USER MANUAL KX-TH112 PANASONIC

Operating Instructions

Line drawing of a wireless device with two connected devices (no text or symbols)

2-Line Expandable Digital Cordless

Answering System

Model No. KX-TH112

2LINE

Bluetooth®

Black-and-white photo of a family with a child, an adult, and a teddy bear on a sofa (no visible text or symbols)

This unit is compatible with Caller ID. To use this feature, you must subscribe to the appropriate service offered by your telephone service provider.

Charge the handset battery for 6 hours before initial use.

Please read these Operating Instructions before using the unit and save for future reference.

For assistance, visit our website:

http://www.panasonic.com/phonehelp for customers in the U.S.A. or Puerto Rico.

Pure geometric lines and symbols without any text, numbers, or labels

Pure geometric diagram with intersecting lines and a circular pattern (no text or symbols)

Table of Contents

Introduction

Introduction....3

Feature highlights....3

Accessory information 4

Expanding your phone system ..... 5

Important safety instructions ..... 6

For best performance 8

Preparation

Setting up the base unit ..... 9

Setting up the handset ..... 12

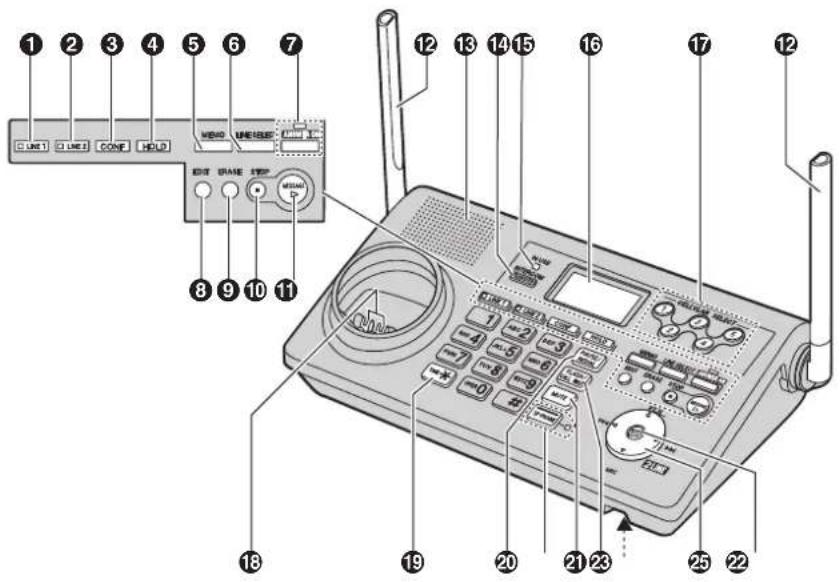

Controls 14

Displays 17

Symbols used in these operating

instructions 19

Setting the unit before use ..... 19

Making/Answering Calls

Making calls 21

Answering calls 23

Useful features during a call....24

Using the other line during a call ..... 25

Phonebook

Handset phonebook 26

Base unit phonebook 29

Caller ID Service

Using Caller ID service....31

Caller list....32

Intercom

Intercom feature 35

Transferring a call. 36

Conference calls....37

Call share 39

Monitoring

Monitoring feature 40

Audio monitor 40

Programmable Settings

Ringer settings 41

Other settings 44

Registering a unit 48

Answering System

Answering system feature .....50

Setting up the answering system ..... 50

Listening to messages using the base unit....52

Listening to messages using the handset. 53

Voice memo 54

Remote operation 55

Answering system settings ..... 57

Using a Cellular Phone with this Unit

Configuring a cellular phone ..... 59

Making/answering calls using a cellular line 61

Useful features during a cellular call. . . 63

Cellular settings 64

Transferring a cellular call....66

Conference calls....68

Useful Information

Headset (optional) 70

Additional accessories ..... 71

Error messages 72

Troubleshooting 74

FCC and other information ..... 80

Specifications 83

Customer services 84

Warranty 85

Direct command chart/programming index 87

Index

Index....90

Introduction

Thank you for purchasing a Panasonic cordless telephone.

We recommend keeping a record of the following information for future reference.

Serial No. Date of purchase

(found on the bottom of the base unit)

Name and address of dealer

Attach your purchase receipt here.

Feature highlights

Telephone and monitoring features

■2 line telephone

While one line is in use, you can make or answer a call using the other line.

■Audio monitor (between handset and base unit)

You can listen to the audio in a room where the handset or base unit is located (page 40).

■Customize ring

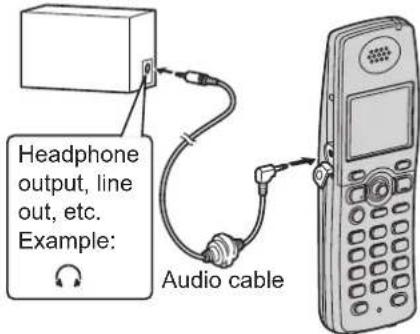

You can connect an audio device to the handset using the included audio cable and record songs to be used as the handset ringer tone (page 42).

■Changing the device name

You can customize the name for the handset and base unit (page 44).

■Link to Cell feature

This feature allows you to make or answer cellular calls using the handset or base unit, if your cellular phone is Bluetooth ^® wireless technology compatible to this product (page 59). Your cellular line can be used as a 3rd line. For more information for this feature, please visit our website (page 5).

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Introduction

Accessory information

Base unit

☐AC adaptor for base unit(Order No. PQLV206X)

☐4-wire telephone line cord with green plugs(Order No. PQJA10088Z)

☐2-wire telephone line cord with transparent plugs(Order No. PQJA10075Z)

Handset

□Battery(Order No. HHR-P104)

□Handset cover(Order No. PQYNTHA19R)

□Audio cable(Order No. PQJA10165Z)

Additional/replacement accessories

Accessory item Order number
Rechargeable nickel metal hydride (Ni-MH) battery	HHR-P104
Corded headset KX-TCA86, KX-TCA88HA, KX-TCA91, KX-TCA92, KX-TCA93, KX-TCA94, KX-TCA95, or KX-TCA98
Belt clip PQKE10404Z1
Wall-mounting adaptor for base unit	PQKL10078Z1
T-adaptor KX-J66
2-line splitter KX-J42

Note:

- You can expand your phone system by registering additional compatible Panasonic units (page 5).

Sales and support information

• To order these accessories, call 1-800-332-5368.
• TTY users (hearing or speech impaired users) can call 1-866-605-1277.

4

For assistance, please visit http://www.panasonic.com/phonehelp

T 4

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Expanding your phone system

You can expand the phone system by registering the following units to a single base unit: max. 18

Handsets (optional): max. 8 (including handset sold with KX-TH112 base unit)

Cordless handset KX-THA19

Other Bluetooth compatible devices (optional): max. 10

Headset

Cellular phone: max. 5

Note:

• Headset and cellular phone must have Bluetooth capability and must be compatible to this product. For more details and the list of compatible cellular phones, please visit: www.panasonic.com/CompatibleCellPhones
• References in these operating instructions to "a charger" or "other handsets" are for accessory handset users only.

Introduction

Important safety instructions

When using the product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury.

1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug the product from power outlets before cleaning. Do not use liquid or aerosol cleaners. Use a moist cloth for cleaning.
4. Do not use the product near water, for example near a bathtub, wash bowl, kitchen sink, etc.
5. Place the product securely on a stable surface. Serious damage and/or injury may result if the product falls.
6. Do not cover slots and openings on the product. They are provided for ventilation and protection against overheating. Never place the product near radiators, or in a place where proper ventilation is not provided.
7. Use only the power source marked on the product. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
8. Do not place objects on the power cord. Install the product where no one can step or trip on the cord.
9. Do not overload power outlets and extension cords. This can result in the risk of fire or electric shock.
10. Never push any objects through slots in the product. This may result in the risk of fire or electric shock. Never spill any liquid on the product.
11. To reduce the risk of electric shock, do not disassemble the product. Take the product to an authorized service center when service is required. Opening or removing covers may expose you to dangerous voltages or other risks.

Incorrect reassembly can cause electric shock when the product is subsequently used.

1. Unplug the product from power outlets and refer servicing to an authorized service center when the following conditions occur:

A. When the power cord is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not work normally by following the operating instructions. Adjust only controls covered by the operating instructions. Improper adjustment may require extensive work by an authorized service center.

E. If the product has been dropped or physically damaged.

F. If the product exhibits a distinct change in performance.

1. During thunderstorms, avoid using telephones except cordless types. There may be a remote risk of an electric shock from lightning.

2. Do not use the product to report a gas leak, when in the vicinity of the leak.

SAVE THESE INSTRUCTIONS

CAUTION:

Installation

• Never install telephone wiring during a lightning storm.
  ● Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
  ● Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
• Use caution when installing or modifying telephone lines.

Introduction

• Do not touch the plug with wet hands.
  ●The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.
• To prevent electric shock, use only the included audio cable with the transformer when connecting the unit to an audio device.

Battery

To reduce the risk of fire or injury to persons, read and follow these instructions.

• Use only the battery(ies) specified.
• Do not dispose of the battery(ies) in a fire. They may explode. Check with local waste management codes for special disposal instructions.
• Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause burns or injury to the eyes or skin. The electrolyte may be toxic if swallowed.
• Exercise care when handling the battery(ies). Do not allow conductive materials such as rings, bracelets or keys to touch the battery(ies), otherwise a short circuit may cause the battery(ies) and/or the conductive material to overheat and cause burns.
• Charge the battery(ies) provided, or identified for use with the product only, in accordance with the instructions and limitations specified in this manual.

WARNING:

• To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.
  ● Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact the Panasonic Call

Center at 1-800-211-PANA (1-800-211-7262).

Medical

- Consult the manufacturer of any personal medical devices, such as pacemakers or hearing aids, to determine if they are adequately shielded from external RF (radio frequency) energy. (The product operates in the frequency range of 2.402 GHz to 2.48 GHz, and the power output is 125 mW (max.).) Do not use the product in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF (radio frequency) energy.

Introduction

For best performance

Base unit location/noise

The base unit and other compatible Panasonic units use radio waves to communicate with each other. For maximum distance and noise-free operation, we recommend the following:

• Placing the base unit in a HIGH and CENTRAL location with no obstructions such as walls.
  ●Raising the antennas vertically.
• Placing the product away from electrical appliances.
• If you use the handset near other electrical appliances (microwave, wireless LAN appliance, etc.), noise may be heard. Move away from those appliances and closer to the base unit.
• If you use the handset near another cordless phone's base unit, noise may be heard. Move away from the other cordless phone's base unit and closer to your base unit.

Environment

• Keep the product away from electrical noise generating devices, such as fluorescent lamps and motors.
  ●The product should be kept free from excessive smoke, dust, high temperature, and vibration.
  ●The product should not be exposed to direct sunlight.
• Do not place heavy objects on top of the product.
• When you leave the product unused for a long period of time, unplug the product from the power outlet.
  ●The product should be kept away from heat sources such as heaters, kitchen stoves, etc. It should not be placed in rooms where the temperature is less than 5 °C (41 °F) or greater than 40 °C

(104 °F). Damp basements should also be avoided.

● The maximum calling distance may be shortened when the product is used in the following places: Near obstacles such as hills, tunnels, underground, near metal objects such as wire fences, etc.
- Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.

Routine care

- Wipe the outer surface of the product with a soft moist cloth. Do not use benzine, thinner, or any abrasive powder.

Setting up the base unit

Overview

1 Connect the AC adaptor.
2 Connect the telephone line cord.

Refer to one of the following methods depending on your situation.

● To connect to a 2-line telephone jack: page 10
● To connect to 2 single-line telephone jacks: page 10
● To connect to a single-line telephone jack: page 10

For DSL service subscribers:

• To connect to a 2-line telephone jack: page 11
  ● To connect to 2 single-line telephone jacks: page 11

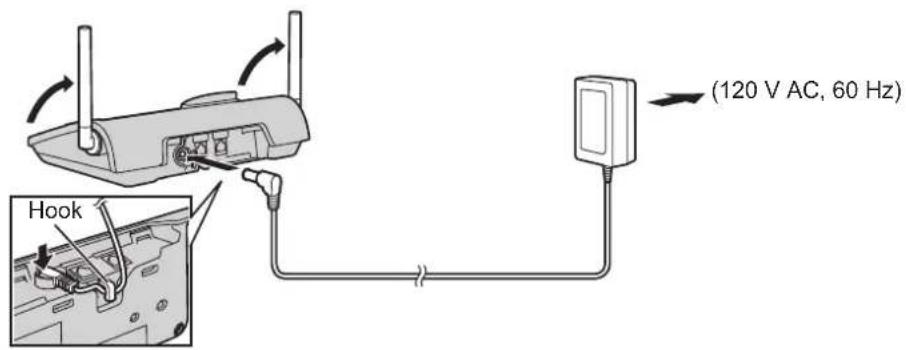

Connecting the AC adaptor

Connect the AC adaptor, then raise the antennas.

- Use only the included Panasonic AC adaptor PQLV206.

(120 V AC, 60 Hz) Hook

Note:

• The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)
• The AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet. Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the adaptor may cause it to become disconnected.
• The unit will not work during a power failure. We recommend connecting a corded telephone to the same telephone line or to the same telephone jack using a Panasonic T-adaptor (page 4).

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Preparation

Connecting the telephone line cord

Connect the telephone line cord until it clicks into the telephone jack.

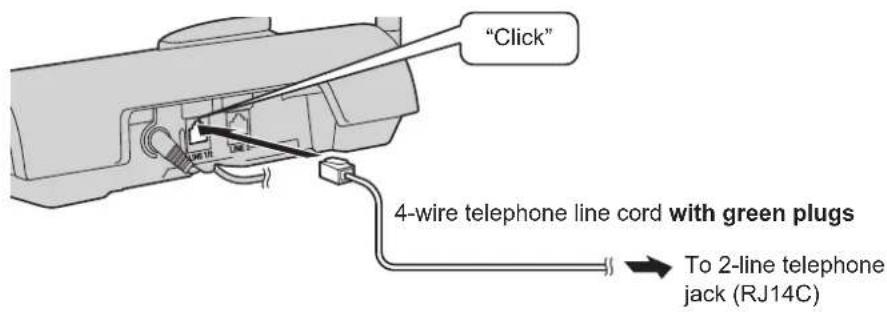

To connect to a 2-line telephone jack

"Click" 4-wire telephone line cord with green plugs To 2-line telephone jack (RJ14C)

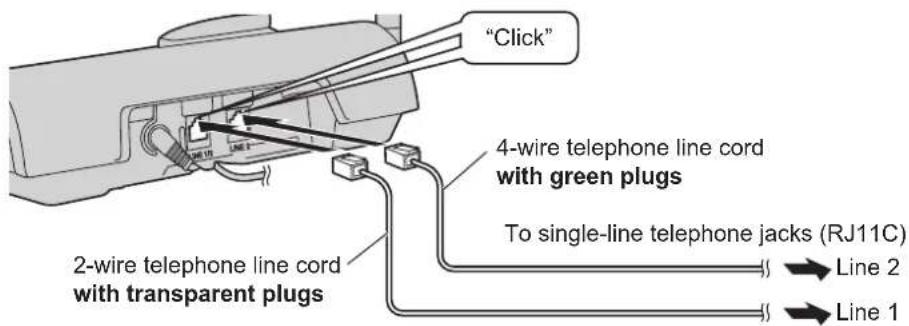

To connect to 2 single-line telephone jacks

"Click" 4-wire telephone line cord with green plugs 2-wire telephone line cord with transparent plugs To single-line telephone jacks (RJ11C) Line 2 Line 1

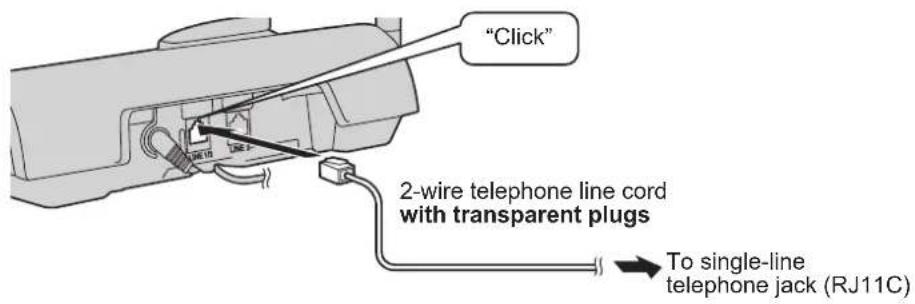

To connect to a single-line telephone jack

"Click" 2-wire telephone line cord with transparent plugs To single-line telephone jack (RJ11C)

Note:

- Make sure you connect the telephone line cord into LINE1/2 telephone jack.

If you subscribe to a DSL service

Please attach a noise filter (contact your DSL provider) to the telephone line between the base unit and the telephone line jack in the event of the following:

– Noise is heard during conversations.
- Caller ID features (page 31) do not function properly.

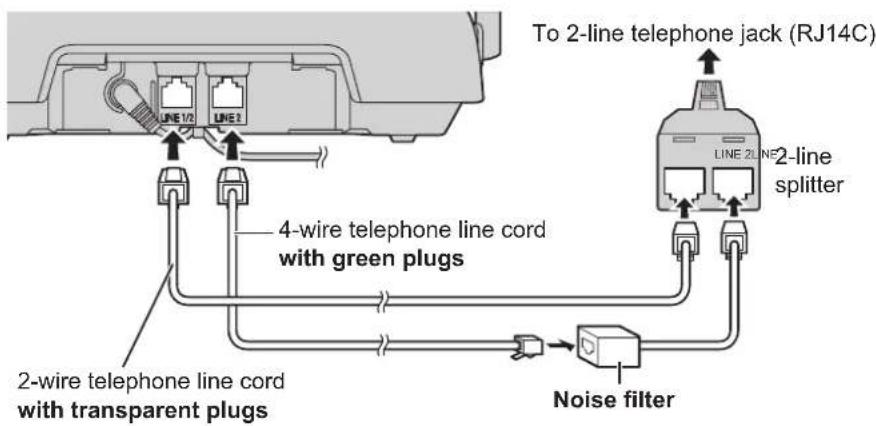

To connect to a 2-line telephone jack

For this connection, please purchase a Panasonic 2-line splitter (page 4).

Example: DSL line is line 2

To 2-line telephone jack (RJ14C) LINE 2 LINE 2-line Splitter 4-wire telephone line cord with green plugs 2-wire telephone line cord with transparent plugs Noise filter

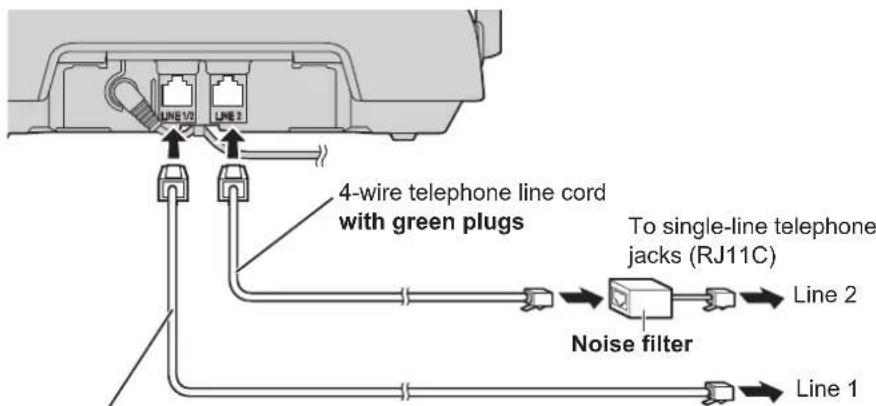

To connect to 2 single-line telephone jacks

Example: DSL line is line 2

LINE 1/2 LINE 2 4-wire telephone line cord with green plugs To single-line telephone jacks (RJ11C) Line 2 Noise filter Line 1

2-wire telephone line cord with transparent plugs

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Preparation

Setting up the handset

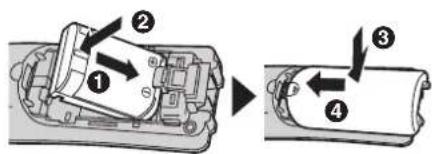

Battery installation/replacement

1 Press the notch of the handset cover firmly, and slide it in the direction of the arrow.

- If necessary, remove the old battery.

Illustration of hands holding a handheld device with a finger pointing to the wrist area (no text or symbols present)

2 Insert the battery (1), and press it down until it snaps into position (2). Then close the handset cover (3, 4).

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion

Important:

- Use only the rechargeable Panasonic battery noted on page 4.

Attention:

A nickel metal hydride battery that is recyclable powers the product you have purchased.

Please call 1-800-8-BATTERY (1-800-822-8837) for information on how to recycle this battery.

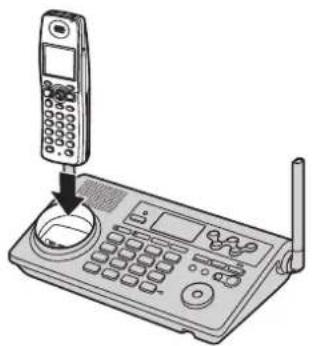

Battery charge

Place the handset on the base unit for 6 hours before initial use.

While charging, the charge indicator on the handset lights in amber. When the battery is fully charged, the indicator lights in green.

Base unit

Illustration of a mobile phone with a keypad and antenna, no text or symbols present

Note:

- If you want to use the handset immediately, charge the battery for at least 15 minutes.

● To ensure that the battery charges properly, clean the charge contacts of the handset and base unit with a soft, dry cloth once a month. Clean more often if the unit is subject to the exposure of grease, dust, or high humidity.

Battery level

Battery icon Battery level
Fully charged
Medium
Low	Flashing: needs to be recharged.
Empty

Note:

- When the battery needs to be charged, the handset beeps intermittently during use.

Panasonic battery performance

Operation Operating time
While in use (talking)	Up to 4.5 hours
While not in use (standby)	Up to 7 days
While using the clarity booster feature (page 25)	Up to 3.5 hours

Note:

●Battery operating time may be shortened over time depending on usage conditions and surrounding temperature.
●Battery power is consumed whenever the handset is off the base unit, even when the handset is not in use. The longer you leave the handset off the base unit, the less time you may actually talk using the handset.
- After the handset is fully charged, displaying "Charge completed", it may be left on the base unit without any ill effect on the battery.
●The battery level may not be displayed correctly after you replace the battery. In this case, place the handset on the base unit and let charge for 6 hours.

Preparation

Controls

Base unit

Diagram of a landline telephone with numbered labels pointing to the control panel and keypad

24

③[CONF] (Conference)

④[HOLD]

⑤[MEMO]

⑥[LINE SELECT]

⑦[ANSWER ON] ANSWER ON indicator

⑧[EDIT]

⑨[ERASE]

⑩[STOP]

⑪[MESSAGE]

⑫Antenna

⑬Speaker

⑭ [TRANSFER] [INTERCOM]

⑮IN USE indicator

⑯Display

⑰ CELLULAR SELECT [1], [2], [3], [4], [5]

⑱Charge contacts

⑲【*】(TONE)

⑳ [PAUSE] [REDIAL]

21[SP-PHONE] (Speakerphone) SP-PHONE indicator

⑳[MUTE]

②3 [FLASH] [CALL WAIT]

24MIC (Microphone)

⑲ Navigator key ([▲] [▼] [◀] [▶])

26 [MENU] [SET]

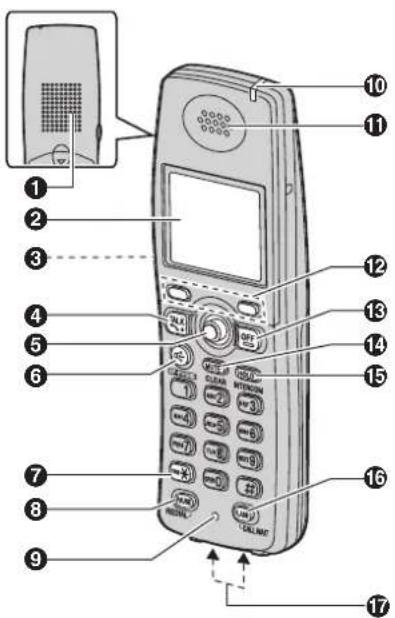

Handset

Diagram of a mobile phone with numbered labels pointing to various function keys and buttons

①Speaker
②Display
③Headset jack/Audio jack
④[\~] (TALK)
⑤Joystick
6【◀】(SP-PHONE)
⑦[∗] (TONE)
⑧ [PAUSE] [REDIAL]
⑨Microphone

⑩Charge indicator/Ringer indicator/Message indicator
⑪Receiver
⑫Soft keys
⑬[OFF]
⑭ [MUTE] [CLEAR]
⑮ [HOLD] [INTERCOM]
⑯ [FLASH] [CALL WAIT]
⑰Charge contacts

Using the joystick

The handset joystick can be used to navigate through menus and to select items shown on the display, by pushing it up, down, left, or right.

It can also be used to select the center soft key icon (page 18), by pressing down on the center of the joystick.

Pure geometric diagram with intersecting lines and a circular pattern (no text or symbols)

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Preparation

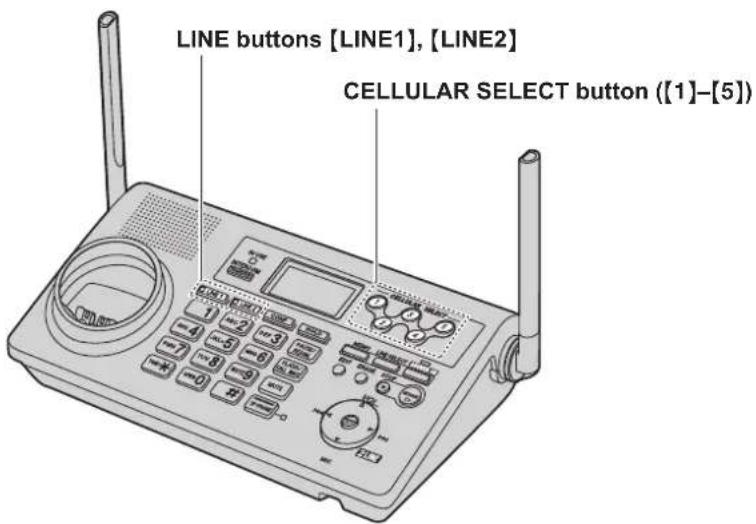

Understanding the indicators

LINE buttons [LINE1], [LINE2] CELLULAR SELECT button ([1]–[5])

Base unit line buttons

The line buttons ([LINE1], [LINE2]) show the status of each line as follows.

Status Meaning
Light off The line is available.
Light on The line is in use.
Flashing rapidly A call is being received.
Flashing A call is put on hold or the answering system is answering a call.

Base unit CELLULAR SELECT button ([1] to [5])

The CELLULAR SELECT button ([1] to [5]) shows the status as follows.

Status Meaning
Light off A cellular phone is either not registered or registered but not connected to the base unit (page 59, 60)
Yellow-green The cellular phone is connected and the cellular line is available.Flashing: the cellular phone is being registered to the base unit.
Red (light on) The cellular line is in use.
Red (flashing rapidly) A cellular call is being received.
Red (flashing) A cellular call is put on hold on the base unit or the answering system is answering a call.

Displays
Base unit display items

Displayed item	Meaning
	Flashes when the date and time need to be set.
	Ringer for both line 1 and line 2 on the base unit is off.
	Line 1 or line 2 ringer on the base unit is off.
PRIVACY	Call privacy mode is on.
	The line icon is displayed when the displayed line is selected for the answering system.Flashing:– the answering system is answering a call on that line.– you have new messages on that line.
	Flashes when message memory is full.
	You are using a cellular line. The number of bars indicates the signal strength of the cellular line. Depending on a connected cellular phone's capability, these bars may not be displayed.
	This icon is displayed in the lower right representing a connected cellular phone's battery level. It may not be displayed depending on the cellular phone's capability.

Handset display items

Displayed item	Meaning
■■■—Battery level indicator for the handset (located in the upper right of the display)– This icon is also displayed in the lower right representing a connected cellular phone's battery level. It may not be displayed depending on the cellular phone's capability.
L1L2	The line is in use.Flashing:– the call is put on hold on that line.– the answering system is answering a call on that line.Flashing rapidly: a call is being received on that line.
Example: Handset extension [1]	number
VE	Voice enhancer is on.
SP	Speaker is on.
PRIVACY	Call privacy mode is on.
XL1L2	Ringer for both line 1 and line 2 on the handset is off.
XL1, XL2	Line 1 or line 2 ringer on the handset is off.
CELL (displayed in the top center)	The cellular line is in use.Flashing: a cellular call is put on hold on the handset.Flashing rapidly: a cellular call is being received.

Preparation

Displayed item	Meaning
Yil	You are using a cellular line. The number of bars indicates the signal strength of the cellular line. Depending on a connected cellular phone's capability, these bars may not be displayed.

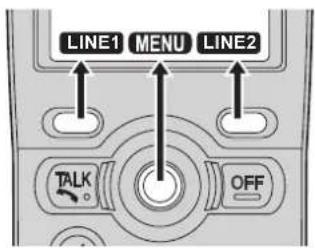

Handset soft keys

The handset features 2 soft keys and a joystick. By pressing a soft key, or by pressing the center of the joystick, you can select the feature or operation indicated by the soft key icon shown directly above it.

LINE1 MENU LINE2 TALK OFF

Menu icons

When in standby mode, pressing [MENU] (center of joystick) on the handset or [MENU] on the base unit reveals the main menu. From here you can access various features and settings.

Note:

- The menu icons shown in these operating instructions vary slightly from the actual icons shown on the display.

Base unit

Menu icon	Menu/feature
	Phonebook
	Caller list
	Set answering
	Ringer settings
	Audio monitor
	Other items

Handset

Menu icon	Menu/feature
	Phonebook
	Caller list
	Message playback
	Ringer settings
	Audio monitor
	Other items

Symbols used in these operating instructions

Symbols used at the end of titles

Symbol Meaning
	Operate with the base unit.
	Operate with the handset.

Symbols used for operations

Symbol Meaning
For base unit , , , , + ,	The symbols to the left represent the base unit menu icons.
For handset , , , , + ,	The symbols to the left represent the handset menu icons.
Example:“Ringer volume”	Push the joystick of the handset or press the navigator key of the base unit up or down to select the words in quotations shown on the display.
→Proceed	to the next operation.
Example: [MENU]	The words in the brackets show button names on the handset and base unit.
Handset: [▲] [▼] [◀] [▶]	Push the joystick up, down, left, or right.
Base unit: [▲] [▼] [◀] [▶]	Press up, down, left, or right on the base unit navigator key.

Setting the unit before use

Display language

Handset

1 [MENU] (center of joystick) → ⚡ → [SELECT]
2 "Change language" → [SELECT]
3 Select the desired setting. (Default: "English")
4 Press the center of joystick to save. → [OFF]

Note:

- If you select a language you cannot read, press the center of joystick, [#][1][1][0][1], and [SAVE] to change the display language to English.

Base unit

1 [MENU] → ↘ → [SET]
2 "Change language" → [SET]
3 Select the desired setting. (Default: "English") → [SET] → [STOP]

Note:

- If you select a language you cannot read, press [MENU], [#][1][1][0][1], and [SET] to change the display language to English.

Preparation

Dialing mode

If you cannot make calls, change this setting depending on your telephone line service.

"Tone": For tone dial service.

"Pulse": For rotary pulse dial service.

- You only need to program this setting once, using either the handset or base unit.

Handset

1 [MENU] (center of joystick) → ↘ → [SELECT]

2 "Set tel line" → [SELECT]

3 "Set dial mode" → [SELECT]

4 Select the desired setting. (Default: "Tone") → [SAVE] → [OFF]

Base unit

1 [MENU] → ↘ → [SET]
2 "Set tel line" → [SET]
3 "Set dial mode" → [SET]
4 Select the desired setting. (Default: "Tone") → [SET] → [STOP]

Date and time

- You only need to program this setting once, using either the handset or base unit.

Handset

1 [MENU] (center of joystick) → ↘ → [SELECT]
2 "Date and time" → [SELECT]
3 Enter the current month, day, and year by selecting 2 digits for each. Example: May 15, 2006 [0][5] [1][5] [0][6]

4 Enter the current hour and minute (12-hour clock format) by selecting 2 digits for each.

Example: 9:30

[0][9][3][0]

5 Press [✗] to select "AM" or "PM".
6 [SAVE] → [OFF]

Base unit

1 [MENU] → ↘ → [SET]
2 "Date and time" → [SET]
3 Enter the current month, day, and year by selecting 2 digits for each.

Example: May 15, 2006

[0][5][1][5][0][6]

4 Enter the current hour and minute (12-hour clock format) by selecting 2 digits for each.

Example: 9:30

[0][9][3][0]

5 Press [★] to select "AM" or "PM".
6 [SET] → [STOP]

Note for handset and base unit:

- If you make a mistake when entering the date and time, press [▲], [▼], [◀], or [▶] to move the cursor, then make the correction.

Making/Answering Calls

Making calls

Using the handset ↗

1 Lift the handset and dial the phone number.

- To correct a digit, press [CLEAR].

2 [\~]

- An available line is automatically selected and the line number is displayed.

3 When you finish talking, press [OFF] or place the handset on the base unit or charger.

Note:

- You can also select a line by pressing [LINE1] or [LINE2] in step 2.

- To change the line selection, see page 46.

●While on a call, you can switch from the handset to the base unit or another handset by:

- pressing [LINE1] or [LINE2] twice on the base unit.

- pressing [LINE1] or [LINE2] twice on another handset.

Using the speakerphone

1 Lift the handset, dial the phone number, and press [◀].

●Speak alternately with the other party.

2 When you finish talking, press [OFF] or place the handset on the base unit or charger.

Note:

• Use the speakerphone in a quiet environment.
• To switch to the receiver, press [→].

Adjusting the receiver/speaker volume Push [▲] or [▼] while talking.

Making a call using the redial list

The last 10 phone numbers dialed are stored in the redial list.

1 [REDIAL]
2 Push [▲] or [▼] to select the desired number.

- To erase the displayed number, press [CLEAR].

3 [\~]

PAUSE button (for PBX/long distance service users)

A pause is sometimes required when making calls using a PBX or long distance service. When storing a calling card access number and/or PIN in the phonebook, a pause is also needed (page 27).

For example, if you need to dial the line access number "9" when making outside calls with a PBX:

1 [9] → [PAUSE] → Dial the phone number.

2 [\~]

Note:

●A 3.5 second pause is inserted each time [PAUSE] is pressed. Press repeatedly to insert longer pauses.

Making/Answering Calls

Using the base unit

1 Dial the phone number.
- To correct a digit, press [ERASE].

2 [SP-PHONE]

- An available line is automatically selected and [LINE1] or [LINE2] lights.

3 When the other party answers, speak into the MIC.
●Speak alternately with the other party.

4 When you finish talking, press [SP-PHONE].

Note:

• You can also select a line by pressing [LINE1] or [LINE2] in step 2.
• To change the line selection, see page 46.
• Use the speakerphone in a quiet environment.
  ●While on a call, you can switch from the base unit to the handset:
• If the handset is off the base unit, press [LINE1] or [LINE2] twice on the handset.
• If the handset is on the base unit, simply lift it.

Adjusting the speaker volume Press [▲] or [▼] while talking.

Making a call using the redial list

The last 10 phone numbers dialed are stored in the redial list.

1 [REDIAL]
2 Press [▲] or [▼] to select the desired number.
- To erase the displayed number, press [ERASE].
3 [SP-PHONE]

PAUSE button (for PBX/long distance service users)

A pause is sometimes required when making calls using a PBX or long distance service.

For example, if you need to dial the line access number "9" when making outside calls with a PBX:

1 [9] → [PAUSE] → Dial the phone number.

2 [SP-PHONE]

Note:

● A 3.5 second pause is inserted each time [PAUSE] is pressed. Press repeatedly to insert longer pauses.

Making/Answering Calls

Answering calls

Using the handset ↗

1 Lift the handset and press [◀] or [◀].

• The called line is automatically selected.
• You can also answer the call by pressing any button except the joystick or [OFF]. (Any key talk feature)

2 When you finish talking, press [OFF] or place the handset on the base unit or charger.

Note:

• You can also answer the call by pressing [LINE1] or [LINE2] in step 1.
• To change the line selection, see page 46.

Auto talk

This feature allows you to answer a call by simply lifting the handset off the base unit or charger. You do not need to press [\~]. To activate this feature, see page 45.

Temporary ringer off

While the handset is ringing for an outside call, you can turn the ringer off temporarily by pressing [OFF].

Using the base unit

1 [SP-PHONE]

● The called line is automatically selected.

2 Speak into the MIC.

3 When you finish talking, press [SP-PHONE].

Note:

- You can also answer the call by pressing [LINE1] or [LINE2] in step 1.

- To change the line selection, see page 46.

Making/Answering Calls

Useful features during a call

HOLD button

This feature allows you to put an outside call on hold.

Handset

Press [HOLD] 2 times during an outside call.

- To release the hold, press [LINE1] or [LINE2] that is flashing on the handset.

Base unit

Press [HOLD] during an outside call.

- To release the hold, press [LINE1] or [LINE2] that is flashing on the base unit.

Note for handset and base unit:

- If a call is kept on hold for more than 6 minutes, an alarm tone starts to sound. After 4 additional minutes on hold, the call is disconnected.

MUTE button

While mute is turned on, you can hear the other party, but the other party cannot hear you.

Handset

To mute your voice, press [MUTE].

- To return to the conversation, press [MUTE] or [→].

Base unit

To mute your voice, press [MUTE].

- To return to the conversation, press [MUTE] or [SP-PHONE].

FLASH button

Pressing [FLASH] allows you to use special features of your host PBX such as transferring an extension call, or accessing optional telephone services such as Call Waiting.

Note:

- To change the flash time, see page 46.

For Call Waiting service users

To use Call Waiting, you must subscribe to your telephone service provider's Call Waiting service.

This feature allows you to receive calls while you are already talking on the phone. If you receive a call while on the phone, you will hear a Call Waiting tone.

Press [CALL WAIT] to answer the 2nd call after the tone.

- To switch between calls, press [CALL WAIT].

Note:

- Please contact your telephone service provider for details and availability of this service in your area.

Temporary tone dialing (for rotary/pulse service users)

You can temporarily switch the dialing mode to tone when you need to access touch tone services (for example, answering services, telephone banking services, etc.).

Press 【★】(TONE) before entering access numbers which require tone dialing.

Handset clarity booster

This feature can improve sound clarity when the handset is used in an area where there may be interference. During an outside call, this feature is turned on automatically when necessary. You can also turn this feature on or off manually.

1 Press [MENU] (center of joystick) during an outside call.

2 To turn this feature on, select "Booster on". To turn this feature off, select "Booster off".

3 [SELECT]

Note:

- While this feature is turned on; - the battery operating time is shortened (page 13). - the maximum number of extensions that can be used at a time may decrease.

Handset voice enhancer

This feature clarifies the voice of the person you are talking to, reproducing a more natural-sounding voice that is easier to hear and understand (page 44).

1 Press [MENU] (center of joystick) during an outside call.

2 To turn this feature on, select "Voice enhancer". To turn this feature off, select "V.E. off".

3 [SELECT]

Note:

- Depending on the condition and quality of your telephone line, this feature may emphasize existing line noise. If it becomes difficult to hear, turn this feature off.

Using the other line during a call

When a call is being received on the other line during a conversation, the interrupt tones sound (page 43). L1 or L2 on the handset, or [LINE1] or [LINE2] on the base unit flashes rapidly. You can answer the 2nd call while holding the 1st call. You can also make a call without ending the 1st call.

Handset

Example: If you are using line 1

1 Press [HOLD] 2 times to put the 1st call (line 1) on hold.
2 Press [LINE2] to make or answer a 2nd call.
- To hold the 2nd call, press [HOLD] 2 times.
3 To return to the 1st call (line 1), press [LINE1].

Base unit

Example: If you are using line 1

1 Press [HOLD] to put the 1st call (line 1) on hold.
2 Press [LINE2] to make or answer a 2nd call.
- To hold the 2nd call, press [HOLD].
3 To return to the 1st call (line 1), press [LINE1].

Note for handset and base unit:

- If you subscribe to Caller ID, the 2nd caller's information is displayed when a call is being received on the other line (page 31).

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circular shapes (no text or symbols)

Phonebook

Handset phonebook

Illustration of a closed book with a small circular badge on top (no text or symbols visible)

You can add 50 items to the handset phonebook and search for phonebook items by name. Each item can be assigned a name, phone number, ringer ID, and light-up ID. Ringer ID and light-up ID features (page 32) are available for Caller ID subscribers.

Adding items to the handset phonebook

1 [MENU] (center of joystick) → 📄 → [SELECT]
2 [ADD]
3 Enter the name (max. 16 characters). → [NEXT]
4 Enter the phone number (max. 32 digits). → [NEXT]
5 Select the desired ringer ID (page 32). → [NEXT]
6 Select the desired light-up ID (page 32). → [NEXT] → [SAVE]

- To add other items, repeat from step 2.

7 [OFF]

Note:

• To assign a song as ringer ID, you can record it from an audio device (page 42).
• If you select "No Ringer ID" (default), the handset uses the ringer tone you

selected on page 41 when a call is received from that caller.

- If you select "No Light-up ID" (default), the handset uses the ringer indicator color you selected on page 43 when a call is received from that caller.

Character table for entering names

Key Character
[1]& '	( ), - . / 1
[2]a b c	A B C 2
[3]d e f	D E F 3
[4]g h i	G H I 4
[5]j k l	J K L 5
[6]m n	o M N O 6
[7]p q r	s P Q R S 7
[8]	t u v T U V 8
[9]w x y	z W X Y Z 9
[0]	0 Space
[*]	*
[‡]	#

Note:

- To enter another character that is located on the same dial key, first push [▶] to move the cursor to the next space.

Editing/correcting a mistake

Use the joystick to move the cursor to the character or number you want to erase, then press [CLEAR]. Enter the appropriate character or number.

Note:

- Press and hold [CLEAR] to erase all characters or numbers.

Finding and calling a handset phonebook item 🔒

Phonebook items can be searched for alphabetically by scrolling through the phonebook items or by initial.

Once you have found the desired item, press [→] to dial the phone number.

• You can also make a call by pressing [LINE1] or [LINE2].
• If you have registered a cellular phone to the base unit (page 59), you can make a call by pressing [CALL], then pressing [LINE1] or [LINE2].

Searching for a name alphabetically by scrolling through all items

1 [MENU] (center of joystick) → 📄 → [SELECT]
2 Push [▲] or [▼] to select the desired item.

- To display further information for the selected item, push [▶]. To return to the list, push [◀].

Searching for a name by initial

1 [MENU] (center of joystick) → 📄 → [SELECT]
2 Press the dialing button ([0] to [9], [11], or [★]) that corresponds to the first letter you are searching for (see the character table, page 26).

Example: "LISA"

Press [5] repeatedly to display the first phonebook entry starting with the initial "L" and go to step 3.

- If there is no item corresponding to the letter you selected, the next item is displayed.

3 Push [▼] to select the desired item.

Editing items in the handset phonebook

1 Find the desired item (page 27). → [EDIT]
2 Edit the name if necessary (page 26). → [NEXT]
3 Edit the phone number if necessary. → [NEXT]
4 Select the desired ringer ID. → [NEXT]
5 Select the desired light-up ID. → [NEXT] → [SAVE] → [OFF]

Erasing an item in the handset phonebook

1 Find the desired item (page 27).
2 [CLEAR] → [YES] → [OFF]

Chain dial

This feature allows you to dial phone numbers in the handset phonebook while you are on a call. This feature can be used, for example, to dial a calling card access number or bank account PIN that you have stored in the handset phonebook, without having to dial manually.

1 During an outside call, press [MENU] (center of joystick).
2 "Phonebook" → [SELECT]
3 Find the desired item (page 27). → [CALL]

Note:

- When storing a calling card access number and your PIN in the phonebook as one phonebook item, press [PAUSE] to add pauses after the number and PIN as necessary (page 21).

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Phonebook

- If you have rotary or pulse service, you need to press [✗] before pressing [MENU] in step 1 to change the dialing mode temporarily to tone.

Copying handset phonebook items

You can copy one or all of the phonebook items from the handset to the phonebook of the base unit or a compatible Panasonic handset (KX-THA19).

Important:

• In order to correctly copy a ringer ID as a phonebook item, the same melodies must be stored in identical order in the memories of both units involved. If the melody order in memory is different in the copy destination unit from the sending unit, the ringer ID will not be copied properly. (This is not necessary if the ringer ID is set to use a preset melody.)
  ● Light-up ID settings for phonebook items are not copied to the base unit.
  ●The melodies and songs for ringer ID are not copied to the base unit.

Copying an item

1 [MENU] (center of joystick) → 📐 → [SELECT]
2 [COPY]
3 "Copy 1 item" → [SELECT]
4 Select the destination unit. → [SELECT]
5 Find the desired item (page 27). → [SEND]
6 Press [OFF] after "Complete" is displayed.

Copying all items

1 [MENU] (center of joystick) → 📐 → [SELECT]
2 [COPY]
3 "Copy all items" → [SELECT]
4 Select the destination unit. → [SEND]
5 Press [OFF] after "Complete" is displayed.

Base unit phonebook

You can add 50 items to the base unit phonebook and search for phonebook items by name. Each item can be assigned a name, phone number, and ringer ID. The ringer ID feature (page 32) is available for Caller ID subscribers.

Adding items to the base unit phonebook

1 [MENU] → 📄 → [SET] 2 times
2 "Add phonebook" → [SET]
3 Enter the name (max. 16 characters; page 26). → [SET]
4 Enter the phone number (max. 32 digits). → [SET]
5 Select the desired ringer ID (page 32). → [SET] 2 times

- To add other items, repeat from step 2.

6 [STOP]

Note:

- If you select "No Ringer ID" (default), the base unit uses the ringer tone you selected on page 41 when a call is received from that caller.

Editing/correcting a mistake

Press [◀] or [▶] to move the cursor to the character or number you want to erase, then press [ERASE]. Enter the appropriate character or number.

Note:

- Press and hold [ERASE] to erase all characters or numbers.

Finding and calling a base unit phonebook item 📄

Phonebook items can be searched for alphabetically by scrolling through the phonebook items or by initial.

Once you have found the desired item, press [SP-PHONE] to dial the phone number.

- You can also make a call by pressing [LINE1] or [LINE2].

Searching for a name alphabetically by scrolling through all items

1 [MENU] → 📄 → [SET]

2 Press [▲] or [▼] to select the desired item.

Searching for a name by initial

1 [MENU] → 📄 → [SET]
2 Press the dialing button ([0] to [9], [‡], or [★]) that corresponds to the first letter you are searching for.

Example: "LISA"

Press [5] repeatedly to display the first phonebook entry starting with the initial "L" and go to step 3.

- If there is no item corresponding to the letter you selected, the next item is displayed.

3 Press [▼] to select the desired item.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Phonebook

Editing items in the base unit phonebook

1 Find the desired item (page 29). → [EDIT]
2 Edit the name, if necessary. → [SET]
3 Edit the phone number, if necessary. → [SET]
4 Change the ringer ID, if necessary. → [SET] 2 times → [STOP]

Erasing an item in the base unit phonebook

1 Find the desired item (page 29).
2 [ERASE] → [▶] → [STOP]

Chain dial

This feature allows you to dial phone numbers in the base unit phonebook while you are on a call. This feature can be used, for example, to dial a calling card access number or bank account PIN that you have stored in the base unit phonebook, without having to dial manually.

1 During an outside call, press [MENU].
2 "Phonebook" → [SET]
3 Find the desired item (page 29). → [SET]

Note:

• When storing a calling card access number and your PIN in the phonebook as one phonebook item, press [PAUSE] to add pauses after the number and PIN as necessary (page 22).
• If you have rotary or pulse service, you need to press [★] before pressing [MENU] in step 1 to change the dialing mode temporarily to tone.

Copying base unit phonebook items

You can copy one or all of the phonebook items from the base unit to the phonebook of a compatible Panasonic handset (KX-THA19).

Copying an item

1 [MENU] → 📄 → [SET] 2 times
2 "Copy phonebook" → [SET]
3 "Copy 1 item" → [SET]
4 Select the destination unit. → [SET]
5 Find the desired item (page 29). → [SET]
6 Press [STOP] after "Complete" is displayed.

Copying all items

1 [MENU] → 📄 → [SET] 2 times
2 "Copy phonebook" → [SET]
3 "Copy all items" → [SET]
4 Select the destination unit. → [SET]
5 Press [STOP] after "Complete" is displayed.

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Using Caller ID service

Ann 555-321-5555

This unit is Caller ID compatible. To use Caller ID features, you must subscribe to your telephone service provider's Caller ID service.

Caller ID features

When an outside call is being received, the calling party's name and telephone number are displayed.

Caller information for the last 50 different callers is logged in the caller list, allowing you to return missed calls. Caller information is stored by the most recent call to the oldest.

• Generally caller information is displayed from the 2nd ring.
• If the unit cannot receive caller information, the following is displayed:

- "Out of area": The caller dialed from an area which does not provide Caller ID service.

- “Private caller”: The caller requested not to send caller information.

- “Long distance”: The caller called you long distance.

- If the unit is connected to a PBX system, caller information may not be received properly. Consult your PBX supplier.

Private name display

When caller information is received and it matches a phone number stored in the phonebook, the stored name is displayed and logged in the caller list.

Call Waiting Caller ID display

If you subscribe to both Caller ID and Call Waiting with Caller ID services, the 2nd caller's information is displayed after you hear a Call Waiting tone (page 24).

Note:

- Please contact your telephone service provider for details and availability of this service in your area.

Talking Caller ID

This feature lets you know who is calling without looking at the display. When a call comes in, the handset announces the caller's name displayed on the handset following every ring.

To use this feature, you must subscribe to your telephone service provider's Caller ID service.

• Name pronunciation may vary. This feature may not pronounce all names correctly.
• Caller ID service has a limit of how many characters can be displayed. If caller's name is too long, the handset may not be able to display or announce the entire name.
• Usually the handset announces the caller's name after the 2nd ring. If you turn on the answering system and set the ring count to "2 rings" (page 57), the handset does not announce the caller's name. If "Toll saver" is selected and there is a new message, the handset does not announce the caller's name.
• When you receive a call while on the phone, the 2nd caller's name is not announced even if you subscribe to both Caller ID and Call Waiting with Caller ID services.
• This feature can be turned on or off (page 45).

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and a circular pattern (no text or symbols)

CIO> Caller ID Service

Ringer ID

This feature can help you identify who is calling by using different ringers for different callers stored in the phonebook (page 26, 29). You can assign a different ringer to each phonebook item. When a call is received from a caller stored in the phonebook, the ringer is used after Caller ID information is displayed.

Light-up ID

This feature can help you identify who is calling by using different ringer indicator colors for different callers stored in the handset phonebook (page 26). You can assign a different indicator color to each handset phonebook item. When a call is received from a caller stored in the handset phonebook, the indicator color is used after Caller ID information is displayed.

Caller list

Caller information for the last 50 different callers is logged in the caller list. You can use this list to return missed calls.

Missed calls

If a call is not answered, the unit treats the call as a missed call. The number of missed calls is shown on the display. This lets you know if you should view the caller list to see who called while you were out.

Viewing the caller list and calling back 🔊 🔒

Handset

1 [MENU] (center of joystick) → CD→ → [SELECT]
2 Push [▼] to search from the most recent call, or [▲] to search from the oldest call.
3 [\~]

Note:

• If the indicated line is already being used or you want to select the other line, select the desired line by pressing [LINE1] or [LINE2].
• If you have registered a cellular phone to the base unit (page 59), you can make a call by pressing [CALL], then pressing [LINE1] or [LINE2].

Base unit

1 [MENU] → CID→ → [SET]
2 Press [▼] to search from the most recent call, or [▲] to search from the oldest call.
3 [SP-PHONE]

Note:

- If the indicated line is already being used or you want to select the other line, select the desired line by pressing [LINE1] or [LINE2].

Displayed symbols

• 1 and 2 indicate which line the caller information was received from.
- If the same caller calls more than once, it is displayed with the number of times the caller called ("×2" to "×9"). Only the date and time of the most recent call is stored.
- A √ is displayed next to items which have already been viewed or answered.

Editing a caller's phone number before calling back

You can edit a phone number in the caller list by removing its area code and/or the long distance code "1".

Handset

1 [MENU] (center of joystick) → [SELECT]
2 Select the desired item.
3 Press [EDIT] repeatedly until the phone number is shown in the desired format.

①Local phone number

Example: 321-5555

②Area code – Local phone number

Example: 555-321-5555

③1 – Area code – Local phone number

Example: 1-555-321-5555

4 [\~]

Base unit

1 [MENU] → CID→ → [SET]
2 Select the desired item.
3 Press [EDIT] repeatedly until the phone number is shown in the desired format.

①Local phone number

Example: 321-5555

②Area code – Local phone number

Example: 555-321-5555

③1 – Area code – Local phone number

Example: 1-555-321-5555

4 [SP-PHONE]

Caller ID number auto edit feature

Once you call back an edited number, the unit will remember the Area Code and Format of the Edited Number. Next time when someone calls from the same Area Code, caller information will be customized by the unit as follows:

• When the call is being received, the Caller ID number will be displayed in the same Format as the Edited Number.
• After the call is ended, the telephone number of the caller, when reviewed from the Caller list, will be displayed in the same Format as the Edited Number.

For example, you can use this feature to set the unit to ignore the area code of callers in your area code, so that you can call these local numbers using caller information without dialing the area code. To activate this feature, you must edit an item in the caller list, then call that number. After that, phone numbers from that caller's area code are edited automatically. This feature can be turned on or off (page 45). The default setting is "On".

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

CIO> Caller ID Service

Note:

• Phone numbers from the 4 most recently edited area codes are automatically edited.
• If you move to another area, you can turn this feature off to erase previously edited area codes. To use this feature again, turn it on and reprogram the area codes you want to edit once again.

Storing caller information into the phonebook

Handset

1 [MENU] (center of joystick) → CD→ → [SELECT]
2 Select the desired item.
- To edit the number, press [EDIT] repeatedly until the phone number is shown in the desired format.

3 [▶] to save.

- Enter the name if necessary (page 26). [NEXT]

4 Select the desired ringer ID. → [NEXT]

5 Select the desired light-up ID. → [NEXT] → [SAVE] → [OFF]

Base unit

1 [MENU] → CID→ → [SET]

2 Select the desired item.

- To edit the number, press [EDIT] repeatedly until the phone number is shown in the desired format.

3 [▶] to save.

- Enter the name if necessary (page 26). [SET]

4 Select the ringer ID, if necessary. → [SET] 2 times → [STOP]

Erasing caller information

Erasing a selected item

Handset

1 [MENU] (center of joystick) → [SELECT]
2 Select the desired item.
3 [CLEAR] → [OFF]

Base unit

1 [MENU] → CID→ → [SET]
2 Select the desired item.
3 [ERASE] → [STOP]

Erasing all items

Handset

1 [MENU] (center of joystick) → [CD] → [SELECT]
2 [ERASE] → [YES]
3 Press [OFF] after "All erased" is displayed.

Base unit

1 [MENU] → CID→ → [SET]
2 [ERASE] → [▶]
3 Press [STOP] after "All erased" is displayed.

Intercom

Intercom feature

Illustration showing a woman talking on the phone while being replaced by a lightning bolt, indicating a time-saving or communication delay.

Intercom calls can be made between the handset and the base unit, and between 2 handsets.

Making intercom calls

Handset

1 [INTERCOM]

2 To page the base unit, press [0]. To page another handset, enter its extension number ([1] to [8]).

● The destination unit beeps for 1 minute.
- To stop paging, press [OFF].

3 When you finish talking, press [OFF].

Base unit

1 [INTERCOM]

2 To page a handset, enter its extension number ([1] to [8]).

To page all handsets, press [0].

●The handset(s) beeps for 1 minute.
- To stop paging, press [INTERCOM].
- Even if you call all handsets, only the handset user who answers first can take the intercom call.

3 When you finish talking, press [SP-PHONE].

Note:

- You can also locate a misplaced handset by paging it (handset locator).

Answering intercom calls

When the unit is being paged, it rings and displays the extension number of the paging party.

Handset

1 Press [→] or [◀] to answer the page.
2 When you finish talking, press [OFF].

Base unit

1 Press [SP-PHONE] or [INTERCOM] to answer the page.
2 When you finish talking, press [SP-PHONE].

Note for handset and base unit:

• The ringer volume for intercom calls follows the higher volume level of the 2 lines (page 41).
• When the ringer volume is set to off for both lines, the handset or base unit rings at the low level for intercom calls.

Pure geometric diagram with intersecting lines and circular shapes (no text or symbols)

Intercom

Transferring a call

Outside calls can be transferred between the handset and the base unit, and between 2 handsets.

Transferring calls

Handset

1 During an outside call, press [INTERCOM] to put the call on hold.
2 To page the base unit, press [0]. To page another handset, enter its extension number ([1] to [8]).

- If you do not wish to announce the transfer, skip to step 4.

3 Wait for the paged party to answer.

- If the paged party does not answer, press [LINE1] or [LINE2] that is flashing to return to the outside call.

4 To complete the transfer, press [OFF].

Base unit

1 During an outside call, press [INTERCOM] to put the call on hold.
2 To page a handset, enter its extension number ([1] to [8]).
To page all handsets, press [0].

• If you do not wish to announce the transfer, skip to step 4.
• Even if you call all handsets, only the handset user who answers first can take the transferred call.

3 Wait for the paged party to answer.

- If the paged party does not answer, press [LINE1] or [LINE2] that is flashing to return to the outside call.

4 To complete the transfer, press [SP-PHONE].

Note for handset and base unit:

- If the paged party does not answer within 1 minute after you hang up, your phone rings and the call is returned to your phone. You can speak to the caller again by pressing [LINE1] or [LINE2] on the handset or [LINE1] or [LINE2] on the base unit.

Answering transferred calls

Handset

Press [\~] to answer the page.

● After the paging party hangs up the call, you can talk to the outside caller.

Base unit

Press [SP-PHONE] to answer the page.

● After the paging party hangs up the call, you can talk to the outside caller.

Note for handset and base unit:

- If the paging party hangs up before you answer the page, "Incoming call" is displayed. Press [LINE1] or [LINE2] on the handset or [LINE1] or [LINE2] on the base unit to take the transferred call.

Transferring a call to the answering system

When you answer a call and the caller wants to talk to someone who is not available, you can transfer the caller to the answering system, where the caller can leave a message.

Tell the outside caller you will transfer him or her to the answering system.

Handset

1 During an outside call, press [INTERCOM] to put the call on hold.
2 Press [9] to hang up the call.

Base unit

1 During an outside call, press 【INTERCOM】 to put the call on hold.
2 Press [9] to hang up the call.

Note for handset and base unit:

- After you press [9], the caller hears the greeting message (page 51) and can leave a message after the beep.

Conference calls

Conference call with 2 outside calls

While you are talking with an outside caller, you can make or answer a 2nd call on the other line, and then combine the calls to establish a conference call.

Handset

1 During an outside call, press [HOLD] 2 times.
2 To answer a 2nd call, press [LINE1] or [LINE2].

To make a 2nd call, press [LINE1] or [LINE2], then dial the phone number.

3 When the 2nd call is connected, press [CONF] to make a conference call.

• To hang up only one line, press [LINE1] or [LINE2] for the party with which you want to continue talking.
• To put both lines on hold, press [HOLD]. To talk with only one caller, press [LINE1] or [LINE2] for the party with which you want to continue talking. To resume both lines, press [CONF].

Base unit

1 During an outside call, press [HOLD].
2 To answer a 2nd call, press [LINE1] or [LINE2].

To make a 2nd call, press [LINE1] or [LINE2], then dial the phone number.

3 When the 2nd call is connected, press [CONF] to make a conference call.

• To hang up only one line, press [LINE1] or [LINE2] for the party with which you want to continue talking.
• To put both lines on hold, press [HOLD]. To talk with only one caller,

Intercom

press [LINE1] or [LINE2]. To resume both lines, press [CONF].

Note for handset and base unit:

- Multiple parties can join a conference call. The possible number of participating parties depends on the resources available for wireless communication. When another participating party cannot join a conversation, "System is busy. Please try again later." is displayed.

Conference call with an outside call and an intercom call

While you are talking with an outside caller, one more extension can join the conversation and establish a conference call.

Handset

1 During an outside call, press [INTERCOM].
2 To page the base unit, press [0]. To page another handset, enter its extension number ([1] to [8]).
3 When the paged party answers, press [CONF] to make a conference call.

- To leave the conference, press [OFF]. The other 2 parties can continue the conversation.

Base unit

1 During an outside call, press [INTERCOM].
2 To page a handset, enter its extension number ([1] to [8]). To page all handsets, press [0].
3 When the paged party answers, press [CONF] on the base unit to make a conference call.

- To leave the conference, press [SP-PHONE]. The other 2 parties can continue the conversation.

Note for handset and base unit:

- The outside call can be put on hold by pressing [HOLD]. Only the person who placed the call on hold can resume the full conference by pressing [CONF] on the handset or [CONF] on the base unit.

- Multiple parties can join a conference call. The possible number of participating parties depends on the resources available for wireless communication. When another participating party cannot join a conversation, "System is busy. Please try again later." is displayed.

Call share

This feature allows the handset or base unit to join an existing outside call (land line call).

Joining a conversation

Handset

To join the conversation, press [LINE1] or [LINE2] to select the line that is being used by another extension for an outside call.

- "Conference" is displayed.

Base unit

To join the conversation, press [LINE1] or [LINE2] to select the line that is being used by another extension for an outside call.

- "Conference" is displayed.

Note for handset and base unit:

●Multiple parties can join a conference call. The possible number of participating parties depends on the resources available for wireless communication. When another participating party cannot join a conversation, "System is busy. Please try again later." is displayed.

Call privacy

Call privacy allows you to prevent other users from joining your conversations with outside callers. To allow other users to join your conversations, leave this feature off.

Handset

Press [PRIVACY] during an outside call.

• When this feature is turned on "PRIVACY" is shown in the top of the display.
• To turn this feature off, press [PRIVACY] again. "PRIVACY" disappears from the display.

Note:

- While you are using both lines simultaneously, or you are on a conference call, [PRIVACY] is not displayed. Use the following procedure to turn this feature on or off. Press [MENU] during an outside call, then press [2] to select "Privacy on" or "Privacy off".

Base unit

1 Press [MENU] during an outside call.
2 To turn this feature on, select "Privacy on". To turn this feature off, select "Privacy off".

3 [SET]

- When this feature is turned on "PRIVACY" is shown in the lower right.

Note for handset and base unit:

● This feature will turn off after you hang up the call.

Monitoring

Monitoring feature

This feature allows you to monitor the room where a unit is located. The monitored unit does not ring, allowing you to easily monitor a baby's room, for example, from different areas of the house.

Enabling monitoring access

To use the monitoring feature, you need to set the destination unit to be monitored beforehand.

• “Permit”: allows the unit to be monitored.
• "Deny": denies access from other units.

Handset

1 [MENU] (center of joystick) → ↘ → [SELECT]
2 "Monitor access" → [SELECT]
3 Select the desired setting. (Default: "Deny") → [SAVE] → [OFF]

Base unit

1 [MENU] → ↘ → [SET]
2 "Monitor access" → [SET]
3 Select the desired setting. (Default: "Deny") → [SET] → [STOP]

Audio monitor

This feature allows you to listen to the audio in a room where the handset or base unit is located.

Before using this feature, allow access to the destination unit by selecting "Permit" in the monitor access setting (page 40).

Monitoring audio in a room

Handset

1 [MENU] (center of joystick) → ☐→☐ → [SELECT]
2 Select the desired unit. → [SELECT] • You can listen to the audio.
3 Press [OFF] to stop monitoring.

Base unit

1 [MENU] → 日→日 → [SET]
2 Select the desired unit. → [SET] • You can listen to the audio.
3 Press [SP-PHONE] to stop monitoring.

Note for handset and base unit:

- To start monitoring quickly, press [INTERCOM], then press [] instead of step 1.

Ringer settings

Simple illustration of a musical note and a bell (no text or symbols)

Ringer volume

Handset

1 [MENU] (center of joystick) → («♡») → [SELECT]
2 "Ringer volume" → [SELECT]
3 Select the desired line.
4 Select the desired volume. (Default: High)
- To turn the ringer off, push [▼] repeatedly until "Off ?" is displayed.

5 [SAVE] → [OFF]

Base unit

1 [MENU] → (SET) → [SET]
2 "Ringer volume" → [SET]
3 Select the desired line.
4 Select the desired volume. (Default: High)
- To turn the ringer off, press [▼] repeatedly until "Off ?" is displayed.

5 [SET] → [STOP]

Note for handset and base unit:

- When the ringer volume is set to off for a line, "Ringer off" is displayed and the handset or base unit does not ring for outside calls received on that line.

Ringer tone

You can change the ringer tone heard when an outside call is received.

Important:

- You can record songs for the handset ringer tone from an audio device (page 42).

Handset

1 [MENU] (center of joystick) → (SELECT)
2 "Ringer tone" → [SELECT]
3 Select the desired line.
4 Select the desired item. (Default: Line 1: "Tone 1", Line 2: "Tone 2") → [SAVE] → [OFF]

Note:

• If you subscribe to a distinctive ring service (such as IDENTA-RING), select a tone (tone 1 to 3) for the handset ringer tone. If you select a melody or a song, you cannot distinguish lines by their ringers.
• If you select a melody or a song for the handset ringer tone, the ringer continues to sound for several seconds if:
  – the caller hangs up before you answer the call.
• another person answers the call using another phone connected on the same line.
• The preset song "Melody 1" in this product is used with the permission of © 2005 Speed Crazy.
• The preset songs "Tone 4", "Tone 5", and "Melody 2" in this product are used with the permission of © 2006 Copyrights Vision Inc.

Base unit

1 [MENU] → (<<) → [SET]
2 "Ringer tone" → [SET]

Programmable Settings

3 Select the desired line.
4 Select the desired item. (Default: Line 1: "Tone 1", Line 2: "Tone 2") → [SET] → [STOP]

Recording songs from an audio device for ringer tones using the handset ("Customize ring")

You can record songs (max. 30 seconds each) from an audio device by connecting the included audio cable. These songs can be assigned as the handset ringer tone (page 41) and the ringer ID (page 32) for phone numbers stored in the handset phonebook.

Important:

• If a call is received while a song is being recorded or played back, recording or playback stops automatically. Disconnect the audio cable from the handset to answer the call.
  1 Connect the audio device (such as a CD player or computer) to the handset using the included audio cable.

Audio device

Headphone output, line out, etc. Example: Audio cable

2 [MENU] (center of joystick) → «♡» → [SELECT]
3 "Customize ring" → [SELECT]
4 "Record" → [SELECT]
5 Start playing the audio device.

6 Press [REC.] to start recording.
7 To stop recording, press [STOP].

• To listen to the recording, select "Playback", then press [SELECT].
• To re-record, select "Retry", press [SELECT], then start from step 5.

8 "Save" → [SELECT]

9 Enter the desired name (max. 15 characters; page 26).
10 [SAVE] → [OFF]
11 Disconnect the audio cable from the handset.

Note:

● The total recording time is about 120 seconds.

Playing back a song

1 [MENU] (center of joystick) → («◇») → [SELECT]
2 "Customize ring" → [SELECT]
3 "Playback" → [SELECT]
4 Select the desired song. → [PLAY]
5 [STOP] → [OFF]

Erasing a song

While the song is selected or playing, press [ERASE], then press [YES].

Note:

• If the erased song was used for the handset ringer tone (page 41), "Tone 1" or "Tone 2" (default) is used instead of that song.
• If the erased song was assigned to certain callers as ringer ID (page 32), the ringer ID assignment is canceled, and the handset ringer tone (page 41) is used instead of that song.

Programmable Settings

Changing the name of a song

1 [MENU] (center of joystick) → [SELECT]
2 "Customize ring" → [SELECT]
3 "Edit title" → [SELECT]
4 Select the desired song. → [EDIT]
5 Edit the name (max. 15 characters; page 26).
6 [SAVE] → [OFF]

Ring color

You can change the ringer indicator color used when an outside call is received.

1 [MENU] (center of joystick) → (<<) → [SELECT]
2 "Ring color" → [SELECT]
3 Select the desired color. (Default: "Color 1") → [SAVE] → [OFF]

Interrupt tone

This tone lets you know when you receive a call while you are on the other line, on an intercom call, or monitoring a room.

• “2”: The tone sounds 2 times.
• “On”: The tone sounds for as long as the line rings.
• " off": Turns this feature off.

Handset

1 [MENU] (center of joystick) → («♡») → [SELECT]
2 "Interrupt tone" → [SELECT]
3 Select the desired setting. (Default: "2") → [SAVE] → [OFF]

Base unit

1 [MENU] → ((( )) → [SET]
2 "Interrupt tone" → [SET]
3 Select the desired setting. (Default: "2") → [SET] → [STOP]

Programmable Settings

Other settings

Time adjustment (Caller ID subscribers only)

This feature allows the unit to automatically adjust the date and time setting when caller information is received. To turn this feature on, select "Caller ID [auto]". To turn this feature off, select "Manual".

- You only need to program this setting once, using either the handset or base unit.

Important:

- To use this feature, set the date and time manually first (page 20).

Handset

1 [MENU] (center of joystick) → ↘ → [SELECT]
2 "Time adjustment" → [SELECT]
3 Select the desired setting. (Default: "Caller ID[auto]") → [SAVE] → [OFF]

Base unit

1 [MENU] → ↘ → [SET]
2 "Time adjustment" → [SET]
3 Select the desired setting. (Default: "Caller ID[auto]") → [SET] → [STOP]

Changing the handset/base unit name ↙ ↗

Each handset and the base unit can be given a customized name ("Bob", "Kitchen", etc.), this is useful when you have multiple units.

Handset

1 [MENU] (center of joystick) → ↘ → [SELECT]
2 "Device name" → [SELECT]
3 Enter the desired the name (max. 10 characters; page 26). (Default: "Handset")
4 [SAVE] → [OFF]

Base unit

1 [MENU] → ↘ → [SET]
2 "Device name" → [SET]
3 Enter the desired name (max. 10 characters; page 26). (Default: "Base TH112")
4 [SET] → [STOP]

Handset voice enhancer

You can turn the voice enhancer feature on or off for the handset.

1 [MENU] (center of joystick) → ↘ → [SELECT]
2 "Voice enhancer" → [SELECT]
3 Select the desired setting. (Default: "Off") → [SAVE] → [OFF]

Handset Talking Caller ID

You can turn the Talking Caller ID feature on or off for the handset.

1 [MENU] (center of joystick) → ⚡ → [SELECT]
2 "Talking CallerID" → [SELECT]
3 Select the desired setting. (Default: "On") → [SAVE] → [OFF]

Display contrast

Handset

1 [MENU] (center of joystick) → ↘ → [SELECT]
2 "LCD contrast" → [SELECT]
3 Select the desired setting. (Default: Level 3) → [SAVE] → [OFF]

Base unit

1 [MENU] → ↘ → [SET]
2 "LCD contrast" → [SET]
3 Select the desired setting. (Default: Level 3) → [SET] → [STOP]

Handset key tone

You can select whether or not key tones are heard when keys are pressed. Key tones include confirmation tones and error tones.

1 [MENU] (center of joystick) → ↘ → [SELECT]
2 "Key tone" → [SELECT]
3 Select the desired setting. (Default: "On") → [SAVE] → [OFF]

Handset auto talk

When this feature is turned on, you can answer a call by lifting the handset off the base unit or charger without pressing

[\~].

1 [MENU] (center of joystick) → ⚡ → [SELECT]
2 "Auto talk" → [SELECT]
3 Select the desired setting. (Default: "off") → [SAVE] → [OFF]

Note:

• If you subscribe to Caller ID service and want to view the caller's information on the handset display after lifting up the handset to answer a call, turn off this feature.
• If you set the line selection mode from "Auto" to "Line1" or "Line2" (page 46), the auto talk feature functions for that line only. If the other line receives a call, the auto talk feature does not function.

Caller ID number auto edit

You can turn the Caller ID number auto edit feature on or off.

Handset

1 [MENU] (center of joystick) → ↘ → [SELECT]
2 "Caller ID edit" → [SELECT]
3 Select the desired setting. (Default: "On") → [SAVE] → [OFF]

Base unit

1 [MENU] → ↘ → [SET]
2 "Caller ID edit" → [SET]
3 Select the desired setting. (Default: "On") → [SET] → [STOP]

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Programmable Settings

Setting telephone line

Line selection

The line selection mode determines which line is selected when you press [ ] on the handset or [SP-PHONE] on the base unit.

- "Auto": When making a call, line 1 is selected. If that line is unavailable, line 2 is selected. When answering a call, the ringing line is selected.

- "Line1": Line 1 is selected.

- "Line2": Line 2 is selected.

Handset

1 [MENU] (center of joystick) → ↘ → [SELECT]
2 "Set tel line" → [SELECT]
3 "Line select" → [SELECT]
4 Select the desired setting. (Default: "Auto") → [SAVE] → [OFF]

Note:

- You can select a line manually regardless of the line selection mode by pressing [LINE1] or [LINE2].

Base unit

1 [MENU] → ↘ → [SET]
2 "Set tel line" → [SET]
3 "Line select" → [SET]
4 Select the desired setting. (Default: "Auto") → [SET] → [STOP]

Note:

- You can select a line manually regardless of the line selection mode by pressing [LINE1] or [LINE2].

Flash time

The flash time depends on your telephone exchange or host PBX.

- You only need to program this setting once, using either the handset or base unit.

Important:

- The setting should stay at 700 ms unless pressing [FLASH] fails to pick up the Call Waiting call.

Handset

1 [MENU] (center of joystick) → ↘ → [SELECT]
2 "Set tel line" → [SELECT]
3 "Set flash time" → [SELECT]
4 Select the desired line.
5 Select the desired setting. (Default: "700ms") → [SAVE] → [OFF]

Base unit

1 [MENU] → ↘ → [SET]
2 "Set tel line" → [SET]
3 "Set flash time" → [SET]
4 Select the desired line.
5 Select the desired setting. (Default: "700ms") → [SET] → [STOP]

Note for handset and base unit:

- If the unit is connected via a PBX, certain PBX functions (call transferring, etc.) may not work correctly. Consult your PBX supplier for the correct setting.

Line mode

Generally, the line mode setting should not be adjusted.

When another phone connected to the same line is in use, and

• if L1 or L2 is not displayed on the handset, or
• if [LINE1] or [LINE2] button light is off on the base unit, you need to change the line mode to "A".

- You only need to program this setting once, using either the handset or base unit.

Handset

1 [MENU] (center of joystick) → ↘ → [SELECT]
2 "Set tel line" → [SELECT]
3 "Set line mode" → [SELECT]
4 Select the desired line.
5 Select the desired setting. (Default: "B") → [SAVE] → [OFF]

Base unit

1 [MENU] → ↘ → [SET]
2 "Set tel line" → [SET]
3 "Set line mode" → [SET]
4 Select the desired line.
5 Select the desired setting. (Default: "B") → [SET] → [STOP]

Changing the PIN (personal identification number)

For security, the PIN must be entered when changing certain settings such as registering units. The default setting is "7262".

Important:

- If you change the PIN, please make note of your new PIN. The unit does not reveal the PIN to you.

1 [MENU] → ↘ → [SET]

2 "Set PIN" → [SET]

3 To change the PIN for the first time, skip to step 4. To change the PIN, enter the current 4-digit PIN. → [SET]

4 Enter the new 4-digit PIN. → [SET]

5 Enter the new 4-digit PIN again. → [SET] → [STOP]

If you forget the PIN (resetting the base unit to its default settings)

If you set the PIN and you cannot remember it, you can reset the base unit using the following procedures.

Base unit:

[MENU] → [MUTE] → [#][9][0][0][0]

Note:

●The following items are reset to their default settings:
- Settings indicated by “*2” in the feature column on page 87
- Answering system: On
– Line selection for answering system: Line 1 and line 2
- If you have registered a cellular phone, the following cellular phone settings are also reset to their default settings.
- "Assign Base/HS" (Allows you to select which unit to ring for cellular calls, page 65): "All"

Pure geometric diagram with intersecting lines and a central circle (no text or symbols)

Programmable Settings

• “TAD (cell)” (Answering system for cellular phone, page 65): “Off”
• “TAD ring count” (Ring count of answering system for cellular phone, page 66): “4 rings”

Customer support

The handset and base unit can display the Internet address where you can download the operating instructions or get further information for this product using your computer.

Handset

1 [MENU] (center of joystick) → ↘ → [SELECT]
2 "Customer support" → [SELECT] • The Internet address is displayed.

3 [OFF]

Base unit

1 [MENU] → ↘ → [SET]
2 "Customer support" → [SET] • The Internet address is displayed.

3 [STOP]

Registering a unit

Registering the handset

The included handset and base unit are preregistered. If for some reason the handset is not registered to the base unit, register the handset.

Important:

●Before registering a compatible Panasonic handset to the base unit, we recommend you change the PIN (page 47) so that other Bluetooth devices in the area are not accidentally registered at the same time.
- If you have already canceled the handset registration at the previous base unit, perform steps 2 and 3 only.

1 Handset:

[MENU] (center of joystick) → ↘ →
[SELECT] → "Registration" →
[SELECT] → "Registration" →
[SELECT]

2 Base unit:

Press and hold [INTERCOM] until the IN USE indicator flashes.

● After the IN USE indicator starts flashing, the rest of the procedure must be completed within 2 minutes.

3 Handset:

Press [OK], then wait until a beep sounds.

- If you have changed the PIN, enter it and press [OK], then wait until the handset beeps.

Programmable Settings

Deregistering a unit

Deregistering a handset

Handset

A handset can cancel its own registration.

1 [MENU] (center of joystick) → ↘ → [SELECT]
2 "Registration" → [SELECT]
3 "Deregistration" → [SELECT]
4 [3][3][5] → [OK]

Deregistering another device

Base unit

The base unit can cancel a registered unit (Bluetooth cellular phone, Bluetooth headset).

1 [MENU] → ↘ → [SET]
2 "Deregistration" → [SET]
3 Select the desired device. → [SET]
4 [3][3][5] → [SET] → [STOP]

Answering System

Answering system feature

Illustration of a smiling woman holding a microphone next to a CD (no text or symbols present)

Important:

• Only 1 person can access the answering system (listen to messages, record a greeting message, etc.) at a time.
• When callers leave messages, the unit records the day and time of each message. Make sure the date and time have been set (page 20).

Memory capacity

The total recording capacity (including your greeting message, caller messages, and voice memos) is about 60 minutes. A maximum of 99 messages (including a greeting message) can be recorded.

• If the message memory becomes full, the ANSWER ON indicator flashes rapidly (if the answering system is turned on). To record additional messages, erase unnecessary messages (page 52).

- If less than 10 minutes of recording time are available, the unit announces the remaining recording time when operating the answering system.

- Messages are retained even if a power failure occurs.

Setting up the answering system

Turning the answering system on 📄

Press [LINE SELECT] repeatedly to select the desired line(s). → [ANSWER ON]

●The ANSWER ON indicator lights.

Turning the answering system off Press [ANSWER ON].

●The ANSWER ON indicator turns off.

Screening your calls

While a caller is leaving a message, you can listen to the call through the base unit's speaker. To adjust the speaker volume, press [▲] or [▼].

Note:

- To answer the call, press [LINE1] or [LINE2] being called on the base unit or [LINE1] or [LINE2] being called on the handset.

- To turn this feature off, see page 58.

Recording your greeting message

You can record your own greeting message (max. 2 minutes) that is played when the answering system answers a call.

The greeting messages can be recorded: – for each line.

- for both lines using a common greeting. If you do not record a greeting message, a pre-recorded greeting message is used.

1 [MENU] → 📄→ [SET]
2 "Greeting record" → [SET]
3 Select the desired line(s). → [SET]
4 After the base unit beeps, speak clearly about 20 cm (8 inches) away from the MIC.
5 To stop recording, press [STOP].
6 Press [STOP] when finished.

Playing back the greeting message

1 [MENU] → 📄→ [SET]
2 "Greeting check" → [SET]
3 Select the desired line.
4 [STOP]

Erasing your greeting message

1 [MENU] → 📄→ [SET]
2 "Greeting check" → [SET]
3 Select the desired line.
4 Press [ERASE] while your greeting message is playing.
5 [STOP]

Pre-recorded greeting message

If you erase or do not record your own greeting message, the unit can play a prerecorded greeting message for callers and ask them to leave messages. If the message recording time (page 58) is set to "Greeting only", caller messages are not recorded and the unit plays a different prerecorded greeting message asking callers to call again.

Answering System

Listening to messages using the base unit

When new messages have been recorded, the MESSAGE indicator on the base unit flashes.

Press [MESSAGE].

●The base unit plays new messages including memo messages.
- When you have no new messages, the base unit plays back all messages.

Playing back messages for the desired line(s)

Press [LINE SELECT] repeatedly to select the desired line(s), then press [MESSAGE].

Note:

● After selecting the line(s), memo messages do not play.

Adjusting the speaker volume

Press [▲] or [▼] while listening to a message.

Useful features during playback

Repeating a message

Press [◀◀].

- If pressed within the first 5 seconds of a message, the previous message will be played.

Skipping a message

Press [▶▶].

Pausing a message

Press [STOP].

• To resume playback, press [MESSAGE].
• To stop playback completely, press [STOP] again.

Calling back (Caller ID subscribers only)

If Caller ID information was received for the call, you can call the caller back while listening to the message.

Press [SP-PHONE] during playback.

Note:

• To edit the number before calling back, press [EDIT] to select the desired format (page 33).

Erasing messages

Erasing a message

Press [ERASE] during playback.

Erasing all messages

Press [ERASE] 2 times while the base unit is not being used.

• To erase the messages for the desired line, press [LINE SELECT] repeatedly to select the desired line(s), then press [ERASE] 2 times.

Listening to messages using the handset

When new messages have been recorded:

- "New message" is displayed.

- The message indicator on the handset slowly flashes amber if the message alert feature is turned on (page 58).

1 [MENU] (center of joystick)

2 → [SELECT]

● The handset plays new messages including memo messages.

- When you have no new messages, the handset plays back all messages.

3 Press [OFF] when finished.

Note:

- To switch to the receiver, press [→].

Adjusting the receiver/speaker volume Push [▲] or [▼] while listening to a message.

Voice guidance

If you do not press any buttons after the last message is played back, the unit's voice guidance starts. Operate the answering system by following the guidance as necessary.

Useful features during playback

Calling back (Caller ID subscribers only)

If Caller ID information was received for the call, you can call the caller back while listening to the message.

Press [LINE1] or [LINE2] during playback.

Note:

• To edit the number before calling back, press [EDIT] to select the desired format (page 33).
• If you have registered a cellular phone to the base unit (page 59), you can call the caller back by pressing [CALL], then pressing [LINE1] or [LINE2] while listening to the message.

Answering system commands

You can also select the desired line(s) and press dial keys to access certain answering system functions using the handset during playback.

1 [MENU] (center of joystick) → 📄→ [SELECT]
2 Select the desired line(s) if necessary.

For line 1: [#][1]

For line 2:【#】【2】

For line 1 and line 2: [#][0]

● After selecting the line(s), memo messages do not play.

3 Press the desired dial keys.

Key Command
[1] or [◀]	Repeat message (during playback).*1
[2] or [▶]	Skip message (during playback).
[4]Play new messages.
[5]Play all messages.

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Answering System

Key Command
[9]Stop playback.	*2
[0]Turn answering system off.
[*][4] or [CLEAR] → [YES]	Erase this message (during playback).
[*][5]Erase all messages.
[#][1][8]	Turn answering system on for line 1 only.
[#][2][8]	Turn answering system on for line 2 only.
[#][0][8]	Turn answering system on for both line 1 and line 2.

*1 If pressed within the first 5 seconds of a message, the previous message is played.

*2 To resume operation, press a command key within 15 seconds, or the voice guidance starts.

Voice memo

Recording a voice memo

You can use the base unit to leave a voice memo (voice message) for yourself or someone else (max. 3 minutes). This memo can be played back later, either directly with the base unit or remotely.

1 [MEMO]
2 After the base unit beeps, speak clearly about 20 cm (8 inches) away from the MIC.
3 To stop recording, press [STOP].

Answering System

Remote operation

Using a touch tone phone, you can call your phone number from outside and access the unit to listen to messages. The unit's voice guidance prompts you to press certain dial keys to perform different operations.

Important:

- In order to operate the answering system remotely, you must first set a remote code (page 57). This code must be entered each time you operate the answering system remotely.

Using the answering system remotely

1 Dial your phone number from a touch tone phone.
2 After the greeting message starts, enter your remote code.
- The unit plays back new messages, including memo messages.
3 After 3 seconds, the voice guidance starts. Follow the voice guidance as necessary.
4 When finished, hang up.

Note:

- You can ignore the voice guidance and control the unit using remote commands (page 55).

Voice guidance

During remote operation, the unit's voice guidance prompts you to press [1] to perform a specific operation, or press [2] to listen to more available operations. Operations are presented by voice guidance in the following order:

- Play back all messages

- Play back new messages

• Record a message
• Erase all messages
  – Record your greeting message

Note:

• If you do not press any dial keys within 10 seconds after a voice guidance prompt, the unit disconnects your call.
• If less than 10 minutes of recording time are available, the unit announces the remaining recording time after the last message is played back.

Remote commands

You can select the desired line(s) and press dial keys to access certain answering system functions without waiting for the voice guidance to prompt you.

1 Select the desired line(s) while you are accessing the answering system if necessary.
For line 1: [#][1]
For line 2: [#][2]
For line 1 and line 2: [#][0]
● After selecting the line(s), memo messages do not play.

2 Press the desired dial keys.

Key Remote	command
[1]Repeat message (during playback).*1
[2]Skip message (during playback).
[4]Play new messages.
[5]Play all messages.
[9]Stop recording/playback.*2
[0]Turn answering system off.
[★][4]Erase this message (during playback).
[★][5]Erase all messages.

Answering System

Key Remote	command
[#][1][7]	Record a greeting message for line 1 only.
[#][2][7]	Record a greeting message for line 2 only.
[#][0][7]	Record a common greeting message for both line 1 and line 2.
[#][1][8]	Turn answering system on for line 1 only.
[#][2][8]	Turn answering system on for line 2 only.
[#][0][8]	Turn answering system on for both line 1 and line 2.

*1 If pressed within the first 5 seconds of a message, the previous message is played.
*2 To resume operation, enter a remote command within 15 seconds, or the voice guidance starts.

Turning on the answering system remotely

If the answering system is off, you can turn it on remotely by calling the line selected in "Turning the answering system on 🔊" on page 50.

1 Dial your phone number.
2 Let the phone ring 15 times.

• The unit answers your call with the greeting message.
• You can hang up, or if you call from a touch tone phone, you can enter your remote code and begin remote operation (page 55).

Skipping the greeting message to leave a message

You can leave a message just as any outside caller can. Call your phone number, then press [★] to skip the greeting message and record your message after the beep.

Answering system settings

Remote code

A remote code must be entered when operating the answering system remotely. This code prevents unauthorized parties from listening to your messages remotely.

1 [MENU] → 📄→ [SET]
2 "Remote code" → [SET]
3 Enter the desired 2-digit remote code. (Default: "11")
4 [SET] → [STOP]

Ring count

You can change the number of times the phone rings before the unit answers calls. "Toll saver": The unit answers on the 2nd ring when new messages have been recorded, and on the 4th ring when there are no new messages. If you call your phone from outside to listen to new messages (page 55), you will know that there are no new messages when the phone rings for the 3rd time. You can then hang up without being charged for the call.

1 [MENU] → 📄→ [SET]
2 "Ring count" → [SET]
3 Select the desired line.
4 Select the desired setting. (Default: "4 rings") → [SET] → [STOP]

For Voice Mail service subscribers If you subscribe to a flat-rate bundle service that includes Caller ID, Call Waiting, Voice Mail, and unlimited local regional/long distance calls, please note the following:

• To use the Voice Mail service provided by your telephone service provider rather than the unit's answering system, turn off the answering system (page 50). This unit does not have an indicator to indicate if there are new messages in your mailbox service.
• To use this unit's answering system rather than the Voice Mail service provided by your telephone service provider, please contact your telephone service provider to deactivate your Voice Mail service. If your telephone service provider cannot do this:

- Set this unit's "Ring count" setting so that this unit's answering system answers calls before your telephone service provider's Voice Mail service tries to answer your calls. It is necessary to check the ring count required to activate the Voice Mail service provided by your telephone service provider before changing this setting.

- Change the ring count of the Voice Mail service so that the answering system can answer the call first. To do so, consult your telephone service provider.

Answering System

Caller's recording time

You can change the maximum message recording time allotted to each caller. "Greeting only": The unit plays the greeting message but does not record caller messages.

1 [MENU] → 📄→ [SET]
2 "Recording time" → [SET]
3 Select the desired line.
4 Select the desired setting. (Default: "3min") → [SET] → [STOP]

Note:

- If the message memory becomes full, the unit automatically switches to the "Greeting only" mode. New messages will not be recorded.

Recording mode

You can select a recording mode. Enhanced recording provides improved sound quality, but the total recording capacity is reduced.

1 [MENU] → 📄→ [SET]

2 "Recording mode" → [SET]

3 Select the desired item. (Default: "Standard recording 60min") → [SET] → [STOP]

Call screening

This feature allows you to monitor a message from the speaker when the answering system is recording the message.

1 [MENU] → 📄→ [SET]
2 "Call screening" → [SET]
3 Select the desired item. (Default: "On") → [SET] → [STOP]

Message alert

You can select whether or not the message indicator on the handset slowly flashes amber when new messages are recorded (page 53).

1 [MENU] (center of joystick) → ⬇ → [SELECT]
2 "Message alert" → [SELECT]
3 Select the desired setting. (Default: "Off") → [SAVE] → [OFF]

Note:

●While message alert feature is on, battery operating time will be shortened (page 13).

Using a Cellular Phone with this Unit

Configuring a cellular phone

Illustration showing a person using a mobile phone to interact with a vintage mobile phone, with a magnifying glass highlighting the phone's brightness.

If your cellular phone is Bluetooth wireless technology compatible to this product, you can use the handset or base unit to make or answer calls using a cellular line.

This feature is useful for maximizing the benefits of cellular services (such as free unlimited nights and weekends, or cellular to cellular calling plans) by utilizing unused peak minutes with your home phone.

To use this feature you must first:

• register your cellular phone to the base unit (page 59).
• connect the cellular phone to the base unit (page 60).

Important:

● The following procedures must be performed using the base unit.
- Up to 5 cellular phones can be registered (when other Bluetooth devices are not registered). There can be only one active Bluetooth connection at a time.
- To keep the cellular line stable between the base unit and cellular phone, we recommend you use a cellular phone within the range of the base unit.
●While you are on a cellular call, the battery of your cellular phone is being consumed. We recommend charging your cellular phone during the call.

Registering a cellular phone

Important:

• For more details and the list of compatible cellular phones, please visit: www.panasonic.com/ CompatibleCellPhones
• Before registering a Bluetooth device to the base unit, we recommend you change the PIN (page 47).

1 Base unit:

Press and hold the desired CELLULAR SELECT button (【1】to【5】) until a short beep sounds.

• "CellPhone Registering" is displayed and the CELLULAR SELECT button starts flashing yellow-green.
  ● After the registration starts, the rest of the procedure must be completed within 2 minutes.

2 Your cellular phone:

Follow the instructions of your cellular phone to enter the registration mode.

• Depending on your cellular phone, it may ask you to enter the base unit PIN (Default: "7262").
• When registration is completed successfully, the unit beeps and the button stops flashing but remains lit in yellow-green.

Note:

- To cancel a cellular phone from the base unit, see "Deregistering another device" on page 49.

Using a Cellular Phone with this Unit

Storing your area code (for users dialing only a 7-digit phone number to make a local call)

You need to add your area code when making calls ^1 using a cellular line. Once you store your area code, this feature allows you to automatically add your area code to the beginning of the 7-digit phone number when making calls ^1 using a cellular line.

*1 The area code is automatically added when:

– dialing a 7-digit phone number manually
– dialing a 7-digit phone number saved in the redial list
– dialing a 7-digit phone number stored in the phonebook
– dialing an edited phone number with 7 digits in the caller list

1 [MENU] → [#][8][0][0]

2 Enter 3-digit area code → [SET]

Note:

- You can store only one area code.

Connecting the cellular phone

You need to connect a registered cellular phone to the base unit in order to make or answer calls using a cellular line with this system.

Important:

- After connecting your cellular phone to the base unit, and if you carry your cellular phone far from the base unit (example: if you leave the house with your cellular phone) the connection will be lost. After returning within closer to the base unit's range you need to reconnect the cellular phone to the base unit. Some cellular phones lose

connection after usage, please check the specification of your cellular phone for more details.

• When registering an additional cellular phone to the base unit, cellular phones already connected to the base unit lose connection. You need to reconnect the cellular phones to the base unit.
  1 Press the desired CELLULAR SELECT button ([1] to [5]).
  2 "Connection" → [SET]

- "Connection (OK)" is shown and the CELLULAR SELECT button is lit in yellow-green if the cellular phone is connected to the base unit.

3 [STOP]

Note:

• In step 2, the base unit requires your cellular phone to accept the connection. Depending on your cellular phone, it may ask you if you accept the connection requirement from the base unit. Refer to the operating instructions of your cellular phone for further operations.
• After connecting your cellular phone to the base unit, if the cellular phone is too far from the base unit (out of the base unit's range), or there is an interference from other electrical units, the cellular phone's connection is disconnected. We recommend you place the cellular phone closer to the base unit.

Using a Cellular Phone with this Unit

Making/answering calls using a cellular line

- Before making or answering calls, confirm that you have connected your cellular phone to the base unit (page 60).

Making calls

Handset

1 Dial the phone number. → [CELL]
- If you registered only one cellular phone, skip to step 4.
2 Select the desired cellular phone.
3 [SELECT]
4 When you finish talking, press [OFF].

Base unit

Important:

- Before making a call, check which CELLULAR SELECT number the cellular phone you want to use is registered to. Confirm by pressing the CELLULAR SELECT button to display the registered cellular phone's name.

1 Dial the phone number.
2 Press the desired CELLULAR SELECT button ([1] to [5]).
3 When you finish talking, press [SP-PHONE].

Answering calls

Handset

When a cellular phone connected to the base unit receives a call, CELL shown in the top center of the display flashes rapidly.

1 Press [◀] or [CELL].

2 When you finish talking, press [OFF].

Base unit

When a cellular phone is connected and the base unit receives a call, the corresponding CELLULAR SELECT button flashes rapidly.

1 Press [SP-PHONE] or the CELLULAR SELECT button ([1] to [5]) that is flashing.
2 When you finish talking, press [SP-PHONE].

Note for handset and base unit:

• When you receive a call from a land line and a cellular line at the same time, press [CELL] on the handset or the CELLULAR SELECT button that is flashing on the base unit to answer the cellular call.
• If the line selection mode for land line is set to "Line1" or "Line2", press [CELL] on the handset or the CELLULAR SELECT button that is flashing on the base unit to answer the cellular call.

Making calls using the phonebook

Handset

1 [MENU] (center of joystick) → 📄 → [SELECT]
2 Push [▲] or [▼] to select the desired item.
3 [CALL] → [CELL]

- If you registered only one cellular phone, skip to step 5.

4 Select the desired cellular phone. → [SELECT]
5 When you finish talking, press [OFF].

Pure geometric diagram with intersecting lines and a central circle (no text or symbols)

Using a Cellular Phone with this Unit

Base unit

1 [MENU] → 📄 → [SET]
2 Press [▲] or [▼] to select the desired item.
3 Press the desired CELLULAR SELECT button ([1] to [5]).
4 When you finish talking, press [SP-PHONE].

Note for handset and base unit:

- If the phone numbers stored in the phonebook include a "Pause" or a "Flash", you cannot make a call using a cellular line.

Viewing the caller list and calling back 🔍 🔍

If you receive a call via cellular line, caller information is logged in the caller list with

C.

Handset

1 [MENU] (center of joystick) → [SELECT]

2 Push [▲] or [▼] to select the desired caller information.

3 [CALL] → [CELL]

- If you registered only one cellular phone, skip to step 5.

4 Select the desired cellular phone. → [SELECT]

5 When you finish talking, press [OFF].

Note:

- If the cellular line is already being used or you want to select the land line, select the desired line by pressing [LINE1] or [LINE2] instead of [CELL].

Base unit

1 [MENU] → CID→ → [SET]
2 Press [▲] or [▼] to select the desired caller information.
3 Press the desired CELLULAR SELECT button ([1] to [5]).
- When you call back the caller information indicated by Ⓐ, if you press [SP-PHONE], select the desired cellular phone. → [SET]
4 When you finish talking, press [SP-PHONE].

Note:

- If the cellular line is already being used or you want to select the land line, select the desired line by pressing [LINE1] or [LINE2] instead of pressing the desired CELLULAR SELECT button ([1] to [5]).

Calling back during playback (Caller ID subscribers only)

If Caller ID information was received for the call, you can call the caller back using the cellular line while listening to the message.

Handset

1 Press [CALL], then press [CELL] during playback.
- If you registered only one cellular phone, skip to step 3.
2 Select the desired cellular phone. → [SELECT]
3 When you finished talking, press [OFF].

Base unit

1 Press the desired CELLULAR SELECT button ([1] to [5]) during playback.
2 When you finished talking, press [SP-PHONE].

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Using a Cellular Phone with this Unit

Useful features during a cellular call

Putting a cellular call on hold

Handset

Press [HOLD] 2 times during a cellular call.

- To return to the call, press [\~].

Base unit

Press [HOLD] during a cellular call.

- To return to the call, press the CELLULAR SELECT button ([1] to [5]) that is flashing.

Note for handset and base unit:

- If a call is kept on hold for more than 6 minutes, an alarm tone starts to sound. After 4 additional minutes on hold, the call is disconnected.

Using the land line during a cellular call 📋

Holding a cellular call to make or answer a land line call

Example: If you are on a cellular line call

Handset

1 To put the cellular call on hold, press [HOLD] 2 times.

2 To make a land line call, dial the phone number, then press [LINE1] or [LINE2].

To answer a land line call, press [LINE1] or [LINE2].

3 When you finish talking, press [OFF] to end the land line call.

4 To return to the cellular call, press [\~].

Base unit

1 To put the cellular call on hold, press [HOLD].

2 To make a land line call, dial the phone number, then press [LINE1] or [LINE2].

To answer a land line call, press [LINE1] or [LINE2].

3 When you finish talking, press [SP-PHONE] to end the land line call.

4 To return to the cellular call, press the CELLULAR SELECT button ([1] to [5]) that is flashing.

Holding a land line call and make or answer a cellular call

Example: If you are on a land line call

Handset

1 To put the land line call on hold, press [HOLD] 2 times.

2 To make a cellular call

- If you have registered only one cellular phone, dial the phone number, then press [CELL]. - If you have registered more than one cellular phone, dial the phone number, then press [CELL]. Select the desired cellular phone, then press [SELECT].

To answer a cellular call Press [CELL].

- To hold the cellular call, press [HOLD] 2 times.

3 To return to the land line call, press [LINE1] or [LINE2] that is flashing on the handset.

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Using a Cellular Phone with this Unit

Base unit

1 To put the land line call on hold, press [HOLD].
2 To make a cellular call Dial the phone number, then press the desired CELLULAR SELECT button ([1] to [5]).

To answer a cellular call Press the CELLULAR SELECT button ([1] to [5]) that is flashing.

- To hold the cellular call, press [HOLD].

3 To return to the land line call, press [LINE1] or [LINE2] that is flashing on the base unit.

Cellular settings

Important:

- You must register your cellular phone to the base unit before programming.

Ringer settings for cellular calls

Ringer volume

You can change the ringer volume heard when a cellular call is received. You can change it for the handset and base unit individually.

Handset

1 [MENU] (center of joystick) → («∅») → [SELECT]
2 "Ringer for cell" → [SELECT]
3 "Ringer volume" → [SELECT]
4 Select the desired volume. (Default: High) → [SAVE] → [OFF]

Base unit

1 [MENU] → («)→) → [SET]
2 "Ringer for cell" → [SET]
3 "Ringer volume" → [SET]
4 Select the desired volume. (Default: High) → [SET] → [STOP]

Note for handset and base unit:

- When the ringer volume is set to off for a cellular line, "Ringer off" is not displayed in standby mode and the handset or base unit does not ring for cellular calls.

Using a Cellular Phone with this Unit

Ringer tone

You can change the ringer tone heard when a cellular call is received. You can change it for the handset and base unit individually.

Handset

1 [MENU] (center of joystick) → «♡» → [SELECT]
2 "Ringer for cell" → [SELECT]
3 "Ringer tone" → [SELECT]
4 Select the desired item. (Default: "Tone 3") → [SAVE] → [OFF]

Note:

- If you erase a customized ring for cellular call, "Tone 3" (default) is used instead of that ringer tone.

Base unit

1 [MENU] → («♡») → [SET]
2 "Ringer for cell" → [SET]
3 "Ringer tone" → [SET]
4 Select the desired item. (Default: "Tone 3") → [SET] → [STOP]

Selecting which unit to ring

You can select which handset or base unit rings when you receive a call from one of the registered cellular phones.

1 Press the desired CELLULAR SELECT button ([1] to [5]).
2 "Assign Base/HS" → [SET]
3 Select the desired unit, then press [▶]. (Default: "A11")
- The selected units are indicated by "√".
- To cancel a selected unit, press [▶] again.

4 [SET] → [STOP]

Answering system settings for cellular calls

Setting the answering system for a cellular call

This feature allows the base unit to answer cellular calls when you are not available to answer cellular calls.

Important:

• To use this feature, you need to turn on the answering system for line 1 and/or line 2 (page 50).
• If this feature is turned on, the base unit plays the greeting message for line 1 and message is recorded on line 1.

1 [MENU] → 📄→ [SET]

2 "TAD for cell" → [SET]

3 "TAD (cell)" → [SET]

4 Select the desired setting. (Default: "Off") → [SET] → [STOP]

Note:

- "TAD" stands for Telephone Answering Device.

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Using a Cellular Phone with this Unit

Ring count

You can change the number of times the cellular phone rings before the base unit answers cellular calls.

1 [MENU] → 📄→ [SET]
2 "TAD for cell" → [SET]
3 "TAD ring count" → [SET]
4 Select the desired number. (Default: "4 rings") → [SET] → [STOP]

Turning on the discoverable mode

When discoverable mode is turned on, this unit may be seen by other Bluetooth devices.

1 [MENU] → ↘ → [SET]
2 "Bluetooth" → [SET]
3 "Discoverable" → [SET]
4 Select the desired setting. (Default: "off") → [SET] → [STOP]

Transferring a cellular call

Cellular calls can be transferred between the handset and the base unit, and between the handset and another compatible Panasonic handset (KX-THA19). You can also switch a cellular call between a cellular phone and base unit.

Transferring a cellular call

Handset

1 During a cellular call, press [INTERCOM] to put the call on hold.

2 To page the base unit, press [0]. To page another handset, enter its extension number ([1] to [8]).

- If you do not wish to announce the transfer, skip to step 4.

3 Wait for the paged party to answer.

- If the paged party does not answer, press [→] to return to the cellular call.

4 To complete the transfer, press [OFF].

Base unit

1 During a cellular call, press [INTERCOM] to put the call on hold.

2 To page a handset, enter its extension number ([1] to [8]). To page all handsets, press [0].

- If you do not wish to announce the transfer, skip to step 4.

3 Wait for the paged party to answer.

- If the paged party does not answer, press the CELLULAR SELECT button ([1] to [5]) that is flashing to return to the cellular call.

Using a Cellular Phone with this Unit

4 To complete the transfer, press [SP-PHONE].

Note for handset and base unit:

• If the paged party does not answer within 1 minute after you hang up, your extension rings and the call is returned to your phone. You can speak to the caller again by pressing [→] on the handset or the CELLULAR SELECT button ([1] to [5]) that is flashing on the base unit.
• To transfer a cellular call to the answering system, see page 37.

Answering a transferred cellular call

Handset

Press [\~] to answer the page.

● After the paging party hangs up the call, you can take the transferred call.

Base unit

Press [SP-PHONE] to answer the page.

● After the paging party hangs up the call, you can take the transferred call.

Note for handset and base unit:

- If the paging party hangs up before you answer the page, "Incoming call" is displayed. Press [→] on the handset or the CELLULAR SELECT button ([1] to [5]) that is flashing on the base unit to take the transferred call.

Switching a cellular call between a cellular phone and the base unit

From a cellular phone to the base unit If you answer a cellular call using a cellular phone, you can transfer it to the base unit.

1 During a cellular call using your cellular phone, press the CELLULAR SELECT button ([1] to [5]) that is in use.
2 "Transfer to base" → [SET]
3 Follow the instructions of your cellular phone, if required.

- You may need to enter the PIN (page 47).

From the base unit to a cellular phone If you answer a cellular call using the base unit, you can transfer it to the cellular phone that the call came in.

1 During a cellular call using the base unit, press the CELLULAR SELECT button ([1] to [5]) that is in use.
2 "Transfer to Cell" → [SET]

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Using a Cellular Phone with this Unit

Conference calls

Conference call with a cellular call and land line call

While you are talking on a cellular call, you can make or answer a 2nd call on the land line, and then combine the calls to establish a conference call.

Handset

1 During a cellular call, press [HOLD] 2 times.
2 To answer a land line call, press [LINE1] or [LINE2]. To make a land line call, press [LINE1] or [LINE2], then dial the phone number.
3 When the land line call is connected, press [CONF] to make a conference call.

• To hang up only one line, press the desired line button or [CELL] for the party with which you want to continue talking.
• To put both lines on hold, press [HOLD]. To talk only with the land line caller, press the line button that is flashing. To talk only with the cellular caller, press [\~]. To resume both lines, press [CONF].

Base unit

1 During a cellular call, press [HOLD].
2 To answer a land line call, press [LINE1] or [LINE2]. To make a land line call, press [LINE1] or [LINE2], then dial the phone number.

3 When the land line call is connected, press [CONF] to make a conference call.

• To hang up only one line, press the desired line button or the desired CELLULAR SELECT button ([1] to [5]) for the party with which you want to continue talking.
• To put both lines on hold, press [HOLD]. To talk with only land line caller, press the line button that is flashing. To talk only with the cellular caller, press the CELLULAR SELECT button ([1] to [5]) that is flashing. To resume both lines, press [CONF].

Note for handset and base unit:

● While you are on a conference call using the cellular line, other units cannot join the conference call.
- While you are on a conference call using the cellular line, if you hang up the cellular line and return to the land line call, the "Call privacy" feature is turned on automatically. To turn this feature off, see page 39.

Conference call with a cellular call and an intercom call

While you are talking on a cellular call, one more extension can join the conversation and establish a conference call.

Handset

1 During a cellular call, press [INTERCOM].
2 To page the base unit, press [0]. To page another handset, enter its extension number ([1] to [8]).
3 When the paged party answers, press [CONF] to make a conference call.

- To leave the conference, press [OFF]. The other 2 parties can continue the conversation.

Using a Cellular Phone with this Unit

Base unit

1 During a cellular call, press [INTERCOM].
2 To page a handset, enter its extension number ([1] to [8]). To page all handsets, press [0].

3 When the paged party answers, press [CONF] to make a conference call.

- To leave the conference, press [SP-PHONE]. The other 2 parties can continue the conversation.

Note for handset and base unit:

- The cellular call can be put on hold by pressing [HOLD]. Only the person who placed the call on hold can resume the full conference by pressing [CONF] on the handset or [CONF] on the base unit.

Useful Information

Headset (optional)

Setting up a Bluetooth wireless headset

Illustration of a digital telephone with two antennas and a separate ear device (no text or symbols)

If your headset is Bluetooth wireless technology compatible to this product, you can have a hands-free phone conversation by registering your headset to the base unit.

Important:

●The following procedures must be performed using the base unit.
- There can only be one active Bluetooth headset connection at a time.

Registering a headset

Important:

- For more details, please visit: www.panasonic.com/ CompatibleCellPhones

1 Your headset: Enter the registration mode of your headset (each headset's instructions vary).
2 Base unit: [MENU] → ↘ → [SET]
3 "Bluetooth" → [SET]
4 "Headset" → [SET]
5 "Registration" → [SET]
6 Enter the PIN of your headset. (Refer to the operating instructions provided with your headset.) → [SET]

Note:

- To cancel a headset from the base unit, see "Deregistering another device" on page 49.

Selecting a headset

This setting determines which headset is active. Only 1 headset can be active at a time. When "No headset" is selected, the headset feature is turned off.

1 [MENU] → ↘ → [SET]
2 "Bluetooth" → [SET]
3 "Headset" → [SET]
4 "Headset select" → [SET]
5 Select the desired headset. → [SET] → [STOP]

Making calls

After dialing the phone number using the base unit, you can switch the call to the headset. Follow the instructions for your headset for further operations.

Answering calls

Refer to the operating instructions for your headset.

Switching a call between headset and base unit speakerphone

To switch to the base unit speakerphone, press [SP-PHONE].

To return to the headset, press [STOP].

Connecting the corded headset

Connecting a headset to the handset allows hands-free phone conversations. We recommend using the Panasonic headset noted on page 4.

Illustration of a pair of earphones connected to a mobile phone (no text or symbols visible)

●Headset shown is KX-TCA86.

Switching a call between headset and handset speakerphone

To switch to the handset speakerphone, press [✿].

To return to the headset, press [→].

Additional accessories

Sales and support information

● To order replacement accessories, call 1-800-332-5368.
- TTY users (hearing or speech impaired users) can call 1-866-605-1277.

Wall mounting (optional)

By purchasing the optional wall-mounting adaptor PQKL10078Z1, you can mount the base unit on a wall.

Belt clip (optional)

By purchasing the optional belt clip PQKE10404Z1, you can hang the handset on your belt or pocket.

Useful Information

Error messages

If the unit detects a problem, one of the following messages is shown on the display.

Display message Cause/solution
Busy●The called handset	or base unit is in use.Other users are using the line(s). Wait until the line button light or the line status icon goes out.Other users are using the cellular line. Wait until the CELLULAR SELECT button is lit in yellow-green on the base unit andCELLshown in the top center disappears from the handset display.Privacy mode is on for the call you tried to join (page 39).The handset or base unit you tried to copy phonebook items to is in use.The handset you are calling is too far from the base unit.
DeniedTurn access on at device.	●The monitor feature is turned off on the destination handset or base unit and the room cannot be monitored (page 40).
Error!!	●The handset's registration or deregistration has failed.Move the handset and the base unit away from all electrical appliances and try again.Another handset or base unit user tried to send phonebook items to you but there was an error. Have the other user re-send the items to you (page 28, 30).
Error!!8 handsets have already been registered.	●8 handsets have already been registered to the base unit. The deregistered handset number is still retained in the base unit. To register an additional handset, erase the unnecessary handset number using the base unit (page 49).
---Incomplete---	●The destination unit's phonebook memory is full. Erase unnecessary items from the destination unit's phonebook (page 27, 30).●The destination unit is out of area.The destination unit's user may have pressed【→】or【⇔】on the handset or [SP-PHONE] on the base unit.
Invalid	●There is no handset registered to the base unit matching the extension number you entered.You selected your own extension number.
Invalid.Please register to the base unit	●The handset is not registered to the base unit. Register the handset (page 48).
Memory full	●There is no space in memory to record new songs.Erase unnecessary songs (page 42).

Useful Information

Display message Cause/solution
Message full	● There is no space in memory to record new messages. Erase unnecessary messages (page 52).
No items stored	● Your phonebook, caller list, or redial list is empty.● “Customize ring” is empty.
No link to base.Move closer to base and try again.	● The handset has lost communication with the base unit. Move closer to the base unit, and try again.● Confirm that the base unit’s AC adaptor is plugged in.● Raise the base unit antennas.● The handset’s registration may have been canceled. Re-register the handset (page 48).● After registering a cellular phone to the base unit, the communication between the base unit and other units may be disconnected. You need to wait for a few minutes and try again.
Phonebook full	● There is no space to store new items in the phonebook. Erase unnecessary items (page 27, 30).
Please lift up and try again.	● A handset button was pressed while the handset was on the base unit or charger. Lift the handset and press the button again.
System is busy.Please try again later.	● The resources available for wireless communication (making or answering calls with a handset, monitoring audio in a room, etc.) are limited. Therefore, depending on the combination of wireless features being conducted at the same time, your desired operation may not be possible. Wait for other users to finish and try again.● Another user is listening to messages. Try again later.
Title error	● The title for the customized ring is not entered or the title you entered is already used for another customized ring. Enter the title for that customized ring only.

Useful Information

Troubleshooting

General use

Problem Cause/solution
The unit does not work.	Make sure that the battery is installed correctly and fully charged (page 12).Check the connections (page 9 – 11).Unplug the base unit's AC adaptor to reset the unit.Reconnect the adaptor and try again.The handset has not been registered to the base unit.Register the handset (page 48).
I cannot hear a dial tone.	Confirm that the telephone line cord is properly connected (page 10).Disconnect the base unit from the telephone line and connect a known working telephone. If the working telephone operates properly, contact our service personnel to have the unit repaired. If the working telephone does not operate properly, contact your telephone service provider.
“Recharge battery” is displayed and I cannot perform the following operations:– recording or erasing a customized ringer– editing a title for a customized ringer	The battery power is low. Fully charge the battery (page 12) and try again.

Programmable settings

Problem Cause/solution
I cannot program items.	● While another user is listening to messages or the answering system is answering a call, you cannot program items. Try again later.
While programming, the handset starts to ring.	● A call is being received. Answer the call and start again after hanging up.

Making/answering calls, intercom

Problem Cause/solution
Static is heard, sound cuts in and out.Interference from other electrical units.	Move the handset and base unit away from other electrical appliances (microwave, wireless LAN appliance, etc.).Move closer to the base unit.Raise the base unit antennas.Turn on the clarity booster feature (page 25).If your base unit is connected to a telephone line with DSL service, we recommend connecting a noise filter between the base unit and the telephone line jack.Contact your DSL provider for details.
The handset and base unit do not ring.	The ringer volume is turned off. Adjust it (page 41, 64).
I cannot make a call.	The dialing mode may be set incorrectly. Change the setting (page 20).The base unit (including answering system) or another handset is in use. Try again later.
I cannot redial by pressing [REDIAL].	If the last number dialed was more than 48 digits long, the number will not be redialed correctly. Dial the number manually.
I cannot have a conversation using the headset.	Make sure that an optional headset is connected properly (page 71).If “SP-phone” is displayed on the handset, press [→] to switch to the headset.Your optional Bluetooth headset is not registered. Register it (page 70).
I cannot make long distance calls.	Make sure that you have long distance service.
I cannot page the handset or base unit.	The called handset is too far from the base unit.The called unit is in use. Try again later.
I cannot turn the clarity booster on.	The resources available for wireless communication (making or answering calls with another handset, etc.) are limited. Wait for the other user to end the operation and try again.
The interrupt tones sound while I am on an outside call or on an intercom call or monitoring a room.	A call is being received. Press [OFF] to end the call or stop monitoring, then answer the call.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Useful Information

Phonebook

Problem Cause/solution
Copying stopped with an item displayed.	●The destination handset may have lost communication with the base unit, or the destination unit user may have pressed [↖] or [◀] on the handset or [SP-PHONE] on the base unit.The displayed phonebook item was not copied to the unit. Press [OFF] on the handset or [STOP] on the base unit. Confirm that the destination unit is not in use and try again.

Caller ID

Problem Cause/solution
The handset or base unit does not display the caller's name and/or phone number.	You have not subscribed to Caller ID service. Contact your telephone service provider to subscribe.If your base unit is connected to any additional telephone equipment such as a Caller ID box or cordless telephone jack, disconnect the base unit from the equipment and plug the base unit directly into the wall jack.If your base unit is connected to a telephone line with DSL service, we recommend connecting a noise filter between the base unit and the telephone line jack. Contact your DSL provider for details.The name display service may not be available in some areas. Contact your telephone service provider for details.Other telephone equipment may be interfering with this unit. Disconnect the other equipment and try again.The caller requested not to send caller information (page 31).If a call is being transferred to you, the caller information is not displayed.
The handset does not announce the displayed caller names.	The handset's ringer volume is turned off. Adjust it (page 41).The Talking Caller ID feature is turned off. Turn it on (page 45).The ring count for the answering system is set to “2” or “Toll saver”. Select a different setting (page 57).
The caller list/incoming phone numbers are not edited automatically.	The Caller ID number auto edit feature is turned off. Turn it on and try again (page 45).You need to call back the edited number to activate Caller ID number auto edit.

Useful Information

Problem Cause/solution
I cannot dial the phone number edited in the caller list.	●The phone number you dialed might have an incorrectly edited pattern (for example, the long distance “1” or the area code is missing). Edit the phone number with another pattern (page 33).
The 2nd caller's information is not displayed during an outside call.	●In order to use Caller ID, Call Waiting, or Call Waiting Caller ID (CWID), you must first contact your telephone service provider and subscribe to the desired service. After subscribing, you may need to contact your telephone service provider again to activate this specific service, even if you already subscribed to both Caller ID and Call Waiting with Caller ID services (CWID).

Answering system

Problem Cause/solution
I cannot listen to messages from a remote location.	●A touch tone phone is required for remote operation.●Enter the remote code correctly (page 55).●The answering system is off. Turn it on (page 56).
The unit does not record new messages.	●The answering system is not turned on for the line you wish to record messages from. Select the desired line or both lines by pressing [LINE SELECT] repeatedly, then turn the answering system on (page 50, 56).●The recording time is set to “Greeting only”. Select a different setting (page 58).●The message memory is full. Erase unnecessary messages (page 52).●The answering system is activated for both lines, and the 1st caller is leaving a voice message. The 2nd caller cannot leave a message, but the caller information will be stored (page 32).●If you subscribe to the Voice Mail service, messages are recorded by the telephone service provider not your telephone (page 57).
I cannot operate the answering system.	●Someone is operating the answering system.●If someone is talking on a conference call, you cannot operate the answering system. Try again later.
The message indicator on the handset slowly flashes amber.	●New messages have been recorded. Listen to the new messages (page 52, 53).
I cannot hear a message from the speaker when the answering system is recording a message.	●The call screening feature is turned off. Turn it on (page 58).●The volume for the base unit is turned off. Turn the volume up by pressing [▲] on the base unit.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Useful Information

Link to Cell feature/Bluetooth wireless headset

Problem Cause/solution
I cannot register a cellular phone to the base unit.	●Depending on the compatibility of the cellular phone, you may not be able to register it to the base unit.●Confirm that your cellular phone supports the hands-free profile (HFP) specification. If it does not, you cannot register it to the base unit.●You can register up to 5 cellular phones (when other Bluetooth devices are not registered). Confirm how many cellular phones have already been registered in “Connecting the cellular phone ” (page 60).●Confirm that the Bluetooth feature of your cellular phone is turned on. You may need to turn this feature on depending on your cellular phone.●The Bluetooth technology on your cellular phone may not be functioning normally. Turn off and on your cellular phone.
I cannot connect a cellular phone to the base unit.	●Depending on the compatibility of the cellular phone, you may not be able to connect it to the base unit.●Confirm that you have registered your cellular phone to the base unit using the cellular phone (page 59). Refer to the operating instructions of your cellular phone for registration.●Confirm that your cellular phone is turned on.●Confirm that the Bluetooth feature of your cellular phone is turned on. You may need to turn this feature on depending on your cellular phone.●The Bluetooth technology on your cellular phone may not be functioning normally. Turn off and on your cellular phone.
The registered cellular phone received a call, but I cannot take that call with the handset or base unit.	●If someone is talking on a cellular call or customizing the cellular settings, you cannot use cellular feature. There can be only one active Bluetooth connection at a time.●Confirm that your cellular phone is connected to the base unit (page 60).
I cannot make local calls with the handset or base unit using a cellular line.	●You need to add your area code when making calls using a cellular line. Store your area code in order to automatically add your area code to the beginning of the 7-digit phone number when making calls using a cellular line (page 60).

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Useful Information

Problem Cause/solution
I cannot make or answer cellular calls with the handset or base unit.	·Depending on the cellular phone's compatibility, you may not be able to make or answer cellular calls even if you could register and connect the cellular phone to the base unit.·Confirm that you have registered your cellular phone to the base unit using the cellular phone (page 59). Refer to the operating instructions of your cellular phone for registration.·Confirm that your cellular phone is turned on.·Confirm that your cellular phone is connected to the base unit (page 60).·Confirm that your cellular phone is placed within the range of the base unit.·If someone is talking on a cellular call or customizing the cellular settings, you cannot use cellular feature. There can be only one active Bluetooth connection at a time.
The cellular line is available (the CELLULAR SELECT button is lit in yellow-green), but I cannot make cellular calls with the handset or base unit.	·The cellular phone is being used separately from your system.
I can make or answer cellular calls but cannot hear a sound.	·The Bluetooth technology on your cellular phone may not be functioning normally. Turn off and on your cellular phone.·Disconnect and connect the base unit AC adaptor and try again.
I cannot switch cellular calls between the base unit and cellular phone.	·Your cellular phone may not support this feature. Refer to the operating instructions of your cellular phone.
I cannot register the Bluetooth wireless headset to the base unit.	·Confirm that your Bluetooth wireless headset supports the headset profile (HSP) specification. If it does not, you cannot register it to the base unit.

Battery recharge

Problem Cause/solution
I fully charged the battery, but ☐ continues to flash, or ☐ is displayed.	● Clean the charge contacts and charge again (page 12).● The battery may need to be replaced with a new one (page 12).
The handset display is blank.	● Confirm that the battery is properly installed.● Fully charge the battery (page 12).

For assistance, please visit http://www.panasonic.com/phonehelp 79

Useful Information

FCC and other information

This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:ACJ----. If requested, this number must be provided to the telephone company.

• Registration No ......(found on the bottom of the unit)
  • Ringer Equivalence No. (REN).....0.2B

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with the product. It is designed to be connected to a compatible modular jack that is also compliant.

The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for the product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3).

If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will

notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

If trouble is experienced with this equipment, for repair or warranty information, please contact a Factory Servicenter or other Authorized Servicer. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.

If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.

This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section 68.316.

Useful Information

When you hold the phone to your ear, noise might be heard in your Hearing Aid. Some Hearing Aids are not adequately shielded from external RF (radio frequency) energy. If noise occurs, use an optional headset accessory or the speakerphone option (if applicable) when using this phone. Consult with your audiologist or Hearing Aid manufacturer about the availability of Hearing Aids which provide adequate shielding to RF energy commonly emitted by digital devices.

WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST CALLS TO EMERGENCY NUMBERS:

1) Remain on the line and briefly explain to the dispatcher the reason for the call.
2) Perform such activities in the off-peak hours, such as early morning or late evenings.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Privacy of communications may not be ensured when using this phone.

CAUTION:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Some cordless telephones operate at frequencies that may cause interference to nearby TVs and VCRs. To minimize or prevent such interference, the base of the cordless telephone should not be placed near or on top of a TV or VCR. If interference is experienced, move the cordless telephone further away from the TV or VCR. This will often reduce, or eliminate, interference.

FCC RF Exposure Warning:

The product complies with FCC radiation exposure limits set forth for an uncontrolled environment. To comply with FCC RF exposure requirements, the base unit must be installed and operated with its antenna located 20 cm (8 inches) or more between antenna and all person's body (excluding extremities of hands, wrist and feet). The handset may be carried and operated with only the optional specific belt-clip. Other non-tested belt-clips or similar body-worn accessories may not comply and must be avoided. The product must not be collocated or operated in conjunction with any other antenna or transmitter.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Useful Information

Notice

• This product is designed for use in the United States of America. Sale or use of this product in other countries may violate local laws.
• Cet appareil est conçu pour être utilisé aux États-Unis d'Amérique. La vente ou l'emploi de cet appareil dans certains autres pays peut constituer une infraction à la législation locale.
• Este producto está diseñado para usarse en los Estados Unidos de América. La venta o el empleo de este producto en ciertos países puede constituir violación de la legislación local.
• この製品は、日本国外での使用を目的として設計されており、日本国内での使用は法律違反となります。従って、当社では日本国内においては原則として修理などのサービスは致しかねます。

Specifications

General

Operating environment	5 °C – 40 °C (41 °F – 104 °F)
Frequency	2.402 GHz – 2.48 GHz
Bluetooth compliance	Bluetooth wireless technology 1.2

Base unit

Dimensions Approx. height 53 mm x width 254 mm x depth 140 mm( 2^3/_32 inches x 10 inches x 5^1/_2 inches)
Mass (Weight)	Approx. 490 g (1.08 lb.)
Power consumption Standby: Approx. 3.3 WMaximum: Approx. 5.5 W
Power output 125 mW (max.)
Power supply AC adaptor (120 V AC, 60 Hz)

Handset

Dimensions Approx. height 160 mm x width 49 mm x depth 33 mm( 6^5/_16 inches x 1^15/_16 inches x 1^5/_16 inches)
Mass (Weight)	Approx. 169 g (0.37 lb.)
Power output 125 mW (max.)
Power supply Ni-MH battery (3.6 V, 830 mAh)

Note:

• Design and specifications are subject to change without notice.
• The illustrations in these instructions may vary slightly from the actual product.

Trademarks

- The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic is under license. Other trademarks and trade names are those of their respective owners.

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Useful Information

Customer services

Customer Services Directory

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Servicenter; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/consumersupport

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:

1-800-211-PANA (1-800-211-7262),

Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

TTY users (hearing or speech impaired users) can call 1-877-833-8855.

Accessory Purchases

Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:

http://www.pasc.panasonic.com

or, send your request by E-mail to:

[e-mail]

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)

(Monday - Friday 9 am to 9 pm, EST.)

Panasonic Services Company

20421 84th Avenue South, Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

TTY users (hearing or speech impaired users) can call 1-866-605-1277.

Service in Puerto Rico

Panasonic Puerto Rico, Inc.

San Gabriel Industrial Park,

Panasonic Telephone Products Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Puerto Rico, Inc. (collectively referred to as "the warrantor") will, for the length of the period indicated on the chart below, which starts with the date of original purchase ("Limited Warranty period"), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Parts

Labor

One (1) Year One (1) Year

During the "Labor" Limited Warranty period there will be no charge for labor. During the "Parts" Limited Warranty period, there will be no charge for parts. You must mail-in your product prepaid during the Limited Warranty period. This Limited Warranty excludes both parts and labor for batteries, antennas, and cosmetic parts (cabinet). This Limited Warranty only applies to products purchased and serviced in the United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser and only covers products purchased as new.

Mail-In Service

For assistance in the continental U.S.A. in obtaining repairs please ship the product prepaid to:

Panasonic Services Company Customer Servicenter

4900 George McVay Drive Suite B Door #12 McAllen, TX 78503

For assistance in Puerto Rico call Panasonic Puerto Rico, Inc. (787)-750-4300 or fax [phone].

For Limited Warranty service for headsets if a headset is included with this product please call Panasonic Call Center at 1-800-211-PANA (1-800-211-7262).

When shipping the unit carefully pack, include all accessories, and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached.

IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Useful Information

Limited Warranty Limits And Exclusions

This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As examples, this excludes damages for lost time, lost calls or messages, cost of having someone remove or re-install an installed unit if applicable, travel to and from the servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

Direct command chart/programming index

Important:

- You can program each feature directly by using feature codes.

Press [MENU], [#], then press the desired feature code.

Note:

• When you find “*1”, “*2”, and “*3” in the following table, refer to the corresponding note below.
  *1 If you program the following features using one of the units, you do not need to program the same item using another unit.
  *2 If you reset the base unit (page 47), the marked features are reset to their default settings (base unit only).
  *3 If you have not registered your cellular phone and/or headset to the base unit, the marked features cannot be programmed.

Telephone

Feature Feature	code	Operating unit	Default setting Page
Auto edit^*2 (Caller ID number auto edit)	[2][1][4]		On 45
Auto talk	[2][0][0]		Off 45
Caller list	[2][1][3]		- 32
Customer support	[6][8][0]		- 48
Customize ring	[1][6][6]		- 42
Date and time^*1	[1][0][1]		12.31.2006 20
Deregistration(Deregistering a handset)	[1][3][1]		- 49
Deregistration(Deregistering another device)	[1][3][4]		- 49
Display^*2 (Display language)	[1][1][0]		English 19
Registration (Handset registration)	[1][3][0]		- 48
Interrupt tone^*2	[2][0][1]		2 43
Key tone	[1][6][5]		On 45
LCD contrast^*2 (Display contrast)	[1][4][5]		Level 3 45
Line select^*2	[2][5][0]		Auto 46
Message alert	[3][4][0]		Off 58

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Useful Information

Feature	Feature code	Operating unit	Default setting	Page
Phonebook	[2][8][0]		-	26, 29
Ring color	[2][3][5]		Color 1	43
Ringer tone*2	[1][6][1]		Line 1: Tone 1Line 2: Tone 2	41
Ringer volume*2	[1][6][0]		High	41
Set dial mode*1*2	[1][2][0]		Tone	20
Set flash time*1*2	[1][2][1]		700ms	46
Set line mode*1*2	[1][2][2]		B	47
Set PIN*2	[1][3][2]		7262	47
Talking CallerID	[1][6][2]		On	45
Time adjustment*1*2	[2][2][6]		Caller ID [auto]	44
Voice enhancer	[2][7][0]		Off	44

Intercom and monitor features

Feature	Feature code	Operating unit	Default setting	Page
Audio monitor	[7][2][2]		-	40
Device name(Changing the handset/base unit name)	[1][0][4]		Handset:HandsetBase unit:Base TH112	44
Monitor access^*2	[2][0][2]		Deny	40

Useful Information

Answering system features

Feature Feature	code	Operating unit	Default setting Page
Call screening ^*2	[3][1][0]		On 58
Greeting check	[3][0][3]		- 51
Greeting record	[3][0][2]		- 51
Message playback	[3][0][0]		- 53
Recording mode ^*2	[3][0][9]		Standard recording 60min 58
Recording time ^*2	[3][0][5]		3min 58
Remote code ^*2	[3][0][6]		11 57
Ring count ^*2	[2][1][1]		4 rings 57

Link to Cell feature

Feature Feature	code	Operating unit	Default setting Page
Set Area Code^*2 (For cellular calls)	[8][0][0]		-60
Discoverable^*2 (Turning on the discoverable mode)	[6][2][0]		Off66
Ringer tone^*2*3 (For cellular phones)	[6][2][9]		Tone 365
Ringer volume^*2*3 (For cellular phones)	[6][2][8]		High64
TAD (cell)^*2*3	[6][3][0]		Off65
TAD ring count^*2*3 (For cellular phones)	[6][3][1]		4 rings66

Bluetooth compatible headset

Feature Feature	code	Operating unit	Default setting Page
Headset list ^3 (Selecting a headset)	[6][2][2]		70
Registration (Registering a headset)	[6][2][1]		70

Index

Index

A Answering calls: 23

Answering system

Erasing messages: 52, 53, 55

Listening to messages: 52, 53, 55

Turning on/off: 50, 53, 55

Area code: 60

Audio cable: 42

Auto talk: 23, 45

B Base unit

Monitor: 40

Ringer tone: 41

Ringer volume: 41

Battery

Charge: 12

Installation: 12

Level: 13

Performance: 13

Replacement: 12

Belt clip: 4, 71

Bluetooth wireless technology: 59, 70

Booster (clarity booster): 25

C Call share: 39

Call Waiting: 24

Call Waiting Caller ID: 31

Caller ID number auto edit: 33, 45

Caller ID service: 31

Caller list

Calling back: 32

Editing: 33

Erasing: 34

Storing: 34

Viewing: 32

Cellular phone

Conference: 68

Connection: 60

Discoverable: 66

Making/answering calls: 61

Registration: 59

Ringer tone: 65

Ringer volume: 64

Transferring a call: 66

CID (Caller ID): 32

Conference calls: 37

Connections

AC adaptor: 9

Noise filter: 11

Telephone line cord: 9, 10, 11

Customer support: 48

Customize ring: 42

D Date and time: 20

Deregistration: 49

Device name: 44

Dialing mode: 20

Direct commands: 87

Display

Contrast: 45

Language: 19

E Error messages: 72

F Flash: 24

Flash time: 46

G Greeting message: 51

H Handset

Monitor: 40

Ringer tone: 41

Ringer volume: 41

Headset: 70, 71

Hold: 24

I Installation

Handset: 12

Intercom: 35

Interrupt tone: 43

K Key tone: 45

L Light-up ID: 32

Line mode: 47

Line selection: 46

M Making calls: 21

Memo (voice memo): 54

Memory capacity (message

recording): 50

Message alert: 58

Microphone: 22, 54

Missed calls: 32

Monitor

Audio monitor: 40

Monitor access: 40

Mute: 24

P Pause: 21, 22

Phonebook

Base unit: 29

Handset: 26

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Index

PIN: 47

Privacy feature: 39

Pulse service: 24

R Recording mode: 58

Recording time: 58

Redial list: 21, 22

Registration

Cellular phone: 59

Handset: 48

Headset: 70

Remote code: 57

Remote operation: 55

Ring color: 43

Ring count: 57

Ringer ID: 32

Ringer off: 23, 41

Ringer tone: 41

Ringer volume: 41

Rotary service: 24

S Soft keys: 18

Specifications: 83

SP-phone: 21

T TAD: 65

Talking Caller ID: 31, 45

Time adjustment: 44

Toll saver: 57

Tone: 24

Trademarks: 83

Transferring a call: 36

Troubleshooting: 74

TTY: 4, 71, 84

V VE (voice enhancer): 25, 44

Voice guidance: 53, 55

Voice Mail service: 57

Volume

Receiver: 21

Ringer: 41

Speaker: 21, 22

W Wall-mounting: 4, 71

Warranty: 85

Pure geometric diagram with intersecting lines and circles, no text or symbols present

If you need assistance with setup or operation

1 Visit our website: http://www.panasonic.com/phonehelp
2 Contact us via the web at: http://www.panasonic.com/contactinfo
3 Call us at: 1-800-211-PANA (1-800-211-7262) TTY users (hearing or speech impaired users) can call 1-877-833-8855.

When you ship the product

• Carefully pack your unit, preferably in the original carton.
• Attach a letter, detailing the symptom, to the outside of the carton.
• Send the unit to Panasonic Services Company Customer Servicenter, prepaid and adequately insured.
• Do not send your unit to Panasonic Consumer Electronics Company listed below or to executive or regional sales offices. These locations do not repair consumer products.

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus, New Jersey 07094

Panasonic Puerto Rico, Inc.

San Gabriel Industrial Park, Ave. 65 de Infantería, Km. 9.5, Carolina, Puerto Rico 00985

Copyright:

This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd. © 2006 Panasonic Communications Co., Ltd. All Rights Reserved.

PQQX15313ZA DM0506MK0

Pure geometric diagram with intersecting lines and circles, no text or symbols present

MK0
