button.
- The [OVERLAPPED BLACK LEVEL] screen is displayed.
- [RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF].
24) Press ▲▼ to select an item, and press ◀▶ to adjust the setting.


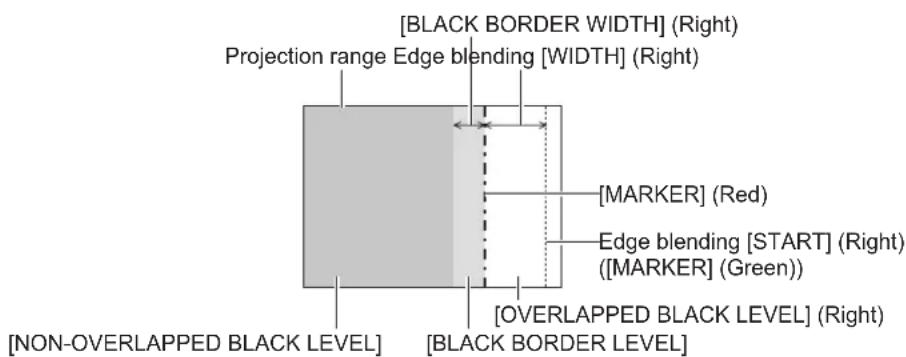

[BLACK BORDER WIDTH] (Right)
Projection range Edge blending [WIDTH] (Right)
[MARKER] (Red)
Edge blending [START] (Right)
([MARKER] (Green))
[OVERLAPPED BLACK LEVEL] (Right)
[NON-OVERLAPPED BLACK LEVEL]
[BLACK BORDER LEVEL]
Note
[BRIGHTNESS ADJUST] is a function that makes the increased brightness in black level of the overlapping image area difficult to notice when [EDGE BLENDING] is used to configure multiple screens. The optimal point of correction is set by adjusting [NON-OVERLAPPED BLACK LEVEL] so the black level of the overlapping image area will be the same level as the non-overlapping area. If the border area of the part where the image is overlapping and the non-overlapping part gets brighter after adjusting [NON-OVERLAPPED BLACK LEVEL], adjust the width of the top, bottom, left, or right. Adjust [BLACK BORDER LEVEL] when the width adjustment makes only the border area darker.
The joining part may look discontinuous depending on the position you are looking from when a screen with high gain or rear screen is used.
When configuring multiple screens using both horizontal and vertical edge blending, adjust [OVERLAPPED BLACK LEVEL] first before making adjustments in Step 12). Adjustment method is same as the procedure of [NON-OVERLAPPED BLACK LEVEL].
If only horizontal or vertical edge blending is used, set all items in [OVERLAPPED BLACK LEVEL] to 0.
The [AUTO TESTPATTERN] setting changes synchronizing with [AUTO TESTPATTERN] of [COLOR MATCHING].
Adjustment of the tilt of the border between [NON-OVERLAPPED BLACK LEVEL] and [BLACK BORDER LEVEL] is a function to perform the adjustment of [GEOMETRY] (→ page 93) together with the edge blending. If [NON-OVERLAPPED BLACK LEVEL] is tilted by correcting the keystone from [KEYSTONE] in [GEOMETRY], perform Steps 17) and 18) to adjust the edge blending according to the shape of [NON-OVERLAPPED BLACK LEVEL].
[FRAME RESPONSE]
Set image frame delay.
1) Press ▲▼ to select [FRAME RESPONSE].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[NORMAL] Standard setting. [FAST]*1 Simplifies the image processing to reduce image frame delay. [FIXED]*2 Sets image frame delay to be constant regardless of the image position or magnification.
*1 When input signals are other than interlaced signals, [FAST] cannot be set.
Note
- [DIGITAL CINEMA REALITY] cannot be set when [FRAME RESPONSE] is set to [FAST].
•[FRAME RESPONSE] cannot be set during P IN P.
[FRAME CREATION]
Set the amount of image frame interpolation.
The image with fast movement can be displayed more smoothly by automatically generating the intermediate frame from the previous and next frame.
1) Press ▲▼ to select [FRAME CREATION].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Disables the frame creation function. [1] Sets the amount of interpolation weaker. [2] Sets the amount of interpolation midway. (Factory default) [3] Sets the amount of interpolation stronger.
Note
The effect may be difficult to notice depending on the image.
Switch the setting when the image looks unnatural due to delay of image or generation of noise.
[FRAME CREATION] is disabled and cannot be selected when [FRAME RESPONSE] is set to [FAST].
[FRAME CREATION] is disabled and cannot be selected when the [3D SETTINGS] menu → [3D SYSTEM SETTING] (→ page 103) is set to [DUAL (LEFT)] or [DUAL (RIGHT)].
[FRAME CREATION] is disabled and cannot be selected when the [3D SETTINGS] menu → [3D INPUT FORMAT] (→ page 104) is set to [AUTO], [SIMULTANEOUS], [SIDE BY SIDE], [TOP AND BOTTOM], [LINE BY LINE], or [FRAME SEQUENTIAL]. In [AUTO], however, this only occurs when 3D format can be recognized.
The [FRAME CREATION] setting will be disabled and cannot be selected when the [DISPLAY OPTION] menu → [SIMUL INPUT SETTING] (→ page 112) is set to [AUTO(3D)] or [AUTO(2D)] and the image in simultaneous format is displayed.
This function is disabled when the internal test pattern or [3D TEST PATTERN] is displayed.
[FRAME LOCK]
Set this function to display the image in 3D when the vertical scanning frequency of the signal is 25 Hz, 50 Hz, and 100 Hz.
1) Press ▲▼ to select [FRAME LOCK].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Decreases the flickering of the displayed image. [ON] Synchronizes the displayed image to the vertical scanning frequency of the input signal.
Note
[FRAME LOCK] is not displayed when a signal with the vertical scanning frequency other than the above is input or 2D images are displayed.
The image may flicker when [FRAME LOCK] is set to [ON].
The displayed image may look discontinuous when [FRAME LOCK] is set to [OFF].
[RASTER POSITION]
This will allow the position of the image to move within the display area arbitrarily when the input image is not using the whole display area.
1) Press ▲▼ to select [RASTER POSITION]. button.
- The [RASTER POSITION] screen is displayed.
3) Press ▲▼◀▶ to adjust the position.

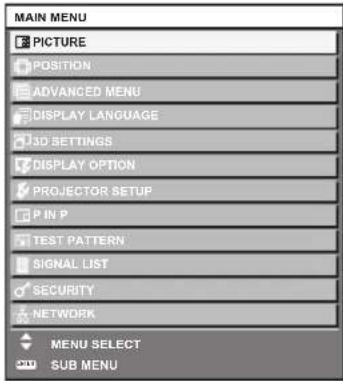

On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu. Refer to "Navigating through the menu" ( page 77) for the operation of the menu screen.

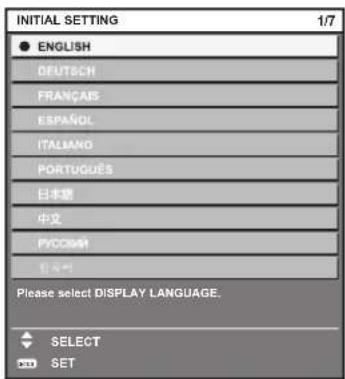

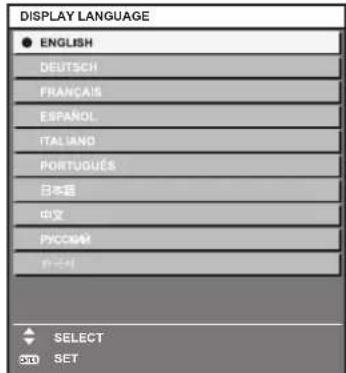

Changing the display language
You can select the language of the on-screen display.
1) Press ▲▼ to select the display language and press the button.
● ENGLISH
DEUTSCH
FRANÇAIS
ESPAROL
ITALIANO
PORTUGUES
日本語
中文
PICCOM
SELECT
SET
Various menus, settings, adjustment screens, control button names, etc., are displayed in the selected language.
The language can be changed to English, German, French, Spanish, Italian, Portuguese, Japanese, Chinese, Russian, or Korean.
Note
- The on-screen display language of the projector is set to English by default as well as when [ALL USER DATA] (→ page 148) in [INITIALIZE] is executed.
On the menu screen, select [3D SETTINGS] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” ( page 77) for the operation of the menu screen.
[3D SYSTEM SETTING]
Set the image display method to be used during 3D signal input, according to the 3D system in use.
1) Press ▲▼ to select [3D SYSTEM SETTING].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[SINGLE] During 3D signal input, images for the left eye and right eye are alternately displayed using the frame sequential format. [DUAL (LEFT)] Only images for the left eye are displayed during 3D signal input. [DUAL (RIGHT)] Only images for the right eye are displayed during 3D signal input.
Note
- When 2D images are input, 2D images are displayed regardless of the [3D SYSTEM SETTING] settings.
[3D SYNC SETTING]

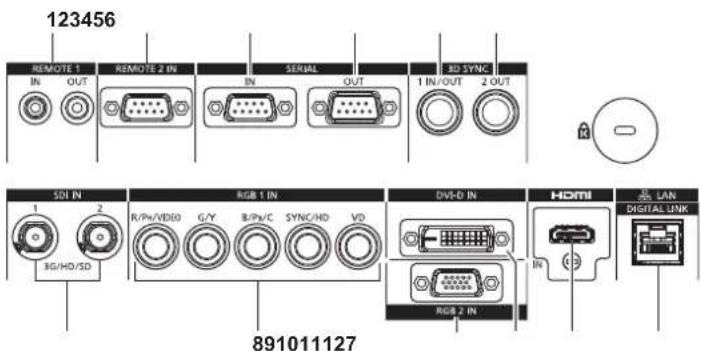

Set the way in which the <3D SYNC 1 IN/OUT> terminal and the <3D SYNC 2 OUT> terminal will be used.
Attention
Before connecting external devices to the <3D SYNC 1 IN/OUT> terminal and the <3D SYNC 2 OUT> terminal using cables, complete the [3D SYNC MODE] setting and confirm that the external devices to be connected are turned off.
Changing the [3D SYNC MODE] setting while the cables are connected may result in malfunctions of the projector or the connected external devices.
1) Press ▲▼ to select [3D SYNC SETTING]. button.
- The precaution message related to [3D SYNC SETTING] is displayed.
3) Press the button.
[3D SYNC MODE] Details to be set in [3D SYNC1] Details to be set in [3D SYNC2] [OFF] Not used. Not used. [1] 3D trigger output Stereo synch output [2] 3D trigger output 3D trigger output [3] Stereo synch input Through 3D SYNC1 [4] Stereo synch input Stereo synch output [5] Stereo synch input 3D trigger output [6] Frame synch input Through 3D SYNC1 [7] Frame synch input Stereo synch output [8] Frame synch input 3D trigger output [9] 3D trigger output Frame synch output [10] Stereo synch output Frame synch output [11] 3D IR TRANSMITTER (+) output 3D IR TRANSMITTER (−) output
6) When [1], [4], [7], or [10] is selected, press ▲▼ to select [STEREO SYNC OUTPUT DELAY], and press ◀▶ to set the amount of delay for output.
[0us] - [25000us]
Sets the amount in 10 us increments.

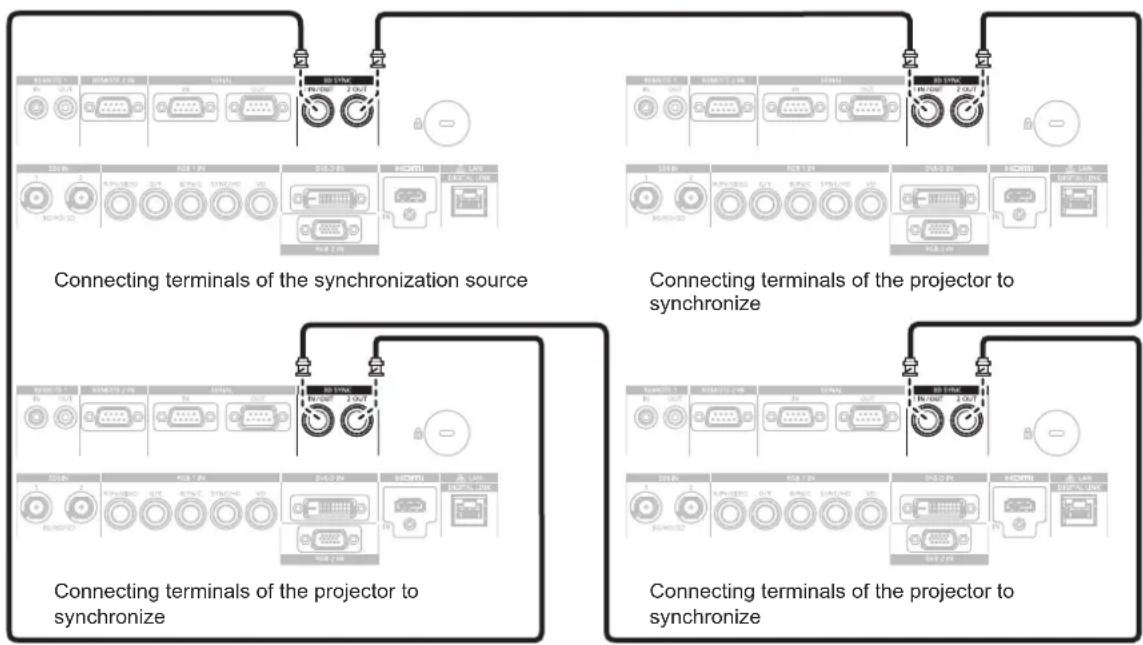

- To synchronize multiple projectors to display 3D images, use a frame synch input and output. Select [9] or [10] for the first projector.
Select [6], [7], or [8] for the second and subsequent projectors.
Stereo synchronization is a signal having a 50% duty cycle where High is for the left eye and Low is for the right eye.
“H” is output to the 3D image display and “L” is output to the 2D image display from the terminal for which 3D trigger output is selected.
Note
[11] in [3D SYNC MODE] is the setting when the 3D IR transmitter TY-3DTRW of Panasonic (production discontinued) is used with the projector. Consult your dealer regarding the connection method.
The following settings are disabled and the contrast synchronization function and shutter synchronization function cannot be used when [3D SYNC SETTING] is set to anything other than [OFF].
The [PICTURE] menu → [DYNAMIC CONTRAST] → [USER] → [MULTI PROJECTOR SYNC]
The [DISPLAY OPTION] menu → [SHUTTER SETTING] → [MULTI PROJECTOR SYNC]
The [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC]
The [3D SYNC SETTING] setting is disabled and fixed to [OFF] when the [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC] → [MODE] is set to anything other than [OFF].
Set the 3D format for the image signals being input.
Set a 3D format that matches the input signal.
1) Press ▲▼ to select [3D INPUT FORMAT].
2) Press the button.
- The [3D INPUT FORMAT] screen is displayed.
3) Press ▲▼ to select a 3D format.
[AUTO]*1 Automatically detects 3D format of input image signals to display images. [NATIVE] Forcibly displays 2D images regardless of input image signals. [SIMULTANEOUS]*2 Forcibly displays 3D images in simultaneous format regardless of input video signals. [SIDE BY SIDE] Forcibly displays 3D images in side by side format regardless of input image signals. [TOP AND BOTTOM] Forcibly displays 3D images in top and bottom format regardless of input image signals. [LINE BY LINE]*3 Forcibly displays 3D images in line by line format regardless of input video signals. [FRAME SEQUENTIAL]*4 Forcibly displays 3D images in frame sequential format regardless of input image signals.
*1 Only during DVI-D or HDMI input // terminals
4) Press the button.
Note
- When [AUTO], [SIMULTANEOUS], [SIDE BY SIDE], [TOP AND BOTTOM], [LINE BY LINE], or [FRAME SEQUENTIAL] is set, 3D images are not displayed with the [DISPLAY OPTION] menu → [SIMUL INPUT SETTING]. In [AUTO], however, this only occurs when 3D format can be recognized.
- This may not function properly for some connected external devices.
[LEFT/RIGHT SWAP]
Display images by inverting the timing when the left and right images are swapped. Change the setting when there is something wrong with the 3D image being viewed.
1) Press ▲▼ to select [LEFT/RIGHT SWAP].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[NORMAL] Do not change the [NORMAL] setting if the 3D images are displayed correctly. [SWAPPED] Select this item when left and right 3D images are swapped to be displayed.
Note
- This function is disabled when [3D SYSTEM SETTING] is set to anything other than [SINGLE].
[3D COLOR MATCHING]
Switch the color matching correction data applied to displayed image.
1) Press ▲▼ to select [3D COLOR MATCHING].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[SHARED 2D/3D] Uses same correction data for 2D signal and 3D signal. [SEPARATE 2D/3D] Uses different correction data for 2D signal and 3D signal.
Note
- Switch the setting of [COLOR MATCHING] (→ page 108) while the signal to be adjusted is being input.
[3D PICTURE BALANCE]
Correct the difference when the images for left eye and right eye have different brightness or color.
1) Press ▲▼ to select [3D PICTURE BALANCE].
2) Press the button.
- The [3D PICTURE BALANCE] screen is displayed.
3) Press ▲▼ to select an item, and press ◀▶ to adjust the setting.
- Using the left eye image as a reference, the right eye image is corrected using the set value.

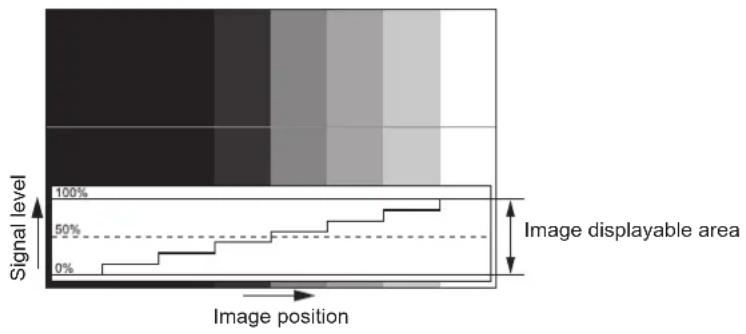

- For [3D WAVEFORM MONITOR], the images for the left eye and right eye are split horizontally on the left and right, and waveforms are displayed.
[CONTRAST] Adjusts the contrast of colors. [WHITE BALANCE HIGH RED] Adjusts the red color of the white balance high. [WHITE BALANCE HIGH GREEN] Adjusts the green color of the white balance high. [WHITE BALANCE HIGH BLUE] Adjusts the blue color of the white balance high. [BRIGHTNESS] Adjusts the dark (black) part of the projected image. [WHITE BALANCE LOW RED] Adjusts the red color of the white balance low. [WHITE BALANCE LOW GREEN] Adjusts the green color of the white balance low. [WHITE BALANCE LOW BLUE] Adjusts the blue color of the white balance low. [COLOR] Adjusts the color saturation. [TINT] Adjusts the skin tone in the projected image. [CLOCK PHASE] Adjusts the image when there is flickering in the image or blur of the outline. [3D WAVEFORM MONITOR] [OFF] Does not display the 3D waveform monitor. [ON] Displays the 3D waveform monitor.
Note
The [CLOCK PHASE] setting is enabled during simultaneous input of RGB1 and RGB2, and is adjusted against the right eye image.
This function is disabled when [3D SYSTEM SETTING] is set to anything other than [SINGLE].
This function is disabled when [3D TEST PATTERN] is displayed.
This function is disabled when [3D TEST MODE] is set to anything other than [NORMAL].
The 3D waveform monitor is displayed only when the [3D PICTURE BALANCE] screen is displayed.
The normal waveform monitor cannot be displayed when the 3D image is displayed.
[DARK TIME SETTING]
Set the black display period that is displayed between the right eye image and the left eye image to match the 3D system in use.
1) Press ▲▼ to select [DARK TIME SETTING].
- The items will switch each time you press the button.
[0.5ms] Sets an item so that 3D setting is made correctly. [1.0ms] [1.5ms] [2.0ms] [2.5ms] [2.7ms]
Note
This function is disabled when [3D SYSTEM SETTING] is set to anything other than [SINGLE].
The crosstalk may get larger or the displayed image may get darker when the setting does not match with the 3D system in use.
[3D FRAME DELAY]
Adjust the timing of the left-right switch of an image.
1) Press ▲▼ to select [3D FRAME DELAY].
2) Press ◀▶ to switch the item.
[0us] - [25000us] Sets the amount in 10 us increments.
- The adjustment range depends on the input signal.
[3D TEST MODE]
Set the image display mode for use with 3D system adjustments.
1) Press ▲▼ to select [3D TEST MODE].
2) Press ◀▶ to switch the item.
[NORMAL] Normal setting. [LEFT/LEFT] Displays the image of the left eye input signal for both the left and right eye image. [RIGHT/RIGHT] Displays the image of the right eye input signal for both the left and right eye images. [LEFT/BLACK] Displays the image of the left eye input signal for the left eye image, and all black images for the right eye image. [BLACK/RIGHT] Displays all black images for the left eye image, and the image of the right eye input signal for the right eye image.
Note
The [3D TEST MODE] setting returns to [NORMAL] when the projector is switched off.
This function is disabled when [3D SYSTEM SETTING] is set to anything other than [SINGLE].
This function is disabled when [3D TEST PATTERN] is displayed.
[3D TEST PATTERN]
The 3D test pattern can be used to check operation and make adjustments even without a 3D signal.
1) Press ▲▼ to select [3D TEST PATTERN].
2) Press ◀▶ to switch the item.
Menu screen + input screen Select a test pattern that is easy to check operation or make adjustment. Menu screen + left: white/right: black Menu screen + left: black/right: white
Note
When the [DISPLAY OPTION] menu → [RGB IN] → [RGB1 INPUT SETTING] (→ page 113) is set to [VIDEO] or [Y/C], the 3D test pattern cannot be displayed while the terminal is selected.
This function is disabled when [3D SYSTEM SETTING] is set to anything other than [SINGLE].
[SAFETY PRECAUTIONS MESSAGE]
Set to show or hide the safety precautions message related to 3D viewing when the projector is switched on.
1) Press ▲▼ to select [SAFETY PRECAUTIONS MESSAGE].
2) Press ◀▶ to switch the item.
•The items will switch each time you press the button.
[ON] Shows the safety precautions message related to 3D viewing when the projector is switched on. [OFF] Hides the safety precautions message related to 3D viewing when the projector is switched on.
Note
If [OFF] is set, the safety precautions message related to 3D viewing is not displayed when the projector is switched on.
A confirmation screen is displayed when switched from [ON] to [OFF]. Press ◀▶ to select [OK], and press the button to change the setting to [OFF].
Attention
- If 3D images are viewed by unspecified number of people for commercial use, display the safety precautions message related to 3D viewing to notify viewers.

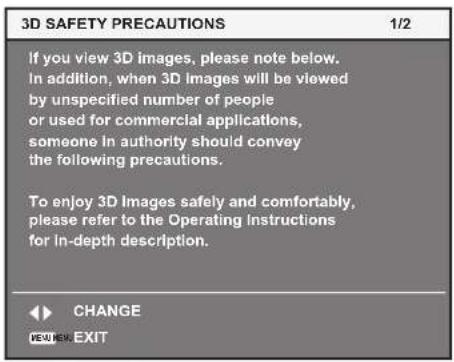

[3D SAFETY PRECAUTIONS]
Show the safety precautions message related to 3D viewing.
1) Press ▲▼ to select [3D SAFETY PRECAUTIONS]. button.
• The [3D SAFETY PRECAUTIONS] screen is displayed.
- Press ◀▶ to switch the page.
If you view 3D images, please note below.
In addition, when 3D Images will be viewed
by unspecified number of people
or used for commercial applications,
someone in authority should convey
the following precautions.
To enjoy 3D Images safely and comfortably,
please refer to the Operating Instructions
for in-depth description.
CHANGE
VIEW NOW EXIT

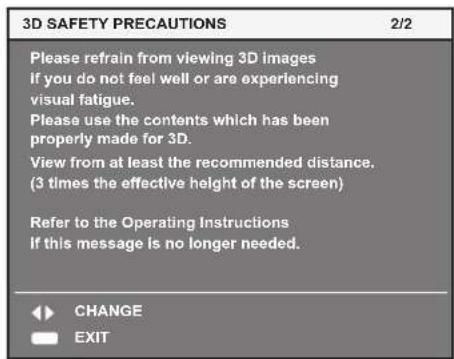

2/2
Please refrain from viewing 3D images
If you do not feel well or are experiencing
visual fatigue.
Please use the contents which has been
properly made for 3D.
View from at least the recommended distance.
(3 times the effective height of the screen)
Refer to the Operating Instructions
If this message is no longer needed.
CHANGE
EXIT
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" (→ page 77) for the operation of the menu screen.
[COLOR MATCHING]
Correct the color difference between projectors when using multiple projectors simultaneously.
Adjusting the color matching as desired
1) Press ▲▼ to select [COLOR MATCHING].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Color matching adjustment is not carried out. [3COLORS] Adjusts the three colors [RED], [GREEN], or [BLUE]. [7COLORS] Adjusts the seven colors [RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE]. [709MODE] Refer to “Adjusting the color matching using a colorimeter” (→ page 108) for details about this mode. [MEASURED]
3) Select [3COLORS] or [7COLORS], and press the button.
- The [3COLORS] or [7COLORS] screen is displayed.
4) Press ▲▼ to select [RED], [GREEN], or [BLUE] ([RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE] for [7COLORS]).
5) Press the button.
The [3COLORS:RED], [3COLORS:GREEN], or [3COLORS:BLUE] screen is displayed.
By setting [AUTO TESTPATTERN] to [ON], the test pattern for the selected color is displayed.
6) Press ▲▼ to select [RED], [GREEN], or [BLUE].
7) Press ◀▶ to adjust.
- The adjustment value changes between 0 and 2 048.
Note
•Operation when correcting the adjustment color
When the correction color same as the adjustment color is changed: The luminance of the adjustment color changes.
When correction color red is changed: Red is added to or subtracted from the adjustment color.
When correction color green is changed: Green is added to or subtracted from the adjustment color.
When correction color blue is changed: Blue is added to or subtracted from the adjustment color.
Since advanced skills are necessary for the adjustment, this adjustment should be carried out by a person who is familiar with the projector or by a service person.
Pressing the button on the remote control will restore the factory default settings for all items.
When [COLOR MATCHING] is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER1].
By setting [3D COLOR MATCHING] (→ page 105), you can set whether to configure separate settings for 2D signal and 3D signal, or to use common data.
Either [NATIVE] or [3D] is displayed at the top right of the menu when separate settings are used for 2D signal and 3D signal.
Adjusting the color matching using a colorimeter
Use a colorimeter that can measure chromaticity coordinates and luminance to change the colors [RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE] to desired colors.
1) Press ▲▼ to select [COLOR MATCHING]. button.
- The [709MODE] or [MEASURED MODE] screen is displayed.
4) Press ▲▼ to select [MEASURED DATA]. button.
- The [MEASURED DATA] screen is displayed.
6) Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter.
- Set [AUTO TESTPATTERN] to [ON] to display a test pattern of selected colors.
8) Once all the input is completed, press the
button.
The [709MODE] or [MEASURED MODE] screen is displayed.
When [MEASURED] is selected in Step 2), proceed to Step 9) and enter the coordinates of desired colors.
9) Press ▲▼ to select [TARGET DATA].
10) Press the button.
- The [TARGET DATA] screen is displayed.
11) Press ▲▼ to select a color and press ◀▶ to input coordinates for desired colors.
- By setting [AUTO TESTPATTERN] to [ON], the test pattern for the selected color is displayed.
12) Once all the input is completed, press the
button.
Note
When [709MODE] is selected in [COLOR MATCHING], the ITU-R BT.709 standard three primary colors are set as target data.
Colors are not displayed properly when target data is a color outside the region of this projector.
The [709MODE] may differ slightly from the ITU-R BT.709 standard colors.
Set the [AUTO TESTPATTERN] to [ON] to automatically display a test pattern for use in adjusting the selected adjustment colors.
Before using a colorimeter or similar instrument to measure measurement data, set [PICTURE MODE] to [DYNAMIC].
A difference in the color coordinates of target data and measurement values obtained from an instrument may occur for certain instruments and measurement environments used.
[AUTO TESTPATTERN] settings change together with the [AUTO TESTPATTERN] of [EDGE BLENDING].
[LARGE SCREEN CORRECTION]
Corrects the phenomenon in which colors that appear lighter when viewed on a large screen viewed from a close distance compared to when viewed on an average screen size so that colors appear the same.
1) Press ▲▼ to select [LARGE SCREEN CORRECTION].
2) Press ◀▶ to switch the item.
[OFF] Performs no correction. [1] Performs weak correction. [2] Performs strong correction.

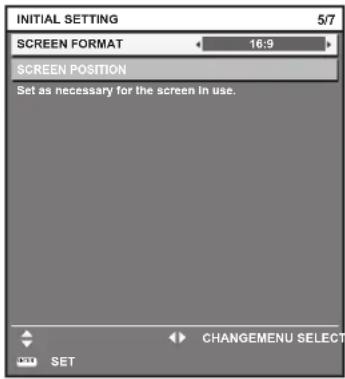

[SCREEN SETTING]
Set the screen size.
Correct to the optimum image position for the set screen when the aspect ratio of a projected image is changed. Set as necessary for the screen in use.
1) Press ▲▼ to select [SCREEN SETTING].
2) Press the button.
- The [SCREEN SETTING] screen is displayed.
3) Press ◀▶ to switch the [SCREEN FORMAT] item.
- The items will switch each time you press the button.
Model No. [SCREEN FORMAT] Range when [SCREEN POSITION] is selected PT-RZ12K [16:10] Cannot be adjusted. [4:3] Adjusts the horizontal position between -160 and 160. [16:9] Adjusts the vertical position between -60 and 60. Model No. [SCREEN FORMAT] Range when [SCREEN POSITION] is selected PT-RS11K [4:3] Cannot be adjusted. [16:9] Adjusts the vertical position between -132 and 131.
4) Press ▲▼ to select [SCREEN POSITION].
[SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMAT] is set to the following item.
5) Press ◀▶ to adjust [SCREEN POSITION].
[AUTO SIGNAL]
Set whether to execute automatic setup of signals automatically.
The screen display position or signal level can be adjusted automatically without pressing the button on the remote control on each occasion if you input unregistered signals frequently at meetings, etc.
1) Press ▲▼ to select [AUTO SIGNAL].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Sets the auto signal function to off. [ON] Executes automatic setup automatically when images are changed to unregistered signals during projection.
[AUTO SETUP]
Set this when adjusting a special signal or horizontally long (such as 16:9) signal.
Setting with [MODE]
1) Press ▲▼ to select [AUTO SETUP]. button.
- The [AUTO SETUP] screen is displayed.
3) Press ▲▼ to select [MODE].
- The items will switch each time you press the button.
[DEFAULT] Standard setting. [WIDE] Select this item when an image aspect ratio is a wide-screen signal, which does not meet the [DEFAULT] setting. [USER] Select this item when receiving a signal with a special horizontal resolution (number of display dots).
When [DEFAULT] or [WIDE] is selected, proceed to Step 7).
When [USER] is selected, proceed to Step 5).
5) Press ▲▼ to select [DISPLAY DOTS], and press ◀▶ to adjust [DISPLAY DOTS] to the horizontal resolution of the signal source. button.
- Automatic adjustment is executed. [PROGRESS] is displayed while in automatic adjustment. When completed, the screen returns to the [AUTO SETUP] screen.
Adjusting position automatically
1) Press ▲▼ to select [AUTO SETUP].
- The [AUTO SETUP] screen is displayed.
3) Press ▲▼ to select [POSITION ADJUST].
4) Press ◀▶ to switch the item.
[ON] Adjust the screen position and size when automatic setup is executed. [OFF] Does not perform automatic adjustment.
Adjusting signal level automatically
1) Press ▲▼ to select [AUTO SETUP].
- The [AUTO SETUP] screen is displayed.
3) Press ▲▼ to select [SIGNAL LEVEL ADJUST].
4) Press ◀▶ to switch the item.
[OFF] Does not perform automatic adjustment. [ON] Adjusts black level (on-screen menu [BRIGHTNESS]) and white level (on-screen menu [CONTRAST]) when automatic setup is executed.
Note
- [SIGNAL LEVEL ADJUST] may not function properly unless a still image containing clear blacks and whites is input.
Set the backup function that switches the signal to the backup input signal as seamless as possible when input signal is disrupted.
- The [BACKUP INPUT SETTING] screen is displayed.
4) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Disables the backup function. [1] Enables the backup function between the DVI-D input and the HDMI input.The input is switched as seamless as possible when the same signal is input to the primary and secondary inputs.Primary input is fixed to theterminal, and the secondary input is fixed to theterminal. [2] Enables the backup function between the SDI1 input and the SDI2 input.The input is switched as seamless as possible when the same signal is input to the primary and secondary inputs.Primary input is fixed to theterminal, and the secondary input is fixed to theterminal.
5) Press ▲▼ to select [AUTOMATIC SWITCHING].
- When [BACKUP INPUT MODE] is set to [OFF], [AUTOMATIC SWITCHING] cannot be selected.
6) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[ENABLE] Switches to the secondary input automatically when the input signal for primary input is disrupted. [DISABLE] Disables the automatic input switching function.
Note
Backup function is enabled when [BACKUP INPUT MODE] is set to [1], and the same signal is input to the and terminals. terminal and the .
To switch to the backup input signal using the backup function, make sure that the following three conditions are satisfied to be ready to use the function.
If the input is switched to other than the primary or secondary input while the backup function is ready for use, the state of readiness to use the backup function is canceled. To switch to the backup input signal using the backup function again, switch to the primary input.
[BACKUP INPUT STATUS] is displayed in the input guide ( page 119) and [STATUS] screen ( pages 74, 146) when [BACKUP INPUT MODE] is set to anything other than [OFF].
The input is switched seamlessly when the inputs of the DVI-D and the HDMI are switched while [BACKUP INPUT MODE] is set to [1] and switching to the backup input signal is possible.
If [BACKUP INPUT MODE] is set to [2], the input is switched seamlessly when the inputs of SDI1 and SDI2 are switched while switching to the backup input signal is possible.
When [AUTOMATIC SWITCHING] is set to [ENABLE], and [BACKUP INPUT STATUS] is [ACTIVE], the signal is switched to the backup input if the input signal is disrupted.
When [AUTOMATIC SWITCHING] is set to [ENABLE] and the signal is automatically switched to the backup input due to disruption of the input signal, [BACKUP INPUT STATUS] changes to [INACTIVE]. In this case, switching to the backup input signal is not possible until the original input signal is restored. If the signal is automatically switched to the backup input, switching to the backup input signal becomes possible when the original input signal is restored. In this case, the current input is retained.
[BACKUP INPUT SETTING] cannot be set during P IN P. The backup operation is not performed either.
[BACKUP INPUT SETTING] cannot be set when the [DISPLAY OPTION] menu → [SIMUL INPUT SETTING] → [HDMI/DVI-D] or [SDI1/SDI2] is set to anything other than [OFF]. The backup operation is not performed either.
[BACKUP INPUT SETTING] cannot be set when the [DISPLAY OPTION] menu → [SDI IN] → [SDI LINK] is set to [DUAL LINK] or [AUTO]. The backup operation is not performed either.
Set this function when the video signal in simultaneous format is input and used.
1) Press ▲▼ to select [SIMUL INPUT SETTING].
2) Press the button.
- The [SIMUL INPUT SETTING] screen is displayed.
3) Press ▲▼ button to select [RGB1/RGB2], [HDMI/DVI-D], or [SDI1/SDI2].
4) Press ◀▶ to switch the setting.
- The items will switch each time you press the button.
[OFF] This is not used for simultaneous input. [AUTO(3D)] Displays 3D images of the simultaneous format. [AUTO(2D)]*1 Displays 2D image of the simultaneous format.
*1 This can be set only when [SIMUL INPUT SETTING] is set to [HDMI/DVI-D] or [SDI1/SDI2].
Note
If [AUTO(2D)] is set, 2D images are displayed when the same 2D compatible signals are entered to each input.
If [AUTO(3D)] is set, 3D images are displayed when the same 3D compatible signals are entered to each input.
[SIMUL INPUT SETTING] cannot be set when [BACKUP INPUT MODE] is set to anything other than [OFF].
This may not function properly for some connected external devices.
This may not function properly depending on the signal.
Usage of each input signal is displayed in [RGB1] and [RGB2], in [HDMI] and [DVI-D], and in [SDI1] and [SDI2] of the [SIMUL INPUT SETTING] screen when [AUTO(3D)] or [AUTO(2D)] is set.
[SIMUL INPUT SETTING] Usage of the input signal Details [AUTO(3D)] [LEFT INPUT] Uses the signal for the corresponding input as a signal for the left eye image. [RIGHT INPUT] Uses the signal for the corresponding input as a signal for the right eye image. [AUTO(2D)] ^1 [1st FRAME INPUT] Uses the signal for the corresponding input as a signal for the odd frame. [2nd FRAME INPUT] Uses the signal for the corresponding input as a signal for the even frame.
*1 This can be set only when [SIMUL INPUT SETTING] is set to [HDMI/DVI-D] or [SDI1/SDI2].
[RGB IN]
Set to match the signal to input to the terminal.
1) Press ▲▼ to select [RGB IN]. button.
- The [RGB IN] screen is displayed.
3) Press ▲▼ to select [RGB1 INPUT SETTING].
- The items will switch each time you press the button.
[RGB/YPBPR] Select this item when an RGB signal or YC _BC_R/YP_BP_R signal is input to theterminal. [VIDEO] Select this item when a video signal is input to the(,) terminal. [Y/C] Select this item when a luminance signal and color signal are input to the(,) terminal.
1) Press ▲▼ to select [RGB IN]. button.
- The [RGB IN] screen is displayed.
3) Press ▲▼ to select [RGB1 SYNC SLICE LEVEL] or [RGB2 SYNC SLICE LEVEL].
[LOW] Sets the slice level to [LOW]. [HIGH] Sets the slice level to [HIGH].
Setting [RGB2 EDID MODE]
1) Press ▲▼ to select [RGB IN]. button.
- The [RGB IN] screen is displayed.
3) Press ▲▼ to select [RGB2 EDID MODE]. button.
- The [RGB2 EDID MODE] screen is displayed.
5) Press ◀▶ to switch [EDID MODE].
- The items will switch each time you press the button.
[DEFAULT] Standard setting. [SCREEN FIT] Changes EDID data according to the [SCREEN FORMAT] setting. [USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items to EDID.
- When [DEFAULT] or [SCREEN FIT] is selected, proceed to Step 10).
- The [RESOLUTION] screen is displayed.
7) Press ▲▼◀▶ to select [RESOLUTION].
- Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
- The [VERTICAL SCAN FREQUENCY] screen is displayed.
9) Press ◀▶ to select [VERTICAL SCAN FREQUENCY].
Select [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [1920x1080p] is selected for [RESOLUTION].
Select [60Hz], [50Hz], or [48Hz] when [1920x1080i] is selected for [RESOLUTION].
Select [60Hz] or [50Hz] when anything other than [1920x1080p] or [1920x1080i] is selected for [RESOLUTION].
•The confirmation screen is displayed.
Note
The setting details are displayed in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] of [EDID STATUS].
The resolution and vertical scanning frequency settings may also be required on your computer or video device.
After configuring settings, your computer or video device or the projector may be required to be turned off and on.
A signal may not be output with the resolution and vertical scanning frequency that have been set, depending on your computer or video device.
[DVI-D IN]
Switch the setting when the external device is connected to the terminal of the projector and the image is not projected correctly.
1) Press ▲▼ to select [DVI-D IN].
- The [DVI-D IN] screen is displayed.
3) Press ▲▼ to select [EDID SELECT].
4) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[EDID3] Recognizes movie-based video signals and still image signals automatically. [EDID1] Select this item mainly when an external device that outputs movie-based video signals (such as a Blu-ray disc player) is connected to theterminal. [EDID2:PC] Select this item mainly when an external device that outputs still image-based video signals (such as a computer) is connected to theterminal.
5) Press ▲▼ to select [SIGNAL LEVEL].
6) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[AUTO] Automatically sets the signal level. [0-255:PC] Select this item when the signal output from the DVI-D terminal of an external device (such as a computer) is input to theterminal. [16-235] Select this item when the signal output from the HDMI terminal of an external device (Blu-ray disc player, etc.) is input to theterminal using a conversion cable, etc.
Note
The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the external device regarding the output of the external device.
The data for Plug and play will change when the setting is changed. Refer to "List of compatible signals" ( page 210) for a resolution that supports plug and play.
Setting [EDID MODE]
1) Press ▲▼ to select [DVI-D IN]. button.
- The [DVI-D IN] screen is displayed.
3) Press ▲▼ to select [EDID MODE]. button.
- The [DVI-D EDID MODE] screen is displayed.
5) Press ◀▶ to switch [EDID MODE].
- The items will switch each time you press the button.
[DEFAULT] Standard setting. [SCREEN FIT] Changes EDID data according to the [SCREEN FORMAT] setting. [USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items to EDID.
- When [DEFAULT] or [SCREEN FIT] is selected, proceed to Step 10).
6) Press the button.
- The [RESOLUTION] screen is displayed.
7) Press ▲▼◀▶ to select [RESOLUTION].
- Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
8) Press the button.
- The [VERTICAL SCAN FREQUENCY] screen is displayed.
9) Press ◀▶ to select [VERTICAL SCAN FREQUENCY].
Select [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [1920x1080p] is selected for [RESOLUTION].
Select [60Hz], [50Hz], or [48Hz] when [1920x1080i] is selected for [RESOLUTION].
Select [60Hz] or [50Hz] when anything other than [1920x1080p] or [1920x1080i] is selected for [RESOLUTION].
10) Press the button.
•The confirmation screen is displayed.
11) Press ◀▶ to select [OK], and press the button.
Note
The setting details are displayed in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] of [EDID STATUS].
The resolution and vertical scanning frequency settings may also be required on your computer or video device.
After configuring settings, your computer or video device or the projector may be required to be turned off and on.
A signal may not be output with the resolution and vertical scanning frequency that have been set, depending on your computer or video device.
[HDMI IN]
Switch the setting when the external device is connected to the terminal of the projector and the image is not projected correctly.
1) Press ▲▼ to select [HDMI IN]. button.
- The [HDMI IN] screen is displayed.
3) Press ▲▼ to select [SIGNAL LEVEL].
- The items will switch each time you press the button.
[AUTO] Automatically sets the signal level.
[64-940] Select this item when the signal output from the HDMI terminal of an external device (such as a Blu-ray disc player) is input to theterminal. [0-1023] Select this item when the signal output from the DVI-D terminal of an external device (such as a computer) is input to theterminal via a conversion cable or similar cable.Select this item also when the signal output from the HDMI terminal of a computer or other device is input to theterminal.
Note
The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the external device regarding the output of the external device.
The HDMI signal level is displayed for 30 bits of input.
Setting [EDID MODE]
1) Press ▲▼ to select [HDMI IN]. button.
• The [HDMI IN] screen is displayed.
3) Press ▲▼ to select [EDID MODE]. button.
- The [HDMI EDID MODE] screen is displayed.
5) Press ◀▶ to switch [EDID MODE].
- The items will switch each time you press the button.
[DEFAULT] Standard setting. [SCREEN FIT] Changes EDID data according to the [SCREEN FORMAT] setting. [USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items to EDID.
- When [DEFAULT] or [SCREEN FIT] is selected, proceed to Step 10).
6) Press the button.
- The [RESOLUTION] screen is displayed.
7) Press ▲▼◀▶ to select [RESOLUTION].
- Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
8) Press the button.
- The [VERTICAL SCAN FREQUENCY] screen is displayed.
9) Press ◀▶ to select [VERTICAL SCAN FREQUENCY].
Select [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [1920x1080p] is selected for [RESOLUTION].
Select [60Hz], [50Hz], or [48Hz] when [1920x1080i] is selected for [RESOLUTION].
Select [60Hz] or [50Hz] when anything other than [1920x1080p] or [1920x1080i] is selected for [RESOLUTION].
10) Press the button.
•The confirmation screen is displayed.
11) Press ◀▶ to select [OK], and press the button.
Note
The setting details are displayed in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] of [EDID STATUS].
The resolution and vertical scanning frequency settings may also be required on your computer or video device.
After configuring settings, your computer or video device or the projector may be required to be turned off and on.
A signal may not be output with the resolution and vertical scanning frequency that have been set, depending on your computer or video device.
[DIGITAL LINK IN]
Sets the signal level when DIGITAL LINK input is selected.
1) Press ▲▼ to select [DIGITAL LINK IN].
- The [DIGITAL LINK IN] screen is displayed.
3) Press ▲▼ to select [SIGNAL LEVEL].
4) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[AUTO] Automatically sets the signal level. [64-940] Select this item when the signal output from the HDMI terminal of an external device (Blu-ray disc player, etc.) is input to theterminal via a twisted-pair-cable transmitter. [0-1023] Select this item when the signal output from the DVI-D terminal or HDMI terminal of an external device (such as a computer) is input to theterminal via a twisted-pair-cable transmitter.
Note
The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the external device regarding the output of the external device.
The signal level is displayed for 30 bits of input.
Setting [EDID MODE]
1) Press ▲▼ to select [DIGITAL LINK IN]. button.
- The [DIGITAL LINK IN] screen is displayed.
3) Press ▲▼ to select [EDID MODE]. button.
- The [DIGITAL LINK EDID MODE] screen is displayed.
5) Press ◀▶ to switch [EDID MODE].
- The items will switch each time you press the button.
[DEFAULT] Standard setting. [SCREEN FIT] Changes EDID data according to the [SCREEN FORMAT] setting. [USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items to EDID.
- When [DEFAULT] or [SCREEN FIT] is selected, proceed to Step 10).
6) Press the button.
- The [RESOLUTION] screen is displayed.
7) Press ▲▼◀▶ to select [RESOLUTION].
- Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
8) Press the button.
- The [VERTICAL SCAN FREQUENCY] screen is displayed.
9) Press ◀▶ to select [VERTICAL SCAN FREQUENCY].
Select [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [1920x1080p] is selected for [RESOLUTION].
Select [60Hz], [50Hz], or [48Hz] when [1920x1080i] is selected for [RESOLUTION].
Select [60Hz] or [50Hz] when anything other than [1920x1080p] or [1920x1080i] is selected for [RESOLUTION].
10) Press the button.
•The confirmation screen is displayed.
11) Press ◀▶ to select [OK], and press the button.
Note
The setting details are displayed in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] of [EDID STATUS].
The resolution and vertical scanning frequency settings may also be required on your computer or video device.
After configuring settings, your computer or video device or the projector may be required to be turned off and on.
A signal may not be output with the resolution and vertical scanning frequency that have been set, depending on your computer or video device.

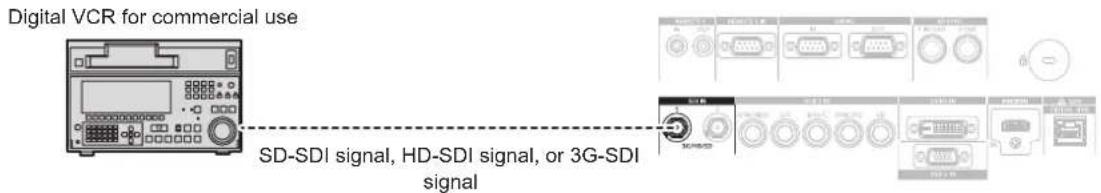

[SDI IN]
Set this function in accordance with the signal input to the / terminals.
Setting [SDI LINK]
1) Press ▲▼ to select [SDI IN]. button.
[SINGLE LINK] Sets the SDI1 input and the SDI2 input to single link. [DUAL LINK] Sets the $DI1 input and the SDI2 input to dual link. [AUTO] Automatically selects the single link or the dual link.
Note
[SDI LINK] cannot be set when [BACKUP INPUT MODE] is set to [2].
When [AUTO] is set, either single link or dual link will be automatically selected by reading the payload ID added to the input signal. Single link will be selected when a payload ID is not added to the input signal.
Setting [SIGNAL LEVEL]
Select the amplitude of the signal to input.
1) Press ▲▼ to select [SDI IN]. button.
[64-940] Normally use this setting. [4-1019] Select this item when gray is displayed as black.
Setting [BIT DEPTH]
1) Press ▲▼ to select [SDI IN]. button.
[AUTO] Automatically select [12-bit] or [10-bit]. [12-bit] Fixes to [12-bit]. [10-bit] Fixes to [10-bit].
Setting [3G-SDI MAPPING]
1) Press ▲▼ to select [SDI IN]. button.
118 - ENGLISH
3) Press ▲▼ to select [3G-SDI MAPPING].
[AUTO] Automatically select [LEVEL A] or [LEVEL B]. [LEVEL A] Fixes to [LEVEL A]. [LEVEL B] Fixes to [LEVEL B].
Note
- This does not operate when the SD-SDI signal or the HD-SDI signal is input.
[ON-SCREEN DISPLAY]
Set the on-screen display.
Setting [OSD POSITION]
Set the position of the menu screen (OSD).
1) Press ▲▼ to select [ON-SCREEN DISPLAY]. button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [OSD POSITION].
- The items will switch each time you press the button.
[2] Sets to the center left of the screen. [3] Sets to the bottom left of the screen. [4] Sets to the top center of the screen. [5] Sets to the center of the screen. [6] Sets to the bottom center of the screen. [7] Sets to the upper right of the screen. [8] Sets to the center right of the screen. [9] Sets to the bottom right of the screen. [1] Sets to the upper left of the screen.
Setting [OSD ROTATION]
Set the orientation of the menu screen (OSD).
1) Press ▲▼ to select [ON-SCREEN DISPLAY]. button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [OSD ROTATION].
- The items will switch each time you press the button.
[OFF] Does not rotate the screen. [CLOCKWISE] Rotates the screen by 90° clockwise. [COUNTERCLOCKWISE] Rotates the screen by 90° counterclockwise.
Setting [OSD DESIGN]
Set the color of the menu screen (OSD).
1) Press ▲▼ to select [ON-SCREEN DISPLAY]. button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [OSD DESIGN].
- The items will switch each time you press the button.
[1] Sets to yellow. [2] Sets to blue. [3] Sets to white. [4] Sets to green. [5] Sets to peach. [6] Sets to brown.
Setting [OSD MEMORY]
Set hold for the position of the menu screen (OSD) cursor.
1) Press ▲▼ to select [ON-SCREEN DISPLAY]. button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [OSD MEMORY].
- The items will switch each time you press the button.
[ON] Holds the cursor position. [OFF] Does not hold the cursor position.
Note
- The cursor position is not maintained even if [OSD MEMORY] is set to [ON].
Set whether to display the input guide (input terminal name, signal name, memory number, and [BACKUP INPUT STATUS] currently selected) in the position set in [OSD POSITION].
1) Press ▲▼ to select [ON-SCREEN DISPLAY]. button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [INPUT GUIDE].
- The items will switch each time you press the button.
[ON] Displays the input guide. [OFF] Hides the input guide.
Setting [WARNING MESSAGE]
Set the display/hide of the warning message.
1) Press ▲▼ to select [ON-SCREEN DISPLAY]. button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [WARNING MESSAGE].
- The items will switch each time you press the button.
[ON] Displays the warning message.
[OFF] Hides the warning message.
Note
- When [WARNING MESSAGE] is set to [OFF], the warning message will not be displayed on the projected image even if a warning status such as [TEMPERATURE WARNING] or [CLEAN THE AIR FILTER] is detected. Also, the following countdown message is not displayed: the message until the power is turned off after the no signal lights-out function is executed; the message until the light source is turned off after the no signal lights-out function is executed
[IMAGE ROTATION]
Set whether to rotate the input image when projecting.
1) Press ▲▼ to select [IMAGE ROTATION].
2) Press ◀▶ to select an item.
- The items will switch each time you press the button.
[OFF] Projects the input image without rotating. [CLOCKWISE] Rotates the input image by 90° clockwise and project it. [COUNTERCLOCKWISE] Rotates the input image by 90° counterclockwise and project it.
Note
[IMAGE ROTATION] is disabled while displaying 3D image, displaying image in simultaneous format, and during P IN P.
The on-screen display orientation does not change even when [IMAGE ROTATION] is set to other than [OFF]. Set the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD ROTATION] (→ page 119) as necessary.
[BACK COLOR]
Set the display of the projected screen when there is no signal input.
1) Press ▲▼ to select [BACK COLOR].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[BLUE] Displays the entire projection area in blue. [BLACK] Displays the entire projection area in black. [DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user.
Note
- To create/register the [USER LOGO] image, use "Logo Transfer Software" included in the supplied CD-ROM.
[STARTUP LOGO]
Set the logo display when the power is turned on.
1) Press ▲▼ to select [STARTUP LOGO].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user. [NONE] Disables the startup logo display.
Note
When [USER LOGO] is selected, the display of the startup logo will be kept for approximately 15 seconds.
To create/register the [USER LOGO] image, use "Logo Transfer Software" included in the supplied CD-ROM.
Correct the brightness and color unevenness of the entire screen.
Setting each color
1) Press ▲▼ to select [UNIFORMITY]. button.
- The [UNIFORMITY] screen is displayed.
3) Press ▲▼ to select [WHITE], [RED], [GREEN], or [BLUE].
Item Operation Adjustment Range of adjustment [VERTICAL] Press ▶. The lower-side color becomes pale, or the upper-side color becomes dark. -127 - +127 Press ◀. The upper-side color becomes pale, or the lower-side color becomes dark. [HORIZONTAL] Press ▶. The left-side color becomes pale, or the right-side color becomes dark. Press ◀. The right-side color becomes pale, or the left-side color becomes dark.
Setting [PC CORRECTION]
To use the [PC CORRECTION] function, the optional Upgrade Kit (Model No.: ET-UK20) is required. To purchase the product, consult your dealer.
1) Press ▲▼ to select [UNIFORMITY]. button.
- The [UNIFORMITY] screen is displayed.
3) Press ▲▼ to select [PC CORRECTION].
[OFF] Does not perform correction using a computer. [ON]*1 Performs correction for the brightness and color unevenness of the entire screen using a computer.
*1 Advanced skills are necessary to use computer control correction. Consult your dealer.
Note
- The [UNIFORMITY] setting value will not return to factory default even if [ALL USER DATA] is executed from the [PROJECTOR SETUP] menu → [INITIALIZE] (→ page 148).
[SHUTTER SETTING]
The operation of the shutter function is set.
Setting [MECHANICAL SHUTTER]
1) Press ▲▼ to select [SHUTTER SETTING]. button.
- The [SHUTTER SETTING] screen is displayed.
3) Press ▲▼ to select [MECHANICAL SHUTTER].
[ENABLE] Turns off the light source and closes the mechanical shutter when the shutter function is enabled (shutter: closed). [DISABLE] Leaves the mechanical shutter open and turns off only the light source when the shutter function is enabled (shutter: closed).
Note
By closing the mechanical shutter, the malfunction of the DLP chip caused by high power laser ray entering the projection lens surface can be prevented. To close the mechanical shutter, set [MECHANICAL SHUTTER] to [ENABLE] and then set the shutter function to be enabled (shutter: closed).
When [MECHANICAL SHUTTER] is set to [ENABLE], it will take approximately 0.5 seconds from when the shutter function is enabled (shutter: closed) to the shutter function is disabled (shutter: opened).
The light source may turn on darker to warm up when the shutter function is used when the operating environment temperature is around 0^ (32 °F) when [MECHANICAL SHUTTER] is set to [DISABLE].
Setting [FADE-IN] or [FADE-OUT]
Set the image fade-in and fade-out when the shutter function operates.
1) Press ▲▼ to select [SHUTTER SETTING]. button.
- The [SHUTTER SETTING] screen is displayed.
3) Press ▲▼ to select [FADE-IN] or [FADE-OUT].
Item Adjustment [FADE-IN][FADE-OUT] [OFF] Does not set fade-in or fade-out. [0.5s] - [10.0s] Sets the fade-in or fade-out time.Select an item from [0.5s] - [4.0s], [5.0s], [7.0s], or [10.0s]. [0.5s] - [4.0s] can be selected in increments of 0.5.
Note
- Press the button on the remote control or the control panel during fade-in or fade-out to cancel the fade operation.
Setting [STARTUP]
Automatically enable/disable the shutter function (shutter: closed/open) when the power is turned on.
1) Press ▲▼ to select [SHUTTER SETTING]. button.
- The [SHUTTER SETTING] screen is displayed.
3) Press ▲▼ to select [STARTUP].
[OPEN] The projector goes into projection mode with the shutter function disabled (shutter: opened) when the power is turned on. [CLOSE] The projector goes into projection mode with the shutter function enabled (shutter: closed) when the power is turned on.
Setting [SHUT-OFF]
Automatically open/close the mechanical shutter when the power is turned off.
1) Press ▲▼ to select [SHUTTER SETTING]. button.
- The [SHUTTER SETTING] screen is displayed.
3) Press ▲▼ to select [SHUT-OFF].
[KEEP CURRENT STATE] The projector goes into standby mode with the condition of the mechanical shutter maintained when the projector is switched off. [OPEN] The projector goes into standby mode with the mechanical shutter opened when the projector is switched off. [CLOSE] The projector goes into standby mode with the mechanical shutter closed when the projector is switched off.
Setting the shutter synchronization function
The shutter synchronization function is a function to synchronize the shutter operation of the specified projector to other projectors, and the effect using the shutter function including the fade in/fade out operation can be synchronized.
To use the shutter synchronization function, it is necessary to connect the projectors targeted for synchronization in a loop with daisy chain connection using the <3D SYNC 1 IN/OUT> terminal and the <3D SYNC 2 OUT> terminal. For details of how to connect the projectors, refer to “Connecting example when using the contrast synchronization function/shutter synchronization function” ( page 52).
1) Press ▲▼ to select [SHUTTER SETTING]. button.
- The [SHUTTER SETTING] screen is displayed.
3) Press ▲▼ to select [MULTI PROJECTOR SYNC]. button.
- The [MULTI PROJECTOR SYNC] screen is displayed.
5) Press ▲▼ to select [MODE].
- The items will switch each time you press the button.
[OFF] Select this item when the contrast synchronization function and the shutter synchronization function are not used. [MASTER] Select this item when the contrast synchronization function or the shutter synchronization function is used.Set this item only on one of the linked projectors that becomes the synchronization source of the shutter operation. [SLAVE] Select this item when the contrast synchronization function or the shutter synchronization function is used.Set this item in all the linked projectors excluding the projector set as the [MASTER].
- When anything other than [OFF] is selected, the diagnostic result is displayed in [LINK STATUS], indicating if all the projectors including the projectors targeted for synchronization are correctly connected, and if [MODE] is correctly set.
[LINKED] All the projectors are correctly connected, and correctly set. They are in the condition that the contrast synchronization function or the shutter synchronization function can be used. [NO LINK] The projectors are not correctly connected, or not correctly set. Check the cable connection status and the projector setting for each projector that is linked.
7) Press ▲▼ to select [SHUTTER SYNC].
- The items will switch each time you press the button.
[OFF] Select this item when the shutter synchronization function is not used. [ON] Select this item when the shutter synchronization function is used.
Note
The [MULTI PROJECTOR SYNC] setting item is common with the following menu item.
The [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC]
The shutter synchronization function will operate when all of the following conditions are fulfilled.
All the projectors to be linked are connected in a loop with the daisy chain connection. (Maximum 64 projectors)
[MODE] on only one projector that is linked is set to [MASTER], and [MODE] on all other projectors are set to [SLAVE].
[SHUTTER SYNC] on the projectors to perform the shutter synchronization is set to [ON].
It is possible to set [SHUTTER SYNC] to [OFF] for the projectors that are linked but not to synchronize.
The shutter operation by the shutter synchronization function will follow the setting of the [DISPLAY OPTION] menu → [SHUTTER SETTING] on the projector that [MODE] is set to [MASTER].
The operation of the mechanical shutter is not included in the shutter synchronization function.
When the input signal to each linked projector is not synchronized, the timing of the shutter operation between the projectors may shift up to 1 frame while using the shutter synchronization function.
The shutter function of the projector with [MODE] set to [SLAVE] can be operated individually. At that time, the shutter operation will follow the setting of the [DISPLAY OPTION] menu → [SHUTTER SETTING] set in that projector.
The [3D SYNC SETTING] setting is disabled and fixed to [OFF] when [MULTI PROJECTOR SYNC] → [MODE] is set to anything other than [OFF].
The following settings are disabled and the contrast synchronization function and shutter synchronization function cannot be used when [3D SYNC SETTING] is set to anything other than [OFF].
The [PICTURE] menu → [DYNAMIC CONTRAST] → [USER] → [MULTI PROJECTOR SYNC]
The [DISPLAY OPTION] menu → [SHUTTER SETTING] → [MULTI PROJECTOR SYNC]
The [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC]
[FREEZE]
Pause the projected image temporarily regardless of the playback of the external device.
1) Press ▲▼ to select [FREEZE].
2) Press the button.
- Press the
button to release.
Note
•[FREEZE] is displayed on the screen when video is paused.
Use the input signals from a connected external device to display in a waveform. Check whether video output (luminance) signal level is within the recommended range for the projector and adjust.
1) Press ▲▼ to select [WAVEFORM MONITOR].
2) Press ◀▶ to switch the item.
[OFF] Does not display the waveform monitor.
[ON] Displays the waveform monitor.
3) Press the
button two times to clear.
4) Press ▲▼ to select any horizontal line.
5) Press the button to switch the Select line to either luminance, red, green, or blue.
- Line selection items switch each time the is pressed only when the waveform monitor is displayed.
“Select line (luminance)” Displayed in white waveform. “Select line (red)” Displayed in red waveform. “Select line (green)” Displayed in green waveform. “Select line (blue)” Displayed in blue waveform.
Note
Setting is also available with [FUNCTION BUTTON] (→ page 144).
Waveform monitor cannot be displayed while in [P IN P].
The waveform monitor turns off when [P IN P] is executed during waveform monitoring.
The waveform monitor is not displayed when on-screen display is hidden (off).
Use [3D WAVEFORM MONITOR] to display the waveform monitor with the 3D image.
Project the luminance adjustment signal of a commercial test disk (0 % (0 IRE or 7.5 IRE) – 100 % (100 IRE)) and adjust.
bar_stacked
| Image position | Signal level |
| -------------- | ------------ |
| 0% | 0% |
| 50% | 50% |
| 100% | 100% |
1) Select "Select line (luminance)" on the waveform monitor.
- Use [BRIGHTNESS] in the on-screen menu [PICTURE] to adjust the black level 0 % of the video signal to the 0 % position of the waveform monitor.
3) Adjust white level.
Adjusting red, green, and blue
1) Set [COLOR TEMPERATURE] to [USER1] or [USER2] (→ page 84).
3) Adjust dark red areas.
Use [RED] in [WHITE BALANCE LOW] to adjust the black level 0 % of the video signal to the 0 % position of the waveform monitor.
Use [RED] in [WHITE BALANCE HIGH] to adjust the white level 100 % of the video signal to the 100 % position of the waveform monitor.
Note
- For the DVI-D signal, the HDMI signal, the SDI signal, or the DIGITAL LINK signal, confirm that the setting for [SIGNAL LEVEL] is correct before the black level adjustment.
[CUT OFF]
Each red, green, and blue color component can be removed.
1) Press ▲▼ to select [CUT OFF]. button.
- The [CUT OFF] screen is displayed.
3) Press ▲▼ to select [RED], [GREEN], or [BLUE].
[OFF] Disables cutoff.
[ON] Enables cutoff.
Note
- When input is switched or a signal is switched, the cutoff setting returns to its original setting (off).

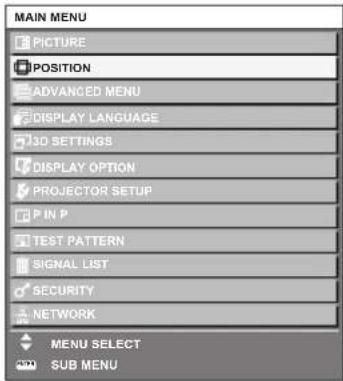

On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" (→ page 77) for the operation of the menu screen.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous control or individual control via a single remote control.
1) Press ▲▼ to select [PROJECTOR ID].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[ALL] Select this item when controlling projectors without specifying an ID number.
[1] - [64] Select this item when specifying an ID number to control individual projector.
Note
To specify an ID number for individual control, the ID number of a remote control must match the ID number of the projector.
When the ID number is set to [ALL], the projector will operate regardless of the ID number specified during remote control or computer control.

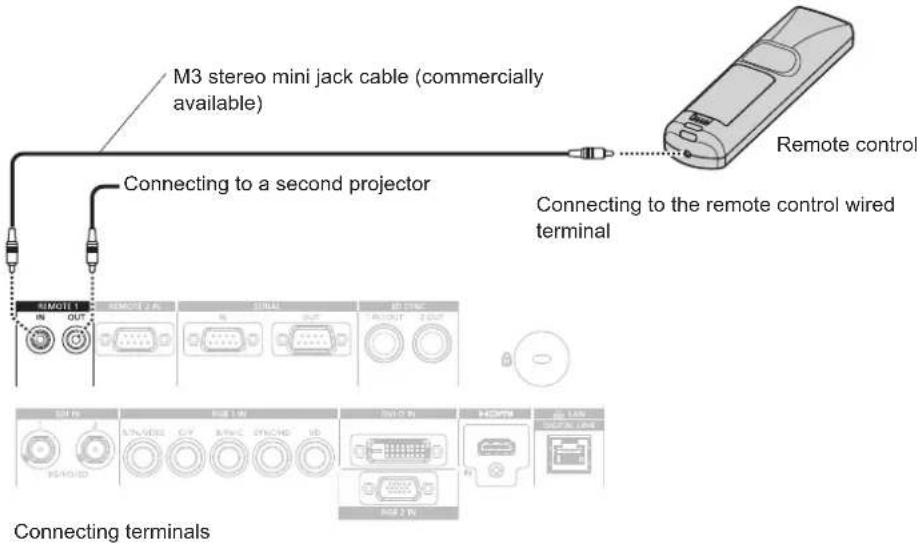

Refer to "Setting ID number of the remote control" (→ page 75) for how to set the ID number on the remote control.

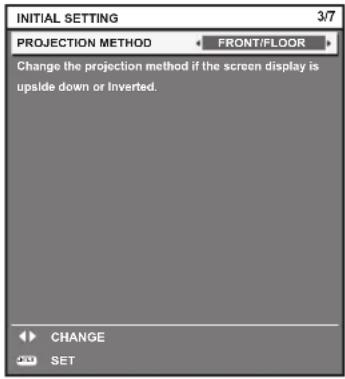

[PROJECTION METHOD]
Set the projection method in accordance with the installation status of the projector.
Change the projection method if the screen display is upside down or inverted.
1) Press ▲▼ to select [PROJECTION METHOD].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[FRONT/FLOOR] When installing the projector on the desk, etc., in front of the screen [FRONT/CEILING] When installing the projector in front of the screen using the Ceiling Mount Bracket (optional) [REAR/FLOOR] When installing the projector on the desk, etc., behind the screen (with a translucent screen) [REAR/CEILING] When installing the projector behind the screen (with a translucent screen) using the Ceiling Mount Bracket (optional)
[OPERATION SETTING]
Set the operation method of the projector.

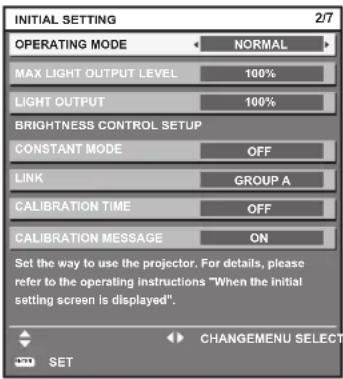

The settings are reflected when “Initial setting (operation setting)” (→ page 58) in the [INITIAL SETTING] screen is already set.
If you change the settings while using the projector, the duration until the luminance of light source decreases by half may shorten or the luminance may decrease.
Setting [OPERATING MODE]
1) Press ▲▼ to select [OPERATION SETTING]. button.
- The [OPERATION SETTING] screen is displayed.
3) Press ▲▼ to select [OPERATING MODE].
- The items will switch each time you press the button.
[NORMAL] ^1
Set this item when high luminance is required. The estimated runtime is approximately 20 000 hours.
[ECO] ^1 Set this item to increase the life of the light source though it will lower the luminance than [NORMAL]. The estimated runtime is approximately 24 000 hours. [LONG LIFE1] ^1 Set this item to increase the life of the light source though it will lower the luminance than [ECO]. The estimated runtime is approximately 43 000 hours. [LONG LIFE2] ^1 Set this item to increase the life of the light source though it will lower the luminance than [LONG LIFE1]. The estimated runtime is approximately 61 000 hours. [LONG LIFE3] ^1 Set this item to increase the life of the light source though it will lower the luminance than [LONG LIFE2]. The estimated runtime is approximately 87 000 hours. [USER1] Set [MAX LIGHT OUTPUT LEVEL] and [LIGHT OUTPUT] individually.[USER2] [USER3]
*1 The runtime is estimated when the [PICTURE] menu → [DYNAMIC CONTRAST] is set to [3].
5) Press ▲▼ to select [APPLY]. button. button.
Note
The [OPERATING MODE] setting will not return to the factory default even when [ALL USER DATA] is executed from the [PROJECTOR SETUP] menu → [INITIALIZE] (→ page 148).
Set [OPERATING MODE] to anything other than [ECO], [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3] when using the projector at an altitude of 2700 m (8 858') or higher above sea level.
If the runtime exceeds 20 000 hours, replacement of the components inside the projector may be required. Consult your dealer for details.
Setting [MAX LIGHT OUTPUT LEVEL]
Adjust the maximum level to correct screen brightness according to the changes in brightness of the light source.
1) Press ▲▼ to select [OPERATION SETTING]. button.
- The [OPERATION SETTING] screen is displayed.
3) Press ▲▼ to select [MAX LIGHT OUTPUT LEVEL].
Operation Adjustment Range of adjustment Press ▶. Increases the maximum level of brightness correction. 8.0 % - 100.0 % Press ◀. Decreases the maximum level of brightness correction.
5) Press ▲▼ to select [APPLY]. button. button.
Note
When [OPERATING MODE] is set to [NORMAL], [ECO], [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3], the item of [MAX LIGHT OUTPUT LEVEL] cannot be adjusted.
When the [PROJECTOR SETUP] menu → [BRIGHTNESS CONTROL] → [BRIGHTNESS CONTROL SETUP] → [CONSTANT MODE] is set to [AUTO] or [PC], the brightness is corrected using this setting.
The [MAX LIGHT OUTPUT LEVEL] setting will not return to the factory default even when [ALL USER DATA] is executed from the [PROJECTOR SETUP] menu → [INITIALIZE] (→ page 148).
Setting [LIGHT OUTPUT]
Adjust the brightness of light source.
The [LIGHT OUTPUT] setting is synchronized with the [PROJECTOR SETUP] menu → [LIGHT OUTPUT]. The most recent setting is reflected in both items.
1) Press ▲▼ to select [OPERATION SETTING]. button.
- The [OPERATION SETTING] screen is displayed.
3) Press ▲▼ to select [LIGHT OUTPUT].
Operation Adjustment Range of adjustment Brightness Runtime (estimate) Press ▶. The screen becomes brighter. The runtime becomes shorter. 8.0% - 100.0% Press ◀. The screen becomes darker. The runtime becomes longer.
5) Press ▲▼ to select [APPLY]. button. button.
Note
[LIGHT OUTPUT] can be adjusted individually for each setting item of [OPERATING MODE].
In such a case when configuring multiple screens with multiple projectors, uniformity of brightness between multiple screens can be obtained by adjusting [LIGHT OUTPUT].
Interrelation of luminance and runtime
You can use the projector with desired brightness and duration of use by combining the settings of [MAX LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP].
Interrelation of luminance and runtime is as follows. Make the settings depending on your desired duration of use and brightness of the projected image.
Values of the luminance and runtime are rough estimations.
■To set the projector based on the duration of use
Duration of use (hour) When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC] [MAX LIGHT OUTPUT LEVEL] (%) [LIGHT OUTPUT] (%) Luminance (lm) [MAX LIGHT OUTPUT LEVEL] (%) [LIGHT OUTPUT] (%) Luminance (lm) 20 000 100.0 100.0 12 000 100.0 58.0 7 000 24 000 100.0 83.0 10 000 100.0 54.0 6 500 27 000 100.0 65.0 7 800 100.0 51.0 6 100 31 000 100.0 — — 100.0 47.0 5 600 35 000 100.0 — — 100.0 44.0 5 300 40 000 100.0 — — 100.0 41.0 4 900
■To set the projector based on luminance
Luminance (lm) When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC] [MAX LIGHT OUTPUT LEVEL] (%) [LIGHT OUTPUT] (%) Runtime (hour) [MAX LIGHT OUTPUT LEVEL] (%) [LIGHT OUTPUT] (%) Runtime (hour) 12 000 100.0 100.0 20 000 — — — 11 000 100.0 92.0 23 000 100.0 92.0 1 500 10 000 100.0 83.0 24 000 100.0 83.0 4 500 9 000 100.0 75.0 25 500 100.0 75.0 8 500 8 000 100.0 67.0 26 500 100.0 67.0 14 000 7 000 100.0 58.0 28 000 100.0 58.0 20 000 6 000 100.0 50.0 29 500 100.0 50.0 28 000 5 000 100.0 — — 100.0 42.0 38 500 4 000 100.0 — — 100.0 33.0 52 500
Note
Under influence of characteristics of each light source, conditions of use, installation environment, etc., the runtime may be shorter than the estimation.
The duration of use is referred to as the runtime when you use the projector successively. The duration of use is an estimated duration and is not the warranty period.
If the runtime exceeds 20 000 hours, replacement of the components inside the projector may be required. Consult your dealer for details.
Setting [BRIGHTNESS CONTROL SETUP]
Set the operation of the brightness control function.
The [BRIGHTNESS CONTROL SETUP] setting is synchronized with the [PROJECTOR SETUP] menu → [BRIGHTNESS CONTROL] → [BRIGHTNESS CONTROL SETUP]. The most recent setting is reflected in both items.
1) Press ▲▼ to select [OPERATION SETTING].
2) Press the button.
- The [OPERATION SETTING] screen is displayed.
3) Press ▲▼ to select [CONSTANT MODE].
4) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Does not correct the brightness of the screen by the brightness sensor. [AUTO] Corrects the brightness of the screen by the brightness sensor.When the brightness of light source or white balance changes, the brightness of the screen is automatically corrected. [PC] Synchronizes nine or more projectors using a computer and the dedicated software “Multi Monitoring & Control Software”*1.
*1 "Multi Monitoring & Control Software" is included in the supplied CD-ROM.
5) Press ▲▼ to select [LINK].
6) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Performs correction by the brightness sensor on one projector without synchronizing with the other projectors.The duration that the constant brightness is kept will become longer by setting the value of [LIGHT OUTPUT] smaller. [GROUP A][GROUP B][GROUP C][GROUP D] Performs correction by the brightness sensor in multiple projectors in synchronization.Up to four groups (A to D) can be set within the same subnet by using the network function.You can register and synchronize up to eight projectors in one group.
7) Press ▲▼ to select [CALIBRATION TIME].
8) Press the button.
- The projector is in the adjustment mode (the time is blinking).
9) Press ◀▶ to select "hour" or "minute", and press ▲▼ or the number (<0> - <9>) button to set a time.
- Selecting “hour” allows setting of only the hour in increments of one hour, and selecting “minute” allows setting of only the minute in increments of one minute between 00 and 59.
- When the time is not specified, select [OFF] between 23 and 00 of the hour, or between 59 and 00 of the minute.
10) Press the button.
•[CALIBRATION TIME] is set.
- Brightness and color are measured at the specified time. The dynamic contrast function does not operate during measurement.
11) Press ▲▼ to select [CALIBRATION MESSAGE].
12) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[ON] Displays the message during calibration. [OFF] Does not display the message during calibration.
13) Press ▲▼ to select [APPLY].
When [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to anything other than [OFF], the brightness and white balance of light source at the time when the button is pressed is recorded as the standard brightness and white balance.
If the button is pressed when [LINK] is set from [GROUP A] to [GROUP D], the group name is displayed on the screens of projectors that have been set in the same group.
Note
When [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO] or [PC], keep the shutter function disabled (shutter: open) for at least two minutes to perform the brightness sensor calibration after the [BRIGHTNESS CONTROL SETUP] setting has been completed.
If the shutter function is enabled (shutter: closed) within approximately 10 minutes after the light source has turned on while [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO] or [PC], brightness and color cannot be measured. Therefore, brightness may be corrected approximately two minutes after the shutter function is disabled (shutter: open).
Since the brightness and the color of the light source do not stabilize for approximately eight minutes after turning on the light source when [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO] or [PC], the brightness and the color of the light source will automatically measured approximately eight minutes after the light source is turned on. A correction is made based on this measurement result so that the brightness and the color will be the same as the standard brightness and the color when adjusted with the brightness control.
When the projector operates with [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] set to [AUTO] or [PC], the items of [OPERATING MODE] and [LIGHT OUTPUT] cannot be changed.
When [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO], and [LINK] is set to [OFF], the brightness will be corrected until it reaches the value set in [MAX LIGHT OUTPUT LEVEL].
The variation in brightness may increase due to dust accumulating on the lens, screen, or inside the projector, depending on the installation environment of the projector.
When the variation in brightness has increased due to aging of the light source, or when you replaced the light source, readjust the brightness control.
When the projector is used continuously for more than 24 hours, set the [CALIBRATION TIME] in [BRIGHTNESS CONTROL SETUP]. If it is not set, correction will not be performed automatically.
The brightness control function and the dynamic contrast function will operate simultaneously, but the dynamic contrast function will not operate while measuring the brightness and the color.
The [CALIBRATION TIME] setting will be reflected when you enter the time.
The [CALIBRATION MESSAGE] setting will be reflected when the item is changed using ◀.
[LIGHT OUTPUT]
Adjust the brightness of light source.
The setting is reflected when it is already set with "Initial setting (operation setting)" (→ page 58) in the [INITIAL SETTING] screen, or the [PROJECTOR SETUP] menu → [OPERATION SETTING]. The [LIGHT OUTPUT] setting is synchronized with the [PROJECTOR SETUP] menu → [OPERATION SETTING] → [LIGHT OUTPUT]. The most recent setting is reflected in both items.
1) Press ▲▼ to select [LIGHT OUTPUT].
2) Press ◀▶ to adjust.
Operation Adjustment Range of adjustment Brightness Runtime (estimate) Press ▶. The screen becomes brighter. The runtime becomes shorter. 8.0% - 100.0% Press ◀. The screen becomes darker. The runtime becomes longer.
Note
[LIGHT OUTPUT] can be adjusted individually for each setting item of [OPERATING MODE].
In such a case when configuring multiple screens with multiple projectors, uniformity of brightness between multiple screens can be obtained by adjusting [LIGHT OUTPUT].
[BRIGHTNESS CONTROL]
The projector is equipped with a brightness sensor to measure brightness and color of the light source, and corrects brightness and white balance of the projected image according to the changes in brightness and color of the light source.
By using this function, in such a condition that multiple screens are configured using multiple projectors, you can reduce changes in overall brightness and white balance of the multiple screens due to light source degradation and suppress variation in brightness and white balance to preserve uniformity.
Setting [BRIGHTNESS CONTROL SETUP]
Set the operation of the brightness control function.
1) Press ▲▼ to select [BRIGHTNESS CONTROL]. button.
- The [BRIGHTNESS CONTROL] screen is displayed.
3) Press ▲▼ to select [BRIGHTNESS CONTROL SETUP]. button.
- The [BRIGHTNESS CONTROL SETUP] screen is displayed.
5) Press ▲▼ to select [CONSTANT MODE].
- The items will switch each time you press the button.
[OFF] Does not correct the brightness of the screen by the brightness sensor. [AUTO] Corrects the brightness of the screen by the brightness sensor.When the brightness of light source or white balance changes, the brightness of the projected image is automatically corrected. [PC] Synchronizes nine or more projectors using a computer and the dedicated software “Multi Monitoring & Control Software”*1.
*1 "Multi Monitoring & Control Software" is included in the supplied CD-ROM.
7) Press ▲▼ to select [LINK].
8) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Performs corrections by the brightness sensor on a single projector without synchronizing with the other projectors.The duration that the constant brightness is kept will become longer by setting the value of [LIGHT OUTPUT] smaller. [GROUP A][GROUP B][GROUP C][GROUP D] Performs correction by the brightness sensor in multiple projectors in synchronization.Up to four groups (A to D) can be set within the same subnet by using the network function.You can register and synchronize up to eight projectors in one group.
9) Press ▲▼ to select [CALIBRATION TIME]. button.
- The projector is in the adjustment mode (the time is blinking).
11) Press ◀▶ to select "hour" or "minute", and press ▲▼ or the number (<0> - <9>) buttons to set a time.
Selecting “hour” allows setting of only the hour in increments of one hour, and selecting “minute” allows setting of only the minute in increments of one minute between 00 and 59.
When the time is not specified, select [OFF] between 23 and 00 of the hour, or between 59 and 00 of the minute.
12) Press the button.
•[CALIBRATION TIME] is set.
- Brightness and color are measured at the specified time. The dynamic contrast function does not operate during measurement.
13) Press ▲▼ to select [CALIBRATION MESSAGE].
14) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[ON] Displays messages during calibration.
[OFF] Does not display messages during calibration.
15) Press ▲▼ to select [APPLY].
16) Press the button.
When [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to anything other than [OFF], the brightness and white balance of light source at the time when the button is pressed is recorded as the standard brightness and white balance.
If the button is pressed when [LINK] is set from [GROUP A] to [GROUP D], the group name is displayed on the screens of projectors that have been set in the same group.
Note
When [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO] or [PC], keep the shutter function disabled (shutter: open) for at least two minutes to perform the brightness sensor calibration after the [BRIGHTNESS CONTROL SETUP] setting has been completed.
If the shutter function is enabled (shutter: closed) within approximately 10 minutes after the light source has turned on while [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO] or [PC], brightness and color cannot be measured. Therefore, brightness may be corrected approximately two minutes after the shutter function is disabled (shutter: open).
Since the brightness and the color of the light source do not stabilize for approximately eight minutes after turning on the light source while [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO] or [PC], the brightness and the color of the light source will be automatically measured approximately eight minutes after the light source is turned on. A correction is made based on this measurement result so that the brightness and the color will be the same as the standard brightness and the color when adjusted with the brightness control.
When [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO], and [LINK] is set to [OFF], the brightness will be corrected until it reaches the value set in [MAX LIGHT OUTPUT LEVEL].
The variation in brightness may increase due to dust accumulating on the lens, screen, or inside the projector, depending on the installation environment of the projector.
When the variation in brightness has increased due to aging of the light source, or when you replaced the light source, readjust the brightness control.
When the projector is used continuously for more than 24 hours, set the [CALIBRATION TIME] in [BRIGHTNESS CONTROL SETUP]. If it is not set, correction will not be performed automatically.
The brightness control function and the dynamic contrast function will operate simultaneously, but the dynamic contrast function will not operate while measuring the brightness and the color.
The [CALIBRATION TIME] setting will be reflected when you enter the time.
The [CALIBRATION MESSAGE] setting will be reflected at the time when the item is switched using ◀.
Displaying [BRIGHTNESS CONTROL STATUS]
Display the brightness control status.
1) Press ▲▼ to select [BRIGHTNESS CONTROL].
2) Press the button.
- The [BRIGHTNESS CONTROL] screen is displayed.
3) Press ▲▼ to select [BRIGHTNESS CONTROL STATUS].
4) Press the button.
- The [BRIGHTNESS CONTROL STATUS] screen is displayed.
[BRIGHTNESS CONTROL STATUS] screen display example

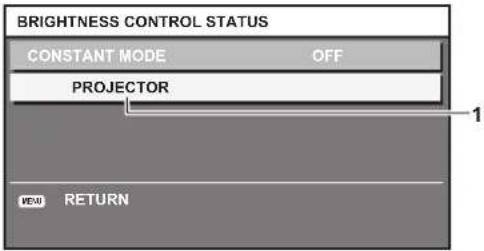

When [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] is set to [OFF]
The screen shows the status that the brightness control is disabled.
CONSTANT MODE OFF
PROJECTOR
1
RETURN

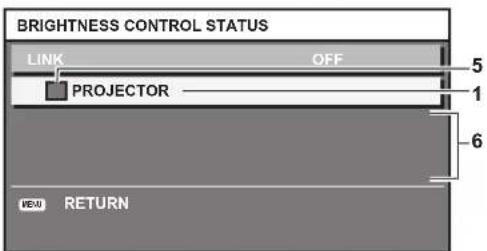

When [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] is set to [AUTO] and [LINK] is set to [OFF]
The screen shows the status of the brightness control in one projector.
LINK OFF 5
PROJECTOR
1
6
RETURN

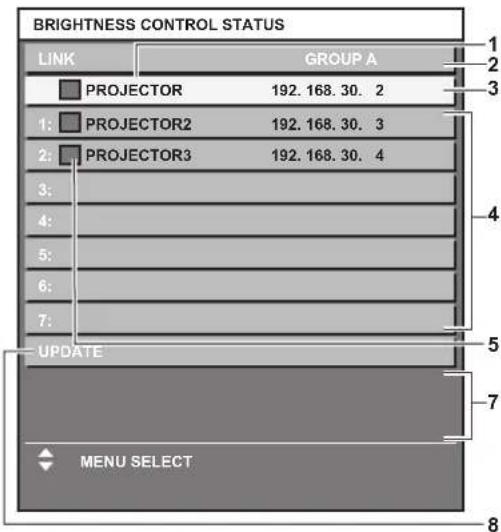

When [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] is set to [AUTO] and [LINK] is set from [GROUP A] to [GROUP D]
The screen shows the status of the brightness control of synchronized projectors (up to eight units), including the projector being controlled through the on-screen menu.
LINK
GROUP A
1
2
3
PROJECTOR 192.168.30.2
1: PROJECTOR2 192.168.30.3
2: PROJECTOR3 192.168.30.4
3:
4:
5:
6:
7:
UPDATE
MENU SELECT
7
8

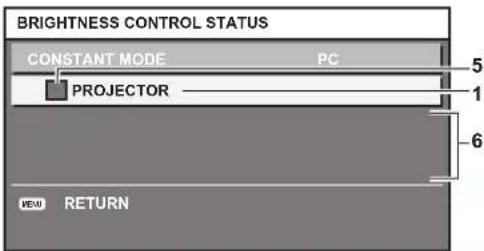

When [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] is set to [PC]
CONSTANT MODE PC
PROJECTOR
VEU RETURN
5
1
6
1 Display the name of the projector.
5 Display the status by color.
Green: There is an allowance for brightness correction.
Yellow: There is little allowance for brightness correction.
Red: There is a brightness control error.
6 Display error detailed messages.
7 Display error messages.
When the message [Failed to apply BRIGHTNESS CONTROL to some projectors.] appears, it means that synchronization with the projector displayed in red has failed.
Press ▲▼ to select the projector displayed in red, and press the button to display the error details.
■Error details
Error message Measures to take [Exceed maximum number of projectors.] Limit the number of projectors in one group to eight.To synchronize nine or more projectors, use a PC and the dedicated software “Multi Monitoring & Control Software”*1. [Please check the COMMAND CONTROL setting.] Set [NETWORK CONTROL] → [COMMAND CONTROL] to [ON] for the projector in error.Set [NETWORK CONTROL] → [COMMAND PORT] of all projectors to be linked to the same value. [Please check the USER NAME and PASSWORD in the COMMAND CONTROL setting.] Assign the same [User name] and [Password] strings that have web control administrator rights to all projectors to be linked. [Cannot apply BRIGHTNESS CONTROL. Please check projector status.] The projector is in standby. Switch on the power. [Brightness Sensor Error] There is a problem with the brightness sensor. If problems persist even after switching on the power, consult your dealer.
*1 "Multi Monitoring & Control Software" is included in the supplied CD-ROM.
Note
- If the synchronized projectors are not displayed in the list, check the following:
- Are there devices with the same IP address on the network?
- Are the LAN cables connected correctly? (→ page 164)
- Are the subnets of the projectors the same?
- Are the same [LINK] settings applied to a group?
- Refer to [NETWORK SETUP] (→ page 161) or “[Network config] page” (→ page 174) on how to change the projector name.
Brightness control adjustment procedure example
The steps exemplify an adjustment to link the brightness of eight projectors connected in a network.
1) Connect all projectors to the hub using LAN cables. (→ page 164) button.
- To be able to communicate over the network, set the same value in [SUBNET MASK] for all projectors and set a different value in [IP ADDRESS] for each projector.
6) Wait for at least eight minutes after projection has started until the light source brightness becomes steady.
- Depending on the [OPERATING MODE] settings, [LIGHT OUTPUT] may not be able to be set to 100% .
11) Set [LIGHT OUTPUT] of the projector with the least brightness to 90 % or 10 % lower than the maximum value that can be set.
12) Adjust [LIGHT OUTPUT] of each projector.
- Adjust [LIGHT OUTPUT] of all the other projectors so that the brightness will be the same as the projector with the least brightness.
13) Set [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] to [AUTO], and [LINK] to [GROUP A] in all projectors.
- Brightness control starts.
Note
Brightness is automatically corrected whenever the light source lights up by switching on/off the projector, etc.
When the variation in brightness has increased due to aging of the light source, or when you replaced the light source, readjust the brightness control.
[STANDBY MODE]
Set the power consumption during the standby.
1) Press ▲▼ to select [STANDBY MODE].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[NORMAL] Select this item to use the network function during standby.
[ECO] Select this item to reduce power consumption during standby.
Note
The AC voltage monitor function, the network function, the terminal, and part of the RS-232C command cannot be used during the standby when set to [ECO].
When [ECO] is set, it may take approximately 10 seconds longer before the projector starts projecting after the power is turned on, compared with when [NORMAL] is set.
When [NORMAL] is set, the network function and the terminal can be used during standby.
The [STANDBY MODE] setting will not reset to the factory default even if [ALL USER DATA] is executed from the [PROJECTOR SETUP] menu → [INITIALIZE].
[NO SIGNAL SHUT-OFF]
A function that automatically switches the power source of the projector to standby if there is no input signal for a certain period of time. The time before switching to standby can be set.
1) Press ▲▼ to select [NO SIGNAL SHUT-OFF].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DISABLE] Disables the No signal shut-off function.
[10MIN.] - [90MIN.] Sets the time in increments of 10 minutes.
[NO SIGNAL LIGHTS-OUT]
This is a function to automatically turn off the light source of the projector when there is no input signal for specific period. The time until the light source is turned off can be set.
1) Press ▲▼ to select [NO SIGNAL LIGHTS-OUT].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DISABLE] Disables the no signal lights-out function.
[10SEC.] - [5MIN.]
Turns off the light source when there is no input signal for the preset period.
Select [10SEC.], [20SEC.], [30SEC.], [1MIN.], [2MIN.], [3MIN.], or [5MIN.].
Note
The power indicator will blink slowly in green while the no signal lights-out function is operating and the light source is turned off.
When [NO SIGNAL LIGHTS-OUT] is set to anything other than [DISABLE], the following are the conditions to turn the light source back on again from the condition that the light source has turned off by this function.
When on-screen display such as menu screen (OSD) or input guide, a test pattern, or a warning message is displayed
When the power on <|> button is pressed
When the operation to disable the shutter function (shutter: open) is performed, such as pressing the button
When the operating environment temperature is around 0 °C (32 °F) and the light source is forced to turn on due to warm-up
[INITIAL STARTUP]
Set the startup method when the switch is set to .
1) Press ▲▼ to select [INITIAL STARTUP].
- The items will switch each time you press the button.
[LAST MEMORY] Starts up the projector in the condition before theswitch is set to. [STANDBY] Starts up the projector in standby. [ON] Starts projecting immediately.
Set the input when the projector is switched on to start projection.
1) Press ▲▼ to select [STARTUP INPUT SELECT]. button.
- The [STARTUP INPUT SELECT] screen is displayed.
3) Press ▲▼◀▶ to select the input, and press the button.
[LAST USED] Keeps the input selected last. [RGB1] Sets the input to RGB1. [RGB2] Sets the input to RGB2. [DVI-D] Sets the input to DVI-D. [HDMI] Sets the input to HDMI. [DIGITAL LINK] Sets the input to DIGITAL LINK. [SDI1] Sets the input to SDI1. [SDI2] Sets the input to SDI2. [INPUT1] - [INPUT10]*1 Sets the input to DIGITAL LINK, and switches the input of the Panasonic twisted-pair-cable transmitter to the specified input.
*1 When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the projector, its input name is automatically reflected from [INPUT1] to [INPUT10]. When an item that does not reflect the input name is selected, it will be disabled.
Note
If [BACKUP INPUT MODE] in the [DISPLAY OPTION] menu → [BACKUP INPUT SETTING] (→ page 111) is set to [1], and the power is turned off with the input set to HDMI in the previous use, the projection will start with DVI-D input even when [STARTUP INPUT SELECT] is set to [LAST USED].
When [BACKUP INPUT MODE] is set to [2] using the [DISPLAY OPTION] menu → [BACKUP INPUT SETTING] (→ page 111), and the power is turned off with the input set to SDI2 in the pervious use, projection will start with the SDI1 input even if [STARTUP INPUT SELECT] is set to [LAST USED].
[DATE AND TIME]
Set the time zone, date, and time of the built-in clock of the projector.
Setting the time zone
1) Press ▲▼ to select [DATE AND TIME]. button.
- The [DATE AND TIME] screen is displayed.
3) Press ▲▼ to select [TIME ZONE].
Setting the date and time manually
1) Press ▲▼ to select [DATE AND TIME]. button.
- The [DATE AND TIME] screen is displayed.
3) Press ▲▼ to select [ADJUST CLOCK]. button.
- The [ADJUST CLOCK] screen is displayed.
5) Press ▲▼ to select an item, and press ◀▶ to set the local date and time. button.
- The setting of the date and time will be completed.
Setting the date and time automatically
1) Press ▲▼ to select [DATE AND TIME]. button.
- The [DATE AND TIME] screen is displayed.
3) Press ▲▼ to select [ADJUST CLOCK]. button.
- The [ADJUST CLOCK] screen is displayed.
5) Press ▲▼ to select [NTP SYNCHRONIZATION], and press ◀▶ to change the setting to [ON]. button.
- The setting of the date and time will be completed.
Note
To set the date and time automatically, the projector must be connected to the network.
If synchronization with the NTP server fails just after [NTP SYNCHRONIZATION] is set to [ON], [NTP SYNCHRONIZATION] will return to [OFF]. If [NTP SYNCHRONIZATION] is set to [ON] while the NTP server is not set, [NTP SYNCHRONIZATION] will return to [OFF].

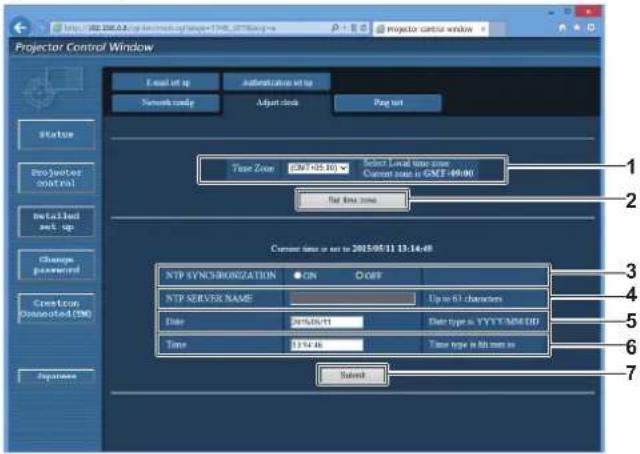

Access the projector via a web browser to set the NTP server. Refer to “[Adjust clock] page” (→ page 175) for details.
The [TIME ZONE] setting is reset to the factory default when [ALL USER DATA] is executed from the [PROJECTOR SETUP] menu → [INITIALIZE] (→ page 148). However, the date and time based on the local date and time setting (Coordinated Universal Time, UTC, Universal Time, Coordinated) will be maintained without being initialized.
[SCHEDULE]
Set the command execution schedule for each day of the week.
Enabling/disabling the schedule function
1) Press ▲▼ to select [SCHEDULE].
- The items will switch each time you press the button.
[OFF] Disables the schedule function. [ON] Enables the schedule function. Refer to “How to assign a program” (⇨ page 139) or “How to set a program” (⇨ page 139) for how to set the schedule.
Note
- When [SCHEDULE] is set to [ON], the [STANDBY MODE] setting is forcibly switched to [NORMAL], and the setting cannot be changed. Even if [SCHEDULE] is then set to [OFF] when in this state, the setting of [STANDBY MODE] remains at [NORMAL].
How to assign a program
1) Press ▲▼ to select [SCHEDULE]. button.
- The [SCHEDULE] screen is displayed.
3) Select and assign a program to each day of week.
Press ▲▼ to select the day of week, and press ◀▶ to select a program number.
You can set the program from No.1 to No.7. “--” indicates that the program number has not been set.
How to set a program
Set up to 16 commands to each program.
1) Press ▲▼ to select [SCHEDULE]. button.
- The [SCHEDULE] screen is displayed.
3) Press ▲▼ to select [PROGRAM EDIT]. button. button.
- You can change the page using ◀▶.
6) Press ▲▼◀▶ to select [TIME], and press the button. button.
9) Press the button.
- The [COMMAND] detailed screen is displayed.
10) Press ▲▼ to select a [COMMAND].
For [COMMAND] which requires detailed settings, the items of the detailed settings will switch each time you press ◀.
When [INPUT] is selected, press the button, and then press ▲▼◀▶ to select the input to be set.
[COMMAND] Detailed settings of [COMMAND] Description [POWER ON] — Switches on the projector. [STANDBY] — Enters standby. [SHUTTER] [OPEN] Disables the shutter function (shutter: open). [CLOSE] Enables the shutter function (shutter: closed). [INPUT] [RGB1] Switches the input to RGB1. [RGB2] Switches the input to RGB2. [DVI-D] Switches the input to DVI-D. [HDMI] Switches the input to HDMI. [DIGITAL LINK] Switches the input to DIGITAL LINK. [SDI1] Switches the input to SDI1. [SDI2] Switches the input to SDI2. [INPUT1] - [INPUT10]*1 Switches the input to DIGITAL LINK, and switches the input of the Panasonic twisted-pair-cable transmitter to the specified input. [OPERATING MODE]^2 [NORMAL] Prioritizes uminance. [ECO] Controls the power to increase the life of the light source with higher luminance. [LONG LIFE1] Controls the power to increase the life of the light source although the luminance is lower than that of [ECO]. [LONG LIFE2] Controls the power to increase the life of the light source although the luminance is even lower than that of [LONG LIFE1]. [LONG LIFE3] Controls the power to increase the life of the light source to the maximum although the luminance is even lower than that of [LONG LIFE2]. [USER1] Controls the power with the setting set to [USER1]. [USER2] Controls the power with the setting set to [USER2]. [USER3] Controls the power with the setting set to [USER3]. [P IN P] [OFF] P IN P function is not used. [USER1] Lays out the sub-screen with the settings of [USER1]. [USER2] Lays out the sub-screen with the settings of [USER2]. [USER3] Lays out the sub-screen with the settings of [USER3].
*1 When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the projector, its input name is automatically reflected from [INPUT1] to [INPUT10]. When an item that does not reflect the input name is selected, it will be disabled.
*2 If you change the settings while using the projector, the duration until the light source luminance decreases by half may shorten or the luminance may decrease.
- The command is fixed and is displayed at the left of the selected command.
- After the command is fixed, press the
button to close the detailed setting screen.
Note
- To delete a command that has been already set, press the button on the remote control while the screen in Step 5) is displayed, or select [DELETE] at the screen in Step 6) and press the button.
- If multiple commands have been set for the same time, they are executed in chronological order starting from the smallest command number.
- The operating time will be the local time. (→ page 137)
- If an operation is executed with the remote control or control panel of the projector or with a control command before the command set in [SCHEDULE] is executed, the command set with the schedule function may not be executed.
[MULTI PROJECTOR SYNC]
Set the contrast synchronization function and the shutter synchronization function.
The contrast synchronization function is a function to display a combined screen with a balanced contrast by sharing the brightness level of the video signal input to each projector when a multi-display is constructed by combining the projected image of multiple projectors. The shutter synchronization function is a function to synchronize the shutter operation of the specified projector to other projectors, and the effect using the shutter function including the fade in/fade out operation can be synchronized.
To use the contrast synchronization function and the shutter synchronization function, it is necessary to connect the projectors targeted for synchronization in a loop with daisy chain connection using the <3D SYNC 1 IN/OUT> terminal and the <3D SYNC 2 OUT> terminal. For details of how to connect the projectors, refer to “Connecting example when using the contrast synchronization function/shutter synchronization function” ( page 52).
Note
- The contrast synchronization function and the shutter synchronization function can be used simultaneously.
- The operation of the mechanical shutter is not included in the shutter synchronization function.
- The menu items in the [PROJECTOR SETUP] menu [MULTI PROJECTOR SYNC] are the same as the following setting items.
- The [PICTURE] menu → [DYNAMIC CONTRAST] → [USER] → [MULTI PROJECTOR SYNC]
- The [DISPLAY OPTION] menu → [SHUTTER SETTING] → [MULTI PROJECTOR SYNC]
- The [3D SYNC SETTING] setting is disabled and fixed to [OFF] when [MULTI PROJECTOR SYNC] → [MODE] is set to anything other than [OFF].
- The following settings are disabled and the contrast synchronization function and shutter synchronization function cannot be used when [3D SYNC SETTING] is set to anything other than [OFF].
- The [PICTURE] menu → [DYNAMIC CONTRAST] → [USER] → [MULTI PROJECTOR SYNC]
- The [DISPLAY OPTION] menu → [SHUTTER SETTING] → [MULTI PROJECTOR SYNC]
- The [PROJECTOR SETUP] menu [MULTI PROJECTOR SYNC]
Setting the contrast synchronization function
1) Press ▲▼ to select [MULTI PROJECTOR SYNC]. button.
- The [MULTI PROJECTOR SYNC] screen is displayed.
3) Press ▲▼ to select [MODE].
4) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Select this item when the contrast synchronization function and the shutter synchronization function are not used. [MASTER] Select this item when the contrast synchronization function or the shutter synchronization function is used.Set this item only on one projector out of the projectors that are linked.The projector set as the [MASTER] will calculate the brightness level of the video signal to become optimum on the whole combined screen for each frame. All the projectors targeted for contrast synchronization will control the dynamic contrast function based on the calculation result. [SLAVE] Select this item when the contrast synchronization function or the shutter synchronization function is used.Set this item in all the linked projectors excluding the projector set as the [MASTER].
- When anything other than [OFF] is selected, the diagnostic result is displayed in [LINK STATUS], indicating if all the projectors including the projectors targeted for synchronization are correctly connected, and if [MODE] is correctly set.
[LINKED] All the projectors are correctly connected, and correctly set. They are in the condition that the contrast synchronization function or the shutter synchronization function can be used. [NO LINK] The projectors are not correctly connected, or not correctly set. Check the cable connection status and the projector setting for each projector that is linked.
5) Press ▲▼ to select [CONTRAST SYNC].
- The items will switch each time you press the button.
[OFF] Select this item when the contrast synchronization function is not used. [ON] Select this item when the contrast synchronization function is used.
Note
The contrast synchronization function will operate when all of the following conditions are fulfilled.
All the projectors to be linked are connected in a loop with the daisy chain connection. (Maximum 64 projectors)
[MODE] on only one projector that is linked is set to [MASTER], and [MODE] on all other projectors are set to [SLAVE].
[CONTRAST SYNC] on the projectors to perform the contrast synchronization is set to [ON].
It is possible to set [CONTRAST SYNC] to [OFF] for the projectors that are linked but not to synchronize.
Setting the shutter synchronization function
1) Press ▲▼ to select [MULTI PROJECTOR SYNC]. button.
- The [MULTI PROJECTOR SYNC] screen is displayed.
3) Press ▲▼ to select [MODE].
- The items will switch each time you press the button.
[OFF] Select this item when the contrast synchronization function and the shutter synchronization function are not used. [MASTER] Select this item when the contrast synchronization function or the shutter synchronization function is used.Set this item only on one of the linked projectors that becomes the synchronization source of the shutter operation. [SLAVE] Select this item when the contrast synchronization function or the shutter synchronization function is used.Set this item in all the linked projectors excluding the projector set as the [MASTER].
- When anything other than [OFF] is selected, the diagnostic result is displayed in [LINK STATUS], indicating if all the projectors including the projectors targeted for synchronization are correctly connected, and if [MODE] is correctly set.
[LINKED] All the projectors are correctly connected, and correctly set. They are in the condition that the contrast synchronization function or the shutter synchronization function can be used. [NO LINK] The projectors are not correctly connected, or not correctly set. Check the cable connection status and the projector setting for each projector that is linked.
5) Press ▲▼ to select [SHUTTER SYNC].
- The items will switch each time you press the button.
[OFF] Select this item when the shutter synchronization function is not used. [ON] Select this item when the shutter synchronization function is used.
Note
The shutter synchronization function will operate when all of the following conditions are fulfilled.
All the projectors to be linked are connected in a loop with the daisy chain connection. (Maximum 64 projectors)
[MODE] on only one projector that is linked is set to [MASTER], and [MODE] on all other projectors are set to [SLAVE].
[SHUTTER SYNC] on the projectors to perform the shutter synchronization is set to [ON].
It is possible to set [SHUTTER SYNC] to [OFF] for the projectors that are linked but not to synchronize.
The shutter operation by the shutter synchronization function will follow the setting of the [DISPLAY OPTION] menu → [SHUTTER SETTING] on the projector that [MODE] is set to [MASTER].
When the input signal to each linked projector is not synchronized, the timing of the shutter operation between the projectors may shift up to 1 frame while using the shutter synchronization function.
The shutter function of the projector with [MODE] set to [SLAVE] can be operated individually. At that time, the shutter operation will follow the setting of the [DISPLAY OPTION] menu [SHUTTER SETTING] set in that projector.
[RS-232C]
Set the communication conditions of the / terminal. Refer to "/ terminal" (▶ page 203).
Setting the communication condition of the terminal
1) Press ▲▼ to select [RS-232C]. button.
[PROJECTOR] Performs the RS-232C communication with theterminal of the projector. [DIGITAL LINK] Performs the RS-232C communication via the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) and theterminal.
5) Press ▲▼ to select [(IN) BAUDRATE].
6) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[9600] Select the proper speed.[19200] [38400]
7) Press ▲▼ to select [(IN) PARITY].
8) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[NONE] Select the parity condition.[EVEN] [ODD]
Setting the communication condition of the terminal
1) Press ▲▼ to select [RS-232C]. button.
• The [RS-232C] screen is displayed.
3) Press ▲▼ to select [(OUT) BAUDRATE].
[9600] Select the proper speed.[19200] [38400]
5) Press ▲▼ to select [(OUT) PARITY].
- The items will switch each time you press the button.
[NONE] Select the parity condition.[EVEN] [ODD]
Setting the response
1) Press ▲▼ to select [RS-232C]. button.
- The [RS-232C] screen is displayed.
3) Press ▲▼ to select [RESPONSE(ID ALL)].
[ON] Returns the response when an ID is designated as ALL. [OFF] Does not return the response when an ID is designated as ALL.
5) Press ▲▼ to select [GROUP].
[A] - [Z] Controls multiple projectors simultaneously by sending the ID of RS-232C. You can set groups from [A] to [Z]. The projector responds when the ID of RS-232C matches the setting.
7) Press ▲▼ to select [RESPONSE(ID GROUP)].
[ON] Returns the response when an ID is designated as GROUP. [OFF] Does not return the response when an ID is designated as GROUP.
Note
- When [INPUT SELECT] is set to [DIGITAL LINK], communication using that serial terminal is available only when the corresponding device (such as the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G)) is connected to the terminal.
When transferring logos via the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G), setting for "NO SIGNAL SLEEP" of the DIGITAL LINK output supported device should be set to "OFF" to avoid interruption of communication.
When [INPUT SELECT] is set to [DIGITAL LINK], communication speed for input is fixed to 9 600 bps and the parity is fixed to "NONE".
[REMOTE2 MODE]
You can set the terminal.
1) Press ▲▼ to select [REMOTE2 MODE].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DEFAULT] Uses pin assignment of theterminal in standard setting. (→ page 207) [USER] Changes the setting of theterminal.
- When [USER] is selected, proceed to Step 3).
3) Press the button.
Set the function of the button on the remote control.
1) Press ▲▼ to select [FUNCTION BUTTON]. button.
- The [FUNCTION BUTTON] screen is displayed.
3) Press ▲▼ to select a function.
[DISABLE] Disables thebutton. [P IN P] Switches the [P IN P] setting ([OFF], [USER1], [USER2], or [USER3]). (⇨ page 150) [SUB MEMORY] Displays the sub memory list. (⇨ page 155) [SYSTEM SELECTOR] Switches the [SYSTEM SELECTOR] setting. (⇨ page 89) [SYSTEM DAYLIGHT VIEW] Switches the [SYSTEM DAYLIGHT VIEW] setting. (⇨ page 87) [FREEZE] Temporarily pauses the image. (⇨ page 125) [WAVEFORM MONITOR] Displays the waveform of the input signal. (⇨ page 125) [LENS MEMORY LOAD] Loads the registered lens memory. (⇨ page 145) [LEFT/RIGHT SWAP] Switches the [LEFT/RIGHT SWAP] setting. (⇨ page 104) [PROJECTION METHOD] Switches the [PROJECTION METHOD] setting. (⇨ page 127)
4) Press the button.
[LENS CALIBRATION]
Detect the lens shift limit value of the projector and set the home position and the ET-D75LE90 lens standard position automatically.
1) Press ▲▼ to select [LENS CALIBRATION].
- The items will switch each time you press the button.
[NORMAL] Select this item when anything other than the Fixed-focus Lens (Model No.: ET-D75LE90) is used.Move the lens to the home position after completing the calibration. [D75LE90] Select this item when the Fixed-focus Lens (Model No.: ET-D75LE90) is used.Move the lens to the ET-D75LE90 lens standard position after completing the calibration.
3) Press the button. button.
The lens moves up, down, left, and right to detect the lens shift limit value, and automatically set the home position and the ET-D75LE90 lens standard position.
The lens stops to complete the calibration.
Note
[PROGRESS] is displayed in the menu during lens calibration. The operation cannot be canceled during calibration.
When lens calibration executes correctly, [COMPLETE] is displayed and [INCOMPLETE] is displayed when it does not execute correctly.
Pressing the button on the remote control for at least three seconds will also display the confirmation screen for lens calibration execution.
[LENS MEMORY]
Save and load the focus position, shift position, and zoom position of an adjusted lens.
Saving lens position
1) Press ▲▼ to select [LENS MEMORY]. button. button.
- The [LENS MEMORY SAVE] screen is displayed.
5) Press ▲▼ to select the item to save, and press the button. button.
- The [LENS MEMORY NAME INPUT] screen is displayed.
7) Press ▲▼◀▶ to select the text, and press the button to enter the text. button.
- The registration completes and returns to the [LENS MEMORY SAVE] screen.
- If you press ▲▼◀▶ to select [CANCEL] and then press the button, the lens memory will not be saved.
- If you press ▲▼◀▶ to select [DEFAULT] and press the button, the entered name will not be registered and the default name will be used.
- If you select [OK] without entering any characters and press the button, the default name will be used.
Loading the lens position
1) Press ▲▼ to select [LENS MEMORY]. button. button.
- The [LENS MEMORY LOAD] screen is displayed.
5) Press ▲▼ to select the item to load, and press the button. button.
- The lens moves automatically to the registered shift, zoom, and focus positions.
Note
Lens memory is not guaranteed to be 100% reproduced.
The zoom and focus positions may have shifted after lens memory was loaded. Readjust as necessary.
When a lens is replaced, readjust and save the lens memory again.
If a lens without zoom function is used, the lens memory of the zoom position does not operate.
- When [LENS MEMORY LOAD] is assigned to the button, the registered lens memory is loaded in order each time you press the button.
Deleting a lens memory
1) Press ▲▼ to select [LENS MEMORY]. button. button.
- The [LENS MEMORY EDIT] screen is displayed.
5) Press ▲▼ to select [LENS MEMORY DELETE]. button.
- The [LENS MEMORY DELETE] screen is displayed.
7) Press ▲▼ to select the item to delete, and press the button. button.
Changing the lens memory name
1) Press ▲▼ to select [LENS MEMORY]. button. button.
- The [LENS MEMORY EDIT] screen is displayed.
5) Press ▲▼ to select [LENS MEMORY NAME CHANGE]. button.
- The [LENS MEMORY NAME CHANGE] screen is displayed.
7) Press ▲▼ to select the name to change, and press the button. button to enter the text. button.
The registration completes and returns to the [LENS MEMORY NAME CHANGE] screen.
If you press ▲▼◀▶ to select [CANCEL] and then press the button, the changed name will not be registered.
If you press ▲▼◀▶ to select [DEFAULT] and press the button, the changed name will not be registered and the default name will be used.
If you select [OK] without entering any characters and press the button, the default name will be used.
[STATUS]
Display the status of the projector.
1) Press ▲▼ to select [STATUS]. button.
- The [STATUS] screen is displayed.

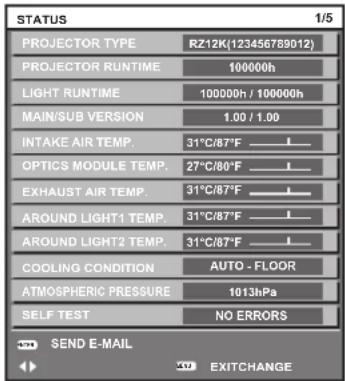

3) Press ◀▶ to switch the pages.
- The page will change each time you press the button.
[PROJECTOR TYPE] Displays the projector type and serial number of the projector. [PROJECTOR RUNTIME] Displays the runtime of the projector. [LIGHT RUNTIME] Displays the runtime of the light source 1 and the light source 2. [MAIN/SUB VERSION] Displays the main and sub versions of the firmware of the projector.
[INTAKE AIR TEMP.]1 Displays the status of the intake air temperature of the projector. [OPTICS MODULE TEMP.]1 Displays the status of the internal temperature of the projector. [EXHAUST AIR TEMP.]1 Displays the status of the exhaust air temperature of the projector. [AROUND LIGHT1 TEMP.]1 Displays the status of the temperature around light source 1 of the projector. [AROUND LIGHT2 TEMP.]1 Displays the status of the temperature around light source 2 of the projector. [COOLING CONDITION] Displays the set cooling conditions. [ATMOSPHERIC PRESSURE] Displays the atmospheric pressure. [SELF TEST] Displays the status of the projector. [INPUT] Displays the input terminal currently selected. [BACKUP INPUT STATUS] Displays whether switching to the backup input signal is possible or not when [BACKUP INPUT MODE] is set to [OFF]. (→ page 111) [SIGNAL NAME] Displays the input signal name. [SIGNAL FREQUENCY] Displays the frequency of the input signal. [NUMBER OF REGISTERED SIGNAL] Displays the number of registered signals. [REMOTE2 STATUS] Displays the control status of the REMOTE2. [AC VOLTAGE] Displays the input supply voltage. [UPGRADE] [ET-UK20] Displays the activation status by the Upgrade Kit (Model No.: ET-UK20). [ET-CUK10] Displays the activation status by the Auto Screen Adjustment Upgrade Kit (Model No.: ET-CUK10). [ON COUNT] [POWER ON TIMES] Displays the number of times the power is turned on. [SHUTTER] Displays the number of times the mechanical shutter is closed. It is counted when [MECHANICAL SHUTTER] is set to [ENABLE]. [SIGNAL INFORMATION] [MEMORY NO.] Displays the memory number of the input signal. [INPUT] Displays the input terminal currently selected. [SIGNAL NAME] Displays the input signal name. [SIGNAL FREQUENCY] Displays the frequency of the input signal. [SYNC.STATE] Displays the synch polarity of the input signal. [V.SYNC WIDTH] Displays the vertical sync signal pulse width of the input signal. [SCAN TYPE] Displays the scan type of the input signal. [TOTAL DOTS] Displays the total dot count of the input signal. [DISPLAY DOTS] Displays the number of input signal display dots. [TOTAL LINES] Displays the total line count of the input signal. [DISPLAY LINES] Displays the number of input signal display lines. [SAMPLING] Displays the sampling information of the input signal. [SIGNAL LEVEL] Displays the signal level of the input signal. [BIT DEPTH] Displays the gradation of the input signal.
*1 The temperature status is indicated with text color (green/yellow/red) and bar scale. Use the projector within the range that the indication is green.
Note
Press the button while displaying the [STATUS] screen to send an E-mail including the content of status to the E-mail addresses (up to two addresses) set in "[E-mail set up] page" ( page 176).
Some items in [SIGNAL INFORMATION] may be displayed and others not displayed, depending on the signal being input.
If any abnormality has occurred on the projector, press the button while the [STATUS] screen is displayed to display the detail screen of the error information.
For details on the contents displayed in [SELF TEST], refer to "Self-diagnosis display" (→ page 193).
[AC VOLTAGE MONITOR]
Enable or disable the AC voltage monitor function. The value of input supply voltage is displayed on the self-diagnosis display at the side of the projector when enabled.
1) Press ▲▼ to select [AC VOLTAGE MONITOR].
- The items will switch each time you press the button.
[OFF] Disables the AC voltage monitor function. [ON] Enables the AC voltage monitor function.
Note
When [ON] is set, the value of the input supply voltage is always displayed in the self-diagnosis display while the main power of the projector is turned on.
Even when [OFF] is set, the value of input supply voltage can be displayed temporarily in the self-diagnosis display by operating the button on the remote control. (→ page 75)
The value of input supply voltage cannot be displayed in the self-diagnosis display during standby when the [PROJECTOR SETUP] menu [STANDBY MODE] (→ page 136) is set to [ECO].
[SAVE ALL USER DATA]
Save the various setting values as a backup in the built-in memory of the projector.
1) Press ▲▼ to select [SAVE ALL USER DATA]. button.
- The [SECURITY PASSWORD] screen is displayed.
3) Enter a security password and press the button. button.
•[PROGRESS] is displayed while saving data.
Note
Data set from the computer application is not included in [ALL USER DATA].
The data saved by executing [SAVE ALL USER DATA] is not deleted even if the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed.
[LOAD ALL USER DATA]
Load the various setting values saved as a backup in the built-in memory of the projector.
1) Press ▲▼ to select [LOAD ALL USER DATA]. button.
- The [SECURITY PASSWORD] screen is displayed.
3) Enter a security password and press the button. button.
Note
The projector enters the standby mode to reflect the setting values when [LOAD ALL USER DATA] is executed.
Data registered from a computer is not included in [ALL USER DATA].
[INITIALIZE]
Return various setting values to their factory default settings.
1) Press ▲▼ to select [INITIALIZE]. button.
- The [SECURITY PASSWORD] screen is displayed.
3) Enter a security password and press the button.
- The [INITIALIZE] screen is displayed.
4) Press ▲▼ to select an item to initialize.
[ALL USER DATA] Returns all setting values including [REGISTERED SIGNAL], [NETWORK SETUP], [E-mail set up], and [USER LOGO] to the factory default settings.The projector enters the standby mode to reflect the setting values. [REGISTERED SIGNAL] Deletes all the setting values saved for each input signal.To delete only a part of a registered signal, perform the procedure described in “Deleting the registered signal” (→ page 153). [NETWORK/E-MAIL] Returns [NETWORK SETUP] and [E-mail set up] to factory default settings. [LOGO IMAGE] Deletes the image registered in [USER LOGO].
5) Press the button.
6) When the confirmation screen is displayed, press ◀▶ to select [OK], and press the button.
Note
- Even when [ALL USER DATA] is executed, the settings of [UNIFORMITY], [OPERATING MODE], [MAX LIGHT OUTPUT LEVEL], and [STANDBY MODE] are not initialized.
[SERVICE PASSWORD]
This function is used by a service person.
On the menu screen, select [P IN P] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” ( page 77) for the operation of the menu screen.
Using P IN P function
Locate a separate, small sub screen in the main screen to project two images simultaneously.
1) Press ▲▼ to select [P IN P MODE].
2) Press the button.
- The [P IN P MODE] screen is displayed.
3) Press ▲▼ to select a function.
[OFF] P IN P function is not used. [USER1] The items set in “Setting P IN P function” (→ page 150) are used in P IN P function. [USER2] [USER3]
4) Press the button.
Setting P IN P function
P IN P function settings can be saved to [USER1], [USER2], and [USER3].
1) Press ▲▼ to select [P IN P MODE].
2) Press the button.
- The [P IN P MODE] screen is displayed.
3) Press ▲▼ to select the desired mode from [USER1], [USER2], and [USER3], and press the button.
4) Press ▲▼ to select [MAIN WINDOW] or [SUB WINDOW], and press the button.
5) Press ▲▼ to select the input terminal to be displayed in the window, and press the button.
6) Press ▲▼to select an item.
[SIZE] Set the window display size between 10 % and 100 %. [POSITION] Set the display position of the window within the screen. [CLOCK PHASE] When the sub window is input from theterminal or theterminal and a flickering image or smeared outline appears, set between 0 and +31.
7) If [SIZE] is selected in Step 6), press the button.
•The sub-menu is displayed.
8) Press ▲▼to select an item.
9) Press ◀▶ to make adjustment, and press the
button.
10) If [POSITION] is selected in Step 6), press the button.
11) Press ▲▼◀▶ to adjust the position, and press the
button.
12) If [CLOCK PHASE] is selected in Step 6), press ◀▶ to make adjustment.
13) Press ▲▼ to select [FRAME LOCK].
14) Press ◀▶ to switch the item.
[MAIN WINDOW] Set frame lock to the input signal set in the main window. [SUB WINDOW] Set frame lock to the input signal set in the sub window.
15) Press ▲▼ to select [TYPE].
150 - ENGLISH
16) Press ◀▶ to switch the item.
[MAIN WINDOW] The main window has display priority.
[SUB WINDOW] The sub window has display priority.
Note
The P IN P function may not be available for some signals being input or terminals being selected. Refer to “Two-window display combination list” ( page 208) for details.
Images in combination of DIGITAL LINK and other inputs cannot be displayed in P IN P.
The main window setting values are applied to image adjustment values such as [PICTURE MODE], [GAMMA], and [COLOR TEMPERATURE].
While in the normal screen (where no menu is displayed), press ◀▶ to switch the sizes and positions of the main window and sub window while P IN P is operating.
[P IN P] cannot be set when [FRAME RESPONSE] is set to other than [NORMAL].
[P IN P] cannot be set when [BACKUP INPUT MODE] is set to other than [OFF].
[P IN P] cannot be set when [IMAGE ROTATION] is set to other than [OFF].
3D images cannot be displayed while in P IN P.
[P IN P] cannot be set when [SIMUL INPUT SETTING] is set to other than [OFF].
On the menu screen, select [TEST PATTERN] from the main menu.
Refer to "Navigating through the menu" (→ page 77) for the operation of the menu screen.
[TEST PATTERN]
Display the test pattern built-in to the projector.
Settings of position, size, and other factors will not be reflected in test patterns. Make sure to display the input signal before performing various adjustments.
1) Press ◀▶ to switch the [TEST PATTERN] item.
- The items will switch each time you press the button.
Menu screen + All white Displays test patterns with the menu screen. Select a test pattern so that it is easy to make various adjustments. Menu screen + All black Menu screen + Window Menu screen + Window (inversion) Menu screen + Color bar (vertical) Menu screen + Color bar (horizontal) Menu screen + 16:9/4:3 aspect frame Menu screen + Focus Menu screen + Input screen Displays the menu screen and input signal.Built-in test patterns are not displayed.
Note
- Press the button on the remote control while the test pattern is displayed to hide the menu screen.
Changing color or a focus test pattern
The color can be changed when the "Menu screen + Focus" test pattern is displayed.
1) Press ◀▶ to select the "Menu screen + Focus" test pattern. button.
- The [TEST PATTERN COLOR] screen is displayed.
3) Press ▲▼ to select a color, and press the button.
- The color of the focus test pattern will be changed to the selected color.
Note
The test pattern color settings return to [WHITE] when the projector is switched off.
Colors of the test patterns other than focus test patterns cannot be changed.
On the menu screen, select [SIGNAL LIST] from the main menu.
Refer to “Navigating through the menu” ( page 77) for the operation of the menu screen.
■Registered signal details
↑
Sub memory number
When the address number (A1, A2, ... L7, L8) signal is registered
- A name can be set for each sub memory (→ page 155).
Registering new signals
After a new signal is input and the
button on the remote control or the control panel is pressed, the registration is completed and the [MAIN MENU] screen is displayed.
- A 3D icon is displayed at the right of the [SIGNAL LIST] screen when a signal is registered as 3D signal.
Note
Up to 96 signals, including sub memories, can be registered to the projector.
There are 12 pages (eight memories of A through L, with eight memories possible on each page) for memory numbers, and the signal is registered to the lowest number that is available. If there is no available memory number it will be overwritten from the oldest signal.
The name to be registered is automatically determined by the input signal.
If a menu is being displayed, the new signals will be registered at the instant they are input.
Renaming the registered signal
Registered signals can be renamed.
1) Press ▲▼◀▶ to select the signal of which name is to be changed. button.
- The [REGISTERED SIGNAL STATUS] screen is displayed.
- The memory number, input terminal, input signal name, frequency, synch polarity, etc., are displayed.
- Press the
button to return to the [SIGNAL LIST] screen.
3) Press the button.
- The [REGISTERED SIGNAL SETUP] screen is displayed.
4) Press ▲▼ to select [SIGNAL NAME CHANGE]. button.
- The [SIGNAL NAME CHANGE] screen is displayed.
6) Press ▲▼◀▶ to select the text, and press the button to enter the text. button.
- The registration is completed and the [REGISTERED SIGNAL SETUP] screen returns.
- When pressing ▲▼◀▶ to select [CANCEL] and pressing the button, the changed signal name will not be registered and an automatically registered signal name will be used.
Deleting the registered signal
Registered signals can be deleted.
1) Press ▲▼◀▶ to select the signal to delete. button on the remote control.
- The [REGISTERED SIGNAL DELETE] screen is displayed.
- To cancel the deletion, press the
button to return to the [REGISTERED SIGNAL LIST] screen.
•The selected signal will be deleted.
Note
- A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen.
Protecting the registered signal
1) Press ▲▼◀▶ to select the signal to protect. button.
- The [REGISTERED SIGNAL STATUS] screen is displayed.
3) Press the button.
- The items will switch each time you press the button.
[OFF] The signal is not protected.
[ON] The signal is protected.
- A lock icon is displayed at the right of the [SIGNAL LIST] screen when [LOCK] is set to [ON].
A2: 1280x1024/60-A2 RGB2
Note
When [LOCK] is set to [ON], signal deletion, image adjustment, and automatic setup are not available. To perform these operations, set [LOCK] to [OFF].
A signal can be registered to the sub memory even if it is protected.
Even a protected signal will be deleted if [INITIALIZE] is executed.
Expanding signal lock-in range
1) Press ▲▼◀▶ to select the signal to set. button.
- The [REGISTERED SIGNAL STATUS] screen is displayed.
3) Press the button.
- The items will switch each time you press the button.
[NARROW] Select in most cases.
[WIDE] Widens the lock-in range.
- An expansion icon is displayed at the right of the [SIGNAL LIST] screen when [LOCK-IN RANGE] is set to [WIDE].
A2: 1280x1024/60-A2 RGB2
Note
Switch the range where the signal to be input is determined to be the same signal as the already registered signal.
To prioritize the determination that a signal is the same as the already registered signal, set this function to [WIDE].
Use in cases such as when the synchronizing frequency of a signal to be input has changed slightly, or multiple signal lists are registered.
This function can be used only when a signal is input from the terminal, the terminal, terminal, the terminal, or the terminal.
When [WIDE] is set, the image may be distorted because a signal is recognized as the same even if its synchronizing frequency varies slightly.
When a signal to be input corresponds to multiple signals set in [WIDE], a registered signal with a high memory number receives priority. Example: a signal to be input that corresponds to memory numbers A2, A4 and B1 will be determined to be B1.
When a registration signal is deleted, the settings are also deleted.
In an environment where multiple types of signals are input to the same terminal, signals are sometimes not determined correctly when the setting is set to [WIDE].
Sub memory
The projector has a sub memory function that can register the multiple image adjustment data, even if it is recognized as the same signal by the frequency or format of the synchronization signal source.
Use this function when you need to adjust the picture quality such as switching of the aspect ratio or white balance by the same signal source. The sub memory includes all the data that can be adjusted for each signal, such as the image aspect ratio and data adjusted in the [PICTURE] item ([CONTRAST], [BRIGHTNESS], etc.).
Registering to the sub memory
1) While in the normal screen (where no menu is displayed), press ◀▶.
The sub memory registration screen is displayed if the sub memory is not registered. Proceed to Step 3).
A list of sub memories registered to the signal currently input is displayed.
The button on the remote control can be used instead of ◀▶ when [SUB MEMORY] is selected from the [PROJECTOR SETUP] menu → [FUNCTION BUTTON].
2) Press ▲▼◀▶ to select the sub memory number to register in [SUB MEMORY LIST]. button.
- The [SIGNAL NAME CHANGE] screen is displayed.
4) Press ▲▼◀▶ to select [OK], and press the button.
- To rename the registered signal, follow the procedure in Steps 6) and 7) in “Renaming the registered signal” (→ page 153).
Switching to the sub memory
1) While in the normal screen (where no menu is displayed), press ◀. button.
- This switches to the signal selected in Step 2).
Deleting the sub memory
1) While in the normal screen (where no menu is displayed), press ◀.
- The [SUB MEMORY LIST] screen is displayed.
2) Press ▲▼◀▶ to select the sub memory to be deleted, and press the button on the remote control.
The [REGISTERED SIGNAL DELETE] screen is displayed.
To cancel the deletion, press the button to return to the [SUB MEMORY LIST] screen.
3) Press the button.
•The selected sub memory will be deleted.
On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (→ page 77) for the operation of the menu screen.
- When the projector is used for the first time
Initial password: Press ▲▶▼◀▲▶▼◀ in order, and press the button.
Attention
When you select the [SECURITY] menu and press the button, entering a password is required. Enter the preset password and then continue operations of the [SECURITY] menu.
When the password has been changed previously, enter the changed password, and press the button.
Note
The entered password is displayed with * marks on the screen.
An error message is displayed on the screen when the entered password is incorrect. Re-enter the correct password.
[SECURITY PASSWORD]
Display the [SECURITY PASSWORD] screen when the power is turned on with the switch set to the side. When the entered password is incorrect, the operation will be restricted to the power standby <∅> button, the button, and the buttons (, , ).
1) Press ▲▼ to select [SECURITY PASSWORD].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Disables the security password entry.
[ON] Enables the security password entry.
Note
The [SECURITY PASSWORD] setting is set to [OFF] by the factory default or when [ALL USER DATA] in [INITIALIZE] (→ page 148) is executed.
Change the password periodically that is hard to guess.
The security password is enabled after setting [SECURITY PASSWORD] to [ON] and turning the switch to .
[SECURITY PASSWORD CHANGE]
Change the security password.
1) Press ▲▼ to select [SECURITY PASSWORD CHANGE]. button. button. button.
Note
The entered password is displayed with * marks on the screen.
When numerical values are used for the security password, the security password is required to be initialized if the remote control is lost. Consult your dealer for the method of initialization.
[DISPLAY SETTING]
Overlap the security message (text or image) over the projecting image.
1) Press ▲▼ to select [DISPLAY SETTING].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Hides the security message. [TEXT] Displays the text set in the [SECURITY] menu → [TEXT CHANGE]. [USER LOGO] Displays the image registered by the user.
Note
- To create/register the [USER LOGO] image, use "Logo Transfer Software" included in the supplied CD-ROM.
[TEXT CHANGE]
Edit the text to be displayed when [TEXT] is selected in [DISPLAY SETTING].
1) Press ▲▼ to select [TEXT CHANGE]. button.
- The [TEXT CHANGE] screen is displayed.
3) Press ▲▼◀▶ to select the text, and press the button to enter the text. button.
•The text is changed.
[CONTROL DEVICE SETUP]
Enable/disable the button operations on the control panel and the remote control.
1) Press ▲▼ to select [CONTROL DEVICE SETUP]. button.
- The [CONTROL DEVICE SETUP] screen is displayed.
3) Press ▲▼ to select [CONTROL PANEL] or [REMOTE CONTROL].
[CONTROL PANEL] You can set the limitation on the control from the control panel. [REMOTE CONTROL] You can set the limitation on the control from the remote control.
4) Press the button.
- You can set the operation restriction from the control panel or the remote control.
[ENABLE] Enables all button operations. [DISABLE] Disables all button operations. [USER] Operation of all buttons can be enabled/disabled separately.Refer to “Enabling/disabling any button” (⇨ page 157) for details.
7) Press ▲▼ to select [APPLY], and press the button. button.
1) Press ▲▼ to select [CONTROL DEVICE SETUP]. button.
- The [CONTROL DEVICE SETUP] screen is displayed.
3) Press ▲▼ to select [CONTROL PANEL] or [REMOTE CONTROL].
- The [CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed.
5) Press ▲▼ to select [CONTROL PANEL] or [REMOTE CONTROL].
6) Press ◀▶ to switch [USER].
- When [INPUT SELECT BUTTON] is selected, press the button, and then press ▲▼ to select the button to set.
Buttons that can be set [CONTROL PANEL] [REMOTE CONTROL] [POWER BUTTON] Power standby <∅> button, power on <I> button [INPUT SELECT BUTTON] button,button,button,button,button,button button,button,button,button,button,button,button [MENU BUTTON]button [LENS BUTTON]button Lens buttons (,,) [AUTO SETUP BUTTON]button [SHUTTER BUTTON]button [ASPECT BUTTON] —<ASPECT> button [ON SCREEN BUTTON] —<ON SCREEN> button [OTHER BUTTON]▲▼◀▶,button Buttons not listed above
8) Press ◀▶ to switch the item.
[ENABLE] Enables button operations. [DISABLE] Disables button operations.
- Following items can be selected only when [SDI BUTTON] in [INPUT SELECT BUTTON] is selected.
[TOGGLE] Switches between [SDI1] and [SDI2] when the button is operated. [SDI1] Fixes to [SDI1]. [SDI2] Fixes to [SDI2]. [DISABLE] Disables button operations.
- Press the
button to return to the [CONTROL PANEL] screen or the [REMOTE CONTROL] screen when [INPUT SELECT BUTTON] is selected in Step 7).
•The confirmation screen is displayed.
Note
When a button operation is performed on the device set to [DISABLE], the [CONTROL DEVICE PASSWORD] screen is displayed. Enter the control device password.
The [CONTROL DEVICE PASSWORD] screen will disappear when there is no operation for approx. 10 seconds.
If the operations of both [CONTROL PANEL] and [REMOTE CONTROL] are set to [DISABLE], the projector cannot be turned off (cannot enter standby).
When the setting has completed, the menu screen will disappear. To operate continuously, press the button to display the main menu.
Even when you set button operations on the remote control disabled, operations of the and buttons on the remote control are kept enabled.
[CONTROL DEVICE PASSWORD CHANGE]
The control device password can be changed.
1) Press ▲▼ to select [CONTROL DEVICE PASSWORD CHANGE]. button.
- The [CONTROL DEVICE PASSWORD CHANGE] screen is displayed.
3) Press ▲▼◀▶ to select the text, and press the button to enter the text.
4) Press ▲▼◀▶ to select [OK], and press the button.
• To cancel, select [CANCEL].
Attention
- The initial password is "AAAA" by the factory default or when [ALL USER DATA] in [INITIALIZE] (→ page 148) is executed.
- Change the password periodically that is hard to guess.
On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (→ page 77) for the operation of the menu screen.
[DIGITAL LINK MODE]
Switch the communication method of the terminal of the projector.
1) Press ▲▼ to select [DIGITAL LINK MODE].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[AUTO] Switches the communication method automatically to DIGITAL LINK, long reach, or Ethernet. [DIGITAL LINK] Fixes the communication method to DIGITAL LINK. [LONG REACH] Fixes the communication method to long reach. [ETHERNET] Fixes the communication method to Ethernet.
Possible communication modes
√: Communication possible
Setting Communication possible Video transfer (100 m (328'1")) Video transfer (150 m (492'2")) Ethernet RS-232C [AUTO] For DIGITAL LINK √ — √ √ For long reach — √√√ For Ethernet — — √*1 — [DIGITAL LINK] √ — √ √ [LONG REACH] — √√√ [ETHERNET] — — √*1 —
*1 Communication via a twisted-pair-cable transmitter is not available. Connect the projector to the network directly.
Note
The maximum transmission distance when connected with the long-reach communication method is 150 m (492'2"). However, the signal that the projector can receive is only up to 1080/60p (148.5 MHz).
When the communication method of the twist-pair-cable transmitter is set to long reach, the projector will connect with long-reach communication method when [DIGITAL LINK MODE] is set to [AUTO]. To connect with the optional DIGITAL LINK Switcher (Model No.: ET-YFB200G) with the long-reach communication method, set [DIGITAL LINK MODE] to [LONG REACH].
Connection will not be made correctly if the twist-pair-cable transmitter is not supporting the long-reach communication method even if [DIGITAL LINK MODE] is set to [LONG REACH].
[DIGITAL LINK SETUP]
Set the communication method of DIGITAL LINK or Ethernet.
When the projector is connected directly via Ethernet
1) Press ▲▼ to select [DIGITAL LINK SETUP]. button.
- The [DIGITAL LINK SETUP] screen is displayed.
3) Press ▲▼ to select [DUPLEX(ETHERNET)].
- The items will switch each time you press the button.
[AUTONEGOTIATION] Sets the communication method automatically. [100BaseTX-Full] Sets full-duplex communication method. [100BaseTX-Half] Sets half-duplex communication method.
5) Press ▲▼ to select [STORE]. button. button.
Note
- The projector does not support 10BaseT Full/Half.
When the projector is connected to a twisted-pair-cable transmitter
1) Press ▲▼ to select [DIGITAL LINK SETUP]. button.
- The [DIGITAL LINK SETUP] screen is displayed.
3) Press ▲▼ to select [DUPLEX(DIGITAL LINK)].
- The items will switch each time you press the button.
[100BaseTX-Full] Sets full-duplex communication method. [100BaseTX-Half] Sets half-duplex communication method. [AUTONEGOTIATION] Sets the communication method automatically.
5) Press ▲▼ to select [STORE]. button. button.
[DIGITAL LINK STATUS]
Display the DIGITAL LINK connection environment.
1) Press ▲▼ to select [DIGITAL LINK STATUS]. button.
- The [DIGITAL LINK STATUS] screen is displayed.
[LINK STATUS] Either [NO LINK], [DIGITAL LINK], [LONG REACH], or [ETHERNET] is displayed. [HDCP STATUS] Either [NO SIGNAL], [OFF], or [ON] is displayed. [SIGNAL QUALITY] [SIGNAL QUALITY] is a numerical value of the amount of error, and the display color changes to green, yellow, or red depending on that value.Check the signal quality level while receiving a signal from the twisted-pair-cable transmitter.[MAX]/[MIN]: Maximum/minimum value of the amount of error•Green (-12 dB or lower) → normal signal quality level.•Yellow (-11 to -8 dB) → caution level that noise may appear on the screen.•Red (-7 dB or higher) → abnormal level with interrupted synchronization and receiving not possible.
[NETWORK SETUP]
Perform the initial setting of the network before using the network function.
1) Press ▲▼ to select [NETWORK SETUP]. button.
- The [NETWORK SETUP] screen is displayed.
3) Press ▲▼ to select an item, and change the settings according to the operation instructions of the menu.
[PROJECTOR NAME] Allows to change the projector name. Enter the host name if it is required to use a DHCP server.
[DHCP] [ON] If a DHCP server exists in the network where the projector is to be connected, obtains the IP address automatically. [OFF] If a DHCP server does not exist in the network where the projector is to be connected, set [IP ADDRESS], [SUBNET MASK], and [DEFAULT GATEWAY]. [IP ADDRESS] Enter the IP address when a DHCP server is not used. [SUBNET MASK] Enter the subnet mask when a DHCP server is not used. [DEFAULT GATEWAY] Enter the default gateway address when a DHCP server is not used.
4) Press ▲▼ to select [STORE], and press the button. button.
Note
When using a DHCP server, confirm that the DHCP server is running.
Consult your network administrator regarding the IP address, subnet mask, and default gateway.
When [Art-Net SETUP] is set to [ON(2.X.X.X)] or [ON(10.X.X.X)], [NETWORK SETUP] cannot be selected.
[NETWORK CONTROL]
Set up the control method of the network.
1) Press ▲▼ to select [NETWORK CONTROL]. button.
- The [NETWORK CONTROL] screen is displayed.
3) Press ▲▼ to select an item, and press ◀▶ to change the setting.
[WEB CONTROL] Set to [ON] to control with the web browser. [PJLink CONTROL] Set to [ON] to control with the PJLink protocol. [COMMAND CONTROL] Set to [ON] to control with the/terminal control command format (⇨ page 206). Refer to “Control commands via LAN” (⇨ page 200). [COMMAND PORT] Set the port number used for command control. [Crestron Connected(TM)] Set to [ON] to control with Crestron Connected TM of Crestron Electronics, Inc. [AMX D.D.] Set to [ON] to control with the controller of AMX Corporation.Setting this function to [ON] enables detection through “AMX Device Discovery”. For details, visit the website of AMX Corporation.URL http://www.amx.com/ [EXTRON XTP] Set to [ON] when connecting the “XTP transmitter” of Extron Electronics to theterminal.The [EXTRON XTP] setting must be set to [OFF] when connecting the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G).For details of the “XTP transmitter”, visit the website of Extron Electronics.URL http://www.extron.com/
4) Press ▲▼ to select [STORE], and press the button. button.
[NETWORK STATUS]
Display the status of the projector network.
1) Press ▲▼ to select [NETWORK STATUS]. button.
- The [NETWORK STATUS] screen is displayed.
[DHCP] Displays the status of use of the DHCP server. [IP ADDRESS] Displays the [IP ADDRESS]. [SUBNET MASK] Displays the [SUBNET MASK]. [DEFAULT GATEWAY] Displays the [DEFAULT GATEWAY]. [DNS1] Displays the address of the preferred DNS server. [DNS2] Displays the address of the alternate DNS server. [MAC ADDRESS] Displays the [MAC ADDRESS].
When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the terminal, the main menu of the connected DIGITAL LINK output supported device is displayed. Refer to the Operating Instructions of the DIGITAL LINK output supported device for details.
Note
[DIGITAL LINK MENU] cannot be selected when [EXTRON XTP] is set to [ON].
The operation guidance for the "RETURN" button is in the menu screen of the Digital Interface Box and DIGITAL LINK Switcher. The projector does not have the "RETURN" button, but the same operation is available with the button.
[Art-Net SETUP]
Make settings to use the Art-Net function.
1) Press ▲▼ to select [Art-Net SETUP].
2) Press ◀▶ to select an item.
- The items will switch each time you press the button.
[OFF] Disables the Art-Net function. [ON(2.X.X.X)] Enables the Art-Net function and sets the IP address to 2.X.X.X. [ON(10.X.X.X)] Enables the Art-Net function and sets the IP address to 10.X.X.X. [ON(MANUAL)] Enables the Art-Net function and uses the IP address set in [NETWORK SETUP].
- When other than [OFF] is selected, proceed to Step 3).
3) Press the button.
- The [Art-Net SETUP] screen is displayed.
4) Press ▲▼ to select an item, and press ◀▶ to switch the setting.
[NET] Enter [NET] to be used when the projector processes Art-Net. [SUB NET] Enter [SUB NET] to be used when the projector processes Art-Net. [UNIVERSE] Enter [UNIVERSE] to be used when the projector processes Art-Net. [START ADDRESS] Enter [START ADDRESS] to be used when the projector processes Art-Net.
5) Press ▲▼ to select [STORE], and press the button. button.
Note
- If [ON(2.X.X.X)] or [ON(10.X.X.X)] is selected, IP address is calculated and set automatically.
[Art-Net CHANNEL SETTING]
Set the assignment of the channel.
For the channel definitions used for controlling the projector with the Art-Net function, refer to “Using Art-Net function” ( page 197).
1) Press ▲▼ to select [Art-Net CHANNEL SETTING].
[2] Uses the channel assignment in standard setting. [USER] Changes the channel assignment. [1] Uses the channel assignment with DZ21K series compatible.DZ21K series: DZ21K series, DS20K series, DW17K series, DZ16K series
When [2] or [1] is selected, pressing the button displays the function assigned to the channel.
When [USER] is selected, proceed to Step 3).
3) Press the button.
- The [Art-Net CHANNEL SETTING] screen is displayed.
4) Press ▲▼ to select the channel to set, and press◀▶ to switch the item.
[LIGHT OUTPUT] Adjusts the amount of light. [INPUT SELECT] Switches the input. [LENS POSITION] Moves the lens position. [LENS H SHIFT] Adjusts the lens shift in the horizontal direction. [LENS V SHIFT] Adjusts the lens shift in the vertical direction. [LENS FOCUS] Adjusts the focus. [LENS ZOOM] Adjusts the zoom. [POWER] Controls the power status. [SHUTTER] Controls the shutter. [GEOMETRY] Performs geometric adjustment. [CUSTOM MASKING] Performs geometric adjustment using the computer.To use PC-1, PC-2, and PC-3, the optional Upgrade Kit (Model No.: ET-UK20) is required. [FREEZE] Freezes the projected image. [COLOR] Adjusts the color saturation. [TINT] Adjusts the tint. [RASTER PATTERN] Displays the raster pattern. [ENABLE/DISABLE] Enables/disables the control of the projector with the Art-Net function. [NONE] No definition
The setting can be also made by pressing ▲▼ to select the channel, pressing the button to display the item list, pressing ▲▼◀▶ to select the item, and pressing the button.
Same item cannot be set for multiple channels, except for [NONE].
[Art-Net STATUS]
Display the content of control assigned to each channel and the received data of that channel.
1) Press ▲▼ to select [Art-Net STATUS]. button.
- The [Art-Net STATUS] screen is displayed.
Network connection
The projector has a network function, and the following operations are available from the computer using the web control.
Setting and adjustment of the projector
Display of the projector status
Sending E-mail messages when there is a problem with the projector
RoomView Express
Fusion RV
Attention
- When a LAN cable is directly connected to the projector, the network connection must be made indoors.
Note
“Crestron Connected™” is a system of Crestron Electronics, Inc. that collectively manages and controls devices on multiple systems connected to a network using a computer.
For details of the "Crestron Connected™", visit the website of Crestron Electronics, Inc. (English only.) URL http://www.crestron.com
A LAN cable is required to use the network function.

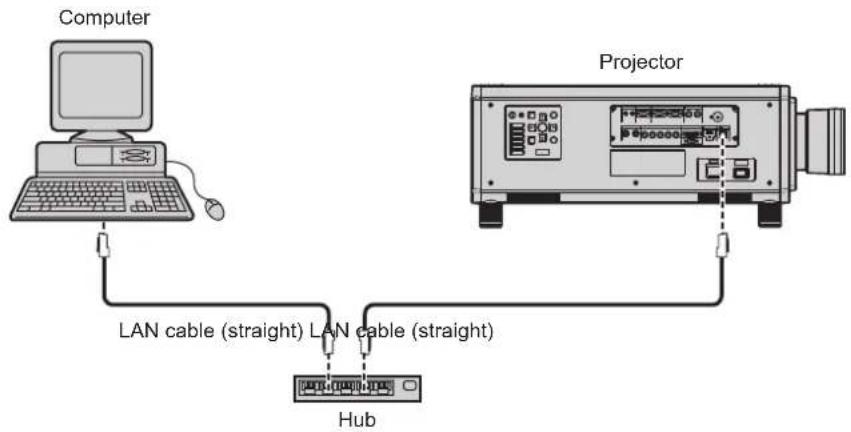

■Example of a normal network connection
A web browser is required to use this function. Confirm that the web browser can be used beforehand.
Communication with an E-mail server is required to use the E-mail function. Confirm that the E-mail can be used beforehand.
Use a LAN cable that is straight cable and compatible with category 5 or higher.
Use a LAN cable of 100 m (328'1") or shorter.
Connecting to a twisted-pair-cable transmitter
The projector has a function that can receive Ethernet signals from a twisted-pair-cable transmitter together with video and audio signals via a LAN cable. Connect a LAN cable to the terminal of the projector. (→ pages 21, 30)

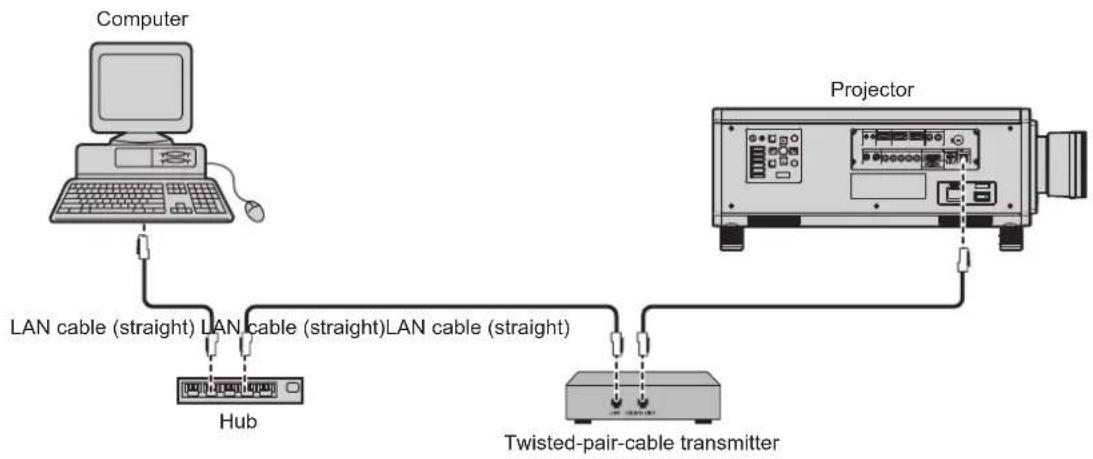

■Example of network connections via a twisted-pair-cable transmitter
For the LAN cable between the twisted-pair-cable transmitter and the projector, use a cable that meets the following criteria:
The maximum transmission distance between the twisted-pair-cable transmitter and the projector is 100 m (328'1"). It is possible to transmit up to 150 m (492'2") if the twisted-pair-cable transmitter supports the long-reach communication method. If this distance is exceeded, image may be disrupted or a malfunction may occur in LAN communication.
When laying cables between the twisted-pair-cable transmitter and the projector, confirm that cable characteristics are compatible with CAT5e or higher using tools such as a cable tester or cable analyzer.
Do not use a hub between the twisted-pair-cable transmitter and the projector.
Do not pull cables forcefully. Also, do not bend or fold cables unnecessarily.
To reduce the effects of noise as much as possible, stretch out the cables between the twisted-pair-cable transmitter and the projector without any loops.
Lay the cables between the twisted-pair-cable transmitter and the projector away from other cables, particularly power cables.
When laying multiple cables, run them side by side along the shortest distance possible without bundling them together.
After laying the cables, go to the [NETWORK] menu → [DIGITAL LINK STATUS] and confirm that the value of [SIGNAL QUALITY] is displayed in green which indicates normal quality. (→ page 161)
For twisted-pair-cable transmitters of other manufacturers of which the operation has been verified with the projector, visit the Panasonic website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Accessing from the web browser
1) Start up the web browser on the computer.
3) Enter the user name and the password.
- The factory default setting of the user name is user1 (user rights)/admin1 (administrator rights) and the password is panasonic (lower case).

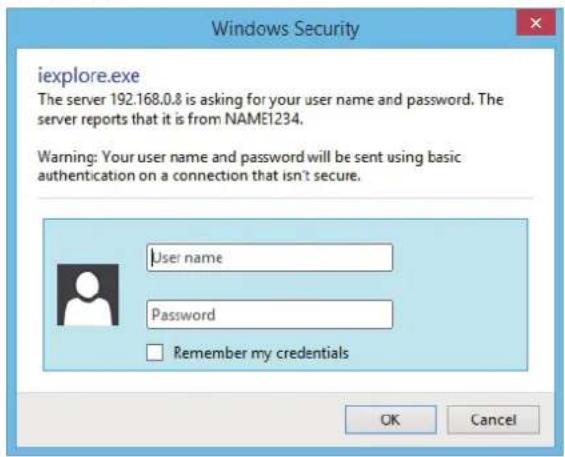

iexplore.exe
The server 192.168.0.8 is asking for your user name and password. The server reports that it is from NAME1234.
Warning: Your user name and password will be sent using basic authentication on a connection that isn't secure.
User name
Password
Remember my credentials
OK Cancel
4) Click OK.

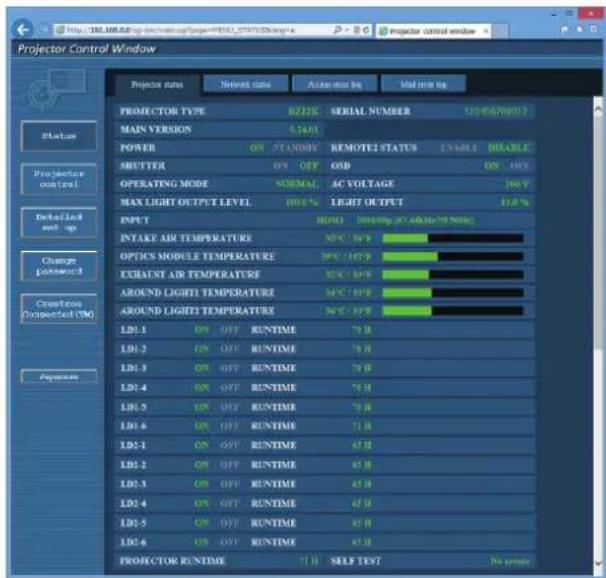

•The [Projector status] page is displayed.
Projector status
Network status
Active status
Main status
Projector control
Status
Projector control
Detailed set-up
Change password
Connections Connected (TM)
Parameters
PROJECTOR TYPE
87JJK
SERIAL NUMBER
12540700012
MAIN VERSION
6.5kV
POWER
ON STANOW
REMOTE STATUS
ENABLE
DISABLE
SHUTTER
ON OFF
OSD
ON
OPERATING MODE
NORMAL
AC VOLTAGE
390 V
MAX LIGHT OUTPUT LEVEL
100 %
LIGHT OUTPUT
13.8 %
INPUT
INTAKE AIR TEMPERATURE
30°C / 10 P
OPTICS MODULE TEMPERATURE
30°C / 10 P
EXHAUST AIR TEMPERATURE
30°C / 10 P
AROUND LIGHT TEMPERATURE
30°C / 10 P
AROUND LIGHT TEMPERATURE
30°C / 10 P
LD0-1 ON OFF RUNTIME 7 H
LD0-2 ON OFF RUNTIME 7 H
LD0-3 ON OFF RUNTIME 7 H
LD0-4 ON OFF RUNTIME 7 H
LD0-5 ON OFF RUNTIME 7 H
LD0-6 ON OFF RUNTIME 7 H
LD0-1 ON OFF RUNTIME 45 H
LD0-2 ON OFF RUNTIME 45 H
LD0-3 ON OFF RUNTIME 45 H
LD0-4 ON OFF RUNTIME 45 H
LD0-5 ON OFF RUNTIME 45 H
LD0-6 ON OFF RUNTIME 45 H
PROJECTOR RUNTIME 11 H SELF TEST No issues
Note
If you use a web browser to control the projector, set [WEB CONTROL] to [ON] in [NETWORK CONTROL] (→ page 162).
Do not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple computers.
Change the password first. (→ page 181)
The administrator rights allow use of all functions. The user rights allow use of [Projector status] (→ page 169), confirmation of the error information page (→ page 170), [Network status] (→ page 171), [Basic control] (→ page 173), and [Change password] (→ page 181) only.
Access will be locked for few minutes when an incorrect password is entered three times consecutively.
Some items on the projector setting page use the Javascript function of the web browser. The projector may not be able to be controlled properly if this function is disabled on the browser settings.
If the screen for the web control is not displayed, consult your network administrator.
While updating the screen for the web control, the screen may appear white for a moment, but it is not a malfunction.

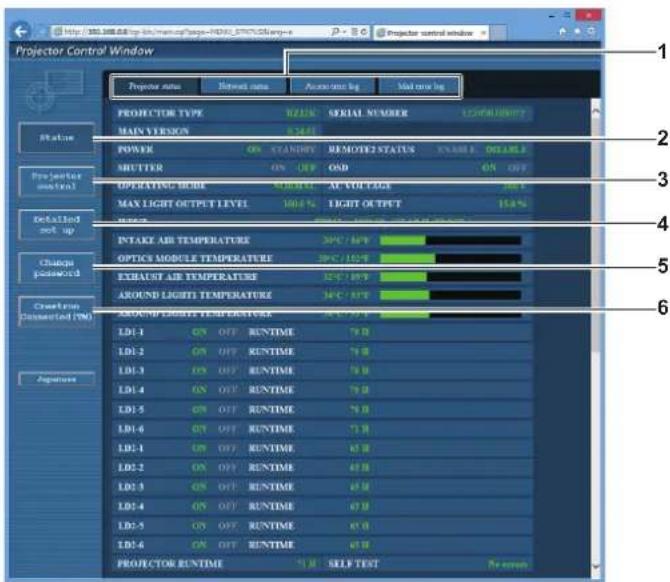

Descriptions of items
Projector status
Internet status
Access time log
Mid row log
1
2
3
4
5
6
Projector control
PROYCTOR TYPE
MAIN VERSION
POWER
ON STANDRY REMOTE2 STATUS EXAMOUNT ORDER
MUTTER ON OFF ON
OPERATING MODE AT VOLTAGE 200%
MAX LIGHT OUTPUT LEVEL 100% LIGHT OUTPUT 150%
INTAKE AIR TEMPERATURE
OPTICS MODULE TEMPERATURE
EXHAUST AIR TEMPERATURE
AROUND LIGHT TEMPERATURE
ROUND LIGHT TEMPERATURE
LDI-1 ON OFF RUNTIME 78 B
LDI-2 ON OFF RUNTIME 78 B
LDI-3 ON OFF RUNTIME 78 B
LDI-4 ON OFF RUNTIME 78 B
LDI-5 ON OFF RUNTIME 78 B
LDI-6 ON OFF RUNTIME 78 B
LDI-1 ON OFF RUNTIME 63 B
LDI-2 ON OFF RUNTIME 63 B
LDI-3 ON OFF RUNTIME 63 B
LDI-4 ON OFF RUNTIME 63 B
LDI-5 ON OFF RUNTIME 63 B
LDI-6 ON OFF RUNTIME 63 B
PROJECTOR RUNTIME SELF TEST No screen
1 Page tab
Switches pages by clicking this item.
4 [Detailed set up]
The [Detailed set up] page is displayed by clicking this item.
[Projector status] page
Click [Status] → [Projector status].
Display the status of the projector for the following items.
Projector name Network name Acute name key Mail name key
PROJECTOR TYPE SERIAL NUMBER 554 and MODE
MAIN VERSION 0.443
POWER ON STANDOUT REMOTE STATUS 1.000 BLAMBE
SHUTTER ON OFF GDP ON 128
OPERATING MODE NORMAL AC VOLTAGE 1963
MAX LIGHT OUTPUT LEVEL 100.0% LIGHT OUTPUT 18.0%
INPUT ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/ON/OFF/On/OFF RUNTIME 70 H
OPTICS MODULE TEMPERATURE 50V / 10V
EXhaust AIR TEMPERATURE 50V / 10V
AROUND LIGHT TEMPERATURE 50V / 10V
AROUND LIGHT TEMPERATURE 50V / 10V
LDL-1 ON OFF RUNTIME 70 H
LDL-2 ON OFF RUNTIME 70 H
LDL-3 ON OFF RUNTIME 70 H
LDL-4 ON OFF RUNTIME 70 H
LDL-5 ON OFF RUNTIME 70 H
LDL-6 ON OFF RUNTIME 71 H
LDL-1 ON OFF RUNTIME 67 H
LDL-2 ON OFF RUNTIME 67 H
LDL-3 ON OFF RUNTIME 67 H
LDL-4 ON OFF RUNTIME 67 H
LDL-5 ON OFF RUNTIME 67 H
LDL-6 ON OFF RUNTIME 67 H
FIGURE FOR RUNTIME SELF TEST No. 7
18
19

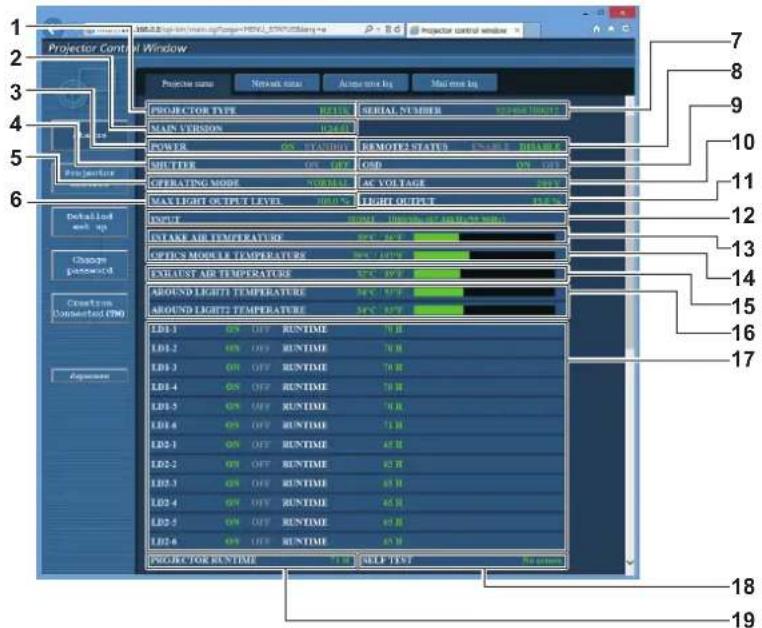

1 [PROJECTOR TYPE]
Displays the type of the projector.
2 [MAIN VERSION]
Displays the firmware version of the projector.
3 [POWER]
Displays the status of the power.
4 [SHUTTER]
Displays the status of shutter function (ON: enabled (closed), OFF: disabled (open)).
5 [OPERATING MODE]
Displays the setting status of [OPERATING MODE].
6 [MAX LIGHT OUTPUT LEVEL]
Displays the setting status of [MAX LIGHT OUTPUT LEVEL].
7 [SERIAL NUMBER]
Displays the serial number of the projector.
8 [REMOTE2 STATUS]
Displays the control status of the terminal.
9 [OSD]
Displays the status of the on-screen display.
10 [AC VOLTAGE]
Displays the input supply voltage.
11 [LIGHT OUTPUT]
Displays the setting status of [LIGHT OUTPUT].
12 [INPUT]
Displays the status of the selected input.
13 [INTAKE AIR TEMPERATURE]
Displays the status of the intake air temperature of the projector.
14 [OPTICS MODULE TEMPERATURE]
Displays the status of the internal temperature of the projector.
15 [EXHAUST AIR TEMPERATURE]
Displays the status of the exhaust air temperature of the projector.
16 [AROUND LIGHT1 TEMPERATURE], [AROUND LIGHT2 TEMPERATURE]
Displays the temperature status of the light source.
17 [LD1-1], [LD1-2], [LD1-3], [LD1-4], [LD1-5], [LD1-6], [LD2-1], [LD2-2], [LD2-3], [LD2-4], [LD2-5], [LD2-6]
Displays the lighting status and runtime of the light source.
18 [SELF TEST]
Displays the self-diagnosis information.
19 [PROJECTOR RUNTIME]
Displays the runtime of the projector.

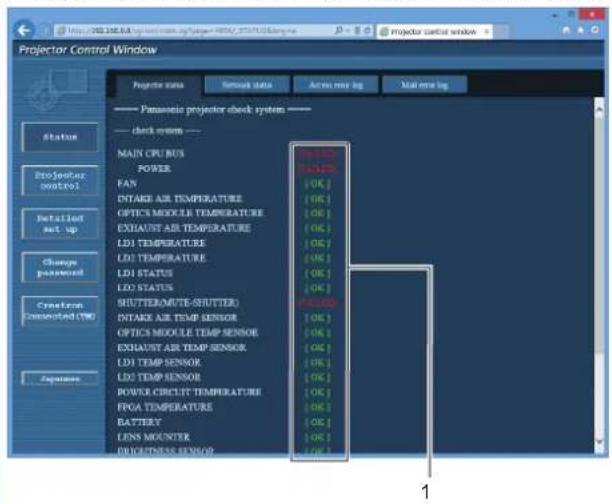

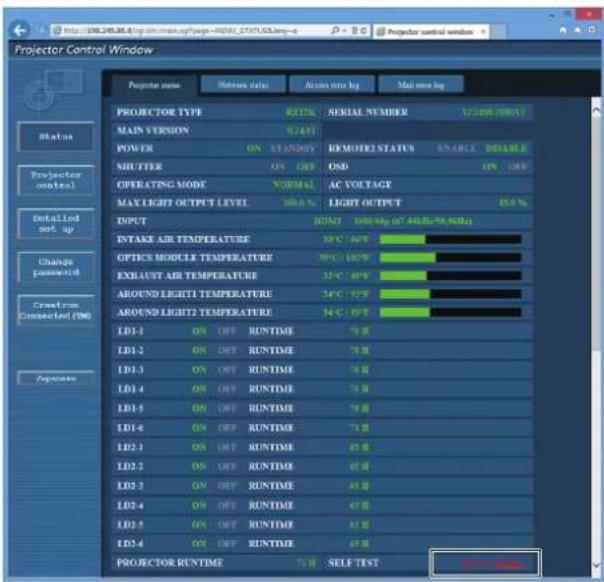

Error information page
When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status] screen, click it to display the content of the error/warning.
- The projector may go into the standby status to protect the projector depending on the contents of the error.
Projector name Release date Access time log Med time log
PROJECTOR TYPE RECE SERIAL NUMBER 1/2/06/2007
MAIN VERSION STAGE
POWER ON STANDING REMOVED2_STATUS ENABLE DRAWLE
SHUTTER ON,OFF OSD ON,LTF
OPERATING MODE NORMAL AC VOLTAGE
MAX LIGHT OUTPUT LEVEL 80.0 % LIGHT OUTPUT 85.0 %
OUTPUT RESUM 1000 Vp (67.4GHz-78.9GHz)
INTAKE AIR TEMPERATURE 30°C 40V
OPTICS MODULE TEMPERATURE 30°C 100V
EXHAUST AIR TEMPERATURE 31°C 40V
AROUND LIGHT1 TEMPERATURE 34°C 50V
AROUND LIGHT2 TEMPERATURE 34°C 50V
LD1-1 ON DFT RUNTIME 7.8
LD1-2 ON DFT RUNTIME 7.8
LD1-3 ON DFT RUNTIME 7.8
LD1-4 ON DFT RUNTIME 7.8
LD1-5 ON DFT RUNTIME 7.8
LD1-6 ON DFT RUNTIME 7.8
LD2-1 ON DFT RUNTIME 65.8
LD2-2 ON DFT RUNTIME 65.8
LD2-3 ON DFT RUNTIME 65.8
LD2-4 ON DFT RUNTIME 65.8
LD2-5 ON DFT RUNTIME 65.8
LD2-6 ON DFT RUNTIME 65.8
PROJECTOR RUNTIME 7.8 SELF TEST
Status
Projector control
Detailed set up
Change transmitted
Cramfer Connected (PM)
Parameters
Projector status
Network data
Act on may log
Materials log
Panasonic projector check system
— deck system —
MAIN CPU BUS
POWER
FAN
INTAKE AIR TEMPERATURE
OPTICS MODULE TEMPERATURE
EXHAUST AIR TEMPERATURE
LDI TEMPERATURE
LDI TEMPERATURE
LDI STATUS
LDI STATUS
SHUTTER(MUTE-SHUTTER)
INTAKE AIR TEMP SENSOR
OPTICS MODULE TEMP SENSOR
EXHAUST AIR TEMP SENSOR
LDI TEMP SENSOR
LDI TEMP SENSOR
POWER CIRCUIT TEMPERATURE
FROA TEMPERATURE
BATTERY
LENS MOUNTER
DELENTRESS TENDER
1
1 Self-diagnosis result display
Displays the item check results.
[OK]:
Indicates that operation is normal.
[FAILED]:
Indicates that there is a problem.
[WARNING]:
Indicates that there is a warning.
■[FAILED] items
Item Description [MAIN CPU BUS] There is a problem with the micro circuitry. Consult your dealer. [FAN] There is a problem with the fan or the fan drive circuit. Consult your dealer. [INTAKE AIR TEMPERATURE] The intake air temperature is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. [OPTICS MODULE TEMPERATURE] The temperature around the optics module inside the projector is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. [EXHAUST AIR TEMPERATURE] The exhaust air temperature is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. Or the air exhaust port may be blocked. [LD1 TEMPERATURE] The temperature of the light source is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. [LD2 TEMPERATURE] [LD1 STATUS] The light source has failed to turn on. Consult your dealer. [LD2 STATUS] [SHUTTER(MUTE-SHUTTER)] There is a problem with the shutter circuitry. Consult your dealer. [INTAKE AIR TEMP.SENSOR] There is a problem with the sensor used to detect intake temperature. Consult your dealer. [OPTICS MODULE TEMP.SENSOR] There is a problem with the sensor used to detect temperature inside the projector. Consult your dealer. [EXHAUST AIR TEMP.SENSOR] There is a problem with the sensor used to detect exhaust air temperature. Consult your dealer. [LD1 TEMP.SENSOR] There is a problem with the temperature detection sensor of light source 1. Consult your dealer. [LD2 TEMP.SENSOR] There is a problem with the temperature detection sensor of light source 2. Consult your dealer. [POWER CIRCUIT TEMPERATURE] The temperature around the power circuit is high. The air intake port may be blocked. [FPGA TEMPERATURE] The temperature inside the projector is high. The air intake port may be blocked. [LENS MOUNTER] There is a problem in the lens mounter. Consult your dealer. [BRIGHTNESS SENSOR] There is a problem with the luminance sensor. If problems persist even after switching on the power, consult your dealer. [PHOSPHOR WHEEL1] There is a problem with the phosphor wheel 1 or phosphor wheel 1 drive circuit. Consult your dealer. [PHOSPHOR WHEEL2] There is a problem with the phosphor wheel 2 or phosphor wheel 2 drive circuit. Consult your dealer. [FILTER UNIT] The air filter unit is not attached. Check the connection of the air filter unit.(→ page 188)
■[WARNING] items
Item Description [INTAKE AIR TEMPERATURE] The intake temperature is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. [OPTICS MODULE TEMPERATURE] The temperature around the optics module inside the projector is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. [EXHAUST AIR TEMPERATURE] The exhaust air temperature is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. Or the air exhaust port may be blocked. [LD1 TEMPERATURE] The temperature of the light source is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. [LD2 TEMPERATURE] [POWER CIRCUIT TEMPERATURE] The temperature around the power circuit is high. The air intake port may be blocked. [FPGA TEMPERATURE] The temperature inside the projector is high. The air intake port may be blocked. [BATTERY] Battery replacement is required. Consult your dealer. [AIR FILTER] There is too much dust accumulated in the air filter. Set theswitch to(⇨ page 64), and clean the air filter. (⇨ page 188) [AC VOLTAGE] The input supply voltage is low. Use electric wiring that can sufficiently withstand the power consumption of the projector. [LOW-TEMPERATURE] The temperature around the optics module inside the projector is low. Projection cannot be started until the optics module becomes warm.
[Network status] page
Click [Status] → [Network status].
The current network setting status is displayed.

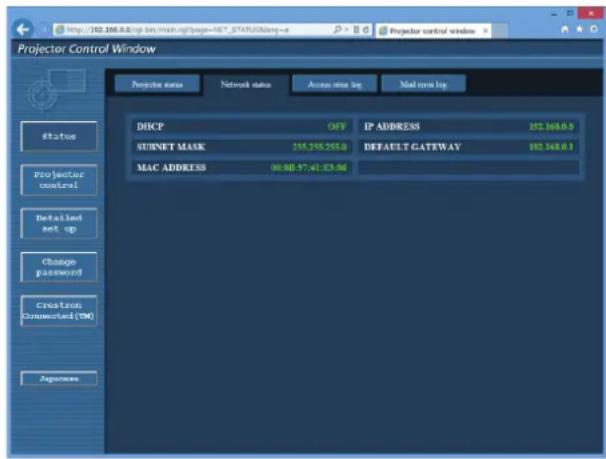

Projector status
Network status
Access time log
Mail time log
Status
Projector control
Detailed set up
Change password
Creation Connected (79)
Parameters
DECP
OFF
IP ADDRESS
192.168.0.5
SUBNET MASK
245.236.255.0
DEFAULT GATEWAY
192.168.0.1
MAC ADDRESS
00:88-7.41-3.56
[Access error log] page
Click [Status] → [Access error log].
The error log on the web server is displayed such as access to the pages that do not exist or access with unauthorized user names or passwords.

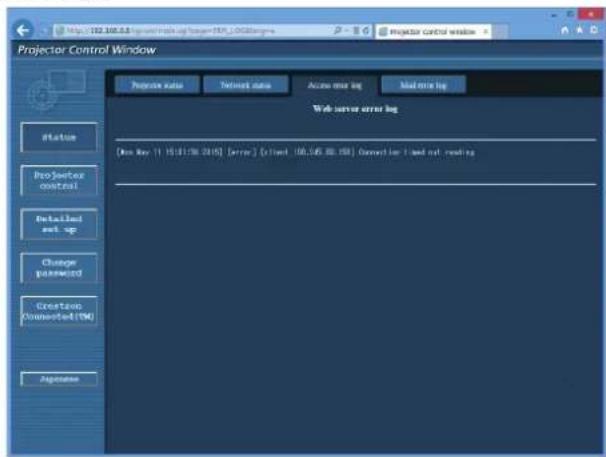

Projector control
Status
Projector control
Detailed set up
Change password
Created or connected (104)
Aggregate
Projector control
Projector control
Web server error log
[User May 11 15:01:58:24:05] [error] [client: (06.545.88.159) Connection I and not reading]
[Mail error log] page
Click [Status] → [Mail error log].

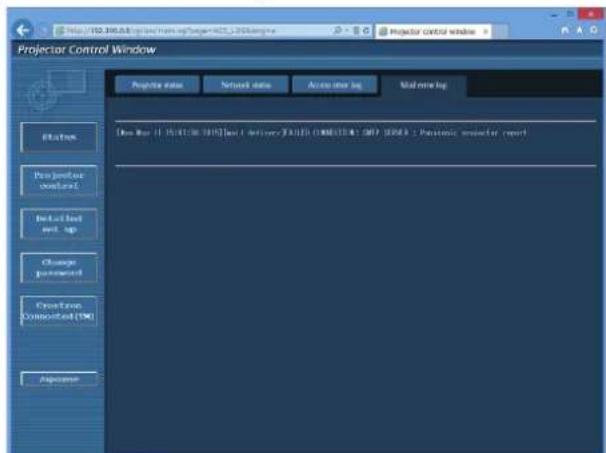

E-mail error log is displayed if periodic E-mail sending has failed.
Projector status
Network data
Access key log
Material key
Status
Projector control
Details and up
Change password
Create Connected (NC)
Access
[Max Mar 1] [05/01/08:2015][box1 deliver:XXX] (XMM334:097) [XXX] : Pesticor master report
Note
[Access error log] and [Mail error log] display the recent few thousand accesses/requests. All information may not be displayed when many accesses/requests are made at once.
Logs in [Access error log] and [Mail error log] are deleted from the oldest when exceeding a certain amount.
Check [Access error log] and [Mail error log] periodically.

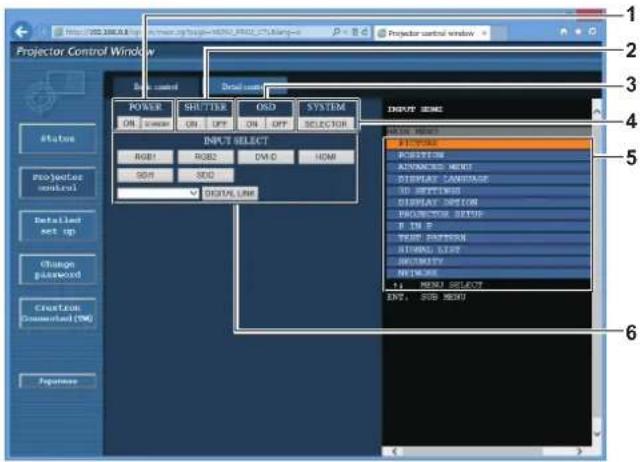

[Basic control] page
Click [Projector control] → [Basic control].
Projector control window
1
2
3
4
5
6
OUTPUT SELECT
POWER SHUTTER OSD SYSTEM
ON ON OFF ON OFF SELECTOR
RGB ROB DVD HAM
90% SSD
DISPLAY
INPUT SOME
BASE KEY
FUNCTION
PROFESSION
ADVANCED KEY
DISPLAY LANGUAGE
NO SETTINGS
DISPLAY OPTION
PROFECTION SETUP
R IN B
TENET PATTERN
RONG LIST
PROMPTY
NETWORK
1: MENU SELECT
ANY, SUB MENU
1 [POWER]
Turns on/off the power.
2 [SHUTTER]
Switches whether to use the shutter function (enabled (shutter: closed)/disabled (shutter: open)).
3 [OSD]
Switches on (display)/off (hide) the on-screen display function.
4 [SYSTEM]
Switches the system method.
5 On-screen display of the projector
Displays the same items as shown on the on-screen display of the projector. You can check or change the settings of the menus. It is displayed even if the on-screen display function is set to off (hide).
Switches the input signal.
The content of display for the input selection button is different depending on the model of the projector.

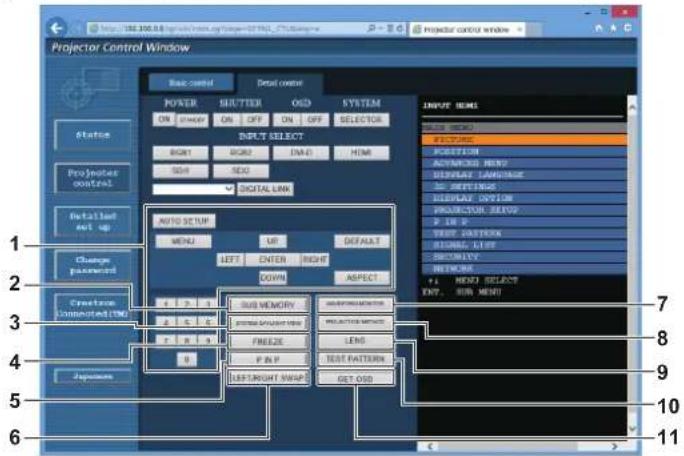

[Detail control] page
Click [Projector control] → [Detail control].
Basic control
Detail control
POWER
ON
OFF
SHUTTER
ON
OFF
OISD
ON
OFF
SYSTEM
SELECT
INPUT HOME
POSTERS
POSITION
ADVANCED MODE
DISPLAY LANGUAGE
IN PROTTORS
DISPLAY OPTION
PROJECTION SERVICE
P IN P
TORT POSTERS
RONG KILLI
SHORT LIME
RENEUR
+1 MODE SELECT
EXT. INT. MENT
OUTPUT
TITLE
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Reinstruct
Rein# 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
1 Control of the projector
The projector is controlled by clicking the buttons in the same way as the buttons on the remote control. After control, the on-screen display of the projector at the right of the control page is updated.
2 [SUB MEMORY]
Switches the sub memory.
3 [SYSTEM DAYLIGHT VIEW]
Switches to system daylight view settings.
4 [FREEZE]
Temporarily pauses the image.
5 [P IN P]
Switches the P IN P setting.
6 [LEFT/RIGHT SWAP]
Switches the flip horizontal settings.
Displays the waveform of the input signal.
8 [PROJECTION METHOD]
Switches the setting of the projection method.
9 [LENS]
Adjusts the projection lens.
10 [TEST PATTERN]
Displays the test pattern.
11 [GET OSD]
Updates the on-screen display of the projector at the right of the control page.

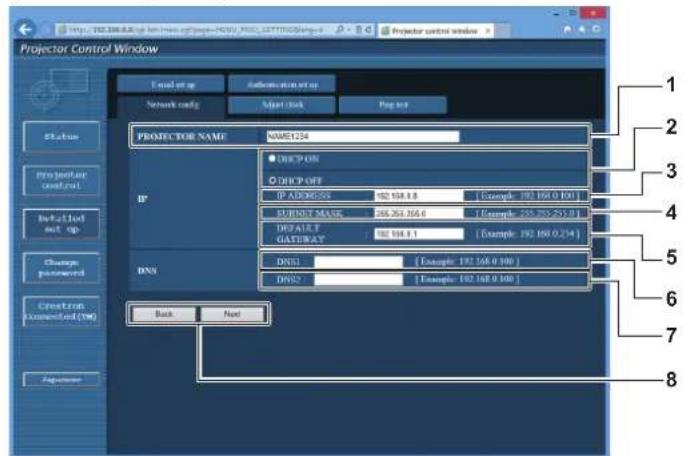

[Network config] page
Click [Detailed set up] → [Network config].
Click [Network config] to display the [CAUTION!] screen.
The current settings are displayed by pressing the [Next] button.
Click [Change] to display the setting change screen.
E-mail at up
Information at up
Network config
Super link
Project
PROYECTOR NAME NAME1234
IP
DHCPOR
DHCP OFF
IP ADDRESS: 192.168.1.8 [Example: 192.168.0.101]
SUBJECT MASK: 248.263.164.6 [Example: 252.752-255.3.1]
DEFAULT GATEWAY: 192.168.1.1 [Example: 192.168.0.234]
DNS
DNS1: [Example: 192.168.0.100]
DNS2: [Example: 192.168.0.100]
Back Next
1
2
3
4
5
6
7
8
1 [PROJECTOR NAME]
Enter the name of the projector. Enter the host name if it is required when using a DHCP server etc.
2 [DHCP ON], [DHCP OFF]
To enable the DHCP client function, set to [DHCP ON].
3 [IP ADDRESS]
Enter the IP address when not using a DHCP server.
4 [SUBNET MASK]
Enter the subnet mask when not using a DHCP server.
5 [DEFAULT GATEWAY]
Enter the default gateway address when not using a DHCP server.
Note
6 [DNS1]
Enter the DNS1 server address.
Permissible characters for the entry of DNS1 server address (primary):
Numbers (0 - 9), period (.)
(Example: 192.168.0.253)
7 [DNS2]
Enter the DNS2 server address.
Available characters for the entry of DNS2 server address
(secondary):
Numbers (0 - 9), period (.)
(Example: 192.168.0.254)
8 [Back], [Next]
Click the [Back] button to return to the original screen. The current settings are displayed by pressing the [Next] button. Click the [Submit] button to update the settings.
When you use the "Forward" and "Back" functions of your browser, a warning message "Page has Expired" may appear. In that case, click [Network config] again since the following operation will not be guaranteed.
Changing LAN settings while connected to the LAN may cause the connection to cut out.
[Adjust clock] page
Click [Detailed set up] → [Adjust clock].
I read at up
Authentication at up
Network ready
Adjust clock
Page set
Status
Projector control
Detailed set up
Change password
Creation Connected (10)
Parameters
Time Zone: 207-05-101 Select Local time zone
Current zone is GMT-49-00
Flat time zone
Current time is set to 2015/05/11 13:14:48
NTP SYNCHRONIZATION ● ON OFF
NTP SERVER NAME Up to 61 characters
Date: 2015/05/11 Date type is YYYY-MM-DD
Time: 2015/05/11 Time type is 8th sum to
Submit
1 [Time Zone]
Select the time zone.
2 [Set time zone]
Updates the time zone setting.
3 [NTP SYNCHRONIZATION]
Set to [ON] to adjust the date and time automatically.
4 [NTP SERVER NAME]
Enter the IP address or server name of the NTP server when you set to adjust the date and time manually.
(To enter the server name, the DNS server needs to be set up.)
5 [Date]
Enter the date to be changed.
6 [Time]
Enter the time to be changed.
7 [Submit]
Updates the date and time settings.
Note
- The replacement of the battery inside the projector is required when the time goes out of alignment right after correcting the time. Consult your dealer.

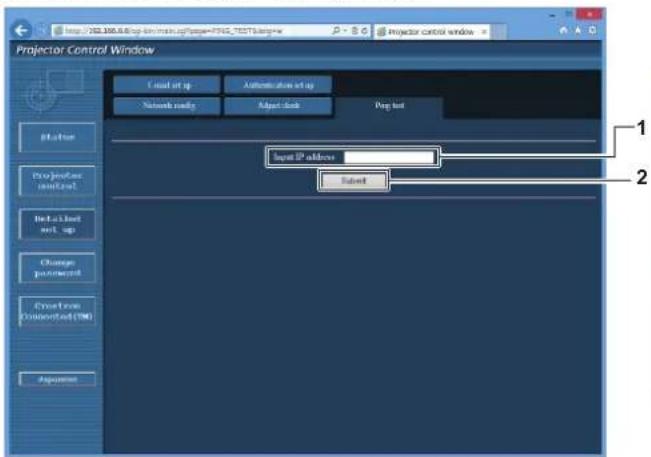

[Ping test] page
Check whether the network is connected to the E-mail server, POP server, DNS server, etc.
Click [Detailed set up] → [Ping test].
Input IP address
Submit
1 [Input IP address]
Enter the IP address of the server to be tested
2 [Submit]
Executes the connection test.

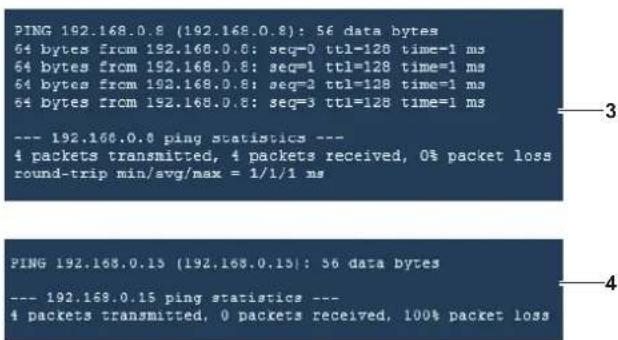

64 bytes from 192.168.0.8: seq=0 ttl=128 time=1 ms
64 bytes from 192.168.0.8: seq=1 ttl=128 time=1 ms
64 bytes from 192.168.0.8: seq=2 ttl=128 time=1 ms
64 bytes from 192.168.0.8: seq=3 ttl=128 time=1 ms
--- 192.168.0.8 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 1/1/1 ms
PING 192.168.0.15 (192.168.0.15): 56 data bytes
--- 192.168.0.15 ping statistics ---
4 packets transmitted, 0 packets received, 100% packet loss
3 Example of display when the connection has succeeded
4 Example of display when the connection has failed

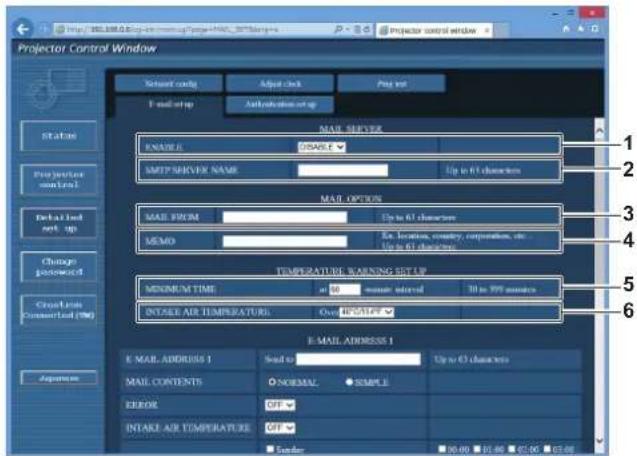

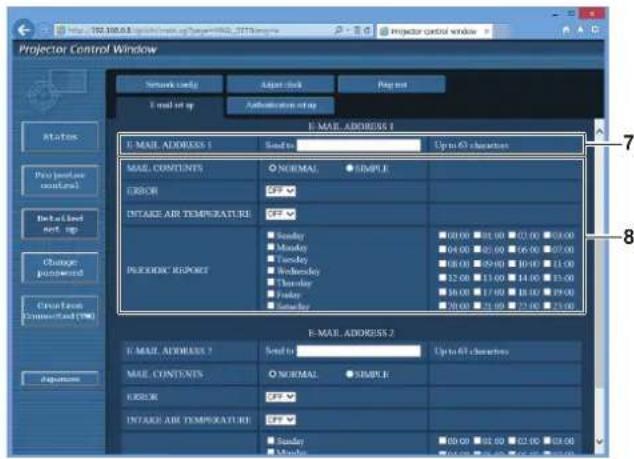

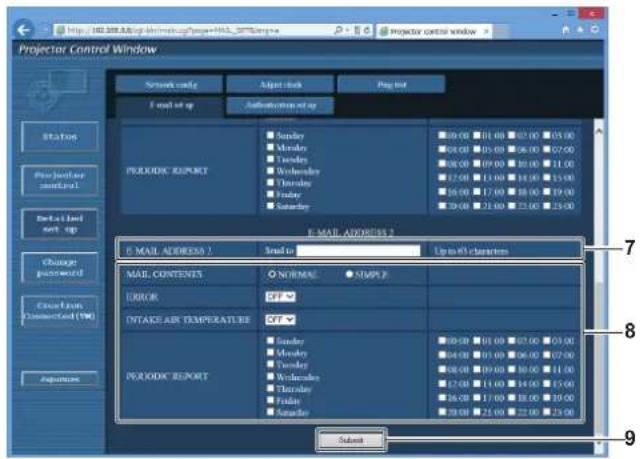

[E-mail set up] page
Send an E-mail to preset E-mail addresses (up to two addresses) when a problem has occurred.
Click [Detailed set up] → [E-mail set up].
Set Cardi
Adjust C#
Prior ext
F end strip
Authorization set up
Status
Projection switch
Default find net up
Change password
Circuit Line Connected (TM)
Appearance
MAIL SERVER
EMAIL: INSTALL
MIME SERVER NAME: Up to 61 characters
MAIL OPTION
MAIL FROM: Up to 61 characters
MEMO: Ex. location, directory, corporation, etc.
To be 61 characters
TEMPERATURE WARNING SET UP
MINIMUM TIME: up to 60 minutes interval 10 to 99 minutes
INTAKE AIR TEMPERATURE: Over UPDATE
E-MAIL ADDRESS 1
E-MAIL ADDRESS 1
Mail CONTENTS: Normal: SAMPLE
ERROR: Off
INTAKE AIR TEMPERATURE: Off
Solder: 00.00 51.00 52.00 53.00
1 [ENABLE]
Select [Enable] to use the E-mail function.
2 [SMTP SERVER NAME]
Enter the IP address or the server name of the E-mail server (SMTP). To enter the server name, the DNS server needs to be set up.
3 [MAIL FROM]
Enter the E-mail address of the projector. (Up to 63 characters in single byte)
4 [MEMO]
Enter information such as the location of the projector that notifies the sender of the E-mail. (Up to 63 characters in single byte)
5 [MINIMUM TIME]
Change the minimum interval for the temperature warning E-mail. The default value is 60 minutes. In this case, another E-mail will not be sent for 60 minutes after sending the temperature warning E-mail even if it reaches the warning temperature.
6 [INTAKE AIR TEMPERATURE]
Change the temperature setting for the temperature warning mail. A temperature warning E-mail is sent when the temperature exceeds this value.
Network config
Adjust check
Pag not
I mail or up
Authentication or up
Status
Paid packet
out Level
Set to Lined
sort up
Change:
passworded
Creation
Connected (TM)
Accession
E-MAIL ADDRESS 1
Send to
Up to 63 characters
MAIL CONTENTS
NORMAL
● SIMPLE
ERROR
OFF
INTARE AIR TEMPERATURE
OFF
PICKED REPORT
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
00:00 01:00 02:00 03:00
04:00 05:00 06:00 07:00
08:00 09:00 10:00 11:00
12:00 13:00 14:00 15:00
16:00 17:00 18:00 19:00
20:00 21:00 22:00 23:00
E-MAIL ADDRESS 2
Send to
Up to 63 characters
MAIL CONTENTS
NORMAL
● SIMPLE
ERROR
OFF
INTARE AIR TEMPERATURE
OFF
Sunday
Monday
00:00 01:00 02:00 03:00
7 [E-MAIL ADDRESS 1], [E-MAIL ADDRESS 2]
Enter the E-mail address to be sent. Leave [E-MAIL ADDRESS 2] blank when two E-mail addresses are not to be used.
Network ready
Adjust clock
Project
Event at up
Authentication at up
Status
Projector
control
Defaulted
sort up
Change
passwords
Create from
Connected (TM)
Appendices
E-MAIL ADDRESS 2
Mail to
Up to AS characters
MAIL CONTENTS
NORMAL SIMPLY
ERROR
OFF
INTAKE AIR TEMPERATURE
OFF
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
30:00 11:00 82:00 03:00
40:00 15:00 96:00 07:00
48:00 19:00 10:00 11:00
57:00 13:00 14:00 15:00
56:00 17:00 18:00 19:00
70:00 21:00 22:00 23:00
E-MAIL ADDRESS 2
Mail to
Submit
8 Settings of the conditions to send E-mail
Select the conditions to send E-mail.
[MAIL CONTENTS]:
Select either [NORMAL] or [SIMPLE].
[ERROR]:
Send an E-mail when an error occurred in the self-diagnosis.
[INTAKE AIR TEMPERATURE]:
Send an E-mail when the intake air temperature has reached the value set at the above field.
[PERIODIC REPORT]:
Place a check mark on this to send an E-mail periodically.
It will be sent on the days and time with the check mark.
9 [Submit]
Update the settings.

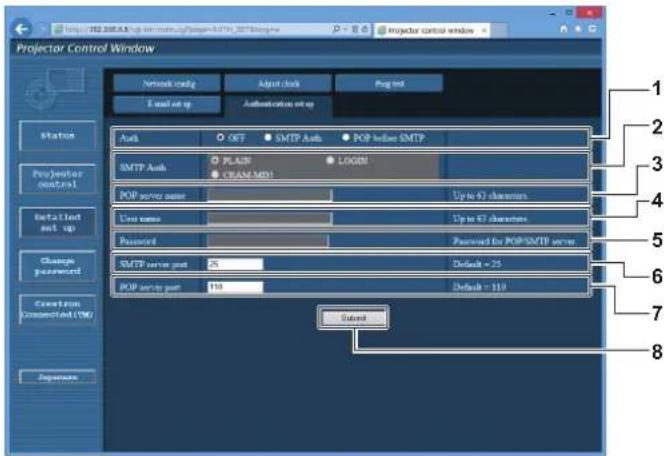

[Authentication set up] page
Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up].
Network mask
Adjust clock
Project
E-mail at up
Authentication at up
Avail
OFF
SMTP Auth
POP border SMTP
SMTP Auth
PLAIN
LOGIN
CREAM POST
POP server name:
Up to 62 characters
User name:
Up to 62 characters
Password:
Password for POP/SMTP server
SMTP server post: 25
Default = 25
POP server post: 10
Default = 110
Cancel
Station
1
2
3
4
5
6
7
8
1 [Auth]
Select the authentication method specified by your Internet service provider.
2 [SMTP Auth]
Set when the SMTP authentication is selected.
3 [POP server name]
Enter the POP server name.
Allowed characters:
Alphanumerics (A - Z, a - z, 0 - 9)
Minus sign (-) and period (.)
4 [User name]
Enter the user name for the POP server or the SMTP server.
5 [Password]
Enter the password for the POP server or the SMTP server.
6 [SMTP server port]
Enter the port number of the SMTP server.
(Normally 25)
7 [POP server port]
Enter the port number of the POP server.
(Normally 110)
8 [Submit]
Update the settings.
Contents of E-mail sent

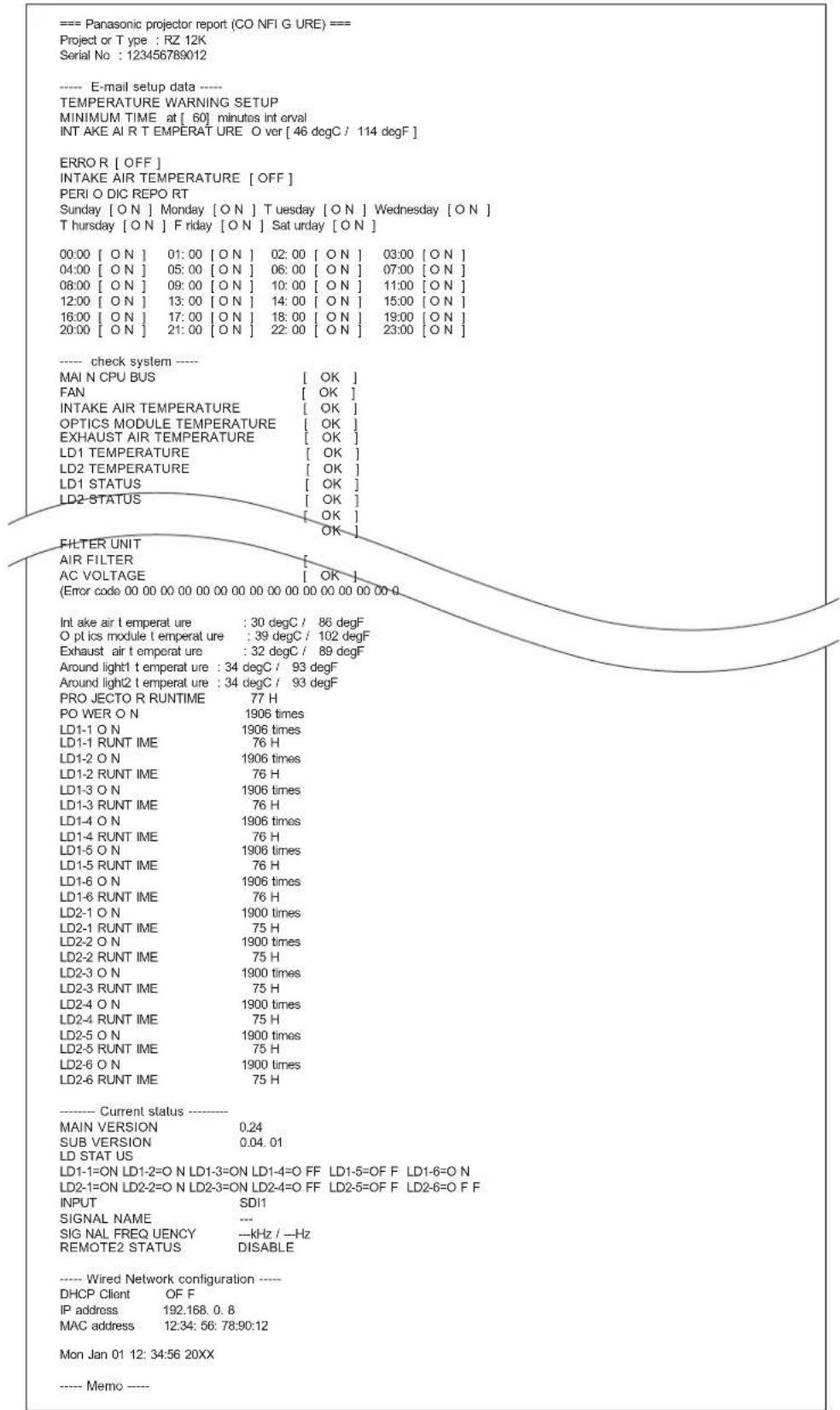

Example of the E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been established.
Project or T type : RZ 12K
Serial No : 123456789012
---- E-mail setup data ----
TEMPERATURE WARNING SETUP
MINIMUM TIME at [ 60] minutes int orval
INT AKE AIR T EMPERAT URE O ver [ 46 degC / 114 degF ]
ERROR [ OFF ]
INTAKE AIR TEMPERATURE [ OFF ]
PERI O DIC REPO RT
Sunday [ O N ] Monday [ O N ] Tuesday [ O N ] Wednesday [ O N ]
Thursday [ O N ] Friday [ O N ] Saturday [ O N ]
00:00 [ O N ] 01:00 [ O N ] 02:00 [ O N ] 03:00 [ O N ]
04:00 [ O N ] 05:00 [ O N ] 06:00 [ O N ] 07:00 [ O N ]
08:00 [ O N ] 09:00 [ O N ] 10:00 [ O N ] 11:00 [ O N ]
12:00 [ O N ] 13:00 [ O N ] 14:00 [ O N ] 15:00 [ O N ]
18:00 [ O N ] 17:00 [ O N ] 18:00 [ O N ] 19:00 [ O N ]
20:00 [ O N ] 21:00 [ O N ] 22:00 [ O N ] 23:00 [ O N ]
---- check system ----
MAI N CPU BUS [ OK ]
FAN [ OK ]
INTAKE AIR TEMPERATURE [ OK ]
OPTICS MODULE TEMPERATURE [ OK ]
EXHAUST AIR TEMPERATURE [ OK ]
LD1 TEMPERATURE [ OK ]
LD2 TEMPERATURE [ OK ]
LD1 STATUS [ OK ]
LD2 STATUS [ OK ]
OK
FILTER UNIT
AIR FILTER [
AC VOLTAGE [ OK ]
(Error code 00 00 00 00 00 00 00 00 00 00 00 00 00 00]
Int ake air t emperat ure : 30 degC / 86 degF
O pt lcs module t emperat ure : 39 degC / 102 degF
Exhaust air t emperat ure : 32 degC / 89 degF
Around light1 t emperat ure : 34 degC / 93 degF
Around light2 t emperat ure : 34 degC / 93 degF
PRO JECTO R RUNTIME 77 H
PO WER O N 1906 times
LD1-1 O N 1906 times
LD1-1 RUNT IME 76 H
LD1-2 O N 1906 times
LD1-2 RUNT IME 76 H
LD1-3 O N 1906 times
LD1-3 RUNT IME 76 H
LD1-4 O N 1906 times
LD1-4 RUNT IME 76 H
LD1-5 O N 1906 times
LD1-5 RUNT IME 76 H
LD1-6 O N 1906 times
LD1-6 RUNT IME 76 H
LD2-1 O N 1900 times
LD2-1 RUNT IME 75 H
LD2-2 O N 1900 times
LD2-2 RUNT IME 75 H
LD2-3 O N 1900 times
LD2-3 RUNT IME 75 H
LD2-4 O N 1900 times
LD2-4 RUNT IME 75 H
LD2-5 O N 1900 times
LD2-5 RUNT IME 75 H
LD2-6 O N 1900 times
LD2-6 RUNT IME 75 H
---- Current status ----
MAIN VERSION 0.24
SUB VERSION 0.04. 01
LD STAT US
LD1-1=ON LD1-2=O N LD1-3=ON LD1-4=O FF LD1-5=OF F LD1-6=O N
LD2-1=ON LD2-2=O N LD2-3=ON LD2-4=O FF LD2-5=OF F LD2-6=O F F
INPUT SDI1
SIGNAL NAME ---
SIG NAL FREQ UENCY --kHz / --Hz
REMOTE2 STATUS DISABLE
---- Wired Network configuration ----
DHCP Client OF F
IP address 192.168. 0.8
MAC address 12:34: 56: 78:90:12
Mon Jan 01 12:34:56 20XX
---- Memo ----
Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== Panasonic projector report (ERRO R) ===
Project or Type : RZ 12K
Serial No : 123456789012
---- check system ----
MAI N CPU BUS [ FAILED ]
FAN [ OK ]
INTAKE AIR TEMPERATURE [ OK ]
OPTICS MODULE TEMPERATURE [ OK ]
EXHAUST AIR TEMPERATURE [ OK ]
LD1 TEMPERATURE [ OK ]
LD2 TEMPERATURE [ OK ]
LD1 STATUS [ OK ]
LD2 STATUS [ OK ]
SHUT T ER(MUT E-SHUT T ER) [ OK ]
INTAKE AIR TEMP.SENSOR [ OK ]
OPTICS MODULE TEMP.SENSOR [ OK ]
EXHAUST AIR TEMP.SENSOR [ OK ]
LD1 TEMPERATURE [ OK ]
LD2 TEMPERATURE [ OK ]
PO WER CI RCUIT TEMPERATURE [ OK ]
FPGA TEMPERATURE [ OK ]
BATTERY [ OK ]
LENS MO UNTER [ OK ]
BRIGHTNESS SENSOR [ OK ]
PHOSPHOR WHEEL1 [ OK ]
PHOSPHOR WHEEL2 [ OK ]
FI LTER UNI T [ OK ]
AIR FILTER [ OK ]
AC VOLTAGE [ OK ]
(Error code 80 00 00 00 00 00 00 00 00 00 00 00 00 00)
Int ake air t emperat ure : 30 degC / 86 degF
O pt ics module t emperat ure : 39 degC / 102 degF
Exhaust air t emperat ure : 32 degC / 89 degF
Around light1 t emperat ure: 34 degC / 93 degF
Around light2 t emperat ure: 34 degC / 93 degF
PRO JECTO R RUNTIME 77 H
PO WER O N 1906 times
LD1-1 O N 1906 times
LD1-1 RUNT IME 76 H
LD1-2 O N 1906 times
LD1-2 RUNT IME 76 H
LD1-3 O N 1906 times
LD1-3 RUNT IME 76 H
LD1-4 O N 1906 times
LD1-4 RUNT IME 76 H
LD1-5 O N 1906 times
LD1-5 RUNT IME 76 H
LD1-6 O N 1906 times
LD1-6 RUNT IME 76 H
LD2-1 O N 1900 times
LD2-1 RUNT IME 75 H
LD2-2 O N 1900 times
LD2-2 RUNT IME 75 H
LD2-3 O N 1900 times
LD2-3 RUNT IME 75 H
LD2-4 O N 1900 times
LD2-4 RUNT IME 75 H
LD2-5 O N 1900 times
LD2-5 RUNT IME 75 H
LD2-6 O N 1900 times
LD2-6 RUNT IME 75 H
---- Current status ----
MAIN VERSION 0.24
SUB VERSION 0.04.01
LD STAT US
LD1-1=ON LD1-2=ON LD1-3=ON LD1-4=OFF LD1-5=OFF F LD1-6=ON
LD2-1=ON LD2-2=ON LD2-3=ON LD2-4=OFF LD2-5=OFF F LD2-6=OFF F
INPUT SDI1
SIGNAL NAME ---
SIG NAL FREQ UENCY --kHz / --Hz
REMOTE2 STATUS DISABLE
---- Wired Network configuration ----
DHCP Client OFF
IP address 192.168.0.8
MAC address 12:34:56:78:90:12
Mon Jan 01 12:34:56 20XX
---- Memo ----

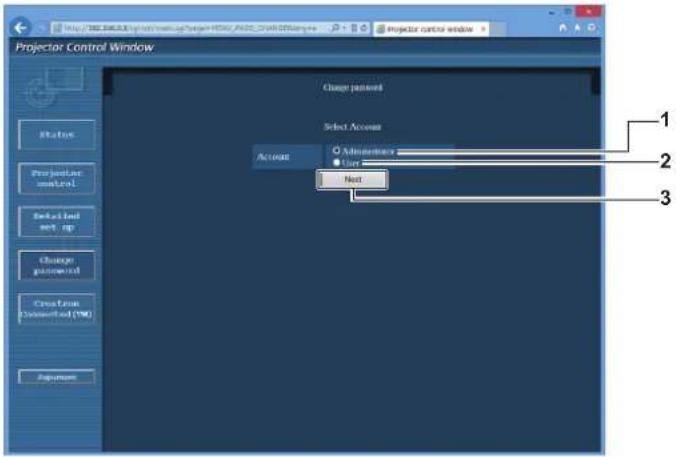

[Change password] page
Click [Change password].
Change password
Select Account
Account
○ Administerency
● User
Next
Status
Projection control
Initial load
set up
Change password
Creation Connection (TW)
Appendix
1 [Administrator]
Used to change the setting of the [Administrator].
3 [Next]
Used to change the setting of the password.
2 [User]
Used to change the setting of the [User].

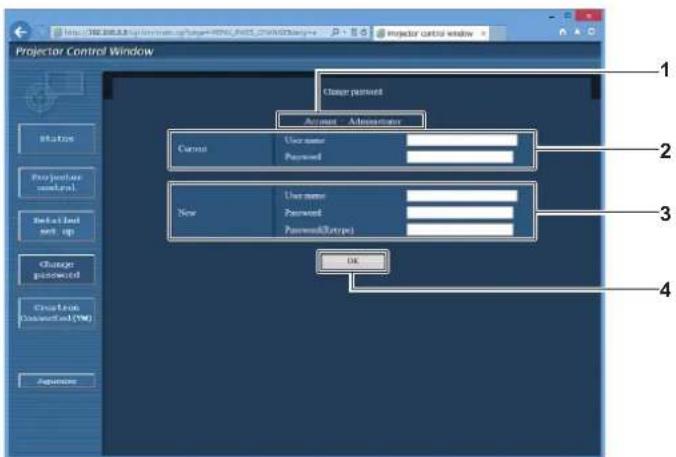

[Administrator] account
Change packet
Access Administration
Current User name
Password
New User name
Password
Password(https)
OK
Status
Projection
control
Default and
set up
Change
password
Creation
Unconnected (W)
Assignee
1 [Account]
Displays the account to change.
2 [Current]
[User name]:
Enter the user name before the change.
[Password]:
Enter the current password.
3 [New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single byte)
[Password(Retype)]:
Enter the desired new password again.
4 [OK]
Determines the change of password.

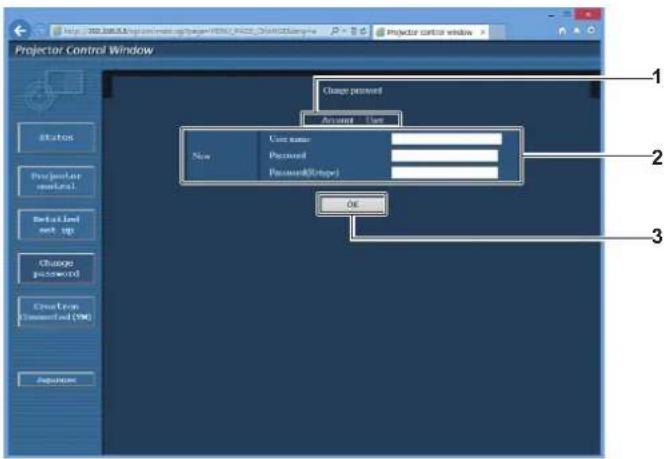

[User] account
Change password
Account User
New
User name:
Password:
Password(https)
OK
1
2
3
1 [Account]
Displays the account to change.
3 [OK]
Determines the change of password.
2 [New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single byte)
[Password(Retype)]:
Enter the desired new password again.

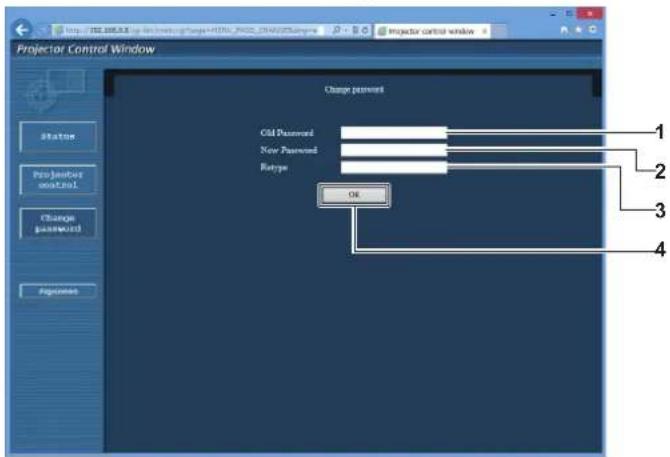

[Change password] (For user rights)
Only the change of password is enabled under the user rights.
Change password
Old Password
New Password
Rtype
OK
Status
Projector
and First
Change
password
Regulator
1
2
3
4
1 [Old Password]
Enter the current password.
3 [Retype]
Enter the desired new password again.
2 [New Password]
Enter the desired new password. (Up to 16 characters in single byte)
4 [OK]
Determines the change of password.
Note
- To change the account of the administrator, you must enter the [User name] and [Password] in [Current].
[Crestron Connected(TM)] page
The projector can be monitored/controlled with Crestron Connected™.
It is necessary to access with the administrator rights to start the operation screen of Crestron Connected™ from the web control screen. (The [Crestron Connected(TM)] button is not displayed in the web control screen with the user rights.)
The operation page of Crestron ConnectedTM is displayed by clicking [Crestron Connected(TM)].
It is not displayed if Adobe Flash Player is not installed on your computer, or the browser you use does not support Flash. In such a case, click [Back] in the operation page to go back to the previous page.

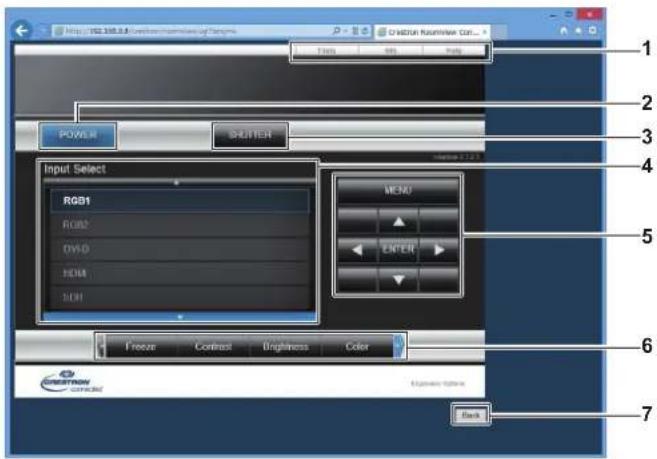

Operation page
2
3
4
5
6
7
Input Select
RGB1
RGB2
DVD
HCM
HCM
MENU
ENTER
Freeze
Contrast
Brightness
Color
Exposure status
Chiketron Rountview Con...
Back
1 [Tools], [Info], [Help]
Tabs for selecting the setting, information, or help page of the projector.
2 [POWER]
Turns on/off the power.
3 [SHUTTER]
Switches whether to use the shutter function (enabled (shutter: closed)/disabled (shutter: open)).
4 [Input Select]
Controls input selection.
Not available when the power of the projector is turned off.
5 Menu screen control buttons
Navigates the menu screen.
6 Freeze/image quality adjustment
Controls items related to freeze/image quality.
7 [Back]
Returns to the previous page.

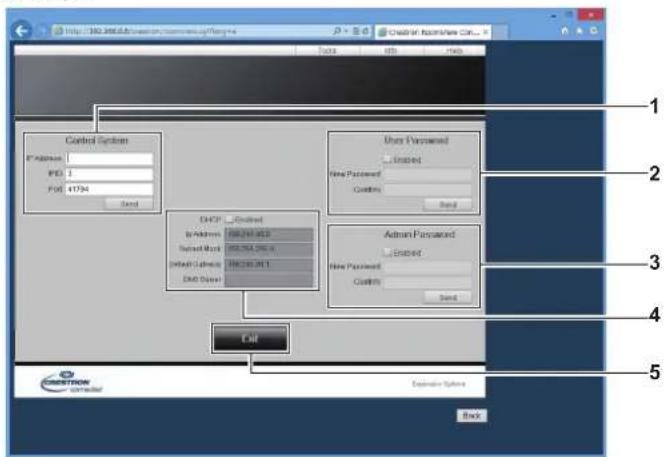

[Tools] page
Click [Tools] in the operation page.
P Address:
PID 1
FUE 41734
Send
CHFTP _Enabled
In Address: 100.267.951.0
Named Mark: 00.754.286.0
Default Password: 100.267.951.1
EMD Address:
User Powered
Enabled
New Powered
Customs
Send
Admin Powered
Enabled
New Powered
Customs
Send
Exit
C:\WIN\SYSTEM\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\Control\control
Back
1 [Control System]
Set the information required for communicating with the controller to be connected with the projector.
2 [User Password]
Set the user rights password for the operation page of Crestron Connected™.
3 [Admin Password]
Set the administrator rights password for the operation page of Crestron Connected™.
4 Network status
Displays the settings of wired LAN.
[DHCP]
Displays the current setting.
[Ip Address]
Displays the current setting.
[Subnet Mask]
Displays the current setting.
[Default Gateway]
Displays the current setting.
[DNS Server]
Displays the current setting.
5 [Exit]
Returns to the operation page.

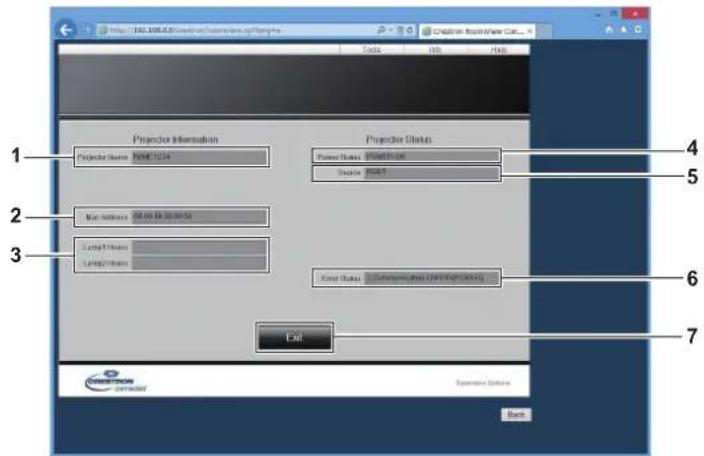

[Info] page
Click [Info] in the operation page.
2
3
4
5
6
7
Projector Information
Projector Status: NME1204
Projector Status: Power Status: 900000
Projector Status: 900000
Projector Status: 900000
Projector Status: 900000
Projector Status: 900000
Projector Status: 900000
Projector Status: 900000
Projector Status: 900000
Projector Status: 900000
Projector Status: 85.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
Projector Status:
1 [Projector Name]
Displays the projector name.
2 [Mac Address]
Displays the MAC address.
3 [Lamp1 Hours], [Lamp2 Hours]
Displays the runtime of the light source 1 and the light source 2.
4 [Power Status]
Displays the status of the power.
5 [Source]
Displays the selected input.
6 [Error Status]
Displays the error status.
7 [Exit]
Returns to the operation page.

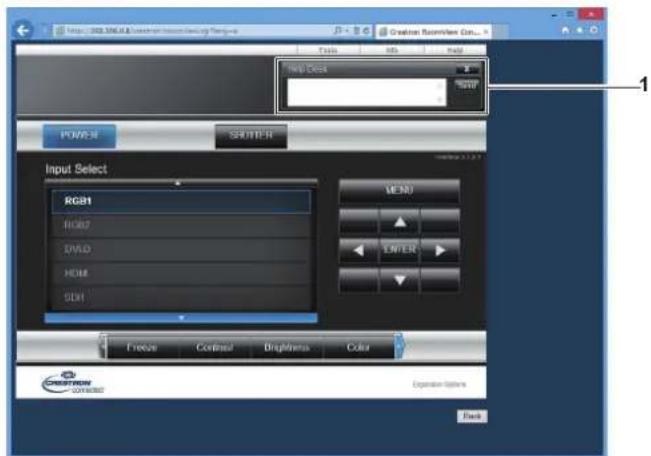

[Help] page
Click [Help] in the operation page.
The [Help Desk] window is displayed.
1
POWER
SHUTTER
Input Select
RGB1
RGB2
DVD
HDMI
SDH
MENU
ENTER
Freeze
Contrastal
Bruglithma
Color
CREDITROOM
Connected
Expansion Buttons
Back
1 [Help Desk]
A message can be sent/received with the administrator using the Crestron Connected™.
Chapter 5 Maintenance
This chapter describes methods of inspection when there are problems, maintenance, and replacement of the units.
Light source/temperature/filter indicators
When an indicator lights up
If a problem occurs inside the projector, the light source indicators /, temperature indicator , or filter indicator will inform you by lighting or blinking in red. Check the status of the indicators and take following measures.
Attention
- When switching off the projector to deal with problems, make sure to follow the procedure in "Switching off the projector" (→ page 64).

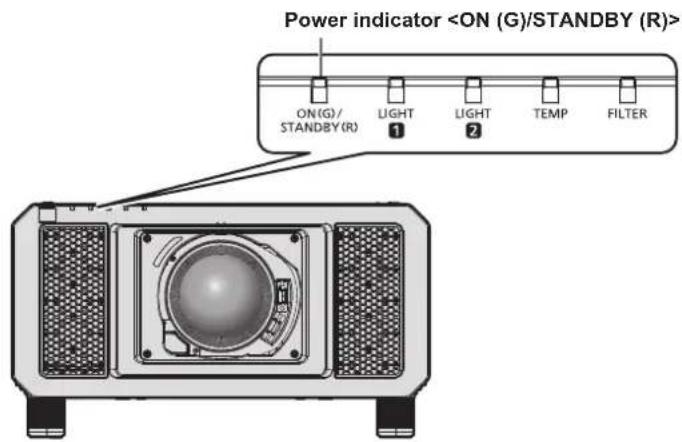

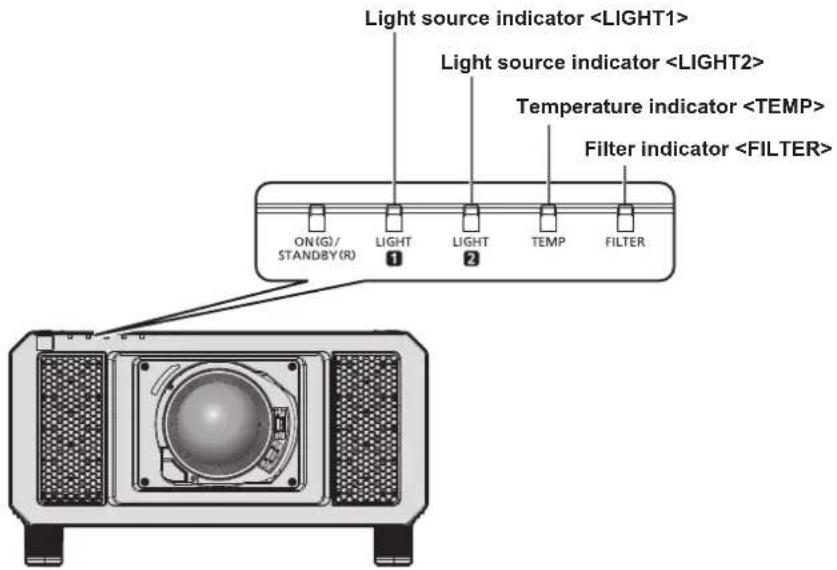

Light source indicator
Temperature indicator
Filter indicator
ON(G)/
STANDBY(R)
LIGHT
1
LIGHT
2
TEMP
FILTER
Light source indicators /
Indicator status Blinking in red(2 times) Blinking in red(3 times) Status The light source does not light up, or the light source turns off while the projector is in use. Cause — Solution • Turn theswitch to(→ page 64), and turn on the power again.
Note
- If the light source indicators / are still lit or blinking after taking the measures, ask your dealer for repair.
- The light source indicator corresponding to the light source being lit will light up in green if the projector is in projection mode and there is no indication of problem by lighting or blinking in red.
Temperature indicator
Indicator status Lighting in red Blinking in red(2 times) Blinking in red(3 times) Status Warm-up status Internal temperature is high (warning). Internal temperature is high (standby status). The cooling fan has stopped. Cause Did you turn on the power when the temperature was low (around 0 °C (32 °F))? Is the air intake/exhaust port blocked?Is the room temperature high?Is the filter indicatorlit? — Solution Wait at least five minutes in the current status.Install the projector in a location with the operating environment temperature between 0 °C (32 °F) and 50 °C (122 °F)*1. Remove any objects that are blocking the air intake/ exhaust port.Install the projector in a location with the operating environment temperature between 0 °C (32 °F) and 50 °C (122 °F)*1, and ambient humidity between 10 % and 80 % (no condensation).Clean or replace the air filter unit. (→ page 188) Turn theswitch to(→ page 64), and consult your dealer.
*1 The operating environment temperature should be between 0 °C (32 °F) and 45 °C (113 °F) if the projector is used at an altitude between 1 400 m (4 593') and 4 200 m (13 780') above sea level. When [OPERATING MODE] in the [PROJECTOR SETUP] menu → [OPERATION SETTING] is set to [ECO], [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3], the operating environment temperature should be between 0 °C (32 °F) and 45 °C (113 °F), and when the Smoke Cut Filter is used, it should be between 0 °C (32 °F) and 40 °C (104 °F) regardless of the altitude. When [OPERATING MODE] in the [PROJECTOR SETUP] menu → [OPERATION SETTING] is set to [ECO], [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3], the projector cannot be used at an altitude of 2 700 m (8 858') or higher above sea level. When the Smoke Cut Filter is used, the projector cannot be used at an altitude of 1 400 m (4 593') or higher above sea level.
Note
- If the temperature indicator is still lit or blinking after taking the measures, ask your dealer for repair.
Filter indicator
Indicator status Lighting in red Blinking in red Status The filter is clogged.The temperature inside or outside the projector is abnormally high. The air filter unit is not attached. Cause •Is the air filter unit dirty? •Is the air intake/exhaust port blocked? •Is the projector used at an altitude of 4 200 m (13 780') ^1 or higher above sea level? •Is the air filter unit attached? Solution •Clean or replace the air filter unit. (⇨ page 188) •Remove any objects that are blocking the air intake/exhaust port. •Do not use the projector at an altitude of 4 200 m (13 780') ^1 or higher above sea level. •Attach the air filter unit.
*1 When [OPERATING MODE] in the [PROJECTOR SETUP] menu → [OPERATION SETTING] is set to [ECO], [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3], the projector cannot be used at an altitude of 2 700 m (8 858') or higher above sea level. When the Smoke Cut Filter is used, the projector cannot be used at an altitude of 1 400 m (4 593') or higher above sea level.
Note
- If the filter indicator is still lit or blinking after taking the measures, ask your dealer for repair.
Maintenance/replacement
Before performing maintenance/replacement
Make sure to turn off the power before maintaining or replacing the unit. (→ pages 55, 64)
When switching off the projector, make sure to follow the procedures in "Switching off the projector" ( page 64).
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.
If the dirt is persistent, soak the cloth with water and wring it thoroughly before wiping. Dry off the projector with a dry cloth.
Do not use benzene, thinner, or rubbing alcohol, other solvents, or household cleaners. Doing so may deteriorate the outer case.
When using chemically treated dust cloths, follow the instructions written on its packaging.
Lens front surface
Wipe off dirt and dust from the front surface of the lens with a soft clean cloth.
- Do not use a cloth that is fluffy, dusty, or soaked with oil/water.
- Since the lens is fragile, do not use excessive force when wiping the lens.
Attention
- The lens is made of glass. Impacts or excessive force when wiping may scratch its surface. Handle with care.
Air filter unit
Perform maintenance of the air filter unit in the following cases.
- The air filter is clogged with dust, causing the filter replacement message to appear on the screen and the filter indicator to light in red.
Attention
Make sure to turn off the power before performing maintenance on the air filter unit.
Make sure that the projector is stable, and perform the maintenance in a safe place even if you drop it accidentally.

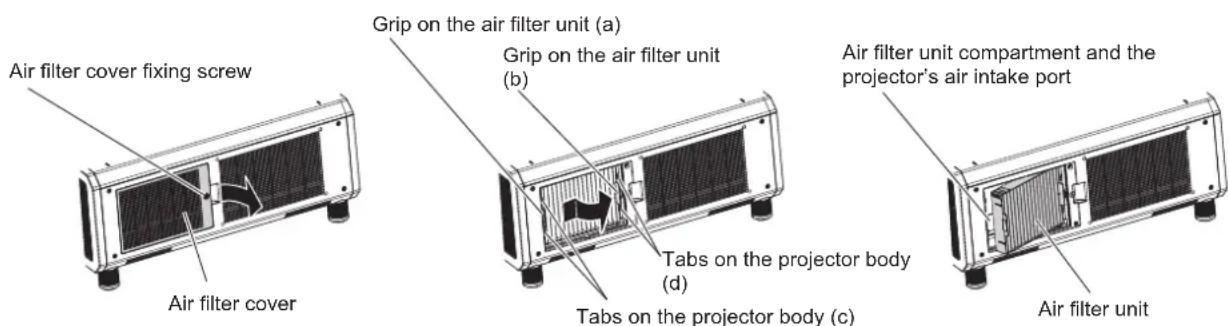

Removing the air filter unit
Grip on the air filter unit (a)
Grip on the air filter unit
(b)
Air filter cover
Tabs on the projector body
(d)
Air filter unit compartment and the projector's air intake port
Tabs on the projector body (c)
Air filter unit
Fig. 3 Fig. 2 Fig. 1
1) Remove the air filter cover. (Fig. 1)
Use a Phillips screwdriver to turn the air filter cover screw counterclockwise until it turns freely, and then remove the air filter cover.
Loosen the air filter cover fixing screw while putting your hand on.
2) Pull out the air filter unit.
i) Pull out the air filter unit from the tabs on the projector body (c) while slightly pressing the grip on the air filter unit (a) inward as described with the arrow. (Fig. 2)
ii) Pull out the air filter unit. (Fig. 3)
When pulling out, confirm that the air filter unit comes off from the tabs on the projector body (d).
After pulling out the air filter unit, remove large foreign objects and dust from the air filter unit compartment and the air intake port of the projector body if there are any.
Cleaning the air filter unit
Remove the air filter unit beforehand with the previously described procedure of "Removing the air filter unit".

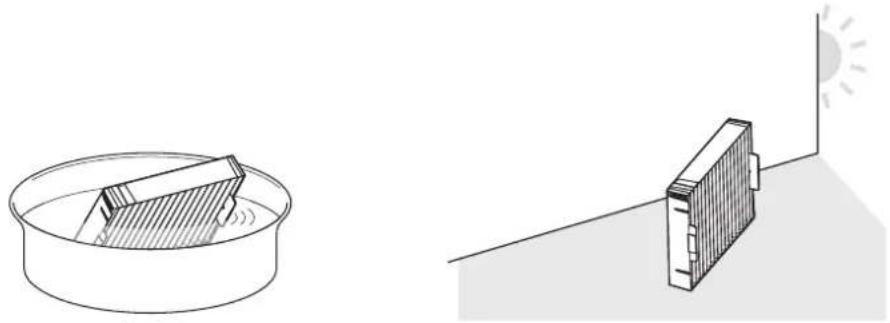

Fig. 1 Fig. 2
1) Wash the air filter unit. (Fig. 1)
i) Soak the air filter unit in cold or warm water and then lightly rinse it.
- Do not use cleaning tools such as brushes.
- When rinsing, hold the frame of the air filter unit without putting strong pressure on the filter unit.
ii) Rinse the air filter unit two to three times using fresh water each time.
•Insufficient rinsing may result in odors.
2) Dry the air filter unit. (Fig. 2)
Let the air filter unit naturally dry off in a well-ventilated place where there is little dust and is not exposed to direct sunlight.
Do not dry using drying devices such as dryers.
After the air filter is dried, proceed to "Attaching the air filter unit" (→ page 189).

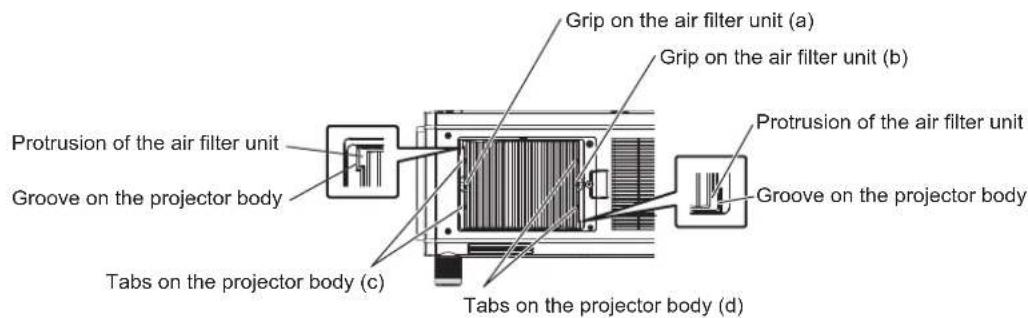

Attaching the air filter unit
Grip on the air filter unit (b)
Protrusion of the air filter unit
Groove on the projector body
Protrusion of the air filter unit
Groove on the projector body
Tabs on the projector body (c)
Tabs on the projector body (d)
1) Attach the air filter unit to the projector.
The air filter unit has no difference between top and bottom, but is two-sided. Match the protrusion position of the air filter unit with the grooves on the projector body.
Hook the air filter unit frame at the air exhaust port side to the tabs on the projector body (d), and perform Step 2) in "Removing the air filter unit" in the reverse order to attach.
Confirm that the tabs on the projector body (c) and (d) are hooked to the air filter unit frame.
2) Attach the air filter cover to the projector and use a Phillips screwdriver to tighten the air filter cover screw.
- Attach the air filter cover by performing Step 1) in "Removing the air filter unit" (→ page 188) in the reverse order.
Attention
After washing the air filter unit, dry it thoroughly before attaching it back to the projector. Attaching a wet unit will cause an electric shock or malfunction.
Do not disassemble the air filter unit.
Note
Make sure that the air filter unit is properly attached before using the projector. If it is not properly attached, the projector will suck in dirt and dust causing a malfunction.
If you use the projector without attaching the air filter unit, the filter indicator blinks in red and the message appears on the projected image for approximately 30 seconds.
Replace the air filter unit with the new optional Replacement Filter Unit (Model No.: ET-EMF330) if it is damaged or if the dirt does not come off even after washing.
Air filter replacement is recommended after cleaning the unit two times.
The dust-proof properties may be reduced after each cleaning.
Replacing the unit
Air filter unit
If dirt does not come off even after the unit is maintained, it is time for the unit to be replaced.
The Replacement Filter Unit (Model No.: ET-EMF330) is an optional accessory. To purchase the product, consult your dealer.
Replacing the air filter unit
Attention
Make sure to turn off the power before replacing the air filter unit.
When attaching the unit, make sure that the projector is stable, and perform the replacement in a safe place even if you drop it accidentally.
1) Remove the air filter unit.
- Refer to "Removing the air filter unit" (→ page 188).
2) Attach the optional Replacement Filter Unit (Model No.: ET-EMF330) to the projector.
The air filter unit has no difference between top and bottom, but is two-sided. Match the protrusion position of the air filter unit with the grooves on the projector body.
Refer to "Attaching the air filter unit" (→ page 189).
Attention
When switching on the projector, make sure that the air filter unit is attached. If it is not properly attached, the projector will suck in dirt and dust causing a malfunction.
If you use the projector without attaching the air filter unit, the filter indicator blinks in red and the message appears on the projected image for approximately 30 seconds.
Note
- The replacement cycle of the air filter unit varies greatly depending on the usage environment.
Troubleshooting
Review the following points. For details, see the corresponding pages.
Problems Points to be checked Page Power does not turn on. ●Is the power plug firmly inserted into the outlet? —●Is theswitch set to? 64●Is the wall outlet supplying electricity? —●Have the circuit breakers tripped? —●Are the light source indicators//or the temperature indicatorlighting or blinking? 186 No image appears. ●Are connections to external devices correctly performed?●Is the input selection setting correct? 71●Is the [BRIGHTNESS] adjustment setting at a minimum?●Is the external device that is connected to the projector working properly?●Is the shutter function in use? 72●If the power indicatoris blinking in red, consult your dealer.Is the lens cover still attached to the lens? 4884——56 Image is fuzzy. ●Is the lens focus set correctly?●Is the projection distance appropriate?●Is the lens dirty?●Is the projector installed perpendicular to the screen? 653522— Color is pale or grayish. ●Are [COLOR] and [TINT] adjusted correctly?●Is the external device connected to the projector adjusted correctly?●Is the RGB cable damaged? 8448— Remote control does not respond. ●Are the batteries depleted?●Is the polarity of the batteries set correctly?●Are there any obstructions between the remote control and the remote control signal receiver of the projector?●Is the remote control being used beyond its effective operation range?●Are other forms of light, such as fluorescent light, affecting the projection?●Is the [REMOTE CONTROL] setting in [CONTROL DEVICE SETUP] set to [DISABLE]?●Is theterminal used for contact control?●Is the ID number setting operation correct? ——3126272715720775 Menu screen does not appear. ●Is the on-screen display function turned off (hidden)? 119 Buttons on the control panel do not operate. ●Is the [CONTROL PANEL] setting in [CONTROL DEVICE SETUP] set to [DISABLE]?●Is theterminal used for contact control? 157207 Image does not display correctly. ●Is the [SYSTEM SELECTOR] selection set correctly?●Is the [RGB1 INPUT SETTING] setting made correctly?●Is there a problem with the video tape or other image sources?●Is a signal which is not compatible with the projector being input? 89113——210 Image from a computer does not appear. ●Is the cable too long? (For D-Sub cables, the cable length should be 10 m (32'10") or shorter.)●Is the external video output on the laptop computer set correctly? (Ex.: The external output settings may be switched by pressing the "Fn" + "F3" or "Fn" + "F10" simultaneously. Since the method varies depending on the computer type, refer to the user manual provided with your computer.) —— Image output from DVI-D of the computer does not appear. ●Is the [EDID SELECT] setting in [DVI-D IN] set to [EDID3] or [EDID2:PC]?●The graphics accelerator driver of the computer may need to be updated to the latest version.●The condition may be improved by making the [EDID SELECT] setting in [DVI-D IN] and then restarting the computer. 114——114 Video from HDMI compatible device does not appear or it appears jumbled. ●Is the HDMI cable connected securely?●Turn the power of the projector and the external device off and on.●Is a signal which is not compatible with the projector being input? 48——210 Lens shift cannot be adjusted. ●Perform [LENS CALIBRATION].●Is the Fixed-focus Lens (Model No.: ET-D75LE50) attached? 144—
Chapter 5 Maintenance — Troubleshooting
Problems Points to be checked Page Cannot control the projector with Art-Net. Are the connections between the twisted-pair-cable transmitter and an external device, and between the twisted-pair-cable transmitter and projector correctly done?Is [Art-Net SETUP] set to other than [OFF]? 163Are [NET], [SUB NET], [UNIVERSE], and [START ADDRESS] set correctly? —163 The DIGITAL LINK input image is not displayed. Are the connections between the twisted-pair-cable transmitter and the projector or an external device correctly done?Is [DIGITAL LINK MODE] set to [AUTO] or [DIGITAL LINK]? Is it set to [ETHERNET]?Is a signal which is not compatible with a twisted-pair-cable transmitter being input? —160— 3D function is not working. Is the [3D INPUT FORMAT] setting of [3D SETTINGS] correct? 104Check the 3D eyewear settings. —Is a signal which is supported by the projector being input? 213 Left and right images are reversed (not showing properly). Is it synchronized? Check the 3D eyewear settings. —Change the [LEFT/RIGHT SWAP] setting of [3D SETTINGS]. 104 Image in the 3D eyewear flickers. Are you within the reception range? — 3D eyewear is not functioning. Is the battery for 3D eyewear dead? Charge the battery for the rechargeable 3D eyewear. Change the battery for the battery type.Is the [3D SETTINGS] setting correct? —103
Attention
- If problems persist even after checking the preceding points, consult your dealer.
Self-diagnosis display
There is a self-diagnosis display on the side of the projector. Self-diagnosis display will automatically display the value of the input supply voltage, or details of errors or warnings when they occur. (→ page 29)
The following list shows the alphanumeric symbol that is displayed when an error or a warning has occurred and its details. The input supply voltage is displayed only with the numeric value.
Error/warning display Details Measure U04 Air filter clogging Clean the air filter unit. U11 Intake temperature warning The operating environment temperature is too high. Use the projector in an appropriate operating environment temperature*1. U12 Optical module temperature warning U13 Exhaust air temperature warning The operating environment temperature is too high, or the air exhaust port may be blocked. Use the projector in an appropriate operating environment temperature*1. Or remove any objects that are blocking the air exhaust port. U14 Low temperature warning The operating environment temperature is too low. Use the projector in an appropriate operating environment temperature*1. U16 Light source 1 temperature warning The operating environment temperature is too high. Use the projector in an appropriate operating environment temperature*1. U17 Light source 2 temperature warning U21 Intake temperature error U22 Optical module temperature error U23 Exhaust air temperature error The operating environment temperature is too high, or the air exhaust port may be blocked. Use the projector in an appropriate operating environment temperature*1. Or remove any objects that are blocking the air exhaust port. U24 Low temperature error The operating environment temperature is too low. Use the projector in an appropriate operating environment temperature*1. U25 Light source 1 temperature error The operating environment temperature is too high. Use the projector in an appropriate operating environment temperature*1. U26 Light source 2 temperature error U76 Air filter unit not installed Attach the air filter unit. U81 Low AC voltage warning (below 90 V) The input supply voltage is low. Use electric wiring that can sufficiently withstand the power consumption of the projector. UA0 Power supply temperature warning The operating environment temperature is too high. Use the projector in an appropriate operating environment temperature*1. UA1 FPGA temperature warning UA4 Power supply temperature error UA5 FPGA temperature error H01 Battery replacement for the internal clock Battery replacement is required. Consult your dealer. H11 Intake temperature sensor not present If the display does not clear after switching the main power off and on, consult your dealer. H12 Optical module temperature sensor not present H13 Exhaust air temperature sensor not present H14 Light source 1 temperature sensor not present H15 Light source 2 temperature sensor not present H18 Clog sensor not present F00 Liquid cooling pump 1 warning If the display does not clear after switching the main power off and on, consult your dealer. F01 Liquid cooling pump 2 warning F11 Shutter error F15 Luminance sensor error F50 Radiator fan 1 warning ●If the display does not clear after switching the main power off and on, consult your dealer. F51 Radiator fan 2 warning F52 Radiator fan 3 warning F53 Radiator fan 4 warning F54 Radiator fan 5 warning F55 Radiator fan 6 warning F56 Exhaust fan 1 warning F57 Exhaust fan 2 warning F58 Intake fan 1 warning F59 Intake fan 2 warning F61 LD 1 driver communication error F62 LD 2 driver communication error F70 Color prism fan 1 warning F71 Color prism fan 2 warning F72 Color prism fan 3 warning F73 Optical engine exhaust fan 1 warning F74 Optical engine exhaust fan 2 warning F75 Circuit intake fan warning F76 LD driver fan warning F96 Lens mounter error ●If the display does not clear after switching the main power off and on, consult your dealer. FA8 Light source 1 error FC8 Light source 2 error FE1 Radiator fan 1 error FE2 Radiator fan 2 error FE3 Radiator fan 3 error FE4 Radiator fan 4 error FE5 Radiator fan 5 error FE6 Radiator fan 6 error FE7 Exhaust fan 1 error FE8 Exhaust fan 2 error FE9 Intake fan 1 error FF0 Intake fan 2 error FF1 Color prism fan 1 error FF2 Color prism fan 2 error FF3 Color prism fan 3 error FF4 Optical engine exhaust fan 1 error FF5 Optical engine exhaust fan 2 error FF6 Circuit intake fan error FF7 LD driver fan error FH0 Phosphor wheel 1 error SUB FH1 Phosphor wheel 1 error FPGA FH2 Phosphor wheel 2 error SUB FH3 Phosphor wheel 2 error FPGA FJ0 Liquid cooling pump 1 error FJ1 Liquid cooling pump 2 error FL1 Light source 1 unit error FL2 Light source 2 unit error
*1 Refer to "Operating environment temperature" (→ page 216) for the operating environment temperature of the projector.
Note
- The self-diagnosis display and the details of the malfunction may vary.
- For errors and warnings that are not described in the table, consult your dealer.
Chapter 6 Appendix
This chapter describes specifications and after-sales service for the projector.
PJLink protocol
The network function of this projector supports the PJLink class 1, and the PJLink protocol can be used to perform projector setting and projector status query operations from a computer.
Control commands
The following table lists the PJLink protocol commands that can be used to control the projector.
- x characters in tables are non-specific characters.
Command Control details Parameter/response string Remark POWR Power supply control 0 Standby1 Power on POWR? Power supply status query 0 Standby1 Power on2 Preparing for switching off3 Warm-up the projector INPT Input selection 11 RGB112 RGB231 DVI-D32 HDMI33 DIGITAL LINK34 SDI135 SDI2 INPT? Input selection query AVMT Shutter control 30 Shutter function disabled (shutter: open) function enabled (shutter: closed) AVMT? Shutter status query 31 Shutter ERST? Error status query xxxxxx 1st byte Indicates fan errors, and returns 0 - 2. 0 = No error is detected1 = Warning2 = Error 2nd byte Indicates light source errors, and returns 0 - 2. 3rd byte Indicates temperature errors, and returns 0 - 2. 4th byte Returns 0. 5th byte Indicates filter errors, and returns 0 - 2. 6th byte Indicates other errors, and returns 0 - 2. LAMP? Light source status query xxxxxxxxxx 1st number (1 - 5 digits): Light source 1 runtime2nd number: 0 = Light source 1 off, 1 = Light source 1 on3rd number (1 - 5 digits): Light source 2 runtime4th number: 0 = Light source 2 off, 1 = Light source 2 on INST? Input selection list query 11 12 31 32 33 34 35 — NAME? Projector name query xxxxx Returns the name set in [PROJECTOR NAME] of [NETWORK SETUP]. INF1? Manufacturer name query Panasonic Returns manufacturer name. INF2? Model name query RZ12KRS11K Returns model name. INF0? Other information queries xxxxx Returns information such as version number. CLSS? Class information query 1 Returns class for PJLink.
PJLink security authentication
The password used for PJLink is the same as that of the password set for web control.
When using the projector without security authentication, do not set a password for web control.
- For specifications related to PJLink, visit the website of Japan Business Machine and Information System Industries Association.
URL http://pjlink.jbmia.or.jp/english/
Using Art-Net function
Since the network function of the projector supports the Art-Net function, you can control the projector settings with the DMX controller and application software using the Art-Net protocol.
Channel definition
The following table lists the channel definitions used for controlling the projector with the Art-Net function.
Channel settings can be switched using the [NETWORK] menu → [Art-Net CHANNEL SETTING] (→ page 163).
The control details assigned to each channel are listed in the following table.
- Channel assignment for [USER] is in factory default setting. Assignment can be changed.
Channel Control details [2] [USER] [1] CHANNEL1 LIGHT OUTPUT Lenght LIGHT OUTPUT SHUTTER CHANNEL2 INPUT SELECT INPUT SELECT INPUT SELECT CHANNEL3 LENS POSITION LENS POSITION LENS POSITION LENS FUNCTION SELECT CHANNEL4 LENS H SHIFT LENS H SHIFT LENS CONTROL CHANNEL5 LENS V SHIFT LENS V SHIFT POWER CHANNEL6 LENS FOCUS LENS FOCUS LIGHT OUTPUT CHANNEL7 LENS ZOOM LENS ZOOM ENABLE/DISABLE DISABLE CHANNEL8 POWER POWER FADE-IN CHANNEL9 GEOMETRY GEOMETRY FADE-OUT CHANNEL10 CUSTOM MASKING CUSTOM MASKING CUSTOM MASKING CHANNEL11 ENABLE/DISABLE ENABLE/DISABLE GEOMETRY CHANNEL12 NONE NONE NONE
■ Control details
Control details Performance Parameter Default value Remark LIGHT OUTPUT 100 % 0 0 Can be set in 256 steps between 100 % and 0 %. ... ... 0 % 255 INPUT SELECT (when [1] is selected) No operation 0-7 0 — RGB1 8-15 RGB2 16-23 No operation 24-31 DVI-D 32-39 HDMI 40-47 SDI1 48-55 SDI2 56-63 No operation 64-127 P IN P execution, USER1 128-135 P IN P execution, USER2 136-143 P IN P execution, USER3 144-151 No operation 152-255
Chapter 6 Appendix — Technical information
Control details Performance Parameter Default value Remark INPUT SELECT (when [2] or [USER] is selected) No operation 0-7 0 — RGB1 8-15 RGB2 16-23 DVI-D 24-31 HDMI 32-39 DIGITAL LINK 40-47 SDI1 48-55 SDI2 56-63 No operation 64-119 P IN P OFF 120-127 P IN P execution, USER1 128-135 P IN P execution, USER2 136-143 P IN P execution, USER3 144-151 No operation 152-255 LENS POSITION No operation 0-31 0 “Move to the home position” is an operation when [NORMAL] is selected in [HOME POSITION] of the [HOME POSITION] screen. “Move to the ET-D75LE90 lens standard position” is an operation when [D75LE90] is selected in [HOME POSITION] of the [HOME POSITION] screen. Move to the home position 32-63 Move to the ET-D75LE90 lens standard position Load LENS MEMORY 1 64-79 Load LENS MEMORY 2 80-95 Load LENS MEMORY 3 96-111 Load LENS MEMORY 4 112-127 Load LENS MEMORY 5 128-143 Load LENS MEMORY 6 144-159 Load LENS MEMORY 7 160-175 Load LENS MEMORY 8 176-191 Load LENS MEMORY 9 192-207 Load LENS MEMORY 10 208-223 No operation 224-255 LENS H SHIFTLENS V SHIFTLENS FOCUSLENS ZOOM Lens adjustment (−) High speed 0-31 128 — (−) Low speed 32-63 (−) Fine adjustment 64-95 Operation stop 96-159 Lens adjustment (+) Fine adjustment 160-191 (+) Low speed 192-223 (+) High speed 224-255 LENS FUNCTION SELECT (when [1] is selected) No operation 0-15 0 Operate together with LENS CONTROL. “Move to the home position” is an operation when [NORMAL] is selected in [HOME POSITION] of the [HOME POSITION] screen. “Move to the ET-D75LE90 lens standard position” is an operation when [D75LE90] is selected in [HOME POSITION] of the [HOME POSITION] screen. LENS H SHIFT 16-31 LENS V SHIFT 32-47 LENS FOCUS 48-63 LENS ZOOM 64-79 Move to the home position 80-95 Move to the ET-D75LE90 lens standard position No operation 96-255 LENS CONTROL (when [1] is selected) Lens adjustment (−) High speed 0-31 100 Operate together with LENS FUNCTION SELECT. (−) Low speed 32-63 (−) Fine adjustment 64-95 Operation stop 96-127 Lens adjustment (+) Fine adjustment 128-159 (+) Low speed 160-191 (+) High speed 192-223 Execute command action 224-255
Chapter 6 Appendix — Technical information
Control details Performance Parameter Default value Remark POWER Standby 0-63 128 —No operation 64-191 Power on 192-255 SHUTTER SHUTTER: Open 0-63 128 —No operation 64-191 SHUTTER: Close 192-255 FADE-INFADE-OUT(when [1] is selected) 0.0s 0-15 255 Operate together with CHANNEL1. 0.5s 16-31 1.0s 32-47 1.5s 48-63 2.0s 64-79 2.5s 80-95 3.0s 96-111 3.5s 112-127 4.0s 128-143 5.0s 144-159 7.0s 160-175 10.0s 176-191 No operation 192-255 — GEOMETRY OFF 0-15 255 — KEYSTONE 16-31 CURVED 32-47 PC-1 48-63 PC-2 64-79 PC-3 80-95 CORNER CORRECTION 96-111 No operation 112-255 CUSTOM MASKING OFF 0-31 255 To use PC-1, PC-2, and PC-3, the optional Upgrade Kit (Model No.: ET-UK20) is required. PC-1 32-63 PC-2 64-95 PC-3 96-127 No operation 128-255 FREEZE No operation 0-31 128 — OFF 32-95 No operation 96-159 ON 160-223 No operation 224-255 COLOR TINT No operation 0-31 0 — Factory default setting 32-63 -31 64-65 ... ... 0 128-129 ... ... +31 190-191 No operation 192-255 RASTER PATTERN No operation 0-15 0 — OFF 16-31 WHITE 32-47 YELLOW 48-63 CYAN 64-79 GREEN 80-95 MAGENTA 96-111 RED 112-127 BLUE 128-143 BLACK 144-159 USER LOGO 160-175 No operation 176-255
Chapter 6 Appendix — Technical information
Control details Performance Parameter Default value Remark ENABLE/DISABLE Disable 0-127 0 When “Disable” is set, operations of all channels become unacceptable. Enable 128-255
Note
If the projector is operated with the remote control or on the control panel, or by the control command while controlling the projector using the Art-Net function, the setting of the DMX controller or computer application may be different from the projector status. To reflect the controls of all channels to the projector, set "ENABLE/DISABLE" of channel 11 to "Disable" and then set back to "Enable".
To create/register the USER LOGO image, use "Logo Transfer Software" included in the supplied CD-ROM.
Control commands via LAN
When web control administrator rights password is set (Protect mode)
Connecting
1) Obtain the IP address and port number (Initial set value = 1024) of the projector and request a connection to the projector.
- You can obtain both the IP address and the port number from the menu screen of the projector.
IP address Obtain from the [NETWORK] menu → [NETWORK STATUS]. Port number Obtain from the [NETWORK] menu → [NETWORK CONTROL] → [COMMAND PORT].
2) Check the response from the projector.
Data section Blank Mode Blank Random number section Termination symbol Command example “NTCONTROL” (ASCII string) ‘’ 0x20 ‘1’ 0x31 ‘’ 0x20 “zzzzzzzz” (ASCII code hex number) (CR) 0x0d Data length 9 bytes 1 byte 1 byte 1 byte 8 bytes 1 byte
- Mode: 1 = Protect mode
- Example: Response during protect mode (random number section is undefined value) "NTCONTROL 1 23181e1e" (CR)
3) Generate a 32-byte hash value from the following data using MD5 algorithm.
- "xxxxxx:yyyyMMddy:zzzzzzzzz"
xxxxxx Administrator rights user name for the web control (default user name is “admin1”) yyyyy Password of above administrator rights user (default password is “panasonic”) zzzzzzzzz 8-byte random number obtained in Step 2)
Command transmission method
Transmit using the following command formats.
■Transmitted data
Header Data section Termination symbol Command example Hash value(Refer to “Connecting” above) ‘0’0x30 ‘0’0x30 Control command(ASCII string) (CR)0x0d Data length 32 bytes 1 byte 1 byte Undefined length 1 byte
- Example: Transmission of power supply status acquisition command (hash value is calculated from default user name, password, and acquired random number)
"dbdd2dabd3d4d68c5dd970ec0c29fa6400QPW" (CR)
■Received data
Header Data section Termination symbol Command example ‘0’0x30 ‘0’0x30 Control command(ASCII string) (CR)0x0d Data length 1 byte 1 byte Undefined length 1 byte
- Example: The projector is powered on "00001" (CR)
■Error response
String Details Termination symbol Message “ERR1” Undefined control command (CR)0x0d “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period “ERR4” Timeout or no-acceptable period “ERR5” Wrong data length “ERRA” Password mismatch Data length 4 bytes — 1 byte
When web control administrator rights password is not set (Non-protect mode)
Connecting
1) Obtain the IP address and port number (Initial set value = 1024) of the projector and request a connection to the projector.
- You can obtain both the IP address and the port number from the menu screen of the projector.
IP address Obtain from the [NETWORK] menu → [NETWORK STATUS]. Port number Obtain from the [NETWORK] menu → [NETWORK CONTROL] → [COMMAND PORT].
2) Check the response from the projector.
Data section Blank Mode Termination symbol Command example “NTCONTROL” (ASCII string) ‘’0x20 ‘0’0x30 (CR)0x0d Data length 9 bytes 1 byte 1 byte 1 byte
Mode: 0 = Non-protect mode
Command transmission method
Transmit using the following command formats.
■Transmitted data
Header Data section Termination symbol Command example '0'0x30 '0'0x30 Control command(ASCII string) (CR)0x0d Data length 1 byte 1 byte Undefined length 1 byte
- Example: Transmission of power supply status acquisition command "00QPW" (CR)
■Received data
Header Data section Termination symbol Command example ‘0’0x30 ‘0’0x30 Control command(ASCII string) (CR)0x0d Data length 1 byte 1 byte Undefined length 1 byte
- Example: The power of the projector is in standby status "00000" (CR)
■Error response
String Details Termination symbol Message “ERR1” Undefined control command (CR)0x0d “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period “ERR4” Timeout or no-acceptable period “ERR5” Wrong data length “ERRA” Password mismatch Data length 4 bytes — 1 byte
/ terminal The / terminal of the projector conforms with RS-232C so that the projector can be connected to and controlled from a computer.
Connection

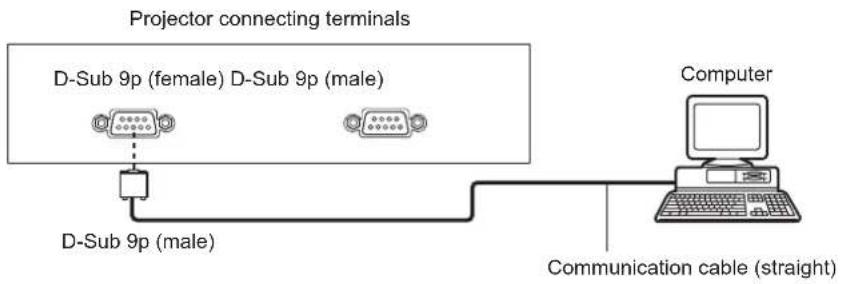

Single projector
D-Sub 9p (female) D-Sub 9p (male)
D-Sub 9p (male)
Computer
Communication cable (straight)

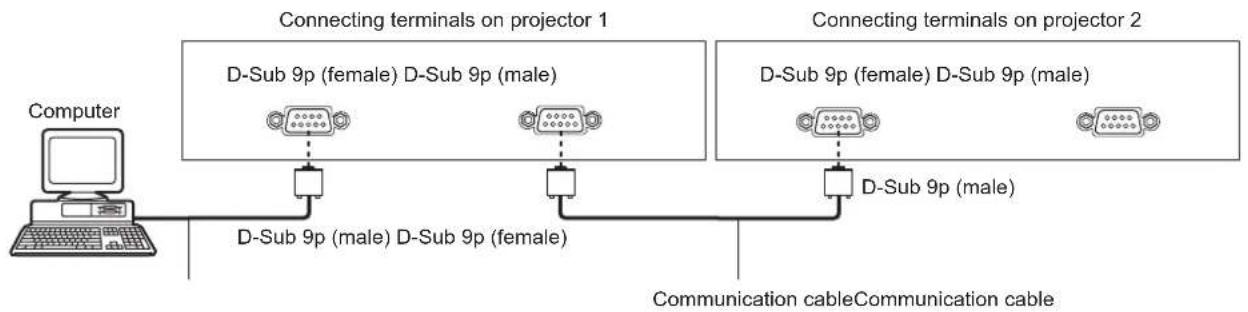

Multiple projectors

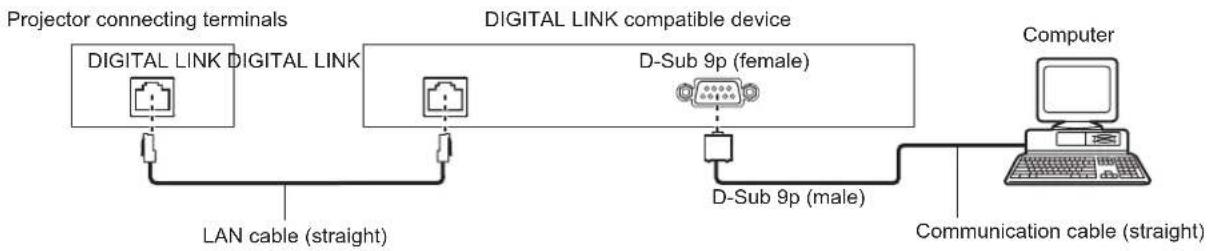

When connecting using DIGITAL LINK compatible device
Note
The destination of [RS-232C] (→ page 142) must be set according to the connection method.
When connecting using a DIGITAL LINK compatible device, set the [PROJECTOR SETUP] menu → [STANDBY MODE] (→ page 136) to [NORMAL] to control the projector during standby.
Pin assignments and signal names
D-Sub 9-pin (female) Outside view Pin No. Signal name Details (1) — NC (2) TXD Transmitted data (3) RXD Received data (4) — NC (5) GND Earth (6) — NC (7) CTS Connected internally (8) RTS (9) — NC
Chapter 6 Appendix — Technical information
D-Sub 9-pin (male) Outside view Pin No. Signal name Details (1) — NC (2) RXD Received data (3) TXD Transmitted data (4) — NC (5) GND Earth (6) — NC (7) RTS (8) CTS (9) — NC
Communication conditions (Factory default)
Signal level RS-232C-compliant Sync. method Asynchronous Baud rate 9 600 bps Parity None Character length 8 bits Stop bit 1 bit X parameter None S parameter None
Transmission from the computer starts with STX, then the ID, command, parameter, and ETX are sent in this order. Add parameters according to the details of control.

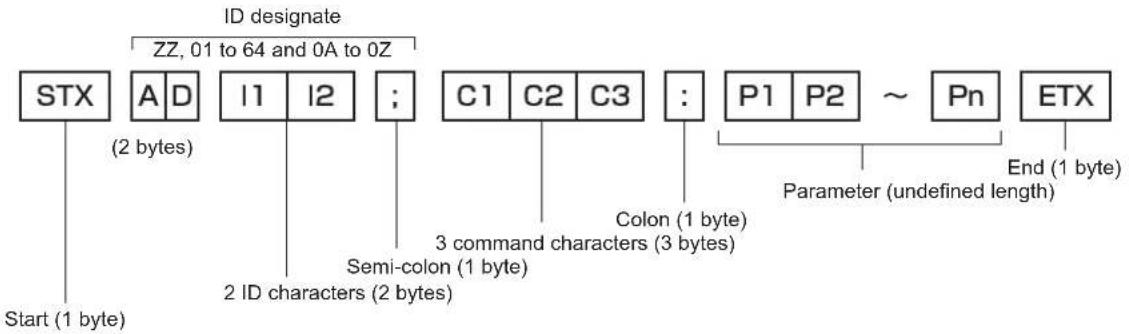

ZZ, 01 to 64 and 0A to 0Z
STX A D I1 I2 ; C1 C2 C3 : P1 P2 ~ Pn ETX
(2 bytes) (2 bytes)
Semi-colon (1 byte) 3 command characters (3 bytes)
2 ID characters (2 bytes)
Start (1 byte) Parameter (undefined length) End (1 byte)

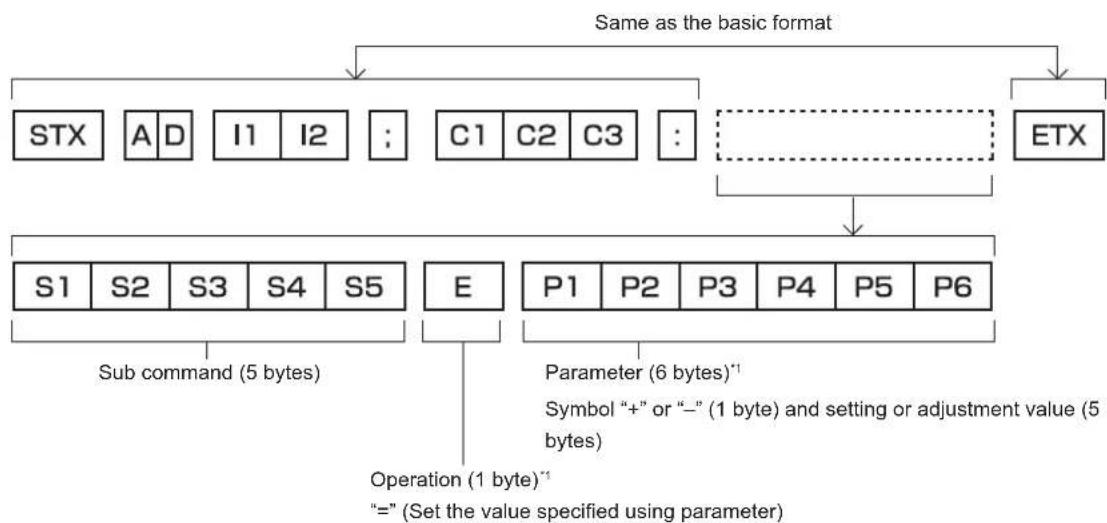

Basic format (has subcommands)
*1 When transmitting a command which does not need a parameter, an operation (E) and parameter are not necessary.
Attention
If a command is sent after the light source starts lighting, there may be a delay in response or the command may not be executed. Try sending or receiving any command after 60 seconds.
When transmitting multiple commands, be sure to wait until 0.5 seconds has elapsed after receiving the response from the projector before sending the next command. When transmitting a command which does not need a parameter, a colon (:) is not necessary.
Note
If a command cannot be executed, the "ER401" response is sent from the projector to the computer.
If an invalid parameter is sent, the "ER402" response is sent from the projector to the computer.
ID transmission in RS-232C supports ZZ (ALL) and 01 to 64, as well as 0A to 0Z groups.
If a command is sent with an ID designated, a response will be sent to the computer only in the following cases.
STX and ETX are character codes. STX shown in hexadecimal is 02, and ETX shown in hexadecimal is 03.
When multiple projectors are controlled
When multiple projectors are all controlled
When controlling multiple projectors together via RS-232C, perform the following settings.
1) Set a different ID for each projector.
When multiple projectors are all controlled by group unit
When controlling multiple projectors by group unit via RS-232C, perform the following settings.
1) Set a different ID for each projector.
2) Set [RESPONSE(ID GROUP)] to [ON] in only one projector.
3) Set [RESPONSE(ID GROUP)] to [OFF] for all other projectors set in Step 2).
Note
There will be no response if two or more projectors have [RESPONSE(ID ALL)] set to [ON].
When setting multiple groups, set [RESPONSE(ID GROUP)] to [ON] in only one projector in each group.
Cable specification

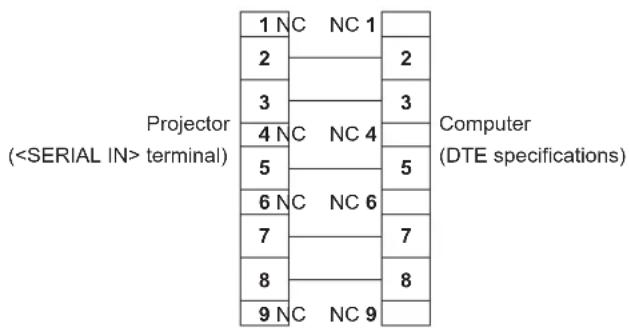

When connected to a computer
( terminal)
1 NC NC 1
2
3
4 NC NC 4
5
6 NC NC 6
7
8
9 NC NC 9
Computer
(DTE specifications)

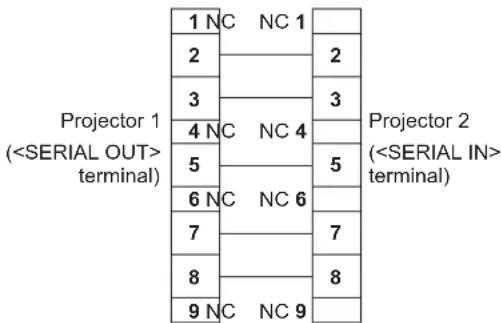

When multiple projectors are connected
(
terminal)
1 NC NC 1
2
3
4 NC NC 4
5
6 NC NC 6
7
8
9 NC NC 9
Projector 2
(
terminal)
Control command
The following table lists the commands that can be used to control the projector using a computer.
■Projector control command
Command Details Parameter/response string Remark (parameter) PON Power on — To check if the power is on, use the “Power query” command. POF Power standby QPW Power query 000001 STANDBYPower on IIS Switching the input signal RG1 RGB1RG2 RGB2DVI DVI-DHD1 HDMIDL1 DIGITAL LINKSD1 SDI1SD2 SDI2 OSH Shutter control 0 OPEN QSH Shutter status query 1 CLOSE VSE Aspect ratio switch 0 DEFAULT/VID AUTO1 4:32 16:95 THROUGH6 HV FIT9 H FIT10 V FIT QSE Aspect ratio settings query OPP P IN P execution 0 OFF1 USER12 USER23 USER3 QPP P IN P setting query OCS Sub memory switch 01 - 96 Sub memory number QSB Sub memory status query
■Projector control command (with sub command)
Command Sub command Details Remark VXX RYC I1 RGB 1 input setting +00000 = RGB/YP _B P_R , +00001 = Y/C, +00002 = VIDEO
■ Lens control command
Command Sub command Details Remark VXX LNS12 Lens H shift +00000 = Fine adjustment 1+, +00001 = Fine adjustment 1-, +00100 = Fine adjustment 2+, +00101 = Fine adjustment 2-, +00200 = Coarse adjustment+, +00201 = Coarse adjustment- VXX LNS13 Lens V shift VXX LNS14 Lens focus VXX LNS15 Lens zoom
terminal It is possible to control the projector remotely (by external contact) from a control panel located away from the projector where remote control signals cannot reach.
Use the terminal on the connecting terminals of the projector to connect to the control panel.

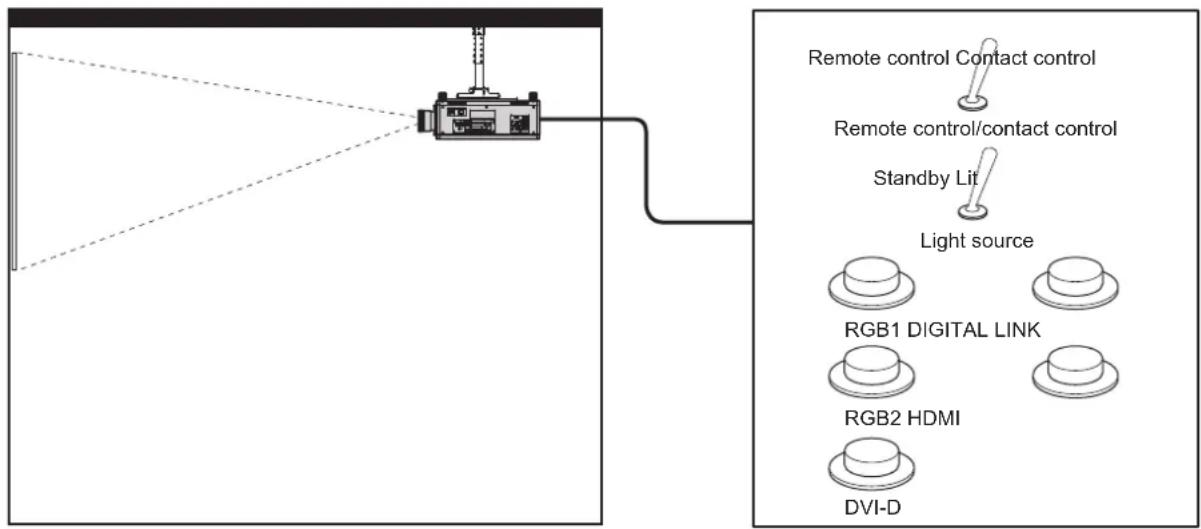

Installation locations in meeting rooms, etc. Remote control board in another location
Pin assignments and signal names
D-Sub 9-pinOutside view Pin No. Signal name Open (H) Short (L) (1) GND — GND (2) POWER OFF ON (3) RGB1 Other RGB1 (4) RGB2 Other RGB2 (5) DIGITAL LINK Other DIGITAL LINK (6) HDMI Other HDMI (7) DVI-D Other DVI-D (8) SHUTTER OFF ON (9) ENABLE / DISABLE Controlled by remote control Controlled by external contact
Attention
- When controlling, make sure to short-circuit pins (1) and (9).
- When pins (1) and (9) are short-circuited, the following buttons on the control panel and the remote control are disabled. Commands for RS-232C and network functions corresponding to these functions are also disabled.
- Power on <|> button, power standby <@> button, button
- When pins (1) and (9) are short-circuited, and then any pins from (3) to (7) and the pin (1) are short-circuited, the following buttons on the control panel and the remote control are disabled. Commands for RS-232C and network functions corresponding to these functions are also disabled.
- Power on <|> button, power standby <∅> button, button, button, button, button, button, button or button, button
Note
- For pin (2) to pin (8) settings, you can make changes if you set [REMOTE2 MODE] to [USER]. (→ page 144)
Two-window display combination list
√: P IN P (picture in picture) combination is possible
Sub window RGB1 RGB2 Main window Still image Movie ^*1 Y/C Video Still image Movie ^*1 RGB1 input Still image signal — — — — √ √ Movie signal ^1 — — — — √ ▲ Y/C signal — — — √ ▲ Video signal — — — √ ▲ RGB2 input Still image signal √√√√ — — Movie signal ^1 √▲▲▲ — — DVI-D input Still image signal ^2 √√√√√√ Movie signal ^3 √▲▲▲√▲ HDMI input Still image signal ^2 √√√√√√ Movie signal ^3 √▲▲▲√▲ SDI1 input √▲▲▲√▲ SDI2 input √▲▲▲√▲ Dual link SDI ^4 — — ▲ ▲ — —
Sub window DVI-D HDMI SDI1 SDI2 Dual link SDI*4 Main window Still image*2 Movie*3 Still image*2 Movie*3 RGB1 input Still image signal ✓✓✓✓ ✓✓ — Movie signal*1 ✓▲✓▲ ▲▲ — Y/C signal ✓▲✓▲ ▲▲▲ Video signal ✓▲✓▲ ▲▲▲ RGB2 input Still image signal ✓✓✓✓ ✓✓ — Movie signal*1 ✓▲✓▲ ▲▲ — DVI-D input Still image signal*2 — — ✓✓✓ — — Movie signal*3 — — ✓▲▲ — — HDMI input Still image signal*2 ✓ ✓ ——— ✓ — Movie signal*3 ✓ ▲ ——— ▲ — SDI1 input ✓ ▲ ——— ▲ — SDI2 input —— ✓▲▲ — — Dual link SDI*4 —— — —— —
*1 480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24sF, 1080/24p, 1080/25p, 1080/30p, 1080/50p, 1080/60p
Note
In the combination of , if P IN P function is used with the signals of a different frequency, images in the sub window will not be displayed.
Images in combination of DIGITAL LINK and other inputs cannot be displayed in P IN P.
Control device password
To initialize your password, consult your distributor.
Upgrade Kit
If the optional Upgrade Kit (Model No.: ET-UK20) is applied, the following functions are extended.
Function Standard status When the Upgrade Kit is applied Adjustment range of [VERTICAL KEYSTONE] Maximum of ± 40^ × 1 Maximum of ± 45^ × 1 Adjustment range of [HORIZONTAL KEYSTONE] Maximum of ± 15^ × 1 Maximum of ± 40^ × 1 Adjustment range of [CURVED] Vertical arc, Maximum ± 50^ × 1 Horizontal arc, Maximum ± 50^ × 1 Vertical arc, Maximum ± 100^ × 1 Horizontal arc, Maximum ± 100^ × 1 [CUSTOM MASKING] Cannot be used. The image is masked in optional form. [PC CORRECTION] of [UNIFORMITY] Cannot be used. Correct the brightness and color unevenness of the entire screen.
*1 The adjustment range of the menu. Refer to “[GEOMETRY] projection range” ( page 37) for the possible projection range.
List of compatible signals
The following table specifies the video signals compatible with the projector.
- Symbols that indicate formats are as follows.
-V: VIDEO, Y/C
Compatible signal Resolution(Dots) Scanning freq. Dot clockfreq.(MHz) Format Plug and play*1 Horizontal(kHz) Vertical(Hz) RGB2 DVI-D HDMI EDID1 EDID2 EDID3 NTSC/NTSC4.43/PAL-M/PAL60 720 x 480i 15.7 59.9 — V — — — — — PAL/PAL-N/SECAM 720 x 576i 15.6 50.0 — V — — — — — 525i (480i) 720 x 480i 15.7 59.9 13.5 R/Y/S *2 — — — — — 625i (576i) 720 x 576i 15.6 50.0 13.5 R/Y/S *2 — — — — — 525i (480i) 720 (1440) x 480i *3 15.7 59.9 27.0 D/H — — — — — 625i (576i) 720 (1440) x 576i *3 15.6 50.0 27.0 D/H — — — — — 525p (480p) 720 x 483 31.5 59.9 27.0 R/Y/D/H — √ — √ √ 625p (576p) 720 x 576 31.3 50.0 27.0 R/Y/D/H — √ — √ √ 750 (720)/60p 1 280 x 720 45.0 60.0 74.3 R/Y/D/H/S*2 — √ — √ √ 750 (720)/50p 1 280 x 720 37.5 50.0 74.3 R/Y/D/H/S*2 — √ — √ √ 1125 (1080)/60i*4 1 920 x 1 080i 33.8 60.0 74.3 R/Y/D/H/S — √ — √ √ 1125 (1080)/50i 1 920 x 1 080i 28.1 50.0 74.3 R/Y/D/H/S — √ — √ √ 1125 (1080)/24p 1 920 x 1 080 27.0 24.0 74.3 R/Y/D/H/S — √ — √ √ 1125 (1080)/24sF 1 920 x 1 080i 27.0 48.0 74.3 R/Y/D/H/S — — — — — 1125 (1080)/25p 1 920 x 1 080 28.1 25.0 74.3 R/Y/D/H/S — √ — √ — 1125 (1080)/30p 1 920 x 1 080 33.8 30.0 74.3 R/Y/D/H/S — — — — — 1125 (1080)/60p 1 920 x 1 080 67.5 60.0 148.5 R/Y/D/H/S — √ — √ √ 1125 (1080)/50p 1 920 x 1 080 56.3 50.0 148.5 R/Y/D/H/S — √ — √ √ 2K/24p 2 048 x 1 080 27.0 24.0 74.3 S *5 — — — — — 2K/24sF 2 048 x 1 080 27.0 24.0 74.3 S *5 — — — — — 2K/48p 2 048 x 1 080 54.0 48.0 148.5 S*6 — — — — — 2K/50p 2 048 x 1 080 56.3 50.0 148.5 S*6 — — — — — 2K/60p 2 048 x 1 080 67.5 60.0 148.5 S*6 — — — — — 640 x 400 640 x 400 31.5 70.1 25.2 R/D/H — — — — 640 x 400 37.9 85.1 31.5 R/D/H — — — — 640 x 480 640 x 480 31.5 59.9 25.2 R/D/H √ √ √ √ √ 640 x 480 35.0 66.7 30.2 R/D/H — — — — 640 x 480 37.9 72.8 31.5 R/D/H √ — √ √ √ 640 x 480 37.5 75.0 31.5 R/D/H √ — √ √ √ 640 x 480 43.3 85.0 36.0 R/D/H — — — — 800 x 600 800 x 600 35.2 56.3 36.0 R/D/H √ — √ √ √ 800 x 600 37.9 60.3 40.0 R/D/H √ — √ √ √ 800 x 600 48.1 72.2 50.0 R/D/H √ — √ √ √ 800 x 600 46.9 75.0 49.5 R/D/H √ — √ √ √ 800 x 600 53.7 85.1 56.3 R/D/H — — — — 832 x 624 832 x 624 49.7 74.6 57.3 R/D/H √ — √ √ √
Chapter 6 Appendix — Technical information
Compatible signal Resolution(Dots) Scanning freq. Dot clockfreq.(MHz) Format Plug and play*1 Horizontal(kHz) Vertical(Hz) RGB2 DVI-D HDMI EDID1 EDID2 EDID3 1024 x 768 1 024 x 768 39.6 50.0 51.9 R/D/H — — — — 1 024 x 768 48.4 60.0 65.0 R/D/H √ — √√√ 1 024 x 768 56.5 70.1 75.0 R/D/H √ — √√√ 1 024 x 768 60.0 75.0 78.8 R/D/H √ — √√√ 1 024 x 768 65.5 81.6 86.0 R/D/H — — — — 1 024 x 768 68.7 85.0 94.5 R/D/H — — — — 1 024 x 768*7 81.4 10 0.0 113.3 R/D/H — — — — — 1 024 x 768*7 98.8 12 0.0 139.1 R/D/H √ — √√√ 1152 x 864 1 152 x 864 53.7 60.0 81.6 R/D/H — — — — 1 152 x 864 64.0 70.0 94.2 R/D/H — — — — 1 152 x 864 67.5 74.9 108.0 R/D/H — — — — — 1 152 x 864 77.1 85.0 119.7 R/D/H — — — — — 1152 x 870 1 152 x 870 68.7 75.1 100.0 R/D/H √ — √√√ 1280 x 720 1 280 x 720 37.1 49.8 60.5 R/D/H — — — — 1 280 x 720 44.8 59.9 74.5 R/D/H — — — — 1 280 x 720*7 76.3 10 0.0 131.8 R/D/H — — — — — 1 280 x 720*7 92.6 12 0.0 161.6 R/D/H — — — — — 1280 x 768 1 280 x 768 39.6 49.9 65.3 R/D/H — — — — 1 280 x 768 47.8 59.9 79.5 R/D/H — — — — 1 280 x 768*8 47.4 60.0 68.3 R R/D/H — — — — — 1 280 x 768 60.3 74.9 102.3 R/D/H — — — — — 1 280 x 768 68.6 84.8 117.5 R/D/H — — — — — 1280 x 800 1 280 x 800 41.3 50.0 68.0 R/D/H — — — — 1 280 x 800 49.7 59.8 83.5 R/D/H — — — — 1 280 x 800*8 49.3 59.9 71.0 R R/D/H — — — — — 1 280 x 800 62.8 74.9 106.5 R/D/H — — — — — 1 280 x 800 71.6 84.9 122.5 R/D/H — — — — — 1280 x 960 1 280 x 960 60.0 60.0 108.0 R/D/H — — — — — 1280 x 1024 1 280 x 1 024 52.4 50.0 88.0 R R/D/H — — — — — 1 280 x 1 024 64.0 60.0 108.0 R/D/H — — — — 1 280 x 1 024 72.3 66.3 125.0 R/D/H — — — — 1 280 x 1 024 78.2 72.0 135.1 R/D/H — — — — 1 280 x 1 024 80.0 75.0 135.0 R/D/H √ — √√√ 1 280 x 1 024 91.1 85.0 157.5 R/D/H — — — — — 1366 x 768 1 366 x 768 39.6 49.9 69.0 R/D/H — — — — 1 366 x 768 47.7 59.8 85.5 R/D/H — — — — 1400 x 1050 1 400 x 1 050 54.1 50.0 99.9 R R/D/H — — — — — 1 400 x 1 050 64.0 60.0 108.0 R/D/H — — — — 1 400 x 1 050 65.2 60.0 122.6 R/D/H √ — √√√ 1 400 x 1 050 65.3 60.0 121.8 R/D/H — — — — 1 400 x 1 050 78.8 72.0 149.3 R/D/H — — — — — 1 400 x 1 050 82.2 75.0 155.9 R/D/H — — — — 1440 x 900 1 440 x 900 46.3 49.9 86.8 R/D/H — — — — 1 440 x 900 55.9 59.9 106.5 R/D/H — — — — — 1600 x 900 1 600 x 900 46.4 49.9 96.5 R/D/H — — — — 1 600 x 900 55.9 60.0 119.0 R/D/H √ — √√√ 1600 x 1200 1 600 x 1 200 61.8 49.9 131.5 R/D/H — — — — 1 600 x 1 200 75.0 60.0 162.0 R/D/H √ — √√√ 1680 x 1050 1 680 x 1 050 65.3 60.0 146.3 R/D/H — — — — 1 680 x 1 050 54.1 50.0 119.5 R/D/H — — — — — 1920 x 1080 1 920 x 1 080 55.6 49.9 141.5 R/D/H — — — — — 1 920 x 1 080*8 66.6 59.9 138.5 R/D/H — — — — 1 920 x 1 080*9 67.2 60.0 173.0 R — — — — —
Chapter 6 Appendix — Technical information
Compatible signal Resolution(Dots) Scanning freq. Dot clockfreq.(MHz) Format Plug and play*1 Horizontal(kHz) Vertical(Hz) RGB2 DVI-D HDMI EDID1 EDID2 EDID3 1920 x 1200 1 920 x 1 200 61.8 49.9 158.3 R/D/H — — — — — 1 920 x 1 200*8 74.0 60.0 154.0 R/D/H √ — √ √*10 √*10 1 920 x 1 200*9 74.6 59.9 193.3 R — — — — —
*1 Signals with a √ in the Plug and play columns are signals described in EDID (extended display identification data) of the projector. If a signal has no √ in the Plug and play columns but has an entry in the Format column, it can be input. For signals without a √ in the Plug and play columns, there are instances when resolution cannot be selected on the computer even though the projector supports them.
Note
- A signal with a different resolution is converted to the number of display dots. The number of display dots is as follows.
- PT-RZ12K: 1 920 x 1 200
- PT-RS11K: 1 400 x 1 050
The "i" at the end of the resolution indicates an interlaced signal.
When interlaced signals are connected, flickering may occur on the projected image.
DIGITAL LINK input compatible signal is the same as HDMI input compatible signal.
The following table specifies the simultaneous input (2D) compatible video signals that the projector can project.
2D compatible signal Resolution(Dots) Scanning freq. Dot clock freq.(MHz) HDMI/DVI SDI1/SDI2 Horizontal(kHz) Vertical(Hz) 1080/50p 1 920 x 1 080 56.3 50.0 148.5 √ √ 1080/60p 1 920 x 1 080 67.5 60.0 148.5 √ √ 1366 x 768 1 366 x 768 39.6 49.9 69.0 √ — 1 366 x 768 47.7 59.8 85.5 √ — 1400 x 1050 1 400 x 1 050 54.1 50.0 99.9 √ — 1 400 x 1 050 65.3 60.0 121.8 √ — 1920 x 1080 1 920 x 1 080 55.6 49.9 141.5 √ — 1 920 x 1 080 66.6 59.9 138.5 √ — 1920 x 1200 1 920 x 1 200 61.8 49.9 158.3 √ — 1 920 x 1 200 74.0 60.0 154.0 √ —
List of 3D compatible signals
The following table specifies the 3D compatible video signals that the projector can project.
- Abbreviations for input formats and 3D formats in the table have the following meanings.
-FP: Frame packing format
3D compatible signal Resolution(Dots) Scanning freq. Dot clockfreq.(MHz) HDMI DVI-D Horizontal(kHz) Vertical(Hz) FP SBS*1 TB FS SBS*1 TB L BL FS 720/60p 1 280 x 720 45.0 60.0 74.3 ✓✓✓ — ✓✓✓ — 720/50p 1 280 x 720 37.5 50.0 74.3 ✓✓✓ — ✓✓✓ — 1080/60i 1 920 x 1 080i 33.8 60.0 74.3 ✓ ✓ — — ✓ ✓ — — 1080/50i 1 920 x 1 080i 28.1 50.0 74.3 ✓ ✓ — — ✓ ✓ — — 1080/24p 1 920 x 1 080 27.0 24 0 74.3 ✓✓✓ — ✓ ✓ — — 1080/24sF 1 920 x 1 080i 27.0 24.0 74.3 — — — — ✓ ✓ — — 1080/25p 1 920 x 1 080 28.1 25.0 74.3 — — — — ✓ ✓ — — 1080/30p 1 920 x 1 080 33.8 30.0 74.3 — — — — ✓ ✓ — — 1080/60p 1 920 x 1 080 67.5 60.0 148.5 — ✓ ✓ — ✓ ✓ — — 1080/50p 1 920 x 1 080 56.3 50.0 148.5 — ✓ ✓ — ✓ ✓ — — 640 x 480 640 x 480 31.5 59.9 25.2 — — — — ✓ — — — 800 x 600 800 x 600 37.9 60.3 40.0 — — — — ✓ — — — 1024 x 768 1 024 x 768 39.6 50.0 51.9 — — — — ✓ — — — 1 024 x 768 48.4 60.0 65.0 — — — — ✓ — — — 1 024 x 768 81.4 100.0 113.3 — — — ✓ — — — ✓ 1 024 x 768 98.8 120.0 139.1 — — — ✓ — — — ✓ 1152 x 864 1 152 x 864 53.7 60.0 81.6 — — — — ✓ — — — 1280 x 720 1 280 x 720 37.1 49.8 60.5 — — — — ✓ — — — 1 280 x 720 44.8 59.9 74.5 — — — — ✓ — — — 1 280 x 720 76.3 100.0 131.8 — — — ✓ — — — ✓ 1 280 x 720 92.6 120.0 161.6 — — — ✓ — — — ✓ 1280 x 768 1 280 x 768 39.6 49.9 65.3 — — — — ✓ — — — 1 280 x 768 47.8 59.9 79.5 — — — — ✓ — — — 1 280 x 768*2 47.4 60 0 68.3 — — — — ✓ — — — 1280 x 800 1 280 x 800 41.3 50.0 68.0 — — — — ✓ — — — 1 280 x 800 49.7 59.8 83.5 — — — — ✓ — — — 1 280 x 800*2 49.3 59 9 71.0 — — — — ✓ — — — 1280 x 960 1 280 x 960 60.0 60.0 108.0 — — — — ✓ — — — 1280 x 1024 1 280 x 1 024 52.4 50 0 88.0 — — — — ✓ — — — 1 280 x 1 024 64.0 60 0 108.0 — — — — ✓ — — — 1366 x 768 1 366 x 768 47.7 59.8 85.5 — — — — ✓ — — — 1 366 x 768 39.6 49.9 69.0 — — — — ✓ — — — 1400 x 1050 1 400 x 1 050 54.1 50 0 99.9 — — — — ✓ — — — 1 400 x 1 050 64.0 60 0 108.0 — — — — ✓ — — — 1 400 x 1 050 65.2 60 0 122.6 — — — — ✓ — — — 1 400 x 1 050 65.3 60 0 121.8 — — — — ✓ — — — 1440 x 900 1 440 x 900 55.9 59.9 106.5 — — — — ✓ — — — 1 440 x 900 46.3 49.9 86.8 — — — — ✓ — — — 1600 x 900 1 600 x 900 46.4 49.9 96.5 — — — — ✓ — — — 1 600 x 900 55.9 60.0 119.0 — — — — ✓ — — —
Chapter 6 Appendix — Technical information
3D compatible signal Resolution(Dots) Scanning freq. Dot clockfreq.(MHz) HDMI DVI-D Horizontal(kHz) Vertical(Hz) FP SBS*1 TB FS SBS*1 TB L BL FS 1600 x 1200 1 600 x 1 200 75.0 60.0 162.0 — — — — √ — — — 1 600 x 1 200 61.8 49.9 131.5 — — — — √ — — — 1680 x 1050 1 680 x 1 050 65.3 60.0 146.3 — — — — √ — — — 1 680 x 1 050 54.1 50.0 119.5 — — — — √ — — — 1920 x 1080 1 920 x 1 080 55.6 49.9 141.5 — — — — √ — — — 1 920 x 1 080*2 66.6 59 9 138.5 — — — — √ — — — 1920 x 1200 1 920 x 1 200 61.8 49.9 158.3 — — — — √ — — — 1 920 x 1 200*2 74.0 60 0 154.0 — — — — √ — √ —
*1 Supports half.
3D compatible signal Resolution(Dots) Scanning freq. Dot clockfreq.(MHz) RGB1/RGB2 SDI1/SDI2 H-D R1-2 S1-2 Horizontal(kHz) Vertical(Hz) SBS*1 TB LBL FS SBS*1 TB LBL 3G 720/60p 1 280 x 720 45.0 60.0 74.3 √ √ √ — √ √ √ √ √ √ √ 720/50p 1 280 x 720 37.5 50.0 74.3 √ √ √ — √ √ √ √ √ √ √ 1080/60i 1 920 x 1 080i 33.8 60.0 74.3 √ √ — — √ √ — √√√ √ √ 1080/50i 1 920 x 1 080i 28.1 50.0 74.3 √ √ — — √ √ — √√√ √ √ 1080/24p 1 920 x 1 080 27.0 24.0 74.3 √ √ — — √ √ — √√√ √ √ 1080/24sF 1 920 x 1 080i 27.0 24.0 74.3 √ √ — — √ √ — √√√ √ √ 1080/25p 1 920 x 1 080 28.1 25.0 74.3 √ √ — — √ √ — √√√ √ √ 1080/30p 1 920 x 1 080 33.8 30.0 74.3 √ √ — — √ √ — √√√ √ √ 1080/60p 1 920 x 1 080 67.5 60.0 148.5 √ √ — — √ √ — — √√ √ 1080/50p 1 920 x 1 080 56.3 50.0 148.5 √ √ — — √ √ — — √√ √ 640 x 480 640 x 480 31.5 59.9 25.2 √ — — — — — — — — — — 800 x 600 800 x 600 37.9 60.3 40.0 √ — — — — — — — — — — 1024 x 768 1 024 x 768 39.6 50.0 51.9 √ — — — — — — — — — — 1 024 x 768 48.4 60.0 65.0 √ — — — — — — — — — — 1 024 x 768 81.4 100.0 113.3 — — — √ — — — — — — — 1 024 x 768 98.8 120.0 139.1 — — — √ — — — — — — — 1152 x 864 1 152 x 864 53.7 60.0 81.6 √ — — — — — — — — — — 1280 x 720 1 280 x 720 37.1 49.8 60.5 √ — — — — — — — — — — 1 280 x 720 44.8 59.9 74.5 √ — — — — — — — — — — 1 280 x 720 76.3 100.0 131.8 — — — √ — — — — — — — 1 280 x 720 92.6 120.0 161.6 — — — √ — — — — — — — 1280 x 768 1 280 x 768 39.6 49.9 65.3 √ — — — — — — — — — — 1 280 x 768 47.8 59.9 79.5 √ — — — — — — — — — — 1 280 x 768*2 47.4 60.0 68.3 √ — — — — — — — — — — 1280 x 800 1 280 x 800 41.3 50.0 68.0 √ — — — — — — — — — — 1 280 x 800 49.7 59.8 83.5 √ — — — — — — — — — — 1 280 x 800*2 49.3 59.9 71.0 √ — — — — — — — — — — 1280 x 960 1 280 x 960 60.0 60.0 108.0 √ — — — — — — — — — — 1280 x 1024 1 280 x 1 024 52.4 50.0 88.0 √ — — — — — — — — — — 1 280 x 1 024 64.0 60.0 108.0 √ — — — — — — — — — — 1366 x 768 1 366 x 768 47.7 59.8 85.5 √ — — — — — — — — — — 1 366 x 768 39.6 49.9 69.0 √ — — — — — — — — — — 1400 x 1050 1 400 x 1 050 54.1 50.0 99.9 √ — — — — — — — √ √ — 1 400 x 1 050 64.0 60.0 108.0 √ — — — — — — — √ √ — 1 400 x 1 050 65.2 60.0 122.6 √ — — — — — — — √ √ — 1 400 x 1 050 65.3 60.0 121.8 √ — — — — — — — √ √ — 1440 x 900 1 440 x 900 55.9 59.9 106.5 √ — — — — — — — — — — 1 440 x 900 46.3 49.9 86.8 √ — — — — — — — — — — 1600 x 900 1 600 x 900 46.4 49.9 96.5 √ — — — — — — — — — — 1 600 x 900 55.9 60.0 119.0 √ — — — — — — — — — —
Chapter 6 Appendix — Technical information
3D compatible signal Resolution(Dots) Scanning freq. Dot clockfreq.(MHz) RGB1/RGB2 SDI1/SDI2 H-D R1-2 S1-2 Horizontal(kHz) Vertical(Hz) SBS*1 TB LBL FS SBS*1 TB LBL 3G 1600 x 1200 1 600 x 1 200 75 0 60.0 162.0 √ — — — — — — 1 600 x 1 200 61 8 49.9 131.5 √ — — — — — — 1680 x 1050 1 680 x 1 050 65 3 60.0 146.3 √ — — — — — — 1 680 x 1 050 54 1 50.0 119.5 √ — — — — — — 1920 x 1080 1 920 x 1 080 55 6 49.9 141.5 √ — — — — — — 1 920 x 1 0802 66.6 59.9 138.5 √ — — — — — — 1920 x 1200 1 920 x 1 200 61 8 49.9 158.3 √ — — — — √ √ — 1 920 x 1 2002 74.0 60.0 154.0 √ — √ — — — √ √ —
*1 Supports half.
Note
- DIGITAL LINK input compatible signal is the same as HDMI input compatible signal.
Specifications
The specifications of the projector are as follows.
Power supply 100 V - 240 V ~ (100 V - 240 V alternating current), 50 Hz/60 Hz Power consumption 1 200 W (12.0 A - 6.0 A) When [STANDBY MODE] is set to [ECO]: 0.3 W When [STANDBY MODE] is set to [NORMAL]: 4 W DLP chip Size PT-RZ12K 24.4 mm (0.96") (aspect ratio 16:10) PT-RS11K 24.1 mm (0.95") (aspect ratio 4:3) Display system DLP chip x 3, DLP projection system Number of pixels PT-RZ12K 2 304 000 pixels (1 920 x 1 200 dots) PT-RS11K 1 470 000 pixels (1 400 x 1 050 dots) Lens Optional Light source Laser, 2-bank type Light output*1 12 000 lm (ANSI) Contrast ratio*1 20 000:1 (when [DYNAMIC CONTRAST] is set to [3]) Color system 7 standards (NTSC/NTSC4.43/PAL/PAL-N/PAL-M/SECAM/PAL60) Projected image size 1.78 m (70") to 25.40 m (1 000") *2 Image aspect ratio PT-RZ12K 16:10 PT-RS11K 4:3 Projection method [FRONT/CEILING], [FRONT/FLOOR], [REAR/CEILING], [REAR/FLOOR] Power cord length 3.0 m (118-1,8") Outer case Molded plastic Dimensions Width 578 mm (22-3/4") Height 270 mm (10-5/8") (excluding the feet) Depth 725 mm (28-17/32") (excluding the protrusion) Weight Approx. 44.0 kg (96.9 lbs.)*3 Noise level*1 43 dB Operating environment temperature 0 °C (32 °F) to 50 °C (122 °F)*4*5 Operating environment humidity 10 % to 80 % (no condensation) Remote control Power supply DC 3 V (AA/R6/LR6 battery x 2) Operating range Within approx. 30 m (98'5") (when operated directly in front of signal receiver) Weight 150 g (5.3 ozs.) (including batteries) Dimensions Width: 47.5 mm (1-7/8"), Height: 181.5 mm (7-5/32"), Depth: 27.5 mm (1-3/32")
*1 Measurement, measuring conditions and method of notation all comply with ISO21118 international standards.
■Applicable scanning frequency
Refer to "List of compatible signals" ( page 210) for the types of video signals that can be used with the projector.
For video signal, Y/C signal Horizontal: 15.75 kHz, Vertical: 60 Hz; Horizontal: 15.63 kHz, Vertical: 50 Hz For RGB signal Horizontal: 15 kHz to 100 kHz, Vertical: 24 Hz to 120 HzPIAS (Panasonic Intelligent Auto Scanning) system Dot clock frequency: 162 MHz or less For YC_B C_R / YP_B P_R signal 525i (480i)Horizontal: 15.73 kHz, Vertical: 59.94 Hz525p (480p)Horizontal: 31.47 kHz, Vertical: 59.94 Hz750 (720)/60pHorizontal: 45 kHz, Vertical: 60 Hz1125 (1035)/60iHorizontal: 33.75 kHz, Vertical: 60 Hz1125 (1080)/50iHorizontal: 28.13 kHz, Vertical: 50 Hz1125 (1080)/24sFHorizontal: 27 kHz, Vertical: 48 Hz1125 (1080)/30pHorizontal: 33.75 kHz, Vertical: 30 Hz1125 (1080)/50pHorizontal: 56.25 kHz, Vertical: 50 HzThe SYNC/HD and VD terminals do not support 3 value SYNC. For DVI-D signal 525i (480i)*1, 625i (576i)*1, 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/25p, 1125 (1080)/30p, 1125 (1080)/60p, 1125 (1080)/50p Displayable resolution: 640 x 480 to 1 920 x 1 200 (non-interlaced)Dot clock frequency: 25 MHz to 162 MHz For HDMI signal 525i (480i)*1, 625i (576i)*1, 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60i, 1125 (108O)/50i, 1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/25p, 1125 (1080)/30p, 1125 (1080)/60p, 1125 (1080)/50p For SDI signal SD-SDI signal SMPTE ST 259 compliant YC_B C_R 4:2:2 10-bit 480i, 576iSingle link HD-SDI signal SMPTE ST 292 compliant YP_B P_R 4:2:2 10-bit 720/50p, 720/60p, 1035/60i, 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30pDual link HD-SDI signal SMPTE ST 372 compliantRGB 4:4:4 12-bit/10-bit1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 2048 x 1080/24p, 2048 x 1080/24sFX'Y'Z' 4:4:4 12-bit2048 x 1080/24p, 2048 x 1080/24sF3G-SDI signal SMPTE ST 424 compliant YP_B P_R 4:2:2 10-bit 1080/50p, 1080/60pRGB 4:4:4 12-bit/10-bit1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30pDual link 3G-SDI signal SMPTE ST 425 compliant YP_B P_R 4:4:4 12-bit/10-bit 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48pRGB 4:4:4 12-bit/10-bit1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p
*1 Pixel-Repetition signal (dot clock frequency 27.0 MHz) only
Note
- DIGITAL LINK input compatible signal is the same as HDMI input compatible signal.
Terminal
1 set (BNC x 5 (RGB/YP _B P _R /YC _B C _R /YC/VIDEO x 1))RGB signal 0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω)SYNC/HD TTL high impedance, automatic positive/negative polarity compatibleVD TTL high impedance, automatic positive/negative polarity compatibleYP _B P _R signal Y: 1.0 V [p-p] including synchronization signal, P _B P _R : 0.7 V [p-p] 75 ΩY/C signal Y: 1.0 V [p-p], C: 0.286 V [p-p] 75 ΩVIDEO signal 1.0 V [p-p] 75 Ω 1 set, high-density D-Sub 15 p (female)RGB signal 0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω)SYNC/HD TTL high impedance, automatic positive/negative polarity compatibleVD TTL high impedance, automatic positive/negative polarity compatibleYP _B P _R signal Y: 1.0 V [p-p] including synchronization signal, P _B P _R : 0,7 V [p-p] 75 Ω 24 p, single link, DVI 1.0 compliant, HDCP compatible 19 p, HDCP compatible, Deep Color compatible 1 set (BNC)SD-SDI signal SMPTE ST 259 compliantHD-SDI signal SMPTE ST 292 compliant3G-SDI signal SMPTE ST 424 compliantDual link HD-SDI SMPTE ST 372 compliant(LINK-A) signalDual link 3G-SDI (Link SMPTE ST 425 compliant1) signal 1 set (BNC)SD-SDI signal SMPTE ST 259 compliantHD-SDI signal SMPTE ST 292 compliant3G-SDI signal SMPTE ST 424 compliantDual link HD-SDI SMPTE ST 372 compliant(LINK-B) signalDual link 3G-SDI (Link SMPTE ST 425 compliant2) signal 1 set (BNC)During input setting TTL high impedanceDuring output setting TTL output: Maximum 10 mA 1 set (BNC)TTL output: Maximum 10 mA D-Sub 9 p, 1 set each, RS-232C compliant, for computer control M3 stereo mini jack, 1 set each, for remote control (wired)/for projector connection control 1 set, D-Sub 9 p, for contact control 1 set, RJ-45, for network and DIGITAL LINK connections (HDBase ^TM compliant), PJLink compatible, 100Base-TX, Art-Net compatible, HDCP compatible, Deep Color compatible
Note
- The model numbers of accessories and optional accessories are subject to change without prior notice.

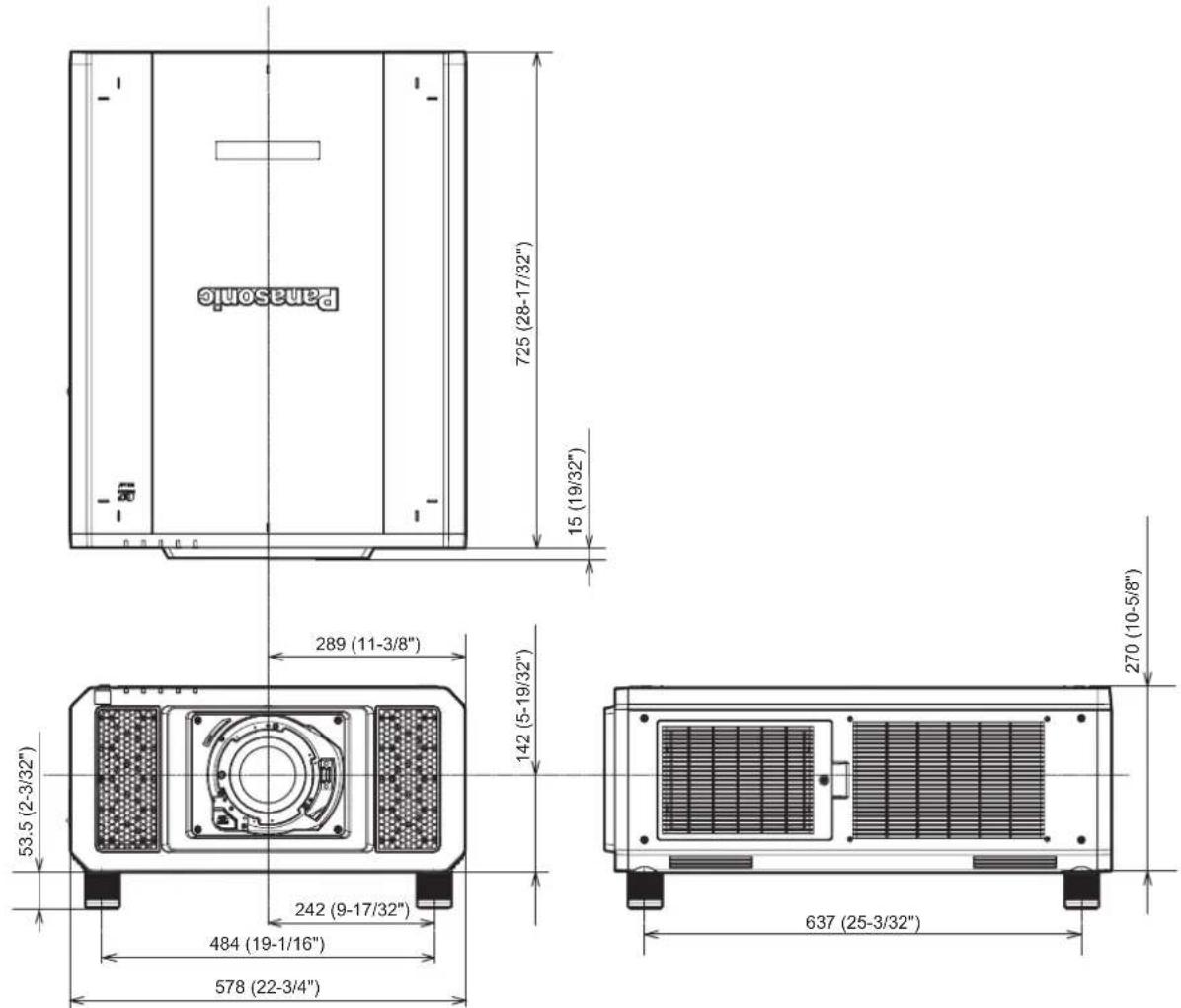

Dimensions
Unit: mm
725 (28-17/32")
15 (19/32")
289 (11-3/8")
142 (5-19/32")
53.5 (2-3/32")
242 (9-17/32")
484 (19-1/16")
578 (22-3/4")
270 (10-5/8")
637 (25-3/32)
* Actual dimensions may differ depending on the product.

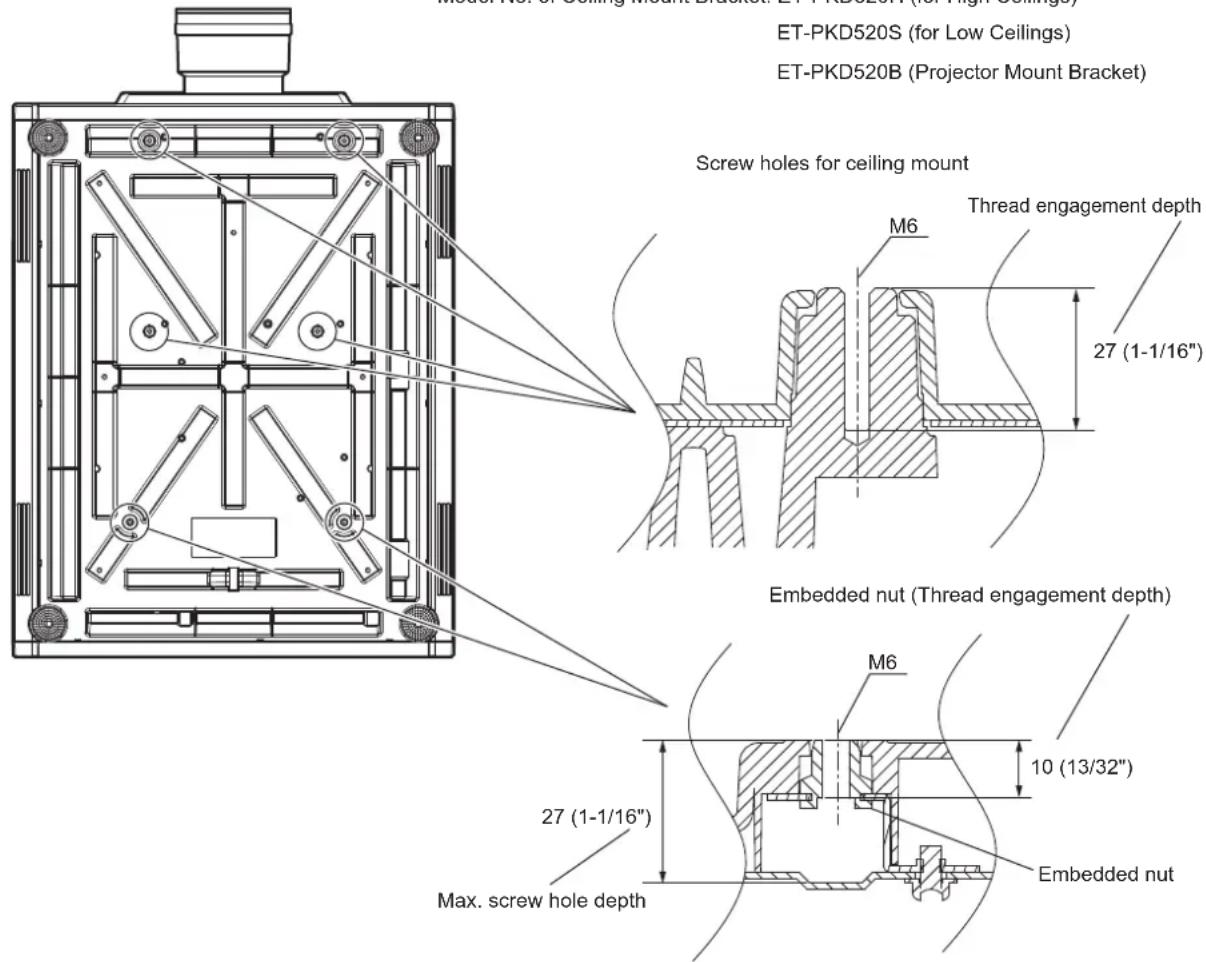

Precautions for attaching the Ceiling Mount Bracket
When installing the projector to a ceiling, be sure to use the specified optional Ceiling Mount Bracket (Model No.: ET-PKD520H (for High Ceilings), ET-PKD520S (for Low Ceilings), ET-PKD520B (Projector Mount Bracket)). The Ceiling Mount Bracket (Model No.: ET-PKD520H (for High Ceilings), ET-PKD520S (for Low Ceilings)) is used in combination with the Ceiling Mount Bracket (Model No.: ET-PKD520B (Projector Mount Bracket)).
Attach the drop-prevention set that comes with the Ceiling Mount Bracket. If you need the drop-prevention set (hex bolt with washer (M10 x 40), wire rope: TTRA0143) separately, consult your dealer.
Ask a qualified technician to do the installation work such as mounting the projector on the ceiling.
Panasonic takes no responsibility for any damage to the projector resulting from use of the Ceiling Mount Bracket not manufactured by Panasonic or the inappropriate choice of location for installing the Ceiling Mount Bracket, even if the warranty period of the projector has not expired.
Unused products must be removed promptly by a qualified technician.

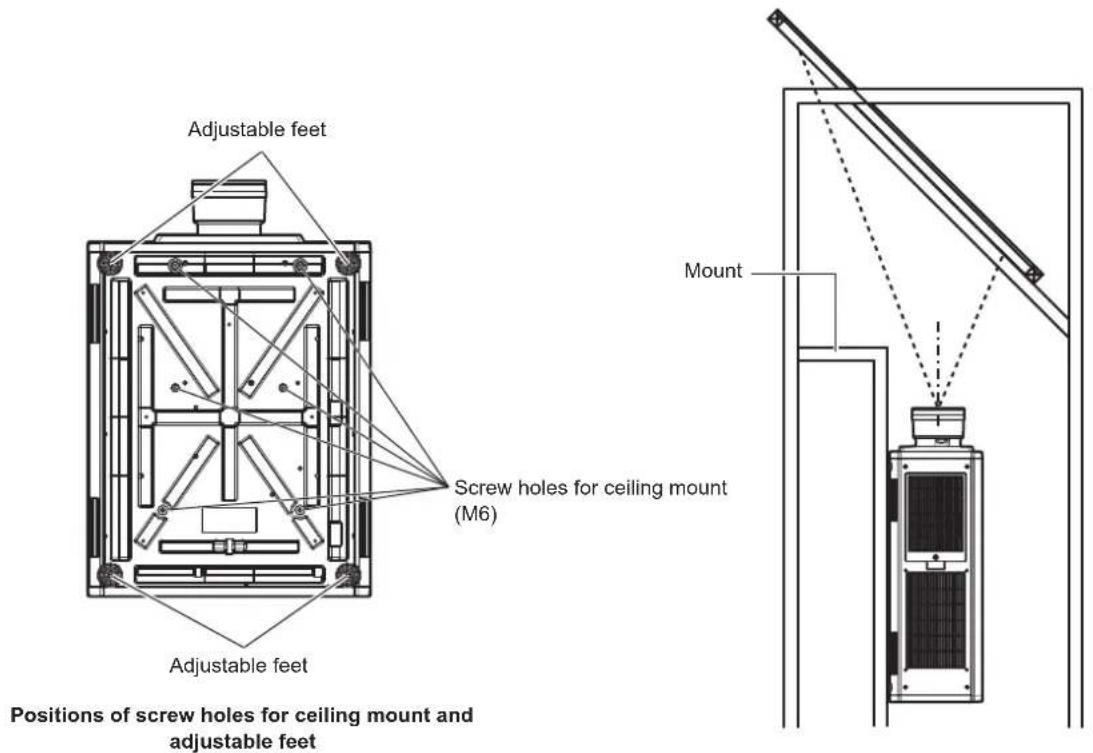

Referring to the following screw holes for ceiling mount diagram, use screws of sufficient length to reach the embedded nuts.
Use a torque screwdriver or Allen torque wrench to tighten bolts to their specified tightening torques. Do not use electric screwdrivers or impact screwdrivers.
Read the Installation Instructions of the Ceiling Mount Bracket for details.
The model numbers of accessories and optional accessories are subject to change without prior notice.
Bottom view
Model No. of Ceiling Mount Bracket: ET-PKD520H (for High Ceilings)
ET-PKD520S (for Low Ceilings)
ET-PKD520B (Projector Mount Bracket)
Unit: mm
ET-PKD520B (Projector Mount Bracket)
Screw holes for ceiling mount
M6
Thread engagement depth
27 (1-1/16")
Embedded nut (Thread engagement depth)
M6
10 (13/32")
27 (1-1/16")
Max. screw hole depth
Embedded nut
Torque: (M6) 4 ± 0.5 N·m
Index
0 - 9
[3D COLOR MATCHING]
A
Accessories terminal 28, 55 button button
B
[BACK COLOR]
[BACKUP INPUT SETTING] 111
[BLANKING] 96
[BRIGHTNESS] 84
[BRIGHTNESS CONTROL] 132
C
Cautions on use
Cautions when installing 18
Cautions when transporting 18
Ceiling Mount Bracket 220
[CLAMP POSITION] 97
[CLOCK PHASE] 93
[COLOR] 84
[COLOR MATCHING] 108
[COLOR TEMPERATURE] 84
Connecting the power cord 55
Connecting the remote control to the projector
with a cable 32
Connection 48
[CONTRAST] 83
[CONTROL DEVICE PASSWORD CHANGE]....158
[CONTROL DEVICE SETUP] 157
[Crestron Connected(TM)] 182
[CUT OFF] 126
D
[DARK TIME SETTING] .... 137
[DATE AND TIME]....
button
Remote control 26,78
Deleting the registered signal 153
[DIGITAL CINEMA REALITY]......96
DIGITAL LINK 21
button
Projector body 29,71
Remote control 26,71
[ DIGITAL LINK IN ] 116
[ DIGITAL LINK MENU ]....163
[ DIGITAL LINK MODE] 160
[ DIGITAL LINK SETUP ] 160
[ DIGITAL LINK STATUS]....161
Dimensions 219
Display language 80, 102
[DISPLAY OPTION] 80, 108
[DISPLAY SETTING] 156
Disposal 22
button
Projector body 29,71
Remote control 26,71
[DVI-D IN] 114
[DYNAMIC CONTRAST] 88
E
Early WarningSoftware
[EDGE BLENDING] 98
button
Projector body 29
Remote control 26
Expanding signal lock-in range 154
F
Filter indicator
button
Remote control 26, 65
[FRAME CREATION] 100
[FRAME LOCK] 24 100
[FRAME RESPONSE] 99
[FREEZE] 125
Function button 74
button
Remote control 26,74
[FUNCTION BUTTON] 144
G
[GAMMA]
EOMETRY] 93
H
button
Projector body 29,71
Remote control 26,71
[HDMI IN] 115
|
button
Remote control 26,75
button
Remote control 26,75
[IMAGE ROTATION]121 121
[INITIALIZE] 148
Initial setting 57
[INITIAL STARTUP] 137
Remote control 26,71
[INPUT RESOLUTION] 97
Input selection terminal2Indicator 29
Installation mode 34
L
[LARGE SCREEN CORRECTION] ____
[LEFT/RIGHT SWAP] 104
button
Projector body 29, 65
[LENS CALIBRATION] 144
[LENS MEMORY] 145
button
Remote control 26
[LIGHT OUTPUT] 131
Light source indicator 186
List of compatible signals 210
[LOAD ALL USER DATA] 148
button
Remote control 26
M
Main menu 105
Main power switch 28,56
Maintenance 188
button
Projector body 29,77
Remote control 26,77
Menu item 79
[MULTI PROJECTOR SYNC] 140
N
Navigating through the menu 77
[NETWORK] 82,160
Network connection 164
[NETWORK CONTROL] 162
[NETWORK SETUP] 161
[NETWORK STATUS] 162
[NOISE REDUCTION] 88
[NO SIGNAL LIGHTS-OUT] 136
[NO SIGNAL SHUT-OFF] 136
O
button
Remote control 26,73
[ON-SCREEN DISPLAY] 119
On-screen menu 77
[OPERATION SETTING] 127
Optional accessories 25
22
P
[PICTURE] 79,83
[PICTURE MODE] 83
[P IN P] 81, 150
P IN P function 150
[POSITION] 79, 91
Power cord 55
Power indicator 186 55
Power on button
Projector body ....
Remote control 26
Power standby button
Projector body
Remote control 26
Precautions for attaching the Ceiling Mount
Bracket 220
Precautions for use 18
Projecting 65
[PROJECTION METHOD] 127
Projector body 28
[PROJECTOR ID] 86 127
[PROJECTOR SETUP] 81, 127
Protecting the registered signal 154
R
[RASTER POSITION] 101
Read this first! 5
Registering new signals
terminal 32
terminal 32
terminal 207
[REMOTE2 MODE] 144
Remote control 26
Remote control operations
Renaming the registered signal 153
Replacing the air filter unit 190
Replacing the unit 190
Resetting to the factory default 78
button
Projector body 29,71
Remote control 26,71
button
Projector body 29,71
Remote control 26,71
[RGB IN] 113
[R80232C] 142, 203
S
[SAFETY PRECAUTIONS MESSAGE] 107
[SAVE ALL USER DATA] 148
[SCHEDULE] 138
[SCREEN SETTING] 109
button
Projector body 29,71
button
Remote control 26,71
[SDI IN] 118
Security 21
[SECURITY] 81, 156
[SECURITY PASSWORD] 156
[SECURITY PASSWORD CHANGE] 156
Selecting the input signal ....78.
Self-diagnosis display 29, 193
terminal 203
terminal 203
[SERVICE PASSWORD] 149
Setting ID number of the remote control 75
Setting up 34
[SHARPNESS] 87
[SHIFT] 91
button
Remote control 26, 65
button
Projector body 29,72
Remote control 26,72
[SHUTTER SETTING]
[SIGNAL LIST] 81, 153
[SIMUL INPUT SETTING] 112
Specifications 216
sRGB-compliant video 90
[STANDBY MODE] 136
[STARTUP INPUT SELECT] 137
[STARTUP LOGO] 121
[STATUS]....146
button
Remote control 26,74
Sub memory 155
button
Remote control 26,71
Switching off the projector 64
Switching on the projector 56
Switch the input signal 71
[SYSTEM DAYLIGHT VIEW] 87
[SYSTEM SELECTOR] 89
T
Temperature indicator 186
[TEST PATTERN] 81, 152
button
Remote control 26,74
[TEXT CHANGE] 157
[TINT] 84
Troubleshooting 191
Two-window 208
U
[UNIFORMITY] 122
Upgrade Kit 209
V
button
Remote control 26,71
W
[WAVEFORM MONITOR] 125
Z
[ZOOM]
button
Remote control 26, 65
92
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.
AEEE Yönetmeliğine Uygundur.
Eski Ekipman ve Bataryaların İşlenmesi.
Sadece geri dönüşüm sistemleri olan Avrupa Birliği ve ülkeleri için geçerlidir.
Ürünler, ambalaj ve/veya ekli belgeler üzerindeki bu semboller kullanılmış elektrik ve elektronik ürünlerin ve pillerin genel ev atığı ile karıştırılmaması gerektiğini ifade eder.
Eski ürünlerin ve pillerin toplanması ve geri kazanılması için bu atıkları lütfen yasayla belirlenmiş olan uygun toplama merkezlerine teslim ediniz.
Bu atıkların doğru işlenmesiyle, değerli kaynakların korunmasına ve insan sağlığı ve çevreye olası negatif etkilerinin engellenmesine yardımcı olabilirsiniz.
Atıkların toplanması ve geri dönüşümü için detaylı bilgi için lütfen bağlı olduğunu yerel yönetimlerle iletişime geçiniz.
Atıkların atılmasıyla ilgili yanlış uygulamalar yasayla belirlenmiş olan cezalara sebebiyet verebilir.
Panasonic Corporation
Web Site : http://panasonic.net/avc/projector/
© Panasonic Corporation 2015
Panasonic System Communications Company of North America
5th Floor, Two Riverfront Plaza, Newark, NJ 07102-5490
TEL: (877) 803 - 8492
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
TEL: (905) 624 - 5010
