USER MANUAL Essential-line E2460SH AOC

LCD Monitor User Manual E2460SH LED Backlight

Black-and-white photo of a flat-screen monitor with a circular base and 'ABC' logo, placed on a wooden surface (no text or symbols visible on the screen)

Safety....3

National Conventions....3

Power 4

Installation 5

Cleaning 6

Other....7

Setup 8

Contents in Box 8

Setup Stand & Base 9

Adjusting Viewing Angle 10

Connecting the Monitor....11

Wall Mounting....12

Adjusting 13

Setting Optimal Resolution 13

Windows Vista 13

Windows XP 15

Windows ME/2000....16

Windows 8....17

Hotkeys....19

OSD Setting....21

Luminance 22

Image Setup 24

Color Setup....26

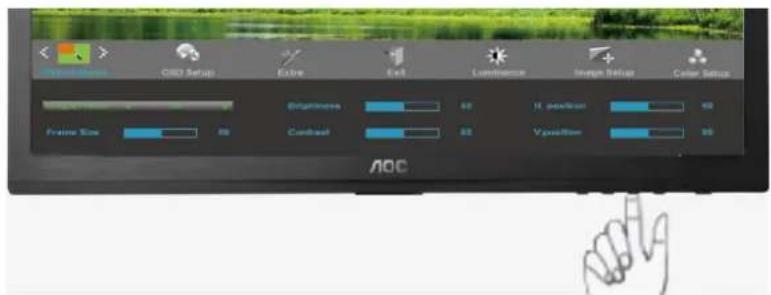

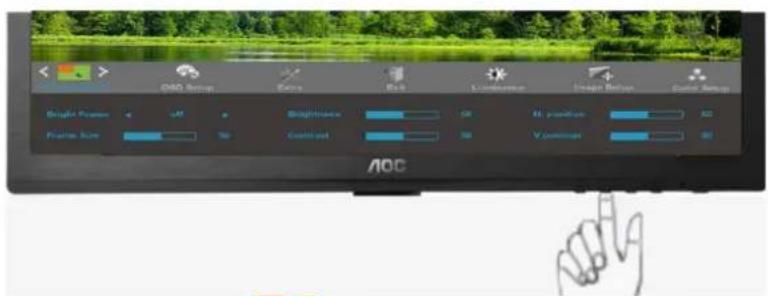

Picture Boost....28

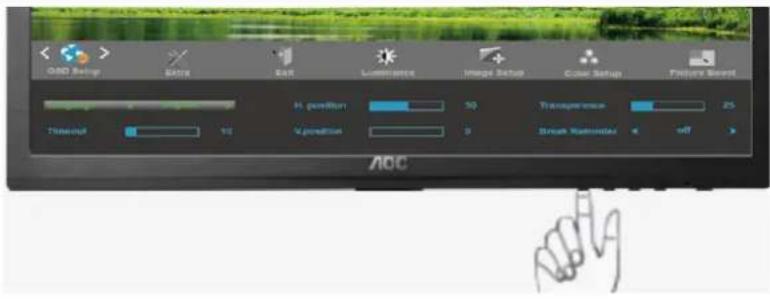

OSD Setup 30

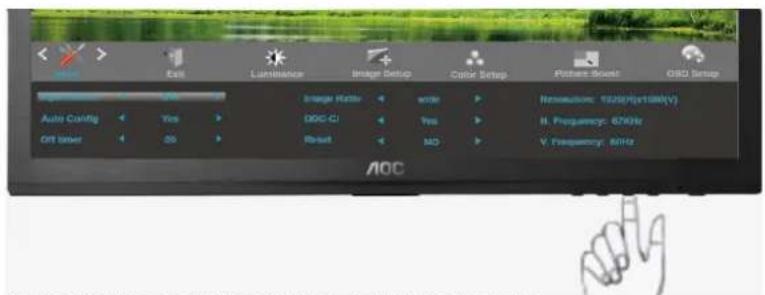

Extra 32

Exit 34

LED Indicator 34

Driver 35

Monitor Driver 35

Windows 8....35

Windows 7....39

Windows Vista 43

Windows XP 45

Windows 2000....48

Windows ME....48

i-Menu....49

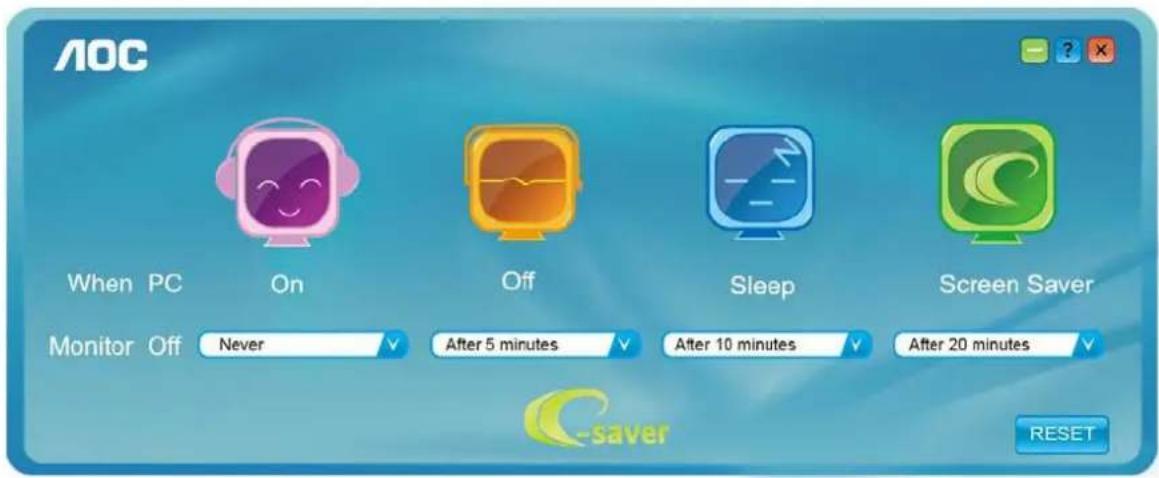

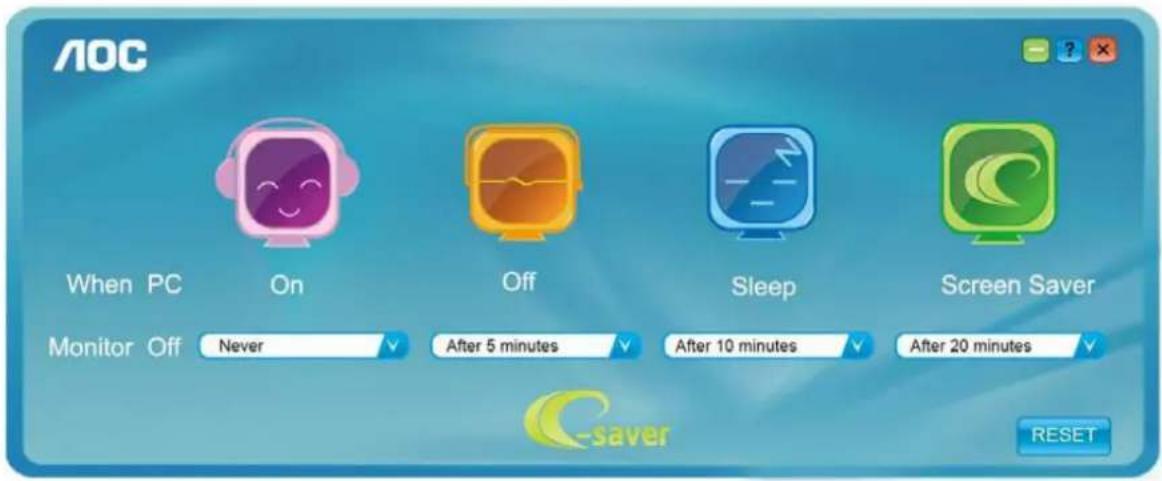

e-Saver 50

Screen+ 51

Troubleshoot 52

Specification....53

General Specification....53

Preset Display Modes....54

Pin Assignments 55

Plug and Play 57

Regulation....58

WEEE Declaration....58

EPA Energy Star 59

EPEAT Declaration....60

Service 6

EU WARRANTY FOR AOC MONITORS 6

AOC Pixel Policy ISO 9241-307 Class 1....65

TCO DOCUMENT 66

Safety

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

⚠️ Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V \~, Min. 5A

The wall socket shall be installed near the equipment and shall be easily accessible.

For use only with the attached power adapter (Output 12Vdc) which have UL, listed license (Only for monitors with power adapter).

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.

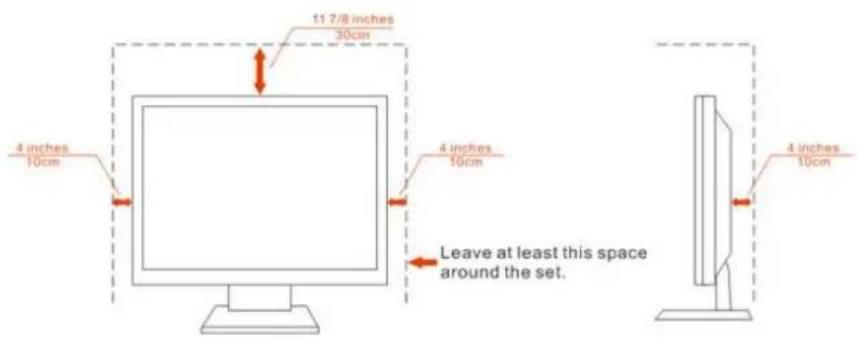

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the stand:

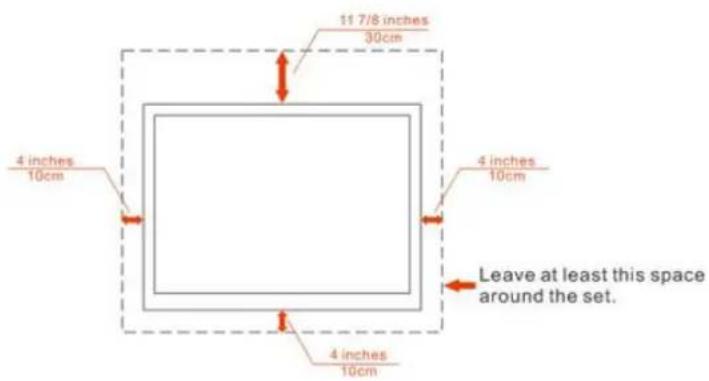

Installed on the wall

11 7/8 inches 30cm 4 inches 10cm 4 inches 10cm Leave at least this space around the set. 4 inches 10cm

Installed with stand

11 7/8 inches 30cm 4 inches 10cm 4 inches 10cm Leave at least this space around the set. 4 inches 10cm

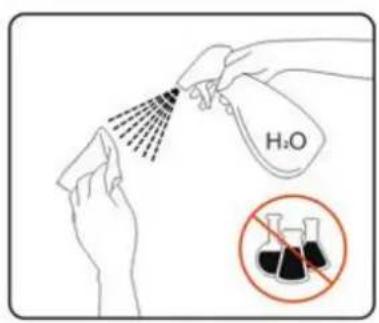

Cleaning

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.

Please disconnect the power cord before cleaning the product.

H₂O No No

Simple line drawing of a computer monitor with a cable and a switch, no text or symbols present.

Illustration of a hand interacting with a computer monitor displaying a curved line graph (no text or symbols)

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.

Make sure that the ventilating openings are not blocked by a table or curtain.

Do not engage the LCD monitor in severe vibration or high impact conditions during operation.

Do not knock or drop the monitor during operation or transportation.

Setup

Contents in Box

Front view of a black CRT monitor with a circular checkmark icon on the left (no text or symbols on screen)

Monitor

CD Manual

Monitor Base

Power Cable

DVI Cable

Analog Cable

Audio Cable

HDMI Cable

* Not all signal cables (Audio, Analog, DVI, HDMI) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.

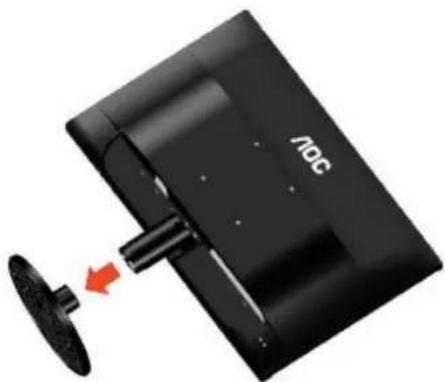

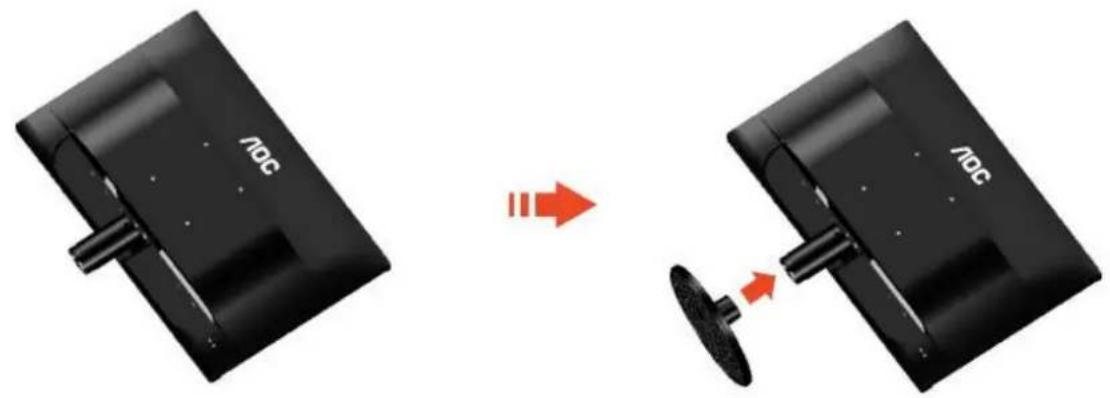

Setup Stand & Base

Please setup or remove the base following the steps as below.

Setup:

Remove:

Close-up of a black electronic device with a red arrow pointing to its side panel (no visible text or symbols)

Black rectangular electronic device with a metallic clip and '70C' label (no readable text or symbols beyond branding)

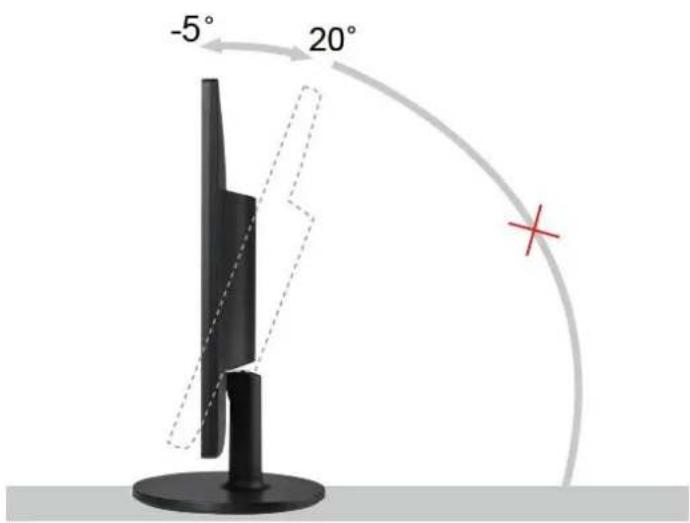

Adjusting Viewing Angle

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.

Hold the stand so you will not topple the monitor when you change the monitor's angle.

You are able to adjust the monitor's angle from -5^ to 20^ .

-5° 20°

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Connecting the Monitor

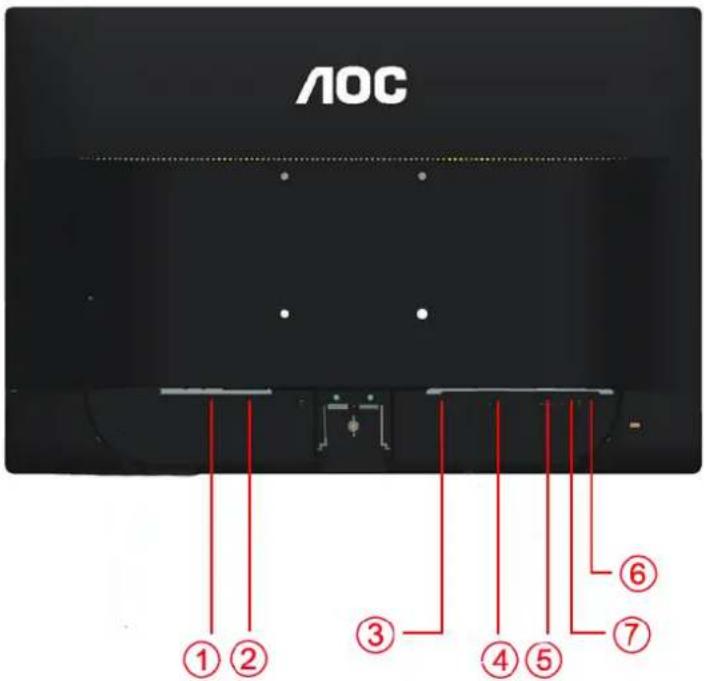

Cable Connections In Back of Monitor and Computer:

AOC ① ② ③ ④ ⑤ ⑥ ⑦

1 Power switch
2 Power
3 HDMI
4	DVI
5	D-SUB
6 Earphone
7 Audio in

To protect equipment, always turn off the PC and LCD monitor before connecting.

1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port.
3 Connect one end of the DVI cable to the back of the monitor and connect the other end to the computer's DVI port.

4 (Optional – Requires a video card with Audio port) - Connect one end of the Audio cable to the back of the monitor and connect the other end to the computer's Audio port.

5 (Optional – Requires a video card with HDMI port) – Connect one end of the HDMI cable to the back of the monitor and connect the other end to the computer's HDMI port.

6 Turn on your monitor and computer.

7 Video content supporting resolution: VGA / DVI / HDMI.

If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.

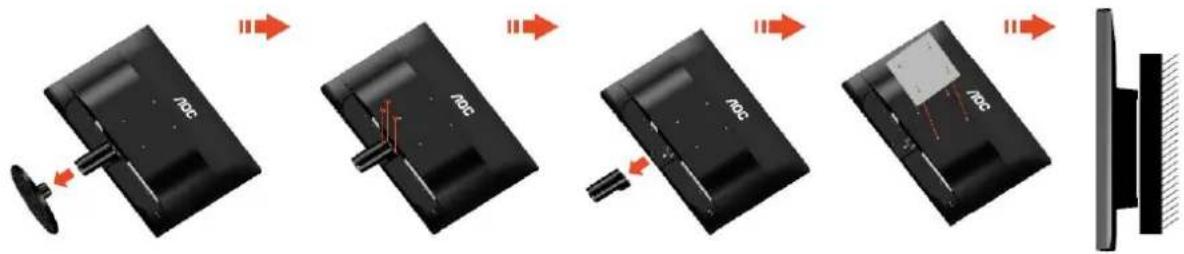

Wall Mounting

Preparing to Install An Optional Wall Mounting Arm.

70C 70C 70C 70C

This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure. Follow these steps:

1 Remove the base.
2 Follow the manufacturer's instructions to assemble the wall mounting arm.
3 Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor.
4 Insert the 4 screws into the holes and tighten.
5 Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall.

Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC.

Adjusting

Setting Optimal Resolution

Windows Vista

For Windows Vista:

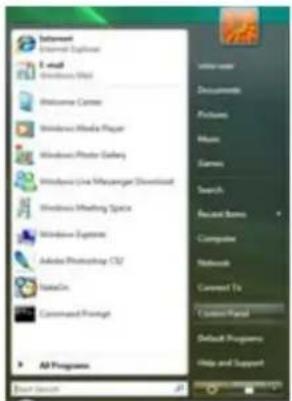

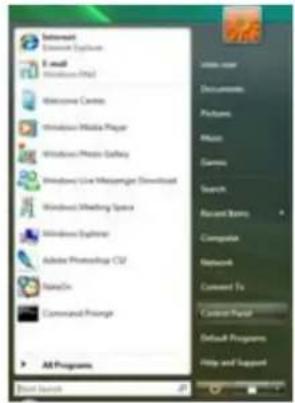

1 Click START.
2 Click CONTROL PANEL.

Internet Internet Explorer E-mail Windows (Shift) Welcome Carton Windows Altina Player Windows Printer Gallery Windows Live Magazines Download Windows Printing Space Windows Express Adobe Photoshop CS2 Status Command Prompt All Programs Open Start Edit User Documents Pictures Music Games Search Recent Items Computer Networks Connect To: Custom Wizard Default Programs Help and Support

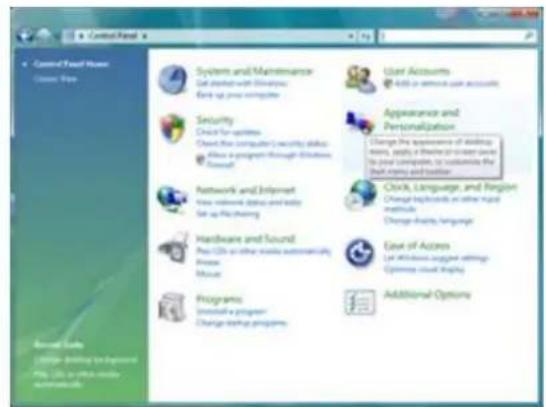

3 Click Appearance and Personalization.

Control Panel Options System and Maintenance Set desktop with Windows Back up your computer Security Create for updates Create this computer's security details Allow an appropriate through Security Thesis Network and Internet View network startup and links Set up for sharing Hardware and Sound Play ODS as a key user automatically Access Access Programs Unchanged a program Change backup programs User Accounts Add or remove user accounts Appearance and Personalization Change the app improvements of: Building Windows, apply software or server users to your computer, or additional free Data rights and licenses Clock, language, and Region Change keyboards or other audio methods Change driving language Ease of Access Get Windows support settings Optimize cloud display Additional Options

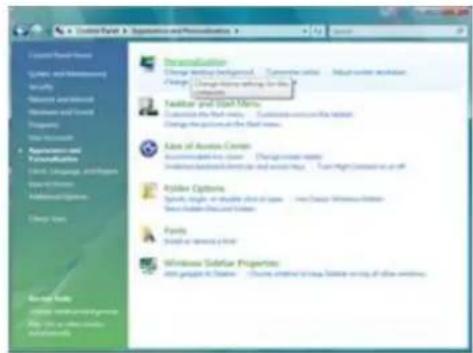

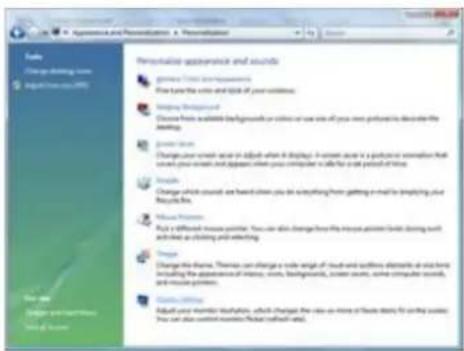

4 Click Personalization

Central Panel & Appensions and Recommendations Personalization Change existing background Change existing text Change existing text to the Web Categories Textbook and Start Menu Customize the Text menu Customize the text on the website Change the text on the Web menu Use of Audio Center Recommendation to use Change user status Recommendation to the Web and Word Text that Content is on an Adder Options Specific tagger in a language tool to open New Computer Access System New User Interface System Family Details to access a tool Windows Subinar Properties Other languages to Database Choose further to map these as top at other sites

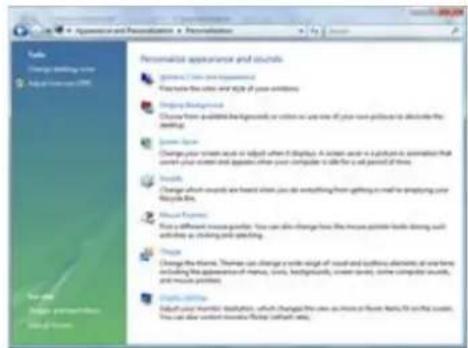

5 Click Display Settings.

Personal appearance and soundsline Change the voice and size of your voice. Display background Choose from public background, or write on any one of your voice colors to identify the soundline. Change your voice and size of soundline when it displays. A sound line is a visualise in conjunction that convert your voice and size when your computer is able to add a part of time. Smooth Change which concepts are found when you are everything their images in real to plotting your recycle line. Visual Fines: Show a different audience profile. You can also change how the audience looks during all activity as clicking and spicking. People Change the soundsline. Thomas can change a whole name of sound and soundsline elements at every time excluding the appearance of music, music, handlessly, screen imagery, outline computer sounds, and music patterns. Audio/Video Select your music line distribution, which changes the voice as from the music files to the audio. You can also contain more audio files (e-mail: radio)

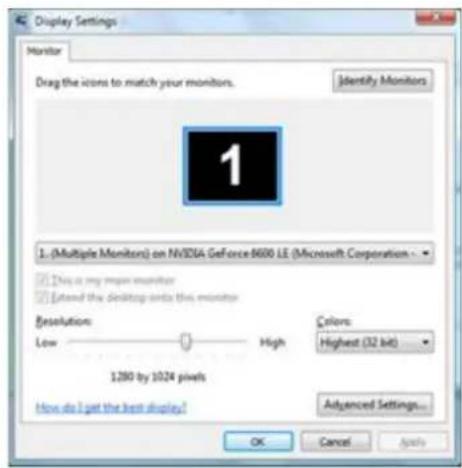

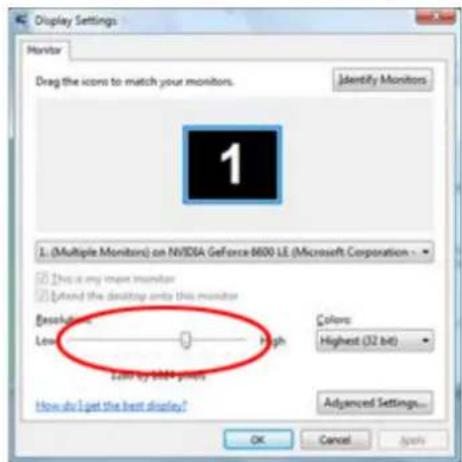

6 Set the resolution SLIDE-BAR to Optimal preset resolution.

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 1. (Multiple Monitors) on NVIDIA GeForce 8600 LE (Microsoft Corporation - This is any import monitor Lifted the desktop only this monitor Resolution Low - High Left by 960+ pixels Colors: Highest (32 bit) How do I get the best display? Advanced Settings... OK Cancel Apply

Windows XP

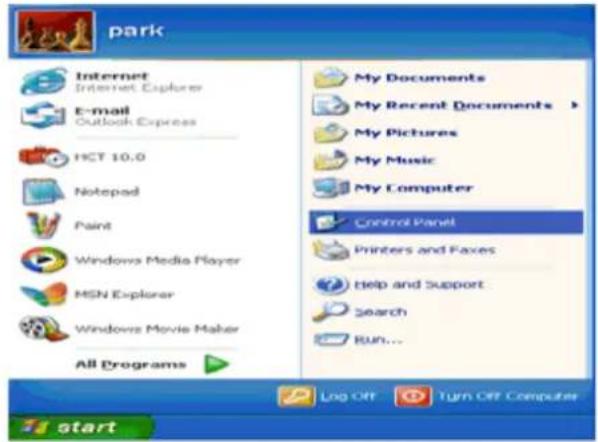

For Windows XP:

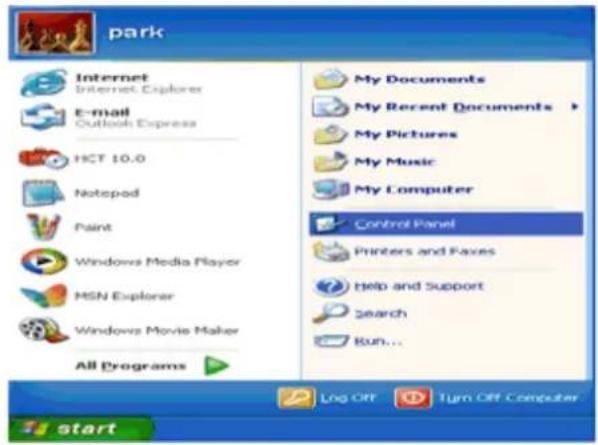

1 Click START.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Faxes help and Support Search Run... Log Off Turn Off Computer start

2 Click SETTINGS.
3 Click CONTROL PANEL.

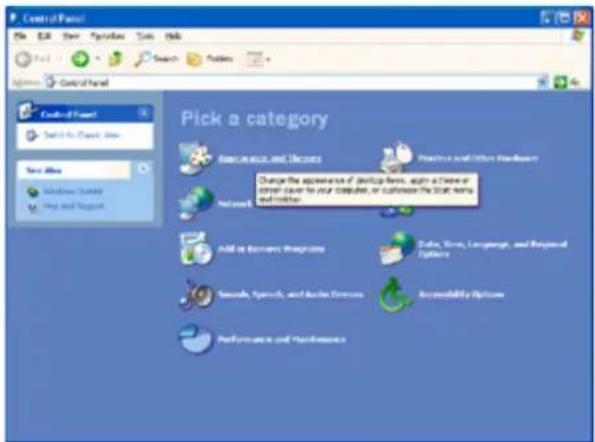

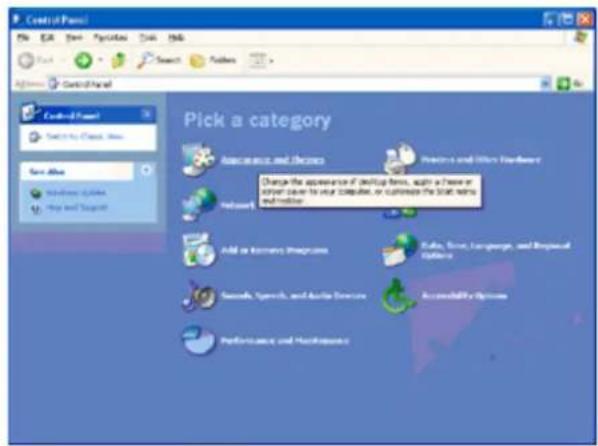

4 Click Appearance and Themes.

Control Panel File Edit View Properties Tools Help Find Search Problems Controls Panel Control Panel Search to Copy Area New Area Settings Update Help and Support Pick a category Create your area, library Practice and Other Handlower Change the appearance of desktop hardware, apply a Time or clock time for your computer, or software the Start being and more. Networks Add to Earnings Graphics Sales, TV, Language, and Regional Options Seconds, Speech, and Audio Exercises Accessibility Options Performance and Performance

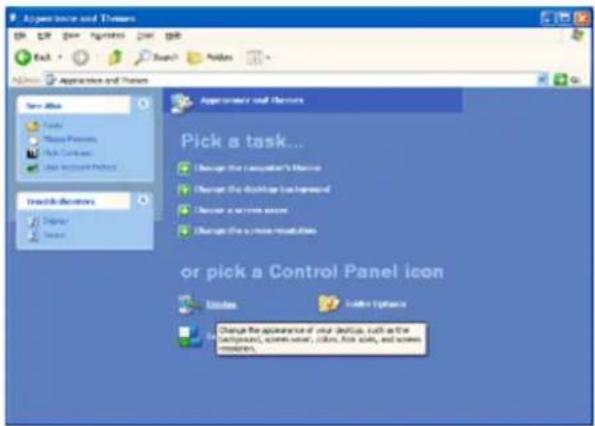

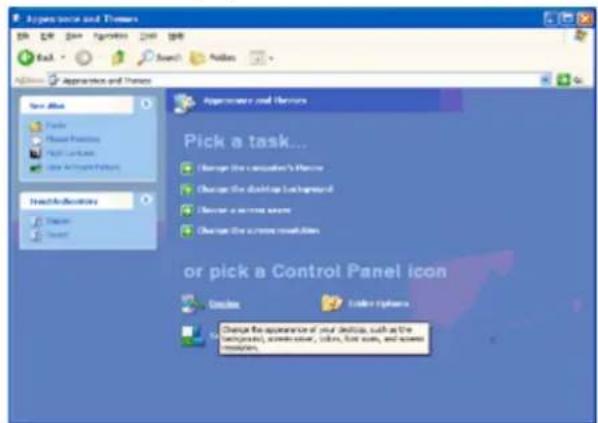

5 Double click DISPLAY.

Apprentise and Features Save Asks Tools Mouse Patterns Pick Accounts Ask Accounts Protocol Import/Description Export Export Apprentise and Features Pick a task... Change the capacitor's Motion Change the display background Change the screen space Change the screen resolutions or pick a Control Panel icon Images Make Options Change the appearance of your device, such as the display, screen view, buttons, hot screen, and screen modules.

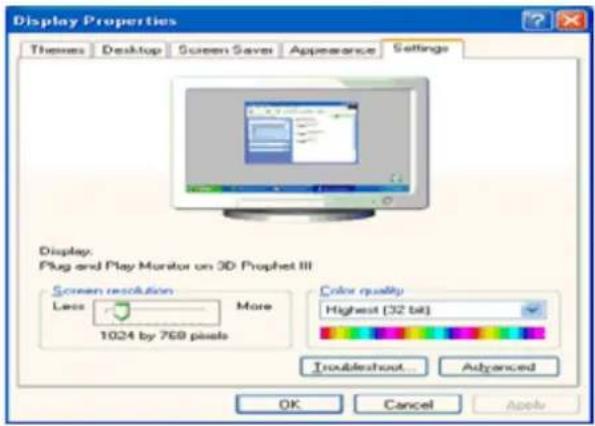

6 Click SETTINGS.

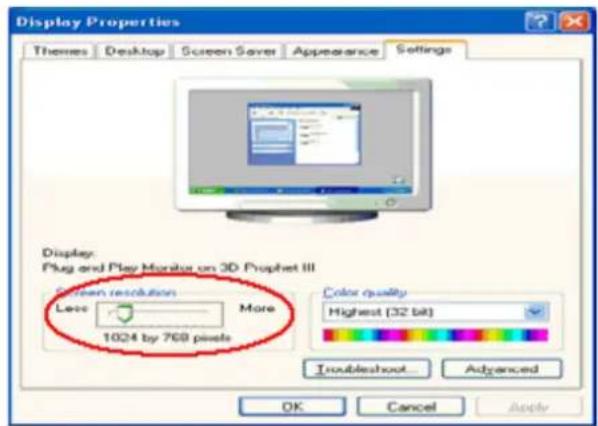

7 Set the resolution SLIDE-BAR to Optimal preset resolution.

Display Properties Themes Desktop Screen Save Appearance Settings Display: Plug and Play Monitors on 3D Prophet III Screen resolution More Less 1024 by 768 pixels Color quality Highest (32 bit) Troubleshoot Advanced OK Cancel Apply

Windows ME/2000

For Windows ME/2000:

1 Click START.
2 Click SETTINGS.
3 Click CONTROL PANEL.
4 Double click DISPLAY.
5 Click SETTINGS.

6 Set the resolution SLIDE-BAR to Optimal preset resolution.

Windows 8

For Windows 8:

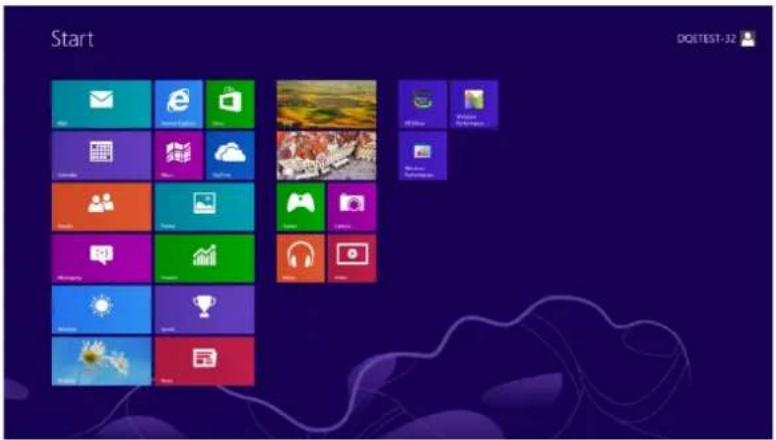

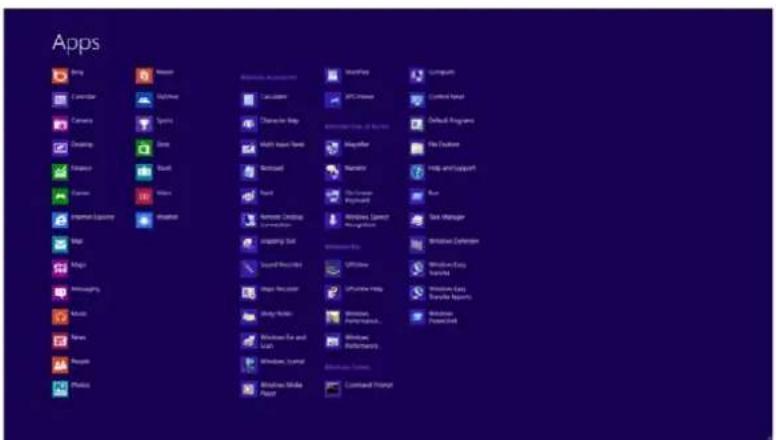

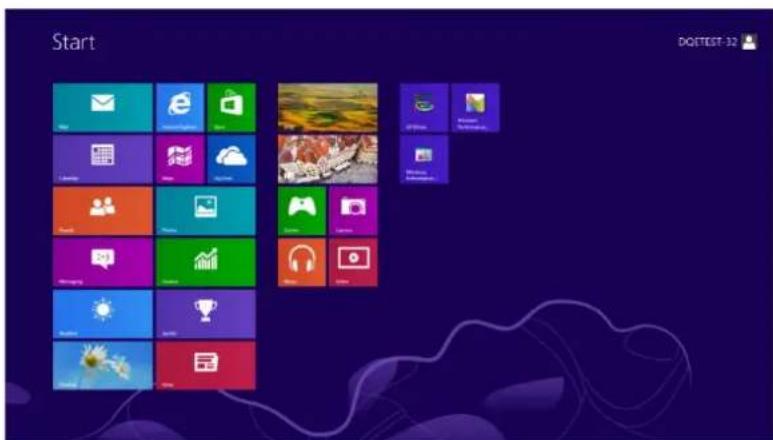

1. Right click and click All apps at the bottom-right of the screen.

Start DOCTEST-32

Apps Eng Calendar Camera Desktop Database Explorer Internal Exchange Map Maps Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous

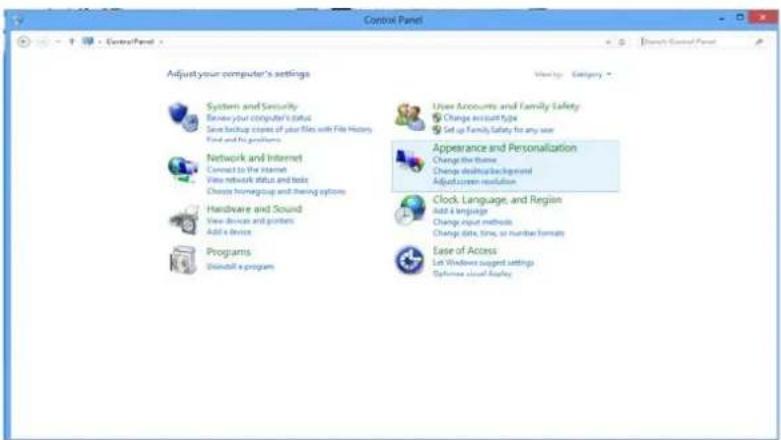

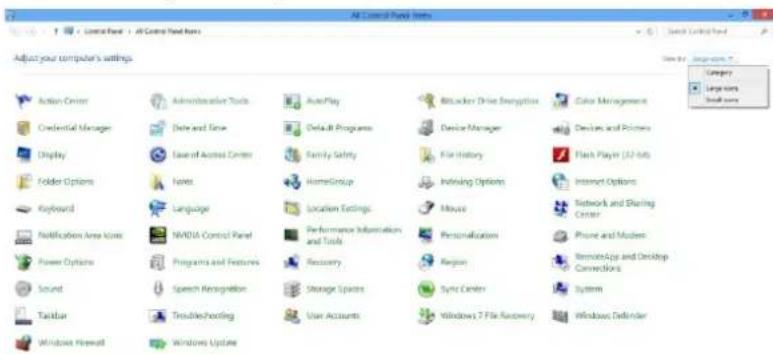

1. Set the "View by" to "Category".
2. Click Appearance and Personalization.

Control Panel Adjust your computer's settings Systems and Security Browse your computer's status Save backup stores of your files with File History Find and fix problems Network and Internet Connect to the Internet View network status and testis Check homegroup and hosting options Hardware and Sound View devices and printers Add a device Programs Build all a program User Accounts and Family Safety Change account type Set up Family Safety for any use Appearance and Personalization Change the theme Change desktop background Adjust screen resolution Clock, Language, and Region Add a language Change input methods Change data, times, or number formats Ease of Access Let Windows support settings Options cloud library

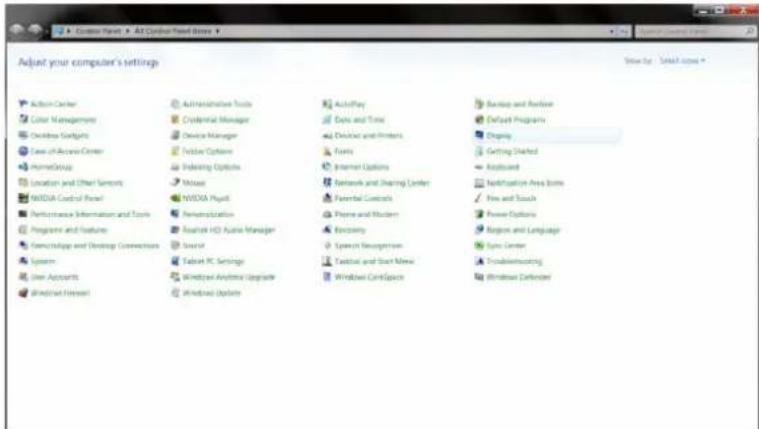

4. Click DISPLAY.

Appearance and Personalization Control Panel > Appearance and Personalization > Search Control Panel Control Panel Home System and Security Network and Internet Hardware and Sound Programs User Accounts and Family Safety Appearance and Personalization Clock, Language, and Region Face of Access Personalization Change the Items Change desktop background Change the color of your backlier and window border Change sound effects Change screen user Display Make text and other items larger or smaller Adjust screen resolution Taskbar Customize icons on the taskbar Ease of Access Center Accummoderate view vision Statuscreen reader Turn out easy accesslogs Turn High Contrastion as off Folder Options Specify simple or double-click touch screen Show button files and folders Fonts Preview, defaults, or phone and media fonts Change from Settings Adjust ClearType text

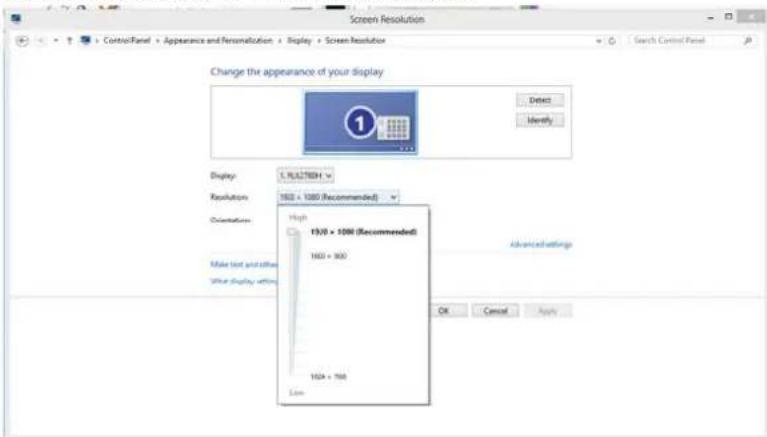

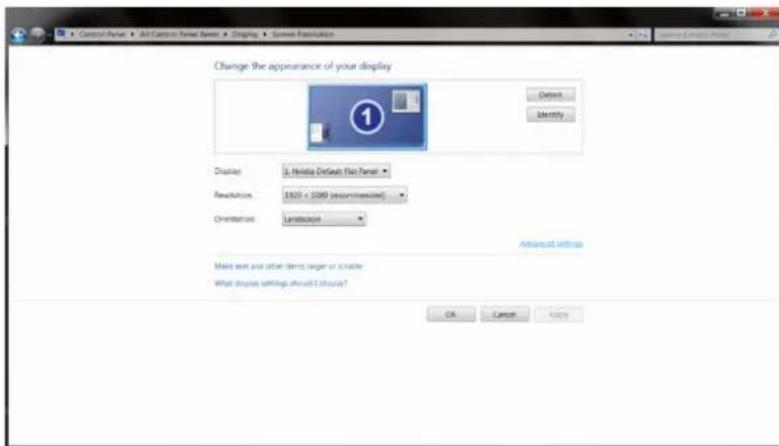

5. Set the resolution SLIDE-BAR to 1920x1080.

Screen Resolution Change the appearance of your display Display Resolution Orientation Make text and other What display setting L1.RU2780H 160 × 1000 (Recommended) High 15/10 × 1000 (Recommended) 1600 × 100 1624 × 758 Low Detect Identify Advanced settings OK Cancel Apply

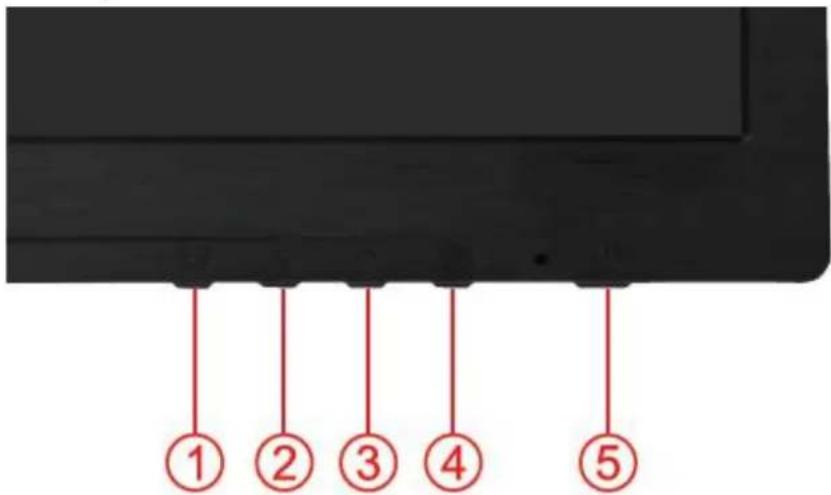

Hotkeys

① ② ③ ④ ⑤

1 Source / Auto / Exit
2	Clear Vision /<
3 Volume / >
4 Menu / Enter
5 Power

Power

Press the Power button to turn on/off the monitor.

Menu/Enter

Press to display the OSD or confirm the selection.

> Volume

When there is no OSD, Press Volume button to active volume adjustment bar, Press < or > to adjust volume(Only for the models with speakers)

Source/Auto/Exit

When the OSD is closed, press Source/Auto/Exit button will be auto configure hot key function. When the OSD is closed, press Source/Auto/Exit button continuously about 3 second to do auto configure (Only for the models with dual or more inputs).

Clear Vision

1. When there is no OSD, Press the "<" button to activate Clear Vision.
2. Use the "<" or ">" buttons to select between weak, medium, strong, or off settings. Default setting is always "off".

Clear Vision ← Off ►

1. Press and hold "<" button for 5 seconds to activate the Clear Vision Demo, and a message of "Clear Vision Demo: on" will be displayed on the screen for a duration of 5 seconds. Press Menu or Exit button, the message will disappear. Press and hold "<" button for 5 seconds again, Clear Vision Demo will be off.

Clear Vision Demo: On

Clear Vision function provides the best image viewing experience by converting low resolution and blurry images into clear and vivid images.

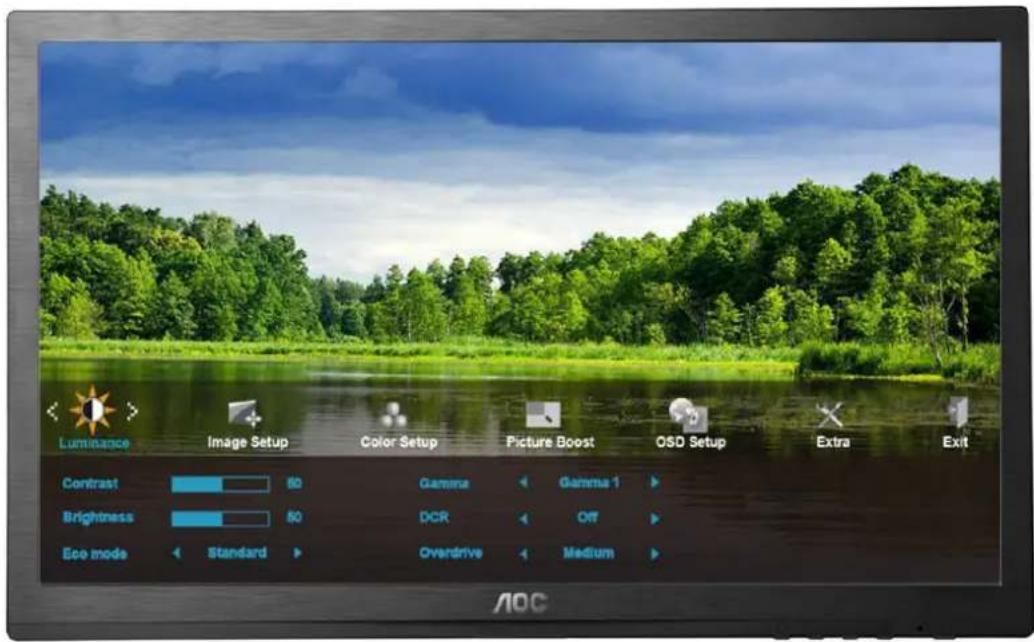

OSD Setting

Basic and simple instruction on the control keys.

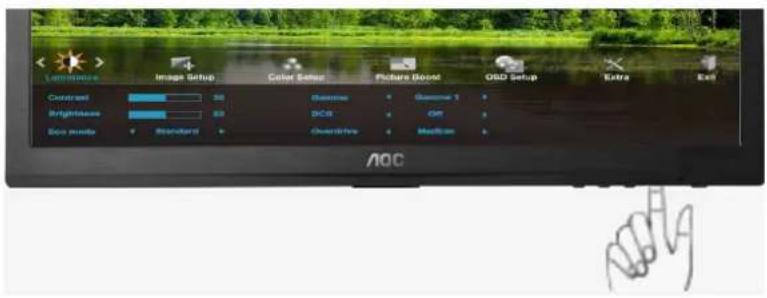

Luminance Image Setup Color Setup Picture Boost OSD Setup Extra Exit Contrast 60 Gamma Gamma 1 Brightness 60 DCR Off Eco mode Standard Overdrive Medium AOC

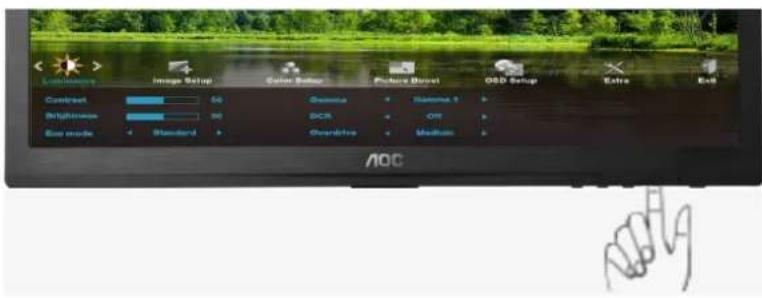

1) Press the MENU-button to activate the OSD window.
2) Press < or > to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it. press < or > to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.
3) Press < or > to change the settings of the selected function. Press → AUTO to exit. If you want to adjust any other function, repeat steps 2-3.
4) OSD Lock Function: To lock the OSD, press and hold the ☐ MENU button while the monitor is off and then press ⏻ power button to turn the monitor on. To un-lock the OSD - press and hold the ☐ MENU button while the monitor is off and then press power button to turn the monitor on.

Notes:

1) If the product has only one signal input, the item of "Input Select" is disable to adjust.
2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to adjust.
3) One of Clear vision, DCR, Color Boost, and Picture Boost functions is activated; the other three functions are turned off accordingly.

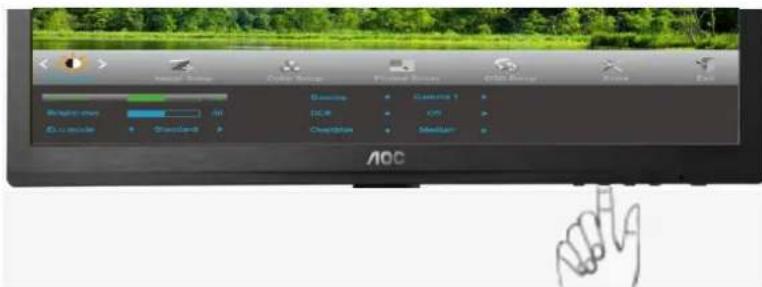

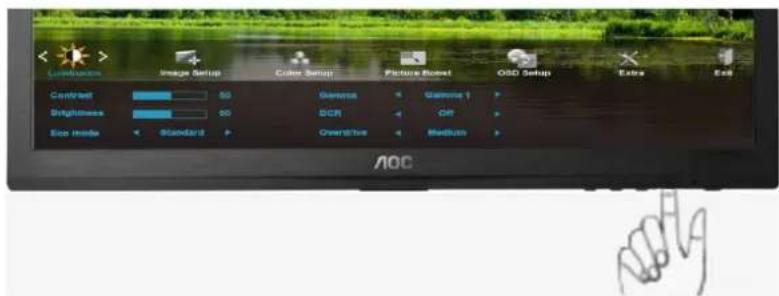

Luminance

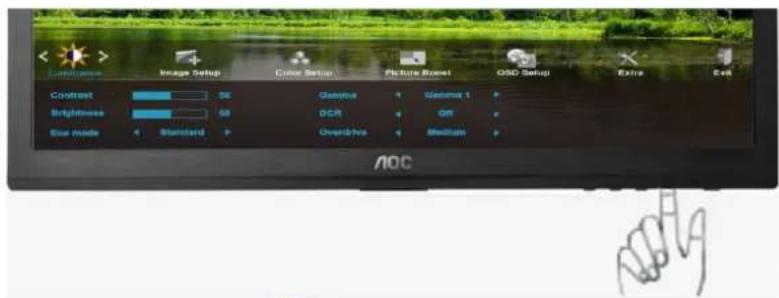

Luminance Image Setup Cube Setup Picture Setup GSD Setup Extra Exo Contrast 50 Gamma Gamma 1 Brightness 50 DCR Off Eco mode Standard Overdrive Medium AOC

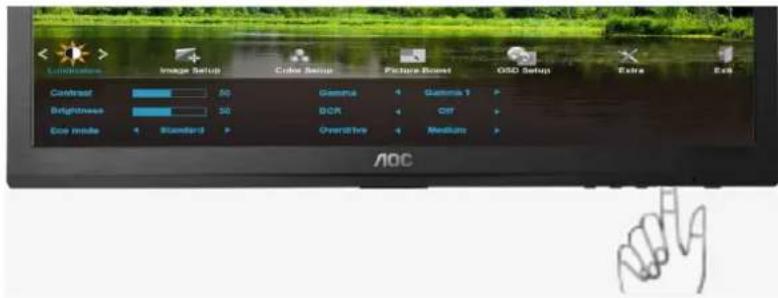

1. Press (Menu) to display menu.

Limitance Image Setup Color Setup Picture Reset OSG Setup Extra End Contrast 50 Gossus Gamma 1 Brightness 50 DCR GT Size mode Standard Overdrive Medium AOC

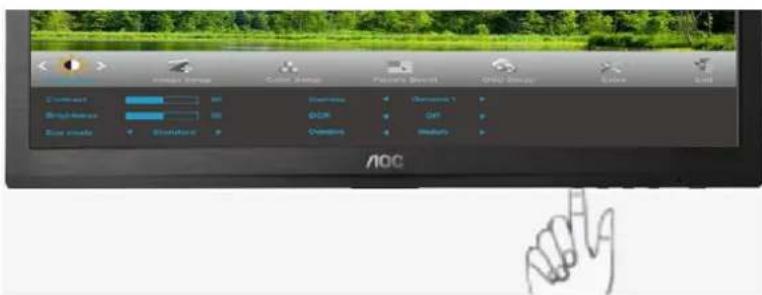

1. Press < or > to select (Luminance), and press to enter.

Construction Image Setup Color Setup Picture Reset OSO Setup Extra Exit Contrast 50 Gamma Gamma 1 Brightness 50 SCR Off Size mode Standard Overactive Medium AOC

1. Press < or > to select submenu, and press 📄 to enter.

AOC

1. Press < or > to adjust.

AOC

5. Press to exit:

	Brightness 0-100 Backlight Adjustment
	Contrast 0-100	Contrast from Digital-register.
	Eco mode	Standard Standard Mode
		Text Text Mode
		Internet Internet Mode
		Game Game Mode
		Movie Movie Mode
		Sports Sports Mode
	Gamma	Gamma1 Adjust to Gamma1
		Gamma2 Adjust to Gamma 2
		Gamma3 Adjust to Gamma 3
	DCR	Off Disable dynamic contrast ratio
		On Enable dynamic contrast ratio
	Overdrive	Weak
		Medium
		Strong
		Off

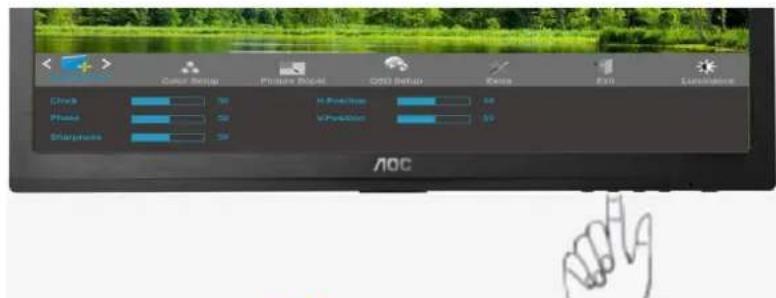

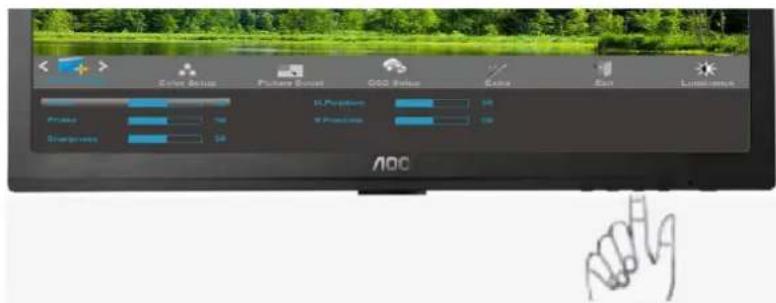

Image Setup

Lightwave Image Setup Color Setup Picture Reset O2D Setup Extra Ex8 Contrast 30 Brightness 30 DCR Gaussive Gamma 1 Ctrl Bio mode Standard Cycoshne Medium AOC

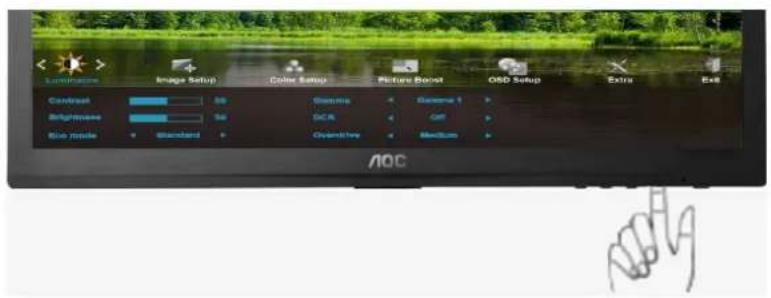

1. Press (Menu) to display menu.

Color Setup Photo Split OEC Setup Reside EVD Lightance Clips H: Position 40 Phase V: Position 50 Sharpness AOC

1. Press < or > to select

(Image Setup), and press 📄 to enter.

Color Offset Picture Reset GOG Offset Color AOC Lightness H: Positive V: Positive AOC

1. Press < or > to select submenu, and press to enter.

Color Setup Picture Setup Color Setup Balance Kash Lightness H: Position V: Position GND: Medium AOC

1. Press < or > to adjust.

Color Setup Picture Reset RGB Setup Color Exit Luminance Clear 02 u Position 09 Photo 02 v Position 09 Strapping 02 ADC

1. Press to exit

	Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise.
	Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise
	Sharpness 0-100 Adjust picture sharpness
	H.Position 0-100 Adjust the horizontal position of the picture.
	V.Position 0-100 Adjust the vertical position of the picture.

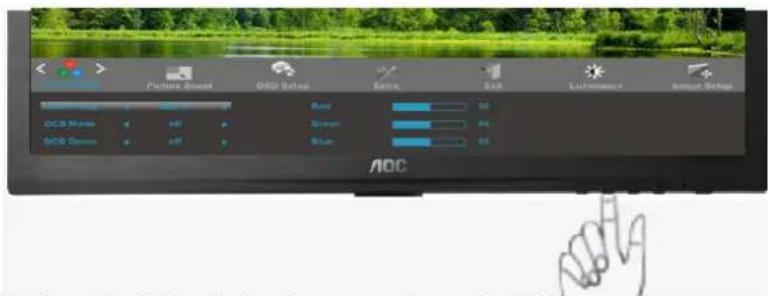

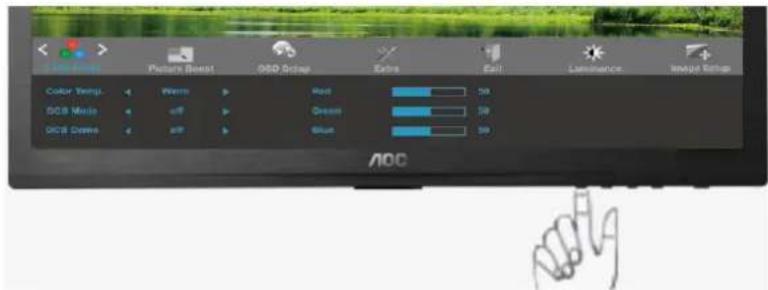

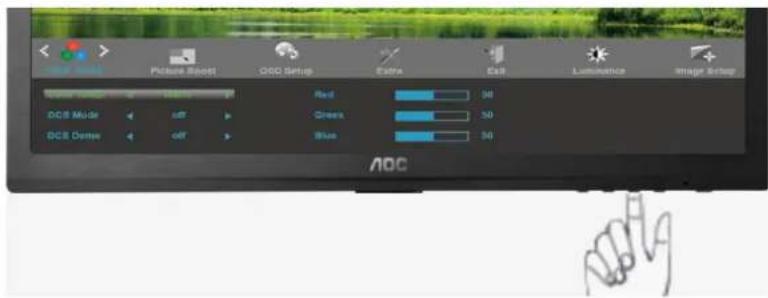

Color Setup

Lightwave Image Ramp Color Ramp Future Boost OED Setup Beta Exit Contrast 50 Brightness GCR Brightness GRT Brightness Dual mode Standard Overdrive Multi-Box AOC

1. Press (Menu) to display menu.

Color Temp RGB Mode RGB Lumin Alpha RGB Red Blue Orange Gray Light/Dimine Image Setup ADC

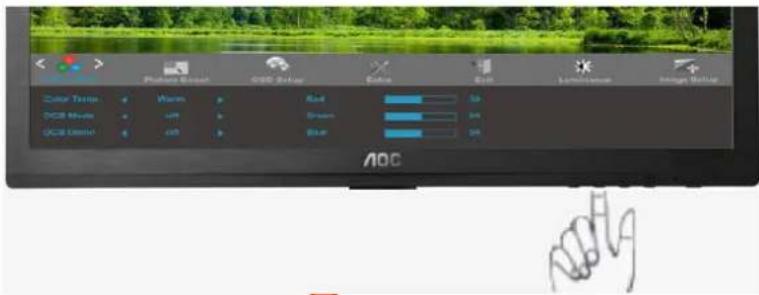

1. Press < or > to select (Color Setup), and press to enter.

Picture Sound ODS Setup Extra Red Laserance Audio Setup DCB Mode +IF Green Blue AOC

1. Press < or > to select submenu, and press to enter.

Picture Reset O2G Setup Extra Exit Lock/Uncor Image Setup RGB Mode Red 90 DCB Mode off Green 50 DCB Dose off Blue 50 AOC

1. Press < or > to adjust.

6 Max Clock Picture Reset OBO Setup Extra Exit Luminance Image Setup Color Temp. Wash Red 50 OBO Music off Green 50 OBO Down off Blue 50 AOC

1. Press to exit

	Color Temp.	Warm Recall W	Warm Color Temperature from EEPROM.
		Normal Recall	Normal Color Temperature from EEPROM.
		Cool Recall Cool	Color Temperature from EEPROM.
		sRGB Recall S	RGB Color Temperature from EEPROM.
		User	Red Red Gain from Digital-register
			Green Green Gain Digital-register.
			Blue Blue Gain from Digital-register
	DCB Mode	Full Enhance on or off Disable or Enable Full Enhance Mode
		Nature Skin on	or off Disable or Enable Nature Skin Mode
		Green Field on	or off Disable or Enable Green Field Mode
		Sky-blue on or off Disable or Enable Sky-blue Mode
		AutoDetect on or off Disable or Enable AutoDetect Mode
	DCB Demo On	or off Disable	or Enable Demo

Picture Boost

Luminosity Image Setup Color Setup Picture Boost OSG Setup Extra Ext Contrast 30 Overactive Gamma 1 Brightness 50 DCR Off Exo mode Standard Overactive Medium AOC

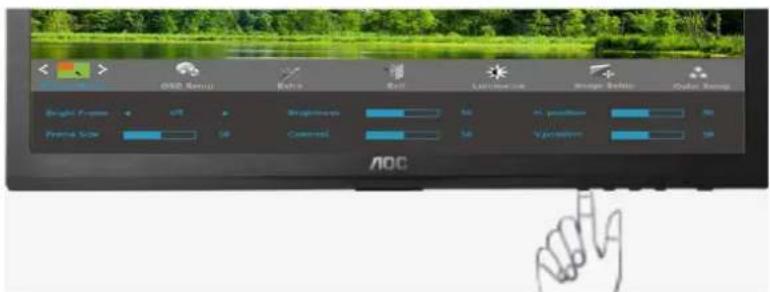

1. Press (Menu) to display menu.

AOC Setup Extra Rsc Lightwave Image Setup Contrast Setup Bright Power Diff Brightness H: position Alt Flatten Size 30 Contrast V: position Alt AOC

1. Press < or > to select (Picture Boost), and press to enter.

CCD Setup RGB RGB Luminative Image Setup Color Setup Brightness Noise Contrast Noise AOC

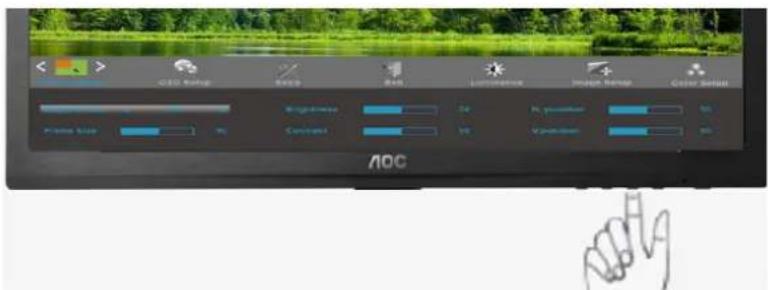

1. Press < or > to select submenu, and press to enter.

OEC Setup Extra Exit Luminance Image Setup Color Setup Brightness 80 H. position 80 Contrast 80 Vposition 80 Frame Size 80 AOC

1. Press < or > to adjust.

OSS Setup Noise Noise Landscape Image Setup Color Setup Bright Speed off Straightness 50 A. position 00 Preset Size 50 Control 50 Vibration 50 AOC

1. Press to exit

	Frame Size 14-100 Adjust Frame Size
	Brightness 0-100	Adjust Frame Brightness
	Contrast 0-100 Adjust Frame Contrast
	H. position 0-100	Adjust Frame horizontal Position
	V.position 0-100	Adjust Frame vertical Position
	Bright Frame on or off Disable or Enable Bright Frame

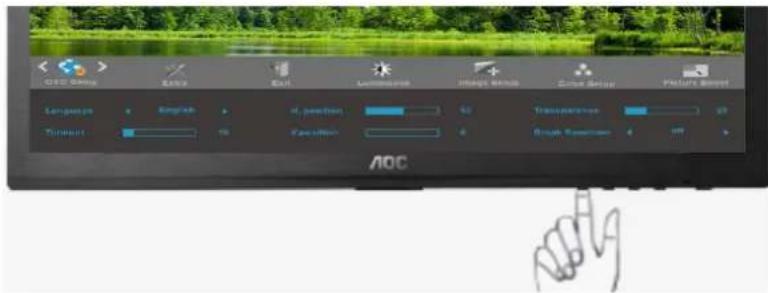

OSD Setup

Lightning Image Setup Color Setup Picture Setup OBD Setup Extra Exit Contrast 60 Brightness 90 DCR ATT Gray mode Standard Quantifray Medium AOC

1. Press (Menu) to display menu.

OCD Setup Language English Image Setup Transmittance 25 Transmittance 0.0 AOC

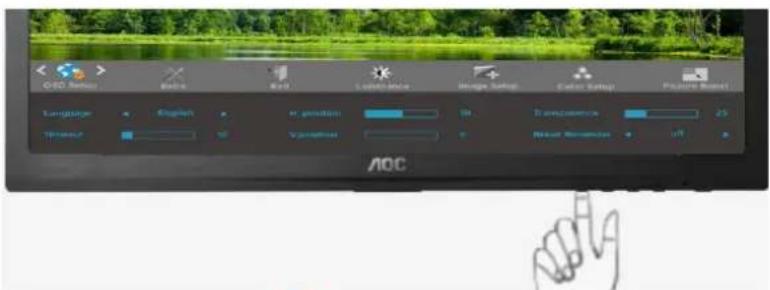

1. Press < or > to select (OSD Setup), and press to enter.

AOC Setup Extra OK Audioreset Image Setup Color Setup Picture Street Threshold 10 percent 40 Transparency 20 Duration 0 Drink Remindler AOC

1. Press < or > to select submenu, and press to enter.

ODD Setup Extra Kelt Luminance Image Setup Color Setup Picture Secret H. preview 50 Transpersion 25 Timeout 10 Duration 9 Stroke Nexthead off AOC

1. Press < or > to adjust.

GEO Delay Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language Language AOC

5. Press to exit:

	H. Position	0-100	Adjust the horizontal position of OSD.
	V. Position	0-100	Adjust the vertical position of OSD.
	Timeout	5-120	Adjust the OSD Timeout.
	Transparence	0-100	Adjust the transparence of OSD.
	Language Select the	OSD language.
	Break Reminder	on or off	Disable or Enable(1 hour of work, break !)

Extra

Luminance Image Setup Color Setup Picture Boost OGD Setup Extra Exit Contrast Brightness Sco mode Standard Baseline DCB Continuous Gauss 1 Off Median AOC

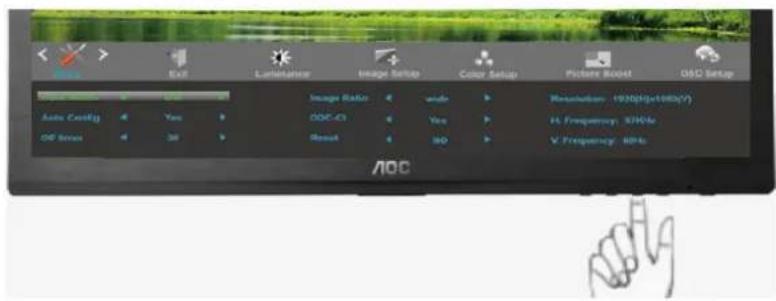

1. Press (MeHU) to display menu.

Input Select Auto Control Off Series Exit Lightwave Image Setup Image Ratio DDC-Cl Reset Water Yes No Color Setup Picture Reset O2D Setup Resolution: 1920(rfs1880V) H, Frequency: 576Hz V, Frequency: 5MHz

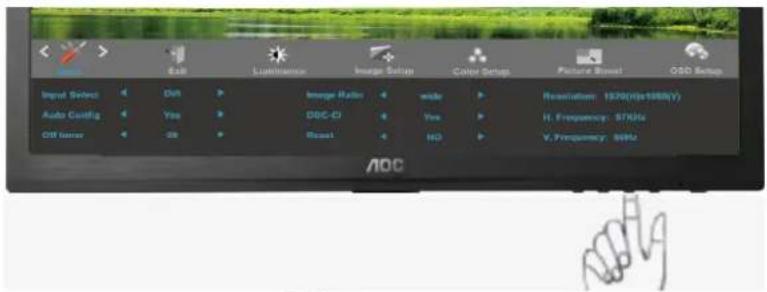

1. Press < or > to select (Extra), and press to enter.

Import Auto Config Offener Exit Luminance Image Setup Image Ratio DOG-CI Reset Color Setup write Yes MD Rename: 1200Hr/1500V II. Frequency: 670Hz V. Frequency: 8MHz

1. Press < or > to select submenu, and press to enter.

Auto Control Yes Off Since 30 Image Ratio GDC-01 Reset width Yes ISO Color Setup Picture Boost GSD Setup Resolution: 1930Ω/6x100(√) H. Frequency: 57Hz V. Frequency: MHz AOC

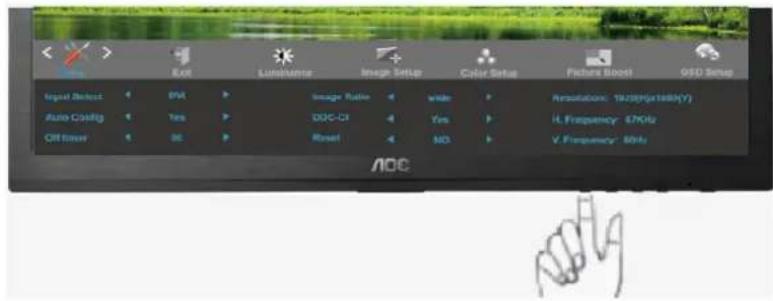

1. Press < or > to adjust.

Input Select Auto Config Off Noise EBIT Lumenhome Image Setup Image Ratio DUC-CF Reset Wide Yes MD Color Setup Pictures Reset OIS Setup Resolution: 1920(Hx188(V) H. Frequency: 67KHz V. Frequency: 60Hz

1. Press to exit

	Input Select	Auto / D-SUB / DVI /HDMI	Select Input Signal Source
	Auto Config yes or no Auto adjust the picture to default
	Off timer 0-24hrs Select DC off time
	Image Ratio wide or 4:3 Select wide or 4:3 format for display
	DDC/CI yes or no Turn ON/OFF DDC-CI Support
	Reset Yes or no Reset the menu to default
	Information		Show the information of the main image and sub-image source

Exit

Luminance Image Setup Color Setup Picture Reset OBD Setup Extra Ext Contrast 30 Gamma Gamma 1 Brightness 30 DCR GIF Box mode Standard Continuous Medium AOC

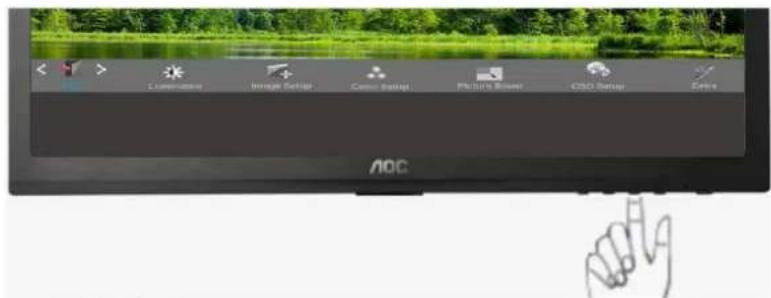

1. Press (MeHU) to display menu.

< > Laserless Image Setup Color Setup Picture Window CMD Setup Extra AOC

1. Press < or > to select (Exit), and press to enter.

[Figure]

C:\Users\Control\Image Setup\Control Setup\Photoshop\Control Setup\Controls

1. Press to exit

Exit Exit the main OSD

LED Indicator

Status LED Color
Full Power Mode Green or Blue
Active-off Mode Orange or red

Driver

Monitor Driver

Windows 8

1. Start Windows® 8
2. Right click and click All apps at the bottom-right of the screen.

Apps Bing Calendar Commerce Desktop Finance iTunes Internal Explorer Mail Maps Miscellaneous Music News Products Plastics Name Welcome applications Language Character Map Multi-Input Panel Wordmap Smart Word Synapse Desktop Existing Site Sound Recycleer Logic Recycleer Play Action Windows For and Use Windows Install Windows Media Player Command Project InstallPage BPS Stream Internet User Services MyButton MyButton Help and Support Real Windows Speech Programming Windows Express Windows Easy Transfer Security Windows Performance Windows Performance Command Project

1. Click on the "Control panel" icon
2. Set the "View by" to "Large icons" or "Small icons".

All Control Panel Items Control Panel - All Control Panel Items Adjust your computer's settings Action Center Credential Manager Display Folder Options Keyboard Notification Area Name Power Options Sound Tailbar Windows Firewall Administrative Tools Date and Time Use of Active Center Fonts Language NVIDIA Control Panel Programs and Features Speech Recognition Troubleshooting Windows Update AutoPlay Default Programs Family Safety HomeGroup Location Settings Performance Information and Tools Recovery Storage Updates User Accounts BitLoader Drive Encryption Device Manager File History Infoising Options Mouse Personalization Region Sync Center Windows 7 File Recovery Color Management Devices and Primes Flash Player (32-bit) Internet Options Network and Sharing Center Phone and Modem RemoteApp and Desktop Connections System Windows Definder

5. Click on the "Display" icon.

Adjust your computer's settings Action Center Color Management Desktop Groups Case of Access Center HomeGroup Location and Other Services NVDA Control Panel Performance Information and Tools Programs and Features Knowledge and Desktop Connections System User Accounts Windows Start Menu Administrative Tools Credential Manager Device Manager Data and Time Device and Printers Forms Internet Options Network and Sharing Center Parental Controls Phone and Module Exposure Speech Recognition Textile and Start Menu Windows CardSpace ActivePlay Data and Time Device and Printers Forms Internet Options Network and Sharing Center Parental Controls Phone and Module Exposure Speech Recognition Textile and Start Menu Windows CardSpace Backup and Archive Default Programs Chrome Getting Started Accounted Notification Area Box Fire and Touch Power Options Blogs and Language Sync Center Troubleshooting Windows Calendar

6. Click on the "Change display settings" button.

Control Panel Options Adjust resolution Calibrate color Chrome displaying settings Adjust ClearType text Set system text size (CM) Make it easier to read what's on your screen You can change the size of text and other items on your screen by choosing one of these options. For temporarily enlarge just part of the screen, use the "computer" tool. Scale: 100% Preview Medium: - 25% default Larger: - 150% Apply Set user PersonalContent Devices and Printers

7. Click the "Advanced Settings" button.

Change the appearance of your display Display: 3. Microsoft Default Flat Panel Resolution: 1800 x 1280 (assumptomatic) Orientation: Landscape Options of settings Make text and other items larger or smaller What display settings should choose? OK Cancel Apply

1. Click the "Monitor" tab and then click the "Properties" button.

Generic PhP Monitor and NVIDIA GeForce 9100M G Properties Adapter Monitor Troubleshoot Color Management GeForce 9100M G Monitor Type Generic PhP Monitor Properties Monitor Settings Screen refresh rate 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. Colors: True Color (32 bit) OK Cancel Apply

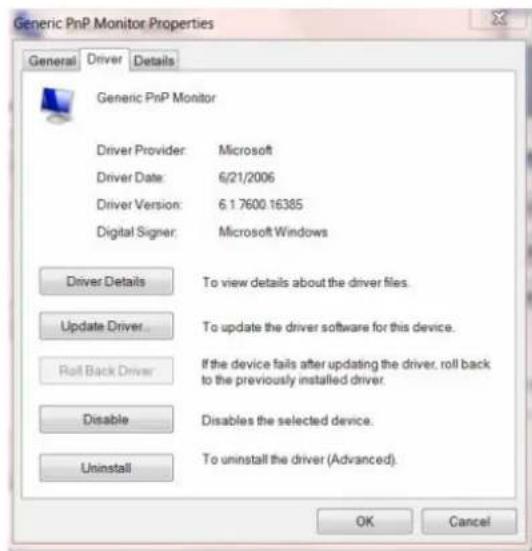

1. Click the "Driver" tab.

Generic PnP Monitor Properties General Driver Details Generic PnP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.1.7600.16385 Digital Signer: Microsoft Windows Driver Details To view details about the driver files. Update Driver... To update the driver software for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device. Uninstall To uninstall the driver (Advanced) OK Cancel

1. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver..." and then click the "Browse my computer for driver software" button.

Update Driver Software - Generic PnP Monitor How do you want to search for driver software? → Search automatically for updated driver software Windows will search your computer and the Internet for the latest driver software for your device, unless you've disabled this feature in your device installation settings. → Browse my computer for driver software Locate and install driver software manually. Cancel

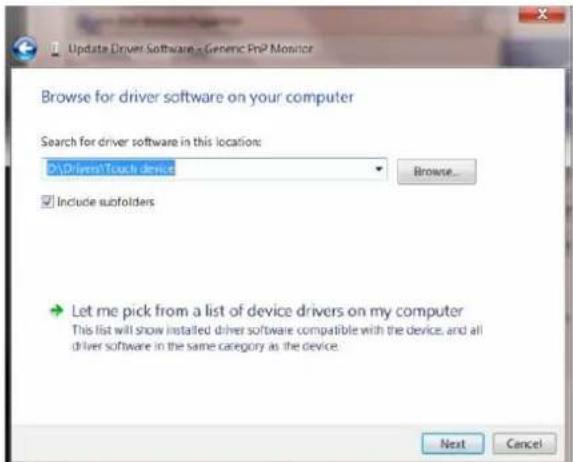

1. Select "Let me pick from a list of device drivers on my computer".

Update Driver Software - Generic FnP Monitor Browse for driver software on your computer Search for driver software in this location: D:\Driver\Touch device Include subfolders Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device. Next Cancel

1. Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

Update Driver Software - Generic PnP Monitor Select the device driver you want to install for this hardware. Select the manufacturer and portal of your hardware device and then click Next if you Install From Disk Insert the manufacturer's installation disk, and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's files from F:\Drivers\e936Va\ Browse... This driver is digitally signed. Have Disk... Tell me why driver signing is important Next Cancel

1. Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
2. Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk drive.
3. Close all open windows and remove the CD.
4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Windows 7

1. Start Windows® 7

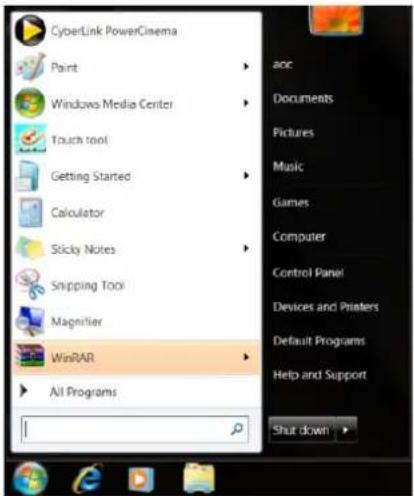

2. Click on the 'Start' button and then click on 'Control Panel'.

CyberLink PowerCinema Paint Windows Media Center Touch tool Getting Started Calculator Sticky Notes Snipping Tools Magnifier WinRAR All Programs aoc Documents Pictures Music Games Computer Control Panel Devices and Printers Default Programs Help and Support Shut down

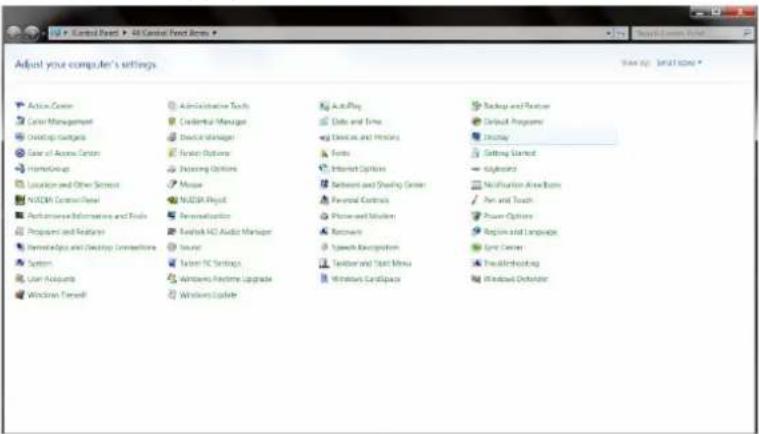

1. Click on the 'Display' icon.

Adjust your computer's settings Action Center Color Management Desktop Controls Case of Access Centers Intersections Location and Other Services NVIDIA Control Panel Performance Information and Tools Propriet and Features Demographic and Desktop Connections System User Accounts Windows F邻居 Administrative Techs Credential Manager Device Manager Service Options Processing Options Mouse MUSDA Project Revascularization Network HCI Audio Manager Sound System PC Settings Windows Active Upgrade Windows Update AutoPlay Data and Time Device and Hours Forms Internet Options Settings and Sharing Groups Personal Controls Phone and Window Services Speech Recognition Texter and Start Menu Windows CardSpace Backup and Review Default Programs Desktop Setting Started Categories Modification And Items Pan and Touch Power Options Regions and Language Spot Centers Pre-Backlogging Windows Environment

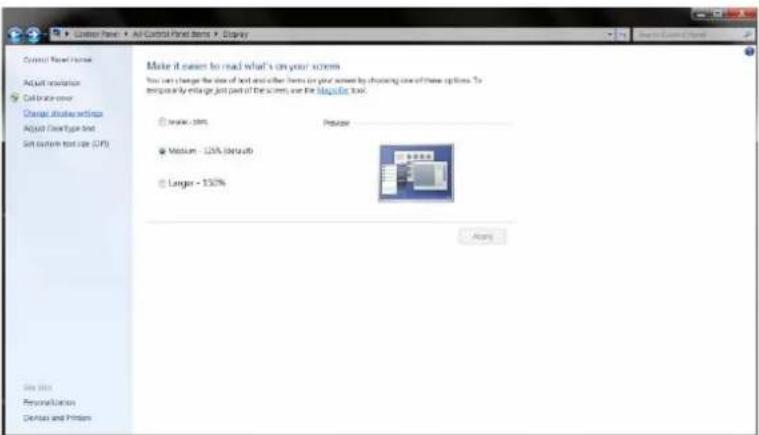

1. Click on the "Change display settings" button.

Control Panel - All Control Panel Items - Display Control Panel Name Adjust resolution Calculate power Change display settings Adjust format type test Soft output text rate (CFR) Make it easier to read what's on your screen You can change the size of text and other items on your screen by choosing one of these options. To response by adding just part of the screen, use the "Mapfile" tool. www.cfm Preview Medium - 125% default Larger - 150% Options Size Info Personalization Devices and Printers

5. Click the "Advanced Settings" button.

Change the appearance of your display Display: 2. Brade Decheck Fat Point Resolution: 1000 x 1000 (Recommended) Orientation: Landscape Add instructions Make text and other items later to create Make display settings (AnJia) menu: OK Cancel Apply

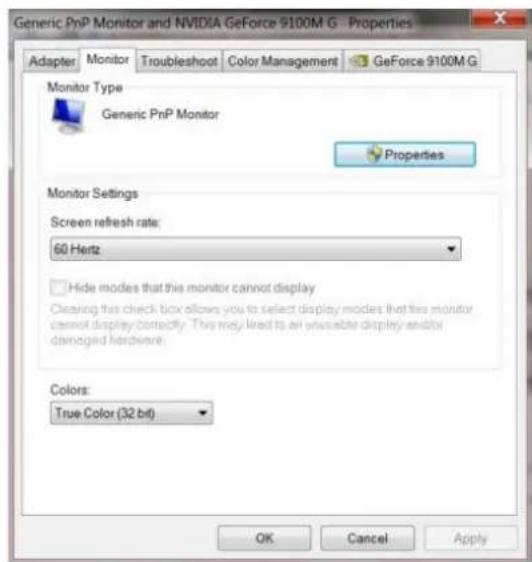

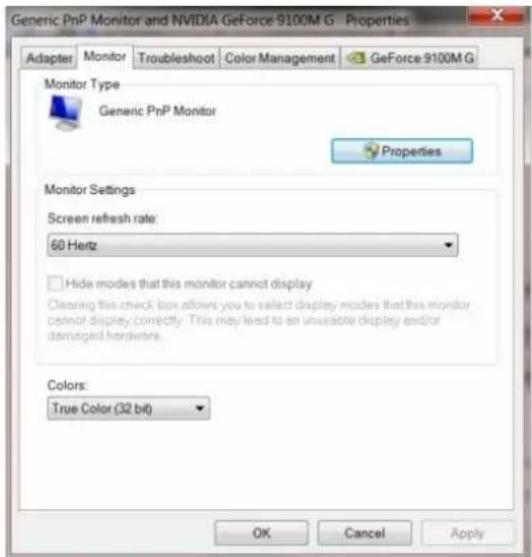

6. Click the "Monitor" tab and then click the "Properties" button.

Generic PnP Monitor and NVIDIA GeForce 9100M G Properties Adapter Monitor Troubleshoot Color Management GeForce 9100M G Monitor Type Generic PnP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Cleaning this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. Colors: True Color (32 bit) OK Cancel Apply

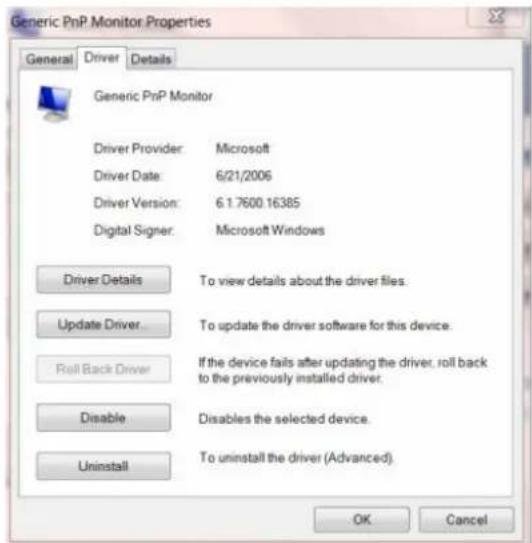

7. Click the "Driver" tab.

Generic PnP Monitor Properties General Driver Details Generic PnP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.1.7600.16385 Digital Signer: Microsoft Windows Driver Details To view details about the driver files. Update Driver... To update the driver software for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device. Uninstall To uninstall the driver (Advanced). OK Cancel

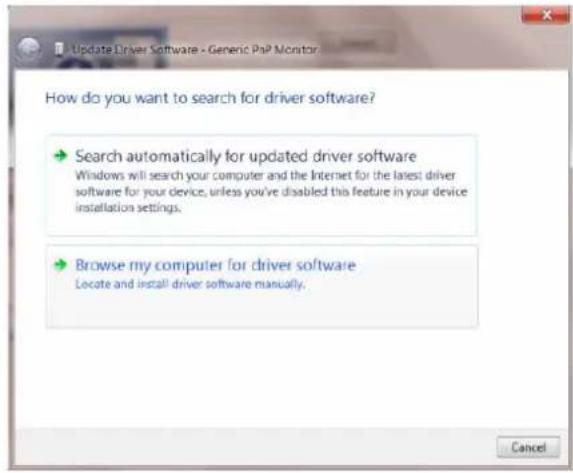

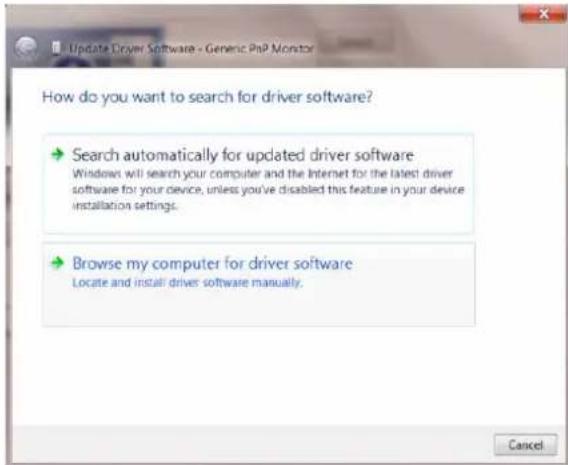

1. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver... "and then click the "Browse my computer for driver software" button.

Update Driver Software - Generic PnP Monitor How do you want to search for driver software? → Search automatically for updated driver software Windows will search your computer and the Internet for the latest driver software for your device, unless you've disabled this feature in your device installation settings. → Browse my computer for driver software Locate and install driver software manually. Cancel

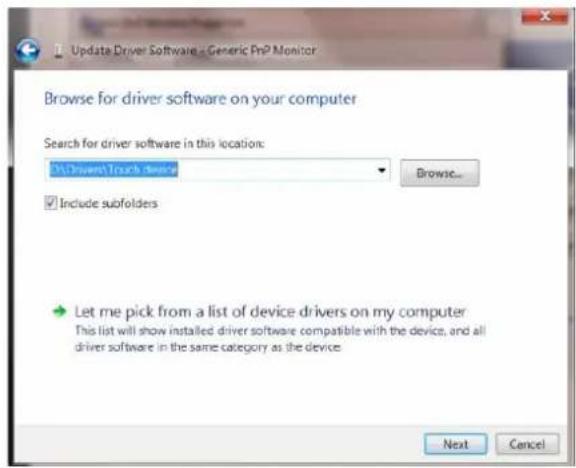

1. Select "Let me pick from a list of device drivers on my computer".

Update Driver Software - Generic PrGP Monitor Browse for driver software on your computer Search for driver software in this location: All Driven Trust device Browse... Include subfolders Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device. Next Cancel

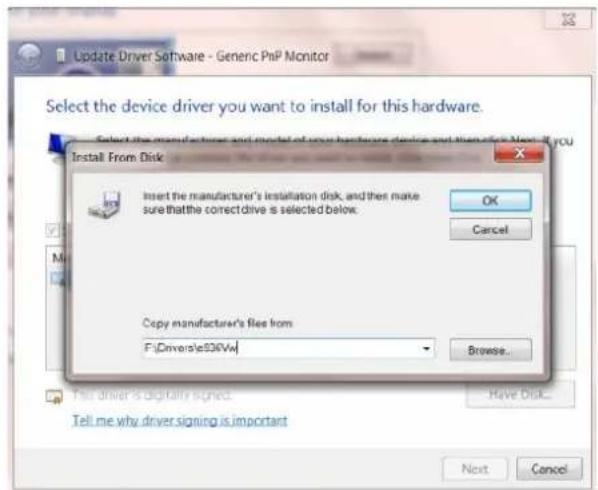

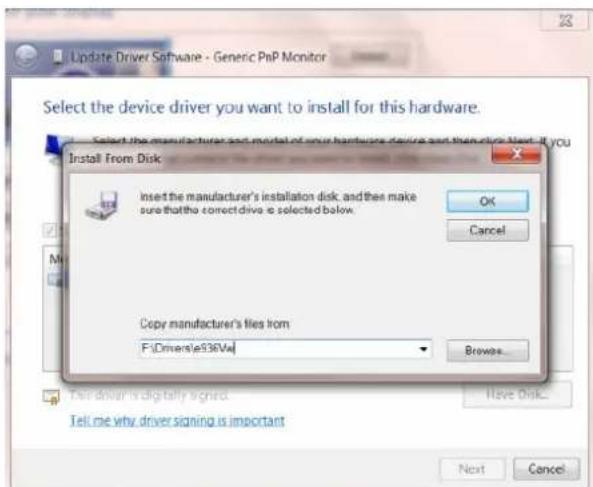

1. Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

Update Driver Software - Generic PnP Monitor Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then find it. You Install From Disk Insert the manufacturer's installation disk, and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's files from F:\Drivers\e936VW\ Browse... This driver is digitally signed. Have Disk... Tell me why driver signing is important Next Cancel

1. Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
2. Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk drive.
3. Close all open windows and remove the CD.
4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Windows Vista

1. Click "Start" and "Control Panel". Then, double-click on "Appearance and Personalization".

Microsoft Current Edition E-mail Windows (Mail) Welcome Colors Windows Mobile Player Windows Photo Gallery Windows Live Masters (Download) Windows Offloading Space Windows Explorer Adobe Photoshop CSF NameOn Command Password All Programs Start Search Video Documents Packages Music Canvas Canvas Search Recent Name Computer Network Comment To Current Panel Default Programs Help and Support

Control Panel System and Maintenance Get started with Internet Get up your computer Security Check for updates Check the computer's security profile Allow a program through Internet Forward Networks and Internet New network dial-up and help Set up file sharing Hardware and Sound Pre CDs or other mobile automatically Update Music Programs Unrealized a program Change backup programs User Accounts Add a remote user accounts Appearance and Personalization Change the appearance of adding uses, apply a theme to new users to your computer, to customize the base name and folder. Clock, Language, and Region Change top/biocks in other major methods. Change Dublin, language Use of Access Let Windows click settings Options cloud links Additional Options

1. Click "Personalization" and then "Display Settings".

Desensitization Change Building Background Change Building - Texting to the Description Data and Start Menu Access to the Start Menu Change Document to the Start Menu. Use of Audio Centers Recommended by: or use Change user name Available as an existing site for your home. You might contact us at all. Options Options Specific single or additional options from any other Windows application Use in the Internet and Internet Forts Show or access a link Windows Subinar Properties With people in Windows - Does not want to buy Hotkey or any other services.

Analysis and Recommendation & Recommendation Language Change the driving time Adjust how to account Persimvatic appearance and sounds glasses (Text) on assessments Find typing the colors and highlights of your questions. Images (Background) Choose from available backgrounds or colors on use as well as your own approach to decide the learning. Green Scene Change your words are not assigned when it displays. In terms of use is a picture or explanation that covers your words but appears where your computer is safe for the content of this. Visuals Change which sounds are heard when you are anything from getting a mail to implying your resources. Visuals History Play a different image picture. You can also change from the image picture cards during their activity as clicking and clicking. Change Change the theme. Thomas can change a code shape of sound and sounds details at which has replacing the appearance of images, images, backgrounds, screen screens, some computer sounds, and audio pictures. Details: Modeling Adjust using monitor display, which change the view as more of video views for the speaker. You can also control more filter tool used.

1. Click "Advanced Settings...".

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 (Multiple Monitors) on NVIDIA GeForce 8600 LE (Microsoft Corporation) ✓ Drag is my main monitor ✓ Extended the desktop onto this monitor Resolution: Low High 1280 by 1024 pixels Colors: Highest (32 bit) How do I get the best display? Advanced Settings... OK Cancel Apply

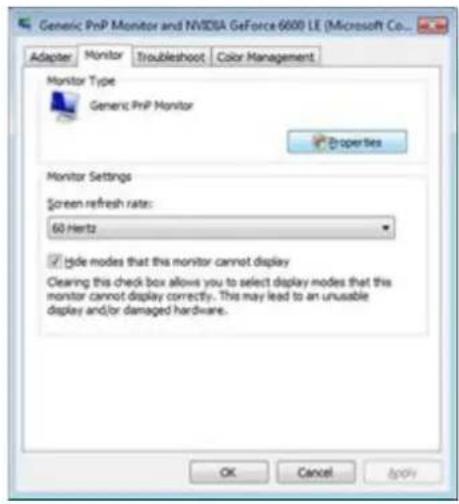

1. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is.

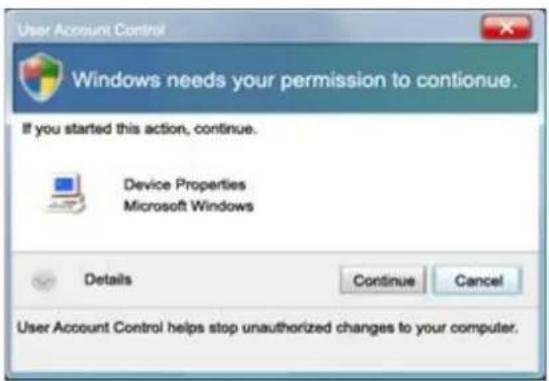

If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".

Generic PrNP Monitor and NVIDIA GeForce 6000 LE (Microsoft Co... Adapter Monitor Troubleshoot Color Management Monitor Type Generic PrNP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

User Account Control Windows needs your permission to continue. If you started this action, continue. Device Properties Microsoft Windows Details Continue Cancel User Account Control helps stop unauthorized changes to your computer.

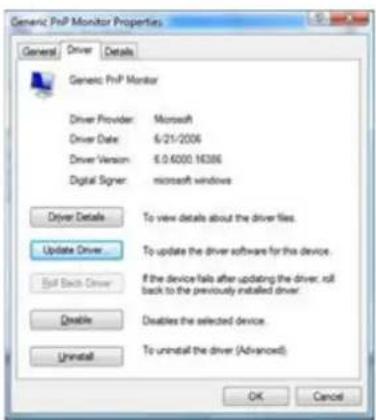

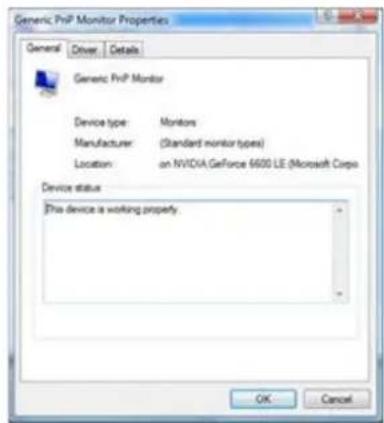

1. Click "Update Driver..." in the "Driver" tab.

Generic PrNP Monitor Properties General Driver Details Generic PrNP Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location: on NVIDIA GeForce 6600 LE (Microsoft Corp) Device status This device is working property. OK Cancel

Generic PhIP Monitor Properties General Driver Details Generic PhIP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.0.6000.16386 Digital Signar: microsoft windows Driver Details To view details about the driver files. Update Driver To update the driver software for this device. Build Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Drables the selected device. Uninstall To uninstall the driver (Advanced). OK Cancel

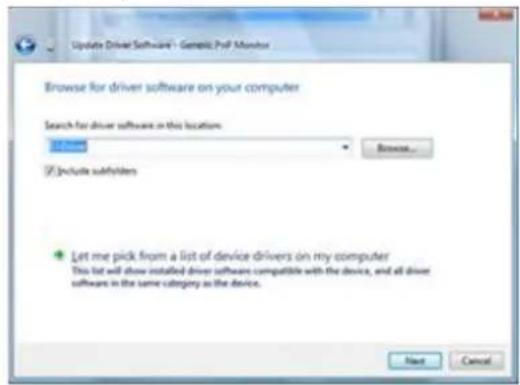

1. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".

Update Driver Software - Generic PDF Monitor Browse for driver software on your computer Search for driver software in this location Browse... Include subholders Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device. Next Cancel

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:\Driver (CD-ROM Drive).
2. Select your monitor model and click on the 'Next' button.
3. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.

Windows XP

1. Start Windows® XP
2. Click on the 'Start' button and then click on 'Control Panel'.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Faxes help and Support Search Run... Log Off Turn Off Computer start

1. Select and click on the category 'Appearance and Themes'

Control Panel File Edit View Applications Edit Help Search Favorites Add to Control Panel Check All User Select to Close Now Save All Settings Options Help and Support Pick a category Accessories and Features Create and Other Hardware Change the appearance of #config files, which is one or more than 50% free for your computer, or customizes the Start menu and other. Networks Add to Networks Graphics Delete, Save, Language, and Empirical Options Smooth, Speech, and Audio Services Accessible Options Performance and Performance

1. Click on the 'Display' Item.

Examples and Features Show All Trade Show Functions Show Functions Show Action Patterns Show Action Patterns Show Action Patterns Pick a task... Change the computer's feature Change the desktop background Change the screen assets Change the screen preview or pick a Control Panel icon Create Create options Change the appearance of your profile, such as the background, screen color, colors, line colors, and screen visuals.

1. Select the 'Settings' tab then click on the 'Advanced' button.

Display Properties Themes Desktop Screen Save Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 768 pixels Color quality Highest (32 bit) Troubleshoot Advanced OK Cancel Apply

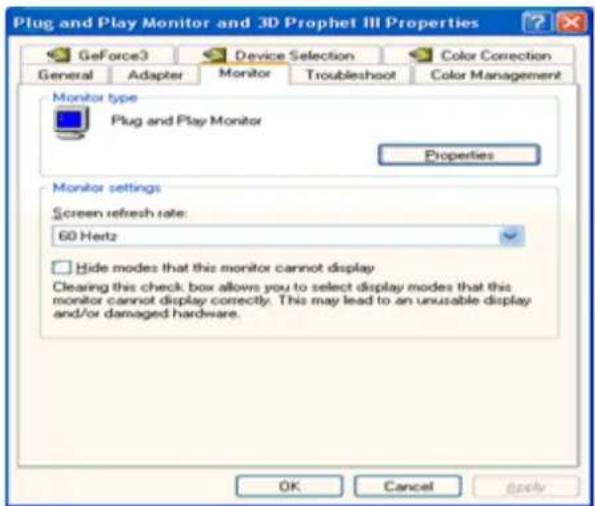

1. Select 'Monitor' tab

- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

- If the 'Properties' button is active, click on 'Properties' button.

Please follow the steps below.

Plug and Play Monitor and 3D Prophet III Properties GeForce3 Device Selection Color Correction General Adapter Monitor Troubleshoot Color Management Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

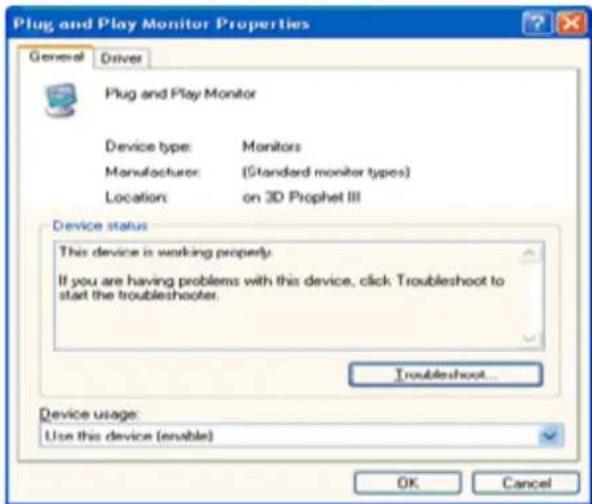

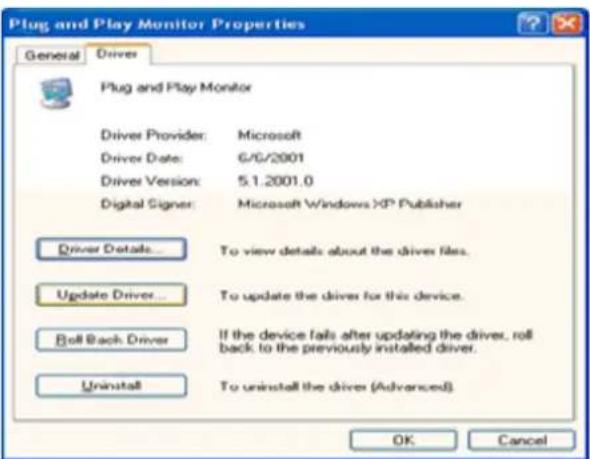

1. Click on the 'Driver' tab and then click on 'Update Driver...' button.

Plug and Play Monitor Properties General Driver Plug and Play Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location:,on 3D Prophet III Device status This device is working properly. If you are having problems with this device, click Troubleshoot to start the troubleshooter. Troubleshoot... Device usage: Use this device (enable) OK Cancel

Plug and Play Monitor Properties General Driver Plug and Play Monitor Driver Provider: Microsoft Driver Date: 6/6/2001 Driver Version: 5.1.2001.0 Digital Signer: Microsoft Windows XP Publisher Driver Details... To view details about the driver files. Update Driver... To update the driver for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Uninstall To uninstall the driver (Advanced) OK Cancel

1. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.

Hardware Update Wizard Welcome to the Hardware Update Wizard This wizard helps you install software for: Plug and Play Monitor If your hardware came with an installation CD or floppy disk, insert it now. What do you want the wizard to do? ○ Install the software automatically (Recommended) ● Install from a list or specific location (Advanced) Click Next to continue. < Back Next > Cancel

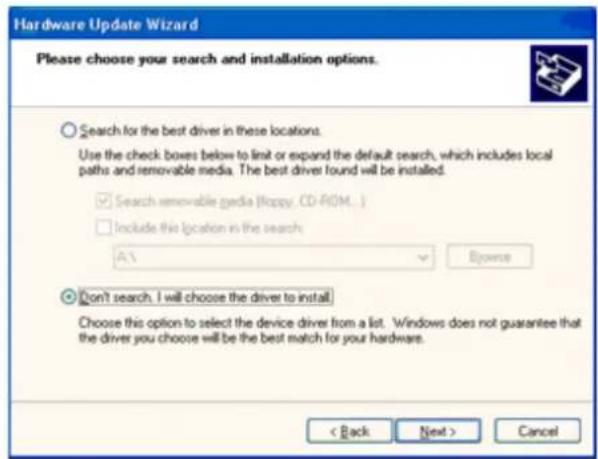

1. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.

Hardware Update Wizard Please choose your search and installation options. Search for the best driver in these locations. Use the check boxes below to limit or expand the default search, which includes local paths and removable media. The best driver found will be installed. ✓ Search removable media (Happy, CD-ROM...) Include this location in the search A\ Browse Don't search. I will choose the driver to install Choose this option to select the device driver from a list. Windows does not guarantee that the driver you choose will be the best match for your hardware. < Back Next > Cancel

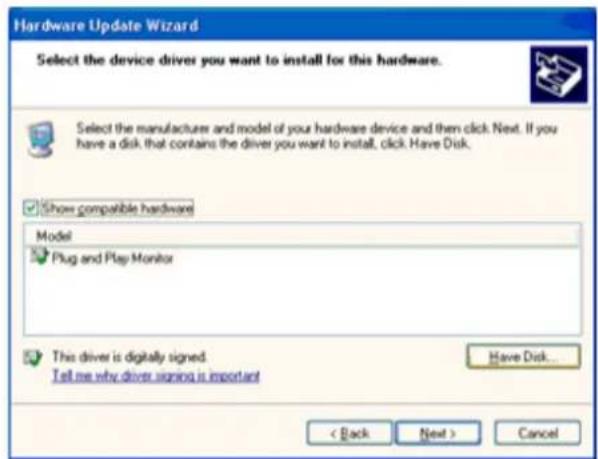

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive).

Hardware Update Wizard Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk that contains the driver you want to install, click Have Disk. Show compatible hardware Model Plug and Play Monitor This driver is digitally signed. Tell me why driver signing is important Have Disk... < Back Next > Cancel

1. Click on the 'Open' button, then click the 'OK' button.
2. Select your monitor model and click on the 'Next' button.

- If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message, please click on the 'Continue Anyway' button.

1. Click on the 'Finish' button then the 'Close' button.
2. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.

Windows 2000

1. Start Windows® 2000
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.

4. Select the 'Settings' tab then click on 'Advanced...'.

5. Select 'Monitor'

6. If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

7. If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.
8. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.
9. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on 'Next' and then click on 'Have disk...'.
10. Click on the 'Browse...' button then select the appropriate drive F: (CD-ROM Drive).
11. Click on the 'Open' button, then click on the 'OK' button.
12. Select your monitor model and click on the 'Next' button.
13. Click on the 'Finish' button then the 'Close' button.

If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.

Windows ME

1. Start Windows® Me
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select the 'Monitor' button, then click on 'Change...' button.
6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.
7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click on 'Next' and then click on 'Have Disk...'.
8. Click on the 'Browse...' button, select the appropriate drive F: (CD-ROM Drive) then click on the 'OK' button.
9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.
10. Click on 'Finish' button then the 'Close' button.

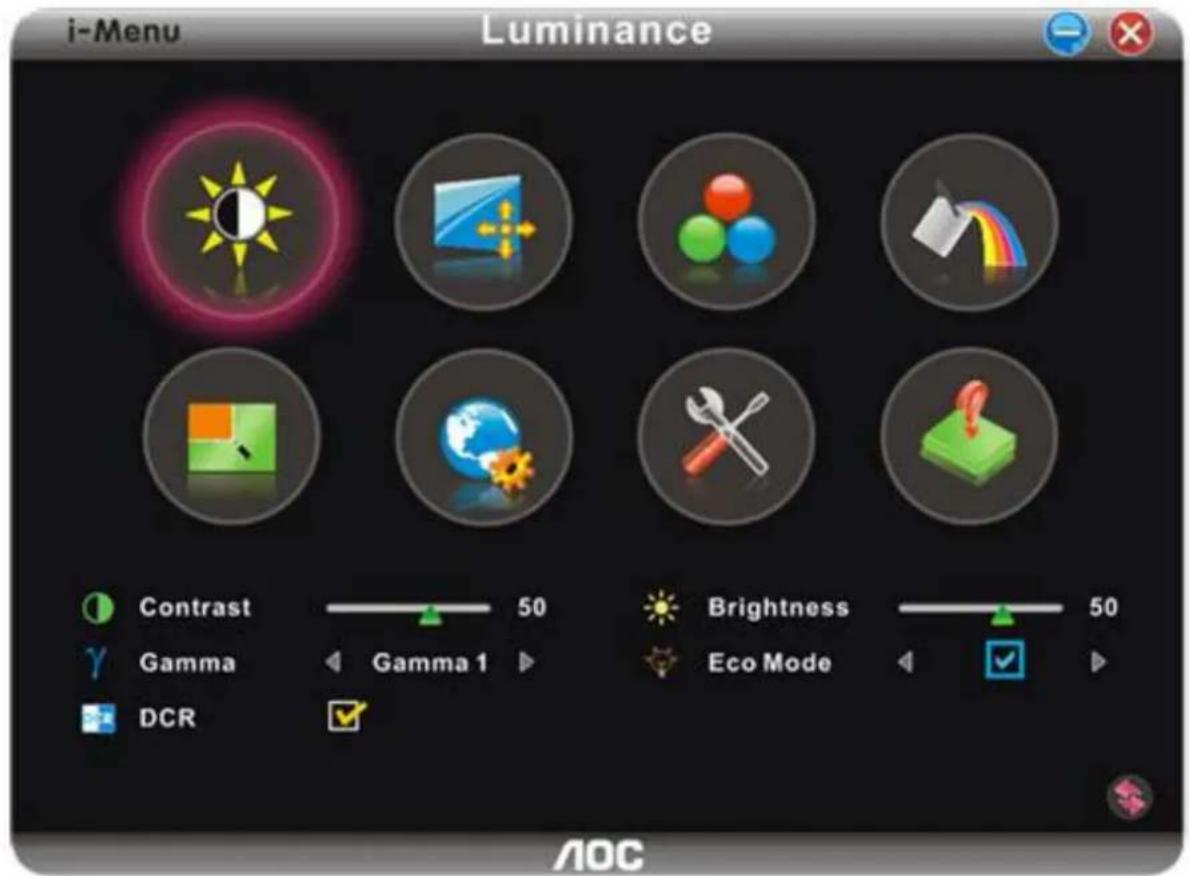

i-Menu

Welcome to "i-Menu" software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide.

i-Menu Luminance Contrast 50 Brightness 50 Gamma Gamma 1 Eco Mode DCR AOC

e-Saver

Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below).

Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to complete software installation.

Under each of the four PC status, you may choose from the pull-down menu the desired time (in minutes) for your monitor to automatically shutdown. The example above illustrated:

1) The monitor will never shutdown when the PC is powered on.
2) The monitor will automatically shutdown 5 minutes after the PC is powered off.
3) The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.
4) The monitor will automatically shutdown 20 minutes after the screen saver appears.

AOC When PC On Off SleepScreen Saver Monitor Off Never After 5 minutes After 10 minutes After 20 minutes C-saver RESET

You can click "RESET" to set the e-Saver to its default settings like below.

AOC When PC On Off Sleep Screen Saver Monitor Off Never After 5 minutes After 10 minutes After 20 minutes C-saver RESET

Screen+

Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the installation software to install it.

□日巳巳巳□目

Troubleshoot

Problem & Question	Possible Solutions
Power LED Is Not ON	Make sure the power button is ON and the Power Cord is properly connected to a grounded power outlet and to the monitor.
No images on the screen	Is the power cord connected properly?Check the power cord connection and power supply.Is the cable connected correctly?(Connected using the D-sub cable)Check the DB-15 cable connection.(Connected using the DVI cable)Check the DVI cable connection.* DVI input is not available on every model.If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen.If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card.(Refer to the Setting the Optimal Resolution)If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.Can you see "Input Not Supported" on the screen?You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly.Adjust the maximum resolution and frequency that the monitor can handle properly.Make sure the AOC Monitor Drivers are installed.
Picture Is Fuzzy & Has Ghosting Shadowing Problem	Adjust the Contrast and Brightness Controls.Press to auto adjust.Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back .
Picture Bounces, Flickers Or Wave Pattern Appears In The Picture	Move electrical devices that may cause electrical interference as far away from the monitor as possible.Use the maximum refresh rate your monitor is capable of at the resolution your are using.
Monitor Is Stuck In Active Off-Mode"	The Computer Power Switch should be in the ON position.The Computer Video Card should be snugly fitted in its slot.Make sure the monitor's video cable is properly connected to the computer.Inspect the monitor's video cable and make sure no pin is bent.Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary colors (RED, GREEN, or BLUE)	Inspect the monitor's video cable and make sure that no pin is damaged.Make sure the monitor's video cable is properly connected to the computer.
Screen image is not centered or sized properly	Adjust H-Position and V-Position or press hot-key (AUTO).
Picture has color defects (white does not look white)	Adjust RGB color or select desired color temperature.
Horizontal or vertical disturbances on the screen	Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and FOCUS.Press to auto-adjust.

Specification

General Specification

Panel	Model name	E2460SH
	Driving system TFT Color LCD
	Viewable Image Size 61.0 cm diagonal
	Pixel pitch 0.27675 mm(H) x 0.27675 mm(V)
	Video R, G, B Analog Interface & Digital Interface & HDMI Interface
	Separate Sync. H/V TTL
	Display Color 16.7M Colors
	Dot Clock 165 MHz
Resolution	Horizontal scan range 30 kHz - 83 kHz
	Horizontal scan Size(Maximum)	531.36 mm
	Vertical scan range 50 Hz - 76 Hz
	Vertical scan Size(Maximum) 298.89 mm
	Optimal preset resolution 1920 x 1080 (60 Hz)
	Plug & Play VESA DDC2B/CI
	Input Connector	D-Sub 15pin DVI 24pin, HDMI
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, TMDS
	Power Source	100-240V~, 50/60Hz
	Power Consumption	Active 22 W (typical)
		Standby < 0.5 W
	Off timer	0~24 hrs
	Speakers	2W x 2
Physical Characteristics	Connector Type	15-pin Mini D-Sub DVI-D,HDMI
	Signal Cable Type	Detachable
Environmental	Temperature	Operating	0° to 40°
		Non-Operating	-25° to 55°
	Humidity	Operating	10% to 85% (non-condensing)
		Non-Operating	5% to 93% (non-condensing)
	Altitude	Operating	0~3658m (0~12000 ft)
		Non-Operating	0~12192m (0~40000 ft)

Preset Display Modes

STANDARD RESOLUTION		HORIZONTAL FREQUENCY(kHZ)	VERTICAL FREQUENCY(Hz)
VGA 640×480	@60Hz 31.469 59.940
VGA 640×480	@67Hz 35.000 66.667
VGA 640×480	@72Hz 37.861 72.809
VGA 640×480	@75Hz 37.500 75.000
Dos-mode 720×400 @70Hz 31.469 70.087
SVGA 800×600	@56Hz 35.156 56.250
SVGA 800×600	@60Hz 37.879 60.317
SVGA 800×600	@72Hz 48.077 72.188
SVGA 800×600	@75Hz 46.875 75.000
SVGA 832×624	@75Hz 49.725 74.551
XGA 1024×768	@60Hz 48.363 60.004
XGA 1024×768	@70Hz 56.476 70.069
XGA 1024×768	@75Hz 60.023 75.029
XGA 1024×768	@75Hz 60.241 74.927
*** 1280×720	@60Hz 45.000 60.000
*** 1280×960	@60Hz 60.000 60.000
SXGA 1280×1024 @60Hz 63.981 60.02
SXGA 1280×1024 @75Hz 79.976 75.025
WXGA+ 1440×900 @60Hz 55.935 59.887
WSXGA 1680X 1050 @60Hz		65.290 59.954
HD	1920×1080@60Hz	67.500 60.000

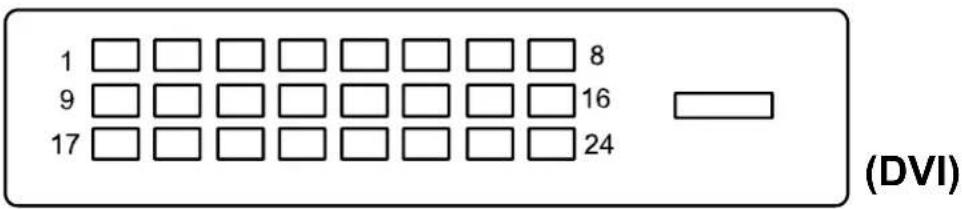

Pin Assignments

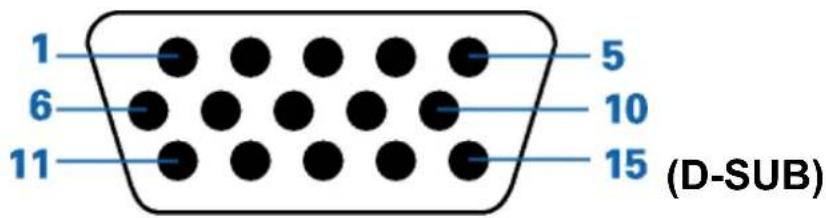

1 6 11 5 10 15 (D-SUB)

Pin Number 15-Pin Side of the Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 N.C.
5 Detect Cable
6 GND-R
7 GND-G
8 GND-B
9 +5V
10 Ground
11 N.C.
12 DDC-Serial data
13 H-sync
14 V-sync
15 DDC-Serial clock

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

Regulation

WEEE Declaration

Disposal of Waste Equipment by Users in Private Household in the European Union.

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste equipment for recycling in India please visit the below web link.

www.aocindia.com/ewaste.php.

EPA Energy Star

ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

EPEAT Declaration

EPEAT is a system to help purchasers in the public and private sectors evaluate, compare and select desktop computers, notebooks and monitors based on their environmental attributes. EPEAT also provides a clear and consistent set of performance criteria for the design of products, and provides an opportunity for manufacturers to secure market recognition for efforts to reduce the environmental impact of its products.

AOC believes in protecting the environment.

With a key concern for the conservation of natural resources, as well as landfill protection, AOC announces the launch of AOC monitor's packaging recycling program. This program is designed to help you discard of your monitor carton and filler materials properly. If a local recycling center is not available, AOC will recycle the packaging material for you, including foam filler and carton. AOC Display solution will only recycle AOC monitor packaging. Please refer to the following website address:

Only for North and South American, excluding Brazil:

http://us.aoc.com/about/environmental_impact

For Germany:

http://www.aoc-europe.com/en/service/tco.php

For Brazil:

http://www.aoc.com.br/2007/php/index.php?req=pagina&pgn_id=134

Service

Warranty Statement for Europe

LIMITED THREE-YEAR WARRANTY\*

For AOC LCD Monitors sold within Europe, AOC International (Europe) B.V. warrants this product to be free from defects in material and workmanship for a period of Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) B.V. will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. In the absent of the proof of purchase, the warranty will start 3 months after the date of manufacturing indicated on the product.

If the product appears to be defective, please contact your local dealer or refer to the service and support section on www.aoc-europe.com for the warranty instructions in your country. The freight cost for the warranty is pre-paid by AOC for the delivery and return. Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Certified or Authorized Service Center under the following condition:

• Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box to protects your monitor well enough during transport).
• Put the RMA number on the address label
• Put the RMA number on the shipping carton

AOC International (Europe) B.V. will pay the return shipping charges within one of the countries specified within this warranty statement. AOC International (Europe) B.V. is not responsible for any costs associated with the transportation of product across international borders. This includes the international border within the European Union. If the LCD Monitor is not available for collection when the currier attends, you will be charged a collection fee.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Damages during transport due to improper packaging
- Improper installation or maintenance other then in accordance with AOC's user manual
- Misuse
- Neglect
- Any cause other than ordinary commercial or industrial application
• Adjustment by non-authorized source
- Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized ServiceCenter
- Improper environments like humidity, water damage and dusts
• Damaged by violence, earthquake and terrorist attacks
- Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other irregularities

This limited warranty does not cover any of the product firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modifications or alteration.

All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1 pixel policy standards.

If your warranty has expired, you still have access to all available service options, but you will be responsible for the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified or Authorized Service Center will provide you with an estimate of service costs before receiving your authorization to perform service.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Information in this document is subject to change without notice. For more information, please visit: http://www.aoc-europe.com

Service

Warranty Statement for Middle East and Africa (MEA)

And

The Commonwealth of Independent States (CIS)

LIMITED ONE to THREE YEARS WARRANTY\*

For AOC LCD Monitors sold within the Middle East and Africa (MEA) and the Commonwealth of Independent States (CIS), AOC International (Europe) B.V. warrants this product to be free from defects in material and workmanship for a period of One (1) to Three (3) years from the manufacture date depending on sale country. During this period, AOC International (Europe) B.V. offers a Carry-In (return to Service Center) Warranty Support at an AOC's Authorized Service Center or Dealer and at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. As a Standard Policy, the warranty will be calculated from the manufacture date identified from the product ID serial number, but the total warranty will be Fifteen (15) months to Thirty Nine (39) months from MFD (manufacture date) depending on sale country. Warranty will be considered for exceptional cases that are out of warranty as per the product ID serial number and for such exceptional cases; Original Invoice/Proof Of Purchase Receipt is mandatory.

If the product appears to be defective, please contact your AOC authorized dealer or refer to the service and support section on AOC's website for the warranty instructions in your country:

• Egypt: http://aocmonitorap.com/egypt_eng
• CIS Central Asia: http://aocmonitorap.com/ciscentral
• Middle East: http://aocmonitorap.com/middleeast
• South Africa: http://aocmonitorap.com/southafrica
• Saudi Arabia: http://aocmonitorap.com/saudiarabia

Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Authorized Service Center or Dealer under the following condition:

• Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box to protects your monitor well enough during transport).
• Put the RMA number on the address label
• Put the RMA number on the shipping carton

* This limited warranty does not cover any losses or damages that occur as a result of:

• Damages during transport due to improper packaging
- Improper installation or maintenanceother then in accordance with AOC's user manual
- Misuse
- Neglect
- Any cause other than ordinary commercial or industrial application
• Adjustment by non-authorized source
- Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center
- Improper environments like humidity, water damage and dusts
• Damaged by violence, earthquakes and terrorist attacks
- Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other irregularities

This limited warranty does not cover any of the product firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modifications or alteration.

All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1 pixel policy standards.

If your warranty has expired, you still have access to all available service options, but you will be responsible for the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified, Authorized Service Centeror dealer will provide you with an estimate of service costs before receiving your authorization to perform service.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF ONE (1) to THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Information in this document is subject to change without notice. For more information, please visit:http://www.aocmonitorap.com

AOC Pixel Policy

ISO 9241-307 Class 1

July 25 ^th , 2013

AOC strives to deliver the highest quality products. We use some of the industry's most advanced manufacturing processes and practice stringent quality control. However, pixel or sub pixel defects on the TFT monitor panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but AOC guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This Pixel Policy explains the different types of pixel defects and defines acceptable defect levels for each type. In order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT monitor panel must exceed these acceptable levels.

Pixels and Sub Pixel Definition

A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and blue. When all sub pixels of pixel are lit, the three colored sub pixel together appear as a single white pixel. When all are dark, the three colored sub pixels together appear as a single black pixel.

subpixel R G B pixel

Types of Pixel Defects

• Bright Dot Defects: the monitor displays a dark pattern, sub pixels or pixels are always lit or "on"
• Black Dot Defects: the monitor displays a light pattern, sub pixels or pixels are always dark or "off"

ISO 9241-307Pixel Defect Class	Defect Type 1Bright Pixel	Defect Type 2Black Pixel	Defect Type 3Bright Sub pixel	Defect Type 4Black Sub pixel
Class 1 1 1			2\\1+3\\0+5 + 1

AOC International (Europe) B.V.

TCO DOCUMENT

Congratulations!

This product is designed for both you and the planet!

TCO CERTIFIED

TCO Development works for sustainable IT - manufacture, use and recycling of IT products reflecting environmental, social and economic responsibility.

TCO Certified is a third party verified program, where every product model is tested by an accredited impartial test laboratory. TCO

Certified represents one of the toughest certifications for ICT products worldwide.

Some of the Usability features of TCO Certified Displays:

• Visual Ergonomics for image quality is tested to ensure top performance and reduce sight and strain problems. Important parameters are Resolution, Luminance, Contrast, Reflection and Colour characteristics
• Products are tested according to rigorous safety standards at impartial laboratories
• Electric and magnetic fields emissions as low as normal household background levels
  • Workload ergonomics to ensure a good physical environment

Some of the Environmental features of TCO Certified Displays:

• Production facilities have an Environmental Management System (EMAS or ISO 14001)
  • Low energy consumption to minimize climate impact
• Restrictions on Chlorinated and Brominated flame retardants, plasticizers, plastics and heavy metals such as cadmium, mercury and lead (RoHS compliance)
  • Both product and product packaging is prepared for recycling
  • The brand owner offers take-back options

Corporate Social Responsibility

- The brand owner demonstrates the product is manufactured under working practices that promote good labour relations and working conditions.

The Criteria Document can be downloaded from our web site. The criteria included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user and environmentally friendly direction. Our ICT product labeling system began in 1992 and is now requested by users and ICT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com
