Indoor Mini Dome & Indoor Mini Fisheye Dome Hardware Manual

D91, D92, E91, E92, E93, E94, E95, E96, E97, E98, E911, E913

Ver. 2017/03/01

Table of Contents

Precautions 4

Safety Instructions 6

Introduction 7

List of Models....7

Package Contents......9

Physical Description .... 10

Installation Procedures 12

Installing the Camera on a Surface....13

Installing the Camera on a Gang Box 16

Step 1: Install the Gang Box .... 17

Step 2: Install the Gang Box Converter....18

Step 3: Connect the Cable....19

Step 4: Install the Camera....19

Step 5: Connect to Network ...... 20

Step 6: Access the Camera Live View ...... 20

Step 7: Adjust the Viewing Angle and Focus....20

Step 8: Close the Dome Cover ....20

Basic Connections ...... 21

Other Adjustments and Accessories 22

How to Adjust the Viewing Angle and Focus 22

How to Rotate the Viewing Orientation (E96 / E98)......24

How to Replace the Dome Cover....25

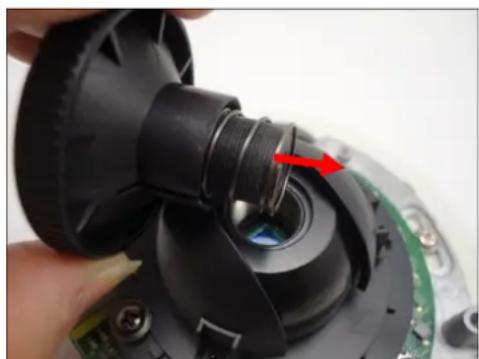

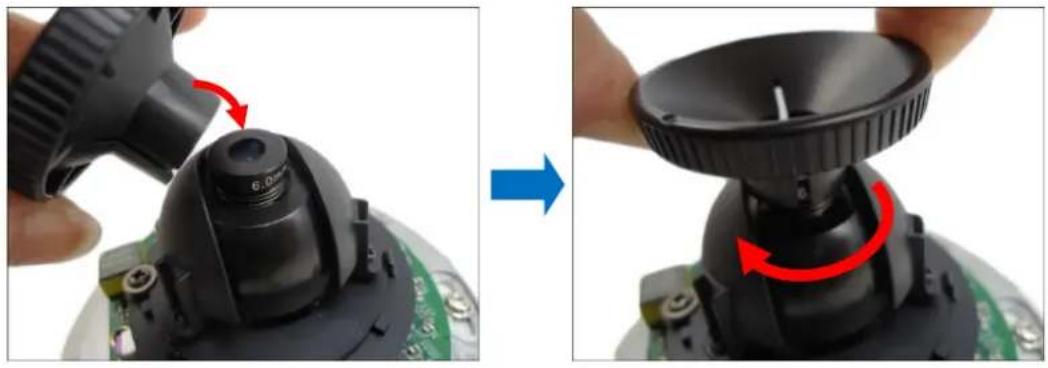

How to Replace the Lens (D91 / D92 only).... 27

Accessing the Camera 30

Configure the IP Addresses....30

Using DHCP Server to Assign IP Addresses....30

Using the Default Camera IP Address....32

Access the Camera....34

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice.

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the responsible party for compliance could void the user's authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures.

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

Water and Moisture

Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool and the like.

Don't use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the video product has been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in this manual. Adjust only those controls that are covered by the instruction manual, as an improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition.

Introduction

List of Models

This hardware manual contains the following models:

D91		1MP Indoor Mini Dome with Fixed lens
D92		3MP Indoor Mini Dome with Fixed lens
E91		1MP Indoor Mini Dome with Basic WDR, Fixed lens
E92		3MP Indoor Mini Dome with Basic WDR, Fixed lens
E93		5MP Indoor Mini Dome with Basic WDR, Fixed lens
E94		1.3MP Indoor Mini Dome with Basic WDR, SLLS, Fixed lens
E95		2MP Indoor Mini Dome with Basic WDR, SLLS, Fixed lens
E96		5MP Indoor Mini Fisheye Dome with Basic WDR, Fixed lens
E97		10MP Indoor Mini Dome with Basic WDR, Fixed lens
E98		10MP Indoor Mini Fisheye Dome with Basic WDR, Fixed lens
E911		3MP Video Analycs Indoor Mini Dome with Extreme WDR, SLLS, Fixed lens
E913		3MP Indoor Mini Dome with Superior WDR, Fixed lens

Package Contents

Camera(Mini Dome)		Camera(Mini Fisheye Dome)
	or
Screw Kit		Drill Template
Hexagon Screwdriver		Lens Focus Tuner(Not available in E93, E96, and E97 models)
Quick Installation Guide		Warranty Card

Physical Description

Mini Dome

Labeled diagram of a camera module showing internal components and parts with numbered annotations

Mini Fisheye Dome

Labeled diagram of an electronic camera module showing internal components and parts with numbered annotations

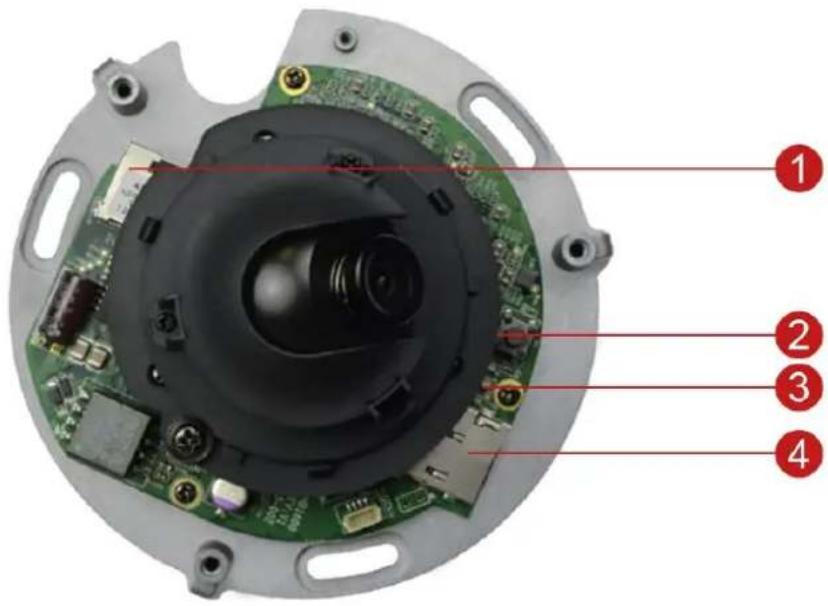

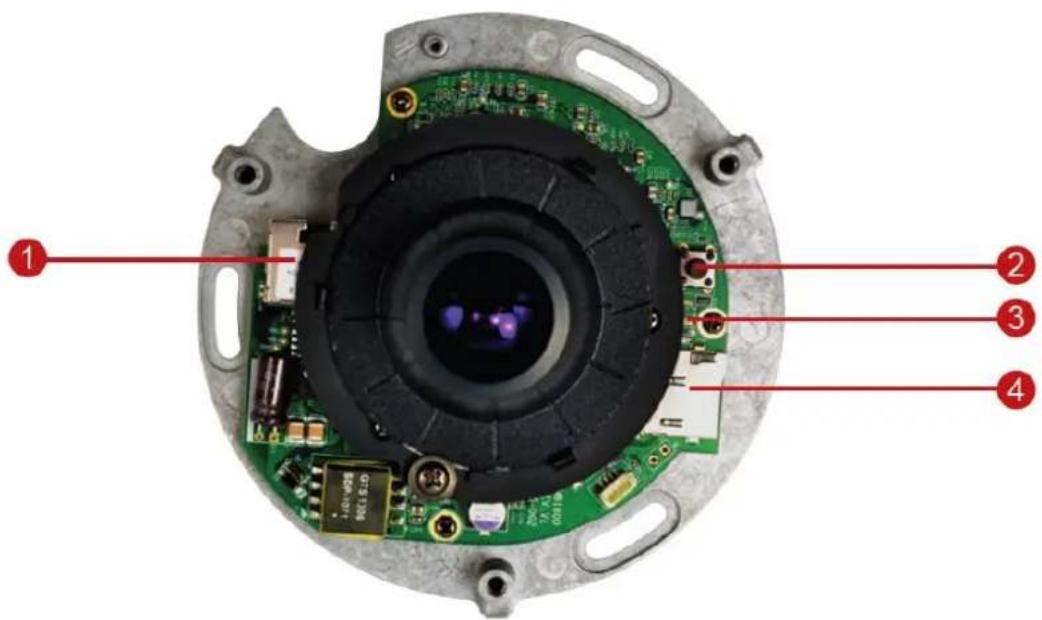

1) Ethernet Port

The Ethernet port connects to a network using an Ethernet cable.

2) Reset Button

The Reset Button is used to restore the factory default settings of the camera, including the administrator's password.

How to reset the camera?

While the power is on, press and hold the Reset Button for 5 seconds or until the Blue LED lights up.

3) LED Indicators

• Blue LED: The Power LED lights blue when the camera is powered on, the light goes off once the initial boot up process is complete.
• Amber LED: The Ethernet Activity LED blinks amber when network activity is in progress.
• Green LED: The Ethernet Link LED lights green when a network connection is established.

4) Memory Card Slot

Insert a memory card (not included) into this slot for local recording.

NOTE: Supports microSDHC and microSDXC cards.

How to install the memory card?

Insert the memory card into the slot with the metal contacts facing down, and then push the card until it clicks into place.

How to remove the memory card?

Access the Web Configurator to "safely unmount" the card (see the camera Firmware Manual for details). Once unmounted from the firmware, push the card to eject it from the slot.

Installation Procedures

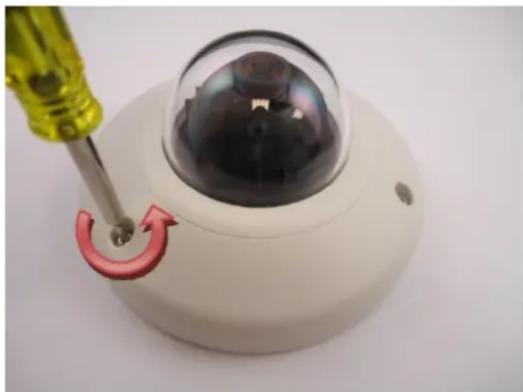

Before mounting the camera, remove the dome cover by loosening the three (3) screws.

Close-up of a white spherical device with a black dome and a yellow screwdriver inserted, showing a red curved arrow on the base (no text or symbols visible)

NOTE: Some models have styrofoam inside the dome cover which is used to protect the lens during shipping. Remember to remove the styrofoam before mounting the camera.

There are two ways to mount the camera:

• Surface mount: Use this method to mount the camera directly on the ceiling. See Installing the Camera on a Surface on page 13.
• Gang Box Mount: If the camera will be mounted on a gang box (applicable in some areas in the US), a gang box converter (not included in the camera package) is needed. See Installing the Camera on a Gang Box on page 16.

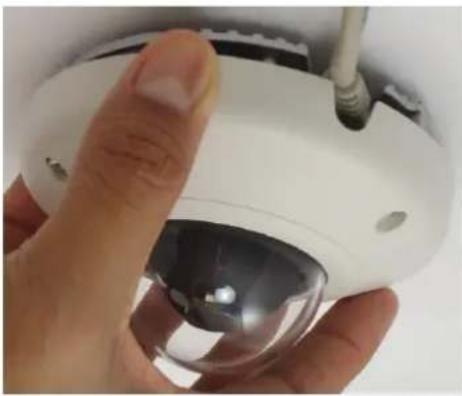

Installing the Camera on a Surface

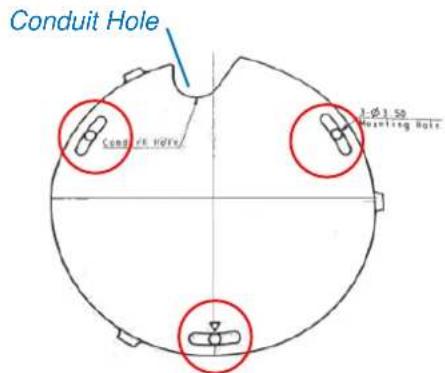

1. Mark the location of the screw holes base on the drill template included in the package.

Conduit Hole Conduit Hole 1-Ø 1.50 Mounting Hole

NOTE: Depending on the surface where you will install the camera, it may be necessary to drill three (3) holes with 3.5 on the ceiling and use the supplied screw tox.

1. Route the cables through the ceiling, taking the Conduit Hole on the drilling template as a reference. Or, slide off the cable exit tab on the dome cover to route the cable through that hole later.

Close-up of a hand holding a white computer mouse with a red arrow pointing to the handle (no text or symbols visible)

Close-up of a hand holding a white computer mouse with a curved handle (no visible text or symbols)

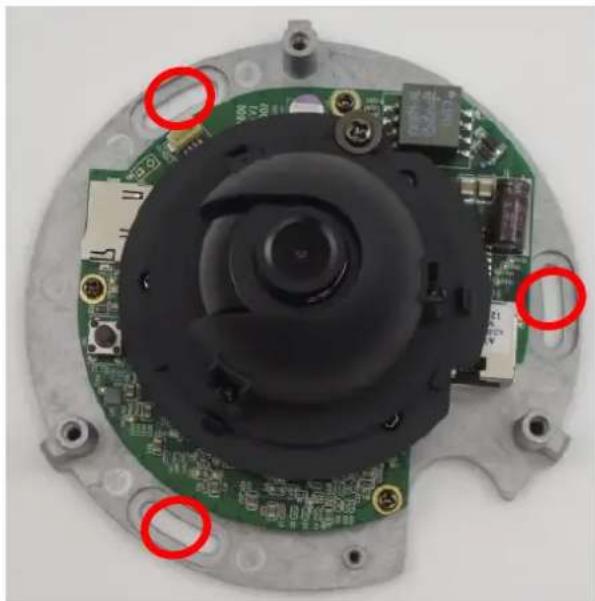

1. Use the camera body and locate the three (3) screw holes.

Close-up of a camera lens mounted on a green circuit board with red-circled annotations (no readable text or symbols)

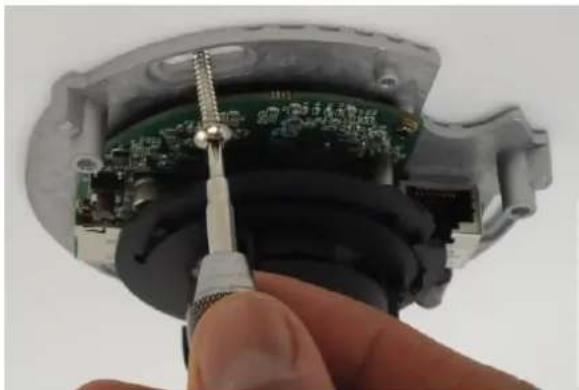

1. Install the camera body to the ceiling using the three (3) screws included in the camera package.

Close-up of a hand holding a screwdriver inserted into a damaged electronic component (no visible text or symbols)

NOTE: Please make sure the screw is flat on the plate.

1. Connect the Ethernet cable to the Ethernet port of the camera.

2. Adjust the camera viewing angle and focus. See How to Adjust the Viewing Angle and Focus on page 22.

NOTE: Not applicable to E96 model.

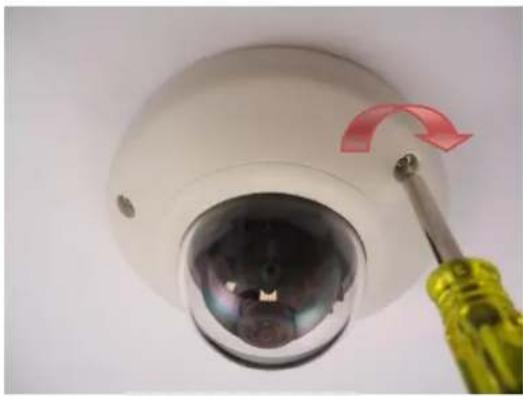

1. Attach the cover to the camera body and tighten the three (3) screws to secure it.

Close-up of a hand holding a white surveillance camera with a screwdriver inserted (no visible text or symbols)

Close-up of a white surveillance camera with a yellow screwdriver inserted, showing a red curved arrow pointing to the lens (no text or symbols visible)

Installing the Camera on a Gang Box

In case the camera has to be installed on a gang box, use the gang box converter below to install your camera.

Gang Box Converter	Description	Supported Gang Box
PMAX-0805	The gang box converter is installed onto the gang box which can either be on a surface or inside the surface. The camera can then be installed onto the gang box converter.	4” Round4” Octagon

NOTE: The gang box and the gang box converter are not included in the camera package.

Step 1: Install the Gang Box

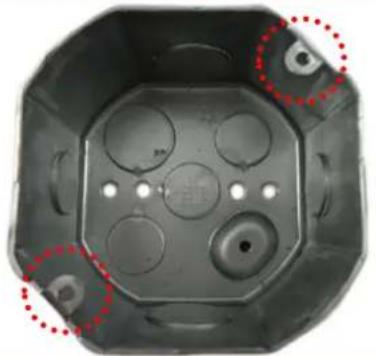

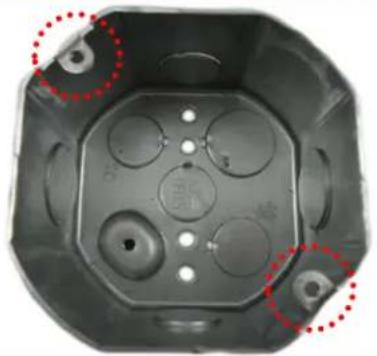

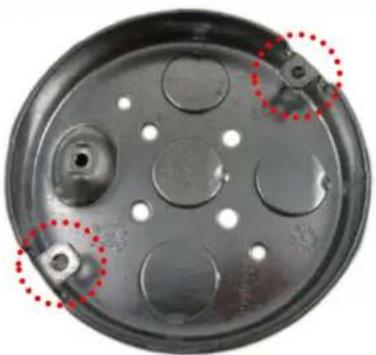

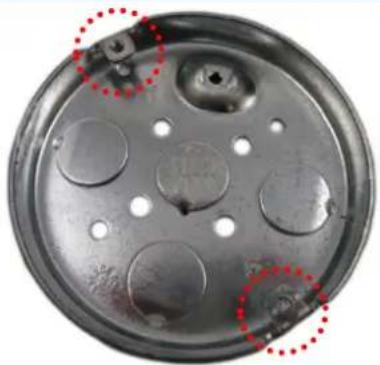

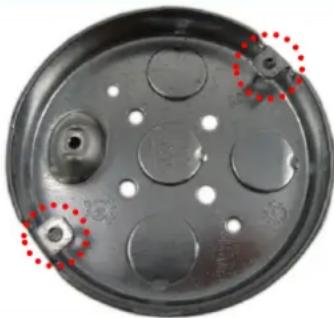

Before installation, note that the gang box must be installed with either of the following orientation:

Screw Holes from Left to Right		Screw Holes from Right to Left
4” Round
4” Octagon

1. Remove a knockout on the gang box to route the network cable.
2. Route the network cable along the surface or inside the surface and into the gang box.
3. Attach the gang box on the surface or inside the surface according to the recommended orientation above.

Step 2: Install the Gang Box Converter

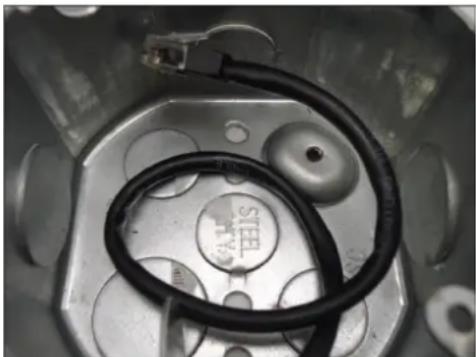

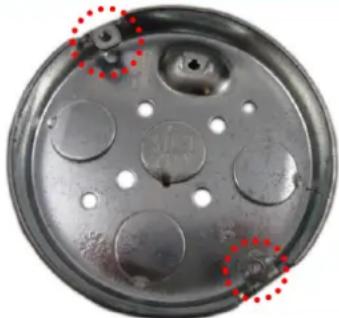

1. Route the network cable to pass through the hole of the gang box converter.

Close-up of a black cable with a connector attached to a metallic mechanical component (no visible text or symbols)

1. Install the gang box converter onto the gang box using the screws included in the gang box package. Note which screw holes to attach to secure the converter to the gang box.

Screw Holes from Left to Right	Screw Holes from Right to Left

NOTE: Same screw holes apply when using the 4" octagon gang boxes.

Step 3: Connect the Cable

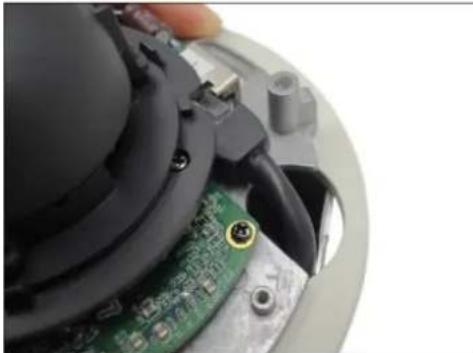

Connect the network cable to the Ethernet port of the camera.

Close-up of a mechanical component with a green circuit board and a black plastic housing (no visible text or symbols)

Step 4: Install the Camera

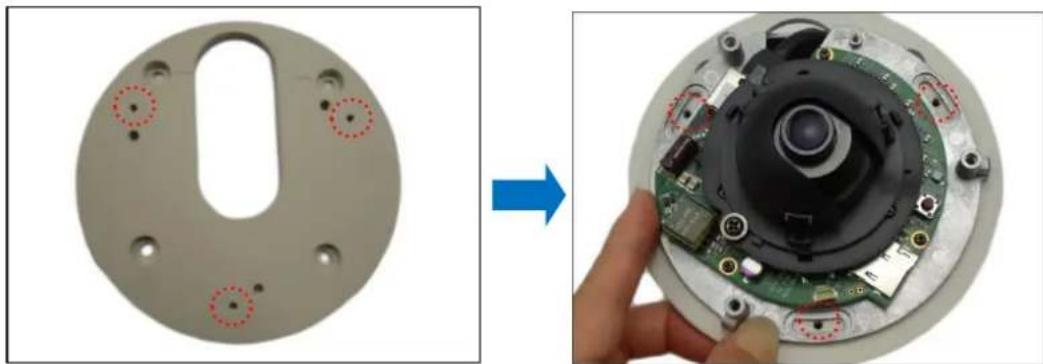

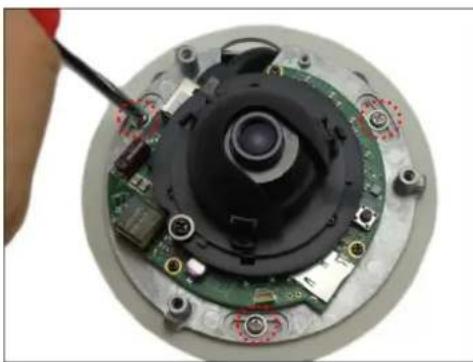

1. Align the camera screw holes to the screw holes of the gang box converter.

Two-panel image showing a circular mechanical component before and after assembly, with a hand adjusting the interior circuit board (no text or symbols visible)

1. Attach the three (3) screws (included in the gang box converter package) to secure the camera to the converter.

Close-up of a mechanical assembly with a central black component and surrounding electronic components (no visible text or symbols)

Step 5: Connect to Network

On the network side, connect the other end of the network cable to a network switch. See

Basic Connections on page 21 for more information.

Step 6: Access the Camera Live View

See Accessing the Camera on page 30 for more information on how to access the Live View of the camera.

Step 7: Adjust the Viewing Angle and Focus

Based on the Live View, adjust the viewing angle, focus, and orientation of the camera.

Adjustments vary depending on model, see How to Adjust the Viewing Angle and Focus on page 22 or How to Rotate the Viewing Orientation (E96 / E98) on page 24 for more information.

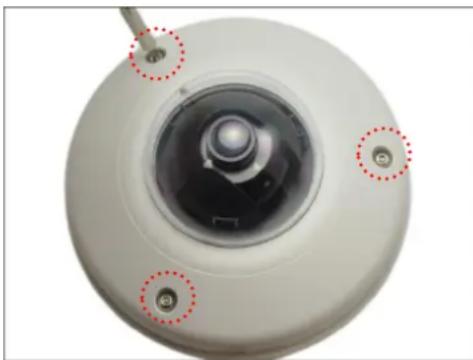

Step 8: Close the Dome Cover

1. Align cable tab side of the dome cover to the direction of the network cable.
2. Tighten the three (3) screws using the supplied hex screwdriver to attach the dome cover.

Close-up of a white spherical device with a central lens and three red dotted circular markers on the top surface (no text or symbols visible)

Final installation should look similar to the illustration below.

Close-up of a circular mechanical or electronic component with central lens and mounting holes (no visible text or symbols)

Basic Connections

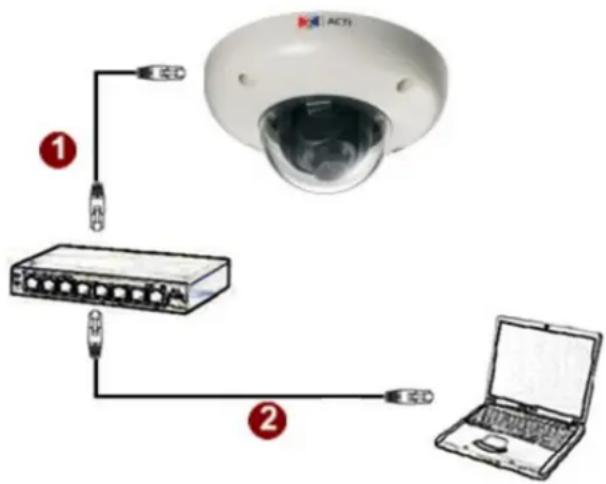

Follow the procedures below to connect the camera to the network.

Diagram showing connection between a network device, a security camera, and a laptop with labeled components.

Please use a PoE (Power over Ethernet) supported switch or injector:

1) Connect your IP Camera to the PoE Switch / Injector using an Ethernet cable.
2) Connect your PoE Switch / Injector to a PC / network using another Ethernet cable.

Other Adjustments and Accessories

How to Adjust the Viewing Angle and Focus

NOTE: The following procedures are not applicable to Mini Fisheye Dome cameras.

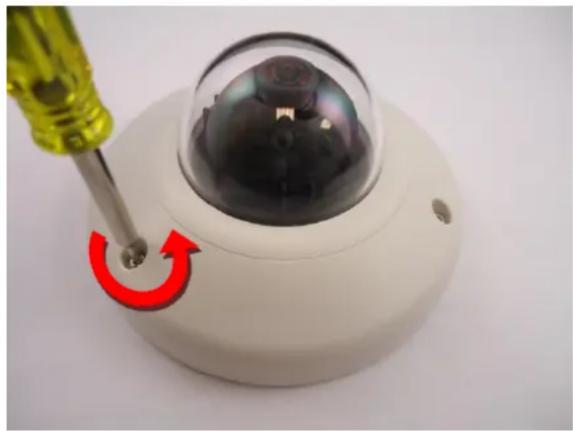

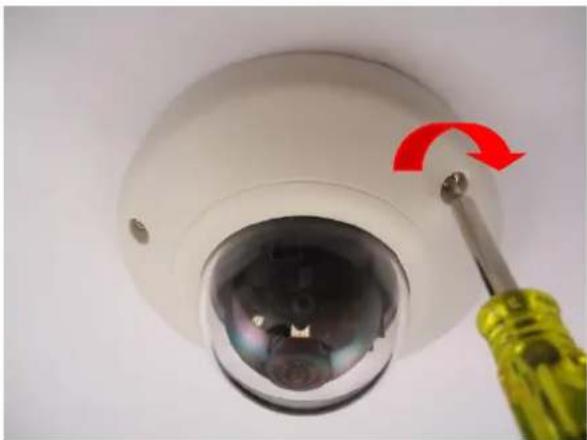

1. Loosen the three (3) screws to remove the dome cover.

Close-up of a white surveillance camera with a yellow screwdriver inserted, showing a red circular arrow indicating rotation (no text or symbols visible)

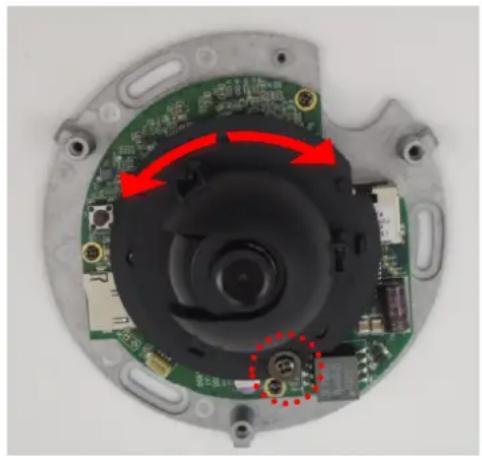

1. Based on the live view from the camera, adjust the viewing angle with pan and tilt direction (for Mini Dome models only).

Interior view of a computer motherboard with visible circuit board and camera lens (no text or symbols)

Interior view of a mechanical device with visible circuit board and component, marked with red arrow (no text or symbols)

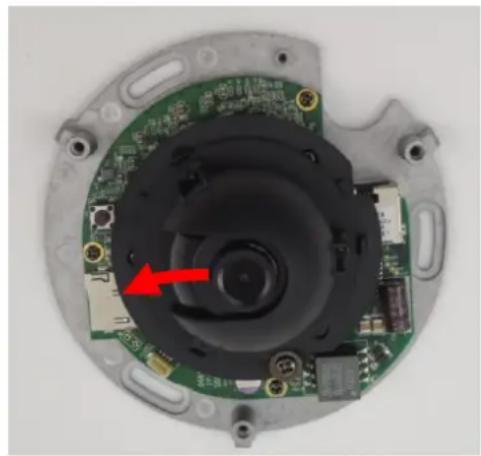

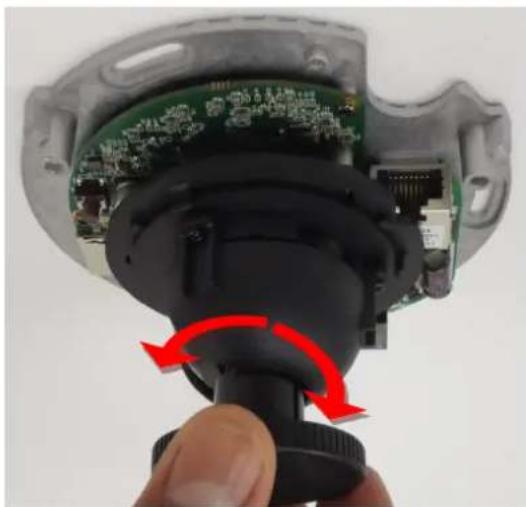

1. Adjust the focus.

NOTE: Not applicable for E93 / E97 / E911 / E913 model because the camera is already pre-focused.

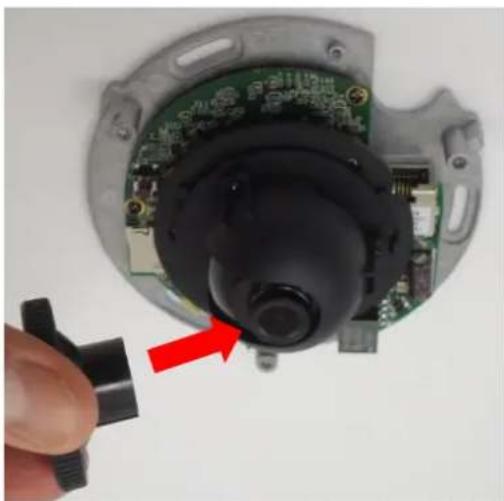

a. Attach the focus tuner (included in the camera package) on the lens and adjust the focus of the lens.

Close-up of a hand holding a black mechanical knob next to a green electronic device (no visible text or symbols)

Close-up of a hand holding a black plastic electronic device with red arrows indicating rotation or adjustment (no text or symbols visible)

b. Remove the lens focus tuner.

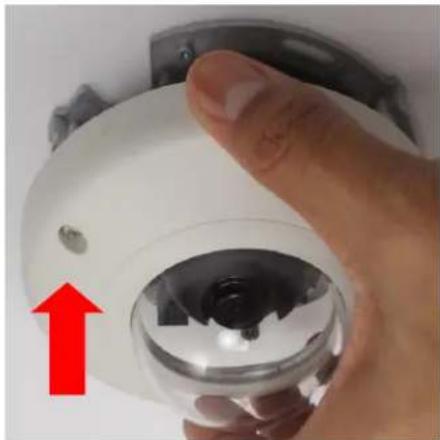

1. Attach the dome cover to the camera and tighten the three (3) screws.

Close-up of a hand holding a white spherical device with a black lens, showing a red upward arrow (no text or symbols visible)

Close-up of a security camera with a red arrow indicating clockwise motion (no text or symbols visible)

How to Rotate the Viewing Orientation (E96 / E98)

This section describes the procedures in rotating the viewing orientation of Mini Fisheye Dome cameras.

1. Open the dome cover.

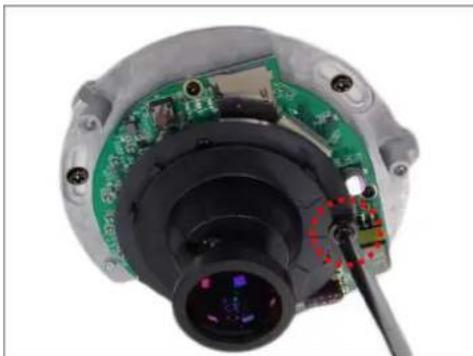

2. Loosen the screw as marked below.

Close-up of a camera module with green circuit board and lens, no visible text or symbols

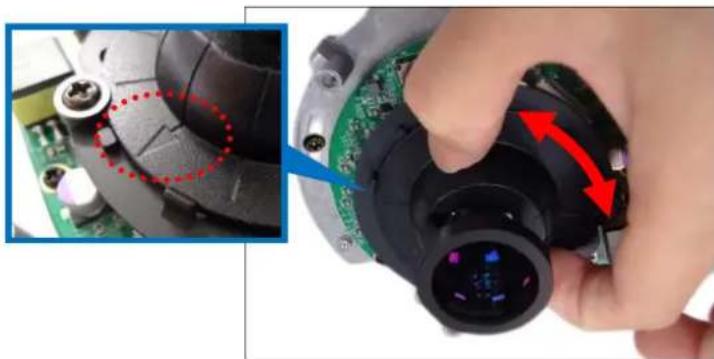

1. Turn the lens holder to rotate the viewing orientation. Note that the arrow indicates the viewing direction.

Close-up of a camera lens assembly with a hand adjusting the lens, showing internal components and a close-up of a mechanical component (no text or symbols visible)

1. When the desired orientation is achieved, tighten the screw to fix the orientation position.

Close-up of a mechanical camera module with green circuit board and lens, showing internal components and wiring (no text or symbols visible)

1. Close the dome cover.

How to Replace the Dome Cover

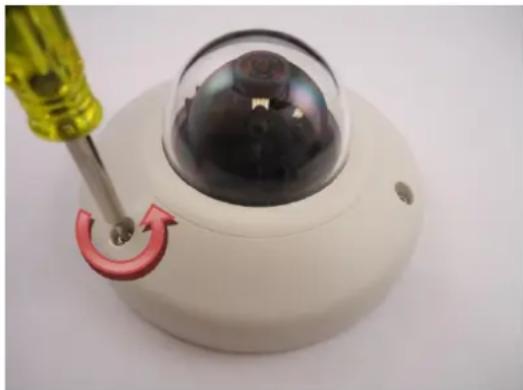

For more discrete surveillance needs, the pre-installed dome cover can be replaced with a smoked, non-vandal proof dome cover. The smoked dome cover is an optional accessory; contact your sales agent to purchase.

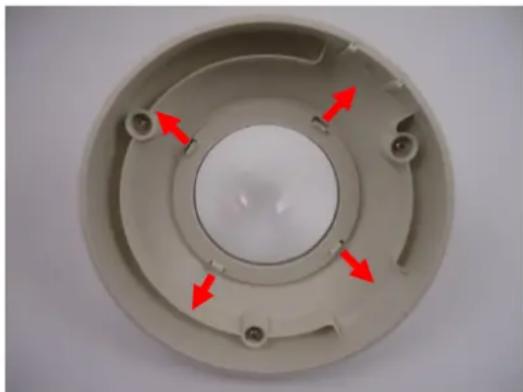

Optional Accessories

PDCX-1106

To replace the dome cover, follow the procedures below:

1. Loosen the three (3) screws to remove the dome cover.

Close-up of a white spherical device with a red curved arrow pointing to its base, being adjusted by a yellow screwdriver (no text or symbols visible)

1. Push the clips outwards to release the dome cover latches.

Top-down view of a circular mechanical component with red arrows indicating directional flow or features (no text or symbols)

1. Remove the ring from the cover.

Close-up of a hand holding a transparent plastic ring with a red arrow pointing to the inner ring (no text or symbols visible)

1. Insert ring to the new dome cover and latch it to the cover body.

White spherical object with a dark dome and small circular opening, resembling a smart TV or camera module (no text or symbols visible)

How to Replace the Lens (D91 / D92 only)

For wider viewing angle, the bundled lens can be replaced with the optional IR-compatible lens. Contact your sales agent to purchase.

To replace the lens, follow the procedures below:

1. Using the bundled hex screwdriver, loosen the three (3) screws to open the dome cover.

Close-up of a white spherical device with a black dome and a yellow screwdriver inserted, showing a red circular arrow on the base (no text or symbols visible)

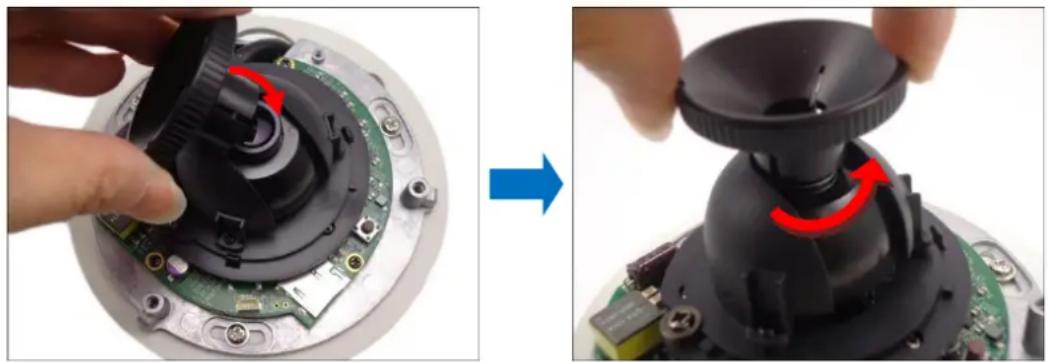

1. Attach the lens focus tuner to the lens and continuously rotate until the lens comes off.

Close-up of a hand using a tool to adjust the circuit board component, showing red arrows indicating rotation (no text or symbols visible)

1. When the lens comes off, remove the spring and remove the bundled lens from the lens focus tuner.

Close-up of a black mechanical component with a red arrow indicating a adjustment or inspection, no visible text or symbols.

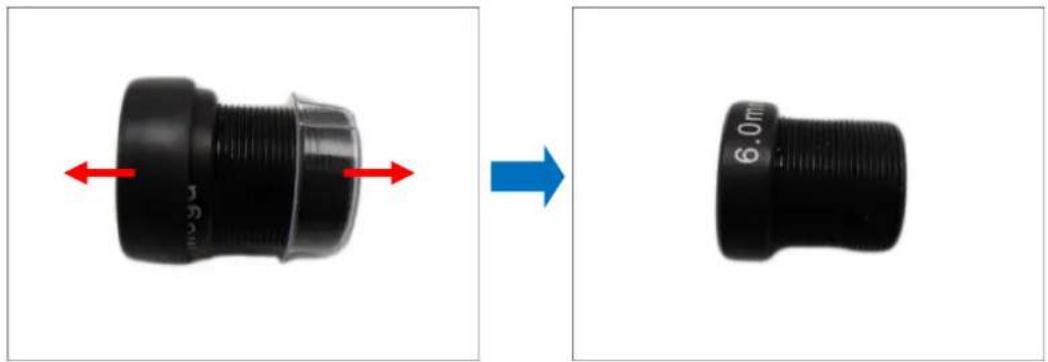

1. Remove the transparent plastic from the replacement lens.

Two black plastic connector parts with red arrows indicating left and right motion, one showing a 6.0mm thickness (no text or symbols on the components)

1. Attach the spring to the replacement lens.

Close-up of a black threaded mechanical component with a red arrow pointing to it (no text or symbols visible)

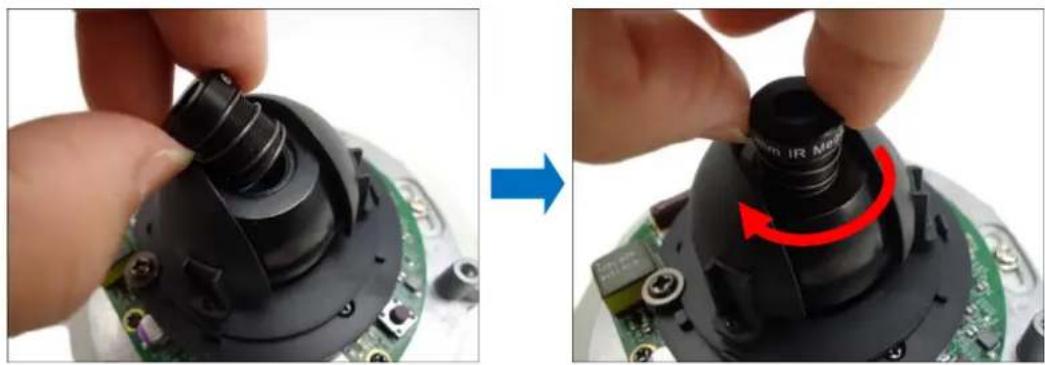

1. Continuously rotate the replacement lens to attach it to the camera.

Close-up of hands assembling a black mechanical component on a circuit board, showing a blue arrow indicating rotation (no text or symbols visible)

1. Attach the lens focus tuner when the tip of the lens is difficult to hold then turn it clockwise or counter-clockwise to adjust the camera focus. See How to Adjust the Viewing Angle and Focus on page 22 for more information.

Close-up of a camera lens adjustment mechanism showing the top view and side view (no text or symbols visible)

1. Close the dome cover.

Accessing the Camera

Configure the IP Addresses

In order to be able to communicate with the camera from your PC, both the camera and the PC have to be within the same network segment. In most cases, it means that they both should have very similar IP addresses, where only the last number of the IP address is different from each other. There are 2 different approaches to IP Address management in Local Area Networks – by DHCP Server or Manually.

Using DHCP Server to Assign IP Addresses

If you have connected the computer and the camera into the network that has a DHCP server running, then you do not need to configure the IP addresses at all – both the camera and the PC would request a unique IP address from DHCP server automatically. In such case, the camera will immediately be ready for the access from the PC. The user, however, might not know the IP address of the camera yet. It is necessary to know the IP address of the camera in other to be able to access it by using a Web browser.

The quickest way to discover the cameras in the network is to use the simplest network search, built in the Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras.

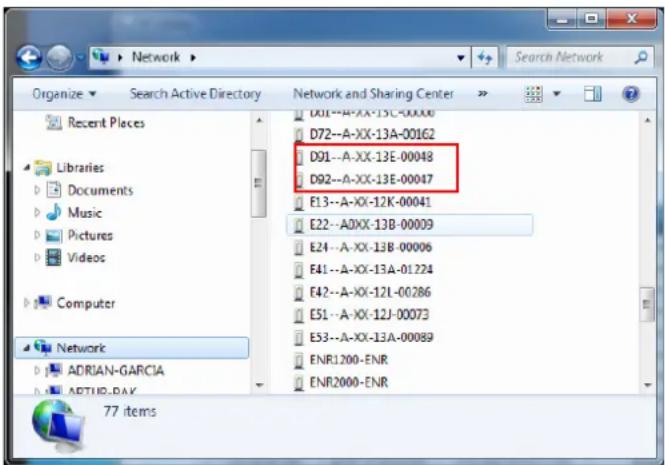

In the example below, we successfully found the camera that we had just connected to the network.

Recent Places Libraries Documents Music Pictures Videos Computer Network ADRIAN-GARCIA ARTIPO-DAX 77 items D01--A-XX-13C-00006 D72--A-XX-13A-00162 D01--A-XX-13E-00048 D92--A-XX-13E-00047 E13--A-XX-12K-00041 E22--A0XX-13B-00009 E24--A-XX-13B-00006 E41--A-XX-13A-01224 E42--A-XX-12L-00286 E51--A-XX-12J-00073 E53--A-XX-13A-00089 ENR1200-ENR ENR2000-ENR

By double-clicking with the left mouse on the camera model, it is possible to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.

If you work with our cameras regularly, then there is even a better way to discover the cameras in the network – by using IP Utility. The IP Utility is a light software tool that can not only discover the cameras, but also list lots of valuable information, such as IP and MAC addresses, serial numbers, firmware versions, etc, and allows quick configuration of multiple devices at the same time.

The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility

With just one click, you can launch the IP Utility and there will be an instant report as follows:

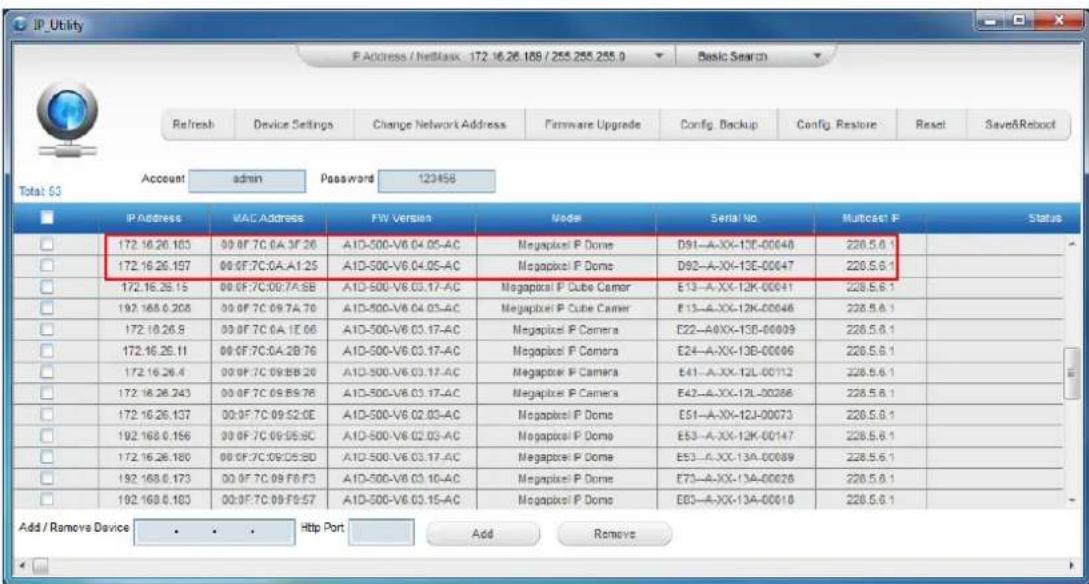

IP_Utility P Address / NetMask: 172.16.26.189 / 255.255.255.0 Basic Search Refresh Device Settings Change Network Address Firmware Upgrade Config Backup Config Restore Reset Save&Roboct Total: 53 Account admin Password 123458 IP Address MAC Address FW Version Node Serial No Multicast P Status 172.16.26.163 00.0F 7C.0A.3F.26 A1D-500-V6.04.05-AC Megapixel P Dome D91--A-XX-13E-00048 226.5.6.1 172.16.26.197 00.0F 7C.0A.A1.25 A1D-500-V6.04.05-AC Megapixel P Dome D92--A-XX-13E-00047 226.5.6.1 172.16.26.15 00.0F 7C.0G.7A.SB A1D-500-V6.03.17-AC Megapixel P Cube Camer E13--A-XX-12K-00041 226.5.6.1 192.168.6.208 00.0F 7C.09.7A.76 A1D-500-V6.04.05-AC Megapixel P Cube Camer E13--A-XX-12K-00048 226.5.6.1 172.16.26.8 00.0F 7C.0A IE 66 A1D-500-V6.03.17-AC Megapixel P Camera E22--A8XX-13E-00009 226.5.6.1 172.16.26.11 00.0F 7C.0A.2B 76 A1D-500-V6.03.17-AC Megapixel P Camera E24--A-XX-13E-00006 226.5.6.1 172.16.26.4 00.0F 7C.09.BB 28 A1D-500-V6.03.17-AC Megapixel P Camera E41--A-XX-12L-00112 226.5.6.1 172.16.26.243 00.0F 7C.09.BB 76 A1D-500-V6.03.17-AC Megapixel P Camera E42--A-XX-12L-00288 226.5.6.1 172.16.26.137 00.0F 7C.09.SZCE A1D-500-V6.02.03-AC Megapixel P Dome E51--A-XX-12J-00073 226.5.6.1 192.168.6.156 00.0F 7C.09.SSBC A1D-500-V6.02.03-AC Megapixel P Dome E53--A-XX-12K-00147 226.5.6.1 172.16.26.180 00.0F 7C.09.CS.SD A1D-500-V6.03.17-AC Megapixel P Dome E53--A-XX-13A-00089 226.5.6.1 192.168.6.173 00.0F 7C.09.FB.F3 A1D-500-V6.03 1C-AC Megapixel P Dome E73--A-XX-13A-00028 226.5.6.1 192.168.6.183 00:FF 7C 09:F9:57 A1D-500-V6.03:15-AC Megapixel P Dome E83--A-XX-13A-00018 226.5.6.1 Add / Remove Device Web Port Add Remove

You can quickly see the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.

Using the Default Camera IP Address

If there is no DHCP server in the given network, the user may have to assign the IP addresses to both PC and camera manually to make sure they are in the same network segment.

When the camera is plugged into network and it does not detect any DHCP services, it will automatically assign itself a default IP:

192.168.0.100

Whereas the default port number would be 80. In order to access that camera, the IP address of the PC has to be configured to match the network segment of the camera.

Manually adjust the IP address of the PC:

In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below:

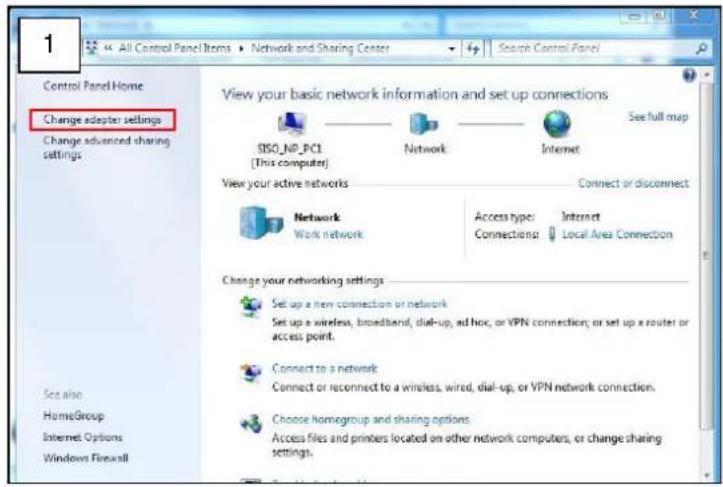

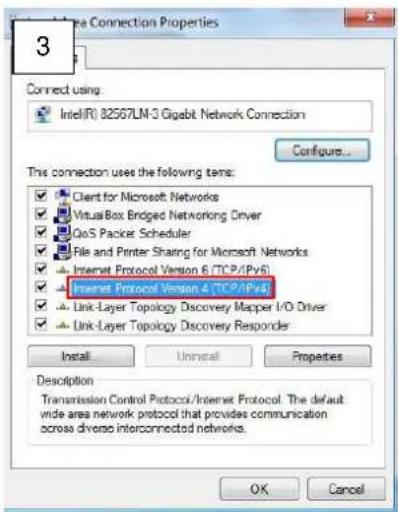

1 All Control Panel Items ▶ Network and Sharing Center ▶ Search Control Panel Control Panel Home Change adapter settings Change advanced sharing settings View your basic network information and set up connections SISO_NP_PCI [This computer] Network Internet See full map View your active networks Connect or disconnect Network Work network Access type: Internet Connections: Local Area Connection Change your networking settings Set up a new connection or network Set up a wireless, broadband, dial-up, ad hoc, or VPN connection; or set up a router or access point. Connect to a network Connect or reconnect to a wireless, wired, dial-up, or VPN network connection. Choose homegroup and sharing options Access files and printers located on other network computers, or change sharing settings. See also: HomeGroup Internet Options Windows Firefox

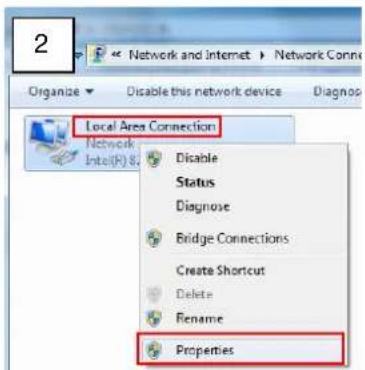

2 Network and Internet > Network Conn Organize Disable this network device Diagnos Local Area Connection Network Intel(R) & Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties

Connect using Intel(R) 82567LM-3 Gigabit Network Connection Configure... This connection uses the following items: ✓ Client for Microsoft Networks ✓ Virtual Box Embedded Networking Driver ✓ GoS Packet Scheduler ✓ File and Printer Sharing for Microsoft Networks ✓ Internet Protocol Version 6 (TCP/IPv5) ✓ Internet Protocol Version 4 (TCP/IPv4) ✓ Link-Layer Topology Discovery Mapper I/O Driver ✓ Link-Layer Topology Discovery Responder Install Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

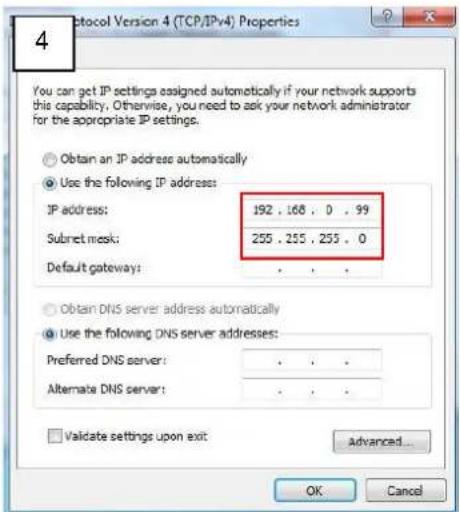

4 You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 0 . 99 Subret mask: 255 . 255 . 255 . 0 Default gateway: Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced... OK Cancel

Manually adjust the IP addresses of multiple cameras:

If there are more than 1 camera to be used in the same local area network and there is no DHCP server to assign unique IP addresses to each of them, all of the cameras would then have the initial IP address of 192.168.0.100, which is not a proper situation for network devices – all the IP addresses have to be different from each other. The easiest way to assign cameras the IP addresses is by using IP Utility:

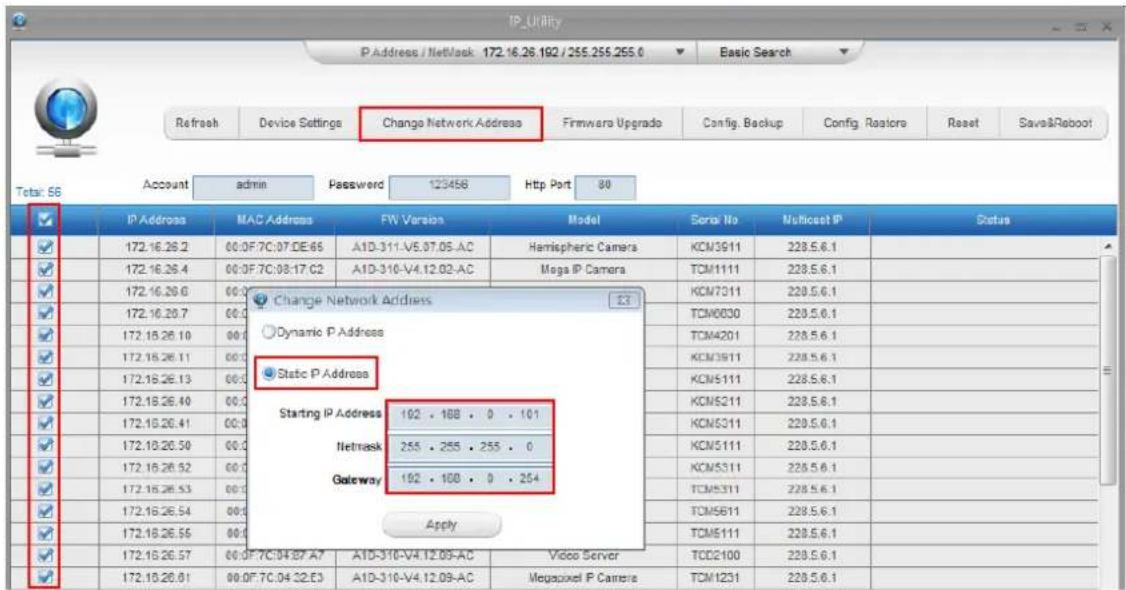

IP_Utility P Address / NetMask 172.16.26.192 / 255.255.255.0 Basic Search Refresh Device Settings Change Network Address Firmware Upgrade Config. Backup Config. Restore Reset Save&Reboot Total: 56 Account admin Password 123458 Http Port 80 IP Address MAC Address FW Version Model Serial No Multicost IP Status 172.16.26.2 00:0F:7C:07:DE:65 A1D-311-V5.07.05-AC Hemispheric Camera KCM3911 228.5.6.1 172.16.26.4 00:0F:7C:08:17:C2 A1D-310-V4.12.02-AC Mega IP Camera TCM1111 228.5.6.1 172.16.26.6 00:0F:7C:08:17:C2 Change Network Address Dynamic P Address Static P Address Starting IP Address 102 . 168 . 0 . 101 Netmask 255 . 255 . 255 . 0 Gateway 192 . 168 . 0 . 254 Apply 172.16.26.57 00:0F:7C:04:87:A7 A1D-310-V4.12.09-AC Video Server TCD2100 228.5.6.1 172.16.26.61 00:0F:7C:04:32:E3 A1D-310-V4.12.09-AC Megapixel P Camera TCM1231 228.5.6.1

With the procedure shown above, all the cameras will have unique IP addresses, starting from 192.168.0.101. In case there are 20 cameras selected, the last one of the cameras would have the IP 192.168.0.120.

Later, by pressing the "Refresh" button of the IP Utility, you will be able to see the list of cameras with their new IP addresses.

Please note that it is also possible to change the IP addresses manually by using the Web browser. In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time.

Access the Camera

Now that the camera and the PC are both having their unique IP addresses and are under the same network segment, it is possible to use the Web browser of the PC to access the camera.

You can use any of the browsers to access the camera, however, the full functionality is provided only for Microsoft Internet Explorer.

The browser functionality comparison:

Functionality	Internet Explorer	Other browsers
Live Video	Yes	Yes*
Live Video Area Resizable	Yes	No
PTZ Control	Yes	Yes
Capture the snapshot	Yes	Yes
Video overlay based configuration (Motion Detection regions, Privacy Mask regions)	Yes	No
All the other configurations	Yes	Yes

* When using non-Internet Explorer browsers, free third-party software plug-ins must be installed to the PC first to be able to get the live video feed from the camera:

Browser	Required Plug-In
Safari	QuickTime (http://www.apple.com/quicktime/download/)
Other non-Internet Explorer browsers	Basic VLC Media Player (http://www.videolan.org)

Disclaimer Notice: The camera manufacturer does not guarantee the compatibility of its cameras with VLC player or QuickTime – since these are third party softwares. The third party has the right to modify their utility any time which might affect the compatibility. In such cases, please use Internet Explorer browser instead.

When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case.

The following examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera.

Assuming that the camera's IP address is 192.168.0.100, you can access it by opening the Web browser and typing the following address into Web browser's address bar:

http://192.168.0.100

Upon successful connection to the camera, the user interface called Web Configurator would appear together with the login page. The HTTP port number was not added behind the IP address since the default HTTP port of the camera is 80, which can be omitted from the address for convenience.

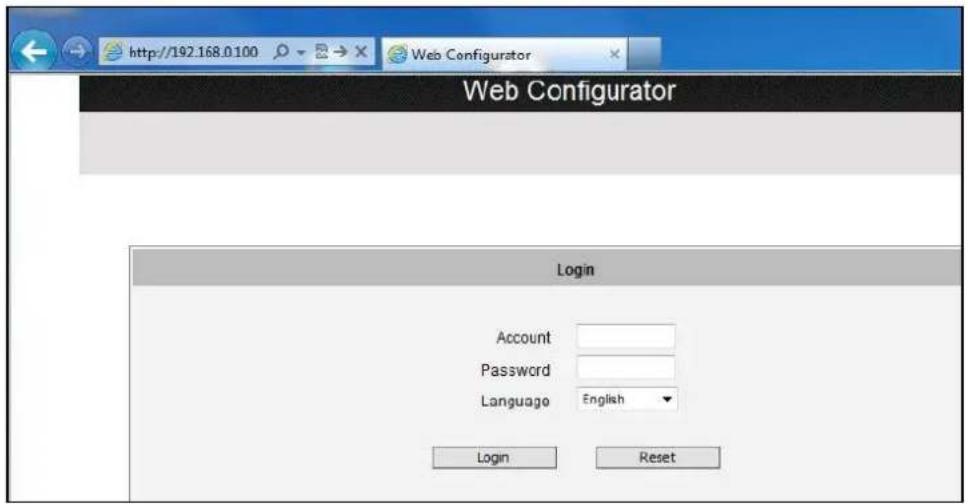

http://192.168.0.100 Web Configurator Web Configurator Login Account Password Language English Login Reset

Before logging in, you need to know the factory default Account and Password of the camera.

Account: Admin

Password: 123456

For further operations, please refer to the Firmware User Manual.

ACTi

Connecting Vision

Copyright © 2014, ACTi Corporation, All Rights Reserved

7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C.

TEL: [phone]

FAX: [phone]

Email: [e-mail]
