Product Type	Full-range, 2-way architectural loudspeaker
Model	ARQIS 110
Woofer	10" (254 mm)
HF Driver	1" (25.4 mm) compression driver (rotatable)
RMS Power	220 W @ 8 Ω
Program Power	440 W
Impedance	8 Ω
Frequency Response (±3 dB)	60 Hz – 18 kHz
Max SPL @ 1 m	118 dB
SPL 1W/1m	95 dB
Dispersion (H x V)	90° x 50°
Crossover Frequency	3.5 kHz
Connectors	Euroblock 2-pin + Speakon 4-pin (dual INPUT/STACK)
Dimensions (W x H x D)	359 x 495 x 310 mm (14.1 x 19.5 x 12.2 in)
Weight	14.8 kg (32.6 lb)
Color	Black or white
Mounting Points	8 x M8 threaded inserts for flying
Pole Mount	35 mm socket (compatible with SR12 wall bracket or TRIP01 floor stand, not included)
U-Bracket Option	ARQ110UB (not included)
Safety Sling	Included (metal)
Recommended Amplifier	220 – 450 W RMS @ 8 Ω
Cleaning	Dry cloth only; do not use water

Frequently Asked Questions - ARQIS 110 Ecler

What is the recommended amplifier power for the ARQIS 110?

The recommended amplifier power is between 220 and 450 W RMS @ 8 Ω.

Can the ARQIS 110 be mounted on a wall or stand?

Yes, it has a 35 mm pole socket compatible with SR12 wall bracket or TRIP01 floor stand (sold separately). It also has 8 x M8 rigging points for flying.

What type of connectors are used on the ARQIS 110?

It features dual INPUT/STACK connectors: Euroblock 2-pin and Speakon 4-pin, both with security attachment screws.

Is the ARQIS 110 suitable for outdoor use?

The ARQIS 110 is designed for fixed indoor installations. Avoid exposure to water or extreme weather. If used outdoors, it must be sheltered.

How do I clean the ARQIS 110?

Clean only with a dry cloth. Do not use water, solvents, or abrasive cleaners.

What is the dispersion pattern of the ARQIS 110?

The dispersion is 90° horizontal by 50° vertical.

Can the high-frequency driver be rotated?

Yes, the 1-inch compression driver is rotatable to allow horizontal or vertical cabinet orientation.

What is the maximum SPL of the ARQIS 110?

The maximum SPL is 118 dB @ 1 m.

Does the ARQIS 110 come with a safety sling?

Yes, a metal safety sling is included to prevent accidental drops.

What is the frequency response of the ARQIS 110?

The frequency response is 60 Hz – 18 kHz (±3 dB).

USER MANUAL ARQIS 110 Ecler

Architectural Loudspeaker Cabinets

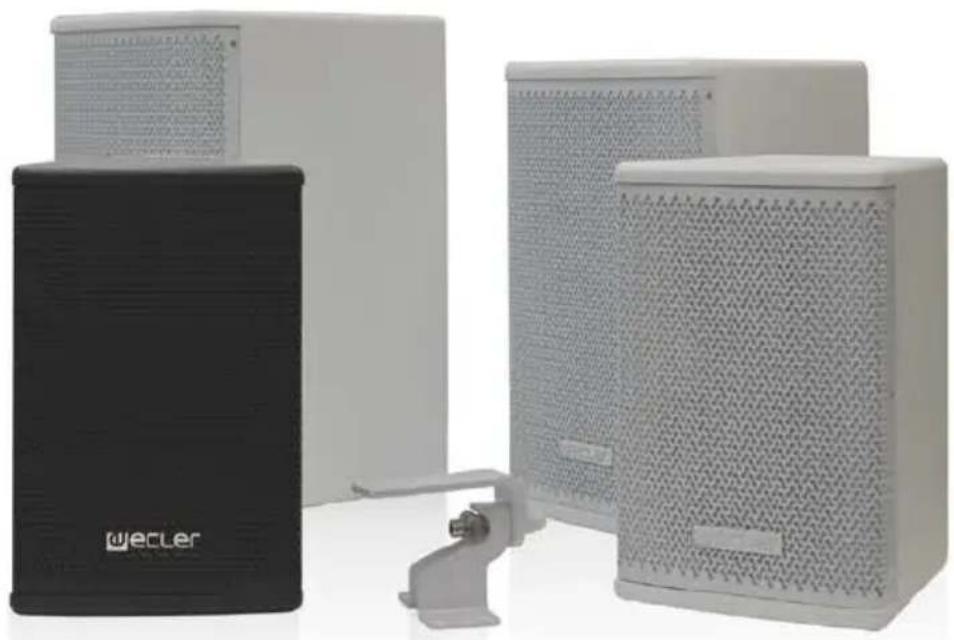

Exterior view of four white electronic speakers with black bases, no visible text or symbols on the devices themselves.

USER MANUAL

INDEX

Important note 3

Precautions 3

Introduction 4

Models 4

Connections 7

Recommended amplifier 8

Positioning 8

Installation 8

Technical specifications 9

Diagram 11

IMPORTANT NOTE

Congratulations! You are the owner of carefully designed and manufactured equipment. We thank you for trusting in us and choosing our ARQIS Series loudspeaker cabinets.

In order to get the optimum operation and efficiency from this unit, it is VERY IMPORTANT - before you plug anything - to read this manual very carefully and bear in mind all considerations specified within it. We strongly recommend that its maintenance be carried out by our Authorised Technical services.

Warning: an inappropriate usage of the device could cause injury, death or damage the apparatus.

PRECAUTIONS

• Read these instructions
• Keep these instructions
• Heed all warnings
• Follow all instructions
• Do not use this apparatus near water
• Clean only with dry cloth
  • Refer all servicing to qualified personnel

- Install in accordance with the manufacturer's instructions

- Do not install near any heat sources such as radiators or heat registers

- Only use attachments/accessories specified by the manufacturer

INTRODUCTION

Based on studying installers and interior design and system integration professionals as well as on a permanent contact with them, the ARQIS line of speakers is designed for fixed installation, especially in environments in need of a compact speaker offering high output, easy installation, long-term reliability and excellent sound quality.

MODELS

ARQIS105

• Full range, 2-way architectural loudspeaker
- 70 WRMS @ 8 Ω
- 5,25" woofer
- 1" tweeter
- Double INPUT/STACK connector, Euroblock type, with security attachment screws to avoid accidental disconnection
- Wall bracket included, allowing for pan & tilt adjustment, employing a single screw for fastening
- Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
• Available in black or white finish

ARQIS106

• Full range, 2-way architectural loudspeaker
• 120 WRMS @ 8 Ω
- 6,5" woofer
- 1" compression driver (rotable)
- Double INPUT/STACK connector, Euroblock type, with security attachment screws to avoid accidental disconnection
- Wall bracket included, allowing for pan & tilt adjustment, employing a single screw for fastening
- Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
• Available in black or white finish

ARQIS108

• Full range, 2-way architectural loudspeaker
• 175 WRMS @ 8 Ω
- 8" woofer
- 1" compression driver (rotable)
- Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection
- Wall bracket included, allowing for pan & tilt adjustment, employing a single screw for fastening
- U-bracket wall-mount accessory compatible, ARQ108UB (not included)
- Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
• Available in black or white finish

ARQIS205

• Full range, 2-way architectural loudspeaker
• 140 WRMS @ 8 Ω
- 2 x 5,25" woofer
- 1" compression driver (rotable)
- Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection
- U-bracket wall-mount included, allowing for tilt adjustment
- 8 x M8 cabinet flying points
- Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
• Available in black or white finish

ARQIS208

• Full range, 2-way architectural loudspeaker
• 300 WRMS @ 8 Ω
- 2 x 8" woofer
- 1" compression driver (rotable)
- Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection
- U-bracket wall-mount included, allowing for tilt adjustment
- 8 x M8 cabinet flying points

• Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
  • Available in black or white finish

ARQIS110

• Full range, 2-way architectural loudspeaker
• 220 WRMS @ 8 Ω
- 10" woofer
- 1" compression driver (rotable)
- 8 x M8 cabinet flying points.
• Available in black and white finish

- Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection

- 35 mm mount socket, compatible with SR12 wall bracket (not included) & TRIP01 floor stand (not included)

- U-bracket wall-mount accessory compatible, ARQ110UB (not included)

- Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface

ARQIS112

• Full range, 2-way architectural loudspeaker
• 340 WRMS @ 8 Ω
- 1 x 12" woofer
- 1" compression driver (rotable)
- Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection
- 35 mm mount socket, compatible with SR12 wall bracket (not included) & TRIPO1 floor stand (not included)
- U-bracket wall-mount accessory compatible, ARQ112UB (not included)
- 8 x M8 cabinet flying points.
- Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
• Available in black and white finish

ARQISSB10

• 1-way surface-mount subwoofer
• 150 WRMS @ 8 ohm
- 10" woofer
• Wall-mount hardware included
• 12 x M8 cabinet flying points
• Available in black or white finish

- Euroblock connector and spring loaded input terminals

- LPF cut-off frequency selection: OFF/ 120Hz / 150Hz

ARQISSB15

• 1-way architectural subwoofer
• 600 WRMS @ 8 Ω
- 15" woofer
- Double INPUT/STACK connector, Speakon© type
- 35 mm top-hat mount socket, for pole mount combinations with ARQIS10, ARQIS12, etc.
- 8 x M8 cabinet flying points.
• Available in black finish

CONNECTIONS

The connection cables which connect the amplifiers output and the speaker should be of good quality, have sufficient conductor area and be as short as possible. The latter fact is especially important when the distance is long and the load impedance low (4-8 ). A cross-section of at least 2.5mm ^2 is recommended for distances up to 10m; 4 or 6mm ^2 for longer distances. Following formula gives the required section, assuming 4% losses:

$$ \text { Cross section in mm } ^ {2} = \frac {\text { Length in m }}{\text { Loudspeaker impedance in } \Omega} $$

Always respect the polarity. All models have an Euroblock connector, and a second connector (Euroblock or Speakon®, depending on model), thereby facilitating the parallel connection of speakers.

RECOMMENDED AMPLIFIER

Following table shows the output power of the amplifier adequate to each acoustic system:

• ARQIS 105: between 70 and 150W RMS
• ARQIS 106: between 120 and 250W RMS
• ARQIS 108: between 150 and 300W RMS
• ARQIS 205: between 150 and 300W RMS
• ARQIS 208: between 300 and 600W RMS
• ARQIS 110: between 220 and 450W RMS
• ARQIS 112: between 340 and 700W RMS
• ARQIS SB10: between 150 and 300W RMS
• ARQIS SB15: between 600 and 1000W RMS

POSITIONING

Consider following general rules:

Place the speakers on a solid and firm surface. Subwoofers placed directly and horizontally on the ground have a higher output than hanged or directly on the floor, but vertically. No obstacles should stand between the enclosures and the audience. The high frequencies are very directive compared to the low frequencies, so that any obstacle will impair their response. In case large audiences must be addressed, a better long distance sound propagation will be achieved if the enclosures are flown high enough.

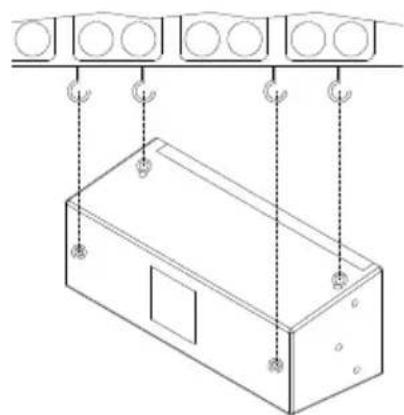

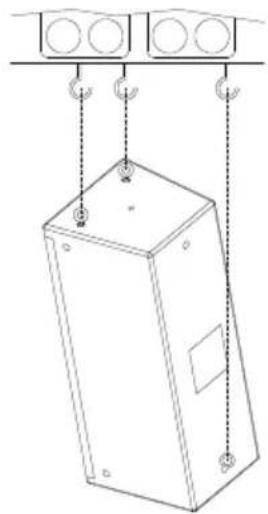

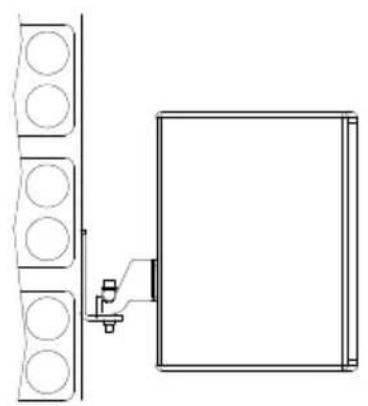

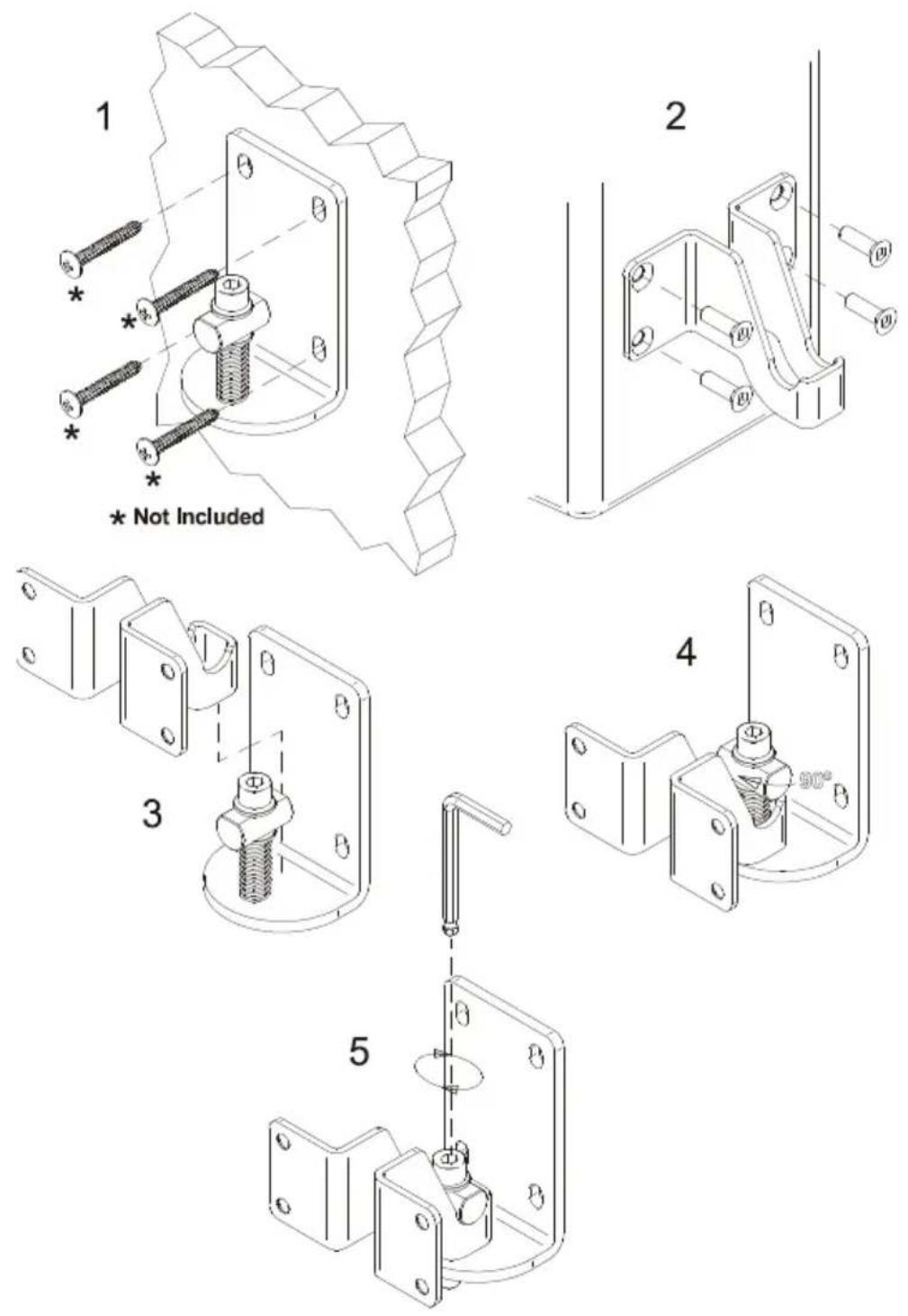

INSTALLATION

In the ARQIS series, the best way to install the enclosure was studied for each model. Each model from the ARQIS range is supplied with the optimal installation system. ARQIS205 / ARQIS208 / ARQIS110 / ARQIS 112 / ARQISSB10 / ARQISSB15 also have built-in M8 rigging points for suspension from a compatible structure or "truss" using steel cables.

IMPORTANT NOTE: The equipment must in no case be suspended using its carrying handles (if any); use the appropriate accessories for each application. Whenever a ceiling/wall mounting bracket is used, it is mandatory to add a redundant safety system. Use wire ropes, slings or chains of the appropriate diameter to prevent the fall of the speaker in case the main mounting system is pulled out.

	ARQIS105	ARQIS106	ARQIS108
Ways	2	2	2
Impedance	8Ω	8Ω	8Ω
RMS power	70 WRMS	120 WRMS	175 WRMS
Program power	140 WRMS	240 WRMS	350 WRMS
SPL 1W/1m	89 dB	92dB	93dB
Max SPL @ 1m	110 dB	116dB	118dB
Frequency response (±3dB)	85Hz÷20kHz	75Hz÷19kHz	60Hz÷19kHz
Cross-over frequency	3.2kHz	3.2kHz	3.5kHz
Dispersion (HxV)	120°x120°	90°x60°	90°x60°
Driver LF/MF	5.25"	6.5"	8"
Driver HF	Dome tweeter 1"	Compression driver 1"	Compression driver 1"
Connection	Euroblock 2 ways	Euroblock 2 ways	Euroblock 2 ways + Speakon© 4 ways
Dimensions (WxHxD)	186x280x210mm	216x350x240mm	244x390x280mm
Weight	3.6kg	7.4kg	8.4kg
Colour	Black / White	Black / White	Black / White

	ARQIS205	ARQIS208
Ways	2	2
Impedance	8Ω	8Ω
RMS power	140 WRMS	300 WRMS
Program power	280 WRMS	600 WRMS
SPL 1W/1m	92dB	96dB
Max SPL @ 1m	116dB	124dB
Frequency response (±3dB)	85Hz÷18kHz	65Hz÷18kHz
Cross-over frequency	2.6kHz	3.5kHz
Dispersion (HxV)	90^ × 60^	90^ × 60^
Driver LF/MF	2x5.25”	2x8”
Driver HF	Compression driver 1”	Compression driver 1”
Connection	Euroblock 2 ways + Speakon© 4 ways	Euroblock 2 ways + Speakon© 4 ways
Dimensions (WxHxD)	480x186x210mm	610x244x280mm
Weight	8.4kg	14.4kg
Colour	Black / White	Black / White
	ARQIS110	ARQIS112
Ways	2	2
Impedance	8Ω	8Ω
RMS power	220 WRMS	340 WRMS
Program power	440 WRMS	680 WRMS
SPL 1W/1m	95dB	97dB
Max SPL @ 1m	118dB	122dB
Frequency response (±3dB)	60Hz÷18kHz	60Hz÷18kHz
Cross-over frequency	3.5kHz	2.5kHz
Dispersion (HxV)	90°x50°	80°x40°
Driver LF/MF	10"	12"
Driver HF	Compression driver 1"	Compression driver 1"
Connection	Euroblock 2 ways + Speakon© 4 ways	Euroblock 2 ways + Speakon© 4 ways
Dimensions (WxHxD)	359x495x310mm	416x565x352mm
Weight	14.8kg	20.0kg
Colour	Black / White	Black / White

	ARQISSB10	ARQISSB15
Ways	10” subwoofer	15” subwoofer
Impedance	8Ω	8Ω
RMS power	150W	600W
Program power	300W	1200W
SPL 1W/1m	94dB	98dB
Max SPL @ 1m	115dB	125dB
Frequency response (±3dB)	45Hz-3kHz	45Hz-3kHz
Connection	Euroblock connector and spring loaded input terminals	2xSpeakon©
Dimensions (WxHxD)	600×442×228mm	534×460×525mm
Weight	16.5 kg	32.0 kg
Colour	Black / White	Black

Technical line drawing of a mechanical assembly with circular components and a rectangular block (no text or symbols)

Simple line drawing of a mechanical device with a conical base and three circular components above it (no text or symbols)

Technical line drawing of a rectangular enclosure with mounting holes and hanging fixtures (no text or symbols)

Line drawing of a cabinet with hanging wires and mounting holes (no text or symbols)

Pure technical line drawing of a rectangular panel with circular cutouts on both sides (no text or symbols)

Simple line drawing of a rectangular frame with circular cutouts on top and bottom (no text or symbols)

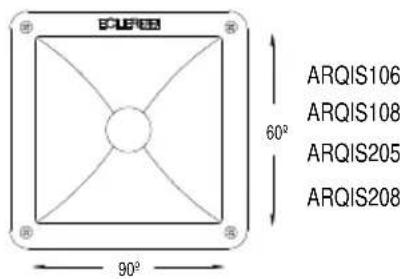

DISPERSION

HOLES FOR SRDA
OPTIONAL ACCESSORY

Technical line drawing of a U-shaped metal bracket with mounting holes and a curved internal feature (no text or symbols)

All product characteristics are subject to variation due to production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications.

Motors, 166-168 08038 Barcelona - Spain - ([phone] [e-mail] www.ecler.com
