About This Document

This document introduces PanoVu series network camera, including 360° panoramic + PTZ camera, 180° panoramic + PTZ camera, and 360° panoramic camera. It covers how to acvate and access to the camera, and operate the camera in the network environment.

Overview of Contents

This document contains the following chapters, seconds and appendixes:

Chapter1 Acvang and Accessing to the Camera provides procedures for seng network environment, acvang and accessing the camera by web browsers and client soware, and introduces the power-up acon.

Chapter2 Seng Local Parameters and Network suggests the basic sengs, including viewing device local informaon, conguring saving paths of les, network sengs, and other sengs.

Chapter3 Live View describes how to view video and congure the available sengs for the camera via web browser.

Chapter4 PTZ Control describes the PTZ funcon of camera, including preset, patrol, and pattern. It also suggests the PTZ conguraons, such as PTZ limits, initial posion, and park acons, etc..

Chapter5 Storage and Playback introduces how to set the storage, set the recording schedule and capture schedule to trigger the recording and capture by events, and how to view the pictures and play back the saved video les.

Chapter6 Alarm and Events explains how to congregate the camera to respond to alarm events, and make the events to trigger alarm acons.

Chapter7 Maintenance describes how to set the system sengs, security sengs and user management, including me sengs, RS-485 sengs, and DST sengs, etc.

Appendix describes the SADP soware, surge protecon and details, aenon of waterproof measurements and bubble maintenance, RS-485 bus conncon details, wire gauge standards and transmission distance, and alarm in/out conncons, etc.

Noce

The Camera 1 is the PTZ channel, and the Camera 2 and Camera 3 are the panoramic view channels. All PTZ funcons, including privacy mask, and ROI funcon are only supported by Camera 1.

Chapter 1 Acvang and Accessing to the

Camera

1.1 System Requirement

System requirements of web browser accessing are as follows:

Operang System: Microso Windows XP SP1 and above version/Vista/Win7/Server 2003/Server 2008 32bits

CPU: Intel Penum IV 3.0 GHz or higher

RAM: 1G or higher

Display: 1024 × 768 resoluon or higher

Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.02 and above version, Mozilla Firefox 5 and above version and Google Chrome 18 and above versions.

1.2 Acvang the Camera

1.2.1 Seng the Camera over the LAN

Purpose:

To view and congregate the camera via the LAN, you need to connect the camera in the same subnet with your computer, and install the SADP or client soware to search and change the IP address of the camera.

Note:

For the detailed introducon of SADP, refer to Appendix 1.

The following gures show the two ways of cable conneccon of a camera and a computer:

Purpose:

• To test the camera, you can directly connect the camera to the computer with a network cable as shown in Figure 1-1.
  ● Refer to Figure 1-2 to set the camera over the LAN via a switch or a router.

Network Cable

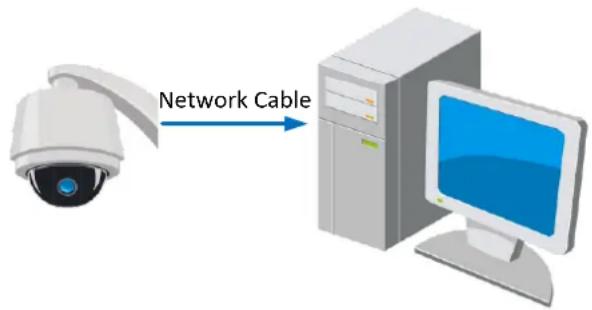

Figure 1-1 Connecng Directly


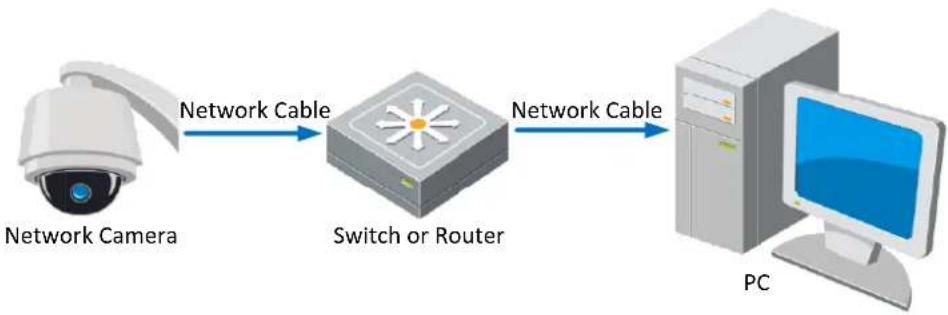

Figure 1-2 Connecting via an Switch or a Router

1.2.2 Acvang the Camera

Purpose:

You are required to acvate the camera rst before you can use the camera.

Acvaon via web browser, acvaon via SADP, and acvaon via client soware are supported. In the following seconds, acvaon via web browser and acvaon via SADP will be taken as examples. You may refer to the user manual of the camera for details of acvaon via client soware.

1. Power on the camera, and connect the camera to the network.
2. Input the IP address into the address bar of the web browser, and click Enter to enter the acvaon interface.

Note:

The default IP address of the camera is 192.168.1.64.

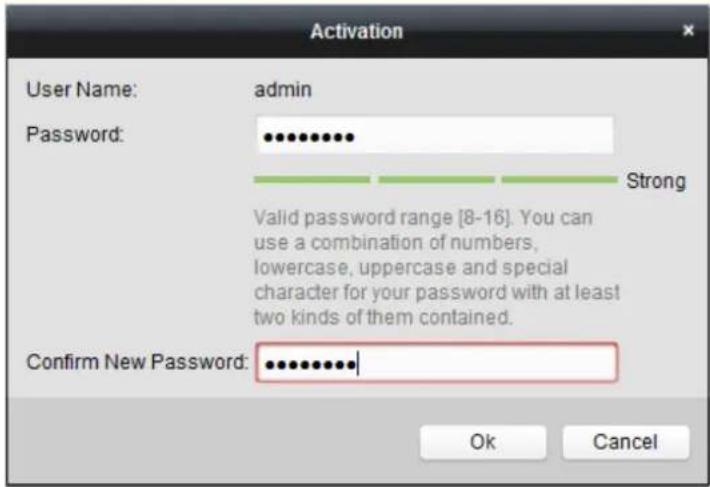

Activation User Name admin Password Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. Confirm OK

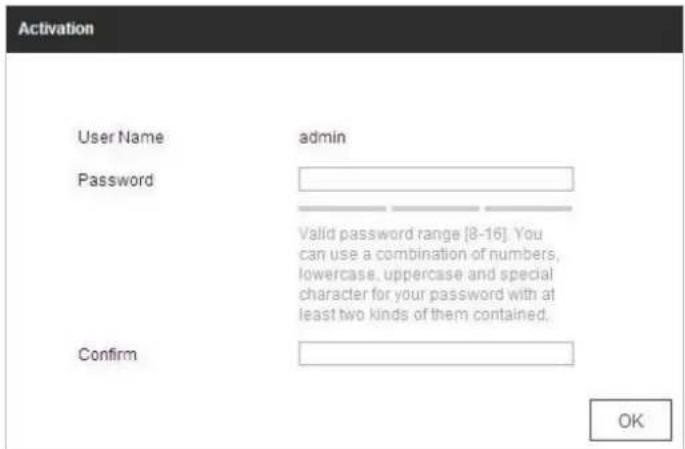

Figure 1-3 Acvaon Interface (Web Browser)

1. Create a password and input the password into the password eld.

STRONG PASSWORD RECOMMENDED— We highly recommend you create a strong

password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case leers, lower case leers, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, reseng the password monthly or weekly can beer protect your product.

1. Conrm the password.
2. Click OK to acvate the camera and enter the live view interface.

◆ Acvaon via SADP Soware

SADP soware is used for detecting the online device, acvang the device, and reseng the password.

Get the SADP soware from the supplied disk or the ocial website, and install the SADP soware according to the prompts. Follow the steps to acvate the camera.

Steps:

1. Run the SADP soware to search the online devices.
2. Check the device status from the device list, and select an inacve device.

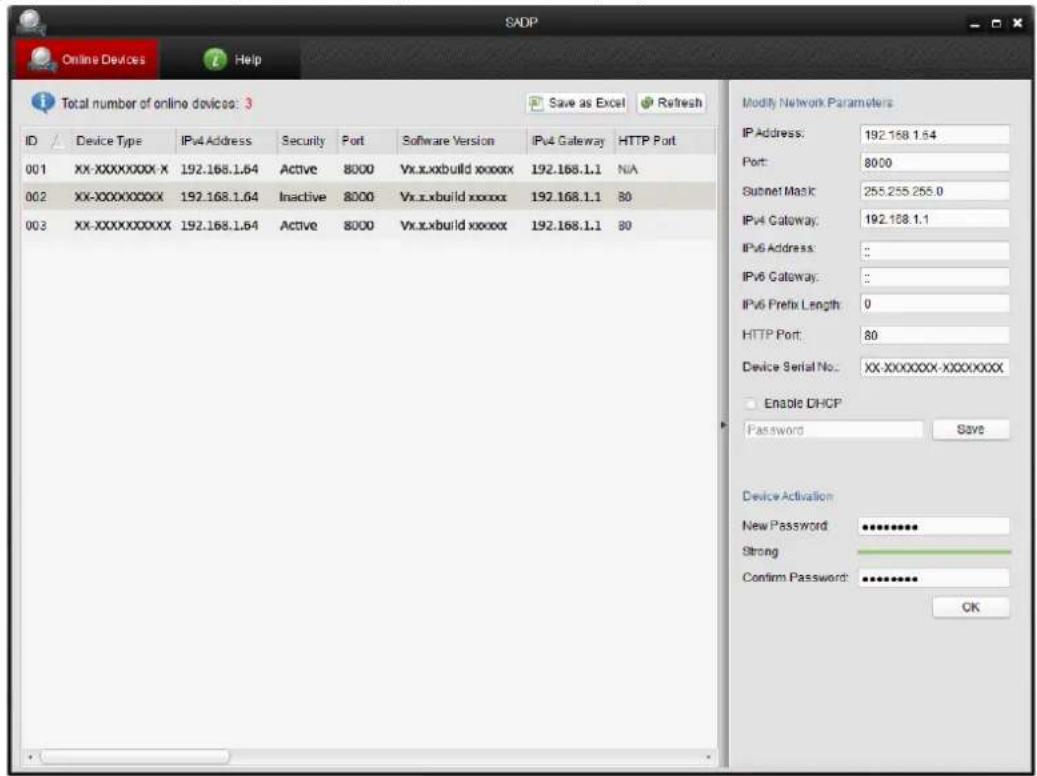

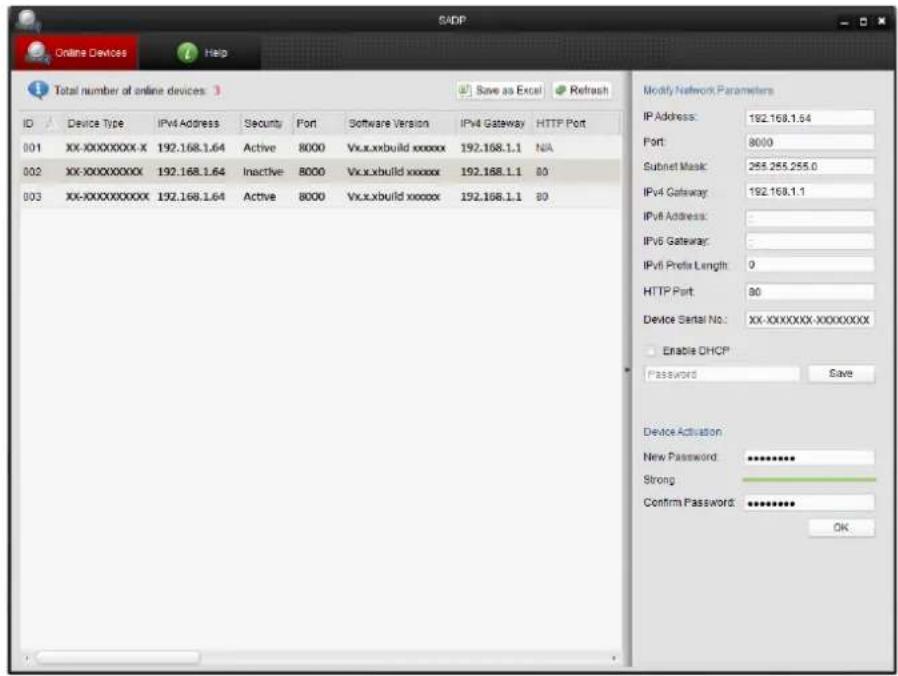

SADP Online Devices Help Total number of online devices: 3 ID Device Type IPv4 Address Security Port Software Version IPv4 Gateway HTTP Port 001 XX-XXXXXXX-X 192.168.1.64 Active 8000 Vx.x.xbuild xxxxxx 192.168.1.1 N/A 002 XX-XXXXXXXX 192.168.1.64 Inactive 8000 Vx.x.xbuild xxxxxx 192.168.1.1 80 003 XX-XXXXXXXX 192.168.1.64 Active 8000 Vx.x.xbuild xxxxxx 192.168.1.1 80 Modify Network Parameters IP Address: 192.168.1.64 Port: 8000 Subnet Mask: 255.255.255.0 IPv4 Gateway: 192.168.1.1 IPv6 Address: IPv6 Gateway: IPv6 Prefix Length: 0 HTTP Port: 80 Device Serial No: XX-XXXXXX-XXXXXXX Enable DHCP Password Save Device Activation New Password: ********** Strong Confirm Password: ********** OK

Figure 1-4 SADP Interface

1. Create a password and input the password in the password eld, and conrm the password.

STRONG PASSWORD RECOMMENDED— We highly recommend you create a strong

password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case leers, lower case leers, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, reseng the password monthly or weekly can beer protect your product.

1. Click OK to save the password.

You can check whether the acvaon is completed on the popup window. If acvaon failed, make sure that the password meets the requirement and then try again.

1. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the Enable DHCP checkbox.

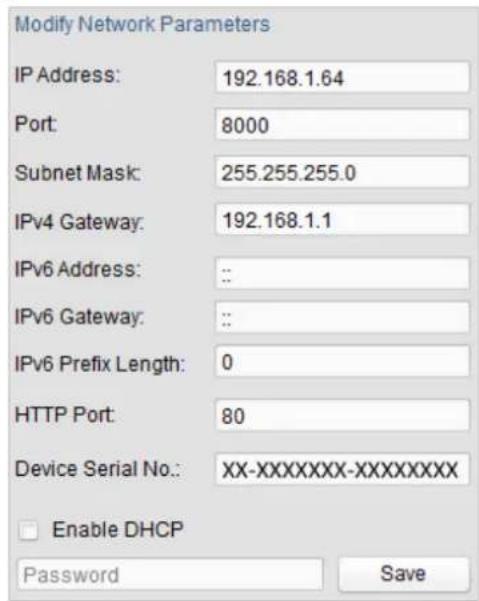

Modify Network Parameters IP Address: 192.168.1.64 Port: 8000 Subnet Mask: 255.255.255.0 IPv4 Gateway: 192.168.1.1 IPv6 Address: : : IPv6 Gateway: : : IPv6 Prefix Length: 0 HTTP Port: 80 Device Serial No.: XX-XXXXXXXX-XXXXXXXXX Enable DHCP Password Save

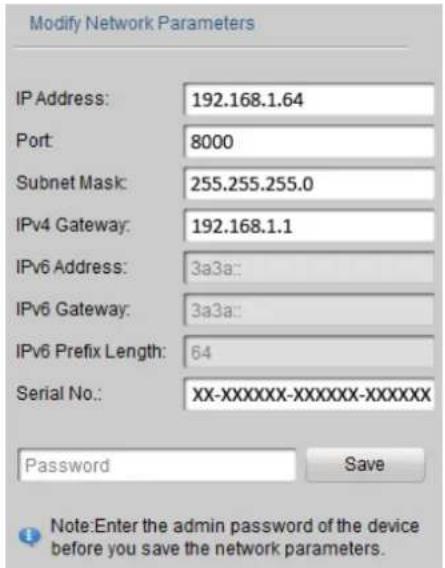

Figure 1-5 Modify the IP Address

1. Input the password and click Save to acvate your IP address modicaon.

◆ Acvaon via Client Soware

The client soware is versale video management soware for mulple kinds of devices.

Get the client soware from the supplied disk or the ocial website, and install the soware according to the prompts. Follow the steps to acvate the camera.

Steps:

1. Run the client soware and the control panel of the soware pops up, as shown in the gure below.

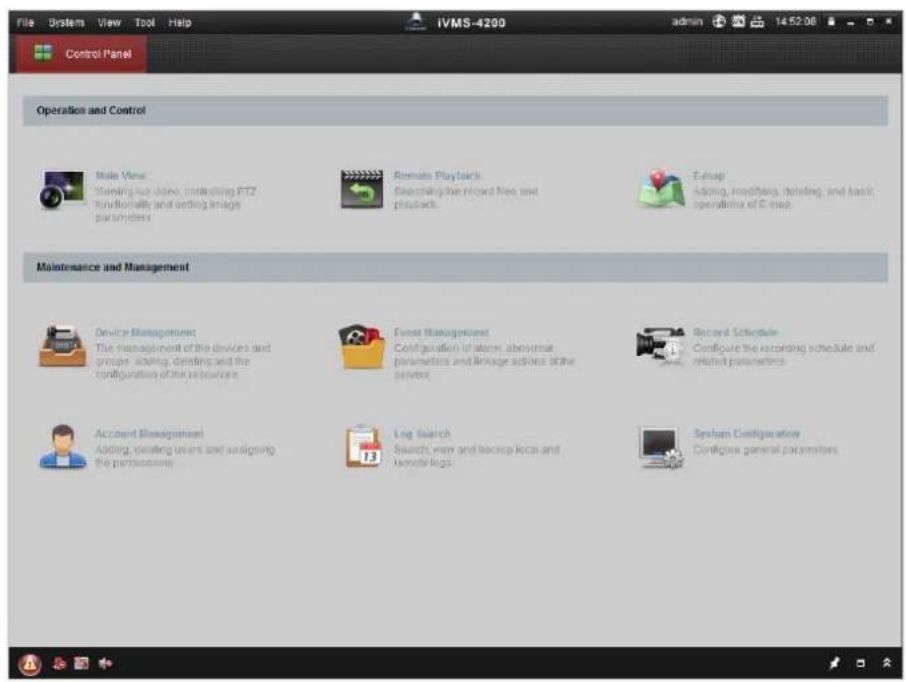

Control Panel Operation and Control File View Viewing key video, connecting PTZ functionally and setting images parameters Remote Playback Searching the record file and playback. E-Map Adding, modifying, deleting, and basic operations of E-Map Maintenance and Management Device Management The management of the devices and group, adding, deleting and the configuration of the resources Event Management Configuration of alarm, abnormal parameters and linkage actions other servers Record Schedule Configure the recording schedule and related parameters Account Management Adding, deleting users and assigning the permission Log Search Search view and backup local and remote logs. System Configuration Configure general parameters

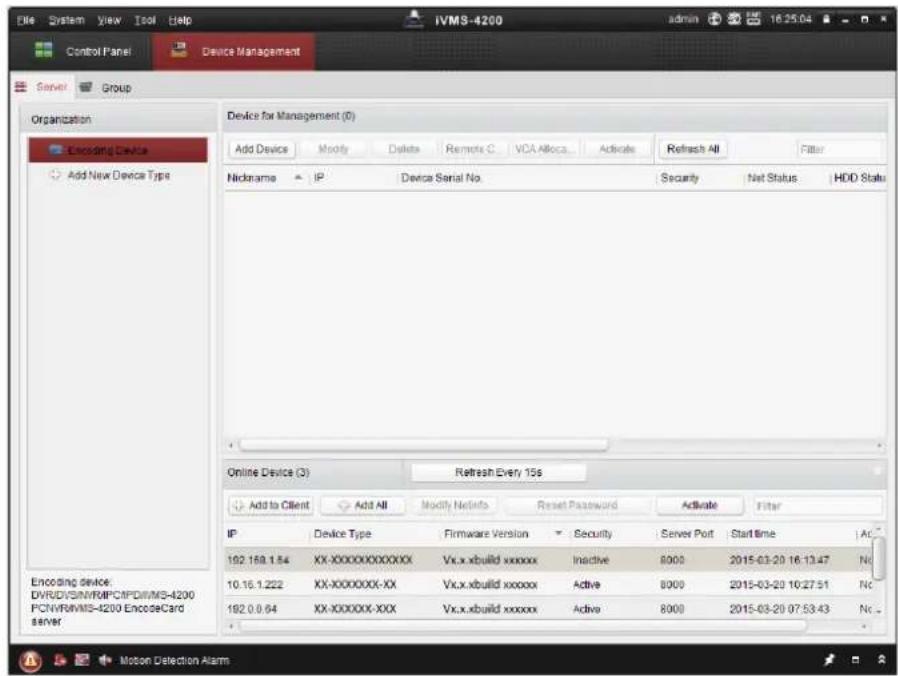

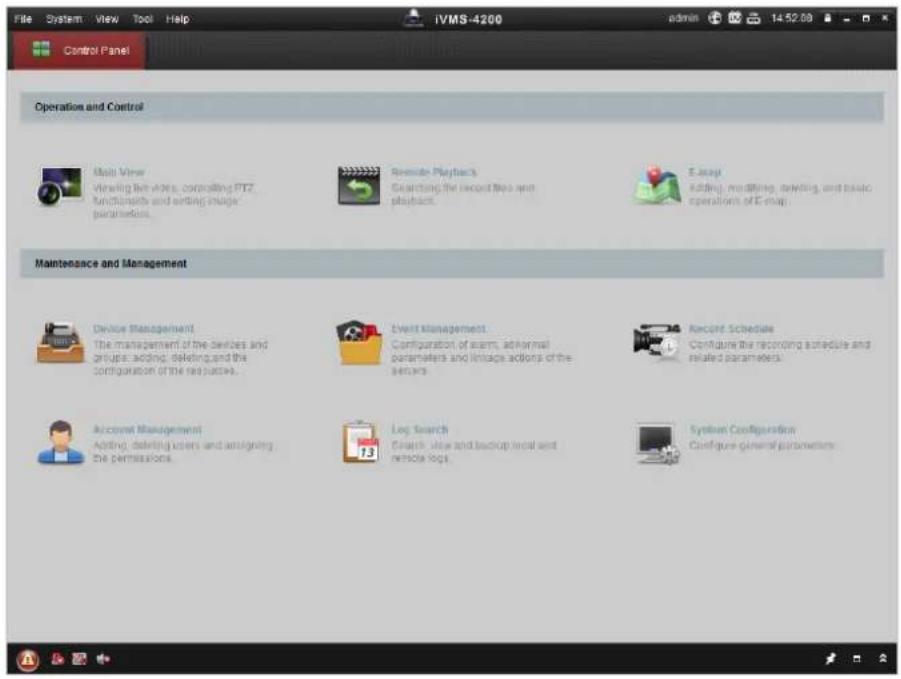

Figure 1-6 Control Panel

1. Click Device Management to enter the Device Management interface, as shown in the gure below.

Device for Management (0) Add Device Modify Delete Remote C VCA Allocs Activate Refresh All Filter Nickname IP Device Serial No Security Net Status HDD Status Online Device (3) Refresh Every 15s Add to Client Add All Modify None Info Reset Password Activate Filter IP Device Type Firmware Version Security Server Port Start Time Acc 192.169.1.84 XX-XXXXXXXXXXXXXV Xv.xxbuild xxxxxx Inactive 8000 2015-03-20 16:13:47 No 10.16.1.222 XX-XXXXXXXXX-XX Vx.xxbuild xxxxxx Active 8000 2015-03-20 10:27:51 No 192.0.0.64 XX-XXXXXXXXX-XXX Vx.xxbuild xxxxxx Active 8000 2015-03-20 07:53:43 No Encoding device: DV/RD/DSN/RMPC/PDFIVMS-4200 PCNV/RIVMS-4200 EncodeCard server Motion Detection Alarms

Figure 1-7 Device Management Interface

1. Check the device status from the device list, and select an inactive device.
2. Click Acvate to pop up the Acvation interface.
3. Create a password and input the password in the password eld, and conrm the password.

STRONG PASSWORD RECOMMENDED— We highly recommend you create a strong

password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case leers, lower case leers, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, reseng the password monthly or weekly can beer protect your product.

Activation User Name: admin Password: ••••••••• Strong Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. Confirm New Password: ••••••••••• Ok Cancel

Figure 1-8 Acvaon Interface

1. Click OK to start acvaon.

2. Click Modify Nenfo to pop up the Network Parameter Modicaon interface, as shown in the gure below.

Modify Network Parameter Device Information: MAC Address: XX-XX-XX-XX-XX Software Version: Vx.x.xbuild xxxxxx Device Serial No.: XX-XXXXXXXXXXXXXXXXXXXXXXXXXXXXX Network Information: DHCP Port: 8000 IPv4(Enable) IP address: 192.168.1.64 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1 IPv6(Disable) Password: OK Cancel

Figure 1-9 Modifying the Network Parameters

1. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the Enable DHCP checkbox.

2. Input the password to acvate your IP address modicaon.

1.3 Seng the Camera over the WAN (Oponal)

Purpose:

This secon explains how to connect the camera to the WAN with a stac IP or a dynamic IP.

1.3.1 Stac IP Connecon

Before you start:

Apply a stac IP from an ISP (Internet Service Provider). With the stac IP address, you can connect the camera via a router or connect it to the WAN directly.

◆ Connecng the camera via a router

Steps:

1. Connect the camera to the router.
2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Secon 1.2 Acvang the Camera for detailed IP address conguraon of the camera.
3. Save the stac IP in the router.
4. Set port mapping, E.g., 80, 8000 and 554 ports. The steps for port mapping vary depending on dierent routers. Call the router manufacturer for assistance with port mapping.

Note:

Refer to Appendix 2 for detailed informaon about port mapping.

1. Visit the camera through a web browser or the client soware over the internet.


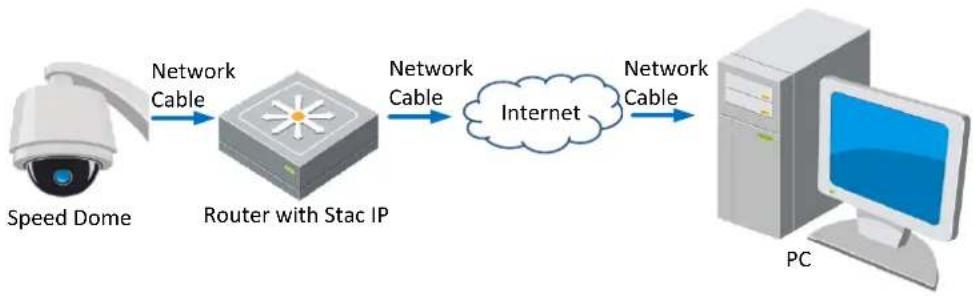

Figure 1-10 Accessing the Camera through Router with Stac IP

◆ Connecng the camera with stac IP directly

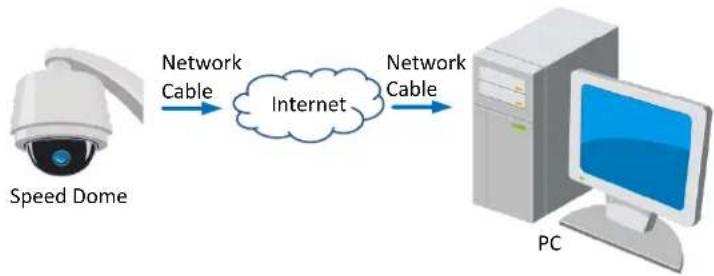

You can also save the stac IP in the camera and directly connect it to the internet without using a router. Refer to Secon 1.2 Activang the Camera for detailed IP address conguration of the camera.

Figure 1-11 Accessing the Camera with Stac IP Directly

1.3.2 Dynamic IP Connecon

Before you start:

Apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the camera to a modem or a router.

◆ Connecng the camera via a router

Steps:

1. Connect the camera to the router.

2. In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer to Secon 1.2 Acvang the Camera for detailed LAN conguraon.

3. In the router, set the PPPoE user name, password and conrm the password.

- For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.

- Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

1. Set port mapping. E.g. 80, 8000 and 554 ports. The steps for port mapping vary depending on dierent routers. Call the router manufacturer for assistance with port mapping.

Note:

Refer to Appendix 2 for detailed informaon about port mapping.

1. Apply a domain name from a domain name provider.
2. Congure the DDNS sengs in the seng interface of the router.
3. Visit the camera via the applied domain name.

◆ Connecng the camera via a modem

Purpose:

This camera supports the PPPoE auto dial-up funcon. The camera gets a public IP address by ADSL dial-up aer the camera is connected to a modem. You need to conjure the PPPoE parameters of the camera. Refer to Secon 2.2.1 Basic Sengs - Conguring PPPoE Sengs for detailed conguraon.

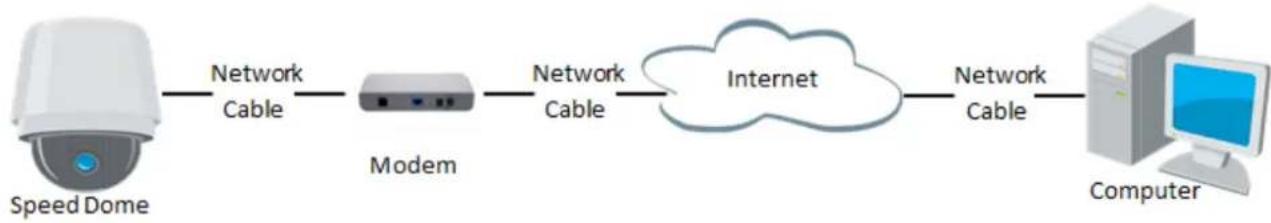


Figure 1-12 Accessing the Camera with Dynamic IP

Note:

The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes aer reboong the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (E.g. DynDns.com). Follow the steps below for normal domain name resoluon and private domain name resoluon to solve the problem.

◆ Normal Domain Name Resoluon

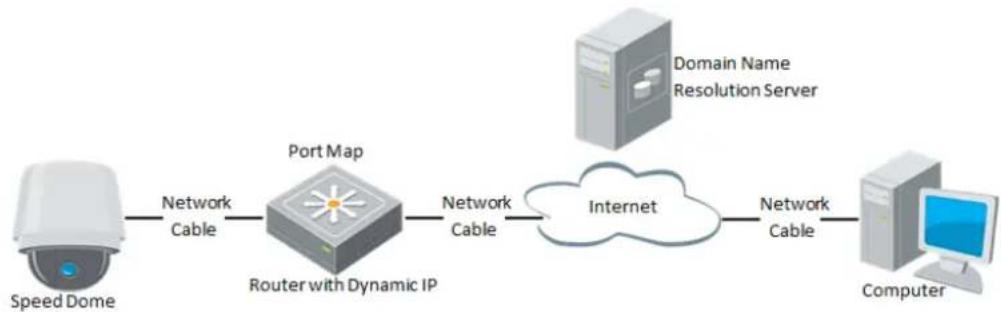


Figure 1-13 Normal Domain Name Resoluon

Steps:

1. Apply a domain name from a domain name provider.
2. Congure the DDNS sengs in the DDNS Seings interface of the camera. Refer to Secon 2.2.1 Basic Senas - Conguring DDNS Senas for detailed conguraon.
3. Visit the camera via the applied domain name.

1.4 Accessing to the Camera

1.4.1 Accessing by Web Browsers

Steps:

1. Open the web browser.

2. In the address eld, input the IP address of the camera, e.g., 192.168.1.64 and click Enter to enter the login interface.

3. If you acvate the camera for the rst me using, refer to the Secon 1.2 Acvang the Camera.

4. Select English as the interface language on the top-right of login interface.

5. Input the user name and password and click

Login

The admin user should congregate the device accounts and user/operator permissions properly. Delete the unnecessary accounts and user/operator permissions.

Note:

The device IP address gets locked if the admin user performs 7 failed password aempts (5 aempts for the user/operator).

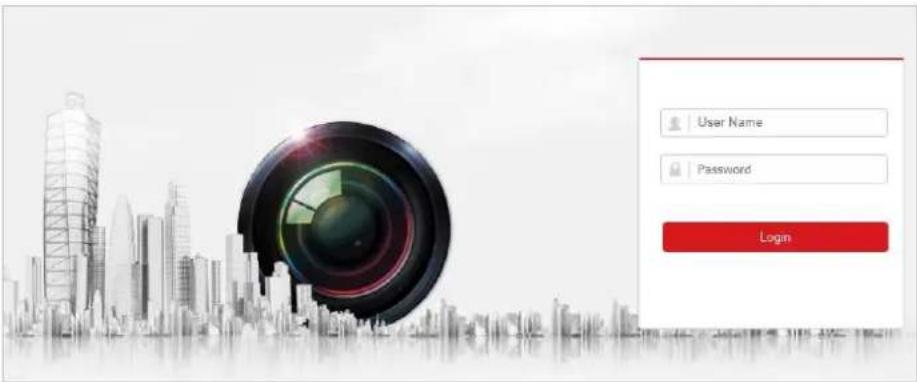

User Name Password Login

Figure 1-14 Login Interface

1.4.2 Accessing by Client Soware

The product CD contains the client soware. You can view the live video and manage the camera with the client soware.

Follow the installaon prompts to install the client soware and. The conguraon interface and live view interface of client soware are shown below.

File System View Tool Help iVMS-4200 admin 14:52:09 Control Panel Operation and Control Main View Viewing Web Area, controlling PTZ functionally and setting image parameters. Reminder Playback Searching the record New and playback. E-mail Editing, modelling, drafting, and basic operations of E-mail. Maintenance and Management Device Management The management of the devices and groups: adding, deleting, and the configuration of the resources. Event Management Configuration of alarm, abnormal parameters and linkage actions of the parameters. Record Schedule Configure the recording schedule and related parameters. Account Management Adding, deleting users and assigning, the permissions. Log Search Search, view and backup local and remote logs. System Configuration Configure general parameters

Figure 1-15 iVMS-4200 Control Panel

File System View Tool Help Control Panel Main View View Search... Default View 1-Screen 4-Screen 9-Screen 16-Screen Custom View Camera Search PTZ Control IVMS-4200 admin 14:36:56

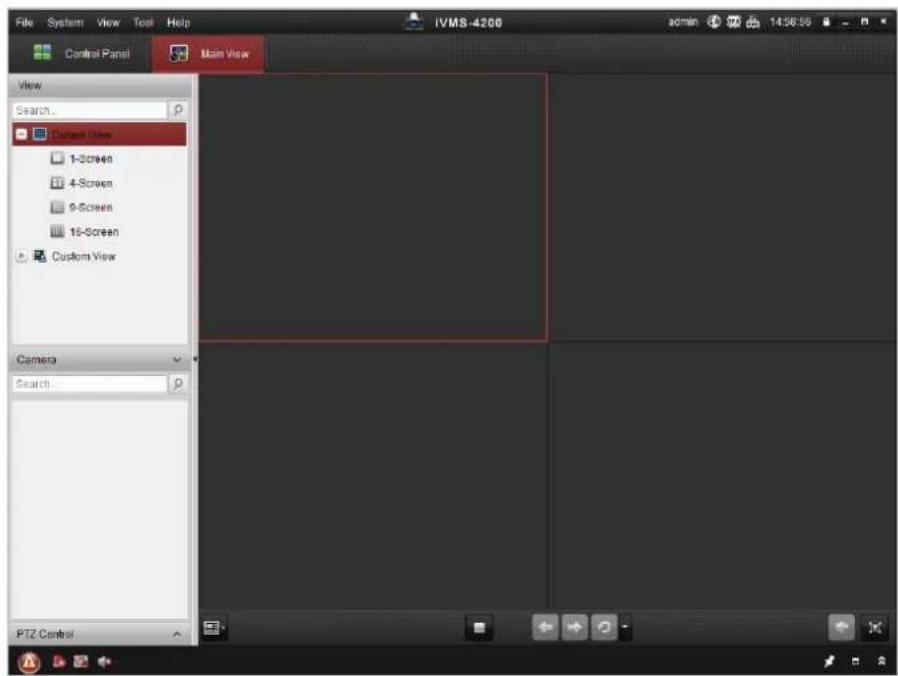

Figure 1-16 iVMS-4200 Live View Interface

Notes:

- If you use third party VMS soware, contact technical support of our branch for camera rmware.

- For detailed informaon about client soware of our company, refer to the user manual of the soware. This manual mainly introduces accessing to the camera by web browser.

1.5 Power-up Acon

Aer the power is applied, the camera will perform self-test acons. It begins with lens acons and then pan and lt movement. Aer the power-up self-test acons, the informaon shown in Figure 1-17 will be displayed on screen for 40 seconds.
The system informaon displayed on the screen includes the camera model, address, protocol, version and other informaon. The COMMUNICATION refers to the baud rate, parity, data bit and stop bit of the camera. e.g., "2400, N, 8, 1" indicates the camera is congured with the baud rate of 2400, no parity, 8 data bits and 1 stop bit.

Model	XX-XXXXXX-X
Address	0
Communicaon	0000,0,0,0
Soware Version	Vx.x.x
Camera Version	Vx.xx
Language	English

Figure 1-17 Power-up Informaon

Chapter 2 Seng Local Parameters and

Network

2.1 Conguring Local Parameters

Note:

The local conguraon refers to the parameters of the live view and other operaons using the web browser.

Steps:

1. Enter the Local conguraon interface:

Conguraon > Local

Local System Network Video/Audio Image PTZ Event Storage VCA Face Capture Live View Parameters Protocol ○ TCP ○ UDP ○ MULTICAST ○ HTTP Play Performance ○ Shortest Delay ● Balanced ○ Fluent Rules ○ Enable ● Disable Display POS Information ○ Enable ● Disable Image Format ● JPEG ○ BMP Record File Settings Record File Size ○ 256M ● 512M ○ 1G Save record files to ______ Browse Open Save downloaded files to ______ Browse Open Picture and Clip Settings Save snapshots in live vi... ______ Browse Open Save snapshots when pla... ______ Browse Open Save clips to ______ Browse Open Save

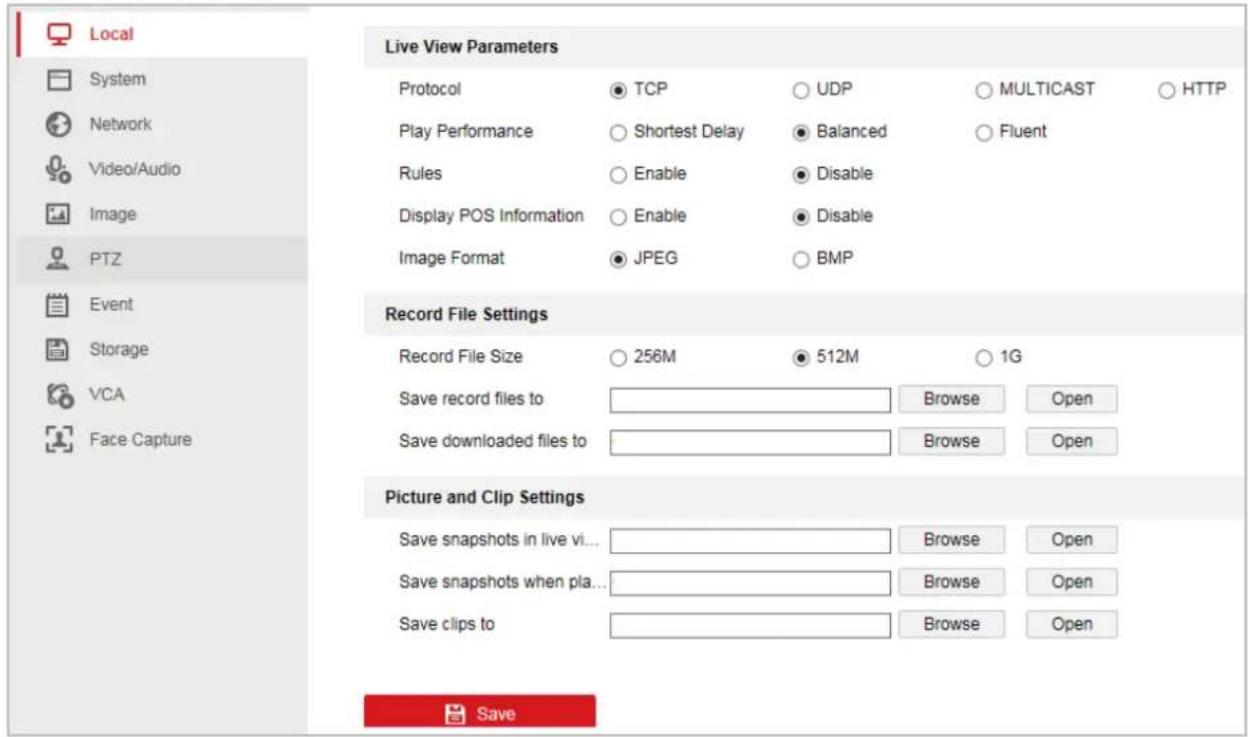

Figure 2-1 Local Conguraon Interface

1. Congure the following sengs:

Live View Parameters: Set the protocol type, play performance, rules, and image format.

• Protocol: TCP, UDP, MULTICAST and HTTP are selectable.
  TCP: Ensures complete delivery of streaming data and beer video quality, yet the real-me transmission will be aected.
  UDP: Provides real-me audio and video streams.

MULTICAST: It's recommended to select the protocol type to Mulcast when using the Mulcast funcon. For other informaon about Mulcast, refer to Secon 2.2.1 Basic Sengs -

Conguring TCP/IP Sengs.

HTTP: Allows the same quality as of TCP without seng specic ports for streaming under some network environments.

● Play Performance: Set the live view performance to Shortest Delay, Balanced or Fluent.
● Rules: You can enable or disable the rules of dynamic analysis for events here.

• Display POS Informaon: Enable the funcon, feature informaon of the detected target is dynamically displayed near the target in the live image.
• Image Format: The captured pictures can be saved in different format. JPEG and BMP are available.

◆ Record File Sengs: Set the saving path of the video les.

• Record File Size: Select the packed size of manually recorded and downloaded video les. The size can be set to 256M, 512M or 1G.
• Save record les to: Set the saving path for the manually recorded video les.

- Save downloaded les to: Set the saving path for the downloaded video les in interface.

◆ Picture and Clip Setngs: Set the saving paths of the captured pictures and clipped video les.

• Save snapshots in live view to: Set the saving path of the manually captured pictures in Live View interface.
• Save snapshots when playback to: Set the saving path of the captured pictures in Playback interface.

- Save clips to: Set the saving path of the clipped video les in

interface.

Note:

You can click to change the directory for saving video les, clips and pictures.

1. Click to save the sengs.

2.2 Conguring Network Sengs

2.2.1 Basic Sengs

Conguring TCP/IP Sengs

Purpose:

TCP/IP sengs must be properly congured before you operate the camera over network. IPv4 and IPv6 are both supported.

Steps:

1. Enter TCP/IP sengs interface:

Conguraon > Network > Basic Sengs > TCP/IP

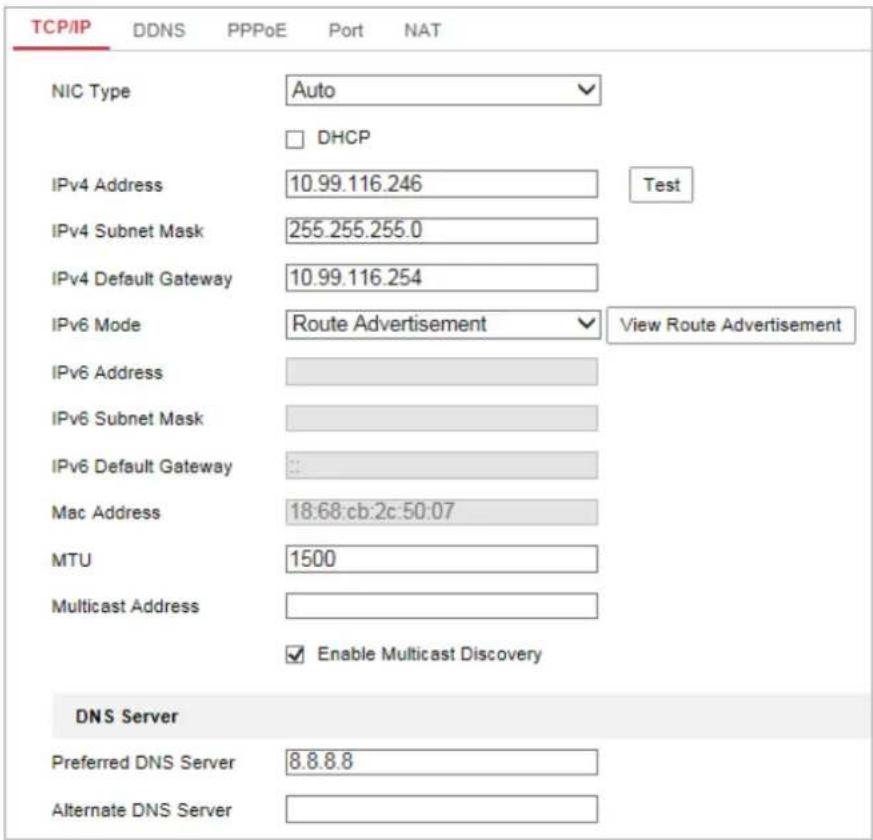

TCP/IP DDNS PPPoE Port NAT NIC Type Auto □ DHCP IPv4 Address 10.99.116.246 Test IPv4 Subnet Mask 255.255.255.0 IPv4 Default Gateway 10.99.116.254 IPv6 Mode Route Advertisement View Route Advertisement IPv6 Address IPv6 Subnet Mask IPv6 Default Gateway Mac Address 18:68:cb:2c:50:07 MTU 1500 Multicast Address ■ Enable Multicast Discovery DNS Server Preferred DNS Server 8.8.8.8 Alternate DNS Server

Figure 2-2 TCP/IP Sengs

1. Congure the basic network sengs, including the NIC Type, IPv4 or IPv6 Address, IPv4 or IPv6 Subnet Mask, IPv4 or IPv6 Default Gateway, MTU sengs and Mulcast Address.

2. (Oponal) Check the Enable Mulcast Discovery checkbox, and then the online network camera can be automatically detected by client soware via private mulcast protocol in the LAN.

3. Congure the DNS server. Input the preferred DNS server, and alternate DNS server.

4. Click to save the above sengs.

Notes:

● The valid value range of MTU is 1280 \~ 1500.
- The Mulcast sends a stream to the mulcast group address and allows mulple clients to acquire the stream at the same me by requesng a copy from the mulcast group address. Before utilizing this funcon, you have to enable the Mulcast funcon of your router.
● Reboot the device before the sengs take eect.

Conguring DDNS Sengs

Purpose:

If your camera is set to use PPPoE as its default network conncon, you can use the Dynamic DNS (DDNS) for network access.

Before you start:

Registraon on the DDNS server is required before conguring the DDNS sengs of the camera.

- For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (Using a minimum of 8 characters, including at least three of

the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.

- Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Steps:

1. Enter the DDNS sengs interface:

Conguraon > Network > Basic Sengs > DDNS

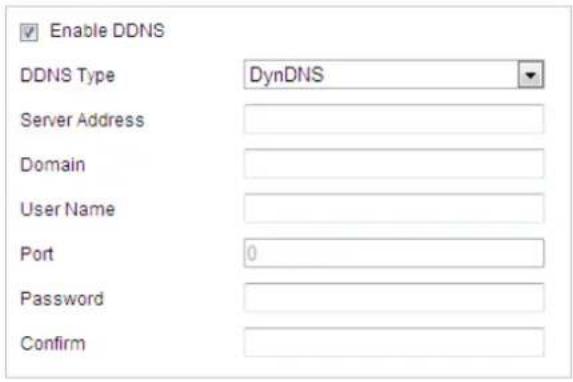

Enable DDNS DDNS Type DynDNS Server Address Domain User Name Port 0 Password Confirm

Figure 2-3 DDNS Sengs

1. Check the Enable DDNS checkbox to enable this feature.
2. Select DDNS Type. Two DDNS types are selectable: DynDNS and NO-IP.

- DynDNS:

Steps:

(1) Input Server Address of DynDNS (e.g. members.dyndns.org).
(2) In the Domain text eld, input the domain name obtained from the DynDNS website.
(3) Input the Port of DynDNS server.
(4) Input the User Name and Password registered on the DynDNS website.

(5) Click to save the sengs.

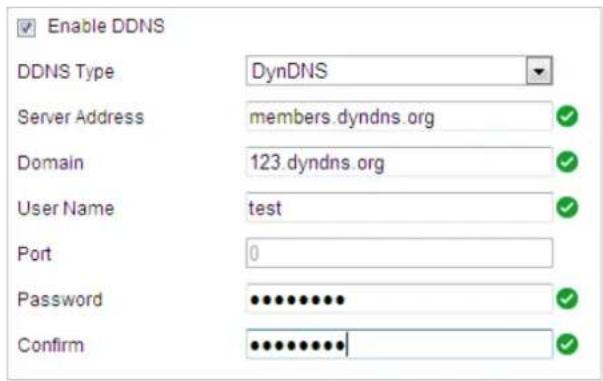

Enable DDNS DDNS Type DynDNS Server Address members.dyndns.org Domain 123.dyndns.org User Name test Port 0 Password •••••••••• Confirm •••••••••••

Figure 2-4 DynDNS Sengs

- NO-IP:

Steps:

(1) Input Server Address of NO-IP.
(2) In the Domain text eld, input the domain name obtained from the NO-IP website.
(3) Input the Port of NO-IP server.
(4) Input the User Name and Password registered on the NO-IP website.

(5) Click to save the sengs.

Conguring PPPoE Sengs

Purpose:

If you have no router but only a modem, you can use Point-to-Point Protocol over Ethernet (PPPoE) funcon.

Steps:

1. Enter the PPPoE sengs interface:

Conguraon > Network > Basic Sengs > PPPoE

Enable PPPoE Dynamic IP 0.0.0.0 User Name Password Confirm

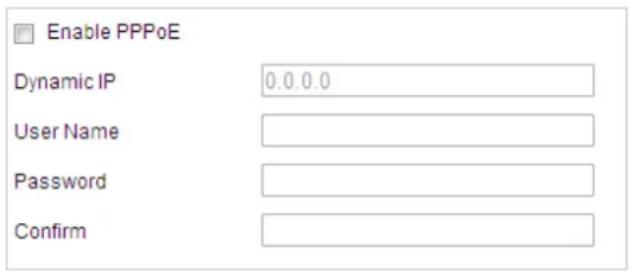

Figure 2-5 PPPoE Sengs

1. Check the Enable PPPoE checkbox to enable this feature.
2. Input User Name, Password, and Conrm password for PPPoE access.

Note:

The User Name and Password should be assigned by your ISP.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.

• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

• Click to save and exit the interface.

Conguring Port Sengs

Purpose:

If there is a router and you want to access the camera through Wide Area Network (WAN), you need to forward the 3 ports for the camera.

Steps:

1. Enter the Port sengs interface:

Conguraon > Network > Basic Sengs > Port

HTTP Port 80 RTSP Port 554 HTTPS Port 443 Server Port 8000

Figure 2-6 Port Sengs

1. Set the HTTP port, RTSP port, HTTPS port and port of the camera.

HTTP Port: The default port number is 80.

RTSP Port: The default port number is 554.

HTTPS Port: The default port number is 443.

Server Port: The default port number is 8000.

3. Click

Conguring NAT (Network Address Translaon) Sengs

Purpose:

Universal Plug and Play (UPnP™) is a networking architecture that provides compatibility among networking equipment, soware and other hardware devices. The UPnP protocol allows devices to connect seamlessly and to simplify the implementation of networks in the house and corporate environments.

With the funcon enabled, you don't need to conjure the port mapping for each port, and the camera is connected to the Wide Area Network via the router.

Steps:

1. Enter the NAT sengs interface by

Conguraon > Network > Basic Sengs > NAT

1. Check the ☑ Enable UPnP™ checkbox to enable the UPnP™ funcon.

2. Set the port mapping mode:

To port mapping with the default port numbers:

Choose

Port Mapping Mode

Auto

To port mapping with the customized port numbers:

Choose

Port Mapping Mode

Manual

And you can customize the value of the port No. by yourself.

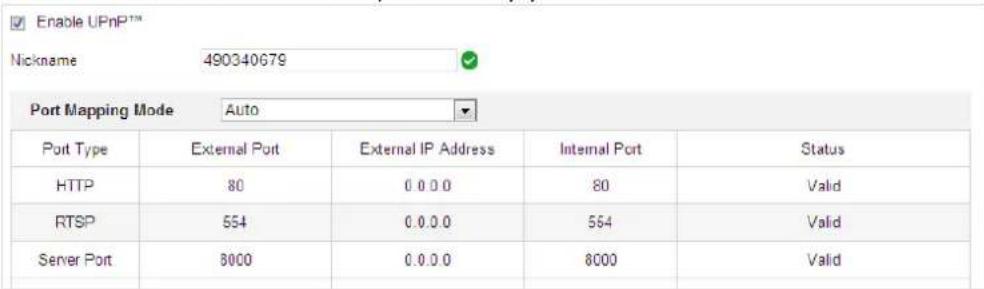

Enable UPnP™ Nickname 490340679 Port Mapping Mode Auto Port Type External Port External IP Address Internal Port Status HTTP 80 0.0.0 80 Valid RTSP 554 0.0.0 554 Valid Server Port 8000 0.0.0 8000 Valid

Figure 2-7 Congure the Port No.

4. Click

2.2.2 Advanced Sengs

Conguring SNMP Sengs

Purpose:

You can use SNMP to get camera status and parameters related informaon.

Before you start:

Before seng the SNMP, use the SNMP soware and manage to receive the camera informaon via SNMP port. By seng the Trap Address, the camera can send the alarm event and excepon messages to the surveillance center.

Note:

The SNMP version you select should be the same as that of the SNMP soware.

Steps:

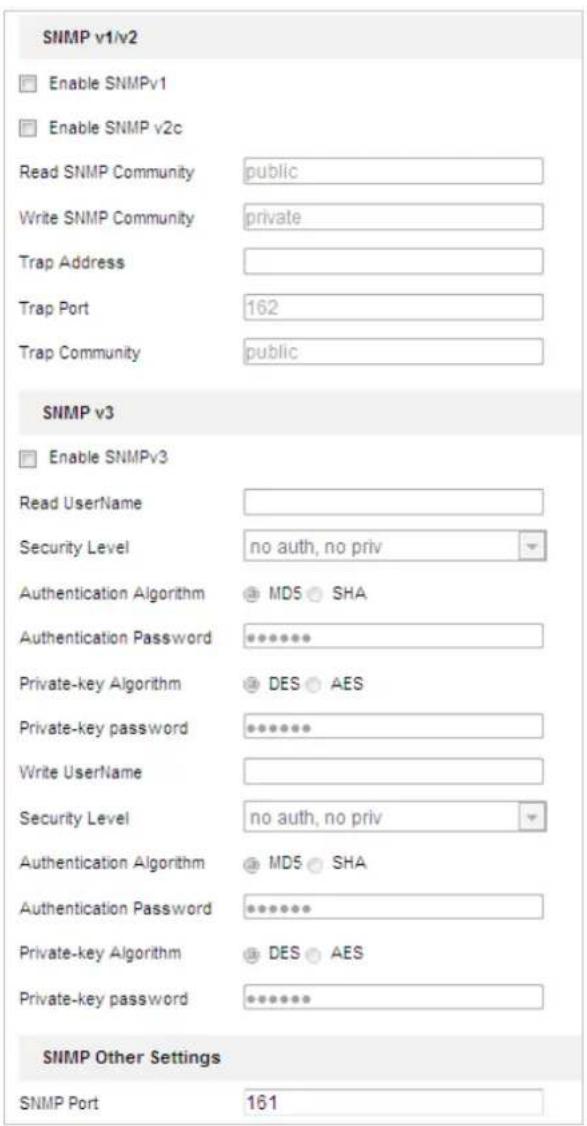

1. Enter the SNMP sengs interface:

Conguraon > Network > Advanced Sengs > SNMP

SNMP v1/v2 Enable SNMPv1 Enable SNMP v2c Read SNMP Community public Write SNMP Community private Trap Address Trap Port 162 Trap Community public SNMP v3 Enable SNMPv3 Read UserName Security Level no auth, no priv Authentication Algorithm MD5 SHA Authentication Password ***** Private-key Algorithm DES AES Private-key password ***** Write UserName Security Level no auth, no priv Authentication Algorithm MD5 SHA Authentication Password ***** Private-key Algorithm DES AES Private-key password ***** SNMP Other Settings SNMP Port 161

Figure 2-8 SNMP Sengs

1. Check the corresponding version checkbox (Enable SNMP v1, Enable SNMP v2c, Enable SNMP v3) to enable the feature.
2. Congure the SNMP sengs.

Note:

The conguraon of the SNMP soware should be the same as the sengs you congure here.

1. Click

to save and nish the sengs.

Conguring FTP Sengs

Purpose:

You can set a FTP server and congure the following parameters for uploading captured pictures.

Steps:

1. Enter the FTP sengs interface:

Conguraon > Network > Advanced Sengs > FTP

Server Address 0.0.0.0 Port 21 User Name Anonymous Password Confirm Directory Structure Save in the child directory Parent Directory Use Device Name Child Directory Use Camera Name Upload Picture Test

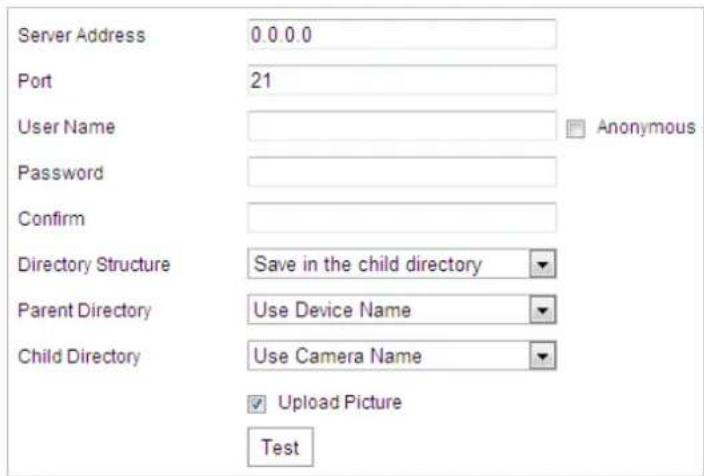

Figure 2-9 FTP Sengs

1. Congure the FTP sengs, including server address, port, user name, password, directory, and upload type.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

The server address supports both the domain name and IP address formats.

- Setng the directory in FTP server for saving les:

In the Directory Structure eld, you can select the root directory, parent directory and child directory.

• Root directory: The les will be saved in the root of FTP server.
• Parent directory: The les will be saved in a folder in FTP server. The name of folder can be dened as shown in following Figure 2-10.

Use Device Name Use Device Name Use Device Number Use Device IP address Custom

Figure 2-10 Parent Directory

- Child directory: It is a sub-folder which can be created in the parent directory. The les will be saved in a sub-folder in FTP server. The name of folder can be dened as shown in following Figure 2-11.

Use Camera Name Use Camera Name Use Camera Number Custom

Figure 2-11 Child Directory

- Upload type: To enable uploading the captured picture to the FTP server.

3. Click to save the sengs.

Note:

If you want to upload the captured pictures to FTP server, you also have to enable the connuous snapshot or event-triggered snapshot in Snapshot interface. For detailed informaon, refer to the Secon 5.1.4 Conguring Capture Schedule.

Conguring Email Sengs

Purpose:

The system can be congured to send an Email nocoon to all designated receivers if an alarm event is detected, e.g., moon detecon event, video tampering, etc.

Before you start:

Congure the DNS Server sengs under Conguraon > Network > Basic Sengs > TCP/IP before using the Email funcon.

Steps:

1. Enter the Email sengs interface:

Conguraon> Network > Advanced Sengs > Email

Sender Sender's Address SMTP Server SMTP Port 25 E-mail Encryption None Authentication User Name Password Confirm Receiver No. Receiver Receiver's Address Test 1 2 3 Save

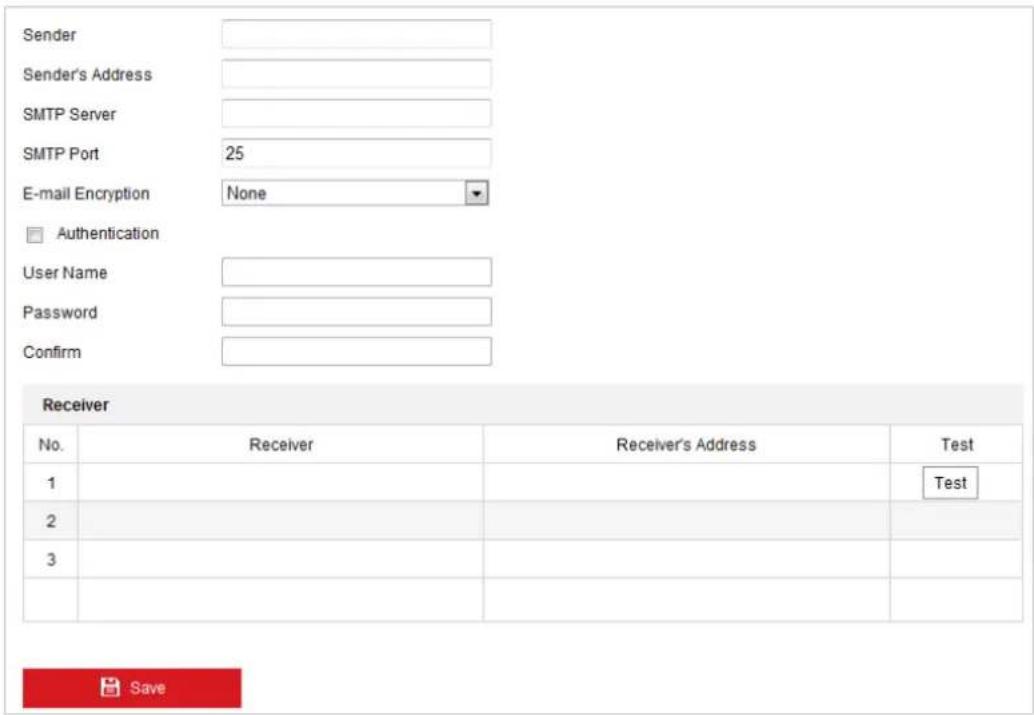

Figure 2-12 Email Sengs

1. Congure the following sengs:

Sender: The name of the email sender.

Sender's Address: The email address of the sender.

SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).

SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25.

E-mail Encrypon: Email encrypon can be selected among None, SSL, and TLS. When you select SSL or TLS and disable STARTTLS, e-mails will be sent aer encrypted by SSL or TLS. The SMTP port

should be set as 465 for this encrypon method. When you select SSL or TLS and enable STARTTLS, emails will be sent aer encrypted by STARTTLS, and the SMTP port should be set as 25.

Note:

If you want to use STARTTLS, make sure that the protocol is supported by your e-mail server. If you check the Enable STARTTLS checkbox when the protocol is not supported by your e-mail sever, your e-mail will not be encrypted.

Authencaon (oponal): If your email server requires authencaon, check this checkbox to use authencaon to log in to this server and input the login user name and password.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Receiver: Input the receiver to which the email is sent.

Receiver's Address: The email address of user to be noed.

Note:

You can click to check whether the seng is invalid aer the required parameters are congured.

3. Click

Conguring HTTPS Sengs

Purpose:

HTTPS provides authencaon of the web site and associated web server that one is communicang with, which protects against Man-in-the-middle aacks. Perform the following steps to set the port number of hps.

Example:

If you set the port number as 443 and the IP address is 192.168.1.64, you may access the device by inpung hps://192.168.1.64:443 via the web browser.

Steps:

1. Enter the HTTPS sengs interface.

Conguraon > Network > Advanced Sengs > HTTPS

1. Create the self-signed cercate or authorized cercate.

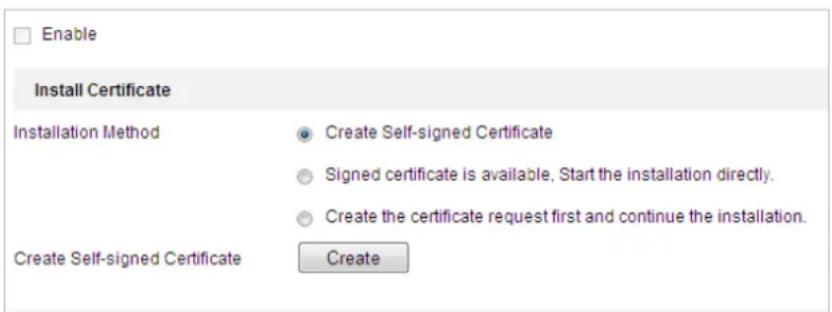

Enable Install Certificate Installation Method Create Self-signed Certificate Signed certificate is available, Start the installation directly. Create the certificate request first and continue the installation. Create Self-signed Certificate Create

Figure 2-13 Create Cercate

OPTION 1: Create the self-signed cercate

1) Select Create Self-signed Cercate.
2) Click Create to create the following dialog box.

Create Country Hostname/IP Validity Password State or province Locality Organization Organizational Unit Email OK Cancel

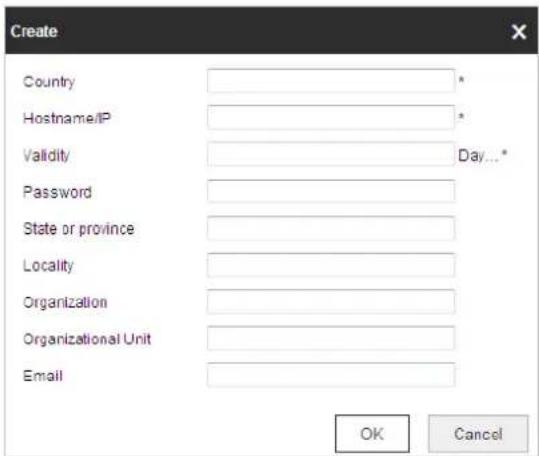

Figure 2-14 Create Self-signed Cercate

3) Input the country, host name/IP, validity and other informaon.
4) Click OK to save the sengs.

OPTION 2: Start the installaon when signed cercate is available.

1) Select Signed cercate is available, Start the installaon directly.
2) Click Browse to upload the available cercate.
3) Click Install buon to install the cercate.
4) Click OK to save the sengs.

OPTION 3: Create cercate request rst and connue the installaon.

1) Select Create cercate request rst and connue the installaon.
2) Click Create to create the cercate request, and full the required informaon.
3) Download the cercate request and submit it to the trusted cercate authority for signature.
4) Aer receiving the signed valid cercate, import the cercate to the device.
5) Click OK to save the sengs.

1. There will be the cercate informaon after you successfully create and install the cerficate.

Certificate Details Installed Certificate C=CN, H/IF=ADMIN Property Subjects: C-CN, B/IP=ADMIN Issuer: C=CN, B/IP=ADMIN Validity: 2015-08-12 09:43:55 - 2015-10-01 09:43:55 Delete

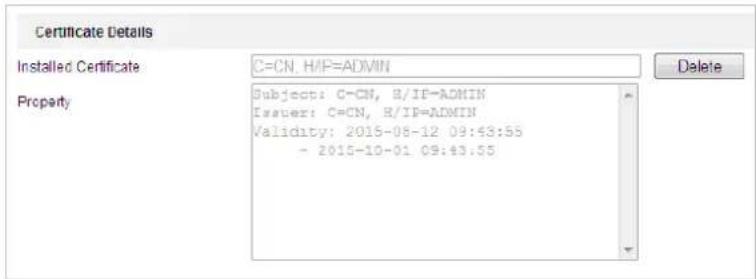

Figure 2-15 Installed Cercate Property

Note:

You can click congure the HTTPS port No. on your demand; refer to Secon 2.2.1 Basic Sengs - Conguring Port Sengs for details.

1. Check the Enable HTTPS checkbox and click Save.

Conguring QoS Sengs

Purpose:

QoS (Quality of Service) can help solve the network delay and network congeson by conguring the priority of data sending.

Steps:

1. Enter the QoS sengs interface:

Conguraon > Network > Advanced Sengs > QoS

Video/Audio DSCP 0 Event/Alarm DSCP 0 Management DSCP 0

Figure 2-16 QoS Sengs

1. Congure the QoS sengs, including video/audio DSCP, event/alarm DSCP and Management DSCP. The valid DSCP value ranges from 0 to 63. The DSCP value is bigger, the priority is higher.

2. Click to save the sengs.

Notes:

● Make sure that you enable the QoS funcon of your network device (such as a router).
● Reboot the device before the sengs take eect.

Conguring 802.1X Sengs

Purpose:

The camera supports IEEE 802.1X standard.

IEEE 802.1X is a port-based network access control. It enhances the security level of the LAN. When devices connect to this network with IEEE 802.1X standard, the authencaon is needed. If the authencaon fails, the devices don't connect to the network.

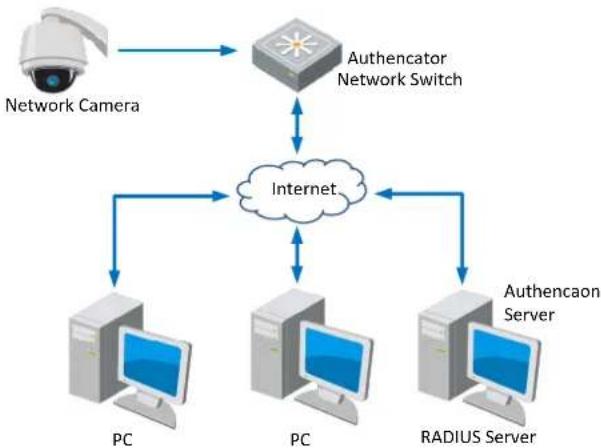

The protected LAN with 802.1X standard is shown as follows:

Figure 2-17 Protected LAN

• Before connecng the network camera to the protected LAN, apply a digital cercate from a Cercate Authority.
  ● The network camera requests access to the protected LAN via the authencator (a switch).
  ● The switch forwards the identity and password to the authencaon server (RADIUS server).
  ● The switch forwards the cercate of authencaon server to the network camera.
• If all the informaon is validated, the switch allows the network access to the protected network.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Steps:

1. Connect the network camera to your PC directly with a network cable.
2. Enter the 802.1X sengs interface:

Conguraon > Network > Advanced Sengs > 802.1X

Enable IEEE 802.1X Protocol EAP-MD5 EAPOL version 1 User Name Password Confirm

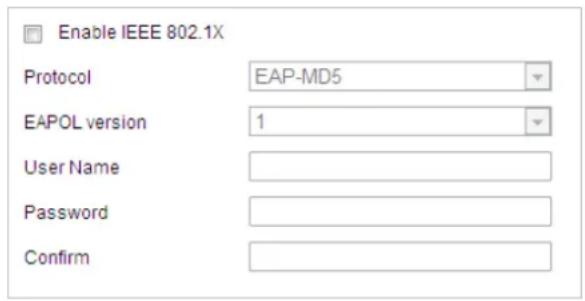

Figure 2-18 802.1X Sengs

1. Check the Enable IEEE 802.1X checkbox to enable it.
2. Congure the 802.1X sengs, including user name and password.

Note:

The EAP-MD5 version must be identical with that of the router or the switch.

1. Click to nish the sengs.

Note:

The camera reboots when you save the sengs.

1. Aer the conguraon, connect the camera to the protected network.

Integraon Protocol

If you need to access to the camera through the third party plaorm, you can enable CGI funcon. And if you need to access to the device through ONVIF protocol, you can congregate ONVIF user in this interface. Refer to ONVIF standard for detailed conguraon rules.

Note:

Supported protocols may be dierent among camera models.

CGI

Check the Enable ***CGI checkbox and then select the authencaon from the drop-down list.

Then you can access to the camera through the third party plaorm.

● ONVIF

Steps:

1. Check the Enable ONVIF checkbox to enable the funcon.
2. Click Add to add a new ONVIF user. Set the user name and password, and conrm the password. You can set the user as media user, operator, and administrator.

3. Click Modify to modify the informaon of the added ONVIF user.

4. Click Delete to delete the selected ONVIF user.

5. Save the sengs.

Note:

User sengs of ONVIF are cleared when you restore the camera.

Chapter 3 Live View

3.1 Install the Plug-in

Install the plug-in before viewing the live video and operang the camera. Follow the installaon prompts to install the plug-in.

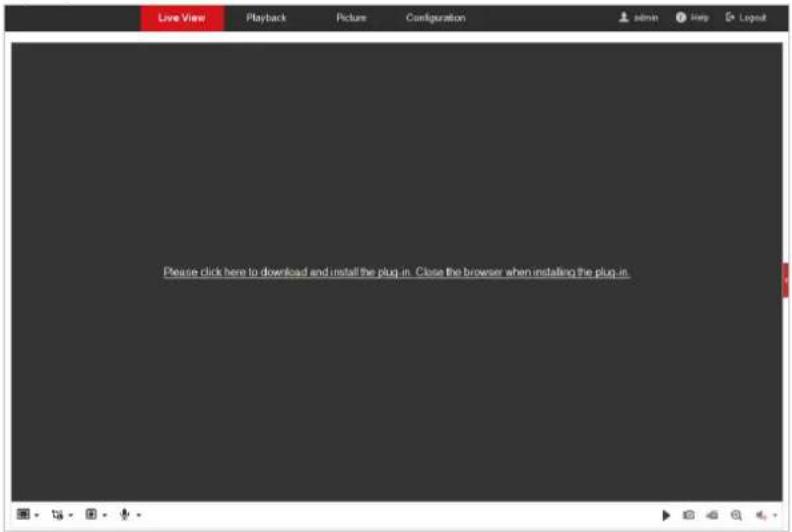

Live View Playback Picture Configuration admin Help Layout Please click here to download and install the plug-in. Close the browser when installing the plug-in.

Figure 3-1 Download and Install Plug-in

Notes:

• You may have to close the web browser to install the plug-in. Reopen the web browser and log in again aer installing the plug-in.
• To select the plug-in type, you can click 📋 on live view interface. For detailed informaon, refer to Secon 3.2.2 Live View Operaon.

3.2 Live View Page

3.2.1 Descripons of the live view page:

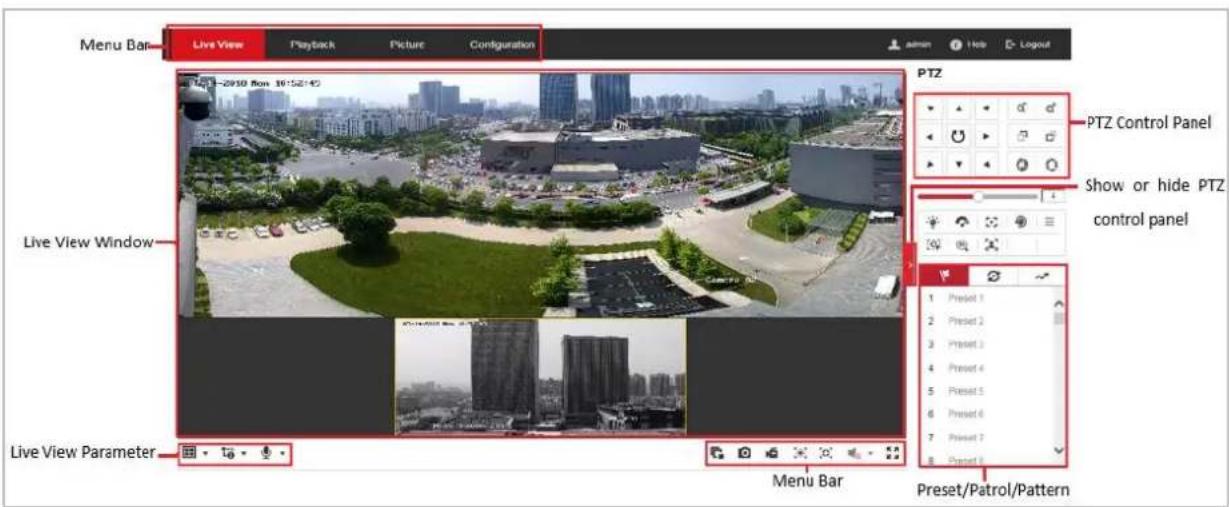

Menu Bar Live View Playback Picture Configuration admin Help Logout PTZ PTZ Control Panel Show or hide PTZ control panel Live View Window Live View Parameter Menu Bar Preset/Patrol/Pattern

Figure 3-2 Live View Page

Menu Bar:

Click each tab to enter Live View, Playback, Picture, and Conguraon page respectively.

Click to display the help le of the camera.

Click to logout the system.

Live View Window:

Display the live video.

Toolbar:

Operaons on the live view page, e.g., live view, capture, record, audio on/o, regional exposure, regional focus, etc.

PTZ Control:

Panning, Ing, focusing and zooming acons of the camera. The lighter, wiper, one-touch focus and lens inializaon control.

Preset/patrol/paern:

Set and call the preset/patrol/paern for the camera.

Live View Parameters:

Congure the window division, image size, stream type, plug-in type, and two-way audio of the live video.

3.2.2 Live View Operaon

Purpose:

The live video page allows you to view live video, capture images, realize PTZ control, set/call presets and congure video parameters.

Log in the camera to enter the live view page, or you can click Live View on the menu bar of the main page to enter the live view page.

Starng Live View

Click 📄 on the toolbar to start the live view of all channels of the network camera. Live view page of panoramic + PTZ camera and panoramic camera are dierent as shown below.

Live View Playback Picture Configuration admin Help E+ Lopout PTZ 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8

Figure 3-3 Start Live View (Panoramic + PTZ Camera)

Descripons of Icons on Toolbar and Live View Interface are listed below:

Live View		Click to start all live views and the icon turns into . Click the icon again to stop all live views.
Full-screen		Double-click on the live video to switch the current live view into full-screen or return to normal mode from the full-screen.
Record/Capture		Click to manual capture the picture.
		Click to start manual recording and the icon turns into . Click the icon again to stop recording.Note: Before perform manual recording and manual capture, congure the saving path of les referring to Secon 2.1 Local Conguraon Interface.
Window Division		For 360° panoramic + PTZ camera, click to select fromand display live video in triple-row/double-row/1 × 1/2 × 2/ PIP (Picture in Picture)window size.
Stream Type		Click to select from and display live video with the main/sub/third stream. The main stream is with a relavely high resoluon and needs much bandwidth. The sub-stream is with a low resoluon and needs less bandwidth. The resoluon of third stream isbetween that of main stream and sub stream. The default seng of stream type is .
Plug-in Switch	/	Click to select between and play the live video via player Webcomponents or Quick Time. The live video is played via webcomponents by default, and other types of players are supported for the browser, such as MJPEG, and VLC. You are required to download and install the player to play the live video.
Audio	/	VolumeClick to display the . Drag the slider to adjust the volume.
	/	Two-way AudioClick and it displays . Click to enable two-way audio and the icon turns into . Click the icon again to stop two-way audio.Note:Before enabling the two-way audio or recording with audio funcons, set the Stream Type to Video & Audio referring to Secon 3.4.1 ConguringVideo Sengs.
Digital Zoom	/	Click to enable digital zoom funcon and the icon turns into . Then drag the mouse towards low right direcon to draw a rectangle on the image as the desired zoom. Aer viewing it you can click any place of the picture to get back to normal picture.
Regional Exposure	/	Click on the toolbar to enter the regional exposure operaon mode and the icon turns into . Then drag the mouse to draw a rectangle on the image as the desired exposure region.
Regional Focus	/	Click on the toolbar to enter the regional focus operaon mode and the icon turns into . Then drag the mouse to draw a rectangle on the image as the desired focus region.

PTZ Control Panel

On the live view page, click to show the PTZ control panel or click to hide it.

Descripons of Icons on PTZ Control Panel are listed below:

PTZ Control

Hold the direcon buons to control the pan/It movements.

Click 🎨 and the camera keeps panning, the icon turns into . Click the

		icon again to stop the camera.
Zoom		Click , the lens zooms in, click , and the lens zooms out.
Focus		Click , the lens focus far and the items far away gets clear. Click , the lens focus near and the items nearby gets clear.
Iris		When the image is too dark, click to open the iris. When the image is too bright, click to close the iris.
Adjust Speed		Adjust speed of pan/lt movements.
Preset	[YATX]	Refer to 4.1.1 for detailed informaon of seng preset.
Patrol		Refer to 4.1.2 for detailed informaon of seng patrol.
Paern		Refer to 4.1.3 for detailed informaon of seng paern.

Note:

PTZ funcons, including PTZ control, preset, patrol, and paern are only supported by camera 1.

Auxiliary Funcons

The auxiliary funcons include light, wiper, auxiliary focus, lens inializaon, manual tracking, 3D posioning, one-touch patrol, and one-touch park.

The Auxiliary funcons panel is shown in the gure below:

Toolbar with icons for weather, camera, refresh, and search functions

Figure 3-4 Auxiliary Funcons

Descripons of Icons on PTZ Control Panel are listed below:

Light Supplement	[CS7X]	Click to enable/disable the light supplement of the camera. This funcon is reserved.
Wiper		Click to move the wiper once.
Auxiliary Focus		The auxiliary focus funcon is reserved.

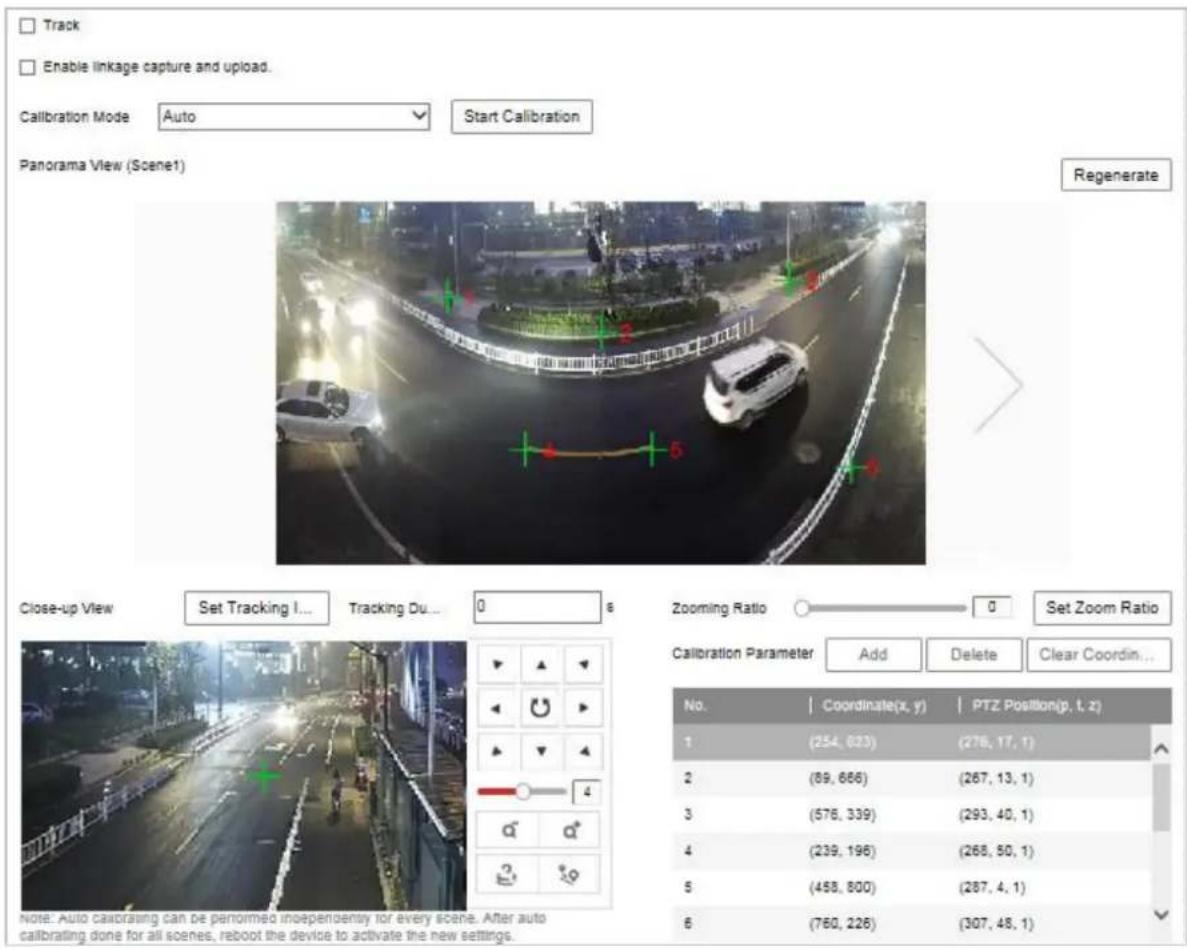

Manual Tracking		Before you start:Enter the Smart Tracking sengs interface and enable smart tracking rst.Conguraon > PTZ > Smart TrackingSteps:1. Click click one toolbar of live view interface.2. Click a ving object in the live video. The camera will track the object automacally.
3D Poisoning	[CK06]	Steps:[T242]1. Click click one toolbar of live view interface.

	2. Operate the 3D posioning funcon:Le click a posion of the live video. The corresponding posion will be moved to the center of the live video.Hold down the le mouse buon and drag the mouse to the lower right on the live video. The corresponding posion will be moved to the center of the live video and zoomed in.Hold down the le mouse buon and drag the mouse to the upper le on the live video. The corresponding posion will be moved to the center of the live video and zoomed out.Note:When you perform 3D posioning on Camera 2 or Camera 3, the Camera 1 will move to the corresponding posion.
Lens Inializaon	Click and the lens operates the movements for inializaon.
Face Capture	Steps:1. Click to start manual face capture.2. Frame the target face in PTZ camera channel by le-click and drag to draw a frame.3. Click the icon again to stop manual face capture.Note:To use manual face capture, you should congure Face Capture funcon rst. Go to Conguraon > Face Capture. The funcon is only available for certain camera models.

3.3 Conguring Image Sengs

3.3.1 Conguring Display Sengs

Purpose:

You can set the image quality of the camera, including brightness, contrast, saturaon, sharpness, etc.

Notes:

● The parameters in Display Sengs interface vary depending on different camera models.
● You can double click the live view to enter full screen mode and double click it again to exit.

Steps:

1. Enter the Display Sengs interface:

Conguraon > Image> Display Sengs

1. Select channel No. of the camera.
2. You can select the Mounng Scenario from the dropdown list with different predened image parameters.
3. Set the image parameters of the camera.

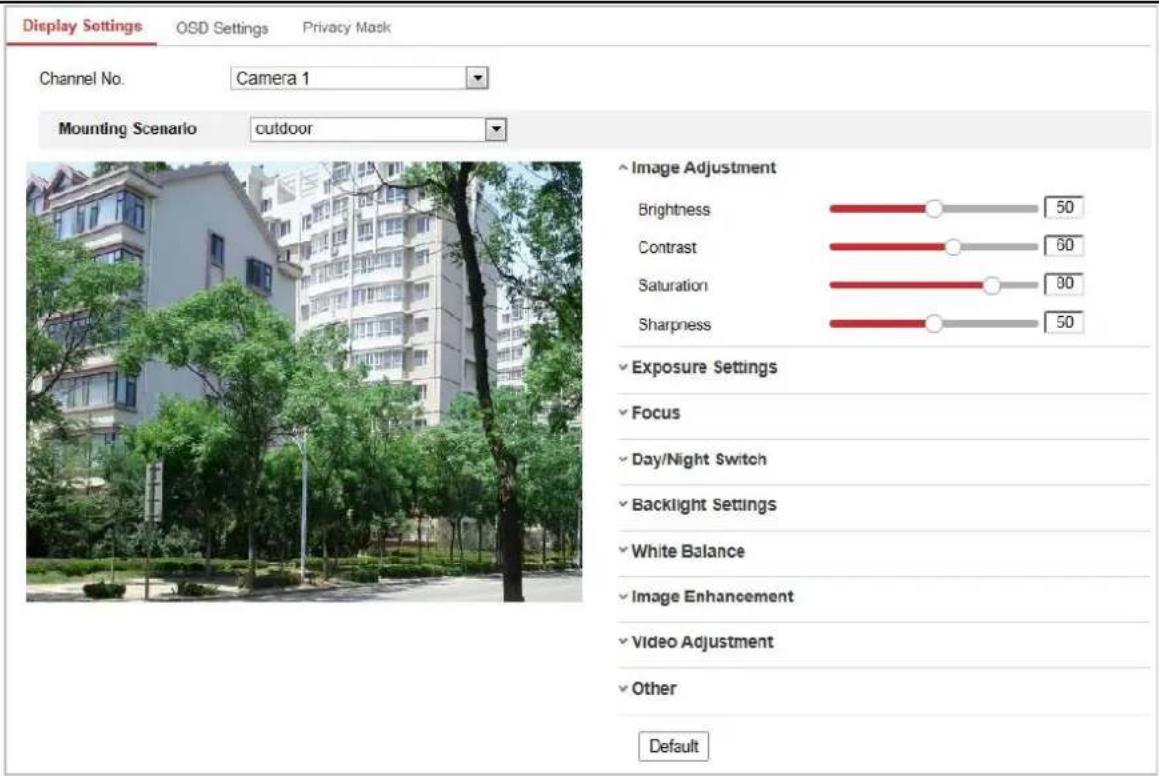

Display Settings OSD Settings Privacy Mask Channel No. Camera 1 Mounting Scenario outdoor ^ Image Adjustment Brightness 50 Contrast 60 Saturation 80 Sharpness 50 ✓ Exposure Settings ✓ Focus ✓ Day/Night Switch ✓ Backlight Settings ✓ White Balance ✓ Image Enhancement ✓ Video Adjustment ✓ Other Default

Figure 3-5 Display Sengs

Image Adjustment

- Brightness

This feature is used to adjust brightness of the image. The value ranges from 0 to 100.

- Contrast

This feature enhances the dience in color and light between parts of an image. The value ranges from 0 to 100.

- Saturaon

This feature is used to adjust color saturaon of the image. The value ranges from 0 to 100.

- Sharpness

Sharpness funcon enhances the detail of the image by sharpening the edges in the image. The value ranges from 0 to 100.

Exposure Sengs

- Exposure Mode

The Exposure Mode can be set to Auto, Iris Priority, Shuer Priority, and Manual.

- Auto:

The iris, shuer and gain values will be adjusted automatically according to the brightness of the environment.

- Iris Priority:

The value of iris needs to be adjusted manually. The shuer and gain values will be adjusted automatically according to the brightness of the environment.

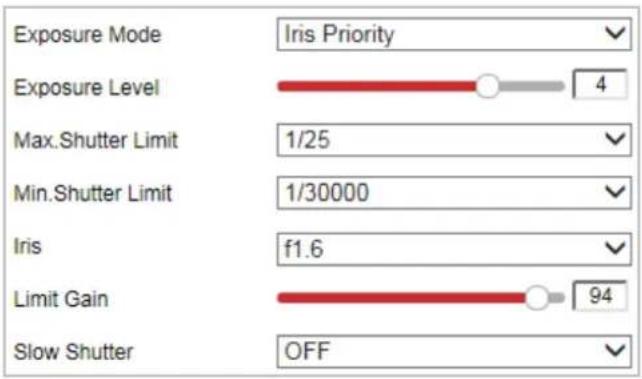

Exposure Mode Iris Priority Exposure Level 4 Max.Shutter Limit 1/25 Min.Shutter Limit 1/30000 Iris f1.6 Limit Gain 94 Slow Shutter OFF

Figure 3-6 Manual Iris

- Shuer Priority:

The value of shuer needs to be adjusted manually. The iris and gain values will be adjusted automatically according to the brightness of the environment.

Exposure Mode Shutter Priority Exposure Level 4 Max. Iris Limit 100 Min. Iris Limit 0 Shutter 1/25 Limit Gain 94 Slow Shutter OFF

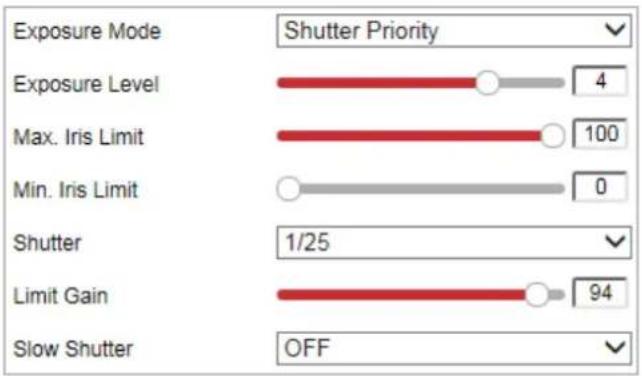

Figure 3-7 Manual Shuer

- Manual:

In Manual mode, you can adjust the values of Gain, Shuer, Iris manually.

Note:

This funcon varies depending on dierent camera models.

- Limit Gain

This feature is used to adjust gain of the image. The value ranges from 0 to 100.

- Slow Shuer

This funcon can be used in underexposure condition. It lengthens the shuer me to ensure full exposure. Select slow shuer level from the dropdown list

Slow Shutter ON Slow Shutter Level Slow Shutter*2

Figure 3-8 Slow Shuer

Focus Sengs

- Focus Mode

The Focus Mode can be set to Auto, Manual, Semi-auto.

- Auto:

The camera focuses automacally at any me according to objects in the scene.

- Semi-auto:

The camera focuses automacally only once aer panning, Ing and zooming.

- Manual:

In Manual mode, you need to use

on the control panel to focus manually.

● Min. Focus Distance

This funcon is used to limit the minimum focus distance.

Note:

Focus sengs applies only to PTZ camera channel.

Day/Night Switch

● Day/Night Switch

The Day/Night Switch mode can be set to Auto, Day, Night, and Scheduled-Switch.

- Auto:

In Auto mode, the day mode and night mode can switch automacally according to the light condition of environment. The switching sensitivity can be set to Low, Normal, High.

Day/Night Switch Auto Sensitivity 2

Figure 3-9 Auto Mode Sensitivity

Day:
In Day mode, the camera displays color image. It is used for normal lighng condions.

- Night:

In Night mode, the image is black and white. Night mode can increase the sensitivity in low light conditions.

- Scheduled-Switch

In Scheduled-Switch mode, you can set the me schedule for day mode as shown in Figure 3-10. The rest me out of the schedule is for night mode.

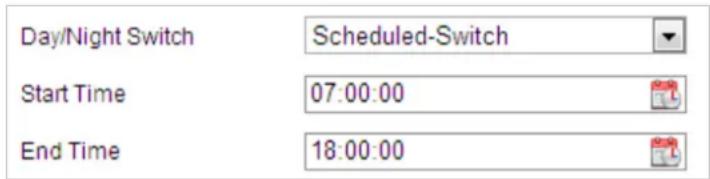

Day/Night Switch Scheduled-Switch Start Time 07:00:00 End Time 18:00:00

Figure 3-10 Day Night Schedule

● Smart Supplement Light

If the light supplement is on and the image center is overexposure, you can enable this funcon.

- IR Light Mode

IR light mode can be set to Auto and Manual.

● Auto: The brightness of the infrared light will be adjusted automacally. IR Light Sensitivity value ranges from 0 to 100. Trigger Mode can be set to Camera or Photosensitive.
- Manual: you need to adjust the brightness value of infrared light manually. Brightness Limit value ranges from 0 to 100.

Notes:

● This funcon varies depending on dierent camera models.
● The IR related funcons are supported by the IR camera only.
- For detailed parameters conguraon of IR light, you can enter the OSD menu by calling the special preset 95.

• When the IR Light Mode is auto, the day/night mode is adjusted automatically according to the IR Light Mode. Manually seng the day/night mode is invalid.
• When the IR Light Mode is manual and the Brightness Limit is 0, you can set the day/night mode manually.
• When the IR Light Mode is manual and the Brightness Limit is not 0, the night mode is set as the default mode. Manually seng the day/night mode is invalid.

Backlight Sengs

● BLC (Back Light Compensaon)

If there's a bright backlight, the subject in front of the backlight appears silhouetted or dark. Enabling BLC (back light compensaon) funcon can correct the exposure of the subject. But the backlight environment is washed out to white.

● WDR (Wide Dynamic Range)

The wide dynamic range (WDR) funcon helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the eld of view, WDR balances the brightness level of the whole image and provide clear images with details.

You can enable or disable the WDR funcon as shown in Figure 3-11. The wide dynamic level ranges from 0 to 100.

WDR ON Wide Dynamic Level 11

Figure 3-11 WDR

Note:

This funcon varies depending on dierent camera models.

HLC

HLC (High Light Compensaon) makes the camera identify and suppress the strong light sources that usually are across a scene. This makes it possible to see the detail of the image that would normally be hidden.

White Balance

The White Balance mode can be set to Auto, MWB, Outdoor, Indoor, Fluorescent Lamp, Sodium Lamp and Auto-Tracking.

- Auto

In Auto mode, the camera retains color balance automacally according to the current color temperature.

- MWB

In MWB (Manual White Balance) mode, you can adjust the color temperature manually to meet your own demand as shown in Figure 3-12.

White Balance MWB WB Gain Circuit R 0 WB Gain Circuit B 0

Figure 3-12 Manual White Balance

- Outdoor

You can select this mode when the camera is installed in outdoor environment.

- Indoor

You can select this mode when the camera is installed in indoor environment.

- Fluorescent Lamp

You can select this mode when there are uorescent lamps installed near the camera.

- Sodium Lamp

You can select this mode when there are sodium lamps installed near the camera.

- Auto-Tracking

In Auto-Tracking mode, white balance is connuously being adjusted in real-me according to the color temperature of the scene illuminaon.

Image Enhancement

● Digital Noise Reducon

The digital noise reduces funcon processes the noise in the video signal.

You can set Digital Noise Reducon funcon to Normal and adjust the Noise Reducon Level as shown in Figure 3-13. The level ranges from 0 to 100.

Digital Noise Reduction Normal Noise Reduction Level 50

Figure 3-13 Normal Mode

If you are a professional technician, you can set it to Expert Mode then adjust Space DNR Level and Time DNR Level.

Digital Noise Reduction Expert Space DNR Level 50 Time DNR Level 50

Figure 3-14 Expert Mode

- Defog Mode

When there is fog in the image, you can enable this funcon to get clear image.

● EIS (Electronic Image Stabilizaon)

The live view image would be trembled and dim when the camera is shocked slightly in some monitoring conditions. And the electronic image stabilizaon (EIS) funcon is used to overcome this problem to ensure a steady and clear image.

● OIS (Opcal Image Stabilizaon)

You can set the OIS (Opcal Image Stabilizaon) to NORMAL, EXPERT, or OFF as you need. In expert mode, you can specify OIS level and OIS Sensitivity.

Video Adjustment

- Mirror

If you turn the MIRROR funcon on, the image will be ipped. It is like the image in the mirror. The ip direcon can be set to OFF, or CENTER.

- Video Standard

You can set the Video Standard to 50 Hz (PAL) or 60 Hz (NTSC) according to the video system in your country.

- Capture Mode:

The Capture Mode can be selected from the list.

Other

- Lens Inializaon

The lens operates the movements for initializaon when you check the Lens Inializaon checkbox.

- Zoom Limit

You can set Zoom Limit value to limit the maximum value of zooming. The value can be selected from the list.

Note:

Lens Inializaon and Zoom Limit funcons are supported by Camera 1 only.

- Local Output

Turn on local output, you can output the video to a monitor via analog signal.

3.3.2 Conguring OSD Sengs

Purpose:

OSD (On-screen Display) refers to the camera name, me/date, customized informaon displayed on the live view.

Note:

This funcon varies according to dierent camera models.

Steps:

1. Enter the OSD sengs interface:

Conguraon > Image > OSD Sengs

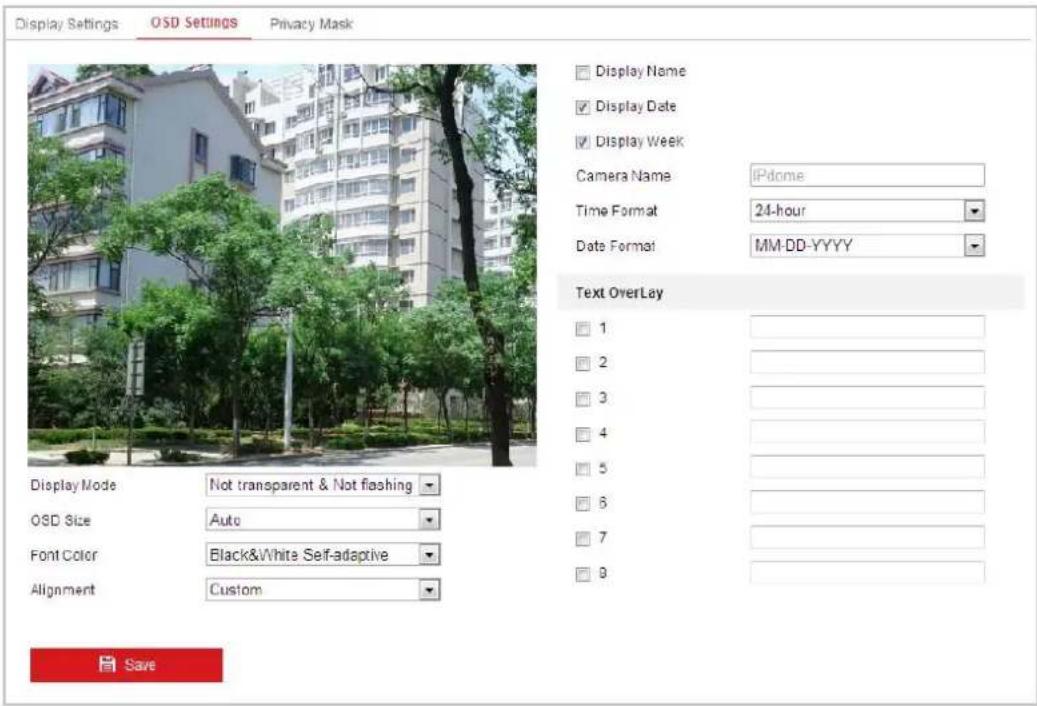

Display Settings OSD Settings Privacy Mask Display Name Display Date Display Week Camera Name iPdome Time Format 24-hour Date Format MM-DD-YYYY Text Overlay 1 2 3 4 5 6 7 8 Display Mode Not transparent & Not flashing OSD Size Auto Font Color Black&White Self-adaptive Alignment Custom Save

Figure 3-15 OSD Sengs

1. Check the corresponding checkbox to select the display of camera name, date or week if required.
2. Edit the camera name in the text eld of Camera Name.
3. Select from the dropdown list to set the me format, date format and display mode.
4. You can use the mouse to drag the text frame IPdome in the live view window to adjust the OSD posion.

2013-06-55 Thursday 20:24:21 IF Date

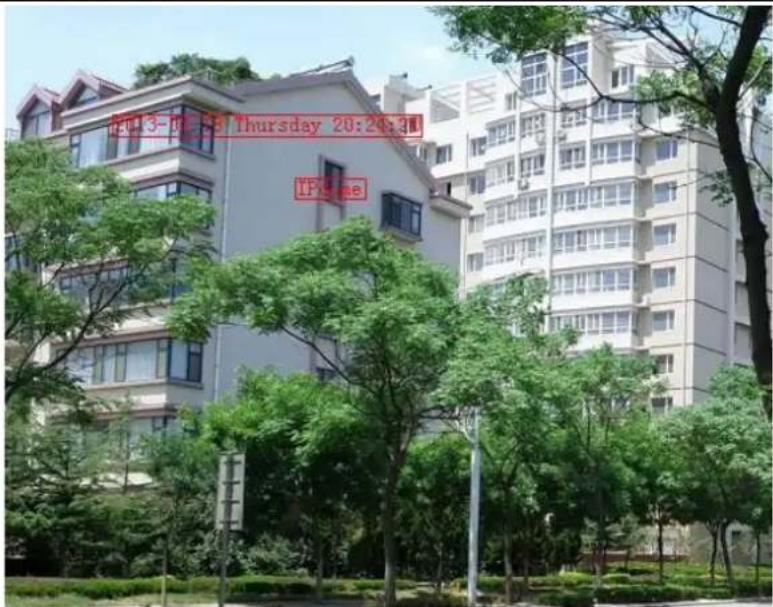

Figure 3-16 Adjust OSD Locaon

1. Click

Save to acvate above sengs.

3.3.3 Conguring Text Overlay Sengs

Purpose:

You can customize the text overlay.

Steps:

1. Enter the Text Overlay sengs interface:
   Conguraon > Image > OSD Sengs
2. Check the checkbox in front of textbox to enable the on-screen display.
3. Input the characters in the textbox.

4. Use the mouse to drag the red text frame Text in the live view window to adjust the text overlay posion.

5. Click .

Save

Note:

There are up to 8 text overlays congorable.

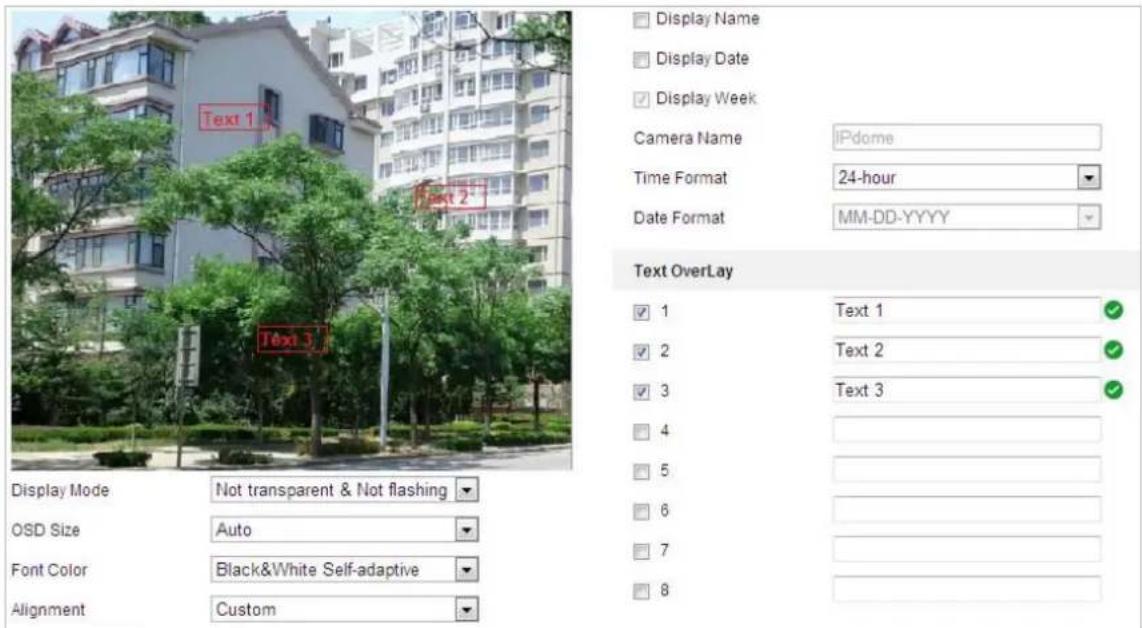

Text 1 Text 2 Text 3 Display Name Display Date Display Week Camera Name IPdome Time Format 24-hour Date Format MM-DD-YYYY Text Overlay 1 Text 1 2 Text 2 3 Text 3 4 5 6 7 8 Display Mode Not transparent & Not flashing OSD Size Auto Font Color Black&White Self-adaptive Alignment Custom

Figure 3-17 Text Overlay Sengs

3.3.4 Conguring Privacy Mask

Purpose:

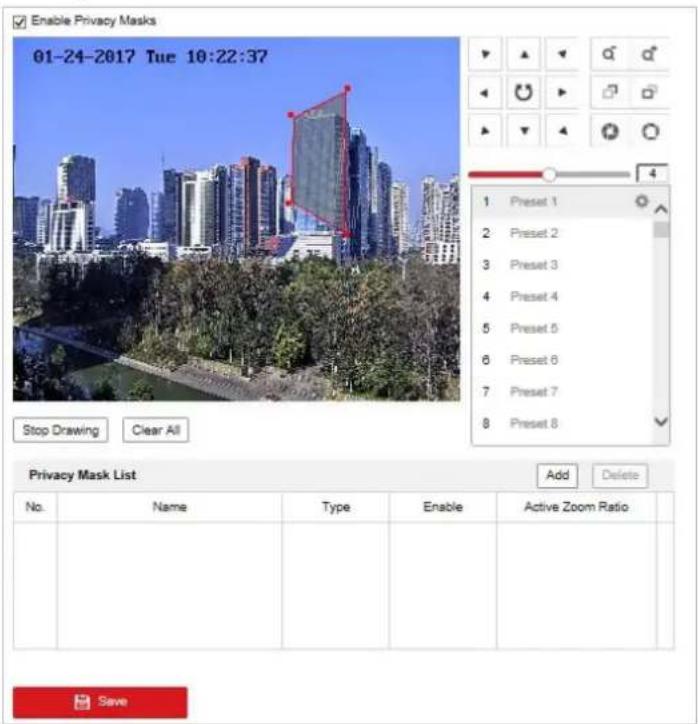

Privacy Mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded.

Steps:

1. Enter the Privacy Mask Sengs interface:

Conguraon > Image > Privacy Mask

1. Check the checkbox of Enable Privacy Mask to enable this funcon.
2. Click Draw Area.
3. Click and drag the mouse in the live video window to draw the mask area.
4. Click Stop Drawing to nish drawing or click Clear All to clear all of the areas you set without saving them.
5. Click Save to save the sengs.

3.4 Conguring Video and Audio Sengs

Note:

Before you adjust the parameters, select the camera channel No. from the dropdown list.

3.4.1 Conguring Video Sengs

Steps:

1. Enter the Video sengs interface:

Conguraon > Video/Audio > Video

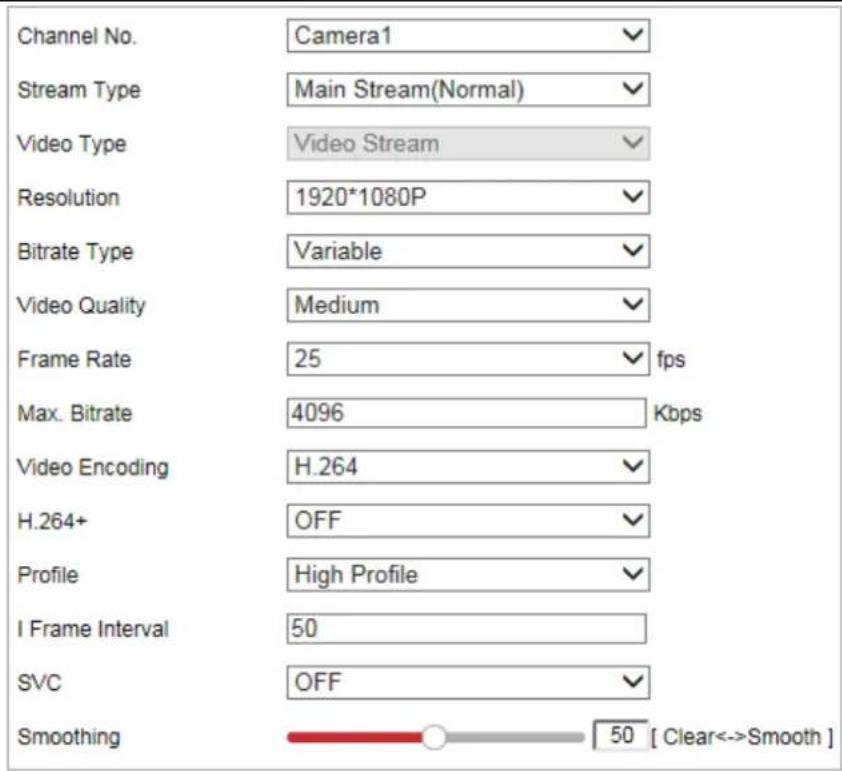

Channel No. Camera1 Stream Type Main Stream(Normal) Video Type Video Stream Resolution 1920*1080P Bitrate Type Variable Video Quality Medium Frame Rate 25 fps Max. Bitrate 4096 Kbps Video Encoding H.264 H.264+ OFF Profile High Profile I Frame Interval 50 SVC OFF Smoothing 50 [ Clear<->Smooth ]

Figure 3-18 Congure Video Sengs

1. Select the Stream Type of the camera to Main Stream (Normal), Sub-Stream or Third Stream.

Note:

The main stream is usually for recording and live viewing with good bandwidth, and the sub-stream can be used for live viewing when the bandwidth is limited. Refer to the Secon 2.1 Conguring Local Parameters for switching the stream type for live viewing.

1. You can customize the following parameters for the selected stream:

Video Type:

Select the stream type to video stream, or video & audio composite stream. The audio signal will be recorded only when the Video Type is Video & Audio.

Resoluon:

Select the resolution of the video output.

Bitrate Type:

Select the bitrate type to constant or variable.

Video Quality:

When bitrate type is selected as Variable, 6 levels of video quality are selectable.

Frame Rate:

The frame rate is to describe the frequency at which the video stream is updated and it is measured by frames per second (fps). A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout.

Max. Bitrate:

Set the max. bitrate. The higher value corresponds to the higher video quality, and the higher bandwidth is required as well.

Video Encoding:

Select the Video Encoding standard for each camera.

Prole:

You can set the prole level to High Prole, Main Prole or Basic Prole.

I Frame Interval:

Set the I-Frame interval from 1 to 400.

SVC:

SVC is a video encoding technology. It extracts frames from the original video and sends these frames to a video recorder which also supports SVC funcon when the network bandwidth is insucient.

Smoothing:

Drag to adjust the value of video smoothing on your demand.

Resoluon Mode:

Resoluon of the panoramic view channels are dierent in dierent resuloon mode (including main stream, sub-stream and third stream). Select the resuloon mode from the dropdown list on your demand.

Notes:

● The funcon is only supported by Camera 2 and Camera 3.
● Reboot the device before it takes eect when the resoluon mode is switched.
- Redraw the rule area if the resoluon mode is switched.

4. Click to save the sengs.

Note:

Video sengs vary depending on dierent camera models.

3.4.2 Conguring Audio Sengs

Steps:

1. Enter the Audio sengs interface
   Conguraon > Video/Audio > Audio
2. Congure the following sengs.
   Audio Encoding: G.722.1, G.711ulaw, G.711alaw, MP2L2, PCM and G.726 selectable.
   Audio Stream Bitrate: When the Audio Encoding is selected as MP2L2, you can conjure the Audio Stream Bitrate in the dropdown list. The greater the value is, the beer the audio quality will be.
   Sampling Rate: When the Audio Encoding is selected as MP2L2 or PCM, you can congregate the Sampling Rate in the dropdown list. The greater the value is, the beer the audio quality will be.
   Audio Input: When an intercom is connected to the camera, you need to set this opon to LineIn. When a microphone is connected to the camera, you need to set this opon to MicIn.
   Input Volume: Slid the bar to turn up/down the volume. The value ranges from 0 to 100.
   Environmental Noise Filter: When the monitoring environment is very noisy, you can enable this funcon to reduce part of the noise.

3. Click to save the sengs.

3.4.3 Conguring ROI Sengs

Before you start:

ROI (Region of Interest) encoding is used to enhance the quality of images which are specified in advance.

Enter the ROI sengs interface:

Conguraon >Video/Audio > ROI

Draw Area Clear 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8

Figure 3-19 Region of Interest(1)

Stream Type Stream Type Main Stream(Normal) Fixed Region Enable Region No. 1 ROI Level 3 Region Name Dynamic Region Enable Face Tracking ROI Level 3 Enable Target Tracking ROI Level 6

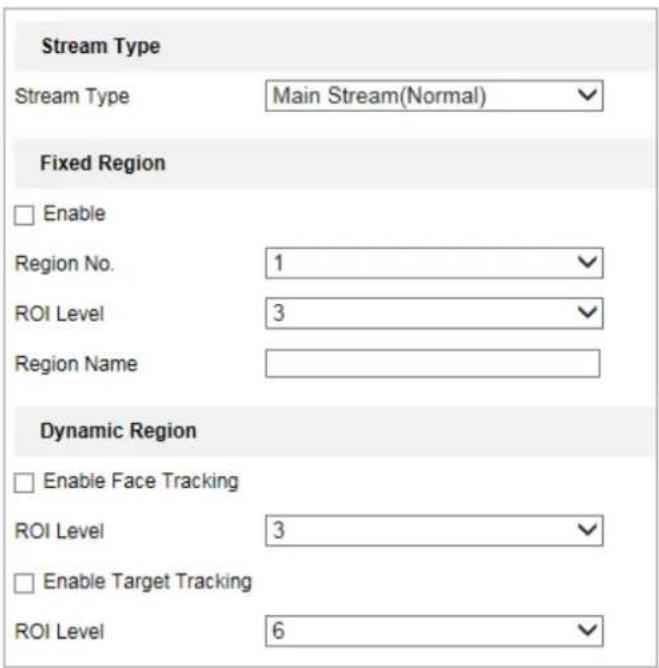

Figure 3-20 Region of Interest (2)

Stream Type:

You can set the ROI funcon for main stream, sub-stream and third stream. Select a stream type and then congregate the ROI sengs.

- Fixed Region: The xed region encoding is the ROI encoding for the manually congured area. And you can choose the Image Quality Enhancing level for ROI encoding, and you can also name the ROI area.

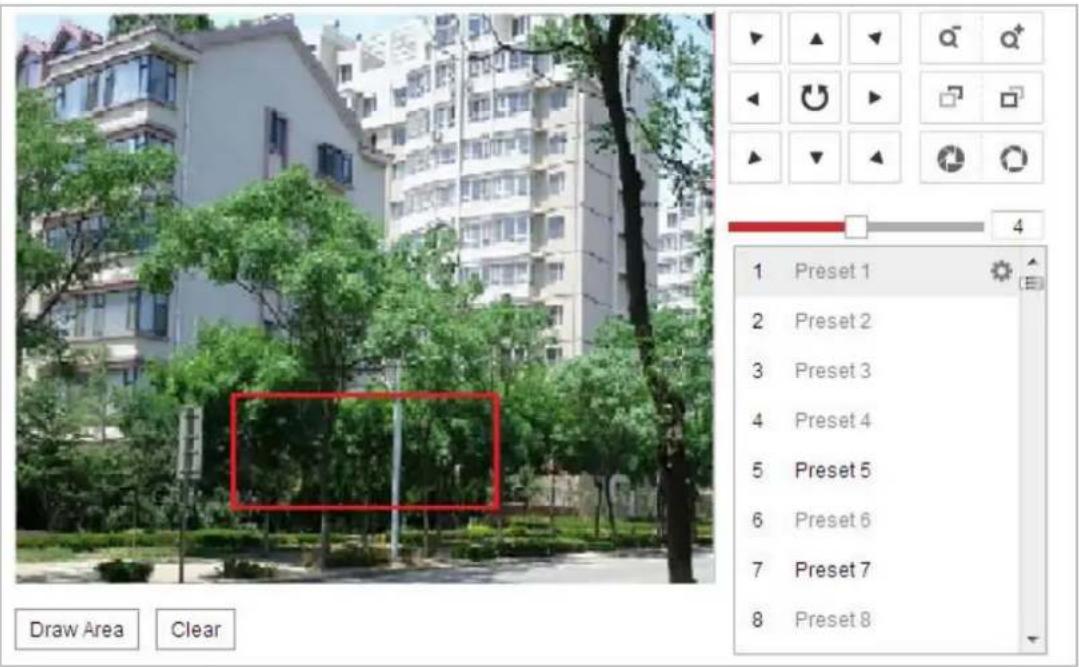

Steps:

1. Select a Region No..
2. Check the Enable checkbox under Fixed Region.

3. Select the region from the dropdown list for ROI settings. There are four xed regions selectable.

4. Click Draw Area, and then drag the mouse to draw the region of interest on the live video.

5. Adjust the ROI level from 1 to 6. The higher the value, the beer image quality in the red frame.
6. Enter a Region Name and click Save to save the sengs.

- Dynamic Region: The device can automatically calculate the region with moon. Set the Image Quality Enhancing level for ROI encoding.

Steps:

1. Check Enable Face Tracking and set ROI Level. Higher level means more resource is assigned to the face.
2. Check Enable Target Tracking and set ROI Level. Higher level means more resource is assigned to the target.
3. Click Save to save the sengs.

Chapter 4 PTZ Control

4.1 Operang PTZ Control

Purpose:

In the live view interface, you can use the PTZ control buons to control panning, Ing and zooming.

Refer to Secon 3.2.2 Live View Operaon for detailed informaon.

4.1.1 Seng/Calling a Preset

Purpose:

A preset is a predened image posion. For the dened preset, you can click the calling buon to quickly view the desired image posion.

- Seng a Preset:

Steps:

1. In the PTZ control panel, select a preset number from the preset list.

1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5

Figure 4-1 Seng a Preset

1. Use the PTZ control buons to move the lens to the desired posion.

2. Pan the camera to the right or le.

3. Tilt the camera up or down.
4. Zoom in or out.

5. Refocus the lens.

6. Click to nish the seng of the current preset.

7. Edit a preset name by double clicking on the default name such as preset 1. (The pre-dened presets are named already and not congorable. Refer to the user manual for detailed funcon descripon.)
8. You can click to delete the preset.

Note:

You can congure up to 300 presets.

- Calling a Preset:

In the PTZ control panel, select a dened preset from the list and click to call the preset.

1 Preset 1 2 Preset 2 Preset 1 3 Preset 3 4 Preset 4 5 Preset 5

Figure 4-2 Calling a Preset

For convenient preset selecon, refer to the following steps to navigate to the preset you want.

Steps:

1. Select any preset from the list.
2. Click the preset number you need on the keyboard.

Note:

The following presets are predened with special commands. You can only call them but not congure them. For instance, preset 99 is the "Start auto scan". If you call the preset 99, the camera starts auto scan funcon.

Table 4-1 Special Presets

Preset	Funcon	Preset	Funcon
33	Auto ip	93	Save manual limits
34	Back to initial posion	94	Remote reboot
35	Call patrol 1	95	Call OSD menu
36	Call patrol 2	96	Stop a scan
37	Call patrol 3	97	Start random scan
38	Call patrol 4	98	Start frame scan
39	Day mode (IR cut Iter in)	99	Start auto scan
40	Night mode (IR cut Iter out)	100	Start lt scan
41	Call paern 1	101	Start panorama scan
42	Call paern 2	102	Call patrol 5
43	Call paern 3	103	Call patrol 6
44	Call paern 4	104	Call patrol 7
45	One-touch patrol	105	Call patrol 8
92	Set manual limits

32 Preset 32 33 Auto-flip 34 Back to ori... 35 Call patrol 1 36 Call patrol 2 37 Call patrol 3 38 Call patrol 4 39 Day mode

Figure 4-3 Special Preset

Note:

You may need to use the OSD (On Screen Display) menu when controlling the camera remotely. To display the OSD menu on the live view screen, you can call the preset number 95.

4.1.2 Seng/Calling a Patrol

Purpose:

A patrol is a memorized series of preset funcon. It can be congured and called on the patrol sengs interface. There are up to 8 patrols for customizing. A patrol can be congured with 32 presets.

Before you start:

Make sure that the presets you want to add into a patrol have been dened.

- Seng a Patrol:

Steps:

1. In the PTZ control panel, click 📋 to enter the patrol settings interface.
2. Select a patrol number from the list and click .
3. Click + to enter the adding interface of preset, as shown in Figure 4-4.

Patrol Path2 Preset Speed Time (s) 1 30 10 OK Cancel

Figure 4-4 Adding Presets

1. Congure the preset number, patrol me and patrol speed.

Table 4-2 Patrol Time and Patrol Speed

Name	Descripon
Patrol Time	It is the duraon staying on one patrol point. The camera moves to another patrol point aer the patrol me.
Patrol Speed	It is the speed of moving from one preset to another.

1. Click OK to save a preset into the patrol.
2. Repeat the steps from 3 to 5 to add more presets.
3. Click OK to save all the patrol sengs.

- Calling a Patrol:

In the PTZ control panel, select a dened patrol from the list and click to call the patrol, as shown in Figure 4-5.

Patrol Path1 Patrol Path2 Patrol Path3 Patrol Path4 Patrol Path5 Patrol Path6 Patrol Path7

Figure 4-5 Calling a Patrol

4.1.3 Seng/Calling a Paern

Purpose:

A paern is a memorized series of pan, lt, zoom, and preset funcons. It can be called on the paern sengs interface. There are up to 4 paerns for customizing.

- Seng a Paern:

Steps:

1. In the PTZ control panel, click ↗ to enter the pattern sengs interface.
2. Select a paern number from the list as shown in Figure 4-6.

Pattern1 Pattern2 Pattern3 Pattern4

Figure 4-6 Paerns Sengs Interface

1. Click ☐ to enable recording the panning, lng and zooming acons.
2. Use the PTZ control buons to move the lens to the desired posion aer the informaon of Program Paern Remaining Memory (%) is displayed on the screen.

● Pan the camera to the right or le.
- Tilt the camera up or down.
- Zoom in or out.
- Refocus the lens.

1. Click to save all the paern sengs.

Notes:

● These 4 paerns can be operated separately and with no priority level.
- When conguring and calling the paern, proportional pan is valid; the limit stops and auto ip will be invalid; and the 3D posioning operaon is not supported.

4.2 PTZ Conguraon

4.2.1 Conguring Basic PTZ Parameters

Purpose:

You can congregate the basic PTZ parameters, including proporcional pan, preset freezing, preset speed, etc.

1. Enter the Basic PTZ parameter conguraon interface:

Conguraon > PTZ > Basic Sengs

Basic Parameter ✓ Enable Proportional Pan □ Enable Preset Freezing Preset Speed 4 ✓ Manual Control Speed Auto ✓ Keyboard Control Speed Medium ✓ Auto Scan Speed 28 ✓ Max. Tilt-angle (0 - 90)Degree ✓ Zooming Speed 3 ✓ PTZ OSD Zoom Status 2s ✓ PT Status 2s ✓ Preset Status 2s ✓ Power Off Memory Set Resume Time Point 30s ✓

Figure 4-7 Basic PTZ Conguraon Interface

1. Congure the following sengs:

Basic Parameters: Enable/disable proporcional pan and preset freezing, set the preset speed, manual control speed, keyboard control speed, auto scan speed, and zooming speed.

● Proporonal Pan: If you enable this funcon, the pan/lt speeds change according to the amount of zoom. When there is a large amount of zoom, the pan/lt speed will be slower for keeping the image from moving too fast on the live view image.
- Preset Freezing: This funcon enables the live view to switch directly from one scene dened by a preset to another, without showing the middle areas between these two, to ensure the surveillance eciency. It can also reduce the use of bandwidth in a digital network system.

Note:

Preset freezing funcon is invalid when you calling a paern.

• Preset Speed: You can set the speed of a dened preset from 1 to 8.
• Manual Control Speed: The manual control speed can be set as Compatible, Pedestrian, Non-motor Vehicle, Motor Vehicle or Auto.

● Compatible: The control speed is same as the Keyboard Control Speed.
- Pedestrian: Choose the Pedestrian when you monitor the pedestrians.

• Non-motor Vehicle: Choose the Non-motor Vehicle when you monitor the non-motor vehicles.
  ● Motor Vehicle: Choose the Motor Vehicle when you monitor the motor vehicles.
• Auto: You are recommended to set it to be auto when the applicaon scene of the camera is complicated.

● Keyboard Control Speed: Dene the speed of PTZ control by a keyboard as Low, Medium or High.

● Auto Scan Speed: The scan speed can be set from level 1 to 40.
● Max. Tilt-angle: Set the lt-angle of the speed dome from the drop-down list.
- Zooming Speed: The zoom speed is adjustable from level 1 to 3.

◆ PTZ OSD: Set the on-screen display duraon of the PTZ status.

• Zoom Status: Set the OSD duraon of zooming status as 2 seconds, 5 seconds, 10 seconds, Always Close or Always Open.
• PT Status: Set the azimuth angle display duraon while panning and Ing as 2 seconds, 5 seconds, 10 seconds, Always Close or Always Open.
• Preset Status: Set the preset name display duraon while calling the preset as 2 seconds, 5 seconds, 10 seconds, Always Close or Always Open.

Power-o Memory: The camera can resume its previous PTZ status or acons aer it restarted from a power-o. You can set the me point of which the camera resumes its PTZ status. You can set it to resume the status of 30 seconds, 60 seconds, 300 seconds or 600 seconds before power-o.

1. Click to save the sengs.

4.2.2 Conguring PTZ Limits

Purpose:

The camera can be programmed to move within the congorable PTZ limits (le/right, up/down).

Steps:

1. Enter the Limit conguraon interface:

Conguraon > PTZ > Limit

Enable Limit Limit Type Manual Stops Type Status No limited Set Clear 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Save

Figure 4-8 Congure the PTZ Limit

1. Click the Enable Limit checkbox and choose the limit type as manual stops or scan stops.

- Manual Stops:

When manual limit stops are set, you can operate the PTZ control panel manually only in the limited surveillance area.

- Scan Stops:

When scan limit stops are set, the random scan, frame scan, auto scan, lt scan, panorama scan is performed only in the limited surveillance area.

Note:

Manual Stops of Limit Type is prior to Scan Stops. When you set these two limit types at the same me, Manual Stops is valid and Scan Stops is invalid.

1. Click the PTZ control buons to nd the le/right/up/down limit stops; you can also call the dened presets and set them as the limits of the camera.
2. Click Set to save the limits or click Clear to clear the limits.

4.2.3 Conguring Inial Posion

Purpose:

The initial posion is the origin of PTZ coordinates. It can be the factory default initial posion. You can also customize the initial posion according to your own demand.

◆ Customize an Inial Posion:

Steps:

1. Enter the Inial Posion conguraon interface:

Conguraon > PTZ > Inial Posion

Set Clear Call 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8

Figure 4-9 PTZ Conguraon

1. Click the PTZ control buons to nd a posion as the initial posion of the camera; you can also call a dened preset and set it as the initial posion of the camera.
2. Click Set to save the posion.

◆ Call/delete an Inial Posion:

You can click to call the initial posion. You can click to delete the initial posion and restore the factory default initial posion.

4.2.4 Conguring Park Acon

Purpose:

This feature allows the camera to start a predened park acon (scan, preset, pattern and etc.) automacally aer a period of inactivity (park me). The park acon funcon only takes effect in Camera 1.

Note:

Scheduled Tasks funcon is prior to Park Acon funcon. When these two funcons are set at the same me, only the Scheduled Tasks funcon takes eect.

Steps:

1. Enter the Park Acon sengs interface:

Conguraon > PTZ > Park Acon

Enable Park Action Park Time 5 s Action Type Auto Scan Save

Figure 4-10 Set the Park Acon

1. Check the Enable Park Acon checkbox.
2. Set the Park Time as the inactivity me of the camera before it starts the park acons.
3. Choose Acon Type from the dropdown list.

Panorama Scan Auto Scan Frame Scan Random Scan Patrol Pattern Preset Panorama Scan Tilt Scan

Figure 4-11 Acon Types

5. Click

4.2.5 Conguring Privacy Mask

Purpose:

Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded. The privacy mask funcon only takes eect in Camera 1.

Steps:

1. Enter the Privacy Mask sengs interface:

Conguraon > PTZ > Privacy Mask

Enable Privacy Masks 01-24-2017 Tue 10:22:37 Stop Drawing Clear All 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Privacy Mask List Add Delete No. Name Type Enable Active Zoom Ratio Save

Figure 4-12 Draw the Privacy Mask

1. Click the PTZ control buons to nd the area you want to set the privacy mask.
2. Click Draw Area ; drag the mouse in the live video window to draw the area.

You can drag the corners of the red rectangle area to draw a polygon mask.

1. Click Stop Drawing to nish drawing or click Clear All to clear all of the areas you set without saving them.

2. Click Add to save the privacy mask, and it will be listed in the Privacy Mask List area; set the value of Acve Zoom Rao on your demand, and then the mask will only appear when the zoom rao is greater than the predened value.

Privacy Mask List Add Delete No. Name Type Enable Active Zoom Ratio 1 Privacy Mask 1 gray Yes 1

Figure 4-13 Privacy Mask List

1. you can also denote the color of the masks.

gray gray red yellow blue orange green mosaic

Figure 4-14 Dene Mask Color

1. You can select a mask and click Delete to delete it from the list.
2. Check the Enable Privacy Mask checkbox to enable this funcon.

Note:

You are allowed to draw up to 24 areas on the same image.

4.2.6 Conguring Scheduled Tasks

Purpose:

You can congregate the network camera to perform a certain acron automacally in a user-dened me period.

Steps:

1. Enter the Scheduled Task sengs interface:

Conguraon> PTZ > Scheduled Tasks

Enable Scheduled Task OFF Delete All Mon 0 2 4 5 6 8 10 12 14 16 18 20 22 24 Tue 0 2 4 5 6 8 10 12 14 16 18 20 22 24 Wed 0 2 4 5 6 8 10 12 14 16 18 20 22 24 Thu 0 2 4 5 6 8 10 12 14 16 18 20 22 24 Fri 0 2 4 5 6 8 10 12 14 16 18 20 22 24 Sat 0 2 4 5 6 8 10 12 14 16 18 20 22 24 Sun 0 2 4 5 6 8 10 12 14 16 18 20 22 24 Park Time 5 5 Save

Figure 4-15 Congure Scheduled Tasks

1. Check the Enable Scheduled Task checkbox.
2. Set the Park Time. You can set the park me (a period of inactivity) before the camera starts the scheduled tasks.
3. Select the task type from the dropdown list. You can choose scan, preset, pattern and etc.

Aux Output OFF Auto Scan Frame Scan Random Scan Patrol Pattern Preset Panorama Scan Tilt Scan Dome Reboot Dome Adjust Aux Output

Figure 4-16 Task Types

1. Select the meline of a certain day, and drag the le button of the mouse to set the recording schedule (the start me and end me of the recording task).
2. (Oponal) Aer you set the scheduled task, you can click and copy the task to other days.

Figure 4-17 Edit the Schedule and Task Type

1. Aer seng the record schedule, you can click a record segment to display the segment record sengs interface to edit the segment record parameters. (Oponal)

Continuous 07 : 40 - 19 : 12 Delete | Save

Figure 4-18 Segment Record Sengs

Note:

The me of each task cannot be overlapped. Up to 10 tasks can be congured for each day.

1. Click to save the sengs.

4.2.7 Clearing PTZ Conguraons

Purpose:

You can clear PTZ conguraons in this interface, including all presets, patrols, paerns, privacy masks, PTZ limits, scheduled tasks and park acons.

Steps:

1. Enter the Clearing Conguraon interface:
   Conguraon > PTZ > Clear Cong

2. Check the checkbox of the items you want to clear.

3. Click to clear the sengs.

4.2.8 Conguring PTZ Control Priority

Steps:

1. Get to the conguraon interface:

Conguraon > PTZ > Priorize PTZ.

• The camera can be controlled by network and RS-485 signals. You can set the control priority of these two signals.
• The operaon of Operator is prior to that of User. When the Operator is controlling the camera, the User cannot control it. When the Operator nishes, the User can control the camera after the Delay me. The Delay me can be set in Priority PTZ interface as shown follows.

Prioritize PTZ Network Delay 10 s Save

Figure 4-19 PTZ Priority

1. Click to acvate the sengs.

4.2.9 Conguring Panorama Tracking

Purpose:

Aer you enable this funcon, when the camera detects the moving object in the panoramic view, the Camera 02 will track the detected target. Camera 02 automacally adjusts its PTZ posion to ensure that the target is in the center of PTZ view with certain detailed informaon. When you need to perform the manual tracking, click the icon of live view interface and click the target to start tracking.

Steps:

1. Enter the Panorama Tracking sengs interface:

Conguraon > PTZ > Panorama Tracking

Track Enable linkage capture and upload. Calibration Mode Auto Start Calibration Panorama View (Scene1) Regenerate Close-up View Set Tracking I... Tracking Du... 0 6 Zooming Ratio 0 Set Zoom Ratio Calibration Parameter Add Delete Clear Coordin... No. | Coordinate(x, y) | PTZ Position(p, i, z) 1 (254, 823) (276, 17, 1) 2 (89, 666) (267, 13, 1) 3 (576, 339) (293, 40, 1) 4 (239, 196) (268, 50, 1) 5 (458, 800) (287, 4, 1) 6 (760, 226) (307, 48, 1) Note: Auto calibrating can be performed independently for every scene. After auto calibrating done for all scenes, reboot the device to activate the new settings.

Figure 4-20 Congure Smart Tracking

1. Check the Enable Tracking checkbox to enable panorama tracking funcon.
2. Select the calibraon mode and perform the calibraon.

Auto Calibraon:

(1) Select the calibraon mode as Auto.
(2) Move and zoom in/out the PTZ view to make sure the PTZ view and the panoramic view is almost the same.
(3) Click Calibrate to start the auto calibraon. Aer calibraon for one scene is done, manually change to another scene to perform auto calibraon.
(4) Aer calibraon for all scenes are done, click Auto Calibraon Succeeded. The device reboots automacally to take eect.

Manual Calibraon:

(1) Select the calibraon mode as Manual.
(2) Move the No.1 site of panoramic view to certain site “+” and set the calibraon site.
(3) Move and zoom in/out the Camera 02 to make sure the of PTZ view and the of panoramic view are at the same posion.
(4) Click to save the current site posion informaon.
(5) Select other sites, and repeat the steps above to save the site posion informaon.
(6) Click > to switch the scene and set other calibraon sites for the Scene 2.
(7) The calibraon is completed when note shows up as: Calibraon Succeeded.

1. Set the tracking duraon. The camera stops tracking when the duraon me is up. The duraon ranges from 0 to 60 seconds.
2. Click Set Zoom Ratio to set the current zoom rao as the tracking zoom rao.
3. You can select Add, Delete, and Clear All to edit the calibraon sites. The coordinates and PTZ posions of selected calibraon sites will appear in the list below. In auto calibraon mode, click

Calibraon to refresh the PTZ posion; and in manual calibraon mode, click to refresh the

PTZ posion.

Calibration Parameter Add Delete Clear Coordin... No. | Coordinate(x, y) | PTZ Position(p, t, z) 1 (254, 623) (276, 17, 1) 2 (89, 666) (267, 13, 1) 3 (576, 339) (293, 40, 1) 4 (239, 196) (268, 50, 1) 5 (458, 800) (287, 4, 1) 6 (760, 226) (307, 48, 1)

Figure 4-21 Calibraon Parameters

Notes:

• In auto calibraon mode, the more similar is the PTZ view and the panoramic view, the panorama tracking gets more accurate.
• The more distant manual calibraon sites are to each other, the panorama tracking gets more accurate.

4.2.10 Rapid Focus

Purpose:

Aer this funcon is enabled, perform calibraon and the focus can be quicker than quick focus.

Steps:

1. Enter the Posion Sengs interface:
   Conguraon > PTZ > Posion Sengs.
2. Check the Enable checkbox to enable the Rapid Focus.
3. Drag the red line on the live view image to the calibraon posion according to the user. You can drag the ends of the red line to adjust the length of the line.
4. Click Start Calibraon. There is the noce Calibrang on the live view image and the camera lens performs auto focus.
5. After calibraon, there is the noce Calibraon succeeded on the live view image.
6. Click Save to save the sengs.
7. You can repeat step 3 to step 6 to congregate rapid focus for multiple scenes. Up to four scenes are supported.

Chapter 5 Storage and Playback

Notes:

• In this and the following chapters, operaon of the camera by the web browser will be taken as an example.
• You can set recording and capture schedule for dierent channels of the camera. Refer to the actual conguraon interface.

5.1 Storage Sengs

Before you start:

To congure record sengs, make sure that you have the network storage device within the network or the memory card has been inserted in the corresponding card slot. Refer to the quick start guide for the locaon of the memory card slot.

5.1.1 Conguring Net HDD

Before you start:

The network disk should be available within the network and properly congured to store the recorded les, log les, etc.

Steps:

Add Net HDD

1. Enter the NAS (Network-Aached Storage) sengs interface:

Conguraon > Storage > Storage Management > Net HDD

HDD Management Not HDD Net HDD HDD No. Server Address File Path Type Delete 1 10.10.36.61 /cxy_1 NAS ✗ Mounting Type SMB/CIFS User Name cxy1 Password Test 2 10.10.36.252 /dvi/yangjian_1 NAS ✗ 3 NAS ✗

Figure 5-1 Select Net HDD Type

1. Input the IP address of the network disk, and input the le path.
2. Select the moung type. NFS and SMB/CIFS are selectable. You can set the user name and password to guarantee the security if SMB/CIFS is selected.

Note:

Refer to the NAS User Manual for creang the le path.

- For your privacy and to beer protect your system against security risks, we strongly recommend the use of strong passwords for all funcons and network devices. The password should be something of your own choosing (Using a minimum of 8 characters, including at least three of

the following categories: upper case leers, lower case leers, numbers, and special characters.) in order to increase the security of your product.

- Proper conguraon of all passwords and other security settings is the responsibility of the installer and/or end-user.

1. If the status of the disk is Uninialized, check the corresponding checkbox to select the disk and click Format to start inializing the disk.

2. Click to save the sengs.

5.1.2 HDD Management

If the memory card is inserted in the device or NAS (Network-Aached Storage) is added, enter HDD Management interface to congregate the storage status.

Steps:

1. Enter the HDD sengs interface

Conguraon > Storage > Storage Management > HDD Management,

You can view the capacity, free space, status, type and property of the disk.

HDD Management Not HDD HDD Management Format ✓ HDD No. Capacity Free space Status Type Property Progress ✓ 9 9.84GB 0.00GB Normal NAS R/W ✓ 10 10.00GB 6.75GB Normal NAS R/W Quota Max.Picture Capacity 4.50GB Free Size for Picture 0.00GB Max. Record Capacity 14.25GB Free Size for Record 6.75GB

Figure 5-2 Storage Management Interface

1. If the status of the disk is Uninialized, check the corresponding checkbox to select the disk and click Format to start inializing the disk.
2. When the inializaon completed, the status of disk will become Normal.

HDD Management							Set	Format
✓	HDD No.	Capacity	Free space	Status	Type	Property	Progress
✓	9	20.00GB	0.00GB	Formatting	NAS	R/W

Figure 5-3 View Disk Status

Dene the Quota for Record and Pictures

Steps:

1. Input the quota percentage for picture and for record.
2. Click Save and refresh the browser page to acvate the sengs.

Quota Max Picture Capacity 4.75GB Free Size for Picture 4.75GB Max Record Capacity 14.50GB Free Size for Record 14.50GB Percentage of Picture 25 % Percentage of Record 75 % Save

Figure 5-4 Quota Sengs

Note:

Up to 8 NAS disks can be connected to the camera.

5.1.3 Conguring Record Schedule

Before you start:

Make sure a local memory card is inserted in the camera or the network storage is added to the camera.

Purpose:

There are two kinds of recording for the cameras: manual recording and scheduled recording. In this secon, you can follow the instrucons to conjure the scheduled recording. By default, the record les of scheduled recording are stored in the memory card (if supported) or in the network disk.

Steps:

1. Enter the Record Schedule sengs interface:

Conguraon > Storage > Schedule Setngs > Record Schedule

Record Schedule Capture Channel No. Camera 1 Enable Continuous Delete Delete All Advanced Mon 0 2 4 5 6 10 12 14 16 18 20 22 24 Tue 0 2 4 5 6 10 12 14 16 18 20 22 24 Wed 0 2 4 5 6 10 12 14 16 18 20 22 24 Thu 0 2 4 5 6 10 12 14 16 18 20 22 24 Fri 0 2 4 5 6 10 12 14 16 18 20 22 24 Sat 0 2 4 5 6 10 12 14 16 18 20 22 24 Sun 0 2 4 5 6 10 12 14 16 18 20 22 24 Copy to... Save

Figure 5-5 Record Schedule Interface

1. Check the Enable checkbox to enable scheduled recording.

2. To set the advanced sengs of the camera, click Advanced to enter the advanced settings interface.

Advanced ✓ Overwrite Pre-record 5s Post-record 5s Stream Type Main Stream OK Cancel

Figure 5-6 Record Parameters

- Pre-record: The me you set to start recording before the scheduled me or the event. For example, if an alarm triggers recording at 10:00, and the pre-record me is set as 5 seconds, the camera starts to record at 9:59:55.

The Pre-record me can be congured as No Pre-record, 5 s, 10 s, 15 s, 20 s, 25 s, 30 s or not limited.

Note:

The pre-record me changes according to the video bitrate.

- Post-record: The me you set to stop recording aer the scheduled me or the event. For example, if an alarm triggered recording ends at 11:00, and the post-record me is set as 5 seconds, the camera records unl 11:00:05.

The Post-record me can be congured as 5 s, 10 s, 30 s, 1 min, 2 min, 5 min or 10 min.

Note:

The Pre-record and Post-record parameters vary depending on dierent camera models.

- Stream Type: You can select the stream type for recording; Main stream, sub stream and third stream are selectable. If you select the sub stream, you can record for a longer me with the same storage capacity.

- Overwrite: If you enable this funcon and the HDD is full, the new record files overwrite the oldest record les automacally.

4. Click OK to save the advanced seng.

Figure 5-7 Record Schedule

5. Set the record schedule:

(1) Select a Record Type. The record type can be Connuous, Moon, Alarm, Moon | Alarm, Moon & Alarm, and Event.

- Connuous

If you select Connuous, the video will be recorded automacally according to the me of the schedule.

- Record Triggered by Moon Detecon

If you select Moon, the video will be recorded when the moon is detected.

Besides conguring the recording schedule, you have to set the moon detecon area and check the Trigger Channel checkbox in the Linkage Method of Moon Detecon sengs interface. For detailed informaon, refer to the Step 1 in the Secon 6.1.1 Conguring Moon Detecon.

- Record Triggered by Alarm

If you select Alarm, the video will be recorded when the alarm is triggered via the external alarm input channels.

Besides conguring the recording schedule, you have to set the Alarm Type and check the Trigger Channel checkbox in the Linkage Method of Alarm Input Sengs interface. For detailed informaon, refer to Secon 6.1.3 Conguring Alarm Input.

- Record Triggered by Moon | Alarm

If you select Moon | Alarm, the video will be recorded when the external alarm is triggered or the moon is detected.

Besides conguring the recording schedule, you have to congure the sengs on the Moon Detecon and Alarm Input sengs interfaces. Refer to Secon 6.1.1 and Secon 6.1.3 for detailed informaon.

● Record Triggered by Moon & Alarm

If you select Moon & Alarm, the video will be recorded when the moon and alarm are triggered at the same me.

Besides conguring the recording schedule, you have to congure the sengs on the Moon Detecon and Alarm Input sengs interfaces. Refer to Secon 6.1.1 and Secon 6.1.3 for detailed informaon.

• Record Triggered by Audio Excepon Detecon: If you select Audio Excepon Detecon, the video will be recorded when the audio excepon detecon is triggered. Besides conguring the recording schedule, you have to congregate the Audio Excepon Detecon.
• Record Triggered by VCA events: If you select VCA, the video will be recorded when the either of the VCA events is triggered. Besides conguring the recording schedule, you have to congure the VCA.
• Record Triggered by smart events: The smart evets include Line Crossing Detecon, Intrusion Detecon, Region Entrance Detecon and Region Exing Detecon. If you select to record by one type of the smart events, the video will be recorded when the selected smart event is triggered. Besides conguring the recording schedule, you have to congregate the specific event sengs.
• Record Triggered by All Events: If you select Event, the video will be recorded when any event is detected.

Note:

Either the smart events or the VCA events are supported, which varies depending on the camera models.

1. Select the record type, and drag the mouse on the me bar to set the record schedule.

2. Click to save the sengs.

5.1.4 Conguring Capture Schedule

Purpose:

You can congregate the scheduled snapshot and event-triggered snapshot. The captured picture can be stored in the local storage or network storage.

Steps:

1. Enter the Capture sengs interface:

Conguraon > Storage > Storage Sengs > Capture

Figure 5-8 Snapshot Sengs

1. Click to enter the Capture interface.
2. Select the meline of a certain day, and drag the le button of the mouse to set the capture schedule (the start me and end me of the recording task).
3. Aer you set the scheduled task, you can click and copy the task to other days (oponal).
4. Aer seng the capture schedule, you can click a capture segment to display the segment capture sengs interface to edit the segment capture parameters. (oponal)

Continuous 07 : 40 - 19 : 12 Delete | Save

Figure 5-9 Segment Snapshot Sengs

1. Click to enter the Capture Parameters interface.
2. Check the Enable Timing Snapshot checkbox to enable connuous snapshot, and configure the schedule of ming snapshot. Check the Enable Event-triggered Snapshot checkbox to enable event-triggered snapshot.
3. Select the format, resoluon, quality of the snapshot.

4. Set the me interval between two snapshots.

5. Click to save the sengs.

5.1.5 Cloud Storage

Purpose:

The captured pictures can be saved on an NVR which works in the Cloud Storage mode.

Note:

Cloud storage funcon varies according to dierent camera models.

Before you start:

Make sure the NVR has been switched into the Cloud Storage working mode, refer to the User Manual of NVR for details.

Steps:

1. Check the checkbox of Enable Cloud Storage.
2. Input the IP address and port of the storage server.
3. Input the user name, password and conrm password for the authencaon of the storage server.
4. Input picture storage pool ID on the server.
5. (Oponal) You can click Test to test the cloud storage sengs.
6. Click Save to save the sengs.

Note:

The storage server port ranges from 2000 to 65535 and the picture storage pool ID ranges from 1 to 255.

5.2 Picture

Purpose:

This secon explains how to view the captured picture les stored in the network disks and download the captured pictures.

Steps:

1. Click on the menu bar to enter picture interface.

Download by File Search Conditions File List Channel No: Camera1 File Type: Continuous Start Time 2018-05-15 00:00:00 End Time 2018-05-15 23:59:59 Search No. File Name Time File Size Progress Total 0 Items < < 0.0 > >>

Figure 5-10 Picture Interface

1. Select the search conditions, including the picture type, start me, and end me, then click Search. The results will be listed on the picture list area.

2. Select one picture and click Preview to preview the picture.

3. Check the checkbox in front of the les that you need to download.
4. Click to download the les.

Note:

Congure the saving path from Conguraon > Local Conguraon > Save snapshots in live view.

5.3 Playback

Purpose:

This secon explains how to view the remotely recorded video les stored in the memory card or network disks.

5.3.1 Play Back Video Files

Steps:

1. Click on the menu bar to enter playback interface.

Live View Playback Picture Configuration admin Help Logout Channel No.: 1 Status: May 2016 Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 5 6 7 8 9 10 11 Search Set playback time: 00 : 00 : 00 Command Continucus Alarm Manual 2016-05-23 00:00:00

Figure 5-11 Playback Interface

1. Select the date and click .

Sun Mon Tue Wed Thu Fri Sat 26 27 28 29 30 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 5

Figure 5-12 Search Video

1. Click to play the video les found on this date.

The toolbar on the boom of Playback interface can be used to control playing process.

Toolbar with playback, play, pause, audio, video, and download icons

Figure 5-13 Playback Toolbar

Descripons of Icons on PTZ Control Panel are listed below:

Playback	✓/II	Click to start playback and the icon turns into . Click the icon again to stop playback.
		Stop All Playback Click to stop all channels's playback at once.
		Single Frame Click to start playback by frame.
Playing Speed	◀/▶	Click to slow forward and click to fast forward.
Capture a picture		Click to manually capture the picture.
Clip	√/	Click to start clipping video le and the icon turns into . Click the icon again to stop clipping.
Download	↓	Click to download the video le.

Note:

You can choose the le paths locally for downloaded playback video les and pictures in Local

Conguraon interface. Refer to Secon 2.1 Local Conguraon Interface for details.

Drag the progress bar with the mouse to locate the exact playback point. You can also input the me and click to locate the playback point in the Set playback me eld. You can also click zoom out/in the progress bar.

Set playback time Set playback time 00 : 00 : 00

Figure 5-14 Set Playback Time

2015-06-15 05:34:54 03:00 04:00 05:00 06:00 07:00 08:00 09:00

Figure 5-15 Progress Bar

The dierent colors of the video on the progress bar stand for the dierent video types as shown in Figure 5-16.

Figure 5-16 Video Types

5.3.2 Downloading Video Files

Steps:

1. Click ↓ on the playback interface. The pop-up menu is shown in Figure 5-17.
2. Set the start me and end me. Click Search. The corresponding video les will be listed.

Download by File Search Conditions File List No. File Name Start Time End Time File Size Progress All Type Start Time 2016-08-15 00:00:00 End Time 2016-08-15 23:59:59 Search Total Items 0/0

Figure 5-17 Video Downloading interface

1. Check the checkbox in front of the video les that you need to download.
2. Click to download the video les.

Notes:

● The progress rao displays the downloading rao of the video le.
- You can click Stop to stop the downloading.
● The total number indicates the amount of the video les.
- The video les are not all listed on one page. You can click << , < , > and >> to turn pages.

5.3.3 Downloading Captured Pictures

Steps:

1. Click ↓ on the playback interface. The download interface pops up.

2. Set the linkage type of capturing the pictures as ming, alarm, moon, etc..

3. Set the start me and end me. Click Search and the corresponding picture les will be listed on the le.
4. Check the checkbox in front of the les that you need to download.
5. Click Download to download the les.

Chapter 6 Events Sengs

Purpose:

This secon explains how to conjure the camera to respond to alarm events, including moon detecon, video tampering, video loss, alarm input, alarm output, excepon, and audio excepon detecon. These events can trigger the alarm acons, such as Send Email, Nofy Surveillance Center, Upload to FTP/Memory Card/NAS, etc.

For example, when an external alarm is triggered, the camera sends a nocaon to an e-mail address.

6.1 Basic Event Conguraon

6.1.1 Conguring Moon Detecon

Purpose:

Moon detecon is a feature which can trigger alarm acons and acons of recording videos when the moon occurred in the surveillance scene.

Steps:

1. Enter the moon detecon seng interface:

Conguraon > Event > Basic Event > Moon Detecon

1. Select the camera Channel No. from the dropdown list.

Note:

The Camera 1 is the PTZ channel, and the Camera 2 and Camera 3 are the panoramic view channels.

1. Check the Enable Moon Detecon checkbox to enable this funcon.

You can check the Enable Dynamic Analysis for Moon checkbox if you want the detected object get marked with rectangle in the live view.

1. Select the conguraon mode as Normal or Expert and set the corresponding moon detecon parameters.

Normal

Steps:

(1) Click Draw Area. Drag the mouse on the live video image to draw a moon detecon area.
(2) Click to nish drawing.

Notes:

• You can draw up to 8 moon detecon areas on the same image.
• You can click to clear all of the areas.

(3) Move the slider to set the sensitivity of the detecon.

Channel No. Camera 1 Enable Motion Detection Enable Dynamic Analysis for Motion Area Settings Arming Schedule Linkage Method Configuration Normal Draw Area Clear All Sensitivity 0 Save

Figure 6-1 Moon Detecon Sengs-Normal

- Expert

Channel No. Camera 1 Enable Motion Detection Enable Dynamic Analysis for Motion Area Settings Arming Schedule Linkage Method Configuration Expert Scheduled Image Settings OFF Area 1 Sensitivity 50 Percentage 0 Draw Area Clear All Save

Figure 6-2 Moon Detecon Sengs-Expert

Steps:

(1) Set the Scheduled Image Sengs, there are OFF, Auto-Switch and Scheduled-Switch selectable. If the switch mode is enabled, you can congregate the detector rule for the day and night separately.

OFF: Disable the day and night switch.

Auto-Switch: Switch the day and night mode according to the illuminaon automacally.

Scheduled-Switch: Switch to the day mode at 6:00 a.m., and switch to the night mode at 18:00 p.m.

(2) Select Area to congregate in the dropdown list.
(3) Set the values of Sensitivity.

Sensitivity: The greater the value is, the easier the alarm will be triggered.

1. Set the Arming Schedule for Moon Detecon.

(1) Click tab to enter the arming schedule seng interface.

Figure 6-3 Arming Schedule

(2) Select the meline of a certain day, and drag the mouse to set the arming schedule (the start me and end me of the arming task).
(3) Aer you set the scheduled task, you can click and copy the task to other days (oponal).

Figure 6-4 Arming Time Schedule

(4) Aer seng the arming schedule, you can click a segment to display the segment arming sengs interface to edit the segment record parameters (oponal).

06 : 35 - 11 : 40 Delete | Save

Figure 6-5 Segment Arming Sengs

(5) Click

Note:

The me of each period cannot be overlapped. Up to 8 periods can be congured for each day. 6. Set the Alarm Acons for Moon Detecon.

Click tab to enter the Linkage Method interface.

You can specify the linkage method when an event occurs. The following contents are about how to congregate the dierent types of linkage method.

Area Settings > Arming Schedule > Linkage Method Normal Linkage Trigger Alarm Output Trigger Recording Send Email A->1 A1 Notify Surveillance Center A->2 A2 Upload to FTP/Memory Card... A3

Figure 6-6 Linkage Method

Check the checkbox to select the linkage method. Send Email, Nofy Surveillance Center, Upload to FTP/Memory Card/NAS, Trigger Alarm Output and Trigger Recording are selectable.

- Send Email

Send an email with alarm informaon to a user or users when an event occurs.

Note:

• To send the Email when an event occurs, you need to refer to Secon 2.2.2 Advanced Setngs - Conguring Email Sengs to set the Email parameters.
  ● Nofy Surveillance Center

Send an excepon or alarm signal to remote management soware when an event occurs.

- Upload to FTP/Memory Card/NAS

Capture the image when an alarm is triggered and upload the picture to a FTP server.

Note:

You need a FTP server and set FTP parameters rst. Refer to Secon 2.2.2 Advanced Setngs - Conguring FTP Sengs for seng FTP parameters.

● Trigger Recording

Record a video when an event occurs.

Note:

You have to set the recording schedule to realize this funcon. Refer to Secon 5.1 Storage Sengs for sengs the recording schedule.

● Trigger Alarm Output

Trigger one or more external alarm outputs when an event occurs.

Note:

To trigger an alarm output when an event occurs, refer to Secon 6.1.4 Conguring Alarm Output to set the alarm output parameters.

6.1.2 Conguring Video Tampering Alarm

Purpose:

You can congregate the camera to trigger the alarm acons when the lens is covered.

Steps:

1. Enter the video tampering sengs interface:

Conguraon > Event > Basic Event > Video Tampering

Enable Area Settings Arming Schedule Linkage Method Draw Area Clear All Sensitivity Save

Figure 6-7 Tampering Alarm

1. Check the Enable checkbox to enable the tampering detecon.

2. Set the tampering area. Refer to Step 4 in Secon 6.1.1 Conguring Motion Detecon.

3. Click Arming Schedule tab to enter the arming schedule seng interface. The arming schedule conguraon is the same as the seng of the arming schedule for moon detecon. Refer to Step 5 in Secon 6.1.1 Conguring Moon Detecon.

4. Click Linkage Method tab to select the linkage method taken for the video loss alarm. Send Email, Nofy Surveillance Center, and Trigger Alarm Output are selectable. Refer to Step 6 in Secon 6.1.1 Conguring Moon Detecon.

5. Click to save the sengs.

6.1.3 Conguring Alarm Input

Steps:

1. Enter the Alarm Input sengs interface:

Conguraon > Event > Basic Event > Alarm Input

1. Choose the Alarm Input No. and the Alarm Type. The alarm type can be NO (Normally Open) and NC (Normally Closed).

2. Edit the name in to set a name for the alarm input (cannot copy)

(oponal).

Alarm Input No. A<-1 IP Address Local Alarm Type NO Alarm Name (cannot copy) Enable Alarm Input Handling Arming Schedule Linkage Method Delete Delete All Mon 0 2 4 6 8 10 12 14 16 18 20 22 24 Tue 0 2 4 6 8 10 12 14 16 18 20 22 24 Wed 0 2 4 6 8 10 12 14 16 18 20 22 24 Thu 0 2 4 6 8 10 12 14 16 18 20 22 24 Fri 0 2 4 6 8 10 12 14 16 18 20 22 24 Sat 0 2 4 6 8 10 12 14 16 18 20 22 24 Sun 0 2 4 6 8 10 12 14 16 18 20 22 24 Copy to... Save

Figure 6-8 Alarm Input Sengs

1. Click Arming Schedule tab to enter the arming schedule seng interface. The arming schedule conguraon is the same as the seng of the arming schedule for moon detecon. Refer to Step 5 in Secon 6.1.1 Conguring Moon Detecon.
2. Click Linkage Method tab to select the linkage method taken for the video loss alarm. Send Email, Nofy Surveillance Center, Upload to FTP/Memory Card/NAS, Trigger Alarm Output and Trigger Recording are selectable. Refer to Step 6 in Secon 6.1.1 Conguring Moon Detecon.
3. You can also choose the PTZ linking for the alarm input. Check the relave checkbox and select the No. to enable Preset Calling, Patrol Calling or Paern Calling.
4. You can copy your sengs to other alarm inputs.
5. Click to save the sengs.

Normal Linkage Send Email Notify Surveillance Center Upload to FTP Trigger Alarm Output A->1 A->2 Trigger Channel A1 PTZ Linking A1 Preset No. 1 Patrol No. 1 Pattern 1 Copy to... Save

Figure 6-9 Linkage Method

6.1.4 Conguring Alarm Output

Steps:

1. Enter the Alarm Output sengs interface:
   Conguraon> Event > Basic Event > Alarm Output
2. Select one alarm output channel in the Alarm Output dropdown list.
3. Set a name in for the alarm output (oponal). (cannot copy)
4. The Delay me can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or Manual. The delay me refers to the me duraon that the alarm output remains in eect aer alarm occurs.
5. Click Arming Schedule tab to enter the arming schedule seng interface. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Step 5 in Secon 6.1.1 Conguring Moon Detecon.

Alarm Output No. A->1 IP Address Local Delay 5s Alarm Name (cannot copy) Alarm Status OFF (cannot copy) Arming Schedule Delete Delete All Mon 0 2 4 5 0 10 12 14 16 18 20 22 24 Tue 0 2 4 5 8 10 12 14 16 18 20 22 24 Wed 0 2 4 5 8 10 12 14 16 18 20 22 24 Thu 0 2 4 5 0 10 12 14 16 18 20 22 24 Fri 0 2 4 5 8 10 12 14 16 18 20 22 24 Sat 0 2 4 5 8 10 12 14 16 18 20 22 24 Sun 0 2 4 5 0 10 12 14 16 18 20 22 24 Manual Alarm Copy to... Save

Figure 6-10 Alarm Output Sengs

1. You can copy the sengs to other alarm outputs.
2. Click to save the sengs.

6.1.5 Handling Excepon

The exception type can be HDD full, HDD error, network disconnected, IP address conicted and illegal login to the cameras.

Steps:

1. Enter the Excepon sengs interface:

Conguraon > Event > Basic Event > Excepon

1. Check the checkbox to set the acons taken for the Excepon alarm. Refer to Step 6 in Secon 6.1.1 Conguring Moon Detecon.

Exception Type HDD Full Normal Linkage Trigger Alarm Output Send Email A->1 Notify Surveillance Center A->2 Save

Figure 6-11 Excepon Sengs

1. Click to save the sengs.

6.2 Smart Event Conguraon

6.2.1 Detecng Audio Excepon

Purpose:

When you enable this funcon and audio excepon occurs, the alarm acons will be triggered.

Steps:

1. Enter the audio excepon detecon interface:

Conguraon > Event > Smart Event > Audio Excepon Detection

Audio Exception Detection Exception Detection Arming Schedule Linkage Method Exception Detection Audio Loss Detection Sudden Increase of Sound Intensity Detection Sensitivity 50 Sound Intensity Threshold 50 Sudden Decrease of Sound Intensity Detection Sensitivity 50 Real-time Volume Save

Figure 6-12 Audio Excepon Detecon

1. Check the Audio Loss Detecon checkbox to enable the audio input excepon detecon.
2. Check the Sudden Increase of Sound Intensity Detecon checkbox to enable the sudden rise detecon.

● Sensitivity: Range [1-100], the smaller the value the more severe the sound change will trigger the detecon.
● Sound Intensity Threshold: Range [1-100], it can iter the sound in the environment, the louder the environment sound, the higher the value should be. You can adjust it according to the actual environment.

1. Check the Sudden Decrease of Sound Intensity Detecon checkbox to enable the sudden drop detecon.

Sensitivity: Range [1-100], the smaller the value the more severe the sound change will trigger the detecon.

1. Click Arming Schedule tab to enter the arming schedule seng interface. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Step 5 in Secon 6.1.1 Conguring Moon Detecon.
2. Click Linkage Method tab to select the linkage method taken for the video loss alarm. Send Email, Nofy Surveillance Center, Trigger Alarm Output, and Trigger Recording are selectable. Refer to Step 3 in Secon 6.1.1 Conguring Moon Detecon.
3. Click to save the sengs.

6.2.2 Conguring Intrusion Detecon

Intrusion detecon can set an area in the surveillance scene and once the area is entered, a set of alarm acon is triggered.

Steps:

1. Enter the intrusion detecon interface:

Conguraon > Events > Smart Event > Intrusion Detecon

1. Check the Enable checkbox.

Enable Area Settings Arming Schedule Linkage Method Region 1 Unlock(143s) #1# 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Draw Area Clear Threshold(s) 5 Sensitivity 50

Figure 6-13 Conguring Intrusion Area

1. The event triggered and park acon related PTZ movement will be locked for 180 seconds aer you enter the intrusion detecos interface. Oponally, you can click the buon to Unlock(69s)

manually acvate the movement, or lock the movement when the buon turns to by clicking it.

1. Draw area.

(1) Select the Region No.in dropdown list.
(2) Click to draw a rectangle on the image as a defense region.
(3) Click on the image to specify a corner of the rectangle, and right-click the mouse aer four corners are congured.

1. Congure the parameters for each defense region separately.

● Region: In this column, you can select a region.
- Threshold: Range [0-10s], the threshold for the me of the object loitering in the region. If you set the value as 0, alarm is triggered immediately aer the object entering the region.
● Sensitivity: Range [1-100]. The value of the sensitivity denotes the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

1. Click Arming Schedule tab to enter the arming schedule seng interface. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Step 5 in Secon 6.1.1 Conguring Moon Detecon.

2. Click Linkage Method tab to select the linkage method taken for intrusion detecon, Nofy Surveillance Center, Send Email, Upload to FTP/Memory Card/NAS, Trigger Alarm Output and Trigger Recording are selectable. Refer to Step 3 in Secon 6.1.1 Conguring Moon Detecon.

3. Click to save the sengs.

6.2.3 Conguring Line Crossing Detecon

The virtual plane detecon can be adopted for the intrusion detecon. Once the virtual plane is detected being traversed according to the congured direcon, a set of alarm acon is triggered.

Steps:

1. Enter the Line Crossing Detecon interface:

Conguraon >Event > Smart Event > Line Crossing Detecon

1. Check the Enable checkbox to enable the line crossing detecon funcon.
2. Select the Line in dropdown list to congure.
3. The event triggered and park acon related PTZ movement will be locked for 180 seconds aer you

enter the line crossing detecon interface. Oponally, you can click the buon to

manually acvate the movement, or lock the movement when the buon turns to by clicking it.

Enable Area Settings Arming Schedule Linkage Method Line 1 Unlock(61s) 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Draw Area Clear Direction A<->B Sensitivity 50 Save

Figure 6-14 Conguring Line

1. Draw area.

(1) Click to draw a line on the image.
(2) Click the line to switch to the eding mode.

Drag an end to the desired place to adjust the length and angle of the line. And drag the line to adjust the locaon.

1. Congure the parameters for each defense region separately.

2. Direcon: Select the detecon direcon in the dropdown list, there are A<->B, A->B and B->A selectable.

3. Sensitivity: Range [1-100]. The value of the sensitivity denes the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

4. Click Arming Schedule tab to enter the arming schedule seng interface. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Step 5 in Secon 6.1.1 Conguring Moon Detecon.

5. Click Linkage Method tab to select the linkage method taken for the line crossing detecon, Nofy Surveillance Center, Send Email, Upload to FTP/Memory Card/NAS, Trigger Alarm Output and Trigger Recording are selectable. Refer to Step 3 in Secon 6.1.1 Conguring Moon Detecon.

6. Click to save the sengs.

6.2.4 Conguring Region Entrance Detecon

Purpose:

Region entrance detecon funcon detects people, vehicle or other objects which enter a pre-dened virtual region from the outside place, and some certain acons can be taken when the alarm is triggered.

Steps:

1. Enter the Region Entrance Detecon sengs interface:

Conguraon> Event > Smart Event> Region Entrance Detecon

1. Check the checkbox of Enable to enable the Region Entrance Detecon funcon.

Enable Area Settings Arming Schedule Linkage Method Region 1 Unlock(175s) Draw Area Clear Sensitivity 50 Detection Target All Save

Figure 6-15 Conguring Region Entrance Detecon

1. Select the region from the dropdown list for detecon sengs.
2. Click the Buon to start the region drawing.
3. Click on the live video to specify the four vertexes of the detecon region, and right click to complete drawing.

Repeat the step to congregate other regions. You can click the buon to clear all pre-dened regions.

1. Sensitivity: Range [1-100]. The value of the sensitivity denotes the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.
2. Detecon Target: Set the detecon target for the region entrance detecon. You can select human, vehicle, or all (human & vehicle) as the detecon target from the dropdown list. If Human is selected, only human beings will be idened as detecon objects and as well as Vehicle.
3. Click Arming Schedule tab to enter the arming schedule seng interface. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Step 5 in Secon 6.1.1 Conguring Moon Detecon.
4. Click Linkage Method tab to select the linkage method taken for the video loss alarm, Nofy surveillance center, send email, upload to FTP, trigger channel, smart tracking and trigger alarm output are selectable. Refer to Step 3 in Secon 6.1.1 Conguring Moon Detecon.
5. Click to save the sengs.

6.2.5 Conguring Region Exing Detecon

Purpose:

Region exing detecon funcon detects people, vehicle or other objects which exit from a pre-dened virtual region, and some certain acons can be taken when the alarm is triggered.

Steps:

1. Enter the Region Exing Detecon sengs interface:

Conguraon> Event > Smart Event> Region Exing Detecon

1. Check the checkbox of Enable to enable the Region Exing Detecon funcon.

Enable Area Settings > Arming Schedule > Linkage Method Region 1 Unlock(152s) Draw Area Clear Sensitivity 50 Detection Target All

Figure 6-16 Conguring Region Exing Detecon

1. Select the region from the dropdown list for detecon sengs.
2. Click the buon to start the region drawing.
3. Click on the live video to specify the four vertexes of the detecon region, and right click to complete drawing.

Repeat the step to conjure other regions. Up to 4 regions can be set. You can click the buon to clear all pre-dened regions.

Clear

1. Sensitivity: Range [1-100]. The value of the sensitivity denotes the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.
2. Detecon Target: Set the detecon target for the region entrance detecon. You can select human, vehicle, or all (human & vehicle) as the detecon target from the dropdown list. If Human is selected, only human beings will be idened as detecon objects and as well as Vehicle.
3. Click Arming Schedule tab to enter the arming schedule seng interface. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Step 5 in Secon 6.1.1 Conguring Moon Detecon.
4. Click Linkage Method tab to select the linkage method taken for the video loss alarm, Nofy surveillance center, send email, upload to FTP, trigger channel, smart tracking and trigger alarm output are selectable. Refer to Step 3 in Secon 6.1.1 Conguring Moon Detecon.
5. Click buon to save the sengs.

6.3 VCA Conguraon

Purpose:

You can do intelligent analysis such as behavior analysis and face capture, etc. with the camera.

Mulple rules can be congured for dierent requirements.

Note:

VCA is only available for panoramic camera channel.

6.3.1 Conguring VCA Informaon (Overlay & Capture)

Steps:

1. Enter the VCA conguraon interface:

Conguraon > VCA > Overlay & Capture

Overlay & Capture Display on Stream ✓ Display VCA Info. on Stream Display on Picture ✓ Display Target Info. on Alarm Picture ✓ Display Rule Info. on Alarm Picture Snapshot Settings ✓ Upload JPEG Image to Center Picture Quality High ✓ Save

Figure 6-17 Overlay & Capture

1. Set the display informaon:

2. Display VCA info. on Stream: The green frames will be displayed on the target if in a live view or playback.

3. Display Target info. on Alarm Picture: There will be a frame on the target on the uploaded alarm picture if the checkbox is checked.

4. Display Rule info. on Alarm Picture: The captured target and the congured area will be framed on the alarm picture.

5. Set the Snapshot:

6. You can check the checkbox to upload JPEG image to surveillance center when VCA alarm occurs.
   ● You can also set the quality of the picture.

7. Click

6.3.2 Shield Region

Purpose:

Shield Region is the user-dened areas in surveillance scene that the analysis doesn't take eect. Usually, they can be privacy areas. Set if needed.

Steps:

1. Click Shield Region tab to enter the shield region conguraon interface
2. Click Draw Area. Draw area by le click end-points in the live view window, and right click to nish the area drawing. Polygon area with up to 10 sides are supported.
3. Click Save to save the sengs.

6.3.3 Rule Conguraon Demonstraon

This secon provides detailed conguraon steps for each rule.

1. Click Rule Tab to enter the rule conguraon interface.
2. Check the checkbox in Rule List to enable the rule for behavior analysis.
3. For the selected rule, set the Rule Name, Rule Type, and complete rule-specified sengs.

- Line Crossing

Purpose:

This funcon can be used for detectng people, vehicles and objects traversing a set virtual plane. The traversing direcon can be set as bidireconal, from le to right or from right to le. The alarm will be triggered if the rule is broken.

Steps:

1) Create new rule: Click add a new rule.
2) Select rule type: Click the dropdown list and select Line Crossing as the rule type.

Rule List Enable No. Rule Name Rule Type ✓ 1 RULE1 Line Crossing ✓ Filter by Pixel Line Crossing None Max. Size 0 * 0 Detection Target Line Crossing Min. Size 0 * 0 Detection Target Intrusion 2 RULE 2 Line Crossing

Figure 6-18 Select Rule Type

3) Congure the rule area:

Click on the tool bar of the live view panel. Adjust the posion and length of the line on the live view panel.

Street photo with visible road markings and directional arrows, labeled A and B

Figure 6-19 Draw Line

4) Click the dropdown list in the rule list to select the crossing direcon.

Line Crossing Detection Target Bidirectional Bidirectional A-to-B B-to-A

Figure 6-20 Select Crossing Direcon

5) Enable rules: Check the Enable checkbox of each rule in the rule list to enable the rule.

6) Click to save the sengs.

- Intrusion

Purpose:

This funcon can be used for detectng whether there are people, vehicles and objects intrude into the pre-dened region longer than the set duraon. The alarm will be triggered if the rule is broken.

Steps:

1) Create new rule: Click add a new rule.
2) Select rule type: Click the dropdown list and select Intrusion as the rule type.

Rule List Enable No. Rule Name Rule Type ✓ 1 RULE1 Line Crossing ✓ 2 RULE 2 ✓ Filter by Pixel Duration Max. Size 0 * 0 Detection Target Min. Size 0 * 0 Intrusion None Line Crossing Intrusion Region Entrance Region Exiting

Figure 6-21 Select Rule Type

3) Congure the rule area:

Click on the tool bar of the live view panel. Click the mouse on the live view panel. Right click the mouse to nish drawing.

Aerial view of a multi-lane road with a green polygonal overlay highlighting a specific area (no text or symbols visible)

Figure 6-22 Draw Area

4) Set the duraon from 1 to 100.

5) Enable rules: Check the Enable checkbox of each rule in the rule list to enable the rule.

6) Click to save the sengs.

● Region Entrance

Purpose:

This funcon can be used for detectng people, vehicles and objects entering the pre-dened region. The alarm will be triggered if the rule is broken.

Steps:

1) Create new rule: Click to add a new rule.

2) Select rule type: Click the dropdown list and select Region Entrance as the rule type.

Rule List Enable No. Rule Name Rule Type ✓ 1 RULE1 Line Crossing ✓ 2 RULE 2 Region Entrance ✓ Filter by Pixel Detection Target None Max. Size 0 * 0 Line Crossing Min. Size 0 * 0 Intrusion Region Entrance Region Etang

Figure 6-23 Select Rule Type

3) Congure the rule area:

Click on the tool bar of the live view panel. Click the mouse on the live view panel. Right click the mouse to nish drawing.

Aerial view of a paved road with a green polygonal overlay, surrounded by trees and grass (no visible text or symbols)

Figure 6-24 Draw Area

4) Enable rules: Check the Enable checkbox of each rule in the rule list to enable the rule.

5) Click to save the sengs.

- Region Exing

Purpose:

This funcon can be used for detectng people, vehicles and objects exing the pre-dened region. The alarm will be triggered if the rule is broken.

Steps:

1) Create new rule: Click to add a new rule.

2) Select rule type: Click the dropdown list and select Region Exing as the rule type.

Rule List Enable No. Rule Name Rule Type ✓ 1 RULE1 Line Crossing ✓ 2 RULE 2 Region Exiting ✓ Filter by Pixel Detection Target None Max. Size 0 * 0 Line Crossing Min. Size 0 * 0 Intrusion Region Entrance Region Exiting

Figure 6-25 Select Rule Type

3) Congure the rule area:

Click on the tool bar of the live view panel. Click the mouse on the live view panel. Right click the mouse to nish drawing.

Aerial view of a multi-lane road with white painted lanes and a green polygonal overlay, surrounded by trees and streetlights (no text or symbols visible)

Figure 6-26 Draw Area

4) Enable rules: Check the Enable checkbox of each rule in the rule list to enable the rule.

5) Click to save the sengs.

1. Click Save to save the sengs.
2. Click Arming Schedule tab to enter the arming schedule seng interface. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Step 5 in Secon 6.1.1 Conguring Moon Detecon.
3. Click Linkage Method tab to select the linkage method taken for the video loss alarm, Nofy surveillance center, send email, upload to FTP, trigger channel, smart tracking and trigger alarm output are selectable. Refer to Step 3 in Secon 6.1.1 Conguring Moon Detecon.
4. Click buon to save the sengs.

6.3.4 Advanced Conguraon

Purpose:

All the parameters for both behavior analysis and face capture are collected in the advanced conguraon page. You can congure these parameters for dierent VCA types on your demand.

Steps:

1. Enter the Advanced Conguraon interface:

Conguraon > VCA > Advanced Conguraon

Parameters Global Size Filter Behavior Analysis Version V1.2.0build20171130 Scene Mode Commanding Height Detection Parameters Detection Sensitivity 3 Background Update Rate 2 Restore Parameters Restore Defaults Restore Restart VCA Restart Intrinsic Parameter Save

Figure 6-27 Advanced Conguraon

1. Adjust Parameters.

Scene Mode: Select a scene mode to acvate certain scene-specific sengs.

Detecon Sensitivity: Range [0-4], the higher the sensitivity is, the easier the target will be detected.

Background Update Rate: Range [0-4], if a detected target remains in the monitoring scene for a certain me, the system will count the target as the background automacally. The greater the value is, the faster the target will be counted as the background.

Restore Default: Click Restore to restore the parameters to the default.

Restart VCA: Click Restart to restart the VCA funcon.

1. Global Size Filter

Global Size Iter is valid for all panoramic channels. Targets larger or smaller than the set size range are Itered out.

Steps:

1) Enable Global Size Filter.
2) Click and draw a max size frame on live image.
3) Click and draw a min size frame on live image.
4) Click Save to save the sengs.

1. Click to save the sengs.

6.4 Face Capture

Face capture funcon detects and captures faces in surveillance scenes. When the grading of the detected face exceeds an algorithm-dened value, the PTZ camera channel captures the face and triggers linkage acons. Set up Capture Parameters and advanced parameters before using the funcon.

Note:

For certain camera models, you need to select Face Capture on VCA Resource (Conguraon > System > System Sengs) page rst.

Steps:

1. Check Enable to enable the funcon.
2. Set up face capture rule.

1) Select a Detecon Scene from the dropdown list.
2) Adjust the live image to a desired scene. you can use PTZ control panel or click 🔒 to locate a scene with a face. Click Lock to lock PTZ for further sengs.
3) Click and draw detecon area on live image.
4) Click and draw min. pupil distance on live image.
5) Input Mounng Height of the camera.
6) Save the sengs for the detecon scene.
7) Repeat the steps to set other detecon scenes.
8) Save the sengs.

1. Set arming schedule and patrol schedule if needed.

Arming Schedule: In scheduled arming me, the camera is ready to capture detected faces in set detecon scenes.

Patrol Schedule: The camera patrols the detecon scenes following congured order and dwell me, and capture faces during its patrol.

1) Set arming schedule.

i. Click Patrol Schedule tab.
ii. Draw blue me bar. Up to 8 me segments are supported for each day.

2) Set patrol schedule.

i. Click the set blue me bar.
ii. Click Conguraon in the pop-up bubble.
iii. Add detecon scenes, adjust the patrol sequence and set dwell me for each detecon scene.
iv. Save the sengs by clicking OK.

3) (Oponal) You can copy the sengs of a day to other days by click on right end of the me bar.

1. Set linkage method.

Chapter 7 System Sengs

7.1 Basic Informaon

7.1.1 Viewing Basic Informaon

Enter the Basic Informaon interface:

Conguraon > System > System Sengs > Basic Informaon

In the Basic Informaon interface, you can edit the Device Name and Device No.

Other informaon of the camera, such as Model, Serial No., Firmware Version, Encoding Version, Web Version, Plugin Version, Number of Channels, Number of HDDs, Number of Alarm Input and Number of Alarm Output are displayed. The informaon cannot be changed in this menu. It is the reference for maintenance or modicaon in future.

Basic Information Time Settings RS485 DST Device Name IP DOME Device No. 88 Model XX-XxxXxxx-X Serial No. XX-XxxXxxx-XXXXXXXXXXX Firmware Version VX.X X build XxxXXXX Encoding Version VX.X build XxxXXXX Web Version VX X X build XxxXXXX Plugin Version VX.X.X.XX Number of Channels 1 Number of HDDs 0 Number of Alarm Input 7 Number of Alarm Output 2

Figure 7-1 Device Informaon

7.1.2 Time Sengs

Purpose:

You can follow the instrucons in this secon to conjure the me which can be displayed on the video. There are Time Zone, Time Synchronizaon, Daylight Saving Time (DST) funcons for seng the me. Time Synchronizaon consists of auto mode by Network Time Protocol (NTP) server and manual mode. To enter the Time sengs interface:

Conguraon > System > System Sengs > Time Sengs

Basic Information Time Settings RS485 DST Time Zone (GMT+08:00) Beijing, Urumqi, Singapore NTP ○ NTP Server Address time.windows.com NTP Port 123 Interval 1440 min Test Manual Time Sync. ● Manual Time Sync. Device Time 2015-08-11T20:08:42 Set Time 2015-08-11T20:08:29 Sync. with computer time Save

Figure 7-2 Time Sengs

◆ Conguring Time Synchronizaon by NTP Server

Steps:

(1) Check the radio buon to enable the NTP funcon.
(2) Congure the following sengs:

Server Address: IP address of NTP server.

NTP Port: Port of NTP server.

Interval: The me interval between the two synchronizing acons by NTP server. It can be set from 1 to 10080 minutes.

NTP ● NTP Server Address time.windows.com NTP Port 123 Interval 1440 min Test

Figure 7-3 Time Sync by NTP Server

(3) You can click to check whether the configuraon is succeeded.

Note:

If the camera is connected to a public network, you should use a NTP server that has a me synchronizaon funcon, such as the server at the Naonal Time Center (IP Address:

210.72.145.44). If the camera is set in a customized network, NTP soware can be used to establish a NTP server for me synchronizaon.

◆ Conguring Time Synchronizaon Manually

Steps:

(1) Check the Manual Time Sync radio buon.
(2) Click to set the system me from the pop-up calendar.
(3) Click to save the sengs.

Note:

You can also check the Sync. with computer me checkbox to synchronize the me of the camera with the me of your computer.

Sun Mon Tue Wed Thu Fri Sat 26 27 28 29 30 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 5 Time 20 : 11 : 33 OK Manual Time Sync. ● Manual Time Sync. Device Time 2015-08-11T20:12:33 Set Time 2015-08-11T20:11:33 Sync. with computer time

Figure 7-4 Time Sync Manually

◆ Select the Time Zone

Purpose:

When the camera is taken to another me zone, you can use the Time Zone funcon to adjust the me. The me will be adjusted according to the original me and the me dierence between the two me zones.

From the Time Zone dropdown menu as shown in Figure 7-5, select the Time Zone in which the camera locates.

Time Zone (GMT+08:00) Beijing, Urumqi, Singapore

Figure 7-5 Time Zone Sengs

7.1.3 Conguring RS-485

Purpose:

The RS-485 serial port is used to control the PTZ of the camera. The conguring of the PTZ parameters should be done before you control the PTZ unit.

Steps:

1. Enter RS-485 Port seng interface:

Conguraon > System > System Sengs > RS-485

RS485 Baud Rate 9600 Data Bit 8 Stop Bit 1 Parity None Flow Ctrl None PTZ Protocol PELCO-D PTZ Address 0 Save

Figure 7-6 RS-485 Sengs

1. Set the RS-485 parameters and click

Note:

The Baud rate, PTZ Protocol and PTZ Address parameters of the camera should be exactly the same as those of the control device.

7.1.4 Conguring DST (Daylight Saving Time)

Purpose:

If there is the habit of adjusng clocks forward in your country in certain me period of a year, you can turn this funcon on. The me will be adjusted automacally when the Daylight Saving Time (DST) comes.

Steps:

1. Enter the DST sengs interface:

Conguraon > System > System Sengs > DST

1. Check to enable the DST funcon.
2. Set the date of the DST period.
3. Click to save the sengs.

Enable DST Start Time Apr First Sun 02 End Time Oct Last Sun 02 DST Bias 30min

Figure 7-7 DST Sengs

7.1.5 VCA Resource

VCA resource oers users opons to enable certain VCA funcon and disable others when several VCA funcons are available. It helps allocate more resources to the wanted funcons.

Steps:

1. Enter the VCA Resource interface: Conguraon > System sengs > VCA Resource
2. Select the desired VCA opon.
3. Save the sengs. A reboot is needed for the sengs to take effect.

Note:

The funcon may not be supported by some camera models.

7.1.6 About

Click View License, you can check Open Source Soware Licenses.

7.2 Maintenance

7.2.1 Upgrade & Maintenance

● Reboong the Camera

Steps:

1. Enter the Maintenance interface:
   Conguraon > System > Maintenance > Upgrade & Maintenance:
2. Click Reboot to remotely reboot the camera.

● Restoring Default Sengs

Steps:

1. Enter the Maintenance interface:
   Conguraon > System > Maintenance > Upgrade & Maintenance:
2. Click Restore or Default to restore the default sengs.

Note:

Clicking buon will restore all the parameters to default sengs including the IP address and user informaon. Use this buon with cauon.

Default Restore Reset all the parameters, except the IP parameters and user information, to the default settings. Default Restore all parameters to default settings.

Figure 7-8 Restore Default Sengs

● Exporng Conguraon File

Steps:

1. Enter the Maintenance interface:
   Conguraon > System > Maintenance > Upgrade & Maintenance
2. Click Device Parameters to select the directory as the saving path to start exporng conguraon le.

- Imporng Conguraon File

Steps:

1. Enter the Maintenance interface:
   Conguraon > System > Maintenance > Upgrade & Maintenance
2. Click Browse to select the local conguraon le and then click Import to start imporg conguraon le.

Import Config. File Device Parameters Browse Import Status

Figure 7-9 Import Conguraon File

Note:

You need to reboot the camera aer imporng conguraon le.

- Upgrading the System

Steps:

1. Enter the Upgrade & Maintenance interface:

Conguraon >System > Maintenance > Upgrade & Maintenance

1. Select Firmware or Firmware Directory.

2. Firmware: when you select Firmware, you need to nd the rmware in your computer to upgrade the device.

3. Firmware Directory: You need to nd the directory where the rmware locates. The device can nd the rmware in the directory automacally.

4. Click Browse to select the local upgrade le and then click Upgrade to start remote upgrade.

Note:

The upgrading process will take 1 to 10 minutes. Do not disconnect the power of the camera during the upgrading process. The camera reboots automacally aer upgrading.

Upgrade Firmware ade Package\IPD_R3_EN_NEU_5.3.10_150729\digicap.dav Browse Upgrade Status Note: The upgrading process will be 1 to 10 minutes, please don't disconnect power to the device during the process. The device reboots after upgrading.

Figure 7-10 Remote Upgrade

7.2.2 Log Searching

Purpose:

The operaon, alarm, excepon and informaon of the camera can be stored in log les. You can also export the log les on your demand.

Before you start:

Congure network storage for the camera or insert a memory card in the camera.

Steps:

1. Enter the Log interface:

Conguraon >System > Maintenance > Log

Upgrade & Maintenance Log System Service Major Type All Types Minor Type All Types Start Time 2015-08-11 00:00:00 End Time 2015-08-11 23:59:59 Search Log List Export No. Time Major Type Minor Type Channel No. Local/Remote User Remote Host IP Total 0 Items << < 0/0 >>>

Figure 7-11 Log Searching Interface

1. Set the log search conditions to specify the search, including the Major Type, Minor Type, Start Time and End Time as shown in Figure 7-11.

2. Click Search to search log les. The matched log les will be displayed on the Log List.

3. To export the log les, click Save Log to save the log les in your computer.

7.2.3 System Service

Hardware

It refers to the hardware service, for example supplement light, the camera supports. Check correspondent funcon to enable it. Supported funcons varies according to the dierent cameras.

Note:

The supplement light conguraon is only supported by certain models.

Soware

You can set the maximum live view conncon. Up to 18 users are supported for live view at the same me.

Note:

The number of live view conncon varies according to dierent camera models. The maximum number of live view conncon equals the number of camera channels mulplied by 6. If the camera supports 2 channels, up to 12 users are supported for live view at the same me.

Steps:

1. Enter the interface of conging the remote conncon:

Conguraon > System > Maintenance > System Service

1. Input a number in text eld as the upper limit of the remote conncon number. E.g. when you specify the remote conncon number as 10, then the 11th remote conncon cannot be established.

Software Live View Connection 10 Save

Figure 7-12 Live View Connecon Sengs

1. Click to acvate the sengs.

7.3 Security

7.3.1 Conguring Authencaon

Purpose:

You can specifically secure the stream data of live view. RTSP authencaon and WEB authencaon are supported.

Steps:

1. Enter the Authencaon interface:
   Conguraon> System> Security > Authenticaon
2. Select the authencaon type. Digest is the recommended safer authencaon way.
3. Click to save the sengs.

7.3.2 Conguring IP Address Filter

Purpose:

With this funcon on, the camera allows certain IP addresses whether to log in or not.

Steps:

1. Enter IP Address Filter interface:

Conguraon > System > Security > IP Address Filter

Enable IP Address Filter IP Address Filter Type Forbidden IP Address Filter Add Modify Delete No. IP Save

Figure 7-13 IP Address Filter

1. Check the Enable IP Address Filter checkbox.
2. Select the type of IP Address Filter in the dropdown list, Forbidden and Allowed are selectable.
3. Set the IP Address Filter list.

- Add an IP Address

Steps:

(1) Click Add to add an IP.
(2) Input the IP Adreess.

Add IP Address IP Address 172.6.23.2 OK Cancel

Figure 7-14 Add an IP

(3) Click OK to nish adding.

- Modify an IP Address

Steps:

(1) Le-click an IP address from Iter list and click Modify.
(2) Modify the IP address in the text led.

Modify IP Address IP Address 172.6.23.2 OK Cancel

Figure 7-15 Modify an IP

(3) Click OK to nish modifying.

- Delete an IP Address

Le-click an IP address from Iter list and click Delete.

- Delete all IP Addresses

Click Clear to delete all the IP addresses.

1. Click Save to save the sengs.

7.3.3 Conguring Security Service Sengs

Steps:

1. Enter the Security Service interface:

Conguraon> System > Security > Security Service

1. Check the Enable Illegal Login Lock checkbox to automacally lock the device IP after performing 5 failed password aempts.

7.4 User Management

Enter the User Management interface:

Conguraon > System > User Management

- As Administrator

The administrator can add, delete or modify user accounts, and grant them dierent permissions. We highly recommend administrator to manage the device accounts and user permissions properly. Up to 31 user accounts can be created.

Administrator need to input correct admin password when changing sengs of other operators or users.

Administrator can set Security Queson. Security queson is used to reset the forgoen password.

When reseng the forgoen password, the PC the administrator uses and the camera should belong to the same IP address segment of the same LAN.

● As Operator or User

Operator or user can modify password. Old password is required for this acon.

- Password Recommendaon

The system judges the password strength automacally when creang the password. A strong password is highly recommended to ensure your data security. And a strong password should be your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case leers, lower case leers, numbers, and special characters).

Online User

Enter the Online Users conguraon interface:

Conguraon > System > User Management > Online Users

User List Refresh
No.	User Name	Level	IP Address	User Operation Time
1	admin	Administrator	10.15.2.15	2017-11-14 14:59:15

Figure 7-16 Online User

You can see the current users who are vising the device through this interface. User informaon, such as user name, level, IP address, and operaon me, is displayed in the User List. Click Refresh to refresh the list.

Appendix

Appendix 1 SADP Soware Introducon

◆ Descripon of SADP

SADP (Search Acve Devices Protocol) is a kind of user-friendly and installaon-free online device search tool. It searches the acve online devices within your subnet and displays the informaon of the devices. You can also modify the basic network informaon of the devices using this soware.

◆ Search acve devices online

- Search online devices automacally

Aer launch the SADP soware, it automacally searches the online devices every 15 seconds from the subnet where your computer locates. It displays the total number and informaon of the searched devices in the Online Devices interface. Device informaon including the device type, IP address and port number, etc. will be displayed.

SADP Online Devices Help Total number of online devices: 3 Save as Excel Refresh ID Device Type IPv4 Address Security Port Software Version IPv4 Gateway HTTP Port 001 XX-XXXXXXXXX 192.168.1.64 Active 8000 Vx.x.xxbuild xxxxxx 192.168.1.1 N/A 002 XX-XXXXXXXXX 192.168.1.64 Inactive 8000 Vx.x.xxbuild xxxxxx 192.168.1.1 80 003 XX-XXXXXXXXX 192.168.1.64 Active 8000 Vx.x.xxbuild xxxxxx 192.168.1.1 80 Modify Network Parameters IP Address: 192.158.1.64 Port: 8000 Subnet Mask: 255.255.255.0 IPv4 Gateway: 192.158.1.1 IPv6 Address: : IPv6 Gateway: : IPv6 Prefix Length: 0 HTTP Port: 80 Device Serial No.: XX-XXXXXXXX-XXXXXXX Enable DHCP Password Save Device Activation New Password ********** Strong Confirm Password: ********** OK

Figure A.1.1 Searching Online Devices

Note:

Device can be searched and displayed in the list in 15 seconds aer it went online; it will be removed from the list in 45 seconds aer it went oine.

- Search online devices manually

You can also click to refresh the online device list manually. The newly searched devices will be added to the list.

Note:

You can click or on each column heading to order the informaon; you can click

to expand the device table and hide the network parameter panel on the right side, or click to show the network parameter panel.

◆ Modify network parameters

Steps:

1. Select the device to be modified in the device list and the network parameters of the device will be displayed in the Modify Network Parameters panel on the right side.
2. Edit the modifiable network parameters, e.g. IP address and port number.
3. Enter the password of the admin account of the device in the Password eld and click save the changes.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Modify Network Parameters IP Address: 192.168.1.64 Port: 8000 Subnet Mask: 255.255.255.0 IPv4 Gateway: 192.168.1.1 IPv6 Address: 3a3a: IPv6 Gateway: 3a3a: IPv6 Prefix Length: 64 Serial No.: XX-XXXXXX-XXXXXX-XXXXXX Password Save Note:Enter the admin password of the device before you save the network parameters.

Figure A.1.2 Modify Network Parameters

Appendix 2 Stacs, Interference Lightning and Surge Protecon

This product adopts TVS plate lightning protecon technology to avoid damage caused by pulse signal that is below 3000V, like instantaneous lighng stroke, surging, etc. According to the actual outdoor situaon, necessary protecon measures must be taken, besides ensuring the electrical safety.

• The distance between signal transmission wires and High-voltage equipment or high-voltage cable is at least 50m.
  ● Outdoor wiring should beer be routed under eaves as much as possible.
• In the open eld, wiring should be buried underground in sealed steel pipe, and the steel-pipe should be one-point grounding. Overhead round method is forbidden.
• In strong thunderstorm area or high inducon voltage areas (such as high-voltage transformer substaon), high power lightning protecon apparatus and lightning conductor are necessary to be added.
• The design of lightning protecon and grounding of the outdoor devices and cables should be considered together with the lightning protecon demand of buildings. It also must conform to the related naonal standards and industrial standards.
• The system should be equipotenal grounded. The grounding equipment must conform to the demands of system an-jamming and electrical safety both and it must not appear short circuit or mixed circuit with the zero conductor of strong grid. When the system is grounded alone, the resistance should be no more than 4Ω. The seconal area of the grounding cable should be no less than 25mm2. For grounding instrucons, refer to the Installaon Manual of Camera.

Video Arrester Communicaon Arrester Power Arrester Lightening Rod 45° The speed dome must be installed in the 45° protecon area of the lightning rod. The impedance of the grounding wire can be no more than 4Ω. Steel Protecon Tube

Figure A.3.1 Lightning & Surge Protecon

Grounding for Cement Pole/Wall Installaon:

When the camera is installed in environment where is relatively insulang to the earth, e.g., cement pole or cement wall, then only the control center requires proper grounded locally. Refer to the following gure.

Power supply board Cement pole/wall Power Power Power supply board Video cable Control line Display Operang center Keyboard GND DVR GND UPS GND 1.5m underground

Figure A.3.2 Grounding in Cement Pole/Wall Installation

Notes:

● Because the signal transmission media of ber opcal camera and camera are isolated from the control center, they must be grounded locally to protect camera against damages.
- If the camera is installed in strong thunderstorm area, it must be grounded locally to release lightening or suchlike high energy to protect camera against damages. Refer to the following gure.

Power Power supply board Power supply board Cement pole/wall Video cable Control line Display Operang Center Keyboard GND DVR GND UPS GND 1.5m underground 1.5m underground

Figure A.3.3 Lightening-protecon Grounding in Cement Pole/Wall Installation

Grounding for Metal Pole Installaon:

When the camera is installed in environment where is conducive to the earth, e.g., metal pole, then the grounding of camera can be achieved by the properly grounded metal pole, meanwhile, the control center must be grounded locally as well. Refer to the following gure.

Figure A.3.4 Grounding in Metal Pole Installaon

Note:

If the ber opcs, lightening protector or other device are applied during the transmission of camera, such devices as well as the video cables round through must be proper grounded.

Appendix 3 Waterproof

Notes:

The long-arm wall mount is recommended for the outdoor applicaon of camera.

You cannot use the short-arm wall mount or pendant mount for outdoor applicaon, because it is not water-proof.

It is recommended to use the mount with inner threaded interface and good waterproof performance.

If you use a mount with outer threaded interface, adopt waterproof measures to the adapter applied between the mount and the camera.

Do not install indoor camera to the outdoor environment.

L-shape Pole Mount

Make sure that the L-shape pole mount is designed with a certain inclinaon angle as shown in following gure. Water won't ow from the pole into the camera with the inclinaon angle.

θ

Figure A.4.1 Customized Mount

Appendix 4 Bubble Maintenance

The bubble is a transparent plasc. The dust, oil and nger print, etc. will cause scratch or image blur.

Refer to the following method to clean the bubble.

- Handling dust

Use oil free so brush or blowing dust ball to clean the dust.

- Handling oil

Steps:

1. Wipe off the water-drop or oil by so cloth and dry the bubble.
2. Use oil free coon cloth to wipe the bubble with alcohol or detergent.
3. Change the cloth to wipe the bubble unl the bubble is clean.

Appendix 5 RS-485 Bus Connecon

● General Property of RS-485 Bus

According to RS-485 industry bus standard, RS-485 is a half-duplex communicaon bus which has 120Ω characterisc impedance, the maximum load ability is 32 payloads (including controller device and controlled device).

● RS-485 Bus Transmission Distance

When using 0.56mm (24AWG) twisted-pair line, according to dierent baudrate, the maximum transmission distance theory table is shown as below:

Max. Distance of RS-485 Transmission
Baudrate	Max Distance
2400BPS	1800m
4800BPS	1200m
9600BPS	800m

The transmission distance will be decreased if we use the thinner cable, or use this product under the strong electromagnec interference situation, or there are lots of devices are added to the bus; on the contrary, the transmission distance will be increased.

- Connecon Methods

RS-485 industry bus standard require daisy-chain conncon method between any devices, both sides have to connect a 120Ω terminal resistance (show as Diagram 1), the simplified conncon method is shown as diagram 2, but the distance of “D” should not be too long.

Figure A.6.1 RS-485 Connecon 1

Figure A.6.2 RS-485 Connecon 2

● Problems in the Praccal Applicaon

Normally, users adopt star-shape conncon method in construcon, under this situation, the terminal resistors must be connected between two farthest devices (as Figure A-9, 1# and 15#), but this conncon method does not satisfy the requirement of the RS-485 industry standard so that it will lead to some problems such as signal reecon, an-jamming ability decline when the devices are faraway.

At this me, the camera will be uncontrollable, or self-running, etc.

Figure A.6.3 Star Shape Connecon

For such case, the best way is adding a RS-485 distributor. This product can eecvely change the star-shape conncon to which sases the requirement of RS-485 industry standard, in order to avoid those problems and improve the communicaon reliability. Refer to the following gure.

RS485 Distributor A+ B- 120Ω 1# 120Ω 2# 120Ω 16#

Figure A.6.4 RS-485 Distributor

● Troubleshoong of RS-485 communicaon

Problem	Possible Reasons	To Solve the Problem
The camera does the self-test acon but cannot be controlled remotely.	1. The address or baudrate of the camera does not match with those of remote control device.	1. Adjust the address and baudrate of the remote control device to match with those of the camera.
	2. The wire RS-485+ connects to the interface RS-485- and wire RS-485- connects to the interface RS-485+.	2. Connect the wire RS-485+ to the interface RS-485+ and wire RS-485- to the interface RS-485-.
	3. The RS-485 wire is disconnected.	3. Reconnect the RS-485 wire ghtly.
	4. RS-485 wire is broken.	4. Change a RS-485 wire.
The camera can be controlled but not smoothly.	1. The conncon is loose.	1. Reconnect the RS-485 wire ghtly.
	2. RS-485+ or RS-485-wire is broken.	2. Change a RS-485 wire.
	3. The camera is too far away from the remote control device.	3. Add a terminal resistor.
	4. Too many cameras are connected.	4. Add a RS-485 distributor.

Appendix 6 24VAC Wire Gauge & Transmission Distance

The following table describes the recommended max. distance adopted for the certain wire gauge when the loss rate of 24VAC voltage is less than 10%. For the AC driven device, the maximum voltage loss rate is 10% allowable. For example, for a device with the rang power of 80VA which is installed at a distance of 35 feet (10m) away from the transformer, then 0.8000mm is required as the minimum wire gauge.

Power (va)\Distance (mm)	0.8000	1.000	1.250	2.000
10	283(86)	451(137)	716(218)	1811(551)
20	141(42)	225(68)	358(109)	905(275)
30	94(28)	150(45)	238(72)	603(183)
40	70(21)	112(34)	179(54)	452(137)
50	56(17)	90(27)	143(43)	362(110)
60	47(14)	75(22)	119(36)	301(91)
70	40(12)	64(19)	102(31)	258(78)
80	35(10)	56(17)	89(27)	226(68)
90	31(9)	50(15)	79(24)	201(61)
100	28(8)	45(13)	71(21)	181(55)
110	25(7)	41(12)	65(19)	164(49)
120	23(7)	37(11)	59(17)	150(45)
130	21(6)	34(10)	55(16)	139(42)
140	20(6)	32(9)	51(15)	129(39)
150	18(5)	30(9)	47(14)	120(36)
160	17(5)	28(8)	44(13)	113(34)
170	16(4)	26(7)	42(12)	106(32)
180	15(4)	25(7)	39(11)	100(30)
190	14(4)	23(7)	37(11)	95(28)
200	14(4)	22(6)	35(10)	90(27)

Appendix 7 12VDC Wire Gauge & Transmission Distance

The following table describes the recommended max. distance adopted for the certain wire gauge when the loss rate of 12VDC voltage is less than 15% . For the DC driven device, the maximum voltage loss rate is 15% allowable.

Power (va)\Distance (feet)\Wire Gauge (mm)	0.800(20)	1.000(18)	1.250 (16)	2.000(12)
10	97(28)	153(44)	234(67)	617(176)
20	49(14)	77(22)	117(33)	308(88)
24	41(12)	64(18)	98(28)	257(73)
30	32(9)	51(15)	78(22)	206(59)
40	24(7)	38(11)	59(17)	154(44)
48	20(6)	32(9)	49(14)	128(37)
50	19(6)	31(9)	47(13)	123(35)
60	16(5)	26(7)	39(11)	103(29)
70	14(4)	22(6)	33(10)	88(25)
80	12(3)	19(5)	29(8)	77(22)
90	10.8(3.1)	17(5)	26(7)	69(20)
100	9.7(2.8)	15(4)	23(7)	62(18)
110	8.9(2.5)	14(4)	21(6)	56(16)
120	8.1(2.3)	13(4)	20(6)	51(15)
130	7.5(2.1)	11.8(3.4)	18(5)	47(14)
140	7(2)	11(3.1)	17(5)	44(13)
150	6.5(1.9)	10.2(2.9)	16(4)	41(12)
160	6.1(1.7)	9.6(2.7)	15(4)	39(11)
170	5.7(1.6)	9(2.6)	14(4)	36(10)
180	5.4(1.5)	8.5(2.4)	13(4)	34(10)

Appendix 8 Table of Wire Gauge Standards

Bare Wire Gauge(mm)	American Wire Gauge AWG	Brish Wire Gauge SWG	Cross-secondal Area of Bare Wire( mm^2 )
0.750	21		0.4417
0.800	20	21	0.5027
0.900	19	20	0.6362
1.000	18	19	0.7854
1.250	16	18	1.2266
1.500	15	17	1.7663
2.000	12	14	3.1420
2.500			4.9080
3.000			7.0683

Appendix 9 Alarm In/Out Connecons

Note:

This secon is only for the cameras with alarm in/out funcons.

The camera can be connected with alarm inputs (0\~5VDC) and alarm outputs. Refer to the following diagrams for alarm output:

DC Load Dome Relay Output OUT (n) DC OUT (n) Diagram (left) Dome Relay Output OUT (n) OUT (n) GND OUT 30VDC 1A J00-3FG Relay (10 A 250VAC) ~220V AC L N

Figure A.9.1 Alarm Out Connecons

The alarm provides the relay output (no voltage), and the external power supply is required when it connects to the alarm device.

• For DC power supply (le diagram), the input voltage must be no more than 30VDC, 1A.
• For AC power supply, the external relay must be used (right diagram) to prevent damages to the camera and avoid risk of electric shock.

Appendix 10 Camera Funcon Descripon

Note:

The funcons vary depending on dierent camera models.

Limit Stops

The camera can be programmed to move within the limit stops (le/right, up/down).

Scan Modes

The camera provides 5 scan modes: auto scan, It scan, frame scan, random scan and panorama scan.

Preset Freezing

This feature freezes the scene on the monitor when the camera is moving to a preset. This allows for smooth transition from one preset scene to another. It also guarantees that masked area will not be revealed when the camera is moving to a preset.

Presets

A preset is a predened image posion. When the preset is called, the camera will automatically move to the dened posion. The presets can be added, modified, deleted and called.

Label Display

The on-screen label of the preset tle, azimuth/elevaon, zoom, me and camera name can be displayed on the monitor. The displays of me and camera name can be programmed.

Auto Flips

In manual tracking mode, when a target object goes directly beneath the camera, the video will automatically ips 180 degrees in horizontal direcon to maintain connuity of tracking. This funcon can also be realized by auto mirror image depending on the models of camera.

Privacy Mask

This funcon allows you to block or mask certain area of a scene, for preventing the personal privacy from recording or live viewing. A masked area will move with pan and It funcons and automacally adjust in size as the lens zooms telephoto and wide.

3D Posioning

In the client soware, use the le key of mouse to click on the desired posion in the video image and drag a rectangle area in the lower right direcon, then the camera system will move the posion to the center and allow the rectangle area to zoom in. Use the le key of mouse to drag a rectangle area in the upper le direcon to move the posion to the center and allow the rectangle area to zoom out.

Proporonal Pan/Tilt

Proporonal pan/lt automacally reduces or increases the pan and lt speeds according to the amount of zoom. At telephoto zoom sengs, the pan and lt speeds will be slower than at wide zoom sengs. This keeps the image from moving too fast on the live view image when there is a large amount of zoom.

Auto Focus

The auto focus enables the camera to focus automacally to maintain clear video images.

Day/Night Auto Switch

The cameras deliver color images during the day. And as light diminishes at night, the cameras switch to night mode and deliver black and white images with high quality.

Slow Shuer

In slow shuer mode, the shuer speed will automatically slow down in low illuminaon conditions to maintain clear video images by extending the exposure me. The feature can be enabled or disabled.

Backlight Compensaon (BLC)

If you focus on an object against strong backlight, the object will be too dark to be seen clearly. The BLC

(Backlight Compensaon) funcon can compensate light to the object in the front to make it clear, but this causes the over-exposure of the background where the light is strong.

Wide Dynamic Range (WDR)

The wide dynamic range (WDR) funcon helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the eld of view, WDR balances the brightness level of the whole image and provide clear images with details.

White Balance (WB)

White balance can remove the unrealisc color casts. White balance is the white rendition funcon of the camera to adjust the color temperature according to the environment automacally.

Patrol

A patrol is a memorized series of pre-dened preset funcon. The scanning speed between two presets and the dwell me at the preset are programmable.

Paern

A paern is a memorized series of pan, lt, zoom, and preset funcons. By default the focus and iris are in auto status during the paern is being memorized.

Power O Memory

The camera supports the power o memory capability with the predened resume me. It allows the camera to resume its previous posion aer power is restored.

Time Task

A me task is a precongured acon that can be performed automacally at a specic date and me.

The programmable acons include: auto scan, random scan, patrol 1-8 ,paern 1-4, preset 1-8,frame scan, panorama scan, lt scan, day, night, reboot, PT adjust, Aux Output, etc.

Park Acon

This feature allows the camera to start a predened acon automacally aer a period of inactivity.

User Management

The camera allows you to edit users with dierent levels of permission, in the admin login status. Mulple users are allowed to access and control the same camera via network simultaneously.

3D Digital Noise Reducon

Comparing with the general 2D digital noise reducon, the 3D digital noise reducon funcon processes the noise between two frames besides processing the noise in one frame. The noise will be much less and the video will be clearer.

Dual-VCA

Combine the detected VCA informaon into the video stream, which can be used for the second-me analysis on the back-end device.

See Far, Go Further
