USER MANUAL NP900X1B SAMSUNG

1 Getting Started
2 Using the Computer
3 Settings and Upgrade
4 Backup / Restore
5 Appendix

Contents

Exterior view of a modern laptop with visible keyboard and screen (no text or symbols)

Start

Contents

Chapter 1. Getting Started

3 Product Features
4 Tips
5 Before You Start
8 Safety Precautions

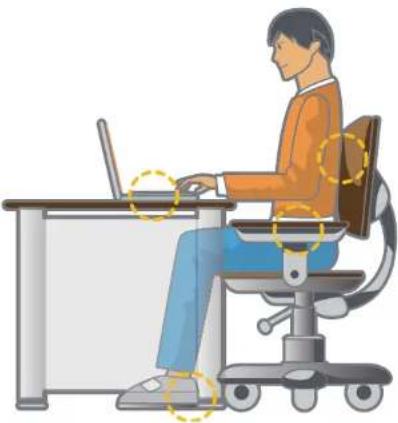

23 Proper Posture During Computer Use
26 Overview

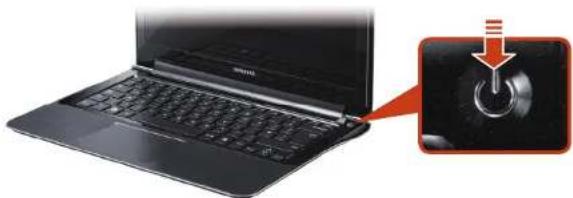

32 Turning the Computer On and Off

Chapter 2. Using the Computer

37 Keyboard
41 Touchpad
48 External-type CD drive (ODD, To be purchased)
50 Micro SD Card Slot (Optional)
52 Connecting an External Display Device
57 Connecting an External Digital Device
58 Adjusting the Volume
61 Wired Network

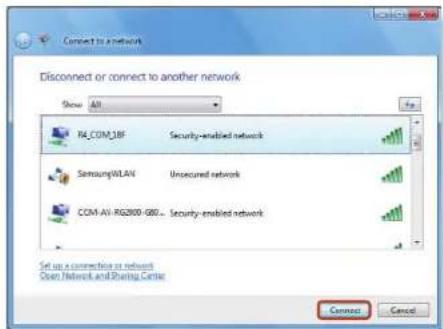

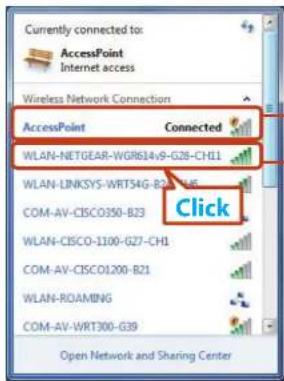

65 Wireless Network (Optional)

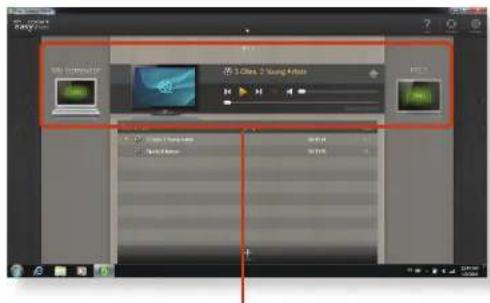

70 Sharing Content in a Home Network (Easy Content Share) (Optional)

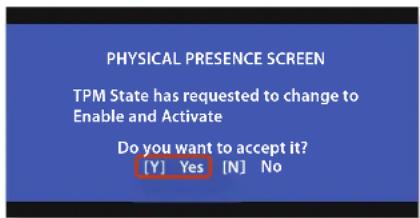

76 Using the TPM Security Device (Optional)

Chapter 3. Settings and Upgrade

85 LCD Brightness Control
87 Control Center (Optional)
88 BIOS Setup

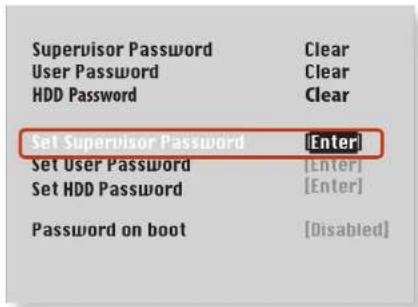

90 Setting a Boot Password
93 Changing the Boot Priority
94 Battery

Chapter 4. Backup / Restore

100 Samsung Recovery Solution (Optional)

Chapter 5. Appendix

113 Important Safety Information
115 Replacement Parts and Accessories
117 Regulatory Compliance Statements
131 WEEE Symbol Information
132 Product Specifications
134 Glossary
138 Index

Orange icon of a laptop inside a white circle on orange background (no text or symbols)

Chapter 1. Getting Started

Product Features 3

Tips 4

Before You Start 5

Safety Precautions 8

Proper Posture During Computer Use 23

Overview 26

Turning the Computer On and Off 32

Product Features

Chapter 1. Getting Started

Two modern laptops displayed against a gradient orange-yellow background (no text or symbols visible)

Illustration of a laptop with a wooden keyboard and golden screen, no visible text or symbols

Wooden laptop placed on a wooden surface (no visible text or symbols)

Optimized Performance and Usability

The latest processor has been adopted for • quicker work processing and a slimmer design has been implemented for higher portability.

With the Super Bright LCD, you can enjoy bright, clear pictures even when outside exposed to direct sunlight. (Optional)

Various Interfaces

You do not need to wait a long time for the computer to boot up, because it boots up quickly once you press the Power button. (Samsung Fast Start, Optional)

Environmentally-Friendly Eco Design

This is an environmentally friendly system • designed in accordance with international environmental specifications regarding the use of environmentally friendly materials and the reduction of hazardous materials.

The system ensures minimal noise by verifying the noise level on the basis of the noise levels of everyday life.

Samsung's Proprietary Software

With no complex configuration necessary, you can easily share data over the wireless network. (Easy File Share, Optional)

When you purchase a new PC, you can easily • and quickly move the data and settings of the previous PC to your new PC.

(Easy Migration, Optional)

Optional items may be changed or may not be provided depending on the computer model.

Tips

Chapter 1. Getting Started

The computer is not turning on or does not respond and displays a blank screen.

Restore the computer using Samsung Recovery Solution (Optional).

1. Turn the computer on and press the F4 key when the booting screen (SAMSUNG logo) appears.
2. The computer will boot up in restore mode after a short while and Samsung Recovery Solution (Optional) appears.

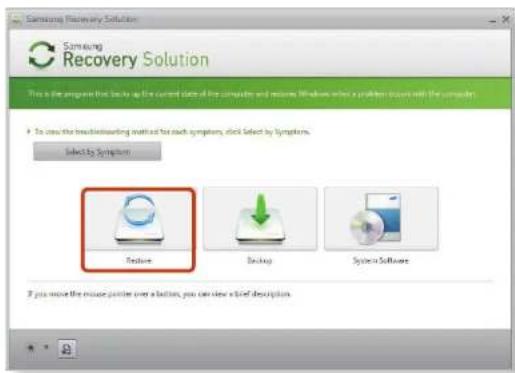

3. When the start menu screen appears, click Restore.

The keyboard Fn keys (shortcut keys) do not work. Install Easy Display Manager.

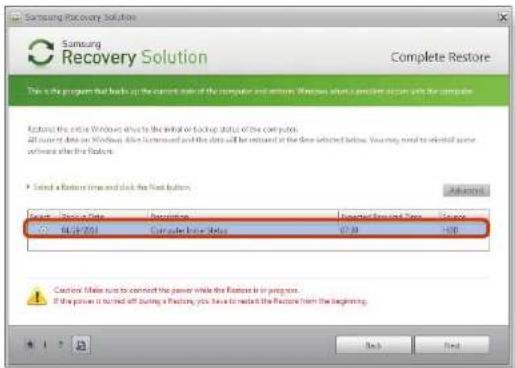

I want to restore the computer to the state when it was purchased.

If you use the Samsung Recovery Solution (Optional) function, you can easily and quickly restore the computer to a previous state even if you do not have a separate OS recovery DVD or recovery CD.

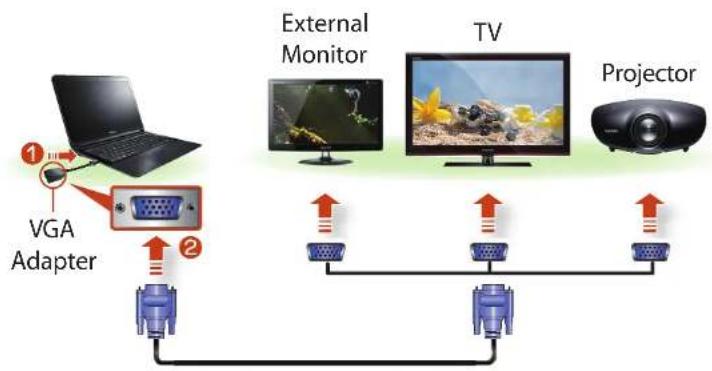

I want to connect an external monitor, TV or projector.

Connect the VGA adapter (Optional) to the computer. Connect the external display device and the computer with the monitor cable and press the F4 key repeatedly until the desired screen appears on the display device.

When I turn the computer on for the first time after purchasing it, the computer does not turn on.

To turn the computer on for the first time, you have to connect the AC adapter and then press the power button. The power from the internal battery of the computer is cut when you purchase the computer for safety purposes.

How can I extend the battery usage time?

The battery usage time may be shortened if you recharge the battery before it is completely discharged. To resolve this problem, enter the BIOS Setup and select Battery Calibration to discharge the battery completely and then recharge the battery.

For detailed information on a function, refer to the corresponding section of the User Manual.

Before reading the User Guide, first check the following information.

Optional items, some devices and software referred to in the User Guide may not be provided and/or changed by upgrade.

Note that the computer environment referred in the User Guide may not be the same as your own environment.

The pictures used for the cover and the main body in the • User Manual are those of the representative model of each series and may differ from the actual appearance of the product.

This guide decribes procedures for using both the mouse • and the touchpad.

This manual has been written for the Windows operating system. The descriptions and figures may differ depending on the installed operating system.

The User guide supplied with this computer may vary depending on your model.

Using the software

The software described in the main text can be launched using the following menu path.

- Start > All Programs

- Start > All Programs > Samsung

- When the programs are not installed, select Samsung Recovery Solution > System Software to install the programs. (Only for models supplied with Samsung Recovery Solution)

Safety Precaution Notations

Icon	Notation	Description
	Warning	Failure to follow instructions marked with this symbol, may cause personal injury and or fatality.
	Caution	Failure to follow instructions marked with this symbol, may cause slight injury to yourself or damage your property.

Text Notations

Icon	Notation	Description
	Caution	Content included in this section includes information required about the function.
	Note	Content included in this section includes helpful information to use the function.

Copyright

© 2011 Samsung Electronics Co., Ltd.

Samsung Electronics Co., Ltd. owns the copyright of this manual.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, without the consent of Samsung Electronics Co., Ltd.

The information in this document is subject to change without notice due to improving the performance of the product.

Samsung Electronics shall not be liable for any data loss. Please take care to avoid losing any important data and backup your data to prevent any such data loss.

Precautions for Operating System Support

If a problem occurs because of the reinstallation of other operating systems(OS) or a previous version of an OS pre-installed on this computer, or a software that does not support the OS, the company will not provide technical support, a replacement or refund, and if our service engineer visits you due to this problem, a service charge will be applied.

Performance Restrictions

Online games and some games(3D,2D) may not be supported and Full HD video and some high bit rate HD video playback may be slow and stutter on this computer.

About the Product Capacity Representation Standard

About HDD Capacity Representation

The capacity of the storage device (HDD, SSD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes.

However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity due to the difference in capacity calculation.

(E.g. For a 80GB HDD, Windows represents the capacity as 74.5GB, 80x1,000x1,000x1,000 byte/(1,024x1,024x1,024)byte = 74.505GB)

In addition, the capacity representation in Windows may be even smaller because some programs such as Recovery Solution may reside in a hidden area of the HDD.

About Memory Capacity Representation

The memory capacity reported in Windows is less than the actual capacity of memory.

This is because BIOS or a video adapter uses a portion of memory or claims it for further use.

(E.g. For 1GB(=1,024MB) memory installed, Windows may report the capacity as 1,022MB or less)

For more information, refer to the Samsung Recovery Solution section.

Safety Precautions

Chapter 1. Getting Started

For your security and to prevent damage, please read the following safety instructions carefully.

Since this is commonly applied to Samsung Computers, some pictures may differ from actual products.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Installation Related

Do not install the product in places exposed to humidity such as a bathrooms.

There is a danger of electric shock. Use the product within the operating conditions specified in the Manufacturers User Guide.

Keep the plastic bags out of the reach of children.

There is a danger of suffocation.

Keep a distance of 15cm or more between the computer and the wall and do not place any objects between them.

This may increase the internal temperature of the computer and may cause an injury.

Do not install the computer on a slant or a place prone to vibrations, or avoid using the computer in that location for a long time.

This increases the risk that a malfunction or damage to the product will occur.

Avoid exposing any part of your body to the heat from the computer vent or AC adapter for a long time when the computer is on.

Exposing a part of your body close to the heat from the vent or AC adapter for long periods of time may cause a burn.

Avoid blocking the vent at the bottom or side of the computer when using it on a bed or cushion.

If the vent is blocked, there is a danger of damaging the computer or overheating the inside of the computer.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Power Related

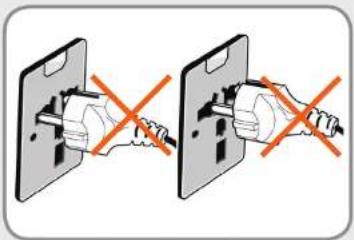

The power plug and wall outlet figures may differ depending on the country specifications and the product model.

Do not touch the main plug or power cord with wet hands.

There is a danger of electric shock.

Do not exceed the standard capacity (voltage/current) of a multiplug or power outlet extension when using it for the product.

There is a danger of electric shock or fire hazard.

If the power cord or power outlet makes a noise, disconnect the power cord from the wall outlet and contact a service center.

There is a danger of electric shock or fire hazard.

Do not use a damaged or loose main plug or power cord or power outlet.

There is a danger of electric shock or fire hazard.

Plug the power cord firmly into the power outlet and AC adapter.

Failing to do so may cause fire hazard.

Do not unplug the power cord by pulling the cable only.

If the cord is damaged, it may cause electric shock.

Do not bend the power cord excessively or do not place a heavy object over the power cord. It is especially important to keep the power cord out of reach of infants and pets.

If the cord is damaged, it may cause electric shock or fire.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Connect the power cord to an outlet or multiple power plug (extended cable) with a ground terminal.

Failing to do so may result in electric shock.

If water or another substance enters the power input jack, AC adapter or the computer, disconnect the power cord and contact the service center.

If the notebook computer has an external type (removable) battery, separate the battery also.

Damage to the device within the computer may cause electric shock or fire hazard.

Keep the power cord or outlet clean so that they are not covered with dust.

Failing to do so may result in fire.

AC Adapter Usage Precautions

Connect the power cord to the AC adapter firmly.

Otherwise, there is a danger of fire due to an incomplete contact.

Use only the AC adapter supplied with the product.

Using another adapter may cause the screen to flicker.

Do not place heavy objects or step onto the power cord or AC adapter to avoid damaging the power cord or AC adapter.

If the cord is damaged, there is a danger of electric shock or fire.

Unplug the wall-mount AC adapter (adapter and plug integrated type) from the wall outlet while holding the body and pulling it in the direction of the arrow.

If you unplug the adapter by holding and pulling the cable, the adaptor may be damaged and an electric shock, explosive sound or spark may occur as a result.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Battery Usage Related

Please charge the battery fully before using the computer for the first time.

Keep the battery out of the reach of infants and pets, as they could put the battery into their mouths.

There is a danger of electric shock or choking.

Use an authorized battery and AC adapter only.

Please use an authorized battery and adapter approved by Samsung Electronics.

Unauthorized batteries and adapters may not meet the proper safety requirements and may cause problems or malfunctions and result in an explosion or fire.

Do not use the computer in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as room with floor heating as it may cause the computer to overheat.

Take care that the computer vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, the computer may overheat and it may cause a computer problem, or even an explosion.

Do not use the computer in a humid location such as a bathroom or sauna.

Please use the computer within the recommended temperature and humidity range (10\~35°C, 20\~80% RH).

Do not close the LCD panel and put the computer into your bag to move it when it is still turned on.

If you put the computer into your bag without turning it off, the computer may overheat and there is a danger of fire. Shut the computer down properly before moving it.

Safety Precautions

Chapter 1. Getting Started

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Never heat the product(or battery) or put the product(or battery) into a fire. Do not put or use the product(or battery) in a hot location such as a sauna, inside a vehicle exposed to the heat, and so on.

There is a danger of an explosion or fire.

Take care not to allow metal objects such as a key or clip to touch the battery terminal (metal parts).

If a metal object touches the battery terminals, it may cause excessive current flow and it may damage the battery, or result in a fire.

If liquid leaks out of the product(or battery) or there is a funny smell coming from the product(or battery), remove the the product(or battery) the computer and contact a service center.

There is a danger of an explosion or fire.

To use the computer safely, replace a dead battery with a new, authorized battery.

Cutting the power to the internal battery (for corresponding models only.)

For products with built-in batteries, customers cannot remove the battery.

In the case of flooding, lightning or explosions, you can cut the battery power by inserting an object such as a paper clip into the [Emergency Hole] at the bottom of the computer.

Disconnect the AC adapter and insert an object such as a paper clip into the hole at the bottom of the computer to cut the battery power.

In the case of flooding, lightning or explosions, cut the battery power, do not reconnect the AC adapter, and immediately contact Samsung Electronics so that the appropriate countermeasures can be taken.

Thereafter, if you connect the AC adapter, the battery power will be supplied again.

Do not cut the battery power under normal conditions.

This may result in data loss or a product · malfunction.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Usage Related

Disconnect all cables connected to the computer before cleaning it. If your notebook is external & removable battery type, remove the external battery.

There is a danger of electric shock or damage to the product.

Do not connect a phone line connected to a digital phone to the modem.

There is a danger of a electric shock, fire or damage to the product.

Do not place any container filled with water or chemicals over or near the computer.

If water or chemicals enter the computer, this may cause fire or electric shock.

If the computer is broken or dropped, disconnect the power cord and contact a service center for a safety check.

If the notebook computer has an external type (removable) battery, separate the battery also.

Using a broken computer may cause electric shock or fire hazard.

Avoid direct sunlight when the computer is in an air-tight location such as inside a vehicle.

There is a danger of a fire hazard. The computer may overheat and also present opportunity to thieves.

Do not use your notebook PC for long periods of time while any part of your body is making direct contact with it. The temperature of the product may increase during normal operation.

This may result in harming or burning your skin.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Upgrade Related

Never disassemble the power supply or AC adapter.

There is a danger of electric shock.

When removing the RTC (Real Time Clock) battery, keep it out of the reach of children as they could touch and/or swallow it.

There is a danger of choking. If a child has swallowed it, contact a doctor immediately.

Use only authorized parts (multi-plug, battery and memory) and never disassemble parts.

There is a danger of damaging the product, electric shock or fire hazard.

Shut down the computer and disconnect all cables before disassembling the computer. If there is a modem, disconnect the phone line. If your notebook is external & removable battery type, remove the external battery.

Failure to do so, may cause electric shock.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Security and Movement Related

Follow the instructions for the relevant location (e.g. airplane, hospital, etc.) when using a wireless communication device (wireless LAN, Bluetooth, etc.).

Avoid exposing a drive to magnetic fields. Security devices with magnetic fields include airport walk-through devices and security wands.

The airport security devices that check carry-on luggage, such as conveyor belts, use x-rays instead of magnetism and will not damage a drive.

When carrying the notebook computer with other items, such as the adapter, mouse, books etc, take care not to press anything against the notebook computer.

If a heavy object is pressed against the notebook computer, a white spot or stain may appear on the LCD. Therefore, take care not to apply any pressure to the notebook.

In this case, place the notebook computer in a separate compartment away from the other objects.

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

Installation Related

Do not block the ports (holes), vents, etc. of the product and do not insert objects.

Damage to a component within the computer may cause electric shock or fire.

When using the computer with it lying on its side, place it so that the vents face upwards.

Failure to do so, may cause the internal temperature of the computer to rise and the computer to malfunction or halt.

Do not place a heavy object over the product.

This may cause a problem with the computer. In addition, the object may fall and cause injury, or damage the computer.

Battery Usage Related

Dispose of worn-out batteries properly.

There is a danger of fire or explosion.

The battery disposal method may differ depending on your country and region. Dispose of the used battery in an appropriate way.

Do not throw or disassemble the battery and do not put it into water.

This may cause an injury, fire or explosion.

Use only a battery authorized by Samsung Electronics.

Failure to do so may cause an explosion.

Avoid contact with metal objects such as car keys or clips when keeping or carrying a battery.

Contact with a metal may cause excessive current and a high temperature and may damage the battery or cause a fire.

Charge the battery according to the instructions in the manual.

Failure to do so, may cause an explosion or fire from damage to the product.

Do not heat the product(or battery) or expose it to heat (e.g. inside a vehicle during the summer).

There is a danger of explosion or fire.

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

Usage Related

Do not place a candle, light cigar, etc. over or on the product.

There is a danger of fire.

Use a wall outlet or multi-plug with a grounding part.

Failure to do so may cause electric shock hazard.

Make sure to have the product tested by a safety service engineer after repairing the product.

Authorized Samsung Repair Centers will carry out safety checks after a repair. Using a repaired product without testing it for safety may cause an electric shock or fire.

In case of lightning, immediately turn the system off, disconnect the power cord from the wall outlet and phone line from modem. Do not use a modem or phone.

There is a danger of electric shock or fire.

Do not use your computer and AC-Adapter on your lap or soft surfaces.

If the computer temperature increases, there is a danger of burning yourself.

Connect only permitted devices to the connectors or ports of the computer.

Failure to do so, may cause electric shock and fire.

Close the LCD panel only after checking if the notebook computer is turned off.

The temperature may rise and it may cause overheating and deformation of the product.

Do not press the Eject Button while the Floppy Disk/CD-ROM drive is in operation.

You might lose data and the disk might be suddenly ejected and could cause an injury.

Take care not to drop the product while using it.

This may cause personal injury or loss of data.

Do not touch the antenna with electricity facility such as the power outlet.

There is a danger of electric shock.

When handling computer parts, follow the instructions on the manual supplied with the parts.

Failure to do so, may cause damage to the product.

Safety Precautions

Chapter 1. Getting Started

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

If the computer emits smoke, or there is a burning smell, disconnect the power plug from the wall outlet and contact a service center immediately. If your notebook is external & removable battery type, remove the external battery.

There is a danger of fire.

Do not use a damaged or modified CD/Floppy Disk.

There is a danger of damaging the product or personal injury.

Do not insert your fingers into the PC Card Slot.

There is a danger of injury or electric shock.

Use recommended computer cleansing solution when cleaning the product and only use the computer when it is completely dried.

Failure to do so may cause electric shock or fire.

Emergency disk eject method using paperclip should not be used while the disk is in motion. Make sure to use the emergency disk eject method only when the Optical Disk Drive has stopped.

There is a danger of injury.

Do not place your face close to the Optical Disk Drive tray when it is operating.

There is a danger of injury due to an abrupt ejection.

Check CDs for cracks and damage prior to use.

It may damage the disc and cause disorder of device and injury of user.

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

Upgrade Related

Take care when touching the product or parts.

The device may be damaged or you may be injured.

Take care not to throw or drop a computer part or device.

This may cause injury or damage to the product.

Make sure to close the computer cover before connecting the power after a reassembly.

There is a danger of electric shock if your body touches an internal part.

Use parts authorized by Samsung Electronics only.

Failure to do so, may cause fire or damage the product.

Never disassemble or repair the product by yourself.

There is a danger of electric shock or fire.

To connect a device that is not manufactured or authorized by Samsung Electronics, enquire at your service center before connecting the device.

There is a danger of damaging the product.

Security and Movement Related

When moving the product, turn the power off and separate all connected cables first.

The product might be damaged or users may trip over the cables.

For long periods of not using the notebook computer, discharge the battery and preserve as it is detached. (For external & removable battery type)

The battery will be preserved at its best condition.

Do not operate or watch the computer while driving a vehicle.

There is a danger of a traffic accident. Please concentrate on driving.

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

Cautions on Preventing Data Loss (Hard Disk Management)

Take care not to damage the data on a hard disk drive.

A hard disk drive is so sensitive to external impact that an • external impact may cause loss of data on the surface of the disk.

Take extra care, because moving the computer or an impact • on the computer when it is turned on may damage the data of the hard disk drive.

The company is not liable for any loss of data on the hard disk drive.

Causes that may damage the data of a hard disk drive and the hard disk drive itself.

The data may be lost when an external impact is applied to the disk while disassembling or assembling the computer.

The data may be lost when the computer is turned off or reset by a power failure while the hard disk drive is operating.

The data may be lost and irrecoverable due to a computer virus infection.

The data may be lost if the power is turned off while running a program.

Moving or causing an impact to the computer while the hard disk drive is operating, may cause files to be corrupted or bad sectors on the hard disk.

To prevent data loss due to damage to the hard disk drive, please backup your data frequently.

Using the power supply in an airplane

Since the power outlet type differs depending on the type of airplane, connect the power appropriately.

Since the representative figures of the power plug and the auto adapter are used, they may differ from the actual parts.

When using the AC power plug

Connect the power plug pins perpendicular into the center of the power outlet.

If the plug pins are not inserted into the center of the holes, the plug pins are only inserted up to half their length. In this case, reconnect the power plug.

You have to insert the power plug into the outlet when the power indicator (LED) of the power outlet is lit green. If the power is connected properly, the power indicator (LED) remains green.

Otherwise, the power indicator (LED) is turned off. In this case, unplug the power, check if the power indicator (LED) is green, and then reconnect the power plug.

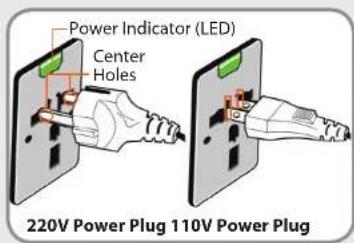

Power Indicator (LED) Center Holes 220V Power Plug 110V Power Plug

Good Example

Two identical diagrams showing a hand inserting a plug into a socket, with no text or symbols present.

Wrong Example X

Safety Precautions

Chapter 1. Getting Started

When using the auto adapter

When the cigar socket is provided, you have to use the auto adapter (optional). Insert the cigar plug of the auto adapter into the cigar socket and connect the DC plug of the auto adapter to the power input port of the computer.

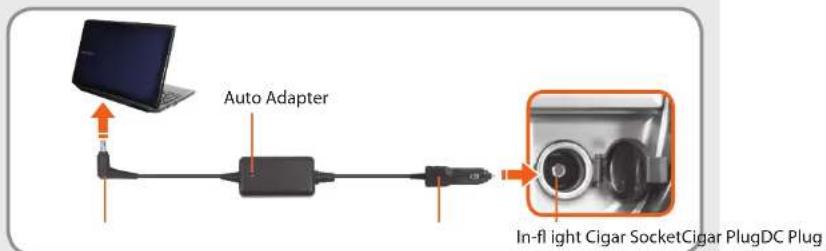

Auto Adapter In-flight Cigar SocketCigar PlugDC Plug

When using the Airplane Charging Converter

Depending on the airplane, you have to use the auto adapter and charging converter. Connect the airplane charging converter (optional) to the auto adapter (optional) and then insert the airplane power input jack into the power outlet.

Charging Converter 1 Connect this end to the auto adapter. 2 Connect the airplane power input jack to the power outlet of the airplane.

Proper Posture During Computer Use

Chapter 1. Getting Started

Maintaining a proper posture during computer use is very important to prevent physical harm.

The following instructions are about maintaining a proper posture during computer use developed through human engineering. Please read and follow them carefully when using the computer.

Otherwise, the probability of (RSI: Repetitive Strain Injury) from repeated operations may increase and serious physical harm may be caused.

The instructions in this manual have been prepared so that they can be applied within the coverage of general users. If the user is not included in the coverage, the recommendation is to be applied according to the user's needs.

Proper Posture

Adjust the heights of desks and chairs appropriate to your height.

The heights are to be adjusted so that your arm forms a right angle when you place your hand over the keyboard while sitting down on a chair.

Adjust the height of chair so that your heel is comfortably placed on the floor.

Do not use the computer while you are lying down, but only • while you are sitting down.

Do not use the computer on your lap. If the computer • temperature increases, there is a danger of burning yourself.

Work while keeping your waist straight.

Use a chair with a comfortable back.

Keep the center of your leg weight not on the chair but on your feet when you are sitting on a chair.

To use the computer while talking over the telephone, use a headset. Using the computer with the phone on your shoulder is bad for posture.

Keep frequently used items within a comfortable work range • (where you can reach them with your hands).

Illustration of a person sitting at a desk using a laptop, with no text or symbols present.

Proper Posture During Computer Use

Chapter 1.

Getting Started

Eye Position

Keep the monitor or LCD away from your eyes by at least 50cm.

Hand Position

Keep your arm at a right angle as shown by the figure.

Adjust the height of the monitor and the LCD screen so that its top height is equal to or lower than your eyes.

Avoid setting the monitor and LCD excessively bright.

Keep the monitor and LCD screen clean.

If you wear glasses, clean them before using the computer.

When entering contents printed on a paper into the computer, use a static paper holder so that the height of the paper is almost equal to that of the monitor.

Keep the line from your elbow to your hand straight.

Do not place your palm over the keyboard while typing.

Do not hold the mouse with excessive force.

Do not press the keyboard, touchpad or mouse with excessive • force.

It is recommended connecting an external keyboard and mouse when using the computer for long periods of time.

Proper Posture During Computer Use

Chapter 1. Getting Started

Volume Control (Headphones and Speakers)

Check your volume first to listen to music.

Check your volume!

Check if the volume is too loud before using headphones.

It is not recommended using headphones for long periods of time.

Any deviation from the equalizer default setting could cause hearing impairment.

The default setting can be changed through software and driver updates without your intervention. Please check the equalizer default setting before first usage.

Use Time (Break Time)

Take a break for 10 minutes or more after a 50-minute period • when working for more than one hour.

Illumination

Do not use the computer in dark locations. The illumination • level for computer use must be as bright so for reading a book. Indirect illumination is recommended. Use a curtain to prevent • reflection on the LCD screen.

Operation Condition

Do not use the computer in hot and humid locations.

- Use the computer within the allowed temperature and humidity range specified in the User Guide.

Overview

Chapter 1. Getting Started

Front View

The pictures used for the cover and the main body in the • User Manual are those of the representative model of each series. Therefore the colors and appearance of the pictures may differ from the actual appearance of the product depending on the model.

The actual color and appearance of the computer may differ from the pictures used in this guide.

This may not be supported for some devices.

1 2 3 4 5 6 7 SAMSUNG

1 Camera (Optional)		Using this camera, you can take still pictures and record video.
2 LCD The screen images are displayed here.
3	Microphone(Optional)	You can use the built-in microphone.
4 Status Indicators		Shows the operating status of the computer. The corresponding operating LED is lit when the corresponding function operates.
5 Power Button ⏻/I		Turns the computer on and off .
6 Keyboard		A device to enter data by pressing the keys.
7	Touchpad/ Touchpad Buttons	The touchpad and touchpad buttons provide functions similar to the mouse ball and buttons.

Using the camera, web cam

Using the Cyberlink YouCam program (optional), you can take pictures or record video by using the computer's built-in camera by adding the balloon talk or frame effect.

Status Indicators

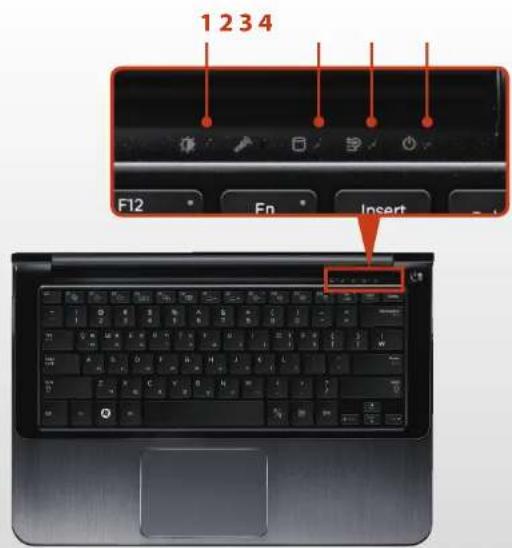

1 2 3 4 F12 Fn Insert

1	Illumination Sensor	This sensor detects the ambient illumination of the PC.If the ambient illumination becomes dark, the LCD becomes dimmer and the keyboard backlight is lit.On the contrary, if the ambient illumination becomes brighter, the LCD becomes brighter and the keyboard backlight is turned off.Press the key combinationand then click Control Center > Adaptive Brightness to turn the setting ON or OFF.
2	HDD/ODD	This turns on when the hard disk is or ODD being accessed.
3	Charge Status	This shows the power source and the battery charge status.Green: When the battery is fully charged or the battery is not installed.Red or orange: When the battery is being charged.Off: When the computer is running on battery power without being connected to AC adapter.
4	Power	This shows the computer operating status.On: When the computer is operating.Blinks: When the computer is in Sleep mode.

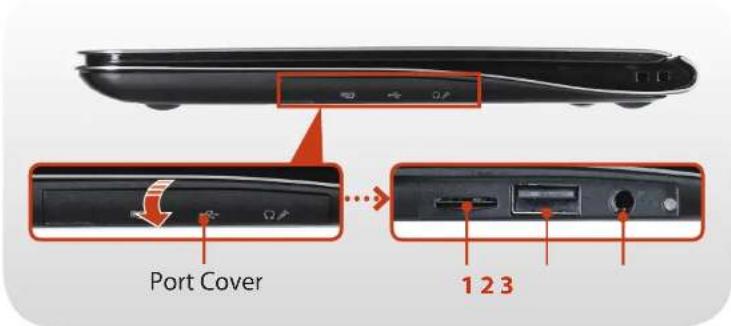

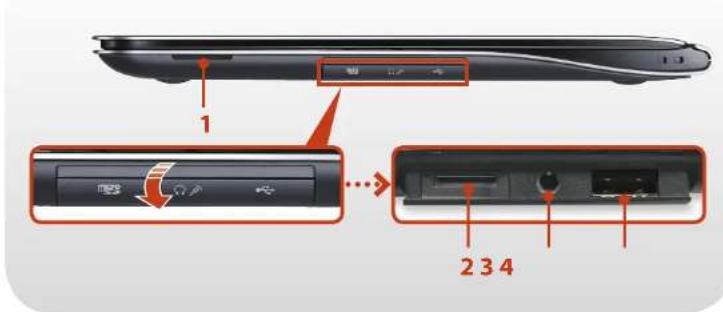

Right View

You can use the port after opening the port cover.

▶ For 13.3 inch models

1 2 3 4

1 Speaker A device used to generate sound.
2	Micro SD Card Slot (Optional)	This slot is for micro SD cards.
3	Ear-set / headset Jack (Optional)	This is the jack for connecting an ear-set or headset.
4 USB Port ⇌		You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.

▶ For 11.6 inch models

Port Cover 1 2 3

1	Micro SD Card Slot (Optional)	This slot is for micro SD cards.
2	USB Port	You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.
3	Ear-set / headset Jack (Optional)	This is the jack for connecting an ear-set or headset.

Open the port cover and store the port cover in a safe location where it can easily be retrieved. When the ports are not in use, close the ports with the port cover.

Overview

Chapter 1. Getting Started

Left View

You can use the port after opening the port cover.

▶ For 13.3 inch models

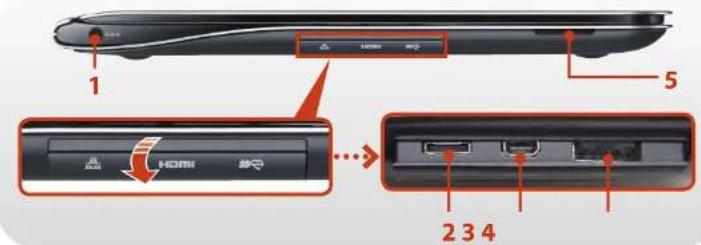

1 2 3 4 5 HDMI

What is a chargeable USB port?

USB device accessing and charging functions are • supported.

The USB charging function is supported regardless of whether the power is turned on or off.

Charging a device through a chargeable USB port may take longer than general charging.

Using the Chargeable USB function when the computer is running on battery power reduces the battery usage time.

The user cannot evaluate the charging status of the USB device from the computer.

This may not be supported for some USB devices.

The USB charging function can be turned-ON/OFF via the Control Center. (Optional)

1	DC Jack◇◇	A jack to connect the AC adapter that supplies power to the computer.
2	Wired LAN Port品	Connect the Ethernet cable to this port.You can use wired LAN by using the LAN adapter (Optional).
3	Micro Digital Video / Audio Port (Micro HDMI) (Optional)	This is the port for a micro HDMI.You can enjoy digital video and audio by connecting the computer to a TV.You can connect a VGA adapter (optional). If you connect a VGA adapter, you may not be able to use the USB 3.0 or Chargeable USB 3.0 port. In this case, use the right side USB port.
4	USB 3.0 PortorChargeable USB 3.0Port(Optional)	USB ports to which you can connect USB devices as well as a chargeable USB port are provided.Using a chargeable USB port, you can access or charge a USB device.The port can be distinguished by the figure (or printed on the port of the product.
5	Speaker	A device used to generate sound.

Overview

Chapter 1. Getting Started

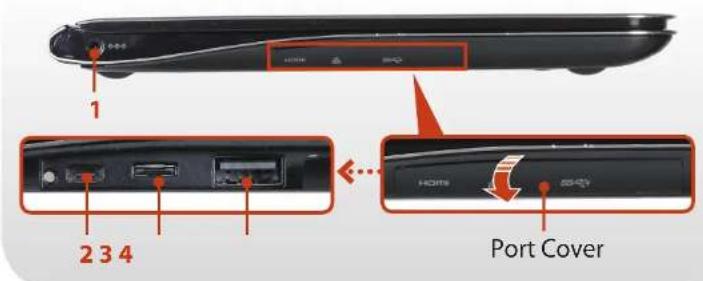

▶ For 11.6 inch models

1 2 3 4 ←... PORT Cover

Open the port cover and store the port cover in a safe location where it can easily be retrieved.

When the ports are not in use, close the ports with the port cover.

What is a chargeable USB port?

USB device accessing and charging functions are supported.

The USB charging function is supported regardless of whether the power is turned on or off.

Charging a device through a chargeable USB port may take longer than general charging.

Using the Chargeable USB function when the computer is running on battery power reduces the battery usage time.

The user cannot evaluate the charging status of the USB device from the computer.

This may not be supported for some USB devices.

The USB charging function can be turned-ON/OFF via the Control Center. (Optional)

1	DC Jack◇◇◇	A jack to connect the AC adapter that supplies power to the computer.

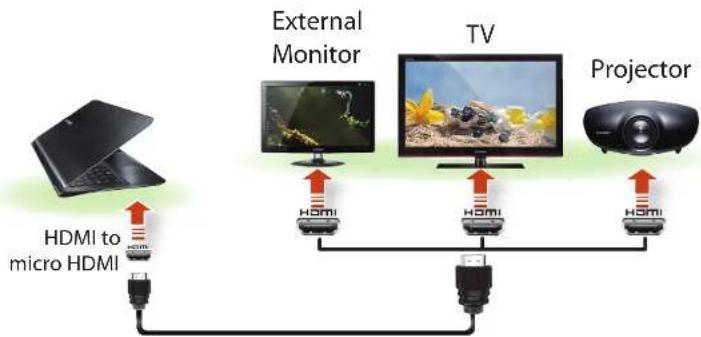

2	Micro Digital Video / Audio Port (Micro HDMI) (Optional)	This is the port for a micro HDMI.You can enjoy digital video and audio by connecting the computer to a TV.You can connect a VGA adapter (optional). If you connect a VGA adapter, you may not be able to use the USB 3.0 or Chargeable USB 3.0 port. In this case, use the right side USB port.
3	Wired LAN Port	Connect the Ethernet cable to this port.You can use wired LAN by using the LAN adapter (Optional).
4	USB 3.0 PortorChargeable USB 3.0Port(Optional)	USB ports to which you can connect USB devices as well as a chargeable USB port are provided.Using a chargeable USB port, you can access or charge a USB device.The port can be distinguished by the figure (or) printed on the port of the product.

Overview

Chapter 1. Getting Started

Bottom View

▶ For 11.6 inch models

Top-down view of a black laptop back panel with four rectangular slots and mounting holes (no text or symbols visible)

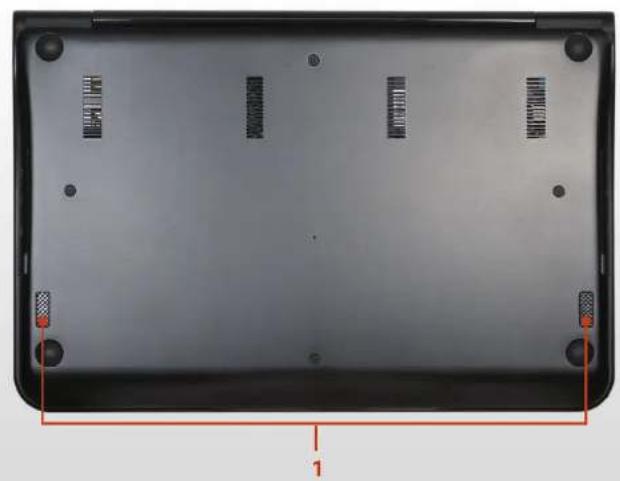

1 Speaker A device used to generate sound.

Turning the Computer On and Off

Chapter 1. Getting Started

Turning the computer on

1 Connect the AC adapter.
2 Lift the LCD panel up.
3 Press the Power button to turn the computer on.

Laptop keyboard with a close-up of the right-hand side showing a black key switch (no text or symbols visible)

4 If the power is turned on, the power LED is lit.

User interface toolbar with navigation icons and a highlighted button, showing menu items like Fn, Insert, Delete

About Windows Activation

When you turn the computer on for the first time, the Windows activation screen appears.

Follow the activation procedures according to the instructions on the screen to use the computer.

Entering Sleep mode

When the computer is turned on, press the computer's power button once briefly.

Adjusting the screen brightness

When the computer runs on battery power, the LCD brightness is automatically set to low.

Press the Fn + key combination to increase the screen brightness.

Turning the Computer On and Off

Chapter 1. Getting Started

Turning the computer off

Since the procedures to turn the computer off may differ depending on the installed operating system, please turn the computer off according to the procedures for the purchased operating system.

• Save all your data before clicking on Shut down.
• If Samsung Fast Start is installed, the system shutdown location may differ.

▶ For Windows 7

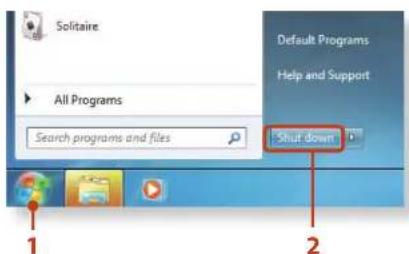

Click Start > Shut down mode Shut down to shutdown the computer.

Solitaire All Programs Search programs and files Default Programs Help and Support Shut down

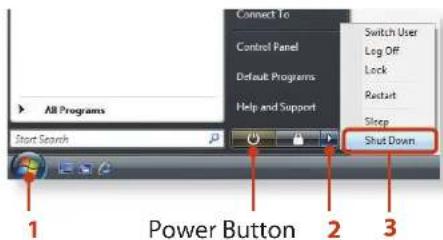

▶ For Windows Vista

Click on Start > and then click on Shut Down as shown in the figure below to shut the computer down.

All Programs Start Search Connect To Control Panel Default Programs Help and Support Switch User Log Off Lock Restart Sleep Shut Down Power Button 1 2 3

Using the Power button in Windows Vista

For Windows Vista, the Power button is set to power saving mode. Therefore, if you click Start > Power button, the computer enters power saving mode.

To shut down the computer by clicking this icon, refer to the descriptions for Setting up Start menu power button of the Control Panel.

Turning the Computer On and Off

Chapter 1. Getting Started

▶ For Windows XP

1 Click the Start button on the taskbar. Click Turn Off Computer.

log off Turn Off Computer start 1 2

2 Click Turn Off.

Turn off computer Stand by Turn Off Restart Cancel

If the system cannot be shut down due to a system error, turn it off by pressing and holding the Power Button for a minimum of 4 seconds.

Please note that turning the computer off by this method may cause a system problem. Thereafter, when turning the computer back on, the disk checking program may launch to check for and correct any disk errors.

Turning the Computer On and Off

Chapter 1. Getting Started

Samsung Fast Start (Optional)

These descriptions are for Windows 7 and for supported models only.

If you are using the system very often while on the move, use Fast Start to reduce the booting time.

When the Samsung Fast Start function is being used, the computer runs in hybrid power-saving mode when the computer enters standby mode or hibernation mode.

Using Fast Start

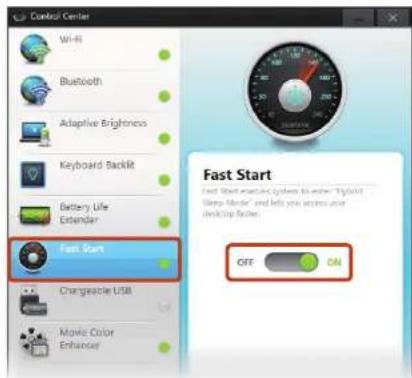

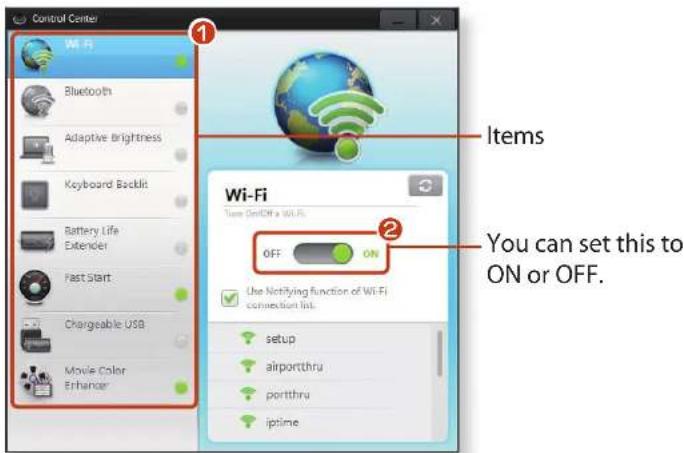

1 Press the +Fn key combination to run the Control Center.

2 Select Fast Start and check if it is set to ON. If this option is set to ON, the Fast Start function will run.

Control Center Wi-Fi Bluetooth Adaptive Brightness Keyboard Backlit Battery Life Extender Fast Start Chargleable USB Movie Color Enhancer OFF ON Fast Start Fast Start is better when to enter "Hybrid Sleep Music" and lets you access your desktop fan.

While the Fast Start function is enabled

You cannot change some power options in the Control • Panel. To change these, first disable the Fast Start function. The existing power saving mode and maximum power • saving mode functions have been replaced by this function.

The LCD may flicker once if the Fast Start function is turned ON or OFF.

What is hybrid power-saving mode?

In hybrid saving mode, the data you are working on will be saved to memory and the HDD, in the event of a sudden power failure, ensuring the safety of your data.

However, as unexpected accidents can always occur, it is recommended backing up any important data beforehand.

Green computer mouse icon with white circular background (no text or symbols)

Chapter 2. Using the computer

Keyboard 37

Touchpad 41

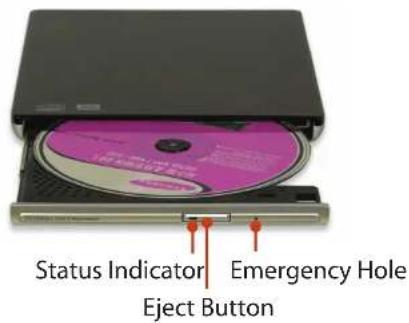

External-type CD drive (ODD, To be purchased) 48

Micro SD Card Slot (Optional) 50

Connecting an External Display Device 52

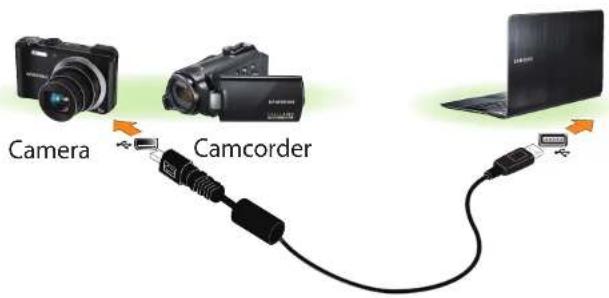

Connecting an External Digital Device 57

Adjusting the Volume 58

Wired Network 61

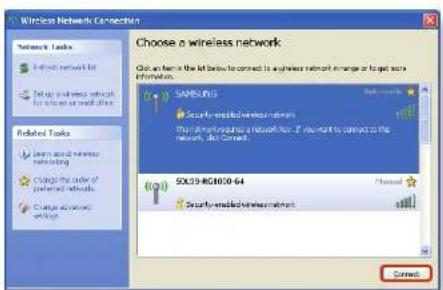

Wireless Network (Optional) 65

Sharing Content in a Home Network

(Easy Content Share) (Optional) 70

Using the TPM Security Device (Optional) 76

Keyboard

Chapter 2. Using the computer

Shortcut key functions and procedures are discussed in the following sections.

The keyboard image may differ from the actual keyboard.

- The keyboard may differ depending on your country. The following mainly describes the shortcut keys.

Shortcut Keys

You can use the following functions by pressing the keys below with the Fn key.

If you press the Fn Lock key and the button LED (Blue Color) is illuminated, you can use the following keys without holding down the Fn key.

Fn + F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12

Fn Name Function
Fn +		Control Center	The Samsung software control program, the Control Center, is launched.
		Screen Brightness Control	Controls the screen brightness.
		CRT/LCD	Switches the screen output to the LCD or external monitor when an external monitor (or TV) is connected to the computer.

Keyboard

Chapter 2. Using the computer

Fn Name Function
Fn+		Touchpad	Turns the Touchpad function on or off.When using an external mouse only, you can turn the Touchpad off.
		Battery mode	To use the battery efficiently, you can change the battery mode according to your usage environment.
		Keyboard Backlight Brightness Control	Controls the brightness of the keyboard backlight.
		Mute	Press this button to turn the audio on or off. If the audio is muted, the LED is lit.
		Volume Control	Controls the volume.
		Wireless network	In models with a wireless network device, press this key to turn the wireless network device on or off.If the wireless network device is turned on, the button LED is turned on.

Keyboard

Chapter 2. Using the computer

Fn Lock key

If you press the Fn Lock key, you can use hot keys even without pressing the Fn key.

If the Fn Lock is turned on, the button LED is lit.

Caps Lock key

If Caps Lock is turned on, the button LED is lit.

Home key

The mouse cursor moves to the beginning of the current row.

End key

The mouse cursor moves to the end of the current row.

PgUp key

The mouse cursor moves to the top of the current page.

PgDn key

The mouse cursor moves to the bottom of the current page.

Other Function Keys

Performs the right-click mouse function (touchpad).

If the hot keys do not work properly, you have to install the Easy Display Manager.

Keyboard

Chapter 2. Using the computer

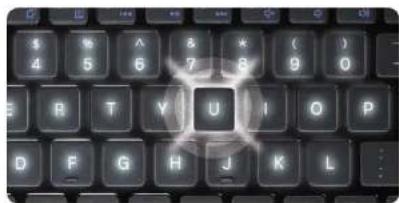

Keyboard Backlit Function (Optional)

The keyboard Backlight are automatically turned on or off depending on the ambient illumination. Therefore, you can easily type with the keyboard when you are in a dark environment or at night.

Close-up of a black keyboard with visible standard keys and a starburst overlay on the front panel.

Press the #n key combination and then click

Control Center > Keyboard Backlit to turn the setting ON or OFF.

The representative figure of the keyboard has been used, but they may differ depending on the country or the model.

Touchpad

Chapter 2. Using the computer

The touchpad provides the same function as a mouse and the left and right buttons of the touchpad plays the role of the left and right buttons of a mouse.

To use the touchpad, the touchpad driver is required.

A built-in Windows driver and a driver provided by the manufacturer are provided. For a better performance, using the driver provided by the touchpad manufacturer is recommended.

The driver provided by the touchpad manufacturer is already installed in this product by default when you purchase this product. When you reinstall Windows or change the operating system, using the driver provided by the corresponding manufacturer is recommended.

Touch the touchpad with your fingers only.

Anything other than your fingers, such as a ball-point pen, will not be recognized by the touchpad.

If you touch the Touchpad or press the Touchpad buttons • while booting up, the Windows boot time may be extended.

- Checking the touchpad manufacturer Click the Start > Control Panel > Hardware and Sound > Mouse > Hardware tab and check the device (E.g. Elan, Synaptics, etc.).

The Windows driver provides basic touchpad functions • (moving the pointer, clicking, etc.) but the gesture function is not supported.

Touchpad

Chapter 2. Using the computer

Basic Touchpad Functions

Moving the cursor on the screen

Place your finger on the touchpad slightly and move your finger. The mouse cursor will move accordingly. Move your finger in the direction you wish to move the cursor.

Hand pointing at a four-way directional arrow symbol on a dark background (no text or labels)

Click Function

Place a finger on the touchpad and click on an item once. Alternatively, press the left button once quickly and release it.

Tap or Click

Double-Click Function

Put your finger on the touchpad and quickly tap twice with your finger on an item you want.

Alternatively, press the left touchpad button twice quickly.

TapTap or ClickClick

Right Button Function

This corresponds to clicking the right mouse button.

Press the right touchpad button once. The corresponding pop-up menu appears.

Click

Touchpad

Chapter 2. Using the computer

Drag Function

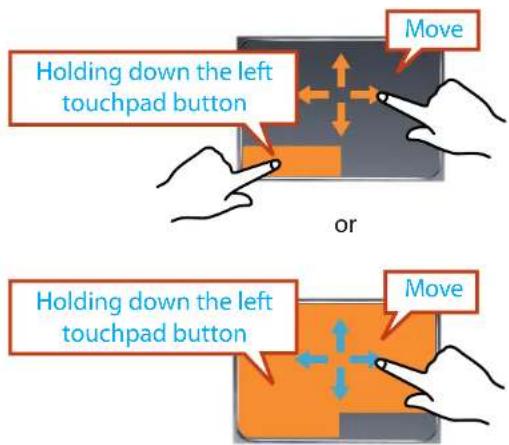

Dragging refers to moving an item to another place after selecting it.

Press and hold down the left touchpad button over an item you want to drag and move the item to the new location.

Holding down the left touchpad button Move or Holding down the left touchpad button Move

The Gesture Function of the Touchpad (Optional)

The Touchpad Gesture function may not be provided and the version of the function may differ depending on the model. Some usage procedures may differ depending on the version.

For detailed usage procedures, refer to the description in the Touchpad Settings window.

Since these descriptions are written on the basis of the latest operating system, Windows 7, some of the content and the figures of the descriptions may differ depending on the operating system. Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.

Using the Touchpad, you can use the following additional Gesture functions.

Scroll function•

Zoom functions•

Page Move Function·

Configuring the Gesture Function

Some gesture functions may not be configured. In this case, you can configure them using the following path.

1 ▶ When using the Elan driver

Click the Start > Control Panel > Hardware and Sound > Mouse > ELAN > Options button.

▶ When using the Synaptics driver

Click the Start > Control Panel > Hardware and Sound > Mouse > Device Settings tab > Settings button.

2 The Touchpad Settings window appears. Click over the corresponding item to select the item in the Select an item and click OK.

• To cancel the Gesture function, unselect the corresponding item in the Touchpad Settings window and click OK.
• Do not use the gesture function after you have already touched the touchpad with your finger.
• The gesture function works well when you use it in the center of the touch area.

Touchpad

Chapter 2. Using the computer

The Scroll Function

This function is the same as the scroll area of the Touchpad.

If you place two fingers over the Touchpad and move them up, down, left or right, the screen is scrolled up, down, left or right accordingly.

or

Zoom Functions

If you place two fingers over the Touchpad together or apart, the current image or text is zoomed in or out.

Zoom-in Zoom-out or

Page Move Function

You can move to the previous or next page when you are looking at a photo or surfing the Internet.

For example, if you lightly brush three fingers to the left while you are looking at a web site, you will return to the previous page.

Diagram showing hand gesture with bidirectional arrows and three equal signs, likely indicating bidirectional or balanced states.

Touchpad

Chapter 2. Using the computer

Setting the Touchpad Sensitivity

If the touchpad reacts too sensitively or the pointer moves unintentionally, please adjust the touchpad pointer speed and sensitivity.

Adjusting the Touchpad Pointer Speed

Click Start > Control Panel > Hardware and Sound > Mouse > Pointer Options and then adjust the pointer speed.

Adjusting the Touchpad Palm Detection Function

The palm detection function is to avoid malfunctions when the palm touches the touchpad by mistake.

This function is provided by the touchpad driver provided by the manufacturer.

▶ When using the Elan driver

Click Start > Control Panel > Hardware and Sound > Mouse > ELAN > Options > PalmTracking and then adjust the sensitivity.

▶ When using the Synaptics driver

Click Start > Control Panel > Hardware and Sound > Mouse > Device Settings > Settings > SmartSense and then adjust the sensitivity.

When the touchpad pointer does not move smoothly: Slide the bar appropriately in the direction of Minimum.

When the touchpad pointer moves unintentionally (excessively): Slide the bar appropriately in the direction of Maximum.

Touchpad

Chapter 2. Using the computer

Touchpad On/Off Function

Locking with shortcut keys

If you want to use the mouse only without using the touchpad, you can turn the touchpad off.

To lock the touchpad function, press the Fn + keys.

You can set the touchpad and touchpad button settings in the tabs that appear when clicking Start > Control Panel > Hardware and Sound > Mouse.

Auto-locking when connecting USB mouse

▶ When using the Elan driver

Click Start > Control Panel > Hardware and Sound > Mouse > ELAN, and check the Disable When external USB mouse plug in option. This will turn the touchpad off when a USB mouse is connected.

▶ When using the Synaptics driver

Click Start > Control Panel > Hardware and Sound > Mouse > Device Settings, and check the Disable internal pointing device when external USB pointing device is attached in option. This will turn the touchpad off when a USB mouse is connected.

In case of some touch-screen model, checking option locks touchpad even though you did not connect a USB mouse.

This auto-locking function is not provided for some models.

External-type CD drive(ODD, To be purchased)

Chapter 2. Using the computer

This computer supports an external USB CD-ROM drive (can be additionally purchased).

Check if the interface type of the external CD-ROM drive is a USB type. For detailed specifications, refer to the catalog.

Do not insert a cracked or scratched CD.

Otherwise, the CD may break and damage the optical disk drive when the CD rotates at a high speed.

When you clean a CD or DVD title, wipe with a soft cloth • from inside to outside.

Do not eject a CD when the CD operating LED is on.

The figures used for the description are of a representative model. Therefore the figures may differ from the real ones.

Using a CD that is not in the shape of a circle is not recommended.

Connecting the CD Drive

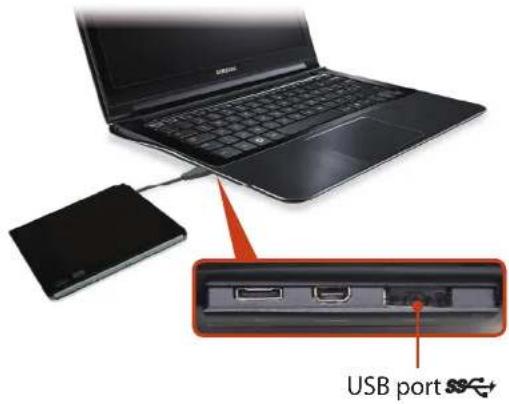

Connect the CD drive to the USB port.

USB port

External-type CD drive (ODD, To be purchased)

Chapter 2. Using the computer

Inserting and Ejecting a CD

1 Press the Eject button of the CD drive.

Status Indicator Emergency Hole Eject Button

2 When the CD tray opens, insert a CD or DVD and push the tray in until it clicks.
3 Push the CD tray inward until it clicks. The CD drive status indicator is turned on.

A CD drive's reading and writing speed may differ • depending on the condition and type of the media. To eject a CD when the CD drive does not work or the • computer is off, place the end of a paper clip ( ) into the Emergency Hole until the CD tray is ejected.

Micro SD Card Slot(Optional)

Chapter 2. Using the computer

You can only use the micro SD card slot for micro SD cards.

You can use micro SD cards as removable disks and conveniently exchange data with digital devices such as a digital camera, digital camcorder, MP3, etc.

You have to additionally purchase a micro SD card with the necessary capacity depending on your requirements.

You can use a micro SD card just like any data storage device.

A copyright protection function is not supported.

Since you can lose a card when moving the computer, keep the card separately.

The figures used for the description are of a representative model. Therefore the figures may differ from the real ones.

These descriptions are written based on Windows 7, the latest operating system. Therefore, some descriptions and figures may differ from your operating system. But as the usage is similar to other Windows operating systems, you can use these descriptions for reference.

Using the card

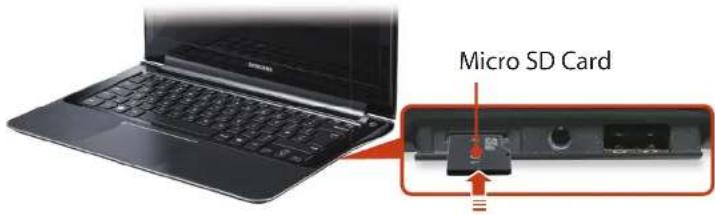

1 Insert the card into the micro SD card slot in the indicated direction.

Micro SD Card

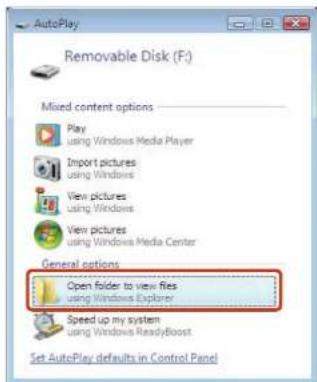

2 The card drive appears. Click Open folder and view fi les. If the window does not appear, click Start > Computer.

AutoPlay Removable Disk (F:) Mixed content options Play using Windows Media Player Import pictures using Windows View pictures using Windows Media Center View pictures using Windows Media Center General options Open folder to view files using Windows Explorer Speed up my system using Windows ReadyBoost Set AutoPlay defaults in Control Panel

If a window asking to scan and change appears, click Continue Without Scanning. This will proceed to Step 2 above.

3 You can save, move and delete data by double-clicking the corresponding drive. You can only use the card after formatting it.

Screenshot of a device list showing 'Removable Storage' and 'Removable Disk' with icons and labels

The device name of the card drive may differ depending on your computer model.

To remove a memory card

Press the card until it pops up, then pull it out by holding the end of the card.

To format a memory card

When using the memory card for the first time, you must format the card before using it.

Formatting a card deletes all data saved on the card. If the card includes data, backup the data before formatting it.

1 Click Start > Computer.
2 Right-click over a card drive with the touchpad and select Format.
3 Click Start to the formatting.

To use a card to exchange data with a digital device such as a digital camera, formatting the data using the digital device is recommended.

When you try to use a card, which is formatted in the computer, in another digital device, you may have to format the card again in the device.

- If the write-protect tab is in the Lock position, you cannot format, write or delete data on the card. Take care when you insert or remove a micro SD card. The micro SD card may be damaged when not treated carefully.

Connecting an External Display Device

Chapter 2. Using the computer

If you connect an external display device such as a monitor, TV, projector, etc., you can view the picture on the wider screen of the external device when you give a presentation or watch a video or movie.

There is an analog monitor port (RGB) and a micro digital video and audio port (Micro HDMI).

Since the visual quality is higher for Micro HDMI than VGA, if more than one port is available, connect the port that provides the higher visual quality.

Before you start, check the port and cable of the external display device and then connect the display device to the computer.

Due to restrictions of the operating system the DualView function is not supported for Windows 7 Starter.

About the connection cable

Users should additionally purchase the necessary connection cables.

Illustration of a blue and white cable with two connectors, no text or symbols present

Analog Monitor (RGB) Cable

Coiled black cable with two USB connectors, no text or symbols visible

HDMI to micro HDMI Cable

Connecting to the monitor port (Optional)

You can experience a wider screen by connecting the computer to a monitor, TV or projector with a monitor port.

You can give better presentations by connecting the computer to a projector.

The VGA adapter is optional and may not be provided depending on the model.

1 Connect the VGA adapter to the monitor port of the computer.

Connecting an External Display Device

Chapter 2. Using the computer

2 Connect the VGA cable (15-pin) to the connected VGA adapter and then connect the other end of the VGA cable to the VGA port of the monitor or the TV.

3 Connect the power cord of the connected monitor, TV or projector and turn the power on.

4 Press the +Fn key Combination once. Then the Easy Display Manager screen appears where you can select a display device.

Since pressing the F4 key while holding down the key changes the selection, select a display device.

LCD
HDMI
LCD + HDMI Clone
LCD + HDMI DualView

If the screen is not switched even if you press the • Fn + key combination, you have to install the Easy

Display Manager program.

Alternatively, to set up dual view:

Open the Display Settings window in the Control Panel, select Monitor 2 and select the Expand to fit to this monitor checkbox to set dual view. For more detailed information, refer to the Windows online help.

Connecting an External Display Device

Chapter 2. Using the computer

Connecting through the Micro HDMI port (Optional)

By connecting the computer to a TV with a HDMI port, you can enjoy both a high visual quality and a high sound quality.

After connecting a TV through Micro HDMI, you have to confi gure the screen and sound.

You have to additionally purchase the HDMI to micro HDMI cable.

1 Connect the HDMI to micro HDMI cable to the HDMI port of the TV.

This is only supported for models that support a TV output • port (HDMI).

When a TV provides more than one HDMI port, connect the computer to the DVI IN port.

When connecting the computer to a TV, switch the external input mode of the TV to HDMI.

2

Press the -Fn key combination once. Then the Easy

Display Manager screen appears where you can select a display device.

Since pressing the F4 key while holding down the key changes the selection, select a display device.

LCD
HDMI
LCD + HDMI Clone
LCD + HDMI DualView

Connecting an External Display Device

Chapter 2. Using the computer

External Monitor / TV is not supported in the DOS • Command Prompt window.

Simultaneous output to all 3 (LCD + CRT + HDMI) is not supported.

If the screen is not switched even if you press the •

Fn + key combination, you have to install the Easy

Display Manager program.

Setting up HDMI TV video (Optional)

If the Desktop screen displayed on the TV does not fit to the TV screen, configure it as follows depending on the graphics card.

- You can view the graphics card type by selecting Device Manager > Display adapters and then clicking the + symbol.

The screen images and terms may differ from actual product depending on the computer model and driver version.

▶ For Intel graphics cards

1 Right-click over the Desktop and select Graphics Properties.

If a window appears where you can select the mode, select Basic Mode and click OK.

2 Click Display > General Settings, select Customize Aspect Ratio in the Scaling fi eld, fi t the Desktop to the TV screen and click OK.

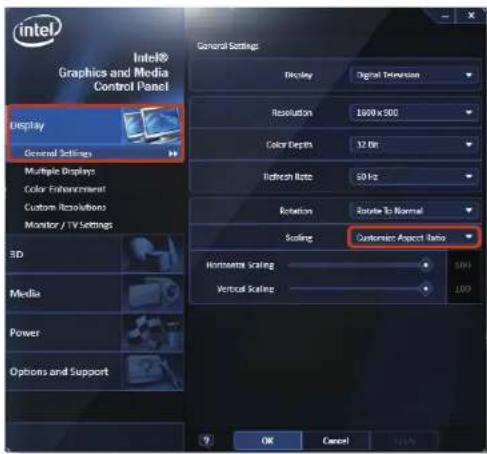

Intel® Graphics and Media Control Panel Display General Settings Multiple Displays Color Enhancement Custom Resolutions Monitor / TV Settings SD Media Power Options and Support General Settings Display Signal Transmission Resolution 1000 x 500 Color Depth 32 Bz Refresh Rate: 50 Hz Rotation Rotate To Normal Scaling Customize Aspect Ratio Horizontal Scaling Vertical Scaling 1000 100 OK Cancel

Connecting an External Display Device

Chapter 2. Using the computer

Setting up HDMI TV audio (Optional)

You can configure the sound of the computer to be played through the HDMI TV.

You have to configure the sound device in the Control Panel whenever you connect the HDMI TV in order to hear sound from the computer on the TV.

The screen images and terms may differ from actual product depending on the computer model.

1 Right-click over the Volume Control icon in the notification area at the bottom right of the Desktop and select Playback Devices.

(Alternatively, click the Control Panel > Hardware and Sound > Sound.)

2 Change the setting to Digital Audio (HDMI), HDMI Device or Digital Output Device, click Set Default and click OK.

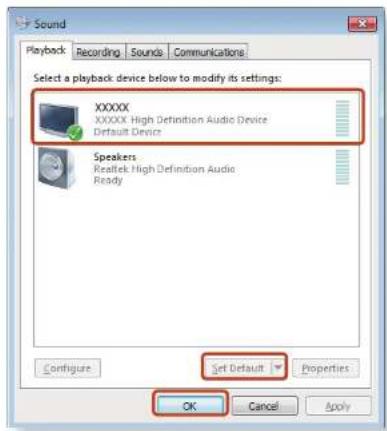

Sound Playback Recording Sounds Communications Select a playback device below to modify its settings: XXXXX XXXXX High Definition Audio Device Default Device Speakers Realtek High Definition Audio Ready Set Default Configure Set Default Properties OK Cancel Apply

HDMI Output Device may not appear on the playback device list depending on the computer model.

In this case, turn on the TV, connect the TV to the computer using a HDMI cable and then switch to HDMI or LCD+HDMI Clone or LCD+HDMI DualView mode using the Shortcut

$$ \text { Key } (\text { Fn }) + \text { F } ^ {4} $$

To listen to sound on the computer after disconnecting the HDMI TV, you have to set the Playback Device to Speakers.

Connecting an External Digital Device

Chapter 2. Using the computer

You can save a file stored on a device onto the computer by connecting a digital device such as a camera, camcorder or mobile phone to the computer and using the file management functions.

Connecting and using a camera or camcorder

If a digital device such as a camera or camcorder is connected with the computer, it is recognized as a removable disk so that you can copy or move the files on the device.

1 Connect the USB port of the notebook computer and the USB port of the digital device such as a camera using the USB cable.

Both the computer and the digital device must be turned • on.

You have to additionally purchase the USB cable necessary to connect the computer and the device.

Camera Camcorder

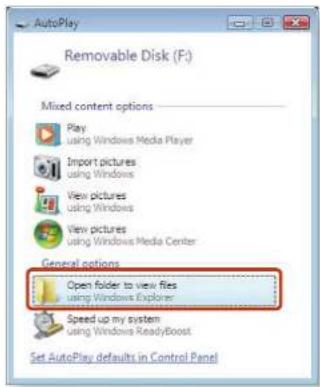

2 The Auto run window appears. Click Open folder and view

If the window does not appear, click Start > Computer.

Removable Disk (F:) Mixed content options Play using Windows Media Player Import pictures using Windows View pictures using Windows View pictures using Windows Media Center General options Open folder to view files using Windows Explorer Speed up my system using Windows ReadyBoost Set AutoPlay defaults in Control Panel

3 Double-click the corresponding drive. You can then save, move or delete data.

Devices with Removable Storage (2) DVD Drive (E:) Removable Disk (F:)

The device name of the card drive may differ depending on the model.

Adjusting the Volume

Chapter 2. Using the computer

You can adjust the volume using the keyboard and the volume control program.

Adjusting the Volume using the Keyboard

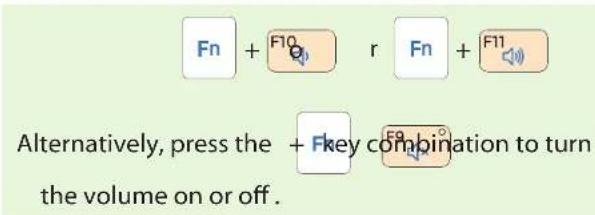

Fn + F10 r Fn + F11 Alternatively, press the + key combination to turn the volume on or off.

Adjusting the Volume using the Volume Adjustment Program

Click the Volume icon on the taskbar and slide the volume control bar to adjust the volume.

Mute Volume Mute

Windows XPWindows 7/Vista

Using the Sound Recorder

The procedures to record sound using the Windows Recorder are described below.

▶ For Windows 7/Vista

1 Connect a microphone to the microphone jack. You can also use the internal MIC.
2 Right-click over the Volume icon 📋 on the taskbar and select Recording Device.
3 Check if the microphone is set as the default recording device. If this is the case, it is already set as the default device. If not, right-click over the microphone and select Set default.

4 Click Start > All Programs > Accessories > Sound Recorder and click Start recording to start a recording.

Sound Recorder Start Recording 0:00:00

Adjusting the Volume

Chapter 2. Using the computer

▶ For Windows XP

1 Connect a microphone to the microphone jack. You can also use the internal MIC.
2 Click Start > Control Panel > Sounds, Speech, and Audio Devices > Sounds and Audio Devices.
3 Click Advanced from Volume and then, click Options > Properties.
4 Select Realtek HD Audio input from the mixer device to select Recording from Adjust Volume for.

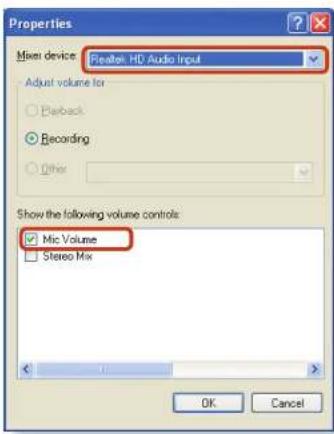

Properties Mixer device: Realtek HD Audio Input Adjust volume for ○ Parback ● Recording ○ Other Show the following volume controls: ● Mic Volume □ Stereo Mix OK Cancel

5 Select Mic Volume from Show the following volume controls and click OK.
6 When Recording Control window appears, check the Select checkbox. Increase the recording volume to increase the recording sensitivity and close the window.
7 Click Start > All Programs > Accessories > Entertainment > Sound Recorder.
8 Click the Record button to perform recording.

Sound - Sound Recorder File Edit Effects Help Position: 0.00 sec Length: 0.00 sec

The default recording duration of Windows is 60 seconds. Download a dedicated recording program from the Internet to record audio data for a long time.

Adjusting the Volume

Chapter 2. Using the computer

Using SoundAlive (Optional)

The SoundAlive function enables you to experience more stereophonic sound using stereo speakers.

SoundAlive is only supported in Windows 7.

The software programs provider may vary, depending on your computer model.

In addition, some pictures may differ from actual product depending on the computer model and software version.

1 Right-click over the Volume Control icon (in the notification area at the bottom right of the Desktop and select Playback Devices. (Alternatively, click the Control Panel > Hardware and Sound > Sound.)
2 Right-click over the Speakers and select Properties.
3 Select the SoundAlive tab and select one of the modes.

▶ Basic Mode

Music Select this mode to listen to music.
Movie Select this mode to watch a movie.
Speech	Emphasizes voice over other sounds.
Silver	Silver mode is for people who have difficulty in hearing.

▶ Advanced Mode

Finely tuned 25 presets are arranged on a square according to their relative sound characteristics.

▶ User Mode

You can control a variety of sound effects.

Wired Network

Chapter 2. Using the computer

A wired network is a network environment used for a company network or broadband internet connection at home.

You can use wired LAN by using the LAN adapter (Optional). Since these descriptions are written on the basis of the latest operating system, Windows 7, some of the content and the figures of the descriptions may differ depending on the operating system. Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.

The figures used for the description are of a representative model. Therefore the figures may differ from the real ones.

1 Connect the LAN adapter to the wired LAN port.

2 Connect the LAN cable to the connected LAN adapter.

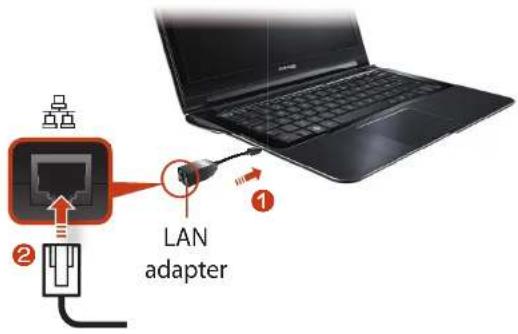

LAN adapter

3 ▶ For Windows 7

Click Start > Control Panel > Network and Internet > Network and Sharing Center and click on Change adapter settings in the left menu pane.

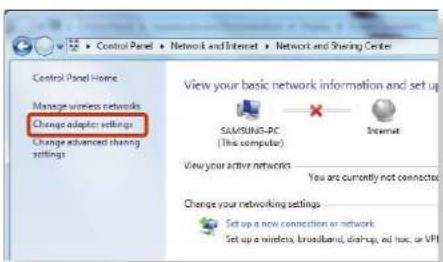

Control Panel Home Manage wireless networks Change adapter settings Change advanced sharing settings View your basic network information and set up SAMSUM-PC (This computer) Internet View your active networks You are currently not connected Change your networking settings Set up a new connection or network Set up a wireless, broadband, startup, etc, or VPI

▶ For Windows Vista

Click Start > Control Panel > Network and Internet > Network and Sharing Center and click Manage Network Connections in the left menu pane.

▶ For Windows XP

Click Start > Control Panel > Network and Internet Connections > Network Connection.

Wired Network

Chapter 2. Using the computer

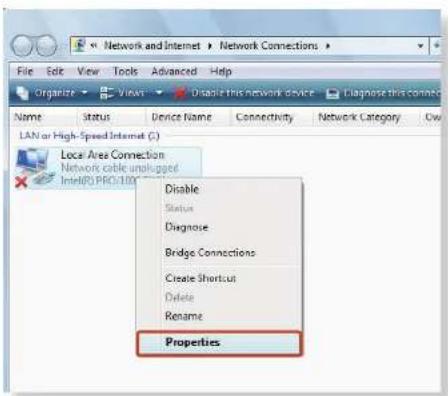

4 Select Local Area Connection and click the right button of the touch pad and select Properties.

Network and Internet > Network Connections > File Edit View Tools Advanced Help Organize > Views Disable this network device Diagnose this connection Name Status Device Name Connectivity Network Category Ow LAN or High-Speed Internet (C:) Local Area Connection Network cable unplugged InHRS PROJ100 Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties

The LAN Device name may differ depending on your computer's Network Device.

5

▶ For Windows 7/Vista

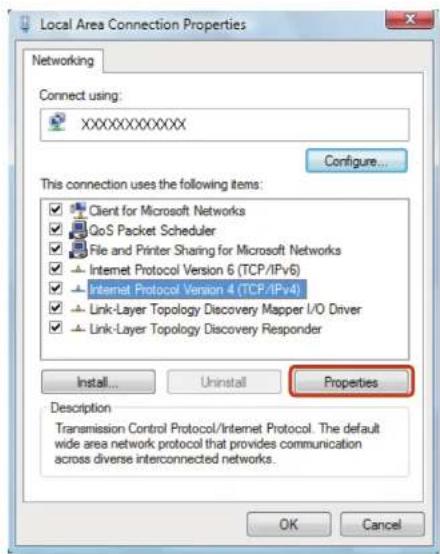

Select Internet Protocol Version 4(TCP/IPv4) from the list of Network Components and click Properties.

Local Area Connection Properties Networking Connect using: XXXXXXXXXXXXX Configure... This connection uses the following items: ✓ Client for Microsoft Networks ✓ QoS Packet Scheduler ✓ File and Printer Sharing for Microsoft Networks ✓ Internet Protocol Version 6 (TCP/IPv6) ✓ Internet Protocol Version 4 (TCP/IPv4) ✓ Link-Layer Topology Discovery Mapper I/O Driver ✓ Link-Layer Topology Discovery Responder Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

▶ For Windows XP

Click General tab and select a LAN driver from Connect using:. Select Internet Protocol(TCP/IP) and click Properties.

The Network Component name may differ depending on the Operating System Installed.

To add a network component, click Install in the screen shown in the figure above. You can add clients, services, and protocols.

Wired Network

Chapter 2. Using the computer

6 Configure the IP settings.

When using DHCP, select Obtain an IP address automatically. To use a static IP address, select Use the following IP address, and set the IP address manually.

Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: , , , Subnet mask: , , , Default gateway: , , , Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: , , , Alternate DNS server: , , . Validate settings upon exit Advanced... OK Cancel

When not using DHCP, ask your network administrator for the IP address.

7 When you have completed the settings, click the OK button. The network settings have been completed.

Using the WOL (Wake On LAN) function

is a function that activates the system from Sleep mode when a signal (such as a ping or magic packet command) arrives over the network (wired LAN).

1 ▶ For Windows 7

Click Start > Control Panel > Network and Internet > Network and Sharing Center and click on Change adapter settings in the left menu pane.

▶ For Windows Vista

Click Start > Control Panel > Network and Internet > Network and Sharing Center and click Manage Network Connections in the left menu pane.

▶ For Windows XP

Click Start > Control Panel > Network and Internet Connections > Network Connection.

2 Right-click on the Local Area Connection and select Properties.

3 Click Configure > Power Management tab. Select Allow this device to bring the computer out of standby, then click OK. Restart the system.

• If the system wakes up from Sleep mode even though there is no received signal, use the system after disabling the function.
• The LAN LED may not be turned off if System is shutdown without disabling the WOL (Wake on LAN) option.
• Connecting a wired LAN while using a wireless LAN may not activate the function. Set the Wireless LAN to Disable to use the function.
• feature may not work while using Hybrid power saving feature.

When connected to a 100Mbps/1Gbps wired LAN and the computer exits Sleep/hibernation mode, a message appears informing you of a connection to a 10Mbps/100Mbps wired LAN. This happens because when the computer exits standby/hibernate mode, restoring the network takes about 3 seconds. When the network is restored, it operates at 100Mbps/1Gbps.

When system is running on battery, some time it takes about 20sec after inserting LAN cable to be able to connect to internet. This symptom happen as a result of power saving feature to reduce battery consumption.

When system is running on battery, the Wired LAN speed is decreased automatically to reduce battery consumption. In such case, a 1Gbps /100Mbps LAN would function at 100Mbps/10Mbps speed.

For Win7, Wake On LAN is not supported by Ping.

Wireless Network(Optional)

Chapter 2. Using the computer

A wireless network (Wireless LAN) environment is a network environment that enables communicating between multiple computers at home or a small-size office through wireless LAN devices.

The descriptions below are for computer models with a Wireless LAN card or device. A Wireless LAN device is optional.

The pictures in this manual may differ from the actual product depending on your wireless LAN device model.

If the wireless LAN is turned off, press the fn + Key combination to turn it on.

What is an Access Point (AP)?

An AP is a network device that bridges wired and wireless LANs, and corresponds to a wireless hub in a wired network. Connect the computer with the wireless LAN function to the AP to use to the network connection.

Connecting to a Wireless LAN

If there is an AP, you can connect to the Internet via the AP using the Wireless LAN connection method provided by Windows.

▶ For Windows 7

1 If you click the Network Connections icon in the system tray, a list of available APs appears. If you select an AP to connect to, the Connect button appears.

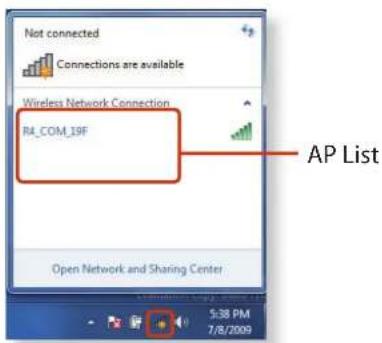

Not connected Connections are available Wireless Network Connection R4_COM_19F AP List Open Network and Sharing Center 5:38 PM 7/8/2009

Wireless Network (Optional)

Chapter 2. Using the computer

2 Click Connect.

If a network key is set for the AP, enter the network key and then click Connect.

For the network key, please ask your network administrator.

Not connected Connections are available Wireless Network Connection R4_COM_19F Connect automatically Connect ELBRUSAP9 Open Network and Sharing Center

3 When Connected to the AP is displayed, click the Close button.

You can access the network.

▶ For Windows Vista

1 Right-click over the Network Connections icon on the taskbar and click Connect to the Network.

Connect to a network Turn on activity animation Turn off notification of new networks Diagnose and repair Network and Sharing Center

2 Select an AP to connect to and click Connect. If there is a configured network key for the AP to connect to, enter the network key and then click the Connect button.

Connect to a network Disconnect or connect to another network Show All R4_COM_1BF Security-enabled network Samsung/WLAN Unsecured network COM-AI-RG2000-GB0... Security-enabled network Set up a connection to network Open Network and Sharing Center Connect Cancel

3 When Connected to the AP is displayed, click the Close button. You can access the network.

Wireless Network (Optional)

Chapter 2. Using the computer

▶ For Windows XP

1 Click the Wireless Network Connection icon from the Taskbar using the right button of the touch pad. Then, click View Available Wireless Networks.

Change Windows Firewall settings Open Network Connections Repair View Available Wireless Networks

2 Select an AP to be connected and click Connect.

If a network key is set in the AP, the network key input window will appear. Enter the network key in the input window and click OK.

Choose a wireless network Click an extra on the list below to connect its wireless network in charge or to get more information. SAMSUNG Scan for wireless wireless network If you want to connect to this network, then Connect. SQL39-RG100-64 Scan for wireless wireless network Connect

For a network key, contact the network administrator.

3 Once Connected to AP is displayed, you can use a wireless network.

Wireless Network (Optional)

Chapter 2. Using the computer

Connecting to a wireless network through Control Center (Optional)

These descriptions are for Windows 7 and for supported models only.

The screen images and terms may differ from actual product depending on the computer model.

You can access a wireless network using Control Center.

1 Press the +Fn key Combination to run the Control Center.

2 Select Wi-Fi and check if it is set to ON. If this option is set to ON, the Wi-Fi function will run.

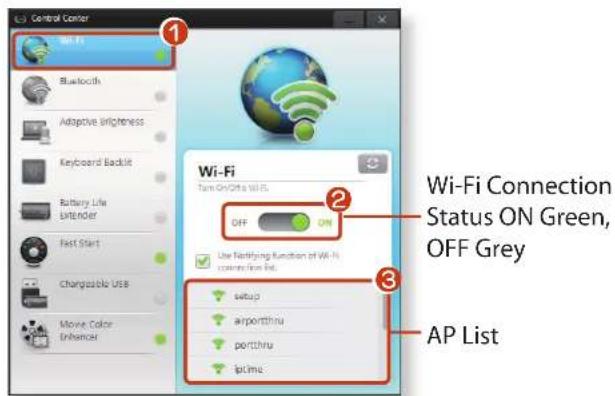

Control Center Wi-Fi Bluetooth Adaptive brightness Keyboard Backlit Battery Life Bluetooth Fast Start Chargable USB Movie Color Enhancer Wi-Fi Take On/On Wi-Fi OFF ON Use Notification Function of Wi-Fi connection kit. setup airportthru portthru iptime. Wi-Fi Connection Status ON Green, OFF Grey AP List

Normal Wireless Network Status

If the wireless LAN icon is displayed in the system tray of the Taskbar, it indicates that the computer is connected to the Internet properly (see below).

[Windows 7] [Windows Vista] [Windows XP]

Wireless Network (Optional)

Chapter 2. Using the computer

Abnormal Wireless Network Status

When the wireless LAN is not connected

If the wireless LAN icon is displayed with an "X" in the system tray of the Taskbar, it indicates that the wireless LAN device is turned off or that there are no available APs. Or the wireless LAN is disconnected.

[Windows 7] [Windows Vista] [Windows XP]

If the wireless LAN is turned off, press the F4 key combination to turn it on.

When you are not connected to the Internet

This is indicated by the wireless LAN icon in the system tray of the Taskbar. In this case, you have to check the IP address settings.

Please contact your network administrator and reconfi gure the IP address.

[Windows 7] [Windows Vista] [Windows XP] Iows Y

When APs are found but your computer is not connected to the Internet

This is the case when an AP with a weak signal has been set to a high priority. Connect to an AP with a strong signal by clicking it.

Currently connected to: AccessPoint Internet access Wireless Network Connection AccessPoint Connected WLAN-NETGEAR-WGR614-9-G28-CH1 WLAN-LINKSYS-WRT54G-B23 COM-AV-CISCO350-B23 CICLO-1100-G27-CH1 COM-AV-CISCO1200-B21 WLAN-ROAMING COM-AV-WRT300-G39 Open Network and Sharing Center

The currently connected AP.

The signal strength is low.

An AP with a strong signal strength

[Windows 7]

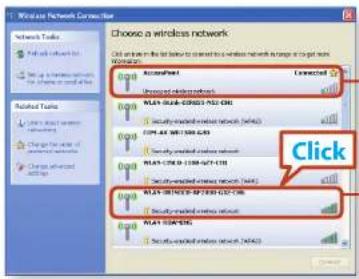

Choose a wireless network Click to access in the list below to connect to a wireless network in range of to get back. Networks: Connected Connected Unconnected networks WLAN-0041-00855-002-006 Sonically connected wireless network (WLAN) ECP-XK-MET-500-002 Sonically connected wireless network WLAN-CNE-1100-007-003 Sonically connected wireless network (WLAN) WLAN-DRIVE-01-009-002-006 Sonically connected wireless network WLAN-CNPE Sonically connected wireless network (WLAN) Click

The currently connected AP. The signal strength is low.

An AP with a strong signal strength

[Windows XP]

Sharing Content in a Home Network

(Easy Content Share) (Optional)

Chapter 2.

Using the computer

Easy Content Share is a DLNA application that allows you to play photos, videos and music fi les on your TV.

These descriptions are for Windows 7 and for supported models only.

The Digital Living Network Alliance (DLNA) aligns industry • leaders in the CE, mobile, and PC industries through digital interoperability, and DLNA-certified devices allow users to play videos, photos and music files stored on a computer on a TV.

To play content using DLNA technology, both your computer and TV must be DLNA certified.

For information on whether a product supports DLNA, refer to the respective user manuals.

To play videos, photos and music files stored on a computer, configure the settings in the order as shown below.

1. Confi guring the network settings for your computer and TV
2. Adding shared content on your computer
3. Playing content on your TV using your computer

Configuring the network settings for your computer and TV

To share content, all shared devices must be connected to the same access point.

Configure the network settings by following the steps below.

1 Connect your computer and TV to an access point through a wired or wireless LAN connection, as shown in the figure below.

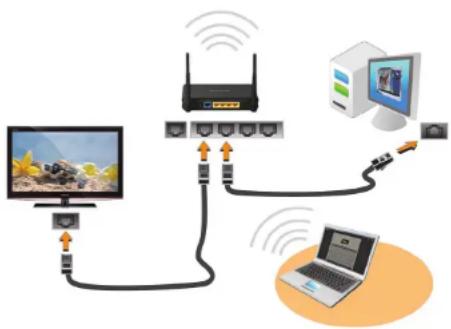

[Network connection diagram]

2 Conf i gure the IP address settings for your computer and TV. You must check the Obtain an IP address automatically (DHCP) checkbox.

Sharing Content in a Home Network

(Easy Content Share) (Optional)

Chapter 2.

Using the computer

For more information on how to configure the IP address • for your computer, refer to Chapter 2. Using the Computer > Network.

For more information on how to configure the IP address • for your TV, refer to the user manual of your TV.

3 To check if the network environment has been configured, run Easy Content Share.

If the connected computer and TV are shown in the program window, the network settings have been configured successfully.

3.0 fps - 3 Young Artists 10:00 AM 2:00 PM 3:00 PM 4:00 PM 5:00 PM 6:00 PM 7:00 PM 8:00 PM 9:00 PM 10:00 PM

Devices that can share content

If connected devices are not displayed, refer to the Easy Content Share item in the Troubleshooting Guide.

Adding shared content on your computer

Add the videos, photos and music fi les that you want to play on your TV as shared items.

You can only play shared items on your TV.

1 Click Settings 🔒 at the top right of Easy Content Share.

2 Click My computer > Add Folder + . The Browse For Folder window appears. Select a folder to share and click OK.

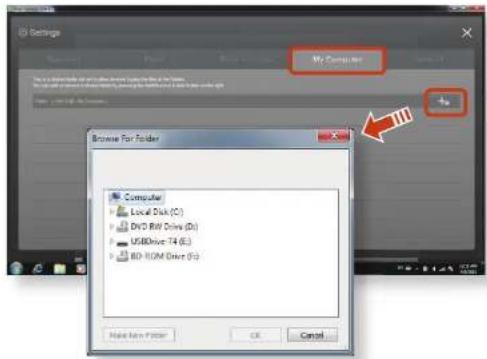

Settings My Computer Browse For Folder Computer Local Disk (C) DVD RW Drive (D:) USBDrive T4 (E:) 80 ROM Drive (G:) Make New Folder OK Cancel

Sharing Content in a Home Network

(Easy Content Share) (Optional)

Chapter 2.

Using the computer

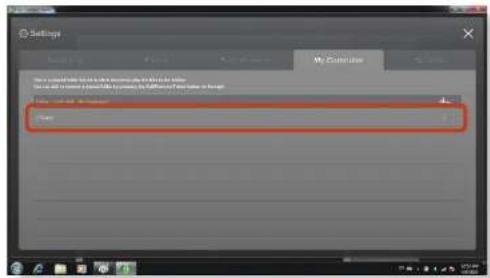

3 The selected folder is added to the shared list.

Settings Name: 100% Name: 100%

Playing content on your TV using your computer

After you have set photos, videos and music fi les as shared items, you can play them on your TV using your computer.

1 In Easy Content Share, select the TV you want to use to play content.

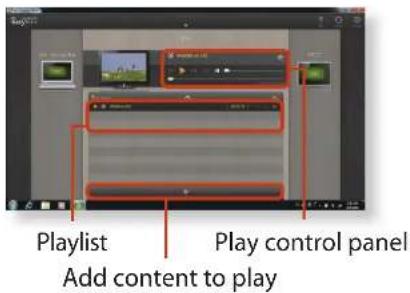

Playlist Add content to play Play control panel

2 Select the item you want to play in the playlist, and then click Play ▶.

3 The selected file is played on the TV. Using the Play Control panel, you can control the item being played on the TV.

4 To stop playing, click Stop

Easy Content Share does not support subtitles due to DLNA constraints. To use the caption function, refer to the Easy Content Share item in the Troubleshooting Guide.

Sharing Content in a Home Network

(Easy Content Share) (Optional)

Chapter 2. Using the computer

Adding a video, photo or music file to the playlist

1 Click Add Content 🧑 the Playlist screen. The shared content list is displayed.

2 In the shared content list, check the checkbox in front of the item you want to add to the playlist, and then click Add to playlist.

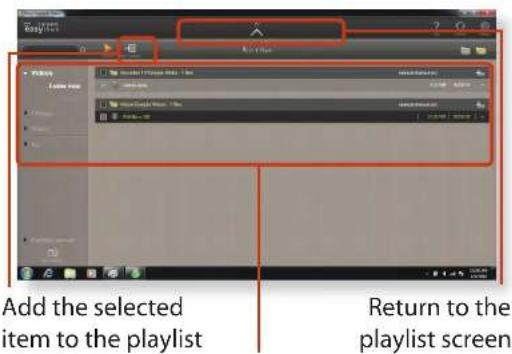

Add the selected item to the playlist Return to the playlist screen

Shared content list

3 Click Return to playlist screen ▲ In the playlist screen, you can find that the selected item has been added to the playlist.

Playing the content stored on a computer when Easy Content Share is not installed

You can also play the videos, photos and music files stored on a computer when Easy Content Share is not installed on your TV by using Windows Media Player.

As described in the steps below, configure the content sharing settings to play content on your TV.

The computer containing the shared content (when Easy Content Share is not installed) must be connected to the same access point to which the computer where Easy Content Share is installed and the TV is connected to.

▶ For Windows Media Player 12

1 Run Windows Media Player.

2 Click Stream and check the Automatically allow devices to play my media... menu item.

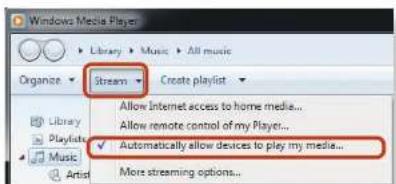

Windows Media Player Organize Stream Create playlist Allow Internet access to home media... Allow remote control of my Player... ✓ Automatically allow devices to play my media... More streaming options...

Sharing Content in a Home Network

(Easy Content Share) (Optional)

Chapter 2.

Using the computer

3 Run Windows Explorer.

4 Right-click the folder to share. From the menu displayed, point to Include in library.

Click Videos, Photos or Music in the displayed sub menu, according to the type of content contained in the selected folder.

If the selected folder contains two or more types of content, you must click each corresponding menu item (Videos, Photos or Music) to register each type of content.

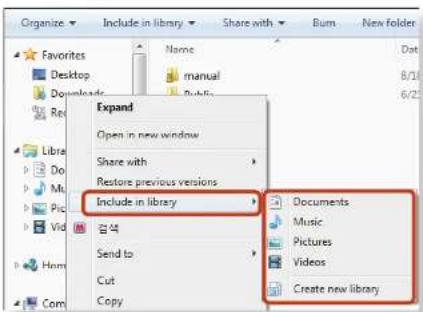

Organize Include in library Share with Bum New folder Favorites Desktop Home Desktops Open in new window Share with Restore previous versions Include in library Documents Music Pictures Videos Create new library

▶ For Windows Media Player 11

1 Run Windows Media Player.

2 Click Library > Media Sharing. The Media Sharing window is displayed. Check the Share my media checkbox and then click OK.

Library Create Picture Create Auto World Music Pictures Video Recorded TV Other Media Sharing... Media Sharing Share music, pictures, and video on your network Learn about sharing Tree Sharing settings Share my media How does sharing change below settings? OK Cancel

Sharing Content in a Home Network

(Easy Content Share) (Optional)

Chapter 2.

Using the computer

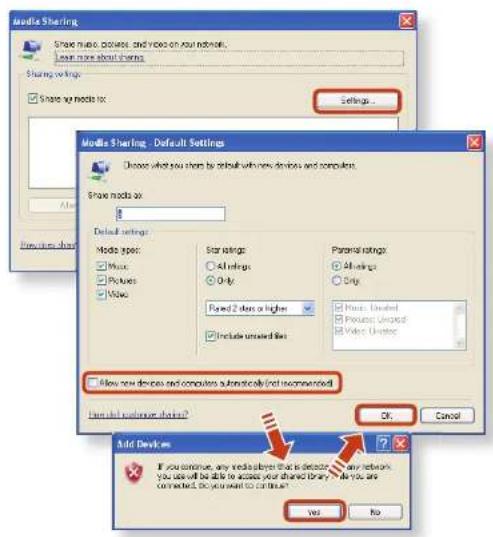

3 In the Media Sharing window, click Settings.... The Media Sharing - Default Settings window is displayed. Check the Allow new devices and computers automatically (not recommended) checkbox.

A popup window is displayed. Click Yes. Then click OK in the Media Sharing-Default Settings window and in the Media Sharing window.

Moodle Sharling Share music, pictures, and video on your network. Learn more about sharing Sharing settings: Share up mods to: Settings... Modles Sharling - Default Settings Choose what you share be default with new devices and computers. Share mods as: Default settings: Mode type: Music Pictures Video Scan ratings: All ratings Only Rated 2 class or higher Include installed files Paramal ratings: All ratings Only Music: Unloaded Pictures: Unloaded Video: Unloaded Allow new devices and computers automatically (not recommended) Have all downloads after? OK Cancel Add Devices If you continue, any media player that is defective, how network you use will be able to access your shared library. Do you are connected, do you want to call into? Yes No

After the registration has been fi nished, you can fi nd the added folder is listed in the shared content list of Easy Content Share.

For a shared content item, the name of the computer where the item is stored is displayed next to it, allowing you to identify the computer. This is useful when multiple computers are providing content.

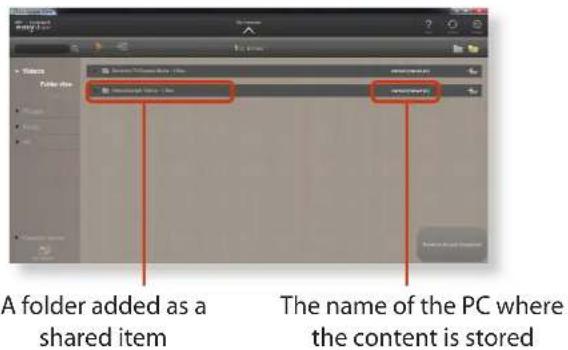

A folder added as a shared item The name of the PC where the content is stored

Content sharing is only available with Windows Media Player 11 or later.

If your Windows Media Player is earlier than Windows Media Player 11, download and install Windows Media Player 11 or later from the Microsoft website.

Using the TPM Security Device (Optional)

Chapter 2. Using the computer

A TPM (Trusted Platform Module) security device is a security solution that protects your personal information by saving the user authentication data on the TPM chip installed on the computer.

To use the TPM security device, you have to initialize the TPM chip in the BIOS Setup, initialize the TPM program, and then register the user.

This function is only supported for models with TPM • (security chip).

For more information, refer to the online help for the program.

The program version described in this manual is subject to change and the screenshots and terms used in this manual may differ from the actual product.

Setting Up the TPM

To use the TPM function, you have to complete the following steps.

1 Initializing the TPM chip

Initializes the authentication information saved on the TPM chip.

2 Installing the TPM program

Installs the TPM program.

3 Registering the TPM program

Registers the TPM program.

If you complete the steps above, you can use the TPM function.

Using the TPM Security Device (Optional)

Chapter 2. Using the computer

Initializing the TPM chip

When you use the TPM function for the first time or you want to register the user again, you have to initialize the TPM chip.

Initializing the TPM chip erases all authentication • information saved on the TPM chip. Any decision to initialize must be taken carefully.

To initialize the TPM chip again while the TPM function is in use, you have to decrypt any existing fi les and folders encrypted by the TPM function fi rst. Otherwise, you will not be able to access the fi les and folders after re-initialization.

Restart the computer.

When the Samsung logo screen appears, press the F2 key repeatedly.

If the BIOS screen appears, select the Security > TPM Configuration item and press Enter.

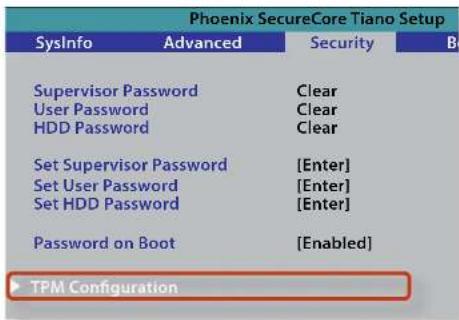

Phoenix SecureCore Tiano Setup SysInfo Advanced Security B Supervisor Password Clear User Password Clear HDD Password Clear Set Supervisor Password [Enter] Set User Password [Enter] Set HDD Password [Enter] Password on Boot [Enabled] TPM Configuration

Set the TPM Support item to Enabled and set the Change TPM Status to Clear.

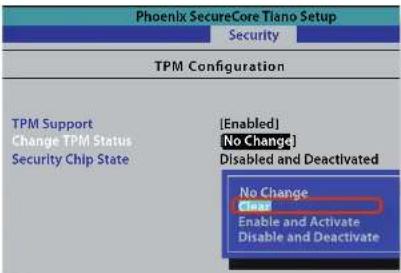

Phoenix SecureCore Tlano Setup Security TPM Configuration TPM Support Change TPM Status Security Chip State (Enabled) No Change Disabled and Deactivated No Change Enable and Activate Disable and Deactivate

Using the TPM Security Device(Optional)

Chapter 2. Using the computer

4 Press the F10 key to save the changes.
5 If the system automatically restarts, the PHYSICAL PRESENCE SCREEN appears. Enter Y.

PHYSICAL PRESENCE SCREEN TPM State has requested to change to Clear Do you want to accept it? [Y] Yes [N] No

6 When the computer restarts automatically and the Samsung logo screen appears, press the F2 key repeatedly.
7 Select the Security > TPM Configuration > Change TPM Status item and set the item to Enable and Activate.

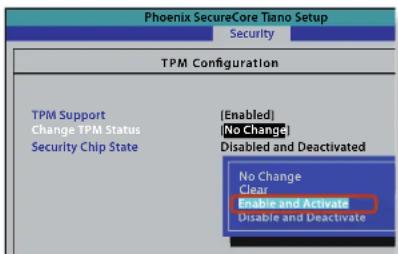

Phoenix SecureCore Tiano Setup Security TPM Configuration TPM Support Change TPM Status Security Chip State [Enabled] [No Change] Disabled and Deactivated No Change Clear Enable and Activate Disable and Deactivate

8 Press the F10 key to save the changes.
9 If the system automatically restarts, the PHYSICAL PRESENCE SCREEN appears. Enter Y.

PHYSICAL PRESENCE SCREEN TPM State has requested to change to Enable and Activate Do you want to accept it? [Y] Yes [N] No

10 Press the F10 key to save the changes. The computer automatically restarts. Initialization of the TPM chip has been completed. Now, install the TPM program and register the TPM program.

Using the TPM Security Device (Optional)

Chapter 2. Using the computer

Installing the TPM program

You can install the TPM program as follows. Install the program according to the procedures below.

This program is only provided for models with Samsung Recovery Solution and the TPM function.

1 Launch the Samsung Recovery Solution.
2 Click the System Software icon.

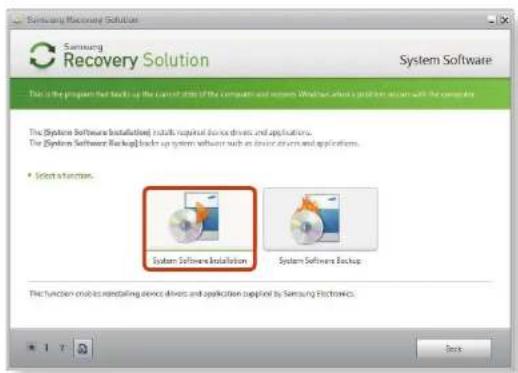

3 Click the System Software Installation icon.
4 Select TPM Host SW and click Install Now.

If the system software media is supplied with the product, you can install the program by using the system software media (only when supplied.)

Registering the TPM program

1 When the TPM program installation is completed, click Start > All Programs > Infi neon Security Platform Solution > Manage Security Platform > User Settings. (with administrator authority) Alternatively, double-click the TPM icon on the Taskbar and run initialization with administrator authority.
2 The security authentication settings begin with the Initialization Wizard. When the Initialization Wizard appears, click Next.

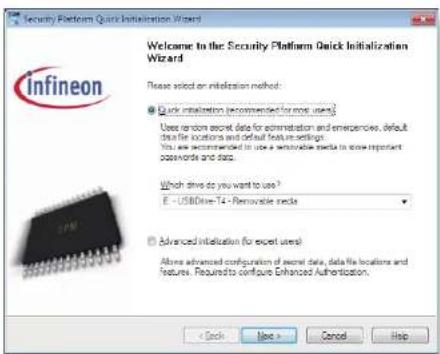

Security Platform Quick Initialization Wizard Welcome to the Security Platform Quick Initialization Wizard Please select an initialization method: ● Quick installation (recommended for most users) Uses random secret data for administration and emergencies, default data file locations and default feature settings. You are recommended to use a removable media to store important passwords and data. Which drive do you want to use? E - USBDrive-T4 - Renovable media Advanced installation (for excel users) Also advanced configuration of secret data, data file locations and features. Requires to configure Enhanced Authentication. < Back Next > Cancel Help

If the status not initialized message appears, click Yes. If you backup the emergency recovery file to an external storage device according to the instructions of the Initialization Wizard, you can use the TPM security device more safely.

Using the TPM Security Device (Optional)

Chapter 2. Using the computer

3 Select a Security Platform Feature and set a basic user password.
4 The Security Platform is now ready for construction. Click Next to start constructing the Security Platform.
5 If the Initialization Wizard completion window appears, click Finish.
6 The user registration for the TPM program has been completed. You can encrypt fi les and folders by using the encryption fi le system, and use fi les and folders to be encrypted by creating or copying them to the virtual drive. The virtual drive is created in the following location.

Organize System properties Downloads Recent Places Libraries Documents Music Pictures Videos Computer Local Disk (C:) USDDrive-T4 (E:) Personal Secure T Networks Hard Disk Drives (2) Local Disk (C:) Personals Secure Drive (N:) Devices with Removable Storage (2) DVD RW Drive (D:) USDDrive T 4 (E:) SANSUNG-PC Workgroup: WORKGROUP Processor: Intel(R) Core(TM) B CPU M 323 @ 2.4GHz

Using the TPM program

For more information about using the TPM program, refer to the online help for the program.

Encrypting a file (folder)

This function enables encrypting files and folders. You can safely protect documents through the Encrypt File System (EFS).

The Encrypt File System(EFS) function is supported by the following operating systems.

Windows XP Professional •

Windows Vista Business / Enterprise / Ultimate

Windows 7 Professional / Enterprise / Ultimate

1 Right-click over the folder (or file) to be encrypted, and select Encrypt from the pop-up menu.

Open Open in new window Encrypt Share with Restore previous versions Personal Secure Drive Send to

Using the TPM Security Device (Optional)

Chapter 2. Using the computer

2 If the Confirm Attribute Changes window appears, select the range to apply the encryption to and click OK. (This dialog box only appears when the folder is encrypted.)

Confirm Attribute Changes You have chosen to make the following attribute changes: encrypt Do you want to apply this change to this folder only, or do you want to apply it to all subfolders and files as well? ○ Apply changes to this folder only ● Apply changes to this folder, subfolders and files OK Cancel

If the current operating system is Windows 7 or Vista, the user account control window appears. In this case, click Continue.

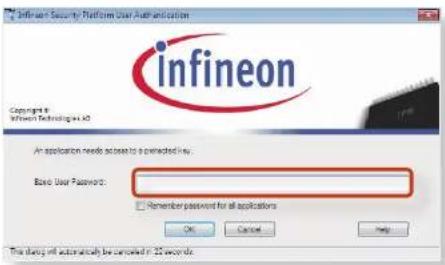

3 In the user authentication window, enter the Basic user password you entered when registering the user and click OK.

Infineon Security Platform User Authentication Copyright in Infineon Technologies Inc. An application needs access to a predated key. Base User Password: Remember password for all applications OK Cancel Help The delay will automatically be cancelled in 25 seconds.

4 You will be able to confirm that the color of the folder (fi le) name in the encrypted folder has been changed to green.

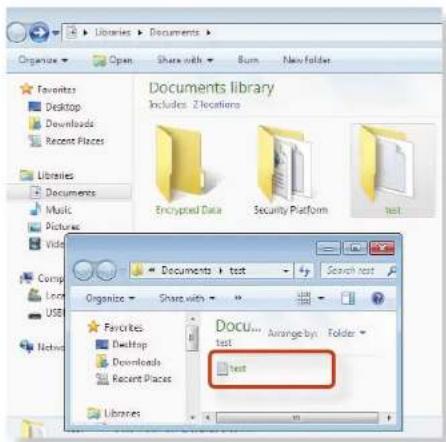

Organize Open Share with Burn New Folder Favorites Desktop Downloads Recent Places Documents library Includes: Z locations Encrypted Data Security Platform test Comp Log USB Organize Share with Favorites Desktop Downloads Recent Places Docu... test Arrange by: Folder test Libraries

Opening an encrypted folder (fi le)

1 Double-click an encrypted folder (fi le).
2 If the user authentication window appears, enter the basic user password you entered when registering the user and click OK.
3 The folder (fi le) opens.

Using the TPM Security Device(Optional)

Chapter 2. Using the computer

Decrypting an encrypted folder (file)

1 Right-click over an encrypted folder (file) and select Decrypt from the pop-up window.
2 If the user authentication window appears, enter the basic user password you entered when registering the user and click OK.
3 The folder (file) is decrypted.

Using the virtual drive (Personal Secure Drive: PSD)

The virtual drive (PSD) is a virtual space to save and manage confidential data. In the created virtual drive (PSD), you can create files and folders as with a normal drive (e.g. drive C:) and you can use confidential data saved on another drive by copying the data to the virtual drive (PSD).

When the virtual drive (PSD) does not appear

You can only use the virtual drive (PSD) when you have selected the Personal Secure Drive (PSD) option during the program registration.

If you have not selected the option during the registration, complete the following steps.

1 Click start > All Programs > Infineon Security Platform Solution > Manage Security Platform and click the User Settings tab > Security Platform Features and then Configure.
2 When the Initialization Wizard appears, select Personal Secure Drive (PSD) and enter the user password.
3 Click Next several times according to the instructions of the Initialization Wizard to finish the wizard.

When the virtual drive (PSD) is not loaded

To use the virtual drive (PSD), the virtual drive (PSD) should be loaded first. If it is not loaded, you can load it according to the procedures below.

1 Right-click over the Security Platform ☐ on in the system tray of the Taskbar and select Personal Secure Drive > Load from the pop-up menu.

Using the TPM Security Device(Optional)

Chapter 2.

Using the computer

2 In the load window, enter the basic user password and click OK.

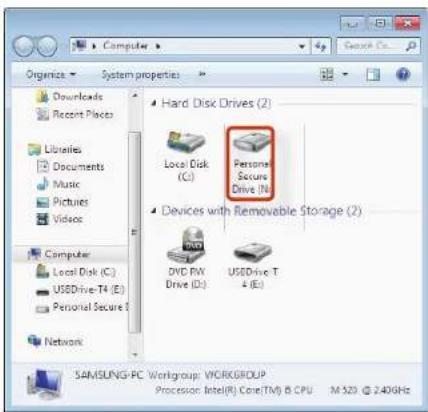

3 If you click Start > Computer, you will be able to confirm that the Personal Secure Drive is created.

Note that when you have copied confidential data to the PSD, the original data files are not encrypted.

When you have to register again (to erase the authentication information on the TPM chip)

To register again, you have to erase the existing authentication information saved on the TPM chip and initialize the TPM chip.

1 Click the Start > Control Panel > Programs > Uninstall Program > Infi neon TPM Professional Package and click Uninstall.
2 If the message window appears, click Yes to remove the program.
3 If the Infineon Security Platform message appears, click No.

4 Click the Start > Computer > Organize > Folder and Search Options > View > Hidden fi les and folders item, select Show hidden files and folders and click OK.
5 Click the Start > Computer > Drive C: > ProgramData folder and delete the Infi neon folder.
6 The authentication information of the TPM chip is removed. To use the TPM function, please repeat the procedures of the TPM chip initialization process.

The paths may differ depending on the operating system.

Blue gear icon inside a white circle on a blue background (no text or symbols)

Chapter 3. Settings and Upgrade

LCD Brightness Control 85

Control Center (Optional) 87

BIOS Setup 88

Setting a Boot Password 90

Changing the Boot Priority 93

Battery 94

LCD Brightness Control

Chapter 3. Settings and Upgrade

You can adjust the LCD brightness in 8 levels.

The screen brightness is automatically set to the brightest level (brightness level 8) when AC power is connected and the brightness is automatically set dimmer when the computer runs on battery power to extend the battery use time.

Controlling the Brightness Using the Keyboard

Adjust the LCD brightness by pressing the Fn key for the Fn + key.

The LCD brightness can change up to 8 levels and the brightness increases by 1 level when pressing the Fn + Rev once.

Maintaining the changed LCD brightness even after - turning the computer on again

To maintain the LCD brightness set by using the brightness control keys or through the Power Options, follow the procedures below.

▶ For Windows 7/Vista

1. Click Control Panel > Hardware and Sound > Power Options.

2. Click Change the settings of the currently configured mode.

3. Adjust the display brightness adjustment menu bar and click the Save the changes button.

Saving battery power consumption

Decreases the LCD brightness when the computer is running on battery power to save battery power consumption.

LCD Brightness Control

Chapter 3.

Settings and Upgrade

LCD bad pixels principle of computer.

Samsung observes the specifications regarding strict quality and reliability of LCD. But in spite of that, it is inevitable that there might be a small number of bad pixels. A large number of bad pixels can cause problems in appearance, but a small number of pixels doesn't affect the computer performance.

Therefore Samsung observes and manages the following dot principles:

- Bright dot : 2 or less

- Black dot : 4 or less

- Combination of Bright and Dark : 4 or less

Instructions for Cleaning the LCD

Clean the LCD panel with a soft cloth lightly moistened with computer cleansing detergent moving in one direction.

Cleaning the LCD panel with excessive force can damage the LCD.

Control Center(Optional)

Chapter 3. Settings and Upgrade

The Control Center is the integrated Samsung software control program that allows users to configure various settings.

This description is for models that support this function • running on Windows 7.

The screen image and terminology may change depending on the model.

Depending on the program version, some functions may not be provided or different functions may be provided.

1 Press the Center.

Fn + Key combination to launch the Control

2 Click on the item you want to use and select ON or OFF to determine whether to use the function or not.

Control Center ① Bluetooth Adaptive Brightness Keyboard Backlit Battery Life Extender Fast Start Chargeable USB Movie Color Enhancer Items ② You can set this to ON or OFF. Wi-Fi Take On/Off a WiFi. OFF ON Use Notifying function of WiFi connection list. setup airportthru portthru iptime

Wi-Fi Trun	On/Off a Wi-Fi.
Bluetooth (Optional)	Trun On/Off a Bluetooth.
Adaptive Brightness	Automatically adjusts the brightness of the system's LCD panel based on surrounding light levels.
Keyboard Backlit	Automatically adjusts the brightness of the Keyboard Backlit based on surrounding light levels.
Battery Life Extender	Battery Life Extender can reduce the battery ageing process and thus extend the overall battery life.
Fast Start	Fast Start enables system to enter 'Hybrid Sleep Mode' and lets you access your desktop faster.
Chargeable USB	This chargeable USB tool provides power to a specific USB port even when this system is in sleep, hibernate or shutdown mode.
Movie Color Enhancer	Movie Color Enhancer automatically improves screen quality of video playback.ON: Select this mode for movie.OFF: Select this mode for normal.When you switched Movie Color Enhancer ON, you can see the icon 📋 on the tray bar while playing a video. Using the selectable modes, you can enjoy the movies more.- Movie Color Mode: default color effect- Movie Color Mode 2: it increases brightness for dark scenes- Normal: no effect

BIOS Setup

Chapter 3. Settings and Upgrade

The BIOS Setup enables you to configure your computer hardware according to your needs.

Use the BIOS setup to define a boot password, change the • booting priority, or add a new device.

Since incorrect settings may cause your system to • malfunction or crash, take care when confi guring the BIOS.

The functions of the BIOS setup are subject to change for product function enhancement purposes.

The BIOS Setup menus and items may differ depending on your computer model.

Entering the BIOS Setup

1 Turn the computer on.

2 When the booting screen (SAMSUNG logo) appears, press the F2 key to enter the BIOS Setup.

SAMSUNG

The screen images in this document may differ from actual product.

3 After a moment, the BIOS setup screen appears.

The items in the BIOS setup may differ depending on the product.

The BIOS Setup Screen

The BIOS Setup menus and items may differ depending on your computer model.

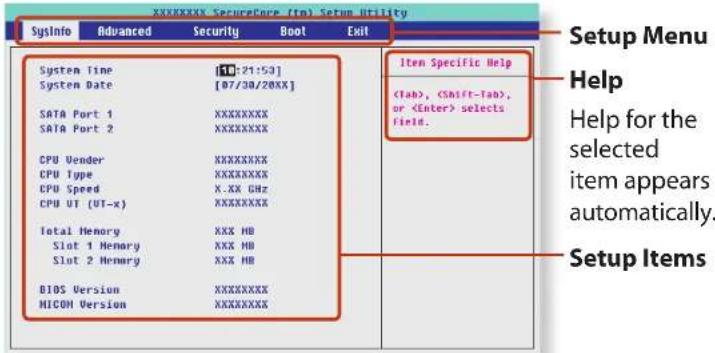

XXXXXXX SecureCore (tm) Setup Utility SysInfo Advanced Security Boot Exit System Time [10:21:53] System Date [07/30/20XX] SATA Port 1 XXXXXXXX SATA Port 2 XXXXXXXX CPU Vender XXXXXXXX CPU Type XXXXXXXX CPU Speed X.XX GHz CPU UT (UT-x) XXXXXXXX Total Memory XXX HB Slot 1 Memory XXX HB Slot 2 Memory XXX HB BIOS Version XXXXXXXX MICOM Version XXXXXXXX Item Specific Help , , or selects Field. Setup Menu Help Help for the selected item appears automatically. Setup Items

Setup Menu Description
SysInfo	This is a description about the basic specifications of the computer.
Advanced	Using this menu, you can configure the major chipsets and additional functions.
Security	Used to configure security functions, including passwords.
Boot	This menu enables you to configure peripherals and booting related settings such as the boot priority.
Exit	Used to exit the Setup either saving the changes or not.

System Setup Keys

In the Setup, you have to use the keyboard.

F1 Press to view the Setup Help.
Up & Down Keys		Press to move up and down.
F5/F6		Press to change the item value.
F9		Press to load the default Setup settings.
ESC		Press to return to a higher level menu or to move to the Exit menu.
Left & Right Keys		Press to move to another menu.
Enter		Press to select an item or to enter a sub menu.
F10		Press to save the changes and exit Setup.

The keyboard image may differ from the actual keyboard.

Setting a Boot Password

Chapter 3. Settings and Upgrade

When setting a password, you have to enter a password to use the computer or enter the BIOS Setup.

By confi guring a password, you can restrict system access to authorized users only and protect data and fi les saved on the computer.

Do not lose or forget your password.

If you have forgotten your password, contact a Samsung service center. In this case, a service fee will be charged.

The BIOS Setup menus and items may differ depending on your computer model.

Setting a Supervisor Password

A Supervisor Password is required to turn the computer on or to start the System Setup.

When setting a Supervisor Password, users other than a supervisor cannot use the computer.

1 Select the Security menu in the BIOS Setup.

2 In the Set Supervisor Password item, press .

Supervisor Password Clear User Password Clear HDD Password Clear Set Supervisor Password [Enter] Set User Password [Enter] Set HDD Password [Enter] Password on boot [Disabled]

3 Enter a password, press , re-enter the password for confirmation, and press again.

The password can be up to 8 alphanumeric characters. Special characters are not allowed.

4 The supervisor password has been set.

The supervisor password is required to turn the computer on or to enter the BIOS Setup.

For some models, if the password entered message appears in the Setup Notice window, the settings are not complete until the key is pressed.

Setting a Boot Password

Chapter 3.

Settings and Upgrade

Setting a User Password

Users can start the system with a user password, but cannot enter the System Setup. By doing this, you can prevent other users from entering Setup.

Before configuring a user password, a supervisor password must have been configured. Deactivating the supervisor password also deactivates the user password.

In the Set User Password item, press and complete the procedures from Step 3 of Setting a Supervisor Password.

Setting Up a Boot Password

To setup a boot password, the administrator password (Set Supervisor Password) should be set in advance.

Set the Password on boot item to Enabled.

Once a boot password is set, you have to enter a password to boot up the computer.

Setting up a Hard Disk Drive Password (Optional)

If you set a password for a hard disk drive, it cannot be accessed from another computer.

Press in the Set HDD Password item and define a password as described in Step 3 of the Setting up the Supervisor Password.

The hard disk drive password setting function is not provided for some models.

Changing the hard disk drive password-

For security purposes, you can only change a hard disk drive password after restarting the computer by pressing the computer Power button.

If you cannot change the hard disk drive password or the HDD Password Frozen message appears when entering the BIOS Setup and then selecting Security > HDD Password, press the Power button to turn the computer on again.

Setting a Boot Password

Chapter 3.

Settings and Upgrade

Deactivating the Password

1 Press on the password to be deactivated. For example, to deactivate a supervisor password in the Set Supervisor Password item, press .
2 In the Enter Current Password item, enter the currently configured password and press .
3 Leave the Enter New Password item fi eld empty, and press .
4 Leave the Confirm New Password fi eld empty, and press .
The password is deactivated.

For some models the password is only canceled if the key is pressed in the Setup Notice window.

Changing the Boot Priority

Chapter 3. Settings and Upgrade

By default, the highest boot priority device is set to the CD-ROM/DVD drive. As an example, the procedures to change the highest boot priority device to the hard disk drive are described below.

The screen images and terms may differ from actual product depending on the computer model and driver version.

1 Select the Boot menu in the BIOS Setup.

2 Press on the Boot Device Priority item.

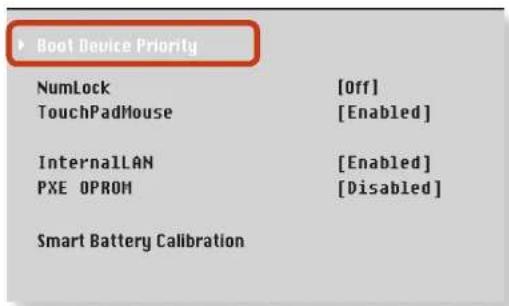

Boot Device Priority NumLock [Off] TouchPadMouse [Enabled] InternalLAN [Enabled] PXE OPROM [Disabled] Smart Battery Calibration

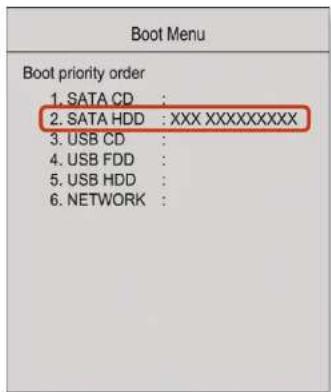

3 Press the down key (↓) to move to the SATA HDD item and press the F6 key to move up to the top item.

4 Press the F10 key to save the settings and exit Setup. The highest boot priority device is now set to the Hard Drive.

Battery

Chapter 3. Settings and Upgrade

Please refer to the following instructions when running the computer on battery power without connecting the AC power.

This computer is equipped with an internal battery.

Precautions

Users cannot remove or replace the internal battery.

To remove or replace the battery, use an authorized service center in order to protect the product and users. You will be charged for this service.

Use only chargers specified in the User Manual.

Never heat the battery pack, put it near or in a fire or use at a temperature higher than 60^ C, as this may cause fire.

Please refer to the system operation environment of this manual and operate and store the battery at room temperature.

Before using the computer for the first time, make sure to connect the AC adapter and charge the battery completely.

The images used for the illustration are of a representative model, therefore the images may differ from the the actual product.

The location of the internal battery

Back view of a black electronic device with red LED indicators and mounting holes (no visible text or symbols)

Charging the Battery

1 An internal battery is embedded. Connect the AC adapter to the power input jack of the computer. The battery will start charging.
2 When charging is complete, the Charge LED turns green.

Status	Charge LED
Charging	[607T] [687I][VATT]	Red or orange
Charging complete	[KABD]	Green
AC adapter not connected		Off

Battery

Chapter 3. Settings and Upgrade

Measuring the Remaining Battery Charge

You can view the battery charge status by completing the following procedures.

Confirming the battery charge in the Taskbar

Disconnect the AC adapter and move the mouse cursor over the battery icon in the system tray of the Taskbar to confirm the remaining battery charge.

Battery Usage Time Information

A battery is an expendable supply, so when using it over a long time, the capacity/battery life is shortened. If the battery life is reduced to under half of its initial time, we recommend purchasing a new battery.

When not using the battery for a long time, store the battery after charging it to 30-40% of its capacity. This extends the battery life time.

Battery

Chapter 3. Settings and Upgrade

Extending the Battery Usage Time

Decreasing the LCD Brightness

Press the #n keys on the keyboard to decrease the LCD brightness to extend the battery usage time.

Using the battery mode (optional)

Press the #n key combination. The battery mode window will appear that helps you to use the battery efficiently. battery modes optimized for the operating environment are supported.

These descriptions are for Windows 7 and for supported models only.

Using the battery modes

To use the power options of the Easy Display Manager program after reinstalling Windows, you can install the Easy Display Manager program using the system software media. Since the battery mode is optimized to extend the battery use time, programs that require high performance may slow down when the computer is running on battery power. In this case, it is recommended connecting the AC adapter or selecting high-performance mode.

▶ For Windows 7/Vista

1 Click Start > Control Panel > Hardware and Sound > Power Options.

Alternatively, right-click the power measuring device icon in the notification area of the taskbar and select Power Options.

2 If the following screen appears, select one of the modes.

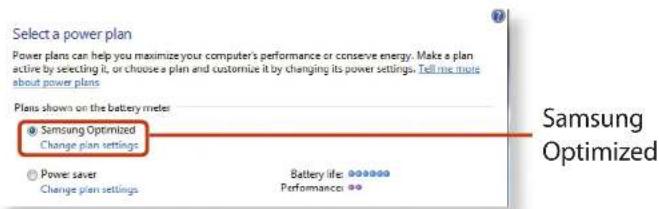

Select a power plan Power plans can help you maximize your computer's performance or conserve energy. Make a plan active by selecting it, or choose a plan and customize it by changing its power settings. Tell me more about power plans Plans shown on the battery meter ● Samsung Optimized Change plan settings ● Power saver Change plan settings Battery life: ○○○○○○○ Performance: ○○○○○○○ Samsung Optimized

Samsung Optimized

This mode is appropriate for normal conditions. It maximizes the system performance when the computer is running on AC power while maximizing the battery usage time when the computer is running on battery power.

Battery

Chapter 3. Settings and Upgrade

Extending the Battery Life (Optional)

The Battery Life Extender is a battery power management program that enables extending the battery life. Users can change the settings depending on their requirements.

The Battery Life Extender is optional and may not be supplied depending on the model.

The screen images and terms may differ from actual product depending on the computer model.

1 Press the +Fn key Combination to run the Control Center.

2 Select Battery Life Extender > ON.

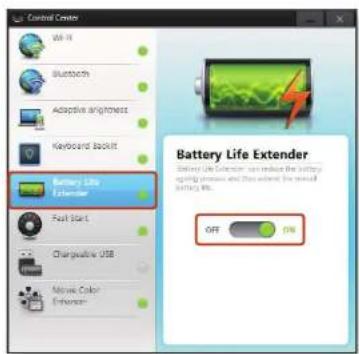

Control Cover USB-31 Bluetooth Adaptive brightness Keyboard Backlit Battery Life Extender Fast Start Changputable USB Mouse Color Extender Battery Life Extender Battery life extender can reduce the battery charging process and thus allow the next battery to use OFF OR

Press the F2 key when the Samsung logo appears in the booting sequence to enter the BIOS Setup, select Advanced > Battery Life Cycle Extension, and set it to Enable. Then you can use the battery life cycle extension mode.

Battery

Chapter 3. Settings and Upgrade

Using the Battery Calibration Function

When charging/discharging the battery repeatedly for a short time only, the battery usage time may be reduced by the difference between the actual battery charge and the remaining charge display.

In this case, the actual battery charge and the remaining charge display will be the same by discharging the battery completely using the Battery Calibration function, and then recharging it again.

The screen images and terms may differ from actual product depending on the computer model and driver version.

1 Disconnect the AC power adapter after turning off the computer.

2 Restart your computer and press the F2 button when the Samsung logo appears, to start the BIOS Setup.

3 Move to the Boot > Smart Battery Calibration item using the direction keys and press .

Boot Device Priority NumLock [Off] TouchPadMouse [Enabled] InternalLAN [Enabled] PXE OPROM [Disabled] Smart Battery Calibration

4 Highlight Yes in the Battery Calibration Confirmation window and press .

The Battery Calibration function is activated and the battery is forcefully discharged. To stop the operation, press the button.

This operation requires 3\~5 hours depending on the battery capacity and the remaining battery charge.

Orange icon depicting a first aid kit with a cross and syringe, enclosed in a white circle (no text or symbols)

Chapter 4. Backup / Restore

Samsung Recovery Solution (Optional) 100

Samsung Recovery Solution (Optional)

Chapter 4. Backup / Restore

Samsung Recovery Solution is a program that enables restoring or backing up the hard disk drive for when a problem occurs with the computer.

If the computer fails to boot up, you can restore the computer by pressing the F4 key in the booting screen.

Samsung Recovery Solution may not be provided or the version may differ depending on the model. In addition, some functions may not be provided or may differ depending on the version.

For more information on using Samsung Recovery Solution, please refer to the online help of the program.

The screen images in this document may differ from actual product.

If your computer does not have an internal ODD, you need an external ODD connected to your computer to use the Backup Function or Restore Function using DVDs.

The System Software function may not be provided • depending on the program version.

Samsung Recovery Solution Functions

Backup/Restore Functions

Backup Function Backs up drive C or required folders and fi les.

Complete Backup·

Backs up drive C.

Data Backup·

Backs up important folders and files.

A problem occurs

Restore Function

Restores major Windows fi les, drive C, or folders and fi les to the previous state.

Basic Restore

Restores only major Windows files in a short time.

- Complete Restore

Restores drive C to the previous, normal state.

- Data Restore

Restores important fi les or folders to the previously backed up state.

Samsung Recovery Solution (Optional)

Chapter 4. Backup / Restore

System Software Functions

Samsung Recovery Solution provides system software so that you can reinstall or copy the device drivers and system software necessary for normal operations onto a separate storage device.

Restore Function

Not only can you use Samsung Recovery Solution when Windows is running, but also when you are unable to boot up into Windows. Let's learn how to use Samsung Recovery Solution.

Optional functions such as Initial State Image, Initial Status Backup, and Partitioning are only available in some models.

Partition Setup & Initial Status Backup

If you turn your computer on for the first time, the Initial Status Backup function is performed after registering Windows. This function saves an image of the Initial Status of the C drive to a secure location so that users can restore the computer to the Initial Status using the Complete Restore function. An Initial Status Backup is only performed once immediately after the computer is purchased.

1 If you turn the power on for the first time, the Register Windows screen appears. If you register Windows according to the instructions on the screen, the computer will be restarted.
2 After the computer has been restarted, the Partition Setup screen appears.

To resize the C and D drives, adjust the partition size using the slide bar and the click Next.

The Partition Setup function is only available when the computer is turned on for the first time and will not be available afterwards. Once you have completed the partitioning, it cannot be resized. Partition the disk carefully.

3 The Initial Status Backup screen appears.
To continue the Initial Status Backup, click Restart Now. The computer will restart.
4 The Initial Status Backup is performed to backup the initial status of the C drive to a secure location. This backup image is used for the Complete Restore function that restores your computer to the initial status.
5 When the Initial Status Backup is complete, restart Windows.

Samsung Recovery Solution (Optional)

Chapter 4. Backup / Restore

Restoring the computer

Restore is a function that enables restoring the computer to a saved point when the computer was purchased or a user-saved point.

The Restore function provides the Basic Restore and Complete Restore options.

1 - When Windows is running:

Click Samsung Recovery Solution.

- When Windows does not start:

Turn the computer on and press the key when the boot screen (SAMSUNG logo) appears. After a moment, the computer boots up in Restoration mode and the Samsung Recovery Solution screen appears.

For computers supporting the touch screen function, the touch screen function does not work during Restore Mode. In this case, please use the touchpad or mouse.

2 If the initial menu screen appears, click Restore.

Samsung Recovery Solution This is the program that also is the current date of the computer and requires the time when a problem exists with the computer. To use the breakout mounting method for such symptoms, click Select by Symptoms. Select by Symptom Timeout Backup System Software If you move the ensure portion over a button, you can view a brief description.

If you click Select by Symptom, the Select by Symptom menu appears. If you select a symptom, a recommended restoration option will blink. Click the restoration option to continue.

Samsung Recovery Solution (Optional)

Chapter 4. Backup / Restore

3 Select either Basic Restore or Complete Restore from the Restore menu.

To restore the computer to the initial state, click Computer Initial State and perform the restoration process according to the instructions that appear on the screen.

Samsung Recovery Solution Complete Restore This is the program that backs up the current site of the computer and removes Windows when a restore option with the computer. Restore this entire Windows drive to the initial lock status of the computer. All users continue to use Windows drive to download and write all the data will be returned at the time selected below. You may need to select some software after the Restore. Select a Restore time and click the Next button. Advanced File Edit View Insert Selection Tools Help 04.01.2011 Computer Store Address 67.35 HFC Custom File must be connected to the power while the Restore is in progress. If the power is locked off, there is a Restore, you have to restart the Restore from the beginning.

Run Complete Restore if the computer does not work even after Basic Restore has been completed.

In the Advanced menu, you can change the size of the hard drive partitions (e.g. C: and D:).

Make sure to backup your data in advance, as all data will be deleted after the partition size is changed.

- The Advanced menu is only activated when the computer boots up in the restoration area.

(by pressing the F4 key during the booting sequence.)

Since a Complete Restore deletes all user data as well as additionally installed programs, please backup your important data first using the Data Backup function, before running Complete Restore.

4 The computer boots up into restoration mode and the restoration progress message appears. If you click OK, the restoration begins. The restoration may take some time, please wait for a moment.

5 When the 'Restart the System' message appears after the restoration is complete, click OK to restart the system.

Make sure that the power cord is connected while the restoration is in process. The first time the computer boots up after a Complete Restore has been performed, the speed of the boot process may be slowed down due to the system optimization process. At this time, do not shut the computer down by force.

Samsung Recovery Solution (Optional)

Chapter 4. Backup / Restore

Complete Backup/Restore

A Complete Backup saves the complete image of the C drive onto another drive or DVD. A Complete Restore restores the image fi le saved by the Complete Backup onto the C drive.

Complete Backup

If you run Complete Backup using a DVD, you can restore the computer even when a problem occurs with the hard disk or when the restoration area is removed.

1 Click Backup in the start screen of the Samsung Recovery Solution.

2 Enter a description of the current status of the computer and click Next.

If a writable DVD drive is installed, you can specify the DVD as the Save Path.

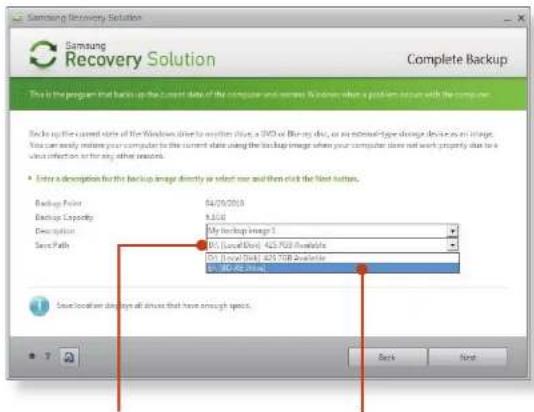

Samsung Recovery Solution Complete Backup This is the program that-back up the current date of the computer and serves Windows when a problem exists with the computer. Backup up the current date of the Windows drive to another drive, a ISO of Blue-ray disc, or an external-type storage device as an image. You can easily restore your computer to the current date using the backup image when your computer does not work properly due to a virus infection or for any other reasons. • Insert a description for the backup image directly or select user and then click the next button. Backup Provider 4/25/2013 Backup Capacity 9.100 Description: My backup image 1 Secret Path: 01 (Local Disk) 425.700 Download 01 (Local Disk) 425.700 Download 01 (Local Disk) 425.700 Download Save local server design all drives that have enough space. Back Next

Select Drive D. Select the DVD drive.

3 When the option selection item appears, select an option and click Next.

The LiveImaging and System Software Backup functions are supported as options for the Complete Backup operation.

Livelmaging:· Performs the Complete Backup operation while Windows is running. The backup operation using Livelmaging may slow down if the hard disk drive is accessed frequently by other applications.

System Software Backup: • This function backs up the system software on to the DVD after the completion of the Complete Backup operation.

Samsung Recovery Solution (Optional)

Chapter 4. Backup / Restore

4 When the system restarts in Restoration Mode, the Complete Backup operation begins. Continue with the backup by following the instructions.

Samsung Recovery Solution supports the DVD+R, DVD-R, • DVD+RW and DVD-RW formats.

If the LiveImaging option has been selected, the Complete Backup operation begins without the computer being restarted.

5 Continue with the Complete Backup operation by following the instructions.

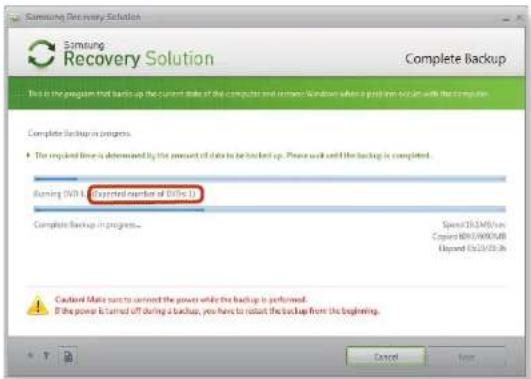

Samsung Recovery Solution Complete Backup This is the program that banks up the current state of the computer and other Windows where a problem can be completed. Complete Backup in progress. • The required time is determined by the amount of data to be backed up. Please work until the backup is completed. Running DVD 1 (Targeted number of Diffs 1) Complete Backup in progress... Speed: 25.34/0.06 Copied: 89.5.00/0.08 Expired: 03.23/0.26 Caudate Make sure to destroy the power while the backup is performed. If the power is turned off during a backup, you have to restart the backup from the beginning.

6 When the 'Restart the System' message appears after the backup is complete, click OK to restart the system.

If the LiveImaging option has been selected, the computer is not restarted.

Samsung Recovery Solution (Optional)

Chapter 4. Backup / Restore

Complete Restore

1 - When backing up onto DVD

Turn the computer on and insert the backup DVD into the DVD drive. If there are multiple backup DVDs, insert the first DVD.

- When backing up to another drive

Proceed to Step 2.

2 When the Samsung Recovery Solution start screen appears, click Restore and then click Complete Restore.

3 Select a Complete Backup restoration point in the restoration point selection screen and click the Next button. The system is restarted.

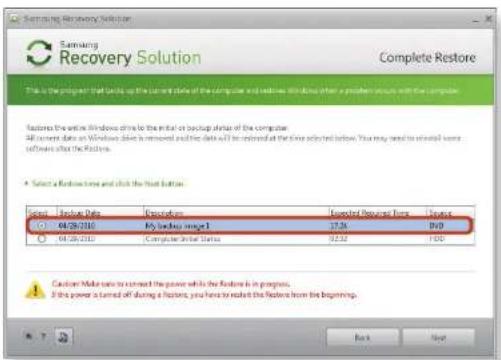

Samsung Recovery Solution Complete Restore This is the program that looks up to the current state of the computer and continues through when a problem exists with the computer. Features the entire Windows drive is the initial or backup drive of the computer. All current states on Windows drive is removed and then data will be removed at the time until below. You may need to switch some software after the restore. Select a Restore time and click the host button. Score | Runtime Date | Description | Investor Resource Time | Status 04/26/2016 | MyBackus Image 1 | 37.24 | 9:00 04/26/2012 | Computer Start Date | 82.22 | 1:00 Copyright Make sure to connect the power which the Restore is in progress. If the power is turned off during a Restore, you have to read the Restore from the beginning.

4 The restoration progress message appears after the computer boots up in restoration mode. If you click OK, the restoration begins.

If multiple DVDs have been used for a Complete Backup, whenever burning a DVD is completed, the "Insert the next DVD" message will appear.

5 When the 'Restart the System' message appears after the restoration is complete, click OK to restart the system. The Complete Restore has been completed.

Samsung Recovery Solution (Optional)

Chapter 4. Backup / Restore

Data Backup/Restore

Data Backup enables you to save specific files or folders onto another drive or DVD. Data Restore enables you to restore data using the data saved by a Data Backup when data is lost. This guide describes the Backup and Restore procedures on the basis of backing up and restoring by using DVD.

Data Backup

1 When the Samsung Recovery Solution start screen appears, click Backup and then click Data Backup.
2 In the data selection screen, select either Basic Selection or Select from all, select a folder or file to be backed up, and then click the Next button.
3 Enter a description for the backup in the Description fi eld so that you can easily recognize it later and specify the Save Path. If your computer has a DVD-Writer, you can specify the DVD drive as the Save Path.

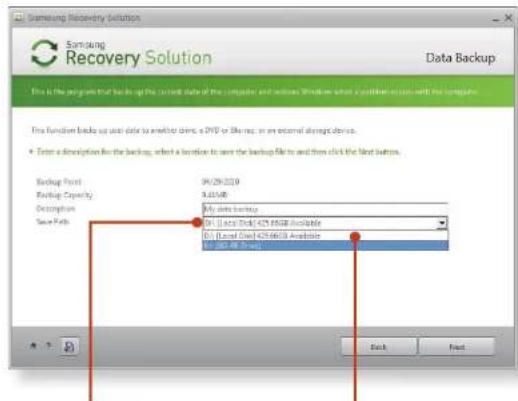

Samsung Recovery Solution Data Backup This is the program that looks up the current date of the computer and notes Windows when a problem exists with the computer. This function looks up your date to another drive, a DVD or DRAS, or an external automatic device. Enter a description for the backup, which a location to save the backup file to and then click the first button. Backup Point: 9/09/2019 Backup Capacity: 3.0GB Occipitum: My data backup D:\1.0\data.Disk\425.85GB Available D:\Local Data\425.86GB Available D:\Local Data\425.87GB Available Back Next

Select Drive D. Select the DVD drive.

If you have specified a hard disk drive or a removable disk as the Save Path, the SamsungRecovery\SamsungData folder is created on the corresponding drive (e.g. D:) and the data is saved to the folder. Take care to not delete the folder by mistake or on purpose.
4 If you click the Next button, the Data Backup begins. If you have selected the DVD drive as the Save Path, the "Insert a blank DVD" message appears. Insert a blank DVD and click the OK button.
5 The "Backup is completed" message appears.

Samsung Recovery Solution (Optional)

Chapter 4. Backup / Restore

Data Restore

1 – When backing up onto DVD

Turn the computer on and insert the backup DVD into the DVD drive.

- When backing up to another drive

Proceed to Step 2.

2 When the initial menu screen appears, click Restore and then click Data Restore.
3 Select a backup item to be restored in the backup list and click the Next button.
4 Select a folder for the restoration and click the Next button. Data Restore begins.
5 When Data Restore is completed, check if the data has been restored to the specified folder.

Samsung Recovery Solution (Optional)

Chapter 4. Backup / Restore

System Software Function

The System Software function is a function that enables you to reinstall device drivers and System Software Programs or back up those programs.

The system software function is supported by Samsung Recovery Solution version 4 or later. Therefore, the function may not be supported depending on the version.

The System Software Installation Function only works in Microsoft Windows.

Installing System Software

1 When the initial menu screen appears, click System Software > System Software Installation.

Samsung Recovery Solution System Software This is the program that lacks any of the current sites of the computer and requires What's what a solution exists with the computer. The System Software Installation installed required devices drives and applications. The System Software Backup backed up system software such as server drives and applications. Select a function. System Software Installation System Software Backup This function enables maintaining device drives and application applied by Samsung Electronics.

2 When the Samsung System Software screen appears, check all the device drivers and application programs you want to install and then click Install Now.
3 After the installation is complete, the computer will restart.

Samsung Recovery Solution (Optional)

Chapter 4. Backup / Restore

System Software Backup

1 When the initial menu screen appears, click System Software > System Software Backup.
2 Specify the Save Path. If your computer has a DVD-Writer, you can specify the DVD drive as the Save Path.

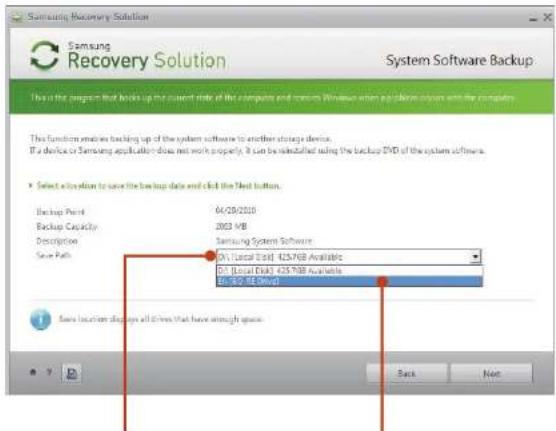

Samsung Recovery Solution System Software Backup This is the program that looks up in the current state of the computer and remote Windows users and download users with the computers. This function enables tracking up of the system software to another storage device. If a device or Samsung application does not work properly, it can be installed using the backup DVD of the system software. Select a location to save the backup data and click the Next button. Backup Panel 64/29/2018 Backup Capacity 2003 MB Description Samsung System Software Save Path 01 (Local Disk) 4257GB Available 01 (Local Disk) 4257GB Available 05.962 SE Devd Save location displays all drives that have enough space.

Select Drive D. Select the DVD drive.

If you have specified a hard disk drive or a removable disk as the Save Path, the SamsungSoftware folder is created on the corresponding drive (e.g. D:) and the system software programs are saved to that folder. Take care to not delete the folder.
3 If you click the Next button, the Software Backup begins. If you have selected the DVD drive as the Save Path, the "Insert a blank DVD" message appears. Insert a blank DVD and click the OK button.
4 After the backup, the System Software Backup is completed message appears.

If you want to install the System Software Programs backed up on the drive, run the SoftwareMediaXX.exe file in the SystemSoftware folder.

When installing System Software Programs from the • backed-up DVD, insert the DVD and follow the System Software Installation directions.

To delete Samsung Recovery Solution, refer to the Help section of the program.

Samsung Recovery Solution (Optional)

Chapter 4. Backup / Restore

Recovery Solution Representation (Optional)

What is a Recovery Area?

Samsung computers have an additional partition to recover • computers or save backup files.

(Only for models with the Samsung Recovery Solution.)

This partition is called a Recovery Area and it includes a recovery image that comprises of the OS and application programs.

You can either double-click the Samsung Recovery Solution • icon on the desktop or press F4 while booting the computer to enter the Recovery Area. Then you can back up the present computer state or recover the computer from backed up images.

For deleting the Recovery Area, you need to use an additional • Recovery Area Removal Tool. After deleting the recovery area, you can use the newly created partition for other uses, such as for saving personal data. Be careful that once the recovery area is deleted, the Samsung Recovery Solutions will not work anymore.

The capacity representation of the hard disk drive(HDD) in Windows is different from the product specifications.

The capacity of the storage device (HDD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes. However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity.

This is due to the difference in capacity calculation and does not mean the installed HDD is different from the product specifications.

The capacity representation in Windows may be smaller than the actual capacity because some programs occupy a certain area of the HDD outside of Windows.

For models with Samsung Recovery Solution, the HDD capacity • representation in Windows may be smaller than the actual capacity because Samsung Recovery Solution uses a hidden area of about 5\~20GB of the HDD to save the recovery image, and that hidden area is not counted towards the total size available to Windows.

The size of Samsung Recovery Solution varies by models because of the different size of applied programs.

Green icon of a spiral-bound notebook inside a white circle on a solid green background (no text or symbols)

Chapter 5. Appendix

Important Safety Information 113

Replacement Parts and Accessories 115

Regulatory Compliance Statements 117

WEEE Symbol Information 131

Product Specifications 132

Glossary 134

Index 138

Important Safety Information

Chapter 5. Appendix

Safety Instructions

Your system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.

Always follow these instructions to help guard against personal injury and damage to your system.

Setting Up your System

Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use.

Do not use this product near water or a heat source such as a radiator.

Set up the system on a stable work surface.

The product should be operated only with the type of power • source indicated on the rating label.

Ensure that the electrical outlet you are using to power your equipment is easily accessible in case of fi re or short circuit.

If your computer has a voltage selector switch, make sure that the switch is in the proper position for your area.

Openings in the computer case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the computer ventilation openings.

Ensure that the fan vents on the bottom of the casing are clear • at all times. Do not place the computer on a soft surface, doing so will block the bottom vents.

If you use an extension cord with this system, make sure that the total power rating on the products plugged into the extension cord does not exceed the extension cord power rating.

For Notebooks with glossy display bezels the user should • consider the placement of the Notebook as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

Important Safety Information

Chapter 5. Appendix

Care During Use

Do not walk on the power cord or allow anything to rest on it. Do not spill anything on the system. The best way to avoid • spills is to not eat or drink near your system.

Some products have a replaceable CMOS battery on the system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer.

Dispose of batteries according to the manufacturers instructions. If the CMOS battery requires replacement insure that a qualified technician performs the task.

When the computer is turned off, a small amount of electrical current still flows through the computer.

To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system.

Unplug the system from the wall outlet and refer servicing to • qualified personnel if:

– The power cord or plug is damaged.
– Liquid has been spilled into the system.
- The system does not operate properly when the operating instructions are followed.
– The system was dropped or the casing is damaged.
– The system performance changes.

The Instruction On Safety Operation of NotePC

1. When installing and operating devices please refer to safety requirements in the user guide.
2. Devices can be used only with the equipment specified in the technical specifications of the devices.
3. If any smell of burning or smoke is detected from the computer the unit should be switched off and battery removed. The unit should be checked by a qualified technician before reuse.
4. Service and repair of devices should be carried out by authorized service centers.
5. Do not allow your portable computer to operate with the base resting directly on exposed skin for extended periods of time. The surface temperature of the base will rise during normal operation (particularly when AC Power is present). Allowing sustained contact with exposed skin can cause discomfort or eventually a burn.

Replacement Parts and Accessories

Chapter 5. Appendix

Use only replacement parts and accessories recommended by manufacturer.

To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord.

Do not use this product in areas classified as hazardous. Such areas include patient care areas of medical and dental facilities, oxygen rich environments, or industrial areas.

Battery Disposal

Do not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage.

Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer.

Follow all local regulations when disposing of old batteries.

! THERE IS A RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Laser Safety

All systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 60825-1. The laser devices in these components are classified as "Class 1 Laser Products" under a US Department of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing, contact an authorized service location.

! Laser Safety Note:

Use of controls or adjustments or performance of procedures other than those specified in this manual may result in hazardous radiation exposure. To prevent exposure to laser beams, do not try to open the enclosure of a CD or DVD drive.

Class 1M laser radiation when operating part is open. Do not view directly with optical instruments.

Class 3B invisible laser radiation when open. Avoid exposure to the beam.

Replacement Parts and Accessories

Chapter 5. Appendix

Connect and Disconnect the AC adapter

The socket-outlet shall be installed near the equipment and shall be easily accessible.

Do not unplug the power cord by pulling the cable only.

Power Cord Requirements

The power cord set (wall plug, cable and AC adapter plug) you received with your computer meets the requirements for use in the country where you purchased your equipment.

Power cord sets for use in other countries must meet the requirements of the country where you use the computer. For more information on power cord set requirements, contact your authorized dealer, reseller, or service provider.

General Requirements

The requirements listed below are applicable to all countries:

All power cord sets must be approved by an acceptable • accredited agency responsible for evaluation in the country where the power cord set will be used.

The power cord set must have a minimum current capacity of 7 A and a nominal voltage rating of 125 or 250 volts AC, as required by each country's power system. (USA ONLY)

The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard Sheet C7 (or C5) connector, for mating with appliance inlet on the computer.

Regulatory Compliance Statements

Chapter 5. Appendix

Wireless Guidance

(If fitted with 2.4G band or 5G band)

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.

The RF field strength of the wireless device or devices that may be embedded in your notebook are well below all international RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your notebook) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.

Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed on the next page:

Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane.

802.11ABGN (also known as wireless Ethernet or Wifi) and Bluetooth communication devices are examples of devices that provide wireless communication.

In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.

Every country has different restrictions on the use of • wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.

If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.

Regulatory Compliance Statements

Chapter 5. Appendix

!

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Please contact manufacturer for service.

Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

United States of America

USA and Canada Safety Requirements and Notices

Do not touch or move antenna while the unit is transmitting or receiving.

Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting.

Do not operate the radio or attempt to transmit data unless the antenna is connected; if not, the radio may be damaged.

Use in specific environments:

The use of wireless devices in hazardous locations is limited by the constraints posed by the safety directors of such environments.

The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA).

The use of wireless devices in hospitals is restricted to the limits set forth by each hospital.

!

Explosive Device Proximity Warning

Do not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modified to be qualified for such use.

Regulatory Compliance Statements

Chapter 5. Appendix

Use On Aircraft Caution

Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments.

Other Wireless Devices

Safety Notices for Other Devices in the Wireless Network: Refer to the documentation supplied with wireless Ethernet adapters or other devices in the wireless network.

The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Intel could void the user's authority to operate this device.

Unintentional Emitter per FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician • for help.

Regulatory Compliance Statements

Chapter 5. Appendix

If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet helpful: "Something About Interference."

This is available at FCC local regional offices. Our company is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system.

Intentional emitter per FCC Part 15

(If fitted with 2.4G band or 5G band)

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.

This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device.

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter except the installed Bluetooth transmitter.

! Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

FCC Part 68 (If fitted with a modem device.)

This equipment complies with part of the FCC rules. On the back of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

Regulatory Compliance Statements

Chapter 5. Appendix

This equipment uses the following USOC jacks : RJ11C

An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or promises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.

The REN is used to determine the quantity of devices which may be connected to telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by total RENs, contact the local telephone company to determine the maximum REN for the calling area.

If the terminal equipment causes harm to the telephone network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advanced notice in order for you to make necessary modifications to maintain uninterrupted service.

If trouble is experienced with this equipment (Modem) for repair or warranty information, please contact your local distributor.

If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

The user must use the accessories and cables supplied by the manufacturer to get optimum performance from the product.

No repairs may be done by the customer.

This equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state tariffs.

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be any number for which charges exceed local or long-distance transmission charges.)

In order to program this information into your fax machine, refer to your communications software user manual.

Regulatory Compliance Statements

Chapter 5. Appendix

Canada

Unintentional Emitter per ICES-003

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.

This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.

The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Regulatory Compliance Statements

Chapter 5. Appendix

(If fitted with 2.4G band or 5G band)

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in Canada if an Industry Canada ID number is on the system label.

When using IEEE 802.11a wireless LAN, this product is restricted to indoor use due to its operation in the 5.15- to 5.25-GHz frequency range. Industry Canada requires this product to be used indoors for the frequency range of 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel mobile satellite systems. High power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These radar stations can cause interference with and/or damage to this device.

The maximum allowed antenna gain for use with this device is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to 5.35 and 5.725 to 5.85 GHz frequency range in point-to-point operation.

The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by Industry Canada.

Operation of this device is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

To prevent radio interference to licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

Regulatory Compliance Statements

Chapter 5. Appendix

Telecommunications per DOC notice (for products fitted with an IC-compliant modem)

The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users' satisfaction.

Before installing this equipment, users should make sure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the inside wiring associated with a single-line individual service may be extended by means of a certified connector assembly. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should make sure, for their own protection, that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

To avoid electrical shock or equipment malfunction do not attempt to make electrical ground connections by yourself. Contact the appropriate inspection authority or an electrician, as appropriate.

The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

Regulatory Compliance Statements

Chapter 5. Appendix

Brazil

European Union CE Marking and Compliance Notices

Products intended for sale within the European Union are marked with the Conformité Européenne (CE) Marking, which indicates compliance with the applicable Directives and European standards and amendments identified below. This equipment also carries the Class 2 identifier.

The following information is only applicable to systems labeled with the CE markCE.

European Directives C€

This Information Technology Equipment has been tested and found to comply with the following European directives:

EMC Directive 2004/108/EC•

Low Voltage Directive 2006/95/EC•

R&TTE Directive 1999/5/EC•

Manufacturer Information

Samsung Electronics Co., Ltd.

416, Maetan-3Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, 443-742, Korea

Samsung Electronics Suzhou Computer Co., Ltd.

No. 198, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province, 215021, China

Tel: [phone]

For the web or the phone number of Samsung Service Centre, see the Warranty or contact the retailer where you purchased your product.

Regulatory Compliance Statements

Chapter 5. Appendix

European Radio Approval Information (for products fitted with EU-approved radio devices)

This Product is a Notebook computer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz band, may be present (embedded) in your notebook system which is intended for home or offi ce use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

CE!

Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.

The power output of the wireless device or devices that may be embedded in you notebook is well below the RF exposure limits as set by the European Commission through the R&TTE directive.

The low band 5.15 - 5.35 GHz is for indoor use only.

See 802.11b and 802.11g restrictions for specific countries or regions within countries under the heading "European Economic Area Restrictions" below.

EU R&TTE Compliance Statements

	Česky [Czech]	Samsung tímto prohlašuje, že tento Notebook PC je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
	Dansk [Danish]	Undertegnede Samsung erklærer herved, at følgende udstyr Notebook PC overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
	Deutsch [German]	Hiermit erklärt Samsung, dass sich das Gerät Notebook PC in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befí ndet.
	Eesti [Estonian]	Käesolevaga kinnitab Samsung seadme Notebook PC vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
	English	Hereby, Samsung, declares that this Notebook PC is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
	Español [Spanish]	Por medio de la presente Samsung declara que el Notebook PC cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

Regulatory Compliance Statements

Chapter 5. Appendix

el	Ελληνική [Greek]	ME THN ΠΑΡΟΥΣΑ Samsung ΔΗΛΩΝΕΙ OTI Notebook PC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
fr	Français [French]	Par la présente Samsung déclare que l'appareil Notebook PC est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
it	Italiano [Italian]	Con la presente Samsung dichiara che questo Notebook PC è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
lv	Latviski [Latvian]	Ar šo Samsung deklarē, ka Notebook PC atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
lt	Lietuvių [Lithuanian]	Šiuo Samsung deklaruoja, kad šis Notebook PC atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
nl	Nederlands [Dutch]	Hierbij verklaart Samsung dat het toestel Notebook PC in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
mt	Malti [Maltese]	Hawnhekk, Samsung, jiddikjara li dan Notebook PC jikkonforma mal-ħtiāijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fi d-Dirrettiva 1999/5/EC.

hu	Magyar [Hungarian]	Alulírott, Samsung nyilatkozom, hogy a Notebook PC megfelel a vonatkozó alapvető követelményeknek és az 1999/5/EC irányelv egyéb előírásainak.
pl	Polski [Polish]	Niniejszym Samsung oświadcza, Še Notebook PC jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
pt	Português [Portuguese]	Samsung declara que este Notebook PC está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
sl	Slovensko [Slovenian]	Samsung izjavlja, da je ta Notebook PC v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
sk	Slovensky [Slovak]	Samsung týmto vyhlasuje, že Notebook PC spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
fi	Suomi [Finnish]	Samsung vakuuttaa täten että Notebook PC tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
sy	Svenska [Swedish]	Härmed intygar Samsung att denna Notebook PC står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Regulatory Compliance Statements

Chapter 5. Appendix

To view the EU Declaration of Conformity for this product (in English only), go to: http://www.samsung.com/uk/support/download/supportDownMain.do then search the model number of the product.

If the Declaration of Conformity for the model you are interested in is not available on our web-site, please contact your distributor.

European Economic Area Restrictions

Local Restriction of 802.11b/802.11g Radio Usage

[Note to integrator: The following statements on local restrictions must be published in all end-user documentation provided with the system or product incorporating the wireless product.]

Due to the fact that the frequencies used by 802.11b/802.11g wireless LAN devices may not yet be harmonized in all countries, 802.11b/802.11g products are designed for use only in specific countries or regions, and are not allowed to be operated in countries or regions other than those of designated use.

As a user of these products, you are responsible for ensuring that the products are used only in the countries or regions for which they were intended and for verifying that they are configured with the correct selection of frequency and channel for the country or region of use. Any deviation from permissible settings and restrictions in the country or region of use could be an infringement of local law and may be punished as such.

Regulatory Compliance Statements

Chapter 5. Appendix

The European variant is intended for use throughout the European Economic Area. However, authorization for use is further restricted in particular countries or regions within countries, as follows:

General

European standards dictate maximum radiated transmit power of 100 mW effective isotropic radiated power (EIRP) and the frequency range 2400 – 2483.5 MHz.

The low band 5.15 - 5.35 GHz is for indoor use only.

Belgium

The product may be used outdoors, but for outdoor transmissions over a distance of 300m or more, a license from the BIPT is required.

This restriction should be indicated in the manual as follows:

For Metropolitan departments:

2.400 - 2.4835 GHz for indoor use.

2.400 - 2.454 GHz (channels 1 to 7) for outdoor use.

For Guadeloupe, Martinique, St Pierre et Miquelon, Mayotte:

2.400 - 2.4835 GHz for indoor and outdoor use.

For Reunion, Guyane:

2.400 - 2.4835 GHz for indoor use.

2.420 - 2.4835 GHz for outdoor use (channels 5 to 13)

The low band 5.15 - 5.35 GHz is for indoor use only.

Regulatory Compliance Statements

Chapter 5. Appendix

European Telecommunication Information (for products fitted with EU-approved modems)

Marking by the symbol C indicates compliance of this equipment to the Radio and Telecom Terminal Equipment Directive 1999/5/EC. Such marking is indicative that this equipment meets or exceeds the following technical standards:

CTR 21 - Attachment requirements for pan-European approval for connection to the analogue Public Switched Telephone Networks (PSTNs) of TE (excluding TE supporting voice telephony services) in which network addressing, if provided, is by means of Dual Tone Multi-Frequency (DTMF) signaling.

Although this equipment can use either loop disconnect (pulse) or DTMF (tone) signaling, only the performance of the DTMF signaling is subject to regulatory requirements for correct operation.

It is therefore strongly recommended that the equipment is set to use DTMF signaling for access to public or private emergency services. DTMF signaling also provides faster call setup.

This equipment has been approved to Council Decision 98/482/EEC - "CTR 21" for Pan-European single terminal connection to the Public Switched Telephone Network (PSTN).

However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact manufacturer Technical Support.

Correct disposal of this product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material re-use, please separate batteries from other types of waste and recycle them through your local, free battery return system.

USA ONLY

This Perchlorate warning applies only to primary CR (Maganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.

"Perchlorate Material- special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate."

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, [phone]

Product Specifications

Chapter 5. Appendix

The system specifications may differ depending on the derived models.

For detailed system specifications, refer to the product catalogue.

CPU (Optional) Intel i3/i5/i7 (Core) Processor
Main Memory (Optional)	Memory type: DDR3 SODIMM DDR3 SDRAM on board
Main Chipset (Optional)	Intel HM65 Intel HM55
Hard Disk Drive (Optional)	5mmH SATA HDD, SSD
Graphics (Optional)	Intel HD Graphics 3000 (Internal) Intel HD Graphics 3500M (Internal)
Operating Environment	Temperature: -5~40°C for storage, 10~35°C when operating Humidity: 5~90% for storage, 20~80% when operating
AC/DC Rating (Optional)	Input) 100-240VAC, 50/60Hz, Output) 19VDC 2.1A
PC Rating (Optional)	19VDC 2.1A (40W)

Optional components may not be provided or different • components may be provided depending on the computer model.

The system specifications are subject to change without notice.

The hard disk drive capacity of a computer in which • Samsung Recovery Solution is installed, is represented as smaller than the product specification.

For 11.6 inch models, you cannot replace, add or • upgrade the memory due to the design of the computer architecture.

The amount of memory that Windows can use may be smaller than the actual amount of memory available.

Product Specifications

Chapter 5. Appendix

Registered Trademarks

Samsung is a registered trademark of Samsung Co., Ltd.

Intel, Pentium/Celeron are registered trademarks of the Intel Corporation.

Microsoft, MS-DOS, and Windows are registered trademarks of the Microsoft Corporation.

All other product or company names mentioned herein are registered trademarks of their respective companies.

ENERGY STAR® Partner

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

The Glossary lists the terminologies used in this User Guide. For terminologies other than these, look in Windows Help.

Backup

A way to save the current data to restore it later if necessary. A backup is a way to restore computer data when the data or computer is damaged.

Chargeable USB

This program enables supplying power to a specific USB port when the system is in power saving mode, hibernation mode or off.

Client

This refers to a computer that uses a shared network resource provided by a server.

DDR SDRAM

(Double Data Rate Synchronous Dynamic Random Access Memory)

DRAM is a memory type whose cells consist of a capacitor and transistor manufactured at a low price. SDRAM is a memory type whose performance has been improved by synchronizing the clock with the external CPU clock. DDR SDRAM is a memory type whose performance has been improved by doubling the operating speed of the SDRAM and is widely used nowadays. This computer uses DDR SDRAM.

Device Manager

An administrative tool used to manage computer devices. You can add or remove hardware or update a device driver using the Device Manager.

DHCP (Dynamic Host Configuration Protocol)

This refers to automatically allocating IP addresses to the users on the network by the network administrators.

Direct X

An application interface developed to enable Windows application programs to access hardware devices at a very high speed. Since the operating speed of graphics, memory and sound cards must be very fast to provide high quality video and sound for games, Direct X enables faster control and interaction between applications and hardware devices. By using Direct X, the multimedia performance of Windows has been hugely improved.

Driver

Software that interacts between the hardware and the operating system. An operating system knows the hardware information and controls the hardware. In general, a driver is supplied with the corresponding hardware device.

D-sub (D-subminiature)

This is the cable connecting a general CRT monitor and the computer. Analog video is output through this cable.

DVD (Digital Versatile Disk)

DVD was developed to replace CD (compact disk). Although the shape and size of the disc are the same as that of a CD, the capacity of a DVD is at least 4.7GB while the capacity of a CD is 600MB. DVD video is digital unlike VHS (analog) video and supports MPEG2 compression and digital audio. To play a DVD, a DVD drive is required.

Firewall

A security system used to protect an internal network or intranet from external networks through an authentication procedure.

HDMI

This is a digital video / audio interface specification that transmits video and audio signals over a single cable.

Hibernation Mode

A power mode that saves all data in memory to the hard disk and turns the CPU and hard disk off. When canceling Hibernation Mode, all application programs that were running are restored to their last state.

Icon

This refers to a small image that represents a file that users can use.

IEEE802.XX

This is a set fo specifications developed by the 802 committee of IEEE for the LAN connection method called XX.

LAN (Local Area Network)

A communications network connecting computers, printers and other devices within a local area such as within a building. A LAN enables all connected devices to interact with other devices on the network. The current LAN uses the Ethernet media access control method developed in the early 1980s. To connect to an Ethernet, a network card called a LAN card, Ethernet card or network interface card is required. To exchange data between computers, a protocol is required besides the hardware equipment. Windows Vista uses TCP/IP as the default protocol.

LCD (Liquid Crystal Display)

There are Passive Matrix and Active Matrix LCD types. This computer uses the Active Matrix type LCD called a TFT LCD. Since an LCD is implemented by transistors instead of a cathode-ray tube unlike a CRT, its size can be slim. And because it does not blink, it reduces eye strain.

MMC (MultiMedia Card) card

This is an external-type flash memory used for mobile devices such as mobile phones or digital cameras.

Network

A group of computers and devices, such as printers and scanners, connected by a communications link. A network can be either small or large and can be connected permanently through cables or temporarily through telephone lines or wireless links. The biggest network is the Internet, a worldwide network.

Network Administrator

A user who plans, configures and manages network operations. Sometimes, a network administrator is called a system administrator.

Notification Area

This refers to the right area of the Taskbar including program icons such as the volume control, the power options and the time.

Partition

This refers to the act or practice of dividing the storage space of a hard disk drive into separate data areas known as partitions. If a 100GB hard disk drive is partitioned into 2 x 50GB partitions, the hard disk drive can be used as if there are 2 hard disk drives.

PCMCIA( Personal Computer Memory Card International Association) card

This is an extended card slot specification for mobile computers such as a notebook computer. Not only a memory, device but also most peripherals such as hard disk drives, LAN cards, etc. can be connected to this card slot.

Protocol

A protocol is a set of rules used by computers to communicate with each other across a network. A protocol is a convention or standard that controls or enables the connection, communication, and data transfer between computing endpoints. It defines the data transmission procedures and the transmission medium for more efficient network functions.

Quick Launch

This refers to a toolbar that can be configured so that you can launch a program such as Internet Explorer or display the Windows Desktop with one click. You can add any icon to the quick launch area of the Taskbar and launch frequently used program by clicking that icon.

SD (Secure Digital) card

An SD card is a flash (non-volatile) memory card developed for mobile devices by improving on the MMC card. Although an MMC card can be used in an SD card slot, an SD card is not recognized when inserted into an MMC card.

SDHC (Secure Digital High Capacity) card

This is the extension of the SD card that supports over 2GB bytes.

Server

In general, a server refers to a computer that provides shared resources for network users.

Share

This refers to setting a resource of a computer such as a folder or printer so that other users can also use it.

Shared Folder

A folder that can be used by other users on the network.

Sleep Mode

A power mode that enables computers to save power consumption when they are not being used. When a computer is in Sleep Mode, the data on the computer memory is not saved to the hard disk. If the power is turned off, the data in memory will be lost.

System File

System Files refer to files that are read and used by the Windows operating system. In general, system files must not be deleted or moved.

TCP/IPv4

This is a 4 byte (32 bit) address system separated into each byte (8 bits) by a dot and each byte is represented as a decimal number.

USB (Universal Serial Bus)

This refers to a serial interface standard developed to replace the conventional interface standards such as Serial and PS/2.

The data transmission specifications are one of the interface standards used to connect a computer to peripheral devices. These specifications include USB 1.0, 1.1, 2.0 and 3.0.

It is appropriate to support peripheral devices that require high data rates such as an AV device, secondary HDD or CD-RW. The higher the version (e.g. USB 3.0), the higher the data rate provided.

Virtual XP Mode

This is a virtual operating system that enables running Windows XP programs on the Windows 7 operating system. Using this mode, you can run programs that do not run on Windows 7.

Windows Media Player

A multimedia program included with Windows. Using this program, you can play a media file, create an audio CD, listen to a radio broadcast, search and manage media files, and copy files to a portable device, etc.

Index

Chapter 5. Appendix

A

AP 65

B

Battery 94

BIOS Setup 88

Booting Priority 93

C

CD Drive 48

Charge 94

Click 42

D

Double-Click 42

Drag 43

Dual View 53

L

LCD Brightness 85

M

Micro SD Card Slot 50

Monitor Connection / Output 52

0

Overview 26

P

Password 90

Product Specifications 132

R

Recorder 58

S

Safety Precautions 8

Samsung Recovery Solution 100

Scroll 45

Shortcut Key 37

Status Indicators 27

Supervisor Password 90

T

Touchpad 41

U

User Password 91

V

Volume Control 58

W

Wired Network 61

Wireless Network 65
