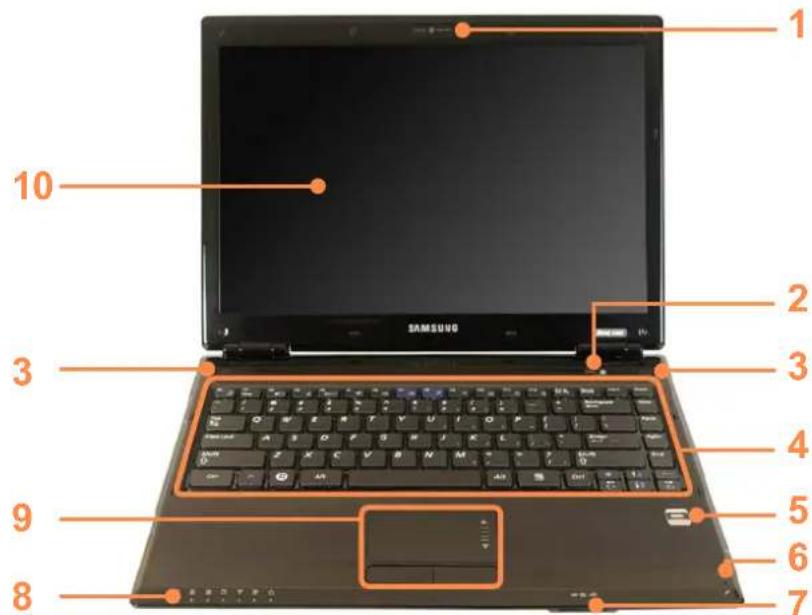

Front View 42

Status Indicators 43

Right View 44

Left View 45

Back View 46

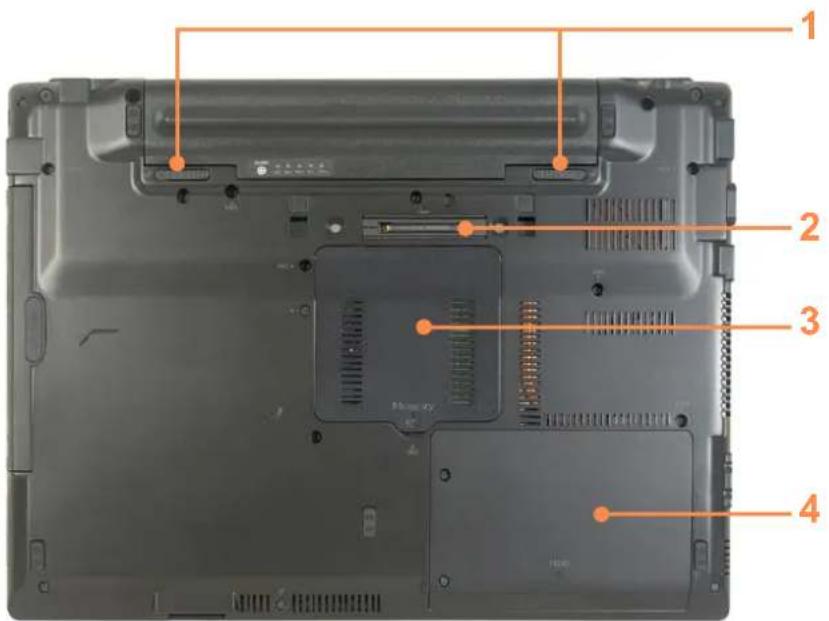

Bottom View 47

Turning the Computer On and Off 48

Turning the computer on 48

Turning the computer off 49

Product Features

Laptop with black keyboard and yellow abstract graphic overlay (no text or symbols)

Diagram illustrating a home internet connection with a HDMI cable, camera, and photo gallery interface

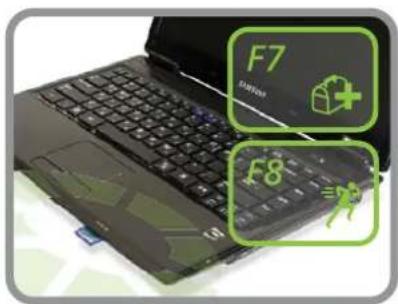

F7 F8

High-Performance Notebook Computer

• Intel Core™2 Duo Processor and DDR III Memory
  ● Wireless LAN (Optional), Bluetooth (Optional)
  ● Fingerprint recognition (Optional), TPM(Trusted Platform Module) (Optional)

Supports Various Multimedia Functions

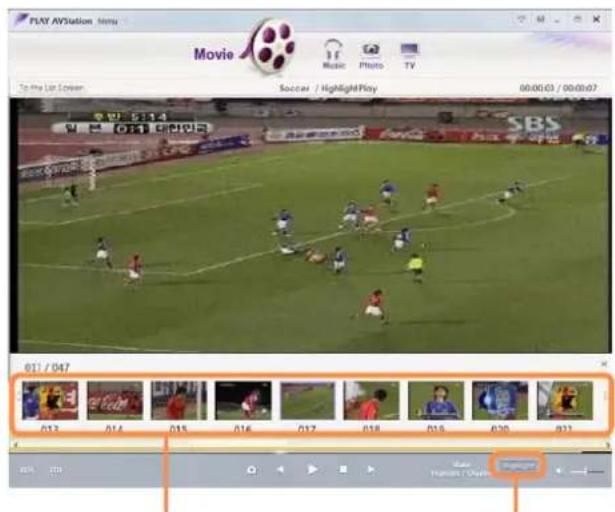

● Supports Play AVStation which allows you to enjoy various multimedia items (Optional)
- A video chatting/conference function adopting the camera module (Optional)

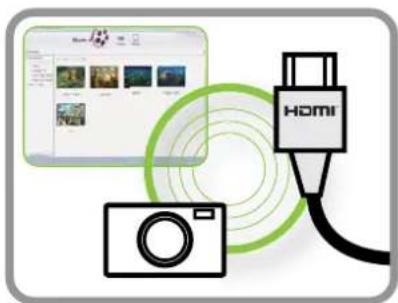

- An HDMI port that enables viewing a full HD picture on the TV (Optional)

Easy-to-Use and Convenient Functions

● Various Hot Key Functions
● Multi-Card Slot (Optional)
● Luxurious, Ergonomic Design
● Convenient Touchpad Gesture Functions (Optional)

Optional items may be changed or may not be provided depending on the computer model.

Before You Start

Before reading the User Guide, first check the following information.

User Guide Information

This product is supplied with an Installation Guide, and a User Guide.

You can even more easily and conveniently use the computer by using any of the guides depending on your needs.

Installation Guide

This guide is provided so that you can conveniently refer to this guide when using the computer for the first time after purchasing it.

This document includes the computer components and the connection procedures.

User Guide

You are currently reading the User Guide. To open the file at any time, double-click the icon on the Desktop. Alternatively, select Start > All Programs > Samsung > User Guide > User Guide.

This document includes the computer functions, how to use the functions, and how to use the programs.

Utilizing the User Guide

① Be sure to read the Safety Precautions before using the computer.
② Refer to the separately supplied Installation Guide when installing your computer.
③ Refer to the User Guide for the procedures to use the computer.
④ Using the Index of the User Guide, you can easily find any information you are looking for.
⑤ Using the Glossary of the User Guide, you can easily find meanings for technical terms.
⑥ If a problem occurs, refer to the Q & A included in the User Guide.

• Optional items, some devices and software referred to in the User Guide may not be provided and/or changed by upgrade.
  Note that the computer environment referred in the User Guide may not be the same as your own environment.
• Images used in this User Guide may differ from actual product.
• This guide decribes procedures for using both the mouse and the touchpad.
• The illustrations provided in this guide assume that your operating system is Windows Vista. These illustrations are subject to change.
• The User guide supplied with this computer may vary depending on your model.

Safety Precaution Notations

Icon Notation Description
	Warning	Failing to follow instructions marked with this symbol, may cause personal injury and or fatality.
	Caution	Failing to follow instructions marked with this symbol, may cause slight injury to yourself or damage your property.

Text Notations

Icon Notation Description
	Before You Start	Content included in this section includes information required before using a function.
	Caution Content included in this section includes information required about the function.
	Note Content included in this section includes helpful information to use the function.
	XX	This notation represents the page number you can refer to for information about related functions or as a reference.
Start > All Programs > Samsung > User Guide > User Guide		This represents a menu path to run a program.Click the Start button and then select All Programs > Samsung > User Guide > User Guide in this order from the menu.

Copyright

© 2008 Samsung Electronics Co., Ltd.

Samsung Electronics Co., Ltd. owns the copyright of this manual.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, without the consent of Samsung Electronics Co., Ltd.

The information in this document is subject to change without notice due to improving the performance of the product.

Samsung Electronics shall not be liable for any data loss. Please take care to avoid losing any important data and backup your data to prevent any such data loss.

Precautions for Operating System Support

The operating system (OS) installed on this product is the latest version of Windows Vista.

Other operating systems (Windows 98, Windows ME, Windows 2000, Windows 2003 server, UNIX and LINUX, other Windows Vista versions, etc.) other than the operating system already installed on this computer are not supported.

If a problem occurs because of the installation of another operating system, the company will not provide technical support, a replacement or refund, and if our service engineer visits you due to this problem, a service charge will be applied.

In addition, installing a program that does not support Windows Vista, may cause the program to not work properly. In this case, ask the corresponding software manufacturer about the problem. If you request our services to resolve a problem caused by incompatible software, a service charge will be applied.

About HDD Capacity Representation

The capacity of the storage device (HDD, SSD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes.

However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity due to the difference in capacity calculation.

(E.g. For a 80GB HDD, Windows represents the capacity as 74.5GB, 80x1,000x1,000x1,000 byte/

(1,024x1,024x1,024)byte = 74.505GB)

In addition, the capacity representation in Windows may be even smaller because some programs such as Recovery

Solution may reside in a hidden area of the HDD.

About Memory Capacity Representation

The memory capacity reported in Windows is less than the actual capacity of memory.

This is because BIOS or a video adapter uses a portion of memory or claims it for further use.

(E.g. For 1GB(=1,024MB) memory installed, Windows may report the capacity as 1,022MB or less)

Contents

Chapter 1. Getting Started

Product Features 2

Before You Start 3

Contents 7

Safety Precautions 8

Proper Posture During Computer Use 22

Important Safety Information 25

Replacement Parts and Accessories 27

Regulatory Compliance Statements 29

WEEE SYMBOL INFORMATION 41

Overview 42

Front View 42

Status Indicators 43

Right View 44

Left View 45

Back View 46

Bottom View 47

Turning the Computer On and Off 48

Turning the computer on 48

Turning the computer off 49

Chapter 2. Using the Computer

Keyboard 51

Touchpad 54

Basic Touchpad Functions 55

Touchpad Gesture Function (Optional) 56

Touchpad On/Off Function 58

CD Drive (ODD, Optional) 59

Inserting and Ejecting a CD 59

Burning a CD 60

Multi Card Slot (Optional) 62

ExpressCard Slot (Optional) 65

Connecting a monitor / TV 66

Connecting to the Monitor / TV 66

Viewing Through a Monitor / TV 68

Using Dual View 72

Adjusting the Volume 74

Intel Turbo Memory Device (Optional) 76

Check before installing another

operating system such as Windows XP 77

Q & A 78

Chapter 3. Using Microsoft Windows Vista

About Microsoft Windows Vista 80

Welcome Center 80

Help and Support 81

Windows Vista Screen Layout 82

Desktop 82

Start Menu 84

Sidebar / Gadget 86

Window 89

Control Panel 92

Opening the Control Panel 92

User Accounts 94

Changing the screen resolution

and the color 96

Configuring the Start Menu

Power Button 97

Phishing Filter 99

User control function 101

Windows Mobile Center 103

Chapter 4. Using the Network

Wired Network 105

Wireless Network 108

Connecting to a Wireless LAN 109

Using the Easy Network Manager

(Optional) 110

Network Settings 110

Using in Another Location 112

Diagnosing the Network Status 113

Connecting with a Modem (Optional) 114

Bluetooth (Optional) 115

Bluetooth Function 115

Using Bluetooth 116

Chapter 5. Using Applications

Introducing Programs 121

CyberLink DVD Suite (Optional) 124

Play AVStation (Optional) 127

Launching and Screen Layouts 127

Movie Station 128

Music Station 132

Photo Station 136

Play Camera (Optional) 140

Samsung Update Plus (Optional) 141

McAfee SecurityCenter (Optional) 143

Installing McAfee 143

Using McAfee 144

Using Samsung Magic Doctor

(Optional) 147

OmniPass (Fingerprint Identification,

Integrated Password Authentication,

Optional) 149

TPM (Trusted Platform Module, Optional)

156

Before Starting TPM 156

TPM Settings 157

Using the TPM Functions 164

Initializing and Reconfiguring the

TPM Chip 167

Reinstalling Software 169

Chapter 6. Settings and Upgrade

LCD Brightness Control 172

BIOS Setup 173

Entering the BIOS Setup 173

The BIOS Setup Screen 175

Setting a Boot Password 177

Changing the Boot Priority 179

Upgrading Memory 180

Battery 182

Installing/Removing the Battery 182

Charging the Battery 183

Measuring the Remaining Battery

Charge 184

Extending the Battery Usage Time 185

Using the Security Lock Port 188

Chapter 7. Windows Media Center

About Package Contents

and the Program Guide 190

Connecting and Setting Up

Media Center 191

Connecting Devices 191

Media Center Setup 192

Using Media Center 194

Start Screen Layout 194

Pictures + Videos 195

Music 199

TV + Movies 202

Chapter 8. Appendix

Reinstalling Windows Vista 207

Using Samsung Recovery Solution

(Optional) 211

Samsung Recovery Solution

Functions 211

Using Samsung Recovery Solution 213

Q & A 218

Display Related 218

Modem Related 220

Wired Network (LAN) Related 222

Wireless Network (WLAN) Related 223

Game and Program Related 227

Bluetooth 228

Other 230

Try the Microsoft Office Trial Demo

Free for 60 Days (Optional) 231

Product Specifications 233

Glossary 243

Index 246

Safety Precautions

For your security and to prevent damage, please read the following safety instructions carefully.

Since this is commonly applied to Samsung Computers, some pictures may differ from actual products.

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Installation Related

Illustration of a baby sitting near a trash bin and a laptop on a wall (no text or symbols)

Do not install the product in places exposed to humidity such as a bathrooms.

There is a danger of electric shock. Use the product within the operating conditions specified in the Manufacturers User Guide.

Isometric line drawing of a desktop desk with monitor and tower, showing a 15cm measurement label (no text or symbols beyond measurement)

Keep a distance of 15cm or more between the computer and the wall and do not place any objects between them.

This may increase the internal temperature of the computer and may cause an injury.

Illustration of a hand inserting a package into a laptop on a surface (no text or symbols)

Avoid exposing any part of your body to the heat from the computer vent for a long time when it is on.

Exposing a part of your body to the heat from the vent for long periods of time may cause a burn.

Keep the plastic bags out of the reach of children.

There is a danger of suffocation.

Do not install the computer on a slant or a place prone to vibrations, or avoid using the computer in that location for a long time.

This increases the risk that a malfunction or damage to the product will occur.

Avoid blocking the vent at the bottom or side of the computer when using it on a bed or cushion.

If the vent is blocked, there is a danger of damaging the computer or overheating the inside of the computer.

Power Related

The power plug and wall outlet figures may differ depending on the country specifications and the product model.

Illustration of a hand using a power plug to test a small object on a device, with lightning bolts indicating electrical hazard (no text or symbols present)

Do not touch the main plug or power cord with wet hands.

There is a danger of electric shock.

Do not exceed the standard capacity (voltage/current) of a multiplug or power outlet extension when using it for the product.

There is a danger of electric shock or fire hazard.

AS SAMSUNG

If the power cord or power outlet makes a noise, disconnect the power cord from the wall outlet and contact a service center.

There is a danger of electric shock or fire hazard.

Illustration of a hand inserting a plug into a socket connected to a rectangular device (no text or symbols)

Plug the power cord firmly into the power outlet and AC adapter.

Failing to do so may cause fire hazard.

Simple line drawing of a plug inserted into a socket, with a fuse and screwdriver inserted (no text or symbols)

Do not use a damaged or loose main plug or power cord or power outlet.

There is a danger of electric shock or fire hazard.

Illustration of a hand using a power plug to lift an electrical outlet (no text or symbols)

Do not unplug the power cord out by pulling the cable only.

If the cord is damaged, it may cause electric shock.

Simple line drawing of a cabinet with a power outlet and a zigzag line below (no text or symbols)

Do not bend the power cord excessively or do not place a heavy object over the power cord. It is especially important to keep the power cord out of reach of infants and pets.

If the cord is damaged, it may cause electric shock or fire.

Illustration showing a person using a smartphone to call into a microphone, with a lamp emitting sound waves and a laptop displaying a simple diagram.

If water or another substance enters the power input jack, AC adapter or the computer, disconnect the power cord and contact the service center.

Damage to the device within the computer may cause electric shock or fire hazard.

AC Adapter Usage Precautions

Illustration of a computer connected to an LNG plug and cable, showing data flow (no text or symbols)

Do not place heavy objects or step onto the power cord or AC adapter to avoid damaging the power cord or AC adapter.

If the cord is damaged, there is a danger of electric shock or fire.

Use only the AC adapter supplied with the product.

Using another adapter may cause the screen to flicker.

Diagram illustrating electrical connections with a fuse, switch, and a prohibition symbol

Connect the power cord to the AC adapter firmly.

Otherwise, there is a danger of fire due to an incomplete contact.

Battery Usage Related

Keep the battery out of the reach of infants and pets, as they could put the battery into their mouths.

There is a danger of electric shock or choking.

Authorized Parts

Use an authorized battery and AC adapter only.

Please use an authorized battery and adapter approved by Samsung Electronics.

Unauthorized batteries and adapters may not meet the proper safety requirements and may cause problems or malfunctions and result in an explosion or fire.

Illustration of a laptop with a thermometer and a no-smoking symbol, no text or labels present.

Do not use the computer in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as room with floor heating as it may cause the computer to overheat.

Take care that the computer vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, the computer may overheat and it may cause a computer problem, or even explosion.

Illustration of a laptop with water droplets and a prohibition sign, placed on tiled walls (no text or symbols)

Do not use the computer in a humid location such as a bathroom or sauna.

Please use the computer within the recommended temperature and humidity range (10\~35°C, 20\~80% RH).

Power Off

Do not close the LCD panel and put the computer into your bag to move it when it is still turned on.

If you put the computer into your bag without turning it off, the computer may overheat and there is a danger of fire. Shut the computer down properly before moving it.

Illustration of a car interior with steering wheel, laptop, and warning symbols (no text or labels)

Never heat the battery or put the battery into a fire. Do not put or use the battery in a hot location such as a sauna, inside a vehicle exposed to the heat, and so on.

There is a danger of an explosion or fire.

Illustration of a hand holding a chain link with a prohibition symbol (no text or labels)

Take care not to allow metal objects such as a key or clip to touch the battery terminal (metal parts).

If a metal object touches the battery terminals, it may cause excessive current flow and it may damage the battery, or result in a fire.

Illustration of a steaming box connected to a computer with a phone and a blue prohibition symbol (no text or labels)

If liquid leaks out of the battery or there is a funny smell coming from the battery, remove the battery from the computer and contact a service center.

There is a danger of an explosion or fire.

Two metallic electronic components with internal features, one with a cross symbol and the other with a diamond shape (no text or symbols visible)

To use the computer safely, replace a dead battery with a new, authorized battery.

Please charge the battery fully before using the computer for the first time.

Usage Related

Illustration of a hand holding a smartphone next to a laptop, with tools and documents nearby (no text or symbols)

Disconnect all cables connected to the computer before cleaning it. If you are cleaning a notebook computer, remove the battery.

There is a danger of electric shock or damage to the product.

Illustration of a computer monitor, a desktop computer, and a server with a 'X' symbol (no text or labels)

Do not place any container filled with water or chemicals over or near the computer.

If water or chemicals enter the computer, this may cause fire or electric shock.

AS TAMSUNG

If the computer is broken or dropped, disconnect the power cord and contact a service center for a safety check.

Using a broken computer may cause electric shock or fire hazard.

Illustration of a laptop connected to a telephone with a crossed-out X symbol (no text or labels)

Do not connect a phone line connected to a digital phone to the modem.

There is a danger of a electric shock, fire or damage to the product.

Avoid direct sunlight when the computer is in an air-tight location such as inside a vehicle.

There is a danger of a fire hazard. The computer may overheat and also present opportunity to thieves.

Upgrade Related

Diagram showing a device connected to a laptop with an OFF button, accompanied by two test probes and a plug.

Never disassemble the power supply or AC adapter.

There is a danger of electric shock.

When removing the RTC (Real Time Clock) battery, keep it out of the reach of children as they could touch and/or swallow it.

There is a danger of choking. If a child has swallowed it, contact a doctor immediately.

Illustration of a laptop with a smiling face, surrounded by tools and a crossed-out X (no text or symbols)

Use only authorized parts (multi- plug, battery and memory) and never disassemble parts.

There is a danger of damaging the product, electric shock or fire hazard.

OFF

Shut down the computer and disconnect all cables before disassembling the computer. If there is a modem, disconnect the phone line. If you are disassembling a notebook computer, make sure to remove the battery.

Failing to do so, may cause electric shock.

Custody and Movement Related

Illustration of two people in a meeting, one gesturing while speaking, the other seated at a desk with a laptop (no text or symbols visible)

Follow the instructions for the relevant location (e.g. airplane, hospital, etc.) when using a wireless communication device (wireless LAN, Bluetooth, etc.).

Illustration of a briefcase with three thought bubbles showing a laptop, a pencil, and a computer (no text or symbols present)

When carrying the notebook computer with other items, such as the adapter, mouse, books etc, take care not to press anything against the notebook computer.

If a heavy object is pressed against the notebook computer, a white spot or stain may appear on the LCD. Therefore, take care not to apply any pressure to the notebook.

In this case, place the notebook computer in a separate compartment away from the other objects.

Caution

Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.

Installation Related

Do not block the ports (holes), vents, etc. of the product and do not insert objects.

Damage to a component within the computer may cause electric shock or fire.

Do not place a heavy object over the product.

This may cause a problem with the computer. In addition, the object may fall and cause injury, or damage the computer.

When using the computer with it lying on its side, place it so that the vents face upwards.

Failing to do so, may cause the internal temperature of the computer to rise and the computer to malfunction or halt.

Battery Usage Related

Dispose of worn-out batteries properly.

• There is a danger of fire or explosion.
• The battery disposal method may differ depending on your country and region. Dispose of the used battery in an appropriate way.

Do not throw or disassemble the battery and do not put it into water.

This may cause an injury, fire or explosion.

Use only a battery authorized by Samsung Electronics.

Failing to do so may cause an explosion.

Avoid contact with metal objects such as car keys or clips when keeping or carrying a battery.

Contact with a metal may cause excessive current and a high temperature and may damage the battery or cause a fire.

Charge the battery according to the instructions in the manual.

Failing to do so, may cause an explosion or fire from damage to the product.

Do not heat the battery or expose it to heat (e.g. inside a vehicle during the summer).

There is a danger of explosion or fire.

Usage Related

Do not place a candle, light cigar, etc. over or on the product.

There is a danger of fire.

Use a wall outlet or multi-plug with a grounding part.

Failing to do so may cause electric shock hazard.

Make sure to have the product tested by a safety service engineer after repairing the product.

Authorized Samsung Repair Centers will carry out safety checks after a repair. Using a repaired product without testing it for safety may cause an electric shock or fire.

In case of lightning, immediately turn the system off, disconnect the power cord from the wall outlet and phone line from modem. Do not use a modem or phone.

There is a danger of electric shock or fire.

Do not use your computer and AC-Adapter on your lap or soft surfaces.

If the computer temperature increases, there is a danger of burning yourself.

Connect only permitted devices to the connectors or ports of the computer.

Failing to do so, may cause electric shock and fire.

Close the LCD panel only after checking if the notebook computer is turned off.

The temperature may rise and it may cause overheating and deformation of the product.

Do not press the Eject Button while the Floppy Disk/CD-ROM drive is in operation.

You might lose data and the disk might be suddenly ejected and could cause an injury.

If the computer emits smoke, or there is a burning smell, disconnect the power plug from the wall outlet and contact a service center. If your computer is a notebook computer, make sure to remove the battery.

There is a danger of fire.

Emergency disk eject method using paperclip should not be used while the disk is in motion. Make sure to use the emergency disk eject method only when the Optical Disk Drive is stopped.

There is a danger of injury.

Take care not to drop the product while using it.

This may cause personal injury or loss of data.

Do not use a damaged or modified CD/Floppy Disk.

There is a danger of damaging the product or personal injury.

Do not place your face close to the Optical Disk Drive tray when it is operating.

There is a danger of injury due to an abrupt ejection.

Do not touch the antenna with electricity facility such as the power outlet.

There is a danger of electric shock.

Do not insert your fingers into the PC Card Slot.

There is a danger of injury or electric shock.

Check CDs for cracks and damage prior to use.

It may damage the disc and cause disorder of device and injury of user.

When handling computer parts, follow the instructions on the manual supplied with the parts.

Failing to do so, may cause damage to the product.

Use recommended computer cleansing solution when cleaning the product and only use the computer when it is completely dried.

Failing to do so may cause electric shock or fire.

Upgrade Related

Take care when touching the product or parts.

The device may be damaged or you may be injured.

Take care not to throw or drop a computer part or device.

This may cause injury or damage to the product.

Make sure to close the computer cover before connecting the power after a reassembly.

There is a danger of electric shock if your body touches an internal part.

Use parts authorized by Samsung Electronics only.

Failing to do so, may cause fire or damage the product.

Never disassemble or repair the product by yourself.

There is a danger of electric shock or fire.

To connect a device that is not manufactured or authorized by Samsung Electronics, enquire at your service center before connecting the device.

There is a danger of damaging the product.

Custody and Movement Related

When moving the product, turn the power off and separate all connected cables first.

The product might be damaged or users may trip over the cables.

For long periods of not using the notebook computer, discharge the battery and preserve as it is detached.

The battery will be preserved at its best condition.

Do not operate or watch the computer while driving a vehicle.

There is a danger of a traffic accident. Please concentrate on driving.

Cautions on Preventing Data Loss (Hard Disk Management)

Take care not to damage the data on a hard disk drive.

• A hard disk drive is so sensitive to external impact that an external impact may cause loss of data on the surface of the disk.
  ● Take extra care, because moving the computer or an impact on the computer when it is turned on may damage the data of the hard disk drive.
• The company is not liable for any loss of any data caused by a customer's careless usage or bad environmental conditions.

Causes that may damage the data of a hard disk drive and the hard disk drive itself.

● The data may be lost when an external impact is applied to the disk while disassembling or assembling the computer.
● The data may be lost when the computer is turned off or reset by a power failure while the hard disk drive is operating.
● The data may be lost and irrecoverable due to a computer virus infection.
- The data may be lost if the power is turned off while running a program.
- Moving or causing an impact to the computer while the hard disk drive is operating, may cause files to be corrupted or bad sectors on the hard disk.

To prevent data loss due to damage to the hard disk drive, please backup your data frequently.

Proper Posture During Computer Use

Maintaining a proper posture during computer use is very important to prevent physical harm.

The following instructions are about maintaining a proper posture during computer use developed through human engineering. Please read and follow them carefully when using the computer.

Otherwise, the probability of (RSI: Repetitive Strain Injury) from repeated operations may increase and serious physical harm may be caused.

The instructions in this manual have been prepared so that they can be applied within the coverage of general users. If the user is not included in the coverage, the recommendation is to be applied according to the user's needs.

Proper Posture

Adjust the heights of desks and chairs appropriate to your height.

The heights are to be adjusted so that your arm forms a right angle when you place your hand over the keyboard while sitting down on a chair.

Adjust the height of chair so that your heel is comfortably placed on the floor.

• Do not use the computer while you are lying down, but only while you are sitting down.
• Do not use the computer on your lap. If the computer temperature increases, there is a danger of burning yourself.
  ● Work while keeping your wrist straight.
• Use a chair with a comfortable back.

• Keep the center of your leg weight not on the chair but on your feet when you are sitting on a chair.

• To use the computer while talking over the telephone, use a headset. Using the computer with the phone on your shoulder is bad for posture.

• Keep frequently used items within a comfortable work range (where you can reach them with your hands).

Line drawing of a person sitting at a desk using a laptop (no text or symbols)

Eye Position

Keep the monitor or LCD away from your eyes by at least 50cm.

50cm

• Adjust the height of the monitor and the LCD screen so that its top height is equal to or lower than your eyes.
• Avoid setting the monitor and LCD excessively bright.
• Keep the monitor and LCD screen clean.
• If you wear glasses, clean them before using the computer.
• When entering contents printed on a paper into the computer, use a static paper holder so that the height of the paper is almost equal to that of the monitor.

Hand Position

Keep your arm at a right angle as shown by the figure.

Diagram of a human seated chair with a blue arrow pointing to the seat (no text or symbols)

• Keep the line from your elbow to your hand straight.
• Do not place your palm over the keyboard while typing.
• Do not hold the mouse with excessive force.
• Do not press the keyboard, touchpad or mouse with excessive force.
• It is recommended connecting an external keyboard and mouse when using the computer for long periods of time.

Volume Control (Headphones and Speakers)

Check your volume first to listen to music.

VOLUME Check your volume!!

• Check if the volume is too loud before using headphones.
• It is not recommended using headphones for long periods of time.
• Any deviation from the equalizer default setting could cause hearing impairment.
• The default setting can be changed through software and driver updates without your intervention. Please check the equalizer default setting before first usage.

Use Time (Break Time)

● Take a break for 10 minutes or more after a 50-minute period when working for more than one hour.

Illumination

• Do not use the computer in dark locations. The illumination level for computer use must be as bright so for reading a book.
• Indirect illumination is recommended. Use a curtain to prevent reflection on the LCD screen.

Operation Condition

• Do not use the computer in hot and humid locations.
• Use the computer within the allowed temperature and humidity range specified in the User Guide.

Important Safety Information

Safety Instructions

Your system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.

Always follow these instructions to help guard against personal injury and damage to your system.

Setting Up your System

• Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use.
• Do not use this product near water or a heat source such as a radiator.
• Set up the system on a stable work surface.
• The product should be operated only with the type of power source indicated on the rating label.
• Ensure that the electrical outlet you are using to power your equipment is easily accessible in case of fire or short circuit.

• If your computer has a voltage selector switch, make sure that the switch is in the proper position for your area.

• Openings in the computer case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the computer ventilation openings.

• Ensure that the fan vents on the bottom of the casing are clear at all times. Do not place the computer on a soft surface, doing so will block the bottom vents.
• If you use an extension cord with this system, make sure that the total power rating on the products plugged into the extension cord does not exceed the extension cord power rating.

Care During Use

• Do not walk on the power cord or allow anything to rest on it.
• Do not spill anything on the system. The best way to avoid spills is to not eat or drink near your system.
• Some products have a replaceable CMOS battery on the system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries according to the manufacturers instructions. If the CMOS battery requires replacement insure that a qualified technician performs the task.
• When the computer is turned off, a small amount of electrical current still flows through the computer. To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system.
• Unplug the system from the wall outlet and refer servicing to qualified personnel if:
  – The power cord or plug is damaged.
  – Liquid has been spilled into the system.
• The system does not operate properly when the operating instructions are followed.
  – The system was dropped or the casing is damaged.
  – The system performance changes.

The Instruction On Safety Operation of NotePC

When installing and operating devices please refer to safety requirements in the user guide.
② Devices can be used only with the equipment specified in the technical specifications of the devices.
③ If any smell of burning or smoke from the computer the unit should be switched off and battery removed. The unit should be checked by a qualified technician before reuse.
④ Service and repair of devices should be carried out by authorized service centers.
Do not allow your portable computer to operate with the base resting directly on exposed skin for extended periods of time. The surface temperature of the base will rise during normal operation (particularly when AC Power is present). Allowing sustained contact with exposed skin can cause discomfort or eventually a burn.

Replacement Parts and Accessories

Use only replacement parts and accessories recommended by manufacturer.

To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord.

Do not use this product in areas classified as hazardous. Such areas include patient care areas of medical and dental facilities, oxygen rich environments, or industrial areas.

Battery Disposal

Do not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage.

Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer.

Follow all local regulations when disposing of old batteries.

THERE IS A RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Laser Safety

All systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 60825-1. The laser devices in these components are classified as "Class 1 Laser Products" under a US Department of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing, contact an authorized service location.

- Laser Safety Note:

Use of controls or adjustments or performance of procedures other than those specified in this manual may result in hazardous radiation exposure. To prevent exposure to laser beams, do not try to open the enclosure of a CD or DVD drive.

- Class 1M laser radiation when operating part is open.

Do not view directly with optical instruments.

- Class 3B invisible laser radiation when open. Avoid exposure to the beam.

Connect and Disconnect the AC adapter

The socket-outlet shall be installed near the equipment and shall be easily accessible.

Do not unplug the power cord out by pulling the cable only.

Power Cord Requirements

The power cord set (wall plug, cable and AC adapter plug) you received with your computer meets the requirements for use in the country where you purchased your equipment.

Power cord sets for use in other countries must meet the requirements of the country where you use the computer. For more information on power cord set requirements, contact your authorized dealer, reseller, or service provider.

General Requirements

The requirements listed below are applicable to all countries:

• The length of the power cord set must be at least 6.00 feet (1.8m) and a maximum of 9.75 feet (3.0m).
• All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country where the power cord set will be used.
• The power cord set must have a minimum current capacity of 7 A and a nominal voltage rating of 125 or 250 volts AC, as required by each country's power system.
• The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard Sheet C7 connector, for mating with appliance inlet on the computer.

Regulatory Compliance Statements

Wireless Guidance

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.

The RF field strength of the wireless device or devices that may be embedded in your notebook are well below all international RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your notebook) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter except the installed Bluetooth transmitter.

Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed on the next page:

• Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane.
  802.11ABGN (also known as wireless Ethernet or Wifi) and Bluetooth communication devices are examples of devices that provide wireless communication.
• In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.
• Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.
• If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.
• Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Please contact manufacturer for service.
• Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

United States of America

USA and Canada Safety Requirements and Notices

Do not touch or move antenna while the unit is transmitting or receiving.

Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting.

Do not operate the radio or attempt to transmit data unless the antenna is connected; if not, the radio may be damaged.

Use in specific environments:

The use of wireless devices in hazardous locations is limited by the constraints posed by the safety directors of such environments.

The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA).

The use of wireless devices in hospitals is restricted to the limits set forth by each hospital.

Explosive Device Proximity Warning

Do not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modified to be qualified for such use.

Use On Aircraft Caution

Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments.

Other Wireless Devices

Safety Notices for Other Devices in the Wireless

Network: Refer to the documentation supplied with wireless Ethernet adapters or other devices in the wireless network.

The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Intel could void the user's authority to operate this device.

Unintentional Emitter per FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet helpful: "Something About Interference."

This is available at FCC local regional offices. Our company is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system.

Intentional emitter per FCC Part 15

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.

This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device.

The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by the FCC.

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter except the installed Bluetooth transmitter.

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Wireless devices are not user serviceable. Do not modify them in any way.

Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

FCC Statement for Wireless LAN use:

"While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times.

This device can not be colocated with another transmitter and transmitting antenna."

FCC Part 68 (If fitted with a modem device.)

This equipment compiles with part of the FCC rules. On the back of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

This equipment uses the following USOC jacks : RJ11C An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or promises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.

The REN is used to determine the quantity of devices which may be connected to telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by total RENs, contact the local telephone company to determine the maximum REN for the calling area.

If the terminal equipment causes harm to the telephone network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advanced notice in order for you to make necessary modifications to maintain uninterrupted service.

If trouble is experienced with this equipment (Modem) for repair or warranty information, please contact your local distributor. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

The user must use the accessories and cables supplied by the manufacturer to get optimum performance from the product.

No repairs may be done by the customer.

This equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state tariffs.

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be any number for which charges exceed local or long-distance transmission charges.)

In order to program this information into your fax machine, refer to your communications software user manual.

Canada

Unintentional Emitter per ICES-003

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in Canada if an Industry Canada ID number is on the system label.

When using IEEE 802.11a wireless LAN, this product is restricted to indoor use due to its operation in the 5.15- to 5.25-GHz frequency range. Industry Canada requires this product to be used indoors for the frequency range of 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel mobile satellite systems. High power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These radar stations can cause interference with and/or damage to this device.

The maximum allowed antenna gain for use with this device is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to 5.35 and 5.725 to 5.85 GHz frequency range in point-to-point operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on.

The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by Industry Canada.

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter except the installed Bluetooth transmitter.

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

To prevent radio interference to licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

Telecommunications per DOC notice (for products fitted with an IC-compliant modem)

The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users' satisfaction.

Before installing this equipment, users should make sure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the inside wiring associated with a single-line individual service may be extended by means of a certified connector assembly. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should make sure, for their own protection, that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

To avoid electrical shock or equipment malfunction do not attempt to make electrical ground connections by yourself. Contact the appropriate inspection authority or an electrician, as appropriate.

The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

European Union

European Union CE Marking and Compliance Notices

Products intended for sale within the European Union are marked with the Conformité Européenne (CE) Marking, which indicates compliance with the applicable Directives and European standards and amendments identified below. This equipment also carries the Class 2 identifier.

The following information is only applicable to systems labeled with the CE mark CE.

European Directives

This Information Technology Equipment has been tested and found to comply with the following European directives:

● EMC Directive 89/336/EEC with amending directives 92/31/EEC & 93/68/EEC as per

• EN 55022 Class B
• EN 61000-3-2
• EN 61000-3-3
• EN 55024

● Low Voltage Directive (Safety) 73/23/EEC as per EN 60950(A1/A2/A3/A4/A11)
● Radio and Telecom Terminal Equipment Directive 1999/5/EC as per

- CTR21 (if fitted with a modem device)

- EN 300 328 (if fitted with a 2.4 GHz band embedded wireless device)

- EN 301 489-1 (if fitted with a 2.4 GHz band embedded wireless device)

- EN 301 489-17 (if fitted with a 2.4 GHz band embedded wireless device)

- EN 301 893 (if fitted with a 5 GHz band embedded wireless device)

European Radio Approval Information (for products fitted with EU-approved radio devices)

This Product is a Notebook computer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz band, may be present (embedded) in your notebook system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark CE with a Notified Body Registration Number and the Alert Symbol is on the system label.

The power output of the wireless device or devices that may be embedded in you notebook is well below the RF exposure limits as set by the European Commission through the R&TTE directive.

The low band 5.15 - 5.35 GHz is for indoor use only.

See 802.11b and 802.11g restrictions for specific countries or regions within countries under the heading "European Economic Area Restrictions" below.

Translated Statements of Compliance

[English]

This product follows the provisions of the European Directive 1999/5/EC.

[Danish]

European Economic Area Restrictions

Local Restriction of 802.11b/802.11g Radio Usage

[Note to integrator: The following statements on local restrictions must be published in all end-user documentation provided with the system or product incorporating the wireless product.]

Due to the fact that the frequencies used by 802.11b/802.11g wireless LAN devices may not yet be harmonized in all countries, 802.11b/802.11g products are designed for use only in specific countries or regions, and are not allowed to be operated in countries or regions other than those of designated use.

As a user of these products, you are responsible for ensuring that the products are used only in the countries or regions for which they were intended and for verifying that they are configured with the correct selection of frequency and channel for the country or region of use. Any deviation from permissible settings and restrictions in the country or region of use could be an infringement of local law and may be punished as such.

The European variant is intended for use throughout the European Economic Area. However, authorization for use is further restricted in particular countries or regions within countries, as follows:

General

European standards dictate maximum radiated transmit power of 100 mW effective isotropic radiated power (EIRP) and the frequency range 2400 – 2483.5 MHz. The low band 5.15 - 5.35 GHz is for indoor use only.

Belgium

The product may be used outdoors, but for outdoor transmissions over a distance of 300m or more, a license from the BIPT is required.

This restriction should be indicated in the manual as follows:

For Metropolitan departments:

2.400 - 2.4835 GHz for indoor use.

2.400 - 2.454 GHz (channels 1 to 7) for outdoor use.

For Guadeloupe, Martinique, St Pierre et Miquelon, Mayotte:

2.400 - 2.4835 GHz for indoor and outdoor use.

For Reunion, Guyane:

2.400 - 2.4835 GHz for indoor use.

2.420 - 2.4835 GHz for outdoor use (channels 5 to 13)

The low band 5.15 - 5.35 GHz is for indoor use only.

European Telecommunication Information (for products fitted with EU-approved modems)

Marking by the symbol indicates compliance of this equipment to the Radio and Telecom Terminal Equipment Directive 1999/5/EC. Such marking is indicative that this equipment meets or exceeds the following technical standards:

CTR 21 - Attachment requirements for pan-European approval for connection to the analogue Public Switched Telephone Networks (PSTNs) of TE (excluding TE supporting voice telephony services) in which network addressing, if provided, is by means of Dual Tone Multi-Frequency (DTMF) signaling.

Although this equipment can use either loop disconnect (pulse) or DTMF (tone) signaling, only the performance of the DTMF signaling is subject to regulatory requirements for correct operation.

It is therefore strongly recommended that the equipment is set to use DTMF signaling for access to public or private emergency services. DTMF signaling also provides faster call setup.

This equipment has been approved to Council Decision 98/482/EEC - "CTR 21" for Pan-European single terminal connection to the Public Switched Telephone Network (PSTN).

However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact manufacturer Technical Support.

WEEE SYMBOL INFORMATION

Correct disposal of this product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems.)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

Pb

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

USA ONLY

This Perchlorate warning applies only to primary CR (Maganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.

"Perchlorate Material- special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate."

Contains Mercury, Dispose According to Local, State or Federal Laws.

For details see lamprecycle.org, eise.org, or call 1-800-Samsung.

Overview

Front View

Before You Start!

• Optional items may be changed or may not be provided depending on the computer model.
  ● The actual color and appearance of the computer may differ from the pictures used in this guide.

1 2 3 4 5 6 7 8 9 10 SAMSUNG

1	Camera Lens (Optional) Using this lens, you can take still pictures and record video.
2	Power Button	Turns the computer on and off. 48
3	Speaker A device used to generate sound.
4	Keyboard	A device to enter data by pressing the keys. 51
5	Fingerprint Sensor (Optional)	You can turn the computer on with your fingerprint or login to Windows. For more information, refer to the additionally supplied manual. (Only for models with the fingerprint identification system.) 149
6	Microphone You can use the built-in microphone.
7	Multi Card Slot (Optional)	A card slot that supports Memory Stick, Memory Stick Pro, SD Card, SDHC, MMC, MMC Plus and xD cards. 62
8	Status Indicators	Shows the operating status of the computer.The corresponding operating LED is lit when the corresponding function operates. 43
9	Touchpad/Touchpad Buttons	The touchpad and touchpad buttons provide functions similar to the mouse ball and buttons. 54
10	LCD The screen images are displayed here.

Status Indicators

1 2 3 4 5 6 7

1	Num Lock This turns on when the Num Lock key ispressed and numeric keypad is activated.目52
2	Caps Lock This turns on when the Caps Lock key ispressed allowing capital letters to be typedwithout holding the Shift button down.
3	Scroll Lock This turns on when the Scroll Lock key ispressed and screen scroll is locked.目52
4	HDD/ODD This turns on when the hard disk is or ODDbeing accessed.
5	Wireless LAN This turns on when the wireless LAN isoperating.
6	ChargeStatusThis shows the power source and the batterycharge status.Green:When the battery is fully charged orthe battery is not installed.Amber:When the battery is being charged.Off:When the computer is runningon battery power without beingconnected to AC adapter.
7	Power This shows the computer operating status.On:When the computer is operating.Blinks:When the computer is in Sleep mode.

Right View

1 2 3 4

1	ExpressCard Slot(Optional)	Install the Express card into this slot. 65
2	CD Drive(ODD) (Optional)	Plays CD or DVD titles.Since an ODD(Optical Disk Drive) is optional, the installed drive depends on the computer model. 59
3	USB Port	You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.
4	Security Lock Port	You can connect a Kensington lock to the Security Lock Port to prevent the computer from being stolen.

Left View

21 4 5 63

1	Wired LAN Port	Connect the Ethernet cable to this port. ☑ 105
2	Monitor Port	A port used to connect a monitor, TV or projector supporting a 15pin D-SUB interface. ☑ 66
3	USB Port	You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.
4	Fan Vents The internal heat of the computer is emitted through these holes. If the vents are blocked the computer may overheat.Avoid blocking the vents as this may be dangerous.
5	Microphone Jack A jack used to connect the microphone.
6	Headphone Jack A jack used to connect the headphones.

Back View

2 3 4 51

1	Modem Port (Optional)	A port to which a telephone cable is connected to in order to dial up to the Internet. ☑ 114
2	USB Port	You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.
3	Battery	This is a Lithium-Ion rechargeable battery that supplies power to the computer. ☑ 182
4	Digital Video/Audio Port (HDMI) (Optional)	You can connect an HDMI cable to this port.Using this port, you can enjoy digital video and audio on the TV.
5	DC Jack A jack to connect the AC adapter that supplies power to the computer.

Bottom View

Laptop rear panel diagram with numbered annotations pointing to key components

1	Battery Latches	The latch used to remove or install the battery. ☑ 182
2	P-Dock Connector (Optional)	You can connect a Docking Station that provides additional ports.
3	Memory Compartment Cover	The main memory is installed inside the cover. ☑ 180
4	Hard Disk Drive Compartment Cover	The hard disk drive is installed inside the cover.

Turning the Computer On and Off

Turning the computer on

1 Install the battery and connect the AC adapter. (Refer to the Installation Guide.)
2 Lift the LCD panel up.
3 Press the Power button to turn the computer on.

Laptop with keyboard and power button icon (no text or symbols on device)

4 Power button LED is lit while the computer is turned on.

• If you press and release the Power button on the computer when it is on, the computer enters Sleep mode.
• When running the computer on battery power, the LCD brightness is dimmed automatically to save battery power.

Press the Fn+ key to increase the LCD brightness. ☑53

- When turning the computer on for the first time, the Register Windows screen appears. You can use the computer after registering your user information.

Turning the computer off

1 Click the Start button on the taskbar.

2 Click the and click on Shut down. The computer will shut down.

All Programs Connect To Control Panel Default Programs Help and Support Switch User Log Off Lock Restart Sleep Shut Down Start Search Power Button

Before Using the Power Button

Since the Power Icon is set to power saving mode, selecting Start > Power Button ⏻, will cause the computer to enter Sleep mode.

To shut down the computer by clicking this icon, refer to the descriptions for Setting up Start menu power button of the Control Panel. ☐ 97

If the system cannot be shut down due to a system error, turn it off by pressing and holding the Power Button for a minimum of 4 seconds.

Please note that turning the computer off by this method may cause a system problem. Thereafter, when turning the computer back on, the disk checking program may launch to check for and correct any disk errors.

Illustration of a laptop computer with an 'US' logo beside it (no text or symbols on the device itself)

Chapter 2.

Using the computer

Keyboard 51

Touchpad 54

Basic Touchpad Functions 55

Touchpad Gesture Function (Optional) 56

Touchpad On/Off Function 58

CD Drive (ODD, Optional) 59

Inserting and Ejecting a CD 59

Burning a CD 60

Multi Card Slot (Optional) 62

ExpressCard Slot (Optional) 65

Connecting a monitor / TV 66

Connecting to the Monitor / TV 66

Viewing Through a Monitor / TV 68

Using Dual View 72

Adjusting the Volume 74

Intel Turbo Memory Device (Optional) 76

Check before installing another operating system

such as Windows XP 77

Q & A 78

Keyboard

Shortcut key functions and procedures are discussed in the following sections.

● The keyboard is supplied according to the corresponding country.
● The keyboard image may differ from the actual keyboard.

Shortcut Keys

You can use the following functions by pressing the keys below with the Fn key.

Fn+ Name Function
	REST(Sleep Mode)	Switches to Sleep mode. To wake the computer up, press the Power button.
	Gauge	Shows the remaining battery charge.You can only use this function when the Easy Display Manager program is installed.
	Euro	Enters the Euro monetary unit symbol.This key may not be provided depending on the keyboard type.
	CRT/LCD	Switches the screen output to the LCD or external monitor when an external monitor (or TV) is connected to the computer. 68
	Backlit Turns the LCD backlight on or off.
	Mute Mutes or cancels mute.
	Samsung Magic Doctor	System diagnosis, recovery and Internet consultation program, Samsung Magic Doctor, will be launched.
	Easy SpeedUp Manager	You can select operation mode when you need maximum system performance or low-noise/low power consumption with one-click.Silent: Low-noise and low power consumption modeNormal: Normal ModeSpeed: Maximum performance mode. The system operates in its maximum performance, and system resources are allocated to the currently active program with priority for maximum performance.
	Wireless LAN Turns the wireless LAN function on or off in models with wireless LAN capability.
	Touchpad	Turns the Touchpad function on or off.When using an external mouse only, you can turn the Touchpad off.
	Num Lock Turns the numeric keyboard on or off.
	Scroll Lock	If you turn the Scroll Lock on, you can scroll the screen up or down without changing the cursor location in some applications.

Screen Brightness Control

To adjust the LCD brightness press the Fn + ↑↓ key combination or the Fn + ↓↓ key combination.

The changed screen brightness is displayed at the center of the screen for a moment.

Volume Control

To control the volume, press the Fn + key combination or the Fn + key combination.

You can mute the sound or cancel the mute function by clicking the Fn + F6 key combination.

Numeric Key

The numbers are printed in blue on the numeric keys.

If Num Lock is turned on by pressing the Fn + F11 key combination, you can use the numeric keys to enter digits.

Other Function Keys

• Application Key
  Performs the right-click mouse function (touchpad).
• Internet Explorer Quick Launch Key : Fn +
  Launches Internet Explorer.

Touchpad

The touchpad provides the same function as a mouse and the left and right buttons of the touchpad plays the role of the left and right buttons of a mouse.

Before You Start!

• Use the Touchpad with your fingers. Using a sharp object may damage the Touchpad.
• If you touch the Touchpad or press the Touchpad buttons while booting up, the Windows boot time may be extended.

Touchpad Use to move the cursor. Scroll Area Plays the role of the mouse wheel. You can scroll up and down using the Scroll Area. Touchpad Left Button You can select or run a program using this button. Touchpad Right Button Plays the role of the right mouse button.

Basic Touchpad Functions

Moving the cursor on the screen

Place your finger on the touchpad slightly and move your finger.

The mouse cursor will move accordingly. Move your finger in the direction you wish to move the cursor.

Hand pointing at a keyboard with four directional arrows (no text or symbols)

Click Function

Place your finger on the touchpad and tap your finger once over an item you want.

Alternatively, press the left touchpad button once.

Tap or Click

Double-Click Function

Put your finger on the touchpad and quickly tap twice with your finger on an item you want.

Alternatively, press the left touchpad button twice quickly.

TapTap or ClickClick

Right Button Function

This corresponds to clicking the right mouse button.

Press the right touchpad button once. The corresponding pop-up menu appears.

Click

Drag Function

Dragging refers to moving an item to another place after selecting it.

Press and hold down the left touchpad button over an item you want to drag and move the item to the new location.

Holding down the left touchpad button Move

Touchpad Gesture Function (Optional)

You can use the following Gesture function with the touchpad.

● A scrolling function using the circle.
- Image and text zoom-in and zoom-out functions using two fingers
● A long distance cursor movement function

Chiral Scroll Function

The Chiral Scroll function enables users to scroll long horizontally and vertically.

If you place your finger over the Scroll Area at the bottom right of the touchpad and move your finger slightly, the mouse pointer changes to the circle icon 🔒.

At this time, circle clockwise or counterclockwise over the touchpad with your finger to scroll long.

Scroll Area

Image and Text Zoom-In and Zoom-Out (Pinch) Function

If you place two fingers over the touchpad and set them close or apart, the image or text is zoomed-in or zoomed-out.

Zoom-In or Zoom-Out

Cursor Long-Distance Movement (Momentum/Glide) Function

You can move the cursor quickly and smoothly a long distance with a small movement over the touchpad. To use this function, configure as follows.

Click the Start > Control Panel > Hardware and Sound > Mouse > Device Settings tab > Settings button, select the Momentum > Enable Momentum option in the Touchpad Setting window, and click the OK button.

Disabling the Gesture Function

1 Click the Start > Control Panel > Hardware and Sound > Mouse > Device Settings tab > Settings button.

2 If the Touchpad Settings window appears, deselect the option you want to disable in Select an item click the OK button.

E.g.) The Image and text zoom-in and zoom-out function is selected.

Properties for Synaptics TouchPad V7.2 on PS/2 Port 3 Select an lens Overview Trapping Bubbles Virtual Scrolling Pointer Motion Edge Motion Constrained Motion Slow Motion Sticky Borders Momentum Glide Pinch Pointer Refresh Rate Sensitivity Pinch Enable Pinch The Pinch gesture delivers zooming functionality in many applications. The Pinch gesture can be used to perform the same function as a scroll wheel on standard Windows applications that support CTRL-SCROLL WHEEL zoom functionality. To perform a pinch gesture, place two fingers on the TouchPad surface. Move them closer together or further apart. To zoom in, place your fingers on the TouchPad surface near to each other and then side them apart. To zoom out, begin by placing your fingers apart and then moving them closer together. The best zooming experience results when the finger tip of the two fingers Defaults www.synaptics.com OK Cancel Apply Disabling the Image and Text Zoom-in and Zoom-out Function

Disabling the Cursor Long Distance Movement Function

Touchpad On/Off Function

If you want to use the mouse only without using the touchpad, you can turn the touchpad off.

To lock the touchpad function, press the Fn + F10 keys.

You can set the touchpad and touchpad button settings in the tabs that appear when clicking Start > Control Panel > Hardware and Sound > Mouse.

CD Drive (ODD, Optional)

An optical disk drive is optional and may differ depending on your computer model. For detailed specifications, refer to the catalogue.

Before You Start!

One of the following optical disk drives is installed on this computer or may not be provided depending on your computer model.

Drive Type Function
DVD Super Multi	You can read CDs and DVDs, and burn CDs and DVDs.Supported DVD recording types include DVD ± R , DVD ± RW , DVD-RAM.
DVD Super Multi LS (LightScribe)	- You can read CDs and DVDs, and burn CDs and DVDs.Supported DVD recording types include DVD ± R , DVD ± RW , DVD-RAM.- Print an image or text onto the surface of a CD/DVD.

• Do not insert a cracked or scratched CD.
  Otherwise, the CD may break and damage the optical disk drive when the CD rotates at a high speed.
• When you clean a CD or DVD title, wipe with a soft cloth from inside to outside.
• Do not eject a CD when the CD operating LED is on.
• DVD Super Multi LS (LightScribe) are only available for some models.
• The LightScribe logo can be found on ODDs that support the DVD Super Multi LS (LightScribe) feature. ODDs without the logo do not support this feature.

Inserting and Ejecting a CD

1 Click the Eject button of the optical disk drive at the side of the computer.

Status Indicator Emergency Hole Eject Button

2 When the CD tray opens, insert a CD or DVD and push the tray in until it clicks.

Laptop with open CD and an orange arrow pointing to a purple CD, indicating file transfer or storage (no text or symbols visible)

3 Push the CD tray inward until it clicks. The CD drive status indicator is turned on.

• A CD drive's reading and writing speed may differ depending on the condition and type of the media.
• To eject a CD when the CD drive does not work or the computer is off, place the end of a paper clip ( ) into the Emergency Hole until the CD tray is ejected.

Burning a CD

If your computer has a writable CD drive, you can write data onto a CD or DVD or burn an audio CD.

CyberLink DVD Suite is supplied with the System Software Media (or an additional CD) so that you can burn a CD using the program. It is optional and is not supplied with some models.

Install the provided software and use the software functions referring to the software help.

CyberLink DVD Suite Copy & Backup PhotoNow! Fix your photos by enhancing colors, brightness and contrast, and removing photo red-syes in just one click. Apply special photo effects and compare the results before saving. CyberLink

The Cyberlink DVD Suite may be supplied depending on the installed ODD model.

Using LightScribe (Optional)

LightScribe is a feature that allows you to print letters or images onto the surface of a CD/DVD when recording data.

LightScribe's features are provided for DVD Super Multi drives (ODDs) that support LightScribe.

If the LightScribe logo lightScribe is on the surface of the CD drive (ODDs), it means the LightScribe feature is supported.

1 Click Cyberlink DVD Suite > Utility > Print Disk Label.

2 The user registration screen appears. While connected to the internet, enter your personal information such as the first name, last name, E-mail address, etc. and click Register Now. The CyberLink Label Print screen appears.

3 Click on LightScribe to use the feature. Please refer to the Help information for the application for more detailed instructions.

• Even if the Disk label print program is installed on your computer or the LightScribe Control Panel program icon is in the system tray of the Taskbar, you cannot use the LightScribe function, if your CD-ROM drive (ODD) does not support this function.
• If the LightScribe menu is not shown in CyberLink Label Print even for a model that supports LightScribe, please go to http://www.lightscribe.com/ and download the latest version of LightScribe.

Multi Card Slot (Optional)

Using the multi card slot, you can read and write data to a Memory Stick, Memory Stick Pro, SD card, SDHC card, MMC, MMC Plus and xD card.

You can use a card as a removable disk and conveniently exchange data with digital devices such as a digital camera, digital camcorder, MP3, etc.

Before You Start!

• You have to additionally purchase a multi card with the necessary capacity depending on your requirements.
• You can use a multi card just like any data storage device. A copyright protection function is not supported.
• Since you can lose a card when moving the computer, keep the card separately.

Supported Cards

Memory Stick Memory Stick Pro

SD Card

SDHC card

MMC

xD CardMMC Plus

To Insert and Use a Memory Card

1 Insert a card into the slot according to the directions printed on the slot.

Example) SD Card

2 The card drive appears. Click Open folder and view files.

If the window does not appear, click Start > Computer.

Removable Disk (F:) Mixed content options Play using Windows Media Player Import pictures using Windows View pictures using Windows View pictures using Windows Media Center General options: Open folder to view files using Windows Explorer Speed up my system using Windows Readyboost Set AutoPlay defaults in Control Panel

If a window asking to scan and change appears, click Continue Without Scanning. This will proceed to Step 2 above.

3 You can save, move and delete data by double-clicking the corresponding drive.

Screenshot of a device list showing 'Removable Disk (F)' and 'DVD Drive (E)'

The device name of the card drive may differ depending on your computer model.

Since you can only use the card after formatting it, if it is not formatted, format the card referring to the descriptions of "To format a memory card". ☐64

Using a Memory Stick Duo, Mini SD and RS-MMC

Since the above cards are too small, you cannot insert the cards into the slot directly.

Insert the card into the dedicated adapter (available from most electronic retailers) and then insert the adapter into the multi card slot.

However, depending on the adapter's body material, some Memory Stick Duo or RS-MMC cards may not be recognized properly. Samsung recommend that you check the card is recognized correctly prior to purchasing.

To remove a memory card

1 Push the card in the slot lightly. Then the card pops up.

2 Eject the card.

To format a memory card

When using the memory card for the first time, you must format the card before using it.

Formatting a card deletes all data saved on the card. If the card includes data, backup the data before formatting it.

1 Click Start > Computer.

2 Right-click over a card drive with the touchpad and select Format.

3 Click Start to the formatting.

• To use a card to exchange data with a digital device such as a digital camera, formatting the data using the digital device is recommended.
• When you try to use a card, which is formatted in the computer, in another digital device, you may have to format the card again in the device.
• You cannot format, write or delete data from a Memory Stick, Memory Stick Pro, SD, or SDHC card with a write protection tab when it is in the Lock position.
• Inserting and removing a memory card repeatedly may damage the memory card.

ExpressCard Slot (Optional)

You can use Express cards using this slot.

The ExpressCard slot can be regarded as the next generation PCMCIA card specification and supports LAN, TV Tuner and Sound cards. This computer's slot supports the Express Card/34 specification.

Before You Start!

• Remove the dummy card installed to protect the slot first. Lightly push the dummy card of the slot. The dummy card pops up. Eject the dummy card.
  ● This slot is a ExpressCard slot. You cannot connect a PCMCIA card here.

To insert a card

1 Insert a card into the slot on the side of the computer.

ExpressCard Slot

2 If you insert a card into the slot, Windows recognizes the card automatically or a message telling you to install a driver appears.

If the card is not automatically recognized, install the device driver supplied with the card.

If a window asking whether you want to scan and change appears, click on Continue Without Scan. This will proceed to Step 2 above.

To remove a card

1 Double-click the Safely Remove Hardware icon on the taskbar.

2 Select the card to be removed and click Stop.

3 If the Stop a Hardware device window appears, click the OK button.

4 Push the card in the slot lightly. Then the card pops up.

5 Eject the card.

Connecting a monitor / TV

Using an external display device is useful when you are giving a presentation or watching a video or movie through your monitor.

Before You Start!

You have to buy a connection cable additionally.

Connecting to the Monitor / TV

Connecting to the Monitor port

Connect the computer to the RGB port of the monitor or TV using a monitor cable (15-pin).

Diagram showing connection between a laptop and two VGA connectors via cable, with one connector highlighted in orange.

Connecting to the HDMI port (Optional)

Connect the computer to the HDMI port of the monitor or TV using a HDMI cable.

HDMI™

• When connecting the computer to a TV, switch the external input mode of the TV to 'HDMI'.
• When a TV provides more than one HDMI port, connect the computer to the "DVI IN" port.

Viewing Through a Monitor / TV

You can switch the display device using the shortcut key.

Switching the Display Device using the Shortcut Key

Press the Fn + key combination once. Then the Easy Display Manager screen appears in which you can select a display device.

Whenever you press the F4 key while holding down the Fn key, the selected option is changed.

LCD+CRT DualView

Example) Selecting LCD+CRT Dual View

• LCD: Notebook Screen
  ● CRT: External Monitor Screen
• HDMI: TV Screen or Monitor (when it is connected via the HDMI port).
• LCD+CRT Clone : Notebook+ External Monitor Screen
• LCD+CRT DualView: Notebook+ External Monitor Screen in Dual View
• LCD+HDMI Clone: Notebook+ TV(or Monitor) Screen
• LCD+HDMI DualView: Notebook+ TV(or Monitor) Screen Dualview

• What is Dual View?

Dual View is a function that enables you to view a computer screen over two display devices. It is convenient when you need a wide screen.

• The TV screen is only supported for models that support the TV output port (HDMI).
• Simultaneous output to all 3 (LCD + CRT + HDMI) is not supported.
• External Monitor / TV is not supported in the DOS Command Prompt window.

Setting up HDMI TV video (Optional)

If the Desktop screen displayed on the TV does not fit to the TV screen, configure it as follows depending on the graphics card.

• You can view the graphics card type by selecting Start > Control Panel > Hardware and Sound > Device Manager > Display adapters and then clicking the + symbol.
• The screen images and terms may differ from actual product depending on the computer model and driver version.

● For NVIDIA graphics cards

1 Right-click over the Desktop and select NVIDIA Control Panel.
2 In the Select a Task window in the left panel, select the Video and Television > Resize HDTV Desktop item and then click Resize Desktop.

NVIDIA Control Panel File Edit View Help Standard Settings Select a Task... 3D Settings Adjust image settings with preview Display Change resolution Change far panel using Adjust desktop color settings Rotate display Set up multiple downloads Video & Television Adjust video color settings Adjust video color settings Change the signal to HD format Select digital color format Remove HDTV Desktops System Information Resize HDTV Desktop You can reuse the desktop appearing on your HDTV to achieve the most desired reveng experience. If your desktop is being cropped by the edges if your HDTV, you can decrease the size of your desktop as it is better. 1. Select the HDTV you would like to change. Canning PDF 2. To resize the HDTV desktop... Click the Resize Desktopbutton. You will be presented with a screen where you can increase or decrease the size of your desktop. Resize Desktop Description: Typical usage scenarios:

3 Resize the Desktop using the resize bars so that the four arrows at the corners of the Desktop are placed in the corners of the TV and then click OK.

NVIDIA OK Cancel

Horizontal Resize Bar Vertical Resize Bar

- For Intel graphics cards

1 Right-click over the Desktop and select Graphics Properties.

2 Click Display Settings and click the Aspect Ratio Options.

Intel® Graphics Media Accelerator Driver for mobile Display Devices Display Settings Color Correction Hot Keys intel® Digital Television Color Quality 32 Bit Screen Resolution 1280 x 720 Refresh Rate 60 Hz Display Expansion Aspect Ratio Options Rotation Enable Rotation 0 90 270 180 OK Cancel Apply 3D Settings Scheme Options Video Settings

3 Fit the Desktop to the TV screen by sliding the Horizontal and Vertical Resize Bars and click OK.

Aspect Ratio Options Custom Selection Horizontal Minimum Maximum Vertical Minimum Maximum Intel® Graphics Media Accelerator Driver for mobile OK Cancel Resize Bars

Setting up HDMI TV audio (Optional)

You can configure the sound of the computer to be played through the HDMI TV. You have to configure the sound device in the Control Panel whenever you connect the HDMI TV in order to hear sound from the computer on the TV.

The screen images and terms may differ from actual product depending on the computer model.

1 Right-click over the Volume Control icon in the notification area at the bottom right of the Desktop and select Playback Devices. (Alternatively, click the Control Panel > Hardware and Sound > Sound.)

2 If the default Playback Device is set to Speakers, change it to Digital Output Device(HDMI) (or HDMI Device), click Set Default and then click OK.

Sound Playback Recording Sounds Select a playback device below to modify its settings: HDMI Device Intel(R) High Definition Audio HDMI Working Speakers Realtek HD Audio (With EDS) Working Configure Set Default Properties OK Cancel Apply

HDMI Output Device may not appear on the playback device list depending on the computer model.

In this case, turn on the TV, connect the TV to the computer using a HDMI cable and then switch to HDMI or LCD+HDMI Clone or LCD+HDMI DualView mode using the Shortcut Key(Fn + F4).

To listen to sound on the computer after disconnecting the HDMI TV, you have to set the Playback Device to Speakers.

Using Dual View

Dual View enables users to expand their computer screen over two display devices.

Dual View is convenient when a wide operating space is needed. In addition, since Dual View operates as if there are 2 graphic cards present even when there is only one, you can set the resolution and color for each display device.

Selecting Dual View

Check if the external display device is properly connected and follow the instructions below.

1 Click the Start > Control Panel > Appearance and Personalization > Adjust screen resolution.

2 Click on the number 2 monitor icon and select Extend the desktop onto this monitor. Click Apply and then click the OK button.

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 2 2. This is my main monitor Extend the desktop onto this monitor Resolution: Low High 1024 by 768 pixels Colors: Highest (32 bit) How do I get the best display? Advanced Settings... OK Cancel Apply

3 When notebook LCD is set as the main device, the 1 digit is displayed over it and the 2 digit is displayed over the auxiliary display device. Now you can expand the Desktop screen over 2 display devices. When using Dual View, it is recommended setting the LCD as the main device (number 1).

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 2

If the resolution of the auxiliary display device is 640×480 pixels with 256 colors, click the Start > Control Panel > Appearance and Personalization > Adjust screen resolution > Monitor Number 2 and adjust the resolution and color quality.

Using Window in Dual View

Click on the window title bar of the main LCD (monitor number 1) and drag it into the auxiliary display device (monitor number 2) to move the window.

Canceling Dual View

1 Click the Start > Control Panel > Appearance and Personalization > Adjust screen resolution.

2 Click on the Monitor Number 2 icon, unselect Extend the desktop onto this monitor, and then click Apply.

Adjusting the Volume

You can adjust the volume using the keyboard and the volume control program.

Adjusting the Volume using the Keyboard

Press the Fn + key combination or Fn + key combination to adjust the volume.

Press the Fn + F6 key combination to turn the volume on or off.

Adjusting the Volume using the Volume Adjustment Program

Click the Volume icon on the taskbar and slide the volume control bar to adjust the volume.

Mute

Alternatively, right-click over the Volume icon and select Open Volume Mixer to adjust the volume.

Volume Mixer Device Device Speakers Applications Windows Sounds

Using the Sound Recorder

The procedures to record sound using the Windows Recorder are described below.

1 Connect a microphone to the microphone jack.
2 Right-click over the Volume icon on the taskbar and select Recording Device.
3 Check if the microphone is set as the default recording device.

If this is the case, it is already set as the default device. If not, right-click over the microphone and select Set default.

4 Click Start > All Programs > Accessories > Sound Recorder and click Start recording to start a recording.

Sound Recorder Start Recording 0:00:00 ?

Using EDS

The EDS function enables you to experience more stereophonic sound using stereo speakers.

1 Right-click over the Volume icon in the Taskbar and select Playback Devices (P).
2 Select Speaker in the Play tab and click Properties.
3 Select the Samsung EDS tab in the Speaker Properties window. ① Unselect Disable Samsung EDS (Enhanced Digital Sound) and then ② select a mode.

Speakers Properties General Levels Samsung EDS Advanced Disable Samsung EDS (Enhanced Digital Sound) Samsung Enhanced Digital Sound Speaker Music Mode Headphone Music Mode Speaker Movie Mode Headphone Movie Mode Auto Volume Control (Automatically match volume levels across all digital sounds.) Music Samsung EDS Copyright(c) 2007 SAMSUNG Electronics Co., LTD OK Cancel Apply

4 To use the Auto Volume Control function, select Auto Volume Control.

● What is Auto Volume Control?

Auto Volume Control is a function that maintains the same volume level for all digital sources.

The volume level of playing music changes for each file even if the player volume is fixed. If you use the Auto Volume Control function, the volume level will remain the same.

However, if the Auto Volume Control function is activated, the volume control function of a multimedia player such as Windows Media Player may appear to not work. In this case, click over the volume icon 📋 in the notification area of the Taskbar and adjust the volume by sliding the volume bar.

• The function is only supported for a computer's built-in speakers and headphones.
• For product improvement or changes to functions, the screen image is subject to change without prior notice.

Intel Turbo Memory Device (Optional)

Intel Turbo Memory is a device that enhances program execution speed, minimizes power consumption and reduces the booting time by optimizing the hard disk drive access.

To use the Intel Turbo Memory device, perform the setup as follows.

• You can only use the Intel Turbo Memory device with Windows Vista.
  ● This function is only supported for a specific model.

1 Select Start >All Programs >Intel Turbo Memory >Intel Turbo Memory Console.

The Intel Turbo Memory console program (optional) is only provided for models with Intel Turbo Memory.

2 Select the Information tab and check if both Windows ReadyBoost\* and Windows ReadyDrive\* in the Arguments fields are set to Available.

If they are not set to Available, select the Select a cache policy to use option. If the Restart the computer message appears, select Yes and then the computer restarts.

3 Select Start >All Programs >Intel Turbo Memory >Intel Turbo Memory Console and check if Windows ReadyBoost and Windows ReadyDrive on the right are displayed as 'Normal Operation'.

What is ReadyBoost?

A new Windows Vista technology that enhances the program execution speed by using the embedded flash memory.

What is ReadyDrive?

A new Windows Vista technology that enhances the booting and drive access of the hard disk drive by using the embedded flash memory.

Turning the Intel Turbo Memory device off Unselect the device items in the Select a cache policy to use field in Step 2 above and restart the computer according to the instruction.

Check before installing another operating system such as Windows XP

To remove Windows Vista, the default operating system of this computer, and to install a different operating system such as Windows XP, you need to change the SETUP settings first.

Set the AHCI item in SETUP to Disabled before installing another operating system.

If a problem occurs because of the installation of another operating system, the company will not provide technical support, a replacement or refund, and if our service engineer visits you due to this problem, a service charge will be applied.

Restrictions

Intel Turbo Memory is only supported for Windows Vista. This function is not available for any other operating system.

1 Turn the computer on and press the F2 key when the booting screen (SAMSUNG logo) appears.
2 After a moment, the SETUP screen appears. Enter the Advanced menu in SETUP.
3 Move to the AHCI Mode Control item and press Enter.
4 Select Disabled and press Enter.

5 Enter the Exit menu, move to Exit Saving Changes and press Enter.

6 When the Save configuration changes and exit now? message appears, select Yes and press Enter.

Now you will be able to install a different operating system.

Q&A

How does Intel Turbo Memory work?

A Intel Turbo Memory enhances memory performance and reduces the power consumption by minimizing the number of hard disk drive read and write operations through the inter-operation of the installed device driver and the embedded flash memory.

Can I use Intel Turbo Memory in Windows XP?

A Since Intel Turbo Memory uses performance enhancement functions provided by Windows Vista, you cannot use this function in Windows XP.

Illustration of a green laptop with a white computer mouse beside it, no text or symbols present.

Chapter 3.

Using Microsoft

Windows Vista

About Microsoft Windows Vista 80

Welcome Center 80

Help and Support 81

Windows Vista Screen Layout 82

Desktop 82

Start Menu 84

Sidebar / Gadget 86

Window 89

Control Panel 92

Opening the Control Panel 92

User Accounts 94

Changing the screen resolution and the color 96

Configuring the Start Menu Power Button 97

Phishing Filter 99

User control function 101

Windows Mobile Center 103

The screen shots used in this chapter may differ from actual screens depending on the Windows Vista version and model.

About Microsoft Windows Vista

Microsoft Windows Vista (hereafter Windows) is a computer operating system. Since you have to learn how to use it in order to use the computer efficiently and effectively, use the Welcome Center and Windows Help and Support to learn about Windows Vista.

The screen layout may differ depending on the computer model and the operating system.

Welcome Center

In the Welcome Center, you can view brief descriptions of Windows Vista functions and run the functions directly.

1 Click Start > Welcome Center.

2 If you click on an item, information on the function is displayed in the description window. For example, if you click View computer details, your computer information is displayed in the description window. In addition, click on Show More details, for more detailed information.

System and Maintenance > Welcome Center SAMSUNG Windows Vista® Home Premium Intel(R) Pentium(R) 4. CPU 300GHz 1.00 GB RAM NVIDIA GeForce6200 Turbo Cache(TM) (Microsoft Corporation - WDDM) Computer Name: SAMSUNG-PC Show more details Description Window 1. Get started with Windows (14) View computer detail Transfer to Mac and Settings Add new users Windows Anytime Upgrade Connect to the Internet What's new in Windows Vista Show all 14 items...

Windows Vista Demo

If you click Start > Welcome Center > Show all x items > Windows Vista Demo, you can watch the Windows Vista introduction movie.

Help and Support

Windows Help and Support provides information on Windows basic functions and usages.

Click Start > Help and Support.

You can find help for frequently used basic functions using Find an Answer and you can search for help by entering a keyword in the Search box.

Windows Help and Support Search Help Ask Options Help Search Find an answer Windows Basics Security and Maintenance Windows Online Help Table of Contents Troubleshooting What's new?

Windows Basics	[17:48]	Introduces the basic usage of the computer and the Windows operation system. You can learn tasks and tools necessary to use the computer.
Security and Maintenance		You can view help on computer protection and security.
Windows Online Help	[3CTT]	If your computer is connected to the Internet, you can view the necessary information online.
Table of Contents	[03AD]	The help pages are arranged by subject so that users can easily find the relevant information.
Troubleshooting	[2BGH]	You can view possible problems that may occur while using Windows and solutions to the problems.
What's new?	[KAH6]	You can view help for new Windows Vista features.

Windows Vista Screen Layout

Desktop

If you turn the computer on, the Desktop screen appears.

The desktop is the working area on the computer. It consists of a large workspace and a taskbar at the bottom as shown in the figure below.

The screen layout may differ depending on the computer model and the operation system version.

1 Recycle Bin 2 Shortcut Icons 3 Start Menu 4 Start Button 5 Taskbar 6 System Tray with Clock 7 Sidebar 8 Gadget 9 12 1 2 3 4 5 6 7 8 SAMSUNG Documents Pictures Music Games Search Recent Items Computer Network Connect To Control Panel Default Programs Help and Support All Programs Start Search SAMSUNG View headlines

1	Recycle Bin You can drop useless files and folders here.
2	Shortcut Icons You can launch programs by clicking the shortcut icons on the Desktop.
3	Start Menu The menu from which you can launch programs.
4	Start Button Press the start button. The Start menu appears.
5	Taskbar Currently running programs are displayed here.
6	System Tray with Clock Shows some running program icons. Icons not being used are hidden. If you click the arrow mark on the left, you can view hidden icons. This is a mini information program that appears on the Sidebar.
7	Sidebar This is a vertical bar that appears at the side of the Desktop.
8	Gadget This is a mini information program that appears on the Sidebar.

Some items may not be provided depending on the Windows Vista version.

Start Menu

The menu from which you can launch programs.

Click Start 📄. The Start menu appears.

Alternatively, press the Windows key on the keyboard.

Fixed Programs The program or search result is displayed. All Programs You can search for files, folders, etc. Internet Internet Explorer E-mail Windows Mail Welcome Center Windows Media Center Windows Media Player Windows Photo Gallery Windows Live Messenger Download Windows DVD Maker Windows Calendar SAMSUNG Username Documents Pictures Music Games Search Search Recent Items Computer Network Connect To Control Panel Default Programs Help and Support Power Button Lock Button Power Menu Button

Search Enables users to search for files and folders.
Computer		Shows storage devices such as hard disk drives, CD/DVD drives, network drives, etc.In addition, you can manage files and folders here.
Control Panel	[6COW]	Enables users to configure the appearance and settings of Windows such as the Desktop, window colors, hardware and software settings, security, etc.
Help and Support		Provides on-line help about functions and usage of Windows and troubleshooting. You can find a solution to a problem by entering a keyword.
Power Button		Click the Power button to enter Sleep mode.However, what the power button does changes according to the power button setting. 37
Lock Button		To lock the computer, click this button. If you lock your computer, no one can use the computer until you enter the password.
Power Menu Button		Click the Power Menu button to shut down, restart, and logoff from the computer.

Sidebar / Gadget

Sidebar is a vertical bar that appears at the side of the Desktop.

A mini program called Gadget runs over the Sidebar which shows information such as stocks, schedule, weather, etc. and provides frequently used tools.

You can download various Gadgets from the Internet other than the default Gadget.

Sidebar / Gadget Structure

If you launch Windows, the Sidebar is automatically launched and the Sidebar and Gadget appear at the side of the Desktop.

Gadget Sidebar View headlines SAMSUNG

• If the Sidebar is not launched automatically when Windows starts, click Start > All Programs > Accessories > Windows Sidebar to launch it manually.
• To always display the Sidebar, right-click over the Sidebar and select Properties and then select the Sidebar is always on top of other windows option in the Arrangement field.

You can find a gadget in the Gadget Gallery and add it to the Sidebar.

1 If you click the + at the top of the Sidebar, the Gadget Gallery opens.

Page 1 of 1 Search all gadgets Calendar Clock Contacts CPU Meter Currency Feed Headlines Notes Picture Puzzle Slide Show Stocks Weather Show details Get more gadgets online

2 If you double-click on a gadget, the gadget is added to the Sidebar.

• You can move a gadget to another location by dragging it with the mouse. Not only can you move a gadget onto the Sidebar but also out of the Sidebar.
• If you place the mouse pointer over a gadget, the close and option buttons appear.

Exiting the Sidebar

Right-click on the Sidebar icon in the System Tray with the clock on the taskbar and select Exit to exit the Sidebar.

Closing the Sidebar

• Even if you close the Sidebar, the Sidebar continues running in the System Tray in the clock area, though it is not displayed on the Desktop.
• To close the Sidebar, right-click over the Sidebar on the Desktop and select Close Sidebar. To open the Sidebar again, right-click on the Sidebar icon in the System Tray with the clock on the taskbar and select Open.

Window

A window is the basic frame for a computer operation. As an example, let's see the layout of a Pictures Window.

Click Start > Pictures.

The items and names may differ depending on your computer model and the Windows Vista version.

Window Layout

1 Address Display Line 2 Move Button 3 Toolbar 4 Search Window 5 Window Button 6 Search Box 7 Sort Order 8 Folder / File 1 SAMSUNG Pictures Search Organize Views Preview Slide Show Print E-mail Share Burn Favorite Links Name Date taken Tags Size Documents Pictures Music Recently Changed Searches Public Sample Pictures working Folders working Date modified: 11/27/2006 11:55 AM Date created: 11/27/2006 12:17 PM Bitmap Image Dimensions: 1024 x 768 Size: 2.25 MB 9 Detailed Information Window

1 Address Display Line Shows the location of the currently selected folder or file.
2 Move Button	You can move to the previous or next page by clicking the Back or Next buttons.Opens the previously opened page Opens the next page, when you have returned to a previous page.
3 Toolbar Provides icons to quickly run frequently used functions.
4 Search Window	You can view the drive structure and the currently opened window location.You can move directly to a folder by clicking the folder in the Search window.
5 Window Button	Used to resize the window.Minimizes the window.Maximizes the window.Closes the window.
6 Search Box	You can search for files by specifying the text included in the filename or within the file or file attributes.
7 Sort Order Used to change the sort order of the files.
8 Folder / File The drives, folders and files included on the computer are displayed here.
9 Detailed Information Window Shows the general information of the selected file.

- What is a drive?

A storage device on which files and folders are saved to and read from.

● What is a folder?

A folder is used to systematically group and manage files, and may include files in sub-folders. It is similar to a filing cabinet.

● What is a file?

A file is a document or various kinds of information generated as a result of a program operation. This is also called data.

Window View Functions

• If you have set up the Aero function, you can use the window view functions.
• If you want to use the Aero function, click Start > Control Panel > Appearance and Personalization > Window Color and Appearance. Select Enable Transparency and Click OK. If Appearance Settings window appears, select Windows Aero from the color scheme and click OK.

- Preview

If you move the mouse pointer over a window button on the Taskbar, you can preview the contents of the window without opening it.

Computer

- Switching between Windows

This function arranges multiple windows in 3D so that users can easily view the windows.

Press the Windows logo + Tab keys or click on Switch Windows at the bottom left of the Desktop, and the windows are displayed in 3D.

Computer desktop with icons for Start menu, Windows, and application icons (no readable text or symbols)

Screenshot of a Windows desktop with multiple open applications and a 'SAMSUNG' logo visible on the wall.

Control Panel

Tools for configuring Windows are located in the Control Panel.

Opening the Control Panel

Click Start

ontrol Panel.

Control Panel Home Classic View System and Maintenance Get started with Windows Back up your computer Security Check for updates Check this computer's security status Allow a program through Windows Firewall Network and Internet Connect to the Internet View network status and tasks Set up file sharing Hardware and Sound Play CDs or other media automatically Printer Mouse Programs Uninstall a program Change startup programs Mobile PC Change battery settings Adjust commonly used mobility settings User Accounts and Family Safety Set up parental controls for any user Add or remove user accounts Appearance and Personalization Change desktop background Customize colors Adjust screen resolution Clock, Language, and Region Change keyboards or other input methods Change display language Ease of Access Let Windows suggest settings Optimize visual display Additional Options Recent Tasks Add or remove user accounts Customize colors

System and Maintenance		Using this function, you can configure Windows performance options.
Security		Using this function, you can check the current security status to protect the computer and configure the security settings for the firewall, spyware, etc.
Network and Internet		Using this function, you can check the network status and configure the settings.You can change the Internet connection settings.
Hardware and Sound		Using this function, you can add a printer and other hardware, change the settings, and update the device drivers.
Programs		Using this function, you can remove a program or Windows function and download a new program from the internet.
Mobile PC		You can set up the mobility, power option and personal settings for your mobile PC. You can also synchronize your mobile PC with another portable device or network folder.

Control Panel Home Classic View System and Maintenance Get started with Windows Back up your computer Security Check for updates Check this computer's security status Allow a program through Windows Firewall Network and Internet Connect to the Internet View network status and tasks Set up file sharing Hardware and Sound Play CDs or other media automatically Printer Mouse Programs Uninstall a program Change startup programs Mobile PC Change battery settings Adjust commonly used mobility settings User Accounts and Family Safety Set up parental controls for any user Add or remove user accounts Appearance and Personalization Change desktop background Customize colors Adjust screen resolution Clock, Language, and Region Change keyboards or other input methods Change display language Ease of Access Let Windows suggest settings Optimize visual display Additional Options Recent Tasks Add or remove user accounts Customer colors

User Accounts and Family Safety		You can change the user account settings, passwords and configure the Parental Controls function.
Appearance and Personalize		Using this function, you can configure the Desktop style, theme or screen saver settings.
Clock, Language, and Region		Using this function, you can configure the date, time, language and regional settings.
Ease of Access		Using this function, you can select options for hearing and sight impaired persons as well as for challenged persons. You can configure the audio recognition settings.
Additional Options		Using this function, you can configure other Control Panel item settings.

User Accounts

Using Windows Vista User Accounts, more than one user can easily share the same PC.

The procedures to add and delete a user account and to switch users are described below.

Adding User Accounts

1 Click Start >Control Panel> User Accounts and Family Safety.
2 Click User Accounts > Manage another account.
3 Click Create a new account.
4 Enter a new username and select either Standard User or Administrator.

5 Click Create a new account to add a new account.

Manage Accounts ▶ Create New Account View Tools Help Name the account and choose an account type This name will appear on the Welcome screen and on the Start menu. SAMSUNG Standard user Standard account users can use most software and change system settings that do not affect other users or the security of the computer. Administrator Administrators have complete access to the computer and can make any desired changes. To help make the computer more secure, administrators are asked to provide their password or confirmation before making changes that affect other users. We recommend that you protect every account with a strong password. Why is a standard account recommended? Create Account Cancel

Removing User Accounts

• If there is only one administrator account for the computer, you cannot delete the administrator account.
• You can only delete another account when you are logged in as an administrator.

1 Click Start > Control Panel > User Accounts and Family Safety > User Accounts.

2 Click Manage Another Account.
3 Click on the user account to be deleted.
4 Click Delete the Account in the Make changes to user's account menu.
5 A window appears asking whether you want to save the desktop, documents, favorites, music files, pictures and video folders as new folders on the Desktop before deleting the account.

If you click Delete files, the account and all files belonging to the account are deleted.

If you click Keep files, only the account is deleted and the files belonging to the user are saved on the Desktop.

User Accounts > Manage Accounts > Delete Account View Tools Help Do you want to keep SAMSUNG-M's files? Before you delete SAMSUNG-M's account, Windows can automatically save the contents of SAMSUNG-M's desktop and Documents, Favorites, Music, Pictures and Videos folders to a new folder called "SAMSUNG-M" on your desktop. However, Windows cannot save SAMSUNG-M's e-mail messages and other settings. Delete Files Keep Files Cancel

Switching User Accounts

1 Click Start on the taskbar and select Switch User.

Windows DVD Maker Sound Recorder All Programs Start Search Connect To Control Panel Default Programs Help and Support Switch User Log Off Lock Restart Sleep Shut Down

2 If you click on another username in the start screen, you can login with that user account.

Changing the screen resolution and the color

The resolution refers to the number of pixels displayed on the screen. When increasing the resolution, the items on the Desktop become smaller and more items can be displayed on the screen. The higher the color quality, the more colors are displayed on the screen.

1 Click Start > Control Panel > Appearance and Personalization > Personalization > Display Settings. Alternatively, right-click on the Desktop and select Personalization > Display Settings from the pop-up menu.
2 The Display Settings screen appears. Change the resolution and color settings and click the OK button.

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 2 XXXXXXX This is my main monitor Extend the desktop onto this monitor Resolution Low High Colors: Highest (32 bit) 1024 by 768 pixels How do I get the best display? Advanced Settings... OK Cancel Apply You can check the graphics chipset. To change the resolution, slide the resolution sliding bar to a particular resolution. To change the color quality, click this button and select a particular quality.

The following resolutions and color qualities are recommended according to the computer LCD panel type.

LCD Type Resolution Color Quality
WXGA 1280 x 800 Very High (32bit)

Configuring the Start Menu Power Button

The Power button on the Start menu performs various operations depending on the settings.

1 Click Start > Control Panel > Hardware and Sound > Power Options and then Change Battery Settings.

Control Panel > Hardware and Sound > File Edit View Tools Help Control Panel Home System and Maintenance Security Network and Internet Hardware and Sound Programs User Accounts and Family Safety Appearance and Personization Clock, Language, and Region Ease of Access Additional Options Classic View Printers Add a printer | Change default printer | Remove a printer AutoPlay Change default settings for media or devices | Play CDs or Sound Adjust system volume | Change system sounds | Manage Mouse Change button settings | Change pointer appearance Power Options Change power-saving settings Change what the power be Require a password when the computer wakes | Change w

2 Click on Change Plan Settings in the currently selected power setting.

3 Click on Change Advanced Power Settings and open Start Menu Power Button in the Power Buttons and Lid item.

Power Options Advanced settings Select the power plan that you want to customize, and then choose settings that reflect how you want your computer to manage power. Change settings that are currently unavailable High performance Wireless Adapter Settings Sleep USB settings Power buttons and lid Power button action Sleep button action Start menu power button Setting: Sleep PCI Express Processor power management Restore plan defaults OK Cancel Apply

4 Select a power plan and click the OK button.

Type Description		Power Button Image after Setting Change
Sleep	Sets the computer to enter Sleep mode.The screen and hard disk will be turned off to reduce the power consumption of the overall system.If you press the Power button on the computer, Sleep mode is deactivated and you can start working immediately.
Hibernate	Sets the computer to hibernate.All work is automatically saved, the screen is turned off and the computer makes no noise. If you press the Power button of the computer main body, the work environment is restored and you can start working immediately.
Shut down	Shut down the computer.You have to shut down the computer after closing all programs and opened folders.

● The Power button is set to Sleep mode by default.
- If the computer is set to download Windows updates automatically, the update mark is displayed on the Power button when an update is ready.

If you click this button, the update is installed and the computer is shut down when the update installation is complete.

Phishing Filter

Phishing is a method used by hackers to illegally collect personal information such as credit card numbers, passwords, other account numbers, etc. through emails or websites.

The Phishing Filter protects users from these phishing attempts.

If the current page is judged to be a suspicious website, the Phishing Filter displays a warning message with an alarm when the Phishing Filter is enabled. In addition, if a page that the user is currently trying to open is registered as a known Phishing website list, it displays a warning page instead.

Phishing Filter Settings

1 Launch Internet Explorer.

2 Select Tools from the menu and click Phishing Filter > Phishing Filter Settings.

Internet Explorer cannot display the webpage - Windows Internet Explorer http://go.microsoft.com/twlink/?LinkId=76277 File Edit View Favorites Tools Help Delete Browsing History... Diagnose Connection Problems... Pop-up Blocker Phishing Filter Manage Add-ons Subscribe to this Feed... Feed Discovery Windows Update Internet Options Check This Website Turn Off Automatic Website Checking... Report This Website Phishing Filter Settings Internet Exp Most likely cause You are The web There mix What you can try... Diagnose Connection Problems More information

2 The Internet Options window opens.

Locate the Phishing Filter item in the Settings field. Select Turn on automatic website checking and click the OK button to use the Phishing Filter.

Internet Options General Security Privacy Content Connections Programs Advanced Settings ✓ Check for server certificate revocation* ✓ Check for signatures on downloaded programs ☐ Do not save encrypted pages to disk ☐ Empty Temporary Internet Files folder when browser is clc ✓ Enable Integrated Windows Authentication* ☐ Enable memory protection to help mitigate online attacks ✓ Enable native XMLHTTP support Phishing Filter ○ Disable Phishing Filter ○ Turn off automatic website checking ● Turn on automatic website checking ☐ Use SSL 2.0 ☐ Use SSL 3.0 ☐ Use TLS 1.0 *Takes effect after you restart Internet Explorer Restore advanced settings Reset Internet Explorer settings Deletes all temporary files, disables browser add-ons, and resets all the changed settings. Reset... You should only use this if your browser is in an unusable state. OK Cancel Apply

4 To not use the Phishing Filter, select Turn off automatic website checking in the Settings field in Step 3 above.

User control function

Using this function, you can control the content your children can access. You can determine for how long they can use the computer and the content they can access. When you have finished the settings, click OK to finish.

Configuring Parental Controls

1 Click Start > Control Panel > User Accounts and Family Safety > Parental Controls.
2 Select a user to configure the Parental Controls for. The User Controls window for that user opens.
3 Click Parental Controls > Use and configure the necessary settings in the Windows Settings at the bottom. If you click OK, the Parental Controls setting is completed.

Set up how Children will use the computer Parental Controls: On, enforce current settings Off Activity Reporting: On, collect information about computer usage Off Windows Settings Windows Vista Web Filter Control allowed websites, downloads, and other use Time limits Control when Children uses the computer Games Control games by rating, content, or title Allow and block specific programs Allow and block any programs on your computer Current Settings: Children Standard user Password protected View activity reports Web Restrictions Medium Time Limits Off Game Ratings Off Program Limits Off OK

Using Activity Report

You can view and evaluate your children's internet access through the Activity Report.

1 Open the User Controls window referring to the descriptions of Parental Controls.
2 Set Activity Reporting to On.

Set up how Children will use the computer Parental Controls: On, enforce current settings Off Activity Reporting: On, collect information about computer usage Off Windows Settings Windows Vista Web Filter Control allowed websites, downloads, and other use Time limits Control when Children uses the computer Games Control games by rating, content, or title Allow and block specific programs Allow and block any programs on your computer Current Settings: Children Standard user Passive protected View activity reports Web Restrictions: Medium Time Limits: Off Game Ratings: Off Program Limits: Off OK

3 To view the Activity Report, click on View Activity Report on the right of the User Controls window.
4 If you click the View Activity Report, the following window opens displaying a computer operating summary.

Parental Controls User Controls Activity Viewer File Edit View Tools Help Generate Report Children Account Activity SAMSUNG-M Account Activity General System Summary of Computer Activity for Children from 11/20/2006 - 11/27/2006 Activity Reporting is On Web Browsing Top 10 Websites Visited 1. 6. 2. 7. 3. 8. 4. 9. 5. 10. Most Recent 10 Websites Blocked 1. 6. 2. 7. 3. 8. 4. 9. 5. 10. Web Overrides none File Downloads none File Downloads Blocked none

Windows Mobile Center

Using Windows Mobile Center, you can easily configure computer settings such as the volume, the wireless network connection settings, the display settings, etc. all at the same time.

Some functions may not be supported depending on the Windows Vista version.

1 Click Start > All Programs > Accessories > Windows Mobile Center. Alternatively, click Start > Control Panel > Mobile PC > Windows Mobile Center.

Windows Mobility Centers Volume Control Volume Volume Not presenting Turn on Presentation Settings 45% available (plugged charging) Balanced Battery Status No display connected Connect display External Display Sync settings No sync partnerships Sync settings Battery Status Settings Display Connection Settings Customized by SAMSUNG Auto Dimming On Battery Only Turn off Easy Battery Manager Current Location (House) House Easy Network Manager Easy Network Manager Window

2 Configure the volume, the battery status, the external display, the Sync center, etc. according to your requirements.

• Configurable items may differ depending on the installed Windows Vista version or programs.
• If Easy Network Manager program is installed, you can see Easy Network Manager window.
• If you turn the wireless LAN off in the Mobile Center, this is not reflected by the wireless LAN LED.

Illustration of a yellow laptop with a white computer mouse beside it (no text or symbols)

Chapter 4.

Using the Network

Wired Network 105

Wireless Network 108

Connecting to a Wireless LAN 109

Using the Easy Network Manager (Optional) 110

Network Settings 110

Using in Another Location 112

Diagnosing the Network Status 113

Connecting with a Modem (Optional) 114

Bluetooth (Optional) 115

Bluetooth Function 115

Using Bluetooth 116

Wired Network

A wired network is a network environment used for a company network or broadband internet connection at home.

Before You Start!

You can also configure the network settings using the Easy Network Manager. ☐10

1 Connect a LAN cable to the computer's LAN port.

Diagram showing a laptop connected to an Ethernet port with an icon indicating connection point and cable connection.

2 Click Start > Control Panel > Network and Internet > Network and Sharing Center.

3 Click Manage Network Connections from the left pane.

4 Right-click over the Local Area Connection and select Properties.

Network and Internet ▶ Network Connections ▶ File Edit View Tools Advanced Help Organize ▼ Views ▼ Disable this network device ▶ Diagnose this connec Name Status Device Name Connectivity Network Category Ow LAN or High-Speed Internet (1) Local Area Connection Network cable unplugged Intel(R) PRO/100 Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties

The LAN Device name may differ depending on your computer's Network Device.

5 Select Internet Protocol Version 4 (TCP/IPv4) from the Networking tab and click Properties.

Local Area Connection Properties Networking Connect using: XXXXXXXXXXXXX Configure... This connection uses the following items: ✓ Client for Microsoft Networks ✓ QoS Packet Scheduler ✓ File and Printer Sharing for Microsoft Networks ✓ Internet Protocol Version 6 (TCP/IPv6) ✓ Internet Protocol Version 4 (TCP/IPv4) ✓ Link-Layer Topology Discovery Mapper I/O Driver ✓ Link-Layer Topology Discovery Responder Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

• The LAN device driver may differ depending on your LAN device model.
• To add a network component, click Install in the screen shown in the figure above. You can add clients, services, and protocols.

6 Configure the IP settings. When using DHCP, select Obtain an IP address automatically. To use a static IP address, select Use the following IP address, and set the IP address manually.

Internet Protocol Version 4 (TCP/IPv4) Properties General Alternate Configuration You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: . Subnet mask: . Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Advanced... OK Cancel

When not using DHCP, ask your network administrator for the IP address.

7 When you have completed the settings, click the OK button. The network settings have been completed.

Using both DHCP and a fixed IP simultaneously

Using the Alternate Configuration providing by Windows Vista, you can set both automatic and fixed IP addresses and then you can select to use either of them to connect to the Internet.

1 Click Start > Control Panel > Network and Internet > Network and Sharing Center and click Manage Network Connections in the left pane.
2 Right-click over the Local Area Connection and select Properties.
3 Select Internet Protocol Version 4 (TCP/IPv4) from the Networking tab and select Properties.

4 Select the Alternate Configuration tab, select User configured and fill in the corresponding fields.

Internet Protocol Version 4 (TCP/IPv4) Properties General Alternate Configuration If this computer is used on more than one network, enter the alternate IP settings below. Automatic private IP address User configured IP address: . . . . Subnet mask: . . . . Default gateway: . . . . Preferred DNS server: . . . . Alternate DNS server: . . . . Preferred WINS server: . . . . Alternate WINS server: . . . . OK Cancel

5 When you have completed the settings, click the OK button.

Wireless Network

A wireless network (Wireless LAN) environment is a network environment that enables communicating between multiple computers at home or a small-size office through wireless LAN devices.

Before You Start!

- The descriptions below are for computer models with a Wireless LAN card or device. You can also configure the wireless network settings using the Easy Network Manager. 10 A Wireless LAN device is optional. To view the installed wireless LAN card, click Start > Control Panel > Hardware and Sound > Device Manager > Network Adapter and click the + symbol.

The pictures in this manual may differ from the actual product depending on your wireless LAN device model.

- To use the wireless LAN, you have to turn the wireless LAN on first by pressing the Fn + F9 keys. If the wireless LAN is turned on, the Wireless LAN LED is lit.

Wireless LAN Connections

Wireless network connections can be classified into 3 categories and this manual describes the connection procedures for connecting through an AP.

- Access Point (AP)

You can connect to the Internet or another computer on the network through an AP.

What is an Access Point (AP)?

An AP is a network device that bridges wired and wireless LANs, and corresponds to a wireless hub in a wired network. You can connect multiple wireless LAN installed computers to an AP.

● Wireless Ad-Hoc Network Type

This connects computers with wireless LAN communications capability.

Communication is enabled by constructing an Ad-Hoc network via one computer and connecting another computer through a wireless connection.

For more detailed connection procedures, refer to the descriptions that appear when selecting Start > Help and Support > Table of Contents > Networking-connecting computers and devices > Setting up a network > Setting up a computer-to-computer (ad hoc) network.

When you use Ad-Hoc, you have to change the McAfee Firewall settings. ☐225

Connecting to a Wireless LAN

If there is an AP, you can connect to the Internet via the AP using the Wireless LAN connection method provided by Windows Vista.

1 Right-click over the Network Connections icon on the taskbar and click Connect to the Network.

Connect to a network Turn on activity animation Turn off notification of new networks Diagnose and repair Network and Sharing Center

2 Select an AP to connect to and click Connect. If there is a configured network key for the AP to connect to, the Enter Network Key window appears. Enter the network key in the window and then click the Connect button.

Connect to a network Disconnect or connect to another network Show All R4_COM_18F Security-enabled network SamsungWLAN Unsecured network COM-AV-RG2000-G60... Security-enabled network Set up a connection or network Open Network and Sharing Center Connect Cancel

Ask your network administrator for the network key, if necessary.

3 When Connected to the AP is displayed, click the Close button. You can access the network.

Checking the network connection status

Move the mouse pointer over the Wireless Network Connection icon on the taskbar, and the connection status is displayed.

Currently connected to: COM-AV-SWL3300-B24 Access: Local only 10:07

Using the Easy Network Manager (Optional)

Easy Network Manager is a program that helps configure the network settings.

Easy Network Manager provides the following features.

• You can easily configure the network and printer settings. 10\~111
• You can immediately use the network without having to define new network settings again after moving to another location. 12
  By configuring the network settings (IP address, printer settings, etc.) for each location, you can immediately access the network without following the network setting procedures each time regardless of your location.

- You can diagnose the network status. 13

Network Settings

This section describes the procedures to connect to the Internet by setting up a network. The setting up procedures include procedures to add a printer to the network.

1 To use a wired LAN, connect the LAN cable to the LAN port. To use the wireless LAN, you have to turn the wireless LAN on first by pressing the Fn + ^f9 keys. If the wireless LAN is turned on, the Wireless LAN LED lights up.

2 Click Start > All Programs > Samsung > Easy Network Manager > Easy Network Manager.

3 Click the Add button.

4 Select a network location icon and enter the name of the location (e.g. Home). Click the Next button.

Add Location 1. Select the icon and location name Select the icon and enter the location name House Library Office Cafe Conference School Organis Location Name House Back Next Cancel

5 Select Direct Connection and click the Next button.

Add Location 2. Select the Internet connection type Direct Connection Sharing Server Sharing Client Connects to the Internet directly through a wired or wireless computer connection. Back Next Cancel

6 Select the LAN device, setup the IP address and click the Next button.

Add Location 3. Select the device whose IP address is to be changed Enter an IP after selecting the device Device Name Wireless: Inte(R) Wireless Wi-Fi Link 5300 Receive an IP Address Automatically IP Address 0 0 0 0 Gateway 0 0 0 0 Subnet Mask 0 0 0 0 Preferred DNS Advanced Back Next Cancel Select Device Select a device to be connected to the Internet. Select either Wired LAN or Wireless LAN. IP Settings To use a static IP address, fill in the fields. For the IP address information, ask your network administrator.

Obtain an IP address automatically

Select DHCP to use this option (automatic IP setting).

7 Click Add Printer and set up a printer according to the wizard.

When the printer has been added, click the Refresh button, select the newly added printer and then click the Finish button.

To not add a printer, click the Finish button.

8 When the network settings are complete, the Do you want to move to the newly added location now? message appears. Click the Cancel button.

An icon for the added location is created. The network settings have been completed.

If you select OK, the network settings for the added location are applied.

ENM Do you want to move to the added location right now? OK Cancel

To add a new location, repeat the procedures from Step 3 above.

Using in Another Location

By configuring the network settings (IP address, printer setting, etc.) for each location, you can immediately access the network in one click, without performing the network setting procedures regardless of your location.

1 Click Start > All Programs > Samsung > Easy Network Manager > Easy Network Manager when connected to the Internet.

2 Select an icon that represents the corresponding location from the Saved Locations window and then click Move.

3 If the Internet connection is a wired LAN, you can immediately load the settings for the new location and the corresponding network connection information is displayed in the Current Location Information window.

To connect to a wireless LAN, select the AP Setting from the menu. The available APs are represented as icons. If you double-click an AP icon to connect to, the computer is connected to the AP through the wireless LAN and you are moved to the corresponding location.

Click the AP Setting menu item at the top of the screen and double-click one of the available APs.

Easy Network Manager printer... PRT-EDU... Available AP Icon PC Icon

• The closer to the PC icon at the bottom of the screen, the stronger the signal from the AP is, while the further from the icon, the weaker the signal strength is.
• If a network key is required, request the key from your network administrator.

Diagnosing the Network Status

You can diagnose the network state and find solutions for why you cannot connect to the network.

1 Launch Easy Network Manager.

2 Select Diagnosis from the menu.

Easy Network Manager AutoMove AP Setting Diagnosis Help Connected Device: None Connected Status: Disconnected Add Location 1. Select the icon and location name Select the icon and enter the location name House Library Office Cafe Conference School Organic Location Name: House Back Next Cancel

3 The Network Connections window appears. Click Start to start the network diagnosis.

4 When the diagnosis is complete, a device with a problem is marked by a X mark icon with a description of the problem at the bottom of the window.

Connecting with a Modem (Optional)

The procedures to connect to the Internet via a phone connection are described below.

Before You Start!

• To connect to the Internet, you have to subscribe to an Internet connection service of an Internet service provider (ISP).
• A modem port is optional and provided for some models only.

1 Connect the phone cable to the Modem port.

Take care to not connect a digital phone line to the modem port.

Diagram showing connection between a power outlet and a Samsung laptop, with labeled components and connection arrows.

2 Connect to the Internet according to the instructions of your Internet service provider (ISP).

If the Internet connection is terminated abnormally, the connection is not released and the corresponding cost can be accrued.

Bluetooth (Optional)

Bluetooth is wireless communications technology that allows access to nearby devices such as another computer, a cell phone, printer, keyboard, mouse, etc. without a cable connection. Using Bluetooth, you can exchange files, connect to the Internet, and construct a private network as well as communicate with a keyboard, mouse, printer, etc. without a cable connection.

Before You Start!

• The Bluetooth supporting function is only available between devices (a computer, cell phone, PDA, printer, etc.) and the connection may be restricted according to the profile of the corresponding device.
• The Bluetooth function is optional and may not be supported depending on your model.
• Compatibility to devices without the authentication or logo of Bluetooth is not guaranteed.

Bluetooth Function

File Transmission	[Y3A2]	You can exchange files between two Bluetooth devices.You can exchange files with another Bluetooth device such as another computer, cell phone, PDA, etc.
Network Access		You can connect to another Bluetooth-installed computer in the same way as an Ad-Hoc mode in wireless LAN and connect to the network via an AP or an Internet connection sharing server.
Network Access through a Phone Connection		You can connect to the network via a Bluetooth cell phone.
Data Sync (Synchronization)	[D506]	You can synchronize PIMS data (Outlook E-mail address data) with Bluetooth devices such as a cell phone, PDA, another notebook computer, etc.
Electronic Business Card (Vcard) Exchange	[4XZ3]	You can exchange business cards with Bluetooth devices such as a cell phone, PDA, another notebook computer, etc.
Sound Output	[TXXX]	You can output computer sound to another Bluetooth device or vice versa.
HID Connections	[0W84]	You can connect and use Bluetooth peripherals such as a keyboard, mouse, joystick, etc.

For more information about using the Bluetooth function, refer to the online help of the Bluetooth Device.

Using Bluetooth

The procedures to exchange files between computers supporting Bluetooth and to use other Bluetooth devices are described below.

Using Bluetooth Devices (Connecting Headset supporting Bluetooth)

As an example, the procedures to connect to a headset supporting Bluetooth will be described below. Searching for Bluetooth devices corresponds to Steps 1 to 4 and may be slightly different depending on the device.

1 To connect to another device via Bluetooth, double-click the Bluetooth icon on the Taskbar.

< Bluetooth 5:10

If the Bluetooth icon does not appear on the Taskbar, click Start > Control Panel > Hardware and Sound > Bluetooth Devices > Options and select the Show the Bluetooth icon in the notification area check box. Click OK.

2 If the Bluetooth Device window appears, click Add.

Bluetooth Devices Share PIM Interface Audio Disup Devices Options COM Ports Hardware Add... Remove Proceeds OK Cancel Apply

3 If the Add Bluetooth Device Wizard screen appears, select the My device is set up and ready to be found and click the Next button.

Add Bluetooth Device Wizard Welcome to the Add Bluetooth Device Wizard Before proceeding, refer to the "Bluetooth" section of the device documentation. Then set up your device so that your computer can find it: - Turn it on - Make it discoverable (visible) - Give it a name (optional) - Press the button on the bottom of the device (keyboards and mice only) ✓ My device is set up and ready to be found! Add only Bluetooth devices that you trust. < Back Next > Cancel

4 When the search is complete, all available Bluetooth devices are listed. Select the Headset from the list and click the Next button.

Add Bluetooth Device Wizard Select the Bluetooth device that you want to add. Phones and modems V600 New device 00:00:48:99:5x25 New device Audio devices SXPantronics New device Computers (workstations, servers, laptops, PDAs) If you don't see the device that you want to add, make sure that it is turned on. Follow the setup instructions that come with the device, and then click Search Again. Search Again < Back Next > Cancel

● A Bluetooth device is represented by the device type and name (Dedicated Bluetooth ID).
- To use the Bluetooth headset, Bluetooth Pairing Mode is required. For the procedures to set up Pairing Mode, refer to the Headset Manual.

5 Enter the PIN in the device PIN field and click the Next button.

Add Bluetooth Device Wizard Do you need a passkey to add your device? To answer this question, refer to the "Bluetooth" section of the documentation that came with your device. If the documentation specifies a passkey, use that one. Choose a passkey for me Use the passkey found in the documentation: 0000 Let me choose my own passkey Don't use a passkey You should always use a passkey, unless your device does not support one. We recommend using a passkey that is 8 to 16 digits long. The longer the passkey, the more secure it will be. < Back Next > Cancel

For pairing, a PIN is required. Since a PIN is provided by the headset manufacturer, refer to the corresponding manual.

6 If the Completing the Add Bluetooth Device Wizard window appears, click Finish.
7 The stereo headset is connected and you can now use the Bluetooth headset normally.

If you cannot hear sound from the headset, you have to check Playback Device setting. Click the Start > Control Panel > Hardware and Sound > Sound and make sure the default Playback Device is set to Bluetooth Headset.

Exchanging Files between Bluetooth Computers

The procedures to exchange files between computers with Bluetooth capability are described below.

1 On the computer which is sending a file (hereafter Computer A), right-click the Bluetooth icon on the taskbar and select File Transfer.

2 Click Browse, select a Bluetooth device to send the file to and click the Next button in the Select Bluetooth Device window.

Bluetooth File Transfer Wizard Select where you want to send the file. Send the file to the computer or device below, or click. Browse to choose a different computer or device. Send to: Boolean note Browse... Use a passkey to ensure that you are sending the file to the correct device. The passkey also protects the file from being viewed by others while it is sent to the other device. ✓ Use a passkey Passkey: 0000 < Back Next > Cancel

3 Select a computer to send the file to and click the OK button.

Select Bluetooth Device Phones and modems nada Now device Anycall New device Audio devices 590Plantronics Already connected Computers (workstations, servers, laptops, PDAs) SAMSUNG Now device Bosun-note New device If you don't see the device that you want to add, make sure that it is turned on. Follow the setup instructions that came with the device, and then click Search Again. Search Again OK Cancel

4 Enter a PIN in the Bluetooth PIN Code field and click the Next button.

The Bluetooth PIN Code is a password used for connecting two Bluetooth devices. The user just enters the same PIN Code (E.g. same numbers) on both Bluetooth devices to make the connection.

5 Click Browse, specify a file to be sent and click Next button in the Select File to be Sent screen.

6 When the PIN input window appears on the computer to receive the file, enter the PIN from Step 5.

7 When the FTP file access privilege request for the file reception notification window appears, click the notification window. If the Select Access Permission window appears, click the OK button.

Usage Instructions

● Generally, Bluetooth devices deliver stable performance while connected within a 3m(10 ft.) distance.
- For Bluetooth to operate smoothly, use the computer in an open environment with no walls or obstacles in the way.
- You can connect to only one Bluetooth device at a time for a phone connection, data syncing, electronic business card exchange, FAX transmission/reception, sound related functions, and serial port functions.
- It is recommended using only one Bluetooth device at a time as connecting multiple Bluetooth or other wireless devices at the same time may slow or destabilize the Bluetooth connection.
- Data communications via Bluetooth may be poor when the CPU load is at full capacity or there are insufficient system resources.
- The Bluetooth function of a Bluetooth PDA, mobile phone, mouse or keyboard may be turned off. To use them in connection with a Samsung computer supporting Bluetooth, you must check if the Bluetooth function of the device to connect to is turned on.
For the procedures on turning on the Bluetooth function of a device, refer to the relevant device manual.
- The services provided by Bluetooth devices may vary depending on their capabilities. For the services provided by the Bluetooth device, refer to the device manual.

Illustration of a laptop computer with a white mouse beside it (no text or symbols)

Chapter 5.

Using Applications

Introducing Programs 121

CyberLink DVD Suite (Optional) 124

Play AVStation (Optional) 127

Launching and Screen Layouts 127

Movie Station 128

Music Station 132

Photo Station 136

Play Camera (Optional) 140

Samsung Update Plus (Optional) 141

McAfee SecurityCenter (Optional) 143

Installing McAfee 143

Using McAfee 144

Using Samsung Magic Doctor (Optional) 147

OmniPass (Fingerprint Identification, Integrated Password Authentication, Optional) 149

TPM (Trusted Platform Module, Optional) 156

Before Starting TPM 156

TPM Settings 157

Using the TPM Functions 164

Initializing and Reconfiguring the TPM Chip 167

Reinstalling Software 169

Introducing Programs

Using the software supplied with the Samsung computer, you can easily use functions and troubleshoot problems. Try to use the software after learning about the basic use of the software. For detailed information, refer to the help section of the corresponding software.

Before You Start!

Every software program may not be provided depending on your computer model.

In addition, some pictures may differ from actual product depending on the computer model and software version.

Promotional image for CyberLink BIRD Suite software, featuring open boxes and product packaging with Chinese text labels.

Multi Media Functions

- CyberLink DVD Suite (Optional)

Using this program, you can use multimedia functions such as playing a DVD, burning a DVD/CD etc.

The CyberLink DVD Suite program is provided via the system software media (or additional CD-ROM). ☐124

- Play Camera (Optional)

Using this program, you can directly take pictures and record video on the computer. ☐140

● Play AVStation (Optional)

Play AVStation is an integrated multimedia program that enables users to enjoy better quality music, photographs, videos, movies, etc. all with a single program. ☐127

Management Functions

● Samsung Update Plus (Optional)

Samsung Update Plus is a software function that examines and updates the Samsung software and drivers installed on your Samsung computer to the most recent versions. ☐141

● McAfee SecurityCenter (Optional)

This is a security solution that detects and removes computer viruses and protects the computer from Internet threats. 143

- Easy Network Manager (Optional)

Easy Network Manager is a program that enables you to easily configure the network settings.

You can configure the network settings for each location and you can also diagnose the network status. 目110

- Easy Battery Manager (Optional)

Easy Battery Manager is a power management program that provides easy-to-use power management and power saving settings so that the battery usage time can be extended. ☐185

● Easy Display Manager (Optional)

Easy Display Manager is a program that displays the changed setting on the screen when a setting is changed by pressing the shortcut keys, and enables changing the display mode through the Display Settings window.

Example) The icon that appears when pressing the Fn + keys to change the screen brightness.

● Easy SpeedUP Manager (Optional)

This program enables you to select operation mode when you need maximum system performance or low-noise/low power consumption with one-click. ☐52

- OmniPass (Fingerprint Identification, Integrated Password Authentication, Optional)

OmniPass is fingerprint identification software. You can register your fingerprint and use it by placing your finger on the fingerprint identification sensor instead of using a password. You can turn the computer on, login to Windows and encrypt a file, all using your fingerprint. ☐149

- TPM (Trusted Platform Module, Optional)

TPM (Trusted Platform Module) is a powerful hardware-based security solution that protects important authentication information such as user passwords from malicious users.

If TPM is used with the TPM program, it protects your personal information such as e-mails as well as protecting your system from unauthorized access attempts by malicious users. ☐156

Troubleshooting Functions

● SAMSUNG Magic Doctor (Optional)

SAMSUNG Magic Doctor is troubleshooting software provided by Samsung Computer for system diagnosis, and restoring the system.

The system diagnosis function enables users to diagnose system problems without assistance from others.

CyberLink DVD Suite (Optional)

The CyberLink DVD Suite provides you with multimedia functions such as playing a DVD, burning a DVD/CD etc.

Before You Start!

For some models, only the DVD Movie Player function is installed from among the functions of the CyberLink DVD Suite. To use other functions such as recording data (burning a disk), please install the additional software on the system software media (or additional CD-ROM).

● The CyberLink DVD Suite program is optional and may not be provided for some models.
● The screen display may differ depending on the program version and inserted disk type.

Playing a DVD

1 Insert a DVD title into the DVD drive.
2 Select PowerDVD and click the OK button. After a moment, the DVD title will play.

AutoPlay DVD RW Drive (E:) FELLOWSHIP_EXT_D1 Always do this for DVD movies: DVD movie options Play DVD movie using Windows Media Player Play DVD movie using Windows Media Center Copy Disc or Play Movie using DVD Suite Play DVD Video using PowerDVD General options Open folder to view files using Windows Explorer Set AutoPlay defaults in Control Panel

3 If the DVD title is not automatically played, click Start > All Programs > CyberLink DVD Suite > Power DVD > CyberLink PowerDVD.
4 Then click the Play icon in the control panel of CyberLink PowerDVD to play the DVD title.

CyberLink PowerDVD The No. 1 DVD Experience on the PC v7 CyberLink 0:00:00

Play Undock Player Panel

If you click the Undock Player Panel button, the program control panel transforms as follows.

CyberLink DVD VIDEO 0:00:00 0:00:00

- Detailed Usage

For more detailed usage, click Start > All Programs > Cyberlink DVD Suite > Power DVD > PowerDVD Help.

• DVD Region Code

A DVD title has a region code according to the international specifications so that it can be played only in that specific region. DVD titles with a region code will only play on DVD drives and program for playing with the same region code.

A DVD drive is sold with an empty region code and the region code is set when the user inserts a DVD title into the drive for the first time. Whenever a DVD title is inserted with a region code different from that of the DVD drive, the region code of the DVD drive is automatically changed to the region code of the DVD title.

However, changing the region code of a DVD drive is limited to 5 changes. After that, the region code is permanently fixed to the last region code. If you need to change the region code after changing the code 5 times, contact a service center. Although a service center can help you in this case, you will be charged a service fee.

Using Additional Functions

The Cyberlink DVD Suite provides functions to record data, burn a DVD/CD title, edit videos/photos etc.

1 Click Start > All Programs > CyberLink DVD Suite > CyberLink DVD Suite.

Alternatively, double-click the CyberLink DVD Suite icon on the Desktop.

2 The User Registration screen appears.

Enter your personal information including your last name, first name and e-mail address when connected to the Internet and click the Register Now button.

3 The Cyberlink DVD Suite screen appears.

CyberLink DVD Suite Movie Player Watch a DVD movie Watch with PowerDVD Experience unsurpassed video and audio quality with technologiers that deliver the smoochest, brightest and most natural visuals, combined with exceptional multi-channel audio. SAMSUNG

MenuMenu Functions

Favorites		You can save frequently used menus so that you can use them quickly.
Movie Player		You can play a DVD title.
Data You can rec		ta to a CD or DVD.
Music		You can create an audio/WMA CD or WMA DVD, and rip an audio CD.
Video & Photo		You can create a DVD title, save HDV/DV video, edit video, and record a DVD folder.
Copy & Backup		You can copy DVD/CD data.
Utility		You can create a disk image, save and delete an image and print a label.

For the detailed usage procedures for each of the functions, refer to the help section of the corresponding program.

Play AVStation (Optional)

Play AVStation is an integrated multimedia program that enables users to enjoy music, photographs, video, movies, etc. using a single program.

This section describes the basic usage of Play AVStation.

Before You Start!

● The screens used in this manual may differ from actual screens according to the program version.
- For detailed usage, refer to the program help.
● TV Station is only available for systems supporting the TV function. This computer is not supported.
- Since this program is optional and is provided for some models only, this program may not be installed on your computer. If this program is not installed on your computer, install the program using the System Software Media before using it.

Launching and Screen Layouts

To launch the program, click Start > All Programs > Samsung > Play AVStation > Play AVStation.

Alternatively, double-click the Play AVStation icon on the Desktop.

Menu Movie Music Photo TV Resize Window And Exit Buttons Library Directory Library - All Video - Actor - Recorded TV - List Created by Me - Later Added List DVD / VCD samsung 1 samsung 2 samsung 3 samsung 4 samsung 5 Station Bar

Movie You can play a video (movie) file.

Music You can play a music file or an audio CD.

Photo You can view or edit a photograph (image), and also view the photographs in a SlideShow.

Movie Station

Launch Play AVStation and click on Movie on the Station Bar.

PLAY AVStation Menu Movie Music Photo TV Mini Mode View Movie Library Library All Video Actor Recorded TV List Created by Me Latest Added List DVD /VCD samsung 1 samsung 2 samsung 3 samsung 4 Movie List and Thumbnail Window EDI Button (Enhanced Digital Image Setting) Play Control Buttons Play Highlight Button EDS Button (Enhanced Digital Sound Setting) EDS EDI Capture Button Create Highlight/Chapter Button Volume Control

• What is EDI (Enhanced Digital Image)?

EDI (Enhanced Digital Image) is visual quality enhancement technology developed by Samsung Electronics. You can view clearer and sharper images by enabling the EDI function when watching TV or playing a movie on Play AVStation. To enable the EDI function, click the EDI [EDI] button at the bottom of the TV or Movie Station.

Some TV tuner and graphics cards are not supported by EDI.

• What is EDS (Enhanced Digital Sound)?

EDS (Enhanced Digital Sound) is sound quality enhancement technology developed by Samsung Electronics. You can listen to clearer sound if you enable the EDS function when playing music or movie on Play AVStation. To enable the EDS function, click the EDS button at the bottom of Music or Movie Station.

The procedures to play a movie file registered to the MOVIE Library are described below. For the procedures to register files to the Library, refer to ☐130.

1 Move to Movie Station and double-click All Video in the left menu pane.
2 Double-click a movie file. The file is played.

- Playing a Video File not Registered to the Library

Click Menu > File > Open File, select a movie file to be played and click Open. The selected file is automatically registered to the Library and played.

- Playing a Video File in Full Screen

1. Double-click on the current playback screen.
2. The movie is played in full screen.

In full screen, to view the movie at the default size, double-click on the current playback screen again.

- Capturing the Video Screen

Click on Capture Current Screen below the You can view captured images in the Photo Station > Captured Images folder. Captured images are saved in the C:\Samsung\Play AVStation\Data\Capture folder. You can change the captured image folder by selecting Menu > Tools > Options > Capture.

Adding Videos to the Library

The Movie Library is a library with movie files to be used by Movie Station. The procedures to add movie files saved on the computer to the Library are described below.

You can add files or folders.

As an example, the procedures to add folders are described below.

2 Select a target folder and select Video Files option in the Target File Type field.

3 The movie files found in the selected folder are added to the Library.

The movie files used in Play AVStation are automatically added to the Library.

1 Select Menu > File > Add to Library > Folder.

PLAY AVStation Menu File(F) Edit(E) View(V) Control(C) Tools(T) Open file(O) Add to Library File Information(D) New List(N) Create a new list with the selected items(P) FolderInformation(F) Exit(X) alt + Shift + 1 Alt + F4 File(F) Folder(O) Directory Library + Alt Video + Actor - Recorded TV + List Created by Me - Lapsed Added List DVD / VCD samsung 1 samsung 2 samsung 3 samsung 4 samsung 5

Highlight / Chapter Function

Using the Highlight function, you can watch a highlighted part of a movie such as a sports or news item, etc. Using the Chapter function, you can create chapters for a movie and play the movie from any of the chapters.

The Highlight/Chapter function works on the basis of specific standards depending on the target video. Therefore, the result of the function may differ from the user's intention.

1 Select a movie and click Make Highlight/Chapter at the bottom of the window.

PLAY AVStation Menu Movie Directory Cell Library -All Video -Actor -Recorded TV -Cut Created by Me -Latest Added List DVD /VCD football Home Sign Image / Image

2 Select the movie type (Sports, News, Other). A Highlight / Chapter is created.

3 To watch a highlight, double-click a file made and click the Highlight icon at the bottom right of the current movie file.

PLAY AVSTATION Movie Music Photo TV To the Live Screen Soccer / HighlightPlay 00:00:03 / 00:00:07 011 / 047 HUAAN CHANG

Highlight ON/OFFChapte

4 The highlight is played. If you click on a Chapter thumbnail, the corresponding Chapter is played.

Music Station

Launch Play AVStation and click Music on the Station Bar.

PLAY AVStation Menu Music Movie Photo TV Music Type Directory Object Mood Similar Tracks Music Search Library All Music Artist Album Genre List Created by Me Latest Added List Audio CD Music Library Playlist Window Repeat Setting Repeat All Stairs EDS EQ Play Control Buttons Random Play Setting Highlights Volume Control

Playing an Audio CD

The procedures to play an audio CD are described below.

1 Insert an audio CD into the CD drive.

2 If the AutoPlay window appears, select Play audio CD using Samsung PLAY AVStation.

AutoPlay DVD RW Drive (E:) Audio CD ✓ Always do this for audio CDs: Audio CD options Play audio CD using Windows Media Player Rip music from CD using Windows Media Player Play audio CD using Windows Media Center Play audio CD using Samsung PLAY AVStation General options Open folder to view files using Windows Explorer Set AutoPlay defaults in Control Panel

3 The CD is played.

If a CD is already inserted in the CD/DVD drive, select CD in the Audio CD folder of the Library and double-click the title. The CD is played.

Playing a Music File

If a music file is registered to the Music Library, you can easily play the music file. For the procedures to register tracks to the Library, refer to ☐134.

1 Move to Music Station and double-click on All Music.

2 Double-click a music file. The file is added to the playlist and played.

PLAY AVStation Menu Music Movie Photo TV Directory Subject Mood Similar Mood Time Artist Album Preferences Duration Type 1 Samsung 1 2 Minutes 5 MP3 2. Samsung 2 - Unknown 0'05" Audio CD

Play a Track not registered to the Library

Click Menu > File > Open File, select a music file to be played and click Open. The selected track is registered to the Library and played.

Adding Music Files to the Library

The Music Library is a library with music files used by Music Station. The procedures to add music files saved on the computer to the Library are described below. You can add files, folders.

As an example, the procedures to add a folder are described below.

1 Select Menu > File > Add to Library > Folder.

PLAY AVSTation Menu File(F) Edit(F) View(V) Control(C) Tools(T) Open File(O) Add to Library(A) File Information(I) New List(N) Create a new list with the selected items(P) Folds Information(S) Exit(O) Ctrl+O Ctrl+1 Ctrl+G Ctrl+Shift+1 Alt+H File(F) Folder(D) Type Audio CD

2 Select a target folder and select the Audio File option in the Target File Type.

3 The music files found in the selected folder are added to the Library. The music files are registered.

PLAY AVStation Menu Music Movie Photo TV Directory Subject • Music • Audio Tasks • All Music • Artist • Album • Genre • List Capted by M • United Added Of Audio CD • Music The After Addn Addn Reference 2 Minutes E... MP3 2 Minutes E... MP3 2 Minutes E... MP3 2 Minutes E... MP3

The tracks played in Play AVStation are automatically added to the Library.

Photo Station

Launch Play AVStation and click on Photo on the Station Bar.

PLAY AVStation Menu Photo Category® Similar Photo Similar Page Event Photo Library Library All Image 2006s 10 CoInfused Image List Created by Me Latest Added List Photo List and Thumbnail Window 3 4 5 6 7 8 9 Batch Edit Button SlideShow Button View and Edit Button

Viewing an Image

The procedures to view images registered to the Photo Library individually and via a SlideShow are described below.

For the procedures to register image files to the Library, refer to ☐ 139.

1 Move to Photo Station and double-click on All Images.
2 Double-click on an image. The selected image is displayed in the Preview screen. Press the left and right arrow keys to navigate through the images.

FLJ NAScation Film Photo Slide Show Edit Image Left and Right Arrows Zoom Control

3 Click on To The list Screen to return to the list.

- Viewing an image not registered to the Library

Click Menu > File > Open File, select an image file to view, and click Open.

The selected image file is registered to the Library and displayed in the Preview window.

- Viewing images using the SlideShow function

Click the SlideShow button at the bottom of the Photo Station.

Editing an Image

You can change the shape of an image, edit an image or apply special effects to an image. The image editing functions are described below.

1 Move to Photo Station and double-click on All Images.
2 Click on a folder which includes images, and the images in the folder are displayed.
3 Double-click on an image or click the View and Edit button at the bottom right to switch to the Preview screen.

PLAY AVScation - Vina Photo Directory C:\Agory* Similar Photo Similar Image Event Library All Image -200% *10 *Continued Image *Get Changed By Me *Used Added Of 3 4 5 6 7 8 9 Data View Save and Add

4 If the Preview screen appears, click the Edit button at the bottom left. If the image editor screen appears, edit the image using the Edit tools at the bottom of the window.

Click to save the edited image Click to switch to the Preview screen PLAY AIRStation Menu Photo Music Music TV Original View Edit ToolsImage Edito

Click on Original View to edit the image comparing it to the original.

5 You can save an edited image by clicking the Save or Save As button.
6 Click the Exit Editor button to return to the Preview screen.

Adding Images to the Library

The Photo Library is a library with image files to be used by Photo Station. The procedures to add image files saved on the computer to the Library are described below.

You can add files, add folders.

As an example, the procedures to add folders are described below.

1 Select Menu > File > Add to Library > Folder.

PLAY AVStation File(F) Edit(E) View(V) Control(C) Edit Image Tools(T) Open File(O) Ctrl + O Add to Library Save(S) Ctrl + S Save As(A) Ctrl + Shift + S File Information(I) Ctrl + I New List(N) Ctrl + G Create a new list with the selected items(P) Folder Information(F) Ctrl + Shift + 1 Exit(X) Alt + F4 File(F) Folder(O) Directory Libras - All Image - Captured Image - List Created by Mo - Latest Added List

2 Select a target folder and select the Image File option in the Target File Type field. The image files found in the selected folder are added to the Library.

The image files used in AVStation are automatically added to the Library.

Play Camera (Optional)

Play Camera is a program that enables users to take still pictures or record videos using the camera installed on the computer.

Before You Start!

• The program versions described in this manual are subject to change and the screen images and terms in this manual may differ from actual product.
• For more information on how to use the program, refer to the online help.

• Do not take pictures or record video of someone without their permission.
• Do not take pictures or record video in locations where photography is prohibited.
• Do not take pictures or record video in locations where you could violate another person's privacy.

Click Start > All Programs > Samsung > Play Camera > Play Camera.

Preview Window Window Control and Exit Buttons Play Camera Open Folder Rec Help Snapshot

If you right-click over the Preview window using the Touchpad, you can set up the camera, resolution, device and save folder.

Place an object in front of the camera over the LCD and click the Snapshot or Start Recording button. A still picture is taken or video starts recording.

To stop a video recording, click the Stop Recording button. The recording is stopped.

If you click the Open Save Folder button, you can view your stored pictures and videos.

• You can view a picture by double-clicking it.
• Since you cannot watch recorded videos using the Play Camera, use a video playing program such as Windows Media Player, Cyberlink Power DVD, etc. to watch videos.

Samsung Update Plus (Optional)

Samsung Update Plus is software that examines and updates the Samsung software and drivers installed on your Samsung computer to the optimal version.

Before You Start!

• To check for updates and update your computer using Samsung Update Plus, your computer must be connected to the Internet.
• The update search result may differ depending on your computer model.

Samsung Update Plus does not provide updates for applications installed after purchasing the computer.

To update the software and drivers

1 Select Start > All Programs > Samsung > Samsung Update Plus > Samsung Update Plus.

If this is the first time you are running the program, a window will appear asking you if you agree to the agreement in the window. Click Agree to use this software.

2 If you click on Check for updates, new updates are searched for.

Samsung Update Plus Samsung UpdatePlus Check for updates Change settings View update history Privacy Protection Policy Windows Update Check for updates Samsung Update Plus automatically searches, downloads and installs the most optimal versions of pre-installed Samsung software and drivers for your system. Please click on the [ Check for Updates ] button to begin searching for new updates. Check for updates Most recent check for updates: 2008-09-02 22:26 Updates were installed: 2008-09-02 21:18 You have set Samsung Update Plus to: Everyday, install updates automatically (recommended)

3 If there are available software or driver updates for your computer, the available updates will be listed. Select the required updates from the list and click Install Update to start the update. (The update list on the screen may differ depending on the computer model.)

Samsung Update Plus Samsung UpdatePlus Check for updates Change settings View update history Privacy Protection Policy Update Description Names Version Published SCREENSAVER(1.0.1.0) 1.0.1.0 BIOS 06AF 06AF TOUCHPAD(8.2.5.1) 8.2.5.1 MAGIC DOCTOR(4.0.2.1) 4.0.2.1 Total: 0Updates Install updates Most recent check for updates: 2008-09-02 22:26 Updates were installed: 2008-09-02 21:18 You have set Samsung Update Plus to: Everyday, Install updates automatically (recommended)

Automatic update items display

By default, your computer is configured to automatically check for updates. If there is a new update available, this is notified in the notification area. Click the balloon help icon in the notification area. Here you will be able to find the latest available updates.

New updates are available. Samsung Update Plus has found new updates for your system. Please click here to view the list of new updates.

Updates that must be installed separately.

If you select an update item that must be installed separately, a message appears informing you of this. Follow the instruction message to correctly install it.

McAfee SecurityCenter (Optional)

McAfee SecurityCenter (a virus/spyware detection and protection software that includes a firewall function. Hereafter, referred to as "McAfee") is software that protects your PC from various Internet threats as well as detecting and removing viruses.

Before You Start!

• For more detailed information on the program, refer to the McAfee help.
• You can register McAfee when connected to the Internet.
• McAfee software is optional. It may not be supplied for some models or it may be supplied through the McAfee installation icon. When the installation icon is provided, you have to install the program referring to the Installing McAfee section.
  ● A different anti-virus program may be provided depending on the computer model.

Installing McAfee

For some models, an Install McAfee Web Essentials icon is located on the Desktop. In this case, you can install the McAfee software according to the following procedures and then use the McAfee software.

For some models, a McAfee Security Center icon installed, the installation step is not required.

is located on the Desktop, since the software is already

① Double click the Install McAfee Web Essentials icon on the Desktop.
② The Chain Installer window opens and the installation begins automatically. Please wait for a moment.

Chain Installer Installation may take several minutes. Please wait...

③ When the installation is complete, the Chain Installer window disappears.

Using McAfee

To use McAfee, user registration is required. If a user is not registered, even though virus inspection is supported, your PC will not be completely protected because the virus information will not be updated with the latest information. The procedures to inspect and heal viruses after the user registration will be described below.

User Registration

1 The Program Setup screen appears while booting. Click Next.

If the Program Setup screen does not appear, right-click over the McAfee icon in the Taskbar and then select Product Setup from the pop-up menu.

Open SecurityCenter Updates Scan Quick Links Change Settings Product Setup Verify Subscription Customer Support

2 The End User License Agreement appears. Check if the country has been correctly selected and then click Accept.

3 The Create New McAfee Account item appears. Be sure to fill in all the fields and click Next. The Program Setup Completed window appears.

If you have already registered with McAfee, click Login and enter the registered email address and password to login. The Program Setup Completed window appears.

McAfee® SecurityCenter Current McAfee User If you already have a McAfee account, please log in. Login Create New McAfee Account First Name: Last Name: E-mail Address: Re-enter E-mail Address: Password: Re-enter Password: Back Next

Inspecting and Healing Viruses

The procedures to check if the computer's files or information have been infected by a virus and to heal viruses found by McAfee are described below.

1 Click Start > All Programs > McAfee > McAfeeSecurityCenter.

2 Click the Scan button on the left side of the program. The Scan begins.

At this time, if a virus is found, it is immediately healed during the inspection.

3 If a virus has been found, click View Results. The viruses are listed. Since the corresponding viruses have already been removed, you can use your computer without any concern.

• For possible virus infections (where it is not completely certain), the Detected message appears. In this case, the items will be maintained or deleted depending on your decision.
• To deal with new viruses, please always keep McAfeeSecurityCenter up to date. In general, it is automatically updated when connected to the Internet. Alternatively, you can update it manually by clicking Update Update after connecting to the Internet.

McAfee® SecurityCenter Update Scan Am I Protected? Yes Your computer protection services are enabled and up-to-date. No action is required. Common Tasks Home Lockdown Firewall Restore Firewall Defaults View Recent Events Manage Network Maintain Computer McAfee Virtual Technician My Account Components Installed - McAfee Vibration - McAfee Personal Firewall More... Advanced Menu Computer & Files Attention Internet & Network Attention E-mail & IP1 Attention Parental Controls Attention Click any category on the left to view details. SecurityCenter Information Update Check: No data available Last Scan: No data available Configure About

Configuring the McAfee Firewall

The McAfee Firewall is configured for the product when purchasing the product in order to protect the computer from viruses. However, if the firewall is activated, you may not connect to the network or the Internet properly. In this case, you have to change the settings as follows.

Method 1) When you need to select Allow Access in the Server or Internet Access Request window.

When you connect to a bank, stock market, or gaming website, an access request window appears. In this case, select Allow Access in the window and click OK. Then you can install the program normally or open the page.

Program Requests Internet Access The program requests access to the Internet. You can grant, grant once, grant outbound-only, or block access for this program. McAfee does not recognize this program. Details Program: Location: Tell McAfee about this program. Grant access Grant access once Grant outbound-only access Block access OK

Method 2) When you need to deactivate the Firewall

If you cannot connect to the Internet when using a broadband Internet service, you can connect to the Internal normally if you disable the McAfee Firewall. However, since it may cause a security problem, be careful when doing so.

1 Double-click the McAfee Security Center icon from the Desktop.
② Click the Advanced menu at the bottom left and click Configure > Internet&Network.
③ Turn the Internet&Network at the right to Off, set the Select when to re-enable firewall to Never and then click OK.
④ Click Home in the left menu pane and click Ignore next to the 'Firewall protection is disabled' message.

It is recommended activating the Windows Firewall for your computer's safety when you have disabled the McAfee Firewall. To activate the Windows Firewall, click Start > Control Panel>Security>Turn Windows Firewall on or off> On(recommended) (When your Control Panel is set to the 'Classic View' of Windows Vista or when you are using Windows XP, click Start > Control Panel > Windows Firewall > Change Settings > On(recommended).)

Using Samsung Magic Doctor (Optional)

Magic Doctor is troubleshooting software provided by Samsung Computer. A user can diagnose system problems via one-click or by selecting diagnostic items.

Before You Start!

The screens used in this manual may differ from actual screens according to the program version.

Diagnosing the System

Diagnosing the System is a function to check system connections and diagnose problems affecting to system operation and solve it.

1 Click Start > All Programs > Samsung > Samsung Magic Doctor > Samsung Magic Doctor.
2 Click on Diagnose the System to start diagnosing the system.

Samsung Magic Doctor SAMSUNG MagicDoctor The Samsung Magic Doctor program diagnoses the system and fixes any problems found. To run the program, click the [Diagnose the System] button. Restore the System Diagnose the System Exit System Information CPU, BMO, SIN, RAM HDD

3 When the system diagnosis is completed, the diagnostic result appears.

If problems are found, click the Cure button to correct the problem. Samsung Magic Doctor starts the corrective operations.

Samsung Magic Doctor Problems found by the diagnosis. ✓ Network device disabled. ✓ Firewall has been disabled. ✓ McAfee VirusScan not installed. Select items to be fixed and click the [Cure] button. Restore the System Cure Exit System Information CPU, BIOS, SIN, MAX, HDD Help

Viewing My Computer Information

You can view detailed information about your computer in Samsung Magic Doctor.

Click on the icon in the shape of a monitor at the bottom of the main program screen to view detailed information about the computer.

Samsung Magic Doctor SAMSUNG MagicDoctor The Samsung Magic Doctor program diagnoses the system and fixes any problems found. To run the program, click the [Diagnose the System] button. Restore the System Diagnose the System Exit System Information CPU, BIOS, SIN, RAM, HDD More

System Information System Purchase Date: Unknown CPU: Intel(R) Pentium(R) D CPU 3.00GHz BIOS: Phoenix, E2PL 5/N:123408EN40005 RAM: 2.00 GBytes HDD: (C): 52.43 GBytes (D): 27.60 GBytes * HDD capacity is subject to change because currently being used area by the system is excluded. [Graphics Driver Info] Manufacturer: NVIDIA Version: 7.14.10.9677 Driver Info: NVIDIA GeForce 6200 TurboCache(TM) (Microsoft Corporation - WODM) [Sound Driver Info] Manufacturer: Realtek Version: 6.0.1.5302 Driver Info: Realtek High Definition Audio [Network Driver Info] Manufacturer: Intel Version: 968.0 Driver Info: Intel(R) PRO/1000 PL Network Connection OK

OmniPass

(Fingerprint Identification, Integrated Password Authentication, Optional)

Using the OmniPass program, you can use the following functions.

● Fingerprint Identification Function

You can register your fingerprint and use it instead of a password.

- Integrated Password Authentication Function

You can use your Windows user account information using the Integrated Password Authentication Function. If you register your Windows user account(s) information with the OmniPass program, you can login to Windows or onto websites using a single password.

Before You Start!

The program versions described in this manual are subject to change and the screen images and terms in this manual may differ from actual product.

● This function is applied to some models only.
- The program version described in this manual is subject to change and some functions may not be provided due to restrictions in the program.
- The OmniPass program is already installed on your computer or is provided with your System Software Media (or additional CD) for manual installation.
- For more detailed information on the usage procedures, refer to the Help section in the OmniPass program(Fingerprint Identification, Integrated Password Authentication).

Signing Up

You have to register your fingerprint and Windows user account information as follows to use the fingerprint identification and integrated password authentication functions.

When using the fingerprint identification sensor

Keep your finger clean and dry when touching the sensor. Place your finger over the fingerprint sensor and push gently down.

1

Select Start All Programs > Omnipass > OmniPass Control Center. Turn the computer on and click the Start button in the Omnipass window.

2 Click Run Enrollment Wizard to start the registration.

OmniPass Control Center Action Log Off Current User Switch User Identity Password Wizard... Information Help User Information Current User: samsung Domain: LH-80KSWGZWF32V Version Detail Version: 5.00.17 Build Number: A17910108 Manage Your Passwords Protect Your Files Change Your User Settings Change Your System Settings Run Enroliment Wizard

3 For the integrated password authentication step, complete the following.

Enter the Windows user ID and logon password and click the Next button.

If you do not enter a logon password, the integrated password authentication function will be permitted to anyone; it is therefore recommended entering a logon password.

Creating a user logon password

• Select Start > Control Panel > User Accounts > Create password for user account.
• Enter a password in the New Password field, and re-enter the password in the Confirm New Password field. Click Create Password. A password has been created.

4 The fingerprint registration begins. Select the finger to be registered and click the Next button.
5 Register the fingerprint by placing your finger over the fingerprint identification sensor and placing it down slowly.

Repeat this at least 3 times until the next screen appears automatically.

6 Place the registered finger over the fingerprint identification sensor again and click the Next button.
7 A window appears asking if you want to register an additional fingerprint.

Click No to proceed to the next window.

If you click Yes, Steps 5\~7 are repeated.

8 Proceed with the settings and click the Next button.
9 When the user profile backup instruction window appears, read the contents and click on Backup Now.

Specify a path to save the user profile to and save the name.

When the backup file password window appears, enter a password and click the OK button.

What is a user profile backup?

This is a function for backing up the OmniPass information (fingerprint and user account information) registered on a computer so that the information can be used on another computer. For information on how to use a backed up user profile on another computer, refer to the Help section.

10 Click Done.

Registering information for using the fingerprint identification and integrated password authentication functions has been completed.

Turning the Computer On

This function is applied to some models only.

To use the Turn the computer on function, you have to register your fingerprint first and configure it as follows. When finishing the settings, you can turn the computer on through fingerprint identification or integrated password authentication instead of entering a password.

1 Select Start > All Programs > OmniPass > OmniPass Control Center.
2 Select Change System Settings and then select either Enable or disable pre-boot authentication or Do Not Use Authentication before Boot.
3 Select Enable System Boot Authentication and click the Next button.
4 Enter the Boot Password Setting and click the Next button.
5 Click Finish to complete the Turn the computer on function settings.

When turning the computer on, the following screen appears. Place your finger over the fingerprint identification sensor and then remove it.

To use a booting password instead of fingerprint identification, press the key to display the booting password input screen. Enter the booting password in the screen. Then you can boot up your computer.

- You can attempt the fingerprint identification up to three times. If all the three attempts fail, the computer will automatically shutdown. In this case, turn the computer on again and retry the fingerprint identification or enter the booting password.

- Canceling the Settings

Unselect the System Boot Authentication Available option in Step 3 above, and then configure it according to the instructions that appear on the screen.

Logging onto Windows

1 If you turn the computer on after completing the user information registration step, the Logon Authentication window appears.

● To use the fingerprint identification function

In the Logon User Authentication window, select AuthenTec Fingerprint Device, place your finger over the fingerprint identification sensor and place it down slowly.

Logon User Authentication OmniPass AuthenTec Fingerprint Device

Please swipe your finger on the sensor

If your fingerprint is not recognized, the fingerprint is displayed in red in the fingerprint display window. In this case, place your finger over the fingerprint identification sensor again and push it down slowly until the fingerprint is displayed in green.

● To use the integrated password authentication function

In the Logon Authentication window, select Master Password Authentication. Enter the username and the login password and click the OK button.

Logon User Authentication OmniPass Master Password Authentication

User Name: xxxxxxx Domain: Password: ••••••| Identity: OK ✓

• User Name: User account name
• Password: User account password
• Domain, Identity: These fields are automatically entered.

2 When the fingerprint identification or password authentication is complete, you can logon to Windows.

Encrypting/Decrypting Files

You can encrypt folders and files so that only specified users can open or modify them.

The procedures to encrypt files are described below.

This function is applied to some models only.

1 Select Start >All Programs > OmniPass > OmniPass Control Center > Protect Your Files.

2 Select a folder or file to be encrypted and click Encrypt.

OmniPass > Protect Your Files Action Log Off Current User Switch User Identity Password Wizard... Information Help User Information Current User: Samsung Domains: LH-BDK0WXQWF32V Version Detail Version: S 00.17 Build Numbers: A17510168 Protect Your Files Desktop samsung Public Computer Network Control Panel Recycle Bin samsung Name Size 1 Control Panel $ Recycle Bin $ Adobe Reader 7.0 2KB$ Diskkeys 2KB$ Easy Button Manager 2KB$ Easy Network Manager 2KB$ McAfee Security Center 1KB$ Microsoft Office 160.0... 3KB$ Microsoft Reader 2KB$ Cingami Experience 2KB$ Play AVSstation 1KB$ Samsung Recovery S... 1KB$ Samsung Update Plus 2KB$ Samsung Note: You cannot encrypt system files. Encrypt Decrypt

To decrypt encrypted folders and files

The procedures are the same as those for the encryption process except for selecting Decrypt instead of Encrypt in the figure above.

3 When the file encryption authentication window appears, select AuthenTec Fingerprint Driver, place your finger over the fingerprint identification sensor and push it down slowly. Alternatively, select Integrated Password Authentication and enter the login password.

If your fingerprint is not recognized, the fingerprint is displayed in red in the fingerprint display window. In this case, place your finger over the fingerprint identification sensor again and push it down slowly until the fingerprint is displayed in green.

4 If the fingerprint is recognized, the following window appears.

Click OK to encrypt the file.

OmniPass WARNING: Decrypt all your OmniPass-encrypted files and back them up to a removable media (CD-ROM, USB storage device, etc.) before performing any of the following actions: uninstalling OmniPass. reformatting the hard drive, removing the hard drive, or reinstalling the Operating System. Do not show this warning again OK

Right-click over a folder or file to be encrypted and select OmniPass Encrypt File(s) from the pop-up menu. The selected folder or file will be encrypted.

Logging into Internet Sites

You can easily login to frequently used Internet sites using the fingerprint identification or password authentication functions instead of entering your user ID and password.

As an example, the procedures for logging into the Hotmail site are described below.

The following describes the procedures for registering your user ID and password. Once the user ID and password of a site are registered, you can login to the site automatically.

● This function is applied to some models only.
- This function may not be supported for some Internet sites.

1 Launch Internet Explorer and open the Hotmail site. (http://www.hotmail.com) Enter your user ID and password.
2 Right-click over the icon in the Taskbar and click on Remember Password.
3 When the mouse pointer changes to a yellow key icon, click the login window, but not the Sign in button. If you wait a moment, the mail address and password information are retrieved.

Sign in to your page E-mail address: [e-mail] Password: ••••••••• Forgot your password? Sign in Save my e-mail address and password Save my e-mail address Always ask for my e-mail address and password Sign in using enhanced security Windows Live ID Works with Windows Live, MSN, and Microsoft Passport sites Account Services | Privacy Statement | Terms of Use ©2007 Microsoft Login Window

4 Enter an easy to remember name and click Finish.
5 Thereafter you can login to your registered websites using your fingerprint or password.

① When opening a registered site, the Access Authentication window appears.
② Select AuthenTec Fingerprint Device, place your finger over the fingerprint identification sensor and push it down slowly once. Alternatively, select Integrated Password Authentication and enter the login password.
③ If the fingerprint identification or password authentication is complete, your ID and password are automatically entered and you are logged into the website.

TPM (Trusted Platform Module, Optional)

TPM (Trusted Platform Module) is a powerful hardware-based security solution that protects important authentication information such as user passwords from malicious users. If TPM is used with the TPM program, it protects your personal information such as e-mails as well as protecting your system from unauthorized access attempts by malicious users.

Before You Start!

• The program versions described in this manual are subject to change and the screen images and terms in this manual may differ from actual ones.
• Since this program is optional and is provided for some models only, this program may not be installed on your computer. If this program is not installed on your computer, install the program using the System Software Media before using it.

Before Starting TPM

You can use the following TPM functions.

• File Encryption Function: Using this function, you can protect your files and folders by encrypting them. (The EFS function: Encrypt File System).
• Personal Secure Drive Function: Using this function, you can create a virtual, secure drive so as to safely use important files and folders. (The PSD function: Personal Secure Drive).
• Initializing and Reconfiguring the TPM Chip: Using this function, you can initialize and reconfigure the authentication information saved on the TPM chip.

To use the TPM program, you have to first complete the following steps.

Initializing the Security Platform

Configure the TPM program password, whether to use automatic backup, and the backup location.

Registering a Security Platform User

Select the TPM user password and functions to be used and create an encrypted certificate for the TPM user.

For more detailed procedures on using the TPM program, refer to program Help.

TPM Settings

Initializing the Security Platform

Before using TPM, you have to first initialize the Security Platform. In the Security Platform initialization step, you can select automatic backup and the password reconfiguration function.

1 Click Start > All Programs > Infineon Security Platform Solution > Security Platform Management > User Settings.

(Alternatively double-click the Security Platform icon in the Taskbar.)

2 If a window appears asking whether you want to start The Infineon Security Platform Initialization Wizard, click OK.

In the start screen, click Next.

If the Trusted Platform Module activation screen appears, check TPM State in the BIOS setup and make sure TPM State is set to Enable & Activate. For how to check TPM State in the BIOS setup, refer to the 'Initialzing a TPM chip' section. ☐ 167

3 Select Initialize a new Security Platform and click the Next button.

Infineon Security Platform Initialization Wizard Initialization Initialize or restore Do you want to perform Security Platform initialization or Security Platform restoration from a Backup Archive? ● Security Platform initialization ○ Security Platform restoration from a Backup Archive < Back Next > Cancel Help

4 Enter a password and click the Next button.

Infineon Security Platform Initialization Wizard Create Security Platform Owner Provide Security Platform Owner Password The Security Platform Initialization must be completed before individual users can use Security Platform Features. After finishing this wizard, you will be Security Platform Owner. Access to the Security Platform Owner functions is protected with the Owner Password. Note: You should memorize the Security Platform Owner Password. If you forget this password, you will not be able to perform critical administrative Security Platform tasks. Enter a password between 6 and 25G characters. You can change this password later. Password: Confirm Password: < Back Next > Cancel Help

5 Select the Security Platform features to use and click the Next button.

● Automatic Backup: The Security Platform authentication and settings are saved in the backup file.
- Password Reset: Allows a user password to be reset.

Infineon Security Platform Initialization Wizard Features Choose Security Platform Features Select the Security Platform Features you want to configure and click "Next" to continue. For details on Security Platform Features, click "Help" Security Platform Features Feature Status ✓ Automatic Backup (includes Emergency Recovery) Not configured ✓ Password Prefix Not configured Configuring "Automatic Backup" is strongly recommended. Otherwise encrypted user data could be lost in case of an emergency. < Back Next > Cancel Help

6 Click the Browse button and specify the backup location for Automatic Backup and click the Next button.

Infineon Security Platform Initialization Wizard Backup Set up automatic backup Automatic scheduled backup will save Security Platform credentials and settings to a Backup Archive. Backup location: By default, the backup will be scheduled to run automatically at 12 PM every day. Click "Schedule." I'm visible and modify the backup scheduling. Schedule... You will have an opportunity to run backup immediately on the completion of the wizard. < Back Next > Cancel Help

The screen below appears when you have selected Automatic Backup in Step 5.

7 Click the Browse button and specify the path to save the emergency recovery file to, enter the emergency recovery token password and click the Next button.

An emergency recovery file is used to restore the TPM authentication information when it is damaged by a system error.

Infineon Security Platform Initialization Wizard Emergency Recovery Configure Emergency Recovery Token Emergency Recovery requires a Recovery Token. This Token is protected with a dedicated password. ○ Create a new Recovery Token □ Use existing Recovery Token Bio location: Browse... Recommendation: Save the Emergency Recovery Token on a reasonable medium (e.g. a memory drive) which is kept safely. Enter the token password (6...256 characters) Password: Confirm Password: < Back Next > Cancel Help

Save an emergency recovery file to a hard disk drive. In addition, also make a backup of the emergency recovery file to a removable disk in case of a hard disk error, after completing the user registration.

8 Click the Browse button and specify the path to save the password reset file to, enter a password for resetting the password and click the Next button.

Infineon Security Platform Initialization Wizard Password Reset Configure Password Reset Token Resetting user's password requires a Password Reset Token. This Token is protected with a dedicated password. ● Create a new Token ○ Use an existing Token File location: Browse... Recommendation: Save the Password Reset Token on a removable medium (e.g. a memory drive) which is kept safely. Enter the token password (6 ... 256 characters). Password: Confirm Password: < Back Next > Cancel Help

10 Select the Start Security Platform User Initialization Wizard to proceed to the next step, which is User Registration, and click the Finish button for registering a user.

Infineon Security Platform Initialization Wizard The wizard completed successfully. Summary: Security Platform Owner created. The Security Platform initialization is completed. Security Platform policies can be configured through the Advanced Settings of the Security Platform Settings Tool (not available on Windows Home editions). You have configured the following Security Platform Features: - Automatic Backup (includes Emergency Recovery) - Password Reset. You may start the Security Platform User Initialization Wizard if you intend to use the Security Platform Features yourself. ✓ Start Security Platform User Initialization Wizard ✓ Run automatic backup now < Back Finish Cancel Help

The screen below appears when you have selected Password Reset in Step 5.

9 The operations to be performed appear. Confirm the operations and click the Next button.

Registering a Security Platform User

Register Security Platform users.

In this step, the available TPM functions and the password for each user are configured and an encrypted certificate is created.

To register users who will use the TPM program, this step must be completed for each Windows user account.

1 The User Initialization Wizard screen appears. Click the Next button.

If this screen does not appear, click Start > All Programs > Infineon Security Platform Solution > Security Platform Management > User Settings.

If a window appears asking whether you want to start The User Initialization Wizard, click OK.

2 Enter a password for the TPM program and click the Next button.

Infineon Security Platform User Inebelization Wizard Basic User Password Set your password Please set your Basic User Password. This password will protect your Basic User Key. Password: Confirm Password: Your password has to meet the following requirements: Length: Between 6 and 256 characters. < Back Next > Cancel Help

3 To allow a password reset, select the Enable the resetting of my Basic User Password in case of an emergency option.

Click the Browse button, specify the path to save the password reset file to, enter a password for resetting the password and click the Next button.

Infinion Security Platform User Initialization Wizard Basic User Password Reset Enable the reset functionality for my Basic User Password ✓ Enable the resetting of my Basic User Password in case of an emergency. A Personal Secret is going to be written to a file. Specify the path and file name. Personal Secret location: Browse Please keep this file in a safe location. You will need it, if you have to reset your Basic User Password in case of an emergency. < Back Next > Cancel Help

4 The operations to be performed appear. Confirm the operations and click the Next button.

5 Select the Security Platform Features to use and click the Next button.

- Secure e-mail:

This feature enables only the writer and the recipient to read the email.

- File and folder encryption with Encrypting File System (EFS):

This feature enables encrypting files and folders using EFS.

- File and folder encryption with Personal Secure Drive (PSD):

This feature enables saving important data by creating a virtual drive.

Infineon Security Platform Users Initialization Wizard Security Platform Features Choose Security Platform Features Select the Security Platform Features you want to configure and click "Next" to continue. For details on Security Platform Features click "Help" Security Platform Features Feature Status ✓ Secure email Not detectable ✓ Re and folder encryption with Personal Secure Drive (PSD) Not configured < Back Next > Cancel Help

6 To create an encryption certificate to use the TPM program, click the Select button.

Infineon Security Platform User Initialization Wizard Security Platform Features Encryption Certificates Infineon Security Platform can enhance file and folder encryption by providing additional protection for the key used to encrypt and decrypt data. For more information on Infineon Security Platform enhancements to file and folder encryption, click "Help" File and folder encryption is configured to use the following Certificate. Issued To Issued By Expiration Thumbprint Click "Select" to select another Certificate. Select...< Back Next > Cancel Help

If there are existing certificates, select one and click the Next button. In this case, proceed to Step 10.

7 Click the Create button to create a certificate.

Infineon Security Platform Certificate Selection Show certificates with intended purposes Encspring File System Select the certificate to use from the list below: Issued To Issued By Expiration Date Intended Purposes Captographic Provider View Import Quote... Exhibit... Private Key Coptographic provider Key size: TPM generated key Exploration: String private key projects Select Cancel Help

8 Select a certificate to use and click the Select button.

Infincon Security Platform Certificate Selection Show certificates with intended purpose: Encrypting File System Select the certificate to use from the list below: Issued To Issued By Expiration Date Intended Purposes Cryptographic Provider =Iss Iss 29/04/2018 Encrypting File System Infincon TPM Cryptogr... View Import Crods Request Private Key Cystographic provider: Infincon TPM Cryptographic Provider Key size: 1024 Bits TPM generated key: Yes Exportable: - Strong private key protection: No Select Cancel Help

9 Confirm the certificate to use and click the Next button.

Infinon Security Platform User Ubitalization Wizard Security Platform Features Encryption Certificate Infinon Security Platform can enhance file and folder encryption by providing additional protection for the key used to encrypt and decrypt data. For more information on Infinon Security Platform enhancements to file and folder encryption, click "Help" File and folder encryption is configured to use the following Certificate. Issued To Issued By Expiration Thumbprint so se 29/04/2018 0982767ED77A8CF... Click "Select" to select another Certificate < Back Next > Cancel Help

10 Construct an Infineon Security Platform Personal Secure Drive (PSD). Select a drive in the My PSD will be mapped to drive: field and enter a drive label in the Drive label for my PSD and click the Next button.

Infinon Security Platform User Initialization Wizard Security Platform Features Configure your Infinon Security Platform Personal Secure Drive Your Personal Secure Drive (PSD) provides protected store for sensitive data. It appears as an additional disk on your computer and is not viable to other users. Please move existing files and folders to your PSD to protect them. You will not be able to change the storage space of your PSD after the drive has been created. My Personal Secure Drive will be snapped to drive 0 Drive label for my Personal Secure Drive Personal Secure Drive Load my Personal Secure Drive at logon < Back Next > Cancel Help

The screens for Steps 10 and 11 appear when selecting the File and folder encryption with Personal Secure Drive (PSD) feature.

When this feature is not selected, the screen for Steps 12 or 13 appears.

11 Select the disk space for 'My Personal Secure Drive'. And select a drive to save 'My Personal Secure Drive' to and click the Next button.

Infinan Security Platform User Initialization Wizard Security Platform Features Configure your Infinan Security Platform Personal Secure Drive My Personal Secure Drive will have 400 + ME of storage space Note: Your Personal Secure Drive appears as a single encrypted file on the specified local drive to users who are not authorized to access it. They cannot see any of the subholders or files saved on the Personal Secure Drive. My Personal Secure Drive will be saved on the drive: < Back Next > Cancel Help

12 The operations to be performed appear. Confirm the operations and click the Next button.

13 When the registration is complete, click the Finish button.

Using the TPM Functions

Encrypt File System (EFS) Function

This function encrypts files and folders. Using the EFS (Encrypt File System), you can protect your important data or documents from malicious intruders.

The EFS function is only supported for some operating systems.

1 Select a folder (or file) to encrypt, rightclick it and select Encrypt.

Security Platform 8/7/2008 6:28 PM File Folder Test Folder 8/7/2008 6:37 PM File Folder Users Window BOOTSE RHDSetu setup Open Explore Encrypt Share... Restore previous versions Personal Secure Drive Send To Cut Copy Paste File Folder File Folder AK File ext Document ext Document

2 When the Confirm Attribute Change window appears, select the encryption coverage and click the OK button. (This window only appears when selecting folder encryption.)

Confirm Attribute Changes You have chosen to make the following attribute changes: encrypt Do you want to apply this change to this folder only, or do you want to apply it to all subfolders and files as well? ○ Apply changes to this folder only ● Apply changes to this folder, subfolders and files OK Cancel

If your operating system is Windows Vista, the User Accounts Control window appears. Click Continue.

3 Enter the user password to be entered when register a user for Security Platform user authentication and click the OK button.

Infineon Security Platform User Authentication Copyright © 2003-2007 Infineon Technologies AG infineon An application needs access to a presented key. Basic User Password Remember password for all applications OK Cancel Help This calling will automatically be cancelled in 22 seconds

4 You will see the color of the encrypted folder (or file) in the encrypted folder (or file) contents change to green.

Computer > Local Disk (C:) > Test Folder System Favorites Views Slider Show Blue Exclusive Units Documents Features Music Recently Changed Searches Public Test 054 GB 1 item

To cancel encryption

You can also decrypt an encrypted folder (or file) according to the procedures above.

Security Platform 8/7/2006 6:28 PM File Folder Test Folder Users Windows BOOTSECT PHOSetup setup Open Explore Add to Windows Media Player list Play with Windows Media Player Decrypt Share... Restore previous versions Personal Secure Drive

Personal Secure Drive (PSD) Function

The Personal Secure Drive (PSD) function enables users to create and use a virtual disk to save and manage confidential data as if using a normal drive (e.g. drive C:).

To use the PSD function, you have to select `File and folder encryption with Personal Secure Drive (PSD)' in Step 5 `Registering a Security Platform User'. If you did not select the feature in the registration step, click Start > All Programs(or Program) > Infineon Security Platform Solution > Security Platform Management, click Settings in the User Settings tab. Select File and folder encryption with Personal Secure Drive (PSD).

To use the PSD, you have to first load PSD. If you have selected the 'Load my Personal Secure Drive at logon' option in Step 10 'Registering Security Platform User', PSD is automatically loaded. If you did not select the option, you can load PSD as follows.

1 Right-click the Security Platform icon in the Taskbar and select Personal Secure Drive > Load.

2 Enter the user password in the Load window for Security Platform user authentication and click the OK button.

3 Select Start > My Computer(or Start > Computer). Then you can confirm that a Personal Secure Drive has been created.

Personal Secure Drive (O:) 182 MB free of 200 MB Local Disk (D:) 50.9 GB free of 50.9 GB Personal Secure Drive (O:) Local Disk (D:) 50.9 GB free of 50.9 GB Personal Secure Drive (O:) Space used: File system: NTFS Space free: 182 MB Total size: 200 MB

Please note that even if you have copied confidential data to the PSD, the original file is not protected by the PSD.

Initializing and Reconfiguring the TPM Chip

If you have to re-register as a user due to a hard disk drive fault, you can initialize the authentication information saved on the TPM chip and reconfigure it.

When initializing a TPM chip, all authentication information saved on the TPM chip is deleted.

Before initialization, decrypt all encrypted files. If you do not decrypt the files, you will not be able to access the encrypted files after initialization.

Initializing a TPM Chip

1 Prior to initialization, delete the specified folder according to the following procedures.

1 Select the Start > Computer > Configuration > Folder and Search Options > View tab and then select the Hidden files and folders option of the Hidden files and folders item.
② Select Start > Computer and double-click Drive C:.
③ Double-click the Program Data folder and delete the Infineon folder.

2 Restart the system and press the key several times when the Samsung logo appears.
3 When the BIOS screen appears, press the → key to move to the Security menu. Then press the ↓ key to move to the TPM Support item and set it to Enable.

4 Press the → key to move to the TPM State, press the ↓ key to move to the Change TPM State item, and press .
5 Press the ↓ key to move to the Clear item, and press .
6 Press the key. When the Setup Confirmation window appears, select Yes and press .
7 Restart the system and select Execute in the Physical Presence Operations. At this time, to cancel the initialization, select Reject.
8 Press the key. When the Setup Confirmation window appears, select Yes and press .

Reconfiguring the TPM Chip

To re-use an initialized TPM chip, you have to reconfigure it to the available status.

1 Restart the system and press the key several times when the Samsung logo appears.
2 When the BIOS screen appears, press the → key to move to the Security menu.

Then press the ↓ key to move to the TPM Support item and set it to Enable.

3 Press the → key to move to the TPM State, press the ↓ key to move to the Change TPM State item, and press .
4 Press the ↓ key to move to the Enable & Activate item and press .
5 Press the key and if the Setup Confirmation window appears, select Yes and press .
6 The system is restarted. To use the TPM chip, you can initialize the Security Platform.

Reinstalling Software

You can reinstall software using the System Software Media, when a device driver or computer application is not working properly.

Before You Start!

When software is not working properly, it is recommended removing the software using the Add or Remove Programs of the Control Panel and reinstalling the software using the System Software Media.

The System Software Media is supplied as a CD or DVD depending on your computer model.

Running the System Software Media

The System Diagnosis function enables users to diagnose the system connectivity, any system problems and resolve these problems.

1 Insert the System Software Media into the CD drive. If the Auto Play window appears, select Run SoftwareMedia..... in the Install or Run Program field.

2 In the User Account Control window, click Allow.

If you are not logged in with an administrator account, you have to enter an administrator password in the User Account Control window.

3

The System Software Media will launch.

Select an instillation option to start the installation.

System Software Media Samsung System Software Media What is SYSTEM SOFTWARE MEDIA? SYSTEM SOFTWARE MEDIA is a CD/CVD that is provided by Samsung Computers to enable the easy re-installation of drivers and software in case of system crash. Standard Installation Minimum Installation Custom Installation Cancel

Standard Installation	If you select this option, programs not currently installed on the computer are listed.
Minimum Installation	If you select this option, programs are listed that need to be installed on the computer (drivers, Windows updates, etc.).You can conveniently use this option, when you need to install essential programs only.
Custom Installation	If you select this option, you can select the programs to be installed.You can conveniently use this option, when you need to install an individual driver or program that is causing a problem.

Installing Software

As an example, the installation procedures for the Standard Installation options are described below.

1 Select Standard Installation in the System Software Media main screen.

System Software Media Samsung System Software Media What is SYSTEM SOFTWARE MEDIA? SYSTEM SOFTWARE MEDIA is a CD/DVD that is provided by Samsung Computers to enable the easy re-installation of drivers and software in case of system crash. Standard Installation Minimum Installation Custom Installation Cancel

2 If the Start Standard Installation window appears, click the Yes button. The drivers and programs, which were installed in the computer when you purchased the computer, are installed again.
3 The Software installations was completed window appears. If you click Yes, the computer is restarted.

Illustration of a laptop computer with an 'Se' symbol beside it (no text or symbols on the device itself)

Chapter 6.

Settings and Upgrade

LCD Brightness Control 172

BIOS Setup 173

Entering the BIOS Setup 173

The BIOS Setup Screen 175

Setting a Boot Password 177

Changing the Boot Priority 179

Upgrading Memory 180

Battery 182

Installing/Removing the Battery 182

Charging the Battery 183

Measuring the Remaining Battery Charge 184

Extending the Battery Usage Time 185

Using the Security Lock Port

LCD Brightness Control

You can adjust the LCD brightness in 8 levels.

Before You Start!

The LCD brightness is the brightest (Level 8) when the computer is running on AC power, and it becomes dimmer when running on battery power.

Controlling the Brightness Using the Keyboard

Adjust the LCD brightness by pressing the Fn + ↑↓ key or the Fn + ↓↓ key.

The LCD brightness can change up to 8 levels and the brightness increases by 1 level when pressing the Fn + ↑☆ key once.

- Maintaining the changed LCD brightness even after turning the computer on again

To maintain the LCD brightness set by using the brightness control keys or through the Power Options, follow the procedures below.

1. Turn the computer on and press the F2 key when the SAMSUNG logo appears on the screen to enter the BIOS Setup.
2. Select the Boot menu and set the Brightness Mode Control item to User Control.
3. Press the F10 key to save the settings and exit Setup.

- Saving battery power consumption

Decrease the LCD brightness when the computer is running on battery power or select Samsung Optimized in Easy Battery Manager to save battery power consumption.

Easy Battery Manager is optional and may not be supported depending on your model.

● Defective LCD Pixels

An LCD panel may include less than 4 defective pixels due to a limit in the manufacturing process and this does not affect the computer performance. The computer's LCD panel may have the same or similar number of defective pixels as other manufacturer's notebook computers.

Instructions for Cleaning the LCD

Clean the LCD panel with a soft cloth lightly moistened with computer cleansing detergent moving in one direction.

Cleaning the LCD panel with excessive force can damage the LCD.

BIOS Setup

The BIOS Setup enables you to configure your computer hardware according to your needs.

Before You Start!

• Use the BIOS setup to define a boot password, change the booting priority, or add a new device. Since incorrect settings may cause your system to malfunction or crash, take care when configuring the BIOS.
  ● The functions of the BIOS setup are subject to change for product function enhancement purposes.

The BIOS Setup menus and items may differ depending on your computer model.

Entering the BIOS Setup

1 Turn the computer on.
2 When the booting screen (SAMSUNG logo) appears, press the F2 key to enter the BIOS Setup.

SAMSUNG

Press the F12 key while the booting screen(SAMSUNG logo) appears, the system will try to boot from the network.

2 After a moment, the BIOS setup screen appears.

The items in the BIOS setup may differ depending on the product.

Phoenix SecureCore (tm) Setup Utility Main Advanced Security Boot Exit Setup Menu System Time [10:21:53] System Date [07/30/200X] SATA Port 1 XXXXXXXX SATA Port 2 XXXXXXXX CPU Type XXXXXXXX CPU Speed X.XX GHz Total Memory XXX MB Slot1 Memory XXX MB Slot2 Memory Not Installed BIOS Version XXXXXXXX MICOM Version XXXXXXXX Item Specific Help , , or selects field. Setup Items F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Enter Select ▶ Sub-Menu F10 Save and Exit

The BIOS Setup Screen

Phoenix SecureCore (tm) Setup Utility
Main	Advanced	Security	Boot	Exit
System Time	[10:21:53]			Item Specific Help
System Date	[07/30/2008]			, or selects field.
SATA Port 1	XXXXXXXXX
SATA Port 2	XXXXXXXXX

Menu	Description
Main Used to change the basic system and environment settings.
Advanced Used to configure advanced functions on your computer for devices and chipsets.
Security Used to configure security functions, including passwords.
Boot Used to set the boot priority and other boot options
Exit Used to exit the Setup either saving the changes or not.

System Setup Keys

In the Setup, you have to use the keyboard.

F1		Press to view the Setup Help.
Up & Down Keys		Press to move up and down.
F5/F6		Press to change the item value.
F9 Press to load the Setup settings.
ESC Press to return level menu or to move to the Exit menu.
Left & Right Keys		Press to move to another menu.
Enter Press to select to enter a sub menu.
F10 Press to save and exit Setup.

The keyboard image may differ from the actual keyboard.

Setting a Boot Password

When setting a password, you have to enter a password to use the computer or enter the BIOS Setup.

By configuring a password, you can restrict system access to authorized users only and protect data and files saved on the computer.

Before You Start!

Do not lose or forget your password.

If you have forgotten your password, contact a Samsung service center. In this case, a service fee will be charged.

Setting a Supervisor Password

A Supervisor Password is required to turn the computer on or to start the System Setup.

When setting a Supervisor Password, users other than a supervisor cannot use the computer.

1 Select the Security menu in the BIOS Setup.

2 In the Set Supervisor Password item, press .

Phoenix SecureCore (tm) Setup Utility Main Advanced Security Boot Exit Supervisor Password Clear User Password Clear HDD Password Clear Set Supervisor Password Enter Set User Password Enter Set HDD Password Enter Password on boot [Disabled] Fixed disk boot sector [Normal] Item Specific Help Supervisor Password controls access to the setup utility. F1 Help ↑↓ Select Item FS/F6 Change Values F9 Setup Defaults Esc Exit ++ Select Menu Enter Select ▶ Sub-Menu F10 Save and Exit

3 Enter a password, press , re-enter the password for confirmation, and press again.

The password can be up to 8 alphanumeric characters. Special characters are not allowed.

Set Supervisor Password Enter New Password Confirm New Password

4 When a message confirming the password configuration appears in the Setup Notice window, press .

The supervisor password has been set.

The supervisor password is required to turn the computer on or to enter the BIOS Setup.

Setting a User Password

Users can start the system with a user password, but cannot enter the System Setup. By doing this, you can prevent other users from entering Setup.

Before configuring a user password, a supervisor password must have been configured. Deactivating the supervisor password also deactivates the user password.

In the Set User Password item, press and complete the procedures from Step 3 of Setting a Supervisor Password.

Setting Up a Boot Password

To setup a boot password, the administrator password (Set Supervisor Password) should be set in advance.

Set the Password on boot item to Enabled.

Once a boot password is set, you have to enter a password to boot up the computer.

Setting up a Hard Disk Drive Password (Optional)

A supervisor password must be set using the Set Supervisor Password menu.

If you set a password for a hard disk drive, it cannot be accessed from another computer.

Press in the Set HDD Password item and define a password as described in Step 3 of the Setting up the Supervisor Password.

The hard disk drive password setting function is not provided for some models.

Changing the hard disk drive password

For security purposes, you can only change a hard disk drive password after restarting the computer by pressing the computer Power button.

If you cannot change the hard disk drive password or the HDD Password Frozen message appears when entering the BIOS Setup and then selecting Security > HDD Password, press the Power button to turn the computer on again.

Deactivating the Password

1 Press on the password to be deactivated. For example, to deactivate a supervisor password in the Set Supervisor Password item, press .

2 In the Enter Current Password item, enter the currently configured password and press .

3 Leave the Enter New Password item field empty, and press .

4 Leave the Confirm New Password field empty, and press .

5 In the Setup Notice window, press . The password is deactivated.

Changing the Boot Priority

The default boot priority of your computer is the CD-ROM first, then a removable device and then the hard disk drive in this order.

By default, the highest boot priority device is set to the CD-ROM/DVD drive. As an example, the procedures to change the highest boot priority device to the hard disk drive are described below.

1 Select the Boot menu in the BIOS Setup.

2 Press on the Boot Device Priority item.

Phoenix SecureCore (tm) Setup Utility Main Advanced Security Boot Exit ▶ Boot Device Priority NumLock [Off] Enable Keypad [By NumLock] Summary screen [Disabled] Boor-time Diagnostic Screen [Disabled] PXE OPROM [Only with F12] Brightness Mode Control [Auto] Wireless Device Control [Always On] Smart Battery Calibration Item Specific Help Select system boot options F1 Help ↑↓ Select Item FS/F6 Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Enter Select ▶ Sub-Menu F18 Save and Exit

3 Press the down key (↓) to move to the AHCI HDD item and press the F6 key to move up to the top item.

[Boot priority order] 1. AHCI CD :XXXXXXXXXXXXXX 2. AHCI HDD :XXXXXXXXXXXXXXXXXX 3. USB KEY : N/A 4. USB CD : N/A 5. USB FDD : N/A 6. USB HDD : N/A 7. PCI BEV : N/A 8. [Excluded from boot order] - IDE HDD : N/A - IDE CD : N/A - PCI SCSI : N/A - USB ZIP : N/A - USB LS120 : N/A

4 Press the F10 key to save the settings and exit Setup. The highest boot priority device is now set to the Hard Drive.

Upgrading Memory

One or more memory modules are installed on the computer.

There are 2 memory slots and users can replace the installed memory or add new memory.

Before You Start!

• Replace or install new memory only after shutting the computer down completely. Do not replace or install memory when the computer is in Sleep mode.
• Disconnect main power plug and remove the battery before continuing.
• To utilize the dual channel feature, using memory modules with the same specifications (of the same capacity and from the same manufacturer) is recommended.
• Only use the same type of memory as specified in the Product Specification.

Adding a Memory Module

1 Remove the screw on the memory compartment cover at the bottom of the computer using a screw driver.

Fixing Screw

2 Insert a new memory module into the memory slot at an angle of approximately 30 degrees aligning it to the angle of the memory slot.

Memory Slot

3 Push the memory module down so that it is completely fixed. If the memory does not fit easily, push the memory module down while pulling the memory module latches outward.

Laptop back with a highlighted internal component and an orange arrow pointing to it (no text or symbols visible)

4 Close the memory compartment cover and fasten the screw.

Removing a memory module

Pull the memory module latches outward. The memory module will pop up.

Remove the memory module out at an angle of 30 degrees.

Laptop interior showing internal RAM slots and memory modules with directional arrows indicating movement (no text or symbols)

Battery

Please refer to the following instructions when running the computer on battery power without connecting the AC power.

A Lithium-Ion smart battery is supplied with this computer.

Before You Start!

Carefully read and follow the precautions printed on the battery before using the battery.

Precautions

Use only chargers specified in the User Manual.

Never heat the battery pack, put it near or in a fire or use at a temperature higher than 60^ C, as this may cause fire.

Never cause a short circuit between the battery pack terminals or disassemble the battery pack.

Carefully read and follow the precautions printed on the battery and the safety instructions in the User Manual before using the battery.

Please refer to the system operation environment (☐ 233) of this manual and operate and store the battery at room temperature.

Installing/Removing the Battery

1 Shutdown the system, close the LCD panel and place the computer upside down on a flat surface. 2

Pull the two battery latches outwards remove the battery.

Laptop back panel with orange arrows pointing to a component detail (no text or symbols visible)

3 To install the battery again, slide the battery into the system.

The battery latches move inwards and fix the battery automatically.

Laptop back panel with a highlighted orange arrow pointing to the front panel (no text or symbols visible)

Check if the battery latch has been moved inwards.

Charging the Battery

1 Attach the battery and connect the AC adapter to the DC-in jack of the computer. The battery will then start charging.

2 When charging is complete, the Charge LED turns green.

Status Charge LED
Charging Amber
Charging complete Green
AC adapter not connected Off

Measuring the Remaining Battery Charge

You can view the battery charge status by completing the following procedures.

To use the shortcut key to view

Press the Fn + keys on the keyboard. The remaining battery charge (%) will displayed for a moment.

You can only view the charge status in this way when Easy Display Manager is installed on your computer.

To view on the battery

Separate the battery and press the PUSH button inside the battery. The remaining battery charge (%) will be displayed.

Close-up of a black electronic device casing with a highlighted 'Power' button (no readable text or symbols beyond the icon)

Battery Warning

- You will hear an alarm when the remaining battery charge reaches below 10%.

In this case, connect the AC adapter or turn off the computer and install a fully charged battery.

- If the battery residual amount is 3\~5%, the computer automatically shuts down after saving the data. The battery residual amount may vary depending on the computer model.

Battery Usage Time Information

A battery is an expendable supply, so when using it over a long time, the capacity/battery life is shortened. If the battery life is reduced to under half of its initial time, we recommend purchasing a new battery.

For long periods of not using the battery, keep the battery after discharging it. This extends the battery life time.

Extending the Battery Usage Time

Decreasing the LCD Brightness

Press the Fn + ↓ keys on the keyboard to decrease the LCD brightness to extend the battery usage time.

Using Easy Battery Manager (Optional)

Easy Battery Manager is a power management program that enables using the battery power efficiently. You can select an optimized power mode according to your requirements.

Easy Battery Manager is optional and may not be supported depending on your model.

1 Click Start > Control Panel > Hardware and Sound > Power Options.

Alternatively, right-click the power measuring device icon 📋 in the notification area of the taskbar and select Power Options.

2 If the following screen appears, select one of the modes.

Control Panel ▶ Hardware and Sound ▶ Power Options ▶ Search Require a password on wakeup Choose what the power buttons do Choose what closing the lid does Create a power plan Choose when to turn off the display Change when the computer sleeps Select a power plan Power plans can help you maximize your computer's performance or conserve energy. Make a plan active by selecting it, or choose a plan and customize it by changing its power settings. Tell me more about power plans Plans shown on the battery meter Samsung Optimized Change plan settings Power saver Change plan settings Battery life: Performance: Multimedia Change plan settings Show additional plans Samsung Optimized Multimedia

Samsung Optimized	This mode is appropriate for normal conditions. It maximizes the system performance when the computer is running on AC power while maximizing the battery usage time when the computer is running on battery power.
Multimedia	This mode is appropriate for a multimedia environment that requires maximum system performance. Therefore, the battery usage time may be reduced in this mode.

Using the Easy Battery Manager power options

To use the Easy Battery Manager power options after reinstalling Windows, you have to install the Easy Battery Manager manually using the system software media.

Since power options in Easy Battery Manager aim at maximizing the battery usage time, programs requiring high performance may slow down when using the battery.

In this case, it is recommended connecting the AC adapter or selecting Power Saver.

Using the Battery Calibration Function

When charging/discharging the battery repeatedly for a short time only, the battery usage time may be reduced by the difference between the actual battery charge and the remaining charge display.

In this case, the actual battery charge and the remaining charge display will be the same by discharging the battery completely using the Battery Calibration function, and then recharging it again.

1 Disconnect the AC power adapter after turning off the computer.
2 Restart your computer and press the F2 button when the Samsung logo appears, to start the BIOS Setup.
3 Move to the Boot > Smart Battery Calibration item using the direction keys and press .

Phoenix SecureCore (tm) Setup Utility Main Advanced Security Boot Exit ► Boot Device Priority NumLock [Off] Enable Keypad [By NumLock] Summary screen [Disabled] Boot-time Diagnostic Screen [Disabled] PXE OPROM [Only with F12] Brightness Mode Control [Ruto] Wireless Device Control [Always On] Smart Battery Calibration Item Specific Help Select system boot options. F1 Help ↑↓ Select Item FS/F6 Change Values F9 Setup Defaults Esc Exit ↔→ Select Menu Enter Select > Sub-Menu F10 Save and Exit

4 Highlight Yes in the Battery Calibration Confirmation window and press .

The Battery Calibration function is activated and the battery is forcefully discharged. To stop the operation, press the button.

This operation requires 3\~5 hours depending on the battery capacity and the remaining battery charge.

Using the Security Lock Port

You can connect a Kensington lock to the Security Lock port to prevent your computer from being stolen when you have to use the computer in a public place.

To use this feature, you have to purchase the Kensington lock additionally. To use the Kensington lock, refer to the product manual.

Tie the Kensington lock cable to a fixed object and install the other end of the cable to the Security Lock port.

Laptop with attached cable and lock icon, showing front panel and close-up of internal components (no text or symbols)

Illustration of a green laptop with a white computer mouse beside it, no text or symbols present.

Chapter 7.

Windows Media Center

About Package Contents and the Program Guide 190

Connecting and Setting Up Media Center 191

Connecting Devices 191

Media Center Setup 192

Using Media Center 194

Start Screen Layout 194

Pictures + Videos 195

Music 199

TV + Movies 202

Windows Media Center is provided for some versions of Windows Vista only.

Therefore, this chapter is for models with Windows Media Center only.

About Package Contents and the Program Guide

About the Package Contents

The package contents of your Samsung computer may differ depending on the computer model.

A TV tuner card is not supplied with the product and is not essential for the Media Center.

However, you can only use the TV function of the Media Center when a TV tuner card has been installed.

About the Program Guide

An electronic TV program guide, the Electronic Program Guide (EPG) is provided by the EPG provider and the contents of the EPG may differ from the actual TV program depending on programming changes by the EPG provider or broadcast station.

The contents of this manual are subject to change for product improvement purposes.

Connecting and Setting Up Media Center

The basic usage of Media Center for Microsoft Windows Vista Home Premium is described below.

Before You Start!

This manual will describe procedures assuming that you are using Media Center with a mouse.

Connecting Devices

- Connecting to the Internet

To view the TV Guide or to move to Media Center sites in Media Center, you have to connect to the Internet.

Connect the network (LAN) cable to the LAN port of the computer.

If the computer is not connected to the Internet, you cannot use the TV Guide (Channel Information) and the Online Spotlight functions.

- Connecting the TV antenna

To use the Media Center TV function, you have to connect the TV antenna to the TV tuner card.

If your computer has a built-in TV tuner card, connect the TV antenna cable to the TV Antenna Input port.

If you do not have an installed TV tuner card, you cannot use the TV function.

To use the TV function, purchase and install an additional TV tuner card.

Media Center Setup

Connect all necessary devices and setup Media Center. You have to complete the settings to use Media Center.

1 Turn the computer on.

2 Click Start > Windows Media Center or Start > All Programs > Windows Media Center.

Internet Internet Explorer E-mail Windows Mail Welcome Center Windows Media Center Windows Media Player Windows Photo Gallery Windows Live Messenger Download Windows DVD Maker Windows Update All Programs Start Search Samsung Documents Pictures Music Games Search Recent Items Computer Network Connect To Control Panel Default Programs Help and Support

3 If the following start screen appears, select the installation option.

Express Setup enables you to use the basic functions of Media Center when clicking OK. However, you cannot use TV and Internet related functions using Express Setup.

Custom Setup allows you to configure all settings including TV and Internet settings. If you click OK, the Setup Wizard starts.

welcome To get started with Windows Media Center, select one of the following setup options: • Express setup ○ Custom setup ○ Run setup later Express Setup will allow Windows Media Center to download art and information for your media from the Internet and sign you up for the Customer Experience Improvement Program. OK

To setup the TV or Internet after an Express Setup, select Tasks > Settings > General > Windows Media Center Setup in the Media Center start screen and setup the following items.

4 If you have selected Custom Setup, continue with the setup according to the Setup Wizard instructions.

If there are no installed TV tuner cards, the TV related setup steps will appear during the Media Center setup.

In addition, if the computer is not connected to the Internet, you cannot setup and use the TV Guide (Channel Information).

5 When the Media Center setup is complete, click Finish.

Now you can use the Media Center.

You Are Done! Select Finish to start using Windows Media Center. Finish

Changing the Media Center settings

You can change the settings by selecting Tasks

Settings in the Media Center start screen after completing the Configuration Wizard.

Using Media Center

The descriptions of the Media Center start screen and basic functions will be given below.

Start Screen Layout

Before You Start!

If you selected Run Setup Later in the Media Center start screen or did not complete the Setup Wizard, the Setup Wizard screen appears when launching Media Center.

If you complete the setup, the Media Center start screen appears.

Click Start > Windows Media Center or Start > All Programs > Windows Media Center.

Move to the Media Center Start Screen

Move to the Previous Screen Exit Media Center Resize Pictures + Videos picture library play all video lib Music TV + Video Move to the Next Menu Item Play Control Buttons

Pictures + Videos	You can view pictures, images and video files.
Music	You can listen to music files, audio CDs and the radio.
TV + Movies	You can watch and record TV programs and play DVD titles.
Online Media	You can access all kinds of multimedia content over the internet.
Tasks	You can change the Media Center settings.
Navigation Arrow	If you move the mouse pointer over the arrow, you can navigate through the menu in the up, down, left and right directions.

The Menu and Play Control buttons appear for a moment only when moving the mouse pointer. The Media Player window size decreases if you perform another task after playing a media file.

Pictures + Videos

In Pictures + Videos, you can view pictures and videos registered to the Media Center library.

In addition, you can also view files not registered to the library by registering them, as well as viewing files on a removable disk.

Registering to the Library

The procedures to register files to the library are described below.

1 Launch Media Center, and select Pictures + Videos > Picture Library or Video Library.

When you run it for the first time, a LIBRARY SETUP window may appear. In this case, you can add files according to the instructions on the screen.

2 In the library menu, right-click and select Library Setup.

Burn View Small Library Setup Settings

3 If the Library Setup screen appears, select Add Folder to Watch.
4 Specify the path for the folder according to the instructions on the screen.
5 If the following screen appears, click Finish. You can view the newly added folder in the Picture Library or Video Library.

Library Setup Add folders Windows Media Center will add these folders: • C:\Users\Samsung 1 of 1 ^ Back Finish Cancel

Viewing Pictures and Images

The procedures to view pictures and images registered to the library are described below.

Picture and image files are saved in the Computer > Local Disk (C:) > Users > User Accounts > Picture Folder or Computer > Local Disk (C:) > Users > Public > Public Pictures folder.

1 Launch Media Center, and select Pictures + Videos.

2 Select Picture Library.

When you run it for the first time, the Setup Library window may appear. In this case, click the No button.

3 Select a folder with picture files.

play slide show folders > tags date taken Sample Pictures Public Pictures : Sample Pictures 11/27/2006 15 items 1 | 1

4 If you select a picture, the picture is displayed in full screen.

You can view another picture by using the Play Control buttons or the direction buttons on the keyboard.

5 To view pictures in a SlideShow, click on Play SlideShow.

Alternatively, select Pictures + Videos > Play All. Then the pictures in the registered folder are displayed in a random order.

Viewing Videos

The procedures to view videos registered to the library are described below.

Video files are saved in the Computer > Local Disk (C:) > Users > User Accounts > Video Folder or Computer > Local Disk (C:) > Users > Public > Public Video folder.

1 Launch Media Center, and select Pictures + Videos.

2 Select Video Library.

When you run it for the first time, the Setup Library window may appear. In this case, click the No button.

3 Select a folder with video files. If you select a video file, the video file is played.

< folders > date taken Sample Videos Public Videos : Sample Videos 11/2/2006 3 items video library 1 | 1

Viewing Pictures and Videos Saved on Removable Media

The procedures to view pictures, images and videos saved on removable media in Media Center are described below.

1 Launch Media Center.
2 Insert a removable media with picture, image or video files. Removable media refers to a CD, DVD, USB flash memory, memory card, etc.

To view pictures saved on a digital camera, connect the digital camera and the computer using a USB cable.

3 After a while, a window notifying you that new media has been found appears. Select View Pictures or View Videos.

REMOVABLE DISK (FX) What do you want to do? Take no action Play music Import pictures and videos View pictures View videos Sync to a device

4 If the file list appears, select a file.
5 View the picture or video.

Music

In Music of Media Center, you can play music files or audio CDs. In addition, you can rip the tracks of an audio CD onto the computer and play them later individually or by using a playlist.

Playing an Audio CD

1 Launch Media Center.
2 Press the Eject button of the CD-ROM drive to open the CD tray and insert an audio CD. The tracks on the CD are played automatically.

Ripping an Audio CD

1 Launch Media Center.
2 Insert an audio CD into the CD-ROM drive and play the CD.

3 Select Copy CD at the bottom left of the Music Player window.

queue Copy CD Shuffle Repeat Track 1 Track 2 Track 3 Track 4 Track 5 Track 6 Track 7 Track 8 Track 9 4:29 5:32 4:48 3:14 0:52 3:35 3:21 4:39 5:25

When running the Rip CD function for the first time, the Ripping Options appear. Configure the ripping options according to the instructions on the screen, and complete the following procedures. From the second time the program is run, the setup options are omitted.

4 If the Rip CD window appears, click Yes.

5 Ripping a CD begins by showing rotating CD icon on the right side that indicates ripping a CD is in progress. When ripping is complete, the ripping CD complete message appears.

The ripped tracks are displayed in the Music > Music Library of Media Center and in the Library of Windows Media Player. The ripped tracks are copied to Start > Music of the Desktop as album files.

To change the folder to save the ripped tracks to, launch Windows Media Player and right-click over the top taskbar and select More Options > Rip Music > Rip music to this location from the pop-up menu.

Playing Ripped Tracks

1 Launch Media Center, and select Music.

2 If you select Music Library, the album list appears including the ripped album.

play all < albums > artists genres songs playlists comp UNKNOWN ALBUM (11/27/2006 4:18:33 PM) Unknown Album (11/27/2006 4:18 Unknown Artist 1 track 4:29 Ripped music albums 7 | 8

3 Select an album to be played and click Play Album in the left pane.

4 The album is played.

Using Playlists

You can easily create, manage and play a playlist with ripped music albums and music files downloaded from the Internet.

1 Launch Media Center, and select Music > Music Library.
2 You can search for a music file by selecting the album, artist, genre or song at the top.

If you select Playlist > All Music, all registered music files are listed.

3 Select the music files to be added to the playlist and click Add to Queue in the left pane.
4 The + mark starts blinking at the bottom left of the Media Player window and disappears the selected music files are added to the queue.

album details MUSO KO Habib Koite & Bamada 2 tracks, 9:45, 1995 Play Album Add to Queue I Ka Barra (Your Work) 5:00 Din Din Wo (Little Child) 4:45 Burn Edit Info Delete 2 of 2 ▲▼

Media Player Window

5 Select the Media Player window at the bottom left and click View Queue.
6 Select Save As Playlist, enter a playlist name and select Save. If you have a remote control, you can enter a name using the numeric buttons on the remote control.

PLAYLIST Save Cancel Use your keyboard or the numeric keypad on your remote to enter the name of the playlist. new playlist @'. abc def 1 2 3 ghi jkl mno 4 5 6 pqrs tuv wxyz 7 8 9 - 0 CLEAR MODE Use the CLEAR button to delete letters. Use the CH +/- buttons to change to a different mode.

7 To play the saved playlist, select Media Center > Music Library > Playlist, select a playlist and click Play.

- If a music file appears in the Media Center even after the file has been deleted

If you deleted a music file, you must also manually delete the file from the Media Center playlist.

- Deleting a playlist from Media Center

Select Media Center > Music Library > Playlist, select a saved playlist and click Delete. Then the selected playlist is deleted.

TV + Movies

Before You Start!

The TV function is only available when a TV tuner card is installed on your computer.

TV + Movies Menus

Live TV You can watch live TV programs.

Recorded TV You can watch recorded TV programs.

Guide (TV Broadcast Program Guide - EPG) You can view the TV program guide. You can watch or record live TV programs and reserve a recording.

Play DVD The DVD title appears.

Search You can search for a program by the title, keyword or genre.

What is a TV Program Guide - EPG?

An Electronic Program Guide (EPG) is a TV program guide. You can select a program and view detailed information on that program or easily reserve a recording. The guide information is updated by Media Center more than once a day.

Watching TV

1 Launch Media Center and select TV + Movies.

2 Select Live TV or Guide from the menu.

- When Live TV is selected

A TV program is played immediately. Switch to the channel you want to start watching it.

- When Guide is selected

When the Guide List is displayed, select a program currently being broadcast. The program on the selected channel is displayed.

Programs that are being broadcast are represented in white and programs that have been broadcast or will be broadcast are represented in blue.

Switching channels

• Select a channel from the Guide.
• Moving the mouse will display the play control buttons. Click the ch+ or ch- buttons to switch channels.

Using the play control buttons while watching TV

Moving the mouse will display the play control buttons. Select Pause, Play, Fast Forward, Rewind or Skip according to your requirements.

Recording a TV Program

The procedures to record the current program and reserve a recording will be described below.

● Recording the current program

1 Moving the mouse will display the play control buttons. When the play control buttons appear, click the Record button.
A red dot appears indicating that a recording is in progress and the recording begins.

2 To stop the recording, right-click and select Stop Recording from the pop-up menu.
Alternatively, move the mouse and double-click the Record button.
● Recording or reserving a recording in the Guide
1 Launch the Media Center and select TV + Movies.
2 Select Guide from the menu.

2 Move to a program to be recorded.

Right-click over a program to be recorded and select Record. A red dot appears over the program list.

• If the selected program is scheduled to be broadcast later, the recording is reserved.
• Recording a series.

Right-click over a program to be recorded and select Record Series. The Series Recording Indicator appears.

When the set time arrives, the computer automatically wakes up from Sleep mode and starts recording.

To re-enter Sleep mode after completing a reserved TV recording, exit Media Center when leaving the computer. A reserved TV recording is conducted regardless of whether Media Center is executed or not.

Watching a recorded program

Recorded files are saved in the Computer > Local Disk (C:) > Users > Common > Recorded TV folder.

1 Launch Media Center and select TV + Movies.
2 Select Recorded TV from the menu.
3 Select a program you want to watch in the following window.
4 Double-click the program list or right-click and select Play.

The selected recording is played.

Playing a DVD

The procedures to watch a DVD title are described below.

1 Launch Media Center.
2 Press the Eject button of the DVD drive to open the tray and insert a DVD title.

If you insert a DVD title without starting Media Center, the Auto Play selection window appears.

Select Play DVD Video using Media Center and click OK.

3 After a moment, the DVD menu is displayed. It the DVD menu is not automatically displayed, select Play DVD in the start screen.

Pictures - Videos Music TV + Movies play dvd guide movies guide search Online Media

4 Select Watch Movie or Play from the DVD menu. The DVD title is played.

If you move the mouse, the Play Control buttons appear. Using the Play Control buttons, you can play the DVD from a particular point or stop playing the DVD.

Online Media

You can access more online content through Online Media.

Online Media is a service provided by content providers via the Media Center. You can enjoy all kinds of multimedia content such as movies, news, sports, etc. over the Internet.

• To use Online Media, your computer must be connected to the Internet.
• For problems encountered while using Online Media, contact the corresponding online service provider. Online Media content services are not the responsibility of the computer manufacturer.

Illustration of a yellow laptop with a white computer mouse beside it (no text or symbols)

Chapter 8.

Appendix

Reinstalling Windows Vista 207

Using Samsung Recovery Solution (Optional) 211

Samsung Recovery Solution Functions 211

Using Samsung Recovery Solution 213

Q & A 218

Display Related 218

Modem Related 220

Wired Network (LAN) Related 222

Wireless Network (WLAN) Related 223

Game and Program Related 227

Bluetooth 228

Other 230

Try the Microsoft Office Trial Demo Free for 60 Days (Optional) 231

Product Specifications 233

Glossary 243

Index 246

Reinstalling Windows Vista

You can reinstall Windows using the System Recovery Media for Windows Vista when Windows is no longer working properly. (For models supplied with a System Recovery Media.)

For models supplied with the Samsung Recovery Solution, you can reinstall Windows using the Samsung Recovery Solution.

Before You Start!

● A System Recovery Media may not be supplied depending on your computer model.
- If you cannot start Windows, or if you want to delete all existing data and reinstall Windows, install Windows according to the descriptions in [Reinstalling when Windows does not start] (see page 210).
- The manual describes procedures on the basis of Windows Vista Home Premium. Some pictures may differ from actual product.
- Since Windows Vista may be upgraded to increase performance, some of the installation procedures may differ depending on the Windows Vista version. This guide describes how to reinstall Windows on the basis of the latest version, Windows Vista SP1.

Reinstalling Windows may delete data (files and programs) saved on the hard disk drive. Make sure to backup all important data. Samsung Electronics shall not be held liable for any loss of data.

Reinstalling in Windows

1 Insert the System Recovery Media into the DVD drive.

2 When the AutoPlay window appears, select Run setup.exe and click Allow.

AutoPlay DVD RW Drive (D:) LRMCFRE_KO_DVD Always do this for software and games: Install or run program Run setup.exe Published by Microsoft Windows General options Open folder to view files using Windows Explorer Set AutoPlay defaults in Control Panel

3 Since the installation step may differ depending on the Windows Vista version, continue the installation according to the following descriptions.

- 3-1 If a window appears which allows you to select the operating system to install,

click Next. Step 4 follows.

Install Windows Select the operating system you want to install. Operating Systems Architects Data Modified Windows Vista HOMEPREMUM X85 02/11/2006

The operating system name may differ depending on the Windows version.

● 3-2 If the Select Windows Installation window appears (for Windows Vista SP1),

click Install Now. When the Select Update window appears, click on the relevant item.

Install Windows Windows Vista™ Check compatibility online Install now What to know before installing Windows Transfer files and settings from another computer Copyright © 2007 Microsoft Corporation. All rights reserved.

If you select Go online to get the latest updates for installation in the Select Update window, the latest updates are installed and Step 4 follows. At this time, the computer must be connected to the Internet.

4 If the User Agreement screen appears, select I accept the license terms and then click Next.

- For Windows Vista SP1, the following window appears. In this case, select an installation option.

If you click Custom, Steps 5 to 12 are continued sequentially.

If you click Upgrade, Step 6 begins. After that, proceed to Step 11.

Install Windows Which type of installation do you want? Upgrade Keep your files, settings, and programs and upgrade Windows. Be sure to back up your files before upgrading. Custom (advanced) Install a clean copy of Windows, select where you want to install it, or make changes to disks and partitions. This option does not keep your files, settings, and programs. Help me decide

Custom

Select this option to Reinstall Windows. You have to reinstall all necessary device drivers and programs after the Custom installation. In addition, unnecessary folders and files may remain on the hard disk drives after the installation (e.g. C:\Windows.old, etc.).

Upgrade

Select this option to Upgrade Windows while maintaining current files, configurations and programs. Although you therefore do not need to reinstall the device drivers and programs, some programs may not work properly after the upgrade.

5 When a window appears asking for the location to install the operating system to, select a disk drive partition and click the Next button.

Drive D includes an area to save the backup image used by Samsung Recovery Solution. Installing Windows to drive C is recommended.

When previous Windows installation files are in the selected partition, a message appears informing you that the files and folders will be moved to the Windows. old folder. Click the OK button.

6 The Windows installation continues.

The computer will restart 3 times during the installation. If the Press any key to boot from CD or DVD... message appears after a restart, do not press any button.

7 The Windows user registration screen appears. Select the username and photo and click the Next button.

8 Enter the computer name. The window in which you can select the Desktop background appears. Enter the contents and click the Next button.

9 The Windows automatic protection settings window appears. Configure the setting according to your requirements.

10 The time and date settings window appears. Click the Next button.

11 The Registration Complete window appears. If you click the Start button, a computer specifications check begins.

12 After a while, the Windows Desktop appears. When Windows is launched, install the device drivers and applications according to your requirements using the System Software Media.

Reinstalling when Windows does not start

When Windows does not start, boot up with the System Recovery Media and from there you can reinstall Windows.

1 Insert the System Recovery Media into the DVD drive and restart the computer.
2 If the Press any key to boot from CD or DVD... message appears while booting, press any key on the keyboard.

Press any key to boot from CD or DVD.....

3 After a while, the Options windows such as Language, Time, Keyboard, etc. appear. Confirm the settings and click the Next button.
4 Since the installation step may differ depending on the Windows Vista version, continue the installation according to the following descriptions.

- 4-1 If a window appears which allows you to select the operating system to install,

click Next. Step 5 appears.

The operating system name may differ depending on the Windows version.

- 4-2 If the Select Windows Installation window appears (for Windows Vista SP1).

Click Install Now.

5 If the User Agreement screen appears, select I accept the license terms and then click Next.

- For Windows Vista SP1, a window where you can select an installation option appears. In this case, click Custom.

6 When a window appears asking for the location to install the operating system to, select the partition of the disk drive and then click the Next button.

Drive D includes an area to save the backup image used by Samsung Recovery Solution. Installing Windows to drive C is recommended.

• A If you click Drive Options (Advanced), you can delete, format, create or expand a partition. Click on a function and proceed according to the instructions on the screen.
• When previous Windows installation files are in the selected partition, a message appears informing you that the files and folders will be moved to the Windows.old folder. Click the OK button.

7 The subsequent steps are the same as those for Reinstalling in Windows. ☐209

Using Samsung Recovery Solution (Optional)

Samsung Recovery Solution provides a Restore Function that enables you to easily restore your computer to a previous, normal state when a problem occurs with your computer, as well as a Backup Function that enables you to easily save your computer's current status and your data.

• Samsung Recovery Solution may not be provided or the version may differ depending on your computer model and the usage procedures may differ depending on the version. The screen images in this document may differ from actual product.
• For models with an SSD (Solid State Disk), Samsung Recovery Solution is not provided.

Samsung Recovery Solution Functions

- Restore Function

Using this function, you can easily restore your computer to a previous, normal state without using the System Recovery Media or the Windows Installation CD, when your computer is no longer working properly or fails to boot up due to a problem. If you have backed up data, you can restore the backup data.

- Backup Function

You can backup the entire C drive or all your data to another hard disk drive or DVD. You can restore the backed up drive or data using the Restore function.

Using Samsung Recovery Solution

Not only can you use Samsung Recovery Solution when Windows is running, but also when you are unable to boot up into Windows. Let's learn how to use Samsung Recovery Solution.

Initial Status Backup

If you turn your computer on for the first time, the Initial Status Backup function is performed after registering Windows. This function saves an image of the Initial Status of the C drive to a secure location so that users can restore the computer to the Initial Status using the Complete Restore function. An Initial Status Backup is only performed once immediately after the computer is purchased.

1 If you turn the power on for the first time, the Register Windows screen appears. If you register Windows according to the instructions on the screen, the computer will be restarted.

2 When the computer has been restarted, the User Registration Complete message appears. Click OK. The computer will restart.

3 The Initial Status Backup screen appears. To resize the C and D drives, click Advanced and partition the disk accordingly. Adjust the partition size using the slide bar and then click Next.

The partition disk function is only available when the computer is turned on for the first time and will not be available afterwards. Once you have completed the partitions, you cannot resize the partitions. Therefore partition the disk carefully.

4 The Initial Status Backup is performed to backup the initial status of the C drive to a secure location. This backup image is used for the Complete Restore function that restores your computer to the initial status when the computer is not working properly.

5 When the Initial Status Backup is complete, restart Windows.

Quick Restore

Quick Restore enables you to easily restore your computer to a previous, normal state when a problem occurs with your computer. Quick Restore provides Basic Restore and Complete Restore (Computer Initial Status Restore) options.

1 – When Windows is running:

Click Start > All Programs > Samsung > Samsung Recovery Solution > Samsung Recovery Solution.

- When Windows does not start:

Turn the computer on and press the F4 key when the boot screen (SAMSUNG logo) appears. After a moment, the computer boots up in Restoration mode and the Samsung Recovery Solution screen appears.

The touch screen function is not supported in this mode even if your model supports a touch screen. In this mode, please use the touchpad or mouse instead of the touch screen.

2 If the Samsung Recovery Solution program is launched for the first time after purchasing the computer, the license agreement screen appears before the restoration is started. Read the agreement and click Agree to continue.

3 If the initial menu screen appears, click Restore.

If you click Select by Symptom, the Select by Symptom menu appears. If you select a symptom, a recommended restoration option will blink. Click the restoration option to continue.

4 Select either Basic Restore or Complete Restore from the Restore menu.

• A Basic Restore restores the major Windows files only while maintaining the user configuration and data on the C drive in a short time.
• A Complete Restore deletes the entire C drive and then restores the contents of the C drive.

Run Complete Restore if the computer does not work even after Basic Restore has been completed.

4-1 If you have selected Basic Restore:

In the Basic Restore screen, click the Next button. The system will be restarted.

4-2 If you have selected Complete Restore:

In the restoration point selection screen, select the restoration point described as 'Computer Initial Status' and click the Next button. The system will be restarted.

Since a Complete Restore deletes all user data as well as additionally installed programs, please backup your important data first using the Data Backup function, before running Complete Restore.

5 The computer boots up into restoration mode and the restoration progress message appears. If you click OK, the restoration begins. The restoration may take some time, please wait for a moment.

6 When the 'Restart the System' message appears after the restoration is complete, click OK to restart the system.

Make sure that the power cord is connected while the restoration is in process. The first time the computer boots up after a Complete Restore has been performed, the speed of the boot process may be slowed down due to the system optimization process. At this time, do not shut the computer down by force.

User Complete Backup/Restore

A Complete Backup saves the complete image of the C drive onto another drive or DVD. A Complete Restore restores the image file saved by the Complete Backup onto the C drive. This guide describes the Complete Backup and Complete Restore procedures on the basis of backing up and restoring by using DVD.

- Complete Backup

If you run Complete Backup using a DVD, you can restore the computer even when a problem occurs with the hard disk or when the restoration area is removed.

1 Click Start > All Programs > Samsung > Samsung Recovery Solution > Samsung Recovery Solution.

2 When the initial menu screen appears, click Backup.

3 Click Complete Backup in the backup menu.

4 Enter a description for the backup regarding the current computer status in the Description field so that you can easily recognize it later, and specify the Save Path. If your computer has a DVD-Writer, you can specify the DVD drive as the Save Path.

Backup Point 20/02/2007 Backup Capacity 5.4GB Description My games and programs install complete! Save Path D:\ [Local Disk] 140.5GB Available D:\ [Local Disk] 140.5GB Available EA /CD/DVDW drive. Select Drive D. Select the DVD drive.

5 If you click the Next button, the system restarts in restoration mode and the Complete Backup begins. If you have selected the DVD drive as the Save Path, the "Enter a blank DVD" message appears. Insert a blank DVD and click the OK button.

Samsung Recovery Solution supports DVD+R, DVD-R, DVD+RW, and DVD-RW, but does not support CD-R, CD-RW, DVD-RAM, DVD-DL (Dual Layer), HD-DVD, and Blu-Ray.

6 The Complete Backup begins. If multiple DVDs are required, the expected number of DVDs is displayed in the progress screen. Whenever burning a DVD is completed, the "Insert the next DVD" message will appear. Continue the backup according to the instructions.

7 When the 'Restart the System' message appears after the backup is complete, click OK to restart the system.

- Complete Restore

1 – When backing up onto DVD Turn the computer on and insert the backup DVD into the DVD drive. If there are multiple backup DVDs, insert the first DVD. – When backing up to another drive Proceed to Step 2.

2 Click Start > All Programs > Samsung > Samsung Recovery Solution > Samsung Recovery Solution.

When you cannot start Windows, turn the computer on and press the F4 key in the boot screen to enter restoration mode.

3 When the initial menu screen appears, click Restore and then click Complete Restore.

4 Select a Complete Backup restoration point in the restoration point selection screen and click the Next button. The system is restarted.

5 The restoration progress message appears after the computer boots up in restoration mode. If you click OK, the restoration begins.

If multiple DVDs have been used for a Complete Backup, whenever burning a DVD is completed, the "Insert the next DVD" message will appear.

6 When the 'Restart the System' message appears after the restoration is complete, click OK to restart the system. The Complete Restore has been completed.

User Data Backup/Restore

Data Backup enables you to save specific files or folders onto another drive or DVD. Data Restore enables you to restore data using the data saved by a Data Backup when data is lost. This guide describes the Backup and Restore procedures on the basis of backing up and restoring by using DVD.

- Data Backup

1 Click Start > All Programs > Samsung > Samsung Recovery Solution > Samsung Recovery Solution.

When you cannot start Windows, turn the computer on and press the F4 key in the boot screen to enter restoration mode.

2 When the initial menu screen appears, click Backup and then click Data Backup.

3 In the data selection screen, select either Basic Selection or Select from all, select a folder or file to be backed up, and then click the Next button.

4 Enter a description for the backup in the Description field so that you can easily recognize it later and specify the Save Path. If your computer has a DVD-Writer, you can specify the DVD drive as the Save Path.

If you have specified a hard disk drive or a removable disk as the Save Path, the SamsungRecovery\SamsungData folder is created on the corresponding drive (e.g. D:) and the data is saved to the folder. Take care to not delete the folder by mistake or on purpose.

5 If you click the Next button, the Data Backup begins. If you have selected the DVD drive as the Save Path, the "Enter a blank DVD" message appears. Insert a blank DVD and click the OK button.

6 The "Backup is completed" message appears.

Data Restore

1 – When backing up onto DVD Turn the computer on and insert the backup DVD into the DVD drive. – When backing up to another drive Proceed to Step 2.

2 Click Start > All Programs > Samsung > Samsung Recovery Solution > Samsung Recovery Solution.

When you cannot start Windows, turn the computer on and press the F4 key in the boot screen to enter restoration mode.

3 When the initial menu screen appears, click Restore and then click Data Restore.

4 Select a backup item to be restored in the backup list and click the Next button.

5 Select a folder for the restoration and click the Next button. Data Restore begins.

6 When Data Restore is completed, check if the data has been restored to the specified folder.

Q & A

This section provides information on possible problems, solutions and other references for using the system.

Display Related

The LCD screen is too dark or too bright.

A Turn the LCD backlight on or adjust the LCD brightness.

Press Fn + to turn the LCD backlight on or press Fn + or Fn + to adjust the LCD brightness.

The screensaver is activated while Media Player is playing a movie or video clip.

A Unselect Library > More Options > Player > Allow screen saver during playback in the Media Player.

In the following cases, the screen blinks or there is noise for a short time.

- Click the Graphics Related tab, Change Resolution, Change Display Device, Remove the AC Adapter, Restart the System, Change Power Scheme.

A This may happen while the video driver is examining the connected device. While the detection process is busy, any connected display devices may blink or some noise may occur.

When I connect a projector, and change the settings to display the screen image on both the LCD and the projector by pressing the Fn+ ^F4 , the screen is not displayed properly.

A Press the Fn + keys again.

If the problem continues even after pressing the key combination, this is because the current resolution is too high and is not supported by the projector. In this case, change the resolution to 1024x768 pixels.

When I connect a projector, the taskbar at the bottom of the screen is not displayed on the projector.

A This occurs because a WXGA LCD supports a resolution of 1280×800 pixels but the resolution is not supported by the projector. In this case, change the resolution to 1024×768 pixels (recommended).

The shortcut icons are not displayed on the screen even if I press the shortcut key.

A The shortcut icons only appear when the Easy Display Manager program is installed.

I have connected a monitor (or projector) to the computer, but the colors on the monitor are abnormally displayed.

A Check if the monitor and computer are properly connected with the signal cable and reconnect the cable if necessary.

I am trying to view the screen through a TV by connecting it through the HDMI port, but the edge of the screen is not displayed.

A It is recommended using a notebook computer screen or monitor for documents and Internet pages.

Although connecting via the HDMI port is recommended when watching video, it may be inappropriate for displaying documents and Internet pages because most TVs that support HDMI fail to display the edge of the screen or the characters on the screen properly.

I cannot configure the Image Sharpness in the NVIDIA Control Panel of [NVIDIA Graphics].

A The NVIDIA Control Panel >Adjust desktop Color Settings >Image Sharpening item is set to None and will not be configurable. This is normal.

This function is only available for old graphic chipsets.

Modem Related

cannot hear the modem

A1 Check if the phone line is properly connected to the modem.
A2 Check if the modem driver is properly installed.

1 Click Start > Control Panel > System and Maintenance > Device Manager > Modem and then check if the model is not marked with a yellow exclamation mark. If it is marked with an exclamation mark, it means that the modem driver is not properly installed. In this case, remove the installed driver and install the driver again.

② If the modem is not marked with a yellow exclamation mark, double-click the installed modem and select Diagnosis tab > Query modem to diagnose the modem. If there is no reaction to the command, it means the modem is out or order.

In this case, restart the system or reinstall the modem driver and then diagnose the modem again.

(Close all applications using the modem before diagnosing the modem.)

When you are unable to make a call when using a switchboard

A In general, the dial tone of a switchboard or a digital phone switching system is not continuous unlike that of a PSTN line. Therefore, the modem may not make a phone call as it misreads the dial tone as a busy tone. In this case, perform the following.

- Use the AT Command

Add the ATX3 command for initialization.

Alternatively, enter the ATX3 command first before make a phone call.

The modem will not check the dial tone before making a phone call.

- Configuring the Model in the Control Panel

① Click Start > Control Panel > Hardware and Sound.
② Click on Phone and Modem Options.
③ In the Modem tab, select an installed modem and click Properties.
4 In the Modem tab of the Modem Properties window, unselect the Make a phone call after waiting for a dial tone option.
⑤ When the settings are complete, click the OK button.

If you cannot make a phone call starting with a 0, such as 01432, 01421, 01433, etc., this is because the private switching system is set to block long distance calls. Ask your switching system administrator.

When using the modem overseas

A1 Check if the country setting of the modem is set to the current country.

Since each country has slightly different telecommunication values, if the location is not set to the corresponding country, the modem may fail to make a phone call.

① Click Start > Control Panel > Hardware and Sound.

② Click on Phone and Modem Options.

③ In the Dialing Rules tab, click Edit.

④ In the General tab of the Edit Location window, set the Country/Region to your current country, enter the region code and then click the OK button.

A2 Since the shape of the phone line connector may differ depending on the country you are in, you may have to buy a phone line connector to make a phone call from that country.

How can I receive a FAX in Sleep mode (Standby Mode)?

A To receive a FAX when the computer is in Sleep Mode (Standby Mode), the computer must be configured as follows.

The FAX program must be configured so that it receives FAXES automatically referring to the FAX program manual.

① Click Start > Control Panel > Hardware and Sound.
② Click on Phone and Modem Options.
③ In the Modem tab, select an installed modem and click Properties.
④ In the Power Management tab of the Modem Properties window, select the Wake up the computer with this device option and click the OK button.

(If the Power Management tab does not appear, select Change Settings in the General tab.)

When the modem is configured as above, and a FAX arrives, the computer wakes up from Sleep Mode and receives the FAX.

Wired Network (LAN) Related

The function

A1 is a function that activates the system from Sleep mode when a signal (such as a ping or magic packet command) arrives over the network (wired LAN).

• Using the Function
  ① Click Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections.
  ② Right-click on the Local Area Connection and select Properties.
  ③ Click Configure > Power Management tab. Select Allow this device to bring the computer out of standby, then click OK. Restart the system.

• If the system wake up from Sleep mode even though there is no received signal, use the system after disabling the function.

• The LAN LED may not be turned off if System is shutdown without disabling the WOL (Wake on LAN) option.
• Connecting a wired LAN while using a wireless LAN may not activate the function. Set the Wireless LAN to Disable to use the function.

① Click Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections.

② Right-click on the Wireless Network Connections and select Disable.

When I am connected to a 100Mbps/1Gbps wired LAN and the computer exits Sleep/hibernation mode, a message appears informing you of a connection to a 10Mbps/100Mbps wired LAN.

A When the computer exits standby/hibernate mode, restoring the network takes about 3 seconds.

When the network is restored, it operates at 100Mbps/1Gbps.

Wireless Network (WLAN) Related

I cannot find an AP.

A Verify whether the Wireless LAN LED is on. If it is turned off, turn it on by pressing the Wireless LAN On/Off button (Fn + ∫).

The Wireless LAN device is operating properly, but I cannot connect to the Internet or to another computer.

This is due to an incorrect configuration, or a configuration error. Check the following:

A1 When connecting to a wireless Ad-Hoc network, check if the network name (SSID) is the same.
A2 If a network key (encryption key) is used, the AP (Access Point) and wireless Ad-Hoc network keys must be the same.

The AP network key can be configured using an AP management program. For more detailed information, ask your network administrator or product provider.

A3 Check that the device driver is installed properly. If the driver is not properly installed, you will find a yellow exclamation mark on the network icon by clicking Start > Control Panel > System and Maintenance > Device Manager > Network Adapter.

The signal strength is excellent, but I cannot connect to the network.

Even if the signal strength is excellent, the network connection may not operate properly if the TCP/IP properties are not properly configured, or the network key (encryption key) is incorrect.

A Check that the TCP/IP properties are configured properly. When connecting to an AP, right-click the Network Connections icon on the taskbar and select Network and Sharing Center. If you click the View Status next to a connected wireless network device and then click the Detail button, you can view the IP information. If the IP is not allocated properly, the IP address will be displayed as follows (e.g. 169.254.xxx.xxx).

If the network does not provide DHCP, you have to specify the correct IP address by asking your network administrator.

Even if the network provides DHCP, the server may not allocate an IP address to the client properly, and the client station cannot connect to the network.

cannot connect to the AP.

- Check the Computer Settings

A1 Select Start > All Programs > Accessories > Windows Mobile Center and check the wireless device status.

• When it is represented as Disconnected This means the computer is not connected to the AP. Check the status of the AP, referring to the descriptions of the Checking the SP Settings section below. Check the encryption key configured in the AP and retry to the connection.
• When it is represented as Connected, but you cannot connect to the Internet

This means the computer is connected to the AP, but the AP or external network connected with the AP may have a problem.

- When the 'There is no wireless LAN adapter' message appears or there is no wireless LAN icon

This means the wireless LAN device is set to Do Not Use or the device is not recognized.

Check if the wireless device is properly recognized in the Device Manager window. If the device is set to Do Not Use, right-click and select Use from the pop-up menu.

A2 Verify whether the same network key (encryption key) has been entered for both the AP and the computer. The network key is an encryption key for encrypting the data transmitted between the AP and the computer. It is recommended setting the network key manually.

- Check the AP Settings

For the AP settings, refer to the User Guide provided by the AP manufacturer.

A3 Verify whether the environment is suitable for using a wireless LAN. The use of a wireless LAN may be restricted according to the environment and distance. Obstacles such as walls or doors affect the use of a wireless LAN. Install the AP in a high and open space, 50cm from the wall and far removed from any other radio signal sources.
A4 Verify whether the AP is operating properly.

- When the AP is not operating normally, turn off the AP, wait a short while, and turn it on again.

- Verify whether the AP's firmware is the most recent version. (Contact the AP manufacturer or the place where you purchased the AP for details of the AP firmware.)

A5 Verify whether the AP has been properly connected to the network. Verify whether the network is operating normally by connecting the wired network cable, which has been connected to the AP, to your computer.
A6 Check the network key settings (encryption key) again. When automatic code conversion (a passphrase function) has been selected and data communication is not functioning even with a normal wireless connection, it is recommended entering the network key (encryption key) manually.
A7 Check the AP settings as follows. (The following is recommended for a standard environment and thus may differ according to the specific wireless network environment.)

• When several APs are present simultaneously, check the channel settings for each AP. When different APs are using nearby channels, interference may occur between the electronic waves. Set the AP channels further apart from each other. (Ex: Ch1, Ch5, Ch9, Ch13)
• When an AP's SSID (Service Set ID) option is set to "Hide", you cannot search for that AP on the computer. We recommend unselecting the "Hide" option for the AP. The SSID is a name used for distinguishing one wireless LAN from another wireless LAN.
• It is recommended using Long Preamble. Preamble is a signal for data transmission synchronization. Short Preamble may be supported by some types of APs but may cause compatibility problems.
• It is recommended using a static IP.
• Since static channel selection is more reliable than auto channel selection, it is recommended using a static channel.

I cannot connect to a computer connected to the Ad-Hoc network.

A1 Check the security settings and network name of the wireless Ad-Hoc network.
A2 Check the TCP/IP settings of the computers connected to the wireless Ad-Hoc network. The IP addresses of the computers to be connected to a wireless Ad-Hoc network must be set to the same sub-network address.

- For example, if the TCP/IP setting is configured to a fixed IP address, select Use the following IP address in the TCP/IP Properties of the wireless adapter, configure the items as follows and try again.

IP: 10.0.0.1\~10.0.0.254, Subnet Mask: 255.255.255.0.

It is recommended using a fixed IP address for wireless Ad-Hoc network connections.

A3 You have to register the IP address allocated for the wireless adapter as a 'Trusted IP' in McAfee SecurityCenter.

- Click McAfee SecurityCenter > Advanced menu > Configure > Internet and Network > Advanced > Trusted and Banned IPs, and register the IP address or IP address range as a Trusted IP address.

During the wireless Ad-Hoc network operation, the AP (Access Point) is intermittently not found.

A This problem occurs intermittently during the wireless Ad-Hoc network operation. Even if this problem occurs, the wireless Ad-Hoc network operation is working properly and is not affected. Click Refresh to update the AP list.

I have set the same IP address for both the wireless and wired connections, but they do not work properly.

A You cannot use wireless and wired connections using the same IP address. To sequentially use both the wired and wireless connections with the same IP address, you need to set the currently not needed connection to Do Not Use in the Network Connections of the Control Panel.

The wireless LAN does not work properly when there is a device operating on an adjacent frequency in the vicinity of the product.

A1 Channel interference may occur when a wireless video transceiver or a microwave oven is being used. If you experience channel interference from other equipment, we recommended changing the channel for connecting to the AP. For more information about AP settings, refer to the User Manual supplied by the AP manufacturer.
A2 Since IEEE802.11g equipment operates in hybrid mode when there is active IEEE802.11b equipment, the data rate may be degraded.

Game and Program Related

Windows Vista may not provide some functions properly when performing some applications especially games, or may cause a problem due to a device driver compatibility issue. For the latest device drivers and bug fixes, please refer to the respective company's website.

A 3D game does not work, or some functions are not working.

A Change the graphics settings of the game to '2D' or 'Software Renderer', then run the program again.

The game is not displayed smoothly on the screen.

A For 3D games, the texture data for the 3D screen display is saved to the system memory.
If there is insufficient system memory, the data is saved to the hard disk drive and loaded to memory when required. This operation may temporarily stop displaying the picture on the screen.
In this case, lower the game resolution or the screen settings.

The picture on the screen is displayed as a broken image for some games.

A A part of the picture on the screen may be broken when playing some games that require a high-specification graphics card.
In this case, set the 3D function setting for the game to a lower value or set the game resolution to a lower value.

Bluetooth

When no headset is found or cannot be connected

A1 If the headset is already connected to another device, you will not be able to find the headset and cannot connect to the headset even if the headset is found. Disconnect the connection to the other device and then start the search again.
A2 If the headset is connected to a power adapter, you cannot make a Bluetooth connection.

Disconnect the power adapter and then retry.

A3 In general, a Bluetooth headset has 2 operating modes, On/Off mode and Pairing mode.

To connect the headset to another Bluetooth device such as a PC or cell phone, the headset must be in Pairing mode.

Switch the headset to Pairing mode and then retry the search operation.

In general, the headset in Pairing mode automatically returns to On/Off mode after a certain period of time.

There is no sound or sound is intermittently interrupted after connecting a headset

A1 If your headset is a mono headset, check if a mono headset connection has been made. In this case, to resolve the problem, complete the procedures below.
1 Double-click over the Bluetooth icon on the Taskbar, select the Audio tab and check the connection status of the Bluetooth Hands-Free Audio for the headset in the connected device list. If it is not connected, right click over the device and select Connect from the pop-up menu.
② Right-click over the Speaker icon on the Taskbar, select Playback Devices, and make sure that the Bluetooth Hands-free Audio is enabled. If not, right-click over Bluetooth Hands-free Audio and select Set as Default Device.

A2 If your head set is a stereo headset, you have to check if the headset is connected as a stereo headset.

To resolve the problem, complete the procedures below.

1 Double-click the Bluetooth icon on the Taskbar, select the Audio tab and check the connection status of the Bluetooth Stereo Audio that corresponds to the corresponding headset in the connected device list. If it is not connected, right-click over the device and select Connect from the pop-up menu.
② Right-click over the Speaker icon on the Taskbar, select Playback Devices, and make sure that the Bluetooth Hands-free Audio is enabled. If not, right-click over Bluetooth Hands-free Audio and select Set as Default Device.

After changing the Bluetooth or sound settings, you must exit and re-run the audio/video player program (such as Windows Media Player) to apply the changed settings.

Other

The User Controls window appears when installing or running a program in Windows Vista.

A In this case, click Allow (or OK) to install or run the program. However, if you do not have an administrator account, you have to enter the administrator password in the User Controls window and then click Allow (or OK). If no administrator password is set you can click Allow (or OK) without entering a password.

Try the Microsoft Office Trial Demo Free for 60 Days

(Optional)

Your new PC comes preinstalled with a free 60-day Microsoft Office Professional 2007 Trial Demo.

Starting the Microsoft Office Free Trial Demo

① Click Start from your Windows Vista operating system desktop.
② Point to All Programs, then point to Microsoft Office and then click on the specific Microsoft Office program you want to start, for example Microsoft Office Word 2007.
③ You will be prompted to activate your trial software. To request your trial key, please visit: (www.microsoft.com/office/pctrial2007)

Alternatively, you can receive a product authentication key by connecting to the Internet and clicking the Microsoft Office – 60 Day Trial icon on the Desktop. However, the creation of the authentication key may fail when protected by a company or school firewall.

Purchasing a Microsoft Office Product License

If you decide to buy a full-product license for one of the Microsoft Office suites listed below, come back to us for a better price! (www.microsoft.com/office/pctrial2007)

[Microsoft Office Suites]

Microsoft Office Suites	Word Excel Outlook Powerpoint Publisher Access
Microsoft Office Basic 2007	● ● ●
Microsoft Office Small Business 2007	● ● ● ● ●
Microsoft Office Professional 2007	● ● ● ● ● ●

You won't have to install the Microsoft Office suite yourself - but only if you buy from us! The full version of the suites is already preinstalled on your PC. We will sell you a license kit that includes the product key to unlock your full-product software. It's so easy!

● Microsoft Office Product Suite Pricing is subject to change. See http://office.microsoft.com.
- For more information on Microsoft Office, contact Microsoft Corp. (www.microsoft.com/office/pctrial2007).
- A free 60-day Microsoft Office Professional 2007 Trial Demo is preinstalled on PC's sold during the event period only. Note that you can use the Trial Demo only for 60 days after activation.

Product Specifications

The system specifications may differ depending on the derived models. For detailed system specifications, refer to the product catalogue.

CPU (Optional) Intel Core2 DUO Processor
Main Memory (Optional) Memory type: DDR3 SODIMM
Main Chipset (Optional) Intel GM45/PM45 + ICH9M
Hard Disk Drive (Optional) 9.5mmH SATA HDD
Graphics (Optional)	Intel GMAX4500 (Internal)Nvidia Geforce 9200M GS (External)
Operating Environment	Temperature : -5~40°C for storage, 10~35°C when operatingHumidity : 5~90% for storage, 20~80% when operating
Operating Voltage 100 - 240VAC
Frequency 50/60Hz
Output Power (Optional) 60W or 90W
Output Voltage 19VDC

● The weight and dimension listed are approximate values and may vary a bit from the actual product.
- Optional components may not be provided or different components may be provided depending on the computer model.
● The system specifications are subject to change without notice.

Wireless LAN Specifications (802.11a/b/g, 802.11n Card)

Intel 802.11ABG WLAN

- The Name of the Registered Equipment : Special Low Power Wireless Device for Wireless Data Communication Systems.

Item Detailed Specifications
Physical Specifications	Dimensions 30.0 × 50.95mm (Width X Height)
	Operating Temperature And Humidity	Same as System Operations
		Temperature: Bet. 0°C and 70°C, Humidity: Less than 85%
Power Specifications	Power 3.3V
Network Specifications	Compatibility IEEE 802.11a, IEEE 802.11b, IEEE 802.11g
	Operating System Microsoft Windows XP/Vista
	Media Access Protocol (MAC)	CSMA/CA (Collision Avoidance) with Acknowledgement (ACK)
	Security	Wired Equivalent Privacy support (WEP) 64bit/128bit WPA*

* This device supports the Wireless LAN Security Specifications WPA (Wi-Fi Protected Access) for Wi-Fi. To connect to a WPA wireless network, you have to configure the settings according to the network connection environment. For detailed setting information, ask your network administrator.

● Radio Specifications

RF Band 2.4GHz, 5GHz
Supported Channels Channels allowed per country.
Device Transceiver
Standard Output Power MAX 10mW
Modulation Scheme	11a mode : OFDM
	11b mode : DSSS
	11g mode : OFDM
Data Rate (Mbps)*	11a mode** : MAX 54Mbps
	11b mode : MAX 11Mbps
	11g mode*** : MAX 54Mbps
Antenna Type Built-in Antenna

* The data rate may differ from the real data transmission rate.

** 11a mode is only supported when the device is connected to an IEEE 802.11a device. (e.g. Access Point supporting IEEE 802.11a)

*** 11g mode is only supported when the device is connected to an IEEE 802.11g device. (e.g. Access Point supporting IEEE 802.11g)

Intel 802.11AGN WLAN

- The Name of the Registered Equipment: Special Low Power Wireless Device for Wireless Data Communication Systems.

Item Detailed Specifications
Physical Specifications	Dimensions 30.0 × 50.95mm (Width X Height)
	Operating Temperature And Humidity	Temperature: Between 0°C and 70°C, Maximum Humidity: 85%
Power Specifications	Power 3.3V
Network Specifications	Compatibility IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
	Operating System Microsoft Windows XP/Vista
	Media Access Protocol (MAC)	CSMA/CA (Collision Avoidance) with Acknowledgement (ACK)
	Security	Wired Equivalent Privacy support (WEP) 64bit/128bit WPA*

* This device supports the Wireless LAN Security Specifications WPA (Wi-Fi Protected Access) for Wi-Fi. To connect to a WPA wireless network, you have to configure the settings according to the network connection environment. For detailed setting information, ask your network administrator.

● Radio Specifications

RF Band 2.4GHz, 5GHz
Supported Channels Channels allowed per country.
Device Transceiver
Standard Output Power MAX 10mW
Modulation Scheme	11a mode : OFDM11b mode : DSSS11g mode : OFDM11n mode : MIMO
Data Rate (Mbps)*	11a mode** : MAX 54Mbps11b mode : MAX 11Mbps11g mode*** : MAX 54Mbps11n mode**** : MAX 450Mbps, MAX 300Mbps
Antenna Type Built-in Antenna

* The data rate may differ from the real data transmission rate.

** 11a mode is only supported when it is connected to an IEEE802.11a device (e.g. Access Point supporting IEEE802.11a).

*** 11g mode is supported only when you are connected to an IEEE 802.11g device (e.g. An Access Point supporting IEEE 802.11g).

****11n mode is only supported when it is connected to an IEEE802.11n device (e.g. Access Point supporting IEEE802.11n). The data rate in 11n mode is determined by the number of antenna and Access Point type.

Wireless LAN Specifications (802.11BG Card)

Intel 802.11BG WLAN

- The Name of the Registered Equipment : Special Low Power Wireless Device for Wireless Data Communication Systems.

Item Detailed Specifications
Physical Specifications	Dimensions 30.0 × 50.95mm (Width X Height)
	Operating Temperature And Humidity	Same as System Operations
		Temperature: Bet. 0°C and 70°C, Humidity: Less than 85%
Power Specifications	Power 3.3V
Network Specifications	Compatibility IEEE 802.11b, IEEE 802.11g
	Operating System Microsoft Windows XP/Vista
	Media Access Protocol (MAC)	CSMA/CA (Collision Avoidance) with Acknowledgement (ACK)
	Security	Wired Equivalent Privacy support (WEP) 64bit/128bit WPA*

* This device supports the Wireless LAN Security Specifications WPA (Wi-Fi Protected Access) for Wi-Fi. To connect to a WPA wireless network, you have to configure the settings according to the network connection environment. For detailed setting information, ask your network administrator.

● Radio Specifications

RF Band 2.4GHz
Supported Channels Channels allowed per country.
Device Transceiver
Standard Output Power MAX 10mW
Modulation Scheme	11b mode : DSSS
	11g mode : OFDM
Data Rate (Mbps)*	11b mode : MAX 11Mbps
	11g mode**: MAX 54Mbps
Antenna Type Built-in Antenna

* The data rate may differ from the real data transmission rate.
** 11g mode is only supported when the device is connected to an IEEE 802.11g device. (e.g. Access Point supporting IEEE 802.11g)

Atheros 802.11BG WLAN

- The Name of the Registered Equipment : Special Low Power Wireless Device for Wireless Data Communication Systems.

Item Detailed Specifications
Physical Specifications	Dimensions 30.0 × 50.95mm (Width X Height)
	Operating Temperature And Humidity	Temperature: Between 0°C and 70°C, Maximum Humidity: 85%
Power Specifications	Power 3.3V
Network Specifications	Compatibility IEEE 802.11b, IEEE 802.11g
	Operating System Microsoft Windows XP/Vista
	Media Access Protocol (MAC)	CSMA/CA (Collision Avoidance) with Acknowledgement (ACK)
	Security	Wired Equivalent Privacy support (WEP) 64bit/128bit WPA*

* This device supports the Wireless LAN Security Specifications WPA (Wi-Fi Protected Access) for Wi-Fi. To connect to a WPA wireless network, you have to configure the settings according to the network connection environment. For detailed setting information, ask your network administrator.

• Radio Specifications

RF Band 2.4GHz
Supported Channels Channels allowed per country.
Device Transceiver
Standard Output Power MAX 10mW
Modulation Scheme	11b mode : DSSS
	11g mode : OFDM
Data Rate (Mbps)*	11b mode : MAX 11Mbps
	11g mode**: MAX 54Mbps
Antenna Type Built-in Antenna

* The data rate may differ from the real data transmission rate.
** 11g mode is supported only when you are connected to an IEEE 802.11g device (e.g. An Access Point supporting IEEE 802.11g).

Registered Trademarks

Samsung is a registered trademark of Samsung Co., Ltd. SENS is a registered trademark of Samsung Electronics Co., Ltd.

Intel, Pentium/Celeron are registered trademarks of the Intel Corporation.

Microsoft, MS-DOS, and Windows are registered trademarks of the Microsoft Corporation.

"Memory Stick" and Memory Stick are trademarks of the Sony Corporation.

All other product or company names mentioned herein are registered trademarks of their respective companies.

ENERGY STAR® Partner

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Glossary

The Glossary lists the terminologies used in this User Guide. For terminologies other than these, look in Windows Help.

Backup

A way to save the current data to restore it later if necessary. A backup is a way to restore computer data when the data or computer is damaged.

Client

This refers to a computer that uses a shared network resource provided by a server.

DDR SDRAM (Double Data Rate Synchronous Dynamic Random Access Memory)

DRAM is a memory type whose cells consist of a capacitor and transistor manufactured at a low price. SDRAM is a memory type whose performance has been improved by synchronizing the clock with the external CPU clock. DDR SDRAM is a memory type whose performance has been improved by doubling the operating speed of the SDRAM and is widely used nowadays. This computer uses DDR SDRAM.

Device Manager

An administrative tool used to manage computer devices. You can add or remove hardware or update a device driver using the Device Manager.

Direct X

An application interface developed to enable Windows application programs to access hardware devices at a very high speed. Since the operating speed of graphics, memory and sound cards must be very fast to provide high quality video and sound for games, Direct X enables faster control and interaction between applications and hardware devices. By using Direct X, the multimedia performance of Windows has been hugely improved.

Driver

Software that interacts between the hardware and the operating system. An operating system knows the hardware information and controls the hardware. In general, a driver is supplied with the corresponding hardware device.

DVD (Digital Versatile Disk)

DVD was developed to replace CD (compact disk). Although the shape and size of the disc are the same as that of a CD, the capacity of a DVD is at least 4.7GB while the capacity of a CD is 600MB. DVD video is digital unlike VHS (analog) video and supports MPEG2 compression and digital audio. To play a DVD, a DVD drive is required.

Firewall

A security system used to protect an internal network or intranet from external networks through an authentication procedure.

Hibernation Mode

A power mode that saves all data in memory to the hard disk and turns the CPU and hard disk off. When canceling Hibernation Mode, all application programs that were running are restored to their last state.

Icon

This refers to a small image that represents a file that users can use.

LAN (Local Area Network)

A communications network connecting computers, printers and other devices within a local area such as within a building. A LAN enables all connected devices to interact with other devices on the network. The current LAN uses the Ethernet media access control method developed in the early 1980s. To connect to an Ethernet, a network card called a LAN card, Ethernet card or network interface card is required. To exchange data between computers, a protocol is required besides the hardware equipment. Windows Vista uses TCP/IP as the default protocol.

LCD (Liquid Crystal Display)

There are Passive Matrix and Active Matrix LCD types. This computer uses the Active Matrix type LCD called a TFT LCD. Since an LCD is implemented by transistors instead of a cathode-ray tube unlike a CRT, its size can be slim. And because it does not blink, it reduces eye strain.

Network

A group of computers and devices, such as printers and scanners, connected by a communications link. A network can be either small or large and can be connected permanently through cables or temporarily through telephone lines or wireless links. The biggest network is the Internet, a worldwide network.

Notification Area

This refers to the right area of the Taskbar including program icons such as the volume control, the power options and the time.

Power Schemes

This refers to a pre-determined power management option group. For example, you can set the time the computer waits before entering Standby Mode, or before the monitor or hard drive turns off. The settings are saved as a power scheme.

Quick Launch

This refers to a toolbar that can be configured so that you can launch a program such as Internet Explorer or display the Windows Desktop with one click. You can add any icon to the quick launch area of the Taskbar and launch frequently used program by clicking that icon.

Server

In general, a server refers to a computer that provides shared resources for network users.

Share

This refers to setting a resource of a computer such as a folder or printer so that other users can also use it.

Shared Folder

A folder that can be used by other users on the network.

Network Administrator

A user who plans, configures and manages network operations. Sometimes, a network administrator is called a system administrator.

Sleep Mode

A power mode that enables computers to save power consumption when they are not being used. When a computer is in Sleep Mode, the data on the computer memory is not saved to the hard disk. If the power is tuned off, the data in memory will be lost.

System File

System Files refer to files that are read and used by the Windows operating system. In general, system files must not be deleted or moved.

USB (Universal Serial Bus)

This refers to a serial interface standard developed to replace the conventional interface standards such as Serial and PS/2. While USB 1.1 supports 12Mbps (12 million bits per second), USB 2.0 supports a data rate that is 40 times (480Mbps) faster than that of USB 1.1. The data rate of USB 2.0 is equivalent to that of IEEE1394. Therefore USB 2.0 is used for A/V devices supported by IEEE 1394 and a 2nd HDD and CDRW that require a high data rate.

Windows Media Player

A multimedia program included with Windows. Using this program, you can play a media file, create an audio CD, listen to a radio broadcast, search and manage media files, and copy files to a portable device, etc.

Index

B

Battery 182

Battery Calibration 187

BIOS Setup 173

Bluetooth 115

Booting Priority 179

C

CD Drive / Recording 59

Charge 183

Click 55

Connect / Output Monitor 66

Connecting AP / AP 108

Control Panel 92

CyberLink DVD Suite 124

D

Desktop / Change 82

Dual View 72

E

Easy Battery Manager 185

Easy Network Manager 110

ExpressCard Slot 65

H

Help 81

L

LCD Brightness 172

M

Memory 180

Modem Connection 114

Multi Card Slot 62

Multimedia 122

N

Network 110

Network Status Diagnosis 113

P

Password 177

Product Name 42

Product Specifications 233

Program 121

R

Recorder 74

Remaining Battery Charge 184

Resolution / Color 96

s

Safety Precautions 8

Samsung Update Plus 141

Security Lock Port 188

Shortcut Keys 51

Status Indicators 43

T

Touchpad 54

U

User Accounts / Switch User 94

v

Volume Control 74

W

Windows Vista 80

Wired Network 105

Wireless Network 108
