Product Type	Smartphone / Mobile Phone
Brand	HTC
Model	Snap
Dimensions	Approx. 116.5 x 63.5 x 13 mm
Weight	Approx. 130 g (including battery)
Operating System	Windows Mobile 6.1 Standard
Battery Type	Lithium-Ion (Li-Ion), rechargeable
Battery Capacity	Up to 5.3 hours talk time, up to 11 days standby
Charger	AC phone charger (100-240V)
Display	2.4-inch TFT LCD, 320x320 pixels
Processor	Qualcomm MSM7225 528 MHz
Memory	256 MB ROM, 128 MB RAM
Camera	2.0 Megapixel with video recording
Keyboard	QWERTY keyboard with numeric keypad
Connectivity	Bluetooth 2.0, USB 1.1 (mini-USB), Wi-Fi 802.11b/g
GPS	Built-in GPS with QuickGPS
Expansion Slot	microSD card (supports up to 32 GB)
Data Networks	CDMA 800/1900, EV-DO Rev. A
Audio	Speakerphone, 3.5mm headphone jack (via adapter), Windows Media Player
Battery Charging Indicator	Solid amber (charging), solid green (fully charged), flashing red (low)
Included Accessories	AC charger, USB sync cable, stereo headset, battery, multi-function audio cable, getting started CD
Safety and Maintenance	Use only approved batteries/chargers; avoid moisture; clean with dry cloth; do not disassemble
Warranty	12-month limited manufacturer warranty (US/Canada)

Frequently Asked Questions - Snap HTC

How do I activate my HTC Snap?

If purchased at a Sprint store, your phone is usually already activated. If you received it by mail for a new account, it should activate automatically when you turn it on and make a call. For an existing number, go to www.sprint.com/activate from a computer and follow the onscreen instructions.

How do I charge the battery?

Connect the USB connector of the phone charger to the sync connector on your phone, then plug the charger into an electrical outlet. The battery indicator will show amber while charging and green when fully charged. Avoid charging with non-approved chargers.

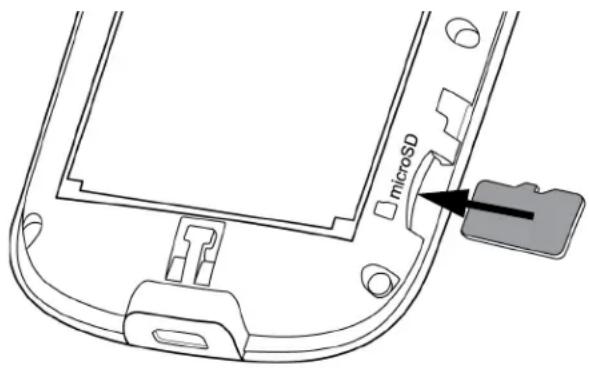

How can I insert or remove a microSD card?

Turn off the phone and remove the back cover. The microSD slot is located near the battery. Insert the card with the gold contacts facing down, and push it in until it clicks. To remove, push the card in to release it, then pull it out.

How do I pair a Bluetooth headset?

From the Home screen, press Start > All Programs > Settings > Connections > Bluetooth. Turn Bluetooth on and set the phone to visible mode. Then put your headset in pairing mode, select it from the device list, and follow the prompts to complete pairing.

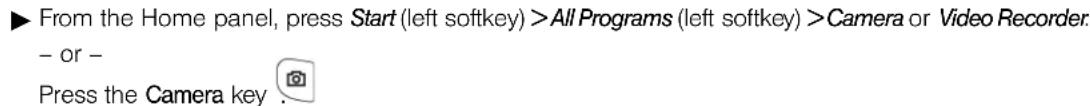

How do I take a photo with the camera?

Press the Camera key on the side of the phone to launch the camera. Aim at the subject and press the Enter key or the Camera key again to capture. You can change modes (photo, video, panorama) by pressing left/right on the navigation key.

How do I set up email on my HTC Snap?

Press Start > All Programs > Settings > Email Setup. Follow the wizard to configure your email account. You can set up Outlook, POP3/IMAP4, or Windows Live accounts. For company email, you may need Exchange Server settings provided by your IT department.

How do I synchronize my phone with a computer?

Install ActiveSync (Windows XP) or Windows Mobile Device Center (Windows Vista/7) on your computer. Connect your phone via USB, then follow the onscreen prompts to set up a sync partnership. You can sync contacts, calendar, tasks, and files.

What should I do if the battery drains quickly?

Reduce screen brightness and backlight timeout, turn off Bluetooth and Wi-Fi when not in use, close unused programs (use Task Manager), and lower ring volume. Also, avoid using the camera or playing video for extended periods.

How do I reset my HTC Snap?

To perform a soft reset, press and release the Reset button (found near the battery cover) using the stylus or a paperclip. For a hard reset (factory reset), press and hold the End/Power key and the Send key simultaneously until the device restarts. Note: Hard reset erases all data.

Can I use the phone on an airplane?

Enable Airplane Mode to turn off all wireless radios (phone, Bluetooth, Wi-Fi). You can enable it via the Comm Manager or by pressing and holding the End/Power key and selecting Airplane Mode from the Quick List.

USER MANUAL Snap HTC

© 2009 Sprint. Sprint and the logo are trademarks of Sprint.

Other marks are the property of their respective owners.

Looking for something? If you don't see it in the headings listed here, try the Index on page 167.

Introduction.... i

Section 1: Getting Started .... 1

1A. Setting Up Service 2

Setting Up Your Phone 2

Activating Your Phone 4

Setting Up Your Voicemail 5

Sprint Account Passwords 5

Getting Help 6

Section 2: Your Device 9

2A. Device Basics 10

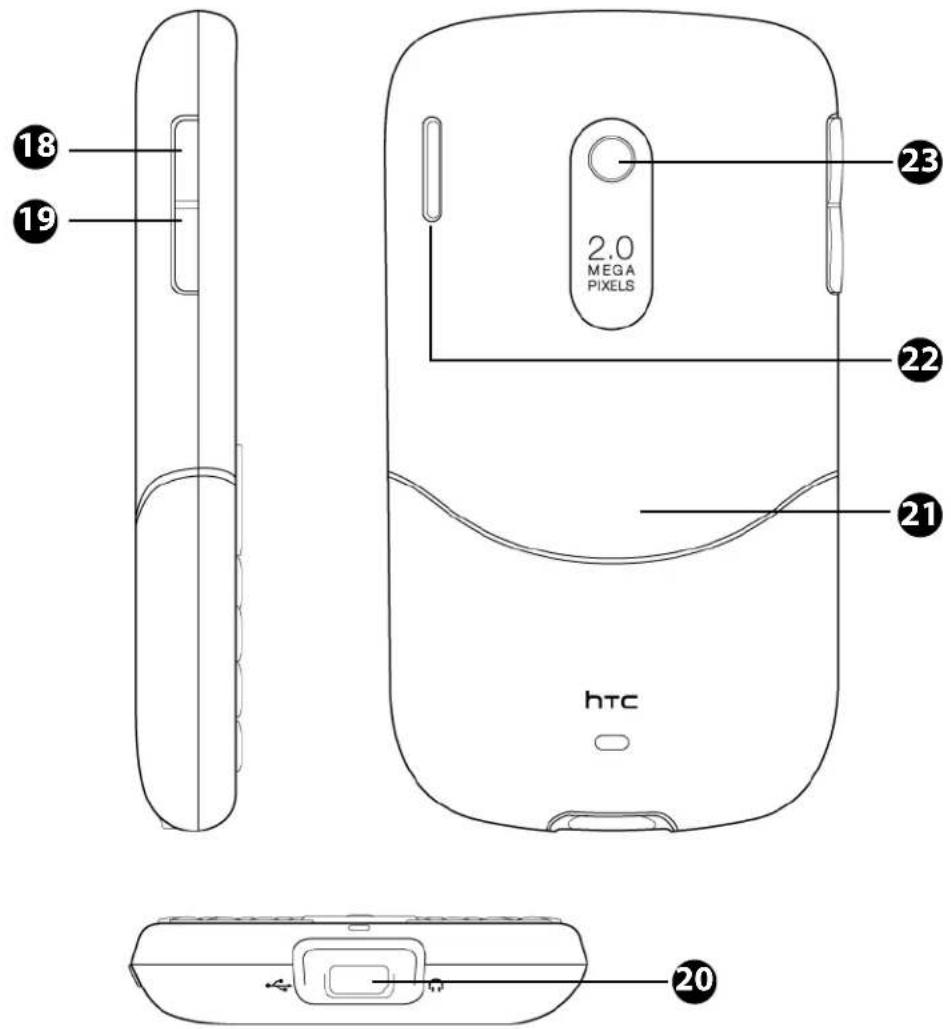

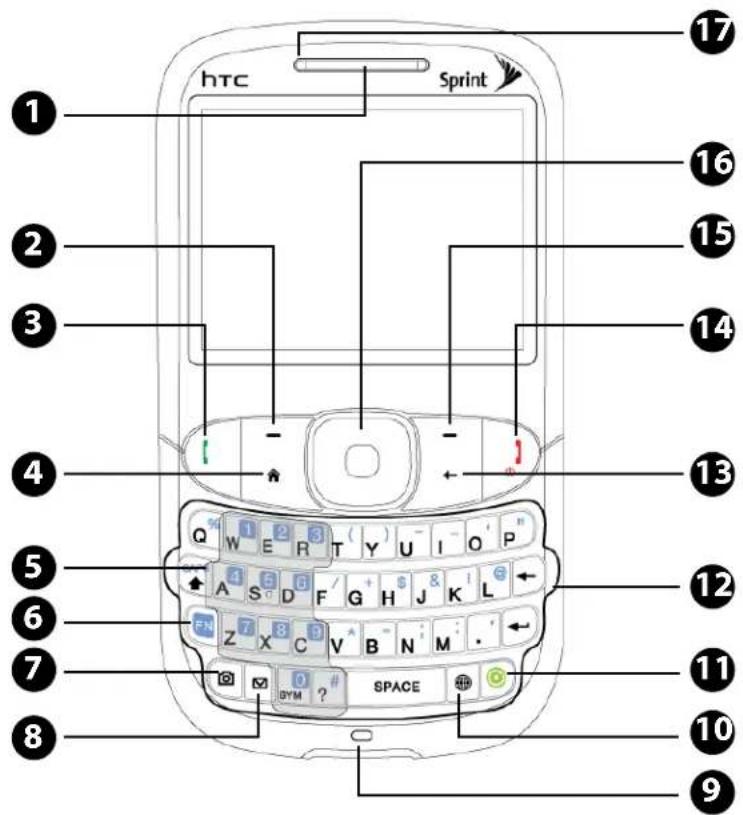

Your Device 11

Accessories 14

Features of Your Phone 14

Turning Your Device On and Off 15

Using Your Phone's Battery and Charger 15

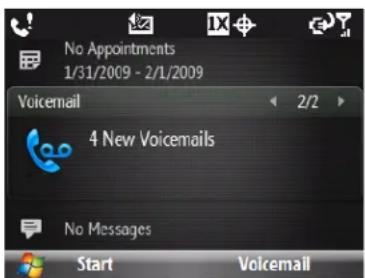

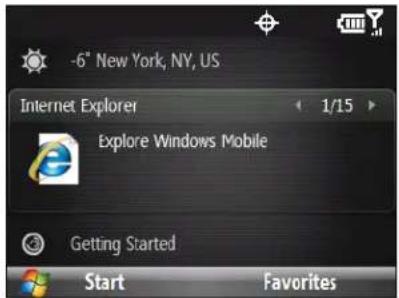

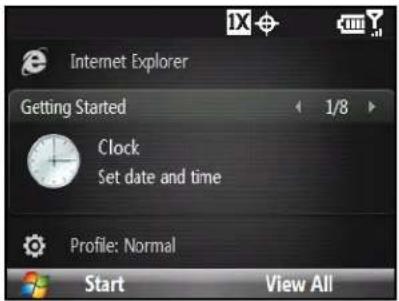

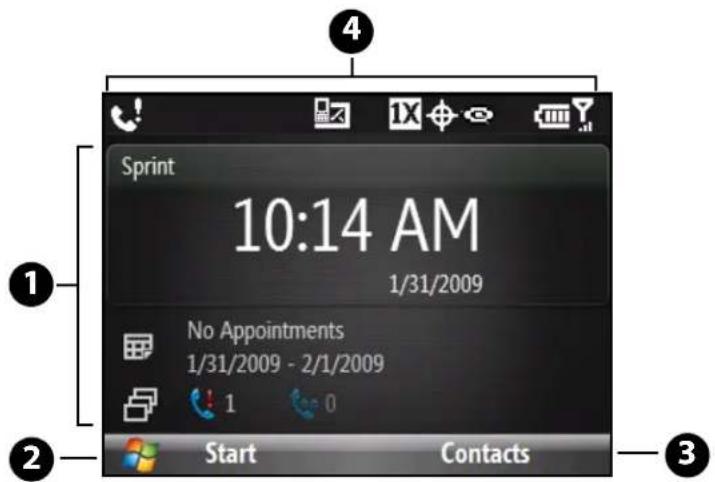

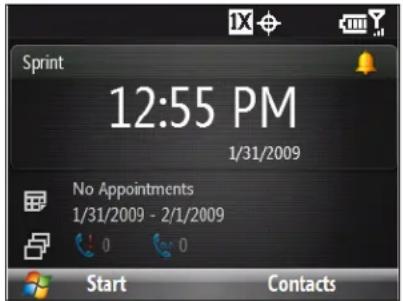

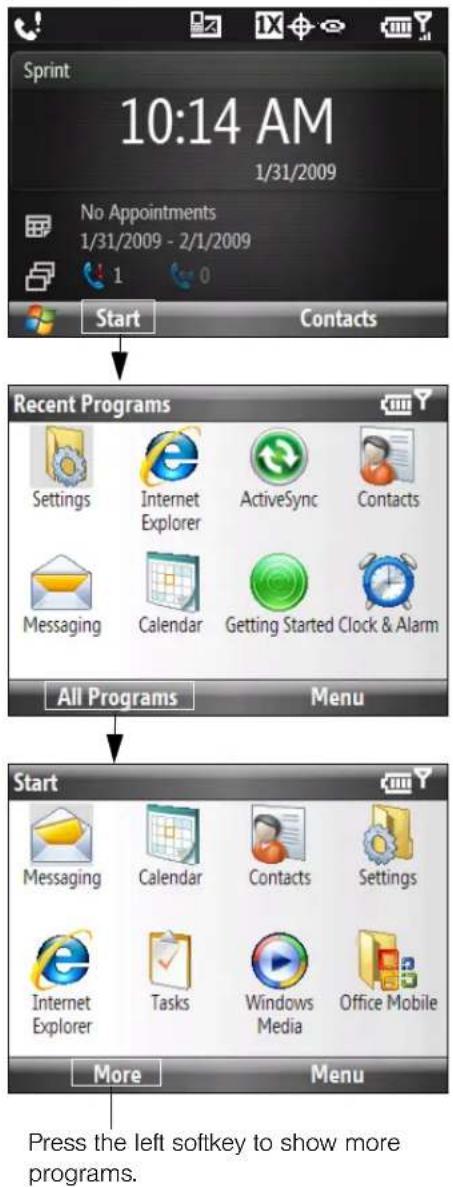

The Home Screen 17

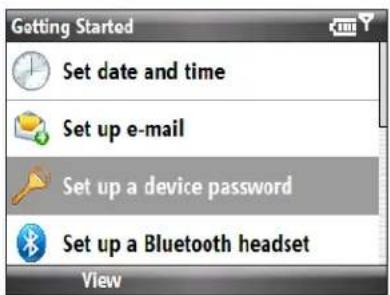

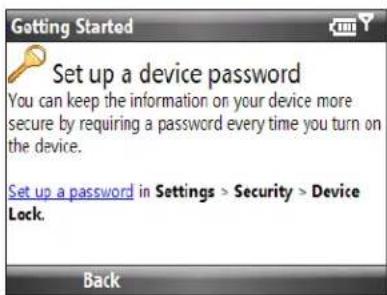

Using the Getting Started Application 20

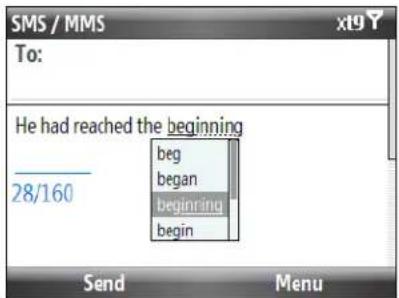

Entering Text 21

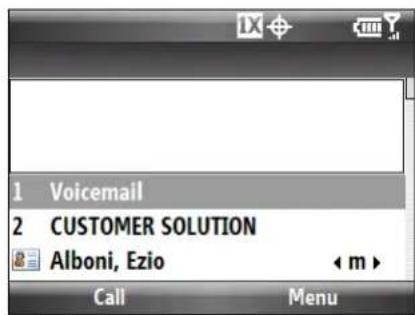

The Phone Screen 23

Displaying Your Phone Number 24

Making a Call 24

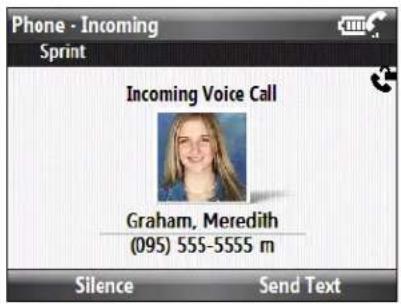

Answering a Call 25

Ending a Call 27

Checking Missed Calls 27

Call History 27

Speed Dial 28

Turning the Phone On and Off 29

2B. HTC Home 30

Using HTC Home 30

Home 30

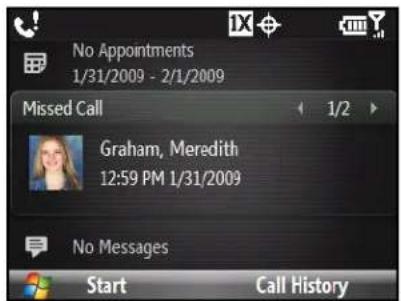

Missed Call/Voicemail 31

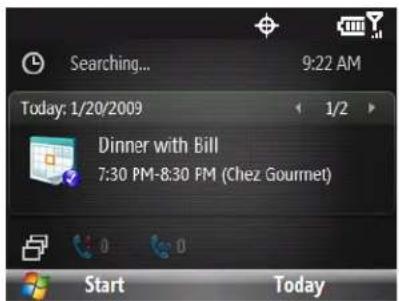

Appointments 31

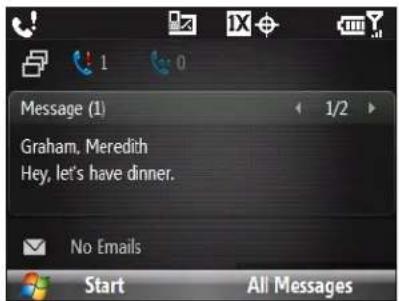

Messages 31

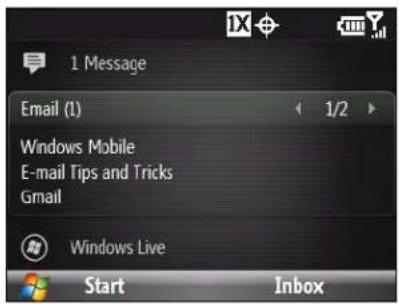

Email 32

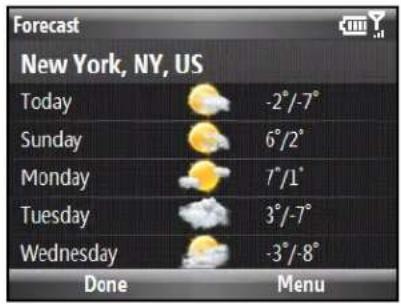

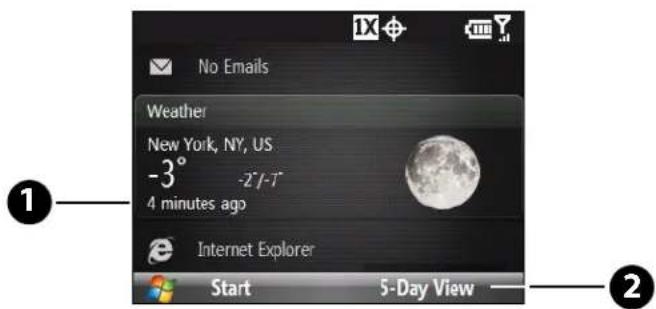

Weather 32

Internet Explorer 33

Getting Started 34

Settings 34

2C. Contacts, Calendar, and Tools 35

Contacts 35

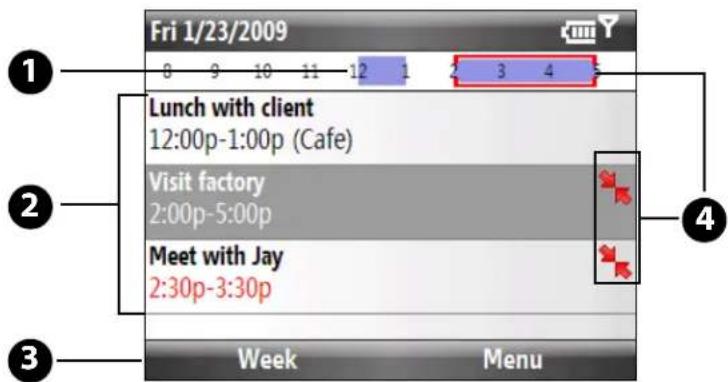

Calendar 37

Tasks 39

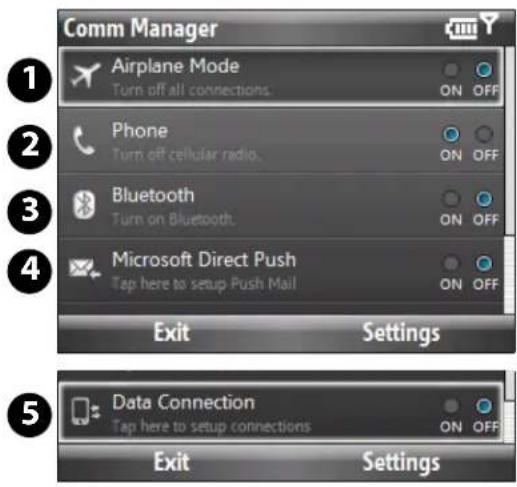

Comm Manager 40

Adobe Reader LE 41

Microsoft Office Mobile 41

Automatic Speech Recognition (ASR) 42

Voice Recorder 43

2D. Camera and Multimedia 44

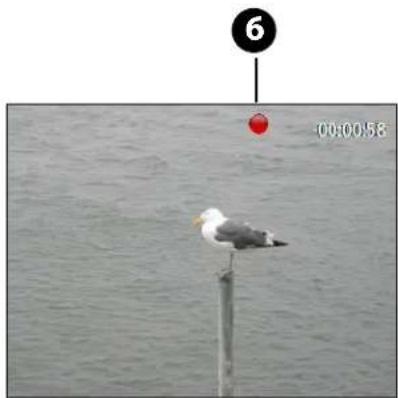

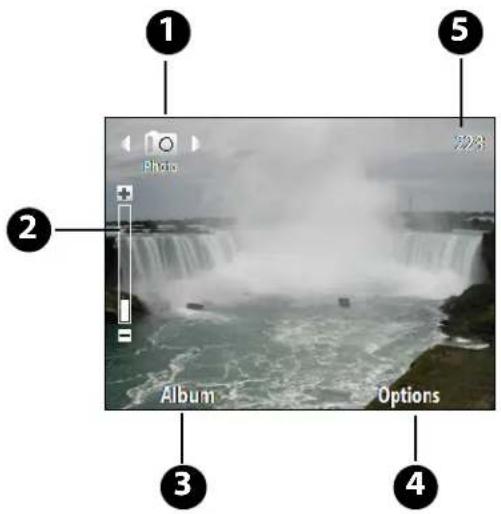

Taking Photos and Videos 44

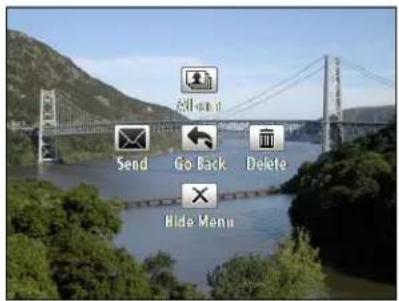

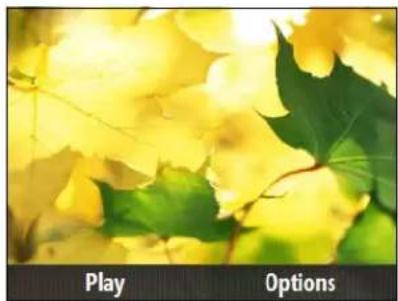

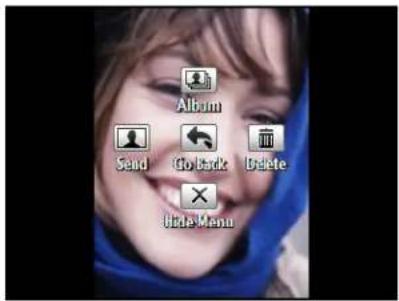

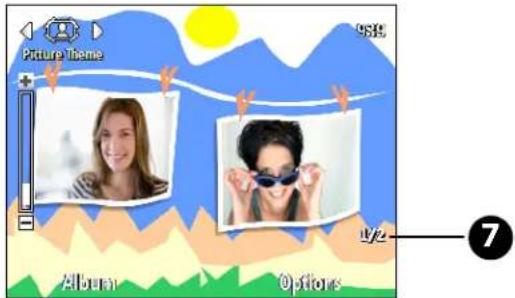

Viewing Photos and Videos 50

Using Windows Media Player Mobile 52

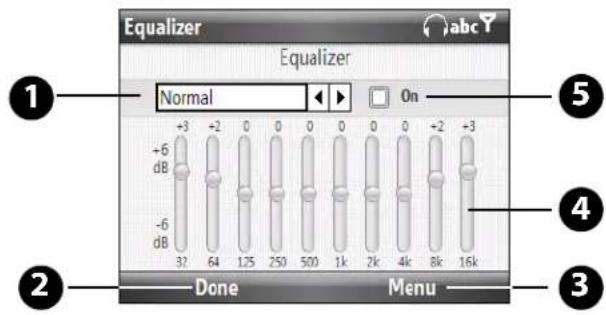

Using Audio Booster 56

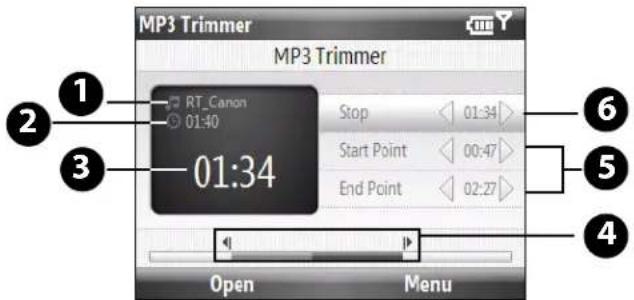

Using MP3 Trimmer 57

2E. Bluetooth 58

Using Bluetooth 58

Printing Files via Bluetooth 61

2F. microSD Card 62

Using a microSD Card on Your Phone 62

Managing the microSD Card 63

Using Your Device as a USB Drive 64

2G.Managing Your Device 65

Copying and Managing Files 65

Changing Basic Settings 66

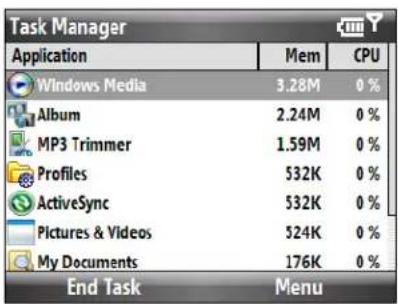

Using Task Manager 70

Protecting Your Device 70

Managing Memory 71

Adding and Removing Programs 71

Resetting Your Device 72

Windows Update 72

2H. Synchronizing With Your Computer 74

About Synchronization 74

Ways to Synchronize 74

Setting Up ActiveSync on Windows XP 75

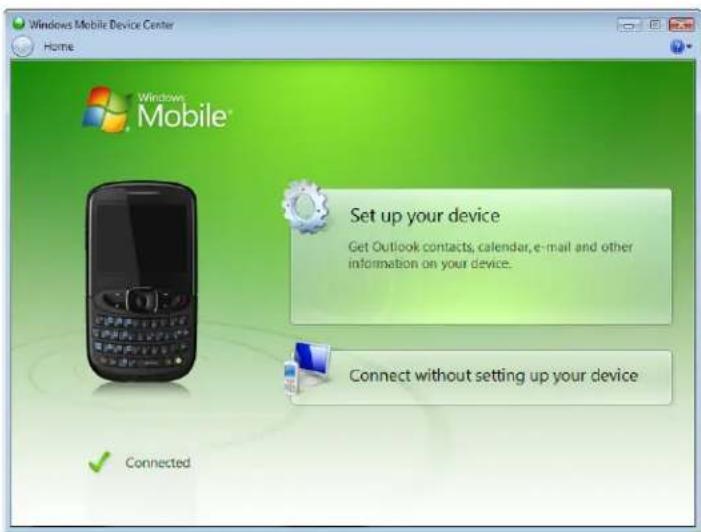

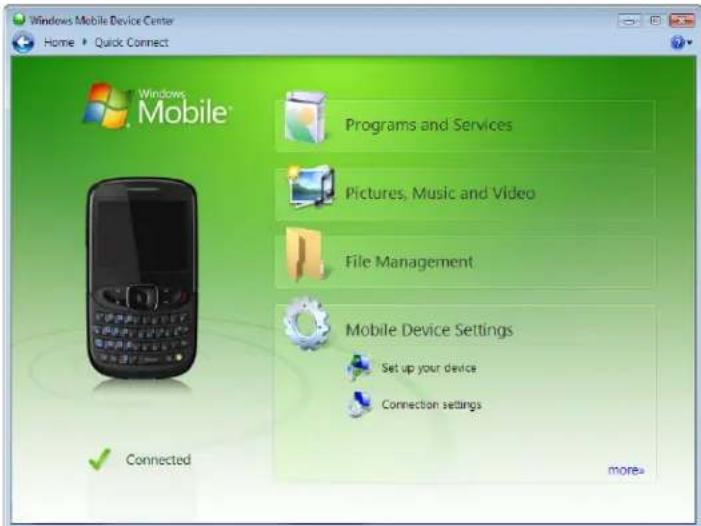

Setting Up Windows Mobile Device Center on Windows Vista 75

Synchronizing With Your Computer 77

Synchronizing via Bluetooth 78

Synchronizing Music and Video 79

Section 3: Sprint Service 81

3A. Sprint Service: The Basics 82

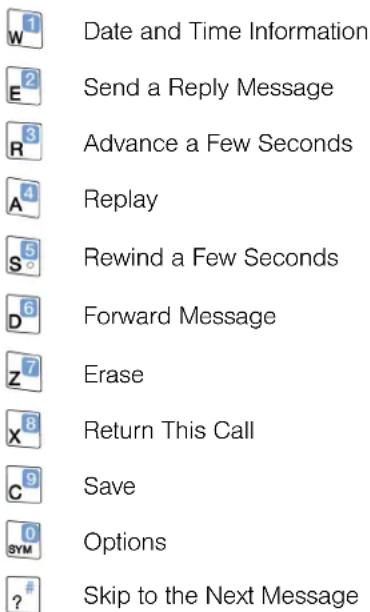

Voicemail 82

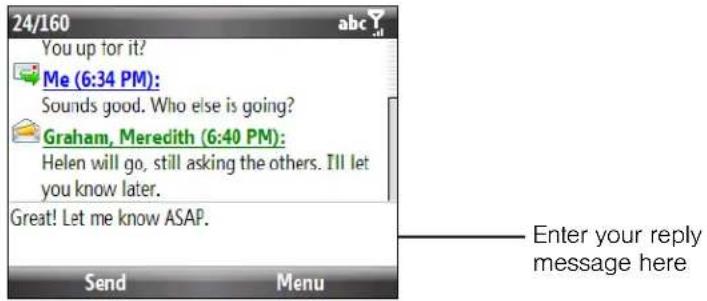

Text Messaging (SMS) 85

Video and Picture Messaging (MMS) 88

Using Caller ID 89

Call Waiting 89

Making a Three-Way Call 90

Call Forwarding 90

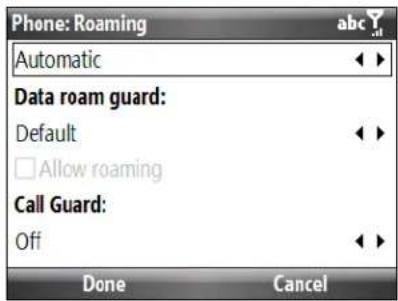

Roaming 90

3B. Web and Data Services 93

Getting Started With Data Services 93

Connecting to the Internet 95

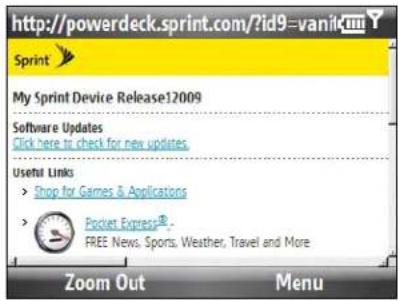

Navigating the Web 97

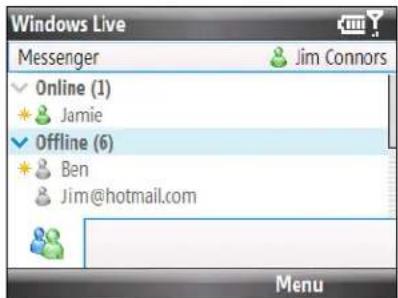

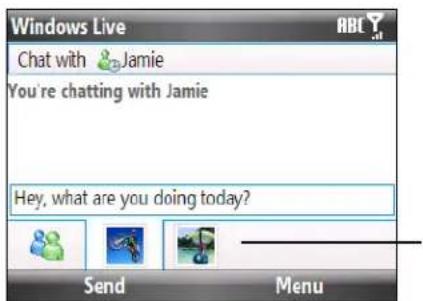

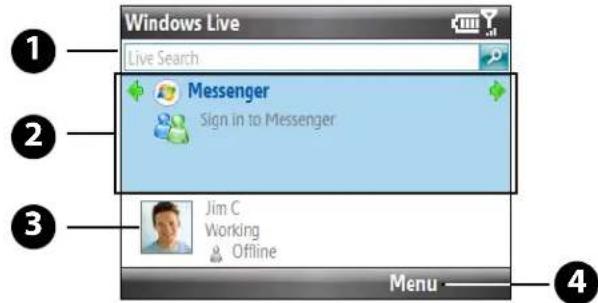

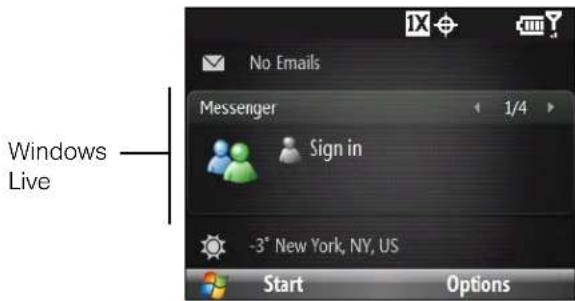

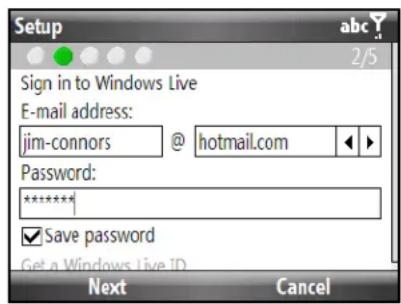

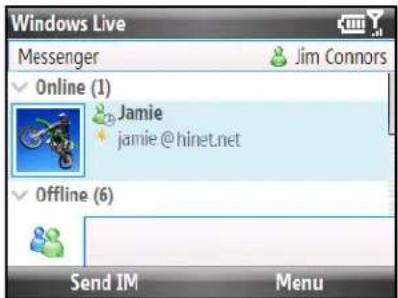

Using Windows Live 98

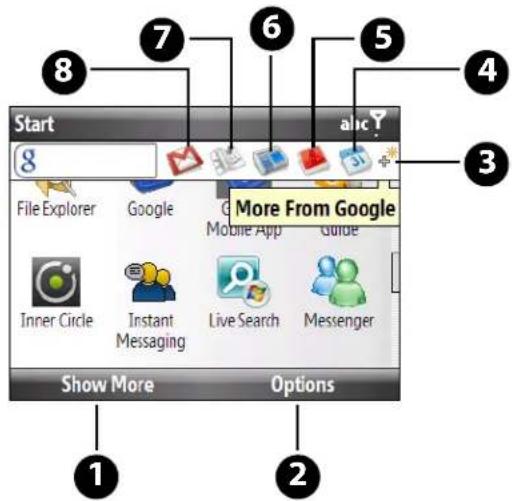

Google Mobile 103

Sprint Software Store 105

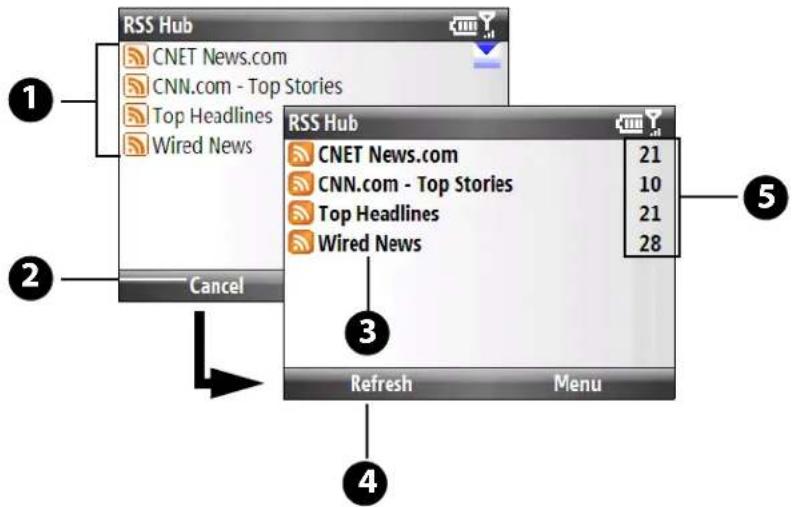

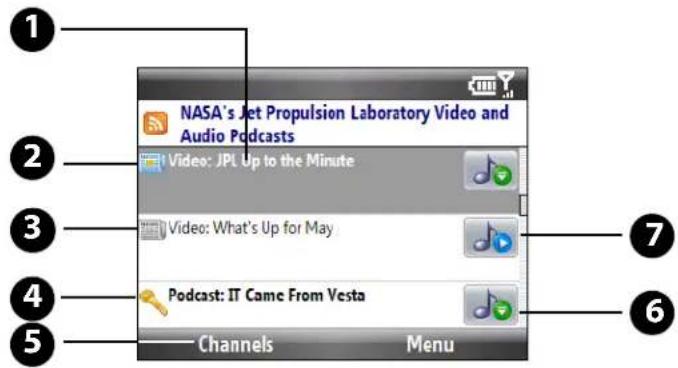

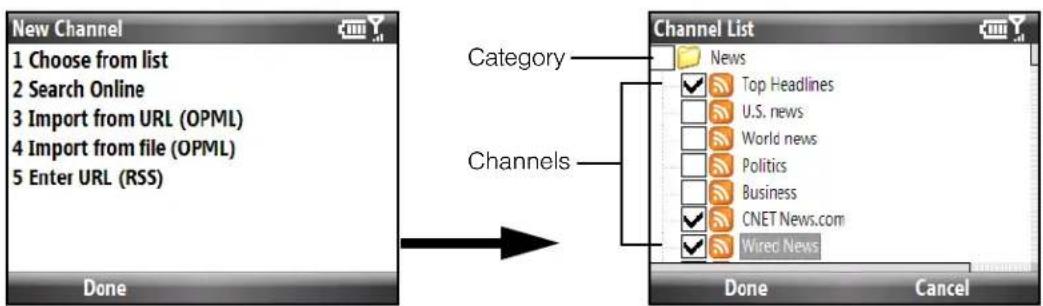

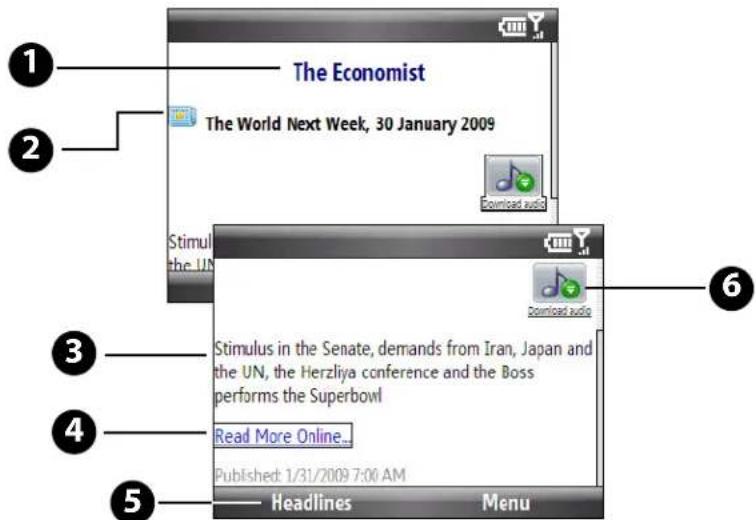

Using RSS Hub 105

Using Remote Desktop Mobile 109

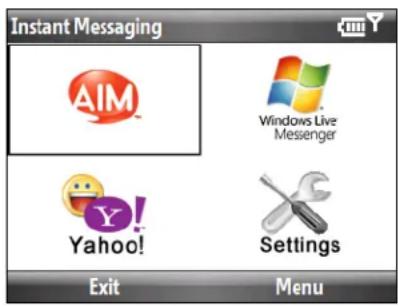

Accessing Sprint Instant Messaging 110

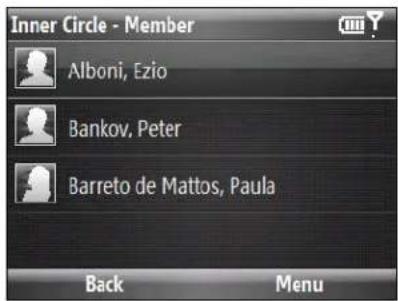

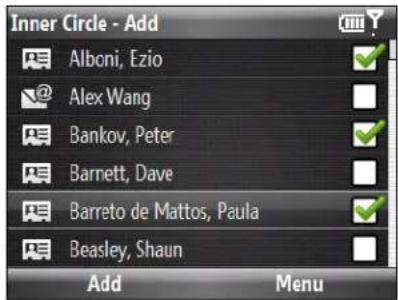

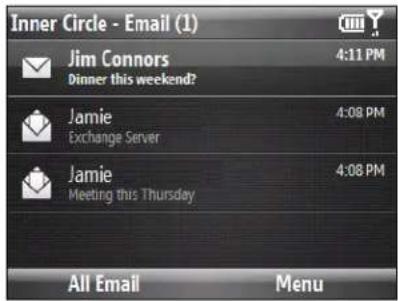

Using Inner Circle 111

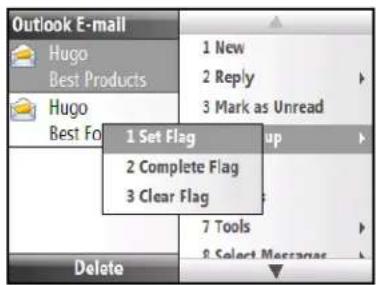

Email Messaging 113

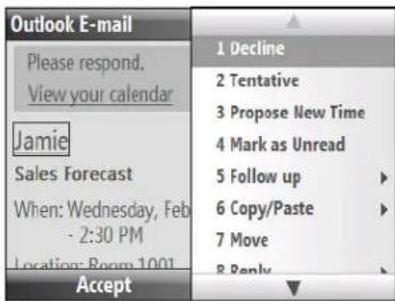

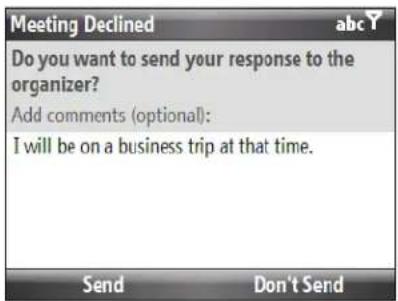

Working With Company Email and Meeting Appointments 119

3C. Entertainment: TV and Music 125

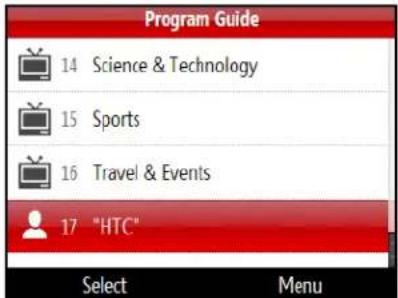

TV 125

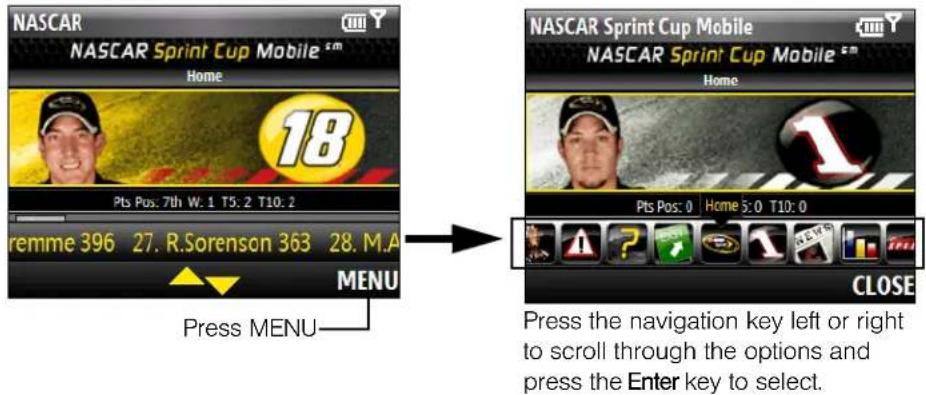

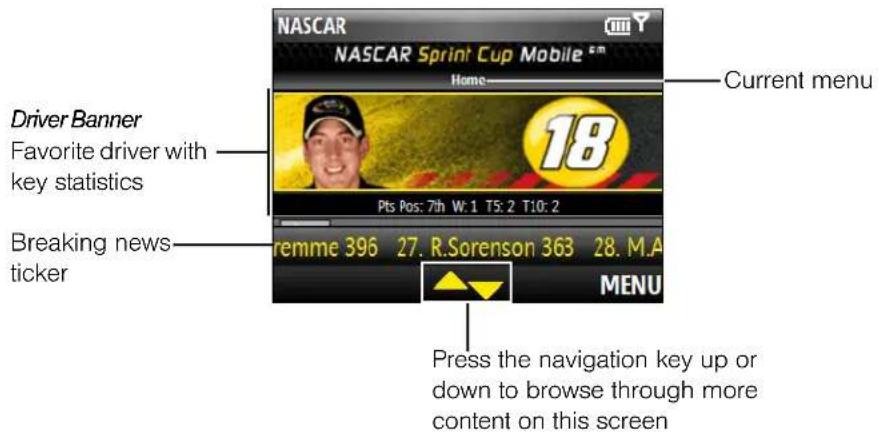

NASCAR Sprint Cup Mobile 127

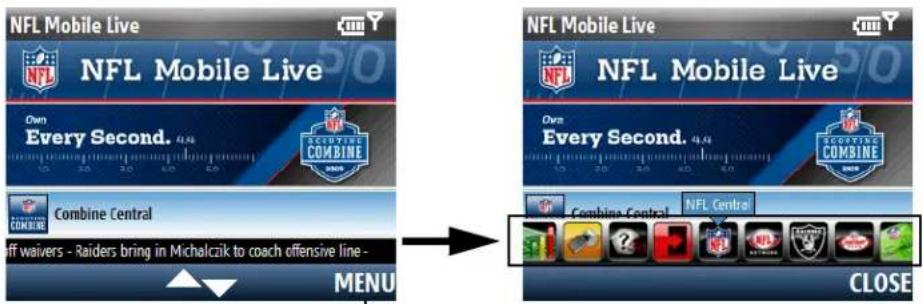

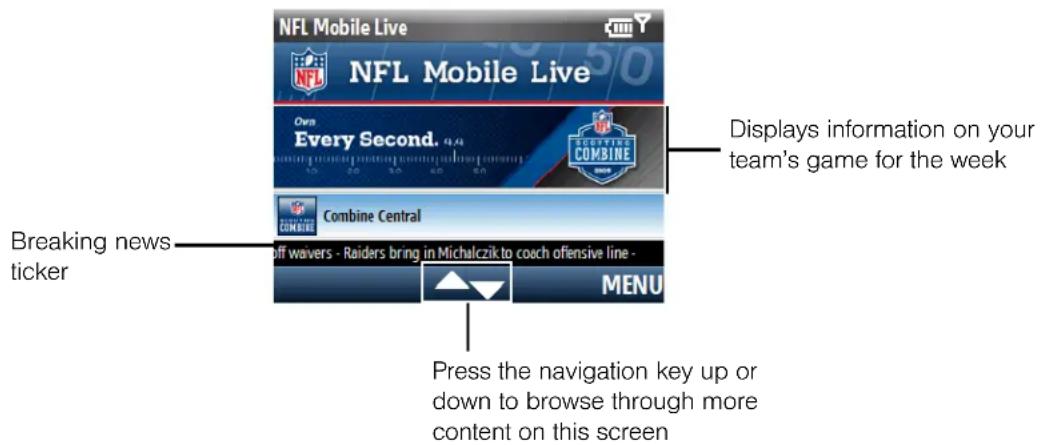

NFL Mobile Live 130

Music: Sprint Music Store 133

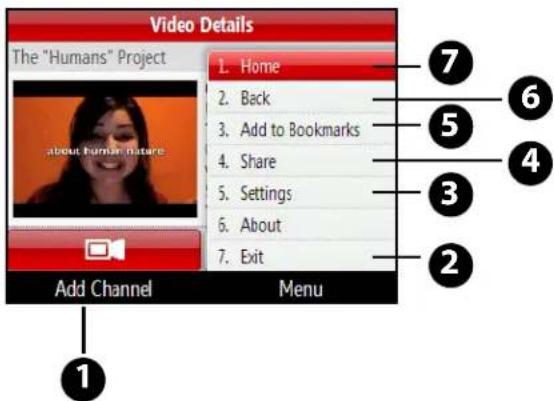

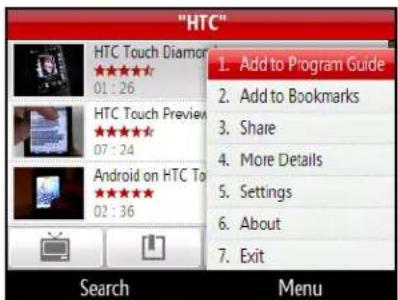

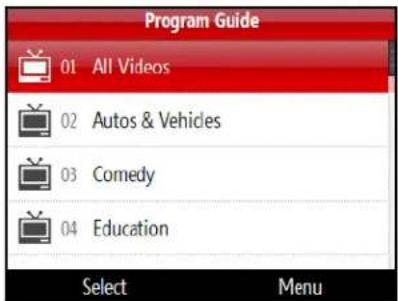

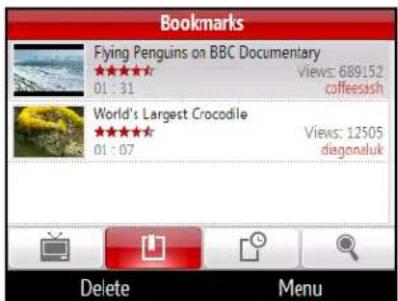

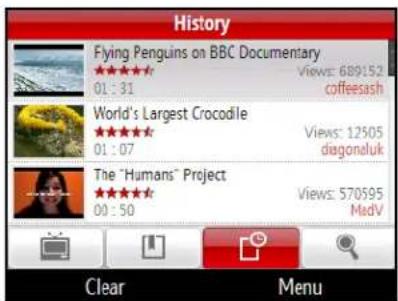

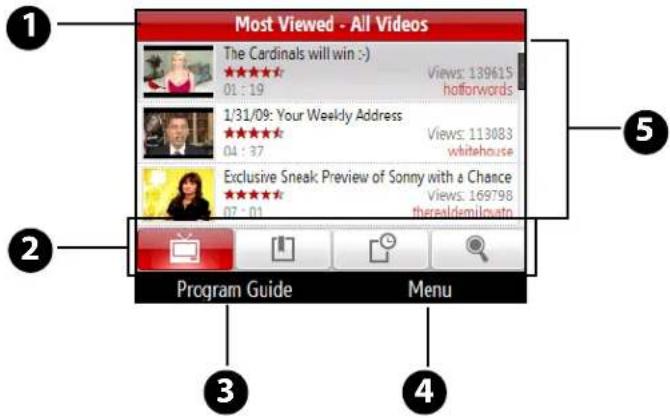

YouTube 135

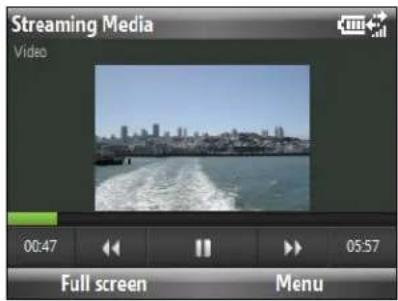

Streaming Media 139

3D. GPS Navigation 141

Guidelines and Preparation for Using GPS 141

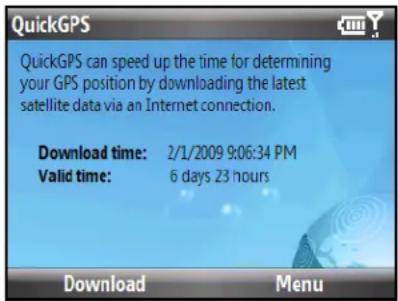

Downloading Satellite Data via QuickGPS 142

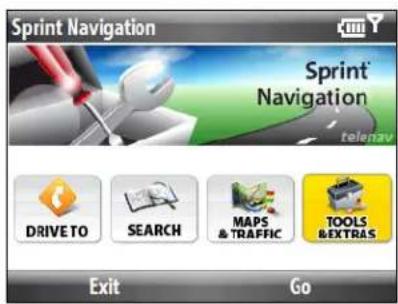

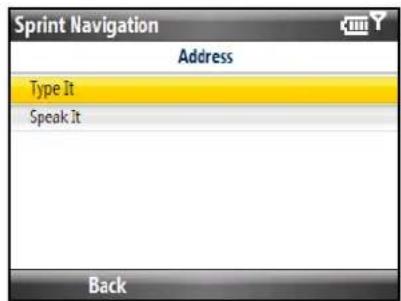

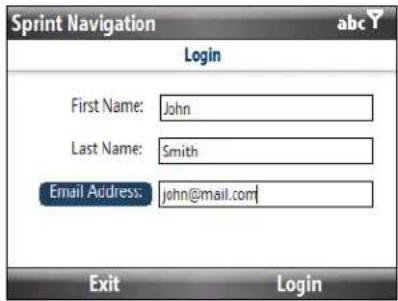

Using Sprint Navigation 143

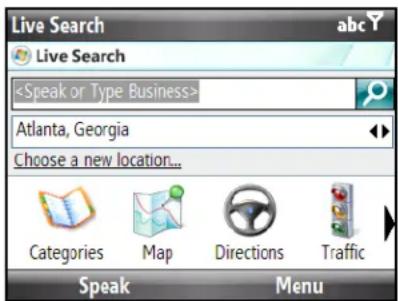

Windows Live Search 145

Section 4: Safety, Regulatory, and Warranty Information.... 147

4A. Important Safety Information.... 148

Safety Precautions 148

General Precautions 151

Additional Safety Information 152

4B. Regulatory Notices 157

Regulatory Agency Identifications 157

Federal Communication Commission Interference Statement 157

FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices 158

SAR Information 159

Body-worn Operation 160

Telecommunications & Internet Association (TIA) Safety Information 160

WEEE Notice 161

RoHS Compliance 161

4C. Warranty and Other Notices 162

Manufacturer's Warranty 162

Privacy Restrictions 164

Weather Disclaimer 164

Warranty Disclaimer 164

Limitation of Damages 164

Copyright and Trademark Information 165

Index 167

Introduction

This UserGuide introduces you to Sprint® service and all the features of your new phone. It's divided into four sections:

◆ Section 1: Getting Started
◆ Section 2: Your Phone
◆ Section 3: Sprint Service
◆ Section 4: Safety Information and Other Notices

Throughout this guide, you'll find tips that highlight special shortcuts and timely reminders to help you make the most of your new phone and service. The Table of Contents and Index will also help you quickly locate specific information.

You'll get the most out of your phone if you read each section. However, if you'd like to get right to a specific feature, simply locate that section in the Table of Contents and go directly to that page. Follow the instructions in that section, and you'll be ready to use your phone in no time.

User Guide Note

Because of updates in the phone's software, this user guide may not be the most current version for your phone. Visit www.sprint.com and log on to My Sprint Wireless to access the most recent version of the user guide.

WARNING

Please refer to "Important Safety Information" on page 148 to learn about information that will help you safely use your phone. Failure to read and follow the Important Health and Safety Information in this user guide may result in serious bodily injury, death, or property damage.

Section 1

Getting Started

Section 1A

Setting Up Service

◆ Setting Up Your Phone (page 2)
◆ Activating Your Phone (page 4)
◆ Setting Up Your Voicemail (page 5)
◆ Sprint Account Passwords (page 5)
◆ Getting Help (page 6)

Setting up and activating your new phone is quick and easy. This section walks you through the necessary steps to set up your phone, activate your phone, set up your voicemail, establish passwords, and contact Sprint for assistance with your Sprint service.

Setting Up Your Phone

When you take your phone out of the box, install the battery, turn on the power, and allow the phone to install customization settings to prepare your phone for use.

Note You can use a microSD™ card with your phone. (See "Using a microSD Card on Your Phone" on page 62.)

Installing the Battery

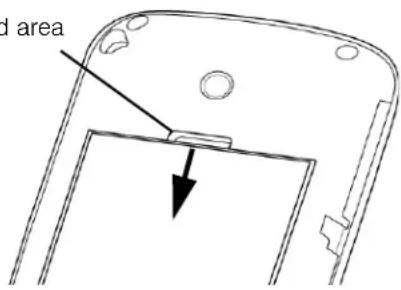

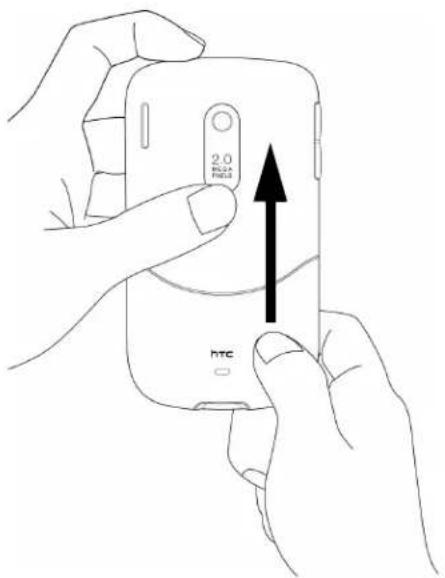

1. Remove the back cover.

■Hold the phone with both hands and the front panel facing down.
■ Push the back cover up with your thumb until it disengages from the phone and then slide it up to remove.

2 1A. Setting Up Service

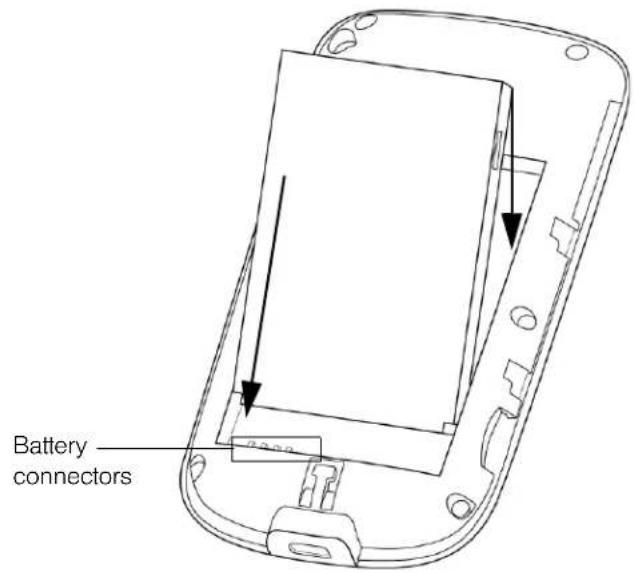

1. Insert the battery.

- Align the battery's exposed copper contacts with the battery connectors inside the battery compartment.

■ Insert the contacts side of the battery first and then gently push the battery into place.

1. Replace the back cover.

Turning the Phone On for the First Time

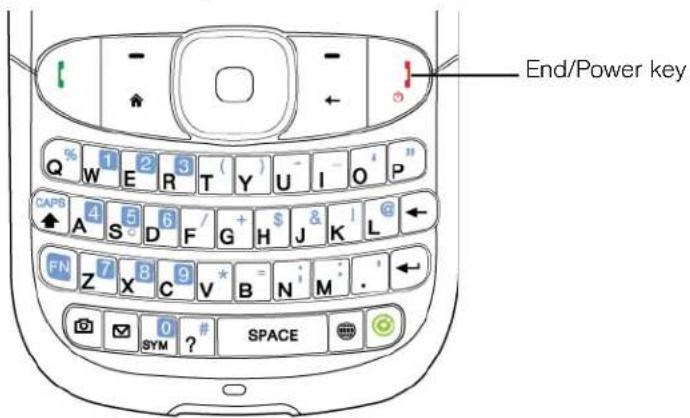

1. Press and hold the End/Power key for a few seconds.

1. When you turn on your phone for the first time, the phone installs customization settings, and then restarts.

■ If your phone is already activated, it will search for Sprint service and then enter standby mode.

■ If your phone is not yet activated, see "Activating Your Phone" on page 4 for more information.

Note

Your phone's battery should have enough charge for your phone to turn on and find a signal, set up your voicemail, and make a call. You should fully charge your battery as soon as possible. See "Charging the Battery" on page 16 for details.

Activating Your Phone

• If you purchased your phone at a Sprint Store, your phone should be activated and ready to use.
• If you received your phone in the mail and it is for a new Sprint account or a new line of service, it is designed to activate automatically. To confirm your activation, make a phone call.
• If you received your phone in the mail and you are activating a new phone for an existing number on your account, you will need to go online to activate the number on your new phone. From your computer's Web browser, go to www.sprint.com/activate and complete the onscreen instructions to activate your phone.

When you have finished, make a phone call to confirm your activation. If your phone is still not activated or you do not have access to the Internet, contact Sprint Customer Service at 1-888-211-4727 for assistance.

Tip

Do not press the End/Power key while your phone is being activated. Pressing the End/Power key cancels the activation process.

Note

If you are having difficulty with activation, contact Sprint Customer Service by dialing 1-888-211-4727 from any other phone.

Making Your First Call

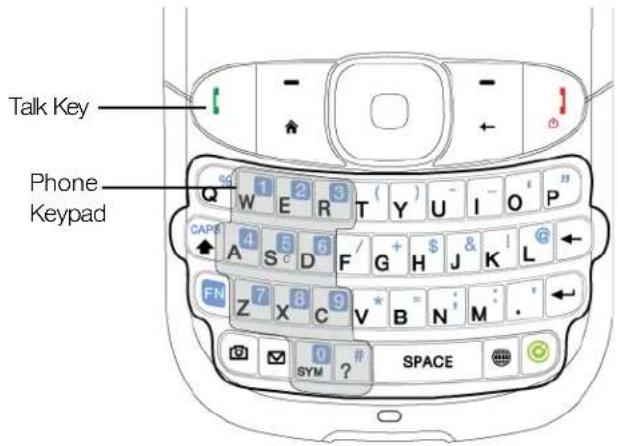

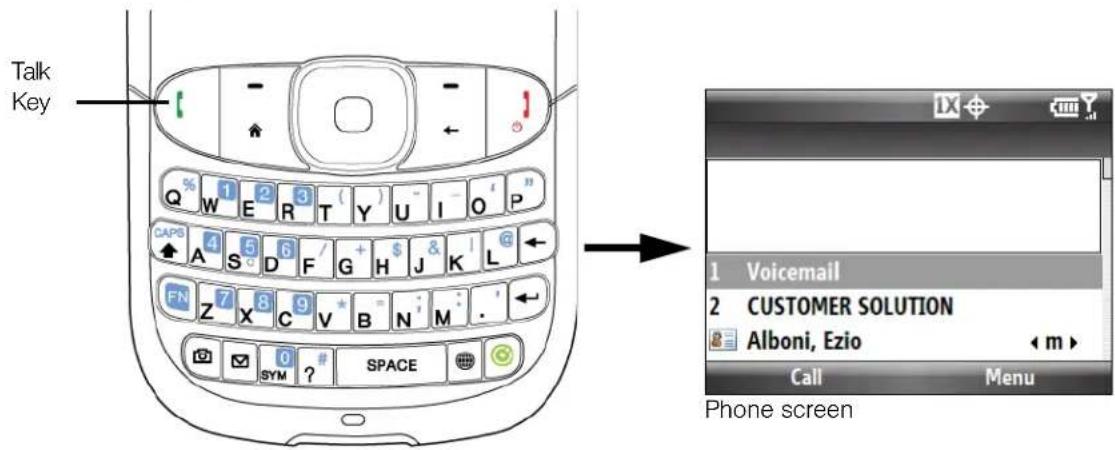

1. Press the Talk key to display the Phone screen.

1. Press the keys on the Phone keypad to enter the phone number.

2. Press the Talk key again to place the call.

For more information about using your phone to make and receive phone calls, see "Making a Call" on page 24 and "Answering a Call" on page 25.

4 1A. Setting Up Service

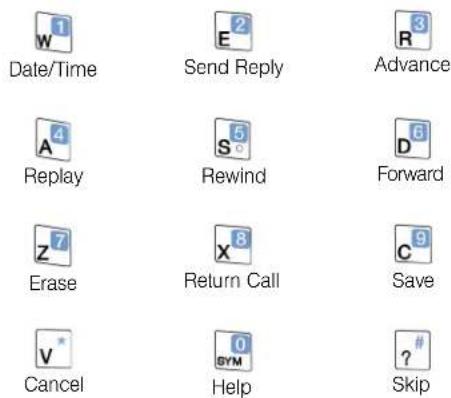

Setting Up Your Voicemail

All unanswered calls to your phone are automatically transferred to your voicemail, even if your phone is in use or turned off. Therefore, you will want to set up your voicemail and personal greeting as soon as your phone is activated.

To set up your voicemail:

1. Press the Tak key to display the Phone screen.
2. Press and hold on the Phone keypad.
3. Follow the system prompts to:

■Create your passcode.
■Record your greeting.
■Record your name announcement.

Note

Voicemail Passcode

Sprint strongly recommends that you create a passcode when setting up your voicemail to protect against unauthorized access. Without a passcode, anyone who has access to your device is able to access your voicemail messages.

Sprint Account Passwords

As a Sprint customer, you enjoy unlimited access to your personal account information, your voicemail account, and your data services account. To ensure that no one else has access to your information, you will need to create passwords to protect your privacy.

Account Password

If you are the account owner, you will create an account user name and password when you sign on to www.sprint.com. (Click Need to register for access? to get started.) If you are not the account owner (if someone else receives the bill for your Sprint service), you can get a sub-account password at www.sprint.com.

Voicemail Password

You will create your voicemail password (or passcode) when you set up your voicemail. See "Setting Up Your Voicemail" for more information on your voicemail password.

Data Services Password

With your phone, you may elect to set up an optional data services password to control data (Web) access and authorize Premium Service purchases.

For more information or to change your passwords, sign on to www.sprint.com.

Managing Your Account

Online: www.sprint.com

You can go online to:

• Access your account information.
• Check your minutes used (depending on your Sprint service plan).
  ●View and pay your bill.
  ●Enroll in Sprint online billing and automatic payment.
  ●Purchase accessories.
  ●Shop for the latest Sprint devices.
  ●View available Sprint service plans and options.

- Learn more about data services and other great products like Sprint Picture Mail, games, ringers, screen savers, and more.

Reaching Sprint Customer Service

You can reach Sprint Customer Service many different ways:

• From the Phone screen, press ^* and then press the Talk key.
  ● Sign on to your account at www.sprint.com.
• Call us toll-free at 1-888-211-4727 (Consumer customers) or 1-888-788-4727 (Business customers).
  ●Write to us at Sprint Customer Service, P.O. Box 8077, London, KY 40742.

Automated Billing Information

For your convenience, your phone gives you access to billing information on your Sprint account. This information includes balance due, payment received, invoicing cycle, and the number of minutes used since your last invoicing cycle.

To access automated billing information:

▶ From the Phone screen, press v ^* A ^4 and then press the Talk key.

Note This service may not be available in all Affiliate areas.

Sprint 411

You have access to a variety of services and information through Sprint 411, including residential, business, and government listings; assistance with local or long-distance calls; movie listings; and hotel, restaurant, shopping, and major local event information. There is a per-call charge and you will be billed for airtime.

To call Sprint 411:

▶ From the Phone screen, press A ^4 W ^1 W ^1 and then press the Talk key.

6 1A. Setting Up Service

Sprint Operator Services

Sprint Operator Services provides assistance when placing collect calls or when placing calls billed to a local telephone calling card or third party.

To access Sprint Operator Services:

▶ From the Phone screen, press SYM and then press the Talk key.

For more information or to see the latest in products and services, visit us online at www.sprint.com.

Section 2

Your Device

Device Basics

◆ Your Device (page 11)
◆ Accessories (page 14)
◆ Features of Your Phone (page 14)
♦ Turning Your Device On and Off (page 15)
◆ Using Your Phone's Battery and Charger (page 15)
◆ The Home Screen (page 17)
◆ Using the Getting Started Application (page 20)
◆ Entering Text (page 21)
◆ The Phone Screen (page 23)
◆ Displaying Your Phone Number (page 24)
◆ Making a Call (page 24)
◆ Answering a Call (page 25)
♦ Ending a Call (page 27)
◆ Checking Missed Calls (page 27)
◆ Call History (page 27)
◆ Speed Dial (page 28)
♦ Turning the Phone On and Off (page 29)

Tip

Device Software Upgrades – Updates to your device's software may become available from time to time. Sprint will automatically upload critical updates to your device. You can also use the menu to check for and download updates. Press Start (left softkey) > All Programs (left softkey) > Settings > Device Management > Firmware Update to search for and download available updates.

Front Panel

1. Earpiece. Hear the caller and automated prompts.
2. Left Softkey. Press to perform the command above the selection
3. Talk Key

■ Press to answer an incoming call or display the Phone screen to place a call.
■ During a call, press and hold to toggle the speakerphone on and off. (See "In-Call Options" on page 26 for details.)
■ Press and hold to use Automatic Speech Recognition (ASR). (See "Automatic Speech Recognition (ASR)" on page 42 for details.)

1. Home Key. Press to return to the Home screen. (See "The Home Screen" on page 17 for details.)

2. Keypad. Use the keypad to dial phone numbers.

3. FNKey. Press once to let you type symbols (characters in blue) and enter numbers in text fields. Press two more times for continuous symbol or number entries.
4. Camera. Press to open the camera program. When the camera program is open, you can press this key to take a picture or capture video.
5. SMS/MMS. Press to open the SMS/MMS inbox.
6. Microphone. Speak into the microphone during phone conversations, when recording a voice note, or when giving a voice command.
7. Internet. Press to open Internet Explorer Mobile.

11. Inner Circle™

• Press to open the Inner Circle where you can send and receive email messages to selected contacts. (See “Using Inner Circle” on page 111 for details.)
  ■Press and hold to display the Message Center screen.

• QWERTY Keyboard. This is similar to a standard keyboard on a computer. Use it to type messages or documents. (See "Using the QWERTY Keyboard" on page 21 for details.)

• Back Key. Press to return to the previous screen.

14. End/Power Key

■Press for five seconds to turn on the phone.
■Press to end a call or return to the Home screen.
■ Press and hold to display the Quick List. (See "Quick List" on page 20 for details.)

1. Right Softkey. Press to perform the command above the selection
2. Navigation Key. Press this up, down, left, or right to move through menus and items, and then carry out the selection by pressing the Enter (center) key.
3. Notification LED. LED indicates battery charging status and notification.

■Solid Green: battery is fully charged
■ Flashing Green: MMS downloaded/new email/new MMS/new text message/missed phone call/new voicemail/reminder
■Solid Amber: charging
■Flashing Red: battery is low
■ Solid Red: battery is totally discharged (shown when connected to AC).

Left, Rear, and Bottom Panels

1. Volume Up Button. Press this button to increase the volume.
2. Volume Down Button. Press this button to decrease the volume.
3. Sync Connector/Earphone Jack. Connect the supplied USB cable to synchronize information or plug in the AC phone charger to recharge the battery. You can also connect the supplied USB stereo headset.
4. Back Cover. Remove to gain access to the battery and microSD card slot.
5. Speaker. You can listen to different ringers and sounds through this, and also hear a caller's voice in speakerphone mode.
6. 2.0 Megapixel Camera. Use the camera to take photos and capture video clips. (See "Taking Photos and Videos" on page 44 for details.)

Accessories

The product package includes the following items and accessories:

●AC phone charger
- USB sync cable
●Mini-USB stereo headset
●Battery
●Multifunction audio cable
●Getting Started CD
● Get Started Guide, Basics Guide, Set Up Your Email Guide, and Features Guide

Features of Your Phone

The HTC Snap ^™ is powerful, easy to use, and reliable, and it offers many features and service options. This list previews some of those features and provides page numbers where you can find out more:

• Digital dual-band capability allows you to make and receive calls while on the Nationwide Sprint Network and to roam on other 1900 and 800 MHz digital networks where Sprint has implemented roaming agreements (page 90).
• Access the Internet using your Sprint connection (page 93) from your phone. Additional charges may apply.
• SMS Text Messaging (page 85) and Email Messaging (page 113) provide quick and convenient messaging capabilities.
  ●QWERTY keyboard lets you quickly type messages (page 21).
  ● Automatic Speech Recognition (ASR) lets you dial phone numbers by speaking a name or a phone number (page 42).
• Inner Circle™ keeps all your closest contacts grouped together in one convenient location as well as email messages from Inner Circle members (page 111).
  ● Speed dial lets you dial phone numbers and launch programs with one or two key presses (page 28).
• HTC Home gives you quick access to various applications and settings that you frequently use on your phone (page 30).
• The built-in Calendar offers several personal information management features to help you manage your busy lifestyle (page 37).
  ● The Location setting works in connection with available location-based services (page 68).
• Bluetooth ^® allows you to connect and use Bluetooth-enabled devices, such as Bluetooth stereo headsets and printers (page 58).
  ● The built-in 2.0 megapixel camera allows you to take photos and capture video clips (page 44).

Turning Your Device On and Off

Turning the Power On

▶Press and hold .!

Turning the Power Off

1. Press and hold for about five seconds.
2. Select Power Off from the Quick List (page 20).

Using Your Phone's Battery and Charger

Your phone is equipped with a Lithium Ion (Li-Ion) battery. It allows you to recharge your battery before it is fully drained. The battery provides up to 5.3 hours of continuous digital talk time.

Note

• Long backlight settings, searching for service, vibrate mode, browser use, and other variables may reduce the battery's talk and standby times.
• Watch your phone's battery level indicator and charge the battery before it runs out of power.

If you need to purchase extra batteries for your phone, Sprint-approved or HTC-approved batteries and accessories can be found at Sprint Stores or through HTC; or call 1-866-866-7509 to order. They're also available at www.sprint.com.

WARNING

Use only Sprint-approved or HTC-approved batteries and chargers with your phone. The failure to use a Sprint-approved or HTC-approved battery and charger may increase the risk that your phone will overheat, catch fire, or explode, resulting in serious bodily injury, death, or property damage.

To reduce risk of fire or bums:

• Do not attempt to open, disassemble, or service the battery pack.
• Do not crush, puncture, short external contacts, or dispose of in fire or water.
• Do not expose to temperatures above 140^ (60°C).
• Replace only with the battery pack designated for this product.
• Recycle or dispose of used battery as stipulated by local regulations.

Installing and Removing the Battery

Always turn off your phone before installing or replacing the battery. You also need to remove the back cover before you can install these components.

To install the battery:

▶ See "Setting Up Your Phone" on page 2.

To remove the battery:

1. Make sure your phone is turned off.
2. Remove the back cover.
3. There is a recessed area in the chassis near the top of the battery. In this recessed area, use your finger to press the battery downwards slightly, and then pull the battery out to remove the battery.

Recessed area

Line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Charging the Battery

Charge your battery as soon as possible so you can begin using your phone.

Keeping track of your battery's charge is important. If your battery level becomes too low, your phone automatically turns off, and you will lose any information you were just working on. For a quick check of your battery level, glance at the battery charge indicator located in the upper-right corner of your phone's display screen. If the battery charge is critically low, the battery icon (☐) will be shown in the title bar.

Always use a Sprint-approved or HTC-approved desktop charger, travel charger, or vehicle power adapter to charge your battery.

To charge the battery:

1. Connect the USB connector of the phone charger to the sync connector on your phone.
2. Plug in the phone charger to an electrical outlet to start charging the battery.

Charging is indicated by a charging icon ( ) in the title bar of the Home screen.

After the battery has been fully charged, a full battery icon (☐) appears in the title bar of the Home screen.

WARNING

• Do not remove the battery from the phone while you are charging it using the phone charger or car adapter.
• As a safety precaution, the battery stops charging when it overheats.

Battery Saving Tips

How long your battery power lasts depends on the battery type and how you use your phone. Try the following to help conserve battery life:

• On the Home panel, press Start (left softkey) >All Programs (left softkey) >Settings >Power >Power Management, and adjust the backlight brightness and time out, and display time out.
• Use the AC phone charger to plug your phone into an external power outlet whenever possible, especially when using a modem or other peripherals.
• Turn Bluetooth off when you are not using it. Make your phone visible to other devices only when you are trying to establish a Bluetooth partnership. For more information about Bluetooth, see "Using Bluetooth" on page 58.
  ●Lower the volume.
• Close battery-intensive programs such as the camera when you are done using them. Make sure the programs are ended and are not continuously running in the background. See "Using Task Manager" on page 70 for information on closing programs.

The Home Screen

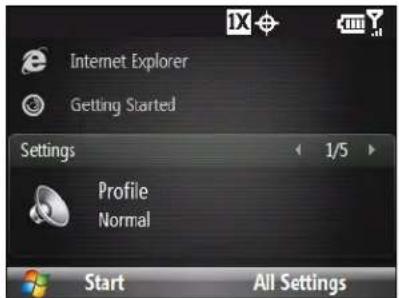

The Home screen displays status indicators and the HTC Home. The Home screen also gives you quick access to various applications and settings that you frequently use on your phone.

1. HTC Home (page 30)
2. Start menu (page 19)
3. Contacts (page 35)
4. Status icons (page 18)

Status Icons

The following are some of the status icons that you may see on the phone.

[7D24]	New text message Speakerp [SY2C]
	New email message		1xRTT available
	New voicemail message	[5X00]	EVDO available
[9CXT]	New Live Messenger message	[W07R]	Lowercase text input
[10198]	Roaming Uppercase text input	caps lock
[10175]	Voice call in progress Uppercase text input	text input
[104210]	Data call in progress	[100%]	Numeric or symbol (labeled in green color on keyboard) input, locked
[1087]	Missed call	[108%]	Numeric or symbol input (labeled in green color on keyboard)
[1499]	Battery level XT9 text input	[1499%] lowercase
[1648]	Low battery XT9 text input	[1647%] uppercase
[1588]	Very low battery XT9 text input	[1581%] bde, caps lock
[16000]	Battery charging Ringer off	[160A]
[1649]	No battery or battery fault Vib	call alert
[1652]	Signal strength Bluetooth on	[1650]
[17124]	Radio connected or no signal	[171A]	Bluetooth in visible mode
[17181]	Radio off Bluetooth headset connected	[171B]
[17182]	Microphone muted New Inne	[171C] role email message.

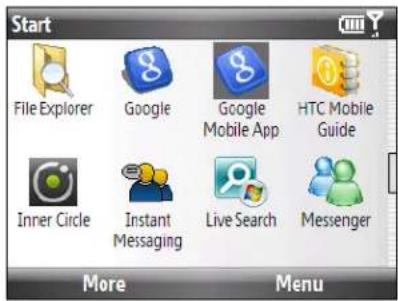

Start Menu

The Start menu, which can be opened from the lower left corner of the screen, gives you access to all the programs and settings of your Windows Mobile-powered phone.

By default, the Recent Programs screen is shown when you press Start (left softkey). To see the available programs on your phone, press All Programs (left softkey) on the Recent Programs screen.

Tip

You can disable the Recent Programs screen. To disable, From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Home Screen and then clear the Show Recent Programs check box. Disabling the Recent Programs screen takes you directly to the All Programs screen when you press Start.

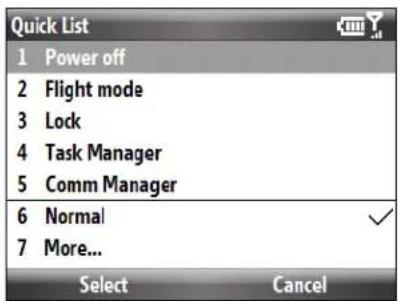

Quick List

The Quick List offers convenient access to a list of functions, such as locking your phone and keypad, opening Comm Manager and Task Manager, and choosing a different profile.

To access the Quick List

1. Press and hold the End/Power key.
2. Select the desired option and press Select (left softkey).

1. To exit the Quick List at any time, press Cancel (right softkey).

Using the Getting Started Application

The Getting Started application is a list of "how to's" that you can use to learn basic features and settings of your phone.

To learn the basics through the Getting Started application:

1. Press Start (left softkey) > All Programs (left softkey) > Getting Started.
2. Select one of the items onscreen to learn how to do a certain task.
3. Most tutorials contain a link to the screen where you actually perform a selected task. Select the link to go to that screen.

Entering Text

You can enter text, numbers, and symbols using the QWERTY keyboard. When you select a field that requires entering text or numbers, the phone automatically selects the appropriate input mode. The status indicator on the top-right side of the display screen indicates the input mode that you are currently using.

abc	Lowercase text input
ABC	Uppercase text input, caps lock
ABC	Uppercase text input
12#	Numeric or symbol (labeled in green color) input, locked
12#	Numeric or symbol (labeled in green color) input
xt9	XT9 text input mode, lowercase
xT9	XT9 text input mode, uppercase
xT9	XT9 text input mode, caps lock

Using the QWERTY Keyboard

You can do the following with the QWERTY keyboard:

● To type lowercase letters, press the keys using your thumbs or fingers.
● To use a single uppercase letter, press 📄 and then press the corresponding key.
● To use all uppercase letters, press first and then press CAPS. To change back to all lowercase letters, press these buttons again.
● To enter a number or symbol (labeled in green), press 📄 and then press the corresponding key.
- To continuously enter numbers or symbols (labeled in green), press twice. Press again to exit continuous input mode.
●To open the Symbol table while entering text, press
● To backspace and delete a single character in any input mode, press the Back (←) key.
● To backspace and delete an entire text or numeric field in any input mode, press and hold the Back key.
●Press the Space key to enter a space.
- Press and hold the Home ( hat ) key to lock the keyboard. To unlock, press the left soft key and then press v ^*

Using XT9 mode

To form a word in XT9 mode, press the keys that contain the letters you want. As you enter letters, XT9 analyzes your key presses and attempts to complete the word. XT9 also tries to predict your next word based on previous sentences you have typed.

To enter text in XT9 mode

1. While on a text field, press and hold to display a text input options menu.
2. On the menu, select Predictive Text > On.

Note

You can choose a different XT9 language (if available) by selecting Language on the text input options menu, and then choosing the language you want.

While typing, words will appear in a menu on the screen.

Use the navigation key up or down to choose the word you want to insert, and then press the Enter key.

To add custom words to the XT9 My Words list

Save words that you often use but are not in the English dictionary into the XT9 My Words list. Words that you add into the XT9 My Words list will appear in the predicted word list.

1. While on a text field, press and hold to display a text input options menu.
2. On the menu, select XT9 My Words > Add (left softkey).

Note

You must first set Predictive Text to On before you can select XT9 My Words from the menu.

1. In the Add/Edit Word box, enter the word and press Done (left softkey)

To edit or delete words in the XT9 My Words list, pressMenu and then select the appropriate command in the menu.

To set XT9 settings

▶ Press and hold STM and on the text input options menu, choose XT9 Settings. In the screen, choose the options you want and press Done (left softkey).

Note

You must first set Predictive Text to On before you can select XT9 Settings from the menu.

• Spell Correction. Corrects typographical errors by selecting from a list of possible words that reflect the characters of the keys you have pressed as well as characters of nearby keys.
• Auto-Substitution. Automatically adds an apostrophe when you type common contracted words (e.g. dont automatically becomes don't).
• Word Completion. Lets you select from a list of possible words based on the keys that you pressed and on the words available in the dictionary.
• Word Completion by. Lets you choose which key to use to select a word from the word completion list. You can select the OK (Enter) key or the Space key.

Using Numeric mode

If a text box permits a numeric entry only, such as a phone number, the input mode automatically defaults to Numeric mode. However, if you need to enter numbers within a line of text, change to Numeric mode, and then change back to abc or XT9 mode to finish entering the text.

To enter numbers in text boxes

1. On a text field, press and hold
2. Select numeric mode (123) from the menu.
3. On the keypad, enter the number or numbers you want.
4. Change back to abc or XT9 input mode by pressing and holding 0 and selecting either mode from the menu, and then finish entering your text.

Tip

To quickly enter a sequence of numbers (or symbols), press the FN key twice and enter the numbers from the keypad. After you have finished, press the FN key again to return to text input mode.

The Phone Screen

To display the Phone screen:

●Enter the phone number by pressing the keys on the keypad.
- or -
- Press the Talk key.

Displaying Your Phone Number

1. Press the Talk key to display the Phone screen.
2. Press Menu (right softkey) >My Phone Number. (Your phone number and account information will be displayed.)

Tip To view information about your phone, press Menu (right softkey) > Device Information on the Phone screen.

Making a Call

Placing a call from your phone is as easy as making a call from any landline phone. You can dial a phone number or select a contact who you want to call.

Making a Call from the Phone Screen

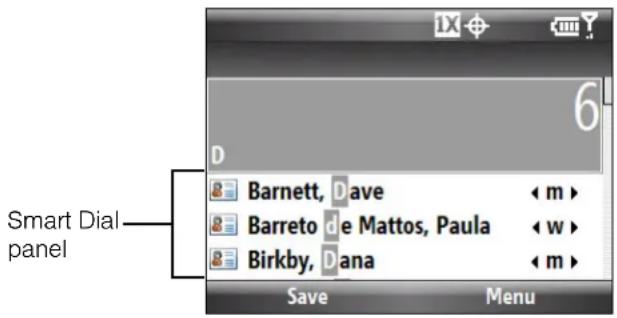

The Phone program's Smart Dial feature makes it easy for you to call a phone number or contact. When you press a key on the QWERTY keyboard, a list of names and numbers is displayed as your phone searches Contacts, Call History, and Speed Dial to find a matching name or number. For example, when you press a key such as 6, names that begin with D will be displayed as well as phone numbers that start with 6. The next key you press continues to narrow the search. When you see the name of the person you want to call, select it, and press Talk (☐).

To call a phone number or contact:

1. Press the Talk key to display the Phone screen.
2. Begin entering the first few numbers or characters by pressing the keys on the Phone keypad. As you enter numbers or letters, the Smart Dial panel will display matches found. If you pressed a wrong number or character, press the Back key to erase each subsequent digit or character.
3. Press the navigation key up or down to select a number.

4. Press the Talk key to place the call.

Tip

• When in a call, use the Volume Up or Down keys on the side of the phone to adjust the phone volume.
• To send a text message to a selected contact, press Menu (right softkey) > Send Text Message. For more information about sending text messages, see “Text Messaging (SMS)” on page 85.

Making a Call from Contacts

1. From the Home panel, press Contacts (right softkey) to open the Contacts screen.
2. Select the contact to call and then press the Tak key.

Note

If the contact has more than one number stored, press the navigation key right or left to select the number you want to call before pressing the Talk key.

- or -

Highlight the contact and press the Enter key to open the contact details, highlight the phone number you want to call, and then press the Talk key to place the call.

Making an International Call

1. Press and hold on the keypad until the plus (+) sign appears. The plus (+) sign replaces the international prefix of the country that you are calling.
2. Enter the full phone number you want to dial, and press the Talk key on your phone. The full phone number includes the country code, area code (without the leading zero, if any), and phone number.

Calling Voicemail

is reserved for your voicemail. Press and hold 1 on the Phone keypad to call voicemail and retrieve your voicemail messages.

For more information about using voicemail, see "Voicemail" on page 82.

Answering a Call

Your phone notifies you of incoming calls in the following ways:

●The phone rings or vibrates.
●The backlight illuminates.
- The screen displays an incoming call message. If the incoming call is from a number stored in your Contacts, the caller's name is displayed. The caller's phone number and picture may also be displayed, if available.

Accepting an Incoming Call

To answer the call:

▶ Press the Talk key.

To mute the ringing sound without rejecting the call:

▶ Press Silence (left softkey) when you receive an incoming call. Press Answer (left softkey) when you are ready to answer the call.

Rejecting an Incoming Call

To reject the call:

▶ Press the End/Power key.

To reject a call and send a text message:

▶ To reject the call and to send a text message to the caller's mobile phone, press Send Text (right softkey).

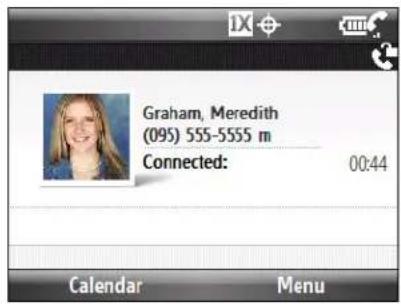

In-Call Options

To put a call on hold:

Your phone notifies you when you have another incoming call, and gives you the option of rejecting or accepting the call. If you are already on a call and accept the new call, you can choose to switch between the two callers, or set up a conference call between all three parties. For instructions on how to start a conference call, see "Making a Three-Way Call" on page 90.

1. Press Answer (left softkey) to take the second call and put the first one on hold.

2. To end the second call and return to the first call, press the End/Power key on your phone.

To switch between two calls:

▶ Press Menu (right softkey) >Swap.

To turn the speakerphone on or off:

▶ During a call, press and hold the Talk key to turn the speakerphone on or off. The speakerphone icon (") appears in the title bar when the speakerphone is on.

WARNING

To avoid damage to your hearing, do not hold your phone against your ear when the speakerphone is turned on.

To mute the microphone during a call:

▶ During a call, press Menu (right softkey) >Mute to turn the microphone off. When the microphone is turned off, the mute icon (✗ appears on the screen. Press Menu (right softkey) >Mute to turn the microphone on again.

Ending a Call

▶ When a call is in progress press the End/Power key to hang up.

Checking Missed Calls

Missed Call Notification

There are two ways your phone alerts you when you have missed calls:

●The missed call icon ( ) is displayed in the title bar.
● The number of missed calls is shown on the Missed Call/Voicemail panel.

To check who the caller was:

On the Home panel, press the navigation key down to select the Missed Call/Voicemail panel and press the Enter key.

- or -

On the Phone screen, press Menu (right softkey) >View >All Calls.

Call History

Call History shows you your incoming calls, outgoing calls, and missed calls. Call History makes redialing a number fast and easy. It is continually updated as new numbers are added to the beginning of the list and the oldest entries are removed from the bottom of the list.

To access the call history

On the Home panel, press the navigation key down to select the Missed Call/Voicemail panel and press Call History (right softkey).

- or -

On the Home panel, press Start (left softkey) > All Programs (left softkey) > Call History.

Each entry contains the phone number (if it is available) and Contacts entry name (if the phone number is in your Contacts). An icon appears to the left of the number, and it indicates the type of call:

	Missed. These are incoming calls that you were not able to answer, and they are routed to your voicemail.
	Received. These are incoming calls that were answered.
	Dialed. These are outgoing calls that you made.

Note

Call History records only those calls that occur while the phone is turned on. If a call is received while your phone is turned off, it will not be added to the Call History.

To make a call from Call History

1. Press the navigation key up or down to select the number or contact name in the Call History that you want to call.
2. Press the Talk key to place the call.

Call History Options

• Select an entry in the Call History and press the Enter key to display details about a call, such as the date and time of the call, the phone number (if available), and the caller's name (if the number is already in your Contacts).
• After highlighting a call entry in the Call History screen, you can also press Menu (right softkey) to choose what you want to do with the selected call:

■ Find Contact to open the caller's Contact card (if available).
- Send Text Message to create and send an SMS text message to the caller. (For more information about sending text messages, see "Text Messaging (SMS)" on page 85.)
- E-mail to create and send an email message to the caller. (For more information about sending email messages, see “Email Messaging” on page 113.)
■ Delete to remove the call entry from the Call History.
■ Delete List to erase all history entries.
■ Save to Contacts to save the phone number to your Contacts.
- Filter to restrict the list of entries that appear in the Call History according to the type of call.

Speed Dial

You can create speed dial entries for frequently-called numbers or frequently-accessed items so you can dial a number or access an item by pressing a single key.

To create a speed dial entry for a contact

1. From the Home panel, press Contacts (right softkey).
2. Highlight a contact.
3. Press the Enter key to view the contact details.
4. Highlight the desired phone number and press Menu (right softkey) > Add to Speed Dial.
5. Enter appropriate details in Name, Value, and Keypad assignment.
6. Press Done (right softkey). To quit at any time during this process, press Menu (right softkey) > Cancel.

To create a speed dial entry for an item

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) then highlight the item you want.
2. Press Menu (right softkey) > Add Speed Dial.
3. Enter details in Name, Value, and Keypad assignment.
4. Press Done (right softkey). To quit at any time during this process, press Menu (right softkey) >Cancel.

Note

The first speed dial location is generally reserved for your voicemail. Speed Dial uses the next available location by default. If you want to place a number in a location that is already used, the new number replaces the existing number.

To make a call or launch a program using Speed Dial

If you have assigned a speed dial (for example, the second location) to a contact or a program in Speed Dial, simply press and hold on the phone keypad to dial the contact's number or open the program.

To delete a speed dial entry

1. From the Home panel, press Start (left softkey) >All Programs (left softkey) >Speed Dial.

2. Select the desired entry and press Menu (right softkey) > Delete.

Turning the Phone On and Off

In many countries, you are required by law to turn off the phone while on board an aircraft.

Enabling or Disabling the Phone

1. On the Home panel, press the navigation key down to select the Settings panel, press the navigation key right to select Comm Manager, and then press the Enter key.

- or -

On the Home panel, press Start (left softkey) >All Programs (left softkey) >Comm Manager.

1. On the Comm Manager screen, highlight Phone and press the Enter key to enable or disable the phone. When enabled, the ON indicator is activated.

Enabling or Disabling Airplane Mode

Another way to turn off the phone function is to switch your phone to Airplane Mode.

When you enable Airplane Mode, all wireless radios on your phone are turned off, including the phone and Bluetooth. When you disable Airplane Mode, the phone function is turned back on and the previous state of Bluetooth is restored.

1. On the Home panel, press the navigation key down to select the Settings panel, press the navigation key right to select Comm Manager, and then press the Enter key.

- or -

On the Home panel, press Start (left softkey) >All Programs (left softkey) >Comm Manager.

1. On the Comm Manager screen, highlight Airplane Mode and press the press the Enter key to enable or disable Airplane Mode. When enabled, the ON indicator is activated.

Section 2B

HTC Home

◆ Using HTC Home (page 30)
◆ Home (page 30)
♦ Missed Call/Voicemail (page 31)
◆ Appointments (page 31)
◆ Messages (page 31)
◆ Email (page 32)
◆ Weather (page 32)
◆ Internet Explorer (page 33)
◆ Getting Started (page 34)
◆ Settings (page 34)

Using HTC Home

Navigate through the items on HTC Home by pressing the navigation key up or down. When an item is selected, press the navigation key left or right to go through the available options of that particular HTC Home item. Open the item by pressing the Enter key.

Home

The Home panel displays the current date, a digital clock, and an alarm icon that indicates when the alarm is on. Press Enter to open the Clock & Alarm screen where you can adjust the time and set alarms.

Pressing the Home ( ) key also takes you to this item.

Missed Call/Voicemail

Displays your missed calls and voicemail messages. Press Call History (right softkey) to view all incoming and outgoing calls.

Note

A different icon is shown if there is no picture associated with the contact.

Appointments

Lets you see your upcoming appointments for the day or set a new appointment. If you have more than one appointment for the day, press the navigation key right to go through the appointments. Press Today (right softkey) to view the Calendar.

Messages

Read snippets of your unread messages or create a new text or media (MMS) message. Highlight the message and press the Enter key to open the full message. Press All messages (right softkey) to view all messages.

Tip

Press the navigation key left or right to go through your unread messages.

Email

View snippets of your unread email messages or create a new email message. Press the Enter key to open the full email message or create a new email message. Press Inbox (right softkey) to view all email messages.

Press the navigation key left or right to go through your unread email messages.

Weather

View the weather conditions of a selected city.

Adding a City

The Weather panel can display weather information of your local city and other added cities. Follow the steps below to add a city on this panel.

1. On the Weather panel, press Add City (right softkey). Press OK (left softkey) if you are prompted that the service may incur additional transfer fees from your provider.
2. The Select City screen then appears. Enter the name of the city in the text box or use the navigation key to scroll through the list.
3. When you have found the city, press Select (right softkey).

Viewing Weather Information

Your phone automatically connects to the Internet via the data connection to download and display weather information. The current temperature, temperature range, type of weather (sunny, cloudy, showers, or other), and the time of day (daytime or nighttime) are shown on the Weather panel.

1. Shows the last weather update.
2. Press 5-Day View (right softkey) to view an extended forecast.

To view the weather forecast for the next five days

▶ To see the weather information for the next five days of the week, press the Enter key.

To change the temperature scale

1. On the Forecast screen, press Menu (right softkey) >Options.
2. Scroll to Temperature Scale and select Celsius or Fahrenheit.
3. Press Done (left softkey) to confirm the change and return to the Forecast screen.

Choosing Download Options

1. On the Forecast screen, press Menu (right softkey) >Options.
2. You can choose from the following options:

■ Download weather data automatically. When this option is selected, weather information is automatically downloaded from the AccuWeather website whenever you select the Weather panel, if the data has not been updated within the last three hours. Weather data is also downloaded every time an ActiveSync connection is established (through over-the-air or USB connections). Clear this option if you prefer to manually download weather information.

■ Download when roaming. Select this option only if you want to allow automatic download of weather data when roaming. This may incur additional costs.

Internet Explorer

Quickly access your Internet Explorer Mobile favorites. Press the navigation key right or left to go through your favorites and then press the Enter key to go to the favorite page. You can also press Favorites (right softkey) to access a list of your Favorites.

Getting Started

Press the navigation key right or left to go through the available tutorials to learn basic features and settings of your phone. Press the Enter key to view the selected tutorial. Press View All (right softkey) to see a list of all tutorials.

Tip

You can remove the Getting Started item from the HTC Home. To remove, press the navigation key right until you see Done! Remove Getting Started and then press the Enter key. On the Getting Started screen, select the Add/Remove link, and press the Enter key.

Settings

Lets you quickly access the Comm Manager and Task Manager, and change your profile, wallpaper, or ring tone. Press All Settings (right softkey) to access all the settings of your phone. (See "Changing Basic Settings" on page 66 for details.)

Section 2C

Contacts, Calendar, and Tools

◆ Contacts (page 35)
◆ Calendar (page 37)
◆ Tasks (page 39)
◆ Comm Manager (page 40)
◆ Adobe Reader LE (page 41)
◆ Microsoft Office Mobile (page 41)
◆ Automatic Speech Recognition (ASR) (page 42)
◆ Voice Recorder (page 43)

Your phone is equipped with several personal information management features that help you manage your busy lifestyle. Document viewers, voice recognition, a calendar, and other useful tools are also available. This section shows you how to use these features and tools.

Contacts

Adding New Contacts

Contacts is your address book and information storage for people and businesses you communicate with. You can add the following types of contacts to your phone:

• Outlook contacts. Contacts that are stored on your phone, which can be created on your phone or synchronized with your computer or the Exchange Server.

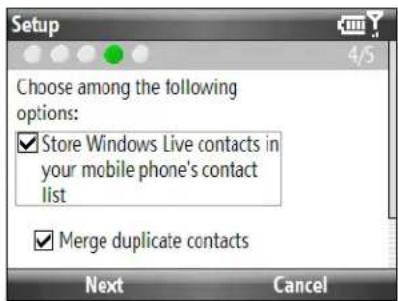

  ● Windows Live™ contacts. Contacts that you communicate with using Windows Live™ Messenger or MSN.

Note

You can add Windows Live™ contacts only after setting up Windows Live™ on your phone. See "Adding Windows Live Contacts" on page 102 for details.

To open the Contacts screen:

▶ From the Home panel, press Contacts (right softkey).

- or -

Press Start (left softkey) > All Programs (left softkey) > Contacts.

To add a contact on your phone:

1. Open the Contacts screen.
2. Press New (left softkey), and enter the contact information.

■ To easily identify the caller, you can assign a custom ring tone to each Outlook contact. To assign a custom ring tone, scroll down to Custom ring tone, and press the navigation key left or right to select a ring tone.

■ To assign a picture to a contact, scroll down to Picture, highlight Select a picture and press the Enter key. Highlight the picture you want and press Select (left softkey). To remove the picture, press Menu (right softkey) >Remove Picture.

1. Press Done (left softkey).

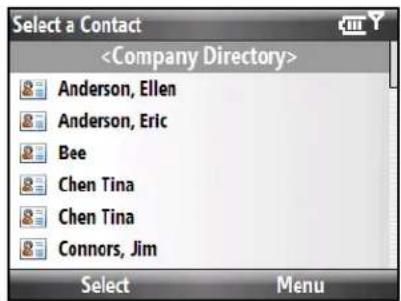

Tips

If someone who is not in your list of contacts calls you or sends you a message, you can quickly create a contact from Call History or from the message by pressing Menu (right softkey) > Save to Contacts.

Managing Contacts

To view and edit contact information:

1. From the Home panel, press Contacts (right softkey).
2. Select the contact whose information you want to view or edit and press Menu (right softkey) >Edit.
3. When finished making changes, press Done (left softkey).

To call a contact from the contact list

1. From the Home panel, press Contacts (right softkey).
2. Select the contact to call and press the Talk key. The contact's default phone number is dialed.

Tips

To call a phone number other than the default, highlight a contact and press the Enter key, scroll to the number you want to dial, and then press Call (left softkey) or press the Talk key.

To find a contact on your phone:

1. From the Home panel, press Contacts (right softkey).
2. Do one of the following:

■ Begin entering the name of the contact until the contact is displayed. When you press a key, such as S, you find first and last names that begin with S. The next key you press continues to narrow the search.
- If you have assigned categories (e.g. Business) to your Outlook contacts, you can filter the contact list by categories. In the contact list, press Menu (right softkey) >Filter and then select a category. To show all contacts again, press Menu (right softkey) >Filter >All Contacts.
■ If you have entered information under Company for your Outlook contacts on your phone, you can quickly locate the contacts that work for a specific company. In the contact list, press Menu (right softkey) >View By >Company. Select the company to see the contacts who work there.

Note

If you are not in Name view, press Menu (right softkey) > View By > Name.

To beam a contact's details to another device via Bluetooth:

You can quickly send contact information to another mobile phone or device through Bluetooth beaming.

1. From the Home panel, press Contacts (right softkey) and then select the contact whose information you want to beam.
2. Press Menu (right softkey) > Send Contact > Beam.
3. Select the device where you want to beam the contact details to and press Beam (left softkey).

Note

Before beaming, make sure Bluetooth is turned on and set to visible mode on your phone and the target mobile device. You can also beam contact information to your computer. See “Bluetooth” on page 58 for details.

Calendar

Use Calendar to schedule appointments, including meetings and other events. If you use Outlook on your computer, you can synchronize appointments between your phone and computer. This section shows you how to create a new appointment, change calendar views and send meeting requests.

To open the Calendar screen:

▶ From the Home panel, press the navigation key down to select the Appointments panel and press Today (right softkey).

- or -

Press Start (left softkey) > All Programs (left softkey) > Calendar.

Creating Appointments

To schedule an appointment:

1. Open the Calendar screen and then press Menu (right softkey) >New Appointment.

Tip

You can also schedule a new appointment in HTC Home. From the Home panel, press the navigation key down to select the Appointments panel, and press the navigation key right to select New Appointment. Then press the Enter key.

1. Enter the a name for the appointment in the Subject field, and then set the start and end dates and time.

■ To schedule an all-day event, under End time, select the All day event check box.
■ To make the appointment recurring, scroll to Occurs and select an option from the list.

1. Press Done (left softkey).

Notes

- All-day events do not occupy blocks of time in Calendar; instead, they appear in banners at the top of the calendar. - To remove an appointment, press Menu (right softkey) > Delete Appointment

To set the reminder time for new appointments:

By default, Calendar has been set to display a reminder alert when you have new upcoming appointments. You can change the reminder time.

1. Open the Calendar screen.

2. Press Menu (right softkey) >Tools>Options.

3. Scroll to Set reminders and set the time when you want the reminder to alert you, and then press Done (left softkey) to return to the Calendar screen.

Viewing Appointments

You can view your schedule in three different views: Month, Week, and Agenda.

To view your schedule

1. Open the Calendar screen.

2. Press the left softkey or press Menu (right softkey) and choose the view you want.

Agenda View

Agenda view

1. The highlighted hours indicate the time of your appointments.
2. Select an appointment to view details about the appointment.
3. Press the left softkey to change the calendar view to one of the following: Day, Week, Month, Year, or Agenda.
4. The red box and red arrows indicate there are conflicting appointments.

When in Month view, you will see the following indicators:

Morning appointment
4 Afternoon or evening appointment
■ Both morning and afternoon or evening appointments
□ All-day event

Sending Appointments

Sending a Meeting Request

Use Calendar to schedule meetings via email with contacts who use Outlook or Outlook Mobile.

1. Open the Calendar screen.
2. Schedule a new appointment, or open an existing one and press Menu (right softkey) >Edit.
3. Scroll down to Attendees, highlight No attendees and then press the Enter key.
4. Select Add Required Attendee or Add Optional Attendee and press the Enter key to add the contacts whom you want to invite.
5. Choose the contact(s) you want to send the meeting request to and press Select (left softkey).
6. On the Attendees, screen press Done (left softkey), and then press Done (left softkey) again.

The meeting request is sent out.

Notes

• You can specify whether an attendee is required or optional only if your phone is connected to a Microsoft Exchange 2007 server. Otherwise, all attendees are designated as required. For more information, see “Managing Meeting Requests” on page 123.
• To remove an attendee from the list, select the attendee and press Menu (right softkey) > Remove Attendee.
• When attendees accept your meeting request, the meeting is automatically added to their schedules. When their response is sent back to you, your calendar is updated as well.
• To choose the email account to use for sending meeting requests, press Menu (right softkey) >Tools> Options. Select the Respond to meetings via check box and choose to send via your Outlook Email, POP3/IMAP4 or Windows Live™ account.
• If you're sending the meeting request using your Outlook Email account, it will be sent to the attendees the next time you synchronize your phone with your computer or Exchange Server.

Tasks

Use Tasks to keep track of things you need to do. A task can occur once or repeatedly (recurring).

Your tasks are displayed in a task list. Overdue tasks are displayed in red. A reminder will be displayed when you have new tasks to be completed.

To create a task:

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Tasks.
2. Press Menu (right softkey) > New Task.
3. Enter the necessary task information and press Done (left softkey).

■ Set a Priority for the task. This item can be referenced when sorting tasks.
■ Enter a Start date and Due date if the task starts and ends at a specific time.
■ Select how often the task Occurs.
■ Enter a Reminder if you want to be notified if the task is due.
■ Enter the Categories (you can set more than one) that best describes the task. This item can be referenced when filtering tasks.

Notes

• You can synchronize information on your phone with your computer to keep your task list up to date in both locations.
• If you create a new task with a reminder on your computer and then synchronize tasks with your phone, the reminder will play at the time that was set on your computer.

To show start and due dates in the task list:

1. From the Home panel, press Start (left softkey) >All Programs (left softkey) >Tasks, and then press Menu (right softkey) >Options.
2. Select the Show start and due dates check box, and then press Done (left softkey).

To locate a task

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Tasks.
2. In the task list, do one of the following:

■ To sort the list, press Menu (right softkey) >Sort by, and select a sort option.
■ To filter the list by category, press Menu (right softkey) >Filter, and select the category you want displayed.

To mark a task as completed

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Tasks.
2. Select the task, and press Complete (left softkey).

Comm Manager

Comm Manager is a central location where you can easily turn on and off the communication features of your phone such as the phone, data connection, Bluetooth, and more.

To access the Comm Manager:

Do one of the following:

From the Home panel, press the navigation key down to select the Settings panel, and then press the navigation key right to select Comm Manager. Press the Enter key to open the Comm Manager.

- or -

Press Start (left softkey) > All Programs (left softkey) > Comm Manager.

- or -

Press Start (left softkey) > All Programs (left softkey) > Settings > Connections > Comm Manager.

- or -

Press and hold the End/Power key and select Comm Manager from the Quick List.

1. Switch Airplane Mode on or off. Turning on Airplane Mode turns off the phone and Bluetooth functions. For more information, see "Enabling or Disabling Airplane Mode" on page 29.
2. Switch the phone on or off. Press Settings (right softkey) >Phone to set call options and other phone settings. See "Phone Services" on page 68 for details.
3. Switch Bluetooth on or off. Press Settings (right softkey) >Bluetooth to configure Bluetooth on your phone. See "Bluetooth" on page 58 for details.
4. Switch between automatically receiving (as items arrive) or manually retrieving Outlook email. See "Working With Company Email" on page 120 for details.
5. Connect to or disconnect from data services. See "Connecting to Data Services from the Comm Manager" on page 94 and "Disconnecting from Data Services" on page 95 for details.

Adobe Reader LE

Adobe® Reader® LE lets you view Portable Document Format (PDF) files.

When you open a password-protected PDF file, you will be prompted to enter the password before the file can be opened.

To open a PDF file on your phone

1. From the Home panel press Start (left softkey) >All Programs (left softkey) >Adobe Reader LE.
2. Press Open (left softkey).
3. Browse to a folder, highlight the PDF file you want to open, and press the Enter key.

Note

To open another PDF file, press Menu (right softkey) > Open > Browse (left softkey). You can also open a PDF file from File Explorer by highlighting it and pressing the Enter key.

To navigate through a PDF file

You can do any of the following:

●Use the navigation key up and down to scroll through the pages.
- Press Tools (left softkey) >Go To and select an option to go to a specific page in the PDF file.
While reading a PDF file, press Tools(left softkey) to open a list of options that lets you zoom in and out, go directly to a page, and more.

Microsoft Office Mobile

Microsoft® Office Mobile consists of the following applications:

• Microsoft ^ Office Excel ^ Mobile lets you view and edit Excel worksheets.
  ●Microsoft * Office OneNote* Mobile lets you easily create notes with audio and images
• Microsoft "Office PowerPoint" Mobile let you view (but not create) Microsoft PowerPoint slides.
• Microsoft "Office Word Mobile lets you view and edit Microsoft Word documents and text files.

To use Microsoft Office Mobile:

1. Press Start (left softkey) > All Programs (left softkey) > Office Mobile.
2. Select the Office Mobile application that you want to use.

Word Mobile and Excel Mobile do not fully support all features of Microsoft Office Word and Microsoft Office Excel. To see a complete list of features that are not supported in Word Mobile and Excel Mobile, see Help on your phone.

Automatic Speech Recognition (ASR)

Your phone's built-in ASR lets you make phone calls, open programs, play back music, get calendar information, and more, just by using your voice. It only responds to a set of predefined commands and does not allow you to record your own commands.

This section gives a few examples on how to use ASR. For more information, see ASR help on the phone. To access help, press Start (left softkey) >All Programs (left softkey) >Voice Command, and then press Menu (right softkey) >Help.

To use ASR:

1. Press and hold the Talk key, and a microphone icon ( ^① ) will appear on the title bar.
2. Hold your phone a few inches away from your mouth. In a clear voice, say a command.

For example, say "Help" to ask for information about using ASR.

1. The ASR software may ask you a question to further clarify your request. Say your answer.

To place a call:

You can call contacts that are stored on your phone, dial a phone number, redial, and place a return call.

1. Press and hold the Talk key until the microphone icon (💡) appears on the title bar.
2. In a clear voice, say one of the following commands:

■“Call [contact name]” to call a contact.
■“Dial [number]” to dial a phone number.
■“Redial” to repeat the last call made.
■“Callback” to return the last call received.
- "Call [contact name] at [location]" to call a contact at a specific number.

For example, say:

"Call Ann at mobile"

"Call Ann at home"

"Call Ann at work"

1. The ASR software will then confirm with you the contact or number to call. Say "Yes" or "Correct."

If the ASR software is wrong about the contact or number to call, say "No" or "Incorrect" to try again.

1. Your phone starts to call the contact or number.

To open a program:

1. Press and hold the Talk key until the microphone icon (💡) appears on the title bar.
2. In a clear voice, say "Start", "Open", or "Show" then the program name.

To request information from your calendar:

1. Press and hold the Talk key until the microphone icon (☐) appears on the title bar.
2. In a clear voice, ask for the information you want to retrieve.

For example, say:

"What's my next appointment?"

"What's my next meeting?"

"What's my schedule tomorrow?"

42 2C. Contacts, Calendar, and Tools

To request for date and time:

1. Press and hold the Talk key until the microphone icon (☐) appears on the title bar.
2. In a clear voice, say "What date is it?" The ASR software then tells you the current date.
3. Press and hold the Takkey again, and then say "What time is it?"
4. The ASR software then tells you the current time.

Voice Recorder

Voice Recorder lets you record your voice and quickly send it via MMS.

To record your voice:

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Voice Recorder.
2. Hold the phone's microphone near your mouth.
3. Press Record (left softkey) to start recording your voice clip. You can press Pause (right softkey) to temporarily stop recording. When you want to continue recording, pressResume (right softkey).
4. Press Stop (left softkey) to stop recording.

Note

Press Menu (right softkey) > Play to play back the recorded voice clip. If you are not satisfied with the recording, press Menu (right softkey) > Record Again.

1. Press Send (left softkey) to automatically open the MMS program with the voice note file automatically inserted as the audio file for the MMS message.
2. Press the Back key to exit Voice Recorder.

Camera and Multimedia

♦ Taking Photos and Videos (page 44)
◆ Viewing Photos and Videos (page 50)

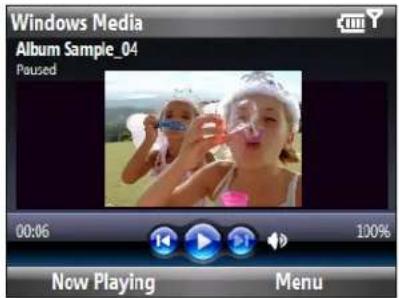

◆ Using Windows Media Player Mobile (page 52)
◆ Using Audio Booster (page 56)
◆ Using MP3 Trimmer (page 57)

Taking Photos and Videos

Use your phone's built-in camera to take photos and record video clips.

To launch the camera:

To turn off the camera:

▶ Press the End/Power key.

Capture Modes

The camera on your phone allows you to capture pictures and video clips by using various built-in modes that provide you flexibility in taking your shots.

To change the capture mode:

▶Press the navigation key right or left.

You can select from the following capture modes:

Icon Capture mode
	Photo Captures standard still images.
	Video Captures video clips, with or without accompanying audio.
	MMS Video Captures video clips suitable for sending via MMS.
	Contacts Picture Captures a still image and gives you the option to immediately assign it as a Photo ID for a contact.
	Picture Theme Captures still images and places them within frames.
	Panorama Captures a sequence of still images continuously in one direction, and allows stitching of all the images to create a panoramic view of a scenery.

Supported File Formats

Using the available capture modes, the camera in your phone captures files in the following formats:

Capture mode Format
Photo / Contacts Picture / Picture Theme / Panorama	JPEG
Video H.263 (.3gp); MPEG-4 (.mp4); 3GPP2 (.3g2)

Taking a Photo or Capturing a Video Clip

Aim the camera at the subject and then press the Enter key to take the shot. When capturing video, press Enter to start recording; press it again to stop.

Tip

You can also press the Camera key to take a shot or capture video.

Onscreen Controls and Indicators

The camera icons and indicators disappear after a few seconds if there is no user interaction. Press the navigation key direction keys, the keypad's keys, or the left/right softkeys to display the icon indicators again.

Note

For more information about the different shoot options, see "Viewing Photos and Videos" on page 50.

1. Capture mode. Displays the current capture mode. Press the navigation key right or left to choose the capture mode.
2. Zoom control. Indicates the current zoom ratio. Press the navigation key up or down to increase or decrease the zoom level.
3. Album. Press the left softkey to open Album. See "Viewing Photos and Videos" for details.

4. Options Menu. Press the right softkey to open the camera settings menu. See "Customizing Camera Advanced settings" on page 48 for details.

5. Remaining information indicator. In Photo, Contacts Picture, Picture Theme, and Panorama modes, this shows the remaining number of pictures you can take based on the current settings. In Video mode, this shows the remaining duration that can be recorded. While recording video, this shows the recorded duration.

6. Recording indicator. Flashes when recording a video.

Seagull standing on a pole with water and a red circular marker labeled '6' (no text or symbols on the bird or background)

1. Progress indicator. In Picture Theme and Panorama modes, this shows the current and total number of shots for the selected template or mode.

The Review Screen

After capturing a photo or video, you will be presented with options that you can do with the captured media file.

Contacts Picture mode

Press To
Navigation key up	View the image in camera Album or play back the video in Windows Media Player.
Navigation key down	Hide the Review screen icons. Press again to show the icons.
Navigation key right Delete the captured media.
Navigation key left	Send the captured image or video clip to someone via email or MMS.(For Contacts Picture mode only) Associate the photo to a selected contact.
Enter key Go back to the camera	screen.

Using Zoom

Before capturing a still image or a video clip, you can first zoom in to make the object in focus move closer, and you can zoom out to make the object move farther away. In all capture modes, press the navigation key up on your phone to zoom in, the navigation key down to zoom out.

The camera zoom range for a picture or video depends on the capture mode and capture size. Also, please note the capture sizes available for certain capture formats also vary from one capture mode to another.

Customizing Camera Advanced settings

Press Options (right softkey) on the camera screen to open the camera Advanced settings where you can activate the self-timer, change the resolution, customize capture settings, and more.

Note The available settings on the panel depend on the selected Capture mode.

Use the navigation key up and down to go through the available settings. Use the navigations key right and left to select options for a particular setting.

Option Allows you to
Mode Select the capture mode to use.
Self-timer	Select the Self-timer option for capturing images: Off, 2 seconds, or 10 seconds.Selecting 2 seconds or 10 seconds delays the capturing by the specified time after you press Enter.
Brightness Adjust the brightness from -2 to +2 (increments of 0.5).
White Balance	Specify the white balance setting such as Auto, Daylight, Night, Incandescent, and Fluorescent to suit the lighting environment.
Resolution	Choose the resolution to use. The resolution options depend upon which camera mode you are using.
Capture Format(Video and MMS Video modes only)	Select whether to use MPEG4, H.263, or 3GPP2.
Recording Limit(Video mode only)	Specify the maximum time or file size for recording video clips.
Quality	Select the JPEG image quality level for all captured still images. You can choose from Basic, Normal, Fine, and Super Fine. This option is available in all modes except Video and MMS Video.
Time Stamp(Photo mode only)	Choose whether to include the shooting date and time on captured photos.
Storage	Select where you want to save your files. You can either save the files to the main memory or to a storage card if one is installed.
Template(Picture Theme mode only)	Select the template to use.
Record with Audio(Video and MMS Video modes only)	Select On to record audio while capturing video clips. This is selected On by default. If you select Off and then capture a video clip, it will have no audio.
Keep Backlight	Choose whether to turn the backlight on or off while using the camera. This overrides your phone backlight settings while you are using the camera.
Shutter Sound	Choose whether you want the camera to make a shutter sound when you take photos or record video clips.
Review Duration	Set a time length for displaying the captured image or video on the Review screen before automatically saving it and returning to the live camera screen. Select No Limit to allow the picture to be displayed until you choose to take another action. Select No Review to immediately return to the live camera screen after capturing.
Effect	Choose a special effect such as Grayscale, Sepia, or Negative to apply to your photos or video clips.Note: White Balance cannot be applied if an Effect has already been applied.
Metering Mode	Select a metering mode to allow the camera to measure the amount of light in the center and around the image and calculate the best-fit exposure value before capturing. Choose either Center Area to measure light using the center area of the image or Average to measure light using the area all around the image.
Prefix	Set a prefix to image or video filenames.When Default is selected as the prefix, the filename of each new captured file is set to “IMAGE” or “VIDEO” followed by a sequential number, for example: IMAGE_001.jpg. You may also choose to prefix filenames using either the current Date or Date & Time.Note: If you set the camera to save captured photos to a storage card, the prefix cannot be selected. Captured photos will be named using the DCIM (Digital Camera Images) naming standard.
Counter Select	Reset to reset the naming counter to 1.
Flicker Adjustment	When taking indoor shots, flicker on the camera screen may be caused by interference from fluorescent lighting. To reduce flicker, change the flicker adjustment setting to the proper frequency (50Hz or 60Hz) of the location where your phone is being used.
Direction (Panorama mode only)	Choose in what direction images will be stitched in a panorama.
Stitch Count (Panorama mode only)	Select the desired number of snapshots to be taken and stitched into a panorama.
Template Folder (Picture Theme mode only)	By default, templates are stored in the \My Documents\Templates folder on the phone's main memory. If you transferred some templates to a storage card (using File Explorer), set this option to Main + Card to specify that templates are located in both the main memory and the storage card.
Show Reminder (Contacts Picture mode only)	Select On to be prompted to set the picture to a contact after taking a contact picture. Select Off to disable the prompt.
About Display the camera's firmware information.

Viewing Photos and Videos

Album offers a host of features that let you view your images as a slideshow, use images as contact pictures, and more.

Notes

- Album can only display files using the JPEG, MPEG4, H.263, or 3GPP2 file formats.

- You can also view pictures and videos using the Pictures & Videos program. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Pictures & Videos.

Launching Album

To open Album:

▶ From the Home panel, press Start (left softkey) >All Programs (left softkey) >Album.

- or -

On the camera screen, press Album (left softkey).

To launch the camera from the Album program:

▶ On the main Album screen, highlight the camera icon and press the Enter key.

Viewing an Image

• On the main Album screen, use the navigation key to select the image you want to view and then press the Enter key.
  ● While viewing the image, press Zoom In (left softkey) to zoom in on the image.

Illustration of a goldfish jumping from water with water splashing, labeled 'Zoom In' and 'Menu' at the bottom (no other text or symbols)

Note

If you do not see Zoom In on the screen, press the Enter key to show the menu bar at the bottom of the screen.

While zoomed in, use the navigation key to pan the image. Press Zoom Out (right softkey) to zoom out of the image.

50 2D. Camera and Multimedia

To set an image as the Home screen wallpaper:

1. On the main Album screen, select the image you want to set as the Home screen wallpaper.
2. Press Menu (right softkey) > Set as Home Wallpaper.

Note

To return the Home screen wallpaper to the default image, from the Home screen, press Start (left softkey) > All Programs (left softkey) > Settings > Home Screen. Scroll to Background image, and select Default

To view the next or previous image:

▶Press the navigation key right or left to go to the next or previous image.

Note

If you are zoomed in on an image, you need to zoom out first before you can go to the next or previous image.

To view still images as a slideshow

• On the Album screen, highlight or select the image where you want to start the slideshow from and then press Menu (right softkey) >Slide Show. The slideshow automatically starts playing back from the selected image.
• Press the Enter key to pause the slideshow playback. Press Play (the left softkey) to resume playback.
• Press Options (right softkey) to set slide show options such as slide transitions and the duration that each image appears.

To play back video

On the main Album screen, highlight the thumbnail of the video file you want to play back and press the Enter key. Windows Media Player then plays back the file.

Using Windows Media Player Mobile

Windows Media ^® Player Mobile for Smartphones plays digital audio and video files that are stored on your phone or on a network, such as on a website. This section shows you how to use Windows Media Player Mobile.

To open Windows Media Player Mobile:

▶ Press Start (left softkey) > All Programs (left softkey) > Windows Media.

Supported File Formats

Video File Formats Supported File Extensions
Windows Media Video	.wmv, .asf
MPEG4 Simple Profile	.mp4
H.263	.3gp, .3g2
H.264	.mp4, .3gp, .3g2, .m4v
Motion JPEG	.avi

Audio File Formats Supported File Extensions
Windows Media Audio	.wma
WAVE	.wav
MP3	.mp3
MIDI and SP MIDI	.mid, .midi, .rmi
AMR Narrow Band	.amr, .3gp
AMR Wide Band	.awb,.3gp
AAC, AAC+, and eAAC+	.aac, .mp4, .m4a, .3gp
MPEG4 audio	.m4a
QCELP	.qcp, .3g2
EVRC	.qcp

About the Controls

ToPress
Play or pause Enter
Skip to a previous file Navigation left
Skip to the next file Navigation right
Increase the volume Navigation up
Decrease the volume Navigation down
Turn the sound on or off (mute) #
Switch to full screen during video playback	0
Change rating *
Fast-forward a file Navigation right (hold)
Rewind a file Navigation left (hold)

Windows Media Player Mobile has three primary screens:

● Playback screen. The screen that displays the playback controls and the video window.
- Now Playing screen. The screen that displays the Now Playing playlist. This special playlist indicates the current file being played and any files that are “queued up” to play next.
- Library screen. The screen that lets you quickly find your audio files, video files, and playlists. It contains categories such as My Music, My Videos, My TV, and My Playlists.

At the bottom of each screen, you can open a Menu. The commands on this menu vary, depending on which screen you are viewing.

About licenses and protected files

Some media files have associated licenses that protect them from being unlawfully distributed or shared.

If you want to copy a protected file from your computer to your phone, use the Windows Media Player on your computer to synchronize the file to your phone. This will ensure that the license is copied along with the protected file. For more information about synchronizing files to your phone and other mobile devices, see the Windows Media Player Help on you computer.

Note

You can view the protection status for a file by checking its file properties (Menu > Properties).

Synchronizing Video and Audio Files

Use the latest version of Windows Media Player on your computer to synchronize digital media files from your computer to your phone. This ensures that protected files and album art (for skins) are copied to your phone correctly.

Synchronizing Content to Your Device Automatically

1. On your computer, open Windows Media Player, and then connect your phone to your computer.
2. In the Device Setup Wizard, select Yes, search my computer now.

Note If you have previously opened Windows Media Player and searched for media on your computer, you will not be prompted to search your computer.

1. On the Device Setup dialog box, enter a name for your phone and click Finish. Windows Media starts synchronizing the music files in the computer with the phone.
2. On the left panel of Windows Media Player, right-click the name of your phone and click Set Up Sync.
3. On the Device Setup dialog box, select the Sync this device automatically and then select the playlist(s) that you want to sync between the computer and your phone.

Note On the Device Setup dialog box, make sure that the Sync this device automatically check box is selected.

1. Click Finish.

The files will begin synchronizing to your phone. The next time you connect your phone to your computer while Windows Media Player is running, synchronization will start automatically.

Note You can also sync your storage card if you have one installed on your phone. To sync, right-click Storage Card.

Synchronizing Content Manually to Your Device

1. If you have not set up media synchronization between your phone and computer, follow steps 1 to 3 in "Synchronizing Content to Your Device Automatically."
2. Click the Sync tab on the Windows Media Player of your computer. Select a Playlist or a Library on the left panel of the Windows Media Player.
3. From the Content List, drag the media files that you want to sync to your phone and drop them to the Sync List.

1. Playlist and Library List
2. Content List

3. Sync List

4. Press Start Sync to start synchronizing the selected files to your phone.

54 2D. Camera and Multimedia

Notes

- Use Windows Media Player 11 or higher on your computer to synchronize media files to your phone.

- Audio files copy faster if Windows Media Player is configured to automatically set the quality level for audio files copied to your phone. For more information, see the Windows Media Player Help.

Playing Media

Use the Library to find and play songs, videos, and playlists that are stored on your phone or microSD card.

1. If you are not on the Library screen, press Menu (right softkey) >Library.
2. If necessary, on the Library screen, press Menu (right softkey) >Library, and then select the library that you want to use.
3. In most cases, Windows Media Player Mobile automatically updates the library. However, you can manually update the library to ensure that it contains new files that you recently copied to your phone or storage card. Press Menu (right softkey) >Update Library to manually update the library list.
4. Select a category (for example, My Music or My Playlists), select the item that you want to play (such as a song, album, or artist name), and then press Play (left softkey).

Tips

• To play a media file that is stored on your phone but is not in a library, on the Library screen, press Menu (right softkey) > Open File. Select the item that you want to play (such as a file or a folder), and then press Play (left softkey).
• To play a media file from the Internet or a network server, press Menu (right softkey) > Library then press Menu (right softkey) > Open URL

Playlists

In Windows Media Player Mobile, you can create a new playlist by saving the current Now Playing playlist and giving it a new name.

To save a new playlist:

1. If you are not on the Library screen, press Menu (right softkey) >Library.
2. Click to select a category (for example, My Music or My Playlists).
3. Select a media file that you want, and then press Menu (right softkey) > Queue Up. This adds the file to the Now Playing list. Repeat this step until you have added all desired media files to the Now Playing list.

Note

You cannot select multiple files at the same time.

1. After adding the media files, press Menu (right softkey) >Now Playing.
2. On the Now Playing screen, press Menu (right softkey) >Save Playlist.
3. Enter the playlist name, and then press Done (left softkey).
4. To play back the playlist you created, select My Playlists in the Library, highlight your playlist, and then press Play (left softkey).

Troubleshooting

If you encounter a problem while using the Windows Media Player Mobile, see the Troubleshooting Windows Media Player Mobile page at the Microsoft website: (http://www.microsoft.com/windows/windowsmedia/player/windowsmobile/troubleshooting.aspx).

Using Audio Booster

Audio Booster optimizes sound for a better listening experience. It provides preset moods, such as hip-hop, jazz, and rock, and several enhancement presets that suit different types of music.

To access Audio Booster:

▶ Press Start (left softkey) > All Programs (left softkey) > Audio Booster.

Note You must plug in the headset first onto the earphone jack of your phone before you can open the program.

Control Use
1 Equalizer Presets	Select to choose the Equalizer preset to use.
2 Done Press to apply	the modified settings.
3 Menu	● Press Menu (right softkey) >Cancel to exit Audio Booster without applying the modified settings:● Press Menu (right softkey) >Save as Preset or Delete Preset to save or delete preset equalizer settings.
4 Frequency Band	Select then use the navigation key to adjust the frequency.
5 On Select the check	box to enable or disable the equalizer.

To use an Equalizer preset:

▶Select the list box and then select a desired preset.

To create a custom equalizer preset:

1. Select the frequency band area and press the Enter key. Use the navigation key right and left to select individual frequency bands and then adjust to your desired values by using the navigation key up and down. The selected values are indicated on top of the sliders. Press the Enter key to exit adjustment mode.
2. Save equalizer settings as a preset by pressing Menu (right softkey) >Save as Preset.
3. Enter a preset name and then press Done (left softkey). The preset you created will be added to the list box.

To delete a custom equalizer preset:

1. Select the list box and then highlight the Equalizer preset you want to delete.
2. Press Menu (right softkey) > Delete Preset.

Note You can only delete custom equalizer presets. Equalizer presets that are preinstalled cannot be deleted.

Using MP3 Trimmer

Use MP3 Trimmer to trim MP3 files. You can choose to save a trimmed file as a new file or set it as a ring tone.

1. Shows the title of the MP3 file.
2. Shows the duration of the trimmed portion.

3. Shows the elapsed playback time.

4. Shows the current start and end points of the song. The song will be trimmed based on these points.

5. For more precise trimming, you can also select the Start Point and End Point controls and use the navigation key left and right to step backward and forward in one-second increments.

6. Select Play to start playback, or select Stop to end the playback.

To trim the MP3 file:

1. Press Start (left softkey) > All Programs (left softkey) > MP3 Trimmer.
2. Press Open (left softkey) to find an MP3 file.
3. On the MP3 Trimmer screen, use the navigation key to adjust the Start and End points.
4. Select Play to play back the trimmed song.
5. Press Menu (right softkey) and select to whether set the file as the default ring tone, save the file to the ring tone folder, or save it using another file name.

Tip

If you only want to save the song to the ring tone folder for future use, select Save to Ring Tone Folder. Later on, you can press Start (left softkey) > All Programs (left softkey) > Settings > Sounds to set it as your ring tone.

Bluetooth

◆ Using Bluetooth (page 58)
◆ Printing Files via Bluetooth (page 61)

Your phone features built-in Bluetooth technology, allowing you to share information more easily than ever before.

Bluetooth is a short-range communications technology that allows you to connect wirelessly to a number of Bluetooth devices, such as headsets and hands-free car kits, and Bluetooth-enabled handhelds, computers, printers, and wireless phones. The Bluetooth communication range is usually up to approximately 30 feet.

This section shows you how to use Bluetooth on your phone, including turning Bluetooth on and off, connecting to another Bluetooth device such as a Bluetooth stereo headset, and more.

Using Bluetooth

Bluetooth Modes

Bluetooth on your phone has three different modes:

• On. Bluetooth is turned on. Your phone can detect other Bluetooth-enabled devices within range, but cannot be detected by other Bluetooth-enabled devices.
• Visible. Bluetooth is turned on, and all other Bluetooth-enabled devices within range can detect your phone.
• Off. Bluetooth is turned off. In this mode, you can neither send nor receive information using Bluetooth.

• By default, Bluetooth is turned off. If you turn it on and then turn off your phone, Bluetooth also turns off. When you turn on your phone again, Bluetooth automatically turns on.
• Turn off Bluetooth when not in use to conserve battery power, or in places where using a wireless device is prohibited, such as aboard an aircraft and in hospitals.

To turn on or off Bluetooth on your phone

You can enable Bluetooth by selecting the Bluetooth button in the Comm Manager. You can also do the following:

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Connections > Bluetooth.
2. Press Bluetooth>Menu>Turn On Bluetooth.
3. To turn off Bluetooth capabilities on your phone, press Bluetooth >Menu >Turn Off Bluetooth.

To make your phone visible

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Comm Manager > Settings > Bluetooth.
2. Press Bluetooth >Menu >Turn On Visibility.

Tip

Enter a Bluetooth phone name for your phone. This will be the phone name that will be shown on another Bluetooth-enabled device when it searches and detects your phone. To enter a name, on the Bluetooth screen, select Security and enter a Device name.

Turning Off Bluetooth Visibility After a Certain Period of Time

You can automatically turn off Bluetooth visibility after a specified period of time.

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Connections > Bluetooth > Visibility Timeout.
2. In Visibility Timeout, select the time before your phone's Bluetooth visibility turns off.
3. Press Done (left softkey).

Bluetooth Partnerships

A Bluetooth partnership is a relationship that you create between your phone and another Bluetooth-enabled device in order to exchange information in a secure manner.

Creating a Bluetooth Partnership

1. From the Home panel, press Start (left softkey) >All Programs (left softkey) >Comm Manager>Settings (right softkey) >Bluetooth.
2. Select Bluetooth > Add new device.
   Your phone searches for other Bluetooth-enabled devices and lists them.
3. Select the desired device name in the list and press Next (left softkey).
4. Enter a passcode (1 up to 16 characters) to establish a secure connection, and then press Next (left softkey).
5. Wait for the paired device to accept the partnership. The receiving party needs to enter the same passcode that you specified.
6. After the receiving party enters the passcode, a message box appears on your phone confirming the partnership.

Tip

Press Advanced (right softkey) to change the paired device name and to set the services you want to use for the paired device. After setting the name and options, press Done (left softkey).

1. Press Done (left softkey).

Note

Creating a Bluetooth partnership between two devices is a one-time process. Once a partnership is created, the devices can recognize the partnership and exchange information without entering a passcode again.

Accepting a Bluetooth Partnership

1. Ensure that Bluetooth is turned on and in visible mode.
2. Press Yes (left softkey) when prompted to establish a partnership with the other device.
3. Enter a passcode (the same passcode that is entered on the device requesting the partnership) to establish a secure connection. The passcode must be between 1 and 16 characters. Press Next (left softkey).

Tip

Press Advanced (right softkey) to change the paired device name and to set the services you want to use for the paired device. After setting the name and options, press Done (left softkey).

1. Press Done (left softkey).

Tips

• To rename a Bluetooth partnership, highlight the partnership's name on the Bluetooth Devices screen, and then press Menu (right softkey) > Edit.
• To delete a Bluetooth partnership, highlight the partnership's name on the Bluetooth Devices screen, and then press Menu (right softkey) > Delete.

Connecting a Bluetooth Hands-free or Stereo Headset

For hands-free phone conversations, you can use a Bluetooth hands-free headset such as a car kit with your phone. Your phone also supports A2DP (Advanced Audio Distribution Profile) which allows you to use a Bluetooth stereo headset for hands-free phone conversations and for listening to stereo music.

To connect a Bluetooth hands-free or stereo headset:

1. Make sure that both your phone and the Bluetooth headset are turned on and within range, and that the headset is visible. Refer to the manufacturer's documentation to find out how to set the headset in visible mode.
2. From the Home panel, press Start (left softkey) >All Programs (left softkey) >Comm Manager>Settings (right softkey) >Bluetooth.
3. Select Bluetooth > Add new device.
4. Select the name of the Bluetooth headset, and then press Next (left softkey). The phone will automatically pair with the Bluetooth headset.

Windows Mobile will automatically try one of the preconfigured passcodes (0000, 1111, 8888, 1234) to pair the Bluetooth headset with the phone. If this fails, you have to enter the passcode delivered with your headset manually.

Note

If the Bluetooth stereo headset becomes disconnected, turn the headset on and repeat steps 1 to 3 in the previous steps. Select the stereo headset and press Menu (right softkey) > Set as Wireless Stereo.

Beaming Information Using Bluetooth

You can beam information, such as contacts, calendar items, tasks, and files from your phone to your computer or to another Bluetooth-enabled device.

Note

If your computer does not have built-in Bluetooth capability, you need to connect and use a Bluetooth adapter or dongle on your computer.

To beam information from your phone to a computer (Windows Vista or Windows XP SP2 [or higher] only):

1. Turn on Bluetooth on your phone, and make your phone visible. For information about this, see "To turn on or off Bluetooth on your phone."
2. Set Bluetooth on your computer to visible mode, create a Bluetooth partnership, and then enable your computer to receive Bluetooth beams.

Note

If the Bluetooth adapter or dongle on your computer was installed using a third-party driver, open the Bluetooth software that came with the Bluetooth adapter or dongle and enable the adapter or dongle to be discovered by other devices. Refer to the Bluetooth adapter's documentation for more information.

1. On your computer, open Bluetooth Devices from the Control Panel, and then click the Options tab on the Bluetooth Devices window.
2. For Windows Vista, select Allow Bluetooth devices to find this computer. For Windows XP, select Turn discovery on and Allow Bluetooth devices to connect to this computer.
3. Create a Bluetooth partnership between your phone and computer. For information about creating a partnership, see "Bluetooth Partnerships" on page 59.
4. In the Options tab of Bluetooth Devices, select Show the Bluetooth icon in the notification area.

5. To enable your computer to receive Bluetooth beams, right-click the Bluetooth icon 📋 in the notification area at the bottom right corner of your computer screen and select Receive a File. You are now ready to beam.

6. On your phone, select an item to beam. The item can be an a task, a contact card, or a file.

Note

Not all file types can be sent via Bluetooth.

1. To beam a contact, press Menu (right softkey) > Send Contact > Beam. To beam other types of information, press Menu (right softkey) > Beam [type of item].
2. Select the device name to which you want to send the item.
3. If you beamed a task, or contact item to your computer and it is not automatically added to Outlook, select File >Import and Export in Outlook to import it.

To beam information to a Bluetooth-enabled device such as another Windows Mobile-powered device, follow steps 1 to 10 in the above procedure.

Tips

• The default folder on your computer where beamed items are stored may be C:\Documents and Settings\your_username\My Documents in Windows XP or C:\Users\your_username\My Documents in Windows Vista.
• For your phone to receive Bluetooth beams, press Start (left softkey) > All Programs (left softkey) > Settings > Connections > Beam and make sure the Receive incoming beams check box is selected.

Printing Files via Bluetooth

Connect your phone to a Bluetooth printer to print contact information, appointment details, and images.

Before you start printing, make sure to turn on the Bluetooth printer and to turn on Bluetooth on your phone. To turn on Bluetooth, press Start (left softkey) >All Programs (left softkey) >Comm Manager, highlight Bluetooth and then press the Enter key.

Printing Contact Information

1. From the Home panel, press Contacts (right softkey) and then select the contact whose information you want to print.
2. Press Menu (right softkey) > Print via Bluetooth.
3. Press Menu (right softkey) > Search Devices. Your phone starts to search for Bluetooth devices.
4. Select the Bluetooth printer and press Menu (right softkey) > Send File.
5. Set the printing options you want, and then press Print.

Printing a Calendar Appointment

1. Press Start (left softkey) > All Programs (left softkey) > Calendar, and then select (highlight) the appointment whose details you want to print.
2. Follow steps 2 to 4 in "Printing Contact Information."

Printing a JPEG File

1. In Pictures & Videos, locate the JPEG file you want to print.
2. Press Menu (right softkey) > Print via Bluetooth.
3. Follow steps 3 to 5 in "Printing Contact Information."

microSD Card

◆ Using a microSD Card on Your Phone (page 62)
◆ Managing the microSD Card (page 63)
◆ Using Your Device as a USB Drive (page 64)

Your phone lets you insert a microSD ^™ card to expand the available storage space. This highly secure digital card enables you to exchange images, music, and other data between SD-compatible devices, and also provides additional storage space on your phone.

Using a microSD Card on Your Phone

Note A microSD card is not included in the box.

Inserting the microSD card

The microSD card slot is located under the back cover of your phone.

1. Remove the back cover. (See "Installing the Battery" on page 2.)
2. Insert the microSD card into the slot with the gold contacts facing down (in the same orientation as the image just above the card slot).

1. Replace the back cover.

Removing the microSD card

1. Remove the back cover. (See "Installing the Battery" on page 2.)
2. Remove the microSD card by pressing on the exposed edge and releasing. The card should pop out partway.
3. Remove the microSD card.

Copying files to the microSD card:

1. Press Start > All Programs > File Explorer and navigate to the appropriate folder.
2. Select the file you want to copy, and then press Menu (right softkey) > Edit > Copy.
3. Press Up (left softkey) until you get to the root folder (My Device) and then select Storage Card in the list.
4. Press Menu (right softkey) > Edit > Paste.

Encrypting files on your microSD card:

You can set your phone to encrypt files as they are saved on the microSD card.

▶ Press Start (left softkey) > All Programs (left softkey) > Settings > Security > Encryption and select Encrypt files when placed on storage cards.

Notes

• Encrypted files can only be read on the device that encrypted them.
• Encrypted files are opened just like other files, provided you are using the device that encrypted them. There is no separate step for you to take to read these files.

Important

If Encrypt files when placed on a storage card is enabled, back up all files from the microSD card before using Clear Storage, hard reset, or updating the ROM system software. Otherwise you will no longer be able to access the encrypted files on the microSD card. Use ActiveSync or Windows Mobile Device Center to transfer files between your microSD card and computer. After the procedure, copy those files back to the microSD card.

Checking the available microSD card memory:

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Device Information.
2. Select Hardware and scroll down to check the Storage card memory. You can see the storage card's total memory capacity, memory used, and memory available.

If your phone is running low on memory, try the following to free memory on your phone:

■Close programs that are not in use.
■Move files and email attachments to the microSD card.
■ Delete unnecessary files. Press Start (left softkey) >All Programs (left softkey) >File Explorer. Select the file, and press Menu (right softkey) >Edit >Delete.
- Internet Explorer Mobile, delete temporary Internet files and clear history information. Open Internet Explorer Mobile, and press Menu (right softkey) >Tools>Options. Select Browsing History, select Temporary Files or History, and then press Clear (right softkey).
■Remove programs you no longer use.
■Reset your phone.

Using Your Device as a USB Drive

You can use an installed microSD card as a USB flash drive, allowing you to take pictures, music, documents, and other files with you on the go.

▶ Press Start (left softkey) > All Programs (left softkey) > Settings > Connections > USB to PC and then select Disk Drive mode.

While Disk Drive mode is enabled:

• You will not be able to use your phone to access files from the microSD card or run applications that are installed on the microSD card while the phone is connected to your computer.
• Your computer will connect only to the phone's microSD card. When you access your phone from the computer, you will only see the contents of the microSD card.

Remember to change back to ActiveSync mode when you need to synchronize data between your phone and your computer.

Section 2G

Managing Your Device

◆ Copying and Managing Files (page 65)
◆ Changing Basic Settings (page 66)
◆ Using Task Manager (page 70)
◆ Protecting Your Device (page 70)
◆ Managing Memory (page 71)
♦ Adding and Removing Programs (page 71)
◆ Resetting Your Device (page 72)
◆ Windows Update (page 72)

You can customize your phone to sound, look, and operate just the way you want it to. This section describes how to customize your phone to best suit your needs.

Copying and Managing Files

You can copy files between your phone and computer, or copy files to the microSD card of your phone. You can also efficiently manage your files and folders using File Explorer.

To copy files using Windows Mobile Device Center or ActiveSync:

1. Connect your phone to the computer.
2. Click File Management >Browse the contents of your device in Windows Mobile Device Center on your computer, or click Explore in ActiveSync on your computer. This opens Windows Explorer on your computer and displays the contents of your phone.
3. To copy a file from your phone to your computer, browse the contents of your phone, right-click the file you want to copy, and then click Copy.
   Right-click a folder on your computer, and then click Paste.
4. To copy a file from your computer to your phone, browse the folders on your computer, right-click the file you want to copy, and then click Copy.
5. Right-click a folder on your phone, and then click Paste.

Copying a file results in separate versions of a file on your phone and computer. Changes made to one file will not affect the other since the files are not synchronized.

To manage files on your phone using File Explorer:

File Explorer lets you browse and manage the contents of your phone. The root folder on the phone is named My Device, and contains the following folders: My Documents, Program Files, Windows, and more.

1. Press Start (left softkey) > All Programs (left softkey) > File Explorer and then highlight a folder or file and press the Enter key to open it.
2. To return to an upper level folder, press UP (left softkey) and select the folder.
3. To quickly delete, rename, or copy a file, select the file, and then press Menu (right softkey) >Edit. Select the desired operation from the submenu.

Date and Time

To set the date and time:

1. From the Home panel, press the Enter key.
2. Select Date and Time and then set the Time zone, Date, and Time.
3. Press Done (left softkey).

Note During synchronization, the time on your phone is updated with the time on your computer.

Regional Settings

The style in which numbers, currency, dates, and times are displayed is specified in regional settings.

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Regional Settings.
2. In Locale, select for your current location. The Locale option automatically changes the format of the remaining options (such as date, time, and currency) according to the locale you specify.
3. To customize regional settings further, select the appropriate items and set the desired options.

Display Settings

To adjust the screen brightness:

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Power > Power Management.
2. Scroll to Backlight brightness.
3. Adjust the brightness by pressing the navigation key left and right keys.

To set the backlight to dim after a time delay:

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Power > Power Management.
2. Scroll to Backlight time out on battery or Backlight time out on AC.
3. Set the time delay by pressing the navigation key left or right.

Device Name

The device name is used to identify your phone in the following situations:

●Synchronizing with a computer
●Connecting to a network
●Restoring information from a backup

Note If you synchronize multiple devices with the same computer, each device must have a unique name.

To change the device name:

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Device Name.
2. Enter the phone name.
3. Press Done (left softkey).

Notes

• The device name must begin with a letter, consist of letters from A to Z, numbers from 0 to 9, and cannot contain spaces. Use the underscore character to separate words.
• If you enroll your phone to your company's domain, the device name will be changed to be the same as the one used to enroll the phone.

Ringer Settings

To change the ring type and ring tone :

1. From the Home panel, scroll down to the Settings item.
2. Press the navigation key right until you see Ringtone and then press the Enter key.
3. On the Sounds screen, select a ringtone in Ring tone and then press Done (left softkey).

Tips

• If you select Vibrate, the sound is muted and the phone will vibrate when you receive a call. The Vibrate icon (☐) appears in the title bar. Selecting None in the Ring tone list mutes the phone.
• You can use *.wav, *.mp3, *.wma, or other types of sound files that you downloaded from the Internet or copied from your computer as ring tones. For a complete list of supported audio file formats for ring tones see "Supported File Formats" on page 45.
• To use your sound files as ring tones, copy them first to the /My Documents/My Ringtones folder on your phone, and then select the sound from the Ring tone list of your phone. For more information about copying files, see "Copying and Managing Files" on page 65.

Alarms and Notifications

To set an alarm:

You can set two different alarms on your phone.

1. On the Home panel press the Enter key.
2. Select Alarm 1 or Alarm 2.
3. Set the Alarm settings you want and then press Done (left softkey). An alarm icon appears on the Home panel.

To choose how to be notified about events or actions:

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Sounds.

2. For the desired event, select a sound. Select None if you do not want to hear a sound.

Tips

• When you select a sound, the sound plays. To hear it again, press Menu (right softkey) > Play.
• Turning off sound notifications helps conserve battery power.

Profiles

A profile is a group of settings that determine how your phone will alert you to phone events such as incoming calls and notifications.

To change the current profile

1. From the Home panel, scroll to the Settings item and then press the Enter key (option should be Profile).
2. Select the profile you want to use and then press Done (left softkey).

Tip

To quickly change the profile, briefly press the End/Power key to display the Quick List, and choose a profile.

To edit a profile

1. From the Home panel, scroll to the Settings item and then press the Enter key (option should be Profile).
2. Select the profile to edit and then press Menu (right softkey) >Edit.
3. Modify the settings and press Done (left softkey). To cancel without saving the changes, press Cancel (right softkey).

Tip To revert to the default profile settings, press Menu (right softkey) > Reset to default.

Set Personal Information

Entering and displaying owner information are best practices; they allow someone to return the phone to you in case it is lost.

To enter owner information

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Owner Information.
2. Enter the necessary information and press Done (left softkey).

Change Power Management Settings

You can use Power Management to check the battery, and configure settings that prolong battery life.

To change power management settings

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Power Management.
2. Adjust the available settings:

■ In Backlight brightness, select the backlight brightness.
- In Backlight time out on battery/AC and Display time out on battery/AC, set the time when the backlight and display will turn off when the phone is left idle.
In Adjust keypad backlight by light sensor, select whether to turn it on or off. If this is turned on, the light sensor senses the dark conditions and activates a backlight under the keypad and keyboard.
■ In When device is turned on, do not charge the battery when connected to the PC, select Off if you want to charge the phone battery when the phone is connected to the computer through USB.

1. Press Done (left softkey).

Tip Main battery indicates the amount of battery life remaining.

Phone Services

Additional phone service options can be easily configured on your phone.

To access and change settings of phone services:

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Phone.
2. Select the service you want to use, and then press the Enter key.
3. Choose your desired options, and then press Done (left softkey).

The following are some of the phone services that you can configure for your phone:

Phone Services Usage
Auto Answer Sets how quickly calls are automatically answered during hands-free operation.
Automatic Prepend Automatically adds a “1” in front of long distance numbers, if required.
Call Options	Lets you set any key to answer a call, set the country code, area code, and more.
DDTM Mode	Enables you to set voice calls to be sent to voicemail during active data connections.
Location Setting	Allow the mobile phone network to detect your current location via your phone's built-in GPS chip. This is especially useful in times of emergency.
Plus Code Dialing This allows easy dialing when making international calls.
Roaming	To better control roaming costs, you can set your phone to roam only on certain networks. The Data Roam Guard also helps you to manage your roaming costs.
Roaming Alert	Enable sound alerts on your phone so that you can be notified when your phone enters or goes out of the network coverage area. By default, alert notification is enabled.
Time Synchronization	Allow the system time on your phone to be synchronized with the time information of the mobile phone network.
TTY Mode	Allow the use of a TTY (teletypewriter) device with the phone for users who are visually or hearing impaired. Choose one of the following modes, depending on the operation mode that is supported by the TTY device:Full mode: Send and receive text during an ongoing call.VCO mode: Voice Carry Over mode, which allows users to send voice and receive text during an ongoing call.HCO mode: Hearing Carry Over mode, which allows users to send text and receive voice during an ongoing call.Off: Disable TTY mode, and send and receive voice during an ongoing call.
Voicemail Clears voicemail messages.

For more information about customizing settings of phone services, see Help on your phone.

Using Task Manager

Task Manager allows you to view or stop the programs currently running on your phone.

To close running programs from the Task Manager:

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Accessories > Task Manager.

1. On the Task Manger screen, select a program on the list and then press End Task (left softkey).

Tip

To stop all running programs, press Menu (right softkey) > End All Tasks.

Press Menu (right softkey) to open a menu where you can change the view, sorting order, refresh the screen, and more.

Protecting Your Device

You can help keep your data more secure by requiring a password every time the phone is turned on.

To enable the phone lock:

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Security > Device lock.
2. Select Prompt if device unused for, then select the amount of time for the phone to be inactive before automatically locking.
3. Select the Password type, then enter and confirm your password.
4. Press Done (left softkey) and then press Yes (left softkey) in the confirmation screen.

Tip

If your phone is configured to connect to a network, use an alphanumeric password for increased security.

Notes

• To ensure that you can always make emergency calls, do not begin your password with the digits of your local emergency number.
- If you forget your password, you can hard reset or clear the phone memory. Before you do this, make sure you back up your data and files so that you can restore them back to your phone. For more information about hard resetting the phone and clearing the memory, see "Resetting Your Device" on page 72.

To disable the phone lock

▶ Press Unlock (left softkey) and then enter the password you have set to unlock your phone.

70 2G. Managing Your Device

To encrypt files on the microSD card

▶ Press Start (left softkey) > All Programs (left softkey) > Settings > Security > Encryption and select Encrypt files when placed on storage cards.

Managing Memory

To see how much memory is available

1. From the Home panel, press Start (left softkey) >All Programs (left softkey) >Settings >About.
2. Scroll down to check the Available Memory.

To see how much storage space is available

1. From the Home panel, press Start (left softkey) >All Programs (left softkey) >Settings >About
2. Scroll down to check the Available Storage.

Adding and Removing Programs

Additional programs that you purchased can be installed and uninstalled on your phone. Your phone does not allow you to uninstall most of the preinstalled programs.

Note Before you purchase additional programs for your phone, make sure that they are compatible with your phone.

To install a program:

1. Download the program to your computer (or insert the disc that contains the program into your computer). You may see a single *.exe file, a *.zip file, a Setup.exe file, or several versions of files for different device types and processors. Be sure to select a program designed for your phone and processor type.
2. Read the installation instructions that came with the program.
3. Connect your phone to the computer and then double-click the *.exe file.

To uninstall a program:

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Remove Programs.
2. Scroll to the program to remove and then press Menu (right softkey) >Remove.

Restarting Your Phone

Restart your phone when a program is not performing properly or the phone is not responding to any keypresses.

To restart the phone

1. Remove the battery (see "Installing and Removing the Battery" on page 16).
2. Wait for three seconds, and then reinsert the battery and turn on your phone.

Warning

If the phone is restarted while a program is running, any unsaved work will be lost.

Resetting

Resetting your phone will remove all the data from its memory and restore the phone back to the factory default settings.

Warning

Your phone will be set back to factory default settings. Make sure that any additional installed programs and/or user data have been backed up before you perform a hard reset.

Important

If Encrypt files when placed on a storage card is enabled, back up all files from the microSD card before using Clear Storage, hard reset, or updating the ROM system software. Otherwise you will no longer be able to access the encrypted files on the microSD card. Use ActiveSync or Windows Mobile Device Center to transfer files between your microSD card and computer. After the procedure, copy those files back to the microSD card.

To reset your phone:

1. Press Start (left softkey) > All Programs (left softkey) > Accessories > Clear Storage.
2. Follow the onscreen instructions to reset the phone. The phone will restart after it has been reset.

Windows Update

You can update Windows Mobile on your phone with the latest updates, security patches or fixes, if these are available.

To set up Windows Update:

The first time you run Windows Update, you need to set up how you want Windows Update to check for patches on the Microsoft website.

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Windows Update.
2. On the Update Setup screen, press Next (right softkey).
3. Choose how you want to check for updates (Manual or Automatic) and then press Next (right softkey).

Note

If you select Automatic, you will be asked if you want to use your current data plan to check for updates. Select or clear the Use my data plan to check for and download updates check box and press Next (right softkey).

1. Press Finish (left softkey).

To check for updates:

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Windows Update.
2. Press Check Now (left softkey).

Note

Windows Mobile updates may not be available at all times. Check the Windows Mobile website for update information.

To change Windows Update options:

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Windows Update.
2. Press Menu (right softkey) and then select the option you want to change:

■ Select Connections to change how the phone connects to the Internet when checking for updates.
■ Select Change Schedule to change how Windows Update checks for Windows Mobile updates.

Synchronizing With Your Computer

◆ About Synchronization (page 74)
◆ Ways to Synchronize (page 74)
◆ Setting Up ActiveSync on Windows XP (page 75)
Setting Up Windows Mobile Device Center on Windows Vista (page 75)
◆ Synchronizing With Your Computer (page 77)
◆ Synchronizing via Bluetooth (page 78)
◆ Synchronizing Music and Video (page 79)

You can take information from your computer wherever you go by synchronizing them to your phone. This section explains how to connect your phone to the computer and synchronize your data.

About Synchronization

The following types of information can be synchronized between your computer and your phone:

• Microsoft * Office Outlook® information, which includes Office Outlook email, contacts, calendar, tasks, and notes
  Notes, which are created using Microsoft® Office OneNote® 2007
  ●Media, such as pictures, music, and video
  ● Favorites, which are the bookmarked links to your favorite websites
  ●Files, such as documents and other files

Before you can synchronize, you first need to install and set up the synchronization software on your computer. For more information, see "Setting Up ActiveSync on Windows XP" and "Setting Up Windows Mobile Device Center on Windows Vista" in this section.

Ways to Synchronize

After you have installed the synchronization software on your computer, connect and synchronize your phone with your computer by:

●Using the supplied USB sync cable.
Upon connecting the sync cable to your phone and your computer, the synchronization process automatically starts.

●Using Bluetooth.

You must first set up a Bluetooth partnership between your phone and your computer before you can synchronize information between them using Bluetooth. For more information about setting up a Bluetooth partnership, see “Bluetooth Partnerships” on page 59. For information about synchronizing through Bluetooth, see “Synchronizing via Bluetooth.”

Try to synchronize regularly in order to keep information up-to-date in both your phone and your computer.

Note

You can also synchronize Outlook email, contacts, calendar, and tasks on your phone with the Exchange Server at your workplace. For more information about setting up your phone to synchronize with the Exchange Server, see “Working With Company Email and Meeting Appointments” on page 119.

Setting Up ActiveSync on Windows XP

The Getting Started CD that comes with your phone contains Microsoft ActiveSync 4.5 (or later). Follow the steps in this section to install and set up ActiveSync on Windows XP or other compatible Windows systems.

Note

For a list of compatible Windows systems, go to this website: http://www.microsoft.com/windowsmobile/activesync/activesync45.mspx

Installing ActiveSync

1. Place the Getting Started CD in the CD or DVD drive of your computer, and then click Setup and Installation.
2. Select the ActiveSync check box, and then click Install.
3. Read the license terms, and then click Accept.
4. When installation is completed, click Done.
5. On the Getting Started with Windows Mobile screen, click Close.

Setting Up Synchronization in ActiveSync

1. Connect your phone to your computer. The Synchronization Setup Wizard automatically starts and guides you to create a synchronization partnership. Click Next to proceed.
2. To synchronize your phone with your computer, clear the Synchronize directly with a server running Microsoft Exchange check box, and then click Next.
3. Select the information types that you want to synchronize, and then click Next.
4. Select or clear the Allow wireless data connections check box according to your preference.
5. Click Finish.

When you finish the wizard, ActiveSync synchronizes your phone automatically. Notice that Outlook email messages and other information appear on your phone after synchronization.

Setting Up Windows Mobile Device Center on Windows Vista

Microsoft Windows Mobile ^® Device Center is the replacement for Microsoft ^® ActiveSync ^® on Windows Vista ^® .

Note

Some versions of Windows Vista come with Windows Mobile Device Center already installed. If Windows Mobile Device Center is not available in your Windows Vista installation, you can install it from the Getting Started CD that came with your phone.

Setting Up Synchronization in Windows Mobile Device Center

When you connect your phone to your computer and start Windows Mobile Device Center for the first time, you are asked to create a Windows Mobile partnership with your phone. To create a partnership:

1. Connect your phone to your computer. Windows Mobile Device Center configures itself and then opens.
2. On the license agreement screen, click Accept.
3. On the Windows Mobile Device Center's Home screen, click Set up your device.

Note

Choose Connect without setting up your device if you only want to transfer media files, check for updates, and explore your phone but not synchronize Outlook information.

1. Select the items you want to synchronize, and then click Next.
2. Enter a phone name, and then click SetUp.

When you finish the setup wizard, Windows Mobile Device Center synchronizes your phone automatically. Outlook email messages and other information appear on your phone after synchronization.

Using Windows Mobile Device Center

To open Windows Mobile Device Center, click Start > All Programs > Windows Mobile Device Center on your Windows Vista computer.

Within Windows Mobile Device Center, you can do the following:

• Click Mobile Device Settings to change synchronization settings.
• Click Pictures, Music and Video >-- new pictures/video clips are available for import, and a wizard will guide you through tagging and transferring photos from your phone to the Photo Gallery on your computer.
• Click Pictures, Music and Video > Add media to your device from Windows Media Player to synchronize music and video files using Windows Media Player. For more information, see "Using Windows Media Player Mobile" on page 52.
• Click File Management >Browse the contents of your device to view documents and files on your phone.

Note

See Windows Mobile Device Center Help for more information.

Synchronizing With Your Computer

Connect and synchronize your phone with your computer using the USB cable or Bluetooth connection.

Starting and Stopping Synchronization

You can manually synchronize from either your phone or your computer.

From your Device

▶ Press Start (left softkey) >All Programs (left softkey) >ActiveSync, and then press Sync (left softkey). To end synchronization before it completes, press Stop (left softkey).

Tip

To delete a partnership with one computer completely, disconnect your phone from that computer. In ActiveSync on your phone, press Menu (right softkey) > Options., highlight the computer name, and then press Menu (right softkey) > Delete.

From ActiveSync on Your Computer

When you connect your phone to your computer, ActiveSync automatically opens on your computer and synchronizes.

●To manually start synchronization, click
●To end synchronization before it completes, click ✗

From Windows Mobile Device Center

1. Click Start > All Programs > Windows Mobile Device Center.
2. Click 🔒 at the lower left of the Windows Mobile Device Center. To end synchronization before it completes, click 🔒

Specifying What Information Is Synchronized

You can change the information types and the amount of information to synchronize for each type on either your phone or your computer. Follow the steps below to change synchronization settings on your phone.

Note

Before changing synchronization settings on your phone, disconnect it from your computer.

1. In ActiveSync on your phone, press Menu (right softkey) >Options.
2. Select the check box for any items you want to synchronize. If you cannot select a check box, you might have to clear the check box for the same information type elsewhere in the list.
3. To change synchronization settings for an information type (for example, E-Mail), select it, and press Settings (right softkey).
   You can then set the download size limit, specify the time period of information to download, and more.

Notes

• Some information types such as Favorites, Files, and Media cannot be selected in ActiveSync Options on your phone. You can select or clear these items only from your computer's Windows Mobile Device Center or ActiveSync.
• A computer can have sync partnerships with many different Windows Mobile powered devices, but a device can have sync partnerships with at most two computers. To ensure that your phone will synchronize properly with both computers, set up the second computer using the same synchronization settings you used on the first computer.
• Outlook email can be synchronized with only one computer.

Troubleshooting Sync Connection Problems

In some cases, when the computer connects to the Internet or a local network, it may disconnect the connection with your phone in favor of the Internet or network connection.

If this happens, press Start (left softkey) >All Programs (left softkey) >Settings >Connections >USB to PC, and then clear the Enable faster data Synchronization check box. This makes your computer use a serial USB connection with your phone.

Synchronizing via Bluetooth

You can connect and synchronize your phone with the computer using Bluetooth.

Note

To connect and synchronize your phone with a computer via Bluetooth, your computer must have a built-in Bluetooth or installed with a Bluetooth adapter or dongle.

1. Set up Windows Mobile Device Center or ActiveSync on your computer to synchronize through Bluetooth. See the program's Help for instructions.
2. On your phone, press Start (left softkey) > All Programs (left softkey) > ActiveSync.
3. Make sure that Bluetooth on both your phone and the computer are turned on and set to visible mode. See "Using Bluetooth" on page 58 for details.
   If this is the first time you connected to this computer via Bluetooth, you must first complete the Bluetooth wizard on your phone and set up a Bluetooth partnership between your phone and the computer. For more information about creating a Bluetooth partnership, see “Bluetooth Partnerships” on page 59.
4. Press Menu Press Settings (right softkey) >Connect via Bluetooth. Make sure the Bluetooth function of both your phone and the computer are turned on and set to visible mode.

Note

To conserve battery power, turn off Bluetooth when not in use.

Synchronizing Music and Video

If you want to carry your music or other digital media along with you while you travel, set up Windows Media Player on your computer to synchronize music and video with your phone.

Other than selecting the Media information type to be synchronized, all media synchronization settings must be set in Windows Media Player. Before media can be synchronized, you must do the following:

● Install Windows Media Player Version 11 on your computer. (Windows Media Player 11 works only with Windows XP or later versions).
- Connect your phone to the computer with a USB cable. If your phone is currently connected using Bluetooth, you must end that connection before media can be synchronized.
- Set up a sync partnership between your phone and your computer's Windows Media Player.

For more information about using Windows Media Player Mobile, see "Using Windows Media Player Mobile" on page 52.

Section 3

Sprint Service

Sprint Service: The Basics

◆ Voicemail (page 82)
◆ Text Messaging (SMS) (page 85)
♦ Video and Picture Messaging (MMS) (page 88)
◆ Using Caller ID (page 89)
◆ Call Waiting (page 89)
◆ Making a Three-Way Call (page 90)
◆ Call Forwarding (page 90)
◆ Roaming (page 90)

Now that you've explored your device's fundamentals, it's time to learn about the calling features that enhance your Sprint service. This section outlines your basic Sprint service features.

Voicemail

Setting Up Your Voicemail

For instructions on how to set up your voicemail, see "Setting Up Your Voicemail" on page 5.

Voicemail Notification

There are several ways your device alerts you to a new voicemail message:

• By displaying the voicemail icon (OK) in the title bar and a pop-up message.
• By displaying the number of voicemail messages in the Missed Call/Voicemail panel.
  ●By sounding the assigned alert or ringer type.

New Voicemail Message Alerts

When you receive a new voice message, your device alerts you that you have voicemail.

To call your voicemail:

The number of new voicemails is shown on the Missed Call/Voicemail panel. Select to call your voicemail. - or -

Press the Talk key to display the Phone screen, and then press and hold 📄 on the Phone keypad.

Retrieving Your Voicemail Messages

You can listen to voice messages directly from your device or from any other touch-tone phone.

Note

When you are roaming off the Nationwide Sprint Network, you may not receive notification of new voicemail messages. It is recommended that you periodically check your voicemail by dialing 1 + area code + your wireless phone number. When your voicemail answers, press v ^* and enter your passcode. You will be charged roaming rates when accessing voicemail while roaming off the Nationwide Sprint Network.

Your device accepts messages even when it is turned off. However, you are notified of new messages only when your device is turned on and you are in a Sprint service area.

Using One-Touch Message Access

▶ Press the Talk key to display the Phone screen, and then press and hold 📋 on the Phone keypad.

Tip

When you call into voicemail, you first hear the header information (date, time, and sender information) for the message. To skip directly to the message, press during the header.

Using Another Phone to Access Messages

1. Dial your wireless phone number.
2. When your voicemail answers, press *.
3. Enter your passcode.

Voicemail Key Guide

Below are some Phone keypad functions that you can use while listening to voicemail messages. For further details and menu options, see "Voicemail Menu Key" on page 84.

Voicemail-to-Voicemail Message Reply

Reply to a voice message received from any other Sprint Voicemail user.

1. After listening to a voice message, press E ^2 on the Phone keypad.
2. Follow the voice prompts to record and send your reply.

Using Expert Mode

Using the Expert Mode setting for your personal voicemail box helps you navigate through the voicemail system more quickly by shortening the voice prompts you hear at each level.

1. Press and hold ☐ to access your voicemail. (If your voicemail box contains any new messages, press ☐ to access the main voicemail menu.)
2. Press ☐ to change your Personal Options, following the system prompts.
3. Press for Expert Mode.
4. Press to turn Expert Mode on or off.

Voicemail-to-Voicemail Message Forwarding

Forward a voice message, except those marked "Private," to other Sprint Voicemail users.

1. After listening to a voice message, press on the Phone keypad.
2. Follow the voice prompts to enter the phone number.
3. Follow the voice prompts to record your introduction and forward the voice message.

Extended Absence Greeting

When your device is turned off or you are off the Nationwide Sprint Network for an extended period, your device can play this greeting instead of your normal personal greeting.

1. From the main voicemail menu, press 📄 on the Phone keypad for Personal Options.
2. Press for Greetings.
3. Press to record an Extended Absence Greeting.

Voicemail Menu Key

Following the prompts on the voicemail system, you can use the keypad on the Phone screen to navigate through the voicemail menu. The following list outlines the voicemail menu structure.

Listen

Send a Message

Personal Options

Settings

Skip Passcode

Autoplay

Play Back Date, Time, and Caller Info.

Change Passcode

Group Distribution Lists

Numeric Paging

Return to Personal Options Menu

Greetings

Personal Greetings

Name Announcement

Extended Absence Greeting

Return to Personal Options Menu

Expert Mode

Place a Call

Exit

Text Messaging (SMS)

With SMS Text Messaging, you can send and receive instant text messages between your device and another messaging-ready device. When you receive a new text message, your phone notify you by sounding the assigned alert or ringer type and then displaying the SMS icon (💡) in the title bar.

SMS Text Messaging includes a variety of preset messages, such as "I'm running late," "I'll be right there," and more, which make composing messages fast and easy. You can use your device to customize your own preset messages.

Creating a New Text Message

From the Home Screen

1. From the Home panel, scroll to the Messages panel and then press the Enter key.
2. Select Text message.

Tip

If you have unread messages, you will need to press the navigation key right until you see New Message before pressing the Enter key.

From the Messaging Screen

1. From the Home panel, press Start (left softkey) >All Programs (left softkey) >Messaging >SMS / MMS.
2. Select Menu (right softkey) > New > SMS.

From the Contacts Screen

1. From the Home panel, press Contacts (right softkey).
2. Highlight the contact's name and press the Enter key to open his or her contact card.
3. Select Send text message.

Composing and Sending a Text Message

After creating a new text message, follow the steps below to enter your message and then send it.

1. To add recipients, enter their mobile phone numbers in the To field, separating them with a semicolon (;). To access phone numbers from Contacts, in To, press Menu (right softkey) >Add Recipient. Select a contact from the list and press the Enter key.
2. Enter your message. You can enter up to 160 characters in one message.

Tip

To choose from preset messages, press Menu (right softkey) > My Text and select a desired message.

1. Press Send (left softkey).

Tips

• For more information about entering text and symbols, see "Entering Text" on page 21.
• To cancel the text message, press Menu (right softkey) > Cancel Message.

Copy and Paste Text

Copy words or lines of text in your messages or email messages and then paste them on the current or new message.

To copy text from a message or email that is being written

1. In the message that is being written, position the cursor where you want to start copying from.
2. Press Menu (right softkey) > Copy/Paste > Select Text.
3. Press the navigation key left or right until you have selected the text you want to copy and then press Copy (left softkey).

To copy text from a message or email

1. Open the message or email where you want to copy text from.
2. Press Menu (left softkey) > Copy/Paste > Select Text.
3. Use the navigation key to position the cursor where you want to start copying and then press Select (left softkey).

Tip

Press Menu (right softkey) > Copy/Paste > Select All to select the whole message.

1. Press the navigation key left or right until you have selected the text you want to copy and then press Copy (left softkey).

Tip

Press the navigation key up or down to select the whole line of text.

To paste text on a text message or email

In a text message or email, position the cursor where you want to paste the text and then press Menu (right softkey) >Copy/Paste>Paste.

Managing Threaded Text Messages

Text messages that are sent to and received from a contact (or number) are grouped as a single thread in your inbox. Threaded SMS lets you see exchanged messages (similar to a chat program) with a contact on the screen.

To reply to a text message:

1. In the SMS / MMS inbox, highlight a message thread and press the Enter key to open it.
2. At the bottom of the screen, type your reply message and then press Send (left softkey).

To delete a message in the thread:

1. In the SMS / MMS inbox, highlight a message thread and press the Enter key to open it.
2. Press the navigation key up or down to select a message in the thread that you want to delete.
3. Press Menu (right softkey) > Delete.

To delete all messages in a thread:

1. In the SMS / MMS inbox, highlight a message thread.
2. Press Menu (right softkey) > Delete.

To reply to a text message with an MMS message

You can reply to a text message in a thread using an MMS message.

1. In the SMS / MMS inbox, highlight a message thread and press the Enter key to open it.
2. Press Menu (right softkey) >Insert, and then in the menu, select the item you want to insert: Picture/Video, Audio or Attachment.

Tip Press Menu (right softkey) > Advanced Composer after adding a picture/video, audio, or attachment to compose an MMS message complete with text, emoticons, media and attachments.

1. Press Send (left softkey).

Tip You can also insert a vCard or vCalendar in your MMS message.

Creating and sending Multimedia Message Service (MMS) messages to your friends and family is fun and easy.

To access MMS

▶ On the Home panel, press Start (left softkey) > All Programs (left softkey) > Messaging > SMS/MMS.

Create and send MMS messages

You can compose MMS messages in a combination of various slides, where each slide can consist of a photo, audio or video clip, and/or text.

Notes

• MMS is a charged service. In order to use MMS successfully, this has to be provisioned on your mobile account. Please contact the wireless service provider to have this provisioned as part of your calling plan.
• Make sure the size of the MMS is within the limits of the wireless service provider while sending it to another mobile phone user or to an email address.

To compose an MMS message

1. Press Start (left softkey) >All Programs (left softkey) >Messaging >SMS / MMS then press Menu (right softkey) >New >Picture Message or Video Message.
2. In To, enter the recipient's phone number or email address.
3. In Subject, enter a subject for your message.
4. Select Insert Picture... or Insert Video... to select a photo or video clip from the Select Media screen and insert it.

■ To capture a new photo, select the Capture Image icon (图标) or click Menu (right softkey) >Capture Image.
■ To record a new video, click the Capture Video icon (💡) or Menu (right softkey) >Capture Video.

1. Select Insert Text... to enter text for your MMS message.
   ■ To insert predefined text or emoticons, click Menu (right softkey) >Insert My Text or Insert Emoticon.

2. Select Insert Audio... to insert an audio clip. Select an audio clip on the Select Audio screen.
   ■ To record a new audio clip, press Menu (right softkey) > Capture Audio.

3. Press Send (left softkey) to send the message.

Tip

After inserting an MMS message element, press navigation key right to add a new slide.

Notes

• To send a copy of this message to others, highlight the To field and use navigation up to display the Cc and Bcc fields.
  • To remove the photo, text, or audio, select the item and press the Back key (←).

View and reply to MMS messages

To view an MMS message

You can view MMS messages in several ways.

• When you receive an MMS message, select View. On the message thread, select the MMS message (MMS messages will have the icon).
• On the message thread, select the MMS message. Press Pause or Menu (right softkey) >Stop to pause or stop the playback of the message.
• Press Menu (right softkey) >Content View to see a list of files included in the message. To open a file, select it and click Open. To save a file, select it, and press Save, Menu (right softkey) >Save Audio, or Menu (right softkey) >Save Photo.
• View each slide included in the message by pressing Menu (right softkey) >Next.

To reply to an MMS message

1. In the SMS / MMS inbox, press navigation key up or down to select the mobile phone number or name of the contact who sent you the MMS message.
2. In the threaded message, MMS messages will have the icon. Select this icon to open and view an MMS message.
3. After viewing the MMS message, press Menu (right softkey) >Reply >via MMS to reply with an MMS message or press Menu (right softkey) >Reply >via SMS to reply with a text message

Using Caller ID

Caller ID allows people to identify a caller before answering the phone by displaying the number of the incoming call. If you do not want your number displayed when you make a call, follow these steps.

1. Press the Talk key to display the Phone screen.
2. Press v on the Phone keypad.
3. Enter the number you want to call.
4. Press the Talk key to place the call.

To permanently block your number, call Sprint Customer Service.

Call Waiting

When you're on a call, Call Waiting alerts you to incoming calls by sounding two beeps. Your device's screen informs you that another call is coming in and displays the caller's phone number (if it is available and you are in digital mode).

To respond to an incoming call while you're on a call:

▶ Press the Talk key. (This puts the first caller on hold and answers the second call.)

To switch back to the first caller:

▶ Press the Talk key again.

Tip

For those calls where you don't want to be interrupted, you can temporarily disable Call Waiting by pressing *70 before placing your call. Call Waiting is automatically reactivated once you end the call.

Making a Three-Way Call

With Three-Way Calling, you can talk to two people at the same time. When using this feature, the normal airtime rates will be charged for each of the two calls.

1. Place the first call, or take an incoming call.
2. Press the Talk key to put the first call on hold, and dial a second number.
3. When you're connected to the second party, press the Talk key to begin the three-way call.

If one of the parties in the current call hangs up, you and the remaining caller still remain connected.

If you initiated the call and are the first to hang up, all other callers are disconnected.

Call Forwarding

Call Forwarding lets you forward all your incoming calls to another phone number – even when your device is turned off. You can continue to make calls from your device when Call Forwarding is activated.

Note You cannot forward your calls to an international number.

To activate Call Forwarding:

1. On the Phone keypad, press
2. Enter the area code and phone number to which your future calls should be forwarded.
3. Press the Talk key. (You will see a message and hear a tone to confirm the activation of Call Forwarding.)

To deactivate Call Forwarding:

1. On the Phone keypad, press
2. Press the Talk key. (You will see a message and hear a tone to confirm the deactivation.)

Note You are charged a higher rate for calls you have forwarded.

Roaming

Roaming is the ability to make and receive calls, send and receive text messages, or use data services when you are off the Nationwide Sprint Network. Your new HTC Snap™ phone works anywhere on the Nationwide Sprint Network and allows you to roam on other 1900 and 800 MHz digital networks where Sprint has implemented roaming agreements.

Your phone allows both voice and data roaming if these services are included in your service plan. Contact Sprint to find out about roaming services and rates.

Understanding Roaming

Recognizing the Roaming Icon on the Display Screen

Your phone's display screen always lets you know when you are off the Nationwide Sprint Network. Anytime you are roaming, the phone displays the roaming icon (in the title bar.

Tip

Remember, when you are using your phone off the Nationwide Sprint Network, always dial numbers using 11 digits (1 + area code + number).

Roaming on Other Digital Networks

When you are roaming on digital networks, your call quality and security will be similar to the quality you receive when making calls on the Nationwide Sprint Network. However, you may not be able to access certain features, such as data services, depending on the available network.

Note

If you're on a call when you leave the Nationwide Sprint Network, your call is dropped. If your call is dropped in an area where you think Sprint service is available, turn your phone off and on again to reconnect to the network.

Checking for Voicemail Messages While Roaming

When you are roaming off the Nationwide Sprint Network, you may not receive on-phone notification of new voicemail messages. Callers can still leave messages, but you will need to periodically check your voicemail for new messages if you are in a roaming service area for an extended period of time.

1. Press the Talk key to display the Phone screen.
2. Enter 1, the area code, and then your phone number.
3. Press the Tak key again to call your voicemail.
4. When you hear your voicemail greeting, press v* on the Phone keypad.
5. Enter your passcode at the prompt and follow the voice prompts.

When you return to the Nationwide Sprint Network, voicemail notification will resume as normal.

Setting Roaming Options for Your Phone

You can set roaming options for your phone to better control your roaming costs.

From the Home panel, press Start (left softkey) >All Programs (left softkey) >Settings >Phone >Roaming. The Phone: Roaming screen appears where you can set options such as the roaming mode as well as Call Guard and Data Roam Guard notifications.

Choosing a Roaming Mode

On the Phone: Roaming screen, you can enable or disable roaming by choosing one of the following modes:

● Sprint Only to prevent roaming on other networks.
● Automatic to seek service on the Nationwide Sprint Network. When Sprint service is unavailable, your phone searches for an alternate system.

Using Call Guard

Your phone has two ways of alerting you when you are roaming off the Nationwide Sprint Network: the onscreen roaming icon and Call Guard. Call Guard makes it easy to manage your roaming by requiring an extra step before you can place or answer a roaming call. (This additional step is not required when you make or receive calls while on the Nationwide Sprint Network.)

To turn Call Guard on or off:

▶ On the Phone: Roaming screen, scroll to Call Guard and select On or Off.

Note Call Guard is turned off by default on your phone.

To place roaming calls with Call Guard on:

1. Press the Talk key to display the Phone screen.
2. Enter 1, the area code, and then the seven-digit number. After entering the number, press the Talk key.
3. A pop-up message then appears, informing you that roaming rates will apply. Select Dismiss to close the message, and then press to place the call.

To answer incoming roaming calls with Call Guard on:

When you have an incoming roaming call, the Phone screen alerts you with a message. Press the Talk key if you want to accept the roaming call.

Note If the Call Guard feature is set to On, you may need to take extra steps to make and receive roaming calls.

Using Data Roam Guard

Depending on service availability and roaming agreements, your phone may be able to access data services while roaming on certain digital systems. You can use the Data Roam Guard to alert you when you are roaming off the Nationwide Sprint Network and try to use data services such as messaging.

To set your Data Roam Guard notification:

• Select Never ask and the Allow roaming check box to always allow data roaming without prior notification.
• Select Never ask and then clear the Allow roaming check box to always disable data roaming.
• Select Always ask to enable the Data Roam Guard to always display a confirmation message and alert whenever your phone enters a roaming network.
• Select Default to enable data roaming internationally. The Data Roam Guard may display a confirmation message and alert.

To use data services when Data Roam Guard is active:

When a notification message appears informing you that data roam charges may apply:

• Select Roam or OK to allow data roaming.
• Select Cancel if you don't want to allow data roaming.

Note If this is your first time using data roaming, the Data Roam Guard will display a second message, informing you about how to change the notification setting.

Section 3B

Web and Data Services

◆ Getting Started With Data Services (page 93)
◆ Connecting to the Internet (page 95)
♦ Navigating the Web (page 97)
◆ Using Windows Live (page 98)
◆ Google Mobile (page 103)
◆ Sprint Software Store (page 105)
◆ Using RSS Hub (page 105)
◆ Using Remote Desktop Mobile (page 109)
◆ Accessing Sprint Instant Messaging (page 110)
◆ Using Inner Circle (page 111)
◆ Email Messaging (page 113)
◆ Working With Company Email and Meeting Appointments (page 119)

Your device allows you to wirelessly connect to the Internet, and with Sprint data services, you have access to a dynamic variety of data services you will really use. Data services such as email, instant messaging, Web browsing, and RSS feeds let you have fun, stay in touch, and stay informed no matter where you go on the Nationwide Sprint Network.

Getting Started With Data Services

Sprint enhances data services with increased broadband speed, and gives you clearer, high-quality visuals and sound when you preview videos and music online. It also offers you exciting services such as Sprint TV, the Sprint Music Store, and YouTube. (For more information about Sprint TV, the Sprint Music Store, and YouTube, see "Entertainment: TV and Music" on page 125.)

Data Services

Here is a brief list of the data services available for your device. For more information, please visit us online at www.sprint.com.

Messaging – Send and receive email messages (page 113) and instant messages (page 110) on your device.

Web Browsing – Experience full-color graphic versions of popular websites from your device. You can use the Internet Explorer Mobile browser (page 97) to search and browse websites.

Information Services – View the latest news, sports, stock quotes, travel information, and more using the built-in RSS Hub program (page 105).

Your User Name

When you buy your device and sign up for service, you're automatically assigned a user name. When you use data services on your device, your user name is submitted to identify you to the Nationwide Sprint Network. Your user name will be automatically programmed into your device. You don't have to enter it.

Finding Your User Name

If you aren't sure what your user name is, you can easily find it on your device.

▶ Press Start (left softkey) > All Programs (left softkey) > Settings > Device Information > Version and scroll down to Current username.

Tip

If you choose to change your user name and select a new one online, you must then update the user name on your device. Press Start (left softkey) > All Programs (left softkey) > Settings > Device Name.

Connecting to Data Services

To connect to data services and access the Internet, you can simply launch the Web browser on your device. You can also connect to data services from the Connections settings screen or the Comm Manager.

Connecting to Data Services Using Internet Explorer

▶ Press Start (left softkey) > All Programs (left softkey) > Internet Explorer.

- or -

From the Home panel, scroll to the Internet Explorer panel and then press the Enter key.

Your data connection starts and the Sprint Powerdeck home page is displayed:

Sprint Powerdeck Home Page

Connecting to Data Services from the Comm Manager

1. Do one of the following to open the Comm Manager:

■ From the Home panel, scroll to the Settings panel and then press the navigation key right to select Comm Manager. Then press the Enter key.

- or -

■ Press Start (left softkey) > All Programs (left softkey) > Comm Manager.

- or -

■ Press Start (left softkey) > All Programs (left softkey) > Settings > Connections > Comm Manager.

1. Select Data Connection. The indicator is in the ON position when your device is connected to data services.

Data Connection Status Icons

Your device displays the current status of your data connection through status icons at the top of the screen. The following symbols are used for data connections:

A high-speed connection to the Sprint Mobile Broadband network (EVDO) or a Sprint 1xRTT data connection is available. These icons in conjunction with the data connection icons below let you know what type of connection your device is using.

Your device has an active connection to the Sprint Mobile Broadband (EVDO) or Sprint 1xRTT data network. When active, data is being transferred and you cannot receive calls.

Your device's data connection is idle. You can receive incoming calls.

If none of the above status icons are displayed, your device does not have a current data connection. To launch a connection, see "Connecting to Data Services" on page 94.

Disconnecting from Data Services

1. Do one of the following to open the Comm Manager:

■ From the Home panel, scroll to the Settings panel and then press the navigation key right to select Comm Manager. Then press the Enter key.
- or -
■ Press Start (left softkey) > All Programs (left softkey) > Comm Manager.
- or -
■ Press Start (left softkey) > All Programs (left softkey) > Settings > Connections > Comm Manager.

1. Select Data Connection. The ON/OFF button is in the OFF position when your device has disconnected from data services.

Connecting to the Internet

Your device's networking capabilities allow you to wirelessly access the Internet or your corporate network through one of the following connections:

● Data Services (see "Getting Started With Data Services" on page 93)
●Dial-up (see "Dial-up" on page 95)

Note

You can also add and set up the following connections:

• VPN: A VPN connection is used to access your corporate network by using an existing Internet connection.
• Proxy: A Proxy connection is used to access the Internet using an existing connection to your corporate or WAP network.

Dial-up

When you use your phone to dial up to your ISP and connect to the Internet or to your corporate network, you will be billed by the number of minutes that you use.

To set up a dial-up connection for browsing the Internet

1. From the Home panel, press Start (left softkey) >All Programs (left softkey) >Settings >Connections >Dial-up >New.

2. In Description, enter a name for the connection.

3. In Connects to, select The Internet.
4. Enter the appropriate information in the remaining fields.
5. Press Done (left softkey).

To set up a dial-up connection to your corporate network

1. From the Home panel, press Start (left softkey) >All Programs (left softkey) >Settings >Connections >Dial-up >New.
2. In Description, enter a name for the connection.
3. In Connects to, select Work.
4. Enter the appropriate information in the remaining fields.
5. Press Done (left softkey).

Advanced options

From the Connections screen, you can access advanced options to specify the service provider, the number of redial attempts, the amount of idle time to wait before disconnecting, and so on.

1. From the Home panel, press Start (left softkey) > All Programs (left softkey) > Settings > Connections > Menu (right softkey) > Advanced.
2. Select a network service provider for each connection type. You can choose Automatic to allow the phone to set a service provider for each connection by default.
3. Press Menu (right softkey)>Options.
4. Choose the appropriate settings in the remaining fields.
5. Press Done (left softkey).

Add a URL exception

Some URLs for Web pages on your company intranet may use periods, for example: intranet.companyname.com. To view these pages in Internet Explorer Mobile, you must create a URL exception.

1. From the Home panel, press Start (left softkey) >All Programs (left softkey) >Settings >Connections >Menu (right softkey) >Advanced.
2. Press Menu (right softkey) > Work URL Exceptions > Menu (right softkey) > Add.
3. In URL Pattern, enter the URL name. To add multiple URLs, use a semicolon (;).
4. Press Done (left softkey).

Note

You do not need to create URL exceptions for Internet URLs.

Navigating the Web

To search, browse, and navigate the Web on your device, use Internet Explorer Mobile.

Using Internet Explorer Mobile

Internet Explorer® Mobile is the standard Web browser that is included with Windows Mobile.

To launch Internet Explorer Mobile:

▶ Press Start (left softkey) > All Programs (left softkey) > Internet Explorer.

- or -

From the Home panel, scroll to the Internet Explorer panel and then press the Enter key.

To go to a website:

1. Press Menu (right softkey) > Go to Web Address.

2. Enter the Web address of the desired website in the address bar and then press Go (left softkey).

To navigate a Web page:

▶ Press the navigation key up, down, left, or right to scroll vertically or horizontally on a Web page. Press the Enter key when a link is highlighted to access it.

▶ Press Zoom Out (left softkey) to view the entire Web page, and use the navigation key to move the navigation box to the area of the Web page that you want to view, and then press Zoom in (right softkey) or press the Enter key to view the selected area at the specified zoom level.

To use the browser menu:

▶ Press Menu (right softkey) to choose from a list of options that will let you change the text size of a Web page, save favorites, and more.

Options available in the browser menu include:

■ Favorites. Allows you to access and manage your favorites.

■ Add to Favorites. Marks the current website as your favorite.

■ Go to Web Address. Displays the address bar and allows you to enter a Web address.

■Home Page. Opens the default home page.

■ History. Displays a list of websites that you previously accessed and allows you to quickly return to a visited website.

■ Forward. Moves forward to a previously viewed Web page.

■Refresh. Reloads the current Web page.

■ View. Allows you to change how a Web page is displayed. You can choose from the following options:

- Text Size. Allows you to choose the font size for the text.

- Full Screen. Displays the current Web page in full-screen view. To change back to the normal view, press the left or right softkey, and then press Menu (right softkey) >View >Full Screen to deselect the full screen option.

- Mobile. Arranges the content into one column that is as wide as the screen. This means that you will rarely have to scroll horizontally.

- Desktop. Keeps the same layout and size as on a desktop computer, which will require both horizontal and vertical scrolling.

■ Tools. Additional options you will find in this submenu include:

- Send Link. Allows you to send the current Web address in a text message or email message.

- Properties. Displays information about the current Web page such as file size.

- Options. Allows you to change various browser settings such as the default home page, to clear the browser's history or cookie files, and more.

■ Copy/Paste. Allows you to select, copy, and paste text.

Using Windows Live

Windows Live™ gives you a full Internet experience on your device. Windows Live™ helps you to find information, pursue your interests, and get in touch with friends and family on the Internet easier.

Windows Live™ offers the following key features:

● Live Search Bar, which lets you search for information on the Web.
● Live Messenger, the next generation of MSN Messenger Mobile.
●Live Mail, the next generation of Hotmail.
- Live Search, which lets you find locations, browse maps, and check for directions. See “Windows Live Search” on page 145.
● Live Contacts, your address book for storing Live Mail, Live Messenger, and Hotmail contacts.

Setting Up Windows Live™

The first time you use Windows Live™, sign in using your Windows Live™ ID, which is your Windows Live™ Mail or Hotmail address, and password.

To set up Windows Live™ for the first time:

1. Press Start (left softkey) > All Programs (left softkey) > Windows Live and then select Sign in to Windows Live.
2. On the next screen, select the links to read the Windows Live™ Term of Use and the Microsoft Privacy Statement. After reviewing them, press Accept. (left softkey).
3. Enter your Windows Live™ Mail or Hotmail address and password, and ensure that the Save password check box is selected and then press Next (left softkey).

1. Choose whether to show Windows Live's services from the Home panel then press Next. (left softkey).

2. Choose what information you want to sync online with your device.

- If you select Store Windows Live contacts in your mobile phone's contact list, your Windows Live™ contacts will be added to the contact list and to Windows Live™ Messenger on your device. - If you select Sync e-mail, your Windows Live™ Mail or Hotmail inbox messages will be downloaded to your device.

1. Press Next (left softkey).

2. After synchronization is complete, press Done (left softkey).

The Windows Live Interface

On the main interface of Windows Live, you will see a search bar, navigation bar, and an area where you can customize to show your picture.

1. Search Bar. To search for websites, enter search keywords and then press the Enter key.
2. Navigation. Press the navigation key left or right to switch between Windows Live™ Messenger, Windows Live™ Mail, and Sync status. Press the Enter key to open/activate the selected Windows Live component.
3. Display Picture. Highlight your display picture and press the Enter key to change your display name, picture, or personal message.
4. Menu. Press Menu (right softkey) to access and change settings.

If you chose to display Windows Live services from the Home panel when you were setting up Windows Live, you will see them on the Home panel:

Press the navigation key right or left while on the Windows Live item to go through the available services.

To show or hide Windows Live from the Home panel, pressOptions (right softkey) >Home screen options on the Windows Live item from the Home panel.

Windows Live Messenger

With this mobile version of Windows Live™ Messenger, you enjoy many of the same features that you get from the desktop version, which include the following:

●Instant messaging via text and voice
●Multiple conversations
- Inserting emoticons
●Contact list with online or offline status
●Sending and receiving files (including photos)
●Changing the status and display name
●Viewing contacts by online status, groups, and more
- Sending messages even when a contact is offline

Note

Before you can use Windows Live Messenger, your device must be connected to the Internet. To find out how to connect your device to the Internet, see "Connecting to the Internet" on page 95.

Launching Messenger and Signing In

To open Windows Live™ Messenger:

▶ Press Start (left softkey) > All Programs (left softkey) > Messenger.

- or -

On the Windows Live panel of the Home screen, press the navigation key left or right until you see Messenger, and then press the Enter key.

To sign in and out:

1. Press Sign in (left softkey) on the Messenger screen.
2. If this is your first time to sign in, a message appears to inform you that your messenger contacts will be added to the contact list on your device. Select OK to add them. Signing in may take several minutes, depending on your connection speed.

Live Messenger screen after you have signed in

1. To sign out, press Menu (right softkey) > Sign out.

To start and end conversations:

1. In the contact list, select a contact, and then press Send IM (left softkey) to open a message screen.

1. Enter your text message in the text entry area of the message screen.
2. To add an emoticon, press Menu (right softkey) > Add emoticon, highlight an icon, and then press Select (left softkey) or press the Enter key
3. Press Send (left softkey).
4. To start a conversation with another contact, press the navigation key left or right to go back to the contact list, and then select another contact and press Send IM (left softkey) again. Another message screen opens.
5. To switch from one message screen to another, press the navigation key left or right to the display picture of the contact whom you want to talk to.

Pictures of contacts you're chatting with

1. To end a conversation with the current contact, press Menu (right softkey) >End conversation.
2. To end all active conversations, press Menu (right softkey) >End all conversations.

Tips

• To send a file, press Menu (right softkey) > Send. You can choose to send a picture, voice clip or any file.
• To invite one or more contacts to the conversation, press Menu (right softkey) > Options > Add participant.
• To send a voice message, press Voice Clip (left softkey) on a message screen, and then start talking. After you have recorded a message, press Send (left softkey).

Adding Windows Live Contacts

You can add new Windows Live contacts in Windows Live Messenger or in Contacts.

To add a Windows Live contact in Live Messenger:

1. Press Menu (right softkey) > Add new contact.
2. Enter the email address of the contact, and then press OK (left softkey).

To add a Windows Live contact in Contacts:

You can only add Windows Live contacts if you selected the Store Windows Live contacts in your mobile phone's contact list checkbox when you set up Windows Live.

1. From the Home panel, press Contacts (right softkey).
2. Press New (left softkey) then select Windows Live.
3. In the IM box, enter the email address of the contact, which can be a Windows Live ID or any other email address.

Tip

You can fill in other information about the contact, if desired. This is not necessary if you will communicate with the contact only through Live Messenger or Live Mail.

1. Press Done (left softkey).
2. Follow the remaining instructions to add the new contact to your Windows Live™ contact list.

To delete a contact

1. In Messenger, select the contact and press Menu (right softkey) >Contact options >Remove contact.

■Choose whether to block the contact.
- Choose whether to delete the contact from your phone's contact list.

1. Press OK (left softkey).

Google Mobile

Google Mobile provides a convenient toolbar application to search for information, access Google Mail and Google Maps, get the latest news, view Picasa Web Albums, and more. You must first install the application to use Google Search.

To install Google Search

1. Press Start (left softkey) > All Programs (left softkey) > Google.
2. Select Download Google Mobile App to install the Google Mobile toolbar.

1. When prompted on what to do with the file, press Menu (right softkey) >Open and follow the instructions on the screen to install the Google Mobile Application.

To open Google Mobile

▶ Press Start (left softkey) > All Programs (left softkey) > Google Mobile App.

Using Google Mobile

Enter a search query in the text box and press Search (left softkey) to open the Web browser and view the query results.

Using Google Mobile Applications

▶ Press the navigation key left or right to select a shortcut on the Google Mobile toolbar and then press the Enter key to open the Web browser and access the application.

1. Show More/Launch/Install. Depending on which shortcut you have selected, press the left softkey to launch the Web browser and go to the selected Web shortcut, install the application, or show more information.
2. Options. Select to browse to the Google Home website, select a different location, and more.
3. More From Google. Select to access other Google applications, including an RSS reader, Google SMS, Blogger, and more.
4. Calendar. Use an online calendar to add and view events.
5. Picasa Web Albums. Access your Picasa Web Albums. Pictures are resized for fast downloading.
6. News. Customize to get the latest news on stories of interest to you.
7. Maps. Find local businesses and addresses, and get directions.
8. Google Mail. Access your Google Mail account on the go.

Sprint Software Store

The Sprint Software Store provides links to download applications, games, ringer, themes and more.

To access the Sprint Software Store

▶ Press Start (left softkey) > All Programs (left softkey) > Software Store.

Using RSS Hub

RSS Hub is an RSS reader that keeps you up-to-date with the latest news from the Internet. It monitors Internet news channels and downloads the most current news updates and podcasts so you are instantly informed of breaking news and events.

This section provides basics on using RSS Hub. For more information and tips on using RSS Hub, see Help on your device.

Note

Make sure you have an active Internet connection before using RSS Hub. To find out how to connect to the Internet, see "Connecting to the Internet" on page 95.

Subscribing to and Organizing News Channels

You must subscribe to news channels before you can receive RSS feeds.

To subscribe to news channels:

1. Press Start (left softkey) > All Programs (left softkey) > RSS Hub, and then press OK (left softkey) on the Welcome screen.
2. In the New Channel screen, select Choose from list. A list of RSS channels is displayed.

1. Select the RSS channels you want to subscribe to and press Done (left softkey).

Tip

Channels are grouped by categories. If you want to select all channels in a category, select the category check box.

1. The channel list appears.

1. Channel List. Shows the list of available channels.
2. Cancel. Press to cancel the channel update process.
3. Updated Channels. Channels are displayed in bold after they have been updated. Select a channel to view the headlines for that channel.
4. Refresh. Press to update the channels.
5. Headline Count. Shows the number of headlines per channel.

To add new channels:

1. In the channel list, press Menu (right softkey) > Channel > New to open the New Channel Wizard screen.
2. Select an option, and then follow screen instructions to add new channels.

To filter the channels in the display:

In the channel list, press Menu (right softkey) >View, and then select:

• Updated to display only those channels with unread headlines.
  ●All to display all subscribed channels.

To manage channel categories:

• To view all the channels in a particular category, press Menu (right softkey) >Categories >All Categories, and then select the category you want to display.
• To add a new category, press Menu (right softkey) >Categories in the channel list to display all categories, and then press Menu (right softkey) >New.
  ● To rename or delete a category, press Menu (right softkey) >Categories in the channel list to display all categories, select a category, and then press Menu (right softkey) >Rename or Menu >Delete.

Viewing and Organizing Headlines

Select a channel in the channel list to display the headlines for that channel.

1. Select a headline to open the news summary screen.

2. indicates that the headline is new or unread.

3. indicates that the headline has already been read.
4. indicates that the headline or news summary contains a keyword.
5. Channels. Press to return to the channel list.
6. indicates an audio/video file attachment is available for download. Press Softkey) >Podcast>Start Download to download the attachment. Menu (right
7. indicates an audio/video file attachment has been downloaded. Press Softkey) >Podcast>Play to listen to or view the audio/video file.

Viewing the News Summary

Select a headline in the headline list and press the Enter key to display the news summary.

1. Shows the channel name
2. Displays the headline and read status.

3. Displays the news summary.

4. Select Read More Online to open the news item in Internet Explorer. See "Navigating the Web" on page 97 for details.

5. Press Headlines (left softkey) to return to the headline list.

6. Select to download the audio, video or image file attachment.

To change view options:

In the news summary screen, press Menu (right softkey) to change the text size or fit the text to the screen (text wrap) for better viewing.

To download, play, or save podcasts:

1. When you see an audio or video file attachment in the news summary, do one of the following to download the file:

■ Press Menu (right softkey) > Podcast > Start Download.

- or -

■ Select the Download audio/Download video link below the audio or video file icon.

Tip

To cancel the file download, press Menu (right softkey) >Podcasts >Cancel Download, or select Cancel download below the audio or video file icon.

1. After downloading the file, do one of the following:

■ Press Menu (right softkey) > Podcast > Play or select Play audio/Play video below the audio or video file icon to play back the file.

- or -

■ Press Menu (right softkey) > Podcast > Save to save a copy of the file to the device main memory or microSD card (if one is installed.)

To view the next or previous news summary:

In the news summary screen, press Menu (right softkey) > Next or Menu > Previous, or press the navigation key right or left.

Tip

For more information about RSS Hub, please go to http://www.illumsoft.com/site/nw/newsbreak.php. RSS Hub is a "lite" version and contains most of the features of Newsbreak.

Using Remote Desktop Mobile

Remote Desktop Mobile lets you access your computer remotely from your device and use programs which are available on your computer.

Notes

• Make sure that you configure the remote computer to allow remote desktop connections. Refer to your operating system's manual or help file for details.
• You need to be connected to the Internet to remotely access your desktop computer.

To configure the remote desktop display:

Before you connect to your remote computer, configure the Remote Desktop Mobile to optimize the remote computer display on your device.

1. Press Start (left softkey) > All Programs (left softkey) > Remote Desktop.
2. Press Menu (right softkey) >Options.
3. Do any of the following:

■ In Display, select 256 Colors.
■ Select the Full screen check box to display the remote desktop in full-screen mode.
- When using programs which are specifically configured for use with your device, select the Fit remote desktop to screen check box to adjust the desktop proportions to fit your device's screen.
■ In Device storage, select whether to map device storage to the remote machine or disable mapping.
■ In Remote desktop sound, select Mute to mute audio, select Play on remote computer to play audio on the remote computer, or select Play on this device to play audio on your device.

1. Press Done (left softkey).

To connect to a remote computer:

1. On the Remote Desktop Mobile screen, enter the computer name (or IP address), user name, password, and domain of the remote computer, and then select the Save password option.

Note

If the computer is set up on a custom port, include the custom port number with the computer name (computername:portnumber). You can get this information from your system administrator.

1. Press Connect (left softkey). When connected, you can now access and start using the desktop computer programs on your device.

To disconnect from the remote computer:

▶ Press Disconnect (left softkey).

- or -

When in full-screen mode, press Start (left softkey) > Exit full screen mode > Disconnect (left softkey) on the Windows desktop (on the device).

Accessing Sprint Instant Messaging

The Sprint Instant Messaging application provides you with access to popular instant messaging (IM) communities, including AOL® Instant Messenger™ (AIM™), Windows Live™ Messenger, and Yahoo!® Messenger.

1. Press Start (left softkey) > All Programs (left softkey) > Instant Messaging.
2. The first time you launch Sprint Instant Messaging, it will prompt you to download and install the application to your device. Follow the onscreen instructions to download and complete the installation.
3. After installation, launch Sprint Instant Messaging again (see step 1).
4. A message appears, informing you to add a messaging and data plan to your service plan. Press OK (left softkey) to close the message.
5. Select a community: AIM, Windows Live Messenger, or Yahoo!

1. Enter the required sign-in information for the selected community, such as user name or password, and then press Sign In (left softkey).

Note The information required to sign in will vary depending on the instant messaging community you are accessing.

The instant messaging screen for your selected community will then be displayed, and you can start chatting online with your friends or family.

Using Inner Circle

Inner Circle™ enables you to group your most important contacts together in one location and access them with the press of a single key. Email messages from your Inner Circle members will be grouped together as well.

To display the Inner Circle screen

▶ Press the Inner Circle key

- or -

Press Start (left softkey) > All Programs (left softkey) > Inner Circle.

The first time you run Inner Circle, a tutorial shows you how to use common features of the program.

Tip To run the tutorial again at any time, open the Inner Circle program and press Menu (right softkey) > Tutorial.

To add members of your contact list to the Inner Circle

1. Press the Inner Circle key.
2. Press Menu (right softkey) > Member List.

3. Press Menu (right softkey) > Add.

4. Select the contacts you would like to add to the Inner Circle. A checkmark appears next to the selected contacts.

1. Press Add (left softkey). The selected contacts are added to the Inner Circle - Member list.

To add non-contact members to the Inner Circle

1. In the Inner Circle - Add screen, press Menu (right softkey) > New.
2. Enter the email address for the new member.
3. Press OK (left softkey).

To add the sender of an email to the Inner Circle

1. From the email account inbox, select or open an email message.
2. Press Menu (right softkey) > Add to Inner Circle.
3. Press OK (left softkey) on the confirmation screen.

To delete a member from the Inner Circle

1. In the Inner Circle - Member list, press Menu (right softkey) >Delete.
2. Select the members that you want to delete and press Delete (left softkey).
3. Press Yes (left softkey) on the confirmation screen.

To search for a member in the Inner Circle

1. In the Inner Circle - Member list, select a member and press Menu (right softkey) >Search Member.
2. Start entering letters in the search textbox. The list displays members whose names begin with the letters.
3. To view a member's contact details, select the member and press View (right softkey) or press the Enter key.

To view email from Inner Circle members

1. Press the Inner Circle key.
2. Any email messages from members of the Inner Circle are displayed.

1. From here you can preform any of the following actions:

■ Select an email and press the Enter key to view it.
■ Press Menu (right softkey) >Sort By >Name or Time to sort your email messages accordingly.
■ Press Menu (right softkey) > Send/Receive to manually send or receive email.
■ Press Menu (right softkey) >Search Email to search for email messages from specified member names.
■ Press All Email (left softkey) to view the Messaging accounts screen.

112 3B. Web and Data Services

Types of Email Accounts

You can set up the following types of email accounts on your device:

● Outlook email that you sync with your computer or the Exchange Server.
● Email accounts that you have with an Internet Service Provider (ISP) or other email provider.
- Web-based email accounts such as Gmail ^ , Yahoo! ^ Mail Plus, AOL ^* , and others.
●Work accounts that you access using a VPN connection.

Setting Up Your Device to Synchronize Outlook Email with the Computer

If you have installed the synchronization software on your computer and created a partnership with your device, and then your device is ready to send and receive Outlook email.

If you have not yet installed the synchronization software nor created a partnership, see "Setting Up Windows Mobile Device Center on Windows Vista" on page 75 or "Setting Up ActiveSync on Windows XP" on page 75 for instructions.

Tip

To set up your company email account so that you can access Outlook email messages wirelessly, you must set up your device to synchronize via an over-the-air connection with your company's Exchange Server. For more information about synchronizing with your company email server, see "Setting Up an Exchange Server Connection" on page 119.

Adding an Email Account

To add a new email account:

▶ Press Start (left softkey) > All Programs (left softkey) > Messaging > Setup E-mail.

The Email Setup Wizard then opens and lets you enter your email account settings. See "Email Setup Wizard" for details.

Email Setup Wizard

Windows Mobile's Email Setup Wizard walks you through the process of setting up your email account. It has an Auto Setup feature that can automatically set up your email account based on the email address and password that you enter, if your email provider settings are preconfigured on your device. If the settings are not found on your device, Auto Setup then attempts to retrieve the settings online for which you may be charged when your device connects to the Internet and downloads them. If it cannot find the email settings online, you need to enter them manually.

Note

For more information about setting up your company Outlook email account, see "Setting Up an Exchange Server Connection" on page 119.

Setting Up an Internet Email Account

Set up a POP3 or IMAP4 email account on your device if you have an email account from an Internet service provider (ISP) or other email service provider, or a Web-based account such as Gmail, Yahoo! Mail Plus, or AOL. You can also add a work account that you access using a VPN server connection as a POP3/IMAP4 account.

1. Press Start (left softkey) > All Programs (left softkey) > Messaging > Setup E-mail.
2. Enter your email address and the password for your email account. Ensure that the Save password check box is selected and then press Next (right softkey).
3. If email provider settings are found preconfigured on your device, the Email Setup Wizard shows a successful message. Press Next (right softkey).

If the settings are not found on your device, select the Try to get e-mail settings automatically from the Internet check box to find and download email server settings from the Internet and then press Next (right softkey).

1. Enter Your name and the Account display name and then press Next (right softkey).

If the Email Setup Wizard was unsuccessful in finding and downloading settings from the Internet, select Internet e-mail from the Your email provider list is on the next screen. You will be asked to enter email server settings. See "Specifying Email Server Settings" for details.

1. In the Automatic Send/Receive list, choose how frequently you want email messages to be automatically sent and downloaded on your device.

Select Review all download settings to select download options, set the email format as HTML or plain text, and more. For more information, see "Customizing Download and Format Settings" on page 114.

1. Press Finish (right softkey).

Specifying Email Server Settings

If Auto Setup is unsuccessful, contact your ISP or email provider for the Incoming mail server and Outgoing mail server settings so you can enter them on your phone.

Other options that you can select include the following:

• Select the Outgoing server requires authentication check box, if required by your provider.
• If the outgoing email server requires a different user name and password for sending email, clear the Use the same user name and password for sending e-mail check box. You will be prompted to enter this information.
• Select Advanced Server Settings, and then select the Require SSL check boxes if your email provider uses an SSL connection for more secured email. From the Network connection list, select the data connection that you use for connecting to the Internet.

Customizing Download and Format Settings

Before you press Finish when setting up your POP3 or IMAP4 email account, you can select the Review all download settings link at the bottom of the screen to choose download options, message format, and other settings. In the Email Setup screen, select Advanced Settings for further options.

Options Description
Automatic Send/Receive	You can select a time interval for connecting to the Internet automatically to send and receive messages.
Download messages	Set the number of days of messages that you want to be downloaded to your device.

114 3B. Web and Data Services

Options Description
Send/receive when I click Send	By default, messages are immediately delivered when you pressSend. If you prefer to save outgoing messages to the Outbox folder first, clear the check box. (In this case, you will need to manually send messages by pressingMenu(right softkey) >Send/Receive).
Use automatic send/receive schedule when roaming	This allows your device to data roam when there is a set time interval for connecting to the Internet automatically. Since this may result in higher connection costs, you may want to leave the check box cleared.
When deleting messages	Choose whether to delete messages from the mail server when you delete them on your device.
Message format Select HTML	or Plain Text.
Message download limit	Select the email download size. If you have a large volume of email, use a lower size or select to download headers only.
Download attachments Set your preference when there is an email attachment.

Setting Up a Custom Domain Email

When you are using an email domain name that is hosted by a different email provider (for example, your email address may be [e-mail] but Email.com hosts the email account and provides email services), select the Custom Domain option in the Email Setup Wizard to set up your email accoun.

1. Press Start (left softkey) > All Programs (left softkey) > Messaging > Setup E-mail.
2. Enter your email address and password for your email account. Ensure that the Save password check box is selected and then press Next (right softkey).
3. Clear the Try to get e-mail settings automatically from the Internet check box and then press Next (right softkey).
4. In Your e-mail provider, select Custom domain and then press Next (right softkey).
5. Enter the domain of your email provider and then press Next (right softkey).
6. The Email Setup Wizard then tries to find the email provider settings on your device or from the Internet. If the settings are found, it shows a successful message. Press Next (right softkey).
   7.Enter Your name and the Account display name and then press Next (right softkey).

Note If the Email Setup Wizard was unsuccessful in finding the settings, you will be prompted to enter email server settings on the succeeding screens. See “Specifying Email Server Settings” on page 114 for details.

1. In the Automatic Send/Receive list, choose how frequent you want email messages to be automatically sent and downloaded on your device.

Note Select Review all download settings to select download options, set the email format as HTML or plain text, and more. For more information, see “Customizing Download and Format Settings” on page 114.

1. Press Finish (right softkey).

Creating a New Email Message

To start from an empty message:

1. Press Start (left softkey) > All Programs (left softkey) > Messaging then select an email account.
2. Press Menu (right softkey) > New.

To send an email message to a favorite contact:

1. From the Home panel, press Contacts (right softkey).
2. Select a contact and press the Enter key.
3. In the Contact card, select Send e-mail.

Composing and Sending an Email Message

After creating a new email message, follow the steps below to enter your message and then send it.

1. Enter the email address of one or more recipients, separating them with a semicolon. To access email addresses stored in Contacts, in To, press Menu (right softkey) >Add Recipient. Select a contact from the list and press the Enter key.

2. Enter a subject and compose your message.

Tip

To choose from preset messages, press Menu (right softkey) > My Text and select a desired message.

1. Press Send (left softkey).

Tip

• For more information about entering text and symbols, see "Entering Text" on page 21.
• To set the message priority, press Menu (right softkey) > Message Options.
• If you are working offline, email messages are moved to the Outbox folder and will be sent the next time you connect.

To add an attachment to a message:

1. In the message that you are composing, press Menu (right softkey) >Insert and choose the item you want to attach: Picture, Voice Note, or File.
2. Select the file or picture you want to attach, or record a voice note.

Filtering the Inbox Message List

When the Inbox on your device is full of messages, you can filter your Inbox to display only the messages that contain a particular sender or subject you are searching for.

To filter your Inbox:

Enter the sender name or email subject you want to look for. As you type characters, the message list narrows down to the sequence of characters you have entered.

For example, entering "J", and then "A" narrows the list to only the email messages that contain sender names and email subjects that start with "JA."

Viewing and Replying to Messages

To download a complete email message:

By default, each email received in the inbox on your device contains only the first few kilobytes of the message. When you open an email message, it displays only the headers and part of the message. You must download the whole email to view the complete content.

To download a complete email message, open the email and then do one of the following:

▶ Scroll to the end of the message, and select Get entire message and any attachments (POP3 email account) or select Get the rest of this message (IMAP4 and Outlook email accounts).

- or -

Press Menu (right softkey) > Download Message.

Notes

• The Fetch Mail feature, which is available for POP3 and IMAP4 Internet email accounts, downloads an entire email without the need for you to perform a full synchronization. This limits the download to just the email message that you want and helps save data cost. Fetch Mail is also available for Outlook Email. See “Instant Email Download Using Fetch Mail” on page 121 for details.
• Downloading may take some time, depending on the speed of your Internet connection, email file size, and whether file attachments are automatically downloaded.

To download file attachments:

• POP3 email account: File attachments of a POP3 Internet email account are automatically downloaded when you download a complete email.
• IMAP4 and Outlook email accounts: File attachments appear below the subject of an email message. Selecting an attachment opens the attachment if it has been fully downloaded or marks it for download the next time you send and receive email.

You can set automatic downloading of file attachments. See “Customizing Email Settings” on page 118 for details.

To reply to or forward a message:

1. Open the message and press Menu (right softkey) >Reply, Menu >Reply All, or Menu >Forward.
2. Enter your response, and then press Send (left softkey).

Notes

• You can receive and view HTML email from any type of email account. The HTML format is retained, without layout shifting or resizing. HTML email support in Outlook Mobile is available only if you are synchronizing your device with Microsoft Exchange Server 2007.
• When replying using an Outlook email account, you can customize ActiveSync to exclude addresses, including your own, from being added to the recipient list. Press Menu (right softkey) > Options in ActiveSync, select the E-mail item, press Settings (right softkey), and then press Menu (right softkey) > Advanced. In the My e-mail addresses box, enter email addresses you want to exclude.

Synchronizing Email

Synchronizing email message ensures that new email messages are downloaded to the phone Inbox folder, email messages in the Outbox folder are sent, and email messages deleted from the server are removed from your phone. The manner in which you synchronize email depends on the type of email account you have.

To automatically synchronize an Outlook email account:

1. Connect your device to your computer through USB or Bluetooth. Otherwise, connect through a data connection if you are synchronizing Outlook email with the Exchange Server. For more information, see "Connecting to the Internet" on page 95.
2. Synchronization automatically begins, and your device sends and receives Outlook email.

To manually synchronize your Outlook or Internet email account:

1. Press Start (left softkey) > All Programs (left softkey) > Messaging, and then select your Internet email account.
2. Press Menu (right softkey) > Send/Receive.

Customizing Email Settings

To change the download size and format for Outlook email:

1. Disconnect your device from the computer.
2. Press Start (left softkey) > All Programs (left softkey) > ActiveSync.
3. Press Menu (right softkey) >Options, select E-mail, and then press Settings (right softkey).
4. On the E-mail Sync Options screen:

■ Under Message format, select HTML or Plain text.
■ Under Download size limit, select the desired email size.

1. Close ActiveSync and reconnect your device to the computer.

To change the download size and format for Internet email:

1. Press Menu (right softkey) > Settings on the Account Selection screen, or press Menu (right softkey) > Tools > Options > Account Settings while you're in a message list.

■ Under Message format, select HTML or Plain text.
■ Under Message Download size limit, select the desired email size.

1. Press Done (left softkey).

Working With Company Email and Meeting Appointments

To keep up-to-date with your company email and meeting schedules while you're out of the office, you can connect your device to the Internet via your Sprint connection and synchronize with your company's Exchange Server. This section shows you how to set up an Exchange Server connection on your device so that you can access your Outlook email and synchronize other information such as calendar appointments with your company's Exchange Server.

Setting Up an Exchange Server Connection

Before you can synchronize or access information on the Exchange Server, you need to set up an Exchange Server connection on your device. You need to get the following information from your network administrator and enter them on your device:

●Exchange Server name (must be Outlook Web Access server name)
- Domain name
-User name and password that you use at work

If you have not synchronized your device with your computer, follow these steps to set up an Exchange Server connection.

1. Press Start (left softkey) > All Programs (left softkey) > ActiveSync.
2. Press Menu (right softkey) > Add Server Source.
3. Enter your E-mail address, and ensure that the Attempt to detect Exchange Server Settings automatically check box is selected. By selecting the option, the device attempts to download exchange server settings so that you do not need to enter them manually. Press Next (right softkey).
4. Enter your User name, Password, and Domain. Exchange Server settings and the password are case-sensitive, so be sure to enter uppercase and lowercase letters correctly. Select the Save password check box if you want to save your password so that you do not need to enter it again. Press Next (right softkey).
5. After Automatic Configuration finishes, enter the Server address. Press Next (right softkey).

Note

If SSL authentication is required, select the This Server requires an encrypted (SSL) connection check box.

1. Select the check boxes of the items that you want to sync with the Exchange Server.

Tips

• To change synchronization settings of an information item, for example, E-mail, select the check box, and then press Settings (right softkey).
• If you synchronized email with your computer before, you will not be able to select the E-mail item. You need to cancel the E-mail Setup Wizard first, press Start (left softkey) > All Programs (left softkey) > ActiveSync > Menu > Options, and then clear the E-mail check box under the Windows PC group of items.

• To change the rules for resolving synchronization conflicts, press Menu (right softkey) > Advanced.

• Press Finish (right softkey).

Notes

To change Exchange Server settings, open ActiveSync on your device, and then press Menu (right softkey) > Configure Server.

Starting Synchronization

Before you start synchronizing with the Exchange Server, make sure your device has been set up with a data connection to the Internet so that you can synchronize over the air. For more information about connections, see “Connecting to the Internet” on page 95.

After you finish setting up an Exchange Server connection, your device automatically starts synchronization.

To manually start synchronization:

▶ Press Start (left softkey) >All Programs (left softkey) >ActiveSync and then press Sync (left softkey).

Note

If you connect your device to your office computer via a USB or Bluetooth connection, you can use this connection to the computer to "pass through" to the network and download Outlook email and other information to your device.

Working With Company Email

Your device gives you instant access to your company email and lets you manage your messages easier. Direct Push, Fetch Mail, Remote email search, and email flags are just some of the tools you can use to manage your email. This section shows you how to use these tools to manage your email.

Note

Some messaging features depend on the Microsoft Exchange Server version used in your company. Check with your network administrator for the availability of these features.

Automatic Synchronization Using Direct Push

Direct Push technology (push email feature) enables you to receive new email messages on your device as soon as they arrive in your Inbox on the Exchange Server. Items such as contacts, calendar, and tasks are also immediately updated onto your device when these items have been changed or new entries have been added on the Exchange Server. To make Direct Push work, you need to have a data connection on your device.

You need to perform a full synchronization between your device and the Exchange Server first before Direct Push can be enabled.

Requirement

The Direct Push feature works for your device only if your company is using Microsoft Exchange Server 2003 Service Pack 2 (SP2) with Exchange ActiveSync or higher version.

You can turn on Direct Push in the Comm Manager or ActiveSync.

To turn on Direct Push in Comm Manager:

1. Press Start (left softkey) > All Programs (left softkey) > Comm Manager.
2. On the Comm Manager screen, select Microsoft Direct Push.

To turn on Direct Push in ActiveSync:

1. Press Start (left softkey) > All Programs (left softkey) > ActiveSync and then press Menu (right softkey) > Schedule.
2. Select As items arrive in the Peak times and Off-peak times boxes.

Note

When Direct Push is off, you need to manually retrieve your email messages.

Scheduled Synchronization

If you do not want to use Direct Push, you can set a regular schedule for synchronizing Outlook email and information.

1. In ActiveSync on your device, press Menu (right softkey) > Schedule.
2. Select a shorter time interval in the Peak times box for you to be able to receive email messages more frequently. (Peak times usually refer to your working hours when email volume is high).
3. Select a longer interval in the Off-peak times box.

Tip Press Menu (right softkey) > Peak Times to set the peak and off-peak times.

Instant Email Download Using Fetch Mail

The Fetch Mail feature downloads an entire email message immediately without the need for you to perform a full Send/Receive action. This limits the download to just the email message that you want and helps to reduce data service charges.

Requirement

Fetch Mail works for your device only if your company is using Microsoft Exchange Server 2007 or higher.

1. Press Start (left softkey) > All Programs (left softkey) > Messaging > Outlook Email.
2. Select an email message to open it.
3. By default, only the first few words of the message is shown. To download the whole email message, scroll to the end of the message, and then select Get the rest of this message.
4. A "Downloading message" status appears. Wait for the remainder of the message body to be downloaded.

Notes

• For information about changing email sync options such as setting the download size for email, see "Customizing Email Settings" on page 118.
• When you receive an email message that contains a link to a document such as a PDF or Microsoft Office document located on SharePoint or an internal file server, you can select the link to view the document on your device. You can view the document only if you have a Microsoft Outlook account that synchronizes with Microsoft Exchange Server 2007 or later. Exchange Server must also be set up to allow access to SharePoint document libraries or internal file servers.

Searching for Email on the Exchange Server

You can access email that is not available on your device by searching your Microsoft Exchange Server mailbox. The search results are downloaded and displayed in a Search Results folder.

Requirement Your company must be using Microsoft Exchange Server 2007 or higher.

1. Press Start (left softkey) > All Programs (left softkey) > Messaging > Outlook E-mail.
2. Press Menu (right softkey) >Tools >Search Server.
3. In the Look for text box, enter the search keyword.
4. Choose the date range of messages to search from.
5. In Look in, specify whether to search in the Inbox, Sent Items, or All Folders.
6. Press Search (left softkey).

Tip To clear the search results and return to the message list, press Menu (right softkey) > Clear Results.

Flagging Your Messages

Flags serve as a reminder for you to follow up on important issues or requests contained in email messages. Flagging messages, which has been a useful feature on desktop Outlook Email, can also be done in Outlook Mobile on your device. You can flag received email messages on your device.

Requirement

Flags are enabled only if email messages are synchronized with Microsoft Exchange Server 2007 or higher. Flags are disabled or hidden if email is synchronized with earlier versions of Microsoft Exchange Server.

To flag or unflag a message:

1. Press Start (left softkey) > All Programs (left softkey) > Messaging > Outlook Email.
2. Select a message or open a message.
3. Press Menu (right softkey) >Follow Up and select one of the following options:

■ Set Flag to mark the message with a red flag to indicate that it needs following up.
■ Complete Flag to mark the message with a check mark to indicate that the issue or request in the email is already completed.
■ Clear Flag to remove the flag to unmark the message.

Note

Email message reminders are displayed on your device if the messages are flagged with reminders and synchronized from the Exchange Server.

Out-of-office Auto-reply

Outlook Mobile allows you to retrieve and change your out-of-office status. Just like desktop Outlook Email, Outlook Mobile automatically sends an auto-reply message when you're not available.

To send out-of-office auto-reply messages:

1. Press Start (left softkey) > All Programs (left softkey) > Messaging > Outlook Email.
2. Press Menu (right softkey) >Tools >Out of Office.
3. From the I am currently list, select Out of the Office.
4. Enter your auto-reply message, and then press Done (left softkey).

122 3B. Web and Data Services

Managing Meeting Requests

When you schedule and send meeting requests from your device, you can invite attendees to your meeting and check their status to know about their availability.

When you receive a meeting request, you can reply by accepting or declining the request. The meeting request also clearly indicates whether there are conflicting or adjacent meetings.

Requirement Your company must be using Microsoft Exchange Server 2007 or higher.

To reply to a meeting request:

1. When there's an incoming email with a meeting request, a notification message will be displayed on your phone's Home screen. Scroll to the Email panel and select it.
2. In the Outlook message list, select the email to open it.
3. Press Accept to reply and accept the meeting request, or press Menu (right softkey) >Decline if you cannot attend the meeting.

Tips

• Before responding, you can check your availability during the time of the requested meeting by selecting View your calendar.

• If the time of the meeting conflicts with your other appointments, a "Scheduling Conflict" status appears on top of the email.

• Choose whether to edit your response email before sending it, and then press Done (left softkey).

If you accepted the meeting request, it will automatically be added as an appointment in Calendar on your device.

To view the list of meeting participants:

1. Press Start (left softkey) > All Programs (left softkey) > Calendar.
2. Select a meeting request that you sent and then select Attendees. The required and optional attendees will be listed.

Icons indicating whether each attendee has accepted or declined the meeting request will also be displayed.

Tips

• To see the icon indicators in the attendees list, make sure Calendar is synchronized with the Exchange Server.
- For information about creating a meeting request, see "Sending a Meeting Request" on page 38.
- To view an attendee's contact information, select the attendee's name. If the attendee is included in your contacts list, you will see the contact information immediately. If the attendee is not in your contacts list, select Company Directory to view the contact information.

Finding Contacts in the Company Directory

In addition to having contacts on your device, you can access contact information from your organization's Company Directory. By having over-the-air access to the Company Directory, you can easily send email messages and meeting requests to anyone in your company.

Requirement

Access to the Company Directory is available only if your organization is running Microsoft Exchange Server 2003 SP2 or higher, and you have completed your first synchronization with the Exchange Server.

1. Synchronize with the Exchange Server.
2. Do any of the following:

■ In Contacts, press Menu (right softkey) > Company Directory.
In a new email, select the To box and then select Company Directory at the top of the list or press Menu (right softkey) >Company Directory.

In a new meeting request using Calendar, scroll to Attendees and select No attendees > Add Required Attendee or Add Optional Attendee and then select Company Directory at the top of the list.

1. Enter a partial or full contact name and press Search (left softkey). In the search results list, select the contact you want.

Notes

• You can save a contact from the Company Directory to your device by selecting the contact, and then pressing Menu (right softkey) > Save to Contacts.
• You can search on the following information as long as that information is included in the Company Directory: First name, Last name, Email name, Display name, Email address, or Office location.

Section 3C

Entertainment: TV and Music

◆ TV (page 125)
♦ NASCAR Sprint Cup Mobile (page 127)
◆ NFL Mobile Live (page 130)
◆ Music: Sprint Music Store (page 133)
♦ YouTube (page 135)
◆ Streaming Media (page 139)

Sprint TV gives you the ability to listen to audio clips and to view video clips right from your device's display. Watch live TV and catch up on episodes of your favorite shows – anywhere on the Nationwide Sprint Network.

Sprint Music Store lets you preview, purchase, download, and listen to over a million songs right on your device. You can even add songs from your own library to round out your on-the-go playlist.

TV

Your Sprint TV Channel Options

The Sprint TV application offers a wide variety of accessible channels. Subscription options include comprehensive basic packages as well as a full menu of "a la carte" channels. Visit www.sprint.com for more information on channels and pricing.

Some of the available categories may include:

●Sprint Radio

●Sprint Power View

●Primetime TV

●Music Videos

●Sprint TV Live

●Music & Radio

●Sports

●Entertainment

●Cartoons

●News & Weather

●Movies & Shorts

●Mobile Previews

Tip

Available categories and content are subject to change.

Playing a Video or Audio Clip

1. Press Start (left softkey) > All Programs (left softkey) > Sprint TV.
2. Press Continue (right softkey) to connect to data services.
3. Select Sprint TV, Sprint Radio, Sprint Movies, or Premium Channels to display channel options.
4. Use the navigation key and press the Enter key to select a channel from the Sprint TV listings or to select an available category.

Note

The first time you access a channel, you will be prompted to purchase access (unless the channel doesn't have a monthly fee). Select Subscribe to purchase access, or select Preview to view a preview of the selected channel.

1. If applicable, select a clip and press OK (left softkey) to view the program. The clip will automatically load and begin playing.

Tip

While you are playing a clip, you can press the navigation key up or down to surf to a different channel. A small pop-up screen will be displayed that tells you which channel you are watching as well as other channels that you have access to. Use the navigation key to scroll through the channels. Once you find a channel that you want to watch or listen to, scroll to it and pressOK (left softkey) (or simply wait approximately three seconds), and the channel will begin loading.

Sprint TV FAQs

1. How long are the clips? Will I know the estimated time it will take to play the clip prior to accessing it?

Once you have selected a channel, you will see a listing of the available clips, with each clip's length displayed after the clip's title. In general, a clip's duration will depend on the story or content being provided, and can be fairly short or as long as a few minutes.

1. Can I access a clip wherever I am, as long as I have my device?

As long as you are on the Nationwide Sprint Network, you will have access to the audio and video clips.

1. Are the videos that I'm viewing "live" videos?

It depends on the content provider. Some of the channels available through Sprint TV stream live content. Others provide media on demand with video and audio clips that are refreshed throughout the day, but that are not "live."

1. After purchasing access to an Available Channel for a monthly fee, do I receive any confirmation? That is, how do I know it has been purchased?

The next time you access the channel, you bypass the Preview/Purchase page and go directly to the available content.

1. If I don't subscribe to a data services plan from Sprint, will I still be able to view the multimedia clips?

Yes. For service access charges, please consult your Sprint service plan or visit www.sprint.com.

1. What does it mean when the video pauses and I see the word "loading" at the bottom of the screen?

This happens when the phone is loading the data necessary to play the clip. It typically occurs when there is heavy traffic on the network.

7.How can I cancel service if I decide I don't want it?

To cancel your Sprint TV service, visit www.sprint.com and sign on to My Sprint Wireless with your account number and password. From this page, you have the ability to cancel the service or any channels to which you subscribe.

1. Can I surf to a different channel while I am playing a clip?

Yes. While you are playing a clip, you can press the navigation key up and down to surf to a different channel. A small pop-up screen will be displayed that tells you which channel you are watching as well as other channels that you have access to. Use the navigation key to scroll through the different channels. Once you find a channel that you want to watch, scroll to it and press (or simply wait approximately three seconds), and the channel will begin loading.

NASCAR Sprint Cup Mobile

NASCAR Sprint Cup Mobile ^™ keeps all NASCAR related information in one convenient location on your device and enables you to personalize the content with your favorite driver. When you are away from the track, you can follow races via streaming MRN/PRN race broadcast coverage and in-car audio. NASCAR Sprint Cup Mobile delivers real-time, race-day statistics and telemetry from all 43 NASCAR Sprint Cup Series ^™ drivers and offers video on demand from NASCAR.com, SPEED and more.

Note While using this application incoming calls may go directly to voice mail.

Product Features

● Personalize the program view to track your favorite driver
●Live MRN/PRN race broadcasts
●Live driver/team audio communications
● Real-time race-day statistics and telemetry for all 43 NASCAR Sprint Cup Series drivers
● 24-hour access to breaking NASCAR Sprint Cup Series news including insight and analysis from industry experts
- Delivers race and qualifying results including NASCAR Sprint Cup Series points standings and season statistics
● Offers video on demand from NASCAR.com, SPEED programming and more

To open NASCAR Sprint Cup Mobile

▶ Press Start (left softkey) >All Programs (left softkey) >NASCAR.

NASCAR Sprint Cup Mobile displays the Home screen.

To change my favorite driver selection

1. Press MENU (right softkey).
2. Press the navigation key left or right to highlight Alerts & Personalization (A)
3. Select Change My Drivers.
4. Select an empty or filled slot and press the Enter key.
5. Enter your driver's name or number and then press Done (right softkey).
6. Select Go. The driver is added to your favorite driver list.

View mode

The Home screen looks different on race days versus non-race days below the Driver Banner.

Non Race Days	The day after the race (typically Mondays), the home page will include a video of the Sprint Post Race Press Conference, a race recap and photo, official race results and point standing in addition to standard content. The rest of the week includes a special video of the day, official point standings in addition to standard content.
Race Days	On race days, your home page displays the live leaderboard from entry list, qualifying results to live race action, live video programming including pre and post race shows, and a Pit Pass.

Radio button and audio settings

MRN or PRN race radio and in-car audio are easily accessed through your AUDIO button under the driver banner. When 'ON' you will hear whatever audio selections you have currently set. If no audio selections have been made, audio defaults to race radio. You can change your in-car audio by selecting Alerts & Personalization, My Driver, or Audio/Video. Your audio settings will be maintained even when you close the application!

To change screens

1. Press Menu (right softkey) and press the navigation key left or right.
2. Press the Enter key to select a highlighted option.

Menu Items

Icon Heading	Description
	Home	When you open the application, the Home screen is displayed.If you have selected a Favorite Driver, a driver banner appears on your home page with the driver's key statistics. Press the navigation key up or down to view your Favorite Driver's profile, season and race stats, news and downloads.
	My DriverNews	Displays your Favorite Driver's profile, season and race statistics, news and downloads.Keep up on current driver and racing news as well editorial and recent race photos.
	Stats & Schedules	Includes race results, point standings, and season statistics. The NASCAR season schedule is included here as well.
	NASCAR on SPEED View	live SPEED programming or recorded video.
	Audio/Video Access the	most recent NASCAR video and audio clips.
	Sprint FanZone	Learn about the latest Sprint promotions, and see the recent winners in the Sprint All-Star Sweepstakes.
	Fantasy View NASCAR	Fantasy league-related articles and videos.
	Alerts & Personalization	●Change your Primary Favorite driver●Add or delete any of the four Secondary Favorite Drivers●Subscribe and unsubscribe to free Sprint Cup SMS text alerts●Set your default in-car audio
	Help Access online help	for the NASCAR Sprint Cup Mobile application.
	Exit Select	Exit and press Yes (right softkey) to exit the application.

NFL Mobile Live keeps you up to date on all NFL games and information while you are on the go. Using NFL Mobile Live, you can watch and listen to live video, hear the latest scores, get alerts, and customize the application to track your favorite team.

Note While using this application incoming calls may go directly to voice mail.

To open NFL Mobile live

▶ Press Start (left softkey) > All Programs (left softkey) > NFL Mobile Live.

NFL Mobile Live displays the NFL Central screen.

NFL Central

The Scoreboard displays all the current, upcoming and completed games of the week. On the Scoreboard, you can do either of the following:

• Highlight a game score and press the Enter key to go directly to the Game Center page which will show the selected game in the Marquee and also present that game's progress and stats in detail.
• Press the navigation key right from a game score to access Live Game Radio. Select one of the icons and press the Enter key to start the audio on this page, so that you can listen to that game while still checking the scores for other games.

Note This feature is only available during the regular season.

Game Center

The Game Center page shows all the info about the game you've selected. The selected game will be shown in the Marquee at the top of the page. You can view highlight videos from the game, listen to Game Radio or Quarterly Highlights, or review stats and logs from Game Day Match Up to Injury Reports and Stats Leaders.

To change screens

1. Press MENU (right softkey) and press the navigation key left or right.
2. Press the Enter key to select a highlighted option.

Press MENU-Press the navigation key left or right
to scroll through the options and press the Enter key to select.

Menu Items

Icon Heading	Description
	NFL Central	When you open the application, NFL Central is displayed. From here, you can view the scoreboard of all the week's games, watch the NFL Network TV channel on your phone, read league-wide News, and check the top videos and articles about your customized team.
	NFL Network	The NFL Network page lets you view content from the live TV broadcast of the NFL Network, and view various On Demand clips, including Total Access. You can also view the NFL Network channel broadcast schedule to see when your favorite show will be on.
	My Team	The My Team page let's you stay on top of the latest news and videos for your favorite team. You can also view your team statistics, roster and standings. You may quickly jump to any Player's Profile page by selecting a player and pressing the Enter key. To reset your favorite team, press Menu (right softkey) >Alerts & Personalization >Choose Your Favorite Team
	Fantasy	The Fantasy section allows you to manage your fantasy team, and also offers articles, videos and analysis to keep you informed on the hottest players
	Teams & Standings	Use the Teams & Standings page to check the standings for both the AFC and NFC-Press Right to change from one division's tab view to the other. Within the chart, you may quickly jump to any Team's page by selecting a team and pressing the Enter key.
	Scores & Schedules	The Scores & Schedule section allows you to view the season schedule week by week. Press the navigation key left or right to move from week to week, and press the Enter key while highlighting a game to go to the Game Center focused on that match up
	News & Photos	The News & Photos section presents a large number of League news articles, feature articles, as well as transaction news. It also contains a photo gallery with images from recent games. Select a Photo Gallery title to see the images contained within
	Audio & Video	The Audio & Video page collects videos that are spread throughout the application all into one location. Here you can view content such as Fantasy videos, Game highlights, and even Can't Miss Plays.
	Statistics	The Statistics page lets you view various stats like Weekly Leaders and League Leaders. You can also use the Team stats and Player stats sections to search for any team or player to quickly bring up their statistics
	Alerts & Personalization	This section allows you to change your Favorite team, and view all the alerts you've received today. In the sections below, you can also set and manage your Game Alerts, Team alerts, Fantasy alerts and Player alerts. To set or unsubscribe to an alert, simply highlight it and press the Enter key. Alerts that are subscribed to are marked with an “X” in the box next to it.
	Help Access online help	for the NFL Mobile Live application.
	Exit Select	Exit and press Yes (right softkey) to exit the application.

Music: Sprint Music Store

The Sprint Music Store enables you to purchase and download digital music files to play on your device.

Accessing the Sprint Music Store

When you connect to the Nationwide Sprint Network and access the Sprint Music Store for the first time, you will be prompted to set up your user identification and password.

1. Press Start (left softkey) > All Programs (left softkey) > Music.
2. Follow the onscreen instructions to establish your User ID and password.

Tip

Your User ID for the Sprint Music Store is your 10-digit wireless phone number. The password may be any 4-digit number.

1. After you have entered your password, highlight Create New Account and press OK (left softkey).
2. Use the navigation key to explore the store.

Purchasing and Downloading Music

Now that you're in the store, you can shop for songs to purchase and download to your device's main memory or a microSD card.

1. From the Sprint Music Store opening page, select an option to browse the store:

■ Featured Music offers a revolving selection of highlighted songs and artists.
■ Genres allows you to choose from different types of music such as Hip Hop/Rap, R&B, Pop, Inspirational songs, and more.
■ Categories allows you to choose from other types of categories.
■ Search gives you the option of searching for specific songs or artists. Just use the keypad of your device to enter your search criteria in the available field.

1. Select a song by selecting the song title, and pressing OK. (The song information screen will be displayed.)
2. Select Preview to play the selected song.
3. When you are ready to purchase the song, select the displayed price. This confirms your purchase and begins the download process.

The song will be downloaded to your device (\Music).

Note

If you have a microSD card inserted, you have the option to download the song to it.

Once the song has been downloaded to your device, you will be able to immediately listen to it, add it to a playlist, or continue shopping.

Playing Music

▶ Use Windows Media player to play the song that you purchased and downloaded to your device. Press Start (left softkey) > All Programs (left softkey) > Windows Media.

Receiving an Incoming Call While Playing Music

An incoming call causes the currently played music file to be paused while the phone call is active. Once the current call is ended, you can select to resume any paused applications. (Music will resume playing automatically.)

1. When you receive an incoming call, press the Talk key.
2. When you are done with your call, press the End/Power key to end the call. The previously paused application then resumes.

Backing Up Your Downloaded Music Files

When you purchase and download a music file from the Sprint Music Store, you get two versions of the song: one to download and play on your device (file type: AAC+), and another to download from http://musicstore.sprint.com and play on your computer (file type: WMA). The AAC+ files downloaded to your device can only be played on your device and on your account, and once they have been downloaded, they cannot be downloaded again without being repurchased.

Sprint recommends you back up your AAC+ music files to your computer so you can access the files in case your device is lost or damaged, or if you buy a new device.

1. Use your computer to navigate to the Music folder of your device (that is, go to this path: \Music).

Note If you downloaded the music files to the microSD card, go to \Storage Card.

1. Select and copy the music files to a folder on your computer's hard drive.

Note Although you can store AAC+ files on your computer, they will only be playable on your device and on your account.

YouTube

YouTube™ lets you browse, search, and watch video clips from the YouTube server. This section shows you how to use the YouTube application on your device to browse, search, watch, and bookmark videos from YouTube.

Note

You need an active connection to use YouTube. If you are using a data connection, your data connection bill may increase significantly due to large file sizes of the videos.

Introducing the YouTube Screen

▶ Press Start (left softkey) > All Programs (left softkey) > YouTube to open the YouTube application.

1. Channel. Displays the current program channel being viewed.
2. Tabs. Press the navigation key left and right to switch between the different YouTube screens: Videos, Bookmarks, History, and Search
3. .Program Guide. Press the left softkey to open the Program Guide list.
4. Menu Press the right softkey to add a video to bookmarks, share the video, view more details on the video, access settings, and more.
5. Video List. Displays the available videos for the selected program channel. Highlight a video and press the Enter key to watch it.

Browsing for Videos

The Program Guide list lets you change the program channel so you can browse different types of videos available on the YouTube server.

To add a new program channel into the Program Guide list:

1. On the YouTube screen, scroll to

1. Press Search (left softkey).

2. On the Search screen, enter keywords to search for channels you want to add to the Program Guide list.

1. Press Search (right softkey). YouTube searches for the channel and then displays the available videos from it.

2. Press Menu (right softkey) > Add to Program Guide.

1. Press Yes (left softkey) on the confirmation screen. The channel you just subscribed to will now be shown when you press Program Guide.

To change the program channel:

1. On the Videos screen, press Program Guide (left softkey).
2. On the Program Guide list, select a channel.
3. The video list refreshes to display the available videos for the newly selected channel.

To delete a program channel from the Program Guide list:

You can only delete program channels that you have added to the Program Guide list.

1. On the Videos screen, press Program Guide (left softkey).
2. Scroll down to the channel you want to delete.
3. Press Menu (right softkey) >Remove.
4. On the confirmation screen, press Yes(left softkey).

Watching Videos

In the Videos, Bookmarks, or History screens, select a video and press the Enter key to launch the YouTube Video Player.

Using the Navigation Key

You can also use the navigation key to control the video playback.

Control	Use
Enter Key Toggle between playing and pausing video playback.
Navigation Key Right Press and then press the Enter key to skip forward in the video.
Navigation Key Left Press and then press the Enter key to skip backward in the video.
Navigation Key Up Press and then press the Enter key to stop the video.
Navigation Key Down Press and then press the Enter key to view video details.

When you press the Enter key or finish watching the entire video, you are presented with details on video you just watched. Press Menu (right softkey) to view options on what you can do next.

1. Add Channel. Select to go add this channel to the Program Guide.
2. Exit. Select exit the YouTube application.
3. Settings. Select to set the default country and the video playback quality.
4. Share. Select to share the video via email.
5. Add to Bookmarks. Select to add the video to your Bookmarks.
6. Back. Select to return to the previous screen.
7. Home. Select to go to the Program Guide.

Tip

To adjust the volume, press the Volume Up or Down keys at the left side of the device.

Bookmarks

You can save frequently viewed videos to Bookmarks for quick access.

To add a video into Bookmarks:

▶ After watching a video, press Menu (right softkey) >Add to Bookmarks.

- or -

On the list of videos, highlight the video you want to add to Bookmarks and then press Menu (right softkey) > Add to Bookmarks.

To view Bookmarks:

▶On the YouTube screen, scroll to . Select a video to watch it.

To delete a video from Bookmarks:

1. On the Bookmarks screen, select the video you want to delete.
2. Press Delete (left softkey).
3. On the confirmation screen, press Yes(left softkey).

History

View recently watched videos on the History screen.

To view History:

▶On the YouTube screen, scroll to . Select a video to watch it.

Note

To clear the History list, press Clear (left softkey).

138 3C. Entertainment: TV and Music

Streaming Media

Streaming Media lets you stream live broadcasts or on-demand media content from the Web. The media is sent in a continuous stream to your device and is played as it arrives, along with the audio.

The Streaming Media program allows you to play 3GP and MPEG-4 files. It also supports playback of SDP (Session Description Protocol) files. An SDP file is a text file that contains the format, broadcast times, media content, and other information about a live broadcast, or it may contain a playlist and links to prerecorded media files if you are viewing on-demand streaming media.

To access streaming content via Internet Explorer:

In Internet Explorer, you can open a Web page containing http links to streaming media content and play the content in the Streaming Media program.

1. From the Home panel, press Start (left softkey) >All Programs (left softkey) >Internet Explorer.
2. Press Menu (right softkey) > Go to Web Address. In the address bar, enter the URL address of the Web page that contains the RTSP link to the desired *.3gp, *.mp4, or *.sdp file.
3. On the Web page, select the RTSP link and press the Enter key.
4. Streaming Media then automatically opens and starts playing the file. During playback, use the button controls to play/pause the video and adjust the sound volume.

Tip

Press Menu (right softkey) > Zoom > Zoom In to zoom in on the video.

Control Use
Enter Key Toggle between playing and pausing video playback.
Navigation Key Right Fast Forward
Navigation Key Left Rewind

To view the video in full screen

▶ Press Full screen (left softkey) to view the video in full screen mode. Press the Back key to return to normal view mode.

To stream media files directly on the Streaming Media Player:

Streaming Media only supports RTSP links when you stream *.3gp and *.mp4 files directly on the program.

Note

Before you launch the Streaming Media program, make sure that you are connected to the Internet.

1. From the Home panel, press Start (left softkey) >All Programs (left softkey) >Multimedia >Streaming Media.

2. From the program, press Menu (right softkey) >Connect.

3. Enter the URL for the website (rtsp://) and the file name.

4. Press Go (left softkey).
5. Streaming Media then starts playing the file. During playback, use the button controls to play/pause and adjust the sound volume.

To view streaming video information:

▶ Press Menu (right softkey) >Properties to view the properties and general information of a streaming video clip, such as video codec, audio codec, dimension, frames, and duration of the video.

To configure streaming video connection settings

▶ Press Menu (right softkey)>Options to configure the following settings:

■ Playback. Specify the memory space (in terms of duration) to reserve for storing video and audio data while streaming media.
■ Networks. Choose the connection to use and specify a range of port numbers to use for streaming.
■ Video. Select whether to start video with full screen or best fit to screen.

Section 3D

GPS Navigation

◆ Guidelines and Preparation for Using GPS (page 141)
◆ Downloading Satellite Data via QuickGPS (page 142)
◆ Using Sprint Navigation (page 143)
◆ Windows Live Search (page 145)

Use your device's built-in GPS capabilities and the Sprint Navigation software to easily access both directional information and location-specific features such as nearby businesses, services or other points of interest. Sprint Navigation also provides turn-by-turn driving directions onscreen and by voice right on your device.

Guidelines and Preparation for Using GPS

Please follow these guidelines before and when using your device as a GPS device.

●Do not attempt to set or adjust the GPS system while driving.
- When using the device inside a vehicle, use the car holder to mount the device securely in place. Avoid placing the device in the areas shown in the following diagram:

1. Do not place where it will block the driver's vision.
2. Do not place where air bags could deploy.
3. Do not place anywhere in the vehicle without securing the device in the holder.

● The GPS signal cannot pass through solid non-transparent objects. Signal reception may be affected by obstructions such as high-rise buildings, tunnels, bridges, forests, and weather conditions. Even metal in the overhead visors could block GPS reception.

● Wireless communication products (such as mobile phones or radar-detecting devices) may interfere with the satellite signal, resulting in unstable signal reception.

● The Global Positioning System (GPS) is maintained by the United States Department of Defense. Any changes that the DOD makes may affect the accuracy and function of the GPS system.

- Do not leave your device in a vehicle or expose the device to direct sunlight to avoid overheating the battery, which could cause damage to the device or the vehicle.

Downloading Satellite Data via QuickGPS

Before you start using your device for GPS navigation, open the QuickGPS program first to download ephemeris data (current satellite position and timing information) to your device. This data is needed to determine the GPS position of your current location.

QuickGPS downloads data from a Web server using the Internet connection on your device (ActiveSync or data services). This significantly speeds up the time for determining your GPS position.

To open QuickGPS:

▶ Press Start (left softkey) > All Programs (left softkey) > QuickGPS.

To download data:

▶ Press Download (left softkey) on the QuickGPS screen.

You will initially see onscreen the Valid time for the downloaded data. This will continue to update until the time runs out.

To speed up GPS positioning, download the latest ephemeris data when the validity of the data expires.

Download Options

To configure download times, press Menu (right softkey) >Options and choose from the available options:

• Remind me when data expires. Enables your device to display a reminder message when the validity of the ephemeris data has expired. When you see the reminder message, pressMenu to dismiss the reminder or to set the snooze time so that you will be reminded again. Select OK to open the QuickGPS program and download the latest data.
• Autodownload when data expires. Allows ephemeris data to be automatically updated onto your device when the data has expired.
• Autodownload when connected to PC via ActiveSync. Allows ephemeris data to be automatically downloaded via ActiveSync to your device when your device is connected to your computer. Your computer must be connected to the Internet in order to download data.

Note

The data is stored on Web servers. QuickGPS is preconfigured to connect to these servers.

Using Sprint Navigation

Sprint Navigation™ utilizes GPS positioning technology and access to Sprint's wireless data network to provide you with driving directions and a host of other services including:

• GPS navigation that gives you turn-by-turn directions to any destination address in the continental United States. If you miss a turn or get off track, Sprint Navigation will calculate a new route for you. You can enter a destination address by using Sprint Navigation's automatic voice recognition system or by using the QWERTY keyboard.
  ● Audio and visual traffic alerts while driving or viewing maps, as well as traffic rerouting capabilities to minimize delays.
• Maps of the area around your current location, a marked Favorite, or an address you enter manually or have previously entered. You can pan the map (adjust left/right/up/down) and zoom in or out.

Launching Sprint Navigation

1. To launch Sprint Navigation on your device, press Start (left softkey) >All Programs (left softkey) >Sprint Navigation.

After starting Sprint Navigation, you will see a splash screen for a few seconds.

1. You will then see Terms and Conditions for using the software. If you agree to the conditions listed, press Accept (right softkey).
2. Type in your First Name, Last Name, and Email Address, and then press Login (right softkey).

1. You will then see a safety warning. If you agree to the conditions listed, press Go (right softkey).
2. You can choose to take a brief tour of Sprint Navigation or proceed directly to the application.

Note

The Product tour is only displayed the first time you log into Sprint Navigation. If you would like to access the Product Tour again after your first login, you can access it by selecting Tools/Extras > About > Product Tour.

Using Sprint Navigation

The Main Menu

After logging into Sprint Navigation, you will be taken to the application's Main menu.

• Drive To lets you get driving directions by address, recently entered locations, airport code or business name.
• Search provides you with different ways to provide the addresses and phone numbers of banks, restaurants, gas stations, emergency services, and other hard to find locations.
• Maps & Traffic allows you to view map and traffic information for your current location, favorite places, a business, specific addresses, and more.
  ● Tools & Extras gives you options for setting preferences and other features.

Entering an Address

With Sprint Navigation, there are two ways to enter an address—by typing it or by speaking it. To access the address entry menu, select Drive To and then select Address. You will then see the following options:

● Type It allows you to enter a street address by typing it in the appropriate fields.

1. On the Address screen, select TypeIt

2. Enter the street name. You may type in a partial entry (five or more letters) for the street name.

Note You can always leave the street address field blank and type in a city to perform a city search. The City and State fields have an auto-fill feature, so you usually will not have to type in the whole name of the city or state.

1. Select Done to submit the address.

Note To quickly clear the fields, press Menu (right softkey) > Clear All on the address screen.

1. Sprint Navigation checks to see if the address you entered can be found. Sprint Navigation prompts you to modify the address if it is too new to be found in the mapping database or if the street number cannot be found for some other reason. After submitting the address, you will be taken to the trip confirmation street and you are ready to begin your trip.

● Speak It allows you to enter a street address by calling in and dictating the address.

1. On the Address screen, select SpeakIt.

2. Follow the voice prompts to enter your destination address.

3. After a successful entry, hang up and you will be taken back to the screen you were viewing prior to making the call. The location you just entered will now be displayed at the top of your Recent Places list. You may need to select Refresh Recent Places to make the address available.

You should now have a basic understanding of how to enter an address and get driving directions. For more information about using Sprint Navigation, visit the support page at http://www.htc.com/us/default.aspx.

Note

The Sprint Navigation software gets routing directions, maps, and its directory of businesses and points of interests from the Sprint Navigation servers. You need to subscribe to a data plan in order to access this information. If you do not have a data plan yet, check Sprint Navigation's website at www.sprint.com/navigation for subscription rates.

Windows Live Search

Windows Live™ Search is a separate program that offers you a fast, easy way to find and view maps and local information on your phone. With Windows Live™ Search, you can:

●Browse through local listings of categories.
- Locate nearby restaurants, shopping centers, etc., and check for street addresses and phone numbers.
●View maps with directions to and from a location.
●View traffic information.

To open Windows Live Search

1. Press Start (left softkey) > All Programs (left softkey) > Live Search.
2. Read the Service Agreement, and if you agree with the terms of service, press Accept (left softkey).
3. On the Welcome screen press OK (left softkey).

Note

You may be prompted to install an update for Live Search. Press Yes (left softkey) to install the update.

The Live Search main window appears.

To find a location

1. Specify first where the location is near. You can select from the list of cities.

You can also select Choose a new location to enter a city, select on a map, or get a contact's address.

Tip

Windows Live Search allows you to speak the name of the business. Press Speak (left softkey) and say the name clearly.

1. Enter the location that you want to find and then press the Enter key.
2. The Search Results screen then shows a list of matched places. Use the navigation key to browse through the list. As you browse, the address, phone number, and estimated distance of a selected item are displayed.
3. Select the desired location in the Search Results screen.
4. On the Details screen:

■ Press Map (left softkey) to see the location on a map.
■ Select Directions to Here for instructions on how to reach the location.
■ Select Search Near Here to find addresses, businesses, or other places of interest near the location.

Note

If you connect a Bluetooth GPS receiver and set it up on your phone, Live Search can track your current position. You can use your current position as a starting point for finding a desired location. See the user manual of your GPS device for more details.

Section 4

Safety, Regulatory, and Warranty Information

Important Safety Information

◆ Safety Precautions (page 148)
♦ General Precautions (page 151)
◆ Additional Safety Information (page 152)

This User Guide contains important operational and safety information that will help you safely use your device. Failure to read and follow the information provided in this guide may result in serious bodily injury, death, or property damage.

Safety Precautions

When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages.

Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product.

To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions.

Electrical Safety

This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product.

Safety Precautions for Proper Grounding Installation

CAUTION: Connecting to an improperly grounded equipment can result in an electric shock to your device.

This product equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances.

Safety Precautions for Power Supply Unit

• Use the correct external power source. A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product.
• Handle battery packs carefully. This product contains a Li-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 140^ F ( 60^ C).

WARNING

Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 140^ F ( 60^ C), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.

● Take extra precautions:

• Keep the battery or device dry and away from water or any liquid as it may cause a short circuit.

• Keep metal objects away so they don't come in contact with the battery or its connectors as it may lead to short circuit during operation.
  ■ The phone should be only connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.
  ■ Do not use a battery that appears damaged, deformed, or discolored, or the one that has any rust on its casing, overheats, or emits a foul odor.
  ■ Always keep the battery out of the reach of babies and small children, to avoid swallowing of the battery. Consult the doctor immediately if the battery is swallowed.
  ■ Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725-2006. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard.
  ■ Replace the battery only with another battery that has been qualified with the system per this standard, IEEE-Std-1725-2006. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard.
  ■ Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
  ■If the battery leaks:

• Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.

• Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.
• Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion.

Safety Precautions for Direct Sunlight

Keep this product away from excessive moisture and extreme temperatures. Do not leave the product or its battery inside a vehicle or in places where the temperature may exceed 140^ F ( 60^ C), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle.

Prevention of Hearing Loss

CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time.

Road Safety

Vehicle drivers in motion are not permitted to use telephony services with handheld devices, except in the case of emergency. In some countries, using hands-free devices as an alternative is allowed.

Safety Precautions for RF Exposure

● Avoid using your phone near metal structures (for example, the steel frame of a building).
- Avoid using your phone near strong electromagnetic sources, such as microwave ovens, sound speakers, TV and radio.
● Use only original manufacturer-approved accessories, or accessories that do not contain any metal.
- Use of non-original manufacturer-approved accessories may violate your local RF exposure guidelines and should be avoided.

Interference with Medical Equipment Functions

This product may cause medical equipment to malfunction. The use of this device is forbidden in most hospitals and medical clinics.

If you use any other personal medical device, consult the manufacturer of your device to determine if they are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information.

Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.

Nonionizing Radiation

Your device has an internal antenna. This product should be operated in its normal-use position to ensure the radiative performance and safety of the interference. As with other mobile radio transmitting equipment, users are advised that for satisfactory operation of the equipment and for the safety of personnel, it is recommended that no part of the human body be allowed to come too close to the antenna during operation of the equipment.

Use only the supplied integral antenna. Use of unauthorized or modified antennas may impair call quality and damage the phone, causing loss of performance and SAR levels exceeding the recommended limits as well as result in non-compliance with local regulatory requirements in your country.

To assure optimal phone performance and ensure human exposure to RF energy is within the guidelines set forth in the relevant standards, always use your device only in its normal-use position. Contact with the antenna area may impair call quality and cause your device to operate at a higher power level than needed. Avoiding contact with the antenna area when the phone is IN USE optimizes the antenna performance and the battery life.

Antenna Location

General Precautions

• Avoid applying excessive pressure to the device. Do not apply excessive pressure on the screen and the device to prevent damaging them and remove the device from your pants' pocket before sitting down. It is also recommended that you store the device in a protective case. Cracked display screens due to improper handling are not covered by the warranty.
• Device getting warm after prolonged use. When using your device for prolonged periods of time, such as when you're talking on the phone, charging the battery or browsing the Web, the device may become warm. In most cases, this condition is normal and therefore should not be interpreted as a problem with the device.
• Heed service markings. Except as explained elsewhere in the Operating or Service documentation, do not service any product yourself. Service needed on components inside the device should be done by an authorized service technician or provider.
  ● Damage requiring service. Unplug the product from the electrical outlet and refer servicing to an authorized service technician or provider under the following conditions:

■ Liquid has been spilled or an object has fallen onto the product.
■The product has been exposed to rain or water.
■The product has been dropped or damaged.
■There are noticeable signs of overheating.
■ The product does not operate normally when you follow the operating instructions.

• Avoid hot areas. The product should be placed away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
  ● Avoid wet areas. Never use the product in a wet location.
  ● Avoid using your device after a dramatic change in temperature. When you move your device between environments with very different temperature and/or humidity ranges, condensation may form on or within the device. To avoid damaging the device, allow sufficient time for the moisture to evaporate before using the device.

NOTICE: When taking the device from low-temperature conditions into a warmer environment or from high-temperature conditions into a cooler environment, allow the device to acclimate to room temperature before turning on power.

• Avoid pushing objects into product. Never push objects of any kind into cabinet slots or other openings in the product. Slots and openings are provided for ventilation. These openings must not be blocked or covered.
• Mounting accessories. Do not use the product on an unstable table, cart, stand, tripod, or bracket. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
  ● Avoid unstable mounting. Do not place the product with an unstable base.
• Use product with approved equipment. This product should be used only with personal computers and options identified as suitable for use with your equipment.
• Adjust the volume. Turn down the volume before using headphones or other audio devices.
• Cleaning. Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning, but NEVER use water to clean the LCD screen.

When Driving

Do Not Use the PC Functions of Your Device While Driving or Walking

Never use the personal computer functions of your device while driving an automobile or any other moving vehicle. Always pull out of traffic and come to a stop in a legally permissible and safe location before using your device. Failure to do so could result in serious bodily injury in a traffic accident.

When driving:

●Always secure your device in its leather pouch.
- Never place your device on the passenger seat or anyplace else in the car where it can become a projectile during a collision or stop.
- An air bag inflates with great force. DO NOT place objects, including either installed or portable wireless equipment, in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result.

Never store or transport flammable liquids, gases or explosive materials in the same compartment of your automobile as the device or any of its accessories, as possible sparking in the device could cause ignition or explosion.

Never use your device while walking. Usage while walking could result in bodily injury caused by inattention to automobile traffic or other pedestrian hazards.

Using The Phone While Driving Is Extremely Dangerous

Talking on or using your device while driving is extremely dangerous and is illegal in some states.

Remember, safety comes first. Check the laws and regulations on the use of phones in the areas where you drive. Always obey them.

If you must use the phone function while driving, please:

• Give full attention to driving. Driving safely is your first responsibility.
• Use hands-free operation and/or one-touch, speed dialing, and auto answer modes.
  ●Pull off the road and park before making or answering a call.

Warning

Failure to follow these instructions could lead to serious personal injury and possible property damage.

When Using Your Device Near Other Electronic Devices

Your wireless handheld portable device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.

Most modern electronic equipment is shielded from RF energy. However, certain electronic equipment may not be shielded against the RF signals from your wireless device; therefore, use of your device must be restricted in certain situations.

In addition, the computer portion of your device produces low levels of RF energy due to the generation of digital timing pulses by its clock oscillator circuits. Your device has been equipped with internal shielding to minimize stray emissions of RF energy. However, use of the computer functions of your device must be restricted in certain situations.

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your service provider, or call the customer service line to discuss alternatives.

For more regulatory information about hearing devices, see “FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices.”

Electronic Devices in Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.

Posted Facilities

Turn your device OFF where posted notices so require.

Turn Off Your Device Before Flying

Aircraft

FCC regulations prohibit using the transmitting and phone functions of your device while in the air. In addition, most airline regulations prohibit the on-board use of portable PCs (and all other portable electronic devices that could potentially emit stray RF energy), particularly during take-offs and landings, to prevent any possible interference with the reception of signals by airborne electronic navigational devices.

Turn your device OFF before boarding an aircraft. Always request and obtain prior consent and approval of an authorized airline representative before using your device aboard an aircraft. Always follow the instructions of the airline representative whenever using your device aboard an aircraft, to prevent any possible interference with airborne electronic equipment.

Turn Off Your Device in Dangerous Areas

Blasting Areas

To avoid interfering with blasting operations, turn your device OFF when in a “blasting area” or in areas posted “Turn off two-way radio.” Obey all signs and instructions.

Potentially Explosive Atmospheres

Turn your device OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.

Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include fueling areas such as gas stations; below deck on boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum gas (such as propane or butane); areas where the air contains chemicals or articles, such as grain, dust, or metal powders; and any other area where you would normally be advised to turn off your vehicle's engine.

General Safety and Other Precautions

Your device is a high quality piece of equipment. Before operating, read all instructions and cautionary markings on the product, battery and AC phone charger.

Failure to follow the directions below could result in serious bodily injury and/or property damage due to battery liquid leakage, fire or rupture.

DO NOT use or store this equipment in a place where it will be exposed to high temperatures, such as near an open flame or heat-emitting equipment.

DO NOT drop your device or subject it to severe shock. When not using, lay down the unit to avoid possible damage due to instability.

DO NOT expose this equipment to rain or spilled beverages.

DO NOT use unauthorized accessories.

DO NOT disassemble the device or its accessories. If service or repair is required, return unit to an authorized Sprint cellular service center. If the unit is disassembled, the risk of electric shock or fire may result.

Never allow metallic objects, such as staples and paper clips, to get into the inside of your device.

Never touch the liquid that might leak from a broken liquid crystal display. Contact with this liquid could cause a skin rash. If the crystal display liquid should come into contact with the skin or clothing, wash it immediately with clean water.

In the event that the device emits an unusual odor or sound or generates smoke, immediately disconnect the AC phone charger from the power outlet, and then detach the battery.

Antenna Safety

Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage your device, or result in violation of FCC regulations. Please contact your local dealer for replacement antenna.

Do not use the device with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna.

Battery Safety

Your device uses a removable and rechargeable lithium ion battery. Please contact customer service for assistance should you need a replacement battery.

DOs

• Only use the battery and charger approved by the manufacturer.
  ●Only use the battery for its original purpose.
  ● Try to keep batteries in a temperature between 41^ F ( 5^ C) and 95^ F ( 35^ C).
• If the battery is stored in temperatures above or below the recommended range, give it time to warm up or cool down before using.
• Completely drain the battery before recharging. It may take one to four days to completely drain.
  ●Store the discharged battery in a cool, dark, and dry place.
  ● Purchase a new battery when its operating time gradually decreases after fully charging.
  ● Properly dispose of the battery according to local regulations.

DON'Ts

• Don't attempt to disassemble the battery—it is a sealed unit with no serviceable parts.
• Don't expose the battery terminals to any other metal object (e.g., by carrying it in your pocket or purse with other metallic objects such as coins, clips and pens). This can short circuit and critically damage the battery.
• Don't leave the battery in hot or cold temps. Otherwise, it could significantly reduce the capacity and lifetime of the battery.
• Don't dispose of the battery into a fire.

Lithium ion batteries are recyclable. When you replace the removable battery, please request the repair center to recycle the battery in accordance with RBRC standards. When disposing of the battery by yourself, please call RBRC at [phone] for proper disposal tips.

Never touch any fluid that might leak from the built-in battery. Such liquid when in contact with the eyes or skin, could cause injury to the skin or eyes. Should the liquid come into contact with the eyes, irrigate the eyes thoroughly with clean water and immediately seek medical attention. In the event the liquid comes into contact with the skin or clothing, wash it away immediately with clean water.

AC Phone Charger

Use the Correct External Power Source

A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product.

The AC phone charger designed by Sprint for this unit requires the use of a standard 120 V AC power source for device operation.

Never attempt to disassemble or repair an AC phone charger. Never use an AC phone charger if it has a damaged or worn power cord or plug. Always contact a Sprint authorized service center, if repair or replacement is required.

Never alter the AC cord or plug on an AC phone charger. If the plug will not fit into the available outlet, have a proper outlet installed by a qualified electrician.

Never allow any liquids or water to spill on an AC phone charger when it is connected to an AC power source.

Always use the authorized Sprint AC phone charger to avoid any risk of bodily injury or damage to your cellular phone or battery.

Never attempt to connect or disconnect the AC phone charger with wet hands. Always unplug the AC phone charger from the power source before attempting any cleaning. Always use a soft cloth dampened with water to clean the equipment, after it has been unplugged.

Handling the cord on this product or cords associated with accessories sold with this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.

Always disconnect the travel charger or desktop charger from the power source when it is not in use.

Regulatory Notices

◆ Regulatory Agency Identifications (page 157)
◆ Federal Communication Commission Interference Statement (page 157)
◆ FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices (page 158)
◆ SAR Information (page 159)
◆ Body-worn Operation (page 160)
♦ Telecommunications & Internet Association (TIA) Safety Information (page 160)
◆ WEEE Notice (page 161)
◆ RoHS Compliance (page 161)

This section provides more safety information and regulation statement for using your device.

Regulatory Agency Identifications

For regulatory identification purposes, your product is assigned a model number of CEDA200.

To ensure continued reliable and safe operation of your device, use only the accessories listed below with your CEDA200.

The Battery Pack has been assigned a model number of RHOD160.

Operating temperature range: 32°F to 122°F (0°C to 50°C)

Note

This product is intended for use with a certified Class 2 Limited Power Source, rated 5 Volts DC, maximum 1 Amp power supply unit.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

●Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio or television technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Important Note

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this guide.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter, except the transmitters built-in with this device.

FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices

On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-aids. The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities.

While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.

The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label located on the box.

The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.

M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not rated. M4 is the better/higher of the two ratings. CEDA200 is rated M3.

T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with a hearing aid's telecoil than phones that are not rated. T4 is the better/higher of the two ratings. CEDA200 is rated T3.

Please power off the Bluetooth function while using hearing aid devices with your CEDA200.

Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for better use. A sum of 8 is considered for best use.

In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equal M5. This should provide the hearing aid user with “normal usage” while using their hearing aid with the particular wireless phone. “Normal usage” in this context is defined as a signal quality that is acceptable for normal operation.

This methodology applies equally for T ratings. The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.

For information about hearing aids and digital wireless phones

FCC Hearing Aid Compatibility and Volume Control:

http://www.fcc.gov/cgb/dro/hearing.html

Gallaudet University, RERC:

https://fjallfoss.fcc.gov/oetcf/eas/reports/GenericSearch.cfm

SAR Information

1.32 W/kg @ 1g (HEAD)

0.393 W/kg @ 1g (BODY)

THIS MODEL DEVICE MEETS THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with the HTC Corporation accessories supplied or designated for this product. Use of other accessories may not ensure compliance with the FCC RF exposure guidelines.

Your wireless mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards previously set by both U.S. and international standards bodies:

● American National Standards Institute (ANSI) IEEE. C95.1-1992.
● National Council on Radiation Protection and Measurement (NCRP). Report 86. 1986.
● International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996.
- Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg*.

The FCC has granted an Equipment Authorization for this model device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines.

SAR information on this model device is on file with the FCC and can be found under the Display Grant section of https://fjallfoss.fcc.gov/oetcf/eas/reports/GenericSearch.cfm after searching on FCC ID: NM8CEDA200. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) website as http://www.phonefacts.net.

* In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 Watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in usage.

Normal condition only to ensure the radiative performance and safety of the interference. As with other mobile radio transmitting equipment, users are advised that for satisfactory operation of the equipment and for the safety of personnel, it is recommended that no part of the human body be allowed to come too close to the antenna during operation of the equipment.

Body-worn Operation

This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.5 cm must be maintained between the user's body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided.

Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna.

Telecommunications & Internet Association (TIA) Safety Information

Pacemakers

The Health Industry Manufacturers Association recommends that a minimum separation of six inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research. Persons with pacemakers:

● Should ALWAYS keep the phone more than six inches from their pacemaker when the phone is turned ON.
●Should not carry the phone in a breast pocket.
- Should use the ear opposite the pacemaker to minimize the potential for interference. If you have any reason to suspect that interference is taking place, turn the phone OFF immediately.

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your service provider, or call the customer service line to discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of your device to determine if they are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information.

Turn the phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.

WEEE Notice

The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law on 13th February 2003, resulted in a major change in the treatment of electrical equipment at end-of-life.

The purpose of this Directive is, as a first priority, the prevention of WEEE, and in addition, to promote the reuse, recycling and other forms of recovery of such wastes so as to reduce disposal.

The WEEE logo (shown at the left) on the product or on its box indicates that this product must not be disposed of or dumped with your other household waste. You are liable to dispose of all your electronic or electrical waste equipment by relocating over to the specified collection point for recycling of such hazardous waste. Isolated collection and proper recovery of your electronic and electrical waste equipment at the time of disposal will allow us to help conserving natural resources. Moreover, proper recycling of the electronic and electrical waste equipment will ensure safety of human health and environment. For more information about electronic and electrical waste equipment disposal, recovery, and collection points, please contact your local city center, household waste disposal service, shop from where you purchased the equipment, or manufacturer of the equipment.

RoHS Compliance

This product is in compliance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) and its amendments.

Warranty and Other Notices

◆ Manufacturer's Warranty (page 162)
◆ Privacy Restrictions (page 164)
◆ Weather Disclaimer (page 164)
♦ Warranty Disclaimer (page 164)
♦ Limitation of Damages (page 164)
◆ Copyright and Trademark Information (page 165)

Your device has been designed to provide you with reliable, worry-free service. If for any reason you have a problem with your equipment, please refer to the manufacturer's warranty in this section. For information regarding the terms and conditions of service for your device, please visit www.sprint.com or call Sprint Customer Service at 1-888-211-4727.

Manufacturer's Warranty

12 Month Limited Warranty

HTC Corporation (the Company) warrants to the original retail purchaser of this HTC handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) month period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company's option, without charge for parts or labor directly related to the defect(s).

The antenna, keypad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase.

This Warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable.

This Warranty does not apply to:

(a) Product subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage;
(b) Product whose mechanical serial number or electronic serial number has been removed, altered or defaced;
(c) Damage from exposure to moisture, humidity, excessive temperatures or extreme environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts;
(f) Product damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse, theft or improper usage of any electrical source.

The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole.

When sending your wireless device to HTC Corporation for repair or service, please note that any personal data or software stored on the device may be inadvertently erased or altered. Therefore, we strongly recommend you make a back up copy of all data and software contained on your device before submitting it for repair or service. This includes all contact lists, downloads (i.e. third-party software applications, ringtones, games and graphics) and any other data added to your device. In addition, if your wireless device utilizes a SIM or Multimedia card, please remove the card before submitting the device and store for later use when your device is returned, HTC Corporation is not responsible for and does not guarantee restoration of any third-party software, personal information or memory data contained in, stored on, or integrated with any wireless device, whether under warranty or not, returned to HTC Corporation for repair or service.

To obtain repairs or replacement within the terms of this Warranty, the product should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the consumer's return address, daytime phone number and/or fax number and complete description of the problem, transportation prepaid, to the Company at the address shown below or to the place of purchase for repair or replacement processing. In addition, for reference to an authorized Warranty station in your area, you may telephone in the United States [phone].

THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LAIBILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.

ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR AN SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.

No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.

Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

IN USA AND CANADA: HTC Corporation

5950 Corporate Dr.

Houston, TX 77036

Privacy Restrictions

Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your device.

Weather Disclaimer

THE WEATHER INFORMATION, DATA AND DOCUMENTATION ARE PROVIDED "AS IS" AND WITHOUT WARRANTY OR TECHNICAL SUPPORT OF ANY KIND FROM HTC. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, express or implied, arising by law or otherwise, regarding the Weather Information, Data, Documentation, or any other Products and services, including without limitation any express or implied warranty of merchantability, express or implied warranty of fitness for a particular purpose, non-infringement, quality, accuracy, completeness, effectiveness, reliability, usefulness, that the Weather Information, Data and/or Documentation will be error-free, or implied warranties arising from course of dealing or course of performance.

Without limiting the foregoing, it is further understood that HTC and its Providers are not responsible for Your use or misuse of the Weather Information, Data and/or Documentation or the results from such use. HTC and its Providers make no express or implied warranties, guarantees or affirmations that weather information will occur or has occurred as the reports, forecasts, data, or information state, represent or depict and it shall have no responsibility or liability whatsoever to any person or entity, parties and non-parties alike, for any inconsistency, inaccuracy, or omission for weather or events predicted or depicted, reported, occurring or occurred. WITHOUT LIMITING THE GENERALITY OF THE FOREGOING, YOU ACKNOWLEDGE THAT THE WEATHER INFORMATION, DATA AND/OR DOCUMENTATION MAY INCLUDE INACCURACIES AND YOU WILL USE COMMON SENSE AND FOLLOW STANDARD SAFETY PRECAUTIONS IN CONNECTION WITH THE USE OF THE WEATHER INFORMATION, DATA OR DOCUMENTATION.

Warranty Disclaimer

Your warranty is invalidated if you open or tamper with the device's outer casing.

For details about warranty coverage, see "Manufacturer's Warranty" on page 162.

Limitation of Damages

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS PROVIDERS BE LIABLE TO USER OR ANY THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, IN CONTRACT OR TORT, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS ARISING OUT OF, OR RELATED TO, IN ANY MANNER, OR THE DELIVERY, PERFORMANCE OR NONPERFORMANCE OF OBLIGATIONS, OR USE OF THE WEATHER INFORMATION, DATA OR DOCUMENTATION HEREUNDER REGARDLESS OF THE FORESEEABILITY THEREOF.

Copyright and Trademark Information

© 2009 Sprint. Sprint and the logo are trademarks of Sprint. Other marks are the property of their respective owners.

HTC, the HTC logo, HTC Innovation, HTC Snap, ExtUSB, and HTC Care are trademarks and/or service marks of HTC Corporation.

Microsoft, MS-DOS, Windows, Windows NT, Windows Server, Windows Mobile, Windows XP, Windows Vista, ActiveSync, Windows Mobile Device Center, Internet Explorer, MSN, Hotmail, Windows Live, Outlook, Excel, PowerPoint, Word, OneNote and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Bluetooth and the Bluetooth logo are trademarks owned by Bluetooth SIG, Inc.

microSD is a trademark of SD Card Association.

Google is a registered trademark of Google, Inc. in the United States and other countries.

YouTube is a trademark of Google, Inc.

This device is licensed under patented keyboard technology of Research In Motion Limited including the following US Patents and foreign counterparts: 6,278,442; 6,396,482; 6,452,588; 6,489,950; 6,611,254; 6,611,255; 6,876,763; 6,873,317; 6,891,529; 6,919,879; 7,056,043; 7,073,964; 7,106,306; 7,113,111; 7,153,049; 7,158,120; 7,227,536; 6,891,529; 7,083,342; 7,096,036; 7,106,306; 7109973; and 7,220,069.

All other company, product and service names mentioned herein are trademarks, registered trademarks or service marks of their respective owners.

HTC shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from furnishing this material. The information is provided "as is" without warranty of any kind and is subject to change without notice. HTC also reserves the right to revise the content of this document at any time without prior notice.

No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storing in a retrieval system, or translated into any language in any form without prior written permission of HTC.

Index

A

A2DP 60

About 66

Account Passwords 5

Activating Your Phone 4

ActiveSync 75, 77, 78

Adding and Removing Programs 71

Adobe Reader LE 41

Airplane Mode 29, 40

Alarm 67

Album

About 50

Closing Album 52

Playing Back Video 51

Selecting a Photo or Video to View 50

Viewing an Image 50

Appointments 31

Attachment

Adding an Attachment to a Message 116

Downloading 117

Audio Booster 56

Automatic Speech Recognition (ASR) 42

B

Backlight

Adjusting Brightness 66

Setting Backlight Timeout 66

Basic Settings 66

Battery

About the Battery and Charger 15

Battery Saving Tips 17

Charging the Battery 16

Installing the Battery 2

Removing the Battery 16

Beaming Information Using Bluetooth 60

Bluetooth

About 58

Connecting a Bluetooth Hands-free or Stereo Headset 60

Modes 58

Partnerships (Pairing) 59

Turning Bluetooth On and Off 40

C

Calendar

Creating Appointments 37

Sending Appointments 38

Viewing Appointments 38

Call Forwarding 90

Call History 27

Call Waiting 89

Caller ID 89

Camera

Advanced Settings 48

Capture Modes 44

Onscreen Controls and Indicators 45

Review Screen 47

Taking Photos and Videos 44

Zoom 47

Checking Missed Calls 27

Clock & Alarms 66, 67

Comm Manager 40

Company Directory 124

Connecting to Data Services 94

Connecting to the Internet 95

Contacts 35

Contacts Picture capture mode 44

Copying and Managing Files 65

D

Data Connection 40, 94, 95

Data Services 93

Date and Time 66

Device

Name 66

Protecting 70

Resetting 72

Direct Push 40, 120

Disable Phone Lock 70

Display Settings 66

Downloading

Downloading a Complete Email Message 117

Email Settings 114, 118

File Attachments 117

Satellite Data 142

Web Feeds 105

E

Email

Custom Domain Email 115

Email Panel 32

Email Setup Wizard 113

Internet Email 114

Outlook Email 113

Replying To or Forwarding a Message 117

Sending 116

Types of Email Accounts 113

Emoticon

Windows Live Messenger 101

Enable Phone Lock 70

Encrypt Files on Your microSD Card 63

Exchange Server 119, 120

F

File Explorer 65

Files

Copying 65

Finding Contacts

Company Directory 124

G

Getting Help 6

Getting Started 34

Google Mobile 103

GPS 141

QuickGPS 142

Sprint Navigation 143

H

Home Screen 17

HTC Home 30

Appointments Panel 31

Email Panel 32

Getting Started Panel 34

Home panel 30

Internet Explorer Panel 33

Messages Panel 31

Missed Call/Voicemail Panel 31

Settings 34

Weather Panel 32

i

IMAP4 114

Inner Circle 111

Inserting a microSD Card 62

Instant Messaging 110

International Call 25

Internet Email 114

Internet Explorer Mobile 97

Internet Explorer Panel 33

L

Live Messenger 100

M

Making a Call

Call Forwarding 90

Calling From Contacts 25

International Call 25

Phone Screen 24

Roaming 90

Three-Way Call 90

Meeting Requests 123

Memory 71

Messages 31

Messaging

Email 113

Instant Messaging 110

Text Messaging (SMS) 85

Video and Picture Messaging (MMS) 88

Windows Live Messenger 100

Messenger 100

microSD Card

Checking Available Memory 63

Encrypting Files On Your microSD Card 63

Inserting 62

Managing 63

Removing 62

Using Device as a USB Drive 64

Microsoft Office Mobile 41

Missed Call Notification 27

Missed Call/Voicemail 31

MMS 88

MMS Video Capture Mode 44

MP3 Trimmer 57

Music

Sprint Music Store 133

N

NASCAR Sprint Cup Mobile 127

Navigating the Web 97

News Channels (Web Feeds) 105

NFL Mobile Live 130

Numeric mode 23

0

Office Mobile 41

P

Panorama Capture Mode 44

Passwords 5

Phone

Activating 4

Lock 70

Phone Services 68

Photo Capture Mode 44

Picture Theme Capture Mode 44

Playing Media 55

Playing Music

Windows Media Player Mobile 55

Playlists

Windows Media Player Mobile 55

POP3 114

Power Management 68

Profiles 67

Programs

Adding and Removing 71

Protecting Your Device 70

Putting a Call On Hold 26

Q

Quick Menu 20

QuickGPS 142

QWERTY keyboard 21

R

Recording

Voice Recorder 43

Regional Settings 66

Remote Desktop Mobile 109

Removing the microSD Card 62

Replying

Email 117

Text (SMS) 87

Resetting 72

Clear Storage 72

Hard Reset 72

Soft Reset 72

Restarting 72

Review Screen 47

Ring Tone 67

Ring Type 67

Ringer Settings 67

Roaming 90

RSS Hub 105

s

Sending

Email 116

Meeting Request 38

Text Message 86

Set Personal Information 68

Settings

Alarms and Notifications 67

Date and Time 66

Device Name 66

Display 66

Power Management 68

Regional Settings 66

Ringer 67

Set Personal Information 68

Settings Panel 34

SMS 85

Sounds & Notifications 67

Speakerphone 26

Speed Dial 28

Sprint Account Passwords 5

Sprint Instant Messaging 110

Sprint Music Store 133

Sprint Navigation 143

Sprint Operator Services 7

Sprint Software Store 105

Sprint TV 125

Start Menu 19

Status Icons 18

Streaming Media 139

Switching Between Two Calls 26

Synchronizing

ActiveSync 77

Choosing What Information Is Synchronized 78

Exchange Server 119

Music and Videos 79

Using Bluetooth 78

Video and Audio Files 54

Windows Mobile Device Center 75

Your Device With Your Computer 77

T

Taking Photos and Videos 44

Task Manager 70

Tasks 39

Text Messages

Creating a New Text Message 85

Sending 86

Three-Way Call 90

Troubleshooting

Sync Connection 78

Windows Media Player Mobile 55

Turning the Phone On and Off 29, 40

Turning Your Device On and Off 15

U

USB to PC 78

Using Your Device as a USB Drive 63

V

Video and Picture Messaging (MMS) 88

Video Capture Mode 44

Voice Recorder 43

Voicemail 5, 25, 82

W

Weather 32

Web and Data Services 93

Windows Live 98

Windows Live Messenger 100

Windows Live Search 145

Windows Media Player Mobile 52

Windows Mobile Device Center 75

Windows Update 72

X

xT9 mode 21

Y

YouTube 135

Z

Zoom 47
