Product Type	Wireless Charging Pad
Brand	Mophie
Model	Charge Stream Pad Mini
Charging Standard	Qi
Input	5V/2A via USB-C
Output Power	Up to 10W (compatible with 7.5W iPhone and 10W Android)
Dimensions	90 mm diameter x 10 mm height
Weight	60 g
Material	Plastic with silicone ring
LED Indicator	Blue LED for charging, green for fully charged
Compatibility	Qi-enabled smartphones, including iPhone 8 and newer, Samsung Galaxy S8 and newer
Safety Features	Overcharge protection, foreign object detection, temperature control
Cleaning Instructions	Wipe with a soft, dry cloth; do not use liquids
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Warranty	2 years limited warranty
Included Accessories	Charging pad, USB-C cable, user manual
Repairability	Not user-serviceable; contact Mophie support for issues

Frequently Asked Questions - Charge Stream pad mini Mophie

What is the Mophie Charge Stream Pad Mini compatible with?

It is compatible with any Qi-enabled device, including iPhone 8 and newer, Samsung Galaxy S8 and newer, and many other Android phones.

What is the maximum charging speed?

The pad supports up to 10W for compatible Android devices and 7.5W for iPhones. Actual speed depends on your device's Qi implementation.

Does the pad work with a phone case?

Yes, it works with most cases up to 3 mm thick. Avoid metallic or magnetic cases as they may interfere with charging.

What does the LED indicator mean?

A solid blue light indicates charging, green means fully charged, and blinking blue indicates an error or foreign object detected.

Is it safe to leave the charger on overnight?

Yes, the pad has overcharge protection and will stop charging once the device is full, making it safe for overnight use.

How do I clean the charging pad?

Unplug the pad and wipe it with a soft, dry cloth. Do not use liquids or abrasive cleaners.

What input adapter do I need?

Use a USB-A to USB-C cable (included) with a 5V/2A wall adapter (not included). Higher wattage adapters may not increase charging speed.

Why is my phone not charging?

Ensure the phone is centered on the pad and that no foreign objects are between them. Try removing the case and check the power source.

Does the pad charge through thick cases?

It can charge through cases up to 3 mm thick. Thicker cases or those with metal attachments may prevent charging.

What is the warranty period?

The Mophie Charge Stream Pad Mini comes with a 2-year limited warranty. Contact Mophie support for claims.

USER MANUAL Charge Stream pad mini Mophie

& Other Qi-enabled Smartphones

Welcome

Thank you for purchasing the mophie® charge stream™ pad mini. The charge stream pad mini will wirelessly charge Apple and Samsung Qi-compatible smartphones, mophie cases with wireless charging, and other devices with Qi wireless technology. The mophie charge stream pad mini charges on contact.

Package contains

• mophie charge stream pad mini
- Micro-USB cable
- Quick-start guide

Features

• Charges on contact. Simply place an Apple or Samsung Qi-compatible smartphone, a mophie case with wireless charging, or other device with Qi wireless technology on the charge stream pad mini to immediately begin charging.
• The rubberized top with built-in microsuction pad help your device stay in place to maintain a constant connection while it's wirelessly charging, and protect your device from scratches.
• Low standby current draw lets you leave the wireless charging pad plugged in when it's not in use.
• Compact design for use in the office or at home.

Compatibility

The mophie charge stream pad mini will wirelessly charge Apple and Samsung Qi-compatible smartphones, mophie cases with wireless charging, and other devices with Qi wireless technology.

Note: The charge stream pad mini will not fast charge devices capable of being fast charged. It will charge them at the standard Qi charging power of up to 5 watts.

Charging your wireless device

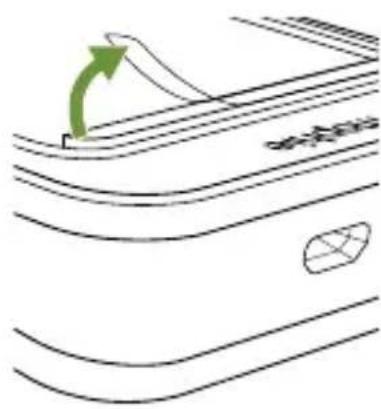

1. Remove the protective film from the microsuction pad.

Line drawing of a car door handle with a green arrow indicating clockwise motion (no text or symbols)

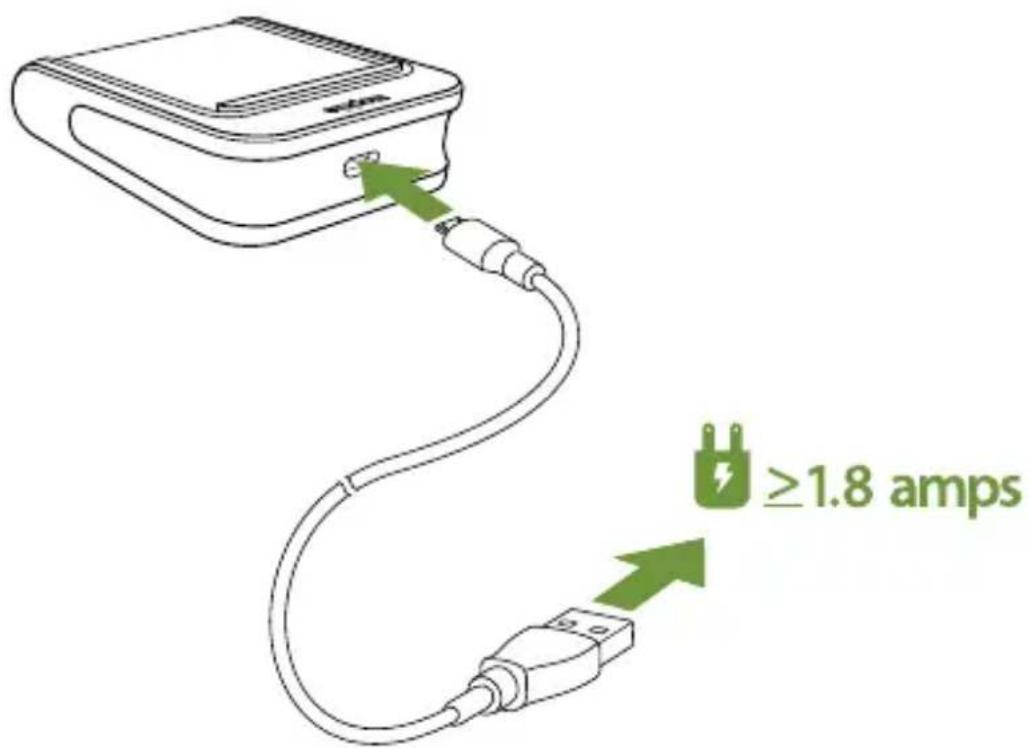

1. Use the supplied micro-USB cable to connect the charging pad to an adapter capable of at least 1.8 amps.

≥1.8 amps

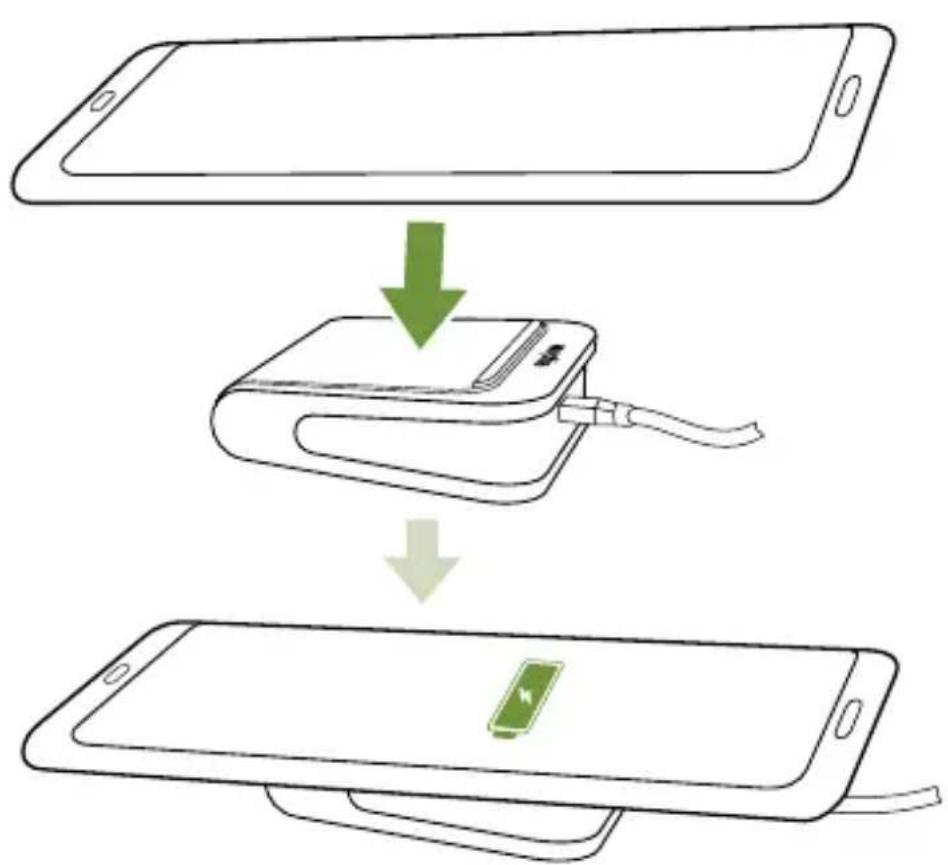

1. Place the wireless device on the charging pad as shown in the illustration below. Make sure the center of the device is aligned over the center of the charging pad. Charging will begin on contact.

Charging status indicator

The charging pad has an LED that indicates its charging status:

LED illuminated continuously:

- The wireless device is properly charging.

LED flashing continuously:

- A metallic foreign object (keys, etc.) has been detected on the charging pad.

Taking care of your charging pad

- Keep your wireless charging pad dry and away from moisture and corrosive materials.

- Do not clean your wireless charging pad with harsh chemicals, soaps or detergents. Just wipe it with a soft, water-dampened cloth.

- Use a piece of tape to clean any dust and dirt from the microsuction pad on top of the charger.

Warranty

At mophie, we are dedicated to making the best quality products. To back this up, this product is warranted for 2 years. For full details regarding warranty terms and exclusions, please visit: mophie.com/warranty. This warranty does not affect any statutory rights that you may be entitled to. Keep a copy of your purchase receipt as proof of purchase. Be sure to register your product at

mophie.com. Failure to register your product and/or provide proof of purchase may void the warranty.

Exclusions & Limitations

Except for the limited warranty expressly set forth or to the extent restricted or prohibited by applicable law, mophie expressly disclaims any and all other warranties express or implied, including any warranty of quality, merchantability, or fitness for a particular purpose, and you specifically agree that mophie shall not be liable for any special, incidental, indirect, punitive, or consequential damages of any type on any mophie product. In addition to and without limiting the generality of the foregoing disclaimers, the limited warranty does not, under any circumstances, cover the replacement or cost of any electronic device or personal property inside or outside of the mophie product.

You may have additional warranty rights depending on your country, state or province. Further, some countries, states and provinces do not allow the exclusion or limitation of incidental or consequential damages or exclusions or limitations on the duration of implied warranties, so the above may not apply to you. If any provision of the warranty is found unlawful, void or unenforceable, that provision shall be deemed severable and shall not affect any remaining provision.

Customer service

Telephone: 1-888-8mophie

International: [phone]

Web: www.mophie.com/cs

Warning

Read all instructions and warnings prior to using this product. Improper use of this product may result in product damage, excess heat, toxic fumes, fire, or explosion, for which damages you (“Purchaser”), and not mophie llc (“Manufacturer”) are responsible.

Do not store device in high-temperature environment, including heat caused by intense sunlight or other forms of heat. Do not place device in fire or other excessively hot environments.
Do not disassemble this device or attempt to re-purpose or modify it in any manner.
For questions or instructions for the various ways to charge using this device refer to the Charging Your Wireless Device section of this manual.
Do not attempt to replace any part of this device.
If this device is accessible to or may be used by a minor, purchasing adult agrees to be solely responsible for providing supervision, instruction, and warnings. Purchaser agrees to defend, indemnify, and hold Manufacturer

harmless for any claims or damages arising from unintended use or misuse by a minor.

All products have gone through a thorough quality assurance inspection. If you find that your device is excessively hot, is emitting odor, is deformed, abraded, cut or is experiencing or demonstrating an abnormal phenomenon, immediately stop all product use and contact Manufacturer.

To comply with FCC RF exposure compliance requirements, the wireless charging pad must be used with a separation distance of at least 10 cm from all persons.

Legal

This product is meant for use only in conjunction with the appropriate device. Please consult your device packaging to determine whether this product is compatible with your particular device. Manufacturer is not responsible for any damages to any device incurred through the use of this product.

Manufacturer shall not in any way be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this product in conjunction with any device or accessory other than the appropriate device for which this product is designed. Manufacturer will not be responsible for

any damages you or any third party may suffer as a result of misuse of this product as outlined above. Purchaser agrees to defend, indemnify, and hold Manufacturer harmless for any claims or damages arising from unintended use or misuse, including use with an unintended device.

mophie, charge stream, Stay Powerful, mophie loves you, the five-circles design, and the mophie logo are trademarks of mophie inc. Apple is a trademark of Apple Inc. Samsung is a trademark of Samsung Electronics Co., Ltd. The 'Qi' symbol is a trademark of the Wireless Power Consortium. All rights reserved. Patents: mophie.com/patents.

This device complies with part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.

CAUTION: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC Rules, this device must be used with certified peripherals and shielded cables. All peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables may result in interference to radio or reception.

MODIFICATION: Any changes or modifications of this device could void the warranty.

Statement of Compliance

Hereby, ZAGG International declares that the radio equipment wireless charging pad is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.mophie.com/cert_red

WEEE Declaration

All of our products are marked with the WEEE symbol; this indicates that this product must NOT be disposed of with other waste. Instead it is the user's responsibility to dispose of their waste electrical and electronic equipment by handing it over to an approved re-processor, or by returning it to mophie inc. for reprocessing. For more information about where you can send your waste equipment for recycling, please contact mophie inc. or one of your local distributors.

STAY POWERFUL®
