USER MANUAL DA-70135-2 ASSMANN Electronic
USB 2.0 Sharing Switch


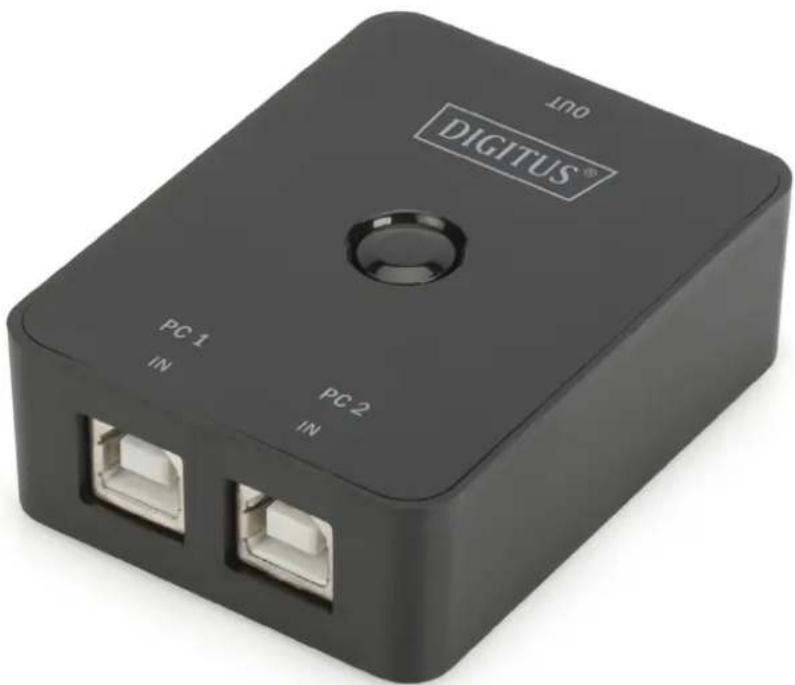

DIGITUS® OUT PC 1 IN PC 2 INUser Manual
DA-70135-2
Getting started with USB 2.0 Sharing Switch
These sharing switches are ideal for multiple PCs to share one USB device. The USB 2.0 sharing Switch has designed a user-friendly interface that makes device sharing easier. No more extra complex driver download procedures are necessary. Only a few clicks and you can start to explore the USB adventures. USB connections can be found in various devices, from PC cameras to scanners, printers, Hubs, and KVM switches, As USB technology continues its reign in the computer peripheral market, USB 2.0 Sharing Switches offer a completely cost-effective solution for the small business and home user to manage their network layout.
PACKAGE CONTENT
• 1 x Main unit: USB 2.0 Sharing switch
- 1 x Manual
- 2 x USB 2.0 Connection cables, 1.5m
FEATURES
Compliant with USB 2.0 specifications
Use one USB 1.1/2.0 device with two PCs
Operating System Support: Vista/XP/2000, Mac 9.2 and higher

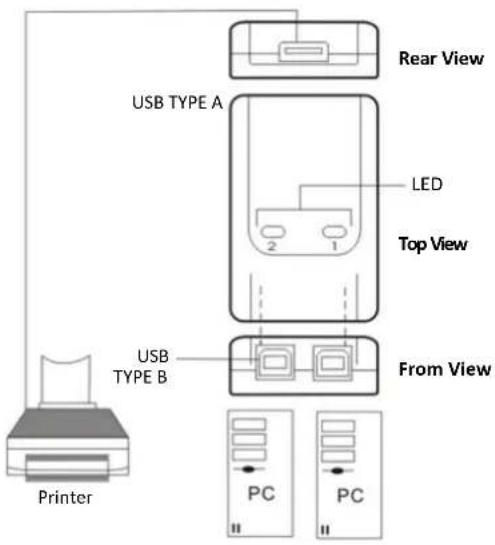

HARDWARE INSTALLATION
2 x USB B Type connectors connect to each PC and 1 USB A Type connector attaches to the USB device(s).
| PC port & Device port 1 USB A Type/2 USB B Type | |
| Module Dimension (mm) 69×42×20(mm) | |

