USER MANUAL G2790PX AOC

LCD Monitor User Manual

E2770SD/E2770SD6/E2770SHE/E2770PQU/E2770SH

Q2770Pqu

G2770Pqu/G2770PF

M2770V/M2870V/M2870VHE/M2870VQ

I2770V/I2770VHE/I2770PQ

(LED Backlight)

Safety 4

National Conventions....4

Power 5

Installation....6

Cleaning....7

Other 8

Setup 9

Content of the Box 9

Setup Stand....10

Adjusting Viewing Angle....11

Connecting the Monitor....12

Wall Mounting....15

AOC Anti-Blue Light Feature Description (Optional) 17

Adjusting 18

Setting Optimal Resolution ....18

Windows Vista 18

Windows XP 20

Windows ME/2000....21

Windows 8....22

Hotkeys....24

Using "MHL(Mobile High-Definition Link)" (Optional) 26

OSD Setting....27

Luminance....28

Image Setup 30

Color Setup....31

Picture Boost 32

OSD Setup 33

Extra....34

Exit....35

LED Indicator 36

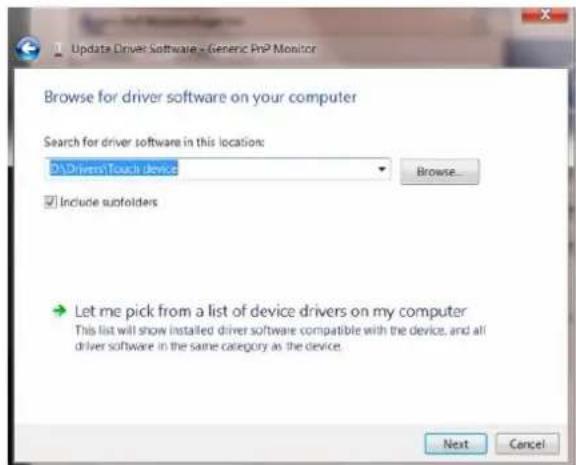

Driver 37

Monitor Driver 37

Windows 2000....37

Windows ME....37

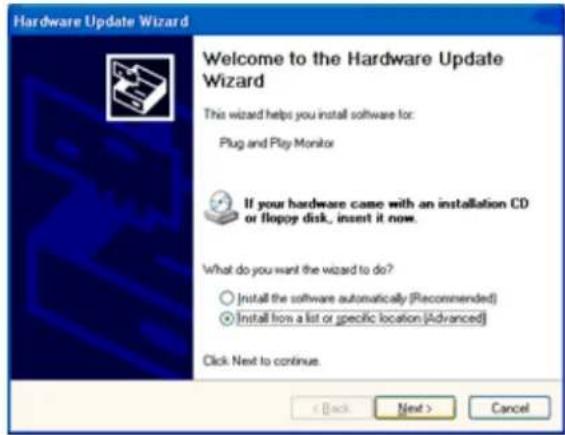

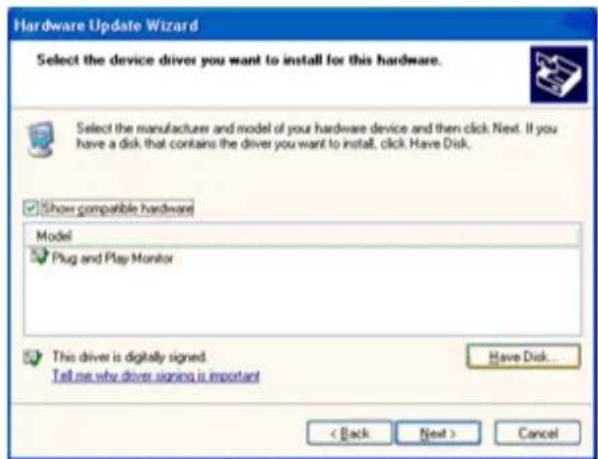

Windows XP 38

Windows Vista 41

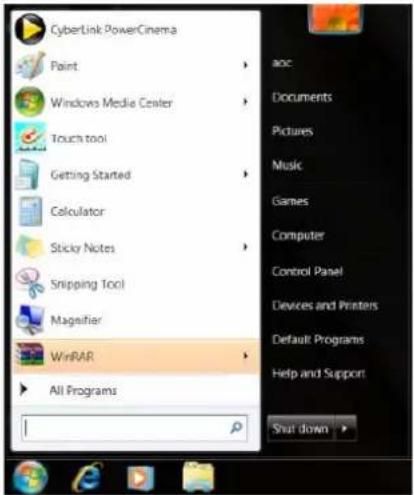

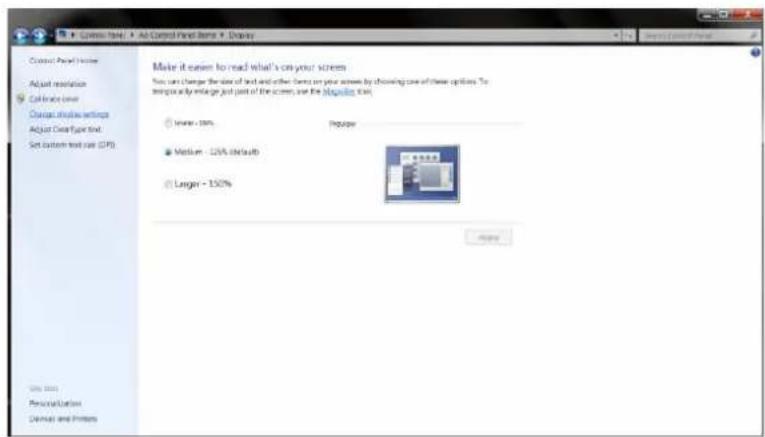

Windows 7....43

Windows 8....47

i-Menu....51

e-Saver 52

Screen+ 53

Troubleshoot 54

Specification....56

General Specification....56

Preset Display Modes....62

Pin Assignments 65

Plug and Play....67

Regulation....68

FCC Notice 68

WEEE Declaration (Optional) 69

WEEE Declaration for India (Optional) 69

EPA Energy Star 70

EPEAT Declaration....70

EPEAT Declaration....71

TCO DOCUMENT 72

Service....73

Warranty Statement for Europe 73

Warranty Statement for Middle East and Africa (MEA) 75

AOC Pixel Policy ISO 9241-307 Class 1 ....77

Warranty Statement for North & South America (excluding Brazil) 78

Safety

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

The wall socket shall be installed near the equipment and shall be easily accessible.

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.

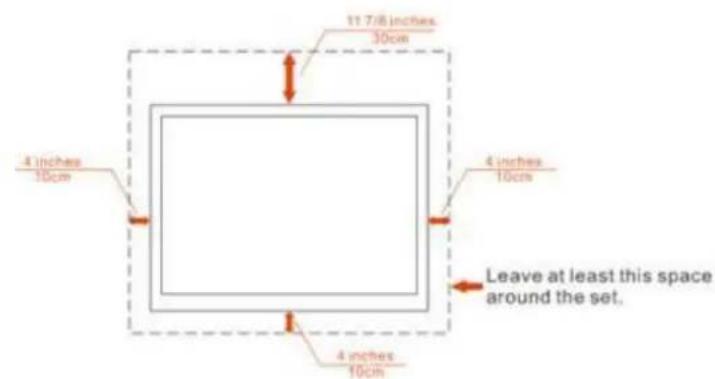

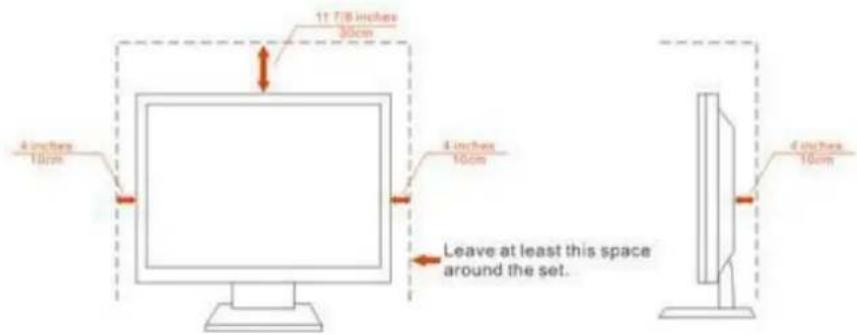

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the stand:

Installed on the wall

11 7/8 inches 30cm 4 inches 10cm 4 inches 10cm Leave at least this space around the set. 4 inches 10cm

Installed with stand

4 inches 10cm 11 7/8 inches 30cm 4 inches 10cm Leave at least this space around the set. 4 inches 10cm

Cleaning

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.
! Please disconnect the power cord before cleaning the product.

H₂O

Simple line drawing of a computer monitor with a cable and a switch, no text or symbols present.

Illustration of a hand interacting with a computer monitor, showing scroll arrows (no text or symbols)

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
For display with glossy bezel the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

Setup

Content of the Box

Monitor CD Manual Monitor Base /Stand Wire holder MHL cable Power Cable DVI Cable Analog Cable HDMI Cable USB Cable Audio Cable DP Cable

* Not all signal cables (Analog, Audio, DVI, USB, DP, MHLand HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.

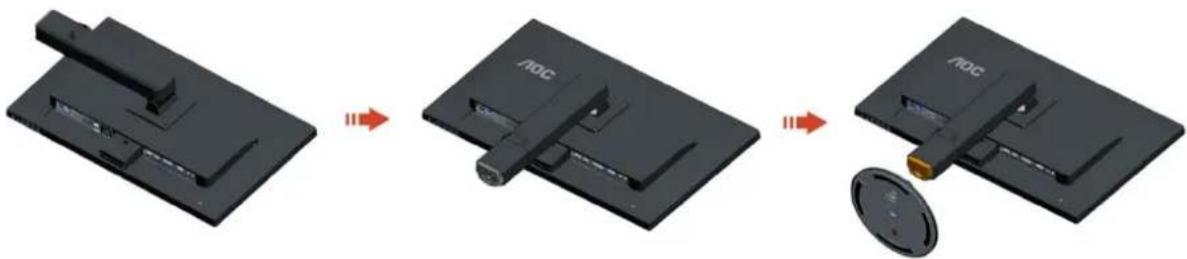

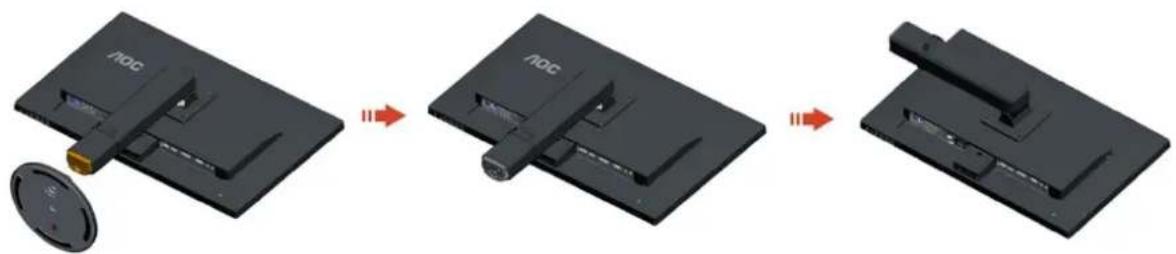

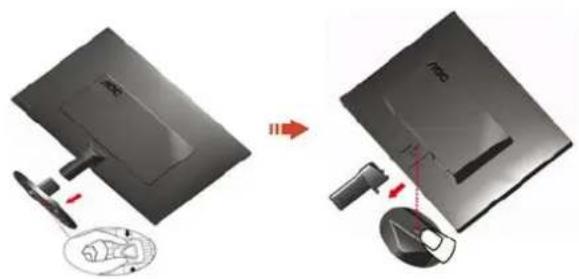

Setup Stand

Please setup or remove the Stand following the steps as below.

70S/70V

Setup

Two black computer monitors with red arrows indicating adjustment or change, no visible text or symbols

Remove:

Two-step diagram showing a computer monitor with a mouse and ear, connected by a red arrow indicating transformation (no text or symbols present)

70P

Setup:

Three-step diagram showing a device being processed, with no visible text or symbols.

Remove:

Three-step diagram showing a device being processed, with no visible text or symbols.

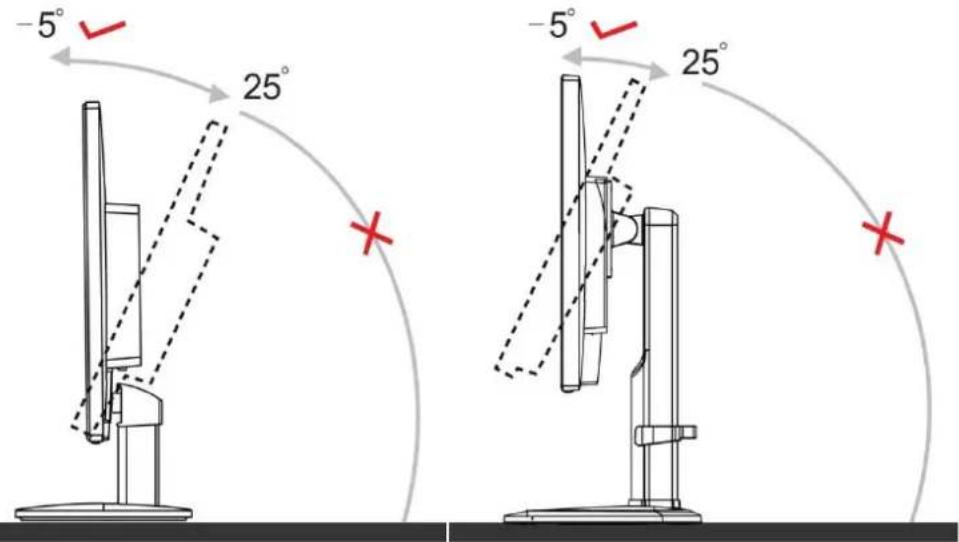

Adjusting Viewing Angle

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.

Hold the stand so you will not topple the monitor when you change the monitor's angle.

You are able to adjust the monitor's angle from -5^ to 25^ .

-5° 25° -5° 25°

NOTE: Do not adjust the viewing angle over 25 degrees in order to avoid damage.

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen. Do not put your hand close to the gap between the monitor and the base to avoid the injury when adjusting the viewing angle.

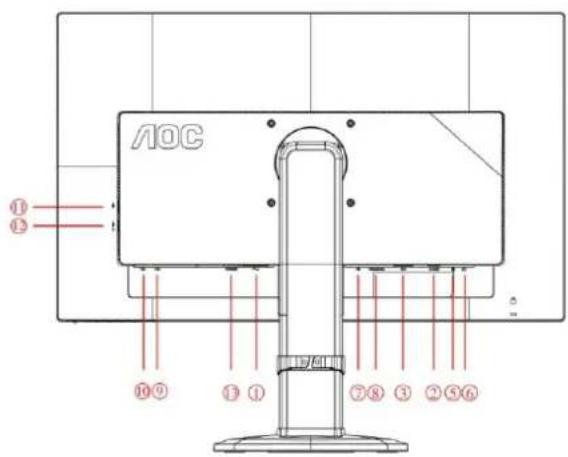

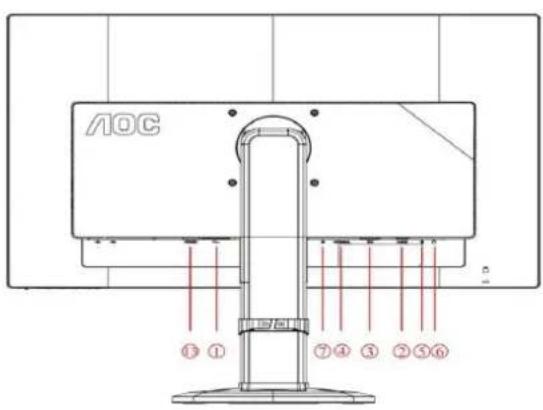

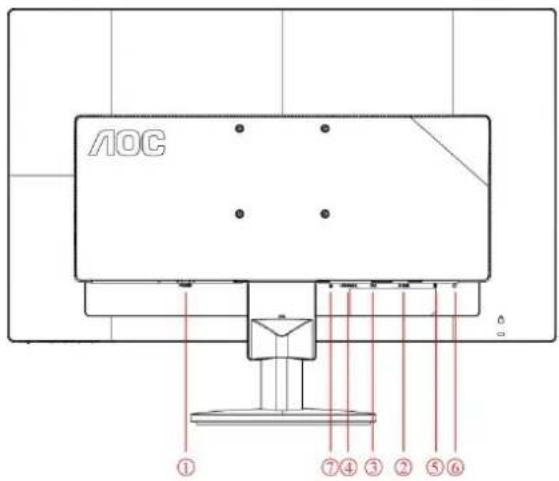

Connecting the Monitor

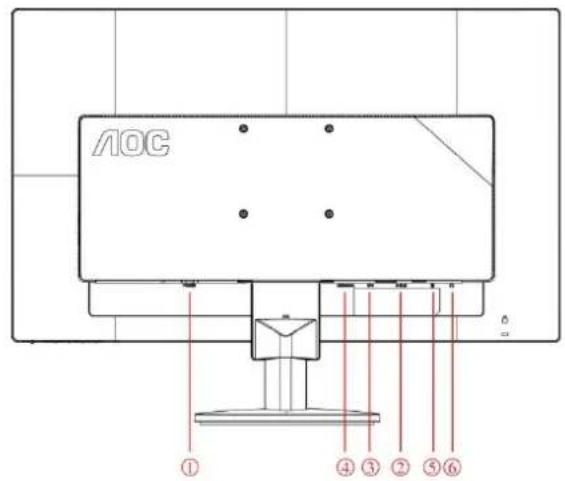

Cable Connections In Back of Monitor and Computer:

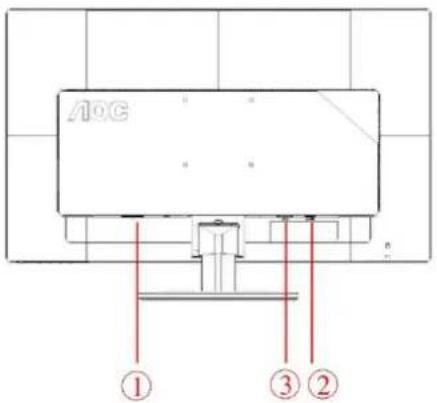

1. E2770SD/E2770SD6/M2770V/M2870V/I2770V

AOC ① ③ ②

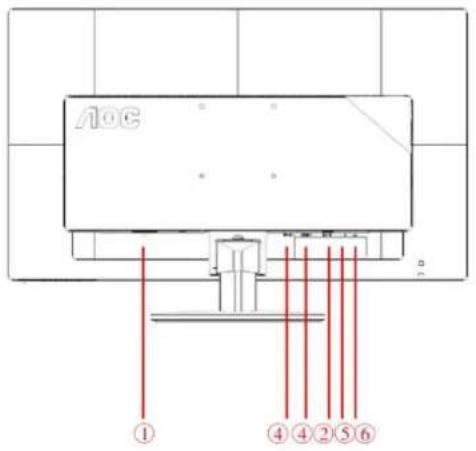

1. E2770SHE

AOC ① ④ ④ ② ⑤ ⑥

3.E2770PQU

AOC ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟● ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟○ ㉟O

1. Q2770PQU/G2770PQU


AOC ① ② ⑩⑨ ⑬① ⑦②③④⑤⑥

1. M2870VHE / I2770VHE/E2770SH


AOC ① ④ ③ ② ⑤ ⑥

1. M2870VQ


AOC ① ⑦④③②⑤⑥

7.12770PQ

AOC ① ① ⑦ ④ ③ ② ⑤ ⑥

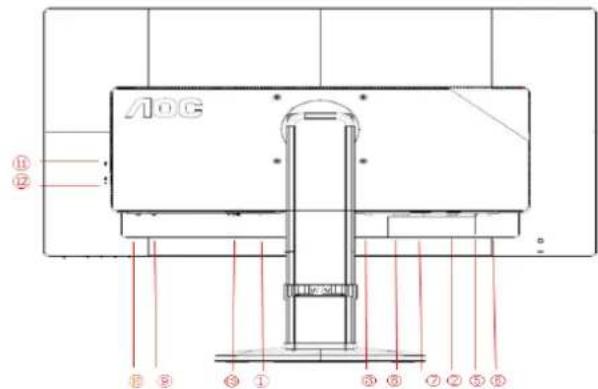

8.G2770PF

AOC ⑪ ⑫ ⑬ ⑧ ③ ① ③ ⑥ ⑦ ② ⑤ ⑬

1. Power
2. Analog (D-Sub 15-Pin VGA cable)
3. DVI
4. HDMI
5. Audio in
6. Earphone out
7. Display port
8. HDMI/MHL
9. USB input
10. USB 2.0x2
11. USB 3.0
12. USB 3.0+ fast charging
13. AC power switch

To protect equipment, always turn off the PC and LCD monitor before connecting.

1. Connect the power cable to the AC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port.
3. (Optional – Requires a video card with DVI port) Connect one end of the DVI cable to the back of the monitor and connect the other end to the computer's DVI port.
4. (Optional – Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of the monitor and connect the other end to the computer's HDMI port.
5. (Optional – Requires a video card with DP port) - Connect one end of the DP cable to the back of the monitor and connect the other end to the computer's DP port.
6. (Optional – Requires a video card with MHL port) - Connect one end of the MHL cable to the back of the monitor and connect the other end to the computer's MHL port.
7. (Optional)Connect the audio cable to audio in port on the back of the monitor
8. Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.

System requirement: refer to G2770PF

FreeSync function:

1. FreeSync function is working with DisplayPort.
2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com
   • AMD Radeon R9 295X2
   • AMD Radeon R9 290X
   • AMD Radeon R9 290
   • AMD Radeon R9 285
   • AMD Radeon R7 260X
   • AMD Radeon R7 260

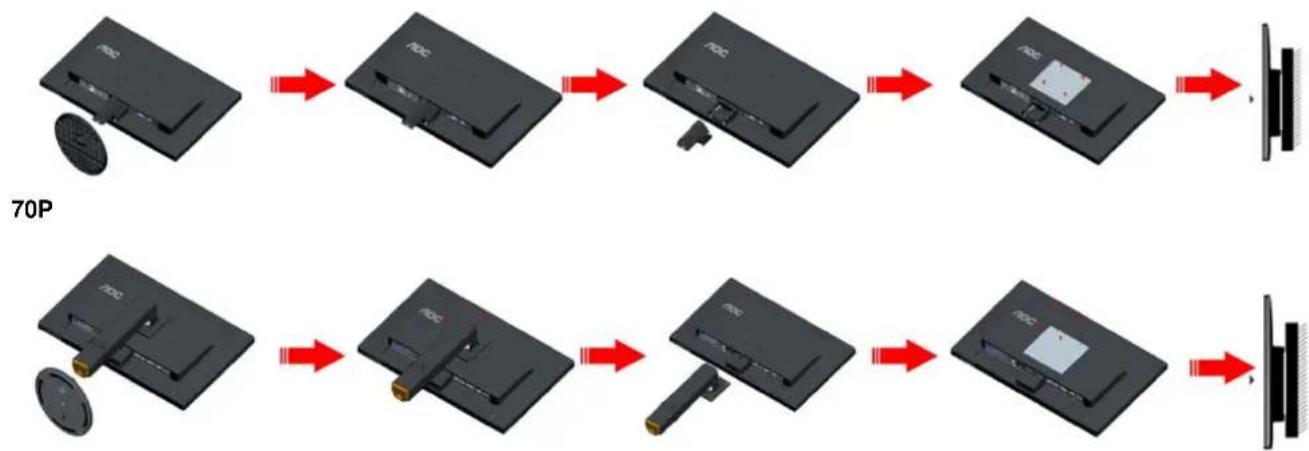

Wall Mounting

Preparing to Install An Optional Wall Mounting Arm.

70S/70V

This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure. Follow these steps:

1. Remove the base.
2. Follow the manufacturer's instructions to assemble the wall mounting arm.

3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor.

4. Insert the 4 screws into the holes and tighten.

5. Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall.

Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC.

AOC Anti-Blue Light Feature Description (Optional)

Studies have shown that just as ultra-violet rays can cause eye damage, blue light rays from LED displays can cause damage to different parts of the eye and affect vision over time. AOC Anti-Blue Light feature uses a smart technology to reduce the harmful blue light waves without affecting the color or image of the display.

Adjusting

Setting Optimal Resolution

Windows Vista

For Windows Vista:

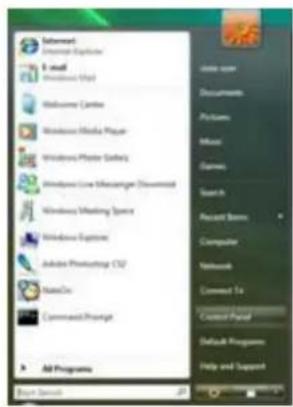

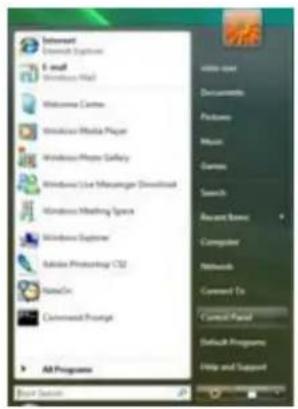

1 Click START.

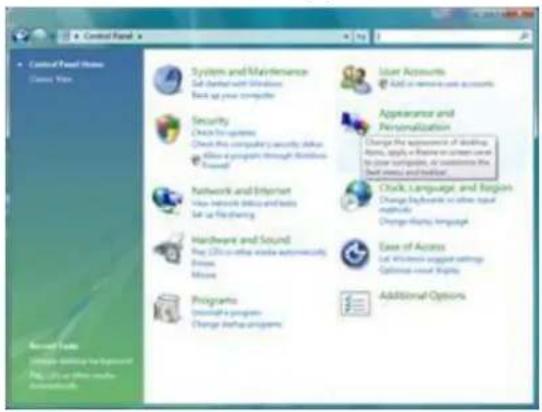

2 Click CONTROL PANEL.

Internet Internet Explorer I mod Windows U3d Welcome Cartes Windows Media Player Windows Fighter Cartes Windows Core Magician Download Windows Monitoring Space Windows Express JavaScript Programming C32 Name:\ Command Prompt All Programs Edit Speech Data type Documents Pictures Music Games Search Recent Bars Computer Network Connect To Create Panel Default Programs Help and Support

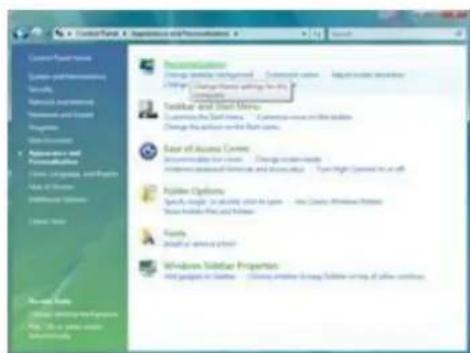

3 Click Appearance and Personalization.

Control Panel Help Class: Web System and Maintenance Get Started with Windows Help you your computer Security Check for options Check this computer currently static Allow a program through Windows Networks and Internet Use wireless static and static Set up Flashing Hardware and Sound Play iOS to other wireless automatically Remove Programs Command a program Change closing programs User Accounts Add or service with Accounts Appearance and Personalization Change the appearance of settings items, apply a theme in order from to your templates, to customize the Windows and Windows Clock, Language, and Register Change keyboards or other key methods Change audio, language Ease of Access Let Windows vsgard settings Options used by Display Additional Options

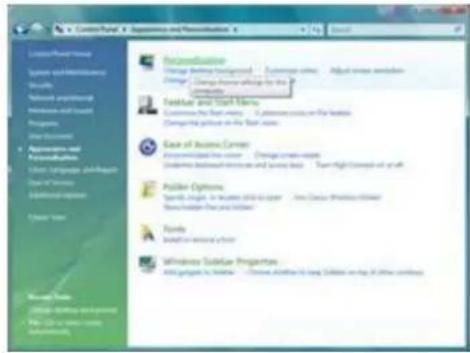

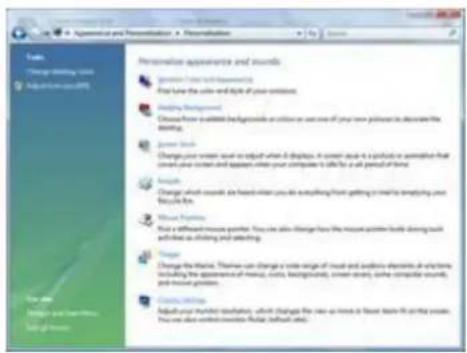

4 Click Personalization

C:\Users\Fench 2\Agostasia and Personalization Configuration Change setting configuration Change settings Adjust current settings Change settings with the key Settings TableBlue and Sheet Metrics Customize the Sheet Metrics Customize user on the tables Change the access to the User Teams. Ease of Access Current Set up or reduce the user's access Change settings Set up or reduce the user's access Type High Connected to an off Options Options Specific options in selecting your Open - Use Control Window Properties Show available Files and Settings Equity Details of service providers Windows Tabular Properties Add queries to TableBlue - Change sensitive to new Tabular strings of all users.

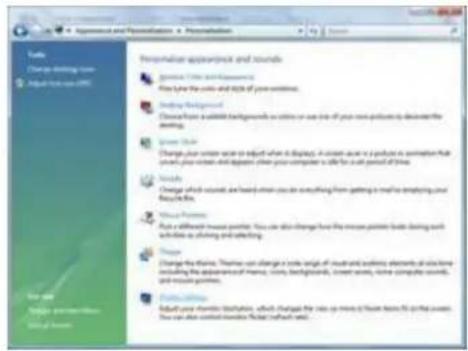

5 Click Display Settings.

Personal appearance and sounds Games: 1000 times Face like the color and style of your colors. Background Choose from available backgrounds as colors or use one of your own patterns to deliver the meeting. Sound Change your color uses to adjust when it displays. A screen uses a product in animation that parks, your screen and apparaes, please your computer is able to start upon of time. Sounds Change which sounds are ready when you are everything from getting a mask to displaying your resources. Visual Patterns Look a different music picture. You can also change how the music picture looks during each activity as clicking and clicking. Change Change the themes. That's can change a note length of audio and auditory elements at all home including the appearance of memory, voice, background, cover words, name, computer sounds, and audio pictures. Details: Adjust your character distributions, which change the size up more than from home (or if the audience You can also control more specific methods).

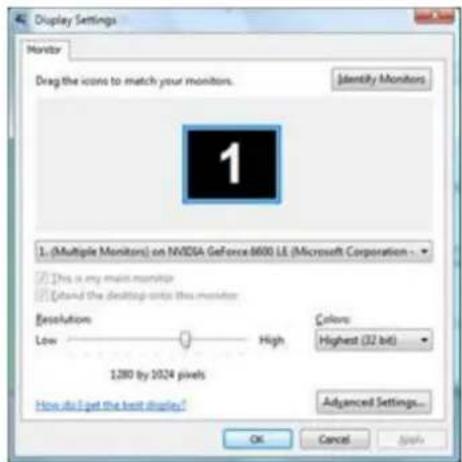

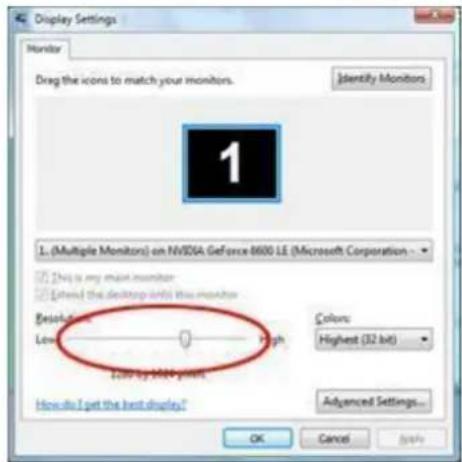

6 Set the resolution SLIDE-BAR to Optimal preset resolution

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 L. (Multiple Monitors) on NVIDIA GeForce 8600 LE (Microsoft Corporation - This is my main monitor Entered the desktop units this monitor Resolution: Low High Color: Highest (32 bit) Load by 9600 points How do I get the best display? Advanced Settings... OK Cancel Apply

Windows XP

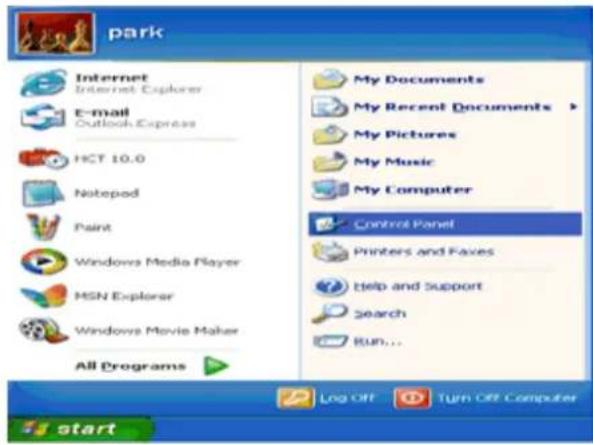

For Windows XP:

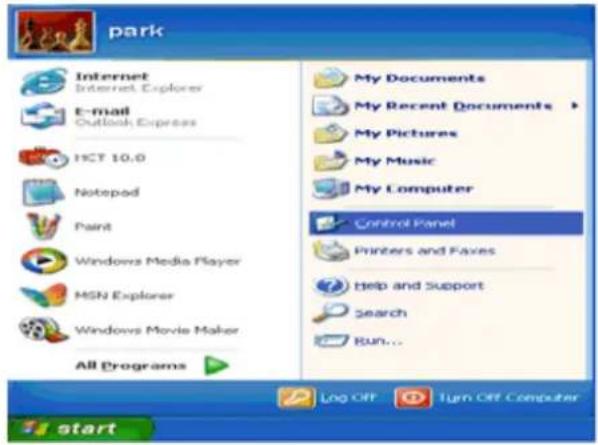

1 Click START.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Faxes Help and Support Search Run... Log Off Turn Off Computer start

2 Click SETTINGS.
3 Click CONTROL PANEL.

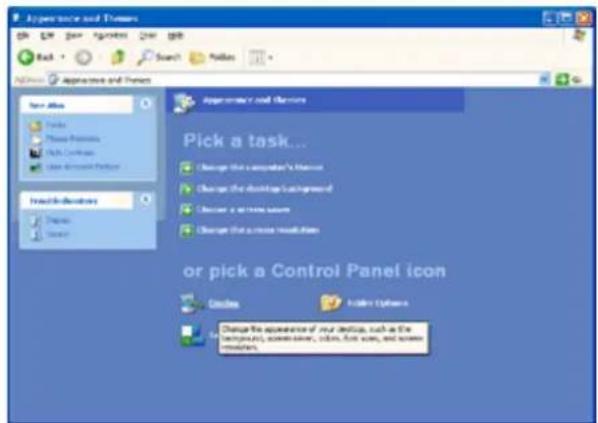

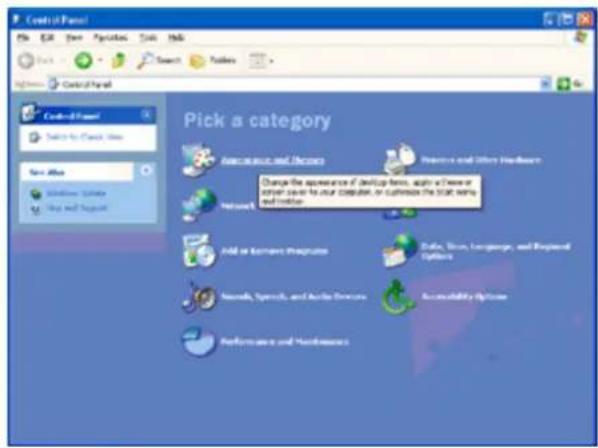

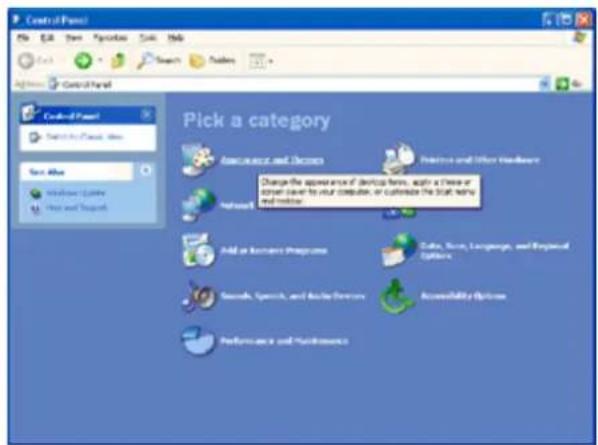

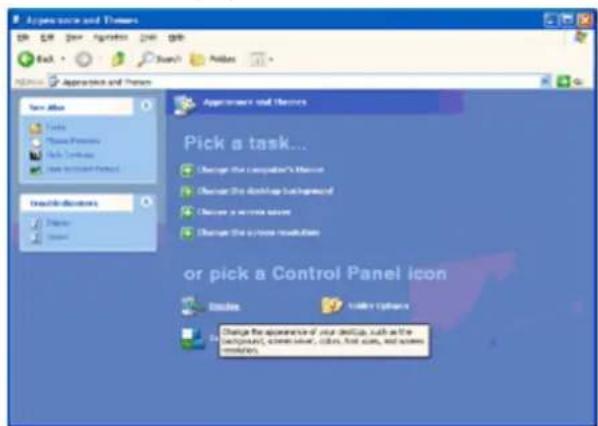

4 Click Appearance and Themes.

Control Panel File Edit View Favorites Tools Help Control Panel Control Panel Select to Control Panel Save As Windows Update Help and Support Pick a category Accessories and Discounts Preferences and Other Hardware Change the appearance of .dental tools, with a Time or clock saved for your computer, or customizing the Start Window and Window Networks Add or Increase Programs Cable, Scene, Language, and Environmental Options Smooth, Speech, and Audio Services Accessibility Options Performance and Maintenance

5 Double click DISPLAY.

Approve and Features OK Apply Apply Apply Apply Apply Apply Back Search Push Push Search Push Search Appravise and Features New Access Tools Please Properties Help Controls Use Microsoft Provider Show Information Preview Search Approve and Features Pick a task... Change this computer's features Change the desktop background Change it's more features Change that a movie resolution or pick a Control Panel icon Create Make Options Change the appearance of your details, such as the backgrounds, screen sizes, sizes, foot size, and screen modules.

6 Click SETTINGS.

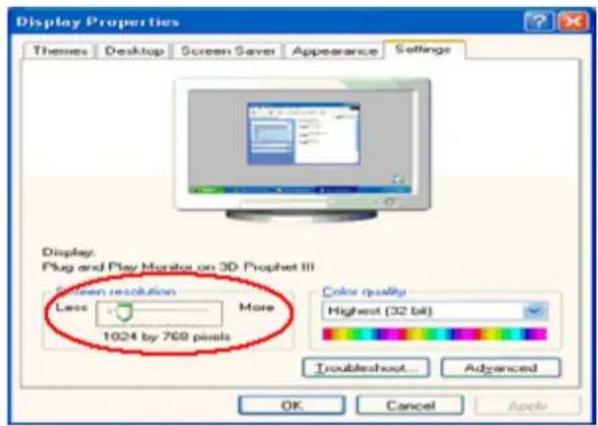

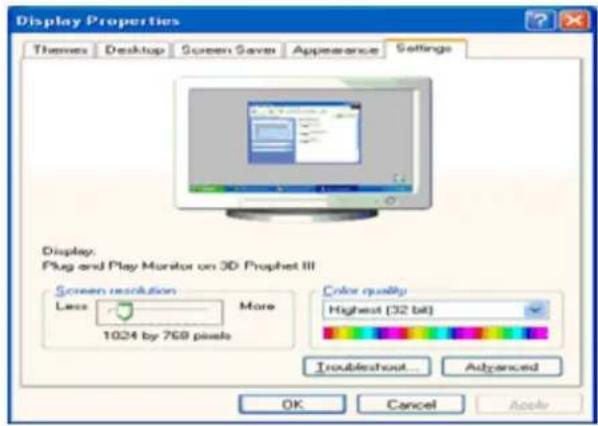

7 Set the resolution SLIDE-BAR to Optimal preset resolution

Display Properties Themes Desktop Screen Save Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 769 pixels Color quality Highest (32 bit) Troubleshoot Advanced OK Cancel Apply

Windows ME/2000

For Windows ME/2000:

1 Click START.
2 Click SETTINGS.
3 Click CONTROL PANEL.
4 Double click DISPLAY.
5 Click SETTINGS.

6 Set the resolution SLIDE-BAR to Optimal preset resolution

Windows 8

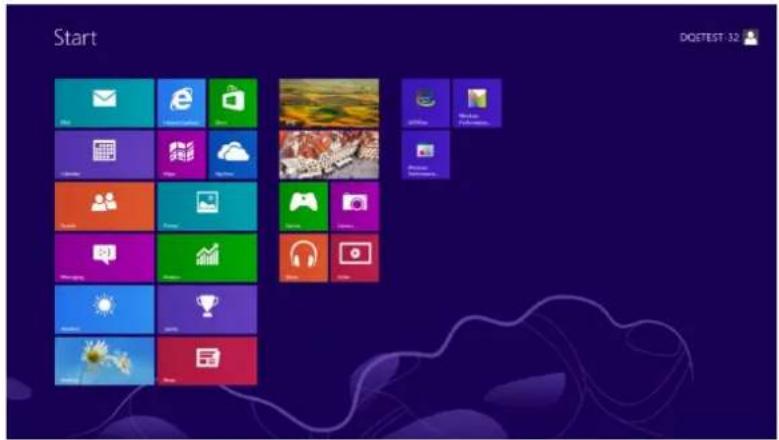

For Windows 8:

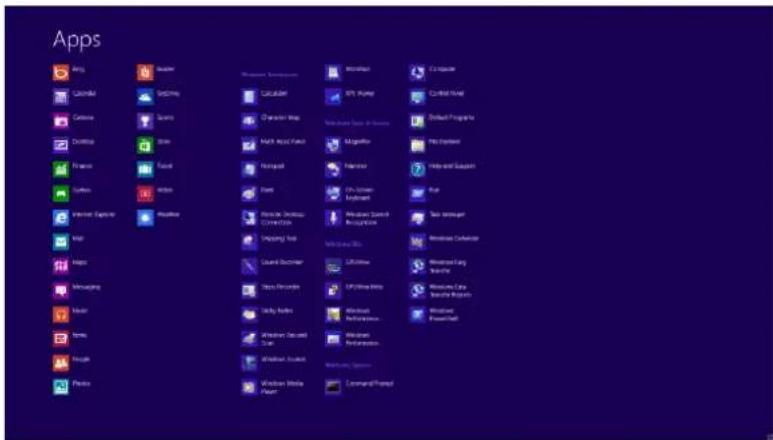

1. Right click and click All apps at the bottom-right of the screen.

Start DOCTEST: 32

Apps Big Calendar Canvas Desktop Transformer Camera Myersome Engineer Excel Mines Microsoft Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel Microsoft Excel

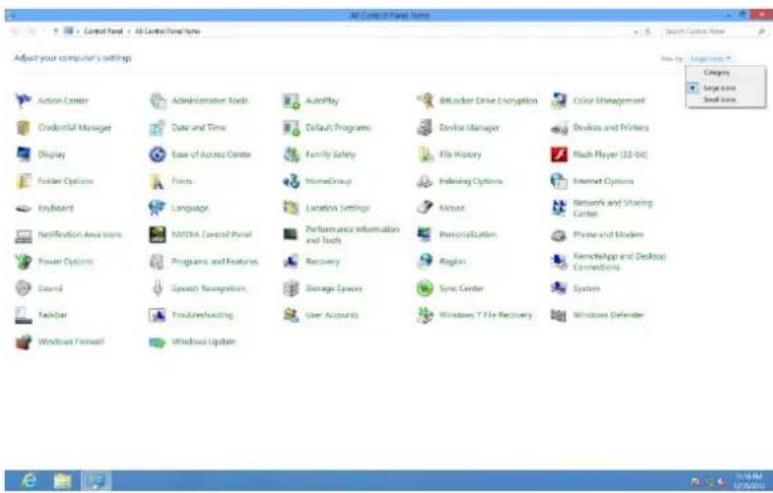

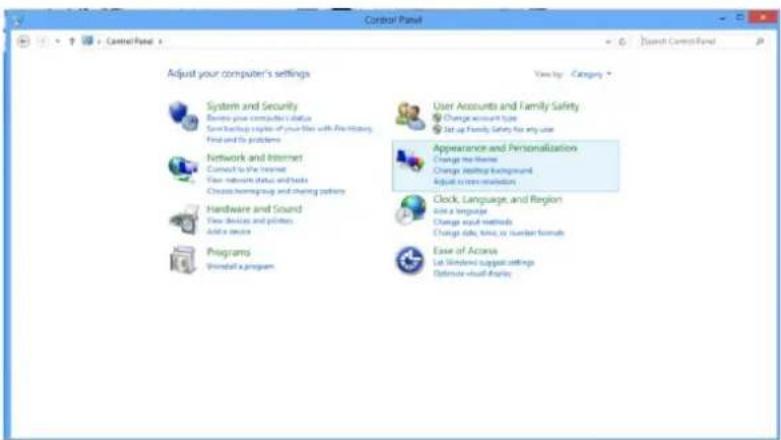

1. Set the "View by" to "Category".
2. Click Appearance and Personalization.

Control Panel Adjust your computer's settings System and Security Remove your computer's status Save backup styles of your file with the history. Find and try problems Network and Internet Connect to the Internet View network status and keys Choose homologics and sharing patterns Hardware and Sound View devices and phones Add a security Programs Thread a program User Accounts and Family Safety Change account type Set up Family Safety for any user Appearance and Personalization Change the Home Change booting background Adjust more information Clock, Language, and Region Add a language Change audio methods Change data, time, or number formats Ease of Access Let Windows support settings Optimize visual graphics

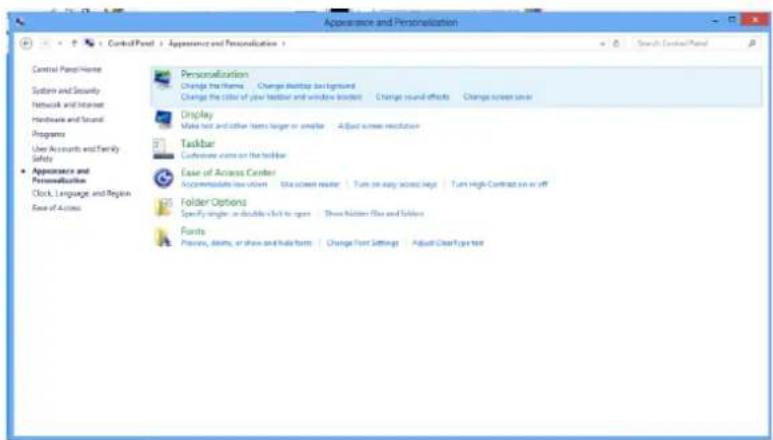

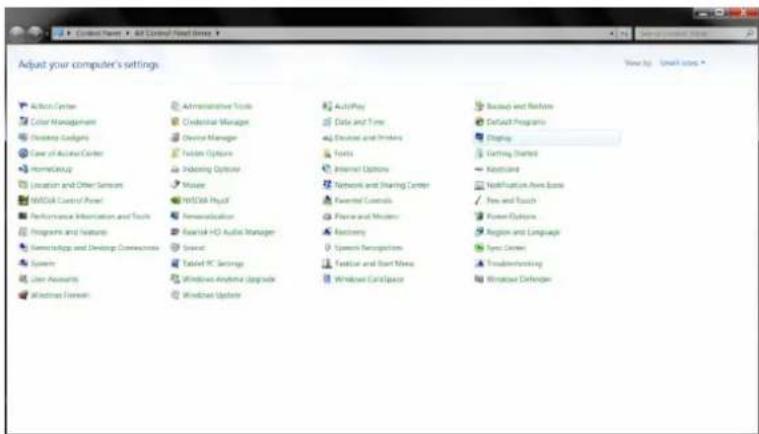

4. Click DISPLAY.

Appearance and Personalization Control Panel > Appearance and Personalization > Search Control Panel Control Panel Name Solder and Security Network and Internet Hardware and Sound Programs User Accounts and Family Safety Appurposes and Personalization Clock, Language, and Region Ease of Access Personnalization Change the schema Change desktop background Change the color of your toolbar and windows server Change sound effects Change screen server Display Make text and other items larger or smaller Adjust screen resolution Taskbar Customize own on the toolbar Ease of Access Center Accommodiate new colors Use screen reset Turn on easy socket keys Turn High Contrast run or off Folder Options Specify single or double click to space Show Hidden Flow and Buttons Points Preview, details, or show and make fonts Change Point Settings Adjust Clear Figure text

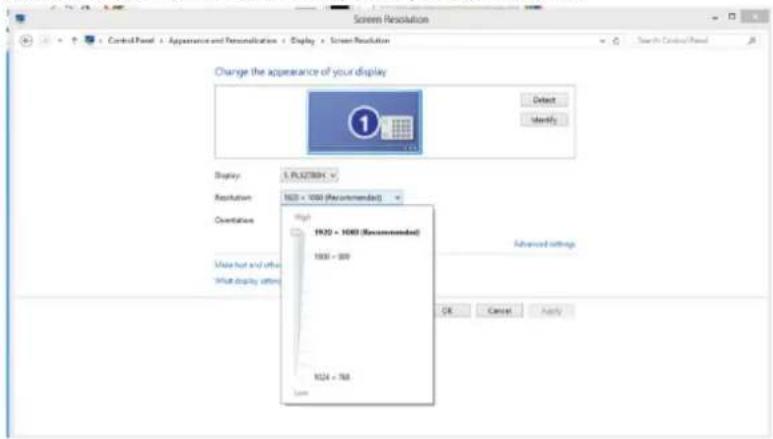

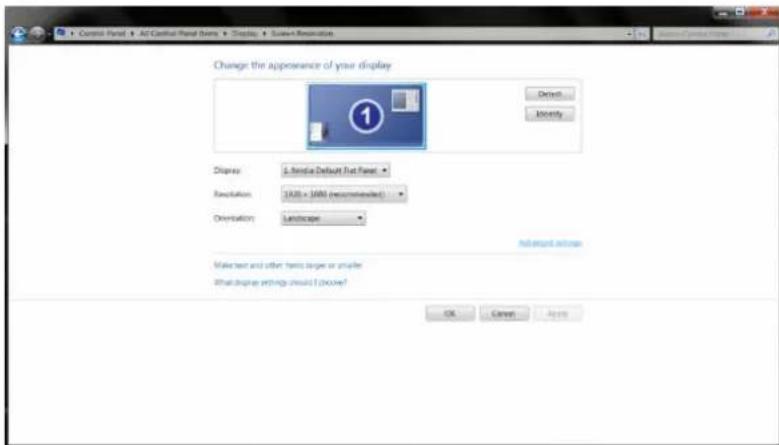

5. Set the resolution SLIDE-BAR to Optimal preset resolution.

Screen Resolution Change the appearance of your display Display: 1.03278864 Resolution: 1000 x 1000 (Recommended) Orientation: High 1920 x 1040 (Recommended) 1030 x 500 Value test and other Value display settings: Advanced settings OK Cancel Apply 1024 x 768 Low

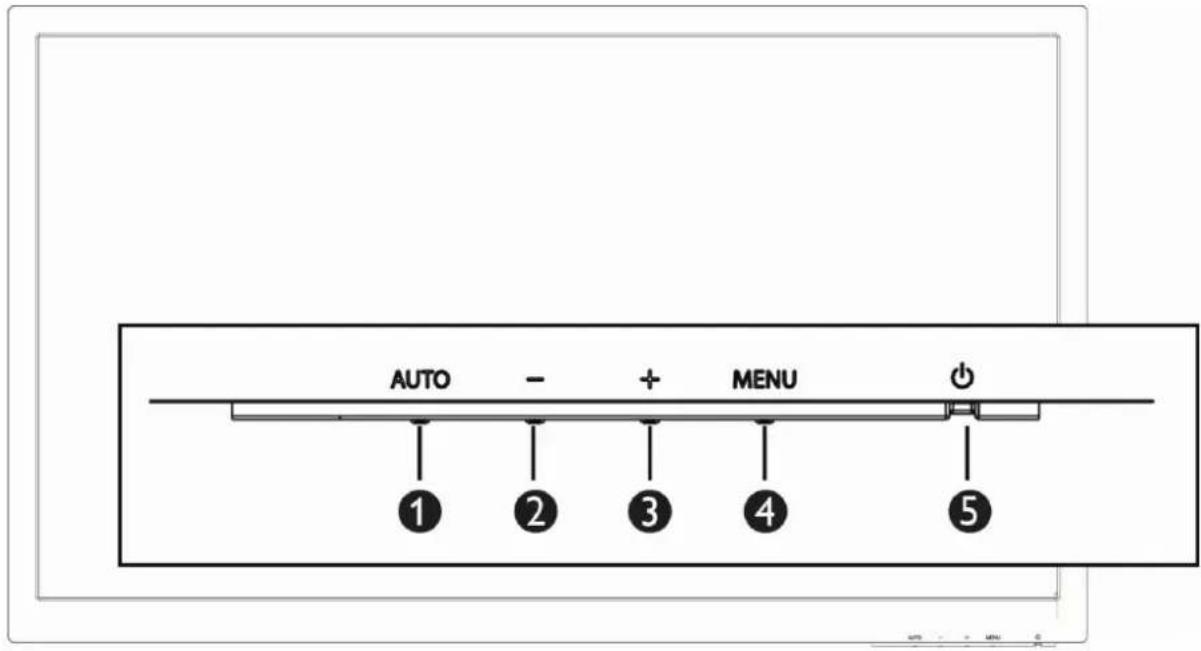

Hotkeys

AUTO - + MENU ① ② ③ ④ ⑤

E2770SD/M2770V/M2870V/I2770V/E2770SD6

1	Source/Auto/Exit
2	Clear Vision/-
3	4:3 or Wide/+
4	Menu/Enter
5	Power

E2770SHE/E2770PQU/Q2770PQU/G2770PQU/M2870VQ/M2870VHE/I2770VHE/I2770PQ/E2770SH

1	Source/Auto/Exit
2	Clear Vision/-
3	Volume/+
4	Menu/Enter
5	Power

G2770PF

1	Source/Auto/Exit
2	Game Mode/-
3	Volume /+
4	Menu/Enter
5	Power

Clear Vision

1. When there is no OSD, Press the “-” button to activate Clear Vision.
2. Use the “-” or “+” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”.

Clear Vision ← Off ►

1. Press and hold “-” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on” will be displayed on the screen for a duration of 5 seconds. Press Menu or Exit button, the message will disappear. Press and hold “-” button for 5 seconds again, Clear Vision Demo will be off.

Clear Vision Demo: On

Clear Vision function provides the best image viewing experience by converting low resolution and blurry images into clear and vivid images.

Using "MHL(Mobile High-Definition Link)" (Optional)

1."MHL" (Mobile High-Definition Link)

This feature allows you to enjoy videos and photos (imported from a connected mobile device that supports MHL) on the screen of the product.

• To use the MHL function, you need an MHL-certified mobile device. You can check if your mobile device is MHL certified on the device manufacturer's website. To find a list of MHL-certified devices, visit the official MHL website (http://www.mhlconsortium.org).
  ● To use the MHL function, the latest version of software must be installed on the mobile device.
• On some mobile devices, the MHL function may not be available depending on the device's performance or functionality.
  ● Since the display size of the product is larger than those of mobile devices, the picture quality may degrade.
• This product is officially MHL-certified. If you encounter any problem when using the MHL function, please contact the manufacturer of the mobile device.
• The picture quality may degrade when content (imported from the mobile device) with a low Resolution is played on the product.

Using "MHL"

1. Connect the micro USB port on the mobile device to the [HDMI / MHL] port on the product using the MHL cable.

HDMI/MHL MHL Cable Micro USB

• When the MHL cable is used, [HDMI / MHL] is the only port on this monitor that supports the MHL function.
• Mobile device must be purchased separately.
• Press the source button and switch to HDMI /MHL to activate MHL mode.
• After about 3 seconds, the MHL screen will be displayed if MHL mode is active.

Remark: The indicated time "3 sec later" may vary depending on the mobile device.

When the mobile device is not connected or does not support MHL

• If MHL mode is not activated, check the connection of the mobile device.
• If MHL mode is not activated, check if the mobile device supports MHL.
• If MHL mode is not activated even though the mobile device supports MHL, update the firmware of the mobile device to the latest version.
• If MHL mode is not activated even though the mobile device supports MHL, check if mobile device MHL port is MHL standard port otherwise an additional MHL-enabled adapter is required.

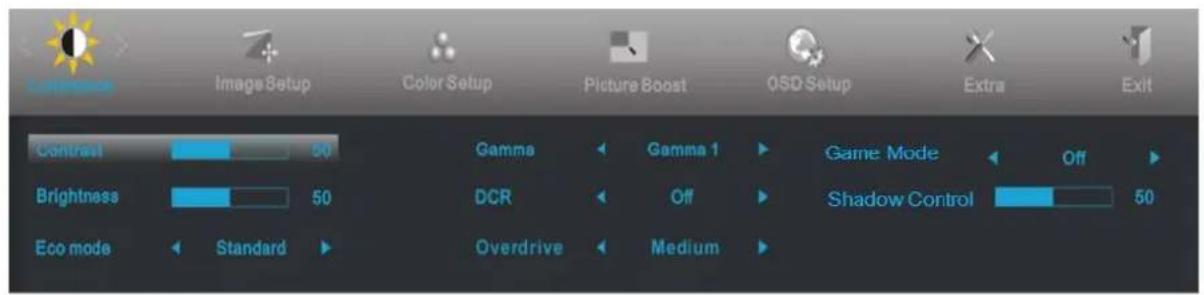

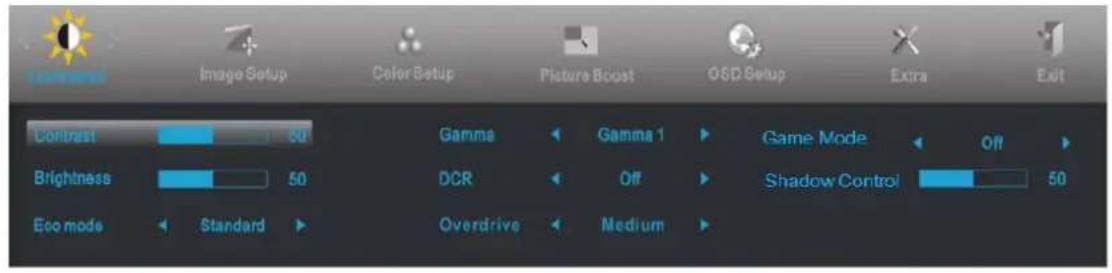

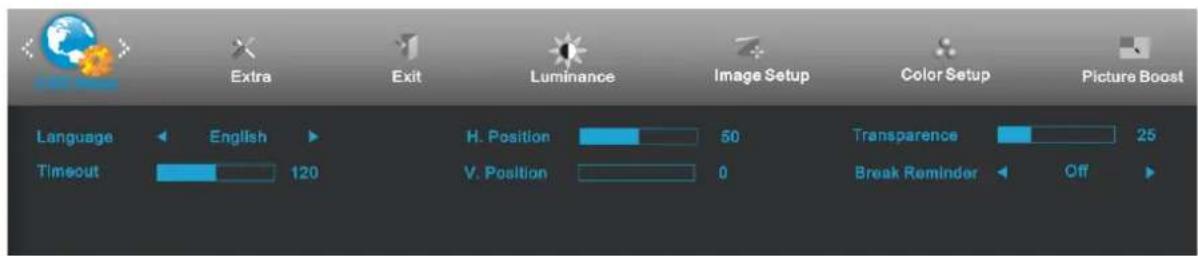

OSD Setting

Basic and simple instruction on the control keys.

Image Setup Color Setup Picture Boost O&D Setup Extra Exit Contrast 50 Gamma Gamma 1 Game Mode Off Brightness 50 DCR Off Shadow Control 50 Eco mode Standard Overdrive Medium

1. Press the MENU-button to activate the OSD window.
2. Press - or + to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate. Press - or + to navigate through the sub-menu. Once the desired function is highlighted, press MENU-button to activate.
3. Press - or + to change the settings of the selected function. Press AUTO to exit. If you want to adjust any other function, repeat steps 2-3.
4. OSD Lock Function: To lock the OSD, press and hold the MENU-button while the monitor is off and then press power-button to turn the monitor on. To un-lock the OSD, press and hold the MENU-button while the monitor is off and then press power-button to turn the monitor on.

Notes:

1. If the product has only one signal input, the item of "Input Select" is disabled.
2. If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disabled.
3. One of Clear vision, DCR, Color Boost, and Picture Boost functions is activated; the other three functions are turned off accordingly.

Luminance

Image Setup Color Setup Picture Boost QSD Setup Extra Exit Contrast 50 Gamma Gamma 1 Game Mode Off Brightness 50 DCR Off Shadow Control 50 Eco mode Standard Overdrive Medium

1 Press (Menu) to display menu.

2 Press - or + to select (minance), and press to enter.
3 Press - or + to select submenu, and press to enter. 4 Press - or + to adjust.
5 Press to exit.

	Brightness	0-100			Backlight Adjustment.
	Contrast	0-100			Contrast from Digital-register.
	Eco mode	Standard			Standard Mode.
		Text			Text Mode.
		Internet			Internet Mode.
		Game			Game Mode.
		Movie			Movie Mode.
		Sports			Sports Mode.
	Gamma	Gamma1			Adjust to Gamma 1.
		Gamma2			Adjust to Gamma 2.
		Gamma3			Adjust to Gamma 3.
	DCR	Off			Disable dynamic contrast ratio.
		On			Enable dynamic contrast ratio.
	Overdrive	Weak			Adjust the response time(only for E2770PQU/Q2770PQU/I2770VHE/M2870VHE/M2870VQ/I2770PQ/G2770PF/E2770SH/G2770PQU)
		Light(only for G2770PF/G2770PQU)
		Medium
		Strong
		Off
	Game mode	FPS	For playing FPS(first Person Shppters) games.Improves dark theme black level details.
		RTS	For playing RTS(Real Time Strategy, improve response time and brightness for presenting smooth pictures.
		Racing	For playing Racing games,Provides fastest response time and high color saturation.
		Gamer 1	User's preference settings saved as Gamer 1.
		Gamer 2	User's preference settings saved as Gamer 2.
		off	No optimization by Smartimage game
	Shadow Control	0-100	Shadow Control Default is 50, then end-user can adjust from 50 to 100 or 0 to increase contrast for clear picture.1. If picture is too dark to be saw the detail clearly, adjusting from 50 to 100 for clear picture.2. If picture is too white to be saw the detail clearly, adjusting from 50 to 0 for clear picture

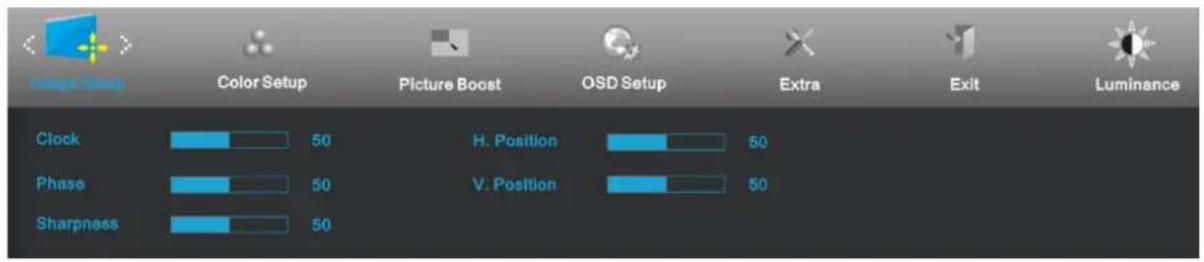

Image Setup

Image Setup Color Setup Picture Boost OSD Setup Extra Exit Luminance Clock 50 H. Position 50 Phase 50 V. Position 50 Sharpness 50

1 Press (Menu) to display menu.

2 Press - or + to select (Image Setup), and press to enter.
3 Press - or + to select submenu, and press to enter.
4 Press - or + to adjust.
5 Press to exit.

	Clock	0-100	Adjust picture Clock to reduce Vertical-Line noise.
	Phase	0-100	Adjust Picture Phase to reduce Horizontal-Line noise.
	Sharpness	0-100	Adjust picture sharpness.
	H.Position	0-100	Adjust the horizontal position of the picture.
	V.Position	0-100	Adjust the vertical position of the picture.

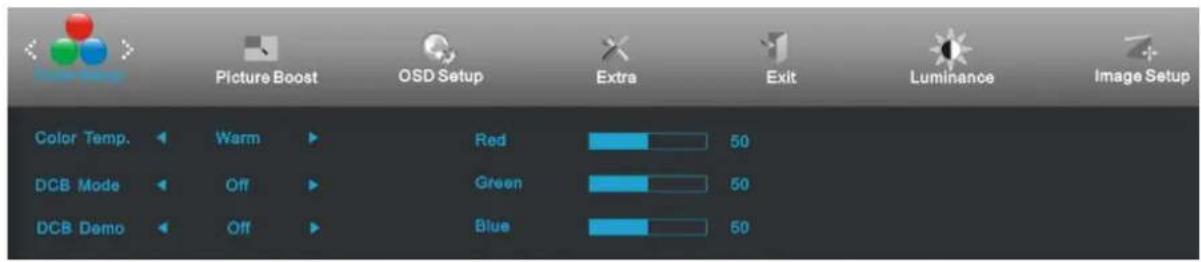

Color Setup

Picture Boost OSD Setup Extra Exit Luminance Image Setup Color Temp. Warm Red 50 DCB Mode Off Green 50 DCB Demo Off Blue 50

1 Press (Menu) to display menu.

2 Press - or + to select (Color Setup), and press to enter.
3 Press - or + to select submenu, and press to enter.
4 Press - or + to adjust.
5 Press to exit.

	Color Temp.	Warm		Recall Warm Color Temperature from EEPROM.
		Normal		Recall Normal Color Temperature from EEPROM.
		Cool		Recall Cool Color Temperature from EEPROM.
		sRGB		Recall SRGB Color Temperature from EEPROM.
		User	Red	Red Gain from Digital-register.
			Green	Green Gain Digital-register.
			Blue	Blue Gain from Digital-register.
	DCB Mode	Full Enhance	on or off	Disable or Enable Full Enhance Mode.
		Nature Skin	on or off	Disable or Enable Nature Skin Mode.
		Green Field	on or off	Disable or Enable Green Field Mode.
		Sky-blue	on or off	Disable or Enable Sky-blue Mode.
		AutoDetect	on or off	Disable or Enable AutoDetect Mode.
	DCB Demo		on or off	Disable or Enable Demo.

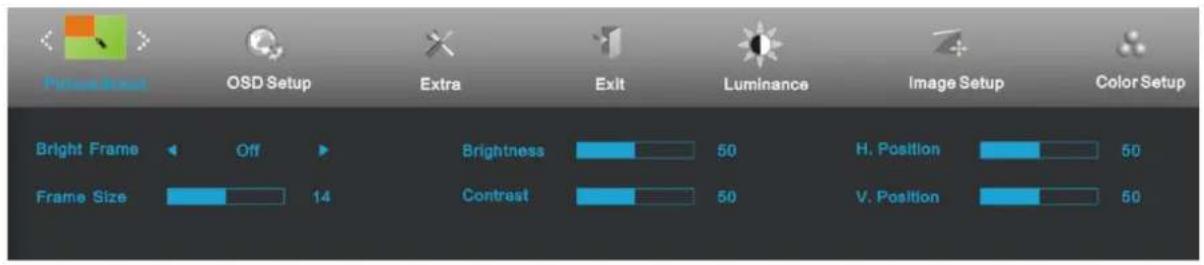

Picture Boost

Picture Setup OSD Setup Extra Exit Luminance Image Setup Color Setup Bright Frame Off Brightness 50 H. Position 50 Frame Size 14 Contrast 50 V. Position 50

1 Press (Menu) to display menu.
2 Press - or + to select (Picture Boost), and press to enter.
3 Press - or + to select submenu, and press to enter.
4 Press - or + to adjust.
5 Press to exit.

	Frame Size	14-100	Adjust Frame Size.
	Brightness	0-100	Adjust Frame Brightness.
	Contrast	0-100	Adjust Frame Contrast.
	H. position	0-100	Adjust Frame horizontal position.
	V. position	0-100	Adjust Frame vertical position.
	Bright Frame	on or off	Disable or Enable Bright Frame.

OSD Setup

Extra Exit Luminance Image Setup Color Setup Picture Boost Language English H. Position 50 Transparence 25 Timeout 120 V. Position 0 Break Reminder Off

1 Press (Menu) to display menu.

2 Press - or + to select (OSD Setup), and press to enter.
3 Press - or + to select submenu, and press to enter.
4 Press - or + to adjust.
5 Press to exit.

	H. Position	0-100	Adjust the horizontal position of OSD.
	V. Position	0-100	Adjust the vertical position of OSD.
	Timeout	5-120	Adjust the OSD Timeout.
	Transparence	0-100	Adjust the transparence of OSD.
	Language		Select the OSD language.
	Break Reminder	on or off	Disable or Enable(1 hour of work, break ?) /(2 hours of work, break ?)
	DP Capaciliby	1.1/1.2	please be noted that only DP1.2 support free sync function

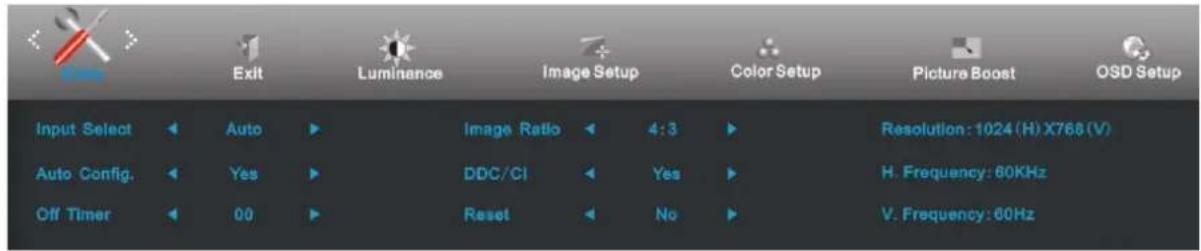

Extra

Exit Luminance Image Setup Color Setup Picture Boost OSD Setup Input Select Auto Image Ratio 4:3 Resolution: 1024 (H) X768 (V) Auto Config. Yes DDC/CI Yes H. Frequency: 60KHz Off Timer 00 Reset No V. Frequency: 60Hz

1 Press (Menu) to display menu.

2 Press - or + to select (Extra), and press to enter.
3 Press - or + to select submenu, and press to enter.
4 Press - or + to adjust.
5 Press to exit.

	Input Select	Auto / D-SUB / DVI / HDMI/MHL /DP	Select input signal source.(E2770PQU/G2770PF)
	Input Select	Auto / Analog / HDMI1/ HDMI2	Select input signal source. (E2770SHE)
	Input Select	Auto / Analog / DVI/HDMI	Select input signal source.(I2770VHE/M2870VHE/E2770SH)
	Input Select	Auto / Analog / DVI	Select input signal source.(E2770SD/M2770V/M2870V/I2770V/E2770SD6)
	Input Select	Auto / Analog / DVI / HDMI /DP	Select input signal source.(Q2770PQU/G2770PQU/M2870VQ/I2770PQ)
	Auto Config	Yes or No	Auto adjust the picture to default.
	Off timer	0-24hrs	Select DC off time.
	Image Ratio	wide or 4:3	Select wide or 4:3 format for display.
		wide / 4:3 / 1:1 / 17"(4:3) / 19"(4:3) /19"w(16:10) / 21.5"w(16:9) / 22"w(16:10) / 23"w(16:9) / 23.6"w(16:9) / 24"w(16:9) / 24"w(16:10)	Select image ratio for display.(G2770PQU)
		Full / Square / 1:1 / 17"(4:3) / 19"(4:3) /19"(5:4)/19"W(16:10) / 21.5"W(16:9) / 22"W(16:10) / 23"W(16:9) / 23.6"W(16:9) / 24"W(16:9)	Select image ratio for display.G2770PF
	DDC-CI	Yes or No	Turn ON/OFF DDC-CI Support.
	Reset	Yes or No	Reset the menu to default.
	Information		Show the information of the main image and sub-image source.

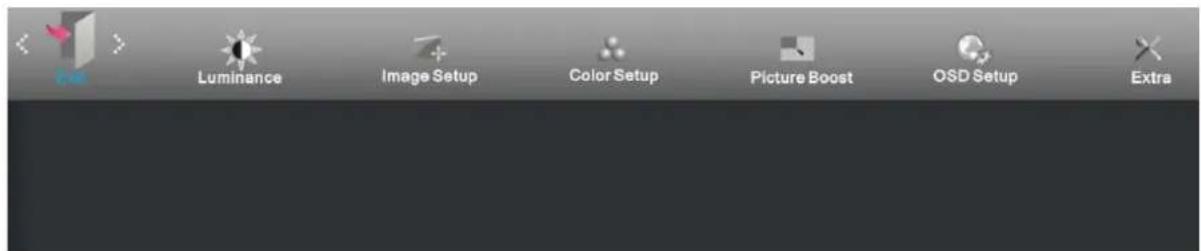

Exit

Luminance Image Setup Color Setup Picture Boost OSD Setup Extra

1 Press (Menu) to display menu.
2 Press - or + to select (Exit), and press to enter.
3 Press to exit.

Exit

Exit the main OSD.

LED Indicator

Status	LED Color
Full Power Mode	Green or Blue
Active-off Mode	Orange or red

Driver

Monitor Driver

Windows 2000

1. Start Windows® 2000
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select 'Monitor'
6. If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
7. If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.
8. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.
9. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on 'Next' and then click on 'Have disk...'.
10. Click on the 'Browse...' button then select the appropriate drive F: (CD-ROM Drive).
11. Click on the 'Open' button, then click on the 'OK' button.
12. Select your monitor model and click on the 'Next' button.
13. Click on the 'Finish' button then the 'Close' button.
    If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.

Windows ME

1. Start Windows® Me
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select the 'Monitor' button, then click on 'Change...' button.
6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.
7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click on 'Next' and then click on 'Have Disk...'.
8. Click on the 'Browse...' button, select the appropriate drive F: (CD-ROM Drive) then click on the 'OK' button.
9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.
10. Click on 'Finish' button then the 'Close' button.

Windows XP

1. Start Windows® XP
2. Click on the 'Start' button and then click on 'Control Panel'.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Faxes help and Support Search Run... Log Off Turn Off Computer start

1. Select and click on the category 'Appearance and Themes'

Control Panel File Edit View Favorites Tools Help Control Panel Check-Off-Form1 Search to Check-Offs Save Asse Settings Update Help and Support Pick a category Remove your and Moreons Remove and Other Hardware Change the appearance of desktop fans, again a Time or user cover for your computer, or customize the Start Window and more Network Add or Remove Programs Safe, Drive, Language, and Personal Options Sounds, Speechs, and Audio Services Accessibility Options Performances and Preferences

1. Click on the 'Display' Item.

Approve and Perform Take All Apply and Perform Pick a task... Change the computer's monitor Change the desktop background Change the screen space Change the phone resolution or pick a Control Panel icon Show how to change the Change the appearance of your desktop, such as the background, screen server, icons, hot colors, and screen correction.

1. Select the 'Settings' tab then click on the 'Advanced' button.

Display Properties Themes Desktop Screen Save Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 768 pixels Color quality Highest (32 bit) Troubleshoot Advanced OK Cancel Apply

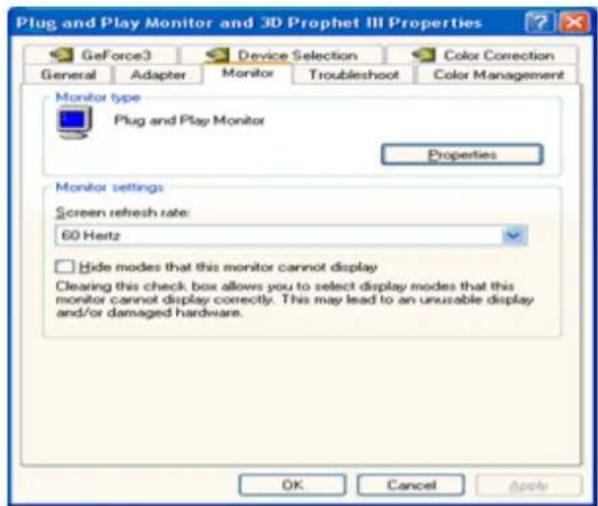

1. Select 'Monitor' tab

2. If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

3. If the 'Properties' button is active, click on 'Properties' button.

Please follow the steps below.

Plug and Play Monitor and 3D Prophet III Properties GeForce3 Device Selection Color Correction General Adapter Monitor Troubleshoot Color Management Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

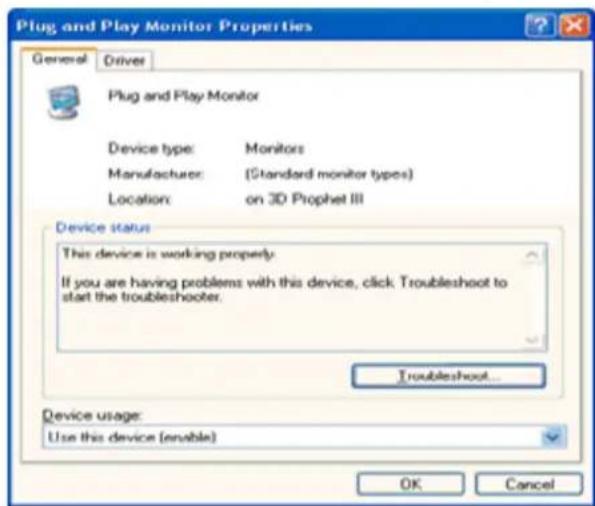

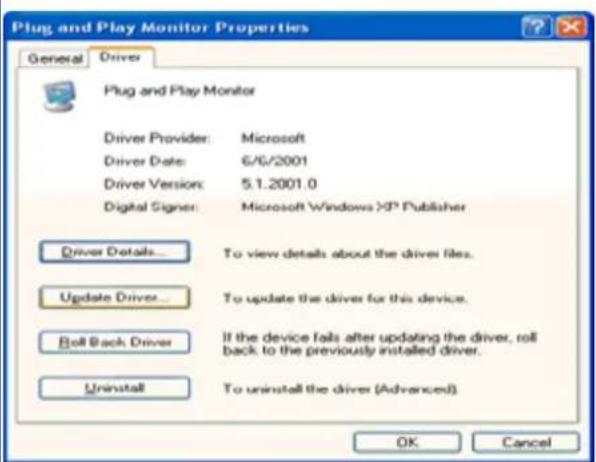

1. Click on the 'Driver' tab and then click on 'Update Driver...' button.

Plug and Play Monitor Properties General Driver Plug and Play Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location:,on 3D Prophet III Device status This device is working properly. If you are having problems with this device, click Troubleshoot to start the troubleshooter. Troubleshoot... Device usage: Use this device (enable) OK Cancel

Plug and Play Monitor Properties General Driver Plug and Play Monitor Driver Provider: Microsoft Driver Date: 6/6/2001 Driver Version: 5.1.2001.0 Digital Signer: Microsoft Windows XP Publisher Driver Details... To view details about the driver files. Update Driver... To update the driver for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Uninstall To uninstall the driver (Advanced) OK Cancel

1. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.

Hardware Update Wizard Welcome to the Hardware Update Wizard This wizard helps you install software for: Plug and Play Monitor If your hardware came with an installation CD or floppy disk, insert it now. What do you want the wizard to do? ○ Install the software automatically (Recommended) ● Install from a list or specific location (Advanced) Click Next to continue. < Back Next > Cancel

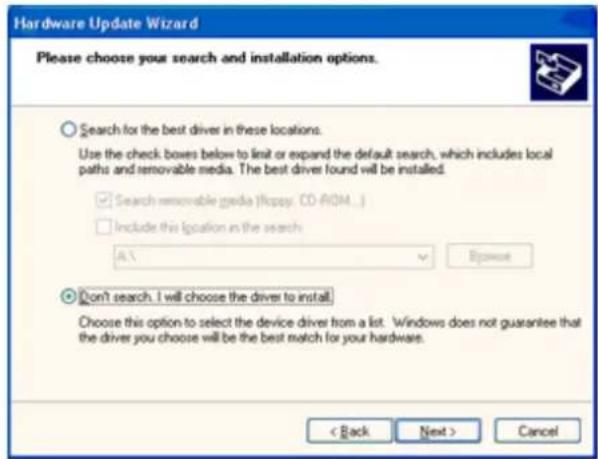

1. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.

Hardware Update Wizard Please choose your search and installation options. Search for the best driver in these locations. Use the check boxes below to limit or expand the default search, which includes local paths and removable media. The best driver found will be installed. ✓ Search removable media (Kopy, CD-ROM...) Include this location in the search A:\ Browse Don't search. I will choose the driver to install. Choose this option to select the device driver from a list. Windows does not guarantee that the driver you choose will be the best match for your hardware. < Back Next > Cancel

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive).

Hardware Update Wizard Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk that contains the driver you want to install, click Have Disk. Show compatible hardware Model Plug and Play Monitor This driver is digitally signed. Tell me why driver signing is important Have Disk... < Back Next > Cancel

1. Click on the 'Open' button, then click the 'OK' button.
2. Select your monitor model and click on the 'Next' button.
3. If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message, please click on the 'Continue Anyway' button.
4. Click on the 'Finish' button then the 'Close' button.
5. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.

Windows Vista

1. Click "Start" and "Control Panel". Then, double-click on "Appearance and Personalization".

Internet E-mail Windows Media Welcome Centre Welcome Media Player Welcome Photo Security Windows Live Monitoring Download Windows Infacing Space Windows Explorer Adobe Photoshop CS2 NameOn Command Prompt All Programs Home Search Content Documents Packages Music Games Search About Memory Computer Networks Comment To Control Panel Default Programs Help and Support

Control Panel Options Class: Film Systems and Maintenance Set desktop with Windows Back up your workspeople Security Check for updates Check this computer's security dash Allow a copyright through Windows Buses! Network and Internet View network links and links Set up freshing Hardware and Sound Play Linux to other media automatically Remove Programs Download programs Change features programs User Accounts Add to new user accounts Appearance and Personalization Change the appointment of desktop Apps, apply a remote or smart tool to your sessions, or satisfaction the best apps and tools. Clock, Language, and Region Change blockchain or other textual methods Change Android language Ease of Access Get Wireless support settings Options - User Rights Additional Options

1. Click "Personalization" and then "Display Settings".

Control Panel 1. Apparices and Personalization Description Change (using background) - Autozone sites - Adjust areas: settings Change / Change (see text with the next) Community Features and Start Sites Customize the Start sites - A software area on the website Change the path to the Start sites Case of Access Center Recommended the site - Change database Database-based structure and source sites - Top Right Complex of growth Problem Options Special single, or local single, or open - New Course: wireless network Show better than and better Fords Build or remove objects Wireless Database Properties Add further to website - Windows addition to new Database as log is also confirmed

Personal appearance and sounds Questions (What is something) Find how the color and style of your colors. Display background Choose from available backgrounds or online or via one of your new patterns to create the skating. Power Book Change your sounds use as subject when it displays. In some areas it is possible or assumption that create your screen and appraise your computer to file the web page of text. Seaples Change which sounds are here when you are everything from getting in mind to implying your visual files. Visual Patterns Find a different visual pattern. You can also change how the sound position looks during their and find a clothing and accessories. Tanger Change the mask. Think user change a role range of visual and audio elements at any time including the appearance of noise, noise, background noise, cover noise, some compatible sounds, and visual patterns. Clearing conditions Adjust your music format, which changes the size as more than fresh bars for the people. You can also create a voice (feedback) card.

1. Click "Advanced Settings...".

Display Settings Monitor Drag the icons to match your monitors. Identity Monitors 1 (Multiple Monitors) on NVIDIA GeForce 6600 LE (Microsoft Corporation - This is my main monitor Cbsd the desktop onto this monitor Resolution Low High 1280 by 1024 pixels Colors Highest (32 bit) Advanced Settings... How did I get the best display? OK Cancel Apply

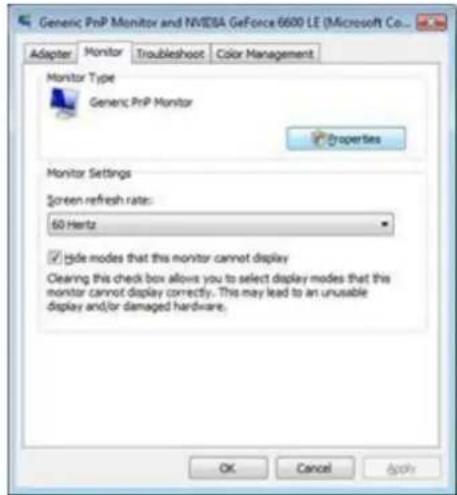

1. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is.

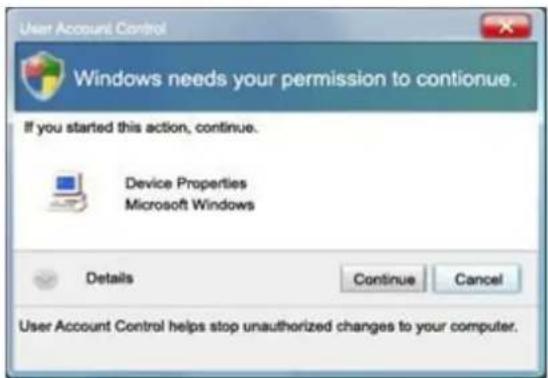

If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".

Generic PrIP Monitor and NVIDIA GeForce 6600 LE (Microsoft Co... Adapter Monitor Troubleshoot Color Management Monitor Type Generic PrIP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

User Account Control Windows needs your permission to continue. If you started this action, continue. Device Properties Microsoft Windows Details Continue Cancel User Account Control helps stop unauthorized changes to your computer.

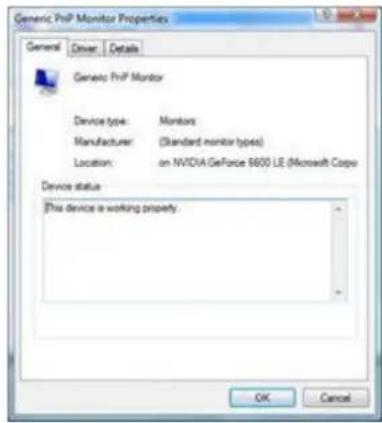

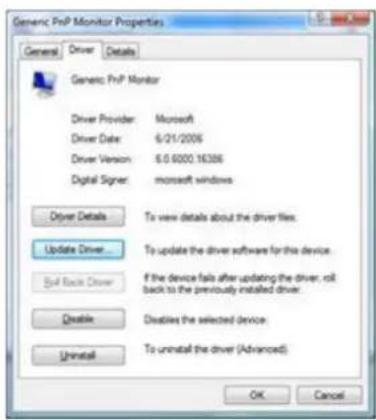

1. Click "Update Driver..." in the "Driver" tab.

Generic PrNP Monitor Properties General Driver Details Generic PrNP Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location:on NVIDIA GeForce 6600 LE (Microsoft Corp) Device status This device is working property. OK Cancel

Generic PhIP Monitor Properties General Driver Details Generic PhIP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.0 6000 16386 Digital Signer: microsoft windows Driver Details To view details about the driver files. Update Driver... To update the driver software for this device. Build Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device. Uninstall To uninstall the driver (Advanced). OK Cancel

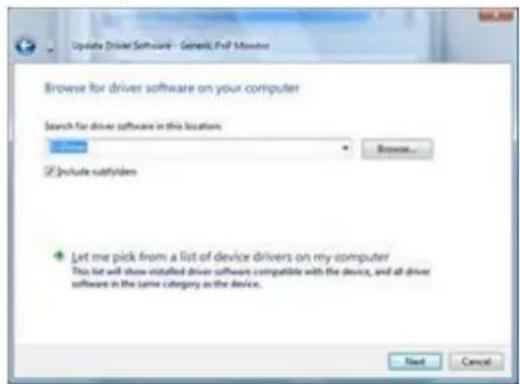

1. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".

Update Driver Software - Samski, Full Monitor Browse for driver software on your computer Search for driver software in this location Browse... ✓ Include subthyden Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device. Next Cancel

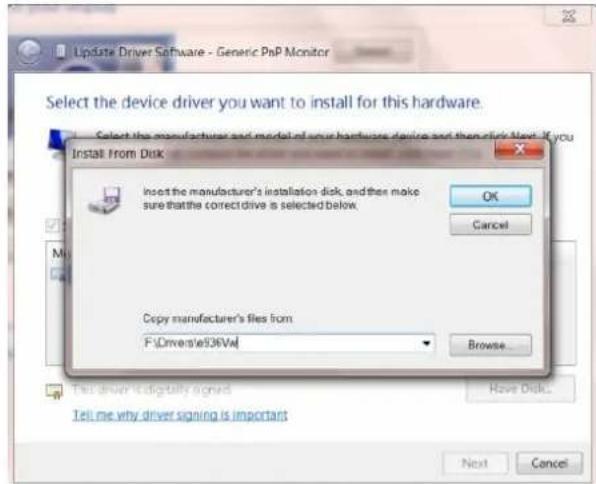

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:\Driver (CD-ROM Drive).
2. Select your monitor model and click on the 'Next' button.
3. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.

Windows 7

1. Start Windows® 7

2. Click on the 'Start' button and then click on 'Control Panel'.

CyberLink PowerCinema Point Windows Media Center Touch tool Getting Started Calculator Sticky Notes Snipping Tool Magnifier WinRAR All Programs aoc Documents Pictures Music Games Computer Control Panel Devices and Printers Default Programs Help and Support Shut down

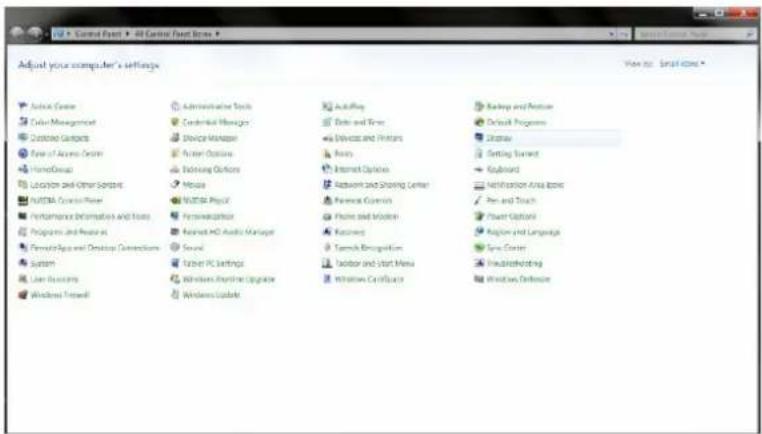

1. Click on the 'Display' icon.

Control Panel - All Computer Panel Series Adjust your computer's settings Action Course Color Management Customs Groups Face of Audio Control HomeGroup Location and Other Settings NUTRAL Control Power Performance Information and Notes Programs and Features Personalize and Desktop Connections System Line Resources Windows Forward Administrative Tools Centennial Manager Device Manager User Options Existing Options Mouse NUTRAL Plugin Performance Automotive Audio Manager Serial Fisher PC Settings Windows Active Upgrade Windows Update Accessibility Data and Tree Services and Hours Hours Internet Options Services and Sharing Center Performance Currency Fisher and Module Access Tampbox Recognition Vendor and Start Menu Windows Certificate Settings and Process Default Programs Chrome Setting System Keyboard Authentication Area Iconic Pen and Touch Power Gridlock Application Language Sync Center Emulsifying Windows Connection

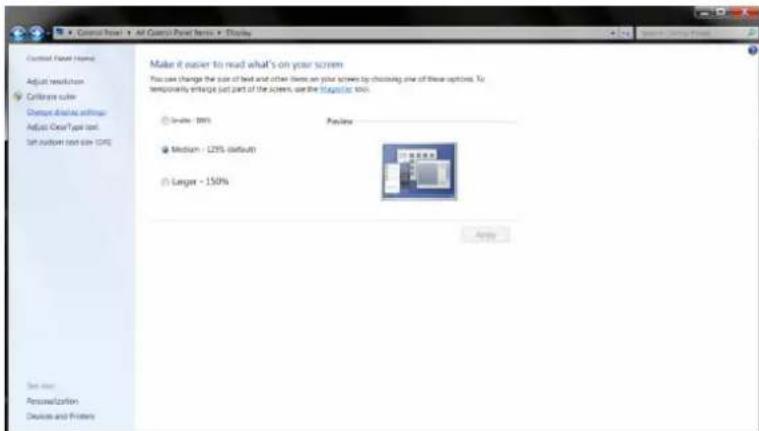

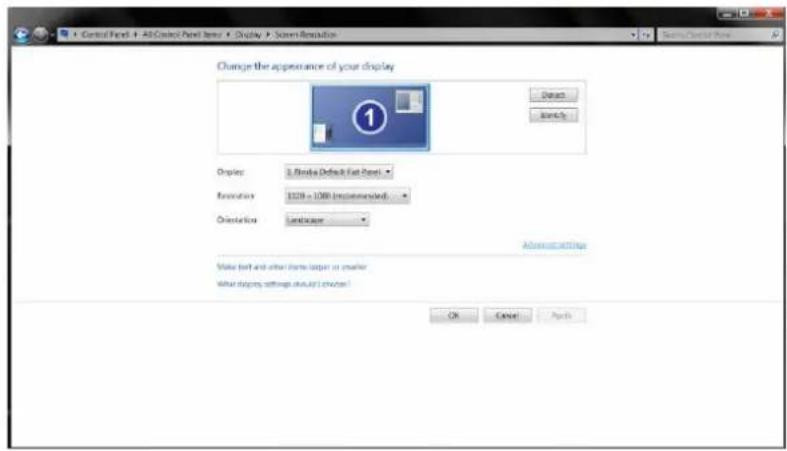

1. Click on the "Change display settings" button.

Control Panel Name Adjust version Calculate time Create available settings Adjust Copy format text Set custom text set (CPS) Make it easier to read what's on your screens You can change the size of text and other items on your screen by choosing one of these options. To temporarily logage just part of the screens, use the installed text. Server: 100% Pageup Medium - 12% default Larger - 150% None Personalization Details and Printers

1. Click the "Advanced Settings" button.

Control Panel + All Control Panel Series X Display X Screen Remation Change the appearance of your display Display: 2. Bottle Default Fast Panel Resolution: 1000 x 1000 (Incremental) Orientation: Landscape Active settings Value test and other items later at shorter What displays are all displayed! OK Cancel Apply

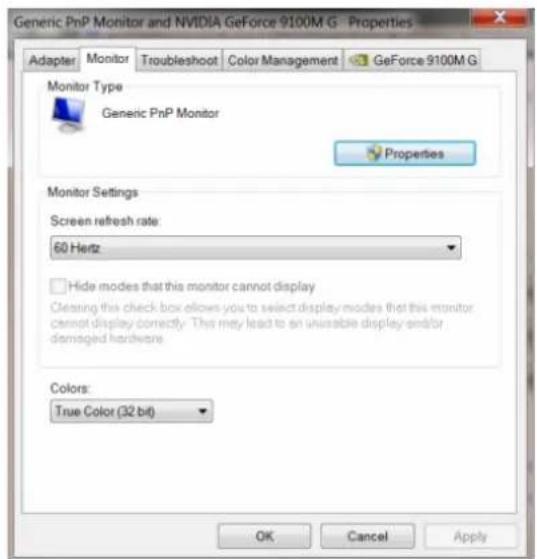

1. Click the "Monitor" tab and then click the "Properties" button.

Generic PnP Monitor and NVIDIA GeForce 9100M G Properties Adapter Monitor Troubleshoot Color Management GeForce 9100M G Monitor Type Generic PnP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Cleaning this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. Colors: True Color (32 bit) OK Cancel Apply

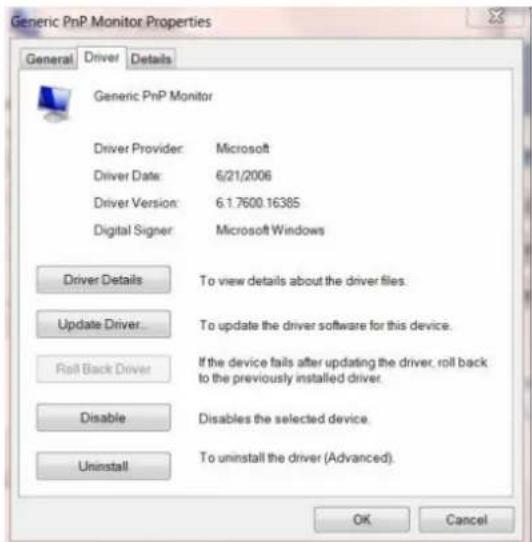

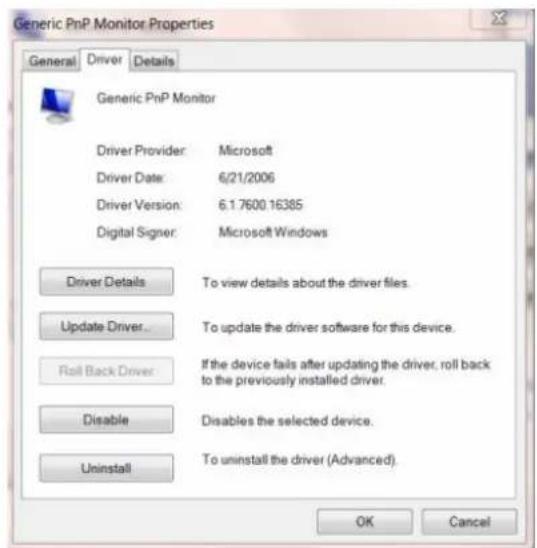

7. Click the "Driver" tab.

Generic PnP Monitor Properties General Driver Details Generic PnP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.1.7600.16385 Digital Signer: Microsoft Windows Driver Details To view details about the driver files. Update Driver... To update the driver software for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device. Uninstall To uninstall the driver (Advanced). OK Cancel

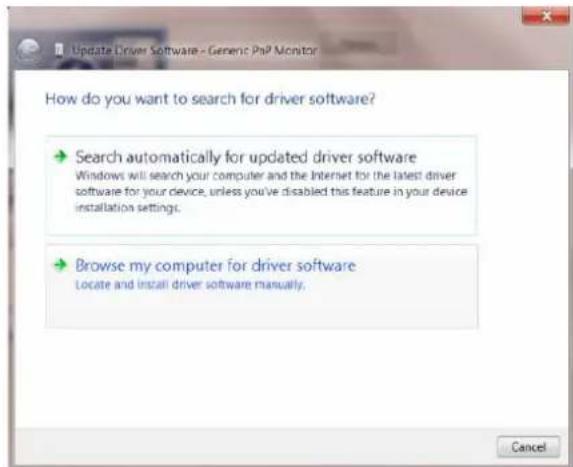

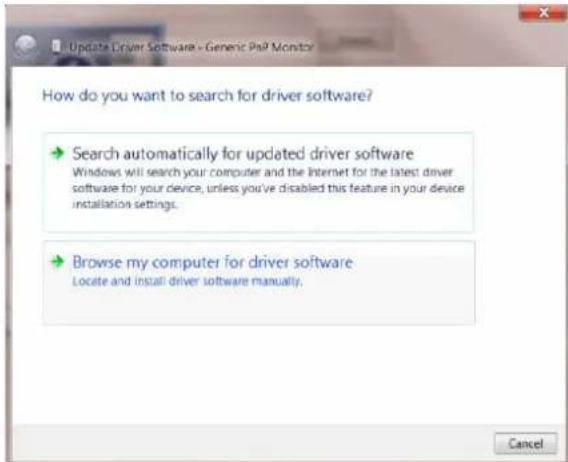

1. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver... "and then click the "Browse my computer for driver software" button.

Update Driver Software - Generic Php Monitor How do you want to search for driver software? → Search automatically for updated driver software Windows will search your computer and the Internet for the latest driver software for your device, unless you've disabled this feature in your device installation settings. → Browse my computer for driver software Locate and install driver software manually. Cancel

1. Select "Let me pick from a list of device drivers on my computer".

Update Driver Software = Generic Ph2 Monitor Browse for driver software on your computer Search for driver software in this location: D:\Driver\Touch device Include subfolders Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device Next Cancel

1. Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

Update Driver Software - Generic PnP Monitor Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next if you Install From Disk Insert the manufacturer's installation disk and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's files from: F:\Driver\e936V4\ Browse... This driver is digitally signed. Have Disk... Tell me why driver signing is important Next Cancel

1. Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
2. Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk drive.
3. Close all open windows and remove the CD.
4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Windows 8

1. Start Windows® 8
2. Right click and click All apps at the bottom-right of the screen.

Start DOTEST: 32

Apps King CatalM Commerce Desktop Phone Settings Internet Explorer View Help Managing Music Items Health Physics Windows Visual Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio Visual Studio

1. Click on the "Control panel" icon
2. Set the "View by" to "Large icons" or "Small icons".

All Control Panel Name Control Panel - All Control Panel Name Adjust your computer's settings Action Center Credential Manager Display Folder Options Keyboard Notification Area Items Power Options Sound Toolbar Windows Firewall Administrative Tools Date and Time Ease of Access Center Forms Language MTDA Control Panel Programs and Features Speech Recognition Troubleshooting Windows Update AutoPlay Default Programs Family Safety HomeGroup Location Settings Performance Information and Tools Recovery Storage Space User Accounts Bitlocker Drive Encryption Device Manager File History Linking Options Mouse Personal Station Region Sync Center Windows T File Recovery Color Management Desktops and Providers Rack Player (32-60) Internet Options Network and Sharing Center Phone and Modem Kernelpage and Desktop Connections System Windows Defender

1. Click on the "Display" icon.

Adjust your computer's settings View by: Small size * Action Center Color Management Desktop Settings Case of Active Center HomeGroup Location and Other Servers WISDA Control Panel Performance Information and Tools Programs and Features Technology and Desktop Connections System User Accounts Windows Framework Administrative Tools Credential Manager Device Manager Folder Options Indexing Options Mouse WISDA Play Personalization AutoPlay Data and Time Edit Devices and Strikers Fonts Internet Options Network and Sharing Center Functional Controls Planes and Modems Recovery Speech Recognition Textile and Start Menu Windows Coordinate Backup and Restore Default Programs Display Starting Started Keyframes Notification Area Name Free and Touch Power Options Region and Language Sync Center Transchattering Writerier Defender

6. Click on the "Change display settings" button.

Control Panel Help Adjust resolution Collaborate cube Change display setup Adjust ClearType text Soft custom text file (SDF) Make it easier to read what's on your screen You can change the size of text and other items on your screen by choosing one of these options. To temporarily enlarge just part of the screen, use the "Cognosine" tool. ○ 0-wide - 100% ● Medium - 125% default ○ Larger - 150% Preview Apply Set user: Personalization Devices and Printers

7. Click the "Advanced Settings" button.

Change the appearance of your display Display: 1. Normal Default Fact Panel Resolution: 1000 x 1000 (recommended) Orientation: Landscape Advanced options Make text and other items larger or smaller What degree settings should I proceed? OK Cancel Apply

8. Click the "Monitor" tab and then click the "Properties" button.

Generic PnP Monitor and NVIDIA GeForce 9100M G Properties Adapter Monitor Troubleshoot Color Management GeForce 9100M G Monitor Type Generic PnP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Cleaning this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display end/or damaged hardware. Colors: True Color (32 bit) OK Cancel Apply

9. Click the "Driver" tab.

Generic PnP Monitor Properties General Driver Details Generic PnP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.1.7600.16385 Digital Signer: Microsoft Windows Driver Details To view details about the driver files. Update Driver... To update the driver software for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device. Uninstall To uninstall the driver (Advanced). OK Cancel

10. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver... " and then click the "Browse my computer for driver software" button.

Update Driver Software - Generic PaP Monitor How do you want to search for driver software? → Search automatically for updated driver software Windows will search your computer and the Internet for the latest driver software for your device, unless you've disabled this feature in your device installation settings. → Browse my computer for driver software Locate and install driver software manually. Cancel

11. Select "Let me pick from a list of device drivers on my computer".

Update Driver Software = Generic Prp Monitor Browse for driver software on your computer Search for driver software in this location: D:\Drivers\Touch device Include autofolders Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device. Next Cancel

1. Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

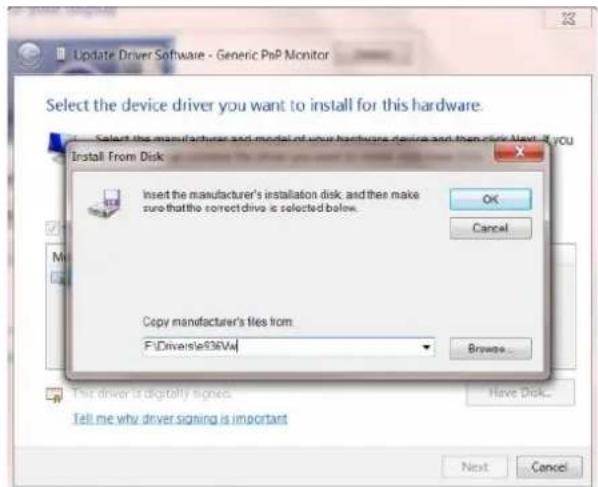

Update Driver Software - Generic PsP Monitor Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you Install From Disk Insert the manufacturer's installation disk, and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's files from F:\Driver\ie936Va\ Browse... This driver is digitally signed Have Disk... Tell me why driver signing is important Next Cancel

1. Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
2. Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk drive.
3. Close all open windows and remove the CD.
4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

i-Menu

Welcome to "i-Menu" software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide.

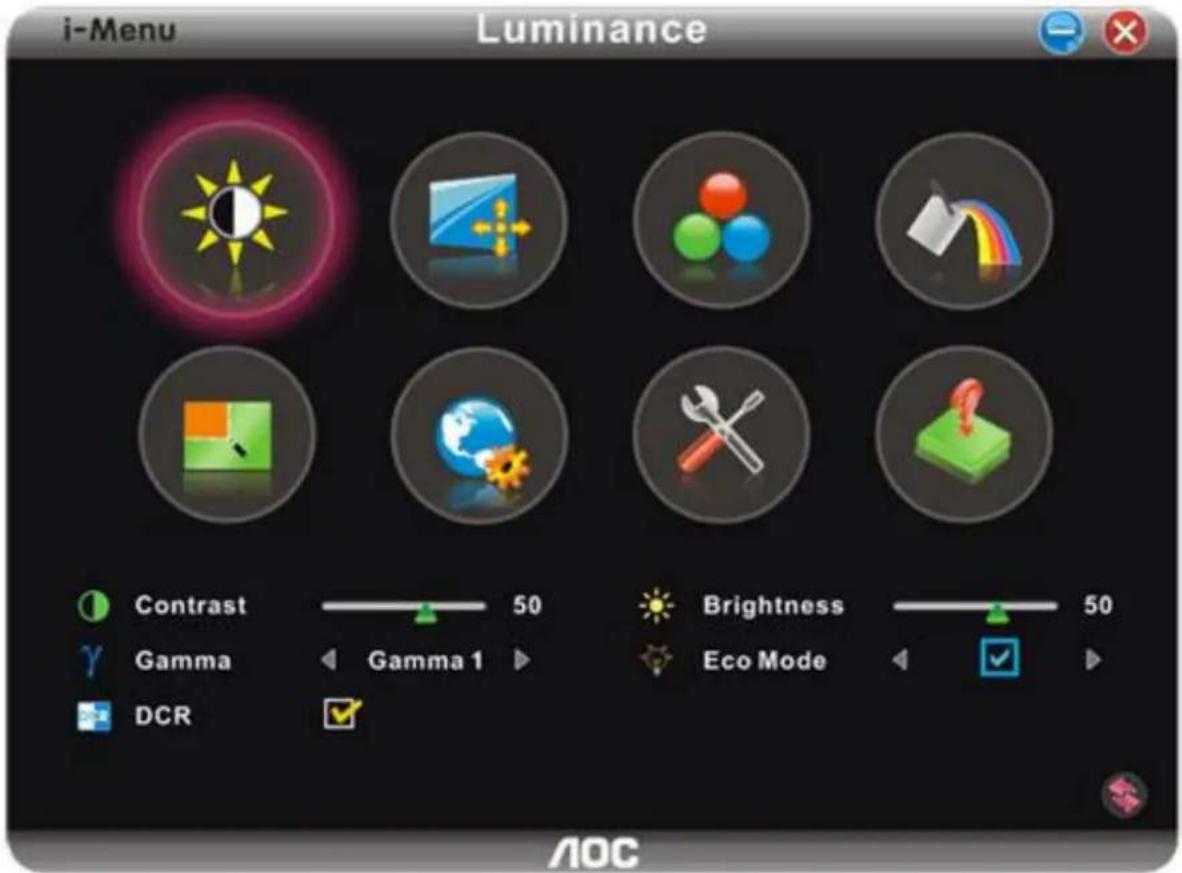

i-Menu Luminance Contrast 50 Brightness 50 Gamma Gamma 1 Eco Mode DCR

e-Saver

Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below).

Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to complete software installation.

Under each of the four PC status, you may choose from the pull-down menu the desired time (in minutes) for your monitor to automatically shutdown. The example above illustrated:

1) The monitor will never shutdown when the PC is powered on.
2) The monitor will automatically shutdown 5 minutes after the PC is powered off.
3) The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.
4) The monitor will automatically shutdown 20 minutes after the screen saver appears.

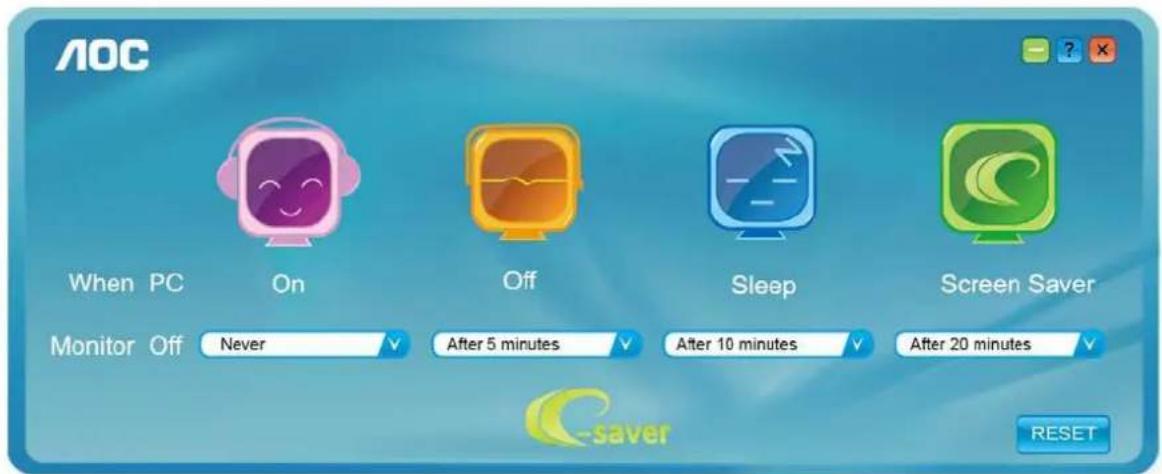

AOC When PC On Off Sleep Screen Saver Monitor Off Never After 5 minutes After 10 minutes After 20 minutes C-saver RESET

You can click "RESET" to set the e-Saver to its default settings like below.

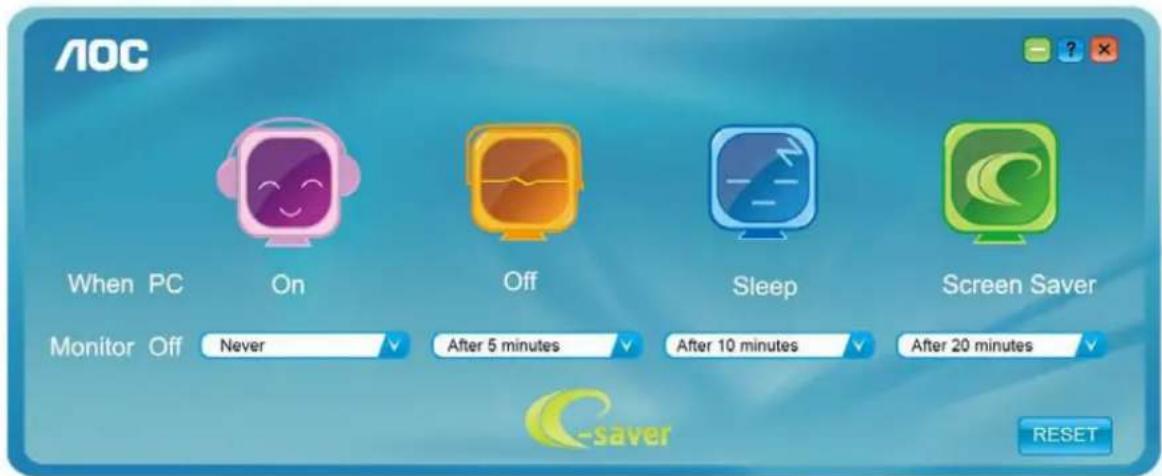

AOC When PC On Off Sleep Screen Saver Monitor Off Never After 5 minutes After 10 minutes After 20 minutes - saver RESET

Screen+

Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the installation software to install it.

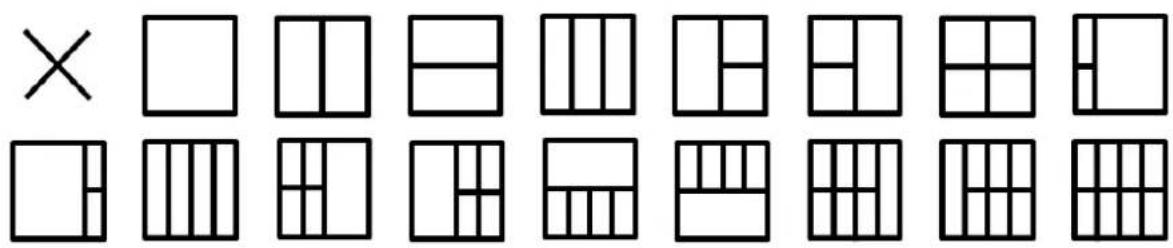

Grid pattern puzzle with geometric shapes and a cross symbol, likely for logic or pattern recognition

Troubleshoot

Problem & Question	Possible Solutions
Power LED Is Not ON	Make sure the power button is ON and the Power Cord is properly connected to a grounded power outlet and to the monitor.
No images on the screen	•Is the power cord connected properly?Check the power cord connection and power supply.•Is the signal cable connected correctly?(Connected using the signal cable)Check the signal cable connection.•If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen.If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card.(Refer to the Setting the Optimal Resolution)If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.•Can you see "Input Not Supported" on the screen?You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly.Adjust the maximum resolution and frequency that the monitor can handle properly.•Make sure the AOC Monitor Drivers are installed.
Picture Is Fuzzy & Has Ghosting Shadowing Problem	Adjust the Contrast and Brightness Controls.Press to auto adjust.Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back .
Picture Bounces, Flickers Or Wave Pattern Appears In The Picture	Move electrical devices that may cause electrical interference as far away from the monitor as possible.Use the maximum refresh rate your monitor is capable of at the resolution your are using.
Monitor Is Stuck In Active Off-Mode"	The Computer Power Switch should be in the ON position.The Computer Video Card should be snugly fitted in its slot.Make sure the monitor's video cable is properly connected to the computer.Inspect the monitor's video cable and make sure no pin is bent.Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary colors (RED, GREEN, or BLUE)	Inspect the monitor's video cable and make sure that no pin is damaged.Make sure the monitor's video cable is properly connected to the computer.
Screen image is not centered or sized properly	Adjust H-Position and V-Position or press hot-key (Power/AUTO).
Picture has color defects (white does not look white)	Adjust RGB color or select desired color temperature.
Horizontal or vertical disturbances on the screen	Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and FOCUS.Press to auto-adjust.
Display not on whole screen in default resolution ration	Use I-menu software from CD(or download from AOC official website), select “reset” option to adjust.

Specification

General Specification

E2770SD /E2770SHE/M2770V/I2770V/I2770VHE/E2770SD6/E2770SH

Panel	Product name	E2770SD/E2770SD6/E2770SHE/M2770V/I2770V/I2770VHE/E2770SH
	Driving system	TFT Color LCD
	Viewable Image Size	68.6cm diagonal
	Pixel pitch	0.3114mm(H)X0.3114mm(V)
	Video	R, G, B Analog Interface & Digital Interface
	Separate Sync.	H/V TTL
	Display Color	16.7M Colors
	Dot Clock	148.5MHz
Resolution	Horizontal scan range	30 kHz - 83 kHz
	Horizontal scan Size(Maximum)	597.89mm
	Vertical scan range	50 Hz - 76 Hz
	Vertical scan Size(Maximum)	336.31mm
	Optimal preset resolution	1920x 1080 @60 Hz
	Plug & Play	VESA DDC2B/CI
	Input Connector	E2770SD/ E2770SD6/M2770V/I2770V:D-Sub 15pin; DVI 24pin
		E2770SHE:D-Sub 15pin;;HDMI
		I2770VHE/E2770SH: D-Sub 15pin; DVI 24pin; HDMI;
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, TMDS
	Power Source	100-240V~, 50/60Hz
	Typical power consumption	E2770SD /E2770SD6/I2770V: 30WE2770SHE/I2770VHE: 32WM2770V/E2770SH:38W(Test condition: set Contrast = 50, Brightness = 90)
	Power Consumption	E2770SD /E2770SD6/I2770V: 32WE2770SHE/I2770VHE/E2770SH: 40WM2770V/E2770SH:44W(Test condition: Set Brightness and Contrast to maximum)
	Power consumption @power-saving	≤ 0.5W
	Off timer	0-24 hrs
	Speakers	2WX2(E2770SH)
Physical Characteristics	Connector Type	E2770SD/M2770V/I2770V /E2770SD6:D-Sub ; DVI-D
		E2770SHE:D-Sub ; HDMI
		I2770VHE/E2770SH: D-Sub ; DVI-D;HDMI;
	Signal Cable Type	Detachable
Environmental	Temperature:	Operating	0° to 40°
		Non-Operating	-25° to 55°
	Humidity:	Operating	10% to 85% (non-condensing)
		Non-Operating	5% to 93% (non-condensing)
	Altitude:	Operating	0~ 3658m (0~ 12000 ft )
		Non-Operating	0~ 12192m (0~ 40000 ft )

E2770PQU/I2770PQ

Panel	Product name	E2770PQU/I2770PQ
	Driving system	TFT Color LCD
	Viewable Image Size	68.6cm diagonal
	Pixel pitch	0.3114mm(H)X0.3114mm(V)
	Video	R, G, B Analog Interface & Digital Interface
	Separate Sync.	H/V TTL
	Display Color	16.7M Colors
	Dot Clock	148.5MHz
Resolution	Horizontal scan range	30 kHz - 83 kHz
	Horizontal scan Size(Maximum)	597.89mm
	Vertical scan range	50 Hz - 76 Hz
	Vertical scan Size(Maximum)	336.31mm
	Optimal preset resolution	1920x 1080 @60 Hz
	Plug & Play	VESA DDC2B/CI
	Input Connector	E2770PQU:D-Sub 15pin; DVI 24pin; HDMI(MHL) ;DP
		I2770PQ:D-Sub 15pin; DVI 24pin; HDMI ;DP
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, TMDS
	Power Source	100-240V~, 50/60Hz
	Typical power consumption	E2770PQU: 32W I2770PQ:31W (Test condition: set Contrast = 50, Brightness = 90)
	Power Consumption	E2770PQU: 40W I2770PQ:39W (Test condition: Set Brightness and Contrast to maximum)
	Power consumption @power-saving	≤0.5W
	Off timer	0-24 hrs
	Speakers	2WX2
Physical Characteristics	Connector Type	15-pin D-Sub DVI-D HDMI DP
	Signal Cable Type	Detachable
Environmental	Temperature:	Operating	0° to 40°
		Non-Operating	-25° to 55°
	Humidity:	Operating	10% to 85% (non-condensing)
		Non-Operating	5% to 93% (non-condensing)
	Altitude:	Operating	0~3658m (0~12000 ft)
		Non-Operating	0~12192m (0~40000 ft)

Q2770PQU

Panel	Model name	Q2770PQU
	Driving system	TFT Color LCD
	Viewable Image Size	68.6cm diagonal
	Pixel pitch	0.233mm(H)X0.233mm(V)
	Video	R, G, B Analog Interface & Digital Interface
	Separate Sync.	H/V TTL
	Display Color	16.7M Colors
	Dot Clock	241.5MHz
Resolution	Horizontal scan range	30 kHz - 83 kHz for D-Sub
	Horizontal scan range	30 kHz - 99 kHz for DVI (dual link) ; HDMI ; DP
	Horizontal scanSize(Maximum)	596.74mm
	Vertical scan range	50 Hz - 76 Hz
	Vertical scan Size(Maximum)	335.66mm
	Optimal preset resolution	1920x 1080 @60 Hz for D-Sub
	Optimal preset resolution	2560x 1440 @60 Hz for DVI (dual link) ; HDMI ; DP only
	Plug & Play	VESA DDC2B/CI
	Input Connector	D-Sub 15pin; DVI 24pin; HDMI;DP
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, TMDS
	Power Source	100-240V~, 50/60Hz
	Typical power consumption	45W(Test condition: set Contrast = 50, Brightness = 90)
	Power Consumption	50W(Test condition: Set Brightness and Contrast to maximum)
	Power consumption@power-saving	≤0.5W
	Off timer	0-24 hrs
	Speakers	2WX2
PhysicalCharacteristics	Connector Type	15-pin D-Sub DVI-D HDMI DP
	Signal Cable Type	Detachable
Environmental	Temperature:
	Operating	0° to 40°
	Non-Operating	-25° to 55°
	Humidity:
	Operating	10% to 85% (non-condensing)
	Non-Operating	5% to 93% (non-condensing)
	Altitude:
	Operating	0~3658m (0~12000 ft)
	Non-Operating	0~12192m (0~40000 ft)

G2770PQU/G2770PF

Panel	Model name	G2770PQU/G2770PF
	Driving system	TFT Color LCD
	Viewable Image Size	68.6cm diagonal
	Pixel pitch	0.311mm(H)X0.311mm(V)
	Video	R, G, B Analog Interface & Digital Interface
	Separate Sync.	H/V TTL
	Display Color	16.7M Colors
	Dot Clock	330MHz
Resolution	Horizontal scan range	30 kHz - 83 kHz
	Horizontal scan range	30 kHz - 160 kHz for DVI (dual link); DP only
	Horizontal scan range G2770PF	160 kHz - 160 kHz for DP only
	Horizontal scan Size(Maximum)	597.6mm
	Vertical scan range	50 Hz - 76 Hz
	Vertical scan range	50Hz~146Hz for DVI (dual link); DP only
	Vertical scan range G2770PF	48Hz~146Hz for DP only
	Vertical scan Size(Maximum)	336.15mm
	Optimal preset resolution	1920x 1080 @60 Hz
	Optimal preset resolution	1920x 1080 @144 Hz for DVI (dual link); DP only
	Plug & Play	VESA DDC2B/CI
	Input Connector	D-Sub 15pin; DVI 24pin; HDMI;DP
	Input Connector G2770PF	D-Sub 15pin; DVI 24pin; HDMI/ MHL;DP;
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, TMDS
	Power Source	100-240V~, 50/60Hz
	Typical power consumption	45W(Test condition: set Contrast = 50, Brightness = 90)
	Power Consumption	55W(Test condition: Set Brightness and Contrast to maximum)
	Power consumption @power-saving	≤ 0.5W
	Off timer	0-24 hrs
	Speakers	2WX2
Physical Characteristics	Connector Type	15-pin D-Sub DVI-D HDMI DP
	Connector Type G2770PF	15-pin D-Sub DVI-D HDMI/ MHL DP
	Signal Cable Type	Detachable
Environmental	Temperature:
	Operating	0° to 40°
	Non-Operating	-25° to 55°
	Humidity:
	Operating	10% to 85% (non-condensing)
	Non-Operating	5% to 93% (non-condensing)
	Altitude:
	Operating	0~ 3658m (0~ 12000 ft )
	Non-Operating	0~ 12192m (0~ 40000 ft )

M2870V/ M2870VQ/M2870VHE

Panel	Model name	M2870V/ M2870VQ/M2870VHE
	Driving system	TFT Color LCD
	Viewable Image Size	71.1cm diagonal
	Pixel pitch	0.32mm(H)X0.32mm(V)
	Video	R, G, B Analog Interface & Digital Interface
	Separate Sync.	H/V TTL
	Display Color	16.7M Colors
	Dot Clock	148.5MHz
Resolution	Horizontal scan range	30 kHz - 83 kHz
	Horizontal scan Size(Maximum)	620.9mm
	Vertical scan range	50 Hz - 76 Hz
	Vertical scan Size(Maximum)	341.2mm
	Optimal preset resolution	1920x 1080 @60 Hz
	Plug & Play	VESA DDC2B/CI
	Input Connector	(M2870V)D-Sub 15pin; DVI 24pin
		(M2870VHE)D-Sub 15pin; DVI 24pin; HDMI;
		(M2870VQ)D-Sub 15pin; DVI 24pin; HDMI;DP
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, TMDS
	Power Source	100-240V~, 50/60Hz
	Typical power consumption	41W(Test condition: set Contrast = 50, Brightness = 90)
	Power Consumption	49W(Test condition: Set Brightness and Contrast to maximum)
	Power consumption @power-saving	≤ 0.5W
	Off timer	0-24 hrs
	Speakers	2WX2 (M2870VQ)
Physical Characteristics	Connector Type	M2870V:D-Sub ; DVI-D
		M2870VHE:D-Sub ; DVI-D,HDMI
		M2870VQ:D-Sub ; DVI-D,HDMI;DP
	Signal Cable Type	Detachable
Environmental	Temperature:
	Operating	0° to 40°
	Non-Operating	-25° to 55°
	Humidity:
	Operating	10% to 85% (non-condensing)
	Non-Operating	5% to 93% (non-condensing)
	Altitude:
	Operating	0~ 3658m (0~ 12000 ft )
	Non-Operating	0~ 12192m (0~ 40000 ft )

Preset Display Modes

E2770SD/E2770SD6/E2770SHE/E2770PQU/M2770V/M2870V/I2770V/I2770VHE/M2870VHE/

M2870VQ/I2770PQ/E2770SH

Standard	Resolution	H. Frequency (kHz)	V. Frequency (Hz)
VGA	640 X 480@60Hz	31.469	59.94
MAC MODE	640 X 480@67Hz	35	66.667
VGA	640 X 480@72Hz	37.861	72.809
VGA	640 X 480@75Hz	37.5	75
IBM MODE	720 X 400@70Hz	31.469	70.087
SVGA	800 X 600@56Hz	35.156	56.25
	800 X 600@60Hz	37.879	60.317
	800 X 600@72Hz	48.077	72.188
	800 X 600@75Hz	46.875	75
MAC MODE	832 X 624@75Hz	49.725	74.551
XGA	1024 X 768@60Hz	48.363	60.004
	1024 X 768@70Hz	56.476	70.069
	1024 X 768@75Hz	60.023	75.029
***	1280 X 960@60Hz	60	60
SXGA	1280 X 1024@60Hz	63.981	60.02
	1280 X 1024@75Hz	79.976	75.025
***	1280X 720@60Hz	44.772	59.855
WXGA+	1440 X 900@60Hz	55.935	59.876
WSXGA+	1680 X 1050@60Hz	65.29	59.95
FHD	1920 X 1080@60Hz	67.5	60

Q2770PQU

Standard	Resolution	H. Frequency (kHz)	V. Frequency (Hz)
VGA	640 X 480@60Hz	31.469	59.94
MAC MODE	640 X 480@67Hz	35	66.667
VGA	640 X 480@72Hz	37.861	72.809
VGA	640 X 480@75Hz	37.5	75
IBM MODE	720 X 400@70Hz	31.469	70.087
SVGA	800 X 600@56Hz	35.156	56.25
	800 X 600@60Hz	37.879	60.317
	800 X 600@72Hz	48.077	72.188
	800 X 600@75Hz	46.875	75
MAC MODE	832 X 624@75Hz	49.725	74.551
XGA	1024 X 768@60Hz	48.363	60.004
	1024 X 768@70Hz	56.476	70.069
	1024 X 768@75Hz	60.023	75.029
***	1280 X 960@60Hz	60	60
SXGA	1280 X 1024@60Hz	63.981	60.02
	1280 X 1024@75Hz	79.976	75.025
***	1280X 720@60Hz	44.772	59.855
WXGA+	1440 X 900@60Hz	55.935	59.876
WSXGA+	1680 X 1050@60Hz	65.29	59.95
FHD	1920 X 1080@60Hz	67.5	60
WQHD	2560 X 1440@60Hz	88.787	60

WQHD Mode(2560x1440) for Q2770PQU model DVI(dual link), Display Port only; For HDMI, the highest supporting screen resolution is also 2560 x 1440, but it always depends on your capability of graphics card and BluRay/video players.

G2770PQU/G2770PF

Standard	Resolution	H. Frequency (kHz)	V. Frequency (Hz)
VGA	640x480@60Hz	31.469	59.94
	640x480@72Hz	37.861	72.809
	640x480@75Hz	37.5	75
SVGA	800x600@56Hz	35.156	56.25
	800x600@60Hz	37.879	60.317
	800x600@72Hz	48.077	72.188
	800x600@75Hz	46.875	75
	800x600@100Hz	46.875	75
XGA	1024x768@60Hz	48.363	60.004
	1024x768@70Hz	56.476	70.069
SXGA	1280x1024@60Hz	63.981	60.02
WXGA(DVI/HDMI/DP)	1440x900@60Hz	55.935	59.887
WSXGA(DVI/HDMI/DP)	1680x1050@60Hz	65.29	59.954
HD	1920x1080@60Hz	67.5	60
*** (DVI/HDMI/DP)	1280x720@60Hz	45	60
IBM MODES DOS	720x400@70Hz	31.469	70.087
MAC MODES VGA	640x480@67Hz	35	66.667
MAC MODES SVGA	832x624@75Hz	49.725	74.551
HD(only DVI/DP)	1920x 1080@100Hz	113.3	100
	1920x 1080@120Hz	137.2	120
	1920x 1080@144Hz	158.1	144

HDMI/DP Timing(E2770SHE/E2770PQU/Q2770PQU/G2770PQU /I2770VHE/M2870VQ/M2870VHE/E2770SH/G2770PF)

Format	Resolution	Vertical frequency
480P	640 X 480	60Hz
480P	720 X 480	60Hz
576P	720 X 576	50Hz
720P	1280 X 720	50Hz,60Hz
1080P	1920 X 1080	50Hz,60Hz

MHL Timing(E2770PQU/ G2770PF)

Format	Resolution	Type	Vertical frequency
480P	640 X 480	SD	60Hz
480P	720 X 480	SD	60Hz
576P	720 X 576	SD	50Hz
720P	1280 X 720	HD	50Hz,60Hz
1080P	1920 X 1080	HD	30Hz,50Hz,60Hz

Pin Assignments

15-Pin Color Display Signal Cable

Pin No.	Signal Name	Pin No.	Signal Name
1	Video-Red	9	+5V
2	Video-Green	10	Ground
3	Video-Blue	11	N.C.
4	N.C.	12	DDC-Serial data
5	Detect Cable	13	H-sync
6	GND-R	14	V-sync
7	GND-G	15	DDC-Serial clock
8	GND-B

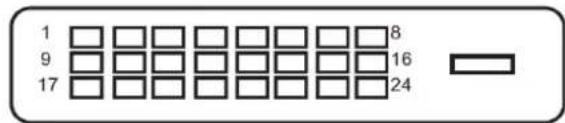

1 9 17 8 16 24

24-Pin Color Display Signal Cable

Pin Number	24-Pin Color Display Signal Cable	Pin Number	24-Pin Color Display Signal Cable
1	TMDS data 2—	13	TMDS data 3+
2	TMDS data 2+	14	+5V Power
3	TMDS data 2/4 Shield	15	Ground (for+5V)
4	TMDS data 4—	16	Hot Plug Detect
5	TMDS data 4+	17	TMDS data 0—
6	DDC Clock	18	TMDS data 0+
7	DDC Data	19	TMDS data 0/5 Shield
8	N.C.	20	TMDS data 5—
9	TMDS data 1—	21	TMDS data 5+
10	TMDS data 1+	22	TMDS Clock Shield
11	TMDS data 1/3 Shield	23	TMDS Clock +
12	TMDS data 3—	24	TMDS Clock —

19 17 1 18 2

19-Pin Color Display Signal Cable

Pin No.	Signal Name	Pin No.	Signal Name	Pin No.	Signal Name
1	TMDS Data 2+	9	TMDS Data 0	17	DDC/CEC Ground
2	TMDS Data 2 Shield	10	TMDS Clock +	18	+5V Power
3	TMDS Data 2	11	TMDS Clock Shield	19	Hot Plug Detect
4	TMDS Data 1+	12	TMDS Clock
5	TMDS Data 1Shield	13	CEC
6	TMDS Data 1	14	Reserved (N.C. on device
7	TMDS Data 0+	15	SCL
8	TMDS Data 0 Shield	16	SDA

Scanned text of a document with faint, partially visible characters and a horizontal line at the bottom.

20-Pin Color Display Signal Cable

Pin No.	Signal Name	Pin No.	Signal Name
1	ML_Lane 3 (n)	11	GND
2	GND	12	ML_Lane 0 (p)
3	ML_Lane 3 (p)	13	CONFIG1
4	ML_Lane 2 (n)	14	CONFIG2
5	GND	15	AUX_CH(p)
6	ML_Lane 2 (p)	16	GND
7	ML_Lane 1 (n)	17	AUX_CH(n)
8	GND	18	Hot Plug Detect
9	ML_Lane 1 (p)	19	Return DP_PWR
10	ML_Lane 0 (n)	20	DP_PWR

Plug and Play

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

Regulation

FCC Notice

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

NOTICE :

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference. It is the responsibility of the user to correct such interference.

WEEE Declaration (Optional)

Disposal of Waste Equipment by Users in Private Household in the European Union.

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

WEEE Declaration for India (Optional)

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste equipment for recycling in India please visit the below web link.

www.aocindia.com/ewaste.php.

This product complies with all implemented RoHS type regulations worldwide, including but not limited to, EU, Korea, Japan, US States (e.g. California), Ukraine, Serbia, Turkey, Vietnam and India.

We continue to monitor, influence and develop our processes to comply with upcoming proposed RoHS type regulations, including but not limited to, Brazil, Argentina, Canada.

Restriction on Hazardous Substances statement (India)

This product complies with the "India E-waste Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

EPA Energy Star

Energy ENERGY STAR

ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

(FOR EPA CERTIFIED MODELS)

EPEAT Declaration

repeat SILVER

EPEAT is a system to help purchasers in the public and private sectors evaluate, compare and select desktop computers, notebooks and monitors based on their environmental attributes. EPEAT also provides a clear and consistent set of performance criteria for the design of products, and provides an opportunity for manufacturers to secure market recognition for efforts to reduce the environmental impact of its products.

AOC believes in protecting the environment.

With a key concern for the conservation of natural resources, as well as landfill protection, AOC announces the launch of AOC monitor's packaging recycling program. This program is designed to help you discard of your monitor carton and filler materials properly. If a local recycling center is not available, AOC will recycle the packaging material for you, including foam filler and carton. AOC Display solution will only recycle AOC monitor packaging. Please refer to the following website address:

Only for North and South American, excluding Brazil:

http://us.aoc.com/about/environmental_impact

For Germany:

http://www.aoc-europe.com/en/service/tco.php

For Brazil:

http://www.aoc.com.br/2007/php/index.php?req=pagina&pgn_id=134

(FOR EPEAT Silver CERTIFIED MODELS)

EPEAT Declaration

repeat GOLD

EPEAT is a system to help purchasers in the public and private sectors evaluate, compare and select desktop computers, notebooks and monitors based on their environmental attributes. EPEAT also provides a clear and consistent set of performance criteria for the design of products, and provides an opportunity for manufacturers to secure market recognition for efforts to reduce the environmental impact of its products.

AOC believes in protecting the environment.

With a key concern for the conservation of natural resources, as well as landfill protection, AOC announces the launch of AOC monitor's packaging recycling program. This program is designed to help you discard of your monitor carton and filler materials properly. If a local recycling center is not available, AOC will recycle the packaging material for you, including foam filler and carton. AOC Display solution will only recycle AOC monitor packaging. Please refer to the following website address:

Only for North and South American, excluding Brazil:

http://us.aoc.com/about/environmental_impact

For Germany:

http://www.aoc-europe.com/en/service/tco.php

For Brazil:

http://www.aoc.com.br/2007/php/index.php?req=pagina&pgn_id=134

(FOR EPEAT GOLD CERTIFIED MODELS)

TCO DOCUMENT

Congratulations!

This product is designed for both you and the planet!

TCO CERTIFIED

TCO Development works for sustainable IT - manufacture, use and recycling of IT products reflecting environmental, social and economic responsibility.

TCO Certified is a third party verified program, where every product model is tested by an accredited impartial test laboratory. TCO

Certified represents one of the toughest certifications for ICT products worldwide.

Some of the Usability features of TCO Certified Displays:

• Visual Ergonomics for image quality is tested to ensure top performance and reduce sight and strain problems. Important parameters are Resolution, Luminance, Contrast, Reflection and Colour characteristics
  • Products are tested according to rigorous safety standards at impartial laboratories
  • Electric and magnetic fields emissions as low as normal household background levels
  • Workload ergonomics to ensure a good physical environment

Some of the Environmental features of TCO Certified Displays:

• Production facilities have an Environmental Management System (EMAS or ISO 14001)
• Low energy consumption to minimize climate impact
- Restrictions on Chlorinated and Brominated flame retardants, plasticizers, plastics and heavy metals such as cadmium, mercury and lead (RoHS compliance)
• Both product and product packaging is prepared for recycling
• The brand owner offers take-back options

Corporate Social Responsibility

- The brand owner demonstrates the product is manufactured under working practices that promote good labour relations and working conditions.

The Criteria Document can be downloaded from our web site. The criteria included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user and environmentally friendly direction. Our ICT product labeling system began in 1992 and is now requested by users and ICT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

TCO Certified Document for Displays version. 2.3

Technology for you and the planet

(FOR TCO CERTIFIED MODELS)

Service

Warranty Statement for Europe

LIMITED THREE-YEAR WARRANTY\*

For AOC LCD Monitors sold within Europe, AOC International (Europe) B.V. warrants this product to be free from defects in material and workmanship for a period of Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) B.V. will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. In the absent of the proof of purchase, the warranty will start 3 months after the date of manufacturing indicated on the product.

If the product appears to be defective, please contact your local dealer or refer to the service and support section on www.aoc-europe.com for the warranty instructions in your country. The freight cost for the warranty is pre-paid by AOC for the delivery and return. Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Certified or Authorized Service Center under the following condition:

• Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box to protects your monitor well enough during transport).
• Put the RMA number on the address label
• Put the RMA number on the shipping carton

AOC International (Europe) B.V. will pay the return shipping charges within one of the countries specified within this warranty statement. AOC International (Europe) B.V. is not responsible for any costs associated with the transportation of product across international borders. This includes the international border within the European Union. If the LCD Monitor is not available for collection when the currier attends, you will be charged a collection fee.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Damages during transport due to improper packaging
• Improper installation or maintenance other then in accordance with AOC's user manual
• Misuse
• Neglect
• Any cause other than ordinary commercial or industrial application
• Adjustment by non-authorized source
• Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center
• Improper environments like humidity, water damage and dusts
• Damaged by violence, earthquake and terrorist attacks
• Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other irregularities

This limited warranty does not cover any of the product firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modifications or alteration.

All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1 pixel policy standards.

If your warranty has expired, you still have access to all available service options, but you will be responsible for the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified or Authorized Service Center will provide you with an estimate of service costs before receiving your authorization to perform service.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Information in this document is subject to change without notice. For more information, please visit: http://www.aoc-europe.com

Warranty Statement for Middle East and Africa (MEA)

And

The Commonwealth of Independent States (CIS)

LIMITED ONE to THREE YEARS WARRANTY\*

For AOC LCD Monitors sold within the Middle East and Africa (MEA) and the Commonwealth of Independent States (CIS), AOC International (Europe) B.V. warrants this product to be free from defects in material and workmanship for a period of One (1) to Three (3) years from the manufacture date depending on sale country. During this period, AOC International (Europe) B.V. offers a Carry-In (return to Service Center) Warranty Support at an AOC's Authorized Service Center or Dealer and at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. As a Standard Policy, the warranty will be calculated from the manufacture date identified from the product ID serial number, but the total warranty will be Fifteen (15) months to Thirty Nine (39) months from MFD (manufacture date) depending on sale country. Warranty will be considered for exceptional cases that are out of warranty as per the product ID serial number and for such exceptional cases; Original Invoice/Proof Of Purchase Receipt is mandatory.

If the product appears to be defective, please contact your AOC authorized dealer or refer to the service and support section on AOC's website for the warranty instructions in your country:

• Egypt: http://aocmonitorap.com/egypt_eng
  • CIS Central Asia: http://aocmonitorap.com/ciscentral
  • Middle East: http://aocmonitorap.com/middleeast
• South Africa: http://aocmonitorap.com/southafrica
  • Saudi Arabia: http://aocmonitorap.com/saudiarabia

Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Authorized Service Center or Dealer under the following condition:

• Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box to protects your monitor well enough during transport).
• Put the RMA number on the address label
• Put the RMA number on the shipping carton

* This limited warranty does not cover any losses or damages that occur as a result of:

• Damages during transport due to improper packaging
• Improper installation or maintenance other then in accordance with AOC's user manual
• Misuse
• Neglect
• Any cause other than ordinary commercial or industrial application

• Adjustment by non-authorized source

• Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center

• Improper environments like humidity, water damage and dusts
• Damaged by violence, earthquakes and terrorist attacks
• Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other irregularities

This limited warranty does not cover any of the product firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modifications or alteration.

All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1 pixel policy standards.

If your warranty has expired, you still have access to all available service options, but you will be responsible for the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified, Authorized Service Center or dealer will provide you with an estimate of service costs before receiving your authorization to perform service.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF ONE (1) to THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Information in this document is subject to change without notice. For more information, please visit:

http://www.aocmonitorap.com

AOC Pixel Policy ISO 9241-307 Class 1

AOC International (Europe) B.V.

Prins Bemhardplein 200 / 6 ^th floor, Amsterdam, The Netherlands

Tel: [phone] • Fax: [phone]

AOC Pixel Policy

ISO 9241-307 Class 1

July 25 ^th , 2013

AOC strives to deliver the highest quality products. We use some of the industry's most advanced manufacturing processes and practice stringent quality control. However, pixel or sub pixel defects on the TFT monitor panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but AOC guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This Pixel Policy explains the different types of pixel defects and defines acceptable defect levels for each type. In order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT monitor panel must exceed these acceptable levels.

Pixels and Sub Pixel Definition

A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and blue. When all sub pixels of pixel are lit, the three colored sub pixel together appear as a single white pixel. When all are dark, the three colored sub pixels together appear as a single black pixel.

subpixel subpixel subpixel R G B pixel

Types of Pixel Defects

• Bright Dot Defects: the monitor displays a dark pattern, sub pixels or pixels are always lit or "on"
• Black Dot Defects: the monitor displays a light pattern, sub pixels or pixels are always dark or "off"

ISO 9241-307Pixel Defect Class	Defect Type 1Bright Pixel	Defect Type 2Black Pixel	Defect Type 3Bright Sub pixel	Defect Type 4Black Sub pixel
Class 1	1	1	2+11+30+5

AOC International (Europe) B.V.

Warranty Statement for North & South America (excluding Brazil)

WARRANTY STATEMENT

for AOC Color Monitors

Including those Sold within North America as Specified

Envision Peripherals, Inc. warrants this product to be free from defects in material and workmanship for a period of three (3) years for parts & labor and one (1) year for CRT Tube or LCD Panel after the original date of consumer purchase. During this period, EPI (EPI is the abbreviation of Envision Peripherals, Inc.) will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. The parts or product that are replaced become the property of EPI.

In the USA to obtain service under this limited warranty, call EPI for the name of the Authorized Service Center closest to your area. Deliver the product freight pre-paid, along with the dated proof of purchase, to the EPI Authorized Service Center. If you cannot deliver the product in person:

• Pack it in its original shipping container (or equivalent)
• Put the RMA number on the address label
• Put the RMA number on the shipping carton
  • Insure it (or assume the risk of loss/damage during shipment)
  • Pay all shipping charges

EPI is not responsible for damage to inbound product that was not properly packaged.

EPI will pay the return shipment charges within one of the countries specified within this warranty statement. EPI is not responsible for any costs associated with the transportation of product across international borders. This includes the international borders of the countries within this warranty statements.

In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number [phone]. Or you can request an RMA Number online at www.aoc.com/na-warranty.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Shipping or improper installation or maintenance
- Misuse
- Neglect
- Any cause other than ordinary commercial or industrial application
- Adjustment by non-authorized source
- Improper environment

• Repair, modification, or installation of options or parts by anyone other than an EPI Authorized Service Center

• Excessive or inadequate heating or air conditioning or electrical power failures, surges, or other irregularities

This three-year limited warranty does not cover any of the product's firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modification or alteration.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR AND ONE (1) YEAR FOR CRT TUBE OR LCD PANEL FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

EPI OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HERE. EPI' LIABILITY, WHETHER BASED ON CONTRACT, TORT. WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL ENVISION PERIPHERALS, INC. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

In the United States of America, this limited warranty is only valid for Products purchased in the Continental United States, Alaska, and Hawaii.

Outside the United States of America, this limited warranty is only valid for Products purchased in Canada.

Information in this document is subject to change without notice.

For more details, please visit:

USA: http://us.aoc.com/support/warranty

ARGENTINA: http://ar.aoc.com/support/warranty

BOLIVIA: http://bo.aoc.com/support/warranty

CHILE: http://cl.aoc.com/support/warranty

COLOMBIA: http://co.aoc.com/warranty

COSTA RICA: http://cr.aoc.com/support/warranty

DOCAN REPUBLIC: http://do.aoc.com/support/warranty

ECUADOR: http://ec.aoc.com/support/warranty

EL SALVADOR: http://sv.aoc.com/support/warranty

GUATEMALA: http://gt.aoc.com/support/warranty

HONDURAS: http://hn.aoc.com/support/warranty

NICARAGUA: http://ni.aoc.com/support/warranty

PANAMA: http://pa.aoc.com/support/warranty

PARAGUAY: http://py.aoc.com/support/warranty

PERU: http://pe.aoc.com/support/warranty

URUGUAY: http://pe.aoc.com/warranty

VENEZUELA: http://ve.aoc.com/support/warranty

IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty
