USER MANUAL 27MP59G LG

Owner's Manual IPS LED MONITOR (LED MONITOR\*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

Please read this manual carefully before operating your set and retain it for future reference.

IPS LED MONITOR MODEL

24MP59G

27MP59G

CONTENTS

LICENSE 3

ASSEMBLING AND PREPARING - 4

• Product Components ---- 4
• Supported Drivers and Software ---- 5
• Component and Button Description ---- 6

How to Use the Joystick Button

Input Connector

• Moving and Lifting the Monitor ---- 8
• Setting up the Monitor set 9

Attaching the Stand Base

Mounting on a table

Using the cable holder

USING THE MONITOR SET ---- 12

• Connecting to a PC ----12
  D-SUB connection
  HDMI connection
  DisplayPort connection
• Connecting to AV Devices ----13
  HDMI connection
• Connecting Peripherals ----14
  Connecting Headphones

CUSTOMIZING SETTINGS ---- 15

TROUBLESHOOTING ---- 21

SPECIFICATIONS 22

• Preset Modes (Resolution) ---- 24
• Indicator 24

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP Directive. * This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display. * To make this setting be disabled, change the option to 'Off' in OSD menu of "Automatic Standby".

ASSEMBLING AND PREPARING

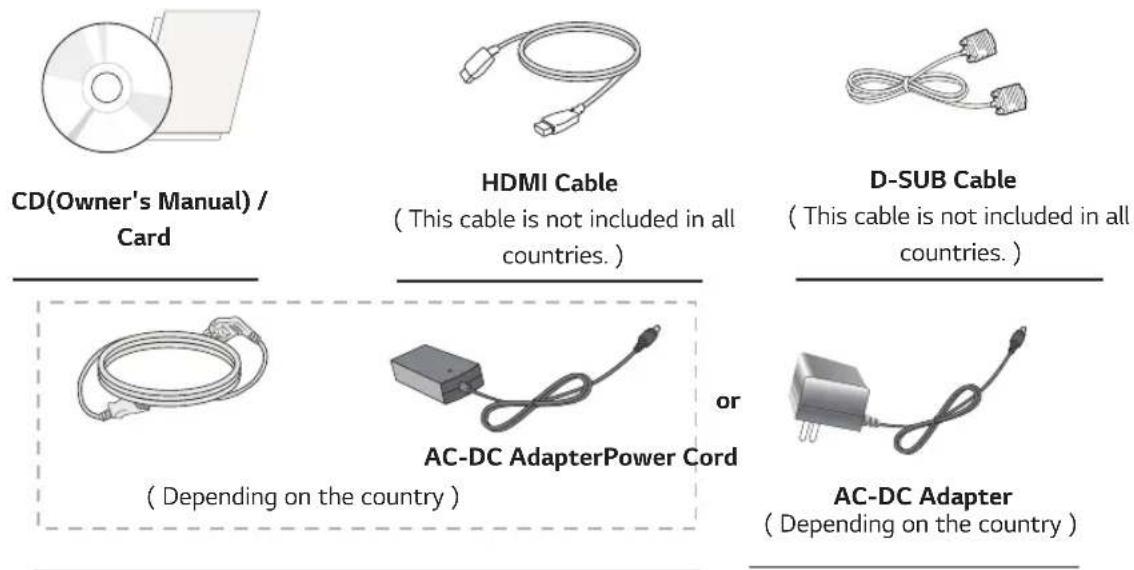

Product Components

Please check whether all the components are included in the box before using the product. If there are missing components, contact the retail store where you purchased the product. Note that the product and components may look different from those shown here.

Display Port Cable
( This cable is not included in all countries. )

Stand Body

Stand Base

Cable Holder

CAUTION

Always use genuine components to ensure safety and product performance.

The product warranty will not cover damage or injury caused by the use of counterfeit components.

It is recommend that use the supplied components.

If you use generic cables not certified by LG, the screen may not display or there may be image noises.

NOTE

Note that the components may look different from those shown here.

Without prior notice, all information and specifications in this manual are subject to change to improve the performance of the product.

To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store where you purchased the product.

Supported Drivers and Software

Check the drivers and software supported by your product and refer to the manuals on the CD enclosed in the product package.

Drivers and Software Installation Priority		24MP59G27MP59G
Monitor Driver Recommended O
OnScreen Control Recommended O

Required and Recommended: You can download and install the latest version from the enclosed CD or from the LGE website (www.lg.com).

Optional: You can download and install the latest version from the LGE website (www.lg.com).

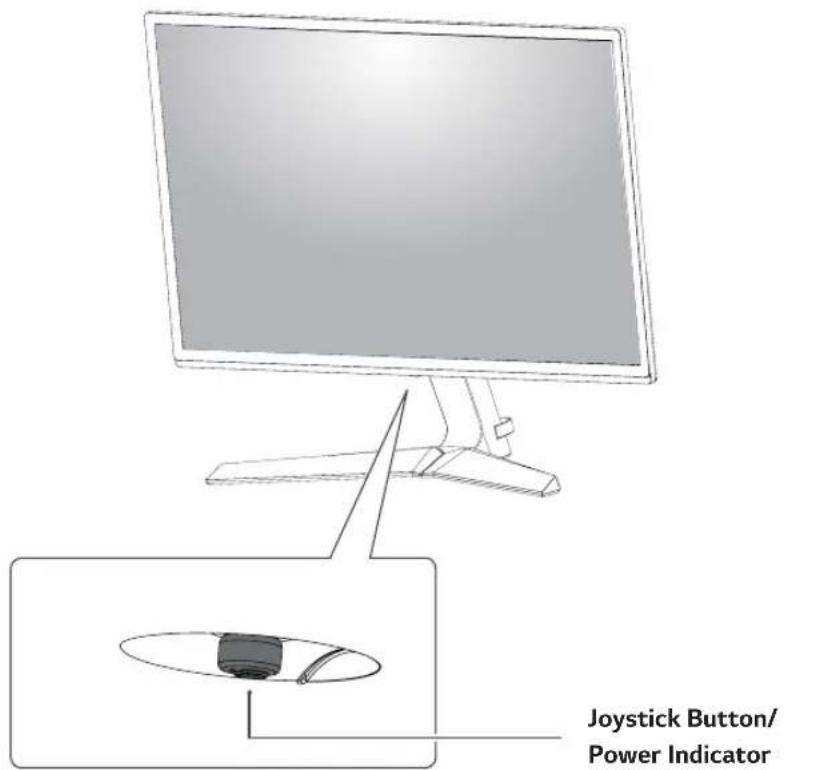

Component and Button Description

Joystick Button/ Power Indicator

Joystick Button/

On: power is on

Off: power is off

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your finger.

Basic Functions

		Power on	Press the joystick button once with your finger to turn on the monitor.
		Power off	Press and hold the joystick button once with your finger to turn off the monitor.
	◀/▶	Volume Control	You can control the volume by moving the joystick button left/right.

NOTE

The joystick button is located at the bottom of the monitor.

Input Connector

24MP59G 27MP59G 电源输入 DC-IN (19 V==) D-SUB IN HDMI IN HDMI DP-IN H/P Connection panel (See p.12~14)

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation regardless of its shape or size.

It is advisable to place the monitor in the original box or packing material before attempting to move it.

Before moving or lifting the monitor, disconnect the power cord and all cables.

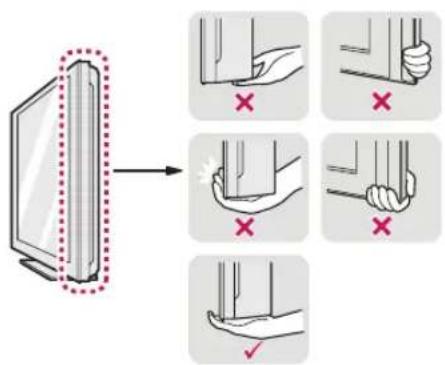

Hold the top and bottom of the monitor frame firmly.

Do not hold the panel itself.

Diagram illustrating hand positioning and movement of a device, with red X marks indicating correct or incorrect positions.

When holding the monitor, the screen should face away from you to prevent it being scratched.

Prohibition sign with silhouette and crossed-out document, indicating no prohibition or exclusion

When moving the monitor, avoid any strong shock or vibrations to the product.

When moving the monitor, keep it upright, never turn the monitor on its side or tilt it sideways.

CAUTION

As far as possible, avoid touching the monitor screen. This may result in damage to the screen or some of the pixels used to create images.

Computer monitor sign with prohibition symbol and virus icon, indicating no restrictions on screen

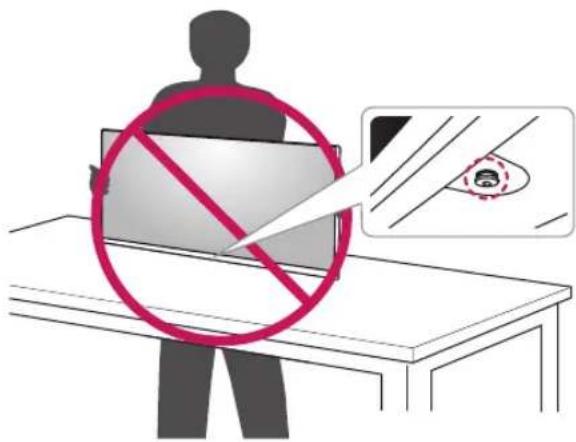

If you use the monitor panel without the stand base, its joystick button may cause the monitor to become unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick button to malfunction.

Illustration showing a person holding a prohibition symbol with a magnified inset showing a face detection device.

Setting up the Monitor set

Attaching the Stand Base

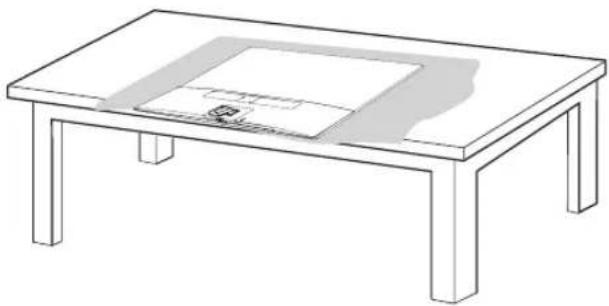

1

Line drawing of a simple wooden table with a flat top and two legs, featuring a small open lid on the front panel (no text or symbols)

CAUTION

To protect the screen from scratches, cover the surface with a soft cloth.

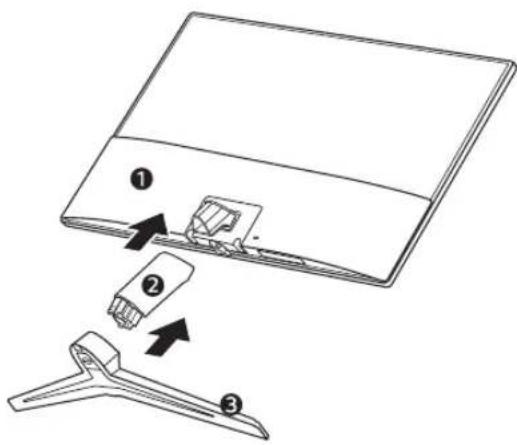

2

Diagram showing three labeled parts of a device or device with arrows indicating assembly or transformation steps.

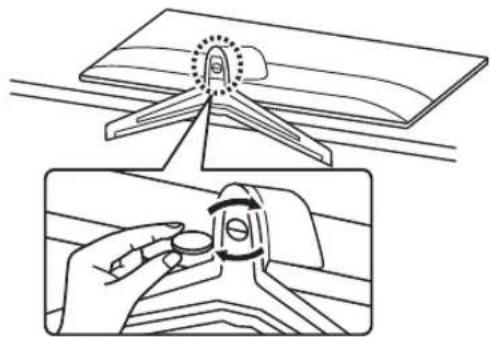

3

Illustration showing a mechanical component being adjusted to a circular component, with no visible text or symbols.

WARNING

To avoid injury to the fingers and foot when Assembly Stand Body and Base, should hold Base when assembly stand body and base.

CAUTION

Illustrations in this document represent typical procedures, so they may look different from the actual product.

Do not carry the monitor upside down by just holding the stand base. This may cause the monitor to fall off the stand and could result in personal injury.

When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.

Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)

Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.

NOTE

You can disassemble the stand in the reverse order of the assembly.

Mounting on a table

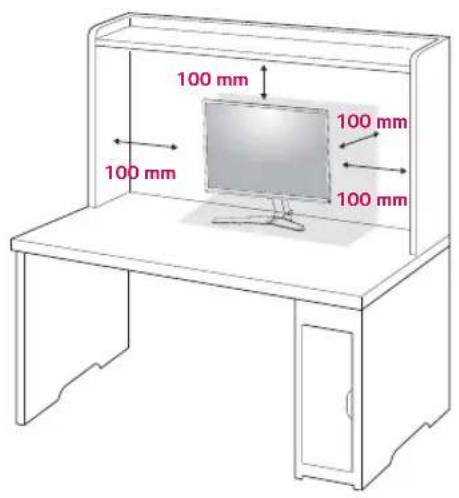

1 Lift and tilt the Monitor set into its upright position on a table.

Leave a 100 mm (minimum) space from the wall for proper ventilation.

100 mm 100 mm 100 mm 100 mm

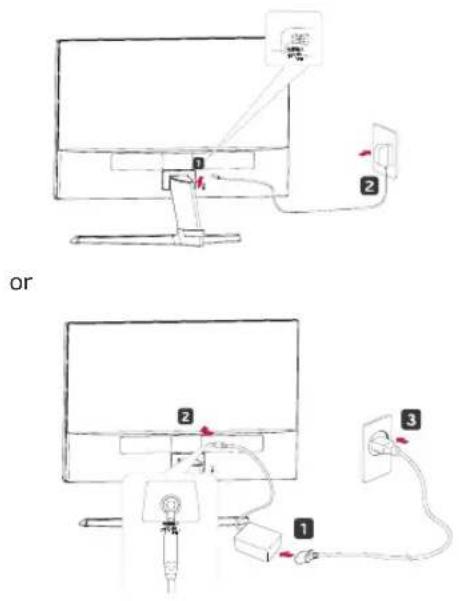

2 Connect the AC-DC Adapter and Power Cord to a wall outlet.

or 1 2 3 1

3 Press the joystick button on the bottom of the monitor to turn on the monitor.

CAUTION

Unplug the power cord prior to moving or installing the monitor. There is risk of electric shock.

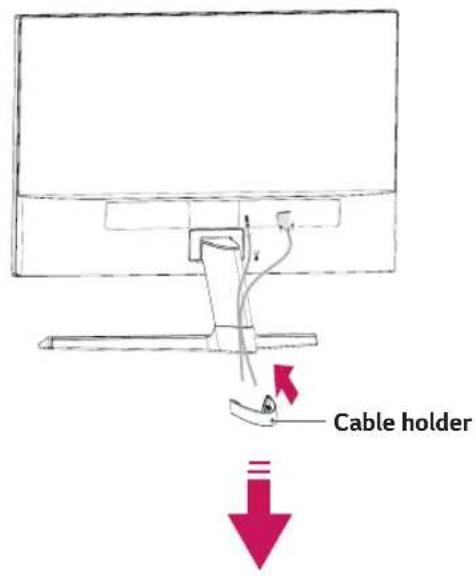

Using the cable holder

Cable holder

Line drawing of a monitor with a stand and cable, no text or symbols present

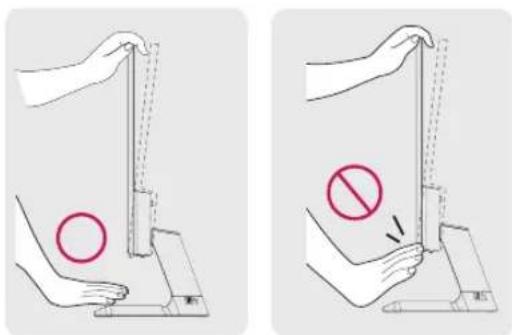

WARNING

When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers.

Diagram illustrating two methods of removing a device, showing hand positioning and prohibition symbol with Chinese text.

Do not touch or press the screen when adjusting the angle of the monitor.

Line drawing of two hands holding a blank computer monitor with a red prohibition symbol (no text or labels)

Do not hold this set like below picture.Monitor screen can detach from stand base and injure your body.

Simple line drawing of two hands holding a rectangular object with a red prohibition symbol (no text or labels)

NOTE

Tilt from +15 to -2 degrees up or down to adjust the angle of the Monitor set to suit your view.

-2° 15° Front Rear

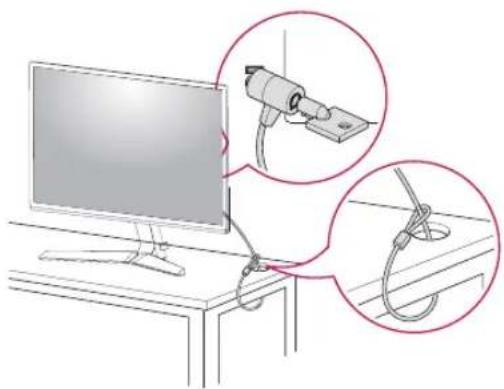

Using the Kensington security system

The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the Monitor set and a table.

Illustration of a computer monitor connected to a cable with magnified insets showing the cable being held and hanging (no text or symbols present)

NOTE

The Kensington security system is optional. You can obtain it from most electronics stores.

USING THE MONITOR SET

Connecting to a PC

Your Monitor set supports Plug & Play*.

*Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

D-SUB connection

Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations.

D-SUB IN RGB OUT PC

HDMI connection

Transmits the digital video and audio signals from your PC to the Monitor set. Connect the PC and the Monitor set with the HDMI cable as shown in the following illustrations.

HDMI IN HDMI OUT PC

NOTE

If you use HDMI PC, it can cause compatibility problem. Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. Recommended HDMI cable types - High-Speed HDMI®/™ Cable - High-Speed HDMI®/™ Cable with Ethernet

DisplayPort connection

Transmits the digital video and audio signals from your PC to the monitor. Connect your PC to the monitor using the display port cable as illustrated below. Press the menu button and then select the input option.

DP OUT PC DP IN

NOTE

There may be no video or audio output depending on the DP version of the PC.

If you use generic cables not certified by LG, the screen may not display or there may be image noises.

Connecting to AV Devices

HDMI connection

Transmits the digital video and audio signals from your AV devices to the monitor. Connect your AV device to the monitor with the HDMI cable as illustrated below.

HDMI IN HDMI OUT A/V

NOTE

If you use HDMI PC, it can cause compatibility problem.

Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.

Recommended HDMI cable types

• High-Speed HDMI ^® /TM Cable
• High-Speed HDMI ^® / ^TM Cable with Ethernet

Connecting Peripherals

Connecting Headphones

Connect peripherals to the monitor via the headphones port. Connect as illustrated.

Line drawing of a headset and audio jack connected to a speaker (no text or symbols)

(sold separately)

NOTE

Peripheral devices are sold separately.

If you use angled headphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight headphones.

Angle Type Straight Type

Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited.

CUSTOMIZING SETTINGS

Activating the Main Menu

1 Press the joystick button on the bottom of the monitor.
2 Move the joystick up/down (▲/▼) and left/right(◄/►) to set the options.
3 Press the joystick button once more to close the main menu.

Abstract black-and-white line drawing with a pink circular emblem (no text or symbols)

Joystick Button

Button Menu Status Description
	Main menu disabled Enables the main menu.
	Main menu enabled		Close the main menu.(Long press the button to turn off the monitor)
	◀	Main menu disabled Adjusts the monitor volume level. (Only HDMI / Display Port.)
		Main menu enabled Enters the input features.
	▶	Main menu disabled Adjusts the monitor volume level. (Only HDMI / Display Port.)
		Main menu enabled Enters the menu feature.
	▲	Main menu disabled Enables the main menu.
		Main menu enabled Turns off the monitor.
	▼	Main menu disabled Enables the main menu.
		Main menu enabled Enters the game mode feature.

Main Menu Features

Monitor off Input Close Menu Game Mode

Main Menu Description
Menu Configures the screen settings.
Game Mode You can change Picture Mode to a gaming mode.
Input Sets input mode.
Monitor off Turns off the monitor.
Close Close the main menu.

Customizing settings

Menu > Quick Settings Description
Brightness	Adjusts the color contrast and brightness of the screen.
Contrast
Volume Adjusts the volume.
	NOTE• You can adjust Mute/ Unmute by moving the joystick button to ▼ in the Volume menu.
Ratio Adjusts the screen ratio.
Original Displays a video according to the input video signal aspect ratio.
SMART ENERGY SAVING	High Enables SMART ENERGY SAVING you can save energy with this energy- high efficient.
	Low Enables SMART ENERGY SAVING you can save energy with this energy- low efficient.
	Off Disables SMART ENERGY SAVING .

* SMART ENERGY SAVING : Conserve energy by using luminance compensation algorithm.

NOTE

The display may look the same for Wide, Original options at the recommended resolution (1920 x 1080).

The ratio is disabled in the interlaced signal.

Saving Data depends on the Panel. So, those values should be different from each panel and panel vendor. If option of SMART ENERGY SAVING is High or Low, monitor luminance become higher or lower depend on source.

Customizing settings

Menu > Picture	Description
Picture Mode	Custom	Allows the user to adjust each element. The color mode of the main menu can be adjusted.
	Reader 1	It is a mode that the screen is adjusted to the best for the new spaper. If you want screen more bright, you can control brightness in Menu OSD.
	Reader 2	It is a mode that the screen is adjusted to the best for the cartoon. If you want screen more bright, you can control brightness in Menu OSD.
	Photo Optimizes	the screen to view photos.
	Cinema Optimizes	the screen to improve the visual effects of a video.
	Color Weakness	This mode is for users who cannot distinguish between red and green. It enables users with color weakness to easily distinguish between the two colors.
	FPS Game 1 This mode is optimized for FPS games.
	FPS Game 2	It has a higher Black Stabilizer value than FPS Game 1. It is suitable for very dark FPS games.
	RTS Game This mode is optimized for RTS Game.
	Custom(Game)	In this mode, users can customize various elements including game-related options.
Picture Adjust SUPER RESOLUTION+		High Optimized picture quality is displayed when a user wants crystal clear images. It is effective for high quality video or game.
		Middle The optimized picture quality is displayed when a user wants images between low and high modes for comfortable viewing. It is effective for UCC or SD video.
		Low The optimized picture quality is displayed when a user wants smooth and natural images. It is effective for slow -moving pictures or still images.
		Off Select this option for everyday viewing. SUPER RESOLUTION+ is turned off in this mode.
		Sharpness Adjusts the sharpness of the screen.
		Black Level Sets the offset level (for HDMI only).Offset as a reference for a video signal, this is the darkest color the monitor can display.
		High Keeps the current contrast ratio of the screen.
		Low Low ers the black levels and raises the white levels from the current contrast ratio of the screen.
		On Adjusts the brightness automatically according to the screen.
		Off Disables the DFC feature.
Game Adjust	Response Time	Sets a response time for displayed pictures based on the speed of the screen.For a normal environment, it is recommended that you use Middle. For a fast-moving picture, it is recommended that you use high.Setting to High may cause image sticking.
		High Sets the response time to High.
		Middle Sets the response time to Middle.
		Low Sets the response time to Low.
		Off Does not use the response time improvement feature.

NOTE

• This is subsidiary for color weakness user. Therefore if you feel uncomfortable with the screen, please turn off this function.
• This function can't distinguish some colors in some images.

Game Adjust	FreeSync	Provides seamless and natural images by synchronizing the vertical frequency of the input signal with that of the output signal. Supported Interface: DisplayPort/HDMI.Supported Graphic Card : A graphic card that supports AMD's FreeSync is necessary.Supported Version : Make sure to update the graphic card to the latest driver.For more information and requirement, refer to AMD website at http://www.amd.com/FreeSyncFreeSyncand 1ms Motion Blur Reduction cannot be enabled simultaneously.
		On FreeSync function on.
		Off FreeSync function off.
	Black Stabilizer	Black Stabilizer:You can control the black contrast to have better visibility in dark scenes.Increasing the Black Stabilizer value brightens the low gray level area on the screen.(You can easily distinguish objects on dark game screens.)Reducing the Black Stabilizer value darkens the low gray level area and increases the dynamic contrast on the screen.
	1ms Motion Blur Reduction	On This mode minimizes motion blur in fast-moving videos. To take full advantage of this function, select 1920X1080@75Hz before enabling 1ms Motion Blur Reduction.This Function is available for 75hz vertical frequency
		Off Turns	1ms Motion Blur Reduction Mode off.
		NOTETo reduce motion blur, brightness is reduced with backlight control.1ms Motion Blur Reduction and FreeSync feature can not used at the same time.This function is game-optimized.It is recommended to turn off when you are not using the gaming function.
	Cross Hair	Cross Hair provides a mark on the center of the screen for First Person Shooter(FPS) games.Users can select thecross hairthat fits their gaming environment among four differentcross hairs.When the monitor is off or enters energy saving mode, the Cross Hair feature is automatically turnedoff.
Color Adjust	Gamma	The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image becomes. If you do not need to adjust the gamma settings, select Off.
	Color Temp Selects the factory default picture color.Warm: Sets the screen color to a reddish tone.Medium: Sets the screen color between a red and blue tone.Cool: Sets the screen color to a bluish tone.Custom: The user can adjust it to red, green or blue by customization.
	Red/Green/Blue	You can customize the picture color using Red, Green, and Blue colors.
	Six Color	Meets the user requirements for colors through adjusting the color and saturation of the six colors(Red_Hue, Red_Saturation, Green_Hue, Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_Hue, Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yellow_Hue, Yellow_Saturation) and sing the Six Color settings.*Hue: Adjusts tone of the screen.*Saturation: Adjusts the saturation of the screen colors. The lower the value, less saturated and bright the colors become. The higher the value, the more saturated and dark the colors become.
	Reset Returns the color settings to the default settings.
Display Horizontal	To move image	left and right.
	Vertical To move image up and down.
	Clock	To minimize any vertical bars or stripes visible on the screen background.The horizontal screen size will also change.
	Phase	To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

Customizing settings

Menu > General Description
Language To choose the language in which the control names are displayed.
Power LED Turns the power indicator on the front side of the monitor on/off.
On The power indicator is automatically turned on.
Off The power indicator is turned off.
Automatic Standby The monitor will automatically switch to standby mode after a certain period.
Resolution	User can set the desired resolution.This option is enabled only when the screen resolution on your computer is set to the following(D-SUB only).
	NOTEThe function is enabled only when the screen resolution on your computer is set to the following, except that the PC output wrong resolution.
	1024x768, 1280x768, 1360x768, 1366x768,Off
	1280x960, 1600x900,Off
	1440x900, 1600x900,Off
OSD Lock Prevents incorrect key input.

Menu > Auto Configuration Description
Do you want to Auto Configuration?
Yes	Operate the Auto Configuration for optimal display in D-SUB.
Cancel	Cancel the select.

NOTE

This function will be enable only in analog input.

Menu > Reset Description
Do you want to reset your settings?
Reset Returns to the default settings.
Cancel Cancel the select.

TROUBLESHOOTING

Check the following before calling for service.

No image appears
Is the power cord of the display connected?	Check and see if the power cord is connected properly to the power outlet.
Is the power indicator light on?	Press the Power button.
Do you see an "Out of Range" message on the screen?	This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.
Do you see a "NO SIGNAL" message on the screen?	After the monitor is on "NO SIGNAL", the monitor goes to DPM mode.This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.

Can 't you control some functions in OSD?
Can't you select some menu in OSD?	• You can unlock the OSD controls at any time by entering the OSD lock menu and changing items to off.

CAUTION

Check Control Panel▶ Display▶ Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.

If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.

The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.

Display image is incorrect
The screen color is mono or abnormal.	Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.Make sure the video card is properly inserted in the slot.Set the color setting higher than 24 bits (true color) atControl Panel ▶ Settings.
The screen blinks.	Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display driver?	Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our website: http://www.lg.com.Make sure to check if the video card supports Plug&Play function.

The screen is flickering.
Did you select the recommended resolution?	• If the selected resolution is HDMI 1080i 60/50 Hz, the screen may be flickering. Change the resolution to the recommended resolution 1080P.

SPECIFICATIONS

24MP59G

LCD Screen Type TFT (Thin Film Transistor)		LCD(Liquid Crystal Display) Screen
		Pixel Pitch 0.2745mm x 0.2745mm
Resolution Maximum R	Resolution 1920 x 1080 @ 75 Hz
	Recommended Resolution 1920 x 1080 @ 75 Hz
Video Signal Horizontal	Frequency HDMI: 30 kHz to 85 kHzDP: 30 kHz to 85 kHzD-SUB: 30 kHz to 85 kHz
	Vertical Frequency HDMI: 40 Hz to 75 HzDP: 40 Hz to 75 HzD-SUB: 40 Hz to 75 Hz
	Synchronization Separate Sync, Digital.
Input Connector HDMI IN, DP(DisplayPort) IN, D-SUB IN, HP OUT
Power Input 19 V	---1.3 A
Power Consumption On	Mode: 17.1 W Typ. (ENERGY STAR® standard) *22 W Typ. (Outgoing condition) **Sleep Mode ≤ 0.3 WOff Mode ≤ 0.3 W
AC/DC adaptor Type ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONICor Type ADS-40FSG-19 19032GPG-1, manufactured by SHENZHEN HONOR ELECTRONICor Type ADS-40FSG-19 19032GPBR-1, manufactured by SHENZHEN HONOR ELECTRONICor Type ADS-40FSG-19 19032GPI-1, manufactured by SHENZHEN HONOR ELECTRONICor Type ADS-40FSG-19 19032GPCU-1, manufactured by SHENZHEN HONOR ELECTRONICor Type ADS-32FSG-19 19032EPCU-1L, manufactured by SHENZHEN HONOR ELECTRONICor Type LCAP21A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISEor Type LCAP26A-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISEor Type LCAP26A-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISEor Type LCAP26A-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISEor Type LCAP26A-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISEor Type LCAP51A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISEor Type PA-1031-23, manufactured by Lite-On Technology Corporation
		OUTPUT: 19 V--- 1.7 A
Environmental conditions	Operating TemperatureOperating Humidity	0 °C to 40 °CLess than 80%
	Storage TemperatureStorage Humidity	-20 °C to 60 °CLess than 85 %
Dimension	Monitor Size (Width x Height x Depth)
	With Stand	550.5 mm x 419.9 mm x 204.1 mm
	Without Stand	550.5 mm x 332.1 mm x 85.5 mm
Weight (Without Packaging)	With Stand	3.2 Kg
	Without Stand	2.8 Kg

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

* The power consumption level can be different by operating condition and monitor setting.

* The On mode power consumption is measured with ENERGY STAR® test standard.

** The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum resolution).

SPECIFICATIONS

27MP59G

LCD Screen Type TFT (Thin Film Transistor)		LCD(Liquid Crystal Display) Screen
Pixel Pitch 0.31 14mm x 0.31 14mm
Resolution Maximum Res	Resolution 1920 x 1080 @ 75Hz
	Recommended Resolution 1920 x 1080 @ 75Hz
Video Signal Horizontal	Frequency HDMI: 30 kHz to	85 kHzDP: 30 kHz to 85 kHzD-SUB: 30 kHz to 85 kHz
	Vertical Frequency HDMI: 40 Hz to 75 HzDP: 40 Hz to 75 HzD-SUB: 40 Hz to 75 Hz
	Synchronization Separate Sync, Digital.
Input Connector HDMI	IN, DP(DisplayPort) IN, D-SUB IN, HP OUT
Power Input 19 V	---1.6 A
Power Consumption On	Mode: 20.3 W Typ. (ENERGY STAR® standard) *26.5 W Typ. (Outgoing condition) **Sleep Mode ≤ 0.3 WOff Mode ≤ 0.3 W
AC/DC adaptor Type ADS	DS-45SN-19-3 19040G, manufactured by SHENZHEN HONOR ELECTRONIC or Type LCAP21C, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26B-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
	OUTPUT: 19 V---2.1 A
Environmental conditions	Operating TemperatureOperating Humidity	0 °C to 40 °CLess than 80%
	Storage TemperatureStorage Humidity	-20 °C to 60 °CLess than 85 %
Dimension	Monitor Size (Width x Height x Depth)
	With Stand	634.1 mm x 470.5 mm x 204.1mm
	Without Stand	634.1 mm x 382.7 mm x 91.1 mm
Weight (Without Packaging)	With Stand	4.3 kg
	Without Stand	3.9 kg

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
** The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum resolution).

Preset Modes (Resolution)

D-SUB/ HDMI/ DP PC Timing

Display Modes (Resolution)	Horizontal Frequency(kHz)	Vertical Frequency(Hz)	Polarity(H/V)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75 +/+
1152 x 864 67.500 75 +/+
1280 x 1024 63.981 60 +/+
1280 x 1024 79.976 75 +/+
1680 x 1050 65.290 60 -/+
1920 x 1080 67.500 60 +/+
1920 x 1080 83.89 75 +/+ Recommend Mode

HDMI AV Timing

Factory support mode(Preset Mode)	HorizontalFrequency(kHz)	VerticalFrequency(Hz)	HDMI
480P 31.50 60 0
576P 31.25 50 0
720P 37.50 50 0
720P 45.00 60 0
1080P 56.25 50 0
1080P 67.50 60			ORecommend Mode

Indicator

Mode LED Color
On Mode White
Sleep Mode	Off
Off Mode	Off

LG Life's Good

Make sure to read the Safety Precautions before using the product.

Keep the Owner's Manual (CD) in an accessible place for future reference.

The model and serial number of the SET is located on the back and one side of the SET. Record it below should you ever need service.

MODEL

SERIAL

ENERGY STAR® is a set of power-saving guidelines issued by the U.S.EnvironmentAL Protection Agency (EPA).

As an ENERGY STAR® Partner LGE U. S. A., Inc. has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Refer to ENERGYSTAR.gov for more information on the ENERGY STAR® program.
