USER MANUAL OB-300NP Star Brickcom

Hardware User's Manual

Megapixel Day & Night

Outdoor Bullet Network Camera

Quality Service Group

Professional Outdoor Bullet Series

Review History:

1. Separate User Manual into HW and SW.
2. Merge OB-100A V2 series /OB-130N-series into this User Manual.
3. Add OB-500A Series /OB-300N Series into the User Manual.
4. Clarify the OB series Reset button and WPS button.
5. HW add one function for TV out Connector.
6. Modify I/O Terminal Block definition.
7. Add OB-200Np-LR Series into the User Manual
8. Update OB-P series V6 version
9. Add WOB Series and GOB Series into the User Manual

Product name:	Network Camera (Outdoor Bullet series)
Release Date:	2015/09
Manual Revision:	V4.0
Web site:	www.brickcom.com
Email:	[e-mail]@brickcom.com© 2015 Brickcom Corporation. All Rights Reserved

Table of Contents

Before You Use This Product ....3

Regulatory Information ....4

Chapter 1 - Package Contents....5

Chapter 2 - Outdoor Bullet Network Camera Overview....7

Chapter 3 - Device Appearance Description ....8

Chapter 4 - Installation....14

4.1 Hardware Installation....14

4.2 Camera Connection....19

4.3 System Requirements ......21

4.4 Software Installation ......22

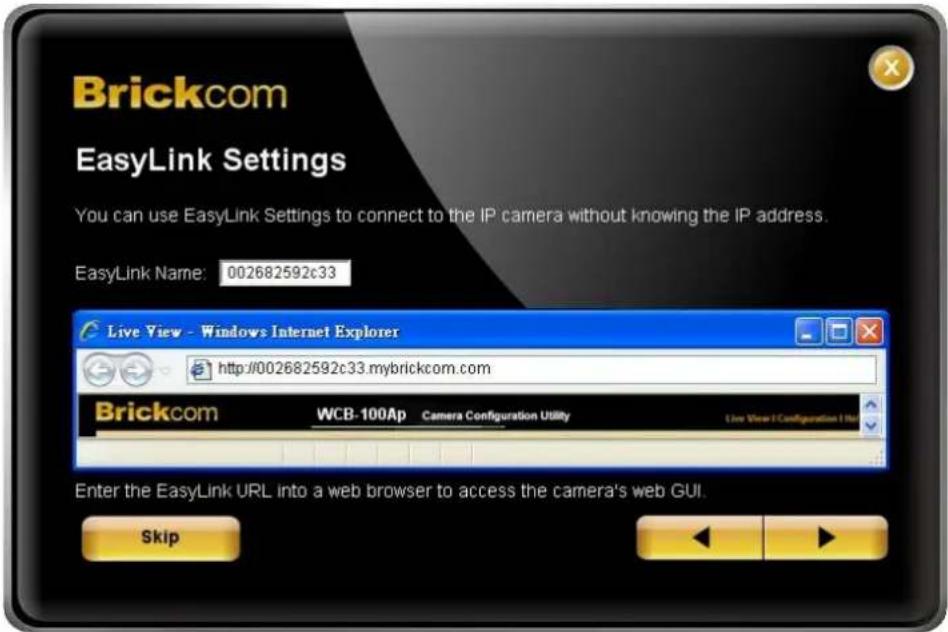

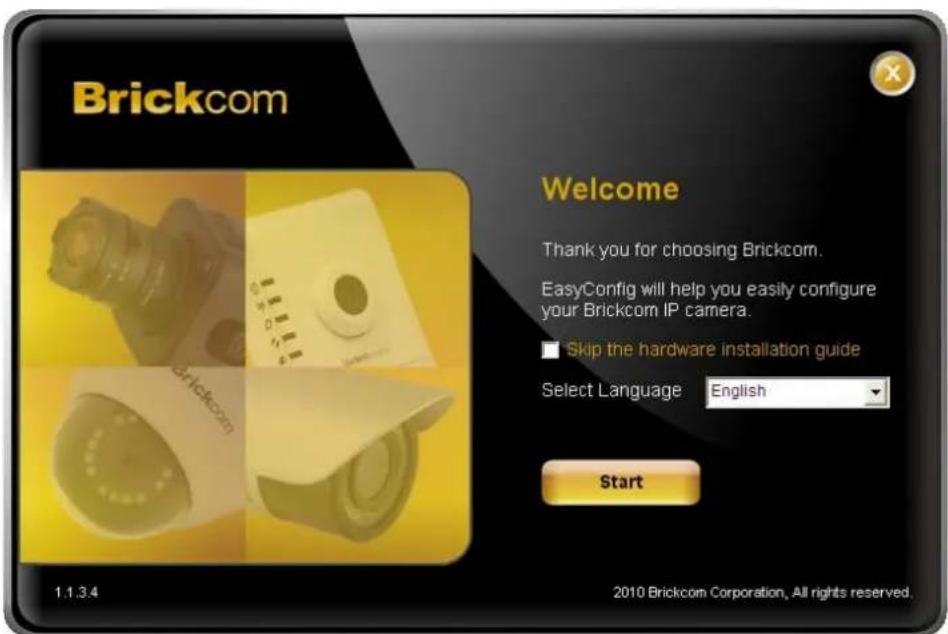

4.4.1 EasyConfig.... 30

Before You Use This Product

In many countries, there are laws prohibiting or restricting the use of surveillance devices. This Network Camera is a high-performance, web-ready camera which can be part of a flexible surveillance system. It is the user's responsibility to ensure that the operation of this camera is legal before installing this unit for its intended use.

Upon opening the product's package, verify that all the accessories listed on the "Package Contents" are included. Before installing the Network Camera, read the warnings in the "Quick Installation Guide" to avoid misuse. When installing the Network Camera, carefully read and follow the instructions in the "Installation" chapters to avoid damages due to faulty assembly or installation.

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.

Chapter 1 - Package Contents

Please check to make sure the product package contains all the accessories listed below.

A. Camera Package Contents

a. Network CameraOB-p Series OB-p-LR Series	b. Shielding Cover
c. Screw bag	d. Product CD
e. Warranty Card / Easy Installation Guide	f. Water Proof Connectors
g. Dry Bag	h. High Power POE (Optional)
i. Bracket (Optional)	j. Bracket Assembly Plate (Optional)
k. Wi-Fi Dual Band Antenna package (Optional)	l. 3G Antenna package (Optional)

m. Power adapter (Non LR-Series)

Line drawing of a cable and electrical plug assembly (no text or symbols)

B. Wi-Fi Antenna Package contents (Optional for WOB-P Series)

Refer to the installation guide included in the package when installing the Wi-Fi antenna

a. Wi-Fi Dual Band Antenna

b. Extension Cable

Line drawing of a coiled cable with a sensor or probe, no text or symbols present

c. Surge Arrestor Kit

WATERPROOF TAPE

d. Mount Kit

C. 3G / 4G LTE Antenna Package contents (Optional for GOB-P series)

Refer to the installation guide included in the package when installing the 3G antenna

a. 3G / 4G LTE Antenna

b. Extension Cable

Line drawing of a coiled cable or sensor with a probe, no text or symbols present

c. Surge Arrestor Kit

WATERPROOF TAPE

d. Mount Kit

Chapter 2 - Outdoor Bullet Network Camera Overview

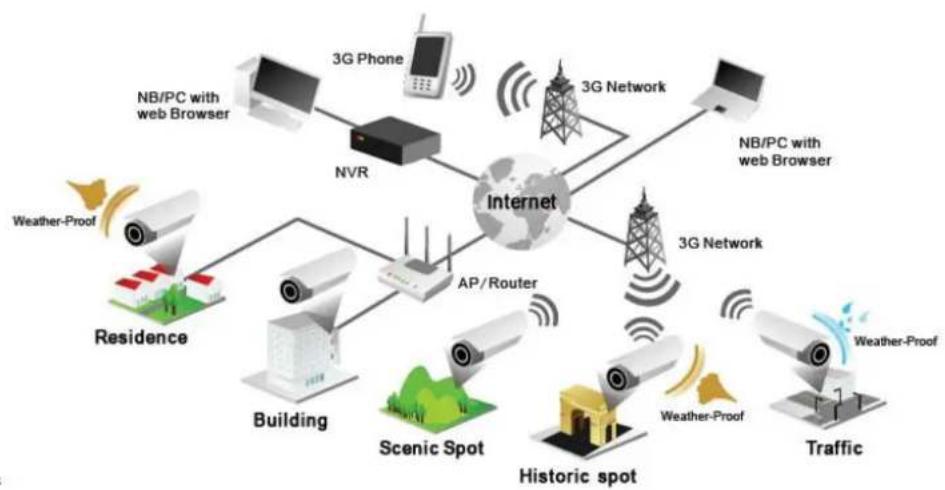

The Brickcom Outdoor Bullet SERIES is an outdoor bullet network camera. It adopts a megapixel sensor which allows the camera to deliver extremely clear and detailed images that CCTV cameras cannot offer. To optimize use of the megapixel resolution, the Outdoor Bullet SERIES uses efficient H.264/ MJPEG/ MPEG-4 codec compression to deliver dual configurable video streams simultaneously at up to 30 fps. These features make this series the perfect outdoor camera for neighborhood, school campus, and parking lot surveillance.

The Outdoor Bullet SERIES has many user friendly features, such as the Smart Focus capability which allows users to configure settings for excellent image quality without difficult procedures. Support for Power over Ethernet enables the camera to use the same cable for power and data transmission, eliminating the need to install an external power supply.

Installation for the WOB/GOB Series models is not restricted by location or landforms. The cameras offer various wireless options that make connecting to networks easier by adopting the technology of IEEE 802.11 a/b/g/n and 3G SIM module. The wireless Bullet Cameras can be set within any wireless or 3G signal coverage areas. Users do not have to worry about the data connection failing because each camera is equipped with a SD/SDHC memory card slot for local storage.

With an IP67 certified outdoor enclosure, the Outdoor Bullet SERIES is not only weather proof, but also dust and rust resistant. By utilizing a built-in industrial fan and heater, it can perform well in extreme environments.

Chapter 3 - Device Appearance Description

< Front Panel >

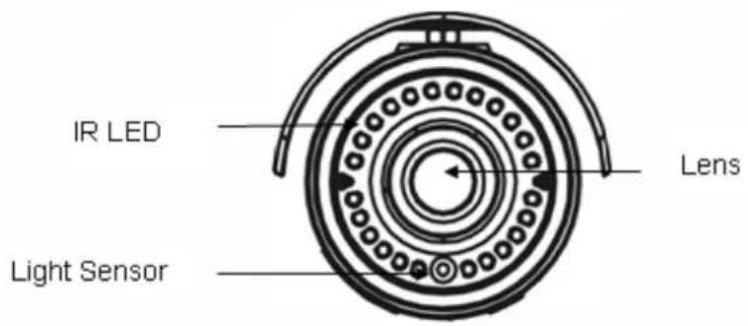

IR LED Lens Light Sensor

< Rear Panel >

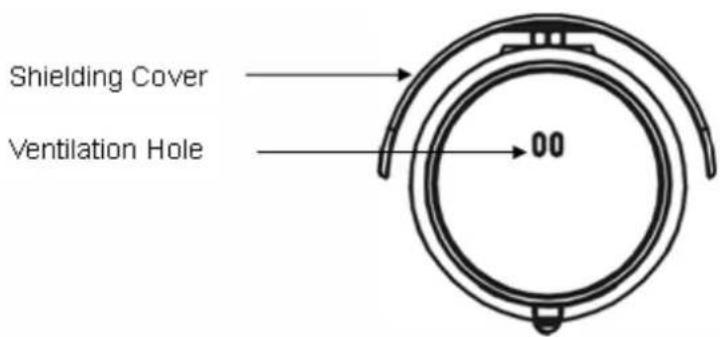

Shielding Cover Ventilation Hole 00

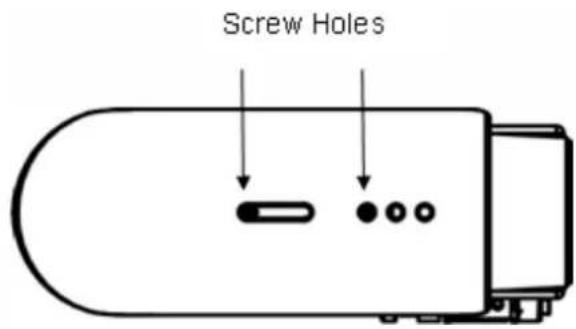

Screw Holes

< Bottom >

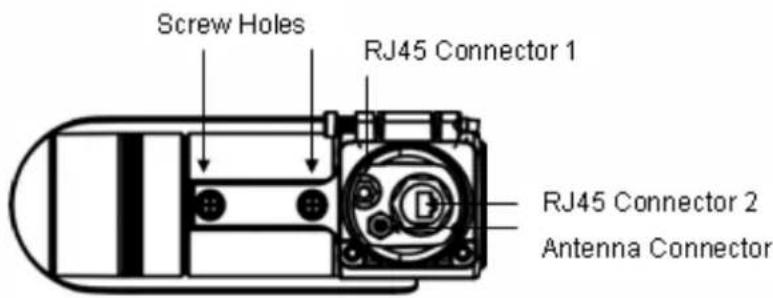

Screw Holes RJ45 Connector 1 RJ45 Connector 2 Antenna Connector

< Side >

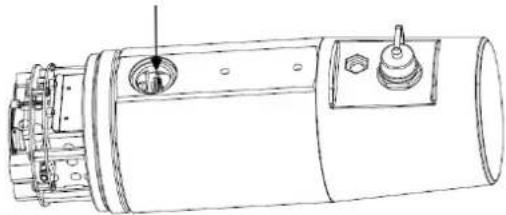

Micro-SD/SDHC Card Slot

Technical line drawing of a cylindrical mechanical component with internal gears and mounting holes (no text or symbols)

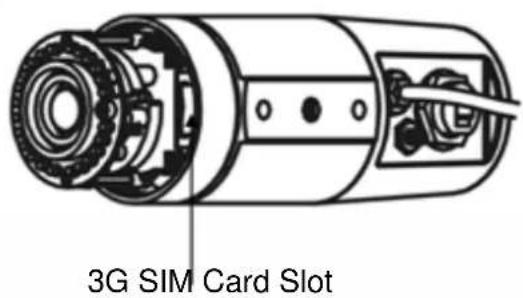

3G SIM Card Slot

**3G SIM Card Slot only apply for GOB & WOB series**

< OB-p-LR series >

Micro-SD/SDHC/SDXC Card Slot

Technical line drawing of a cylindrical mechanical component with mounting holes and a central hub (no text or symbols)

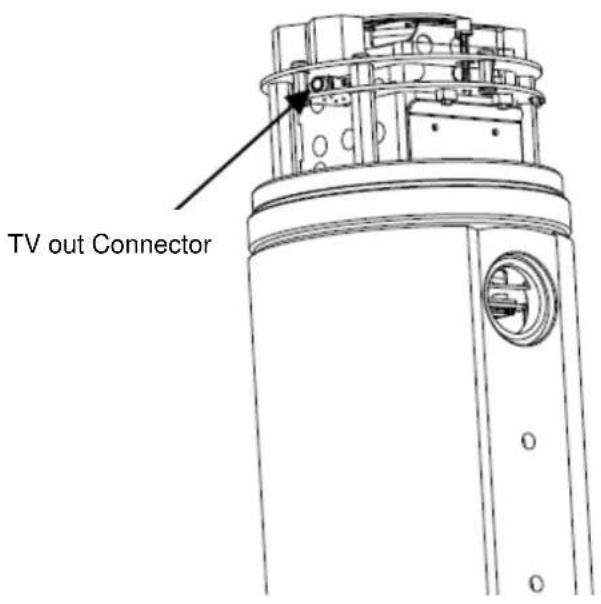

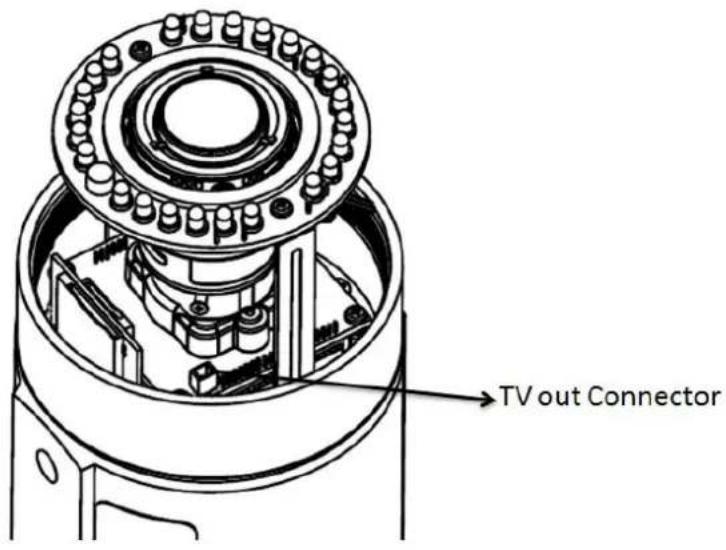

TV out Connector

***This function only apply below models.***

OB-502A Series/OB-500A Series and OB-302N Series/OB-300NSeries

TV out Connector

< OB-p-LR series >

TV out Connector

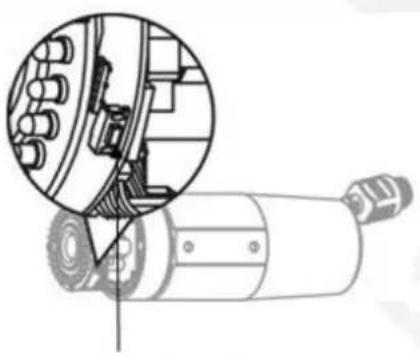

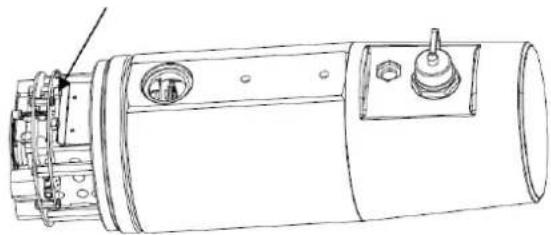

< Extension I/O Terminal Block >

The Network Camera provides an extension I/O terminal block which is used to connect the camera with external input/output devices. The pin definitions are listed as below.

Pin No.
Pin 1	Power +4.5V / 12V*
Pin 2	Digital Output
Pin 3	Digital Input
Pin 4	Ground
Pin 5	RS-485-
Pin 6	RS-485+
Pin 7	Audio-in
Pin 8	Audio-out

* V5 & V6 Series Supported*V5&V6 (WDRPro & Star & StarPlus) Series Supported

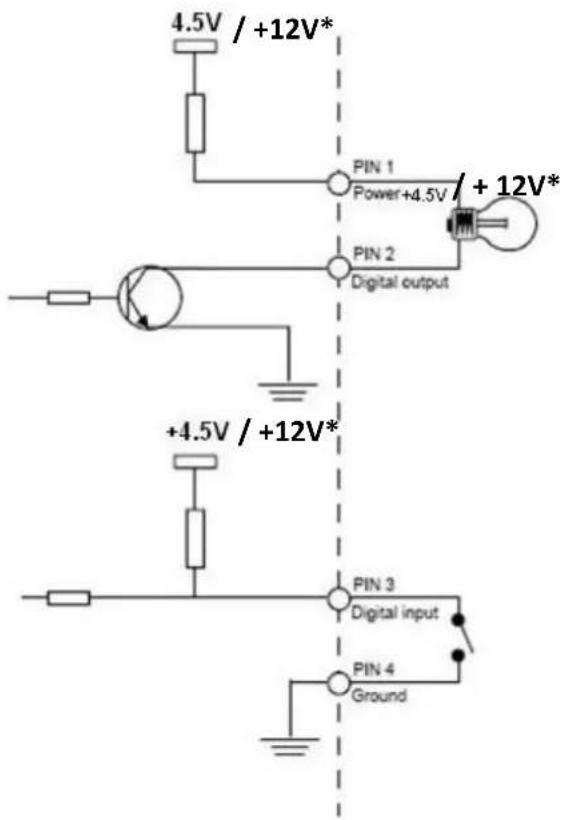

DI/DO Diagram >

4.5V / +12V* PIN 1 Power+4.5V / +12V* PIN 2 Digital output +4.5V / +12V* PIN 3 Digital input PIN 4 Ground

OB-100Ap Series and OB-130N Series

< Reset button >

Mechanical assembly diagram showing a cylindrical component with internal components and a magnified inset (no text or labels)

Reset Button

Reset Button

Technical line drawing of a cylindrical mechanical component with mounting holes and a side knob (no text or symbols)

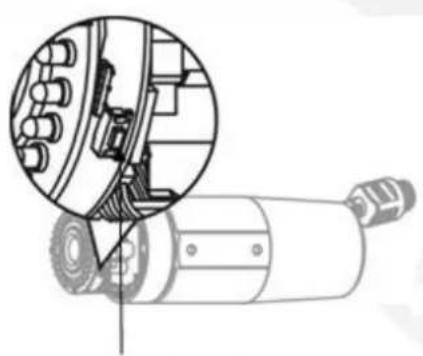

OB-502A Series and OB-302N Series

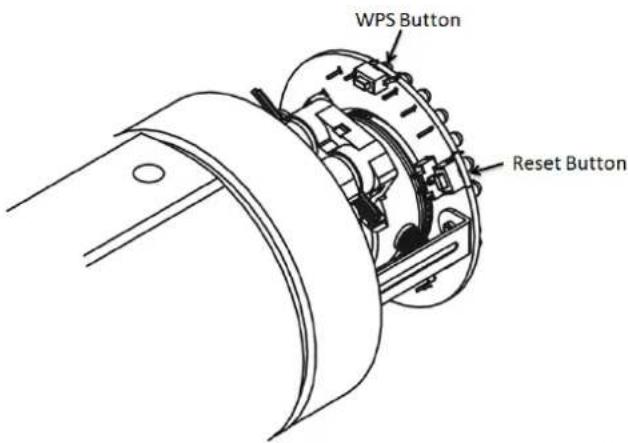

Reset Button and WPS button

**WPS Button only applies for WOB-502A Series/WOB-500Ap Series /WOB-302Np Series/WOB-300Np Series**

WPS Button Reset Button

WPS button for quickly link to WiFi.

< Hardware Reset >

Mechanical assembly diagram showing a cylindrical component with attached springs and a magnified inset (no text or labels)

Reset Button

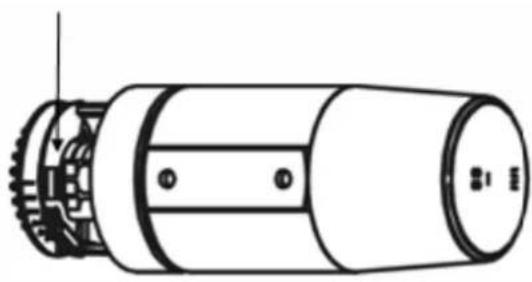

The Reset Button can be used to reboot the camera or restore it to factory default settings. If the camera experiences a problem, rebooting the camera may correct the problem. If the problem remains, please restore the camera to factory default settings and reinstall the software.

To Reboot

Press and hold the Reset Button for one second using a paper clip or thin object. Wait for the camera to reboot.

To Restore

Press and hold the Reset Button for ten seconds until the LED light turns off. When successful restored, the LED will be blue during normal operation.

NOTE - By restoring the camera, all settings will be restored to the factory default settings.

Micro-SD/SDHC Card Capacity

The network camera is compatible with Micro-SD/SDHC (Maximum 32GB) cards.

(*) These are optional features. Please refer to the Product List for the full list of optional features that are available for this product.

Chapter 4 - Installation

4.1 Hardware Installation

WARNING - Do not mount the camera on a soft material. The camera may fall and be damaged.

A. Micro-SD/SDHC Card and 3G SIM Card(GOB series) Installation

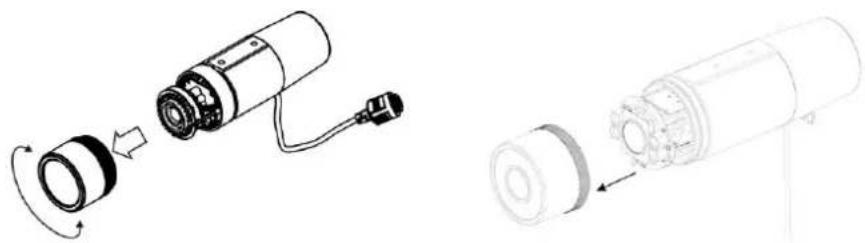

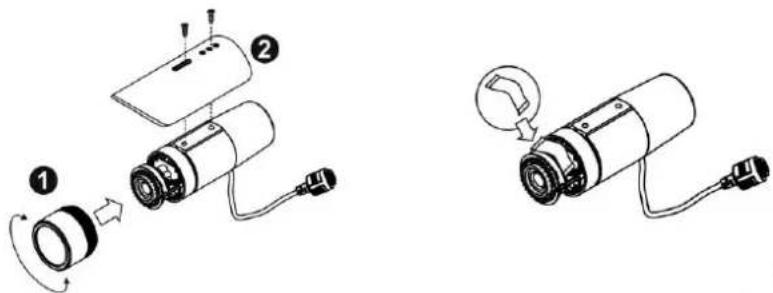

a. Remove the Lens cover from the Bullet Camera.

Technical line drawing showing exploded and assembled views of a mechanical device (no text or symbols)

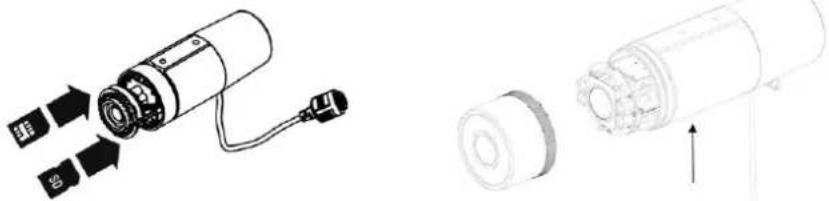

b. Inset the Micro SD/SDHC card and 3G SIM card(*) into their respective slots.

Technical illustration of a mechanical device with exploded view showing internal components (no text or symbols)

c. Place a dry bag onto the camera device.

Technical diagram showing two mechanical components with labeled parts and directional arrows indicating assembly or movement.

d. Reattach the Lens cover and secure the cover to the top of the camera device using two screws.

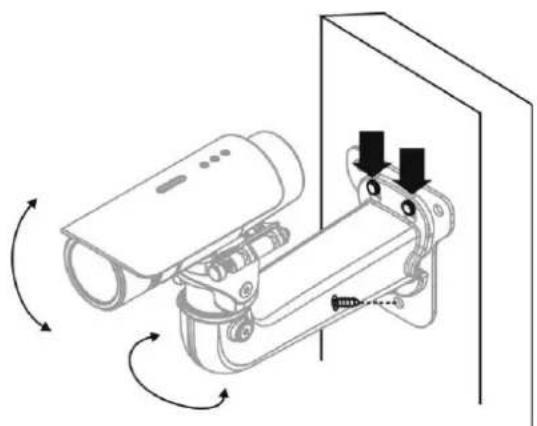

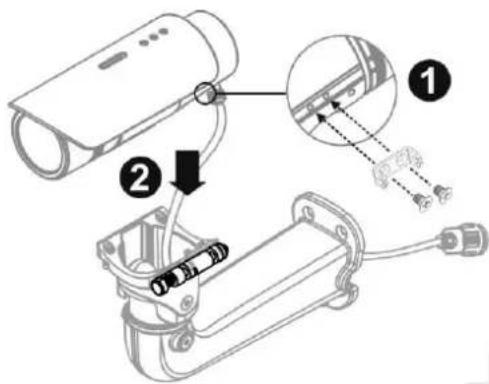

B. Wall Installation Using the Optional Bracket

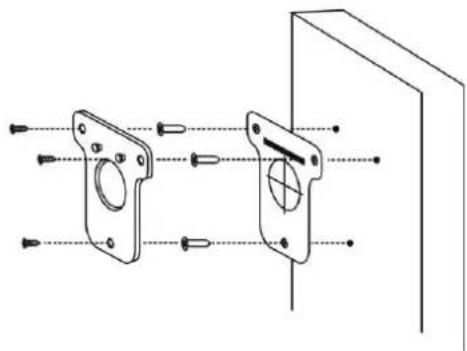

a. Using the Bracket plate as a guide, drill three holes into the wall and hammer the supplied plastic anchors into the three holes. Use a

screwdriver and the supplied screws to secure the plate to the wall.

Technical line drawing of two mechanical components with fasteners, shown from different angles (no text or symbols)

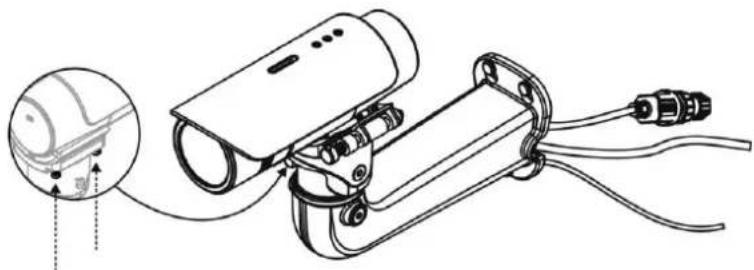

b. Attach the Bracket Assembly Plate to the bottom of the camera using two screws.

Technical line drawing of a cylindrical device with attached bracket and mounting base (no text or symbols)

c. (1) Use the two supplied screws to secure the bracket to the side of the camera. (2) Push back the spring on the mortise lock and hook the camera and attached bracket onto the groove of the wall mount bracket as shown in the diagram.

Technical diagram showing mechanical assembly with labeled parts and a magnified detail view

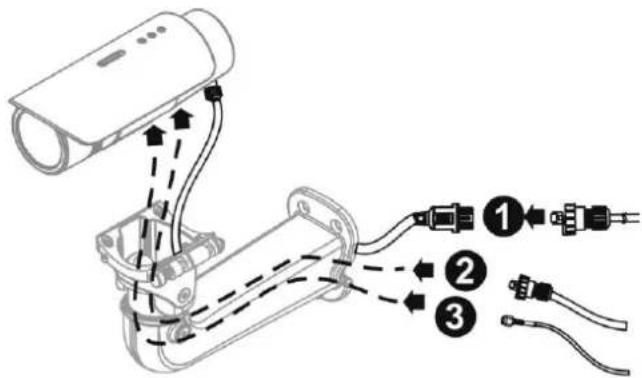

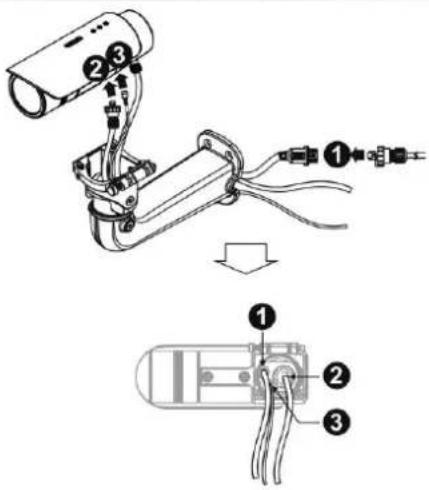

d. Connect (1) the POE cable; (2) DIDO, Audio In/Out, RS485 cable; and

(3) Antenna cable with the camera (only for GOB series). Refer to step 3 for more details installation information.

Diagram of a surveillance camera with labeled components and wiring connections

e. Secure the two screws on the wall mount bracket.

Technical line drawing of a surveillance camera with attached cables and a magnified inset showing the lens (no text or symbols present)

f. Place the wall mount bracket on the plate and attach it using the supplied screws. Adjust the angle of the wall mount bracket towards the area to be monitored.

Diagram of a surveillance camera mounted on a wall-mounted device, showing rotational motion arrows (no text or symbols)

B. DIDO, Audio In/Out, RS485, and Antenna Connection(GOB & WOB series only)

Technical diagram showing mechanical assembly with numbered components and a close-up of a connector pinout.

a. PoE Connection

For the Power over Ethernet connection, construct the PoE cable using the pin definitions of the RJ45 connector below and refer to step 5 for instructions on how to install the Water Proof Connector. Once the PoE cable has been constructed using the waterproof connector, pass the RJ-45 cable from the camera through the bracket and connect it to the PoE cable.

RJ45 Connector 1
Pin No.	Function
Pin 1	Transmit Out+ (Tx+)
Pin 2	Transmit Out- (Tx-)
Pin 3	Receive In+ (Rx+)
Pin 4	DC 48V
Pin 5	DC 48V
Pin 6	Receive In- (Rx-)
Pin 7	48V_GND
Pin 8	48V_GND

b. DIDO, Audio In/Out, RS485 Cable Connection

For the DIDO, Audio In/Out and RS485 cable connection, construct an Ethernet cable using the pin definitions of the RJ-45 connector below and refer to step 4 for instructions on how to install the Water Proof Connector. Once the Ethernet cable has been constructed using the waterproof connector, pass the cable through the bracket and connect

it to the RJ-45 connector at the bottom of the camera.

RJ45 Connector 2
Pin No.	Function
Pin 1	Power +4.5V / 12V*
Pin 2	Digital Output
Pin 3	Digital Input
Pin 4	Ground
Pin 5	RS-485-
Pin 6	RS-485+
Pin 7	Audio-in
Pin 8	Audio-out

*V5&V6 (WDRPro & Star & StarPlus) Series Supported

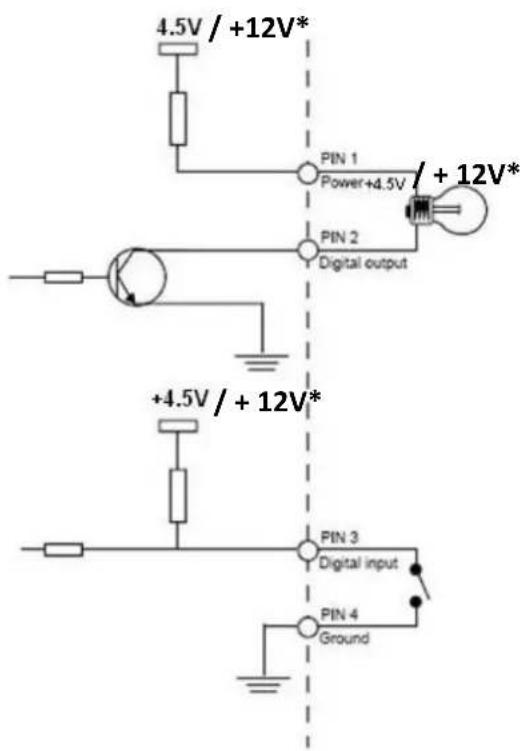

DIDO Diagram

4.5V / +12V* PIN 1 Power+4.5V / + 12V* PIN 2 Digital output +4.5V / + 12V* PIN 3 Digital input PIN 4 Ground

c. WiFi or 3G Antenna Extension Cable Connection(GOB & WOB series only)

Pass the Antenna extension cable (1) through and bracket and connect it to the Antenna connector (2) at the bottom of the camera.

Line drawing of a flashlight and its connector (no text or symbols)

4.2 Camera Connection

The Outdoor Bullet Series is PoE compliant, so there are two options for connecting the camera to a power and Ethernet source. The camera can either be connected to a PoE-enabled switch or a non-PoE switch.

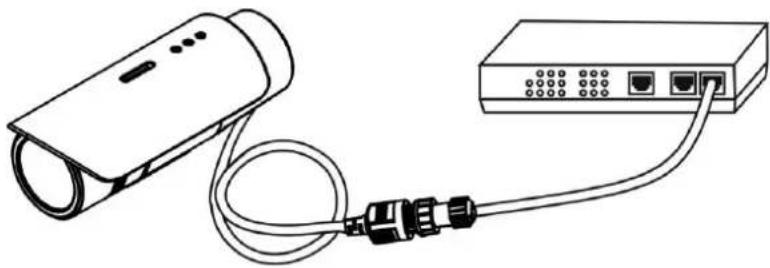

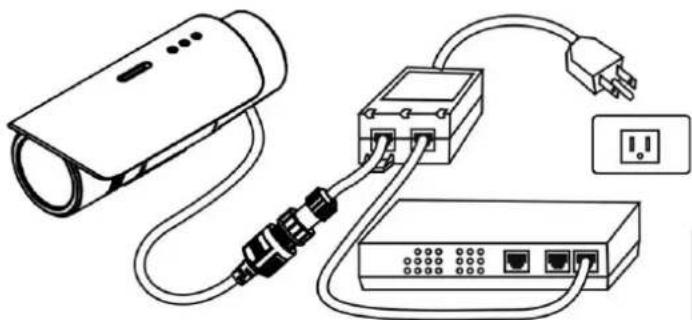

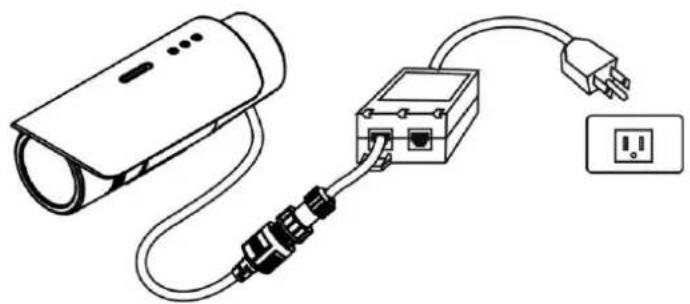

a. If using a PoE-enabled switch: (OB-X00Np-LR series require 802.3at PoE)

Line drawing of a remote control device connected to a network switch (no text or symbols)

i. Use a single Ethernet cable to connect the camera to the PoE-enabled switch.

b. If using a non-PoE switch: (OB-X00Np-LR series require 802.3at PoE)

Line drawing of a device with cable, switch, and power outlet (no text or symbols)

i. Use a standard RJ-45 cable to connect the camera to a PoE Injector.

ii. Use a standard RJ-45 cable to connect the PoE Injector to the non-PoE switch.

c. Use a standard power cable to connect the PoE Injector to a power outlet. If

using a PoE injector as power input (OB-X00Np-LR series require 802.3at PoE):

Diagram of a flashlight connected to a power outlet and a wall socket (no text or symbols)

i. Use a standard RJ-45 cable to connect the camera to a PoE Injector.
ii. Use a standard power cable to connect the PoE Injector to a power outlet.

d. If using the DC12V for the power Supply. The RJ45 cable will be data

transmission. (This only apply in OB-500A Series /OB-300N Series)

(OB-X00Np-LR series require 802.3at PoE)

Line drawing of a surveillance camera connected to a network device with ports and cables (no text or symbols)

4.3 System Requirements

Operating System:

Microsoft Windows 8.1/8/7/Vista/XP/2000

Computer:

IBM PC/AT Compatible

CPU:

Pentium 3GHz or faster

Memory:

1024 MB or more

Monitor:

1024 x 768 pixels or more, 24-bit True color or better

Network Interface:

10/100Mbps Network interface card must be installed

Web Browser:

Microsoft Internet Explorer 6.0 SP2 or higher

Adobe Reader:

Adobe Reader 8.0 or higher

Audio:

The audio function will not work if a sound card is not installed in the PC. Audio may be interrupted depending on network traffic.

4.4 Software Installation

In this manual, "User" refers to whoever has access to the Network Camera, and "Administrator" refers to the person who can configure the camera and grant user access to the camera.

After checking the hardware connection, run the Installation Wizard program included on the product's CDROM to automatically search the intranet for the camera. There may be many cameras on the local network. Differentiate the cameras using the serial number which is printed on the labels on the carton and the bottom of the camera.

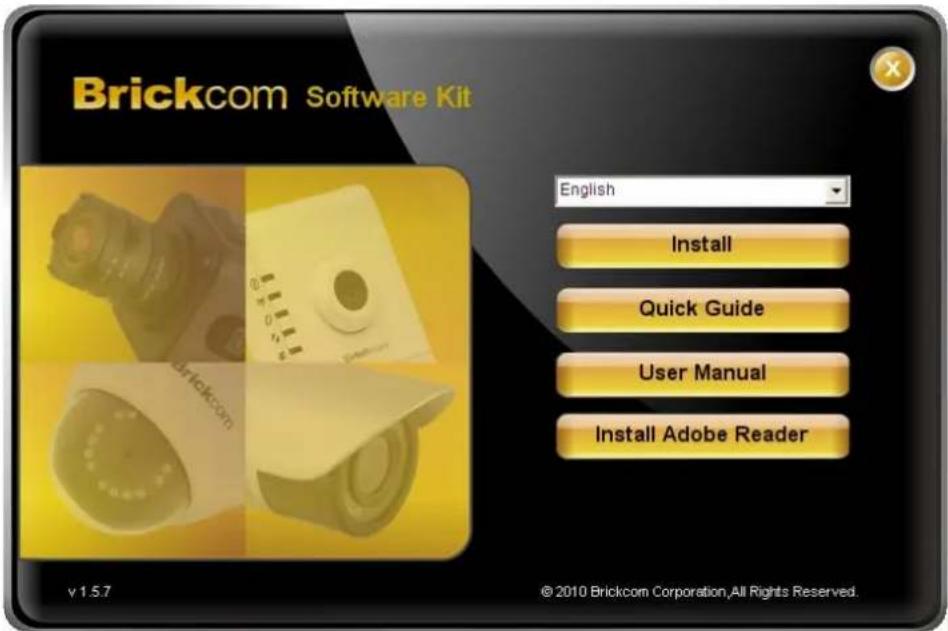

A. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box. Click and follow the steps to install the EasyConfig wizard on the desired computer.

Brickcom Software Kit English Install Quick Guide User Manual Install Adobe Reader v1.5.7 © 2010 Brickcom Corporation, All Rights Reserved.

B. In the Install Shield Wizard dialog box, click to continue.

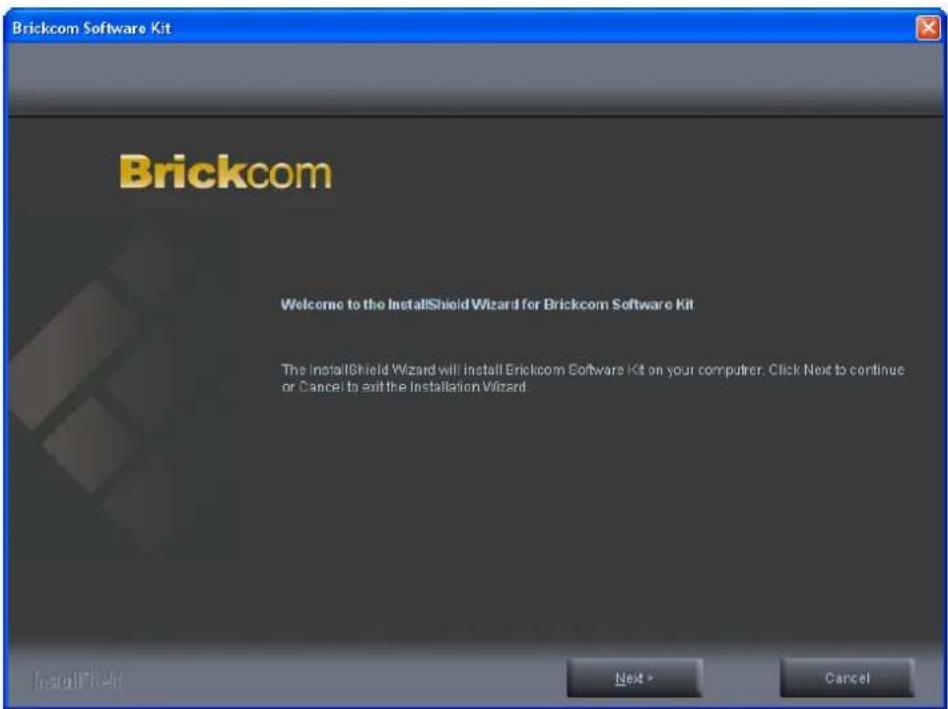

Brickcom Welcome to the InstallShield Wizard for Brickcom Software Kit The InstallShield Wizard will install Brickcom Software Kit on your computer. Click Next to continue or Cancel to exit the Installation Wizard.

C. Read the End-User License Agreement and check the option "I accept the terms of the license agreement". Click to continue.

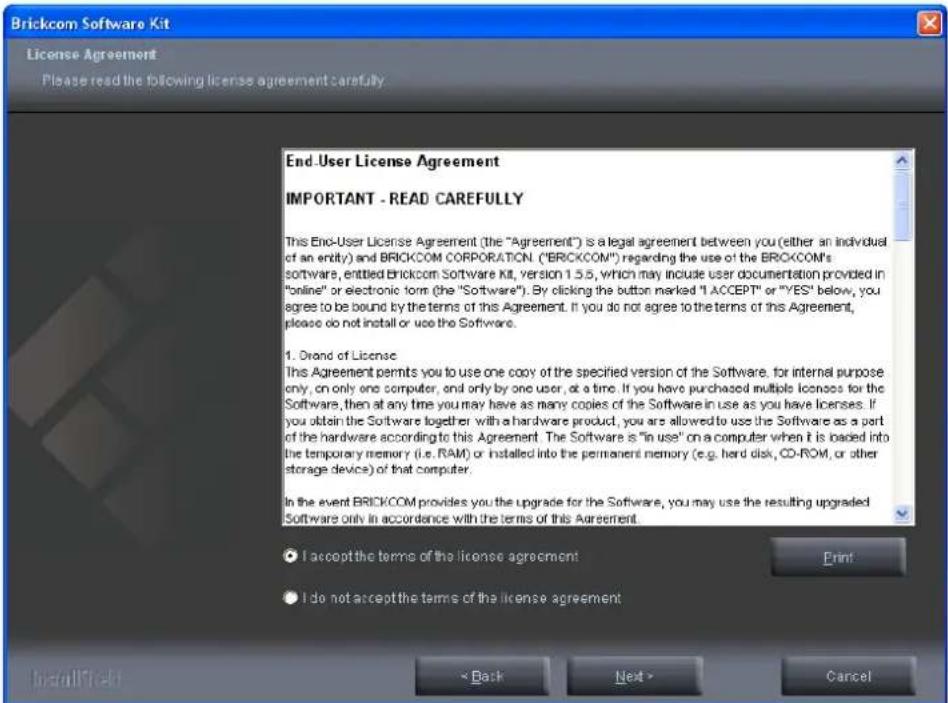

Brickcom Software Kit License Agreement Please read the following license agreement carefully End-User License Agreement IMPORTANT - READ CAREFULLY This End-User License Agreement (the "Agreement") is a legal agreement between you (either an individual of an entity) and BRICKCOM CORPORATION ("BRICKCOM") regarding the use of the BRICKCOM's software, entitled Brickcom Software Kit, version 1.5.5, which may include user documentation provided in "online" or electronic form (the "Software"). By clicking the button marked "I ACCEPT" or "YES" below, you agree to be bound by the terms of this Agreement. If you do not agree to the terms of this Agreement, please do not install or use the Software. 1. Brand of License This Agreement permits you to use one copy of the specified version of the Software. for internal purpose only, on only one computer, and only by one user, at a time. If you have purchased multiple licenses for the Software, then at any time you may have as many copies of the Software in use as you have licenses. If you obtain the Software together with a hardware product, you are allowed to use the Software as a part of the hardware according to this Agreement. The Software is "in use" on a computer when it is loaded into the temporary memory (i.e. RAM) or installed into the permanent memory (e.g. hard disk, CD-ROM, or other storage device) of that computer. In the event BRICKCOM provides you the upgrade for the Software, you may use the resulting upgraded Software only in accordance with the terms of this Agreement. ● I accept the terms of the license agreement ○ I do not accept the terms of the license agreement Print < Back Next > Cancel

D. Select either "Complete" setup or "Custom" setup to install the system.

a. If COMPLETE SETUP is selected:

i. All program features will be installed into the default directory. Check the option "Complete" and then click .

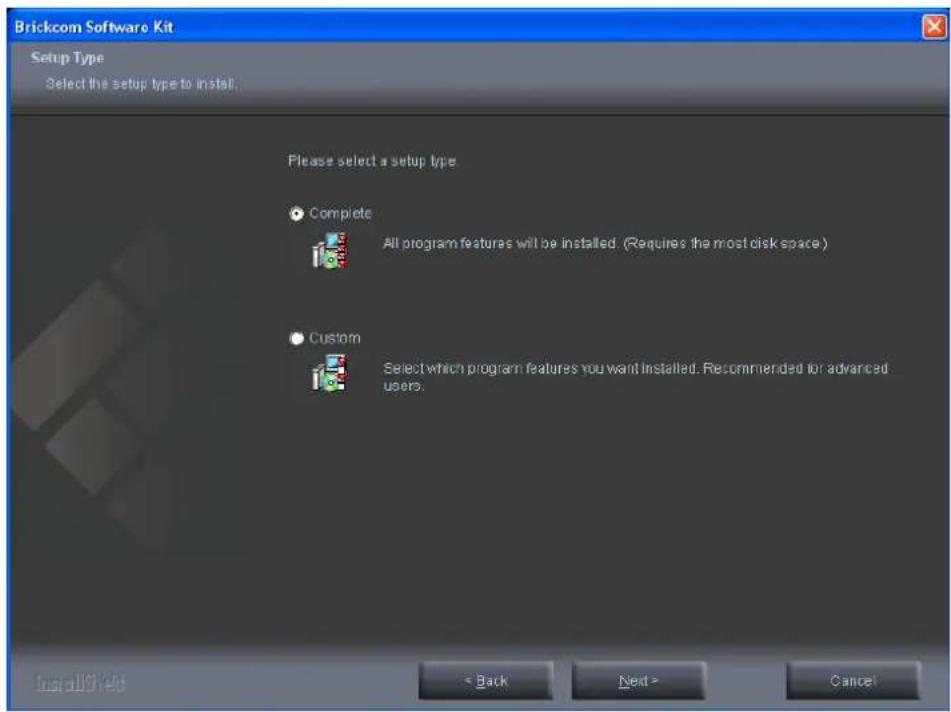

Brickcom Software Kit Setup Type Select the setup type to install. Please select a setup type • Complete All program features will be installed. (Requires the most disk space) • Custom Select which program features you want installed. Recommended for advanced users. < Back Next > Cancel

ii. Click to change the appointed folder where installation and program files will be stored. Click to continue.

Brickcom Software Kit Choose Destination Location Select folder where setup will install files. Install Brickcom Software Kit to: C:\Program Files\Brickcom Change... InstallFile: < Back Next > Cancel

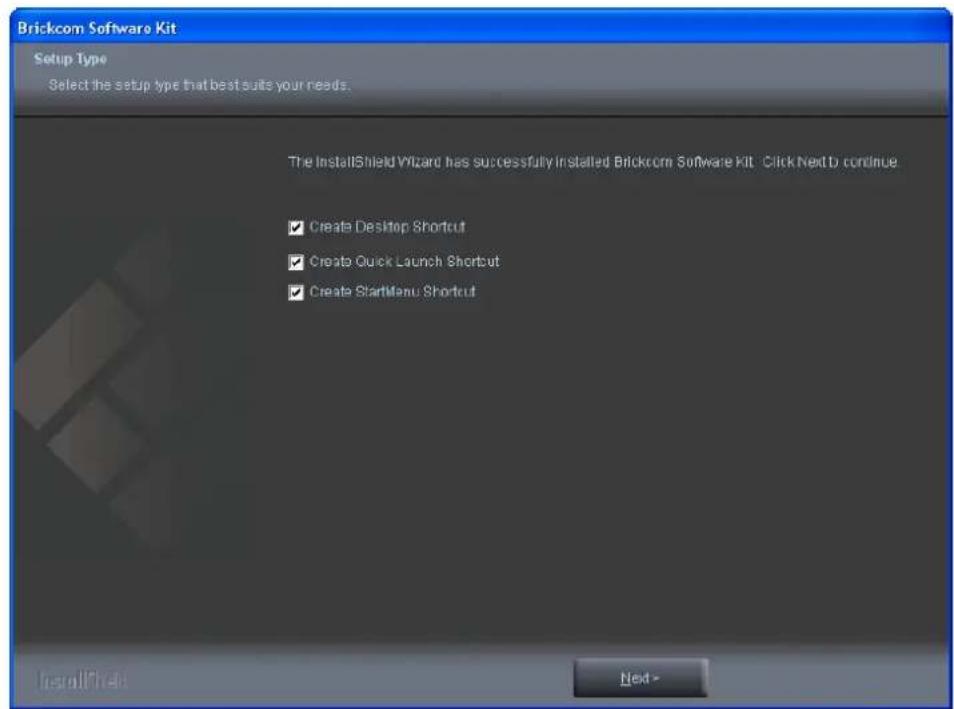

iii. Select to create shortcuts. Click to continue.

Brickcom Software Kit Setup Type Select the setup type that best suits your needs. The InstallShield Wizard has successfully installed Brickcom Software Kit. Click Next to continue ✓ Create Desktop Shortcut ✓ Create Quick Launch Shortcut ✓ Create StartMenu Shortcut InstallShield Next >

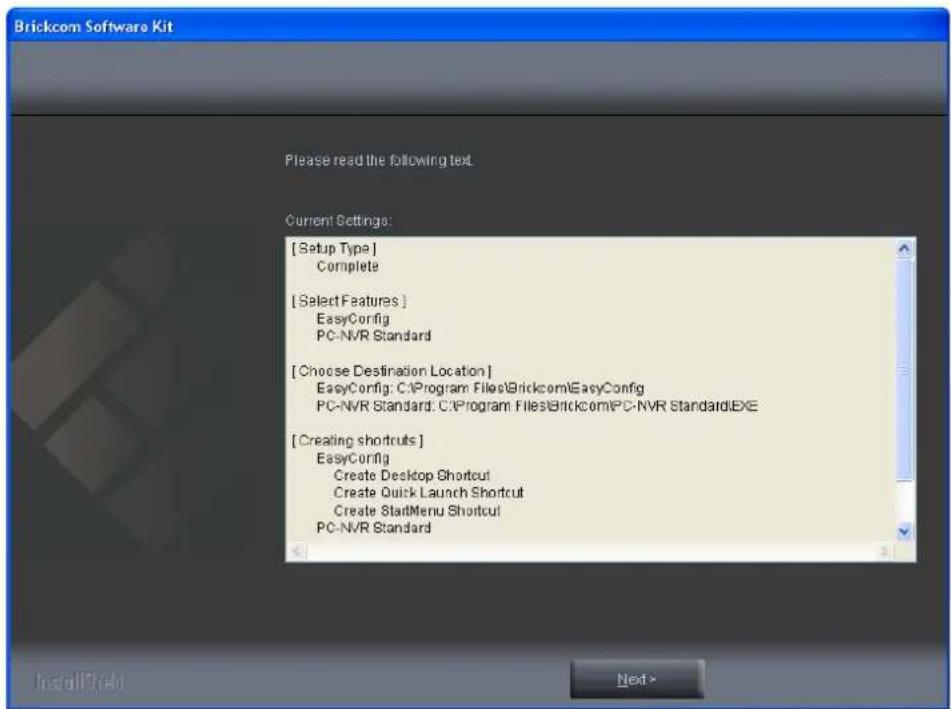

iv. The installation information will be displayed. Click to continue.

Brickcom Software Kit Please read the following text. Current Settings: [Setup Type] Complete [Select Features] EasyConfig PC-NVR Standard [Choose Destination Location] EasyConfig: C:\Program Files\Brickcom\EasyConfig PC-NVR Standard: C:\Program Files\Brickcom\PC-NVR Standard.EXE [Creating shortcuts] EasyConfig Create Desktop Shortcut Create Quick Launch Shortcut Create StartMenu Shortcut PC-NVR Standard Install Web Next >

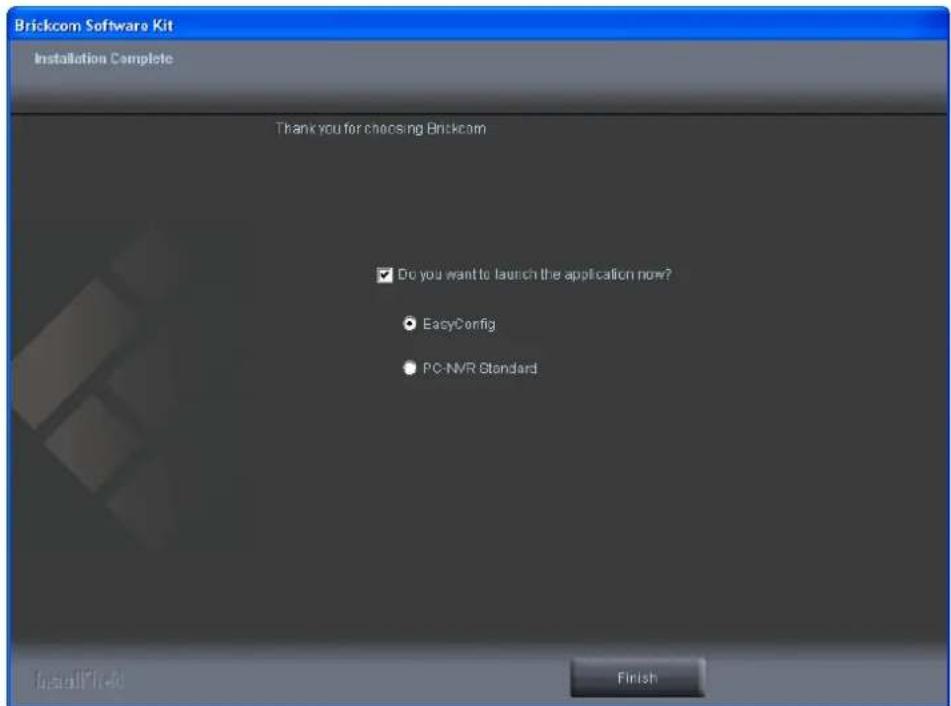

v. To launch EasyConfig or PC-NVR Standard, select the application and click . When launching the PC-NVR program, please refer to the PC-NVR user manual.

Brickcom Software Kit Installation Complete Thank you for choosing Brickcam ✓ Do you want to launch the application now? ● EasyConfig ● PC-NVR Standard Finish

b. If CUSTOM SETUP is selected:

i. This option is recommended for advanced users. It can be used to install the system to a preferred directory or to select specific program feature(s).

ii. Check the option "Custom", and then click .

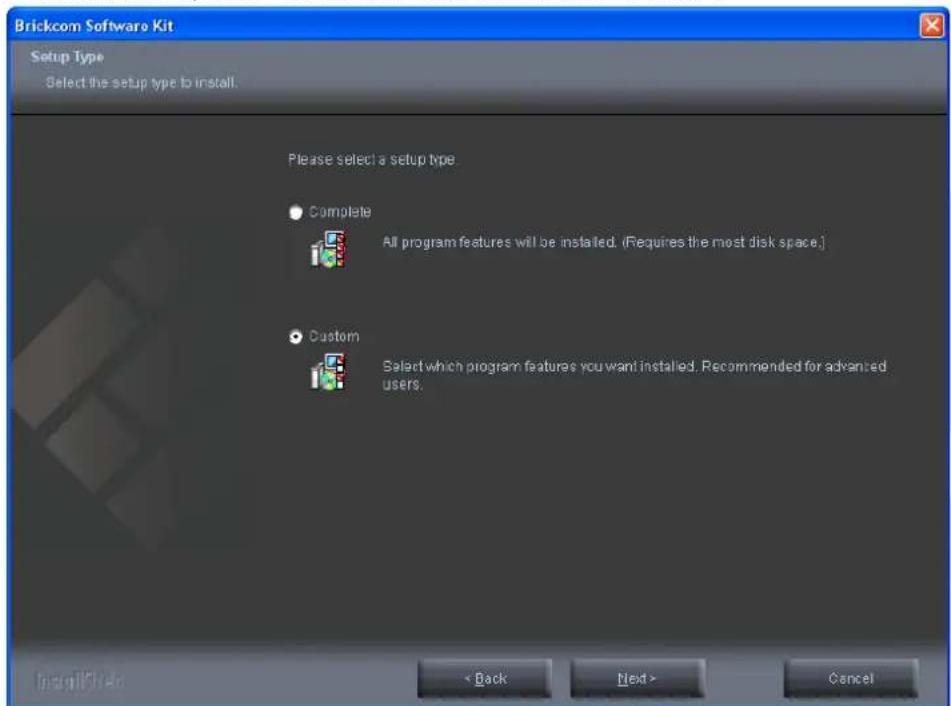

Brickcom Software Kit Setup Type Select the setup type to install. Please select a setup type • Complete All program features will be installed. (Requires the most disk space.) • Custom Select which program features you want installed. Recommended for advanced users. < Back Next > Cancel

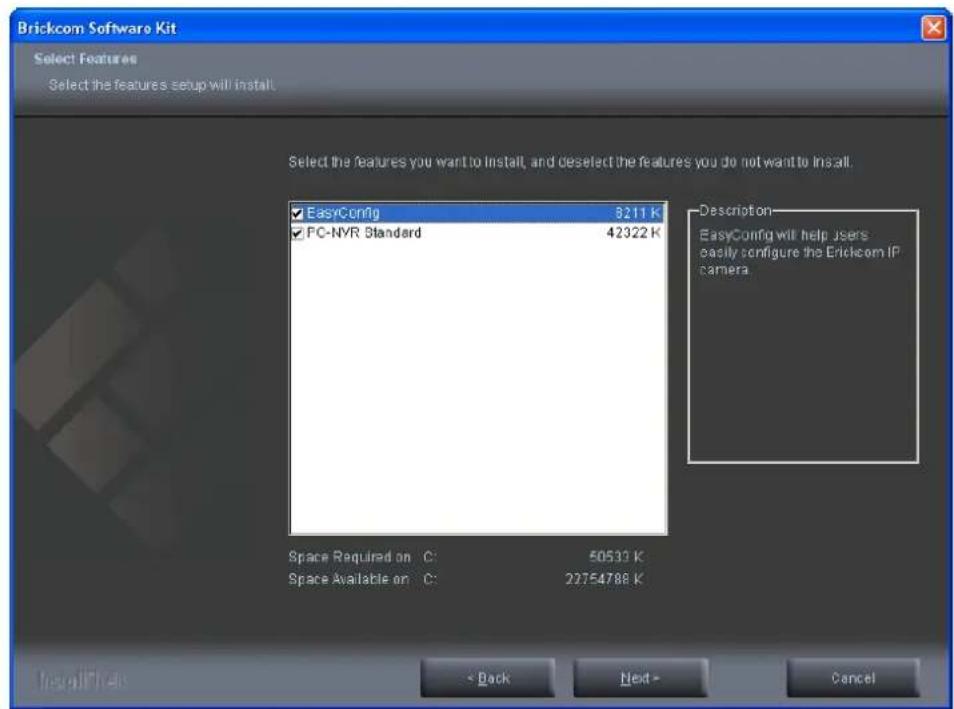

iii. Select the features to install. Click to continue.

Brickcom Software Kit Select Features Select the features setup will install. Select the features you want to install, and deselect the features you do not want to install. EasyConfig 8211 K PC-NVR Standard 42322 K Description EasyConfig will help users easily configure the Brickcom IP camera. Space Required on C: 50533 K Space Available on C: 22754788 K < Back Next > Cancel

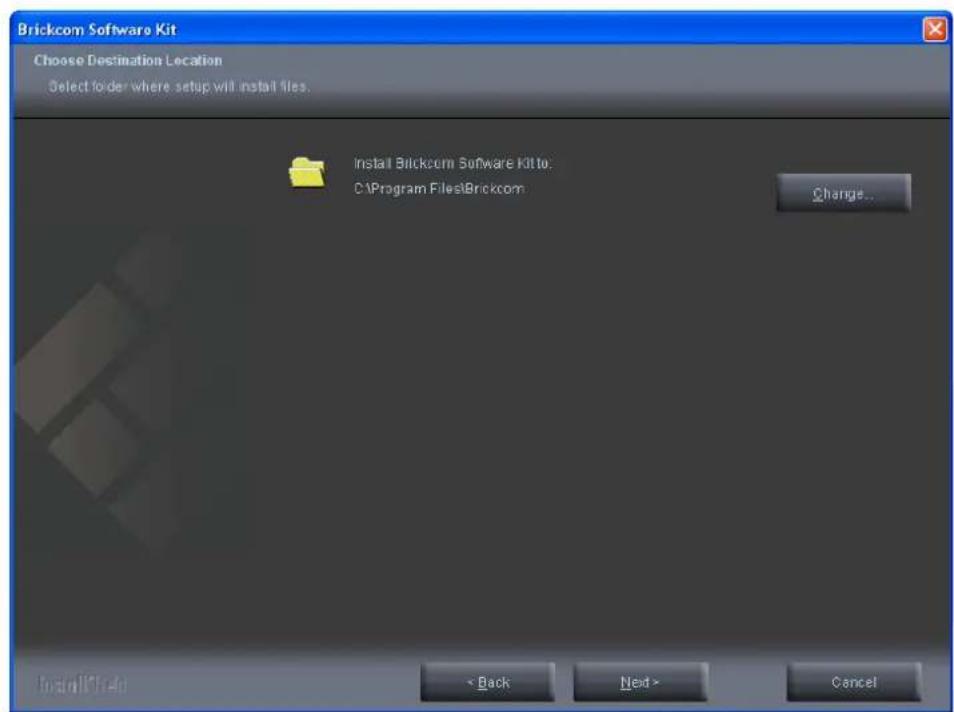

iv. Click to change the appointed folder where installation and program files will be stored. Click to continue.

Brickcom Software Kit Choose Destination Location Select folder where setup will install files. Install Brickcom Software Kit to: C:\Program Files\Brickcom Change... Install < Back Next > Cancel

v. Select programs to create shortcuts. Click to continue.

Brickcom Software Kit Setup Type Select the setup type that best suits your needs. The InstallShield Wizard has successfully installed Brickcom Software Kit. Click Next to continue ✓ Create Desktop Shortcut ✓ Create Quick Launch Shortcut ✓ Create StartMenu Shortcut Next >

vi. The installation information will be displayed. Click to continue.

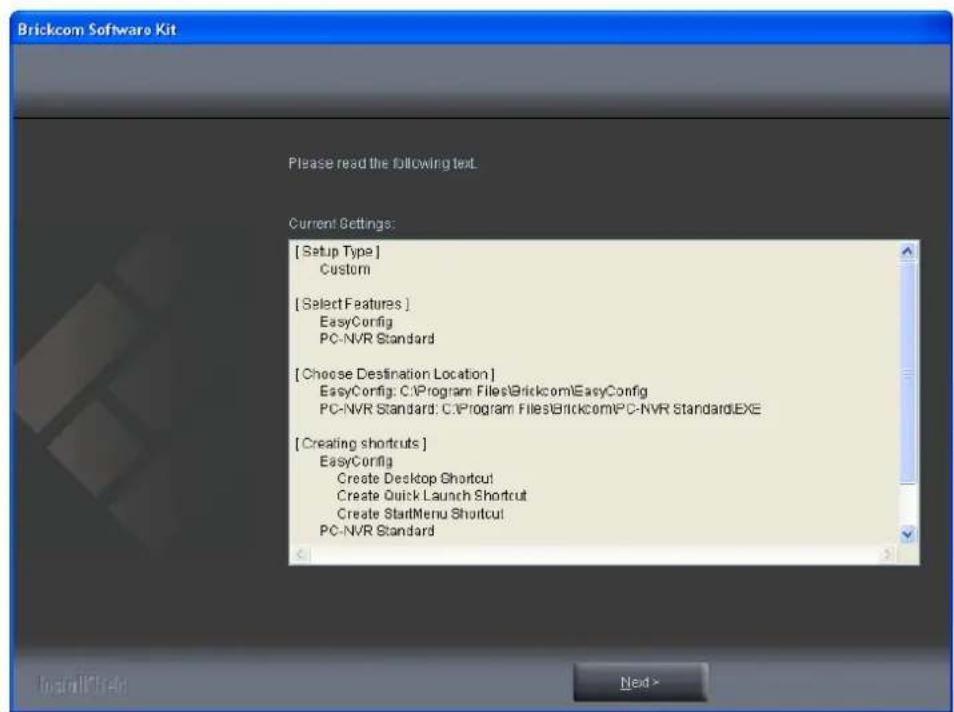

Brickcom Software Kit Please read the following text. Current Settings: [ Setup Type ] Custom [ Select Features ] EasyConfig PC-NVR Standard [ Choose Destination Location ] EasyConfig: C:\Program Files\Brickcom\EasyConfig PC-NVR Standard: C:\Program Files\Brickcom\PC-NVR Standard.EXE [ Creating shortcuts ] EasyConfig Create Desktop Shortcut Create Quick Launch Shortcut Create StartMenu Shortcut PC-NVR Standard Next >

Brickcom

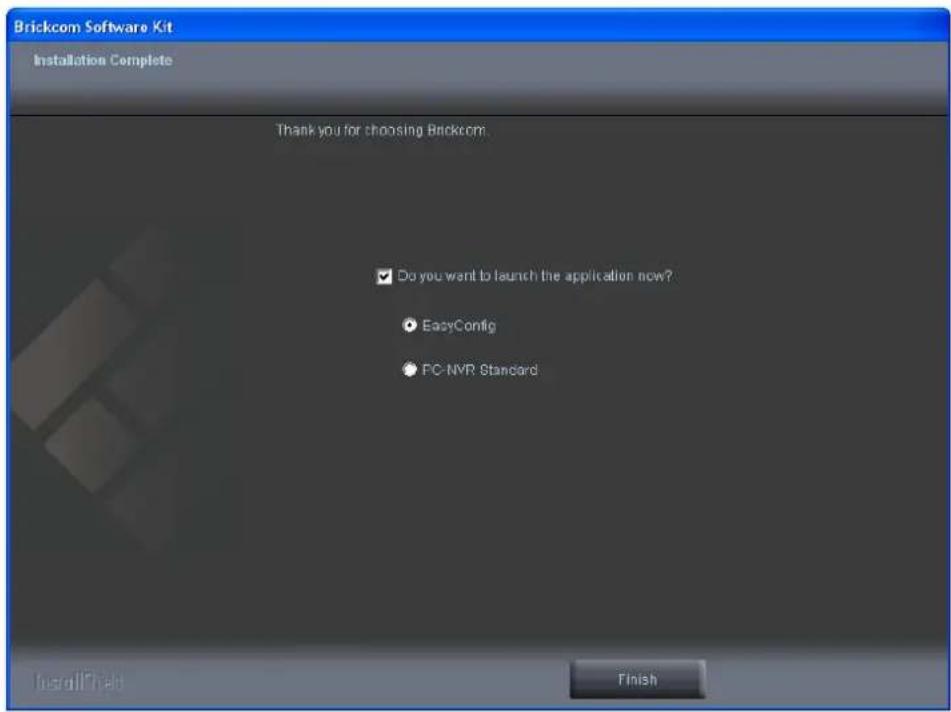

E. To launch EasyConfig or PC-NVR Standard, select the application and click . When launching the PC-NVR program, please refer to the PC-NVR user manual.

Brickcom Software Kit Installation Complete Thank you for choosing Brickcom. ✓ Do you want to launch the application now? ● EasyConfig ● PC-NVR Standard Install/Help Finish

4.4.1 EasyConfig

To launch EasyConfig, select EasyConfig from the start menu. If Complete Setup type was used in the software installation, an EasyConfig icon was installed on the desktop. Double click to open the icon.

If Custom Setup type was used in the software installation and an EasyConfig icon was not installed on the desktop, the program will be installed under C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory.

A. Click to continue. The program will automatically search for the camera in the intranet.

NOTE - Check "Skip the hardware installation guide" to skip checking the hardware connection. To check the hardware installation settings, do not check the option box.

Brickcom Welcome Thank you for choosing Brickcom. EasyConfig will help you easily configure your Brickcom IP camera. Skip the hardware installation guide Select Language English Start 1.1.3.4 2010 Brickcom Corporation, All rights reserved.

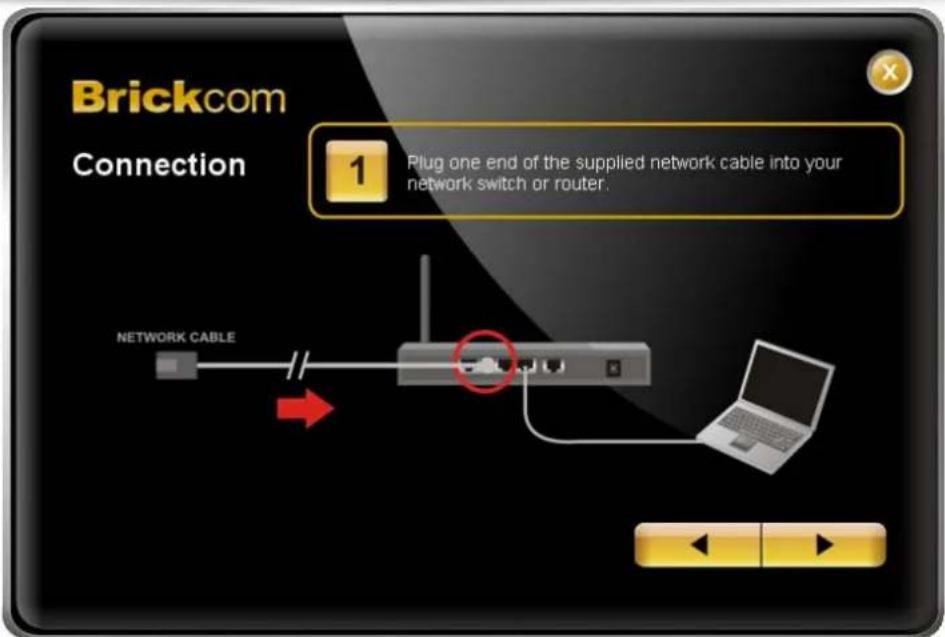

Brickcom Connection 1 Plug one end of the supplied network cable into your network switch or router. NETWORK CABLE

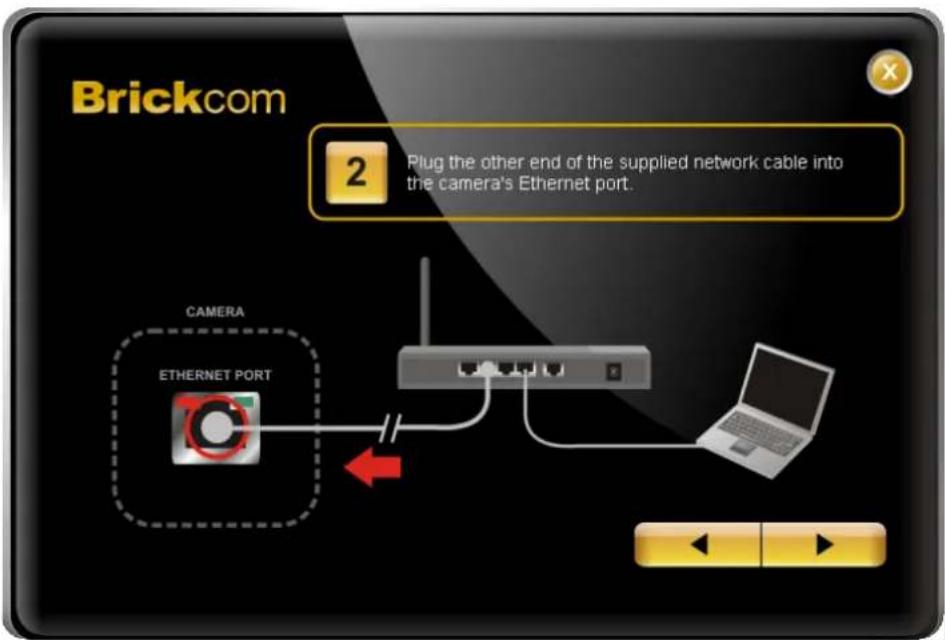

Brickcom 2 Plug the other end of the supplied network cable into the camera's Ethernet port. CAMERA ETHERNET PORT

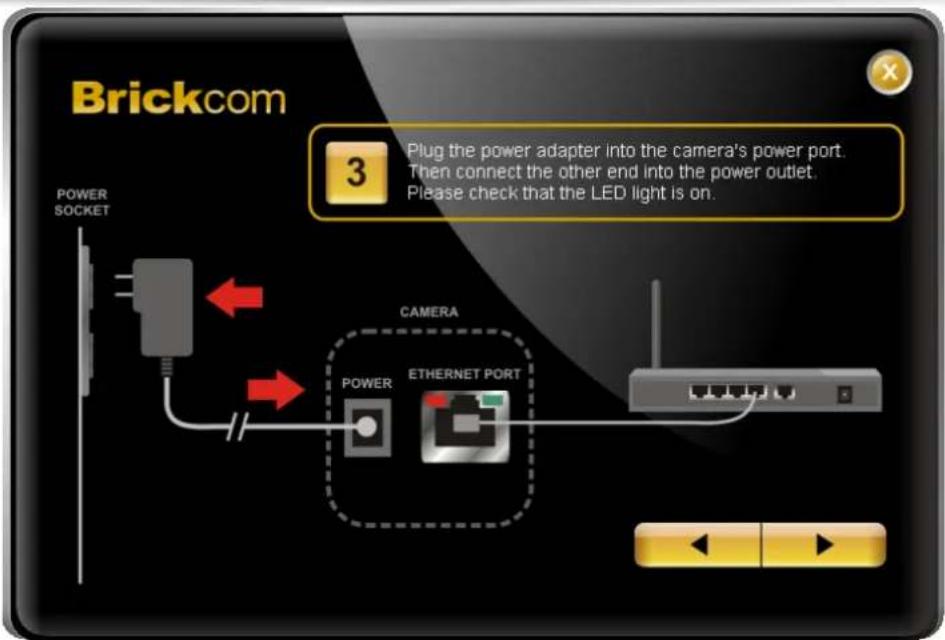

Brickcom 3 Plug the power adapter into the camera's power port. Then connect the other end into the power outlet. Please check that the LED light is on. POWER SOCKET CAMERA POWER ETHERNET PORT

B. Select either "Simple Mode" or "Professional Mode" to obtain the camera's IP settings. If "Simple Mode" is selected, EasyConfig will set up the connection automatically. If "Professional Mode" is selected, the user will need to configure the IP settings manually.

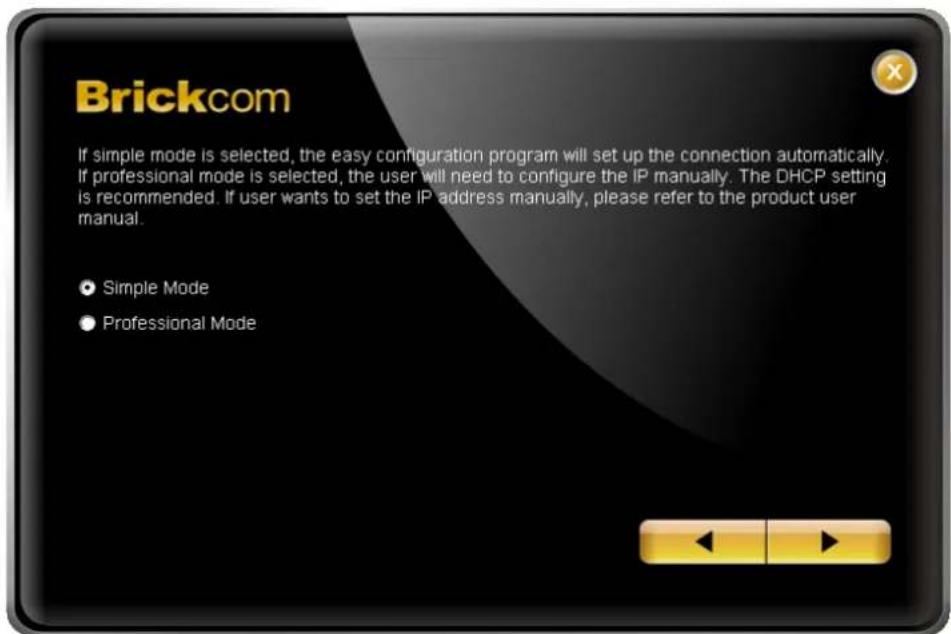

Brickcom If simple mode is selected, the easy configuration program will set up the connection automatically. If professional mode is selected, the user will need to configure the IP manually. The DHCP setting is recommended. If user wants to set the IP address manually, please refer to the product user manual. • Simple Mode • Professional Mode

C. There may be many cameras in the local network. Differentiate the cameras using their UPnP name. Double click on the camera from the survey list to connect.

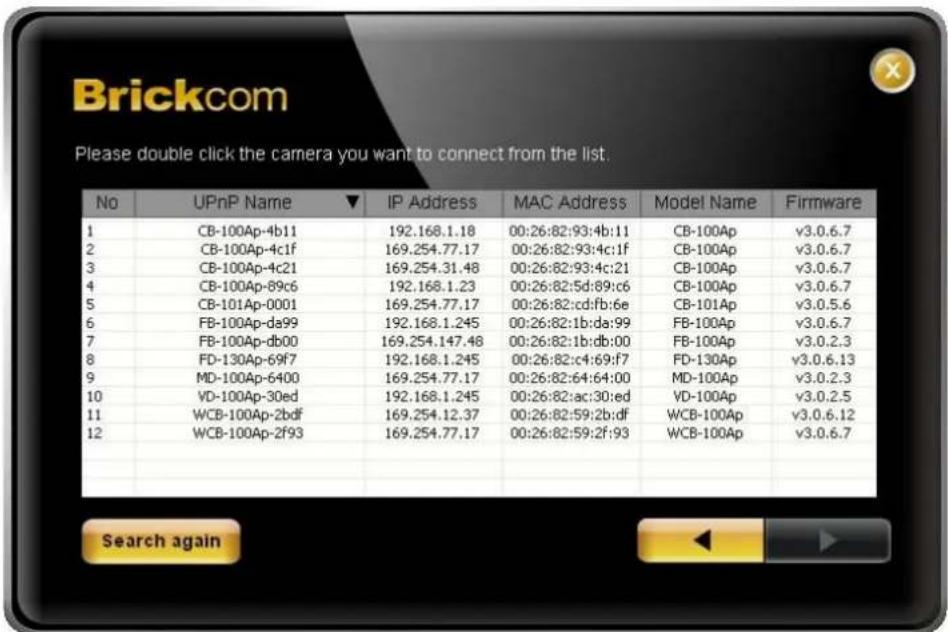

Brickcom Please double click the camera you want to connect from the list. No UPnP Name ▼ IP Address MAC Address Model Name Firmware 1 CB-100Ap-4b11 192.168.1.18 00:26:82:93:4b:11 CB-100Ap v3.0.6.7 2 CB-100Ap-4c1f 169.254.77.17 00:26:82:93:4c:1f CB-100Ap v3.0.6.7 3 CB-100Ap-4c21 169.254.31.48 00:26:82:93:4c:21 CB-100Ap v3.0.6.7 4 CB-100Ap-89c6 192.168.1.23 00:26:82:5d:89:c6 CB-100Ap v3.0.6.7 5 CB-101Ap-0001 169.254.77.17 00:26:82:cd:fb:6e CB-101Ap v3.0.5.6 6 FB-100Ap-da99 192.168.1.245 00:26:82:1b:da:99 FB-100Ap v3.0.6.7 7 FB-100Ap-db00 169.254.147.48 00:26:82:1b:db:00 FB-100Ap v3.0.2.3 8 FD-130Ap-69f7 192.168.1.245 00:26:82:c4:69:f7 FD-130Ap v3.0.6.13 9 MD-100Ap-6400 169.254.77.17 00:26:82:64:64:00 MD-100Ap v3.0.2.3 10 VD-100Ap-30ed 192.168.1.245 00:26:82:ac:30:ed VD-100Ap v3.0.2.5 11 WCB-100Ap-2bdf 169.254.12.37 00:26:82:59:2b:df WCB-100Ap v3.0.6.12 12 WCB-100Ap-2f93 169.254.77.17 00:26:82:59:2f:93 WCB-100Ap v3.0.6.7 Search again

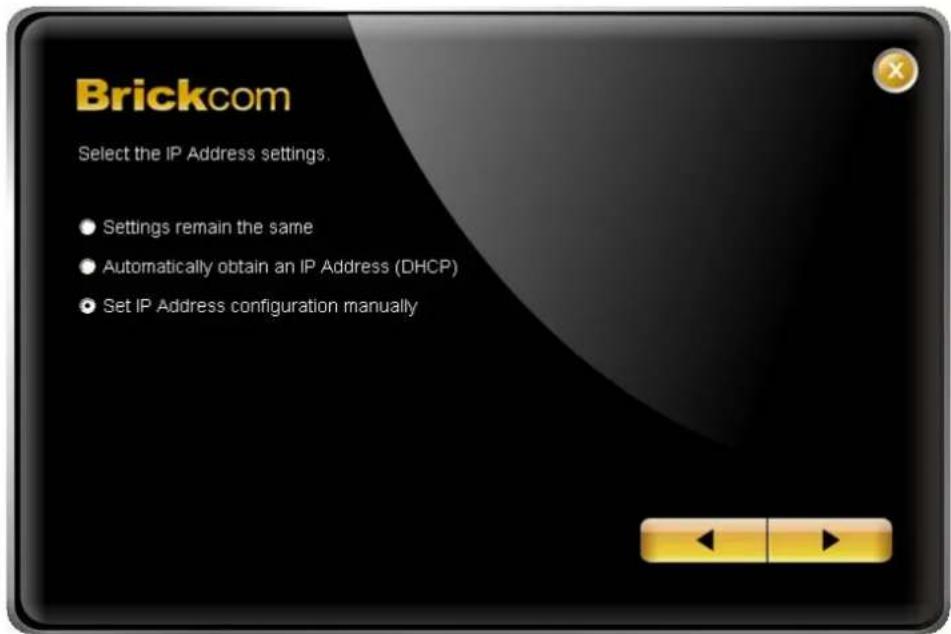

D. For configuring the IP address settings, select either , or . The DHCP setting is recommended.

Brickcom Select the IP Address settings. Settings remain the same Automatically obtain an IP Address (DHCP) Set IP Address configuration manually

If is selected, the following pages will be displayed.

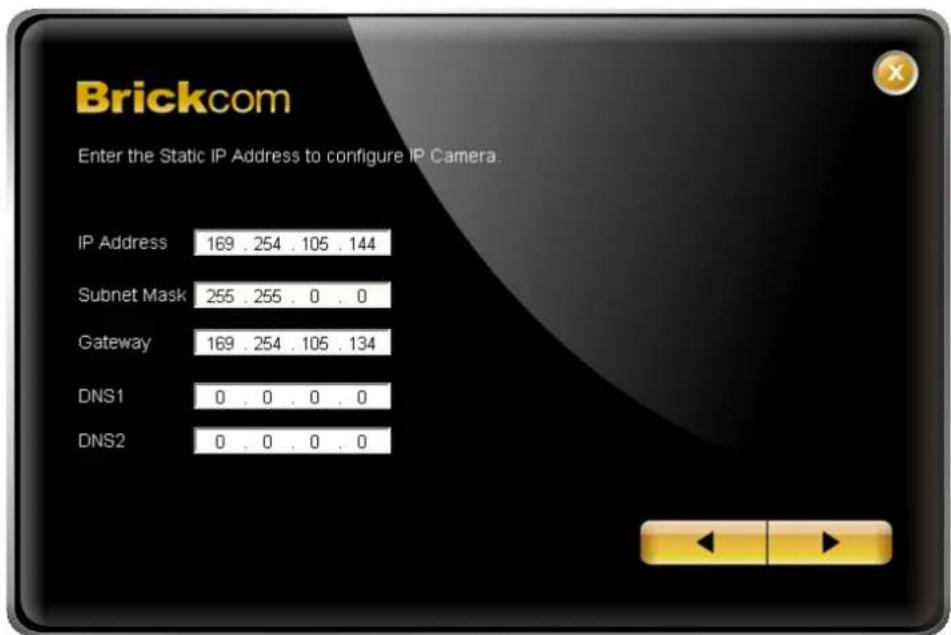

Brickcom Select the IP Address settings. • Settings remain the same • Automatically obtain an IP Address (DHCP) • Set IP Address configuration manually

Brickcom Enter the Static IP Address to configure IP Camera. IP Address 169 . 254 . 105 . 144 Subnet Mask 255 . 255 . 0 . 0 Gateway 169 . 254 . 105 . 134 DNS1 0 . 0 . 0 . 0 DNS2 0 . 0 . 0 . 0

E. If the camera supports the EasyLinkTM function, the following page will be displayed. Otherwise, this page will not be shown. *If desired, click to skip this setting.

Brickcom EasyLink Settings You can use EasyLink Settings to connect to the IP camera without knowing the IP address. EasyLink Name: 002682592c33 Live View - Windows Internet Explorer http://002682592c33.mybrickcom.com Brickcom WCB-100Ap Camera Configuration Utility Live View I Configuration I Hi Enter the EasyLink URL into a web browser to access the camera's web GUI. Skip

EasyLinkTM is a unique Brickcom function which allows users to assign a unique EasyLink name to their network camera's IP address. There is no need to configure the router to open up ports or remember hard-to-memorize IP addresses. Users can log onto

[uniqueEasyLinkname].mybrickcom.com to view the camera's web GUI and live view.

a. Enter a unique EasyLink name whose length must be between 5-32 characters.
b. When finished, click the arrow button to continue.

F. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation.

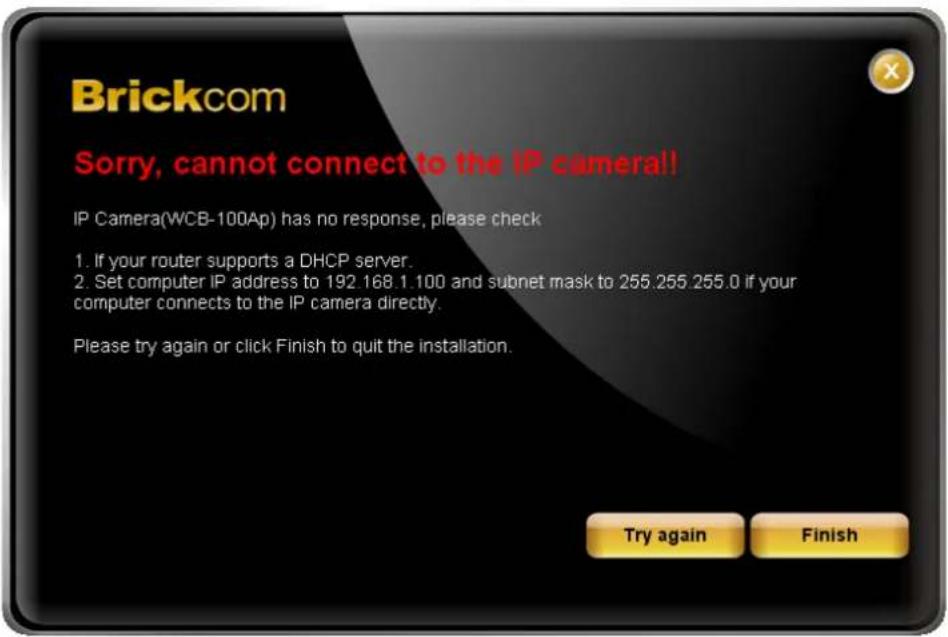

a. If "DHCP IP address settings" was selected, the failure page will be displayed as below:

Brickcom Sorry, cannot connect to the IP camera!! IP Camera(WCB-100Ap) has no response, please check 1. If your router supports a DHCP server. 2. Set computer IP address to 192.168.1.100 and subnet mask to 255.255.255.0 if your computer connects to the IP camera directly. Please try again or click Finish to quit the installation. Try again Finish

b. If "Static IP address settings" was selected, the failure page will be displayed as below:

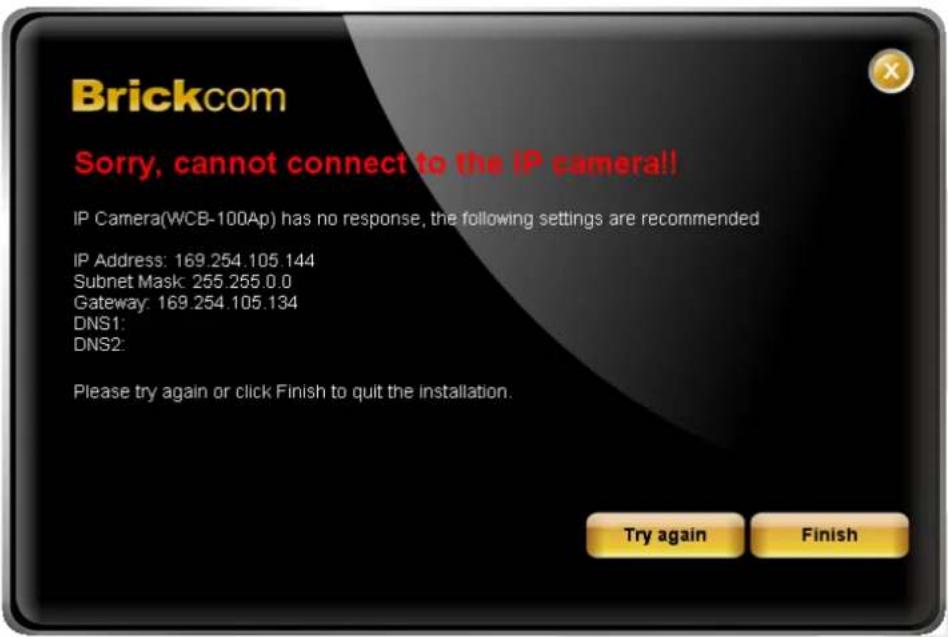

Brickcom Sorry, cannot connect to the IP camera!! IP Camera(WCB-100Ap) has no response, the following settings are recommended IP Address: 169.254.105.144 Subnet Mask: 255.255.0.0 Gateway: 169.254.105.134 DNS1: DNS2: Please try again or click Finish to quit the installation. Try again Finish

c. If the connection was successful, the user will see the message: "Congratulations. The installation of the camera is complete."

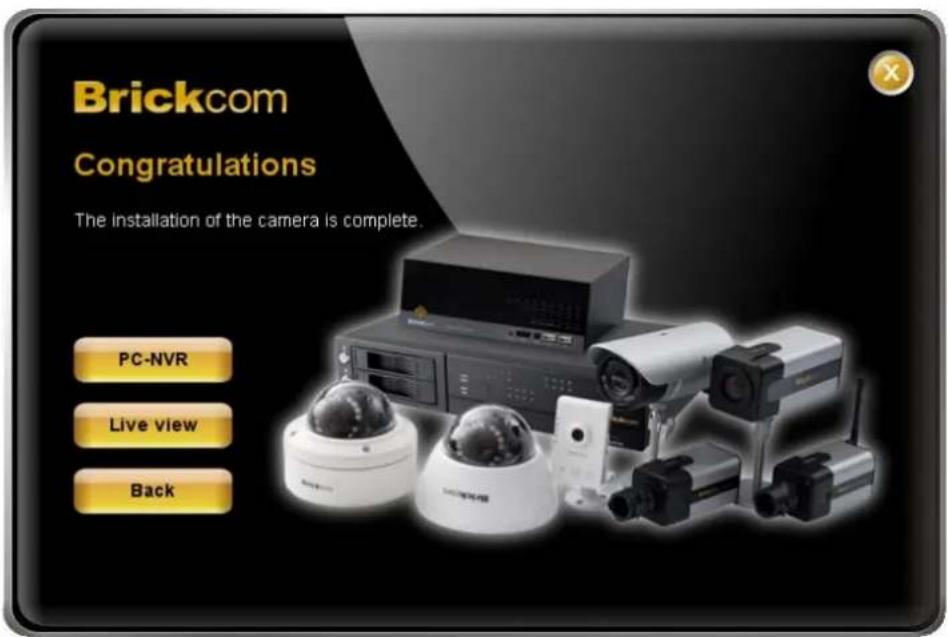

When this window is displayed, click to start the PC-NVR program, to view the live video from the connected IP camera, or in the top right corner of the screen to close the installation window. If the user starts the PC-NVR program, please refer to the PC-NVR user manual.

Brickcom Congratulations The installation of the camera is complete. PC-NVR Live view Back

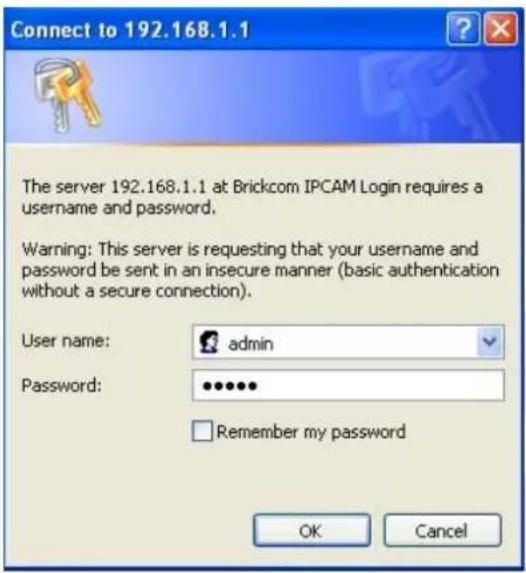

d. Log in to the camera. Key in the username and password on the log-in window. The default username and password are "admin" and "admin".

Connect to 192.168.1.1 The server 192.168.1.1 at Brickcom IPCAM Login requires a username and password. Warning: This server is requesting that your username and password be sent in an insecure manner (basic authentication without a secure connection). User name: admin Password: •••••• Remember my password OK Cancel

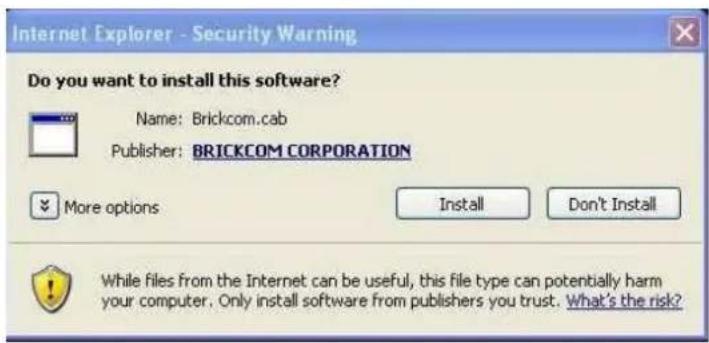

e. Install the plug-in. Please click Install to install the ActiveX plug-in on the Internet Explorer.

Internet Explorer - Security Warning Do you want to install this software? Name: Brickcom.cab Publisher: BRICKCOM CORPORATION More options Install Don't Install While files from the Internet can be useful, this file type can potentially harm your computer. Only install software from publishers you trust. What's the risk?

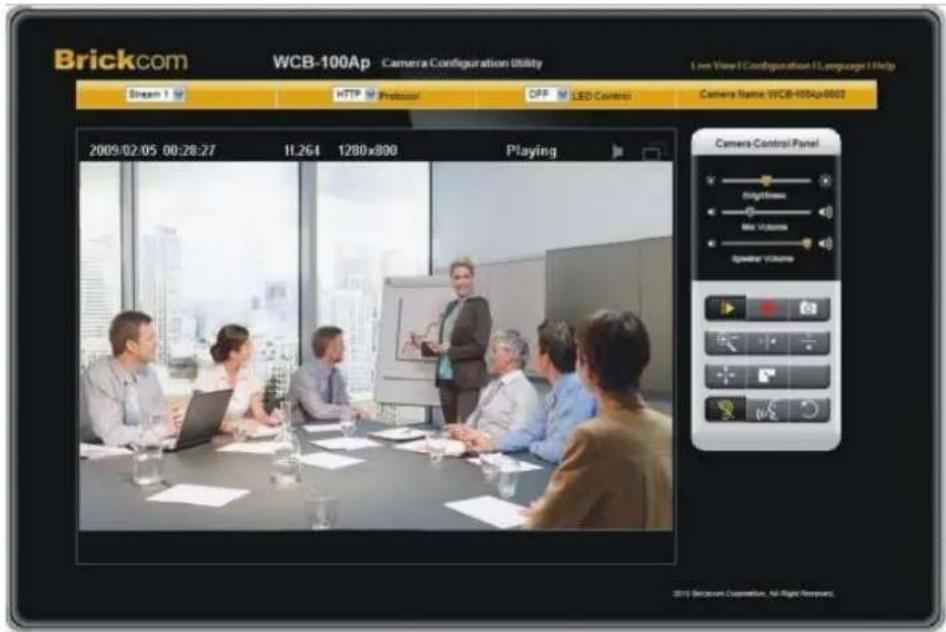

f. Live View

Brickcom WCB-100Ap Camera Configuration Utility Live View Configuration Language Help Stream 1 HTTP Protocol OFF LED Control Camera Name: WCB-100Ap0002 2009/02/05 00:28:27 11.264 1280x890 Playing Camera Control Panel Brightness Mix Volume Speaker Volume 2013 Brickcom Connection, All Right Resources
