Product Type	2.5-inch Internal Hard Drive
Model Number	Firecuda ST2000LX001
Capacity	2 TB
Interface	SATA III 6Gb/s
Form Factor	2.5-inch (7mm height)
Rotational Speed	5400 RPM
Cache	8GB NAND Flash (SSHD)
Transfer Rate	Up to 140 MB/s sustained
Dimensions (L x W x H)	100.45 x 69.85 x 7.0 mm
Weight	115 g
Operating Shock	350 Gs (2 ms)
Non-operating Shock	1000 Gs (1 ms)
Power Consumption (Active)	1.9W typical
Power Consumption (Idle)	0.8W typical
Power Supply	5V DC, 1.0A
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Warranty	5 years Limited
Main Features	Hybrid drive (SSHD) with adaptive memory technology
Maintenance & Care	Avoid physical shocks; keep in a dry, cool environment; handle by edges.
Safety Precautions	Discharge static before handling; use ESD protection; avoid contact with circuit board.
Spare Parts & Repairability	Not user-serviceable; internal components sealed.

Frequently Asked Questions - Firecuda ST2000LX001 SEAGATE

What type of drive is the Seagate Firecuda ST2000LX001?

The Seagate Firecuda ST2000LX001 is a 2.5-inch hybrid hard drive (SSHD) that combines a traditional hard disk with an 8GB NAND flash cache for faster performance.

What is the capacity and interface of this drive?

It has a capacity of 2TB and uses a SATA III 6Gb/s interface for connectivity.

Is the Firecuda ST2000LX001 compatible with laptops?

Yes, its 7mm height makes it compatible with most laptops that accept a 2.5-inch SATA drive. Always check your device's specifications.

How can I install the Firecuda ST2000LX001 in my computer?

Installation is straightforward: power off your system, connect the SATA data cable and SATA power cable to the drive, then mount it in the drive bay. Refer to your computer's manual for specific steps.

Why is my Firecuda ST2000LX001 not detected?

Check that the SATA cables are firmly connected and the power supply is adequate. Ensure the drive is enabled in BIOS/UEFI. If still not detected, test with a different cable or port.

How do I optimize performance of the SSHD?

The drive automatically learns your most-used files and caches them in the NAND flash. No manual optimization is needed; ensure AHCI mode is enabled in BIOS for best performance.

What should I do if the drive makes unusual noises?

Clicking, grinding, or beeping sounds may indicate a mechanical issue. Back up your data immediately and test the drive using Seagate's SeaTools diagnostics. If errors appear, contact support.

Can I use the Firecuda ST2000LX001 as a boot drive?

Yes, it can be used as a boot drive. Its hybrid technology helps speed up boot times compared to a standard HDD, though an SSD may be faster for pure OS loading.

How long is the warranty on this drive?

The Seagate Firecuda ST2000LX001 comes with a 5-year limited warranty. Check Seagate's website for warranty terms and claims.

How do I clean or maintain the drive?

There is no user maintenance required. Keep the drive dry and dust-free. Avoid moving it while operating and handle it by the edges to prevent static damage.

USER MANUAL Firecuda ST2000LX001 SEAGATE

Abstract logo design with green and white stylized shapes inside a black circle (no text or symbols)

FIRECUDA

COMPUTE

5400 RPM - SATA Product Manual

Standard models

ST2000LX001

ST1000LX015

ST500LX025

100802299, Rev. H

February 2019

Document Revision History

Revision Date	Pages affected and Description of change
Rev. A 07/05/2016 Initial release.
Rev. B 08/18/2016	5, 13, 18 & 20: Re-Branded to FireCuda.16: Added warning statement for Class B devices in Korean
Rev. C 08/31/2016 5-6: Added NAND flash text
Rev. D 11/14/2016	fc: Added FireCuda logo to cover page5: Add MTC bullet & change Perpendicular recording to SMR9: Revise Section 2.7.1 Power consumption & Table 4 DC Power Requirements12: Revise Section 2.7.4 Power management modes16: Updated Korean text for MSIP statement
Rev. E 02/22/2017	fc: New horizontal FireCuda logo7: Added Power-off/Flush Command note after Table 17 & 16: Revised Rated Workload statements16: Added Section 2.11.1 Data loss under power interruption with write cache enabled19-20: Updated 2-disk mechanical drawing & added 1-disk drawing
Rev. F 10-06-2017	17-20: Updated Sections 2.12 through 2.14.321: Removed (drives support latching SATA connectors)22-24: Updated Figures 4-6 (mechanical drawings)
Rev. G 08-17-2018 20: Updated Table 10: Taiwan - Restricted Substances
Rev. H 02-01-2019	22: Added Section 3.3 Drive grounding & Figures 4 & 5.bc: Updated EMEA & APAC addresses

© 2019 Seagate Technology LLC. All rights reserved.

Publication number: 100802299, Rev. H February 2019

Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SeaTools and 3D Defense System are either a trademark or registered trademark of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments. All other trademarks or registered trademarks are the property of their respective owners.

No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC.

Call 877-PUB-TEK1(877-782-8351) to request permission.

When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer's operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Actual quantities will vary based on various factors, including file size, file format, features and application software. Actual data rates may vary depending on operating environment and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more information, visit www.bis.doc.gov), and controlled for import and use outside of the U.S. Seagate reserves the right to change, without notice, product offerings or specifications.

Seagate® Technology Support Services ....5

1.0 Introduction....6

1.1 About the Serial ATA Interface 6

2.0 Drive Specifications 7

2.1 Formatted Capacity 8

2.1.1 LBA mode 8

2.2 Physical organization 9

2.3 Recording and Interface Technology....9

2.4 Physical Characteristics....9

2.5 Seek time 9

2.6 Start/stop times 10

2.7 Power Specifications 10

2.7.1 Power consumption 10

2.7.2 Conducted noise....12

2.7.3 Supply Voltage 12

2.7.4 Power management modes 13

2.8 Environmental Specifications....14

2.8.1 Shock....14

2.8.2 Vibration 15

2.9 Acoustics 15

2.9.1 Test for prominent discrete tones (PDTs)....15

2.10 Electromagnetic Immunity 16

2.10.1 DC Magnetic Field Immunity 16

2.11 Reliability 17

2.11.1 Data loss under power interruption with write cache enabled 17

2.12 Agency and Safety Certifications....17

2.13 Safety certification .... 17

2.13.1 European Union (EU) CE Marking Requirements....17

2.13.2 Australian RCM Compliance Mark 17

2.13.3 Canada ICES-003....18

2.13.4 South Korean KC Certification Mark....18

2.13.5 Morocco Commodity Mark 18

2.13.6 Taiwanese BSMI....18

2.13.7 FCC verification....18

2.14 Environmental protection....19

2.14.1 European Union Restriction of Hazardous Substance Law 19

2.14.2 China Requirements —China RoHS 2....19

2.14.3 Taiwan Requirements — Taiwan RoHS....20

2.15 Corrosive Environment 20

3.0 Configuring and Mounting the Drive 21

3.1 Handling and Static-Discharge Precautions 21
3.2 Configuring the Drive 21

3.2.1 Serial ATA Cables and Connectors 21

3.3 Drive Grounding 22
3.4 Drive Mounting 23

4.0 Serial ATA (SATA) Interface 26

4.1 Hot-Plug Compatibility 26
4.2 Serial ATA Device Plug Connector Pin Definitions....26
4.3 Supported ATA Commands....27

4.3.1 Identify Device command....29
4.3.2 Set Features command....33
4.3.3 S.M.A.R.T. commands 34

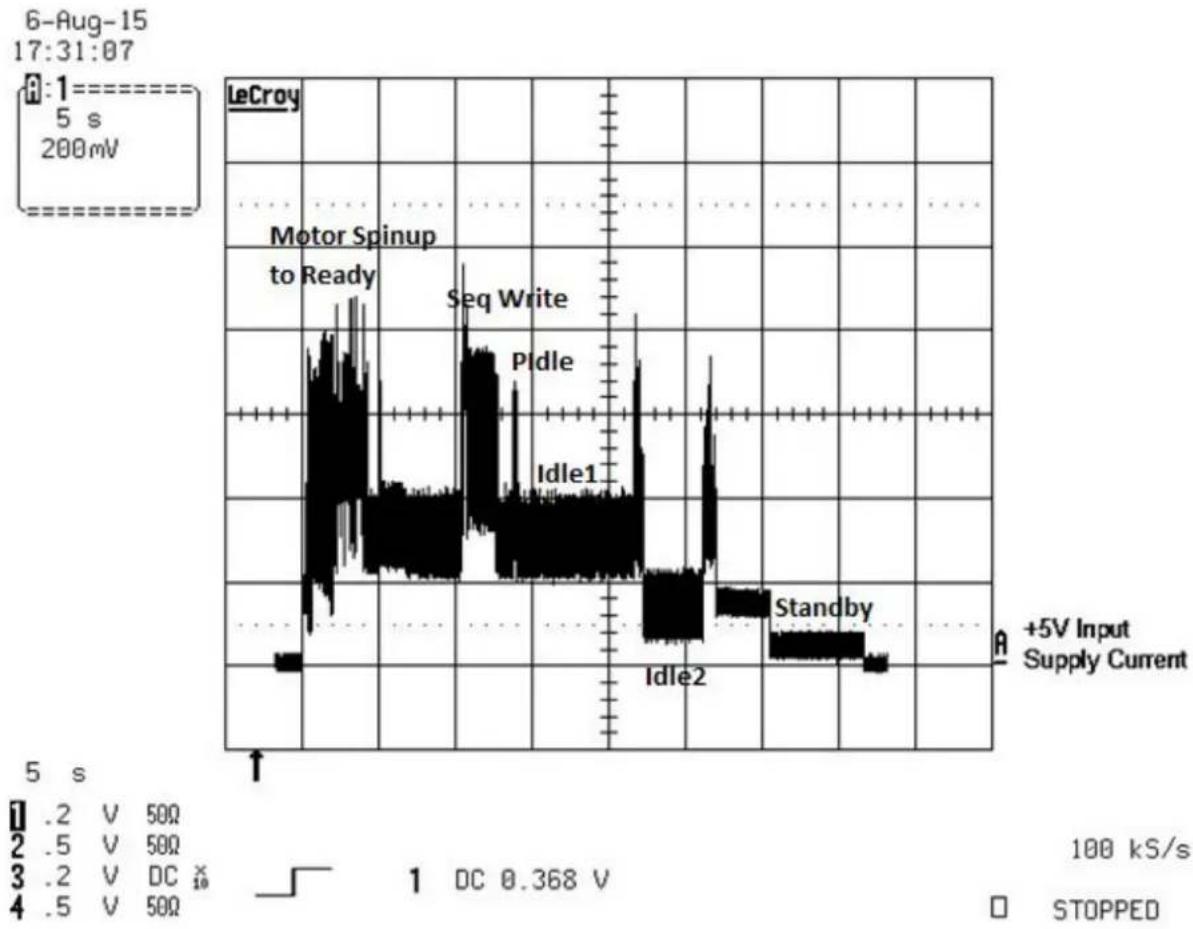

Figure 1 Typical 1D - 5V Startup and Operation Current Profile.... 11

Figure 2 Typical 2D - 5V Startup and Operation Current Profile....12

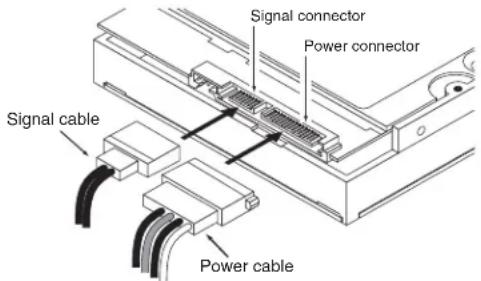

Figure 3 Attaching SATA Cabling 21

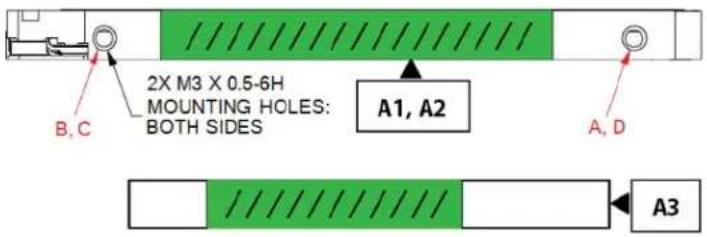

Figure 4 Drive Grounding Side Mounting for 1-disk and 2-disk models) 22

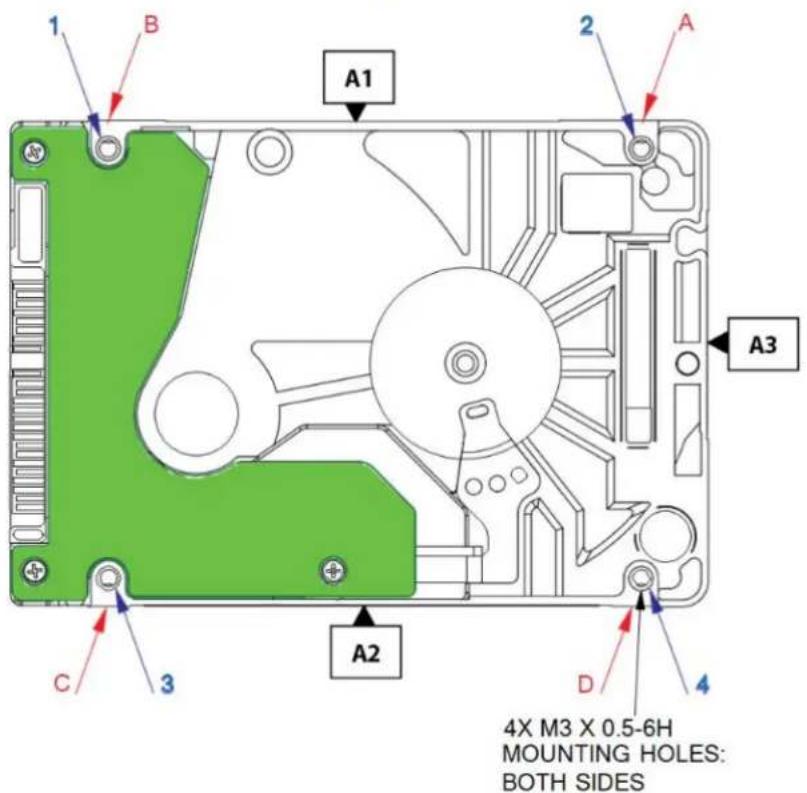

Figure 5 Drive Grounding Bottom Mounting for 1-disk and 2-disk models.... 22

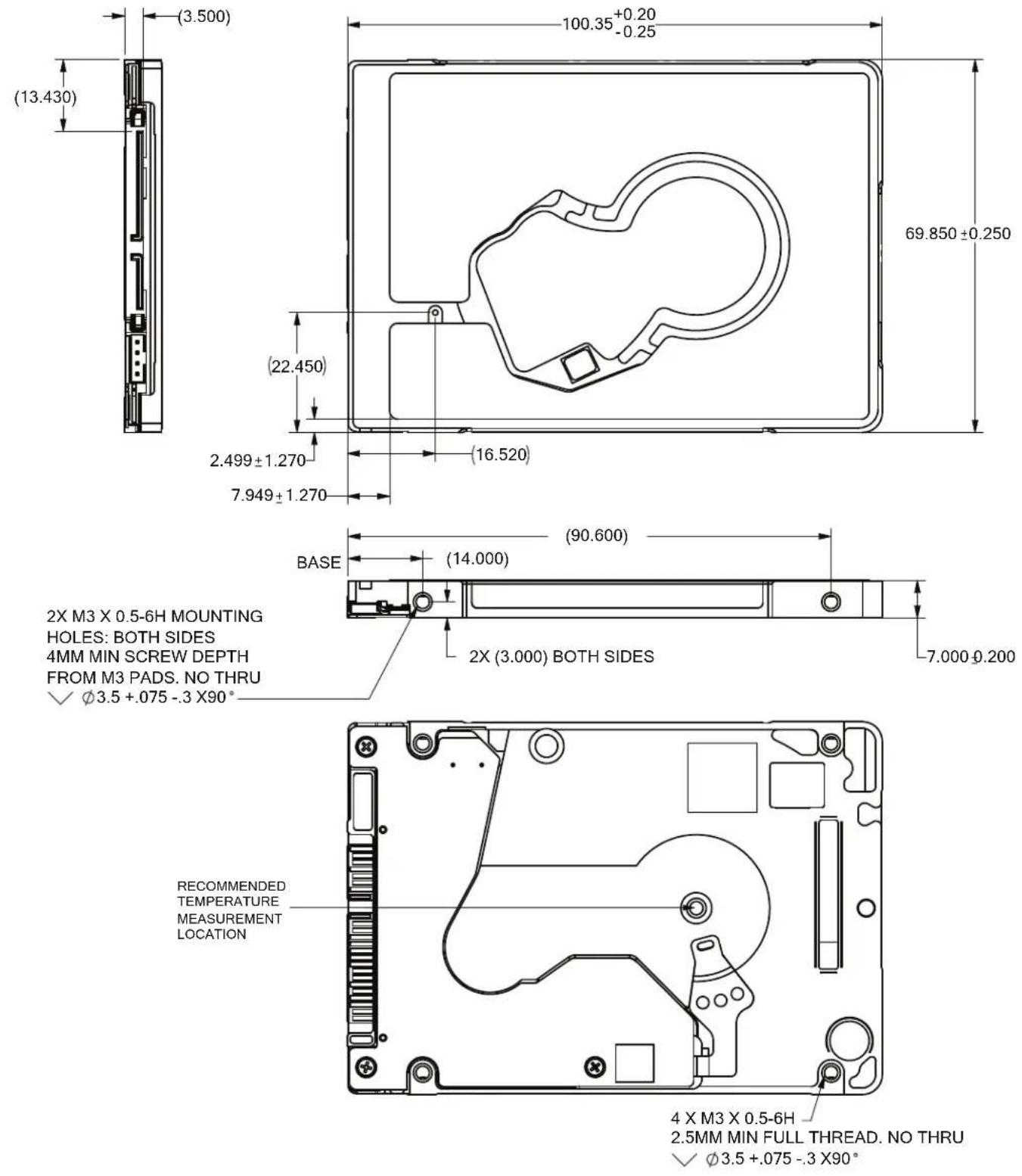

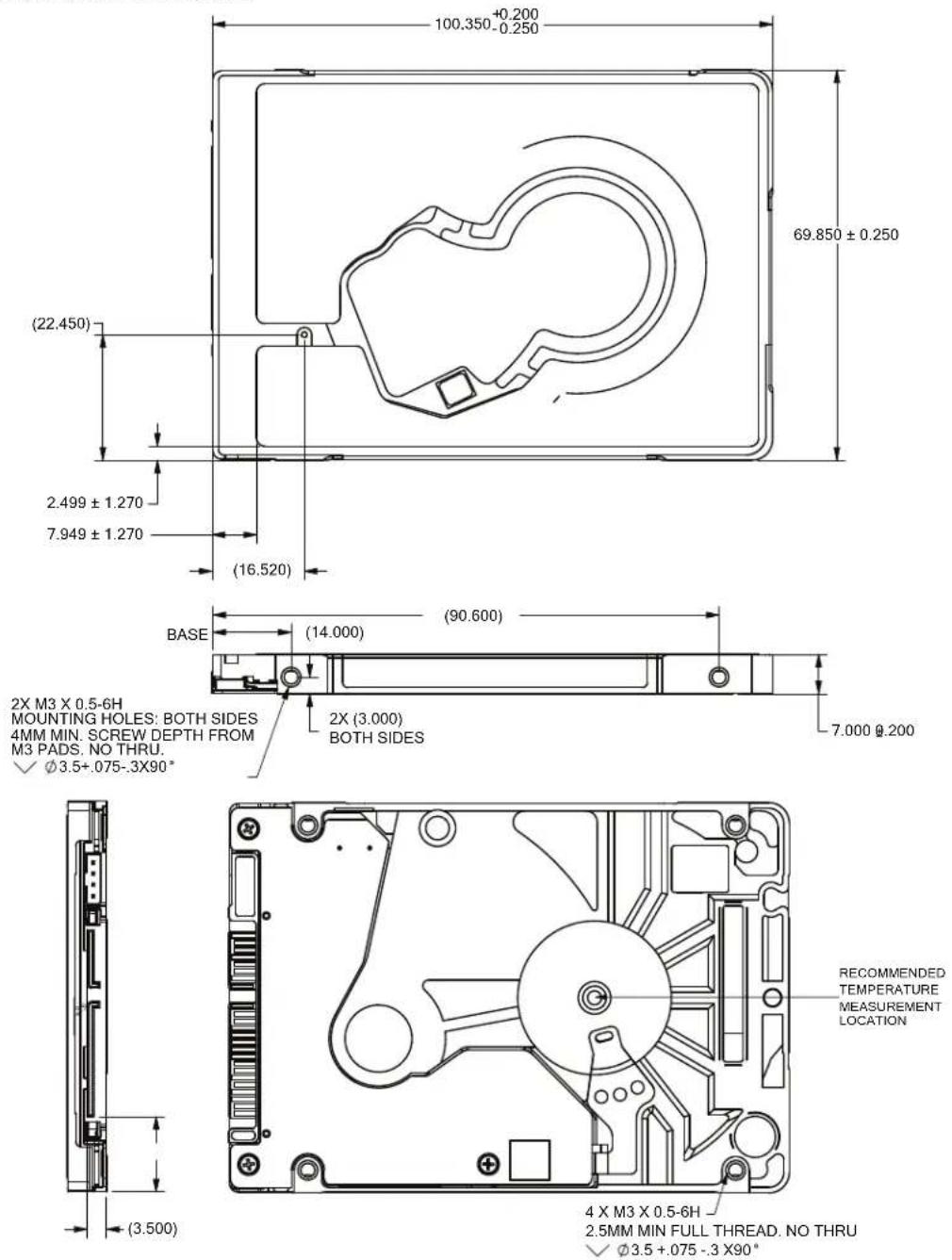

Figure 6 Mounting Dimensions (for 1-disk models) 23

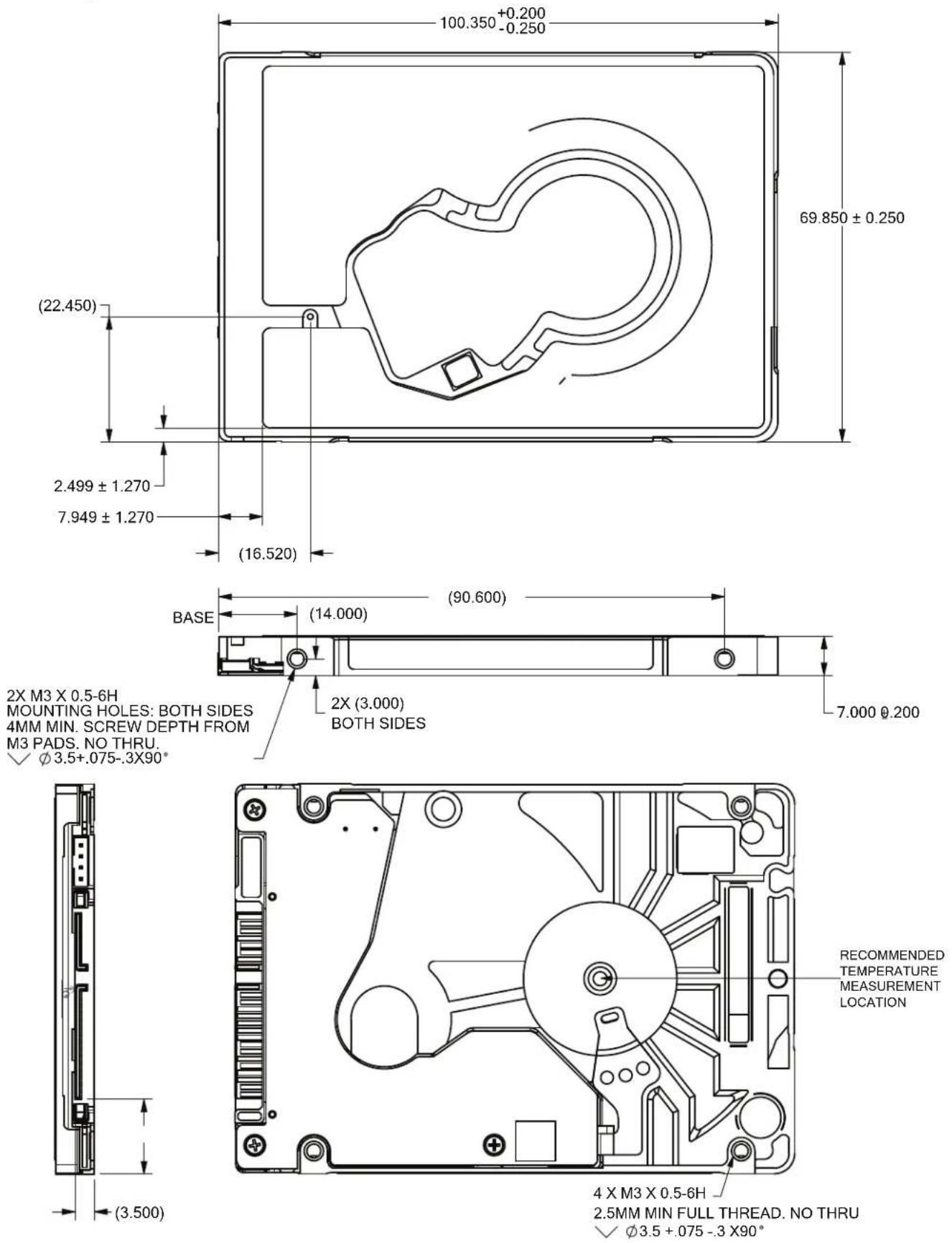

Figure 7 Mounting Dimensions (for 1-disk models) (alternate basedeck). 24

Figure 8 Mounting Dimensions (for 2-disk models) 25

Seagate® Technology Support Services

For information regarding online support and services, visit: http://www.seagate.com/contacts/

For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/

For information regarding data recovery services, visit: http://www.seagate.com/services-software/recover/

For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/

1.0 Introduction

This manual describes the functional, mechanical and interface specifications for the following Seagate® FireCuda™ model drives:

Standard models

ST2000LX001

ST1000LX015

ST500LX025

These drives provide the following key features:

• 1000 Gs non-operating shock and 400 Gs of operating shock.
• 128MB buffer.
  • 5400-RPM spindle speed.
• Flash-accelerated drives combining 8GB NAND technology with massive HDD storage capacity up to 2TB.
  • Full-track multiple-sector transfer capability without local processor intervention.
  • High instantaneous (burst) data-transfer rates (up to 6Gb/s).
• MTC Technology ^TM , proprietary data flow management.
• Native Command Queuing (NCQ) with command ordering.
• Quiet operation. Fluid Dynamic Bearing (FDB) motor.
• SeaTools ^TM diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• Shingled magnetic recording with perpendicular magnetic recording heads/media.
• State-of-the-art cache and on-the-fly error-correction algorithms.
• Support for Read Multiple and Write Multiple commands.
• Support for S.M.A.R.T. drive monitoring and reporting.
• Worldwide Name (WWN) capability uniquely identifies the drive.

1.1 About the Serial ATA Interface

The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. The primary advantages include:

• Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other configuration options.
• Thinner and more flexible cabling for improved enclosure airflow and ease of installation.
• Scalability to higher performance levels.

In addition, Serial ATA makes the transition from parallel ATA easy by providing legacy software support. Serial ATA was designed to allow users to install a Serial ATA host adapter and Serial ATA disk drive in the current system and expect all of the existing applications to work as normal.

The Serial ATA interface connects each disk drive in a point-to-point configuration with the Serial ATA host adapter. There is no master/slave relationship with Serial ATA devices like there is with parallel ATA. If two drives are attached on one Serial ATA host adapter, the host operating system views the two devices as if they were both "masters" on two separate ports. This essentially means both drives behave as if they are Device 0 (master) devices.

Note

The host adapter may, optionally, emulate a master/slave environment to host software where two devices on separate Serial ATA ports are represented to host software as a Device 0 (master) and Device 1 (slave) accessed at the same set of host bus addresses. A host adapter that emulates a master/slave environment manages two sets of shadow registers. This is not a typical Serial ATA environment.

The Serial ATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward compatibility with existing host systems and software. The Command and Control Block registers, PIO and DMA data transfers, resets, and interrupts are all emulated.

The Serial ATA host adapter contains a set of registers that shadow the contents of the traditional device registers, referred to as the Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to the Serial ATA International Organization: Serial ATA (Revision 2.6). The specification can be downloaded from www.serialata.org.

2.0 Drive Specifications

Unless otherwise noted, all specifications are measured under ambient conditions, at 25^ C, and nominal power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate the following drive models:

The specification summaries listed in the following tables are for quick reference. For details on specification measurement or definition, refer to the appropriate section of this manual.

Table 1 Drive Specifications Summary

Drive Specification ST2000LX001 ST1000LX015 ST500LX025
Formatted capacity (1)	2TB 1TB 500GB
Guaranteed sectors 3,907,029,168 1,953,525,168	976,773,168
Heads	4	2
Disks	2	1
NAND flash Commercial Multilevel Cell (cMLC)	8GB
Bytes per sector	512 (logical) / 4096 (physical)
Recording density	2296 KFC/in
Track density	580 KTP/in avg
Areal density	1327 Mb/in^2 avg
Spindle speed	5400 RPM
Data transfer rate (up to)	140 MB/s
Interface	SATA 6Gb/s
ATA data-transfer modes supported	PIO modes 0-4Multiword DMA modes 0-2Ultra DMA modes 0-6
Cache buffer	128 MB
Height (mm/in)	7.0 ( ± 0.2) / 0.276 ( ± 008)
Width (mm/in)	69.85 ( ± 0.25) / 2.750 ( ± 0.010)
Length (mm/in)	100.35 (+0.20/-0.25) / 3.951 (+0.008/-0.010)
Weight (g/lb) max	96 / 0.212	92 / 0.203
Average latency	5.6 ms
Startup current, Max (+5V)	1.0 A
Voltage tolerance (including noise)	5V ± 5%
Operating temperature	0° to 60°C
Non-operating temperature (ambient)	-40° to 70°C
Temperature gradient	20°C per hour max (operating)35°C per hour max (non-operating)
Relative humidity	5% to 95% (operating)5% to 95% (non-operating)
Relative humidity gradient (max)	30% per hour
Wet bulb temperature	37.7°C max (operating)40.0°C max (non-operating)
Altitude, operating	-304.8 m to 3048 m (-1000 ft to 10,000+ ft)
Altitude, non-operating(below mean sea level, max)	-304.8 m to 12,192 m (-1000 ft to 40,000+ ft)
Drive Specification	ST2000LX001	ST1000LX015	ST500LX025
Operational Shock 400 Gs at 2 ms max
Non-Operational Shock 1000 Gs at 1 ms max
Vibration, operating	5–200 Hz: 2.0 Gs201–500 Hz: 1.0 Gs
Vibration, non-operating 5–500 Hz: 5.0 Gs
Nonrecoverable read errors 1 per 10	^14 bits read
Rated workload	Average annualized workload rating: <55 TB/year.The specifications for the product assumes the I/O workload does not exceed the average annualized workload rate limit of 55 TB/year. Workloads exceeding the annualized rate may degrade and impact reliability as experienced by the particular application. The average annualized workload rate limit is in units of TB per calendar year.
Warranty	To determine the warranty for a specific drive, use a web browser to access the following web page: http://www.seagate.com/support/warranty-and-replacements/.From this page, click on the “Is my Drive under Warranty” link. The following are required to be provided: the drive serial number, model number (or part number) and country of purchase. The system will display the warranty information for the drive.
Load-unload cycles	600,000 at 25°C, 50% rel. humidity
Supports Hotplug operation per the Serial ATA Revision 3.2 specification	Yes

1. One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.

Note	If the drive is powered-off before issuing flush cache command, in some instances, the end user data in the DRAM cache might not be committed to the disk.

2.1 Formatted Capacity

Model	Formatted Capacity (1)	Guaranteed Sectors	Bytes per Sector
ST2000LX001	2000 GB	3,907,029,168	512 (logical) / 4096 (physical)
ST1000LX015	1000 GB	1,953,525,168
ST500LX025	500 GB	976,773,168

1. One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.

2.1.1 LBA mode

When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n-1, where n is the number of guaranteed sectors as defined above.

Refer to Configuring and Mounting the Drive on page 21 (words 60-61 and 100-103) for additional information about 48-bit addressing support of drives with capacities over 137 GB.

2.2 Physical organization

Drive model Read/write heads Number of discs
ST2000LX001 4 2
ST1000LX015 2 1
ST500LX025 2 1

2.3 Recording and Interface Technology

Interface SATA 6Gb/s
Recording method Perpendicular
Recording density 2276 Kb/in
Track density	580 ktracks/in avg
Areal density	1320 Gb/in ^2 avg
Spindle speed	5400 RPM
Data transfer rate (up to) 140 MB/s

2.4 Physical Characteristics

Height (mm/in)	7.0 ( ± 0.2) / 0.276 ( ± 008)
Width (mm/in)	69.85 ( ± 0.25) / 2.750 ( ± 0.010)
Length (mm/in)	100.35 (+0.20/-0.25) / 3.951 (+0.008/-0.010)
Typical weight (g/lb)(2-Disk models)	96 / 0.212
Typical weight (g/lb)(1-Disk models)	92/ 0.203
Cache buffer	128MB

2.5 Seek time

Seek measurements are taken with nominal power at 25^ C ambient temperature. All times are measured using drive diagnostics. The specifications in the table below are defined as follows:

• Track-to-track seek time is an average of all possible single-track seeks in both directions.
  • Average seek time is a true statistical random average of at least 5000 measurements of seeks between random tracks, less overhead.

Table 2 Typical seek times

Typical seek times (ms)	Read
Track-to-track	1.5
Average	13.0
Average latency	5.6

Note

These drives are designed to consistently meet the seek times represented in this manual. Physical seeks, regardless of mode (such as track-to-track and average), are expected to meet the noted values. However, due to the manner in which these drives are formatted, benchmark tests that include command overhead or measure logical seeks may produce results that vary from these specifications.

2.6 Start/stop times

Table 3 Start/stop times

Typical seek times (ms) Typical Max @ 25°C
Power-on to ready (sec) 0.6 0.8
Standby to ready (sec) 2.5 3.0

2.7 Power Specifications

The drive receives DC power (+5V) through a native SATA power connector (refer to Figure 3).

2.7.1 Power consumption

Power requirements for the drives are listed in the table in Table 4. Typical power measurements are based on an average of drives tested, under nominal conditions, at 25°C ambient temperature. These power measurements are done with DIPM enabled.

• Spinup current is measured from the time of power-on to the time that the drive spindle reaches operating speed.
• Read/Write current is measured with the heads on track, based on three 64 sector read or write operations every 100 ms.
- The drive supports three idle modes: Performance Idle mode, Active Idle mode and Low Power Idle mode. Refer to Section 2.7.4 for power-management modes.

Table 4 DC Power Requirements

Power Dissipation	2-Disk models +5V input average (25°C)	1-Disk models +5V input average (25°C)
Spinup (max) 1.00A
Write average 1.80W	1.70W
Read average	1.70W	1.60W
Idle, low power mode	0.50W	0.45W
Standby(1)	0.13W
Sleep	0.13W

1. Standby power is measured at steady state (after 200ms from transition)

2.7.1.1 Typical current profiles

The typical 5V startup and operation current profile is shown in Figure 1 and Figure 2.

Figure 1 Typical 1D - 5V Startup and Operation Current Profile

Figure 2 Typical 2D - 5V Startup and Operation Current Profile

2.7.2 Conducted noise

Input noise ripple is measured at the host system power supply across an equivalent 15-ohm resistive load on the +5 volt line.

• Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave injected noise at up to 20 MHz.

Note

Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current.

2.7.3 Supply Voltage

Allowable voltage 5V ± 5%
Allowable noise/ripple 100 p-p max, 0-20 MHz
Allowable supply rise time <100 ms

2.7.4 Power management modes

The drive provides programmable power management to provide greater energy efficiency. In most systems, power management is controlled through the system setup program. The drive features the following power-management modes:

Power modes Heads Spindle Electronics
Active (operating)	Tracking	Rotating	Full power
Idle, performance	Tracking	Rotating	Partial Power
Idle, active	Floating	Rotating	Partial Power
Idle, low power	Parked	Rotating	Partial Power
Standby	Parked	Stopped	Low Power
Sleep	Parked	Stopped	Low Power

- Active mode

The drive is in Active mode during the read/write and seek operations.

n Idle mode

The electronics remains powered, and the drive accepts all commands and returns to Active mode when disk access is necessary.

- Standby mode

The drive enters Standby mode immediately when the host sends a Standby Immediate command. If the host has set the standby timer, the drive can also enter Standby mode automatically after the drive has been inactive for a specifiable length of time. The standby timer delay is established using a Standby or Idle command. In Standby mode, the electronics are in low power mode, the heads are parked and the spindle is at rest. The drive accepts all commands and returns to Active mode when disk access is necessary.

n Sleep mode

The drive enters Sleep mode after receiving a Sleep command from the host. In Sleep mode, the electronics are in low power mode, the heads are parked and the spindle is at rest. The drive leaves Sleep mode after it receives a Hard Reset or Soft Reset from the host. After receiving a reset, the drive exits Sleep mode and enters Standby mode.

n Idle and standby timers

Each time the drive performs an active function (read, write or seek), the standby timer is reinitialized and begins counting down from its specified delay times to zero. If the standby timer reaches zero before any drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive accepts all commands and returns to Active mode when disk access is necessary.

2.8 Environmental Specifications

This section provides the temperature, humidity, shock, and vibration specifications for FireCuda drives.

Ambient temperature is defined as the temperature of the environment immediately surrounding the drive.

Above 1000 feet (305 meters), the maximum temperature is derated linearly by 1°C every 1000 feet.

Table 5: Environmental specifications

Parameters Operating Non-Operating
Ambient temperature 0° to 60°C (32° to 140°F) -40° to 70°C (-40° to 158°F)
Temperature gradient	20°C per hour (68°F per hour) max, without condensation	35°C per hour (95°F per hour) max, without condensation
Humidity	5% to 95% non-condensing(30% per hour)	5% to 95% non-condensing(30% per hour)
Wet bulb 37.7°C (99.8°F) max	40°C (104°F) max
Altitude	-304.8m to 3048m(-1000ft to 10,000ft)	-304.8m to 12,192m(-1000ft to 40,000ft)

Note	The recommended storage period:• 1 year under controlled conditions of 34°C 90%RH or less• 90 days in uncontrolled storage conditions

2.8.1 Shock

All shock specifications assume that the drive is mounted securely with the input shock applied at the drive mounting screws. Shock may be applied in the X, Y, or Z axis.

2.8.1.1 Operating shock

These drives comply with the performance levels specified in this document when subjected to a maximum operating shock of 400 Gs based on half-sine shock pulses of 2ms. Shocks should not be repeated more than one time per axis.

2.8.1.2 Non-operating shock

The non-operating shock level that the drive can experience without incurring physical damage or degradation in performance when subsequently put into operation is 1000 Gs based on a nonrepetitive half-sine shock pulse of 1 ms duration.

2.8.2 Vibration

All vibration specifications assume that the drive is mounted securely with the input vibration applied at the drive mounting screws. Vibration may be applied in the X, Y, or Z axis.

2.8.2.1 Operating vibration

The maximum vibration levels that the drive may experience while meeting the performance standards specified in this document are specified below.

5–200 Hz 2.0	Gs (0 to peak). Max displacement may apply below 10 Hz.
201–500 Hz 1.0	Gs (0 to peak).

2.8.2.2 Non-operating vibration

The maximum non-operating vibration levels that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operation are specified below.

5–500 Hz 5.0 Gs (0 to peak). Max displacement may apply below 22 Hz.

2.9 Acoustics

Drive emission of sound is measured consistent with the ECMA-74 and its referenced standards. Testing is conducted at room temperature (approximately 25^ C). Emission levels are reported as the total A-weighted sound power levers for steady state, idle, and active seeks modes of operation.

Table 6 Drive A-weighted Sound Power Levels (SWL, BA)

Models 2-Disk 1-Disk
Idle^(1)	2.2 bels (typ)2.4 bels (max)	2.0 bels (typ)2.2 bels (max)
Performance Seek	2.4 bels (typ)2.6 bels (max)	2.2 bels (typ)2.4 bels (max)

1. During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels.

2.9.1 Test for prominent discrete tones (PDTs)

Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses the lower limit for the threshold curve* to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards.

*Defined as the median curve given by ISO 389-7 (Tf curve) minus 10dB at all frequencies.

2.10 Electromagnetic Immunity

When properly installed in a representative host system, the drive operates without errors or degradation in performance when subjected to the radio frequency (RF) environment as defined in Table 7.

Table 7 Radio Frequency Environments

Test Description		Performance Level	Reference Standard
Electrostatic discharge Contact, HCP,	VCP: ± 4 kV; Air: ± 8 kV B EN 61000-4-2: 95
Radiated RF immunity	80 to 1GHz, 3 V/m, 80% AM with 1 kHz sine900 MHz, 3 V/m, 50% pulse modulation @ 200 Hz	A	EN 61000-4-3: 96ENV 50204: 95
Electrical fast transient ± 1 kV on AC	mains, ± 0.5 kV on external I/O B EN 61000-4-4: 95
Surge immunity ± 1 kV differential, ± 2 kV common, AC mains	B EN 61000-4-5: 95
Conducted RF immunity	150 kHz to 80 MHz, 3 Vrms, 80% AM with 1 kHz sine	A	EN 61000-4-6: 97
Power Frequency H-field immunity	1 A/m, 50Hz/60Hz, 3 axes	A	EN 61000-4-8: 97
Voltage dips, interrupts	30% Reduction for 25 cycles>95% Reduction for 250 cycles>95%, 0.5 cycles	CCB	EN 61000-4-11: 94

2.10.1 DC Magnetic Field Immunity

Table 8: DC Magnetic Field Immunity

Test	Product Spec (Standalone)
DC Magnetic Field Immunity1, 2, 3	400 Gauss, RMS
1Field in Gauss at the drive envelope. Testing per procedures 20800109-349 and 20800109-350.2Passing Field in Gauss at the drive envelope. In practice, testing is conducted using a fixed distance from the bottom of the magnet to the top of the drive. Calibration of the field vs. distance is done with a Hall probe with no magnetic materials present.3Testing to be done with magnet.375" dia. x 0.100" Ni-plated NdFeB; B,~11.5 kG, magnetized along its length; the magnet is oriented with the length perpendicular to the drive cover/PCBA. Drive to be properly secured during test.

2.11 Reliability

Nonrecoverable read errors	1 per 10^14 bits read, max
Load/Unload (U/UL)25°C, 50% relative humidity	600,000 software-controlled power on/off cycles20,000 hard power on/off cycles
Rated workload	Average annualized workload rating: <55 TB/year.The specifications for the product assumes the I/O workload does not exceed the average annualized workload rate limit of 55 TB/year. Workloads exceeding the annualized rate may degrade and impact reliability as experienced by the particular application. The average annualized workload rate limit is in units of TB per calendar year.
Warranty	To determine the warranty for a specific drive, use a web browser to access the following web page:http://www.seagate.com/support/warranty-and-replacements/.From this page, click on the “Is my Drive under Warranty” link. The following are required to be provided: the drive serial number, model number (or part number) and country of purchase. The system will display the warranty information for the drive.

2.11.1 Data loss under power interruption with write cache enabled

Drive preserves its data during all operations except in cases where power to the drive is interrupted during write operations. This could result in either an uncorrected data error being reported, or the entire sector/track becoming unreadable. This can be permanently recovered by rewriting to the same location on the drive. Additionally any data present in the DRAM buffer will not be written to the disk media, additionally, the drive will not be able to return the original data.

In order to prevent this data loss, the host should issue a standby immediate or flush cache command before a controlled power off operation to the drive.

2.12 Agency and Safety Certifications

Each Hard Drive and Solid State Drive ("drives") has a product label that includes certifications that are applicable to that specific drive. The following information provides an overview of requirements that may be applicable to the drive.

2.13 Safety certification

The drives are recognized in accordance with UL/cUL 60950-1 and EN 60950-1.

The following regulatory model number represent all features and configurations within the series:

Regulatory Model Numbers: SDC002/SDC004

2.13.1 European Union (EU) CE Marking Requirements

Drives that display the CE mark comply with the European Union (EU) requirements specified in the Electromagnetic Compatibility Directive (2014/30/EU) put into force on 20 April 2016. Testing is performed to the levels specified by the product standards for Information Technology Equipment (ITE). Emission levels are defined by EN 55032:2012, Class B and the immunity levels are defined by EN 55024:2010.

The drives also meet the requirements of The Low Voltage Directive (LVD) 2014/35/EU.

Seagate drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with all relevant regulatory requirements and standards for the drives, Seagate cannot guarantee that all system-level products into which the drives are installed comply with all regulatory requirements and standards applicable to the system-level products. The drive is designed for operation inside a properly designed system (e.g., enclosure designed for the drive), with properly shielded I/O cable (if necessary) and terminators on all unused I/O ports. Computer manufacturers and system integrators should confirm EMC compliance and provide CE marking for the system-level products.

For compliance with the RoHS "Recast" Directive 2011/65/EU (RoHS 2), See Section 2.14.1 on page 19.

2.13.2 Australian RCM Compliance Mark

If these models have the RCM marking, they comply with the Australia/New Zealand Standard AS/NZ CISPR32 and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Australian Communication and Media Authority (ACMA).

2.13.3 Canada ICES-003

If this model has the ICES-003:2016 marking it complies with requirements of ICES tested per ANSI C63.4-2014.

2.13.4 South Korean KC Certification Mark

The South Korean KC Certification Mark means the drives comply with paragraph 1 of Article 11 of the Electromagnetic Compatibility control Regulation and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Radio Research Agency (RRA) Communications Commission, Republic of Korea. These drives have been tested and comply with the Electromagnetic Interference/Electromagnetic Susceptibility (EMI/EMS) for Class B products. Drives are tested in a representative, end-user system by a Korean-recognized lab.

2.13.5 Morocco Commodity Mark

To satisfy our OEM customers, Seagate has added the Moroccan Commodity Mark to the drives provided to the OEM for the sale of Customer Kits produced by our OEM customers that are intended to be incorporated into the OEM's finished system-level product by an end user. The Customer Kits are considered 'devices' under Morocco's Order of the Minister of Industry, Trade, Investment and Digital Economy No. 2574-14 of 29 Ramadan 1436 (16 July 2015) on electromagnetic compatibility of equipment.

Seagate drives are tested for compliance and complies with the European Union (EU) Electromagnetic Compatibility (EMC) Directive 2014/30/EU and the Low Voltage Directive (LVD) 2014/35/EU. Accordingly, the drives also meets the requirements of Morocco's Order of the Minister of Industry, Trade, Investment and Digital Economy No. 2574-14 of 29 Ramadan 1436 (16 July 2015) on electromagnetic compatibility of equipment.

2.13.6 Taiwanese BSMI

Drives with the Taiwanese certification mark comply with Chinese National Standard, CNS13438.

For compliance with the Taiwan Bureau of Standards, Metrology and Inspection's (BSMI) requirements, See Section 2.14.3 on page 20.

2.13.7 FCC verification

These drives are intended to be contained solely within a personal computer or similar enclosure (not attached as an external device). As such, each drive is considered to be a subassembly even when it is individually marketed to the customer. As a subassembly, no Federal Communications Commission verification or certification of the device is required.

Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disk drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules. Operation with noncertified assemblies is likely to result in interference to radio and television reception.

Radio and television interference. This equipment generates and uses radio frequency energy and if not installed and used in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception.

This equipment is designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television, which can be determined by turning the equipment on and off, users are encouraged to try one or more of the following corrective measures:

• Reorient the receiving antenna.
• Move the device to one side or the other of the radio or TV.
• Move the device farther away from the radio or TV.
• Plug the computer into a different outlet so that the receiver and computer are on different branch outlets.

If necessary, users should consult a dealer or an experienced radio/television technician for additional suggestions. Users may find helpful the following booklet prepared by the Federal Communications Commission: How to Identify and Resolve Radio-Television Interference Problems. This booklet is available from the Superintendent of Documents, U.S. Government Printing Office, Washington, DC 20402. Refer to publication number 004-000-00345-4.

2.14 Environmental protection

Seagate designs its products to meet environmental protection requirements worldwide, including regulations restricting certain chemical substances.

2.14.1 European Union Restriction of Hazardous Substance Law

2.14.1.1 Restriction of Hazardous Substances in Electrical and Electronic Equipment

Seagate drives are designed to be compliant with the European Union RoHS "Recast" Directive 2011/65/EU (RoHS 2) as amended by Directive (EU) 2015/863. The RoHS2 restricts the use of certain hazardous substances such as Lead, Cadmium, Mercury, Hexavalent Chromium, Polybrominated Biphenyls (PBB) and Polybrominated Diphenyl Ether (PBDE), BisBis(2-Ethylhexyl) phthalate (DEHP), Benzyl butyl phthalate (BBP), Dibutyl phthalate (DBP), and Diisobutyl phthalate (DIBP) in electrical and electronic equipment (EEE).

2.14.1.2 Substances of Very High Concern (SVHC)

The European Union REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) Regulation (EC) 1907/2006 regulates chemicals shipped into and used in Europe. A number of parts and materials in Seagate products are procured from external suppliers. We rely on the representations of our suppliers regarding the presence of REACH substances in these articles and materials. Our supplier contracts require compliance with our chemical substance restrictions, and our suppliers document their compliance with our requirements by providing full-disclosure material content declarations that disclose inclusion of any REACH-regulated substance in such articles or materials. Product-specific REACH declarations are available upon request through your Seagate Sales Representative.

2.14.2 China Requirements —China RoHS 2

China RoHS 2 refers to the Ministry of Industry and Information Technology Order No. 32, effective July 1, 2016, titled Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products. To comply with China RoHS 2, Seagate determines this product's Environmental Protection Use Period (EPUP) to be 20 years in accordance with the Marking for the Restricted Use of Hazardous Substances in Electronic and Electrical Products, SJT 11364-2014.

Table 9 China - Hazardous Substances

部件名称Part Name	有害物质Hazardous Substances
	铅(Pb)	汞(Hg)	镉(Cd)	六价铬( Cr^+6 )	多溴联苯(PBB)	多溴二苯醚(PBDE)
硬盘驱动器HDD	X	O	O		O	O
印刷电路板组装PCBA	X	O	O		O	O
本表格依据 SJ/T 11364 的规定编制。This table is prepared in accordance with the provisions of SJ/T 11364-2014O:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。O:Indicates that the hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T26572.X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。X:Indicates that the hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T26572.

2.14.3 Taiwan Requirements — Taiwan RoHS

Taiwan RoHS refers to the Taiwan Bureau of Standards, Metrology and Inspection's (BSMI) requirements in standard CNS 15663, Guidance to reduction of the restricted chemical substances in electrical and electronic equipment. Seagate products must comply with the "Marking of presence" requirements in Section 5 of CNS 15663, effective January 1, 2018. This product is Taiwan RoHS compliant.

The following table meets the Section 5 "Marking of presence" requirements.

Table 10 Taiwan - Restricted Substances

設備名稱:硬碟設備,型號:Equipment Name: Hard Disk Device, Type Designation:
單元Unit	限用物質及其化學符號Restricted Substance and its chemical symbol
	鉛(Pb)	汞(Hg)	鎘(Cd)	六價鉻(Cr+6)	多溴聯苯(PBB)	多溴二苯醚(PBDE)
頂蓋Top Cover	—	O	O	O	O	O
磁碟Magnetic disk	—	O	O	O	O	O
電機底座組件Motor Base Assembly	—	O	O	O	O	O
印刷電路板組裝PCB Assembly	—	O	O	O	O	O
備考1. “0”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 1. “O” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考2. “—”係指該項限用物質為排除項目。Note 2. “—” indicates that the restricted substance corresponds to the exemption.

2.15 Corrosive Environment

Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845. However, this accelerated testing cannot duplicate every potential application environment.

Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electronic drive component reliability can be affected by the installation environment. The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%. Materials used in cabinet fabrication, such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.

Seagate recommends that data centers be kept clean by monitoring and controlling the dust and gaseous contamination. Gaseous contamination should be within ANSI/ISA S71.04-2013 G2 classification levels (as measured on copper and silver coupons), and dust contamination to ISO 14644-1 Class 8 standards, and MTBF rated conditions as defined in the Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF) section.

3.0 Configuring and Mounting the Drive

This section contains the specifications and instructions for configuring and mounting the drive.

3.1 Handling and Static-Discharge Precautions

After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD) hazards. Observe the following standard handling and static-discharge precautions.

CAUTION

Keep the drive in the electrostatic discharge (ESD) bag until ready for installation to limit the drive's exposure to ESD.Before handling the drive, put on a grounded wrist strap, or ground yourself frequently by touching the metal chassis of a computer that is plugged into a grounded outlet. Wear a grounded wrist strap throughout the entire installation procedure.Handle the drive by its edges or frame only.The drive is extremely fragile—handle it with care. Do not press down on the drive top cover.Always rest the drive on a padded, antistatic surface until mounting it in the computer.Do not touch the connector pins or the printed circuit board.Do not remove the factory-installed labels from the drive or cover them with additional labels. Removal voids the warranty. Some factory-installed labels contain information needed to service the drive. Other labels are used to seal out dirt and contamination.

3.2 Configuring the Drive

Each drive on the Serial ATA interface connects in a point-to-point configuration with the Serial ATA host adapter. There is no master/slave relationship because each drive is considered a master in a point-to-point relationships. If two drives are attached on one Serial ATA host adapter, the host operating system views the two devices as if they were both "masters" on two separate ports. Both drives behave as if they are Device 0 (master) devices.

3.2.1 Serial ATA Cables and Connectors

The Serial ATA interface cable consists of four conductors in two differential pairs, plus three ground connections. The cable size may be 30 to 26 AWG with a maximum length of one meter (39.37 in). Refer to Table 11 for connector pin definitions. Either end of the SATA signal cable can be attached to the drive or host.

For direct backplane connection, the drive connectors are inserted directly into the host receptacle. The drive and the host receptacle incorporate features that enable the direct connection to be hot pluggable and blind mateable. For installations which require cables, users can connect the drive as shown in Figure 3.

Figure 3 Attaching SATA Cabling

Signal connector Power connector Signal cable Power cable

Each cable is keyed to ensure correct orientation.

3.3 Drive Grounding

Care should be taken when mounting the drive in a system chassis. The drive should be mounted using four screws in the side mounting holes (positions A, B, C, and D as in Figure 4 and Figure 5) or bottom mounting holes (positions 1, 2, 3, and 4 as in Figure 5) grounded to the system chassis. At least one mounting screw is required for proper grounding. See Figure 4 for drive grounding using four screws in the side mounting holes and Figure 5 for drive grounding using four screws in the bottom mounting holes. The sidewall surfaces A1, A2, A3 (cross-hatched green shaded areas as in Figure 4) and the green highlighted area (as labeled in Figure 5) should not be used for system grounding purposes.

B, C 2X M3 X 0.5-6H MOUNTING HOLES: BOTH SIDES A1, A2 A, D A3

Figure 4 Drive Grounding Side Mounting for 1-disk and 2-disk models)

The green highlighted area (PCBA as in Figure 5) should never make contact with the system chassis to prevent electrical shorting of the drive. Contact must be limited to side mounting holes (positions A, B, C, and D as in Figure 4 and Figure 5) or bottom mounting holes (positions 1, 2, 3, and 4 as in Figure 5).

1 B A1 2 A A3 C 3 A2 D 4 4X M3 X 0.5-6H MOUNTING HOLES: BOTH SIDES

Figure 5 Drive Grounding Bottom Mounting for 1-disk and 2-disk models

Notes:

• Side Mounting - Use four metal screws in positions A, B, C, and D.
• Bottom Mounting - Use four metal screws in positions 1, 2, 3, and 4.
• Do NOT use sides A1, A2 or A3 for grounding purposes.

- If less than four screws are used, at least one mounting screw is required for proper grounding.

3.4 Drive Mounting

Users can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottom-mounting holes. Refer to Figure 6 through Figure 8 for drive mounting dimensions. Follow these important mounting precautions when mounting the drive:

• Allow a minimum clearance of 0.030 in (0.76 mm) around the entire perimeter of the drive for cooling.
• Use only M3 x 0.5 mounting screws.
• Do not overtighten the mounting screws. Maximum torque: 4.0 in-lb (0.4519 N-m).
• Four (4) threads (0.080 in, 2.032 mm) minimum screw engagement recommended.
• Avoid excessive drive distortion when mounting. Refer to the following specifications for stiffness/deflection information:

Top cover stiffness/deflection
Operating: no performance degradation, emitted noise, mechanical damage, or hard errors	10 mm probe: 2.0kgf (typical)
Non-operating: no hard errors 10 mm probe: maximum 2.0kgf (instantaneous)

Figure 6 Mounting Dimensions (for 1-disk models)

100.350 - 0.250 +0.200 69.850 ± 0.250 (22.450) 2.499 ± 1.270 7.949 ± 1.270 (16.520) BASE (14.000) (90.600) 2X M3 X 0.5-6H MOUNTING HOLES: BOTH SIDES 4MM MIN. SCREW DEPTH FROM M3 PADS. NO THRU. Ø3.5+.075-.3X90° 2X (3.000) BOTH SIDES 7.000 Ø.200 RECOMMENDED TEMPERATURE MEASUREMENT LOCATION 4 X M3 X 0.5-6H - 2.5MM MIN FULL THREAD. NO THRU Ø3.5 + .075 -.3 X90°

Figure 7 Mounting Dimensions (for 1-disk models) (alternate basedeck)

100.350 +0.200 -0.250 69.850 ± 0.250 (22.450) 2.499 ± 1.270 7.949 ± 1.270 (16.520) BASE (14.000) (90.600) 2X M3 X 0.5-6H MOUNTING HOLES: BOTH SIDES 4MM MIN. SCREW DEPTH FROM M3 PADS. NO THRU. ✓ Ø3.5+.075-.3X90° 2X (3.000) BOTH SIDES 7.000 Ø.200 RECOMMENDED TEMPERATURE MEASUREMENT LOCATION 4 X M3 X 0.5-6H 2.5MM MIN FULL THREAD. NO THRU ✓ Ø3.5 + .075 -.3 X90°

Figure 8 Mounting Dimensions (for 2-disk models)

4.0 Serial ATA (SATA) Interface

These drives use the industry-standard Serial ATA interface that supports FIS data transfers. It supports ATA programmed input/output (PIO) modes 0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–6. The drive also supports the use of the IORDY signal to provide reliable high-speed data transfers.

For detailed information about the Serial ATA interface, refer to the Serial ATA: High Speed Serialized AT Attachment specification.

4.1 Hot-Plug Compatibility

FireCuda drives incorporate connectors which enable users to hot plug these drives in accordance with the Serial ATA: High Speed Serialized AT Attachment specification revision 2.0. This specification can be downloaded from www.serialata.org. This device requires a COMRESET from the host after a hotplug event.

4.2 Serial ATA Device Plug Connector Pin Definitions

Table 11 summarizes the signals on the Serial ATA interface and power connectors. Refer to the Notes below.
Table 11 Serial ATA Connector Pin Definitions

Segment	Pin	Function	Definition
Signal	S1	Ground	2nd mate
	S2	A+	Differential signal pair A from Phy
	S3	A-
	S4	Ground	2nd mate
	S5	B-	Differential signal pair B from Phy
	S6	B+
	S7	Ground	2nd mate
Key and spacing separate signal and power segments
Power	P1	V33	3.3V power
	P2	V33	3.3V power
	P3	V33	3.3V power, pre-charge, 2nd mate
	P4	Ground	1st mate
	P5	Ground	2nd mate
	P6	Ground	2nd mate
	P7	V5	5V power, pre-charge, 2nd mate
	P8	V5	5V power
	P9	V5	5V power
	P10	Ground	2nd mate
	P11	Ground or LED signal	If grounded, drive does not use deferred spin
	P12	Ground	1st mate
	P13	V12	12V power, pre-charge, 2nd mate
	P14	V12	12V power
	P15	V12	12V power

Notes

1 All pins are in a single row, with a 1.27 mm (0.050 in) pitch.

2 The comments on the mating sequence apply to the case of backplane blindmate connector only. In this case, the mating sequences are:

• the ground pins P4 and P12.

- the pre-charge power pins and the other ground pins.

- the signal pins and the rest of the power pins.

3 There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a blind-mate backplane configuration.

4 All used voltage pins (V _x ) must be terminated.

4.3 Supported ATA Commands

Table 12 lists Serial ATA standard commands that the drive supports. For a detailed description of the ATA commands, refer to the Serial ATA International Organization: Serial ATA (Revision 2.6). Refer to www.sata-io.org.

Refer to S.M.A.R.T. commands on page 34 for details and subcommands used in the S.M.A.R.T. implementation.

Table 12 Supported ATA commands

ATA-standard commands names Command code (in hex)
Device Configuration Restore B1h/C0h
Device Configuration Freeze Lock B1h/C1h
Device Configuration Identify B1h/C2h
Device Configuration Set B1h/C3h
Download Microcode 92h
Execute Device Diagnostics 90h
Flush Cache	E7h
Flush Cache Extended	EAh
Identify Device	ECh
Initialize Device Parameters	91h
Read Buffer	E4h
Read DMA	C8h
Read DMA Extended	25h
Read DMA without Retries	C9h
Read Long with Retries	22h
Read Long without Retries	23h
Read Multiple	C4h
Read Multiple Extended	29h
Read Native Max Address	F8h
Read Native Max Address Extended	27h
Read Sectors	20h
Read Sectors Extended	24h
Read Sectors without Retries	21h
Read Verify Sectors	40h
Read Verify Sectors Extended	42h
Read Verify Sectors without Retries	41h
Seek	70h
Set Features	EFh
Set Max Address	F9h
Note: Individual Set Max commands are identified by the value placed in the Set Max Features register as defined to the right.	Address:Password:Lock:Unlock:Freeze Lock:	00_H 01_H 02_H 03_H 04_H
Set Max Address Ext	37h
Set Multiple Mode	C6h
S.M.A.R.T. Disable Operations	B0h/D9h
S.M.A.R.T. Enable/Disable Autosave	B0h/D2h
S.M.A.R.T. Enable Operations	B0h/D8h

Table 12 Supported ATA commands

ATA-standard commands names	Command code (in hex)
S.M.A.R.T. Enable/Disable Auto Offline B0h/DBh
S.M.A.R.T. Enable One Attribute Modification B0h/E0h
S.M.A.R.T. Execute Offline B0h/D4h
S.M.A.R.T. Free Fall Protection Host Interface FEh
S.M.A.R.T. Read Attribute Thresholds B0h/D1h
S.M.A.R.T. Read Data B0h/D0h
S.M.A.R.T. Read Log Sector B0h/D5h
S.M.A.R.T. Return Status B0h/DAh
S.M.A.R.T. Save Attribute Values B0h/D3h
S.M.A.R.T. Write Attribute Thresholds B0h/D7h
S.M.A.R.T. Write Attribute Values B0h/E1h
S.M.A.R.T. Write Log Sector	B0h/D6h
Trusted Receive	5Ch (SED only)
Trusted Receive DMA	5Dh (SED only)
Trusted Send	5Eh (SED only)
Trusted Send DMA	5Fh (SED only)
Write Buffer	E8h
Write DMA	CAh
Write DMA Extended	35h
Write DMA without Retries	CBh
Write Long with Retries	32h
Write Long without Retries	33h
Write Multiple	C5h
Write Multiple Extended	39h
Write Sectors	30h, 31h
Write Sectors Extended 34h
ATA-standard power-management commands
Check Power Mode	E5h
Idle	E3h
Idle Immediate	E1h
Sleep	E6h
Standby	E2h
Standby Immediate	E0h
ATA-standard security commands
Security Set Password	F1h
Security Unlock	F2h
Security Erase Prepare	F3h
Security Erase Unit	F4h
Security Freeze Lock	F5h
Security Disable Password F6h

4.3.1 Identify Device command

The Identify Device command (command code EC_H ) transfers information about the drive to the host following power up. The data is organized as a single 512-byte block of data, whose contents are shown in Table 13. All reserved bits or words should be set to zero. Parameters listed with an "x" are drive-specific or vary with the state of the drive. Refer to Drive Specifications on page 7 for default parameter settings.

The following commands contain drive-specific features that may not be included in the Serial ATA specification.

Table 13 Identify Device command

Word Description Value
0	Configuration information:Bit 15: 0 = ATA; 1 = ATAPIBit 7: removable mediaBit 6: removable controllerBit 0: reserved	0C5A_H
1 Number of logical cylinders 16,383
2 Specific configuration C837H
3 Number of logical heads	16
4 Retired	0000	H
5 Retired	0000	H
6 Number of logical sectors per logical track: 63	003F	H
7-9	Retired	0000_H
10-19	Serial number: (20 ASCII characters, 0000_H = none)	ASCII
20	Retired	0000_H
21	Retired	8000_H
22	Obsolete	0004_H
23-26	Firmware revision:(8 ASCII character string, padded with blanks to end of string)	x.xx
27-46	Drive model number:(40 ASCII characters, padded with blanks to end of string)	ST2000LX001ST1000LX015ST500LX025
47	(Bits 7-0)Maximum sectors per interrupt on Read multiple and Write multiple (16)	8010_H
48	Trusted Computing Feature set options	4001_H
49	Standard Standby timer, IORDY supported and may be disabled	2F00_H
50	Capabilities	4000_H
51	PIO data-transfer cycle timing mode	0200_H
52	Retired	0200_H
53	Words 54-58, 64-70 and 88 are valid	0007_H
54	Number of current logical cylinders	xxx_H
55	Number of current logical heads	xxx_H
56	Number of current logical sectors per logical track	xxx_H
57-58	Current capacity in sectors	xxx_H
59	Number of sectors transferred during a Read Multiple or Write Multiple command	xxx_H
60-61	Total number of user-addressable sectorsThis field contains a value that is one greater than the total number of user-addressable sectors. The maximum value that shall be placed in this field is 0FFFFFFh. The 0FFFFFFh value applies to all capacities over 137GB (see Section 2.1, Formatted Capacity for related information).	ST2000LX001 = 0FFFFFFhST1000LX015 = 0FFFFFFhST500LX025 = 0FFFFFFh

Table 13 Identify Device command

Word	Description	Value
62 Retired 0000		H
63	Multiword DMA active and modes supported(see note following this table)	xx07_H
64 Advanced	PIO modes supported (modes 3 and 4 supported) 0003	H
65 Minimum	multiword DMA transfer cycle time per word (120 ns) 0078	H
66 Recommended	multiword DMA transfer cycle time per word (120 ns) 0078	H
67 Minimum	PIO cycle time without IORDY flow control (240 ns) 0078	H
68 Minimum	PIO cycle time with IORDY flow control (120 ns) 0078	H
69	Additional Supported bitsBit 4 means Device Encrypts All User Data on the device.Bit 7 means IEEE1667 protocol is supported.	xx1x_H or xx9x_H
70-74 ATA	reserved 0000	H
75 Queue depth 001F		H
76 Serial ATA capabilities 0D06		H
77 ATA-reserved 0000		H
78 Serial ATA features supported		0048
79 Serial ATA features enabled		0048
80 Major version number		01F0
81 Minor version number		0029
82 Command sets supported		746B
83 Command sets supported		7D69
84 Command sets support extension		61E3
85 Command sets enabled		7469
86 Command sets enabled		BC49
87 Command sets enable extension		61E3
88	Ultra DMA support and current mode (see note following this table)	xx7F_H
89 Security erase time		xxxx
90 Enhanced security erase time		xxxx
91 Current APM values		8080
92 Master password revision code		FFFE
93	Hardware reset value (see description following this table)	xxxx_H
94 Auto acoustic management setting		xxxx
95 Stream Min. Request Size		0000
96 Streaming Transfer Time - DMA		0000
97 Streaming Access Latency - DMA and PIO		0000
98-99	Streaming Performance Granularity	0000_H
100-103	Total number of user-addressable LBA sectors available(seeSection 3.2,Configuring the Drivefor related information)These words are required for drives that support the 48-bit addressingfeature. Maximum value: 0000FFFFFFFFFh.	ST2000LX001 = 3,907,029,168ST1000LX015 = 1,953,525,168ST500LX025 = 1,953,525,168

Table 13 Identify Device command

Word	Description	Value
104 Streaming Transfer Time - PIO 0000		H
105 Reserved 0000		H
106 Physical sector size / Logical sector size 6003		H
107 Seagate reserved 0000		H
108-111	The mandatory value of the world wide name (WWN) for the drive. NOTE: This field is valid if word 84, bit 8 is set to 1 indicating 64-bit WWN support.	Each drive will have a unique value.
112-118 ATA-reserved 0000		H
119 Free Fall Protection support (bit 5)		1 = Free Fall Protection supported0 = Free Fall Protection not supported
120 Free Fall Protection enable/disable (bit 5)		1 = Free Fall Protection feature is enabled0 = Free Fall Protection feature is disabled
121-127 ATA-reserved 0000		H
128 Security status 0021		H
129-159 Seagate-reserved xxxx		H
160-221 ATA-reserved 0000		H
222 Transport major version number	101F	H
223-254 ATA-reserved 0000		H
255 Integrity word	xxA5	H

Note

See the bit descriptions below for words 63, 88 and 93 of the Identify Drive data. (on next page)

Table 14 Bit Descriptions

Description (if bit is set to 1)
Bit Word	63
0 Multiword DMA mode 0 is supported.
1 Multiword DMA mode 1 is supported.
2 Multiword DMA mode 2 is supported.
8 Multiword DMA mode 0 is currently active.
9 Multiword DMA mode 1 is currently active.
10 Multiword DMA mode 2 is currently active.
Bit Word	88
0 Ultra DMA mode 0 is supported.
1 Ultra DMA mode 1 is supported.
2 Ultra DMA mode 2 is supported.
3 Ultra DMA mode 3 is supported.
4 Ultra DMA mode 4 is supported.
5 Ultra DMA mode 5 is supported.
6 Ultra DMA mode 6 is supported.
8 Ultra DMA mode 0 is currently active.
9 Ultra DMA mode 1 is currently active.
10 Ultra DMA mode 2 is currently active.
11 Ultra DMA mode 3 is currently active.
12 Ultra DMA mode 4 is currently active.
13 Ultra DMA mode 5 is currently active.
14 Ultra DMA mode 6 is currently active.
Bit Word	93
13 1 = 80-conductor cable detected, CBLID above VIH0 = 40-conductor cable detected, CBLID below VIL

4.3.2 Set Features command

This command controls the implementation of various features that the drive supports. When the drive receives this command, it sets BSY, checks the contents of the Features register, clears BSY and generates an interrupt. If the value in the register does not represent a feature that the drive supports, the command is aborted. Power-on default has the read look-ahead and write caching features enabled.

The acceptable values for the Features register are defined as follows:

Table 15 Set Features command values

02_H	Enable write cache (default).
03_H	Set transfer mode (based on value in Sector Count register).Sector Count register values: 00_H Set PIO mode to default (PIO mode 2). 01_H Set PIO mode to default and disable IORDY (PIO mode 2). 08_H PIO mode 0 09_H PIO mode 1 0A_H PIO mode 2 0B_H PIO mode 3 0C_H PIO mode 4 (default) 20_H Multiword DMA mode 0 21_H Multiword DMA mode 1 22_H Multiword DMA mode 2 40_H Ultra DMA mode 0 41_H Ultra DMA mode 1 42_H Ultra DMA mode 2 43_H Ultra DMA mode 3 44_H Ultra DMA mode 4 45_H Ultra DMA mode 5 46_H Ultra DMA mode 6
55_H	Disable read look-ahead (read cache) feature.
82_H	Disable write cache
AA_H	Enable read look-ahead (read cache) feature (default).
C1_H	Disable the Free Fall Protection feature ( 41_H above enables the Free Fall Protection feature)
F1_H	Report full capacity available

Note

At power-on, or after a hardware or software reset, the default values of the features are as indicated above

4.3.3 S.M.A.R.T. commands

S.M.A.R.T. provides near-term failure prediction for disk drives. When S.M.A.R.T. is enabled, the drive monitors predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines that a failure is likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable. S.M.A.R.T. predictability is limited to the attributes the drive can monitor. For more information on S.M.A.R.T. commands and implementation, see the Draft ATA-5 Standard.

SeaTools diagnostic software activates a built-in drive self-test (DST S.M.A.R.T. command for D4) that eliminates unnecessary drive returns. The diagnostic software ships with all new drives and is also available at: http://www.seagate.com/support/downloads/seatools/.

This drive is shipped with S.M.A.R.T. features disabled. Users must have a recent BIOS or software package that supports S.M.A.R.T. to enable this feature. The table below shows the S.M.A.R.T. command codes that the drive uses.

Table 16 S.M.A.R.T. Commands

Code in features register S.M.A.R.T. command
D0_H	S.M.A.R.T. Read Data
D2_H	S.M.A.R.T. Enable/Disable Attribute Autosave
D3_H	S.M.A.R.T. Save Attribute Values
D4_H	S.M.A.R.T. Execute Off-line Immediate (runs DST)
D5_H	S.M.A.R.T. Read Log Sector
D6_H	S.M.A.R.T. Write Log Sector
D8_H	S.M.A.R.T. Enable Operations
D9_H	S.M.A.R.T. Disable Operations
DA_H	S.M.A.R.T. Return Status

Note

If an appropriate code is not written to the Features Register, the command is aborted and 0x04 (abort) is written to the Error register.

SEAGATE

Seagate Technology LLC

AMERICAS Seagate Technology LLC 10200 South De Anza Boulevard, Cupertino, California 95014, United States, 408-658-1000

ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 90 Woodlands Avenue 7, Singapore 737911, 65-6412-3666

EUROPE, MIDDLE EAST AND AFRICA Seagate Technology (Netherlands) B.V. Koolhovenlaan 1, 1119 NB Schiphol-Rijk, Netherlands, 31-20-316-7300

Publication Number: 100802299, Rev. H

February 2019
