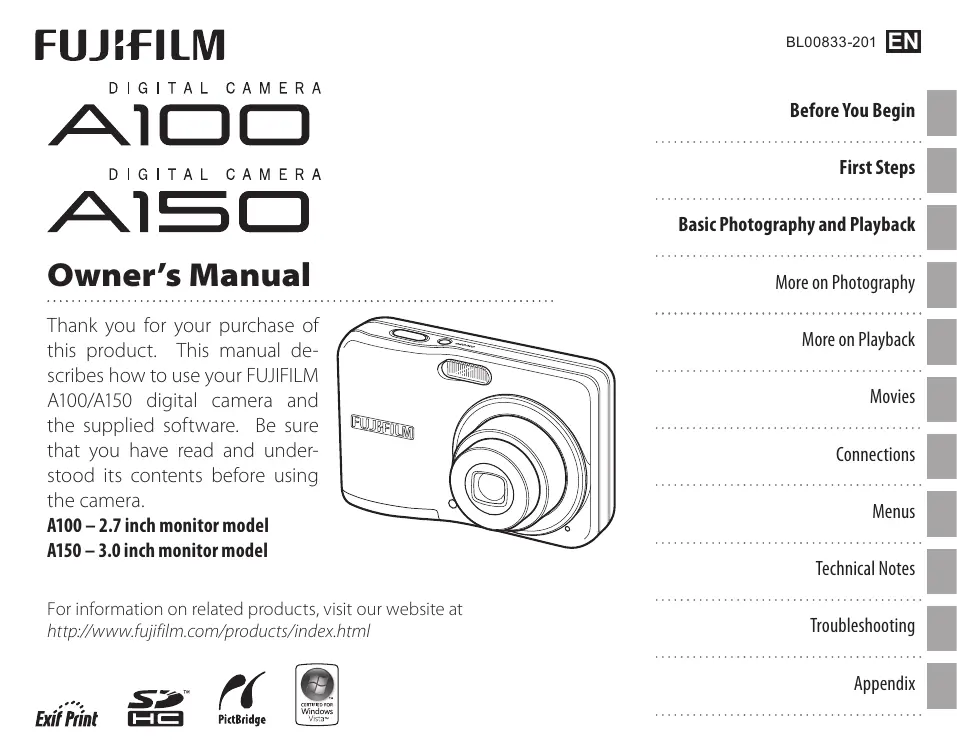

FUJÉFILM DIGITAL CAMERA ANOO DIGITAL CAMERA ANS5O Owner” s Manual

Thank you for your purchase of this product. This manual de- scribes how to use your FUJIFILM A100/A150 digital camera and the supplied software. Be sure that you have read and under- stood its contents before using the camera

A100 — 2.7 inch monitor model

A150 — 3.0 inch monitor model

For information on related products, visit our website at htip/wwfajifilm.com/products/index html

8L00833-201 [EN Before You Begin E

| First Steps L_ Basic Photography and Playback L More on Photography E oem DE Movies E

Menus E Technical hotes E

appendi E About This Manual

Before using the camera, read this manual and the warnings on another sheet. For information on specific topics, consult the sources below.

w CameraQ&A.. pq. it Table of Contents Know what you want to do but don't know the name for it? Find the answer in “Camera Q & A"

…pgV The “Table of Contents” gives an overview of the

entire manual. The principal camera operations are listed here.

w Troubleshooting … …p9.75, Warning Messages and Displays … ….Pg. 80

Having a specific problem with the camera? | | Find out what's behind that flashing icon or error Find the answer here. message in the monitor.

w Glossary. …Pg. 84 The meanings of some technical terms may be found here.

Pictures can be stored in the camera internal memory or on optional SD and SDHC memory cards

In this manual, SD memory cards are referred to as ‘memory cards” For more information, see page 5

Camera Q & A Find items by task.

Question Key phrase See page How do | set the camera clock? Date and time 9 Can l set the clock to local time when l travel? Time difference 70 How do | keep the monitor from turning off automatically? Auto power off 69 How do | make the monitor brighter or darker? LCD brightness 68 How do stop the camera beeping? Operation volume 65 What are the parts of the camera called? Parts of the camera 2 What do the icons in the monitor mean? Monitor 3 How do | use the menus? Menus 50 What behind that flashing icon or error message in the monitor Messages and displays 80 How much charge is left in the battery? Battery level 10 Can l'increase the capacity of rechargeable Ni-MH batteries? Discharge 72 Sharing Pictures

Question Key phrase See page Can print pictures on my home printer? Printing pictures 38 Can | copy my pictures to my computer? Viewing pictures on a computer] 43

Question Key phrase See page How many pictures can | take? Memory capacity 85 Is there a quick and easy way to take snapshots? AUTO mode 10 How can | make good portraits? Intelligent Face Detection 15 Is there a simple way to adjust settings for different scenes? Shooting mode 25 How do shoot close-ups? Macro mode (close-ups) 20 How do | keep the flash from firing? How do stop my subjects’ eyes glowing red when l'use the flash? Flash mode 21 How do l“fill-in” shadows on back-lit subjects? How do l'take a group portrait that includes the photographe? Self-timer mode 3 How do | frame pictures with the subject off to one side? Focus lock 18 How do shoot movies? Recording movies 34 Viewing Pictures

Question Key phrase See page How do | view my pictures? Viewing pictures 14 How do | get rid of unwanted pictures? Deleting pictures 14 How do | delete a lot of pictures at once? Erase 32 Can 1 zoom in on pictures during playback? Playback zoom 29 How do | view a lot of pictures at once? Multi-frame playback 30 How do view all pictures taken on the same day? Sort by date 31 Can | protect my pictures from accidental deletion? Protect 59 Can l'hide the icons in the monitor when viewing my pictures? Choosing a display format 28 How do view my pictures on TV? Viewing pictures on TV 37

About This Manual Camera Q &

Before You Begin Introduction Symbols and Conventions Supplied Accessories. Parts of the Camera. The Monitor.

First Steps Inserting the Batteries Inserting a Memory Card Turning the Camera on and O Basic Setup

Basic Photography and Playback Taking Pictures in AUTO Mode. Viewing Pictures

More on Photography Intelligent Face Detection and Red-Eye Remova Focus Lock % Macro Mode (Close-ups) . # Using the Flasl Ÿ Using the Self-Timer. @ Shooting Mode Selecting a Shooting Mode. Shooting Mode:

Multi-Frame Playback. Sort by Date. @ Deleting Pictures .

# Recording Movies D] Viewing Movies

Connections Viewing Pictures on TV. Printing Pictures via USB Connecting the Camera Printing Selected Pictures Printing the DPOF Print Order Creating a DPOF Print Order. Viewing Pictures on a Computer Installing FinePixViewer Connecting the Camera

Menus The Shooting Men Using the Shooting Menu. Shooting Menu Options @1IS0 © QUALIT © EXP. COMPENSATION. © WHITE BALANCI © CONTINUOUS (Continuous shooting).

© RED EYE REMOVAL. @ SLIDE SHOW. © PROTECT © COPY. © IMAGE ROTATE. © TRIMMING.

Optional Accessories Caring for the Camera.

Troubleshooting Troubleshooting Warning Messages and Displays.

Appendix Glossary Internal Memory/Memory Card Capacity. Specification:

Symbols and Conventions

The following symbols are used in this manual:

© Caution: This information should be read before use to ensure correct operation. Note: Points to note when using the camera.

Tip: Additional information that may be helpful when using the camera.

Menus and other text in the camera monitor are shown in bold. In the illustrations in this manual, the monitor display may be simplified for explanatory purposes.

Supplied Accessories

The following items are included with the camera:

uIb2g no] 210,29 EH FinePix software CD (IMPORTANT. read license agreement on the last page of this manual before opening)

AA alkaline (LR6) batteries (x2) USB cable % Attachingthe Strap Owner's Manual Attach the strapas @ {may be distributed on shown CD in some countries or

Parts of the Camera For more information, refer to the page listed to the right of each item.

| 2 83 4 Move cursor up || MENU/OK button (delete) button (pg. 14) || (pg. 9) = = Move cursor left Move cursor % (macro) 4 (flash) button Lu] button (pg. 20) (pg. 21) Move cursor down Ÿ (self-timer) button (pg. 23) 5 6 1 Shutter button. 13] Monitor 3 Æ] Stap eyelet 1 ON/OFF button 8 M] visP (display)/BAGK button. 12, 28 DE Battery-chamber cover 4 Flash 21 M] indicator lamp. 13 AA Tripod mount Lens and lens cover 8 M] w zoom out) button 11,29 PA Speaker 36 Self-timer lamp. 23 MD T(oom in) button 11,29 BED Memory card slot 6 Microphone. 34 DPI D] (playback) button 28 REX Battery chamber. 4

LEA Connector for USB cable 48

The Monitor The following indicators may appear in the monitor during shooting and playback: B Shooting 54321 2 EI Macro mode (close-ups).……20 [I Focus frame. 12 és Te 2] Flash mode 21 Date and time. 9 ‘2 Lou] _ MER Péou Li El Silent mode 22 [A ouai. 34,52 7 1 var Li = WMEÉ Ê] intelligent Face Detection Number of available frames...85 $ Le indicator. 15 PA Sensitivity 51 10 L,4 er A Shooting mode 25 JA Focus waming 2 n1— Q Battery level 10 A Blur warning 21 LA Selftimer indicator 23 Internal memory indicator*.….5 É] White balance 54 Exposure compensation ……53 É] Continuous shooting mode... 54

* Indicates that no memory card is inserted and that pictures will be stored in the camera's internal memory (pg. 5).

The camera takes two AA alkaline (LR6) batteries (supplied) , two lithium batteries (sold separately) or two AA rechargeable Ni-MH batteries (sold separately). Insert the batteries in the camera as described below.

À Open the battery-chamber cover.

é-Note ES Be sure the camera is off before opening the battery- chamber cover.

+ Do not open the battery-chamber cover when the camera is on. Failure to observe this pre- caution could result in damage to image files or memory cards

+ Do not use excessive force when handling the battery-chamber cover.

2 Insert the batteries. Insert the batteries in the orientation shown by the “#" and “-* marks inside the battery chamber.

3 Close the battery-chamber cover.

A Cautions + Insert the batteries in the correct orientation.

+ Never use batteries with peel- ing or damaged casing or mix old and new batteries, batter-

ies with different charge levels,

or batteries of different types.

Failure to observe these precautions could re- sult in the batteries leaking or overheating

+ Never use manganese or Ni-G. Replace AA alkaline batteries with batteries of the same make and grade as those supplied with the camera

+ Ifthe battery-chamber cover can not be latched easily,

confirm the battery orientation first. Do not use exces- sive force to latchit.

Inserting a Memory Card

Although the camera can store pictures in internal memory, SD memory cards (sold separately) can be used to store additional pictures.

When no memory card is inserted, fn appears in the monitor and internal memory is used for recording and playback. Note that because camera malfunction could cause internal memory to become cor- rupted, the pictures in internal memory should periodically be transferred to a computer and saved on the computer hard disk or on removable media such as CDs or DVDs. The pictures in internal memory can also be copied to a memory card (see page 60). To prevent internal memory from becoming full, be sure to delete pictures when they are no longer needed.

When a memory card is inserted as described below, the card will be used for recording and playback.

M Compatible Memory Cards

SanDisk SD and SDHC memory cards have been tested and approved for use in the camera. À complete list of approved memory cards is available at http/www.fujifilm.com/products/digital_cameras/index. html. Operation is not guaranteed with other cards. The camera can not be used with MultiMediaCard (MMO) or xD-Picture cards.

Memory cards can be locked, making it impossible to format the card or to record or delete Ju images. Before inserting a memory card, slide the write-protect switch to the unlocked posi- œ tion À d

Insert the memory card. Holding the memory card in the orientation shown below, slide it all the way in.

Be sure card is in cor- rect orientation, do not insert at an angle or use force.

3 Close the battery-chamber cover.

2 Removing Memory Cards After turning the camera off, press the card in and

then release it slowly. The card can now be removed by hand

+ The memory card may spring out if you remove your finger immediately after pushing the card in.

+ Memory cards may be warm to the touch after be- ing removed from the camera. This is normal and does not indicate a malfunction

Inserting a Memory Card

+ Format memory cards before first use or after using them in a computer or other device. For more information on formatting memory cards, see page 69.

+ Memory cards are small and can be swallowed; keep out of reach of children. fa child swallows a memory card, seek medical assistance immediately.

+ Do not use miniSD or microSD adapters that expose the back ofthe card. Failure to observe this precaution may cause damage or malfunction. Adapters that are larger or smaller than the standard dimensions of an SD card may not eject normally; if the card does not eject, take the camera to an authorized service representative. Do not forcibly remove the card

+ Do not turn the camera off or remove the memory card while the memory card is being formatted or data are being recorded to or deleted from the card. Failure to observe this precaution could damage the card.

+ Do not affix labels to memory cards. Peeling labels can cause camera malfunction

- Movie recording may be interrupted with some types of memory card.

+ The data in intemal memory may be erased or corrupted when the camera is repaired. Please note that the repairer will be able to view pictures in internal memory.

+ Formatting a memory card or internal memory in the camera creates a folder in which pictures are stored. Do not rename or delete this folder or use a computer or other device to edit, delete, or rename image files. Always use the camera to delete pictures from memory cards and internal memory; before editing or renaming files, copy them to a computer and edit or rename the copies, not the originals

sda3s3s4ls EH Turning the Camera on and Off

Press the ON/OFF button to turn the camera on. The lens will extend and the lens cover will open.

Press ON/OFF again to turn the camera off.

EX] Tip: Switching to Playback Mode

Press the (] button to start playback. Press the shutter button halfway to return to shooting mode.

- Pictures can be affected by fingerprints and other marks on the lens. Keep the lens clean

+ The ON/OFF button does not completely disconnect the camera from its power supply.

To turn the camera on and begin playback, press the D] button for about a second

Press the 1 button again to turn the camera off.

EN] Tip: Switching to Shooting Mode To exit to shooting mode, press the shutter button halfway. Press the [] button to return to playback.

The monitor will dim to save power if no operations are performed for about ten seconds in shooting mode. Full brightness can be restored by operating any of the controls next to the monitor. The camera will turn off automatically ifno operations are performed for the length oftime selected in the AUTO POWER OFF menu (see page 69). To turn the camera on, press the ON/OFF button or press the [1 button for about a second.

A language-selection dialog is displayed the first time the camera is turned on. Set up the camera as described below (for information on resetting the clock or changing languages, see page 64).

À Choose a language.

11Press the selector up, down, left, or right to highlight a lan- guage.

2 Setthe date and time.

2.1 Press the selector leftorrightto 4 highlight the year, month, day, PEN hour, or minute and press up N 72 or down to change. To change the order in which the year, month, and day are displayed, highlight the date for- mat and press the selector up or down.

3 Check the battery type.

A confirmation message for the battery type to be used appears. Alkaline batteries are selected by default.

lfthe batteries are removed for an extended period, the camera clock will be reset and the language-selection dialog will be displayed when the camera is turned on. lfthe batteries are left in the camera for about two hours, they can be removed for about twenty four hours without resetting the clock or language selection

sda3s3s4ls EH Taking Pictures in AUTO Mode

x>0q4bjd puo Aydv16o}oyd 115bg |.

This section describes how to take pictures in AIO mode. AIO mode is automatically selected the first time the camera is turned on; for information on restoring AMD mode after shooting in other modes, see page 25.

Turn the camera on. Check the battery level. Press the ON/OFF button to turn the camera Check the battery level in the monitor. on.

Indicator Description

@ (red) Batteries are low. Replace as soon las possible.

@) (blinks red) [Batteries are exhausted. Turn cam- era off and replace batteries.

À battery warning may not be displayed before the camera turns off, particularly if batteries are reused after having once been exhausted. Power consumption varies greatly from mode to mode; the low battery warning (2) may not be displayed or may be displayed only briefly before the camera turns off in some modes or when switching from shooting to playback mode.

Taking Pictures in AUTO Mode

3 Frame the picture. % Holding the Camera Position the main subject in the focus area | |Hold the camera steady and use the zoom buttons to frame the pic- | |with both hands and ture in the monitor. brace your elbows against

your sides. Shaking or

unsteady hands can blur your shots

To prevent pictures that are out of focus or too @ dark (underexposed), keep

(O6) your fingers and other ob- £

jects away from the lens Zoom in using optical | [and'flash zoom, or use digital

EX Tip: Focus Lock Use focus lock (pq. 18) to focus on subjects that are not in the focus frame.

poq{vjd puo Aydv16o}oy4 2150g EH

To use the best framing, position the main subject at the intersection of two lines or align one of the hori- zontal lines with the horizon. Use focus lock (pg. 18) to focus on subjects that will not be in the center of: the frame in the final photograph

Focus. Press the shutter button halfway to focus on the main subject in the focus frame.

œ_L Focus frame fn Camera selects small ne focus fiameand

Press focuses on subject

Ifthe camera is able to focus, it will beep twice and the indicator lamp will glow green.

Ifthe camera is unable to focus, the focus frame will turn red, a ŸAF indicator will appear in the monitor, and the indicator lamp will blink green. Change the composition or use focus lock (pg. 18).

dé Note The lens may make a noise when the camera focuses This is normal.

Taking Pictures in AUTO Mode

5 Shoot. Smoothly press the shutter button the rest of the way down to take the picture.

E Tip: The Shutter Button

The shutter button has two positions. Pressing the shutter button halfway sets focus and exposure; to shoot, press the shutter button the rest of the way down

If the subject is poorly lit, the flash may fire when the picture is taken. To take pictures without the flash, choose another flash mode (pg. 21)

2 The Indicator Lamp

The indicator lamp shows camera status as follows: Indicator lamp Camera status Glows green [Focus locked

Camera unable to focus.

Blinks green [Aa Glows (Recording pictures. No additional pic- orange … |tures can be taken at this time.

Blinks orange[Flash charging; shutter disabled Blinks red_ [Recording or lens error.

& Tip:Wamings Detailed warnings appear in the monitor. See pages 80-83 for more information.

Pictures can be viewed in the monitor. When taking important photographs, take a test shot and

À Press the D] button.

The most recent picture will be displayed in the monitor.

2 View additional pictures. Press the selector right to view : : TAN pictures in the order recorded left LS

to view pictures in reverse order. SZ Press the shutter button to exit to shooting mode.

%° Deleting Pictures

To delete the picture currently displayed in the monitor, press the selector up (&) The following dialog will be displayed

To delete the picture, press the selector left to highlight OK and press MENU/0K To exit without deleting the picture, high- light CANCEL and press MENU/OK.

FX Tip: The Playback Menu Pictures can also be deleted from the playback menu (pg. 32).

Intelligent Face Detection and Red-Eye Removal

Intelligent Face Detection allows the camera to automatically detect human faces and set focus and exposure for a face anywhere in the frame for shots that emphasize portrait subjects. Choose for group portraits to prevent the camera from focusing on the background.

1 Turn Intelligent Face Detection on. 11Press MENU/OK to display the shooting menu.

1.2Press the selector up or down to highlight @ FACE DETEC- TION.

1.3Press the selector right to dis- play Intelligent Face Detection options.

14Press the selector up or down to highlight the desired option

Option Description EST ON [Intelligent Face Detection and red-eye @ ON Jremoval on. Use with the flash E81 ON |Intelligent Face Detection on; red-eye @ OFF/removal off.

Intelligent Face Detection and red-eye

Le] icon appears in the monitor

when Intelligent Face Detec- tion is on

Intelligent Face Detection and Red-Eye Removal

2 Frame the picture.

If a face is detected, it will be indicated by a green border. If there is more than one face in the frame, the camera will select the face closest to the center: other faces are indicated by white borders.

Press the shutter button halfway

to set focus and exposure for the

subject in the green border. PER

+ lfno face is detected when the shutter button is pressed halfway (pg. 76), the camera will focus on the subject at the center of the monitor and red-eye will not be removed

+ In each shooting mode, the camera will focus on the human faces, but the exposure will be optimized for the selected shooting mode, so

the brightness of human faces may not be opti- mized.

Intelligent Face Detection and Red-Eye Removal

4 Shoot. Press the shutter button all the way down to shoot.

If the subject moves as the shutter button is pressed, their face may not be in the area indicat- ed by the green border when the picture is taken:

If I ON/® ON is se- lected, the picture will be processed to reduce red-eye before it is re- À corded (the © RED-EYE REMOVAL option in the playback menu can also be used to reduce red-eye; pq. 57).

2e Intelligent Face Detection Intelligent Face Detection is

self-timer for group- or self-por- traits (pp. 23-24).

During slide shows, the camera can zoom in on pic- tures taken with Intelligent Face Detection (pg. 58).

Aydv16ojoyq uo 210 EH

To compose photographs with off-center subjects:

1 Position the subject in the focus frame.

2 Focus. Press the shutter button halfway to set fo- cus and exposure. Focus and exposure will remain locked while the shutter button is pressed halfway (AF/AE lock).

Repeat steps 1 and 2 as desired to refocus before taking the picture.

Recompose the picture. Keeping the shutter button pressed halfway, recompose the picture.

Press the shutter-release button the rest of the way down to take the picture.

Press the rest of the way down

Although the camera boasts a high-precision autofocus system, it may be unable to focus on the subjects listed below. If the camera is unable to focus using autofocus, use focus lock (pg. 18) to focus on another subject at the same distance and then recompose the photograph.

+ Very shiny subjects such as mirrors or car bodies.

+ Subjects photographed through a window or other reflective object.

+ Dark subjects and subjects that absorb rather than reflect light, such as hair or fur.

+ Insubstantial subjects, such as smoke or flame.

+ Subjects that show little contrast with the background (for example, subjects in clothing that is the same color as the background)

+ Subjects positioned in front of or behind a high-contrast object that is also in the focus frame (for example, a subject photographed against a backdrop of highly contrasting elements).

Aydv16ojoyq uo 210 EH

%# Macro Mode (Close-ups)

Macro mode can be used for close-ups in some modes (see another sheet). Press the selector left (@).

% icon appears in monitor when camera is in macro mode

When macro mode is in effect, the camera focuses on subjects near the center ofthe monitor. Use the zoom buttons to frame pictures.

To exit macro mode, press the selector left ($). Macro mode can also be cancelled by turning the camera off or selecting another shooting mode.

Note Use of a tripod is recommended to prevent blur caused by camera shake.

Use the flash when lighting is poor, for example when shooting at night or indoors under low light.

To choose a flash mode, press the selector right (4). The flash mode changes each CA time the selector is pressed; in modes other than AUTO, the current mode is indi- # Û cated by an icon in the monitor. Choose from the following options (some options D are not available in all shooting modes; see another sheet)

AUTO (no icon) _ [The flash fires when required. Recommended in most situations.

As above, except that red-eye reduction is used to minimize “red-eye” caused by light from the flash reflecting from the subject's retinas as shown in the illustra- Hion at right.

@ (red-eye reduction)

The flash fres whenever a picture is taken. Use for backlit subjects or for natural coloration

# (orcedflash) | chooting in bright light

© (suppressed [The flash does not fire even when the subject is poorly lit. ty will appear in the monitor at flash) slow shutter speeds to warn that pictures may be blurred. Use of a tripod is recommended

S$(slowsync) [Capture both the main subject and the background when shooting at night (note that & (low sync with|brightly lit scenes may be overexposed). & combines slow sync with red-eye reduction. If red-eye reduction) |C is selected for © SHOOTING MODE, shutter speed may be slow. Use a tripod

the flash will fire, Æ will be displayed in the monitor when the shutter button is pressed halfway.

A Caution The flash may fire several times with each shot. Do not move the camera until shooting is complete.

Aydb16o}oy4 uo 210 EH

When @ REMOVAL ON is selected for Intelligent Face Detection (pg. 15), red- eye removal (®) is available in AM (@), forced flash (@%), and slow sync (@) modes. Red-eye removal minimizes “red- eye” caused when light from the flash is reflected from the subject's retinas as shown in the illustration at right.

In situations in which camera sounds or light from the flash may be unwelcome, press the DISP/BACK button until à is displayed in the monitor.

The camera speaker, flash and self-timer lamps turn off. Flash and volume settings can not be adjusted while silent mode is in effect. To restore normal op- eration, press the DISP/BACK button until the Ci icon is no longer displayed

Using the Self-Timer

The camera offers a ten-second timer that allows photographers to appear in their own photographs, and a two-second timer that can be used to avoid blur caused by the camera moving when the shutter button is pressed. The self-timer is available in all shooting modes.

1 Setthe timer. The current self-timer mode is displayed in the monitor. To choose à different setting, press the selector down (Ù). The selection changes each time the selector is pressed.

Choose fiom 8 (selftimer off), & (105 delay) or & (25 delay)

2 Focus. Press the shutter button halfway to focus.

YF [ Caution Le Stand behind the camera when using the shutter button. Standing in front

of the lens can interfere with focus and exposure.

Aydb16o}oy4 uo 210 EH

3 Start the timer. Press the shutter button the rest of the way down to start the timer. En The display in the monitor shows the number of seconds remaining until the shutter is released. To stop the timer before the picture is taken, press DISP/BACK.

© Using the Self-Timer

The self-timer lamp on the front of the camera will blink immediately before the picture is taken. Ifthe two-second timer is selected, the self-timer lamp will blink as the timer counts down

% Intelligent Face Detection Because it ensures that the faces of portrait subjects will be in focus, Intelligent Face Detection (pg. 15) is recom-

mended when using the self-timer for group portraits or self-portraits. To use the self-timer with Intelligent Face Detection, set the timer as described in Step 1 and then press the shutter button all the way down to start the timer. The camera will detect faces while the timer is counting down and adjust focus and exposure immedi- ately before the shutter is released. Be careful not to move until the picture has been recorded.

Note The self-timer turns off automatically when the picture is taken, a different shooting mode is selected, playback

mode is selected, or the camera is turned off.

Choose a shooting mode according to the scene or type of subject.

Selecting a Shooting Mode À Press MENU/OK to display the shoot- ing menu.

MEL Press the selector up or down to highlight © SHOOTING MODE

3 Press the selector right to display shooting mode options.

4 Press the selector up or down to À: highlight the desired mode. (@) Y

5 Press MENU/0K to select the high- lighted option.

Shooting Modes Shooting Mode Functions © MANUAL Choose this mode for complete control of shooting settings, including sensitivity {pg. 51), exposure compensation (pg. 53), and white balance (pg. 54). AU AUTO Choose for crisp, clear snapshots (pg. 10). This mode is recommended in most situ- ations. © BABYMODE Choose for natural skin tones when taking portraits of infants. The flash turns off automatically. ANTI-BLUR Choose this mode for fast shutter speeds that reduce blur caused by camera shake {Picture Stal or subject movement. PORTRAIT Choose this mode for softtoned portraits with natural skin tones. à LANDSCAPE Choose this mode for crisp, clear daylight shots of buildings and landscapes. The flash turns off automatically. Choose this mode when photographing moving subjects. Priority is given to faster %R SPORT shutter speeds. Slow shutter speeds are used to record night and twilight scenes. Use of a tripod is C NIGHT recommended to prevent camera shake. Capture natural light indoors, under low light, or where the flash can not be used. D NATURAL LIGHT The flash turns off and sensitivity is raised to reduce blur. Mi BEACH Choose for crisp, clear shots that capture the brightness of sunlit beaches. &: snow Choose for crisp, clear shots that capture the brightness of scenes dominated by shin-

28: FIREWORKS Slow shutter speeds are used to capture the expanding burst of light from a frework. Press the selector left or right to choose from shutter speeds. Use of a tripod is rec-

lommended to prevent blur. The flash turns off automatically.

Shooting Mode Functions

üës SUNSET Choose this mode to record the vivid colors in sunrises and sunsets. Choose for vivid close-ups of flowers. The camera focuses in the macro range and

%e FLOWER the flash turns off automatically.

Y PARTY Capture indoor background lighting under low-light conditions Choose where flash photography is prohibited or the sound of the shutter may be unwelcome. The flash, speaker, and shooting indicator turn off automatically.

+ MUSEUM é-Note Photography may be prohibited altogether in some settings. Obtain permission be- fore shooting,

a rer Take clear pictures of text or drawings in print. The camera focuses in the macro

To view the most recent picture in the monitor, press the [] button.

Press the selector right to view pictures in the order recorded, left to view pictures in reverse order.

> Press and hold the selector to scroll rapidly through your pictures.

2e Choosing a Display Format Press the DISP/BACK button to cycle through playback display formats as shown below.

Indicators displayed

Pictures taken using other cameras are indicated by a ÉB (‘gift image”) icon during playback.

Press T to zoom in on the picture currently dis- played full frame in the monitor; press W to zoom out. When the picture is zoomed in, the selector can be used to view areas of the image not cur- rently visible in the display.

ER Press MENU/OK or DISP/BACK to exit zoom.

The maximum zoom ratio varies with image size. Play- back zoom is not available with pictures taken at an image size of CI

To change the number of images ŒX)

displayed, Press W when a picture is

shown full-frame in the monitor.

the number ofpictures displayed to two, nine, or a hundred.

PressT to reduce the number ofimages displayed.

Use the selector to highlight images and press MENU/0K to view the highlighted image full frame. In the nine- and hundred-frame displays, press the selector up or down to view more pictures.

Choose sort-by-date mode to view pictures taken on a selected date.

À Press DISP/BACK until the sort-by-date screen is displayed.

2 Press the selector up or down to se- lect a date.

(CE Press the selector left or right to se- lect a picture.

rapidly. + Press and hold the selector left or right to rapidly scroll pictures taken on the same date.

The ERASE option in the playback menu can be used to delete still pictures and movies, increasing the amount of space available on the memory card or in internal memory (for information on deleting pictures in single-frame playback, see page 14). Note that deleted pictures can not be recovered. Copy important pictures to a computer or other storage device before proceeding.

Press MENU/OK to display the play- y back menu

Press the selector up or down to highlight ERASE.

4 Press the selector up or down to 7N highlight FRAME or ALL FRAMES. @) NZ

5 Press MENU/0K to display options for the selected item (pg. 33).

EN Tips: Deleting Pictures

+ When à memory card is inserted, pictures will be de- leted from the memory card; otherwise, pictures will be deleted from internal memory.

+ Protected pictures can not be deleted. Remove pro- tection from any pictures you wish to delete (pg. 59).

+ Ifa message appears stating that the selected images are part of a DPOF print order, press MENU/0K to delete the pictures.

M FRAME: Deleting Selected Images Selecting FRAME displays the dialog shown at right.

Press the selector left or right to scroll through pictures and press MENU/OK to delete the current picture (the picture is deleted immediately; be care- ful not delete the wrong pic- ture)

Press DISP/BACK to exit when all the desired pic-

tures have been deleted.

M ALL FRAMES: Deleting AÏl Images Selecting ALL FRAMES dlis- plays the confirmation shown at right.

Press MENU/0K to delete all un- protected pictures

The dialog shown at right is displayed during deletion. Press DISP/BACK to cancel be- fore all pictures have been deleted (any pictures deleted before the button was pressed can not be recovered).

»*% Recording Movies

Shoot short movies. Sound is recorded via the built-in microphone; do not cover the microphone

1 Press MENU/0K to display the shooting menu and select © SHOOTING MODE > %# MOVIE

(pg. 25) Time available

is displayed in monitor

% Choosing the Frame Size

To choose the frame size, press MENU/OK and select @ QUALITY. Choose Æ (640x480 pixels) for better

quality, ED (320x240 pix- els) for longer movies. Press MENU/0K to return to:

movie recording mode.

2 Frame the scene using the zoom (XIXT) buttons.

Zoom can not be adjusted once recording be- gins.

3 Press the shutter button all the way down to start recording.

| @RECand time remaining are displayed in monitor

Focus is set when recording begins; exposure and white balance are adjusted automatically throughout recording. The color and brightness of the image may vary from that displayed before recording begins.

% Recording Movies 4 Press the shutter button halfway to end recording. Recording ends au- 2 ‘

tomatically when the movie reaches maximum length or memory is full E Tip There is no need to keep the shutter button pressed during recording

dé Note Movies are recorded as monaural motion JPEG files. See page 85 for more information on recording times.

During playback movies are displayed in the monitor as shown at right. The following operations can be performed while a movie is

Start/pause playback

Press the selector down 10 start playback Press again to pause.

End playback/ delete

Press the selector up to end playback. I playback is paused, pressing the selector up will delete the current movie.

Press the selector right to advance, left to rewind. If playback is paused, the movie will advance or rewind one frame each time the selector is pressed

Press MENU/OK to pause playback and dis- play volume controls. Press the selector up or down to adjust the volume: press MENU/OK again to resume playback

Progress is shown in the monitor during play- back

EX] Tip: Viewing Movies on a Computer Copy movies to the computer before viewing.

+ Do not cover the speaker during playback.

+ White vertical or dark horizontal streaks may appear in movies containing very bright subjects. This is nor- mal and does not indicate a malfunction.

Viewing Pictures on TV Connect the camera to a TV and tune the television to the video channel to show pictures and slide shows (pg. 58) to a group. The A/V cable (sold separately) connects as shown below.

Insert into A/V cable Connect yellow plug connector to video-in jack La nd

Connect white plug to audio-in jack

Press D] for about à second to turn the camera on. The camera monitor turns off and pictures and movies are played back on the TV. Note that the camera volume controls have no effect on sounds played on the TV, use the television volume controls to adjust the volume.

+ A/V cables are sold separately.

+ Use fully charged batteries for extended playback. + Image quality drops during movie playback.

A Caution When connecting the A/V cable, be sure the connectors are fully inserted

the printer supports PictBridge, the camera can be connected directly to the printer and pictures can be printed without first being copied to a computer. Note that depending on the printer, not all the functions described below may be supported.

Connecting the Camera

1 Connect the supplied USB cable as shown and turn the printer on.

2 Press the D] button for about a second to turn the camera on. USB will be displayed in the monitor, followed by the PictBridge display shown below at right.

Printing Selected Pictures

1 Press the selector left or right to dis- play a picture you wish to print.

Press the selector up or down to choose the number of copies (up to 99)

Repeat steps 1-2 to select additional pictures. Press MENU/OK to display a confirmation dialog when settings are complete.

4 Press MENU/0K to start printing.

Printing Pictures via USB EN Tip: Printingthe Date of Recording To print the date of recording on pictures, press DISP/ BACK in steps 1-2 to display the PictBridge menu (see “Printing the DPOF Print Order” below). Press the se- lector up or down to highlight PRINT WITH DATE [& and press MENU/OK to return to the PictBridge display {to print pictures without the date of recording, select PRINT WITHOUT DATE). The date will not be printed if the camera clock was not set when the picture was taken

Note If no pictures are selected when the MENU/OK button is pressed, the camera will print one copy of the current picture.

Printing the DPOF Print Order

To print the print order created with © PRINT ORDER (DPOF) in the playback menu (pg. 41):

In the PictBridge display, press DISP/ BACK to open the PictBridge menu.

Press the selector up or down to highlight & PRINT DPOF.

4 Press MENU/0K to start printing.

The message shown at right is displayed during printing. Press DISP/BACK to cancel before all pictures are printed (depending on the printer, printing may end before the current picture has printed).

If printing is interrupted, press [] to turn the camera off and then on again.

% Disconnecting the Camera

Confirm that “PRINTING" is not displayed in the moni- tor and press [8] to turn the camera off. Disconnect the USB cable.

+ Use fully charged batteries to power the camera for extended periods.

+ Print pictures from internal memory or a memory card that has been formatted in the camera

- If the printer does not support date printing, the PRINT WITH DATE L@ option will not be available in the PictBridge menu and the date will not be printed on the pictures in the DPOF print order.

+ Default printer page size and print quality settings are used when printing via direct USB connection:

Printing Pictures via USB Creating a DPOF Print Order

The @ PRINT ORDER (DPOF) option in the play- back menu can be used to create a digital “print order” for PictBridge-compatible printers (pg. 38) or devices that support DPOF.

e DPOF DPOF (Digital Print Order Format) is standard " that allows pictures to be printed from “print

orders” stored in internal memory or on à DPÔF memory card. The information in the order includes the pictures to be printed and the number of copies of each picture.

WITH DATE L@/ WITHOUT DATE To modify the DPOF print order, select @ PRINT ORDER (DPOF) in the playback menu and press the selector up or down to highlight WITH DATE C@ or WITHOUT DATE.

WITH DATE CG: Print date of recording on pictures.

WITHOUT DATE: Print pictures without date.

Press MENU/OK and follow the steps below.

1 Press the selector left or right to dis- play a picture you wish to include in or remove from the print order.

2 Press the selector up or down to choose the number of copies (up to 99). To remove a picture from the order, press the selector down until the number of copies is O.

— Total number of prints

1 ————<- Number of copies else De

3 Repeat steps 1-2 to complete the print order. Press MENU/OK to save the print order when settings are complete, or DISP/BACK to exit with- out changing the print order.

Printing Pictures via USB The total number of prints is dis- played in the monitor. Press MENU/OK to exit.

The pictures in the current r@) print order are indicated by a à icon during playback.

ÉNET BRESET ALL To cancel the current print or- der, select RESET ALL in the @ PRINT ORDER (DPOF) menu. The confirmation shown at right will be displayed: press MENU/0K to remove all pictures from the order.

+ Remove the memory card to create or modify a print order for the pictures in internal memory.

+ Print orders can contain a maximum of 999 pictures.

+ Ifa memory card is inserted con- taining a print order created by another camera, the message shown at right will be displayed: Pressing MENU/OK cancels the print order; a new print order must be created as de- scribed above.

Viewing Pictures on a Computer

The supplied FinePixViewer software can be used to copy pictures to a computer, where they can be stored, viewed, organized, and printed. Before proceeding, install FinePixViewer as described below. Do Nor connect the camera to the computer until installation is complete.

Installing FinePixViewer

FinePixViewer is available in a Windows version (FinePixViewer S) and a Macintosh version (FinePixViewer). The latest version of the FinePixViewer is available at http:/www.fujifilm.com.

Installation instructions for Windows are on pages 44-45, those for the Macintosh on pages 46-47.

Viewing Pictures on a Computer

FinePixViewer S: Windows

1 Confirm that the computer meets the following system requirements:

os lPreinstalled versions of Windows Vista, Windows XP Home Edition (Service Pack 2), Windows XP Professional (Service Pack 2), or Windows 2000 Professional (Service Pack 4) F Windows Vista: 800 MHz Pentium 4 or better (3 GHz Pentium 4 or better recommended) CU |: Windows XP: 800 MHz Pentium 4 or better (2GHz Pentium 4 or better recommended) : Windows 2000: 200 MHz Pentium or better F Windows Vista: 512 MB or more (1 GB or more recommended) RAM |: Windows XP: 512 VB or more : Windows 2000: 128 MB or more Free disk [A minimum of 4AS0ME required for installation with 600 MB available when FinePixViewer 1s running (15 GB or space _|more recommended under Windows Vista, 2GB or more recommended under Windows XP) Video _|800 x 600 pixels or more with 16-bit color or better (1,024 x 768 pixels or more with 32-bit color recommended) F Built-in USE port recommended. Operation is not guaranteed other USB ports. Other |- Internet connection (56kbps or faster recommended) required to use FinePix Internet Service; Internet con- nection and e-mail software required to use e-mail option A Caution

Other versions of Windows are not supported. Operation is not guaranteed on home-built computers or computers that have been upgraded from earlier versions of Windows.

2 Start the computer. Log in to an account with administrator privileges before proceeding,

Viewing Pictures on a Computer

3 Exit any applications that may be running and insert the installer CD in a CD-ROM drive.

20 Windows Vista If an AutoPlay dialog is displayed, click SETUP.exe. A ‘User Account Control’ dialog will then be displayed: click Allow.

Theinstaller will start automatically; click Installing FinePixViewer and follow the on-screen instruc- tions to install FinePixViewer S. Note that the Windows CD may be required during installation.

2% Ifthe Installer Does Not Start Automatically

Ifthe installer does not start automatically, select Computer or My Computer from the Start menu (Win- dows Vista/XP) or double-click the My Computer icon on the desktop (Windows 2000), then double-click the FINEPIX CD icon to open the FINEPIX CD window and double-click SETUP or SETUP.exe.

4 If prompted to install Windows Media Player or DirectX, follow the on-screen instructions to com- plete installation.

5 When prompted, remove the installer CD from the CD-ROM drive and click Restart to restart the computer. Store the installer CD in a dry location out of direct sunlight in case you need to re-install the software. The version number is printed at the top of the CD label for reference when updating the software or contacting customer support.

Installation is now complete. Proceed to “Connecting the Camera” on page 48.

Viewing Pictures on a Computer

Installing FinePixViewer: Macintosh

1 Confirm that the computer meets the following system requirements: ŒU [PowerPC orintel os Mac OS X version 10.3.9-10.5 (only with OS-preinstalled models)

RAM [256 MB or more Free disk space [A minimum of 200 ME required for installation with 400 MB available when FinePixViewer is running

Video |800X600 pixels or more with thousandi of colors or better F Built-in USB port recommended, Operation is not guaranteed other USB ports. Other |: Internet connection (56kbps or faster recommended) required to use FinePix Internet Service; Internet

connection and e-mail software required to use e-mail option

For the latest compatible OS, see the website below. htip/www.fujifilm.com/products/digital_cameras/index.html

After starting the computer and quitting any applications that may be running, insert the installer CD in a CD-ROM drive. Double-click the FinePix CD icon on the desktop and double-click Installer for Mac OS X.

3 An installer dialog will be displayed; click Installing FinePixViewer to start installation. Enter an administrator name and password when prompted and click OK, then follow the on-screen instruc- tions to install FinePixViewer. Click Exit to quit the installer when installation is complete.

Viewing Pictures on a Computer

Remove the installer CD from the CD-ROM drive. Note that you may be unable to remove the CD if Safari is running; if necessary, quit Safari before removing the CD. Store the installer CD in a dry location out of direct sunlight in case you need to re-install the software. The version number is printed at the top of the CD label for reference when updating the software or contacting customer support.

5 Select Applications in the Finder Go menu to open the applications folder. *à Double-click the Image Capture icon and select Preferences. from the lm- : * age Capture application menu.

6 The Image Capture preferences dialog will be displayed. Choose Other... in the When a camera is connected, open menu, then select FPVBridge in the “Applications/FinePixViewer" folder and click Open

7 Select Quit Image Capture from the Image Capture application menu.

Installation is now complete. Proceed to “Connecting the Camera” on page 48.

Viewing Pictures on a Computer

Connecting the Camera

1 the pictures you wish to copy are stored on a memory card, insert the card into the camera (pg. 5). If no card is inserted, pictures will be copied from internal memory.

Loss of power during transfer could result in loss of data or damage to internal memory or the memory card. Use fully charged batteries.

2 Turn the camera off and connect the supplied USB cable as shown, making sure the connec- tors are fully inserted. Connect the camera di- rectly to the computer; do not use a USB hub or keyboard.

3 Press the D] button for about a second to turn the camera on. FinePixViewer will start auto- matically and the “Save Image Wizard” will be displayed. Follow the on-screen instructions +0 copy pictures to the computer. To exit with-

out copying pictures, click CANCEL A Caution

If FinePixViewer does not start automatically, the software may not be correctly installed. Discon- nect the camera and reinstall the software.

For more information on using FinePixViewer, select How to Use FinePixViewer in the FinePixViewer Help menu.

The camera will not turn off automatically while connected to a computer.

Viewing Pictures on a Computer

+ Use only memory cards that have been formatted

in the camera and contain pictures taken with the

camera. lf a memory card containing a large num- ber of images is inserted, there may be a delay before

FinePixViewer starts and FinePixViewer may be un-

able to import or save images. Use à memory card

reader to transfer pictures.

Make sure the indicator lamp is out before turning the

camera off or disconnecting the USB cable. Failure to

observe this precaution could result in loss of data or damage to internal memory or the memory card

Disconnect the camera before inserting or removing

+ In some cases, it may not be possible to access pic- tures saved to a network server using FinePixViewer in the same way as on a standalone computer.

+ The user bears all applicable fees charged by the phone company or Internet service provider when using services that require an Internet connection.

2e Disconnecting the Camera

After confirming that the indicator lamp is out, follow the on-screen instructions to turn the camera off and disconnect the USB cable.

© Uninstalling Fi Only uninstall FinePixViewer before reinstalling the software or when it is no longer required. After quit- ting FinePixViewer and disconnecting the camera, drag the ‘FinePixViewer” folder from “Applications” into the Trash and select Empty Trash in the Finder menu (Macintosh), or open the control panel and use “Programs and Features” (Windows Vista) or “Add/Re- move Programs” (other versions of Windows) to un- install FinePixViewer. Under Windows, one or more confirmation dialogs may be displayed: read the con-

tents carefully before clicking OK Viewer

The shooting menu is used to adjust settings for a wide range of shooting conditions.

1 Press MENU/0K to display the shoot- ing menu.

5 Press MENU/0K to select the high- lighted option.

Shooting Menu Options

Menuitem Description Options Default Choose à shooting mode according to the type of] GW/AM/S/1R/8/A/%/C/@D7 © SHOONGMODE Libject (pg, 25) see serrée | M0 [Turn Intelligent Face Detection and red-eye removal] Œ8ION @ON/ISION @ OFF/ | SION © FACE DETECTION On or off (pq 15) OFF @oN

@10 Adjust SO sensitvity (bg. 50. Choose higher values] Ur0/1600/800/400/200/100 | AUTO Muhen the subject is poorly lit

D F/ N'ES 3:2/E/ EI,

© QUALITY Choose image size and quality (pg. 52). UN Adjust exposure for right, dark, or high-contrast

-2EVto +2EVinincrements of 4EV| +0 scenes (pg. 53)

© WAITE BALANCE JAdjust color for different light sources (pg. 54) AUTO/R 7/73/7878 | AUTO CONTINUOUS Shoot a series of pictures (pg. 54 OFF OFF h f D. est erform basic camera setup such as choosing à lan-| Dave =

guage and setting the time and date (pg. 64)

Control the camera's sensitivity to light. Higher values can be used to reduce blur when lighting is poor; note, however, that mottling may appear in pictures taken at high sensitivities. If AUTO is se- lected, the camera will adjust sensitivity automatically in response to shooting conditions.

In shooting modes other than M, sensitivity is set to AUTO: other values can not be selected.

Settings other than AUTO are shown by an icon in the monitor. C1] sa)

G QUALITY Choose the size and quality at which still pictures are recorded (the options for movie mode are shown on page 34). Large pictures can be printed at large sizes with no drop in quality; small pic- tures require less memory, allowing more pictures to be recorded.

Option Prints at sizes up to

31x23 cm/12 x 9in.(M)or31 x 21 cm/12xBin (EI 3:2). Choose IF for high-quality prints, E€33:2/E13 322 for an aspect ratio of 3:2.

22x 16cm (8.5x6.5in)

The number of pictures that can be taken at cur- rent settings (pg. 85) is displayed to the right of the image quality icon in the monitor.

Image quality is not reset when the camera is turned off or another shooting mode is selected.

Pictures taken at an image quality setting of EI 3:2 have an aspect ratio of 3:2, the same as a frame ofl 35-mm film. Pictures taken at other settings have an aspect ratio of 4:3

© EXP. COMPENSATION Use exposure compensation when photograph- | !8s choosing an Exposure Compensation Value ing very bright, very dark, or high-contrast sub- | !. Backlit subjects: choose values jects. from +24EV to +124EV (for an explanation of the term “EV",

Choose positive (+) values see the Glossary on page 84)

to increase exposure

+ Highly reflective subjects or very bright scenes (e.g., snowfielde) +EV

- Scenes that are mostly sky: +1 EV Choose negative (-) values + Spotlit subjects (particularly if photographed against

to reduce exposure dark background): -24EV - Subjects with low reflectivity (pine trees or dark-col-| À ored foliage): -24EV à 5 Note

At settings other than +0, a Ed icon is displayed in the monitor. Exposure compensation is not reset when the camera is turned off, to restore normal exposure control, choose a value of +0.

© WHITE BALANCE For natural colors, choose à setting that matches the light source (for an explanation of “white bal- ance "see the Glossary on page 84).

AUTO [White balance adjusted automatically

For subjects in direct sunlight.

For subjects in the shade

Use under “daylight fluorescent lights Use under warm white’ fluorescent lights

Use under “cool white” fluorescent lights Use under incandescent lighting

PAR IBALIES If AUTO does not produce the desired results (for example, when taking close-ups), choose the op- tion that matches the light source.

+ Auto white balance is used with the flash. Turn the flash off (pg. 21) to take pictures at other settings.

+ Results vary with shooting conditions. Play pictures back after shooting to check colors in the monitor.

© CONTINUOUS (Continuous shooting) Select & TOP 3 to capture motion in a series of pictures. The camera takes up to three pictures while the shutter-release button is pressed

- The flash turns off automatically (pg. 21), and focus and exposure are determined by the first frame in each series. The previously-selected flash mode is re- stored when OFF is selected for @ CONTINUOUS.

+ Frame rate varies with shutter speed)

+ The number of pictures that can be recorded depends on the memory available. Additional time may be required to record pictures when shooting ends. The pictures are displayed in the monitor while recording is in progress.

The playback menu is used to manage the pictures in internal memory or on the memory card.

Using the Playback Menu

Press D] to enter playback mode (pg. 28).

5 Press the selector up or down to YA Playback Menu Options highlight the desired option (©) The following options are available:

Y Option Description G Press MENUOK to select the high- © ERASE Delete all or selected pictures (pg. 32) RED-EVE

( lighted option. © REMOVAL Create copies with reduced red eye (pg. 57).

© SLIDESHOW [View pictures in a slide show (pg. 58) PRINTORDER [Select pictures for printing on DPOF- and

8 {DPOF) PictBridge-compatible devices (pg. 41). Protect pictures from accidental deletion

eon Copy pictures between internal memory

and a memory card (pg. 60)

© IMAGE ROTATE [Rotate pictures (pg. 62)

© TRIMMING [Create cropped copies of pictures (pg. 63) © SET-UP Perform basic camera setup (pg. 64)

© RED EYE REMOVAL This option is used with pictures taken using Intelligent Face Detection to create copies that have been

processed to remove red eye.

1 Play the picture back in the monitor (pictures taken with Intelligent Face Detection are in- dicated by à E81 icon) and select © RED EYE REMOVAL in the playback menu (pg. 55).

2 Press MENU/0K. The message shown below at left will be displayed while the camera analyses the image: if red-eye is detected, the message shown be- low at right will be displayed while the camera processes the image to create a copy with re- duced red-eye.

- Red eye may not be removed if the camera is unable to detect a face or the face is in profile. Results may differ depending on the scene. Red eye can not be removed from pictures that have already been processed using

red-eye removal or pictures created with other devices,

- The amount of time needed to process the image varies with the number of faces detected. + Copies created with @ RED EYE REMOVAL are indicated by a [] icon during playback.

© SLIDE SHOW View pictures in an automated slide show. Choose the type of show and press MENU/0K to start. Press the selector left or right to go back or skip ahead one frame. Press DISP/BACK at any time during the show to view on-screen help. When à movie is displayed, movie playback will begin automati- cally, and the slide show will continue when the movie ends. The show can be ended at any time by pressing MENU/0K.

Note The camera will not turn off automatically while a slide show is in progress.

Option Description NORMAL Press selector left or right to go back or —— skip ahead one frame. Select WIPE for WIPE Wwipe transitions between frames NORMAL £e7 [A5 above, except that camera automat- ——ically zooms in on faces selected with WIPE C2] Intelligent Face detection (pg. 15).

@ PROTECT Protect pictures from accidental deletion. The fol- lowing options are available.

BFRAME Protect selected pictures.

Press the selector left or right to dis- play the desired picture.

Picture not protected Protected picture

2 Press MENU/0K to protect the picture. If the picture is already protected, pressing MENU/OK will remove pro- tection from the image.

3 Repeat steps 1-2 to protect addi- tional images. Press DISP/BACK to exit É when the operation is complete.

BSET ALL Press MENU/0K to protect all fessrauo

pictures, or press DISP/BACK to exit without changing picture status.

BRESET ALL Press MENU/0K to remove pro- [emo

tection from all pictures, or press DISP/BACK to exit without changing picture status.

If the number of pictures af- fected is very large, the dis- play at right will appear in the : monitor while the operation is in progress. Press DISP/BACK to exit before the operation is complete.

A Caution Protected pictures will be deleted when the memory card or internal memory is formatted (pg. 69).

@ COPY Copy pictures between internal memory and a memory card.

Press the selector up or down to highlight fs INTERNAL MEMORY æ © CARD (copy pictures from internal memory to the memory card) or & CARD =} (fi INTERNAL MEMORY (copy pictures from a memory card to internal memory).

2 Press the selector right to display op- tions for the highlighted item.

To copy pictures between two memory cards, insert the source card and copy the pictures to internal mem- ory, then remove the source card, insert the destination card, and copy the pictures from internal memory.

BFRAME BALL FRAMES Copy selected frames. Press MENU/OK to copy all pic- tures, or press DISP/BACK to exit without copying pictures.

[NU Cautions + Copying ends when the destination is full. + DPOF print information is not copied (pg. 41).

Press the selector left or right to dis- play the desired picture.

2 Press MENU/OK to copy the picture. 3 Repeat steps 1-2 to copy additional

images. Press DISP/BACK to exit when the operation is complete.

© IMAGE ROTATE By default, pictures taken in tall orientation are displayed in wide orientation. Use this option to display pictures in the correct orientation in the monitor. It has no effect on pictures displayed on a computer or other device.

+ Protected pictures can not be rotated. Remove pro- tection before rotating pictures (pg. 59).

+ The camera may not be able to rotate pictures cre- ated with other devices.

To rotate a picture, play the picture back and se- lect © IMAGE ROTATE in the playback menu

Press the selector down to rotate the picture 90° clockwise, Up to rotate the picture 90° counterclockwise.

2 Press MENU/0K to confirm the opera- tion (to exit without rotating the pic- ture, press DISP/BACK).

The next time the picture is played back, it will automatically be rotated.

© TRIMMING To create a cropped copy of a picture, play the picture back and select @ TRIMMING in the playback

À Press the zoom buttons to zoom in and out and use the selector to scroll the picture un- til the desired portion is displayed (to exit to single-frame playback without creating a cropped copy, press DISP/BACK).

Zoom indicator Navigation window shows portion of image currently displayed in monitor

2 Press MENU/OK. À confirmation dia- log will be displayed

Copy size (EU, 3, or CI; see page 52) is shown at the top if the size is ŒI, OK is dis- played in yellow. Larger crops produce larger copies; all copies have an aspect ratio of 4:3.

3 Press MENU/0K to save the cropped copy to a separate file.

Using the Setup Menu Display the setup menu. 3 Adjust settings. 11Press MENU/0K to display the 3.1 Press the selector up or down menu for the current mode. to highlight a menu item.

1.2 Press the selector up or down

3.2Press the selector right to dis- to highlight @ SET-UP.

play options for the highlight- ed item.

1.3 Press the selector right to dis- play the setup menu.

3.3 Press the selector up or down to highlight an option:

Choose a page. 24 Press the selector left or right LS) 34Press MENU/OK to select the to choose à page. NA highlighted option

2.2Press the selector down to en- © CGs

Choose how long pictures are displayed in the monitor after shooting.

+ CONTINUQUS: Pictures are displayed until the MENU/0K button is pressed

- 3SEC: Pictures are displayed for about 35 before being recorded to the memory card:

- 1.5SEC: Pictures are displayed for about 1.55 before being recorded to the memory card.

+ ZO0M (CONTINUQUS): As for CONTINUOUS, except that pictures taken at qualities larger than can be zoomed in to check fine details (see page 29).

+ OFF: Pictures are not displayed automatically after shooting.

Note The colors displayed at settings of 3 SEC and 1.5 SEC may differ from those in the final picture

New pictures are stored in image files named using a four-digit file num- Frame ber assigned by adding one to the last file number used. The file num- > D oumber ber is displayed during playback as shown at right. FRAME NO. controls File whether file numbering is reset to 0001 when a new memory card is in- number serted or the current memory card or internal memory is formatted. L_irectory + CONTINUOUS: Numbering continues from the last file number used or the number

first available file number, whichever is higher. Choose this option to reduce the number of pictures with duplicate file names. + RENEW: Numbering is reset to 0001 after formatting or when a new memory card is inserted.

+ Ifthe frame number reaches 999-9999, the shutter release will be disabled (pq. 81). + Selecting ŒIRESET (pg. 65) does not reset frame numbering

+ Frame numbers for pictures taken with other cameras may differ.

E DIGITAL ZOOM FON is selected, pressing T at the maximum opti- cal zoom position will trigger digital zoom, further magnifying the image. To cancel digital zoom, zoom out to the minimum digital zoom position and press W.

Zoom indicator, DIGITAL ZOOM off

Zoom indicator, DIGITAL ZOOM on

Digital zoom produces lower quality images than opti- cal zoom:

LCD POWER SAVE If ON is selected, the monitor will dim to save power if no operations are performed for several seconds. Full brightness can be restored by press- ing the shutter button halfway. The monitor does not dim in movie mode or during playback

EI PLAYBACK VOLUME Press the selector up or down to choose volume for movie playback and press MENU/0K to select

LCD BRIGHTNESS Press the selector up or down to choose monitor brightness and press MENU/0K to select.

FORMAT Format internal memory or a memory card. If a memory [RES card is inserted in the camera, : CS & will be displayed in the dia- |

log shown at right and this op- tion will format the memory card. lfno memory card is inserted, a will be displayed and this op- tion will format internal memory. Press the selec- tor left to highlight OK and press MENU/0K to be- gin formatting.

+ All data—including protected pictures—will be de- leted. Be sure important files have been copied to a computer or other storage device.

+ Do not open the battery cover during formatting,

F4 AUTO POWER OFF Choose the length of time before the camera turns off automatically when no operations are performed. Shorter times increase battery life; if OFF is selected, the camera must be turned off manually. Note that regardless of the option se- lected, the camera will not turn off automatically when connected to a printer (pg. 38) or computer (pg. 48) or when a slide show is in progress (pg 58).

EN] Tip: Reactivating the Camera To reactivate the camera after it has turned off auto- matically, press the ON/OFF button or press the D] button for about a second (pg. 8).

TIME DIFFERENCE When travelling, use this option to switch the camera clock instantly from your home time zone to the

local time at your destination.

1 Specify the difference between local time and your home time zone.

1.1 Press the selector up or down 7N to highlight # LOCAL. @)

1.2Press the selector right to dis- play the time difference. (ù

1.3Press the selector left or right 7 to highlight +, -, hours, or min- PEN utes; press Up or down to edit. N 7 The minimum increment is 15 minutes.

1.4Press MENU/0K when settings are complete.

2 Switch between local time and your home time zone. To set the camera clock to local time, high- light Æ# LOCAL and press MENU/0K. To set the clock to the time in your home time zone, select © HOME. |f Æ LOCAL is se- lected, # will be displayed in the monitor for three seconds after the camera enters shooting mode, and the date will be dis- played in yellow.

After changing time zones, check that the date and time are correct.

BATTERY TYPE After replacing the batteries with batteries of a different type, select the battery type to ensure that the battery level is displayed correctly and the camera does not turn off unexpectedly.

+ ALKALINE: AA alkaline (LR6) battery

+ Ni-MH: AA Ni-MH (nickel-metal hydride) battery

+ LITHIUM: AA Ul-certified lithium battery

DISCHARGE (Ni-MH Batteries Only) The capacity of rechargeable Ni-MH batteries may be tem- porarily reduced when new, after long periods of disuse, or ifthey are repeatedly recharged before being fully discharged. Capacity can be increased by repeatedly discharging the batteries using the Æ DISCHARGE option and recharging them in a battery charger (sold separately). Do not use Æ DISCHARGE with non-rechargeable batteries.

3 Press MENU/0K to begin discharging the batteries. When the batteries are fully discharged, the battery level indicator will blink red and the camera will turn off. To cancel the process before the batteries are fully discharged, press DISP/BACK.

| Optional Accessories

Your camera can be used with televisions, printers, computers, and optional memory cards. For more information on the accessories available in your region, contact your local Fujifilm representative or visit

htip/www.fujifilm.com/products/digital_cameras/index.htmil

TV (available from third-party suppliers)

{available from third-party suppliers)

PictBridge-compatible printer

Printer (available from third-party suppliers)

USB Computer (available from third-party suppliers)

SD card slot or card reader

To ensure continued enjoyment of the product, observe the following precautions.

the camera will not be used for an extended pe-

riod, remove the batteries and memory card. Do

not store or use the camera in locations that are

+ exposed to rain, steam, or smoke

- very humid or extremely dusty

- exposed to direct sunlight or very high tempera- tures, such as in a closed vehicle on a sunny day

- subject to strong vibration

- exposed to strong magnetic fields, such as near a broadcasting antenna, power line, radar emit- ter, motor, transformer, or magnet

- in contact with volatile chemicals such as pesti- cides

- next to rubber or vinyl products

Exposure to water and sand can also damage the camera and its internal circuitry and mechanisms. When using the camera at the beach or seaside, avoid exposing the camera to water or sand. Do not place the camera on a wet surface.

Sudden increases in temperature, such as occur when entering a heated building on a cold day, can cause condensation inside the camera. Ifthis occurs, turn the camera off and wait an hour be- fore turning it on again. If condensation forms on the memory card, remove the card and wait for the condensation to dissipate.

Use a blower to remove dust from the lens and monitor, then gently wipe with a soft, dry cloth Any remaining stains can be removed by wiping gently with a piece of FUJIFILM lens-cleaning pa- per to which a small amount of lens-cleaning fluid has been applied. Care should be taken to avoid scratching the lens or monitor. The camera body can be cleaned with a soft, dry cloth. Do not use alcohol, thinner, or other volatile chemicals.

Keep the camera in your carry-on baggage Checked baggage may suffer violent shocks that could damage the camera

Problem Possible cause Solution Page The batteries are exhausted insert fresh or fully-charged spare bateres [4 The camera © ÎThe batteries are not in the correct orienta-|Re-insert the batteries in the correct orienta- does not turn 4 on. tion. tion. The battery-chamber covers noulatched.… |Latch the battery-chamber cover. 4 Naim the batteries by placing them ina pocket The batteries are cold or other warm place and re-insert them in the) 4 camera immediately before taking a picture. Mere is dirt on the battery terminal Clean the terminals with a soft, dry cloth — Power |The batteries Dischage N-MH batteries usng the supply Jrun down pey The batteries are new, have been left unused|Æ PISCHARGE option and recharge them quick in à battery charger (sold separatelÿ). If the for an extended period, or have been re- batteries do not hold a charge after repeated| 72 Charged without fist being fully discharged cad NE M bare Oo) discharging and recharging, they have reached he end of their service life and must be re- blaced The camera turns off sud- The batteries are exhausted Insert fresh or fully-charged spare batteries. | 4 den Menus and Displays Problem Possible cause Solution Page Menus and displays [English is not selected for the Æ££/LANG op. Select ENGLISH 9

ion in the setup menu

Shooting Problem Possible cause Solution Page Memory is full Insert a new memory card or delete pictures. | 5, 32 pote ÏS [Memoryis not formatted Format the memory card orinternal memory] _69 FakeN MEN [There is dirt on the memory card contacts. [Clean the contacts with a soft, dry cloth 6 he shutter Taking [baton The memory card is damaged Insert a new memory card 5 The batteries are exhausted. Insert fresh orfuly-charged spare batteries. | _4 pictures |pressed The camera has tumed off automatically. |lum the camera on. 8.6 The monitor goes dark after |The fiash has fired The monitor may darken while the flash 21 9 Charges. Wait for the flash to charge shooting The subjects close to the camera Berect macro mode. The camera 20 Focus The subjectis far away from the camera. [Cancel macro mode. does not focus The subjectis notsuited to autolocus… [Use focus lock TE Close-ups [Metro mode |The camera Fin à shooting mode Were] oce à diferent shooting mode 5: not available. _|the macro mode cannot be selected Face detection ÎThe camera 5 in à shooting mode WT |Chooce à different shooting mode 5 not available. |face detection cannot be selected. he subjects face is obscured by sungIess [a ove the obstructions es, a hat, long hair, or other objects. Intelligent The subjects face occupies only à small|Change the composition so thatthe subjects] 15 No face is Fe RoRes area of the frame face occupies a larger area of the frame Detection [FETE ÎThe subjects head is tited or horizontal. [Askthe subject to hold their head straight The cameras tited Hoïd the camera straight. il The subjects face is pooryit Shootin bright light — Wrong subject ÎThe selected subject is closer to the center]Recompose the picture ortumface detection] 4 selected the frame than the main subject. off and frame the picture using focus lock

Problem Possible cause Solution Page The camera is in à shooting mode where he flash does Rte Choose à different shooting mode 25 not fire The batteries are exhaustedl Insert fresh on tuly-charged spa pates. | 2 ÎThe flash is off (®) Choose a different flash mode. 21 Flan [ometesh ÎThe camera is in a shooting mode where modes are not |the flash setting you want to use cannot be|Choose a different shooting mode. 25 available. selected The flash does [The subject is not in range of the flash. Position the subject in range of the flash. 87 not fully light he subject. [The flash window is obstructed Hold the camera correct. ni The lens 5 dirty, Cean the lens A The lens isbiocked Keep objects away from the lens ü PEURS AE ar is displayed during shooting and te] AE Problem |blurred î Pay g g Check focus before shooting 7 ro focus frame is displayed in red 80 9 Lo is displayed during shooting, Use the flash or a ipod 7 Ptures are [Ie ambient temperature 5 high and theÏThis is normal and does not ndicate à ma] mottled subject is pooriy lit function. Choose a lower sensitivity. Playback Problem Possible cause Solution Page Pictures are [The pictures were taken With à different — — arainy. make or model of camera Pictures? [a pack on [ne Pictures were taken at an Image 52 of ” or with a different make or model ofl _ _ unavailable. camera No soundin Playback volume is too low JAdjust playback volume. 68 Audio [movie play ÎThemicrophonewasobstructed Hold the camera correctly duringrecording. | 34 back The speakeris obstructed. Do not coverthe speaker during playback | 36

Problem Possible cause Solution Page Selected pie kome of the pictures selected for deletion[Remove protection using the device with Deletion liuresarenot Le Drotected which itwas original applied w deleted . Ne ape Fenumbeg ln baney-chamber cover was openedlu qe came off before opening the bat: Frame no. is unexpect- ery-chamber cover to replace the battery or] 67 while the camera was on. ediy reset insert a memory card Connections Problem Possible cause Solution Page ÎThe camera is not propery connected. [Connect the camera correctiy. 37 The camera es connected during mowe|Connectihe camera once movie playback Res 36 37 None playback lended 1 cond ue OT [put on the television is setto TV” Setinputto VIDEO" — TV The camera is not set to the correct video|Match the camera El VIDEO SYSTEM setting 37.65 Standard othe Tv. ! The volume on the television too low JAdjustthe volume. — The camera is not set to the correct video|Match the camera El VIDEO SYSTEM setting e No color. 37,65 Standard othe Tv. The com Computer/PUE" dO8S NO | Camera is not property connected. |Connectthe camera correctiy, 48 recognize the camera Pictures can [The camera is not properly connected. [Connectthe camera correctiy. 38 not be printed. ÎThe printeris of Tu the printer on: — PictBridge UE copy Re printer is not PictBridge-compatible _ _ printed

Problem Possible cause Solution Page Nothing happens when [Temporary camera malfunction. Remove and reinsert the batteries. 4 the shutter button is

The batteries are exhausted. Insert fresh or fully-charged spare batteries. 4

The camera does not function as expected

ÎTemporary camera malfunction

Remove andreinsertthe batteries. IFthe prob +

lem persists, contact your FUJIFILM dealer (seel 4

Warning Messages and Displays

The following warnings are displayed in the monitor:

Warning Description Solution da (red) Batteries are low. I nsert fresh or fully-charged spare batteries w Slow shutter speed. Picture may be blurred [Use the flash or mount the camera on a tripod Use focus lock to focus on another subject at the tAF same distance, then recompose the picture (pg. 18)

displayed in red with red focus frame)

The camera can not focus.

L Ifthe subjects poor li, try focusing at a distance of about 2m (6ft.7in) Use macro mode to focus when taking close-ups.

YAE Te subject 5 100 Dright or 100 dark. TE) subject is dark, use the flash (displayed in red) |picture will be over- or under-exposed FOCUS ERROR ÎTum the camera off and then on again, taking care Camera malfunction. not to touch the lens. Ifthe message persists, contact 00M ERROR à FUJIFILM dealer. NoGRD No memory cardinserted when COPY Se + à memory card

lected in the playback menu

CARD NOT INITIALIZED

ÎThe memory card or internal memory is not lformatted

Format the memory card or internal memory (pg 69)

The memory card contacts require clean- ing,

Clean the contacts with a sof, dry dloth. IFthe mes- sage is repeated, format the memory card (pg. 69). IF the message persists, replace the memory card

Contact a FUJIFILM dealer.

ÎThe memory cards locked

Unlock the memory card (pg. 5)

ÎThe memory cards incorrect formatted

Use the camera to format the memory card (pg. 69).

Warning Messages and Displays

Warning Solution ne memory card à not formatted For We}. nr the memory card (bg. 60) in the camera. :

CARD ERROR The memory card contacts require cleaning[ (lea the contacts with a soft, diy cloth. IF the mes

sage is repeated, format the memory card (pg. 69). IF or the memory card is damaged 9 9 the message persists, replace the memory card Camera malfunction. Contact a FUJIFILM dealer

eeûs MEMORY FULL EMORY FULL INTERNAL MEMORY 1S FULL

ÎThe memory card or internal memory is full pictures can not be recorded or copied!

Delete pictures or insert a memory card with more free space.

INSERT A NEW CARD Re-insert the memory card or turn the camera off Memory card error or connection error. land then on again. Ifthe message persists, contact à FUJIFILM dealer WAITEERROR Not enough memory remain to record|Delete pictures or Insert à Memory card Win More additional pictures free space The memory card orinternal memory 5 notfFormat the memory card or internal memory (pg formatted 69) he fle is Conupt or Was not creed WA] fie can not be played back the camera READERROR he memory card contacts require clean-[CIE2n € contacts with a soft, dry cloth. IFthe mes

sage is repeated, format the memory card (pg. 69). IF he message persists, replace the memory card

Contact a FUJIFILM dealer.

ÎThe camera has run out of frame numbers! {current frame number is 999-0990)

Format the memory card and select RENEW for the FRAME NO. option in the @ SETUP menu (pg 64). Take a picture to reset frame numbering to 100- 001, then return to the E FRAME NO. menu and select CONTINUOUS.

Warning Messages and Displays

Warning Solution oomanvrRamEs — [Pete for which more than 4999 pictures ex] ce à different date ist selected in sort-by-date view PROTECTED FRAME An attempt was made to delete or rotate aRemove protection before deleting or rotating pic- protected picture. tures. A NO IMAGE The source device selected in the playback ec à different source E NOIMAGE COPY menu contains no pictures. GI CANNOT TRI jan atet was made to crop à pic- These pictures can not be cropped ÎThe picture selected for cropping 55 dam CANNOTTRIM laged or was not created with the camera ÎThe DPOF print order on the current memo-|Copy the pictures to internal memory and create à DPOFFILE ERROR y card contains more than 999 images. [new print order. GNNOTSETDPOF [he picture can not be printed using DPOF. — 2 GANNOTSETDPOF [Movies can not be printed using DPOF. — CGNNOTROTATE [The picture can not be rotated — 5& CANNOT ROTATE [Movies can not be rotated — CANNOT DETECT NOTE ——Red-cye reduction can not be applied to thel : — selected picture or movie. 2 CANNOT EXECUTE À connection error occurred while pictures COMMUNICAMIONERROR were being printed or copied to a computer| nm that the device is turned on and check that he USB cable is connected: or other device Check printer Gee printer manual for details. To re- PRINTER ERROR sume printing, turn the printer off and then turn it Printer out of paper or ink, or other printer|back on. PRINTERERROR error. Check printer Gee printer manual for details. IF print RESUME? ing does not resume automatically, press MENU/OK to

Warning Messages and Displays

PRESS AND HOLD THEDISP BUTTON TO DEACTIVATE SILENT MODE An atemptwas made to choose a flash mode or adjust the volume with the camera

Exit silent mode before choosing a flash mode or adjusting the volume.

CAN NOT BE PRINTED JAn attempt was made to print a movie, a picture not created with the camera, or a picture in a format not supported by the

Movies and some pictures created with other devices can not be printed. Ifthe picture was created with the camera, check the printer manual to confirm that the printer supports the JFIF-JPEG or Exif-JPEG format. Ifit does not, the pictures can not be printed

Digital zoom: Unlike optical zoom, digital zoom does not increase the amount of visible detail. Instead, details vis- ible using optical zoom are simply enlarged, producing a slightly ‘grainy” image.

Discharge: The capacity of rechargeable Ni-MH batteries will drop if they are repeatedly charged without first be- ing fully discharged. Full capacity can be restored by repeatedly discharging the batteries using the Æ DIS- CHARGE option in the camera setup menu and recharging them using a battery charger (sold separately).

in internal memory or on a memory card. The information in the order includes the pictures to be

DPOF (Digital Print Order Format}: A standard that allows pictures to be printed from “print orders" stored |

printed and the number of copies of each picture. DPOF EV (Exposure Value): The exposure value is determined by the sensitivity of the image sensor and the amount of light that enters the camera while the image sensor is exposed. Each time the amount of light doubles, EV increases by one; each time the amount of light is halved, EV decreases by one. The amount of light entering the camera can be controlled by adjusting aperture and shutter speed.

Exif Print: À standard that allows information stored with pictures to be used for optimal color reproduction dur- ing printing,

JPEG (Joint Photographic Experts Group): À compressed file format for color images. The higher the compression rate, the greater the loss of information and more noticeable drop in quality when the picture is displayed.

Motion JPEG: An AVI (Audio Video Interleave) format that stores images and sound in a single file, with the images recorded in JPEG format. Motion JPEG files can be played in QuickTime 3.0 or later.

Smear: À phenomenon specific to CCDs which causes white streaks to appear when very bright light sources, such as the sun or reflected sunlight, appear in the frame.

White balance: The human brain automatically adapts to changes in the color of light, with the result that objects that appear white under one light source still appear white when the color of the light source changes. Digital cameras can mimic this adjustment by processing images according to the color ofthe light source. This process is known as “white balance."

Internal Memory/Memory Card Capacity

The following table shows the recording time or number of pictures available at different image qualities. All figures are approximate: file size varies with the scene recorded, producing wide variations in the number of files that can be stored. The number of frames or length remaining may not diminish at an even rate

Fr | MIN | En? Con] Œ (520] Image size (pixels) | 3648x2736 [3648 2432/2502 x 1944/2048 x 1536 | 1600x 1200 | 640 x480 | 640x480 | 320x 240 File size FOVB | 25MB | 22VB | 12MB | 780KB | 630KB | 130KB — — nl 3 7 8 13 19 26 90 13sec. | 31sec. g LME ss 190 210 350 480 640 2220 | 6min. | 12mn 5 [1œ 190 380 20 700 960 1280 | 4420 | I2mn. | 28m 5 | 2œ 390 760 860 1400 1930 2580 | 8850 | 25min. | 57min 46 790 1520 1720 2810 3870 5160 | 17720 | 50m. | 16min o [6 170 | 2250 | 2540 2160 5730 7640__| 26200 | 75min | 71m | sœ 1590 | 3060 3450 5650 7780 10370 | 35560 | 100min. | 222min 8 | mes | 2370 | 450 5140 8410 n1570 15430 | 52920 [151min. | 346min. $ [css | 310 | 610 6930 11340 | 15600 | 20800 | 71310 |204min. | 467min 3268 | 6340 | 1200 | 13760 | 22610 | 3090 | 420 | 29990 |406mn. | 927mn

* Total length of all movie files. Individual movies can not exceed 2GB in size.

Model HIFILM DIGITAL CAMERA A100/A150

Effective pixels 10 million

co Pavin, square-pixel CCD with primary color filter

Storage media = Internal memory (approx. 20MEB) = SD/SDHC memory cards (see page 5)

File system Compliant with Design Rule for Camera File System (DCF), Exif 2.2, and Digital Print Order Format {DPOF)

File format = Süllpictures: Exif 2.2 JPEG (compressed) = Movies: Motion JPEG AVI Image size (pixels)

IIF.3648x2736 -MIN3648x2736 + DR3:2.3648x2432 + ER: 2,592x 1944 : 2,048x1,536 + IR:1,600x1200 + 640x480

File size See page 85 Lens 3x optical zoom lens, F/3.1 (side angle) — 5.6 (tlephotc)

Focal length f=6.3mm-18.9 mm (35-mm format equivalent: 35.5 mm-106.5 mm) Digital zoom Approx. 5.7X (up to 171 x when combined with optical z00m)

Aperture (wide angle)

Focus range (distance from front oflens)

Programmed autoexposure

Exposure compensation

2EV-+2EV in increments of 5EV (8 mode)

Intelligent Face Detection

Picture stabilization _ Avallable

Y45-V0005 (AUTO mode); 8s-V20005 (other modes); combined mechanical and electronic shutter

Number of recorded frames: up to 3 frames (approx. | frame/sec]

+ Mode: Single A * Autofocus system: Contrast-detect TTL AF

- Focus-areaselection: AF CENTER White balance

Automatic scene detection, sx manual preset modes for direct suniight, shade, daplight fluorescent, warm white fluorescent, cool white fluorescent, and incandescent lighting

Selftimer Approx. 25 and approx. 105

Flash Auto flash, effective range when sensitivity is set to AN is approx. 50cm-3.5m/1ft. Bin.-12ft Bin {wide angle), 50 cm-2.0m/1 ft. 8in.-6ft. 8in. (telephoto), or 30cm-80 cm/1 ft.-2ft. 8in. (macro mode)

Flash modes Auto, red-eye reduction, forced flash, off, slow sync, slow sync with red-eye reduction

Monitor 2773.0-n, 230k-dot low-temperature polysilicon TFT color LCD monitor, frame coverage approx 96%

Movies Camera can record movies with monaural sound and a frame size of 640x480 (EM) or 320x 240

(ŒAD) at a frame rate of 30fps

intelligent Face Detection and Red-Eye Removal framing guideline and frame number memory

Playback options Intelligent Face Detection and Red-Eye Removal, Micro Thumbnail, mult-frame playback, sort-by- date (line view), cropping (still pictures only) slide shows and image rotation Otheroptions PictBridge, Exif Print, language selection Simplified Chinese, Traditional Chinese, Czech, Dutch,

English, French, German, Hungarian, ltalian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Thaï, and Turkish) time difference, discharge option for rechargeable Ni-MH batteries, Silent mode

Input/output terminals A/V OUT (audio/video output)

NTSC or PAL with monaural sound

Digital input/output

USB 2.0 High Speed with MTP/PTP connection

Power sources + AA alkaline batteries (x2) + AA rechargeable nickel-metal hydride (Ni-MH) batteries (x2; sold separatelÿ) + AA lithium batteries (x2) Batterylife Approx. 150 frames (alkaline batteries of the type supplied with the camera), 600 frames (lithium

batteries), or 450 frames (2,700 mAh Ni-MH batteries), based on CIPA (Camera and Imaging Prod- ucts Association) standard; measured at 23°C (73°F) with the monitor on, pictures recorded to an SD memory card, the camera zoomed from widest angle to maximum zoom and back once every 305, the flash fired at full power with every other shot, and the camera turned off and then on again every 10 shots. Note that the number of shots that can be taken varies with battery make and charge state, temperature, and shooting conditions.

91.5 mm x 60.5 mm x21.7mm/3.6in.x 24 in.x0.9 in. (WXHx D), excluding battery and accessories

Approx. 124 g/4.3 07. (A100), 130 g/4.5 oz. (A150), excluding battery, accessories, and memory cards

Approx. 1729/6oz. (A100), 177 9/6.20z. (A150) including battery and memory card

Operating conditions

* Temperature: 0 °C —+40°C/+32°F -+104%F + Humidity: 10%-80% (no condensation)

NTSC (National Television System Committee) is a color television telecasting specification adopted mainly in the U.S.A, Canada, and Japan. PAL (Phase Alternation by Line) is a color television system adopted mainly in European countries and China

+ Specifications subject to change without notice. FUJIFILM shall not be held liable for damages resulting from errors in this manual.

+ Although the monitor is manufactured using advanced high-precision technology, small bright points and anomalous colors (particularly in the vicinity of text) may appear. This is normal for this type of monitor and does not indicate a malfunction; images recorded with the camera are unaffected.

- Digital cameras may malfunction when exposed to strong radio interference (e.g. electric fields, static electric- ity, or line noise).

- Due to the type of lens used, some distortion may occur at the periphery of images. This is normal

IMPORTANT NOTICE: Read Before Using the Software

End User License Agreement This End User License Agreement l'Agreement') s an agreement between FUJIFLM Corporation ('FUJIFILM') and you, which sets farth the terms and conditions of the l- cense granted for you to use the sofare provided by FUJIFILM The CD-ROM contains third-party software. In case à separate agreement is provided byathird party supplier forts software, the provisions of such separate agreement shall apply to the use of such third party softwate, prevaling over those of this Agreement. 1. Definitions. (a) “Media” means the CD-ROM titled "Software for FinePix which is provided to you together with this Agreement. (b) “Software* means the software which is recorded on Media à “Documentation” means the operation manuals of Software and other related written materials which are provided to you together with Media (c) “Product" means Media (including Software) and Documentation collectivey 2. UseofSoftware. FUJIFILM grants to you a nontransferable, nonexclusive license: fa) toinstall one copy of Software onto ane computer in binary machine executable

{b) to use Software on the computer onto which Software is installed and

(€) to make one backup copy of Software:

31 You shal not distrbute, rent, lease or otherwise transferall ar any part of Software, Media or Documentation te any third party without FLUIFILM' prior written con sent. You also shall not sublicense, assign or otherwise transfer al or any part of the rights granted to you by FLUIFILM under this Agreement without FLLIFILMS prior written consent.

322 Except as expressly granted by FLUIFILM hereunder, you shall not copy or repro- duce al or any part of Software or Documentation.

33 You shall not modify, adapt or translate Software or Documentation. You also shal not alter or remove copyright and other praprietary notices that appear on ar in Software or Documentation.

34 You shall not, or shall not have any third party, reverse-engineer, decompile, or disassemble Software.

FUJIFILM FUJIFILM Corporation

7-3, AKASAKA 8.CHOME, MINATO-KU, TOKYO 107-0052, JAPAN http: fujfilm.com/products/digital_camerasfindex html

All copyrights and other proprietary rights to Software and Documentation are owned and retained by FUJFILM or the third party suppliers as indicated on or in Software or Documentation. Nothing contained herein shall be construed, expressy or implicity, as transferring or granting any right, license, or ile to you other than those explicily granted under this Agreement.

5. Limited Warranty.

FUJIFILM warrants to you that Media is free from any defect in material and workman: ship under normal use for ninety (90) days from the date of your receipt of Media. Should Media not meetthe foregoing warranty, FUJIFILM shall replace such defective Media with other Media bearing no defect, FLLIFILMS entire liability and your sole and'exclusive remedy with regard to any defect in Media shall be expressly Imited to such FUJIFILMS replacement of Media as provided herein

6. DISCLAIMEROF WARRANTY.

You acknomiedge that neïther Software nor any part theteof wil be transferred, or exported to any country or used in any manner in violation of any export control laws and regulations to which Software is subject.

9. Termination. In case you breach any ofthe terms and conditions hereof,FUIFLM may immediately terminate this Agreement without any notice.

10.Term. This Agreement is effective until the date when you cease to use Software, unless arlier terminated in accordance with Section 9 hereof.

1.0bligation upon termination. Upon termination ar expiration of this Agreement, you shal, at your own responsibi ity and expense, delete or destroy immediately all Software (including its copies) Media and Documentation

1.GoveringLau. This Agreement shall be governed by and construed in accordance with laws of Japan.
