KDT10052FK - Dishwasher ZANKER - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	Zanker
Model	KDT10052FK
Width	60 cm
Height	85 cm
Depth	60 cm
Weight	45 kg
Power Supply	220-240 V, 10 A, 50 Hz
Energy Efficiency Class	E
Number of Place Settings	13
Noise Level	49 dB
Programs	Eco, Intensive, Normal, Quick, Pre-wash
Additional Functions	Half Load, Delay Start, Additional Drying
Water Consumption	10 L per cycle
Annual Energy Consumption	295 kWh
Annual Water Consumption	2800 L
Adjustable Upper Basket	Yes
Cutlery Basket	Yes
Self-Cleaning Filter	No (manual cleaning required)
Salt and Rinse Aid Indicator	Yes
Child Lock	Yes
Flood Protection	AquaStop
Spare Parts Availability	Available for 10 years

Frequently Asked Questions - KDT10052FK ZANKER

How do I start a wash cycle on my Zanker KDT10052FK?

Close the door, select a program using the program button, then press the start button. Ensure water supply is open and detergent is added.

Why is my dishwasher not draining?

Check the drain hose for kinks or clogs. Clean the filter and ensure the sink drain is not blocked. A faulty drain pump may require service.

How do I clean the filter?

Turn off the dishwasher, remove the lower rack, turn the filter cartridge counterclockwise and lift out. Rinse under running water and reinstall.

What detergent should I use?

Use any standard dishwasher detergent (powder, gel, or tablets). For best results, use a combined product with salt and rinse aid.

How do I adjust the upper basket?

Pull out the upper basket, press the side levers (if equipped) and lift or lower to desired height. Ensure both sides are at same level.

Why is there water left inside after a cycle?

This is normal for some models to keep seals moist. Check the 'Keep Warm' function if active. If excessive, clean filter and drain pump.

How do I refill the rinse aid?

Open the rinse aid dispenser (usually near the detergent compartment), fill to the max level, and wipe any spills. Close the cap.

What does the E30 error code mean?

E30 indicates a blockage in the drain system. Clean the filter and drain hose. If persists, the drain pump may be faulty.

Can I use the half load function?

Yes, select the Half Load option before starting a cycle. This reduces water and energy consumption for smaller loads.

How do I activate the child lock?

Press and hold the Child Lock button (usually marked with a key icon) for 3 seconds until the indicator lights up. Repeat to deactivate.

USER MANUAL KDT10052FK ZANKER

Before first use.9._

Daily use.10._

Hints and tips.12._

Care and cleaning.13._

Troubleshooting.15._

Technical information.18._

Subject to change without notice.

⚠ Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door is open.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

General Safety

- This appliance is intended to be used in household and similar applications such as:

- farm houses; staff kitchen areas in shops, offices and other working environments; - by clients in hotels, motels, bed & breakfast and other residential type environments.

- Do not change the specification of this appliance.

• The operating water pressure (minimum and maximum) must be between 0.5 (0.05) / 8 (0.8) bar (MPa)

• Obey the maximum number of 13 place settings.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.
• Put the cutlery in the cutlery basket with the sharp ends pointing down or put them in the cutlery drawer in a horizontal position with the sharp edges down.
• Do not leave the appliance with the open door unattended to avoid stepping accidentally onto it.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to clean the appliance.
• If the appliance has ventilation openings in the base, they must not be covered e.g. by a carpet.
• The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.

Safety instructions

Installation

Warning! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature is less than 0 °C.
• Follow the installation instruction supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Make sure that the appliance is installed below and adjacent to safe structures.

Electrical connection

Warning! Risk of fire and electrical shock.

• The appliance must be earthed.
- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
- Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
  • This appliance complies with the E.E.C. Directives.
• UK and Ireland only. This appliance is fitted with a 13 A mains plug. If it is necessary to change the mains plug fuse, use only a 13 A ASTA (BS 1362) fuse.

Water connection

• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.
• Ensure that there are no visible water leaks during and after the first use of the appliance.
• The water inlet hose has a safety valve and a sheath with an inner mains cable.

Warning! Dangerous voltage.

- If the water inlet hose is damaged, immediately close the water tap and disconnect the mains plug from the mains socket. Contact the Authorised Service Centre to replace the water inlet hose.

Use

- Do not sit or stand on the open door. - Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.

Product description

• Do not drink and play with the water in the appliance.
• Do not remove the dishes from the appliance until the programme is complete. Some detergent may remain on the dishes.
• The appliance can release hot steam if you open the door while a programme operates.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Disposal

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

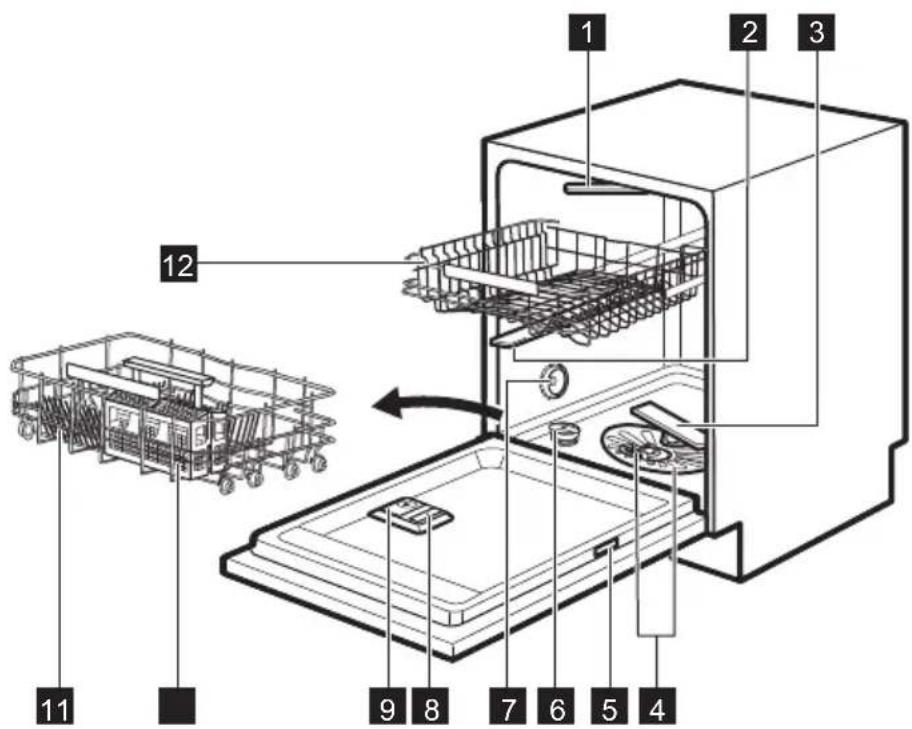

1 Top spray arm
2 Upper spray arm
3 Lower spray arm
4 Filters
5 Rating plate

6 Salt container
7 Air vent
8 Rinse aid dispenser
9 Detergent dispenser
10 Cutlery basket

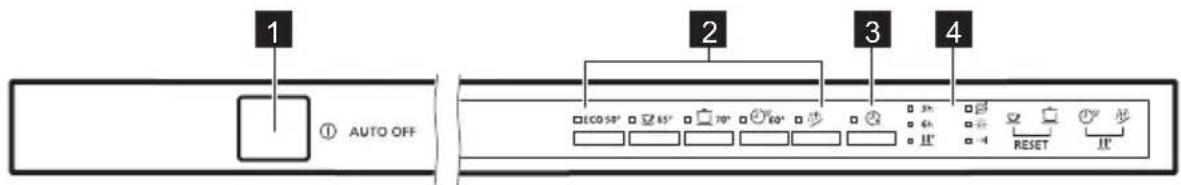

Control panel

1 On/off button
2 Programme buttons
3 Delay button

4 Indicators

Indicators

Indicator Description
→|	End indicator.
^+	XtraDry indicator.
※	Rinse aid indicator. It is always off while the programme operates.
S	Salt indicator. It is always off while the programme operates.

Programmes

Programme Degree of soilType of load		Programme phases Options
ECO 1)	Normal soilCrockery and cutlery	PrewashWash 50 °CRinsesDry	XtraDry
	Heavy soilCrockery, cutlery,pots and pans	PrewashWash 70 °CRinsesDry	XtraDry
	Normal soilCrockery and cutlery	PrewashWash 65 °CRinsesDry	XtraDry
2)	Fresh soilCrockery and cutlery	Wash 60 °CRinses	XtraDry

Programme Degree of soilType of load	Programme phases Options
3) • All • Prewash

1) With this programme, you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. This is the standard programme for test institutes.

2) With this programme, you can wash a half-load dishwasher with fresh soil. It gives good washing results in a short time.

3) With this programme, you can quickly rinse dishes to prevent remains of food to bond on dishes and odours to form in the appliance. Do not use detergent with this programme.

Consumption values

Programme 1)	Water (l)	Energy (kWh)	Duration (min)
	10.2 0.932 225
	12.5 - 14.5 1.4 - 1.7	170 - 190
	15 1.7 170
	10 0.9 30
	4 0.1 14

1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can change the values.

Information for test institutes

For all the necessary information for test performance, send an email to:

[e-mail]

Settings

Write down the product number (PNC) that is on the rating plate.

Programme selection mode and user mode

When the appliance is in programme selection mode it is possible to set a programme and to enter the user mode.

Settings available in the user mode:

• The level of water softener according to the water hardness.
• Activation or deactivation of the acoustic signal for the end of a programme.
• Activation or deactivation of the rinse aid empty notification.
  • The level of rinse aid according to the required dosage.
• Activation or deactivation of AirDry.

As the appliance stores the saved settings, there is no need to configure it before every cycle.

How to set the programme selection mode

The appliance is in programme selection mode when only the indicator of the programme is on.

After activation, the appliance is in programme selection mode by default. If not, set the programme selection mode the following way:

Press and hold simultaneously and until the appliance is in programme selection mode.

How to enter user mode

Make sure the appliance is in programme selection mode.

To enter user mode, press and hold simultaneously

The water softener

The water softener removes minerals from the water supply, which would have a detrimental effect on the washing results and on the appliance.

The higher the content of these minerals, the harder your water is. Water hardness is measured in equivalent scales.

The water softener should be adjusted according to the hardness of the water in your area. Your local water authority can advise you on the hardness of the water in your area. It is important to set the right level of the water softener to assure good washing results.

Water hardness

German degrees (°dH)	French degrees (°fH)	mmol/l Clarke de- grees	Water softener level
47 - 50 84 - 90	8.4 - 9.0 58 - 63 10
43 - 46 76 - 83	7.6 - 8.3 53 - 57 9
37 - 42 65 - 75	6.5 - 7.5 46 - 52 8
29 - 36 51 - 64	5.1 - 6.4 36 - 45 7
23 - 28 40 - 50	4.0 - 5.0 28 - 35 6
19 - 22 33 - 39	3.3 - 3.9 23 - 27		51)
15 - 18 26 - 32	2.6 - 3.2 18 - 22 4
11 - 14 19 - 25	1.9 - 2.5 13 - 17 3
4 - 10 7 - 18	0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5			12)

1) Factory setting.
2) Do not use salt at this level.

Whether you use a standard detergent or multi-tabs (with or without salt), set the proper water hardness level to keep the salt refill indicator active.

Multi-tabs containing salt are not effective enough to soften hard water.

How to set the water softener

Make sure the appliance is in user mode.

1. Press ECO.

• The indicators 📁, and are off.
• The indicator ECO still flashes.

- The indicator starts flashing. The number of flashes indicates the current water softener setting (e.g. 5 flashes + pause + 5 flashes... = level 5).

1. Press repeatedly to change the setting. Each pressing of the button increases the level number by one. After reaching level 10, the count starts again from level 1.
2. Press on/off to confirm and save the setting.

The rinse aid empty notification

The rinse aid helps to dry the dishes without streaks and stains.

The rinse aid is automatically released during the hot rinse phase.

When rinse aid chamber is empty, the rinse aid indicator is turned on notifying to refill rinse aid. If the drying results are satisfactory while using multi-tablets only, it is possible to deactivate the notification for refilling rinse aid. However, for best drying performance, always use rinse aid.

If standard detergent or multi-tablets without rinse aid are used, activate the notification to keep the rinse aid refill indicator active.

How to deactivate the rinse aid empty notification

Make sure the appliance is in user mode.

1. Press

• The indicators, ECO and are off.
• The indicator still flashes.
• The indicator shows the current setting.

- If the indicator is on = the rinse aid empty notification is activated.

- If the indicator is off = the rinse aid empty notification is deactivated.

1. Press to change the setting.
2. Press on/off to confirm and save the setting.

The rinse aid level

It is possible to set the released quantity of rinse aid between level 1 (minimum quantity) and level 6 (maximum quantity). Level 0 deactivates the rinse aid dispenser and no rinse aid is released.

Factory setting: level 4.

How to set the rinse aid level

Make sure the appliance is in user mode.

1. Press .

• The indicators, ECO and are off.
• The indicator still flashes.
- The indicator →I starts flashing. The number of flashes indicates the current setting: e.g. 4 flashes + pause + 4 flashes... = level 4.

– The levels of rinse aid range from 0 to 6.

- Level 0 means no rinse aid is used. In this case the indicator remains off.

1. Press repeatedly to change the setting. Each pressing of increases the level number. After reaching level 6, the count starts again from level 1.
2. Press on/off to confirm the setting.

Acoustic signals

Acoustic signals sound when a malfunction of the appliance occurs. It is not possible to deactivate these acoustic signals.

There is also an acoustic signal that sounds when the programme is completed. By default this acoustic signal is deactivated but it is possible to activate it.

How to activate the acoustic signal for the end of programme

Make sure the appliance is in user mode.

1. Press

• The indicators, ECO and are
off.
• The indicator ⏻ still flashes.
• The indicator →|shows the current setting.

• If the indicator is on = the acoustic signal is activated.

• If the indicator is off= the acoustic signal is deactivated.

• Press to change the setting.

• Press on/off to confirm the setting.

AirDry

AirDry improves the drying results with less energy consumption.

Technical line drawing of a mechanical assembly with layered components and a curved arrow indicating motion (no text or symbols)

During the drying phase, the door opens automatically and remains ajar.

Caution! Do not try to close the appliance door within 2 minutes after automatic opening. This can cause damage to the appliance. If, afterwards, the door is closed for another 3 minutes, the running programme ends.

AirDry is automatically activated with all programmes excluding (if applicable).

To improve the drying performance refer to the XtraDry option or activate AirDry.

Caution! If children have access to the appliance, it is advised to deactivate AirDry as opening the door may pose a danger.

Options

Desired options must be activated every time before you start a programme. It is not possible to activate or deactivate options while a programme is running.

Not all options are compatible with each other. If you select non compatible options, the appliance automatically deactivates one or more of them. Only the indicators of the still active options are on.

XtraDry

Activate this option to boost the drying performance. With XtraDry on, the duration of some programmes, water consumption and the last rinse temperature can be affected.

Before first use

1. Make sure that the current level of the water softener agrees with the hardness of the water supply. If not, adjust the level of the water softener.

2. Fill the salt container.

3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any processing residuals that can still be inside the appliance. Do not use detergent and do not load the baskets.
   After starting a programme, it may take up to 5 minutes for the appliance to recharge the resin in the water

How to deactivate AirDry

Make sure the appliance is in user mode.

1. Press

• The indicators, ECO and are off.
  • The indicator still flashes.
  • The indicator shows the current setting.
• If the indicator is on= AirDry is activated.

• If the indicator is off = AirDry is deactivated.

• Press to change the setting.

• Press on/off to confirm and save the setting.

XtraDry is a permanent option for all programmes other than and need not to be selected at every cycle.

In the other programmes the setting of XtraDry is permanent and it is automatically used in next cycles. This configuration can be changed at any time.

Every time is activated, XtraDry is off and needs to be chosen manually.

How to activate XtraDry

Press simultaneously and . The indicator is on.

If the option is not applicable to the programme, the related indicator is off or it flashes quickly for a few seconds and then goes off.

softener. It seems that the appliance is not working. The washing phase starts only after this procedure is completed. The procedure is repeated periodically.

The salt container

Caution! Use rough salt designed for dishwashers only. Fine salt increases the risk of corrosion.

The salt is used to recharge the resin in the water softener and to assure good washing results in daily use.

How to fill the salt container

1. Turn the cap of the salt container counterclockwise and remove it.
2. Put 1 litre of water in the salt container (only for the first time).
3. Fill the salt container with 1 kg of salt (until it is full)

1. Carefully shake the funnel by its handle to get the last granules inside.

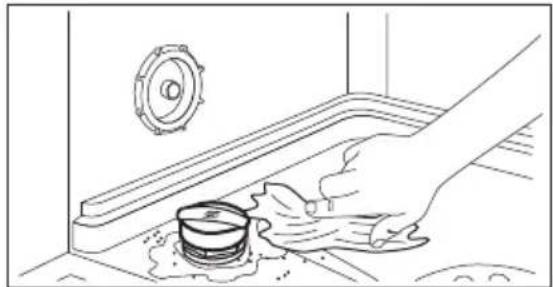

2. Remove the salt around the opening of the salt container.

Line drawing of a hand cleaning a wall with a pipe and circular component (no text or symbols)

1. Turn the cap of the salt container clockwise to close the salt container.

Caution! Water and salt can come out of the salt container when you fill it. After you fill the salt container, immediately start a programme to prevent corrosion.

Daily use

1. Open the water tap.
2. Press the on/off button to activate the appliance. Make sure that the appliance is in programme selection mode.

- If the salt indicator is on, fill the salt container.

- If the rinse aid indicator is on, fill the rinse aid dispenser.

1. Load the baskets.
2. Add the detergent.
3. Set and start the correct programme for the type of load and the degree of soil.

How to fill the rinse aid dispenser

Caution! Only use rinse aid specifically designed for dishwashers.

1. Open the lid (C).
2. Fill the dispenser (B) until the rinse aid reaches the marking "MAX".
3. Remove the spilled rinse aid with an absorbent cloth to prevent too much foam.
4. Close the lid. Make sure that the lid locks into position.

Fill the rinse aid dispenser when the indicator (A) becomes clear.

If you use multi-tablets and the drying performance is satisfactory, the rinse aid refill indication can be disabled.

We recommend to always use rinse aid for better drying performance, also in combination with multi-tablets containing rinsing agent.

Using the detergent

Caution! Only use detergent specifically designed for dishwashers.

1. Press the release button (A) to open the lid (C).
2. Put the detergent, in powder or tablets, in the compartment (B).
3. If the programme has a prewash phase, put a small quantity of detergent on the inner part of the appliance door.
4. Close the lid. Make sure that the lid locks into position.

Setting and starting a programme

The AUTO OFF function

This function decreases energy consumption by deactivating automatically the appliance when it is not operating.

The function comes into operation:

• 5 minutes after the completion of the programme.
  • After 5 minutes if the programme has not started.

Starting a programme

1. Keep the appliance door ajar.
2. Press the on/off button to activate the appliance. Make sure that the appliance is in programme selection mode.
3. Press the button related to the programme you want to start.
   The related programme indicator comes on.
4. Close the appliance door to start the programme.

Starting a programme with delay start

1. Set a programme.

2. Press repeatedly until the indicator related to the desired number of hours is on (3h or 6h). The delay indicator is on.

3. Close the appliance door to start the countdown. While the countdown is running, it is possible to increase the delay time but not to change the selection of the programme and options.

When the countdown is completed, the programme starts.

Opening the door while the appliance operates

Opening the door while a programme is running stops the appliance. It may affect the energy consumption and the programme duration. After closing the door, the appliance continues from the point of interruption.

If the door is opened for more than 30 seconds during the drying phase, the running programme ends. It does not happen if the door is opened by AirDry function.

Cancelling the delay start while the countdown operates

When you cancel the delay start you have to set the programme and options again.

Press and hold simultaneously 📁 and 📄 until the appliance is in programme selection mode.

Cancelling the programme

Press and hold simultaneously and until the appliance is in programme selection mode.

Make sure that there is detergent in the detergent dispenser before you start a new programme.

End of the programme

When the programme is completed the indicator is on.

1. Press the on/off button or wait for the AUTO OFF function to deactivate the appliance. If you open the door before the activation of AUTO OFF, the appliance is automatically deactivated.
2. Close the water tap.

General

The following hints will ensure optimal cleaning and drying results in daily use and also help to protect the environment.

• Remove larger residues of food from the dishes into the waste bin.
• Do not pre-rinse dishes by hand. When needed, use the prewash programme (if available) or select a programme with a prewash phase.
  • Always use the whole space of the baskets.
• When loading the appliance, make sure that the dishes can be completely reached and washed by the water released from the spray arm nozzles. Make sure that items do not touch or cover each other.
• You can use dishwasher detergent, rinse aid and salt separately or you can use the multi-tablets (e.g. "3in1", "4in1", "All in 1"). Follow the instructions written on the packaging.
• Select the programme according to the type of load and degree of soil. With the ECO programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil.

Using salt, rinse aid and detergent

• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.
• In areas with hard and very hard water we recommend to use plain dishwasher detergent (powder, gel, tablets containing no additional agents), rinse aid and salt separately for optimal cleaning and drying results.
• At least once a month run the appliance with the use of appliance cleaner which is particularly suitable for this purpose.
• Detergent tablets do not fully dissolve with short programmes. To prevent detergent residues on the tableware, we recommend that you use the tablets with long programmes.
• Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.

What to do if you want to stop using multi-tablets

Before you start to use separately detergent, salt and rinse aid do the following procedure.

1. Set the highest level of the water softener.

2. Make sure that the salt and rinse aid containers are full.

3. Start the shortest programme with a rinsing phase. Do not add detergent and do not load the baskets.
4. When the programme is completed, adjust the water softener according to the water hardness in your area.
5. Adjust the released quantity of rinse aid.
6. Activate the rinse aid empty notification.

Loading the baskets

• Only use the appliance to wash items that are dishwasher-safe.
• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.
• Do not put in the appliance items that can absorb water (sponges, household cloths).
• Remove larger residues of food from the dishes into the waste bin.
• Make soft the remaining burned food on the items.
• Put hollow items (cups, glasses and pans) with the opening down.
• Make sure that glasses do not touch other glasses.
• Put cutlery and small items in the cutlery basket.
• Put light items in the upper basket. Make sure that the items do not move.
• Make sure that the spray arms can move freely before you start a programme.

Before starting a programme

Make sure that:

• The filters are clean and correctly installed.
• The cap of the salt container is tight.
  • The spray arms are not clogged.
• There is dishwasher salt and rinse aid (unless you use multi-tablets).
• The position of the items in the baskets is correct.
• The programme is applicable for the type of load and for the degree of soil.
• The correct quantity of detergent is used.

Unloading the baskets

1. Let the tableware cool down before you remove it from the appliance. Hot items can be easily damaged.
2. First remove items from the lower basket, then from the upper basket.

At the end of the program water can still remain on the sides and on the door of the appliance.

Warning! Before maintenance, deactivate the appliance and disconnect the mains plug from the main socket.

Dirty filters and clogged spray arms decrease the washing results. Make a check regularly and, if necessary, clean them.

Cleaning the filters

The filter system is made of 3 parts.

1. Turn the filter (B) counterclockwise and remove it.

Two-step diagram showing hand positioning of a mechanical component, with no visible text or symbols.

1. Remove the filter (C) out of filter (B).

2. Remove the flat filter (A).

Illustration of a hand using a tool to press down a circular component with arrows indicating motion (no text or symbols)

1. Wash the filters.

Line drawing of hands washing a showerhead with a water filter, no text or symbols present

1. Make sure that there are no residues of food or soil in or around the edge of the sump.

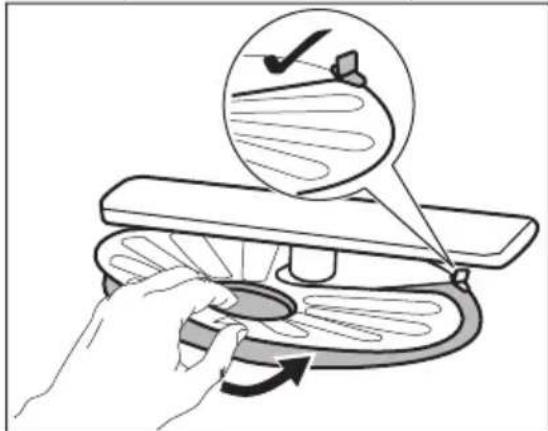

2. Put back in place the flat filter (A). Make sure that it is correctly positioned under the 2 guides.

Illustration of a hand using a computer to interact with a device, showing a magnified view of the screen (no text or symbols present)

1. Reassemble the filters (B) and (C).

2. Put back the filter (B) in the flat filter (A). Turn it clockwise until it locks.

Caution! An incorrect position of the filters can cause bad washing results and damage to the appliance.

Cleaning the upper spray arm

We recommend to clean regularly the upper spray arm to avoid soil to clog the holes.

Clogged holes can cause unsatisfactory washing results.

1. Pull out the upper basket.
2. To disengage the spray arm from the basket, press the spray arm upwards in the direction indicated by the lower arrow and simultaneously turn it clockwise.

Diagram of a mechanical assembly with rotating components and grid lines, no visible text or symbols

1. Wash the spray arm under running water. Use a thin pointed tool, e.g. toothpick, to remove particles of soil from the holes.

Illustration of a hand using a tool to lift a water droplet onto a metal ruler, with a faucet and handle nearby (no text or symbols)

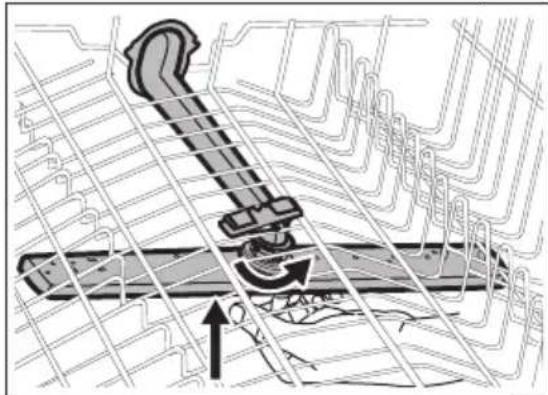

1. To engage again the spray arm to the basket, press the spray arm upwards in the direction indicated by the lower arrow and simultaneously turn it counterclockwise until it locks into place.

Diagram of a mechanical assembly with directional arrows and grid lines, no readable text or symbols present.

External cleaning

• Clean the appliance with a moist soft cloth.
• Only use neutral detergents.
• Do not use abrasive products, abrasive cleaning pads or solvents.

Internal cleaning

• Carefully clean the appliance, including the rubber gasket of the door, with a soft damp cloth.
• If you use short duration programmes regularly, these can leave deposits of grease and limescale inside the appliance. To prevent this, we recommend running long duration programmes at least twice a month.
  • To maintain the performance of your appliance at its best, we recommend using a specific cleaning product for dishwashers (at least once a month). Follow carefully the instructions on the packaging of the product.

If the appliance does not start or it stops during operation, before you contact an Authorised Service Centre, check if you can solve the problem by yourself with the help of the information in the table.

Warning! Repairs not properly done may result in serious risk to the safety of the user. Any repairs must be performed by qualified personnel.

With some problems the end indicator flashes intermittently indicating a malfunction.

The majority of problems that can occur can be solved without the need to contact an Authorised Service Centre.

Problem and alarm code Possible cause and solution
You cannot activate the appliance.	Make sure that the mains plug is connected to the mains socket.Make sure that there is no damaged fuse in the fuse box.
The programme does not start.	Make sure that the appliance door is closed.If the delay start is set, cancel the setting or wait for the end of the countdown.The appliance has started the procedure to recharge the resin inside the water softener. The duration of the procedure is approximately 5 minutes.
The appliance does not fill with water.The end indicator flashes 1 time intermittently.Acoustic signal sounds 1 time intermittently.	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the filter in the inlet hose is not clogged.Make sure that the inlet hose has no kinks or bends.
The appliance does not drain the water.The end indicator flashes 2 times intermittently.Acoustic signal sounds 2 times intermittently.	Make sure that the sink spigot is not clogged.Make sure that the drain hose has no kinks or bends.
The anti-flood device is on.The end indicator flashes 3 times intermittently.Acoustic signal sounds 3 times intermittently.	Close the water tap and contact an Authorised Service Centre.
The appliance stops and starts more times during operation.	It is normal. It provides optimal cleaning results and energy savings.
The program lasts too long.	If the delayed start option is set, cancel the delay setting or wait for the end of the countdown.
Small leak from the appliance door.	The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable).The appliance door is not centred on the tub. Adjust the rear foot (if applicable).
The appliance door is difficult to close.	· The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable).· Parts of the tableware are protruding from the baskets.
Rattling/knocking sounds from inside the appliance.	· The tableware is not properly arranged in the baskets. Refer to basket loading leaflet.· Make sure that the spray arms can rotate freely.
The appliance trips the circuit-beaker.	· The amperage is insufficient to supply simultaneously all the appliances in use. Check the socket amperage and the capacity of the meter or turn off one of the appliances in use.· Internal electrical fault of the appliance. Contact an Authorised Service Centre.

Refer to "Before first use", "Daily use", or "Hints and tips" for other possible causes.

Once you have checked the appliance, deactivate and activate the appliance. If the problem occurs again, contact an Authorised Service Centre.

For alarm codes not described in the table, contact an Authorised Service Centre.

The washing and drying results are not satisfactory

Problem Possible cause and solution
Poor washing results.	Refer to "Daily use", "Hints and tips" and basket loading leaflet.Use more intensive washing programmes.Clean spray arm jets and filter. Refer to "Care and Cleaning".
Poor drying results.	Tableware has been left for too long inside a closed appliance.There is no rinse aid or the dosage of rinse aid is not enough. Set the rinse aid dispenser to a higher level.Plastic items may need to be towel dried.For the best drying performance activate the option XtraDry and set AirDry.We recommend to always use rinse aid, even in combination with multi-tablets.
There are whitish streaks or bluish layers on glasses and dishes.	The release quantity of rinse aid is too much. Adjust the rinse aid level to a lower level.The quantity of detergent is too much.
There are stains and dry water drops on glasses and dishes.	The released quantity of rinse aid is not sufficient. Adjust the rinse aid level to a higher level.The quality of the rinse aid can be the cause.
The dishes are wet.	For the best drying performance activate the option XtraDry and set AirDry.The programme does not have a drying phase or has a drying phase with low temperature.The rinse aid dispenser is empty.The quality of the rinse aid can be the cause.The quality of the multi-tablets can be the cause. Try a different brand or activate the rinse aid dispenser and use rinse aid and multi-tablets together.
The interior of the appliance is wet.	This is not a defect of the appliance. it is caused by the humidity in the air that condenses on the walls.
Unusual foam during washing.	Use the detergent for dishwashers only.There is a leak in the rinse aid dispenser. Contact an Authorised Service Centre.
Traces of rust on cutlery.	There is too much salt in the water used for washing. Refer to "The water softener".Silver and stainless steel cutlery were placed together. Avoid to put silver and stainless steel items close together.
There are residues of detergent in the dispenser at the end of the programme.	The detergent tablet got stuck in the dispenser and therefore was not completely washed away by water.Water cannot wash away the detergent from the dispenser. Make sure that the spray arm is not blocked or clogged.Make sure that items in the baskets do not impede the lid of the detergent dispenser from opening.
Odours inside the appliance.	Refer to "Internal cleaning".
Limescale deposits on the tableware, on the tub and on the inside of the door.	The level of salt is low, check the refill indicator.The cap of the salt container is loose.Your tap water is hard. Refer to "The water softener".Even using multi-functional tabs use salt and set regeneration of the water softener. Refer to "The water softener".If lime scale deposits still remain, clean the appliance with appliance cleaners which are particularly suitable for this purpose.Try different detergent.Contact the detergent manufacturer.
Dull, discoloured or chipped tableware.	Make sure that only dishwasher-safe items are washed in the appliance.Load and unload the basket carefully. Refer to basket loading leaflet.Place delicate items in the upper basket.

Refer to "Before first use", "Daily use"

or "Hints and tips" for other possible

causes.

Technical information

Dimensions Width / height / depth (mm)	596 / 818 - 898 / 550
Electrical connection 1)	Voltage (V) 220 - 240
	Frequency (Hz) 50
Water supply pressure bar (minimum and maximum)	0.5 - 8
	MPa (minimum and maximum) 0.05 - 0.8
Water supply	Cold water or hot water 2)	max 60 °C
Capacity Place settings 13
Power consumption Left-on mode (W)	5.0
Power consumption Off-mode (W)	0.10

1) Refer to the rating plate for other values.
2) If the hot water comes from alternative source of energy, (e.g. solar panels, aeolian energy), use the hot water supply to decrease energy consumption.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not

dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Technical line drawing of a mechanical assembly with internal components and a curved arrow indicating motion (no text or symbols)

Line drawing of a hand cleaning a wall with a pipe and circular component (no text or symbols)

Illustration of hands using a mechanical device to move a circular component with a rotating arrow (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

Illustration of a hand using a tool to press down a circular component, no text or symbols present

Line drawing of a person washing clothes with a shower pump, no text or symbols present

Illustration of a hand using a tool to adjust or install a device with a magnified view of the component (no text or symbols present)

Technical diagram of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to lift a water bottle onto a ruler, with a faucet and droplet on the handle (no text or symbols)

Diagram of a mechanical assembly with a central component and directional arrows, no readable text or symbols present.
