SRT 3001 - Digital decoder STRONG - Free user manual and instructions

Product Type	Digital Decoder (Set-Top Box)
Brand	STRONG
Model	SRT 3001
Dimensions (approx.)	160 mm (W) x 100 mm (D) x 40 mm (H)
Weight (approx.)	0.5 kg
Power Supply Input	100-240 V AC, 50/60 Hz
Power Consumption	10 W (max)
Standby Power Consumption	< 1 W
Video Outputs	HDMI, SCART (CVBS/RGB)
Audio Outputs	Digital coaxial, Analog (RCA)
Connectivity	USB 2.0 (x1), Ethernet RJ-45, Wi-Fi (built-in or optional dongle)
Supported TV Standards	DVB-T/T2, DVB-S/S2, DVB-C (depending on model variant)
Max Video Resolution	1080p (Full HD)
Main Functions	Channel search, Electronic Program Guide (EPG), Parental lock, Subtitle support, Teletext, Timer recording via USB
Media Playback	Video (MPEG, AVI, MKV), Audio (MP3, AAC), Image (JPEG, PNG)
Remote Control	Infrared remote with batteries (included)
Safety Instructions	Do not expose to rain or moisture; use only the supplied power adapter; avoid blocking ventilation slots.
Cleaning & Maintenance	Unplug before cleaning; wipe with a soft, dry cloth. Do not use chemical solvents.
Spare Parts & Repairability	No user-serviceable parts inside. Contact authorized service center for repairs.

Frequently Asked Questions - SRT 3001 STRONG

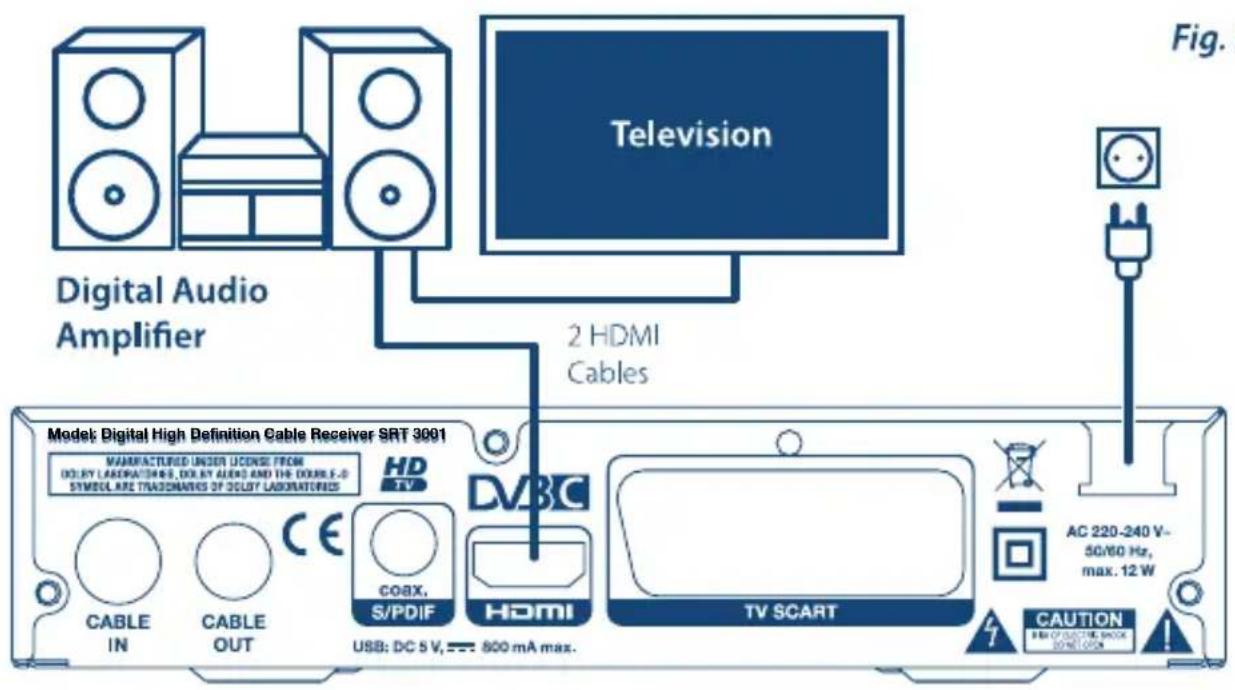

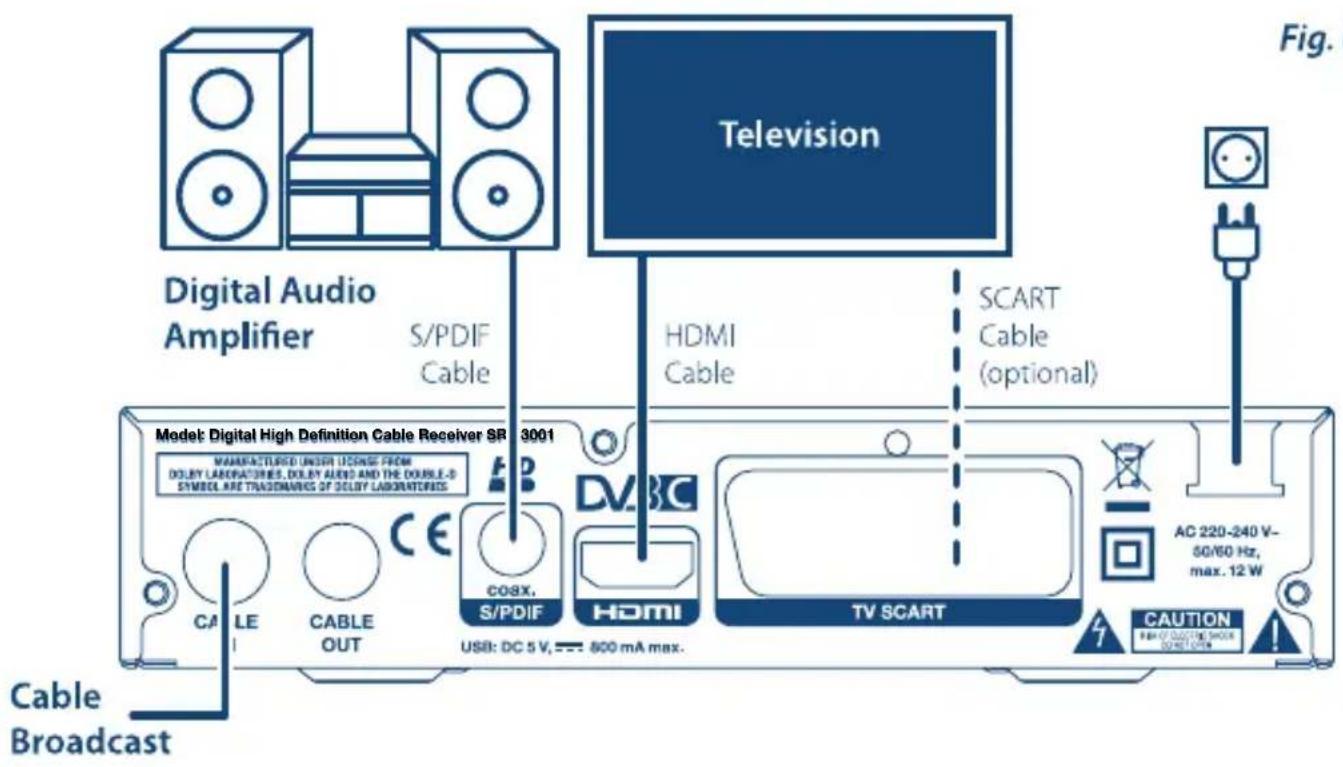

How do I connect the SRT 3001 to my TV?

Use an HDMI cable for the best picture and sound quality. Alternatively, you can use the SCART connection if your TV supports it. Connect the power adapter and turn on the decoder.

Why is my decoder not finding any channels?

Ensure the antenna cable is properly connected. Go to the Installation menu and select Auto Scan. Make sure you have selected the correct satellite or terrestrial source in the setup.

Can I record TV shows with the SRT 3001?

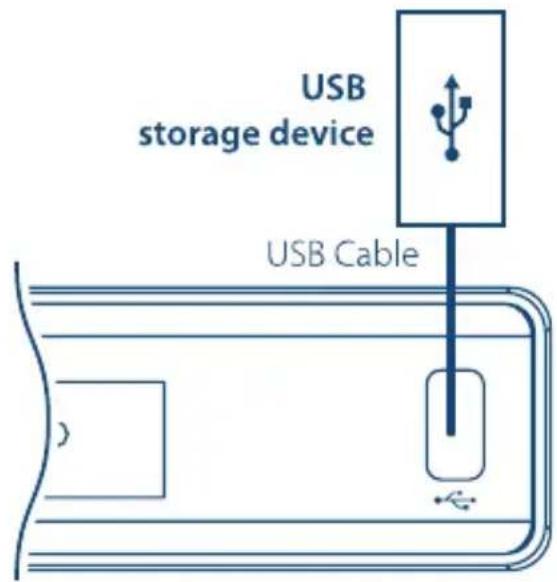

Yes, you can record to a USB storage device. Insert a USB flash drive or external hard disk (formatted as FAT32 or NTFS) into the USB port. Then press the Record button on the remote during a live broadcast.

How do I update the software on my decoder?

Connect the decoder to the internet via Ethernet or Wi-Fi. Go to Settings > Software Update and select Online update. Follow the on-screen instructions. Do not turn off the decoder during the update.

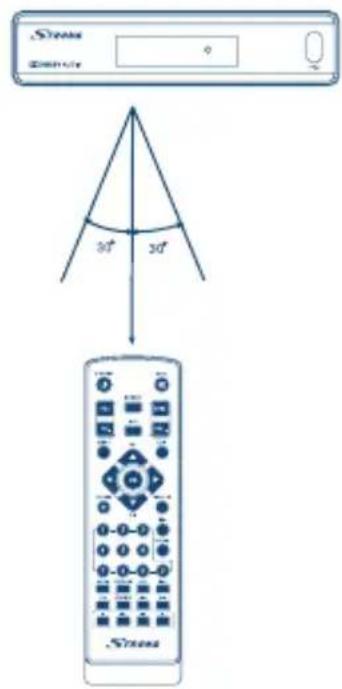

The remote control is not working. What should I do?

First, check if the batteries are inserted correctly and have enough power. Replace them if necessary. Make sure there are no obstacles between the remote and the decoder. Try pointing directly at the front panel.

What file formats are supported for media playback via USB?

The decoder supports common formats like MPEG, AVI, MKV for video, MP3, AAC for audio, and JPEG, PNG for images. Maximum file size may vary depending on the USB format.

How do I reset the decoder to factory settings?

Go to Settings > Factory Reset. Enter the default PIN (usually 0000) and confirm. This will erase all channels and personal settings.

Can I use the decoder with a satellite dish?

If your model supports DVB-S/S2, yes. Connect the satellite cable to the LNB input, then run an auto scan for satellites. Ensure your dish is properly aligned.

What is the default PIN for parental lock?

The default PIN is 0000. You can change it in the Parental Control menu after entering the current PIN.

The decoder gets hot during use. Is that normal?

It is normal for the decoder to become warm during operation. Ensure it is placed in a well-ventilated area and not covered. If it becomes excessively hot, turn it off and contact support.

USER MANUAL SRT 3001 STRONG

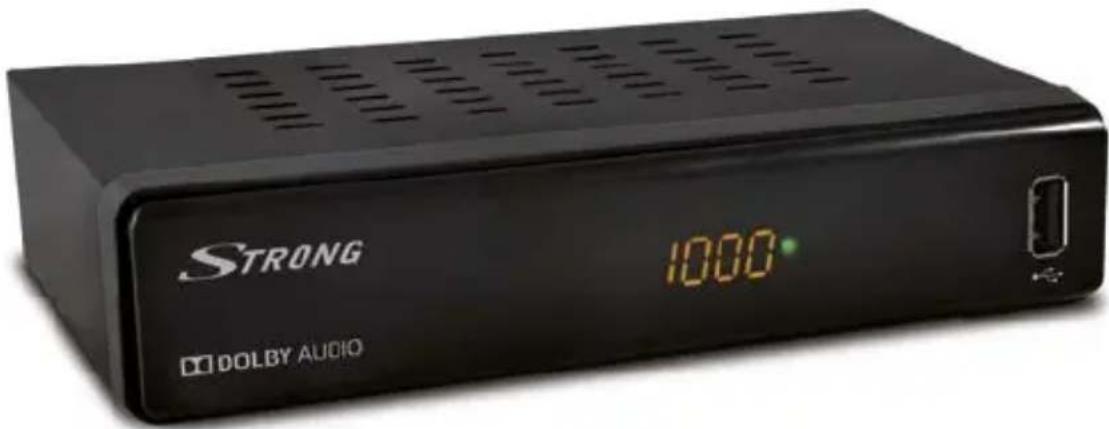

Digital High Definiti on Cable Receiver SRT 3001

Picture similar

User Manual

Bedienungsanleitung

Brugervejledning

Návod k obsluze

Three-step diagram showing a battery holder with rotating components and a hand holding a battery, illustrating mechanical or electrical motion (no text or symbols)

Fig. 5

Fig. 6

Fig. 7

Fig. 8

SERVICE CENTER

AT

[e-mail]

Supplied by STRONG & Co, Japan

Represented by

STRONG Ges.m.b.H.

Franz-Josefs-Kai 1

1010 Vienna

Austria

Email: [e-mail]

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.

This product contains one or more programs protected under international and U.S. copyright laws as unpublished works. They are confidential and proprietary to Dolby Laboratories. Their reproduction or disclosure, in whole or in part, or the production of derivative works therefrom without the express permission of Dolby Laboratories is prohibited. Copyright 2003-2009 by Dolby Laboratories. All rights reserved.

INHALTSVERZEICHNIS

1.0 EINLEITUNG 3

7.2.3 LCN (Logical Channel Numbering)

Modulation: 64 QAM/256 QAM

Symbolrate: 3.6 M \~ 6.952 MS/s (64 QAM)

Video:

Cable IN - IEC Female

Cable OUT - IEC Male

All customers outside Germany or Austria please contact your local retailer for further service support information.
