USER MANUAL S2000 (2002) Honda

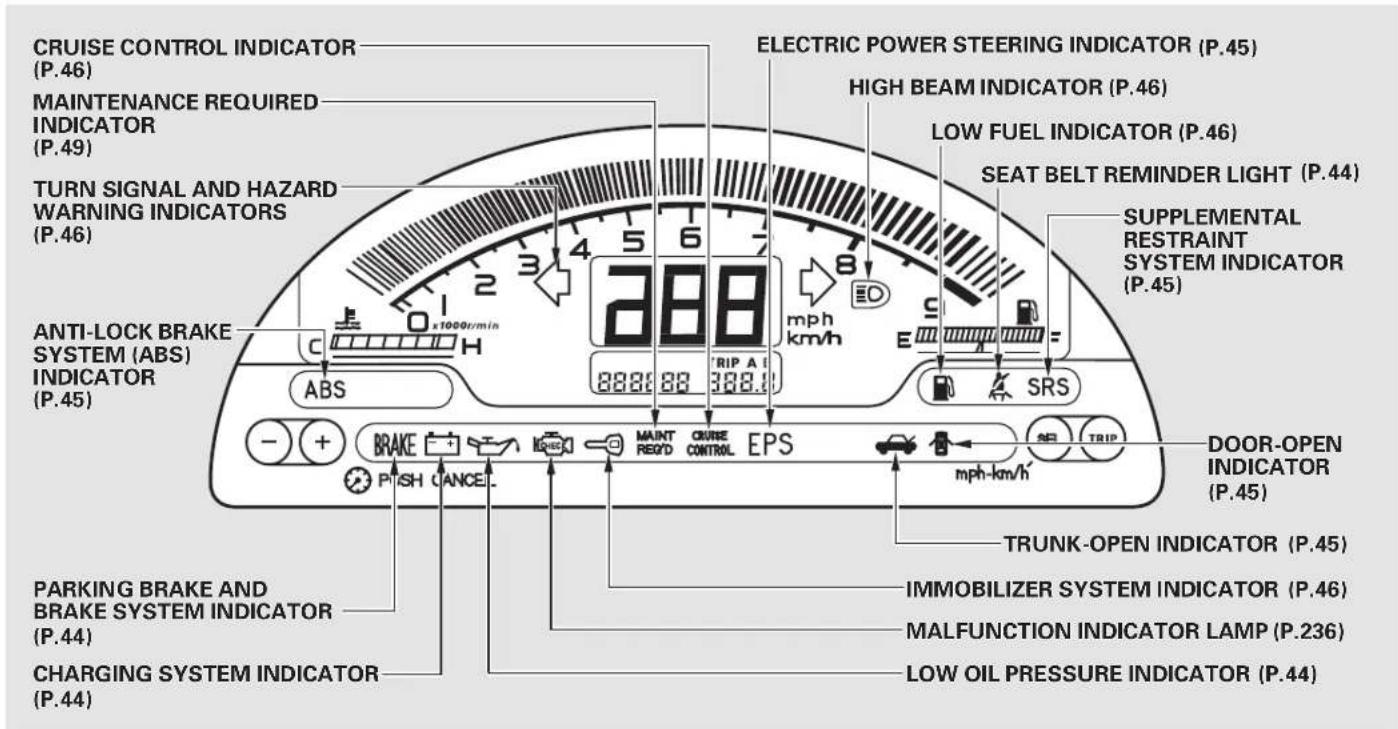

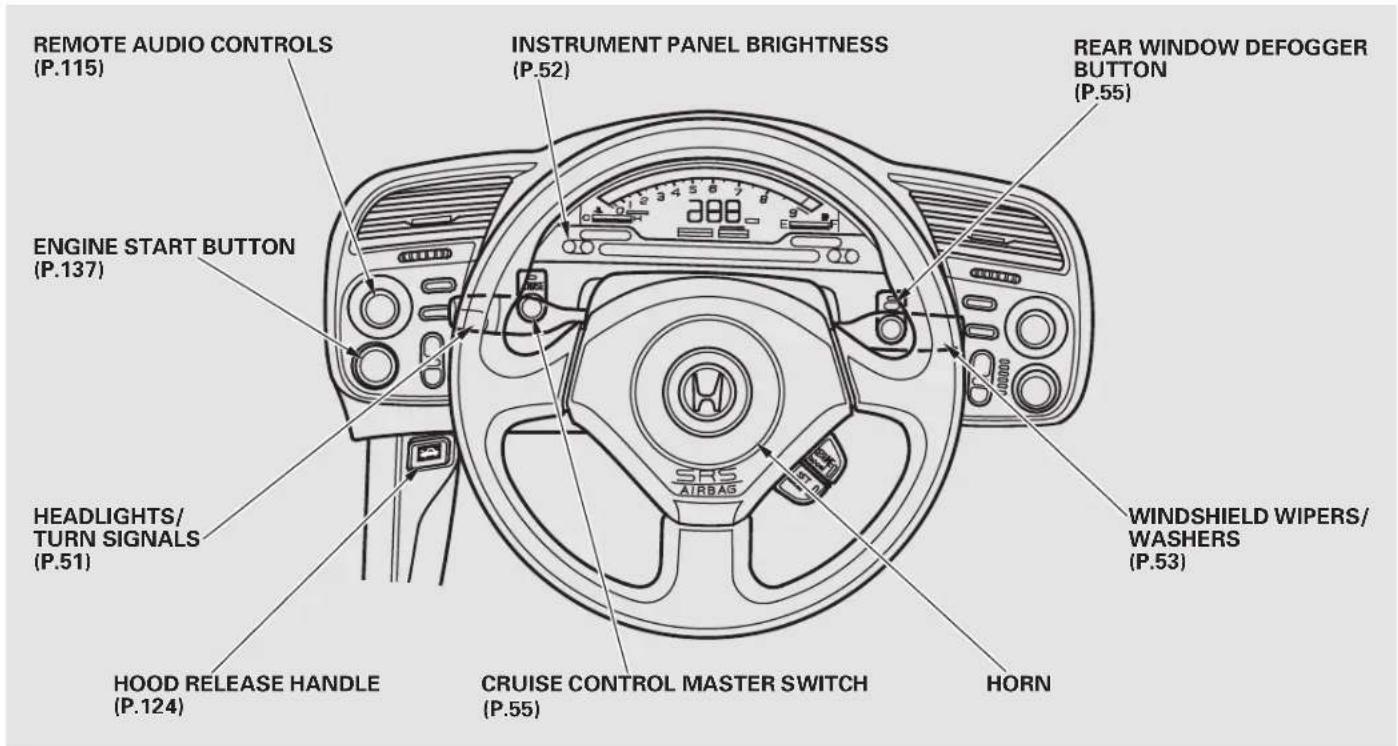

Your Car at a Glance

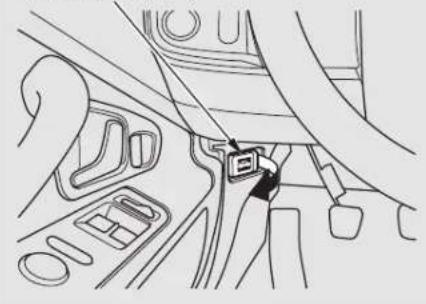

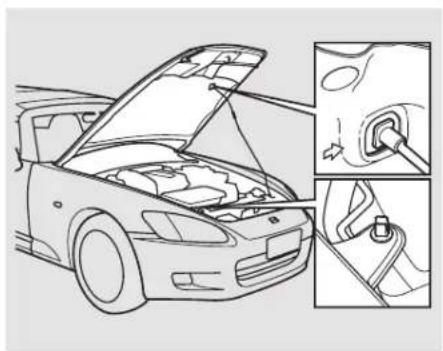

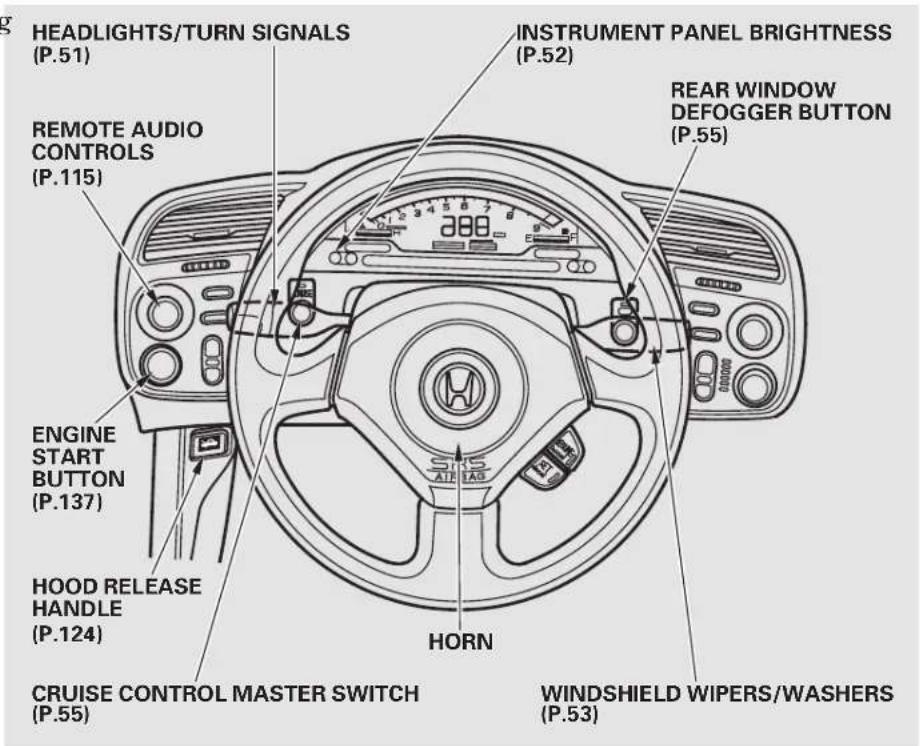

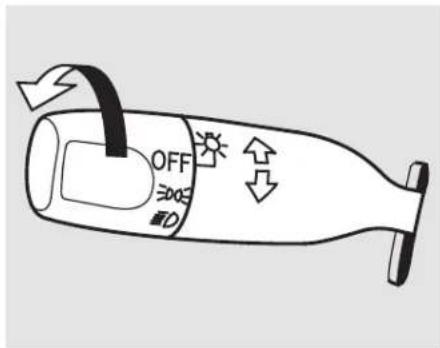

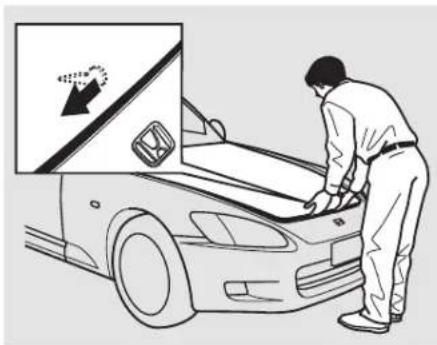

HEADLIGHTS/TURN SIGNAL SWITCH (P.51) HOOD RELEASE HANDLE (P.124) DOOR LOCK SWITCH (P.60) POWER WINDOW SWITCHES (P.68) MIRROR CONTROLS (P.78) ROOF SWITCH (P.71) WINDSHIELD WIPER CONTROLS (P.53) HEATING AND AIR CONDITIONING (P.84) REAR WINDOW DEFOGGER BUTTON (P.55) AUDIO SYSTEM (P.92) HAZARD WARNING SWITCH (P.78)

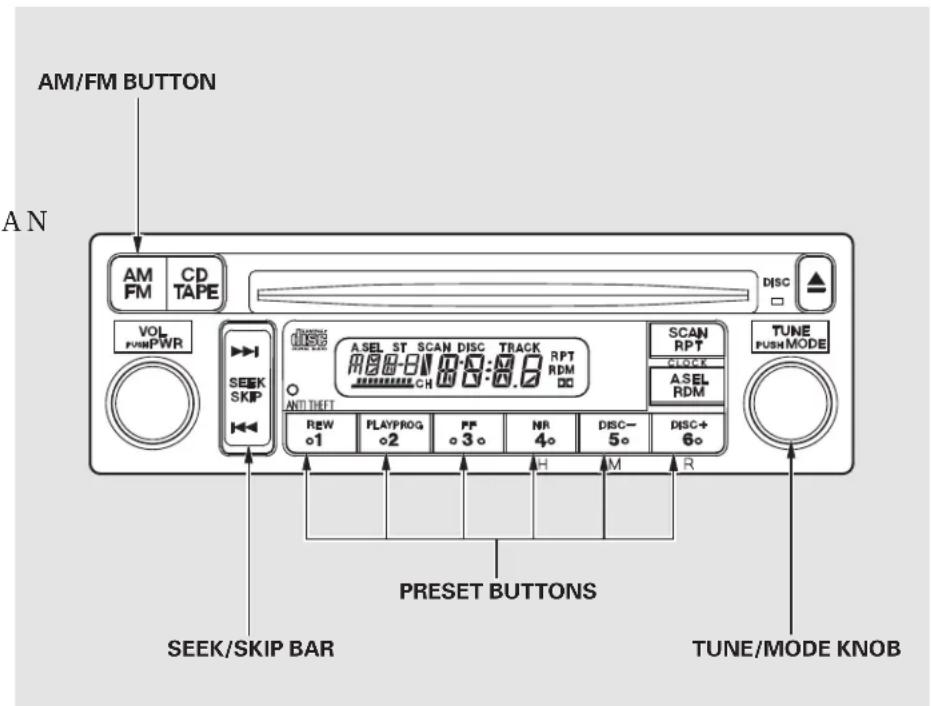

REMOTE AUDIO CONTROLS (P.115) INSTRUMENT PANEL BRIGHTNESS (P.52) REAR WINDOW DEFOGGER BUTTON (P.55) ENGINE START BUTTON (P.137) HEADLIGHTS/TURN SIGNALS (P.51) HOOD RELEASE HANDLE (P.124) CRUISE CONTROL MASTER SWITCH (P.55) HORN WINDSHIELD WIPERS/WASHERS (P.53)

This section gives you important information about how to protect yourself and your passenger. It shows you how to use seat belts properly. It explains your Supplemental Restraint System. And it tells you how to properly restrain children in your car.

Your Car’s Safety Features......7	Child Seats......22Seat Bel Protecting Small Children......26Airbags Protecting Larger Children......29Seats & Added Backs Information About Your Head Restra Seats Blots......33
Door Locks......10	Seat Belt System Components...33
Pre-Drive Safety Checklist......11
Protecting Adults......12
1. Close and Lock the Doors......12	Additional Information About Your SRS......35
2. Adjust the Front Seats......12	SRS Components......35
3. Adjust the Seat-Backs......13	How Your Airbags Work......35
4. Fasten and Position the Seat Belts......15	How the Automatic Seat Belt Tensioners Work......37
5. Maintain a Proper Sitting Position......16	How the SRS Indicator Light Works......37
Advice for Pregnant Women......17	SRS Safety Precautions....18......38
Protecting Children......19
All Children Must Be Restrained......19	Carbon Monoxide Hazard......39
Your Car is Not Recommended for Child Passengers......20	Safety Labels......40
The Passenger’s Airbag Poses Serious Risks to Children......20
......Additional Safety Precaution . 22

Important Safety Precautions

You'll find many safety recommendations throughout this section, and throughout this manual. There commands on the are the ones we consider to be the most important.

Always Wear Your Seat Belt

A seat belt is your best protection in all types of collisions. Airbags supplement seat belts, but airbags are designed to inflate only in a moderate to severe frontal collision. So even though your car is equipped with airbags, make sure you and your passenger always wear your seat belts, and wear them properly. (See page 15

Your Car is Not Recommended for Child Passengers

Since all children are safest in the back seat of a car, and your car does not have a back seat, we recommend that you do not carry a child passenger. Due to the passenger's airbag hazard, you should never carry an infant in a rear-facing child seat in this car. If a small child who must be restrained in a forward-facing child seat, or a larger child, must ride in this car, be sure to follow all instructions and safety warnings in this manual. (See pages 26 and.)

Be Aware of Airbag Hazards

While airbags can save lives, they can cause serious or fatal injuries to occupants who sit too close to them, or are not properly restrained. Infants, young children, and short adults are at the greatest risk. Be sure to follow all instructions and warnings in this manual. (See page 7.)

Don't Drink and Drive

Alcohol and driving don't mix. Even one drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. So don't drink and drive, and don't let your friends drink and drive, either.

Control Your Speed

Excessive speed is a major factor in crash injuries and deaths. Generally, the higher the speed the greater the risk, but serious accidents can also occur at lower speeds. Never drive faster than is safe for current conditions, regardless of the maximum speed posted.

Keep Your Car in Safe Condition Having a tire blowout or a mechanical failure can be extremely hazardous. To reduce the possibility of such problems, check your tire pressures and condition frequently, and perform all regularly scheduled maintenance. (See page .152

(1) Safety Cage (2) Crush Zones (3) Seats & Seat-Backs (4) Head Restraints (5) Collapsible Steering Column (6) Seat Belts (7) Seat Belt Tensioners (8) Airbags (9) Door Locks

Your car is equipped with many features that work together to protect you and your passenger during a crash.

Some safety features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment; front and rear crush zones that are designed to crumple and absorb energy during a crash; a collapsible steering column; and seat belt tensioners that automatically tighten the seat belts in the event of a crash. These safety features are designed to reduce the severity of injuries in a crash. However, you and your passenger can't take full advantage of these safety features unless you remain sitting in a proper position and always wear your seat belts properly. In fact, some safety features can contribute to injuries if they are not used properly.

Seat Belts

For your safety, and the safe your passenger, your car is equipped with seat belts in both seating positions.

Your seat belt system also includes a light on the

instrument panel to remind you and your passenger to fasten your seat belts.

Why Wear Seat Belts

Seat belts have proven to be the single most effective safety

Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even though your car has airbags.

In addition, most states and all Canadian provinces require you to wear seat belts.

WARNING

Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even if you have airbags.

Be sure you and your passenger always wear seat belts and wear them properly.

device.

When properly worn, seat belts:

• Keep you connected to the vehicle so you can take advantage of the vehicle's built-in safety features.
• Help protect you in almost every type of crash, including side and rear impacts and rollovers. (Your airbag can only be helpful in a

moderate to severe frontal collision.)

• Help keep you from being thrown against the inside of the vehicle and against other occupants.

- Keep you from being thrown out of the vehicle.

- Help keep you in a good position should the airbags ever deploy. A good position reduces the risk of injury from an inflating airbag, and allows you to get the best advantage from the airbag.

Of course, seat belts cannot completely protect you in every crash. But in most cases, seat but can reduce your risk of serious injury.

What you should do Always wear your seat belt, and make sure you wear it properly.

Airbags

Line drawing of two identical helmet covers viewed from the side, no text or symbols present

Your car has a Supplemental Restraint System (SRS) with frontal airbags to help protect the driver and a passenger.

SRS

This system also includes an indicator light on the

instrument panel to alert you to a possible problem with the system.

The most important things you need to know about your airbags are:

- Airbags do not replace seat belts. The seat belts are the occupants' primary protection in all types of collisions. Airbags supplement seat belts by providing extra protection for occupants' heads and chests.

• Airbags offer no protection in side impacts, rear impacts, rollovers, or minor collisions. Airbags are designed to deploy only during a moderate to severe frontal collision.

• Airbags can pose serious hazards. To do their job, airbags must inflate with tremendous force and speed. So while airbags save lives, they can cause serious injury adults and larger children who are not wearing seat belts, are not wearing them properly, are sitting too close to the airbag, or are not sitting in a proper position. Infants and small children are at an even greater risk of injury or death.

What you should do Always wear your seat belt properly, and sit upright and as far back as possible from the steering wheel or dashboard.

Seats & Seat-Backs Door Locks

Your car's seats are designed to keep you in a comfortable, upright position so you can take full advantage of the protection offered by seat belts and the energy absorbing materials in the seats.

How you adjust your seats and seat-backs can also affect your safety. For example, sitting too close to the steering wheel or dashboard increases the risk of you or your passenger being injured by striking the inside of the car, or by an inflating airbag.

Reclining a seat-back too far reduces the seat belt's effectiveness and increases the chance that the seat's occupant will slide under the seat belt in a crash and be seriously injured.

What you should do Move the seats as far back as possible, and keep adjustable seat-backs in an upright position whenever the car is moving.

Head Restraints

Head restraints can help protect you from whiplash and other injuries.

Keeping your doors locked reduces the chance of being thrown out to the car during a crash. It also helps prevent occupants from accidentally opening a door and falling out, and outsiders from unexpectedly opening your doors.

Pre-Drive Safety Checklist

To make sure you and your passenger get the maximum protection from your car's safety features, check the following each time before you drive away:

• You and any adult passenger, or a larger child who has outgrown child seats, are wearing your seat belts and wearing them properly (see page 15
• A small child riding in a forward-facing child seat is properly restrained (see page 26
• Occupants are sitting upright and as far back as possible from the steering wheel and dashboard (see page 12

• Seat-backs are upright (see page 13).

• Both doors are closed and locked (see page 12

• All cargo is properly stored or secured (see page) L30

The rest of this section gives more detailed information about how you can maximize your safety.

Remember, however, that no safety system can prevent all injuries or deaths that can occur in severe crashes, even when seat belts are properly worn and the airbags deploy.

Protecting Adults

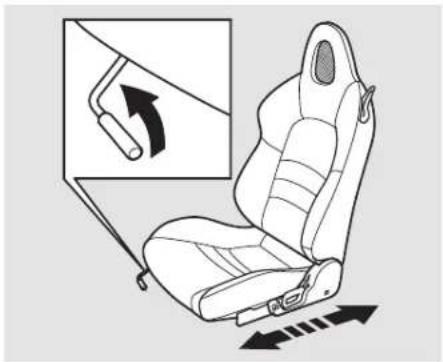

Introduction Adjust the Front Seats

The following pages provide instructions on how to properly protect adult occupants.

These instructions also apply to a child whom you have decided is large enough and mature enough to ride as a passenger. (See page 29 for important additional guidelines on how to properly protect larger children.)

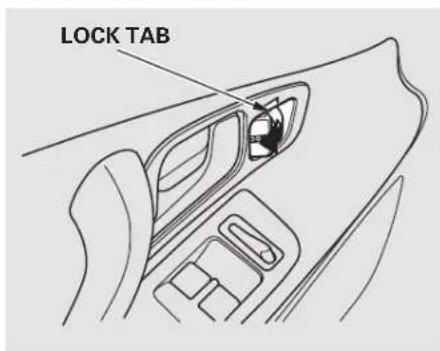

Close and Lock the Doors1. After everyone has entered the car, be sure the doors are closed and locked.

Your car has a door monitor light on the

instrument panel to indicate when a specific door is not tightly closed.

For safety, locking the doors reduces the chance that a passenger, especially a child, will open a door while the car is moving and accidentally fall out. It also reduces the chance of someone being thrown out of the car during a crash.

For security, locked doors can prevent an outsider from unexpectedly opening a door when you come to a stop.

See page 60 for how to lock the doors.

1.

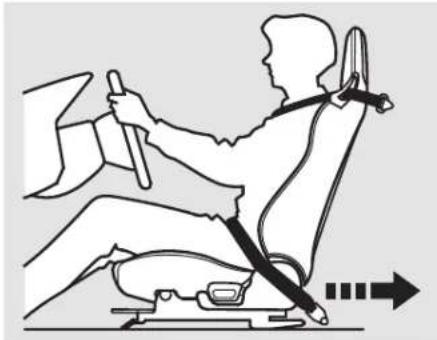

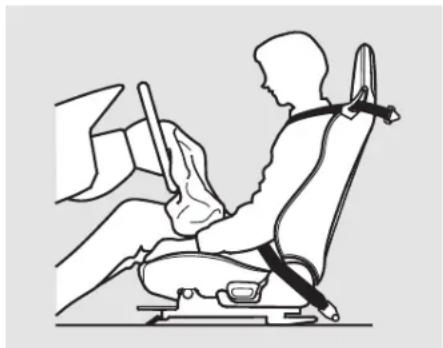

Line drawing of a person seated in a car seat using a steering wheel, with no text or symbols present.

Any driver who sits too close to the steering wheel is at risk of being seriously injured or killed by striking the steering wheel, or from being struck by an inflating airbag during a crash.

To reduce the chance of injury, wear your seat belt properly, sit upright with your back against the seat, and movetheseatawayfromthe steering wheel to the farthest distance that allows you to maintain full control of the car.

The National Highway Traffic Safety Administration and Transport Canada recommend that drivers adjust the seat so the center of the chest is at least 10 inches (25 cm) away from the center of the steering wheel. Also makes sure your passenger moves the seat as far to the rear as possible.

WARNING

Sitting too close to an airbag can result in serious injury or death if the airbags inflate.

Always sit as far back from the airbags as possible.

Most shorter drivers can get far enough away from the steering wheel and still reach the pedals. However, if you are concerned about sitting too close, we recommend that you investigate whether some type of adaptive equipment may help.

Once your seat is adjusted correctly, rock it back and forth to make sure the seat is locked in position.

See page for how to adjust the seats.

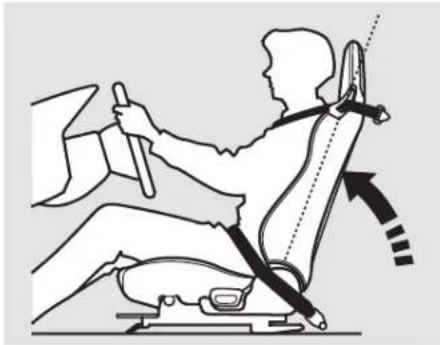

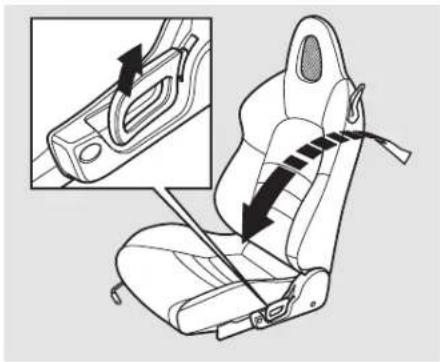

Adjust the Seat-Backs3.

Line drawing of a person using a car seatbelt device, showing seatbelt and seatbelt rack (no text or symbols)

Adjust the driver's seat-back to a comfortable, upright position, leaving ample space between your chest and the airbag cover in the center of the steering wheel. If you sit too close to the steering wheel, you could be injured if the airbag inflates.

CONTINUED

Protecting Adults

A passenger should also adjust the seat-back to an upright position, but as far from the dashboard as possible. A passenger who sits too close to the dashboard could be injured if the airbag inflates.

Reclining a seat-back so that the shoulder part of the belt no longer rests against the occupant's chest reduces the protective capability of the belt. It also increases the chance of sliding under the belt in a crash and being seriously injured. The farther a seat-back is reclined, the greater the risk of injury.

⚠ WARNING

Reclining the seat-back too far can result in serious injury or death in a crash.

Adjust the seat-back to an upright position and sit well back in the seat.

See page f67 how to adjust seat-backs.

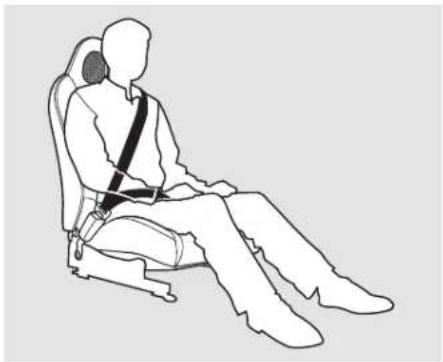

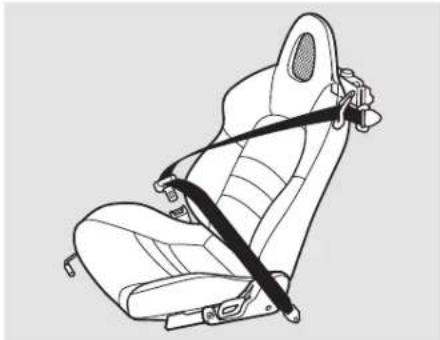

4.Fasten and Position the Seat Belts

Insert the latch plate into the buckle, then tug on the belt to make sure the belt is securely latched. Also check that the belt is not twisted, because a twisted belt can cause serious injuries in a crash.

Line drawing of a seated person wearing a seatbelt and standing in a chair (no text or symbols)

Position the lap part of the belt as low as possible across your hips, then pull up on the shoulder part of the belt so the lap part fits snugly. This lets your strong pelvic bones take the force of a crash and reduces the chance of internal injuries.

If necessary, pull up on the belt again to remove any slack from the shoulder part, then check that the belt rests across the center of your chest and over your shoulder. This

spreads the forces of a crash over the strongest bones in your upper body.

WARNING

Improperly positioning the seat belts can cause serious injury or death in a crash.

Make sure all seat belts are properly positioned before driving.

Never place the shoulder portion of a lap/shoulder belt under your arm or behind your back. This could cause very serious injuries in a crash.

CONTINUED

Protecting Adults

If a seat belt does not seem to work as it should, it may not protect the occupant in a crash. No one should sit in a seat with an inoperative seat belt. Anyone using a seat belt that is not working properly can be seriously injured or killed. Have your Honda dealer check the belt as soon as possible.

See page for additional information about your seat belt system and how to take care of your belts.

5. Maintain a Proper Sitting Position

After occupants have adjusted their seats and put on seat belts, it is very important that they continue to sit upright, well back in their seats, with their feet on the floor, until the car is parked and the engine is off.

Sitting improperly can increase the chance of injury during a crash. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.

In addition, an occupant who is out of position can be seriously or fatally injured by striking interior parts of the car, or by being struck by inflating airbag.

WARNING

Sitting improperly or out of position can result in serious injury or death in a crash.

Always sit upright, well back in the seat, with your feet on the floor.

Remember, to get the best protection from your car's airbags and other safety features, you must sit properly and wear your seat belt properly.

an

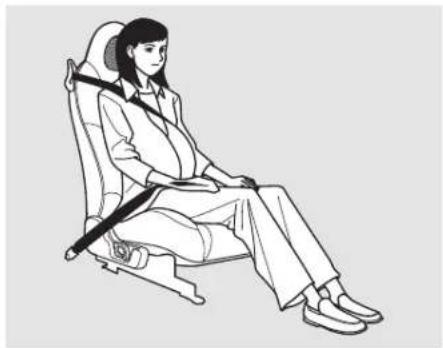

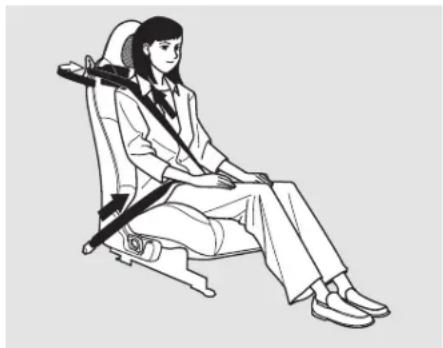

Advice for Pregnant Women

Line drawing of a woman seated in a seat using a seatbelt device (no text or symbols)

Because protecting the mother is the best way to protect her unborn child, a pregnant woman should always wear a seat belt whenever she drives or rides in a vehicle.

Remember to keep the lap portion of the belt as low as possible across your hips.

Pregnant women should also sit upright and as far back as possible from the steering wheel or dashboard. This will reduce the risk of injuries to both the mother and her unborn child that can be caused by a crash or an inflating airbag.

Each time you have a check-up, ask your doctor if it's okay for you to drive.

Protecting Adults

Additional Safety Precautions

• Two people should never use the same seat belt. If they do, they could be very seriously injured in a crash.
• Do not put any accessories on seat belts. Devices intended to improve occupant comfort or reposition the shoulder part of a seat belt can severely compromise the protective capability of the seat belt and increase the chance of serious injury in a crash.

• Do not place hard or sharp objects between yourself and an airbag. Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp object in your mouth, can result in injuries if your airbags inflate.

• Keep your hands and arms away from the airbag covers. If your hands or arms are close to the airbag covers in the center of the steering wheel and on top of the dashboard, they could be injured if the airbags inflate.

• Do not attach or place objects on the airbag covers. Any object attached to or placed on the covers marked "SRS AIRBAG," in the center of the steering wheel and top of the dashboard, could interfere with the proper operation of the airbags. Or, if the airbags inflate, the objects could be propelled inside the car and hurt someone.

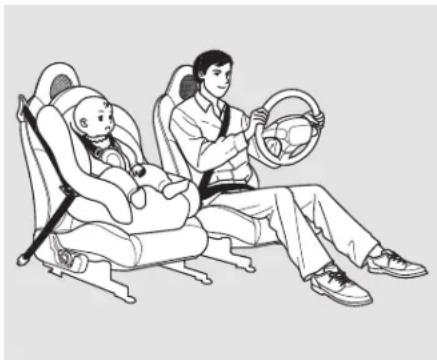

Illustration of a person driving a car with a child seated in a seat, no text or symbols present

Children depend on adults to protect them. However, despite their best intentions, many parents and other adults may not know how to properly protect young passengers.

So if you have children, or if you ever need to drive with a grandchild or other children in your car, be sure to read this section.

WARNING

Children who are unrestrained or improperly restrained can be seriously injured or killed in a crash.

Any child too small for a seat belt should be properly restrained in a child seat. A larger child should be properly restrained with a seat belt.

All Children Must Be Restrained Your Car is Not Recommended Each year, many children are injured for Child Passengers

Each year, many children are injured or killed in vehicle crashes because they are either unrestrained or not properly restrained. In fact, vehicle accidents are the number one cause of death of children ages 12 and under.

To reduce the number of child deaths and injuries, every state and Canadian province requires that infants and children be restrained whenever they ride in a vehicle.

Any child who is too small to seat belt should be properly restrained in a child seat. (See page 26.)

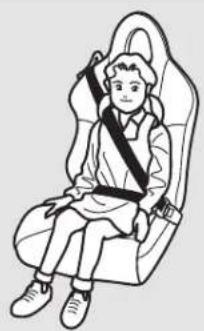

A larger child should always be restrained with a seat belt. (See page 29.)

We strongly recommend that you do not carry any child in this car.

One reason is that your car does not have a back seat, and accident statistics show that a child of any size or age is safer when they are properly restrained in the back seat of a vehicle.

In addition, your car has a passenger's airbag which poses serious risks to children particularly infants and small children.

eara

Protecting Children

- Never hold a small child on your lap. If you are not wearing a seat belt in a crash, you could be thrown forward into the dashboard and crush the child.

If you are wearing a seat before child can be torn from your arms during a crash. For example, if your car crashes into a parked vehicle at 30 mph (48 km/h) 30-lb (14 kg) child will become a 900-lb (410 kg) force, and you will not be able to hold on.

- Never put a seat belt over yourself and a child. During a crash, the belt could press deep into the child and cause very serious injuries. 29

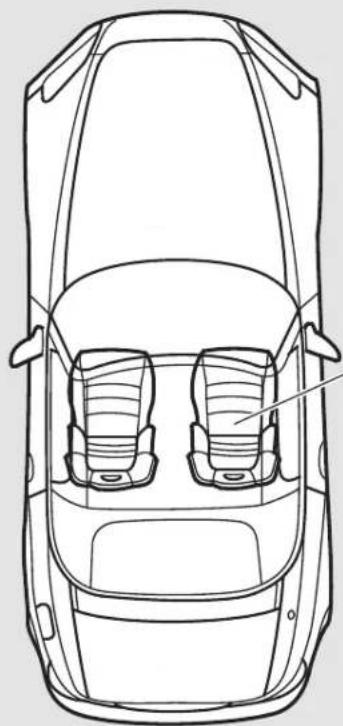

The Passenger's Airbag Poses Serious Risks to Children

Airbags have been designed to help protect adults in a moderate to severe frontal collision. To do this, the passenger's airbag is quite large, that the inflates with tremendous speed.

As a result, we urge you to follow these guidelines. , a

Infants

Never put a rear-facing child seat in the front seat of a car equipped with a passenger's airbag. If the airbag inflates, it can hit the back of the child seat with enough force to kill or very seriously injure an infant.

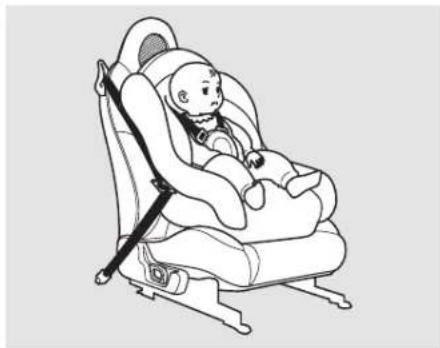

Small Children

Placing a forward-facing child seat in the front seat of a car equipped with a passenger's airbag can be

hazardous. If the vehicle seat is too far forward, or the child's headi thrown forward during a collision, an inflating airbag can strike the child with enough force to kill or very seriously injure a small child. If a small child must ride in this car, follow the instructions on page .26

Larger Children

Children who have outgrown child seats are also at risk of being injured or killed by an inf lating passenger's airbag. If a larger child must ride in this car, see page for important guidelines on how to decide whether a child is large enough and mature enough to ride as a passenger, and how to properly protect the child.

U.S. Models Canadian Models

To remind you of the passenger's airbag hazards, your car has warning labels on the dashboard and on the driver's and passenger's visors. Please read and follow the instructions on these labels.

WARNING

DEATH or SERIOUS INJURY can occur
- Children 12 and under can be killed by the air bag
- NEVER put a rear-facing child seat in the front - Sit as far back as possible from the air box
- Sit as far back as possible from the air bag - ALWAYS use SEAT BELTS and CHILD RESTRAINTS

WARNING

Children Can Be KILLED or INJURED by Passenger Air Bag

• Make sure all children use seat belts or child seats.

To be removed by owner only.

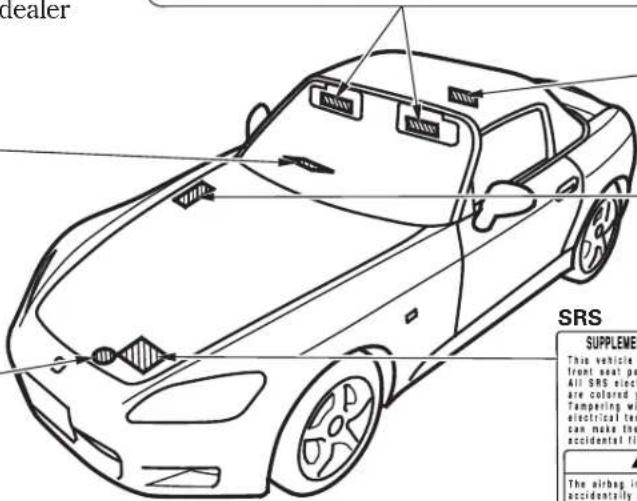

To remind you of the airbag hazards, your car has warning labels on the driver's and passenger's visors.

Please read and follow the instructions on these labels.

CAUTION

TO AVOID SERIOUS INJURY

• FOR MAXIMUM SAFETY PROTECTION IN ALL TYPES OF CRASHES, YOU MUST ALWAYS WEAR YOUR SAFETY BELT.
  • DO NOT INSTALL REARWARD-FACING CHILD SEATS IN ANY FRONT PASSENGER SEAT POSITION
• DO NOT SIT OR LEAN UNNECESSARILY CLOSE TO THE AIR BAG.
• DO NOT PLACE ANY OBJECTS OVER THE AIR BAG OR BETWEEN THE AIR BAG AND YOURSELF.
• SEE THE OWNER'S MANUAL FOR FURTHER INFORMATION AND EXPLANATIONS.

PRÉCAUTIONS:

POUR EVITER DES BLESSURES GRAVES:
POUR PROFITER D'UNE PROTECTION MAXIMALE LORS D'UNE COLLISION BOUCLEZ TOUJOURS VOTREC EINTURE DE SÉCURITÉ
• N'INSTALLEZ JAMAIS UN SIÈGE POUR ENFANTS FAISANT FACE A L'ARRIÈRE SUR LE SIÈGE DU PASSAGER AVANT.
- NE VOUS APPUYEZ PAS ET NE VOUS ASSOYEZ PAS PRÈS DU COUSSIN GONFLABLE.
- NE DÉPOSEZ AUCUN OBJET SUR LE COUSSIN GONFLABLE OU ENTRE LE COUSSIN GONFLABLE ET VOUS.
- LISEZ LE GUIDE UTILISATEUR POUR DE PLUS AMPLES RENSEIGNEMENTS.

Protecting Children

Additional Safety Precautions

- Do not leave a child alone in your car. Leaving a child without adult supervision is illegal in most states and Canadian provinces and can be very hazardous. For example, a small child left in a car on a hot day can die from heatstroke. A child left alone with the key in the ignition can accidentally set the car in motion, possibly injuring themselves or others.

- Lock both doors and the trunk when your car is not in use.

Children who play in cars can accidentally get trapped inside the trunk. Teach your children not to play in or around cars. Know how to operate the emergency trunk opener (US models only) and decide if your children should be shown how to use this feature (see page 65

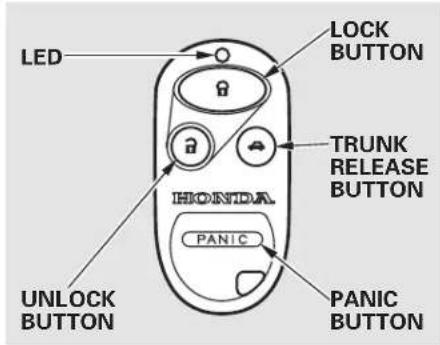

- Keep car keys and remote transmitters out of the reach of children. Even very young children learn how to unlock vehicle doors, turn on the ignition, and open the trunk, which can lead to accidental injury or death.

General Guidelines for Using Child Seats

As discussed on page 20, because your car does not have a back seat, and because of the passenger's airbag hazard, we strongly recommend that you do not carry a small child as a passenger in this car.

However, if you must carry a small child in this car, the child must be properly restrained in a child se

The following pages give general guidelines for selecting and installing a child seat. See page 26r additional information.

Selecting a Child Seat 2.3. To provide proper protection, a child seat should meet three requirements:

1. The child seat should meet safety standards. The child seat should meet Federal Motor Vehicle Safety Standard 213 (FMVSS 213) or Canadian Motor Vehicle Safety Standard 213 (CMVSS 213). Look for the manufacturer's statement of compliance on the box and seat.

The child seat should be of the proper type and size to fit the child.

Illustration of a child wearing a seatbelt and carrying a harness, seated in a car seat (no text or symbols)

Small Children: A child who can sit up without support should be restrained in a forward-facing child seat. See page 26 additional information on protecting small children.

The child seat should fit the passenger's seat.

Due to variations in the design of child seats, vehicle seats, and seat belts, all child seats will not fit all seating positions in all cars.

However, Honda is confident that one or more child seat models can fit and be properly installed in all recommended seating positions in your car.

Before purchasing a child seat, we recommend that parents test the child seat to make sure it fits properly in the passenger's seat. If a previously purchased child seat does not fit, you will need to buy a different one that will fit.

CONTINUED

Protecting Children

Placing a Child Seat

This page briefly summarizes Honda's recommendations on where to place a child seat in your car.

Airbags Pose Serious Risks to Children

The passenger's airbag inflates with enough force to kill or seriously injure an infant in a rear-facing child seat.

A small child in a forward-facing child seat is also at risk. If the vehicle seat is too far forward, or the child's head is thrown forward during a collision, an inflating airbag can kill or seriously injure the child.

If a small child must ride in this car, follow the instructions provided in this section.

Top-down line drawing of a car showing two seats and rear seats (no text or symbols)

Passenger's Seat

Infants: Never in the passenger's seat, due to the passenger's airbag hazard.

Small children: Not recommended, due to the passenger's airbag hazard. If a small child must ride in this car, move the vehicle seat to the rear-most position and secure a front-facing child seat with the seat belt. (see page27).

This car is not equipped with a tether attachment point.

Installing a Child Seat

After selecting a proper child seat, there are three main steps in installing the seat:

1. Secure the child seat to the car with a seat belt. All child seats must be secured to the car with the lap part of a lap/shoulder belt. A child whose seat is not properly secured to the car can be endangered in a crash. See page for instructions on how to secure a forward-facing child seat in this car.

2. Make sure the child seat is firmly secured. After installing a child seat, push and pull the seat forward and from side to side to verify that it is secure.

To provide security during normal driving maneuvers as well as during a collision, we recommend that parents secure a child seat as firmly as possible.

However, a child seat does not need to be “rock solid.” It may be difficult to install a child seat so that it does not move at all. Some side-to-side or back-and-forth movement can be expected and should not reduce the child seat’s effectiveness. ^27

3. Secure the child in the child seat.

Make sure the child is properly strapped in the child seat according to the child seat maker's instructions. A child who is not properly secured in a child seat can be thrown out of these seating crash and be seriously injured.

Storing a Child Seat

When you are not using a child seat, either remove it and store it in a safe place, or make sure it is properly secured. An unsecured child seat can be thrown around the car during a crash or sudden stop and injure someone.

Protecting Children

Protecting Small Children

Line drawing of a baby sitting in a car seat with a belt, no text or symbols present

The passenger's airbag poses serious risks to small children. If the vehicle seat is too far forward, or the child's head is thrown forward during a collision, or the child is unrestrained or improperly restrained, an inflating airbag can kill or seriously injure the child.

For these reasons, we recommend that you do not carry a small child as a passenger.

If you decide to carry a small child in this car, follow the instructions and guidelines below.

Child Seat Type

A child who can sit up without support, and who fits within the child seat maker's weight and height limits, should be restrained in a forward-facing, upright child seat.

Of the different seats available, we recommend those that have a five-point harness system as shown.

We also recommend that a small child stay in the child seat as long as possible, until the child reaches the weight or height limit for the seat.

▲WARNING

Improperly placing a forward-facing child seat in the front seat can result in serious injury or death if the airbags inflate.

If you must place forward-facing child seat in front, move the vehicle seat as far back as possible and properly restrain the child.

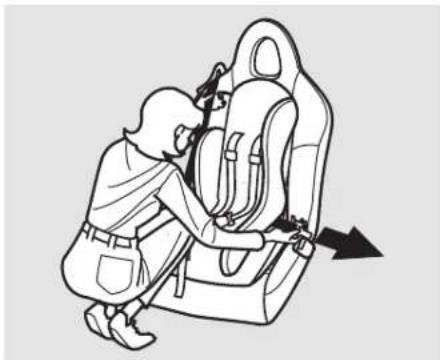

Child Seat Installation

The passenger's seat belt has a locking mechanism that must be activated to secure a child seat.

The following pages provide instructions and tips on how to secure a forward-facing child seat with this type of seat belt.

1. Move the vehicle seat to the rearmost position. Moving the seat as far back as possible reduces the chance of a child being injured or killed if the passenger's airbag inflates. (See page67r instructions on how to adjust the seat.)

Line drawing of a person sitting inside a car seat, holding a backpack and adjusting the seat (no text or symbols)

1. With the child seat in position, route the belt through the child seat according to the seat maker's instructions, then insert the latch plate into the buckle.

Line drawing of a child wearing a backpack and using a seatbelt device to interact (no text or symbols)

To activate the lockable retractor, slowly pull the shoulder part of the belt all the way out until it stops, then let the belt feed back into the retractor (you might hear a clicking noise as the belt retracts).

1. After the belt has retracted, tug on it. If the belt is locked, you will not be able to pull it out. If you can pull the belt out, it is not locked and you will need to repeat these steps. CONTINUED

Protecting Children

Line drawing of a person sitting in a car seat with a belt, no text or symbols present

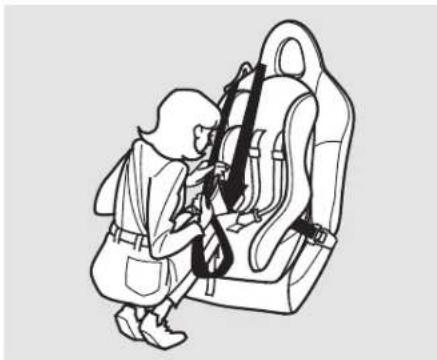

1. After confirming that the belt is locked, grab the shoulder part of the belt near the buckle and pull up to remove any slack from the lap part of the belt. Remember, if the lap part of the belt is not tight, the child seat will not be secure. It may help to put weight on the child seat, or push on the back of the seat, while pulling up on the belt.

Illustration of a person adjusting a seatbelt with directional arrows indicating motion (no text or symbols)

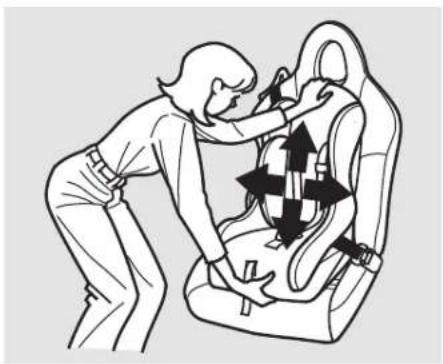

Push and pull the child seat forward and from side to side to verify that it is secure enough to stay upright during normal driving maneuvers. If the child seat is not secure, unlatch the belt, allow it to retract fully, then repeat these steps.

To deactivate the locking mechanism in order to remove a child seat, unlatch the buckle, unroute the seat belt, and let the belt fully retract.

Protecting Larger Children

The passenger's airbag poses serious risks to children, including those who have outgrown child seats. If the vehicle seat is too far forward, or the child's head is thrown forward during a collision, or the child is unrestrained or out of position, an inflating airbag can kill or seriously injure the child.

For these reasons, we recommend that you do not carry a child passenger.

With this in mind, following are some guidelines to help you decide when a given child may ride in your car.

The Child Should Wear a Seat Belt

When a child reaches the recommended weight or height limit for a forward-facing child seat, the child should wear a lap/shoulder belt. If a child is too short for the shoulder part of the belt to properly fit, we recommend that the child use a booster seat until the child is tall enough to use the seat belt without a booster.

The following pages give instructions on how to check proper seat belt fit, what kind of booster seat to use if one is needed, and important precautions for a child who must ride in this car.

WARNING

Allowing a larger child to sit improperly in the front seat can result in injury or death if the airbags inflate.

If a larger child must sit in front, make sure the child moves the seat as far back as possible and wears the seat belt properly.

Checking Seat Belt Fit

Illustration of a person sitting in a car seat with a belt (no text or symbols)

To determine if a lap/shoulder belt properly fits a child, have the child put on the seat belt. Follow the instructions on page 15. Then check how the belt fits.

If the shoulder part of the belt rests over the child's collarbone and against the center of the chest, as shown, the child is large enough to wear the seat belt.

CONTINUED

Protecting Children

However, if the belt touches or crosses the child's neck, the child needs to use a booster seat.

Do not let a child wear a seat belt across the neck. This could result in serious neck injuries during a crash.

Do not let a child put the shoulder part of a seat belt behind the back or under the arm. This could cause very serious injuries during a crash. It also increases the chance that the child will slide under the belt in a crash and be injured.

Do not put any accessories on a seat belt. Devices intended to improve occupant comfort or reposition the shoulder part of a seat belt, severely compromise the protective capability of the seat belt and increase the chance of serious injury in a crash.

Two children should never use the same seat belt. If they do, they could be very seriously injured in a crash.

Using a Booster Seat

Line drawing of a child wearing a seatbelt and harness, seated in a car seat (no text or symbols)

If a child needs a booster seat, we recommend choosing a style that allows the child to use the lap/shoulder belt directly, without a shield, as shown.

Whichever style you select, follow the booster seat maker's instructions.

A child may continue using a booster seat until the tops of the ears are even with the top of the seat-back. A child of this height should be tall enough to use the lap/shoulder belt without a booster.

When Can a Larger Child Ride in this Car

Children vary widely. And while age may be one indicator of when a child can safely ride in this car, there are other important factors you should consider.

Physical Size

Physically, a child must be large enough for the lap/shoulder belt to properly fit over the hips, chest, and shoulder (see pages 15d). If29 the seat belt does not fit properly, the child should use a booster seat.

Maturity

To safely ride in this car, a child must be able to follow the rules, including sitting properly and wearing the seat belt properly throughout a ride.

CONTINUED

Protecting Children

If you decide that a child can safely ride in this car, be sure to:

• and make sure you understand all seat belt instructions and all safety information.
- Move the vehicle seat to the rearmost position.
- Have the child sit up straight, back against the seat, and feet on or near the floor.
- Check that the child's seat belt is properly positioned and secured.

- Supervise the child. Even a mature child sometimes needs to be reminded to fasten the seat belt or sit properly. Carefully read the owner's manual

Seat Belt System Components Lap/Shoulder Belt

Your seat belt system includes lap/shoulder belts in both seating positions.

The seat belts are also equipped with automatic seat belt tensioners.

The system also includes a light on the instrument

panel to remind you and your passenger to fasten your belts. If the driver's seat belt is not fastened before the ignition is turned ON (II), the light will come on and a beeper will also sound. The beeper will stop after a few seconds, but the light will stay on until the driver's seat belt is fastened.

Line drawing of a car seatbelt with black straps (no text or symbols)

This seat belt has a single belt that goes over your shoulder, across your chest and across your hips.

To fasten the belt, insert the latch plate into the buckle, then tug on the belt to make sure the buckle is latched.

To unlock the belt, push the red PRESS button on the buckle the belt across your body to the door pillar. After exiting the car, be sure the belt is out of the way and will not

getclosedinthedoor.

Both seat belts have an emergency locking retractor. In normal driving, the retractor lets you move freely in your seat while it keeps some tension on the belt. During a collision or sudden stop, the retractor automatically locks the belt to help restrain your body.

The passenger's seat belt has an additional locking mechanism that must be activated to secure a child seat. (See page 25r instructions on how to secure a forward-facing child seat with this type of belt.)

If the shoulder part of the belt is pulled all the way out, the locking mechanism will activate. The belt will retract, but it will not allow the passenger to move freely.

CONTINUED

Additional Information About Your Seat Belts

To deactivate the locking mechanism, unlatch the buckle and let the seat belt fully retract. To refasten the belt, pull it out only as far as needed.

See page 15 for instructions on how to wear the lap/shoulder belt properly.

Seat Belt Maintenance

For safety, you should check the condition of your seat belts regularly.

Pull each belt out fully and look for frays, cuts, burns, and wear. Check that the latches work smoothly and that the lap/shoulder belts retract easily. Any belt not in good condition or not working properly will not provide good protection and should be replaced as soon as possible.

WARNING

Not checking or maintaining seat belts can result in serious injury or death if the seat belts do not work properly when needed.

Check your seat belts regularly and have any problem corrected as soon as possible.

U.S. Models

Honda provides a lifetime warranty on seat belts. Honda will repair or replace any seat belt component that fails to function properly during normal use. Please see your Honda Warranty Information booklet for details.

Line drawing of a person seated in a chair with a string bag attached, no text or symbols present

Your Honda has automatic seat belt tensioners for added protection during a moderate to severe frontal collision.

If your airbags inflate, the tensioners immediately tighten the front seat belts to help hold the occupants in place. The belts will remain tight until you unbuckle them in the normal way.

If a seat belt is worn during a crash, it must be replaced by the dealer. A belt that has been worn during a crash may not provide the same level of protection in a subsequent crash. The dealer should also inspect the anchors for damage and replace them if needed.

For information on how to clean your seat belts, see page 214.

SRS Components Automatic Seat Belt Te Your Supplemental Restraint System (SRS) includes:

• Two front airbags. The driver's airbag is stored in the center of the steering wheel; the front passenger's airbag is stored in dashboard. Both are marked "SRS AIRBAG."
  • Automatic seat belt tensioners that tighten the front seat belts during a moderate to severe frontal collision.
• Sensors that can detect a moderate to severe frontal collision.
• A sophisticated electronic system that continually monitors information about the sensors, the control unit, and the airbag activators when the ignition is ON (II).

CONTINUED

Additional Information About Your SRS

An indicator light on the instrument panel that alerts you to a possible problem with the system (see page 3.7

Emergency backup power in case your car's electrical system is disconnected in a crash.

How Your Airbags Work

If you ever have a moderate to severe frontal collision, the sensors will detect rapid deceleration and signal the control unit to instantly inflate the airbags and activate the automatic seat belt tensioners.

During a crash, your seat belt helps restrain your lower body and torso, while the tensioner tightens and locks the seat belt to help keep you in place. Your airbag provides a cushion to help restrain and protect your head and chest.

Since both airbags use the same sensors, both airbags normally inflate at the same time. However, it is possible for only one airbag to inflate.

This can occur when the severity of a collision is at the margin, or threshold, that determines whether or not the airbags will deploy. In such cases, the seat belt will provide sufficient protection, and the supplemental protection offered by the airbag would be minimal.

Line drawing of a person seated in a car seat using a device, no text or symbols present

After inflating, the airbags immediately deflate, so they won't interfere with the driver's visibility, or the ability to steer or operate other controls.

The total time for inflation and deflation is approximately one-tenth of a second, so fast that most occupants are not aware that the airbags deployed until they see them lying in their laps.

After a crash, you may see what looks like smoke. This is actually powder from the airbag's surface. Although the powder is not harmful, people with respiratory problems may experience some temporal discomfort. If this occurs, get out of the car as soon as it is safe to do so.

U.S. Owners

For additional information on how your airbags work, see the booklet titled SRS: What You Need to Know About Airbags that came with your owner's manual.

Canadian Owners

For additional information on how your airbags work, ask your dealer for a copy of the booklet titled SRS: What You Need to Know About Airbags.

How the SRS Indicator Light Works

SRS The purpose of the SRS light is to alert you to a potential problem with your Supplemental Restraint System.

When you turn the ignition ON (II), this indicator will light briefly then go out. This tells you that the system is working properly.

If the light comes on at any other time, or does not come on at all, you should have the system checked by your dealer. For example:

• If the SRS indicator light does not come on after you turn the ignition ON (II).
• If the light stays on after the engine starts.

Additional Information About Your SRS

- If the light comes on or flashes on and off while you drive.

If you see any of these indications, your airbags and seat belt tensioners may not deploy when you need them. See your Honda dealer as soon as possible.

▲WARNING

Ignoring the SRS indicator light can result in serious injury or death if the airbags do not inflate when needed.

Have your vehicle checked by a dealer as soon as possible if the SRS light alerts you to a potential problem.

Your Supplemental Restraint System is virtually maintenance-free, and there are no parts you can safely service. However, you must have your car serviced if:

- Your airbags ever inflate. The airbags, seat belt tensioners, and control unit must be replaced. Do not try to remove or replace the airbags yourself. This must be done by a Honda dealer or a knowledgeable body shop.

- The SRS indicator light alerts you to a problem. Take your car to an authorized Honda dealer as soon as possible. If you ignore this indication, the airbags might not inflate when you need them.

Additional Safety PrecautionsSRS Ser

- Don o t a t t e m p t t o d e a c t i v a t e y airbags. Together, airbags and seat belts provide the best protection in a moderate to severe frontal collision.

- Do not tamper with SRS components or wiring for any reason. Tampering could cause the airbags to deploy, possibly causing very serious injury.

See page 189 further information and precautions relating to your SRS.

Your car's exhaust contains carbon monoxide gas. You should have no problem with carbon monoxide entering the car in normal driving if you maintain your car properly. Have the exhaust system inspected for leaks whenever:

• The car is raised for an oil change.
- You notice a change in the sound of the exhaust.
• The car was in an accident may have damaged the underside.

WARNING

Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and even kill you.

Avoid any enclosed areas or activities that expose you to carbon monoxide.

High levels of carbon monoxide can collect rapidly in enclosed areas, such as a garage. Do not run the engine with the garage door closed. Even with the door open, run the engine only long enough to move the car out of the garage.

With the trunk lid open, air flow can pull exhaust gas into your vehicle's interior and create a hazardous condition. If you must drive with the trunk lid open, open all the windows and set the heating and cooling system as shown below.

If you must sit in your parked car, even in an unconfined area, with the engine running, adjust the heating and cooling system as follows:

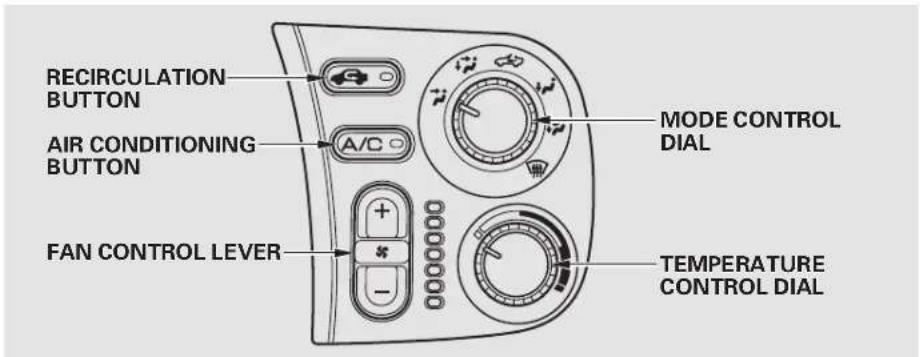

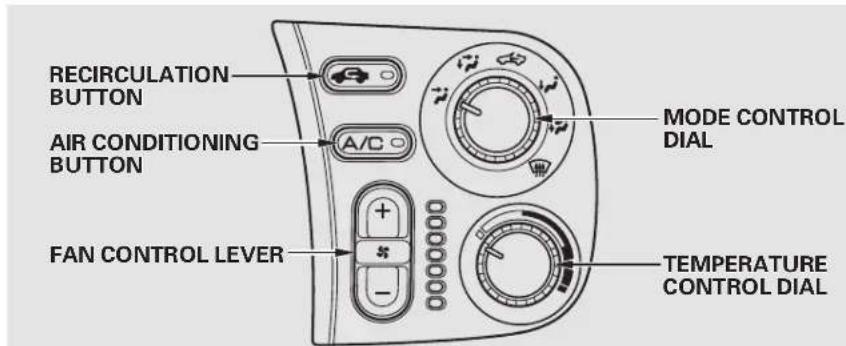

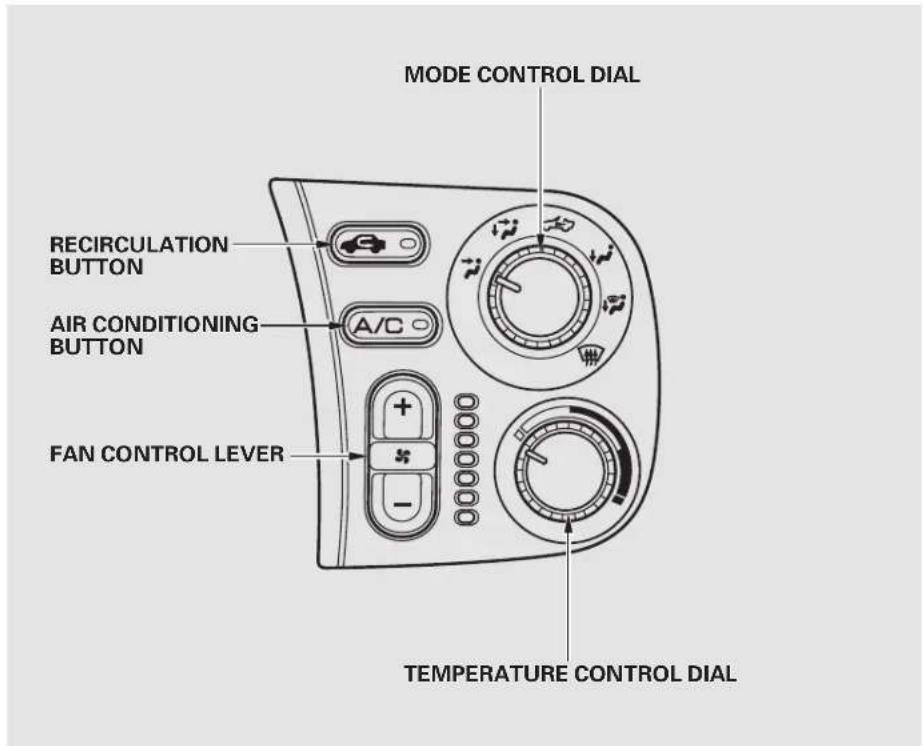

1. Push the button.

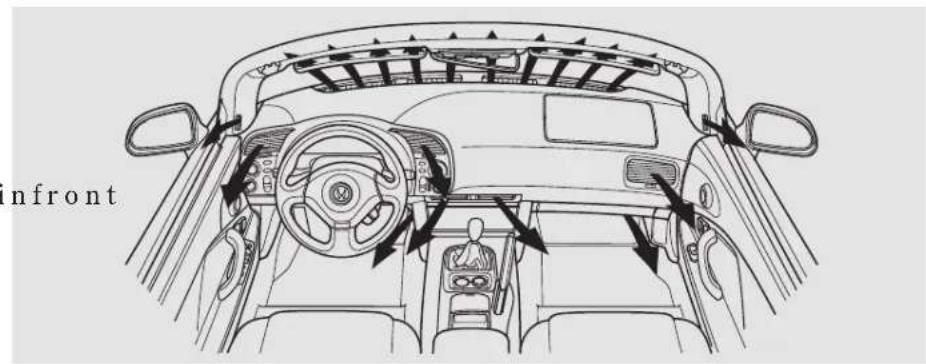

2. Select the mode.

3. Turn the fan on high speed.

4. Set the temperature control to a comfortable setting.

Safety Labels

These labels are in the locations shown. They warn you of potential hazards that could cause serious injury. Read these labels carefully.

If a label comes off or becomes hard to read, contact your Honda dealer for a replacement.

SUN VISOR

U.S. models Canadian models

DASHBOARD U.S. models only

RADIATOR DANGER WARNING 危 険 ▷ NEVER OPEN WHEN HOT. Hut coolant will could you. ▷ N DUVREZ PAS ORANGO CHAUS. ▷ NICHT BEI MEISSEN MOTOROFFEN. ▷ 熬火防止未けないで下さい。 ▷ 满湯機，请勿打开 1.1

dealer SRS SUPPLEMENT This vehicle front seat pair All SRS electric are colored by Tampering with electrical fan can make the accidental fire The airbag in accidentally

SEAT BELT TENSIONER

BATTERY

SRS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) This vehicle is equipped with driver and front seat, pleasant air, or airbags. All SRS electrical wiring and connectors are colored yellow. Tampeing with, disconnecting or using electrical test equipment on the SRS wiring can make the system inoperative or cause accidental wiring of the inflator. ▲ WARNING The airbag infillator is explosive and, if accidentally deployed, can seriously hurt you. Follow Service Manual Instructions carefully

This section gives information about the controls and displays that contribute to the daily operation of your Honda. All the essential controls are within easy reach.

Control LReations Transmitter		61
Indicator Tights .43		64
Gauges . Emergency Trunk Opener		65
Speedom Corsol 7 Compartments		66
Select Satt Adjustments		67
Tachon Power Windows		68
Temperature Bulg Top7		70
Fuel Gauge .48	Lowering the Convertible Top.	70

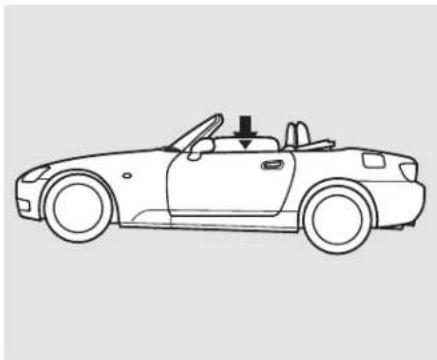

Odometer .48	Raising the Convertible Top .	73
Trip Meter .48	Convertible Top Cover.	75
Maintenance Required	Maintenance.	76
Indicator .49	Hazard Warning.	78
Controls Near the Steering	Mirrors.	78
Wheel .50	Adjusting the Power Mirrors.	78
Headlights .51	Parking Brake.	79

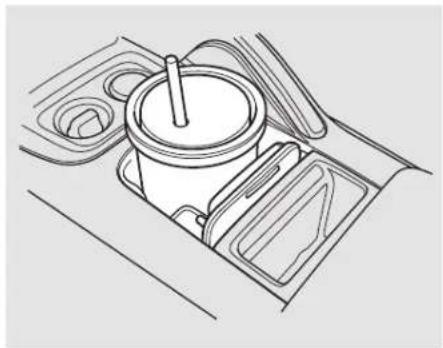

Daytime Running Lights .52	Beverage Holder.	80
Instrument Panel Brightness .52	Accessory Power Socket.	80
Turn Signals .53	Audio Panel.	80
Windshield Wipers .53	Interior Lights.	81
Windshield Washers .54
Rear Window Defogger .55
Keys and Locks .56
Keys .56
Immobilizer System .57
Ignition Switch .58
Power Door Locks .60

Control Locations

HEADLIGHT/TURN SIGNAL SWITCH (P.51) WINDSHIELD WIPER CONTROLS (P.53) REAR WINDOW DEFOGGER BUTTON (P.55) HOOD RELEASE HANDLE (P.124) DOOR LOCK SWITCH (P.60) POWER WINDOW SWITCHES (P.68) MIRROR CONTROLS (P.78) ROOF SWITCH (P.71) HAZARD WARNING SWITCH (P.78) HEATING AND AIR CONDITIONING (P.84) AUDIO SYSTEM (P.92)

CRUISE CONTROL INDICATOR (P.46) MAINTENANCE REQUIRED INDICATOR (P.49) TURN SIGNAL AND HAZARD WARNING INDICATORS (P.46) ANTI-LOCK BRAKE SYSTEM (ABS) INDICATOR (P.45) ABS BRAKE PHISH CANCEL PARKING BRAKE AND BRAKE SYSTEM INDICATOR (P.44) CHARGING SYSTEM INDICATOR (P.44) ELECTRIC POWER STEERING INDICATOR (P.45) HIGH BEAM INDICATOR (P.46) LOW FUEL INDICATOR (P.46) SEAT BELT REMINDER LIGHT (P.44) SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR (P.45) MOATELLA SRS MPH km/h 8888 88 TRIP A 388.0 MPH-km/h MOUNT REQ'D CRUISE CONTROL EPS DOOR-OPEN INDICATOR (P.45) TRUNK-OPEN INDICATOR (P.45) IMMOBILIZER SYSTEM INDICATOR (P.46) MALFUNCTION INDICATOR LAMP (P.236) LOW OIL PRESSURE INDICATOR (P.44)

The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.

The instrument panel has many indicators to give you important information about your car.

Seat Belt Reminder Light

This indicator flashes for several seconds when you turn the ignition ON (II). It flashes as a reminder to you and your passenger to fasten the seat belts. A beeper also sounds if you have not fastened your seat belt.

If you do not fasten your seat belt, the beeper will stop after a few seconds but the light stays on until you do. Both the light and the beeper stay off if you fasten your seat belt before turning on the ignition.

Low Oil Pressure Indicator

The engine can be severely damaged if this light flashes or stays on when the engine is running. For complete information, see page .234

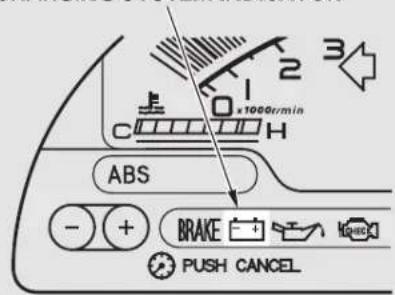

Charging System Indicator

If this light comes on when the engine is running, the battery is not being charged. For complete information, see page .235

U.S. Canada

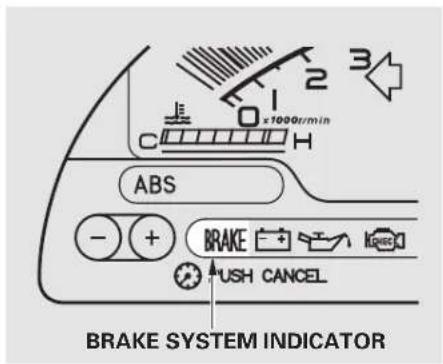

Parking Brake and Brake System Indicator

This light has two functions:

1. This indicator comes on when you turn the ignition switch ON (II). It is a reminder to check the parking brake. Driving with the parking brake not fully released can damage the brakes and tires.

2. If the indicator remains lit after you have fully released the parking brake while the engine is running, or if it comes on while driving, it can indicate a problem in the brake system. For complete information, see page 238

SRS Supplemental Restraint System Indicator

This indicator lights when you turn the ignition switch ON (II). If it comes on at any other time, it indicates a problem in the supplemental restraint system. For complete information, see page .37

U.S. Canada

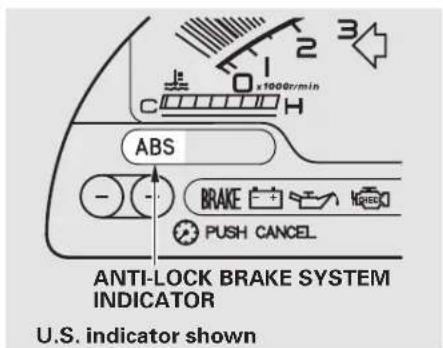

Anti-lock Brake System (ABS) Indicator

This light normally comes on for a few seconds when you turn the ignition switch ON (II), and when you push the START button. If this light comes on at any other time, there is a problem in the ABS. If this happens, take the car to your dealer to have it checked. With the light on, your car still has normal braking ability but no anti-lock.

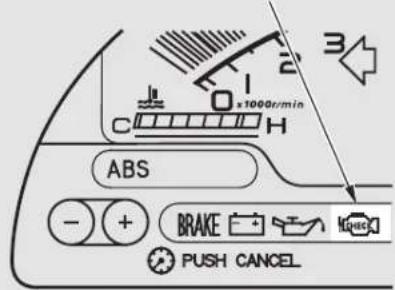

MALFUNCTION INDICATOR Lamp

See page 236

Trunk-open Indicator

This light comes on if the trunk lid is not closed tightly.

Door-open Indicator

This light comes on if either door is not closed tightly.

EPS Electric Power Steering (EPS) Indicator

This light normally comes on when you turn the ignition ON (II) and goes off after the engine starts. If it comes on at any other time, there is a problem in the Electric Power Steering system. If this happens, stop the car in a safe place and turn off the engine. Reset the system by restarting the engine, and watch the EPS light. If it does not go off, or comes back on again while driving, take the car to your dealer to have it checked. With the light on, the EPS is turned off, making the car harder to steer.

Turn Signal and Hazard Warning Indicators

The left or right turn signal light blinks when you signal a lane change or turn. If the light does not blink or blinks rapidly, it usually means one of the turn signal bulbs is burned out (see page 2). Replace the bulb as soon as possible, since other drivers cannot see that you are signalling.

When you turn on the Hazard Warning switch, both turn signal lights blink. All turn signals on the outside of the car should flash.

High Beam Indicator

This light comes on with the high beam headlights. See page5 for information on the headlight controls.

"Daytime Running Lights" Indicator

Canadian models only This indicator lights when you turn the ignition switch to ON (II) with the headlight switch off and the parking brake set. It should go off if you turn on the headlights on the parking brake. If it comes on at any other time, it means there is a problem with the DRL. There may also be a problem with the high beam headlights.

Immobilizer System Indicator

This indicator comes on for a few seconds when you turn the ignition switch ON (II). It will then go off if you have inserted a properly-coded ignition key. If it is not a properly-coded key, the indicator will blink and the engine will not start (see page)57

This indicator also blinks several times when you turn the ignition switch from ON (II) to ACCESSORY (I) or LOCK (0).

Cruise Control Indicator

This lights when you set the cruise control. See page f55198 information on operating the cruise control.

Low Fuel Indicator

This light comes on as a reminder that you must refuel soon.

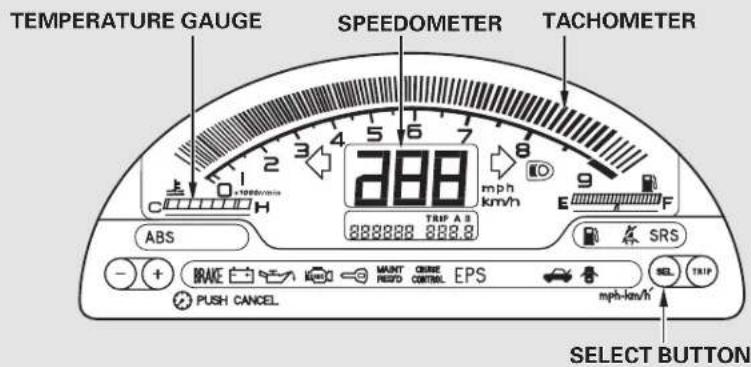

TEMPERATURE GAUGE SPEEDOMETER TACHOMETER ABS BRAKE MAINT RESET CURVE CONTROL EPS E 9 mph km/h SRS SELECT BUTTON mph-km/h

Speedometer

This shows your speed in miles per hour (mph) or kilometers per hour (km/h). 231

Select Button

The Select button switches the speedometer reading between miles per hour and kilometer per h also changes the odometer and trip meters to read in miles or kilometers correspondingly. To change the readings, push the Select button and hold it until you hear a beep.

Tachometer

The tachometer shows the engine speed in revolutions per minute (rpm). To protect the engine from damage, never drive with the tachometer reading in thered zo

Temperature Gauge

This shows the temperature of the engine's coolant. During normal operation, the reading should be in the middle of the gauge. In severe driving conditions, such as very hot weather or a long period of uphill driving, the reading may reach near the red mark. If it reaches the red mark, pull safely to the side of the road. I'll turn to page for instructions and precautions on checking the engine's cooling system.

Gauges

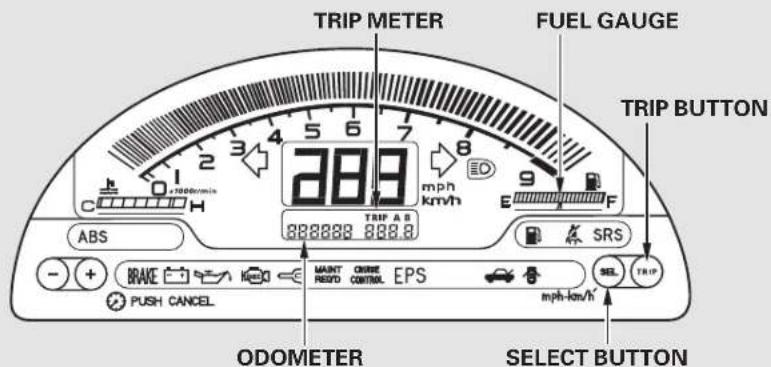

TRIP METER FUEL GAUGE TRIP BUTTON ABS BRAVE PUSH CANCEL ODOMETER MAINT RESET CRIME CONTROL EPS E mph km/h SRS SELECT BUTTON mph-km/h

Fuel Gauge Odometer

This shows how much fuel you have. It is most accurate when the car is on level ground. It may show slightly more or less than the actual amount when you are driving on curve hilly roads.

The odometer shows the total distance your car has been driven. It displays in miles and kilometers. It is illegal under U.S. federal law and Canadian provincial regulations to disconnect, reset, or alter the odometer with the intent to change the number of miles or kilometers indicated.

Trip Meter

This meter shows the number of miles or kilometers driven since you last reset it.

There are two trip meters, Trip A and Trip B. Switch between Trip A and Trip B by pressing the TRIP button repeatedly. Each trip meter works independently, so you can keep track of two different distances.

To reset a trip meter, display it and then press and hold the TRIP button until you hear a beep and the number resets to 0.0.

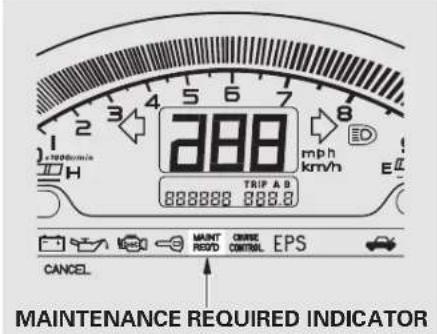

Maintenance Required Indicator

288 Trip A B 888888 888.0 mp h km/h E CANCEL MAINT REV'D ORANGE CONTROL EPS MAINTENANCE REQUIRED INDICATOR

This indicator reminds you that it is time to take your car in for scheduled maintenance. Refer to the Maintenance Schedules for Normal and Severe Driving Conditions on pages 154158

When the distance driven since the last scheduled maintenance reaches 6,000 miles (9,600 km), the indicator starts blinking. If you exceed 7,500 miles (12,000 km), the indicator stays on.

Your dealer will reset the indicator when they perform the scheduled maintenance. If someone else performs the maintenance, reset the indicator yourself.

To reset the maintenance required indicator, turn the ignition switch to the LOCK position, then press and hold the trip meter reset button while you turn the ignition switch ON. Continue holding the button until the indicator resets (the indicator light goes out).

Controls Near the Steering Wheel

Thetwoleversonthesteering column contain controls for driving features you use most often. The left lever controls the turn signals, headlights, and high beams. The right lever controls the windshield washers and wipers.

The engine start button and the remote audio controls are under the left air vent.

The instrument panel brightness control is in the lower left corner of the speedometer.

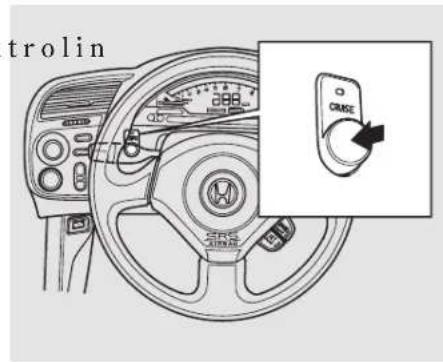

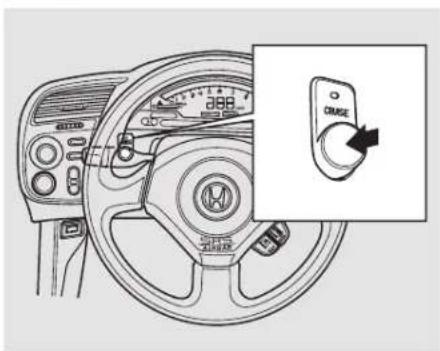

The cruise control master switch is to the left of the steering column.

To use the horn, press the pad around the "H" logo.

HEADLIGHTS/TURN SIGNALS (P.51) INSTRUMENT PANEL BRIGHTNESS (P.52) REAR WINDOW DEFOGGER BUTTON (P.55) REMOTE AUDIO CONTROLS (P.115) ENGINE START BUTTON (P.137) HOOD RELEASE HANDLE (P.124) HORN CRUISE CONTROL MASTER SWITCH (P.55) WINDSHIELD WIPERS/WASHERS (P.53)

Headlights

OFF 3000 3D

The rotating switch on the left lever controls the lights. Turning this switch to the “ ” position turns on the parking lights, taillights, instrument panel lights, side-marker lights, and rear license plate lights. Turning the switch to the “ ” ”D position turns on the headlights.

If you leave the lights on with the ignition switch in ACCESSORY (I) or LOCK (0), you will hear a reminder tone when you open the driver's door.

300 ≡D

To change from low beams to high beams, push the turn signal lever forward until you hear a click. The blue high beam indicator will light (see page 46). To return to low beams, pull the turn signal lever back.

Diagram of a fish with directional arrows and labels indicating sun, sun, and water symbols

To flash the high beams, pull the turn signal lever back lightly, then release it. The high beams will come on and go off. The high beams will stay on for as long as you hold the lever back, no matter what position the headlight switch is in.

Controls Near the Steering Wheel

Daytime Running Lights

Canadian models only With the headlight switch off, the high beam headlights come on with reduced brightness when you turn the ignition switch to ON (II) and release the parking brake. They remain on until you turn the ignition off, even if you set the parking brake.

The headlights revert to normal operation when you turn them on with the switch.

Instrument Panel Brightness

ABS - + BRAKE + PUSH CANCEL BUTTON BUTTON

The buttons in the lower left corner of the instrument panel adjust the brightness of the display in five steps. Push the or button five times to see the full range.

The display dims when the park lights or headlights are turned on. Adjust the brightness to the desired level with the headlight switch off, and also with the headlight switch on. Both settings will remain at those levels until you change them.

With the headlight switch on, you can switch the display to full daytime brightness by pushing and holding the button. Push the button to return the display to the original brightness.

Turn Signals Windshield Wipers

OFF TURN SIGNAL LEVER

Signal a turn or lane change with this lever. Push down on the lever to signal a left turn, and up to signal a right turn. If you push it up or down all the way, the turn signal continues to blink even when you release the lever. It shuts off automatically as you complete the turn.

To signal a lane change, push lightly on the turn signal lever in the proper direction and hold it. The lever will return to the center position as soon as you release it.

MUST OFF OFF

This lever controls the windshield wipers and washers. It has five positions:

MIST: mist

OFF: off

INT: intermittent

LO: low speed

HI: high speed

To select a position, push the lever up or down.

CONTINUED

Controls Near the Steering Wheel

In intermittent, the wipers operate every few seconds. In low speed and high speed, the wipers run continuously.

MIST OFF FOOT

To operate the wipers in mist mode, push the control lever up from the OFF position. The wipers run at high speed until you release the lever. This gives you a quick way to clear the windshield.

Windshield Washers

MUST OFF ON OFF

To clean the windshield, pull back on the wiper control lever. The washers spray until you release the lever.

The wipers run at low speed while you're pulling the lever, then complete one more sweep of the windshield after you release it.

Controls Near the Steering Wheel

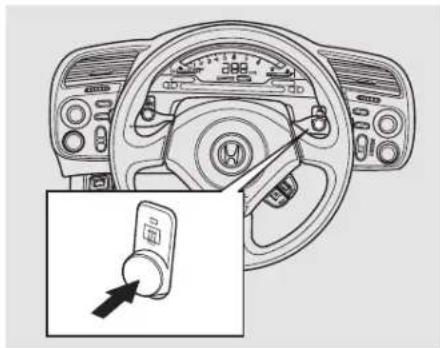

Rear Window Defogger

Diagram of a car dashboard with steering wheel and infotainment knob, showing no text or symbols

The rear window defogger will clear fog, frost, and thin ice from the window. Push the defogger button to turn it on and off. The light in the button come on to show the defogger is on. If you do not turn it off, the defogger will shut itself off after about 15 minutes. It also shuts off when you turn off the ignition. You have to turn it on again when you restart the car.

Do not push the defogger button when the convertible top is folded.

Make sure the rear window is clear and you have good visibility before starting to drive.

The defogger wires on the inside of the rear window can be accidentally damaged. When cleaning the glass, always wipe side to side.

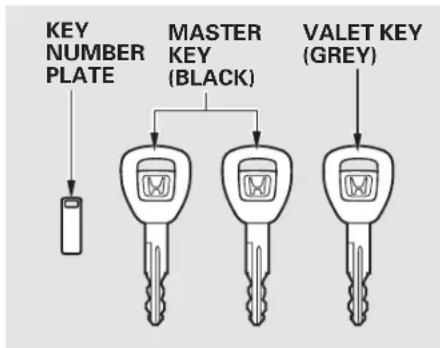

Keys

KEY NUMBER PLATE MASTER KEY (BLACK) VALET KEY (GREY)

Your car comes with two master keys and a valet key. The master key fits all the locks on your car:

• Ignition
• Doors
• Trunk
• Lower console compartment

The valet key works only in the ignition and the door locks. You can keep the trunk and the lower console compartment locked when you leave your car and the valet key at a parking facility.

You should have received a number plate with your keys. You will need this key number if you ever have to get a lost key replaced. Keep the plate stored in a safe place. If you need to replace a key, use only Honda-approved key blanks.

These keys contain electronic circuits that are activated by the Immobilizer System. They will not work to start the engine if the circuits are damaged.

- Protect the keys from direct sunlight, high temperature, and high humidity.

• Donotdropthekeysorsethea objects on them.
• Keep the keys away from liquids. If they get wet, dry them immediately with a soft cloth.

e The keys do not contain batteries. Do not try to take them apart.

Remote Transmitter

Your car also comes with two remote transmitters; see page for an explanation of the operation.

Immobilizer System

The Immobilizer System protects your car from theft. A properly-coded master or valet key must be used in the ignition switch for the engine to start. If an improperly-coded key (or other device) is used, the engine's fuel system is disabled.

When you turn the ignition switch to ON (II), the Immobilizer System indicator should come on for a few seconds, then go out. If the indicator starts to blink, it means the system does not recognize the coding of the key. Turn the ignition switch to LOCK (0), remove the key, reinsert it, and turn the switch to ON (II) again.

The system may not recognize your key's coding if another immobilizer key or other metal object is near the ignition switch when you insert the key. To make sure the system recognizes the key code:

• Do not keep other immobilizer keys on the same key ring.
• Use a plastic or leather key fob, not metal.
• Keep other keys away from your vehicle's key and the ignition switch while trying to start the engine.

If the system repeatedly does not recognize the coding of your key, contact your Honda dealer.

The Immobilizer System indicator will also blink several times when you turn the ignition switch from ON (II) to ACCESSORY (I) or LOCK (0).

Do not attempt to alter this system or add other devices to it. Electrical problems could result that may make your car undriveable.

If you have lost your key and you cannot start the engine, contact your Honda dealer.

CONTINUED

Keys and Locks

As required by the FCC:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Industry Canada Standard RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference that may cause undesired operation of the device.

Line drawing of a car interior showing steering wheel and dashboard (no text or symbols)

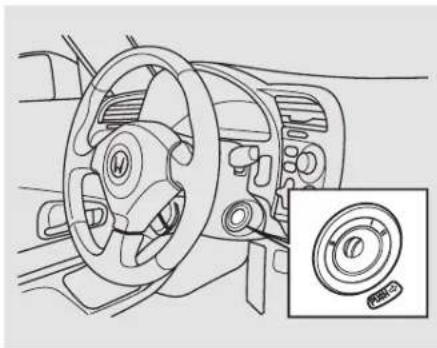

The ignition switch is on the right side of the steering column. It has three positions:

• LOCK(0)
• ACCESSORY (I)
  • ON (II)

LOCK (0)Ignition Switch remove the key only in this position. To switch from ACCESSORY to LOCK, you must push the key in slightly as you turn it. The anti-theft lock will lock the steering column when you remove the key. If the front wheels are turned, the anti-theft lock may sometimes make it difficult to turn the key from LOCK to ACCESSORY. Firmly turn the steering wheel to the left or to the right as you turn the key.

WARNING

Removing the key from the ignition switch while driving locks the steering. This can cause you to lose control.

Remove the key from the ignition switch only when parked.

ACCESSORY (I) In this position, you can operate the audio system and the accessory power socket.

ON (II) This is the normal key position when driving. All features and accessories on the car are usable. Several of the lights on the instrument panel come on as a test when you turn the ignition switch from ACCESSORY to ON.

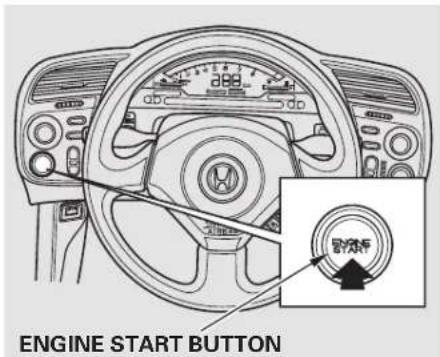

The engine can be started with the key in this position by pressing the engine START button (see page 1).137

The engine will not start if the Immobilizer System does not recognize the key's coding (see page 57).

You will hear a reminder beeper if you leave the key LOCK (0) or ACCESSORY (I) position and open the driver's door. Removethekeyto turn off the beeper.

Keys and Locks

Power Door Locks

LOCK TAB

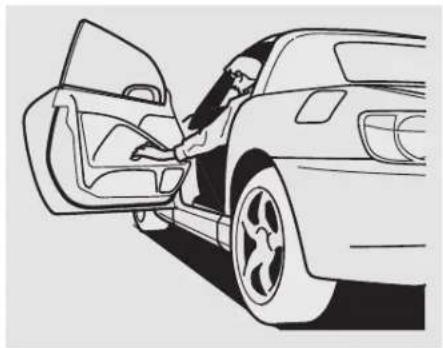

Each door has a lock tab next to the inside door handle. When you push in the lock tab on the driver's door, both doors lock. Pulling out the lock tab on the driver's door only unlocks that door. The lock tab on the passenger's door only locks and unlocks that door.

To lock the passenger's door when getting out of the car, push the lock tab in and close the door. To lock the driver's door, remove the key from the ignition switch, pull out either the inside or outside door handle and push the lock tab in, then close the door.

Both doors lock when you use the key in the driver's door. Using the key in the passenger's door only locks and unlocks that door. To unlock only the driver's door from the outside, insert the key in the driver's door lock, turn the key and release it. If you turn the key and hold it, both doors will unlock.

Remote Transmitter

LED LOCK BUTTON TRUNK RELEASE BUTTON HONDA PANIC UNLOCK BUTTON PANIC BUTTON

You can lock and unlock your car with the remote transmitter. When you push the LOCK button, both doors lock. The side marker lights and taillights flash once.

When you push the UNLOCK button once, only the driver's door unlocks. The parking lights and taillights flash twice. The passenger's door unlocks when you push the button a second time.

The interior light (if the interior light switch is in the center position) will come on when you press the UNLOCK button. If you do not open either door, the light will go out in about 30 seconds and the doors will automatically relock. If you relock the doors with the remote transmitter before 30 seconds have elapsed, the light will go off immediately.

You cannot lock or unlock the doors with the remote transmitter if either door is not fully closed or the key is in the ignition switch.

To open the trunk, push and hold the TRUNK RELEASE button for approximately one second.

Horn Operation

The horn will sound if you push the LOCK button a second time within five seconds of locking the doors.

CONTINUED

Keys and Locks

Panic Mode Replacing the Battery

Panic mode allows you to remotely activate your car's security system to attract attention. When activated, the horn will sound, and the exterior lights will flash for about 30 seconds. To activate panic mode, press and hold the PANIC button for about one second.

To cancel Panic mode before 30 seconds, press any button on the remote transmitter. You can also turn the ignition switch to ON (II).

When the remote transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock the doors, and the LED will get dim. Replace the battery as soon as possible.

Battery type: CR2025

BATTERY CH2025 Open BATTERY BOLKOS Close

To replace the battery, remove the round cover on the back of the transmitter by turning it counterclockwise with a coin.

BATTERY ROUND COVER

Remove the old battery and note the polarity. Make sure the polarity of the new battery is the same (side facing up), then insert it in the transmitter.

Align the mark on the cover with the mark on the transmitter, then set the cover in place and turn it clockwise.

Transmitter Care

Avoid severe shock to the transmitter, such as dropping or throwing it. Also, protect it from extreme hot or cold temperatures.

Clean the transmitter case with a soft cloth. Do not use strong cleaners or solvents that could harm the case. Immersing the transmitter in any liquid will harm the transmitter and cause it to not function properly.

If you lose a transmitter, you will need to have the replacement programmed to your vehicle's system by your Honda dealer. Any other transmitters you have will also need to be reprogrammed.

As required by the FCC:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Industry Canada Standard RSS-210.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference that may cause undesired operation of the device.

Keys and Locks

Trunk

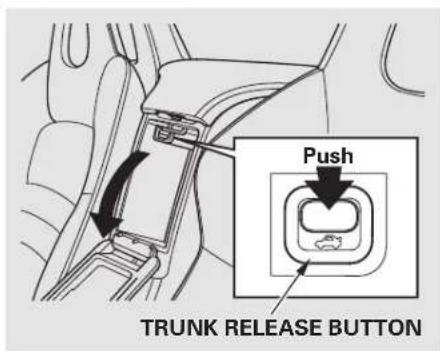

Push TRUNK RELEASE BUTTON

You can open the trunk in three ways:

• Press the trunk release button in the lower console compartment.

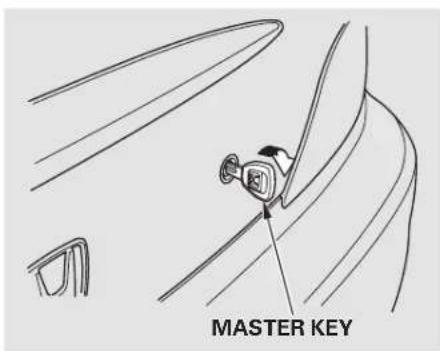

• Use themasterkeytoopent trunk lock. The valet key does not work in this lock.
• Press and hold the trunk release button on the remote transmitter for approximately one second (see page)61

MASTER KEY

Do close the trunk, press down on the trunk lid.

To protect items in the trunk when you need to give the key to someone else, lock the lower console compartment with the master key and give the other person the valet key.

See page 130 for cargo loading and weight limit information. Keep the trunk lid closed at all times while driving to avoid damaging the lid, and to prevent exhaust gas from getting into the interior. SeCarbon Monoxide Hazard on page 39

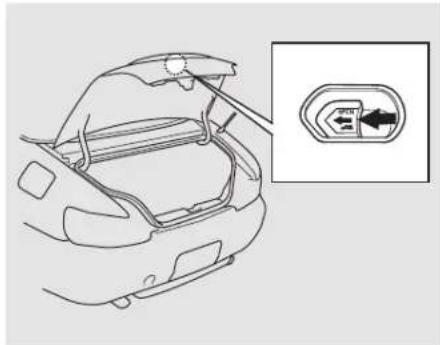

Emergency Trunk Opener (U.S. models only)

Line drawing of a car's rear canopy with a close-up inset showing the right-hand side panel (no text or symbols)

As a safety feature, your car has a release lever on the trunk latch so the trunk can be opened from the inside.

To open the trunk, push the release lever to the left.

Parents should decide if their children should be shown how to use this feature.

For more information about child safety, see page 22

Console Compartments

MASTER KEY

The area between the seats has two compartments. Open the lower compartment by squeezing the handle. Close it with a firm push. You can lock or unlock the lower compartment with the master key.

Diagram of car seatbelt mechanism showing valve placement and adjustment (no text or symbols)

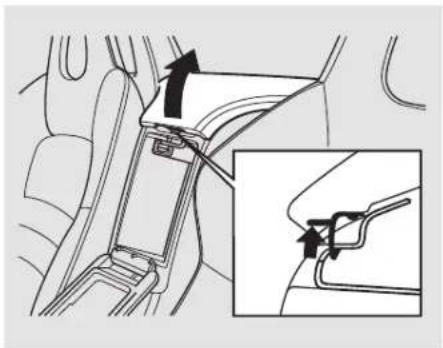

The lever to open the upper compartment is inside the lower compartment. Push up the lever and lift the lid. To close, lower the lid and push it down until it latches.

See pages for important safety information and warnings about how to properly position seats and seat-backs.

Make all seat adjustments before you start driving.

Line drawing of a car seat with directional arrows indicating movement or force (no text or symbols)

To adjust the seat forward and backward, pull up on the lever under the seat cushion's front edge. Move the seat to the desired position and release the lever. Try to move seat to make sure it is locked in position.

Diagram illustrating seatbelting technique with labeled arrows and magnified detail view

To change the angle of the seat-back, pull up on the lever on the outside of the seat bottom. Move the seat-back to the desired position and release ethb lever. Let the seat-back latch in the new position.

Power Windows

Your car's windows are electrically-powered. Turn the ignition switch to ON (II) to raise or lower either window.

DRIVER'S WINDOW SWITCH MAIN SWITCH PASSENGER'S WINDOW SWITCH

Each door has a switch that controls its window. To open the window, push the switch down and hold it. Release the switch when you want the window to stop. Close the window by pulling back on the switch and holding it.

The driver's armrest has a master power window control panel. To open the passenger's window, push down on the switch and hold it down until the window reaches the desired position. To close the window, pull back on the window switch. Release the switch when the window gets to the position you want.

WARNING

Closing a power window on someone's hands or fingers can cause serious injury.

Make sure your passenger is away from the window before closing it.

The master control panel also contains these extra features:

AUTO To open the driver's window fully, push the window switch firmly down and release it. The window automatically goes all the way down. To stop the window from going all the way down, pull back on the window switch briefly.

To open the driver's window only partially, push the window switch down lightly and hold it. The window will stop as soon as you release the switch.

The AUTO function only works to lower the driver's window. To raise the window, you must pull back on the window switch and hold it until the window reaches the desired position.

The MAIN switch controls power to the passenger's window. With this switch off, the passenger's window cannot be raised or lowered. The MAIN switch does not affect the driver's window. Keep the MAIN switch off when you have a child in the car so the child does not get injured by operating the window unintentionally.

Convertible Top

The convertible top on your Honda lowers and raises electrically.

Before operating the convertible top, make sure the car is parked on level ground, and that there is enough clearance above the top.

It is advisable to raise the top whenever you park the car. This helps to protect the car from unexpected weather changes, and from theft of your valuables.

NOTICE

• Do not operate the convertible top in freezing weather. You can damage the material and mechanism of the convertible top.
• Do not operate the top if it is wet, dirty, or covered with ice or snow.

• Never drive the car with the convertible top half open.

• Do not lower or raise the top while the engine is running.

• Do not operate the convertible top if the car is raised on the jack, a hoist, or on jack stands.

Lowering the Convertible Top Park your car in the shade whenever possible.

Extended exposure to sunlight can cause the convertible top to deteriorate.

1. Apply the parking brake. The convertible top will not operate unless the parking brake is fully engaged.

2. Turn the ignition switch to ON (II).

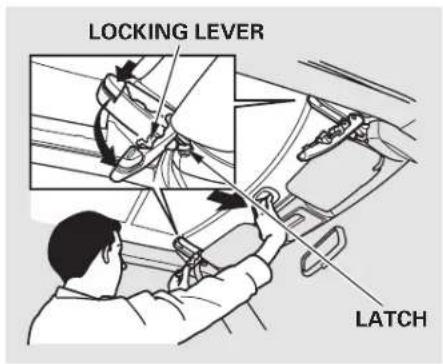

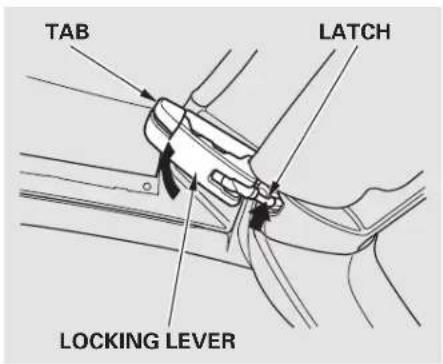

LATCH TAB LOCKING LEVER

1. There is alatch oneach side. Put in the tab and pull the locking lever down.

Convertible Top

LOCKING LEVER LATCH

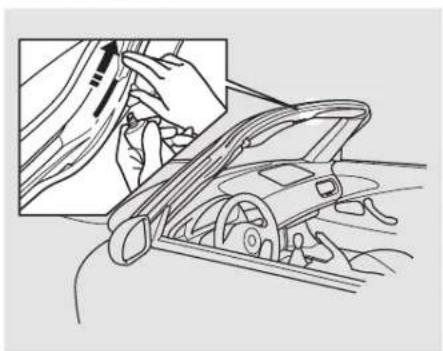

1. Push the top forward while you release the latches from the windshield header by pushing the locking levers forward.

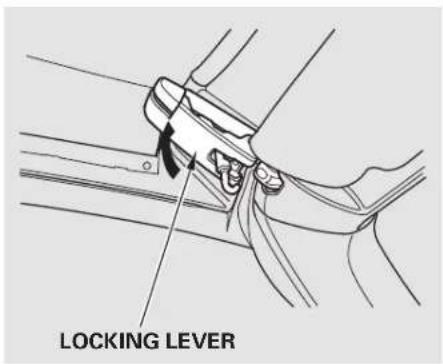

LOCKING LEVER

With the latches released, pull back on the locking levers and push them up until they latch.

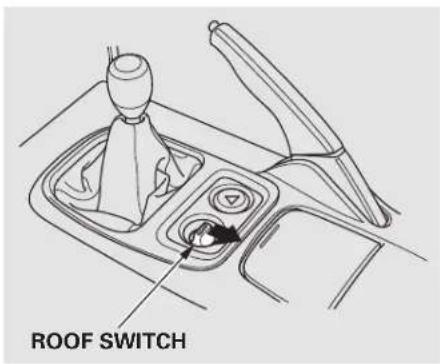

ROOF SWITCH

Pullback and hold the ROOF switch.

CONTINUED

Convertible Top

Side profile line drawing of a sports car (no text or symbols)

The windows will lower and the roof will fold back. Release the ROOF switch when the roof is retracted completely into the rear shelf.

Make sure the rear defogger is off before you lower the convertible top.

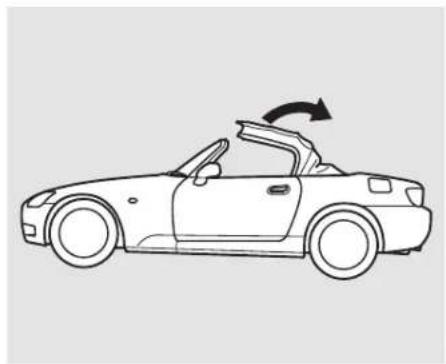

Line drawing of a convertible car with an arrow indicating rotational motion (no text or symbols)

NOTICE

Do not sit on the folded convertible top, or put heavy items on top of it. You could damage the top or the rear window def ogger wires.

WARNING

Operating the convertible top while any part of a passenger is in the way of the convertible top can cause serious injury.

Make sure that you, your passenger or any other people around the car are clear of the way of the moving convertible top.

Raising the Convertible Top

1. Apply the parking brake. The convertible top will not operate unless the parking brake is fully engaged.

2. Turn the ignition switch to ON (II).

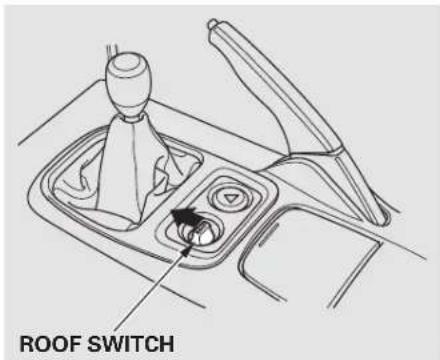

ROOF SWITCH

1. Push the ROOF switch forward and hold it.

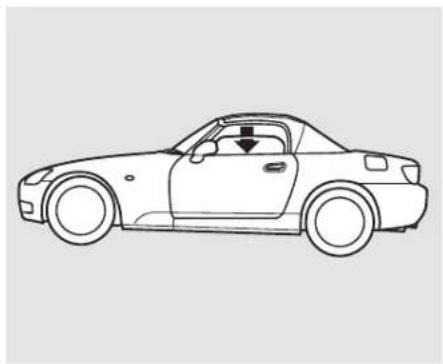

Side profile line drawing of a convertible car (no text or symbols)

The windows, if raised, will lower automatically.

CONTINUED

Convertible Top

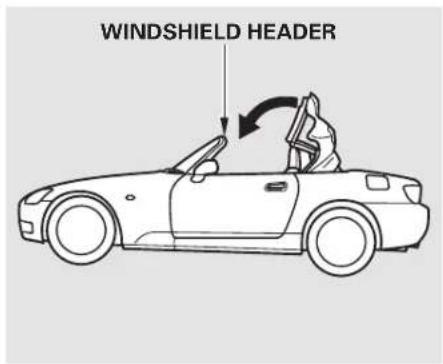

WINDSHIELD HEADER

The convertible top will raise. Release the ROOF switch when the top reaches the windshield header.

TAB LATCH LOCKING LEVER

1. Push in the tab on each locking lever and pull the locking lever down.
2. While pushing the convertible top forward, push the locking lever forward and set the latch into the windshield header.
3. Pull back on the locking lever and push it up until it latches. Make sure it is securely latched.

WARNING

Operating the convertible top while any part of a passenger is in the way of the convertible top can cause serious injury.

Make sure that you, your passenger or any other people around the car are clear of the way of the moving convertible top.

NOTICE

Do not put heavy items on the closed convertible top. You can damage the material and the mechanism.

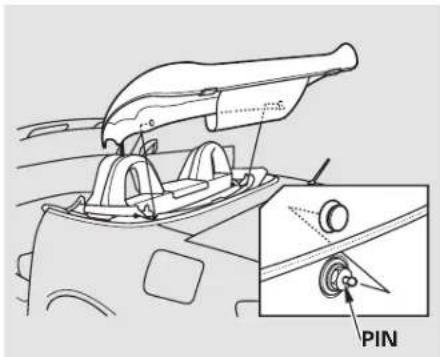

Convertible Top Cover

Use the convertible top cover when the top is folded to help prevent foreign objects, dirt, etc., from getting into the material and mechanism.

Technical diagram showing a car's front compartment with a labeled 'PIN' component and an inset view of the valve mechanism.

1. Remove the convertible top cover from the trunk.

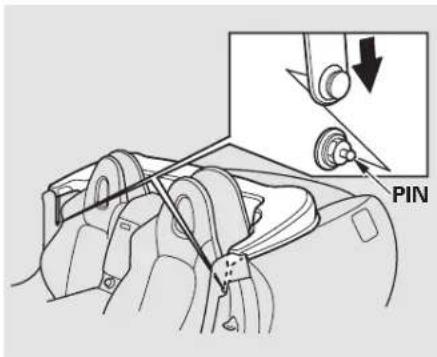

2. Connect the snaps on the top covertothetwopinsonthe back of the interior panel.

PIN

1. Hook the fastener string to the pin on each side wall of the passenger compartment.

CONTINUED

Convertible Top

Line drawing of a car's front bumper with visible seat and side panel (no text or symbols)

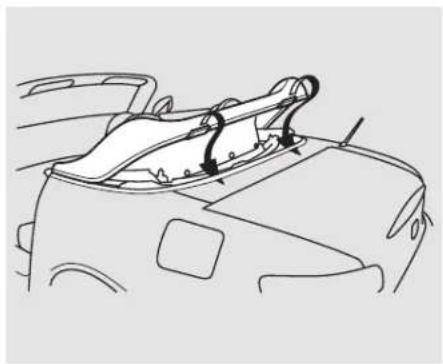

1. Fit the rear part of the top cover into the space behind the convertible top.

2. To remove the top cover, reverse the attaching procedure.

Maintenance

Line drawing of a car interior showing a hand adjusting the dashboard area with a tool (no text or symbols)

Dust is the main cause of creaks or other sounds coming from the convertible top. Regularly clean the body seals with glass cleaner and a soft cloth. Do not use a scraper or de-icing chemicals to remove frost, snow, or ice from the top or rear window.

Every three to six months, depending on how often the top is folded, rub a thin film of Shin-Etsu Silicone grease (available from your Honda dealer, P/N 08798-9013) onto the seals wherever they touch the convertible top or each other.

Convertible Top

To reduce the possibility of leaks:

Line drawing of a car door opening and finishing into the window (no text or symbols)

• Use the door pull to open and close the door. Do not push or pull on the door glass.

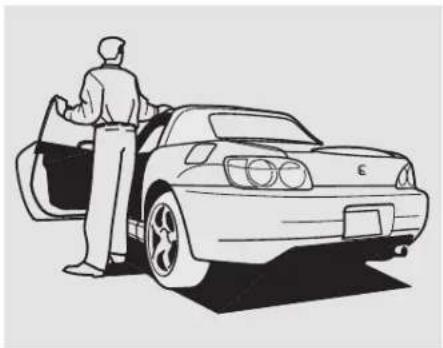

Line drawing of a person standing beside a car with open doors (no text or symbols)

• Do not lean or sit on an open door.

- The convertible top seals are designed to promote the flow of water off the roof. Spraying high pressure water directly on the seals can distort them, causing a leak. Use only a low pressure water stream when using a hose, and avoid car washes.

Line drawing of a car gear shift lever system with no text or symbols

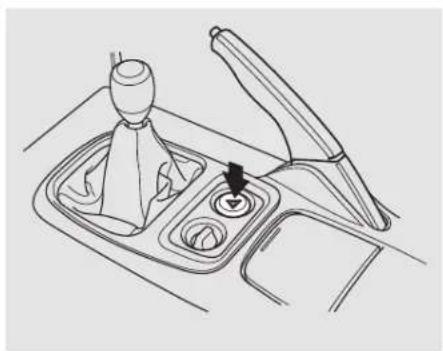

Push the red button next to the roof switch to turn on the hazard warning lights (four-way flashers). This causes all four outside turn signals and both indicators in the instrument panel to flash. Use the hazard warning lights if you need to park in a dangerous area near heavy traffic, or if your vehicle is disabled.

Mirrors Adjusting the Power Mirrors Hazard Warning

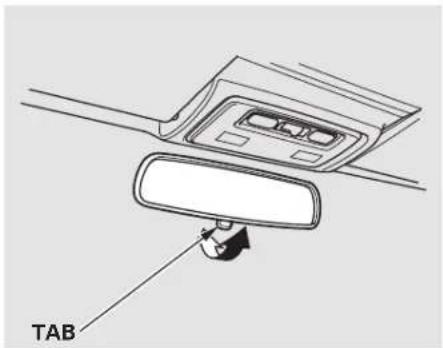

TAB

Keep the inside and outside clean and adjusted for best visibility. Be sure to adjust the mirrors before you start driving.

The inside mirror has day and night positions. The night position reduces glare from headlights behind you. Flip the tab on the bottom edge of the mirror to select the day or night position.

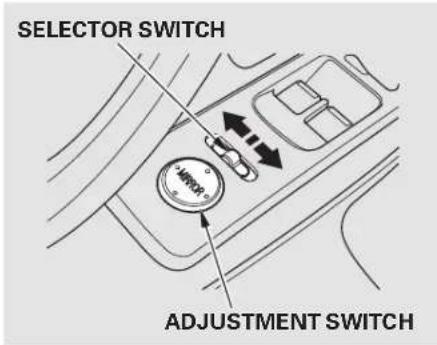

SELECTOR SWITCH ADJUSTMENT SWITCH

mAdjnotthe outside mirrors with the adjustment switch on the driver's door armrest:

1. Turn the ignition switch ON (II).

2. Move the selector switch to L (driver's side) or R (passenger's side).

Line drawing of a car interior showing the dashboard and steering wheel (no text or symbols)

1. Push the appropriate edge of the adjustment switch to move the mirror right, left, up, or do

2. When you finish, move the selector switch to the center (off) position. This turns off the adjustment switch so you can't move a mirror out of position by accidentally bumping the switch.

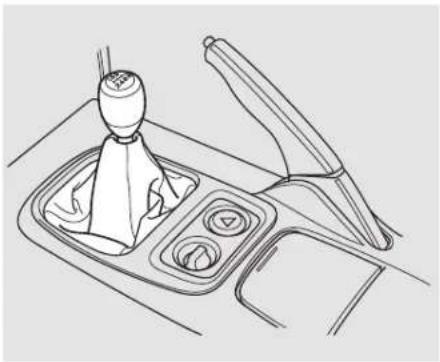

Parking Brake

Line drawing of a car gear shift lever with no text or symbols

To apply the parking brake, pull the lever up fully. To release it, pull up slightly, push the button, and lower the lever. The parking brake light on the instrument panel should go out when the parking brake is fully released (see page 44). If you try to drive the vehicle without releasing the parking brake, the ABS indicator may come on, and the ABS may not work properly.

NOTICE

Driving the car with the parking brake applied can damage the rear brakes and axles.

Beverage Holder, Accessory Power Socket, Audio Panel

Beverage Holder Accessory Power | Socket Audio Panel

Line drawing of a coffee cup with straw inside a coffee machine (no text or symbols)

To open the beverage holder, push on the front edge.

Be careful when you are using the beverage holder. A spilled liquid that is very hot can scald you or your passenger. Spilled liquids can also damage the upholstery, carpeting, and electrical components in the interior.

Interior view of a car seatbelt with a close-up inset showing a circular component (no text or symbols)

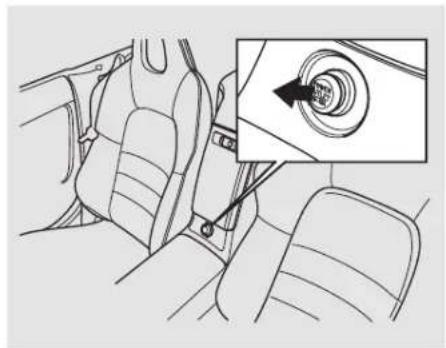

To use the accessory power socket, pull out on the cover. The ignition switch must be in ACCESSORY (I) or ON (II).

This socket is intended to supply power for 12 volt DC accessories that are rated 120 watts or less (10 amps).

It will not power an automotive type cigarette lighter element.

Line drawing of a car interior showing a door, steering wheel, and dashboard (no text or symbols)

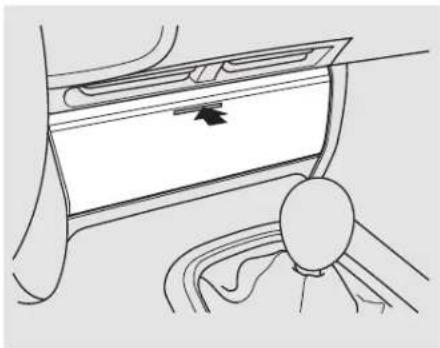

To open the audio panel, push on the top center and let the panel swing down. To close, pivot the panel and push on it until latches. Re to page for operation of the audio system.

Diagram of a car air intake manifold with directional arrows indicating flow or movement (no text or symbols)

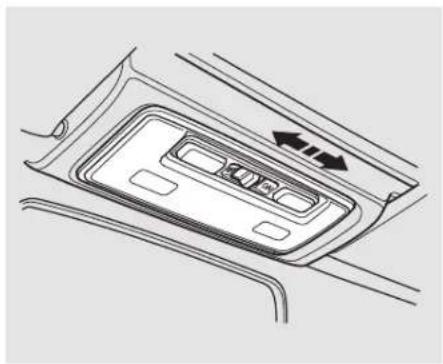

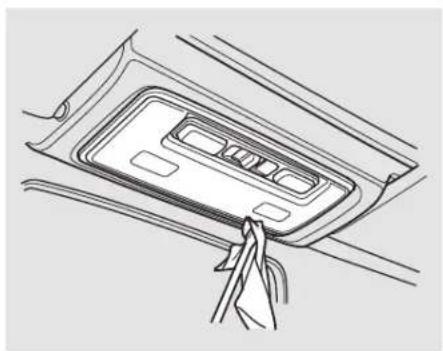

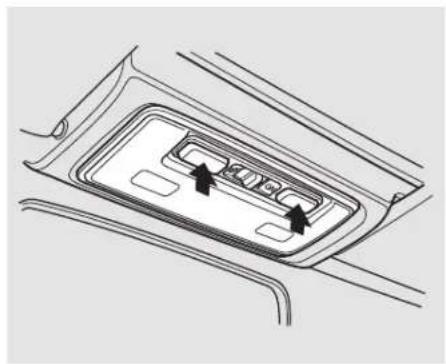

The interior light has a three-position switch. In the OFF position, the light does not come on. In the center position, the interior light comes on when you open either door. In the ON position, the interior light stays on continuously.

Diagram of a car intake tray with two arrows indicating direction (no text or symbols)

In addition, when the three position switch is in the center position with both doors closed, the two bulbs in the interior light can be turned on separately by the pushbutton switches next to them. Push the switch to turn the light on or off.
If the three-position switch is in the center position, the interior light will come on when you remove the key from the ignition switch.

Comfort and Convenience Features

The heating and air conditioning systems in your Honda provide a comfortable driving environment in all weather conditions.

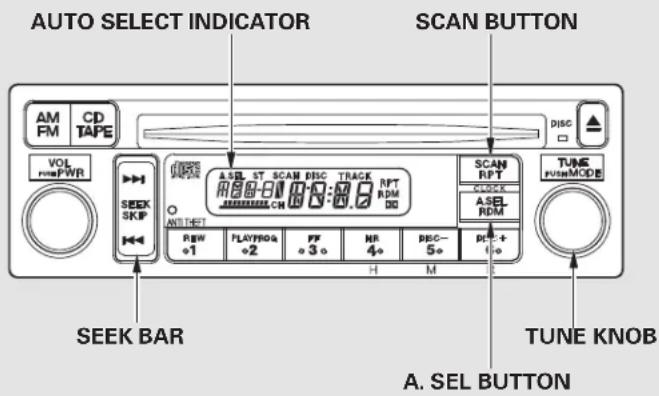

The standard audio system has many features. This section describes those features and how to use them. (If you selected an optional audio system, refer to the operating instructions that came with it.)

Heating and Cooling....84 ....What Each ....How to Us

To Turn Everything Off ...... 91

Audio System

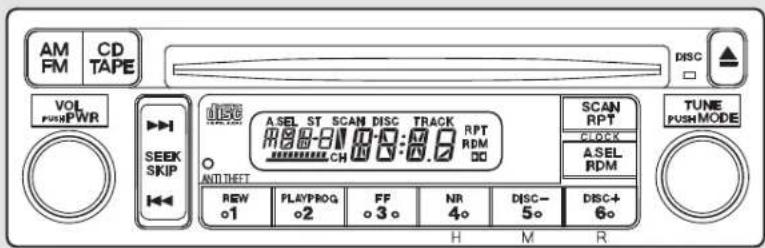

AM/FM/CD Audio System ..... 92

Operating the Radio 93

....Adjusting 1

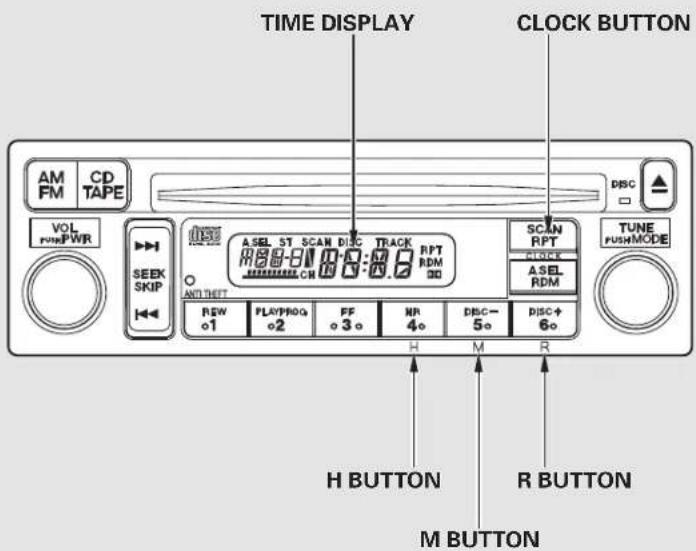

Digital Clock.... 98

Audio System Lighting 100

Radio Frequencies.... 100

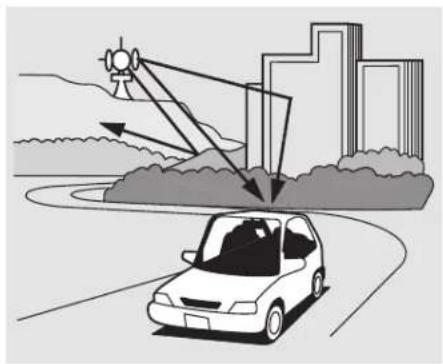

Radio Reception.... 101

Operating the CD Player ...... 103

Operating the CD Changer ..... 106

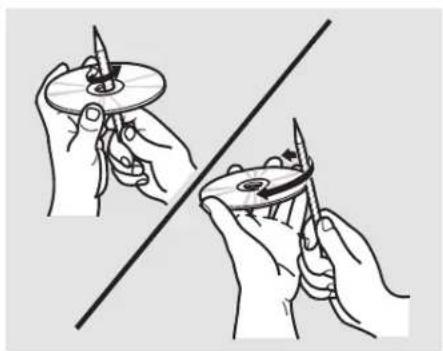

Protecting Compact Discs...... 107

CD Player Error Indications..... 109

CD Changer Error Indications.... 110

Remote Audio Controls.... 115

Theft Protection.... 116

Cruise Control.... 117

Heating and Cooling

Proper use of the Heating and Cooling system can make the interior dry and comfortable, and keep the windows clear for best visibility.

What Each Control Does

Fan Control Lever

Pushing this lever up and down increases and decreases the fan speed. The indicators next to the lever show you the speed selected.

Temperature Control Dial

Turning this dial clockwise increases the temperature of the air flow.

Air Conditioning (A/C) Button

This button turns the air conditioning ON and OFF. The indicator in the button lights when the A/C is on.

RECIRCULATION BUTTON AIR CONDITIONING BUTTON A/C FAN CONTROL LEVER MODE CONTROL DIAL TEMPERATURE CONTROL DIAL

Recirculation Button

This button controls the source of the air going into the system. When the indicator in this button is lit, air from the car's interior is sent through the system again (Recirculation mode). When the indicator is off, air is brought in from outside the car (Fresh Air mode).

Mode Control Dial

Use the MODE control dial to select the vents the air flows from.

Air flows from the vents on both sides of the instrument panel, and from the dashboard vent of the passenger.

Air flow is divided between the vents in the dashboard and the floor vents.

Air flows from the center vents in the dashboard above the audio system, the vents on both sides of the instrument panel, and from the floor vents. Select this position when you drive with the convertible top folded.

Air flows from the floor vents and the vents on both sides of the instrument panel.

infront

Air flow is divided between the floor vents, the defroster vents at the base of the windshield, and the vents on both sides of the instrument panel.

Air flows from the defroster vents at the base of the windshield and the vents on both sides of the instrument panel.

When you select, the system automatically switches to Fresh Air mode and turns on the A/C.

Heating and Cooling

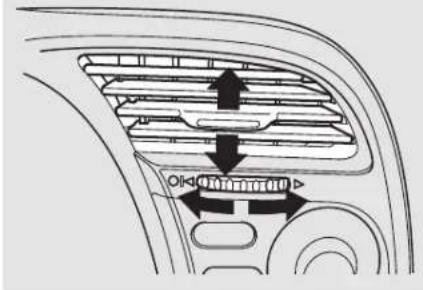

Vent Controls How to Use the System

CENTER VENT

Diagram of a car interior showing airflow direction and ventilation slots (no text or symbols)

air coming from the vents on both sides of the instrument panel and at the corner of the dashboard on the passenger's side. To adjust the air flow up and down, move the tab in the center of each vent up and down. To adjust it left and right, turn the dial under each vent left and right.

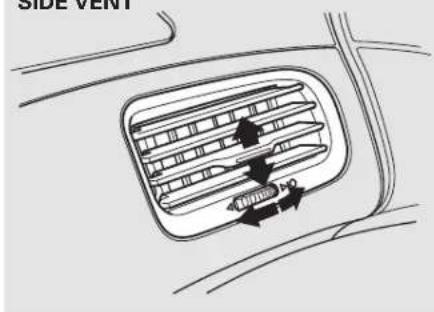

SIDE VENT

SIDE VENT 40mm x 10

You can shut off the air flow from each vent by turning the dial all the way toward the mark until it clicks.

This section covers how to set up the system controls for ventilation, heating, cooling, dehumidifying, and defrosting.

The engine must be running for the heater and air conditioning to generate hot and cold air. The heater uses engine coolant to warm the air. If the engine is cold, it will be several minutes before you feel warm air coming from the system. The air conditioning does not rely on engine temperature. You can adjust the dire

It is best to leave the system in Fresh Air mode under almost all conditions. Keeping the system in Recirculation mode, particularly with the A/C off, can cause the windows to fog up. Switch to Recirculation mode when you are driving through smoky or dusty conditions, then switch back to Fresh Air mode when the condition clears.

The outside air intakes for the heating and cooling system are at the base of the windshield. Keep these clear of leaves and other debris.

RECIRCULATION BUTTON AIR CONDITIONING BUTTON A/C FAN CONTROL LEVER MODE CONTROL DIAL TEMPERATURE CONTROL DIAL

Ventilation

The flow-through ventilation system draws in outside air, circulates it through the interior, then exhausts it through vents behind the seat-backs.

1. Turn the temperature control dial all the way to the left.
   Make sure the A/C is off.
2. Select and Fresh Air mode.
3. Set the fan to the desired speed.

CONTINUED

Heating and Cooling

To Cool with A/C

1. Turn on the A/C by pressing the button. The light in the button comes on when a fan speed is selected.

2. Make sure the temperature control dial is all the way to the left.

3. Select.

4. If the outside air is humid, select Recirculation mode. If the outside air is dry, select Fresh Air mode. Set the fan to the desired speed.

If the interior is very warm from being parked in the sun, you can it down more rapidly by setting up the controls this way:

1. Start the engine.
2. Turn on the A/C by pressing the button. Make sure the temperature control dial is all the way to the left.
3. Set the fan to maximum speed.
4. Open the windows partially. Select and Fresh Air mode.

RECIRCULATION BUTTON AIR CONDITIONING BUTTON A/C FAN CONTROL LEVER MODE CONTROL DIAL TEMPERATURE CONTROL DIAL

When the interior has cooled down to a more comfortable temperature, close the windows and set the controls as described for normal cooling.

Air conditioning places an extra load on the engine. Watch the engine coolant temperature gauge (see page 47) when driving in stop-and-go traffic or climbing a long, steep hill. If it moves near the red mark, turn off the A/C until the reading returns to normal.

To Heat

To warm the interior:

1. Start the engine.
2. Select and Fresh Air mode.
3. Set the fan to the desired speed.
4. Adjust the warmth of the air with the temperature control dial.

To Heat and Dehumidify with Air Conditioning

Air conditioning, as it cools, removes moisture from the air. When used in combination with the heater, it makes the interior warm and dry.

1. Set the fan to the desired speed.
2. Turn on the air conditioning.
3. Select and Fresh Air mode.
4. Adjust the temperature control dial so the mixture of heated and cooled air feels comfortable.

This setting is suitable for all driving conditions whenever the outside temperature is above 32^ F ( 0^ C).

To Defog and Defrost

To remove fog from the inside of the windows:

1. Switch the fan on.
2. Select. When you select, the system automatically switches to Fresh Air mode and turns on the A/C.
3. Adjust the temperature control dial so the air flow from the defroster vents feels warm.

When you switch to another mode from, the A/C stays on.

PresstheA/Cbuttontoturnifof

CONTINUED

Heating and Cooling

To remove exterior frost or ice from the windshield and side windows after the vehicle has been sitting out in cold weather:

1. Start the engine.
2. Select.

When you select, the system automatically switches to Fresh Air mode and turns on the A/C.

1. Set the fan and temperature controls to maximum.

To rapidly remove exterior frost or ice from the windshield (on very cold days), first select the Recirculation mode. Once the windshield is clear, select the Fresh Air mode to avoid fogging the windows.

MODE CONTROL DIAL RECIRCULATION BUTTON AIR CONDITIONING BUTTON A/C FAN CONTROL LEVER TEMPERATURE CONTROL DIAL

These settings direct all the air flow to the defroster vents at the base of the windshield and the side window defroster vents. The air flow will get warmer and clear the windows faster as the engine warms up. You can close the side vents with the dial beside each vent. This will send more warm air to the windshield defroster vents.

For safety, make sure you have a clear view through all the windows before driving away.

To Turn Everything Off

To shut off the system temporarily, turn off the fan (no lights illuminated).

You should shut the system completely off only for the first few minutes of driving in cold weather, until the engine coolant warms up enough to operate the heater. Keep the fan on at all other times so stale air does not build up in the interior.

Audio System

AM/FM/CD Audio System

Your Honda's audio system provides clear reception on both AM and FM bands, while the preset buttons allow you to easily select your favorite stations.

The anti-theft feature will disable the system if it is disconnected from the vehicle's battery. To get the system working again, you must enter a code number (see page).116

AM FM CD TAPE VOL PWR SEEK SKIP DISC RPT RDM DC A SEL ST SCAN DISC TRACK RPT R88-01 0:0:0.0 CH ANTIN FEET REW o1 PLAY/PROG o2 FF o3 o NR 4o DISC- 5o DISC+ 6o TUNE PUSH MODE CLOCK ASEL RDM

Operating the Radio SEEKTUNE

The ignition switch must be in ACCESSORY (I) or ON (II) to operate the audio system. Turn the system on by pressing the PWR/VOL knob or the AM/FM button. Adjust the volume by turning the knob.

The band and frequency that the radio was last tuned to is displayed. To change bands, press the AM/FM button. On the FM band, ST will be displayed if the station is broadcasting in stereo. Stereo reproduction on AM is not available.

You can use any of five methods to find radio stations on the selected band: TUNE, SEEK, SCAN, AUTO SELECT, and the Preset buttons.

Use the TUNE knob to tune the radio to a desired frequency. Turn the TUNE knob to the right to tune to a higher frequency, or to the left to tune to a lower frequency. Turn the knob right or left until the display reaches the desired frequency.

searches the band for a station with a strong signal. To activate it, press the SEEKbaroneiththeor side, then release it. Depending on which side you press, the system scans upward or downward from the current frequency. It stops when it finds a station with a strong signal.

CONTINUED

Audio System

SCAN The SCAN function samples all the stations with strong signals on the selected band. To activate it, press the SCAN button, then release it. You will see SCAN in the display. The system will scan up the band for a station with a strong signal. When it finds one, it will stop and play that station for approximately five seconds. If you do nothing, the system will then scan for the next strong station and play that for five seconds. When it plays a station that you want to continue listening to, press the SCAN button again.

Preset You can store the frequencies of your favorite radio stations in the six preset buttons. Each button will store one frequency on the AM band, and two frequencies on the FM band.

AM/FM BUTTON STEREO INDICATOR SCAN BUTTON AM/FM CD TAPE VOL PWR SEEK SKIP DISC ASEL ST SCAN DISC TRACK RPT RBB-01 00:00.0 RBM DC DISC+ 6o TUNI PUSHMODE PWR/VOL KNOB PRESET BUTTONS TUNE/MODE KNOB SEEK/SKIP BAR AUTO SELECT BUTTON

To store a frequency:

1. Select the desired band, AM or FM. FM1 and FM2 let you store two frequencies with each Preset button.
2. Use the TUNE, SEEK, or SCAN function to tune the radio to a desired station.
3. Pick the Preset button you want for that station. Press the button and hold it until you hear a beep.
4. Repeat steps 1 to 3 to store a total of six stations on AM and twelve on FM.

Once a station's frequency is stored, simply press and release the proper Preset button to tune to it.

The preset frequencies will be lost if your vehicle's battery goes dead, is disconnected, or the radio fuse is removed.

AM/FM BUTTON AN AM FM CD TAPE VOL PUMPWR SEEK SKIP AUTO SHEET REW 01 PLAYPROG 02 FF 03 NR 4o DISC-5o DISC+6o PRESET BUTTONS TUNE/MODE KNOB SEEK/SKIP BAR DISC ▲ SCAN RPT CLOCK ASEL RDM TUNE PUSH MODE

CONTINUED

AUTO SELECT

traveling far from home and can no longer receive the stations you preset, you can use the Auto Select feature to find stations in the local area.

To activate Auto Select, press the A. SEL button. A. SEL will flash in the display, and the system will go into scan mode for several seconds. It automatically scans both bands, looking for stations with strong signals. It stores the frequencies of six AM stations and twelve FM stations in the preset buttons. You can then use the preset buttons to select those stations. If you do not like If you are in a remote area, Auto Select may not find six strong AM stations or twelve strong FM stations. If this happens, you will see a “0” displayed when you press any preset button that does not have a station stored.

AUTO SELECT INDICATOR SCAN BUTTON AM FM CD TAPE VOL rewPWR SEEK SKIP A SEL ST SCAN DISC TRACK RPT RBM-80 CH 0:0.0 RDM WILLET RAW 1 PLAYPROG 2 FF 3 NR 4 DEC- 5 SCAN RPT CLOCK ASEL RDM FL+ + ( ) TUNE FUSMODE SEEK BAR TUNE KNOB A. SEL BUTTON

the stations Auto Select has stored, you can store other frequencies in the preset buttons. Use the TUNE, SEEK, or SCAN function to find the desired frequencies, then store them in the selected preset buttons as described previously.

Auto Select does not erase the frequencies that you preset previously. When you return home, turn off Auto Select by pressing the A. SEL button. The preset buttons will then select the frequencies you originally set.

Adjusting the Sound

Bass, Treble, Balance, and Fader are each adjustable. You select which of these you want to adjust by pressing the TUNE knob. The mode changes from BAS to TRE to FAD to BAL, and then back to the selected audio mode, each time you press the TUNE knob. Each mode is shown in the display as it changes.

Balance/Fader These two modes adjust the strength of the sound coming from each speaker. BAL adjusts the side-to-side strength, while FAD adjusts the front-to-back strength.

Because there are no ears you will not hear any sound from the audio system if you adjust the fader to its full rear ( ) position.

ADJUSTMENT LEVEL AM FM CD TAPE VOL PWR SEEK SKIP +2 TRE RREW +1 PLAYPROG +2 FP +3 MR 4 DISC- 5 DISC+ 6 SCAN RPT RCCC ASEL RBM TUNE PWR MODE H M R TUNE KNOB

Select BAL or FAD by pressing the TUNE knob. Adjust the Balance or Fader to your liking by turning the TUNE knob.

The displayed number shows you the current setting.

When the adjustment level reaches the center, you will see “L”.

Treble/Bass Use these modes to adjust the tone to your liking. Select TRE or BAS by pressing the TUNE knob. Adjust the desired mode by

turning the TUNE knob.

The displayed number shows you the current setting. When the adjustment level reaches the center, you will see “ ”.

The system will automatically return the display to the selected audio mode about five seconds after you stop adjusting a mode with the TUNE knob.

Audio System

Digital Clock

The display of your audio system usually shows the time when the ignition switch is in ACCESSORY (I) or ON (II). It shows operation mode of radio, CD player, or optional CD changer when you operate them, and goes back to the time display after five seconds.

If an error occurs while operating the CD player or optional CD changer, the display will show the error code and will not switch to the time display until the error is corrected (see pages 100 1.10

TIME DISPLAY CLOCK BUTTON AM FD CD TAPE VOL RUNPWR SEEK SKIP AND SHEET R/W 01 PLAYPROG 02 FF 03 MR 4o DISC- 5o DISC+ 6o SCAN RPT CLOCK ASEL RDM TUNE PUSHMODE H BUTTON R BUTTON M BUTTON

To set the hours, press the H (Preset 4) button while pressing the CLOCK (SCAN/RPT) button. Press and hold the H button until the hour advances to the desired time.

To set the minutes, press the M (Preset 5) button while pressing the CLOCK (SCAN/RPT) button. Press and hold the M button until the minutes numbers advance to the desired time.

You can use the R (Preset 6) button to quickly set the time to the nearest hour. Press the R button while pressing the CLOCK button. If the displayed time is before the half hour, pressing R sets the clock back to the previous hour. If the displayed time is after the half hour, pressing R sets the clock forward to the beginning of the next hour.

For example:

• 1:06 would RESET to 1:00
• 1:52 would RESET to 2:00

If your car's battery is disconnected or goes dead, the time setting will be lost. To set the time again, follow the setting procedure.

Audio System

Audio System Lighting Radio Frequencies

The audio system illuminates when the parking lights are on, even if the radio is turned off.

Your Honda's radio can receive the complete AM and FM bands. Those bands cover these frequencies:

AM band: 530 to 1,710 kilohertz FM band: 87.7 to 107.9 megahertz

Radio stations on the AM band are assigned frequencies at least ten kilohertz apart (530, 540, 550). Stations on the FM band are assigned frequencies at least 0.2 megahertz apart (87.9, 88.1, 88.3).

Stations must use these exact frequencies. It is fairly common for stations to round-off the frequency in their advertising, so your radio could display a frequency of 100.9 even though the announcer may identify the station as “FM101.”

Radio Reception

How well your Honda's radio receives stations is dependent on many factors, such as the distance from the station's transmitter, nearby large objects, and atmospheric conditions.

A radio station's signal gets weaker as you get farther away from its transmitter. If you are listening to an AM station, you will notice the sound volume becoming weaker, and the station drifting in and out. I also listening to an FM station, you will see the stereo indicator flickering off and on as the signal weakens. Eventually, the stereo indicator will go off and the sound will fade completely as you get out of range of the station's signal.

youare

Driving very near the transmitter of a station that is broadcasting on a frequency close to the frequency of the station you are listening to can also affect your radio's reception. You may temporarily hear both stations, or hearonlythestation are close to.

Audio System

Illustration of a car driving on a curved road with a sensor array and city skyline in the background (no text or symbols)

Radio signals, especially on the FM band, are deflected by large objects such as buildings and hills. Your radio then receives both the direct signal from the station's transmitter, and the deflected signal. This causes the sound to distort or flutter. This is a main cause of poor radio reception in city driving.

Illustration showing a motorcycle accident near a car with a 'Accident' sign, indicating emergency response or accident prevention.

Radio reception can be affected by atmospheric conditions such as thunderstorms, high humidity, and even sunspots. You may be able to receive a distant radio station one day and not receive it the next day because of a change in conditions.

Electrical interference from passing vehicles and stationary sources can cause temporary reception problems.

As required by the FCC: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Operating the CD Player

You operate the CD player with the same controls used for the radio.

With the ignition switch in ACCESSORY (I) or ON (II), insert the disc into the CD slot. Push the disc in halfway, the drive will pull it in the rest of the way and begin to play. The number of the track that is playing is shown in the display.

You can also play 3-inch (8-cm) discs without using an adapter ring. Play only standard round discs. Odd-shaped CDs may jam in the drive or cause other problems.

For best results when using CD-R discs, use only high quality discs labeled for audio use. When recording a CD-R, the recording must be closed in order for the disc to be used by CD players. CD-RW discs will not work in this unit.

AM/FM BUTTON CD/TAPE BUTTON AM FM CD TAPE REPEAT INDICATOR CD SLOT RPT BUTTON EJECT BUTTON VOL PWR/PWR SEEK SKIP DISC 04 TRACK RPT RDM ANTITNET REW 01 PLAYPROG 02 FF 03 NR 4o H M SCAN RPT MBOX ASEL RDM DISC-5o TUNE PUSHMODE PWR/VOL KNOB RANDAM INDICATOR SEEK/SKIP BAR A.SEL/RDM BUTTON

CONTINUED

Audio System

When the system reaches the end of the disc, it will return to the beginning and play that disc again.

You can switch to the radio while a CD is playing by pressing the AM/FM button. Press the CD button to return to playing the CD. The CD will begin playing where it left off.

If you turn the system off while a CD is playing, either with the PWR/VOL knob or by turning off the ignition, the disc will stay in the drive. When you turn the system back on, will begin playing where it left off.

Press the eject button to remove the disc from the drive.

If you eject the disc, but do not remove it from the slot, the system will automatically reload the disc after 15 seconds and put the CD player in pause mode. To begin playing the disc, press the CD button.

You can use the SEEK/SKIP bar while a disc is playing to select passages and change tracks.

To move rapidly within a track, press and hold the SEEK/SKIP bar the shift to move forward. You will see CUE in the display. Press the

◀◀ side to move backward. You will see REW displayed. Release the bar when the system reaches the point you want.

Each time you press and release the ▶▶ side of the SEEK/SKIP bar, the system skips forward to the beginning of the next track. Press and release the side to skip backward to the beginning of the current track. Press it again to skip to the beginning of the previous track.

Press

REPEAT RANDOM PLAY

feature, press and release the RPT button. You will see RPT in the display. The system continuously replays the current track. Press the RPT button again to turn it off.

This feature, when activated, plays the tracks on the CD in random order, rather than in the order they are recorded on the CD. To activate Random Play, press and release the A. SEL/RDM button. You will see RDM in the display. The system will then select and play tracks randomly. This continues until you deactivate Random Play by pressing A. SEL/RDM again.

If the system is in Repeat mode, you must turn it off by pressing the RPT button before selecting Random Play.

Operating the CD Changer (Optional)

A Compact Disc changer is available for your vehicle. I th old sup discs, providing several hours of continuous entertainment. You operate this CD changer with the same controls used for the in-dash CD player.

Load the desired CDs in the magazine and load the magazine in the changer according to the instructions that came with the unit. Play only standard round discs. Odd-shaped CDs may jam in the drive or cause other problems.

For best results when using CD-R discs, use only high quality discs labeled for audio use. When recording a CD-R, the recording must be closed in order for the disc to be used by CD players. CD-RW discs will not work in this unit.

To select the CD changer, press the CD button. The disc and track numbers will be displayed. o s i x

To select a different disc, use the Preset 5 (DISC) or Preset 6 (DISC) button. Press the Preset 6 button to select the next disc in the magazine. Press the Preset 5 button to select the previous disc. If you select an empty slot in the magazine, the changer will, after finding that slot empty, try to load the CD in the next slot. This continues until it finds a CD to load and play.

If you load a CD in the in-dash player while the changer is playing a CD, the system will stop the changer and begin playing the in-dash CD. To select the changer again, press the CD button. Play will begin where it left off. Use the CD button to switch between the player and the changer.

If you eject the in-dash CD while it is playing, the system will automatically switch to the CD changer and begin play where it left off. If there are no CDs in the changer, the display will flash. You will have to select another mode (AM or FM) with the button.

When you switch back to CD mode, the system selects the same unit (in-dash or changer) that was playing when you switched out of CD mode.

To use the SKIP, REPEAT, and RANDOM functions, refer to the in-dash player operating instructions.

Protecting Compact Discs

Line drawing of a hand holding a CD or DVD disc (no text or symbols)

Handle a CD by its edges; never touch either surface. Do not place stabilizer rings or labels on the CD. These, along with contamination from fingerprints, liquids, and felt-tip pens, can cause the CD to not play properly, or possibly jam in the drive.

When a CD is not being played, store it in its case to protect it from dust and other contamination. To prevent warpage, keep CDs out of direct sunlight and extreme heat.

Hand holding a CD or DVD disc with arrows indicating direction (no text or symbols)

To clean a disc, use a clean soft cloth. Wipe across the disc from the center to the outside edge.

CONTINUED

Audio System

Illustration of two hands holding a small object, one crossed over the other by a diagonal line (no text or symbols)

A new CD may be rough on the inner and outer edges. The small plastic pieces causing this roughness can flake off and fall on the recording surface of the disc, causing skipping or other problems. Remove these pieces by rubbing the inner and outer edges with the side of a pencil or pen.

Never try to insert foreign objects in the CD player or the magazine.

CD Player Error Indications

If you see an error indication in the display while operating the CD player, find the cause in the right. If you cannot clear the error indication, take the vehicle to your Honda dealer.

Indication SolutionCause
CarttoCD DISC	FOCUS Error	Press the EJECT button and pull out the disc.Check if the disc is inserted correctly in the CD player.Make sure the disc is not scratched or damaged.
CD ERR	Mechanical Error	Press the EJECT button and pull out the disc.Check the disc for damage or deformation.If the CD cannot be pulled out or the error indication does not disappear after the disc is ejected, see your Honda dealer.Do not try to force the disc out of the player.
CD Hot	High temperature	Will disappear when the temperature returns to normal.

Audio System

CD Changer Error Indications

If you see an error indication in the display while operating the CD changer, find the cause in the chart to the right. If you cannot clear the error indication, take the vehicle to your Honda dealer.

Indication SolutionCause
CDC D1SC	FOCUS Error	Press the magazine eject button and pull out the magazine, check for error indication. Insert the magazine again. If the code does not disappear or the magazine cannot be pulled out, consult your Honda dealer.
	No CD in the CD magazine	Insert CD.
CDC ERR	Mechanical Error	Press the magazine eject button and pull out the magazine, check for error indication. Insert the magazine again. If the code does not disappear or the magazine cannot be pulled out, consult your Honda dealer.
CDC Hot	High temperature	Will disappear when the temperature returns to normal.
CDC EJEC	No CD magazine in the CD changer	Insert CD magazine.

Operating the Cassette Player (Optional)

The cassette system features Dolby noise reduction, automatic sensing of chromium-dioxide (CrO _2 ) tape, and auto-reverse for continuous play.

To operate the cassette player, the ignition switch must be in ACCESSORY(I) or ON(II). Make sure the tape opening on the cassette is facing to the right, then insert the cassette most of the way into the slot. The system will pull it in the rest of the way, and begin to play.

Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "DOLBY" and the double-D symbol

☐ are trademarks of Dolby Laboratories Licensing Corporation.

AM/FM BUTTON PWR/VOL KNOB CD/TAPE BUTTON AM FM CD TAPE TAPE DIRECTION INDICATOR REPEAT INDICATOR REPEAT BUTTON VOL PWR SEEK SKIP TAPE PLAY RPT R10 SCAN RPT SLOCK ASEL RPM TUNE PUSH MODE FREW 01 PLAYPROG 02 PP 03° NR 4° DISC-5° DISC+6° H M R SEEK/SKIP BAR PLAY/PROG BUTTON NR BUTTON REW BUTTON FF BUTTON

Audio System

The tape direction indicator will light to show you which side of the cassette is playing. The indicates the side you inserted facing is now playing. If you want to play the other side, press the PLAY/PROG button.

Dolby noise reduction turns on when you insert a cassette. The □□ indicator will light in the display. If the tape was not recorded with Dolby noise reduction, turn it off by pressing the NR button.

Noise reduction remains off until you turn it on by pressing the button again.

When the system reaches the end of the tape, it will automatically reverse direction and play the other side. If you want to remove the cassette from the drive, press the EJECT button on the cassette player.

If you turn the system off while a tape is playing, either with the PWR/VOL knob or by turning off the ignition, the cassette will remain in the drive. When you turn the system back on, the cassette player will be in pause mode. To begin playing, press the PLAY/PROG button.

To switch to the radio or CD player while a tape is playing, press the AM/FM, or CD/TAPE button. To change back to the cassette player, press the CD/TAPE button.

Tape Search Functions SKIPFF/REW

With a cassette playing, you can use the FF, REW, SKIP, or REPEAT function to find a desired program.

W Fast Forward and Rewind move the tape rapidly. To re-wind the tape, push the REW button. You will see REW in the display. To fast forward the tape, push the FF button. You will see FF displayed. Press the FF, REW or PLAY/PROG button to take the system out of re-wind or fast forward. When the system reaches the end of the tape, it reverses direction and begins to play.

The Skip function allows you to find the beginning of a song or passage. To activate SKIP, press the SEEK/SKIP bar. Press the

▶▶ side to advance to the beginning of the next song or passage, or the side to return to the beginning of the current song or passage. FF or REW will flash in the display as the tape moves. When the system reaches the beginning of the next song or passage (FF), or the beginning of the current one (REW), it goes back to PLAY mode.

REPEAT Caring for the Cassette Player

continuously replays the current song or passage. Press the RPT button to activate it; you will see RPT displayed as a reminder. When the system reaches the end of the song or passage currently playing, it will automatically go into rewind. When it senses the beginning of the same song or passage, the system returns to PLAY mode. It will continue to repeat this same program until you deactivate REPEAT by pressing the button again.

The SKIP and REPEAT functions use silent periods on the tape to find the end of a song or passage. These features may not work to your satisfaction if there is almost no gap between selections, a high noise level between selections, or a silent period in the middle of a selection.

The cassette player picks up dirt and oxides from the tape. This contamination builds up over time and causes the sound quality to degrade. To prevent this, you should clean the player after every 30 hours of use. Your dealer has a cleaning kit available.

If you do not clean the cassette player regularly, it may eventually become impossible to remove the contamination with a normal cleaning kit.

Use 100-minute or shorter cassettes. Cassettes longer than that use thinner tape that may break or jam the drive.

Look at the cassette before you insert it. If the tape is loose, tighten it by turning a hub with a pencil or your finger.

If the label is peeling off, remove it from the cassette or it could cause the cassette to jam in the player. Never try to insert a warped or damaged cassette in the player.

When they are not in use, store cassettes in their cases to protect them from dust and moisture. Never place cassettes where they will be exposed to direct sunlight, high heat, or high humidity. If a cassette is exposed to extreme heat or cold, let it reach a moderate temperature before inserting it in the player.

Never try to insert foreign objects into the cassette player.

Remote Audio Controls

AUDIO CONTROL BUTTON CHANNEL BUTTON CH MUTE BUTTON MUTE C VOLUME LEVER + - VOL + - VOLT MODE PUSH SYNC

Four controls for the audio system are on the left side of the das by the instrument panel. These let you control basic functions without distracting your attention from driving.

Use the VOLUME lever to adjust the volume. Push the lever up to increase the volume and down to decrease it. Hold the lever until the volume reaches the desired level,

then release it.

If you want to mute the sound temporarily, push the MUTE button. The indicator in the button will light to indicate the mute function is on. Press the button again to cancel MUTE.

The AUDIO CONTROL button changes the mode. Pressing the button repeatedly selects AM, FM1, FM2, or CD (if a CD is loaded) two.

The CHANNEL button has two functions, depending on whether you are listening to the radio, or playing a CD.

If you are listening to the radio, use the CHANNEL button to change stations. Each time you press this button, the system advances to the next preset station on the band you are listening to. You will see the number of the selected Preset button

in the audio system display.

If you are playing a CD, the system skips to the beginning of the next track each time you push the CHANNEL button.

These controls work only with the factory-installed audio system. They will not function if you install any other system.

Theft Protection

Theft Protection

Your car's audio system will disable itself if it is disconnected from electrical power for any reason. To make it work again, the user must enter a specific five-digit code in the Preset buttons. Because there are hundreds of number combinations possible from five digits, making the system work without knowing the exact code is nearly impossible.

You should have received a data lists your audio system's code number and serial number. It is best to store this card in a safe place home. In addition, you should write the audio system's serial number in this Owner's Manual. If you should happen to lose the card, you must obtain the code number from your Honda dealer. To do this, you will need the system's serial number.

If your car's battery is disconnected or goes dead, or the radio fuse is removed, the audio system will disable itself. If this happens, you will see "Code" in the frequency display the next time you turn on the system. Use the Preset buttons to enter the five-digit code. If it is entered correctly, the radio will start playing.

If you make a mistake entering the code, do not start over or try to correct your mistake. Complete the five-digit sequence, then enter the correct code. You have ten tries to enter the correct code. If you are unsuccessful in ten attempts, you must then leave the system on for one hour before trying again.

You will have to store your favorite stations in the Preset buttons after the system begins working. Your original settings were lost when power was disconnected.

Cruise control allows you to maintain a set speed above 25 mph (40 without keeping your foot on the accelerator pedal. It should be used for cruising on straight, open highways. It is not recommended for conditions such as city driving, winding roads, slippery roads, heavy rain, or bad weather. You should have full control of the car under those conditions.

WARNING

m/h)

Improper use of the cruise control can lead to a crash.

Use the cruise control only when traveling on open highways in good weather.

NOTICE

The cruise control, as it operates, moves the accelerator pedal. You can damage your vehicle's accelerator mechanism by resting your foot under the pedal and blocking the movement.

Using the Cruise Control

Diagram of a car steering wheel with a zoomed-in rotary switch labeled 'CIRAGE' and a circular inset showing the mode.

1. Push in the Cruise Control Master Switch on the dashboard beside the steering column. The indicator by the switch will light.
2. Accelerate to the desired cruising speed above 25 mph (40 km/h)

CONTINUED

RES AIRBAS RESUME/accel SET/decel

1. Press and release the SET/decel button on the steering wheel CRUISE CONTROL light on the instrument panel comes on to show the system is now activated.

The cruise control may not the set speed when you are going up and down hills. If your speed increases going down a hill, use the brakestoslow downtot desired speed. This will cancel the

cruise control. To resume the set speed, press the RESUME/accel button. The CRUISE CONTROL light on the instrument panel comes on.

Changing the Set Speed You can increase the set cruising speed in any of these ways:

- Press and hold the RESUME/accel button. The car will accelerate. When you reach the desired cruising speed, release the button.

e b. Flusle on the accelerator pedal. Accelerate to the desired cruising speed and press the SET/decel button.

h ●Td increase your speed in very small amounts, tap the RESUME/ accel button repeatedly. Each time you do this, your car will speed up h e about 1 mph (1.6 km/h).

You can decrease the set cruising speed in any of these ways:

- Press and hold the SET/decel button. The car will decelerate. Release the button when you reach the desired speed.

• To slow down in very small amounts, tap the SET/decel button repeatedly. Each time you do this, your car will slow down about 1 mph (1.6 km/h).

- Tap the brake or clutch pedal lightly with your foot. The CRUISE CONTROL light on the instrument panel will go out. When the car slows to the desired speed, press the SET/decel button. The car will then maintain the desired speed.

Even with the cruise control turned on, you can still use the accelerator pedal to speed up for passing. After completing the pass, take your foot off the accelerator pedal. The car will return to the set cruising speed.

Resting your foot on the brake or clutch pedal will cause the cruise control to cancel.

Cancelling the Cruise Control

You can cancel the cruise control in any of these ways:

• Tap the brake or clutch pedal.
• Press the SET/decel and RESUME/accel buttons at the same time.
• Press the Cruise Control Master Switch.

When you tap the brake or clutch pedal, or press the SET and RESUME buttons at the same time, the CRUISE CONTROL light on the instrument panel will go out and the car will begin to slow down. You can use the accelerator pedal in the normal way.

The system remembers the previously-set cruising speed. To return to that speed, accelerate to above 25 mph (40 km/h), the

trolin ORANGE

the RESUME/accel button. The CRUISE CONTROL light comes on, and the car will accelerate to the same cruising speed as before.

Pressing the Cruise Control Master Switch turns the system completely off and erases the previous cruising speed from memory. To use the system again, refer to Using the Cruise Control.

npress

Before you begin driving your Honda, you should know what gas oil use, and how to check the levels of important fluids. You also need to know how to properly store luggage or packages. The information in this section will help you. If you plan to add any accessories to your vehicle, please read the information in this section first.

Break-in Period....122 neto ....Gasoline . 1 .....Service Stat

Filling the Fuel Tank...... 123

Opening the Hood 124

Oil Check 125

Engine Coolant Check ...... 126

Fuel Economy 127

Car Condition 127

Driving Habits.... 127

Accessories and Modifications .... 128

Accessories.... 128

Modifications 129

Additional Safety Precaution.... 129

Carrying Cargo 130

General Precautions.... 133

Break-in Period

Help assure your car's future reliability and performance by paying extra attention to how you drive during the first 600 miles (1,000 km). During this period:

• Avoid full-throttle starts and rapid acceleration. Do not exceed 5,500 rpm for the first 600 miles (1,000 km) of operation.
• Avoid hard braking. New b need to be broken-in by moderate use for the first 200 miles (300 km).
• Do not change the oil until the recommended time or mileage intervals shown in the main schedule.

You should follow these a commendations with an overhauled or exchanged engine, or when the brakes are relined.

Gasoline

Your Honda is designed to operate on premium unleaded gasoline with a pump octane number of 91 or higher.

If you are unable to find premium unleaded gasoline, you may substitute an unleaded regular gasoline. The engine will compensate for the lower octane, but you may notice a slight decrease in power as a result.

We recommend gasolines containing detergent additives that help prevent fuel system and engine deposits. enance

Using gasoline containing lead will damage your car's emissions controls. This contributes to air pollution.

In Canada, some gasolines contain an octane-enhancing additive called MMT. If you use such gasolines, your emission control system performance may deteriorate and the Malfunction Indicator Lamp on your instrument panel may turn on. If this happens, contact your authorized Honda dealer for service.

Filling the Fuel Tank

Pull

1. Because the fuel fill cap is on the driver's side of the car, park with that side closest to the service station pumps.

2. Open the fuel fill door by pulling on the knob on the driver's door jamb.

WARNING

Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel.

• Stop the engine and keep heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.

FUEL FILL CAP

1. Remove the fuel fill caps lowly You may hear a hissing sound as pressure inside the tank escapes. Place the cap in the holder on the fuel fill door.

CONTINUED

Service Station Procedures

1. Stop filling the tank after the fuel nozzle automatically clicks off. Do not try to "top off" the tank, leave some room for the fuel to expand with temperature changes.

2. Screw the fuel fill cap back on, tighten it until it clicks several times. If you do not properly tighten the cap, the Malfunction Indicator Lamp may come on (see page 236

3. Push the fuel fill door closed until it latches.

Opening the Hood

RELEASE HANDLE

Line drawing of a car interior showing seatbelt and dashboard (no text or symbols)

1. Shift to Neutral and set the parking brake. Pull the hood release handle located under the lower left corner of the dashboard. The hood will pop up slightly.

2. Standing in front of the car, put your fingers under the front edge of the hood to the right of center. Slide your hand to the left until you feel the hood latch handle. Push this handle to the left until it

Line drawing of a person cleaning a car window with a magnified inset showing a gear shift (no text or symbols)

releases the hood. Lift the hood.

If you can open the hood without lifting the hood latch handle, or the hood latch handle moves stiffly or does not spring back as before, the mechanism should be cleaned and lubricated (see page 180).

Line drawing of a car engine hood open, with three inset diagrams showing internal components (no text or symbols)

1. Pull the support rod out of its clip and insert the end into the hole on the front of the hood around the center. To close the hood, lift it up slightly to remove the support rod from the hole. Put the support rod back into its holding clip. Lower the hood to about a foot (30 cm) above the fender, then let it drop. After closing the hood, make sure it is securely latched.

Oil Check

DIPSTICK VTEC

Check the engine oil level every time you fill the car with fuel. Wait a few minutes after turning the engine off before you check the oil.

1. Remove the dipstick (black handle).

Line drawing of a hand holding a tool, no text or symbols present

Wipe the dipstick with a clean cloth or paper towel.

CONTINUED

Line drawing of a car engine bay with visible components and a black arrow pointing to a component (no text or symbols)

1. Insert it all the way back in its tube.

UPPER MARK LOWER MARK

Remove the dipstick again and check the level. It should be between the upper and lower marks.

If it is near or below the lower mark, see Addagg Oil 163

Engine Coolant Check

Technical line drawing of a mechanical assembly with no visible text or symbols

Look at the coolant level in the radiator reserve tank. Make sure it is between the MAX and MIN lines. If it is below the MIN line, see Adding Engine Coolant on page 167 information on adding the proper coolant.

Refer to Owner Maintenance Checks on page 16 information on checking other items in your Honda.

The condition of your car and your driving habits are the two most important things that affect the fuel mileage you get.

Car Condition

Always maintain your car according to the maintenance schedule. This will keep it in top operating condition.

An important part of that maintenance is the Owner Maintenance Checks (see page 16) For example, an underinflated tire causes more “rolling resistance,” which uses fuel. It also wears out faster, so check the tire pressure at least monthly.

In winter, the build-up of snow on your car's underside adds weight and rolling resistance. Frequent cleaning helps your fuel mileage and reduces the chance of corrosion.

Driving Habits

You can improve fuel economy by driving moderately. Rapid acceleration, abrupt cornering, and hard braking use more fuel.

Always drive in the highest gear that allows the engine to run and accelerate smoothly.

Depending on traffic conditions, try to maintain a constant speed. Every time you slow down and speed up, your car uses extra fuel. Use the cruise control, when appropriate, to increase fuel economy.

A cold engine uses more fuel than a warm engine. It is not necessary to "warm-up" a cold engine by letting it idle for a long time. You can drive away in about a minute, no matter how cold it is outside. The engine will warm up faster, and you get better fuel economy. To cut down on the number of "cold starts," try to

combine several short trips into one.

The air conditioning puts an extra load on the engine which makes it use more fuel. Turnoff the A/C to cut down nonair conditioning use. Use the flow-through ventilation when the outside air temperature is moderate.

Accessories and Modifications

Modifying your car, or installing some non-Honda accessories, can make your car unsafe. Before you make any modifications or add any accessories, besuretoread following information.

Accessories

Your dealer has genuine Honda accessories that allow you to personalize your car. These accessories have been designed and approved for your car, and are covered by warranty.

Non-Honda accessories are usually designed for universal applications. Although aftermarket accessories may fit on your car, they may not meet factory specifications, and could adversely affect your car's handling and stability. (See "Modifications" on page 189 additional information.)

WARNING

Improper accessories or modifications can affect your car's handling, stability and performance, and cause a crash in which you can be hurt or killed.

Follow all instructions in this owner's manual regarding accessories and modifications.

When properly installed, cellular phones, alarms, two-way radios, and low-powered audio systems should not interfere with your car's computer-controlled systems, such as the SRS and anti-lock brake system.

However, if electronic accessories are improperly installed, or exceed your car's electrical system capacity, they can interfere with the operation of your car, or even cause the airbags to deploy.

Before installing any accessory:

• Make sure the accessory does not obscure any lights, or interfere with proper car operation or performance.
• Be sure electronic accessories do not overload electrical circuits (see page 241
• Have the installer contact your Honda dealer for assistance before installing any electronic accessory.

If possible, have your dealer inspect the final installation.

Modifications Additional Safety

Do not remove any original equipment or modify your car in any way that would alter its design or operation. This could make your car unsafe and illegal to drive.

For example, do not make any modifications that would change the ride height of your car, or install wheels and tires with a different overall diameter.

Such modifications can adversely affect handling, and interfere with the operation of the car's anti-lock brakes and other systems.

Preaddition, any modifications that decrease ground clearance increase the chance of undercarriage parts striking a curb, speed bump, or other raised object, which could cause your airbags to deploy.

Do not modify your steering wheel or any other part of your Supplemental Restraint System. Modifications could make the system ineffective.

Do not attach or place objects on the airbag covers. Any object attached to or placed on the covers marked “SRS AIRBAG,” in the center of the steering wheel and on top of the dashboard, could interfere with the proper operation of the airbags. Or, if the airbags inflate, the objects could be propelled inside the car and hurt someone.

Carrying Cargo

UPPER AND LOWER CONSOLE COMPARTMENTS TRUNK

Your car has several convenient storage areas so you can stow cargo safely.

The upper and lower console compartments are designed for small, lightweight items. The trunk is intended for larger, heavier items.

However, carrying too much cargo, or improperly storing it, can affect your car's handling, stability, and operation and make it unsafe. Before carrying any type of cargo, be sure to read the following pages.

Load Limit

The maximum load for your car is 400 lbs (185 kg).

This figure includes the total weight of all occupants, cargo, and accessories.

To figure out how much cargo you can carry:

• Add up the weight of all occupants.
• Subtract the total from 400 lbs (185 kg).

The final number is the total weight of cargo you can carry.

WARNING

Overloading or improper loading can affect handling and stability and cause a crash in which you can be hurt or killed.

Follow all load limits and other loading guidelines in this manual.

Carrying Items in the Passenger Compartment

• Store or secure all items that could be thrown around and hurt someone during a crash.
• Besure items placed on the floor behind the front seats cannot roll under the seats and interfere with the driver's ability to operate the pedals, or with the proper operation of the seats.

Carrying Cargo

Carrying Cargo in the Trunk

- Distribute cargo evenly on the floor of the trunk, placing the heaviest items on the bottom and as far forward as possible.

Your Honda is designed to give you optimum handling and performance on well-maintained roads. As part of this design, your car has a minimum of ground clearance and very low-profile tires.

- Use cautionify you should your car on very rough or rutted roads. You could damage the suspension and underbody by bottoming out. Going too fast over parking lot "speed bumps" can also cause damage.

Line drawing of a car on a road with an inset showing a vehicle and a house (no text or symbols)

- Curbs and steep inclines could damage the front and rear bumpers. Low curbs that do not affect the average car may be high enough to hit the bumper on your Honda. The front or rear bumper mayscrapew hentryingto drive onto an incline, such as a steep driveway or trailer ramps.

- Because of the low-profile tires fitted to your car, the alloy wheels are closer to the ground. Driving over a pothole or road debris at too high a speed can seriously damage a wheel. Slow down under these conditions.

Driving

This section gives you tips on starting the engine under various conditions, and how to operate the manual transmission. It also includes important information on parking your car, and the braking system.

Preparing to
Starting the Engine.... 137
Starting in Cold Weather
......at High Alt
6-speed Manual Transmission ..... 139
.....Recommend
Engine Speed Limiter 140
Reverse Lockout.... 140
Parking....141
The Braking System...... 142
Brake Wear Indicators...... 142
Brake System Design.... 143
Anti-lock Brakes 143
Important Safety
Reminders 144
ABS Indicator 145
Driving in Bad Weather 146
Towing a Trailer 147

Preparing to Drive

You should do the following and adjustments every day before you drive your car.

1. Make sure all windows, mirrors, and outside lights are clean and unobstructed. Remove frost, snow, or ice.
2. Check that the hood and trunk are fully closed.
3. Visually check the tires. If a tire looks low, use a gauge to check its pressure.

He Check that any items you may be carrying with you inside are stored properly or fastened down securely.
5. Check the adjustment of the seat (see page 67
6. Check the adjustment of the inside and outside mirrors (see page)78
7. Make sure the doors are securely closed and locked.

1. Fasten your seat belt. Check that your passenger has fastened his or her seat belt (see page 15
2. Turn the ignition switch ON (II). Check the indicator lights in the instrument panel.
   10.Start the engine (see page)137
3. Check the gauges and indicator lights in the instrument panel (see page 43).

Starting the Engine

1. Apply the parking brake.
2. In cold weather, turn off all electrical accessories to reduce the drain on the battery.
3. Push the clutch pedal down all the way. The ENGINE START button has no effect unless the clutch pedal is depressed.
4. Turn the ignition key to ON (II) position.

ENGINE START BUTTON

1. Without touching the accelerator pedal, push the ENGINE START button. If the engine does not start right away, do not hold the ENGINE START button for more than 15 seconds at a time. Pause for at least 10 seconds before trying again.

2. If the engine does not start with 15 seconds, or starts but stalls right away, repeat step 5 with the accelerator pedal pressed half-way down. If the engine starts, release pressure on the accelerator pedal so the engine does not race.

3. If the engine still does not start, press the accelerator pedal all the way down and hold it there while starting in order to clear flooding. As before, hold the ENGINE START button for no more than 15 seconds. Return to step 6 if the engine does not start. If it starts, lift your foot off the accelerator pedal so the engine does not race.

Starting in Cold Weather at High Altitude (Above 8,000 feet/2,400 meters)

An engine is harder to start in cold weather. The thinner air found at high altitude above 8,000 feet (2,400 meters) adds to the problem.

Use the following procedure:

1. Turn off all electrical accessories to reduce the drain on the battery.

2. Push the accelerator pedal halfway to the floor and hold it there while starting the engine. Do not hold the ENGINE START button for more than 15 seconds. the engine starts, release the accelerator pedal gradually as the engine speeds up and smooths out.

3. If the engine fails to start in step 2, push the accelerator pedal to the floor and hold it there while you try to start the engine for no more than 15 seconds. If the engine does not start, return to step 2.

When

Line drawing of a car gear shift lever system (no text or symbols)

The manual transmission is synchronized in all forward gears for operation. It has a lockout so you cannot shift directly from Fifth to Reverse instead of sixth (see page 140). When shifting up or down, make sure you push the clutch pedal down all the way, shift to the next gear, and let the pedal up gradually. When you are not shifting, do not rest your foot on the clutch pedal. This can cause your clutch to wear out faster.

Come to a full stop before you shift into Reverse. You can damage the transmission by trying to shift into Reverse with the car moving. Push down the clutch pedal, and pause for a few seconds before shifting into Reverse, or shift into one of the forward gears for a moment. This stops the gears so they won't "grind."

When slowing down, you can get extra braking from the engine by shifting to a lower gear. This extra braking can help you maintain a safe speed and prevent your brakes from overheating while going down a steep hill. Before downshifting, make sure engine speed will not go into the tachometer's red zone in the lower gear.

WARNING

Rapid slowing or speeding-up can cause loss of control on slippery surfaces. If you crash, you can be injured.

Use extra care when driving on slippery surfaces.

6-speed Manual Transmission

Recommended Shift Points Engine

Drive in the highest gear that lets the engine run and accelerate smoothly. This will give you the best fuel economy and effective emissions control. The following shift points are recommended:

Shift Up	Normal Acceleration
1st to 2nd	15 mph (24 km/h)
2nd to 3rd	25 mph (40 km/h)
3rd to 4th	40 mph (64 km/h)
4th to 5th	47 mph (75 km/h)
5th to 6th	52 mph (83 km/h)

Speed Limiter Reverse Lockout

If you exceed the maximum speed for the gear you are in, the engine speed will enter into the tachometer's red zone. If this occurs, you may feel the engine cut in and out. This is caused by a limiter in the engine's computer controls. The engine will run normally when you reduce the RPM below the red zone.

Before downshifting, make sure the engine will not go into the tachometer's red zone.

Line drawing of a mechanical lever mechanism with three parts and directional arrows (no text or symbols)

The 6-speed manual transmission has a lockout so you cannot accidentally shift from Fifth to Reverse instead of Sixth.

With the clutch pedal depressed, move the shift lever to the Reverse side of the Neutral gate. Then push the shift lever down and shift to Reverse.

Always use the parking brake when you park your car. The indicator on the instrument panel shows that the parking brake is not fully released; it does not indicate that the parking brake is firmly set. Makes up parking brake is set firmly or your car may roll if it is parked on an incline.

If the car is facing uphill, turn the front wheels away from the curb and put the transmission in first gear. If the car is facing downhill, turn the front wheels toward the curb and put ethh transmission in reverse gear.

Make sure the parking brake is fully released before driving away. Driving with the parking brake partially set can overheat or damage the rear brakes.

Parking Tips

• Make sure the convertible top and the windows are closed.
• Turn off the lights.
• Place any packages, valuables, etc., in the trunk or take them with you.
• Lockthedoorswiththekeyort remote transmitter.
• Never park over dry leaves, tall grass, or other flammable materials. The three way catalytic converter gets very hot, and could cause these materials to catch on fire.

The Braking System

Your Honda is equipped with disc brakes at all four wheels. A power assist helps reduce the effort needed on the brake pedal. The ABS helps you retain steering control when braking very hard.

Put your foot on the brake pedal only when you intend to brake. Resting your foot on the pedal keeps the brakes applied lightly, causing them to build up heat. Heat build-up can reduce how well your brakes work. It also keeps your brake lights on all the time, confusing drivers behind you.

Constant application of the brakes when going down a long hill builds up heat and reduces their effectiveness. Use the engine to assist the brakes by downshifting to a lower gear and taking your foot off the accelerator pedal.

Check your brakes after driving through deep water. Apply the brakes moderately to see if they feel normal. If not, apply them gently and frequently until they do. Since a longer distance is needed to stop with wet brakes, be extra cautious and alert in your driving.

Brake Wear Indicators

All four brakes have audible brake wear indicators.

When the brake pads need replacing, you will hear a distinctive metallic “screeching” sound when you apply the brakes. If you do not have the brake pads replaced, they will begin screeching all the time.

Your brakes may sometimes squeal or squeak when you apply them lightly. Do not confuse this with the brake wear indicators. They make a very audible “screeching.”

The Braking System

Brake System Design Anti-lock Brakes

The hydraulic system that operates the brakes has two separate circuits. Each circuit works diagonally across the car (the left-front brake is connected with the right-rear brake, etc.). If one circuit should develop a problem, you will still have braking at two wheels.

Front

Your car has an Anti-lock Brake System (ABS) as standard equipment. ABS helps to prevent the wheels from locking up and skidding during hard braking, allowing you to retain steering control.

When the front tires skid, you lose steering control; the car continues straight ahead of though you out the steering wheel. The ABS helps to prevent lock-up and helps you retain steering control by pumping the brakes rapidly; much faster than a person can do it.

CONTINUED

Driving

The Braking System

You should never pump the brake pedal; this defeats the purpose of the ABS. Let the ABS work for you by always keeping firm, steady pressure on the brake pedal as you steer away from the hazard. This is sometimes referred to as "stomp and steer."

You will feel a pulsation in the brake pedal when the ABS activates, and you may hear some noise. This is normal; it is the ABS rapidly pumping the brakes.

Activation varies with the amount of traction your tires have. On dry pavement, you will need to press on the brake pedal very hard be activate the ABS. However, you may feel the ABS activate immediately if you are trying to stop on snow or ice.

Important Safety Reminders ABS does not reduce the time or distance it takes to stop the car; only helps with steering control during braking. You should always maintain a safe following distance from other vehicles.

ABS will not prevent a skid that results from changing direction abruptly, such as trying to take a corner too fast or making a sudden lane change. Always drive at a safe, prudent speed for the road and weather conditions.

ABS cannot prevent a loss of stability. Always steer moderately when you are braking hard. Severe or sharp steering wheel movement can still cause your car to veer into oncoming traffic or off the road.

A car with ABS may require a longer distance to stop on loose or uneven surfaces, such as gravel or snow, than a car without anti-lock. Slow down and allow a greater distance between cars under those conditions.

ABS Indicator

ANTI-LOCK BRAKE SYSTEM INDICATOR U.S. indicator shown

The ABS is self-checking. If anything goes wrong, the ABS indicator on the instrument panel comes on (see page 45) This means the anti-lock function of the braking system has shut down. The brakes still work like a conventional system without anti-lock, providing normal stopping ability. You should have the dealer inspect your car as soon as possible.

Line drawing of a car with dynamic motion lines, no text or symbols present

Rain, fog, and snow conditions require a different driving technique because of reduced traction and visibility. Keep your car well-maintained and exercise greater caution when you need to drive in bad weather. The cruise control should not be used in these conditions.

Always drive slower than you would in dry weather. It takes your car longer to react, even in conditions that may seem just barely damp. Apply smooth, even pressure to all the controls. Abrupt steering wheel movements or sudden, hard application of the brakes can cause loss of control in wet weather. Be extra cautious for the first few miles (kilometers) of driving while you adjust to the change in driving conditions. This is especially true in snow. A person can forget some snow-driving techniques during the summer months. Practice is needed to relearn those skills. 89

Exercise extra caution when driving in rain after a long dry spell. After months of dry weather, the first rains bring oil to the surface of the roadway, making it slippery.

Visibility Dr Being Technique clearly in all directions and being visible to other drivers are important in all weather conditions. This is more difficult in bad weather. To be seen more clearly during daylight hours, turn on your headlights.

Inspect your windshield wipers and washers frequently. Keep the windshield washer reservoir full of the proper fluid. Have the windshield wiper blades replaced if they start to streak the windshield or leave parts unwiped. Use the defrosters and air conditioning to keep the windows from fogging up on the inside (see page).

Traction Towing a Trailer frequently for wear and proper pressure. Both are important in preventing "hydroplaning" (loss of traction on a wet surface). In the winter, mount snow tires on all four wheels for the best handling.

Watch road conditions carefully, they can change from moment to moment. Wet leaves can be as slippery as ice. "Clear" roads can have patches of ice. Driving conditions can be very hazardous when the outside temperature is near freezing. The road surface can become covered with areas of water puddles mixed with areas of ice, so your traction can change without warning.

Be careful when downshifting. If traction is low, you can lock up the drive wheels for a moment and cause a skid.

Sketch of a truck and car on a wet road with raindrops falling (no text or symbols)

Be very cautious when passing, or being passed by other cars. The spray from large cars reduces your visibility, and the wind buffeting can cause you to lose control.

Your car is not designed to tow a trailer. Attempting to do so can void your warranties.

This section explains why it is important to keep your car well maintained and how to follow basic maintenance safety precautions.

This section also includes Maintenance Schedules for normal driving and severe driving conditions, a Maintenance Record, and instructions for simple maintenance tasks you may want to take care of yourself.

If you have the skills and tools to perform more complex maintenance tasks on your Honda, you may want to purchase the Service Manual. See page 163 information on how to obtain a copy, or see your Honda dealer.

....MaintenSparkShlags..150....180

.ImportantReplayPrentuations...151.... 180

.MaintenanSpecifiedtilms152.... 182

Required Maintenance Record.... 159 Battery

Owner Maintenance Checks...... 161 | Wiper Blades...... 186

Fluid Locations.... 162 Air Conditioning System.... 188

Engine Oil.... 163 | Dust and Pollen Filter .... 189

Adding Oil.... 163 | Drive Belt.... 190

Recommended Oil 163 191

Synthetic Oil.... 164 Inflation.... 191

Additives 164 Inspection 193

Changing the Oil and Filter..... 165 | Maintenance..... 194

Cooling System 167 Tire

Adding Engine Coolant.... 167 | Tire Wear.... 194

Replacing Engine Coolant ..... 169 | Replacing Tires and Wheels .... 195

.WindshieldWeslsensd Tires....173.... 196

6-speed Manual Transmission | Winter Driving 196

Fluid 174 Snow Tires 197

Differential Fluid 175 Tire Chains 197

Brake and Clutch Fluid.... 176 | Lights.... 198

Brake Fluid.... 176 | Replacing Bulbs.... 200

Brake System 176 Storing Your Car 208

Clutch System 177

Air Cleaner Element.... 178

Hood Latch.... 180

Maintenance Safety

Regularly maintaining your car is the best way to protect your investment. Proper maintenance is essential to your safety and the safety of your passengers. It will also reward you with more economical, trouble-free driving and help reduce air pollution.

WARNING

Improperly maintaining this car or failing to correct a problem before driving can cause a crash in which you can be seriously hurt or killed.

Always follow the inspection and maintenance recommendations and schedules in this owner's manual.

This section includes instructions for simple maintenance tasks, such as checking and adding oil. Any service items not detailed in this section should be performed by a Honda technician or other qualified mechanic.

Some of the most important safety precautions are given here. However, we cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.

▲WARNING

Failure to properly follow maintenance instructions and precautions can cause you to be seriously hurt or killed.

Always follow the procedures and precautions in this owner's manual.

Important Safety Precautions Before you begin any maintenance, make sure your car is parked on level ground and that the parking brake is set. Also, be sure the engine is off. This will help to eliminate several potential hazards:

• Carbon monoxide poisoning from engine exhaust. Be sure there is adequate ventilation whenever you operate the engine.
• Burns from hot parts. Let the engine and exhaust system cool before touching any parts.
• Injury from moving parts. Do not run the engine unless instructed to do so.

Read the instructions before you begin, and make sure you have the tools and skills required.

To reduce the possibility of fire or explosion, be careful when working around gasoline or batteries. Use a commercially available degreaser or parts cleaner, not gasoline, to clean parts. Keep cigarettes, sparks, and flames away from the battery and all fuel-related parts.

You should wear eye protection and protective clothing when working near the battery or when using compressed air.

Maintenance Schedule

The Maintenance Schedule specifies how often you should have your car serviced and what things need attention. It is essential that you have your car serviced as scheduled to retain its high level of safety, dependability, and emissions control performance.

The services and time or distance intervals shown in the maintenance schedule assume you will use your car as normal transportation for your passenger and possessions. You should also follow these recommendations:

• Avoid exceeding your car' limit. This put sexcessstr the engine, brakes, and many other parts of your car. The load limit is shown on the label on the driver's doorjamb.
• Operate your car on reasonable roads within the legal speed limit.
• Drive your car regularly over a distance of several miles (kilometers).
  • Always use unleaded gasoline with the proper octane rating (see page 122).

Which Schedule to Follow: Service your car according to the time and mileage periods on one of the Maintenance Schedules on the following pages. Select the schedule for “Severe Conditions” if most of your driving is done under one or more of the conditions listed on that page Otherwise, follow the schedule for Normal Conditions.”

Your authorized Honda dealer knows your car best and can provide competent, efficient service. However, service at a dealer is not mandatory to keep your warranties in effect. Maintenance may be done by any qualified service facility or person who is skilled in this type of automotive service. Keep all the receipts as proof of completion, and have the person who does the work fill out the Maintenance Record. Check your warranty booklet for more information.

We recommend the use of genuine Honda parts and fluids whenever you have maintenance done. These are manufactured to the same high-quality standards as the original components, so you can be confident of their performance and durability.

U.S. Cars:

Maintenance, replacement or repair of emissions control devices and systems may be done by any automotive repair establishment or individual using parts that are “certified” to EPA standards.

According to state and federal regulations, failure to perform maintenance on the items marked with will not void your emissions warranties. However, Honda recommends that all maintenance services be performed at the recommended time or mileage period to ensure long-term reliability.

Service at the indicated distance or time whichever comes first.	miles x 1,000	15	30	45	60	75	90	105	120
	km x 1,000	24	48	72	96	120	144	168	192
	months	12	24	36	48	60	72	84	96
Replace engine oil		Replace every 7,500 miles (12,000 km) or 1 year
Replace engine oil filter		●	●	●	●	●	●	●	●
Check engine oil and coolant		Check oil and coolant at each fuel stop
Replace air cleaner element			●		●		●		●
Inspect valve clearance		Adjust only if noisy						●
Replace spark plugs								●
Inspect drive belt			●		●		●		●
Inspect idle speed								●
Replace engine coolant		120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
Replace transmission fluid									●
Replace rear differential fluid			●		●		●		●
Inspect front and rear brakes		●	●	●	●	●	●	●	●
Replace brake fluid		Every 3 years (independent of mileage)
Check parking brake adjustment		●	●	●	●	●	●	●	●
Replace dust and pollen filter			●		●		●		●
Check tire inflation and condition		Every 7,500 miles (12,000 km)
Visually inspect the following items:
Tie rod ends, steering gear box, and boots Suspension components Driveshaft boots Brake hoses and lines (including ABS) All fluid levels and condition of fluids Cooling system hoses and connections Exhaust system Fuel lines and connections		●	●	●	●	●	●	●	●

U.S. Owners

Follow the Normal Conditions Maintenance Schedule if the severe driving conditions specified in the Severe Conditions Maintenance Schedule do not apply.

NOTE: If you only OCCASIONALLY drive under a "severe" condition, you should follow the Normal Conditions Maintenance Schedule.

Canadian Owners

Follow the Maintenance Schedule for Severe Conditions.

: See information on maintenance and emissions warranty, last column, page153

Service at the indicated distance or time, whichever comes first. Do the items in A, B, C as required for each distance/time interval.

U.S. Owners Refer to page 148 to determine which schedule to use.

Canadian owners: Follow the schedule for Severe Conditions.

7,500 mi/12,000 km	Do items in A.
15,000 mi/24,000 km/1 yr	Do items in A, B.
22,500 mi/36,000 km	Do items in A.
30,000 mi/48,000 km/2 yrs	Do it e m sin A, B, C.
37,500 mi/60,000 km	Do items in A.
3 yrs	Replace brake fluid (independent of mileage)
45,000 mi/72,000 km/3 yrs	Do items in A, B.
52,500 mi/84,000 km	Do items in A.
60,000 mi/96,000 km/4 yrs	Do it e m sin A, B, C.
67,500 mi/108,000 km	Do items in A.
75,000 mi/120,000 km/5 yrs	Do items in A, B.
82,500 mi/132,000 km	Do items in A.
6 yrs	Replace brake fluid (independent of mileage)
90,000 mi/144,000 km/6 yrs	Do it e m sin A, B, C.
97,500 mi/156,000 km	Do items in A.
105,000 mi/168,000 km/7 yrs	Inspect valve clearance.Check idle speed.Replace spark plugs.Do items in A, B.
112,500 mi/180,000 km	Do items in A.
120,000 mi/192,000 km/10 yrs	Replace engine coolant, then replace every 60.000 mi/96,000 km/5 yrs.
120,000 mi/192,000 km/8 yrs	Replace transmission fluid.Do it e m sin A, B, C.

A	Replace engine oil.Check tire inflation and condition.
B	Replace engine oil filter.Inspect front and rear brakes.Check parking brake adjustment.Inspect tie rod ends, steering gear box and boots.Inspect suspension components.Inspect driveshaft boots.Inspect brake hoses and lines (including ABS).Check all fluid levels, condition of fluids, and check for leaks.Inspect cooling system hoses and connections.Inspect exhaust system.Inspect fuel lines and connections.
C	Replace air cleaner element.Replace rear differential fluid.Replace dust and pollen filter.Inspect drive belt.

: See information on maintenance and emissions warranty, last column, page153
Note:
- Check engine oil and coolant at each fuel stop.
- Check and adjust valve clearance, cold engine, only if noisy.

Service at the indicated distance or time whichever comes first.	miles x 1,000	15	30	45	60	75	90	105	120
	km x 1,000	24	48	72	96	120	144	168	192
	months	12	24	36	48	60	72	84	96
Replace engine oil and oil filter		Replace every 3,750 miles (6,000 km) or 6 months
Check engine oil and coolant		Check oil and coolant at each fuel stop
Replace air cleaner element Use normal schedule except in dusty conditions		●	●	●	●	●	●	●	●
Inspect valve clearance		Adjust only if noisy						●
Replace spark plugs								●
Inspect drive belt			●		●		●		●
Inspect idle speed								●
Replace engine coolant		120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
Replace transmission fluid					●				●
Replace rear differential fluid		●	●	●	●	●	●	●	●
Inspect front and rear brakes		Inspect every 7,500 miles (12,000 km) or 6 months
Replace brake fluid		Every 3 years (independent of mileage)
Check parking brake adjustment		●	●	●	●	●	●	●	●
Replace dust and pollen filter^1			●		●		●		●
Lubricate all hinges, locks and latches		●	●	●	●	●	●	●	●
Check tire inflation and condition		Every 7,500 miles (12,000 km)
Visually inspect the following items:
Tie rod ends, steering gear box, and boots Suspension components, Driveshaft boots		Every 7,500 miles (12,000 km) or 6 months
Brake hoses and lines (including ABS) All fluid levels and condition of fluids Cooling system hoses and connections Exhaust system , Fuel lines and connections Lights and controls, Vehicle underbody		●	●	●	●	●	●	●	●

1: Refer to page 189 for replacement information under special driving conditions.

U.S. Owners

Follow the Severe Conditions Maintenance Schedule if you drive your vehicle MAINLY under one or more of the following conditions:

• Driving less than 5 miles (8 km) per trip or, in freezing temperatures, driving less than 10 miles (16 km) per trip.
• Driving in extremely hot [over 90^ (32°C)] conditions.
• Extensive idling or long periods of stop-and-go driving.
• Driving in mountainous conditions.
• Driving on muddy, dusty, or de-iced roads.

Canadian Owners

Follow the Maintenance Schedule for Severe Conditions.

: See information on maintenance and emissions warranty, last column, page1.53

Service at the indicated distance or time, whichever comes first. Do the items in A, B, C, D, E, F as required for each distance/time.

U.S. Owners Refer to page 156 to determine which schedule to use.

Canadian Owners Use the Maintenance Schedule for Severe Conditions.

3,750 mi/6,000 km	Do items in A.
7,500 mi/12,000 km	Do items in A, B.
11,250 mi/18,000 km	Do items in A.
15,000 mi/24,000 km/1 yr	Do it e m sin A, B, C.
18,750 mi/30,000 km	Do items in A.
22,500 mi/36,000 km	Do items in A, B.
26,250 mi/42,000 km	Do items in A.
30,000 mi/48,000 km/2 yrs	Do it e m sin A, B, C, D.
33,750 mi/54,000 km	Do items in A.
37,500 mi/60,000 km	Do items in A, B.
41,250 mi/66,000 km	Do items in A.
45,000 mi/72,000 km/3 yrs	Do it e m sin A, B, C, E.
48,750 mi/78,000 km	Do items in A.
52,500 mi/84,000 km	Do items in A, B.
56,250 mi/90,000 km	Do items in A.
60,000 mi/96,000 km/4 yrs	Do it e m sin A, B, C, D, F.
63,750 mi/102,000 km	Do items in A.
67,500 mi/108,000 km	Do items in A, B.
71,250 mi/114,000 km	Do items in A.
75,000 mi/120,000 km/5 yrs	Do it e m sin A, B, C.
78,750 mi/126,000 km	Do items in A.

1: See dust and pollen filter on page 189 for replacement information under special driving conditions.
See information on maintenance and emissions warranty, last column, page 153.
Note:
- Check engine oil and coolant at each fuel stop.
- Check and adjust valve clearance, cold engine, only if noisy.

A	Replace engine oil and filter.
B	Inspect front and rear brakes.Check tire inflation and condition.Inspect tie rod ends, steering gear box and boots.Inspect suspension components.Inspect driveshaft boots.
C	Replace air cleaner element.Check parking brake adjustment.Lubricate all hinges, locks and latches with multipurpose grease.Replace rear differential fluid.Inspect brake hoses and lines (including ABS).Check all fluid levels, condition of fluids, and check for leaks.Inspect cooling system hoses and connections.Inspect exhaust system.Inspect fuel lines and connections.Check all lights.Inspect the underbody.
D	Inspect drive belt.Replace dust and pollen filter1.
E	Replace Brake fluid every 3 years (regardless of mileage).
F	Replace transmission fluid.

CONTINUED

Maintenance

82,500 mi/132,000 km	Do items in A, B.
86,250 mi/138,000 km	Do items in A.
6 yrs	Replace brake fluid (independent of mileage)
90,000 mi/144,000 km/6 yrs	Do it e m sin A, B, C, D.
93,750 mi/150,000 km	Do items in A.
97,500 mi/156,000 km	Do items in A, B.
101,250 mi/162,000 km	Do items in A.
105,000 mi/168,000 km/7 yrs	Inspect valve clearance.Check idle speed.Replace spark plugs.Do it e m sin A, B, C.
108,750 mi/174,000 km	Do items in A.
112,500 mi/180,000 km	Do items in A, B.
116,250 mi/186,000 km	Do items in A.
120,000 mi/192,000 km/8 yrs	Do it e m sin A, B, C, D, E.
120,000 mi/192,000 km/10 yrs	Replace engine coolant, then replace every 60,000 mi/96,000 km/5 yrs.

1: See dust and pollen filter on page 189 for replacement information under special driving conditions.

: See information on maintenance and emissions warranty, last column, page153

NOTE:

• Check engine oil and coolant at each fuel stop.
• Check and adjust valve clearance, cold engine, only if noisy.

Required Maintenance Record (for Normal and Severe Schedules)

You or the servicing dealer can record all completed maintenance here, whether you follow the schedule for normal conditions (page 154) or severe conditions (page 156). Keep the receipts for all work done on your vehicle.

3,750 mi6,000 km	Signature or dealer stamp	mi/km
		Date
7,500 mi12,000 km		mi/km
		Date
11,250 mi18,000 km		mi/km
		Date
15,000 mi24,000 km(or 1 year)		mi/km
		Date
18,750 mi30,000 km		mi/km
		Date
22,500 mi36,000 km		mi/km
		Date
26,250 mi42,000 km		mi/km
		Date
30,000 mi48,000 km(or 2 years)		mi/km
		Date

33,750 mi54,000 km	Signature or dealer stamp	mi/km
		Date
37,500 mi60,000 km		mi/km
		Date
41,250 mi66,000 km		mi/km
		Date
45,000 mi72,000 km(or 3 years)		mi/km
		Date
48,750 mi78,000 km		mi/km
		Date
52,500 mi84,000 km		mi/km
		Date
56,250 mi90,000 km		mi/km
		Date
60,000 mi96,000 km(or 4 years)		mi/km
		Date

CONTINUED

Maintenance

Required Maintenance Record (for Normal and Severe Schedules)

63,750 mi102,000 km	Signature or dealer stamp mi/km
67,500 mi108,000 km		mi/km
		Date
71,250 mi114,000 km		mi/km
		Date
75,000 mi120,000 km(or 5 years)		mi/km
		Date
78,750 mi126,000 km		mi/km
		Date
82,500 mi132,000 km		mi/km
		Date
86,250 mi138,000 km		mi/km
		Date
90,000 mi144,000 km(or 6 years)		mi/km
		Date

93,750 mi150,000 km	Signature or dealer stamp mi/km
97,500 mi156,000 km		mi/km
		Date
101,250 mi162,000 km		mi/km
		Date
105,000 mi168,000 km(or 7 years)		mi/km
		Date
108,750 mi174,000 km		mi/km
		Date
112,500 mi180,000 km		mi/km
		Date
116,250 mi186,000 km		mi/km
		Date
120,000 mi192,000 km(or 8 years)		mi/km
		Date

You should check the following Engine oil level Check every items at the specified intervals. If you are unsure of how to perform time you fill the fuel tank. See page 125
- Engine coolant level Check the radiator reserve tank every time you fill the fuel tank. S126p
- Windshield washer fluid Check the level in the reservoir monthly. If weather conditions cause you to use the washers frequently, check the reservoir each time you stop for fuel. See page .173
- Brakes and clutch Check the fluid level monthly. See page 176 .

• Tires Check the tire pressure monthly. Examine the tread for wear and foreign objects. See page 191.
- Lights Check the operation of g ethe headlights, parking lights, taillights, high-mount brake light, turn signals, brake lights, and license plate lights monthly. See page .198

Fluid Locations

ENGINE OIL FILL CAP WASHER FLUID (Blue cap) CLUTCH FLUID (Gray cap) BRAKE FLUID (Gray cap) ENGINE OIL DIPSTICK COOLANT RESERVOIR

Adding Oil Recommended Oil

Technical line drawing of a car engine compartment with a magnified inset showing the internal component detail (no text or symbols present)

To add oil, unscrew and remove the engine oil fill cap on top of the left valve cover. Pour in the oil, and replace the engine oil fill cap. Tighten it securely. Wait a few minutes and recheck the oil level. Do not fill above the upper mark; you could damage the engine.

Oil is major contributor to your engine's performance and longevity. Always use a premium-grade detergent oil displaying the API Certification Seal. This seal indicates the oil is energy conserving, and that it meets the American Petroleum Institute's latest requirements. It is highly recommended that you use Honda Motor Oil in your vehicle for as long as you own it.

Make sure the API Certification Seal says "For Gasoline Engines."

AMERICAN PETROLEUM INSTITUTE FOR GASOLINE ENGINES CERTIFIED API CERTIFICATION SEAL

CONTINUED

The numbers on the container's label tell you the oil's viscosity or weight. Select the oil for your car according to this chart.

5W-40 10W-30 -20 0 20 40 60 80 100 °F -30 -20 -10 0 10 20 30 40 °C

Ambient Temperature

An oil with a viscosity of 10W-30 is preferred for optimum fuel economy and year-round protection in your Honda. You may use a 5W-40 oil if the temperature in your area goes below 0^ F ( 20^ C).

Synthetic Oil Additives

You may use a synthetic motor oil if it meets the same requirements given for conventional motor oil: energy conserving, a service classification of SJ, and the proper weight as shown on the chart using synthetic oil, you must follow the oil and filter change intervals given in the maintenance schedule.

Your Honda does not need any oil additives. Purchasing additives for the engine or transmission will not increase your car's performance or longevity. It only increases the cost of operating your car.

Changing the Oil and Filter

Always change the oil and filter according to the time and dis (miles/kilometers) recommendations in the maintenance schedule. The oil and filter collect contaminants that can damage your engine if they are not removed regularly.

Changing the oil and filter requires special tools and access from underneath the car. The car should be raised on a service station-type hydraulic lift for this service. Unless you have the knowledge and proper equipment, you should have this maintenance done by a skilled mechanic.

1. Run the engine until it reaches normal operating temperature, then shut it off.

ance WASHER OIL DRAIN BOLT

1. Remove the engine oil fill cap. Remove the oil drain bolt from the bottom of the engine. Drain the oil into an appropriate container.

OIL FILTER

Remove the oil filter and let the remaining oil drain. A special wrench (available from your Honda dealer) is required to remove the filter.

1. Install a new oil filter according to instructions that come with it.

CONTINUED

Engine Oil

1. Put a new washer on the drain bolt, then reinstall the drain bolt.
   Tighten it to:
   33 lbf·ft (45 N·m, 4.6 kgf·m)
2. Refill the engine with the recommended oil.
   Engine oil change capacity (including filter):
   5.1 US qt (4.8 ℓ, 4.2 Imp qt)
3. Replace the engine oil fill cap. Start the engine. The oil pressure indicator light should go out within five seconds. If it does not, turn off the engine and reinspect your work.

4. Let the engine run for several minutes and check the drain bolt and oil filter for leaks.

5. Turn off the engine, let it sit for several minutes, then check the oil level. If necessary, add oil to bring the level to the upper mark on the dipstick.

NOTICE

Improper disposal of engine oil can be harmful to the environment. If you change your own oil, please dispose of the used oil properly. Put it in a sealed container and take it to a recycling center. Do not discard it in a trash bin or dump it on the ground.

Adding Engine Coolant

RESERVE TANK MAX MIN

If the coolant level in the reserve tank is at or below the MIN line, add coolant to bring it up to the MAX line. Inspect the cooling system for leaks. The coolant you add should always be a mixture of 50 percent antifreeze and 50 percent water. Never add straight antifreeze or plain water.

Always use Honda All Season Antifreeze/Coolant Type 2. This coolant is pre-mixed with 50 percent antifreeze and 50 percent water. It does not require any additional mixing.

If it is not available, you may use another major-brand non-silicate coolant as a temporary replacement. Make sure it is a high-quality coolant recommended for aluminum engines. However, continued use of any non-Honda coolant can result in corrosion, causing the cooling system to malfunction or fail. Have the cooling system flushed and refilled with Honda antifreeze/coolant as soon as possible.

If the reserve tank is completely empty, you should also check the coolant level in the radiator.

WARNING

Removing the radiator cap while the engine is hot can cause the coolant to spray out, seriously scalding you.

Always let the engine and radiator cool down before removing the radiator cap.

1. Make sure the engine and radiator are cool.

CONTINUED

Cooling System

RADIATOR CAP

1. Turn the radiator cap counterclockwise, without pressing down on it, until it stops. This relieves any pressure remaining in the cooling system.

2. Remove the radiator cap by pushing down and turning counterclockwise.

RESERVE TANK

1. The coolant level should be up to the base of the filler neck. Add coolant if it is low.

2. Put the radiator cap back on. Tighten it fully.

3. Pour coolant into the reserve tank. Fill it to halfway between the MAX and MIN marks. Put the cap back on the reserve tank.

Do not add any rust inhibitors or other additives to your vehicle's cooling system. They may not be compatible with the coolant or engine components.

Replacing Engine Coolant

The cooling system should be completely drained and refilled with new coolant according to the time and distance recommendations in the maintenance schedule. Only use Honda All season Antifreeze/Coolant Type 2. Draining the coolant requires access to the underside of the vehicle. Unless you have the tools and knowledge, you should have this maintenance done by a skilled mechanic.

Technical diagram of a mechanical assembly with pipes and components (no visible text or labels)

1. Turn the ignition ON (II). Turn the heater temperature control dial fully clockwise. Turn the ignition off.

2. Open the hood. Makes sure engine and radiator are cool to the touch.

3. Remove the radiator cap.

DRAIN BOLT DRAIN PLUG

1. Loosen the drain plug on the bottom of the radiator. The coolant will drain through the splash guard. Remove the drain bolt and washer from the engine block.

CONTINUED

Cooling System

RESERVE TANK CAP HOLDER RESERVE TANK

1. Remove the reserve tank from its holder by pulling it straight up. Drain the coolant, then put the tank back in its holder.

2. When the coolant stops draining, tighten the drain plug at the bottom of the radiator. Apply non-hardening sealant to the drain bolt threads, put a new washer on the drain bolt, and reinstall the bolt in the engine block. Tighten it securely. Tightening torque: 61 lbf·ft (83 N·m, 8.5 kgf·m)

BLEEDER BOLT

1. Loosen the bleeder bolt on top of the engine, and remove the bleeder cap near the engine oil fill cap.

BLEEDER CAP

1. Pour Honda All Season Antifreeze/Coolant Type 2 into the radiator up to the base of the filler neck. This coolant is a mixture of 50 percent antifreeze and 50 percent water. Pre-mixing is not required. The cooling system capacity is: 1.72 US gal (6.5 ℓ, 1.43 lmp gal)

Fill up to here FILLER NECK

1. Tighten the bleeder bolt and reinstall the bleeder cap when coolant comes out in a steady stream with no bubbles.
2. Start the engine and let it run for about 30 seconds. Then turn off the engine.
3. Pour coolant into the radiator up to the base of the filler neck.

RESERVE TANK

1. Fill the reserve tank to the MAX mark. Install the reserve tank cap.
2. Install the radiator cap, and tighten it to the first stop.
3. Start the engine and let it run until the radiator fan comes on two times. Then stop the engine.

CONTINUED

Cooling System

1. Remove the radiator cap.
2. Pour coolant into the radiator up to the base of the filler neck and into the reserve tank up to the MAX mark.
3. Start the engine and hold it at 1,500 rpm until the radiator fan comes on. Turn off the engine. Check the coolant level in the radiator and add coolant if needed.
4. Install the radiator cap, and tighten it fully.
5. If necessary, fill the reserve tank to the MAX mark. Install the reserve tank cap.

RESERVOIR CAP

Check the level in the windshield washer reservoir at least monthly during normal usage. In bad weather, when you use the washers often, check the level every time you stop for fuel.

The windshield washer reservoir is located in the rear of the engine compartment on the passenger's side.

Check the reservoir's fluid level by removing the cap and looking at the level gauge attached to the cap.

Fill the reservoir with a good-quality windshield washer fluid. This increases the cleaning capability and prevents freezing in cold weather.

When you refill the reservoir, clean the edges of the windshield wiper blades with windshield washer fluid on a clean cloth. This will help to condition the blade edges.

NOTICE

Do not use engine antifreeze or a vinegar/water solution in the windshield washer reservoir.

Antifreeze can damage your car's paint, while a vinegar/water solution can damage the windshield washer pump.

Use only commercially-available windshield washer fluid.

6-speed Manual Transmission Fluid

FILLER BOLT CORRECT LEVEL

Check the fluid level with the transmission at normal operating temperature and the car sitting on level ground. Remove the transmission filler bolt and carefully feel inside the bolt hole with your finger. The fluid level should be up to the edge of the bolt hole. If it is not, add Honda Manual Transmission Fluid (MTF) until it starts to run out of the hole. Reinstall the filler bolt and tighten it securely.

If Honda MTF is not available, you may use an API service SG, SH or SJ grade motor oil with a viscosity of SAE 10W-30 or 10W-40 as a temporary replacement. An SG grade is preferred, but an SH or SJ grade may be used if SG is not available. However, motor oil does not contain the proper additives and continued use can cause stiffer shifting. Replace as soon as it is convenient.

The transmission should be drained and refilled with new fluid according to the time and distance recommendations in the maintenance schedule.

FILLER BOLT CORRECT LEVEL

Check the fluid level with the differential at normal operating temperature and the vehicle sitting on level ground. Remove the differential fluid filler bolt and washer and carefully feel inside the bolt hole with your finger. The fluid level should be up to the edge of the bolt hole. If it is not, slowly add fluid until it starts to run out of the hole.

Use a SAE90 viscosity hypoid gear oil, API service classified GL5 or GL6 only, in the differential.

Put a new washer on the filler bolt, then reinstall the filler bolt. Tighten it securely. Tightening torque: 33 lbf·ft (45 N·m, 4.6 kgf·m)

The differential should be drained and refilled with new fluid according to the time and distance recommendations in the maintenance schedule.

Brake and Clutch Fluid

Check the fluid level in the reservoirs monthly. There are two reservoirs. They are:

• Brake fluid reservoir
• Clutch fluid reservoir

The brake fluid should be replaced according to the time recommendation in the maintenance schedule.

Always use Honda Heavy Duty Brake Fluid DOT 3. If it is not available, you should use only DOT 3 or DOT 4 fluid, from a sealed container, as a temporary replacement. However, the use of any non-Honda brake fluid can cause corrosion and decrease the life of the system. Have the brake system flushed and refilled with Honda Heavy Duty Brake Fluid DOT 3 as soon as possible.

Brake fluid marked DOT 5 is not compatible with your car's braking system and can cause extensive damage.

Brake SystemBrake Fluid

MAX MIN

The fluid level should be between the MIN and MAX markson the si of the reservoir. If the level is at or below the MIN mark, your brake system needs attention. Have the brake system inspected for leaks or worn brake pads.

Clutch System

MAX MIN

The fluid should be between the MIN and MAX marks on the side of the reservoir. If it is not, add brake fluid to bring it up to that level. Use the same fluid specified for the brake system.

Low fluid level can indicate a leak in the clutch system. Have this system inspected as soon as possible.

Air Cleaner Element

The air cleaner element should be replaced according to the time and distance recommendations in the maintenance schedule.

Follow the replacement procedure for removal and reinstallation.

Replacement

CLAMPS

To replace it:

1. Unsnap the six clamps holding the air cleaner housing cover.
2. Remove the air cleaner housing cover. Disconnect the air intake duct from the air cleaner element.

AIR CLEANER ELEMENT

1. Remove the old air cleaner element.
2. Carefully clean the inside of the air cleaner housing with a damp rag.

Air Cleaner Element

1. Attach the new air cleaner element to the duct. Install the new air cleaner element in the air cleaner housing. Make sure the pin on the edge of the element fits in the hole in the bottom of the housing.

2. Reinstall the air cleaner housing cover, snap the six clamps back into place.

Hood Latch, Spark Plugs

PIVOTS

Clean the hood latch assembly with a mild cleaner, then lubricate it with a multipurpose grease. Lubricate all the moving parts (as shown), including the pivot. Follow the time and distance recommendations in the Maintenance Schedule. If you are not sure how to clean and grease the latch, contact your Honda dealer.

Spark PlugsHood Latch

The spark plugs in your car are a special platinum-tipped design for longer life. They only need to be replaced every 7 years or 105,000 miles (168,000 km), whichever comes first.

Replacement

Technical line drawing of an engine bay with visible components and no text or symbols

1. Remove the four hexagon socket head cap bolts holding the ignition coil cover.

2. Clean up any dirt and oil that have collected around the ignition coils.

Technical diagram of an engine cylinder with attached components, showing internal parts and a close-up inset (no text or labels)

1. Remove the bolt holding the ignition coil and pull the ignition coil straight up slightly. Disconnect the ignition coil connector by pushing the tab and pulling the connector back. Pull the ignition coil all the way up.

2. Remove the spark plug with a five-eighths inch (16 mm) spark plug socket.

Line drawing of a car engine bay with a hand adjusting the component (no text or symbols visible)

1. But the new spark plug into the socket, then screw it into the hole. Screw it in by hand so you do not crossthread it.

Line drawing of a car engine bay with a hand adjusting the valve (no text or symbols)

Torque the spark plug. (If you do not have a torque wrench, tighten the spark plug two-thirds of a turn after it contacts the cylinder head.) Tightening torque: 13 lbf·ft (18 N·m, 1.8 kgf·m)

CONTINUED

Spark Plugs

NOTICE

Tighten the spark plugs carefully. A spark plug that is too loose can overheat and damage the engine. Overtightening can cause damage to the threads in the cylinder head.

1. Install the ignition coil. Reinstall the bolt.
2. Repeat this procedure for the other three spark plugs.
3. Reinstall the cover on the cylinder bank. Reinstall the four hexagon socket head cap bolts.

Specifications:

NGK: PFR7G-11 DENSO: PK22PR-L11

Spark Plug Gap: 0.04 in (1.1 mm) 00.1 mm

Check the condition of your car's battery monthly. You should check the color of the test indicator window, and for corrosion on the terminals.

TEST INDICATOR WINDOW

Check the battery condition by looking at the test indicator window on the battery. The label on the battery explains the test indicator's colors.

Check the battery terminals for corrosion (a white or yellowish powder). To remove it, cover the terminals with a solution of baking soda and water. It will bubble up and turn brown. When this stops, wash it off with plain water. Dry off the battery with a cloth or paper towel. Coat the terminals with grease to help prevent future corrosion.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. Wash hands after handling.

CONTINUED

Battery

Line drawing of a hand adjusting the engine compartment of a vehicle (no text or symbols)

If the terminals are severely corroded, clean them with baking soda and water. Then use a wrench to loosen and remove the cables from the terminals. Always disconnect the negative ( ) cable first and reconnect it last. Clean the battery terminals with a terminal cleaning tool or wire brush. Reconnect and tighten the cables, then coat the terminals with grease.

If you need to connect the battery to a charger, disconnect both cables to prevent damage to the car's electrical system.

▲WARNING

The battery gives off explosive hydrogen gas during normal operation.

A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you.

Wear protective clothing and a face shield, or have a skilled mechanic do the battery maintenance.

If your car's battery is disconnected or goes dead, the audio system will disable itself. Then next time on the radio you will see "Code" in the frequency display. Use the Preset buttons to enter the five-digit code (see page).116

NOTICE

Charging the battery with the cables connected can seriously damage your car's electronic controls. Detach the battery cables before connecting the battery to a charger.

Wiper Blades

Check the condition of the wiper blades at least every six months. Look for signs of cracking in the rubber, or areas that are getting hard. Replace the blades if you find these signs, or if they leave streaks and unwiped areas when used.

Diagram showing airflow or movement of a vehicle's blade and blade, with arrows indicating direction (no text or symbols)

To replace the blade:

1. Raise the wiper arm off the windshield.

LOCK TAB

1. Disconnect the blade assembly from the wiper arm by pushing the lock tab. Hold it in while you push the blade assembly toward the base of the arm.

Wiper Blades

Illustration of a hand holding a tool with a curved handle and arrow indicating motion (no text or symbols)

1. Remove the blade from its holder by grasping the tabbed end of the blade. Pull firmly until the tabs come out of the holder.

BLADE REINFORCEMENT

Examine the new wiper blades. If they have no plastic or metal reinforcement along the back edge, remove the metal reinforcement strips from the old wiper blade and install them in the slots along the edge of the new blade.

1. Slide the new wiper blade into the holder until the tabs lock.

2. Slide the wiper blade assembly onto the wiper arm. Make sure it locks in place.

3. Lower the wiper arm down against the windshield.

Air Conditioning System

Your car's air conditioning is a sealed system. Any major maintenance, such as recharging, should be done by a qualified mechanic. You can do a couple of things to make sure the air conditioning works efficiently.

Periodically check the engine's radiator and air conditioning condenser for leaves, insects, and dirt stuck to the front surface. These block the air flow and reduce cooling efficiency. Use a light spray from a hose or a soft brush to remove them.

NOTICE

The condenser and radiator fins bend easily. Only use a low-pressure spray or soft-bristle brush to clean them.

AIR CONDITIONING CONDENSER

Run the air conditioning at least once a week during the cold weather months. Run it for at least ten minutes while you are driving at a steady speed with the engine at normal operating temperature. This circulates the lubricating oil contained in the refrigerant.

If the air conditioning does not get as cold as before, have your dealer check the system. Recharge the system with Refrigerant HFC-134a (R-134a). (See Specifications on page 253.)

NOTICE

Whenever you have the air conditioning system serviced, make sure the service facility uses a refrigerant recycling system. This system captures the refrigerant for reuse. Releasing refrigerant into the atmosphere can damage the environment.

The dust and pollen filter removes pollen and dust from the outside air, The heating and cooling system brings air into the interior. It should be replaced according to the time and distance recommendations in the maintenance schedule.

This filter should be replaced every 30,000 miles (48,000 km) under normal conditions. It should be replaced every 15,000 miles (24,000 km) if you drive primarily in urban areas that have high concentrations of soot in the air from industry and diesel-powered vehicles. Replace it more often if air flow from the climate control system becomes less than usual. Have the dust and pollen filter replaced by your Honda dealer.

Replacement

Technical line drawing of a car engine bay with an arrow pointing to the hood (no text or symbols present)

The dust and pollen filter is located in the engine compartment on the passenger's side near the base of the windshield.

1. Open the hood. Unclip the windshield base by pulling it up.

Technical line drawing of a car engine bay with no visible text or symbols

1. Push the tab on the dust and pollen filter to unlock it from the holder.

2. Remove the old filter. Put a new filter in the holder and push it in until it locks.

3. Put the pins on the windshield base into their mating holes on the support, and push the base down until the pins snap in.

Drive Belt

Line drawing of a car engine bay with internal components and a close-up inset showing internal components (no text or symbols)

You should check the condition of the drive belt every 2 years. Examine the edges of belt for cracks or fraying.

Auto-tensioner

INDICATOR AUTO-TENSIONER POINTER

An auto-tensioner adjusts the tension of the drive belt. The pointer on the auto-tensioner should be within the recessed area of the indicator. If the pointer is not within the recessed area, contact your Honda dealer.

To safely operate your car, your tires must be the proper type and size, in good condition with adequate tread, and correctly inflated. The following pages give more detailed information on how and when to check air pressure, how to inspect your tires for damage and wear, and what to do when your tires need to be replaced.

WARNING

Using tires that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.

Follow all instructions in this owner's manual regarding tire inflation and maintenance.

Inflation

Keeping the tires properly inflated provides the best combination of handling, tread life, and riding comfort. Underinflated tires wear unevenly, adversely affect handling and fuel economy, and are more likely to fail from being overheated. Overinflated tires can make your car ride more harshly, are more prone to damage from road hazards, and wear unevenly.

We recommend that you visually check your tires every day. If you think a tire might be low, check it immediately with a tire gauge.

CONTINUED

Tires

Use a gauge to measure the air pressure at least once a month. Even tires that are in good condition may lose one to two psi (10 to 20 kPa, 0.1 to 0.2 kgf/cm ^3 per month. Remember to check the spare tire at the same time you check all other tires.

Check the pressure in the tires when they are cold. This means the car has been parked for at least three hours. If you have to drive the car before checking the tire pressure, the tires can still be considered “cold” if you drive less than 1 mile (1.6 km).

If you check the pressure when the tires are hot (the car has been driven several miles), you will see readings 4 to 6 psi (30 to 40 kPa, 0.3 to 0.4 kgf/cm ^2 ) higher than the cold reading. This is normal. Do not let air out to match the specified cold pressure. The tire will be underinflated.

You should get your own tire pressure gauge and use it whenever you check your tire pressures. This will make it easier for you to tell if a pressure loss is due to a tire problem and not due to a variation between gauges.

Recommended Tire Pressures for Normal Driving

The following chart shows the recommended cold tire pressures for most normal driving conditions and speeds. Tire pressures for high speed driving are the same as for normal driving.

Front:

Tire Size Cold Tire Pressurefor Normal Driving
205/55R16 89W	32 psi (220 kPa, 2.2 kgf/cm ^2 )

Rear:

Tire Size	Cold Tire Pressure for Normal Driving
225/50R16 92W	32 psi (220 kPa, 2.2 kgf/cm ^2 )

The compact spare tire pressure 60 psi (420 kPa, 4.2 kgf/cm²)

These pressures are also given on the tire information label on the driver's doorjamb.

Tubeless tires have some ability to self-seal if they are punctured. However, because leakage is often very slow, you should look closely for punctures if a tire starts losing pressure.

Inspection

Every time you check inflation, you should also examine the tires for damage, foreign objects, and wear. You should look for:

• Bumps or bulges in the tread or side of the tire. Replace the tire if you find either of these seconds
  • Cuts, splits, or cracks in the side of the tire. Replace the tire if you can see fabric or cord.
• Excessive tread wear.

INDICATOR LOCATION MARKS ditions. TREAD WEAR INDICATORS

Your car's tires have wear indicators molded into the tread. When the tread wears down to that point, you will see a 1/2 inch (12.7 mm) wide band running across the tread. This shows there is less than 1/16 inch (1.6 mm) of tread left on the tire. A tire that is this worn gives very little traction on wet roads. You should replace the tire if you can see the tread wear indicator in three or more places around the tire.

Tires

Maintenance Tire Rotation

In addition to proper inflation, correct wheel alignment helps to decrease tire wear. If you find a tire is worn unevenly, have your dealer check the wheel alignment.

The tires were properly balanced by the factory. They may need to be rebalanced at some time before they are worn out. Have your dealer check the tires if you feel a consistent vibration while driving. A tire should always be rebalanced if it is removed from the wheel for repair.

Make sure the installer balances the wheels when you have new tires installed. This increases riding comfort and tire life. Your car's original tires were dynamic or "spin" balanced at the factory. For best results, have the installer perform a dynamic balance.

NOTICE

Improper wheel weights can damage your vehicle's aluminum wheels. Use only genuine Honda wheel weights for balancing.

You should not rotate your Honda's tires. The front and rear tires are different sizes, so they cannot be rotated front-to-rear. The original-equipment tires on your Honda have a unidirectional tread pattern, so they cannot be rotated side-to-side.

Tire Wear

The tires that came on your car were designed and constructed to provide superior grip during acceleration, braking, and cornering. As a trade-off, they will wear more rapidly than tires used on ordinary passenger cars. Because of the car's weight distribution, and the fact that they are the driving wheels, you may expect the rear tires to wear more rapidly than the front tires.

You should carefully inspect your car's tires for wear, damage, and proper inflation every 7,500 miles (12,000 km) (see page).191

Replacing Tires and Wheels

The tires that came with your car were selected to match the performance capabilities of the car while providing the best combination of handling, ride comfort, and long life. You should replace them with tires of the same size, load range, speed rating, and maximum cold tire pressure rating (as shown on the tire's sidewall). Mixing radial and bias-ply tires on your car can reduce its braking ability, traction, and steering accuracy.

WARNING

Installing improper tires on your car can affect handling and stability. This can cause a crash in which you can be seriously damaged or killed.

Always use the size and type of tires recommended in this owner's manual.

It is best to replace all four tires at the same time. If that is not possible or necessary, then replace the two front tires or the two rear tires as a pair. Replacing just one tire can seriously affect your car's handling.

CONTINUED

Tires

The ABS works by comparing the speed of the wheels. When replacing tires, use the same size originally supplied with the car. Tire size and construction can affect wheel speed and may cause the system to work inconsistently.

If you ever need to replace a wheel, make sure the wheel's specifications match those of the original wheel that came on your car. Replacement wheels are available at your Honda dealer.

Wheels:

Front: 16×61/2JJ

Rear: 16×71/2JJ

Tires:

Front: 205/55R16 89W

Rear: 225/50R16 92W

See page 254 information about DOT Tire Quality Grading.

Winter DrivingWheels and Tires

Tires that are marked “M S” on the sidewall have an all-weather tread design. They should be suitable for most winter driving conditions. Tires without these markings are designed for optimum traction in dry conditions. They may not provide adequate performance in winter driving.

For the best performance in snowy or icy conditions, you should install snow tires or tire chains. They may be required by local laws under certain conditions.

Snow Tires Tire Chains

If you mount snow tires on your Honda, make sure they are radial tires of the same size and load range as the original tires. Mount snow tires on all four wheels to be a year vehicle's handling in all weather conditions. Keep in mind the traction provided by snow tires on dry roads may not be as high as your vehicle's original equipment tires. You should drive cautiously even when the roads are clear. Check with their for maximum speed recommendations.

Because your Honda has limited tire clearance, mount only SAE Class "S" cable-type traction devices on the rear tires. Use traction devices only when required by driving conditions or local laws. Make sure they are the correct size for your tires.

Metal link-type “chains” should not be used. No matter how tight they seem to be installed, they can come the adontact with the body and suspension, causing serious damage.

When installing cables, follow the manufacturer's instructions and mount them as tightly as you can. Drive slowly with them installed. If you hear them coming in con with the body or chassis, stop and investigate. Make sure the cables are installed tightly, and that they are not contacting the brake lines or suspension.

Remove them as soon as you begin

driving on cleared roads.

NOTICE

Cables that are the wrong size or improperly installed can damage your car's brake lines, suspension, body, and wheels. Stop driving if they are hitting any part of the car.

act

Lights

Check the operation of your car's exterior lights at least once a month. A burned out bulb can create an unsafe condition by reducing your car's visibility and the ability to signal your intentions to other drivers.

SIDE TURN SIGNAL LIGHT TURN SIGNAL FRONT PARKING AND SIDE MARKER LIGHT LOW BEAM HEADLIGHT HIGH BEAM HEADLIGHT

TURN SIGNAL LIGHT STOP/TAILLIGHT LICENSE PLATE LIGHT SIDE MARKER LIGHT BACK-UP LIGHT

Check the following:

• Headlights (low and high beam)

- Parking lights

• Taillights

- Brake lights

- Turn signals

- Back-up lights

• Hazard light function

- License plate light

- Side marker lights

• Daytime running lights (Canadian cars)

If you find any bulbs are burned to replace them as soon as possible. Refer to the chart on page 253 to determine what type of replacer bulb is needed.

Lights

Replacing a Headlight Bulb

The low beam headlight bulbs are a type of high voltage discharge tube. High voltage can remain in the circuit even with the light switch off and the key removed. Because of this, you should not attempt to examine or change a low beam headlight bulb yourself. If a low beam headlight bulb fails, take the cartoyourdealerto havei tr

Halogen bulbs are used for the high beam headlight bulbs. When replacing a high beam headlight bulb, handle it by its base and protect the glass from contact with your skin or hard objects. If you touch the glass, clean it with denatured alcohol and a clean cloth.

e placed.

NOTICE

Halogen headlight bulbs get very hot when lit. Oil, perspiration, or a scratch on the glass can cause the bulb to overheat and shatter.

Technical line drawing of a mechanical assembly with gears and linkages (no text or symbols)

1. Open the hood. If you need to change the high beam headlight bulb on the left side, remove the coolant reserve tank from its holder by pulling it straight up.
2. Remove the electrical connector from the bulb by squeezing the connector to unlock the tab, then slide the connector off the bulb.

Mechanical assembly diagram showing a shaft and housing with an arrow indicating direction (no text or symbols)

1. Remove the rubber weather seal by pulling on the tab.

2. Unclip the end of the hold-down wire from its slot. Pivot it out of the way and remove the bulb socket.

3. Pull the bulb straight out of its socket. Push the new bulb straight into the socket until it bottoms.

4. Insert the socket back into the headlight assembly. Make sure the bulb is installed correctly by looking through the headlight lens. The pins on the base of the bulb should fit in the holes in the headlight assembly. Pivot the hold-down wire back in place and clip the end into the slot.

5. Install the rubber seal over the back of the headlight assembly. Make sure it is right side up; it is marked "TOP."

6. Push the electrical connector onto the new bulb. Turn on the headlights to test the new bulb.

Lights

Replacing Front Turn Signal and Side Marker Light Bulbs

1. If you are changing the bulb on the driver's side, start the engine, turn the steering wheel all the way to the right, and turn off the engine. If you are changing the bulb on the passenger's side, turn the steering wheel to the left.

Diagram of a car's internal components with an inset showing a magnified view of the wheel (no text or labels)

1. Use a flat-tipped screwdriver to remove the three holding clips from the inner fender.
2. Pull the inner fender cover back.
3. Remove the socket from the headlight assembly by turning it one-quarter turn counterclockwise.
4. Pull the bulb straight out of its socket.

Diagram of a car interior with mechanical components and directional arrows indicating motion (no text or labels)

1. Install the new bulb in the socket.
2. Insert the socket back into the headlight assembly. Turn it clockwise to lock it in place.
3. Test the lightstomakesureth new bulb is working.
4. Put the inner fender in place. Install the two holding clips. Lock each clip in place by pushing on the center.

Replacing a Side Turn Signal Bulb

Diagram of a mechanical device with a connector and directional arrows indicating assembly (no text or symbols)

1. Use a small flat blade screwdriver to pry carefully on the back edge of the side turn signal assembly until it pops out of the body.

2. Turn the bulb holder one-quarter turn counterclockwise to remove it from the lens.

3. Pull the bulb straight out of its socket. Push the new bulb straight into the socket until it bottoms.

4. Put the bulb holder back into its hole in the lens, and turn it clockwise until it locks.
5. Test the lightstomakesure the new bulb is working.
6. Put the side turn signal assembly back into the body, front first. Push on the back edge until it snaps into place.

Lights

Replacing Rear Bulbs

Diagram showing two mechanical components with arrows indicating motion (no text or symbols)

1. Open the trunk. Determine which of

2. Remove the fasteners from the trunk lining. To remove a fastener, push on the center of the head until it pops in. Then pull it out.

3. Pull the lining back.

Technical line drawing of a car interior showing steering wheel, gear shift, and valve mechanism (no text or labels)

the. four bulbs

is burned out: stop/taillight, backup light, turn signal, or side marker.

Technical line drawing of a mechanical assembly with multiple components and directional arrows (no text or labels)

Remove the socket by turning it one-quarter turn counterclockwise.

1. Remove the burned out bulb. To remove the stop/taillight, back-up or side marker light bulb, pull the bulb straight out of its socket. To remove the turn signal light bulb, push it in and turn it counterclockwise until it unlocks.

2. Install the new bulb in the socket.

3. Push the socket into the light assembly and turn it clockwise until it locks.

4. Test the lightst o makes ur new bulb is working.

the

1. Install the trunk lining and secure it with the fasteners. To reinstall a fastener, reset the fastener by pushing on the pointed end until it pops back almost flush with the fingers on the housing. Put the fastener in the hole of the trunk lining and push on the center until it locks (the center is flush with the head).

Lights

Replacing a Rear License Plate Bulb

Technical diagram of a mechanical assembly with directional arrows indicating motion or force (no text or symbols present)

1. Insert a flat-tipped screwdriver between the left edge of the lens and the housing. The lens will come down.

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols)

Pull the bulb straight out of its socket. Push the new bulb in until it bottoms in the socket.

1. Test the lightstomakesure the new bulb is working.
2. Put the lens back into the light assembly, right side first. Push on the left edge until it snaps into place.

Line drawing of a car interior panel with a cloth clip attached to the tray (no text or symbols)

1. Removethelensbycarefu prying on the front edge of the lens near both sides.

Diagram of a car interior panel with two directional arrows indicating movement or flow (no text or symbols present)

1 y Remove the bulb by pulling it straight out of its metal tabs.
3. Push the new bulb into the metal tabs. Snap the lens back in place.

Replacing the Trunk Light BulbReplacing:

Diagram of a device internal structure showing internal components and directional arrows (no text or symbols)

1. Open the trunk. Pull down the trunk light cover.
2. Remove the bulb by pulling it straight out of its metal tabs.
3. Push the new bulb into the metal tabs.
4. Push the cover back in place.

Storing Your Car

If you need to park your car for an extended period (more than one month), there are several things you should do to prepare it for storage. Proper preparation helps prevent deterioration and makes it easier to get your car back on the road. If possible, store your car indoors.

• Fill the fuel tank.
• Change the engine oil and filter (see page 165
• Wash and dry the exterior completely.
• Clean the interior. Makes carpeting, floor mats, etc. are completely dry.
• Raise the convertible top cover.

• Leave the parking brake off. Put the transmission in Reverse.

• Block the rear wheels.

• If the car is to be stored for a longer period, it should be supported on jackstands so the tires are off the ground.
• Leave one window open slightly (if the car is being stored indoors).
• Disconnect the battery.

• Support the front wiper blade arms with a folded towel or rag so they do not touch the windshield.
  • To minimize sticking, apply a silicone spray lubricant to all door and trunk seals. Also, apply a vehicle body wax to the pairs surfaces that mate with the door and trunk seals.

• Cover the car with a “breathal cover, one made from a porous material such as cotton. Nonporous materials, such as plastic sheeting, trap moisture, which can damage the paint.

• If possible, run the engine for a while periodically (preferably once a month).

If you store your car for 12 months or longer, have your Honda dealer perform the inspections called for in the 24 months/30,000 miles (48,000 km) maintenance schedule as soon as you take it out of storage (see page 15). The replacements called for in the maintenance schedule are not needed unless the car has actually reached that time or mileage.

Appearance Care

Regular cleaning and polishing of your Honda helps to keep it “new” looking. This section gives you hints on how to clean your vehicle and preserve its appearance: the paint, brightwork, wheels, and interior. Also included are several things you can do to help prevent corrosion.

Exterior Ca
Washing.2
Waxing.21
Aluminum
......Paint Touch
Interior Care 213
......Carpeting .
Floor Mats
Fabric.214
Vinyl.214
Leather.... 214
Rear Window 214
Seat Belts 214
Windows 215
Air Fresheners 215
Corrosion Protection 215
Body Repairs 217

Washing

Frequent washing helps preserve your car's beauty. Dirt and grit can scratch the paint, while tree sap and bird droppings can permanently ruin the finish.

Wash your car in a shady area, not in direct sunlight. If the car is parked in the sun, move it into the shade and let the exterior cool down before you start.

Only use the solvents and cleaners recommended in this Owner Manual.

NOTICE

Chemical solvents and strong cleaners can damage the paint, metal, and plastic on your car.

• Rinse the car thoroughly with cool water to remove loose dirt.
• Fill a bucket with cool water. Mix in a mild detergent, such as dishwashing liquid or a product made especially for car washing.

s• Wash the car, using the water and neutral detergent solution and sponge or soft cloth. Start at a top and work your way down. Rinse frequently.

- Check the body for road tar, tree sap, etc. Remove these stains with tar remover or turpentine. Rinse it off immediately so it does not harm the finish. Remember to re-wax these areas, even if the rest of

the car does not need waxing. Do not use harsh chemicals to remove stains from the convertible top or rear window. Use a mild detergent/water solution with a soft-bristle brush on the top, and with a soft cloth on the rear window.

- When you have washed and rinsed the whole exterior, dry it with a chamois or soft towel. Letting it air-dry will cause dulling and water spots. Make sure the top is completely dry before you fold it.

As you dry the car, inspect it for chips and scratches that could allow corrosion to start. Repair them with touch-up paint (see page 212

Waxing

Always wash and dry the whole car before waxing it. You should wax your car, including the metal trim, whenever water sits on the surface in large patches. It should form into beads or droplets after waxing.

You should use a quality liquid or paste wax. Apply it according to the instructions on the container. In general, there are two types of products:

Waxes A wax coats the finish and protects it from damage by exposure to sunlight, air pollution, etc. You should use a wax on your Honda when it is new.

Polishes Polishes and cleaner/waxes can restore the shine to paint that has oxidized and lost some of its shine. They normally contain mild abrasives and solvents that remove the top layer of the finish. You should use a polish on your Honda if the finish does not have its original shine after using a wax.

Cleaning tar, insects, etc. with removers also takes off the wax. Remember to re-wax those areas, even if the rest of the car does not need waxing.

Exterior Care

Clean your Honda's aluminum alloy wheels as you do the rest of the exterior. Wash them with th solution, and rinse them thoroughly.

The wheels have a protective clear-coat that keeps the aluminum from corroding and tarnishing. Using harsh chemicals, including some commercial wheel cleaners, or stiff brushes can damage this clear-coat. Only use a mild detergent and soft brush or sponge to clean the wheels.

Paint Touch-up Aluminum Wheels

Your dealer has touch-up paint to match your car's color. The color code is printed on a sticker on the driver's doorjamb. Take this code to your dealer so you are sure to get the correct color.

Inspect your car frequently for chips or scratches in the paint. Repair them right away to prevent corrosion of the metal underneath. Use the touch-up paint only on small chips and scratches. More extensive paint damage should be repaired by a professional.

Carpeting Floor Mats

Vacuum the carpeting frequently to remove dirt. Ground-in dirt will make the carpet wear out faster.

Periodically shampoo the carpet to keep it looking new. Use one of the foam-type carpet cleaners on the market. Follow the instructions that come with the cleaner, applying it with a sponge or soft brush. Keep the carpeting as dry as possible by not adding water to the foam.

Technical line drawing of a pipe connection with a circular component and a base (no text or symbols)

The Genuine Honda driver's floor mat that camewith your car designed to be hooked over the floor mat anchor. This keeps the floor mat from sliding forward and possibly interfering with the pedals.

If you remove the floor mat, make sure to re-anchor it when you put it back in your car.

If you replace it, use a genuine Honda floor mat that is designed to be used with the floor mat anchors in your car.

If you use a non-Honda floor mat in the driver's footwell, make sure it fits properly and that it can be used with the floor mat anchor.

Do not put additional floor mats on top of the anchored mat, otherwise the additional mats may slide forward and interfere with the pedals.

Fabric Seat Belts

Vacuum dirt and dust out of the material frequently. For general cleaning, use a solution of mild soap and lukewarm water, letting it air dry. To clean off stubborn spots, use a commercially-available fabric cleaner. Test it on a hidden area of the fabric first, to make sure it does not bleach or stain the fabric. Follow the instructions that come with the cleaner.

Vinyl

Remove dirt and dust with a vacuum cleaner. Wipe the vinyl with a soft cloth dampened in a solution of mild soap and water. Use the same solution with a soft-bristle brush on more difficult spots. You can also use commercially-available spray or foam-type vinyl cleaners.

Leather

Vacuum dirt and dust from the leather frequently. Pay particular attention to the pleats and seams. Clean the leather with a soft cloth dampened with clear water, then buff it with a clean, dry cloth. If further cleaning is needed, use a soap specifically for leather, such as saddle soap. Apply this soap with a d a m p , s o f t c l o t h . W i p e d o w n a n d buff as described above.

If your seat belts get dirty, you can use a soft brush with a mixture of mild soap and warm water to clean them. Do not use bleach, dye, or cleaning solvents. They can weaken the belt material. Let the belts air-dry before you set the car.

Windows Air Fresheners Corrosion

Clean the windows, inside and out, with a commercially-available glass cleaner. You can also use a mixture of one part white vinegar to ten parts water. This will remove the haze that builds up on the inside of the windows. Use a soft cloth or paper towels to clean all glass and clear plastic surfaces.

If you get any glass cleaner on the convertible top, immediately spray the area with water, and dry it with a soft cloth.

NOTICE

The rear window defogger is bonded to the inside of the glass. Wiping vigorously up-and-down can dislodge and break these wires. When cleaning therear window, use gentlep and wipe side-to-side.

Protection

If you want to use an air freshener/deodorizer in the interior of your car, it is best to use a solid type. Some liquid air fresheners contain chemicals that may cause parts of the interior trim and fabric to crack or discolor.

If you use a liquid air freshener, make sure you fasten it securely so it does not spill as you drive.

e s s u r e

Two factors normally contribute to causing corrosion in your car:

1. Moisture trapped in body cavities. Dirt and roads salt that collects hollows on the underside of the car stays damp, promoting corrosion in that area.

2. Removal of paint and protective coatings from the exterior and underside of the car.

Corrosion Protection

Many corrosion-preventive measures are built into your Honda. You can help keep your car from corroding by performing some simple periodic maintenance:

• Repair chips and scratches in the paint as soon as you discover them.
- Inspect and clean out the drain holes in the bottom of the doors and body.
- Check the floor coverings for dampness. Carpeting and floor mats may remain damp for a long time, especially in winter. This dampness can eventually cause the floor panels to corrode.

• Use a high-pressure spray to clean the underside of your car. This is especially important in areas that user roads salt in winter. It is good idea in humid climates and areas subject to salt air. Be careful of the ABS wheel sensors and wiring at each wheel.
• Have the corrosion-preventive coatings on the underside of your car inspected and repaired periodically.

Body repairs can affect your car's resistance to corrosion. If your car needs repairs after a collision, pay close attention to the parts used in the repair and the quality of the work.

Make sure the repair facility uses genuine Honda replacement body parts. Some companies make sheet metal pieces that seem to duplicate the original Honda body parts, but are actually inferior in fit, finish, and corrosion resistance. Once installed, they do not give the same high-quality appearance.

When reporting your collision to the insurance company, tell them you want genuine Honda parts used in the repair. Although most insurers recognize the quality of original parts, some may try to specify that the repairs be done with other available parts. You should investigate this before any repairs have begun.

Take your cart to your authorized Honda dealer for inspection after the repairs are completed. Your dealer can make sure that quality materials were used, and that corrosion-preventive coatings were applied to all repaired and replaced parts.

Taking Care of the Unexpected

This section covers the more-common problems that motorists experience with their vehicles. It gives you information about how to safely evaluate the problem and what to do to correct it. If the problem has stranded you on the side of the road, you may be able to get going again. If not, you will also find instructions on getting your car towed.

......Compact Sp

......Changing a

If Your Engine Won't Start...... 226

Nothing Happens or the

Starter Motor Operates

.Very Slowly

The Starter Operates

Normally 227

Jump Starting 228

If Your Engine Overheats...... 231

Low Oil Pressure Indicator ...... 234

Charging System Indicator...... 235

Malfunction Indicator Lamp ...... 236

Brake System Indicator 238

Closing the Convertible Top ...... 239

Fuses 240

Checking and Replacing ...... 241

If Your Car Gets Stuck...... 245

......Emergency

Compact Spare Tire

Your car has a compact spare tire that takes up less space. Use this spare tire as a temporary replacement only. Get your regular tire repaired or replaced and put it back on your car as soon as you can.

Check the inflation pressure of the compact spare tire every time you check the other tires. It should be inflated to: 60 psi (420 kPa, 4.2 kgf/cm²)

Follow these precautions whenever you are using the compact spare tire: la ce -

• Do not exceed 50 mph (80 km/h) under any circumstances.
• This tire gives a harsher ride and less traction on some road surfaces than the regular tire. Use greater caution while driving on this tire.
• Do not mount snow chains on the compact spare.
  • The wheel of the compact spare tire is designed especially to fit your car. Do not use your spare tire on another vehicle unless it is the same make and model.

INDICATOR LOCATION MARK TREAD WEAR INDICATOR BAR

The compactsparetire has a shot tread life than a regular tire. Replace it when you can see the tread wear indicator bars. The replacement should be the same size and desire tire, mounted on the same wheel. The compactsparetire is not designed to be mounted on a regular wheel, and the compact wheel is not designed for mounting a regular tire.

If you have a flat tire while driving, stop in a safe place to change it. Stopping in traffic or on the shoulder of a busy road is dangerous. Drive slowly along the shoulder until you gettoanexitoranareatostop is far away from the traffic lanes.

▲WARNING

The car can easily roll off the jack, seriously injuring anyone underneath.

Follow the directions for changing a tire exactly, and never get under the car when it is supported only by the jack.

The compact spare tire is sm than a standard tire, which will affect the vehicle's handling. Drive cautiously when this spare is mounted on your vehicle.

The-sized difference may also cause damage to the rear differential, so do not mount the compact spare on the rear. If either rear tire goes flat, remove the front tire on that same side mount the compact spare tire on the front, then mount the front tire on the rear.

1. Park the car on firm, level, non-slippery ground away from traffic. Put the transmission in Reverse. Apply the parking brake.

2. Turn on the hazard warning lights and turn the ignition switch to LOCK (0). Have your passenger get out of the car while you change the tire.

aller

Technical line drawing of a car interior showing internal components and structural lines (no text or symbols)

1. Open the trunk. Lift up the tool box lid and take the jack, wheel wrench, and extension out of the tool box.

NOTICE

Use the jack that came on your car. If you try to raise another car by this jack or use another jack to raise your car, the car or jack can be damaged.

CONTINUED

Changing a Flat Tire

Technical line drawing of a car engine compartment showing internal components and wiring (no text or labels)

1. Remove the three clips holding the spare tire cover by pulling straight up on the rings. Remove the spare tire cover.

Line drawing of a person adjusting a car tire with a downward arrow (no text or symbols)

Unscrew the wing bolt and take the spare tire out of the spare tire shelf.
6. Loosen the five wheel nuts 1/2 turn with the wheel wrench.

Line drawing of a car on top with an inset showing its suspension mechanism (no text or symbols)

1. Locate the jacking point nearest the tire you need to change. It is pointed to by an arrow molded into the underside of the body. Place the jack under the jacking point. Turn the end bracket clockwise until the top of the jack contacts the jacking point. Make sure the jacking point tab is resting in the jack notch.

Illustration of a person cleaning or repairing a car wheel, with an upward arrow indicating motion (no text or symbols present)

1. 01st the extension and wheel wrench as shown to raise the car until the flat tire is off the ground.

Line drawing of a person kneeling beside a car tire, with a mounted sensor device nearby (no text or symbols)

Remove the wheel nuts and flat tire. Temporarily place the flat tire on the ground with the outside surface of the wheel facing up. Placing the wheel face down could mar its finish.

BRAKE HUB

Before mounting the spare tire, wipe any dirt toff themounting surface of the wheel and hub with a clean cloth. Wipe the hub carefully, it may be hot from driving.

CONTINUED

Changing a Flat Tire

Line drawing of a person inspecting a car tire (no text or symbols)

Put on the spare tire. Put the wheel nuts back on finger-tight, then tighten them in a crisscross pattern with the wheel wrench until the wheel is firmly against the hub. Do not try to tighten them fully.

Mechanic performing maintenance on a vehicle wheel assembly (no text or symbols visible)

Lower the car to the ground and remove the jack.

Illustration of a person using a tire to lift a car, with an inset showing a star-shaped diagram (no text or symbols)

1. Tighten the wheel nuts securely in the same crisscross pattern. Have the wheel nut torque checked at the nearest automotive service facility. Tighten the wheel nuts to: 80 lbf·ft (108 N·m, 11 kgf·m)

Changing a Flat Tire

Technical line drawing of a car interior showing structural components and dashboard (no text or symbols)

1. Remove the tool box from the trunk well and replace the jack, wheel wrench and extension in the tool box.

2. Place the tool box into the spare tire shelf in the trunk.

Technical line drawing of a car rearview showing internal components like a coiled cable or hose (no text or symbols)

1. Replacethesparetirecover. Secure it with the three clips. Push each clip down securely, and pivot theringdownflat.

Put the flat tire in the trunk well vertically as shown.

Diagnosing why your engine won't start falls into two areas, depending on what you hear when you press the ENGINE START button.

• You hear nothing, or almost nothing. The engine's starter motor does not operate at all, or operates very slowly.
• You can hear the starter motor operating normally, or the starter motor sounds like it is spinning faster than normal, but the engine does not start up and run.

Nothing Happens or the Starter Motor Operates Very Slowly When you press the ENGINE START button, you do not hear the normal noise of the engine trying to start. You may hear a clicking sound or series of clicks, or nothing at all. Check these things:

- Your car has the Immobilizer System. You should use a properly-coded master or valet key to start the engine (see page 57). A key that is not properly coded will cause the immobilizer system indicator in the dash panel to blink rapidly.

• Turn the ignition switch to ON (II). Turn on the headlights and check their brightness. If the headlights are very dim or don't light at all, the battery is discharged. See Jump Starting on page 228
• Press the ENGINE START button, then release it. If the headlights do not dim, check the condition of the fuses. If the fuses are OK, there probably something wrong with the electrical circuit for the ignition switch or starter motor. You will need a qualified technician to determine the problem. (See Emergency Towing on page 247

If the headlights dim noticeably or go out when you try to start the engine, either the battery is discharged or the connections are corroded. Check the condition of the battery and terminal connections (see page 183). You can then try jump starting the car from a booster battery (see page 228

The Starter Operates Normally In this case, the starter motor's speed sounds normal, or even faster than normal, when you press the ENGINE START button, but the engine does not run.

- Are you using the proper starting procedure? Refer to Engine on page 137

- Do you have fuel? Turn the ignition switch to ON (II) for a minute and watch the fuel gauge. The low fuel level warning light may not be working, so you were not reminded to fill the tank.

- There may be an electrical problem, such as no power to the fuel pump. Check all the fuses (see page 241

If you find nothing wrong, you will need a qualified technician to find the problem. See Emergency Towing Starting the

Jump Starting

If your car's battery has run down, you may be able to start the engine by using a booster battery. Although this seems like a simple procedure, you should take several precautions.

WARNING

A battery can explode if you do not follow the correct procedure, seriously injuring anyone nearby.

Keep all sparks, open flames, and smoking materials away from the battery.

To jump start your car, follow these directions closely:

1. Open the hood and check the physical condition of the battery (see page 183n very cold weather, check the condition of the electrolyte. If it seems slushy or like ice, do not try jump starting until it thaws.

NOTICE

If a battery sits in extreme cold, the electrolyte inside can freeze. Attempting to jump start with a frozen battery can cause it to rupture.

1. Turn off all the electrical accessories: heater, A/C, stereo system, lights, etc. Put the transmission in Neutral and set the parking brake.

Technical line drawing of a car engine bay with a positive valve indicator (no text or symbols present)

1. Connect one jumper cable to the positive ( ) terminal on your Honda's battery. Connect the other end to the positive ( ) terminal on the booster battery.

Technical line drawing of a car's front engine compartment showing internal components like fuel, air intake, and exhaust system (no text or labels)

Connect the second jumper cable to the negative ( ) terminal on the booster battery. Connect the other end to the metal projection near the intake manifold as shown in the illustration. Do not connect this jumper cable to any other part of the engine.

CONTINUED

Jump Starting

BOOSTER BATTERY ②

1. If the booster battery is in another vehicle, have an assistant start that vehicle and run it at a fast idle.
   The numbers in the illustration show you the order to connect the jumper cables. Make sure to disconnect the cables in the reverse order.

2. Start your car. If the starter motor still operates slowly, check the jumper cable connections to make sure they have good metal-to-metal contact.

3. Once your car is running, disconnect then negative cable from your car, then from the booster battery. Disconnect the positive cable from your car, then the booster battery.

Keep the ends of the jumper cables away from each other and any metal on the car until all are disconnected. Otherwise, you may cause an electrical short.

The reading on your car's temperature gauge should stay in the midrange under most conditions. It may go higher if you are dr a long steep hill on a very hot day. If it climbs to the red mark, you should determine the reason.

NOTICE

Driving with the temperature gauge reading at the red mark can cause serious damage to your engine.

Your car can overheat for several reasons, such as lack of coolant or a mechanical problem. The only indication may be the temper gauge climbing to or above the red mark. Or you may see steam or spray coming from under the car or engine cover. In either case, you should take immediate action.

WARNING

Steam and spray from an in overheated engine can seriously scald you.

Do not open the hood if steam is coming out.

1. Safely pull to the side of the road. Put the transmission in Neutral and set the parking brake. Turn off the heating and cooling system and all other accessories. the hazard warning indicators.

2. If you see steam and/or spray coming from under the hood, turn off the engine.

3. If you do not see steam or spray, leave the engine running and watch the temperature gauge. If the high heat is due to overloading (climbing a long, steep hill on a hot day with the A/C running, for example), the engine should start to cool down almost immediately. If it does, wait until the temperature gauge comes down to the midpoint then continue driving.

4. If the temperature gauge stays at the red mark, turn off the engine. Turn on
5. Wait until you see no more signs of steam or spray, then open the hood.

CONTINUED

If Your Engine Overheats

1. Look for any obvious coolant leaks, such as a split radiator hose. Everything is still extremely hot, so use caution. If you find a leak, it must be repaired before you continue driving (see Emergency Towing on page 247

WARNING

Removing the radiator cap while the engine is hot can cause the coolant to spray out, seriously scalding you.

Always let the engine and radiator cool down before removing the radiator cap.

If you don't find an obvious leak, check the coolant level in the radiator reserve tank (see page 126). If the level is below the MIN mark, add coolant to halfway between the MIN and MAX marks.

1. If there was no coolant in the reserve tank, you may also have to add coolant to the radiator. Let the engine cool down until the reading reaches the middle of the temperature gauge, or lower, before checking the radiator.

Using gloves or a large heavy cloth, turn the radiator cap counterclockwise, without pushing down, to the first stop. This releases any remaining pressure in the cooling system. After the pressure releases, push down on the cap and turn it until it comes off.

1. Start the engine and set the temperature control dial to maximum. Add coolant to the radiator up to the base of the filler neck. If you do not have the proper coolant mixture available, you can add plain water. Remember to have the cooling system drained and refilled with the proper mixture as soon as you can.

Put the radiator cap back on tightly. Run the engine and watch the temperature gauge. If it goes back to the red mark, the engine needs repair. (See Emergency Towingon page 247

If the temperature stays normal, check the coolant level in the radiator reserve tank. If it has gone down, add coolant to the MAX mark. Put the cap back on tightly.

LOW OIL PRESSURE INDICATOR

ABS - + BRAKE + + Mncheck PUSH CANCEL

This indicator should light when the ignition switch is ON (II), and go out after the engine starts. It should never come on when the engine is running. If it starts flashing, it indicates that the oil pressure dropped very low for a moment, then recovered. If the indicator stays on with the engine running, it shows that the engine has lost oil pressure and serious engine damage is possible. In either case, you should take immediate action.

NOTICE

Running the engine with low oil pressure can cause serious mechanical damage almost immediately. Turn off the engine as soon as you can safely get the car stopped.

1. Safely pull off the road and shut off the engine. Turn on the hazard warning indicators.

2. Let the carsitfor a minute the hood and check the oil level (see page 12) Although oil level and oil pressure are not directly connected, an engine that is very low on oil can lose pressure during cornering and other driving maneuvers.

3. If necessary, add oil to bring the level back to the full mark on the dipstick (see page)163

4. Start the engine and watch the oil pressure indicator. If the light does not go out within ten seconds, turn off the engine. There is a mechanical problem that needs to be repaired before you can continue driving. (See Emergency Towing on page 247

Open

Charging System Indicator

CHARGING SYSTEM INDICATOR

ABS BRAKE PUSH CANCEL

This indicator should come on when the ignition switch is ON (II), and go out after the engine starts. If it comes on brightly when the engine is running, it indicates that the charging system has stopped charging the battery.

Immediately turn off all electrical accessories: radio, heater, A/C, cruise control, etc. Try not to use other electrically-operated controls such as the power windows. Keep the engine running and take extra care not to stall it. Starting the engine will discharge the battery rapidly.

By eliminating as much of the electrical load as possible, you can drive several miles (kilometers) before the battery is too discharged to keep the engine running. Drive to a service station or garage where you can get technical assistance.

Malfunction Indicator Lamp

MALFUNCTION INDICATOR LAMP

ABS - + BRAKE PUSH CANCEL

This indicator comes on for a few seconds when you turn the ignition switch ON (II). If it comes on at any other time, it indicates one of the engine's emissions control systems may have a problem. Even though you may feel no difference in your car's performance, it can reduce your fuel economy and cause your car to put out excessive emissions. Continued operation may cause serious damage.

If you have recently refueled your car, the cause of this indicator coming on could be a loose or missing fuel fill cap. Check the cap and tighten it until it clicks several times. Replace the fuel fill cap if it missing. Tightening the cap will not make the indicator turn off immediately; it takes three driving trips.

If the indicator remains on past three driving trips, or the fuel cap was not loose or missing, have the car checked by the dealer as soon as possible. Drive moderately until the dealer has inspected the problem. Avoid full-throttle acceleration and driving at high speed.

You should also have the dealer inspect your car if this indicator comes on repeatedly, even though it may turn off as you continue driving.

NOTICE

If you keep driving with the malfunction indicator lamp on, you can damage your car's emissions controls and engine. Those repairs may not be covered by your car's warranties.

Readiness Codes

Your car has certain “readiness codes” that are part of the on-board diagnostics for the emissions systems. In some states, part of the emissions testing is to make sure these codes are set. If they are not set, the test cannot be completed.

If your car's battery has been disconnected or gone dead, these codes are erased. It takes several days of driving under various conditions to set the codes again.

If possible, do not take your vehicle for a state emissions test until the readiness codes are set. To check if they are set, turn the ignition ON (II), but do not start the engine. The Malfunction Indicator Lamp will come on for 20 seconds. If it then goes off, the readiness codes are set. If it blinks 5 times, the readiness codes are not set. Refer to State Emissions Testing for more information.(See page and .)261 262

Brake System Indicator

ABS BRAKE SYSTEM INDICATOR

The Brake System Indicator normally comes on when you the ignition switch ON (II). It is a reminder to check the parking brake. It comes on and stays lit if you do not fully release the parking brake.

If it comes on at any other time, it indicates a problem with the car's brake system. In most cases, the problem is a low fluid level in the brake fluid reservoir. Press lightly on the brake pedal to see if it feels normal. If it does, check the brake fluid level the next time you stop at a service station (see page 176 If the fluid level is low, take the car to your dealer and have the brake system inspected for leaks or worn brake pads.

However, if the brake pedal does not feel normal, you should take immediate action. Because of the brake system's dual-circuit design, a problem in one part of the system will still give you braking at two wheels. You will feel the brake pedal go down much farther before the car begins to slow down, and you will have to press harder on the pedal. The distance needed to stop will be much longer.

Slow down by shifting to a lower gear, and pull to the side of the road when it is safe. Because of the longer distance needed to stop, it is hazardous to drive the car. You should have it towed, and repaired as soon as possible.

If you must drive the car a short distance in this condition, drive slowly and cautiously.

Closing the Convertible Top

If the electric motor will not close the convertible top, do the following.

1. Check the fuse for the convertible top motor (see page 241 the fuse is blown, replace it with one of these same or lower rating

2. Try closing the convertible top. If the new fuse blows immediately or the convertible top still does not operate, you can close the convertible top manually.

CONNECTOR

1. Locate the electrical connector for the convertible top motor. It is under the lower corner of the dashboard on the passenger's side. Disconnect the connector by pushing the tab and pulling the connector down.

Line drawing of two men working on a car dashboard, one adjusting the seatbelt and the other inspecting the dashboard (no text or symbols present)

1. Holding each corner of the convertible top, raise the top and push it forward as far as it will go.

2. Follow steps 5 through 7 of the closing procedure on page 74

Fuses

All the electrical circuits in your car have fuses to protect them from a short circuit or overload. These fuses are located in three fuse boxes.

Line drawing of a car interior showing seatbelt and dashboard (no text or symbols)

The interior fuse box is underneath the dashboard on the driver's side.

Technical line drawing of a car engine bay with internal components and a close-up inset showing a component detail (no text or symbols)

There are two under-hood fuse boxes in the engine compartment.

The main fuse box is located on the passenger's side near the battery. To open it, push the two tabs as shown.

Technical line drawing of an automotive engine bay with a close-up inset showing internal components (no text or symbols)

The auxiliary fuse box is located on the driver's sidenearthebr reservoir. To open it, push the tab on each side and remove the lid.

Checking and Replacing Fuses If something electrical in your car stops working, the first thing you should check for is a blown fuse. Determine from the chart on pages 243 24d, or the diagram on the fuse box lid, which fuse or fuses control that component. Check those fuses first, but check all the fuses before deciding that a blown fuse is not the cause. Replace any blown fuses and check the component's operation.

1. If run the ignition switch to LOCK (0). Make sure the headlights and all other accessories are off.

2. Remove the cover from the fuse box.

40A 32V BLOWN

1. Check each of the large fuses in the under-hood fuse box by looking through the top at the wire inside. Removing these fuses requires a Phillips-head screw-driver.

CONTINUED

Fuses

FUSE PULLER

1. Check the smaller fuses by pulling out the fuse with the fuse puller provided in the interior fuse box.

BLOWN 15

Look for a burned wire inside the fuse. If it is burned, replace it with one of the spare refuses of the rating or lower.

If you cannot drive the vehicle without fixing the problem, and you do not have a spare fuse, take a fuse of the same rating or a lower rating from one of the other circuits. Make sure you can dowithouttha temporarily (such as the accessory power socket or radio).

If you replace the blown fuse with a spare fuse that has a lower rating, it might blow out again. This does not indicate anything wrong. Replace the fuse with one of the correct rating as soon as you can.

NOTICE

Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system. If you do not have a replacement fuse with the proper rating for the circuit, install one with a lower rating.

1. If the replacement fuse of the same rating blows in a short time, there is probably a serious electrical problem in your car. Leave the blown fuse in that circuit and have your car checked by a qualified mechanic.

INTERIOR FUSE BOX

1 14 2 15 3 16 4 17 5 18 6 19 20 7 21 8 22 9 23 10 24 11 25 12 26 13 27

		Circuits Protected
1	7.5 A	Windshield Wiper, Auto Stop Signal
2	15 A	Washer Motor
3		Not used
4		Not used
5	10 A	Accessory Socket
6	20 A	Windshield Wiper
7	7.5 A	Turn signal Light
8	15 A	ACG
9	7.5 A	Instrument Light, Back-up Lights
10	15 A	Ignition Coil
11	7.5 A	Engine Start
12	15 A	Fuel Pump, SRS
13	10 A	SRS

: Canadian Model

No.	Amps.Amps.	No. Circuits Protected
14	10 A	Daytime Running Lights
15	10 A	Keyless Entry
16	7.5 A	Back-up
17	7.5 A	Interior Light
18	10 A	Small Lights
19	15 A	Radio
20	7.5 A	Starter Signal
21	7.5 A	Heater Control, Cooling Fan Relay
22	7.5 A	Power Mirrors
23	20 A	Right Power Window
24	20 A	Left Power Window
25		Not used
26		Not used
27		Not used

CONTINUED

Fuses

UNDER-HOOD FUSE BOXES (MAIN FUSE BOX)

1 2 3 4 5 6 15 16 17 18 19 20 21 22 23 24 25 10 11 12 13 14

(AUXILIARY FUSE BOX)

1 2 3 4 5

No.	Amps.
1		Lighting 1 Relay
2		Lighting 2 Rclay
3		Horn Relay
4	40 A	Power Window Motor
5	20 A	Right Roof Motor
6		Not used
7	30 A	Back Up ACC
8	20 A	Lcft Roof Motor
9	40 A	Heater Motor
10	20 A	Condenser Fan
11		Not used
12		Condenser Fan Relay
13		Cooling Fan Relay

No.		Circuits ProtectedAmps
1	20 A	Rear Window Defogger
2		Not used
3		Not used
4	70 A	EPS
5	60 A	Air Pump

No.	Circuits	Protected Circuits Protected
14		Magnetic Clutch Relay
15	20 A	Right Headlight
16	15 A	ACG S
17	10 A	Hazard Warning Lights
18	20 A	Cooling Fan
19		Not used
20	15 A	Stop
21	20 A	Left Headlight
22	20 A	ABS F/S
23	30 A	ABS Motor
24	100 A	Battery
25	40 A	IG1 Main

If your car gets stuck in sand, mud, or snow, call a towing service to pull it out (see page 247

Illustration of a hand using a tool to lift a car wheel (no text or symbols)

For very short distances, such as freeing the car, you can use the detachable towing hook that mounts on the anchors in the front and rear bumpers.

To use the towing hook:

1. Remove the cover from the bumper.

Diagram of a car suspension system with pulleys and a valve, showing mechanical components (no text or labels)

1. Remove the towing hook, hook extension, and wheel wrench from the tool box.

2. Using the wheel wrench, fasten the extension into the bolt hole in the anchor.

CONTINUED

If Your Car Gets Stuck

Line drawing of a car wheel assembly with no text or symbols

1. Screw the towing hook into the extension and tighten it securely by hand.

NOTICE

To avoid damage to your car, use the towing hook for straight, flat ground towing only. Do not tow at an angle. The tow hook should not be used to tow the vehicle onto a flat bed. Do not use it as a tie down.

Line drawing of a car driving on a road with motion blur (no text or symbols)

professional towing service or, if you belong to one, an organization that provides roadside assistance. Never tow your car behind another vehicle with just a rope or chain. It is very dangerous.

There are three popular types of professional towing equipment.

The operator loads your vehicle on the back of a truck. This is the only way your S2000 should be transported. When you contact the towing agency, inform them that you have an S2000 and that a flat-bed is required.

Wheel Lift Equipment Flat-Ted Equipment truck uses two pivoting arms that go under the tires (front or rear) and lift them off the ground. The other two tires remain on the ground. Because the S2000 sits so low, the body could come in contact with the ground and be damaged. This method of towing is unacceptable.

Emergency Towing

Sling-type Equipment truck uses metal cables with hooks on the ends. These hooks go around parts of the frame or suspension and the cables lift that end of the car off the ground. Your car's suspension and body can be seriously damaged. This method of towing is unacceptable.

Technical Information

The diagrams in this section give you the dimensions and capacities of your Honda, and the locations of the identification numbers. It also includes information you should know about your vehicle's tires and emissions control systems.

v e ......IdentificatioorgNurdeFue250....256 ......Specificating252Foreign Countries ....257 DOT Tire Quality Grading Emissions Controls ....258 ....(U.S. Vehicle The) C254n Air Act ....258 ....Treadwear C254kcase Emissions Control ....Traction . 254System ....258 Temperature ....255 Evaporative Emissions Control

Identification Numbers

Your car has several identifying numbers located in various places.

The Vehicle Identification Number (VIN) is the 17-digit number your Honda dealer uses to register your car for warranty purposes. It is also necessary for licensing and insuring your car. The easiest place to find the VIN is on a plate fastened to the top of the dashboard. You can see it by looking through the windshield on the driver's side. It is also on the Certification label attached to the driver's doorjamb, and is stamped on the engine compartment bulkhead. The VIN is also provided in bar code on the Certification label.

VEHICLE IDENTIFICATION NUMBER CERTIFICATION LABEL

The Engine Number is stamped on the left front corner of the engine block.

The Transmission Number is on a label underneath the transmission.

TRANSMISSION NUMBER ENGINE NUMBER

Specifications

Dimensions

Length		162.0 in (4,115 mm)
Width		68.9 in (1,750 mm)
Height		50.6 in (1,285 mm)
Wheelbase		94.5 in (2,400 mm)
Track	Front	57.9 in (1,470 mm)
	Rear	59.4 in (1,510 mm)

Weights

Gross vehicle weight rating

See the certification label attached to the driver's doorjamb.

Engine

Type	Water cooled 4-stroke DOHC VTEC 4-cylinder gasoline engine
BorexStroke	3.43 x 3.31 in (87.0 x 84.0 mm)
Displacement	121.8 cu-in (1,997 cm ^3 )
Compression ratio	11.0 : 1
Spark plugs	See the spark plug maintenance section, page 181 .

Capacities

Fuel tank		13.2 US gal (50 , 11.0 Imp gal)
Engine coolant
	Change ^1	1.72 US gal (6.5 , 1.43 Imp gal)
	Total	2.01 US gal (7.6 , 1.67 Imp gal)
Engine oil	Change ^2
	Including filter	5.1 US qt (4.8 , 4.2 Imp qt)
	Without filter	4.8 US qt (4.5 , 4.0 Imp qt)
	Total	5.9 US qt (5.6 , 4.9 Imp qt)
Manual transmission fluid	Change	1.6 US qt (1.5 , 1.3 Imp qt)
	Total	1.7 US qt (1.6 , 1.4 Imp qt)
Differential oil	Change	0.78 US qt (0.74 , 0.65 l m p q t)
	Total	0.81 US qt (0.77 , 0.68 l m p q t)
Windshield washer reservoir	U.S. Cars	2.7 US qt (2.6 , 2.3 Imp qt)
	Canadian Cars	4.4 US qt (4.2 , 3.7 Imp qt)

1: Including the coolant in the reserve tank and that remaining in the engine.
Reserve tank capacity:
0.16 US gal (0.62, 0.13 Imp gal)
2: Excluding the oil remaining in the engine.

Specifications

Lights

Headlights	High	12 V 55 W
	Low	12 V 35 W
Daytime running lights		12 V 55 W(H1)
Front turn signal lights		12 V 21 W
Rear turn signal lights		12 V 21 W
Stop/Taillights		12 V 21 W/5 W
Side marker lights	Front	12 V 5 W
	Rear	12 V 5 W
Back-up lights		12 V 21 W
License plate light		12 V 5 W
Interior light		12 V 5 W
Trunk light		12 V 5 W
Side turn signal lights		12 V 5 W

Air conditioning

Refrigerant type	HFC-134a (R-134a)
Charge quantity	19.4 21.2 oz (550 600 g)
Lubricant type SP-10

Battery

Capacity

12 V

36 AH/5 HR

Fuses

Under-hood	See page 244 or the fuse box cover.
Interior	See page 243 or the fuse label attached to the inside of the fuse box door under the dashboard.

Alignment

Toe	Front	0.00 in (0.0 mm)
	Rear	in 0.24 in (6.0 mm)
Camber	Front	0^30'
	Rear	1^30'
Caster	Front	6^

Tires

Size	Front	205/55R16 89W
	Rear	225/50R16 92W
	Spare Tire	T125/70D16 96M
Pressure	Front	32 psi (220 kPa, 2.2 kgf/cm2)
	Rear	32 psi (220 kPa, 2.2 kgf/cm2)
	Spare Tire	60 psi (420 kPa, 4.2 kgf/cm2)

DOT Tire Quality Grading (U.S. Vehicles)

The tires on your vehicle meet all U.S. Federal Safety Requirements. All tires are also graded for treadwear, traction, and temperature performance according to Department of Transportation (DOT) standards. The following explains these gradings.

Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between the tread shoulder and the maximum section width. For example:

Treadwear 200 Traction AA Temperature A

All passenger car tires must conform to Federal Safety Requirements in addition to these grades.

Treadwear

The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the government course as a tire graded 100. The relative performance of tires depends upon the actual conditions of their use, however, and may depart significantly from the norm due to variations in driving habits, service practices and differences in road characteristics and climate.

Traction AA, A, B, C

The traction grades, from highest to lowest, are AA, A, B, and C. These grades represent the tire's ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.

Warning: The traction grade assigned to this is based on straight-ahead braking traction tests, and does not include acceleration, cornering, hydroplaning, or peak traction characteristics.

Temperature A, B, C

The temperature grades are A (the highest), B, and C, representing the tire's resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure. The grade C corresponds to a level of performance which all passenger car tires must meet under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law.

this tire is established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure.

Oxygenated Fuels

Some conventional gasolines are being blended with alcohol or an ether compound. These gasolines are collectively referred to as oxygenated fuels. To meet clean air standards, some areas of the United States and Canada use oxygenated fuels to help reduce emissions.

If you use an oxygenated fuel, be sure it is unleaded and meets the minimum octane rating requirement.

Before using an oxygenated fuel, try to confirm the fuel's contents. Some states/provinces require this information to be posted on the pump.

The following are the U.S. EPA and Canadian CGSB approved percentages of oxygenates:

ETHANOL (ethyl or grain alcohol) You may use gasoline containing up to 10 percent ethanol by volume. Gasoline containing ethanol may be marketed under the name “Gasohol.”

MTBE (Methyl Tertiary Butyl Ether) You may use gasoline containing up to 15 percent MTBE by volume.

METHANOL (methyl or wood alcohol)

Your vehicle was not designed to use fuel that contains methanol.

Methanol can corrode metal parts in the fuel system, and also damage plastic and rubber components. This damage would not be covered by your warranties.

If you notice any undesirable operating symptoms, try another service station or switch to another brand of gasoline.

Fuel system damage or performance problems resulting from the use of an oxygenated fuel containing more than the percentages of oxygenates given above are not covered under warranty.

If you are planning to take your Honda outside the U.S. or Canada, contact the tourist bureaus in the areas you will be traveling in to find out about the availability of unleaded gasoline with the proper octane rating.

If unleaded gasoline is not available, be aware that using leaded gasoline in your Honda will affect performance and fuel mileage, and damage its emissions controls. It will no longer comply with U.S. and Canadian emissions regulations, and will be illegal to operate in North America. To bring your car back into compliance will require the replacement of several components, such as the oxygen sensors and the three way catalytic converter. These replacements are not covered under warranty.

The burning of gasoline in your car's engine produces several byproducts. Some of these are carbon monoxide (CO), oxides of nitrogen (NOx) and hydrocarbons (HC). Gasoline evaporating from the tank also produces hydrocarbons. Controlling the production of NOx, CO, and HC is important to the environment. Under certain conditions of sunlight and climate, NOx and HC react to form photochemical “smog.” Carbon monoxide does not contribute to smog creation, but it is a poisonous gas.

The Clean Air Act

The United States Clean Air Act sets standards for automobile emissions. It also requires that automobile manufacturers explain to owners how their emissions controls work and what to do to maintain them. This section summarizes how the emissions controls work. Scheduled maintenance is on page 154.

In Canada, Honda vehicles comply with the Canadian Motor Vehicle Safety Standards (CMVSS) for Emissions valid at the time they are manufactured.

Crankcase Emissions Control System

Your car has a Positive Crankcase Ventilation System. This keeps gasses that build up in the engine's crankcase from going into the atmosphere. The Positive Crankcase Ventilation valve routes them from

the crankcase back to the intake manifold. They are then drawn into the engine and burned.

Evaporative Emissions Control System

As gasoline evaporates in the fuel tank, an evaporative emissions control canister filled with charcoal adsorbs the vapor. It is stored in this canister while the engine is off. After the engine is started and warmed up, the vapor is drawn into the engine and burned during driving.

Exhaust Emissions Controls Replace Limiting Control System

The exhaust emissions controls include four systems: PGM-FI, Ignition Timing Control, Secondary Air Injection System, and Three Way Catalytic Converter. These four systems work together to control the engine's combustion and minimize the amount of HC, CO, and NOx that comes out the tailpipe. The exhaust emissions control systems are separate from the crankcase and evaporative emissions control systems.

PGM-FI System

The PGM-FI System uses sequential multiport fuel injection. It has three subsystems: Air Intake, Engine Control, and Fuel Control. The Engine Control Module (ECM) uses various sensors to determine how much air is going into the engine. It then controls how much fuel to inject under all operating conditions.

This system constantly adjusts the ignition timing, reducing the amount of HC, CO, and NOx produced.

Secondary Air Injection System

During engine warm-up, air is pumped into the exhaust to reduce emissions when the engine is cold.

Three Way Catalytic Converter

The three way catalytic converter is in the exhaust system. Through chemical reactions, it converts HC, CO, and NOx in the engine's exhaust to carbon dioxide (CO 2 ), dinitrogen (N 2 ), and water vapor.

The emissions control systems are designed and certified to work together in reducing emissions to levels that comply with the Clean Air Act. To make sure the emissions remain low, you should use only new Genuine Honda replacement parts or their equivalent for repairs. Using lower quality parts may increase the emissions from your car.

The emissions control systems are covered by warranties separate from the rest of your car. Read your warranty manual for more information.

Three Way Catalytic Converter

The three way catalytic converter contains precious metals that serve as catalysts, promoting chemical reactions to convert the exhaust gasses without affecting the metals. The catalytic converter is referred to as a three-way catalyst, since it acts on HC, CO, and NOx. A replacement unit must be an original Honda part or its equivalent.

The three way catalytic converter must operate at a high temperature for the chemical reactions to take place. It can set on fire any combustible materials that come near it. Park your car away from high grass, dry leaves, or other flammables.

Technical line drawing of a mechanical assembly with no visible text or symbols

THREE WAY CATALYTIC CONVERTER

A defective three way catalytic converter contributes to air pollution, and can impair your engine's performance. Follow these guidelines to protect your car's three way catalytic converter.

• Always use unleaded gasoline. Even a small amount of leaded gasoline can contaminate the catalyst metals, making the three way catalytic converter ineffective.

- Keep the engine tuned-up.

- Have your car diagnosed and repaired if it is misfiring, back-firing, stalling, or otherwise not running properly.

Testing of Readiness Codes

If you take your vehicle for a state emissions test shortly after the battery has been disconnected or gone dead, it may not pass the test. This is because of certain “readiness codes” that must be set in the on-board diagnostics for the emissions systems. These codes are erased when the battery is disconnected, and set again only after several days of driving under a variety of conditions.

If the testing facility determines that the readiness codes are not set, you will be requested to return at a later date to complete the test. If you must get the vehicle re-tested within the next two or three days, you can condition the vehicle for re-testing by doing the following.

• Make sure the gas tank is nearly, but not completely, full (around 3/4).
• Make sure the vehicle has been parked with the engine off for 8 hours or more.

• Make sure the ambient temperature is between 20^ and 95^ .

• Without touching the accelerator pedal, start the engine and let it idle for 20 seconds.

• Keep the vehicle on Neutral. Increase the engine speed to 2,000 rpm and hold it there until the temperature gauge rises to at least 1/4 of the scale (approximate) minutes).

CONTINUED

State Emissions Testing

- Select a nearby lightly traveled major highway where you can maintain a speed of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in 5 th. Do not use the cruise control. When traffic allows, drive for 90 seconds without moving the accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do this for a continuous 90 seconds because of traffic conditions, drive for at least 30 seconds, then repeat it two more times (for a total of 90 seconds).

- Then drive in city/suburban traffic for at least 10 minutes. When traffic conditions allow, let the vehicle coast for several seconds without using the accelerator pedal or the brake pedal.

If the testing facility determines the readiness codes are still not set, see your Honda dealer.

Warranty and Customer Relations

Customer Relations

Information

Warranty C

Reporting Safety Defects

(U.S. Vehic

......Authorized

Honda dealership personnel are trained professionals. They should be able to answer all your questions. If you encounter a problem that your dealership does not solve to your satisfaction, please discuss it with the dealership's management. The Service Manager or General Manager can help. Almost all problems are solved in this way.

If you are dissatisfied with the decision made by the dealership's management, contact your Honda Customer Relations Office.

U.S. Owners:

American Honda Motor Co.

Honda Consumer Affairs Department

Mail stop 500-2N-7D

1919 Torrance Blvd

Torrance, CA 90501-2746

telephone: [phone]

Canadian Owners:

CUSTOMER RELATIONS

RELATIONS AVEC LA CLIENTÉLE

Honda Canada Inc.

715 Milner Avenue

Toronto, ON

M1B 2K8

Tel: 1-888-9-HONDA-9

Fax: Toll-free 1-877-939-0909

Toronto [phone]

In Puerto Rico and the U.S. Virgin Islands:

Bella International

P.O. Box 190816

San Juan, Puerto Rico 00919-0816

[phone]

When you call or write, please give us this information:

• Vehicle Identification Number (see page 250
- Name and address of the dealer who services your vehicle
- Date of purchase
- Mileage on your vehicle
- Your name, address, and telephone number
• A detailed description of the problem
• Name of the dealer who sold the vehicle to you

U.S. Owners

Your new Honda is covered by these warranties:

New Car Limited Warranty covers your new vehicle, except for the battery, emissions control systems, and accessories, against defects in materials and workmanship.

Emissions Control Systems Defects Warranty and Emissions

Performance Warranty these two warranties cover your car's emissions control systems. Time, mileage, and coverage are conditional. Please read the warranty manual for exact information.

Original Equipment Battery Limited Warranty this warranty gives up to 100 percent credit toward a replacement battery.

Seat Belt Limited Warranty a seat belt that fails to function properly is covered for the useful life of the vehicle.

Rust Perforation Limited Warranty all exterior body panels are covered for rust-through from the inside for the specified time period with no mileage limit.

Accessory Limited Warranty

Genuine Honda Accessories are covered under this warranty. Time and mileage limits depend on the type of accessory and other factors. Please read your warranty manual for details.

Replacement Parts Limited

Warranty covers all genuine Honda replacement parts against defects in materials and workmanship.

Replacement Battery Limited

Warranty provides prorated coverage for a replacement battery purchased from a Honda dealer.

Replacement Muff ler Lifetime

Limited Warranty provides coverage for as long as the purchaser of the muffler owns the car.

Restrictions and exclusions apply to all these warranties. Please read the 2002 Honda Warranty Information booklet that came with your car for precise information on warranty coverages. Your Honda's original tires are covered by their manufacturer. Tire warranty information is in a separate booklet.

Canadian Owners

Please refer to the 2002 Warranty Manual that came with your car.

Reporting Safety Defects (U.S. Vehicles)

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-424-9393 (or 366-0123 in Washington D.C. area) or write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can also obtain other information about motor vehicle safety from the Hotline.

Purchasing Factory Authorized Manuals (U.S. only)

The following publications covering the operation and servicing of your car can be obtained from H Incorporated, either by filling out the attached form or, for credit card holders, calling the toll-free phone number on the form. For manuals prior to the year shown below, contact Helm Incorporated, P.O. Box 07280, Detroit, Michigan 48207, or call 1-800-782-4356.

Publication Form Number	From Description	Price Each
61S2A01	2000-2002 Honda S2000 Service Manual	68.00
61S2A01EL	2000-2002 Honda S2000 Electrical Troubleshooting Manual	48.00
61S2A30	2000-2002 Honda S2000 Body Repair Manual	42.00
31S2A610	2002 Honda S2000 Owner's Manual	32.00
HON-R	Order Form for Previous Years-Indicate Year and Model Desired	FREE
Prices are subject to change without notice and without incurring obligation.

Valid only for sales within the U.S. Canadian owners should contact their authorized Honda dealer.

m	ORDER TOLL FREE: 1-800-782-4356(NOTE: For Credit Card Holder Orders Only)Monday-Friday 8:00 A.M. 6:00 P.M. EST
	MINIMUM CREDIT CARD PURCHASE $10.00

OR

By completing this form you can order the materials desired. You can pay by check or money order, or charge to your credit card. Mail to Helm Incorporated at the address shown on the back of the order form.

	PUBLICATION NUMBER	VEHICLE MODEL		Qty	Price Each	Total Price
		Name Year
Prices are subject to change without notice and without incurring obligation.Orders are mailed within 10 days. Please allow adequate time for delivery.				TOTAL MATERIAL
				Mich. Purchases Add 6% Sales Tax
				HANDLING CHARGE		$6.00
				GRAND TOTAL

Authorized Manuals

NOTE: Dealers and Companies please provide dealer or company name, and also the name of the person to whose attention the shipment should be sent. For purchases outside U.S.A. please write to the address shown below for a quotation. Customer Name Attention Street Address No P.O. Box Number Apartment Number City State & Zip Code Daytime Telephone Number ( ) □ Check or money order enclosed payable to Holm Inc U.S. funds only. Do not send cash □ Master □ VISA □ Check here if your billing address is different Card □ from the shipping address shown above. Account Number Expiration: Mo. Yr. CUSTOMER SIGNATURE DATE

These Publications cannot be returned for credit without receiving advance authorization within 14 days of delivery. On returns, a restocking fee may be applied against the original order.

P.O. BOX 07280-DETROIT, MICHIGAN 48207-1-800-782-4356

Service Manual:

This manual covers maintenance and recommended procedures for repair to engine and chassis components. It is written for the Journeyman mechanic, but is simple enough for most mechanically-inclined owners to understand.

Electrical Troubleshooting Manual:

This manual complements the Service Manual by providing in-depth troubleshooting information for each electrical circuit in your car.

Body Repair Manual:

This manual describes the procedures involved in the replacement of damaged body parts.

A

Accessories

....Insta

Accessory Power Socket

ACCESSORY (Ignition Key

Posit

Additives, Engine Oil.... 164

Ai

Air Cleaner Element.... 178

Air Conditioning.... 84

Maintenance.... 188

Usage.... 84

Air Outlets (Vents) 86

Air Pressure, Tires 191

.Alarm

Alcohol in Gasoline 256

Aluminum Wheels, Cleaning..... 212

Antifreeze 167

Anti-lock Brakes (ABS)

Indicator Light 45, 145

Operation 143

Anti-theft Steering Column Lock .. 58

Anti-theft System 116

Appearance Care 209

Audio Panel....80

Audio System 92

Automatic Car Washes 210

Automatic Speed Control...... 55

n. 128

B

Backup Lamp Replacement...... 204

Battery

(Shang System

Indicator.... 44, 235

Jump Starting 228

Maintenance.... 183

Specifications 253

Before Driving 121

Belts, Seat 8

Antietaget Holder....116.....80

Body Repair 217

Brakes 142

Anti-lock System (ABS)...... 143

Break-in, New Linings ...... 122

Bulb Replacement 204

Fluid 176

Parking....79

System Indicator 44

Wear Indicators, Disc 142

Braking System...... 142

Break-in, New Car 122

Brightness Control, Instruments... 52

Brights, Headlights 51

Bulb Replacement.... 200

Back-up Lights 204

Brake Lights.... 204

Headlights 200

License Plate Lights.... 206

Side Marker Lights 202

Specifications 253

Turn Signal Lights.... 202

Bulbs, Halogen 200

C

Capacities Chart.... 252

Carbon Monoxide Hazard 39

Cargo, Carrying 130

CAUTION, Explanation of ...... ii

CD Changer.... 106

Certification Label 250

Chains 197

CONTINUED

Index

Changing Oil

How to.... 165

When to.... 152

......Char

Covertible Top 70

Convertible Top Cover.... 75

Lowering the Convertible Top... 70

ging Melatt Finance21....76

ging RaisingChelConvertible Top...... 73

Coolant

Charging System Indicator .... 44, 235

Check Engine Light 45,236

Checklist, BhforkiDriving...136.... 126

Child Safety 19

Child Seats 22

Cleaner, Air 178

Cleaning 209

Aluminum Wheels.... 212

Carpeting 213

Exterior 210

Floor Mats 213

Interior 213

Leather 214

Seat Belts 214

Vinyl 214

Windows 215

Clutch Fluid 177

CO in the Exhaust 258

Cold Weather, Starting in.... 138

Compact Spare Tire.... 220

Controls, Instruments and...... 41

st, BhforkiDgiving...136.... 126

Proper Solution 167

Temperature Gauge 47

Corrosion Protection.... 215

Crankcase Emission Control

System.... 258

Cruise Control Operation .... 55

Customer Relations

Information...... 264

D

DANGER, Explanation of...... ii

Dashboard 42

Daytime Running Lights.... 52

Defects, Reporting Safety...... 268

Defrosting the Windows...... 89

Dimensions.... 252

Dimming the Headlights .... 51

Dipstick

Engine Oil 125

Directional Signals.... 53

Disc Brake Wear Indicators...... 142

Disposal of Used Oil.... 166

Do Not Tow a Trailer 147

D167rs

Locking and Unlocking...... 60

Monitor Light 45

Power Door Locks.... 60

DOT Tire Quality Grading 254

Downshifting, 6-speed Manual

Transmission.... 140

Driving 135

Economy 127

In Bad Weather.... 146

In Foreign Countries 257

E

Economy, Fuel 127

Emergencies on the Road...... 219

Battery, Jump Starting 228

Changing a Flat Tire 221

Charging System Indicator ..... 235

Checking the Fuses.... 241

Closing the Convertible Top .... 239

Low Oil Pressure Indicator ..... 234

Malfunction Indicator Lamp .... 236

Evaporative Emission Controls.... 258

Exhaust Fumes 39

Expectant Mothers, Use of Seat

OverheateBtngbye 231 17

EmergEnterBrakeleaching the 210

Emergency Flashers.78

EmergenFy Trunk Opener. 65

Emissions Controls . 258

Emissions Testing, State 261

Engine

Check Engine Light ...... 45, 236

Compartment, Checking in the 124

Coolant 126

Coolant Temperature Gauge ..... 47

Drive Belt.... 190

Malfunction Indicator Lamp 45,236

Oil Pressure Indicator...... 44, 234

Oil, What Kind to Use 163

Overheating.... 231

Specifications 252

Speed Limiter 140

Starting.... 137

Engine Cover, Opening the...... 124

Ethanol in Gasoline 256

Fabric, Cleaning 214

Fan, Interior 84

Features, Comfort and Convenience....83

Filling the Fuel Tank.... 123

Filters Oil 165

Flashers, Hazard Warning...... 78

Flat Tire, Changing a 221

Fluids Brake.... 176

Clutch 177

Manual Transmission 174

Windshield Washer 173

FM Stereo Radio Reception ..... 101

Foreign Countries, Driving in ..... 257

Four-way Flashers 78

Fuel.... 122

Fill Door and Cap.... 123

Gauge 48

Octane Requirement 122

Oxygenated 256

Reserve Indicator...... 46

Tank, Filling the.... 123

......Fuel Mileag

Fuel Station Procedures ...... 123

Fuses, Checking the.... 241

G

Gasohol 256

Gasoline 122

Fuel Reserve Indicator...... 46

Gauge 48

Octane Requirement 122

Oxygenated Fuels.... 256

Tank, Filling the.... 123

CONTINUED

Index

Gauge Hydraulic Clutch....177...Engine Hydroplating Temperature..47....147...Fuel .48Speedometer .47Tachometer .47
Gearshift Lever Positions6-speed Manual	Identification Number,Vehicle....250Transmission139Glass Cleaking....215....56Switch....58Timing Control System....259Indicator Lights, Instrument Panel....43Inflation, Proper Tire....191Inside Mirror....78Inspection, Tire....193Instrument Panel....42Instrument Panel Brightness....52Interior Cleaning....213Interior Lights....81Introduction....i
H
Halogen Headlight Bulbs....200	J
Hazard Warning Flashers....78
Headlights
Daytime Running Lights....52
High Beam Indicator....46
Reminder Tone....51
Replacing Halogen Bulbs....200
Turning on....51
Heating and Cooling System....84
High Altitude, Starting at....138
High-Low Beam Switch....51
High Speed, Shifting at....140
Hood Latch....180
Hood, Opening the....124

Jump Starting 228

K

Keys.... 56

L

Label, Certification 250

Lane Change, Signaling 53

Lap/Shoulder Belts 33

Leather, Cleaning 214

Lights

Bulb Replacement 200

Indicator 43

Turn Signal 200

Loading Cargo.... 130

LOCK (Ignition Key Position) ..... 58

Locks

Anti-theft Steering Column ..... 58

Fuel Fill Door 123

Power Door 60

Trunk 64

Low Coolant Level.... 126

Lower Gear, Downshifting to a.... 140

Low Fuel Indicator 46

Low Oil Pressure Indicator .... 44, 234

Lubricant Specifications Chart .... 252

......Lugg

M

0

Oct30e Requirement, Gasoline .... 122

Odometer 48

Odometer, Trip 48

Oil

MaintenanChang, How to 165

Owner Maintenance Checks.... 161

Change, When to 152

. 159hecking Engine ...... 125

Schedule .Pressure Indicator 44, 234

..MaintenaSeleRengiPedplardVistousity49

Malfunction Indicator Lamp .. 45, 236

Manual Transmission.... 139

Manual Transmission Fluid ..... 174

Meters, Gauges.... 47

Methanol in Gasoline 256

Mirrors, Adjusting 78

N

New Vehicle Break-in 122

Normal Shift Speeds.... 140

NOTICE, Explanation of...... ii

P

Paint Touch-up 212

Panel Brightness Control 52

BaftengiBcation....250....79

Parking Lights.... 51

PGM-FI System.... 259

Polishing and Waxing 211

Power

Door Locks 60

Engine, Specifications...... 252

Mirrors....78

Windows 68

Pregnancy, Using Seat Belts ...... 17

Protecting Adults.... 12

Additional Safety Precautions. . 18

Advice for Pregnant Women..... 17

Protecting Children 19

Protecting Larger Children ..... 29

Protecting Small Children ...... 26

R

Radiator Overheating.... 231

Radio Sound System.... 92

Readiness Codes.... 261

Rear Lights, Bulb Replacement... 204

Rear View Mirror.... 78

Reclining the Seat-backs...... 67

Recommended Shift Speeds ..... 140

CONTINUED

Index

Recovery Vehicle, Emergency | Seat Belts 8
....Towing . 2A7ditional Information.... 33
......ReminderAdviKtsfo43Pregnant Women..... 17
......Remote Træsningter...61......214
Replacement Information | Lap/Shoulder Belt 33
Air Cleane Maintenance 34
Engine Collantin169 Light and Beeper...... 44
Engine Oil and Filter 165 System Components 33
Fuses|. 241Use During Pregnancy.... 17
......Light BuSats20Adjusting the...... 67
....SchedulSer152Number.... 250
.Spark P1Servide80ntervals 152
Tires 195 | Service Manual 269
Wiper Blades.... 186 | Service Station Procedures .... 123
Replacing Seat Belts After a Shifting
Crash 34 The 6-speed Manual
Restraint, Child 19 Transmission 139
Rotation, Tire 194 | Side Marker Lights, Bulb
Safety Belts....8
Safety Defects, Reporting...... 268
Safety Labels, Location of .... 40
Safety Messages....ii
The 6-speed Manual Transmission.... 139
Side Marker Lights, Bulb
Replacement in 202
Signaling Turns.... 53
6-speed Manual Transmission Checking Fluid Level...... 174
Shifting the 139
Snow Tires.... 197
Solvent-type Cleaners.... 210
Sound System....92

S

Spare Tire Inflating.... 220
Specifications 253
Spark Plugs, Replacing .... 180
Specifications Charts...... 252
Speed Cor
Speedometer 47
SRS, Additional Information...... 35
Additional Safety Precautions.... 38
How the Automatic Seat Belt Tensioners Work.... 37
How the SRS Indicator Works.... 37
How Your Airbags Work...... 35
SRS Components 35
SRS Service.... 38
SRS Indicator Light 37,45
Starting the Engine.... 137
In Cold Weather at High Altitude .... 138 ....With
State Emissions Testing 261
Steam Coming from Engine ...... 231
Steering Wheel Anti-theft Column Lock .... 58
Stereo Sound System 92

Storing Your Car...... 208

Stuck Car 245

Supplemental Restraint System

ServicingIn38tion 191

SRS Indicator Inspection 193

Tensioners, Seat Belts 37

T

Taillights, Changing Bulbs in..... 204

Taking Care of the Unexpected .. 219

Technical Descriptions

DOT Tire Quality Grading ..... 254

Emissions Control Systems..... 256

Oxygenated Fuels.... 258

Three Way Catalytic Converter.... 260

Temperature Gauge 47

Tensioners, Seat Belts 37

Three Way Catalytic Converter... 260

Tire Chains.... 197

Tire, How to Change a Flat ..... 221

Tires 191

Air Pressure 191

Balancing 194

Checking Wear 193

Compact Spare Tire 220

DOT Tire Quality Grading ..... 254

In3Bation.... 191

Replacing 195

Rotating.... 194

Snow 197

Specifications 253

.TachomTetols, Tire Changing 221

Towing

A Trailer, Do Not.... 147

Emergency Wrecker 246

Trailer, Do Not Tow a.... 147

Transmission

Checking Fluid Level, 6-speed Manual Transmission .... 174

Fluid Selection.... 174

Identification Number...... 250

Shifting the 6-speed Manual

.Transmissind Cleaning 214

Treadwear 254

Trip Meter 48

Trunk....64

Emergency Trunk Opener ...... 65

Opening the.... 64

Open Monitor Light 45

Turn Signals 53

U

Underside, Cleaning 215

Unexpected, Taking Care of the 219

Uniform Tire Quality Grading ..... 254

Unleaded Gasoline.... 122

Upholstery Cleaning...... 213

Used Oil, How to Dispose of ..... 166

V

Vehicle Dimensions.... 252

Vehicle Identification Number..... 250

Vehicle Storage 208

Ventilation.... 86

VIN 250

iVsiod Cleaning 214

Viscosity, Oil.... 164

CONTINUED

Index

W

WARNING, Explanation of . ii

Warning Labels, Location of ..... 40

.Warranty Coverages.267

Washer, Windshield

Checking the Fluid Level ..... 173

Operation.54

Washing.210

Waxing and Polishing 211

Wheels 195

Alignment and Balance...... 194

Cleaning Aluminum Alloys..... 212

Wrench 221

Windows

Cleaning.215

Operating the Power 68

Windshield

.Cleaning.215

Defroster 89

Washers 54

Wipers, Windshield

Changing Blades.... 186

Operation.53

Worn Tires 193

Wrecker, Emergency Towing..... 247

VIII

Gasoline: Tire Pressure (measured speed Manual Transmission

Premium unleaded gasoline, pump octane number of 91 or higher.

Fuel Tank Capacity:

13.2 US gal (50 ℓ, 11.0 Imp gal)

Recommended Engine Oil:

API premium grade 10W-30 detergent oil (see page 164

Oil change capacity (including filter):

5.1 US qt (4.8 ℓ, 4.2 Imp qt)

Fluid:

Honda Manual Transmission Fluid preferred, or an API service SG, SH or SJ, SAE 10W-30 or 10W-40 motor oil as a temporary replacement (see page 174

Capacity:

1.6 US qt (1.5 ℓ, 1.3 Imp qt)

Brake Fluid:

Honda Heavy Duty Brake Fluid DOT 3 preferred, or a DOT 3 or DOT 4 brake fluid as a temporary replacement (see page 176

Front:

32 psi (220 kPa, 2.2 kgf/cm²)

Rear:

32 psi (220 kPa, 2.2 kgf/cm²)

SpareTirePressure:

Front:

60 psi (420 kPa, 4.2 kgf/cm²)
