Brand	Meireles
Model	MFF 80 W
Product Type	Refrigerator with ice making compartment
Power Supply	220-240 V ~ 50 Hz
Refrigerant	R600a (flammable, environmentally friendly)
Climate Class	T, ST, N, SN (Ambient temperature 10-43 °C)
Thermostat Settings	Positions 1 to 5 (1-3 for short-term, 3-4 for long-term storage)
Ice Making Compartment	Yes, with ice tray; not for storing frozen food
Summer/Winter Mode	Yes, drain tray flap adjusts cold air flow
Defrosting	Manual; recommended when ice exceeds 7 mm; use winter mode during defrost
Light Bulb (Refrigerator)	Max 15 W, replaceable; LED requires authorized service

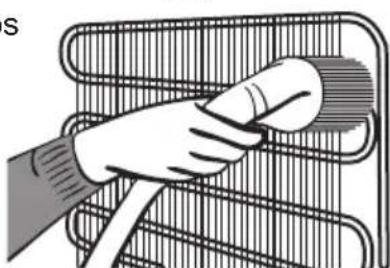

Condenser Cleaning	At least twice a year with a broom
Safety Features	Grounded plug (16 A); do not use extension cords; keep ventilation openings clear
Intended Use	Household and similar applications (e.g., staff kitchens, farm houses)
Door Reversibility	Not possible on models with front handle; contact authorized service
Installation Clearance	At least 15 cm above, 5 cm from electrical ovens, 50 cm from gas stoves
Leveling	Adjustable front legs (turn clockwise)
Storage Guidelines	Store raw meat in polyethylene bag near ice compartment; cool hot food before placing
Energy Saving Tips	Place in cool, ventilated area; cover drinks; keep door closed; clean gaskets
Warranty Note	Guarantee void for commercial or common use

Frequently Asked Questions - MFF 80 W Meireles

How do I set the thermostat for optimal cooling?

Turn the knob from position 1 to 5. For short-term storage, use positions 1-3; for long-term, use 3-4. The coldest area is just below the ice making compartment. Allow 24 hours for initial cooling, and do not open the door frequently.

What is the Summer/Winter mode and how do I use it?

The drain tray flap adjusts cold air flow. In Summer mode (Mode 1), the bottom compartment is cooler. In Winter mode (Mode 2), the bottom compartment is less cool. Use Winter mode during defrosting.

How do I defrost my refrigerator?

Defrost when ice exceeds 7 mm. Set thermostat to 5 the day before. Switch off, leave door open, and place bowls of warm water inside to speed up. Dry thoroughly. Use Winter mode during defrost, then return to previous mode.

What should I do if my refrigerator is not cooling properly?

Check: power supply, thermostat not set to '•', door seals closed, condenser not dusty, and sufficient clearance at rear and sides. Ensure appliance is level. If still not cooling, verify climate class compatibility with room temperature.

Is it normal to hear bubbling sounds from the refrigerator?

Yes, bubbling or slight noise from refrigerant circulation is normal even when compressor is off. If sounds differ, check leveling, rear contact, and items on top for vibration.

Can I change the door opening direction?

If your model has a front handle, door direction cannot be changed. For models without handles, contact authorized service to change the door opening direction.

What type of refrigerant does this fridge use and is it safe?

It uses R600a, an environmentally friendly but flammable gas. Avoid damaging the cooling circuit. If leakage occurs, move away from flames and ventilate the room.

How do I replace the refrigerator light bulb?

Unplug the unit. Press the hooks on the sides of the light cover top and remove it. Replace with a bulb of max 15W. Reattach cover, wait 5 minutes, then plug in. For LED lighting, contact authorized service.

How can I save energy with this refrigerator?

Place in a cool, ventilated spot away from heat sources. Allow hot food to cool before storing. Cover drinks and slops. Open door briefly. Keep gaskets clean and flexible. Defrost regularly.

What should I do if water accumulates in the lower part?

Check that the drain hole for defrost water is not clogged. Use the defrost drain plug to clean the hole. Ensure the drain tray flap is properly placed.

USER MANUAL MFF 80 W Meireles

Abstract black-and-white logo resembling a stylized number 6 inside a rounded square frame (no text or symbols)

meireles

ES

FRÍGORÍFICO

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Illustration showing three different techniques for using a tool to lift a wire, with no text or symbols present.

Cartoon illustration of an electric plug with a warning sign and flame, no text or symbols present

Illustration of a cartoon character hanging from a door, with no text or symbols present

Illustration of two bottles and a glass with explosion effects (no text or symbols)

Cartoon illustration of a distressed container holding a box labeled 'KG', with arms and legs showing stress or discomfort (no text beyond label)

Antes del encendido

Simple line drawing of a smiling face on a square and a hand holding an object (no text or symbols)

MANEJO DEL APARATO

Technical line drawing of a handheld hair dryer with spiral blades and a circular button (no text or symbols)

Illustration showing three different hand positions: a bowl on a keyboard, a tray with a wavy line, and a hand holding a bowl with a crossed-out black cross (no text or symbols)

Modo Verano / Invierno

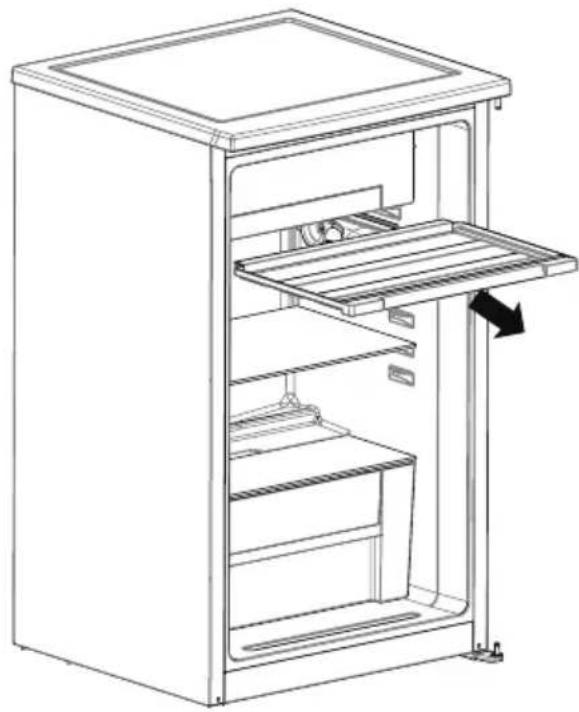

Line drawing of a refrigerator interior showing the door, shelves, and drawer (no text or symbols)

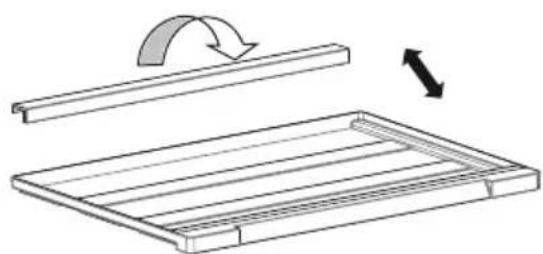

Diagram showing a wooden plank being lifted by a curved arrow, with an open tray and a black arrow indicating rotation (no text or symbols)

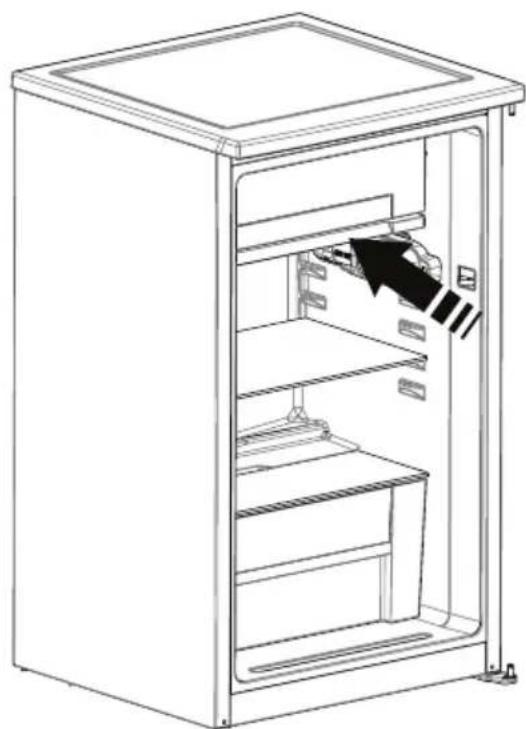

Line drawing of an open refrigerator with a black arrow pointing to the door (no text or symbols)

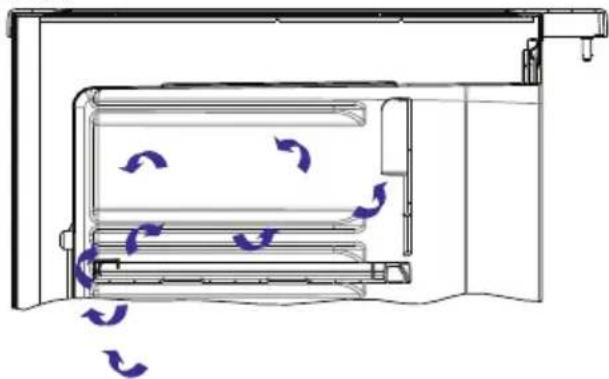

Diagram of a refrigerator interior with airflow arrows indicating movement (no text or symbols)

Modo 1

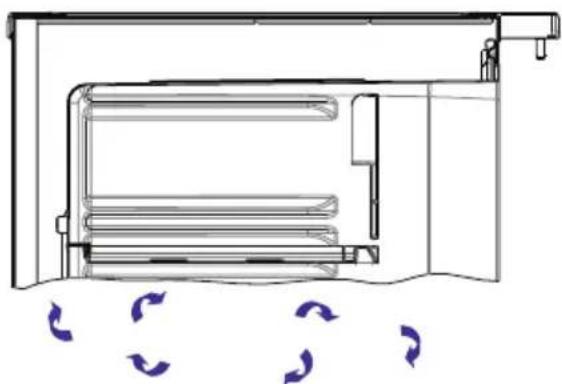

MODO INVIERNO (MODO 2)

Technical line drawing of a mechanical or electrical enclosure with internal channels and directional arrows indicating flow (no text or symbols)

Modo 2

Cartoon illustration of a smiling refrigerator with sunglasses and a mortar, giving thumbs up (no text or symbols)

Illustration of a hand cleaning a metal rack with a circular object on top (no text or symbols)

Close-up of a metallic mechanical component with a circular hole (no text or symbols visible)

Line drawing of a hand cleaning a clean material on a rectangular tray (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

- Follow all instructions on your appliance and instruction manual and keep this manual in a safe place to resolve the problems that may occur in the future.

Cartoon illustration of an angry plug with a warning sign, no text or symbols present

Illustration of three hands performing a cable or wire manipulation technique (no text or symbols present)

Two diagrams showing a coiled tube with internal structures and directional arrows, no text or symbols present.

Simple line drawing of a smiling face on a square object and a hand holding the other (no text or symbols)

Technical line drawing of a handheld device with spiral slots and a circular handle (no text or symbols)

Line drawing of a container being inserted into a tray of circular wells (no text or symbols)

Illustration of hands holding a tray with circular wells, no text or symbols present

Illustration of two hands holding teeth with a crossed-out black symbol (no text or labels)

Line drawing of a refrigerator interior showing the door, front shelves, and storage compartments (no text or symbols)

Diagram showing a wooden plank being lifted by an angle and then placed on a metal tray (no text or symbols)

Line drawing of an open refrigerator with a black arrow pointing to the door (no text or symbols)

Diagram of a refrigerator with airflow arrows indicating internal flow (no text or symbols)

Modo 1

MODO DE INVERNO (MODO 2)

Technical line drawing of a mechanical device with internal channels and motion arrows indicating flow (no text or symbols)

Modo 2

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Diagram of a multi-tiered refrigerator with red crosshair lines indicating internal structure (no text or labels)

Cartoon illustration of a smiling book character waving, with two smaller figures nearby (no text or symbols)

Illustration of a hand cleaning a bicycle rear panel with a circular object on the rim (no text or symbols)

Close-up of a metallic mechanical component with a circular hole (no text or symbols visible)

Descongelar

Line drawing of a hand cleaning a surface with a cloth, placed inside a transparent enclosure (no text or symbols)

Technical line drawing of a handheld power tool with two views: one showing internal components and the other showing external coils (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

General warnings ....30

Old and out-of-order fridges 32

Safety warnings 32

Installing and operating your fridge 33

Before Using your Fridge....34

THE VARIOUS FUNCTION AND POSSIBILITIES 34

Thermostat Setting 34

Ice box tray....34

Summer / Winter mode....35

Recommended Food Storage Conditions ....36

CLEANING AND MAINTENANCE 36

Defrosting 37

Replacing The Light Bulb....38

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION 38

Repositioning the door....38

BEFORE CALLING YOUR AFTER SALES SERVICE....39

Tips For Saving Energy ....40

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ...... 41

- The operating instructions apply to several models. Differences may therefore occur.

BEFORE USING THE APPLIANCE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

- If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance’s cooler elements from being damaged. Although R600a is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not damage the cooler gas circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and similar applications such as;

- staff kitchen areas in shops, offices and other working environments - farm houses and by clients in hotels, motels and other residential type environments

• bed and breakfast type environments;

• catering and similar non-retail applications

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Pure electrical circuit lines without any symbols

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

Illustration of three hands performing a cable or wire manipulation technique (no text or symbols present)

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
• Do not place glass bottles or beverage cans in the ice making compartment. Bottles or cans may explode.
• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge compartment.

Illustration of three cartoon electric shock absorbers: an electric plug, a person inside a door, and a hand holding a fuse with a crossed-out prohibition symbol (no text or labels)

- When taking ice made in the ice making compartment, do not touch it, ice may cause ice burns and/or cuts.

- Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer compartment!

- This product is intended for fresh food and drinks. Store fresh food and drinks short-term.

- Do not store frozen food and use to freeze food in the ice making compartment.

- Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning.

- Do not use electrical devices, defrosting sprays or pointed or sharp-edged objects such as knives or forks to remove the ice.

- Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

- Fix the accessories in the fridge during transportation to prevent damage to accessories.

Simple line drawing of a bottle and glass with explosion effects (no text or symbols)

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

- Operating voltage for your fridge is 220-240 V at 50Hz.

• We do not take the responsibility of the damages that occur due to ungrounded usage.

- Place your fridge in a place that it would not be exposed to direct sunlight.

- Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

- Your fridge should never be used outdoors or left under the rain.

- When your fridge is placed next to a deep freezer, there should be at least 2 ~cm between them to prevent humidity on the outer surface.

- Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.

Cartoon illustration of a distressed container character holding a box labeled 'KG', with no readable text or symbols beyond the label.

- The adjustable front legs should be adjusted to make sure your appliance is level and stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

- Before using your fridge, wipe all parts back with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90^ as shown in the figure to prevent condenser from touching the wall.

- Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.

Before Using your Fridge

- When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.

- Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

Simple line drawing of a smiling emoji on a square and a hand holding a ball (no text or symbols)

PART -2 THE VARIOUS FUNCTION AND POSSIBILITIES

Thermostat Setting

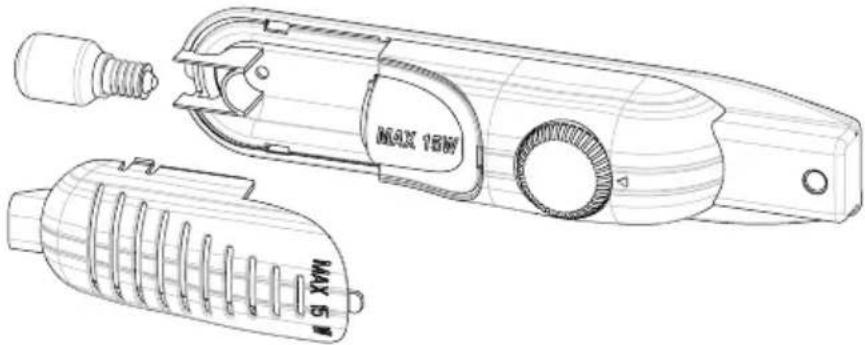

Line drawing of a handheld hair dryer with spiral blades and a circular button labeled 'MAX 5' (no text beyond label)

Thermostat automatically regulates the inside temperature of the refrigerator. By rotating the knob from position 1. to 5., temperatures can be obtained.

Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.

• For short-term storage of food in the appliance, you can set the knob between minimum and medium position. (1-3)
• For long-term storage of food in the appliance, you can set knop medium position. (3-4)

Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

• When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.
  • In this time do not open the door so often and place a lot of food inside the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.

Important note: In product, the coldest region is just below the ice making compartment. In this region, condensation may occur. Icing, frosting and condensation may occur ice making compartment and other compartments. This is normal situation and does not affect cooling. It can be wiped with dry cloth according to safety instructions.

Ice box tray (In some models)

• Fill the ice tray with water and place in ice making compartment.
  • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Line drawing of a hand pouring liquid into a tray with circular wells (no text or symbols)

Illustration of hands holding a tray with circular wells, showing rotational arrows (no text or symbols)

Illustration of two hands holding a tooth with a black X symbol indicating a dental or dental procedure (no text or labels)

Summer / Winter mode

Line drawing of a refrigerator interior showing the door, shelves, and drawer (no text or symbols)

Diagram showing a wooden plank being placed on a flat surface with an arrow indicating rotation (no text or symbols)

Line drawing of an open refrigerator with a black arrow pointing to the door (no text or symbols)

Drain tray flap allows you to adjust cold air flow inside your refrigerator according to summer (high ambient temperature) and winter(low ambient temperature) seasons.

SUMMER MODE (MODE 1)

Refrigerator's bottom compartment will be much cooler.

Diagram of a refrigerator interior with airflow arrows indicating movement (no text or symbols)

Mode 1

WINTER MODE (MODE 2)

Refrigerator's bottom compartment will be not much cooler.

While defrosting winter mode should be used.

Technical line drawing of a mechanical or electrical enclosure with internal channels and directional arrows indicating flow (no text or symbols)

Mode 2

Recommended Food Storage Conditions

The fridge part of the refrigerator for fresh food and drinks.

Ice making compartment is not suitable for storing frozen food. Do not freeze your food in this area. The bottles can be stored in the bottle holder or bottle rack on the door. The best way to store raw meat should be the closest(top) to the ice-making compartment in a polyethylene bag on the shelf. Hot food and drinks cool down to room temperature before placing in the refrigerator.

CLEANING AND MAINTENANCE

- Disconnect unit from the power supply before cleaning.

- Do not clean the appliance by pouring water.

• Make sure that no water enters the lamp housing and other electrical items.

- The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

Cartoon illustration of a smiling refrigerator with sunglasses and a mortar, giving thumbs up (no text or symbols)

- Clean the accessories separately with soap and water Do not clean them in the washing machine.

Diagram of a refrigerator with red crosshair lines indicating no text or symbols on the refrigerator itself

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed reconnect the plug of the unit with dry hands.

Cartoon illustration of a smiling book character with arms and legs, accompanied by two smaller figurines (no text or symbols)

- You should clean the condenser with broom at least twice a year in order to provide energy saving and increase the productivity.

Illustration of a hand cleaning a metal rack with a circular object on top (no text or symbols)

The hole placed at rear bottom of refrigerator is closed and there is no effect to product's cooling system.

Close-up of a metallic mechanical component with a circular hole (no text or symbols visible)

Defrosting

Excessive frost will affect the performance of the refrigerator. Ice making compartment should be melted at least twice a year or when ice exceeds 7 mm.

For this;

• Make sure that drain tray flap on place. (Take the Winter mode. At the end of defrosting take the previous mode depending on the ambient temperature. Winter- Summer mode)

- The day before you defrost, set the thermostat dial to 5. position to freeze the foods completely.

- During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.

- Switch the refrigerator off at the socket outlet and pull the main plug

- Leave the door open and to accelerate the defrosting process one or more basins of warm water can be placed in the freezer compartment.

- Dry the inside of the unit and dripping tray with a sponge or a clean cloth and set the thermostat knob to 5 position.

Line drawing of a hand cleaning a surface with a sponge, placed inside a transparent enclosure (no text or symbols)

Replacing The Light Bulb

When replacing the light of the refrigerator compartment;

1. Unplug the unit from the power supply,
2. Press the hooks on the sides of the light cover top and remove the light cover
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

PART -4

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and Changing of Installation Position

• The original packages and foamed polystyrene (PS) can be concealed if required.
• In transportation the appliance should be tied with a wide stripe or a strong rope. The rules written on the corrugated box must be applied while transporting.

- Before transporting or changing old installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent the shake.

Simple line drawing of two children interacting, one holding a large rectangular object (no text or symbols)

Repositioning the door

• It is not possible to change the opening direction of your refrigerator door, if the door handle on your refrigerator is installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your refrigerator may be changed, you should contact the nearest Authorised Service to have the opening direction changed.

BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate ;

Check that ;

• There is no power,
• The general switch in your home is not disconnected,
• The thermostat setting is on “•” position,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly ;

Check that ;

• You have not overloaded the appliance,
  • The doors are closed perfectly,
  • There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise ;

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that ;

• The appliance is well leveled,
• Nothing is touching the rear,
- The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator ;

Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate class Ambient temperature (°C)

T Between 16 and 43 °C

ST Between 16 and 38 °C

N Between 16 and 32 °C

SN Between 10 and 32 °C

- This appliance is designed for use at an ambient temperature within the 10^ - 43^ range.

Recommendations

If the appliance is not used for long time (for example during the summer holidays) set to thermostat knob to “•” position. Defrost and clean the refrigerator leaving the door open to prevent the formation of midew and smell.

Tips For Saving Energy

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2. Allow ward food and drinks to cool down outside the appliance.
3. When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.
4. When placing, drinks and slops they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.
5. When placing food and drinks, open the appliance door as briefly as possible.
6. Keep close the covers of any different temperature compartment in the appliance (crisper, chiller ...etc).
7. Door gasket must be clean and pliable. Replace gaskets if worn.

PART -6

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Top panel

Pure technical line drawing of a mechanical component with no text or symbols

Top table

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Ice box
2) Ice making compartment
3) Drain tray
4) Fridge shelf
5) Crisper cover
6) Crisper
7) Bottle shelf
8) Chese / Butter shelves
9) Egg holder
10) Thermostat box

CE
