USER MANUAL 931BF SAMSUNG

Select Model Name SyncMaster Safety Precautions Introduction Connections Using the Software Adjusting the Monitor Troubleshooting Specifications Information Regulatory Manual Reader MagicTune Magic Bright Natural Color

Install drivers Install

programs

Windows Me

Windows 98

Natural Color

Windows2000

Windows

MagicTune™

SAMSUNG DIGITAL everyone's invited™ ■ Safety Precautions ■ Adjusting the Monitor ■ Introduction ■ Troubleshooting ■ Connections ■ Specifications ■ Using the Software ■ Information

Safety Precautions

Notation

Power

Installation

Cleaning and Use

Others

Notation

Please read the following safety instructions as they are designed to prevent damage to property and harm to the user.

! Warning / Caution

Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment.

! Notational Conventions

Prohibited Important to read and understand at all times

Do not disassemble Disconnect the plug from the outlet

Do not touch Grounding to prevent an electric shock

Notation

Power

Installation

Cleaning and Use

Others

Power

When not used for extended period of time, set your computer to DPMS. If using a screen saver, set it to the active screen mode.

Shortcut to Anti-Afterimage Instructions

Do not use a damaged or loose plug.

This may cause an electric shock or fire.

Illustration showing a hand pressing down on an electrical socket with warning symbols and a blue circle containing an exclamation mark.

Illustration showing a hand holding a cartoon character with a warning symbol and lightning bolt, accompanied by a blue warning circle.

Do not pull the plug out by the wire nor touch the plug with wet hands.

This may cause an electric shock or fire.

Safety warning illustration showing a person using a device to prevent a flame, with a blue circular icon indicating safety symbol.

Use only a properly grounded plug and receptacle.

An improper ground may cause electric shock or equipment damage.

Safety warning illustration showing a person using a device to prevent a yellow warning symbol with red arrows, accompanied by a blue warning symbol.

Insert the power plug firmly so that it does not come loose.

▶ A bad connection may cause fire.

Illustration of a computer monitor with a cartoon character and warning symbol (no text or labels)

Do not excessively bend the plug and wire nor place heavy objects upon them, which could cause damage.

This may cause an electric shock or fire.

Two electrical clamps with red lightning bolts and a warning symbol (no text or labels)

Do not connect too many extension cords or plugs to an outlet.

This may cause fire.

Notation

Power

Installation

Cleaning and Use

Others

Installation

Be sure to contact an authorized Service Center when installing your set in a location with heavy dust, high or low temperatures, high humidity, and chemical substances, or where it will be operated for 24 hours continuously such as an airport, train station or etc.

Failure to do so may cause serious damage to your set.

Put your monitor in a location with low humidity and a minimum of dust.

▶ Failure to do so may cause an electric shock or fire inside the monitor.

Cartoon illustration of a computer monitor with a sad face and floating colorful icons (no text or symbols)

Illustration of a person viewing a computer screen with a cartoon face (no text or symbols)

Do not drop the monitor when moving it.

This may cause damage to the product or human body.

Cartoon illustration of a computer monitor with a sad face on top, showing a warning symbol (no text or symbols present)

Install the monitor base in a showcase or shelf so that the end of the base does not protrude from the showcase or shelf.

▶ Dropping the product may cause damage to the product or personal injury.

Cartoon illustration of a computer monitor character with a surprised expression, waving, next to a blue warning symbol (no text or symbols present)

Do not place the product on an unstable or small surface area.

Place the product on an even, stable surface, as the product may fall and cause harm to someone walking by, specifically children.

Cartoon illustration of a computer monitor with a sad face and a surprised character (no text or symbols)

Do not place the product on the floor.

Someone, specifically children could trip over it.

Cartoon illustration of a computer monitor with a sad face, a steaming red box, and a warning symbol (no text or labels)

Keep any flammable objects such as candles, insecticides or cigarettes away from the product.

▶ Otherwise, this may cause a fire.

Illustration of a hot air stove next to a computer monitor with a warning icon (no text or symbols)

Keep any heating devices away from the power cable.

▶ A melted coating may lead to electric shock or fire.

Illustration of a desk with a computer monitor and a warning icon (no text or symbols)

Do not install the product in places with poor ventilation, for instance, a bookshelf, closet, etc.

▶ Any increase in internal temperature may cause fire.

Set down the monitor carefully.

Cartoon illustration of a computer monitor with a surprised face and a blue exclamation mark (no text or symbols)

The monitor could be damaged or broken.

Illustration of a computer monitor with a red X mark and an exclamation mark, no text or symbols present.

Do not place the monitor face down.

The TFT-LCD surface may be damaged.

Illustration of a person cleaning a whiteboard with a blue warning symbol above (no text or symbols present)

Installing a wall bracket must be done by a qualified professional.

Installation by unqualified personnel may result in injury. Always use the mounting device specified in the owner's manual.

Illustration of a computer monitor with a cartoon face and warning symbol (no text or labels)

When installing the product, make sure to keep it away from the wall (more than 10 cm/4 inch) for ventilation purposes.

Poor ventilation may cause an increase in the internal temperature of the product, resulting in a shortened component life and degraded performance.

Notation

Power

Installation

Cleaning and Use

Others

Cleaning and Use

When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a slightly moistened, soft fabric.

Illustration of a hand pointing at a computer monitor displaying a smiling face with speech bubbles (no text or symbols present)

Do not spray water or detergent directly on the monitor.

This may cause damage, electric shock or fire.

Cartoon illustration of a smiling computer monitor with a hand holding a magnifying glass, accompanied by a blue exclamation mark (no text or symbols on the monitor itself)

Use the recommended detergent with a smooth cloth.

Illustration of a person cleaning a wall with a magnifying glass and a blue exclamation mark (no text or symbols)

If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth.

A dirty connector may cause an electric shock or fire.

Cartoon illustration of a smiling toothbrush on a computer monitor with a toothpaste tube nearby (no text or symbols)

Make sure to unplug the power cord before cleaning the product.

▶ Otherwise, this may cause electric shock or fire.

Illustration of a woman using a computer with a magnifying glass (no text or symbols)

Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth.

Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent.

Cartoon illustration of a character pointing at a computer monitor with a smiling face, accompanied by a blue exclamation mark (no text or symbols on the monitor or character)

Contact the Service Center or Customer Center for interior cleaning once a year.

Keep the product's interior clean. Dust which has accumulated in the interior over an extended period of time may cause malfunction or fire.

Notation

Power

Installation

Cleaning and Use

Others

Others

Cartoon illustration of a person sitting on a computer monitor with a microphone symbol nearby (no text or symbols present)

Do not remove cover (or back).

This may cause an electric shock or fire. Refer servicing to qualified service personnel.

Illustration of a computer monitor with cartoon characters and a thought bubble showing a yellow object (no text or symbols)

If your monitor does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer or service.

This may cause an electric shock or fire.

Illustration of a cartoon character on a computer monitor with a window and raindrops falling (no text or symbols)

Keep the product away from places exposed to oil, smoke or moisture; do not install inside a vehicle.

This may cause malfunction, an electric shock or fire. Especially avoid operating the monitor near water or outdoors where the monitor could be exposed to snow or rain.

Cartoon illustration of a computer monitor with a sad face and a magnifying glass showing a security symbol (no text or labels)

If the monitor is dropped or the casing is damaged, turn the monitor off and unplug the power cord. Then contact the Service Center.

The monitor may malfunction, causing an electric shock or fire.

- Disconnect the plug from the outlet during storms or lightening or if it is not used for a long period of time.

Cartoon illustration of a computer monitor with a smiling face, accompanied by a cloud and a document icon (no text or symbols present)

▶ Failure to do so may cause an electric shock or fire.

Illustration of a cartoon character holding a green plant, standing beside a circular device with a red icon (no text or symbols)

Do not try to move the monitor by pulling only the wire or the signal cable.

This may cause a breakdown, electric shock or fire due to damage to the cable.

Illustration of a cartoon duckling inside an open book with a heart symbol, no text or symbols present.

Do not move the monitor right or left by pulling only the wire or the signal cable.

This may cause a breakdown, electric shock or fire due to damage to the cable.

Illustration of a cartoon computer monitor with a cartoon character on screen, no text or symbols present.

Do not cover the vents on the monitor cabinet.

Bad ventilation may cause a breakdown or fire.

Cartoon illustration of a computer monitor with angry face and warning symbols (no text or labels)

Do not place water containers, chemical products or small metal objects on the monitor.

This may cause malfunction, an electric shock or fire. If a foreign substance enters the monitor, unplug the power cord and contact the Service Center.

Illustration of a cartoon character with a surprised expression on a computer monitor, surrounded by speech bubbles and a hand gesture (no text or symbols)

Keep the product away from combustible chemical sprays or inflammable substances.

This may cause an explosion or fire.

Cartoon illustration of a computer monitor with a warning sign and a running character (no text or symbols)

Never insert anything metallic into the monitor openings.

This may cause an electric shock, fire or injury.

Cartoon illustration of a computer monitor character with a sad face and warning symbols (no text or labels)

Do not insert metal objects such as chopsticks, wire and gimlet or inflammable objects such as paper and match into the vent, headphone port or AV ports.

It may cause a fire or an electric shock. If an alien substances or water flows into the product, turn the product off, unplug the power connector from the wall outlet and contact Service Center.

If you view a fixed screen for an extended period of time, residual image or blurriness may appear.

Illustration of a computer monitor displaying a cartoon rabbit on screen, with an exclamation mark in the corner (no text or symbols on the monitor itself)

Change the mode to energy save or set a screensaver to moving picture when you need to be away from the monitor for an extended period of time.

Cartoon illustration of a computer monitor displaying a sad face emoji with a warning symbol (no text or symbols on the monitor itself)

Adjust the resolution and frequency to the levels appropriate for the model.

▶ Inappropriate resolution may cause undesirable picture quality.

17 inch (43 cm) - 1280 x 1024

19 inch (48 cm) - 1280 x 1024

Illustration showing a person reacting to a computer screen displaying a smiling face, with an exclamation mark indicating alert.

Watching the monitor continuously at a too close angle may result in eyesight damage.

Illustration of a computer monitor displaying a smiling face with a heart symbol, accompanied by a warning icon and sparkles (no text or symbols present)

To ease eye strain, take at least a five-minute break after every hour of using the monitor.

Illustration of a cartoon-style computer monitor with a sad face and warning symbols (no text or labels)

Do not install the product on an unstable, uneven surface or a location prone to vibrations.

▶ Dropping the product may cause damage to the product or personal injury. Using the product in a location prone to vibrations may shorten the lifetime of the product or may catch fire.

Illustration of a computer monitor with a smiling face and connected cable, accompanied by a hand holding a pointer (no text or symbols)

When moving the monitor, turn off and unplug the power cord. Make sure that all cables, including the antenna cable and cables connected to other devices, are disconnected before moving the monitor.

Failure to disconnect a cable may damage it and lead to fire or an electric shock.

Cartoon character using a computer monitor with a sad face, no text or symbols present

Place the product out of children's reach, as they could damage it by hanging onto it.

A falling product could cause physical damage even death.

Illustration of a desktop computer monitor with cable and a globe icon (no text or symbols)

When not using the product for an extended time period, keep the product unplugged.

▶ Otherwise, this may cause heat emission from the accumulated dirt or degraded insulation, leading to electric shock or fire.

Do not place children's favorite objects (or anything else that may be tempting) on the product.

Cartoon character sitting on a computer monitor with a sad face, surrounded by colorful icons (no text or symbols)

Children may try to climb on the product to retrieve an object. The product could fall, causing physical damage or even death.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time.

This guide is to demonstrate correct usage of LCD products in order to protect them from Image retention.

Warranty

Warranty does not cover any damage caused by image retention.

Burn-in is not covered by the warranty.

What is Image retention?

During normal operation of a LCD panel, pixel image retention doesn't occur. However, if the same image is displayed for a long time, a slight difference in electric charge accumulates between the two electrodes which encase the liquid crystal. This may cause the liquid crystal to build up in a certain areas of the display. Thus, the previous image is retained when switching to a new video image. All display products, including LCD, are subject to image retention. This is not a product defect.

Please follow the suggestions below to protect your LCD from image retention

Power Off, Screen Saver, or Power Save Mode Ex)

• Turn the power off when using a stationary pattern.
• Turn the power off for 4 hours after 24 hours in use
• Turn the power off for 2 hours after 12 hours in use
• Use a Screen saver if possible
• Screen saver in one color or a moving image is recommended.
• Set the Monitor to power off with the PC Display Properties Power Scheme.

- Suggestions for specific applications

Ex) Airports, Transit Stations, Stock Markets, Banks, and Controlling Systems We recommend that you follow set up of your display system program as below:

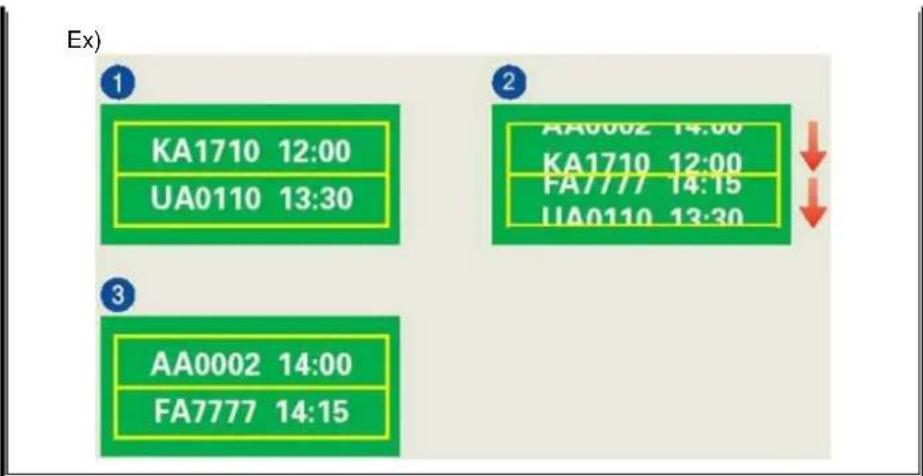

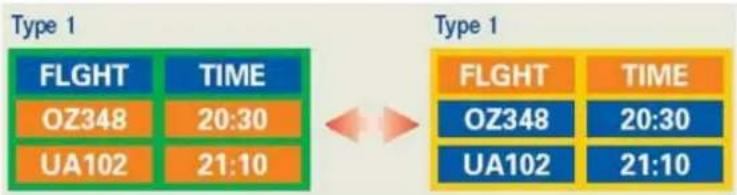

- Display Information together with Logo or Moving image cycle.

Ex) Cycle : Display Information for 1 hour followed by a Display Logo or moving image for 1 minute.

Change the Color Information periodically (Use 2 different colors).

Ex) Rotate the Color Information with 2 colors every 30 minutes.

Type 1 FLIGHT TIME OZ348 20:30 UA102 21:10 Type 1 FLIGHT TIME OZ348 20:30 UA102 21:10

Avoid using a combination of characters and background color with large difference in luminance.

Avoid using Grey colors, which can cause Image retention easily.

- Avoid: Colors with big difference in luminance (Black & White, Grey) Ex)

SYSTEM : 245 STATUS : NG SYSTEM : 245 STATUS : NG

- Recommended settings: Bright colors with little difference in luminance - Change the characters color and background color every 30 minutes Ex)

SYSTEM : 245 STATUS : OK SYSTEM : 245 STATUS : OK SYSTEM : 245 STATUS : OK SYSTEM : 245 STATUS : OK

- Every 30 minutes, change the characters with movement.

Ex) ① KA1710 12:00 UA0110 13:30 ② AA0002 14:00 KA1710 12:00 FA7777 14:15 UA0110 13:30 ③ AA0002 14:00 FA7777 14:15

The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it.

Image retention may not occur when a LCD panel is operated under normal conditions.

Normal conditions are defined as continuously changing video patterns. When the LCD panel is operated for a long time with a fixed pattern (-over 12 hours-), there may be slight difference in voltage between electrodes that work the liquid crystal (LC) in a pixel. The voltage difference between electrodes increases with time, forcing the liquid crystal to lean. When this occurs, the previous image may be seen when the pattern is changed.

To prevent this, the accumulated voltage difference must be decreased.

Black Matrix Common Electrode (ITO) Color-Filter Source Drain CIC Data Bus-Line TFT Gate Pixel Electrode (ITO) Storage Capacitor (Cs) +++

Our LCD Monitor satisfies ISO13406-2 Pixel fault Class II

SAMSUNG DIGITAL everyone's invited™

■ Safety Precautions
■ Adjusting the Monitor

■ Introduction
■ Troubleshooting

■ Connections
■ Specifications

■ Using the Software
Information

Introduction

Package Contents Your Monitor

Package Contents

Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items.

Unpacking

Front view of a computer monitor with blank screen and stand (no text or symbols visible)

Monitor

Manual

Quick

Warranty Card Setup(Not available in all locations)

User's Guide, Monitor Driver, Guide Natural Color software, MagicTune™ software

Cable

Illustration of a cable with a connector (no text or symbols visible)

Coiled cable with two blue connectors, no text or symbols visible

Power Cord D-sub Cable

Coiled cable with two connectors (no text or symbols visible)

DVI
Cable

Package Contents Your Monitor

Your Monitor

Front

MENU / SOURCE/ AUTO ① ② ③ ④ ⑤ ⑥

1 MENU button [0]

Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu.

② MagicBright™ button [▲▲]

MagicBright™ is a new feature providing optimum viewing environment depending on the contents of the image you are watching. Currently six different modes are available: Custom, Text, Internet, Game, Sport and Movie. Each mode has its own pre-configured brightness value. You can easily select one of six settings by simply pressing MagicBright™ control button.

1) Custom

Although the values are carefully chosen by our engineers, the pre-configured values may not be comfortable to your eyes depending on your taste. If this is the case, adjust the brightness and contrast by using the OSD menu.

2) Text

For documentations or works involving heavy text.

3) Internet

For working with a mixture of images such as text and graphics.

4) Game

For watching motion pictures such as a game.

5) Sport

For watching motion pictures such as a sport.

6) Movie

For watching motion pictures such as a DVD or Video CD.

Click here to see an animation clip

3 Brightness button [Φ] When OSD is not on the screen, push the button to adjust brightness.

Click here to see an animation clip

2.3 Adjust buttons [▼Adjust items in the menu.

4 Enter button [Φ/SOURCE button

Activates a highlighted menu item. / Push the 'SOURCE', then selects the video signal while the OSD is off. (When the source button is pressed to change the input mode, a message appears in the upper left of the screen displaying the current mode -- analog or digital input signal.)

If you select the digital mode, you must connect your monitor to the graphic card's DVI port using the DVI cable.

5 AUTO button Use this button for auto adjustment.

Click here to see an animation clip

6 Power button [4] Use this button for turn the monitor on and off.

Power indicator

This light glows blue during normal operation, and blinks blue once as the monitor saves your adjustments.

See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods.

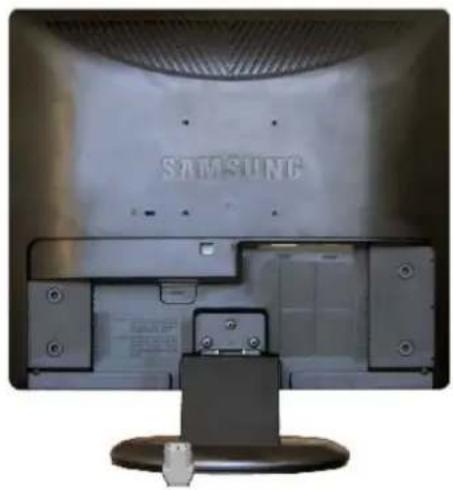

Rear

Back view of a Samsung computer monitor showing internal components and a stand (no readable text or symbols)

The configuration at the back of the monitor may vary from product to product.

1 POWER port Connect the power cord for your monitor to the power port on the back of the monitor.
② DVI IN port Connect the DVI Cable to the DVI port on the back of your monitor.
RGB IN port Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.
4 Kensington Lock The Kensington lock is a device used to physically fix the system when using it in a public place.

✗ The locking device has to be purchased separately. For using a locking device, contact where you purchase it.

✗ See Connecting Cables for further information regarding cable connections.

SAMSUNG DIGITAL everyone's invited™

■ Safety Precautions

■ Introduction

■ Connections

■ Using the Software

■ Adjusting the Monitor

■ Troubleshooting

■ Specifications

Information

Introduction

Features Package Contents Your Monitor

Features

RTA Monitor

RTA (Response Time Accelerator)

A function that accelerates the response speed of the panel so as to provide a sharper and more natural video display.

▶ RTA On Activates the RTA function so that the panel operates at a higher response speed than its original speed.
▶ RTA OFF Deactivates the RTA function so that the panel operates at its original response speed.

If you turn the power off and on again after switching RTA off, the RTA function is automatically switched On (Factory Setting)

Features Package Contents Your Monitor

Package Contents

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Unpacking

Front view of a computer monitor with blank screen and stand (no text or symbols visible)

Monitor

Manual

Quick

Warranty Card Setup(Not available in all locations)

User's Guide, Monitor Driver, Guide Natural Color software, MagicTune™ software

Cable

Illustration of a cable with a plug connector (no text or symbols)

Coiled cable with two blue connectors, no text or symbols visible

Power Cord D-sub Cable

Sold separately

Coiled cable with two connectors (no text or symbols visible)

DVI
Cable

Features

Package Contents

Your Monitor

Your Monitor

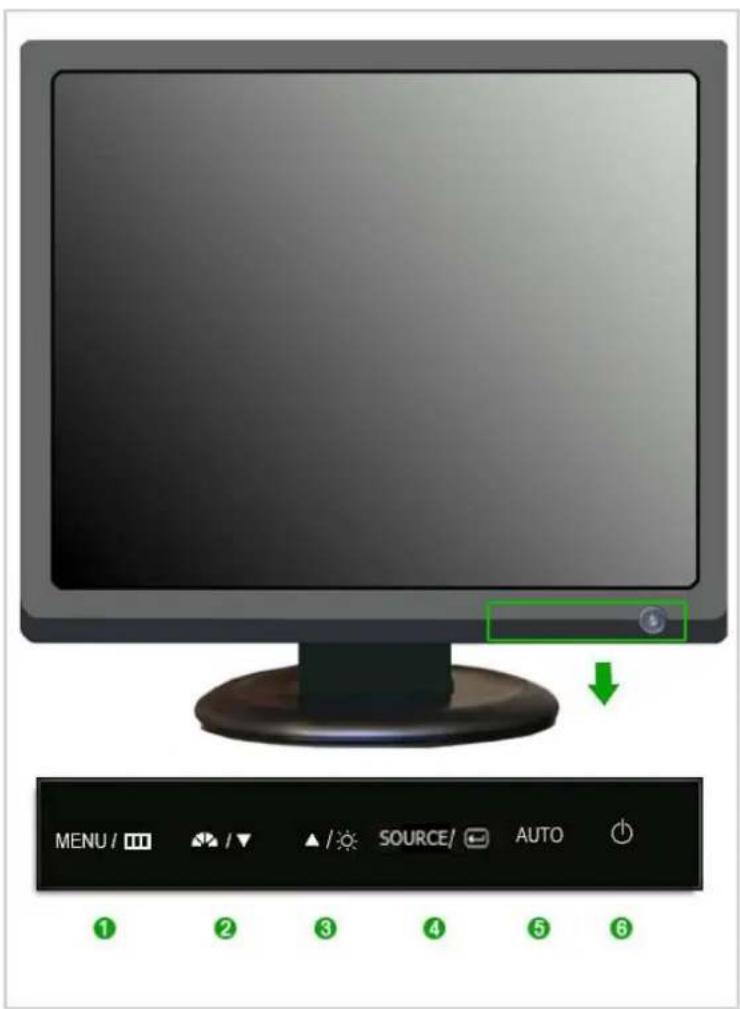

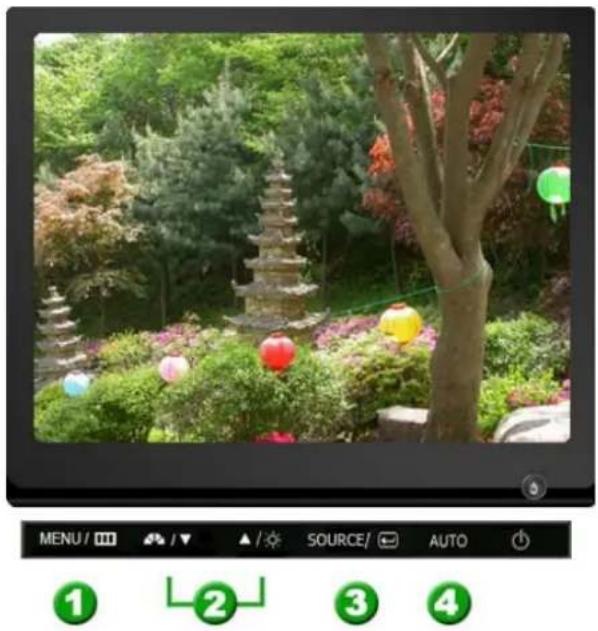

Front

MENU / /▼ ▲ / SOURCE/ AUTO ① ② ③ ④ ⑤ ⑥

1 MENU button [0]
② MagicBright™ button [◀◀]

Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu.

MagicBright™ is a new feature providing optimum viewing environment depending on the contents of the image you are watching. Currently six different modes are available: Custom, Text, Internet, Game, Sport and Movie. Each mode has its own pre-configured brightness value. You can easily select one of six settings by simply pressing MagicBright™ control button.

1) Custom
Although the values are carefully chosen by our engineers, the pre-configured values may not be comfortable to your eyes depending on your taste.
If this is the case, adjust the brightness and contrast by using the OSD menu.

2) Text

For documentations or works involving heavy text.

3) Internet

For working with a mixture of images such as text and graphics.

4) Game

For watching motion pictures such as a game.

5) Sport

For watching motion pictures such as a sport.

6) Movie

For watching motion pictures such as a DVD or Video CD.

Click here to see an animation clip

3 Brightness button [Φ]

When OSD is not on the screen, push the button to adjust brightness. >> Click here to see an animation clip

2.3 Adjust buttons [▼A]just items in the menu.

4 Enter button [C] SOURCE button

Activates a highlighted menu item. / Push the 'SOURCE', then selects the video signal while the OSD is off. (When the source button is pressed to change the input mode, a message appears in the upper left of the screen displaying the current mode -- analog or digital input signal.)

If you select the digital mode, you must connect your monitor to the graphic card's DVI port using the DVI cable.

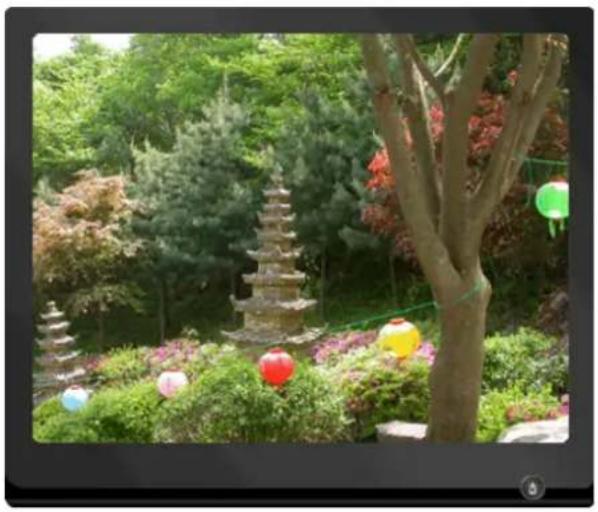

5 AUTO button Use this button for auto adjustment.

Click here to see an animation clip

6 Power button [4] Use this button for turn the monitor on and off.

Power indicator

This light glows blue during normal operation, and blinks blue once as the monitor saves your adjustments.

See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods.

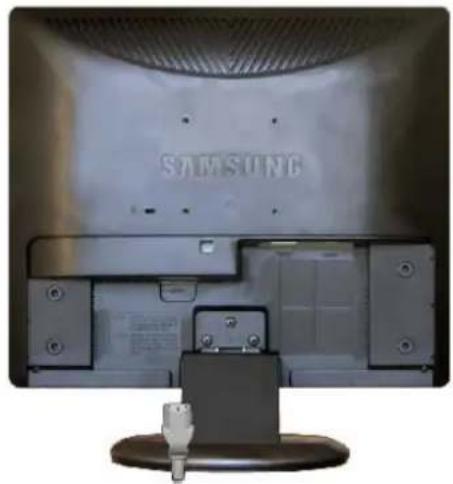

Rear

Back view of a Samsung computer monitor showing internal components and a stand (no readable text or symbols)

✗ The configuration at the back of the monitor may vary from product to product.

1 POWER port Connect the power cord for your monitor to the power port on the back of the monitor.
② DVI IN port Connect the DVI Cable to the DVI port on the back of your monitor.
RGB IN port Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.
4 Kensington Lock The Kensington lock is a device used to physically fix the system when using it in a public place.

The locking device has to be purchased separately. For using a locking device, contact where you purchase it.

See Connecting Cables for further information regarding cable connections.

SAMSUNG DIGITAL everyone's invited™ ■ Safety Precautions ■ Adjusting the Monitor ■ Introduction ■ Troubleshooting ■ Connections ■ Specifications ■ Using the Software ■ Information

- Connections

Connecting Cables Using the Stand

Connecting Cables

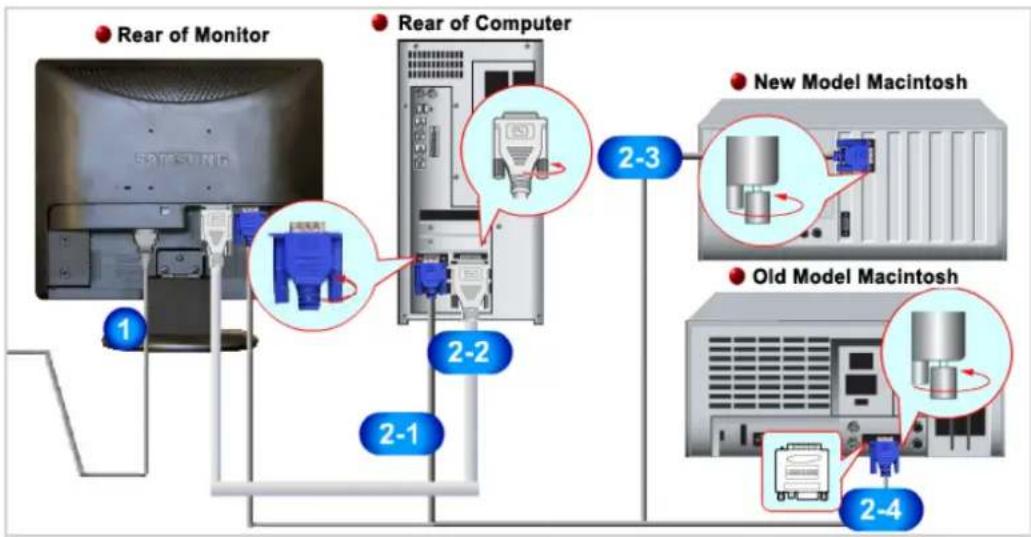

Rear of Monitor Rear of Computer New Model Macintosh Old Model Macintosh 1 2-3 2-2 2-1 2-4

1 Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet.
2-1 Using the D-sub (Analog) connector on the video card. - Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.

[RGB IN]

2-2 Using the DVI (Digital) connector on the video card. - Connect the DVI Cable to the DVI Port on the back of your Monitor.

[DVI IN]

2-3 Connected to a Macintosh. - Connect the monitor to the Macintosh computer using the D-sub connection cable.
2-4 If you are using an old model Macintosh, connect the monitor and the Macintosh using a Macintosh adapter (sold separately).
3 If the monitor and the computer are connected, you can turn them on and use them.

Connecting Cables Using the Stand

Using the Stand

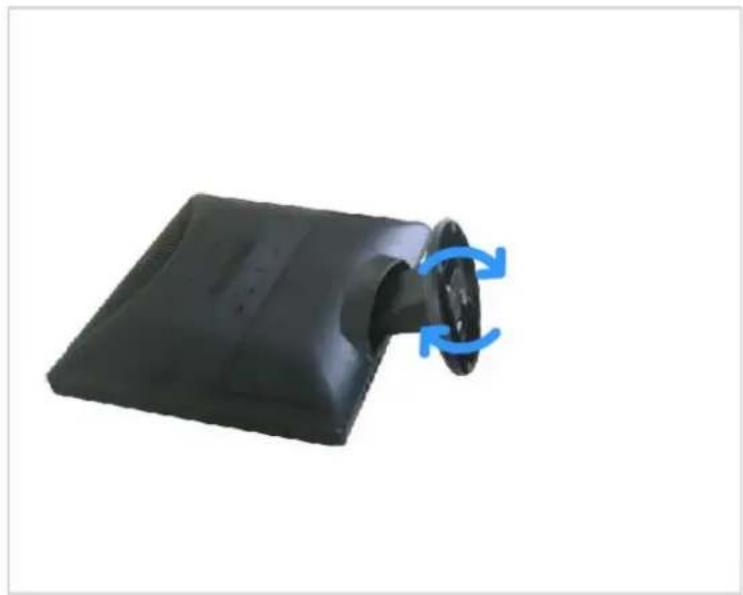

Black plastic component with a blue circular arrow indicating rotational motion (no text or symbols)

Monitor and Bottom

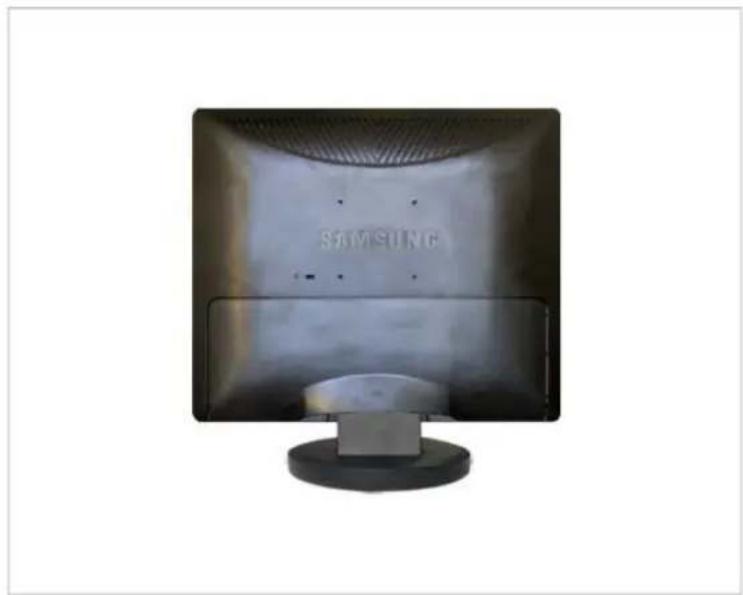

Attaching a Base

This monitor accepts a 75 mm x 75 mm VESA-compliant mounting interface pad.

Front view of a Samsung computer monitor with a blank display area (no visible text or symbols on the screen)

A. Monitor

B. Mounting interface pad (Sold separately)

1 Turn off your monitor and unplug its power cord.
2 Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.
3 Remove three screws and then remove the stand from the LCD monitor.
4 Align the mounting interface pad with the holes in the rear cover mounting Pad and secure it with four screws that came with the arm-type base, wall mount hanger or other base.

SAMSUNG DIGITall everyone's invited™ ■ Safety Precautions ■ Introduction ■ Connections ■ Using the Software ■ Adjusting the Monitor ■ Troubleshooting ■ Specifications ■ Information ○ Using the Software

Monitor Driver Natural Color MagicTune™

Monitor Driver

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have.

Prepare a blank disk and download the driver program file at the Internet web site shown here.

Internet web site :http://www.samsung.com/ (Worldwide) http://www.samsung.com/monitor (U.S.A) http://www.sec.co.kr/monitor (Korea) http://www.samsungmonitor.com.cn/ (China)

Installing the Monitor Driver (Automatic)

Windows ME

① Insert CD into the CD-ROM drive.
② Click "Windows ME Driver".

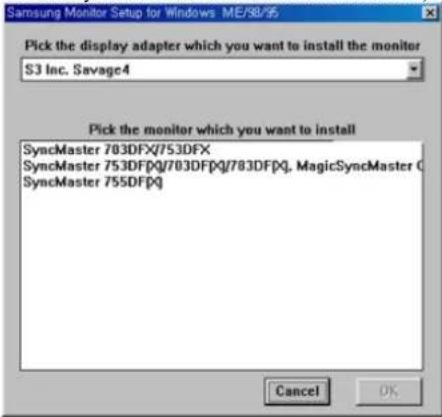

③ Choose your monitor model in the model list, then click the "OK" button.

Samsung Monitor Setup for Windows: ME/98/95 Pick the display adapter which you want to install the monitor S3 Inc. Savage4 Pick the monitor which you want to install SyncMaster 703DFX/753DFX SyncMaster 753DFPQ/783DFPQ/783DFPQ, MagicSyncMaster C SyncMaster 755DFPQ Cancel OK

4 Click the "Install" button in the "Warning" window.

Warning: Select the monitor name that exactly matches the name printed on the front of your monitor or on the back label. If you select the wrong monitor, restart Windows in the "Safe Mode" and use this CD-ROM again to select the correct monitor.

⑤ Monitor driver installation is completed.

Windows XP/2000

① Insert CD into the CD-ROM drive.
② Click "Windows XP/2000 Driver".
③ Choose your monitor model in the model list, then click the "OK" button.

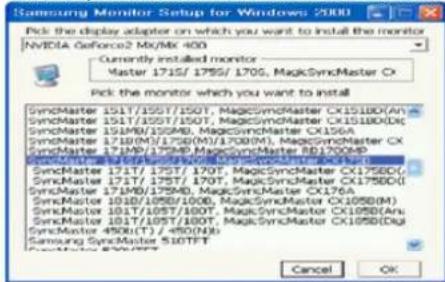

Samsung Monitor Setup for Windows 2000 Pick the display adapter on which you want to install the monitor NVIDIA GeForce2 MX/MK 400 Currently installed monitor Master 1715/1795/1705, MagicSyncMaster CX Pick the monitor which you want to install SyncMaster 1517/1557/1507, MagicSyncMaster CX1518D(An) SyncMaster 1517/1557/1507, MagicSyncMaster CX1518D(Dc) SyncMaster 151MP/150MP, MagicSyncMaster CX156A SyncMaster 1717/1757/1707, MagicSyncMaster CX176D(An) SyncMaster 171MP/179MP, MagicSyncMaster RB1700M SyncMaster 1618/1658/1608, MagicSyncMaster CX165B(M) SyncMaster 1618/1658/1608, MagicSyncMaster CX165D(An) SyncMaster 1817/1857/1807, MagicSyncMaster CX165D(Dc) SyncMaster 4500(T) / 450(N3) Samsung SyncMaster 510TFT Cancel OK

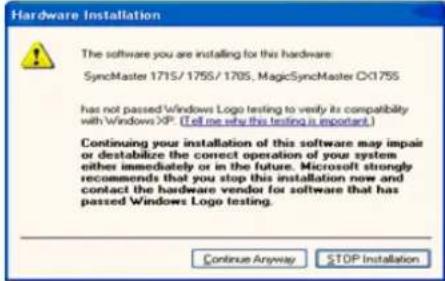

4 If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button.

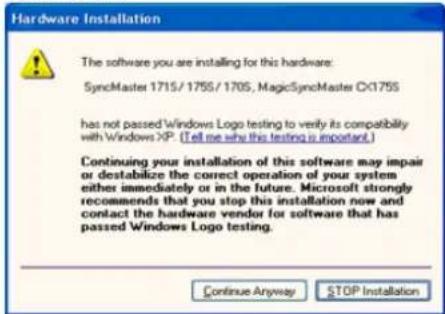

Hardware Installation The software you are installing for this hardware: SyncMaster 1715/1755/1705, MagicSyncMaster CX1755 has not passed Windows Logo testing to verify its compatibility with Windows XP. (Tell me why this testing is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

This monitor driver is under certifying MS logo, and this installation don't damage your system.

The certified driver will be posted on Samsung Monitor homepage

http://www.samsung.com/

⑤ Monitor driver installation is completed.

Installing the Monitor Driver (Manual)

Windows XP | Windows 2000 | Windows ME | Windows NT | Linux

Microsoft® Windows® XP Operating System

① Insert CD into the CD-ROM drive.

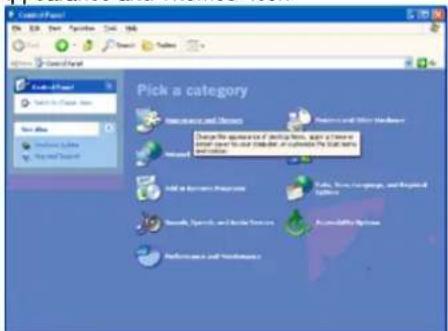

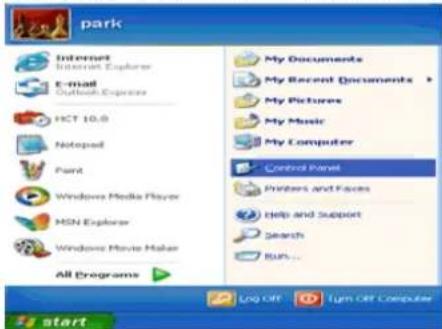

② Click "Start" → "Control Panel" then click the "Appearance and Themes" icon.

park Internet Microsoft Explorer E-mail Outlook Expresses HCT 10.8 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Faces Help and Support Search Run... Log Off Turn Off Computer start

Pick a category Search and Settings Change the options of device types, again 2 times or more with other tools and components, or to locate the main functions.

③

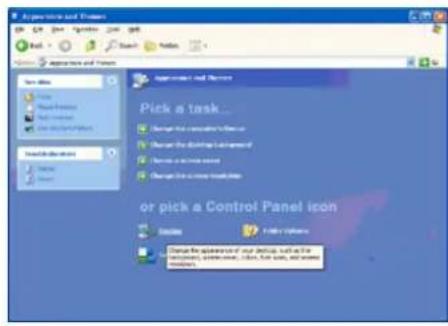

Apply menu and Options Pick a task... or pick a Control Panel icon Find the following: Find the parameters of our desktop, such as the user(s), system(s), data, tools, and other members.

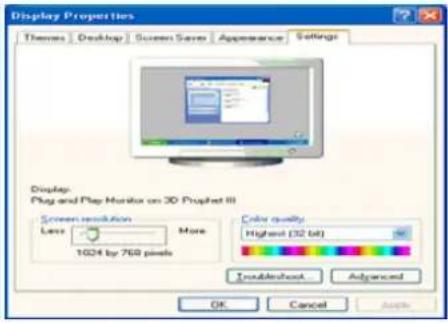

Display Properties Themes Desktop Screen Save Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 768 pixels Color quality: Highest (32 bit) Insubstitut Advanced OK Cancel Access

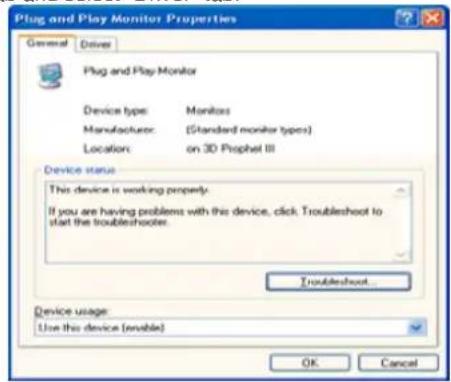

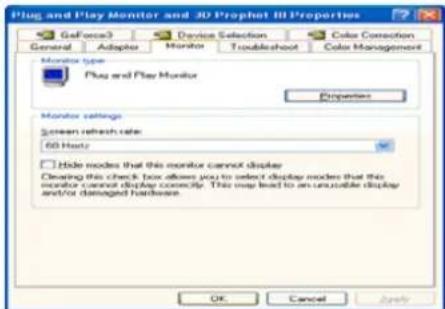

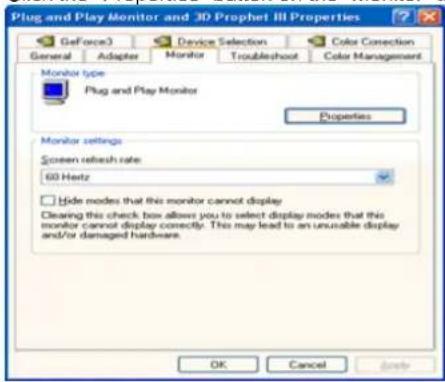

Click the "Properties" button on the "Monitor" tab and select "Driver" tab.

Plug and Play Monitor and 3D Prophet III Properties GeForce3 Device Selection Color Correction General Adapter Monitor Troubleshoot Color Management Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Help

Plug and Play Monitor Properties General Driver Plug and Play Monitor Device type: Monics Manufacturer: (Standard monitor types) Location:,on 3D Prophet III Device status This device is working properly. If you are having problems with this device, click Troubleshoot to start the troubleshooter. Troubleshoot... Device usage: Use this device (enable) OK Cancel

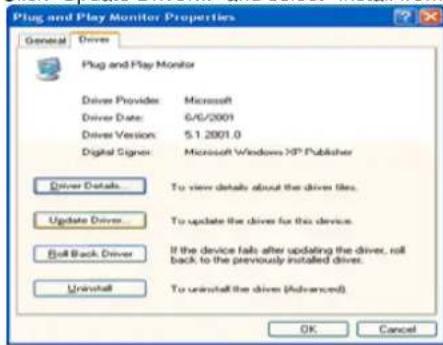

⑤ Click "Update Driver..." and select "Install from a list or..." then click "Next" button.

Plug and Play Monitor Properties General Driver Plug and Play Monitor Driver Providers Microsoft Driver Date 6/5/2001 Driver Version 5.1.2001.0 Digital Signor Microsoft Windows XP Publisher Driver Details...... To view details about the drive files. Update Driver...... To update the drive for this device. Roll Back Driver...... If the device falls after updating the driver, roll back to the previously installed driver. Uninstall...... To uninstall the drive (Advanced). OK Cancel

Hardware Update Wizard Welcome to the Hardware Update Wizard This wizard helps you install software for: Plug and Play Monitor If your hardware came with an installation CD or floppy disk, insert it now. What do you want the wizard to do? ○ Install the software automatically (Recommended) ● Install from a list or specific location (Advanced) Click Next to continue. < Back Next > Cancel

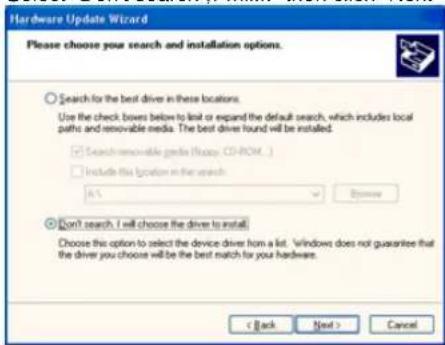

6 Select "Don't search, I will..." then click "Next" and then click "Have disk".

Hardware Update Wizard Please choose your search and installation options. Search for the best driver in these locations. Use the check boxes below to limit or expand the default search, which includes local paths and removable media. The best driver found will be installed. Search renewable media (Roop: CD-ROM...) Include this location in the search A:\ Browse Don't search. I will choose the driver to install. Choose this option to select the device driver from a list. Windows does not guarantee that the driver you choose will be the best match for your hardware. < Back Next > Cancel

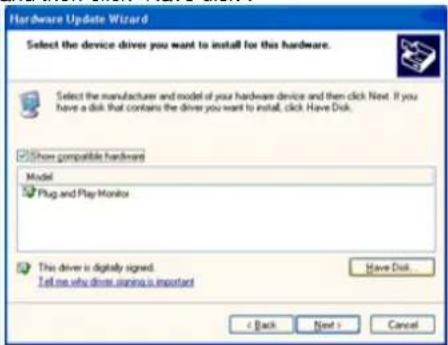

Hardware Update Wizard Select the device drives you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk that contains the drivers you want to install, click Have Disk. Show compatible hardware Model Plug and Play Monitor This driver is digitally signed. Tell me why drive signing is important Have Disk < Back Next > Cancel

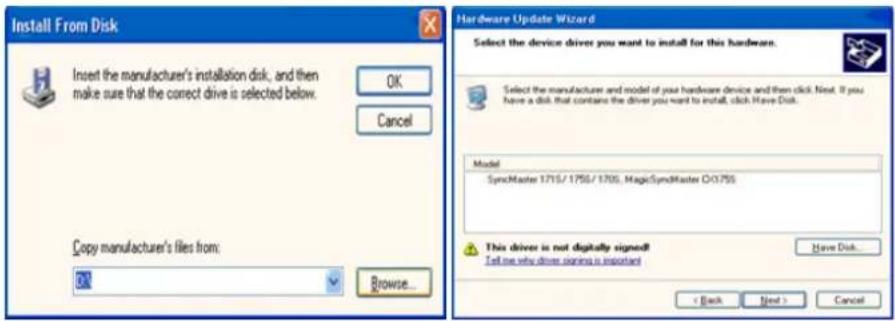

Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model list and click the "Next" button.

Install From Disk Insert the manufacturer's installation disk, and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's files from: Browse... Hardware Update Wizard Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk, that contains the driver you want to install, click Have Disk. Model SyncMaster 1715/1756/1705, MagicSyncMaster O3755 This driver is not digitally signed! Tell me why drive coming is important Have Disk... < Back Next > Cancel

8 If you can see following "Message" window, then click the "Continue Anyway" button. Then click "OK" button.

Hardware Installation The software you are installing for this hardware: SyncMaster 1715/1755/1705, MagicSyncMaster CX1755 has not passed Windows Logo testing to verify its compatibility with Windows XP. (Tell me why this testing is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

This monitor driver is under certifying MS logo, and this installation don't damage your system. The certified driver will be posted on Samsung Monitor homepage

http://www.samsung.com/

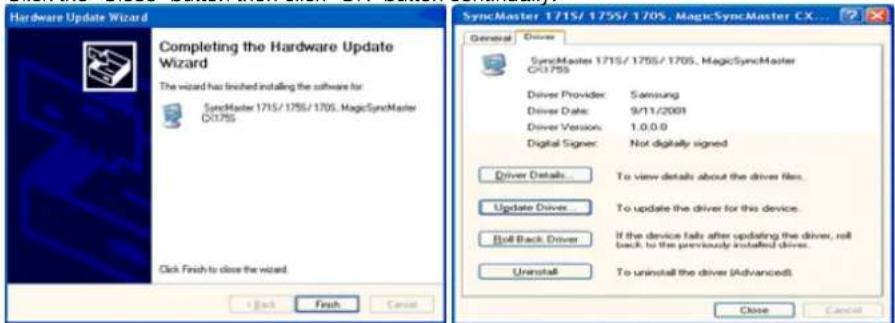

9 Click the "Close" button then click "OK" button continually.

Hardware Update Wizard Completing the Hardware Update Wizard The wizard has finished installing the software for SyncMaster 1715/1705/1705, MagicSyncMaster CX... Click Finish to close the wizard. SyncMaster 1715/1705/1705, MagicSyncMaster CX... General Driver SyncMaster 1715/1705/1705, MagicSyncMaster CX Driver Provider: Samsung Driver Date: 9/11/2001 Driver Version: 1.0.0.0 Digital Signee: Not digitally signed Driver Details: To view details about the driver files. Update Driver: To update the driver for this device. Roll Back Driver: If the device fails after updating the driver, roll back to the previously installed driver. Uninstall: To uninstall the driver (Advanced). Close Cancel

Plug and Play Monitor and 3D Prophet III Properties GeForce3 Device Selection Color Correction General Adopter Monitor Troubleshoot Color Management Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Hztr Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This map leads to an accessible display and/or damaged hardware OK Cancel Tools

Monitor driver installation is completed.

Microsoft® Windows® 2000 Operating System

When you can see "Digital Signature Not Found" on your monitor, follow these steps.

Choose "OK" button on the "Insert disk" window.
② Click the "Browse" button on the "File Needed" window.
③ Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.

How to install

① Click "Start", "Setting", "Control Panel".
② Double click the "Display" icon.
③ Select the "Settings" tab and click "Advanced Properties" button.
4 Choose "Monitor".

Case1 : If the "Properties" button is inactive, it means your monitor is properly configured. Please stop installation

Case2 : If the "Properties" button is active, click the "Properties" button then follow next steps continually.

⑤ Click "Driver" and then click on "Update Driver..." then click on the "Next" button.
6 Choose "Display a list of the known drivers for this device so that I can choose a specific driver" then click "Next" and then click "Have disk".
⑦ Click the "Browse" button then choose A:(D:\Driver).
⑧ Click the "Open" button, then click "OK" button.
9 Choose your monitor model and click the "Next" button then click "Next" button.
10 Click the "Finish" button then the "Close" button.

If you can see the "Digital Signature Not Found" window then click the "Yes" button. And click the "Finish" button then the "Close" button.

Microsoft® Windows® Millennium Operating System

① Click "Start", "Setting", "Control Panel".
② Double click the "Display" icon.
③ Select the "Settings" tab and click "Advanced Properties" button.
4 Select the "Monitor" tab.
⑤ Click the "Change" button in the "Monitor Type" area.
⑥ Choose "Specify the location of the driver".
⑦ Choose "Display a list of all the driver in a specific location..." then click "Next" button.
⑧ Click the "Have Disk" button.
⑨ Specify A: D:driver then click "OK" button.
10 Select "Show all devices" and choose the monitor that corresponds to the one you connected to your computer and click "OK".
Continue choosing "Close" button and "OK" button until you close the Display Properties dialogue box.

Microsoft® Windows® NT Operating System

① Click "Start", "Settings", "Control Panel", and then double-click "Display" icon.
② In Display Registration Information window, click Settings Tab and then click "All Display Modes".
3 Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and then click "OK".
4 Click "Apply" button if you see the screen working normally after clicking "Test". If the screen is not normal, change to a different mode (lower mode of resolution, colors or frequency).

If there is no Mode at All Display Modes, select the level of resolution and vertical frequency by referring to the Preset Timing Modes in the user guide.

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting file.

Press "Enter" at the first and the second screen after executing the X86Config file.
② The third screen is for setting your mouse.
③ Set a mouse for your computer.
4 The next screen is for selecting a keyboard.
⑤ Set a Keyboard for your computer.
⑥ The next screen is for setting your monitor.
7 First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.)
8 Set a vertical frequency for your monitor. (You can enter the frequency directly.)
⑨ "Enter" the model name of your monitor. This information will not affect the actual execution of X-Window.
You have finished setting up your monitor. Execute X-Window after setting other requested hardware.

Natural Color

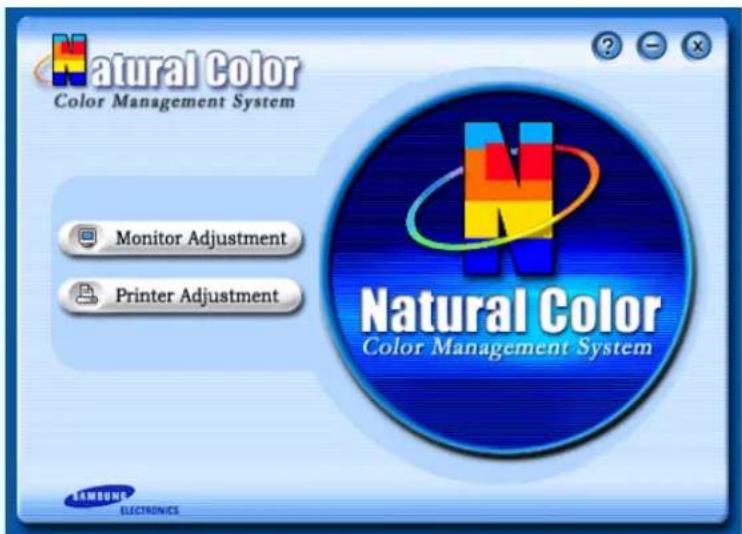

Natural Color Software Program

Natural Color Color Management System Monitor Adjustment Printer Adjustment Natural Color Color Management System

One of the recent problems in using a computer is that the color of the images printed out by a printer or other images scanned by a scanner or a digital camera are not the same as those shown on the monitor. The Natural Color S/W is the very solution for this problem. It is a color administration system developed by Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images. For more information, refer to Help (F1) in the software program.

How to install the Natural Color software

Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of the program Natural Color will be executed. Click Natural Color on the initial screen to install the Natural Color software.

To install the program manually, insert the CD included with the Samsung monitor into the CD-ROM Drive, click the [Start] button of Windows and then select [Run...]. Enter D:\color\eng\setup.exe and then press the [Enter] key. (If the drive where the CD is inserted is not D:\, enter the applicable drive.)

How to delete the Natural Color software program

Select "Setting/Control Panel" on the "Start" menu and then double-click "Add/Delete a program". Select Natural Color from the list and then click the "Add/Delete" button.

MagicTune™ HELP

Monitor Driver Natural Color MagicTune™

Overview | Installation | OSD Mode | Color Calibration | Uninstall | Troubleshooting

What is MagicTune™?

Monitor performance can vary due to the graphics card, host computer lighting conditions and other environmental factors. In order to get the best image on a monitor requires you to adjust it for your unique setting. Unfortunately, the manual controls available to tune the image often prove to be challenging. Proper adjustment (tuning) requires an easy to use program that goes through a step-by-step process to obtain the best overall picture quality.

In most cases even simple adjustments to Brightness, or Contrast require navigation of the multi-level, on-screen display (OSD) menus that are not easy to understand. Furthermore, there is no feedback to assist in correctly setting the controls of the monitor. MagicTune™ is a software utility that guides you through the tuning process with easy to understand instructions and back ground patterns designed for each monitor control. The display settings for each user can be saved, providing an easy way to select display characteristics in a multi-user environme or having a single user have multiple defined presets based on content and ambient lighting.

Basic Functionality

MagicTune™ is a software utility that allows monitor adjustment and color tuning using the Display Data Channel Command Interface (DDC/CI) protocol. All adjustments to the display are controlled via software to eliminate the need to use the monitor on-screen display (OSD).

MagicTune™ supports Windows™ 98 SE, Me, 2000, XP Home, and XP Professional.

It is recommended using MagicTune™ in Windows™ 2000 or later.

MagicTune™ allows for quick accurate tuning of the display with the ability to easily save and use monitor configurations that are best suited for you.

OSD Mode

The OSD mode allows easy adjustment of monitor settings without taking pre-defined steps. You can access the desired menu item to set with ease.

Overview | Installation | OSD Mode | Color Calibration | Uninstall | Troubleshooting

Installation

1. Insert the installation CD into the CD-ROM drive.
2. Click the MagicTune™ installation file.

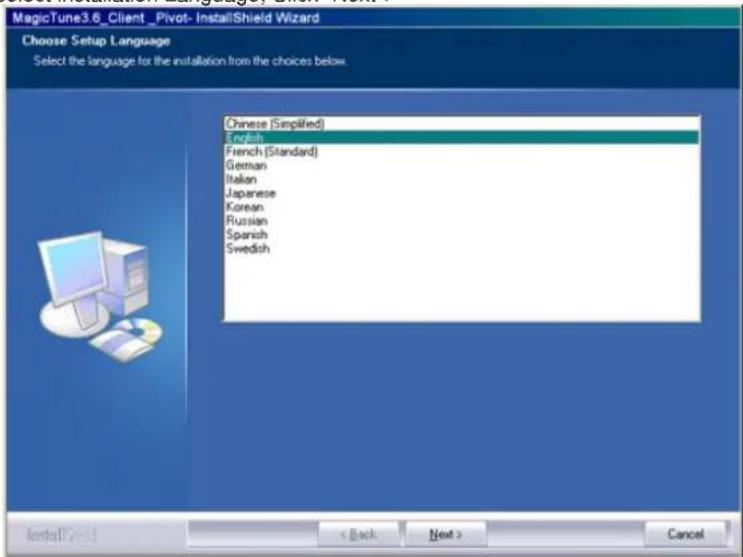

3. Select installation Language, Click "Next".

MagicTune3.6_Client_Pivot- InstallShield Wizard Choose Setup Language Select the language for the installation from the choices below. Chinese (Simplified) English French (Standard) German Italian Japanese Korean Russian Spanish Swedish Install 2015 < Back Next > Cancel

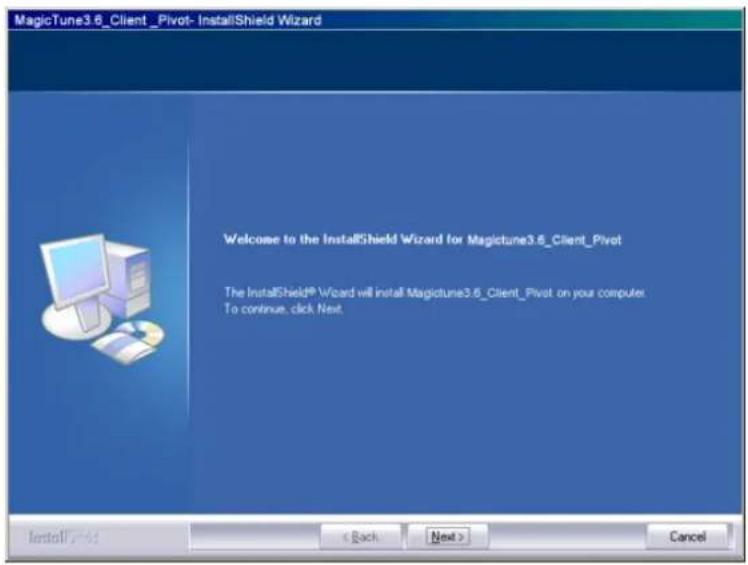

1. When the InstallationShield Wizard window appears, click "Next."

MagicTune3.6_Client_Pivot- InstallShield Wizard Welcome to the InstallShield Wizard for Magictune3.6_Client_Pivot The InstallShield® Wizard will install Magictune3.6_Client_Pivot on your computer. To continue, click Next.

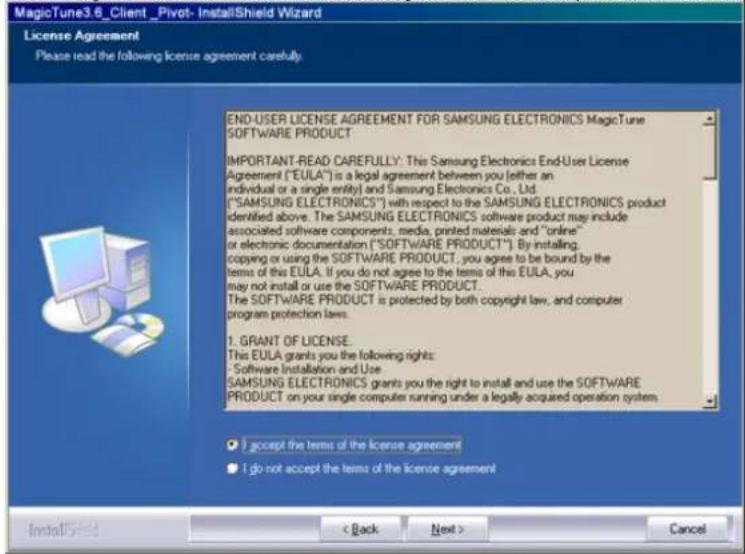

1. Select "I agree to the terms of the license agreement" to accept the terms of use.

MagicTune3.6_Client_Pivot- InstallShield Wizard License Agreement Please read the following license agreement carefully. END-USER LICENSE AGREEMENT FOR SAMSUNG ELECTRONICS MagicTune SOFTWARE PRODUCT IMPORTANT-READ CAREFULLY: This Samsung Electronics End-User License Agreement ("EULA") is a legal agreement between you (either an individual or a single entity) and Samsung Electronics Co., Ltd. ("SAMSUNG ELECTRONICS") with respect to the SAMSUNG ELECTRONICS product identified above. The SAMSUNG ELECTRONICS software product may include associated software components, media, printed materials and "online" or electronic documentation ("SOFTWARE PRODUCT"). By installing, copying or using the SOFTWARE PRODUCT, you agree to be bound by the terms of this EULA. If you do not agree to the terms of this EULA, you may not install or use the SOFTWARE PRODUCT. The SOFTWARE PRODUCT is protected by both copyright law, and computer program protection laws. 1. GRANT OF LICENSE. This EULA grants you the following rights: - Software Installation and Use SAMSUNG ELECTRONICS grants you the right to install and use the SOFTWARE PRODUCT on your single computer running under a legally acquired operation system. I accept the terms of the license agreement I do not accept the terms of the license agreement InstallShield < Back Next > Cancel

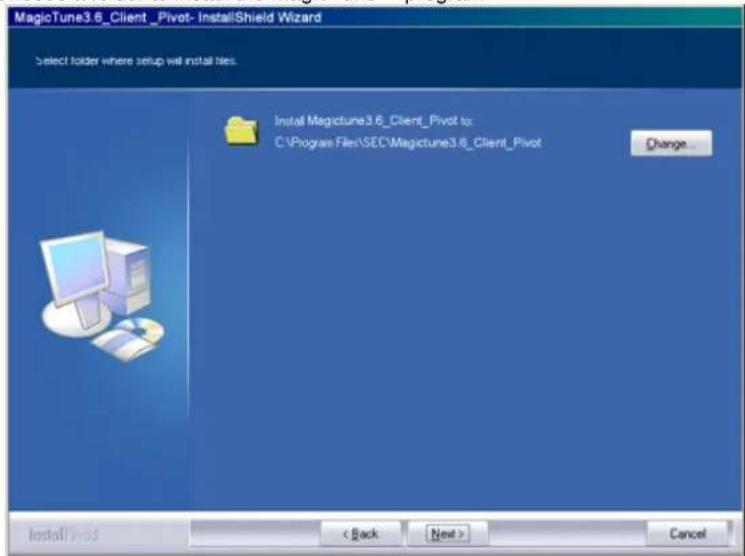

1. Choose a folder to install the MagicTune™ program.

MagicTune3.6_Client_Pivot- InstallShield Wizard Select folder where setup will install files. Install Magpicture3.6_Client_Pivot to: C:\Program Files\SEC\Magpicture3.6_Client_Pivot Change... Install Path < Back Next > Cancel

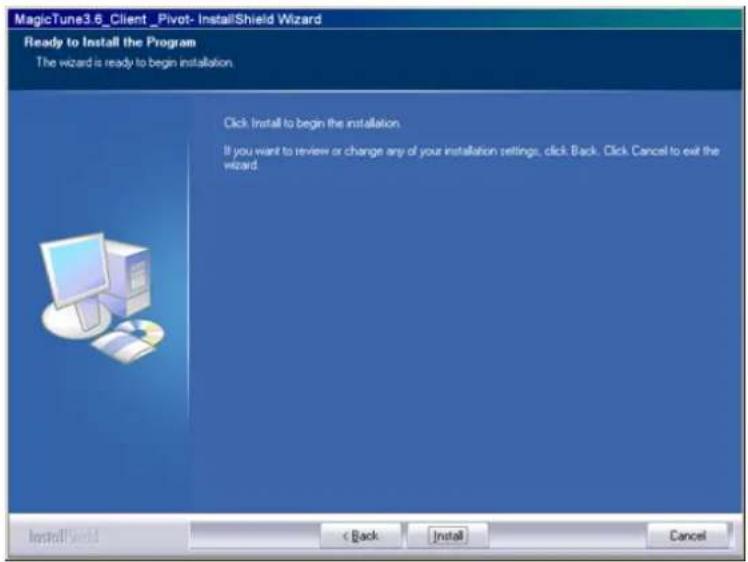

1. Click "Install."

MagicTune3.6_Client_Pivot- InstallShield Wizard Ready to Install the Program The wizard is ready to begin installation. Click Install to begin the installation If you want to review or change any of your installation settings, click Back. Click Cancel to exit the wizard. InstallShield < Back Install Cancel

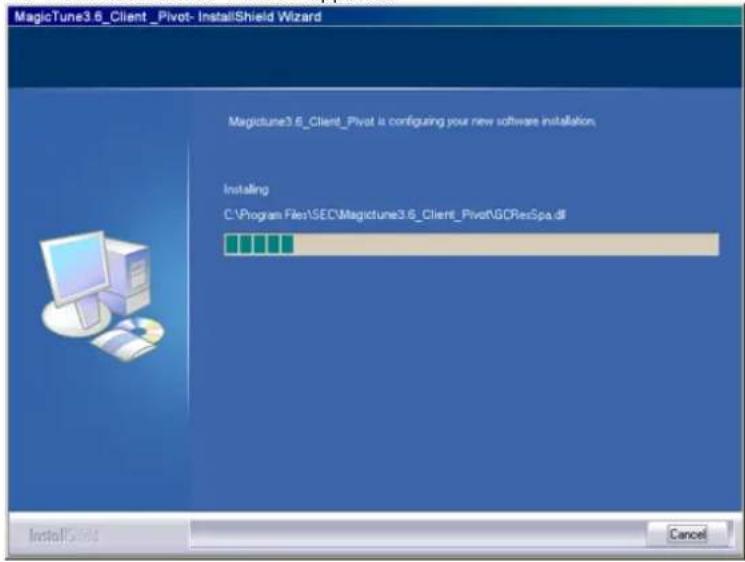

1. The "Installation Status" window appears.

MagicTune3.6_Client_Pivot- InstallShield Wizard Magpicture3.6_Client_Pivot is configuring your new software installation. Installing C:\Program Flex1SEC\Magpicture3.6_Client_Pivot\GCPresSpa.dll InstallShield Cancel

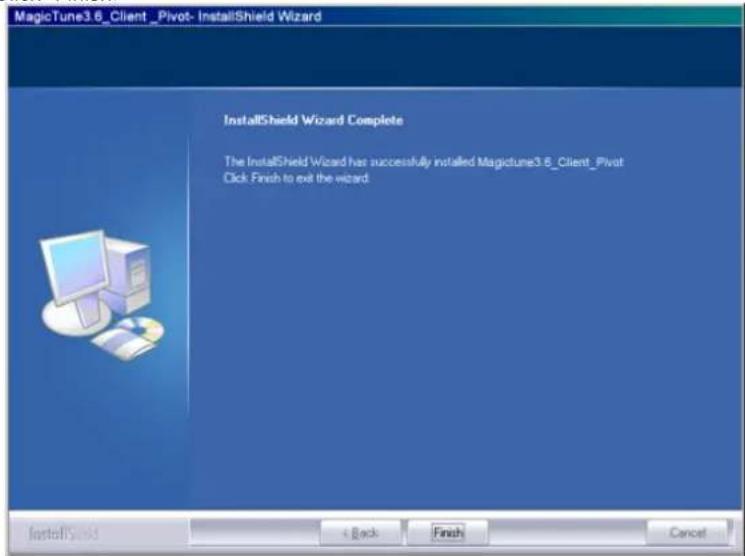

1. Click "Finish."

MagicTune3.6_Client_Pivot- InstallShield Wizard InstallShield Wizard Complete The InstallShield Wizard has successfully installed Magictune3.6_Client_Pivot Click Finish to exit the wizard. InstallShield < Back Finish Cancel

1. When the installation is complete, the MagicTune™ executable icon appears on your desktop.

Double-click the icon to start the program.

MagicTune™ execution icon may not appear depending on specification of computer system or monitor. If that happens, press F5 Key.

? Installation Problems

The installation of MagicTune™ can be affected by such factors as the video card, motherboard and the network environment.

See "Troubleshooting" if you have trouble during installation.

System Requirements

OS

• Windows™ 98 SE
• Windows™ Me
• Windows™ 2000
• Windows™ XP Home Edition
• Windows™ XP Professional

It is recommended using MagicTune™ in Windows™ 2000 or later.

Hardware

• 32MB Memory above
• 25MB Hard disk space above

* For more information, visit the MagicTune™ website.

Overview

Installation

OSD Modes

Color Calibration

Uninstall

Troubleshooting

MagicTune™ allows for quick accurate tuning of the display with the ability to easily save and use monitor configurations that are best suited for you.

• OSD mode may appear inconsistent with the explanation in guidance book depending on specification of each monitor.
• When Pivot is functioning, part of MagicTune™ Program may not operate normally.
• AutoRotation : AutoRotation will automatically pivots the monitor to 0, 90, 180degrees when you pivots the monitor.

To execute Rotation, it should be done as below.

• Please install both of Rotation program and MagicTune™ 3.6 in your PC.
• Launch MagicTune™ 3.6
• Option → Preference → click the small box as "V" in enable task tray menu.

- MagicTune™ control mode will be different according to monitor models.

OSD Mode

The OSD mode makes the adjustment of settings on all monitors easy. When selected, each tab on top of the control window displays the general descriptions of the sub-menu items for adjustment.

When selected, each tab displays a list of menus. For quick adjustment of the monitor settings, the OSD mode allows easy and convenient access to all tabs and sub-menu items.

Button Tab Definition

OK Applies any changes made and exits MagicTune™.

Reset Restores the display settings to the factory settings.

Cancel Exits Magic Tune™ without applying the changes made. If you have not made any changes in the control window, clicking "Cancel" does not cause any actions.

Picture Tab Definition

Allows the user to adjust the screen settings to the desired values.

Brightness Makes the entire screen brighter or darker. The detailed data of the images in the dark areas can be lost if the brightness is not adjusted to the proper level. Adjust the brightness for best viewing conditions.

Contrast Adjusts the difference in brightness between the bright and dark areas on screen. Determines the crispness of the images.

Resolution Lists all display resolutions supported by the program.

MagicBright™ is a new feature providing the optimum viewing environment depending on the contents of the image you are watching. Currently four different modes are available: Text, Internet, Game, Sport, Movie and Custom. Each mode has its own pre-configured brightness value. You can easily select one of six settings by simply pressing MagicBright control buttons.

1. Text: For documentations or works involving heavy text.
2. Internet: For working with a mixture of images such as text and graphics.
3. Game : For watching motion pictures such as a Game.
4. Sport : For watching motion pictures such as a Sport.
5. Movie: For watching motion pictures such as a DVD or Video CD.
6. Custom: Although the values are carefully chosen by our engineers, the pre-configured values may not be comfortable to your eyes depending on your taste. If this is the case, adjust the Brightness and Contrast by using the OSD menu.

MagicBright control mode will be different according to monitor models. Some monitor will only support Four modes(Text, Internet, Entertain, Custom)

Color Tab Definition

Adjusts the "warmth" of the monitor background or image color.

MagicColor and Gamma will be shown only in the monitor that supports these functions.

Color Tone	The tone of the color can be changed.
	Warm2 - Warm1 - Cool 1 - Cool 2 - Cool 3 - Cool 4 - Cool 5 - Cool 6 - Cool 7Off
		Color Tone mode will be different according to monitor models.Some monitor will only support Four modes( Warm, Normal, Cool,Custom)
Color Control	Adjusts of the monitor image color.You can change the monitor color to your desired color.
	R- G - B
Calibration	The process through which the colors of your choice are optimized and maintained. Youwill find MagicTunetM extremely useful if you are one of those who wish to view imageswith their full details accurately reproduced - including web images and ones producedby a digital camera or scanner.
MagicColor	MagicColor is a new technology that Samsung has exclusively developed to improvedigital image and to display natural color more clearly without disturbing image quality.
	1. OFF : Returns to the original mode.2. DEMO : The screen before applying MagicColor appears on the right and thescreen after applying MagicColor appears on the left.3. Full : Displays not only vivid natural color but also more realistic natural skin colorwith clearness.4. Intelligent : Displays vivid natural color with clearness.5. MagicZone○ The MagicZone ensures the clear and sharp display of animatedmultimedia or photo images by enhancing the brightness, sharpness,saturation, Hue of a certain area on the screen. This offers an easy-to-useinterface that highlights the video-playing portion of your multimediaprogram by automatically detecting and highlight the desired area bydragging.○ When the mouse cursor is activated( )and it is necessary to de-activate itto use it for other tasks, right click your mouse, or put the activated cursor ( )on the taskbar and click. When de-activated, the icon on the screenchanges back to the one shown before activation.○ Especially, MagicZone is appropriate to using the moving picture.○Auto Detect: If you run the Movie in some players, MagicZone willautomatically get the play screen highlighted (it will be supported in playersof Gom, Adrenalin, KCP, Window Media, and Power DVD etc., )Some otherplayers also can be highlighted but could have some problems.○ Tusk menu
	HUE	Adjust the tint of the color.
	Saturation	Adjusts the color saturation.
	Brightness	Adjusts the Brightness.
	Sharpness	Adjusts the difference between the lightest and darkest areasof the display.
	Zone Off	Turn off the zone that you have captured.
	Reset	Returns to the default setting that vendor has set.
	Depending on the monitor models Color Control, Sharpness,Contrast, Color Tone will not be adjustable in MagicColor modeof Full and Intelligent.MagicTunetM will be disappear if you excute MagicZone, andclosing the MagicZone after adjusting, will show the MagicTunetMagain.(System Tray is Unchecked)MagicTunetM will be disappear if you excute MagicZone, and

closing the MagicZone after adjusting. will not show MagicTune™ again. (System Tray is Checked)

- MagicColor mode will be different according to monitor models. MagicZone mode will show if the monitor supports the function.

Gamma correction changes the luminance of the colors with intermediate luminance.

Gamma

Gamma mode will be different according to monitor models. Some monitor will only support Three modes.( Mode1, Mode2, Mode3)

Image Tab Definition

Adjusts the Fine, Coarse and Position values.

Image Setup

• Fine : Removes noise such as horizontal stripes. If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock speed).

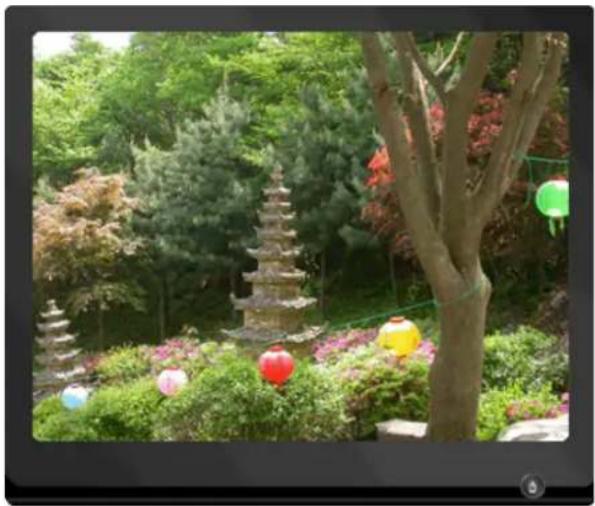

• Coarse : Removes noise such as vertical stripes. Coarse adjustment may move the screen image area. You may relocate it to the center using the Horizontal Control menu.
• Auto Setup : Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically.

Position

Adjusts the screen location horizontally and vertically.

Sharpness

Changes the clearance of image.

Option Tab Definition

You can configure MagicTune ^TM using the following options.

Preferences

Loads the Preferences Dialog Box. Preferences in use will have an "V" in the check box. To turn on or off any Preference, position the cursor over the box and click.

• Enable task tray menu
• To access the MagicTune™ menus, click the icon on the [task tray menu].
  The menus are not displayed if the [Enable System Tray] is deselected in [Options] ' [Basic Settings].
• Select Language - The language chosen affects only the language of the OSD.

Source Select

• Analog
• Digital

Support Tab Definition

Shows the Asset ID and the version number of the program, and allows you to use the Help feature.

Help	Visit the MagicTuneTM website or click to open the Help files (User Manual) if you need any help installing or running MagicTuneTM. The User Manual opens within a basic browser window.
Asset ID	you can use the server to control the Client monitor.(Server program should be installed to use this program as Client)
	User Name	Shows the user name that is registered in PC.
	User ID	Shows the user ID that is register in PC.
	Server IP	Write down the server IP .
	Department	Write down the department.
	Location	Write down the location.
Version	Displays the version of MagicTuneTM.

Overview | Installation | OSD Mode | Color Calibration | Uninstall | Troubleshooting

Color Calibration

Color Calibration

Color Calibration guides you to get optimal color condition for your monitor.

Proceed following 5 steps for getting optimal monitor color condition.

1. Control "Brightness control bar" for matching the brightness of control patch and the brightness of background pattern
2. When you detect specific color tone on "Control patch", move the control cursor toward to the direction of the color tone referring to "Color reference Circle".
   => Adjustment is finished properly, you won't detect any color tone on Control patch.
3. When you finish adjustment for step1, Click "Next" button.
4. Repeat 1), 2), 3) procedures for remaining step2 \~ step5.
5. You can easily view the calibration effect through clicking "Preview" button!

How multiple users can use adjusted color values

Definition

When monitor is used by multiple users, color values which are adjusted via Color calibration for each users can be saved and used. Up to 5 users can use the saved color values.

1. How to save adjusted color values:
   Press Next to make it change into Apply and then you can save adjusted color values.
   As many as 5 values can be saved.
2. How to apply the saved color values:
   Press Multi User button on main screen to select and use one of the saved color values.

Preview

Still life arrangement of fresh fruits including grapes, bananas, peaches, broccoli, and carrots on a red-and-white checkered tablecloth against a blue background (no text or symbols)

Press "Preview" button on the Color Calibration. The above picture will be shown.

1. Press "View Calibrated" button to see the calibration effect which you adjusted.
2. Press "View Uncalibrated" button to see the original image.

Overview

Installation

OSD Mode

Color Calibration

Uninstall

Troubleshooting

Uninstall

The MagicTune™ program can be removed only by using the "Add or Remove Programs" option of the Windows™ Control Panel.

Perform the following steps remove MagicTune™.

1. Go to [Task Tray]' [Start]' [Settings] and select [Control Panel] in the menu. If the program runs on Windows™ XP, go to [Control Panel] in the [Start] menu.
2. Click the "Add or Remove Programs" icon in Control Panel.
3. In the "Add or Remove Programs" screen, scroll down to find "MagicTune™." Click on it to highlight it.
4. Click the "Change/Remove" button to remove the program.
5. Click "Yes" to begin the uninstall process.
6. Wait until the "Uninstall Complete" dialog box appears.

Visit the MagicTune™ website for technical support for MagicTune™, FAQs (questions and answers) and software upgrades.

Overview

Installation

OSD Mode

Color Calibration

Uninstall

Troubleshooting

Troubleshooting

The current computing system is not compatible with MagicTune™.

? Please press OK and click on the "Shortcut to the MagicTune™ site" to view our home page for further reference.

An error may occur when your video/graphic card is not in the 'Available' list. (The latest or oldest video cards may not be compatible.)

Please visit our homepage to see the Troubleshooting section.

An error may occur if the card maker has modified the video card driver or the graphics chip even when the video card is in the list.

Please visit our homepage to see the Troubleshooting section.

Check if your monitor is manufactured by Samsung. Products from other manufacturers may cause errors.

Only Samsung products are able to support this feature.

An error may occur even when your monitor is manufactured by Samsung but is out of date. Check if your monitor is able to support MagicTune™.

This feature is only supported by those monitors that are registered on our homepage. Check for the monitor before purchasing it as out-of-date models are not supported.

An error occurs when no information on EDID (Extended Display Identification Data) exists for the current monitor. This happens when from your desktop, Start → Setup → Control Panel → System → Hardware → Device Manager → Monitor is selected, the current "Plug-and-play monitor" is removed and new hardware is searched for but the system couldn't find any "Plug-and-play monitor".

Please visit our homepage to see the Troubleshooting section.

An error occurs when replacing the monitor with a new one when the system power is off but the system has not been restarted.

Please restart the system each time the monitor is replaced before using MagicTune™.

An error occurs when the video card driver is not installed properly. This happens when the current video card list is not displayed normally. You can check this via Start → Setup → System → Hardware → Device Manager → Display Adapter.

Visit the video card maker's homepage and download and install the latest driver. For more information about the video card, contact the card manufacturer.

? To ensure normal operation, please restart your system.

An error occurs when the system is not restarted after installing MagicTune™. (This is for Win98SE and WinMe only.)

Restart the system before use.

For the best performance of MagicTune™, adjust to the optimal resolution. Refer to the User Guide for the optimal resolution.

If you do not adjust to the optimal resolution and perform Color Calibration, the monitor cannot be adjusted to the optimal condition.

Refer to the manual for the optimal resolution.

? This video card does not support MagicTune™. Please install a new video card driver.

An error occurs when the video card driver is not installed properly. This happens when the current video card list is not displayed normally. You can check this from Start → Setup → System → Hardware → Device Manager → Display Adapter.

Visit the video card manufacturer's homepage and download and install the latest driver. For more information about the video card, contact the card manufacturer.

? As the Highlight program uses the communication lines, please exit the Highlight program before you can access MagicTune™.

Some of Samsung CDT monitors support the Highlight feature.

When using both the Highlight feature and MagicTune ^™ simultaneously, conflicts occur, which cause errors.

Make sure to turn OFF Highlight before using MagicTune™.

Troubleshooting

- MagicTune™ may not work in case monitor is replaced or driver of graphic card is updated while MagicTune™ is operating. If so, please restart the system.

Symptom Check List Solutions

Check when MagicTuneTM does not function properly.	MagicTuneTM feature is found only on PC (VGA) with Window OS that supports Plug and Play.	* To check whether your PC is available for MagicTuneTM feature, follow the steps below (When WindowsTM is XP);Control Panel → Performance and Maintenance → System → Hardware → Device Manager → Monitors → After deleting Plug and Play monitor, find 'Plug and Play monitor' by searching new Hardware.MagicTuneTM is an additional software for the monitor. Some graphic cards may not support your monitor. When you have a problem with the graphic card, visit our website to check the compatible graphic card list provided.http://www.samsung.com/monitor/magicTune
MagicTuneTM doesn't work properly.	Have you changed your PC or video graphic card?	Download the latest program. The program can be downloadedhttp://www.samsung.com/monitor/magicTune

- Visit the MagicTune™ website for technical support for MagicTune™, FAQs (questions and answers) and software upgrades.

- Visit the MagicTune™ website and download the installation software for MagicTune™ MAC.

The MagicTune™ program is an additional program for monitor products. Some computing systems that install either an older or the latest video driver are not compatible with MagicTune™. Please visit the MagicTune™ Website for technical support for MagicTune™.

Specifications subject to change without notice. MagicTune™ is a trademark of SAMSUNG ELECTRONICS CO., Inc. Windows™ is a registered trademark of Microsoft Corp. Other trademarks are property of their respective holders.

SAMSUNG DIGITAL everyone's invited™ ■ Safety Precautions ■ Adjusting the Monitor ■ Introduction ■ Troubleshooting ■ Connections ■ Specifications ■ Using the Software ■ Information

- Adjusting the Monitor

Control Buttons Direct Functions OSD Function

Control Buttons

Garden scene with pagoda, trees, and colorful balloons (no text or symbols visible)

1 [MENU / ] Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu.
② [▼These buttons allow you to adjust items in the menu.
③ [Press this button to activate a highlighted menu item.
4 [AUTO] When the 'AUTO' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center.

Control Buttons Direct Functions OSD Function

Direct Functions

AUTO

Garden scene with a multi-tiered pagoda, colorful lanterns, and trees in the background (no visible text or symbols)

Menu Description

When the 'AUTO' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center.

Auto adjustment allows the monitor to self-adjust to the incoming Analog signal.

The values of fine, coarse and position are adjusted automatically.

(Available in Analog mode only)

AUTO

To make the automatic adjustment function sharper, execute the 'AUTO' function while the AUTO PATTERN is on.

If auto adjustment does not work properly, press 'AUTO' button again to adjust picture with more accuracy.
If you change resolution in the control panel, auto function will be executed automatically.

OSD Lock & Unlock

Garden scene with traditional pagoda, colorful lanterns, and lush greenery (no text or symbols visible)

Garden scene with traditional pagoda, colorful lanterns, and trees (no visible text or symbols)

Menu Description

OSD Lock & Unlock

After pushing the "MENU" button more than 5 seconds, OSD function is locked (unlocked).

You can also adjust the brightness and contrast of the monitor with the OSD adjustment locking feature.

MagicBright™

Garden scene with traditional pagoda, colorful balloons, and lush greenery (no visible text or symbols)

Menu Description

MagicBright™

Push the MagicBright™ button to circle through available preconfigured modes.

- Six different modes (Custom/Text/Internet/Game/Sport/Movie)

Brightness

Garden scene with a multi-tiered pagoda, colorful lanterns, and lush greenery (no visible text or symbols)

Menu Description

Brightness When OSD is not on the screen, push the button to adjust brightness.

SOURCE

Garden scene with traditional pagoda, colorful lanterns, and lush greenery (no text or symbols visible)

MENU / 100

▲/

AUTO

Menu Description

SOURCE Selects the Video signal while the OSD is off. (Analog/Digital)

Control Buttons Direct Functions OSD Function

OSD Function


Brightness Contrast

Color

MagicColor Color Tone

Color Control Gamma


Coarse Fine Sharpness

H-Position V-Position

OSD

Language H-Position V

Position Transparency

Display Time

Setup

Auto Source Image Res

et Color Reset

Information


Garden scene with traditional pagoda, colorful lanterns, and trees (no visible text or symbols)

Menu Description Play/Stop

	You can use the on-screen menus to change the brightness according to personal preference.
Brightness	Direct Access Feature: When OSD is not on the screen, push the button to adjust brightness. >> Click here to see an animation clipMENU → ↻ → ▶ → ▲ ▼ → MENU
Contrast	You can use the on-screen menus to change the contrast according to personal preference.MENU → ↻ → ▲ ▼ → ↻ → ▲ ▼ → MENU

Garden scene with a multi-tiered pagoda, colorful lanterns, and trees in the background (no visible text or symbols)

Menu Description Play/Stop

MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality.

MagicColor

① Off Returns to the original mode.
② Demo The screen before applying MagicColor appears on the right and the screen after applying MagicColor appears on the left.
3 Full Displays not only vivid natural color but also more realistic natural skin color with clearness.
4 Intelligent Displays vivid natural color with clearness.

Color Tone

The tone of the color can be changed and one of four modes can be selected -Cool, Normal, Warm and Custom.

MENU → ▲ ▼→←→ ▲ ▼→←→ ▲ ▼→MENU

Color Control

Adjusts individual Red, Green, Blue color balance. -Red, Green, Blue

MENU → ▲ ▼→←→ ▲ ▼→←→ ▲ ▼→←→ ▲ ▼→ MENU

Gamma correction changes the luminance of the colors with intermediate luminance.

Gamma

• Mode 1
• Mode 2
• Mode 3

Garden scene with traditional pagoda, colorful balloons, and lush greenery (no text or symbols visible)

Menu Description Play/Stop

Coarse

Removes noise such as vertical stripes.

Coarse adjustment may move the screen image area. You may relocate it to the center using the horizontal control menu.

	MENU → ▲ ▼→ ➕ → ➕ → ▲ ▼→ MENU
Fine	Removes noise such as horizontal stripes.If the noise persists even after fine tuning, repeat it after adjusting the frequency (clock speed).
	MENU → ▲ ▼ → ➕ → ▲ ▼ → ➕ → ▲ ▼ → MENU
Sharpness	Changes the clearance of image.
	MENU → ▲ ▼→ ➕ → ▲ ▼→ ➕ → ▲ ▼ → MENU
H-Position	Changes the horizontal position of the monitor's entire display.
	MENU → ▲ ▼→ ➕ → ▲ ▼→ ➕ → ▲ ▼ → MENU
V-Position	Changes the vertical position of the monitor's entire display.
	MENU → ▲ ▼→ ➕ → ▲ ▼→ ➕ → ▲ ▼ → MENU

Garden scene with a multi-tiered pagoda, colorful balloons, and lush greenery (no visible text or symbols)

Menu Description Play/Stop

	You can choose one of nine languages.· English, Deutsch, Español, Français, Italiano, Svenska, Русский , Português , Türkçe
Language	× The language chosen affects only the language of the OSD. It has no effect on any software running on the computer.
	MENU → ▲ ▼→ [←] → [←] → ▲ ▼→ MENU
H-Position	You can change the horizontal position where the OSD menu appears on your monitor.
	MENU → ▲ ▼→ [←] → ▲ ▼→ [←] → ▲ ▼→ MENU
V-Position	You can change the vertical position where the OSD menu appears on your monitor.

MENU → ▲ ▼ → ➕ → ▲ ▼ → ➕ → ▲ ▼ → MENU

Transparency

Change the transparency of the background of the OSD.

The menu will be automatically turned off if no adjustments are made for a certain time period.

You can set the amount of time the menu will wait before it is turned off.

- 5 sec, 10 sec, 20 sec, 200 sec

Garden scene with a multi-tiered pagoda, colorful lanterns, and lush greenery (no visible text or symbols)

MENU / 100

Menu Description Play/Stop

Auto Source

Select Auto Source for the monitor to automatically select the signal source.

Garden scene with traditional pagoda, colorful lanterns, and trees (no visible text or symbols)

Menu Description

Information

Shows a video source, display mode on the OSD screen.

MENU → ▲ ▼

SAMSUNG DIGITAL everyone's invited™ ■ Safety Precautions ■ Adjusting the Monitor ■ Introduction ■ Troubleshooting ■ Connections ■ Specifications ■ Using the Software ■ Information

- Adjusting the Monitor

Control Buttons Direct Functions OSD Function

Control Buttons

Garden scene with pagoda, trees, and colorful balloons (no text or symbols visible)

1 [MENU / ] Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu.
② [▼These buttons allow you to adjust items in the menu.
③ [Press this button to activate a highlighted menu item.
4 [AUTO] When the 'AUTO' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center.

Control Buttons Direct Functions OSD Function

Direct Functions

AUTO

Garden scene with a multi-tiered pagoda, colorful lanterns, and trees in the background (no visible text or symbols)

Menu Description

When the 'AUTO' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center.

Auto adjustment allows the monitor to self-adjust to the incoming Analog signal.

The values of fine, coarse and position are adjusted automatically.

(Available in Analog mode only)

AUTO

To make the automatic adjustment function sharper, execute the 'AUTO' function while the AUTO PATTERN is on.

If auto adjustment does not work properly, press 'AUTO' button again to adjust picture with more accuracy.
If you change resolution in the control panel, auto function will be executed automatically.

OSD Lock & Unlock

Garden scene with traditional pagoda, colorful lanterns, and lush greenery (no visible text or symbols)

Garden scene with traditional pagoda, colorful lanterns, and trees (no visible text or symbols)

Menu Description

OSD Lock & Unlock

After pushing the "MENU" button more than 5 seconds, OSD function is locked (unlocked).

You can also adjust the brightness and contrast of the monitor with the OSD adjustment locking feature.

MagicBright™

Garden scene with traditional pagoda, colorful balloons, and lush greenery (no visible text or symbols)

Menu Description

MagicBright™

Push the MagicBright™ button to circle through available preconfigured modes.

- Six different modes (Custom/Text/Internet/Game/Sport/Movie)

Brightness

Garden scene with a multi-tiered pagoda, colorful lanterns, and lush greenery (no visible text or symbols)

Menu Description

Brightness When OSD is not on the screen, push the button to adjust brightness.

SOURCE

Garden scene with multi-tiered pagoda, colorful lanterns, and lush greenery (no visible text or symbols)

MENU / 100

▲/

AUTO

Menu Description

SOURCE Selects the Video signal while the OSD is off. (Analog/Digital)

Control Buttons Direct Functions OSD Function

OSD Function


Brightness Contrast

Color

MagicColor Color Tone

Color Control Gamma


Coarse Fine Sharpness

H-Position V-Position

OSD

Language H-Position V

Position Transparency

Setup

Auto Source Image Res

et Color Reset

RTA

Information


Garden scene with traditional pagoda, colorful lanterns, and trees (no visible text or symbols)

Menu Description Play/Stop

	You can use the on-screen menus to change the brightness according to personal preference.
Brightness	Direct Access Feature: When OSD is not on the screen, push the button to adjust brightness.>> Click here to see an animation clipMENU →→→→▲▼→MENU
Contrast	You can use the on-screen menus to change the contrast according to personal preference.MENU →→→▲▼→→→→▲▼→MENU

Garden scene with a multi-tiered pagoda, colorful lanterns, and trees in the background (no visible text or symbols)

Menu Description Play/Stop

MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality.

MagicColor

① Off Returns to the original mode.
② Demo The screen before applying MagicColor appears on the right and the screen after applying MagicColor appears on the left.
3 Full Displays not only vivid natural color but also more realistic natural skin color with clearness.
4 Intelligent Displays vivid natural color with clearness.

Color Tone

The tone of the color can be changed and one of four modes can be selected -Cool, Normal, Warm and Custom.

MENU → ▲ ▼→←→ ▲ ▼→←→ ▲ ▼→MENU

Color Control

Adjusts individual Red, Green, Blue color balance. -Red, Green, Blue

MENU → ▲ ▼→←→ ▲ ▼→←→ ▲ ▼→←→ ▲ ▼→ MENU

Gamma correction changes the luminance of the colors with intermediate luminance.

Gamma

• Mode 1
• Mode 2
• Mode 3

Garden scene with traditional pagoda, colorful balloons, and lush greenery (no text or symbols visible)

Menu Description Play/Stop

Coarse

Removes noise such as vertical stripes.

Coarse adjustment may move the screen image area. You may relocate it to the center using the horizontal control menu.

	MENU → ▲ ▼ → ➕ → ➕ → ▲ ▼ → MENU
Fine	Removes noise such as horizontal stripes.If the noise persists even after fine tuning, repeat it after adjusting the frequency (clock speed).
	MENU → ▲ ▼ → ➕ → ▲ ▼ → ➕ → ▲ ▼ → MENU
Sharpness	Changes the clearance of image.
	MENU → ▲ ▼ → ➕ → ▲ ▼ → ➕ → ▲ ▼ → MENU
H-Position	Changes the horizontal position of the monitor's entire display.
	MENU → ▲ ▼ → ➕ → ▲ ▼ → ➕ → ▲ ▼ → MENU
V-Position	Changes the vertical position of the monitor's entire display.
	MENU → ▲ ▼ → ➕ → ▲ ▼ → ➕ → ▲ ▼ → MENU

Garden scene with a multi-tiered pagoda, colorful balloons, and lush greenery (no text or symbols visible)

Menu Description Play/Stop

	You can choose one of nine languages.· English, Deutsch, Español, Français, Italiano, Svenska, Русский , Português , Türkçe
Language	× The language chosen affects only the language of the OSD. It has no effect on any software running on the computer.
	MENU → ▲ ▼→ [←] → [←] → ▲ ▼→ MENU
H-Position	You can change the horizontal position where the OSD menu appears on your monitor.
	MENU → ▲ ▼→ [←] → ▲ ▼→ [←] → ▲ ▼→ MENU
V-Position	You can change the vertical position where the OSD menu appears on your monitor.

MENU → ▲ ▼ → ↻ → ▲ ▼ → ↻ → ▲ ▼ → MENU

Transparency

Change the transparency of the background of the OSD.

The menu will be automatically turned off if no adjustments are made for a certain time period.

You can set the amount of time the menu will wait before it is turned off.

- 5 sec, 10 sec, 20 sec, 200 sec

MENU → ▲ ▼ → ➕ → ▲ ▼ → ➕ → ▲ ▼ → MENU

Setup

Garden scene with traditional pagodas, colorful balloons, and lush greenery (no text or symbols visible)

MENU / 00

[Unreadable]

▲/

SOURCE

AUTO

⊕

Menu Description Play/Stop

Auto Source

Select Auto Source for the monitor to automatically select the signal source.

RTA (Response Time Accelerator)

A function that accelerates the response speed of the panel so as to provide a sharper and more natural video display.

RTA On : Activates the RTA function so that the panel operates at a higher response speed than its original speed.

RTA Off : Deactivates the RTA function so that the panel operates at its original response speed.

RTA

If you turn the power off and on again after switching RTA off, the RTA function is automatically switched On (Factory Setting)

Garden scene with traditional pagoda, colorful lanterns, and trees (no visible text or symbols)

Menu Description

Information

Shows a video source, display mode on the OSD screen.

MENU → ▲ ▼

SAMSUNG DIGITAL everyone's invited™

■ Safety Precautions

■ Introduction

■ Connections

■ Using the Software

■ Adjusting the Monitor

■ Troubleshooting

■ Specifications

Information

Troubleshooting

Check List

Q&A

Self-Test

Check List

Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the Information section or contact your dealer.

Symptom Check List Solutions

No images on the screen.I cannot turn on the monitor.	Is the power cord connected properly?	Check the power cord connection and supply.
	Can you see "Check Signal Cable" on the screen?	(Connected using the D-sub cable)Check the signal cable connection.(Connected using the DVI cable)If you still see an error message on the screen when the monitor is connected properly, check to see if the monitor status is set to analog.Press SOURCE button to have the monitor double-check the input signal source.
	If the power is on, reboot the computer to see the initial screen(the login screen), which can be seen.	If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card.(Refer to the Preset Timing Modes)If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.
	Can you see "Not Optimum Mode", "Recommended Mode 1280 x 1024 60 Hz" on the screen?	You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly.Adjust the maximum resolution and frequency that the monitor can handle properly.If the display exceeds SXGA or 75 Hz, a "Not Optimum Mode", "Recommended Mode 1280 x 1024 60 Hz" message is displayed. If the display exceeds 85 Hz, the display will work properly but the "Not Optimum Mode", "Recommended Mode 1280 x 1024 60 Hz" message appears for one minute and then disappears.Please change to the recommended mode during this one-minute period.(The message is displayed again if the system is rebooted.)
	There is no image on the screen.	The monitor is in PowerSaver mode.
	Is the power indicator on the monitor blinking at 1 second intervals?	Press a key on the keyboard to activate the monitor and restore the image on the screen.
		If there is still no image, press the 'SOURCE' button. Then press any key on the keyboard again to activate the monitor and restore the image on the screen.
	Connected using the DVI cable?	You may get a blank screen if you boot the system before you connect the DVI cable, or disconnect and then reconnect the DVI cable while the system is running as certain types of graphic cards do not send out video signals. Connect the DVI cable and then reboot the system.
I cannot see the On Screen Display.	Have you locked the On Screen Display (OSD) Menu to prevent changes?	Unlock the OSD by pressing the [MENU / I] button for at least 5 seconds.
The screen shows strange colors or just black and white.	Is the screen displaying only one color as if looking at the screen through a cellophane paper?	Check the signal cable connection. Make sure the video card is fully inserted in it's slot.
	Have the screen colors become strange after running a program or due to a crash between applications?	Reboot the computer.
	Has the video card been set properly?	Set the video card by referring to the video card manual.
The screen suddenly has become unbalanced.	Have you changed the video card or the driver?	Adjust screen image position and size using the OSD.
	Have you adjusted the resolution or frequency to the monitor?	Adjust the resolution and frequency at the video card. (Refer to the Preset Timing Modes).
	The screen can be unbalanced due to the cycle of the video card signals. Readjust Position by referring to the OSD.
The screen is out of focus or OSD cannot be adjusted.	Have you adjusted the resolution or frequency on the monitor?	Adjust the resolution and frequency of the video card. (Refer to the Preset Timing Modes).
LED is blinking but no images on the screen.	Is the frequency properly adjusted when checking the Display Timing on the menu?	Adjust the frequency properly by referring to the video card manual and the Preset Timing Modes. (The maximum frequency per resolution may differ from product to product.)
There are only 16 colors shown on the screen. The screen colors have changed after changing the video card.	Have the Windows colors been set properly?	Windows XP: Set the resolution at the Control Panel → Appearance and Themes → Display → Settings. Windows ME/2000: Set the resolution at the Control Panel → Display → Settings.
	Has the video card been set properly?	Set the video card by referring to the video card manual.
message that reads"Unrecognized monitor, Plug & Play (VESA DDC) monitor found".	the monitor driver? Installation Instructions.
	See the video card manual to see if the Plug & Play (VESA DDC) function can be supported.	Install the monitor driver according to the Driver Installation Instructions.
Check when MagicTuneTM does not function properly.	MagicTuneTMfeature is found only on PC (VGA) with Window OS that supports Plug and Play.	* To check whether your PC is available for MagicTuneTMfeature, follow the steps below (When Windows is XP);Control Panel → Performance and Maintenance → System → Hardware → Device Manager → Monitors → After deleting Plug and Play monitor, find 'Plug and Play monitor' by searching new Hardware.MagicTuneTMis an additional software for the monitor. Some graphic cards may not support your monitor. When you have a problem with the graphic card, visit our website to check the compatible graphic card list provided.http://www.samsung.com/monitor/magictune
MagicTuneTM doesn't work properly.	Have you changed your PC or video graphic card?	Download the latest program. The program can be downloaded http://www.samsung.com/monitor/magictune

Visit the MagicTune™ website and download the installation software for MagicTune™ MAC.

Check the following items if there is trouble with the monitor.

Check if the power cord and the video cables are properly connected to the computer.
Check if the computer beeps more than 3 times when booting. (If it does, request an after-service for the main board of the computer.)
If you installed a new video card or if you assembled the PC, check if the installed the adapter(video) driver and the monitor driver.
Check if the scanning ratio of the video screen is set at 56 Hz \~ 75 Hz. (Do not exceed 75 Hz when using the maximum resolution.)
If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode, remove the Display Adapter at the "Control Panel → System → Device Administrator" and then reboot the computer to reinstall the adapter (video) driver.

If problems repeatedly occur, contact an authorized service center.

Check List

Q & A

Self-Test

Q & A

Question

Answer

How can I change the frequency? Frequency can be changed by reconfiguring the video card.

Note that video card support can vary, depending on the version of the driver used. (Refer to the computer or the video card manual for details.)

How can I adjust the resolution? Windows XP :

Set the resolution at the Control Panel → Appearance and Themes → Display → Settings.

Windows ME/2000 : Set the resolution at the Control Panel → Display → Settings.

✗ Contact the video card manufacturer for details.

How can I set the Power Saving function? Windows XP :

Set the resolution at the Control Panel →

Appearance and Themes → Display → Screen

Saver.

Set the function at BIOS-SETUP of the computer.

Windows ME/2000 :

Set the resolution at the Control Panel → Display →

Screen Saver.

Set the function at BIOS-SETUP of the computer.

✗ Refer to Windows/Computer Manual

How can I clean the outer case/LCD Panel? Disconnect the power cord and then clean the

monitor with a soft cloth, using either a cleaning

solution or plain water.

Do not leave any remains of the detergent nor

scratch the case. Do not allow any water to go inside

the monitor.

Check List

Q & A

Self-Test

Self-Test

Self-Test Feature Check | Warning Messages | Environment | Useful Tips

Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly.

Self-Test Feature Check

1 Turn off both your computer and the monitor.
② Unplug the video cable from the back of the computer.
3 Turn on the monitor.

If the monitor is functioning properly, you will see a box in the illustration below.

Check Signal Cable Analog

This box appears during normal operation if the video cable becomes disconnected or damaged.

4 Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.

If your monitor screen remains blank after using the previous procedure, check your video controller and computer system; your monitor is functioning properly.

Warning Messages

If there is something wrong with the input signal, a message appears on the screen or the screen goes blank although the power indicator LED is still on. The message may indicate that the monitor is out of scan range or that you need to check the signal cable.

Not Optimum Mode Recommended Mode : 1280 x 1024 60Hz ? Analog

Environment

The location and the position of the monitor may influence the quality and other features of the monitor.

If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.

Useful Tips

A monitor recreates visual signals received from the computer. Therefore, if there is trouble with the computer or the video card, this can cause the monitor to become blank, have poor coloring, noise, Video mode not supported, etc. In this case, first check the source of the problem, and then contact the Service Center or your dealer.
Judging the monitor's working condition

If there is no image on the screen or a "Not Optimum Mode", "Recommended Mode 1280 x 1024 60 Hz" message comes up, disconnect the cable from the computer while the monitor is still powered on.

If there is a message coming up on the screen or if the screen goes white, this means the monitor is in working condition. In this case, check the computer for trouble.

SAMSUNG DIGITAL everyone's invited™

■ Safety Precautions

■ Introduction

■ Connections

■ Using the Software

■ Adjusting the Monitor

■ Troubleshooting

■ Specifications

Information

Specifications

Specifications

PowerSaver

Preset Timing Modes

Specifications

General

Model Name SyncMaster 731B

LCD Panel

Size 17 " Diagonal (43 cm)

Display area 337.92 mm (H) x 270.336 mm (V)

Pixel Pitch 0.264 mm (H) x 0.264 mm (V)

Type a-si TFT active matrix

Synchronization

Horizontal 30 \~ 81 kHz

Vertical 56 \~ 75 Hz

Display Color

16.2 M Colors

Resolution

Optimum resolution 1280 x 1024@60 Hz

Maximum resolution 1280 x 1024@75 Hz

Input Signal, Terminated

RGB Analog, DVI Compliant Digital RGB, 0.7 Vp-p ± 5%, TTL level

Maximum Pixel Clock

140MHz (Analog, Digital)

Power Consumption

AC 120 V ± 10 V, 60 Hz

AC 220 V ± 20 V, 50 Hz

Signal Cable

15pin to 15pin D-sub cable, Detachable, 1.8 m

DVI-D to DVI-D connector, Detachable, 2.0 m (Option)

Signal Connectors

15pin 3-row D-Sub connector, 24pin 3-row DVI-D connector

Power Consumption

Less than 34 W

Dimensions (W x D x H) / Weight

380.0 x 57.3 x 325.0 mm / 14.9 x 2.2 x 12.8 inch (Without Stand) / 3.75 kg

380.0 x 202.2 x 384.8 mm / 15.0 x 7.9 x 15.1 inch (With Stand) / 5.5 kg

VESA Mounting Interface

75 mm x 75 mm (for use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating Temperature : 50 °F \~ 104 °F (10 °C \~ 40 °C)

Humidity : 10 % \~ 80 %, non-condensing

Storage Temperature : -4 °F \~113 °F (-20 °C \~ 45 °C)

Humidity : 5 % \~ 95 %, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer systems will provide the best operating conditions and monitor settings. In most cases, monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1 ppm (one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be bright sometimes or some of black pixels could be seen. This is not from bad quality and you can use it without uneasiness.

For example, the number of TFT LCD sub pixels that is contained in this product are 3,932,160.

✗ Design and specifications are subject to change without prior notice.

Specifications

PowerSaver

Preset Timing Modes

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in your computer. Use a software utility installed on your computer to set up this feature.

State Normal Operation Power saving mode

Power off

(Power button)

EPA/ENERGY 2000

This monitor is EPA ENERGY STAR ^® compliant and ENERGY2000 compliant when used with a computer equipped with VESA DPMS functionality.

As an ENERGY STAR ^® Partner, SAMSUNG has determined that this product meets the ENERGY STAR ^® guidelines for energy efficiency.

Specifications

PowerSaver

Preset Timing Modes

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows.

Preset Timing Modes

Display Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (H/V)
MAC, 640 x 480	35.000 66.667 30.240	-/-
MAC, 832 x 624	49.726 74.551 57.284	-/-
MAC,1152 x 870	68.681 75.062 100.000	-/-
IBM, 640 x 350	31.469 70.086 25.175	+/-
IBM, 640 x 480	31.469 59.940 25.175	-/-
IBM, 720 x 400	31.469 70.087 28.322	-/+
VESA, 640 x 480	37.500 75.000 31.500	-/-
VESA, 640 x 480	37.861 72.809 31.500	-/-
VESA, 800 x 600	35.156 56.250 36.000	+, -/+,-
VESA, 800 x 600	37.879 60.317 40.000	+/+
VESA, 800 x 600	48.077 72.188 50.000	+/+
VESA, 800 x 600	46.875 75.000 49.500	+/+
VESA, 1024 x 768	48.363 60.004 65.000	-/-
VESA, 1024 x 768	56.476 70.069 75.000	-/-
VESA, 1024 x 768	60.023 75.029 78.750	+/+
VESA, 1152 x 864	67.500 75.000 108.00	+/+
VESA 1280 x 960	60.000 60.000 108.00	+/+
VESA, 1280 x 1024	63.981	60.020	108.00	+/+
VESA, 1280 x 1024	79.976	75.025	135.00	+/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit : kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this repetition is called Vertical Frequency or Refresh Rate. Unit : Hz

SAMSUNG DIGITAL everyone's invited™

■ Safety Precautions

■ Introduction

■ Connections

■ Using the Software

■ Adjusting the Monitor

■ Troubleshooting

■ Specifications

Information

Specifications

Specifications

PowerSaver

Preset Timing Modes

Specifications

General

Model Name SyncMaster 931B

LCD Panel

Size 19 " Diagonal (48 cm)

Display area 376.32 mm (H) x 301.056 mm (V)

Pixel Pitch 0.294 mm (H) x 0.294 mm (V)

Type a-si TFT active matrix

Synchronization

Horizontal 30 \~ 81 kHz

Vertical 56 \~ 75 Hz

Display Color

16.2 M Colors

Resolution

Optimum resolution 1280 x 1024@60 Hz

Maximum resolution 1280 x 1024@75 Hz

Input Signal, Terminated

RGB Analog, DVI Compliant Digital RGB, 0.7 Vp-p ± 5%, TTL level

Maximum Pixel Clock

140 MHz

Power Consumption

AC 120 V ± 10 V, 60 Hz

AC 220 V ± 20 V, 50 Hz

Signal Cable

15pin to 15pin D-sub cable, Detachable, 1.8 m

DVI-D to DVI-D connector, Detachable, 2.0 m (Option)

Signal Connectors

15pin 3-row D-Sub connector, 24pin 3-row DVI-D connector

Power Consumption

Less than 38 W

Dimensions (W x D x H) / Weight

422.7 x 62.5 x 360.2 mm / 16.6 x 2.4 x 14.1 inch (Without Stand) / 5.5 kg

422.7 x 219.3 x 427.9 mm / 16.6 x 8.6 x 16.8 inch (With Stand) / 7.7 kg

VESA Mounting Interface

75 mm x 75 mm (for use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating Temperature : 50 °F \~ 104 °F (10 °C \~ 40 °C)

Humidity : 10 % \~ 80 %, non-condensing

Storage Temperature : -4 °F \~113 °F (-20 °C \~ 45 °C)

Humidity : 5 % \~ 95 %, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer systems will provide the best operating conditions and monitor settings. In most cases, monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1 ppm (one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be bright sometimes or some of black pixels could be seen. This is not from bad quality and you can use it without uneasiness.

For example, the number of TFT LCD sub pixels that is contained in this product are 3,932,160.

✗ Design and specifications are subject to change without prior notice.

Specifications

PowerSaver

Preset Timing Modes

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in your computer. Use a software utility installed on your computer to set up this feature.

State Normal Operation Power saving mode

Power off

(Power button)

EPA/ENERGY 2000

This monitor is EPA ENERGY STAR® compliant and ENERGY2000 compliant when used with a computer equipped with VESA DPMS functionality.

As an ENERGY STAR ^® Partner, SAMSUNG has determined that this product meets the ENERGY STAR ^® guidelines for energy efficiency.

Specifications

PowerSaver

Preset Timing Modes

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows.

Preset Timing Modes

Display Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (H/V)
MAC, 640 x 480	35.000 66.667 30.240	-/-
MAC, 832 x 624	49.726 74.551 57.284	-/-
MAC,1152 x 870	68.681 75.062 100.000	-/-
IBM, 640 x 350	31.469 70.086 25.175	+/-
IBM, 640 x 480	31.469 59.940 25.175	-/-
IBM, 720 x 400	31.469 70.087 28.322	-/+
VESA, 640 x 480	37.500 75.000 31.500	-/-
VESA, 640 x 480	37.861 72.809 31.500	-/-
VESA, 800 x 600	35.156 56.250 36.000	+, -/+,-
VESA, 800 x 600	37.879 60.317 40.000	+/+
VESA, 800 x 600	48.077 72.188 50.000	+/+
VESA, 800 x 600	46.875 75.000 49.500	+/+
VESA, 1024 x 768	48.363 60.004 65.000	-/-
VESA, 1024 x 768	56.476 70.069 75.000	-/-
VESA, 1024 x 768	60.023 75.029 78.750	+/+
VESA, 1152 x 864	67.500 75.000 108.00	+/+
VESA 1280 x 960	60.000 60.000 108.00	+/+
VESA, 1280 x 1024	63.981	60.020	108.00	+/+
VESA, 1280 x 1024	79.976	75.025	135.00	+/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit : kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this repetition is called Vertical Frequency or Refresh Rate. Unit : Hz

SAMSUNG DIGITAL everyone's invited™

■ Safety Precautions

■ Introduction

■ Connections

■ Using the Software

■ Adjusting the Monitor

■ Troubleshooting

■ Specifications

Information

Specifications

Specifications

PowerSaver

Preset Timing Modes

Specifications

General

Model Name SyncMaster 731BF

LCD Panel

Size 17 " Diagonal (43 cm)

Display area 337.92 mm (H) x 270.336 mm (V)

Pixel Pitch 0.264 mm (H) x 0.264 mm (V)

Type a-si TFT active matrix

Synchronization

Horizontal 30 \~ 81 kHz

Vertical 56 \~ 75 Hz

Display Color

16.2 M Colors

Resolution

Optimum resolution 1280 x 1024@60 Hz

Maximum resolution 1280 x 1024@75 Hz

Input Signal, Terminated

RGB Analog, DVI Compliant Digital RGB, 0.7 Vp-p, TTL level

Maximum Pixel Clock

140MHz (Analog, Digital)

Power Consumption

AC 120 V ± 10 V, 60 Hz

AC 220 V ± 20 V, 50 Hz

Signal Cable

15pin to 15pin D-sub cable, Detachable, 1.8 m

DVI-D to DVI-D connector, Detachable, 2.0 m (Option)

Signal Connectors

15pin 3-row D-Sub connector, 24pin 3-row DVI-D connector

Power Consumption

Less than 34 W

Dimensions (W x D x H) / Weight

380.0 x 57.3 x 325.0 mm / 14.9 x 2.2 x 12.8 inch (Without Stand) / 3.75 kg

380.0 x 202.2 x 384.8 mm / 15.0 x 7.9 x 15.1 inch (With Stand) / 5.5 kg

VESA Mounting Interface

75 mm x 75 mm (for use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating Temperature : 50 °F \~ 104 °F (10 °C \~ 40 °C)

Humidity : 10 % \~ 80 %, non-condensing

Storage Temperature : -4 °F \~113 °F (-20 °C \~ 45 °C)

Humidity : 5 % \~ 95 %, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer systems will provide the best operating conditions and monitor settings. In most cases, monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1 ppm (one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be bright sometimes or some of black pixels could be seen. This is not from bad quality and you can use it without uneasiness.

For example, the number of TFT LCD sub pixels that is contained in this product are 3,932,160.

✗ Design and specifications are subject to change without prior notice.

Specifications

PowerSaver

Preset Timing Modes

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in your computer. Use a software utility installed on your computer to set up this feature.

State Normal Operation Power saving mode

Power off

(Power button)

EPA/ENERGY 2000

This monitor is EPA ENERGY STAR® compliant and ENERGY2000 compliant when used with a computer equipped with VESA DPMS functionality.

As an ENERGY STAR ^® Partner, SAMSUNG has determined that this product meets the ENERGY STAR ^® guidelines for energy efficiency.

Specifications

PowerSaver

Preset Timing Modes

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows.

Preset Timing Modes

Display Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (H/V)
MAC, 640 x 480	35.000 66.667 30.240	-/-
MAC, 832 x 624	49.726 74.551 57.284	-/-
MAC,1152 x 870	68.681 75.062 100.000	-/-
IBM, 640 x 350	31.469 70.086 25.175	+/-
IBM, 640 x 480	31.469 59.940 25.175	-/-
IBM, 720 x 400	31.469 70.087 28.322	-/+
VESA, 640 x 480	37.500 75.000 31.500	-/-
VESA, 640 x 480	37.861 72.809 31.500	-/-
VESA, 800 x 600	35.156 56.250 36.000	+, -/+,-
VESA, 800 x 600	37.879 60.317 40.000	+/+
VESA, 800 x 600	48.077 72.188 50.000	+/+
VESA, 800 x 600	46.875 75.000 49.500	+/+
VESA, 1024 x 768	48.363 60.004 65.000	-/-
VESA, 1024 x 768	56.476 70.069 75.000	-/-
VESA, 1024 x 768	60.023 75.029 78.750	+/+
VESA, 1152 x 864	67.500 75.000 108.00	+/+
VESA 1280 x 960	60.000 60.000 108.00	+/+
VESA, 1280 x 1024	63.981	60.020	108.00	+/+
VESA, 1280 x 1024	79.976	75.025	135.00	+/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit : kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this repetition is called Vertical Frequency or Refresh Rate. Unit : Hz

SAMSUNG DIGITAL everyone's invited™

■ Safety Precautions

■ Introduction

■ Connections

■ Using the Software

■ Adjusting the Monitor

■ Troubleshooting

■ Specifications

Information

Specifications

Specifications

PowerSaver

Preset Timing Modes

Specifications

General

Model Name SyncMaster 931BF

LCD Panel

Size 19 " Diagonal (48 cm)

Display area 376.32 mm (H) x 301.056 mm (V)

Pixel Pitch 0.294 mm (H) x 0.294 mm (V)

Type a-si TFT active matrix

Synchronization

Horizontal 30 \~ 81 kHz

Vertical 56 \~ 75 Hz

Display Color

16.2 M Colors

Resolution

Optimum resolution 1280 x 1024@60 Hz

Maximum resolution 1280 x 1024@75 Hz

Input Signal, Terminated

RGB Analog, DVI Compliant Digital RGB, 0.7 Vp-p ± 5%, TTL level

Maximum Pixel Clock

140 MHz

Power Consumption

AC 120 V ± 10 V, 60 Hz

AC 220 V ± 20 V, 50 Hz

Signal Cable

15pin to 15pin D-sub cable, Detachable, 1.8 m

DVI-D to DVI-D connector, Detachable, 2.0 m (Option)

Signal Connectors

15pin 3-row D-Sub connector, 24pin 3-row DVI-D connector

Power Consumption

Less than 38 W

Dimensions (W x D x H) / Weight

422.7 x 62.5 x 360.2 mm / 16.6 x 2.4 x 14.1 inch (Without Stand) / 5.5 kg

422.7 x 219.3 x 427.9 mm / 16.6 x 8.6 x 16.8 inch (With Stand) / 7.7 kg

VESA Mounting Interface

75 mm x 75 mm (for use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating Temperature : 50 °F \~ 104 °F (10 °C \~ 40 °C)

Humidity : 10 % \~ 80 %, non-condensing

Storage Temperature : -4 °F \~113 °F (-20 °C \~ 45 °C)

Humidity : 5 % \~ 95 %, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer systems will provide the best operating conditions and monitor settings. In most cases, monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1 ppm (one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be bright sometimes or some of black pixels could be seen. This is not from bad quality and you can use it without uneasiness.

For example, the number of TFT LCD sub pixels that is contained in this product are 3,932,160.

✗ Design and specifications are subject to change without prior notice.

Specifications

PowerSaver

Preset Timing Modes

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in your computer. Use a software utility installed on your computer to set up this feature.

State Normal Operation Power saving mode

Power off

(Power button)

EPA/ENERGY 2000

This monitor is EPA ENERGY STAR® compliant and ENERGY2000 compliant when used with a computer equipped with VESA DPMS functionality.

As an ENERGY STAR ^® Partner, SAMSUNG has determined that this product meets the ENERGY STAR ^® guidelines for energy efficiency.

Specifications

PowerSaver

Preset Timing Modes

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows.

Preset Timing Modes

Display Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (H/V)
MAC, 640 x 480	35.000 66.667 30.240	-/-
MAC, 832 x 624	49.726 74.551 57.284	-/-
MAC,1152 x 870	68.681 75.062 100.000	-/-
IBM, 640 x 350	31.469 70.086 25.175	+/-
IBM, 640 x 480	31.469 59.940 25.175	-/-
IBM, 720 x 400	31.469 70.087 28.322	-/+
VESA, 640 x 480	37.500 75.000 31.500	-/-
VESA, 640 x 480	37.861 72.809 31.500	-/-
VESA, 800 x 600	35.156 56.250 36.000	+, -/+,-
VESA, 800 x 600	37.879 60.317 40.000	+/+
VESA, 800 x 600	48.077 72.188 50.000	+/+
VESA, 800 x 600	46.875 75.000 49.500	+/+
VESA, 1024 x 768	48.363 60.004 65.000	-/-
VESA, 1024 x 768	56.476 70.069 75.000	-/-
VESA, 1024 x 768	60.023 75.029 78.750	+/+
VESA, 1152 x 864	67.500 75.000 108.00	+/+
VESA 1280 x 960	60.000 60.000 108.00	+/+
VESA, 1280 x 1024	63.981	60.020	108.00	+/+
VESA, 1280 x 1024	79.976	75.025	135.00	+/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit : kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this repetition is called Vertical Frequency or Refresh Rate. Unit : Hz

SAMSUNG DIGITAL everyone's invited™ ■ Safety Precautions ■ Adjusting the Monitor ■ Introduction ■ Troubleshooting ■ Connections ■ Specifications ■ Using the Software ■ Information

Information

Contact SAMSUNG WORLD-WIDE

Terms

For Better Display

Authority

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

North America

CANADA 1-800-SAMSUNG (7267864) http://www.samsung.com/ca

MEXICO 01-800-SAMSUNG (7267864) http://www.samsung.com/mx

U.S.A 1-800-SAMSUNG (7267864) http://www.samsung.com

Latin America

ARGENTINE 0800-333-3733 http://www.samsung.com/ar

BRAZIL 0800-124-421 http://www.samsung.com/br

CHILE 800-726-7864 (SAMSUNG) http://www.samsung.com/cl

COSTA RICA 0-800-507-7267 http://www.samsung.com/latin

Middle East & Africa

SOUTH AFRICA 0860 7267864 (SAMSUNG) http://www.samsung.com/za

U.A.E 800SAMSUNG (7267864) http://www.samsung.com/mea

Contact SAMSUNG WORLD-WIDE

Terms

For Better Display

Authority

Terms

Dot Pitch
The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit : mm
Vertical Frequency
The screen must be redrawn several times per second in order to create and display an image for the user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate. Unit : Hz

Example : If the same light repeats itself 60 times per second, this is regarded as 60 Hz.

▶ Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit : kHz
▶ Interlace and Non-Interlace Methods
- Showing the horizontal lines of the screen from the top to the bottom in order is called the Non-Interlace method while showing odd lines and then even lines in turn is called the Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a clear image. The Interlace method is the same as that used in TVs.
Plug & Play
This is a function that provides the best quality screen for the user by allowing the computer and the monitor to exchange information automatically. This monitor follows the international standard VESA DDC for the Plug & Play function.
Resolution
The number of horizontal and vertical dots used to compose the screen image is called 'resolution'. This number shows the accuracy of the display. High resolution is good for performing multiple tasks as more image information can be shown on the screen.

Example : If the resolution is 1280 x 1024, this means the screen is composed of 1280 horizontal dots (horizontal resolution) and 1024 vertical lines (vertical resolution).

For Better Display

Adjust computer resolution and screen injection rate (refresh rate) oncomputer as described below to enjoy the best quality of picture. You can have an uneven quality of picture in the screen if the best quality of picture is not provided in TFT-LCD.

Resolution : 1280 x 1024
▶ Vertical frequency (refresh rate) : 60 Hz

TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm (one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be bright sometimes or some of black pixels could be seen. This is not from bad quality and you can use it without uneasiness.

For example, the number of TFT LCD sub pixels that is contained in this product are 3,932,160.

When you clean the monitor and the panel outside, please apply the recommended small amount of cleaner by using soft and dry cloth and polish it. Let LCD area not to be forced but to be scrubbed out softly. If excessive force is applied, you can have a stain on it.

If you are not satisfied with the quality of picture, you can get better quality of picture by executing "auto adjustment function" in display screen that is appeared as window termination button is pressed. If there's still noise after automatic adjustment, use FINE/COARSE adjustment function.

If you view a fixed screen for an extended period of time, residual image or blurriness may appear. Change the mode to energy save or set a screensaver to moving picture when you need to be away from the monitor for an extended period of time.

Contact SAMSUNG WORLD-WIDE Terms For Better Display Authority

Authority

Information in this document is subject to change without notice. © 2006 Samsung Electronics Co., Ltd. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden.

Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation; VESA, DPMS and DDC are registered trademarks of Video Electronics Standard Association; the ENERGY STAR® name and logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). As an ENERGY STAR® Partner, Samsung Electronics Co., Ltd. has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. All other product names mentioned herein may be the trademarks or registered trademarks of their respective owners.

RoHS Verified :

The RoHS directive 2002/95/EC bans using the 6 substances listed below with electric and electronic equipment.

- Lead(Pb), Cadmium(Cd), Mercury(Hg), Chromium VI(Cr VI), Polybrominated Biphenyls(PBB), Polybrominated Diphenyl Ethers(PBDE)

This certification will contribute to the protection of health and the environmentally sound recovery and disposal of electric and electronic waste equipment.

Class B

This device is a Class B digital apparatus. For Safety and EMC compliance guide, you may refer to "Regulatory" Guide.

ELECTRONICS

MÉXICO

IMPORTADO POR: SAMSUNG ELECTRONICS MÉXICO. S.A. de C.V.

Vía Lopez Portillo No. 6, Col. San Fco. Chilpan

Tultitlán, Estado de México, C.P. 54940

Tel: [phone]

EXPORTADO POR: Samsung Electronics CO.,LTD.

416, Mae tan-3dong, Yeongtong - gu,

Suwon City, Gyeonggi-do Korea
