Type	Split-type Room Air Conditioner (Cooling and Heating)
Brand	Samsung
Model	AQ18FAN
Cooling Capacity	Approx. 18,000 BTU/h (estimated from model)
Heating Capacity	Approx. 18,000 BTU/h (estimated from model)
Operating Modes	Auto, Cool, Heat, Dry, Fan, Turbo
Fan Speeds	Auto, Low, Medium, High, Maximum
Air Flow Direction	Vertical (remote controlled) and Horizontal (manual)
Timer Functions	On Timer, Off Timer (up to 24 hours), Good Morning Mode
Remote Control	Wireless with LCD display; range up to 7m
Remote Control Batteries	2 AAA, LR03 1.5V

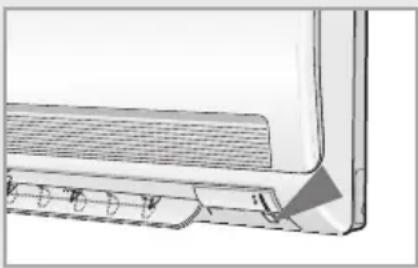

Indoor Unit Power On/Off	Button on right side of indoor unit
Protection Mechanism	3-minute delay on restart to protect compressor
Air Filters	Washable air filters; clean every 3 months
Additional Filters	Deodorizing and Bio filters (optional); clean every 3 months
Safety Features	Auto shut-off on power failure, frost protection (heating), overheat protection
Operating Temperature Range (Cooling)	Indoor: 16°C to 32°C; Outdoor: 19°C to 43°C
Operating Temperature Range (Heating)	Indoor: up to 27°C; Outdoor: 0°C to 24°C
Refrigerant	R-410A (typical for this model, not confirmed)
Installation	Must be installed by a qualified professional

Frequently Asked Questions - AQ18FAN SAMSUNG

What should I do if the air conditioner does not turn on?

Check that the breaker is on and the operation indicator on the indoor unit is lit. If the timer indicator is on, wait for the set time or cancel the timer. Also ensure the remote control is functioning.

How do I clean the air filters?

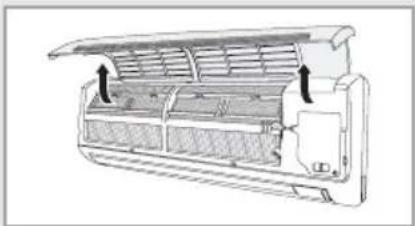

Turn off the breaker. Open the front grille, remove the filters, vacuum or wash with water, dry thoroughly, and reinstall. Clean every 3 months.

Can I use the air conditioner without the remote control?

Yes, press the ON/OFF button on the right side of the indoor unit. It will operate in the most suitable mode based on room temperature.

How do I set the On Timer?

Press the On Timer button to set the desired time (0.5 to 24 hours), then press the Set/Cancel button. The unit will turn on automatically after the set delay.

What is Turbo mode and how do I use it?

Turbo mode cools or heats the room quickly for 30 minutes. Press the Turbo button while in Auto, Cool, or Heat mode. The unit returns to previous settings after 30 minutes.

Why is the fan not blowing air when I select Heat mode?

In Heat mode, the fan may run very slowly for the first 3-5 minutes to allow the indoor coil to warm up. This is normal.

How do I adjust the air flow direction?

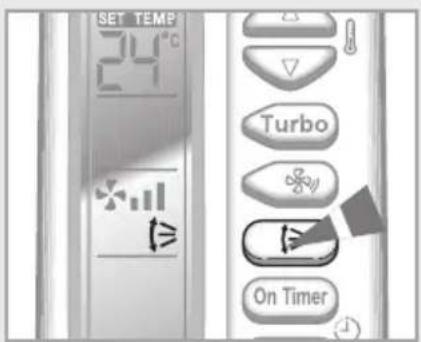

Press the Swing button to automatically move the vertical blade up and down. For horizontal adjustment, manually push the inner blades left or right.

What should I do if the remote control is not working?

Check batteries, ensure no obstacles between remote and indoor unit, and stay within 7 meters. Replace batteries if needed.

Is it normal for the outdoor unit to frost up in winter?

Yes, frost may form when heating. The unit automatically activates a defrost cycle for about 7 minutes, then resumes normal operation.

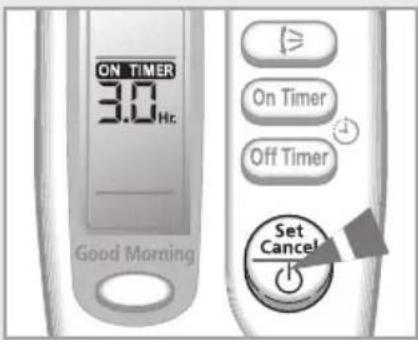

How do I cancel the On or Off Timer?

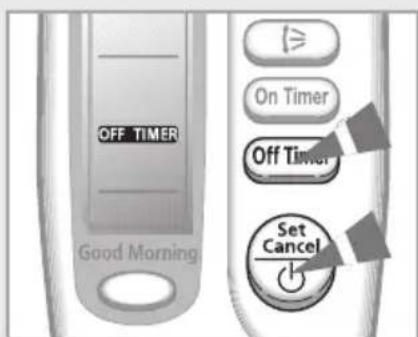

Press the respective timer button until the time display disappears, then press the Set/Cancel button. The timer is canceled.

USER MANUAL AQ18FAN SAMSUNG

Split-type Room Air Conditioner (Cooling and Heating)

Pure technical line drawing of a mechanical component or panel (no text or symbols)

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

WARNING

Risk of electric shock. • Can cause injury or death. • Disconnect all remote electric power supplies before servicing, installing or cleaning. • This must be done by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

DURING OPERATION

◆ Users of this product are cautioned not to attempt repair of this product at their own discretion. Instead, they are requested to directly contact a designated service center or the outlet at which the product was purchased.
◆ Never spill any kind of liquid into the unit. Should this happen, unplug or main switch off the unit and contact an authorized service center.
Do not insert anything between the air outlet blades because the inner fan may be damaged and could cause injury. Keep children away from the unit.
◆ Do not place any obstacles in front of the unit.
Do not spray liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your air conditioner and contact your installation specialist.
◆ Make sure that the unit is correctly ventilated at all times: Do not place clothing or other materials over it.
◆ If the wireless remote control will not be used for a long time, remove the batteries. (If applicable)
When using a wireless remote control, the distance should not be more than 7 meters from the air conditioner. (If applicable)
Before throwing out the device, it is necessary to pull back the battery cells and get rid of them safely for recycling reasons.
When you need to dispose of the unit, consult your dealer. If pipes are removed incorrectly, refrigerant may blow out and come into contact with your skin, causing injury. Releasing refrigerant into the atmosphere also damages the environments.
◆ Please recycle or dispose of the packaging material for this product in an environmentally responsible manner.
- Never store or ship the air conditioner upside down or sideways to avoid damage to the compressor.
The appliance is not intended for use by young children or infirm persons without supervision: Young children should be supervised to ensure that they do not play with the appliance.
Max current is measured according to IEC standard for safety and current is measured according to ISO standard for energy efficiency.

DISPOSING OF THE UNIT

OTHERS

Contents

◆ PREPARING YOUR AIR CONDITIONER

■ Safety Precautions ...... 2
■ View of the Unit .... 4
■ Remote Control - Buttons and Display 6
■ Inserting the Remote Control Batteries .... 6

◆ OPERATING YOUR AIR CONDITIONER

■ Selecting the Automatic Operating Mode 8
■ Cooling Your Room 9
■ Heating Your Room 10
■ Removing Excess Humidity 11
■ Airing Your Room 12

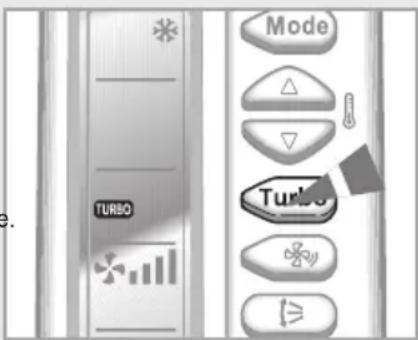

■ Changing the Room Temperature Quickly .... 13
■ Adjusting the Air Flow Direction Vertically .... 14

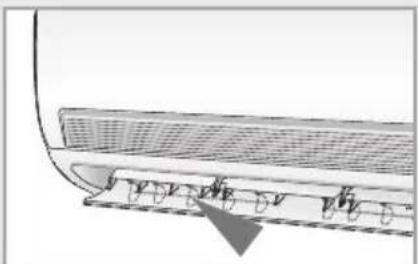

■ Adjusting the Air Flow Direction Horizontally 14

◆ PROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer 15

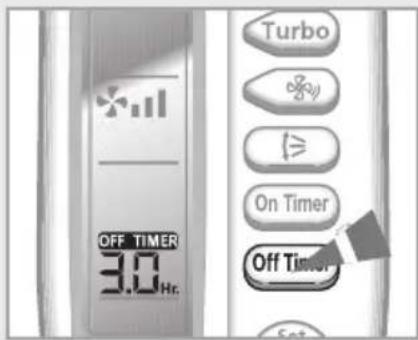

■ Setting the Off Timer 16

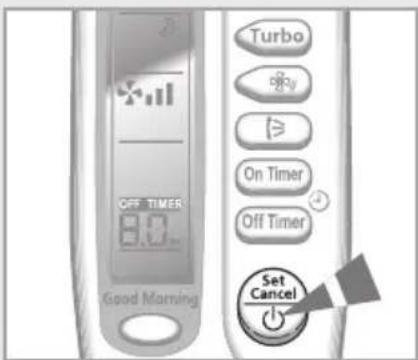

■ Selecting Good Morning Mode .... 17

◆ RECOMMENDATIONS FOR USE

■ Operating Recommendations .... 18
■ Temperature and Humidity Ranges 19
■ Operating Your Air Conditioner Without the Remote Control...... 19
■ Solving Common Problems .... 20
■ Cleaning Your Air Conditioner 21

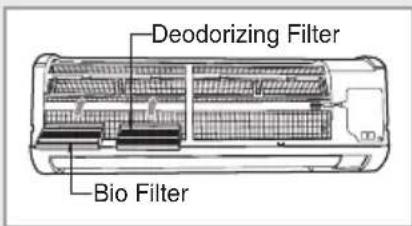

■ Cleaning Deodorizing and Bio filter (Option) 21

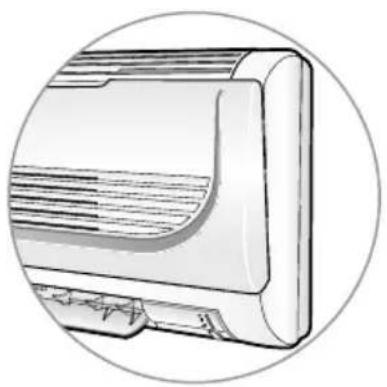

View of the Unit

The design and shape are subject to change according to the model.

Indoor Unit

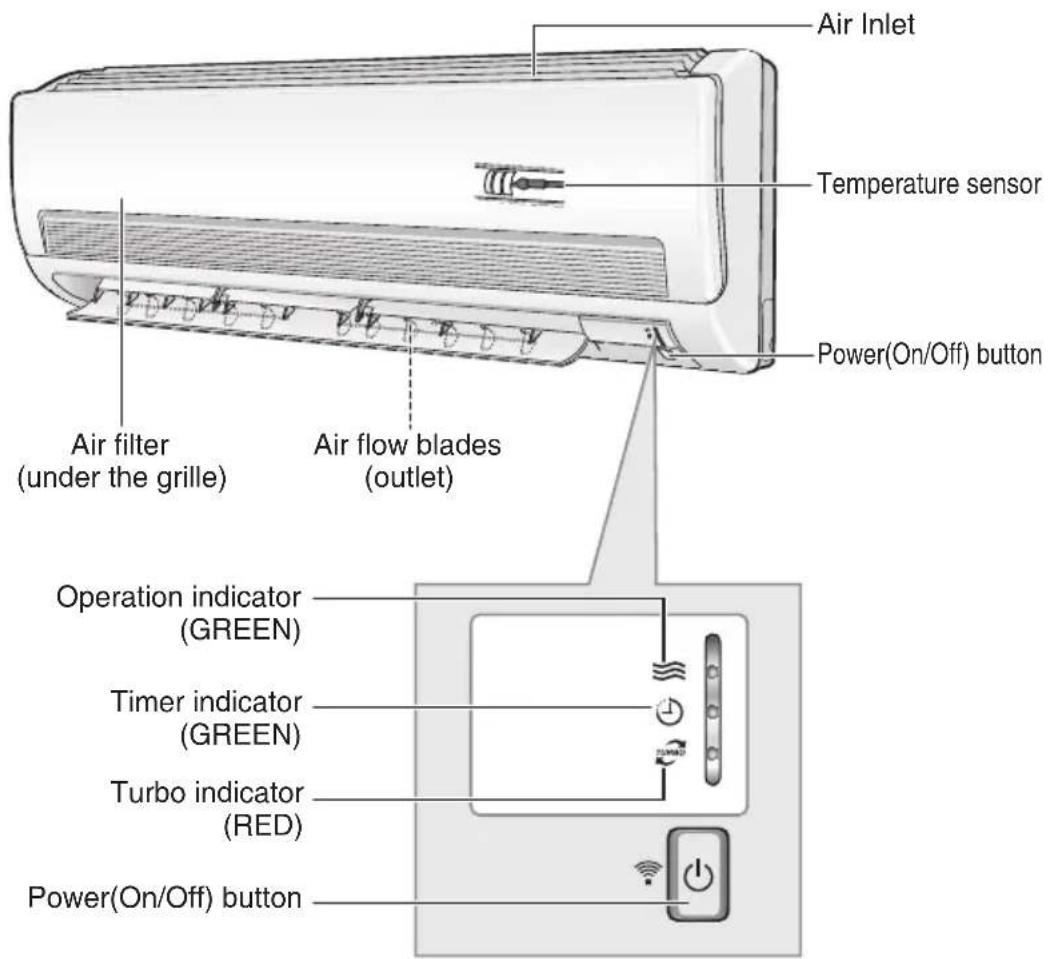

Air Inlet Temperature sensor Power(On/Off) button Air filter (under the grille) Air flow blades (outlet) Operation indicator (GREEN) Timer indicator (GREEN) Turbo indicator (RED) Power(On/Off) button

Technical illustration of a wall-mounted air conditioner unit with ventilation grilles and mounting bracket (no text or symbols)

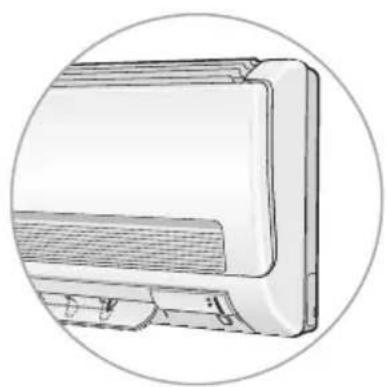

AQ**F* Series AQ

Illustration of a wall-mounted air conditioner unit with no visible text or symbols

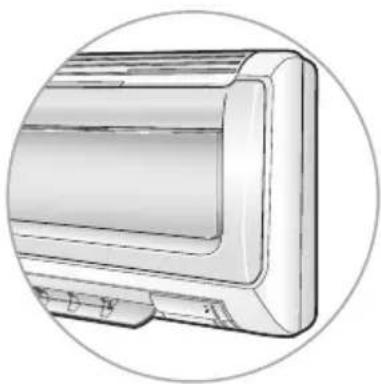

***J* Series AQ

Illustration of a wall-mounted air conditioner unit with ventilation grilles and a label showing '12' (no text or symbols on the device itself)

***W** Series

Outdoor Unit
AQ09** Series

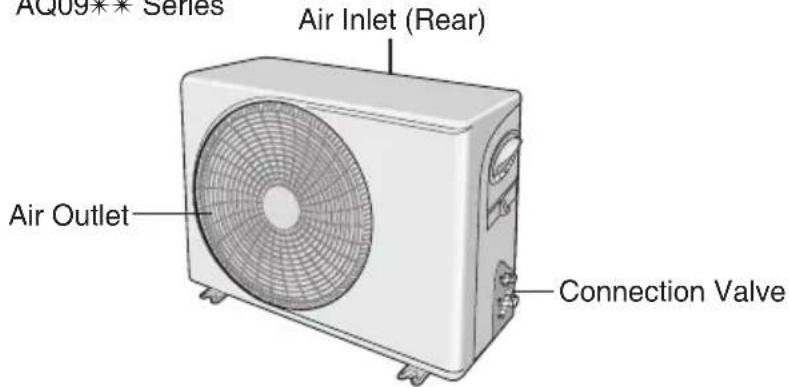

AQ09** Series Air Inlet (Rear) Air Outlet Connection Valve

Outdoor Unit

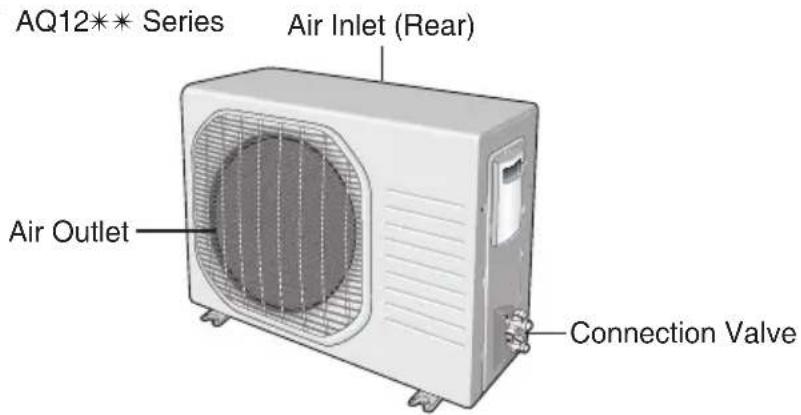

AQ12** Series Air Inlet (Rear) Air Outlet Connection Valve

Outdoor Unit

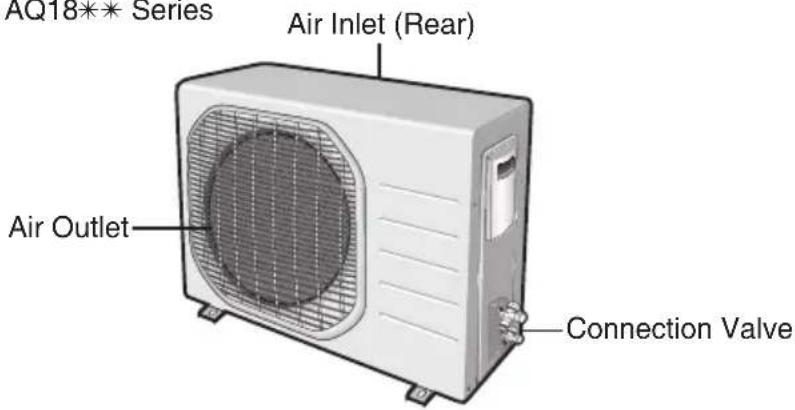

AQ18** Series

AQ18** Series Air Inlet (Rear) Air Outlet Connection Valve

Outdoor Unit
AQ24** Series

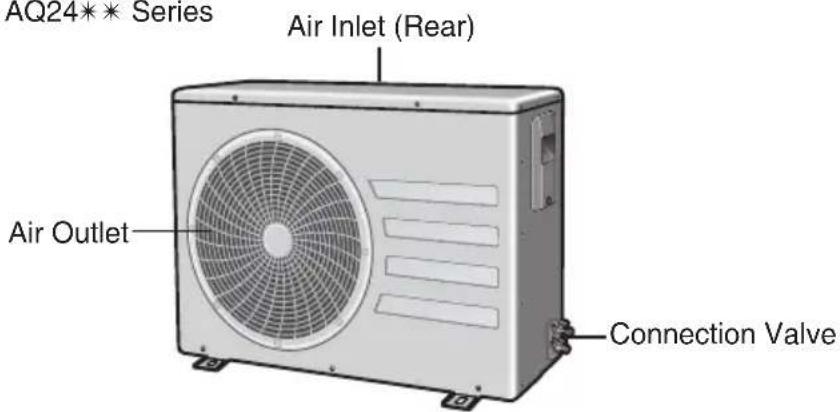

AQ24** Series Air Inlet (Rear) Air Outlet Connection Valve

Remote Control - Buttons and Display

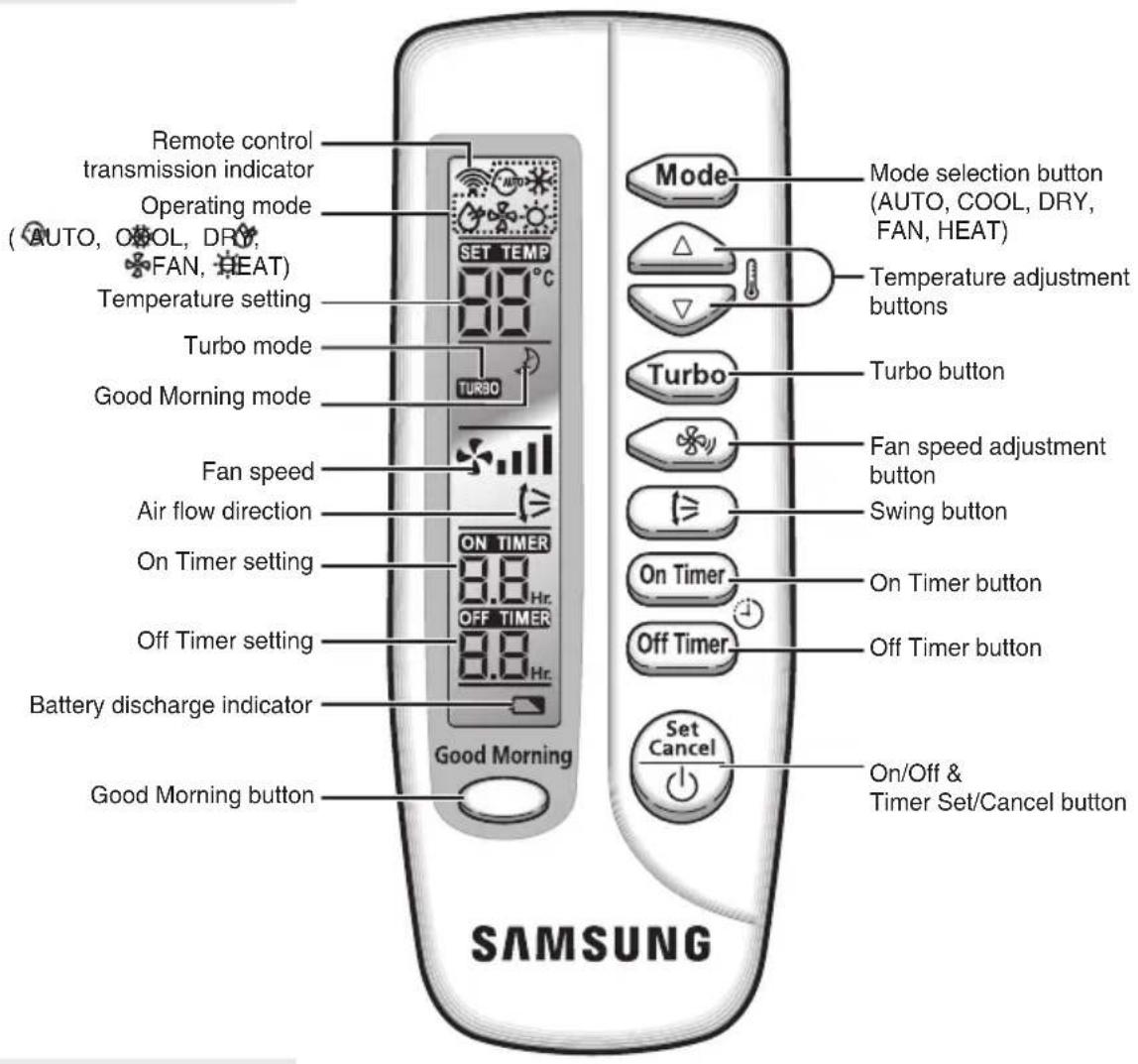

Remote control transmission indicator Operating mode (AUTO, COOL, DRY, FAN, HEAT) Temperature setting Turbo mode Good Morning mode Fan speed Air flow direction On Timer setting Off Timer setting Battery discharge indicator Good Morning button Mode selection button (AUTO, COOL, DRY, FAN, HEAT) Temperature adjustment buttons Turbo button Fan speed adjustment button Swing button On Timer button Off Timer button Set Cancel On/Off & Timer Set/Cancel button SAMSUNG

Inserting the Remote Control Batteries

Two technical illustrations of a remote control device showing internal components and battery casing (no text or symbols)

You must insert or replace the remote control batteries when :

◆ You purchase the air conditioner
◆ The remote control does not work correctly

Note

◆ Use two AAA, LR03 1.5V batteries.
◆ Do not use old batteries or different kinds of batteries together.
◆ Batteries may be completely discharged after 12 months, even if they have not actually been used.

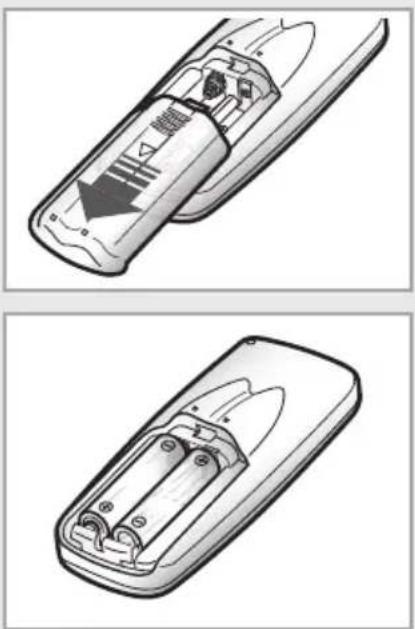

1 Push the battery cover on the rear of the remote control with your thumb in the direction of the arrow and remove it.

2 Insert the two batteries, taking care to respect the polarities :

◆ + on the battery with + on the remote control.
◆ - on the battery with - on the remote control.

3 Close the cover by sliding it back until it clicks into place.

Getting Started

You have just purchased a split type air conditioner and it has been installed by your installation specialist.

Your Owner's Instructions contains valuable information on using your air conditioner. Please take the time to read it as it will help you take full advantage of the unit's features.

The booklet is organized as follows.

◆ The following figures are shown on pages from 4 to 6 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

In the manual, you will find a series of step-by-step procedures for each function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

Selecting the Automatic Operating Mode

Good Morning On Timer Off Timer Set Cancel

You can start the air conditioner in Auto mode from your remote control. In the Auto mode, the cooling and heating operation is selected automatically. You can also raise or lower the temperature and the fan speed in the Auto mode.

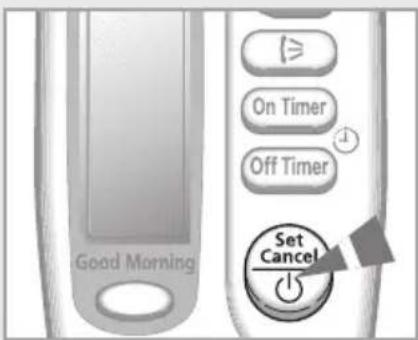

1 If necessary, press the button.

Result:

◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected when the unit was last used.
◆ The indoor unit beeps.

IMPORTANT

The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started immediately after being:

◆ Plugged in
◆ Stopped

It will start up normally after three minutes.

Mode SET TEMP 24°C Turbo

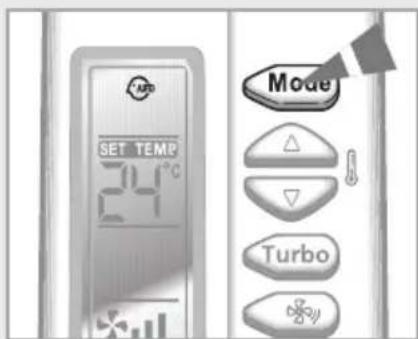

2 If the ☑ not displayed at the top of the remote control, press the button on the remote control one or more times until it appears.

Result:

◆ The indoor unit beeps each time you press the button.
◆ The air conditioner runs in the Auto mode.
◆ The Auto mode cools and heats the room in optimum condition by adjusting the indoor temperature depending on the set temperature.
◆ The mode may change from cooling into heating, from heating into cooling depending on the current temperature during operation.

Note

You can change modes at any time.

SET TEMP 22°C Mode Turbo

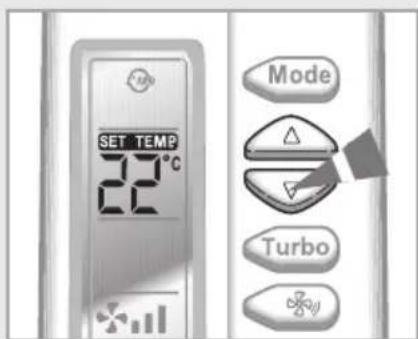

3 To adjust the temperature, press the button one or more times until the required temperature is displayed.

Possible temperatures are between 16°C and 30°C inclusive.

Result:

◆ Each time you press the button:

• The temperature is adjusted by 1°C
• The indoor unit beeps

Cooling Your Room

You must select the Cool mode if you wish to adjust the:

◆ Cooling temperature
◆ Fan speed when cooling

1 If necessary, press the button.

Result:

◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected when the unit was last used.
◆ The indoor unit beeps.

IMPORTANT

The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started immediately after being:

◆ Plugged in
◆ Stopped

It will start up normally after three minutes.

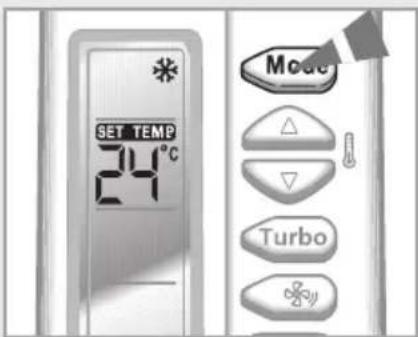

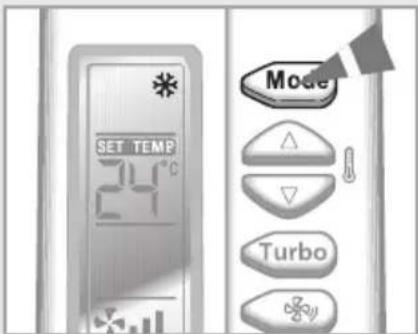

2 If the ✗ not displayed at the top of the remote control, press the button on the remote control one or more times until it appears.

Result:

◆ The indoor unit beeps each time you press the Mo button.
◆ The air conditioner runs in the Cool mode.

Note You can change modes at any time.

3 To adjust the temperature, press the button one or more times until the required temperature is displayed.

Possible temperatures are between 16°C and 30°C inclusive.

Result:

◆ Each time you press the button:

• The temperature is adjusted by 1°C
• The indoor unit beeps
  ◆ The air conditioner starts cooling, provided that the room temperature is higher than the selected temperature.
  If the room temperature reaches the set temperature, the air conditioner stops cooling, but the fan is still operating.

4 Select the fan speed by pressing the button one or more times until the required setting is displayed:

Automatic (rotated : ×₁ → ×₂ → ×₃) Low Medium High Maximum

Result: Each time you press the + button, the indoor unit beeps.

5 To control the direction of the air flow, refer to pages 14.

Good Morning On Timer Off Timer Set Cancel

SET TEMP 24°C Mode Turbo

SET TEMP 22°C Mode Turbo

SET TEMP 27°C Turbo

Heating Your Room

Good Morning On Timer Off Timer Set Cancel

SET TEM 24°C Mode Turbo

SET TEM 30°C Mode Turbo

SET TEMP 28°C Turbo On Time

You must select the Heat mode if you wish to adjust the:

◆ Heating temperature
◆ Fan speed when Heating

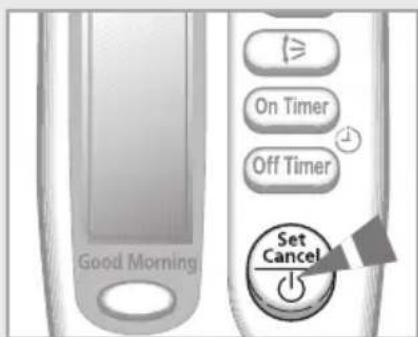

1 If necessary, press the button.

Result:

◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected when the unit was last used.
◆ The indoor unit beeps.

IMPORTANT

The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started immediately after being:

◆ Plugged in
◆ Stopped
It will start up normally after three minutes.

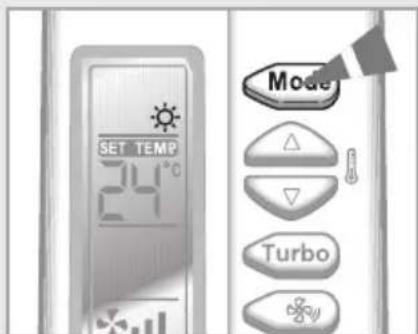

2 If the ✗ is not displayed at the top of the remote control, press the button on the remote control one or more times until it appears.

Result:

◆ The indoor unit beeps each time you press the button.
◆ The air conditioner runs in the Heat mode.

Note

You can change modes at any time.

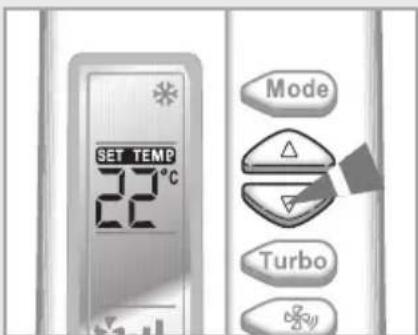

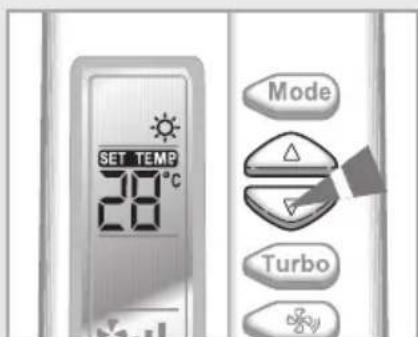

3 To adjust the temperature, press the button one or more times until the required temperature is displayed. Possible temperatures are between 16^ C and 30^ C inclusive.

Result:

◆ Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
If the room temperature reaches the set temperature (selected temperature+5°C), the air conditioner stops heating, but the fan is still operating.
◆ The air conditioner starts heating, provided that the room temperature is lower than the desired temperature (selected temperature+3°C).

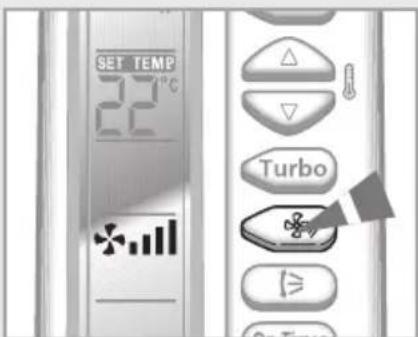

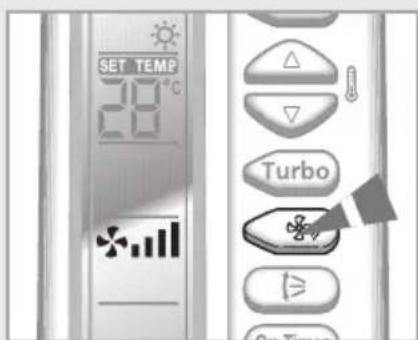

4 Select the fan speed by pressing the button one or more times until the required setting is displayed:

Automatic (rotated : *→*→*) Low Medium High Maximum

Result:

◆ Each time you press the ✦ button, the indoor unit beeps.
For the first three to five minutes, the fan operates very slowly until the air has been sufficiently warmed. Once the correct temperature has been reached, the fan is automatically set to the required speed.

5 To control the direction of the air flow, refer to pages 14.

Removing Excess Humidity

If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature too much.

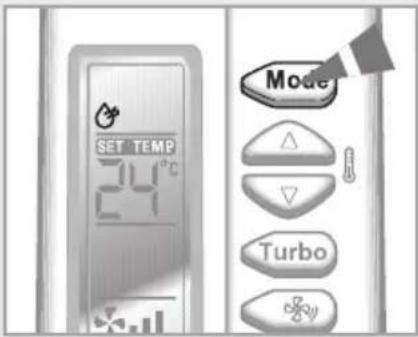

1 If necessary, press the -button.

Result:

◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected when the unit was last used.
◆ The indoor unit beeps.

IMPORTANT

The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started immediately after being:

◆ Plugged in
◆ Stopped
It will start up normally after three minutes.

2 If the ⚙ is not displayed at the top of the remote control, press the Mode button on the remote control one or more times until it appears.

Result:

◆ The indoor unit beeps each time you press the Me button.
◆ The air conditioner runs in the Dry mode.

Note

You can change modes at any time.

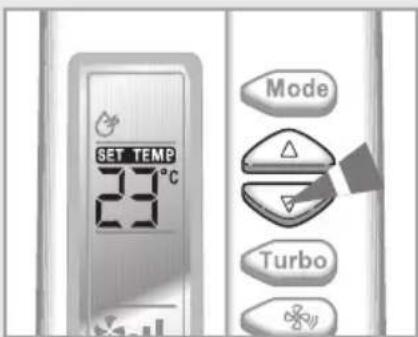

3 To adjust the temperature, press the button one or more times until the required temperature is displayed. Possible temperatures are between 16^ C and 30^ C inclusive.

Result:

◆ Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆ The air conditioner starts removing the excess humidity; the quantity of air is adjusted automatically.
◆ The fan is running in auto mode.

4 To control the direction of the air flow, refer to pages 14.

Good Morning On Timer Off Timer Set Cancel

SET TEMP 24°C Mode Turbo

SET TEMP 23°C Mode Turbo

Airing Your Room

Good Morning On Timer Off Timer Set Cancel

Mode Turbo

Cropped image showing a software toolbar with icons and labels, including 'Turbo' and 'Mode' buttons.

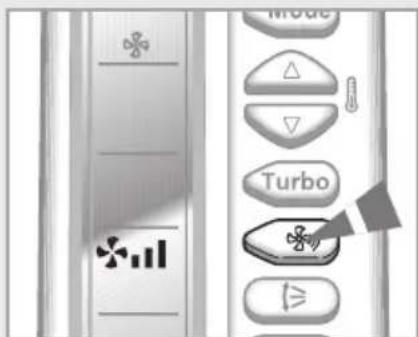

If the atmosphere in your room is stale, you can air the room using the Fan feature.

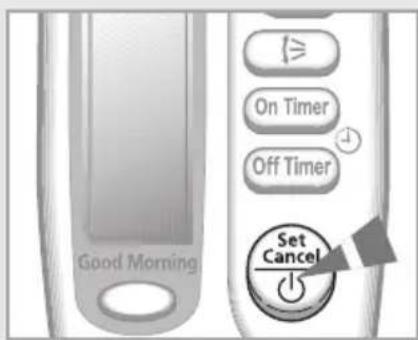

1 If necessary, press the button.

Result: ◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected when the unit was last used.
◆ The indoor unit beeps.

2 If the ✿ not displayed at the top of the remote control, press the Mode button on the remote control one or more times until it appears.

Result: ◆ The indoor unit beeps each time you press the button.
◆ The air conditioner runs in the Fan mode.
◆ The temperature is set automatically.

Note You can change modes at any time.

3 Select the fan speed by pressing the button one or more times until the required setting is displayed:

Result: ◆ Each time you press the + button, the indoor unit beeps.

4 To control the direction of the air flow, refer to pages 14.

Changing the Room Temperature Quickly

The Turbo cooling/heating function is used to cool or heat your room as quickly as possible.

Example :

You have just come home and find that the room is very hot. You wish to cool it down as quickly as possible.

The Turbo function operates for 30 minutes with the maximum settings before returning automatically to the mode and temperature previously selected.

1 If necessary, press the button.

Result:

◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected when the unit was last used.
◆ The indoor unit beeps.

2 Press the button.

Result:

◆ The temperature and fan settings are adjusted automatically.
◆ The air conditioner cools or heats the room as quickly as possible.
◆ After 30 minutes, the air conditioner is reset automatically to the previous mode, temperature and fan settings.
◆ You can select the Turbo function in the Auto, Cool and Heat mode. If you select this function in the Dry or Fan mode, it will return to the Auto mode.

Mode TURBO Turbo

3 If you wish to stop the Turbo function before the end of the 30-minute period, press the Turbo button one or more times until Turbo disappears.

Result: The air conditioner is reset automatically to the previous mode, temperature and fan settings.

4 To control the direction of the air flow, refer to pages 14.

Adjusting the Air Flow Direction Vertically

SET TEMP 24°C Turbo On Timer

Depending on the position of the indoor unit on the wall of your room, you can adjust the position of the outer air flow blade on the bottom of the unit, thus increasing the efficiency of the air conditioner.

1 Press the button one or more times as required.

Result: The outer blade is adjusted vertically.

2 If you want the blade to move up and down automatically when the air conditioner is operating, press the button.

Result: The blade move up and down, around the base position set.

3 To stop the blade moving up and down, press the button again.

Note

If you switch the air conditioner... Then the blade is...

Off Closed completely.

On again

Set to the initial position powered.

Adjusting the Air Flow Direction Horizontally

Pure technical diagram of a curved panel or duct with internal components, no text or symbols present

There are two sets of inner air flow blades. Just as the outer air flow blade can be adjusted vertically, the inner blades can be adjusted horizontally.

1 Adjust each set of inner blades to the required position, by pushing or pulling them sideways.

Setting the On Timer

The On Timer enables you to switch on the air conditioner automatically after a given period of time. You can set the period of time from hour to 24 hours.

1 To set the operating time, press the button one or more times until the required time is displayed. Possible time is between 0.5 hour and 24 hour inclusive.

2 Press the button to complete the setting.

Result: ◆ The remaining time is displayed.

◆ Blinking of the timer indicator stops.
◆ The selected mode and the temperature on the display disappear after 10 seconds.
The air conditioner will switch on automatically when the counter displayed on the remote control reaches the set time and disappears the On Timer setting.

3 To select an operating mode in advance, press the button until the desired mode is displayed at the top of the remote control.

Result: The air conditioner will run in the selected mode when it is turned on.

Note If you don't operate the remote control after setting the On Timer, it will be turned off automatically after 25 hours.

To Cancel the On Timer

If you no longer wish to use the On Timer that you have set, you can cancel it at any time.

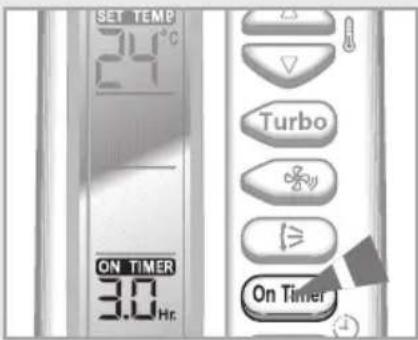

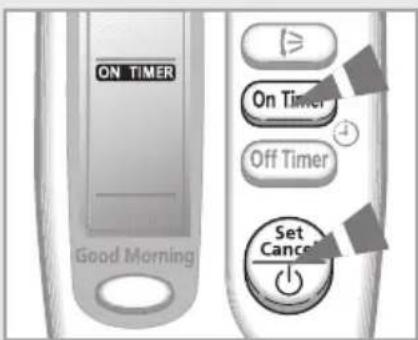

1 To cancel the On Timer, press the button one or more times until the timer setting disappears.

2 Press the button.

Note If you want to turn on the air conditioner before the timer reaches the setting time, press the button.

SET TEM 24°C ON TIMER 3.0 Hr Turbo On Timer

ON TIMER 3.0 Hr. Good Morning On Timer Off Timer Set Cancel

SET TEMP 24°C Mode Turbo

ON TIMER Good Morning On Timer Off Timer Set Cancel

Setting the Off Timer

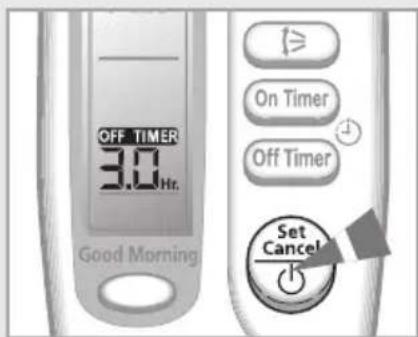

OFF TIMER 3.0 Hz Turbo On Timer Off Timer

OFF TIMER 3.0 Hr. Good Morning On Timer Off Timer Set Cancel

OFF TIMER Good Morning On Timer Off Timer Set Cancel

The Off Timer enables you to switch off the air conditioner automatically after a given period of time. You can set the period of time from 0.5 hour to 24 hours.

1 To set the operating time, press the Off Time button one or more times until the required time is displayed. Possible time is between 0.5 hour and 24 hour inclusive.

2 Press the button to complete the setting.

Result: ◆ The remaining time is displayed.
◆ Blinking of the timer indicator stops.
◆ The air conditioner will switch off automatically when the counter displayed on the remote control reaches the set time and disappears the Off Timer setting.

Example: If you would like to turn the air conditioner on after 2 hours and to operate it for 2 hours:

1. Press the On button until '2 Hr' is displayed.
2. Press the button.
3. Press the Off Timer button until '4 Hr' is displayed.
4. Press the button.

Note You can see or change the setting mode and/or the temperature by pressing the Mode button or the button after setting the Off Timer.

To Cancel the Off Timer

If you no longer wish to use the Off Timer that you have set, you can cancel it at any time.

1 To cancel the Off Timer, press the button one or more times until the timer setting disappears.

2 Press the button.

Note If you want to turn off the air conditioner before the timer reaches the setting time, press the button.

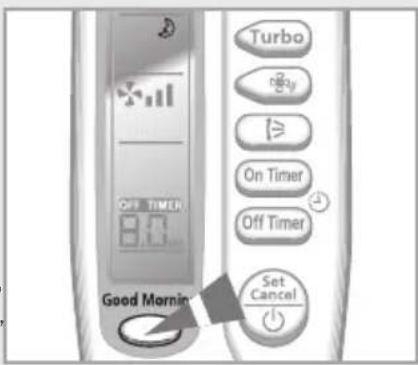

Selecting Good Morning Mode

For cool and heat model: You can only set Good Morning mode after switching on the air conditioner. The Good Morning mode can be selected in both Heat and Cool modes.

Make sure that you have selected either Cool or Heat mode. As a default, the Off Timer will switch off the air conditioner after 8 hours automatically, or you can press the Good Morning button to set Off Timer in the range from 0.5 hour to 12 hours, then press the button to confirm this selection; during the period of Good Morning mode, the temperature is one selected for Heat or Cool mode. The possible temperatures are between 16 °C and 30°C inclusive.

1 Press the button one or more times until is displayed on your remote control.

Result:

◆ The indoor unit beeps
◆ The air conditioner starts the mode you selected before.
If the Good Morning is selected for Cool mode, you can not further adjust the fan speed and the direction of the air flow, while the fan is running in automatic mode; if Good Morning is selected for heat mode, you can adjust fan speed and the direction of the air flow, at this mode, the fan is running at a required speed.

Good Morning Off Timer Turbo On Timer Off Timer Set Cancel

To Cancel the Good Morning

If you no longer wish to use the Good Morning that you have set, you can cancel it at any time.

1 press the button to switch off the air conditioner.

2 To cancel a selected Good Morning mode, you can also press the

Off Timer Good Morning Turbo On Timer Off Timer Set Cancel

Operating Recommendations

Here are a few recommendations that you should follow when using your air conditioner.

Topic Recommendation

Heating performances The heat pump inside the air conditioner absorbs heat from outside air and brings it indoors. If the temperature of the outside air drops, the air conditioner will heat less. If you find that the room is not warm enough, use an additional heating appliance.

Warm air circulation The air conditioner circulates warm air to heat your room; as a result, some time will be required after starting the air conditioner to warm the entire room. If necessary, set the air conditioner on before you wish to use the room.

Frost When outside temperatures are low and humidity is high, frost may form in the outdoor unit when heating is selected. If this happens:

◆ The heating operation is stopped.
◆ The Deice mode is triggered automatically for about seven minutes.
No intervention is required from you; after about seven minutes, the air conditioner starts operating again normally.

High indoor and outdoor temperatures If both the indoor and outdoor temperatures are high and you select the Heat mode, the outdoor unit's fan and compressor may stop at times. This is normal; simply wait until the air conditioner switches on again.

Power failure If a power failure occurs when the air conditioner is operating, the unit is switched off. When the power returns, the air conditioner starts up again automatically.

Temperature and Humidity Ranges

The following table indicates the temperature and humidity ranges within which the air conditioner can be used.

If the air conditioner is used at... Then...

High temperatures The automatic protection feature may be triggered and the air conditioner stopped.

Low temperatures A water leak or some other malfunction may occur if the heat exchanger freezes.

High humidity levels

Water may condense on and drip from the surface of the indoor unit if it is used for long periods.

Mode Outdoor Temperature Indoor Temperature Indoor Humidity

Heating 0°C to 24°C approx. 27°C or less -

Cooling 19°C to 43°C approx. 16°C to 32°C approx. 80% or less

Drying 19^ C to 43^ C approx.

16^ to 32^ approx. -

* If the outdoor temperature is as low as 0^ C, the heating capacity drops up to 70\~80% depending on the operating condition.

If the cooling operation is used at over 32^ C(indoor temperature), it does not cool at its full capacity.

Operating Your Air Conditioner Without the Remote Control

Your air conditioner can be operated directly from the indoor unit if the remote control is lost or broken.

1 To switch the air conditioner on, press the ON/OFF switch on the right side of the indoor unit.

Result:

◆ The OPERATION indicator on the indoor unit comes on.
◆ The indoor unit beeps.
The air conditioner starts up in the most suitable mode for the room temperature. The mode may change from cooling into heating, from heating into cooling depending on the current temperature during operation:

Room Temperature

Less than 24°C

24^ or above

Operating Mode

Heat

Cool

2 To switch the air conditioner off, press the ON/OFF switch again.

Note

Even if the air conditioner has been switched on via the ON/OFF switch, operations can still be controlled using the remote control as usual.

Technical line drawing of a wall-mounted air conditioner unit with a handle and mounting bracket (no text or symbols)

Solving Common Problems

Before contacting the after-sales service, perform the following simple checks.

They may save you the time and expense of an unnecessary call.

Problem Explanation/Solution
The air conditioner does not operate at all	◆ Check that the breaker used for the air conditioner is switched on.◆ Check that the operation indicator on the indoor unit is on; if necessary press the button on the remote control.◆ Check whether the Timer indicator on the indoor unit is switched on. If so:- Wait until the switch-on time is reached and the air conditioner starts up automatically- Cancel the timer (see pages 15 and 16 for further details)
The air conditioner does not operate with the remote control	◆ Check that there are no obstacles between you and the indoor unit.◆ Check the remote control batteries.◆ Check that you are close enough to the indoor unit (seven meters/yards or less).
No beep is heard when you press the on the remote control	◆ Check that you are pointing the remote control at the remote control sensor in the right of the indoor unit.◆ Replace the remote control batteries if necessary.
The air conditioner does not cool or heat	◆ Check that the correct operating mode has been selected (Auto, Cool, Heat).◆ The room temperature may be too low or too high.◆ Dust may be blocking the air filter guard; refer to page 21 for cleaning instructions.◆ Check that there is no obstacle in front of the outdoor unit.
When heating, the required room temperature is never reached and the air conditioner frequently stops	◆ Check that the required temperature has been set correctly.◆ Increase the fan speed.◆ If the air flow is directed upwards, use the remote control to direct it downwards.
The fan speed does not change when you press the button	◆ Check that the operating mode is set to the Auto, Cool, Heat or Fan mode ; in the Dry mode, the fan speed changes automatically.
The air flow direction does not change when you press the button	◆ Check that the air conditioner has been switched on; if necessary, press the button on the remote control.
The timer is not correctly triggered	◆ Check that the timer has been programmed correctly; see pages 15 and 16.
Odour is permeated in the room during air conditioning	◆ Air the room.

Cleaning Your Air Conditioner

To get the best possible use out of your air conditioner, you must clean it regularly to remove the dust that accumulates on the air filter.

IMPORTANT

Before cleaning your air conditioner, ensure that you have switched off the breaker used for the unit.

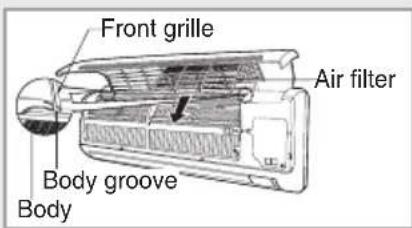

1 Open the upper front grille by pulling the lower right and left tabs of the grille.
2 Pull air filters out of each tab of the grille.
3 Remove all dust on the air filters with a vacuum cleaner or brush.
4 When you finished, insert air filters by fixing it to each tab of the grille.

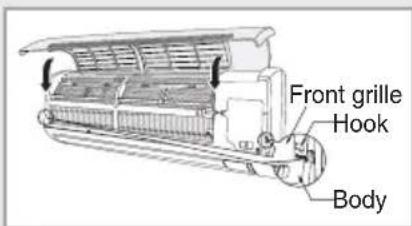

5 To close the front grille, fix it to hooks and push down the lower right and left tabs of the grille.
6 Clean the front grille with a damp cloth and mild detergent (do NOT use benzene, solvents or other chemicals).

Note

If you have not used the air conditioner for a long period of time, set the fan going for three to four hours to dry the inside of the air conditioner thoroughly.

Diagram of an air conditioner unit showing airflow direction (no text or labels)

Front grille Air filter Body groove Body

Front grille Hook Body

Cleaning Deodorizing and Bio filter (Option)

To remove minute dust particles and odors, deodorizing and Bio filter are installed in the air conditioner. You should clean the filters every 3 months.

1 Open the upper front grille by pulling the lower right and left tabs of the grille.
2 Pull out the deodorizing and Bio filter.
3 Wash the filters with clean water, then dry them in the shade.
4 Insert the filters into the original position.

Note

You can change the position of filters with each other.

5 Close the front grille.

Deodorizing Filter Bio Filter

SAMSUNG ELEC

ELECTRONICS

Contact SAMSUNG WORLD WIDE

If you have any comments or questions regarding a Samsung products, contact the SAMSUNG customer care center.

Country	Customer Care Center	Web Site
BELGIUM 02 201 2418	www.samsung.com/be
CZECH REPUBLIC 844	000 844	www.samsung.com/cz
DENMARK 38 322 887	www.samsung.com/dk
FINLAND 09 693 79 554	www.samsung.com/fi
FRANCE 08 25 08 65 65	(0,15/min) www.samsung.com/fr
GERMANY 01805 - 1212	213 (0,12/min) www.samsung.de
HUNGARY 06 40 985 985	www.samsung.com/hu
ITALIA 199 153 153 www	samsung.com/it
LUXEMBURG 02 261 03	710 www.samsung.lu
NETHERLANDS	0900 20 200 88 (0.10/min)	www.samsung.com/nl
NORWAY 231 627 22 w	www.samsung.com/no
POLAND 0 801 801 881	www.samsung.com/pl
PORTUGAL	80 8 200 128	www.samsung.com/pt
SLOVAKIA	0850 123 989	www.samsung.com/sk
SPAIN 902 10 11 30	www.samsung.com/es
SWEDEN	08 585 367 87 www.samsung.com/se
U.K	0870 242 0303 www.samsung.com/uk
