USER MANUAL YP-K5JQB SAMSUNG

For Your Safety Read this manual carefully to ensure proper use of the player and to avoid any danger or physical damage.

WARNING

Failing to heed the player instructions may cause serious injury.

Product Use

Improper use can result in explosion, fire or electric shock.

Do not disassemble, repair or modify this player on your own.

Do not get the player wet or drop it in water.

If the player gets wet, do not switch it on. Contact a Service Center.

Do not place the player in damp, dusty or sooty areas, as it could result in fire or electric shock.

Do not leave the player in areas above 35^ C( 95^ F) (such as a sauna or inside a parked car).

During hot weather, the temperature inside a car may rise up to 80^ C( 176^ F).

To avoid your hearing damage

Avoid using your player at high volume levels, as it may result in permanent hearing damage. If you experience ringing in your ears while using the earphone, remove the earphone immediately and lower the volume.

To avoid a risk of traffic accident

Do not use the earphones while you are driving a bicycle, automobile or motorcycle.

It can cause a serious accident and furthermore, is prohibited by law in some areas.

Using the earphones while walking, in particular, on a crosswalk, can lead to a serious accident.

Take care not to tangle the earphone cable around your arms or neighboring objects while driving, working out or walking, as it could result in a car accident or other injuries.

CAUTION

Failure to follow all instructions lead to physical injuries or damage to the player.

Product Use

Management of Important Data

Be sure to back up important data.

Please be aware that we claim no responsibility for damage from data loss due to breakdown, repair or other causes.

Avoid malfunction

Do not cause excessive impact on the player by dropping it. Do not place heavy objects on top of the player.

Prevent any foreign particles or dust from entering into the player.

Avoid malfunction

Always use the accessories provided by or approved by Samsung.

Do not spray water on the player. Never clean the player with chemical substances such as benzene or thinner, as it may cause fire, electric shock or deteriorate the surface.

Do not place the player near magnetic objects, as it may cause a malfunction.

Contents

For Your Safety 2

Contents 4

Chapter 1. | Preparation

Product Features 6

Basic Information ......7

Components......7

Screen Display Information....9

Button Functions....10

Charging the battery 12

Basic Use....13

Chapter 2. Loading Your Desired File

Loading Your Desired File 16

Installing Samsung Media Studio .....16

Connecting to your PC....17

Adding Files/Folders in

Samsung Media Studio....18

Transferring Files to the Player with

Samsung Media Studio....20

Chapter 3. | Multimedia function

Listening to Music....22

Listening to Music 22

Creating a Playlist Using

Samsung Media Studio....26

To Play a Playlist....28

Using the Music Option Menu....29

Photo Viewing 31

Photo Viewing......31

Using the Photo Option Menu....32

Listening to FM Radio 33

Listening to FM Radio....33

Setting FM Presets 36

To Delete Presets......38

Setting FM Radio 39

Chapter 4. | Setting

Settings......40

Setting Alarm....40

Setting Display....42

Setting Time 44

Setting Language......46

Setting the System 47

Chapter 5. Troubleshooting

Troubleshooting......49

Chapter 6. Appendix

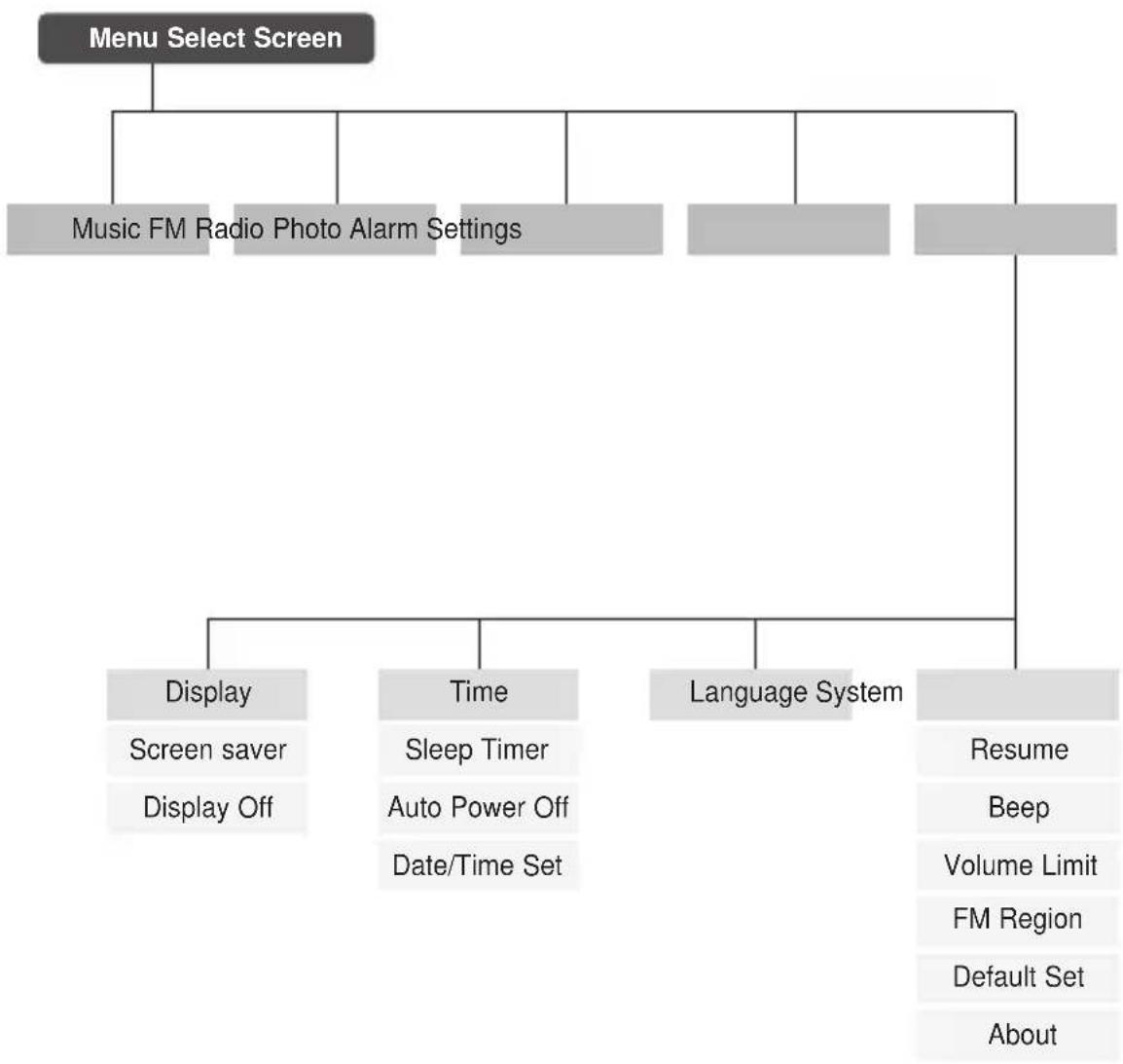

Menu Tree....51

Product Specifications....52

Product Features

High-quality Stereo Speaker!

■ Slide the speaker unit to reveal it, with which you can enjoy a dynamic music.
■ You can share your favorite music anytime and anywhere.

Longer Play Time and Shorter Downloading!

■ A fully charged battery can play up to 30 hours of music (when using the earphone).
■ The player supports USB 2.0 capability, much faster than USB 1.1 to enable faster communication with the PC.

Touchpad

■ You can tap on the touch pad to navigate through the menus.

Supporting Various File Formats!

■ Supports various file formats including MP3 and WMA.
■ The image file is converted to JPG format before transmitted to the player.

Easy & Simple Menu Structure

■ Easy to use with a simple menu structure.
■ You can set your own graphic display by taking advantage of the screen saver and user equalizer.

Convenience

■ You can take advantage of a variety of features including FM radio, alarming, photo view, etc.
■ You can add your favorite music files to the alarm melody list.

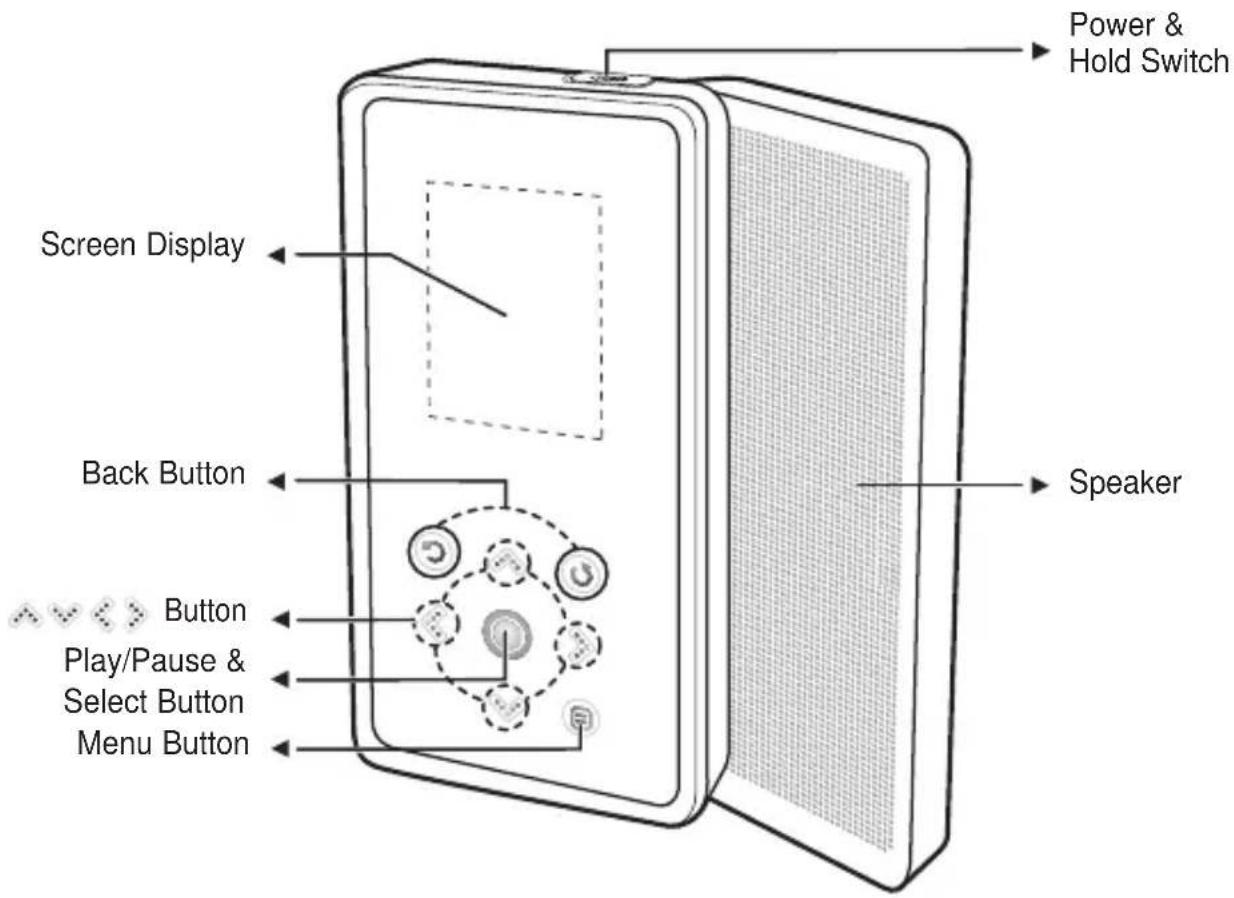

Front, Right Side and Top

All buttons are 'Light-touch' buttons.

Power & Hold Switch Screen Display Back Button Button Play/Pause & Select Button Menu Button Speaker

Basic Information

Components (Continued)

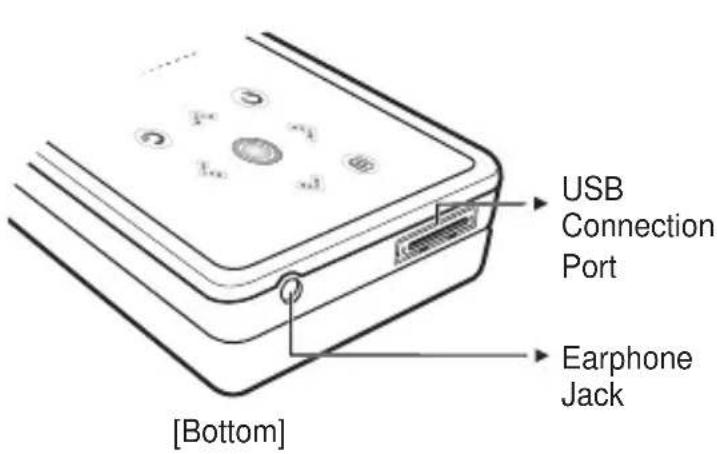

Bottom/Rear

USB Connection Port Earphone Jack [Bottom]

[Rear] Reset Hole 135m

Checking the Accessories

Player Earphones USB Cable

Line drawing of a medical or laboratory device with two test tubes and a coiled tube (no text or symbols)

Line drawing of a handheld electrical plug with coiled cable (no text or symbols)

Installation CD

■ Design of accessories is subject to change for the purpose of improvement, without notice.

Basic Information

Screen Display Information

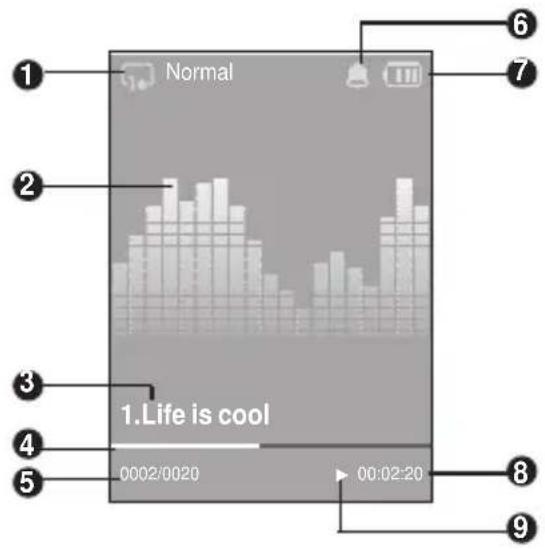

Music

1. Normal 2. 3. 4. 5. 1.Life is cool 00:02:020 00:02:20 6 7 8 9

1 Repeat Play Display
2 Equalizer
3 Music Information
4 Play Status Bar
5 Current Music Number/Total Number Display

6 Alarm Display
7 Battery Status Display
8 Play Time Indicator
9 Play/Pause Display

NOTE

■ The screen pictures are for illustration purposes only. The actual screen may differ.

Basic Information

Button Functions

Buttons Functions and Use
	■ Slide and hold the button in the opposite direction of the arrow to turn the power on/off.■ Slide and release it in the arrow direction to lock the buttons.
	■ Long tap to move to the main menu.■ Short tap to move to the previous screen.
	■ Moving up, down, left and right and Function Selection.◇◇Tap to move up or down by one selection.◇◇Tap to move left or right by one selection.◇◇Press and hold to move up or down continuously.◇◇Short tap to select the play/pause and function, move to the next screen.■ Search for a track and control volume while listening to music.◇Press and hold to scan to a point on the current track.Tap to move to the previous track or to play the current track from the start.◇Press and hold to scan to a point on the current track.Tap and release to move to the next track.◇◇Tap to reduce/increase the volume.
	■ Tap to display the option menu.

* Tap on touch screen with your fingertip.

Illustration showing a hand interacting with an open book and a hand holding a closed book, both marked with symbols and a red X symbol.

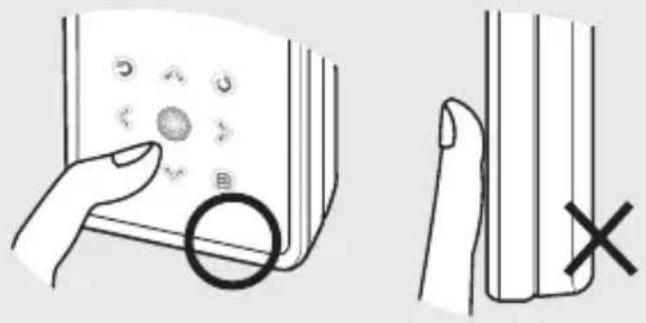

■ Do not use any sharp object other than your fingers to operate the touch screen.

Otherwise, touch screen may be damaged.

■ Do not tap on the touch screen if your fingers are not clean.

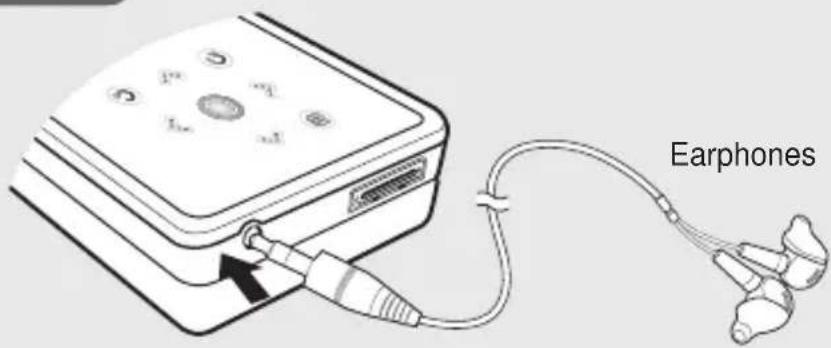

Earphone Connection

▶ Bottom

Earphones

Charging the battery

Fully charge the rechargeable battery before using the player for the first time or when it has not been used for a while.

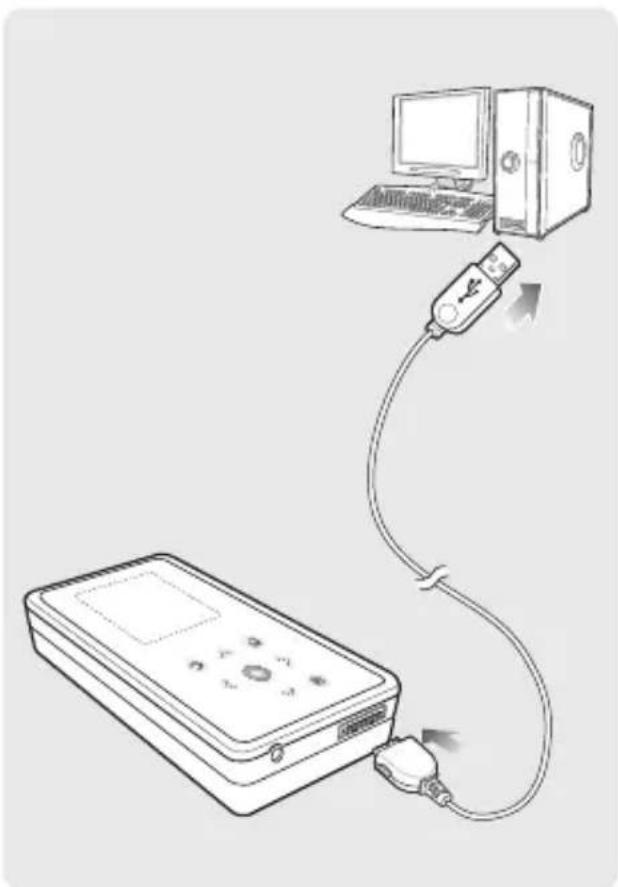

Diagram showing a device connected to a computer via cable, with no visible text or symbols

1 Connect the USB cable to the USB port (ψ) on your PC.

2 Connect the other end of the USB cable to the USB Connection Port on the bottom of the player.

■ When connected with the USB cable, it takes about 4 hours for the player to fully charge although this may vary depending on your PC environment.

Battery Use

■ Recharge and store within the temperature range of 5°C\~35°C(40°F\~95°F).
- Do not overcharge (longer than 12 hours). Excessive charging or discharging may shorten the battery's life.
■ Battery life naturally shortens slowly over time.

NOTE

If you are charging the player while it is connected to your Notebook, make sure the Notebook's battery is also fully charged.

Basic Use

Turning the Power On & Off

Music ......

Turning the Power On

Slide and hold the [HOLD ▶] switch in the opposite direction of the arrow.

■ Power is turned on.

Turning the Power Off

Slide and hold the [HOLD ▶] switch in the opposite direction of the arrow again.

■ Power is turned off.

NOTE

■ Power is automatically turned off when none of the buttons have been tapped for a preset period of time (Default: 1 minute) in the pause mode. ▶ Page 44

Playing Music

Normal 1.Life is cool 0002/0020 00:02:20

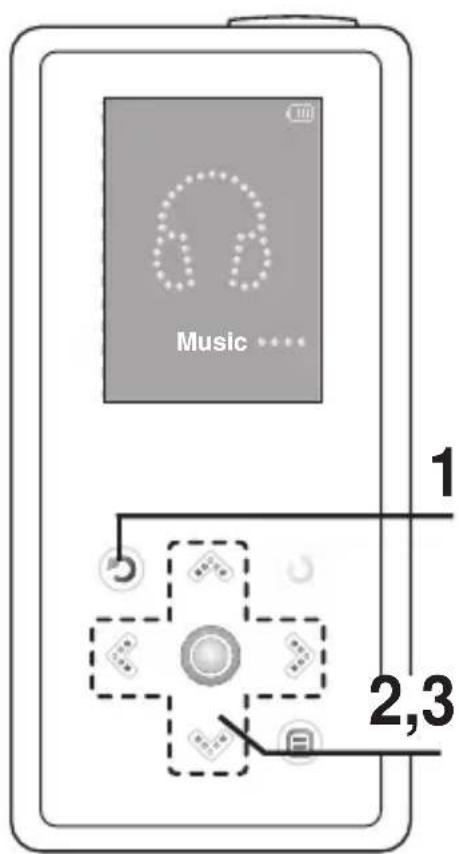

1 Press and hold [] to move to the main menu.

2 Tap [ ] to select and then tap [ ].

■ The Music Menu will appear.

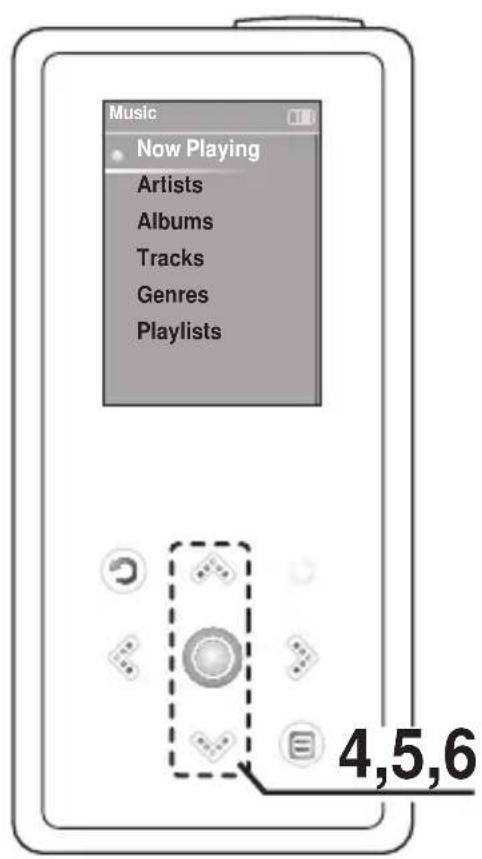

3 Use [ ] and [ ] to select a music file of your choice.

4 Tap [ ].

■ The music file will begin playing.

NOTE

■ Tap [ ] to move to the previous screen.

■ Press and hold [ ] to move to the main menu screen.

Basic Use (Continued)

Volume Control

Normal 1.Life is cool 00/02/2020 ▶ 00:02:20

Tap [ ]

■ You will see a volume control icon.
■ Tap [△] to increase the volume or [▽] to decrease it.

Lock Function

Normal 1.Life is cool 0002/0020 ▶ 00:02:20

In Hold mode, all buttons are disabled. This function is useful when you are walking or jogging.

1 Slide the [HOLD ▶] switch in the direction of the arrow.
2 Slide the [HOLD ▶] switch in the opposite direction of the arrow to release the Lock function.

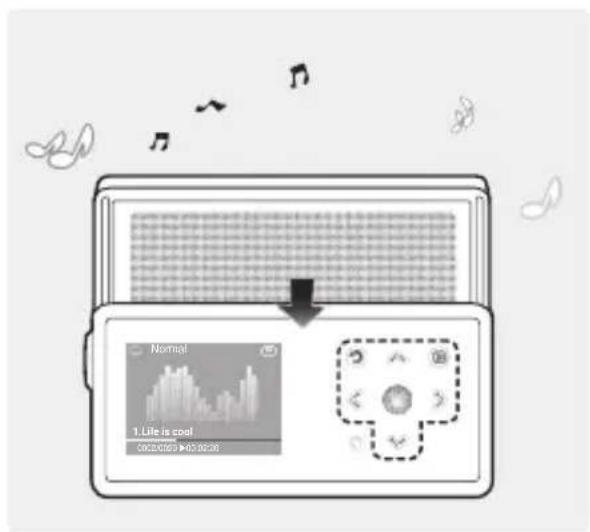

Using the Speaker

Nomal 1.Life is cool 00:00:00 > 00:00:00

Slide the middle of the player in the arrow direction while listening to music or the radio.

■ You can listen to music through the speaker.
■ If you want to use the earphone for enjoying the music, close the speaker by sliding back to the original position.
■ Please position the player horizontally when using the speaker.
■ If you close the slide panel, the speaker will shut off.

Reset Function

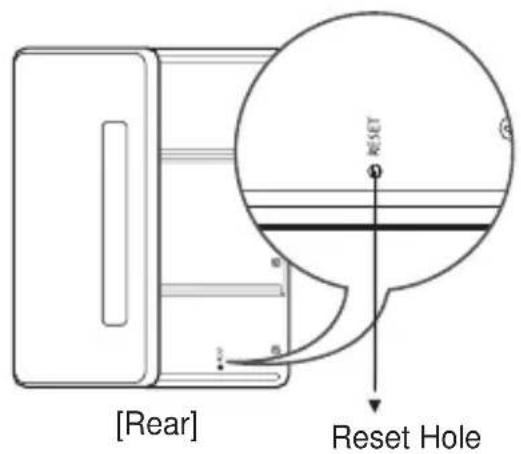

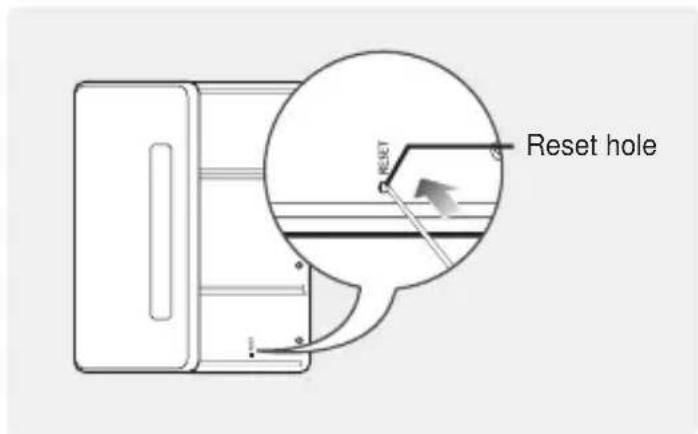

Reset hole

If a player malfunction occurs, you can re-initialize the system by pressing the Reset hole.

Press the Reset hole at the rear of the player with a pointed object such as a safety clip.

■ The system will be initialized.
■ Your settings and files will not be affected.

Loading Your Desired File

Installing Samsung Media Studio

Use Media Studio to transfer music files from your PC to the player.

If Media Studio is not installed automatically

CAUTION

■ Install the program on PCs running Windows 2000 or Windows XP after logging on with the Administrator account. Please refer to the PC user manual on how to log on with the Administrator account.

Before you start!

Insert the installation CD provided with the player into the CD-ROM drive.

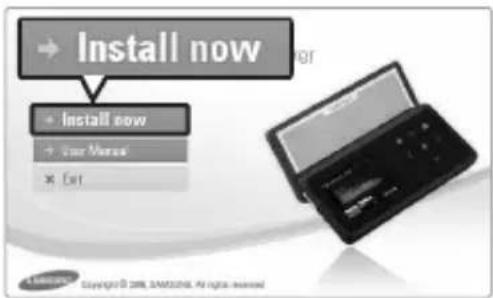

Install now Install now User Manual Exit

1 Click .

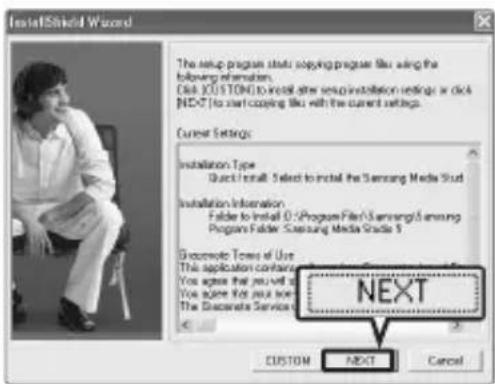

InstallShield Wizard The setup program starts copying program file using the following information. Click CUSTOMS to install other setup/installation settings or click [NEXT] to start copying file with the current settings. Current Settings: Installation Type Quick Text Select to install the Samsung Media Stud Installation Information Folder to install O:\Program Files\Samsung\Samsung Program Folder\ Samsung Media Studio 9 Greenwrite Terms of Use This application contains You agree that you will be You agree for your use The Greenwrite Service NEXT CUSTOM NEXT Cancel

2 Click .

■ Media Studio installation starts.
■ An icon is created on the desktop after installation is complete and Media Studio starts.

Before you start!

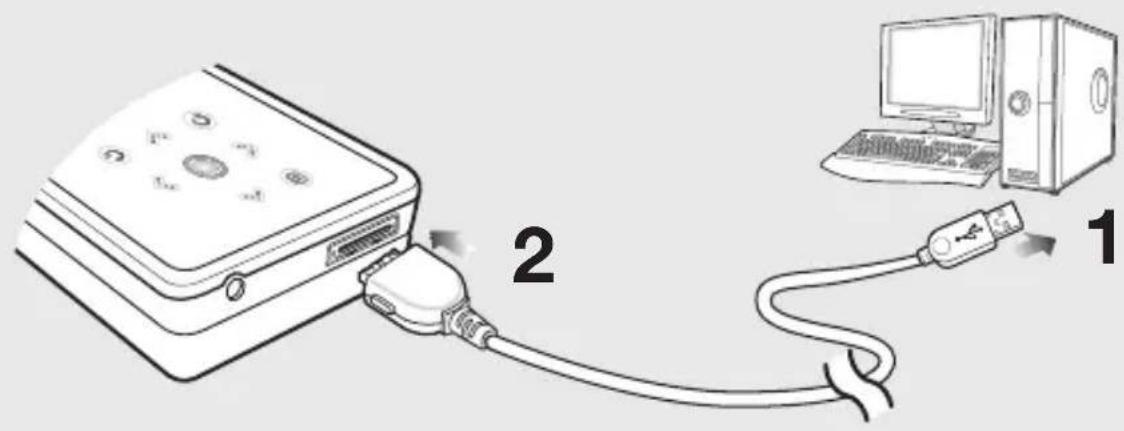

Use the USB Cable provided when connecting the player to your PC.

2 1

1 Connect the USB cable to the USB port ( ) on your PC.
2 Connect the other end of the USB cable to the USB Connection Port on the bottom of the player.

PC Requirements

The PC system must meet the following minimum specifications:

■ Pentium 300MHz or higher
■ Windows XP Service Pack 2 or higher
■ DirectX 9.0 or higher
USB Port 2.0
■ 100MB of free hard disc space
■ CD Rom Drive (2X or higher)
■ Windows Media Player 10.0 or higher
■ Resolution 1024 X 768 or higher

■ If you connect the player through a USB hub, the connection may be unstable. Please connect the player to your PC directly.

Loading Your Desired File

Adding Files/Folders in Samsung Media Studio

Media Studio enables you to select and organize files and folders in preparation for transfer to your player.

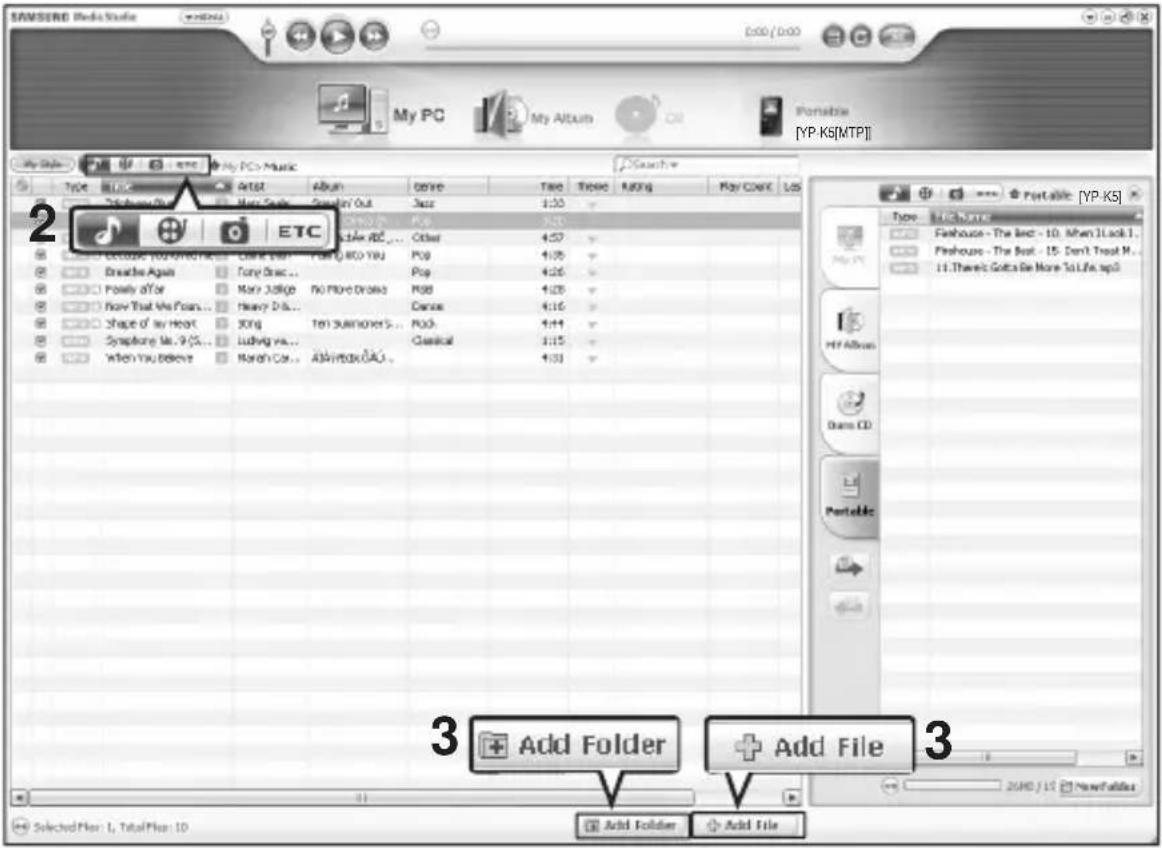

SANSERD Media Studio My PC My Album Portable [YP.KS[MTP]] My Style Type Music Artist Album Movie Time Time Rating Play Count List 2 3 Add Folder Add File 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 4:00 / 4:00 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100%

Please refer to Help for more information on how to use Media Studio.

- Click

→ → from the menu at the top of the Media Studio program.

Before you start!

■Connect the player to your PC.
■Media Studio must be installed on your PC.

1 Media Studio will automatically start when the player is connected to your PC.

■ If the program does not start automatically, double Click the Media Studio icon on the desktop.

2 Click the desired file icon.

• Choose the file type you want to transfer by clicking on one of these icons. 📂 represents a music file and represents a photo.
• Click ETC icon to display etc list. The ETC list includes other file types (ex: TXT, XOV, etc) than music, photo and video files.

To add folders

3 Click on the bottom of Media Studio.

■The Open Folder window will appear.

4 Select the folder to add and click .

■The selected folder is added to the list on the left side the Media Studio Screen.

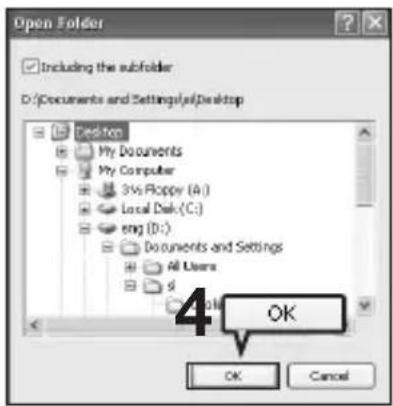

Open Folder Including the subfolder D:\Documents and Settings\a\Desktop Desktop My Documents My Computer 3V5 Floppy (A:) Local Disk(C:) eng (D:) Documents and Settings All Users s 4 OK OK Cancel

To add files

3 Click on the bottom of Media Studio.

■The Open window will appear.

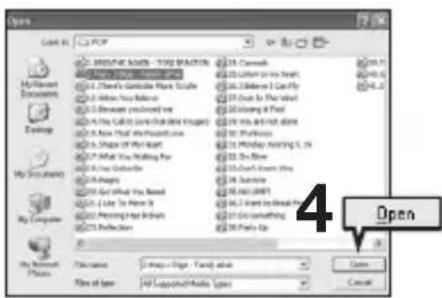

4 Select the files to add and click .

■The selected files are added to the list.

Open File List: PCDF My Documents Eddings My Documents My Computer My Network Files 4 Open

Loading Your Desired File

Transferring Files to the Player with Samsung Media Studio

Perform the following steps to transfer files from your PC to the player.

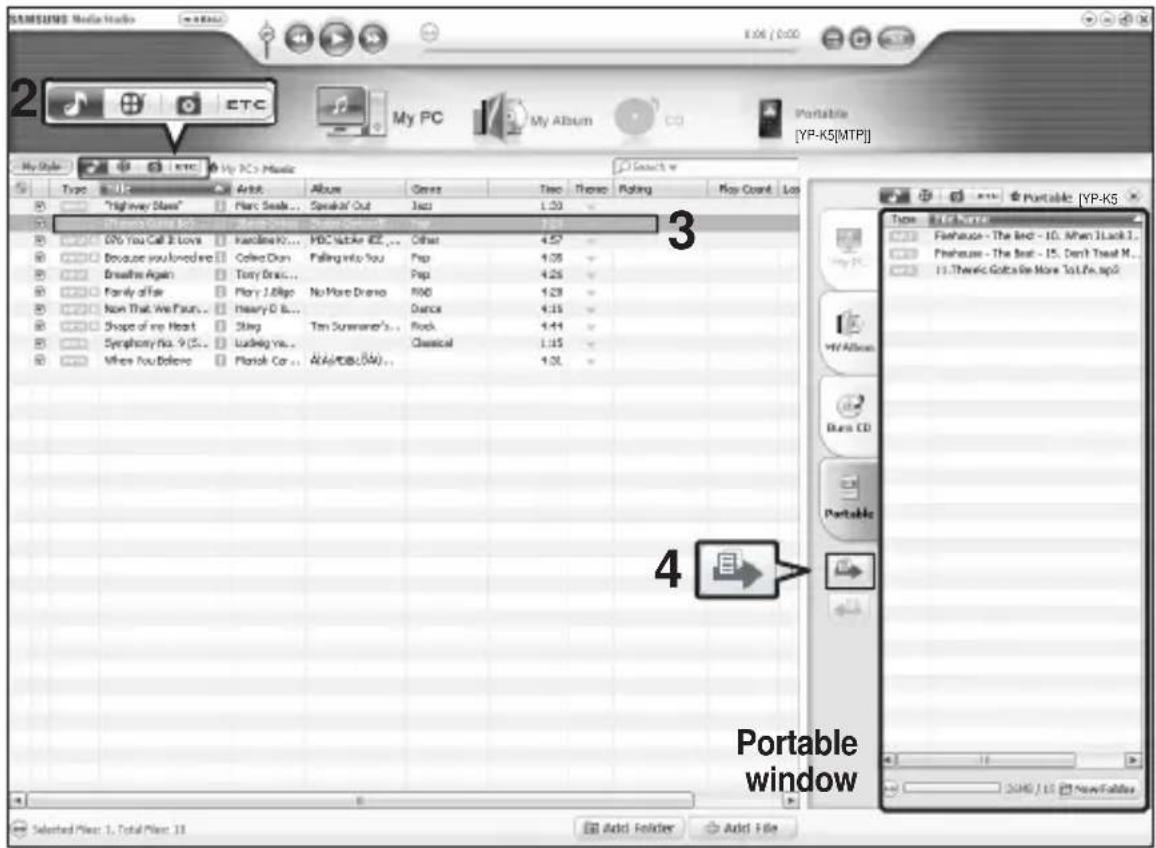

SAMSUNG Media Player 1:06 / 0:00 2 ETC My PC My Album Portable [YP-K5[MTP]] My Style Type 1 ETC My PC > Music Type 1 Top Name File Name - The Best - 10. When It Lack 1. File Name - The Best - 15. Don't Treat M... 13. These Gets More To Life as up? Main PC 4 Portable window Selected Place 1, Total Place 13 Add Folder Add File

NOTE

■ Music recognition technology and related data are provided by Gracenote and Gracenote CDDB® Music Recognition Service ^SM .
■ CDDB is a registered trademark of Gracenote. The Gracenote logo and logotype, the Gracenote CDDB logo and logotype, and the "Powered by Gracenote CDDB" logo are trademarks of Gracenote. Music Recognition Service and MRS are service marks of Gracenote.

Before you start!

■ Connect the player to your PC.
■ Media Studio must be installed on your PC.

1 Media Studio will automatically start when the player is connected to your PC.

■ If the program does not start automatically, double click the Media Studio icon on the desktop.

2 Click the desired file icon.

• Choose the file type you want to transfer by clicking on one of these icons. Represents a music file and represents a photo.
• Click ETC icon to display etc list. The ETC list includes other file types (ex: TXT, XOV, etc) than music, photo and video files.

3 Select the file to transfer in the left file list.

4 Click icon.

■ The Selected file is transferred to the player.

CAUTION

■ Do not disconnect the USB cable during file transfer. This may cause damage to the player or your PC.

NOTE

• When transferring a photo file to the player using , it is automatically converted into JPG format before transfer. The file size is automatically adjusted, too.
  ■ A photo file that is transferred to the player without using can look different from the source on the screen of the player.

Listening to Music

Listening to Music

Before you start!

Connect the earphones, then switch on the player, and check the battery.

Music 1 2,3

E.g. Playing by Artist

1 Press and hold [] to move to the main menu.

2 Tap [] to select and then tap [].

■ The Music Menu will appear.

3 Tap [ ] to select and then tap [ ].

Music Menu

■ : You can see information on the current song.
■ : To play by artist
■ : To play by album
■ : To play in numeric or alphabetical order
■ : To play by genre
■ : To play by Playlist

NOTE

■ The music files compatible with the player are MP3 and WMA.
■ MP1 or MP2 files which only have a changed extension to MP3, may not play on the player.
■ A file without an ID3 Tag is displayed as [Unknown].
■ Files with an ID3 tag will automatically be organized on the player by Artists, albums etc.
An ID3 tag is a hidden part of each music file and is used to categorize.

Music Now Playing Artists Albums Tracks Genres Playlists 4,5,6

4 Tap [] to select an artist, then tap [].

■ The albums for the artist will appear.

5 Tap [] to select an album, then tap [].

■ The music files for the selected album will appear.

6 Tap [] to select a music file to play, then tap [].

■ The music will start playing.

Listening to Music

Listening to Music (Continued)

To Pause

1 Tap [] while the music is playing.

■ The music playback will be paused.

2 Tap [] again.

■ The music will play from the point where it stopped.

NOTE

■ The screen Display window automatically turns off when none of the buttons have been tapped for a preset period of time (Default: 1 minute) in the pause mode.

You can set the time duration before closing the screen display. ▶page 44

To search within a track

1 Press and hold [] while the selected track is playing.

■ It searches to the beginning or the end of the track.

2 Release the button at the point you wish to start.

■ It starts playing from the point you release the button.

To Play from the beginning of the current track

Tap [ ] after 3 seconds of play.

■ The current track starts playing from the beginning.

To play the previous/next track

Tap [ ] within 3 seconds of play.

■ The previous track will start playing.
Tap [ ]:
■ The next track will start playing.

■ When playing VBR files, the previous track may not play even if you tap [ < ] within 3 seconds of play.

Listening to Music

Creating a Playlist Using Samsung Media Studio

A playlist is a list of your favorite songs.

SAMSUNG Media Studio My PC My Album 1 [YP-KS[MTP]] My Style 0 my albums Type Image Title File Count Length Rating Last Played 1 Three albums Exercise 0 8.80 2 Three Album Study 0 8.80 3 Three Album Driving 0 8.80 4 Three Album Party 0 8.80 5 Three Album Mediation 0 8.80 6 Auto Album Plot Favorite Tracks 3 Top 25 Played Tracks Create Ordinary Albums Album Title: New Album Type: Ordinary Albums OK 3 OK 36 Cancel New Album 2 Selected Files 1, All Files 2 Requires 3 TSPB Book CDs Named CD CD/Down Audio CD Type Sub

1 Click on the top of Media Studio.

■ The window appears.

2 Click on the bottom.

■ The Creation window appears.

3 Type in the album title and click .

■ A new album (playlist) will be created and stored in the My Album section of Media Studio.

Adding Music files to a Playlist

Screenshot of a software interface showing file management panels with numbered annotations and labeled icons.

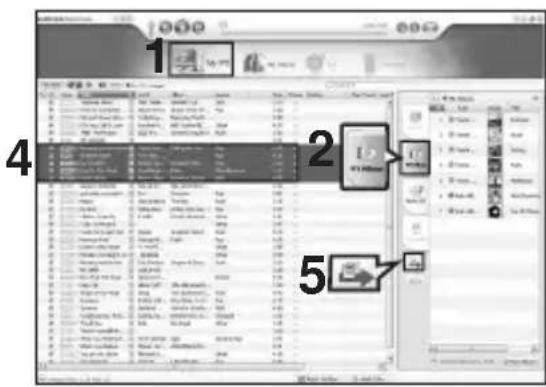

1 Click on the top of Media Studio.

■ The window appears. Click on to the right.

2 Click in the right corner of the window.

■ The Album window appears.

3 Double click on a desired album in the right window.

4 Select files that you want to transfer in the window.

5 Click icon.

■ The selected files will be added to the album (playlist).

Exporting a Playlist to your Player Using Media Studio

1 2 3 4

1 Click on the top of Media Studio.

■ The window appears.

2 Click in the right corner of the window.

■ The window appears.

3 Select a desired album in the list.

4 Click icon.

■ The selected album will be transferred to the player and stored in → .

Listening to Music

To Play a Playlist

Before you start!

For more information, see pages 26\~27 to see how to create and transfer playlists to your player.

Music Now Playing Artists Albums Tracks Genres • Playlists

1 Press and hold [] to move to the main menu.

2 Tap [] to select and then tap [].

■ The Music Menu will appear.

3 Tap [ ] to select and then tap [ ].

■ The Playlist(s) will appear.
■ If there is no playlist found, you will see a message of on the screen.

4 Tap [ ] to select the playlist of your choice, then tap [ ].

■ The music files saved in the selected Playlist will appear.

5 Tap [] to select a music file to play, then tap [].

■ The music file will start playing.

To select the sound effect

Different sound effects can be selected that enable you to enhance the music you are listening to.

Normal Sound Effect Graphic EQ Play Mode Add to Alarm

1 Tap [ ] while listening to music.

■ The music option menu appears.

2 Tap [] to select and then tap [].

■ The sound effect menu appears.

3 Tap [ ] to select the desired sound effect and then tap [ ].

■ You can select either <3D Sound> or .

To select the graphic EQ display

Normal Sound Effect Graphic EQ Play Mode Add to Alarm

1 Tap [ ] while listening to music.

■ The music option menu appears.

2 Tap [ ] to select and then tap [ ].

■ The graphic equalizer menu appears.

3 Tap [] to select or and then tap [].

- : The graphic equalizer will be displayed on the screen.

- : The graphic equalizer will not be displayed on the screen.

■ The EQ cannot be adjusted.

NOTE

Listening to Music

Using the Music Option Menu (Continued)

To select the play mode

Normal Sound Effect Graphic EQ Play Mode Add to Alarm

1 Tap [ ] while listening to music.

■ The music option menu appears.

2 Tap [] to select and then tap [].

■ The play mode menu appears.

3 Tap [ ] to select the desired mode and then tap [ ].

■ You can select either or .

■ : To play all the tracks in order one time.
■ : To repeat one file.
■ : To repeat all files.
■ : To play files at random.

To add to alarm sound

You can add your favorite music file to the alarm sound list, so it can be heard the next time the alarm goes off. See page 40 to set the alarm.

Normal Sound Effect Graphic EQ Play Mode • Add to Alarm

1 Tap [ ] while listening to music.

■ The music option menu appears.

2 Tap [ ] to select and then tap [ ].

3 Tap [] to select and then tap [].

■ The selected music will be added to the alarm sound list. You can add only one music file at a time to the alarm sound list.

Before you start!

See pages 20-21 to transfer Photo files to your player.

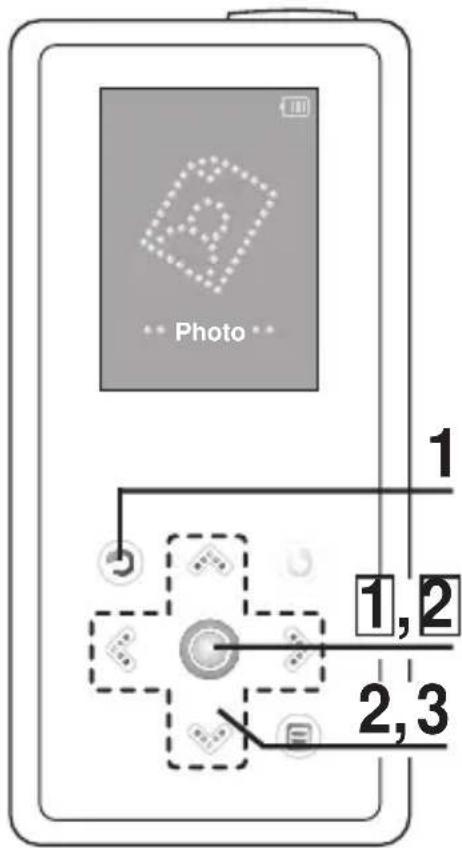

Photo 1 1,2 2,3

NOTE

■ You will see thumbnail photos if the appropriate information is included in the file. For a file with no information, you will see instead.

1 Press and hold [] to move to the main menu.

2 Tap [] to select and then tap [◎].

■ The Photo list will appear.

3 Tap [] to select the photo file of your choice, then tap [].

- The selected file will appear. - Large photos may take longer to display.

Slideshow Viewing

You can view you picture files in order as a Slide show.

1 Tap [ ] in Photo Viewing mode.

■ The slideshow will start.

2 Tap [] to stop the slideshow.

To view the previous / next photo

Tap [ ]

■ You can see the previous or next photo on the display.

Photo Viewing

Using the Photo Option Menu

To listen to music while viewing your photo

You can listen to the song that you last played while viewing your photo.

Background Mu Add to Screen S

1 Tap [ ] while viewing a photo.

■ The photo option menu appears.

2 Tap [] to select or .

• : You can listen to the song that you last played while viewing your photo.
  ■ : No background music is played while viewing a photo.

To add a photo to the screen saver list

Background Mu • Add to Screen S

1 Select a photo file that you want to add to the screen saver list.
2 Tap [ ] while viewing a photo.

■ The photo option menu appears.

3 Tap [] to select and then tap [◎].

■ The selected photo file is added to the list.

NOTE

■ Select from -> -> and the selected photo is displayed on the screen as a screen saver. ▶ page 43
■ If you reset the player, the screen saver will be initialized to .

Before you start!

Connect the earphones, then switch on the player, and check the battery.

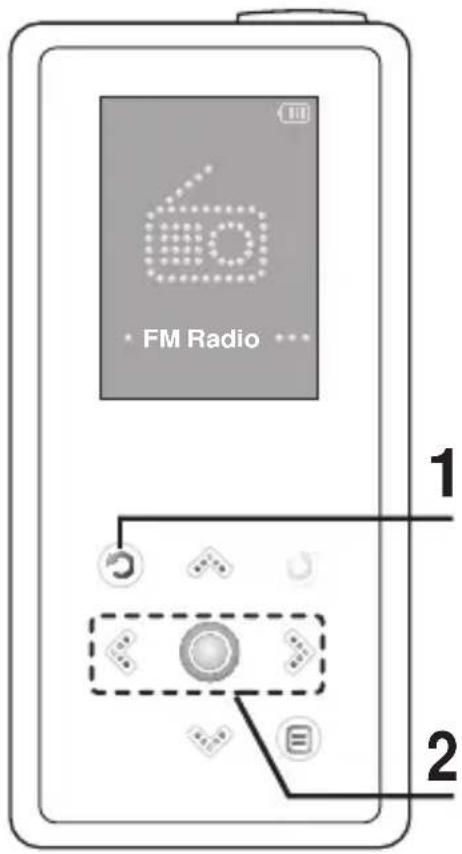

FM Radio 1 2

1 Press and hold [] to move to the main menu.

2 Tap [] to select and then tap [◎].

■ FM radio reception will start.

To use Mute function

Tap [] while listening to the FM radio.

■ Sound is muted.
■ Tap [] once again to hear sound.

CAUTION

■ Always connect your earphones to the player when searching or setting frequencies. The earphones are used as antennas to receive FM radio reception.

Listening to FM Radio

Listening to FM Radio (Continued)

To switch to Manual Tuning mode

Select this mode if you want to manually search through the FM band one frequency at a time.

Preset Mode Go to Manual M Delete Preset Auto Preset Preset List FM Sensitivity

1 Tap []in .

2 Tap [] to select and then tap [◎].

■ You will see on the screen.

To switch to Preset Mode

Select this mode if you want to search through your saved FM presets one preset at a time.

Manual Mode 91.1 MHz Go to Preset .. Add Preset Auto Preset FM Sensitivity

1 Tap [ ]in .

2 Tap [ ] to select and then tap [ ].

■ You will see on the screen.

3 Tap [ ◇ ▷ ] to select the preset frequency.

■ Once appears on the screen, you can select a radio frequency and listen to it.

NOTE

If no preset frequencies are set, you will see and the player will not switch to .
■ If you select (Preset List) on the FM option menu, you will see the preset frequencies.
■ For more information on the preset setup, refer to pages 36\~37.

To automatically search for frequencies

Manual Mode 91.1 MHz

Press and hold [ ◇ ▶ ] in .

■ The broadcast station frequency nearest from the point the button is released will be searched.

To manually search for frequencies

Manual Mode 91.1 MHz

Tap [ ◀ ] in .

■ Moves to next frequency whenever the button is tapped.

To automatically set Presets

Manual Mode 91.1 MHz Go to Preset .. Add Preset Auto Preset FM Sensitivity

1 Tap [ ] in FM Radio mode.
2 Tap [ ] to select and then tap [ ].

■ You will see the Auto Preset window on the screen.

3 Tap [ ] to select and then tap [ ].

■ Up to 30 presets are automatically saved.

To cancel during setting

Tap [ ] to cancel during auto scanning.

■ The auto preset setting is canceled and frequencies set up to then are stored.

NOTE

■ Using deletes all previous presets.

To manually set Presets

Manual Mode 91.1 MHz Go to Preset .. Add Preset Auto Preset FM Sensitivity

1 In , Tap [] to select the desired frequency.

2 Tap [ ]

3 Tap [] to select and then tap [].

■ The selected frequency will be added to the preset list. A maximum of 30 preset numbers are added to the list in sequential order.

4 To set a preset number for other frequencies, follow 1-3 steps above.

NOTE

If a frequency that you try to add already exists in the list, you will see and the selected frequency is not added to the preset list.

To search for presets in PRESET mode

Preset Mode 91.1 MHz

Tap [ ◇ ▷ ] in .

■ The preset number is selected and you can listen to the stored radio frequency.

NOTE

■ If you want to check the preset list in , Tap [☐] to select and Tap [☐].

Delete Preset 89.1MHz 89.2MHz 89.3MHz 89.4MHz

1 Tap []in .

2 Tap [] to select and then tap [].

■ The preset frequencies will appear.

3 Tap [] to select the preset frequency you want to delete and then tap [].

■ The confirmation window will appear.

4 Tap [] to select and then tap [].

■ The selected preset will be deleted.

5 To select and delete other preset numbers, follow 1-4 steps above.

Listening to FM Radio

Setting FM Radio

To set FM Sensitivity

Manual Mode 91.1 MHz Go to Preset .. Add Preset Auto Preset • FM Sensitivity

1 Tap [ ] in FM Radio mode.

2 Tap [] to select and then tap [].

■ The FM Sensitivity menu appears.

3 Tap [ ] to select the sensitivity and then tap [ ].

■ You can select from , and .
■ The higher FM sensitivity is, the more frequencies that can be received.

Settings

Setting Alarm

This player has an alarm which can be set to go off at a scheduled time.

Before you start!

First, you should set the clock for the current time. ▶ page 43

Alarm

New Alarm Set Once AM 12 00 Alarm Sound 2 Interval : 5 min

NOTE

■ You can set up to 6 alarm settings.

1 Press and hold [] to move to the main menu.
2 Tap [ ] to select and then tap [ ].
3 Tap [] to select and then tap [].

■ The Alarm Settings menu appears.

4 Tap [] to select a frequency and then tap [].

■ Select either , , , , , or .

5 Tap [ ] to select or and then tap [ ].
6 Tap [] to set the hour and then tap [].
7 Tap [ ] to set the minute and then tap [ ].
8 Tap [ ] to select an alarm sound and then tap [ ].
9 Tap [] to select an interval and then tap [].

■ The Confirmation window will appear.

10 Tap [ ] to select and then tap [ ].

■ The alarm setting is added to the alarm list.

To edit the alarm setting

Edit Alarm Once AM 12 00 Alarm Sound 2 Interval : 5 min

1 Press and hold [] to move to the main menu.
2 Tap [] to select and then tap [].
3 Tap [] to select the alarm setting to edit in the alarm list and then tap [].
4 Use the [] and [] to edit the setting.

To delete the alarm setting

1 Tap [] to select the alarm setting to delete in the alarm list and then tap []

■ The Delete window will appear.

2 Tap [ ].

■ The Confirmation window will appear.

3 Tap [] to select and then tap [].

■ The selected alarm setting will be deleted.

NOTE

■ The player will sound the alarm when it reaches the scheduled time. Then, tap [ ] and use the [ ] to select or . To end the alarm, press and hold [ ] button. You will return to the main menu.

CAUTION

■ If the USB cable is connected to the player, the alarm function does not work.

Settings

Setting Display

You can adjust the screen saver and the turn-off time for the screen display.

Settings Display Time Language System

1 Press and hold [] to move to the main menu.

2 Tap [ ] to select and then tap [ ].

■ The Settings menu appears.

3 Tap [ ] to select and then tap [ ].

■ The Display menu appears.

4 Use the [] and [] to set the desired functions.

NOTE

Button Operation

■ Tap [] to move up or down in the list.
■ Tap [] to select and confirm your settings.
■ Tap [] to return to the previous screen.

• : You can set an image to use as a screen saver.
  Select either , , , and and set the wait time. is a photo you designated as a screen saver in .
  ▶ page 32
  You can select from <15sec>, <30sec>, <1min>, <3min>, <5min>, and . If no button is tapped within the time set shown above, the player will display the screen saver image.
• : If no button is tapped within the time set shown below, the display screen will automatically turn off. Select either <15sec>, <30sec>, <1min>, <3min>, <5min>, and . With the display turned off, tap any button to turn back on the display and the buttons.

Screen Saver Setting

Screen Saver Photo 15 sec

1 Tap [] to select and then tap [].

■ The screen saver menu appears.

2 Tap [] to select the desired screen saver image and then tap []:

3 Tap [] to select a wait time and then tap [].

■ The Confirmation window will appear.

4 Tap [] to select and then tap [].

■ The screen saver setting is complete.

NOTE

If you set the to <15sec>, and then the to <15sec>.

The set screen saver will appear in 15 seconds if no button is tapped. With the screen saver open, the display will turn off in 15 seconds if no button is tapped.

Settings

Setting Time

You can not only set the current Date/time set but also Sleep Timer and Auto Power Off.

Settings Display • Time Language System

1 Press and hold [] to move to the main menu.

2 Tap [ ] to select and then tap [ ].

■ The Settings menu appears.

3 Tap [] to select and then tap [].

■ The Time menu appears.

4 Use the [] and [] to set the desired functions.

- : Turns off power automatically after the preset time. Select either , <15 min >, <30 min>, <60 min>, <90 min>, or <120 min>.

- : Automatically turns power off when there is no button operation after the preset time in the pause mode. Select either <15 sec>, <30 sec>, <1 min>, <3 min>, or <5 min>.

- : You can set the current date and time. ▶ Page 45

Date/Time Set

Date/Time Set Display Type YYMMDD MMDDYY DDMMYY

Date/Time Set YY MM DD 06 06 02 PM 06 35

1 Tap [] to select and then tap [].

■ The date format menu appears.

2 Tap [] to set the date format and then tap [].

3 Tap [ ] to move to and use the [ ] to set the date and time.

4 Tap [ ].

■ The confirmation window will appear.

5 Tap [] to select and then tap [].

■ The date/time setting will be saved.

Settings

Setting Language

You can set the language for the menu.

Settings Display Time Language System

1 Press and hold [] to move to the main menu.
2 Tap [] to select and then tap [].
■ The Settings menu appears.
3 Tap [ ] to select and then tap [ ].
4 Use the [] and [] to select the language for the menu.

■ Select from , < >, , , , <日本語, <>, 简, 繁體, 中Magyar>, , , , and .

NOTE

■ The supported languages can be changed or added.

Settings

Setting the System You can set various functions of the player.

Settings Display Time Language System

1 Press and hold [] to move to the main menu.
2 Tap [] to select and then tap [].

■ The Settings menu appears.

3 Tap [ ] to select and then tap [ ].

■ The System menu appears.

4 Use the [ ] and [ ] to set the desired functions

• : You can set the start point where the player resumes playback after you stop playing the music. Selecting will resume playback from the last stopped point while will resume playback from the beginning of the last played file.
• : Enables button sounds. Select either or .
• : You can avoid hearing damage by setting the limit of the volume when using the earphone. will limit the maximum volume level up to 20. The maximum volume level when Volume Limit is set to is 30.
• : You can select your regional area for FM radio. Select from , and .

NOTE

■ Frequency range by region

- Other Countries: Search for FM frequencies in 50 kHz increments between 87.50 MHz\~108.00 MHz.

- Korea/USA: Search for FM frequencies in 100 kHz increments between 87.5 MHz\~108.0 MHz.

- Japan: Search for FM frequencies in 100 kHz increments between 76.0 MHz\~108.0 MHz.

■ FM region can be deleted or changed according to the target region of the player.
■ If you change the FM region, the previously stored radio frequencies are deleted.

Settings

Setting the System (Continued)

■ : Returns all settings to the default value.
- : You can check the firmware version, memory capacity and track number.
.Firmware Version : Displays the current firmware version.
- Memory : Indicates the remaining memory capacity. indicates the usage, indicates the remaining capacity and indicates the total memory capacity.
- Files : indicates the number of music files, for the number of photos, and for the number of entire files.

Default Set

Settings Resume Beep Volume Limit FM Region Default Set About

1 Tap [] to select and then tap [].

■ The Confirmation window will appear.

2 Tap [] to select and then tap []

■ : Initializes all settings to default.
■ : Cancels default settings.

NOTE

■ If you reset the player, all functions you set are initialized to the default(factory) settings.
■ Regarding the Built-In Memory

The actual built-in memory available is slightly less than indicated as the internal firmware uses a portion of the memory.

Troubleshooting

If a malfunction is experienced, check the following. If the problem persists, contact 1-800-SAMSUNG for assistance.

Problem	Check points & Troubleshooting
Power will not turn on.	■ Power will not turn on if the batteries are fully discharged. Recharge the batteries and turn the power on again. ■ Press the Reset hole.
Buttons do not work.	■ Check if the [HOLD] switch is in the direction of the arrow position. ■ Check if you tapped the right button, then tap again. ▶ Page 11 ■ Press the Reset hole.
The screen will not turn on.	■ Ifis selected from→the LCD will be turned off. Tap any button to turn on the LCD or check the Display settings. ▶page 43 ■ The screen may not be visible under direct sunlight.
Power is turning off.	■ Check the battery status. ■ The power is automatically turned off when the battery is fully discharged. Recharge the battery.
Battery life differs from the Manual.	■ The battery time can vary, depending on the sound mode and display setting. ■ The battery life may be shortened when left for extended periods in low or high temperatures.
Program Malfunction	Please check if your PC requirements are met.
Connection to your PC is disabled.	Presson the toolbar of your PC to run Windows Update. Select Key Updates and Service Packs, then update all. Reboot your PC and reconnect.

Troubleshooting (Continued)

Problem	Check points & Troubleshooting
Playing is disabled.	Check if the available file has been saved in the memory.Check if the music file is damaged.Check if there is enough battery power.
File upload is disabled.	Check if the USB cable is securely connected.Reconnect if necessary.Check if the memory is full.Press the Reset hole.
Files or Data are Missing.	Check if the USB cable has been disconnected during file or data transmission. If this is the case, it may cause serious damage not only to files/data but also to the player. You have to be extra cautious as Samsung cannot be not held responsible for data loss.
Abnormal Play Time Display during Play.	Check if the file is in VBR (Variable Bit Rate) format.
The player is hot.	Heat may be generated during recharging. This has no effect on the player life or functions.

Menu Tree

You can quickly view the menu structure.

Product Specifications

Model Name		YP-K5
Power		3.7V (Li-Polymer Rechargeable)
Built-in Battery Power		830 mAh
File	Compatibility	Music : MPEG1/2/2.5 Layer3(8kbps~320kbps, 22kHz~48kHz)WMA(48kbps~192kbps,22kHz~48kHz)Image : JPEG(ISO/IEC 10918-1/Annex F-Sequential DCT-based mode of operation)
Earphone Output		20mW(16Ω)
Output Frequency Range		20Hz~20KHz
Noise Ratio		90 dB with 20kHz LPF(based on 1KHz 0 dB)
Play Time		Music 30 hrs (based on MP3 128kbps, volume level 15 and normal mode)
Temperature Range for Operation		-5~35°C (23~95°F)
Case		Magnesium, Stainless
Weight		3.74 oz (106g)
Dimension (WxHxD)		1.87 X 3.86 X 0.7 inches (47.5 X 98 X 18.1 mm)
FM Frequency		87.5~108.0MHz
FM Signal to Noise Ratio		50dB
FM T.H.D		1%
FM Useable Sensitivity		38dBμ
Speaker	Power Output	0.7W/Ch x 2Ch
	Impedance	8Ω
	Frequency Range	400 Hz ~ 20 KHz

● The contents of this Manual are subject to change without prior notice for further improvement.

License

The product player accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product player other than this product player and the license does not extend to any unlicensed product player or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product player. The license only covers the use of this product player to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.

— EUROPE ONLY —

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they

can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and

conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

Symbol of a trash bin crossing over a barrier, no text or numbers present

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Country Customer	Care Center Web Site
CANADA 1-800-SAMSUNG (7267864) www.samsung.ca
MEXICO 01-800-SAMSUNG (7267864) www.samsung.com/mx
U.S.A 1-800-SAMSUNG (7267864) www.samsung.com
ARGENTINE 0800-333-3733 www.samsung.com/ar
BRAZIL 0800-124-421 www.samsung.com/br
CHILE 800-726-7864(SAMSUNG) www.samsung.com/cl
COSTA RICA 0-800-507-7267 www.samsung.com/latin
ECUADOR	1-800-10-7267	www.samsung.com/latin
EL SALVADOR	800-6225	www.samsung.com/latin
GUATEMALA	1-800-299-0013	www.samsung.com/latin
JAMAICA	1-800-234-7267	www.samsung.com/latin
PANAMA 800-7267 www.samsung.com/latin
PUERTO RICO	1-800-682-3180	www.samsung.com/latin
REP. DOMINICA	1-800-751-2676	www.samsung.com/latin
TRINIDAD & TOBAGO	1-800-7267-864	www.samsung.com/latin
VENEZUELA	1-800-100-5303	www.samsung.com/latin
BELGIUM	02 201 2418	www.samsung.com/be
CZECH REPUBLIC 844 000 844 www.samsung.com/cz
DENMARK	38 322 887	www.samsung.com/dk
FINLAND	09 693 79 554	www.samsung.com/fi
FRANCE	08 25 08 65 65 (0,15/min)	www.samsung.fr
GERMANY	01805 - 121213 ( 0,12/Min)	www.samsung.de
Country Customer Care Center Web Site
HUNGARY 06 40 985 985 www.samsung.com/hu
ITALIA 199 153 153 www.samsung.com/it
LUXEMBURG 02 261 03 710 www.samsung.lu
NETHERLANDS 0900 20 200 88 www.samsung.com/nl
NORWAY 231 627 22 www.samsung.com/no
POLAND 0 801 801 881 www.samsung.com/pl
PORTUGAL 808 200 128 www.samsung.com/pt
SLOVAKIA 0850 123 989 www.samsung.com/sk
SPAIN	902 10 11 30	www.samsung.com/es
SWEDEN 08 585 367 87 www.samsung.com/se
U.K	0870 242 0303	www.samsung.co.uk
RUSSIA	8-800-200-0400	www.samsung.ru
UKRAINE	8-800-502-0000	www.samsung.com/ur
AUSTRALIA	1300 362 603 www.samsung.com/au
CHINA	800-810-5858 , 010- 6475 1880	www.samsung.com.cn
HONG KONG	2862 6001	www.samsung.com/hk
INDIA 3030 82821600 1100 11 www.samsung.com/in
INDONESIA 0800-112-8888 www.samsung.com/id
JAPAN	0120-327-527	www.samsung.com/jp
MALAYSIA 1800-88-9999 www.samsung.com/my
PHILIPPINES	1800-10-SAMSUNG (7267864)	www.samsung.com/ph
SINGAPORE	1800-SAMSUNG (7267864)	www.samsung.com/sg
THAILAND	1800-29-3232 / 02-689-3232	www.samsung.com/th
TAIWAN	0800-329-999	www.samsung.com/tw
VIETNAM	1 800 588 889 www.samsung.com/vn
SOUTH AFRICA	0860 7267864 (SAMSUNG)	www.samsung.com/za
U.A.E	800SAMSUNG (7267864)	www.samsung.com/mea

SAMSUNG

REV 0.0
