USER MANUAL HT-P70 SAMSUNG

THIS APPLIANCE IS MANUFACTURED BY:

SAMSUNG

ELECTRONICS

Instruction Manual

Safety Warnings Precautions

CAUTION FISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER, NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

This symbol indicates that dangerous voltage which can cause electric shock is present inside this unit. This symbol alerts you to important operating and maintenance instructions accompanying the unit.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT. FULLY INSERT.

Wiring the Main Power Supply Plug(UK Only)

IMPORTANT NOTICE

The main lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.

Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.

However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a main socket as there is a risk of shock hazard from the bared flexible cord.

Never attempt to insert bare wires directly into a main socket. A plug and fuse must be used at all times.

IMPORTANT

The wires in the main lead are coloured in accordance with the following code:

BLUE = NEUTRAL BROWN = LIVE

As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:

The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E OR BY THE EARTH SYMBOL = , OR COLOURED GREEN OR GREEN AND YELLOW.

10m 10m 10m

Simple line drawing of a toaster with steam rising and a crossed-out X mark (no text or symbols)

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3-inches). Make sure the ventilation slots are not covered. Do not slack anything on log of the player. Do not place the player on amplifiers or other equipment which may become hot. Before moving the player, ensure the disc tray is empty. The player is designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.

Simple line drawing of a device on a table with a lightning bolt and window, no text or symbols present

During thunderstorms, disconnect AC main plug from the wall cullet. Voltage peaks due to lightning could damage the unit.

Diagram showing a cross symbol crossed over a device, with no readable text or labels.

Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and malfunction of the unit.

Diagram showing crossed-out symbols and icons of plants, sun, a tire, and a box, likely illustrating safety or hazard levels.

Protect the player from moisture (i.e. vases), and excess heat (e.g. fireplace) or equipment creating strong magnetic or electric forces (i.e. speakers...). Disconnect the power cable from the AC supply if the player mullfunctions. Your player is not intended for industrial use. Use of this product is for personal use only.

Condensation may occur if your player or disc has been stored in cold temperatures.

It transporting the player during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

Diagram showing a battery with internal components and a cross symbol indicating a disconnection or recycling process.

The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.

Features

○ Multi-Disc Playback & FM Tuner

The HT-P70/HT-TP75 combines the convenience of multi-disc playback capability, including DVD AUDIO, DVD VIDEO, VCD, SACD, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD R/RW, with a sophisticated FM tuner, all in a single player.

DVD-Audio compatible

Experience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.

USB Host Play

You can enjoy the media files such as pictures, movies and tunes saved in an MP3 player, USB memory or digital camera in high visual and high audio quality of 5.1 channel home theater sound by connecting the storage device to the USB port of the home theater.

SACD Play

You can listen to the high quality original sound of multi-channels that produces sound exceeding the limit of human sense.

Dolby Pro Logic II

Dolby Pro Logic II is a new form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro Logic.

○ DTS (Digital Theater Systems)

DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency 5.1 channel sound.

○ TV Screen Saver Function

The HT-P70/HT-TP75 automatically brightens and darkens your TV screen after 3 minutes in the stop mode. The HT-P70/HT-TP75 automatically switches itself into the power saving mode after 20 minutes in the screen saver mode.

Power Saving Function

The HT-P70/HT-TP75 automatically shuts itself off after 20 minutes in the stop mode.

Customized TV Screen Display

The HT-P70/HT-TP75 allows you to select your favorite image during JPEG, DVD or VCD playback and set it as your background wallpaper.

HDMI

HDMI transmits DVD video signal simultaneously, and provides a clearer picture.

Contents

PREPARATION

Safety Warnings	1
Precautions	2
Features	3
Notes on Discs	5
Description	7

CONNECTIONS

Connecting the Speakers	11
Connecting the Video Out to TV	14
HDMI Function	15

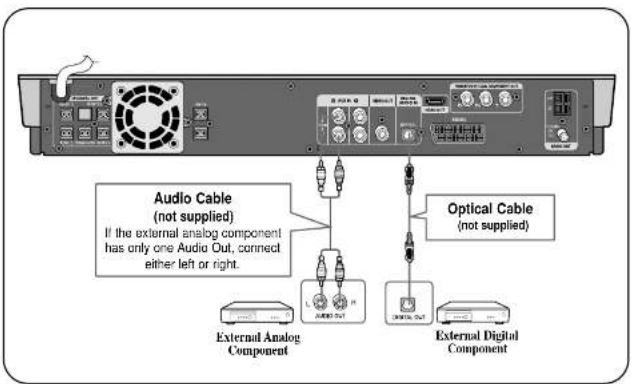

Connecting External Components	17

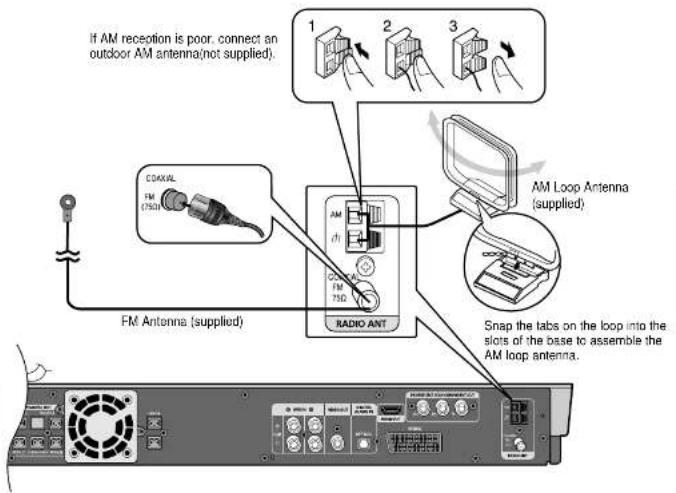

Connecting the FM and AM Antennas	18

OPERATION

Before Using Your Home Theater	19
Disc Playback	21
SACD (Super Audio CD) Playback	23
MP3-CD Playback	24
JPEG File Playback	25
DivX Playback	27
Playing Media Files using the USB HOST feature	29
Displaying Disc Information	31

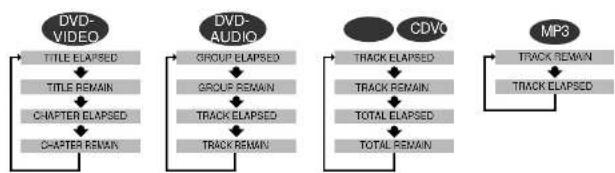

Checking the Remaining Time	31
Fast/Slow Playback	32
Skipping Scenes/Songs	32

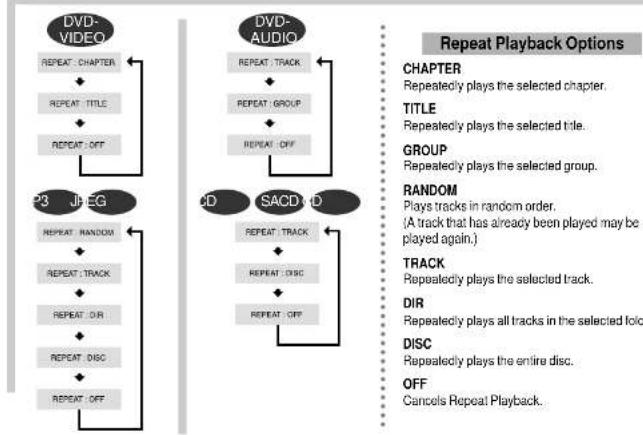

Repeat Playback	33

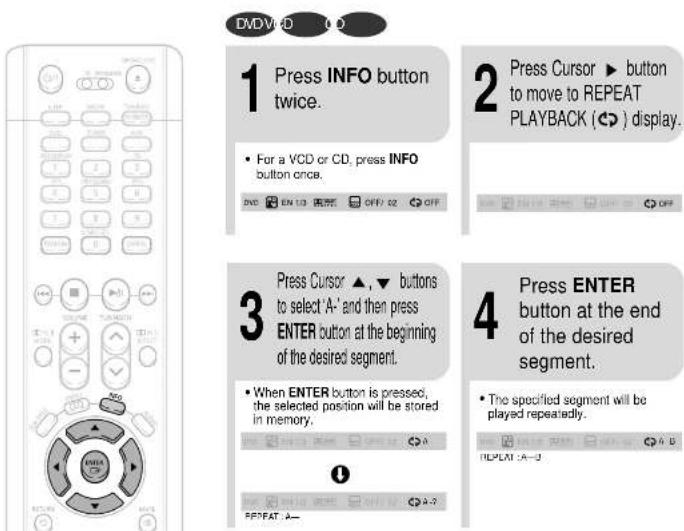

A B Repeat Playback	34
Step Function	35
Angle Function	35
Zoom (Screen Enlarge) Function	36
EZ VIEW Function	36
Bonus Group / Navigating Pages	37
Selecting Audio/Subtille Language	38
Moving Directly to a Scene/Song	39
Using Disc Menu	40
Using the Title Menu	40

SETUP

Setting the Language	41
Setting TV Screen type	43
Setting Parental Controls (Rating Level)	45
Setting the Password	46
Setting the Wallpaper	47

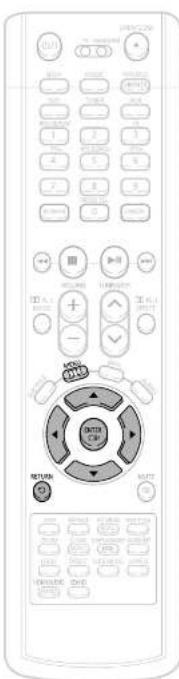

DVD Audio Disc Playback Mode	49
SACD Playback Mode	50
Setting the Speaker Mode	51
Setting the Test Tone	52
Setting the Delay Time	53
Setting the Audio Quality	55
Setting the DRC (Dynamic Range Compression)	57
AV SYNC Setup	59

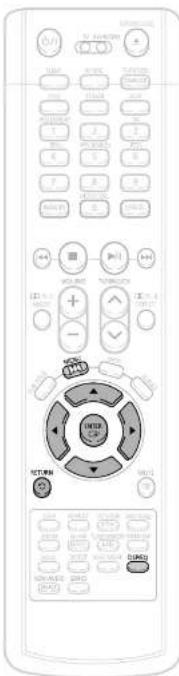

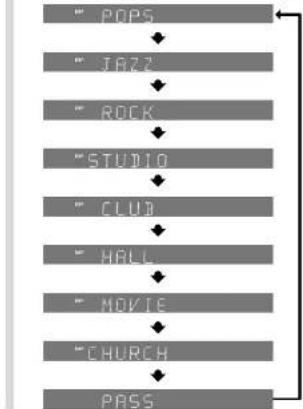

Sound Field (DSP)/EQ Function	60
Dolby Pro Logic II Mode	61
Dolby Pro Logic II Effect	62

RADIO OPERATION

Listening to Radio	63
Preselling Stations	64
About RDS broadcasting	65

MISCELLANEOUS

Convenient Functions	67
Operating a TV with the Remote Control	69
Before Calling for Service	71
Cautions on Handling and Storing Discs	73
Language Code List	74
USB Host Feature Supported Family	75
Specifications	77

Notes on Discs

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall.

DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is given on the rear panel of the player. (Your DVD player will only play DVDs that are labeled with identical region codes.)

playable Discs

Disc Type	Dis- Side (Mega) Play- Time Signals
DVD-AUDIO DVD-VIDEO	DVD	Audio + Video	12cm	Approx. 240 min. [single-sided]
				Approx. 480 min. [double-sided]
			8cm	Approx. 80 min. [single-sided]
				Approx. 100 min. [double-sided]
VIDEO-CD	VIDEO-CD	Audio + Video	12cm	74 min.
			8cm	20 min.
AUDIO-CD	AUDIO-CD	Audio	12cm	74 min.
			8cm	20 min.
DivX	DivX	MPEG4 MP3	12cm	74 min.
			8cm	20 min.
Super Audio CD	Super Audio	Audio	12cm	74 min.

Do not use the following types of disc!

• LD. CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.
  If such discs are played, a "WRONG DISC FORMAT" message appears on the TV screen.
  • DVD discs purchased abroad may not play on this player.
  If such discs are played, a "WRONG REGION CODE" message appears on the TV screen.

Copy Protection

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Disc Recording Format

CD-R Discs

• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc.
• Use a 650MB/74 minute CD-R disc. Do not use CD-R disk over 700MB/80 minute as much as possible since it may not be played back.
• Some CD-RW (Rewritable) media, may not be playable.
• Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.

CD-R MP3 Discs

• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
• MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Use discs recorded with a compression/decompression data rate greater than 128Kbps.
• Only files with the ".mp3" and ".MP3" extensions can be played.
• Only a consecutively written Multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment.
• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps - 320Kbps), the sound may skip during playback.
  • A maximum of 500 tracks can be played per CD
• A maximum of 300 folders can be played per CD.

CD-R JPEG Discs

• Only files with the ".jpeg" and ".JPEG" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (./=+).
• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.
• A maximum of 9,999 images can be stored on a single CD.
• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
• Picture discs other than Kodak'Fuji Picture CDs may take longer to start playing or may not play at all.

Description

—Front Panel—

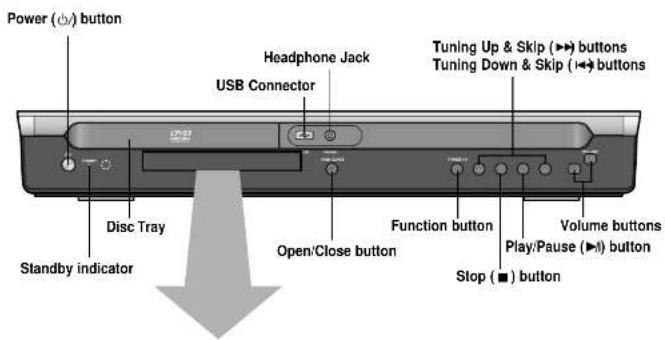

Power (○) button Headphone Jack USB Connector Tuning Up & Skip (→) buttons Tuning Down & Skip (←) buttons Disc Tray Open/Close button Function button Volume buttons Play/Pause (→) button Stop (■) button Standby indicator

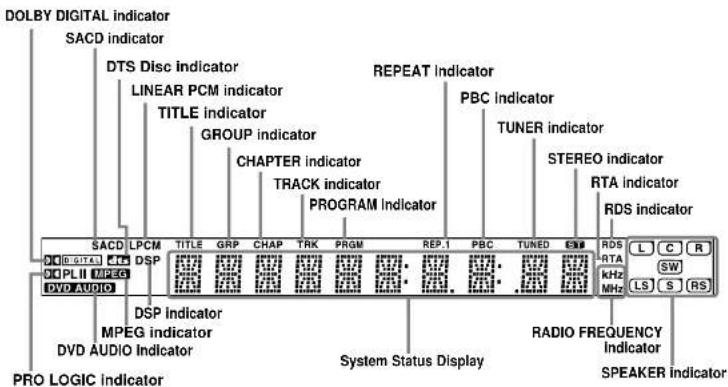

DOLBY DIGITAL indicator SACD indicator DTS Disc indicator LINEAR PCM indicator TITLE indicator GROUP indicator CHAPTER indicator TRACK indicator PROGRAM indicator REPEAT indicator PBC Indicator TUNER indicator STEREO indicator RTA Indicator RDS indicator SACD LPCM TITLE GRP CHAP TRK PRGM REP.1 PBC TUNED SM DIGITAL DSP PLII MPEG DVD AUDIO DSP Indicator MPEG Indicator DVD AUDIO Indicator System Status Display RDS RTA L C R kHz MHz LS S RS RADIO FREQUENCY Indicator SPEAKER indicator

—Rear Panel—

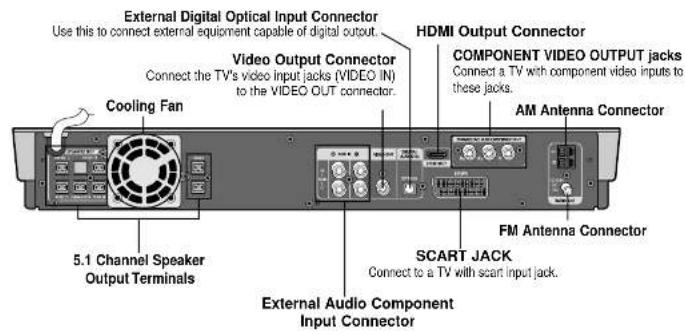

External Digital Optical Input Connector Use this to connect external equipment capable of digital output. Video Output Connector Connect the TV's video input jacks (VIDEO IN) to the VIDEO OUT connector. HDMI Output Connector COMPONENT VIDEO OUTPUT jacks Connect a TV with component video inputs to these jacks. AM Antenna Connector Cooling Fan 5.1 Channel Speaker Output Terminals FM Antenna Connector SCART JACK Connect to a TV with scart input jack. External Audio Component Input Connector

Accessories

Video Cable AM Antenna Remote Control FM Antenna User's Manual

Description

—Remote Control—

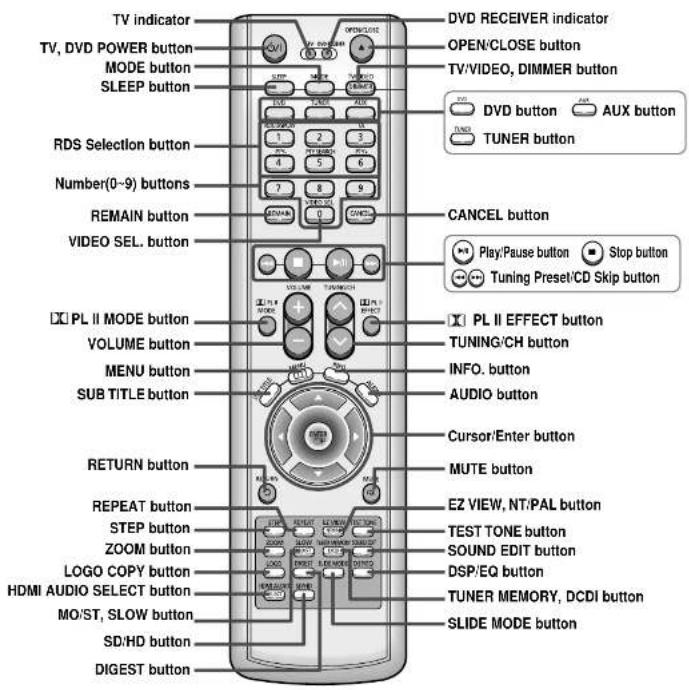

TV indicator TV, DVD POWER button MODE button SLEEP button RDS Selection button Number(0~9) buttons REMAIN button VIDEO SEL. button PL II MODE button VOLUME button MENU button SUB TITLE button RETURN button REPEAT button STEP button ZOOM button LOGO COPY button HDMI AUDIO SELECT button MO/ST, SLOW button SD/HD button DIGEST button DVD RECEIVER indicator OPEN/CLOSE button TV/VIDEO, DIMMER button DVD button AUX button TUNER button CANCEL button Play/Pause button Stop button Tuning Preset/CD Skip button PL II EFFECT button TUNING/CH button INFO. button AUDIO button Cursor/Enter button MUTE button EZ VIEW, NT/PAL button TEST TONE button SOUND EDIT button DSP/EQ button TUNER MEMORY, DCDI button SLIDE MODE button

Insert Remote Batteries

1

Remove the battery cover on the back of the remote by pressing down and sliding the cover in the direction of the arrow.

2

Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and -).

3

Replace the battery cover.

Caution

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity: (+) to (+) and (−) to (−).
• Use the correct type of batteries. Batteries that look similar may differ in voltage.
  • Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.

Range of Operation of the Remote Control

The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.

Diagram showing a remote control device with labeled ports and a pointer indicating orientation.

Connecting the Speakers

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

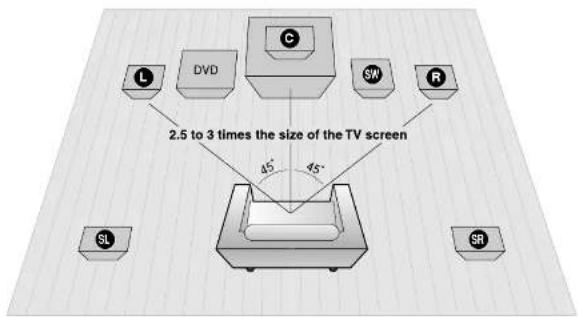

2.5 to 3 times the size of the TV screen 45° 45°

Position of the DVD Player

- Place it on a stand or cabinet shelf, or under the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the

TV. Example: For 32° TVs 2\~2.4m (6\~8feet) For 55° TVs 3.5\~4m (11\~13feet)

Front Speakers L R

• Place these speakers in front of your listening
  position, facing inwards [about 45°] toward you
• Place the speakers so that their tweeters will be at the same height as your ear.
• Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.

Center Speaker ©

• It is best to install it at the same height as the front speakers.

- You can also install it directly over or under the TV.

Rear Speakers \$L SR

• Place these speakers behind your listening position.
• If there isn't enough room, place these speakers so they face each other.
• Place them about 60 to 90cm (2 to 3leet) above your ear, facing slightly downward.
  ★ Unlike the front and center speakers, the rear speakers are used to handle mainly sound effects and sound will not come from them all the time.

Subwoofer SW

• The position of the subwoofer is not so critical. Place it anywhere you like.

HT-P70

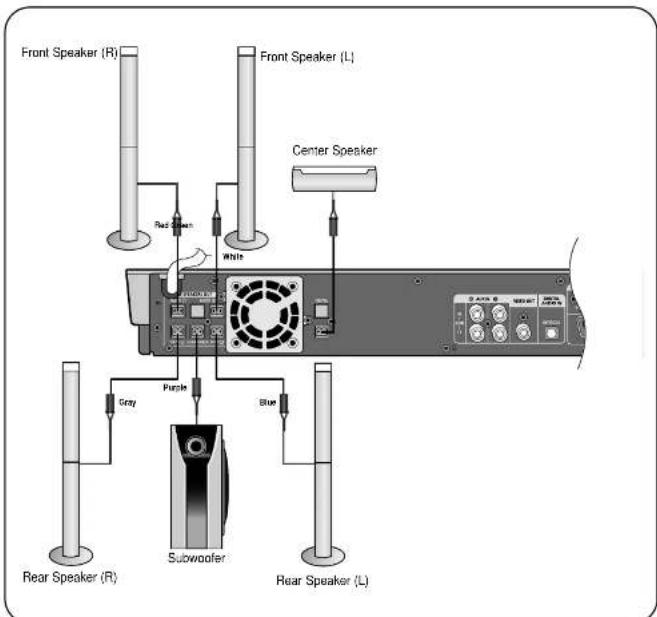

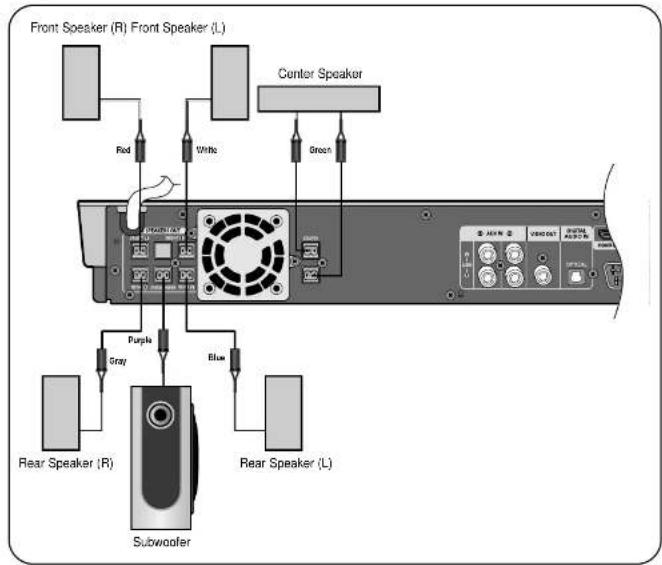

Front Speaker (R) Front Speaker (L) Red White Center Speaker Green Purple Gray Blue Rear Speaker (R) Subwoofer Rear Speaker (L)

Back of the Speakers Back of the Main U

1 Press down the terminal tab on the back of the speaker.

2 Insert the black wire into the black terminal (-) and the gray wire into the gray (+) terminal, and then release the tab.

if

3 Connect the connecting plugs to the back of the DVD player. • Make sure the colors of the speaker terminals match the colors of the connecting plugs.

HT-TP75

Front Speaker (R) Front Speaker (L) Center Speaker Red White Grey Purple Blue Rear Speaker (R) Subwoofer Rear Speaker (L)

Back of the Speakers Back of the Main U

1 Press down the terminal tab on the back of the speaker.

2 Insert the black wire into the black terminal (-) and the gray wire into the gray (+) terminal, and then release the tab.

3 Connect the connecting plugs to the back of the DVD player.

- Make sure the colors of the speaker terminals match the colors of the connecting plugs.

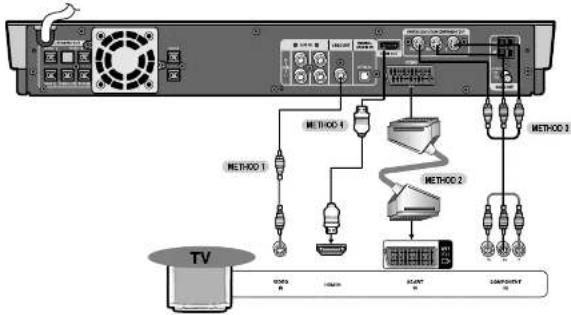

Connecting the Video Out to TV

Choose one of the four methods for connecting to a TV.

TV METHOO 1 METHOO 2 METHOO 3

METHOD 1 Composite Video ...... Good Quality

Connect the supplied video cable from the VIDEO OUT jack on the back panel of the system to the VIDEO IN jack on your television.

METHOD 2 Scart ...... Good Quality

If you television is equipped with an SCART input, connect an Scart Jack (not supplied) from the AV OUT jack on the back panel of the system to the SCART IN jack on your television.

VIDEO SELECT Function

Press and hold VIDEO SEL. button on the remote control for over 5 seconds.

- 'COMPOSITE' or 'RGB' will appear in the display.

At this time, press the VIDEO SEL. button shortly to select between "COMPOSITE" and "RGB".

- If Scart (RGB Input) is equipped for your TV, press VIDEO SEL. button to select RGB mode.

You can get a better picture quality by using Scart setting.

- If Scart (RGB Input) is not equipped for your TV, press VIDEO SEL button to select COMPOSITE mode.

METHOD 3 Component (Progressive Scan) Video...... Better Quality

If your television is equipped with Component Video inputs, connect a component video cable (not supplied) from the Pr, Pb and Y jacks on the back panel of the system to the corresponding jacks on your television.

METHOD 4 HDMI ...... Best Quality

Connect the HDMI out to the HDMI input on your TV.

- This product operates in Progressive scan mode(480p Only) for Component Output. - If the TV only supports a resolution of 576(480i), the screen may be divided into 2 screens, or display nothing.

HDMI Function

What is HDMI (High Definition Multimedia Interface)?

This device transmits DVD video signal digitally without the process of converting to analog. You can get sharper digital pictures by connecting the video to your TV using an HDMI connection cable.

HDMI Audio ON/OFF function

- The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.

Press the HDMI AUDIO SELECT button on the remote control.

• This toggles between 'AUDIO ON' and 'AUDIO OFF' on the display.
• AUDIO ON: Both video and audio signals are transmitted over the HDMI connection cable, and audio output is through the TV speakers only.
• AUDIO OFF : Video is transmitted over the HDMI connection cable only, and audio output is through the home theater speakers only.

Note

• The default setting value of this product is HDMI AUDIO OFF.
• HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.
- If you turn the unit off and on, or switch functions when the HDMI AUDIO is automatically set to OFF.

DCDi (Directional Correlational Deinterlacing) Function

Converts the interlace signal to progressive to prevent flickering and to remove distortion or noise on the edge of screen.

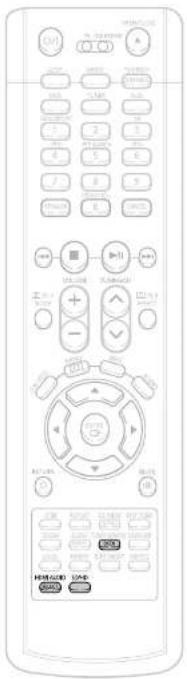

Press and hold DCDi button on the remote control for over 3 seconds.

• Each time the button is pressed, the selection alternates between DCDi ON and DCDi OFF.

ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF

Resolution Selection

- This function allows the user to select screen resolution for HDMI output.

In Stop mode, press and hold the SD/HD (Standard Definition/High Definition) button on the remote control.

- SD(Standard Definition) means resolution of 480p and HD (High Definition) means resolution of 720p/1060i.

Example: If the TV supports resolution up to 480p

Press the SD/HD button.

• A 480p video signal is output through the HDMI output.
• If the TV does not support the configured resolution, you will not be able to see the picture properly.

Note

• Since this product has an embedded Video Upscaler function with Faroudja DCDi technology, it can enhance a 576i(480i) DVD resolution output to 480p/720p/1080i.
• You do not have to make separate adjustments, since the Home Theater and TV will be automatically adjust themselves to the optimal resolution and aspect ratio if connected to HDMI. (If the TV is an HDTV and has an HDMI Input jack, output is automatically converted to 1080i resolution (if supported by the TV).)
• For component video output, only 480P is supported.
• When both HDMI and COMPONENT jacks are connected, COMPONENT video is not displayed.
  • See your TV owner's manual for more information on how to select the TV's Video Input source.

Connecting External Components

Connecting an External Digital, Analog Component

Example: Digital signal components such as a Settop Box or CD Recorder.

Analog signal components such as a VCR or TV.

Audio Cable (not supplied) If the external analog component has only one Audio Out, connect either left or right. External Analog Component Optical Cable (not supplied) External Digital Component

1 Connect the Digital Input (OPTICAL) to the Digital Output on the external digital component.
2 Connect Audio In on the Home Theater to Audio Out on the external analog component. - Be sure to match connector colors.
3 Press AUX on the remote control to select "DIGITAL IN, AUX 1 or AUX 2" input. • Each time the button is pressed, the selection changes as follows: USB → DIGITAL IN → AUX 1 → AUX 2 • You can also use the FUNCTION button on the main unit. The mode switches as follows: DVD/CD → DIGITAL IN → AUX 1 → AUX 2 → USB → FM → AM.

Connecting the FM and AM Antennas

If AM reception is poor, connect an outdoor AM antenna(not supplied). 1 2 3 COAKAL FM (750Ω) FM Antenna (supplied) AM Radio ANT AM Loop Antenna (supplied) Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna.

FM antenna connection AM antenna connection

1. Connect the FM antenna supplied to the FM 75Ω COAXIAL terminal.

2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.

3. Connect the AM loop antenna supplied to the AM and terminals.

4. Insert the black wire into the black terminal and the white wire into the white terminal.

5. If reception is poor, connect an outdoor single vinyl-covered wire to the AM terminal. (Keep the AM loop antenna connected).

Cooling Fan

The cooling fan supplies cool air to the unit to prevent overheating.

Please observe the following cautions for your safety.

• Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit could rise and may damage it.
- Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)

Before Using Your Home Theater

Your Home Theater is capable of playing DVD, CD, MP3, DivX and JPEG discs. Depending on the disc you are using, these instructions may vary slightly. Read the instructions carefully before using.

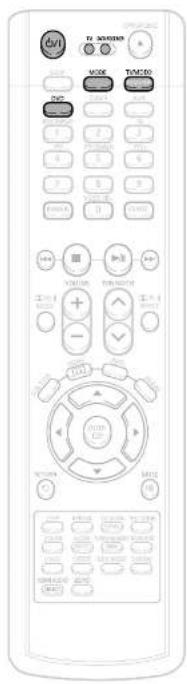

To Operate the TV and DVD Player with a Single Remote Control

TV 200000 TV 200000 MOSK TOMO DIP 1 2 3 4 5 6 7 8 9 10 + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

1 Plug the main unit's power cord into the AC power supply.

4 Press TV/VIDEO button to select VIDEO mode.

2 Press MODE button until the TV indicator lights red.

3 Press POWER button to turn on the main unit and then press DVD button to select "DVD/CD" function of the remote control.

5 Press the MODE button until the DVD RECEIVER indicator lights green.

6 Press FUNCTION button on the main unit or DVD on the remote to select DVD/CD mode.

Note • Buttons Enabled for TV Operation: POWER, CHANNEL, VOLUME, TV/VIDEO, and Numeric (0-9) buttons.

- By default, the remote control is set to work with Samsung TVs. See page 69 for more information on the operation of the remote control.

Disc Playback

1 Press OPEN/ CLOSE button to open the disc tray.

2 Load a disc.

- Place a disc gently into the tray with the disc's label facing up.

3 Press OPEN/ CLOSE button to close the disc tray.

- Playback starts automatically.

Note

- Depending on the content of the disc, the initial screen may appear different.

To stop playback, press STOP during playback.

• If pressed once, "PRESS PLAY" is displayed and the stop position will be stored in memory.
  If PLAY/PAUSE (▶) button or ENTER button is pressed, playback resumes from the stop position.
  (This function works only with DVDs.)
• If pressed twice, "STOI" is displayed, and if PLAY/PAUSE (▶) button is pressed, playback starts from the beginning.

To temporarily pause playback, press PLAY/PAUSE during playback.

• To resume playback, press PLAY/PAUSE (▶/II) button again.

Selecting the Video Format

Press and hold NT/PAL button on the remote controller for over 5 seconds while the power is turned off.
- By default, the video format is set to "PAL".
- "NTSC" or "PAL" will appear in the display.
At this time, press the NT/PAL button shortly to select between 'NTSC' and 'PAL'.
• Each country has a different video format standard.
- For normal playback, the video format of the disc must be the same as the video format of your TV.

Disc terminology

Groups and tracks (DVD-AUDIO)

- DVD-audio is divided into several large sections called "groups" and smaller sections called "tracks". Numbers are allotted to these sections. These numbers are called "group numbers" and "track numbers".

Titles and chapters (DVD-VIDEO)

- DVD-video is divided into several large sections called "titles" and smaller sections called "chapters". Numbers are allotted to these sections. These numbers are called "title numbers" and "chapter numbers".

TITLE 1 TITLE 2 CHAPTER 1 CHAPTER 2 CHAPTER 1 CHAPTER 3 ©

Tracks (SACD, Video and music CDs)

- Video and music CDs are divided into sections called "tracks". Numbers are allotted to these sections. These numbers are called "track numbers".

Files (DivX)

- DivX is divided into sections called "files". Numbers are allotted to these sections. These numbers are called "file numbers".

Note

• In this manual, the instructions marked with "DVD ( DVD )" are applicable to DVD-VIDEO, DVD-AUDIO, and DVD-R/RW discs.
  Where a particular DVD type is mentioned, it is indicated separately.
• Depending on the content of the disc, the initial screen may appear different.

SACD (Super Audio CD) Playback

You can listen to the high quality original sound of multi-channels that produces sound exceeding the limit of human sense.

1 Open the disk tray by using the OPEN/ CLOSE button and then insert SACD.

- SACD menu appears and the play begins.

2 When the play is stopped, select a track using the button and press the ENTER button.

- During the play, you cannot select a track using the ▲▼ button.

3 Press the STOP button to stop playback.

Disc Spec

Item CD SACD			DVD Audio
Number of Channels and Play Time	2 Channels:70 Minutes	2 Channels:110 Minutes5.1 Channels:81 Minutes	2 Channels:120 Minutes5.1 Channel:89 Minutes
Sampling Frequency	44.1 KHz	2822.4 KHz(64 Times of CD)	44.1~192 KHz(4.4 Times of CD)
	96 dB 120 dB 144	dBDynamic Range
	~20 KHz ~100 KHz	~96 KHz

Note

- SACD has three kinds of formats: Single Layer Disc that has 1 HD layer, Dual Layer Disc that has 2 HD layers and Hybrid Disc that has both CD and HD layers. Hybrid Discs can play in regular CD players.

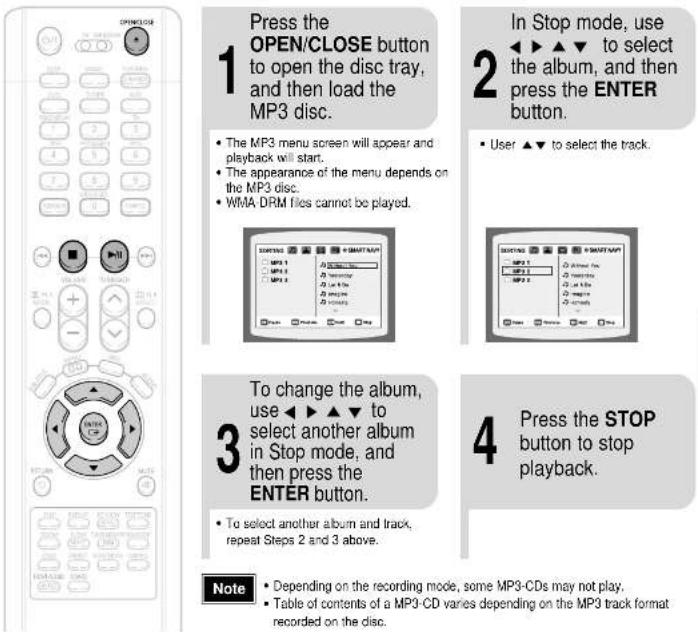

MP3-CD Playback

Data CDs (CD-ROM, CD-R, CD-RW) encoded in MP3 format can be played.

1 Press the OPEN/CLOSE button to open the disc tray, and then load the MP3 disc. • The MP3 menu screen will appear and playback will start. • The appearance of the menu depends on the MP3 disc. • WMA DRM files cannot be played. 2 In Stop mode, use ◀▶▲▼ to select the album, and then press the ENTER button. • User ▲▼ to select the track. 3 To change the album, use ◀▶▲▼ to select another album in Stop mode, and then press the ENTER button. • To select another album and track, repeat Steps 2 and 3 above. 4 Press the STOP button to stop playback. Note • Depending on the recording mode, some MP3-CDs may not play. • Table of contents of a MP3-CD varies depending on the MP3 track format recorded on the disc.

To play a file icon in the screen,

Press the ◀▶▲▼ button when it is in stop status and select a desired icon from the top part of the menu.

• To play music files only, select the 🎯 Icon.
• To view image files only, select the Icon.
• To view movie files only, select the 📄 icon.
• To select all files select the All Icon.

Music File Icon
• Image File Icon
• Movie File Icon
• AI File Icon

JPEG File Playback

Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this DVD player.

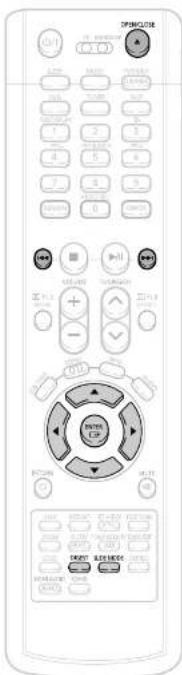

Slide Mode

1 Place the JPEG disc on the disc tray.

2 Press the OPEN/CLOSE button.

3 Press SLIDE MODE button.

• Playback starts automatically.
  • Each time the button is pressed, the image makes the transition as follows:

SLIDE SHOW MODE - 1 From top to bottom

OPRINICORE OFF OK Cancel Change Reset Reset Start Reset End Reset Close Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support

Press ◀◀◀▶▶ to skip to the next slide.

- Each time the button is pressed, the slide moves backward or forward.

Digest Function

You can view 9 JPEG images on the TV screen.

1 Press DIGEST button during playback.

- JPEG files will be shown in 9 windows.

2 Press Cursor ▲, ▼, ◀, ▶ buttons to select the desired image and then press ENTER button.

- The selected image is played for 5 seconds before moving to the next image.

→

To view the previous or next image with 9 windows, press◀◀▶▶.

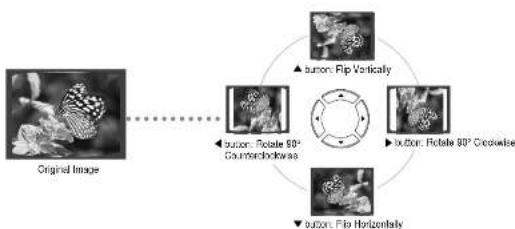

Rotate/Flip Function

Press Cursor ▲, ▼, ◀, ▶ buttons during playback.

JPEG limitation

The maximum resolution is 5120 x 3840 (or 19.0 MPixel) for baseline images, and 2048 x 1536 (3.0 MPixel) for progressive images.
There is no filesize limitation.
The decoder is device independent, thus above applies to USB and other devices as well.

Progressive JPEG images — those that appear gradually as the image is being downloaded.

DivX Playback

Skip Forward/Back

During playback, press the ◀◀▶▶ button.

• Goes to the next file whenever you press ▶▶ button, if there are over 2 files in the disk.
• Goes to the previous file whenever you press ◀◀ button, if there are over 2 files in the disk.

Fast playback

To play back the disc at a faster speed, press and hold ◀◀◀ or ▶▶▶ during playback.
- Each time you press and hold either button, the playback speed will change as follows: 2x → 4x → 8x → 32x → Normal.

5 Minute Skip function

During playback, press the ◀.► button.

• Playback skips 5 minutes forward whenever you press ▶ button.
• Playback skips 5 minutes back whenever you press ◀ button.
• Playback skips 5 minutes forward whenever you press ▶ button.
• Playback skips 5 minutes back whenever you press ◀ button.
• Playback skips 5 minutes forward whenever you press ▶ button.
• Playback skips 5 minutes back whenever you press ◀ button.
• Playback skips 5 minutes forward whenever you press ▶ button.
• Playback skips 5 minutes back whenever you press ◀ button.
• Playback skips 5 minutes forward whenever you press ▶ button.
• Playback skips 5 minutes back whenever you press ◀ button.
• Playback skips 5 minutes forward whenever you press ▶ button.
• Playback skips 5 minutes back whenever you press ◀ button.
• Playback skips 5 minutes forward whenever you press ▶ button.
• Playback skips 5 minutes back whenever you press ◀ button.

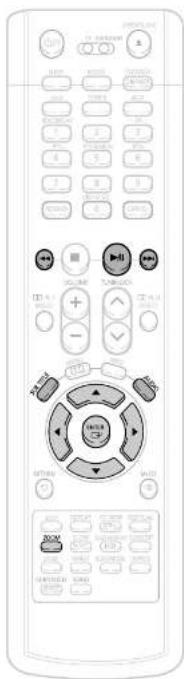

Zoom Function

1 Press ZOOM button.
• Each time you press the button, your selection will toggle between "ZOOM X2" and "ZOOM OFF".

Note

• DIVX file can be zoomed only in ZOOM X2 mode.
• Zoom function is not available when playing a MPEG1 video file.

2 Press Cursor ▲,▼: ◀,► buttons to move to the area you want to enlarge.

Front panel of a remote control with labeled buttons and function keys

Subtitle Display

Press the SUBTITLE button.

• Each time you press the button, your selection will toggle between "SUBTITLE ON" (1/1, 1/2 ...) and "SUBTITLE OFF".
- If the disc has only one subtitle file, it will be played automatically.

Audio Display

Press the AUDIO button.

• Each time you press the button, your selection will toggle between 'AUDIO ON' (1/1, 1/2 ...) and

DivX(Digital internet video eXpress)

DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality video and audio.

1. Supported Formats

This product only provides the following media formats. If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.

• Supported Video Formats

Format AVI WMV
Supported Versions DivX3.11 ~ 5.1 V1/V2/V3/V7

- Supported Audio Formats

Format	MP3	WMA	AC3	DTS
Bit Rate	80~384kbps	56~128kbps	128~384kbps	1.5Mbps
Sampling Frequency	44.1khz		44.1/48khz	44.1khz

• DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.
• Aspect Ratio: Although default DivX resolution is 540*480 pixels (4:3), this product supports up to 720*480 pixels (16:9). TV screen resolutions higher than 800 will not be supported.
• When you play a disc whose sampling frequency is higher than 48khz or 320kops, you may experience shaking on the screen during playback.

2. Caption Function

• You must have some experience with video extraction and editing in order to use this feature properly.
• To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX media file (*.avi) within the same folder.
  Example. Root
  Samsung_Bluetek_007CD1.avi
  Samsung Bluetek 007CD1.sm
• Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for the file name.

Playing Media Files using the USB HOST feature

You can enjoy the media files such as pictures, movies and tunes saved in an MP3 player. USB memory or digital camera in high visual and high audio quality of 5.1 channel home theater sound by connecting the storage device to the USB port of the home theater.

1

Connect the USB device to the USB port on the reside of the unit.

2

Press the FUNCTION button on the main unit or the AUX button on the remote control to select the USB mode.

• "USB" appears on the display screen and then disappear.
• USB SORTING screen appears on the TV screen and the saved file is played.

To stop playback, press the STOP (■) button.

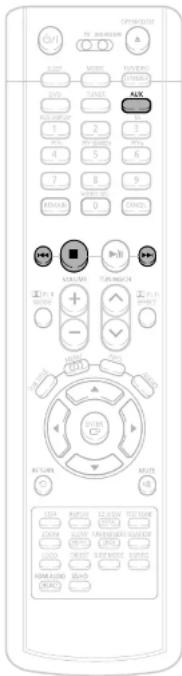

Safe USB Removal

To prevent damage to the memory stored in the USB device, perform safe removal before disconnecting the USB cable.

(1) Press the stop button twice in a row.
The display will show REMOVE → USB.
(2) When the main unit is powered off, or in a different function mode, remove the USB cable.

OPTICALS OFF: 100 MHz MODE: 250 MHz START: 0.1 MHz RESET: 0.01 MHz RESET: 0.001 MHz RESET: 0.0001 MHz RESET: 0.00001 MHz RESET: 0.000001 MHz RESET: 0.0000001 MHz RESET: 0.00000001 MHz RESET: 0.000000001 MHz RESET: 0.0000000001 MHz RESET: 0.00000000001 MHz RESET: 0.000000000001 MHz RESET: 0.0000000000001 MHz RESET: 0.0000000000001 MHz RESET: 0.0000000000001 MHz RESET: 0.0000000000001 MHz RESET: 0.0000000000001 MHz RESET: 0.875 MHz RESET: 3.625 MHz RESET: 4.375 MHz RESET: 5.125 MHz RESET: 5.875 MHz RESET: 6.575 MHz RESET: 7.375 MHz RESET: 8.125 MHz RESET: 8.875 MHz RESET: 9.575 MHz RESET: 1.25 MHz RESET: 1.875 MHz RESET: 2.575 MHz RESET: 3.375 MHz RESET: 4.125 MHz RESET: 4.875 MHz RESET: 5.575 MHz RESET: 6.375 MHz RESET: 7.125 MHz RESET: 7.875 MHz RESET: 8.575 MHz RESET: 9.375 MHz RESET: 1.125 MHz RESET: 1.625 MHz RESET: 2.375 MHz RESET: 3.125 MHz RESET: 3.875 MHz RESET: 4.575 MHz RESET: 5.375 MHz RESET: 6.125 MHz RESET: 6.875 MHz RESET: 7.575 MHz RESET: 8.375 MHz RESET: 9.125 MHz RESET: 9.875 MHz RESET: 1.425 MHz RESET: 1.925 MHz RESET: 2.625 MHz RESET: 3.375 MHz RESET: 4.125 MHz RESET: 4.875 MHz RESET: 5.575 MHz RESET: 6.257 MHz RESET: 6.925 MHz RESET: 7.675 MHz RESET: 8.375 MHz RESET: 9.125 MHz RESET: 9.875 MHz RESET: 1.125 MHz RESET: 1.625 MHz RESET: 2.375 MHz RESET: 3.125 MHz RESET: 3.875 MHz RESET: 4.575 MHz RESET: 5.375 MHz RESET: 6.125 MHz RESET: 6.875 MHz RESET: 7.475 MHz RESET: 8.125 MHz RESET: 8.875 MHz RESET: 9.475 MHz

Skip Forward/Back

During playback, press the ◀◀◀▶▶ button.

• When there is more than a file, when you press the ▶▶1 button, the next file is selected.
• When there is more than a file, when you press the ◀◀ button, the previous file is selected.

Fast playback

To play back the disc at a faster speed, press and hold ◀◀ or ▶▶ during playback.

• Each time you press and hold either button, the playback speed will change as follows: 2x 4x 8x 32x Normal .

Compatible Devices

1. USB devices that support USB Mass Storage v1.0.
   (USB devices that operate as a removable disk in Windows (2000 or later) without additional driver installation.)
2. MP3 Player: HDD and flash type MP3 player.
3. CBI (Control/Bulk/Interrupt) is not supported.
4. Digital camera: PTP protocol is not supported.
   • Devices which require additional program installation when you have connected it to a computer, are not supported.
5. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.
6. You may experience a difference in playback quality when you connect a USB1.1 device.
7. For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.
8. USB card Reader: One slot USB card reader and Multi slot USB card reader
9. Depending on the manufacturer, the USB card reader may not be supported.
10. If you install multiple memory devices into a multi card reader, you may experience problems.
11. If you use a USB extension cable, the USB device might not be recognized.

• Supported Formats

	File name	File extension Frequency	Bit rate Version	Pixel		Sampling
Still Picture	JPG	.JPG .JPEG	-	-	640*480	-
Music	MP3	.MP3	128~320kbps	-	-	32k/44.1k/48kHz
	WMA	.WMA	56~128kbps	V8	-	32k/44.1k/48kHz

• A device using NTFS file system is not supported.
(Only FAT file system is supported.)

- The USB host function of this product does not support all USB devices.

For the information on the supported devices, see page 75\~76.

Displaying Disc Information

You can view disc playback information on the TV screen.

Press INFO button.

• Each time the button is pressed, the display changes as follows:

0

1

The information display disappears from the screen

6

The information display disappears from the screen

↓

The information display disappears from the screen

appears on the TV screen!

If this symbol appears on the TV screen while buttons are being operated, that operation is not possible with the disc currently being played.

Note - Depending on the disc, the disc information display may appear different. - Depending on the disc, you can also select DTS, DOLBY DIGITAL, or PRO LOGIC.

Screen Display

DVD DVD display DivX DivX display

VCD VCD display DVD AUDIO DVD-AUDIO display

CD CD display TITLE display

MP3 MP3 CD display G GROUP display

CHAPTER display

TRACK | FILE | DISCH

ELAPSED TIME display

SAGD display

REPEAT PLAYBACK display

AUDIO LANGUAGE display

SUBTITLE display

LR STEREO LRI display

DOLEY DIGITAL DIGITAL

ANGLE display

Checking the Remaining Time

Press the REMAIN button.

- For checking the total and remaining time of a title or chapter being played.

Each time the REMAIN button is pressed

    F["DVD AUDIO"] --> G["GROUP ELAPSED"]
    G --> H["GROUP REMAIN"]
    H --> I["TRACK ELAPSED"]
    I --> J["TRACK REMAIN"]

    K["CDVO"] --> L["TRACK ELAPSED"]
    L --> M["TRACK REMAIN"]
    M --> N["TOTAL ELAPSED"]
    N --> O["TOTAL REMAIN"]

    P["MP3"] --> Q["TRACK REMAIN"]
    Q --> R["TRACK ELAPSED"]

31

Fast/Slow Playback

Fast Playback

Press and hold ◀◀◀▶▶

• Each time the button is held down during playback, the playback speed changes as follows:

Slow Playback

Press SLOW button

- Each time the button is pressed during playback, the playback speed changes as follows:

Skipping Scenes/Songs

Briefly press ◀◀◀▶▶

• Each time the button is pressed briefly during playback, the previous or next chapter, track, or directory (file) will be played.
• You cannot skip chapters consecutively.

DVD

合

中

VCD SACD

合

合

MP3

•
  (No text)

32

Repeat Playback

Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).

Press REPEAT button.

• Each time the button is pressed during playback, the repeat playback mode changes as follows:

Note

- Repeat playback operation is not possible with version 2.0 VCD discs if PBC is turned on. To use Repeat Playback on a VCD with PBC, you should set the PBC to OFF in the disc menu. (See page 40.)

To Select a Repeat Playback Mode in the Disc Information Screen

1 Press INFO button twice.
2 Press Cursor ▶ button to move to REPEAT PLAYBACK (CD) display.
3 Press Cursor ▼ button to select the desired Repeat Playback mode.
4 Press ENTER button.
* For MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.

DVD

VCD CD

A-B Repeat Playback

You can repetitively play back a designated section of a DVD.

DMDVCD 1 Press INFO button twice. 2 Press Cursor ▶ button to move to REPEAT PLAYBACK (⇨) display. 3 Press Cursor ▲,▼ buttons to select 'A-' and then press ENTER button at the beginning of the desired segment. 4 Press ENTER button at the end of the desired segment. • The specified segment will be played repeatedly. 1 2 3 4 REPEAT: A-0

To return to normal playback, press Cursor ▲▼ buttons to select ⬆ OFF.

Note

• The A-B Repeat function will not work on an SACD, MP3 or JPEG disc.

Step Function DVDWD

Press STEP button.

- The picture moves forward one frame each time the button is pressed during playback.

Note

• During fast playback of a SACD, CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds.
• No sound is heard during slow playback and step motion playback.

Angle Function DVD

This function allows you to view the same scene in different angles.

1 Press INFO button.

2 Press Cursor ▶ button to move to ANGLE (8) display.

3 Press Cursor ▲,▼ or numeric buttons to select the desired angle.

• Each time the button is pressed, the angle changes as follows:

Diagram showing three car frames with a legend and a top view of a tree, likely illustrating a parking or parking scenario.

Note

- The Angle function works only with discs on which multiple angles have been recorded.

Front panel of a remote control with labeled buttons and function keys

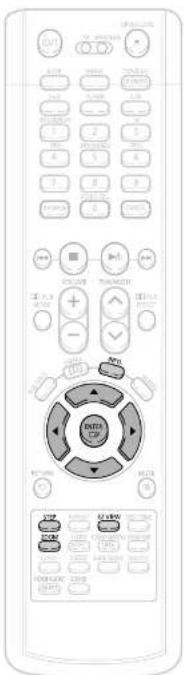

Zoom (Screen Enlarge) Function

This function allows you to enlarge a particular area of the displayed image.

1 Press ZOOM button.

2 Press Cursor ▲,▼,◀,▶ buttons to move to the area you want to enlarge.

Note

- When a DivX disc is being played, only the 2:1 zoom-in is available.

3 Press ENTER button.

• Each time the button is pressed, the zoom level changes as follows:

EZ VIEW Function DVD

Press EZ VIEW button.

• Each time the button is pressed, the zoom function will switch between On and Off.
- When a movie is played in Widescreen format, black bars at the top and bottom of the TV screen can be removed by pressing the EZ VIEW button

Two-panel image showing outdoor seating and an umbrella, no text or symbols visible

Note

• This function will not work if the DVD is recorded with multi-camera angle format.
• Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.
• This feature is not supported for DivX discs.

Bonus Group / Navigating Pages

Selecting Audio/Subtitle Language

GB

TANGO CHANGE TANGO

|| Bonus Group

Some DVD-Audio discs have an extra 'bonus' group that requires a 4-digit key number to access. See the disc packaging for details and the key number.

When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically.

Note

- If you eject the disc, switch the power off, or unplug the player, you will need to re-enter the key number.

Navigating Pages

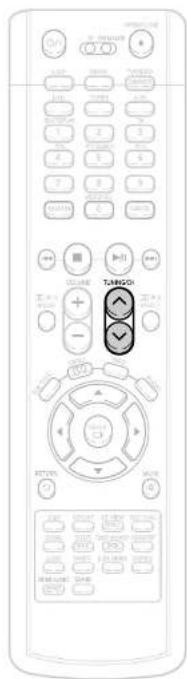

During playback, press the TUNING/CH button on the remote control.

- You can select the desired image from a DVD-Audio disc containing still images. - With some discs, you may not be able to select images depending on how the disc was manufactured.

Audio Language Selection Function DVD

1 Press INFO button twice.

2 Press Cursor ▲,▼ buttons or numeric buttons to select the desired audio language.

DVD EN 1/3 OFF/02 OFF

- Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed.

Note

- You can use the AUDIO button on the remote control to select a audio language.

Subtitle Language Selection Function DVD

1 Press INFO button twice.

2 Press Cursor ▶ button to move to SUBTITLE (☐) display.

• To operate this function, you can also press the Select AUDIO or Select SUBTITLE buttons on the remote control.
- You can use the SUBTITLE button on the remote control to select a subtitle language.
• Depending on the disc, the Subtitle and Audio Language functions may not work.

Moving Directly to a Scene/Song

DVD V D S A C D CD

1 Press INFO button.

01:25 00:00:00:37:11

Moving to a Title/Track

2 Press Cursor ▲,▼ buttons or numeric buttons to select the desired title/track and then press ENTER button.

2106

Moving to a Chapter

3 Press Cursor ▶ buttons to move to Chapter ( ✉ ) display.

0101 001740

Moving to a Chapter

4 Press Cursor ▼,▼ buttons or numeric buttons to select the desired chapter and then press ENTER button.

Moving to a Specific Time

5 Press Cursor◀,▶ buttons to move to time display.

10320

Moving to a Specific Time

6 Press the numeric buttons to select the desired time and then press ENTER button.

you think a code: 200

MP3 J EG

Press the numeric buttons.

• The selected file will be played.
• An MP3 or JPEG disc cannot be moved in the disc information screen.
• When playing an MP3 or JPEG disc, you cannot use ▲,▼ to move to a folder. To move a folder, press ■ (Stop) and then press ▲,▼.

Note

- You can press ◀◀◀◀ on the remote control to move directly to the desired title, chapter, or track. - Depending on the disc, you may not be able to move to the selected title or time.

Using Disc Menu

DVD

You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc.

1 In Stop mode, press MENU button.

- When playing a VCD (version 2.), this toggles between PBC ON and OFF.

2 Press Cursor ▲,▼ buttons to move to 'DISC MENU' and then press ENTER button.

- When you select the disc menu that is not supported by the disc, the *This menu is not supported* message appears on the screen.

3 Press Cursor ▲,▼ ◀,▶ buttons to select the desired item.

- Press ENTER button.

Note

- Disc menu display may be different depending on the disc. PBC (Playback Control) Function

When playing a VCD (version 2.0), you can select and view various scenes according to the menu screen.

PBC ON: This VCD disc is version 2.0. The disc is played back according to the menu screen. Some functions may be disabled. When some functions are disabled, select "PBC OFF" to enable them.

PBC OFF: This VCD disc is version 1.1. The disc is played back in the same way as with a music CD.

Using the Title Menu

DVD

For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this feature may vary.

1 In Stop mode, press MENU button.

2 Press Cursor ▲,▼ button to move to 'Title Menu'.

3 Press ENTER button.

• The title menu appears.

Press MENU button to exit the setup screen.

Note

• Title menu display may be different depending on the disc.

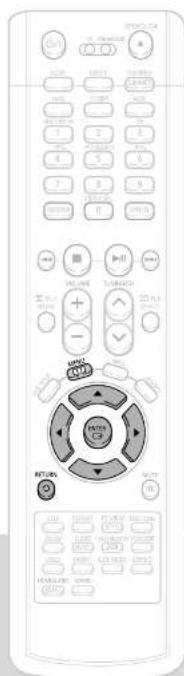

Setting the Language

OSD (On-Screen Display) language is set to English by default.

ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON

1 In Stop mode, press MENU button.

2 Press Cursor button to move to 'Setup' and then press ENTER button.

3 Select 'Language' and then press ENTER button

4 Press Cursor ▲▼ button to select 'OSD Language' and then press ENTER button.

5 Press Cursor button to select the desired language and then press ENTER button.

- Once the setup is complete, it the language was set to English, OSD will be displayed in English.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Note

To select another language, select OTHER and enter the language code of your country.

(See page 74 for language codes)

AUDIO, SUB TITLE and DISC MENU language can be selected.

Selecting the OSD Language

Selecting the Audio Language (recorded on the disc)

Selecting the Subtitle Language (recorded on the disc)

Selecting the Disc Menu Language (recorded on the disc) ※If the language you selected is not reversed on the disc, menu language will not change even if you set it to your desired language.

Setting TV Screen type

Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.

Front panel of a remote control with labeled buttons and function keys

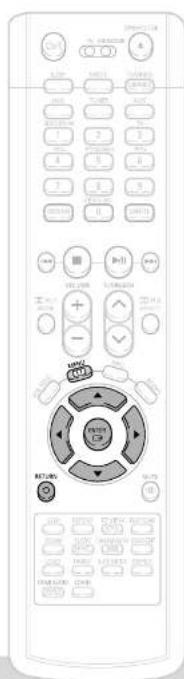

1 In Stop mode, press MENU button.

2 Press Cursor ▼ button to move to 'Setup' and then press ENTER button.

3 Press Cursor ▼ button to move to 'TV DISPLAY' and then press ENTER button.

4 Press Cursor ▲,▼ button to select the desired item and then press ENTER button.

- Once the setup is complete, you will be taken to the previous screen.

Adjusting the TV Aspect Ratio (Screen Size)

The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen size, you should adjust the aspect ratio to fit your TV or monitor.

- For a standard TV, select either "4:3LB" or "4:3PS" option according to personal preference. Select "16:9" if you have a widescreen TV.

WIDE

: Select this to view a 16:9 picture in the full-screen mode on your widescreen TV. • You can enjoy the widescreen aspect.

4:3LB (4:3 Letterbox)

: Select this to play a 16:9 picture in the letter box mode on a conventional TV. - Black bars will appear at the top and bottom of the screen

4:3PS (4:3 Pan&Scan)

: Select this to play a 16:9 picture in the pan & scan mode on a conventional TV. • You can see the central portion of the screen only (with the sides of the 16:9 picture cut off).

Note

- If a DVD is in the 4:3 ratio, you cannot view it in widescreen. - Since DVD discs are recorded in various image formats, they will look different depending on the software, the type of TV, and the TV aspect ratio setting.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Setting Parental Controls (Rating Level)

Use this to restrict playback of adult or violent DVDs you do not want children to view.

Control panel of a remote device with labeled buttons and function keys

1 In Stop mode, press MENU button.

2 Press Cursor ▼ button to move to 'Setup' and then press ENTER button.

3 button to move to 'PARENTAL' and then press ENTER button.

4 Press Cursor ▲, ▼ button to select the desired rating level and then press ENTER button.

- If you have selected Level 6, you cannot view DVDs with Level 7 or higher. - The higher the level, the closer the content is to violent or adult material.

5 Enter the password and then press ENTER button.

- The password is set to "7890" by default. - Once the setup is complete, you will be taken to the previous screen.

Note • This function works only if a DVD disc contains the rating level information.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Setting the Password

You can set the password for the Parental (rating level) setting.

1 Press MENU button.

2 Press Cursor ▼ button to move to 'Setup' and then press ENTER button.

3 Press Cursor ▼ button to move to 'PASSWORD' and then press ENTER button.

4 Press ENTER button.

5 Enter the password and then press ENTER button.

- Enter the old password, a new password, and confirm new password. - The setting is complete.

Note • The password is set to "7890" by default.

If you have forgotten the rating level password, do the following:

- While the player is in the no disc mode, hold the main unit's ○ button for longer than 5 seconds. "INITIALIZE" appears on the display and all settings will return to the default values.

- Press the POWER button.

Using the RESET function will erase all stored settings. Do not use this unless necessary.

Setting the Wallpaper

DVD

CDJPEG

While watching a DVD, VCD or JPEG CD, you can set the image you like as background wallpaper.

Setting the Wallpaper

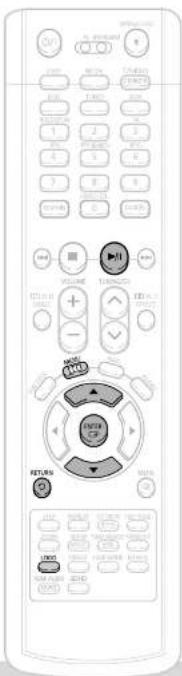

1 During playback, press PLAY/PAUSE button when an image you like appears.

Press LOGO button.

- "COPY LOGO DATA" will be displayed on the TV screen.

3 The power will turn off and then back on.

- The selected wallpaper will be displayed. - You can select up to 3 wallpaper settings.

OK Cancel Help Apply Reset Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to

To select one of the 3 wallpaper settings you've made

1 In Stop mode, press MENU button.

2 Press Cursor ▼ button to move to 'Setup' and then press ENTER button.

3 Press Cursor ▼ button to move to 'LOGO' and then press ENTER button.

4 Press ▼ to select the desired 'USER', and then press ENTER.

5 Press MENU button to exit the setup screen.

Select this to set the Samsung Logo image as your wallpaper.

Select this to set the desired image as your wallpaper.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

DVD Audio Disc Playback Mode

Some DVD-Audio discs contain DVD-Video as well as DVD-Audio. To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.

Front panel of a remote control with labeled buttons and function keys

1 Press the MENU button while the disc tray is open.

2 Press Cursor ▼ button to move to 'Setup' and then press ENTER button.

3 Press Cursor ▼ button to move to 'DVD TYPE' and then press ENTER button.

4 Press Cursor ▲,▼ button to move to 'DVD VIDEO' and then press ENTER button.

- Set steps 1 - 4 again if you want to switch to DVD AUDIO Play mode.

When Selecting DVD Play Mode:

• DVD VIDEO : set to play the DVD video contents contained on a DVD audio disc.

- DVD AUDIO : set to play the default DVD audio.

Note

• DVD Play mode is set to DVD Audio as factory default setting.

- Powering off the main unit will automatically switch to the DVD Audio mode.

DivX (R) registration

- Please use the Registration code to register this player with the DivX (R) video on demand format. To learn more, go to www.divx.com/vod.

SACD Playback Mode

If the SACD is created in HYBRID disc format, you can play the disc in CODA MODE as you play in SACD MODE.

1 Press the MENU button while the disc tray is open.

2 Press Cursor ▼ button to move to 'Setup' and then press ENTER button.

3 button to move to 'SACD TYPE' and then press ENTER button.

4 Press Cursor ▲,▼ button to move to 'SACD MODE' and then press ENTER button.

- Set steps 1 - 4 again if you want to switch to CDDA Play mode.

- SACD MODE : Set this mode to play SACD.

• CDDA MODE : Set this mode to play CDDA format contents included in a disc.

Note

- Powering off the main unit will automatically switch to the SACD mode.

GB

ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF

Setting the Speaker Mode

Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker configuration and whether certain speakers are used or not.

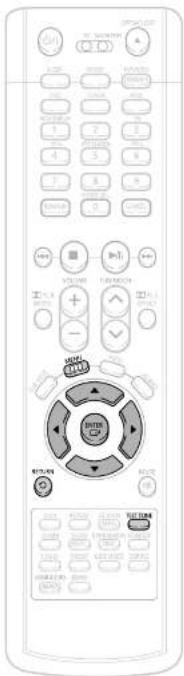

1

In Stop mode, press MENU button.

3

In the Speaker Setup, press the ENTER button again.

2

Press Cursor ▼ button to move to 'Audio' and then press ENTER button.

4

Press Cursor ▲, ▼, ◀, ▶ buttons to move to the desired speaker and then press ENTER button.

- For C, SL, and SR, each time the button is pressed. the mode switches alternately as follows: SMALL → NONE. - For L and R, the mode is set to SMALL

OFFICE LUT OK Cancel HOLD MAKE FRUIT CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECTS

Select this when using the speakers. Select this when no speakers are connected.

Note

- Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 61).

Setting the Test Tone

Use the Test Tone feature to check the speaker connections.

1

In Stop or no disc mode, press MENU button.

2

Press Cursor ▼ button to move to 'Audio' and then press ENTER button.

3

Press Cursor ▼ button to move to 'TEST TONE' and then press ENTER button.

- The test tone will be sent to L → C → R → SR → SL → SW in order. If the ENTER button is pressed again at this time, the test tone will stop.

Pres

s RETURN button to return to the previous level.

Pres

s MENU button to exit the setup screen.

Alternate method: press the TEST TONE button on the remote.

Press TEST TONE button.

• Test tone will be produced as follows: When playing a DVD or CD, this will work only in Stop mode.
• Use this function to check that each speaker is correctly connected and that there is no problem.

To end the test tone, press TEST TONE button again.

L: Front Speaker (L) C: Center Speaker SW: Subwoofer R: Front Speaker (R) SL: Rear Speaker (L) SP: Rear Speaker (R)

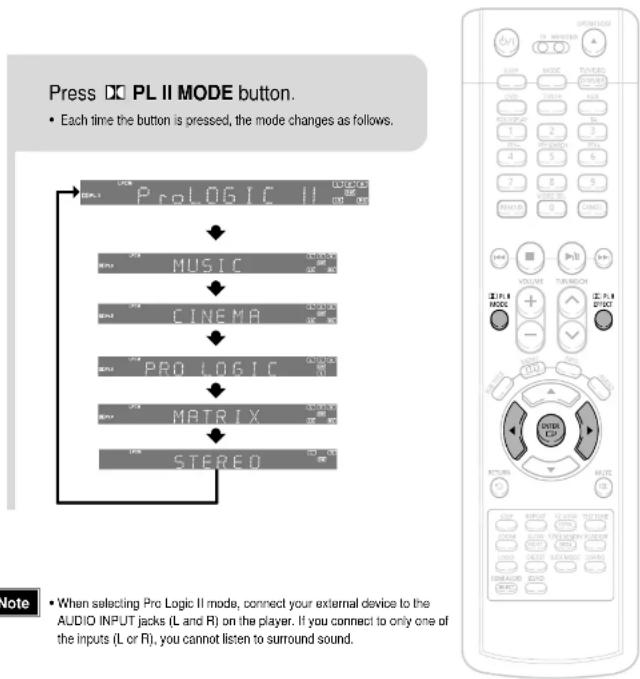

Multi-Channel Pro Logic Mode

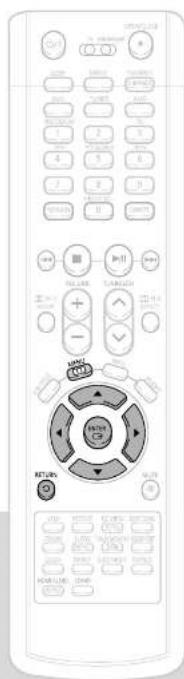

Setting the Delay Time

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers.

OPEN/CONTROL ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OFO

1 In Stop mode, press MENU button.

2 Press Cursor ▼ button to move to 'Audio' and then press ENTER button.

3 Press Cursor → button to move to 'DELAY TIME' and then press ENTER button.

4 Press Cursor ▲, ▼, ◀, ▶ buttons to move to the desired speaker and then press ENTER button.

5 Press Cursor ◀. ► to set the Delay time.

- You can set the delay time for C between 00 and 05mSEC and for SL and SR between 00 and 15mSEC.

Setting up the Speaker Delay Time

When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same. Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the sound of the Center Speaker and Surround Speakers.

Note

• With X IPL (Dolby Pro Logic II), the delay time may be different for each mode.
• With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.
• The Center channel is only adjustable on 5.1 channel discs.

- Setting CENTER SPEAKER

If the distance of Dc is equal to or longer than the distance of DI in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between Df and Dc	Delay Time
0.03 m	0 ms
0.34 m	1 ms
0.65 m	2 ms
1.02 m	3 ms
1.36 m	4 ms
1.70 m	5 ms

- Setting REAR (SURROUND) SPEAKERS If the distance of Df is equal to the distance of D in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between Df and Ds	Delay Time
0.00 m	2 ms
1.02 m	3 ms
2.04 m	5 ms
3.06 m	9 ms
4.08 m	12 ms
5.10 m	15 ms

Ideal CENTER SPEAKER PLACEMENT C SW H Dc Df Ds Sl Sn Ideal SURROUND SPEAKER PLACEMENT It is desirable to place all speakers within this circle. Df: The distance from FRONT SPEAKER Dc: The distance from CENTER SPEAKER Ds: The distance from SURROUND SPEAKER

Setting the Audio Quality

You can adjust the balance and level for each speaker.

ON/OFFIC LIME PUL YUMBER SLEEP MACHINE TURUSICO ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC LIME ON/OFFIC

Method 1 When adjusting the audio quality using the setup screen

1 In Stop mode, press MENU button.

2 Press Cursor ▼ button to move to 'Audio' and then press ENTER button.

3 Press Cursor ▼ button to move to 'SOUND EDIT' and then press ENTER button.

4 Press Cursor ▲,▼ buttons to select and adjust the desired item. Press the ◀,▶ buttons to adjust the settings.

Method 2 When manually adjusting with the SOUND EDIT button

Adjusting Front Speaker Balance

1

Press SOUND EDIT button and then press Cursor

◀ : ▶

usting Rear Speaker Balance

2

Press SOUND EDIT button and then press Cursor

◀, ▶

Adjusting Center Speaker Level

3

Press SOUND EDIT button and then press Cursor

◀, ▶

00 F - 01

00 R - 01

CEN +01dB

Adjusting Rear Speaker Level

4

Press SOUND EDIT button and then press Cursor

◀, ▶

Adjusting Subwoofer Speaker Level

5

Press SOUND EDIT button and then press Cursor

◀: ▶.

REAR -01dB

SW +01dB

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Note

- The adjustments will appear on the main unit's display, not on your TV screen.

Adjusting Front/Rear Speaker Balance

• You can select between 00 and -06 and OFF.
• The volume decreases as you move closer to -6.
  Adjusting Center/Rear/Subwoofer Speaker Level
• The volume level can be adjusted in steps from +6dB to -6dB.
• The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

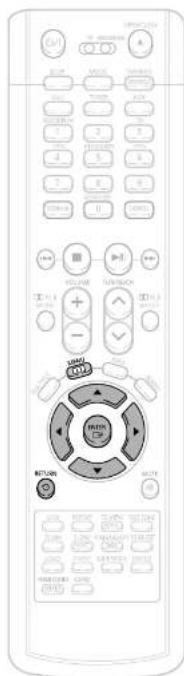

Setting the DRC (Dynamic Range Compression)

You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

ON OFF MOSO TURS ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK

1 In Stop mode, press MENU button.

2 Press Cursor ▼ button to move to 'Audio' and then press ENTER button.

3 Press Cursor ▼ button to move to 'DRC' and then press ENTER button.

4 Press Cursor ▲,▼ to adjust the 'DRC'.

- When the Cursor ▲ button is pressed, the effect is greater, and when the Cursor ▼ button is pressed, the effect is smaller.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

AV SYNC Setup

Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to match the video.

1 Press the MENU button.

- Setup menu appears.

2 Press Cursor ▲,▼ buttons to move to 'Audio' and then press ENTER button.

• 'Audio' menu appears.

3 Press Cursor ▲, ▼ buttons to move to 'AV-SYNC' and then press ENTER button.

• AV-SYNC screen appears.

4 Press Cursor ▲,▼ buttons to select the AV-SYNC Delay Time and then press the ENTER button.

- You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status.

Sound Field (DSP)/EQ Function

DSP(Digital Signal Processor) DSP modes have been designed to simulate different acoustic environments. EQ: You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing

ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON

Press DSP/EQ button.

- "DSP" appears on the display panel. - Each time the button is pressed, the selection changes as follows:

Note

• DSP/EQ function is only available in STEREO mode.
  Press the Ⅱ PL II mode button to show STEREO on the display.
• This feature works with CDs, MP3-CDs, 2 channel DVD-Audio, DivX and Dolby Digital discs.
• When playing a DVD disc encoded with two or more channels, multi-channel mode will be selected automatically and DSP/EQ function does not work.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

59

Note

POP, JAZZ, ROCK: Depending on the genre of music, you can select POP, JAZZ, and ROCK.
STUDIO : Provides a sense of presence as if in a studio
CLUB : Simulates the sound of a dance club with a throbbing bass beat.
HALL: Provides a clear vocal as if listening in a concert hall.
MOVIE: Provides the feeling of a movie theater.
CHURCH: Gives the feel of being in a grand church.
PASS: Select this for normal listening.

60

Dolby Pro Logic II Mode

You can select the desired Dolby Pro Logic II audio mode.

Press ☐ PL II MODE button. • Each time the button is pressed, the mode changes as follows. ProLOGIC II MUSIC CINEMA PRO LOGIC MATRIX STEREO Note • When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.

Dolby Pro Logic II Effect

This function works only in Dolby Pro Logic MUSIC mode.

1 Press ☐ PL II MODE button to select 'MUSIC' mode.

2 Press PL II EFFECT button to select Panorama, then press Cursor ▶, ▶ buttons to select the desired effect setting.

- You can select either 0 or 1.

- This mode extends the front stereo image to include the surround speakers for an exciting "wraparound" effect with side wall imaging.

3 Press □□ PL II EFFECT button to select C-Width, then press Cursor ◀, ► buttons to select the desired effect setting.

- You can select between 0 and 7.

- This sets the width of the center image. The higher the setting, the less sound comes from the center speaker.

4 Press ☐ PL II EFFECT button to select Dimension, then press the Cursor ◀, ▶ buttons to select the desired setting.

- You can select between 0 and 6.

- Incrementally adjusts the sound field (DSP) from the front or rear.

Note - When playing a DVD disc encoded with two or more channels, multi-channel mode will be selected automatically and [IMAGE] (Dolby Pro Logic II) button does not work.

Note

- When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.

PRO LOGIC II

• MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.
  • CINEMA: Adds realism to the movie soundtrack.
• PRO LOGIC: You will experience a realistic multi-channel effect, as if using live speakers, while using just the front left and right speakers.
  • MATRIX: You will hear 5.1 channel surround sound.
  STEREO: Select this to listen to sound from the front left and right speakers and the subwoofer only.

Listening to Radio

You can listen to the chosen band (FM, AM broadcast stations) by using either the automatic or manual tuning operation.

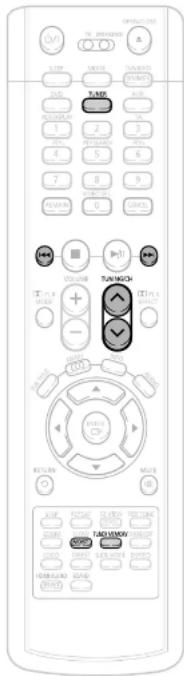

Remote Control Unit

1 Press TUNER button.

- The selection toggles back and forth between "FM" • AM" each time the TUNER button is pressed.

2 Tune in to the desired station.

Automatic Turing 1 When is pressed, a preset broadcast station is selected.

Automatic Turing 2 Press and hold TUNING/CH to automatically search for active broadcasting stations.

Manual Tuning Briefly press TUNING/CH to increase or decrease the frequency incrementally.

Main Unit

1 Press the Function button to select the desired band (FM, AM).

2 Select a broadcast station.

Automatic Turing 1 Press the STOP (■) button to select PRESET and then press ◀◀◀▶▶▶ button to select the preset station.

Automatic Turing 2 Press the STOP (■) button to select "MANUAL" and then press and hold ◀◀◀▶▶1 button to automatically search the band.

Manual Tuning Press STOP (■) to select MANUAL and then briefly press to a lower or higher frequency.

OFF START MINT RUN/WAY ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OFO

Presetting Stations

You can store up to:

• 15 FM stations • 15 AM stations

- FM ...... Frequency Modulation - AM ...... Medium Wave

Example: Presetting FM 89.1 in the memory

1 Press the TUNER button and select the FM band.

• Each time the button is pressed, the band switches between "FM → AM".

2 Press TUNING/CH to select "89.10".

- Refer to Step 2 on page 63 to automatically or manually tune into a station.

3 Press the TUNER MEMORY button.

- "PRGM" flashes in the display.

FN 91.90

FM 8910-

1PM 89.10

4 Press ◀◀◀▶▶ to select preset number.

- You can select between 1 and 15.

5 Press the TUNER MEMORY button again.

- Press the TUNER MEMORY button before 'PRGM' disappears from the display.

- 'PRGM' disappears from the display and the station is stored in memory.

6 To preset another station, repeat steps 2 to 5.

2 FM 8910

PM 89.10

Note

- Up to 15 stations (30 total; 15FM, 15AM) can be saved in memory. If you save more than 15 stations, the oldest station previously saved is removed and a new station is stored in its place.

Press MO/ST button to listen in Mono/Stereo.

(This applies only when listening to an FM station.)

• Each time the button is pressed, the sound switches between "STEREO" and "MONO".
- In a poor reception area, select MONO for a clear, interference-free broadcast.

To tune in to a preset station, press ◀◀◀▶▶ on the remote control to select a channel.

About RDS broadcasting

Using the RDS (Radio Data System) to receive FM stations

RDS allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc.

When tuned to an FM station which provides the RDS service, the RDS indicator lights up on the display.

• Description on RDS function
1. PTY (Program Type) : Displays the type of programme currently being broadcast
2. PS NAME (Program Service Name) : Indicates the name of broadcasting station
and is composed of 5 characters.
3. RT (Radio Text) : Decodes the text broadcast by a station (if any) and is composed
of maximum 64 characters.
4. CT (Clock Time) : Decodes the real time clock from the FM frequency.
• Some stations may not transmit PTY, RT or CT information therefore this may not be
displayed in all cases.
5. TA (Traffic Announcement): When this symbol flashes it shows that the traffic
announcement is in progress.

- RDS may not operate correctly if the station tuned is not transmitting. RDS signal properly or if the signal strength is weak.

What information can RDS signals provide?

You can see the RDS signals the station sends on the display.

TO show the RDS signals

Press RDS DISPLAY while listening to an FM station.

Each time you press the button, the display change to show you the following information:

PS (Program Service) :While searching, *PS* appears and then the station names will be displayed. *NO PS* appears if no signal is sent.

RT(RadioText): while searching, "RT" appears and then text messages the station sends will be displayed. "NO RT" appears if no signal is sent.

Frequency : station frequency (non-RDS service)

About characters shown in the display

When the display shows PS, or RT signals, the following characters are used.

• The display window cannot differentiate upper case and lower case letters and always
uses upper case letters.
- The display window cannot show accented letters, "A." for instance, may stans for
accented 'A's' like 'A, A, A, A, A and A.'

- If searching finishes at once, 'PS' and 'RT' will not appear on the display.

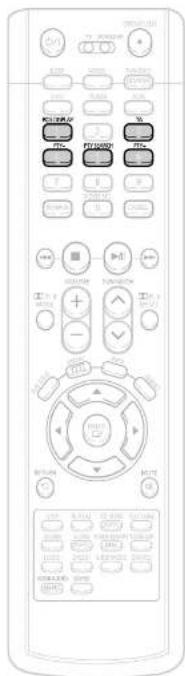

Front panel of a remote control with labeled buttons and function keys

PTY (Program Type) indication and PTY-SEARCH function

One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels by specifying the PTY codes.

To search for a program using the PTY codes

Before you start, remember...

• The PTY Search is only applicable to preset stations.
• To stop searching any time during the process, press PTY SEARCH while searching.
• There is a time limit in doing the following steps. If the setting is cancelled before you finish, start from step 1 again.
• When pressing the buttons on the primary remote control, make sure that you have selected the FM station using the primary remote control.

Press PTY SEARCH while listening to an FM station.

Press the PTY-or PTY+until the PTY code you want appears on the display.

- The display gives you the PTY codes described to the right.

Press PTY SEARCH again, while the PTY code selected in the previous step is still on the display.

- The center unit searches 15 preset FM stations, stops when it finds the one you have selected, and tunes in that station.

Display	Program Type
NEWS	• News including an announced opinion and report
AFFAIRS	• Several matters including a current incident, documentary, discussion and analysis.
INFO	• Information including weights and measures, returns and forecast, matters interesting the customer, medical information, etc.
SPORT	• Sports
EDUCATE	• Education
DRAMA	• Drama-Radio serial, etc.
CULTURE	• Culture-National or local culture including the religious problem, social science, language, theater, etc.
SCIENCE	• Natural science and technology
VARIED	• Others-Speech, amusing program (cuz, game), Interview, corney and satirical play, etc.
POP M	• Pop music
ROCK M	• Rock music
M.O.R.M	• Current contemporary music considered to be easily listening.
LIGHT M	• Light classical music. Classical music and instrumental and chorus music
CLASSICS	• Heavy classical music-Orchestra music, symphony, chamber music and operis
OTHER M	• Other music - Jazz, R&B country music
WEATHER	• Weather
FINANCE	• Finance
CHILDREN	• Children's programmes
SOCIAL A	• Social affairs
RELIGION	• Religion
PHONE IN	• Phone in
TRAVEL	• Travel
LEISURE	• Leisure
JAZZ	• Jazz Music
COUNTRY	• Country Music
NATION M	• National Music
OLDIES	• Oldies Music
FOLK M	• Folk Music
DOCUMENT	• Documentary

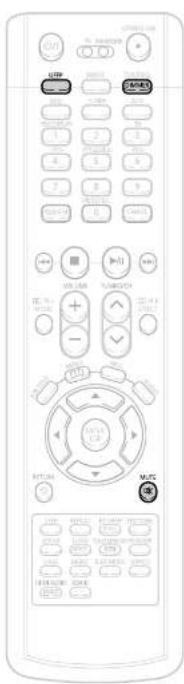

Convenient Functions

USB POWER CANADA 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Sleep Timer Function

You can set the time that the DVD player will shut itself off.

Press SLEEP button.

- "SLEEP" will be displayed. Each time the button is pressed the preset time changes as follows: 10 → 20 → 30 → 60 → 90 → 120 → 150 → OFF.

To confirm the sleep timer setting, press SLEEP button.

- The remaining time before the DVD player will shut itself off is displayed. - Pressing the button again changes the sleep time from what you have set earlier.

To cancel the sleep timer, press SLEEP button until OFF appears on the display.

Adjusting Display Brightness

You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.

Press DIMMER button.

• Each time the button is press. the brightness changes as follows: DARK → BRIGHT.

Mute Function

This is useful when answering a doorbell or telephone call.

Press MUTE button.

- 'MUTE' flash in the display. - To switch the sound back on (at the same volume as before), press MUTE again or the VOLUME buttons.

Using Headphones

Use headphones (not supplied) for private listening pleasure.

Connect the headphones to the PHONES jack for private listening.

Illustration of a CD-ROM drive with headphones connected to a cable (no text or symbols visible)

Caution

• To prevent hearing damage, do not increase the volume excessively when using headphones.

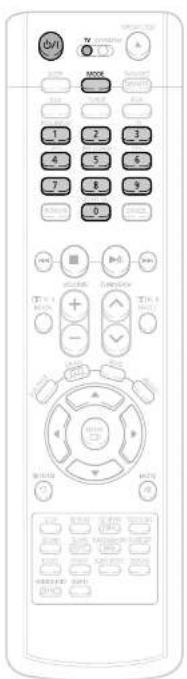

Operating a TV with the Remote Control

TV OFF MOSK SUPPORT OFF 1 2 3 4 5 6 7 8 9 0 OK Cancel OFF + - TEN + - HOLD HOLD

When operating a TV with the remote control

1 Press the MODE button to make the TV indicator on the remote control flash.

2 Press POWER button to turn on the TV.

3 Point the remote control toward the TV.

4 While holding down POWER, enter the code corresponding to your brand of TV.

- If the code matches the TV's code, the TV will be turned off.

- If there is more than one code listed for your TV in the table.

enter one at a time to determine which code works.

Example: For a Samsung TV

While holding down POWER, use the number buttons to enter 00,

01, 02, 03, 04, and 05.

5 Point the remote control toward the TV and press POWER. If the TV turns off or on, the setting is complete.

- You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0-9).

Note

• The remote control may not work on some brands of TVs. Also some operations may not be possible depending on your brand of TV.
• If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default.

TV Brand Code List

No.	Brand	Code	No.	Brand	Code
1	SAMSUNG	00 (Initial Value), 01, 02, 03, 04, 05, 73	30	BRANDT	41
2	ANAM	06-11, 59	31	FERGUSON	41
3	DAEWOO	12-18, 20, 21	32	PIONEER	41, 48, 74
4	LG	05, 20, 21, 22, 53	33	TELEAVA	41
5	HITACHI	23, 40, 41, 49	34	FINLUX	05, 42, 47
6	JVC	24, 55	35	FISHER	31
7	SHARP	27, 33, 34, 35, 54	36	AKAI	31
8	SONY	27, 36	37	YOKO	05
9	TOSHIRA	27, 37, 42, 43, 44, 46	38	PHONOLA	05, 45, 47
10	SANYO	27, 30, 31, 32	39	RADIGOLA	05, 45
11	MITSUBISHI	05, 27, 28	40	SCHNEIDER	05
12	MATSUSHITA	08, 26	41	NEWSAN	58
13	TELEPLENKEN	41, 49, 51, 57	42	CONTINENTAL EDISON	49
14	RCA	26, 61	43	SALORA	48
15	PANASONIC	07, 09, 25, 48, 49, 50	44	SELEDO	48
16	SARA	40, 41, 47, 48, 49	45	NOKIA	48
17	PHILIPS	05, 45, 47, 64, 65, 66, 67, 68, 69	46	REX	48
18	ORUNDIC	39, 42, 48, 70, 71, 72	47	MIVANI	46
19	ZENITH	38	48	IMPERIAL	46
20	MIVAL	52	49	COE	46
21	NOBLEX	55	50	BANGA OLUFSEN	47
22	EMERSON	19	51	DRIONVECA	47
23	MAGNAVOX	25	52	FORMENTI	47
24	LOEWE	05, 60	53	METZ	47
25	THOWSON	40, 41, 49, 52, 63	54	WEGA	47
26	NORDMENDE	40, 41, 49	55	RADICMAPELLI	47
27	LOEWE OPTA	36, 47, 05	56	SINGER	47
28	BLAUPUNKT	39	57	SINU DYNE	47
29	SIEMENS	39

Before Calling for Service

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.

Symptom Check/Remedy

Disc tray does not open.	• Is the power cord plugged securely into the outlet?• Turn off the power and then turn it back on.
Playback does not start.	• Check the region number of the DVD.DVD discs purchased from abroad may not be playable.• CD-ROMs and DVD-ROMs cannot be played on this DVD player.• Make sure that the rating level is correct.
Playback does not start immediately when the Play/Pause button is pressed.	• Are you using a deformed disc or a disc with scratches on the surface?• Wipe the disc clean.
Sound is not produced.	• No sound is heard during fast playback, slow playback, and step motion playback.• Are the speakers connected properly? Is the speaker setup correctly customized?• Is the disc severely damaged?
Sound can be heard only from a few speakers and not all six.	• When listening to a CD or radio, sound is output to the front speakers (L/R) only. Select "PRO LOGIC II" by pressing PL II(Dolby Pro Logic II) on the remote control to use all six speakers.• Make sure that the DVD disc is 5.1-CH compatible.• If you set C, SL, and SR to NONE in the speaker mode in the audio setup of the setup screen, no sound is heard from the center speaker and the front left and right speakers. Set C, SL, and SR to SMALL.
Picture does not appear, sound is not produced, or the disc tray opens 2 to 5 seconds later.	• Was the DVD player suddenly moved from a cold place to a warm one? When condensation forms inside the player, remove the disc and let the player stand for 1 or 2 hours with the power on. (You can use the player again after condensation disappears.)
Dolby Digital 5.1 CH Surround Sound is not produced.	• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound.• Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in the information display?

Symptom Check/Remedy

Disc is rotating but no picture is produced.Picture quality is poor and picture is shaking.	Is the TV power on?Are the video cables connected properly?Is the disc dirty or damaged?A poorly manufactured disc may not be playable.
The remote control does not work.	Is the remote control being operated within its operation range of angle and distance?Are the batteries exhausted?
Audio language and subtitles do not work.	Audio language and subtitles will not work for DVDs not containing them. And depending on the disc, they may work differently.
Menu screen does not appear even when the menu function is selected.	Are you using a disc that does not contain menus?
Aspect ratio cannot be changed.	You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.
Can't receive radio broadcast.	Is the antenna connected properly?If the antenna's input signal is weak, install an external FM antenna in an area with good reception.
The main unit is not working.(Example: The power goes out or strange noise is heard.)The DVD player is not working normally.	Turn off the power and hold the button on the main unit for longer than 5 seconds.Using the RESET function will erase all stored settings.Do not use this unless necessary.
The password for rating level has been forgotten.	While "NO DISC" message appears on the display of main unit, hold the main unit's button for longer than 5 seconds. "INITIALIZE" appears on the display and all settings will return to the default values.Press the POWER button.Using the RESET function will erase all stored settings.Do not use this unless necessary.

Cautions on Handling and Storing Discs

Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them.

Handling discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc.

Disc Storage

Do not keep in direct sunlight

Keep in a cool ventilated area

Keep in a clean Protection jacket. Store vertically.

Caution

- Do not allow the discs to become contaminated with dirt.

- Do not load cracked or scratched discs.

Handling and Storing Discs

When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

- When cleaning, wipe gently from the inside to the outside of the disc.

Note

- Condensation may form if warm air comes into contact with cold parts inside the player. When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.

Language Code List

Enter the appropriate code number for the initial settings "Disc Audio", "Disc Subtitle" and/or "Disc Menu" (See page 41).

Code Language Code Language Code Language Language
1027 Atar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian
1028 Abkhazian 1183 Irish 1345 Malagasy 1507 Samoan
1032	Afrikaans	1186	Scots Gaelic	1347	Maori	1508	Shona
1039	Amharic	1194	Galician	1349	Macedonian	1509	Somali
1044	Arabic	1196	Guarani	1350	Malayalam	1511	Albanian
1045	Assamese	1203	Gujarati	1352	Mongolian	1512	Serbian
1051	Aymara	1209	Hausa	1353	Moldavian	1513	Siswali
1052	Azerbaijani	1217	Hindi	1356	Marathi	1514	Sesotho
1053	Bashkir	1226	Croatian	1357	Malay	1515	Sundanese
1057	Byelorussian	1229	Hungarian	1358	Maltese	1516	Swedish
1059	Bulgarian	1233	Armenian	1363	Burmese	1517	Swahili
1060	Bihari	1235	Interlingua	1365	Nauru	1521	Tamil
1069	Bislama	1239	Imerlingue	1369	Nepali	1525	Tegulu
1066	Bengali; Bangla	1245	Inupiak	1376	Dutch	1527	Tajik
1067	Tibetan	1248	Indonesian	1379	Norwegian	1528	Thai
1070	Brelon	1253	Icelandic	1393	Occitan	1529	Tigrinya
1079	Catalan	1254	Italian	1403	(Atan) Oromo	1531	Turkmen
1093	Corsican	1257	Hebrew	1408	Oriya	1532	Tagalog
1097	Czech	1261	Japanese	1417	Punjabi	1534	Setswana
1103	Welsh	1269	Yodish	1428	Polish	1535	Tonga
1105	Danish	1283	Javanese	1435	Pashto, Pushto	1538	Turkish
1109	German	1287	Georgian	1436	Portuguese	1539	Tsonga
1130	Bhutani	1297	Kazakh	1463	Quechua	1540	Tatar
1142	Greek	1298	Greenlandic	1481	Rhaeto-Romance	1543	Twi
1144	English	1299	Cambodian	1482	Kirundi	1557	Ukrainian
1145	Esperanto	1300	Kannada	1483	Romanian	1564	Urdu
1149	Spanish	1301	Korean	1489	Russian	1572	Uzbek
1150	Estonian	1305	Kashmiri	1491	Kinyarwanda	1581	Vietnamese
1151	Basque	1307	Kurdish	1495	Sanskrit	1587	Volapuk
1157	Persian	1311	Kirghiz	1498	Sindhi	1613	Wolof
1165	Finnish	1313	Latin	1501	Sangro	1632	Xhosa
1166	Fiji	1326	Lingalia	1502	Serbo-Croatian	1665	Yoruba
1171	Faeroese	1327	Laothian	1503	Singhalese	1684	Chinese
1174	French	1332	Lithuanian	1505	Slovak	1697	Zulu

USB Host Feature Supported Family

Digital Camera

Product	Company	Type
PowerShot A70 Canon Digital Camera
A60 Canon Digital Camera
DXY10 Canon Digital Camera
DXY50 Canon Digital Camera
A80 Canon Digital Camera
A85 Canon Digital Camera
GB Canon Digital Camera
B50 Canon Digital Camera
Exelon Z-40 Cassio Digital Camera
ON R51 Cassio Digital Camera
Firepix A340 Fuji Digital Camera
Firelick-7810 Fuji Digital Camera
Firelick-7610 Fuji Digital Camera
Firepix-940 Fuji Digital Camera
Firelick ST200 Fuji Digital Camera
Firepix A1010 Fuji Digital Camera
Easy Save CX-4300 Kodak Digital Camera
KD-310Z	Korikea	Digital Camera
Finecom SL300R	Kyocora	Digital Camera
Finecom SL400R	Kyocora	Digital Camera
Finecom SS7	Kyocora	Digital Camera
Finecom X1	Kyocora	Digital Camera
Dimge Z1	Minolta	Digital Camera
Dimge Z1	Minolta	Digital Camera
Dimge X21	Minolta	Digital Camera
Cocip x4200	NIKON	Digital Camera
Cocip x4300	NIKON	Digital Camera
Cocip x 2000	Nikon Digital Camera
Cocip x 3600	Nikon Digital Camera
Cocip x 3700	Nikon Digital Camera
Cocip x 4100	Nikon Digital Camera
Cocip x 5200	Nikon Digital Camera
cytus c10 digital	Olympus	Digital Camera
300 digital Olympus	Digital Camera
U300 Olympus	Digital Camera
X-350	Olympus	Digital Camera
C-760	Olympus	Digital Camera
C-6500	Olympus	Digital Camera
X1	Olympus	Digital Camera
Lum x1	Olympus	Digital Camera
Lum x-FZ20	Panasonic	Digital Camera
DMC-FX760	Panasonic	Digital Camera

Product	Company	Type
Lamix LC33	Panasonic	Digital Camera
LUMIK DMG F1	Panasonic	Digital Camera
Optio-540	Pentex	Digital Camera
Optio-850	Pentex	Digital Camera
Optio 36LF	Pentex	Digital Camera
Optio 36L	Pentex	Digital Camera
Optio X Pentex	Digital Camera
SYoe	Pentex	Digital Camera
Optio MX	Pentex	Digital Camera
Digimax 420	Samsung	Digital Camera
Digimax 400	Samsung	Digital Camera
Kenza UXM Samsung	Digital Camera
VPC-AZI	Sanyo Digital Camera
Var morgensen I PG
DSC-F320	Sony	Digital Camera
DSC-P70	Sony	Digital Camera
DSC-T1	Sony	Digital Camera
DSC-F88	Sony	Digital Camera
DSC-V1	Sony	Digital Camera
DSC-W1	Sony	Digital Camera
DSC-T3	Sony	Digital Camera
Sora PDR T3C	Torchera	Digital Camera
Cocipix S600	Nikon Digital Camera
Cocipix S1	Nikon Digital Camera
Cocipix 7600	Nikon Digital Camera
DMG-FX7	Panasonic	Digital Camera
DMG-L51 Panasonic	Digital Camera
DMG L20 Panasonic	Digital Camera
DCY-Digital600	Coxton Digital Camera
BSI	Pentex	Digital Camera
Dimago X1 Minolta	Digital Camera
AZ-1	Clymous	Digital Camera
DSC-W5	Sony	Digital Camera

USB Flash Disk

Product	Company	Type
Cruzer Micro	SanDisk	USB2.0 USB Flash Drive 128M
Cruzer Mini	SanDisk	USB2.0 126M
Cruzer Mini	SanDisk	USB2.0 256M
SOVY Micro Vault	SOVY	USB2.0 64MB
FLEX DRIVE	seritech	USB2.0 32MB
AnyDrive	ALLtech	USB2.0 128MB
XTICK	LG	USB2.0 128M
Micro Mini	OMEGA	USB2.0 126M
iFlash	Insilon	USB2.0 64M
LG	XTICKMy	USB2.0 64M
RDATA	F2Dvcs	USB2.0 64M

MP3 Player

Product	Company	Type
Cosmos Vatico MX128M	Creatius	125 MP3 Player
Iriver H20	Iriver	20G HDC MP3 player
yocp.yh-20S	samsung	20G HDC MP3 player
yocp.yh-20S	samsung	20G HDC MP3 player
I.psd	apple	HDD MP3 player(40G)
I.psd.mini	Acpio	HDD MP3 Player(20G)
yocp.(yp-T7) samsung MP3 Player
yocp.(yp-MT6)	samsung MP3 Player
yocp.(yp-T6)	samsung MP3 Player
yocp.(yp-S0)	samsung MP3 Player
yocp.(yp-s05)	samsung	MP3 Player
yocp.(yp-T5)	samsung MP3 Player
yocp.(yp-S0)	samsung MP3 Player
yocp.(yp-T85) samsung MP3 Player
yocp.(yp-36)	samsung MP3 Player
yocp.(yp-S6)	samsung MP3 Player
iAUDIO L2	COVON/Korea	MP3 Player
iAUDIO-53	COVON/Korea	MP3 Player
iAudio M3	COVON/Korea	HDD MP3 Player
iWi50L, ShARP(Japan)	256ME	MP3Player
H10	IRIVER/Korea	MP3Player
YEPY XP-T5 V3	Samsung(Korea)	MP3Player
YEPY XP-5	Samsung(Korea)	256ME MP3Player

Multi Card Reader

Product	Company	Type
UNICORN	Unicom	USB 2.0.7 IN1 CARD READER UC 001F
USB2.0 Card Reader	Sill onion (Taver)	USB 2.0 Card Reader Inc 60/100/80 AMC 3 n 11

USB External HDD

Product	Company	Type
CUTE scrosh	POCKET HARD DISK DRIVE
MOMOBAY UX-2	DVICO USB2.0

Specifications

GENERAL	Power Consumption	80W
	Weight	3.5Kg
	Dimensions (W x H x D)	430 x 60 x 340 mm
	Operating Temperature Range	+5°C~+35°C
	Operating Humidity Range	10%~75%
TUNER	Usable Sensitivity	10dB
	S/N Ratio	60dB
	Distortion	0.5%
TUNER	Usable Sensitivity	55dB
	S/N Ratio	40dB
	Distortion	2%
OUTPUT	Composite Video	1.0Vp-p(75Ω load)
	Scart Jack	Compositive Video : 1.0Vp-p(75Ω load)
		RGB Signal : 0.714Vp-p(75Ω load)
	Component Video	Y:1.0Vp-p(75Ω load)
		Pr:0.70Vp-p(75Ω load)
		Pb:0.70Vp-p(75Ω load)
	HDMI	Impedance: 85~115Ω
AMPLIFIER	Front speaker output	130W(4Ω)/CH
	Center speaker output	130W(4Ω)
	Rear speaker output	130W(4Ω)/CH
	Subwoofer speaker output	150W(3Ω)
	Frequency range	20Hz~20kHz
	S/N Ratio	70dB
	Channel separation	60dB
	Input sensitivity	(AUX)500mV

HT-P70

SPEAKER	Speaker system	5.1ch speaker system
		Front/Rear speaker	Center speaker	Subwoofer speaker
	Impedance	3Ω x 4	3Ω	3Ω
	Frequency range	110Hz~20kHz	110Hz~20kHz	35Hz~200Hz
	Output sound pressure level	84dB/W/M	84dB/W/M	85dB/W/M
	Rated input	130W	130W	160W
	Maximum input	260W	260W	320W
	Dimensions (W x H x D)	105.6 x 1310 x 76 mm	550 x 110 x 78 mm	195 x 437 x 408 mm
	Weights	6.2 kg	2.0 kg	7.6Kg

HT-TP75

SPEAKER	Speaker system	5.1ch speaker system
		Front/Rear speaker	Center speaker	Subwoofer speaker
	Impedance	3Ω x 4	3Ω	3Ω
	Frequency range	110Hz~20kHz	110Hz~20kHz	40Hz~200Hz
	Output sound pressure level	84dB/W/M	84dB/W/M	85dB/W/M
	Rated input	130W	130W	150W
	Maximum input	260W	260W	300W
	Dimensions (W x H x D)	85 x 1054 x 132.5 mm	280 x 100 x 135 mm	200 x 403 x 441 mm
	Weights	8.6 Kg	0.84 Kg	7.8 Kg
