USER MANUAL DS-2DE4A215IW-DE Hikvision

Any and all informaon, including, among others, wordings, pictures, graphs are the properes of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinaer referred to be "Hikvision"). This user manual (hereinaer referred to be "the Manual") cannot be reproduced, changed, translated, or distributed, parally or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise spulated, Hikvision does not make any warranes, guarantees or representaons, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to Network Speed Dome.

The Manual includes instrucons for using and managing the product. Pictures, charts, images and all other informaon hereinaer are for descripon and explanaon only. The informaon contained in the Manual is subject to change, without noce, due to rmware updates or other reasons. Please end the latest version in the company website (hp://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

HIKVISION and other Hikvision's trademarks and logos are the properes of Hikvision in various jurisdicons. Other trademarks and logos menoned below are the properes of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

05061220190802

Regulatory Informaon

FCC Informaon

Please take aenon that changes or modicaon not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operaon.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Low Voltage Direcve 2015/35/EU, the EMC Direcve 2014/30/EU, the RoHS Direcve 2011/65/EU.

2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collecon points. For more informaon see: www.recyclethis.info.

2006/66/EC (baery direcve): This product contains a baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentaon for speci baery informaon. The baery is marked with this symbol, which may include leering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon, see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Safety Instrucon

These instrucons are intended to ensure that the user can use the product correctly to avoid danger or property loss.

The precauon measure is divided into 'Warnings' and 'Cauons':

Warnings: Serious injury or death may be caused if any of these warnings are neglected.

Cauons: Injury or equipment damage may be caused if any of these cauons are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cauons Follow these precautions to prevent potential injury or material damage.

Warnings:

• Adopt the power adapter which can meet the safety extra low voltage (SELV) standard. The power consumption cannot be less than the required value.
• Do not connect several devices to one power adapter as an adapter overload may cause over-heang and can be a re hazard.
• When the product is installed on a wall or ceiling, the device should be rmly xed.
• To reduce the risk of re or electrical shock, do not expose the indoor used product to rain or moisture.
• This installaon should be made by a qualified service person and should conform to all the local codes.
  ● Install blackouts equipment into the power supply circuit for convenient supply interrupon.
• If the product does not work properly, contact your dealer or the nearest service center. Never aempt to disassemble the product yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)

Cauons:

• If the camera fails to synchronize local me with that of the network, you need to set up camera me manually. Visit the camera (via web browser or client sware) and enter system sengs interface for me sengs.
  ● Make sure the power supply voltage is correct before using the product.
• Do not drop the product or subject it to physical shock. Do not install the product on vibratory surface or places.

• Do not expose it to high electromagnec radiang environment.

• Do not aim the lens at the strong light such as sun or incandescent lamp. The strong light can cause fatal damage to the product.

• The sensor may be burned out by a laser beam, so when any laser equipment is being used, make sure that the surface of the sensor not be exposed to the laser beam.
• For working temperature, refer to the specicaon manual for details.
  ● To avoid heat accumulaon, good venlaon is required for a proper operang environment.
  ● While shipping, the product should be packed in its original packing.
• Use the provided glove when open up the product cover. Do not touch the product cover with ngers directly, because the acidic sweat of the ngers may erode the surface coating of the product cover.
• Use a so and dry cloth when clean inside and outside surfaces of the product cover. Do not use alkaline detergents.
• Improper use or replacement of the baery may result in hazard of explosion. Use the manufacturer recommended baery type.

Table of Contents

CHAPTER 1 OVERVIEW ....1

1.1 SYSTEM REQUIREMENT....1
1.2 FUNCTIONS....1

CHAPTER 2 NETWORK CONNECTION ....4

2.1 SETTING THE NETWORK CAMERA OVER THE LAN 4

2.1.1 Wiring over the LAN 4
2.1.2 Acvang the Camera 5

2.2 SETTING THE NETWORK CAMERA OVER THE WAN....10

2.2.1 Stac IP Connecon 10
2.2.2 Dynamic IP Connecon 11

CHAPTER 3 ACCESSING TO THE NETWORK SPEED DOME....13

3.1 ACCESSING BY WEB BROWSERS 13

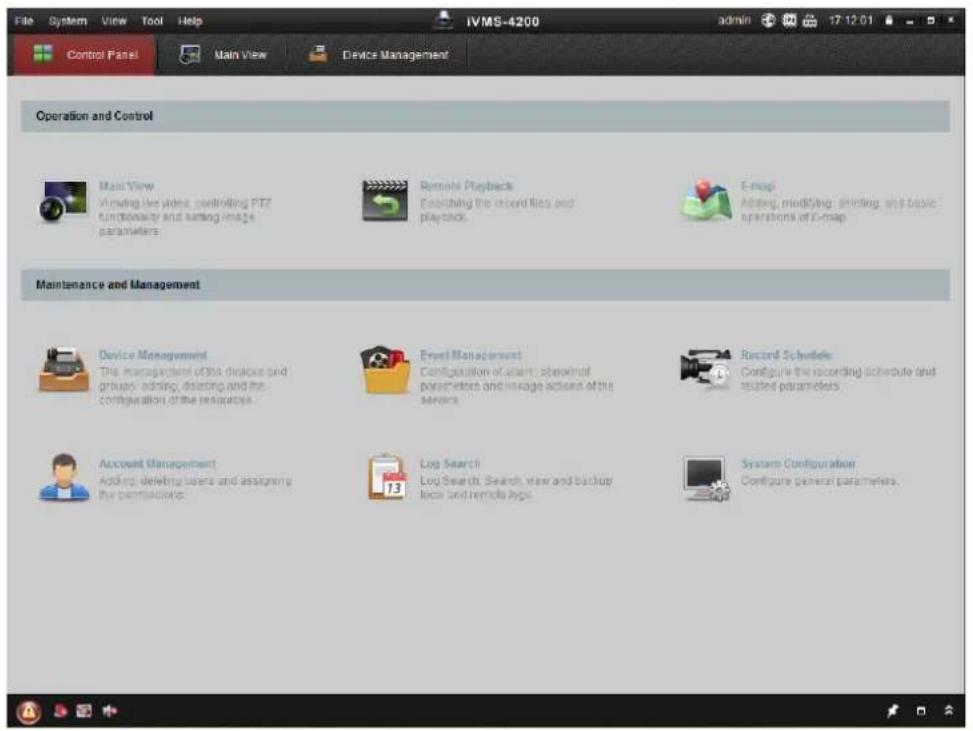

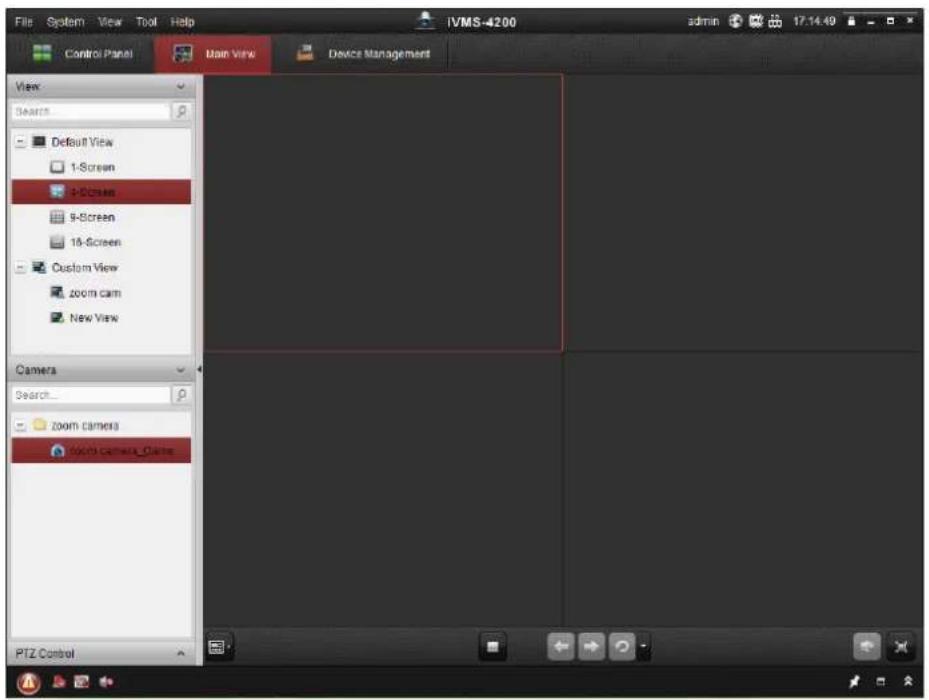

3.2 ACCESSING BY CLIENT SOFTWARE 14

CHAPTER 4 BASIC OPERATIONS....16

4.1 POWER-UP ACTION 16

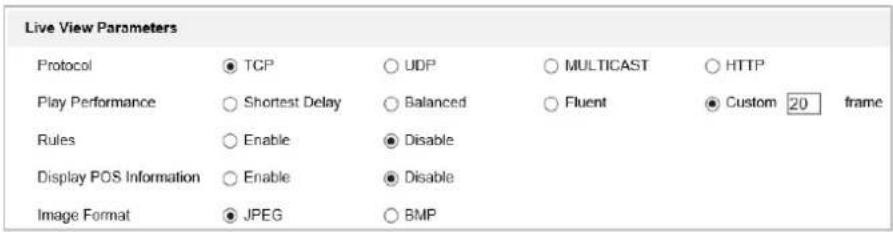

4.2 CONFIGURING LOCAL PARAMETERS....16

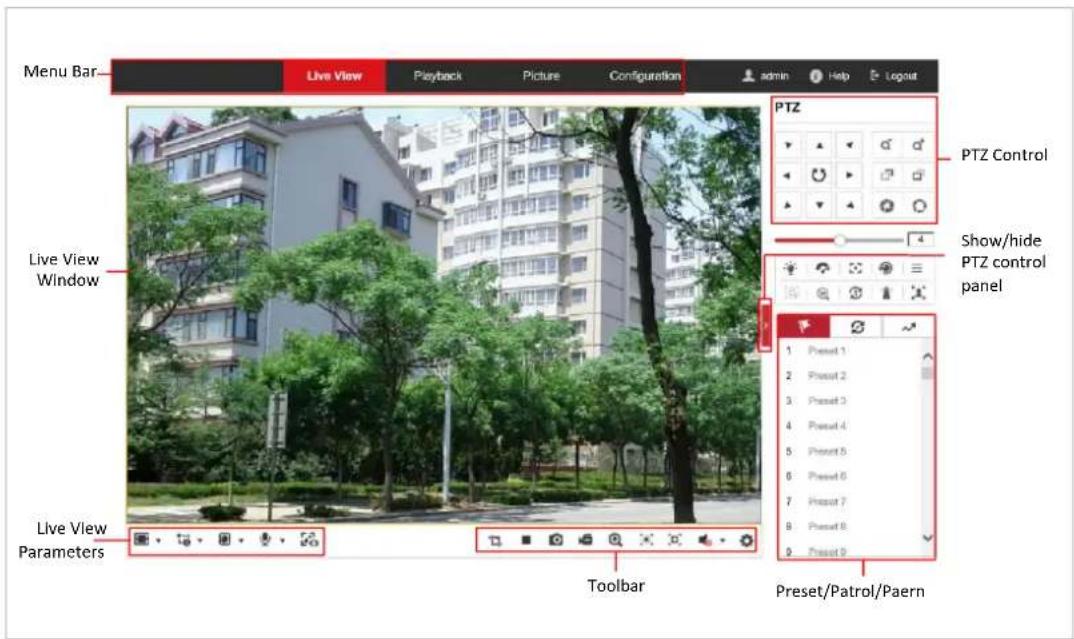

4.3 LIVE VIEW PAGE....17
4.4 STARTING LIVE VIEW 18

4.4.1 Live Operaon 18
4.4.2 Install Plug-in....21

4.5 OPERATING PTZ CONTROL 22

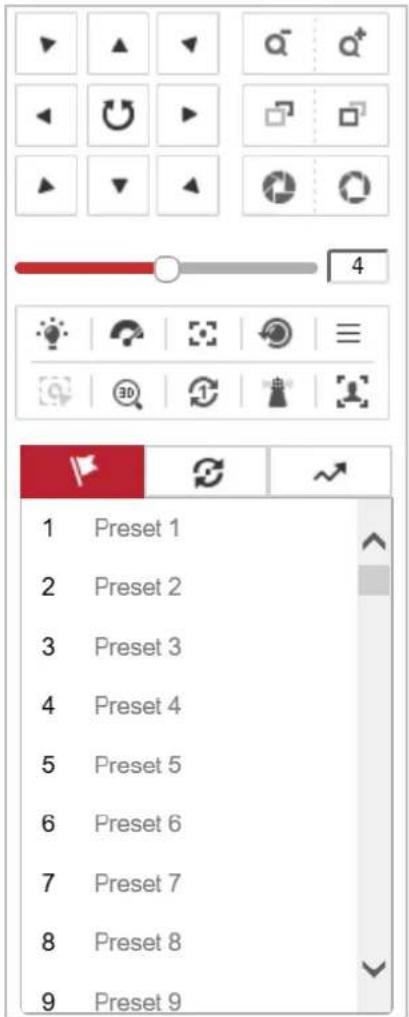

4.5.1 PTZ Control Panel 22
4.5.2 Auxiliary Funcons....24

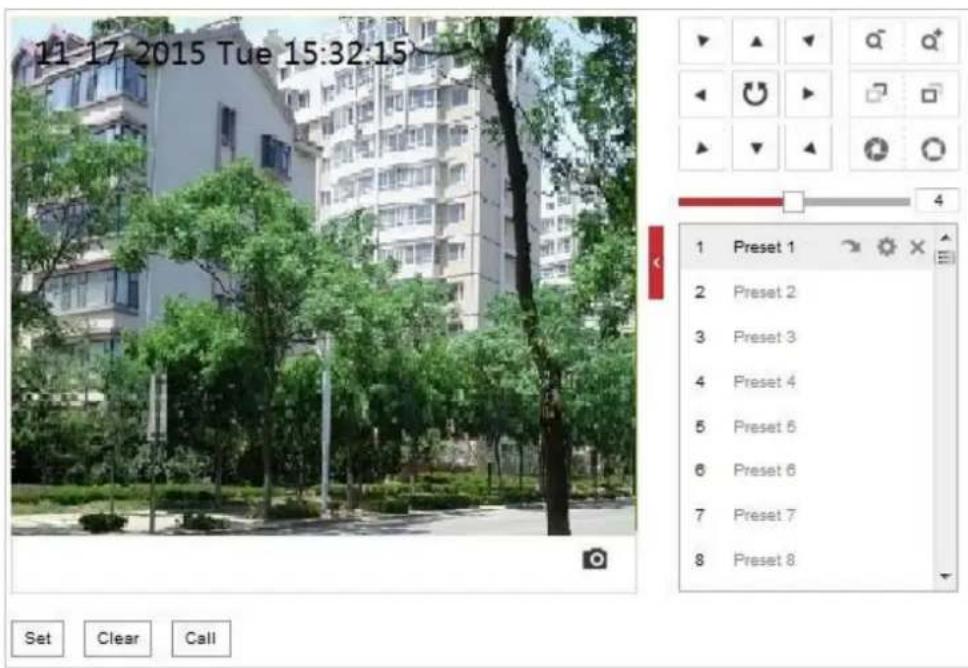

4.5.3 Seng/Calling a Preset....25

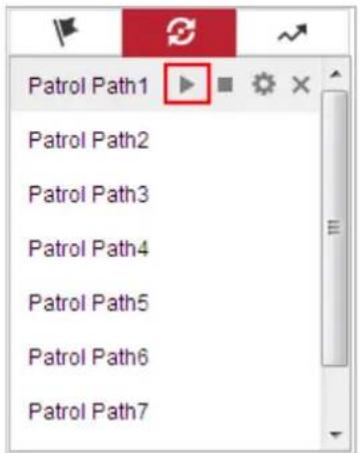

4.5.4 Seng/Calling a Patrol 27
4.5.5 One-touch Patrol....28
4.5.6 Seng/Calling a Paern....29

4.6 PLAYBACK....30

4.6.1 Play Back Video Files 30
4.6.2 Downloading Video Files....32

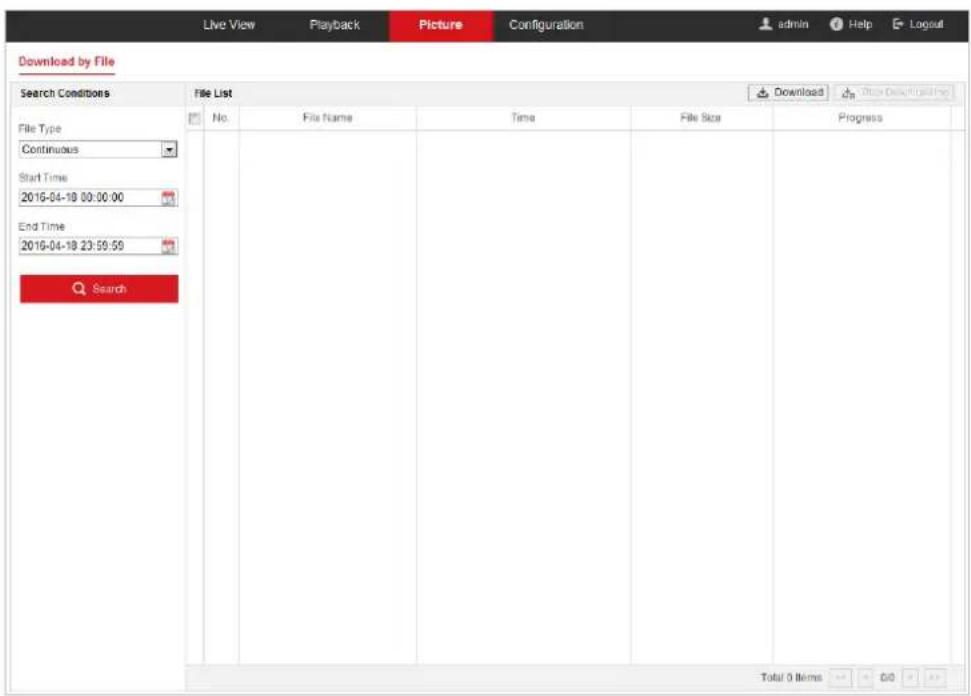

4.7 PICTURES 33

CHAPTER 5 SYSTEM CONFIGURATION....35

5.1 STORAGE SETTINGS....35

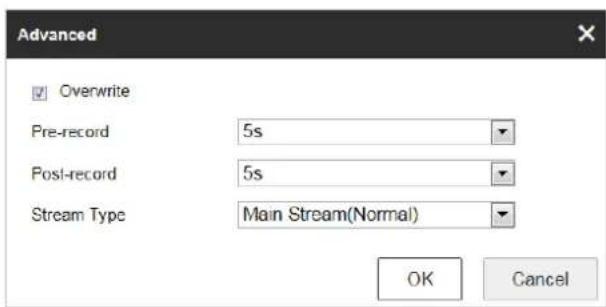

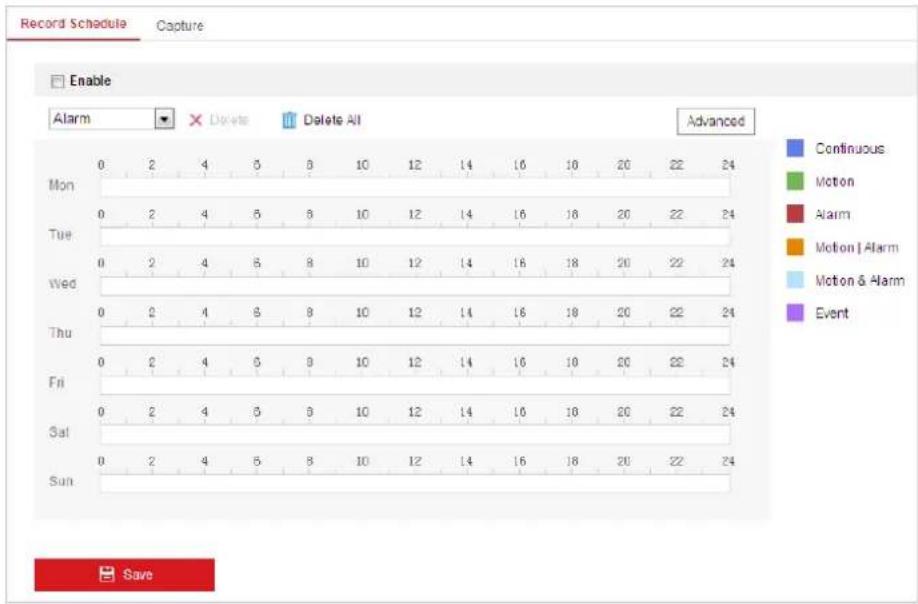

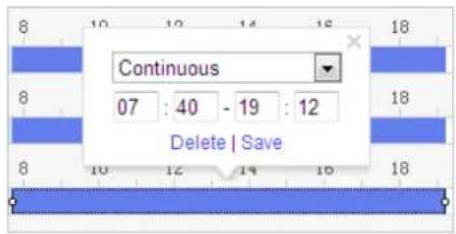

5.1.1 Conguring Recording Schedule 35
5.1.2 Conguring Capture Schedule 37

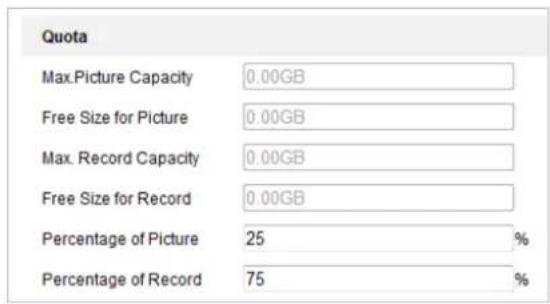

5.1.3 Conguring Net HDD 39

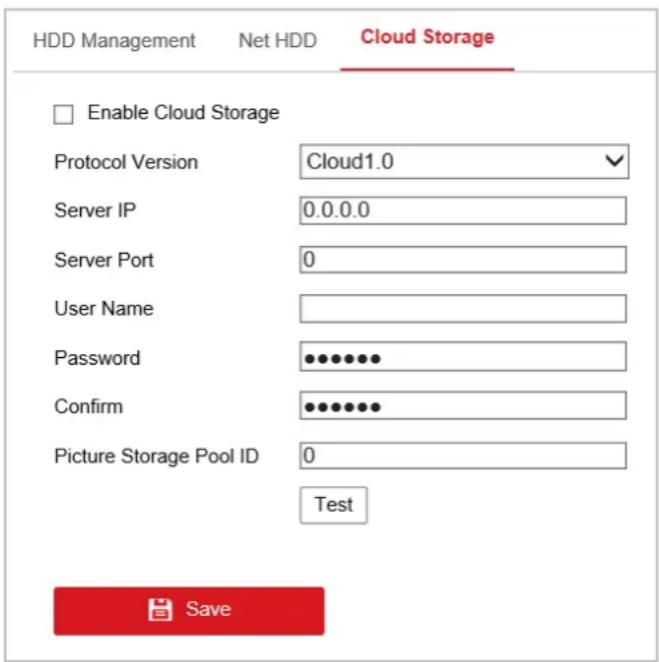

5.1.4 Conguring Cloud Storage....41

5.2 BASIC EVENT CONFIGURATION....41

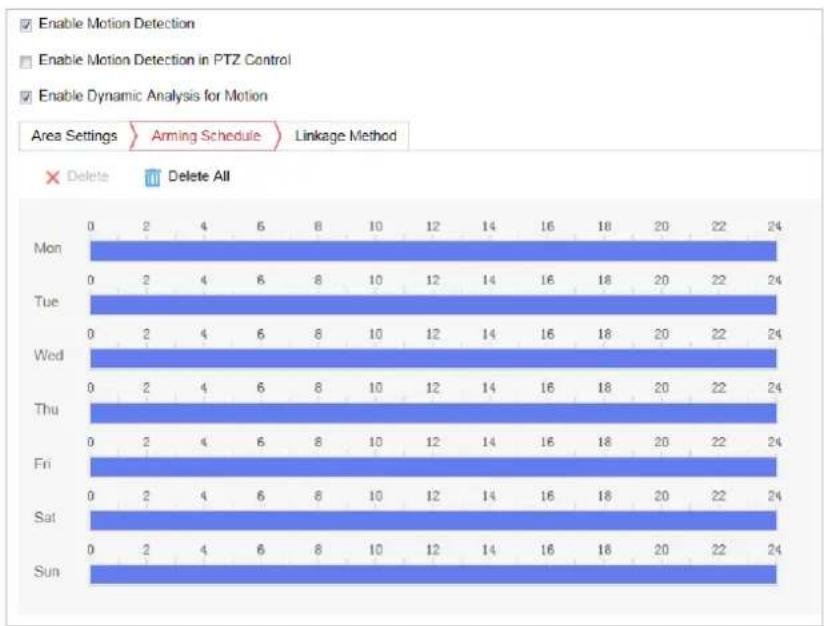

5.2.1 Conguring Moon Detecon....42

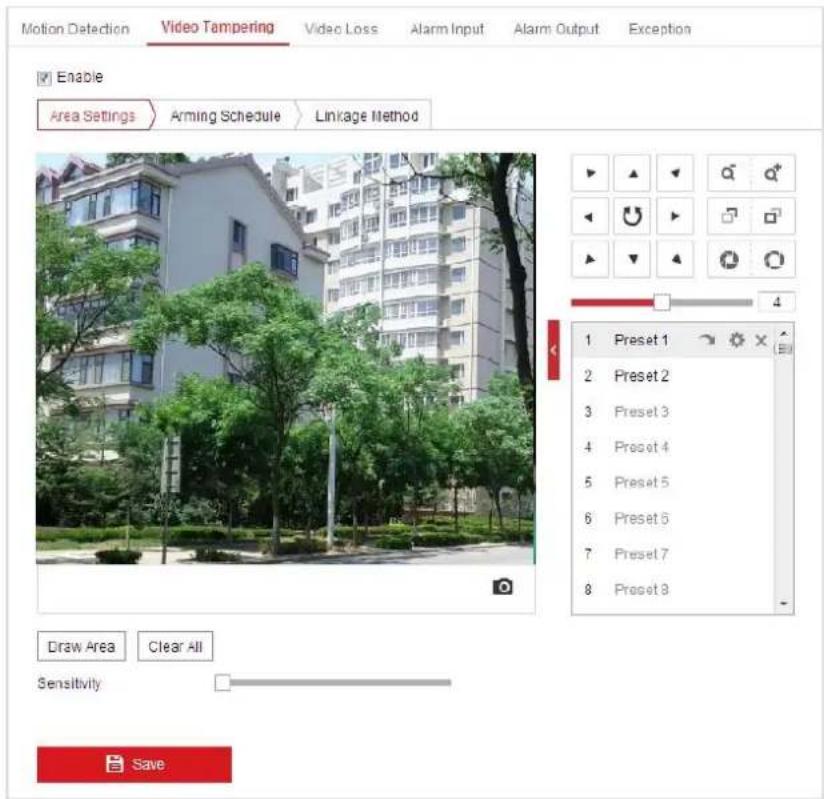

5.2.2 Conguring Video Tampering Alarm....47
5.2.3 Conguring Alarm Input 48
5.2.4 Conguring Alarm Output 50

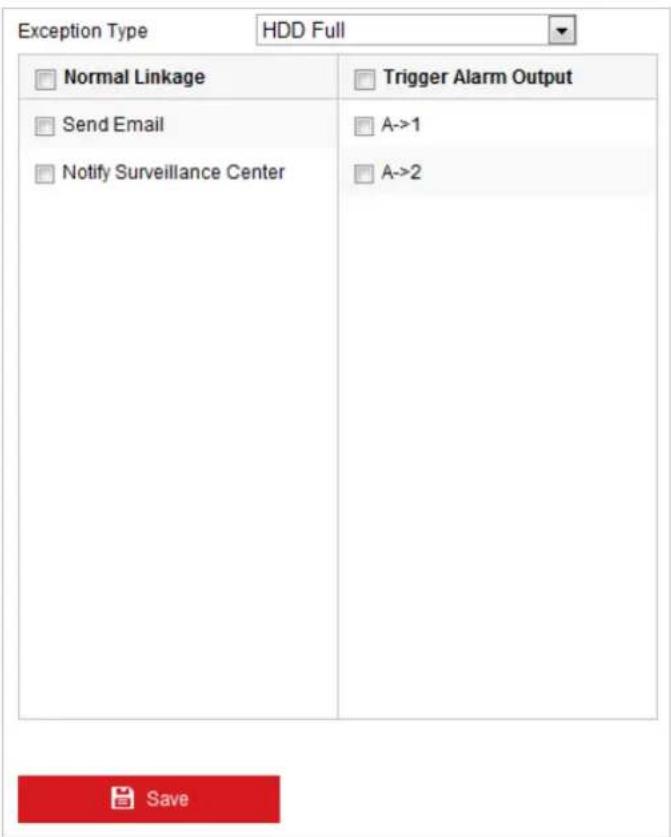

5.2.5 Handling Excepon....51
5.2.6 Conguring Flashing Alarm Light Output....52
5.2.7 Conguring Audible Alarm Output 53

5.3 SMART EVENT CONFIGURATION .... 53

5.3.1 Detecng Audio Excepon 53
5.3.2 Conguring Face Detecon 55

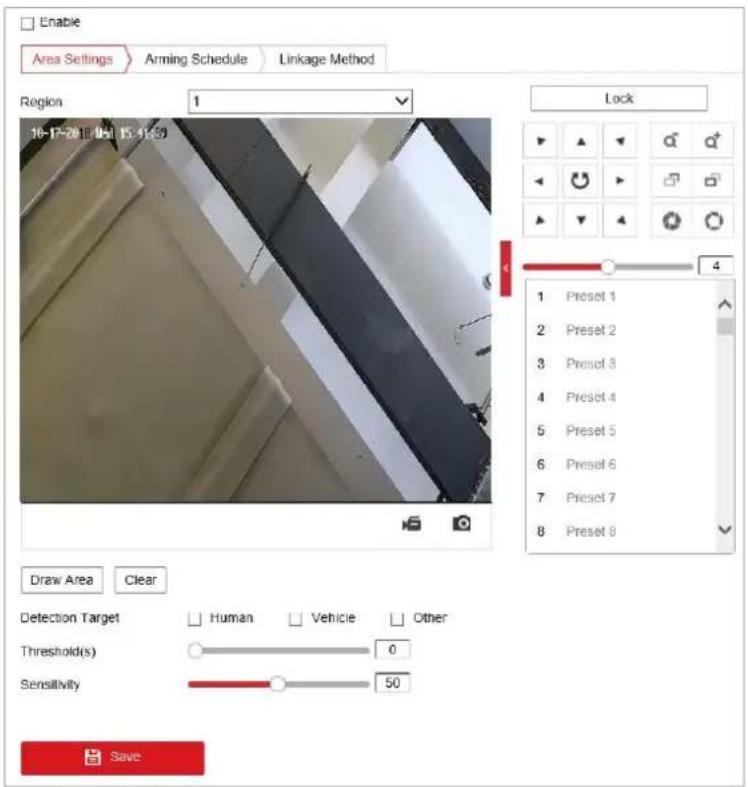

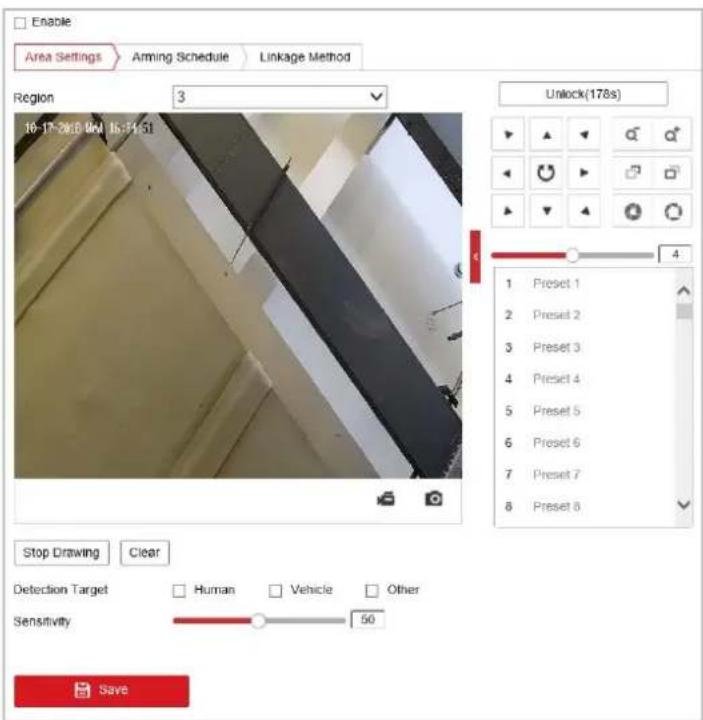

5.3.3 Conguring Intrusion Detection....55

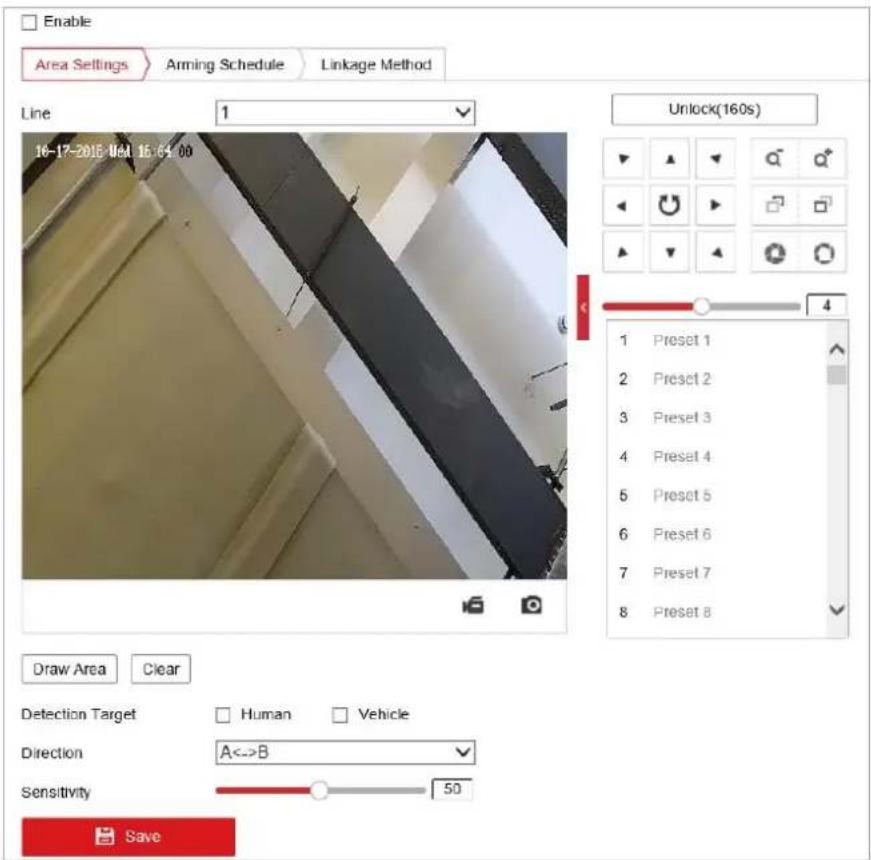

5.3.4 Conguring Line Crossing Detecon 57
5.3.5 Conguring Region Entrance Detecon 59
5.3.6 Conguring Region Exing Detecon 60
5.3.7 Unattended Baggage Detection 62
5.3.8 Object Removal Detecon....63

5.4 PTZ CONFIGURATION....64

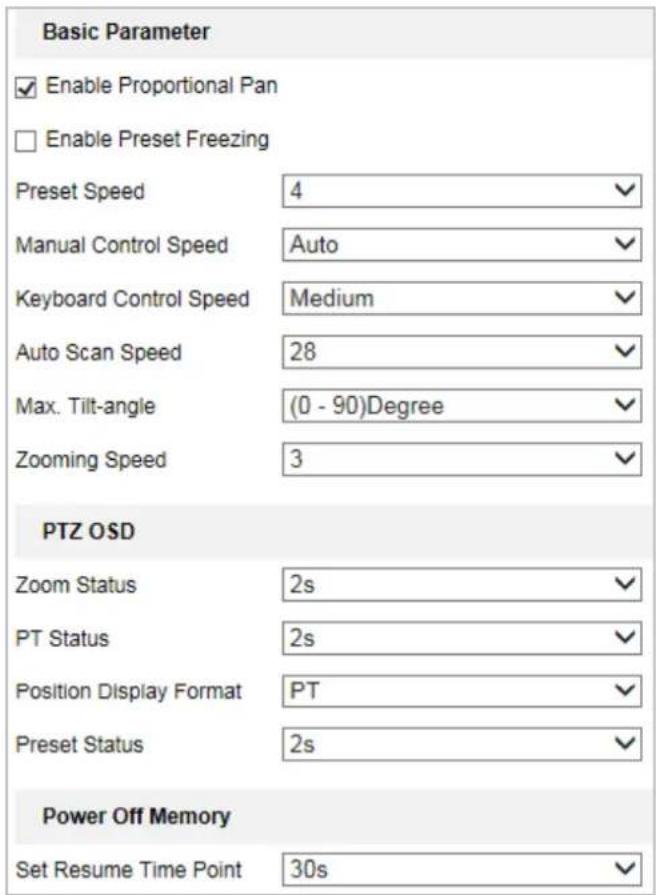

5.4.1 Conguring Basic PTZ Parameters....64

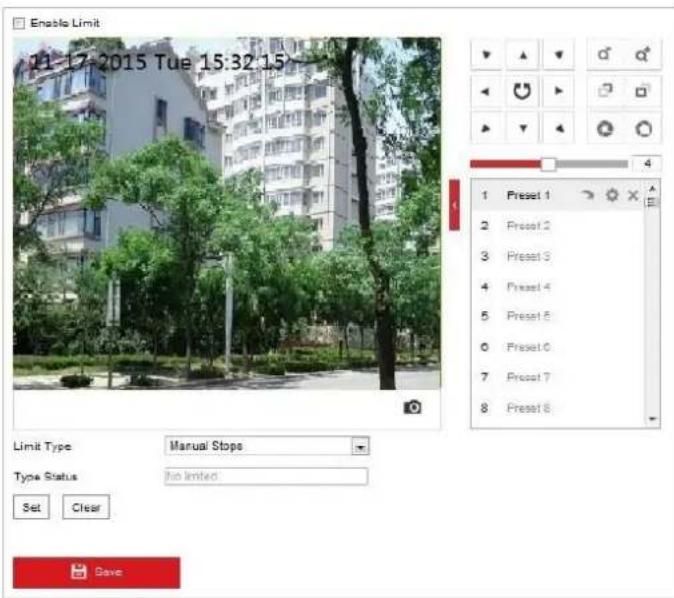

5.4.2 Conguring PTZ Limits 66
5.4.3 Conguring Inial Posion....67
5.4.4 Conguring Park Acons....68

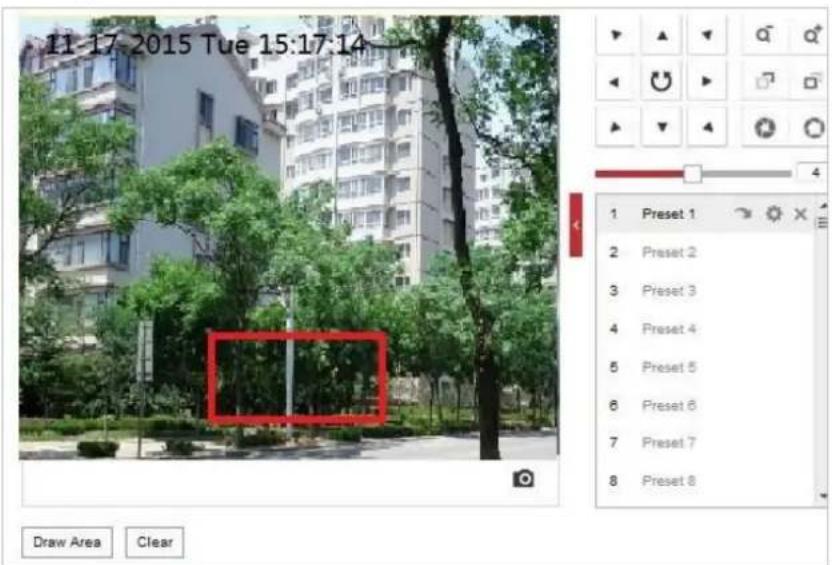

5.4.5 Conguring Privacy Mask....69
5.4.6 Conguring Scheduled Tasks 70
5.4.7 Clearing PTZ Conguraons 72

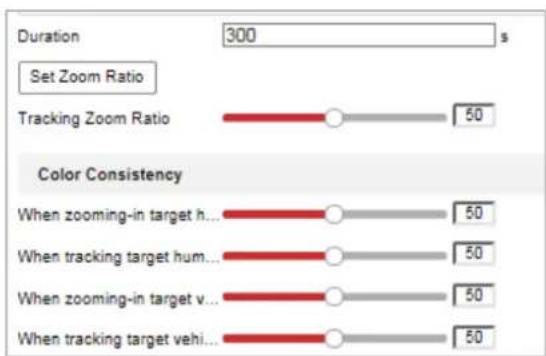

5.4.8 Conguring Smart Tracking....72
5.4.9 Priorize PTZ....73
5.4.10 Position Seings 73
5.4.11 Rapid Focus 74

CHAPTER 6 CAMERA CONFIGURATION....76

6.1 CONFIGURING NETWORK SETTINGS 76

6.1.1 Basic Seings....76
6.1.2 Advanced Seings....81

6.2 CONFIGURING VIDEO AND AUDIO SETTINGS....94

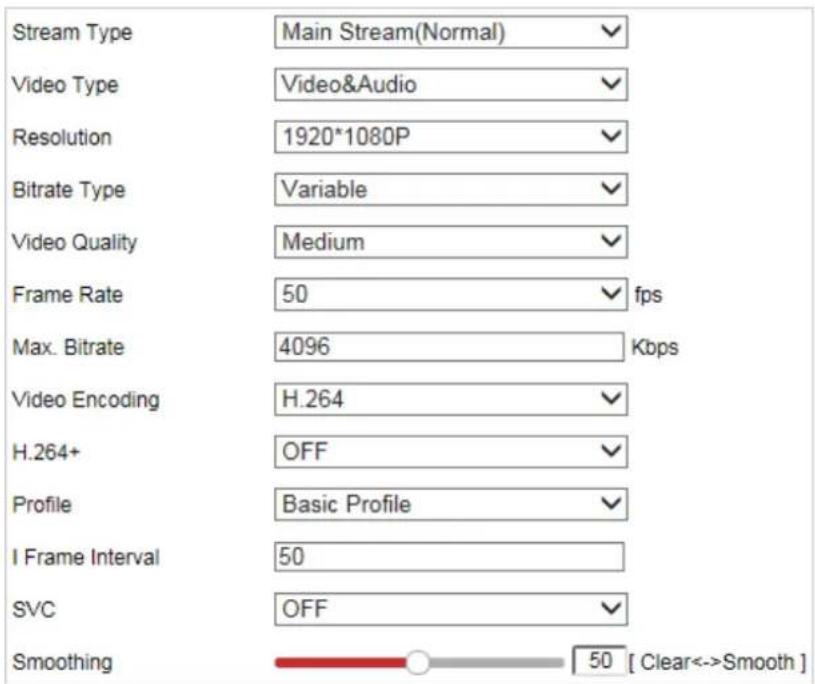

6.2.1 Conguring Video Sengs....94
6.2.2 Conguring Audio Seings....96
6.2.3 Conguring ROI Seings 97
6.2.4 Display Info. on Stream 98

6.3 CONFIGURING IMAGE SETTINGS....99

6.3.1 Conguring Display Seings....99
6.3.2 Conguring OSD Seings 105
6.3.3 Conguring Image Parameters Switch....106

6.4 CONFIGURING SYSTEM SETTINGS....107

6.4.1 System Seings.... 107

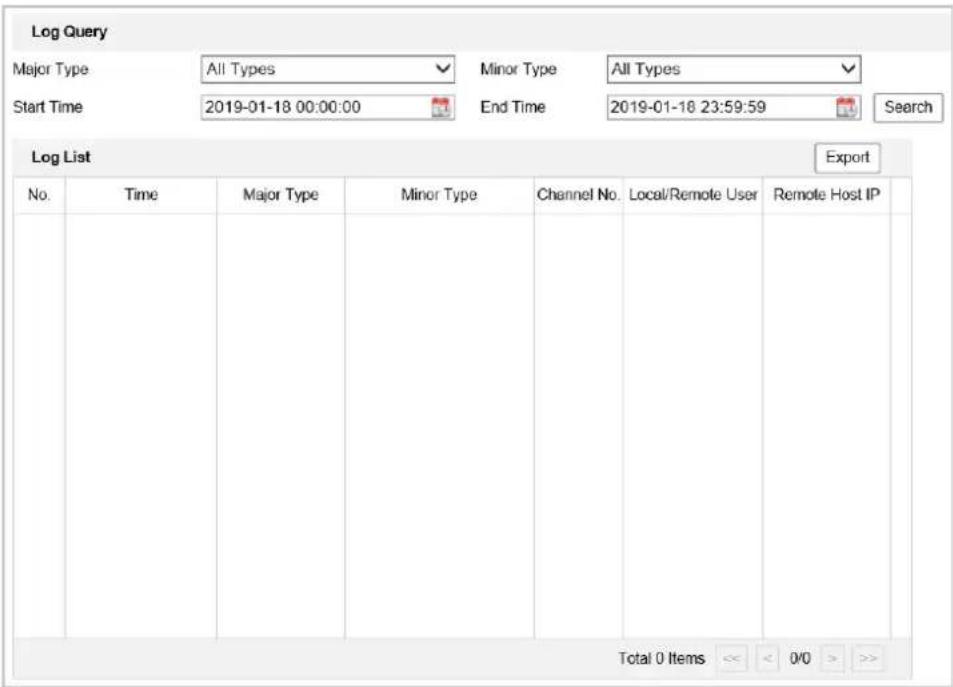

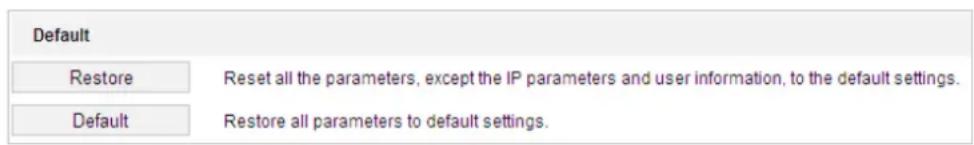

6.4.2 Maintenance 112

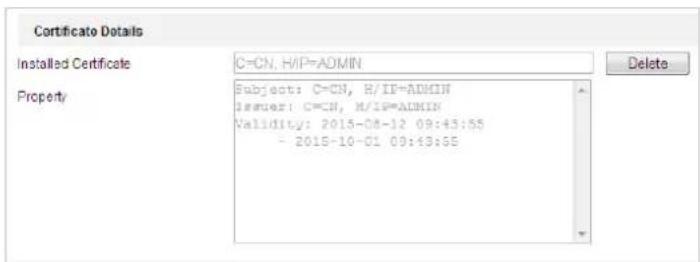

6.4.3 Security 116

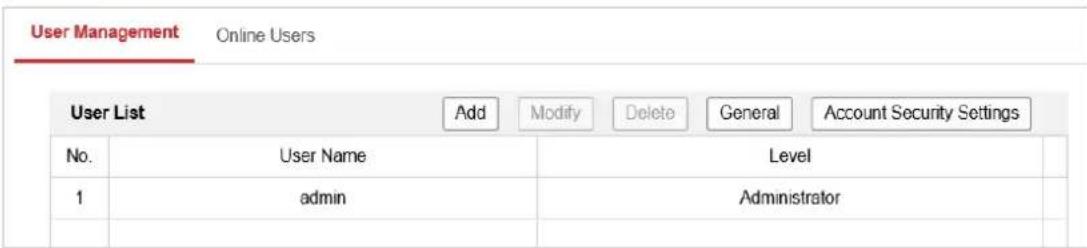

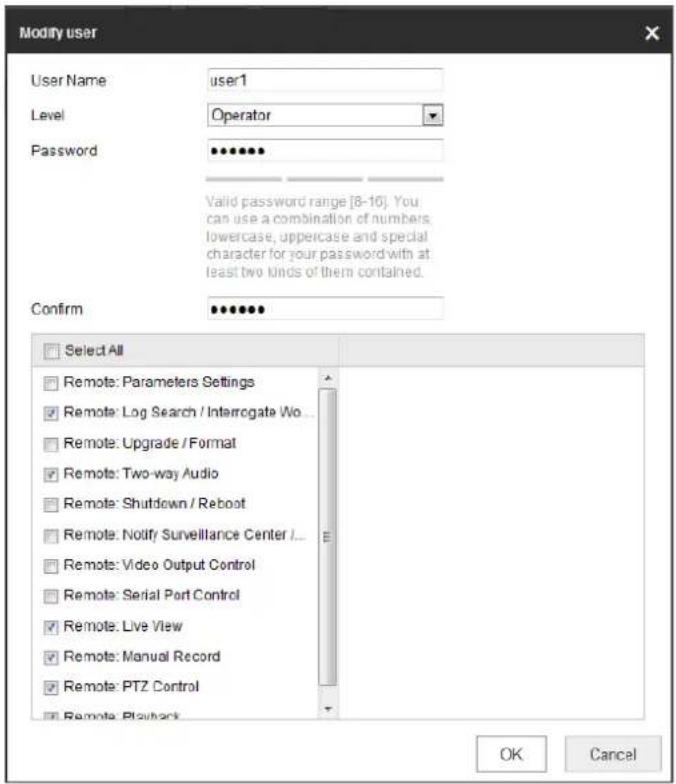

6.4.4 User Account....118

APPENDIX 123

SADP SOFTWARE INTRODUCTION 123

DEVICE COMMUNICATION MATRIX 125

DEVICE COMMAND....125

Chapter 1 Overview

1.1 System Requirement

System requirement of web browser accessing is as follows:

Operang System: Microso Windows XP/Win7/Win8/Win10

CPU: Intel Penum IV 3.0 GHz or higher

RAM: 1G or higher

Display: 1024 × 768 resoluon or higher

Web Browser: Internet Explorer 8.0 to 11.0, Apple Safari 11.0 and above version, Mozilla Firefox 30.0 and above version, Google Chrome 31.0 and above version, and Microso Edge 16.16299 and above version.

Note:

If you are using Google Chrome 57 and its above version or Mozilla Firefox 52 and its above version, you need to click 📄 Dcoralv1.Plo-3rd and install plug-in (only for Windows operaon system) for normal device operaon.

1.2 Funcons

Note:

The funcons vary depending on dierent camera models.

- PTZ Limits

The camera can be programmed to move within the PTZ limits (le/right, up/down).

- Scan Modes

The camera provides 5 scan modes: auto scan, It scan, frame scan, random scan and panorama scan.

- Presets

A preset is a predened image posion. When the preset is called, the camera will automatically move to the dened posion. The presets can be added, modified, deleted and called.

- Label Display

The on-screen label of the preset tle, azimuth/elevaon, zoom, me and camera name can be displayed on the monitor. The displays of me and camera name can be programmed.

- Auto Flips

In manual tracking mode, when a target object goes directly beneath the camera, the video will automatically ips 180 degrees in horizontal direcon to maintain connuity of tracking. This funcon can also be realized by auto mirror image depending on dierent camera models.

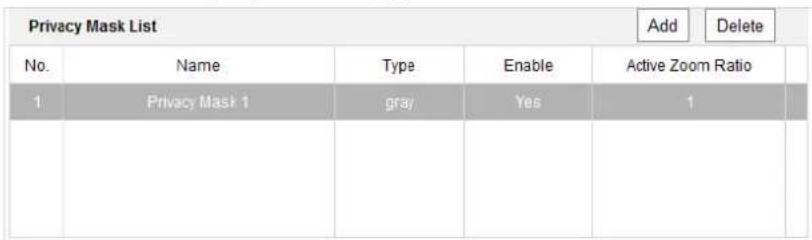

- Privacy Mask

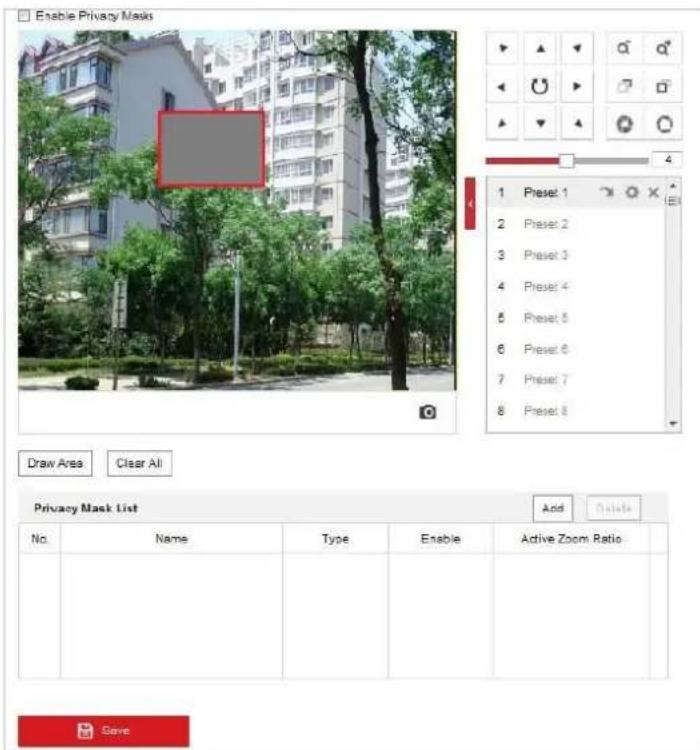

This funcon allows you to block or mask certain area of a scene, for preventing the personal privacy from recording or live viewing. A masked area will move with pan and It funcons and automacally adjust in size as the lens zooms telephoto and wide.

● 3D Posioning

In the client soware, use the le key of mouse to click on the desired posion in the video image and drag a rectangle area in the lower right direcon, then the camera system will move the posion to the center and allow the rectangle area to zoom in. Use the le key of mouse to drag a rectangle area in the upper le direcon to move the posion to the center and allow the rectangle area to zoom out.

● Proporonal Pan/Tilt

Proporonal pan/It automacally reduces or increases the pan and It speeds according to the amount of zoom. At telephoto zoom sengs, the pan and It speeds will be slower than at wide zoom sengs. This keeps the image from moving too fast on the live view image when there is a large amount of zoom.

- Auto Focus

The auto focus enables the camera to focus automacally to maintain clear video images.

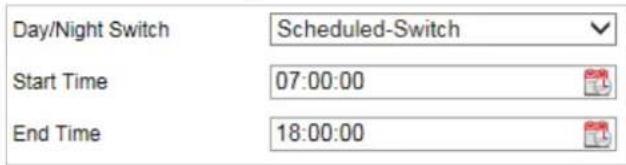

● Day/Night Auto Switch

The cameras deliver color images during the day. And as light diminishes at night, the cameras switch to night mode and deliver black and white images with high quality.

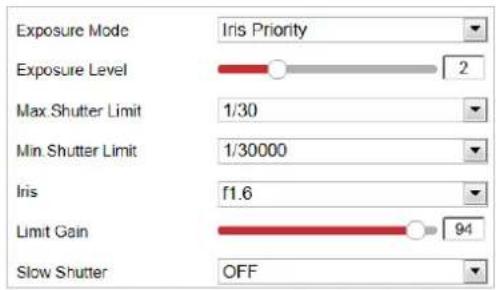

- Slow Shuer

In slow shuer mode, the shuer speed will automatically slow down in low illuminaon conditions to maintain clear video images by extending the exposure me. The feature can be enabled or disabled.

● Backlight Compensaon (BLC)

If you focus on an object against strong backlight, the object will be too dark to be seen clearly. The BLC (Backlight Compensaon) funcon can compensate light to the object in the front to make it clear, but this causes the over-exposure of the background where the light is strong.

● Wide Dynamic Range (WDR)

The wide dynamic range (WDR) funcon helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the eld of view, WDR balances the brightness level of the whole image and provide clear images with details.

● White Balance (WB)

White balance can remove the unrealisc color casts. White balance is the white rendition funcon of the camera to adjust the color temperature according to the environment automacally.

- Patrol

A patrol is a memorized series of pre-dened preset funcon. The scanning speed between two presets and the dwell me at the preset are programmable.

● Paern

A pattern is a memorized series of pan, lt, zoom, and preset funcons. By default the focus and iris are in auto status during the paern is being memorized.

● Power O Memory

The camera supports the power o memory capability with the predened resume me. It allows the camera to resume its previous posion aer power is restored.

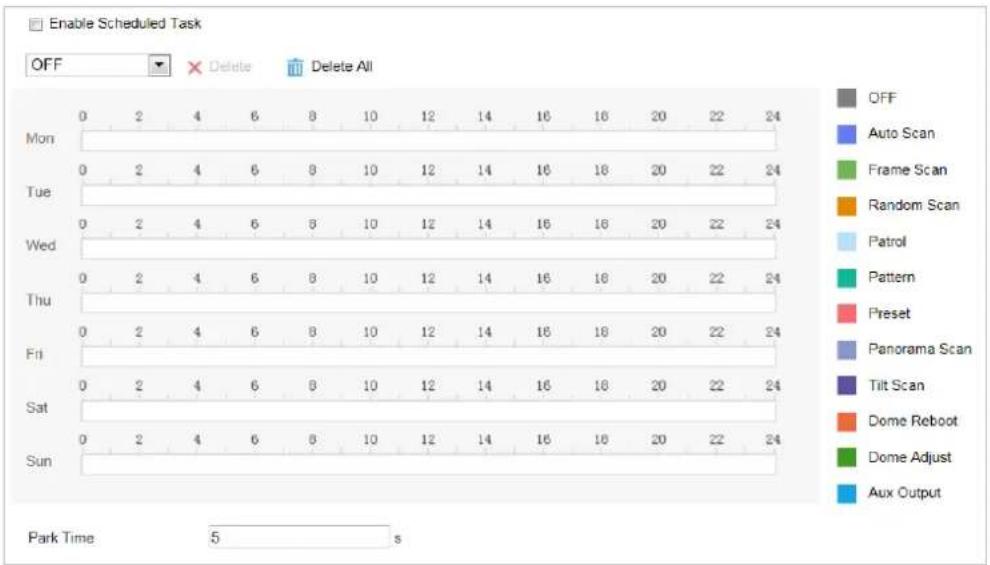

- Scheduled Task

A me task is a precongured acon that can be performed automacally at a speci date and me. The programmable acons include: auto scan, random scan, patrol 1-8 ,pattern 1-4, preset

1-8, frame scan, panorama scan, lt scan, day, night, reboot, PT adjust, Aux Output, etc.

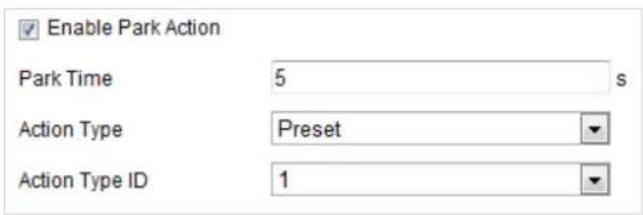

Park Acon

This feature allows the camera to start a predened acon automacally aer a period of inacvity.

- User Management

The camera allows you to edit users with dierent levels of permission, in the admin login status. Mulple users are allowed to access and control the same network camera via network simultaneously.

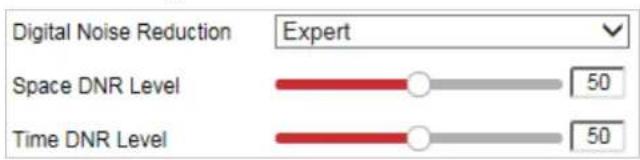

● 3D Digital Noise Reducon

Comparing with the general 2D digital noise reducon, the 3D digital noise reducon funcon processes the noise between two frames besides processing the noise in one frame. The noise will be much less and the video will be clearer.

Chapter 2 Network Connecon

Notes:

• You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and informaon leakage, strengthen your own protecon. If the product does not work properly, contact with your dealer or the nearest service center.
• To ensure the network security of the network camera, we recommend you to have the network camera assessed and maintained termly. You can contact us if you need such service.

Before you start:

• If you want to set the network camera via a LAN (Local Area Network), refer to Secon 2.1 Seng the Network Camera over the LAN.

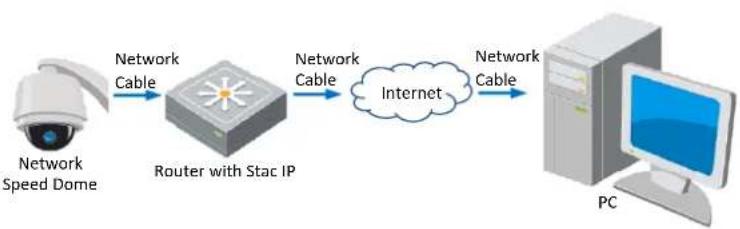

• If you want to set the network camera via a WAN (Wide Area Network), refer to Secon 2.2 Seng the Network Camera over the WAN.

2.1 Seng the Network Camera over the LAN

Purpose:

To view and congregate the camera via a LAN, you need to connect the camera in the same subnet with your computer, and install the SADP or client soware to search and change the IP of the network camera.

Note:

For detailed introducon of SADP, refer to Appendix.

2.1.1 Wiring over the LAN

The following gures show the two ways of cable conncon of a network camera and a computer:

Purpose:

• To test the network camera, you can directly connect the network camera to the computer with a network cable as shown in Figure 2-1.
  ● Refer to the Figure 2-2 to set the network camera over the LAN via a switch or a router.


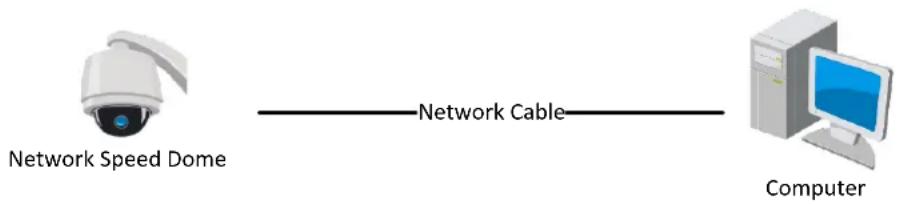

Figure 2-1 Connecng Directly

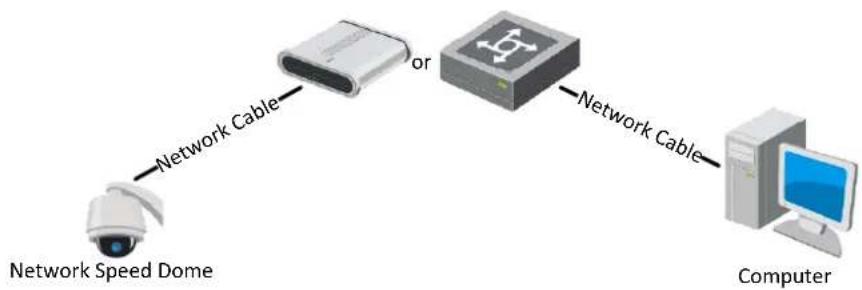


Figure 2-2 Connecng via a Switch or a Router

2.1.2 Acvang the Camera

Purpose:

You are required to acvate the camera rst before you can use the camera.

Acvaon via web browser, acvaon via SADP, and acvaon via client soware are supported.

1. Power on the camera, and connect the camera to the network.
2. Input the IP address into the address bar of the web browser, and click Enter to enter the acvaon interface.

Note:

The default IP address of the camera is 192.168.1.64.

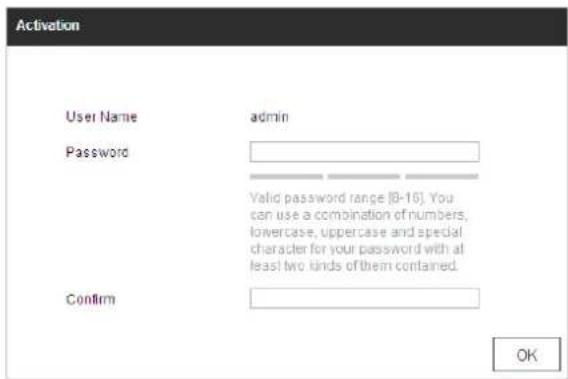

Activation User Name admin Password Valid password range (8-16). You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. Confirm OK

Figure 2-3 Acvaon Interface (Web)

1. Create a password and input the password into the password field.

- For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.
• Conrm the password.
• Click OK to acvate the camera and enter the live view interface.

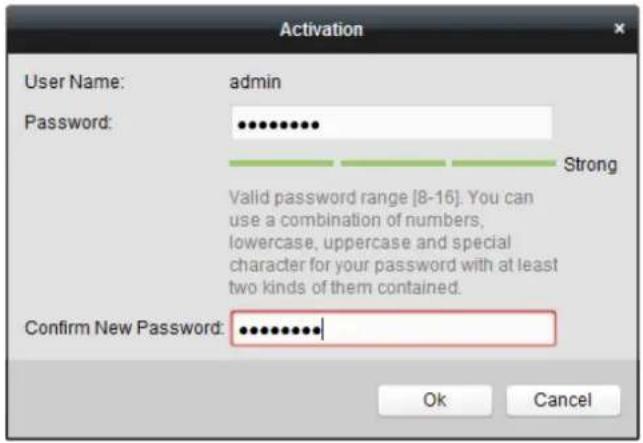

Acvaon via SADP Soware

SADP soware is used for detecting the online device, acvang the device, and reseng the password.

Get the SADP software from the supplied disk or the ofcial website, and install the SADP according to the prompts. Follow the steps to acvate the camera.

Steps:

1. Run the SADP soware to search the online devices.
2. Check the device status from the device list, and select an inactive device.

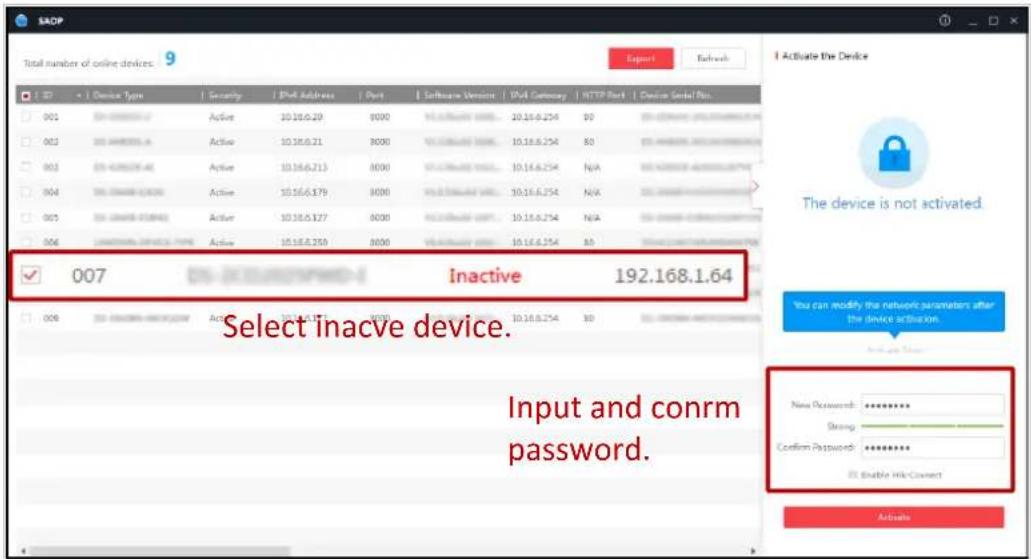

SADP Total number of online devices. 9 Export Enbush Device Type Security IP Mall Address Ports Software Version IP Mall Gateway HTTP Port Device Serial Bit. 001 002 003 004 005 006 007 Active 10.18.6.20 8000 10.18.6.21 8000 10.18.6.213 8000 10.18.6.179 8000 10.18.6.127 8000 10.18.6.250 8000 10.18.6.254 N/A 10.18.6.254 N/A 10.18.6.254 N/A 10.18.6.254 M Active Inactive 192.168.1.64 Select Inacve device. Input and conrm password. Activate the Device The device is not activated. You can modify the network parameters after the device activation. New Password: ********** Strong: Confirm Password: ********** Enable Hit-Correct Activate

Figure 2-4 SADP Interface

Note:

The SADP soware supports acvating the camera in batch. Refer to the user manual of SADP soware for details.

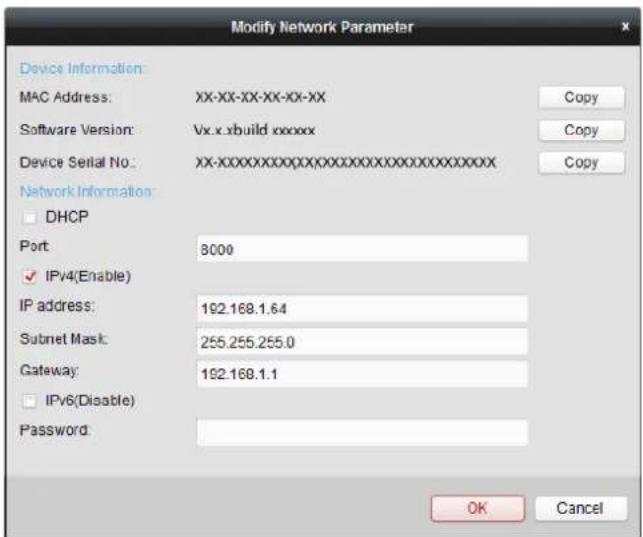

1. Create a password and input the password in the password eld, and confirm the password.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Note:

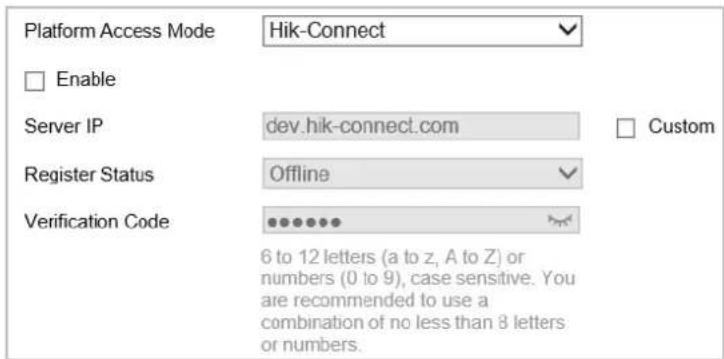

You can enable the Hik-Connect service for the device during acvaon. Hik-Connect funcon varies depending on dierent speed dome models.

1. Click Acvate to start acvaon. You can check whether the acvaon is completed on the popup window. If acvaon failed, make sure that the password meets the requirement and then try again.

2. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the Enable DHCP checkbox.

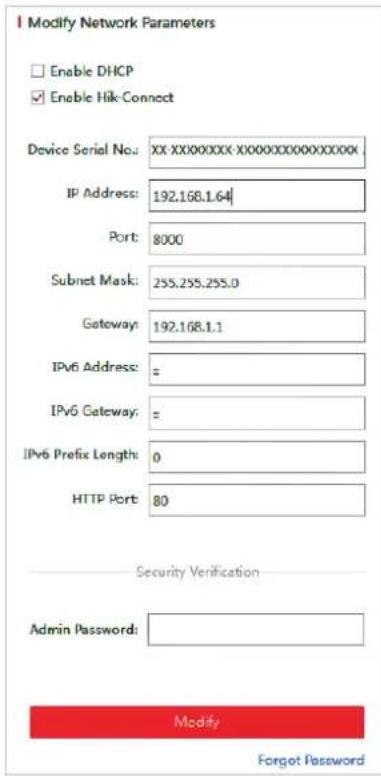

Modify Network Parameters Enable DHCP Enable Hik Connect Device Serial No: XX-XX0000XX-XX00000000XXXXXX. IP Address: 192.168.1.64 Port: 8000 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1 IPv6 Address: = IPv6 Gateway: = IPv6 Prefix Length: 0 HTTP Port: 80 Security Verification Admin Password: Modify Forget Password

Figure 2-5 Modify the IP Address

1. Input the password and click Modify to acvate your IP address modicaon.

The batch IP address modicaon is supported by the SADP. Refer to the user manual of SADP for details.

Acvaon via Client Soware

The client soware is versale video management soware for mulple kinds of devices.

Get the client soware from the supplied disk or the ocial website, and install the soware according to the prompts. Follow the steps to acvate the camera.

Steps:

1. Run the client soware and the control panel of the software pops up, as shown in Figure 2-6.

File System View Tool Help Control Panel Operation and Control Blue View Viewing live video, controlling PTZ functionality and setting image parameters Remote Playback Searching the image files and playback. E-map Arding, modifying, deleting, and basic operators of E-Map. Maintenance and Management Device Management The management of the devices and groups, adding, developing and the configuration of the resources. Event Management Configuration of alarms, abnormal parameters and Bollage actions of the servers. Record Schedule Configure the recording schedule and related parameters Account Management Adding, deleting users and assigning the permission. Log Search Search, view and backup local and remote logs. System Configuration Configure general parameters

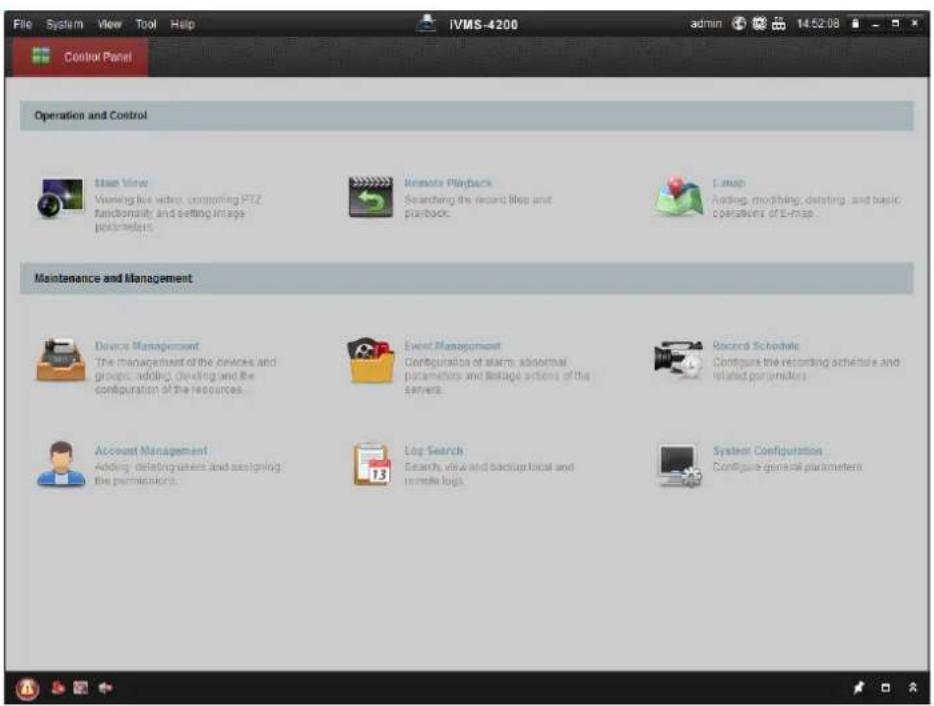

Figure 2-6 iVMS-4200 Control Panel

1. Click Device Management to enter the Device Management interface, as shown in Figure 2-7.

Control Panel Device Management Server Group Organization Encoding Device Add New Device Type Device for Management (0) Add Device Modify Delete Remote C... VCA Altoca... Activate Refresh All Filter Nickname IP Device Serial No. Security Net Status HDD Status Online Device (3) Refresh Every 15s Add to Client Add All Modify Refinalo Reset Password Activate Filter IP Device Type Firmware Version Security Server Port Start time Ac 192.168.1.64 XX-XXXXXXXXXXXXX Vx.x.x built xxxxxx Inactive 8000 2015-03-20 18:13:47 No 19.16.1.222 XX-XXXXXXX-XX Vx.x.x built xxxxxx Active 8000 2015-03-20 10:27:51 No 192.0.0.64 XX-XXXXXX-XXX Vx.x.x built xxxxxx Active 8000 2015-03-20 07:53:43 No. Encoding device: DVR/DVSIN/VRIPCSPDMVMS-4200 PCNVR/VMS-4200 EncodeCard server Motion Detection Alarm

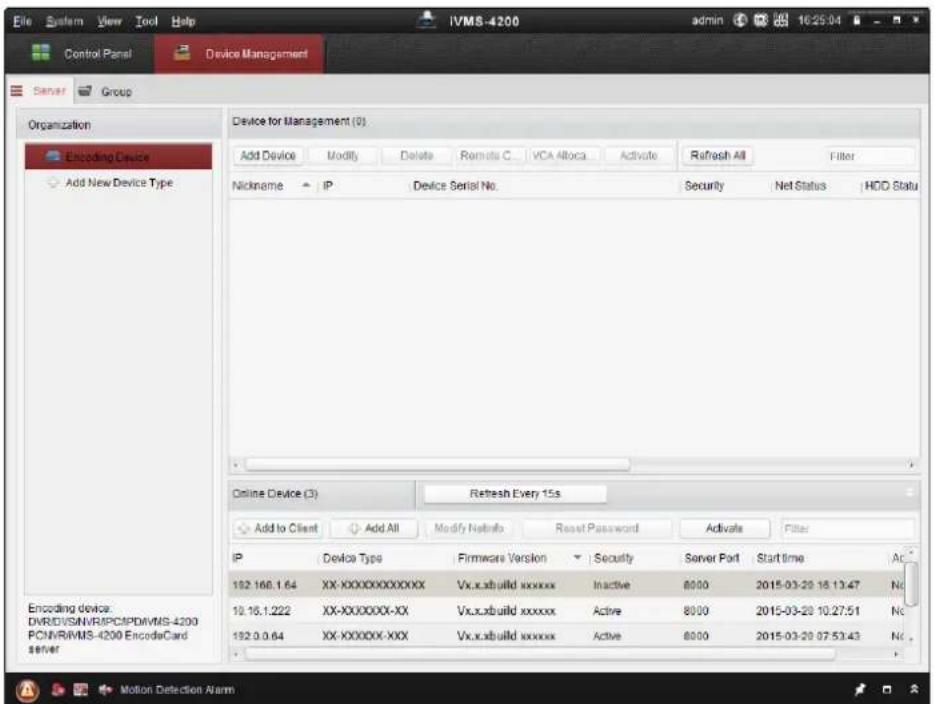

Figure 2-7 Device Management Interface

1. Check the device status from the device list, and select an inactive device.
2. Click Acvate to pop up the Acvation interface.
3. Create a password and input the password in the password eld, and conrm the password.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
  ● Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Activation User Name: admin Password: •••••••••• Strong Valid password range [8-16]: You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. Confirm New Password: •••••••••••• Ok Cancel

Figure 2-8 Acvaon Interface

1. Click OK to start acvaon.
2. Click Modify Nenfo to pop up the Network Parameter Modicaon interface, as shown in Figure 2-9.

Modify Network Parameter Device Information: MAC Address: XX-XX-XX-XX-XX Software Version: Vx.xxbuild xxxxxx Device Serial No: XX-XXXXXXXXXXXXXXXXXXXXXXXXXXXXX Network Information: DHCP Port 8000 IPv4(Enable) IP address: 192.168.1.64 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1 IPv6(Disable) Password: OK Cancel

Figure 2-9 Modifying the Network Parameters

1. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the Enable DHCP checkbox.
2. Input the password to acvate your IP address modicaon.

2.2 Seng the Network Camera over the WAN

Purpose:

This secon explains how to connect the network camera to the WAN with a stac IP or a dynamic IP.

2.2.1 Stac IP Connecon

Before you start:

Apply a stac IP from an ISP (Internet Service Provider). With the stac IP address, you can connect the network camera via a router or connect it to the WAN directly.

- Connecng the network camera via a router

Steps:

1. Connect the network camera to the router.
2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Secon 2.1.2 for detailed IP address conguraon of the camera.
3. Save the stac IP in the router.
4. Set port mapping, e.g., 80, 8000 and 554 ports. The steps for port mapping vary depending on dierent routers. Call the router manufacturer for assistance with port mapping.
5. Visit the network camera through a web browser or the client soware over the internet.

Figure 2-10 Accessing the Camera through Router with Stac IP

- Connecng the network camera with stac IP directly

You can also save the stac IP in the camera and directly connect it to the internet without using a router. Refer to Secon 2.1.2 for detailed IP address conguraon of the camera.


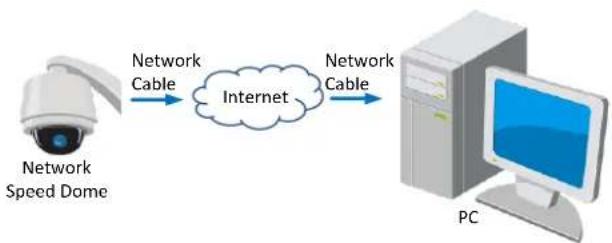

Figure 2-11 Accessing the Camera with Stac IP Directly

2.2.2 Dynamic IP Connecon

Before you start:

Apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network camera to a modem or a router.

- Connecng the network camera via a router

Steps:

1. Connect the network camera to the router.
2. In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer to Secon 2.1.2 for detailed LAN conguraon.
3. In the router, set the PPPoE user name, password and confirm the password.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

• Set port mapping. e.g. 80, 8000 and 554 ports. The steps for port mapping vary depending on dierent routers. Call the router manufacturer for assistance with port mapping.

• Apply a domain name from a domain name provider.

• Configure the DDNS sengs in the setng interface of the router.
• Visit the camera via the applied domain name.

- Connecng the network camera via a modem

Purpose:

This camera supports the PPPoE auto dial-up funcon. The camera gets a public IP address by ADSL dial-up after the camera is connected to a modem. You need to configure the PPPoE parameters of the network camera. Refer to Secon 6.1.1 Conguring PPPoE Sengs for detailed conguraon.

Note:

The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes aer reboong the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (e.g. DynDns.com). Follow the steps below for normal domain name resoluon and private domain name resoluon to solve the problem.

♦ Normal Domain Name Resoluon

Steps:

1. Apply a domain name from a domain name provider.

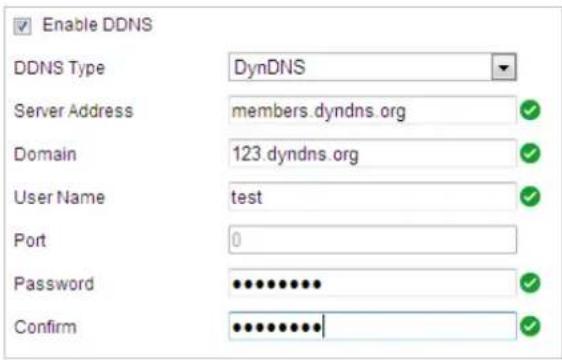

2. Configure the DDNS sengs in the DDNS Setngs interface of the network camera. Refer to Secon 6.1.1 Conguring DDNS Sengs for detailed conguraon.

3. Visit the camera via the applied domain name.

Chapter 3 Accessing to the Network Speed Dome

3.1 Accessing by Web Browsers

Steps:

1. Open the web browser.
2. In the address eld, input the IP address of the network camera, e.g., 192.168.1.64 and press the Enter key to enter the login interface.
3. Acvate the camera for the rst me using. Refer to the Secon 2.1.2 Acvang the Camera.

4. Select English as the interface language on the top-right of login interface.

5. Input the user name and password and click

The admin user should congregate the device accounts and user/operator permissions properly. Delete the unnecessary accounts and user/operator permissions.

Note:

The device IP address gets locked if the user performs certain failed password aempts. Admin user can adjust the number of attempts on Security Service page (Conguraon > System > Security).

User Name Password Login

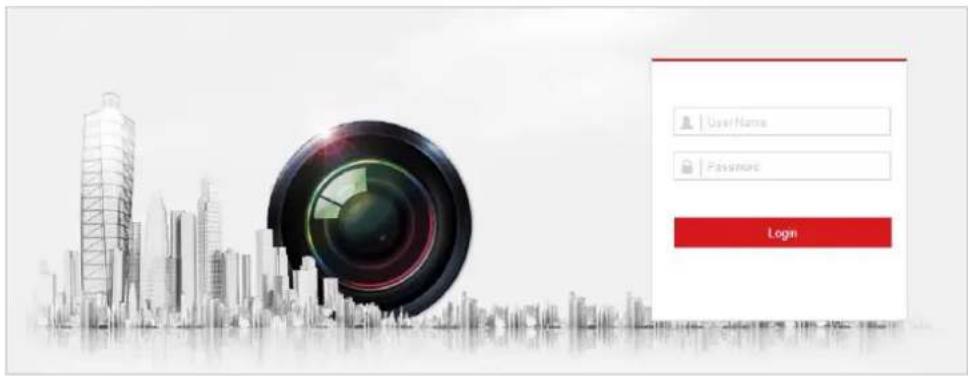

Figure 3-1 Login Interface

1. For certain web browsers, you should install the plug-in before viewing the live video and operang the camera. Follow the installaon prompts to install the plug-in.

Note:

You may have to close the web browser to install the plug-in. Reopen the web browser and log in again aer installing the plug-in.

3.2 Accessing by Client Soware

The product CD contains the client soware. You can view the live video and manage the camera with the client soware.

Follow the installaon prompts to install the client soware and WinPcap. The conguraon interface and live view interface of client soware are shown in Figure 3-2.

File System View Tool Help Control Panel Main View Device Management Operation and Control Main View Visualing live video, controlling PTZ functionality and setting image parameters Removal Playback EnLinking the record files and playback E-map Adding, modifying, shrking, and basic operations of E-map Maintenance and Management Device Management The management of this devices and groups, adding, deleting and the configuration of the resources Event Management Configuration of alert, abnormal parameters and image actions of the services Record Schedule Configure the recording schedule and retached parameters Account Management Adding, deleting users and assigning the permissions. Log Search Log Search, Search, view and backup locis and remote logs System Configuration Configure general parameters.

Figure 3-2 iVMS-4200 Control Panel

File System View Tool Help Control Panel Main View Device Management View Search Default View 1-Screen 9-Screen 9-Screen 18-Screen Custom View zoom cam New View Camera Search... zoom cameras zoom camera_Close PTZ Control

Figure 3-3 iVMS-4200 Main Interface

Notes:

• If you use third party VMS soware, contact our technical support for camera firmware.
• For detailed informaon about client soware of our company, refer to the user manual of the soware. This manual mainly introduces accessing to the network camera by web browser.

Chapter 4 Basic Operaons

In this and the following chapters, operaon of the speed dome by the web browser will be taken as an example.

4.1 Power-up Acon

Aer power up, the speed dome will perform self-test acon. It begins with lens acon and then pan/lt movement.

Aer the self-test acon, the system informaon of the speed dome including model, address, communicaon, version, and others will be displayed on screen for 40 seconds.

4.2 Conguring Local Parameters

The local conguraon refers to the parameters of the live view and other operaons using the web browser.

Steps:

1. Enter the Local Conguraon interface:

Conguraon > Local

1. Congure the following sengs:

- Live View Parameters: Set the Protocol, Play Performance, Rules, Display POS Information and Image Format.

◆ Protocol: TCP, UDP, MULTICAST and HTTP are selectable.
TCP: Ensures complete delivery of streaming data and better video quality, yet the real-me transmission will be aected.
UDP: Provides real-me audio and video streams.
MULTICAST: It's recommended to select the protocol type to MULTICAST when using the Mulcast funcon.
HTTP: Allows the same quality as of TCP without seng speci ports for streaming under some network environments.

◆ Play Performance: Set the live view performance to Shortest Delay, Balanced, Fluent or Custom. For Custom, you can set the frame rate for live view.
Rules: You can enable or disable the rules of dynamic analysis for moon here.
◆ Display POS Informaon: Enable the funcon, feature informaon of the detected target is dynamically displayed near the target in the live image.
◆ Image Format: The captured pictures can be saved as dierent format. JPEG and BMP are available.

Live View Parameters Protocol ○ TCP ○ UDP ○ MULTICAST ○ HTTP Play Performance ○ Shortest Delay ○ Balanced ○ Fluent ● Custom 20 frame Rules ○ Enable ● Disable Display POS Information ○ Enable ● Disable Image Format ● JPEG ○ BMP

Figure 4-1 Live View Parameters

- Record File Seings: Set the saving path of the video files.

Record File Size: Select the packed size of manually recorded and downloaded video les. The size can be set to 256M, 512M or 1G.
◆ Save record files to: Set the saving path for the manually recorded video les.
Save downloaded les to: Set the saving path for the downloaded video les in Playback interface.

● Picture and Clip Sengs: Set the saving paths of the captured pictures and clipped videos.

◆ Save snapshots in live view to: Set the saving path of the manually captured pictures in
interface.
Save snapshots when playback to: Set the saving path of the captured pictures in Playback interface.

Save clips to: Set the saving path of the clipped video les in Playback interface. You can click Browse to change the directory for saving video les, clips and pictures. You can click Open to directly open the video files, clips and pictures.

1. Click

to save the sengs.

4.3 Live View Page

Purpose:

The live video page allows you to view live video, capture images, realize PTZ control, set/call presets and congure video parameters.

Log in the network camera to enter the live view page, or you can click Live View on the menu bar of the main page to enter the live view page.

Note:

The funcons vary depeding on dierent camera models. Take the actual interface as standard.

Descripons of the Live View page:

Menu Bar Live View Playback Picture Configuration admin Help Logout PTZ PTZ Control Live View Window Show/hide PTZ control panel Live View Parameters Toolbar Preset/Patrol/Paern

Figure 4-2 Live View Page

Menu Bar:

Click each tab to enter Live View, Playback, Picture, and Conguraon page respectively.

Click to display the help le of the network camera.

Click to logout the system.

Live View Window:

Display the live video.

Toolbar:

Operaons on the live view page, e.g., Count Pixel, Live View, Capture, Record, Audio on/o, Regional Exposure, Regional Focus, etc.

Note:

Audio on/o is only supported by certain camera models.

PTZ Control:

Panning, Tilng, Focusing and Zooming acons of the network, as well as the Light, Wiper, Auxiliary Focus, and Lens Inializaon Control, etc.

Preset/Patrol/Paern:

Set and call the Preset/Patrol/Paern for the camera.

Live View Parameters:

Congure the Image Size, Stream Type, Plug-in Type.

4.4 Starng Live View

4.4.1 Live Operaon

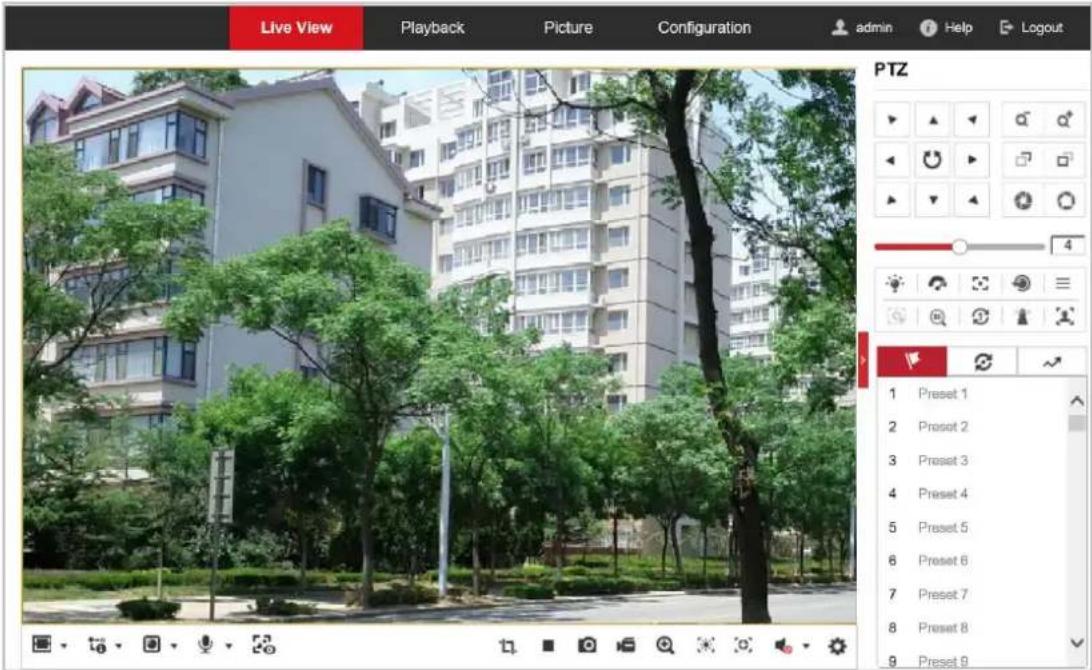

In the live view window as shown in Figure 4-3, click ▶ on the toolbar to start the live view of

the network.

Live View Playback Picture Configuration admin Help Logout PTZ 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 9 Preset 9

Figure 4-3 Start Live View

Table 4-1 Descripons of the Toolbar and Live View Parameters

Icon	Descripon
	Click the buon to enable Pixel Counter. Draw an area in live view window, and it shows the height and width of the selected area.
	Start/stop Live view.
	Manually capture the pictures.
	Manually start/stop recording.
	Steps:1. Click the buon to enable Digital Zoom funcon.2. Draw a rectangle on the image as the target area, and the area will be zoomed in.3. Aer viewing, you can click any place of the picture to get back to normal picture.
	Steps:1. Click the buon to enter the regional exposure operaon mode.2. Draw a rectangle on the image as target exposure region.
	Steps:1. Click the buon to enter the regional focus operaon mode.2. Draw a rectangle on the image as the target focus region.
	Mute/audio on and adjust volumeNote:The funcon is only supported by certain camera models.
	Click the buon to enable quick setup of image/video related parameters, including Specify Display, OSD and Video/Audio parameters. For detailed conguraon, refer toSecon 0 Smooth StreamingPurpose:Thisfuncon is used to view the live view smoothly via the client soware or Web Browser when the network is unstable or high quality of video is required.Notes:Supported services vary according to camera models.Before you start:Add the device to your client soware and enable the NPQ protocol for live view via the client.Steps:1. Enter the Smooth Streaming interface:Conguraon > Network > Advanced Sengs > Smooth Streaming2. Select theStream Type.3. CheckEnable Smooth Streaming.4. Select the mode of smooth streaming. There are three modes selectable:Auto, Resoluon Priority, and Error Correction.Auto:The resoluon and bitrate will be adjusted automacally, the upper limits of which will not exceed the values you set on Video page. Go toConguraon >Video/Audio >Videopage, set theResoluonand Max.Bitratebefore you enable smooth streaming funcon.Resoluon Priority:The resoluon stays the same as the set value in Video page, and the bitrate will be adjusted automacally. Go toConguraon >Video/Audio >Vidopage, set the Max. Bitrate before you enable smooth streaming funcon.Error Correcon:The resoluon and bitrate stay the same as the set values in Video page. This mode is used to correct the data error during transmission. You can congregate the error correcon proporon within range of 0-100. When the proporon is 0, the data error will be corrected by data retransmission. When the proporon is higher than 0, the error data will be recovered via redundant data that is added to the stream. The higher the value is, the more redundant date will be generated, an the larger bandwidth is required. When the proporon is 100, the redundant data will be as large as the original data.Note:Be sure the bandwidth is sufficient in Error Correcon mode.5. ClickSaveto save the sengs.
	Click to select from and display live video in4:3/16:9/ original/original rao/self-adapve window size.
	Clickto select from and display live video with themain/ sub/third stream. The main stream is with a relavely highresoluon and needs more bandwidth. The default seng of streamtype is .
	Clickto select between and play the live video via playerWeb Components or Quick Time.Note:The live video is played via Web Components by default, and other typesof players are supported for the browser, such as MJPEG, and VLC. Youare required to download and install the player to play the live video.
	Steps:1. Click ▼ and it appears 。 Click ▼ to enable two-way audiowhen the icon turns into 。2. Click the icon again to stop two-way audio.Note:The funcon is only supported by certain camera models.

Notes:

• Double-click on the live video to switch the current live view into full-screen or return to normal mode from the full-screen.
• Before using the two-way audio or recording with audio funcons, set the Stream Type to Video & Audio referring to Secon 6.2.1 Conguring Video Sengs.

4.4.2 Install Plug-in

Certain operaon system and web browser may restrict the display and operaon of the camera funcon. You should install plug-in or complete certain sengs to ensure normal display and operaon.

Operaon System	Web Browser	Operaon
Windows	Internet Explorer 8+Google Chrome 56 and earlier versionMozilla Firefox 51 and earlier version	Follow pop-up prompts to complete plug-in installaon.
	Google Chrome 57+Mozilla Firefox 52+Latest Internet Edge (Windows 10)	ClickDownload Plug-into download and install plug-in.
Others	Internet Explorer 8+	Follow pop-up prompts to complete plug-in installaon to obtain high qualitydisplay and complete funcons the camera oers.

4.5 Operang PTZ Control

Purpose:

In the live view interface, you can use the PTZ control buttons to control panning, lting and zooming.

Note:

PTZ funcons vary depending on dierent camera models.

4.5.1 PTZ Control Panel

On the live view page, click to show the PTZ control panel or click to hide it. Click the direcon buons to control the pan/lt movements.

Click the zoom/iris/focus buons to control lens.

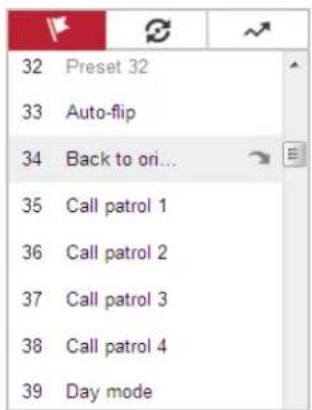

1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 9 Preset 9

Figure 4-4 PTZ Control Panel

Table 4-2 Descripons of PTZ Control Panel

Buon	Name	Descripon
	PTZ Control Panel	Hold and press the direconal buon to pan/lt the camera.Click , then the camera keeps panning when the icon turns into. Click the icon again to stop the camera.
	Zoom out/in	Click , then the lens zooms in.Click , then the lens zooms out.
	Focus near/far	Click , then the lens focuses far and the object far away gets clear.Click , then the lens focuses near and the object nearby gets clear.
	Iris close/open	When the image is too dark, click to enlarge the iris. When the image is too bright, click to stop down the iris.
	Auxiliary Funcons	Refer to Secon 4.5.2 Auxiliary Funcons for detailed informaon of auxiliary funcons
	Speed Adjustment	Adjust speed of pan/lt movements.
	Preset	Refer to Secon 4.5.3Seng/Calling a Preset for detailed informaon of seng preset.

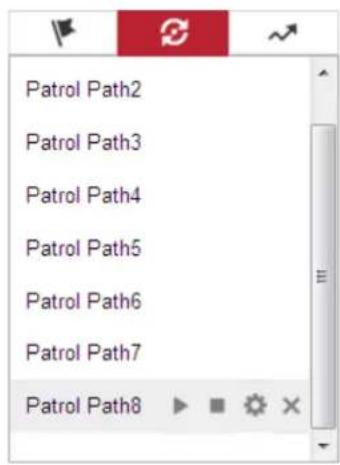

	Patrol	Refer to Secon 4.5.4Seng/Calling a Patrol for detailed informaon of seng patrol.
	Paern	Refer to Secon 4.5.6Seng/Calling a Paern for detailed informaon of seng paern.

● Buons on the Preset/Patrol/Paerns interface:

Table 4-3 Descripons of Buons

Buon	Descripon
	Start the selected patrol/paern.
	Stop current patrol/paern.
	Set the selected preset/patrol.
×	Delete the selected preset/patrol/paern.
	Start recording a paern.
	Stop recording the paern.

4.5.2 Auxiliary Funcons

Note:

These funcons may dier from dierent cameras. Please take the actual product as standard. The Auxiliary funcons panel is shown in Figure 4-5.

Grid of nine icons including lightbulb, cloud, camera, and magnifying glass with numbers 30 and 1

Figure 4-5 Auxiliary Funcons

Table 4-4 Descripons of Auxiliary Funcons

Buon	Name	Descripon
	Light	Click the buon to enable/disable the light supplement of the camera.
	Wiper	Click the buon to move the wiper once. The funcon can only be realized with wiper device.
[WAZ4]	Auxiliary Focus	This funcon is reserved.
	Lens Inializaon	Click the buon and the lens operates the movements for inializaon.
	Menu	Click the buon to call the OSD menu of the device and click again to close the OSD menu.
[4327]	Manual Tracking	Steps:1. Click on the toolbar of live view interface.2. Click a moving object in the live video. The camera will track the object automacally.
[KBX7]	3D Posioning	Steps:1. Click on the toolbar of live view interface.2. 3D posioning can be operated in three ways:● Click a posion of the live video. The corresponding posion will be moved to the center of the live video.Hold down the le mouse buon and drag the mouse to the lower right on the live video. The corresponding posion will be moved to the center of the live video and zoomed in.Hold down the le mouse buon and drag the mouse to the upper le on the live video. The corresponding posion will be moved to the center of the live video and zoomed out.
[322Y]	One-touch Patrol	Click to call one-touch patrol. For detailed informaon of seng one-touch patrol, refer to Secon 4.5.5 One-touch Patrol.
[7KAT]	One-touch Park	Click to save the current view as the preset No. 32 and start park at the current posion.

4.5.3 Seng/Calling a Preset

Purpose:

A preset is a predened image posion. For the dened preset, you can click the calling button to quickly view the predetermined image posion.

- Seng a Preset:

Steps:

1. In the PTZ control panel, select a preset number from the preset list.

1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5

Figure 4-6 Seng a Preset

1. Use the PTZ control buons to move the lens to the desired posion.

2. Pan the camera to the right or le.

3. Tilt the camera up or down.
4. Zoom in or out.

5. Refocus the lens.

6. Click ⚙ to nish the seng of the current preset.

7. Edit a preset name by double clicking on the default name such as preset 1. (The pre-dened presets are named already but not congorable. Refer to the user manual for detailed funcon descripon.)
8. You can click ✗ to delete the preset.

Note:

You can congure up to 272 presets.

- Calling a Preset:

In the PTZ control panel, select a defined preset from the list and click to call the preset.

1 Preset 1 2 Preset 2 Preset 1 3 Preset 3 4 Preset 4 5 Preset 5

Figure 4-7 Calling a Preset

For convenient preset selecon, refer to the following steps to navigate to the preset you want.

Steps:

1. Select any preset from the list.
2. Click the preset number you need on the keyboard.

Notes:

• The following presets are predened with special commands. You can only call them but not congure them. For instance, preset 99 is the "Start auto scan". If you call the preset 99, the camera starts auto scan funcon.
  ● Pattern function varies depending on dierent camera models.

Table 4-5 Special Presets

Preset	Funcon	Preset	Funcon
33	Auto ip	92	Set manual limits
34	Back to initial posion	93	Save manual limits
35	Call patrol 1	94	Remote reboot
36	Call patrol 2	95	Call OSD menu
37	Call patrol 3	96	Stop a scan
38	Call patrol 4	97	Start random scan
39	Day mode (IR cut Iter in)	98	Start frame scan
40	Night mode (IR cut Iter out)	99	Start auto scan
41	Call paern 1	100	Start It scan
42	Call paern 2	101	Start panorama scan
43	Call paern 3	102	Call patrol 5
44	Call paern 4	103	Call patrol 6
45	One-touch Patrol	104	Call patrol 7
46	Day/Night Auto Mode	105	Call patrol 8

32 Preset 32 33 Auto-flip 34 Back to ori... 35 Call patrol 1 36 Call patrol 2 37 Call patrol 3 38 Call patrol 4 39 Day mode

Figure 4-8 Special Preset

Note:

You may need to use the OSD (On Screen Display) menu when controlling the camera remotely. To display the OSD menu on the live view screen, you can call the preset number 95.

4.5.4 Seng/Calling a Patrol

Purpose:

A patrol is a memorized series of preset funcon. It can be congured and called on the patrol sengs interface. There are up to 8 patrols for customizing. A patrol can be congured with 32 presets.

Before you start:

Make sure that the presets you want to add into a patrol have been denied.

- Seng a Patrol:

Steps:

1. In the PTZ control panel, click ☑ to enter the patrol settings interface.
2. Select a patrol number from the list and click .
3. Click + to enter the adding interface of preset, as shown in Figure 4-9.

Patrol Path2 Preset Speed Time (s) OK Cancel

Figure 4-9 Adding Presets

1. Congure the preset number, patrol me and patrol speed.

Name	Descripon
Patrol Time	It is the duraon staying on one patrol point. The camera moves to another patrol point aer the patrol me.
Patrol Speed	It is the speed of moving from one preset to another.

1. Click OK to save a preset into the patrol.
2. Repeat the steps from 3 to 5 to add more presets.
3. Click OK to save all the patrol settings.

- Calling a Patrol:

In the PTZ control panel, select a defined patrol from the list and click to call the patrol, as shown in Figure 4-10.

Patrol Path1 Patrol Path2 Patrol Path3 Patrol Path4 Patrol Path5 Patrol Path6 Patrol Path7

Figure 4-10 Calling a Preset

4.5.5 One-touch Patrol

Purpose:

One-touch patrol is an automacally created patrol. The system automacally add preset No.1 to No.32 to the patrol path 8. You can call the one-touch patrol and the camera moves as the patrol path 8 automacally.

Steps:

1. Set preset No.1 to No.32. Refer to Secon 4.5.3 Seng/Calling a Preset for detailed informaon of seng preset.
2. Call preset No. 45, and the camera moves as patrol path 8.
3. Click ☑ to enter the patrol sengs interface and start/stop one-touch patrol, edit the patrol me and the speed.
4. You can click Ⓐ of the PTZ control panel to start one-touch patrol.

Patrol Path2 Patrol Path3 Patrol Path4 Patrol Path5 Patrol Path6 Patrol Path7 Patrol Path8

Figure 4-11 Patrol Path 8

4.5.6 Seng/Calling a Paern

Purpose:

A pattern is a memorized series of pan, lt, zoom, and preset funcons. It can be called on the paern sengs interface. There are up to 4 paerns for customizing.

Note:

Paern funcon varies depending on dierent camera models.

- Seng a Paern:

Steps:

1. In the PTZ control panel, click → to enter the pattern sengs interface.

2. Select a paern number from the list as shown in Figure 4-12.

Pattern1 Pattern2 Pattern3 Pattern4

Figure 4-12 Paerns Sengs Interface

1. Click to enable recording the panning, lng and zooming acons.

2. Use the PTZ control buons to move the lens to the desired posion aer the informaon of PROGRAM PATTERN REMAINNING MEMORY (%) is displayed on the screen.

- Pan the camera to the right or le.

- Tilt the camera up or down.

- Zoom in or out.

- Refocus the lens.

1. Click ☐ to save all the paern sengs.

● Buons on the Paerns interface:

Buons	Descripon
	Start the selected patrol/paern.
	Stop current patrol/paern.
	Set the selected preset/patrol.
×	Delete the selected preset/patrol/paern.
	Start recording a paern.
	Stop recording the paern.

Notes:

● These 4 paerns can be operated separately and with no priority level.

- When conguring and calling the pattern, proporcional pan is valid; the limit stops and auto ip will be invalid; and the 3D posioning operaon is not supported.

4.6 Playback

Purpose:

This secon explains how to view the video les stored in the network disks or memory cards.

4.6.1 Play Back Video Files

Steps:

1. Click on the menu bar to enter playback interface.

Live View Playback Picture Configuration admin Help Logout Channel No 1 Status Aug 2015 Sun Mon Tue Wed Thu Fri Sat 25 27 28 29 30 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 5 Search Set playback time 00 00 00 2015-08-15 00:00:00 Command Continuous Alarm Manual ©Hikvision Digital Technology Co., Ltd. All Rights Reserved

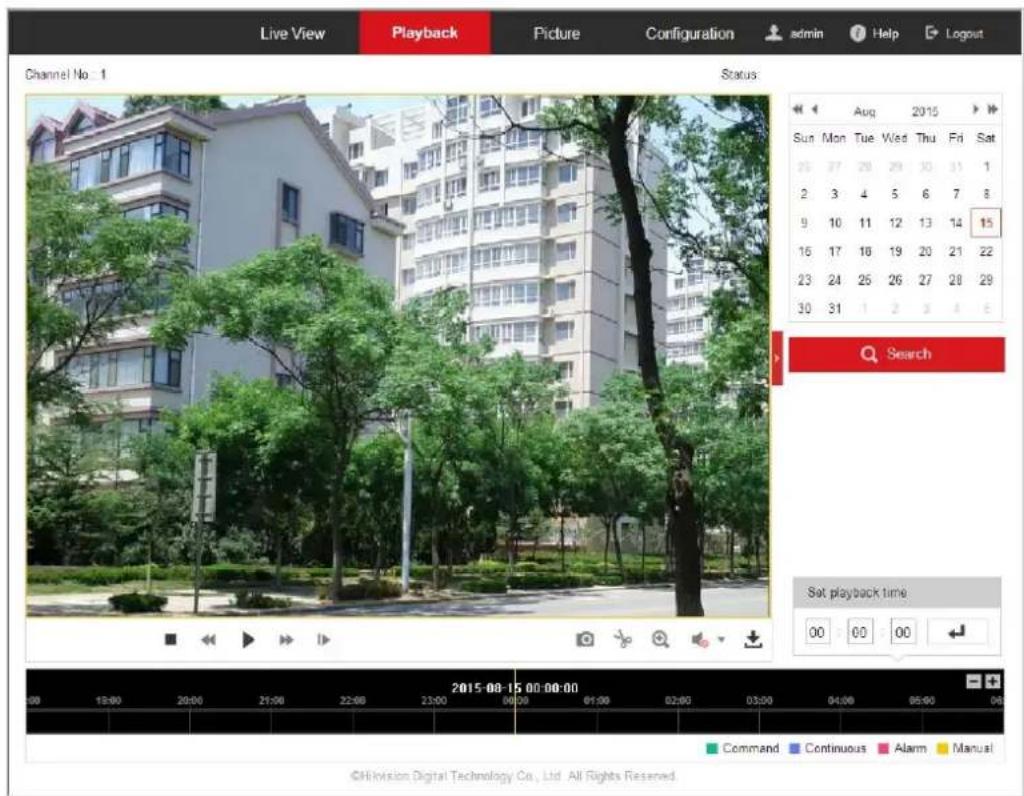

Figure 4-13 Playback Interface

1. Select the date and click

Sun Mon Tue Wed Thu Fri Sat 26 27 28 29 30 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 5

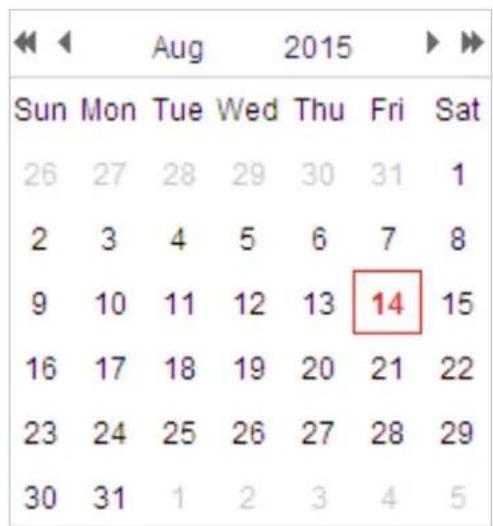

Figure 4-14 Search Video

1. Click to play the video les found on this date.

The toolbar on the boom of Playback interface can be used to control playing process.

Screenshot of a media player control bar with playback, pause, and download icons

Figure 4-15 Playback Toolbar

Table 4-6 Descripon of the buons

Buon	Operaon	Buon	Operaon
	Play		Capture a picture
	Pause		Start/Stop clipping video les
	Stop		Volume up/down
	Speed down		Download
	Speed up		Playback by frame
	Enable/Disable digital zoom

Notes:

● Volume funcon varies depending on dierent camera models.
- You can choose the le paths locally for downloaded playback video les and pictures in Local Conguraon interface. Refer to Secon 4.2 Configuring Local Parameters for details.
- Drag the progress bar with the mouse to locate the exact playback point. You can also input the me and click to locate the playback point in the Set playback me eld. You can also click 70 boom out/in the progress bar.

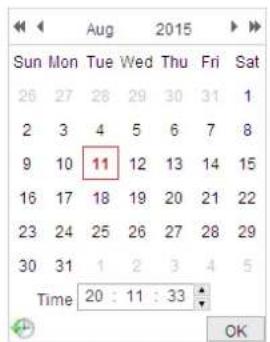

Figure 4-16 Set Playback Time

2015-06-15 05:34:54 03:00 04:00 05:00 06:00 07:00 08:00 09:00

Figure 4-17 Progress Bar

The dierent colors of the video on the progress bar stand for the dierent video types as shown in Figure 4-18.

Figure 4-18 Video Types

4.6.2 Downloading Video Files

Steps:

1. Click ↓ on the playback interface. The pop-up menu is shown in Figure 4-19.

2. Set the start me and end me. Click Search. The corresponding video les are listed on the right.

Download by File Search Conditions File List No. File Name Start Time End Time File Size Progress File Type All Type Start Time 2016-08-15 00:00:00 End Time 2015-08-15 23:59:59 Search Total 0 Items OK

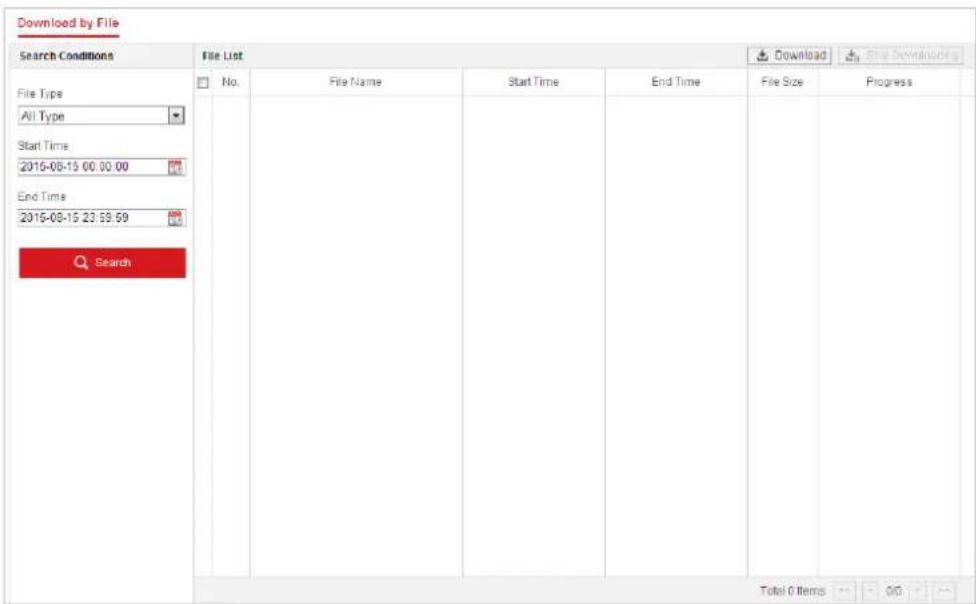

Figure 4-19 Video Downloading interface

1. Check the checkbox in front of the video les that you need to download.

2. Click to download the video les.

4.7 Pictures

Purpose:

This secon explains how to view the captured picture les stored in the network disks or the memory cards and download the captured pictures.

Steps:

1. Click on the menu bar to enter picture interface.

Download by File Search Conditions File List No. File Name Time File Size Progress Continuous Start Time 2016-04-18 00:00:00 End Time 2016-04-18 23:59:59 Search Total 0 Items Add Add Edit Help Help Logout

Figure 4-20 Picture Interface

1. Select the le type.
2. Set the start me and end me. Click Search. The corresponding picture les will be listed.
3. Check the checkbox in front of the les that you need to download.
4. Click to download the les.

Chapter 5 System Conguraon

5.1 Storage Sengs

Before you start:

To congure record sengs, make sure that you have the network storage device within the network or the memory card inserted in your camera.

5.1.1 Conguring Recording Schedule

Purpose:

There are two kinds of recording for the camera: manual recording and scheduled recording. In this secon, you can follow the instrucons to conjure the scheduled recording. By default, the record les of scheduled recording are stored in the memory card (if supported) or in the network disk.

Steps:

1. Enter the Record Schedule settings interface:

Conguraon > Storage > Schedule Setngs > Record Schedule

Record Schedule Capture Enable Alarm Delete All Advanced Mon 0 2 4 5 8 10 12 14 16 18 20 22 24 Tue 0 2 4 5 8 10 12 14 16 18 20 22 24 Wed 0 2 4 5 8 10 12 14 16 18 20 22 24 Thu 0 2 4 5 8 10 12 14 16 18 20 22 24 Fri 0 2 4 5 8 10 12 14 16 18 20 22 24 Sat 0 2 4 5 8 10 12 14 16 18 20 22 24 Sun 0 2 4 5 8 10 12 14 16 18 20 22 24 Continuous Motion Alarm Motion | Alarm Motion & Alarm Event Save

Figure 5-1 Recording Schedule Interface

1. Check the checkbox to enable scheduled recording.

2. To set the advanced sengs of the camera, click Advanced to enter the advanced settings interface.

Advanced Overwrite Pre-record 5s Post-record 5s Stream Type Main Stream(Normal) OK Cancel

Figure 5-2 Record Parameters

- Pre-record: The me you set to start recording before the scheduled me or the event. For example, if an alarm triggers recording at 10:00, and the pre-record me is set as 5 seconds, the camera starts to record at 9:59:55.

The pre-record me can be congured as No Pre-record, 5 s, 10 s, 15 s, 20 s, 25 s, 30 s or not limited.

Note:

The pre-record me changes according to the video bitrate.

- Post-record: The me you set to stop recording aer the scheduled time or the event. For example, if an alarm triggered recording ends at 11:00, and the post-record me is set as 5 seconds, the camera records until 11:00:05.

The Post-record me can be congured as 5 s. 10 s. 30 s. 1 min. 2 min. 5 min or 10 min.

- Stream Type: You can select the stream type for recording; Main Stream and Sub-stream are selectable. If you select Sub-stream, you can record for a longer me with the same storage capacity.

- Overwrite: If you enable his funcon and the HDD is full, the new record les overwrite the oldest record les automacally.

Note:

The Pre-record and Post-record parameters vary depending on dierent camera models.

1. Click OK to save the advanced seng.

2. Select a Record Type. The record type can be Connuous, Moon, Alarm, Moon | Alarm, Moon & Alarm, and Event.

● Normal: If you select Connuous, the video will be recorded automatically according to the me of the schedule.

- Record Triggered by Moon Detecon: If you select Motion, the video will be recorded when the moon is detected. Besides conguring the recording schedule, you have to set the moon detecon area and check the checkbox of Trigger Channel in the Linkage Method of Moon Detecon sengs interface. For detailed informaon, refer to

Secon 5.2.1 Conguring Moon Detecon.

- Record Triggered by Alarm: If you select Alarm, the video will be recorded when the alarm is triggered via the external alarm input channels. Besides conguring the recording schedule, you have to set the Alarm Type and check the checkbox of Trigger Channel in the Linkage Method of Alarm Input sengs interface. For detailed informaon, refer to Secon 5.2.3 Conguring Alarm Input.

Note:

The funcon is only supported by certain camera models.

• Record Triggered by Moon | Alarm: If you select Moon | Alarm, the video will be recorded when the external alarm is triggered or the moon is detected. Besides conguring the recording schedule, you have to congure the sengs on the Moon Detecon and Alarm Input sengs interfaces.
• Record Triggered by Moon & Alarm: If you select Moon & Alarm, the video will be recorded when the moon and alarm are triggered at the same me. Besides conguring the recording schedule, you have to congure the sengs on the Moon Detecon and Alarm Input sengs interfaces.

Note:

The funcon is only supported by certain camera models.

- Record Triggered by Event: If you select to record by event, the video will be recorded when any of the events is triggered.

6. Click

5.1.2 Conguring Capture Schedule

Purpose:

You can congregate the scheduled snapshot and event-triggered snapshot. The captured picture can be stored in the local storage or network storage.

Steps:

1. Enter the Snapshot sengs interface:

Conguraon > Storage > Storage Sengs > Capture

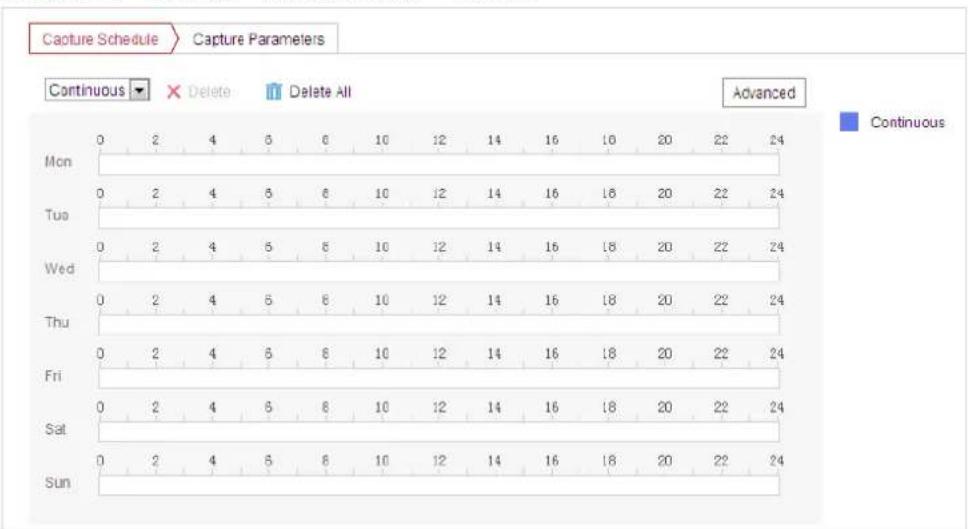

Figure 5-3 Snapshot Sengs

1. Click to enter the Capture Schedule interface.
2. Select the meline of a certain day, and drag the le button of the mouse to set the capture schedule (the start me and end me of the recording task).
3. Aer you set the scheduled task, you can click and copy the task to other days

(oponal).

1. Aer seng the capture schedule, you can click a capture segment to display the segment capture sengs interface to edit the segment capture parameters (oponal).

Continuous 07 : 40 - 19 : 12 Delete | Save

Figure 5-4 Segment Snapshot Sengs

1. Click Advanced to enter the advanced setng interface. You can select the stream type of the capture.

2. Click to enter the Capture Parameters Interface.

3. Check the Enable Timing Snapshot checkbox to enable connuous snapshot, and congure the schedule of ming snapshot. Check the Enable Event-triggered Snapshot checkbox to enable event-triggered snapshot.

4. Select the format, resoluon, quality of the snapshot.

5. Set the me interval between two snapshots.

6. Set capture number for every capture acon.

7. Click to save the sengs.

Uploading to FTP

Notes:

● Make sure that the FTP server is online.

● This funcon is only available for certain camera models.

You can follow below conguraon instrucons to upload the snapshots to FTP.

- Upload connuous snapshots to FTP

Steps:

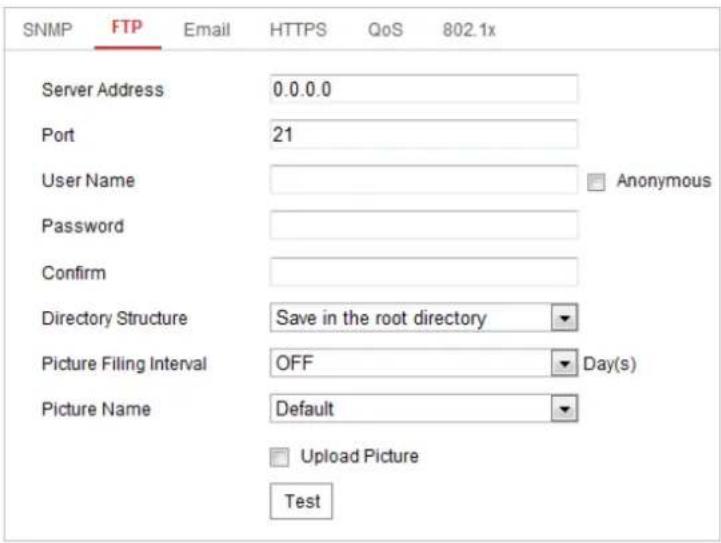

1) Configure the FTP sengs and check Upload Picture checkbox in FTP Sengs interface. Refer to Section 3 Conguring FTP Sengs for more details to configure FTP parameters.

2) Check the Enable Timing Snapshot checkbox.

3) Click Edit to set the snapshot schedule. Refer to Secon 5.2.1 Conguring Motion Detecon.

- Upload event-triggered snapshots to FTP

Steps:

1) Configure the FTP sengs and check Upload Picture checkbox in FTP Sengs interface. Refer to Section 3 Conguring FTP Sengs for more details to configure FTP parameters.

2) Check Upload to FTP checkbox in Moon Detecon Sengs or Alarm Input interface. Refer to Secon 5.2.1 Conguring Moon Detecon.

3) Check the Enable Event-triggered Snapshot checkbox.

5.1.3 Conguring Net HDD

Before you start:

The network disk should be available within the network and properly congured to store the recorded les, log les, etc.

Steps:

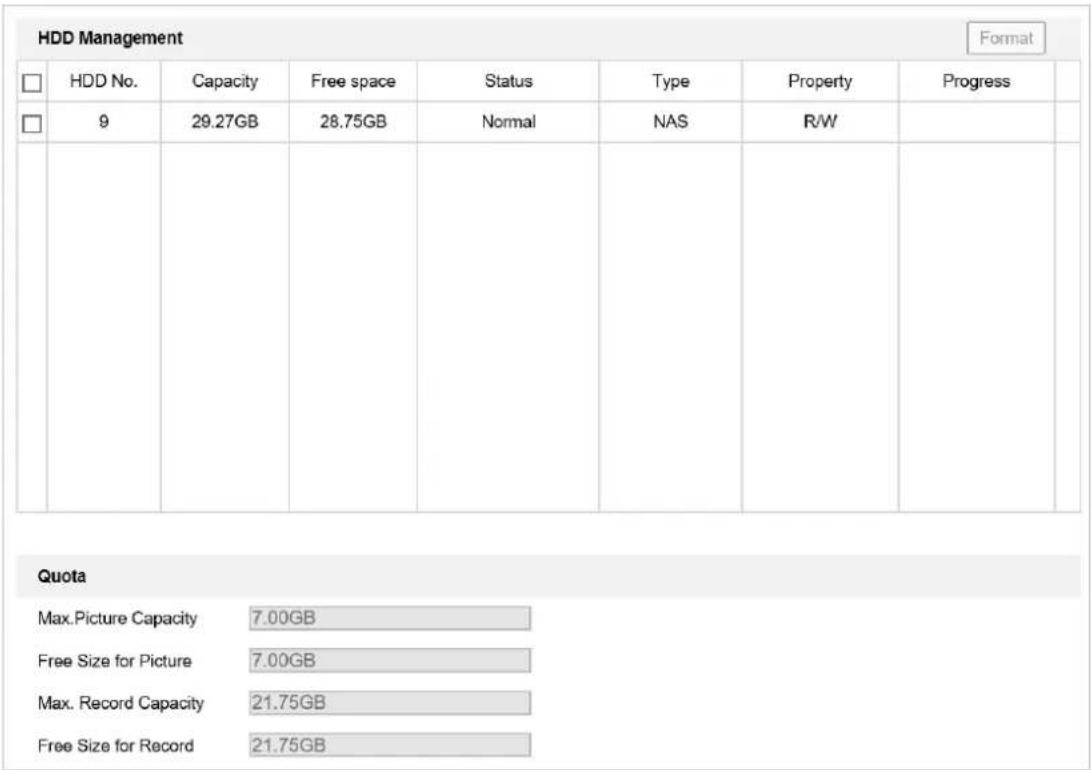

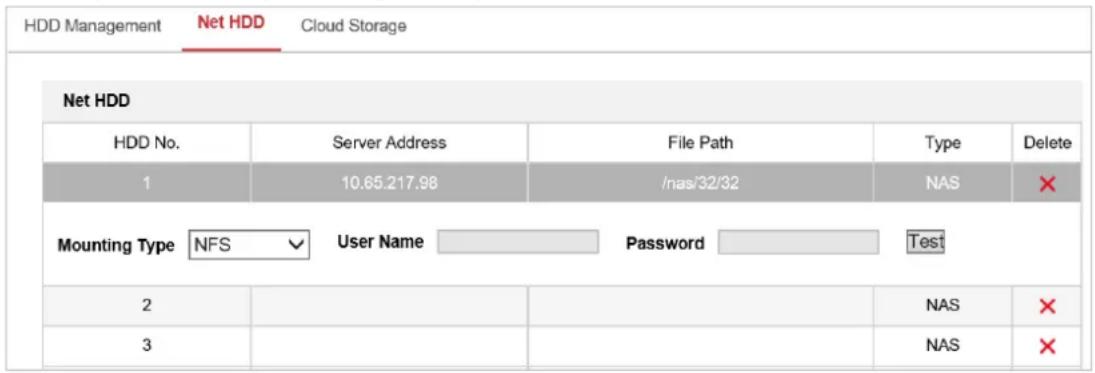

- Add the network disk

1. Enter the NAS (Network-Aached Storage) sengs interface:

Conguraon > Storage > Storage Management > Net HDD

HDD Management Net HDD Cloud Storage Net HDD HDD No. Server Address File Path Type Delete 1 10.65.217.98 /nas/32/32 NAS ✗ Mounting Type NFS User Name Password Test 2 3 NAS ✗ NAS ✗

Figure 5-5 Select Net HDD Type

1. Enter the IP address and the le path of the network disk.
2. Select the moung type. NFS and SMB/CIFS are selectable. You can set the user name and password to guarantee the security if SMB/CIFS is selected.

Note:

Refer to the NAS User Manual for creang the le path.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

• Click to add the network disk.

Save

Note:

Aer having saved successfully, you need to reboot the camera to acvate the sengs.

- Initialize the added network disk.

1. Enter the HDD sengs interface (Conguraon > Storage > Storage Management > HDD Management), in which you can view the capacity, free space, status, type and property of the disk.

HDD Management Format □ HDD No. Capacity Free space Status Type Property Progress □ 9 29.27GB 28.75GB Normal NAS R/W Quota Max.Picture Capacity 7.00GB Free Size for Picture 7.00GB Max. Record Capacity 21.75GB Free Size for Record 21.75GB

Figure 5-6 Storage Management Interface
2. If the status of the disk is Uninialized, check the corresponding checkbox to select the disk and click Format to start initializing the disk.
3. When the initializaon completed, the status of disk will become Normal as shown in Figure 5-7.

HDD Management							Set	Format
✓	HDD No.	Capacity	Free space	Status	Type	Property	Progress
✓	9	20.00GB	0.00GB	Formatting	NAS	R/W

Figure 5-7 View Disk Status

● Dene the Quota for Record and Pictures

1. Input the quota percentage for picture and for record.
2. Click Save and refresh the browser page to acvate the sengs.

Quota Max.Picture Capacity 0.00GB Free Size for Picture 0.00GB Max. Record Capacity 0.00GB Free Size for Record 0.00GB Percentage of Picture 25 % Percentage of Record 75 %

Figure 5-8 Quota Sengs

Notes:

● Up to 8 NAS disks can be connected to the camera.

● To inialize, refer to the steps of NAS disk inializaon

5.1.4 Conguring Cloud Storage

Note:

Cloud Storage is only supported for certain camera models.

HDD Management Net HDD Cloud Storage Enable Cloud Storage Protocol Version Cloud1.0 Server IP 0.0.0.0 Server Port 0 User Name Password •••••••• Confirm •••••••• Picture Storage Pool ID 0 Test Save

Figure 5-9 Cloud Storage conguraon

Steps:

1. Enter the Cloud Storage sengs interface:
   Conguraon > Storage > Storage Management > Cloud Storage
2. Check the checkbox to enable this funcon.
3. Select Protocol Version from dropdown list.
4. Enter the Server IP. Server Port, User Name, Password, and Picture Storage Pool ID.
5. Click to save the sengs.

5.2 Basic Event Conguraon

Purpose:

This secon explains how to conjure the network camera to respond to alarm events, including moon detecon, video tampering alarm input, alarm output and excepon. These events can trigger the alarm acons, such as Send Email, Nofy Surveillance Center, etc.

For example, when moon detecon is triggered, the network camera sends a nocaon to an e-mail address.

● On the event conguraon page, click to show the PTZ control panel or click to hide it.
- Click the direcon buons to control the pan/lt movements.
- Click the zoom/iris/focus buons to realize lens control.
● The funcons vary depending on dierent camera models.

5.2.1 Conguring Moon Detecon

Purpose:

Moon detecon is a feature which can trigger alarm acons and acons of recording videos when the moon occurred in the surveillance region.

Steps:

1. Enter the moon detecon seng interface:

Conguraon > Event > Basic Event > Moon Detecon

1. Check the checkbox of the Enable Moon Detecon to enable this funcon.

You can check the Enable Moon Detecon in PTZ Control checkbox and when the speed dome is performing PTZ acon, moon detecon can also trigger alarm.

You can check the Enable Dynamic Analysis for Moon checkbox if you want the detected object get marked with rectangle in the live view.

1. Select the conguraon mode as Normal or Expert and set the corresponding moon detecon parameters.

- Normal

Enable Motion Detection Enable Motion Detection in PTZ Control Enable Dynamic Analysis for Motion Area Settings > Arming Schedule > Linkage Method Configuration Normal 1 PRESET 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Draw Area Clear All

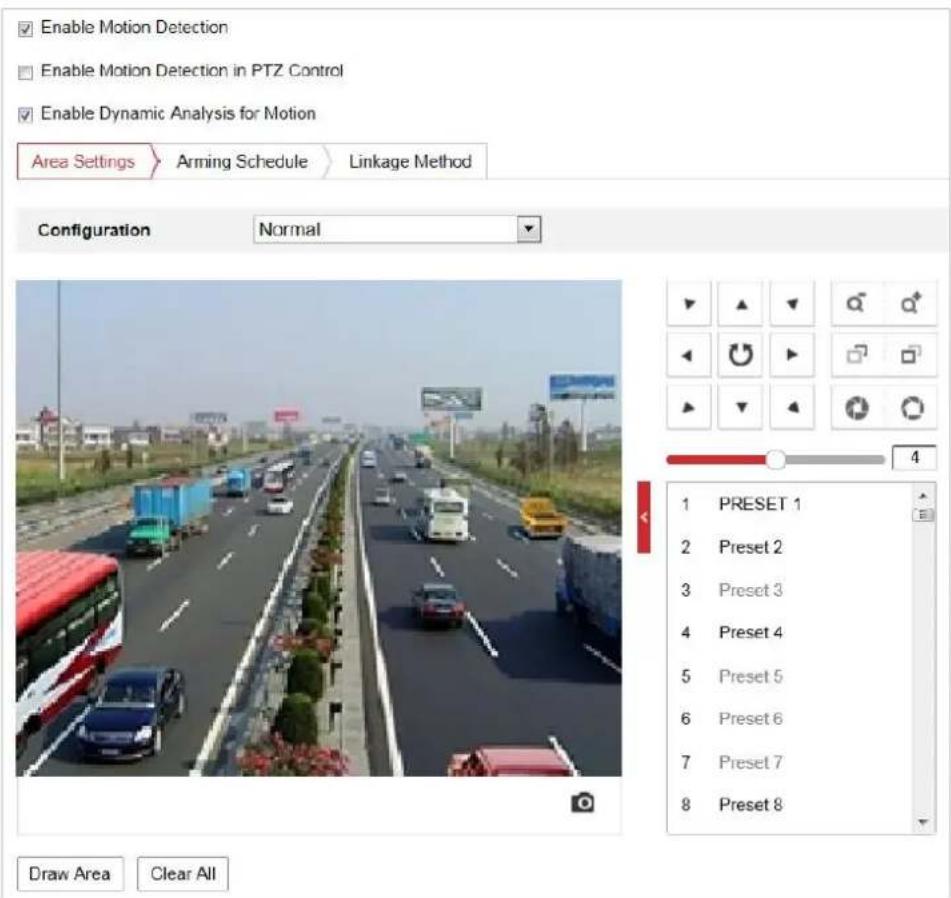

Figure 5-10 Moon Detecon Setngs-Normal

Steps:

(1) Click Draw Area and drag the mouse on the live video image to draw a moon detecon area.
(2) Click to nish drawing.

Note:

You can click Clear All to clear all of the areas.

(3) Move the slider to set the sensitivity of the detecon.

- Expert

Enable Motion Detection Enable Motion Detection in PTZ Control Enable Dynamic Analysis for Motion Area Settings Arming Schedule Linkage Method Configuration Expert Scheduled Image Settings: Scheduled-Switch Start Time 06:00:00 End Time 18:00:00 Area 1 Day 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 9 Preset 9 10 Preset 10 11 Preset 11 Sensitivity 50 Night Sensitivity 50 Draw Area Clear All

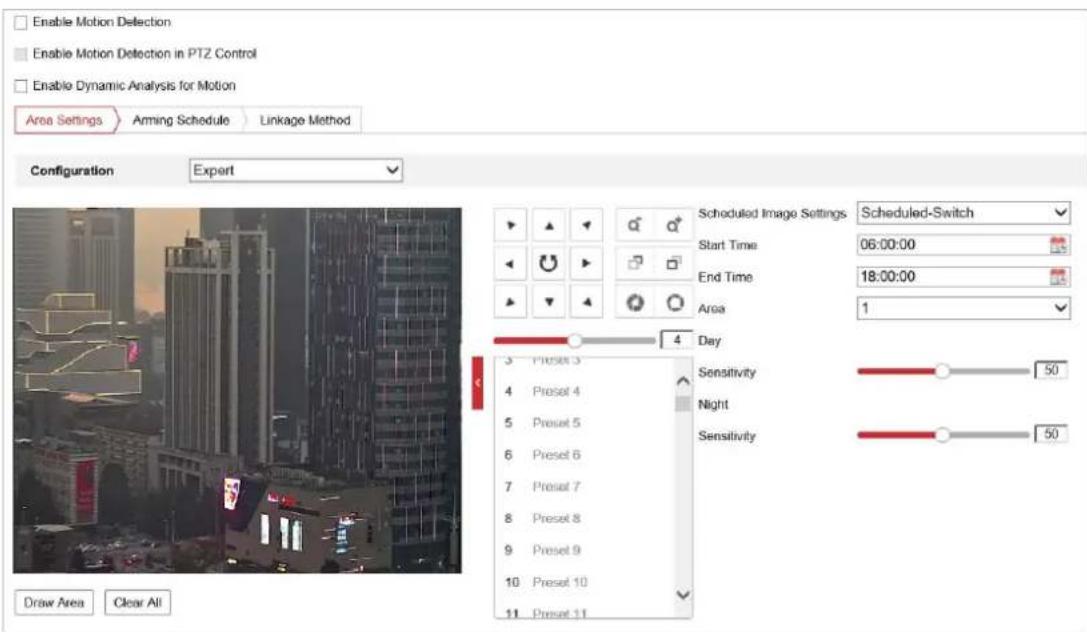

Figure 5-11 Moon Detecon Setngs-Expert

Steps:

(1) Set the Scheduled Image Settings, there are OFF, Auto-Switch and Scheduled-Switch selectable. If the schedule image switch mode is enabled, you can congregate the detector rule for the day and night separately.

OFF: Disable the day and night switch.

Auto-Switch: Switch the day and night mode according to the illuminaon automacally.

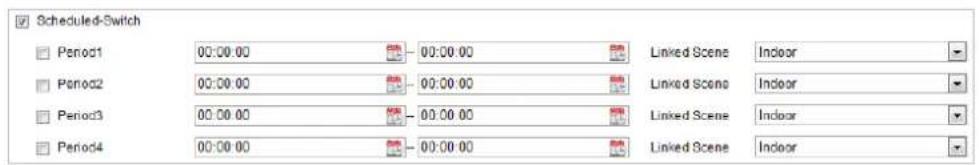

Scheduled-Switch: Switch to the day mode and the night mode according to the congured me. You need to set the start me and end me.

(2) Select Area from the dropdown list to congure.

(3) Set the value of sensitivity.

Sensitivity: The higher the value is, the easier the alarm will be triggered.

(4) Percentage: When the size proporon of the moving object exceeds the predened value, the alarm will be triggered. The less the value is, the easier the alarm will be triggered.

Note:

Percentage is only supported by certain camera models.

1. Set the Arming Schedule for Moon Detecon.

Steps:

(1) Click Arming Schedule tab to enter the arming schedule seng interface.

Figure 5-12 Arming Schedule

(2) Select the meline of a certain day, and drag the mouse to set the arming schedule (the start me and end me of the arming task).
(3) Aer you set the scheduled task, you can click and copy the task to other days (oponal).

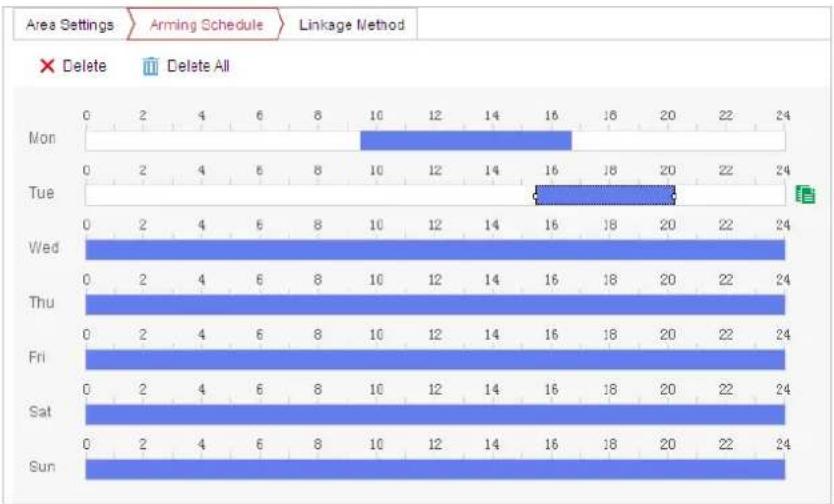

Figure 5-13 Arming Time Schedule

(4) Aer setng the arming schedule, you can click a segment to display the segment arming sengs interface to edit the segment record parameters (oponal).

06 : 35 - 11 : 40 Delete | Save

Figure 5-14 Segment Arming Sengs

(5) Click

Note:

The me of each period cannot be overlapped. Up to 8 periods can be congured for each day.

5. Set the Alarm Acons for Moon Detecon.

Click tab to enter the Linkage Method interface.

You can specify the linkage method when an event occurs. The following contents are about how to conjure the dierent types of linkage method.

☐ Normal Linkage	☐ Trigger Alarm Output	☐ Trigger Recording
✓ Send Email ✓ Notify Surveillance Center ✓ Upload to FTP/Memory Card/... ☐ Flashing Alarm ☐ Audible Warning	☐ A->1	☐ A1

Figure 5-15 Linkage Method

Check the checkbox to select the linkage method. Send Email, Nofy Surveillance Center and Upload to FTP/Memory/NAS are selectable.

- Send Email

Send an email with alarm informaon to a user or users when an event occurs.

Note:

To send the Email when an event occurs, you need to refer to Secon 3 Conguring Email Sengs to set the Email parameters.

● Nofy Surveillance Center

Send an excepon or alarm signal to remote management soware when an event occurs.

- Upload to FTP/Memory/NAS

Capture the image when an alarm is triggered and upload the picture to a FTP server.

Note:

You need a FTP server and set FTP parameters rst. Refer to Secon 6.1.2 Conguring FTP Sengs for seng FTP parameters.

- Smart Tracking

Track the moving objects automacally when an alarm is triggered.

Notes:

• To congregate the smart tracking, you need to refer to Secon Configuring Smart Tracking to set the parameters.
  ● The funcon is only supported by certain camera models.

● White Light Flashing

White light of the camera ashes when alarm happens. Flashing Duraon, Flashing Frequency, and Brightness are congorable on Flashing Alarm Light Output page:

Conguraon > Event > Basic Event

Notes:

• Before using the funcon, go to Conguraon -> System -> Maintenance -> System Service to enabled white light in advance.
  ● The funcon is only supported by certain camera models.

- Audible Warning

Built-in speaker or connected external speaker plays warning sound when alarm happens. Sound Type and Alarm Times are congorable on Audible Alarm Output page:

Conguraon > Event > Basic Event

Notes:

• Before using the funcon, go to Conguraon -> Video/Audio -> Audio to enabled built-in speaker in advance.
  ● The funcon is only supported by certain camera models.

- Trigger Alarm Output

Trigger one or more external alarm outputs when an event occurs.

Notes:

• To trigger an alarm output when an event occurs, refer to Secon 5.2.4 Conguring Alarm Output to set the alarm output parameters.
  ● The funcon is only supported by certain camera models.

- Trigger Recording

Record a video when an event occurs.

Note:

• You have to set the recording schedule to realize this funcon. Refer to Secon 5.1.1 Conguring Recording Schedule for settings the recording schedule.
  ● The funcon is only supported by certain camera models.

5.2.2 Conguring Video Tampering Alarm

Purpose:

You can congregate the camera to trigger the alarm acons when the lens is covered.

Steps:

1. Enter the Video Tampering sengs interface :

Conguraon > Event > Basic Event > Video Tampering

Motion Detection Video Tampering Video Loss Alarm Input Alarm Output Exception Enable Area Settings Arming Schedule Linkage Method 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Draw Area Clear All Sensitivity Save

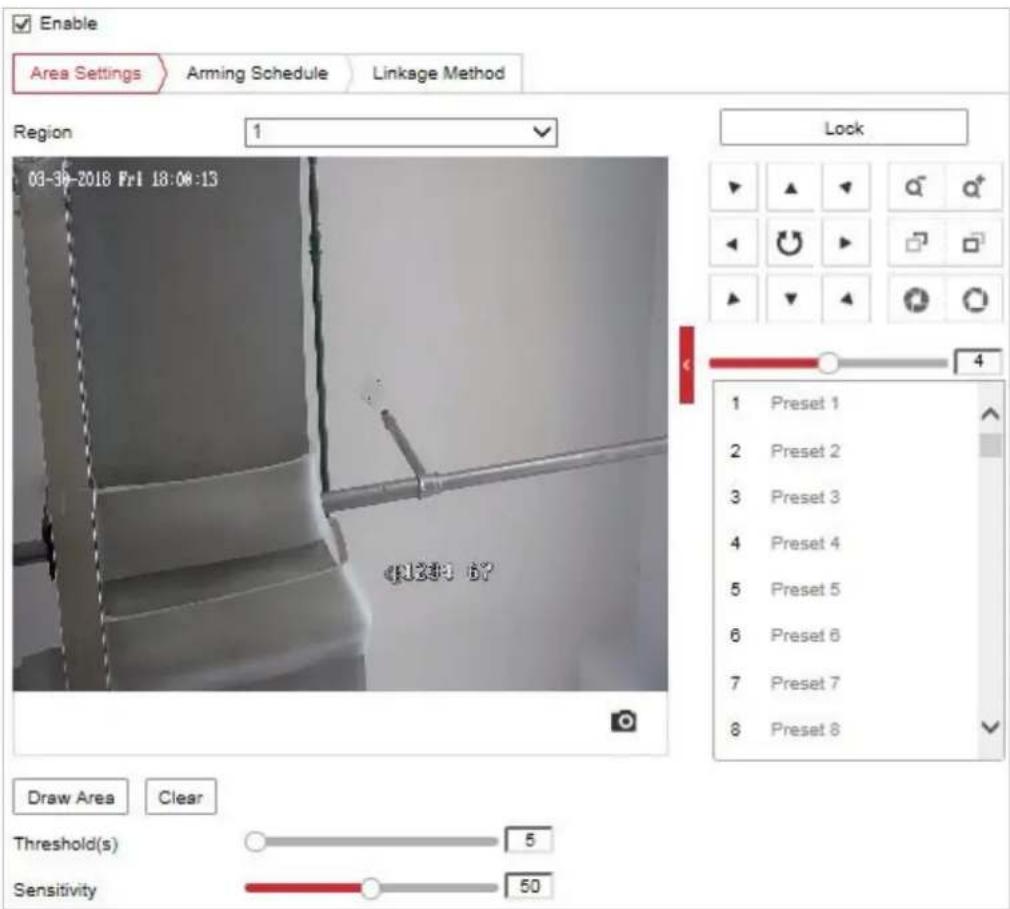

Figure 5-16 Tampering Alarm

1. Check the checkbox to enable the tampering detecon.
2. Set the tampering area.
3. Set Sensitivity level. Higher level means easier to trigger.
4. Click Arming Schedule tab to enter the arming schedule setng interface. The arming schedule conguraon is the same as the seng of the arming schedule for moon detecon. Refer to Section 5.2.1 Conguring Motion Detecon.
5. Click Linkage Method tab to select the linkage method taken for tampering. Nofy surveillance center, send email and trigger alarm output are selectable. Refer to Secon 5.2.1 Conguring Moon Detecon.
6. Click to save the sengs.

5.2.3 Conguring Alarm Input

Note:

The funcon is only supported by certain camera models.

Steps:

1. Enter the Alarm Input sengs interface:

Conguraon > Event > Basic Event > Alarm Input

1. Choose the Alarm Input No. and the Alarm Type. The alarm type can be NO (Normally Open)

and NC (Normally Closed).

1. Edit the name in to set a name for the (cannot copy)

alarm input (oponal).

Alarm Input No. A<-1 IP Address Local Alarm Type NO Alarm Name (cannot copy) Enable Alarm Input Handling Arming Schedule Linkage Method Delete Delete All Mon 0 2 4 6 8 10 12 14 16 18 20 22 24 Tue 0 2 4 6 8 10 12 14 16 18 20 22 24 Wed 0 2 4 6 8 10 12 14 16 18 20 22 24 Thu 0 2 4 6 8 10 12 14 16 18 20 22 24 Fri 0 2 4 6 8 10 12 14 16 18 20 22 24 Sat 0 2 4 6 8 10 12 14 16 18 20 22 24 Sun Copy to... Save

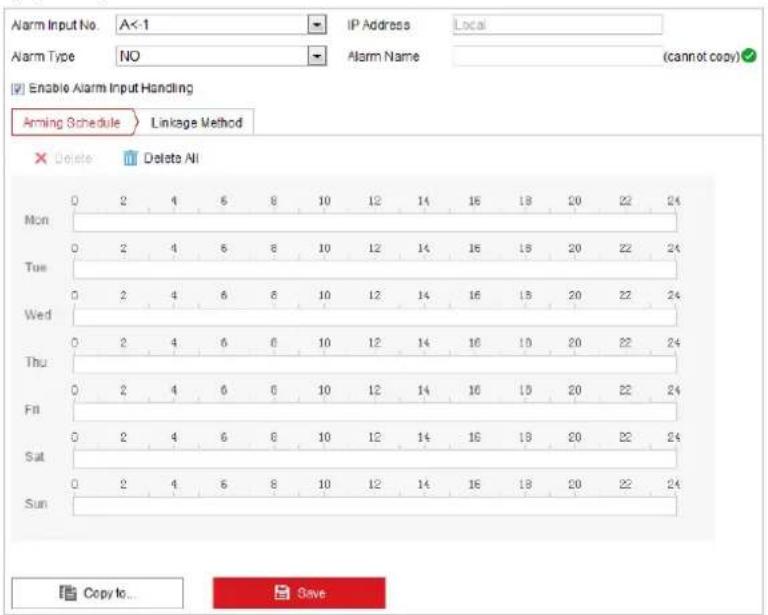

Figure 5-17 Alarm Input Sengs

1. Click ☐ Arming Schedule ☐ tab to enter the arming schedule seng interface. The arming schedule conguraon is the same as the seng of the arming schedule for moon detecon. Refer to Secon 5.2.1 Conguring Moon Detecon.

2. Click Linkage Method tab to select the linkage method taken for alarm input, including Send Email, Nofy Surveillance Center, and Upload to FTP/Memory Card/NAS, Trigger Alarm Output and Trigger Recording. Refer to Secon 5.2.1 Configuring Moon Detecon for more details.

3. You can also choose the PTZ linking for the alarm input. Check the relave checkbox and select the No. to enable Preset Calling, Patrol Calling or Paern Calling.

4. You can copy your sengs to other alarm inputs.

5. Click to save the sengs.

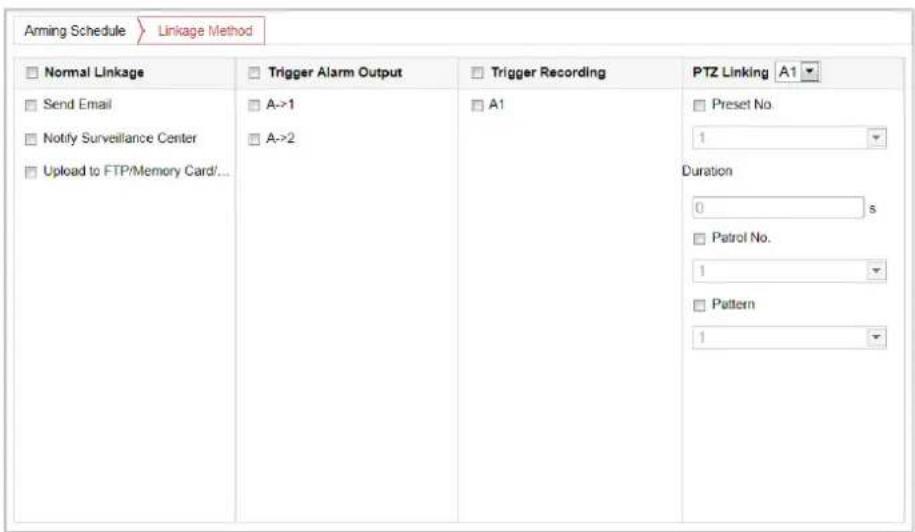

Arming Schedule > Linkage Method Normal Linkage Send Email Notify Surveillance Center Upload to FTP/Memory Card... Trigger Alarm Output A->1 A->2 Trigger Recording A1 PTZ Linking A1 Preset No. 1 Duration 0 s Patrol No. 1 Pattern 1

Figure 5-18 Linkage Method

5.2.4 Conguring Alarm Output

Note:

The funcon is only supported by certain camera models.

Steps:

1. Enter the Alarm Output sengs interface:
   Conguraon> Event > Basic Event > Alarm Output
2. Select one alarm output channel in the Alarm Output dropdown list.
3. Set a name in for the alarm output
   (oponal).
4. The Delay me can be set to 1sec, 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or Manual. The delay me refers to the me duraon that the alarm output remains in eect aer alarm occurs.
5. Click Arming Schedule tab to enter the arming schedule seng interface. The me schedule conguraon is the same as the setngs of the arming schedule for moon detecon. Refer to Secon 5.2.1 Conguring Moon Detecon for more details.

Alarm Output No. A->1 IP Address Local Delay 5s Alarm Name (cannot copy) Alarm Status OFF (cannot copy) Arming Schedule Delete Delete All Mon 0 2 4 6 8 10 12 14 16 18 20 22 24 Tue 0 2 4 6 8 10 12 14 16 18 20 22 24 Wed 0 2 4 6 8 10 12 14 16 18 20 22 24 Thu 0 2 4 6 8 10 12 14 16 18 20 22 24 Fri 0 2 4 6 8 10 12 14 16 18 20 22 24 Sat 0 2 4 6 8 10 12 14 16 18 20 22 24 Sun 0 2 4 6 8 10 12 14 16 18 20 22 24 Manual Alarm Copy to... Save

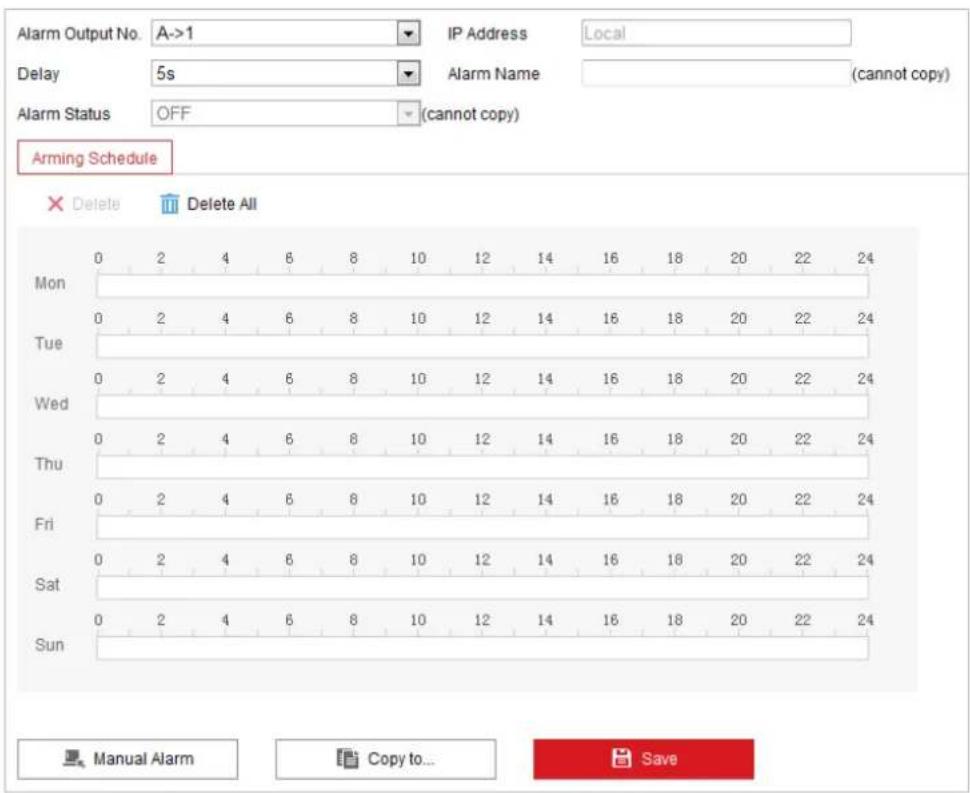

Figure 5-19 Alarm Output Sengs

1. You can copy the sengs to other alarm outputs.

2. Click to save the sengs.

5.2.5 Handling Excepon

The exception type can be HDD Full, HDD Error, Network Disconnected, IP Address Conicted and Illegal Login.

Steps:

1. Enter the Excepon sengs interface:

Conguraon > Event > Basic Event > Excepon

1. Check the checkbox to set the acons taken for the Excepon alarm. Refer to Secon 5.2.1 Conguring Moon Detecon.

Exception Type HDD Full Normal Linkage Trigger Alarm Output Send Email A->1 Notify Surveillance Center A->2 Save

Figure 5-20 Excepon Sengs

3. Click

Note:

Trigger alarm output is only supported by certain camera models.

5.2.6 Conguring Flashing Alarm Light Output

For camera that supports ashing alarm as a linkage method, opons are open to congregate ashing light parameters.

Note:

The funcon is only supported by certain camera models.

Steps:

1. Enter the Flashing Light Alarm Light configuraon interface:

Conguraon > Event > Basic Event > Flashing Alarm Light Output

1. Set ashing light parameters.

Flashing Duraon: the me period the ashing lasts when one alarm happens.

Flashing Frequency: the ashing speed of the light. High, Medium, and Low are selectable.

Brightness: the brightness of the light.

1. Set the arming schedule for the ashing alarm. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Secon 5.2.1

Conguring Moon Detecon for more details.

1. Save the sengs.

5.2.7 Conguring Audible Alarm Output

For camera that supports audible warning as a linkage method, opons are open to conjure audible alarm parameters.

Note:

The funcon is only supported by certain camera models.

1. Enter Audible Alarm conguraon interface:
   Conguraon > Event > Basic Event > Audible Alarm Output

2. Set audible alarm parameters.

Alarm Sound Type: the content of audible alarm.

Alarm Times: the repeang mes of the warning.

1. Set arming schedule for audible alarm. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Section 5.2.1 Conguring Moon Detecon for more details.

2. Save the sengs.

5.3 Smart Event Conguraon

Note:

The funcons vary depending on dierent camera models.

Before Smart Event Conguraon, you need to set VCA Resource as Smart Event:

Conguraon > System > System Sengs > VCA Resource

5.3.1 Detecng Audio Excepon

Note:

The funcon is only supported by certain camera models.

Purpose:

When you enable this funcon and audio excepon occurs, the alarm acons will be triggered.

Steps:

1. Enter the video audio excepon detecon interface:

Conguraon > Event > Smart Event > Audio Excepon Detection

Exception Detection Arming Schedule Linkage Method Exception Detection Audio Loss Detection Sudden Increase of Sound Intensity Detection Sensitivity 50 Sound Intensity Threshold 50 Sudden Decrease of Sound Intensity Detection Sensitivity 50 Real-time Volume Save

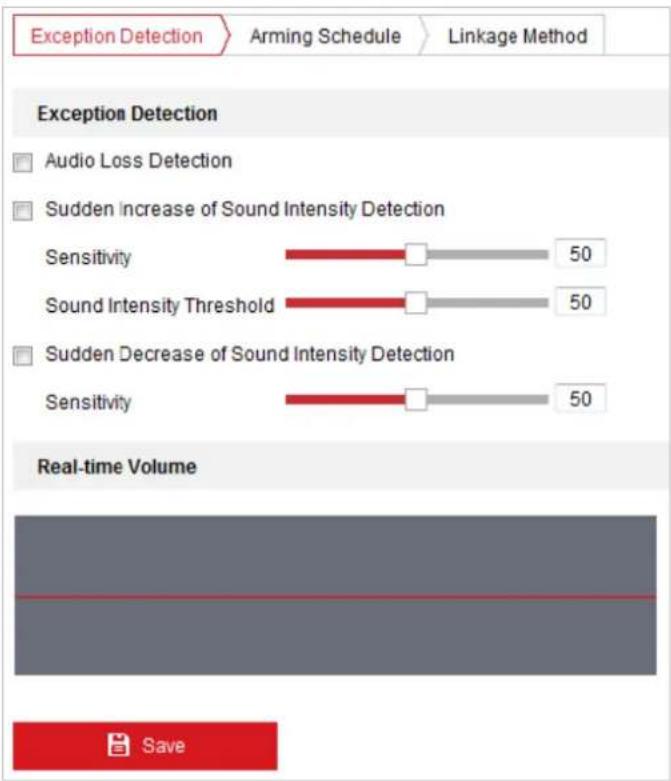

Figure 5-21 Audio Excepon Detecon

1. Check the checkbox of Audio Loss Detecon to enable the audio input excepon detecon.

2. Check the checkbox of Sudden Increase of Sound Intensity Detecon checkbox to enable the sudden rise detecon.

3. Sensitivity: The smaller the value the more obvious sound change will trigger the detecon.
   ● Sound Intensity Threshold: It can iter the sound in the environment, the louder the environment sound, the higher the value should be. You can adjust it according to the actual environment.

4. Check the checkbox of Sudden Decrease of Sound Intensity Detecon checkbox to enable the sudden drop detecon.

Sensitivity: The smaller the value the more obvious sound change will trigger the detecon.

1. Click Arming Schedule tab to enter the Arming Schedule seng interface. The me schedule

conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Secon 5.2.1 Conguring Moon Detecon for more details.

1. Click Linkage Method tab to select the linkage method taken for the audio input excepon,

Send Email, Nofy Surveillance Center, Trigger Alarm Output and Trigger Recording are selectable. Refer to Section 5.2.1 Conguring Moon Detecon for more details.

1. Click to save the sengs.

5.3.2 Conguring Face Detecon

Purpose:

Aer the face detecon is enabled, a face appears in the surveillance area, it will be detected and certain acons may be triggered by the detecon.

Steps:

1. Enter the face detecon interface
   Conguraon > Event > Smart Event > Face Detecon
2. Check the Enable Face Detecon checkbox.
3. You can check the Enable Dynamic Analysis for Face Detecon checkbox if you want the detected face get marked with rectangle in the live view (oponal).

Enable Face Detection Enable Dynamic Analysis for Face Detection Sensitivity 3

Figure 5-22 Conguring Face Detecon

1. Congure the sensitivity for face detecon.

Sensitivity: The value of the sensitivity denotes the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

1. Click Arming Schedule tab to enter the Arming Schedule setng interface. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Secon 5.2.1 Conguring Moon Detecon for more details.

2. Click Linkage Method tab to select the linkage method taken for the video loss alarm, Nofy Surveillance Center, Send Email, Upload to FTP, Trigger Channel, and Trigger Alarm Output are selectable. Refer to Section 5.2.1 Conguring Moon Detecon for more details.

3. Click

5.3.3 Conguring Intrusion Detecon

Purpose:

Intrusion detecon can set an area in the surveillance scene and once the area is entered, a set of alarm acon is triggered.

Steps:

1. Enter the intrusion detecon interface:
   Conguraon > Events > Smart Event > Intrusion Detecon
2. Check the Enable checkbox.

Enable Area Settings Arming Schedule Linkage Method Region 1 16-17-2011/15/15 15:41:59 Lock 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Draw Area Clear Detection Target Human Vehicle Other Threshold(s) 0 Sensitivity 50 Save

Figure 5-23 Conguring Intrusion Area

1. The event triggered and park acon related PTZ movement will be locked for 180 seconds aer you enter the intrusion detecon interface. Oponally, you can click the

Unlock(69s) buon to manually acvate the movement, or lock the movement when the buon turns to by clicking it.

1. Select a region.

2. Draw area.

1) Select the Region No.in dropdown list.

2) Click Draw Area to draw a rectangle on the image as a defense region.

3) Click on the image to specify a corner of the rectangle, and right-click the mouse aer four corners are congured.

1. Congure the parameters for each defense region separately.

2. Threshold: The threshold for the me of the object loitering in the region. If you set the value as 0, alarm is triggered immediately aer the object entering the region.

3. Sensitivity: The value of the sensitivity denotes the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

Note:

For network cameras, regions can be set simultaneously before clicking Save buon. For speed domes, you need to set 1 region and save it. Then connue to set and save the next

region.

1. Click Arming Schedule tab to enter the arming schedule setng interface. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Secon 5.2.1 Conguring Moon Detecon for more details.

2. Click Linkage Method tab to select the linkage method taken for intrusion detecon, Nofy Surveillance Center, Send Email, Upload to FTP/Memory Card/NAS, Trigger Alarm Output, Trigger Recording, Smart Tracking, White Light Flashing, and Audible Warning are selectable.

3. For speed dome, you can also choose to link smart tracking. Smart Tracking should be congured in advance.

4. For certain models, White Light Flashing and Audible Warning are supported. Refer to Secon 5.2.1 Conguring Moon Detecon for detailed conguraon.

5. Click

5.3.4 Conguring Line Crossing Detecon

Purpose:

The virtual plane detecon can be adopted for the intrusion detecon. Once the virtual plane is detected being traversed according to the congured direcon, a set of alarm acon is triggered.

Steps:

1. Enter the Line Crossing Detecon interface:

Conguraon >Event > Smart Event > Line Crossing Detection

1. Check the Enable checkbox to enable the line crossing detecon funcon.

2. Select the Line in dropdown list to congure.

3. The event triggered and park acon related PTZ movement will be locked for 180 seconds aer you enter the line crossing detecon interface. Oponally, you can click the

buon to manually acvate the movement, or lock the movement

when the buon turns to by clicking it.

Enable Area Settings Arming Schedule Linkage Method Line 1 16-17-2018 04/15:04:00 Unlock(160s) 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Draw Area Clear Detection Target Human Vehicle Direction A<>B Sensitivity 50 Save

Figure 5-24 Conguring Line

1. Draw area.

4) Click to draw a line on the image.

5) Click the line to switch to the eding mode. Drag an end to the desired place to adjust the length and angle of the line. And drag the line to adjust the locaon.

1. Congure the parameters for each defense region separately.

2. Direcon: Select the detecon direcon in the dropdown list, there are A<->B, A->B and B->A selectable.

3. Sensitivity: The value of the sensitivity denotes the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

Note:

For network cameras, regions can be set simultaneously before clicking Save buon. For speed domes, you need to set one region and save it, then connue to set and save the next region.

1. Click Arming Schedule tab to enter the arming schedule seng interface. The me schedule conguraon is the same as the setngs of the arming schedule for moon detecon. Refer to

Secon 5.2.1 Conguring Moon Detecon for more details.

1. Click Linkage Method tab to select the linkage method taken for the line crossing detection,

Nofy Surveillance Center, Send Email, Upload to FTP/Memory Card/NAS, Trigger Alarm Output, Trigger Recording, Smart Tracking, White Light Flashing, and Audible Warning are selectable.

• For speed dome, you can also choose to link smart tracking. Smart Tracking should be congured in advance.

• For certain models, White Light Flashing and Audible Warning are supported. Refer to Secon 5.2.1 Conquiring Moon Detecon for detailed conguraon.

• Click

5.3.5 Conguring Region Entrance Detecon

Note:

The funcon varied depending on dierent speed domes.

Purpose:

Region entrance detecon funcon detects people, vehicle or other objects which enter a pre-dened virtual region from the outside place, and some certain acons can be taken when the alarm is triggered.

Steps:

1. Enter the Region Entrance Detecon sengs interface:

Conguraon> Event > Smart Event> Region Entrance Detecon

1. Check the checkbox of Enable to enable the Region Entrance Detecon funcon.

Enable Area Settings Arming Schedule Linkage Method Region 3 10-17-2010 04/16:51 Stop Drawing Clear Detection Target Human Vehicle Other Sensitivity 50 Unlock(178s) 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Save

Figure 5-25 Conguring Region Entrance Detecon

1. The event triggered and park acon related PTZ movement will be locked for 180 seconds aer you enter the line crossing detecon interface. Oponally, you can click the
   Unlock(69s) buon to manually acvate the movement, or lock the movement when the buon turns to by clicking it.

2. Select the region from the dropdown list for detecon sengs.

3. Click the Buon to start the region drawing.

4. Click on the live video to specify the four vertexes of the detecon region, and right click to complete drawing.

Repeat the step to conjure other regions. You can click the buon to clear all pre-dened regions.

1. Congure the parameters for each defense region separately.

- Sensitivity: The value of the sensitivity denotes the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

1. Click Arming Schedule tab to enter the arming schedule setng interface. The me schedule configuraon is the same as the sengs of the arming schedule for moon detecon. Refer to Secon 5.2.1 Conguring Moon Detecon for more details.

2. Click Linkage Method tab to select the linkage method taken for the region entrance alarm, Nofy surveillance center, send email, upload to FTP, trigger channel, smart tracking, White Light Flashing, Audible Warning, and trigger alarm output are selectable.

3. For speed dome, you can also choose to link smart tracking. Smart Tracking should be congured in advance.
   ● For certain models, White Light Flashing and Audible Warning are supported. Refer to
   Secon 5.2.1 Conguring Moon Detecon for detailed conguraon.

4. Click

Save to save the sengs.

5.3.6 Conguring Region Exing Detecon

Purpose:

Region exing detecon funcon detects people, vehicle or other objects which exit from a pre-dened virtual region, and some certain acons can be taken when the alarm is triggered.

Steps:

1. Enter the Region Exing Detecon sengs interface:
   Conguraon> Event > Smart Event> Region Exing Detecon
2. Check the checkbox of Enable to enable the Region Exing Detecon funcon.

Enable Area Settings Arming Schedule Linkage Method Region 1 Unlock(125e) 10-17-2013 4x1 16:04:51 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Draw Area Clear Detection Target Human Vehicle Other Sensitivity 50 Save

Figure 5-26 Conguring Region Exing Detecon

1. The event triggered and park acon related PTZ movement will be locked for 180 seconds aer you enter the line crossing detecon interface. Oponally, you can click the

Unlock(69s) buon to manually acvate the movement, or lock the movement when the buon turns to by clicking it.

1. Select the region from the dropdown list for detecon sengs.

2. Click the buon to start the region drawing.

3. Click on the live video to specify the four vertexes of the detecon region, and right click to complete drawing.

Repeat the step to conjure other regions. Up to 4 regions can be set. You can click the buon to clear all pre-dened regions.

1. Congure the parameters for each defense region separately.

- Sensitivity: The value of the sensitivity denotes the size of the object which can trigger the alarm. When the sensitivity is high, a very small object can trigger the alarm.

1. Click Arming Schedule tab to enter the arming schedule setng interface. The me schedule configuraon is the same as the sengs of the arming schedule for moon detecon. Refer to Secon 5.2.1 Configuring Moon Detecon for more details.

2. Click Linkage Method tab to select the linkage method taken for the region exiting alarm, Nofy Surveillance Center, Send Email, Upload to FTP, Trigger Channel, Smart Tracking, White Light Flashing, Audible Warning, and Trigger Alarm Output are selectable.

- For speed dome, you can also choose to link smart tracking. Smart Tracking should be congured in advance.

- For certain models, White Light Flashing and Audible Warning are supported. Refer to Secon 5.2.1 Conguring Moon Detecon for detailed conguraon.

1. Click buon to save the sengs.

5.3.7 Unaended Baggage Detecon

Purpose:

Unaended baggage detecon funcon detects baggage which is le in a pre-dened virtual region, and some certain acons can be taken when the alarm is triggered.

Steps:

1. Enter the Unaended Baggage Detecon sengs interface:

Conguraon> Event > Smart Event> Unaended Baggage Detecon

1. Check the checkbox of Enable to enable the Unattended Baggage Detecon funcon.

Enable Area Settings Arming Schedule Linkage Method Region 1 03-39-2018 Fri 18:08:13 Lock 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Draw Area Clear Threshold(s) 5 Sensitivity 50

Figure 5-27 Conguring Region Exing Detecon

1. The event triggered and park acon related PTZ movement will be locked for 180 seconds aer you enter the unaended baggage detecon interface. Oponally, you can click the

Unlock(69s) buon to manually acvate the movement, or lock the movement when the buon turns to by clicking it.

1. Select the region from the dropdown list for detecon sengs.
2. Click the buon to start the region drawing.
3. Click on the live video to specify the four vertexes of the detecon region, and right click to complete drawing.

Repeat the step to conjure other regions. Up to 4 regions can be set. You can click the

Clear

buon to clear all pre-dened regions.

1. Congure the parameters for each defense region separately.

2. Threshold Level: If you set the value as 5, alarm is triggered immediately after the object entering the region.

3. Sensitivity Level: The value of the sensitivity denotes the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

4. Click Arming Schedule tab to enter the arming schedule seng interface. The me schedule configuraon is the same as the setngs of the arming schedule for moon detecon. Refer to Secon 5.2.1 Conguring Moon Detecon for more details.

5. Click Linkage Method tab to select the linkage method taken for the unaended baggage alarm, Nofy surveillance center, send email, upload to FTP, trigger channel, smart tracking and trigger alarm output are selectable. Refer to Secon 5.2.1 Conguring Moon Detecon for more details.
6. Click buon to save the sengs.

5.3.8 Object Removal Detecon

Purpose:

Object removal detecon funcon detects objects which remove in a pre-dened virtual region, and some certain acons can be taken when the alarm is triggered.

Steps:

1. Enter the Object Removal Detecon sengs interface:
   Conguraon> Event > Smart Event> Object Removal Detecon
2. Check the checkbox of Enable to enable the Object Removal Detecon funcon.

3. The event triggered and park acon related PTZ movement will be locked for 180 seconds aer you enter the unaended baggage detecon interface. Oponally, you can click the
   Unlock(69s)
   button to manually acvate the movement, or lock the movement
   when the buon turns to
   Lock by clicking it.

4. Select the region from the dropdown list for detecon setngs.

5. Click the buon to start the region drawing.
6. Click on the live video to specify the four vertexes of the detecon region, and right click to complete drawing. Repeat the step to conjure other regions. Up to 4 regions can be set.

You can click the

Clear

buon to clear all pre-dened regions.

1. Congure the parameters for each defense region separately.

2. Threshold Level: If you set the value as 5, alarm is triggered immediately after the object entering the region.

3. Sensitivity Level: The value of the sensitivity defines the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

4. Click Arming Schedule tab to enter the arming schedule seng interface. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Secon 5.2.1 Conguring Moon Detecon for more details.

5. Click Linkage Method tab to select the linkage method taken for the object removal alarm, Nofy Surveillance Center, Send Email, Upload to FTP, Trigger Channel, Smart Tracking and Trigger Alarm Output are selectable. Refer to Secon 5.2.1 Conguring Moon Detecon for more details.

6. Click Save buon to save the sengs.

5.4 PTZ Conguraon

● On the event conguraon page, click to show the PTZ control panel or click to hide it.
- Click the direcon buttons to control the pan/lt movements.
- Click the zoom/iris/focus buons to realize lens control.
● The funcons vary depending on dierent camera models.

5.4.1 Conguring Basic PTZ Parameters

Purpose:

You can congregate the basic PTZ parameters, including proporcional pan, preset freezing, preset speed, etc.

Steps:

1. Enter the Basic Sengs interface:

Conguraon > PTZ > Basic Setngs

Basic Parameter ✓ Enable Proportional Pan □ Enable Preset Freezing Preset Speed 4 ✓ Manual Control Speed Auto ✓ Keyboard Control Speed Medium ✓ Auto Scan Speed 28 ✓ Max. Tilt-angle (0 - 90)Degree ✓ Zooming Speed 3 ✓ PTZ OSD Zoom Status 2s ✓ PT Status 2s ✓ Position Display Format PT ✓ Preset Status 2s ✓ Power Off Memory Set Resume Time Point 30s ✓

Figure 5-28 Basic Sengs

2. Congure the following sengs:

● Basic Parameters: Set the basic parameters of PTZ.

◆ Proporonal Pan: If you enable this funcon, the pan/lt speeds change according to the amount of zoom. When there is a large amount of zoom, the pan/lt speed will be slower for keeping the image from moving too fast on the live view image.
◆ Preset Freezing: This funcon enables the live view to switch directly from one scene dened by a preset to another, without showing the middle areas between these two, to ensure the surveillance eciency. It can also reduce the use of bandwidth in a digital network system.

Note:

Preset freezing funcon is invalid when you calling a paern.

◆ Preset Speed: You can set the speed of a dened preset from 1 to 8.
◆ Manual Control Speed: The manual control speed can be set as Compatible, Pedestrian, Non-motor Vehicle, Motor Vehicle or Auto.

✨ Compatible: The control speed is same as the Keyboard Control Speed.
Pedestrian: Choose the Pedestrian when you monitor the pedestrians.
Non-motor Vehicle: Choose the Non-motor Vehicle when you monitor the non-motor vehicles.
Motor Vehicle: Choose the Motor Vehicle when you monitor the motor vehicles.
Auto: You are recommended to set it as Auto when the applicaon scene of the speed dome is complicated.

◆ Keyboard Control Speed: Dene the speed of PTZ control by a keyboard as Low, Medium or High.
◆ Auto Scan Speed: The scan speed can be set from level 1 to 40.
Max. Tilt-angle: Set the lt-angle of the speed dome from the dropdown list.
◆ Zooming Speed: The zoom speed is adjustable from level 1 to 3.

● PTZ OSD: Set the on-screen display duraon of the PTZ status.

◆ Zoom Status: Set the OSD duraon of zooming status as 2 seconds, 5 seconds, 10 seconds, NC (Normally Closed), or NO (Normally Open).
◆ PT Status: Set the azimuth angle display duraon while panning and lng as 2 seconds, 5 seconds, 10 seconds, NC (Normally Closed), or NO (Normally Open).
◆ Posion Display Format: Set the posion display format as PT or Direcon and the posion parameter displays in corresponding format.

Note:

The funcon is only supported by certain camera models.

◆ Preset Status: Set the preset name display duraon while calling the preset as 2 seconds, 5 seconds, 10 seconds, NC (Normally Closed), or NO (Normally Open).

- Power-o Memory: The speed dome can resume its previous PTZ status or acons aer it restarted from a power-o. You can set the me point to which the dome resumes its PTZ status. You can set it to resume the status of 30 seconds, 60 seconds, 300 seconds or 600 seconds before power-o.

1. Click to save the sengs.

5.4.2 Conguring PTZ Limits

Purpose:

The speed dome can be programmed to move within the congorable PTZ limits (left/right, up/down).

Steps:

1. Enter the Limit conguraon interface:

Conguraon > PTZ > Limit

Enable Limit 21-17-2015 Tue 15:32 15- Limit Type Manual Stops Type Status No limited Set Clear Preset 1 Preset 2 Preset 3 Preset 4 Preset 5 Preset 6 Preset 7 Preset 8 Dave

Figure 5-29 Congure the PTZ Limit

1. Click the Enable Limit checkbox and choose the limit type as manual stops or scan stops.

- Manual Stops:

When manual limit stops are set, you can operate the PTZ control panel manually only in the limited surveillance area.

- Scan Stops:

When scan limit stops are set, the random scan, frame scan, auto scan, lt scan, panorama scan is performed only in the limited surveillance area.

Note:

Manual Stops of Limit Type is prior to Scan Stops. When you set these two limit types at the same me, Manual Stops is valid and Scan Stops is invalid.

1. Click the PTZ control buons to nd the le/right/up/down limit stops; you can also call the dened presets and set them as the limits of the speed dome.

2. Click Set to save the limits or click Clear to clear the limits.

3. Click to save the sengs.

5.4.3 Conguring Inial Posion

Purpose:

The initial posion is the origin of PTZ coordinates. It can be the factory default initial posion. You can also customize the initial posion according to your own demand.

- Customize an Inial Posion:

Steps:

1. Enter the Inial Posion conguraon interface:

Conguraon > PTZ > Inial Posion

11 17 2015 Tue 15:32:15 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Set Clear Call

Figure 5-30 PTZ Conguraon

1. Click the PTZ control buttons to nd a posion as the initial posion of the speed dome; you can also call a dened preset and set it as the initial posion of the speed dome.
2. Click Set to save the posion.

- Call/delete an Inial Posion:

You can click to call the initial posion. You can click to delete the initial posion and restore the factory default initial posion.

5.4.4 Conguring Park Acons

Purpose:

This feature allows the camera to start a predened park acon (scan, preset, pattern and etc.) automacally aer a period of inactivity (park me).

Notes:

• Scheduled Tasks funcon is prior to Park Acon funcon. When these two funcons are set at the same me, only the Scheduled Tasks funcon takes eect.
  ● Park funcon varies depending on dierent camera models.

Steps:

1. Enter the Park Acon sengs interface:

Conguraon > PTZ > Park Acon

Enable Park Action Park Time 5 s Action Type Preset Action Type ID 1

Figure 5-31 Set the Park Acon

1. Check the Enable Park Action checkbox.
2. Set the Park Time as the inacvity me of the camera before it starts the park acons.
3. Choose Action Type from the dropdown list.

4. If you select Patrol, Pattern, or Preset as Acon Type, you need to select Acon Type ID from the dropdown list.

5. Click

5.4.5 Conguring Privacy Mask

Purpose:

Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded.

Steps:

1. Enter the Privacy Mask sengs interface:

Conguraon > PTZ > Privacy Mask

Enable Privacy Masks 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Draw Area Clear All Privacy Mask List Add Delete No. Name Type Enable Active Zoom Ratio Save

Figure 5-32 Draw the Privacy Mask

1. Click the PTZ control buttons to nd the area you want to set the privacy mask.

2. Click Draw Area; drag the mouse in the live video window to draw the area.

3. You can drag the corners of the red rectangle area to draw a polygon mask.

4. Click Stop Drawing to nish drawing or click Clear All to clear all of the areas you set without saving them.

5. Click Add to save the privacy mask, and it will be listed in the Privacy Mask List area.

6. Modify the mask sengs.

● Type: you can specify a desired color for the mask or set it as mosaic.

Note:

The mosaic opon may not be supported by certain camera models.

- Acve Zoom Rao: The set mask is only valid when the camera zoom rao is equal to or larger than the set value. Click to check or change current zoom rao (The zoom rao value is displayed on image).

Privacy Mask List Add Delete No. Name Type Enable Active Zoom Ratio 1 Privacy Mask 1 gray Yes 1

Figure 5-33 Privacy Mask List

1. Check the checkbox of Enable Privacy Mask to enable this funcon.

5.4.6 Conguring Scheduled Tasks

Purpose:

You can congregate the network speed dome to perform a certain acon automacally in a user-dened me period.

Steps:

1. Enter the Scheduled Task sengs interface:

Conguraon> PTZ > Scheduled Tasks

Figure 5-34 Congure Scheduled Tasks

1. Check the Enable Scheduled Task checkbox.
2. Set the Park Time. You can set the park me (a period of inactivity) before the speed dome starts the scheduled tasks.
3. Select the task type from the dropdown list.
4. Select the meline of a certain day, and drag the mouse to set the recording schedule (the start me and end me of the recording task).
5. Aer you set the scheduled task, you can click and copy the task to other days (oponal).

Figure 5-35 Edit the Schedule and Task Type

1. Click to save the sengs.

Save

5.4.7 Clearing PTZ Conguraons

Purpose:

You can clear PTZ conguraons in this interface, including all presets, patrols, privacy masks, PTZ limits, scheduled tasks and park acons.

Steps:

1. Enter the Clearing Conguraon interface:

Conguraon > PTZ > Clear Cong

1. Check the checkbox of the items you want to clear.

Select All Clear All Presets Clear All Patrols Clear All Patterns Clear All Privacy Masks Clear All PTZ Limited Clear All Scheduled Tasks Clear All Park Action

Figure 5-36 Clear Cong

1. Click

5.4.8 Conguring Smart Tracking

Purpose:

The speed dome tracks the moving objects automacally aer you congure this funcon.

Note:

The VCA speed dome do not support this funcon.

Steps:

1. Enter the Smart Tracking sengs interface:

Conguraon > PTZ > Smart Tracking

Duration 300 s Set Zoom Ratio Tracking Zoom Ratio 50 Color Consistency When zooming-in target h... 50 When tracking target hum... 50 When zooming-in target v... 50 When tracking target vehi...

Figure 5-37 Congure Smart Tracking

1. Check the Enable Smart Tracking check box to enable smart tracking function.
2. Set Zoom Rao for tracking. You can set a xed zoom rao, or you can let the camera calculates the actual zoom rao automacally.

- Set a Fixed Zoom Rao

1. Move the Tracking Zoom Rao cursor to 1.
2. Select a target in the live image and adjust the PTZ buttons to see the target at desired size.
3. Click Set Zoom Rao to set the current zoom ratio as the zoom rao.

● Camera Calculates Zoom Rao Automacally

Adjust the Tracking Zoom Rao to a desired value. Then the camera determines the actual zoom rao dynamically according to the detected target size and the set value. Larger value means larger zoom rao.

Note:

As long as you set the Tracking Zoom Rao value not as 0, the zoom rao you set manually is invalid.

1. Set Duraon. The speed dome stops tracking when the duraon me is up.
2. Set Color Consistency.

Color Consistency: The camera checks the color of the detected target several mes during tracking and compares the color resemblance to determine whether it should continue tracking the target or not. If the returned resemblance is lower than the set value, the camera stops tracking.

You can set the resemblance thresholds for dierent targets at dierent tracking stages.

Higher value means higher resemblance requirement to connue tracking.

5.4.9 Priorize PTZ

Steps:

1. Enter the Priorize PTZ interface:

Conguraon > PTZ > Priorize PTZ.

Prioritize PTZ Network Delay 10 s

Figure 5-38 Priorize PTZ

1. Select Network or RS-485 from the dropdown list

2. Set the delay me.

3. Click to save the sengs.

5.4.10 Posion Sengs

Purpose:

You can congregate the posion sengs in this interface, including the posion informaon of the

device.

Note: Posion sengs may not be supported by certain camera models.

Steps:

1. Enter the Posion Sengs interface:

Conguraon > PTZ > Posion Sengs

Compass PT Mode Manual Set as North Point to North GPS Longitude-Latitude Mode Manual Longitude East 0 0~179 0 0~59 0.00 " 0.00~59.99" Latitude North 0 0~89 0 0~59 0.00 " 0.00~59.99"

Figure 5-39 Posion Sengs

1. Manually nd the north posion for the speed dome in Live View interface, and click Set at North to set the north direcon.

2. Aer the speed dome changes its direcon, you can click Point to North and the speed dome turns back to the north direcon.

3. You can manually set GPS informaon of certain camera including Longitude and Latitude.

4. Click

5.4.11 Rapid Focus

Purpose:

Rapid Focus is a funcon to reduce me of focusing comparing with that of normal focusing. To use the funcon, calibraon should be done rst.

Note: Rapid focus may not be supported by certain camera models.

Steps:

1. Enter the rapid focus interface

Conguraon > PTZ > Rapid Focus

Enable 01-23-2018 Tri 17:30:16 5 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 9 Preset 9 10 Preset 10 11 Preset 11 Finish calibration before you enable rapid focus. Disabling rapid focus before you delete all scenes. Start Calibration Stop Calibration Add Delete No. Scene Name Rate Calibration Point Amount 1 Scene1 39 3 2 Scene2 39 3

Figure 5-40 Rapid Focus

1. Check Enable to enable the funcon.

2. Calibrate the camera.

(1) Add scenes for calibraon.

a. Adjust the camera to a desired scene via PTZ control buons.
b. Click Add to add the scene, and input Rate and Calibraon Point Amount of the scene.
c. Repeat above steps to add other scenes.

(2) Adjust calibraon line.

a. Select an added scene, and a red line appears on live image.
b. Adjust the length and position of the line by dragging its two endpoints.

Notes:

● The red line is recommended to stay in the center of the scene and to cover ground at the same me.
- If the line is not in the center, use PTZ control to adjust the scene.

(3) Click Start Calibraon, and calibraon status appears on the live image.

1. Save the sengs aer successful calibraon.

Chapter 6 Camera Conguraon

6.1 Conguring Network Sengs

Note:

The funcons vary depending on dierent camera models.

6.1.1 Basic Sengs

Conguring TCP/IP Sengs

Purpose:

TCP/IP sengs must be properly congured before you operate the camera over network. IPv4 and IPv6 are both supported.

Steps:

1. Enter TCP/IP sengs interface:

Conguraon > Network > Basic Sengs > TCP/IP

TCP/IP DDNS PPPoE Port NAT NIC Type Auto DHCP IPv4 Address 10.16.1.250 Test IPv4 Subnet Mask 255.255.255.0 IPv4 Default Gateway 10.16.1.254 IPv6 Mode Route Advertisement View Route Advertisement IPv6 Address IPv6 Subnet Mask 0 IPv6 Default Gateway Mac Address c0:56:e3:b3:bc:c0 MTU 1500 Multicast Address Enable Multicast Discovery DNS Server Preferred DNS Server 8.8.8.8 Alternate DNS Server

Figure 6-1 TCP/IP Sengs

1. Configure the NIC sengs, including the IPv4(IPv6) Address, IPv4(IPv6) Subnet Mask and IPv4(IPv6) Default Gateway.

2. Click to save the above sengs.

© Hikvision

You can click Test to make sure that the IP address is valid.

Notes:

• If the DHCP server is available, you can check ☐ DHCP to automatically obtain an IP address and other network sengs from that server.
  ● The valid value range of Maximum Transmission Unit (MTU) is 1280 to 1500.
• The Mulcast sends a stream to the mulcast group address and allows mulple clients to acquire the stream at the same me by requesng a copy from the mulcast group address. Before ulizing this funcon, you have to enable the Mulcast funcon of your router and congure the gateway of the network camera.
• If the DNS server sengs are required for some applicaons (e.g., sending email), you should properly congure the Preferred DNS Server and Alternate DNS server.

DNS Server Preferred DNS Server 8.8.8.8 Alternate DNS Server

Figure 6-2 DNS Server Sengs

Note:

The router must support the route adversement funcon if you select Route Adversement as the IPv6 mode.

Conguring DDNS Sengs

Purpose:

If your camera is set to use PPPoE as its default network conncon, you can use the Dynamic DNS (DDNS) for network access.

Before you start:

Registraon on the DDNS server is required before conguring the DDNS sengs of the camera.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Steps:

1. Enter the DDNS sengs interface:

Conguraon > Network > Basic Sengs > DDNS

1. Check the Enable DDNS checkbox to enable this feature.
2. Select DDNS Type. Two DDNS types are selectable: DynDNS and NO-IP.

- DynDNS:

Steps:

(1) Enter Server Address of DynDNS (e.g. members.dyndns.org).

(2) In the Domain text eld, enter the domain name obtained from the DynDNS website.

(3) Enter the Port of DynDNS server.

(4) Enter the User Name and Password registered on the DynDNS website.

(5) Click

Enable DDNS DDNS Type DynDNS Server Address members.dyndns.org Domain 123.dyndns.org User Name test Port 0 Password •••••••••• Confirm •••••••••••

Figure 6-3 DynDNS Sengs

NO-IP:

Steps:

(1) Enter Server Address of NO-IP.
(2) In the Domain text eld, enter the domain name obtained from the NO-IP website.
(3) Enter the Port of NO-IP server.
(4) Enter the User Name and Password registered on the NO-IP website.

(5) Click

Conguring PPPoE Sengs

Purpose:

If you have no router but only a modem, you can use Point-to-Point Protocol over Ethernet (PPPoE) funcon.

Steps:

1. Enter the PPPoE settings interface:

Conguraon > Network > Basic Sengs > PPPoE

Enable PPPoE Dynamic IP 0.0.0.0 User Name Password Confirm

Figure 6-4 PPPoE Sengs

1. Check the Enable PPPoE checkbox to enable this feature.
2. Enter User Name, Password, and Confirm password for PPPoE access.

Note:

The User Name and Password should be assigned by your ISP.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

• Click to save and exit the interface.

Conguring Port Sengs

Purpose:

You can set the port No. of the camera, e.g., HTTP port, RTSP port and HTTPS port.

Steps:

1. Enter the Port settings interface:

Conguraon > Network > Basic Sengs > Port

TCP/IP DDNS PPPoE Port NAT Multicast HTTP Port 80 RTSP Port 554 HTTPS Port 443 Server Port 8000 Enhanced SDK Service P... 8443 Save

Figure 6-5 Port Sengs

1. Set the HTTP port, RTSP port and port of the camera.

2. HTTP Port: The default port number is 80.
   ● RTSP Port: The default port number is 554.

3. HTTPS Port: The default port number is 443.
   ● Server Port: The default port number is 8000.

Note:

When you use client soware to visit the camera and you have changed the server port number, you have to input the correct server port number in login interface to access to the camera.

● Enhanced SDK Service Port: The default server port number is 8443, and it can be changed to any port number ranges from 2000 to 65535.

3. Click

Conguring NAT (Network Address Translaon) Sengs

Purpose:

Universal Plug and Play (UPnP™) is a networking architecture that provides compatibility among networking equipment, soware and other hardware devices. The UPnP protocol allows devices to connect seamlessly and to simplify the implementation of networks in the house and corporate environments.

With the funcon enabled, you don't need to conjure the port mapping for each port, and the camera is connected to the Wide Area Network via the router.

Steps:

1. Enter the UPnP™ sengs interface.

Conguraon >Network > Basic Sengs > NAT

1. Check the checkbox to enable the UPnP™ funcon.

Note:

You can edit the Friendly Name of the camera. This name can be detected by corresponding device, such as a router.

1. Set the port mapping mode:

To port mapping with the default port numbers:

To port mapping with the customized port numbers:

And you can customize the value of the port number by yourself.

Enable UPnP™ Nickname 490340679 Port Mapping Mode Auto Port Type External Port External IP Address Internal Port Status HTTP 80 0.0.0 80 Valid RTSP 564 0.0.0 554 Valid Senior Port 8000 0.0.0 8000 Valid

Figure 6-6 Port Mapping Mode

4. Click

Conguring Mulcast

Purpose:

Mulcast is group communicaon where data transmission is addressed to a group of desnaon devices simultaneously. Aer setng up acve mulcast, you can send the source eciently to mulple devices.

TCP/IP DDNS PPPoE Port NAT Multicast IP Address 0.0.0.0 Stream Type Main Stream Video Port 8860 Audio Port 8862 Save

Figure 6-7 Seng Mulcast

Steps:

1. Enter the Mulcast seng interface.

Conguraon >Network > Basic Sengs > Mulcast

1. Set IP Address, Stream Type, Video Port, and Audio Port of the camera.

Notes:

● IP Address stands for the address of mulcast.

- Video port and audio port of each video stream of each camera channel can be specied by selecng a stream in Video Stream and inpung port number in Video Port and Audio Port.

1. Click

6.1.2 Advanced Sengs

Conguring SNMP Sengs

Purpose:

You can use SNMP to get camera status and parameters related informaon.

Before you start:

Before seng the SNMP, use the SNMP soware and manage to receive the camera informaon via SNMP port. By seng the Trap Address, the camera can send the alarm event and excepon messages to the surveillance center.

Note:

The SNMP version you select should be the same as that of the SNMP soware.

Steps:

1. Enter the SNMP sengs interface:

Conguraon > Network > Advanced Setngs > SNMP

SNMP v1/v2 Enable SNMPv1 Enable SNMP v2c Read SNMP Community public Write SNMP Community private Trap Address Trap Port 162 Trap Community public SNMP v3 Enable SNMPv3 Read UserName Security Level no auth, no priv Authentication Algorithm MD5 SHA Authentication Password**** Private-key Algorithm DES AES Private-key password**** Write UserName Security Level no auth, no priv Authentication Algorithm MD5 SHA Authentication Password**** Private-key Algorithm DES AES Private-key password**** SNMP Other Settings SNMP Port 161

Figure 6-8 SNMP Sengs

1. Check the corresponding version checkbox (Enable SNMP v1, Enable SNMP v2c, Enable SNMP v3) to enable the feature.
2. Congure the SNMP sengs.

Note:

The conguraon of the SNMP soware should be the same as the sengs you congure here.

1. Click to save and nish the sengs.

Conguring FTP Sengs

Purpose:

You can set a FTP server and congure the following parameters for uploading captured pictures.

Steps:

1. Enter the FTP sengs interface:

Conguraon > Network > Advanced Setngs > FTP

SNMP FTP Email HTTPS QoS 802.1x Server Address 0.0.0.0 Port 21 User Name Anonymous Password Confirm Directory Structure Save in the root directory Picture Filing Interval OFF Day(s) Picture Name Default Upload Picture Test

Figure 6-9 FTP Sengs

1. Configure the FTP sengs, including server address, port, user name, password, and directory.

Note:

The server address supports both the domain name and IP address formats.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.
• Setng the directory in FTP server for saving les:

In the Directory Structure eld, you can select the root directory, parent directory and child directory.

◆ Root directory: The files will be saved in the root of FTP server.
◆ Parent directory: The les will be saved in a folder in FTP server. The name of folder can be dened as shown in Figure 6-10.

Use Device Name Use Device Name Use Device Number Use Device IP address Custom

Figure 6-10 Parent Directory

◆ Child directory: It is a sub-folder which can be created in the parent directory. The les will be saved in a sub-folder in FTP server. The name of folder can be dened as shown in Figure 6-11.

Use Camera Name Use Camera Name Use Camera Number Custom

Figure 6-11 Child Directory

- Upload type: To enable uploading the captured picture to the FTP server.

1. Click to save the sengs.

2. You can click Test to conrm the configuraon.

Note:

If you want to upload the captured pictures to FTP server, you also have to enable the connuous snapshot or event-triggered snapshot in Snapshot interface.

Conguring Email Sengs

Purpose:

The system can be congured to send an Email nocoon to all designated receivers if an alarm event is detected, e.g., moon deteccon event, video loss, video-tampering, etc.

Before you start:

Configure the DNS Server sengs under Conguration> Network > Basic Setngs > TCP/IP before using the Email funcon.

Steps:

1. Enter the Email sengs interface:

Conguraon> Network > Advanced Sengs > Email

Sender Sender's Address SMTP Server SMTP Port 25 E-mail Encryption None □ Attached Image Interval 2 s □ Authentication User Name Password Confirm Receiver No. Receiver Receivers Address Test 1 Test 2 3

Figure 6-12 Email Sengs

1. Congure the following sengs:

2. Sender: The name of the email sender.

3. Sender's Address: The email address of the sender.
4. SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).

● SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25.
- E-mail encrypon: None, SSL, and TLS are selectable. When you select SSL or TLS and disable STARTTLS, e-mails will be sent aer encrypted by SSL or TLS. The SMTP port should be set as 465 for this encrypon method. When you select SSL or TLS and enable STARTTLS, emails will be sent aer encrypted by STARTTLS, and the SMTP port should be set as 25.

Note:

STARTTLS protocol must be supported by the email server for e-mail encrypon with STARTTLS. When it is not supported by the email server and the checkbox of Enable STARTTLS is checked, the email will not be encrypted.

• Attached Image: Check the checkbox of Aached Image if you want to send emails with aached alarm images.
• Interval: The interval refers to the me between two acons of sending attached pictures.
• Authencaon (oponal): If your email server requires authencaon, check this checkbox to use authencaon to log in to this server and enter the login user name and password.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.
  ● Receiver: Select the receiver to which the email is sent. Up to 2 receivers can be congured.
  ● Receiver: The name of the user to be need.

Receiver's Address: The email address of user to be need. (Oponal: click Test to make sure that the email server can send email out.)

1. Click

Conguring Plaorm Sengs

Purpose:

Plaorm access provides you an opon to manage the devices via plaorm.

Note:

This funcon varies depending on dierent speed dome models.

Steps:

1. Enter the Plaorm sengs interface:

Conguraon> Network > Advanced Sengs > Plaorm Access

Platform Access Mode Hik-Connect Enable Server IP dev.hik-connect.com Register Status Offline Verification Code 6 to 12 letters (a to z, A to Z) or numbers (0 to 9), case sensitive. You are recommended to use a combination of no less than 8 letters or numbers.

Figure 6-13 Plaorm Access

1. Check the Enable checkbox to enable the plaorm access funcon of the device.

2. Select the Plaorm Access Mode.

If you select Plaorm Access Mode as Hik-Connect,

1) Click and read "Terms of Service" and "Privacy Policy" in pop-up window.
2) Create a vericaon code or change the vericaon code for the camera.

Notes:

● The verificaon code is required when you add the camera to Hik-Connect app.
- For more informaon about the Hik-Connect app, refer to Hik-Connect Mobile Client User Manual.

1. You can use the default server address. Or you can check the Custom checkbox on the right and input a desired server address.

2. Click to save the sengs.

Note:

Hik-Connect is an applicaon for mobile devices. With the App, you can view live image of the camera, receive alarm nocacn and so on.

Conguring HTTPS Sengs

Purpose:

HTTPS consists of SSL&HTTP. It is used for encrypon transmission, identity authencaon network protocol which enhances the security of WEB accessing.

- For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

- Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Steps:

1. Enter the HTTPS sengs interface.

Conguraon > Network > Advanced Sengs > HTTPS

1. Create the self-signed certificate or authorized cercate.

Enable Install Certificate Installation Method Create Self-signed Certificate Signed certificate is available, Start the installation directly. Create the certificate request first and continue the installation. Create Self-signed Certificate Create

Figure 6-14 Create Cercate

OPTION 1: Create the self-signed cercate

(1) Select Create Self-signed Cercate.

(2) Click Create to create the following dialog box.

Create Country Hostname/IP Validity Password State or province Locality Organization Organizational Unit Email OK Cancel

Figure 6-15 Create Self-signed Cercate

(3) Enter the country, host name/IP, validity and other informaon.
(4) Click OK to save the settings.

OPTION 2: Start the installaon when signed cercate is available.

(1) Select Signed cercate is available, Start the installaon directly.
(2) Click Browse to upload the available cercate.
(3) Click Install buon to install the cercate.
(4) Click OK to save the sengs.

OPTION 3: Create cercate request rst and connue the installaon.

(1) Select Create cercate request rst and connue the installaon.
(2) Click Create to create the cercate request, and fulfill the required informaon.
(3) Download the cercate request and submit it to the trusted cercate authority for signature.
(4) After receiving the signed valid cercate, import the cercate to the device.
(5) Click OK to save the sengs.

1. There will be the certificate informaon after you successfully create and install the cercate.

Certificate Details Installed Certificate C=CN, H/IP=ADMIN Property Subject: C=CN, H/IP=ADMIN Issuer: C=CN, H/IP=ADMIN Validity: 2015-08-12 09:43:$5 - 2015-10-01 09:43:$5 Delete

Figure 6-16 Installed Cercate Property

Notes:

● The default port number of HTTPS is 443. The port value ranges from 1 to 65535.
- When the port number is the default number 443, the format of the URL is hps://IP address, eg., hps://192.168.1.64.
- When the port number is not the default number 443, the format of the URL is hps://IP address:port number, eg., hps://192.168.1.64:81.

Conguring QoS Sengs

Purpose:

QoS (Quality of Service) can help solve the network delay and network congeson by conguring the priority of data sending.

Steps:

1. Enter the QoS sengs interface:

Conguraon > Network > Advanced Conguraon > QoS

Video/Audio DSCP 0 Event/Alarm DSCP 0 Management DSCP 0

Figure 6-17 QoS Sengs

1. Configure the QoS sengs, including Video/Audio DSCP, Event/Alarm DSCP and Management DSCP.

The valid DSCP value ranges from 0 to 63. The higher the DSCP value is, the higher the priority is.

1. Click to save the sengs.

Notes:

● Make sure that you enable the QoS funcon of your network device (such as a router).

- It will ask for a reboot for the sengs to take eect.

Conguring 802.1X Sengs

Purpose:

The camera supports IEEE 802.1X standard.

IEEE 802.1X is a port-based network access control. It enhances the security level of the LAN.

When devices connect to this network with IEEE 802.1X standard, the authencaon is needed. If the authencaon fails, the devices don't connect to the network.

The protected LAN with 802.1X standard is shown in Figure 6-18

Figure 6-18 Protected LAN

• Before connecng the Network Camera to the protected LAN, apply a digital cercate from a Cercate Authority.
• The network camera requests access to the protected LAN via the authencator (a switch).
• The switch forwards the identity and password to the authencaon server (RADIUS server).
  ● The switch forwards the cercate of authentication server to the network camera.
• If all the informaon is validated, the switch allows the network access to the protected network.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
  ● Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Steps:

1. Connect the network camera to your PC directly with a network cable.
2. Enter the 802.1X sengs interface:

Conguraon > Network > Advanced Setngs > 802.1X

Enable IEEE 802.1X Protocol EAP-MD5 EAPOL version 1 User Name Password Confirm

Figure 6-19 802.1X Sengs

1. Check the Enable IEEE 802.1X checkbox to enable it.
2. Select a preferred protocol. EAP-LEAP, EAP-TLS, and EAP-MD5 are selectable.

● EAP-LEAP and EAP-MD5

If you use EAP-LEAP or EAP-MD5, the authencaon server must be congured. Apply and register a user name and password for 802.1X in the server.

Input the user name and password to access the server.

EAP-TLS

If you use EAP-TLS, input Idenfy, Private Key Password, and upload CA Cercate, User Cercate and Private Key.

1. Set the EAPOL version. The EAPOL version must be identical with that of the router or the switch.
2. Configure the 802.1X setngs, including user name and password.
3. Click to nish the sengs.

Note:

The camera reboots when you save the sengs.

1. Aer the conguraon, connect the camera to the protected network.

Conguring Wi-Fi

Wi-Fi is a technology that allows an electronic device to exchange data or connect to the internet wireless. Please make sure your device supports Wi-Fi funcon before you use this funcon. You can connect to the wireless network in manage mode, or establish the wireless conncon via WPS (Wi-Fi Protected Setup), which refers to the easy conguraon of the encrypted conncon between the device and the wireless router.

Note: Wi-Fi funcon is supported by certain camera models.

● Wireless Connecon in Manage Mode

Steps:

1. Click Enable to enable the funcon.
2. Click Search to see available SSIDs.
3. Click to select desired SSID from the Wireless List. SSID, Security Mode, and Encrypon Type are displayed automatically. Don't change them manually.
4. Input the SSID key to Key 1 password eld.

● Easy Wi-Fi Connecon with WPS funcon

WPS (Wi-Fi Protected Setup) refers to the easy congruraon of the encrypted conncon between the device and the wireless router. The WPS makes it easy to add new devices to an

exisng network without entering long passphrases. There are two modes of the WPS conncon, the PBC mode and the PIN mode.

PCB Mode

PBC refers to the Push-Buon-Conguraon, in which the user simply has to push a buon, either an actual or virtual one (as the Connect button on the conguraon interface of the IE browser), on both the Access Point (and a registrar of the network) and the new wireless client device.

PIN Mode

The PIN mode requires a Personal Idencaon Number (PIN) to be read from either a scker or the display on the new wireless device. This PIN must then be entered to connect the network, usually the Access Point of the network.

Steps:

1. Choose a wireless conncon on the Wi-Fi List and the SSID is loaded automacally.
2. Input Router PIN code, if the PIN code is generated from the router side.
3. Click Connect.

OR

You can generate the PIN code on the camera side. And the expired me for the PIN code is 120 seconds.

Steps:

1. Click Generate. And the code displays in PIN Code text eld.
2. Input the code to the router.

Integraon Protocol

Purpose:

If you need to access to the camera through the third party plaorm, you can enable Hikvision-CGI funcon. And if you need to access to the device through ONVIF protocol, you can conjure ONVIF user in this interface. Refer to ONVIF standard for detailed conguraon rules.

Steps:

1. Enter the Integraon Protocol conguraon interface.

Conguraon > Network > Advanced Setngs > Integraon Protocol

Enable Hikvision-CGI Hikvision-CGI Authenticat: digest Enable ONVIF ONVIF Version 17.12 User List Add Modify Delete No User Name Level

Figure 6-20 Integraon Protocol Setngs

1. Check the Enable Hikvision-CGI checkbox and then select the authencaon from the dropdown list. Then you can access to the camera through the third party plaorm.

2. Check the Enable ONVIF checkbox to enable the funcon.

3. Click Add to add a new ONVIF user. Set the user name and password, and conrm the password. You can set the user as media user, operator, and administrator.

4. Click Modify to modify the informaon of the added ONVIF user.

5. Click Delete to delete the selected ONVIF user.

6. Click

Network Service

Purpose:

You can control the ON/OFF status of certain protocol that the camera supports.

Notes:

Supported services vary according to camera models.

Keep unused funcon OFF for security concern.

- SDK Service and Enhanced SDK Service

If you want to add the device to the client soware, you should enable SDK Service or Enhanced SDK Service.

SDK Service: SDK protocol is used.

Enhanced SDK Service: SDK over TLS protocol is used. Communicaton between the device and the client soware is secured by using TLS (Transport Layer Security) protocol.

● TLS (Transport Layer Security)

The device oers TLS 1.1 and TLS 1.2. Enable one or more protocol versions according

to your need.

Smooth Streaming

Purpose:

This funcon is used to view the live view smoothly via the client soware or Web Browser when the network is unstable or high quality of video is required.

Notes:

Supported services vary according to camera models.

Before you start:

Add the device to your client soware and enable the NPQ protocol for live view via the client.

Steps:

1. Enter the Smooth Streaming interface:

Conguraon > Network > Advanced Sengs > Smooth Streaming

1. Select the Stream Type.
2. Check Enable Smooth Streaming.

3. Select the mode of smooth streaming. There are three modes selectable: Auto, Resoluon Priority, and Error Correcon.

4. Auto: The resoluon and bitrate will be adjusted automacally, the upper limits of which will not exceed the values you set on Video page. Go to Conguraon > Video/Audio > Video page, set the Resoluon and Max. Bitrate before you enable smooth streaming funcon.

5. Resoluon Priority: The resoluon stays the same as the set value in Video page, and the bitrate will be adjusted automacally. Go to Conguraon > Video/Audio > Video page, set the Max. Bitrate before you enable smooth streaming funcon.
6. Error Correcon: The resoluon and bitrate stay the same as the set values in Video page. This mode is used to correct the data error during transmission. You can congregate the error correcon proporon within range of 0-100. When the proporon is 0, the data error will be corrected by data retransmission. When the proporon is higher than 0, the error data will be recovered via redundant data that is added to the stream. The higher the value is, the more redundant date will be generated, and the larger bandwidth is required. When the proporon is 100, the redundant data will be as large as the original data.

Note: Be sure the bandwidth is sucient in Error Correcon mode.

1. Click

to save the sengs.

HTTP Listening

Alarm informaon can be sent to desnaon IP or Host via HTTP protocol.

Steps:

1. Input desnaon IP or host name, URL, and port number.
2. Click Test to see if the service is available.

Note: HTTP data transmission should be supported by the desnaon IP or Host.

6.2 Conguring Video and Audio Sengs

6.2.1 Conguring Video Sengs

Steps:

1. Enter the Video sengs interface:

Conguraon > Video/Audio > Video

Stream Type Main Stream(Normal) Video Type Video&Audio Resolution 1920*1080P Bitrate Type Variable Video Quality Medium Frame Rate 50 fps Max. Bitrate 4096 Kbps Video Encoding H.264 H.264+ OFF Profile Basic Profile I Frame Interval 50 SVC OFF Smoothing 50 [ Clear<->Smooth ]

Figure 6-21 Congure Video Sengs

1. (Oponal) Check the checkbox to enable the Stream Adapon. If the funcon is enabled, the live view takes the image smoothing as a priority. The camera adjusts video-related parameters automacally, and the pre-set video-related conguraon is invalid.

Notes:

● A reboot is required for the funcon to take eect.
● The funcon is only available for certain models.

1. Select the Stream Type of the camera to Main Stream (Normal), Sub-stream or Third Stream. The main stream is usually for recording and live viewing with good bandwidth, and the sub-stream can be used for live viewing when the bandwidth is limited. Refer to the Secon 4.2 Conguring Local Parameters for switching the main stream and sub-stream for live viewing.

2. You can customize the following parameters for the selected stream.

Note:

The parameters vary depending on dierent camera models.

- Video Type:

Select the stream type to video stream, or video & audio composite stream. The audio signal will be recorded only when the Video Type is Video & Audio.

- Resoluon:

Select the resolution of the video output.

- Bitrate Type:

Select the bitrate type to constant or variable.

- Video Quality:

When bitrate type is selected as Variable, 6 levels of video quality are selectable.

Frame Rate:

The frame rate is to describe the frequency at which the video stream is updated and it is measured by frames per second (fps). A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout.

● Max. Bitrate:

Set the Max. Bitrate. Higher value corresponds to higher video quality, while the higher bandwidth is required.

- Video Encoding:

Select Video Encoding from the dropdown list for dierent stream type.

H.264+/H.265+:

Set it as ON or OFF.

H.264+: If you set the main stream as the stream type, and H.264 as the video encoding, you can see H.264+ available. H.264+ is an improved compression coding technology based on H.264. By enabling H.264+, users can esmate the HDD consumpon by its maximum average bitrate. Compared to H.264, H.264+ reduces storage by up to 50% with the same maximum bitrate in most scenes.

H.265+: If you set the main stream as the stream type, and H.265 as the video encoding, you can see H.265+ available. H.265+ is an improved compression coding technology based on H.265. By enabling H.265+, users can esmate the HDD consumpon by its maximum average bitrate. Compared to H.265, H.265+ reduces storage by up to 50% with the same maximum bitrate in most scenes.

Notes:

● H.265+/H.265 function varies depending on dierent speed dome models.
- You need to reboot the camera if you want to turn on or turn o the H.264+/H.265+. If you switch from H.264+ to H.265+ directly, and vice versa, a reboot is not required by the system.

- Prole:

Basic Prole, Main Prole and High Prole are selectable.

● I Frame Interval:

Set the I-Frame interval from 1 to 400.

- SVC:

Scalable Video Coding is an extension of the H.264/AVC standard. Select OFF/ON to disable/enable the SVC funcon. Select Auto, and the device will automatically extract frames from the original video when the network bandwidth is insucient.

- Smoothing:

It refers to the smoothness of the stream. The higher value of the smoothing, the beer uency of the stream, though, the video quality may not be so sased. The lower value of the smoothing, the higher quality of the stream, though it may appear not uent.

5. Click

to save the sengs.

6.2.2 Conguring Audio Sengs

Note: Audio Sengs may not be supported by certain camera models.

Steps:

1. Enter the Audio sengs interface

Conguraon > Video/Audio > Audio

Audio Encoding MP2L2 Sampling Rate 44.1kHz Audio Stream Bitrate 128kbps Audio Input MicIn Input Volume 62 Audio Output Built-in Speaker Output Volume 73 Environmental Noise Filter OFF Save

Figure 6-22 Audio Sengs

1. Congure the following sengs.

● Audio Encoding: G.722.1, G.711ulaw, G.711alaw, MP2L2, G.726 and PCM are selectable.
- Audio Input: When an intercom is connected to the camera, you need to set this opon to LineIn. When a microphone is connected to the camera, you need to set this opon to MicIn.
- Mute During Pan/Tilt: For certain camera models, when you select MicIn as audio input, enable the funcon to mute the microphone when the camera is performing pan/lt operaon.
- Audio Stream Bitrate: When the Audio Encoding is selected as MP2L2, you can congregate the Audio Stream Bitrate in the dropdown list. The greater the value is, the beer the audio quality will be.
- Sampling Rate: When the Audio Encoding is selected as MP2L2 or PCM, you can congregate the Sampling Rate in the dropdown list. The greater the value is, the beer the audio quality will be.
● Input Volume: Slide the bar to turn up/down the volume.
- Audio Output: Close, LineOut and Built-in Speaker are selectable. If Close is selected, related audio playing funcon is disabled, for example the audible warning of linkage method. Select LineOut for connected external speaker and Built-in Speaker for the built-in speaker the device has.
● Output Volume: Slide the bar to turn up/down the volume.

Note:

Audio Output, LineOut, and Output Volume are only supported on certain cameras.

Environmental Noise Filter: Select ON or OFF in the dropdown list to enable or disable the funcon. It's recommended to enable the function when sampling rate is lower than 32 kHz.

3. Click

6.2.3 Conguring ROI Sengs

Purpose:

ROI (Region of Interest) encoding is used to enhance the quality of images which are specified in advance. There are two different ROI methods: Fixed Region and Dynamic Region. When Fixed Region is enabled, image quality of ROI area will be enhanced and image quality of other areas will be reduced. When Dynamic Region is enabled, image quality of tracking target will be enhanced.

Note:

ROI funcon varies depending on dierent camera models.

Enter the ROI sengs interface:

Conguraon >Video/Audio >ROI

11-17 2015 Tue 15:17:14 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Draw Area Clear

Figure 6-23 Region of Interest (1)

Stream Type Stream Type Main Stream(Normal) Fixed Region Enable Region No. 1 ROI Level 3 Region Name Dynamic Region Enable Face Tracking ROI Level 3 Enable Target Tracking ROI Level 6

Figure 6-24 Region of Interest (2)

- ROI for Fixed Region

Steps:

1. Check Enable checkbox to enable the Fixed Region funcon.
2. Select a stream type. You can set the ROI funcon for Main Stream(Normal), Sub-stream or Third Stream.
3. Click Draw Area and then drag the mouse to draw a red frame in the live view image. You can click Clear to clear it.

Note:

The number of areas supported in ROI funcon varies depending dierent camera models

1. Select the Region No. from the dropdown list.
2. Adjust the ROI level. The higher the value, the better image quality in the red frame.
3. Enter a Region Name.

● ROI for Dynamic Region

Steps:

1. Check Enable Face Tracking checkbox to enable face tracking, and the captured face picture is set as region of interest. Adjust the ROI level.

2. Click to save the sengs.

Note:

ROI for Dynamic Region is only available for certain cameras models.

6.2.4 Display Info. on Stream

Check the Enable Dual-VCA checkbox, and the informaon of the objects will be marked in the video stream. Then, you can set rules on the connected rear-end device to detect the events including line crossing, intrusion, etc.

6.3 Conguring Image Sengs

• On the Image configuraon page, click it.
• Click the direcon buons to control the pan/lt movements.
• Click the zoom/iris/focus buons to realize lens control.
  ● The funcons vary depending on dierent camera models.

> to show the PTZ control panel or click < to hide

6.3.1 Conguring Display Sengs

Purpose:

Congure the Image Adjustment, Exposure Sengs, Focus, Day/Night Switch, Backlight Sengs, White Balance, Image Enhancement, Video Adjustment, and other parameters in display sengs.

Notes:

● The parameters in Display Setngs interface vary depending on dierent camera models.
- You can double click the live view to enter full screen mode and double click it again to exit.

Steps:

1. Enter the Display Sengs interface:

Conguraon > Image> Display Sengs

1. You can select the Scene in the dropdown list with dierent predened image parameters.

2. Set the image parameters of the speed dome.

Image Adjustment

- Brightness

This feature is used to adjust brightness of the image.

- Contrast

This feature enhances the dience in color and light between parts of an image.

- Saturaon

This feature is used to adjust color saturaon of the image.

- Sharpness

Sharpness funcon enhances the detail of the image by sharpening the edges in the image.

Exposure Sengs

- Exposure Mode

The Exposure Mode can be set to Auto, Iris Priority, Shutter Priority, and Manual.

Auto:

The iris, shuer and gain values will be adjusted automatically according to the brightness of the environment.

You can limit the changing ranges of iris and shuer in Auto mode for beer exposure eect.

♦ Iris Priority:

The value of iris needs to be adjusted manually. The shuer and gain values will be adjusted automatically according to the brightness of the environment.

You can limit the changing range of shutter in Iris Priority mode for beer exposure eect.

Exposure Mode Iris Priority Exposure Level 2 Max Shutter Limit 1/30 Min Shutter Limit 1/30000 Iris f1.6 Limit Gain 94 Slow Shutter OFF

Figure 6-25 Manual Iris

◆ Shuer Priority:

The value of shuer needs to be adjusted manually. The iris and gain values will be adjusted automatically according to the brightness of the environment.

You can limit the changing range of iris in Shutter Priority mode for beer exposure eect.

Exposure Mode Shutter Priority Exposure Level 2 Max. Iris Limit 100 Min. Iris Limit 0 Shutter 1/30 Limit Gain 94 Slow Shutter OFF

Figure 6-26 Manual Shuer

◆ Manual:

In Manual mode, you can adjust the values of Gain, Shutter, and Iris manually.

Note:

This funcon varies depending on the camera models.

Exposure Mode Manual Iris f1.6 Shutter 1/30 Gain 0 Limit Gain 94 Slow Shutter OFF

Figure 6-27 Manual Mode

✨ Limit Gain

This feature is used to adjust gain of the image. The value ranges from 0 to 100.

Slow Shuer

This funcon can be used in underexposure condion. It lengthens the shuer me to

ensure full exposure.

Slow Shuer Level

When slow shuer is set as ON, you can select the slow shuer level from the dropdown list. The slow shuer lever can be set to Slow Shuer*1.25, *1.5, *2, *3, *4, *6, *8.

Slow Shutter ON Slow Shutter Level Slow Shutter*2

Figure 6-28 Slow Shuer

Focus Sengs

- Focus Mode

The Focus Mode can be set to Auto, Manual, and Semi-auto.

Auto:
The speed dome focuses automacally at any me according to objects in the scene.
◆ Semi-auto:
The speed dome focuses automacally only once aer panning, Ing and zooming.
◆ Manual:
In Manual mode, you need to use ☐ on the control panel to focus manually.

● Min. Focus Distance

This funcon is used to limit the minimum focus distance. The value can be set to 10cm, 50cm, 1.0m, 1.5m, 3m, 6m, 10m and 20m.

Note:

The minimum focus value varies depending on dierent camera models.

Day/Night Switch

● Day/Night Switch Mode

The Day/Night Switch mode can be set to Auto, Day, Night and Scheduled-Switch.

Note:

This funcon varies depending on the models of speed dome.

Auto:

In Auto mode, the day mode and night mode can switch automacally according to the light condition of environment. The switching sensitivity can be set to 1, 2, 3.

Figure 6-29 Auto Mode Sensitivity

Day:

In Day mode, the speed dome displays color image. It is used for normal lightng conditions.

Night:

In Night mode, the image is black and white. Night mode can increase the sensitivity in low light conditions.

◆ Scheduled-Switch:

In Scheduled-Switch mode, you can set the start and end me for day mode as shown in Figure 6-30. The rest is the me for night mode.

Day/Night Switch Scheduled-Switch Start Time 07:00:00 End Time 18:00:00

Figure 6-30 Day Night Schedule

- Supplement Light

Smart Supplement Light: It controls the power of light automacally to make image of proper exposure level. If the light supplement is on and the image center is overexposure, you can enable this funcon.
◆ IR Light Mode/Laser Mode: It controls the On/O status of supplement light.
◆ Brightness Limit: It controls the the upper limit of supplement light power.

Note:

To use supplement light, you have to enable the supplement light rst.

Go to Conguraon > System > Maintenance > System Service.

Backlight Sengs

● BLC (Back Light Compensaon)

If there's a bright backlight, the subject in front of the backlight appears silhouetted or dark. Enabling BLC (back light compensaon) funcon can correct the exposure of the subject. But the backlight environment is washed out to white.

● WDR (Wide Dynamic Range)

The wide dynamic range (WDR) funcon helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the eld of view, WDR balances the brightness level of the whole image and provide clear images with details.

You can enable or disable the WDR funcon as shown in Figure 6-31.

WDR ON Wide Dynamic Level 11

Figure 6-31 WDR

HLC

HLC (High Light Compensaon) makes the camera identify and suppress the strong light sources that usually are across a scene. This makes it possible to see the detail of the image that would normally be hidden.

White Balance

The White Balance mode can be set to Auto, MWB, Outdoor, Indoor, Fluorescent Lamp, Sodium Lamp, and ATW.

Auto

In Auto mode, the camera retains color balance automacally according to the current color temperature.

● Manual White Balance:

In MWB mode, you can adjust the color temperature manually to meet your own demand as shown in Figure 6-32.

White Balance MWB WB Gain Circuit R 0 WB Gain Circuit B 0

Figure 6-32 Manual White Balance

- Outdoor

You can select this mode when the speed dome is installed in outdoor environment.

- Indoor

You can select this mode when the speed dome is installed in indoor environment.

- Fluorescent Lamp

You can select this mode when there are uorescent lamps installed near the speed dome.

- Sodium Lamp

You can select this mode when there are sodium lamps installed near the speed dome.

ATW

In ATW mode, white balance is connuously being adjusted in real-me according to the color temperature of the scene illuminaon.

Image Enhancement

Note:

The funcons vary depending on dierent camera models.

● 3D Digital Noise Reducon

You can set Digital Noise Reducon funcon to Normal and adjust the Noise Reducon Level as shown in Figure 6-33. The level ranges from 0 to 100.

Digital Noise Reduction Normal Noise Reduction Level 50

Figure 6-33 3D Digital Noise Reducon

If you are a professional technician, you can set it to Expert Mode then adjust Space DNR Level and Time DNR Level. The level ranges from 0 to 100.

Digital Noise Reduction Expert Space DNR Level 50 Time DNR Level 50

Figure 6-34 Expert Mode

- Defog Mode

You can set the Defog Mode to Auto, ON or OFF as you need.

Figure 6-35 Defog Mode

● EIS (Electronic Image Stabilizaon)

You can set the EIS to ON or OFF as you need.

Figure 6-36 Electronic Image Stabilizaon

● OIS (Opcal Image Stabilizaon)

You can set the OIS to NORMAL, EXPERT, or OFF as you need.

Note:

The funcon is only available for certain camera models.

Figure 6-37 Opcal Image Stabilizaon

Video Adjustment

Note:

The funcon is only available for certain camera models.

- Mirror

If you turn the MIRROR funcon on, the image will be ipped. It is like the image in the mirror. The ip direcon can be set to OFF or CENTER.

- Video Standard

You can set the Video Standard to 50 Hz (PAL) or 60 Hz (NTSC) according to the video system in your country.

- Capture Mode

You can disable this funcon or select the capture mode from the list.

Other

- Lens Inializaon

The lens operates the movements for inializaon when you enable Lens Inializaon.

- Zoom Limit

You can set Zoom Limit value to limit the maximum value of zooming. The value can be selected from the list.

- Local Output

You can select the output mode to ON or OFF.

Note:

The funcons vary depending on dierent camera models.

6.3.2 Conguring OSD Sengs

Purpose:

OSD (On-screen Display) refers to the camera name, me/date, customized informaon displayed on the live view.

Note:

This funcon varies according to dierent camera models.

Steps:

1. Enter the OSD sengs interface:

Conguraon > Image > OSD Sengs

1. Select Character Set. If Korean is required to display on screen, select EUC-KR. Otherwise, select GBK.

Note:

Changing character set requires device reboot.

1. Check the corresponding checkbox to select the display of camera name, date or week if required.

2. Edit the camera name in the text eld of Camera Name.

3. Select from the dropdown list to set the Time Format, Date Format, Display Mode, OSD Size, Font Color and Alignment.

4. You can use the mouse to drag the text frame IPdome in the live view window to adjust the OSD posion.

2013-18 Thursday 20:24:31 IP Date

Figure 6-38 Adjust OSD Locaon

1. Click

Save

Conguring Text Overlay Sengs

Purpose:

You can customize the text overlay.

Steps:

1. Enter the Text Overlay sengs interface:

Conguraon > Image > OSD Sengs

1. Check the checkbox in front of textbox to enable the on-screen display.

2. Input the characters in the textbox.

3. Use the mouse to drag the red text frame Text in the live view window to adjust the text overlay posion.

4. Click to save the sengs.

6.3.3 Conguring Image Parameters Switch

Purpose:

You can congregate Link to Preset or Scheduled-Switch in order to switch to linked scene in certain me.

- Link to Preset: Set the me period and linked scene for the preset and check the corresponding checkbox to go to the linked scene in the congured me period.

- Scheduled-Switch: Set the me period and linked scene and it will go to the linked scene in the congured me period when you check the corresponding checkbox.

Note:

This funcon varies depending on dierent camera models

Steps:

1. Enter the Image Parameters Switch interface:

Conguraon > Image > Image Parameters Switch

1. Check the checkbox of Link to Preset or Scheduled-Switch to enable the funcon. (Only one funcon can be enabled in the same me.)

2. When you enable the funcon of Link to Preset, select one preset from the dropdown list, check the corresponding checkbox, set the me period and the linked scene for the selected preset. (Up to 4 periods can be congured for one preset.)

Link to Preset Preset 1 Period1 00:00:00 00:00:00 Linked Scene Indoor Period2 00:00:00 00:00:00 Linked Scene Indoor Period3 00:00:00 00:00:00 Linked Scene Indoor Period4 00:00:00 00:00:00 Linked Scene Indoor

Figure 6-39 Link to Preset

Indoor Indoor Outdoor Day Night Morning Nightfall Street Low Illumination Custom1 Custom2

Figure 6-40 Linked Scene

1. When you enable the funcon of Scheduled-Switch, check the corresponding checkbox, set the me period and the linked scene.

Scheduled-Switch Period1 00:00:00 00:00:00 Linked Scene Indoor Period2 00:00:00 00:00:00 Linked Scene Indoor Period3 00:00:00 00:00:00 Linked Scene Indoor Period4 00:00:00 00:00:00 Linked Scene Indoor

Figure 6-41 Schedule-Switch

5. Click to save the sengs.

Note:

The two funcons are not enabled by default.

6.4 Conguring System Sengs

6.4.1 System Sengs

Viewing Basic Informaon

Enter the Device Informaon interface:

Conguraon > System > System Sengs > Basic Informaon

In the Basic Informaon interface, you can edit the Device Name and Device No.

Other informaon of the camera, such as Model, Serial No., Firmware Version, Encoding Version, Web Version, Plugin Version, Number of Channels, Number of HDDs, Number of Alarm Input, Number of Alarm Output, and Firmware Version Property are displayed. The informaon cannot be changed in this menu. It is the reference for maintenance or modicaon in future.

Device Name Device No. Model Serial No. Firmware Version Encoding Version Web Version Plugin Version Number of Channels Number of HDDs Number of Alarm Input Number of Alarm Output Firmware Version Property

Figure 6-42 Device Informaon

Time Sengs

Purpose:

You can follow the instrucons in this secon to conjure the me which can be displayed on the video. There are Time Zone, Time Synchronizaon, and Daylight Saving Time (DST) funcons for seng the me. Time Synchronizaon consists of auto mode by Network Time Protocol (NTP) server and manual mode.

Enter the Time Sengs interface:

Conguraon > System > System Sengs > Time Sengs

Time Zone (GMT+08:00) Beijing, Urumqi, Singapore NTP © NTP Server Address time.windows.com NTP Port 123 Interval 1440 minute(s) Test Manual Time Sync. ● Manual Time Sync. Device Time 2017-07-03T14:18:26 Set Time 2017-07-03T14:18:24 Sync with computer time

Figure 6-43 Time Sengs

● Conguring Time Synchronizaon by NTP Server

Steps:

1. Check the radio button to enable the NTP funcon.
2. Congure the following sengs:

Server Address: IP address of NTP server.

NTP Port: Port of NTP server.

Interval: The me interval between the two synchronizing acons by NTP server. It can be set from 1 to 10080 minutes.

NTP NTP Server Address time windows.com NTP Port 123 Interval 1440 min Test

Figure 6-44 Time Sync by NTP Server

You can click Test to make sure that the NTP server is connected.

Note:

If the camera is connected to a public network, you should use a NTP server that has a me synchronizaon funcon, such as the server at the Naonal Time Center (IP Address:

210.72.145.44). If the camera is set in a customized network, NTP soware can be used to establish a NTP server for me synchronizaon.

● Conguring Time Synchronizaon Manually

Steps:

1. Check the Manual Time Sync radio buon.

2. Click to set the system me from the pop-up calendar.

3. Click to save the sengs.

Note:

You can also check the Sync with local me checkbox to synchronize the me of the camera with the me of your computer.

Sun Mon Tue Wed Thu Fri Sat 26 27 28 29 30 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 5 Time 20 : 11 : 33 OK

Manual Time Sync. ● Manual Time Sync. Device Time 2015-08-11T20:12:33 Set Time 2015-08-11T20:11:33 Sync. with computer time

Figure 6-45 Time Sync Manually

- Select the Time Zone

Purpose:

When the camera is taken to another me zone, you can use the Time Zone funcon to adjust the me. The me will be adjusted according to the original me and the me dierence between the two me zones.

From the Time Zone dropdown menu as shown in Figure 6-46, select the Time Zone in which the camera locates.

Time Zone (GMT+08:00) Beijing, Urumqi, Singapore

Figure 6-46 Time Zone Sengs

Conguring DST (Daylight Saving Time)

Purpose:

Daylight Saving Time (DST) is a way of making beer use of the natural daylight by seng your clock forward one hour during the summer months, and back again in the fall.

If there is the habit of adjusng clocks forward in your country in certain me period of a year, you can turn this funcon on. The me will be adjusted automacally when the Daylight Saving Time (DST) comes.

Steps:

1. Enter the DST interface by Conguraon > System > System Setngs > DST

Enable DST Start Time Apr First Sun 02 End Time Oct Last Sun 02 DST Bias 30min

Figure 6-47 DST Sengs

1. Check the Enable DST checkbox to enable the DST funcon.

2. Set the date of the DST period.

3. Click

Conguring RS-232

The RS-232 port can be used in two ways:

• Parameters Configuraon: Connect a computer to the camera through the serial port. Device parameters can be congured by using soware such as HyperTerminal. The serial port parameters must be the same as the serial port parameters of the camera.
• Transparent channel: Connect a serial device directly to the camera. The serial device will be controlled remotely by the computer through the network.

Note:

RS-232 funcon varies depending on dierent speed dome models.

Steps:

1. Enter RS-232 Port seng interface:

Conguraon> System > System Setngs > RS-232

Baud Rate 115200 Data Bit 8 Stop Bit 1 Parity None Flow Ctrl None Usage Transparent Channel

Figure 6-48 RS-232 Sengs

1. Configure the Baud Rate, Data Bit, Stop Bit, Parity, Flow Control, and Usage.

Note:

If you want to connect the camera through RS-232 port, the parameters of the RS-232 should be exactly the same with the parameters you congured here.

1. Click

RS-485

Purpose:

The RS-485 serial port is used to control the PTZ of the camera. The conguring of the PTZ parameters should be done before you control the PTZ unit.

Note:

RS-485 funcon varies depending on dierent speed dome models.

Steps:

1. Enter RS-485 Port Setng interface:

Conguraon> System > System Sengs > RS-485

Baud Rate 9600 Data Bit 8 Stop Bit 1 Parity None Flow Ctrl None PTZ Protocol PELCO-D PTZ Address 1

Figure 6-49 RS-485 Sengs

1. Set the RS-485 parameters and click

Note:

The Baud rate, PTZ Protocol and PTZ Address parameters of the camera should be exactly the same as those of the control device.

About

Click View License, you can check Open Source Soware Licenses.

6.4.2 Maintenance

Upgrade & Maintenance

● Reboong the Camera

Steps:

1. Enter the Maintenance interface:

Conguraon > System > Maintenance > Upgrade & Maintenance:

1. Click Reboot to reboot the network camera.

● Restoring Default Sengs

Steps:

1. Enter the Maintenance interface:

Conguraon > System > Maintenance > Upgrade & Maintenance

1. Click or to restore the default sengs.

Note:

Clicking restores all the parameters to default sengs including the IP

address and user informaon. Use this buon with cauon.

Default Restore Reset all the parameters, except the IP parameters and user information, to the default settings. Default Restore all parameters to default settings.

Figure 6-50 Restore Default Sengs

● Exporng Conguraon File

Steps:

1. Enter the Maintenance interface:
   Conguraon > System > Maintenance > Upgrade & Maintenance
2. Click Device Parameters and set the encrypon password to export the current conguraon le.
3. Set the saving path to save the conguraon le in local storage.
4. Click Diagnose Information to download the log and system informaon.

- Imporng Conguraon File

Steps:

1. Enter the Maintenance interface:

Conguraon > System > Maintenance > Upgrade & Maintenance

1. Click Browse to select the saved conguraon le.
2. Input the encrypon password you have set when exporng the conguraon le.
3. Click Import to import configuraon le.

Note:

You need to reboot the camera aer imporng conguraon le.

- Upgrading the System

Steps:

1. Enter the Maintenance interface:

Conguraon >System > Maintenance > Upgrade & Maintenance

1. Select Firmware or Firmware Directory.

◆ Firmware: when you select Firmware, you need to nd the rmware in your computer to upgrade the device.
◆ Firmware Directory: You need to nd the directory where the rmware locates. The device can nd the rmware in the directory automacally.

1. Click Browse to select the local upgrade file and then click Upgrade to start remote upgrade.

Note:

The upgrading process will take 1 to 10 minutes. Don't disconnect power of the camera during the process. The camera reboots automatically aer upgrading.

Log Searching

Purpose:

The operaon, alarm, excepon and informaon of the camera can be stored in log les. You can also export the log les on your demand.

Before you start:

Congure network storage for the camera or insert a memory card in the camera.

Steps:

1. Enter the Log interface:

Conguraon > System > Maintenance > Log

Upgrade & Maintenance Log System Service Major Type All Types Minor Type All Types Start Time 2015-08-11 00:00:00 End Time 2015-08-11 23:59:59 Search Log List Export No. Time Major Type Minor Type Channel No. Local/Remote User Remote Host IP Total 0 Items << < 0/0 > >

Figure 6-51 Log Searching Interface

1. Set the log search conditions to specify the search, including the Major Type, Minor Type, Start Time and End Time as shown in Figure 6-51.
2. Click Search to search log les. The matched log les will be displayed on the Log interface.
3. To export the log les, click Save Log to save the log les in your computer.

System Service

Steps:

1. Enter the interface of conging the remote conncon:

Conguraon > System > Maintenance > System Service

1. Check the checkbox to enable supplement light funcon if the device supports the funcon.
2. Input a number in text eld as the upper limit of the remote conncon number. For example, when you specify the remote conncon number as 10, then the 11th remote conncon cannot be established.

Software Live View Connection 10 Save

Figure 6-52 Live View Connecon Setngs

1. (Oponal) Third Stream: For certain models, the third stream is not enabled by default. If the third stream is required, enable the funcon. Note that other function may be mutually exclusive with the third stream.

2. Click

© Hikvision

Security Audit Log

Purpose:

The Security Audit Log refers to the security operaon logs. You can search and analyze the security log les of the camera so that to nd out the illegal intrusion and troublesomeong the security events.

Security audit logs can be saved on device ash. The log will be saved every half hour aer device boong.

Due to limited saving space of the ash, you can also save the logs on a log server. Congure the server sengs at Advanced Sengs.

- Searching Logs

Steps:

1. Enter the Security Audit Log interface:

Conguraon > System > Maintenance > Security Audit Log

1. Set the log search conditions to specify the search, including the Major Type, Minor Type, Start Time and End Time.

Log Query Major Type All Types Minor Type All Types Start Time 2019-01-18 00:00:00 End Time 2019-01-18 23:59:59 Search Log List Export No. Time Major Type Minor Type Channel No. Local/Remote User Remote Host IP Total 0 Items << < 0/0 > >>

Figure 6-53 Log Query Interface

1. Click Search to search log les. The matched log les will be displayed on the Log list interface.

2. To export the log les, click Export to save the log les in your computer.

- Seng Log Server

Steps:

1. Check Enable Log Upload Server.

2. Input Log Server IP and Log Server Port.

3. Click Test to test sengs.

4. Install cercates. Client cerficate and CA cercate are required.

◆ Client Cercate

(1) Click Create button to create the cercate request. Fill in the required

informaon in the popup window.

(2) Click Download to download the cercate request and submit it to the trusted cercate authority for signature.

(3) Install the signed cercate to the device.

CA Cercate

(1) Install the CA cercate to the device.

6.4.3 Security

Conguring Authencaon Security

Purpose:

You can specifically secure the stream data of live view.

Steps:

1. Enter the Authencaon interface:

Conguration> System> Security > Authencaon

1. Set the RTSP Authencaon/WEB Authencaon type from the dropdown list. Digest and digest/basic are selectable.

2. Click

Conguring IP Address Filter

Purpose:

With this funcon on, the camera allows certain IP addresses whether to log in or not.

Steps:

1. Enter IP Address Filter interface:

Conguration > System > Security > IP Address Filter

Enable IP Address Filter IP Address Filter Type Forbidden IP Address Filter Add Modify Delete No. IP Save

Figure 6-54 IP Address Filter

1. Check the checkbox of Enable IP Address Filter.
2. Select the type of IP Address Filter in the dropdown list, Forbidden and Allowed are selectable.
3. Set the IP Address Filter list.

- Add an IP Address

Steps:

(1) Click Add to add an IP.
(2) Input the IP Adrees.

Add IP Address IP Address 172.6.23.2 OK Cancel

Figure 6-55 Add an IP

(3) Click OK to finish adding.

- Modify an IP Address

Steps:

(1) Click an IP address from Iter list and click Modify.
(2) Modify the IP address in the text led.

Modify IP Address IP Address 172.6.23.2 OK Cancel

Figure 6-56 Modify an IP

(3) Click OK to finish modifying.

• Delete an IP Address
  Click an IP address from Iter list and click Delete.
• Delete all IP Addresses

Click Clear to delete all the IP addresses.

1. Click

Save to save the sengs.

Conguring Security Service

Steps:

1. Enter the Security Service interface:

Conguraon> System > Security > Security Service

1. Check the checkbox to enable the Illegal Login Lock funcon.

Illegal Login Lock: Enabling illegal login lock funcon is to automatically lock the device IP aer the user performing certain failed password aempts. The number of allowed

aempts is congorable.

3. Click

Conguring Advanced Security

Purpose:

Advanced security oers opons to manage more network security sengs of the device.

● Security Reinforce

Security reinforce is a soluon to enhance network security. With the funcon enabled, risky funcons, protocols, ports of the device are disabled and more secured alternate funcons, protocols and ports are enabled.

Funcon	Status
Control Timeout Sengs	Enabled
Digest Algorithm	MD5 is disabled. SHA256 is enabled
ONVIF	Disabled
TLS	TLS1.1 is disabled. TLS1.2 is enabled
SDK	SDK Service is disabled. Enhanced SDK Service is enabled
SNMP	Disabled
RTSP Authencaon and HTTP Authencaon	Only digest is supported
HTTPS	Enabled
HTTPS Browsing	Enabled. Accessing the device can only use HTTPS protocol
IEEE 802.1X	Only EAP-TLS (TLS1.2) is supported. The funcon is disabled

● Control Timeout Sengs

If you enable the funcon and set meout period, you will be logged out when you make no operaon to the device via web browser (Viewing live image and playback are not included.) for the set meout period.

- Algorithm

Displays the currently acve digest algorithm. If Security Reinforce is enabled, MD5 is disabled and SHA256 is enabled instead.

6.4.4 User Account

Manage Users

Enter the User Management interface:

Conguraon > System > User Management

The admin user has access to create, modify or delete other accounts, and grant dierent permission to dierent user levels. We highly recommend administrator to manage the device

accounts and user permissions properly. Up to 31 user accounts can be created.

User Management Online Users User List Add Modify Delete General Account Security Settings No. User Name Level 1 admin Administrator

Figure 6-57 User Informaon

- Add a User

Steps:

1. Click to add a user.

2. Input the new User Name, select Level and input Password.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.
  ● Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Note:

The level indicates the permissions you give to the user. You can denote the user as Operator or User.

1. In the Basic Permission eld and Camera Conguraon eld, you can check or uncheck the permissions for the new user.
2. Click OK to nish the user addition.

Add user User Name user1 Level Operator Password •••••••••••••••• Strong Valid password range (8-16). You can use a combination of numbers. lowercase, uppercase and special character for your password with at least two kinds of them contained. Confirm •••••••••••••••• Select All Remote: Parameters Settings Remote: Log Search / Interrogate Wo... Remote: Upgrade / Format Remote: Two-way Audio Remote: Shutdown / Reboot Remote: Notify Surveillance Center / Remote: Video Output Control Remote: Serial Port Control Remote: Live View Remote: Manual Record Remote: PTZ Control Remote: Playback OK Cancel

Figure 6-58 Add a User

- Modify a User

Steps:

1. Click to select the user from the list and click
   Modify
2. Modify the User Name, Level or Password.
3. In the Basic Permission eld and Camera Conguraon eld, you can check or uncheck the permissions.
4. Click to nish the user modicaon.

Modify user User Name user1 Level Operator Password ••••••• Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. Confirm ••••••• Select All Remote: Parameters Settings Remote: Log Search / Interrogate Wo... Remote: Upgrade / Format Remote: Two-way Audio Remote: Shutdown / Reboot Remote: Notify Surveillance Center / Remote: Video Output Control Remote: Serial Port Control Remote: Live View Remote: Manual Record Remote: PTZ Control Remote: Playback OK Cancel

Figure 6-59 Modify a User

- Delete a User

Steps:

1. Click the user name you want to delete and click . Delete

2. Click OK on the pop-up dialogue box to delete the user.

Recover Admin Password

Purpose:

The camera allows admin password recovery via security queson or vericaon code received by congured e-mail address.

Recovery password operaon is only available to administrator.

● Setup Security Queson or E-mail Address for Vericaon Code

You should setup security quesons or E-mail address to receive vericaon code.

Steps

1. Click Account Security Settings to enter seng interface.

Conguraon > System > User Management > User Management

1. Select security quesons and input your answers.
2. Input your E-mail address for password recovery.
3. Save the sengs.

- Password Recovery Operaon

Before you start:

The PC used to reset password and the camera should belong to the same IP address segment of the same LAN.

Steps:

1. Enter login interface via web browser.
2. Click Forget Password.
3. Follow pop-up message to complete operaon.

Online Users

Enter the Online Users conguraon interface:

Conguraon > System > User Management > Online Users

User Management Online Users User List Refresh No. User Name Level IP Address User Operation Time 1 admin User 10.16.1.101 2015-11-12 20:53:38

Figure 6-60 Online Users

You can see the current users who are vising the device through this interface.

User informaon, such as user name, level, IP address, and operaon me, is displayed in the User List. Click Refresh to refresh the list.

Note:

Administrator can control the Simultaneous Login. Click General on User Management page, and set desired number. Admin password is required for this operaon.

User Management Online Users: User List Add Modify Delete General Account Security Settings No User Name Level 1 General Simultaneous Login 50 OK Cancel

Figure 6-61 Simultaneous Login

Appendix

SADP Soware Introducon

- Descripon of SADP

SADP (Search Acve Devices Protocol) is a kind of user-friendly and installaon-free online device search tool. It searches the acve online devices within your subnet and displays the informaon of the devices. You can also modify the basic network informaon of the devices using this soware.

- Search acve devices online

◆ Search online devices automacally

Aer launch the SADP soware, it automacally searches the online devices every 15 seconds from the subnet where your computer locates. It displays the total number and informaon of the searched devices in the Online Devices interface. Device informaon including the device type, IP address and port number, etc. will be displayed.

SADP Total number of order devices 9 Export Network I Activate the Device The device is not activated. 007 Inactive 192.168.1.64 Select inactive device. Input and conrm password.

Figure A.1.1 Searching Online Devices

Device can be searched and displayed in the list in 15 seconds aer it went online; it will be removed from the list in 45 seconds aer it went oine.

◆ Search online devices manually

You can also click Refresh to refresh the online device list manually. The newly searched devices will be added to the list.

You can click or on each column heading to order the informaon; you can

click to expand the device table and hide the network parameter panel on the right side, or click to show the network parameter panel.

- Modify network parameters

Steps:

1. Select the device to be modified in the device list and the network parameters of the device will be displayed in the Modify Network Parameters panel on the right side.
2. Edit the modifiable network parameters, e.g. IP address and port number.
3. Enter the password of the admin account of the device in the Password eld and click

to save the changes.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Modify Network Parameters Enable DHCP Device Serial No.: XX-XXXXXXXX-XXXXXXXXXXXXXXXXXXXXX IP Address: 10.16.5.106 Port: 8003 Subnet Mask: 255.255.255.0 Gateway: 0.0.0.0 IPv6 Address: IPv6 Gateway: IPv6 Prefix Length: HTTP Port: 0 Security Verification Admin Password: ************ Modify Forgot Password

Figure A.1.2 Modify Network Parameters

Device Communicaon Matrix

Scan the following QR code to get device communicaon matrix.

Note that the matrix contains all communicaon ports of Hikvision network cameras.

IMIKVISION

Device Command

Scan the following QR code to get device common serial port commands.

Note that the command list contains the commonly used serial port commands for all Hikvision network cameras.

HKVISION

See Far, Go Further
