Product Type	Touchscreen Monitor
Display Size	23.8 inches
Resolution	1920 x 1080 (Full HD)
Touch Technology	Projected Capacitive (PCAP)
Brightness	250 cd/m²
Contrast Ratio	1000:1
Viewing Angles	178° horizontal / 178° vertical
Inputs	HDMI, DisplayPort, VGA, USB
Dimensions (W x H x D)	563 x 347 x 50 mm
Weight	6.9 kg
Power Supply	100-240 V, 50/60 Hz
Power Consumption (Typical)	30 W
VESA Mount	100 x 100 mm
Touchpoints	Up to 10 points
Panel Surface	Anti-glare
Cleaning Instructions	Wipe with a soft, dry cloth; avoid harsh chemicals
Safety Precautions	Ensure proper ventilation; do not expose to liquids
Spare Parts / Repairability	Contact Iiyama support for authorized parts
Warranty	3 years

Frequently Asked Questions - ProLite TF2415MC-B1 IIYAMA

How do I clean the touchscreen?

Use a soft, lint-free cloth slightly dampened with water or a mild screen cleaner. Avoid abrasive materials, alcohol, or ammonia-based cleaners. Power off the monitor before cleaning.

What VESA mount size does the TF2415MC-B1 use?

The monitor supports a 100 x 100 mm VESA mount pattern. Use appropriate screws (typically M4) of suitable length.

How many touch points does the screen support?

It supports up to 10 simultaneous touch points for multi-touch gestures.

Is the touchscreen compatible with both Windows and Mac?

Yes, the monitor works with Windows 7/8/10/11 and macOS. For full touch functionality, ensure the appropriate drivers are installed (Windows HID compliant).

What input lag can I expect?

Typical input lag is around 10-15 ms depending on the video input and settings. The monitor is not designed for competitive gaming but is suitable for general use and interactive applications.

How do I adjust brightness and contrast?

Use the on-screen display (OSD) menu. Press the joystick or buttons on the monitor to navigate to brightness/contrast settings. You can also adjust via the OSD control software if available.

Is the monitor compatible with DisplayPort, HDMI, and VGA?

Yes, it has HDMI, DisplayPort, and VGA inputs. Use the appropriate cable for your device. For touch functionality via USB, connect the USB cable as well.

What does the OSD button do?

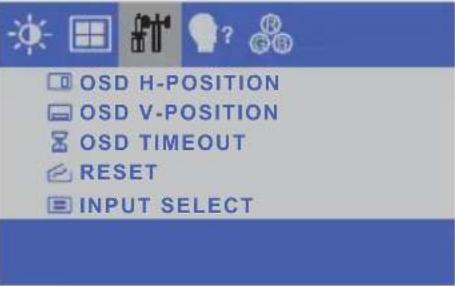

The OSD button opens the on-screen display menu where you can adjust settings like brightness, contrast, input selection, color modes, and more. Refer to the manual for specific button functions.

Can I mount the monitor in portrait orientation?

Yes, the VESA mount allows both landscape and portrait orientations. You may need to adjust the display orientation in your operating system settings.

Does the monitor have built-in speakers?

No, the ProLite TF2415MC-B1 does not include integrated speakers. Use external speakers or headphones connected to your computer.

USER MANUAL ProLite TF2415MC-B1 IIYAMA

Thank you very much for choosing the iiyama LCD monitor.

We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.

Dear user, we congratulate you on the purchase of your iiyama LCD.

For details on warranty and locally used pixel policies that apply directly after installation of your product please check the iiyama website.

To report a fault, please contact your local support centre found at www.iiyama.com/service

Things to check before you call the iiyama information line

| if the power cable is connected securely and turned on?
| if the display has been turned on?
| if the signal cable is connected securely and the correct input selected?
| if the computer has been restarted with the display connected?
| if the graphics card is correctly installed with the latest drivers possible?
| if the correct native resolution has been selected via 'Display Properties'?
| If the R/G/B signal configuration is correct?
| if the displays On Screen Menu is shown?
| if the correct brightness and contrast settings have been set?
| if given display tolerances and compatibility have been considered?
| if via the On Screen Menu you have performed a Factory Reset/Recall?

Before reporting the screen defect, please prepare the following information/evidence:

| model number *
| purchase receipt and serial number *
| name and address for collection
| telephone/fax number, for availability during the day
I convenient collection date (date, time)
| short description of the defect

Important Note:

If there is no fault found in the collected equipment after inspection, the transferring party shall incur charges for transport and administration.

If you have checked all of the above and there is still no picture, call our information line for assistance in your country.

CE MARKING DECLARATION OF CONFORMITY

This LCD monitor complies with the requirements of the EC/EU Directive 2014/30/EU “EMC Directive”, 2014/35/EU “Low Voltage Directive”, 2009/125/EC “ErP Directive” and 2011/65/EU “RoHS Directive”.

The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas, business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterised by their connection to the public low voltage power supply system.

Model No.: PLF1015, PLF1515, PLF2215, PLF2415

We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com

You can access the Web page of different countries from there.

■ We reserve the right to change specifications without notice.
■ All trademarks used in this user manual are the property of their respective owners.

TABLE OF CONTENTS

FOR YOUR SAFETY ....1

SAFETY PRECAUTIONS....1

SPECIAL NOTES ON LCD MONITORS ....3

CUSTOMER SERVICE ....3

CLEANING 3

BUILT-IN EQUIPMENT 6

ROTATING THE DISPLAY 6

CONTROLS AND CONNECTORS....7

SPECIAL NOTES 8

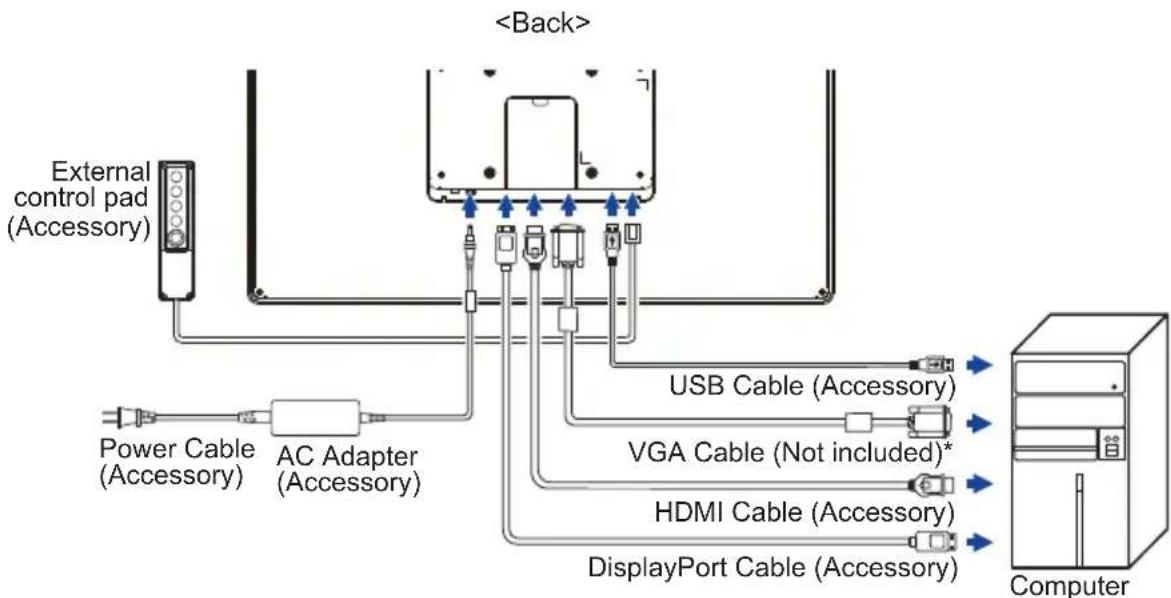

CONNECTING YOUR MONITOR 11

COMPUTER SETTING 13

RECYCLING INFORMATION ......24

APPENDIX 25

SPECIFICATIONS : ProLite TF1015MC ....25

SPECIFICATIONS : ProLite TF1515MC .....26

SPECIFICATIONS : ProLite TF2215MC .....27

SPECIFICATIONS : ProLite TF2415MC ....28

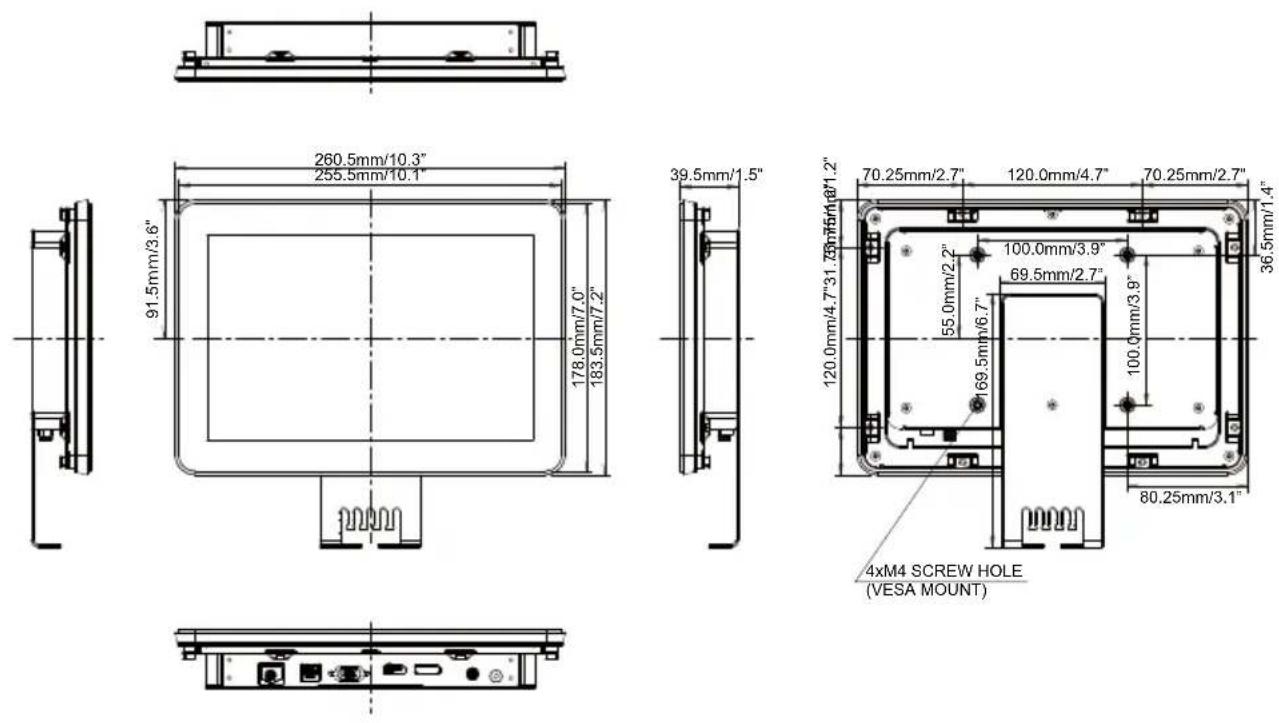

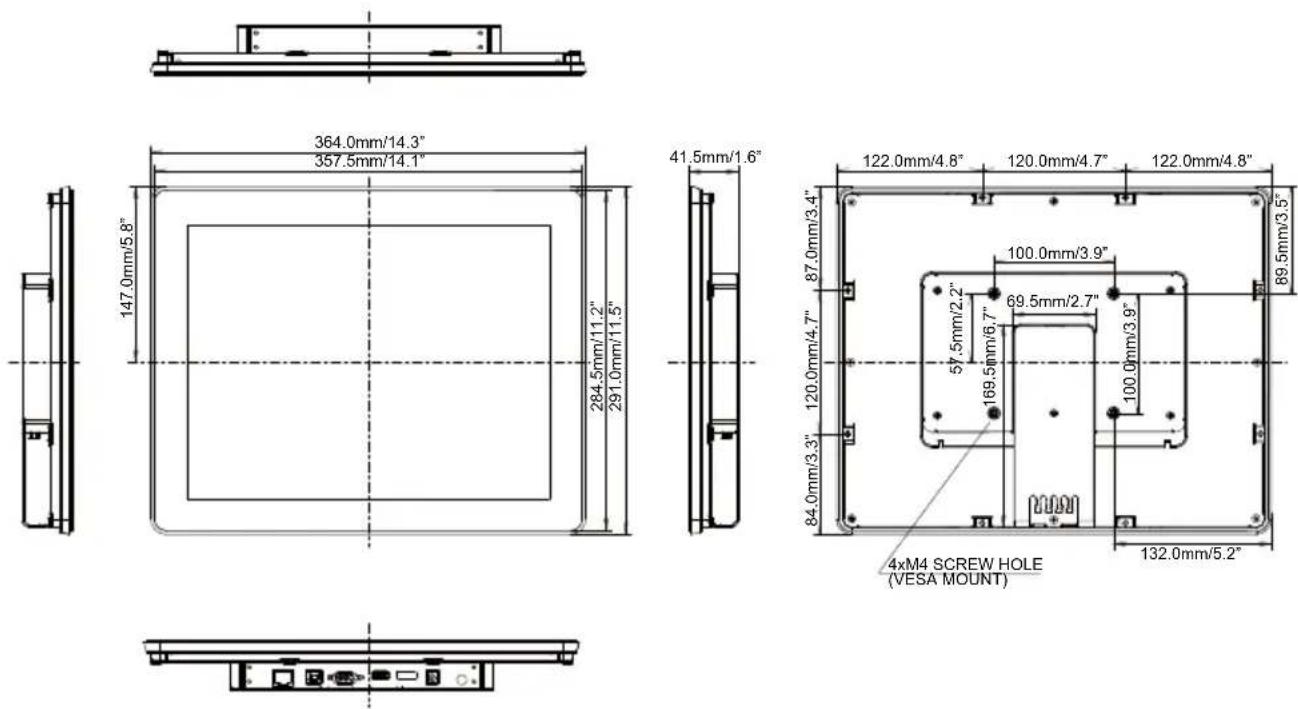

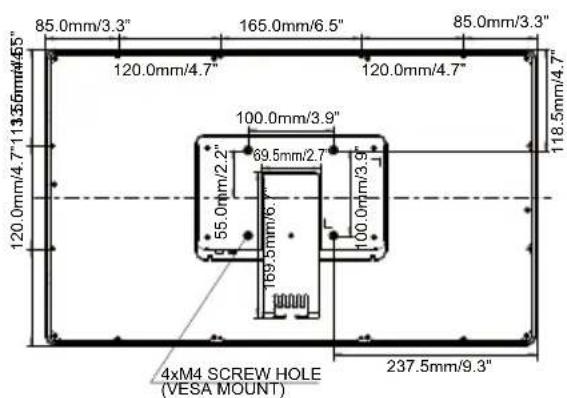

DIMENSIONS : ProLite TF1015MC .....29

DIMENSIONS : ProLite TF1515MC .....29

DIMENSIONS : ProLite TF2215MC ....30

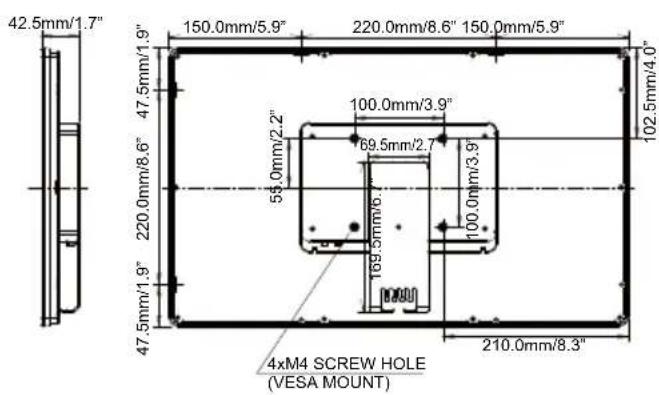

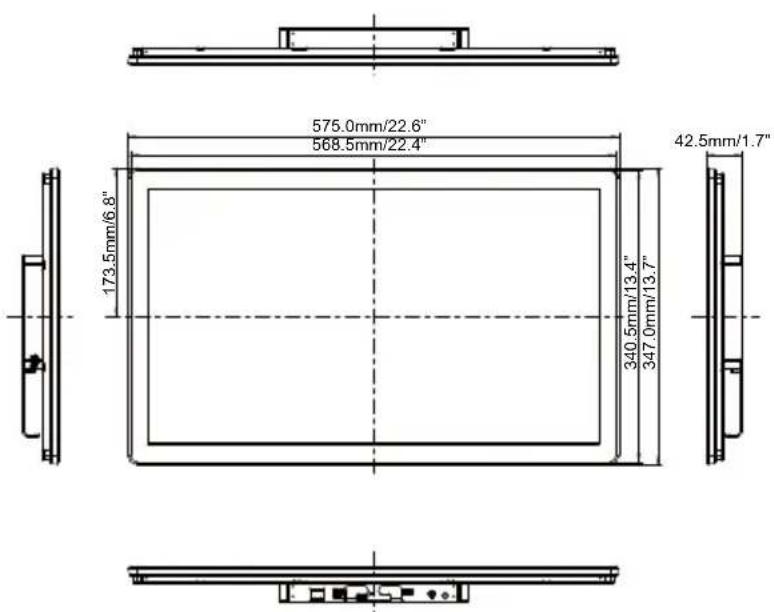

DIMENSIONS : ProLite TF2415MC ....30

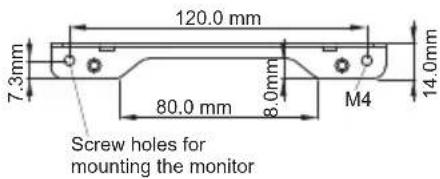

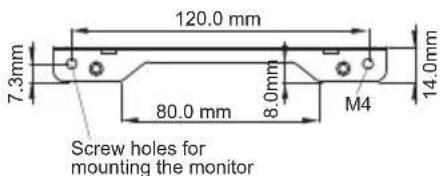

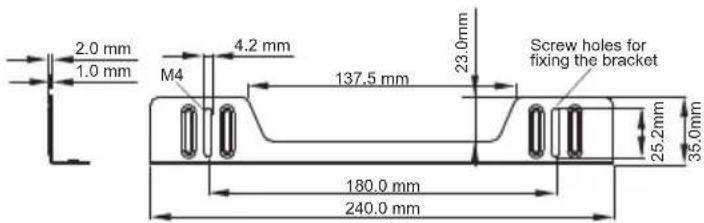

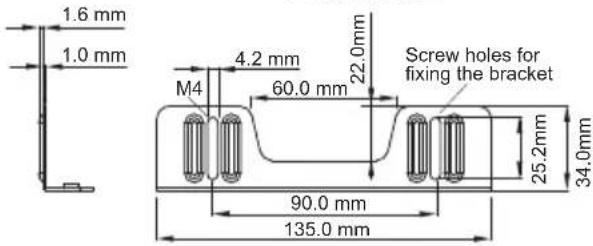

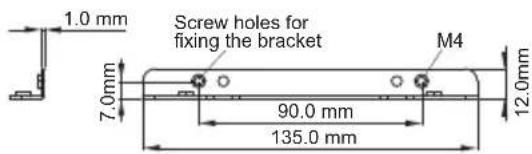

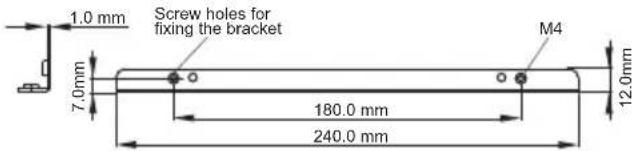

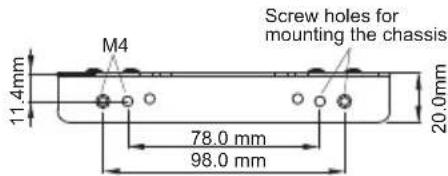

DIMENSIONS : L-BRACKET....31

COMPLIANT TIMING : ProLite TF1015MC ....32

COMPLIANT TIMING :

ProLite TF1515MC / ProLite TF2215MC / ProLite TF2415MC .....32

SAFETY PRECAUTIONS

WARNING

STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE

If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.

NEVER REMOVE THE CABINET

High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fi re or electric shock.

DO NOT PUT ANY OBJECT INTO THE MONITOR

Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage.

INSTALL THE MONITOR ON A FLAT, STABLE SURFACE

The monitor may cause an injury if it falls or is dropped.

DO NOT USE THE MONITOR NEAR WATER

Do not use where water may be splashed or spilt onto the monitor as it may cause fire or electric shock.

OPERATE UNDER THE SPECIFIED POWER SUPPLY

Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will cause malfunction and may cause fire or electric shock.

CORRECT USE OF THE AC ADAPTER

Use only the AC Adapter provided by iiyama. Any deviation from this by using another type of adapter may result in damage to the accessory and the monitor by fire or electric shock.

DO NOT DISASSEMBLE THE AC ADAPTER

Disassembling the AC Adapter may expose you to the danger of fire or electric shock.

PROTECT THE CABLES

Do not pull or bend the AC adapter, the power cable and signal cable. Do not place the monitor or any other heavy objects on the cables. If damaged, the cables may cause fire or electric shock.

ADVERSE WEATHER CONDITIONS

It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may cause electric shock.

CAUTION

INSTALLATION LOCATION

Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor.

DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION

The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.

MAINTAIN GOOD VENTILATION

Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fire. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls. Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the cabinet will be blocked and the monitor may overheat if the stand is removed. This may cause fire or damage. Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also cause damage.

DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR

When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal cable is disconnected. If you do not disconnect them, it may cause fire or electric shock.

UNPLUG THE MONITOR

If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.

HOLD THE PLUG WHEN DISCONNECTING

To disconnect the AC adapter, the power cable or signal cable, always pull it by the plug. Never pull on the cable itself as this may cause fire or electric shock.

DO NOT TOUCH THE PLUG WITH WET HANDS

Pulling or inserting the plug with wet hands may cause electric shock.

WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER

Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage your computer.

REMARK FOR 24/7 USAGE

This product is not specifically designed for 24/7 usage in all environments.

OTHERS

ERGONOMIC RECOMMENDATIONS

To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room. For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches) away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is recommended as looking at the screen continuously can cause eye strain.

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitors and do not indicate a problem.

NOTE

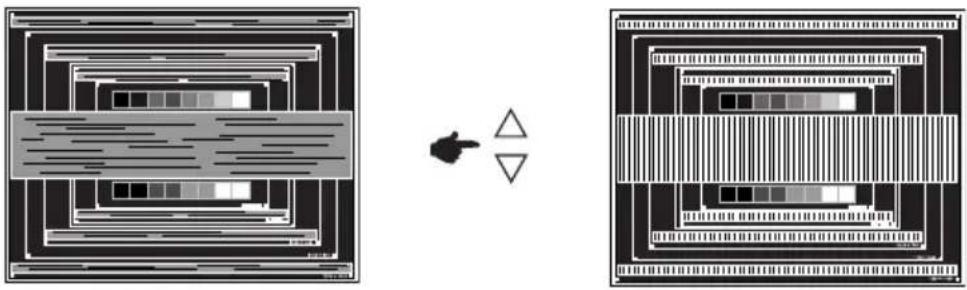

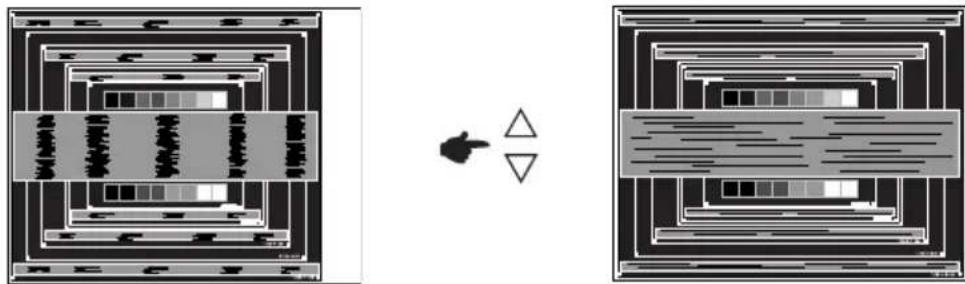

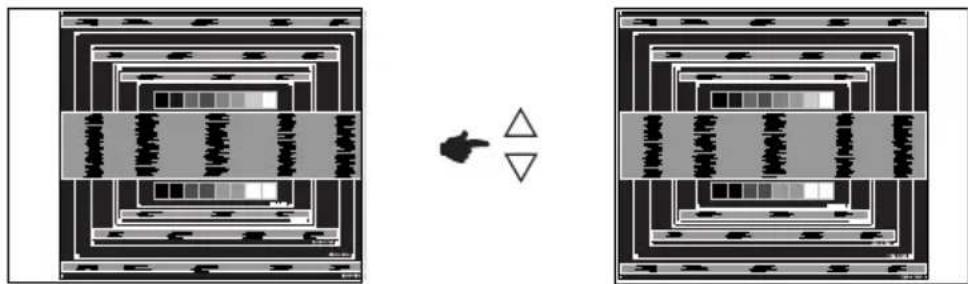

■ When you first turn on the LCD monitor, the picture may not fit in the display area because of the type of computer that is used. In this case, adjust the picture position to the correct position.
■ You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
■ Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for some hours.

CUSTOMER SERVICE

NOTE

If you have to return your unit for service and the original packaging has been discarded, please contact your dealer or iiyama service center for advice or replacement packaging.

CLEANING

WARNING

If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or iiyama service center.

NOTE

■ To protect the Touch screen surface, do not scratch or rub the screen with a hard object.

■ Never use any of the following strong solvents. These will damage the cabinet and the Touch screen surface.

Abrasive cleaner Wax Solvent

■ Touching the cabinet with any product made from rubber or plastic for a long time may cause degeneration or loss of paint on the cabinet.

CABINET

Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then wipe the cabinet with a soft dry cloth.

TOUCH

Touch screen surface may be cleaned using a soft clean cloth moistened with mild window glass commercial cleaners or 50/50 mixture of water and isopropyl alcohol.

SCREEN

Basic touch operations can be performed under Windows 8/8.1/10.

However, please be informed that full touch functionality and normal operational performance are not guaranteed.

CHECKING THE CONTENTS OF THE PACKAGE

The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.

■ Power Cable ^*1

■ AC Adapter ^*1

■ HDMI Cable

■ DisplayPort Cable

USB Cable

■ External control pad

■ L-Bracket (2pairs: ProLite TF1015MC, 4pairs: ProLite TF1515MC / ProLite TF2215MC, 6pairs: ProLite TF2415MC)

■ Bracket Screw (M4×6 8pcs: ProLite TF1015MC, M4×6 16pcs: ProLite TF1515MC / ProLite TF2215MC, M4×6 24pcs: ProLite TF2415MC)

■ Touch Panel Driver Disk (CD-ROM) ^*2

■ Safety Guide

■ Quick Start Guide

CAUTION

\*1 1. TO USERS IN 120V AREA

The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using a power supply higher than this rating, then a power cable with a rating of 10A/250V must be used. However, all guarantees and warranties are void for any problems or damage caused by a power cable or AC adapter not supplied by iiyama.

2. Applicable AC Adapter

AC Adapter Type Name : ADP-36PH B (DELTA ELECTRONICS, INC.)

An approved power cord greater or equal to H05VVF, 3G, 0.75mm ^2 must be used.

*2 This CD-ROM contains the touch screen driver software.

Install the Touch Panel Driver Disk after connecting the computer to the monitor with USB Cable. For the details, see Readme file in the Touch Panel Driver Disk.

WALL MOUNTING

WARNING

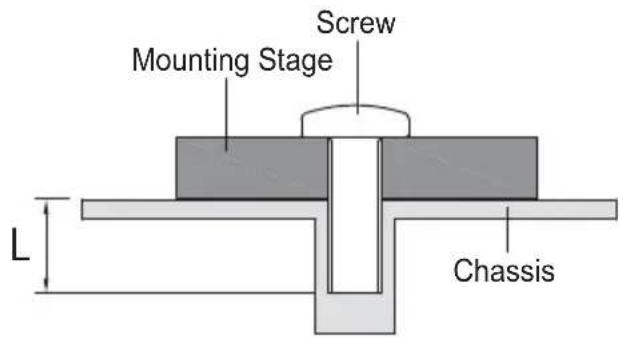

When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which "L" length is 8mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor.

Mounting Stage Screw L Chassis

BUILT-IN EQUIPMENT

WARNING

This product is not designed for the purpose of being used in high temperature environment.

If the product is placed in an external cabinet, you need to design cooling fans and vents to keep the temperature low enough to fit in the product temperature specification.

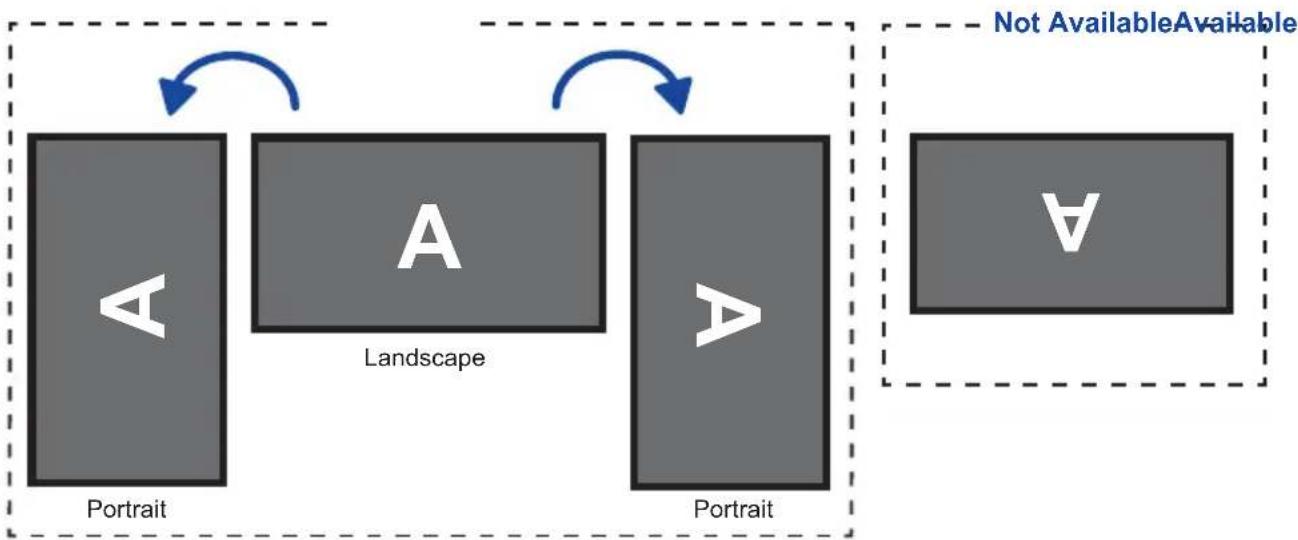

ROTATING THE DISPLAY

It is designed to be compatible in both landscape and portrait modes.
    note right of B "Not AvailableAvailable"
    note left of A "A"

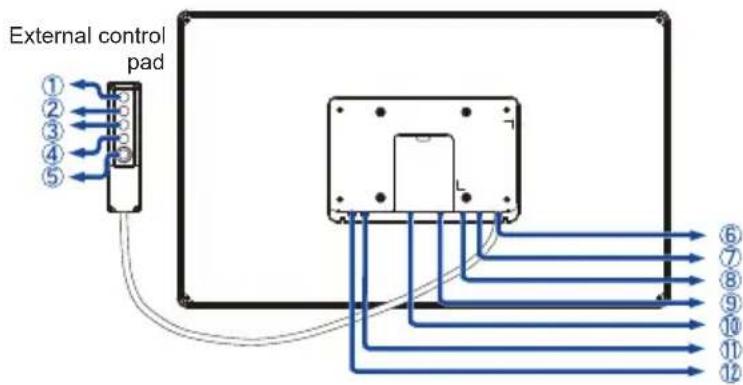

CONTROLS AND CONNECTORS

Empty rectangular frame with black border (no text or symbols)

External control pad ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫

① Menu Button (MENU)
② Scroll Up / Brightness Button (△)
③ Scroll Down / Contrast Button ( ∇)
④ Select Button (SELECT)
⑤ Power Switch ( ⏻
⑥ External control pad Connector (RJ45)
⑦ USB Connector (USB)
⑧ VGA Connector (VGA)
⑨ HDMI Connector (HDMI)
⑩ DisplayPort Connector (DP)
⑪ Connector for AC Adapter(---Direct current) (DC)
⑫ Headphone Connector (AUDIO OUT)

SPECIAL NOTES

L-Brackets and screws are necessary to install an open frame monitor.

CAUTION

■ The L-Brackets are designed to be mounted to specific wall types and hardware, in accordance with the installation instructions.
■ Using L-Bracket or screws other than those specified in the installation instructions may damage the monitor.

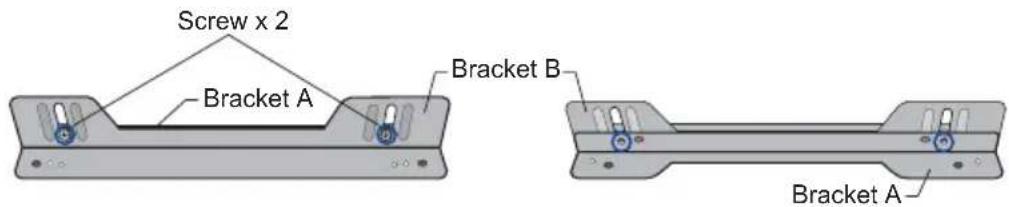

① As shown in figure below, tighten Bracket A to B using the screws supplied.

(ProLite TF1015MC: 2 pairs of 2 pcs, ProLite TF1515MC / ProLite TF2215MC: 4 pairs of 2 pcs, ProLite TF2415MC: 6 pairs of 2 pcs)

Screw x 2 Bracket A Bracket B Bracket A

② Attach the L-bracket(1) to the back of the recess, where the monitor is to be attached, and fi x it with screws.

(Customer's screws: ProLite TF1015MC: 4 pcs, ProLite TF1515MC / ProLite TF2215MC: 8 pcs, ProLite TF2415MC: 12 pcs)

Back of the recess Screw x 2 L-Bracket

ProLite TF1015MC ProLite TF1515MC

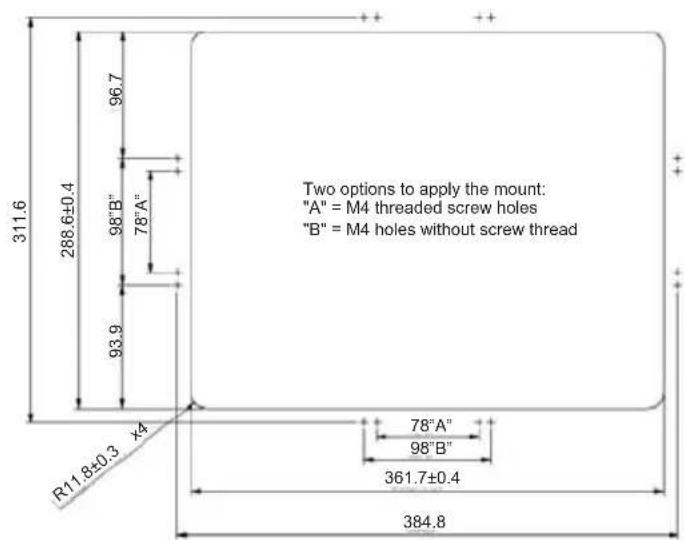

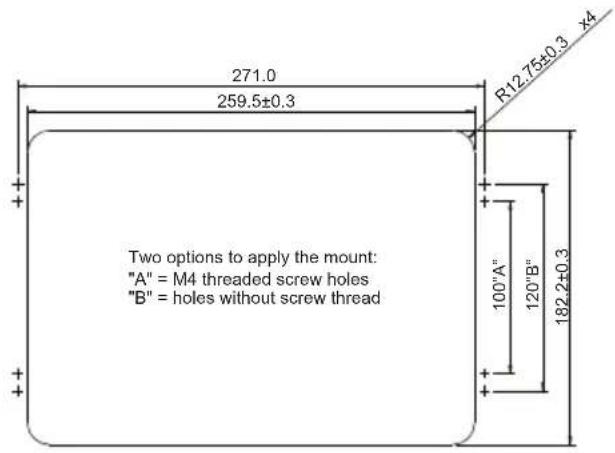

271.0 259.5±0.3 R12.75±0.3 x4 Two options to apply the mount: "A" = M4 threaded screw holes "B" = holes without screw thread 100°A" 120°B" 182.2±0.3

311.6 288.6±0.4 96.7 98"B" 78"A" 93.9 R11.8±0.3 x4 78"A" 98"B" 361.7±0.4 384.8 Two options to apply the mount: "A" = M4 threaded screw holes "B" = M4 holes without screw thread

542.55 517.0 200.0 R8.5 x4 Two options to apply the mount: "A" = M4 threaded screw holes "B" = M4 holes without screw thread 200.0 312.0 337.5

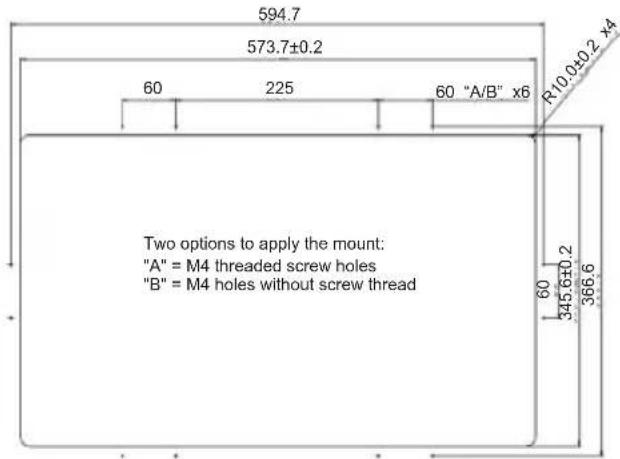

594.7 573.7±0.2 60 225 60 "A/B" x6 R10.0±0.2 x4 Two options to apply the mount: "A" = M4 threaded screw holes "B" = M4 holes without screw thread 60 345.6±0.2 366.6

③ Attach the monitor from the front side of the recess and fi x with the screws.
(Screws: ProLite TF1015MC: 4 pcs, ProLite TF1515MC / ProLite TF2215MC: 8 pcs, ProLite TF2415MC: 12 pcs)

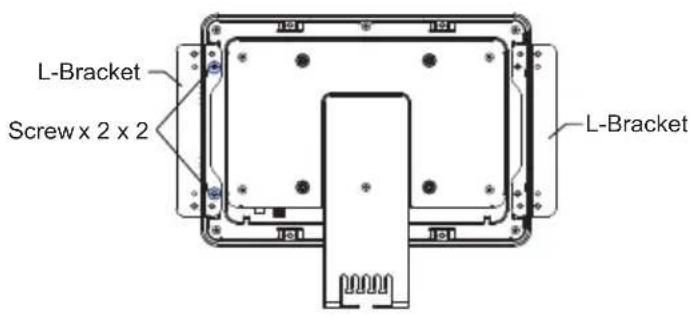

ProLite TF1015MC

L-Bracket Screw x 2 x 2 L-Bracket

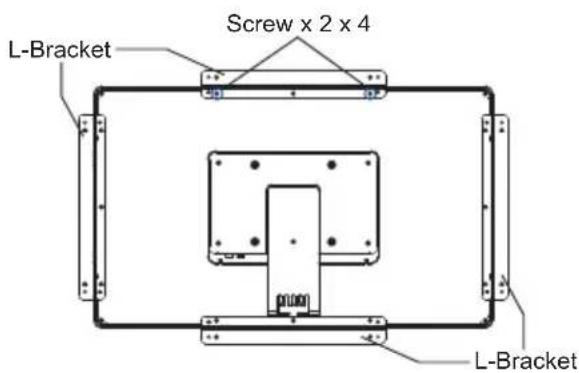

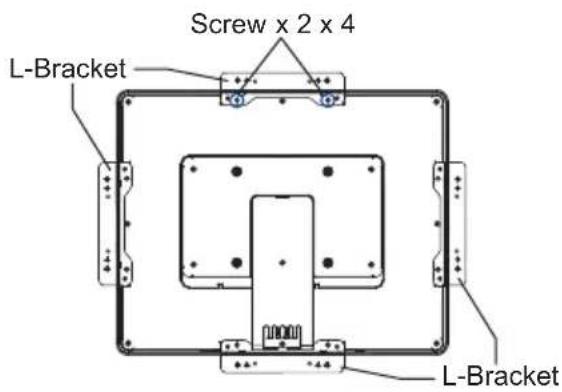

ProLite TF1515MC

Screw x 2 x 4 L-Bracket L-Bracket

ProLite TF2215MC

L-Bracket Screw x 2 x 4 L-Bracket

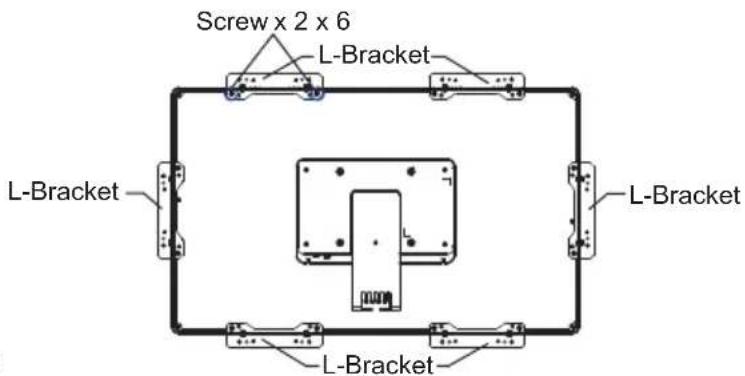

ProLite TF2415MC

Screw x 2 x 6 L-Bracket L-Bracket L-Bracket L-Bracket

NOTE

■ You will need a screwdriver to mount the L-Bracket.
■ L-Brackets and screws are necessary to install an open frame monitor. For details regarding the operating temperature and humidity conditions, see specification of this User Manual.
■ The position of the L-bracket can be either 0 mm or 20.0 mm from the front of the monitor depending on which screw holes you choose for mounting it.
Screw holes for mounting the chassis

Front of the Monitor

20.0mm r

CONNECTING YOUR MONITOR

① Ensure that both the computer and the monitor are switched off.
② Connect the computer to the monitor with the signal cable.
③ Connect the computer to the monitor with the USB Cable.
④ Connect the monitor cable to the External control pad.
⑤ Connect the AC Adapter to the monitor and the Power Cable to the AC Adapter first and then connect to the power supply.
⑥ Turn on your monitor and computer.

NOTE

■ The signal cables used for connecting the computer and monitor may vary with the type of computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.
■ For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama offi ce for a suitable adaptor.
■ Make sure you tighten the finger screws at each end of the Signal Cable.
■ The Class I pluggable equipment Type A must be connected to protective earth.
■ The socket-outlet shall be installed near the equipment and shall be easily accessible.
■ Excessive sound pressure from ear-/headphones can cause hearing damage/hearing loss.

[Example of Connection]

* VGA cable is not supplied with the monitor. If you use low quality VGA cable, it may cause a result of electro-magnetic interference. Please contact the iiyama Support Centre in your country if you wish to connect the monitor via the VGA input.

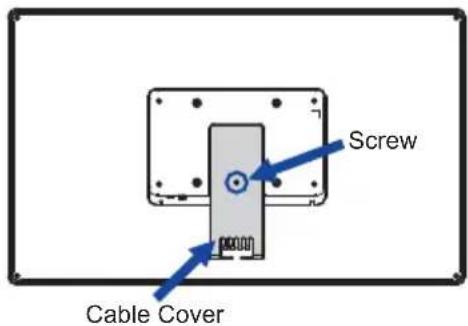

[Fitting and Removal of Cable Cover]

Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor fl at on a table with front face down.

① Remove the screw of the cable cover and remove the cable cover from the monitor.

Screw Cable Cover

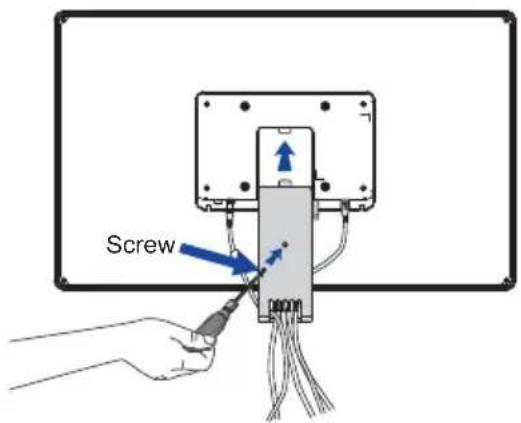

< Fitting >

① Connect the cables, place the cable cover and fi x it firmly using a screw.

Screw

COMPUTER SETTING

■ Signal Timing

Change to the desired signal timing listed on page 32: COMPLIANT TIMING.

■ Windows XP/Vista/7/8/8.1/10 Plug & Play

The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied.

For installation on Windows XP: The monitor Information File for iiyama monitors may be necessary for your computer and obtained via the Internet, using the address:

http://www.iiyama.com

NOTE

■ For additional information on how to download the driver for your touch screen monitor, please access the internet site noted above.
■ Monitor Drivers are not required in most cases for Macintosh or Unix operating systems. For further information, please contact your computer dealer first for advice.

■ Procedure for turning ON the Power Switch

Turn ON the monitor first, and then the computer.

■ Touch screen driver software

Touch screen driver software and system may not start when you start your computer while touching the screen.

Touch screen driver software may not run due to the power saving function depending on the BIOS of your computer. In this case, set the power saving function to off.

■ TOUCH support operation system

Microsoft Windows XP (64 bit and 32 bit) Microsoft Windows Vista (64 bit and 32 bit)

Microsoft Windows 7 (64 bit and 32 bit) Microsoft Windows 8 / 8.1 / 10 (64 bit and 32 bit)

Microsoft Windows CE 6.0 / net (4.x / 5.0) Mac OS X (Intel CPU) / 10.11 El Capitan / 10.12 Sierra

Kernel 2.6.24 upward & 3.x.x / 4.x.x Not support earlier versions.

*1 Default mouse (click, drag, double-click and right-click)
*2 Touch digitizer (click, drag /selection, double-click, right-click, flick and visual feedback)
^*3 Digitizer with Windows7 touch gestures
*4 Windows 7 - Starter and Home Basic version
*5 Windows 7 - Home Premium, Professional, Enterprise and Ultimate versions

To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 32. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 19 for SCREEN ADJUSTMENTS.

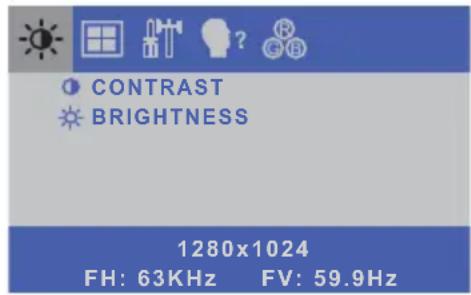

① Press the MENU Button to start the On Screen Display feature. There are additional Menu items which can be switched by using the △ / ▽Buttons.

CONTRAST BRIGHTNESS 1280x1024 FH: 63KHz FV: 59.9Hz

② Select the Menu item which contains the adjustment icon relating to the adjustment you want to make. Use the SELECT Button to highlight the desired adjustment icon.
③ Use the △ / ▽Buttons to make the appropriate adjustment or setting.
④ Press the MENU Button to leave the menu, and the settings you just made would be automatically saved.

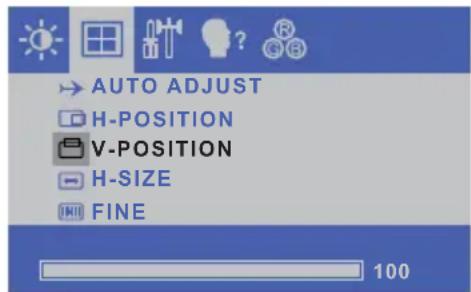

For example, to correct for vertical position, select Menu item of ☐. Then, select V-POSITION by using the SELECT Button.

Use the △ / ▽Buttons to change the vertical position settings. The vertical position of the overall display should be changing accordingly while you are doing this.

AUTO ADJUST H-POSITION V-POSITION H-SIZE FINE 100

Press the MENU Button lastly, it ends, all changes are saved in the memory.

NOTE

■ When button operations are aborted during adjustment, On-Screen Display disappears when the time set for the OSD TIMEOUT has passed.
■ MENU button can be used to return previous menu item.
■ Any changes are automatically saved in the memory when the On Screen Display disappears. Turning off the power should be avoided while using the Menu.
■ Adjustments for H/V-POSITION, H-SIZE and FINE are saved for each signal timing. Except for these adjustments, all other adjustments have only one setting which applies to all signal timings.

ADJUSTMENT MENU CONTENTS

1280x1024 FH: 63KHz FV: 59.9Hz
Adjustment Item Problem / Option Button to Press
CONTRAST Direct	Too dull Too intense	△ ▽
BRIGHTNESS * Direct	Too dark Too bright	△ ▽

* Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright.

Direct

You can skip the Menu items and display an adjustment scale directly by using the following button operations.

• BRIGHTNESS: Press the Button when the Menu is not displayed.
• CONTRAST: Press the ▽ Button when the Menu is not displayed.

Direct

- LOCK MODE:

Simultaneously press the MENU button and the ▽ button when an image is displayed through VGA, HDMI or DisplayPort.

* The OSD menu is not displayed when the OSD is locked. Press the MENU button and the button simultaneously again.

The following OSD menu is displayed.

Adjustment Item Problem / Option
POWER		LOCK The POWER SWITCH is Locked.
		UNLOCK The POWER SWITCH is Unlocked.
OSD		LOCK The OSD menu is Locked.
		UNLOCK The OSD menu is Unlocked.

- TOUCH FANCTION DISABLE:

ON: Pressing and holding of the MENU Button and the SELECT Button at the same time when the Menu is not displayed, massage "TOUCH DISABLE" will appear on the top right corner.

OFF: Pressing and holding of the MENU Button and the SELECT Button at the same time for about 5 seconds when the Menu is not displayed, till "TOUCH DISABLE" disappears.

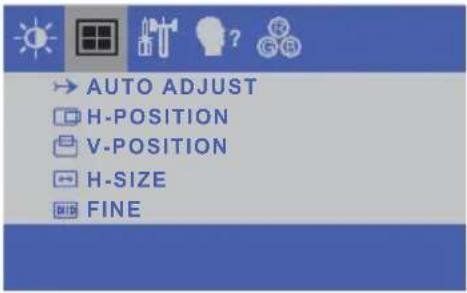

Only Analog Input
Adjustment Item Problem / Option Button to Press
AUTO ADJUST *1	Adjust H/V-POSITION, H-SIZE and FINE automatically.
H-POSITION	Too leftToo right
V-POSITION	Too lowToo high
H-SIZE *2	Too narrowToo wide
FINE *2	To correct fl ickering text or lines

*1 For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 19 for SCREEN ADJUSTMENTS.

*2 See page 19 for SCREEN ADJUSTMENTS.

Adjustment Item Problem	/ Option	Button to Press
OSD H-POSITION	OSD is too leftOSD is too right
OSD V-POSITION	OSD is too lowOSD is too high
OSD TIMEOUT	You can set the OSD display duration time between 5 and 60 seconds.
RESET Factory-preset data is restored.
INPUT SELECT Direct	AUTO	Search for an available input source and select automatically.
	VGA	Select the analog input.
	HDMI	Select the digital(HDMI) input.
	DisplayPort	Select the digital(DisplayPort) input.
NOTE However it will automatically be selected when just one source is using.In Power Management Mode input switching is disabled.Input source is fixed, not selected automatically when VGA,HDMI and DisplayPort which are selected.

Direct

You can skip the Menu items and display an adjustment scale directly by using the following button operations.

- INPUT SELECT: Pressing and holding of the SELECT Button for about 5 seconds when the Menu is not displayed. When VGA, HDMI and DisplayPort signal inputs are connected to a signal source, you can switch between them by successively pressing the SELECT Button.

?
	ENGLISH ESPAÑOL FRANÇAIS 日本語 DEUTSCH 繁体字 ITALIANO 简体字
Adjustment Item Problem	/ Option Button to Press
? OSD LANGUAGE	ENGLISH	English	ESPAÑOL Spanish
	FRANÇAIS French		日本語	Japanese
	DEUTSCH	German	繁体字	Traditional Chinese
	ITALIANO Italian		简体字	Simplifi ed Chinese

9300 6500 RED 94 5500 GREEN 90 7500 BLUE 100 USER
Adjustment Item Problem / Option Button to Press
COLOR TEMP.		Bluish white9300
	6500	Reddish white
	5500	Greenish white
	7500	Yellowish white
	USER	RED	Too weak Too strong
		GREEN
		BLUE

SCREEN ADJUSTMENTS

Adjust the image by following the procedure below to get the desired picture when selecting Analog input.

■ The screen adjustments described in this manual are designed to set image position and minimize fl icker or blur for the particular computer in use.
■ ProLite TF1015MC is designed to provide the best performance at resolution of 1280 × 800 , but can not provide the best at resolutions of less than 1280 × 800 because the picture is automatically stretched to fit the full screen. It is recommended to operate at resolution of 1024 × 768 in normal use.
■ ProLite TF1515MC is designed to provide the best performance at resolution of 1024 × 768 , but can not provide the best at resolutions of less than 1024 × 768 because the picture is automatically stretched to fit the full screen. It is recommended to operate at resolution of 1024 × 768 in normal use.
■ ProLite TF2215MC / ProLite TF2415MC are designed to provide the best performance at resolution of 1920 × 1080 , but can not provide the best at resolutions of less than 1920 × 1080 because the picture is automatically stretched to fit the full screen. It is recommended to operate at resolution of 1920 × 1080 in normal use.
■ Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to the screen enlargement process.
■ It is preferable to adjust the image position and frequency with the monitor controls, rather than the computer software or utilities.
■ Perform adjustments after a warm-up period of at least thirty minutes.
■ Additional adjustments may be required after the Auto Adjust depending on the resolution or signal timing.
■ The Auto Adjust may not work correctly when displaying the picture other than the screen adjustment pattern. In this case, manual adjustments are required.

There are two ways to adjust the screen. One way is automatic adjustment for H/V-POSITION, H-SIZE and FINE. The other way is performing each adjustment manually.

Perform the Auto Adjust first when the monitor is connected to a new computer, or resolution is changed. If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com).

Adjust the image by following the procedure below to get the desired picture. This manual explains adjustment under Windows® OS.

① Display the picture at the optimum resolution.
② Enter the Test.bmp (screen adjustment pattern) to wallpaper.

NOTE

■ Consult the appropriate documentation for doing this.
■ Test.bmp is made at resolution of 1280 × 1024. Set the display position to center in the wallpaper setting dialogue box. If you use Microsoft® PLUS! 95/98 cancel the setting of "Stretch desktop wallpaper to fit the screen".

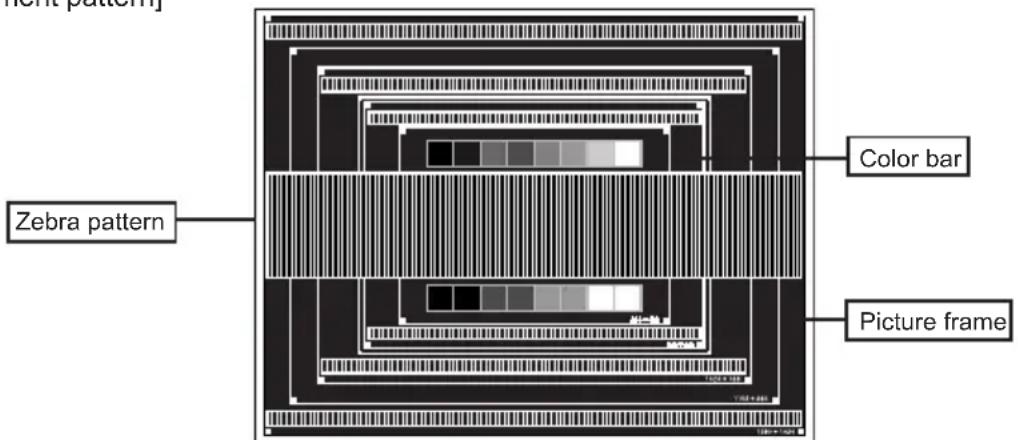

[Adjustment pattern]

Zebra pattern Color bar Picture frame

③ Press the SELECT Button. (AUTO ADJUST)
④ Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fit in the display area after performing the Auto Adjust.
⑤ Adjust the V-POSITION so that the top and bottom of the picture frame will fit to the display area.


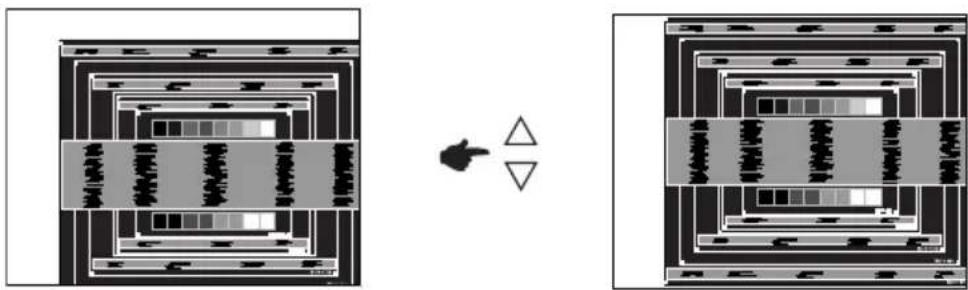

⑥ 1) Adjust the H-POSITION so that the left side of the picture frame will move to the left edge of the display area.

Two identical diagrams showing a central rectangular structure with internal components and a small arrow pointing to a triangular symbol (no text or labels)

2) Stretch the right side of the picture frame to the right edge of the display area by adjusting the H-SIZE.

Two abstract geometric diagrams with layered patterns and a central symbol (no text or symbols present)

NOTE

■ When the left side of the picture frame moves apart from the left edge of the display area during the H-SIZE adjustment, adjust steps 1) and 2).
■ Another way to make the H-SIZE adjustment is to correct the vertical wavy lines in the zebra pattern.
■ The picture may fl icker during the H-SIZE, H/V-POSITION adjustment.
In case the picture frame is bigger or smaller than the data display area after the H-SIZE adjustment, repeat steps from ③.

⑦ Adjust the FINE to correct horizontal wavy noise, fl icker or blur in the zebra pattern.

Two abstract geometric diagrams with layered patterns and a small arrow, no text or symbols present.

NOTE

In case the strong flicker or blurs remain on a part of the screen, repeat steps and ⑦ because the H-SIZE may not be adjusted correctly. If the flicker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from ③ again.
■ Adjust the H-POSITION after the FINE adjustment if the horizontal position moves during the adjustment.

⑧ Adjust the Brightness and Color to get the desired picture after you complete the H-SIZE and FINE adjustments.

Put back your favorite wallpaper.

POWER MANAGEMENT FEATURE

When your computer is not in use, the power management feature will automatically reduce the power consumption of your monitor.

To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured.

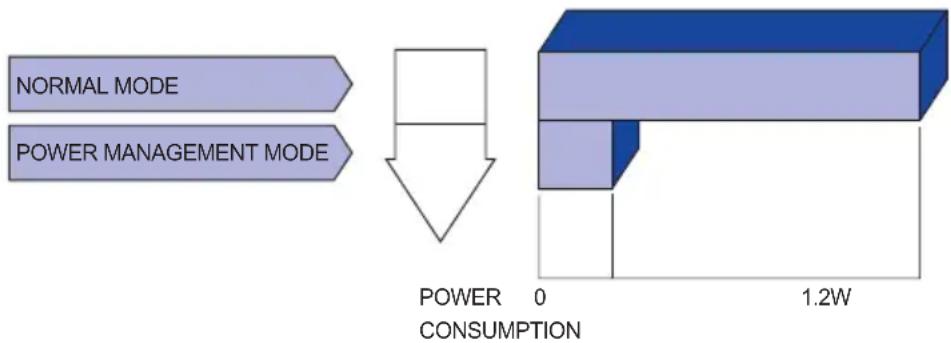

■ Power Management Mode

When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the monitor enters into Power Management Mode which reduces the power consumption to less than 1.2W. The screen becomes dark. From Power Management Mode, the image reappears in several seconds when either the keyboard or the mouse are touched again.

NOTE

■ Even when using the power management mode, the monitor consumes electricity. Turn off the Power Switch whenever the monitor is not in use, during the night and weekends, to avoid unnecessary power consumption.
It is possible that the video signal from the computer may be on while the H or V sync signal is missing. In this instance, the POWER MANAGEMENT feature may not work properly.

TROUBLE SHOOTING

If the monitor fails to operate correctly, please follow the steps below for a possible solution.

1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you have. If the monitor does not get a picture, skip to 2.
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists.
3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance.

Problem Check

① The picture does □ The AC Adapter is firmly seated in the connector.
not appear.
☐ The Power Cable is firmly seated in the socket of the AC Adapter.
☐ The Power Cable is firmly seated in the socket.
☐ The Power Switch is turned ON.
☐ The AC socket is live. Please check with another piece of equipment.
☐ If the blank screen saver is in active mode, touch the keyboard or the mouse.
□ Increase the Contrast and/or Brightness.
□ The computer is ON.
☐ The Signal Cable is properly connected.
☐ The signal timing of the computer is within the specification of the monitor.
☐ If the monitor is in power management mode, touch the keyboard or the mouse.

② The screen is not □ The Signal Cable is properly connected.

synchronized.

☐ The signal timing of the computer is within the specification of the monitor.

☐ The video output level of the computer is within the specification of the monitor.

③ The screen □ The signal timing of the computer is within the specification of the monitor. position is not in the center.

④ The screen is too □ The video output level of the computer is within the specification of the bright or too dark. monitor.

⑤ The screen is □The power voltage is within the specification of the monitor.

shaking.

☐ The signal timing of the computer is within the specification of the monitor.

⑥ The touch☐ The USB Cable is firmly seated in the socket.

screen shows no response.

☐ Touch screen driver software is installed.

⑦ The touch position □ The calibration function set up correctly.

does not deviate.

RECYCLING INFORMATION

For better environment protection please don't dispose your monitor.

Please visit our web site: www.iiyama.com/recycle for monitor recycling.

APPENDIX

Design and specifications are subject to change without prior notice.

SPECIFICATIONS : ProLite TF1015MC

Touch Screen	Technology Projected	capacitive 10pt touch
	Light transmission	85%
	Communication system	USB
Size Category 10.1"
LCD Panel	Panel technology	MVA
	Size Diagonal: 10.1" (25.7cm)
	Pixel pitch 0.1695mm H × 0.1695mm V
	Brightness	500cd/m2(Typical: without Touch panel),425cd/m2(Typical: with Touch panel)
	Contrast ratio 1300 : 1	(Typical)
	Viewable angle Horizontal : 170 degrees, Vertical: 170 degrees (Typical)
	Response time 25ms (Black, White, Black Typical)
Display Colors Approx.16.2M
Sync Frequency Horizontal: 31.4-49.7kHz, Vertical: 60Hz
Maximum Resolution 1280 × 800, 1.0 MegaPixels
Input Connector VGA, HDMI, DisplayPort
Plug & Play		VESA DDC2BTM
Input Sync Signal		Separate sync: TTL, Positive or Negative
Input Video Signal		Analog: 0.7Vp-p (Standard), 75Ω, PositiveDigital: HDMI, DisplayPort
Headphone connector		ø 3.5mm mini jack (Stereo)
External control pad Connector		RJ45
Maximum Screen Size		216.96mm W × 135.60mm H / 8.5" W × 5.3" H
Power Source 12VDC, 1A
AC Adapter (accessory) Input: 100-240VAC 50/60Hz
Power Consumption*1		10W typical, Power management mode: 1.2W maximumEnergy Efficiency Class: A
Dimensions / Net Weight		260.5 × 183.5 × 39.5mm / 10.3 × 7.2 × 1.5" (W×H*3×D)1.4kg / 3.1lbs (Excluding the AC Adapter)
Environmental Considerations		Operating: Temperature 0 to 40°C / 32 to 104°FHumidity 20 to 80% (No condensation)Storage: Temperature -20 to 60°C / -4 to 140°FHumidity 10 to 90% (No condensation)
Approvals		CB, CE, TÜV-Bauart, CU, cULus, IP65*2

NOTE

^*1 USB peripherals is not connected.

*2 IP65 Standard Compliant : Only front face

*3 Excluding the Cable cover.

SPECIFICATIONS : ProLite TF1515MC

Touch Screen	Technology Projected	capacitive 10pt touch
	Light transmission	85%
	Communication system	USB
Size Category 15"
LCD Panel	Panel technology	TN
	Size Diagonal: 15" (38cm)
	Pixel pitch 0.297mm H	× 0.297mm V
	Brightness	350cd/m2(Typical: without Touch panel),298cd/m2(Typical: with Touch panel)
	Contrast ratio 800 : 1	(Typical)
	Viewable angle Horizontal : 160 degrees, Vertical: 150 degrees (Typical)
	Response time 8ms (Black, White, Black Typical)
Display Colors Approx.16.2M
Sync Frequency Horizontal: 31.4-60.0kHz, Vertical: 56-75Hz
Maximum Resolution 1024 × 768, 0.8 MegaPixels
Input Connector VGA, HDMI, DisplayPort
Plug & Play VESA DDC2B		TM
Input Sync Signal Separate sync:		TTL, Positive or Negative
Input Video Signal		Analog: 0.7Vp-p (Standard), 75Ω, PositiveDigital: HDMI, DisplayPort
Headphone connector		ø 3.5mm mini jack (Stereo)
External control pad Connector		RJ45
Maximum Screen Size		304.1mm W × 228.1mm H / 12.0" W × 9.0" H
Power Source 12VDC, 1.5A
AC Adapter (accessory) Input: 100-240VAC 50/60Hz
Power Consumption*1		16W typical, Power management mode: 1.2W maximumEnergy Efficiency Class: A
Dimensions / Net Weight		364.0 × 291.0 × 41.5mm / 14.3 × 11.5 × 1.6" (W×H×D)2.9kg / 6.4lbs (Excluding the AC Adapter)
Environmental Considerations		Operating: Temperature 0 to 40°C / 32 to 104°FHumidity 20 to 80% (No condensation)Storage: Temperature -20 to 60°C / -4 to 140°FHumidity 10 to 90% (No condensation)
Approvals		CB, CE, TÜV-Bauart, CU, cULus, IP65*2

NOTE

*1 USB peripherals is not connected.

^*2 IP65 Standard Compliant : Only front face

SPECIFICATIONS : ProLite TF2215MC

Touch Screen	Technology Projected	capacitive 10pt touch
	Light transmission	85%
	Communication system	USB
Size Category 22"
LCD Panel	Panel technology	IPS
	Size Diagonal: 21.5" (54.6cm)
	Pixel pitch 0.24795mm	H × 0.24795mm V
	Brightness	250cd/m2(Typical: without Touch panel),213cd/m2(Typical: with Touch panel)
	Contrast ratio 1000 : 1	(Typical)
	Viewable angle Horizontal: 178 degrees, Vertical: 178 degrees (Typical)
	Response time 14ms (Black, White, Black Typical)
Display Colors Approx.16.7M
Sync Frequency Horizontal: 31.4-82.0kHz, Vertical: 56-75Hz
Maximum Resolution 1920 × 1080, 2.1 MegaPixels
Input Connector VGA, HDMI, DisplayPort
Plug & Play VESA DDC2B		TM
Input Sync Signal		Separate sync: TTL, Positive or Negative
Input Video Signal		Analog: 0.7Vp-p (Standard), 75Ω, PositiveDigital: HDMI, DisplayPort
Headphone connector		ø 3.5mm mini jack (Stereo)
External control pad Connector		RJ45
Maximum Screen Size		476.064mm W × 267.786mm H / 18.7" W × 10.5" H
Power Source 12VDC, 2A
AC Adapter (accessory) Input: 100-240VAC 50/60Hz
Power Consumption*1		19W typical, Power management mode: 1.2W maximumEnergy Efficiency Class: A
Dimensions / Net Weight		520.0 × 315.0 × 42.5mm / 20.5 × 12.5 × 1.7" (W×H×D)4.4kg / 9.7lbs (Excluding the AC Adapter)
Environmental Considerations		Operating: Temperature 0 to 40°C / 32 to 104°FHumidity 20 to 80% (No condensation)Storage: Temperature -20 to 60°C / -4 to 140°FHumidity 10 to 90% (No condensation)
Approvals		CB, CE, TÜV-Bauart, CU, cULus, IP65*2

NOTE

*1 USB peripherals is not connected.

*2 IP65 Standard Compliant : Only front face

SPECIFICATIONS : ProLite TF2415MC

Touch Screen	Technology Projected	capacitive 10pt touch
	Light transmission	85%
	Communication system	USB
Size Category 23.8"
LCD Panel	Panel technology	VA
	Size Diagonal: 23.8" (60.5cm)
	Pixel pitch 0.2745mm	H × 0.2745mm V
	Brightness	250cd/m2(Typical: without Touch panel),213cd/m2(Typical: with Touch panel)
	Contrast ratio 3000 : 1	(Typical)
	Viewable angle Horizontal: 178 degrees, Vertical: 178 degrees (Typical)
	Response time 16ms (Black, White, Black Typical)
Display Colors Approx.16.7M
Sync Frequency Horizontal: 31.4-82.0kHz, Vertical: 56-75Hz
Maximum Resolution 1920 × 1080, 2.1 MegaPixels
Input Connector VGA, HDMI, DisplayPort
Plug & Play VESA DDC2B		TM
Input Sync Signal Separate sync:		TTL, Positive or Negative
Input Video Signal		Analog: 0.7Vp-p (Standard), 75Ω, PositiveDigital: HDMI, DisplayPort
Headphone connector		ø 3.5mm mini jack (Stereo)
External control pad Connector		RJ45
Maximum Screen Size		527.04mm W × 296.46mm H / 20.7" W × 11.7" H
Power Source 12VDC, 2.5A
AC Adapter (accessory) Input: 100-240VAC 50/60Hz
Power Consumption*1		25W typical, Power management mode: 1.2W maximumEnergy Efficiency Class: A
Dimensions / Net Weight		575.0 × 347.0 × 42.5mm / 22.6 × 13.7 × 1.7" (W×H×D)5.8kg / 12.8lbs (Excluding the AC Adapter)
Environmental Considerations		Operating: Temperature 0 to 40°C / 32 to 104°FHumidity 20 to 80% (No condensation)Storage: Temperature -20 to 60°C / -4 to 140°FHumidity 10 to 90% (No condensation)
Approvals		CB, CE, TÜV-Bauart, CU, cULus, IP65*2

NOTE

*1 USB peripherals is not connected.

*2 IP65 Standard Compliant : Only front face

DIMENSIONS : ProLite TF1015MC

DIMENSIONS : ProLite TF1515MC

DIMENSIONS : ProLite TF2215MC

ENGLISH 520.0mm/20.5" 515.5mm/20.3" 157.5mm/6.2" 310.5mm/12.2" 315.0mm/12.5"

42.5mm/1.7" 150.0mm/5.9" 220.0mm/8.6" 150.0mm/5.9" 47.5mm/1.9" 220.0mm/8.6" 47.5mm/1.9" 100.0mm/3.9" 69.5mm/2.7" 100.0mm/3.9" 102.5mm/4.0" 55.0mm/2.2" 169.5mm/6" 4xM4 SCREW HOLE (VESA MOUNT) 210.0mm/8.3"

DIMENSIONS : ProLite TF2415MC

575.0mm/22.6" 568.5mm/22.4" 173.5mm/6.8" 340.5mm/13.4" 347.0mm/13.7" 42.5mm/1.7"

85.0mm/3.3" 165.0mm/6.5" 85.0mm/3.3" 120.0mm/4.7" 120.0mm/4.7" 118.5mm/4.7" 120.0mm/4.7" 100.0mm/3.9" 69.5mm/2.7" 55.0mm/2.2" 169.5mm/6" 100.0mm/3.9" 4xM4 SCREW HOLE (VESA MOUNT) 237.5mm/9.3"

DIMENSIONS : L-BRACKET

■ ProLite TF1015MC

1.0 mm Screw holes for fixing the bracket 7.0mm 90.0 mm 135.0 mm M4 12.0mm

120.0 mm 7.3mm 80.0 mm 8.0mm M4 14.0mm Screw holes for mounting the monitor

1.6 mm 1.0 mm M4 4.2 mm 60.0 mm 22.0mm Screw holes for fixing the bracket 25.2mm 34.0mm 90.0 mm 135.0 mm

M4 Screw holes for mounting the chassis 5.5mm 120.0 mm 20.0mm

1.0 mm Screw holes for fixing the bracket M4 7.0mm 90.0 mm 135.0 mm 12.0mm

120.0 mm 7.3mm 80.0 mm 8.0mm M4 14.0mm Screw holes for mounting the monitor

1.6 mm 1.0 mm M4 4.2 mm 60.0 mm 22.0mm Screw holes for fixing the bracket 25.2mm 34.0mm 90.0 mm 135.0 mm

M4 Screw holes for mounting the chassis 11.4mm 78.0 mm 98.0 mm 20.0mm

■ ProLite TF2215MC

1.0 mm Screw holes for fixing the bracket 7.0mm M4 180.0 mm 240.0 mm 12.0mm

220.0 mm 6.65mm Screw holes for mounting the monitor M4 14.0mm

2.0 mm 1.0 mm M4 4.2 mm 137.5 mm 23.0 mm Screw holes for fixing the bracket 25.2 mm 35.0 mm 180.0 mm 240.0 mm

M4 Screw holes for mounting the chassis 8.35mm 200.0 mm 20.0mm

COMPLIANT TIMING : ProLite TF1015MC

Video Mode			Horizontal Frequency	Vertical Frequency	Dot Clock
VESA	VGA 640 × 4	80 31.469kHz 59	940Hz 25.175MHz
	SVGA 800 ×	600 37.879kHz 6	0.317Hz 40.000MHz
	XGA 1024 ×	768 48.363kHz 6	0.004Hz 65.000MHz
	WXGA 1280	× 800 49.702kHz	59.910Hz 83.500MHz

COMPLIANT TIMING :
