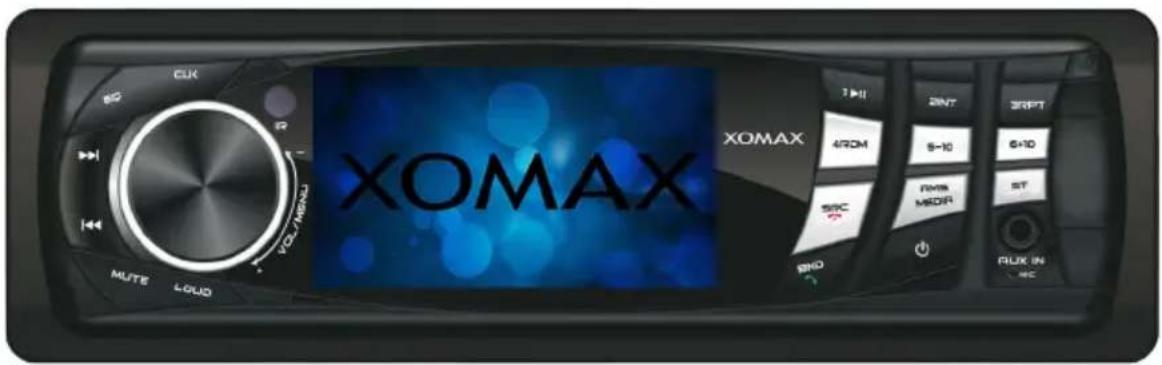

Product Type	Car Multimedia Unit
Brand	Xomax
Model	XM-DVB3007
Mounting Size	1 DIN
Power Supply	12V DC, Negative Ground
Speaker Impedance	4-8 Ohm
Speaker Channels	4 (Front Left/Right, Rear Left/Right)
Radio Bands	FM/AM
Touchscreen	Yes (resistive, use finger or stylus)
Remote Control	Included (IR, requires battery)
Installation Frame	Included (pre-assembled to unit)
Extraction Keys	Included (for removal)
Max Operating Temperature	+60°C (inside vehicle)
Cleaning Method	Soft dry cloth; no chemicals or alcohol
Safety Features	Fuse protection, reverse polarity protection, short-circuit prevention
Recycling	Separate disposal of electronic waste and batteries required
Dimensions (Approx)	180 x 50 x 160 mm (W x H x D)
Weight (Approx)	1.0 kg

Frequently Asked Questions - XM-DVB3007 Xomax

Why doesn't the remote control work?

First, remove the protective film from the battery. If still not working, replace the battery. Also ensure the IR receiver on the unit is not blocked. To test, point the remote at a camera (e.g., phone) and press a button; you should see an IR flash.

The unit does not turn on. What should I do?

This is usually due to incorrect ISO cable connection. Check the pin assignments for ignition plus (A7) and steady plus (A4). They may be swapped. Also verify the ground (A8) is properly connected.

Poor radio reception or no stations found.

Identify your antenna type: passive antenna (replace with a larger antenna), active antenna (requires phantom power), or active with diversity (requires phantom power with diversity). Ensure the antenna cable is connected.

Radio stations and settings are lost when the unit is turned off.

This indicates the ignition plus and steady plus wires are swapped. Interchange the yellow (A7) and red (A4) cables. If they have fuses, swap those as well.

How do I install the unit?

Disconnect the car battery first. Remove the installation frame from the unit using extraction keys. Insert the frame into the dash, bend tabs outward. Connect ISO cables, then slide the unit into the frame until it clicks. Optionally secure with the fixation metal sheet at the back.

How do I remove the unit?

Use a wrench to loosen the rear fixation nut (if present). Insert the two extraction keys into the slots between frame and unit until they click, then pull the unit out. Disconnect all cables.

Can I clean the unit with chemical cleaners?

No. Use only a soft, dry cloth. For stubborn dirt, use a slightly damp cloth. Avoid alcohol or chemical detergents as they can damage the varnish.

Is it safe to operate the unit while driving?

No. Do not handle the unit while driving. Stop and park safely before adjusting any controls. Also keep volume at a level where you can hear traffic warnings.

What should I do if a fuse blows?

Replace the fuse with one of identical amperage. If it blows again, consult a professional technician as there may be a short circuit.

How do I properly dispose of the unit?

Do not throw it in household waste. Take it to a municipal collection point for recycling of electrical and electronic devices. Empty batteries should be disposed of separately at designated bins.

USER MANUAL XM-DVB3007 Xomax

Installation Manual

ENGLISH

Montageanleitung

DEUTSCH

XOMAX

Thank you for purchasing one of our Xomax products! We appreciate your confidence. Enjoy your brand new multimedia unit!

Please read the following manual carefully before you install and use the unit. Please save this manual in case you will need to clarify further possible questions regarding installation and usage of our product.

We recommend you to let the technician install the unit in your vehicle.

You can find the detailed manual for your XOMAX product on our homepage: www.xomax.de/download

Safety instructions and precautions 23

Installation 25

Installation instructions 27

1 Installation steps ......27
2 Fixture of the fixation sheet.....27
3 Fixture of the installation frame ....28
4 Connect the unit....28
5 Fixture of the unit....29

Deinstallation instructions 30

1 Prepair the instruments ....30
2 Unloose the fixation sheet......30
3 Use the extraction keys ......31
4 Unloose the unit ....31
5 Remove the unit ....32
6 Remove installation accessories ....32

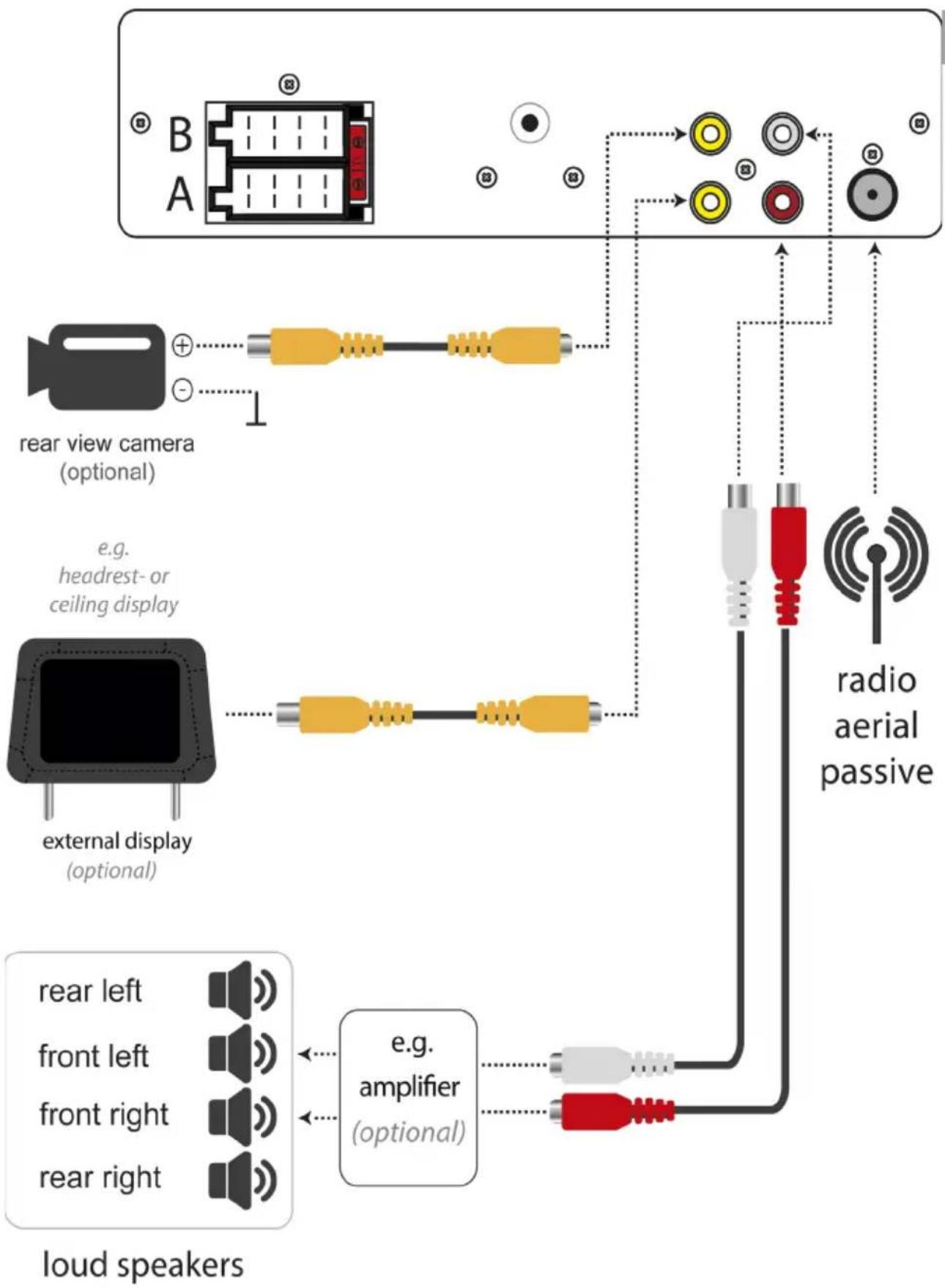

Connection schedule – Cinch multicore 33

Connection schedule – ISO plug 34

ISO plug configuration 35

Socket A (power supply)......35
Socket B (loud speakers)....35

ISO cable connections 36

Common solutions 37

Recycling of an old unit 39

Recycling of the battery 39

Safety instructions and precautions

Handling by stop only

To avoid any accidents please don't handle the unit while you driving. Please stop and park the vehicle at safety place and handle the unit casually.

Installation

Please read the following manual carefully before you install the unit. We recommend you to let the technician install the unit in your vehicle.

! Regular loudness

Please set the loudness of the unit to the appropriate level so you were still able to hear exterior noises especially traffic warning signals. Furthermore the higher loudness level can damage your hearing organs.

! Repair of the unit

Do not open the unit. Do not try to repair the unit by yourself due to any emerging technical problems. While opening the unit by yourself exists the danger to be electrocuted.

Do not use the unit any further since you detect any kind of technical problems.

Leave all the repair operations to professional technicians.

Due to flawed warranty seal the warranty becomes invalid.

Power supply

Use the unit connected only to 12 Volt on-board power supply. The minus (-) should be connected with the ground (GND) (negative).

Due to the wrong configuration exists the danger of fire. In case of doubt please consult with professional technicians.

Replacement of fuses

While replacing the fuse please make sure that the new fuse has the same properties as the old one, especially the amperage.

Overheating

Do not occlude the vent holes to avoid the heat generation and accumulation in the unit. Otherwise exists the danger of fire.

Regular temperature

Please make sure that the temperature inside of the vehicle amounts to not more than +60 C.

If it's too hot inside of the vehicle, do not turn the unit on until the inside temperature of the cabin descends.

Cleaning of the unit

Please keep the unit clean and remove the dust from it regularly. Please use for that a soft and dry cleaning rag.

Major soilings can be removed carefully with the wet cleaning rag. Do not use any chemical or alcohol-containing detergents to avoid the damage of the unit's varnish.

Usage of the touchscreen

Do not press the touchscreen too hard – it may lead to image distortions, unit malfunctions and touchscreen damages.

Do not use any sharp articles to use the touchscreen. Please handle the touchscreen with your finger or with the appropriate stylus.

Moisture

To avoid the danger of fire or the electric shock do not put the unit in to the moist environment (e.g. adverse weather conditions, inappropriate wet cleaning etc.)

Installation

!We recommend you to let a professional technician install the unit in your vehicle.

WARNING!

Please read these advices carefully before installation procedure.

The damages caused by an inappropriate installation are not covered by warranty.

To avoid the risk of losing the warranty please let a specialist accomplish the installation of the unit.

»To avoid a short circuit please disconnect the vehicle battery before the installation. To do it properly please read the manual of the vehicle.

»Please be aware that this unit has an 1 DIN standart size. Make sure that your vehicle is equipped with an installation cell of required size.

»As may be the case you will need a suitable faceplate, adapter or other accessories. These could be provided from your local specialist supplier.

»The connection cables may not be cutted or short-circuited. Otherwise the warranty becomes invalid.

»Before the installation please make sure that the vehicle has the 12 Volt on-board power supply.

»The minus (-) should be connected with the ground (GND) (negative).

»Please tag the polarity of the available speakers before you disconnect the vehicle battery.

»A proper grounding of the unit's housing requires a clean ground connection. Thus the grounding area should be rust-, stain- and dust-free.

»Please ground the cable separately from other heavy current devices such as an amplifier etc.

»Please ensure that the coloured cables are connected according to the wiring diagram. The wrong wiring may lead to malfunctions or even damages of the electric elements of the vehicle.

»Please note that the connection cables of this unit and of the other devices may have the same purpose but the different colour. For this reason while connecting this unit with the other devices please ensure that both of the cables in each case have the same purpose. To configure everything correctly please refer to the manuals of the both devices.

»Please ensure that the negative

speaker cable is in each case plugged into the negative speaker socket of the ISO interface. Do not ever connect the negative speaker cables with the vehicle body.

»This unit is designed and construed for connection with 4 speakers. Do not combine this unit with devices that are designed and construed for connection with 2 speakers.

»The speakers should feature the impedance of 4-8 Ohm and a sufficient wattage.

»Please ensure that the speakers you are connecting with the unit are intact. Damaged speakers can impair the unit.

»To avoid a short circuit please isolate all cable junctions and endings of the unused cables with the electrical tape.

»All the cables should be layed and fixated tidy and properly. The cables should not contact any movable or hot objects.

»If the vehicle doesn't have an "ACC" ignition position, please connect the red cable with the ignition switch. Otherwise the unit does not turn off automatically, causing the discharging of the vehicle battery.

»To avoid a rogue and hazardous short circuit do not lay the yellow cable

through the engine bay in order to connect it with the vehicle battery.

»Do not ever connect speaker cables among one another. In case you do not want to connect all the 4 speakers with the unit please isolate the endings of unused cables with the electrical tape to prevent a short circuit.

»Do not ever connect the negative speaker cables with the vehicle body.

»To ensure a flawless performance of the unit the intergration angle should amount to +/- 30.

Installation instructions

1 Installation steps

1. fixture accessories (optional): 1 x fixation metal sheet, 1 x bolt, 1 x nut, 1 x washer

2. installation frame

3. dual-ended bolt

4. unit

* Installation frame is already firmly fixed to the unit's housing by delivery.

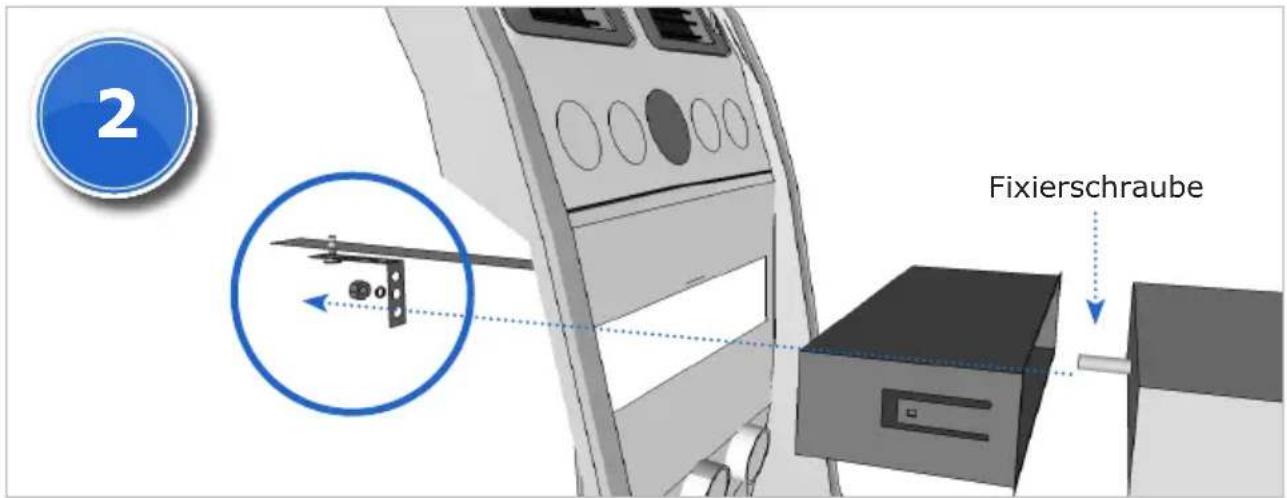

2 Fixture of the fixation sheet

This step can not be accomplished in every vehicle, thus it may be possibly skipped. The fixation metal sheet should be fixated in the vehicle first,

then the dual-ended bolt of the unit should be pulled through one of the holes in the fixation metal sheet.

Later (see page 29) the unit will be fixed to the metal sheet with the washer and the nut.

3 Fixture of the installation frame

Please remove first the installation frame (if it's included in delivery) from the unit. Please use for that the extraction keys (see page 30). Possibly the faceplate should be removed as well.

Please insert the installation frame in the installation cell (car radio slot). Then bend all the cogs outwards to fixate the frame inside the cell (slot).

4 Connect the unit

Please connect the ISO cable first with the ISO plug of the unit, then with the one of the vehicle. Do not forget to connect the radio aerial.

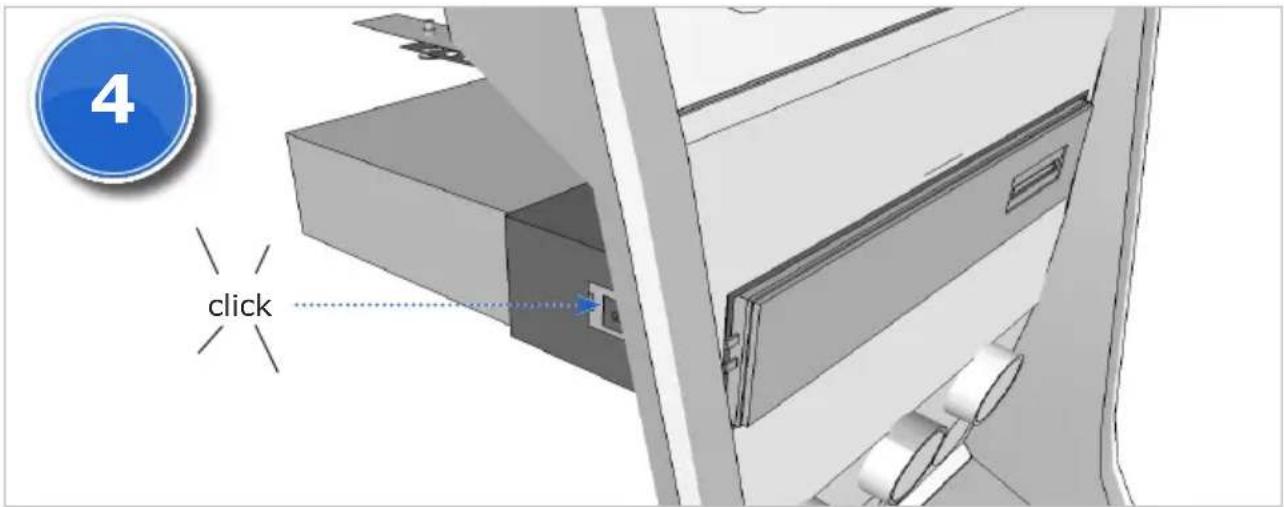

Now slide the unit carefully into the already fixated frame till it clicks into place.

5 Fixture of the unit

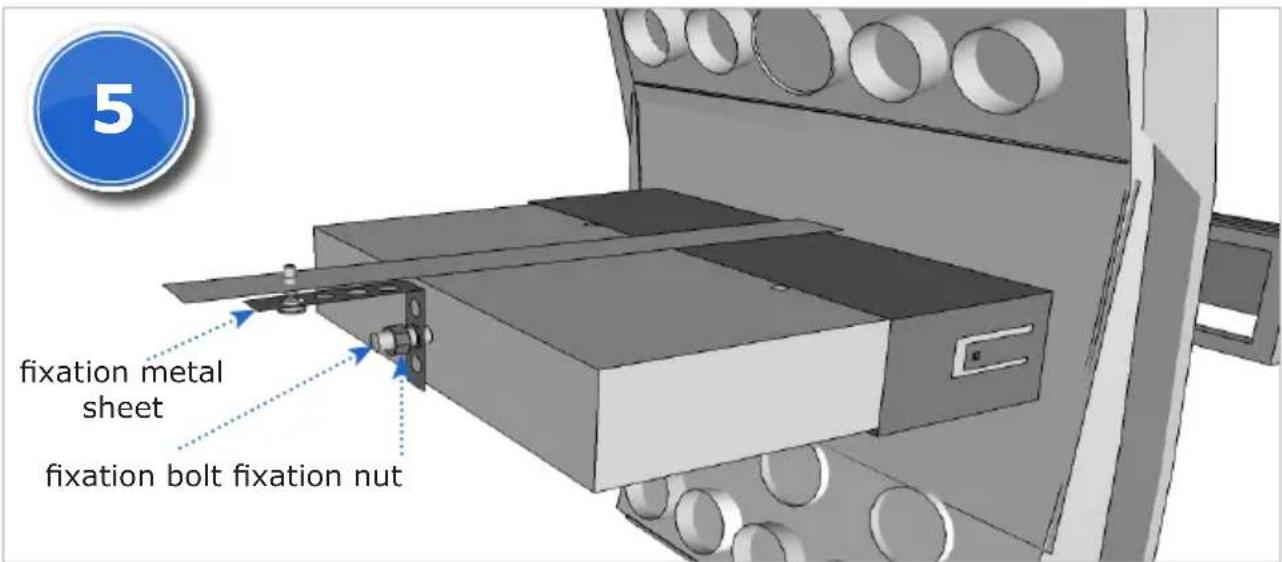

This procedure refers to the step 2 and may be possibly skipped as well. As earlier required (see page 27), the dual-ended bolt of the unit should be pulled through one of the holes in the

fixation metal sheet. Now the unit should be fixated to the metal sheet with the washer and the nut.

Deinstallation instructions

1 Prepair the instruments

To deinstall the unit you will need a spanner (a wrench) to unloose the fixation nut and 2 extraction keys (optional)

to release the unit from the installation frame.

2 Unloose the fixation sheet

First of all please unloose the fixation nut on the rear side of the unit by spanner (wrench).

This step may be possibly skipped, if due to the lack of space the unit initially was not fixated to the fixation metal sheet.

3 Use the extraction keys

Please insert the extraction keys into the dedicated recesses between the installation frame and the unit's housing.

In each case the key should be inserted centered, the inserting point should be equally distanced both from the top and from the bottom.

4 Unloose the unit

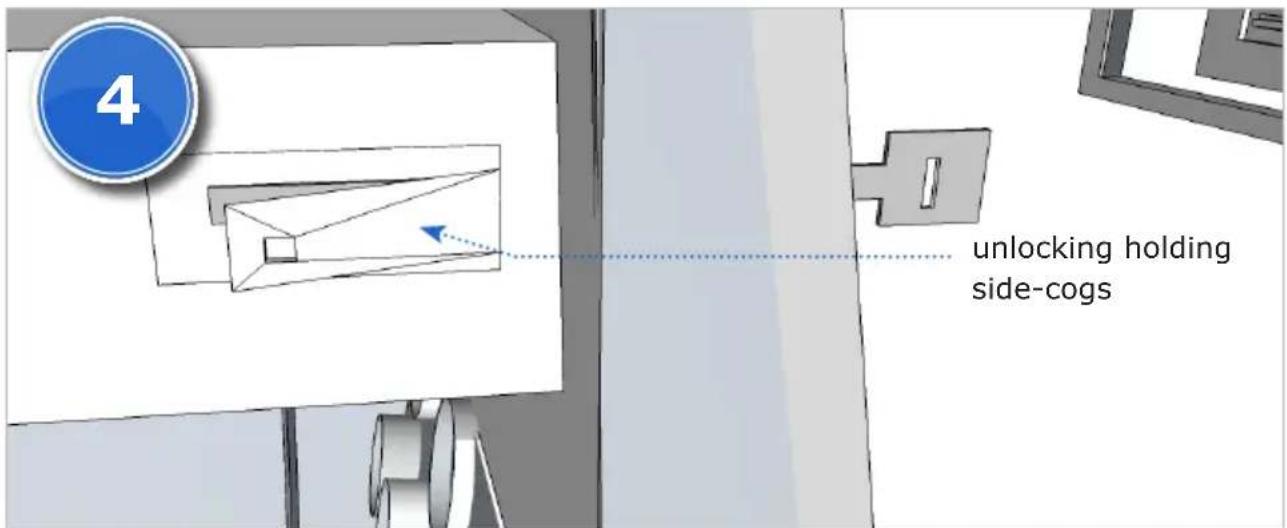

When and as long as inserted, the extraction keys press the holding side-cogs outwards so that the unit is

released from the installation frame and can be carefully pulled out.

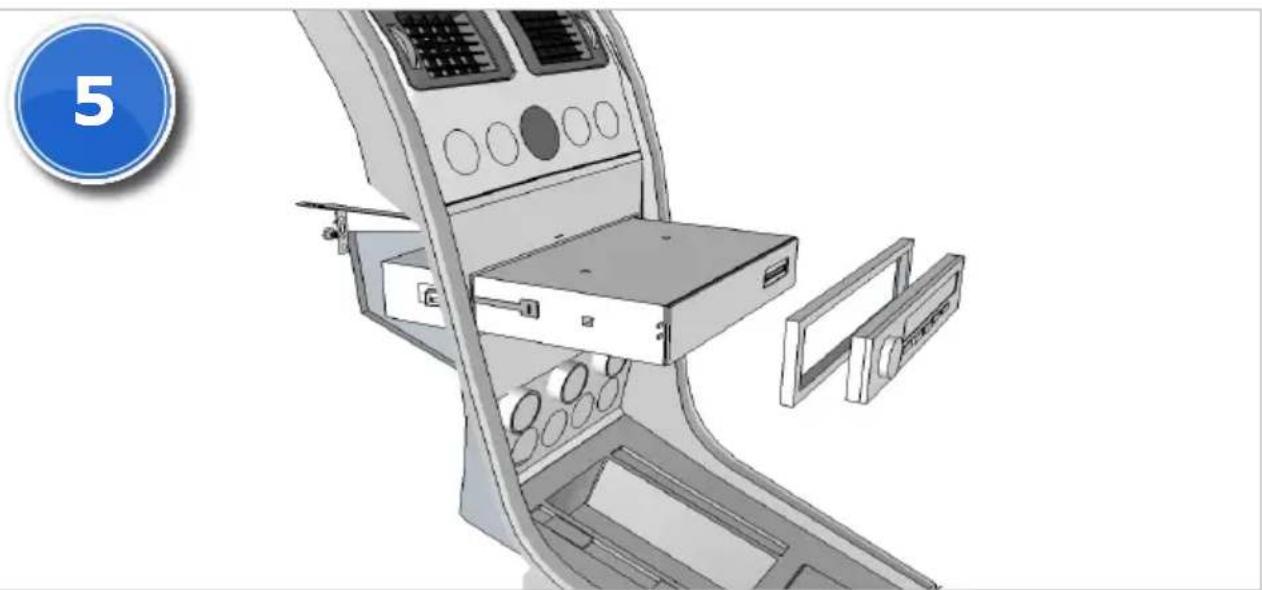

6 Remove the unit

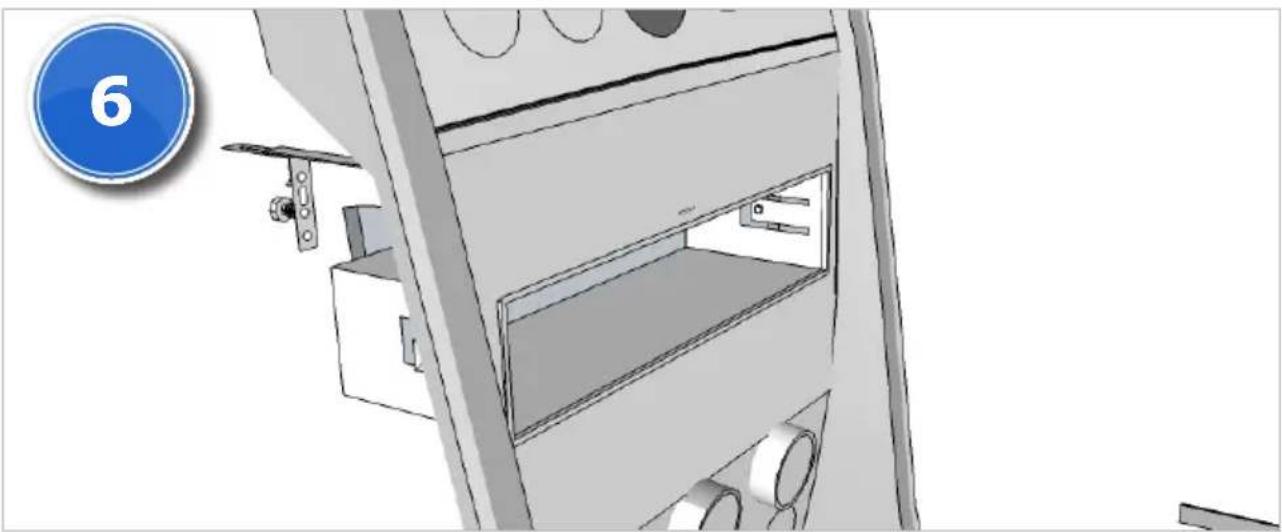

Now pull the unit carefully out of the installation frame or out of the car radio slot in case the frame was already firmly fixed to the unit by delivery.

Afterwards please disconnect all the cables incl. the ISO multicore.

5 Remove the installation accessories

Finally remove all the installation accessories such as fixation metal sheet and installation frame.

ISO plug configuration

Socket A (power supply)

On the A side you can find the socket for power supply.

A1 - (-) handbrake (brown)

A2 - spare

A3 - (+) reverse light (pink)

A4 - (+12V) battery/steady plus * (red)

A5 - (+) electric antenna (blue)

A6 - spare

A7 - (+) 12Volt ignition plus * (yellow)

A8 - (-) minus / ground (black)

* - Some vehicle manufacturers use their own pin assignment. Especially the terminals A7 (ignition plus) and A4 (steady plus) are often interchanged. The incorrect connection in this case leads to following problem: the unit can not be turned on if the ignition is off and all the saved settings are lost as soon as the unit will be turned off. If these problems appear the connections A4 and A7 should be interchanged.

Socket B (loud speakers)

On the B side you can find the speakers terminals.

B1 - (+) rear right (violet)

B2 - (-) rear right (violet/black)

B3 - (+) front right (grey)

B4 - (-) front right (grey/black)

B5 - (+) front left (white)

B6 - (-) front left (white/black)

B7 - (+) rear left (green)

B8 - (-) rear left (green/black)

The terminals are coloured by pairs, in each case one (+) and one (-).

Though the design of ISO plug is standardized, it's pin assignment is not and may vary. Thus in case of mismatch of connections due to different pin assignments a simple plug'n'play connection may lead to grievous errors.

ISO cable connections

!We recommend you to let a professional technician install the unit in your vehicle.

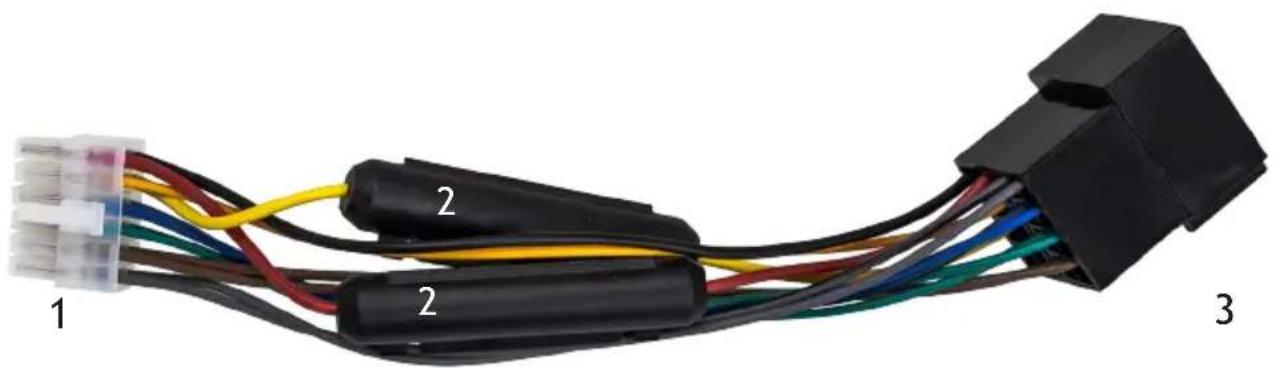

1 Terminal plug

This plug connects the ISO cable with the unit.

2 Fuses

3 ISO plug

This plug connects the ISO cable with the vehicle. The ISO cable as such serves as an extension cable for an eased connection of the unit to the vehicle provided that the vehicle has a standardized ISO plug with the appropriate pin assignment.

Common solutions

The following advices are generally valid and refer to diverse Xomax models with the similar characteristics. Please note that some articles may refer not to your model exactly and contain the description of features and functions that your model does not support.

The description of the problem	The cause and the solution
The remote control is without function.	Solution 1:Please ensure that the battery film is removed. By delivery the battery is protected by a film which should be removed before usage.Solution 2:The battery could be empty. Please replace it if required.Solution 3:Please make sure that the infrared receiver (labelled with IR) on the control panel is not blocked.Note:You can test the functionality of the remote control as follows: please hold the IR transmitter towards a camera (e.g. a cell phone camera) and press any button on the remote control. If the remote control is operative you can see the infrared signal on the display of the used camera device.
The unit does not turn on.Poor radio reception:The radio tuner finds nobroadcaster or the reception is poor.	This problem is in most cases caused due to a wrong connection of the ISO cable.Please review the pin assignments of the ISO cable and ISO plug. Pay attention to the proper connection of the ignition- and steady plus and correct the discrepancy if required.Note:Though the design of ISO plug is standardized, it's pin assignment is not and may vary. Thus in case of mismatch of connections due to different pin assignments a simple plug'n'play connection may lead to grievous errors.For problem-solving regarding the radio reception it is important to know the type of the antenna of your vehicle.Here are the possible solutions for each type of the antenna:Type 1 – passive antenna (see page 33 – wiring diagram):We recommend you to substitute the existing antenna by the larger and therefore more efficient one.Shark fin or rod antennas (under 5 cm) are definitely insufficient.Type 2 – active antenna (see page 34 – wiring diagram):The vehicle provides no current for the active antenna.In this case a phantom power is required, which provides the active antenna with the external power supply.Type 3 – active antenna with diversity system:The unit provides no current for the active antenna and has no diversity support. For this type of antenna is required the phantom power with an integrated diversity system.Note:A phantom power is not to be confused with an antenna amplifier which is far less efficient.
Radio stations are lost:As soon as the unit will be turned off all the stored stations and users settings will be lost.	This problem is caused due to a wrong connection of the ISO cable.Please interchange the cables for ignition plus and for steady plus.Caution:If these wires have fuses the latter should be interchanged as well.

Recycling of an old unit

User information regarding recycling of electric and electronic devices (private households)

This symbol on products or in their manuals implies that electric and electronic devices at the end of their service life should be separated from the domestic waist.

Please hand these products for recycling at municipal collection points free of charge.

The proper disposal of these products contributes to environment protection.

To find the nearest collection point or recycling yard please consult your municipal administration.

Recycling of the battery

According to the battery decree we make you aware of your obligation to dispose of empty batteries at municipal collection points.

Batteries that contain pollutants (e.g. Hg = mercury, Pb = lead, Cd = cadmium) are labelled with the symbol pictured above.

At our place you can free dispose of the empty batteries purchased at our store.
