GlobalMap 9200C - Browser LOWRANCE - Free user manual and instructions

Product Type	Marine GPS Chartplotter
Display Size	9 inches diagonal
Display Type	Color TFT LCD
Display Resolution	640 x 480 pixels
GPS Receiver	Internal, 12-channel WAAS
Map Capacity	Built-in background map, supports Navionics® cartography
Waypoints	Up to 3,000
Routes	Up to 100
Trails	Up to 10,000 points
Power Input	10 – 18 V DC
Power Consumption	1.5 A max
Dimensions (W x H x D)	11.5 x 6.5 x 3.0 inches
Weight	4.5 lbs
Waterproof Rating	IPX7 (submersible 1 m for 30 min)
Operating Temperature	-15°C to 55°C (5°F to 131°F)
Storage Temperature	-20°C to 65°C (-4°F to 149°F)
Interfaces	NMEA 0183, video input, MMC/SD card slot
Mounting Options	Bracket or flush mount
Certifications	CE, FCC
Maintenance	Clean with soft damp cloth; avoid solvents

Frequently Asked Questions - GlobalMap 9200C LOWRANCE

How do I update the maps on my GlobalMap 9200C?

You can update maps via the MMC/SD card slot. Purchase a compatible Navionics® chart card, insert it into the slot, and the unit will automatically read the new map data.

What power supply is required for the GlobalMap 9200C?

The device requires a 10 to 18 V DC power source, typically from a boat's electrical system. Maximum current draw is 1.5 A. Use the supplied power cable with proper fusing.

How do I connect an external sonar module?

The GlobalMap 9200C supports NMEA 0183 for sonar data. Connect a compatible Lowrance sonar module (e.g., LMF-400) via the NMEA 0183 port. Configure the unit to receive sonar data in the setup menu.

My GPS is not acquiring a fix. What should I do?

Ensure the unit has a clear view of the sky. Check the GPS antenna connection. Perform a GPS reset via the menu: go to System Setup > GPS > Reset GPS. Allow up to 15 minutes for a cold start.

How do I perform a factory reset?

To reset to factory defaults, press and hold the PWR and ZOOM OUT keys simultaneously while powering on. Release when the startup screen appears. This erases all user data.

Can I use the GlobalMap 9200C with Navionics Platinum charts?

Yes, the unit is compatible with Navionics Platinum+ and Navionics HotMaps cards. Insert the card into the MMC/SD slot to access high-resolution charts and 3D views.

How do I set a waypoint?

To mark a waypoint at your current position, press WPT key (or MARK depending on firmware). To create a waypoint at a cursor location, move the cursor and press WPT. Enter a name and symbol.

What is the maximum number of trails I can save?

The GlobalMap 9200C can store up to 10,000 trail points. You can save multiple trails, but total points across all trails cannot exceed 10,000. Manage trails in the Trails menu.

How do I adjust the display brightness?

Press the POWER key to access the Brightness slider. Use the arrow keys to adjust. For night use, enable the Night Mode for a red backlight to preserve night vision.

Is the GlobalMap 9200C waterproof?

Yes, it has an IPX7 rating, meaning it can be submerged in up to 1 meter of water for 30 minutes. It is suitable for marine environments but avoid prolonged submersion.

USER MANUAL GlobalMap 9200C LOWRANCE

LOWRANCE® Map N 39°15.097' W 76°34.308' ↔ 8 mi COUT ZIN PRICE WPT MENU EXIT ON EOK FINS CHERRY HILL FROSO BRIAGE BROCOLLYN FRIDISHVILLE STONEHOUSE GREE CURTIS BAY NORGOOD PARK COLGATE CREEK LEIGHARETTI SEBIGHT NARINE TERRINI PATRIPSCO RIVER ST HELENA NORGOOD PARK COLGATE CREEK LEIGHARETTI ST HELENA PATRIPSCO RIVER STONEHOUSE GREE CURTIS BAY NORGOOD PARK COLGATE CREEK LEIGHARETTI ST HELENA STONEHOUSE GREE CURTIS BAY NORGOOD PARK COLGATE CREEK LEIGHARETTI ST HELENA STONEHOUSE GREE CURTIS BAY NORGOOD PARK COLGATE CREEK LEIGHARETTI ST HELENA STONEHOUSE GREE CURTIS BAY NORGOOD PARK COLGATE CREEK LEIGHARETT I STONEHOUSE GREE CURTIS BAY NORGOOD PARK COLGATE CREEK LEIGHARETTI STONEHOUSE GREE CURTIS BAY NORGOOD PARK COLGATE CREEK LEIGHARETTI STONEHOUSE GREE CURTIS BAY NORGOOD PARK COLGATE CREEK LEIGHARETTI STONEHOUSE GREE CURTIS BAY NORGOOD PARK COLGATE CREEK LEIGHARETTI STONEHOUSE GREE CURT IS BAY NORGOOD PARK COLGATE CREEK LEIGHARETTI STONEHOUSE GREE CURT IS BAY NORGOOD PARK COLGATE CREEK LEIGHARETTI STONEHOUSE GREE CURT IS BAY

GlobalMap® 7200C, GlobalMap® 7300C HD, GlobalMap® 8200C, GlobalMap® 8300C HD, GlobalMap® 9200C, GlobalMap® 9300C HD, Mapping GPS Receivers Operation Instructions

Copyright © 2006 Lowrance Electronics, Inc. All rights reserved.

No part of this manual may be copied, reproduced, republished, transmitted or distributed for any purpose, without prior written consent of Lowrance Electronics. Any unauthorized commercial distribution of this manual is strictly prohibited.

Lowrance ^® is a registered trademark of Lowrance Electronics, Inc. MapCreate ^™ , FreedomMaps ^™ , and NauticPaths ^™ are trademarks of LEI. Fishing Hot Spots ^® is a registered trademark of Fishing Hot Spots Inc. Navionics ^® is a registered trademark of Navionics, Inc. NMEA 2000 ^® is a registered trademark of the National Marine Electronics Association.

Points of Interest Data in this unit are by infoUSA, copyright © 2001-2006, All Rights Reserved. infoUSA is a trademark of infoUSA, Inc.

Additional mapping data: copyright © 2006 by Transas Ltd.; copyright © 2006 by Maptech Inc.

Lowrance Electronics may find it necessary to change or end our policies, regulations and special offers at any time. We reserve the right to do so without notice. All features and specifications subject to change without notice. All screens in this manual are simulated. On the cover: GlobalMap® 9300C HD shown.

NMEA 2000® Certification Pending.

For free owner's manuals and other information, visit our web site:

www.lowrance.com

Lowrance Electronics Inc. 12000 E. Skelly Dr. Tulsa, OK USA 74128-2486 Printed in USA.

Table of Contents

Section 1: Read Me First!....1

How Lowrance GPS Works.... 3

Introduction to GPS and WAAS.... 4

How to use this manual: typographical conventions.... 7

Section 2: Installation & Accessories......9

Preparations 9

GPS Antenna/Receiver Module 9

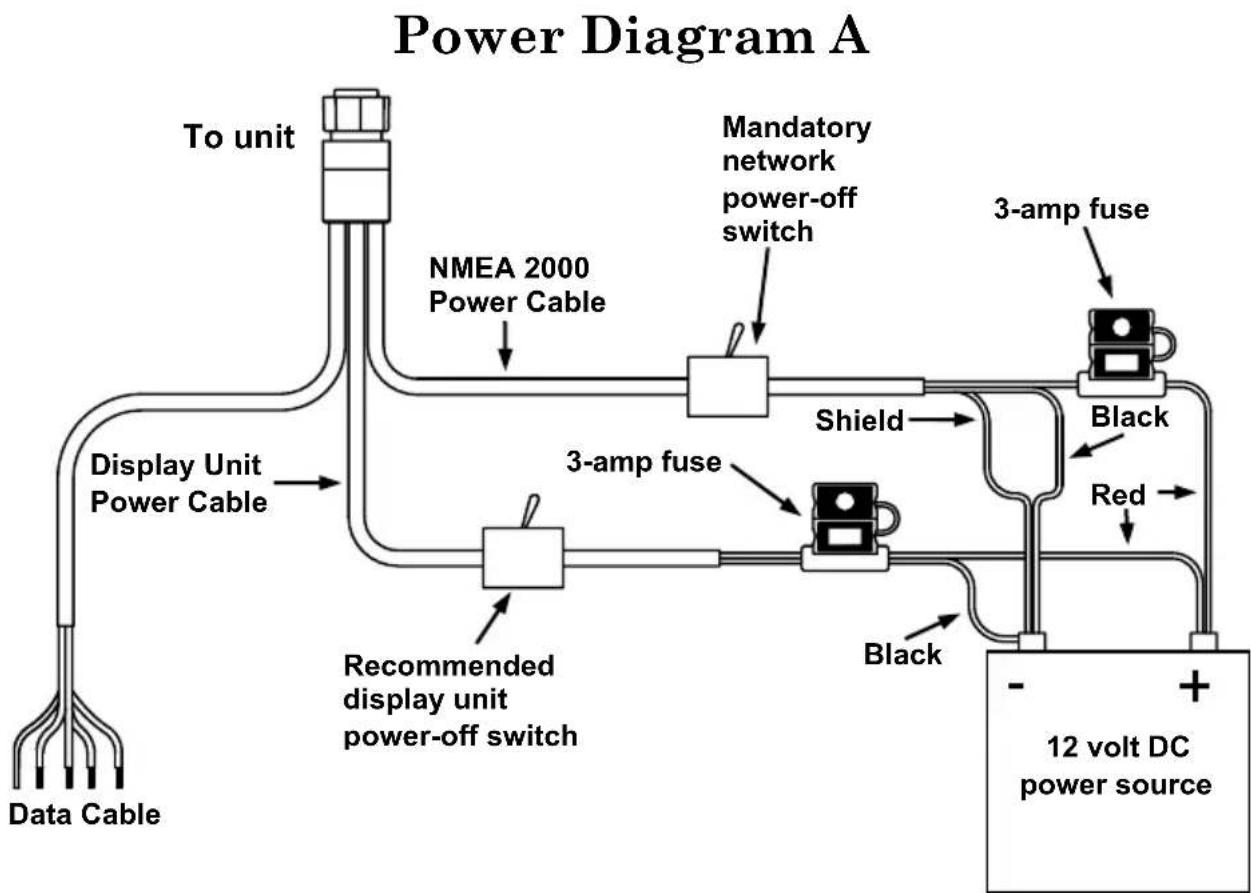

Power Connections.... 10

Powering Your Display Unit 11

Powering a NMEA 2000 Network Bus 13

NMEA 2000 Cable Connections....14

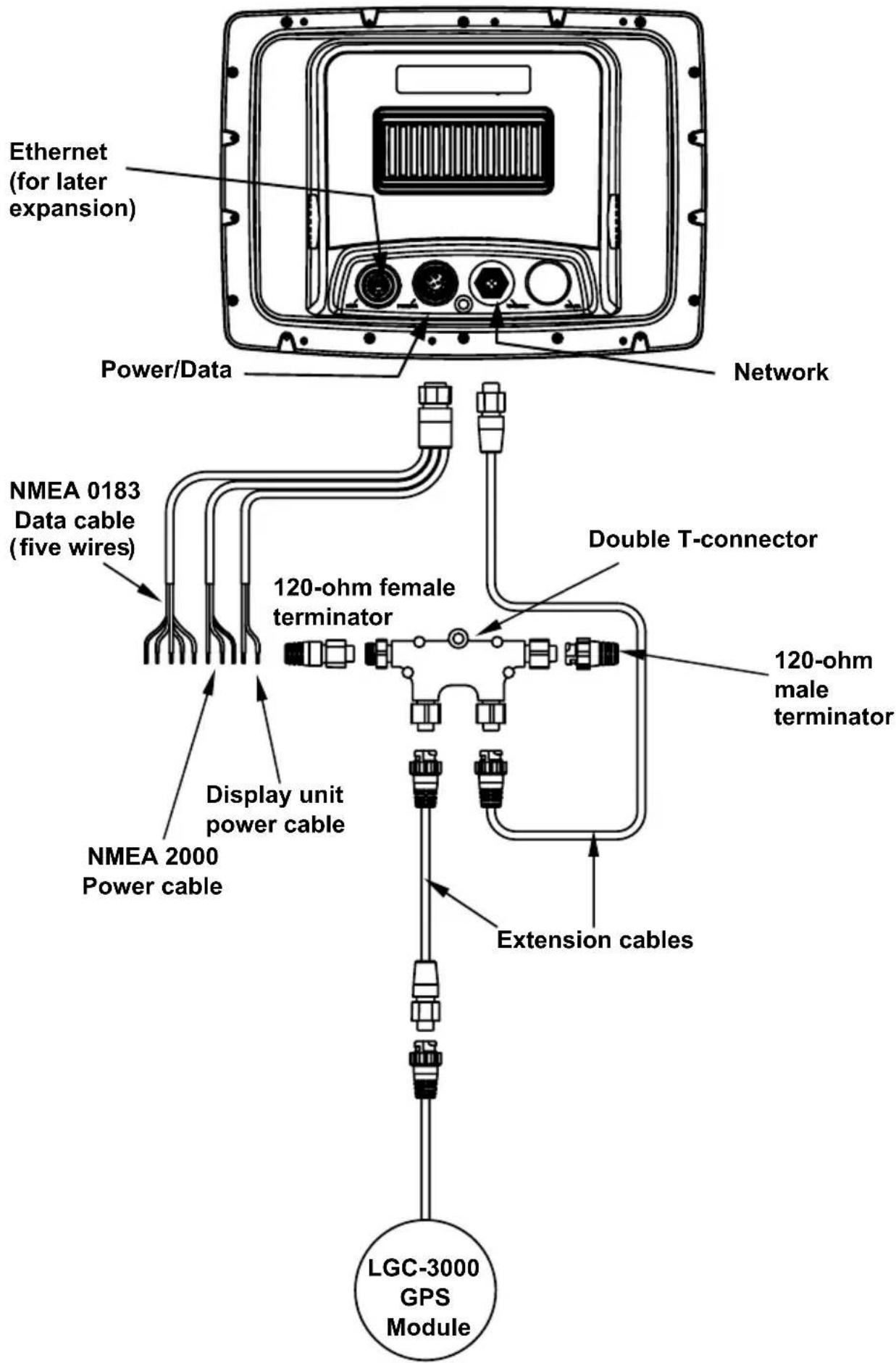

NMEA 0183 Wiring (Data cable) 15

Expanding to a NMEA 2000 Network 20

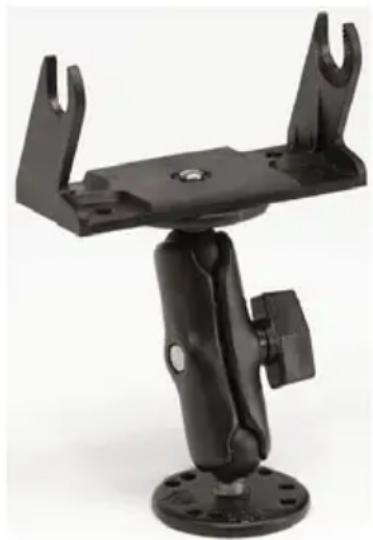

Mounting the Unit: Bracket, In-Dash or Portable.... 22

MMC or SD Memory Card Installation 26

Other Accessories 27

Face Cover 28

Cleaning Towel....28

Section 3: Basic GPS Operations ...... 29

Keyboard.... 29

Power/lights on and off 30

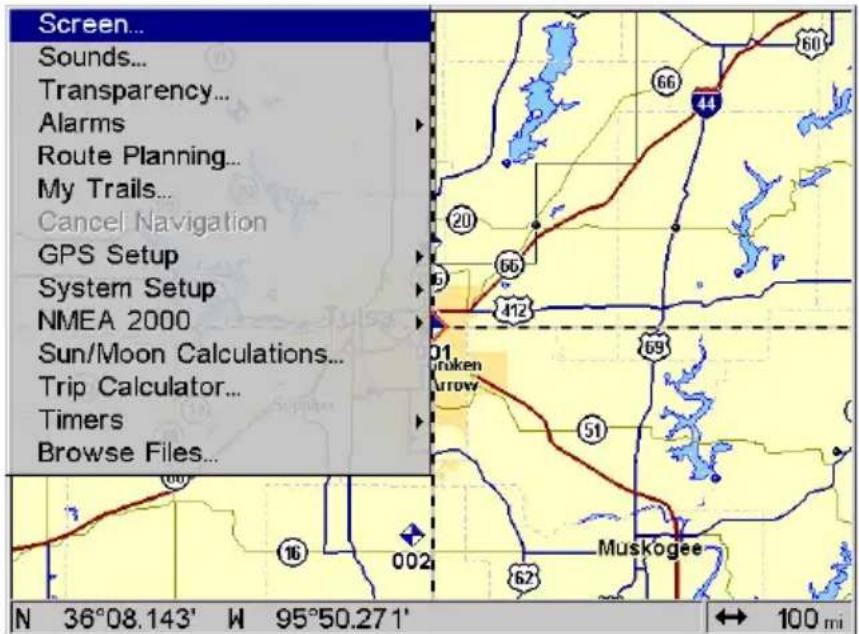

Main Menu.... 30

Pages 32

Satellite Status Page.... 32

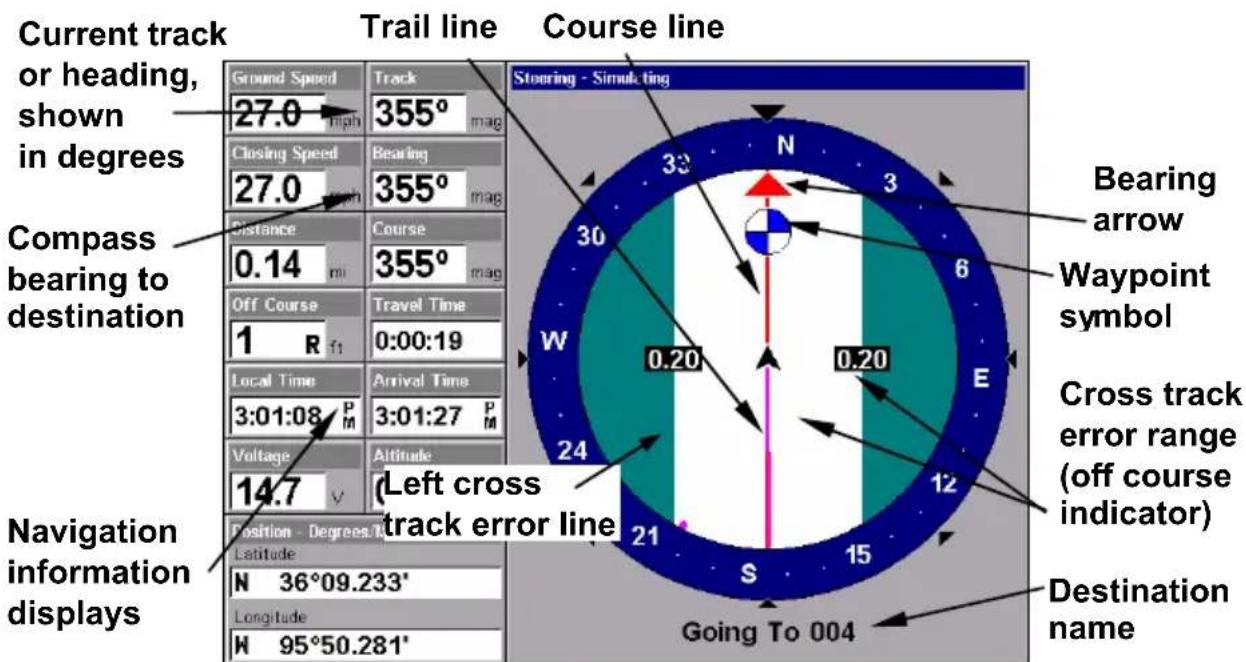

Navigation Page 33

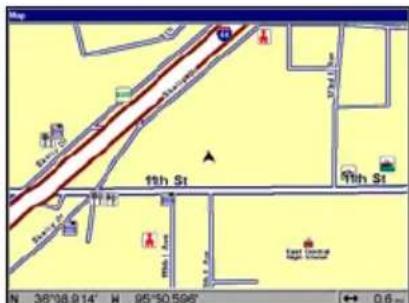

Map Page 36

GPS Quick Reference 41

Find Your Current Position.... 42

Moving Around the Map: Zoom & Cursor Arrow Keys...... 42

Selecting Any Map Item with the Cursor.... 43

Searching 43

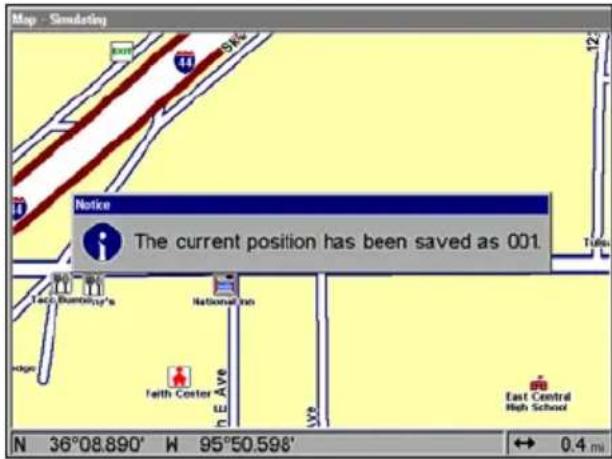

Set a Waypoint 45

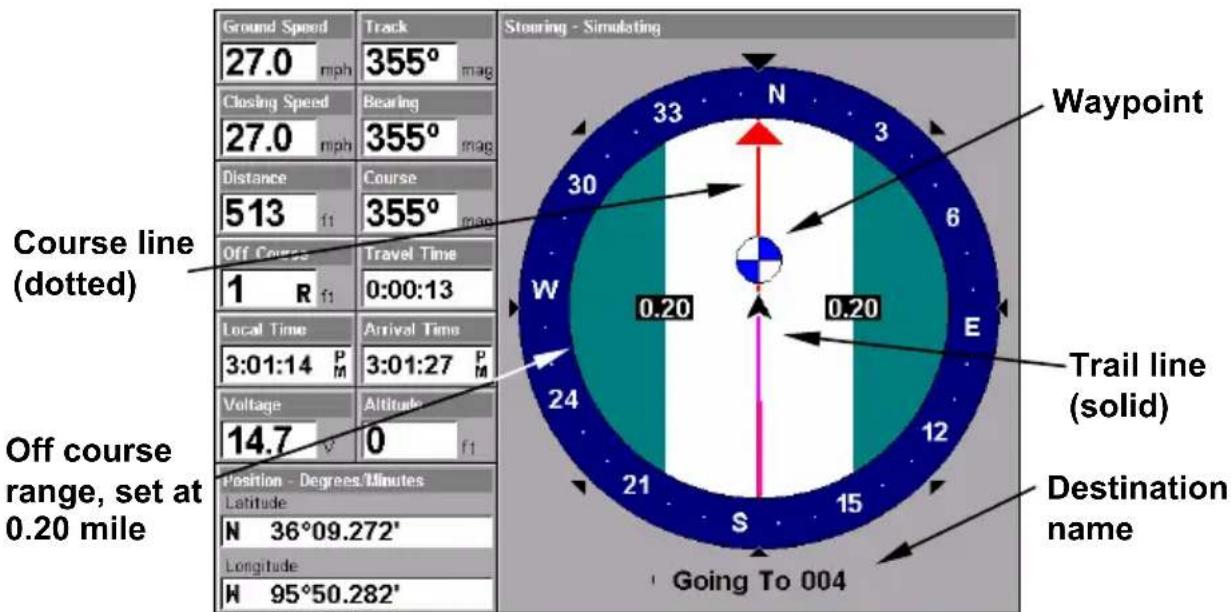

Navigate To a Waypoint 47

Set Man Overboard (MOB) Waypoint.... 48

Navigate Back to MOB Waypoint.... 48

Navigate to Cursor Position on Map.... 49

Navigate to a Point of Interest 50

Creating and Saving a Trail....51

Displaying a Saved Trail 52

Navigating Trails 53

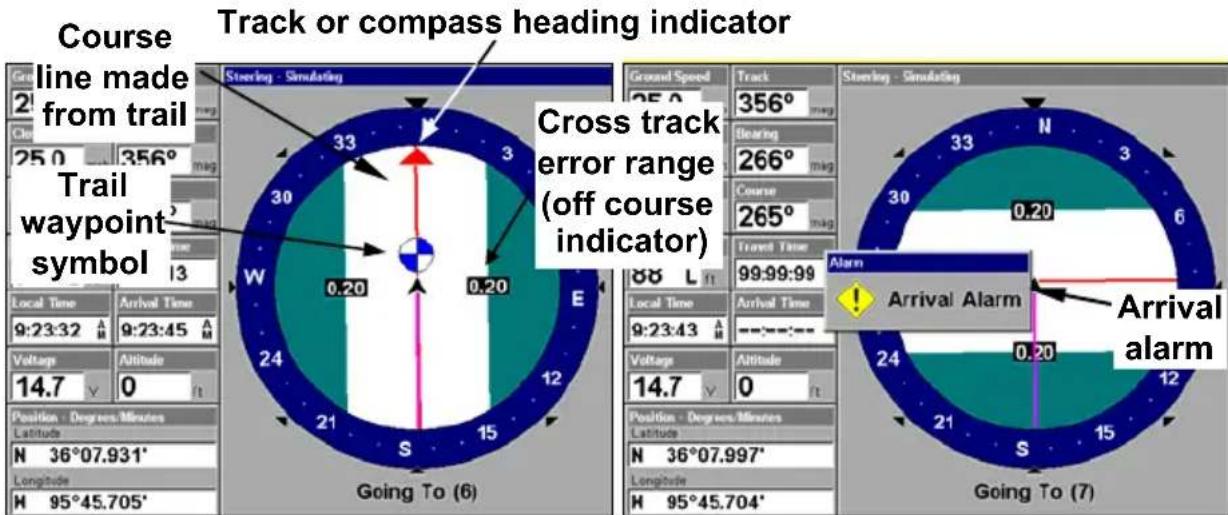

Visual Trailing.... 53

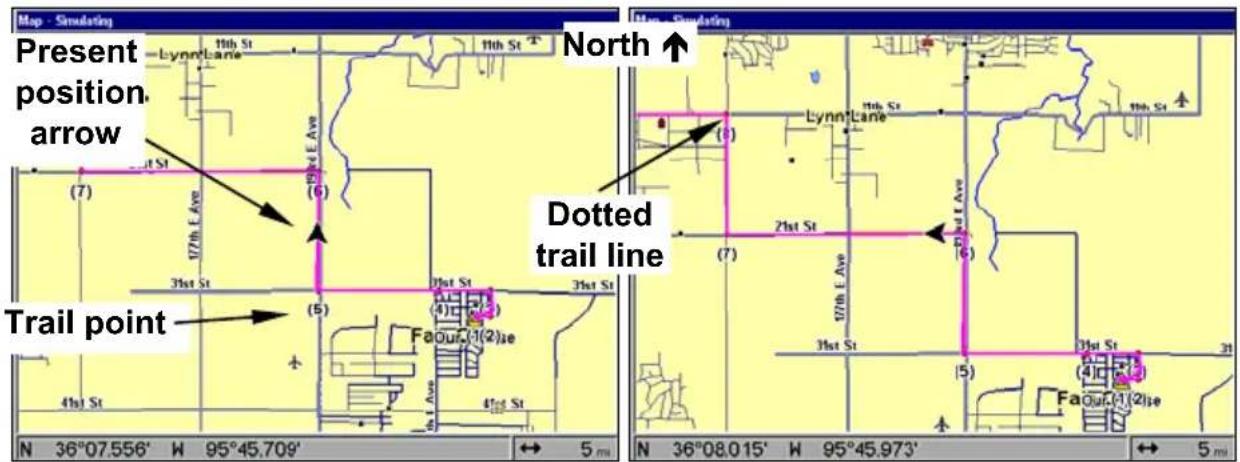

Navigate a Trail (forward).... 53

Navigate a Back Trail (backtrack, or reverse) 55

Transfer Custom Maps and GPS Data Files 56

Save GPS Data to Hard Drive.... 58

Cancel Navigation.... 59

Section 4: Advanced GPS Operations....61

Find Distance to Another Location.... 61

Find Distance From Point to Point 61

Icons 61

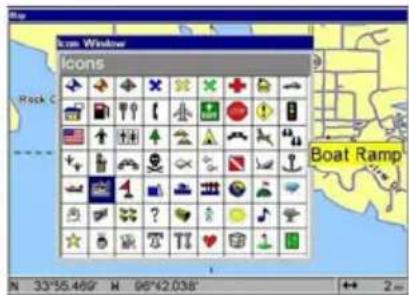

Create Icon on Map 62

Create Icon at Current Position 62

Delete an Icon 62

Navigate to an Icon 63

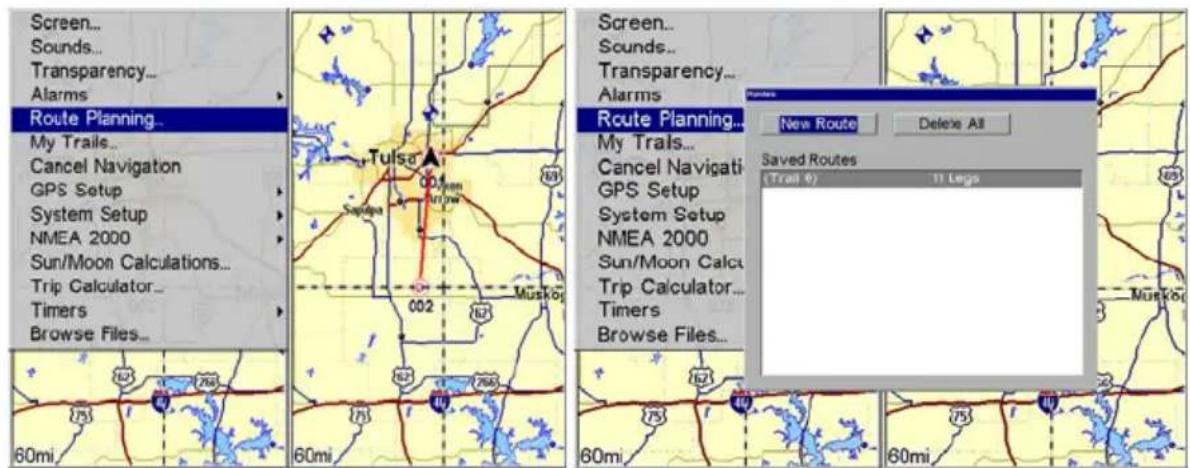

Routes 63

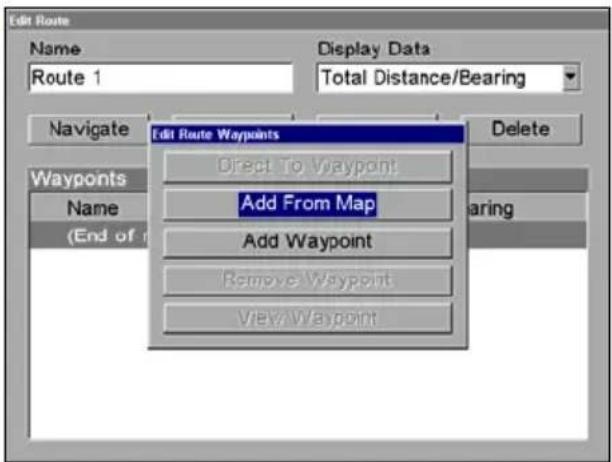

Create and Save a Route 63

Delete a Route 65

Edit a Route....66

Navigate a Route....67

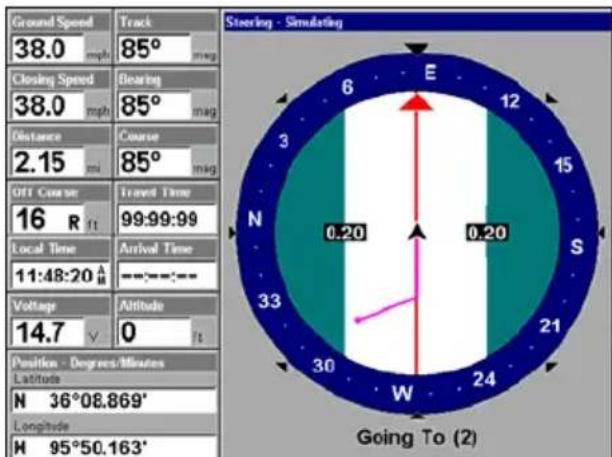

Navigate a Route in Reverse 67

Trails 68

Delete a Trail.... 68

Edit a Trail Name 69

Edit a Trail Color 69

Edit a Trail Pattern.... 69

Utilities 70

Alarm Clock 70

Sun/Moon Rise & Set Calculator.... 70

Trip Calculator 70

Trip Down Timer 70

Trip Up Timer.... 70

Waypoints 70

Delete a Waypoint.... 70

Edit a Waypoint.... 71

Selecting a Waypoint 71

Set a Waypoint by Average Position.... 71

Set a Waypoint by Projecting a Position.... 72

Set a Waypoint by Entering a Position.... 72

Section 5: System & GPS Setup Options....73

Alarms....73

Auto Satellite Search 74

Check MMC Files and Storage Space.... 75

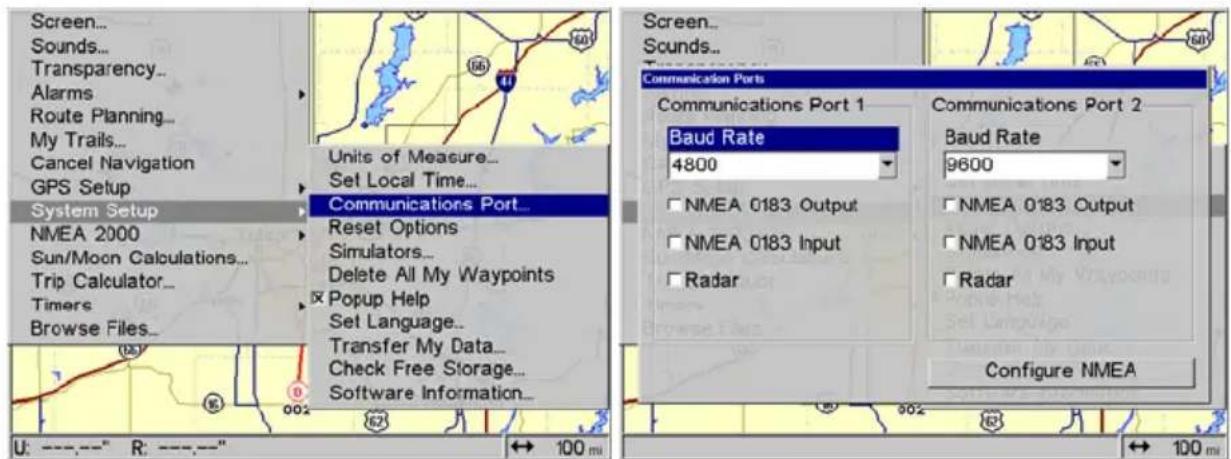

Communications Port Configuration 75

Configure NMEA....76

Coordinate System Selection.... 76

Map Fix 78

Customize Page Displays.... 79

GPS Simulator....80

Simulating Trail or Route Navigation 81

Initialize GPS 82

Map Auto Zoom 82

Map Data 82

Earth Map Detail 83

Pop-up Map Info 83

Map Boundaries 83

Fill Water with White 83

Trackline Extension 83

Presentation Mode 84

Safety Contour....84

Map Overlays (Range Rings; Lat/Long Grid) 84

Map Datum Selection.... 85

Map Detail Category Selection.... 85

Map Orientation.... 86

NauticPath™ USA Marine Charts.... 87

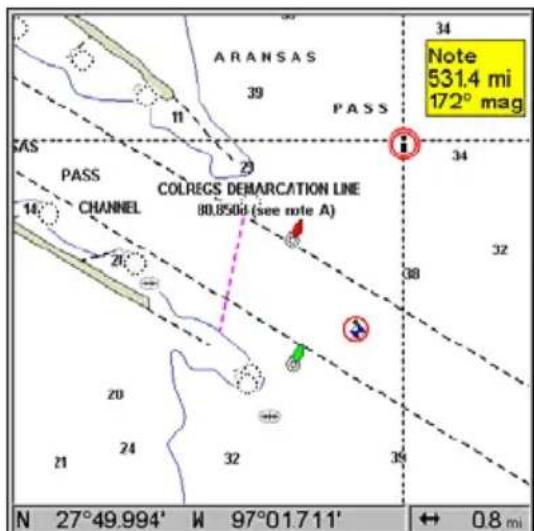

Nautical Chart Notes 87

Port Information.... 88

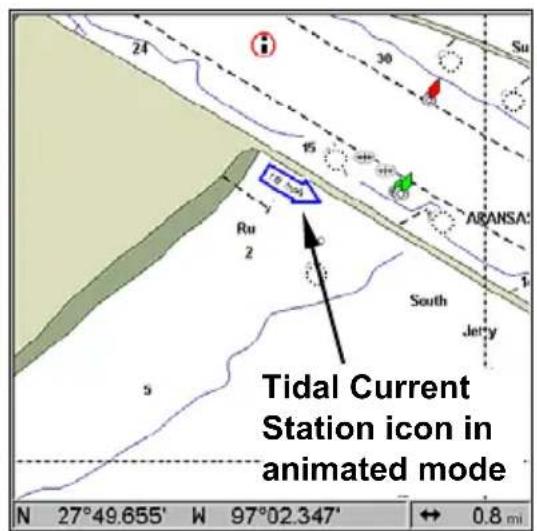

Tidal Current Information.... 89

Tide Information 91

Navionics ^® Charts 92

To display a Navionics chart: 93

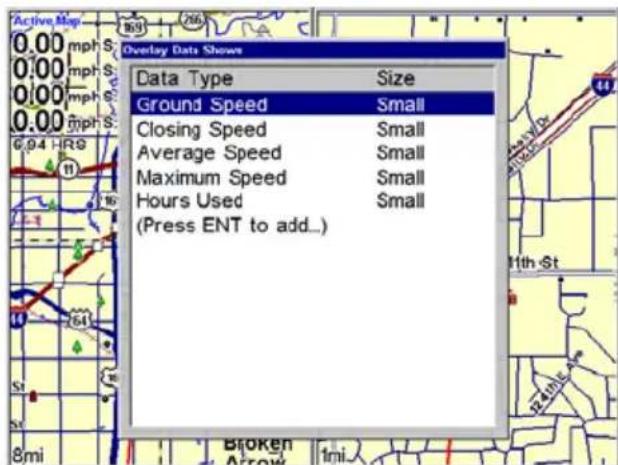

Overlay Data 93

Pop-up Help 99

Reset Options.... 100

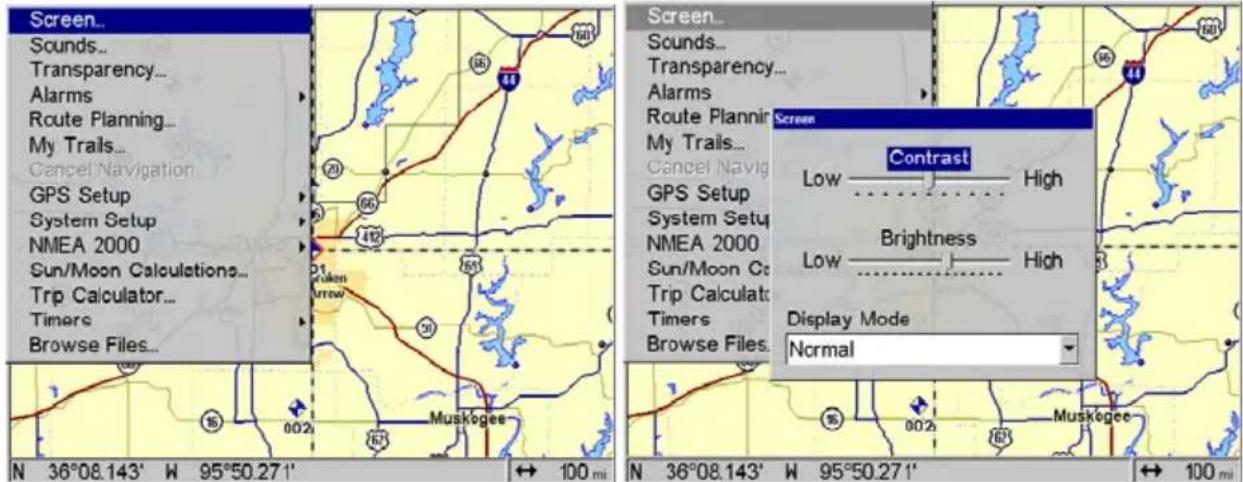

Screen Contrast and Brightness 100

Set Language.... 101

Set Local Time.... 101

Show WAAS Alarm 102

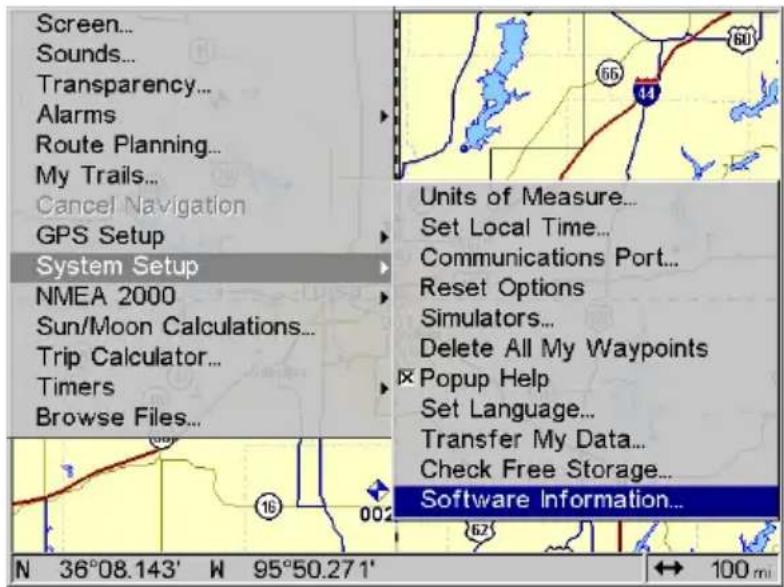

Software Version Information 103

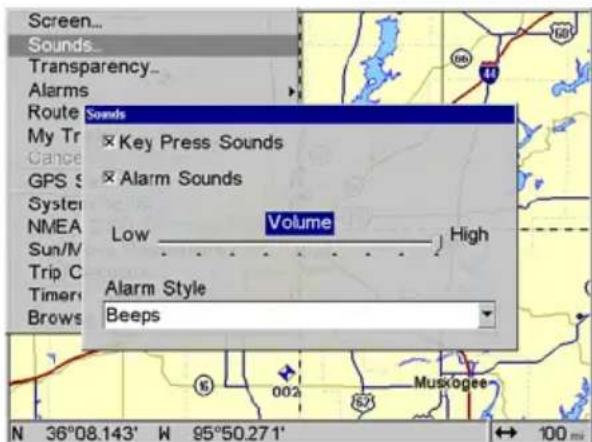

Sounds and Alarm Sound Styles.... 103

Track Smoothing 104

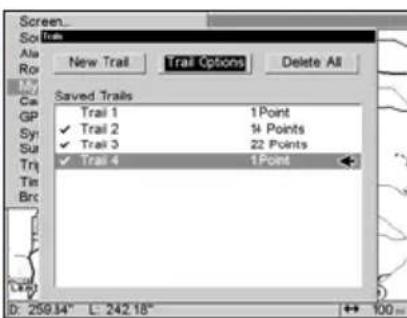

Trail Options.... 105

Delete All Trails 105

Update Trail Options 105

Delete Trail....106

New Trail 107

Trail Visible/Invisible and Other Trail Options.... 107

Transparency (available in some models) 107

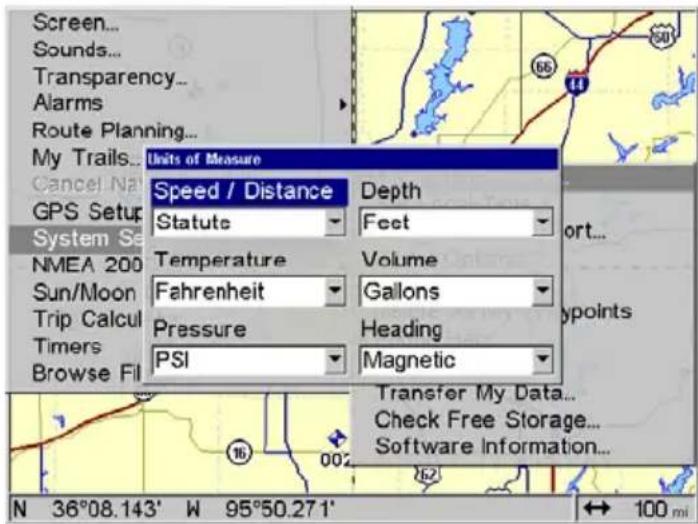

Units of Measure.... 108

Section 6: Searching....109

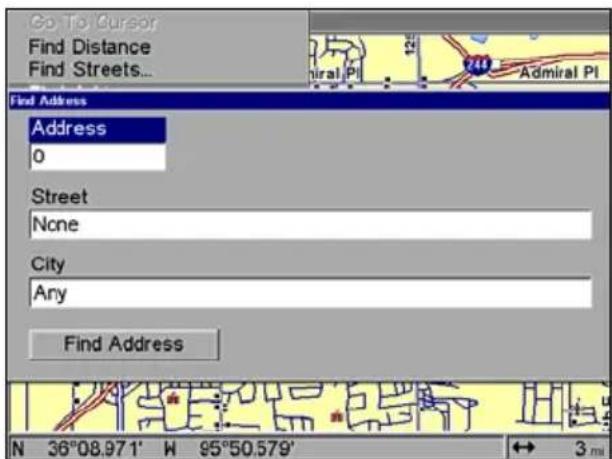

Find Addresses 110

Find Any Item Selected by Map Cursor 112

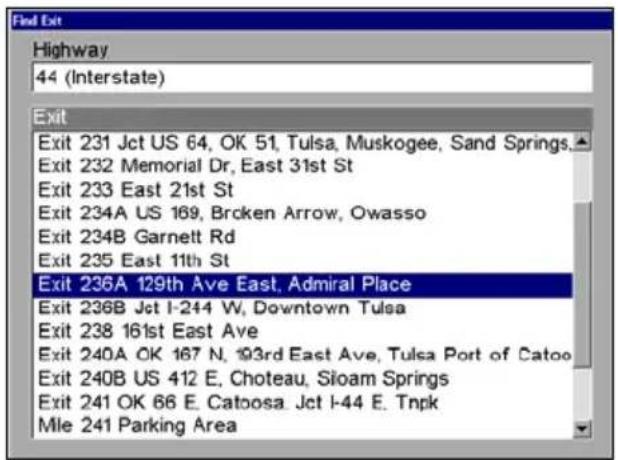

Find Interstate Highway Exits 113

Find Map Places or Points of Interest (POI) 115

Find Streets or Intersections.... 116

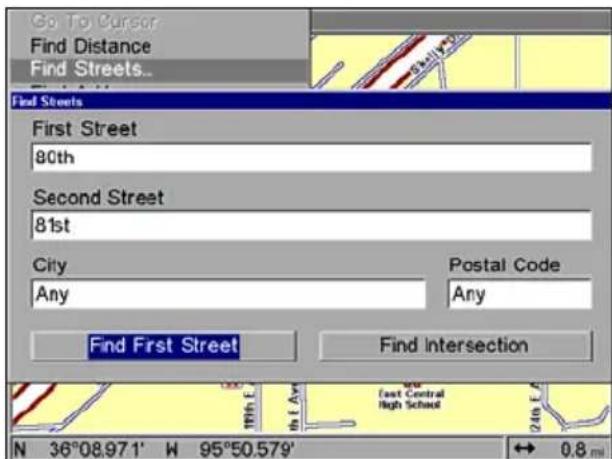

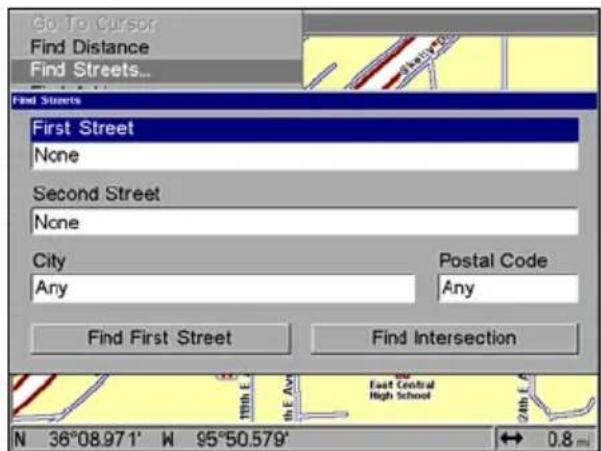

Find a Street.... 116

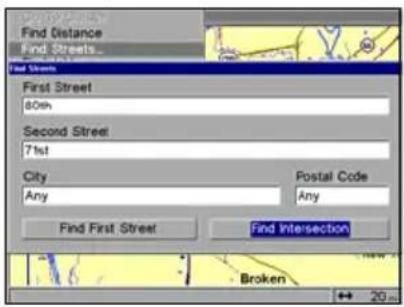

Find an Intersection.... 118

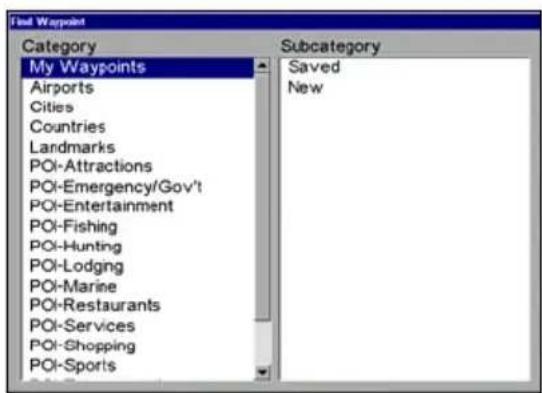

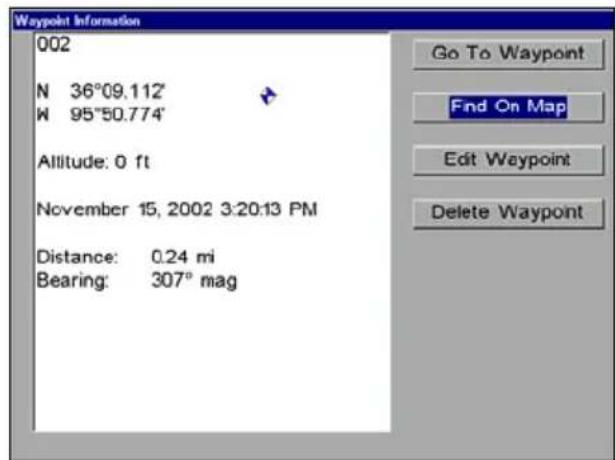

Find Waypoints 120

Section 7: NMEA 2000 Device Configuration......123

NMEA 2000 Menu....123

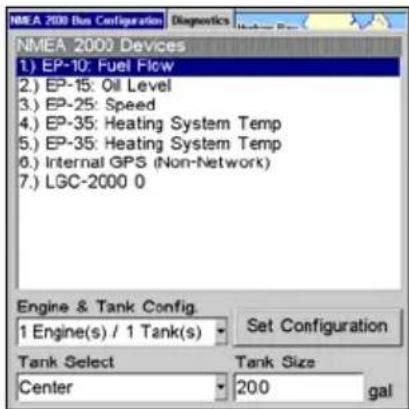

Bus Setup.... 123

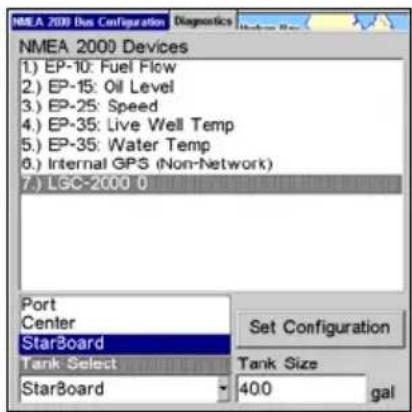

Engine & Tank Configuration.... 124

Device Configuration Menu.... 126

Device Information and Device Data.... 126

Fuel Management Menu.... 127

Adding Fuel to Tank 128

Engine Operations.... 128

NMEA 2000 Alarms....129

Waypoint Sharing 130

Backlight Synchronization 130

Configuring EP Sensors.... 130

EP-35 Temperature Configuration 130

Advanced Options menu 131

EP-10 Fuel Flow Configuration.... 132

Advanced Options menu 133

EP-15 Fluid Level Configuration 134

Advanced Options menu 135

Suzuki Engine Interface Configuration.... 136

Advanced Options menu 137

Calibrating EP Sensors.... 138

EP-10 Fuel Flow Calibration.... 138

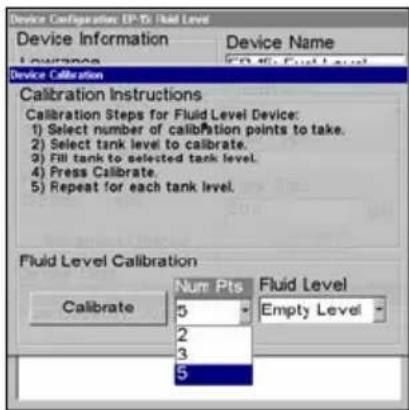

EP-15 Fluid Level Calibration 140

Fuel Flow Calibration in a Suzuki Engine Interface...... 143

Engine Trim Calibration.... 144

Reset Trim Calibration 144

Bennett Trim Tabs Calibration.... 145

Section 8: Supplemental Material ...... 147

WARNING! A CAREFUL NAVIGATOR NEVER RELIES ON ONLY ONE METHOD TO OBTAIN POSITION INFORMATION.

CAUTION

When showing navigation data to a position (waypoint), a GPS unit will show the shortest, most direct path to the waypoint. It provides navigation data to the waypoint regardless of obstructions. Therefore, the prudent navigator will not only take advantage of all available navigation tools when traveling to a waypoint, but will also visually check to make sure a clear, safe path to the waypoint is always available.

WARNING!

When a GPS unit is used in a vehicle, the vehicle operator is solely responsible for operating the vehicle in a safe manner. Vehicle operators must maintain full surveillance of all pertinent driving, boating or flying conditions at all times. An accident or collision resulting in damage to property, personal injury or death could occur if the operator of a GPS-equipped vehicle fails to pay full attention to travel conditions and vehicle operation while the vehicle is in motion.

Notes

Section 1: Read Me First!

How this manual can get you out on the road, fast!

Welcome to the exciting world of GPS satellite navigation! We know you're anxious to begin finding your way with this space-age technology, but we have a favor to ask. Before you grab the GlobalMap® and begin installing it, please give us a moment or two to explain how our manual can help you get the best performance from your high-resolution, high-performance GPS+WAAS chart recorder.

First, we want to thank you for buying a Lowrance GPS unit. Whether you're a first time user or a professional navigator, you'll discover that your GlobalMap is easy to use, yet capable of handling demanding navigation tasks. When you team your unit with our custom mapping software MapCreate™ 6, you have an incredible combination. No other consumer GPS mapping system on the market offers so much information and so many features in one package.

Our goal for this book is to get you on the road fast, with a minimum of fuss. Like you, we'd rather spend more time navigating and less time reading the manual!

So, we designed our book so that you don't have to read the whole thing from front to back for the information you want. At the start (or end) of each segment, we'll tell you what content is coming up next. If it's a concept you're already familiar with, we'll show you how and where to skip ahead for the next important topic. We've also made it easy to look up any tips you may need from time to time. Here's how:

The manual is organized into 8 sections. This first section is an introduction to Lowrance GPS. It tells you the basics you need to know before you can make the unit look around and tell you where you are.

Section 2 will help you install your unit and the GPS antenna module. We'll show you how to get the MultiMedia Card (MMC) correctly installed inside the unit. We'll also tell you about some of the available accessories.

Section 3 covers Basic GPS Operation. It will show you how easy it is to run the GlobalMap, right out of the box. This section features a one-page GPS Quick Reference. (If you've already jumped ahead and figured out how to install the unit yourself, and you just can't wait any longer, turn to the Quick Reference on page 41 and head for the road with your GPS unit!)

Section 3 contains short, easy-to-scan GPS lessons that follow one another in chronological order. They're all you'll need to know to find your way on the water or in the wilderness quickly.

After you've learned the basics (or if you already have some GPS experience), you may want to try out some of the GlobalMap's many advanced navigation features. That brings us to Section 4, Advanced GPS Operations. This section contains the rest of the unit's GPS command functions, organized in alphabetical order.

When you come to a GPS menu command on the GlobalMap's screen, you can look it up in the manual by skimming over the table of contents, just flipping through Section 3 or scanning through the command portion of Section 4.

This unit is ready to use right out of the box, but you can fine tune and customize its operation with dozens of options. We describe how to use general system options along with GPS options in Section 5, System Setup and GPS Setup Options. Section 5 is organized in alphabetical order.

In Section 6, we go into more detail on one of the GlobalMap's most remarkable capabilities — Searching. We'll introduce a search example in the Basic GPS Operation section, but there are so many map items you can search for, we had to give this function its own section in the manual! For example, did you know this unit can look up business phone numbers, functioning as a virtual Yellow Pages? We'll show you how in Section 6.

In Section 7, we explain how to use the NMEA 2000 network that allows you to configure, calibrate and monitor devices on a NMEA 2000 network.

Finally, in Section 8, we offer Supplemental Material, including a list of the GPS datums used, warranties and customer service information.

NOTICE!

The storage and operation temperature range for your unit is from -20 degrees to +167 degrees Fahrenheit (-28 degrees to +75 degrees Celsius). Extended storage or operation in temperatures higher or lower than specified will damage the liquid crystal display in your unit. This type of damage is not covered by the warranty. For more information, contact the factory's Customer Service Department; phone numbers are listed on the last page of the manual.

How Lowrance GPS Works

You'll navigate faster and easier if you understand how the GlobalMap scans the sky to tell you where you are on the earth — and, where you're going (But if you already have a working understanding of GPS receivers and the GPS navigation system, skip on ahead to Section 2, Installation & Accessories on page 9. If you're new to GPS, read on, and you can later impress your friends with your new-found knowledge.).

First, think of your unit as a small but powerful computer (But don't worry — we made it easy to use, so you don't need to be a computer expert to find your way!). The GlobalMap includes a keypad and a screen with menus so you can tell it what to do. The screen also lets the unit show your location on a moving map, as well as point the way to your destination.

This gimbal-mounted GlobalMap uses an external antenna/receiver module, which makes the whole system work something like your car radio. But instead of your favorite dance tunes, this receiver tunes in to a couple of dozen GPS satellites circling the earth (It will also listen in to the WAAS satellites in orbit, but more about that in the upcoming segment introducing you to GPS and WAAS.).

Your unit listens to signals from as many satellites as it can "see" above the horizon, eliminates the weakest signals, then computes its location in relation to those satellites. Once the GlobalMap figures its latitude and longitude, it plots that position on the moving map shown on the screen. The whole process takes place several times a second!

The performance doesn't stop there. Stored in the permanent memory of each unit is a basic background map of the entire world. We lock it in here at the factory — you can't change or erase this map.

The background map is suitable for many navigation chores, but for maximum accuracy and much more detail, you need our optional map-making software, MapCreate™ 6 (This complete set of mapping data is already installed on the GlobalMap 7300 and GlobalMap 9300.). Some unit features — such as searching for businesses and addresses — won't work without a custom MapCreate map. There is so much detail in our background map (and even more in MapCreate) that we'll describe their contents and differences in Section 3, Basic GPS Operations, on page 29.

Another portion of the GlobalMap's onboard memory is devoted to recording GPS navigation information, which includes waypoints, event marker icons, trails and routes. This lets you look back the way you came.

Think of this data storage like the hard drive memory in a computer or a tape in a cassette tape recorder. You can save several different GPS data files, erase 'em and record new ones, over and over again. Like any computer file, these GPS Data Files (file format *.usr) can be shared between Lowrance GPS or sonar/GPS units or even personal computers.

This GlobalMap has one more thing in common with a personal computer. Just as computers have a floppy disk drive for storing and exchanging files, the unit has a slot for an MMC (MultiMedia Card) or SD (Secure Digital) card flash memory card. These solid-state memory devices are about the size of a postage stamp, but can hold data ranging from 8 MB to 1 GB in size (Compare that to a floppy disk's 1.44 MB capacity!). This unit uses all that MMC space for two key GPS purposes.

First, you can backup your onboard GPS Data Files by copying them to the MMC. Since the MMC is removable (like a floppy disk or a cassette tape), you can store these GPS Data Files on a personal computer equipped with an MMC card reader (Or store them on a pocketful of MMCs, if you don't have a computer.). Our MapCreate mapping software can save, edit or create its own GPS Data Files, which can be copied to the MMC and then loaded from the MMC into the unit's memory (NOTE: No matter where they come from, GPS Data Files must be loaded from the MMC into memory before the GlobalMap can use them.).

The other key GPS use for MMCs is storage of special high-detail, custom maps, which you can produce on your computer with our MapCreate software. These MapCreate custom maps contain more detail than the basic background map. These Custom Map Files (file format *.lcm) can also be shared between Lowrance GPS or sonar/GPS units and personal computers.

This unit automatically reads Custom Map Files directly from the MMC or SD card. To use a custom map, all you need to do is slide an MMC containing a map into the GlobalMap 7200, GlobalMap 8200 or GlobalMap 9200.

The GlobalMap 7300, GlobalMap 8300 and GlobalMap 9300 don't read their mapping data from memory cards. In those units, the full-detail, ready-to-use maps are already loaded on the unit's hard drives. All you need to do is use the menus to select what type of mapping data to display. The GlobalMap 7300 and 9300 hard drives contain all the data from: MapCreate Topo, our NauticPaths™ coastal charts and Fishing Hot Spots Elite® lake fishing maps.

Introduction to GPS and WAAS

Well, now you know the basics of how the unit does its work. You might be ready to jump ahead to Section 2, Installation & Accessories, on page

9, so you can mount your GlobalMap and plug in the power. Or you might want to see how our text formatting makes the manual tutorials easy to skim. If that's the case, move on to "How to Use This Manual" on page 7. But, if you want to understand the current state of satellite navigation, look over this segment describing how GPS and its new companion WAAS work together to get you where you're going.

The Global Positioning System (GPS) was launched July 17, 1995 by the United States Department of Defense. It was designed as a 24-hour-a-day, 365-days-a-year, all weather global navigation system for the armed forces of the U.S. and its allies. Civilian use was also available at first, but it was less accurate because the military scrambled the signal somewhat, using a process called Selective Availability (SA).

GPS proved so useful for civilian navigation the federal government discontinued SA on May 2, 2000, after the military developed other methods to deny GPS service to enemy forces. Reliable accuracy for civilian users jumped from 100 meters (330 feet) under SA to the present level of 10 to 20 meters (about 30 to 60 feet).

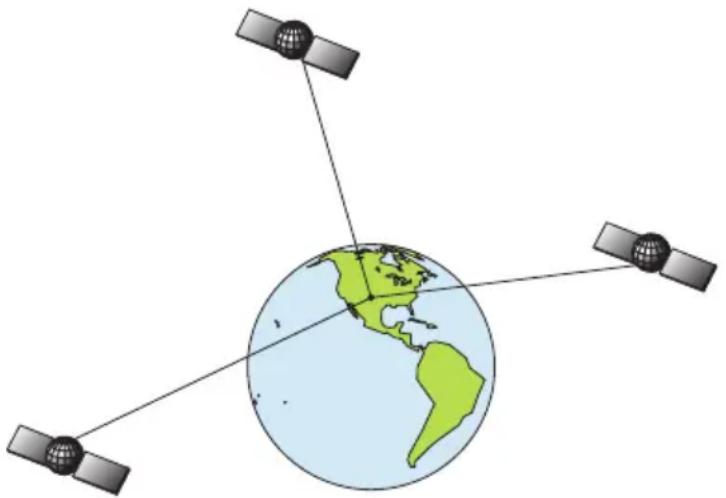

Diagram showing three satellites orbiting Earth with connecting lines, no text or symbols present

A minimum of three satellites are required to determine a 2D fix.

Twenty-four satellites orbit 10,900 nautical miles above the Earth, passing overhead twice daily. A series of ground stations (with precisely surveyed locations) controls the satellites and monitors their exact locations in the sky. Each satellite broadcasts a low-power signal that identifies the satellite and its position above the earth. Three of these satellites are spares, unused until needed. The rest virtually guarantee that at least four satellites are in view nearly anywhere on Earth at all times.

The system requires signal reception from three satellites in order to determine a position. This is called a 2D fix. It takes four satellites to determine both position and elevation (your height above sea level — also called altitude). This is called a 3D fix.

Remember, the unit must have a clear view of the satellites in order to receive their signals. Unlike radio or television signals, GPS works at very high frequencies. These signals can be easily blocked by trees, buildings, an automobile roof, even your body.

Like most GPS receivers, this unit doesn't have a compass or any other navigation aid built inside. It relies solely on the signals from the satellites to calculate a position. Speed, direction of travel, and distance are all calculated from position information. Therefore, in order for the GlobalMap to determine direction of travel, you must be moving and the faster, the better. This is not to say that it won't work at walking or trolling speeds — it will. There will simply be more "wandering" of the data shown on the display.

GPS is plenty accurate for route navigation, but the U.S. Federal Aviation Administration has special needs for aircraft traffic control that go beyond basic GPS. The FAA has a program to boost GPS performance even further with its Wide Area Augmentation System, or WAAS. This GPS add-on will include a time control element that will help airliners fly closer together while avoiding collisions. In addition to carefully spacing airplanes along travel corridors, WAAS will eventually make instrument landings and takeoffs more accurate as it replaces existing aviation navigation systems.

Non-aviators can use WAAS signals to make their GPS navigation even more accurate. Your unit receives both GPS and WAAS signals. However, WAAS has some limits you should know about.

WAAS can boost the accuracy of land GPS navigation, but the system is designed for aircraft. The satellites are in a fixed orbit around the Equator, so they appear very low in the sky to someone on the ground in North America. Aircraft and vessels on open water can get consistently good WAAS reception, but terrain, foliage or even large man-made structures frequently block the WAAS signal from ground receivers.

You'll find that using your GPS receiver is both easy and amazingly accurate. It's easily the most accurate method of electronic navigation available to the general public today. Remember, however, that this receiver is only a tool. Always have another method of navigation available, such as a map or chart and a compass.

Also remember that this unit will always show navigation information in the shortest line from your present position to a waypoint, regardless of terrain! It only calculates position, it can't know what's between you and your destination, for example. It's up to you to safely navigate around obstacles, no matter how you're using this product.

How to use this manual: typographical conventions

Many instructions are listed as numbered steps. The keypad and arrow "keystrokes" appear as boldface type. So, if you're in a real hurry (or just need a reminder), you can skim the instructions and pick out what menu command to use by finding the boldface command text. The following paragraphs explain how to interpret the text formatting for those commands and other instructions:

Arrow Keys

The arrow keys control the movement of dotted cross-hair lines on your mapping screen called the cursor. The arrow keys help you move around the menus so you can execute different commands. They are represented by symbols like these, which denote the down arrow key, the up arrow, the left arrow and the right arrow: ↓↑←→.

Keyboard

The other keys perform a variety of functions. When the text refers to a key to press, the key is shown in bold, sans serif type. For example, the "Enter/Icons" key is shown as ENT and the "Menu" key is shown as MENU.

Menu Commands

A menu command or a menu option will appear in small capital letters, in a bold sans serif type like this: ROUTE PLANNING. These indicate that you are to select this command or option from a menu or take an action of some kind with the menu item. Text that you may need to enter or file names you need to select are show in italic type, such as trail name.

Instructions = Menu Sequences

Most functions you perform with this unit are described as a sequence of key strokes and selecting menu commands. We've written them in a condensed manner for quick and easy reading.

For example, instructions for navigating a trail would look like this:

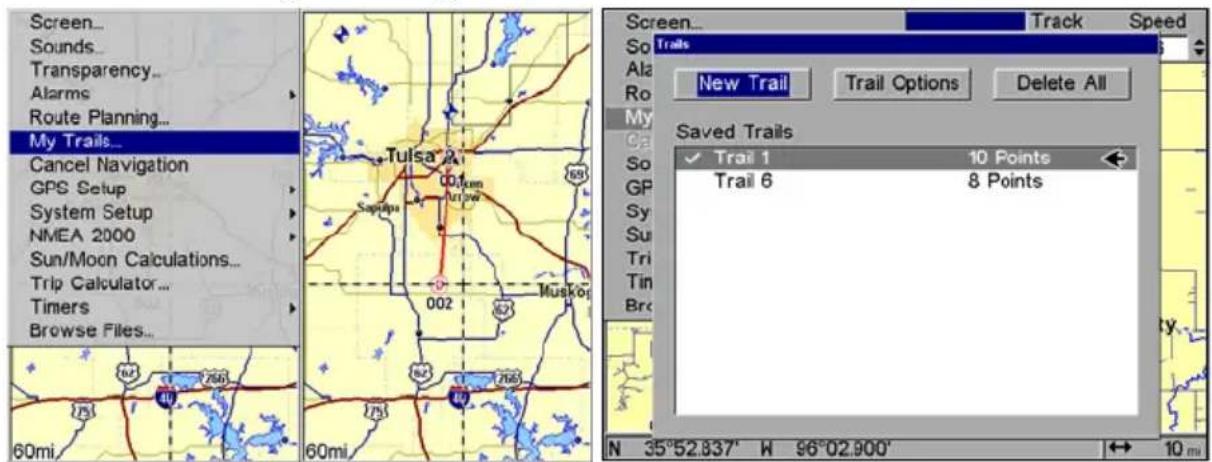

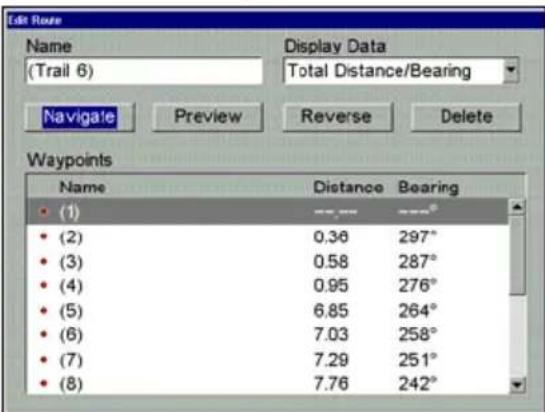

1. From the Map Page, press MENU | MENU | ↓ to MY TRAILS | ENT.
2. Press ↓ to Trail 1 | ENT | → | ↓ to NAVIGATE | ENT.
3. You are asked to wait while it converts the trail into a route.
4. The wait message disappears and the GlobalMap begins showing navigation information along the trail. Now, begin moving and follow your GlobalMap.

Translated into complete English, step 1 above would mean: "Start on the Map Page. Press the Menu key twice. Next, repeatedly press (or

press and hold) the down arrow key to scroll down the menu and select (highlight) the My Trails menu command. Finally, press the Enter key."

Step 2 would mean: "Press the down arrow key repeatedly to scroll to the trail named Trail 1, and press Enter. Next, press the right arrow key and then the down arrow key to highlight the Navigate command, then press Enter."

NOTE:

There are slight differences in menu structure among the Global-Map models covered in this manual. The differences are minimal, but some of the screenshots in this manual may not perfectly match some of your unit's menus.

Section 2: Installation & Accessories

Preparations

You can install the GPS system in some other order if you prefer, but we recommend this installation sequence:

Caution:

You should read over this entire installation section before drilling any holes in your vehicle or vessel!

1. Determine the approximate location for the GPS unit, so you can plan how and where to route the cables for the antenna and power. This will help you make sure you have enough cable length for the desired configuration.
2. Determine the approximate location for the GPS antenna module and its cable route.
3. Determine the location of your battery or other power connection, along with the power cable route.
4. Install the GPS antenna and route the antenna cable to the GPS unit.
5. Install the power cable and route it to the GPS unit.
6. Mount the GPS unit.

GPS Antenna/Receiver Module

The unit packages covered in this manual include the LGC-3000 GPS module. This device contains the unit's external antenna and receiver for GPS and WAAS signals. The antenna/receiver module comes with a 15-foot extension cable. This module can be mounted on a flat surface or optional pole, or an optional magnet is available for temporary mounting on any ferrous surface.

Two electronic components: a circular sensor with a black cable and a white dome, both without any visible text or symbols.

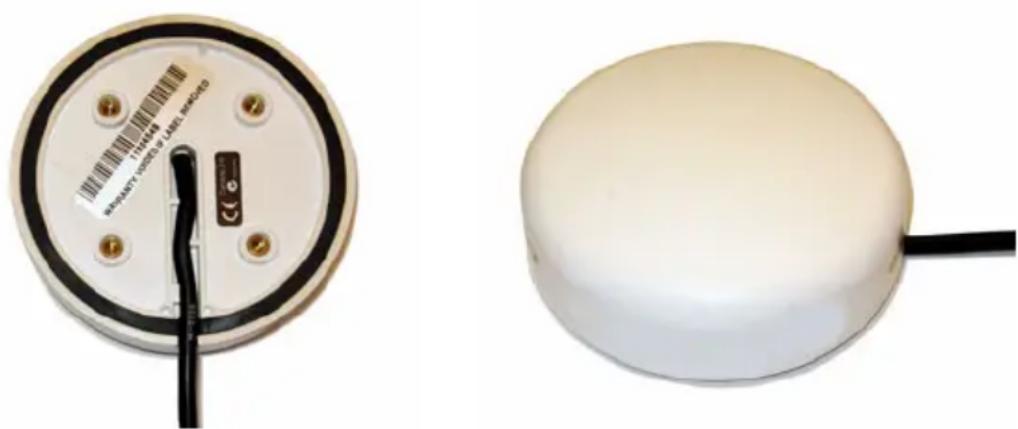

LGC-3000 Module, bottom view (left) and top view (right).

You need to select an antenna installation location that has a clear, unobstructed view of the sky. After the module is installed, connect it to the unit. The LGC-3000 can communicate with your GPS unit either directly (using the supplied extension cable) or through a NMEA 2000 ^® network.

NOTE:

See the module's instruction sheet, publication part number 988-0154-651, for complete installation instructions.

In an automobile, you may achieve good results by simply placing the external antenna on the top of the dash, at the base of the windshield. A piece of the rubber non-skid shelf liner material available in recreational vehicle supply stores will help hold the antenna in place. This may not work well if you have a cab-over design pickup truck camper or motor home. If dashboard reception is poor, simply relocate the antenna module elsewhere on the vehicle for a clearer view of the sky.

Power Connections

Your unit comes with a power/data cable that splits into three branches, each with several exposed wires.

The thicker two-wire cable (red and black) is the power supply for your display unit. This cable has no label.

The branch with three wires (red, black and shield) is the power cable for a NMEA 2000 network. It is labeled "NMEA 2000 POWER."

The branch with 5 wires (blue, yellow, orange, green and shield) is a data cable, labeled "RS-232 COMM." It supports two serial communication ports. These allow your unit to exchange NMEA 0183 data with another device, such as an autopilot, DSC marine radio or computer.

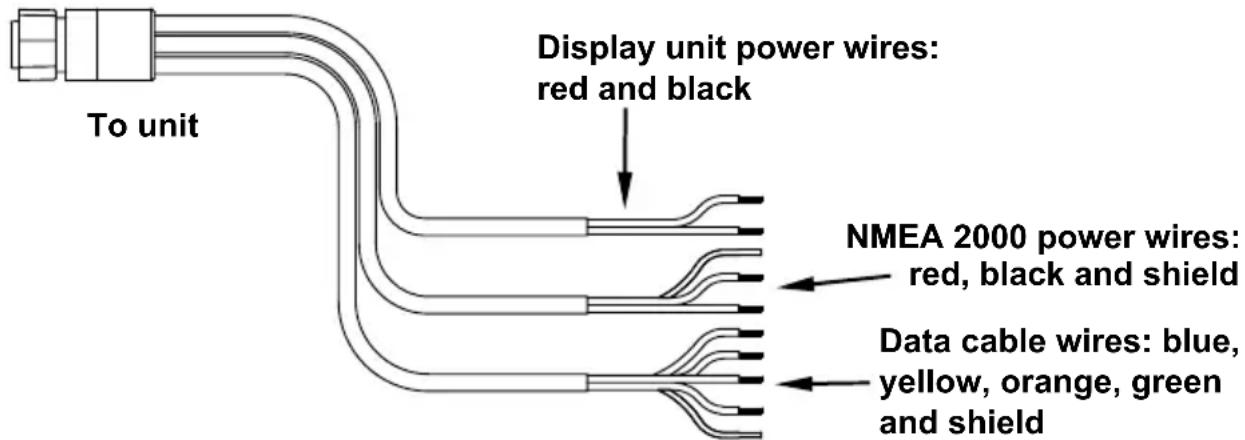

To unit Display unit power wires: red and black NMEA 2000 power wires: red, black and shield Data cable wires: blue, yellow, orange, green and shield

The Power/Data cable for this unit.

NOTE:

There are two basic power connection options, which are shown in the following two diagrams. Read the following instructions carefully to determine which power connection applies to your unit. Depending on your configuration, you may not use all of these wires.

Caution:

All of the wires in the power/data cable have bare ends for easier installation. The bare ends on any unused wires could cause an electrical short if left exposed. To prevent this, you should cover the individual wire ends – either by capping them with wire nuts, wrapping them with electrical tape or both. (You should cut off the bare wire before taping off the ends.)

Powering Your Display Unit

The display unit works from a 12-volt DC battery system. Attach the display power cable (with provided 3-amp fuse) to an accessory switch or power bus. If this results in electrical interference, connect direct to a battery but install an in-line switch on the cable.

Caution:

We strongly recommend that you shut off the power supply to the power cable when the unit is not in use, especially in saltwater environments. When the unit is turned off but still connected to a power supply, electrolysis can occur in the power cable plug. This may result in corrosion of the plug body along with the electrical contacts in the cable and the unit's power socket. Risk of electrolysis corrosion is even greater when the cable is unplugged from the unit, but still connected to a power source.

We recommend you connect the power cable to the auxiliary power switch included in most boat designs. If that results in electrical interference, or if such a switch is not available, we recommend connecting direct to the battery and installing an in-line switch. This will let you shut off power to the power cable when the unit is not in use. When you are not using the unit, you should always shut off power to the power cable, especially when the power cable is disconnected from the unit.

WARNING:

This product must be independently fused with the enclosed 3-amp fuse (or equivalent), even if you connect to a fused accessory or power bus.

If a malfunction happens inside the unit, extensive damage can occur if the enclosed fuse is not used. As with all electrical devices,

this unit could be damaged to a point that it is irreparable and could even cause harm to the user when not properly fused.

Failure to use a 3-amp fuse will void your warranty.

If possible, keep the power cable away from other boat wiring, especially the engine's wires. This will provide the best isolation from electrical noise. If the cable is not long enough, splice #18 gauge wire onto it.

The display power cable has two wires, red and black. Red is the positive (+) lead, black is negative (−) or ground. Make sure to attach the in-line fuse holder to the red lead as close to the power source as possible.

For example, if you have to extend the power cable to the power bus or battery, attach one end of the fuse holder directly to the power bus or battery. This will protect both the unit and the power cable in the event of a short.

This unit has reverse polarity protection. No damage will occur if the power wires are reversed. However, the unit will not work until the wires are attached correctly.

Use this method if you are powering the display unit and a GPS module or the display unit and a NMEA 2000 network.

The network and any NMEA 2000 devices, including the GPS module, will not operate unless the NMEA 2000 Power Cable is connected to power. The NMEA 2000 power cable must be connected to power even if your only NMEA 2000 device is the GPS module and it is connected to the display unit's Network socket. (However, never connect multiple power sources to a NMEA 2000 network. If you have a network that is already powered, see diagram B.)

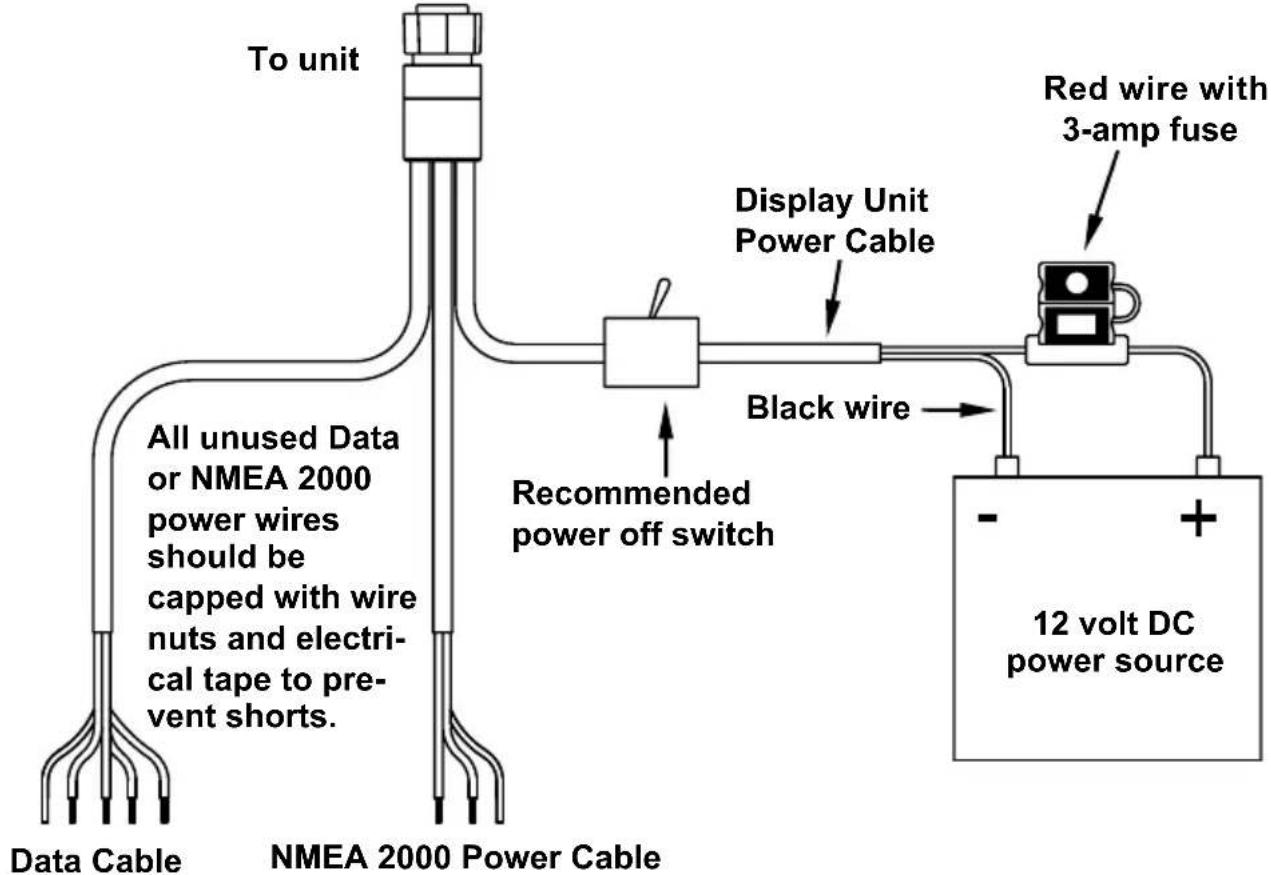

Power Diagram B

To unit All unused Data or NMEA 2000 power wires should be capped with wire nuts and electrii- cal tape to pre- vent shorts. Data Cable NMEA 2000 Power Cable Display Unit Power Cable Black wire Recommended power off switch Red wire with 3-amp fuse - + 12 volt DC power source

Use this method if you are only powering your display unit and are not powering a NMEA 2000 network or any NMEA 2000 accessory device, including a GPS module.

The method in diagram B is also used when your display unit is connected to a NMEA 2000 network that is already connected to power (Never connect multiple power sources to a NMEA 2000 network.)

Powering a NMEA 2000 Network Bus

A NMEA 2000 bus must be connected to a power source to operate. NMEA 2000 devices, including GPS modules, draw their power from the network bus.

If you have a pre-existing NMEA 2000 network installation, it may already be connected to another power source. If you are not sure about a network's power status, consult the boat manufacturer or dealer. If your NMEA 2000 bus is already powered, you do not need to connect the NMEA 2000 Power cable and

use the method shown in Power Diagram B above. Never attach two power sources to a single NMEA 2000 bus.

If you do need to power your NMEA 2000 bus, attach the NMEA 2000 Power cable to an accessory switch as indicated in power diagram A. The NMEA 2000 Power cable's red wire should be attached (with provided 3-amp fuse) to the positive (+) terminal. The NMEA 2000 Power cable's black and shield wires should both be attached to the negative (−) terminal.

WARNING:

The NMEA 2000 network bus is always on and constantly drawing power. You must connect NMEA power to a switched power source so you can turn off the network when not in use. Failure to connect to and use a power switch will drain your boat battery, which could stop your boat's operation.

NMEA 2000 Cable Connections

NMEA 2000 is a new bus network specifically designed for boats. This is a young industry standard and, at the time of printing, some boats being built now have a NMEA 2000 bus installed. Over the next few years, however, NMEA 2000 will become much more common. To help you get the most out of this technology, your Lowrance unit is designed to work with a NMEA 2000 network.

Connecting to a NMEA 2000 Network

A network bus is an installed and operational network cable (backbone) running the length of your boat, already connected to a power supply and properly terminated. Such a bus provides network connection nodes at various locations around your boat.

The NMEA 2000 network is similar to the telephone wiring in a house. If you pick up a phone in your living room, you can hear someone talking into the phone in the bedroom.

Lowrance and LEI provide all the cables you will need to create a NMEA 2000 network. Lowrance provides T connectors and extension cables so you can add devices along the backbone wherever you want. Once you have a working network, every sensor added will come with its own T connector for easy expansion.

The simplest NMEA 2000 network is a GPS or sonar/GPS display unit with the LGC-3000, one double-T connector, two 120 ohm terminators and any extension cables needed to connect them.

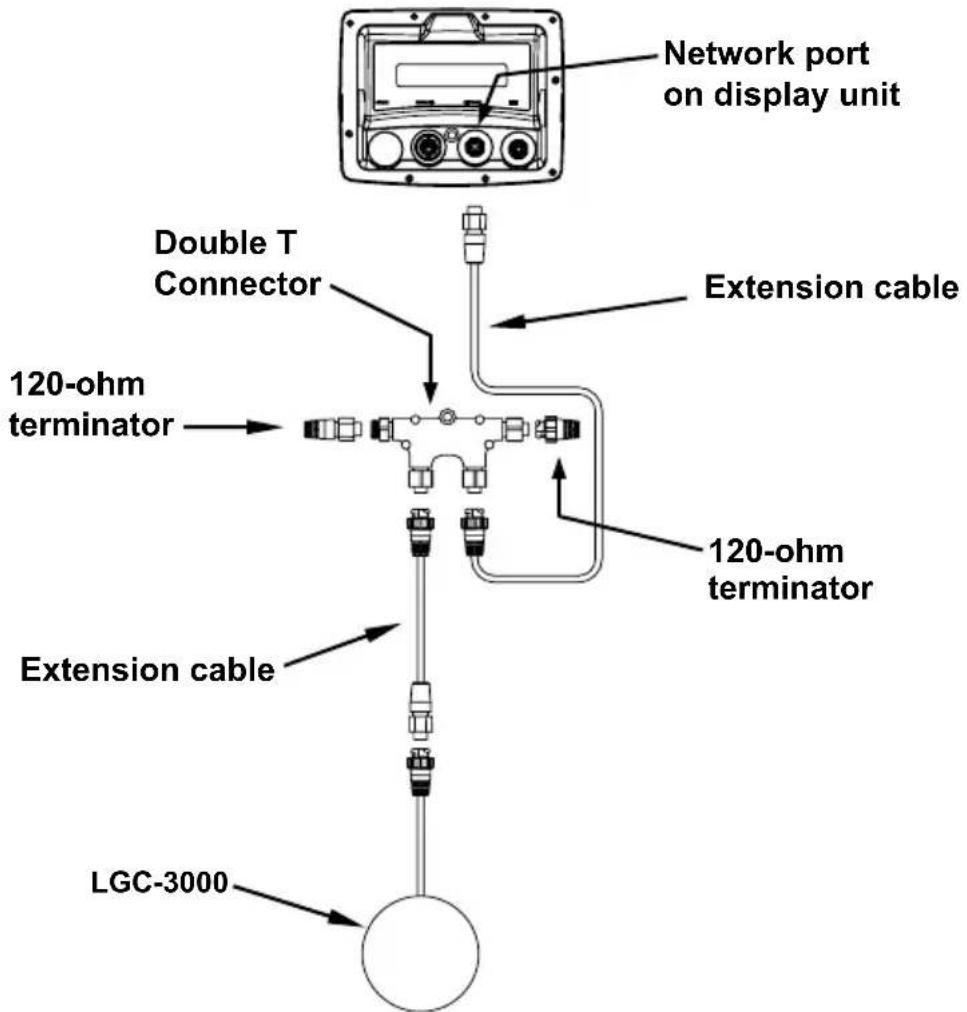

Network port on display unit Double T Connector Extension cable 120-ohm terminator Extension cable 120-ohm terminator LGC-3000

LGC-3000 and display unit as an expandable NMEA 2000 network.

The diagram above has a double T connector with two 120-ohm terminators — one at each end of the connector. It is easy to expand this network by removing a terminator from one end of the double T connector, then inserting a new T connector or extension cable between the double T connector and terminator (See the NMEA 200 network general information document that came with your unit for more information).

NMEA 0183 Wiring (Data cable)

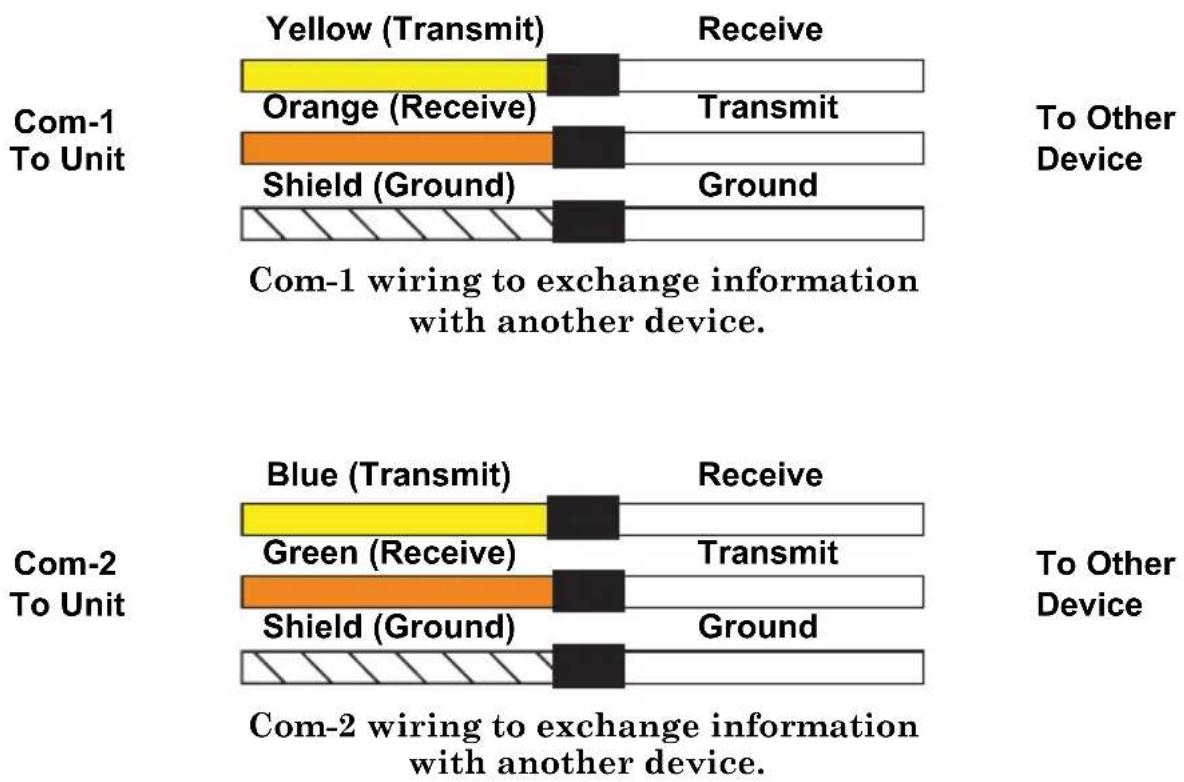

To exchange NMEA 0183 data, this unit has two NMEA 0183 version 2.0 communication ports. Serial Communications Port one (Com1) and Serial Communications Port two (Com2) can be used to transmit or receive NMEA format GPS data.

The five wires for the Serial Communications Ports are combined with the Display Unit Power cable and NMEA 2000 Power cable to form the power/data cable (shown earlier). Com1 uses the yellow wire to transmit, the orange wire to receive and the shield wire for signal ground. Com2 uses the blue wire to transmit, the green wire to receive and the shield wire for signal ground.

Ethernet (for later expansion) Power/Data Network NMEA 0183 Data cable (five wires) Double T-connector 120-ohm female terminator Display unit power cable NMEA 2000 Power cable 120-ohm male terminator Extension cables LGC 3000 GPS Module

Cable connections, GlobalMap 7200 and GlobalMap 7300.

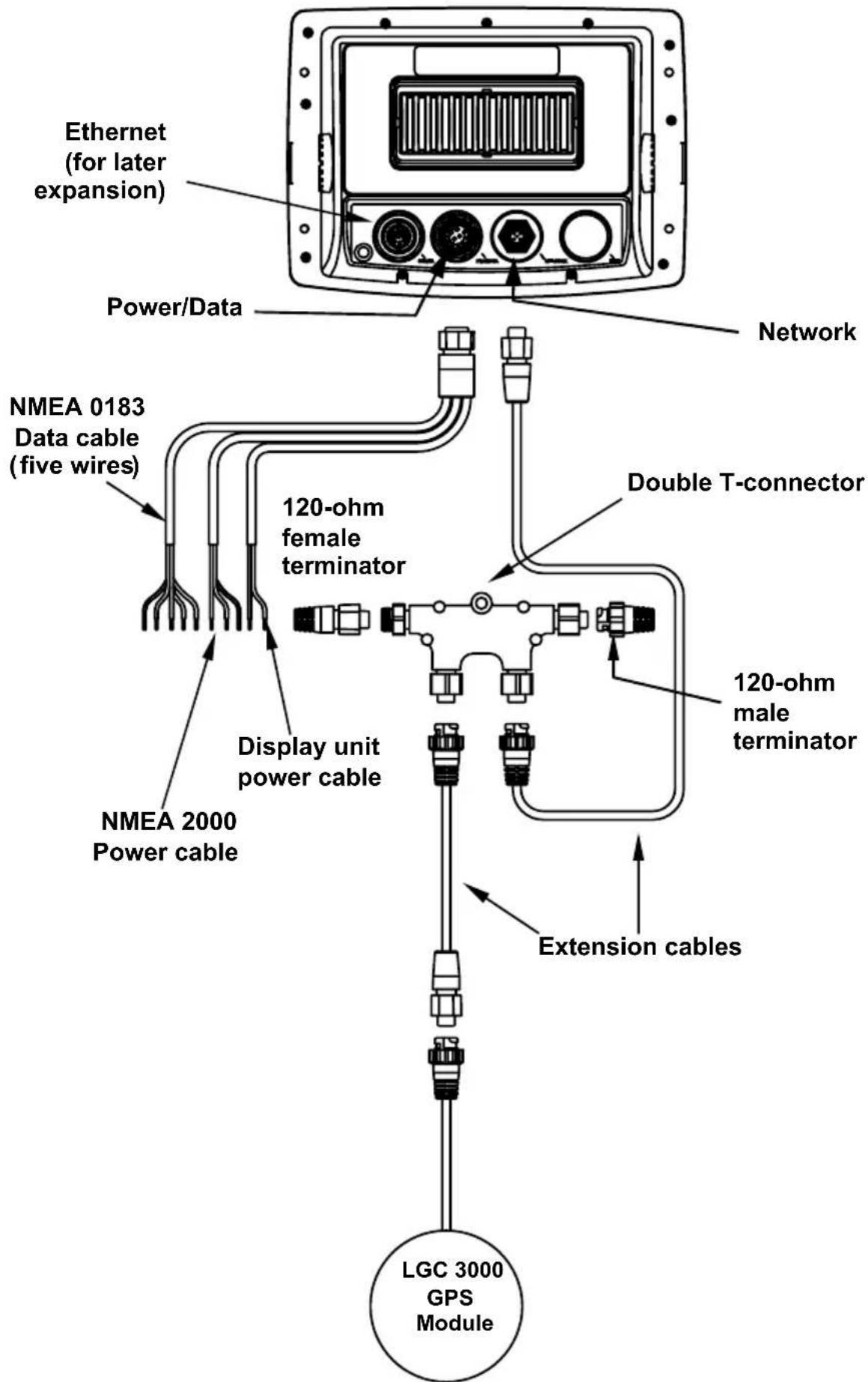

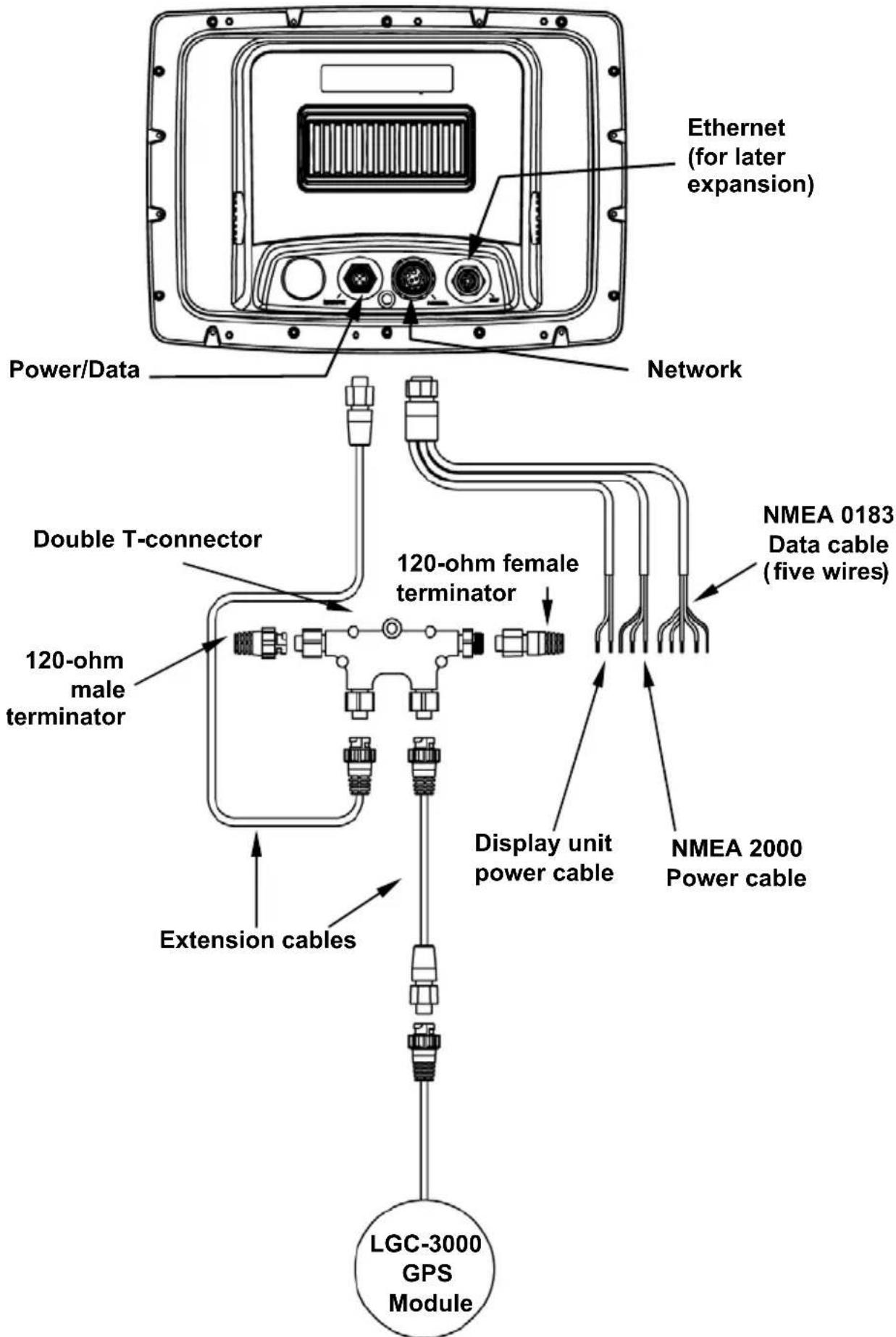

Ethernet (for later expansion) Power/Data Network Double T-connector 120-ohm female terminator 120-ohm male terminator Extension cables Display unit power cable NMEA 0183 Data cable (five wires) NMEA 2000 Power cable LGC-3000 GPS Module

Cable connections, GlobalMap 8200 and GlobalMap 8300

Ethernet (for later expansion) Power/Data Network NMEA 0183 Data cable (five wires) Double T-connector 120-ohm female terminator 120-ohm male terminator Display unit power cable NMEA 2000 Power cable Extension cables LGC-3000 GPS Module

Cable connections, GlobalMap 9200 and GlobalMap 9300.

Expanding to a NMEA 2000 Network

A network bus is an installed and operational network cable (backbone) running the length of your boat, already connected to a power supply and properly terminated. Such a bus provides network connection nodes at various locations around your boat.

The NMEA 2000 network is similar to the telephone wiring in a house. If you pick up a phone in your living room, you can hear someone talking into the phone in the bedroom.

Network Nodes

A network bus is built of network nodes spread along a backbone. Network nodes are made by fitting T-shaped connectors into the backbone (using the sockets on the sides), and attaching any network device to the bottom of the "T."

Using our telephone example, the T connectors on the backbone are similar to telephone jacks spread throughout a house. To pick up a phone and be able to hear a conversation from another phone in the house, both phones must be connected to the main phone line. In similar fashion, only sensors and display units plugged into the NMEA network can share information.

The network backbone is like the phone wiring that runs throughout a home. It connects the network nodes, allowing them to communicate across the network. Connections found in the middle of the bus could have T connectors or backbone network cable plugged into one or both sides. Connections at the end of a network will have the backbone cable or a T connector plugged into one side and a terminator plugged into the other, as shown in the following figure.

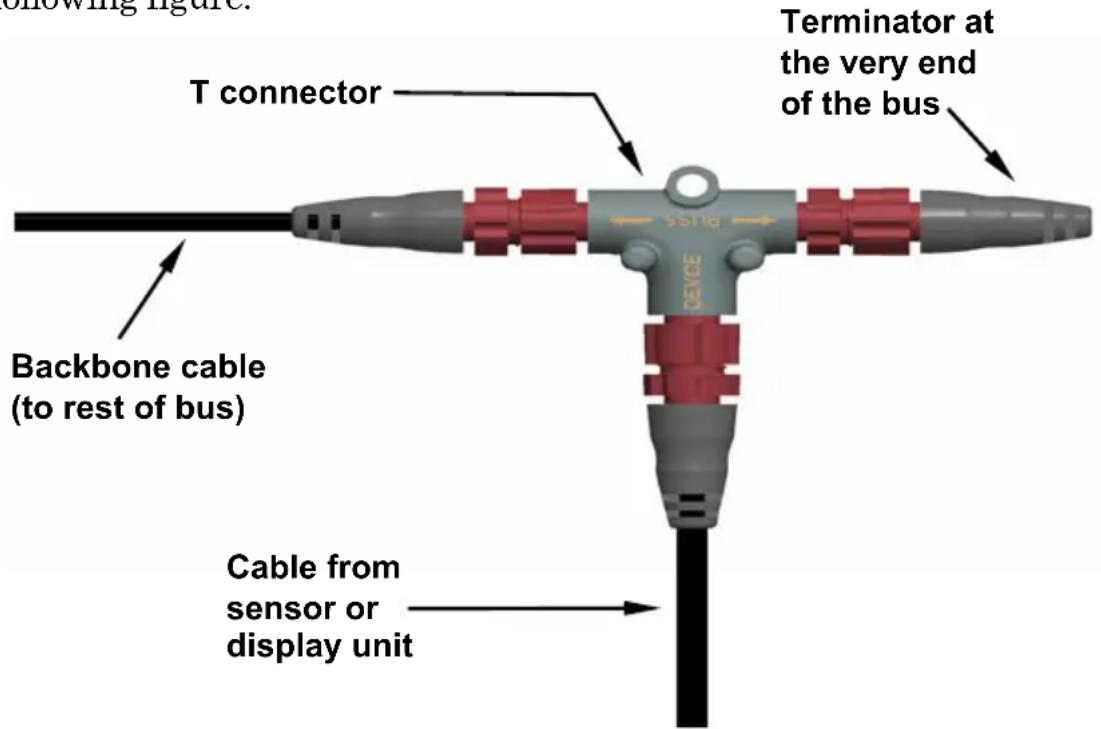

T connector Terminator at the very end of the bus Backbone cable (to rest of bus) Cable from sensor or display unit

NMEA 2000 network node located at the end of a NMEA 2000 bus.

NOTE:

If you have a double T Connector on your network that is not attached to a device, you must cap the unused connector with a NMEA 2000 cap. This will protect the pin connectors from corrosion. The NMEA 2000 cap looks like a terminator, but has "Cap" stamped into the connector housing.

Adding a Network Node

You can add a node to any existing connection, anywhere along the network backbone. This connection could be between a T connector and a terminator, between two T connectors, between a T connector and a backbone extension cable or between two extension cables. Wherever you want to add the new node, separate the sockets of the existing connection and install the T connector between them.

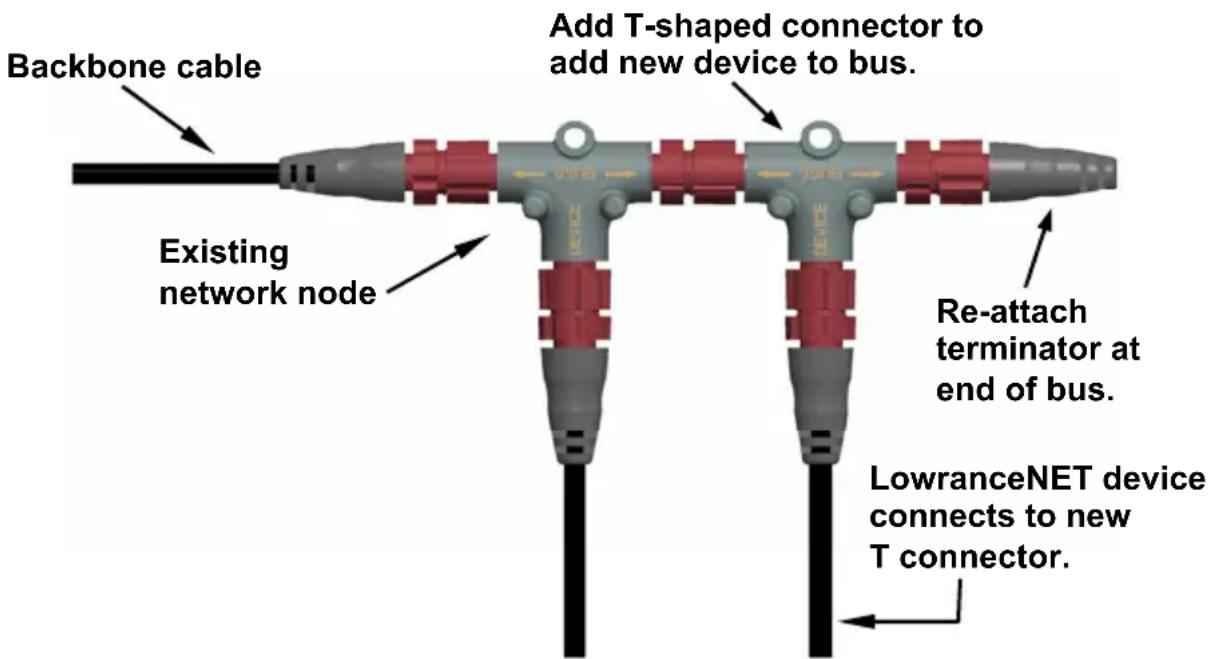

Backbone cable Existing network node Add T-shaped connector to add new device to bus. Re-attach terminator at end of bus. LowranceNET device connects to new T connector.

Add a new device to a NMEA 2000 bus by attaching a T connector between two T connectors, between a T connector and the end terminator, or between two backbone extension cables.

If you want to add a node at the end of the backbone (network bus) remove the terminator from the last connector, like the figure above. Install the new T connector and attach the terminator to the side of the connector.

Additional Network Information

Further instructions on creating or expanding a network are illustrated in the NMEA 2000 network setup booklet, part number 988-0154-173, which came packed with manual.

NOTE:

You do not need a Bus Adapter Cable with this unit if you use an approved Devicenet NMEA 2000 connector. Approved Devicenet NMEA 2000 connectors work with Lowrance red connector display units and components, so no adapter cables are needed.

Mounting the Unit: Bracket, In-Dash or Portable

You can install the GlobalMap on the top of a dash with the supplied gimbal bracket. The GlobalMap 7200 and GlobalMap 7300 can also be installed in the dash or mounted on a portable power supply.

If you use the supplied bracket, you may be interested in the optional R-A-M® bracket mounting system. This converts the unit's gimbal bracket to a swivel mount, which can be used on the dash or overhead mounting positions. Installation instructions are supplied with the R-A-M mounting kits. R-A-M offers permanent mounts and temporary mounts suitable for many vehicle types. See your Eagle dealer or visit the LEI web site (www.lei-extras.com) for the latest options; accessory ordering information is on the inside back cover of this manual. For a complete look at the many mounting options, visit the RAM web site at www.ram-mount.com.

Black adjustable armchair with mounting base and two vertical supports (no text or symbols visible)

Optional R-A-M mounting system.

Bracket Installation

Mount the GlobalMap in any convenient location, provided there is clearance behind the unit when it's tilted for the best viewing angle. You should also make sure there is enough room behind the GlobalMap to attach the power and GPS antenna/receiver module cables (Drawings beginning on the next page shows the dimensions of the gimbal-mounted GlobalMaps.).

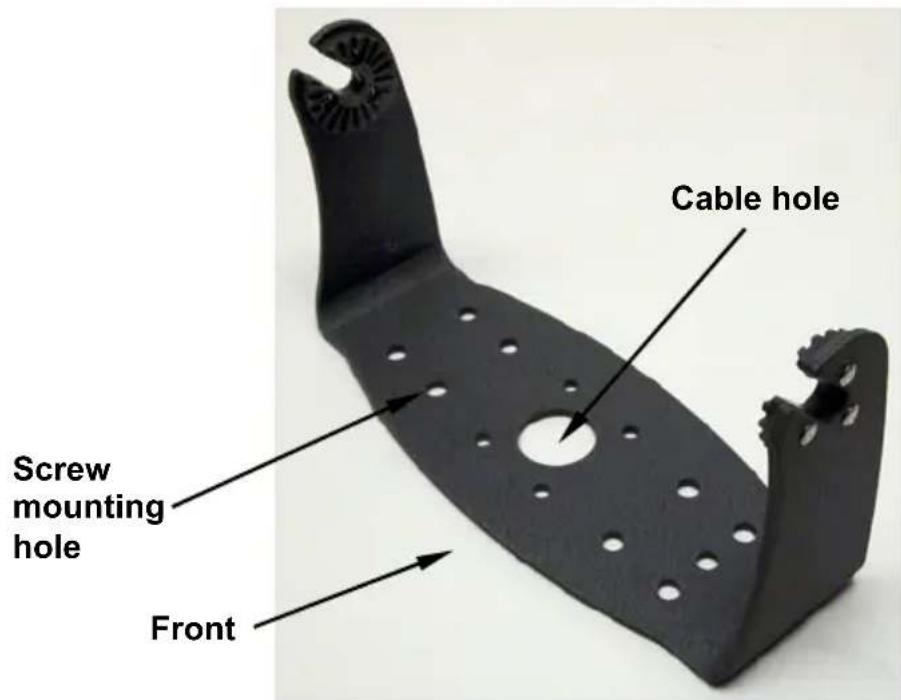

Holes in the bracket's base allow wood screw or through-bolt mounting. You may need to place a piece of plywood on the backside of thin fiberglass panels to reinforce the panel and secure the mounting hardware.

Cable hole Screw mounting hole Front

Install the gimbal bracket. Place the bracket so the arms slope toward the front of your unit.

Once a location is determined, use the bracket as a template and mark the mounting holes and the hole for the cables. Drill a 1-inch (25.4 mm) hole in the dash for the power, transducer and antenna cables. Screw the bracket to the mounting surface.

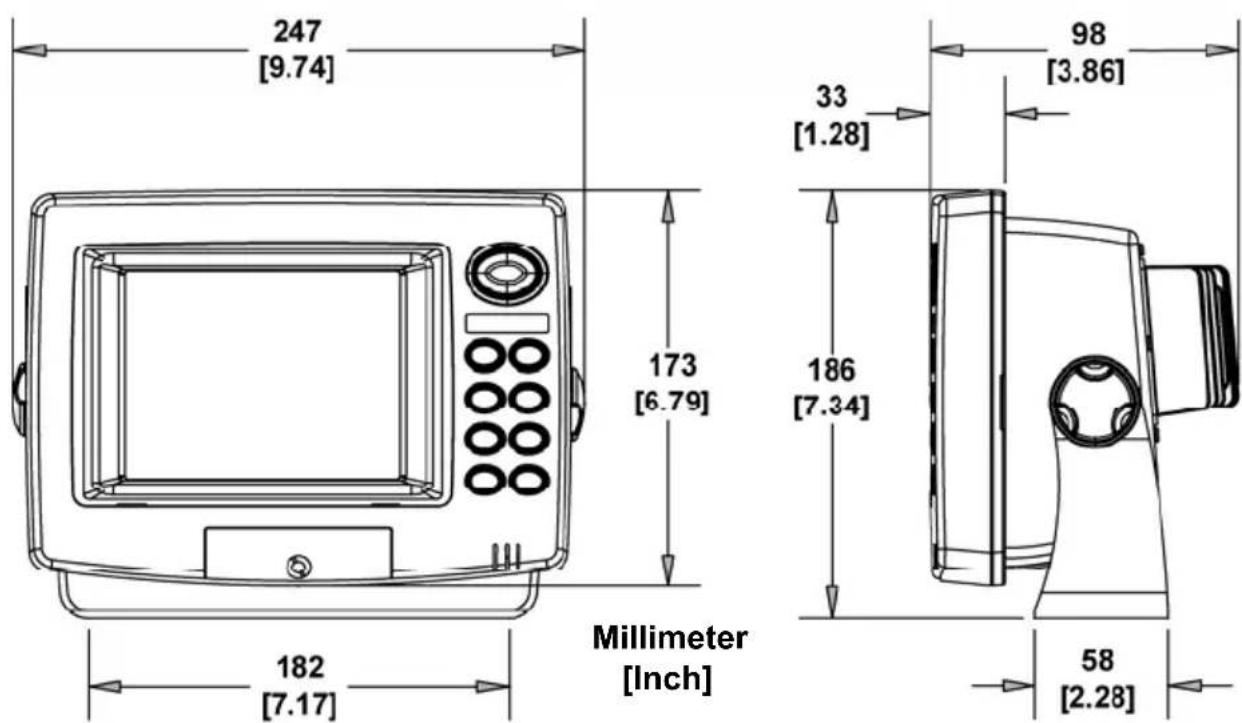

247 [9.74] 173 [6.79] Millimeter [Inch] 182 [7.17] 33 [1.28] 186 [7.34] 98 [3.86] 58 [2.28]

Front view (left) and side view (right) showing dimensions of the GlobalMap 7200 and GlobalMap 7300 mounted on gimbal brackets.

269 [10.59] 33 [1.28] 92 [3.62] 207 [8.15] 182 [7.17] Millimeter [Inch] 58 [2.28] 115 [4.53]

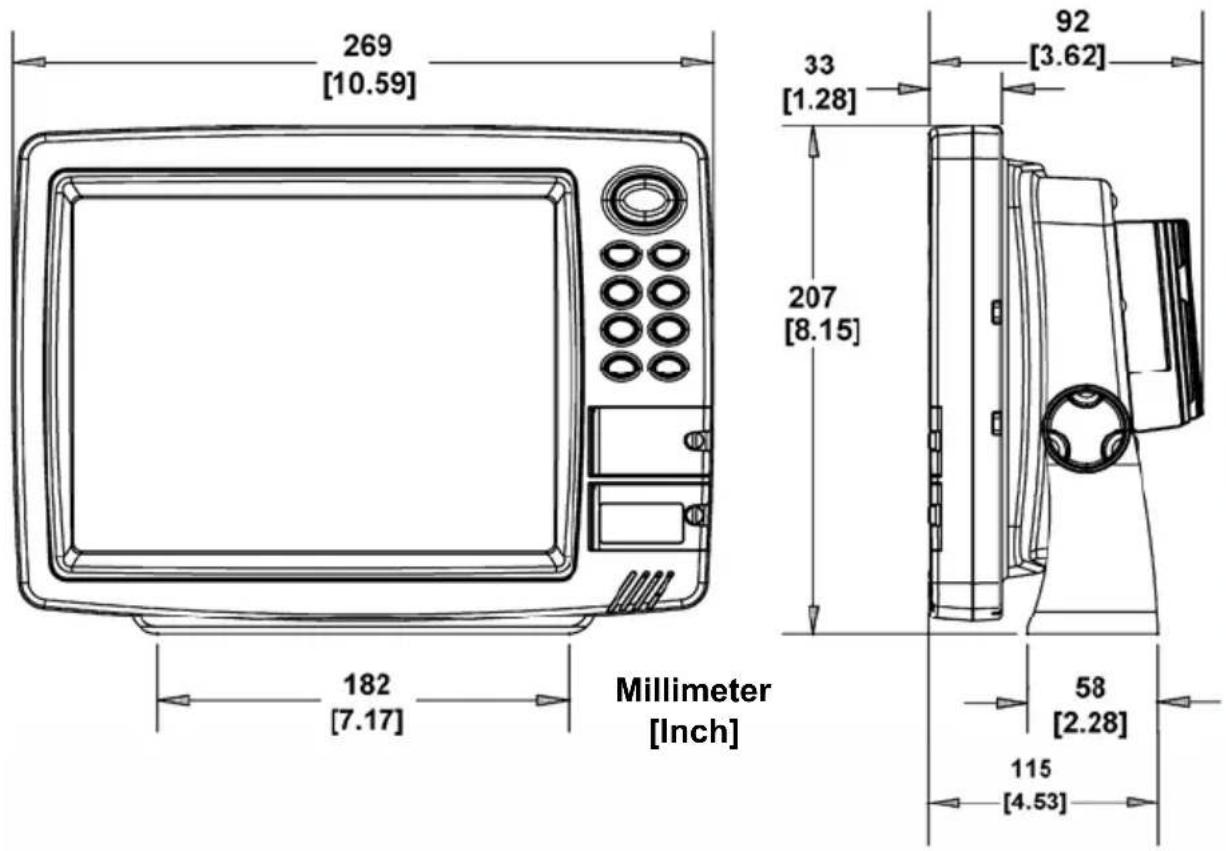

Front view (left) and side view (right) showing dimensions of the GlobalMap 8200c and GlobalMap 8300CHD mounted on gimbal brackets.

310 [12.22] 182 [7.17] Millimeter [Inch] 33 [1.28] 207 [8.15] 92 [3.62] 58 [2.28] 115 [4.53]

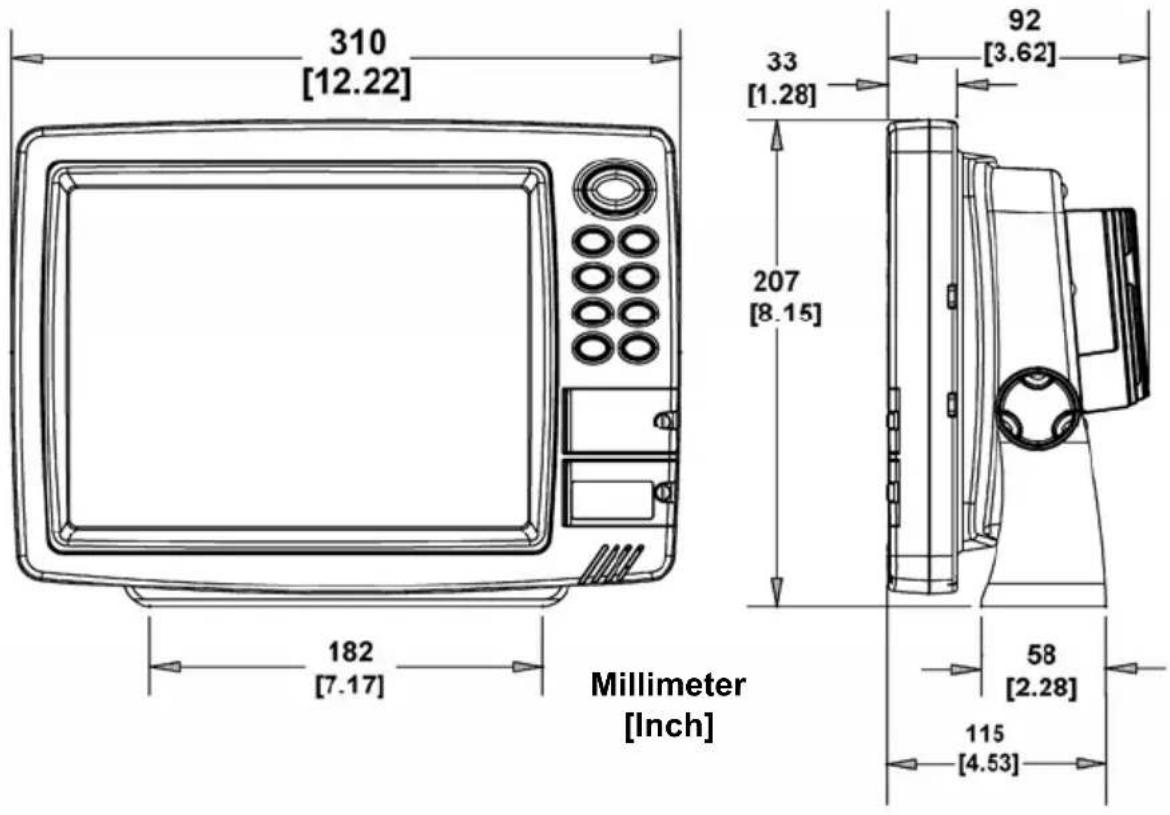

Front view (left) and side view (right) showing dimensions of the GlobalMap 9200 and GlobalMap 9300 mounted on gimbal brackets.

To pass all connectors through the 1" hole, first pass the antenna connector up through the hole from under the dash. Next, pass the power cable's bare-wire end down though the hole from the top.

If you wish, you can fill in the hole around the cables with a good marine caulking compound. No matter what type of installation you prefer, be sure to leave enough slack in the cables to allow tilting or swiveling the unit.

Attach the unit to the gimbal bracket using the supplied gimbal knobs and washers. Attach the cables and the unit is ready to use.

In-Dash Installation

You can mount the GlobalMap 7200 and GlobalMap 7300 in the dash with an optional FM-3 In-Dash Adapter Kit. The kit includes mounting hardware and a template for cutting the hole.

216.00[8.50] TOP CUT ON DOTTED LINE SURFACE AREA NEED TO MOUNT DIMENSIONS IN MM[INCHES] IN-DASH TEMPLATE 93.00[3.66] 190.04[7.00] 155.05[6.10] 4.50[.177] DIA. DRILL THRU (4 PLS.) Always verify dimensions.

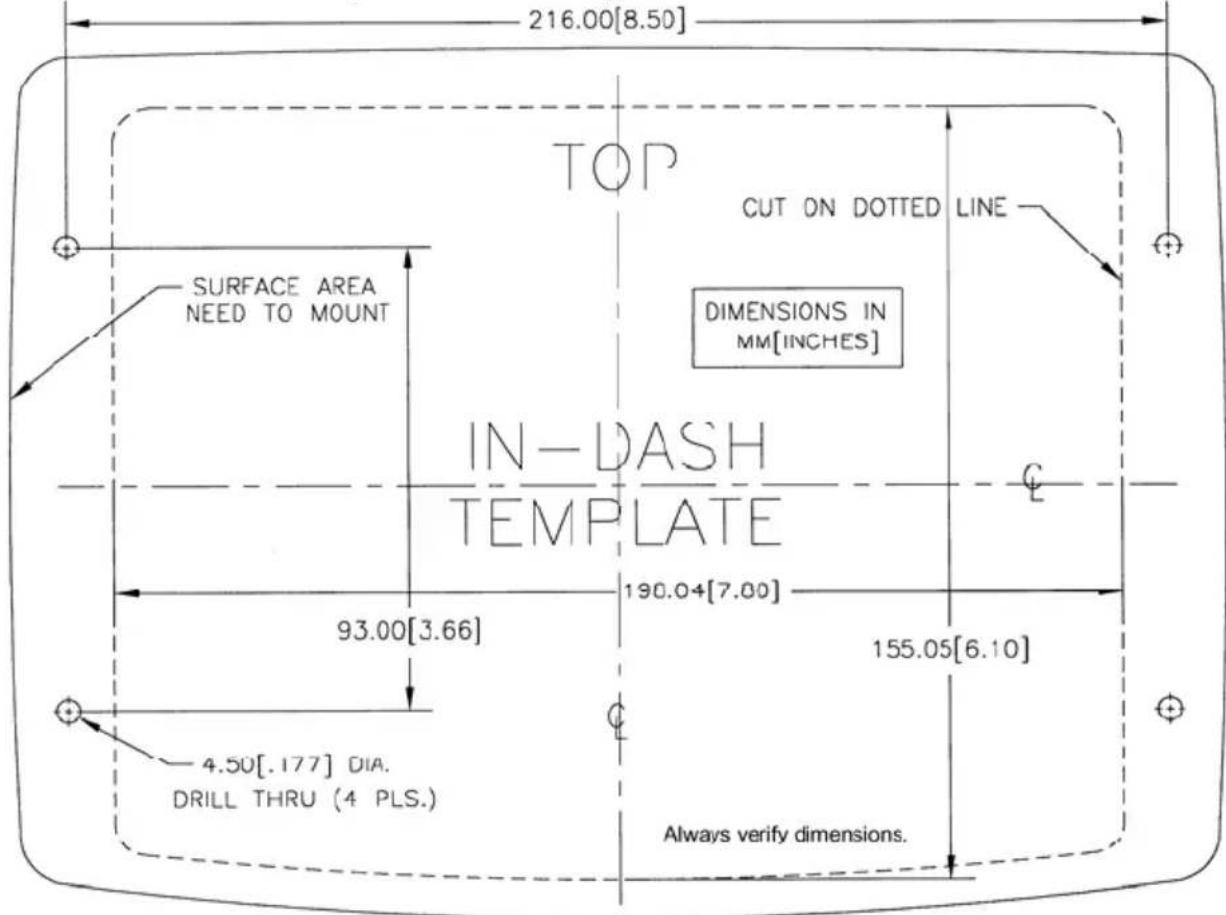

In-dash mounting template for the GlobalMap 7200 and GlobalMap 7300, showing dimensions. The figure above is not printed to scale.

Portable Installation

Like many Lowrance products, the GlobalMap 7200 and GlobalMap 7300 are capable of portable operation by using an optional portable power pack. The power pack and the magnet-equipped antenna module expand the uses for your GPS unit. The portable power pack makes it

easy to transfer your unit from a boat to a car, recreational vehicle, airplane or other vehicle without drilling and mounting a second bracket. You can use your unit in your own car or boat, then take it along when riding in a friend's vehicle that's not equipped with GPS.

The portable power pack includes a sealed, rechargeable battery.

MMC or SD Memory Card Installation

Your unit uses MultiMedia Cards to store information, such as custom maps, waypoints, trails and other GPS data. The unit can also use Secure Digital Cards (SD card) to store data. These units can use up to two cards; an MMC and an SD card can be used at the same time.

NOTE:

Throughout this manual, we will use the term MMC, but just remember your unit can use an MMC or SD card to store data.

Both of these solid-state flash memory devices are about the size of a postage stamp. A SD card is slightly thicker than a MMC. MMCs are available in storage capacities of 8 MB, 16 MB, 32 MB, 64 MB and higher. SD cards are available in capacities of 8 MB, 16 MB, 32 MB, 64 MB, 128 MB, 256 MB, 1 GB and higher.

Additional MMC cards are available from LEI Extras; see ordering information inside the back cover of this manual. MMCs and SD cards are also available at many camera and consumer electronics stores.

In the GlobalMap 7200 and GlobalMap 7300, the MMC drawer is located on the front of the case. To install an MMC, twist the drawer retainer counter-clockwise and pull. The drawer will come out of the unit. Place the MMC in the drawer face down (see following figures).

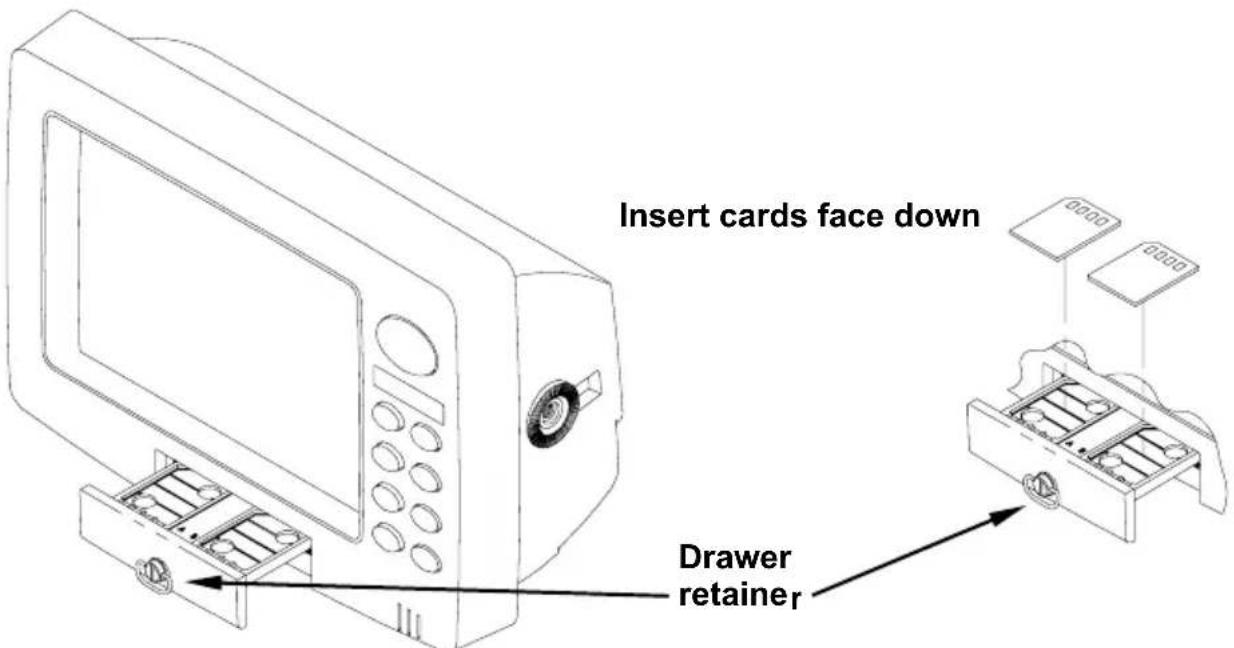

Insert cards face down Drawer retainer

Memory card drawer on the GlobalMap 7200 and GlobalMap 7300.

Slide the drawer back into the unit and twist the retainer clockwise. The MMC is now ready for use.

In the GlobalMap 9200 and GlobalMap 9300, the two MMC slots are located in compartments on the front of the case. The water-proof compartment doors are located at the lower right corner. The following figure shows a close-up of one compartment with the door opened.

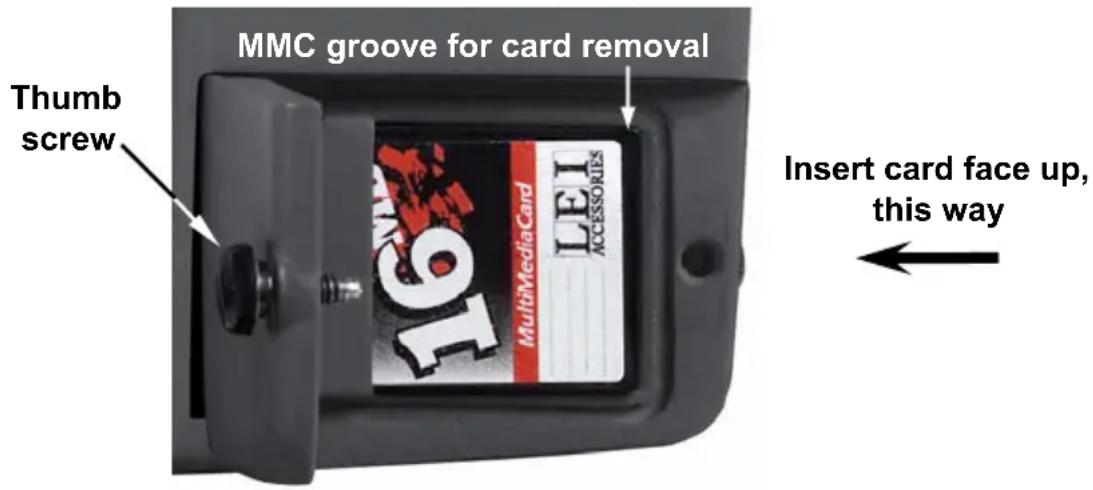

MMC groove for card removal Thumb screw 16 MultiMediaCard LEI ACCESSORIES Insert card face up, this way

Memory card compartment with a 16 MB MMC card installed.

To remove an MMC or SD Card

1. Open the card compartment door by unscrewing the thumb screw. The screw should only be finger tight. If it was over-tightened, use a thumbnail, a coin or a screwdriver to open the door.
2. Use the ball of your finger or thumb and press down in the center of the card, then drag the MMC from the slot. Or, use a thumbnail or fingernail to grab the groove in the bottom of the MMC and drag it out. See the figure above for the groove location.

To add an MMC or SD Card

1. Open the card compartment door.
2. Grasp the bottom of the MMC and push the top of the card into the slot. Once the card is started, press down in the center of the card with the ball of your finger or thumb and push the card all the way to the left, until it is firmly seated in the slot.
3. Close the compartment door and fasten the thumbscrew finger tight.

Other Accessories

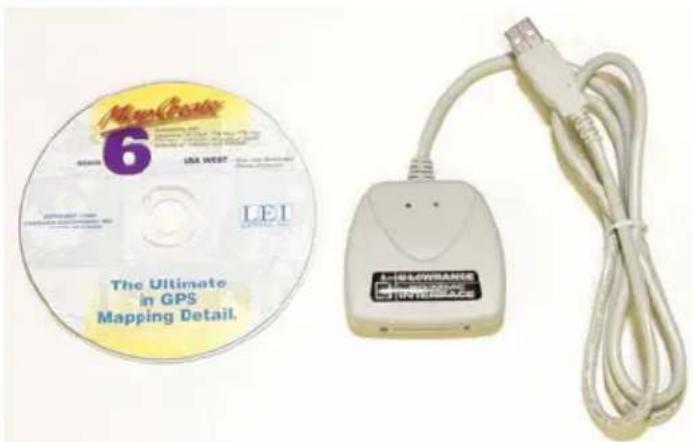

Other accessories include MMC cards, MMC card readers and Map-Create™ custom mapping software for your computer. MMC card readers are available in USB versions.

If these accessories are not available from your dealer, see the accessory ordering information on the inside back cover of this manual.

6 The Ultimate in GPS Mapping Detail.

MapCreate™ 6 CD-ROM, left; MMC card reader for USB ports, right.

Now that you have your GlobalMap installed, move on to Section 3, Basic GPS Operations. There, we'll present a series of step-by-step tutorials to teach you the basics of GPS navigation.

Face Cover

Your unit comes with a white protective cover that snaps on and off the front of the unit. This cover is intended for use when your unit and the vehicle it's mounted in are idle.

WARNING:

When the unit is mounted in an unprotected area, such as an open boat cockpit, the protective face cover must be removed when the vehicle is moving at high speed. This includes towing a boat on a trailer at highway speeds. Otherwise, windblast can pop off the cover.

Cleaning Towel

A lint-free microfiber towel is included for cleaning the unit's screen. The towel is highly effective in clearing away water spots, smudges and finger prints. Just wipe the screen with the dry towel — it's not necessary to moisten the towel with water. If the screen is badly soiled, you may use water or common window or lens cleaners. However, DO NOT use polishing compounds or any other abrasive product.

If you lose the towel or wear it out, you can replace it with a similar microfiber cloth. These are often available where shop towels or automobile cleaning towels are sold.

Caution:

Cleaning fabrics other than the microfiber towel type may scratch the screen. Polishing compounds or other abrasive cleaners will scratch the screen. Damage caused by incorrect cleaning is not covered by the warranty. You may wash the towel if it becomes soiled or loses its effectiveness, but do not use fabric softener. Fabric softener will ruin the towel's cleaning capability.

Section 3: Basic GPS Operations

This section addresses the unit's most basic GPS operations. The tutorials presented in Sec. 3 follow a chronological order. Sec. 4, Advanced GPS Operations, will discuss other more advanced functions and utilities. Material in Sec. 4 is arranged in alphabetical order.

Before you turn on the unit and find where you are, it's a good idea to learn about the different keys, the four Page screens and how they all work together. BUT, if you just can't wait to get outside, turn to the one-page Quick Reference on page 41.

NOTE:

There are slight differences in menu structure among the Global-Map models covered in this manual. The differences are minimal, but some of the screenshots in this manual may not perfectly match some of your unit's menus.

Keyboard

LOWRANCE® Map N 39°15.097' W 76°34.308' MMC drawers NORWOOD PARK RIVERSIDE PARK BURDES FIRISH CREEK COLGATE CREEK ST HELENA CHERRY HILL FIXED BRIDGE BROOKLYN MASONVILLE FOIRFIELD STONEHOUSE GAVE CURTIS BAY CURTIS BAY COLGATE CREEK COLGATE CREEK NORTH HARL LOUST FT MARINE TERMINAL MOCHERY LOCHRETTO PT POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTER POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERT POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERS POTERCHEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEVEEveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveeveevecevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevcevceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvceccvcscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscscsccctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctcctccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttcccttccacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcacttcactttcccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccaccaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaacaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccaaaaaaccAAAAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCCAACCCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTCTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTACTATTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTCATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCATTCCCAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAUGCCCCAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAAGCCCCAUCCGCUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCGUCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCUCCCUGCUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUuuuucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucuaucueuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccuuccoustocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocusocosuscusoccuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscuscascuggggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtgggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggtggttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttaatataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataataatattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatattaatatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaatatacaATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACAATACCACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCACCCCCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGGCUGCATGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCCGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGCUCGGSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBCUSBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUMBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSCUBSFCBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBEEFCBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBECBSCEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEBAFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFCBEABFGCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFCEBBFGEFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFFDFAFDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDFTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAOUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUTGAUNTAUAAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAUAAAI

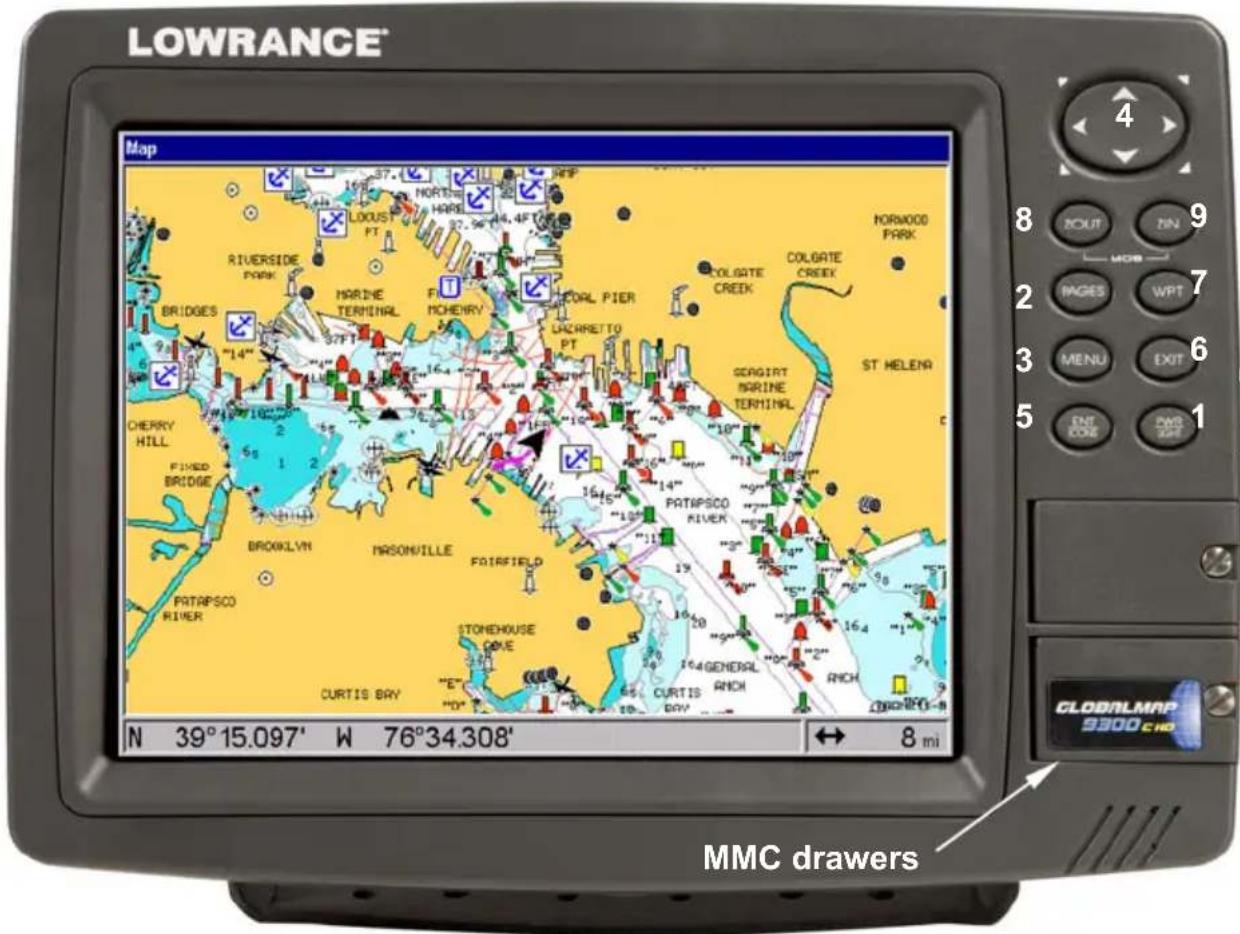

GlobalMap 9300CHD GPS unit, front view, showing screen, keyboard and MMC drawers.

1. PWR/LIGHT (Power & Light) – The PWR key turns the unit on and off and activates the backlight.
2. PAGES - Pressing this and the arrow keys (4) switches the unit between the three different page screens (Satellite Status Page, Navigation Page, Map Page and Radar Page). Each page represents one of the unit's major operation modes.
3. MENU – Press this key to show the menus and submenus, which allow you to select a command or adjust a feature. This also accesses search functions for streets, intersections, addresses and highway exits.
4. ARROW KEYS - These keys are used to navigate through the menus, make menu selections, move the map cursor and enter data.
5. ENT/ICONS (Enter & Icons) – This key allows you to save data, accept values or execute menu commands. It is also used to create event marker icons.
6. EXIT – The Exit key lets you return to the previous screen, clear data or close a menu.
7. WPT - (Waypoint) The Waypoint key is used to save and recall waypoints, search for waypoints and access the waypoint list. It also launches the Point-of-Interest (POI) search menus and is involved in some navigation functions.
8. ZOUT – (Zoom Out) – This key lets you zoom the screen out. On the Map Page, this lets you see a larger geographic area on the map. Less detail is seen as you zoom out.
9. ZIN – (Zoom In) – This key lets you zoom the screen in. On the Map Page, zooming in lets you see more detail in a smaller geographic area on the map.

Power/lights on and off

To turn on the unit, press PWR. As the unit powers up, the Map Page is displayed first (To switch to another page, press PAGES | ← or → to Page Name | EXIT.).

To turn on the backlight, press PWR again. The unit has three backlight levels to select from. Repeatedly pressing PWR will cycle through the backlight settings and turn off the backlight.

Turn off the unit by pressing and holding the PWR key for 3 seconds.

Main Menu

The GlobalMap has a Main Menu, which contains some function commands and some setup option commands. The tutorial lessons in this section will deal only with functions, the basic commands that make the unit do something. The unit will work fine for these lessons right

out of the box with the factory default settings. But, if you want to learn about the various options, see Sec. 5, System Setup and GPS Setup Options.

You can access the Main Menu from any of the three Page screens by pressing MENU | MENU. To clear the menu screen and return to the page display, press EXIT.

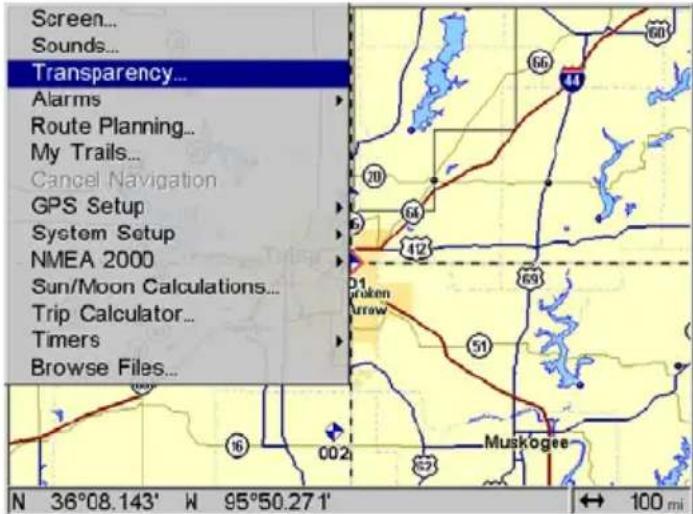

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... N 36°08.143' W 95°50.271' Muskogee 100 mi

Main Menu.

The Main Menu commands and their functions are:

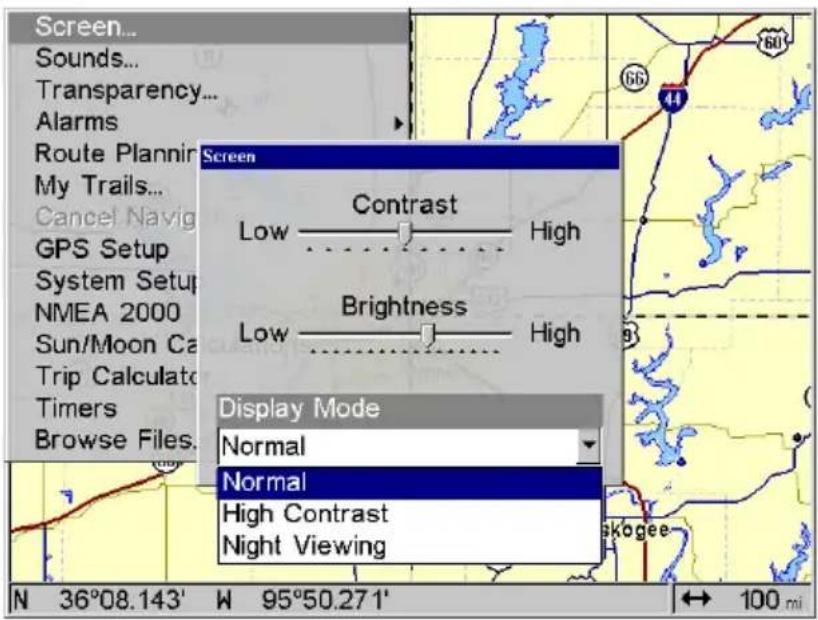

Screen command: changes the contrast or brightness of the screen.

Sounds command: enables or disables the sounds for key strokes and alarms and sets the alarm style.

Transparency command: adjusts the level of transparency for menus.

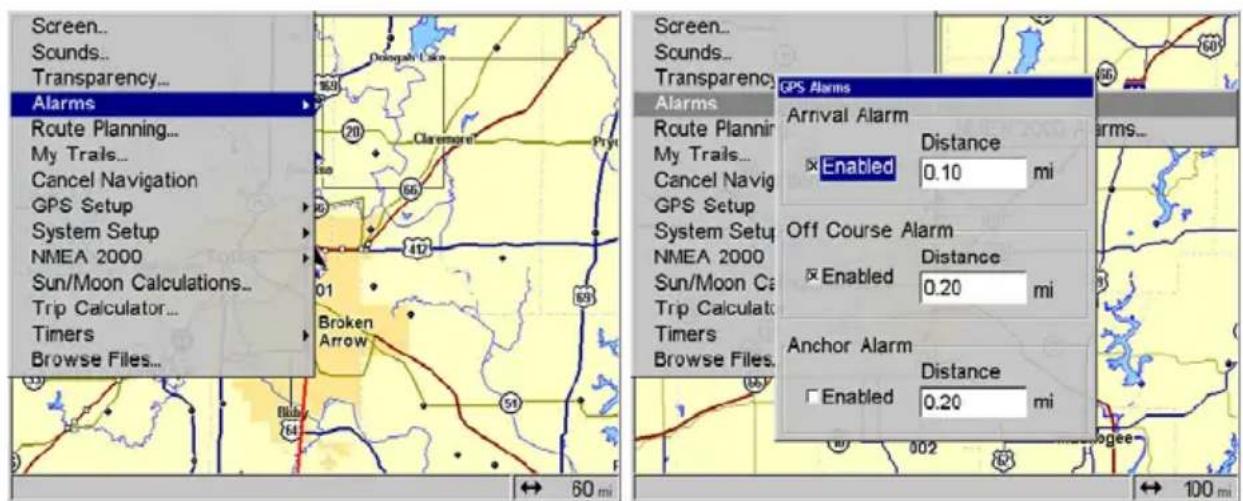

Alarms command: turns GPS alarms on or off and changes alarm thresholds.

Route Planning command: used to plan, view or navigate a route.

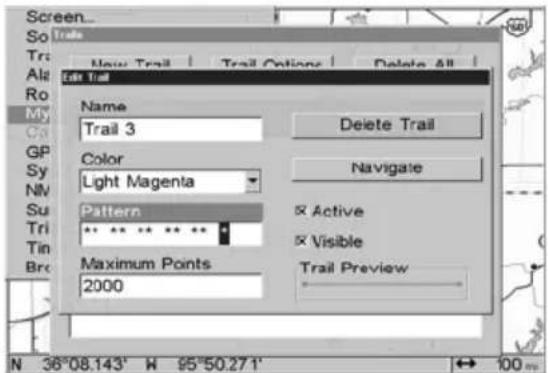

My Trails command: shows, hides, creates and deletes plot trails. Also used to navigate or backtrack a trail.

Cancel Navigation command: turns off the various navigation commands. Used to stop navigating after you have reached your destination waypoint, Point of Interest or map cursor location; or after you reach the end of a route or trail.

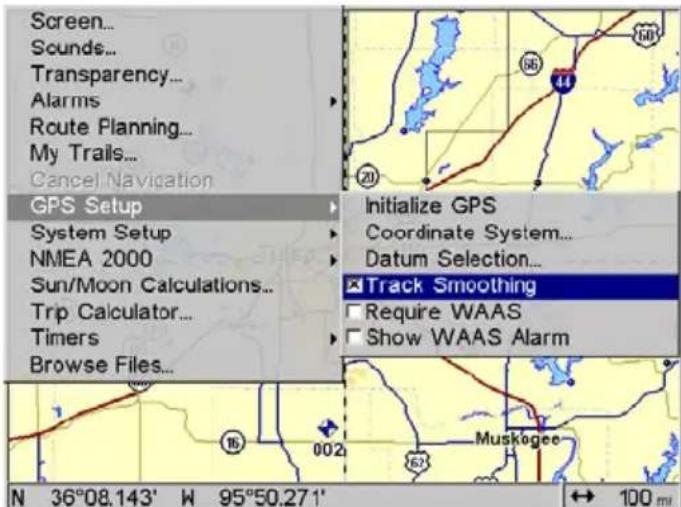

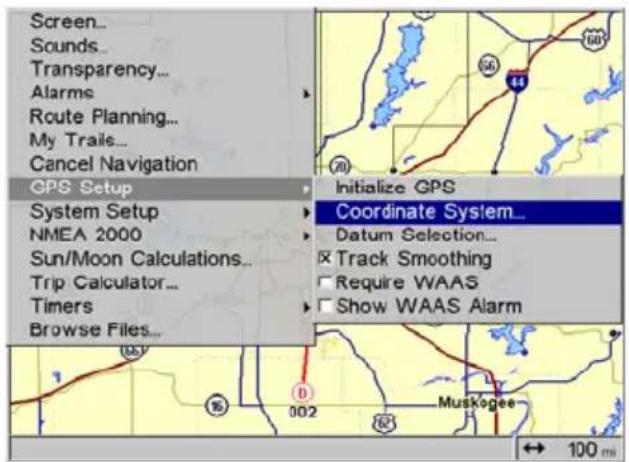

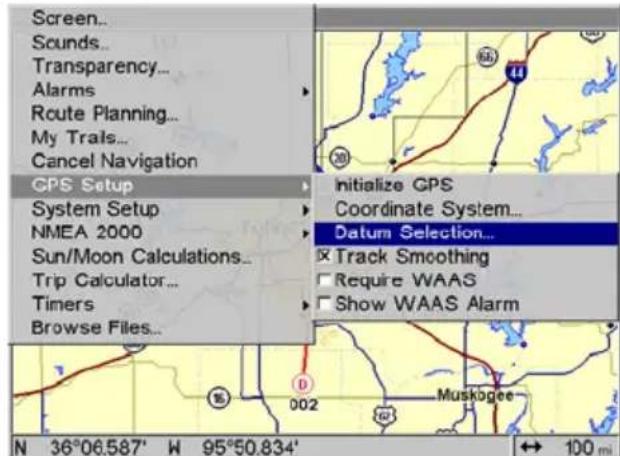

GPS Setup command: sets various GPS receiver options.

System Setup command: sets general configuration options.

Sun/Moon Calculations command: finds the rising and setting time of the sun and the moon.

Trip Calculator command: shows trip status and statistics.

Timers command: controls the up timer, down timer and alarm clock settings.

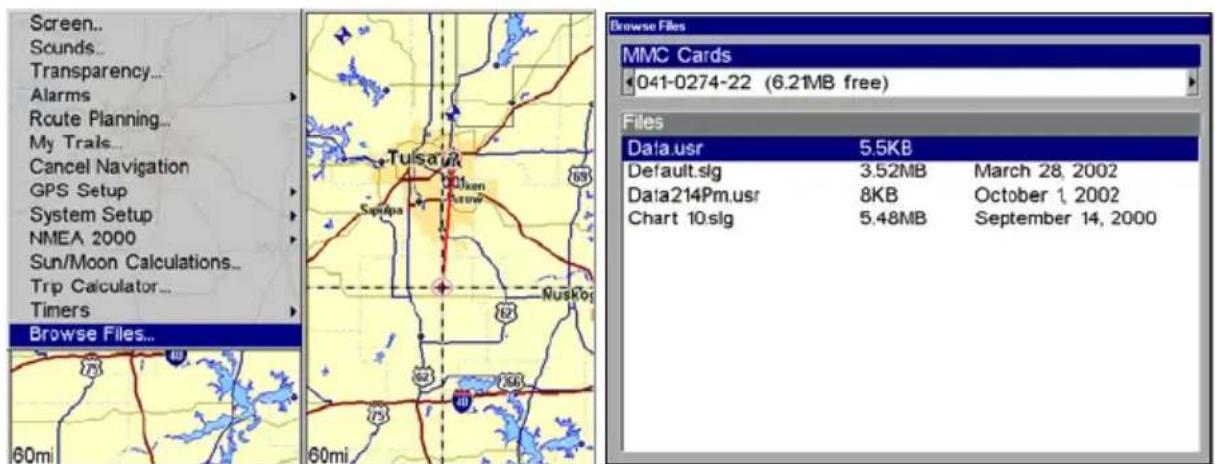

Browse Files command: this allows you to view the installed MMC card and the files it contains.

Pages

The unit has four Page displays that represent the four major operating modes. They are the Satellite Status Page, the Navigation Page, the Map Page and Radar Page (for more information on Radar see additional materials). They are accessed by pressing the PAGES key, then using → or ← to select a Page (Clear the Pages Menu by pressing EXIT.).

Status Navigation Map Radar Full Map Digital Data Two Position Formats Two Maps Map With Custom Gauges Skiatook-Lake 169 Pryo Keystone Lake,San 41 Jenks Broken Arrow Sapulpa Bixby 64 51 60 mi

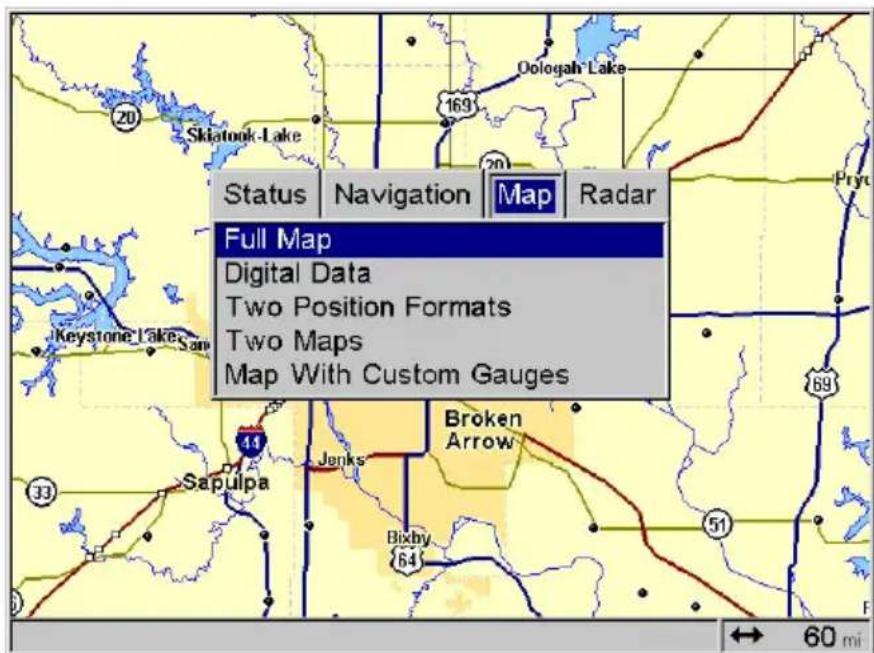

Pages Menu showing some Map display options.

Satellite Status Page

The Satellite Status Page, shown, provides detailed information on the status of the GlobalMap's satellite lock-on and position acquisition. To get to the Satellite Status Page: Press the PAGES key, then use → or ← to select STATUS (Clear the Pages Menu by pressing EXIT).

No matter what Page you are on, a flashing current position indicator/question mark symbol and flashing GPS data displays indicate that satellite lock has been lost and there is no position confirmed. The Satellite Status Page shows you the quality and accuracy of the current satellite lock-on and position calculation.

WARNING:

Do not begin navigating with this unit until the numbers have stopped flashing!

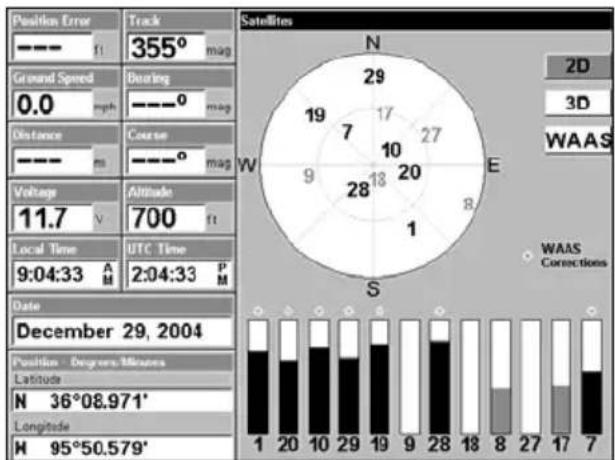

The Satellite Status Page.

This screen shows a graphical view of the satellites that are in view. Each satellite is shown on the circular chart relative to your position. The point in the center of the chart is directly overhead. The small inner ring represents 45^ above the horizon and the large ring represents the horizon. North is at the top of the screen. You can use this to see which satellites are obstructed by obstacles in your immediate area if the unit is facing north.

The GPS receiver is tracking satellites that are in bold type. The receiver hasn't locked onto a satellite if the number is grayed out, therefore it isn't being used to solve the position.

Beneath the circular graph are the bar graphs, one for each satellite in view. Since the unit has twelve channels, it can dedicate one channel per visible satellite. The taller the bar on the graph, the better the unit is receiving the signals from the satellite.

The "Estimated Position Error" (horizontal position error) shown in the upper left corner of the screen is the expected error from a benchmark location. In other words, if the EPE shows 50 feet, then the position shown by the unit is estimated to be within 50 feet of the actual location. This also gives you an indicator of the fix quality the unit currently has. The smaller the position error number, the better (and more accurate) the fix is. If the position error flashes dashes, then the unit hasn't locked onto the satellites, and the number shown isn't valid.

The Satellite Status Page has its own menu, which is used for setting various options (Options and setup are discussed in Sec. 5.). To access the Satellite Status Page Menu, from the Status Page, press MENU.

Navigation Page

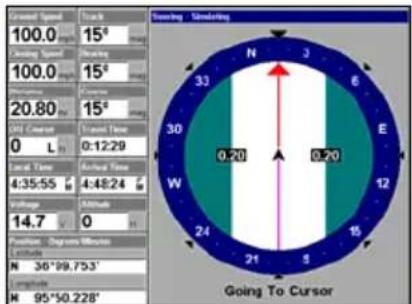

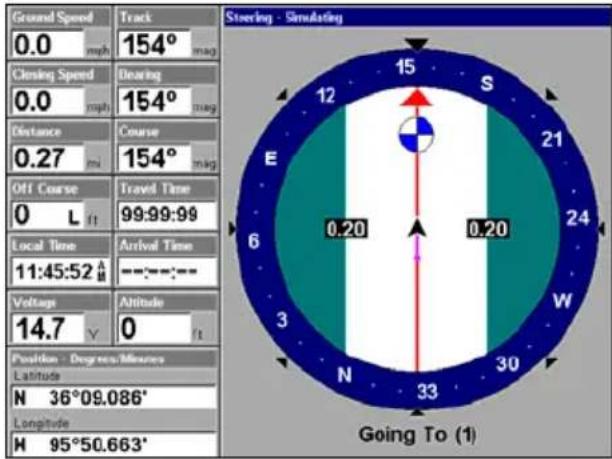

This screen has a compass rose that not only shows your direction of travel, but also the direction to a recalled waypoint. To get to the Navigation Page: Press PAGES | → or ← to NAVIGATION | EXIT.

The navigation screen looks like the one below when you're not navigating to a waypoint or following a route or trail. Your position is shown by an arrow in the center of the screen. Your trail history, or path you've just taken, is depicted by the line extending from the arrow. The arrow pointing down at the top of the compass rose indicates the current track (direction of travel) you are taking.

Navigation information displays Track or compass heading indicator, showing direction of travel Ground Speed Track 3.3 mph 85° mag Closing Speed Bearing -----mph 0 mag Distance Course -----mi 0 mag Off Course Travel Time -----mi Local Time Arrival Time 12:52:14 P m - Voltage Altitude 14.7 V 1 Trail line Position - Degrees/Minutes Latitude N 36°25.433' Longitude H 95°40.136' Stearing - Simulating E 6 12 3 15 N S 33 21 30 W 24 Present position arrow Compass rose

The GlobalMap navigation Page, recording a trail, traveling east. Page looks like this when the unit is not navigating to a waypoint, following a route, or backtracking a trail.

When navigating to a waypoint, the Navigation screen looks like the following figure. Your ground speed, track, distance and bearing to waypoint, and course are all shown digitally on this screen.

NOTE:

Remember, when the Speed, Track and Position information displays are flashing, satellite lock has not been achieved and no position fix has been determined. A question mark will also flash on the position arrow in the center of the compass rose.

Speed (ground speed) is the velocity you are making over the ground (If you wish, you can customize the Speed window to display Closing Speed instead. Closing Speed is also known as velocity made good. It's the speed that you're making toward the waypoint. For instructions, see the Customize Page Displays entry in Sec. 5.).

Track is the heading, or the current direction you are actually traveling. Bearing is the direction of a line-of-sight from your present position to the destination. No matter what direction you are steering, the

Bearing window shows the compass direction straight to the destination from your location at the moment. Distance shows how far it is to the waypoint you're navigating toward.

The Off Course window shows the current cross track error. This shows the distance you are off-course to the side of the desired course line. The course line is an imaginary line drawn from your position when you started navigating to the destination waypoint. The course line is shown on the Navigation Page screen (and the Map Page screen) as a dotted line.

The cross track error range is shown on the compass rose as a wide, white, corridor enclosing the course line. The outer edges of this white corridor represent lines that show the current cross track error range. The default for the cross track error range is 0.20 miles.

For example, if the present position symbol touches the right cross track error line, then you are 0.20 miles to the right of the desired course. You need to steer left to return to the desired course. You can use the ZIN or ZOUT keys to change the cross track error range.

A circular symbol depicting your destination (waypoint) appears on the screen as you approach the waypoint, as shown on the screen in the following figure.

Travel Time is the time that it will take to reach your destination at your present closing speed (You can also customize the time window to show Arrival Time instead. Arrival Time is the local time it will be when you arrive at the destination, based upon your present closing speed and track.).

Current track or heading, shown in degrees Ground Speed Track 27.0 High 355° mag Closing Speed Bearing 27.0 High 355° mag Distance Course 0.14 mi 355° mag Compass bearing to destination Off Course Travel Time 1 R ft 0:00:19 Local Time Arrival Time 3:01:08 P M 3:01:27 P M Voltage Altitude 14.7 V Navigation information displays Position - Degrees/10 Latitude N 36°09.233' Longitude W 95°50.281' Trail line Course line Steering - Simulating N 33 3 6 30 30 W 0.20 0.20 24 12 S 15 21 Left cross track error line Going To 004 Bearing arrow Waypoint symbol Cross track error range (off course indicator) Destination name

The GlobalMap navigation page, backtracking a trail while creating a new trail.

In the example above, the driver is headed north (a 355^ track) toward a waypoint 355^ (bearing) away. The cross track error range (white corridor) is 0.20 miles either side of the course. The driver is headed toward trail waypoint 4, which is 0.14 miles away. The vehicle is virtually on course (off course 1 foot to the right). Traveling at a speed of 27 mph, the driver will arrive at the waypoint in 19 seconds.

The Navigation Page has its own menu, which is used for some advanced functions and for setting various options (Options and setup are discussed in Sec. 5.). To access the Navigation Page Menu, from the Navigation Page, press MENU.

Map Page

The Map Page screens show your course and track from a "bird's-eye" view. By default, this unit shows the map with north always at the top of the screen (This can be changed. See the topic Map Orientation, in Sec. 5.). If you're navigating to a waypoint, the map also shows your starting location, present position, course line and destination. You don't have to navigate to a waypoint, however, to use the map.

Map Page is the default screen that appears when you turn on the unit. To get to the Map Page from another page: Press PAGES | → or ← to MAP | EXIT. When the Map Page is displayed, a screen similar to the following figures appears.

The arrow in the center of the screen is your present position. It points in the direction you're traveling. The solid line extending from the back of the arrow is your plot trail, or path you've taken.

The map zoom range is the distance across the screen. This number shows in the lower right corner of the screen.

In the first example below, the range is 4,000 miles from the left edge of the map to the right edge of the map.

The Zoom In and Zoom Out keys enlarge or reduce the map's coverage area and the amount of mapping detail shown. There are 37 available map zoom ranges, from 0.05 miles to 4,000 miles.

United States Delaware San Francisco Los Angeles El Paso Mexico City Cuba City N 36°08.914' M 95°50.596' ↔ 4000 Hz

Tulosa N 36°18.914' H 95°50.596' ↔ 100...

Map Catouka Fair Oaka 36°08.914' N 95°30.506'

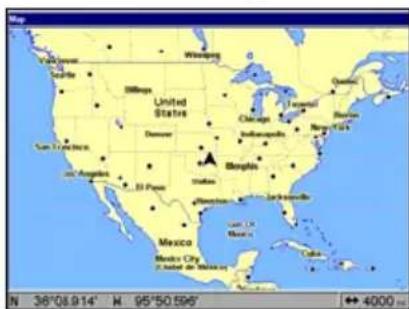

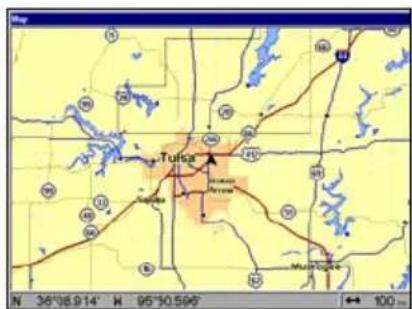

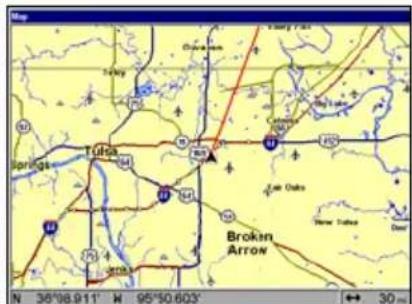

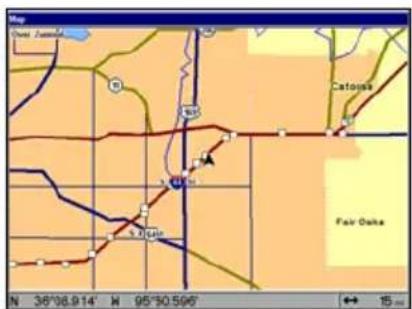

Map Page opening screen (left). Zoomed to 100 miles (center) and zoomed to 15 miles (right). Over Zoomed means you have reached the detail limits in an area covered only by the basic background map. Zooming in any closer will reveal no more map details because a high-detail custom map has not been loaded on the MMC.

If you're using only the factory-loaded background map, the maximum zoom range for showing additional map detail is 20 miles. You can continue to zoom in closer, but the map will simply be enlarged without revealing more map content (except for a few major city streets). Load your own high-detail custom map made with MapCreate, and you can zoom in to 0.05 miles with massive amounts of accurate map detail.

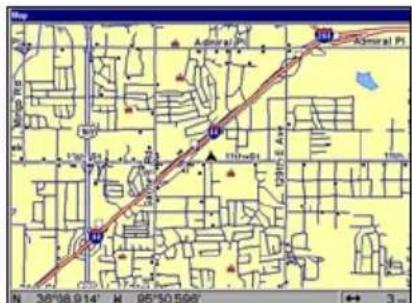

Map H1 H2 N 36°08.9.14" H 95°50.595"

Map Admiral Pl 1984 1985 30°08.9.14' H 85°50.596'

Map 11th St 9th St East Central N 38°08.914' H 95°50.596' 0.6 mm

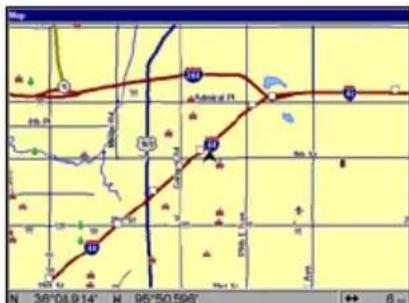

Map Pages with high-detail MapCreate map of an urban area loaded on the MMC. Arterial streets appear at the 6-mile zoom range with a few Point of Interest icons visible (left). Numerous dots representing Points of Interest become visible at the 3-mile range, along with minor streets (center). At the 0.6-mile zoom, you can see an interstate highway with an exit, major and minor streets as well as Point of Interest icons (right).

Background map vs. MapCreate map content

The background map includes: low-detail maps of the whole world, containing cities, major lakes, major rivers, political boundaries, and medium-detail maps of the United States.

The medium-detail U.S. maps contain: all incorporated cities, shaded metropolitan areas, county boundaries, shaded public lands (such as national forests and parks) and some major city streets. Also included are Interstate, U.S. and state highways, large- and medium-sized lakes and streams and more than 60,000 navigation aids with 10,000 wrecks and obstructions in U.S. coastal and Great Lakes waters. New for 2007 are more than 3,000 enhanced lake maps that show better defined shorelines, depth contours and other underwater features.

NOTE:

The GlobalMap HD models have NauticPath charts, Fishing Hot Spots maps and all high detail MapCreate custom maps preloaded on a 30 gigabyte hard drive. If you own an HD model you do not need to load any of those high detail charts/maps into the unit. The unit can also use Navionics charts, but they must be loaded via a Navionics card.

MapCreate custom maps include massive amounts of information not found in the background map. MapCreate contains: the searchable Points of Interest database, all the minor roads and streets, all the

landmark features (such as summits, schools, radio towers, etc.); more rivers, streams, smaller lakes and ponds and their names.

What's more important is the large-scale map detail that allows your GPS unit to show a higher level of position accuracy. For example, the background map would show you the general outline and approximate shape of a coastline or water body, but the higher detail in MapCreate shows the shoreline completely and accurately (finer detail). Many smaller islands would not be included in the background map, but are, of course, in MapCreate.

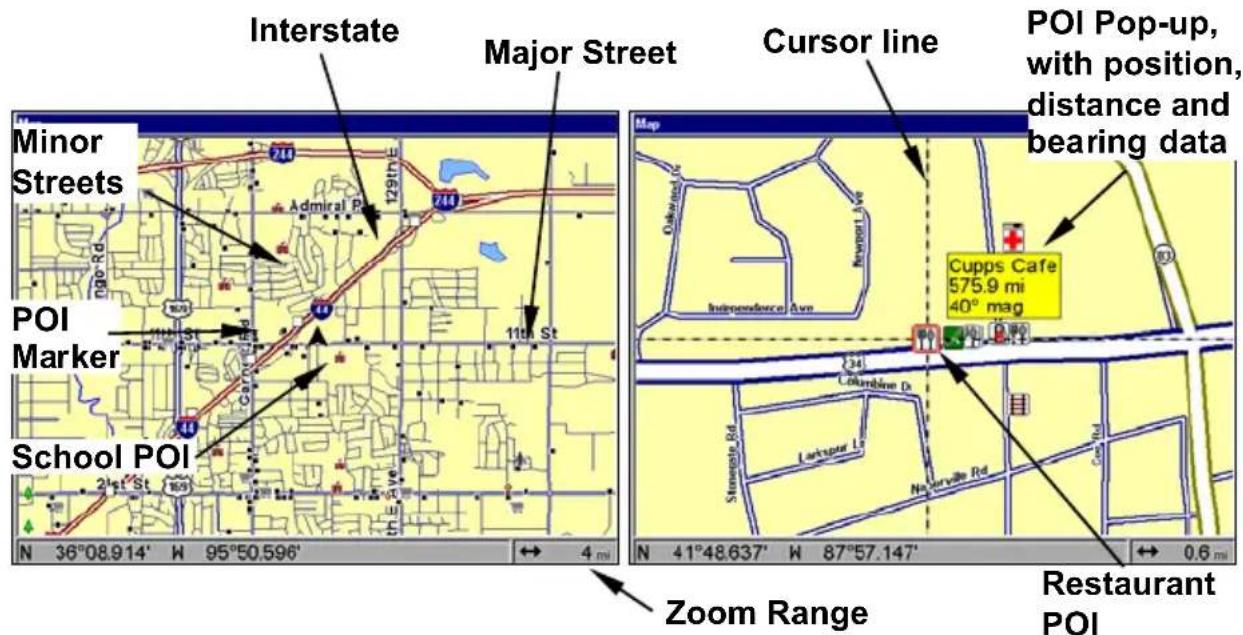

Interstate Major Street Minor Streets Admiral P 129th St 11th St POI Marker School POI N 36°08.9'14' W 95°50.596' Zoom Range Restaurant POI Cursor line POI Pop-up, with position, distance and bearing data Cupps Cafe 575.9 mi 40° mag N 41°48.637' W 87°57.147' 4 mi N 36°08.9'14' W 95°50.596' 0.6 mi

When the map is zoomed out far enough, most POIs appear as square dots (left). As you zoom in closer, the symbols become readable icons. In the 0.6-mile zoom example (right), the cursor has selected the Cupps Café POI, which triggers a pop-up box with the POI name. This pop-up box works on POIs at any zoom range.

Tip:

In some urban areas, businesses are so close to one another that their POI icons crowd each other on the screen. You can reduce screen clutter and make streets and other map features easier to see by simply turning off the display of POIs you're not watching for (To see how, check the text on Map Detail Category Selection, page 85. It shows how to use the Map Categories Drawn menu to turn individual POI displays off and on.).

The Map Page has its own menu, which is used for several functions and for setting various options. To access the Map Page Menu, from the Map Page, press MENU.

The Pages Menu also offers several map display options under the Map Page category. To access them, press PAGES | ← or → to MAP | ↓ to Option | EXIT.

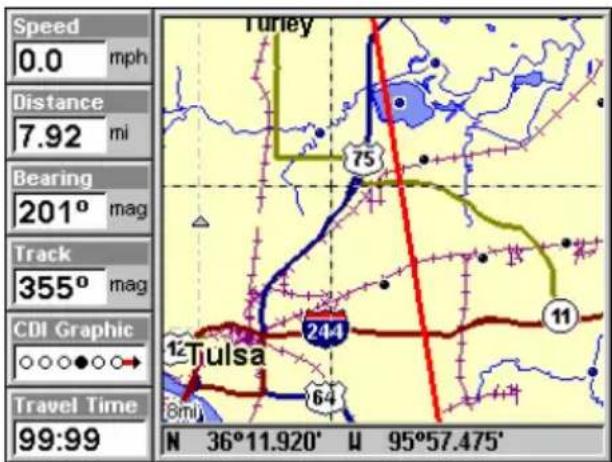

Speed 0.0 mph Distance 7.92 mi Bearing 201° mag Track 355° mag CDI Graphic ○ ○ ○ ● ○ → Travel Time 99:99 N 36°11.920' U 95°57.475'

Ground Speed 0.00 mph Tracking 0.00 mph Dearing 180° mag Distance 26.1 mi Off Course 0 R ft Position - Map Fix Vertical U: ---,--- Horizontal R: ---,--- Position - UTM Zone 15 4004277 N Easting 244221 E Northing Full Map Digital Data Two Position Formats Two Maps Map With Custom Gauges Muskog

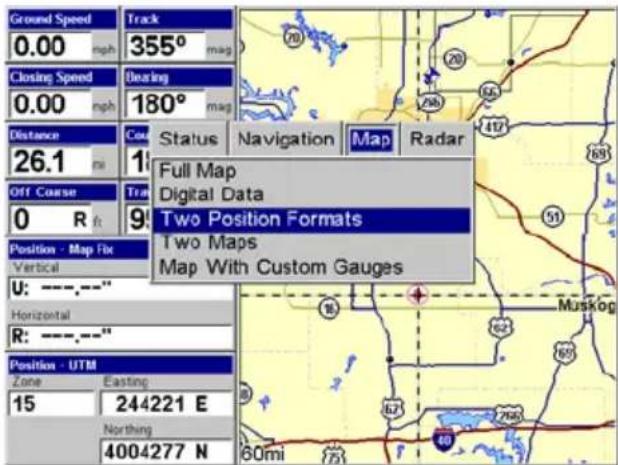

GlobalMap Digital Data page (left) and Two Position Formats page (right).

Active Map Tulsa A Status Navigation Map Radar Full Map Digital Data Two Position Formats Two Maps Map With Custom Gauges Press the PAGES key again to change the active window.

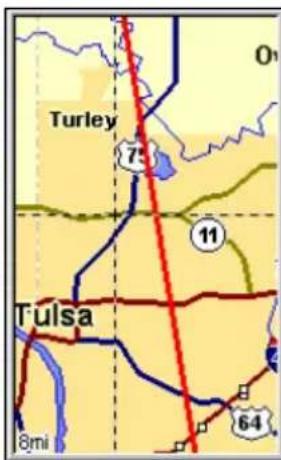

Turley 75 11 Tulsa 8mi 64 O

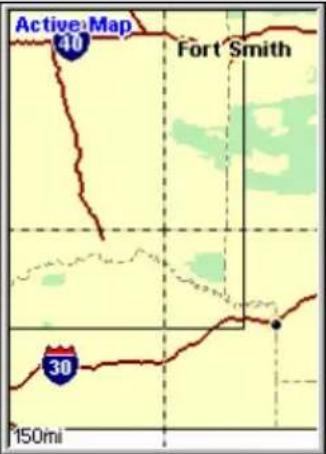

Active Map 40 Fort Smith 30 150mi

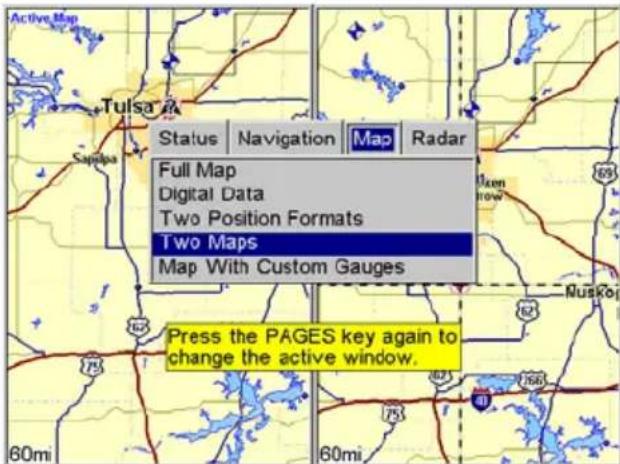

Pages Menu with Two Maps option selected (left).

Map Page with two map windows (right). The right map is active.

In pages that have two major windows (such as two maps) you can toggle back and forth between the two windows by pressing PAGES | PAGES.

This allows you to change which map the cursor, keyboard and menus operate on. "Active window" will be displayed at the top of the active window.

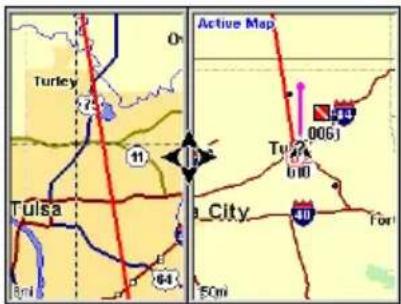

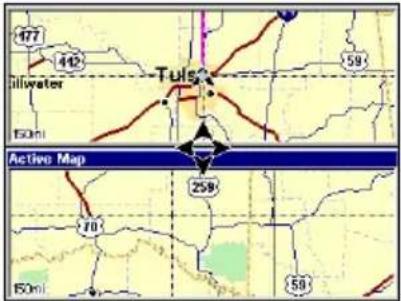

Resize Window is another extremely handy feature for pages that have two major windows. You can change the horizontal size of the windows to suit your viewing preference. Here's how:

1. From any two-window display, press MENU | ↓ to RESIZE WINDOW | ENT.
2. Two flashing arrows appear along the centerline dividing the two windows. Press or to adjust the window widths. Press EXIT to clear the menu.
3. To change the window size again or go back to the original display, just follow the steps above (Most dual-window displays use half the screen for each window by default.). You can also use the Reset Options command to revert to the factory default.

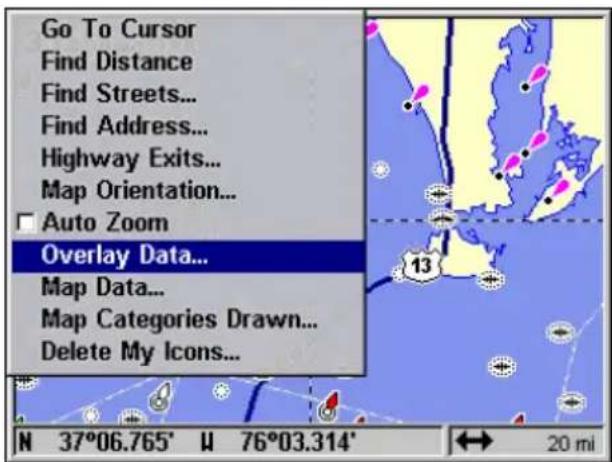

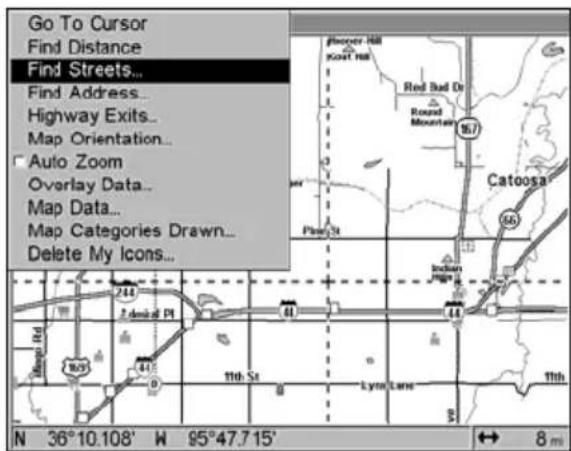

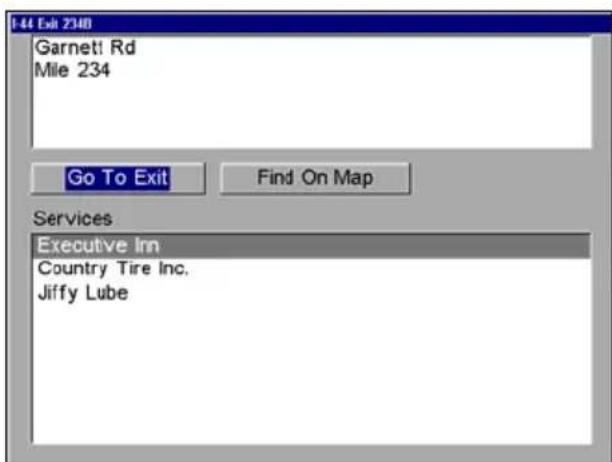

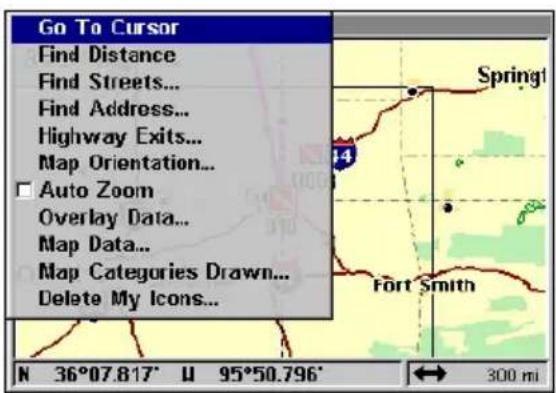

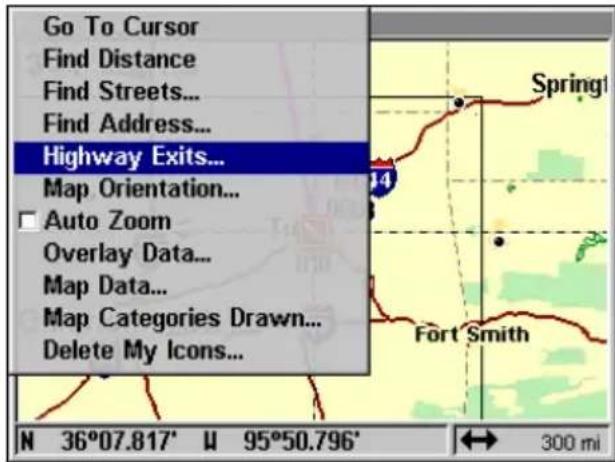

Find Distance Find Streets... Find Address... Highway Exits... Change Both Maps Map Orientation... Auto Zoom Overlay Data... Rescue Window... Map Data... Map Categories Draws... Delete My Icons... 15 80

Turkey Tulsa City Active Map 006) 11 12 40 50m

127 442 Tulis 59 50ml Active Map 258 10 50ml

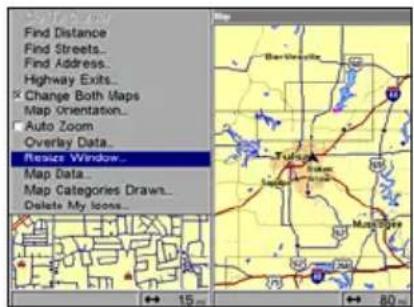

Map Menu with Resize Window command selected (left). Resize Window command is active (center). Pressing the or keys allows you to resize the windows from side to side or stack them one on top of the other (right).

The following page contains a 12-step quick reference for the most basic GPS operations. If you don't want to carry the manual with you as you practice with the unit, you might consider photocopying this quick reference page and tucking it into your pocket.

GPS Quick Reference

Start outdoors, with a clear view of the open sky. As you practice, try navigating to a location at least a few blocks away. While you're learning, navigation in too small an area will constantly trigger arrival alarms.

1. Connect the unit to electric power and the antenna module. Make sure the MMC is in. (See complete installation details beginning on page 9.)
2. To turn on the GlobalMap, press and release PWR key.
3. Opening screen displays map of North America at the 4,000-mile zoom range. Rotate through the three main Page screens (Map Page, Satellite Status Page and Navigation Page) by pressing PAGES |← or → to select Page Name|EXIT. Switch Pages to display Satellite Status Page.
4. Wait while unit locates satellites and calculates current position. Process is visible on Satellite Page. This takes an average of 1 minute or less under clear sky conditions (unobstructed by terrain or structures). When the unit acquires position, a tone sounds and a position acquired message appears.
5. With position acquired, press PAGES key to display Map Page, which shows a bird's eye view of the earth. You can move around the map by:

Zoom in closer to see more detail: press ZIN (zoom in key).

Zoom out to see more area, less detail: press ZOUT (zoom out key).

Scroll map north, south, east or west using arrow keys . To stop scrolling and return to current position on map, press EXIT key.

1. Set a waypoint (Wpt 001) at your current position so you can navigate back here: press WPT | WPT. Waypoint symbol and "001" appears.
2. Zoom/scroll map to find a nearby object or location to go to. Use arrow keys to center cursor cross-hair over the map object or location.
3. Navigate to the selected destination: press MENU | ENT | EXIT. Follow dotted course line on Map Page or compass bearing arrow on Navigation Page.

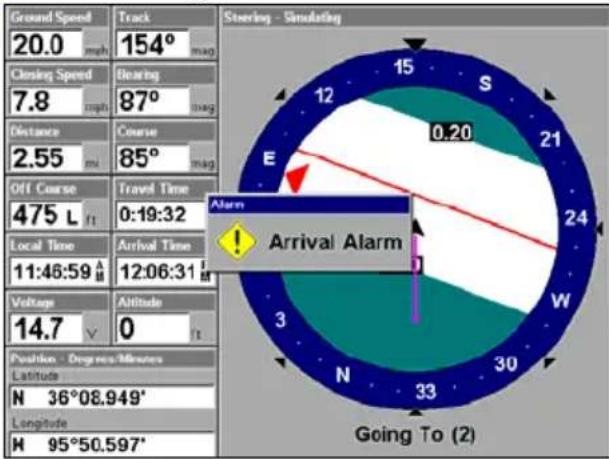

4. At destination, Arrival Alarm goes off. To clear it, press EXIT. Cancel navigation: press MENU | MENU | ↓ to CANCEL NAVIGATION | ENT | ← to YES | ENT.
5. Return to Wpt 1 by Navigate To Waypoint or Backtrack Trail. To Waypoint: press WPT | → to SAVED | ENT | ENT | ENT. Use ↑ or ↓ to select Wpt 001, press ENT | ENT; follow navigation displays. Trail: press MENU | MENU | ↓ to MY TRAILS | ENT. Press ↓ to Trail 1 | ENT | → | ↓ to NAVIGATE | ENT | ↓ to NAVIGATE | → to REVERSE | ENT | ← to NAVIGATE | ENT (If arrival alarm sounds, press EXIT). Follow navigation displays.
6. Back home, Arrival Alarm goes off; press EXIT. Cancel navigation: press MENU | MENU | ↓ to CANCEL NAVIGATION | ENT | ← to YES | ENT.
7. To turn off the unit, press and hold PWR key for three seconds.

Find Your Current Position

Finding your current position is as simple as turning the GlobalMap on. With an unobstructed view of the sky, the unit automatically searches for satellites and calculates its position in approximately one minute or less.

If for some reason satellite acquisition takes longer, you may be inside a structure or vehicle or in terrain that is blocking signal reception. To correct this, be sure you are positioned so that the unit's antenna module has as clear a view of the sky as possible, then turn the unit off and back on again.

Moving Around the Map: Zoom & Cursor Arrow Keys

The map is presented from a bird's eye view perspective. The current zoom range shows in the lower right corner of the screen.

1. Press the ZIN key (zoom in) to move in closer and see more detail in a smaller geographic area.
2. Press the ZOUT key (zoom out) to move farther away and see less detail, but a larger geographic area.

When you are traveling, the map will automatically move as you move. This keeps your current location roughly centered on the screen.

You can manually pan or scroll the map northward, southward, eastward or westward by using the arrow keys, which launch the cross-hair map cursor. This allows you to look at map places other than your current position. To clear the cursor, press EXIT, which jumps the map back to the current position or the last known position.

Tip:

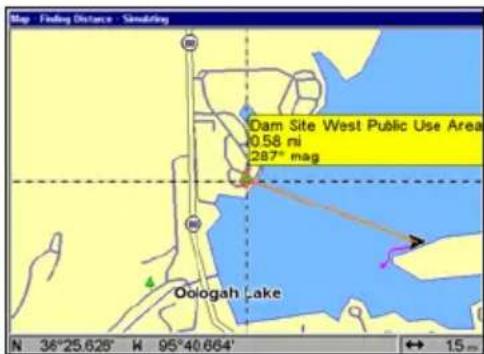

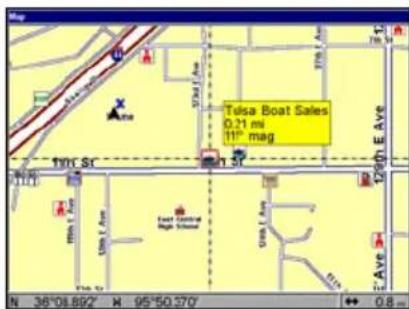

Use the cursor to determine the distance from your current position (or last known position when working indoors) to any map object. Simply use the arrow keys to position the cursor over the object or landmark. The distance, measured in a straight line, appears in the pop-up box. Press EXIT to clear the cursor.

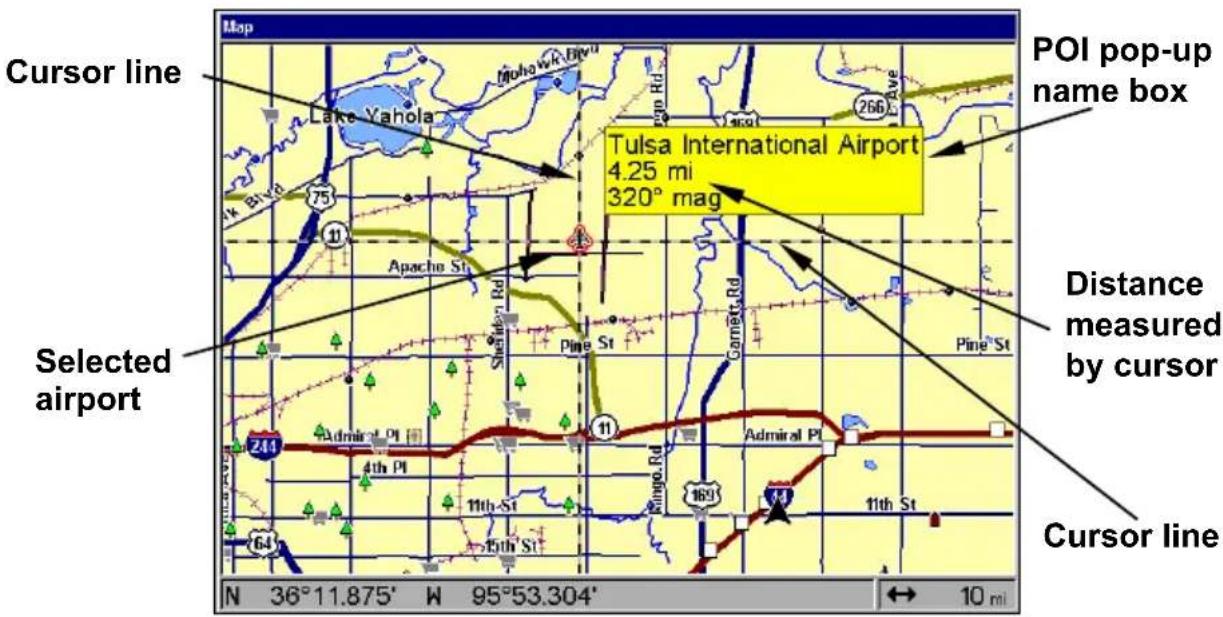

Cursor line Lake Yahola Moho wk Bivu Tulsa International Airport 4.25 mi 320° mag POI pop-up name box Selected airport Apache St Shinney Rd Pine St Cornbelt Rd Pine St Distance measured by cursor 11 Admiral Pt Admiral Pt 1691 11th St 11th St 64 N 36°11.875' W 95°53.304' 10 mi

The selected airport is 4.25 miles away, to the northwest.

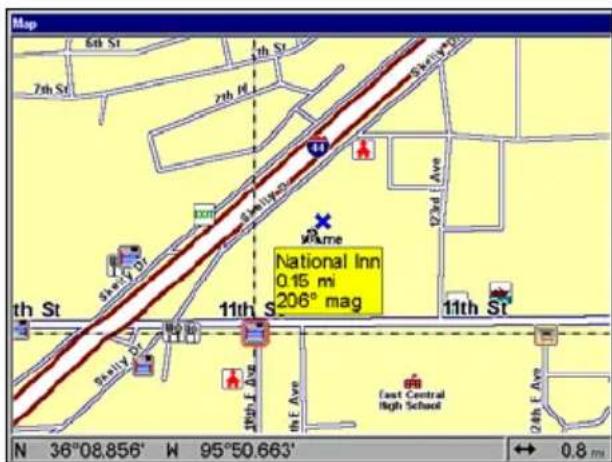

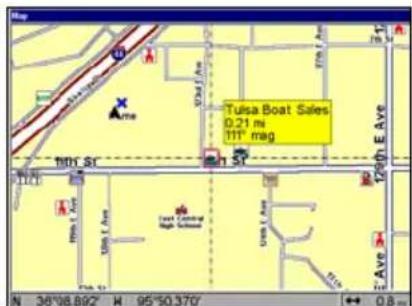

Selecting Any Map Item with the Cursor

1. Use the zoom keys and the arrow keys to move around the map and find the item you wish to select.

2. Use the arrow keys and center the cursor cross-hair on the desired object. On most items, a pop-up box will give the name of the selected item.

Searching

Now that you've seen how the GlobalMap can find where you are, let's search for something else. Searching is one of the most powerful features in the Lowrance GPS product line.

In this example, we'll look for the nearest fast-food restaurant. For more information on different types of searches, refer to Sec. 6, Searching.

NOTE:

This example requires the Point of Interest (POI) database included with a high detail MapCreate 6 custom map.

After the unit has acquired a position:

1. Press WPT | ↓ to POI-RESTAURANTS.

2. You could search the entire restaurant category, but in this example, we will narrow our search. Press → to SUBCATEGORY column | ↓ to FAST FOOD CHAINS | ENT | ↓ to NEAREST | ENT.

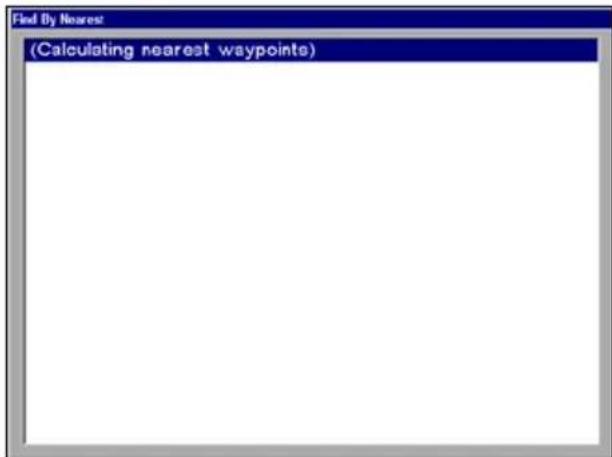

3. The unit says it is calculating, then a list of restaurants appears, with the closest at the top of the list, and the farthest at the bottom of the list. The nearest is highlighted.

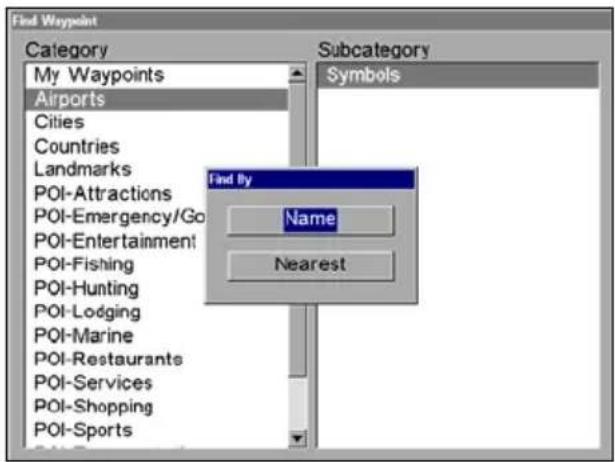

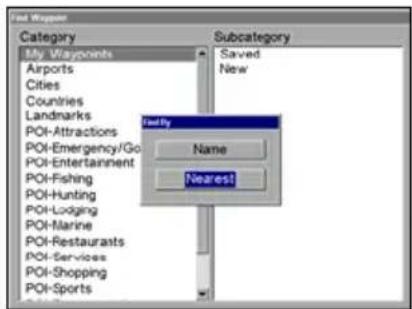

Find Waypoint Category My Waypoints Airports Cities Countries Landmarks POI-Attractions POI-Emergency/Gov't POI-Entertainment POI-Fishing POI-Hunting POI-Lodging POI-Marine POI-Restaurants POI-Services POI-Shopping POI-Sports Subcategory Asian Banquet Rooms Barbecue Coffee Shops Delis Fast Food Chains Ice Cream Italian Mexican Miscellaneous Pizza Sandwiches Seafood Steak Houses

Name	Distance	Bearing
Taco Bueno	0.18	245°
Sonic Drive-h	0.47	265°
Captain D's Seafood Restaurant	0.92	202°
McDonald's	0.93	202°
Long John Silver's	1.04	201°
Burger King	1.15	197°
KFC	1.18	200°
Arby's	1.22	148°
Church's Chicken	2.03	188°
Sonic Drive-h	2.09	159°
Arby's	2.15	190°
Whataburger	2.18	197°
Wendy's	2.34	203°
Arby's	2.44	254°
Taco Bueno	2.48	206°
McDonald's	2.51	283°

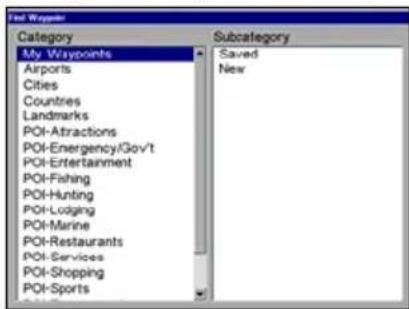

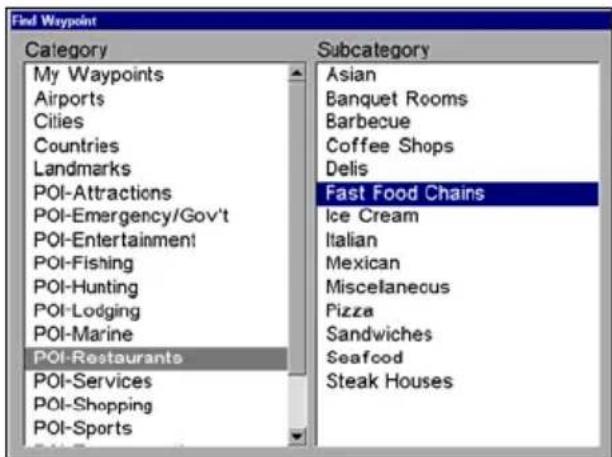

Category Selection menu (left); list of the nearest restaurants (right).

1. If you wish, you could scroll or here to select another restaurant, but for now we will just accept the nearest one. Press ENT.

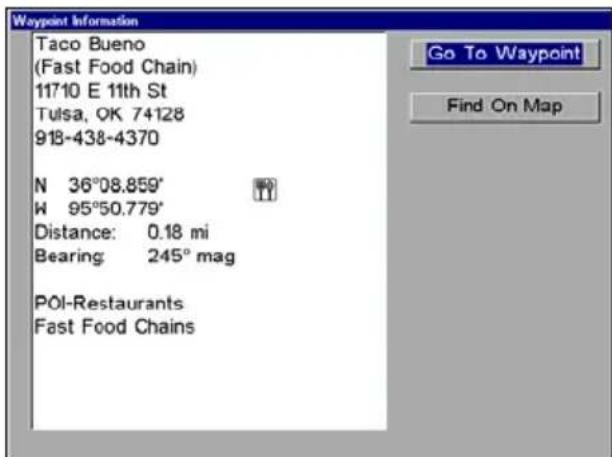

2. The POI information screen appears (This is how you can use the GlobalMap as a business phone directory!). If you wanted to navigate there, you could press ENT, since the Go To command is highlighted. But we just want to see it on the map, so press ↓ to FIND ON MAP | ENT.

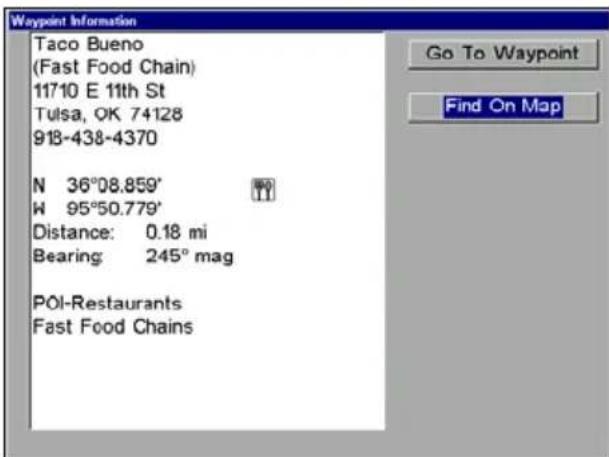

Waypoint Information Taco Bueno (Fast Food Chain) 11710 E 11th St Tulsa, OK 74128 918-438-4370 N 36°08.859' W 95°50.779' Distance: 0.18 mi Bearing: 245° mag POI-Restaurants Fast Food Chains

Waypoint Information Taco Bueno (Fast Food Chain) 11710 E 11th St Tulsa, OK 74128 918-438-4370 N 36°08.859' W 95°50.779' Distance: 0.18 mi Bearing: 245° mag POI-Restaurants Fast Food Chains

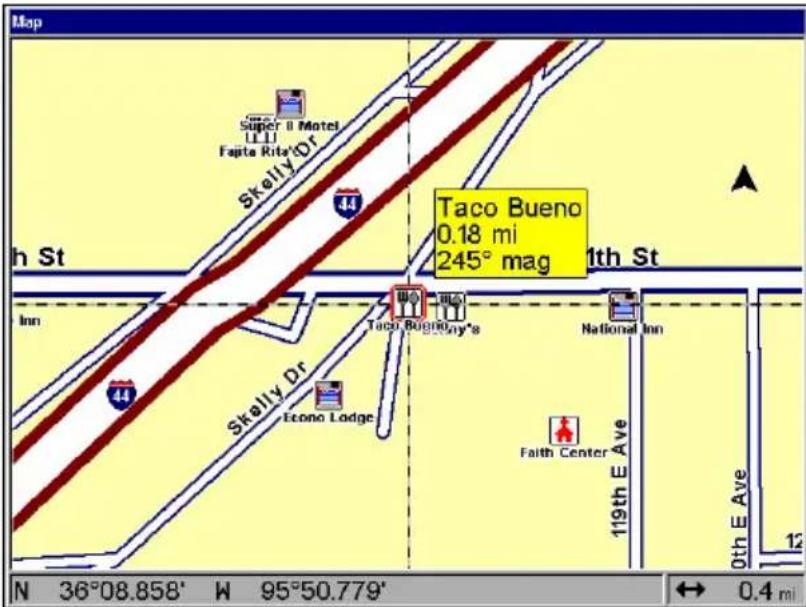

The POI information screen shows name, street address, phone number, latitude/longitude, distance to restaurant and its compass bearing. The Go To command (left); Find On Map command (right).

1. The unit's map appears, with the cross-hair cursor highlighting the restaurant's POI symbol. A pop-up name box identifies the POI, as well as its distance and bearing. A data box at the bottom of the screen continues to display the location's latitude and longitude.
2. To clear the search and return to the last page displayed, press EXIT | EXIT | EXIT | EXIT (Before you completely exited out of the Search menus, you could have gone looking for another place.).

Map Super B Motel Fajta Rits'Or Skelly Dr h St 11th St Inn Taco Bueno 0.18 mi 245° mag Skelly Dr Econo Lodge National Inn Faith Center Ave 119th E Ave 0th E Ave N 36°08.858' W 95°50.779' 0.4 mi

Map screen showing Find Waypoint, the result of a restaurant search.

NOTE:

Search works from mapping and POI data loaded in the Global-Map. If you do not have a high-detailed custom map (containing POI data) for the area you are searching loaded on the MMC, you may not find anything.

Set a Waypoint

A waypoint is simply an electronic "address," based on the latitude and longitude of a position on the earth. A waypoint represents a location, spot, or destination that can be stored in memory, then be recalled and used later on for navigation purposes.

You can create a waypoint at the cursor position on the map, or at your current position while you are navigating. You can create a waypoint at any location by manually entering the position's latitude and longitude. You can copy waypoints from your unit to your personal computer with MapCreate software. When you want to repeat a trip, these archived waypoints can be reloaded into your GPS unit.

To create and save a Waypoint

These first two techniques use the Quick Save method, the fastest and easiest way to create a waypoint.

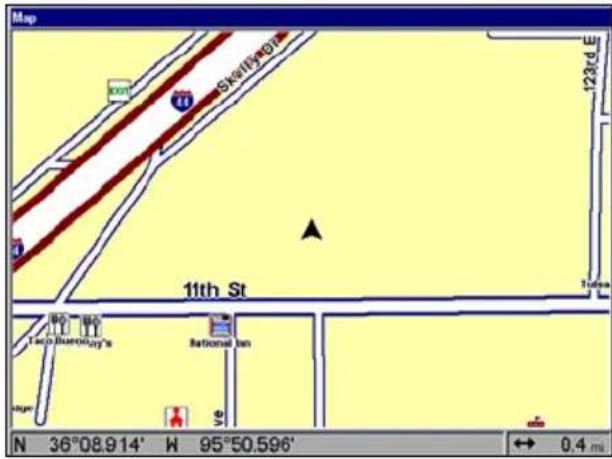

Create Waypoint at Current Position

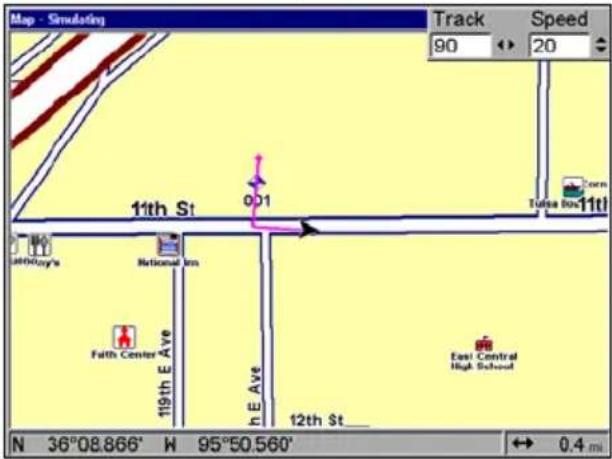

While you are traveling, press WPT|WPT. The waypoint is saved and automatically given a name with a sequential number, such as "waypoint 003." The waypoint symbol and number appear on the map.

Step 1.

Map Skelly Road 123rd St 11th St 1st Street Rational Inn N 36°08.914' W 95°50.596' 0.4 mi

Step 2.

Find Waypoint Category My Waypoints Airports Cities Countries Landmarks POI-Attractions POI-Emergency/Gov't POI-Entertainment POI-Fishing POI-Hunting POI-Lodging POI-Marine POI-Restaurants POI-Services POI-Shopping Press the WPT key again to quickly save a waypoint. Subcategory Saved New

Step 3.

Map - Simdecting Notice The current position has been saved as 001. N 36°08.890' W 95°50.596' East Central High School

Step 4.

Map - Simulating Track 90 Speed 20 11th St 001 Tulsa Ion 11t 11000y's National Ion Fath Center Ave 119th E Ave h E Ave East Central High School 12th St_ N 36°08.866' W 95°50.560' ← 0.4 mi

Sequence for setting a waypoint. Step 1: while traveling, quickly press WPT twice to call up Find Waypoint screen (seen in Step 2) and set a point. Step 3: a message says the waypoint has been saved. Step 4: vehicle continues on its way; number waypoint symbol is visible on map.

NOTE:

The Quick Save method uses the default waypoint symbol until you edit an existing waypoint and change its symbol (Edit Waypoint Symbol is described in Sec. 4.). After you have changed a waypoint symbol, the unit will remember the one you chose and use it the next time you "quick save" a waypoint. To return to the default symbol, edit a waypoint and choose it, use the Reset Options command (described in Sec. 5).

Create Waypoint on Map

1. Use the arrow keys to move the cursor to the place where you want to make a waypoint.
2. Press WPT|WPT. The waypoint is saved and automatically given a name with a sequential number, such as "waypoint 001." The waypoint symbol and number appear on the map.

Create Waypoint by Entering a Position

1. Press WPT | → to SUBCATEGORY column | ↓ to NEW | ENT.
2. Press ↓ to ENTERED POSITION | ENT | → to CREATE | ENT.
3. Press → to LATITUDE|ENT. Enter the latitude by pressing ↑ or ↓ to change the first character, then press → to the next character and repeat until the latitude is correct. Press ENT.
4. Press ↓ to LONGITUDE | ENT. Enter the longitude by pressing ↑ or ↓ to change the first character, then press → to the next character and repeat until the longitude is correct. Press ENT, then EXIT | EXIT to return to the previous page display. The waypoint is saved and automatically given a name with a sequential number, such as "waypoint 001." The waypoint symbol and number appear on the map and in the waypoint list.

Navigate To a Waypoint

You can select any waypoint visible on the Map Page with the cursor, then use the Navigate to Cursor command (we'll describe how later in this section). You, however, can avoid scrolling the map to pick your waypoint if you use the Find Waypoint commands:

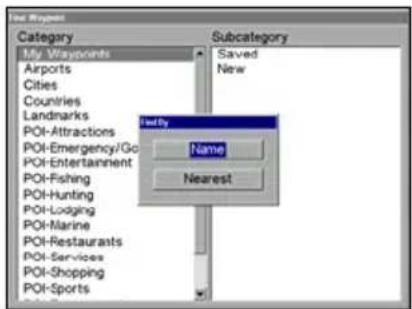

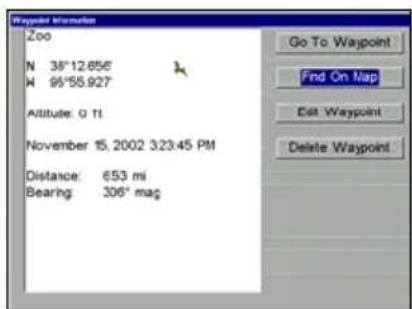

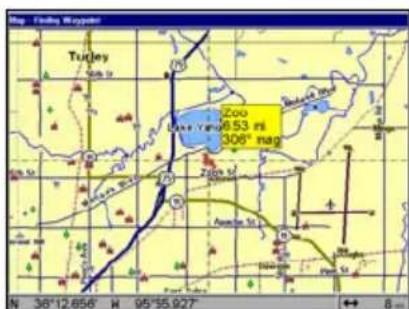

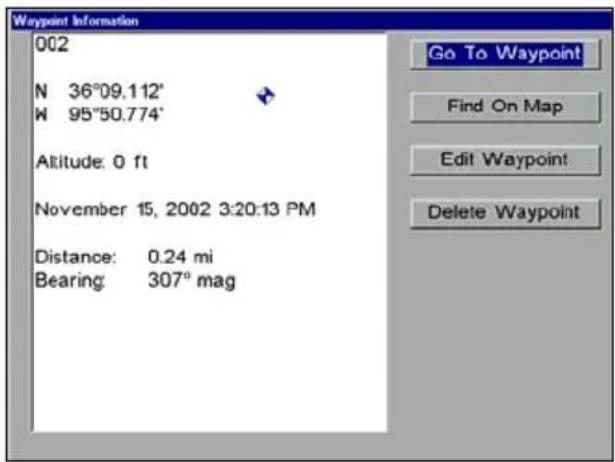

1. Press WPT | → to SAVED | ENT. To look up the nearest waypoint, press ↓ to NEAREST | ENT; or, to look by name (and scroll through the entire waypoint list), press ENT. For this example, look by name.

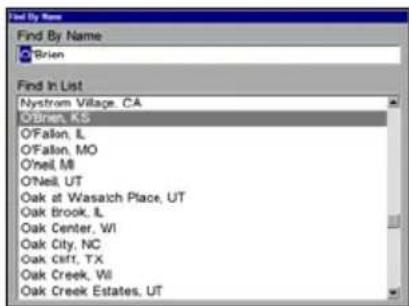

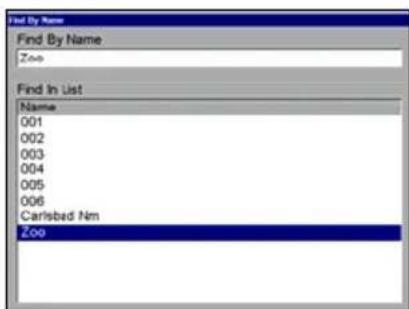

2. If your waypoint list is a long one, you can spell out the waypoint name in the FIND BY NAME box to search for it (Press ↑ or ↓ to change the first character, then press → to move the cursor to the next character and repeat until the name is correct, then press ENT to jump to the list below.).
3. If the list is short, you can jump directly to the FIND IN LIST box by pressing ENT. Use ↑ or ↓ to select the waypoint name, press ENT and the waypoint information screen appears with the Go To command selected.
4. To begin navigating to the waypoint, press ENT.

Ground Speed 27.0 mph Track 355° mag Closing Speed 27.0 mph Bearing 355° mag Distance 513 ft Course 355° mag Off Course Travel Time 1 R ft 0:00:13 Local Time Arrival Time 3:01:14 P M 3:01:27 P M Voltage 14.7 V Altitude 0 ft Position - Degrees/Minutes Latitude N 36°09.272' Longitude H 95°50.282' Stoaring - Simulating Waypoint 33 3 6 30 W 0.20 0.20 E 24 21 S 15 12 Trail line (solid) Destination name Going To 004 Off course range, set at 0.20 mile

GlobalMap navigation Page, navigating toward waypoint 004 and leaving a trail.

Set Man Overboard (MOB) Waypoint

One of boating's most terrifying events is having a friend or family member fall overboard. This situation can be deadly on any body of water. It's particularly dangerous at night or if you're out of sight of land. Of course, the first thing to do is remain calm and then use all standard safety procedures to rescue the person.

This unit has a man overboard feature that shows navigation data to the location where the feature was activated. To activate it, press the ZOUT and ZIN keys at the same time. Your position at the time these keys are pressed is used as the man overboard position.

Caution:

Saving a new "Man Overboard" waypoint will overwrite and erase the previous "Man Overboard" waypoint.

Navigate Back to MOB Waypoint

Find your way back to the accident position with the Navigation Page or Map Page. When MOB is activated, the Navigation Page automatically shows the compass rose with its bearing arrow pointing toward the man overboard position, and the destination name says "Going To Man Overboard." The Map Page displays a Man Overboard waypoint, represented by a human figure, and the steering arrow points where to steer to reach that position.

Ground Speed Track 10.0 mph 270° mag Closing Speed Bearing -10.0 mph 90° mag Distance Course 220 ft OFF Course Travel Time ms 99:99:99 Local Time Arrival Time 4:26:34 P Voltage Attitude 14.7 V Position - Degrees/Missians Latitude N 41°52.516' Longitude H 87°35.248' Steering - Simulating W 30 24 33 21 S 15 N 3 12 E 6 Going To Man Overboard Map - Simulating North Plan Chicago Harbor Southerly Breakwater Man Over board Northernly Island F C N 41°52.514' H 87°35.307' ← 4 mi

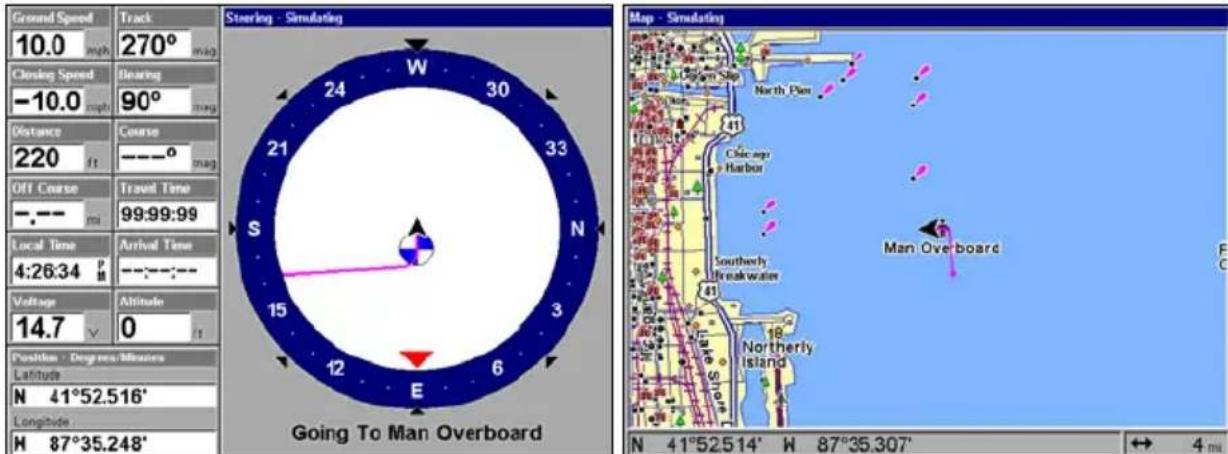

Navigating to Man Overboard: navigation page (left) and Map Page (right). The victim is astern of the vessel; the GPS shows which direction to steer to for the rescue.

The man overboard position is also stored in the waypoint list for future reference. It can be edited the same as any other waypoint.

To cancel navigation to MENU | MENU |s to CANCEL NAVIGATION | ENT | ← to YES | ENT. The GlobalMap stops showing navigation information.

Navigate to Cursor Position on Map

The Go To CURSOR command navigates to the current cursor position on the map. It's a quick and handy way to navigate to anything you can see on the map display.

1. Use the cursor (controlled by the arrow keys) with the zoom in and zoom out keys to maneuver around the map until you find a location you want to go to.
2. Center the cursor over the location to select it. See the example in the following figure (Many map items such as waypoints, Points of Interest, towns, etc. can be "selected," and appear "highlighted" with a pop-up box. Other features, such as a river or a street intersection will not appear "highlighted," but the cursor will take you to those locations just the same.).

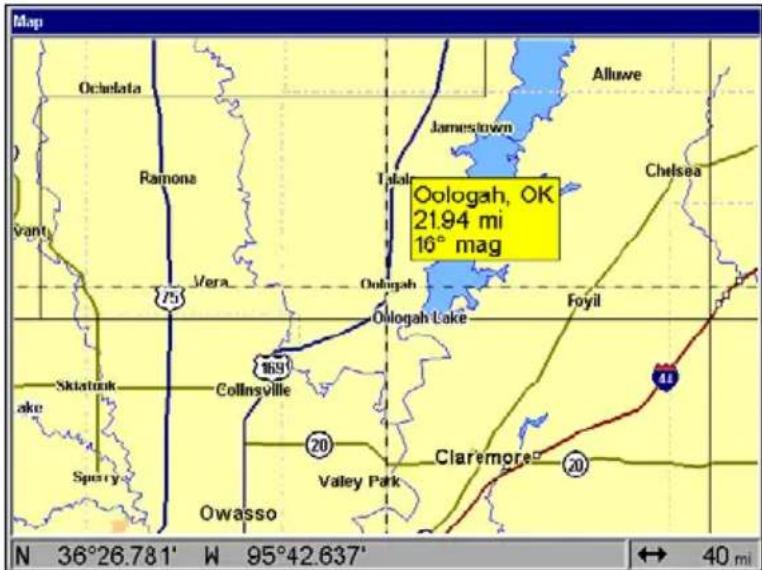

Map Ochelata Ramona Vant Jamestown Talal Chelsea Oologah, OK 21.94 mi 16° mag Oologah Lake Foyil Skiatruk Collinsville Sparey Owasso Claremore Valley Park N 36°26.78'1' W 95°42.637' ← 40 mi

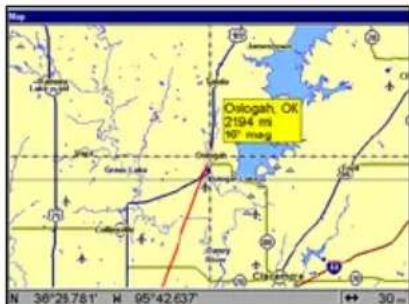

Navigate to cursor. In this example, the cursor is positioned on the town of Oologah, Oklahoma.

1. Press MENU | ENT and the GlobalMap will begin navigating to the cursor location.

The Map Page will display a dotted line from your current position to the cursor position. The Navigation Page displays a compass rose showing navigation information to your destination. See the following examples.

Osiogah, OK 2194 m 10° mag N 36°29.78'1" H 95°42.63'7" ↔ 30 m

Tulga Broken Arrow N 35°98.911' W 95°50.603' 30 m

Speed Speed 100.0 15° Speed Speed 100.0 15° Distance 20.80 15° Unit Direction 0 L 0:12:29 Local Time 4:35:55 4:48:24 Voltage 14.7 0 Position: Seconds Minutes Longitude N 36°99.753' Longitude K 95°50.228" Tuning Simulating N J 33 30 W 24 21 E 12 15 0.20 0.20 Going To Cursor

The 30-mile zoom example (left) shows the dotted course line connecting your current position to your destination. The other 30-mile zoom example (center) shows both current position and direction to destination on screen. The Navigation Page (right) will also show navigation information.

To stop navigating to the cursor, use the Cancel Navigation command: press MENU | MENU | ↓ to CANCEL NAVIGATION | ENT | ← to YES | ENT. The unit stops showing navigation information.

Navigate to a Point of Interest

For POIs that are in view on the map, you can easily use the Navigate to Cursor command above. Just use the cursor to select the POI.

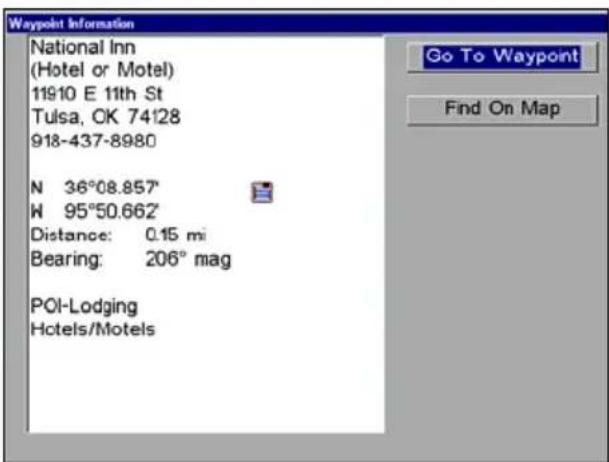

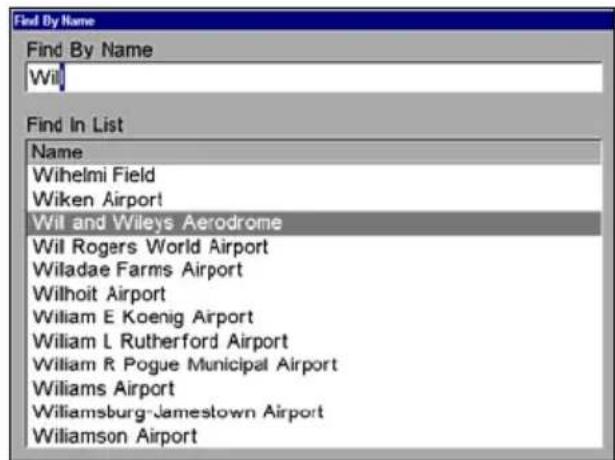

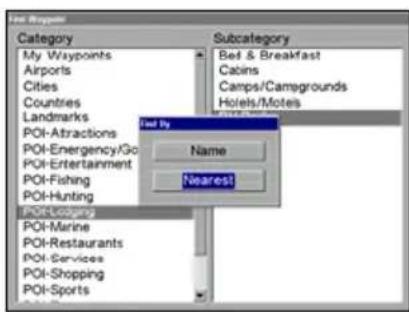

The other method involves searching for POIs with the Find Waypoint command, launched with the WPT key (See the searching example earlier in this section, or turn to Sec. 6, Searching, for detailed instructions on POI searches.).

After you have looked up an item with the Find Waypoint command, use the → to make sure the Go To command is highlighted at the top of the screen, then press ENT. The GlobalMap begins showing navigation information to the item.

To cancel navigation, press MENU | MENU | ↓ to CANCEL NAVIGATION | ENT | ← to YES | ENT. The unit stops showing navigation information.

Creating and Saving a Trail

A trail, or plot trail, is a string of position points plotted by the Global-Map as you travel. It's a travel history, a record of the path you have taken. Trails are useful for repeating a journey along the same track. They are particularly handy when you are trying to retrace your trip and go back the way you came. On the screen, trails are represented by a solid line extending from the back of the current position arrow.

The GlobalMap is set at the factory to automatically create and record a trail while the unit is turned on. The unit will continue recording the trail until the length reaches the maximum trail point setting (default is 2,000, but the unit can record trails 9,999 points long). When the point limit is reached, the unit begins recording the trail over itself.

By default, the trail flashes once a second, making it easier to see against the background map. With the default auto setting, the GlobalMap creates a trail by placing a dot (trail point) on the screen every time you change directions (The trail update rate and the methods used for creating a trail can be adjusted or even turned off. See Sec. 5 for Trail Options.).

To preserve a trail from point A to point B, you must "turn off" the trail by making it inactive before heading to point C or even back to point A. When the current trail is inactive, the GlobalMap automatically begins recording a new trail.

To Save a Trail

1. Press MENU | MENU | ↓ to MY TRAILS | ENT.
2. Press ↓ to choose a trail in the Saved Trails List | ENT.

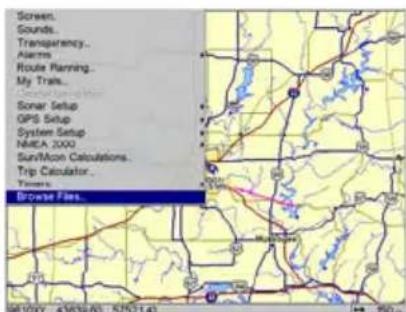

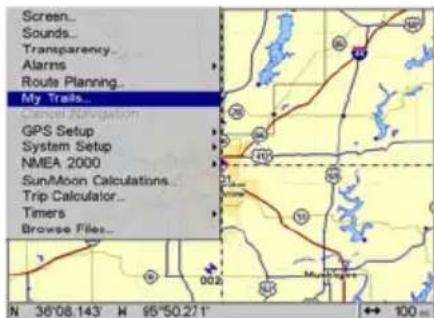

Screen. Sounds. Transparency.. Alarms Route Planning.. My Trails.. Sonar Setup GPS Setup System Setup NiHEA 2000 Sun/Moon Calculations.. Trip Calculator.. Times.. Browse Files..

Screen... So Trails New Trail Trail Options Delete All Saved Trails Trail 1 60 Points Trail 2 141 Points ✓ Trail 3 8 Points Visible symbol Active symbol

Screen... So Tools Name Trail 17 Color Light Magenta Pattern ****** Maximum Points 2000 Delete Trail Navigate Active Visible Trail Preview

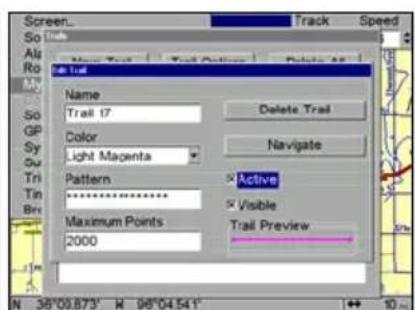

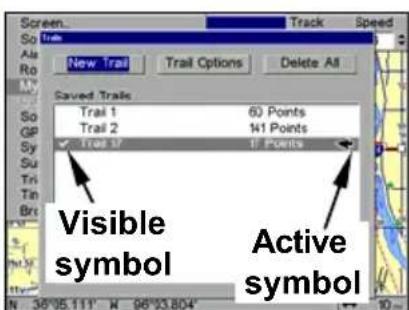

Sequence for saving a trail and beginning a new one. My Trails command (left). The arrow to the right of Trail 17 (center) indicates the trail is "active" and the check to the left shows the trail is visible on the map. The Edit Trail menu (right) with Active command selected.

1. Press ↓ → to ACTIVE | ENT. This unchecks the Active option.

2. To return to the previous page, press EXIT | EXIT | EXIT | EXIT. As you left the Edit Trail menu, you will notice that a new trail was started with a new sequential number. In the example below, the new trail is number 15, showing zero points. Note that Trail 14 is inactive, but it is still visible on the map.

Screen... Sounds... Transparency... Alarms Route Plan My Trails... Cancel Na GPS Setu System Se NMEA 200 Sun/Moon Trip Calcu Timers Browse Fi New Trail Trail Options Delete All Trails Saved Traits Trail 1 60 Points Trail 2 141 Points ✓ Trail 14 18 Points ✓ Trail 15 0 Points Muskogee N 36°08.143' W 95°50.27'1' ← 100 mi

A new trail, Trail 15, is created when Trail 14 is set to inactive. Any new travel will be recorded on this trail, which is active and visible.

Trails do not need to be visible in order to be active.

You can save and recall up to 10 different plot trails, which can also be copied to your MMC for archiving or for transfer to your MapCreate software.

Tip:

Another quick way to stop recording one trail and begin a new one is to use the New Trail command: Press MENU | MENU | ↓ to MY TRAILS | ENT | ENT.

Caution:

You also have the option of completely turning off trail recording, under the trail Options command. If, however, the Update Active Trail option is left turned off, it will cancel the automatic trail creation feature.

Displaying a Saved Trail

The active trail is automatically displayed on the map (the "Visible" option) with the factory default settings. You can selectively turn trail display off and on for any saved or active trail. In the Saved Trails List, visible trails have a check mark in front of the trail name.

To turn off trail display:

1. Press MENU | MENU | ↓ to MY TRAILS | ENT.
2. Press ↓ to enter the Saved Trail list, then use ↑ or ↓ to select the desired Trail Name | ENT.
3. Press ↓ → to ACTIVE | ↓ to VISIBLE | ENT. To return to the previous page, press EXIT | EXIT | EXIT | EXIT.

To turn on trail display:

1. Press MENU | MENU | ↓ to MY TRAILS | ENT.
2. Press ↓ to enter the Saved Trail list, then use ↑ or ↓ to select the desired Trail Name | ENT.
3. Press ↓ → to ACTIVE | ↓ to VISIBLE | ENT. To return to the previous page, press EXIT | EXIT | EXIT | EXIT.

Navigating Trails

There are three methods for following a trail: visual trailing, navigating a trail (forward) and backtracking a trail (backward). Try each method to see which you prefer.

Visual trailing is the simplest method. It uses only the Map Page and requires no menu commands at all. The technique works the same if you are running a trail forward (from start to end) or backward (from end to start). Visual trailing, however, provides no navigation information during the trip, such as the time to your destination.

The other two methods provide a full range of navigation data and work with both the Map Page and Navigation Page. The only difference between them is "navigating a trail" follows a trail forward, while "backtracking" follows a trail in reverse.

When hiking at walking speed with a hand-held GPS, we often just use visual back trailing because it is better following each little turn on a foot path. At faster speeds — like traveling on the highway or on the water — the Navigate Trail and Backtrack Trail commands are handy.

Visual Trailing

1. On the Map Page, zoom (ZIN or ZOUT) so your trail is visible.
2. Begin moving and watch the Map Page. Simply walk or steer so your current position arrow moves along the trail you have just made.

Tip:

Generally, when using this method, the smaller the zoom range, the more accurately you will be able to steer along the trail.

Navigate a Trail (forward)

The following figures illustrate the menu sequence for navigating a trail.

1. Press MENU | MENU | ↓ to MY TRAILS | ENT.
2. Press ↓ to the Saved Trail list, then use ↑ or ↓ to select the desired Trail Name | ENT.
3. Press → to DELETE TRAIL | ↓ to NAVIGATE | ENT.
4. Press ↓ to NAVIGATE|ENT. The unit begins showing navigation information along the trail.

NOTE:

If you are already located at or near the beginning of your trail, the arrival alarm will go off as soon as you hit Enter. Just press EXIT to clear the alarm.

1. Begin moving and let your GlobalMap guide you.
2. When you reach your destination, be sure to cancel your navigation: press MENU | MENU | ↓ to CANCEL NAVIGATION | ENT. The unit asks if you're sure. Press ← | ENT.

Figure 1. Figure 2.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... 60mi Tulsa Sapiops Muskor 60mi 60mi Screen... Track Speed So Trails Ala Ro My Caa New Trail Trail Options Delete All Saved Trails ✓ Trail 1 10 Points So GP GP Sy Su Tri Tin Brc N 35°52.837' H 96°02.900' 8 Points

Figure 3.

Screen... So Ala Ro My S So GP Sy Su Tri Tin Brc Trails New Trail Trail Options Delete All Edit Trail Name Trail 6 Color Light Magenta Pattern ********** Maximum Points 2000 Delete Trail Navigate Active Visible Trail Preview N 35°56.41' W 95°53.436'

Figure 4.

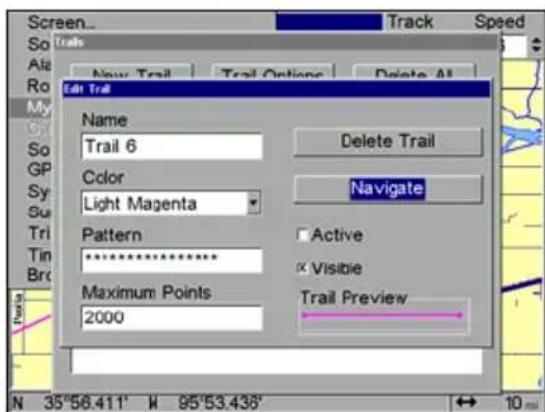

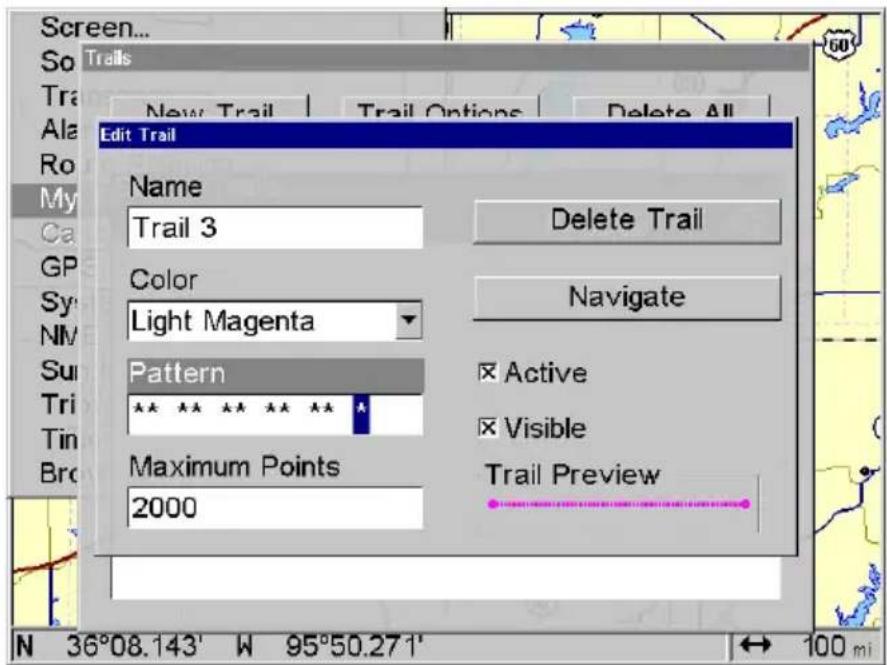

Edit Row Name (Trail 6) Display Data Total Distance/Bearing Navigate Preview Reverse Delete Waypoints Name Distance Bearing • (1) --- --- ---* • (2) 0.36 297° • (3) 0.58 287° • (4) 0.95 276° • (5) 6.85 264° • (6) 7.03 258° • (7) 7.29 251° • (8) 7.76 242°

Navigate a trail menu sequence: Fig. 1, My Trails command. Fig. 2, Trails Menu. Fig. 3, Edit Trail Menu. Fig. 4, Edit Route Menu with Navigate command highlighted for Trail 6. A trail is always converted to a "route" when you navigate the trail.

On the Map Page, the trail you are navigating is represented by a dotted line that alternates with a flashing solid line. The Navigation Page will also show the navigated trail as a dotted line. The bearing arrow on the compass rose points to the next waypoint on the trail.

As you travel, the arrival alarm will go off when you near a waypoint. The bearing arrow on the compass rose will swing around and point to the next trail waypoint. Press EXIT to clear the alarm.

Map - Simulating Present position- arrow North ↑ Dotted trail line Trail point (7) (6) (5) (4) (3) (2) (1) (0) Lynn' Lane Lynn' Lane 17th E. Ave 17th E. Ave 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st S 31st S 31st S 31st S 31st S 31st S 31st S 31st S 31st S 31st S 31st S 31st S 31st S 31st S 31st S 31st S 31st S 31st S 31st S 31st S 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st St 31st ST 31st ST 31st ST 31st ST 31st ST 31st ST 31st ST 31st ST 31st ST 31st ST 31st ST 31st ST 31st ST 31st ST 31st ST 31st ST 31st ST 31st ST N 36°07.556' H 95°45.709' ↔ 5 mi N 36°08.015' H 95°45.973' ↔ 5 mi

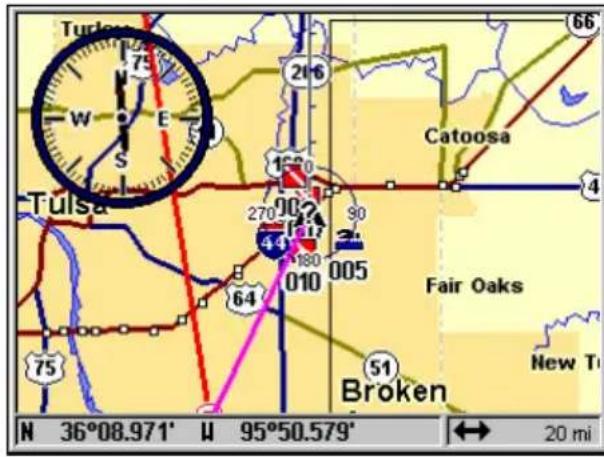

Navigate trail, map views: driver is northbound heading straight toward trail point 6 (left). northbound driver has reached point 6 (right) and has turned west to follow trail.

Course line made from trail Trail waypoint symbol Steering - Simulating Track or compass heading indicator Cross track error range (off course indicator) Ground Speed 356° Bearing 266° Course 265° Travel Time 99:23:32 9:23:45 Voltage Altitude 14.7 0 Position - Degrees/Minutes Latitude N 36°07.931' Longitude H 95°45.705' Going To (6) Storling - Simulating Alarm ! Arrival Alarm Arrival alarm Going To (7)

Navigate trail, navigation page (compass rose) views: driver is north-bound heading straight toward trail point 6 (left); bearing arrow shows the trail point is due north (straight ahead). Driver has reached trail point 6 and must turn west to follow the trail (right). Arrival alarm goes off and bearing arrow swings around to say turn left (west), toward the next waypoint, trail point 7. The GlobalMap now shows navigation information to point 7, which is 1.99 miles away.

Navigate a Back Trail (backtrack, or reverse)

1. Press MENU | MENU | ↓ to MY TRAILS | ENT.
2. Press ↓ to enter the Saved Trail list, then use ↑ or ↓ to select the desired Trail Name | ENT.
3. Press → to DELETE TRAIL | ↓ to NAVIGATE | ENT.
4. Press ↓ to NAVIGATE | → to REVERSE | ENT | ← to NAVIGATE | ENT. The unit begins showing navigation information along the trail, in reverse.

NOTE:

If you are already located at or near the end of your trail, the arrival alarm will go off as soon as you hit ENT. Press EXIT to clear the alarm and proceed.

1. Begin moving and let your GlobalMap guide you.
2. When you reach your destination, be sure to cancel your navigation. Press MENU | MENU | ↓ to CANCEL NAVIGATION | ENT. The unit asks if you're sure. Press ← | ENT.

Transfer Custom Maps and GPS Data Files

Custom Maps

Custom maps work only from the MMC card or SD card unless you have a hard drive model. When a card containing a Custom Map File is loaded into the unit, it automatically loads the map into memory when the unit is turned on.

Instructions for copying Custom Map Files to an MMC are contained in the instruction manual for your MMC card reader and MapCreate software. For instructions on inserting an MMC into the GlobalMap, see Sec. 2, Installation/Accessories.

NOTE:

To load a Navionics ^® chart, see Sec. 5 for the entry Navionics Charts.

GPS Data files

GPS Data Files contain waypoints, routes, trails and event marker icons. Instructions for copying GPS Data Files between your computer and an MMC are contained in the instruction manual for your MMC card reader and MapCreate software.

GPS data automatically recorded in the unit's internal memory must be saved to the MMC (as a GPS Data File) in order to store it on your personal computer (If you have an HD model, these can also be saved to the hard drive.). GPS Data Files stored on an MMC must be copied from the card to the GlobalMap's internal memory before the unit can read them. Here's how:

1. Insert the MMC into your unit. Press MENU | MENU | ↓ to SYSTEM SETUP | ENT | ↓ to TRANSFER MY DATA | ENT and the dialog box below appears.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Naviga GPS Setup System Setup NMEA 2000 Sun/Moon Ca Trip Calculato... Timers Browse Files... Question Transfer data which way? Port... Save Load Vaypoints Popup Help Set Language... Transfer My Data... Check Free Storage... Software Information... N 36°08.143' W 95°50.271' ↔ 100 mi

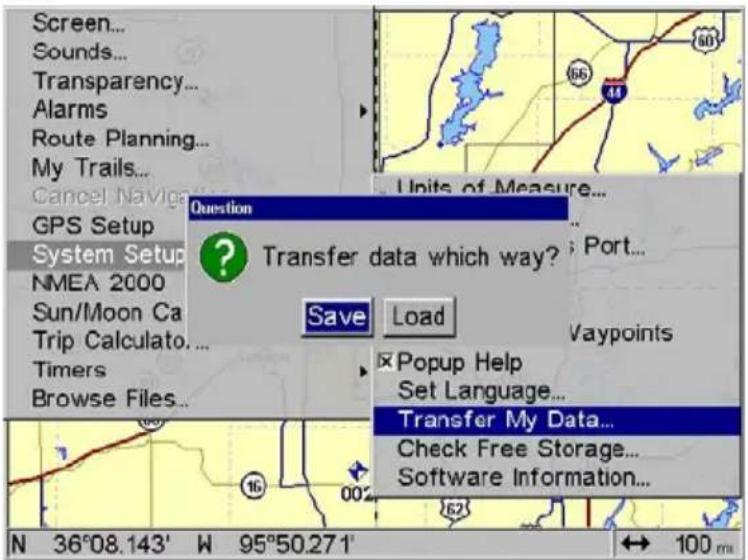

The Transfer My Data submenu asks if you want to save data to the MMC or load data from the MMC into the unit's memory.

1. The Transfer My Data menu includes a message that tells you if a MMC is present or not. If no MMC is present, you must insert a card to activate the Load or Save commands.

To transfer data from the GlobalMap to the MMC press ENT (for SAVE).

To transfer data from the MMC to the GlobalMap press → to LOAD | ENT.

1. Saving to MMC: To accept the default name "Data" for the GPS Data File, press ↓ to SAVE DATA | ENT. If you wish to rename the file (as shown in the following figures), press ENT to activate the file name selection box. Press ↑ or ↓ to change the first character, then press → to the next character and repeat until the name is correct. Then, press ENT | ↓ to SAVE DATA | ENT.

The unit will display a completion message when the data transfer is finished. To return to the Page view, repeatedly press EXIT.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancer Navigation GPS Setup SPTMOLG NMEA 2000 Sun/Moon Calc Trip Calculator... Timers Browse Files... Units of Measure... Metric Data 049-6274-22 (6.268 free) File name Data Save Data Map Port... Waypoints Data... Check Free Storage... Software Information... 36°08.14'3" H 95°50.27'1" ↔ 100 mm

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... GPS Setup MME Card 041-0214-73 (8.2MB free) Data214 Save Data NMEA 2000 Sun/Moon Call Trip Calculator Timers Browse Files... Check Free Storage... Software Information...

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... GPS Setup System Setup NMEA 2000 Sun/Moon Calc Trip Calculator Timers Browse Files... MASC Card 041-0274-22 (5.2MB free) File name Data24Pte Save Data Port... Vaypoints Check Free Storage... Software Information... N 36°38.143' N 95°50.271' ↔ 100 m

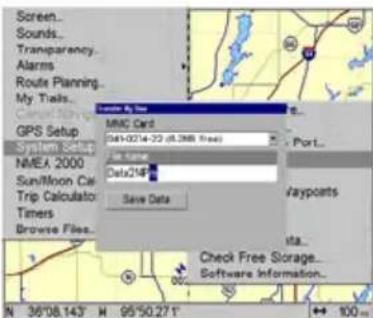

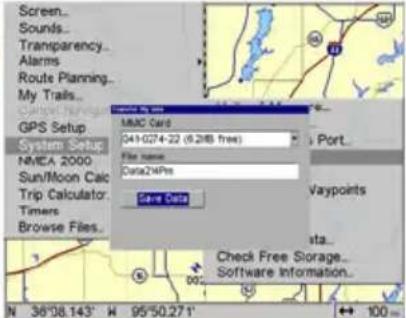

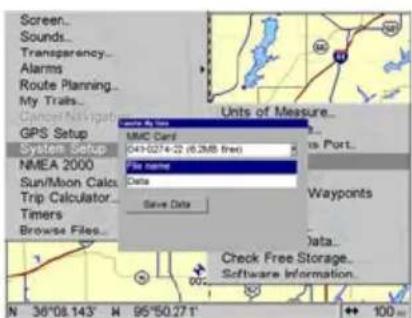

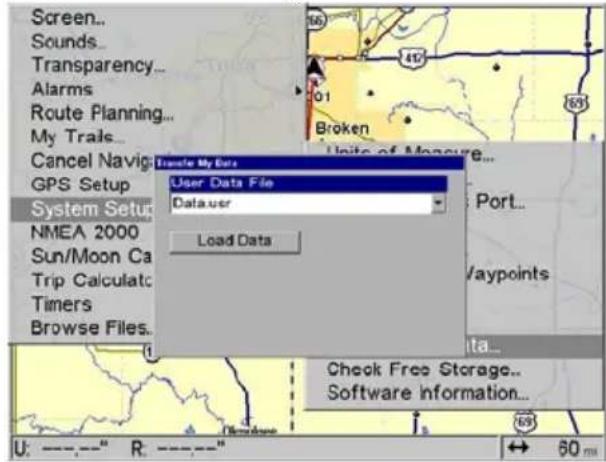

These figures (left to right) show the menu sequence for naming and saving a GPS Data File from the GlobalMap's memory to an MMC.

1. Loading to unit memory: There may be more than one GPS Data File (*.USR) on the card. To select a file, press ENT to activate the selection box, use ↓ or ↑ to highlight the file, then press ENT to accept the selection. Next, press ↓ to LOAD DATA | ENT. The unit will display a completion message when the data transfer is finished. To return to the Page view, press EXIT repeatedly.

Figure 1.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navig GPS Setup System Setup NMEA 2000 Sun/Moon Ca Trip Calculatc Timers Browse Files. Transfer My Data User Data File Data User Load Data Port... aypoints Check Free Storage... Software Information... U: ----" R: ----" 60 mi

Figure 2.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Nav GPS Setup System Se NMEA 2000 Sun/Moon Trip Calcul Timers Browse File Transfer My Data User Data File Data.usr Data.usr Data214Pm.usr U: ----" R: ----" 60 mi

Figure 3.

Screen... Sounds... Transparency... Alarms Route Planning... My Trail Transfer My Date Cancel N User Data File GPS Set Data214Pmusr System NMEA 20 Sun/Moo Trip Calc Load Data Timers Browse I U: - - - - " R: - - - - " ↔ 60 ms

Figure 4.

Screen... Sounds... Transparen Alarms Route Plan My Trails... Cancel Nav GPS Setup System Se NMEA 200 Sun/Moon Trip Calculi Timers Browse Files... Transfer My Data User Data File Data214Pm.usr Notice User data loaded successfully. Transfer My Data... Check Free Storage... Software Information... U: - - - - " R: - - - - " < 60 mi

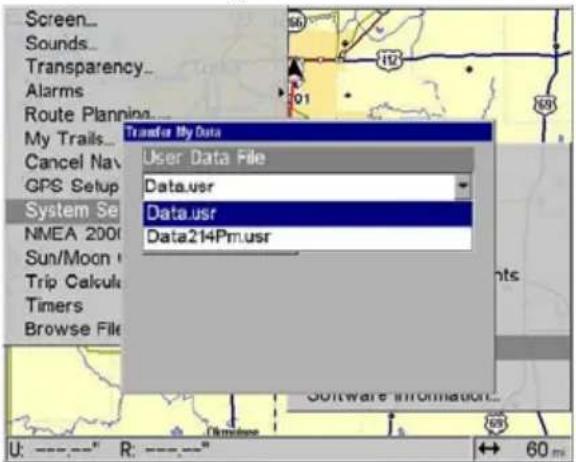

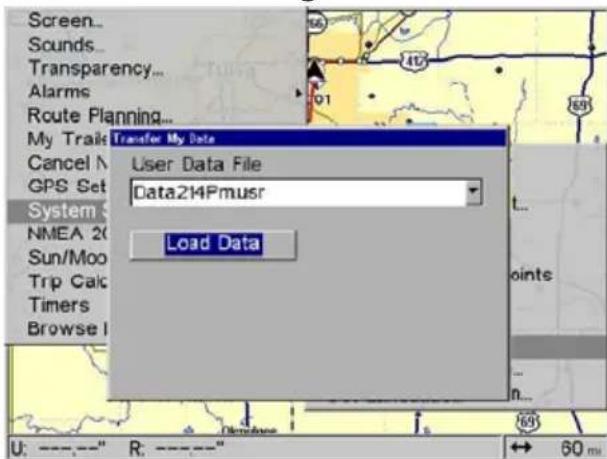

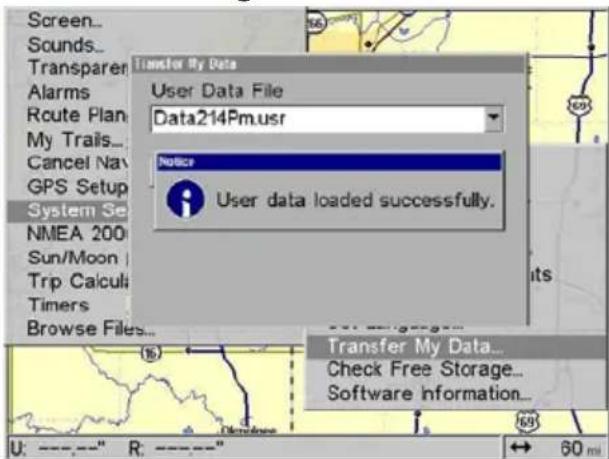

These figures show the menu sequence for loading a GPS Data File from a MMC into the GlobalMap's memory.

Save GPS Data to Hard Drive

If you do not have a MMC or SD card, you can save any GPS data (trails, routes, waypoints and icons) to the unit's hard drive. To do this from the Map Page:

1. Press MENU|MENU| ↓ to SYSTEM SETUP

2. Press → to TRANSFER MY DATA|ENT| ENT. A dialog box will appear on screen. In this dialog box, you can choose whether to save the data to the unit's hard drive or to a MMC card.

3. Press ↓ to SAVE DATA | Press ENT

The data is now stored on the unit's hard drive.

NOTE:

If you do no have a MMC or SD card already in the unit, the data information will automatically save to the unit's hard drive.

To retrieve the saved data information:

1. MENU | MENU| ↓ to BROWSE FILE | ENT| ENT
2. Scroll through the list of files to find the one you want
3. Press ENT | ↓ to PLAY | ENT|EXIT

Cancel Navigation

You can turn off any of the navigation commands after you reach your destination or at any other time by using the Cancel Navigation command. Press MENU | MENU | ↓ to CANCEL NAVIGATION | ENT | ← to YES | ENT.

Notes

Section 4: Advanced GPS Operations

Find Distance to Another Location

1. While on the Map Page press MENU | ↓ to FIND DISTANCE | ENT.

2. To check the distance to a location, center the cursor over the desired position. A rubber band line appears, connecting your current position to the cursor's location. The distance along that line will appear in a pop-up box. The box also shows the bearing to the location.

3. Press EXIT to return to regular operation.

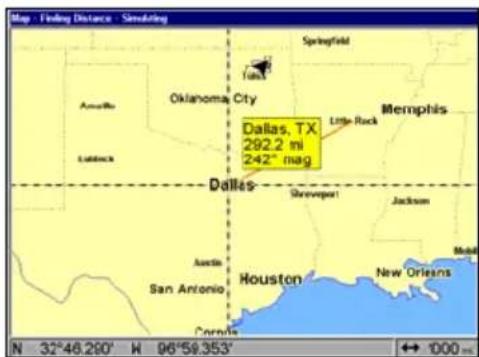

Map - Finding Distance - Simulating Dallas, TX 292.2 mi 242" mag Aurora Lubbock Oklahoma City Springfield Tampa Little Rock Memphis Shreveport Jackson San Antonio Houston New Orleans Cornola N 32°46.200' H 96°59.353' ↔ 1000 m

Dam Site West Public Use Area 0.58 ni 287° mag Oologah Lake N 36°25.625' W 95°40.664' ↔ 15 m

The distance from Dallas to Little Rock is 292.2 miles (left). The distance from the boat's current position to the boat ramp is 0.58 miles (right).

Find Distance From Point to Point

You can also measure distance between two other points on the map.

1. While on the Map Page press MENU | ↓ to FIND DISTANCE | ENT.
2. Center your cursor over the first position (A rubber band line appears, connecting your current position to the cursor's location). Press ENT to set the first point, and the rubber band line disappears.
3. Move the cursor to the second position. The rubber band line reappears, connecting the first point you set to the cursor. The distance along that line will appear in a pop-up box.
4. Press EXIT to clear the command and return to the page screen.

Icons

Icons are graphic symbols used to mark some location, personal point of interest or event. They can be placed on the map screen, saved and recalled later for navigation purposes. These are sometimes referred to as event marker icons. The unit has 42 different symbols you can pick from when creating an icon.

Icons are similar to waypoints, but they do not store as much information as waypoints do. You can't use a menu to navigate to icons as you can with waypoints (But you can use the map cursor and navigate to any icon on the map.).

You can create an icon at the cursor position on the map, or at your current position while you are navigating.

Create Icon on Map

1. Use the arrow keys to move the cursor to the location you want to mark with an icon.
2. Press ENT and the screen shows a Select Icon Symbol menu.
3. Press or or or to select your icon symbol, then press ENT. The icon appears on the map.

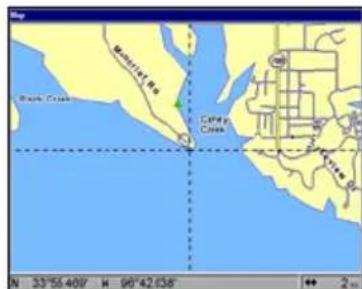

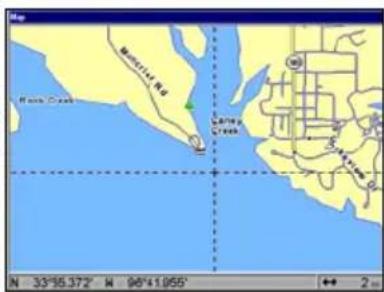

Map Merton Road Lake City Capey Capey N 33°55.40' H 90°42.03' 2 m

Icon Window Icons Rock C Boat Ramp N 33°55.469' H 08°42.038'

Marina Rd LAWAY Green N 33°55.372' N 96°41.055' ↔ 2

Cursor selects icon location (left); Select Icon Symbol menu (center); Boat Ramp icon on map (right). The cursor has been moved for clarity.

Create Icon at Current Position

1. While you are traveling, press ENT and the screen shows a "Select Icon Symbol" menu.
2. Press or or or to select your icon symbol, then press ENT. The icon appears on the map.

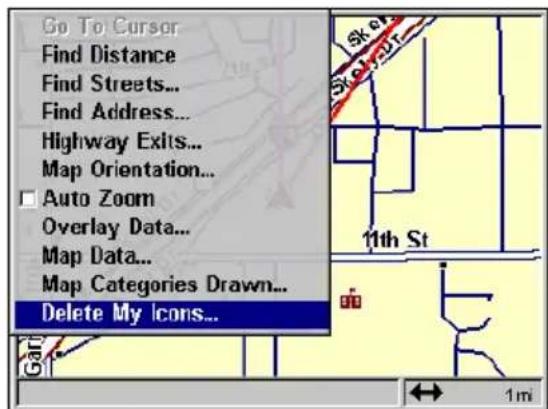

Delete an Icon

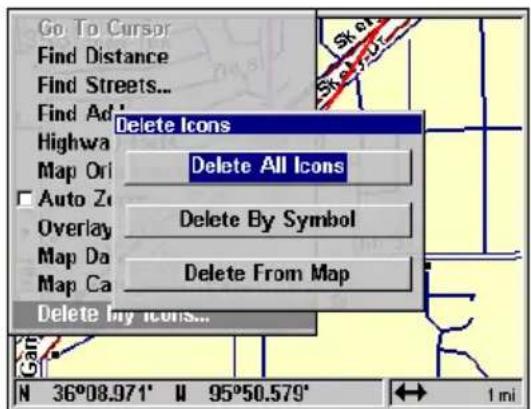

You can delete all the icons at one time, you can delete all icons represented by a particular symbol, or you can use the cursor to delete a selected icon from the map.

1. Press MENU | ↓ to DELETE MY ICONS | ENT.
2. Press ↓ to DELETE ALL ICONS, DELETE BY SYMBOL, or DELETE FROM MAP and press ENT.

Go To Cursor Find Distance Find Streets... Find Address... Highway Exits... Map Orientation... □ Auto Zoom Overlay Data... Map Data... Map Categories Drawn... Delete My Icons...

Go To Cursor Find Distance Find Streets... Find Ad Highway Map Ori Auto Z Overlay Map Da Map Ca Delete Icons Delete All Icons Delete By Symbol Delete From Map Delete by Icons... N 36°08.971" N 95°50.579" ← 1 mi

The Delete icons menus

The Delete All Icons command will ask if you are sure. Press ← to YES | ENT. All icons will be deleted from the map.

The Delete by Symbol command will launch the Select Symbol menu. Press or or or to select the symbol to delete, then press ENT. A message appears saying all icons with the selected symbol have been deleted.

The Delete from Map command will prompt you to move the cursor over an icon to select it. After selecting the icon, press ENT and it disappears from the map.

Navigate to an Icon

Use the Navigate to Cursor command, and use the cursor to select the desired icon on the map.

1. Use arrow keys to center cursor cross-hair over the icon.
2. To navigate to the selected icon location press MENU | ENT | EXIT. Follow the course line on the Map Page or the compass-bearing arrow on the Navigation Page.

Routes

A route is a series of waypoints linked together in an ordered sequence to mark a course of travel. You can visualize a route as a string of beads. The beads represent waypoints and the string represents the course of travel connecting waypoint to waypoint.

The course from one waypoint to the next is a leg. Routes are composed of one or more legs. The legs of all GPS routes are based on straight lines between waypoints.

A route gives users the capability to navigate through several waypoints without having to reprogram the unit after arriving at each waypoint. The GPS unit allows you to navigate forward or backward through a route. You can even begin navigating in the middle of a route!

Create and Save a Route

You have the option of creating and editing a route in the unit, or you can make a route on your computer with our MapCreate 6 software.

PC-created Routes

MapCreate is the easiest method for preparing a route, simply because your PC's larger screen, keyboard and mouse are easier to manipulate.

To load a MapCreate route into the GlobalMap, follow instructions in Map-Create's manual for creating a route and saving it as part of a GPS Data File (file format *.usr). Copy the GPS Data File to an MMC and insert the MMC in the unit (See Sec. 2 for instructions on installing MMCs. To load the GPS Data File into the GlobalMap's memory, see the entry on Transfer Custom Maps & GPS Data Files in Sec. 3, Basic GPS Operations.).

Routes Created in the GlobalMap

You can create a route by selecting existing waypoints from the waypoint list or you can set a series of route waypoints on the map with cursor arrows and the Enter key. In this example, we'll create a route from the map.

1. From the NAVIGATION PAGE, press MENU | ENT or from the MAP PAGE, press MENU | MENU | ↓ to ROUTE PLANNING | ENT.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi 60mi

Route Planning command on Main Menu (left), will open the Route List screen (right). Copy one of the above trails

1. Press ↓ to route name|ENT|↓ to (END OF ROUTE)|ENT|↓ to ADD FROM MAP | ENT. The Map Page appears with the cursor showing.

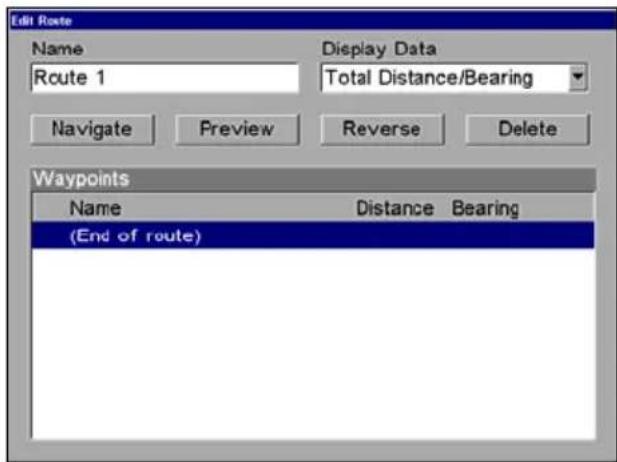

Edit Route Name Route 1 Display Data Total Distance/Bearing Navigate Preview Reverse Delete Waypoints Name Distance Bearing (End of route)

Edit Route Name Route 1 Display Data Total Distance/Bearing Navigate Edit Route Waypoints Direct To Waypoint Add From Map Add Waypoint Remove Waypoint View Waypoint Delete Waypoints Name (End of aring)

Edit Route menu (left). Edit Route Waypoints menu (right), with Add From Map command selected.

1. Use the Zoom keys and arrow keys to move the map and cursor until the cursor is centered on the spot where you want your route to begin (If you are starting at your current position or the current cursor position, you are already at the starting spot.).
2. Set the first route waypoint and press ENT. In this example, we started our route at the intersection of 11th Street and 145th E. Ave. The route is illustrated in the following figures.

1.2.

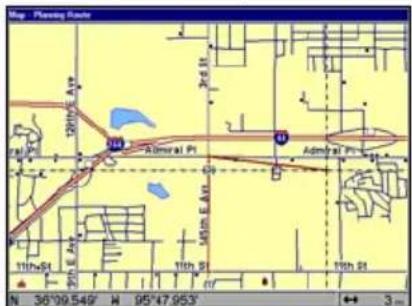

Map: Chemistry Route (n) Ft Admiral Ft 19th St 19th St 19th St 15th St 2nd St 3rd St 36°08.885' N 95°48.619' 2'

Map Planning Ranks 2nd St Admiral Plt 11th St 11th St 36°39.603' M 95°48.816'

1.

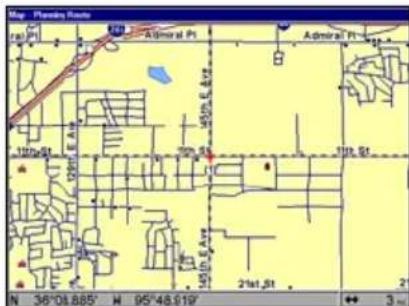

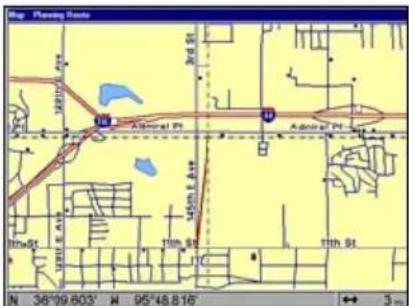

Map - Planning Route 12th St Admiral Pi Admiral Pi 11th St 10th St 11th St 36°09.549' H 95°47.953' + - N 36°09.549' H 95°47.953' + - 3'

Route creation sequence (left to right): Fig. 1. Set route waypoint (1) at 11th St. & 145th Ave. Fig. 2. Move cursor north to set point (2) at 145th & Admiral. Fig. 3. With point (2) set, move cursor east to mark interstate on-ramp with waypoint (3). In figures 2 and 3, notice the rubber band line extending from the previously set waypoint to the cursor. This line will become the course for the route.

4.5.

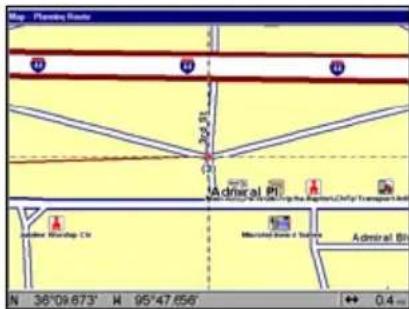

Map Planning Route 3rd St. Admiral Plt Admiral Township Ch Marinated Route of Tavane Admiral Bt N 36°09.673' H 95°47.656' + 0.4 mm

Map Planning Ranks 36°10.05' 95°37.19' 3

1.

Path Route Name Display Data Route 2 Total Distance-Bearing Navigate Preview Reverse Delete Waypoints Name Distance Bearing (19) 356° (2) 0.87 (3) 2.04 84° (4) 10.81 84° (5) 11.77 81° (End of route)

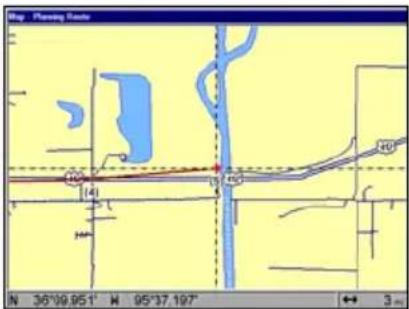

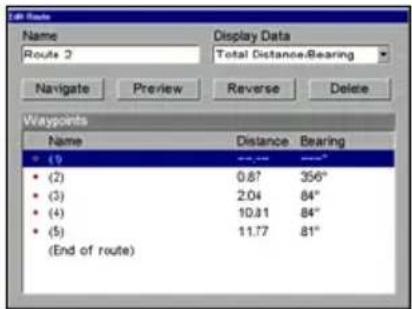

Route creation sequence, continued: Fig. 4. Point (3) set at on-ramp turn. Fig. 5. Waypoint (4) set at highway exit to frontage road leading to river. Waypoint (5) ends the route at a tree stand in the hunting area. Fig. 6. Press EXIT to save the route and you return to this screen.

1. Move the cursor to the next point in the route, a spot where you need to turn or change direction, and press ENT to set the next waypoint.
2. Repeat step five until the route reaches your destination.
3. To save your route, pExTsThe unit reverts to the Edit Route screen, with the route automatically named "Route 1" and stored in the GlobalMap's internal memory (In our example, Route 1 already existed, so the unit automatically made "Route 2.").

You can edit the route and run other commands, but if you are finished with the route for now, return to the last page displayed by pressing EXIT repeatedly.

Delete a Route

1. From the NAVIGATION PAGE, press MENU | ENT or from the MAP PAGE press MENU | MENU | ↓ to ROUTE PLANNING | ENT.
2. Press ↓ to route name | ENT.
3. Press ↓ to NAVIGATE | → to DELETE | ENT | ← to YES | ENT.

Tip:

You can also delete all routes at once:

1. From the NAVIGATION PAGE, press MENU | ENT or from the MAP PAGE press MENU | MENU | ↓ to ROUTE PLANNING | ENT.

2. Press to DELETE ALL | ENT | to YES | ENT.

Edit a Route

You can edit the route name if you wish.

1. From the NAVIGATION PAGE, press MENU | ENT or from the MAP PAGE press MENU | MENU | ↓ to ROUTE PLANNING | ENT.

2. Press ↓ to route name | ENT|↑ to name | ENT.

3. Press ↑ or ↓ to change the first character, then press → to move the cursor to the next character and repeat until the name is correct, then press ENT. Return to the main page by pressing EXIT | EXIT | EXIT | EXIT.

You can edit the route by adding and removing waypoints.

1. From the NAVIGATION PAGE, press MENU | ENT or from the MAP PAGE press MENU | MENU | ↓ to ROUTE PLANNING | ENT.

2. Press ↓ to route name|ENT|↓ to WAYPOINTS. Use ↓ and ↑ to select a waypoint, then press ENT.

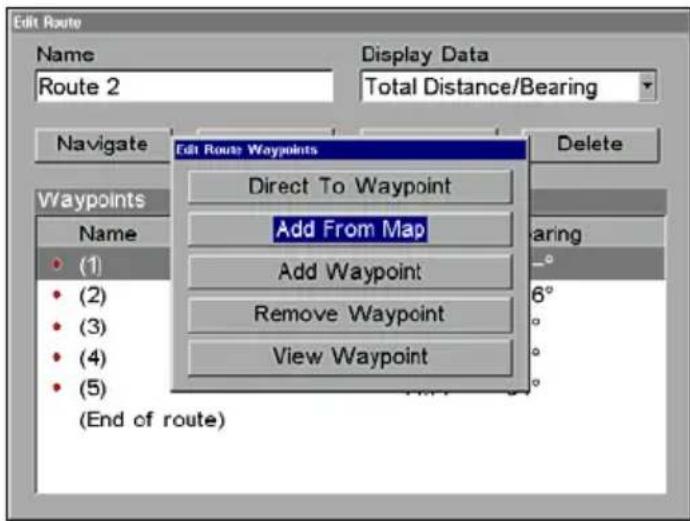

Edit Route Name Route 2 Display Data Total Distance/Bearing Navigate Edit Route Waypoints Delete Waypoints Name • (1) • (2) • (3) • (4) • (5) (End of route) Direct To Waypoint Add From Map Add Waypoint Remove Waypoint View Waypoint 6°

Edit Route Waypoints menu.

1. Use ↓ and ↑ to select a command from the Edit Route Waypoints menu and press ENT. Add From Map lets you insert a waypoint in the route by selecting a location with the cursor then pressing ENT. Add Waypoint calls up the Waypoint List so you can insert a waypoint from the list. Remove Waypoint will delete the waypoint from the route. View Waypoint will show you where the selected waypoint is on the map.

Navigate a Route

1. From the NAVIGATION PAGE, press MENU | ENT or from the MAP PAGE, press MENU | MENU | ↓ to ROUTE PLANNING | ENT.

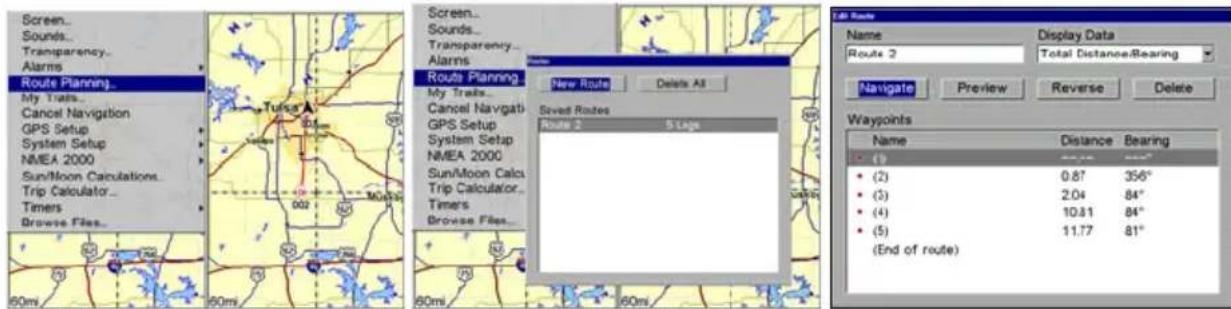

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... 80ms 60ms 50ms 60ms Screen... Sounds... Transparency... Alarms Route Planning New Route Delete All Saved Routes Route 2 5 Links Edit Route Name Display Data Route 2 Total Distance/Bearing Navigate Preview Reverse Delete Waypoints Name Distance Bearing (19) (2) (3) (4) (5) (End of route) (2) (3) (4) (5)

Route Planning command on Main Menu (left); Routes menu (center); Edit Route menu (right) with navigate command is selected.

1. Press ↓ to select route name | ENT | ↓ to NAVIGATE | ENT.

2. Upon arrival at your destination, cancel navigation: press MENU | MENU | ↓ to CANCEL NAVIGATION | ENT | ← to YES | ENT.

The following figures show what the Navigation Page and Map Page look like while navigating a route.

Navigate a Route in Reverse

Here's how you run a route backwards, from the end waypoint to the beginning waypoint.

1. From the NAVIGATION PAGE, press MENU | ENT or from the MAP PAGE, press MENU | MENU | ↓ to ROUTE PLANNING | ENT.

2. Press ↓ to select route name | ENT | ↑ to NAVIGATE | → to REVERSE | ENT | ← to NAVIGATE | ENT.

3. Upon arrival at your destination, cancel navigation: press MENU | MENU | ↓ to CANCEL NAVIGATION | ENT | ← to YES | ENT.

Figure 1.

Ground Speed 0.0 mph 154° mag Closing Speed 0.0 mph 154° mag Distance 0.27 m 154° mag Off Course 0 L ft Travel Time 99:99:99 Local Time 11:45:52 A = - - - Voltage 14.7 V Altitude Position - Degrees/Metrics Latitude N 36°09.086' Longitude H 95°50.663' Steering - Simulating 15 S 12 E 21 24 W 6 33 30 0.20 0.20 Going To (1)

Figure 2.

Figure 3.

Ground Speed 38.0 mph Tracking 85° Closing Speed 38.0 mph Bearing 85° Distance 2.15 m Course 85° Off Course Travel Time 16 R ft 99:99:99 Local Time Arrival Time 11:48:20 A Voltage 14.7 V Attitude 0 Position - Degrees/Minutes Latitude N 36°08.869' Longitude M 95°50.163' Steering - Simulating E 6 12 3 15 N 0.20 0.20 S 33 21 30 W 24 Going To (2)

Figure 4.

Map - Simulating 145th E 11th St 11th St Lynn Lane 11th St Lynn Lane Rd 145th E Ave 21st St 21st St E Ave (3) (4) N 36°08.459' W 95°47.853' ← 3 mi

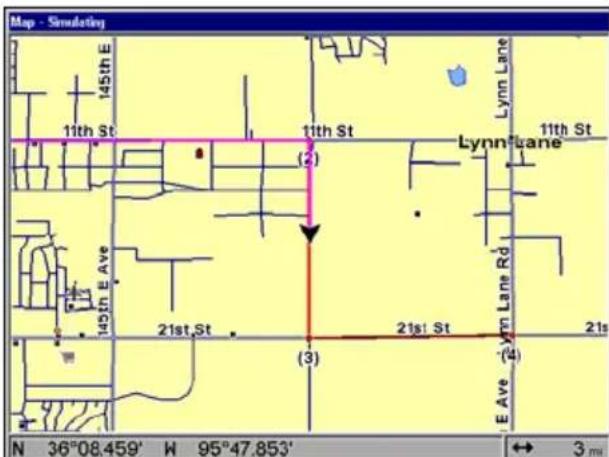

Navigating along a route: Fig. 1 shows the GlobalMap Navigation Page at the start of a route, heading straight for the first waypoint (Wpt 1). In Fig. 2, the traveler has arrived at Wpt 1; the arrival alarm has been triggered and the bearing arrow on the compass rose has turned to point east, toward Wpt 2. In Fig. 3 the traveler has turned east on his new course and is heading straight for Wpt 2, which is 2.15 miles away. Fig. 4 shows route navigation on the Map Page. In this figure, the traveler has reached Wpt 2 and is half-way along the leg between Wpts 2 and 3.

Trails

Delete a Trail

This is the command used to erase or delete a trail:

Press MENU | MENU | ↓ to MY TRAILS | ENT | ↓ to trail name | ENT | → to DELETE TRAIL | ENT | ← to YES | ENT.

Tip:

You can also delete all trails at once:

1. Press MENU | MENU | ↓ to MY TRAILS | ENT.
2. Press → to DELETE ALL | ENT | ← to YES | ENT.

Edit a Trail Name

To edit a trail name: press MENU | MENU | ↓ to MY TRAILS | ENT | ↓ to trail name | ENT | ENT. Press ↑ or ↓ to change the first character, then press → to the next character and repeat until the name is correct. Press ENT then EXIT | EXIT | EXIT | EXIT to return to the previous page display.

Tip:

You can quickly call up the Edit Trail menu by selecting a trail on the map with the cursor. Simply move the cursor over a trail and a pop-up box appears. Press WPT and the Edit Trail menu opens.

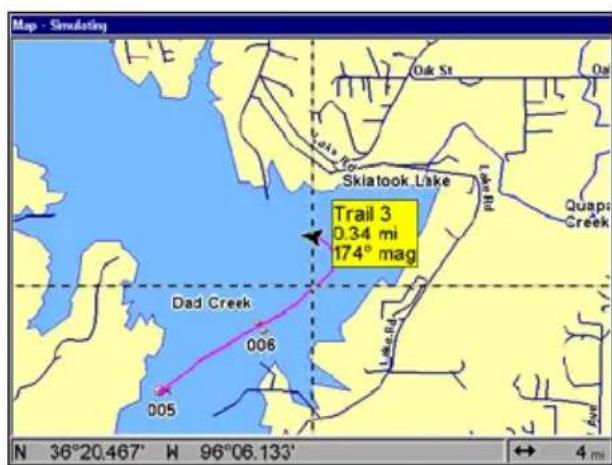

Map - Simulating Skiatook Lake Trail 3 0.34 mi 174° mag Dad Creek 006 005 Lake Rd Quaps Creek N 36°20.467' W 96°06.133' 4 mi

Screen... So Tri Ala Ro My Cg GP Sy NM Su Tri Tin Br Name Trail 3 Delete Trail Color Light Magenta Navigate Pattern •• •• •• •• •• Active •• Visible Maximum Points 2000 Trail Preview

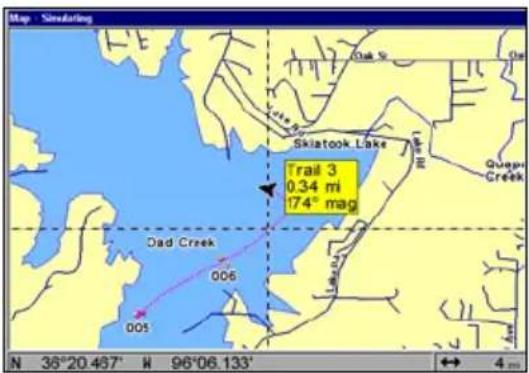

Trail selected with map cursor (left). The pop-up box shows distance and bearing from current position to the selected point on the trail. The Edit Trail menu (right).

Edit a Trail Color

To edit a trail color: press MENU | MENU | ↓ to MY TRAILS | ENT | ↓ to trail name | ENT | ↓ to COLOR | ENT. Press ↑ or ↓ to select a color style, then press ENT. Press EXIT | EXIT | EXIT | EXIT to return to the previous page display.

Edit a Trail Pattern

To edit a trail pattern: press MENU | MENU | ↓ to MY TRAILS | ENT | ↓ to trail name | ENT | ↓ to PATTERN | ENT. Press ↑ or ↓ to change the first character, then press → to the next character and repeat until the pattern is correct. Press ENT, then EXIT | EXIT | EXIT | EXIT to return to the previous page display.

Screen... So Tra Ala Ro My Ca GP Sy NV Su Tri Tin Brc Name Trail 3 Delete Trail Color Light Magenta Navigate Pattern * * * * * * * Active * Visible Maximum Points 2000 Trail Preview N 36°08.143' W 95°50.271'

Map - Simulating Skiatook Lake trail 3 0.34 mi 174° mag Dad Creek 006 005 N 38°20.467' W 96°06.133' ← 4 mi

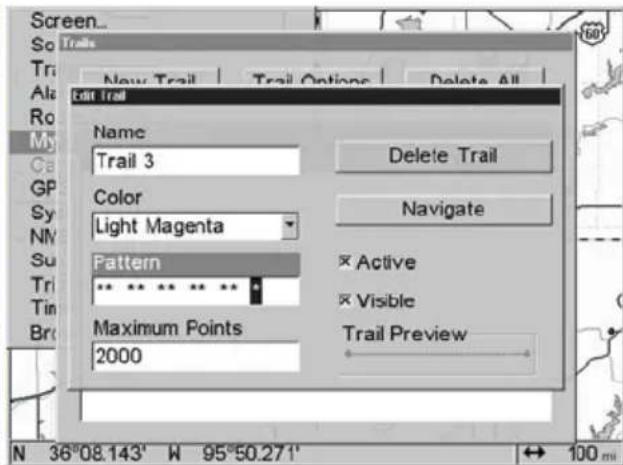

Edit Trail Menu with Pattern option selected (left). Edited trail with dotted line pattern (right). transparency

Utilities

Utilities are useful tools for traveling or for outdoor activities.

Alarm Clock

To get to the alarm clock menu: press MENU | MENU | ↓ to TIMERS | ENT | ↓ to ALARM CLOCK | ENT.

Sun/Moon Rise & Set Calculator

To get to the Sun/Moon menu: press MENU | MENU | ↓ to SUN/MOON CALCULATIONS | ENT.

Trip Calculator

To get to the Calculator menu: press MENU | MENU | ↓ to TRIP CALCULATOR | ENT.

Trip Down Timer

To get to the Down Timer menu: press MENU | MENU | ↓ to TIMERS | ENT | ↓ to DOWN TIMER | ENT.

Trip Up Timer

To get to the Up Timer menu: press MENU | MENU | ↓ to TIMERS | ENT | ENT.

Waypoints

Delete a Waypoint

To delete a waypoint from the waypoint list: press WPT | ENT | ENT | ENT | ↓ to waypoint name | ENT | ↓ to DELETE WAYPOINT | ENT | ← to YES | ENT. To return to the previous page, press EXIT | EXIT.

To delete a waypoint from the map:

1. Use the arrow keys to select the waypoint with the cursor.

2. Press WPT | ↓ to DELETE WAYPOINT | ENT | ← to YES | ENT. To return to the previous page and clear the cursor, press EXIT.

To delete all waypoints at one time: press MENU | MENU | ↓ to SYSTEM SETUP | ENT | ↓ to DELETE ALL MY WAYPOINTS | ENT | ← to YES | ENT. To return to the previous page, press EXIT | EXIT.

Edit a Waypoint

Waypoint Name

To edit waypoint name: 1. Press WPT|ENT|ENT|ENT|↓ to waypoint name|ENT|↓ to EDIT WAYPOINT|ENT|ENT.

1. Press ↑ or ↓ to change the first character, then press → to the next character and repeat until the name is correct. Press ENT then EXIT | EXIT | EXIT | EXIT to return to the previous page display.

Waypoint Symbol

To edit waypoint symbol: 1. Press WPT|ENT|ENT|ENT|↓ to waypoint name|ENT|↓ to EDIT WAYPOINT|ENT|↓ to CHOOSE SYMBOL|ENT.

1. Use arrow keys to select desired symbol and press ENT. To return to the previous page, press EXIT | EXIT | EXIT | EXIT.

Waypoint Position

To edit waypoint position: 1. Press WPT | ENT | ENT | ENT | ↓ to waypoint name | ENT | ↓ to EDIT WAYPOINT | ENT.

1. Latitude: press → to LATITUDE | ENT. Press ↑ or ↓ to change the first character, then press → to the next character and repeat until the latitude is correct. Press EXIT.

2. Longitude: press ↓ to LONGITUDE | ENT. Press ↑ or ↓ to change the first character, then press → to the next character and repeat until the longitude is correct. Press EXIT.

3. When latitude and longitude are correct, return to the previous page: press EXIT | EXIT | EXIT | EXIT.

Selecting a Waypoint

To select a waypoint on the map (for navigating, editing, etc.,) use the arrow keys and center the cursor over the waypoint. A highlighted halo will appear around the waypoint.

Set a Waypoint by Average Position

This feature sets a waypoint at the current position after taking several position readings and averaging them. This boosts waypoint position accuracy by helping to eliminate errors caused by atmospheric conditions and other factors.

1. Press WPT | → to SUBCATEGORY column | ↓ to NEW | ENT.

2. Press ↓ or ↑ to AVERAGE POSITION | ENT | press → to CREATE | ENT.

3. Wait while the unit takes points to average for the position (The greater the number of points, the greater the accuracy.). When the desired number of points accumulates, press ENT to create and save the waypoint.

4. The Edit Waypoint menu appears. You can simply save the waypoint by pressing EXIT | EXIT or you can edit the waypoint.

Set a Waypoint by Projecting a Position

This feature sets a waypoint at a point located a specific distance and bearing from a reference position. The reference position may be a map feature or can be selected from your waypoint or Points of Interest lists.

1. Press WPT | → to SUBCATEGORY column | ↓ to NEW | ENT.
2. Press ↓ to PROJECTED POSITION | ENT | → to CREATE | ENT.
3. Press → to CHOOSE REFERENCE | ENT. Use ↑ and ↓ to select a waypoint, map feature or Point of Interest. When the feature has been selected, press ENT. Now choose the reference point by its name or select the one nearest your location and press ENT. Choose your reference point from the list then press ENT|ENT, which will take you back to the project waypoint screen.
4. Press ↓ to DISTANCE | ENT. Press ↑ or ↓ to change the first character, then press → to the next character and repeat until the distance is correct. Press ENT.
5. Press ↓ to BEARING | ENT. Press ↑ or ↓ to change the first character, then press → to the next character and repeat until the bearing is correct. Press ENT.
6. Press ↑ to PROJECT|ENT. The Edit Waypoint menu appears. You can simply save the new projected waypoint by pressing EXIT|EXIT or you can edit the waypoint (Press EXIT|ENT if you want to begin navigating to the new waypoint.).

Set a Waypoint by Entering a Position

This feature allows you to enter a position if you know the altitude, depth, latitude or longitude for the waypoint. To do this:

1. Press WPT | → to SUBCATEGORY column | ↓ to NEW | ENT.

2. Press ↓ to ENTERED POSITION | ENT | → to CREATE | ENT.

A dialog box will appear on screen. Within the dialog box you can name the waypoint, enter waypoint's altitude, depth, latitude and longitude. To enter the waypoint's latitude and longitude in the dialog box.

1. → to LATITUDE | ENT. Press ↑ or ↓ to change the first character, then press → to the next character and repeat until the latitude is correct. Press ENT.
2. ↓ to LONGITUDE. Repeat the above steps to enter the waypoint's longitude (Press EXIT | ENT if you want to begin navigating to the new waypoint.).

Section 5: System & GPS Setup Options

Alarms

This unit has three GPS alarms. The factory default setting has all the alarms turned on. You can turn the alarms off and on and change their distance settings.

You can set an arrival alarm to flash a warning message and sound a tone when you cross a preset distance from a waypoint. For example, if you have the arrival alarm set to 0.1 mile, then the alarm will flash a message when you come within 0.1 mile of the recalled waypoint.

The off course alarm warns you when your track drifts too far to the right or left of the course line to the waypoint. For example, if the alarm is set to 0.1 mile, then the alarm flashes a message if you drift 0.1 of a mile or more to the right or left of the line to the waypoint.

The anchor alarm is triggered when you drift outside a preset radius. Again, using the 0.1 mile as an example, if you're anchored and your boat moves more than 0.1 mile, the alarm will flash a message and sound a tone.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... Screen... Sounds... Transparency Alarms Route Planning My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... GPS Alarms Arrival Alarm Distance Enabled 0.10 mi Off Course Alarm Distance Enabled 0.20 mi Anchor Alarm Distance Enabled 0.20 mi

Alarms command (left); Alarm menu (right).

To change alarm settings:

1. Press MENU | MENU | ↓ to ALARMS | ENT|ENT.

2. Scroll ↓ or ↑ to select the desired category, then press ENT to check or clear the Enabled box. This turns the alarm on (checked) or off (unchecked).

3. To change distance settings, scroll ↓ or ↑ to select the desired category, then press → | ENT to activate the distance dialog box. Press ↑ or ↓ to change the first character, then press → to the next character and repeat until the name is correct.

4. When your adjustments are finished, return to the last page displayed by repeatedly pressing EXIT.

IMPORTANT ALARM NOTES:

Anchor Alarm — The anchor alarm may be triggered even when you're sitting still. This typically happens when using small (less than 0.05 mile) anchor alarm ranges.

Arrival Alarm — If you set the arrival alarm's distance to a small number and run a route (see the Navigate Routes segment), this unit may not show navigation data to the next waypoint once you arrive at the first waypoint. You may not be able to come close enough to the first waypoint to trip the arrival alarm.

Auto Satellite Search

To lock onto the satellites, the GPS receiver needs to know its current position, UTC time and date. It needs this data so it can calculate which satellites should be in view. It then searches for only those satellites. Elevation (altitude) is also used in the equation, but it's rarely required to determine a position.

When your GPS receiver is turned on for the first time, it doesn't know your position or elevation (altitude). It does know the current UTC time and date since these were programmed into it at the factory and an internal clock keeps the time while the unit is turned off (If the time and/or date are incorrect, you can set it using the "Set Local Time" feature in the System Setup menu.).

The unit begins searching for satellites using the data it acquired the last time it was turned on, which was probably at the factory. Since it's almost certain that you're not at our factory, it's likely that it could be looking for the wrong satellites.

If it doesn't find the satellites it's looking for after approximately one minute, it switches to Auto Search. That's when the receiver looks for any satellite in the sky. Due to advanced technology, the auto search time has shrunk significantly from the early days of GPS.

Once the unit locks onto the satellites, it should take less than a minute to find your position the next time it's turned on, provided you haven't moved more than 100 miles from the last location it was used.

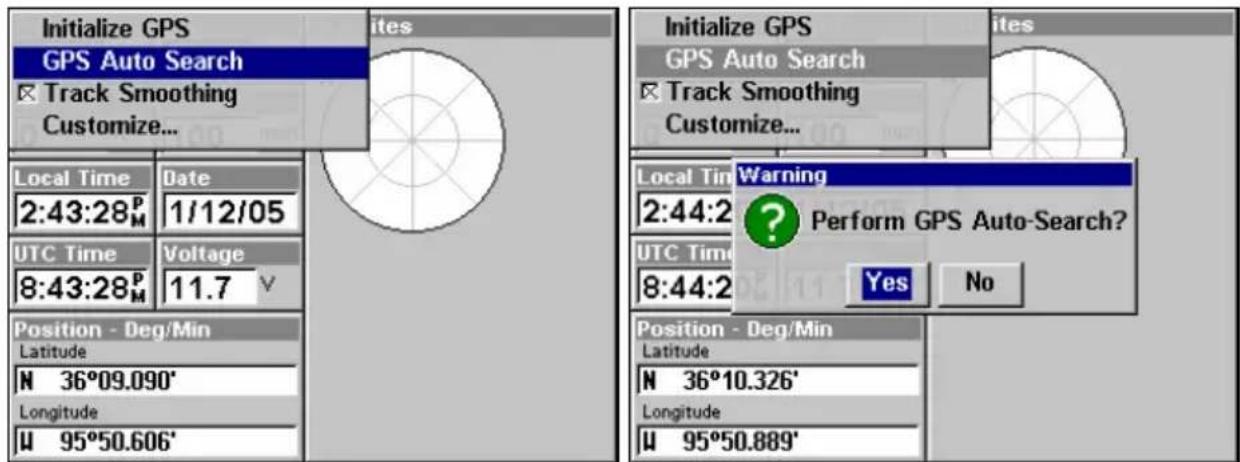

Initialize GPS GPS Auto Search Track Smoothing Customize... Local Time Date 2:43:28P M 1/12/05 UTC Time Voltage 8:43:28P M 11.7 V Position - Deg/Min Latitude N 36°09.090' Longitude U 95°50.606' Initialize GPS GPS Auto Search Track Smoothing Customize... Local Time Warning 2:44:2 ? Perform GPS Auto-Search? UTC Time Yes No Position - Deg/Min Latitude N 36°10.326' Longitude U 95°50.889'

GPS Auto Search on the GlobalMap Satellite Status Menu.

Here's how to put the unit into auto search mode:

1. Press PAGES until you are on the Satellite Status screen.
2. Press MENU | ↓ to GPS AUTO SEARCH | ENT | ← to YES | ENT.

Check MMC Files and Storage Space

To check MMC Files:

Press MENU | MENU | ↓ to BROWSE FILES | ENT.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... Tulsa 60mi 60mi Browse Files MMC Cards 041-0274-22 (6.21MB free) Files Data.usr 5.5KB Default.sg 3.52MB March 28, 2002 Data214Pm.usr 8KB October 1, 2002 Chart 10.sg 5.48MB September 14, 2000

Main Menu (left), MMC File Browser (right).

Communications Port Configuration

The unit has two NMEA 0183 version 2.0 compatible communication ports, or com ports for short. The Com Port Menu, which is accessed from the System Setup Menu, allows you to configure the communications ports to send or receive data to another electronic device, such as an autopilot. Com port 1 and Com port 2 can be used for NMEA.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... Units of Measure... Set Local Time... Communications Port... Reset Options Simulators... Delete All My Waypoints Popup Help Set Language... Transfer My Data... Check Free Storage... Software Information... Screen... Scunds... Communication Ports Communications Port 1 Baud Rate 4800 NMEA 0183 Output NMEA 0183 Input Radar Communications Port 2 Baud Rate 9600 NMEA 0183 Output NMEA 0183 Input Radar Configure NMEA U: ---,---" R: ---,---" ↔ 100 mi

System Setup Menu with Communications Port highlighted (left) and Communications Port menu (right).

For assistance in configuring the unit to communicate with another device, consult the factory. Customer service phone numbers are in the back of this manual. Also see the entry below for to Configure NMEA. To set Com Port Configuration:

1. Press MENU | MENU | ↓ to SYSTEM SETUP | ENT.
2. Press ↓ to COMMUNICATIONS PORT | ENT.

Configure NMEA

You can configure the unit to use specific NMEA sentences.

1. Press MENU | MENU | ↓ to SYSTEM SETUP | ENT.
2. Press ↓ to COMMUNICATIONS PORT | ENT | → to CONFIGURE NMEA | ENT.
3. A menu appears showing the prefixes of the available NMEA sentences. A check mark next to a prefix means the prefix is in use. Use to select a prefix. Press ENT to turn on or off the prefix.
4. When the desired prefixes are checked or unchecked, press EXIT | EXIT | EXIT | EXIT to return to the previous page.

Coordinate System Selection

The Coordinate System Menu lets you select the coordinate system to use when displaying and entering position coordinates.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... Initialize GPS Coordinate System... Datum Selection... Track Smoothing Require WAAS Show WAAS Alarm Muskogee 100 mi

Coordinate System Degrees Degrees/Minutes Deg/Min/Sec UTM MGRS (Standard) MGRS (Std.+10) Map Fix Lcran TD British Grid Irish Grid N 36°08.971' W 95°50.579' Coordinate System 2 Degrees Degrees/Minutes Deg/Min/Sec UTM MGRS (Standard) MGRS (Std.+10) Map Fix Loran TD British Grid Irish Grid 15 244221 E 4004277 N Setup Map Fix Setup Loran TD

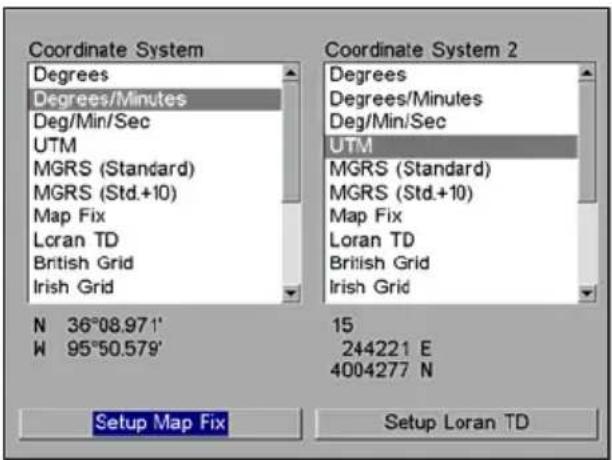

Menus for changing coordinate system.

To get to Coordinate System Selection:

1. Press MENU | MENU | ↓ to GPS SETUP | ENT.

2. Press ↓ to COORDINATE SYSTEM | ENT.

This unit can show a position in degrees (36.14952°); degrees, minutes and thousandths of a minute (36° 28.700'); or degrees, minutes, seconds and tenths of a second (36° 28' 40.9"). It can also show position in: UTM (Universal Transverse Mercator) projection; MGRS (Standard); MGRS (Standard + 10); Map Fix; Loran TD; British, Irish, Finnish, German, New Zealand, Swedish, Swiss, Taiwan, Greek and Military grids.

UTM's are marked on USGS topographic charts. This system divides the Earth into 60 zones, each 6 degrees wide in longitude.

British, Irish, Finnish, German, New Zealand, Swedish, Swiss, Taiwan, and Greek grid systems are each the national coordinate system used only in their respective countries. In order to use these grid systems, you must be in the respective country. This unit will pick the matching datum for you when you select the grid. See the entry on Map Datum Selection for more information.

The military grid reference system (MGRS) uses two grid lettering schemes, which are referred to as standard and standard + 10 MGRS on this unit. Your position and datum in use determines which one to use. If you use standard, and your position is off significantly, then try the alternate.

NOTE: When the position format is changed, it affects the way all positions are shown on all screens. This includes waypoints.

To change the coordinate system, press ENT while COORDINATE SYSTEM is highlighted. Press ↑ or ↓ arrow keys to highlight the desired format. Press ENT to select it. Press EXIT to clear the menus.

To setup Loran TD:

NOTE:

If the Loran TD conversion is chosen, you must enter the local Loran chain identification for the master and slaves. Do this by selecting "Setup Loran TD" at the bottom of the "Coordinate System" menu, press ENT, and select the ID. Press EXIT to clear this menu.

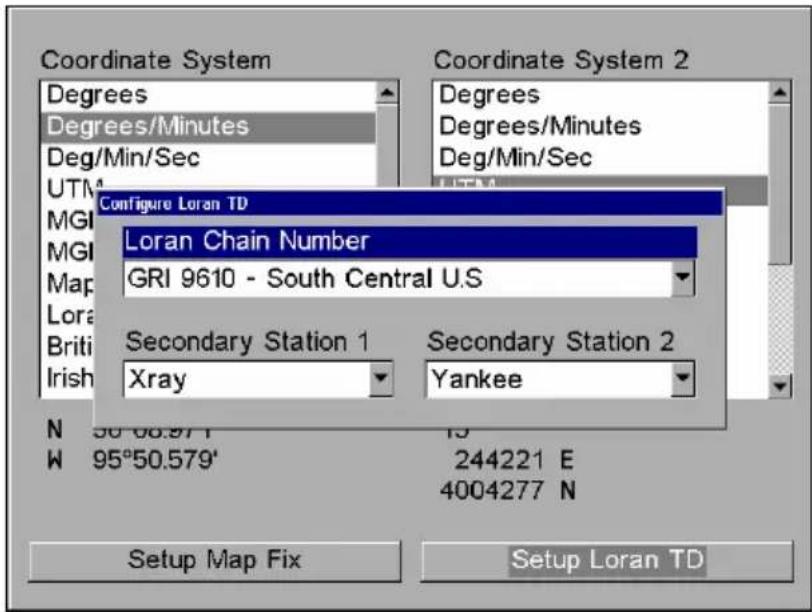

Coordinate System Degrees Degrees/Minutes Deg/Min/Sec UTM MGI MGI Map Lora Briti Irish Configure Loran TD Loran Chain Number GRI 9610 - South Central U.S Secondary Station 1 Xray Secondary Station 2 Yankee N 50°50.579' W 95°50.579' 244221 E 4004277 N Setup Map Fix Coordinate System 2 Degrees Degrees/Minutes Deg/Min/Sec Setup Loran TD

Configure Loran TD menu.

Map Fix

Map Fix is used with charts or maps. This system asks for a reference position in latitude/longitude, which you take from a marked location on the map. It then shows the present position as distance on the map from that reference point.

For example, if it shows a distance of UP 4.00" and LEFT 0.50", you then measure up four inches and to the left a half-inch from the reference point to find your location on the map.

Configure a map fix:

First, take your map of the area and determine a reference latitude/longitude (Please note that in order for this system to work, the latitude/longitude lines must be parallel with the edge of the map. USGS maps are parallel, others may not be. Also, this works better with smaller scale maps.). The reference position can be anywhere on the map, but the closer it is to your location, the smaller the numbers will be that you'll have to deal with.

Once you've decided on a reference position, you can save it as a waypoint. See the waypoint section for information on saving a waypoint. Save the reference position as a waypoint. Exit from the waypoint screens.

1. Press MENU | MENU | ↓ to GPS SETUP | ENT.
2. Press ↓ to COORDINATE SYSTEM | ENT.
3. Press ↓ to SETUP MAP Fix | ENT.

The following screen appears, and MAP SCALE is highlighted. Press ENT and enter the map's scale. This is generally at the bottom of a paper map. It's shown as a ratio, for example 1:24000. Press EXIT and the unit returns to the Configure Map Fix screen.

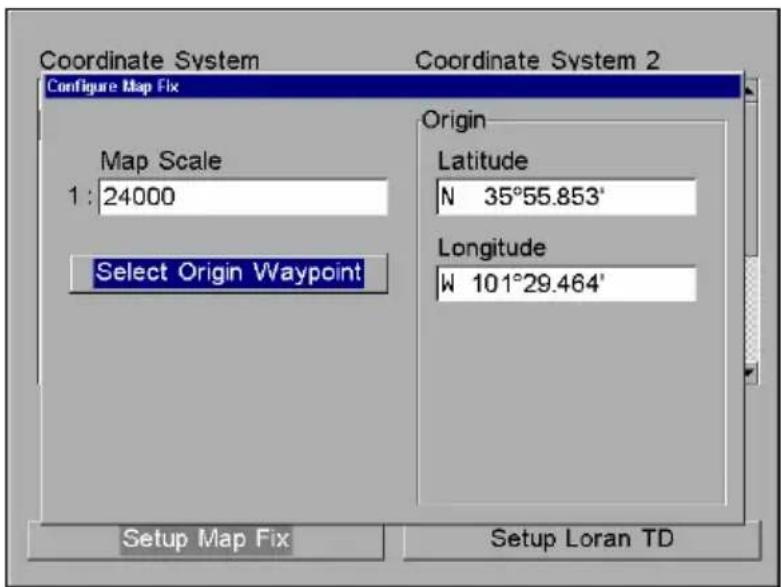

Coordinate System Configure Map Fix Coordinate System 2 Map Scale 1 : 24000 Select Origin Waypoint Origin Latitude N 35°55.853' Longitude W 101°29.464' Setup Map Fix Setup Loran TD

Configure a map fix so the GlobalMap can find your position on a printed chart or topographical map.

Press ↓ to SELECT ORIGIN WAYPOINT|ENT|ENT|ENT to bring up the waypoint list. Select the waypoint that you saved the reference point under and press ENT. The unit displays a waypoint information screen with the command SET AS ORIGIN selected. Press ENT and the unit returns to the Configure Map Fix menu. Finally, press EXIT to clear this menu. Now press ↑ to COORD SYSTEM|ENT, select MAP FIX from the list and press ENT|EXIT|EXIT|EXIT. All position information now shows as a distance from the reference point you chose.

Customize Page Displays

Every Page display option except Full Map, Two Maps and Map With Customize Gauges (on the Map Page) has customizable data boxes to provide constant on-screen information.

The various data available from your unit are divided into categories in the Data Viewer menu. These categories include GPS Data, Navigation, Trip Calculator, Time, and Miscellaneous Data. You can select items from any of these categories for display in any data box — the category divisions are only there to help you sort through the information.

To change the information displayed in a data box:

On the Page display you wish to change, press MENU | ↓ to CUSTOMIZE | ENT | ENT. You'll see a list of categories with "+" or "-" symbols next to each category. A category with a "+" is expandable, meaning its contents are hidden.

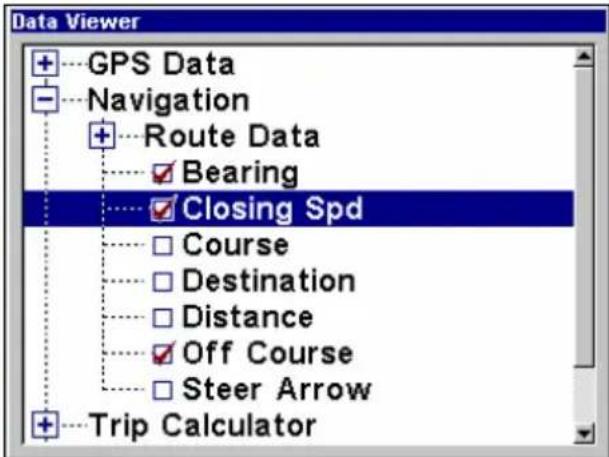

Data Viewer GPS Data Ground Speed Navigation Trip Calculator Time Sonar Data Sensor Data

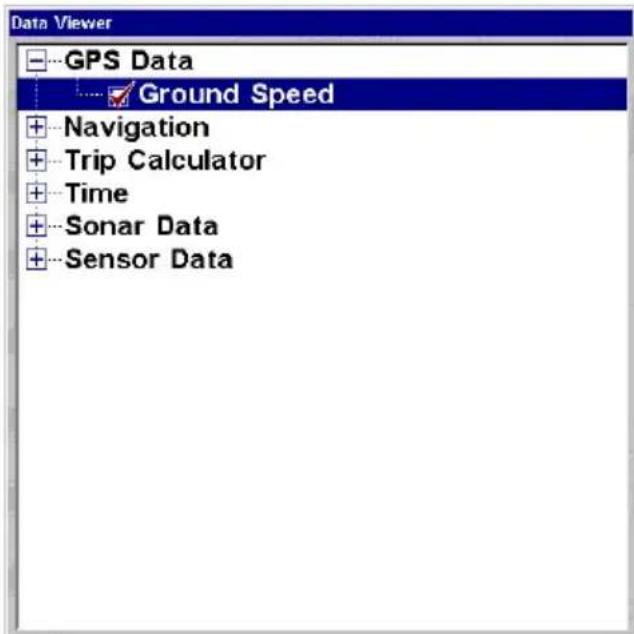

Customize Menu, with the GPS Data category expanded.

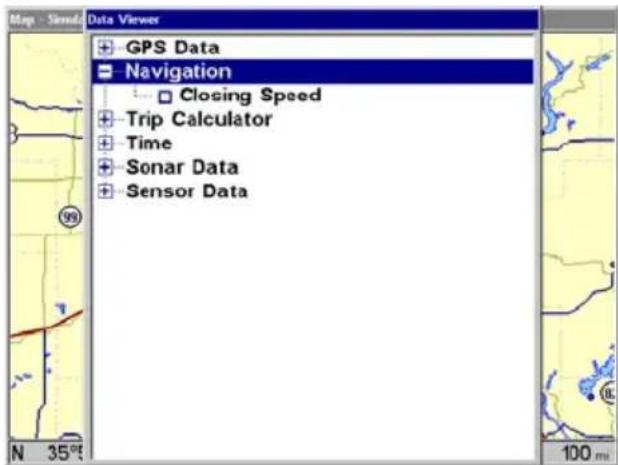

Selecting the category name and pressing ENT will show the category's contents, so you can choose items within it. An expanded category (one with a "-" next to its name) can be collapsed to hide its contents. Just select the category name and press ENT.

Expand any categories that might contain data you want to display. Then press ↓ or ↑ to select a different data option. With the new option highlighted, press ENT to switch the contents of the box to the new data type, then press EXIT. You can now select another box to change. When you are finished with the settings, press EXIT again to end the Customize command, and the box name stops flashing.

A Page display can show a limited number of data boxes. You cannot turn them off or add more data boxes.

GPS Simulator

The GPS simulator lets you use the unit as if you were outdoors navigating somewhere. It's a great way to become familiar with all the unit's features. You can set the starting location by entering latitude/longitude (Starting Position) or from a stored waypoint, map place or POI location (CHOOSE START command). You can steer your position and change speed on the map by using the arrow keys (STEER WITH ARROWS command) or by setting the track and speed in the dialog boxes provided on the simulator menu screen.

To get to the GPS Simulator:

1. Press MENU | MENU | ↓ to SYSTEM SETUP | ENT.
2. Press ↓ to SIMULATORS | ENT. The GPS Simulator Menu appears.
3. Press ↓ to GPS SIMULATOR ON | ENT

Screen... Scunds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... Units of Measure... Set Local Time... Communications Port... Reset Options Simulators... Delete All My Waypoints Popup Help Set Language... Transfer My Data... Check Free Storage... Software Information... GPS Simulator Sonar Simulator Radar Simulator GPS Simulator On Steer With Arrows Select Starting Waypoint Starting Position Track 181 mag Sy NM Speed 100 mph Longitude W 95°50.579' Altitude 0 ft N 36°08.971' W 95°50.579' ↔ 100 mi

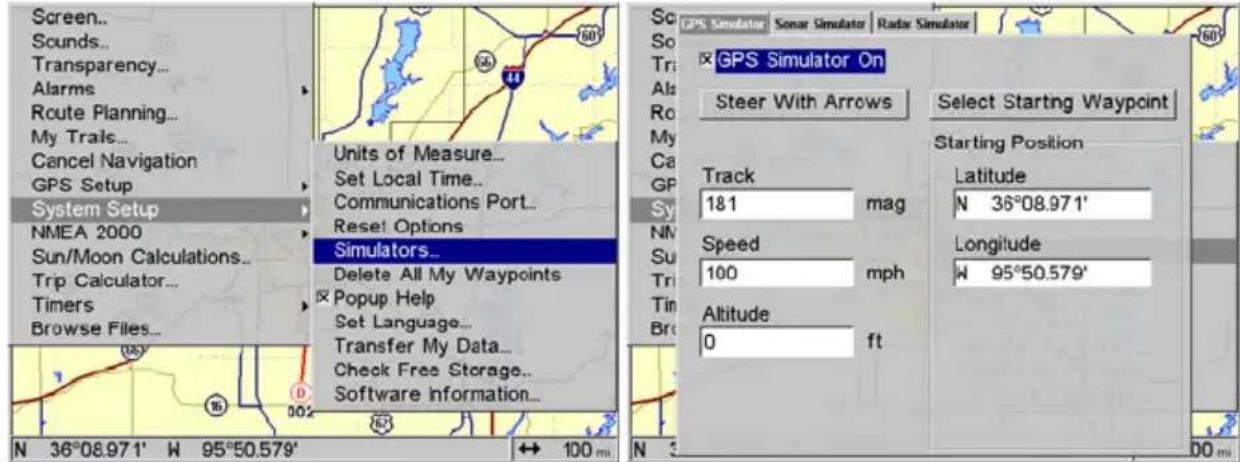

GPS Setup Menu (left); GPS Simulator menu (right).

Make the desired settings, then turn the simulator on by highlighting the GPS SIMULATOR ON box and pressing ENT key. Press EXIT | EXIT | EXIT to clear this menu. A message and tone appear periodically, warning you that the simulator is on. To turn the simulator off, repeat the above steps or turn off the unit.

While in simulator mode, you can press EXIT to clear the steering and speed boxes from the screen while continuing the simulation. This will allow you to use the map cursor during a simulation. To turn steering and speed boxes back on again, return to the GPS Simulator menu, select the STEER WITH ARROWS command, press ENT, then press EXIT | EXIT | EXIT to return to the previous page.

Simulating Trail or Route Navigation

In Simulator mode, your unit can automatically follow a trail or route without manual steering if you use these steps:

1. Go to the simulator menu as shown above. Pick a STARTING POSITION at or near the beginning of your trail/route. Enter an approximate TRACK (shown in compass degrees) that will point you toward the start of the trail/route.
2. Set SPEED to zero. Select STEER WITH ARROWS command and press ENT, which turns on the simulator and returns you to the Map Page.

3. Begin navigating along the trail/route (If you are close enough to the first waypoint, the arrival alarm will usually go off as soon as navigation begins. Press EXIT to clear the alarm.). When navigation starts, press ↑ to increase speed to the desired setting.

4. Press EXIT to turn off the steering and speed boxes. The unit will now automatically "steer" along the trail or route. When you arrive at your "destination," cancel navigation as you normally do.

Tip:

You can pick any spot on the map to begin your simulation session by using the Initialize GPS command. This makes your unit think it's located at the position you select. See the following entry.

Initialize GPS

This command is handy when you are practicing in simulator mode (See the entry in this section for GPS Simulator.). In simulator mode, this command makes the unit operate as if it is sitting someplace other than its actual location. So, you and your unit could be located in Kansas City, but practice navigating in the ocean off Islamorada, Florida.

1. Press MENU | MENU | ↓ to GPS SETUP | ENT | ENT.

2. A message appears, telling you to move the cursor near the desired location and press ENT. When the message automatically clears, follow the message instructions.

3. In a moment, your present position marker arrow appears on the map in the location you selected with the cursor. The unit will consider that spot as its last known position until changed by either a live satellite lock-on or a new simulator location.

Map Auto Zoom

This receiver has an auto zoom feature that eliminates much of the button pushing that other brands of GPS receivers force you to make. It works in conjunction with the navigation features.

First, start navigation to a waypoint (See the waypoint section for more information on navigating to a waypoint.). Then, with the auto zoom mode on, the unit zooms out until the entire course shows, from the present position to the destination waypoint. As you travel toward the destination, the unit automatically begins zooming in — one zoom range at a time — always keeping the destination on the screen.

To turn this feature on, from the MAP PAGE, press MENU | ↓ to AUTO ZOOM | ENT | EXIT. Repeat these steps to turn it off.

Map Data

This menu lets you turn the map off, if desired (which turns the map screen into a GPS plotter); turn off or on the pop-up map info boxes; draw the map boundaries or boxes around the areas of high detail; or fill land areas with gray. You can also turn on or off Map Overlays,

which display latitude and longitude grid lines or range rings on the map. This menu lets you select Navionics Maps. For instructions, see the Navionics Charts entry in this section.

To get to Map Data:

From the Map Page, press MENU | ↓ to MAP DATA | ENT.

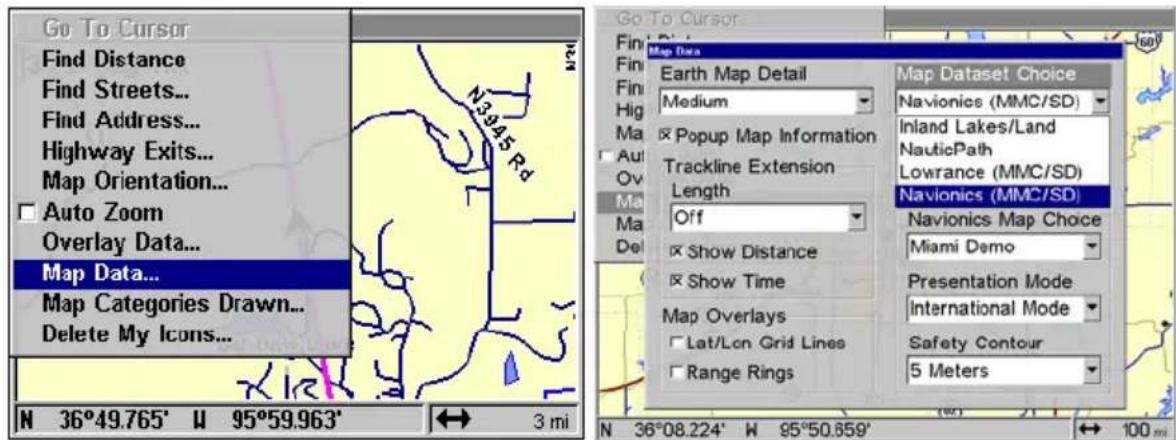

Go To Cursor Find Distance Find Streets... Find Address... Highway Exits... Map Orientation... Auto Zoom Overlay Data... Map Data... Map Categories Drawn... Delete My Icons... N 36°49.765' W 95°59.963' ← 3 mi Go To Cursor Find Fin Fin Hig Ma Aut Ov Ma Ma Del Map Data Earth Map Detail Medium Popup Map Information Trackline Extension Length Off Show Distance Show Time Map Overlays Lat/Lon Grid Lines Range Rings Map Dataset Choice Navionics (MMC/SD) Inland Lakes/Land NauticPath Lowrance (MMC/SD) Navionics (MMC/SD) Navionics Map Choice Miami Demo Presentation Mode International Mode Safety Contour 5 Meters

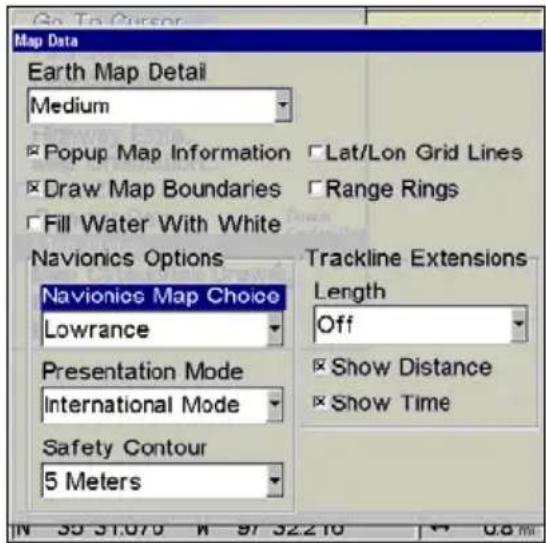

Map Menu (left) and Map Data Menu (right).

Earth Map Detail

From the Map Page, press MENU | ↓ to MAP DATA | ENT. Press ENT to check to select the level of map detail you prefer. Use ↑ ↓ to choose off, low, medium or high, then press EXIT to the page display.

Pop-up Map Info

From the Map Page, press MENU | ↓ to MAP DATA | ENT. Press ↓ to POPUP MAP INFO. With the option highlighted, press ENT to check it (turn on) and uncheck it (turn off). After the option is set, press EXIT | EXIT to return to the page display.

Draw Map Boundaries

From the Map Page, press MENU | ↓ to MAP DATA | ENT. Press → | ↓ to DRAW MAP BOUNDARIES. With the option highlighted, press ENT to check it (turn on) and uncheck it (turn off). After the option is set, press EXIT | EXIT to return to the page display.

Fill Water with White

From the Map Page, press MENU | ↓ to MAP DATA | ENT. Press → | ↓ to FILL WATER WITH WHITE. With the option highlighted, press ENT to check it (turn on) and uncheck it (turn off). After the option is set, press EXIT | EXIT to return to the page display.

Trackline Extension

Trackline Extension is a new tracking option that provides a visual interpretation of your velocity. It charts how long it will take to travel a predetermined distance based on your current navigational information. Distance is shown on one side of the track with estimated time of arrival on the other. Below the

Trackline Extension window are two check boxes (Show Time and Show Distance) which allow you to turn on or off the time and/or distance settings.

To set trackline extension: From the Map Page, press MENU | ↓ to MAP DATA | ENT. Press ↓ to TRACKLINE EXTENSION | ENT. Use ↑ ↓ to select the desired distance setting and press ENT.

Presentation Mode

From the Map Page, press MENU | ↓ to MAP DATA | ENT. Press ↓ and → to PRESENTATION MODE | ENT. Use ↑ ↓ to choose the desired depth and press ENT. Presentation Mode gives you some control over the map layout by allowing you to choose between US and International Modes.

Safety Contour

From the Map Page, press MENU | ↓ to MAP DATA | ENT. Press ↓ and → to SAFETY CONTOUR | ENT. Use ↑ ↓ to choose the desired depth and press ENT. The SAFETY CONTOUR command allows you to modify depth contours on a navionics map for water less than 10 meters deep. Based on your preferences, the depth contours will be colored or shaded to make it easier to identify shallow areas. Keep in mind the size of your ship's keel when determining which option is right for your vessel.

Map Overlays (Range Rings; Lat/Long Grid)

The map screen can be customized with four range rings and/or grids that divide the plotter into equal segments of latitude and longitude.

Range rings are handy for visually estimating distances on the map. The ring diameters are based on the current zoom range. For example: at the 100-mile zoom, the screen will show two rings with your current position in the center. The large ring touching the left and right sides of the screen is 100 miles in diameter (same as the zoom range). The second smaller ring is 50 miles in diameter (always 1/2 the zoom range).

The distance from your current position to the smaller ring (the ring's radius) is 25 miles (always 1/4 the zoom range). With the arrow keys and map cursor, you can scroll the map to see the third and fourth rings. In this example, the distance to the third ring is 75 miles and distance to the fourth ring is 100 miles from your current position.

To set range rings: From the Map Page, press MENU | ↓ to MAP DATA | ENT. Press ↓ to RANGE RINGS. With the option highlighted, press ENT to check it (turn on) and uncheck it (turn off). After the option is set, press EXIT | EXIT to return to the page display.

To set Lat/Long Grid: From the Map Page, press MENU | ↓ to MAP DATA | ENT. Press ↓ to LAT/LON GRID LINES. With the option highlighted, press ENT to check it (turn on) and uncheck it (turn off). After the option is set, press EXIT | EXIT to return to the page display.

Map Datum Selection

Maps and charts are based on a survey of the area that's covered by the map or chart. These surveys are called "Datums." Maps that are created using different datums will show the same latitude/longitude in slightly different locations.

All datums are named. The GPS system is based on the WGS-84 datum, which covers the entire world. Other datums may also cover the entire world, or just a small portion of it. By default, your position shows using the WGS-84 datum. It, however, can show your position using one of 191 different datums. To change the datum:

1. Press MENU | MENU | ↓ to GPS SETUP | ENT | ↓ to DATUM SELECTION | ENT.
2. Scroll ↓ or ↑ to select the desired datum, then press ENT.
3. To return to the last page displayed, press EXIT | EXIT.

A list of the datums used by this unit is in the back of this manual.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... Initialize GPS Coordinate System... Datum Selection... Track Smoothing Require WAAS Show WAAS Alarm N 36°06.587' W 95°50.834' ↔ 100 mi

Map Datum WGS 84 - Default North American 1927 - Mean for Continental US North American 1983 - Alaska, Canada, Continental US Adindan - Mean for Ethiopia, Sudan Adindan - Burkina Faso Adindan - Cameroon Adindan - Ethiopia Adindan - Mali Adindan - Senegal Adindan - Sudan Afgooye - Somalia Ain el Abd 1970 - Bahrain Ain el Abd 1970 - Saudi Arabia Anna 1 Astro 1965 - Cocos Islands Antigua Island Astro 1943 - Antigua (Leeward Islands) Arc 1950 - Mean for Botswana, Lesotho, Malawi, Swaziland, Arc 1950 - Botswana

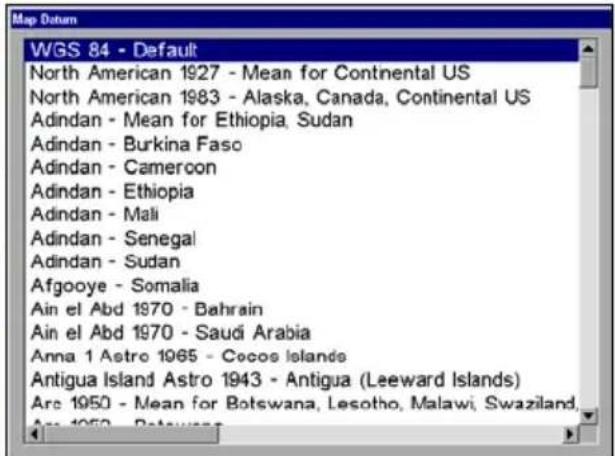

GPS Setup Menu (left) and Map Datum menu (right).

Map Detail Category Selection

This menu determines which of the mapping features are shown on the screen. This includes waypoints, trails, icons, cities, highways, etc. You can selectively turn on or off any of these items, customizing the map to your needs.

To get to Map Categories:

1. From the Map Page, press MENU | ↓ to MAP CATEGORIES DRAWN | ENT.
2. Press ↑ or ↓ to select a category or press → then press ↑ or ↓ to select a subcategory. Press ENT to turn it off (no check) or on (checked).
3. To return to the last page displayed, press EXIT | EXIT.

Go To Cursor Find Distance Find Streets... Find Address... Highway Exits... Map Orientation... □ Auto Zoom Overlay Data... Map Data... Map Categories Drawn... Delete My Icons... CoRd 3102 N 36°48.172' U 95°59.595' ↔ 3 mi

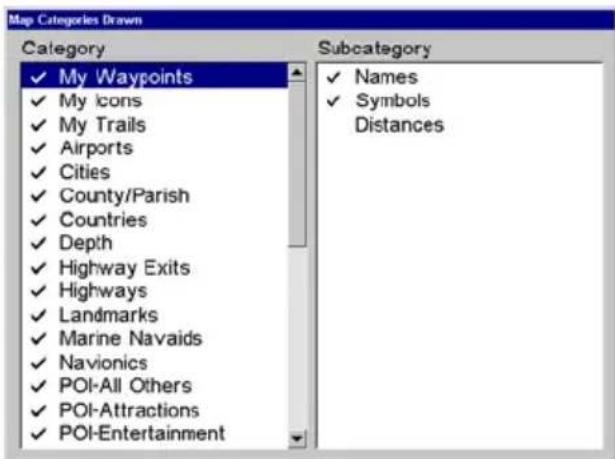

Map Categories Drawn Category ✓ My Waypoints ✓ My Icons ✓ My Trails ✓ Airports ✓ Cities ✓ County/Parish ✓ Countries ✓ Depth ✓ Highway Exits ✓ Highways ✓ Landmarks ✓ Marine Navaids ✓ Navionics ✓ POI-All Others ✓ POI-Attractions ✓ POI-Entertainment Subcategory ✓ Names ✓ Symbols Distances

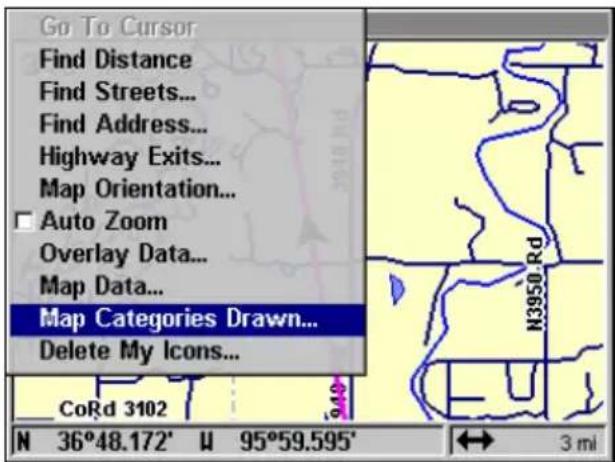

Map menu (left) and Map Categories Drawn menu (right).

Map Orientation

By default, this receiver shows the map with north always at the top of the screen. This is the way most maps and charts are printed on paper.

In Track Up mode, map shows "N" and arrow to indicate north.

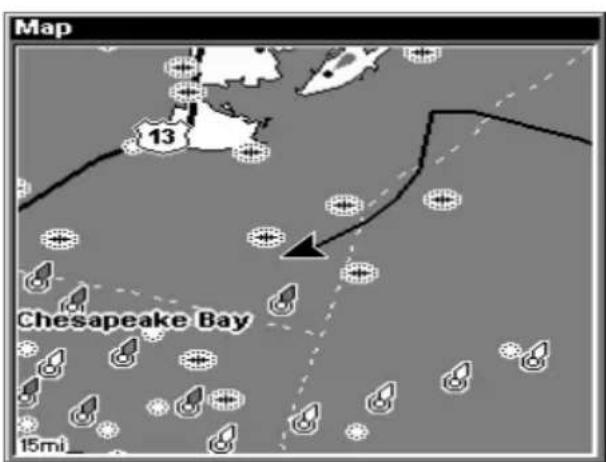

Map 13 Chesapeake Bay 15mi

Map 60 N Chesapeake Bay 13 15mi

Map orientation shown in north up (left) and track up (right).

This is fine if you're always traveling due north. What you see to your left corresponds to the left side of the map, to your right is shown on the right side of the map, and so on. If, however, you travel any other direction, the map doesn't line up with your view of the world.

To correct this problem, a track-up mode rotates the map as you turn. Thus, what you see on the left side of the screen should always be to your left, and so on.

Another option is course-up mode, which keeps the map at the same orientation as the initial bearing to the waypoint. When either the track-up or course-up mode is on, a "N" is displayed on the map screen to show you which direction is north.

To change map orientation: from the Map Page, press MENU | ↓ to MAP ORIENTATION | ENT. Use ↑ or ↓ to select the desired mode, then press ENT. Press EXIT | EXIT to return to the page display.

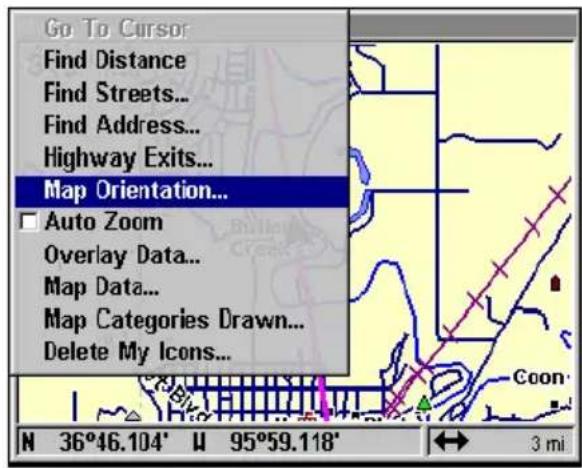

Go To Cursor Find Distance Find Streets... Find Address... Highway Exits... Map Orientation... □ Auto Zoom Overlay Data... Map Data... Map Categories Drawn... Delete My Icons... N 36°46.104' U 95°59.118' ← 3 mi

Go To Cursor Find Distance Find Streets... Find Address... Highway Exits... Map Orientation... ■ Auto Zoom Overlay Data Map Data... Map Categori Delete My Icc Map Orientation North Up Track Up Course Up U: - - - - " R: - - - - " ← 4 mi

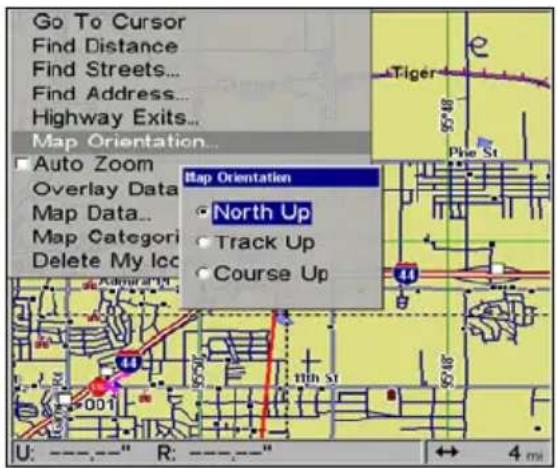

Map Menu (left) and Map Orientation menu with the North Up map orientation option selected (right).

NauticPath™ USA Marine Charts

Your unit can display NauticPath electronic charts on MMCs. They work just like a MapCreate custom map on a MMC.

Nautical Chart Notes

NauticPath charts contain notes or chart information, represented by circle-i Chart Note icons on the map display. An example is shown in the following figure.

ARANSAS 39 PASS 34 Note 531.4 mi 172° mag CAS PASS CHANNEL COLREGS DEMARCATION LINE 80.8500d (see note A) 34 32 21 20 24 21 32 39 N 27°49.994' W 97°01.711' ← 0.8 mi

Waypoint Information Note U. S. - Gulf Coast. Corpus Christi Bay. Port Aransas To Port Ingleside. Chart: U11312 CAUTION ARANSAS PASS Strong currents may be encountered in the vicinity of the jetties at the entrance to Aransas Pass. N 27°49.987' W 97°01.709' Distance: 531.4 mi Bearing: 171° mag Go To Waypoint Find On Map

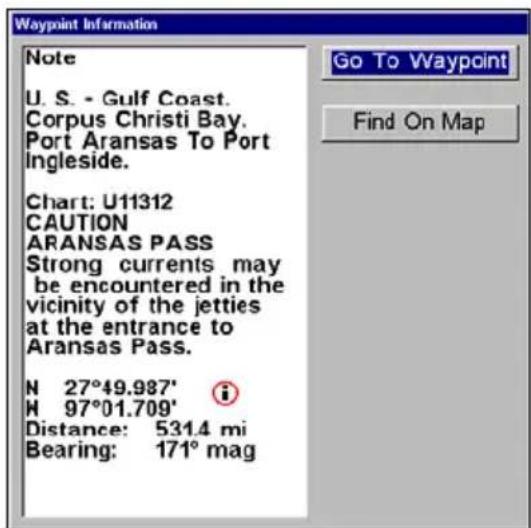

NauticPath chart showing Chart Note icon selected by cursor (left). Note information screen (right).

To view Chart Note information:

1. Use the arrow keys to move the cursor over a Chart Note icon. When it's selected, a pop-up name box appears.

2. Press WPT to display the Note Information screen.

3. To scroll through the Chart Note screen, use arrow keys to read the information. To return to the main page display, press EXIT repeatedly.

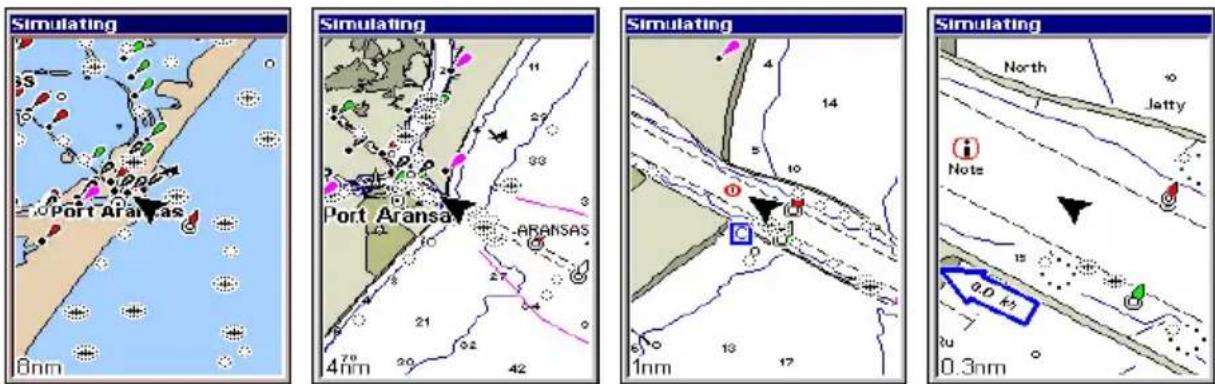

Entrance to Aransas Pass on a NauticPath chart with 8-nautical mile zoom (left). Remaining images (left to right): same position at 4-nautical mile, 1-nautical mile and 0.3-nautical mile zoom ranges.

Port Information

NauticPath charts contain Port Services information, represented by anchor icons on the map display. These icons will appear when you are zoomed in to a 4-nautical mile range. An example is displayed in the following figures.

To view Port Services information:

1. Use the arrow keys to move the cursor over a Port Services icon. When it is selected, a pop-up name box appears.

2. Press WPT to display the Port Services Information screen.

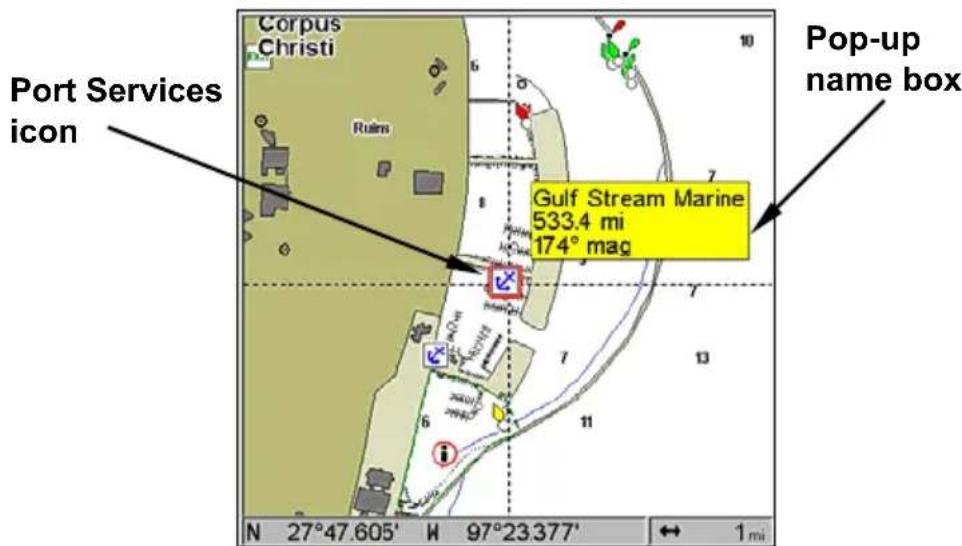

Port Services icon Corpus Christi Gulf Stream Marine 533.4 mi 174° mag Pop-up name box N 27°47.605' W 97°23.377' ← 1 mi

NauticPath chart showing Port Services icon selected by cursor. When first highlighted, the Pop-Up name box appears.

The Port Services information screen for a NauticPath chart contains all the service information in one window.

1. To scroll through the service information window, use to see the types of services available. To return to the main page display, press EXIT repeatedly.

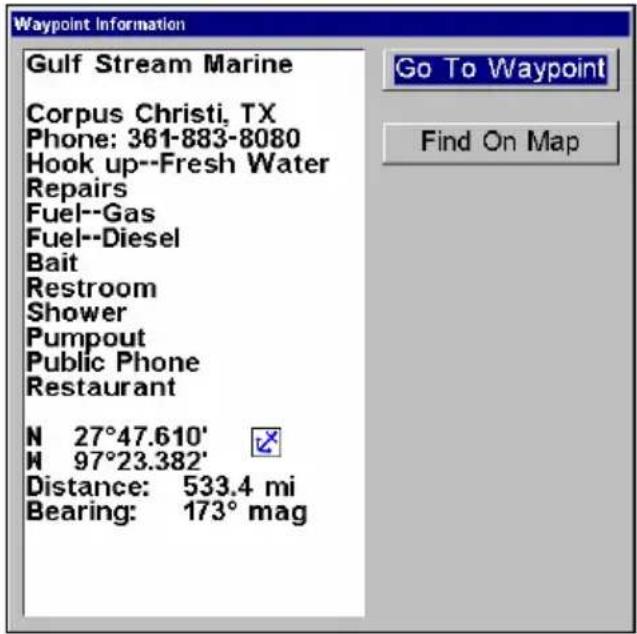

Waypoint Information Gulf Stream Marine Corpus Christi, TX Phone: [phone] Hook up--Fresh Water Repairs Fuel--Gas Fuel--Diesel Bait Restroom Shower Pumpout Public Phone Restaurant N 27°47.610' N 97°23.382' Distance: 533.4 mi Bearing: 173° mag Go To Waypoint Find On Map

Port Services information.

Tidal Current Information

NauticPath charts contain Tidal Current information, represented at large zoom ranges by a box icon with the letter "C." These icons will appear when you are zoomed in to a 6-mile range. The icon stands for a Tidal Current Station location. An example is displayed on the right.

Simple geometric shapes including a triangle, square, and irregular shape on a gray background (no text or symbols)

When you zoom in to a sufficiently small zoom range (0.8 nautical mile), the icon becomes an animated arrow showing tidal current velocity and direction for the selected tidal station at the present time. At larger zoom ranges, you can select the boxed "C" icon and it becomes an animated arrow with a pop-up name box (the name box disappears after a few seconds). Examples are displayed in the following figures.

To view Tidal Current information:

1. Use the arrow keys to move the cursor over a Tidal Current Station icon. When it is selected, a pop-up name box appears.

2. Press WPT to display the Tidal Current Information screen.

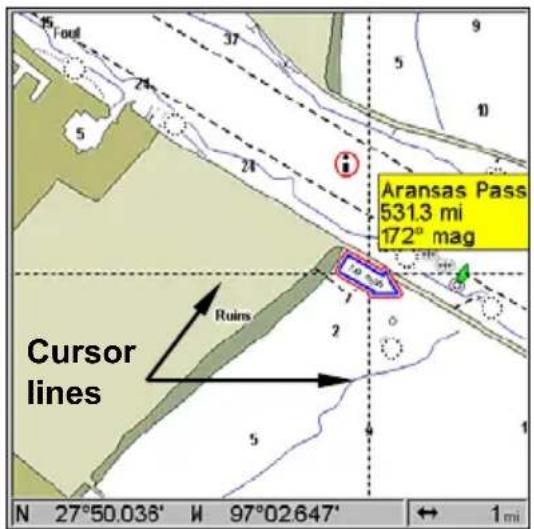

Aransas Pass 531.3 mi 172° mag Cursor lines Ruins N 27°50.038' W 97°02.647' ← 1 mi

Tidal Current Station icon in animated mode N 27°49.655' W 97°02.347' ↔ 0.8 mi

NauticPath chart showing Tidal Current Station icon selected by cursor (left). Tidal Current animated icon at .8-nautical mile range.

Current Time Line Velocity Scale Aransas Pass 4.5 mph SWL 4.5 mph MN 3 6 9 NN 3 6 9 MN Slack Water Line Slack Before 11:18 AM Fld 12:08 PM Fld 11:39 PM Ebb Daily Max Floods & Ebbs: 5:54 AM 4.1 mph 113° Ebb 3:59 PM 3.0 mph 295° Fld 6:41 AM 4.5 mph 113° Ebb 5:01 PM 3.2 mph 295° Fld Month: Day: Year: December 29 2005

Current Information screen.

The Tidal Current Information screen displays daily tidal current data for this station on this date at the present time. The graph at the top of the screen is an approximate view of the flood and ebb pattern for the day, from midnight (MN), to noon (NN) to midnight (MN). The velocity scale at the top left side of the graph changes dynamically based upon the maximum velocity of the current for that day.

Slack water, the period of little or no current, is represented by the Slack Water Line (SWL). The flood appears above the SWL and the ebb appears below the SWL. You can look up tidal current data for other dates by changing the month, day and year selection boxes.

To select another date:

1. Use to highlight month, day or year, then press ENT.
2. Use ↑ ↓ to select the desired month, day or year and press ENT.

To clear the information screen, press EXIT.

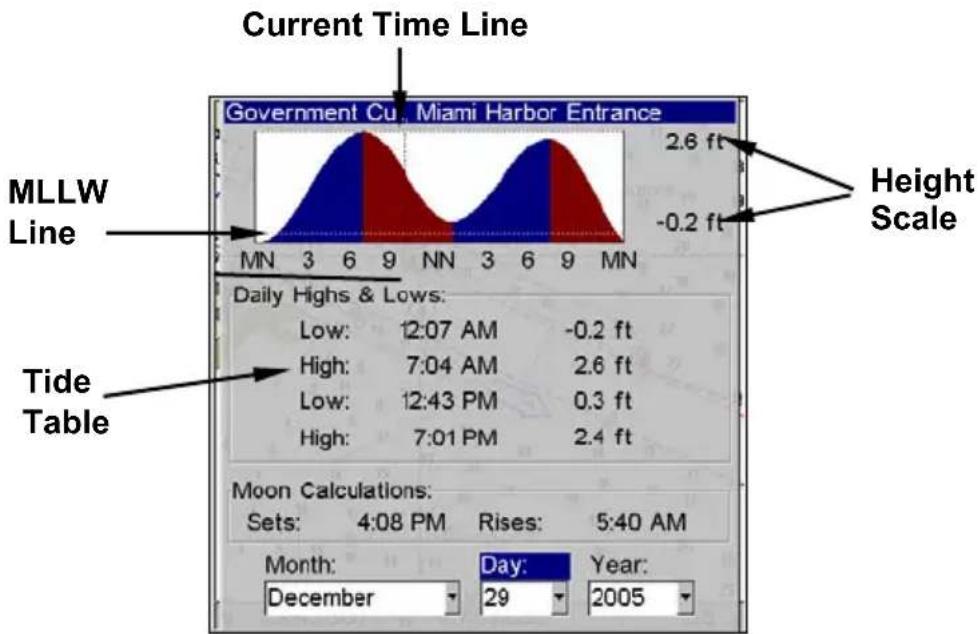

Tide Information

NauticPath charts contain Tidal Information, represented at large zoom ranges by a box icon with the letter "T." These icons will appear when you are zoomed in to a 6-mile range. The icon stands for a Tidal Station location. An example is displayed at right.

25 20 (MAR) OB

When you zoom in to a sufficiently small zoom range (0.8 nautical mile), the icon becomes an animated gauge showing a rising or falling tidal height for the selected station at the present time. At larger zoom ranges, you can select the boxed "T" icon and it becomes an animated gauge with a pop-up name box. The name box disappears seconds.

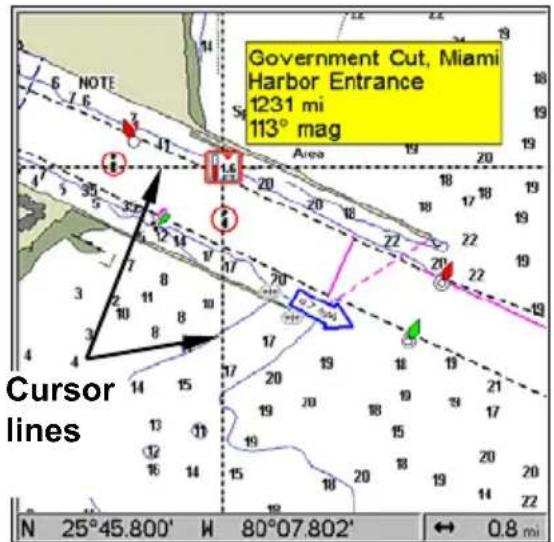

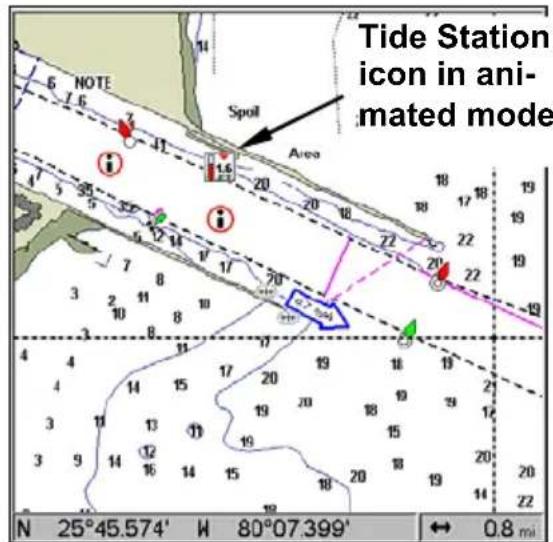

Government Cut, Miami Harbor Entrance 1231 mi 113° mag Cursor lines N 25°45.800' W 80°07.802' ← 0.8 mi

Tide Station icon in animated mode 6 NOTE 7 1.6 4 5 35 5 12 14 17 20 7 8 3 10 8 19 18 17 18 22 20 22 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 N 25°45.574' W 80°07.399' ↔ 0.8 mi

NauticPath chart showing Tide Station icon selected by cursor (left). Icon animates automatically without selection at the 0.8-mile zoom range (right). In the example above, the tide is at 0.9 feet and falling, as shown by the down arrow at the top of the icon.

To view tide information:

1. Use the arrow keys to move the cursor over a tide station icon. When it is selected, a pop-up name box appears.
2. Press WPT to display the Tide Information screen.

Current Time Line Government Current, Miami Harbor Entrance 2.6 ft -0.2 ft Height Scale MLLW Line MN 3 6 9 NN 3 6 9 MN Daily Highs & Lows: Low: 12:07 AM -0.2 ft High: 7:04 AM 2.6 ft Low: 12:43 PM 0.3 ft High: 7:01 PM 2.4 ft Moon Calculations: Sets: 4:08 PM Rises: 5:40 AM Month: Day: Year: December 29 2005

Tide Information screen.

The Tide Information screen displays daily tidal data for this station on this date at the present time. The graph at the top of the screen is an approximate view of the tidal range pattern for the day, from midnight (MN) to noon (NN) to midnight (MN). The dotted line across the graph is the Mean Lower Low Water line (MLLW).

The height scale on the top right side of the graph changes, based upon the maximum range of the tide for that day. The MLLW line also adjusts its position as the height scale changes.

You can look up tidal data for other dates by changing the month, day and year selection boxes. To select another date:

1. Use to highlight month, day or year, then press ENT.
2. Use to select the desired month, day or year and press ENT.

To clear the information screen, press EXIT.

Navionics® Charts

Your unit can also display Navionics electronic charts on MMCs. Like NauticPath, Navionics charts contain tide and port service information.

NOTE:

The primary operational difference between a NauticPath chart and a Navionics chart is the way the chart data is set up for display. NauticPath charts are ready for display as soon as they are inserted into the unit. Navionics charts must be inserted into the unit, then selected as a Map Choice option in the Map Data menu.

To display a Navionics chart:

1. Install the Navionics MMC in the memory card compartment and turn on the unit. (For full card install instructions, see Sec. 2.)

2. From the Map Page, press MENU | ↓ to MAP DATA | ENT | ↓ to MAP CHOICE | ENT. Select the Map Name, then press ENT | EXIT | EXIT.

Map Data Earth Map Detail Medium Popup Map Information Draw Map Boundaries Fill Water With White Navionics Options Navionics Map Choice Lowrance Presentation Mode International Mode Safety Contour 5 Meters Lat/Lon Grid Lines Range Rings Trackline Extensions Length Off Show Distance Show Time

Navionics Map Choice highlighted. Press Ent to select the desired Navionics map from the Map Choice drop down box.

WARNING:

You should never format the MMC containing your Navionics chart. Formatting the MMC will permanently erase the chart from the card.

Overlay Data

On any Page display except Satellite Status, you can "float" or overlay additional GPS or navigation data on the screen with the Overlay Data command. For example, if you left your watch at home, you could display the local time on top of the map. Or, if you wanted to see details about your route and trip, you could show your bearing, course, average speed and trip distance.

The various data available from your unit are divided into categories in the Overlay Data menu. These categories include GPS Data, Navigation, Trip Calculator and Time.

You can select items from any of these categories for display, in any combination — the category divisions are there only to help you sort through the information.

NOTE:

The Customize command and the Overlay Data command both use the same information categories. The difference between the two

commands is that Customize changes only the digital data boxes on a screen, and Overlay Data changes only the information floating on the screen without a box. See Customize Page Displays, on page 79 for information on customizing data boxes.

Go To Cursor Find Distance Find Streets... Find Address... Highway Exits... Map Orientation... □ Auto Zoom Overlay Data... Map Data... Map Categories Drawn... Delete My Icons... N 37°06.765' W 76°03.314' 20 mi

Map - Simula Data Viewer GPS Data Navigation Closing Speed Trip Calculator Time Sonar Data Sensor Data N 35° 100 m

Overlay Data highlighted on GPS menu (left). The Data Viewer menu with the Navigation category expanded.

To overlay information on your screen:

1. While on the Navigation Page or a Map Page, press MENU | ↓ to OVERLAY DATA | ENT | ENT.

2. You'll see a list of the overlay data currently shown on the screen, if any overlay data has been chosen for display. Select (ENTER TO ADD) and press ENT. The data viewer shows information categories with "+" or "-" symbols next to each category name. A category with a "+" next to it is expandable, meaning its contents are hidden.

Selecting the category name and pressing ENT will show the category's contents, so you can choose items within it. An expanded category (one with a "-" next to its name) can be collapsed to hide its contents. Just select the category name and press ENT.

1. Expand any categories that might contain data you want to display. Then press ↓ or ↑ to select a data option.

2. With the data option highlighted, press ENT to check it (turn on) and uncheck it (turn off). As you turn it on, the data will appear on top of the screen. Every Page display has a maximum number of items you can show using the Overlay Data command.

3. After the desired changes are made, press EXIT | EXIT to return to the page display.

Active Map Overlay Data Shown Data Type Size (Press ENT to add...)

Data Viewer GPS Data Navigation Route Data ✓ Bearing ✓ Closing Spd Course Destination Distance ✓ Off Course Steer Arrow Trip Calculator

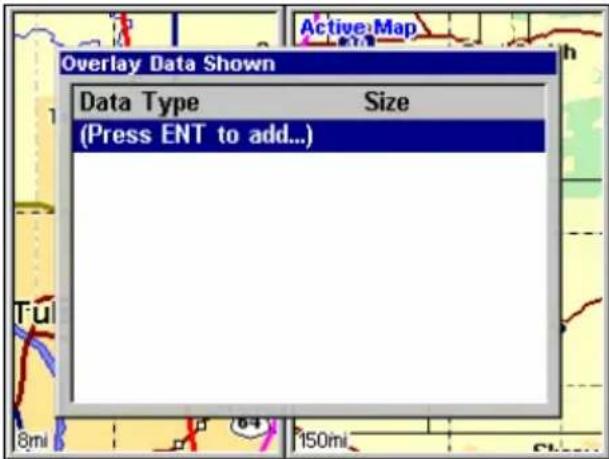

From Overlay Data Shown menu (left) press ENT to see Data Viewer (center). Select a category and press ENT. Bearing, Closing Speed and Off Course have been selected from the Navigation category.

To remove overlaid data:

1. While on the Page that shows the item or items you want to remove, press MENU | ↓ to OVERLAY DATA | ENT.
2. You'll see a list of the overlay data currently displayed. Select the item you want to remove from your display and press ENT|ENT to remove the data. To remove another item, select the item and press ENT|ENT.
3. When you have finished removing all the items you want from the screen, press EXIT to return to the page display.

Active Map Overlay Data Shows Data Type Size Ground Speed Small Closing Speed Small Average Speed Small Maximum Speed Small Hours Used Small (Press ENT to add...)

Active Map 0.00 mph S 0.00 mph S 0.00 mph S 6.96 HRS 11 16 Data Information: SGND Data Description: Ground Speed Overlay Setup Remove Move Overlay Size Small Overlay Style Digital Caption S:GND Show Caption Hide When Invalid

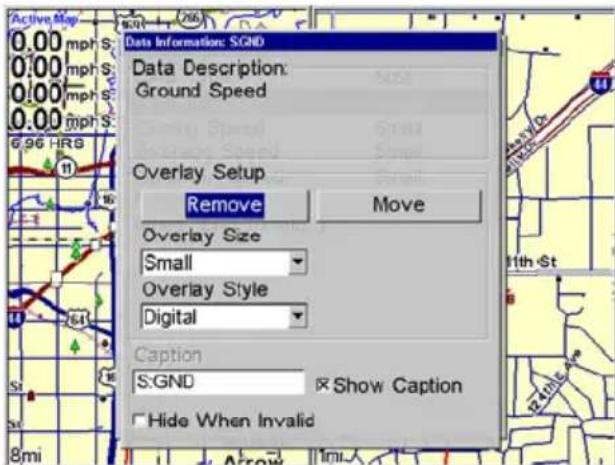

Overlay Data Shown menu with Off Course option selected (left). Press ENT to access Remove option (right). Press ENT again to remove item.

To move overlaid data:

You may find it useful to rearrange data that is floating in your display window.

1. From one of the Map Pages, press MENU | ↓ to OVERLAY DATA | ENT.

2. You'll see a list of the overlay data currently displayed. Select the item you want to move and press ENT | → to MOVE | ENT.

3. The data begins to flash on your screen. Use any combination of , , and to move the data to a new location on the screen.

4. When satisfied, press EXIT | EXIT.

To resize overlaid data: press MENU | ↓ to OVERLAY DATA | ENT. This will bring up the Overlay Data Shown menu with a list of the current overlay data. Use → ← to toggle the size of the data between small, medium, large and enormous. When you are satisfied with the data size, press EXIT. You can also change the data size by highlighting the data you want to change on the Overlay Data Shown menu and pressing ENT. This will bring up the data information menu. Use ↓ to select overlay size, then press ENT. Select the desired data size, then press EXIT | EXIT | EXIT to return to the main screen.

Overylay Data Style

Do you like a digital readout or do you prefer an analog gauge look? With the Overlay Style feature, you can mix and match your data to suit your viewing preferences.

To access overlaid data style menu: press MENU | ↓ to OVERLAY DATA | ENT. This will bring up the Overlay Data Shown menu with a list of current overlay data. Highlight the data you want to change on the Overlay Data Shown menu and press ENT, which will launch the data information menu. Use ↓ to select overlay style, choose analog, and press ENT. Next, press → to enter Analog Setup, which will place a gauge on the display instead of digital numbers.

Active Map 0.00 mph 0.00 mph 0.00 mph 0.00 mph Data Information: SGND Data Description: Ground Speed Overlay Setup Remove Move Overlay Size Small Overlay Style Digital Digital Analog Gauge Analog Slider Show Caption Hide When Invalid Active Map Data Information: SGND Data Description: Ground Speed Overlay Setup Remove Move Overlay Size Small Change Size Overlay Style Analog Gauge Gauge Setup Caption S:GND Show Caption Hide When Invalid

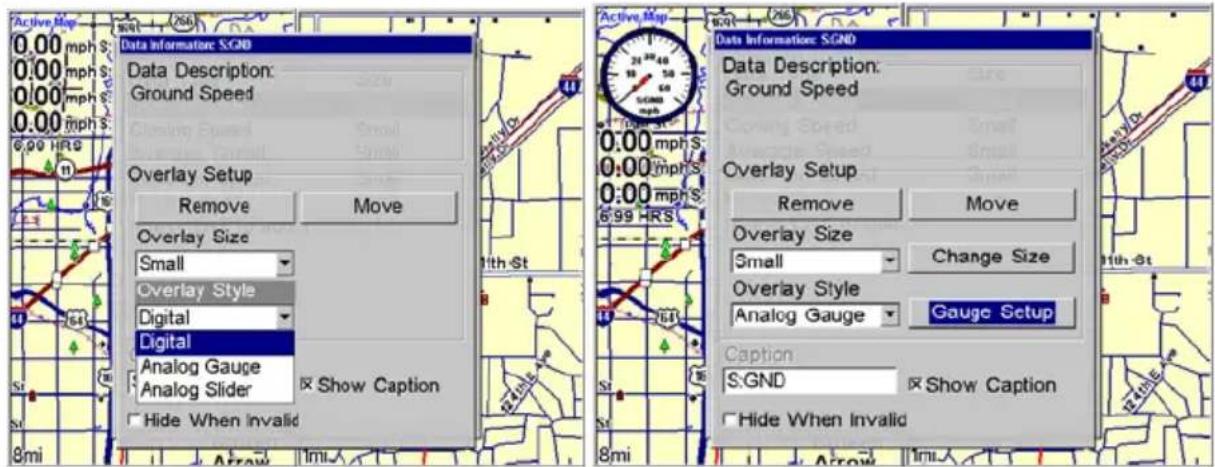

The GlobalMap Data Information menu (left) with the Overlay style window activated. After choosing analog, the Analog Setup button appears (right).

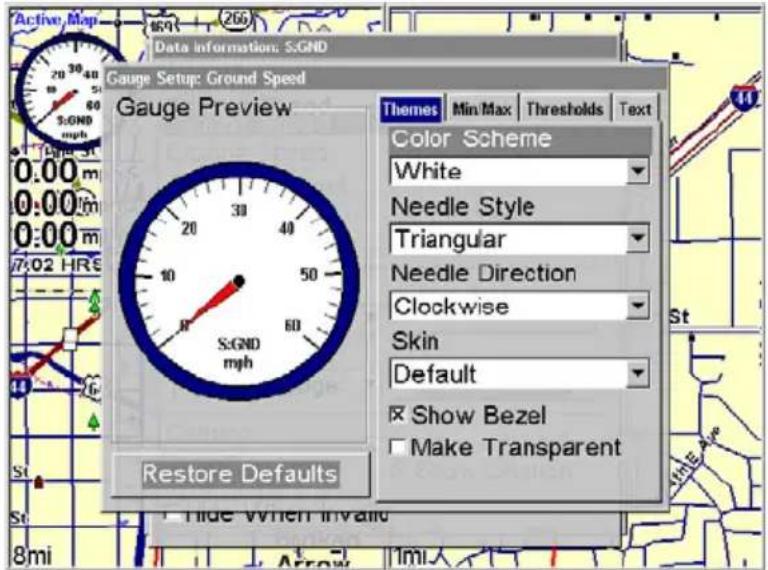

Active Map Data Information: S:GND Gauge Setup: Ground Speed Gauge Preview Themes Min/Max Thresholds Text Color Scheme White Needle Style Triangular Needle Direction Clockwise Skin Default Show Bezel Make Transparent Restore Defaults 8mi

Gauge Setup Menu.

There are four primary setup options in the analog menu: Themes, Tick Marks, Thresholds and Text. When working in the gauge setup menu, use ↓ ↑ and → ← to highlight the desired option, then press ENT. Pressing EXIT will take you back to the previous screen.

NOTE:

You can make gauges transparent from all the setup menus except Text Setup.

Themes setup allows you to change gauge style, color scheme, and needle style.

Gauge Style: There are three gauge settings:

Digital: shows the information in a digital format.

Analog Gauge: uses dials to show gauge information.

Analog Slider: uses a bar graph to show gauge information.

Color Scheme: There are five color options, white, blue, black, red and green.

Needle Style: There are four needle styles, Triangular, Straight, Beveled and Big Needle.

Min/Max setup gives you the option of modifying the gauges minimum and maximum angles, values and ticks.

Minimum and Maximum Angles gives you control over the numerical layout of the gauge. You can spread the numbers out around the gauge or bunch them together in a smaller area.

Minimum and Maximum Values allows you to decide where the gauge's numbers will begin and where they will top out. For example, you may decide to start the gauge at 0, 5 or 10 and top it out at 85, 90 or 100.

Minimum or Maximum Tick controls how many tick marks will be displayed on the gauge. If you set the minimum tick to 1 and the max tick to 10, there will be 10 tick marks between 0 and 10, 10 and 20 and so on. In the case of a speedometer, that's one tick for one mile per hour. If you change the minimum tick to 2 and leave the maximum tick at 10, you'll have one tick for every two miles per hour. That's five ticks between 0 and 10, 10 and 20 and so on.

Gauge Setup: Depth Gauge Preview Themes Min/Max Thresholds Text Min Value Max Value +0 +100 Min Angle Max Angle 230 130 Min Tick Max Tick 5 10 Restore Defaults

Gauge Setup: Depth Gauge Preview Themes | Min/Max | Thresholds | Text | Lower Thresholds Minor: +5 to +10 Major: +0 to +5 Upper Thresholds Minor: +90 to +95 Major: +95 to +10C Restore Defaults

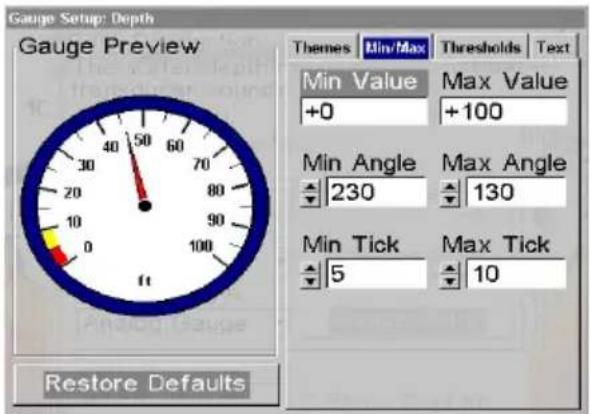

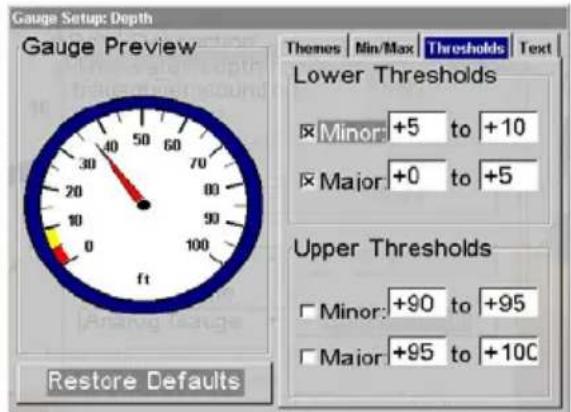

Tick Marks setup menu (left) with Thresholds Setup menu (right).

Thresholds setup can be used as a visual aid to mark portions of the gauge. It is divided into Upper and Lower Thresholds, each containing major (warning) and minor (caution) threshold settings. Two sets of numbers must be entered for each threshold. Minor thresholds ranges are colored yellow. Major threshold ranges are red.

Text setup allows you to choose where the text appears on the gauges. Text can be above needle, below needle, right of needle and left of needle.

Active Map Data Information: SGNB Gauge Setup: Ground Speed Gauge Preview Themes Min/Max Thresholds Text Text Placement Below Needle Show Units Restore Defaults

Active Map Data Information: SGND Gauge Setup: Ground Speed Gauge Preview Text Placement Below Needle Above Needle Below Needle Right of Needle Left of Needle Restore Defaults

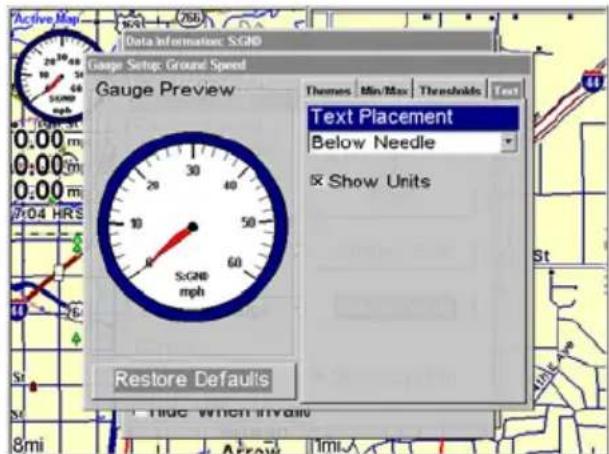

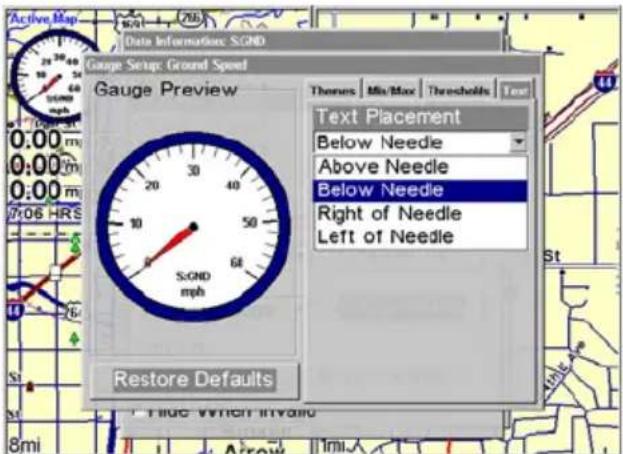

GlobalMap Text Setup menu( left) with transparent gauge labeled as "track"; Text Setup menu with destination house number entered in units text position (right).

Default

The Default command restores the factory default settings. If you run into trouble modifying any of the gauge settings, Default is there to bail you out. The button is labeled RESTORE DEFAULTS.

NOTE:

The Analog setup menus allow you to make gauges transparent. Despite their transparency, the gauges take up much of the display screen.

Tulsa W E S 216 Catoosa 270 90 Fair Oaks 010 005 64 51 Broken 75 N 36°08.971' U 95°50.579' 20 mi

Map - Simulating N W E S 40 50 60 70 30 80 20 90 10 100 0 mph D: 65.33° R: 645.12° ↔ 60 mi

A display with a transparent track gauge (left). The screen on the right is displaying Track and speed gauges.

Pop-up Help

Help is available for virtually all of the menus on this unit. By highlighting a menu item and leaving it highlighted for a few seconds, a "pop-up" message appears that describes the function of the menu item. This feature is on by default.

To set up Popup Help: Press MENU | MENU | ↓ to SYSTEM SETUP | ENT | ↓ to POPUP HELP. With the option highlighted, press ENT to check it (turn on) and uncheck it (turn off). After the option is set, press EXIT | EXIT to return to the page display.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... Units of Measure... Set Local Time... Communications Port... Reset Options Simulators... Delete All My Waypoints Popup Help Set Language... Transfer My Data... Check Free Storage... Software Information... N 36°08.143' W 95°50.27'1" ↔ 100 mi

Screen... Scunds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... Change the contrast, brightness, or color scheme. Muskogee 16 902 561 100 mi 36°08.143' W 95°50.271'

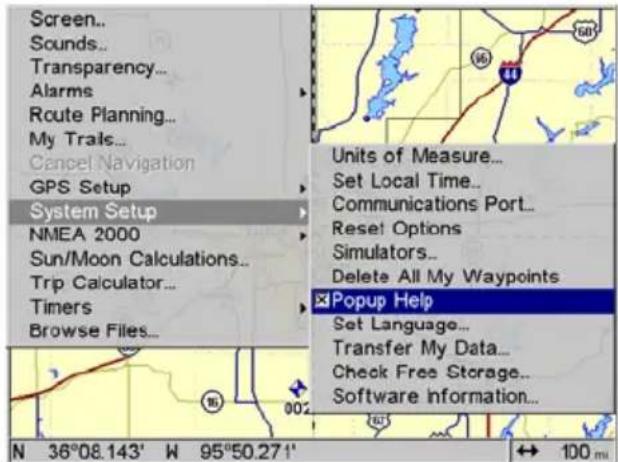

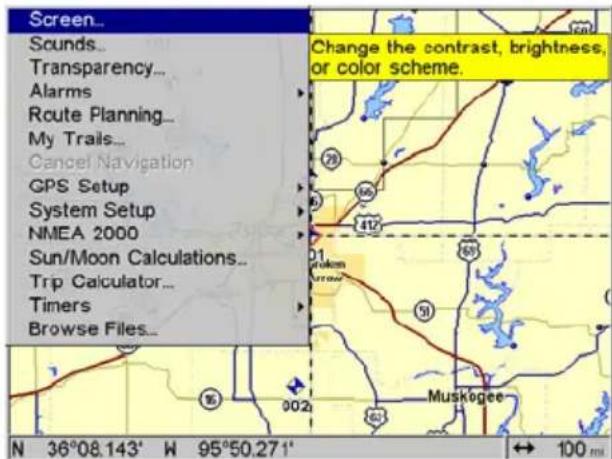

System Setup menu (left) with Pop-up Help command highlighted. The Pop-up Help message for the Screen command (right).

Reset Options

To reset all features to their factory defaults:

Press MENU | MENU | ↓ to SYSTEM SETUP | ENT | ↓ to RESET OPTIONS | ENT | ← to YES | ENT.

NOTE:

Reset Options does not erase waypoints, routes, icons or plot trails.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... Units of Measure... Set Local Time... Communications Port... Reset Options Simulators... Delete All My Waypoints Popup Help Set Language... Transfer My Data... Check Free Storage... Software Information... Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... Warning ? Reset all the options? Yes No No Yes No Path Port... Waypoints PopUp Help Set Language... Transfer My Data... Check Free Storage... Software Information... N 36°08.143' W 95°50.27'1' ↔ 100 mi N 36°08.143' W 95°50.27'1' ↔ 100 mi

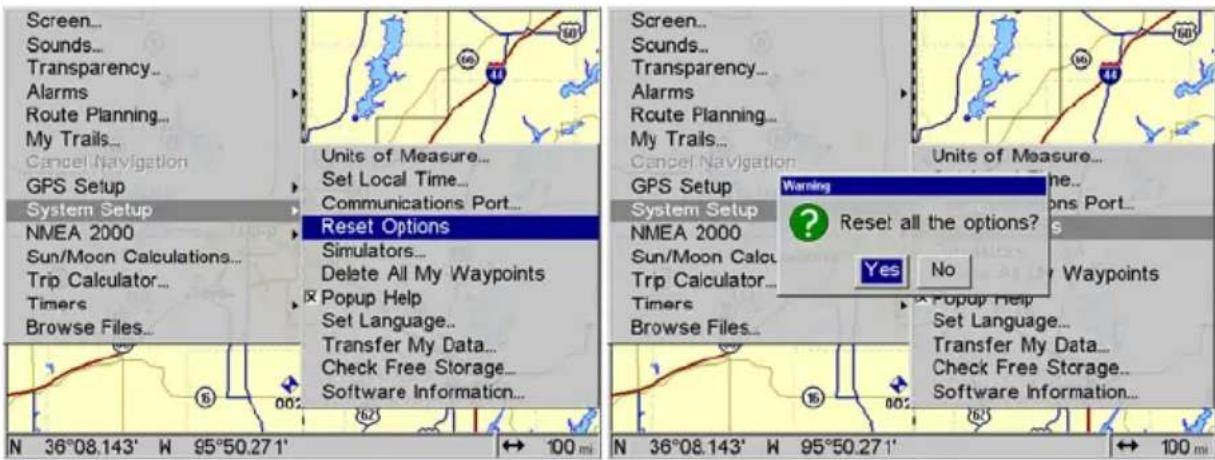

Reset Options command (left) and the Reset Options menu (right).

Screen Contrast and Brightness

To access the Screen menu, press MENU | MENU | ENT.

Once in the Screen menu:

To adjust the display's contrast:

The CONTRAST slider bar is already selected. Press → or ← to move the bar. The left end of the scale is minimum contrast. The right end is maximum contrast.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trp Calculator... Timers Browse Files... Screen... Sounds... Transparency... Alarms Route Planning My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Co Trip Calculat Timers Browse Files... Screen Contrast Low ———— High Brightness Low ———— High Display Mode Normal N 36°08.143' W 95°50.27'1" ↔ 100 mi N 36°08.143' W 95°50.27'1" ↔ 100 mi

Screen Command (left); Screen Menu with Contrast bar selected (right).

To adjust the display's brightness:

Press ↓ to BRIGHTNESS. Press → or ← to move the bar. The left end of the scale is minimum contrast. The right end is maximum contrast.

To adjust the screen's display mode:

Press ↓ to DISPLAY MODE | ENT | press ↑ or ↓ to select mode | EXIT.

Screen... Sounds... Transparency... Alarms Route Planning My Trails... Cancel Navig GPS Setup System Setup NMEA 2000 Sun/Moon Ca Trip Calculate Timers Browse Files. Screen Contrast Low High Brightness Low High Display Mode Normal Normal High Contrast Night Viewing N 36°08.143' W 95°50.271' ↔ 100 mi

Display Mode menu.

Set Language

This unit's menus are available in 10 languages: English, French, German, Spanish, Italian, Danish, Swedish, Russian, Dutch and Finnish. To select a different language:

1. Press MENU | MENU | ↓ to SYSTEM SETUP | ENT.
2. Press ↓ to SET LANGUAGE | ENT.
3. Use ↓ or ↑ to select a different language and press ENT. All menus now appear in the language you selected.

Set Local Time

Using the correct local time setting is handy when estimating local arrival time while navigating. Also, the time and date are saved when a waypoint is created.

To access the Set Local Time menu, you must first acquire your position. Once that is done press MENU | MENU | ↓ to SYSTEM SETUP | ENT | ↓ to SET LOCAL TIME | ENT.

Once in the Time Settings menu:

To set Local Time: Press ENT. Press or to change the first character, then press to move the cursor to the next character. Repeat until the time is correct, then press ENT.

To set the Month: Press ↓ to MONTH | ENT. Press ↑ or ↓ to select the month, then press ENT.

To set the Day: Press → to DAY | ENT. Press ↑ or ↓ to select the day, then press ENT.

To set the Year: Press → to YEAR | ENT. Press ↑ or ↓ to select the year, then press ENT.

Screen... Sounds... Transparency... Alarms Route Planning My Trails... Cancel Navig GPS Setup System Setup NMEA 2000 Sun/Moon Ca Trip Calculate Timers Browse Files Time Settings Local Time 08:36:33 AM Date Month Day Year December 30 2004 Time Format Date Format 12 Hour Month/Day/Year 24 Hour Day/Month/Year Year/Month/Day Configure DST DST is set for United States N 36°08.143' W 95°50.271' ↔ 100 mi

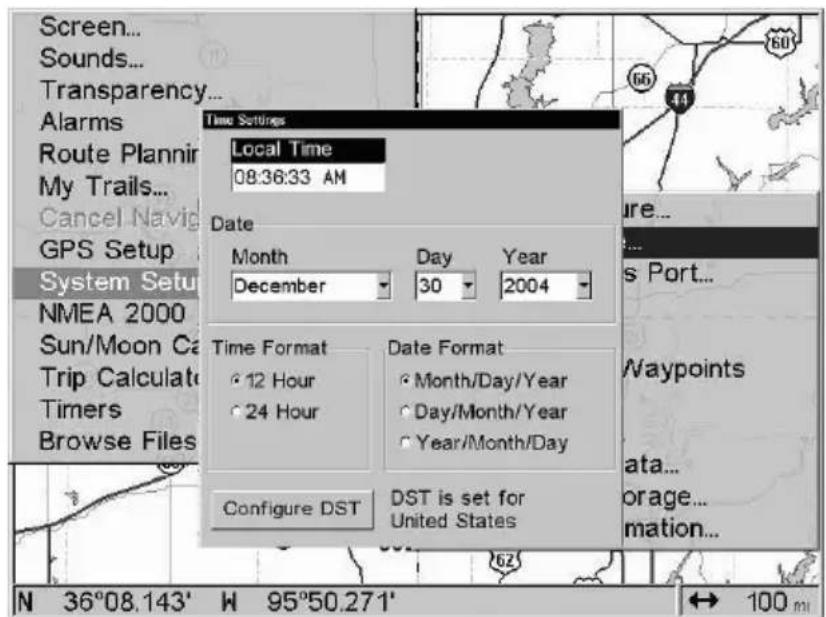

Time Settings Menu.

To Set Time Format: Press ↓ to the Time Format window. Just highlight the option you prefer — 12 or 24 hour — and press ENT.

To Set Date Format: Press ↓ and → to modify the Date Format. There are three options: Month/Day/Year, Day/Month/Year and Year/Month/Day. Use ↑ or ↓ to select the format you prefer, then press ENT.

The last field we have to discuss is CONFIG DST. This feature allows your unit to automatically adjust Daylight Saving Time (you should only have to set it once). You may select which set of rules matches DST in your region, or simply accept the default. Use the ↓ key to configure DST.

Once you have each field set the way you want, press EXIT repeatedly until you return to the previous page.

Show WAAS Alarm

When the signal is available, your unit will automatically use WAAS to boost the accuracy of the position fix. When the WAAS signal is lost or acquired, an alarm message appears. Since the U.S. government is still developing the WAAS system, it's not unusual for a GPS/WAAS receiver to frequently lose and reacquire its lock on a WAAS satellite. That can result in the alarm repeatedly going on and off. If you want, you have the option of turning off the WAAS Acquired/Lost alarm without affecting how the unit uses WAAS. Here's how:

1. Press MENU | MENU | ↓ to GPS SETUP | ENT | ↓ to SHOW WAAS ALARM.

2. With the option highlighted, press ENT to uncheck it (turn off) and check it (turn on). After the option is set, press EXIT | EXIT to return to the page display.

3. You can return to this command and press ENT again to turn on the feature.

Software Version Information

From time to time, Lowrance updates the operating system software in some of its products. These software upgrades are usually offered to customers as free downloads from our web site, www.lowrance.com. These upgrades make the unit perform better or introduce a new feature or function. You can find out what software version is running in your GlobalMap by using the Software Information command.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... Units of Measure... Set Local Time... Communications Port... Reset Options Simulators... Delete All My Waypoints Popup Help Set Language... Transfer My Data... Check Free Storage... Software Information...

Software Information command on the System Setup menu.

1. Press MENU | MENU | ↓ to SYSTEM SETUP | ENT | ↓ to SOFTWARE INFO | ENT.
2. Read the information displayed on the screen.
3. To return to the last page displayed, press EXIT | EXIT | EXIT.

Sounds and Alarm Sound Styles

Sounds triggered by key strokes and alarms can be adjusted:

Press MENU | MENU | ↓ to SOUNDS | ENT.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... N 36°08.143' W 95°50.271'

Screen... Sounds... Transparency... Alarms Route My Tr Change GPS S System NMEA Sun/M Trip C Timer Brows Soands Key Press Sounds Alarm Sounds Volume Low High Alarm Style Beeps Muskogee 36°08.143' W 95°50.271'

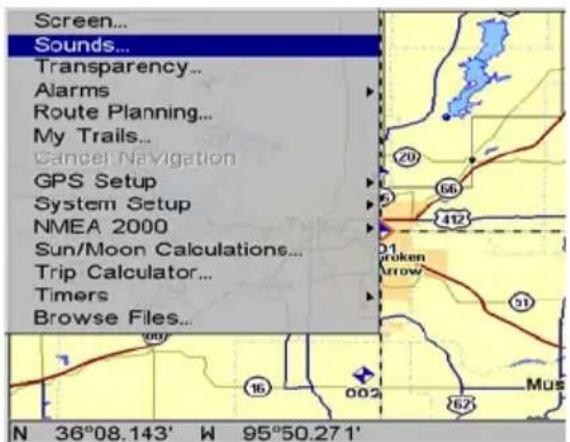

Sounds command (left); The Sounds menu (right).

Once in the Sounds menu:

To set Key Press Sounds: With the option highlighted, press ENT to check it (turn on) and uncheck it (turn off). After the option is set, press EXIT | EXIT to return to the page display.

To set Alarm Sounds: Press ↓ to ALARM SOUNDS. With the option highlighted, press ENT to check it (turn on) and uncheck it (turn off). After the option is set, press EXIT | EXIT to return to the page display.

To set Alarm Volume: Press ↓ to VOLUME. Press → or ← to move the bar. The left end of the scale is low volume; the right end is high volume. After the option is set, press EXIT | EXIT to return to the page display.

To set Alarm Style: Press ↓ to ALARM STYLE | ENT. Press ↑ or ↓ to change the style, then press ENT. After the option is set, press EXIT | EXIT to return to the page display.

Track Smoothing

This is a factory setting on the GPS Setup menu that should always be left on. When stopped or traveling at slow speeds (such as walking or trolling), Track Smoothing prevents wandering of trails.

Screen... Scunds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... Initialize GPS Coordinate System... Datum Selection... Track Smoothing Require WAAS Show WAAS Alarm N 36°08.143' W 95°50.271' ↔ 100 mi

Track Smoothing option turned on.

Trail Options

There are several options you can use with trails. Some affect all trails, other options can be applied to a particular trail. You can change the way trails are updated, you can display or hide trails, make them flash, create a new trail, delete a trail, etc.

General Trail Options

To access the Trails Menu:

Press MENU | MENU | ↓ to MY TRAILS | ENT.

Screen... Sounds... Transparency... Alarms Routes Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations Trip Calculator... Timers Browse Files... N 36°08.143' H 95°50.27'1' ↔ 100 m

Screen... Soft Trail New Trail Trail Options Delete All Saved Trails Trail 1 1Point ✓ Trail 2 14 Points ✓ Trail 3 22 Points ✓ Trail 4 1Point D: 259.34" L: 242.18" ↔ 100

Screen... Trails New Trail Trail Options Delete All Saved 1 ✓ Trail Trail Options Update Active Trail Update Criteria Auto Time Distance Update Distance 0.10 mi/10 N 36°10.712" H 95°50.579" ↔ 80 mm

Main Menu (left), Trails Menu (center) and Trail Options menu (right).

Delete All Trails

To remove all of the trails from memory: from the Trails Menu, press → to DELETE ALL | ENT | ← to YES | ENT.

Update Trail Options

This menu lets you change the way trail updates occur.

WARNING:

If you uncheck the Update Trail option, automatic trail creation and recording will be turned off. You must turn it back on to record trails. The default setting is on.

From the Trails Menu, press → to TRAIL OPTIONS | ENT. With UPDATE ACTIVE TRAIL highlighted, press ENT to check it (turn on) and uncheck it (turn off).

Update Trail Criteria (Auto, Time, Distance)

The options are automatic, time, or distance. When it's in the default automatic mode, the unit doesn't update the plot trail while you're traveling in a straight line. Once you deviate from a straight line, the unit "drops" a plot point (trail waypoint) onto the trail. This conserves trail points. If a plot trail uses all of the available points allotted to it, the points at the start of the trail are removed and replaced by points at the end of the trail.

From the Trails Menu, press → to TRAIL OPTIONS | ENT | ↓ to UPDATE CRITERIA. Press ↑ or ↓ to select criteria type | ENT.

Trail Update Rate (Time, Distance)

You can update a trail by time, with a range from 1 second to 9999 seconds. The default is 3 seconds. You can update by distance, with a

range from 0.01 mile/nm/km to 9.99 mile/nm/km. The default is 0.10 miles. With one of the Update Criteria selected, use the cursor arrows to highlight either the UPDATE RATE or UPDATE DISTANCE data entry boxes and press ENT. Press ↑ or ↓ to change the first character, then press → to the next character and repeat until the entry is correct. Press EXIT to return to the Trail Options Menu.

Screen... Trails New Trail Trail Options Delete All Saved T ✓ Trail Trail Options Update Active Trail Update Criteria Auto Time Distance Update Rate 3 sec N 36°14.646' W 96°03.313' ← 60 mi Screen... Trails New Trail Trail Options Delete All Saved T ✓ Trail Trail Options Update Active Trail Update Criteria Auto Time Distance Update Distance 0.10 mi/10 N 36°10.712' W 95°50.579' ← 80 mi

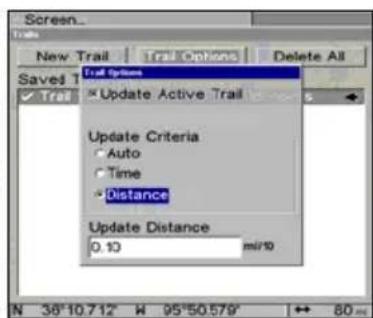

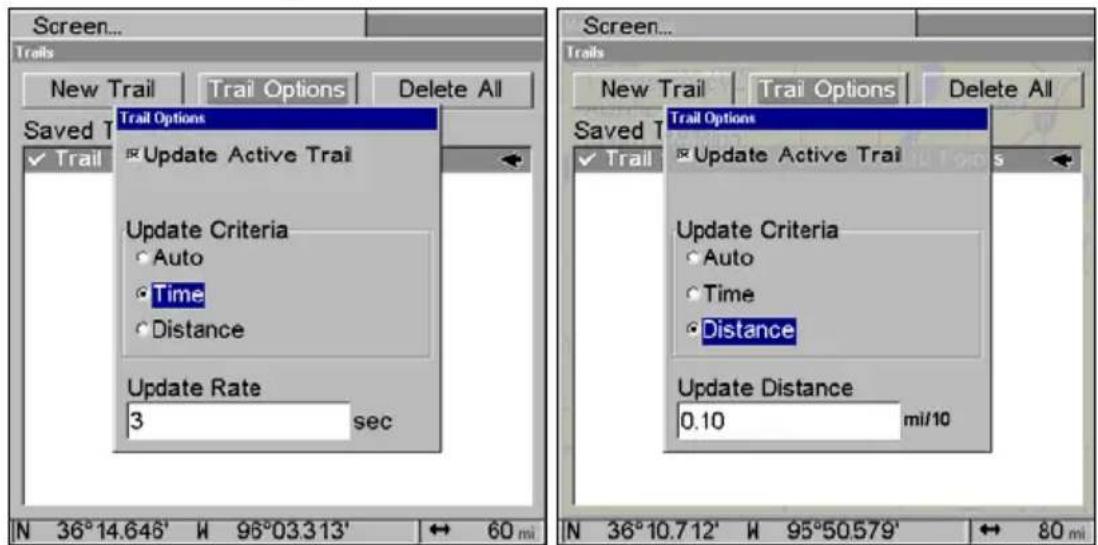

Trail Options menu: Update Time Rate setting (left) and Update Distance setting (right).

Specific Trail Options

Delete Trail

To delete a specific trail: From the Trails Menu, press ↓ to Trail Name | ENT. The Edit Trail menu appears as seen in the following figure. Press → to DELETE TRAIL | ENT | ← to YES | ENT.

Screen... So Trails New Trail Trail Options Delete All Edit Trail Name Trail 3 Delete Trail Color Light Magenta Navigate Pattern Active Visible Maximum Points 2000 Trail Preview N 36°08.143' W 95°50.271' ↔ 100 mi

Edit Trail menu.

New Trail

To manually start a new trail, in the Trails Menu, make sure NEW TRAIL is highlighted and press ENT | EXIT.

Trail Visible/Invisible and Other Trail Options

The name, maximum number of points in the trail, activity, and visibility are all changed on the Edit Trail menu screen. The Active setting determines whether or not the unit is recording new points for a particular trail.

On the Edit Trail menu, press ↓ then → to highlight the Active and/or Visible checkboxes. Press ENT to check (turn on) or uncheck (turn off) the desired feature. Use ↑↓ or → ← to make other changes within the Edit Trails menu. Press EXIT repeatedly to return to the main screen.

Transparency (available in some models)

Use the transparency menu to adjust the transparency of menu windows. A high transparency allows you to continue monitoring the screen's display while adjusting feature settings, though the text of the menus may fade until it is unreadable. A low transparency will usually make menu text easier to read at the cost of watching your display.

Experiment with this feature until you find the level of transparency that matches your preferences.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation GPS Setup System Setup NMEA 2000 Sun/Moon Calculations... Trip Calculator... Timers Browse Files... N 36°08.143' W 95°50.27'1' ↔ 100 mi

Main Menu with Transparency command selected.

To adjust Menu Transparency level:

Press MENU | MENU | ↓ to TRANSPARENCY | ENT. The TRANSPARENCY slider bar appears. Press ↑ or ↓ to move the bar. The lower end of the scale makes the menus opaque. The upper end is maximum transparency.

Units of Measure

This menu sets the speed and distance (statute or nautical miles, meters), depth (feet, fathoms, or meters), temperature (degrees Fahrenheit or Celsius) and heading (true or magnetic) units. To change units:

Press MENU | MENU | ↓ to SYSTEM SETUP | ENT | ENT.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Nat GPS Setup System Se NMEA 200 Sun/Moon Trip Calcul Timers Browse Fil Units of Measure Speed / Distance Statute Depth Feet Temperature Fahrenheit Volume Gallons Pressure PSI Heading Magnetic Transfer My Data... Check Free Storage... Software Information... N 36°08.143' W 95°50.27'1" ↔ 100 mi

The Units of Measure menu.

To set Speed/Distance Unit of Measure: Press ENT then ↑ or ↓ to change the Speed/Distance unit, then press ENT. After the option is set, press EXIT | EXIT | EXIT to return to the page display.

To set Heading: Press ENT then ↑ or ↓ to select the heading type, then press ENT. After the option is set, press EXIT | EXIT | EXIT to return to the page display.

Section 6: Searching

NOTE:

The Search function depends on the type of map data loaded in your unit. GlobalMap HD models are fully "searchable" out of the box because they contain a hard drive loaded with complete mapping information. These maps include all the data contained in our Map-Create custom maps, Fishing Hot Spots lake maps and NauticPath coastal charts.

For all other units, the background map loaded in your unit's permanent memory lets you search for some land features, including cities and lakes. For a full set of searchable land features, including landmarks, streets, addresses, highway exits and Points of Interest, you must load your own high-detail custom map produced with our MapCreate software. Or, you can use one of our plug and play map options such as FreedomMaps, Fishing HotSpots or NauticPath. For a complete description of what detail is found in the background map and custom MapCreate maps, see page 37.

The GlobalMap's variety of search functions all begin with either the Find Waypoint menu or the Map Page menu. Press WPT and the Find Waypoint menu appears for waypoints and Points of Interest (POI). From the Map Page, press MENU and the Map Page menu appears for streets, addresses and highway exits.

Fuel Waypoint Category My Waypoints Airports Cities Countries Landmarks POI-Attractions POI-Emergency/Gov't POI-Entertainment POI-Fishing POI-Hunting POI-Lodging POI-Marine POI-Restaurants POI-Services POI-Shopping POI-Sports Subcategory Saved New

Go To Cursor Find Distance Find Streets... Find Address... Highway Exits... Map Orientation... □ Auto Zoom Overlay Data... Map Data... Map Categories Drawn... Delete My Icons... N 36°07.817' U 95°50.796' ← 300 mi Spring! Fort Smith

Find Waypoint menu (left) and Map Page menu (right).

NOTE:

You can search for items after the unit has acquired a position, or while using it in the "indoor" simulator mode. Distance and bearing to the selected item will be calculated from the GlobalMap's current position or the last known position if operating indoors or without a position determined. You can look up items by name, or search for the item nearest to you.

Find Addresses

1. From the Map Page, press MENU | ↓ to FIND ADDRESS | ENT.
2. Press ENT to search in the Address field.

Go to Cursor Find Distance Find Streets... Admiral Pl Find Address Address 0 Street None City Any Find Address N 36°08.971' H 95°50.579' ↔ 3 mi

Go To Cursor Simulating Find Address Address 324 Street None City Any Find Address Delete My Icons... John 1 64 1.50mm

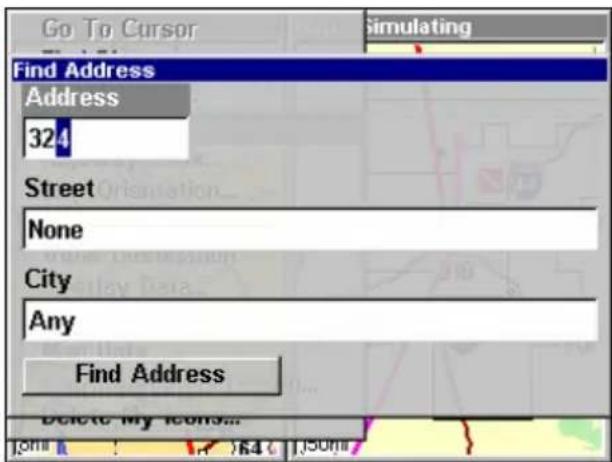

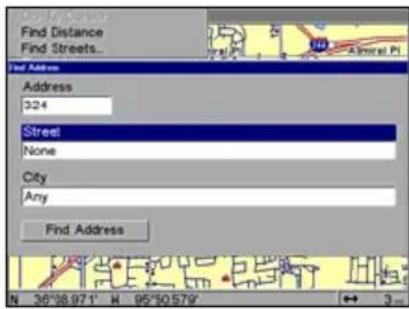

Find Address Menu.

1. To enter an address number, press or to change the first number, then press to move the cursor to the next number and repeat until the number is correct, then press ENT.
2. To enter a street name, press ↓ to STREET | ENT. There are two options: A. You can spell out the name in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press ENT | ENT. B. Or jump down to the lower selection list by pressing ENT, then press ↓ or ↑ to select a street name from the list, then press ENT. The street name you selected is now in the street field.

Find Distance Find Streets... Find Address Address 324 Street None City Any Find Address N 36°38'07'1" H 95°50'57'9" ↔ 3...

Find By Name 5th Find In List 8W (State Highway) 9th 9 A (State Highway) 9 B (State Highway) 9 B (US Highway) 9 D (State Highway) 9 F (State Highway) 9 N (State Highway) 9 P (State Highway) 9 P (US Highway) 9 S (State Highway) 9 (Access Rd) 9 (County Highway)

Find Distance Find Streets... End Address Address 324 Street 9th City Any Find Address N 36°38.97'1 N 95°50.57'9 ↔ 3...

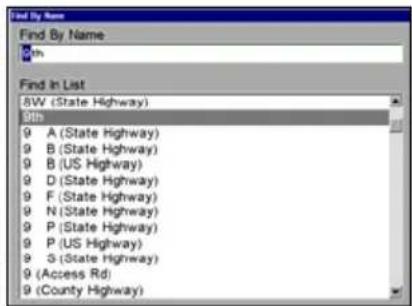

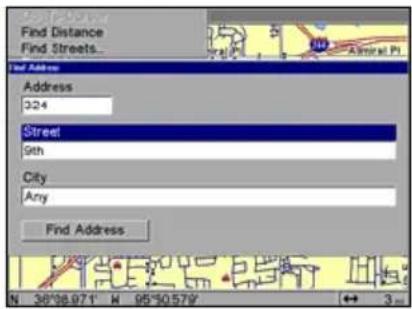

Find Address menu (left); Find Street menu (center) with Find By Name field active; street name entry complete (right).

1. To enter a city name, press ↓ to CITY|ENT. You will be asked if you want to find addresses only within a particular city. This option is designed so you can limit an address search to a single city if necessary (see the note below).

If you select yes, there are two options: A. You can spell out the city name in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is cor-

rect, then press ENT | ENT. B. Or jump down to the lower selection list by pressing ENT, then press ↓ or ↑ to select a city name from the list, then press ENT. The city name you selected is now in the city field.

NOTE:

We recommend you do not enter a city name unless the list is too large when searching without one. The GlobalMap can actually search quicker without a city.

Find Distance Find Streets... First Address Address 324 Street 9th City Any Find Address N 38°04'07'1" H 95°50'57'9" ++ 3...

Find Distance Find Streets... Address 324 Do you want to find addresses only within a particular city? Yes No Find Address

Find By Name O'Brien Find In List Nystrum Village, CA O'Brien, KS O'Fallon, IL O'Fallon, MO O'Neil, MB O'Neil, UT Oak at Wasaich Place, UT Oak Brook, IL Oak Center, WI Oak City, NC Oak Cliff, TX Oak Creek, WI Oak Creek Estates, UT

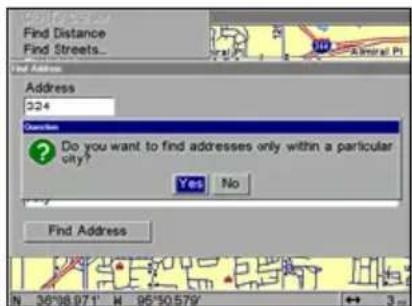

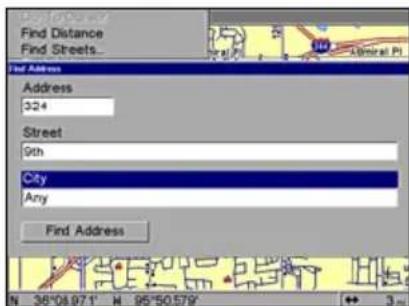

Find city field (left); Search in particular city only option (center) and Find City by name (right).

1. When the necessary search fields are filled in, press ↓ to FIND ADDRESS | ENT. Your unit asks you to wait while it searches for the address. If an address is not in the database, a message appears saying the address could not be found.

2. The unit will display a list of addresses. If the address you are looking for is highlighted at the top of the list, press ENT. If not, use ↓ and ↑ to select the correct address from the list, then press ENT. The Map Page will appear with the location selected by the cursor. In the example below, we are looking for 12303 East 11th Street in Tulsa, not 11th Court, so we had to scroll down the list to select the right one.

Address 12303 E 11th Ct Tulsa, OK 74128 12303 E 11th St Tulsa, OK 74128

Tulsa Boat Sales 0.21 mi 111" mag 126th E Ave 19th St 111' 18th St East Central High School East A Ave N 38°08.89' H 95°50.37'0 0.8mm

Tulsa Boat Sales 0.21 mi 111° mag

Address search result list (left). Map Page showing location of the address on the map, highlighted by cursor (center). After the address is located (right) you can navigate to it.

1. To navigate to the address, press MENU | ENT | EXIT and your unit will begin showing navigation information to the address pointed out by the cursor. If you are only looking up an address (not navigating), just press EXIT to return to the previous page.

Tip:

If the address happens to be an item in the Point of Interest database, you can look up the item's phone number in the POI information window. With the address location selected by the cursor on the map, press WPT. The POI's Waypoint Information window appears, with the Go To Waypoint command highlighted. If you want to navigate to the POI address, just press ENT | EXIT.

Tuisa Boat Sales 0.21 mi 11" mag

Waypoint Manager Tulsa Boat Sales (Boat Dealer) 12303 E 11th St Tulsa OK 74128 915-436-1681 N 38°08.892 W 95°50.370' Distance: 0.21 mi Bearing: 10° mag POF-Marine Boat Dealers Go To Waypoint Find On Map

1614 Birch Pl Corpus Christi, TX 76416 1614 Birch St Hood County, TX 76048 1614 Birch St Grand Prairie, TX 75050 1614 Birch St Royse City, TX 75189 1614 Birch Dr Granville County, NC 27522 1614 N Birch St Jenks, OK 74037 1614 S Birch Ave Broken Arrow, OK 74012 1614 N Birch Ave Tulsa County, OK 74063 1614 N Birch St

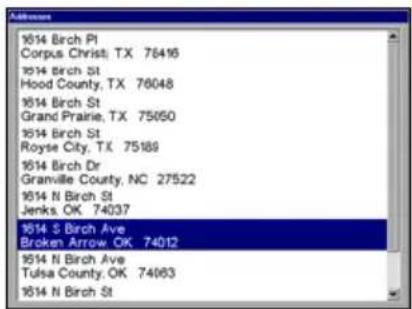

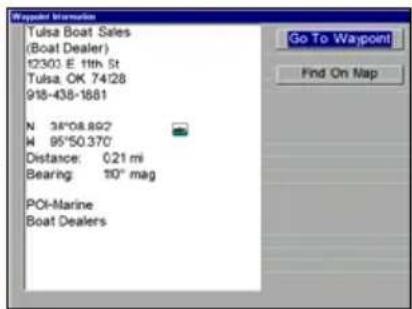

Map Page showing location of the address on the map, highlighted by the cursor (left). The Address is a business in the POI database (center), so you can display the POI information window, then navigate to it. Address is not in the POI database (right), so the Waypoint key will not display any information for this address.

Find Any Item Selected by Map Cursor

On the Map Page: with a POI or map feature selected by the cursor press WPT. To return to the previous page, press EXIT.

Map 6th St 7th St 2nd St 2nd Pl Sten-Dr D2nd Ave Volume National Inn 0.15 mi 206° mag 11th St 11th S 11th St N 36°08.856' W 95°50.663' East Central High School 24th E Ave

Waypoint Information National Inn (Hotel or Motel) 11910 E 11th St Tulsa, OK 74128 918-437-8980 N 36°08.857" W 95°50.662" Distance: 0.15 mi Bearing: 206° mag POI-Lodging Hotels/Motels

A POI selected by the cursor (left) with POI information screen (right).

NOTE:

Since the Go To Waypoint command is highlighted, you can navigate to the selected POI by pressing ENT while in the POI Waypoint Information screen.

Find Interstate Highway Exits

1. From the Map Page, press MENU | ↓ to HIGHWAY EXITS | ENT, which calls up the Find Exit menu.

Go To Cursor Find Distance Find Streets... Find Address... Highway Exits... Map Orientation... Auto Zoom Overlay Data... Map Data... Map Categories Drawn... Delete My Icons... N 36°07.817' U 95°50.796' ← 300 mi

Find Exit Highway 44 (Interstate) Exit Exit 230 41st St, Sheridan Rd Exit 231 Jct US 64, OK 51, Tulsa, Muskogee, Sand Springs, Exit 232 Memorial Dr, East 31st St Exit 233 East 21st St Exit 234A US 169, Broken Arrow, Owasso Exit 234B Garnett Rd Exit 235 East 11th St Exit 236A 129th Ave East, Admiral Place Exit 236B Jct I-244 W, Downtown Tulsa Exit 238 161st East Ave Exit 240A OK 167 N, 193rd East Ave, Tulsa Port of Catoo Exit 240B US 412 E. Choteau, Sioam Springs Exit 241 OK 66 E, Catoosa, Jct I-44 E, Tnpk

Find Highway Exits command (left) and Find Exit menu (right).

1. First, select a highway name by pressing ENT, which calls up the Find By Name menu. There are two highway search options: A. You can spell out the highway name in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press ENT|ENT. B. Or jump down to the lower selection list by pressing ENT, then use ↓ or ↑ to select a highway from the list, then press ENT.

Find By Name Find By Name 44 (Interstate) Find In List 435 (Interstate) 44 (Interstate) 440 (Interstate) 45 (Interstate) 459 (Interstate) 465 (Interstate) 469 (Interstate) 470 (Interstate) 474 (Interstate) 475 (Interstate) 476 (Interstate) 480 (Interstate) 49 (Interstate)

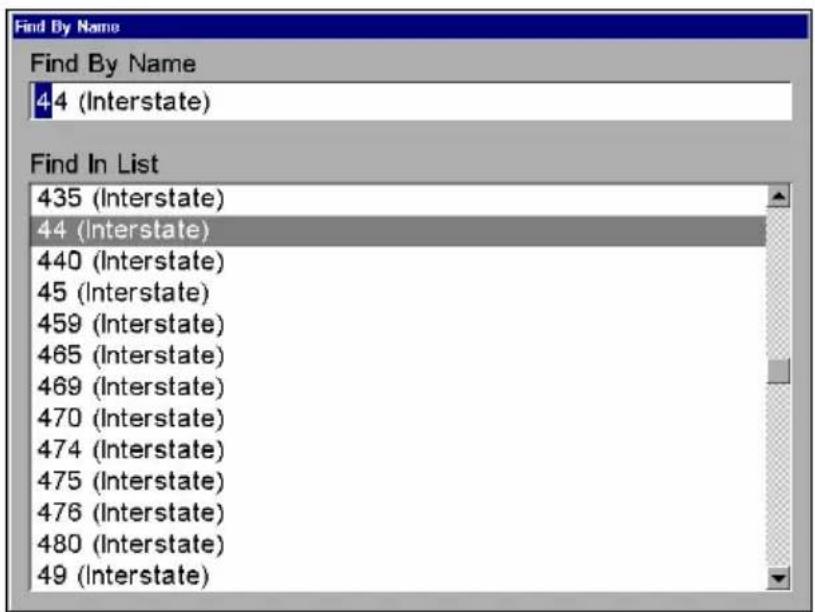

Find By Name menu.

1. Once you have selected a highway name you then can select an exit. Press ↓ to switch to the Exit List. Press ↓ or ↑ until you highlight the exit, then press ENT.

Exit Highway 44 (Interstate) Exit Exit 231 Jct US 64, OK 51, Tulsa, Muskogee, Sand Springs, Exit 232 Memorial Dr, East 31st St Exit 233 East 21st St Exit 234A US 169, Brcken Arrow, Owasso Exit 234B Garnett Rd Exit 235 East 11th St Exit 236A 129th Ave East, Admiral Place Exit 236B Jct I-244 W, Downtown Tulsa Exit 238 161st East Ave Exit 240A OK 167 N, 193rd East Ave, Tulsa Port of Catoo Exit 240B US 412 E, Choteau, Sioam Springs Exit 241 OK 66 E. Catoosa. Jct I-44 E. Tnpk Mle 241 Parking Area

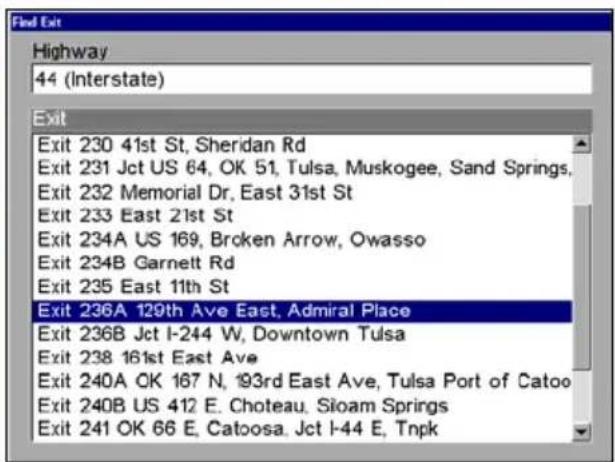

Find Exit menu, with an exit selected in the Exit List.

1. In the Exit Information screen you have two choices. A. Press ENT to navigate or "Go To" the exit. B. Press → | ENT to find exit on the map.

1-44 Exit 2348 Garnet! Rd Mile 234 Go To Exit Find On Map Services Executive Inn Country Tire Inc. Jiffy Lube

I-44 Exit 2340 Garnet! Rd Mile 234 Go To Exit Find On Map Services Executive Inn Country Tire Inc. Jiffy Lube

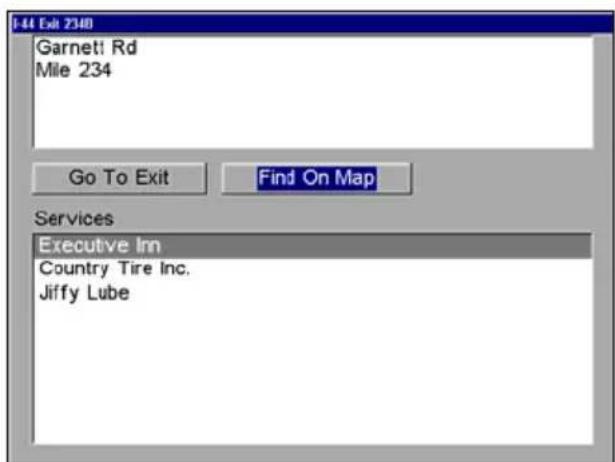

Go To Exit option (left) and Find On Map option (right).

Tip:

You can also look up some additional information on the Exit Services located near this exit. Press ↓ to SERVICES, then press ↓ or ↑ to select Service Name|ENT.

144 Exit 2348 Garnet! Rd Mile 234 Go To Exit Find On Map Services Executive Inn Country Tire Inc. Jiffy Lube

1-44 Exit 2348 Garnett R Mile 234 Go To Services Executive Country Jiffy Lube Hotel Hotel Executive Inn North of I-44 Exit 234B Amenites Truck Parking RV Parking Open 24 Hours

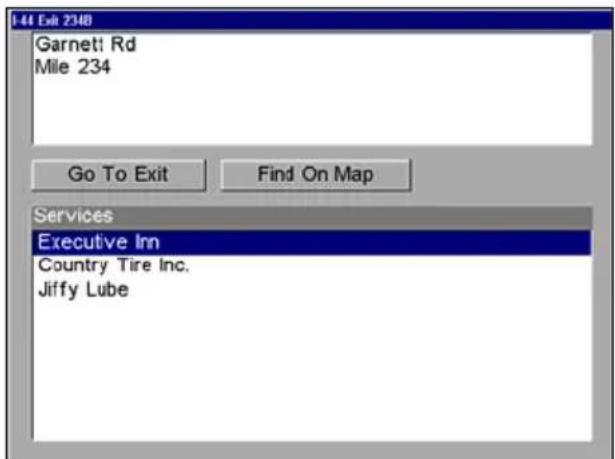

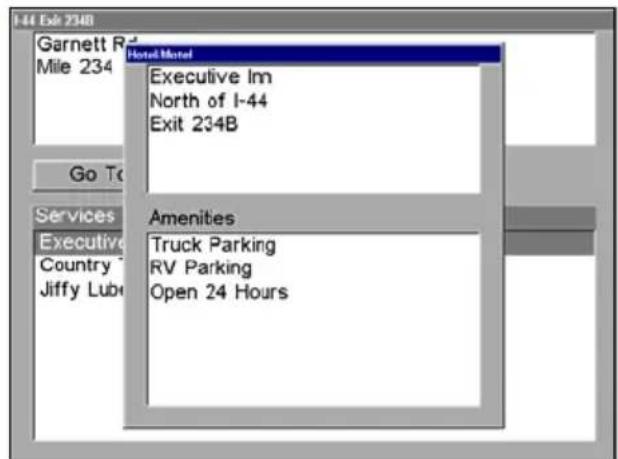

Exit Information screen (left); general location and amenities information (right).

Find Map Places or Points of Interest (POI)

1. Press WPT, then use ↓ or ↑ to select a map place or POI category, then press ENT (To narrow your search, press → then press ↓ or ↑ to select a subcategory before pressing ENT). You will be given two options; Search By Name or By Nearest.

Find Waypoint Category My Waypoints Airports Cities Countries Landmarks POI-Attractions POI-Emergency/Gov't POI-Entertainment POI-Fishing POI-Hunting POI-Lodging POI-Marine POI-Restaurants POI-Services POI-Shopping POI-Sports Subcategory Bed & Breakfast Cabins Camps/Campgrounds Hotels/Motels RV Parks Resorts

Find Waypoint Category My Waypoints Airports Cities Countries Landmarks POI-Attractions POI-Emergency/Gov't POI-Entertainment POI-Fishing POI-Hunting POI-Lodging POI-Marine POI-Restaurants POI-Services POI-Shopping POI-Sports Subcategory Bed & Breakfast Cabins Camps/Campgrounds Hotels/Motels RV Parks Resorts

Find Waypoint menu with Lodging POI category selected (left) and with the RV Parks subcategory selected (right).

1. Search by nearest POI. Press ↓|ENT. The "Find by Nearest" menu will show a "calculating" screen, then a list of the nearest POI's will appear. Press ↓ or ↑ to the selected POI and press ENT to call up the POI's Waypoint Information screen.

Add Options Category My Waypoints Airports Cities Countries Landmarks POI-Attractions POI-Emergency/Go POI-Entertainment POI-Fishing POI-Hunting POI-Lodging POI-Marine POI-Restaurants POI-Services POI-Shopping POI-Sports Subcategory Bed & Breakfast Cabins Camps/Camegrounds Hotels/Motes Add By Name Nearest

(Calculating nearest waypoints)

Name Distance Bearing Town & Country Mobile Home Vlg 84.55 221° Branson Stagecoach Rv Park 144.0 73° Branson Shenanigans Rv Park 145.9 71° Treasure Lake Rv Resort Camp 149.5 71° Turkey Creek Rv Village 149.8 72° Parkers Rv Park 150.8 82° Autumn Run Mobile Home Park 153.1 82° Justmoore Inc 155.7 71° Wall Eye Haven Mobile Home Pk 157.4 71° Cedar Haven Rv Mobile Home Pk 173.7 74° Double J Bar 9 175.2 71° Crossroads Mobile Home Park 176.8 190° Sunshine Farm Rv Park 181.6 195° Classic Rv Park 192.9 76° Barge Point Rv Park 222.2 176° Paradise Rv Park 224.9 197°

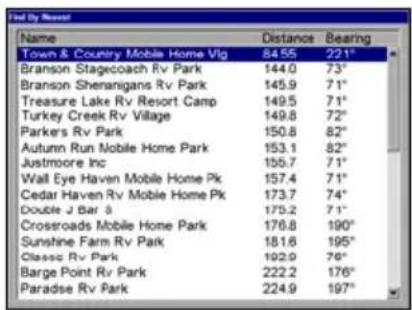

Find by Nearest option (left) with Calculating screen (center) and POI list (right).

1. Search by name of POI. Press ENT. There are two options: A. You can spell out the POI in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press ENT|ENT. B. Or jump down to the lower selection list by pressing ENT, then press ↓ or ↑ to select a POI from the list and press ENT to call up the POI's Waypoint Information screen.

Find Waypoint Category My Waypoints Airports Cities Countries Landmarks POI-Attractions POI-Emergency/Go POI-Entertainment POI-Fishing POI-Hunting POI-Lodging POI-Marine POI-Restaurants POI-Services POI-Shopping POI-Sports Subcategory Symbols Find By Name Nearest

Find By Name Will Find In List Name Wihelmi Field Wiken Airport Wil and Wiley's Aerodrome Wil Rogers World Airport Wiladae Farms Airport Wilhoit Airport William E Koenig Airport William L Rutherford Airport William R Pogue Municipal Airport Wiliams Airport Williamsburg-Jamestown Airport Wiliamson Airport

Find by Name option (left) and Find by Name menu (right).

1. When the POI's Waypoint Information screen is displayed, you can choose to "Go To" the POI waypoint by pressing ENT or find it on the map by pressing → | ENT.

Waypoint Information Will and Wiley's Aerodrome Rogers County, OK N 36°19.534' W 95°38.801' Distance: 16.35 mi Bearing: 37° mag Airports Symbols Go To Waypoint Find On Map

Waypoint Information Will and Wiley's Aerodrome Rogers County, OK N 36°19.534' W 95°38.801' Distance: 16.35 mi Bearing: 37° mag Airports Symbols Go To Waypoint Find On Map

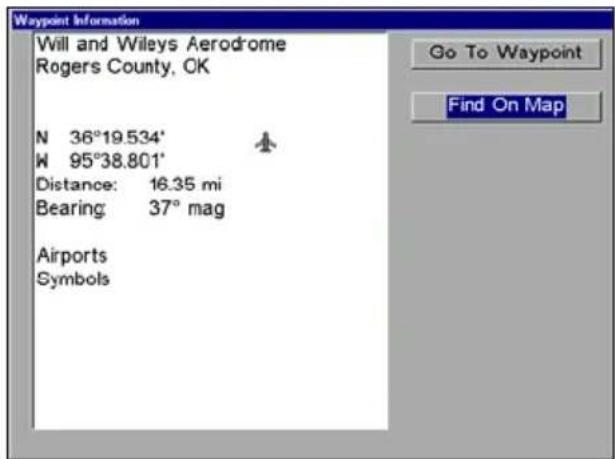

Go To Waypoint POI option (left) and Find on Map POI option (right).

Find Streets or Intersections

Find a Street

1. From the Map Page, press MENU | ↓ to FIND STREETS | ENT and the Find Streets Menu appears.

Go To Cursor Find Distance Find Streets... Find Address... Highway Exits... Map Orientation... Auto Zoom Overlay Data... Map Data... Map Categories Drawn... Delete My Icons... N 36°10.108' W 95°47.715' ↔ 8 mi

Go To Cursor Find Distance Find Streets... Find Streets First Street None Second Street None City Any Postal Code Any Find First Street Find Intersection N 36°08.97' W 95°50.579' East Central High School 24th F. 0.8 mi

Find Streets command (left); Find Streets menu (right).

1. You must first fill in a street name in the First Street dialog box. Press ENT to display the Find By Name menu. There are two options: A. You can spell out the street in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter. Repeat until the name is correct, then press ENT | ENT. B. Or you can jump down to the lower box and pick a street from the selection list. Press ENT, then press ↓ or ↑ to select a street from the list and press ENT.

Find By Name 80th Find In List 8.4 80th 80 B 80 P (State Highway) 80 S (US Highway) 80 (A) 80 (A-) 80 (Aa-) 80 (Alternate Route Route Hwy) 80 (Bangerter Sb I-) 80 (County Highway) 80 (County Road Sekk) 80 (County Road)

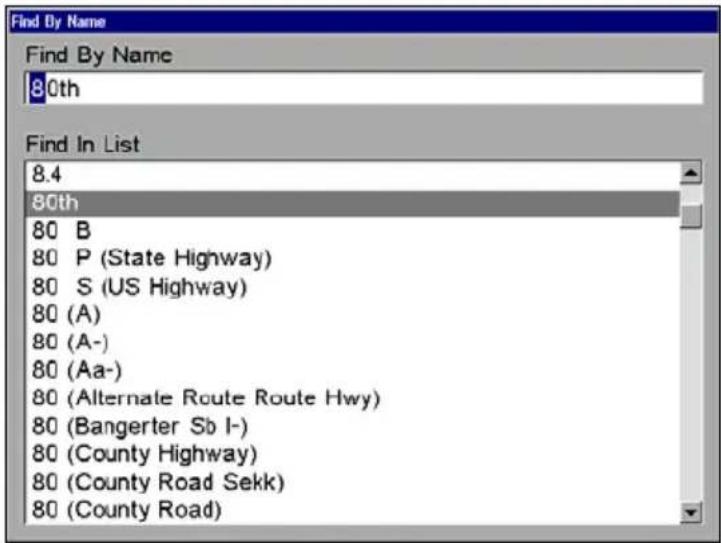

Find Street By Name menu. Spell out name in the top box, or select from the list in the lower box.

1. The Find Streets menu reappears with the street you're searching for in the First Street box (In this example, it's 80th Street.). To search for that street, press ↓ to FIND FIRST STREET | ENT. A message appears asking you to wait while the unit finds the street. When the Streets Found list appears, press ↑ or ↓ to select the street you are searching for and press ENT.
2. The Map Page appears, with the cursor pointing to the found street.

Go To Cursor Find Distance Find Streets... First Street 80th Second Street 81st City Any Postal Code Any Find First Street Find Intersection East Central High School 240 E.A. N 36°08.97'1' H 95°50.579' ← 0.8 mi

Streets Found 80th St. Monroe County, FL 33050 SW 80th Ct, Miami-Dade County, FL 33189 SW 80th St, Miami-Dade County, FL 33157 SW 80th Ave, Miami-Dade County, FL 33189 SW 80th PI, Miami-Dade County, FL 33189 SW 80th Ave, Miami-Dade County, FL 33157 SW 80th PI, Miami-Dade County, FL 33157 SW 80th Ave, Miami-Dade County, FL 33158 SW 80th Ave, Miami-Dade County, FL 33157 SW 80th Rd, Pinecrest, FL 33156 SW 80th Ave, Pinecrest, FL 33156 SW 80th Ct, Miami-Dade County, FL 33158 SW 80th Ct, Miami-Dade County, FL 33157 SW 80th St, Miami-Dade County, FL 33193 SW 80th St, Miami-Dade County, FL 33183 SW 80th Ln, Miami-Dade County, FL 33193 SW 80th Ter, Miami-Dade County, FL 33193

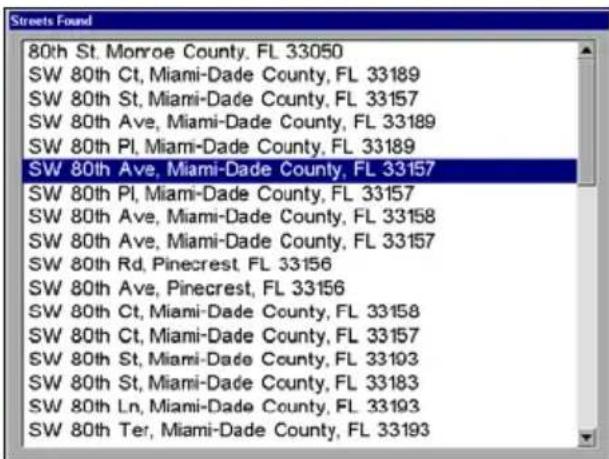

Find Streets menu (left) with the Find First Street command highlighted. Streets Found list (right).

Map Kendall Old Cutler Rd, Ingraham Hwy 1171 mi 120° mag Richmond Heights South Miami Heights Cutler Ridge Goulds Princeton Naranja Lender Point Discayne Bay Sands*Key N 25°35.529' W 80°19.341' ← 20 mi

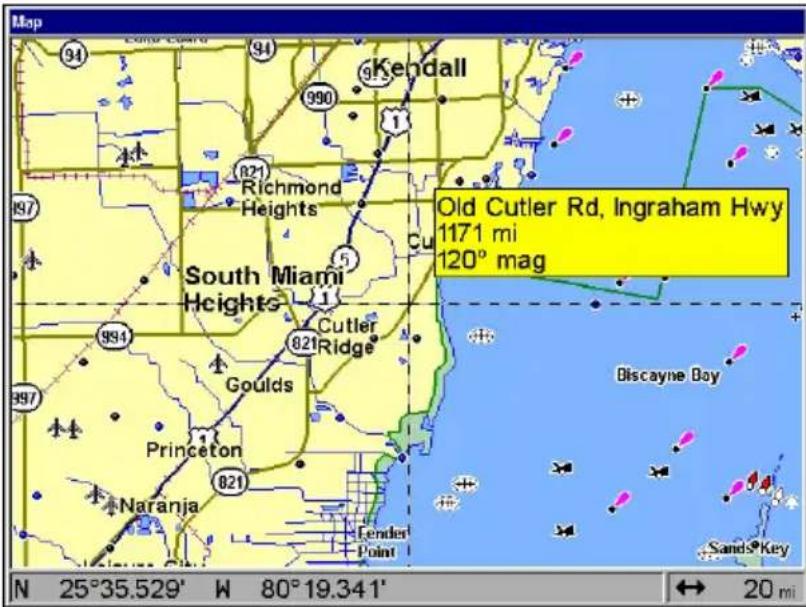

Map Page showing results of a street search. The cursor points to the located street.

If you want to navigate to the found street at the cursor location, just press MENU | ENT | EXIT.

Find an Intersection

You must enter one street in the First Street dialog box and enter the next street in the Second Street dialog box.

1. From the Map Page, press MENU | ↓ to FIND STREETS | ENT and the Find Streets Menu appears.

2. You must fill in a street name in the First Street dialog box. Press ENT to display the Find By Name menu. There are two options: A. You can spell out the street in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press ENT | ENT. B. Or you can jump down to the lower box and pick a street from the selection list. Press ENT, then press ↓ or ↑ to select a street from the list and press ENT.

3. The Find Streets menu reappears with the street you're searching for in the First Street box.

4. Now fill in the second street. Press ↓ to SECOND STREET | ENT and the Find By Name menu appears again. Just like before, there are two options: A. You can spell out the second street in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press ENT | ENT. B. Or you can jump down to the lower box and pick the second street from the selection list. Press ENT, then press ↓ or ↑ to select a street from the list and press ENT.

5. The Find Streets menu reappears with the first and second street dialog boxes filled in. In this example, we selected 71st Street as our second street. You could now use similar techniques to select a city or Zip code, but your search will probably be faster if you leave those boxes blank. You can specify a city and/or Zip code later to narrow the search, if the resulting list is too long.

Find Distance Find Streets... Last Street First Street 80th Second Street: 71st City Any Postal Code Any Find First Street Find Intersection Broken

Find First Street Find Distance Find Streets... First Street 80th Second 71st City Finding street intersection. Please wait. Any Any Find First Street Find Intersection Broken

SW 80th St + SW 71st Ave Miami-Dale County, FL 31143 NW 60th Ave + NW 71st Ct Tamarac,FL 33321 NW 80th Ct + NW 71st Ave Tamarac,FL 33321 E 80th St + S 71st E Ave Tulsa, OK 74133

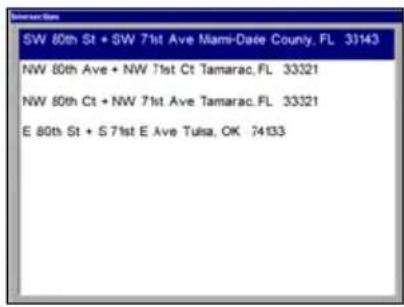

Find Intersection command highlighted (left) and

Working message (center). The Intersections Found list (right).

1. To search for the intersection of the two streets, press ↓ to FIND INTERSECTION | ENT.

Use the arrow keys to select FIND INTERSECTION then press ENT. A message appears asking you to wait while the unit finds the intersection. When the Intersections Found list appears, press ↑ or ↓ to select the intersection you are searching for and press ENT. A window will appear prompting you to FIND or GO To. In this example, we chose FIND (In the example on the previous page, we selected the intersection of SW 80th Street and SW 71st Avenue in Miami, Fla.).

1. The Map Page appears, with the cursor pointing to the found intersection. The intersection in our example is shown below.

Map SW 80th St 1167 mi 120° mag 79th St 72nd Ave 76th Ave 63th Ave 68th Ave 00th St 00th St 01s 01st Tm 82nd St Ave 72nd Ave 70th Ave 878 878 079 N 25°41.758' W 80°18.471' ← 0.6 mi

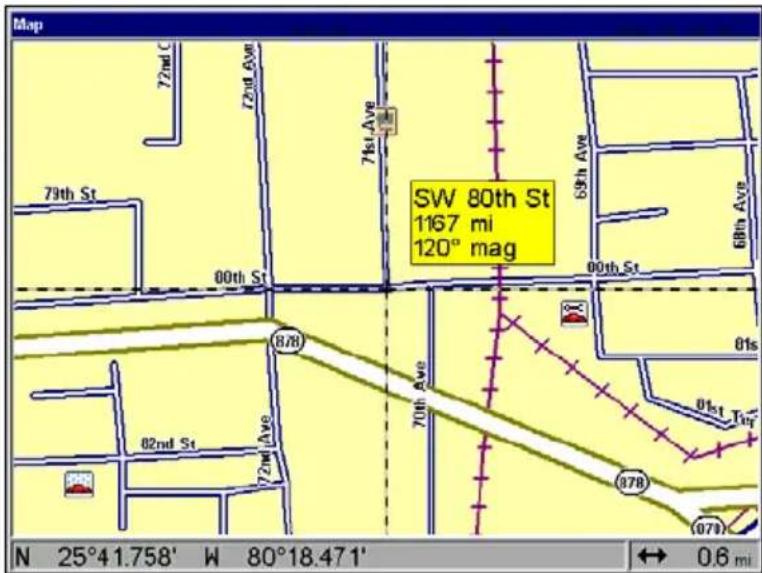

Map Page showing results of an intersection search.

The cursor points to the located intersection.

If you want to navigate to the found intersection, just press MENU | ENT | EXIT.

Find Waypoints

1. Press WPT | ENT.
2. If searching for the waypoint By Name, press ENT. If searching for the Nearest waypoint, press ↓ to NEAREST|ENT (To search by name, jump to step 5 below.).

Find Wayspan Category My Waypoints Airports Cities Countries Landmarks POI-Attractions POI-Emergency/Gov't POI-Entertainment POI-Fishing POI-Hunting POI-Lodging POI-Marine POI-Restaurants POI-Services POI-Shopping POI-Sports Subcategory Saved New

End Picker Category My Waypoints Airports Cities Countries Landmarks POI-Attractions POI-Emergency/Go POI-Entertainment POI-Fishing POI-Hunting POI-Lodging POI-Marine POI-Restaurants POI-Services POI-Shopping POI-Sports Subcategory Saved New Fully Name Nearest!

Sub Category My Waypoints Airports Cities Countries Landmarks POI-Attractions POI-Emergency/Go POI-Entertainment POI-Fishing POI-Hunting POI-Lodging POI-Marine POI-Restaurants POI-Services POI-Shopping POI-Sports Subcategory Saved New Addly Name Nearest

Find Waypoint menu (left), Find By Nearest command (center) and Find by Name command (right).

1. If you're looking for nearest waypoint, the GlobalMap says it is calculating, then a list of waypoints appears. The closest waypoint is highlighted at the top of the list and the one farthest from you is at the bottom of the list.

Find By Nearest (Calculating nearest waypoints)

Name	Distance	Bearing
002	0.24	307°
003	2.97	233°
006	3.70	14°
Zoo	6.53	308°
005	9.78	174°
004	23.37	268°
Carlsbad Nm	543.0	240°
001	1167	120°

Calculating message (left) and list of nearest waypoints (right).

1. To see location information on the closest (highlighted) waypoint, press ENT and the Waypoint Information screen appears. (If you wanted to, you could select another waypoint from the list with the ↑ or ↓ keys.)

A. To navigate to the waypoint, press ENT. (The Go To Waypoint command is already highlighted.) The unit will show navigation information to the waypoint.
B. To find the waypoint, press ↓ to FIND ON MAP | ENT. The Map Page appears with the cursor centered on the found waypoint.

Waypoint Information 002 N 36°09.112' W 95°50.774' Altitude: 0 ft November 15, 2002 3:20:13 PM Distance: 0.24 mi Bearing: 307° mag Go To Waypoint Find On Map Edit Waypoint Delete Waypoint

Waypoint Information 002 N 36°09.112' W 95°50.774' Altitude: 0 ft November 15, 2002 3:20:13 PM Distance: 0.24 mi Bearing: 307° mag Go To Waypoint Find On Map Edit Waypoint Delete Waypoint

Waypoint Information screens with the Go To Waypoint command selected (left) and the Find on Map command selected (right).

To clear these menus and return to the previous page, press EXIT repeatedly.

1. If you're looking by name, there are two options: A. You can spell out the name in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press ENT | ENT. B. Or you can jump down to the lower selection list by pressing ENT, then press ↓ or ↑ to select a waypoint from the list and press ENT. The waypoint information screen appears.

Find By Name Zoo Find In List Name 001 002 003 004 005 006 Carlsbed Nm Zoo

Weather forecast Zoo N 36°12.656' W 96°55.927 Altitude: 0 ft November 15, 2002 3:23:45 PM Distance: 653 mi Bearing: 306° mag Go To Waypoint Find On Map Edit Waypoint Delete Waypoint

Map Ending Waypoint Turkey Lake Valley Zoo 653 mi 306° mag N 36°12.656' H 95°55.927' 8 mm

Find By Name menu (left). Waypoint Information screen (center). The found waypoint (right) is highlighted by the cursor on the Map Page.

A. To navigate to the waypoint, press ENT (Go To Waypoint command is already highlighted.). The unit will show navigation information to the waypoint.
B. To find the waypoint, press ↓ to FIND ON MAP | ENT. The Map Page appears with the cursor centered on the found waypoint.

To clear these menus and return to the previous page, press EXIT repeatedly.

Notes

Section 7:

NMEA 2000 Device Configuration

NMEA 2000 Menu

The NMEA 2000 menu on your display unit's main menu allows you to configure, calibrate and monitor devices on a NMEA 2000 network. The NMEA 2000 menu provides access to the Bus Setup, Fuel Management and NMEA 2000 Alarms. You also can turn on/off Waypoint Sharing and Backlight Synchronization from the NMEA 2000 menu.

Bus Setup

Selecting Bus Setup from the NMEA 2000 menu gives you access to the Bus Configuration menu and the NMEA Diagnostics and Ethernet Diagnostics pages. The Bus Configuration menu allows you to choose an engine-tank configuration and manage devices on the network. When the Bus Configuration menu is accessed, a list will appear of all NMEA 2000 devices on the network.

Screen... Sounds... Transparency... Sonar Alarms... Units of Measure... Set Keel Offset... Calibrate Water Speed... Reset Water Distance Transducer Type... Sonar Simulator Reset Options Popup Help Set Language... Enable Radar Port NMEA 2000 Bus Setup... Software Info: Fuel Management... NMEA 2000 Alarms... Backlight Synchronization 200kHz 40/7

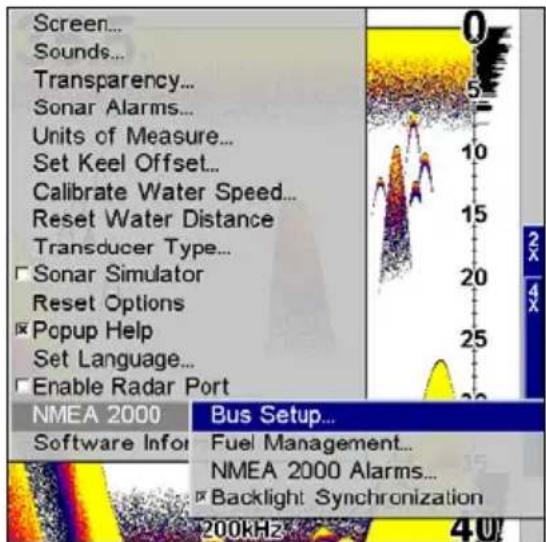

Bus Setup highlighted on the NMEA 2000 menu.

NMEA 2000 Bus Configuration Diagnostics NMEA 2000 Devices 1) EP-10: Fuel Flow 2) EP-15: Oil Level 3) EP-25: Speed 4) EP-35: Heating System Temp 5) EP-35: Heating System Temp 6) Internal GPS (Non-Network) 7) LGC-2000 0 Engine & Tank Config. 1 Engine(s) / 1 Tank(s) Set Configuration Tank Select Center Tank Size 200 gal

NMEA 200 Bus Configuration Diagnostics Controller Status Mode: Normal Status: 0x00 Total Per Second Rx Errors: 0 0 Tx Errors: 0 0 Bus Traffic Total Per Second Rx Messages: 0 0 Tx Messages: 0 0 0% Ping All Devices

NMEA 200 Bus Configuration NMEA Diagnostics Ethernet Diagnostics Controller Status IP Addr: 0.0.0.0 MAC: 00:00:00:00:00:00 Rx: 0 bytes 0 bytes/sec Tx: 0 bytes 0 bytes/sec LINK 100 Mbps Full Duplex Open Ports Ping All Devices

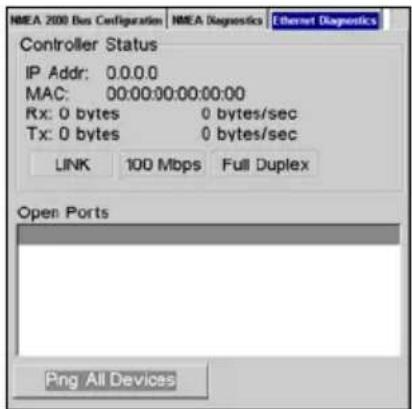

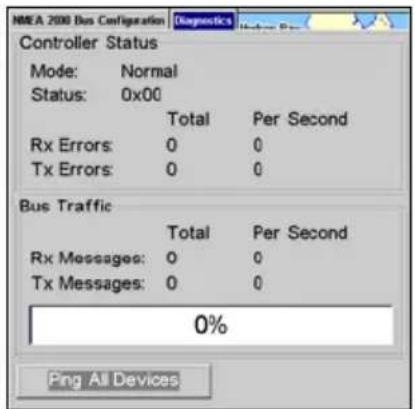

Bus Configuration menu (left). NMEA Diagnostics page (center). Ethernet Diagnostics (right)

The NMEA Diagnostics page displays information about the performance of the network bus, keeping you updated on bus status, mode, errors and bus traffic.

The Ethernet Diagnostics page keeps you updated on the performance of an Ethernet connection (if applicable) supplying information ranging from IP Address to upload and download rates (bytes per second). To refresh either Diagnostics page, highlight the PING ALL DEVICES button at the bottom of the page and press ENT.

The network devices list is located in the top half of the Bus Configuration menu. You can configure, calibrate and set alarms for devices accessed from the Bus Configuration menu network devices list.

The Engine-Tank Configuration and Tank Select menus as well as the Tank Size dialog box are located on the bottom half of the Bus Configuration menu. The Set Configuration button — positioned next to the engine-tank configuration menu — allows you to finalize a selected configuration.

NOTE:

If you have not used the LMF-200 or LMF-400 to choose an engine-tank configuration for your vessel, you must use your display unit to select a configuration.

NMEA 2000 Bus Configuration NMEA 2000 Devices 1) Ep-10: Fuel Flow 2.) EP-15: Fuel Level PORT 3.) EP-35: Live Well Temp 4.) Internal GPS (Non-Network) 5.) LGC-2000 0 Engine & Tank Config. 1 Engine(s) / 2 Tank(s) Set Configuration Tank Select Port Tank Size 40.0 gal

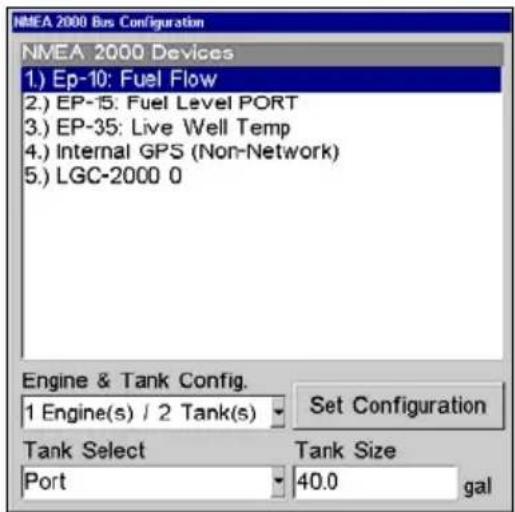

Bus Configuration menu with list of network devices. Engine-Tank Configuration and Tank Select menus are at the bottom of the screen.

Engine & Tank Configuration

The Engine-Tank configuration menu is located below the NMEA 2000 Devices list, but will only be accessible if a Suzuki engine Interface, EP-10 Fuel Flow, EP-15 Fluid Level, EP-45 Pressure Sensor or EP-50 Storage Device are on the network. When choosing an engine-tank configuration you will use the Tank Select menu, Tank Size dialog box and Set configuration button, all detailed below.

Tank Select

The Tank Select menu allows you to choose from up to three tanks (Port, Center and Starboard), depending on the Engine-tank configuration that has been selected. This allows you to set up each tank individually.

Tank Size

The Tank Size menu allows you to input the size of a selected tank in gallons. After selecting the desired tank from the Tank Select menu, you are ready to enter the tank's size.

Set Configuration button

The Set Configuration button is used to finalize engine-tank configuration settings.

Setting Engine-Tank Configuration:

1. Press MENU|MENU, use ↓↑ to highlight NMEA 2000 and press ENT.

2. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Synchronization. Choose BUS SETUP and press ENT.

3. Select ENGINE & TANK CONFIG and press ENT, which will open the Engine & Tank Configuration menu with the following configuration options: 1 Engine/1 Tank, 1 Engine/2 Tanks, 2 Engines/1 Tank, 2 Engines/2 Tanks, 3 Engines/1 Tank, 3 Engine/3 Tanks and Unconfigured Bus.

NMEA 2000 Bus Configuration Diagnostics NMEA 2000 Devices 1) EP-10: Fuel Flow 2) EP-15: Oil Level 3) EP-25: Speed 4) EP-35: Live Well Temp 5) EP-35: Water Temp 6) Internal GPS (Non-Network) 7) LGC-2000 0 1 Engine(s) / 1 Tank(s) 1 Engine(s) / 2 Tank(s) 2 Engine(s) / 1 Tank(s) 2 Engine(s) / 2 Tank(s) 3 Engine(s) / 1 Tank(s) Engine & Tank Config 1 Engine(s) / 1 Tank(s) Set Configuration Tank Select Center Tank Size 300 gal

NMEA 2000 Bus Configuration Diagnostics NMEA 2000 Devices 1) EP-10: Fuel Flow 2) EP-15: Oil Level 3) EP-25: Speed 4) EP-35: Live Well Temp 5) EP-35: Water Temp 6) Internal GPS (Non-Network) 7) LGC-2000 0 Port Center StarBoard Tank Select Set Configuration Tank Size gal StarBoard 400

NMEA 2000 Bus Configuration Diagnostics NMEA 2000 Devices 1) EP-10: Fuel Flow PORT 2) EP-15: Oil Level Unconfigured 3) EP-25: Speed 4) EP-35: Live Well Temp 5) EP-35: Water Temp 6) Internal GPS (Non-Network) 7) LGC-2000 0 Engine & Tank Config. 1 Engine(s) / 1 Tank(s) Set Configuration Tank Select Tank Size StarBoard 0.40.0 gal

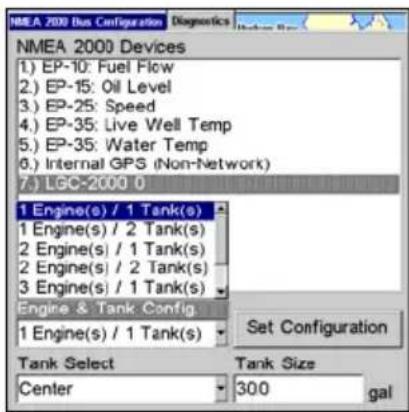

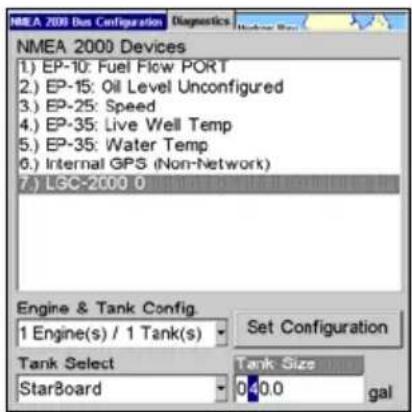

1 Engine/1Tank highlighted on Engine and Tank Configuration menu (left). Starboard highlighted on Tank Select menu (center). Tank Size set to 40 gallons (right).

1. Choose the configuration that matches the number of engines and tanks on your vessel and press ENT.

2. Highlight TANK SELECT and press ENT, which will open the Tank Select menu.

3. Select the tank you want to set up and press ENT. Press → to highlight the Tank Size dialog box and press ENT.

4. Use ↓ ↑, ← → to input the capacity (gallons) of the tank you chose from the Tank Select menu and press ENT.

5. Repeat Steps 5-7 for each remaining tank.

6. When all tanks have been configured, press the SET CONFIGURATION button. The following confirmation message will appear: Are you sure you wish to change the bus configuration? Choose YES and press ENT, Press EXIT to get back to the main display.

Device Configuration Menu

When a device is selected from the network devices list on the Bus Configuration menu, its Device Configuration menu will appear. Device configuration menus vary among devices. Available functions on device configuration menus allow you to change device names, tank sizes, fluid types and provide access to the Advanced Options menu. We will cover configuration and calibration later in this section.

Device Information and Device Data

The Device information panel, located to the left of the Device Configuration menu, displays information on the selected device that includes, software version, model, address, serial number, instance and current status.

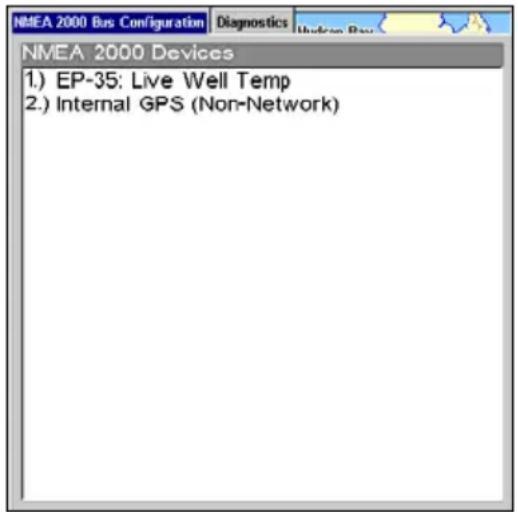

NMEA 2000 Bus Configuration Diagnostics Under Bus NMEA 2000 Devices 1.) EP-35: Live Well Temp 2.) Internal GPS (Non-Network)

If you do not have an EP-15 Fluid Level, EP-10 Fuel Flow or EP-20 Engine Interface on the network, the Bus Configuration menu will not display the Engine-Tank Configuration menu, Tank Select menu, Tank Size menu or Set Configuration button.

Device Data is shown in the Device Data window at the bottom of the device configuration menu. The information displayed in the Device Data window will vary among devices. If, for example, you are viewing the device configuration menu for an EP-15 Fluid Level, the device data window will include tank size and the amount of fuel left in the tank. The Device Data for an EP-10 Fuel Flow includes Fuel Rate (amount of fuel burned per hour), Fuel Used, Trip Fuel Used and Seasonal Fuel Used.

NOTE:

If, as in the graphic above, you do not have a Suzuki Engine Interface, EP-15 Fluid Level or EP-10 Fuel Flow on the network, the

Engine & Configuration menu, Tank Select menu, Tank Size dialog and Set Configuration button will not be displayed on the Bus Configuration menu.

Fuel Management Menu

The Fuel Management menu gives you access to the following options: Tank Location, Fuel Added, Add Fuel, Fill Tank, Engine Select, Reset Calibration, Reset Trip and Reset Seasonal. Those options allow you to configure, calibrate, reset calibration, reset trip fuel and reset seasonal fuel for select NMEA 2000 devices. We will cover configuration and calibration procedures later in this section.

Screen... Sounds... Transparency... Alarms Route Planning... My Trails... Cancel Navigation Sonar Setup GPS Setup System Setup NMEA 2000 Bus Setup... Sun/Moon Call Fuel Management... Trip Calculator NMEA 2000 Alarms... Timers Waypoint Sharing Browse Files Backlight Synchronization Hondura Caribbean Sea Nicaragua Venezuela N 36°08.971' W 95°50.579' ↔ 4000 mi

Fuel Management Tank Operations Tank Location Fuel Added Center 0.00 gal Tank Capacity: 0.0 gal Add Fuel Fill Tank Engine Operations Engine Select All Engines Calibration Const: 0.00 (C) Reset Calibration Reset Trip Reset Seasonal

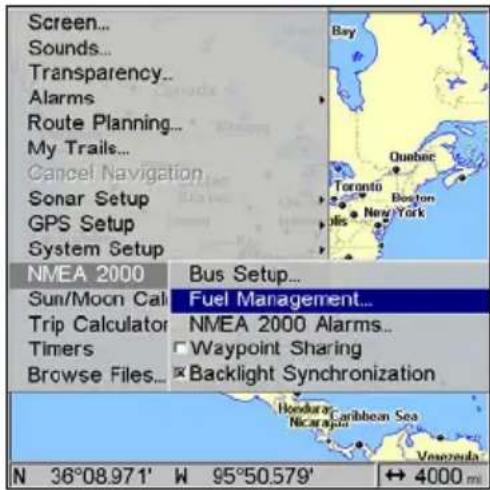

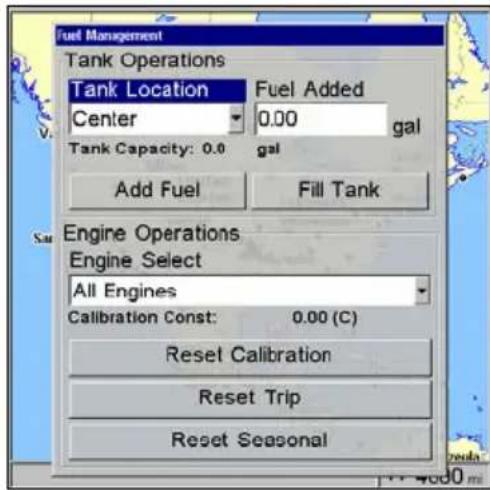

Fuel Management highlighted on the NMEA 2000 menu (left). Fuel Management menu (right).

Tank Location

If you chose an engine-tank configuration with more than one tank, you will be able to switch the tank location (configuration) in the Tank Location menu. When fuel is added to a tank, you will select the correct tank from the Tank Location menu, then input the amount of fuel added in the Fuel Added dialog box.

Fuel Added

Used in tandem with the Add Fuel command, the Fuel Added dialog box allows you to input the amount of fuel added to the tank, when an amount of fuel is added that does not fill up the tank.

Add Fuel

After entering the amount of fuel added to a tank in the Fuel Added dialog, the Add Fuel command finalizes the entry of the data. Like the Fuel Added dialog, the Add Fuel command will only be used when an amount of fuel is added that does not fill up the tank.

Fill Tank

You will use the Fill Tank command when calibrating a fuel flow and when filling up the tank without calibration.

Adding Fuel to Tank

Tank Location, Fuel Added and Add Fuel commands work together to keep NMEA 2000 fuel data consistent with the actual amount of fuel added to the fuel tank(s).

1. Press MENU | MENU, select NMEA 2000 and press ENT.
2. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Synchronization. Select FUEL MANAGEMENT and press ENT.
3. Highlight TANK LOCATION and press ENT. The Tank Location menu will appear with up to three options: Port, Center and Starboard.
4. Select the tank you added fuel to and press ENT.
5. Follow the steps below that apply to your tank.

If you filled up the tank:

A. Press the FILL TANK button and press ENT. The following message will appear: Are you sure you wish to Fill Tank? Press ENT. Another message will appear: Do you wish to re-calibrate the device? Highlight No and press ENT.

If you did not fill up the tank:

B. Highlight FUEL ADDED and press ENT to access the FUEL ADDED dialog box. Use ↑↓, ←→ to input the amount of fuel added to the tank and press ENT. Select the ADD FUEL button and press ENT. The following message will appear: Are you sure you wish to Add Fuel? Highlight YES and press ENT.

1. Press EXIT repeatedly to get back to the main display.

Engine Operations

The lower half of the Fuel Management menu contains the following Engine Operation functions: Engine Select, Reset Calibration, Reset Trip and Reset Seasonal.

Engine Select

Engine Select allows you to choose the desired engine when resetting calibration, resetting trip fuel and resetting seasonal fuel.

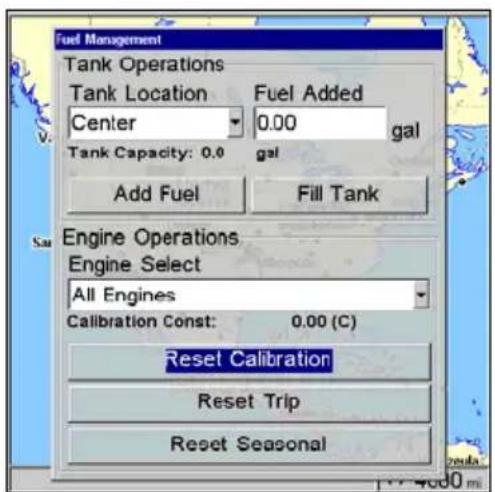

To Reset Calibration:

Choosing the Reset Calibration command will switch fuel flow calibration settings back to factory defaults.

1. Press MENU | MENU, select NMEA 2000 and press ENT.
2. Highlight FUEL MANAGEMENT and press ENT. The Fuel Management menu will appear.

3. Highlight to ENGINE SELECT and press ENT. Select the desired engine — the engine attached to the desired fuel flow — and press ENT.

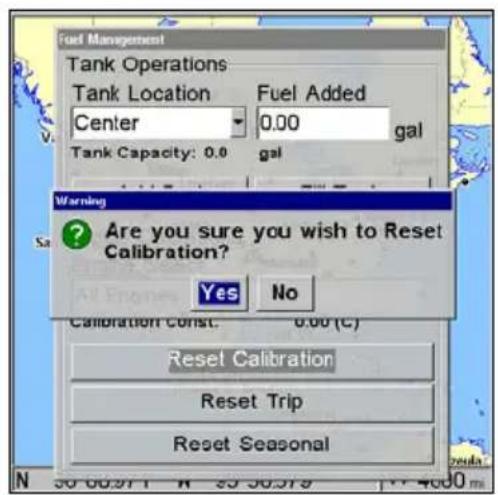

4. Highlight RESET CALIBRATION and press ENT. The following confirmation message will appear: Are you sure you wish to Reset Calibration? Select YES and press ENT. Calibration settings for the selected fuel have been returned to factory defaults.

To Reset Trip:

The Reset Trip function allows you to reset to zero the running total of fuel used on a particular trip.

1. Press MENU | MENU, select NMEA 2000 and press ENT.
2. Highlight FUEL MANAGEMENT and press ENT. The Fuel Management menu will appear.
3. Select RESET TRIP and press ENT. The following confirmation message will appear: Are you sure you wish to Reset Trip? Highlight YES and press ENT. The Trip Fuel Used figure has been reset to zero.

To Reset Seasonal:

Your unit can track fuel usage not only for trips, but also for entire seasons. The reset seasonal command allows you to reset to zero the running total of fuel used during a season.

1. Press MENU | MENU, select NMEA 2000 and press ENT.
2. Highlight FUEL MANAGEMENT and press ENT. The Fuel Management menu will appear.
3. Select RESET SEASONAL and press ENT. The following confirmation message will appear: Are you sure you wish to Reset Seasonal?

Highlight YES and press ENT. The Seasonal Fuel Used figure is reset to zero.

NMEA 2000 Alarms

The NMEA 2000 Alarms menu allows you to set Full and Empty fuel alarms for the EP-10 Fuel Flow, EP-15 Fluid Level, EP-50 Storage Device and the Suzuki Engine Interface. The alarms may be set to a percentage (0-100%) of tank capacity.

The second tab at the top of the NMEA 2000 Alarms page is the Alarm Status Tab. When an alarm has been set for a device, the alarm and its current status will be shown on the Alarm Status window. To view the Alarm Status window, highlight the Alarm Status tab and press ENT.

To set NMEA 2000 Alarm:

1. Press MENU | MENU, select NMEA 2000 and press ENT.
2. Highlight NMEA 2000 ALARMS and press ENT.
3. Highlight FLUID LEVEL DEVICE and press ENT. Use ↑ ↓ to select the device you want to set an alarm for and press ENT.

4. Highlight the ENABLED box next to the desired alarm (Full Alarm or Empty Alarm) and press ENT to turn on the alarm.

5. To set the alarm percentage, press → to highlight PERCENT and press ENT.

6. Use , to input the desired percentage and press ENT. Repeat Steps 3-4 to set the other alarm.
7. Highlight SET CONFIGURATION and press ENT to finalize alarm settings. Press EXIT repeatedly to get back to the main display.

NOTE:

To turn off (uncheck) an alarm, highlight its ENABLED BOX and press ENTER.

Waypoint Sharing

Waypoint Sharing allows you to share a waypoint from one display unit with display units across the network.

To turn on/off Waypoint Sharing:

1. Press MENU | MENU, select NMEA 2000 and press ENT.
2. Highlight WAYPOINT SHARING and press ENT which will turn on/off waypoint sharing.
3. Press EXIT repeatedly to get return to the main display.

Backlight Synchronization

The Backlight Synchronization command will keep all display unit backlight levels consistent across the NMEA 2000 network. So, if you set the backlight level to 75% on one display unit, all other units on the network will automatically switch to the same setting.

To turn on/off Backlight Synchronization:

1. Press MENU | MENU, select NMEA 2000 and press ENT.
2. Highlight BACKLIGHT SYNCHRONIZATION and press ENT, which will turn on/off Backlight Synchronization.
3. Press EXIT repeatedly to get back to the main display.

Configuring EP Sensors

All configurable devices are configured through their Device Configuration menus, which may be accessed through the network devices list on the Bus Configuration menu.

EP-35 Temperature Configuration

To input Device Name:

1. Press MENU | MENU, use ↑ ↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Synchronization.

2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.

3. Select the temp sensor you want to rename and press ENT. The Device Configuration menu will appear with the Device Name dialog box highlighted.
4. Press ENT and use , to input the desired name for the temp sensor. Press ENT. Press EXIT repeatedly to get back to the main display.

To select Temp Type:

1. Press MENU | MENU, use ↑ ↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Synchronization.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.
3. Select the desired temp sensor and press ENT. The Device Configuration menu will appear.
4. Highlight TEMP TYPE and press ENT. The following list of Temp Types will appear: Water, Outside, Inside, Engine Room, Cabin, Live Well, Bait Well, Refrigeration, Heating System and Unknown.
5. Highlight the desired Temp Type and press ENT. The following confirmation message will appear: Are you sure you wish to change this device's configuration?
6. Highlight YES and press ENT. Press EXIT repeatedly to get back to the main display.

Advanced Options menu

The Temp sensor Advanced Options menu contains two categories: Instance and Restore Defaults.

Instance

The Instance command is intended for use only by experienced NMEA 2000 network technicians. Instance allows network technicians to resolve certain electronic probe conflicts. This is most likely to occur if the network includes LMF-200 or LMF-400 digital gauges, which support the display of fewer electronic probes than your GPS or sonar/GPS unit. If you want to use your unit in a network including one of these digital gauges, you may need to consult customer service.

You should never need this command if you are connecting your unit to a network with similar display units and/or a series of electronic probes.

Restore Defaults

The Restore Defaults command allows you to reset an individual EP-35 Temp Sensor's settings to factory defaults. If, for example, you execute the Restore Defaults command from your Water Temp's Advanced Options menu, only the settings for the Water Temp will be reset to factory defaults. Other temps on the network will not be affected.

To restore default settings:

1. Press MENU| MENU, use ↑ ↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Synchronization.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.
3. Select the desired temp sensor and press ENT. The Device Configuration menu will appear.
4. Highlight ADVANCED OPTIONS and press ENT.
5. Select RESTORE DEFAULTS and press ENT. The following message will appear: Are you sure you wish to change this device's configuration?
6. Highlight YES and press ENT. Press EXIT repeatedly to get back to the main display.

EP-10 Fuel Flow Configuration

To input Device Name:

1. Press MENU| MENU, use ↑ ↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Synchronization.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.
3. Select the fuel flow you want to rename and pressENT. The Device Configuration menu will appear with the Device Name dialog box highlighted.
4. Press ENTER and use , to input the desired name for the fuel flow. Press ENT. Press EXIT repeatedly to get back to the main display.

To select a Location:

1. Press MENU| MENU, use ↑↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Synchronization.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.

3. Select the desired fuel flow and press ENT. The Device Configuration menu will appear.

4. Select LOCATION and press ENT, which will open the Location menu with following options: Port, Center, Starboard and Unknown.

5. Highlight the desired location and press ENT. The following message will appear: Are you sure you wish to change this device's configuration?
6. Select YES and press ENT. Press EXIT repeatedly to get back to the main display.

Advanced Options menu

The Fuel Flow sensor Advanced Options menu contains two categories: Instance and Restore Defaults.

Instance

The Instance command is intended for use only by experienced NMEA 2000 network technicians. Instance allows network technicians to resolve certain electronic probe conflicts. This is most likely to occur if the network includes LMF-200 or LMF-400 digital gauges, which support the display of fewer electronic probes than your GPS or sonar/GPS unit. If you want to use your unit in a network including one of these digital gauges, you may need to consult customer service.

You should never need this command if you are connecting your unit to a network with similar display units and/or a series of electronic probes.

Restore Defaults

The Restore Defaults command allows you to reset an individual EP-10 Fuel Flow Sensor's settings to factory defaults. If, for example, you execute the Restore Defaults command from your Port Fuel Flow Advanced Options menu, only the settings for the Port Fuel Flow will be reset to factory defaults. Other fuel flows on the network will not be affected.

To restore default settings:

1. Press MENU| MENU, use ↑ ↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Synchronization.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.
3. Use to select the desired fuel flow and press ENT. The Device Configuration menu will appear.
4. Highlight ADVANCED OPTIONS and press ENT.
5. Select RESTORE DEFAULTS and press ENT. The following message will appear: Are you sure you wish to change this device's configuration?
6. Highlight YES and press ENT. Press EXIT repeatedly to get back to the main display.

EP-15 Fluid Level Configuration

To input Device Name:

1. Press MENU| MENU, use ↑ ↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Synchronization.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.
3. Select a fluid level you want to rename and press ENT. The Device Configuration menu will appear with the Device Name dialog box highlighted.
4. Press ENT and use , to input the desired name for the fluid level. Press ENTER. Press EXIT repeatedly to get back to the main display.

To select Tank Instance (Location):

1. Press MENU| MENU, use ↑ ↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Syn-chronization.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.
3. Select the desired fluid level and press ENT. The Device Configuration menu will appear.
4. Highlight TANK INSTANCE and press ENT, which will open the Tank Instance menu with the following options: Tank 1, Tank 2, Tank 3 and Unknown.
5. Select the desired Tank Instance (location) and press ENT. The following confirmation message will appear: Are you sure you wish to change this device's configuration?
6. Highlight YES and press ENT. Press EXIT repeatedly to get back to the main display.

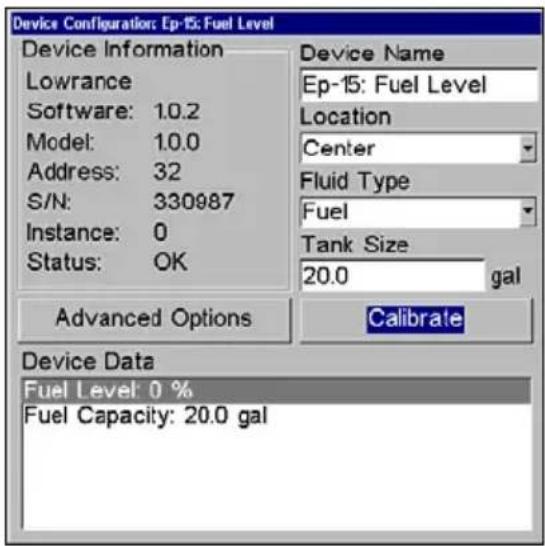

To select Fluid Type:

1. Press MENU| MENU, use ↑ ↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Synchronization.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.
3. Select the desired fluid level and press ENT. The Fluid Level Device Configuration menu will appear.

4. Press ↓ to FLUID TYPE and press ENT, which will open the Fluid Type menu with the following options: Fuel, Water, Gray Water, Live Well, Oil, Black Water and Unknown.

5. Select the desired fluid type and press ENT. The following message will appear: Are you sure you wish to change this device's configuration?

6. Highlight YES and press ENT. Press EXIT repeatedly to get back to the main display.

To input Tank Size:

1. Press MENU| MENU, use ↑ ↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Syn-chronization.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.
3. Select the desired fluid level and press ENT. The Fluid Level Device Configuration menu will appear.
4. Highlight TANK SIZE and press ENT. Use , to input the size of the tank and press Enter. The following message will appear: Are you sure you wish to change this device's configuration?
5. Select YES and press ENT. Press EXIT repeatedly to get back to the main display.

Advanced Options menu

The Fuel Flow sensor Advanced Options menu contains two categories: Instance and Restore Defaults.

Instance

The Instance command is intended for use only by experienced NMEA 2000 network technicians. Instance allows network technicians to resolve certain electronic probe conflicts. This is most likely to occur if the network includes LMF-200 or LMF-400 digital gauges, which support the display of fewer electronic probes than your GPS or sonar/GPS unit. If you want to use your unit in a network including one of these digital gauges, you may need to consult customer service.

You should never need this command if you are connecting your unit to a network with similar display units and/or a series of electronic probes.

Restore Defaults

The Restore Defaults command allows you to reset an individual EP-15 Fluid Level Sensor's settings to factory defaults. If, for example, you execute the Restore Defaults command from your Gray Water Fluid Level Advanced Options menu, only the settings for the Gray Water Fluid Level will be reset to factory defaults. Other fluid levels on the network will not be affected.

To restore default settings:

1. Press MENU| MENU, use ↑ ↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Synchronization.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.
3. Select the desired fluid level and press ENT. The Device Configuration menu will appear.
4. Highlight ADVANCED OPTIONS and press ENT.
5. Select RESTORE DEFAULTS and press ENT. The following message will appear: Are you sure you wish to change this device's configuration?
6. Highlight YES and press ENT. Press EXIT repeatedly to get back to the main display.

NOTE:

The Fluid Level Device Configuration menu also contains the Calibrate button, but we will address that later in the segment covering Calibration.

Suzuki Engine Interface Configuration

To input Device Name:

1. Press MENU| MENU, use ↑ ↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Syn-chronization.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.
3. Use ↑↓ to select the engine interface you want to rename and press ENT. The Device Configuration menu will appear with the Device Name dialog box highlighted.
4. Press ENT and use , to input a name for the interface. Press ENT. Press EXIT repeatedly to return to the main display.

To select a Location:

1. Press MENU| MENU, use ↑ ↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Syn-chronization.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.

3. Select the desired engine interface and press ENT. The Device Configuration menu will appear.

4. Highlight LOCATION and press ENT, which will open the Location menu with the following options: Port, Center, Starboard and Unknown.

5. Select the desired location and press ENT. The following confirmation message will appear: Are you sure you wish to change this device's configuration?
6. Press ENT. Press EXIT repeatedly to get back to the main display.

To select Engine Type:

1. Press MENU| MENU, use ↑ ↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Syn-chronization.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.
3. Use to select the desired engine interface and press ENT. The Device Configuration menu will appear.
4. Highlight ENGINE TYPE and press ENT, which will open the Engine Type menu with the following options: DF40, DF50, DF60, DF70, DF90/115, DF140, DF150, DF175, DF200/225, DF250 and DF300.
5. Select your engine type and press ENT. The following message will appear: Are you sure you wish to change this device's configuration?
6. Highlight YES and press ENT. Press EXIT repeatedly to get back to the main display.

Advanced Options menu

The Engine Interface Advanced Options menu contains three categories: Instance, Restore Defaults and Reset Trim Calibration.

Instance

The Instance command is intended for use only by experienced NMEA 2000 network technicians. Instance allows network technicians to resolve certain electronic probe conflicts. This is most likely to occur if the network includes LMF-200 or LMF-400 digital gauges, which support the display of fewer electronic probes than your GPS or sonar/GPS unit. If you want to use your unit in a network including one of these digital gauges, you may need to consult customer service. You should never need this command if you are connecting your unit to a network with similar display units and/or a series of electronic probes.

Restore Defaults

The Restore Defaults command allows you to reset an individual engine interface's settings to factory defaults. If, for example, you execute the Restore Defaults command from your Port Engine Interface Advanced Options menu, only the settings for the Port Engine Interface will be reset to factory defaults. Other engine interfaces on the network will not be affected.

To restore default settings:

1. Press MENU| MENU, use ↑ ↓ to select NMEA 2000 and press ENT. The NMEA 2000 menu will appear with five options: Bus Setup, Fuel Management, NMEA 2000 Alarms, Waypoint Sharing and Backlight Synchronization.
2. Highlight BUS SETUP and press ENT.
3. Use to select the desired fluid level and press ENT. The Device Configuration menu will appear.
4. Highlight ADVANCED OPTIONS and press ENT.
5. Select RESTORE DEFAULTS and press ENT. The following message will appear: Are you sure you wish to change this device's configuration?
6. Highlight YES and press ENT. Press EXIT repeatedly to get back to the main display.

NOTE:

The Suzuki Engine Interface Device Configuration menu contains two Engine Trim calibration commands, which will be addressed in the next segment of this section, Calibrating EP Sensors.

Calibrating EP Sensors

The factory calibration settings for the EP-10 Fuel Flow, EP-15 Fluid Level and Suzuki Engine Interface should be adequate for the majority of applications, so calibration will not be necessary in most cases.

EP-10 Fuel Flow Calibration

The default calibration for the EP-10 Fuel Flow is adequate in most cases, but if Fuel Used readings are off by more than 3 percent, calibration is recommended.

To check fuel flow accuracy:

Select Fuel Used to be shown as Overlay Data on your unit's main display. Refer to the Overlay Data segment of this manual for instructions on how to select Fuel Used data as Overlay Data.

1. After selecting Fuel Used as overlay data, fill up your tank and press MENU | MENU.
2. Select NMEA 2000 and press ENT.
3. Highlight FUEL MANAGEMENT and press ENT. Select TANK LOCATION and press ENT.
4. Use ↑ ↓ to select the location (Port, Center or Starboard) of the fuel flow you want to calibrate and press ENT.
5. Highlight FILL TANK and press ENT. The following confirmation message will appear: Are you sure you wish to Fill Tank?

6. Select YES and press ENT. The following confirmation message will appear: Do you wish to re-calibrate the device?

7. Highlight No and press ENT.

8. Take your vessel out on the water and burn at least five gallons of fuel. Be sure you run only ONE engine — the engine connected to your fuel flow.
9. Fill up your tank again, noting how much fuel you added to the tank. Compare that number to the Fuel Used figure displayed on the page you customized. If the amount of fuel you added to the tank and the fuel used figure are off by more than 3 percent, we recommend the fuel flow be calibrated.

NOTE:

You must use the gauge's Fill Tank command when filling your fuel tank to keep the fuel flow updated with correct information on the amount of fuel in the tank.

To calibrate an EP-10 Fuel Flow:

1. If calibration is necessary, press MENU | MENU, select NMEA 2000 and press ENT.
2. Highlight FUEL MANAGEMENT and press ENT.
3. Select TANK LOCATION and press ENT to choose the location of the tank connected to selected fuel flow. Press ENT.
4. Highlight FILL TANK and press ENT. The following message will appear: Are you sure you wish to Fill Tank? Select YES and press ENT.
5. The following message will appear: Do you wish to re-calibrate the device? Select YES and press ENT.
6. Repeat these steps for each EP-10 Fuel Flow you want to calibrate.

To Reset Calibration:

1. Press MENU | MENU, select NMEA 2000 and press ENT.
2. Highlight FUEL MANAGEMENT and press ENT.
3. Highlight ENGINE SELECT and press ENT. The Engine Select menu will appear with up to four options: All Engines, Port, Center and Starboard. Selecting All Engines will reset calibration for all engines back to factory defaults.
4. Select All Engines or the engine connected to the desired device and press ENT.
5. Highlight RESET CALIBRATION and press ENT. The following message will appear: Are you sure you wish to Reset Calibration?
6. Highlight YES and press ENT. Press EXIT repeatedly to get back to the main display.

EP-15 Fluid Level Calibration

The default calibration for the EP-15 Fluid Level is just as accurate as standard fluid level gauges. If, however, the tank has an irregular shape or greater accuracy is needed, calibration is recommended. There are three calibration options: 2-Point, 3-Point and 5-Point.

2-Point Calibration

A 2-point calibration is best suited for rectangular or square-shaped tanks, where the capacity of the top half of the tank matches the capacity in the lower half of the tank. In a two-point calibration, you will set two points, one each for empty and full levels. You can begin calibration at either of the two points, but we recommend starting with an empty tank. You will fill the tank to complete calibration.

1. Press MENU|MENU, use ↓ ↑ to select NMEA 2000 and press ENT.

2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page.

3. Select the EP-15 Fluid Level and press ENT.

4. Press ↓ to select CALIBRATE and press ENT. The Device Calibration menu will appear. Instructions on Calibration will be listed at the top of the menu.

5. Highlight NUM PTS, press ENT and select 2. Press ENT.

6. Select FLUID LEVEL, press ENT, then select EMPTY LEVEL and press ENT.

7. Make sure the fuel tank is empty, highlight CALIBRATE and press ENT. The following message will appear: Empty Level Calibration Completed. Press ENT.

8. Fill up your tank, highlight FLUID LEVEL and press ENT.

9. Select FULL LEVEL and press ENT. Highlight CALIBRATE and press ENT.

10. The following message will appear: Full level Calibration Completed. Press ENT, then press EXIT repeatedly to get back to the main display.

Device Configuration: Ep-15: Fuel Level Device Information Lowrance Software: 1.0.2 Model: 1.0.0 Address: 32 S/N: 330987 Instance: 0 Status: OK Advanced Options Device Name Ep-15: Fuel Level Location Center Fluid Type Fuel Tank Size 20.0 gal Calibrate Device Data Fuel Level: 0 % Fuel Capacity: 20.0 gal

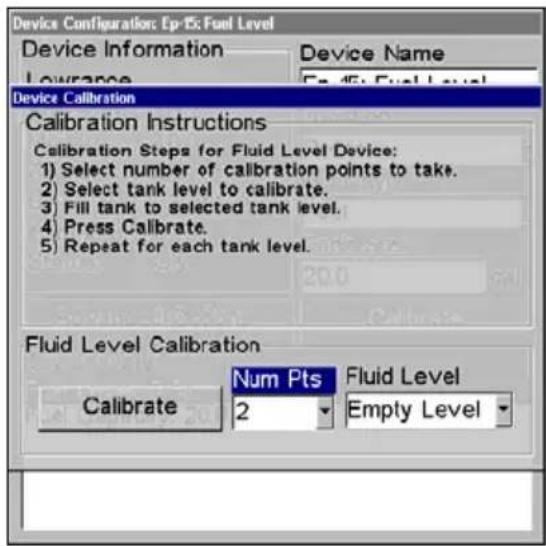

Device Configuration: Ep-15: Fuel Level Device Information Lowrange Device Name Ep-45: Fuel Level Device Calibration Calibration Instructions Calibration Steps for Fluid Level Device: 1) Select number of calibration points to take. 2) Select tank level to calibrate. 3) Fill tank to selected tank level. 4) Press Calibrate. 5) Repeat for each tank level. Fluid Level Calibration Calibrate Num Pts Fluid Level 2 Empty Level

Calibrate is highlighted on the device configuration menu (left). Calibration menu (right) with calibration instructions listed at the top.

3-Point Calibration

3-point calibration is designed for tanks that vary in shape from the top to the bottom. You can begin calibration at any point in the 3-point process, but we recommend starting calibration with an empty tank.

In a 3-point calibration, you will set three points, one each for empty, half and full levels.

1. Press MENU|MENU, use ↓↑ to select NMEA 2000 and press ENT.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page. 3. Select the EP-15 Fluid Level and press ENT.
3. Press ↓ to select CALIBRATE and press ENT. The Device Calibration menu will appear.
4. Highlight Num Pts, press ENT and select 3. Press ENT.
5. Make sure your tank is empty, then highlight FLUID LEVEL and press ENT. Select EMPTY LEVEL and press ENT.
6. Select CALIBRATE and press ENT. The following message will appear: Empty Level Calibration Completed. Press ENTER.
7. Add half a tank of fuel, highlight FLUID LEVEL and press ENT. Select HALF LEVEL and press ENT.
8. Select CALIBRATE and press ENT. The following message will appear: Half Level Calibration Completed. Press ENT.
9. Fill up the tank, then highlight FLUID LEVEL and press ENT. Select FULL LEVEL and press ENT.
10. Highlight CALIBRATE and press ENT. The following message will appear: Full Level Calibration Completed. Press ENT, then press EXIT repeatedly to get back to the main display.

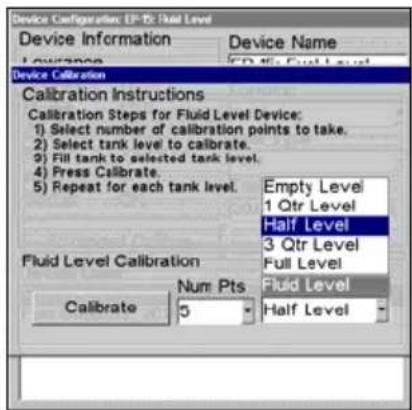

Device Configuration EP-To Fluid Level Device Information Device Name Lowance F8 To Fluid Level Device Calibration Calibration Instructions Calibration Steps for Fluid Level Device: 1) Select number of calibration points to take. 2) Select tank level to calibrate. 3) Fill tank to selected tank level. 4) Press Calibrate. 5) Repeat for each tank level. Fluid Level Calibration Calibrate Num Pts Fluid Level 5 Empty Level 2 3 5

Device Configuration: UP To Fluid Level Device Information Device Name Lowance 50% Full Level Device Calibration Calibration Instructions Calibration Steps for Fluid Level Device: 1) Select number of calibration points to take. 2) Select tank level to calibrate. 3) Fill tank to selected tank level. 4) Press Calibrate. 5) Repeat for each tank level. Empty Level 1 Qtr Level Half Level 3 Qtr Level Full Level Fluid Level Calibrate Num Pts Half Level 5

Device Configuration: EP-15 Fluid Level Device Information Device Name Laurance CP No Fluid Level Device Calibration Calibration Instructions Calibration Steps for Fluid Level Device: 1) Select number of calibration points to take. 2) Select tank level to calibrate. 3) Fill tank to selected tank level 4) Calibration Done 5) Half Level Calibration Completed OK Fluid Level Calibration Num Pts Fluid Level Calibrate 5 Half Level

Num Pts menu with 5-point calibration selected (left). Half level selected on Fluid Level menu (center). Calibration Done window (right).

5-Point Calibration

5-point calibration is best suited tanks that vary greatly in shape from top to bottom. You can begin calibration at any point in the 5-point calibration process. We recommend starting calibration with an empty tank. In a five-point calibration you will set five points: Empty Level, 1 Qtr Level, Half Level, 3 Qtr Level and Full Level.

In a 5-point calibration, you will have four calibration points left after calibrating your tank's Empty Level. To figure out how much fuel you should add for the remaining steps of the calibration process, divide the total capacity of you tank by four. So, if you have a 40-gallon tank, each quarter tank will equate to 10 gallons.

1. Press MENU|MENU, use ↓↑ to select NMEA 2000 and press ENT.
2. Highlight BUS SETUP and press ENT, which will open the Bus Configuration menu. A list of network devices will be at the top of the page. 3. Select the desired EP-15 Fluid Level and press ENT.
3. Press ↓ to select CALIBRATE and press ENT. The Device Calibration menu will appear.
4. Highlight NUM PTS, press ENT and select 5. Press ENT.
5. Make sure your tank is empty, then highlight FLUID LEVEL and press ENT. Select EMPTY LEVEL and press ENT.
6. Select CALIBRATE and press ENT. The following message will appear: Empty Level Calibration Completed. Press ENT.
7. Add 1 quarter tank of fuel, highlight FLUID LEVEL and press ENT. Select 1 QTR LEVEL and press ENT.
8. Select CALIBRATE and press ENT. The following message will appear: 1 Qtr Level Calibration Completed. Press ENT.

9. Add another quarter tank of fuel, which should raise the fuel level to half a tank. Highlight FLUID LEVEL and press ENT. Select HALF LEVEL and press ENT.

10. Highlight CALIBRATE and press ENT. The following message will appear: Half Level Calibration Completed. Press ENT.

11. Add another quarter tank of fuel, which should raise the fuel level to 3 quarters of a tank. Highlight FLUID LEVEL and press ENT. Select 3 QTR LEVEL and press ENT.
12. Select CALIBRATE and press ENT. The following message will appear: 3 Qtr Level Calibration Completed. Press ENT.
13. Top off the tank, highlight FLUID LEVEL and press ENT. Select FULL LEVEL and press ENT.
14. Select CALIBRATE and press ENT. The following message will appear: Full Level Calibration Completed. Press ENT, then press EXIT repeatedly to get back to the main display.

Fuel Flow Calibration in a Suzuki Engine Interface

The default calibration for the Suzuki Engine Interface is adequate in most cases, but if Fuel Used readings are off by more than 3 percent, calibration is recommended.

To check engine interface accuracy:

Select Fuel Used to be shown as Overlay Data on your unit's main display. Refer to the Overlay Data segment of this manual for instructions on how to select Fuel Used data as Overlay Data.

1. After selecting Fuel Used as overlay data, fill up your tank and press MENU | MENU.
2. Select NMEA 2000 and press ENT.
3. Highlight FUEL MANAGEMENT and press ENT. Select TANK LOCATION and press ENT.
4. Use to select the location (Port, Center or Starboard) of the engine interface you want to calibrate and press ENT.
5. Highlight FILL TANK and press ENT. The following confirmation message will appear: Are you sure you wish to Fill Tank?
6. Select YES and press ENTER. The following confirmation message will appear: Do you wish to re-calibrate the device?
7. Highlight No and press ENT. Take your vessel out on the water and burn at least five gallons of fuel. Be sure you run only ONE engine — the engine connected to your engine interface.
8. Fill up your tank again, noting how much fuel you added to the tank. Compare that number to the Fuel Used figure displayed on the page you customized. If the amount of fuel you added to the tank and the fuel used figure are off by more than 3 percent, we recommend the engine interface be calibrated.

NOTE:

You must use the gauge's Fill Tank command when filling your fuel tank to keep the engine interface updated with correct information on the amount of fuel in the tank.

To calibrate a Suzuki Engine Interface:

1. If calibration is necessary, press MENU | MENU, select NMEA 2000 and press ENT.
2. Highlight FUEL MANAGEMENT and press ENT.
3. Select TANK LOCATION and press ENT to choose the location of the tank connected to the selected engine interface. Press ENT.
4. Highlight FILL TANK and press ENT. The following message will appear: Are you sure you wish to Fill Tank? Select YES and press ENT.
5. The following message will appear: Do you wish to re-calibrate the device? Select YES and press ENT.
6. Repeat these steps for each engine interface you want to calibrate.

Engine Trim Calibration

Engine Trim is calibrated through the Suzuki Engine Interface Device Configuration menu.

1. Press MENU | MENU, select NMEA 2000 and press ENT.
2. Choose BUS SETUP and press ENTER. Select the Suzuki Engine Interface connected to the desired engine and press ENT.
3. Highlight CALIBRATE TRIM and press ENT. The Device Calibration window will appear with a list of Calibration Instructions.
4. Highlight START CALIBRATION and press ENT. The following message will appear: Please fully raise the Engine Trim.
5. After engine trim has been fully raised, press ENT. The following message will appear: Please fully lower the Engine trim.
6. After engine trim has been fully lowered, press ENT. A Calibration Completed message will appear. Press ENT.
7. Repeat these instructions to adjust the engine trim for each engine connected to a Suzuki Engine Interface. Press EXIT repeatedly to return to the main display.

Reset Trim Calibration

If you are not satisfied with your engine trim calibration, you can reset engine trim calibration from the Suzuki Engine Interface Advanced Options menu.

1. Press MENU | MENU, select NMEA 2000 and press ENT.

2. Choose BUS SETUP and press ENT. Select the Suzuki Engine Interface connected to the desired engine and press ENT.

3. Highlight ADVANCED OPTIONS and press ENT. Select Reset TRIM CALIBRATION and press ENT. The following message will appear: Do you wish to re-calibrate the device?

4. Highlight YES and press ENT. Press EXIT repeatedly to get back to the main display.

Bennett Trim Tabs Calibration

Trim Tabs will be calibrated through their Device Configuration menu.

To calibrate Trim Tabs:

1. Press MENU | MENU, select BUS SETUP and press ENT. A list of network devices will appear.
2. Select BENNETT TRIM TABS from the list and press ENT, which will open the Trim Tab Device Configuration menu.
3. Highlight CALIBRATE and press ENT. The Device Calibration window will appear with a list of calibration instructions.
4. Select START CALIBRATION and press ENT. The following message will appear: Please fully raise Trim Tabs.
5. After fully raising the trims tabs, press ENT. The following message will appear: Please fully lower trim tabs.
6. After fully lowering the trim tabs, press ENT. A Calibration Complete message will appear. Press ENT. Press EXIT repeatedly to return to the main display.

Fuel Management Tank Operations Tank Location Fuel Added Center 0.00 gal Tank Capacity: 0.0 gal Add Fuel Fill Tank Engine Operations Engine Select All Engines Calibration Const: 0.00 (C) Reset Calibration Reset Trip Reset Seasonal

Fuel Management Tank Operations Tank Location Fuel Added Center 0.00 gal Tank Capacity: 0.0 gal Warning Are you sure you wish to Reset Calibration? Yes No Calibration Const. 0.00 (C) Reset Calibration Reset Trip Reset Seasonal

Reset Calibration highlighted (left). Reset Calibration confirmation window (right).

To Reset Calibration:

1. Press MENU | MENU, select NMEA 2000 and press ENT.
2. Highlight FUEL MANAGEMENT and press ENT.

3. Highlight ENGINE SELECT and press ENT. The Engine Select menu will appear with up to four options: All Engines, Port, Center and Starboard. Selecting All Engines will reset calibration for all engines back to factory defaults.

4. Select All Engines or the engine connected to the desired device and press ENT.

5. Highlight RESET CALIBRATION and press ENT. The following message will appear: Are you sure you wish to Reset Calibration?
6. Highlight YES and press ENT. Press EXIT repeatedly to get back to the main display.

Section 8: Supplemental Material Datums Used by This Unit

WGS 1984Default	Zaire, Zambia and Zimbabwe	Australian Geodetic 1984 - Australia & Tasmania
AdindanMean for Ethiopia, Sudan	Arc 1950 - Botswana	Ayabelle Lighthouse - Djibouti
	Arc 1950 - Burundi
AdindanBurkina Faso	Arc 1950 - Lesotho	Bellevue (IGN) - Efa-te & Erromango I- slands
	Arc 1950 - Malawi
Adindan Cameroon	Arc 1950 - Swaziland	Bermuda 1957 - Bermuda
AdindanEthiopia	Arc 1950 - Zaire	Bissau - Guinea- Bissau
	Arc 1950 - Zambia	Bogota Observatory - Colombia
AdindanMali	Arc 1950 - Zimbabwe
AdindanSenegal	Arc 1960 - Mean for Kenya, Tanzania	Bukit Rimpah - Indo- nesia (Bangka & Beli-tung Islands)
AdindanSudan	Ascension Island 1958 - Ascension Island	Camp Area Astro - Antarctica (McMurdo Camp Area)
AfgooyeSomalia	Astro Beacon E 1945 - Iwo Jima	Campo Inchauspe - Argentina
Ain el Abd 1970Bahrain	Astro DOS 71/4 - St. Helena Island	Canton Astro 1966 - Phoenix Islands
Ain el Abd 1970Saudi Arabia	Astro Tern Island (FRIG) 1961 - Tern Island	Cape - South Africa
Anna 1 Astro 1965Cocos Islands		Cape Canaveral - Bahamas, Florida
Antigua Island Astro 1943; Antigua (Lee- ward Islands)	Astronomical Station 1952 - Marcus Island	Carthage - Tunisia
	Australian Geodetic 1966 - Australia & Tasmania	Switzerland
Arc 1950; Mean for Botswana, Lesotho, Malawi, Swaziland,	European 1950	Chatham Island Astro 1971; New Zealand (Chatham Island)L.C. 5 Astro 1961
Chua Astro	England, Channel	Cayman Brac Island
Paraguay	Islands, Ireland, Scotland, Shetland	Leigon
Corrego Alegre	Islands	Ghana
Brazil
	European 1950	Liberia 1964
Dabola	Finland, Norway	Liberia
Guinea
	European 1950	Luzon
Djakarta (Batavia)	Greece	Philippines (Excluding Mindanao)
Indonesia (Sumatra)
	European 1950
DOS 1968	Iran	Luzon
New Georgia Islands (Gizo Island)		Philippines (Mindanao)
	European 1950
	Italy (Sardinia)
Easter Island 1967		Mahe 1971
Easter Island	European 1950 (Sicily)	Mahe Island
European 1950	European 1950	Massawa
Mean for Austria, Belgium, Denmark, Finland, France, West Germany, Gibraltar, Greece, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland	Malta	Ethiopia (Eritrea)
	Ireland 1965	Merchich
	Ireland	Morocco
	ISTS 061 Astro 1968	Midway Astro 1961
	South Georgia Islands	Midway Islands
	ISTS 073 Astro 1969	Minna
European 1950	Diego Garcia	Cameroon
Mean for Austria, Denmark, France, West Germany, Netherlands, Switzerland	Johnston Island 1961	Minna
	Johnston Island	Nigeria
	Kandawala	Montserrat Island
	Sri Lanka	Astro 1958; Montserrat (Leeward Islands)
European 1950
Mean for Iraq, Israel, Jordan, Lebanon, Kuwait, Saudi Arabia, Syria	Kerguelen Island 1949	M’Poraloko
	Kerguelen Island	Gabon, Nahrwan, Oman (Masirah Island)
	Kertau 1948
European 1950	West Malaysia & Singapore	Nahrwan
Cyprus		Saudi Arabia
European 1950	Kusaie Astro 1951	Nahrwan
Egypt	Caroline Islands	United Arab Emirates

Naparima BWI Trinidad & Tobago

North American 1927 Mean for Antigua, Barbados, Barbuda, Caicos Islands, Cuba, Dominican Republic, Grand Cayman, Jamaica, Turks Islands

North American 1927 Mean for Belize, Costa Rica, El Salvador, Guatemala, Honduras, Nicaragua

North American 1927 Mean for Canada

North American 1927 Mean for CONUS (Continental United States) North American 1927 Mean for CONUS (East of Mississippi River) including Louisiana, Missouri, Minnesota

North American 1927 Mean for CONUS (West of Mississippi River)

North American 1927 Alaska

North American 1927 Bahamas (Except San Salvador Island)

North American 1927 Bahamas (San Sal- vador Island)

North American 1927 Canada (Alberta, British Columbia)

North American 1927 Canada (Manitoba, Ontario)

North American 1927 Canada (New Brunswick, New- foundland, Nova Scotia, Quebec)

North American 1927 Canada (Northwest Territories, Sas- katchewan)

North American 1927 Canada (Yukon)

North American 1927 Canal Zone

North American 1927 Cuba

North American 1927 Greenland (Hayes Peninsula)

North American 1927 Mexico

North American 1983 Alaska, Canada, CONUS

North American 1983 Central America, Mexico

Observaorio Metereo 1939; Azores (Corvo & Flores Islands)

Old Egyptian 1907 Egypt

Old Hawaiian Mean for Hawaii, Kauai, Maui, Oahu

Old Hawaiian Hawaii

Old Hawaiian Kauai

Old Hawaiian Maui

Old Hawaiian Oahu

Oman Oman

Ordinance Survey Great Britain 1936 - Mean for England, Isle of Man, Scotland, Shetland Islands, Wales

Ordinance Survey Great Britain 1936 - England

Ordinance Survey Great Britain 1936 - England, Isle of Man, Wales

Ordinance Survey Great Britain 1936 - Scotland, Shetland Islands

Ordinance Survey Great Britain 1936 - Wales

Pico de las Nieves Canary Islands

Pitcairn Astro 1967 Pitcairn Island

Point 58		Tokyo
Sweden	South American 1969 Chile	Mean for Japan, Korea, Okinawa
Santo (DOS)	South American 1969	Tokyo
1965 Espirito Santo Island	Colombia	Japan
Sao Braz	South American 1969	Tokyo
Azores (Sao Miguel, Santa Maria Islands)	Ecuador	Korea
	South American 1969	Tokyo
Sapper Hill 1943 East Falkland Island	Ecuador (Baltra, Galapagos)	Okinawa
Schwarzeck Nambia	South American 1969	Tristan Astro 1968
	Guyana	Tristan da Cunha
Selvagem Grande Salvage Islands	South American 1969	Viti Levu 1916
	Paraguay	Fiji (Viti Levu Island)
	South American 1969	Wake
SGS 85 Soviet Geodetic System 1985	Peru	Eniwetok 1960
	South American 1969	Marshall Islands
South American 1969 Mean for Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Peru, Trinidad & Tobago, and Venezuela	Trinidad & Tobago	Wake Island Astro 1952
	South American 1969 Venezuela	Wake Atoll
	South Asia	WGS 1972
South American 1969 Argentina	Singapore	Global Definition
	Tananarive Observatory 1925; Madagascar	Yacare
	Car	Uruguay
South American 1969 Bolivia	Timbalai 1948	Zanderij
	Brunei, East Malaysia (Sabah, Sarawak)	Suriname
South American 1969 Brazil

Notes

Notes

FCC Compliance

This device complies with Part 15 of the U.S. Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the factory customer service department for help.

Notes

LOWRANCE DATABASES LICENSE AGREEMENT

THIS IS A LEGAL AGREEMENT BETWEEN THE END-USER WHO FIRST PURCHASES THIS PRODUCT AS A CONSUMER ITEM FOR PERSONAL, FAMILY, OR HOUSEHOLD USE ("YOU") AND LOWRANCE ELECTRONICS, INC., THE MANUFACTURER OF THIS PRODUCT ("WE", "OUR", OR "US"). USING THE PRODUCT ACCOMPANIED BY THIS LICENSE AGREEMENT CONSTITUTES ACCEPTANCE OF THESE TERMS AND CONDITIONS. IF YOU DO NOT ACCEPT ALL TERMS AND CONDITIONS, PROMPTLY RETURN THE PRODUCT WITHIN 30 DAYS OF PURCHASE. PLEASE RETURN USING THE ENCLOSED UPS SHIPPING LABEL AND INCLUDE: PROOF OF PURCHASE, NAME, ADDRESS, AND PHONE NUMBER. YOUR PURCHASE PRICE AND ANY APPLICABLE TAXES WILL BE REFUNDED. PLEASE ALLOW 4-6 WEEKS TO PROCESS YOUR REFUND.

1. This License Agreement applies to the one or more databases that your product may contain. We refer to these singly as a "Database" and together as the "Databases." Your product may thus include the "WBS Database" which contains worldwide background surface mapping data, the "SmartMap Database" which contains inland mapping data, or other Databases.

2. The Databases that your product may contain are licensed, not sold. We grant to you the nonexclusive, nonassignable right to use these Databases for supplemental navigation reference purposes, but only as long as you comply with the terms and conditions of this License Agreement. We reserve the right to terminate this license if you violate any aspect of this License Agreement. You are responsible for using official government charts and prudent navigation for safe travel.

3. The Databases housed in your product are protected by the copyright notices appearing on the product or its screen(s). You may NOT modify, adapt, translate, reverse engineer, decompile, disassemble, rent, lease, or resell any Database, and you may NOT create derivative works based upon any Database or its contents. Any unauthorized reproduction, use, or transfer of a Database may be a crime and may subject you to damages and attorney fees.

4. This License Agreement will terminate immediately without prior notice from us if you fail to comply with or violate any of the provisions of this Agreement. Upon termination, you will promptly return all products containing one or more Databases to us.

5. Prices and programs are subject to change without notice.

6. This License Agreement shall be governed by the laws of the State of Oklahoma and comprises the complete and exclusive understanding between you and us concerning the above subject matter.

DATABASES LIMITED WARRANTY

"We", "our", or "us" refers to Lowrance Electronics, Inc., the manufacturer of this product. "You" or "your" refers to the first person who purchases the product as a consumer item for personal, family, or household use. The Databases Limited Warranty applies to the one or more databases that your product may contain. We refer to each of these as a "Database" or together as the "Databases." Your product may thus include the "WBS Database" which contains worldwide background surface mapping data, the "SmartMap Database" which contains inland mapping data, or other Databases.

We warrant to you that we have accurately compiled, processed, and reproduced the portions of the source material on which the Databases are based. However, we are under no obligation to provide updates to the Databases, and the data contained in the Databases may be incomplete when compared to the source material. WE MAKE NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND ABOUT THE ACCURACY OF THE SOURCE MATERIAL ITSELF, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

If there is a defect in any Database, your exclusive remedy shall be, at our option, either a refund of the price you paid for the product containing the defective Database or a replacement of such product. WE WILL NOT UNDER ANY CIRCUMSTANCES BE LIABLE TO ANYONE FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR OTHER INDIRECT DAMAGE OF ANY KIND.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

This warranty does NOT apply in the following circumstances: (1) when the product has been serviced or repaired by anyone other than us; (2) when the product has been connected, installed, combined, altered, adjusted, or handled in a manner other than according to the instructions furnished with the product; (3) when any serial number has been effaced, altered, or removed; or (4) when any defect, problem, loss, or damage has resulted from any accident, misuse, negligence, or carelessness, or from any failure to provide reasonable and necessary maintenance in accordance with the instructions of the owner's manual for the product.

We reserve the right to make changes or improvements in our products from time to time without incurring the obligation to install such improvements or changes on equipment or items previously manufactured.

This warranty gives you specific legal rights and you may also have other rights which may vary from state to state.

Your remedies under this warranty will be available so long as you can show in a reasonable manner that the defect occurred within one (1) year from the date of your original purchase, and we must receive your warranty claim no later than 30 days after such 1-year period expires. Your claim must be substantiated by a dated sales receipt or sales slip.

LOWRANCE ELECTRONICS FULL ONE-YEAR WARRANTY

"We," "our," or "us" refers to LOWRANCE ELECTRONICS, INC., the manufacturer of this product. "You" or "your" refers to the first person who purchases this product as a consumer item for personal, family or household use.

We warrant this product against defects or malfunctions in materials and workmanship, and against failure to conform to this product's written specifications, all for one (1) year from the date of original purchase by you. WE MAKE NO OTHER EXPRESS WARRANTY OR REPRESENTATION OF ANY KIND WHATSOEVER CONCERNING THIS PRODUCT. Your remedies under this warranty will be available so long as you can show in a reasonable manner that any defect or malfunction in materials or workmanship, or any non-conformity with the product's written specifications, occurred within one year from the date of your original purchase, which must be substantiated by a dated sales receipt or sales slip. Any such defect, malfunction, or non-conformity which occurs within one year from your original purchase date will either be repaired without charge or be replaced with a new product identical or reasonably equivalent to this product, at our option, within a reasonable time after our receipt of the product. If such defect, malfunction, or non-conformity remains after a reasonable number of attempts to repair by us, you may elect to obtain without charge a replacement of the product or a refund for the product. THIS REPAIR, OR REPLACEMENT OR REFUND (AS JUST DESCRIBED) IS THE EXCLUSIVE REMEDY AVAILABLE TO YOU AGAINST US FOR ANY DEFECT, MALFUNCTION, OR NON-CONFORMITY CONCERNING THE PRODUCT OR FOR ANY LOSS OR DAMAGE RESULTING FROM ANY OTHER CAUSE WHATSOEVER. WE WILL NOT UNDER ANY CIRCUMSTANCES BE LIABLE TO ANYONE FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR OTHER INDIRECT DAMAGE OF ANY KIND.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

This warranty does NOT apply in the following circumstances: (1) when the product has been serviced or repaired by anyone other than us; (2) when the product has been connected, installed, combined, altered, adjusted, or handled in a manner other than according to the instructions furnished with the product; (3) when any serial number has been effaced, altered, or removed; or (4) when any defect, problem, loss, or damage has resulted from any accident, misuse, negligence, or carelessness, or from any failure to provide reasonable and necessary maintenance in accordance with the instructions of the owner's manual for the product.

We reserve the right to make changes or improvements in our products from time to time without incurring the obligation to install such improvements or changes on equipment or items previously manufactured.

This warranty gives you specific legal rights and you may also have other rights which may vary from state to state.

REMINDER: You must retain the sales slip or sales receipt proving the date of your original purchase in case warranty service is ever required.

LOWRANCE ELECTRONICS 12000 E. SKELLY DRIVE, TULSA, OK 74128 [phone]

How to Obtain Service... ...in the USA:

We back your investment in quality products with quick, expert service and genuine Lowrance parts. If you're in the United States and you have technical, return or repair questions, please contact the Factory Customer Service Department. Before any product can be returned, you must call customer service to determine if a return is necessary. Many times, customer service can resolve your problem over the phone without sending your product to the factory. To call us, use the following toll-free number:

800-324-1356

8 a.m. to 5 p.m. Central Standard Time, M-F

Lowrance Electronics may find it necessary to change or end our shipping policies, regulations, and special offers at any time. We reserve the right to do so without notice.

...in Canada:

If you're in Canada and you have technical, return or repair questions, please contact the Factory Customer Service Department. Before any product can be returned, you must call customer service to determine if a return is necessary. Many times, customer service can resolve your problem over the phone without sending your product to the factory. To call us, use the following toll-free number:

800-661-3983

905-629-1614 (not toll-free)

8 a.m. to 5 p.m. Eastern Standard Time, M-F

...outside Canada and the USA:

If you have technical, return or repair questions, contact the dealer in the country where you purchased your unit. To locate a dealer near you, visit our web site, www.lowrance.com and look for the Dealer Locator.

Accessory Ordering Information for all countries

To order Lowrance accessories such as power cables or antennas, please contact:

1) Your local marine dealer or consumer electronics store. Most quality dealers that handle marine electronic equipment or other consumer electronics should be able to assist you with these items.

To locate a Lowrance dealer near you, visit our web site, www.lowrance.com and look for the Dealer Locator. Or, you can consult your telephone directory for listings.

2) U.S. customers: LEI Extras Inc., PO Box 129, Catoosa, OK 74015-0129 Call 1-800-324-0045 or visit our web site www.lei-extras.com.

3) Canadian customers can write: Lowrance/Eagle Canada, 919 Matheson Blvd. E. Mississauga, Ontario L4W2R7 or fax [phone].

Shipping Information

If it becomes necessary to send a product for repair or replacement, you must first receive a return authorization number from Customer Service. Products shipped without a return authorization will not be accepted. When shipping, we recommend you do the following:

1. Please do not ship knobs or mounting brackets with gimbal units.
2. If your unit saves sonar logs or GPS data files to memory cards, make sure you have saved the data to a memory card and that the card has been removed from the unit, otherwise your data will be lost.
3. If you are sending a check for repair, please place your check in an envelope and tape it to the unit.
4. For proper testing, include a brief note with the product describing the problem. Be sure to include your name, return shipping address and a daytime telephone number. An e-mail address is optional but useful.
5. Pack the unit in a suitable size box with packing material to prevent any damage during shipping.
6. Write the Return Authorization (RA) number on the outside of the box underneath your return address.
7. For your security, you may want to insure the package through your shipping courier. Lowrance does not assume responsibility for goods lost or damaged in transit.

Visit our web site:

lowrance.com

Lowrance Pub. 988-0151-521

© Copyright 2006

All Rights Reserved

Printed in USA 120806

Lowrance Electronics, Inc.
