USER MANUAL 3989 Kraftwerk

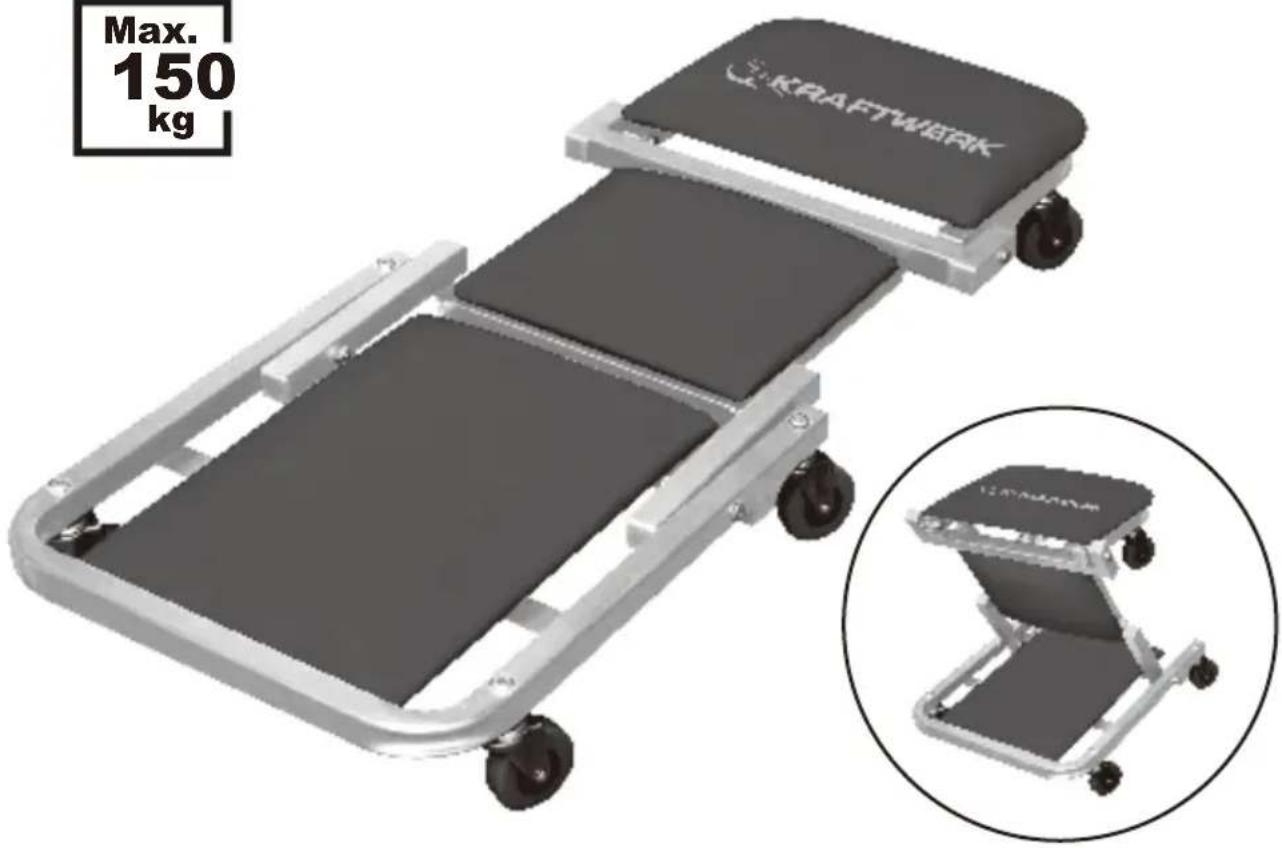

Foldbable creeper and work seat 2 in 1

Max.

150

kg

Max. 150 kg KRAFTWEERK

Art. 3989

Please read these instructions carefully to ensure the safe and effective use of this tool.

Download Bedienungsanleitung / Téléchargement du mode d'emploi / Instructions download Descarga de la instrucción de uso / Download de instruções de operação / Download del manuale

For your safety, read, understand, and follow the information provided with and on this folding creeper. The owner and operator shall have an understanding of this product and safe operating procedures before attempting to use. The owner and operator shall be aware that use of this product may require special skills and knowledge. Make certain that the operator thoroughly understands the inherent dangers associated with the use and misuse of the product. If any doubt exists as to the safe and proper use of this product, remove from service immediately.

Inspect before each use. Do not use if there are broken, bent, cracked or damaged parts (including labels). Any folding creeper that appears damaged in any way, or operates abnormally shall be removed from service immediately. If the folding creeper has been subjected to a shock load (a load dropped suddenly, unexpectedly upon it), immediately discontinue use until it has been inspected by KRAFTWERK authorized service center. It is recommended that an annual inspection be done by qualified personnel. Labels and Operator's Manuals are available from manufacturer.

PRODUCT DESCRIPTION

This device is designed to be folded in a 'Z' shape for use as a mechanics seat or unfolded for use as a mechanics creeper. It is intended to be used to support and move, along a smooth and level surface, rated capacity loads consisting of a single person weighing no more than *150 kg for the purpose of performing automotive maintenance or service. This device is not intended, designed or engineered to be used for any other purpose.

* Rated Capacity: One (1) person weighing 150 kg. or less- includes person, tools, equipment, personal items.

SPECIFICATIONS

Model	Capacity	Seat Size	Creeper Size
3989	*150 kg	380 x 270 mm	1020 mm

COMPONENTS

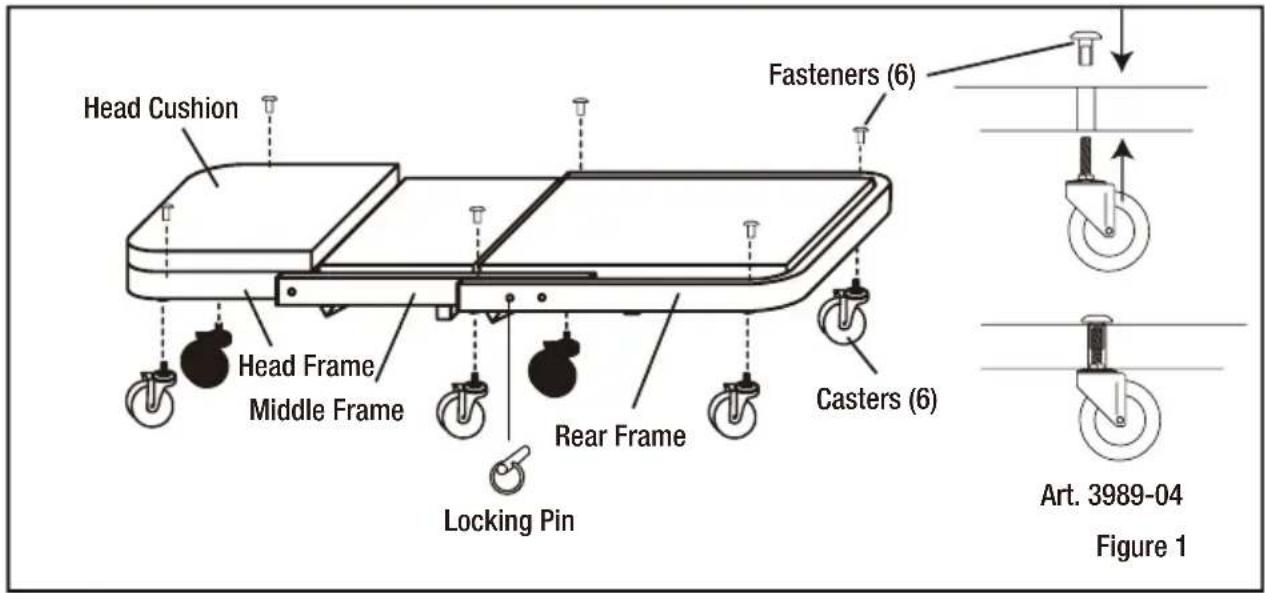

Head Cushion Fasteners (6) Head Frame Middle Frame Rear Frame Locking Pin Casters (6) Art. 3989-04 Figure 1

WARNING

• Read, understand, and follow all printed materials provided with and on this product before use.
• Do not exceed rated capacity! Rated capacity is: 150 kg (includes person, tools, equipment, personal items).
• Sit down gently! Avoid shock loads caused by jumping or falling onto seat.
• Do not stand on seat.
• Beware of pinch and crush hazards when folding and unfolding.
• Keep out of the reach of children! This device is not appropriate for children's use.
• Use on smooth, level surfaces only.

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and Figure 1 illustration. If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement parts.

Contents: 1 creeper body, 6 casters, 6 fasteners

Dimensions: 1020 x 455 x 150 mm

ASSEMBLY INSTRUCTIONS (Refer to Figure 1)

1. Carefully unfold the creeper as seen in Fig. 1. Keep hands away from pinch and crush points that are created while folding and unfolding!

2. Use a suitable screwdriver to attach the head cusion to Head Frame. Hand tighten with screwdriver.

3. Use a 5 mm hex-key to attach the casters to the Rear Frame. Insert the threaded fasteners from above, the casters from below (as seen in Fig. 1), then hand tighten with hex key.
4. Attach Parts Tray to Rear Frame channel as seen below.

OPERATING INSTRUCTIONS (Refer to Figure 2, Figure 3)

Little instruction is necessary for the safe and proper use if all warning information is understood and followed.

Keep hands away from pinch and crush points that are created during use! Be alert and sober when using this product! Never operate this equipment when under the influence of drugs or alcohol.

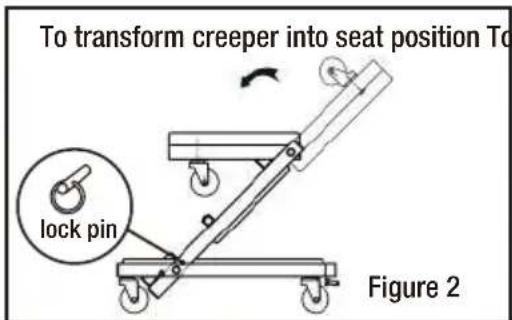

To transform creeper into seat position To lock pin Figure 2

Step 1. Locate, then unlock the spring loaded lock pin by pulling out until disengaged, at the same time flip the Head Frame and Middle Frame upward and back towards the Rear Frame section until the Lock Pin can engage the Creeper Seat Locking Sleeve (Fig. 3). Ensure Lock Pin is fully engaged. Step 2. Flip the Head Frame forward until horizontal.

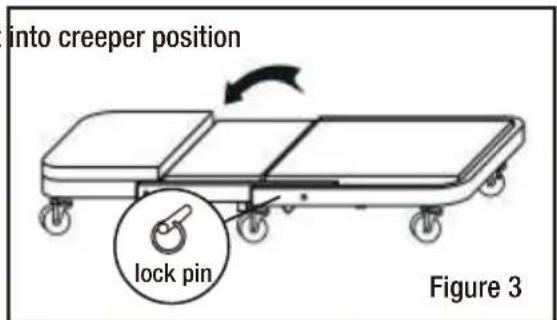

transform seat into creeper position

into creeper position lock pin Figure 3

Step 3. Unlock the spring loaded Lock Pin by pulling out until disengaged, then reverse steps 1, 2 to convert Creeper Seat into Creeper.

MAINTENANCE

Little maintenance is required of this device. Wipe clean as needed. Use mild upholstery cleaner (not caustic) to clean seat as needed.

add lubricant to casters!

Warranty

We do not take responsibility for any damage caused by misuse or any use that is not in compliance with the safety standards described herein.

Customer services

Contact your local importer of your specialized dealer to obtain address of our service department.

You find our partners under www.KRAFTWERKtools.com

From date of purchase receipt

2 YEARS GUARANTEE

on material- or production-defects
