AlertWerks EME113A - Uncategorized Black Box - Free user manual and instructions

Product Type	Environmental Monitoring Device (ServSensor)
Model	AlertWerks EME113A (ServSensor 8 with Dry Contacts)
Dimensions	1.7\"H x 18\"W x 5\"D (4.3 x 45.7 x 12.7 cm)
Weight	4.96 lb (2.25 kg) for 20 dry contact model; 7.17 lb (3.25 kg) for 60 dry contact model
Power Input	7.5–9 VDC via barrel connector; also supports PoE (IEEE 802.3af)
Power Consumption	1.9 W (20 dry contacts) or 2.9 W (60 dry contacts)
Operating Temperature	-31 to +131°F (-35 to 55°C)
Operating Humidity	20 to 80% noncondensing
Sensor Input Ports	8 RJ-45 ports for intelligent sensors
Dry Contact Inputs	20 or 60 (2-wire terminal blocks)
Network Interface	1 RJ-45 10 Mbps full-duplex Ethernet with PoE input
Supported Protocols	TCP/IP, HTTP, SNMP v1, SMTP, DHCP, NTP
Data Logging	8,640 data points per sensor; configurable collection interval
Mounting	1U rackmount (brackets included)
Enclosure	Steel housing
Included Sensors	Dual Temperature/Humidity Sensor (EME1TH1-001) with 1-ft cable
Indicators	Power, Link, Activity, Online (8), Status (8), Dry Contact (20 or 60) LEDs
Operating System	Proprietary Linux-like OS with TCP/IP stack
Certifications	FCC Class A, Industry Canada

Frequently Asked Questions - AlertWerks EME113A Black Box

How does the ServSensor record sensor data and how much can it store?

The ServSensor records sensor data in internal memory. It can save 8,640 data points per sensor. With a collection interval of 15 minutes, this provides approximately 3 months of data storage. When memory is full, the oldest data is overwritten.

How often does the unit interrogate each sensor?

The interrogation frequency depends on sensor type: switch-type sensors are polled more than 2 times per second, while temperature and analog sensors are polled 1 time per second. Actual rates may vary based on the number of connected sensors and alert settings.

Is there a way to remotely reboot the unit's web interface?

Yes, you can remotely reboot the unit using an SNMP command with the appropriate OID. Contact Black Box Technical Support for the exact command and OID.

Can I edit the content of email alerts?

Yes, you can customize email alerts using SNMP set commands to enable separate email notifications. Set the appropriate OID to 1 to use separate emails, or 0 to use the default template.

I forgot the IP address of my ServSensor. How can I find it?

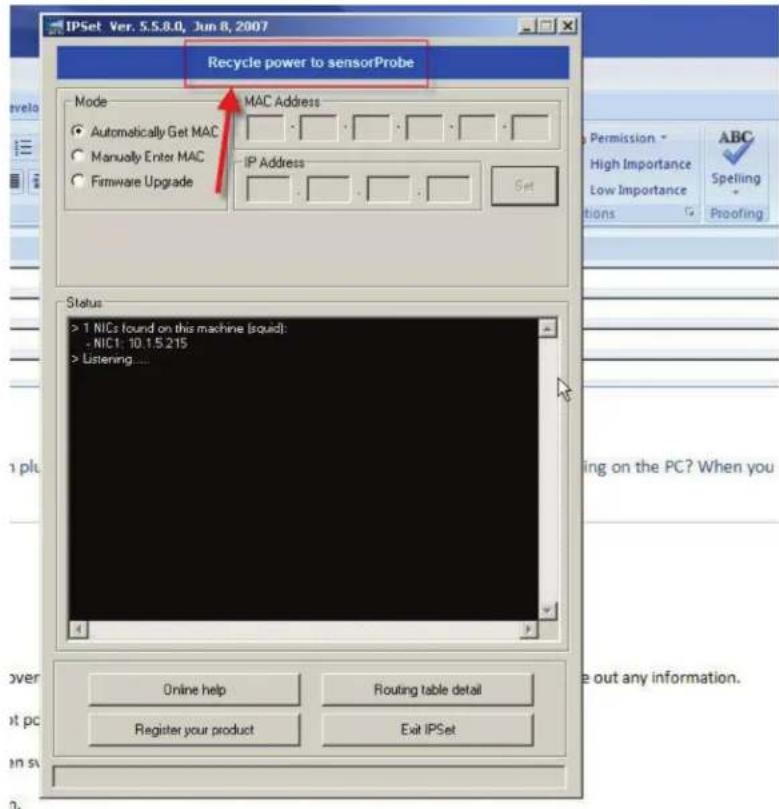

Power cycle the unit and run the IPSet utility on your PC. The utility will capture the unit's IP address during boot. You can download IPSet from the Black Box website using the unit's MAC ID.

Is there a way to reset the unit to factory defaults?

Yes, use the Configure utility available from the Black Box website. Connect the unit directly to your PC with a crossover cable, run the utility, and then perform a firmware update afterwards.

I'm having trouble connecting to the unit's web interface. What should I try?

Try placing the unit in Internet Explorer's trusted sites list, clear the cache and refresh with Ctrl+F5. Ensure you are using HTTP, not HTTPS (HTTPS is not supported on ServSensor base units). Also check browser compatibility.

I assigned a gateway IP but it reverts to default. Why?

This occurs if the device cannot find the entered IP. The unit searches for the gateway and accepts it only if found. If the IP is unreachable, it reverts to the default. Verify the gateway is on the same network and accessible.

How can I limit the rate of email alerts to avoid flooding the SMTP server?

Use the Sensor Status Filters feature in the Web interface. Set Minimum time between each Trap/Email and configure Resend Intervals and Maximum Times to Resend on the Mail or Traps pages to control alert frequency.

My ServSensor fails to connect to my SMTP server. What could be wrong?

Common issues: incorrect SMTP server address (try IP instead of name), Send Mail not enabled, timeout too low, missing gateway IP, Mail From not set or not authorized, or the server requires SSL (not supported). Check each setting and ensure the server accepts connections from the unit.

USER MANUAL AlertWerks EME113A Black Box

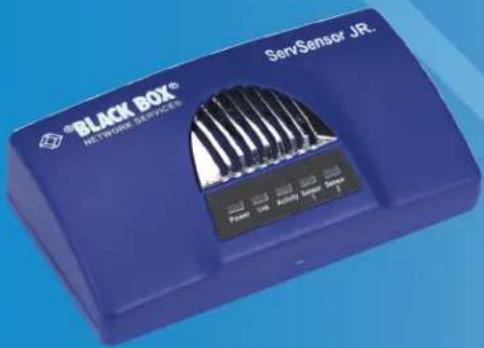

AlertWerks™ ServSensor Jr. and ServSensors

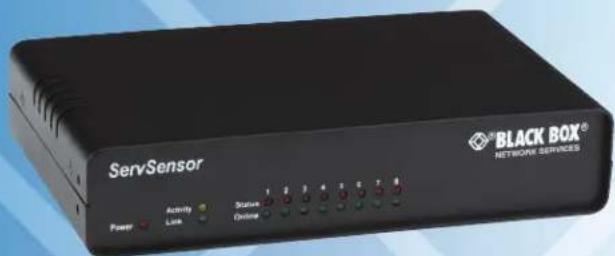

Monitor environmental variations, power, physical threats, and security.

Includes a proprietary operating system that is similar to Linux®, with TCP/IP stack, Web server, e-mail, and full SNMP functionality.

BLACK BOX® NETWORK SERVICES ServSensor JR.

ServSensor Power Activity Link Status Online BLACK BOX® NETWORK SERVICES

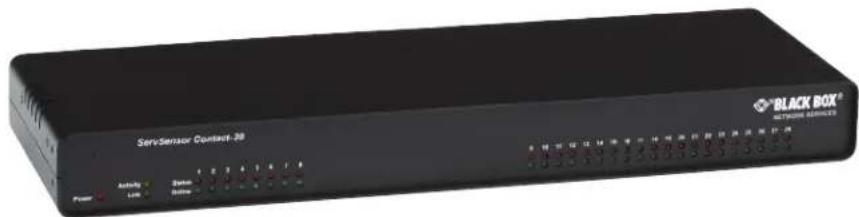

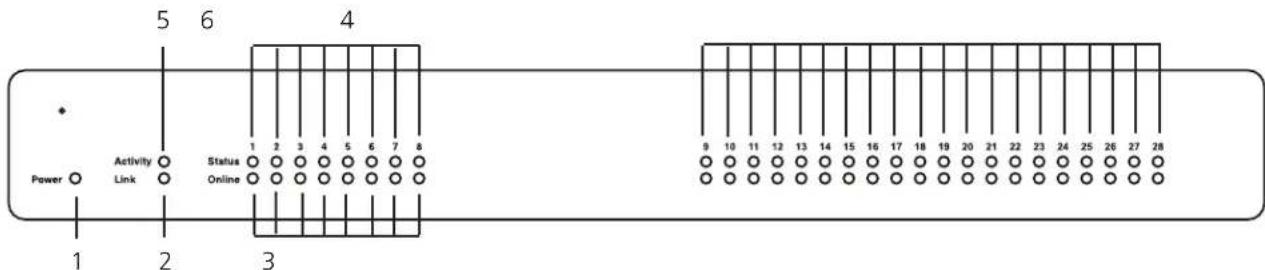

ServSensor Contact-28 Power Active 20ms 30ms 40ms 50ms 60ms 70ms 80ms 90ms 100ms 110ms 120ms 130ms 140ms 150ms 160ms 170ms 180ms 190ms 200ms 210ms 220ms 230ms 240ms 250ms 260ms 270ms 280ms 290ms 300ms 310ms 320ms 330ms 340ms 350ms 360ms 370ms 380ms 390ms 400ms 410ms 420ms 430ms 440ms 450ms 460ms 470ms 480ms 490ms 500ms 510ms 520ms 530ms 540ms 550ms 560ms 570ms 580ms 590ms 600ms 610ms 620ms 630ms 640ms 650ms 660ms 670ms 680ms 690ms 700ms 710ms 720ms 730ms 740ms 750ms 760ms 770ms 780ms 790ms 800ms 810ms 820ms 830ms 840ms 850ms 860ms 870ms 880ms 890ms 900ms 910ms 920ms 930ms 940ms 950ms 960ms 970ms 980ms 990ms 1000ms

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks, and AlertWerks is a trademark, of BB Technologies, Inc.

CA-Unicenter is a registered trademark of CA, Inc.

GNU is a trademark of Free Software Foundation.

HP is a registered trademark of Hewlett-Packard Company.

OpenView is a registered trademark of Hewlett-Packard Development Company.

IBM and Tivoli are registered trademarks of International Business Machines Corporation.

Linux is a registered trademark of Linus Torvalds.

Internet Explorer, Microsoft, Excel, MS-DOS, and Windows are registered trademarks of Microsoft Corporation.

Kiwi is a trademark of SolarWinds Worldwide, LLC.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

We're here to help! If you have any questions about your application or our products, contact Black Box Tech Support at 724-746-5500 or go to blackbox.com and click on "Talk to Black Box." You'll be live with one of our technical experts in less than 30 seconds.

Federal Communications Commission and Industry Canada Radio Frequency Interference Statements

This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada.

1. Specifications....6
2. Overview 8

2.1 Introduction 8

2.1.1 What is the AlertWerks ServSensor? 8
2.1.2 Available Models 8
2.1.3 How to Use this Manual 9

2.2 Features 9

2.3 What's Included....9
2.4 Hardware Description 13

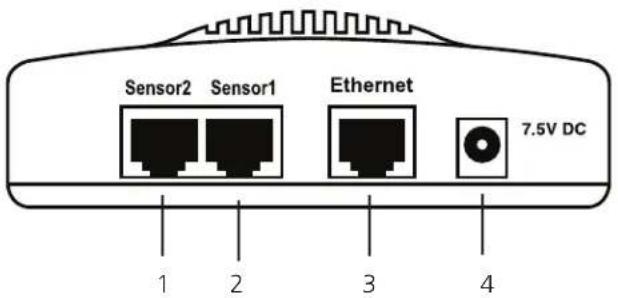

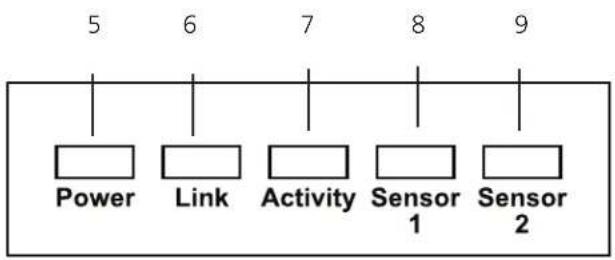

2.4.1 ServSensor Jr. (EME102A-R2, EME103A-R2, EME104A-R2, EME152A, EME153A, EME154A).... 13

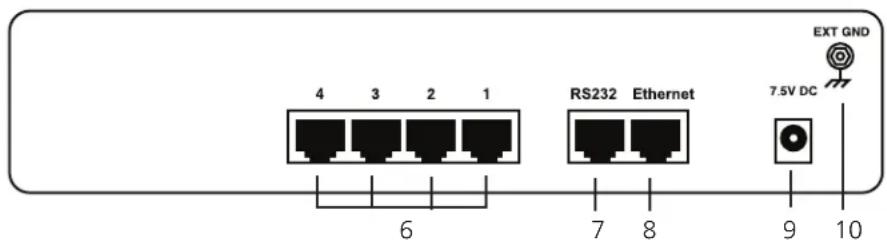

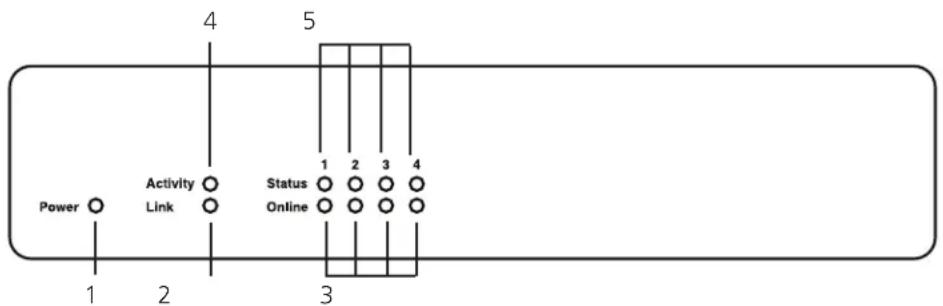

2.4.2 ServSensor 4 (EME105A, EME106A, EME155A) 14

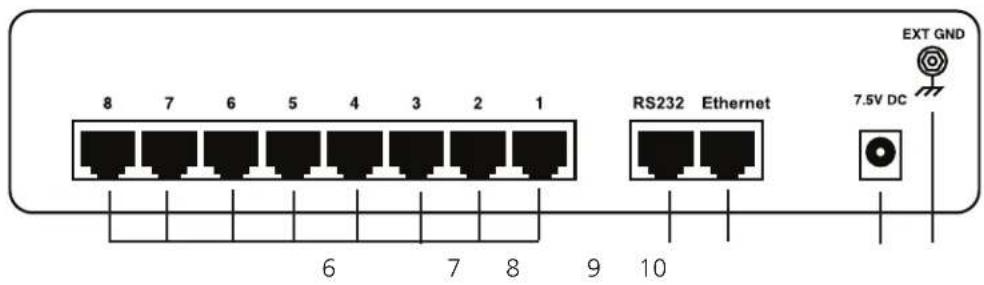

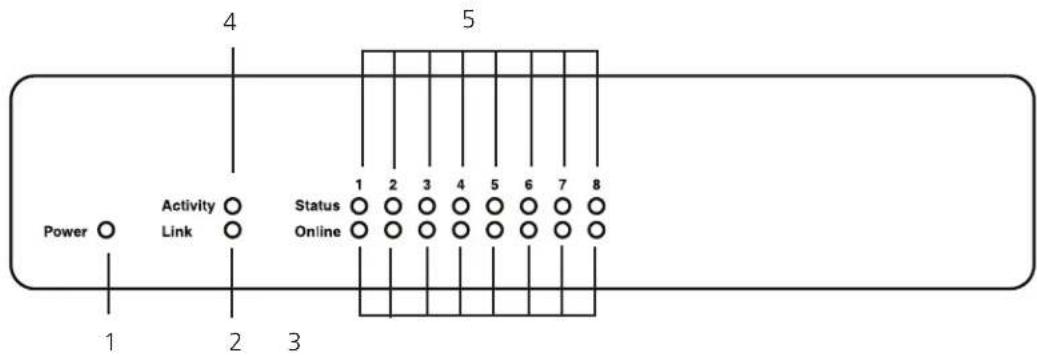

2.4.3 ServSensor 8 (EME108A-R2, EME109A-R2, EME110A-R2, EME158A) 15

2.4.4 ServSensor X20 (EME111A-20-R2, EME111A-60-R2, EME112A-20-R2, EME112A-60-R2, EME113A-20-R2, EME113A-60-R2).... 16

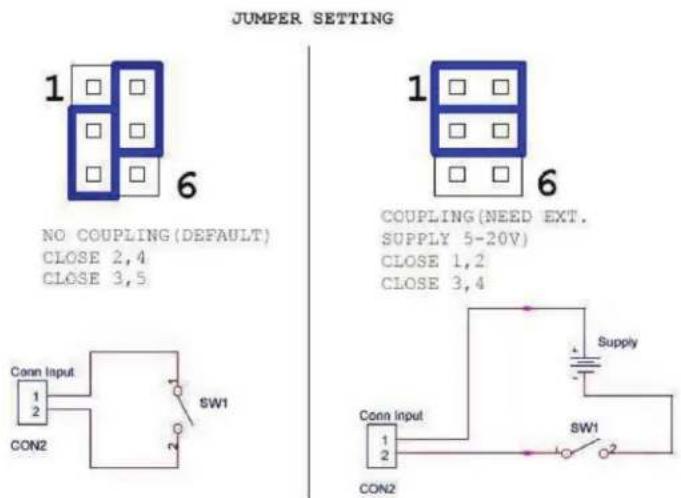

2.4.5 ServSensor 8-X20 20 Extra Dry Contact Inputs....17

1. Installation 18

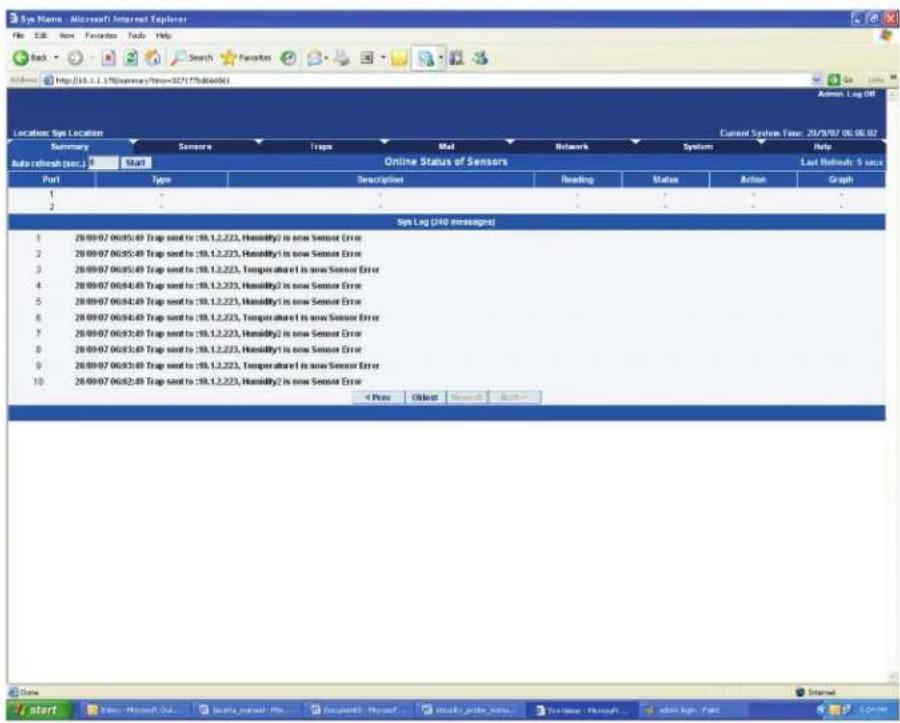

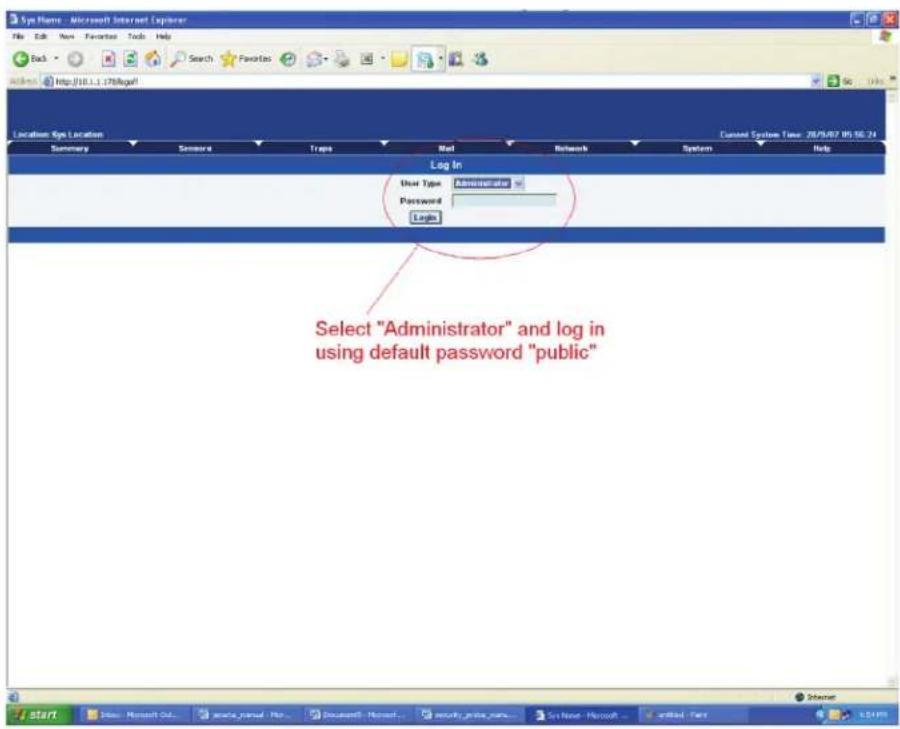

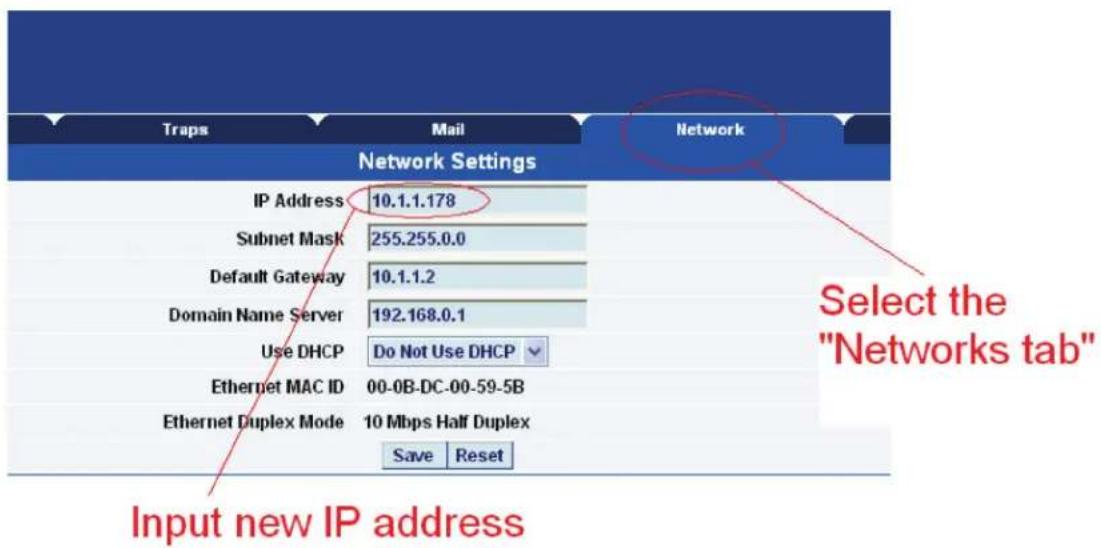

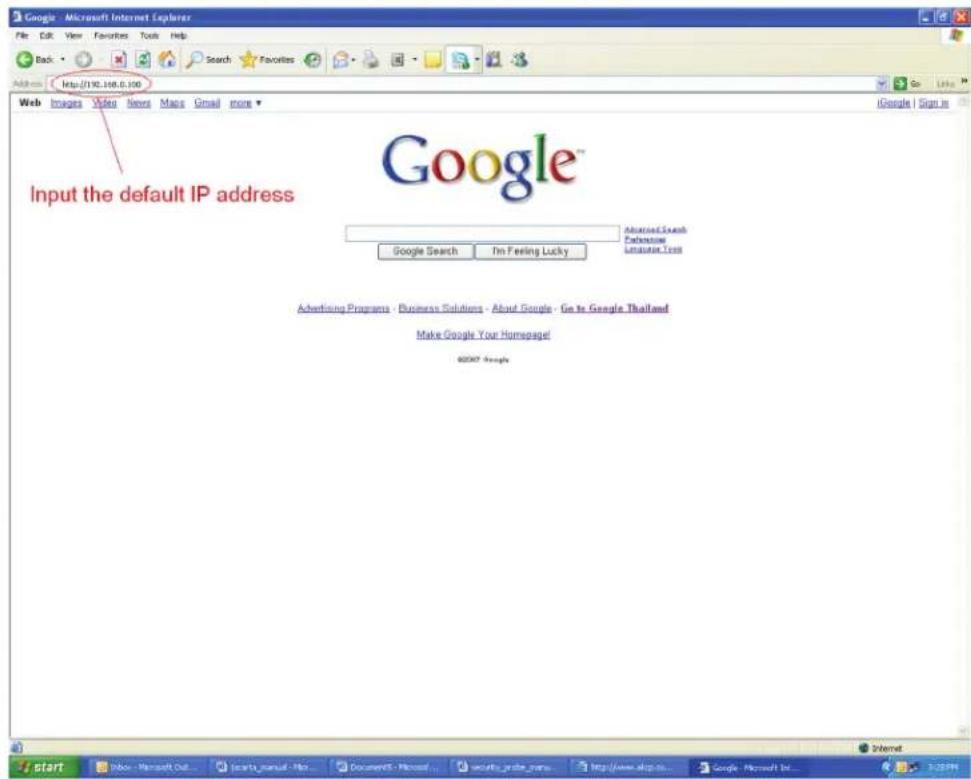

3.1 Assigning an IP Address 18

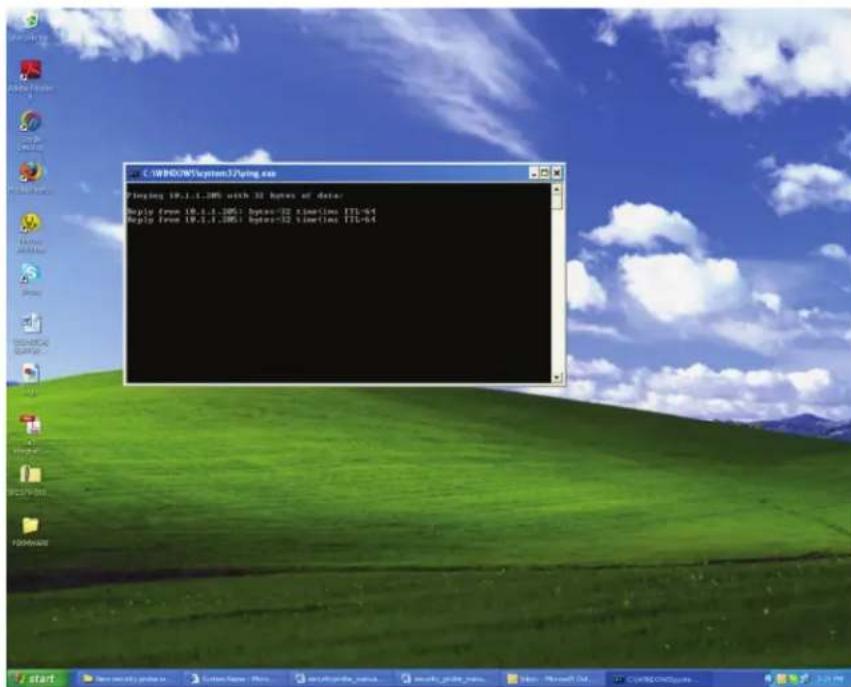

3.2 Testing Your New IP Address 21

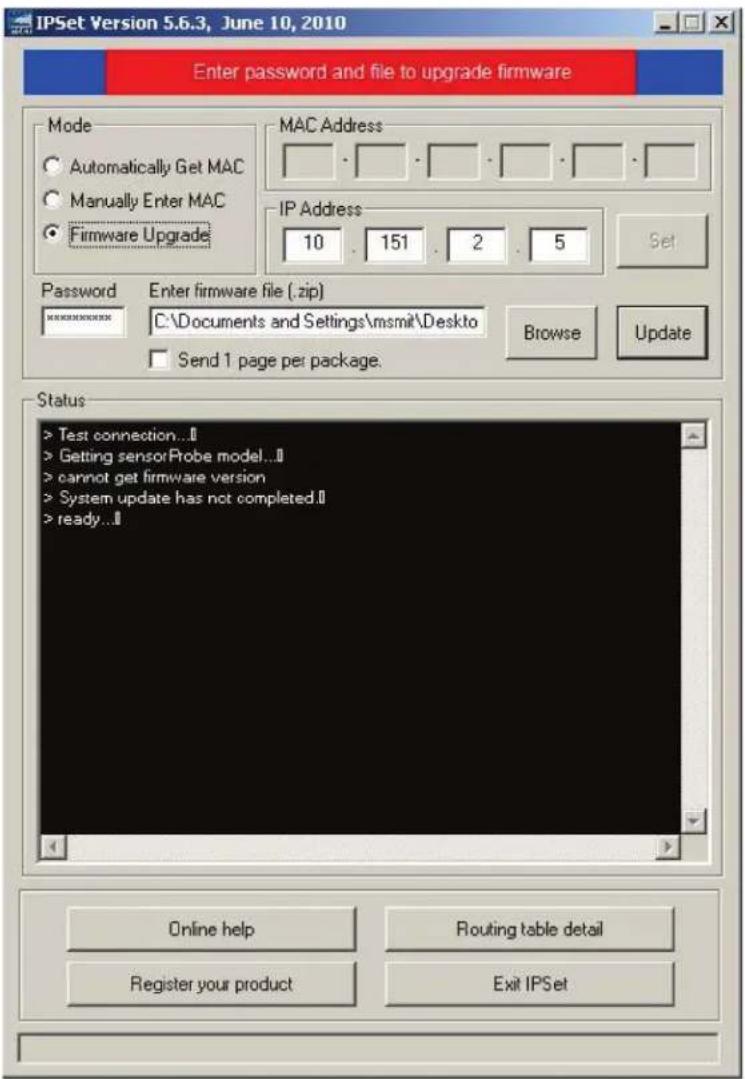

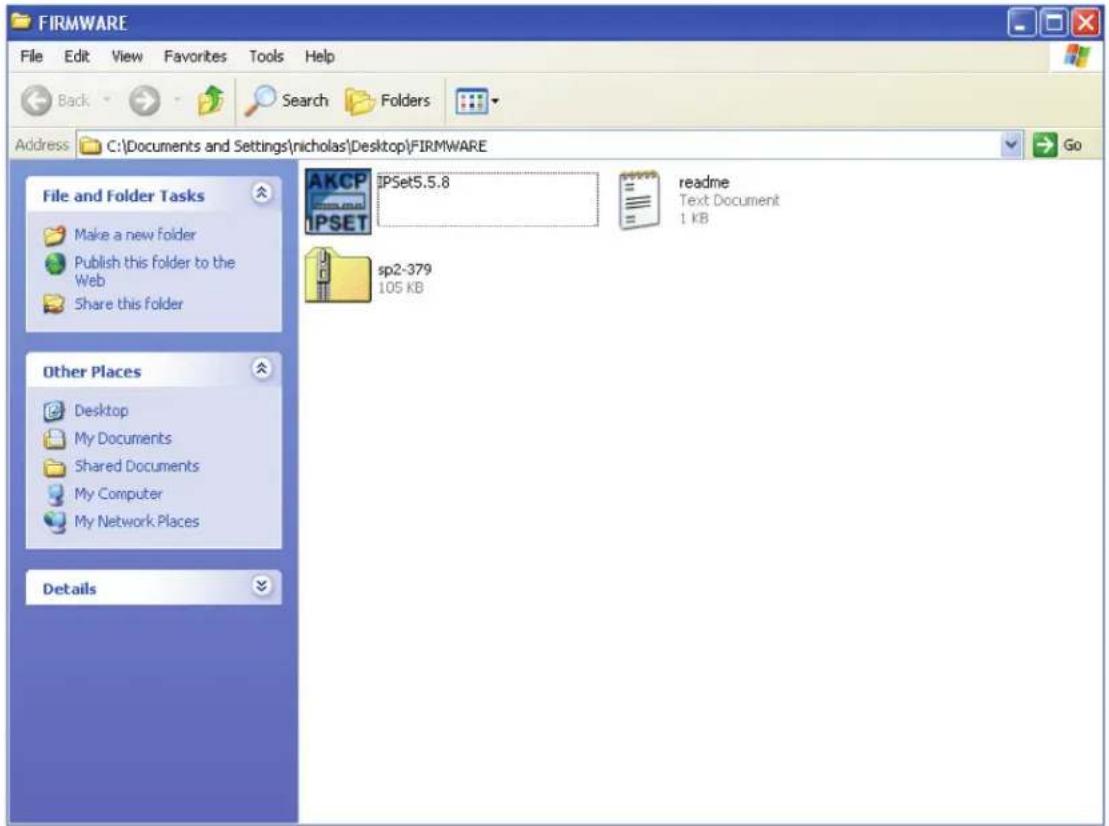

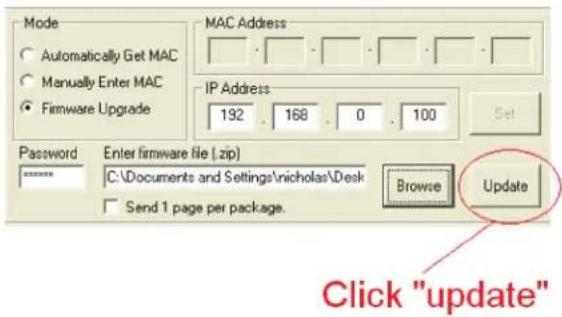

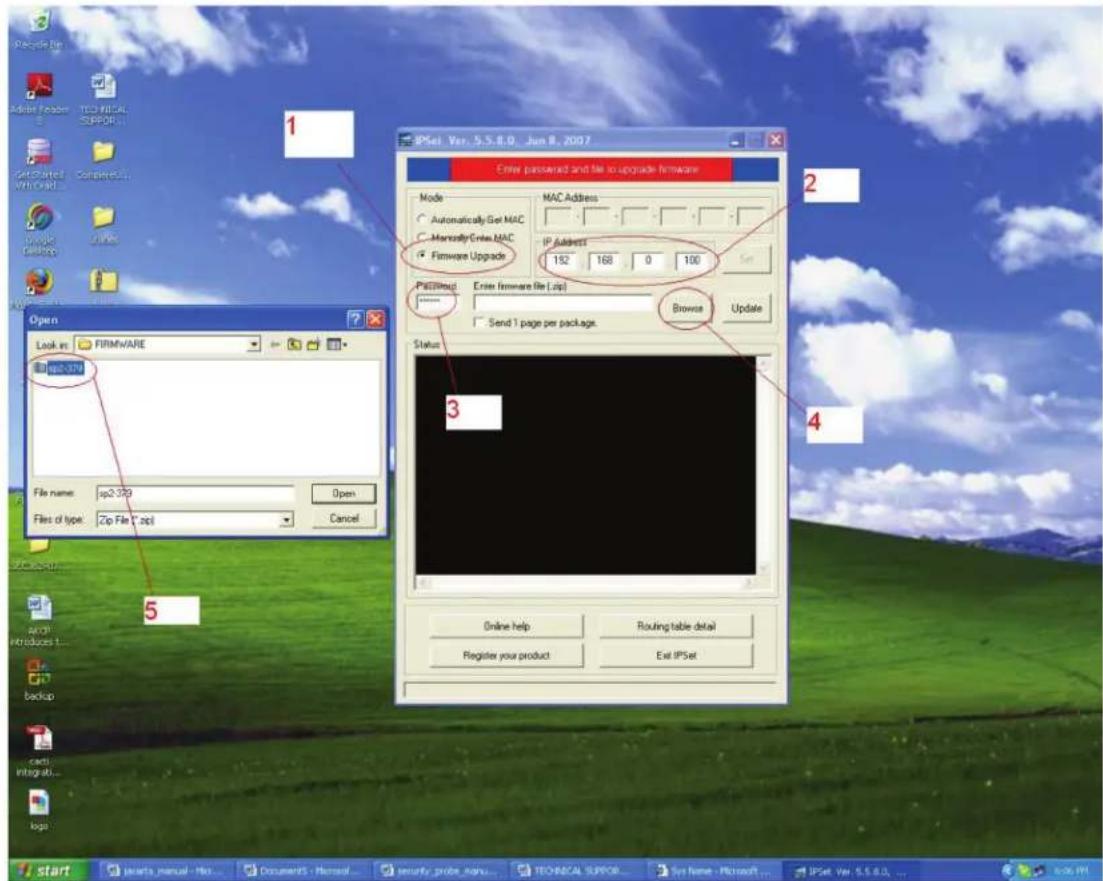

3.3 Upgrading the Firmware 22

1. Setting up a Sensor and Downloading Sensor Data....27

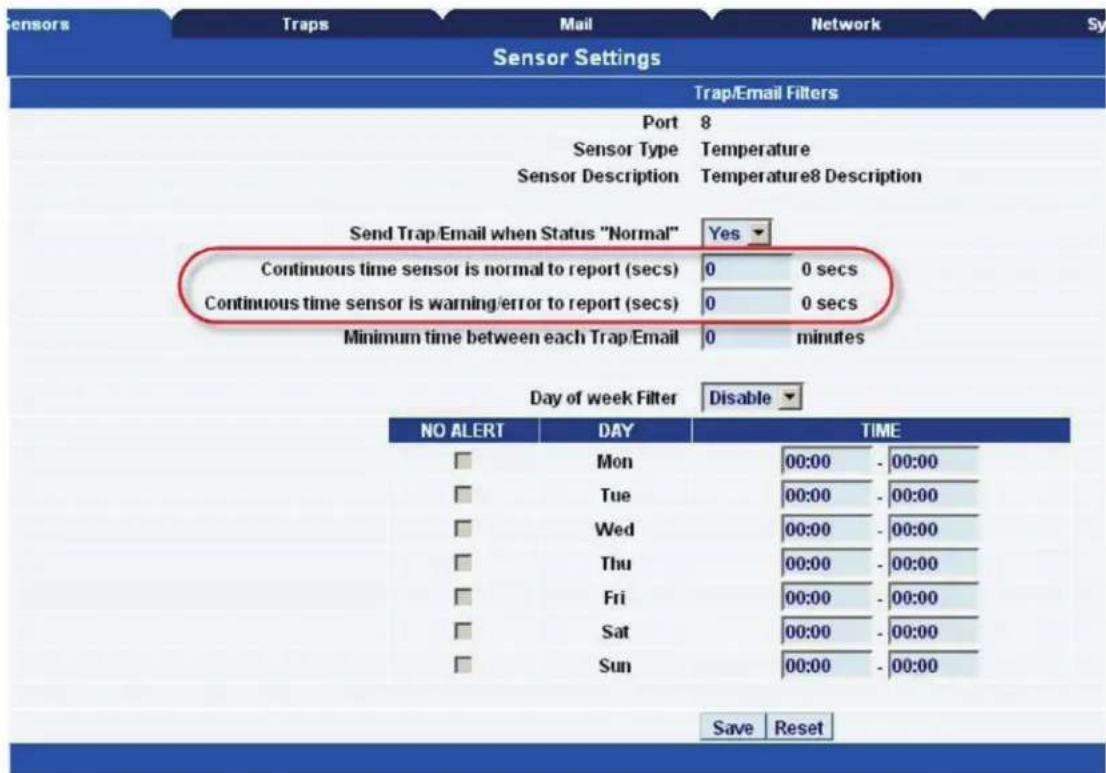

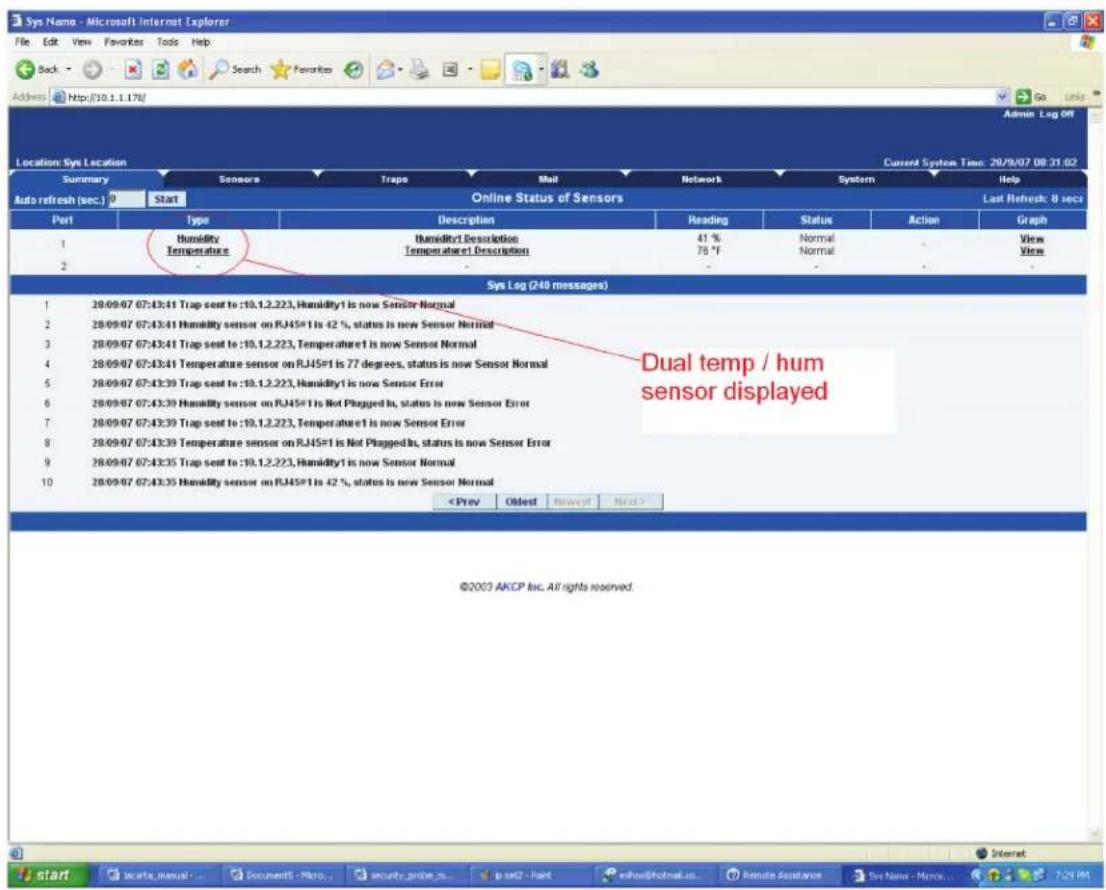

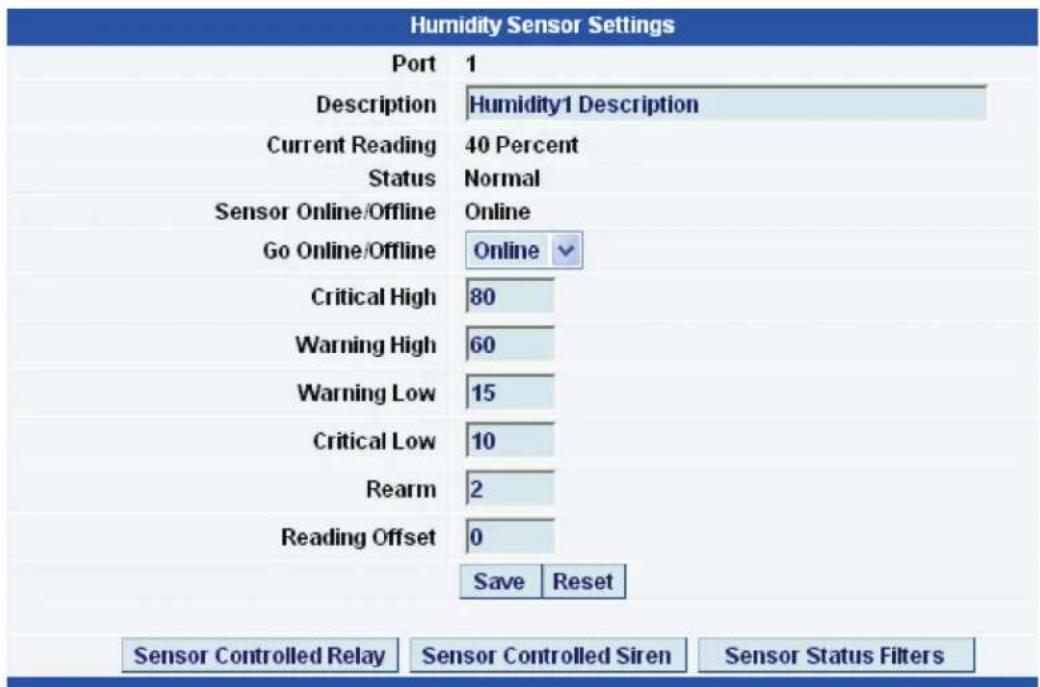

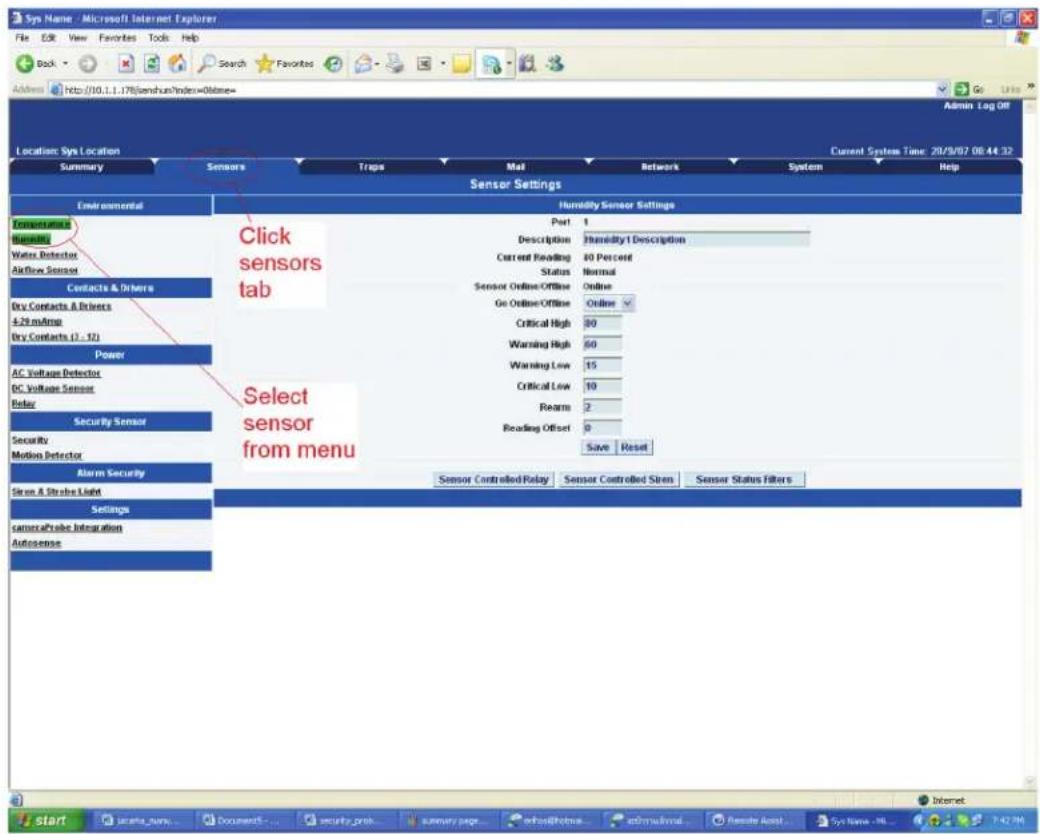

4.1 Basic Setup 27

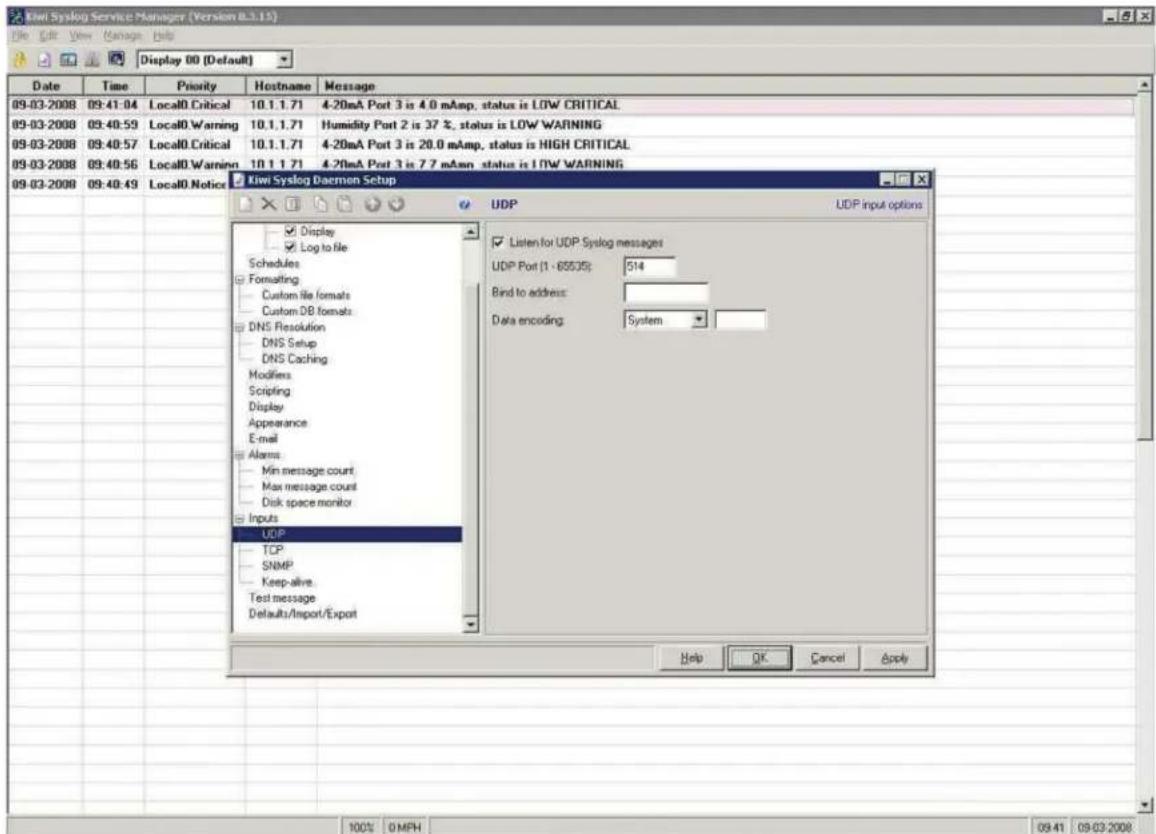

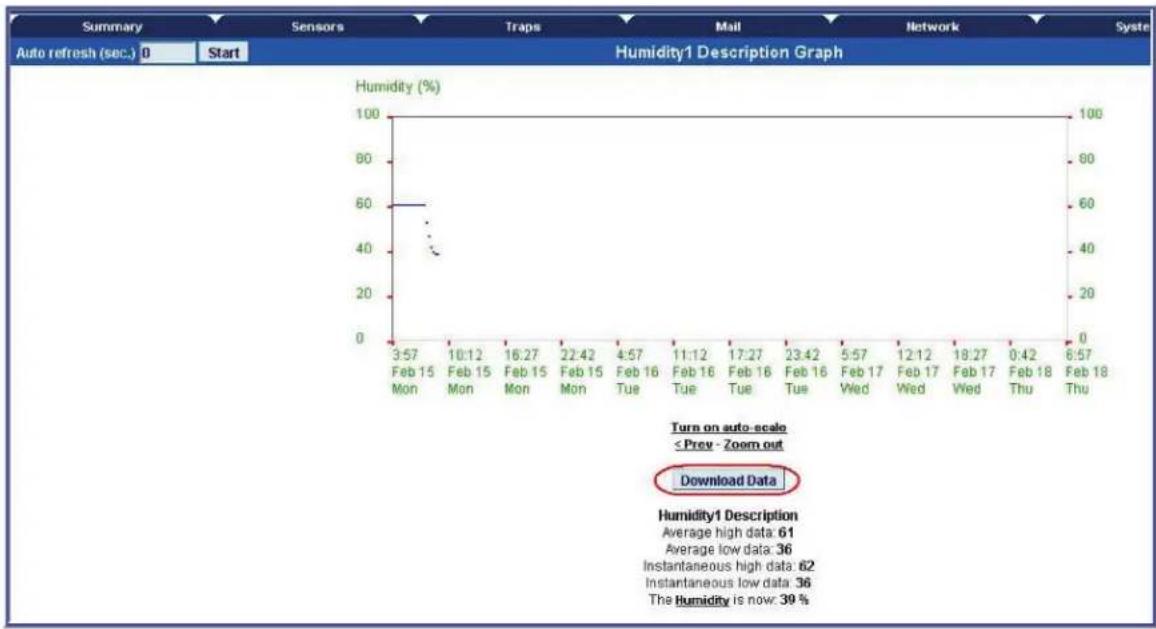

4.2 Downloading Sensor Data 30

1. Notifications 33

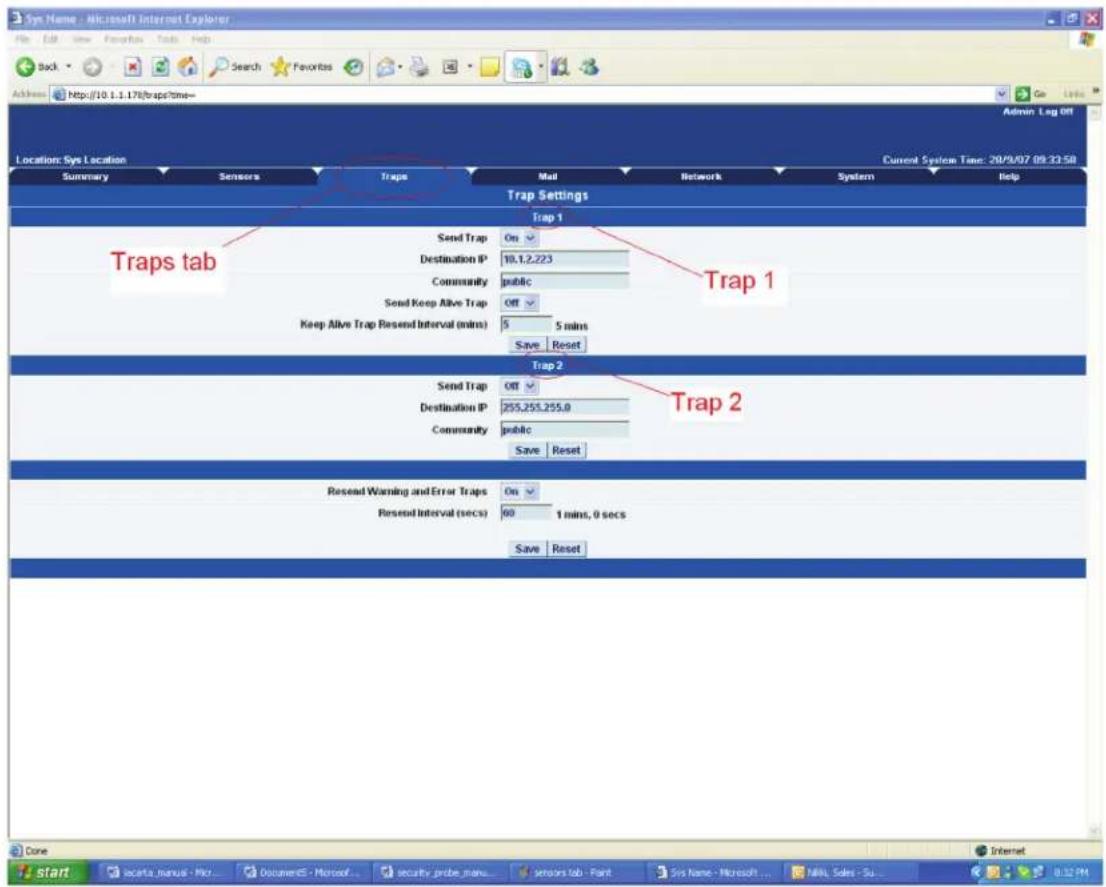

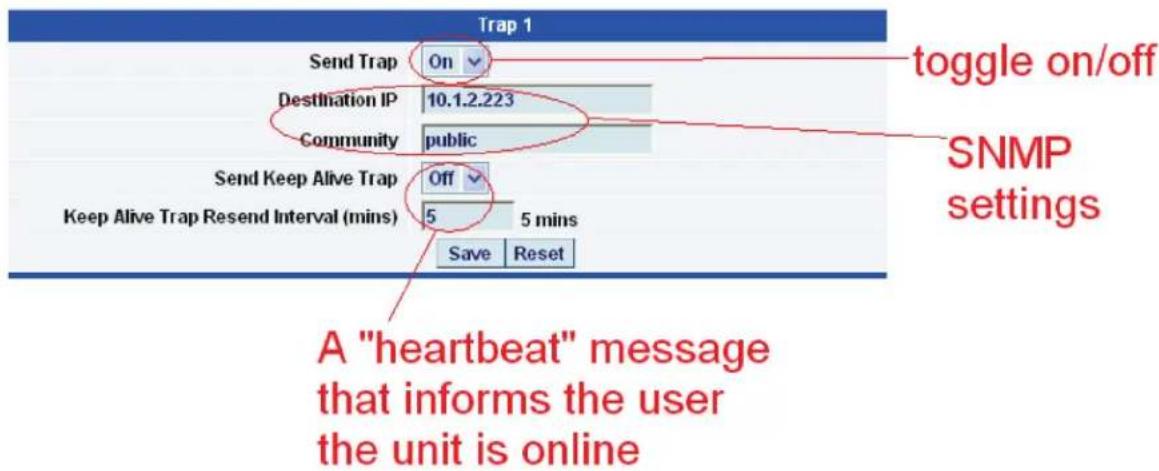

5.1 Setting Up a Trap 33

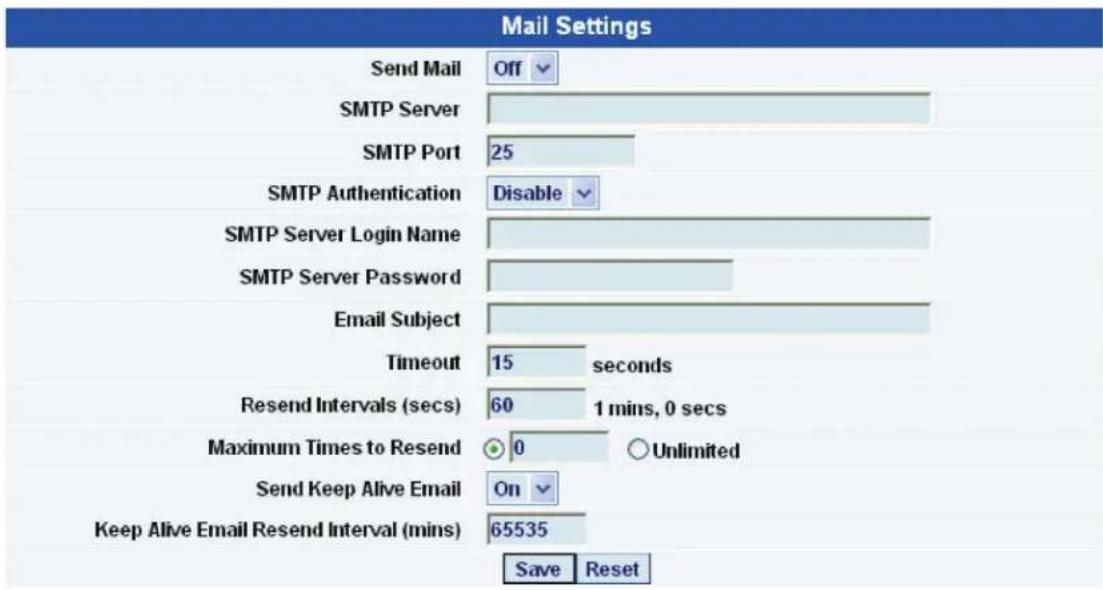

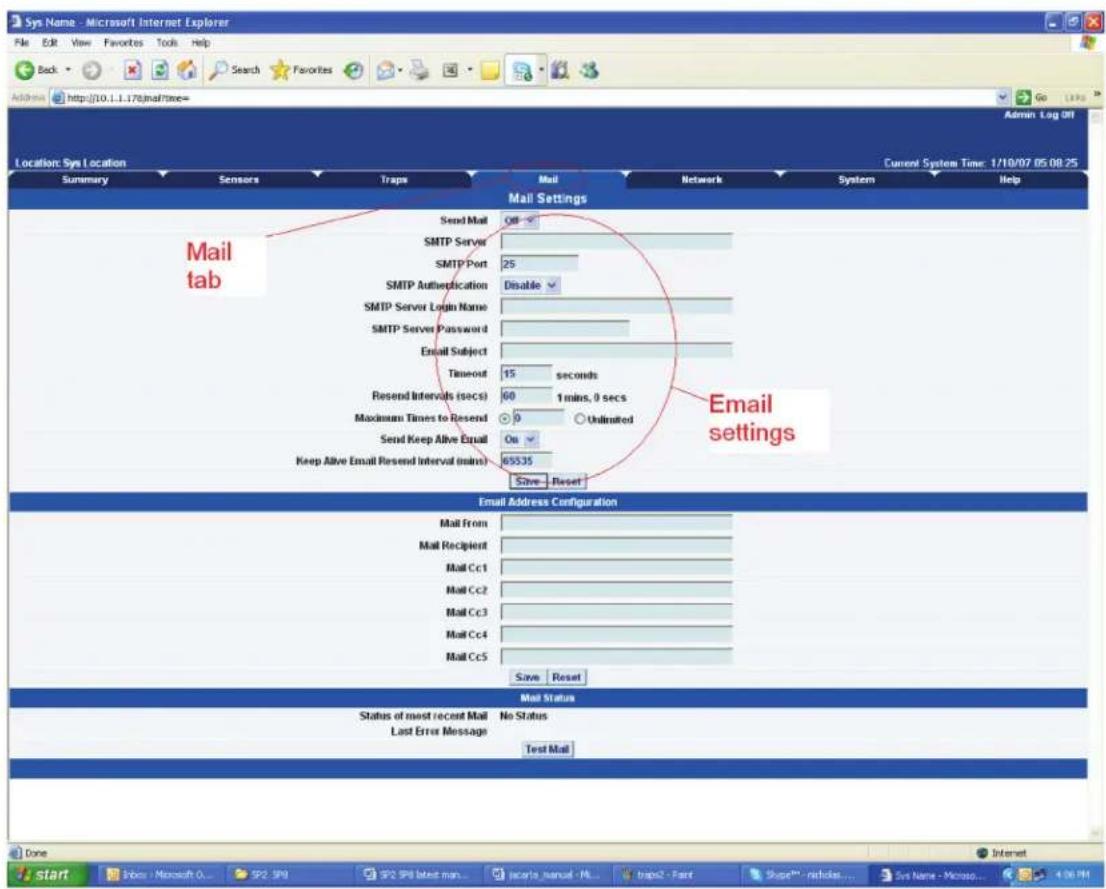

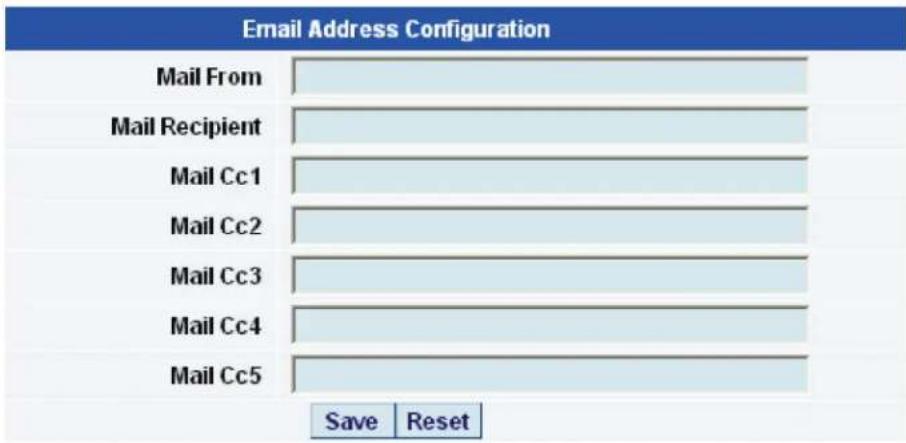

5.2 Setting Up E-mail Notifications 34

1. System Settings 38

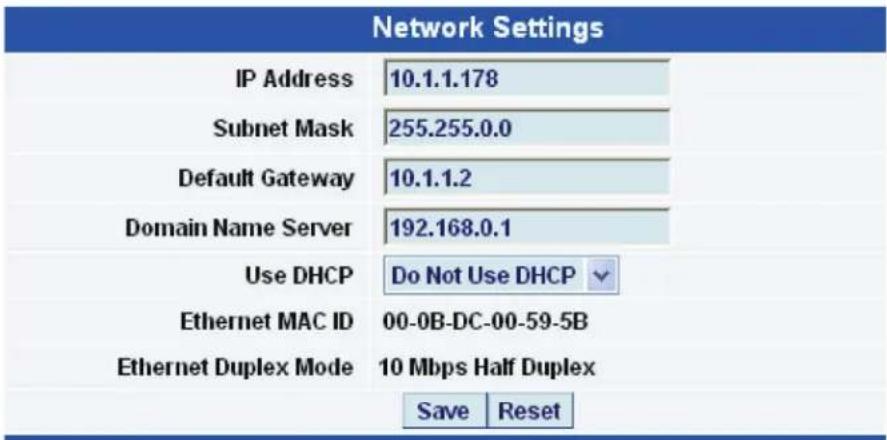

6.1 Network Settings 38

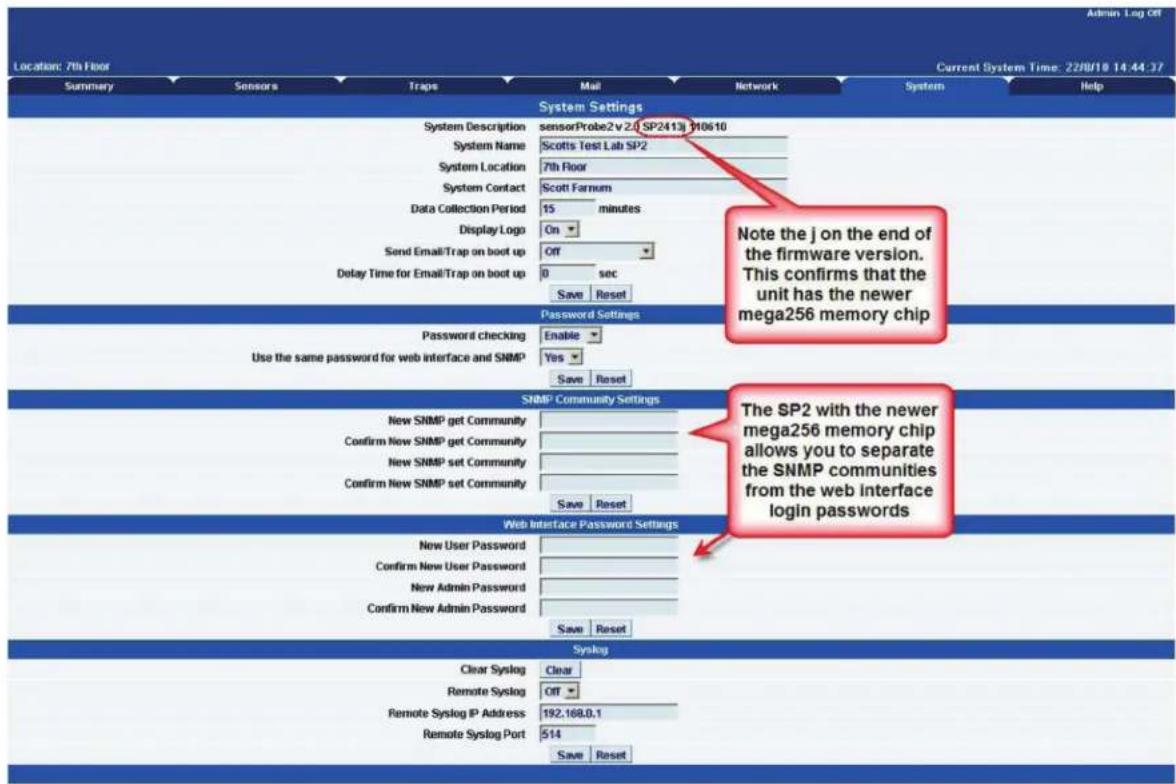

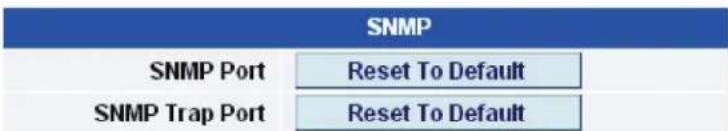

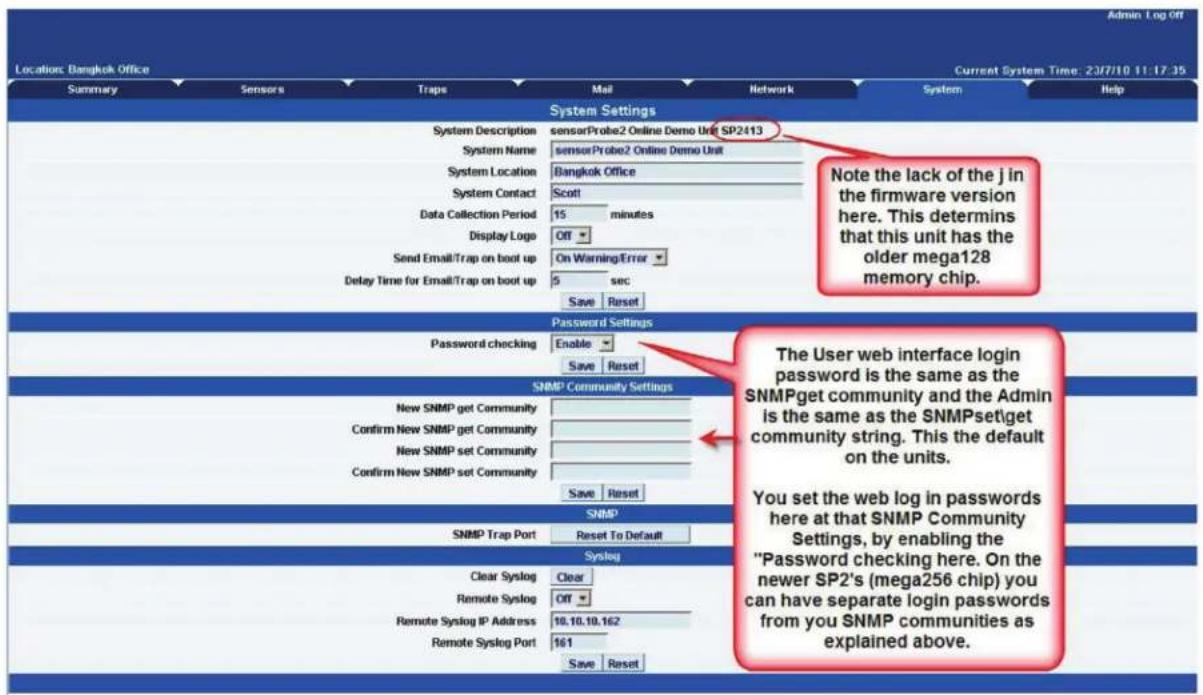

6.2 System Tab....40

1. Making Your Unit Visible to the Internet....46

7.1 Simple Setup 46
7.2 Setting Up Your PC's Routing Table 46

1. Frequently Asked Questions (FAQs)......47

1. Specifications

Color — EME102A-R2-EME104A-R2, EME152A-EME154A: Blue; EME105A-EME106A, EME155A, EME108A-R2-EME110A-R2, EME158A, EME111A-20-R2, EME111A-60-R2, EME112A-20-R2, EME112A-60-R2, EME113A-20-R2, EME113A-60-R2,: Black

Default IP Address — 192.168.0.100

Enclosure — EME102A-R2–EME104A-R2, EME152A–EME154A: Plastic housing; EME105A–EME106A, EME155A, EME158A, EME108A-R2–EME110A-R2, EME111A-20-R2, EME111A-60-R2, EME112A-20-R2, EME112A-60-R2, EME113A-20-R2, EME113A-60-R2: Steel housing

Mounting — EME102A-R2–EME104A-R2, EME152A–EME154A: Shelf- or DIN-rail mounting; EME105A–EME106A, EME155A, EME158A, EME108A-R2–EME110A-R2, EME111A-20-R2, EME111A-60-R2, EME112A-20-R2, EME112A-60-R2, EME113A-20-R2, EME113A-60-R2: 1U rackmount

Number of Dry Contacts — EME111A-20-R2-EM113A-20-R2: 20; EME111A-60-R2-EME113A-60-R2: 60

Operating System — Proprietary, similar to Linux®, including TCP/IP stack, Web server, e-mail, and full SNMP functionality Operating Environment — Indoor

Standards — EME152A–EME154A, EME158A: IEEE 802.3af compliant

Connectors — EME102A-R2–EME104A-R2: Network: (1) RJ-45 10-Mbps full-duplex Ethernet; Sensor Input: (2) RJ-45; Power: (1) 7.5-VDC power connector; EME152A–EME154A: Network: (1) RJ-45, 10-Mbps full-duplex Ethernet /PoE input, Sensor Input: (2) RJ-45; Power: (1) 7.5-VDC power connector; EME105A–EME106A: Network: (1) RJ-45 10-Mbps full-duplex Ethernet, Sensor Input: (4) RJ-45, Power: (1) 7.5-VDC input; EME155A: Network: (1) RJ-45 10-Mbps full-duplex Ethernet/PoE input, Sensor Input: (4) RJ-45, Power: (1) 7.5-VDC input; EME108A-R2–EME110A-R2: Network: (1) RJ-45 10-Mbps full-duplex Ethernet, Sensor Input: (8) RJ-45, Power: (1) 7.5-VDC input; EME158A: Network: (1) RJ-45 10-Mbps full-duplex Ethernet/PoE input, Sensor Input: (8) RJ-45, Power: (1) 7.5-VDC input; EME111A-20-R2–EME113A-20-R2: Network: (1) RJ-45 10-Mbps full-duplex Ethernet/PoE input, Sensor Input: (8) RJ-45, Power: (1) 7.5-VDC input, Dry contact: (20) 2-wire terminal blocks; EME111A-60-R2–EME113A-60-R2: Network: (1) RJ-45 10-Mbps full-duplex Ethernet/PoE input, Sensor Input: (8) RJ-45, Power: (1) 7.5-VDC input, Dry contact: (60) 2-wire terminal blocks Indicators — EME102A-R2–EME104A-R2, EME152A–EME154A: (5) LEDs: Power, Link, Activity, Sensor 1, Sensor 2

Temperature Tolerance — Operating: -31 to +131 F (-35 to 55°C)

Relative Humidity — Operating: 20 to 80% noncondensing

Power — EME102A-R2–EME104A-R2, EME108A-R2–EME110A-R2: Power: 7.5–9 VDC, Consumption: 1.2 amps, 1.125 watts, 0.15 A; EME152A–EME154A, EME158A: Power: 7.5–9 VDC, Consumption: 1.2 amps, 1.125 watts, 0.15 A, PoE: 802.3af; EME105A–EME106A: Power: 7.5–9 VDC, Consumption: 1.2 amps, 1.12 watts, 0.13 A; EME155A: Power: 7.5–9 VDC, Consumption: 1.2 amps, 1.12 watts, 0.13 A, PoE: 802.3af; EME111A-20-R2–EME113A-20-R2: Power: 7.5–9 VDC, Consumption: 3 amps, 1.9 watts, 0.21 A; EME111A-60-R2–EME113A-60-R2: Power: 7.5–9 VDC, Consumption: 3 amps, 2.9 watts, 0.32 A;

Size — EME102A-R2–EME104A-R2, EME152A–EME154A: 0.5"H x 2.5"W x 1.25"D (1.3 x 6.3 x 3.2 cm); EME105A–EME106A: EME108A-R2–EME110A-R2, EME155A, EME158A: 1.8"H (1U) x 8.5"W x 5.4"D x (4.6 x 21.6 x 13.7 cm), EME111A-20-R2–EME112A-20-R2, EME112A-60-R2–EME113A-60-R2: 1.7"H (1U) x 18"W x 5"D (4.3 x 45.7 x 12.7 cm)

Weight — EME102A-R2–EME104A-R2, EME152A–EME154A: 0.66 lb. (0.3 kg); EME105A–EME106A, EME155A: 3.53 lb. (1.6 kg); EME108A-R2–EME110A-R2, EME158A: 3.85 lb. (1.75 kg); EME111A-20-R2–EME113A-20-R2: 4.96 lb. (2.25 kg); EME111A-60-R2–EME113A-60-R2: 7.17 lb. (3.25 kg)

2. Overview

2.1 Introduction

2.1.1 What is the AlertWerks ServSensor?

The AlertWerks ServSensors are intelligent devices for monitoring environmental variables, power, physical threats, and security. The units are IP based and have a Web interface for configuration. Included in this is a TCP/IP stack, Web server, full SNMP, and e-mail support.

Any of our Intelligent Sensors can be connected via the RJ-45 connections (excluding our 8-port, sensor-controlled relay, thermocouple, or PMS sensors), or you can add dry contact connection for monitoring UPS, security systems, and air conditioning status.

2.1.2 Available Models

Table 2-1. Available models.

Part Number Name
EME102A-R2 ServSensor Jr.
EME103A-R2 ServSensor Jr. with Temperature Sensor
EME104A-R2 ServSensor Jr. with Dual Temperature/Humidity Sensor
EME152A ServSensor Jr. with PoE
EME153A ServSensor Jr. with PoE and Temperature Sensor
EME154A ServSensor Jr. with PoE and Dual Temperature/Humidity Sensor
EME105A ServSensor 4
EME106A ServSensor 4 with Temperature Sensor
EME155A ServSensor 4 with PoE and Temperature Sensor
EME108A-R2 ServSensor 8
EME109A-R2 ServSensor 8 with Temperature Sensor
EME110A-R2 ServSensor 8 with Dual Temperature/Humidity Sensor
EME111A-20-R2	ServSensor 8 with 20 Dry Contacts
EME111A-60-R2 ServSensor 8 with 60 Dry Contacts
EME112A-20-R2 ServSensor 8 with 20 Dry Contacts and Temperature Sensor
EME112A-60-R2 ServSensor 8 with 60 Dry Contacts and Temperature Sensor
EME113A-20-R2	ServSensor 8 with 20 Dry Contacts and Dual Temperature/Humidity Sensor
EME113A-60-R2 ServSensor 8 with 60 Dry Contacts and Dual Temperature/Humidity Sensor

What's the difference between the ServSensor Jr., ServSensor 4, and the ServSensor 8?

The ServSensor Jr. is a small unit with two RJ-45 sensor inputs, the ServSensor 4 has four RJ-45 sensor inputs, and the ServSensor 8 has eight RJ-45 inputs.

What's the difference between the ServSensor 8 and the ServSensor X20?

The ServSensor X20 has eight RJ-45 intelligent sensor ports AND 20 extra dry contact inputs; the ServSensor 8 only has eight 8 RJ-45 sensor ports. For more on these extra dry contacts, see Section 2.4.5.

2.1.3 How to Use this Manual

This manual is a step-by-step guide on how to get your unit set up and functioning. It will introduce the primary features of the unit by way of tutorials. You can either go through the whole procedure from start to finish, or, if you wish, use each tutorial as a standalone lesson. The start of each lesson gives an “entry point profile,” which details how to get to the start point of the lesson and assumes previous knowledge through completion of previous tutorials.

NOTE: Throughout this manual, you will find notes in each section that will relate to the information you are reviewing. Also, Chapter 8 contains covers common questions and problems you may encounter. If you need any further assistance, contact Black Box Technical Support at 724-746-5500 or [e-mail].

2.2 Features

• Support all major communications protocols.
• Embedded Web server.
• Support up to (2) intelligent sensors (EME102A-R2, EME103A-R2, EME104A-R2, EME152A, EME153A, EME154A only).
• Support up to (4) intelligent sensors (EME105A, EME106A, EME155A).
• Support up to (8) intelligent sensors (EME108A-R2, EME109A-R2, EME110A-R2).
• ServSensor Jr. (EME102A-R2, EME103A-R2, EME104A-R2, EME152A, EME153A, EME154A only) supports up to 10 dry contact inputs (use two EME1DC-XXX sensors and the EME1DC-UPG).

- Comply with SNMP v1 standard.

- Include SNMP MIB.

- Include SNMP utilities for setting and getting parameters.

- Support SNMP polling to allow sensor values to be collected and graphed.

- Send trap notifications.

- Send e-mail notifications.

- Include sensor description and sensor values in notifications.

- User-configurable sensor thresholds.

- Use the optional "Continuous Time" feature to eliminate false alerts and notifications.

- Optional IEEE 802.3af Power over Ethernet (PoE) compliant (EME152A, EME153A, and EME154A only).

• 100-Mbps full-duplex Ethernet port.

2.3 What's Included

Your package should include the following items. If anything is missing or damaged, contact Black Box Technical Support at 724-746-5500 or [e-mail].

EME102A-R2:

• ServSensor Jr.
• CD containing this user's manual in PDF format
  • (1) power supply
  • (1) RJ-45 to RJ-45 patch cord, 5-ft. (1.5-m)

EME103A-R2:

• ServSensor Jr.
  • Temperature Sensor (EME1T1-001)
• CD containing this user's manual in PDF format
  • (1) power supply
  • (1) RJ-45 to RJ-45 patch cord, 5-ft. (1.5-m)

EME104A-R2:

• ServSensor Jr.
  • Dual Temperature/Humidity Sensor (EME1TH1-001)
• CD containing this user's manual in PDF format
  • (1) power supply
  • (1) RJ-45 to RJ-45 patch cord, 5-ft. (1.5-m)

EME152A:

• ServSensor Jr. PoE Hub
• Power supply
• Power cable
  • CAT5 crossover patch cable
• CD containing this user's manual in PDF format

EME153A:

• ServSensor Jr. PoE Hub
  • Temperature Sensor (EME1T1-001)
• Power supply
• Power cable
  • CAT5 crossover patch cable
• CD containing this user's manual in PDF format

EME154A:

• ServSensor Jr. PoE Hub
  • Dual Temperature/Humidity Sensor (EME1TH1-001)
• Power supply
• Power cable
  • CAT5 crossover patch cable
• CD containing this user's manual in PDF format

EME108A-R2:

• ServSensor 8
• Power supply
  • (1) 5-ft. (1.5-m) RJ-45 to RJ-45 cable
  • (1) set of rackmount brackets with hardware
• CD containing this user's manual in PDF format

EME109A-R2:

• ServSensor 8
  • Temperature Sensor with 1-ft. (3.2-m) cable (EME1T1-001)
• Power supply
  • (1) 5-ft. (1.5-m) RJ-45 to RJ-45 cable
  • (1) set of rackmount brackets with hardware
• CD containing this user's manual in PDF format

EME110A-R2:

• ServSensor 8
• Dual Temperature/Humidity Sensor with 1-ft. (3.2-m) cable (EME1TH1-001)
• Power supply
  • (1) 5-ft. (1.5-m) RJ-45 to RJ-45 cable
  • (1) set of rackmount brackets with hardware
• CD containing this user's manual in PDF format

EME111A-20-R2:

• ServSensor 8 with 20 dry contact ports
• Power supply
  • (1) 5-ft. (1.5-m) RJ-45 to RJ-45 cable
  • (1) set of rackmount brackets with hardware
• CD containing this user's manual in PDF format

EME111A-60-R2:

• ServSensor 8 with 60 dry contact ports
• Power supply
  • (1) 5-ft. (1.5-m) RJ-45 to RJ-45 cable
  • (1) set of rackmount brackets with hardware
• CD containing this user's manual in PDF format

EME112A-20-R2:

• ServSensor 8 with 20 dry contact ports
  • Temperature Sensor with 1-ft. (3.2-m) cable (EME1T1-001)
  • (1) 5-ft. (1.5-m) RJ-45 to RJ-45 cable
  • (4) terminal blocks (installed)
  • (1) set of rackmount brackets with hardware
• CD containing this user's manual in PDF format

EME112A-60-R2:

• ServSensor 8 with 60 dry contact ports
  • Temperature Sensor with 1-ft. (3.2-m) cable (EME1T1-001)
  • (1) 5-ft. (1.5-m) RJ-45 to RJ-45 cable
  • (4) terminal blocks (installed)
  • (1) set of rackmount brackets with hardware
• CD containing this user's manual in PDF format

EME113A-20-R2:

• ServSensor 8 with 20 dry contact ports
• Dual Temperature/Humidity Sensor with 1-ft. (3.2-m) cable (EME1TH1-001)
  • (1) 5-ft. (1.5-m) RJ-45 to RJ-45 cable
  • (4) terminal blocks (installed)
  • (1) set of rackmount brackets with hardware
• CD containing this user's manual in PDF format

EME113A-60-R2:

• ServSensor 8 with 60 dry contact ports
• Dual Temperature/Humidity Sensor with 1-ft. (3.2-m) cable (EME1TH1-001)
  • (1) 5-ft. (1.5-m) RJ-45 to RJ-45 cable
  • (4) terminal blocks (installed)
  • (1) set of rackmount brackets with hardware
• CD containing this user's manual in PDF format

2.4 Hardware Description

2.4.1 ServSensor Jr. (EME102A-R2, EME103A-R2, EME104A-R2, EME152A, EME153A, EME154A)

Figures 2-1 and 2-2 show the front and top panels of the ServSensor Jr. Table 2-2 describes its components.

Sensor2 Sensor1 Ethernet 7.5V DC 1 2 3 4

Figure 2-1. ServSensor Jr. front panel.

Figure 2-2. ServSensor Jr. top panel.

Table 2-2. ServSensor Jr. components.

Number Component Description
1 (1) RJ-45 port Links to Sensor2
2 (1) RJ-45 port Links to Sensor1
3 (1) RJ-45 port Connects to 10BASE-T network.
3 Barrel connector Links to 7.5-VDC power.
5 Power LED Lights when power is on.
6 Link LED Lights when a link is established.
7 Activity LED Lights when the unit is active.
8 Sensor 1 LED Lights when sensor 1 is active.
9 Sensor 2 LED Lights when sensor 2 is active.

NOTE: The EME152A–EME154A use Power over Ethernet (PoE) instead of a power supply jack.

2.4.2 ServSensor 4 (EME105A, EME106A, EME155A)

Figures 2-3 and 2-4 show the front and back panels of the ServSensor 4. Table 2-3 describes its components.

Power Activity Link Status Online 1 2 3 4 4 5 1 2 3 4 3

Figure 2-3. ServSensor 4 front panel.

4 3 2 1 RS232 Ethernet EXT GND 7.5V DC 6 7 8 9 10

Figure 2-4. ServSensor 4 back panel.

Table 2-3. ServSensor 4 components.

Number Component Description
1 (1) Power LED Lights when power is on.
2 (1) Link LED Lights when a link is present.
3 (4) Online LEDs Lights when the sensor is on-line.
4 (1) Activity LED Lights when the unit is active.
5 (4) Status LEDs Lights when the sensor is in alarm state.
6 (4) RJ-45 ports Sensor ports
7 (1) RJ-45 port Links to RS-232 device.
8 (1) RJ-45 port Links to Ethernet.
9 (1) barrel connector Links to 7.5-VDC power.
10	Ground connector	Links to external ground.

2.4.3 ServSensor 8 (EME108A-R2, EME109A-R2, EME110A-R2. EME158A)

Figures 2-5 and 2-6 show the front and back panels of the ServSensor 8. Table 2-4 describes its components.

Power 1 2 3 4 5 Activity Link Status Online 1 2 3 4 5 6 7 8

Figure 2-5. ServSensor 8 front panel.

8 7 6 5 4 3 2 1 RS232 Ethernet EXT GND 7.5V DC 6 7 8 9 10

Figure 2-6. ServSensor 8 back panel.

Table 2-4. ServSensor 8 components.

Number Component Description
1 (1) Power LED Lights when power is on.
2 (1) Link LED Lights when a network link is present.
3 (8) Online LEDs Light when sensors are on-line.
4 (1) Activity LED Lights when network is communicating.
5 (8) Status LEDs	Light when sensors are in alarm state.
6 (8) RJ-45 connectors	Sensor ports.
7 (1) RJ-45 connector	Links to RS-232 device.
8 (1) RJ-45 connector	Connects to Ethernet.
9 (1) barrel connector	Connects to power.
10	External ground	Grounds the unit.

2.4.4 ServSensor X20 (EME111A-20-R2, EME111A-60-R2, EME112A-20-R2, EME112A-60-R2, EME113A-20-R2, EME113A-60-R2)

Figures 2-7 and 2-8 show the front and back panels of the ServSensor 8 X20. Table 2-5 describes its components.

Number Component		Description
1	(1) Power LED	Lights when power is on.
2	(1) Link LED	Lights when there is a network connection.
3	(8) Online LEDs	Light when sensors are on-line.
4	(20) LEDs	Light when dry contacts are on-line.
5	(1) Activity LED	Lights when there is network traffic.
6	(8) Status LEDs	Light when sensors are in alarm state.
7	(20) Dry contact ports	Connect to dry contacts.
8	(8) RJ-45 ports	Sensor ports.
9	(1) RJ-45 port	Connects to RS-232.
10	(1) RJ-45 port	Network connection.
11	(1) barrel connector	Power connector.
12	External ground	Ground lug.

2.4.5 ServSensor 8-X20 20 Extra Dry Contact Inputs

The 20 extra dry contact inputs on, for example, the ServSensor with 20 or 60 DC inputs, can be configured as inputs only up to 5 volts in normal operation. In opto-isolation mode, they can input up to 30 volts DC. This will protect these inputs and the unit from high voltages and spikes.

Opto-isolators provide complete electrical separation between the ServSensor and the dry contact. The base units are therefore protected against possible large voltage spikes caused by lightning for example.

Figure 2-9 shows the JUMPERS (on the dry contact board) set up to provide opto-isolator support. Opto-isolators provide complete electrical separation between the ServSensor and the dry contact.

JUMPER SETTING 1 6 NO COUPLING (DEFAULT) CLOSE 2,4 CLOSE 3,5 1 6 COUPLING (NEED EXT. SUPPLY 5-20V) CLOSE 1,2 CLOSE 3,4 Conn Input 1 2 SW1 CON2 Supply Conn Input 1 2 SW1 CON2

Figure 2-9. Jumpers on the dry contact board.

The OID for the extra dry contact inputs is:- .1.3.6.1.4.1.3854.1.2.2.1.18.1.3.

Extra dry contact input practical applications:

The extra dry contact inputs can be used to monitor many types of equipment, for example, you can run the connection from warning lights on alarm panels to the dry contact inputs, so that when the warning light on the alarm panel is activated, the dry contact is triggered in the unit's Web interface, enabling you to send notifications via e-mails or SNMP traps.

3. Installation

3.1 Assigning an IP Address

These units are plug-and-play devices that will easily connect to your existing network setup. Every unit ships with a default IP address. This is 192.168.0.100. To install your unit, you must first assign it an IP address to match your current network configuration. Before starting this, make sure you have the following items:

• RJ-45 CAT5 crossover cable with RJ-45 male connection
  • A PC with Ethernet card or LAN socket.
  • Power socket for the unit to connect to

• Connect the unit via the CAT5 crossover cable to the Ethernet/LAN port on your computer.

• Open your Web browser and go to the default IP address http://192.168.0.100.

Google Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Search Favorites Search Address http://190.168.0.00 Web Images Video News Maps Gmail more Google | Sign is Input the default IP address Google Search I'm Feeling Lucky Advanced Search Search Preference Institute List Advertising Programs - Business Solutions - About Google - Go to Google Thailand Make Google Your Homepage! ©2007 Google Start Email - Microsoft Out scan manual - Min Document- Microsoft security products name http://www.ship.co Google - Microsoft Int... 3:2PM4

Figure 3-1. Enter default address.

NOTE: In some cases, your computer might not be able to connect to this default IP address. In this situation, you need to set up your computer's routing table to allow access to this.

1. You will now be presented with the following login screen.

System Name - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites http://10.1.1.17896451 Location: Eye Location Current System Time 28/19/07 05:30:24 Summary Session Traps Net Network System Help Log In User Type Administrator Password Login Select "Administrator" and log in using default password "public"

Figure 3-2. Login screen.

1. After logging in, you will be taken to the Main Summary page.

Sys Name - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address: http://10.1.1.178/anyersy/?time=327177b0609c1 Location: Sys Location Current System Time: 20/09/07 06:06:02 Summary Sensors Traps Mail Network System Help Auto-relish (sec.) Start Online Status of Sensors Last Refresh: 5 secs Port Type Description Reading Status Action Graph 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 Sys Log (240 messages) 1 20:09:07 06:05:49 Trap sent to :10.1.2.223, HumidityY2 is now Sensor Error 2 20:09:07 06:05:49 Trap sent to :10.1.2.223, HumidityY2 is now Sensor Error 3 20:09:07 06:05:49 Trap sent to :10.1.2.223, TemperatureY1 is now Sensor Error 4 20:09:07 06:04:49 Trap sent to :10.1.2.223, HumidityY2 is now Sensor Error 5 20:09:07 06:04:49 Trap sent to :10.1.2.223, HumidityY1 is now Sensor Error 6 20:09:07 06:04:49 Trap sent to :10.1.2.223, TemperatureY1 is now Sensor Error 7 20:09:07 06:03:49 Trap sent to :10.1.2.223, HumidityY2 is now Sensor Error 8 20:09:07 06:03:49 Trap sent to :10.1.2.223, HumidityY1 is now Sensor Error 9 20:09:07 06:03:49 Trap sent to :10.1.2.223, TemperatureY1 is now Sensor Error 10 20:09:07 06:02:49 Trap sent to :10.1.2.223, HumidityY2 is now Sensor Error < Prev Other Research Back Start View Microsoft Out Security Manual File Documents HttpSects Update Info Service Hardware admin light Fash Internet

Figure 3-3. Main Summary page.

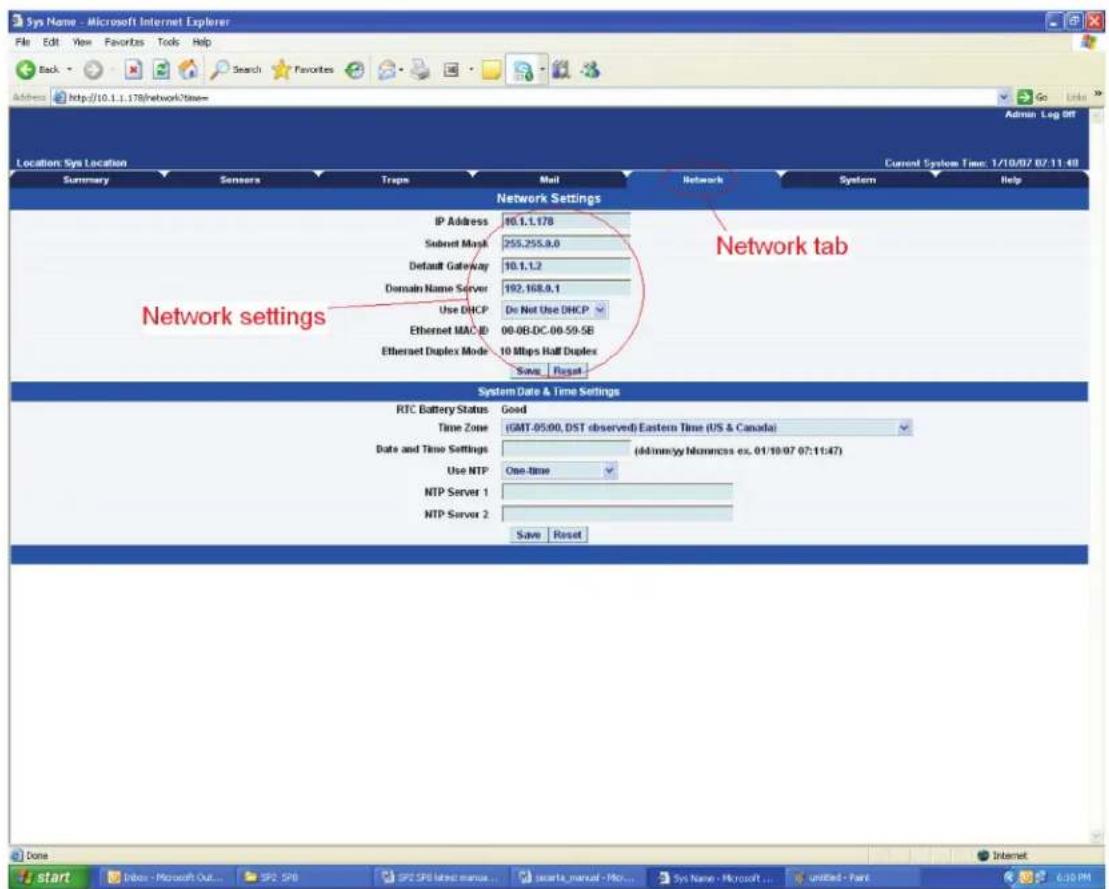

1. From the summary page, select the "Network" tab. Type in your new IP address, then click "Save."

Traps Mail Network Settings IP Address 10.1.1.178 Subnet Mask 255.255.0.0 Default Gateway 10.1.1.2 Domain Name Server 192.168.0.1 Use DHCP Do Not Use DHCP Ethernet MAC ID 00-0B-DC-00-59-5B Ethernet Duplex Mode 10 Mbps Half Duplex Save Reset Select the "Networks tab" Input new IP address

Figure 3-4. Input New Address screen.

3.2 Testing your New IP Address

You now need to test that your new IP address has been assigned successfully. You will do this via the "ping" command.

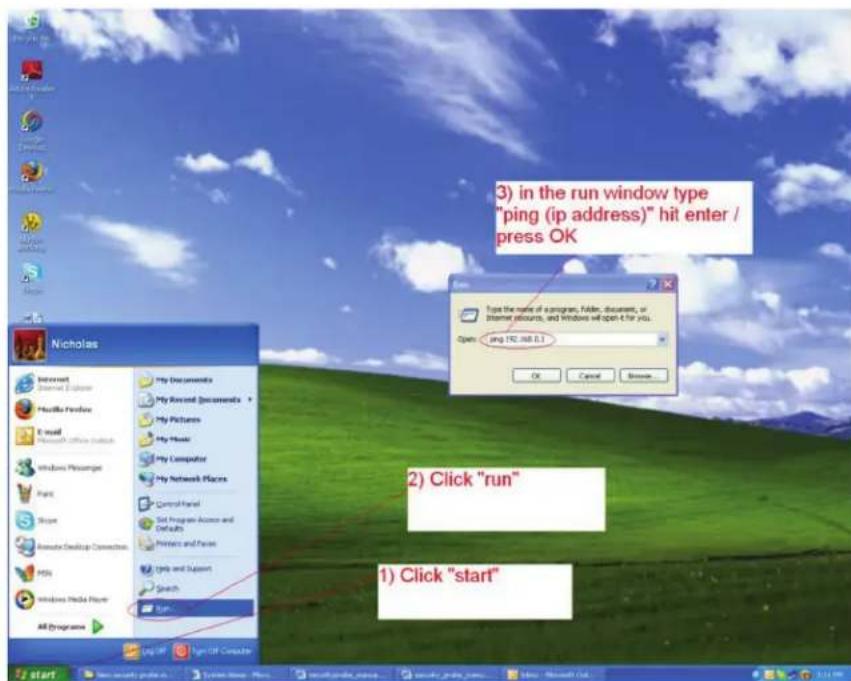

1. Click "Start/Run....." Enter the IP address to ping, then press "Enter."

Nicholas Windows Internet Explorer Macillus Pflorax E-mail Microsoft Office Switch Windows Procamer Print Scape Remote Desktop Connections MSN Windows Media Player All Programs My Documents My Recent Documents > My Pictures My Music My Computer My Network Places Control Panel Set Program Access and Defaults Printers and Forms Units and Supports Search Run 3) in the run window type "ping (ip address)" hit enter / press OK Open: ping 192.068.2.1 OK Cancel Browse 2) Click "run" 1) Click "start"

Figure 3-5. Test New Address screen.

1. You will now get an MS-DOS® command prompt that shows the ping results. If this is unsuccessful, you will receive a "request timed out" message.

C:\WINDOWS\system32\ping.exe Playing 10.1.1.206 with 31 bytes of data Reply from 10.1.1.206: bytes=32 time=NT-94 Reply from 10.1.1.206: bytes=32 time=NT-94

Figure 3-6. Request Timed Out screen.

Having connection problems?

NOTE: The unit's default connection speed is 10 Mbps with half-duplex, so if you are having trouble connecting to the unit, then set the unit to full-duplex mode by using the following SNMP set command.

To set back to halfduplex -->

where "public" is the admin password. "192.168.0.100" is the ServSensor's IP address. The duplex mode is shown on Network Settings page.

NOTE: If you're still having trouble connecting to your ServSensor, or opening your unit's Web interface, see Chapter 8.

3.3 Upgrading the Firmware

We often release new firmware with added capabilities, so we recommend that you upgrade to the latest firmware. To do this, contact Black Box Technical Support at 724-746-5500 or [e-mail] and have the MAC address of the hub available. This can be found on a sticker on the base of your unit.

1. When you download your firmware, it will come in a zip package. Extract this to your desktop into a folder named firmware. When you open this folder you will see something like the following:

FIRMWARE File Edit View Favorites Tools Help Back Search Folders Address C:\Documents and Settings\nicholas\Desktop\FIRMWARE Go File and Folder Tasks Make a new folder Publish this folder to the Web Share this folder Other Places Desktop My Documents Shared Documents My Computer My Network Places Details

Figure 3-7. Firmware screen.

You can see one of these files is a program named IPSet. This utility will upload the firmware to your unit. Double-click the program to boot it.

1. When IPSet loads, you will be met with a screen similar to this:

Recycle Bit Adder Features Get Started With Card... Google Cable Open Look in: FIRMWARE mp2.379 File name: mp2.379 Files of type: Zip File 1.ppt Open Cancel 1 2 3 4 5 Online help Routing table detail Register your product Exit IPSet Enter password and file to upgrade firmware Mode Automatically Get MAC Manually Enter MAC Firmware Upgrade MAC Address IP Address 182 168 0 100 Password: Enter firmware file [zip] Send 1 page per package. Browse Update Status

Figure 3-8. Firmware Upgrade screen.

1. Select "firmware upgrade."
2. Type in the IP address of your unit.
3. Type in your administrator password.

4. Click "Browse," and a new window will pop up.

5. Select the zipped firmware file, and click "Open."

Mode Automatically Get MAC Manually Enter MAC Firmware Upgrade MAC Address IP Address 192 168 0 100 Set Password Enter firmware file (.zip) C:\Documents and Settings\nicholas\Desktop Send 1 page per package. Browse Update Click "update"

Figure 3-9. Open firmware screen.

1. When complete, the message "Upgrade complete" will be displayed.

Problems updating firmware that is very old to the latest release.

You may experience a problem when trying to update your EME102A-R2 or EME108A-R2 to the latest firmware if the firmware on your base unit has not been updated for a very long period of time. Contact Black Box Technical Support at 724-746-5500 or [e-mail].

If you try to update your unit and receive an error in the IPSet utility, then you will need to update your unit. Contact Black Box Technical Support at 724-746-5500 or [e-mail] for details.

IPSet Version 5.6.3, June 10, 2010 Enter password and file to upgrade firmware Mode Automatically Get MAC Manually Enter MAC Firmware Upgrade MAC Address IP Address 10 . 151 . 2 . 5 Set Password Enter firmware file (.zip) C:\Documents and Settings\msmit\Desktop Send 1 page per package. Browse Update Status > Test connection...$ > Getting sensorProbe model...$ > cannot get firmware version > System update has not completed.$ > ready...$ Online help Routing table detail Register your product Exit IPSet

Figure 3-10. Upgrade Firmware screen.

4. Setting up a Sensor and Downloading Sensor Data

For the purposes of this manual and tutorials, we will cover setting up a dual temperature/humidity sensor. The first part of the tutorial will cover the basic installation and settings for the sensor. The second part will explain how to go about setting up various notifications such as SNMP traps.

4.1 Basic Setup

1. Plug in your sensor to the RJ-45 Port 1 (Sensor 1). The unit will automatically detect the presence of the sensor and configure it.
2. Now return to the Web browser and input the IP address of your unit. Then log in as administrator.
3. You will now see the Summary page looking something like this:

Sys Name - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address Http: (10.1.1.178) Location: Sys Location Current System Time: 20/9/07 08:31:02 Summary Sensors Traps Mail Network System Help Auto refresh (sec.) Start Online Status of Sensors Last Refresh: 0 secs Port Type Description Reading Status Action Graph 1 Humidity Temperature Humidity1 Description 41 % Normal View Temperature1 Description 76 °F Normal View 2 - Sys Log (240 messages) 1 20:09:07 07:43:41 Trap sent to :10.1.2.223, Humidity1 is now Sensor Normal 2 20:09:07 07:43:41 Humidity sensor on RJ45#1 is 42 %, status is new Sensor Normal 3 20:09:07 07:43:41 Trap sent to :10.1.2.223, Temperature1 is now Sensor Normal 4 20:09:07 07:43:41 Temperature sensor on RJ45#1 is 77 degrees, status is now Sensor Normal 5 20:09:07 07:43:30 Trap sent to :10.1.2.223, Humidity1 is now Sensor Error 6 20:09:07 07:43:30 Humidity sensor on RJ45#1 is Not Plagged In, status is now Sensor Error 7 20:09:07 07:43:30 Trap sent to :10.1.2.223, Temperature1 is now Sensor Error 8 20:09:07 07:43:30 Temperature sensor on RJ45#1 is Not Plagged In, status is now Sensor Error 9 20:09:07 07:43:35 Trap sent to :10.1.2.223, Humidity1 is now Sensor Normal 10 20:09:07 07:43:35 Humidity sensor on RJ45#1 is 42 %, states is now Sensor Normal ©2003 AKCP Inc. All rights reserved.

Figure 4-1. Summary page.

You will see the temp/humidity sensor displayed in the Summary page.

1. From this page, select the "Sensors" tab. This will bring you to the following page:

Sys Name - Microsoft Internet Explorer File Edit View Favorites Tools Help Book Search Favorites Go Http Address http://10.1.1.178/senchun/index=0@time= Localiser Sys Location Current System Time: 20/9/07 06:44:32 Summary Sensors Traps Mail Network System Help Sensor Settings Environmental Humidity Sensor Settings Enterments Water Detector Airflow Sensor Contacts & Drivers Dry Contacts & Drivers 4-29 mTemp Dry Contacts (1 - 12) Power AC Voltage Detector DC Voltage Sensor Polar Security Sensor Security Motion Detector Alarm Security Siren & Strive Light Settings cameraProbe Integration Autosense Click sensors tab Select sensor from menu Part 1 Description Humidity1 Description Current Reading 40 Percent Status Normal Sensor Online Offline Online Go Online Offline Online Critical High 30 Warning High 60 Warning Low 15 Critical Low 10 Rearm 2 Reading Offset 0 Save Reset Sensor Controlled Relay Sensor Controlled Siren Sensor Status Filters Start security_num Documents security Level summary page email@home information Remote Audio Sys Name - NL 74294

Figure 4-2. Sensors screen.

In this example, we have selected the humidity sensor from the sensor menu on the left. The sensors highlighted in green indicate that they are currently connected to the unit. In this case, you can see there is a temp and humidity sensor connected (dual sensor) and so they are highlighted in green in the menu.

Humidity Sensor Settings Port 1 Description Humidity1 Description Current Reading 40 Percent Status Normal Sensor Online/Offline Online Go Online/Offline Online Critical High 80 Warning High 60 Warning Low 15 Critical Low 10 Rearm 2 Reading Offset 0 Save Reset Sensor Controlled Relay Sensor Controlled Siren Sensor Status Filters

Figure 4-3. Humidity Sensor Settings screen.

1. This window is used for configuring the sensor's parameters. These parameters are explained below:

Description—The name of the sensor. Use a meaningful name such as "humidity sensor office1"

Go Online/Offline—This takes the sensor on or offline without unplugging it from the unit.

Critical high—The percentage humidity level that is critically high.

Warning high—The percentage humidity level that is high.

Warning low—The percentage humidity level that is low.

Critical low—The percentage humidity level that is critically low.

Rearm—Used to prevent the sensor from flickering between two states. For example if the "High Warning" threshold for the temperature sensor is set to 80 degrees and the sensor were to vary between 79 and 80 you could be faced with a very large number of e-mails, traps, and events logged. The Rearm parameter prevents this by forcing the temperature to drop by the Rearm before changing the state back to normal. In this example, if Rearm is set to 2, then the sensor would have to drop from 80 down to 77 before the status would change.

Reading offset—This will adjust the reading by your offset amount.

In our example, we have set the parameters as indicated in Figure 4-3. Once you have done this, click on "Save."

NOTE: For information on setting up other sensor types, refer to the manual for your specific sensor. This will give you guidance in setting up the parameters specific to your sensor.

Sensors Traps Mail Network Sensor Settings Trap/Email Filters Port 8 Sensor Type Temperature Sensor Description Temperature8 Description Send Trap/Email when Status "Normal" Yes ▼ Continuous time sensor is normal to report (secs) 0 0 secs Continuous time sensor is warning/error to report (secs) 0 0 secs Minimum time between each Trap/Email 0 minutes Day of week Filter Disable ▼ NO ALERT DAY TIME Mon 00:00 - 00:00 Tue 00:00 - 00:00 Wed 00:00 - 00:00 Thu 00:00 - 00:00 Fri 00:00 - 00:00 Sat 00:00 - 00:00 Sun 00:00 - 00:00 Save Reset

Figure 4-4. Sensor settings screen.

Sensor Status Filters—By clicking on the "Sensors Status Filters" button shown in the image in Figure 4-3, you can then adjust the continuous time the sensor is in a warning, error, or normal state before the unit sends the alerts (see Figure 4-4). This feature was added to eliminate false warnings.

4.2 Downloading Sensor Data

The ServSensor's hardware has data logger memory where it stores the sensor data.

It can save 8,640 points per sensor. So, if you set your collection time period for 15 minutes, you can save roughly up to 3 months of data on the unit. When the memory is full, the oldest data will be overwritten.

There are a couple of ways to download the sensor data from the ServSensors. The first is using the dataCollect or dataDownload utilities. You can download either utility from your support page on our Web site after adding your ServSensor to your product listing.

When running these utilities, make sure your network firewall is not blocking the port that these run on.

The first is called dataDownload, which is a command-line program that will download all the sensor readings stored on the ServSensor. This downloaded data is stored in a text file and can then be easily imported into a spreadsheet program, such as Microsoft® Excel®.

After running this utility, the data will be stored in a directory called datadownload, located on the C: drive of your PC and this will have the data for each port in it.

Or, you can use our dataCollect utility that allows you to poll the sensor data directly from a PC on the same LAN as your ServSensor in real-time. You can collect an unlimited number of readings, and you can collect data from multiple ServSensors simultaneously.

Figure 4-5. Download Data screen.

Using remote syslog to download sensor data

Another way to get and log all the data in real time from the unit is to use the remote syslog on the unit.

You can use the remote system log feature to push out the syslog in real time to a remote server, or PC, then this information can be imported into a data base or other program.

There are two types of third-party remote syslog utilities that we recommend. One is "rsyslog" and the other "Kiwi" remote syslog.

There is no Microsoft Windows ^® version of rsyslog, and there is no GNU ^® Linux ^® version of Kiw ^® .

So, we recommend rsyslog for the GNU Linux users and the Kiwi for the users of the Microsoft operating systems.

Either can be downloaded from these links below:

http://www.rsyslog.com

http://www.kiwisyslog.com/kiwi-syslog-daemon-download/

You can install and open the Kiwi Syslog program and set the UDP in the Input settings (see Figure 4-6).

Kawi Syslog Service Manager (Version 8.3.15) File Edit View Manage Help Display 00 (Default) Date Time Priority Hostname Message 09-03-2008 09:41:04 Local0.Critical 10.1.1.71 4-20mA Port 3 is 4.0 mAmp, status is LOW CRITICAL 09-03-2008 09:40:59 Local0.Warning 10.1.1.71 Humidity Port 2 is 37 %, status is LOW WARNING 09-03-2008 09:40:57 Local0.Critical 10.1.1.71 4-20mA Port 3 is 20.0 mAmp, status is HIGH CRITICAL 09-03-2008 09:40:56 Local0.Warning 10.1.1.71 4-20mA Port 3 is 7.7 mAmp, status is LOW WARNING 09-03-2008 09:40:49 Local0.Noticer Kawi Syslog Daemon Setup UDP UDP input options ✓ Display ✓ Log to file Schedules Formating Custom file formats Custom DB formats DNS Resolution DNS Setup DNS Caching Modifiers Scripting Display Appearance E-mail Alarms Min message count Max message count Disk space monitor Inputs UDP TCP SNMP Keep alive. Test message Defaults/Import/Export Listen for UDP.Syslog messages UDP Port (1 - 65535): 514 Bind to address: Data encoding: System Help OK Cancel Apply 100% O MPH 09:41 09:03:2008

Figure 4-6. Set UDP.

Set the remote syslog in the ServSensor. The remote syslog IP address is the IP address of the PC that has the Kiwi remote syslog program running on it. The remote syslog port is the same port on the remote syslog program.

It should be showing you the syslog in real time, and any entry that is logged in the unit should appear on your server. You can also export the data to a text file.

5. Notifications

5.1 Setting Up a Trap

The ServSensor can send an SNMP trap message to two different hosts. Whenever the status changes for a sensor that is on-line, a trap message can be sent.

To get to the entry point of this tutorial, complete the following:

1. Log into the Web interface as administrator.

2. From the summary page select the "Traps" tab.

3. After going to the "traps" tab you can see the two traps ("Trap 1," "Trap 2").

Sys Name - Microsoft Internet Explorer Back Search Favorites Tools Help Address: http://10.1.178/traps/time= Location: Sys Location Summary Sensors Traps Mail Network System Help Trap Settings Trap 1 Send Trap On Destination IP 10.1.2.223 Community public Send Keep Alive Trap Off Keep Alive Trap Resend Interval (mins) 5 5 mins Save Reset Trap 2 Send Trap Off Destination IP 255,255,255.0 Community public Save Reset Resend Warning and Error Traps On Resend Interval (secs) 60 1 mins, 0 secs Save Reset Trap 1 Trap 2 Cone start security manual - No... Documents - Microsoft security probe manual sensors tab - Faint Sys Name - Microsoft . . . Mkt Sales - Su . . . 0:32 PM

Figure 5-1. Traps screen.

1. The traps have various fields you need to set. These are explained next.

Trap 1 Send Trap On Destination IP 10.1.2.223 Community public Send Keep Alive Trap Off Keep Alive Trap Resend Interval (mins) 5 5 mins Save Reset A "heartbeat" message that informs the user the unit is online toggle on/off SNMP settings

Figure 5-2. Trap 1 screen.

Send Trap—Toggles whether the SNMP trap is on or off.

Destination IP—The destination IP address that the trap message will be sent to.

Community—This is the community of the host that will receive this trap. This is often set to "public."

Send Keep Alive Trap—Will send a trap message at your preset time interval. Use this to inform the user whether the unit is still on-line. You can also use this if you require data collection at regular intervals regardless of the sensor's status.

Keep Alive Resend Intervals—The time interval in which you want the keep alive traps to be sent.

A different trap message is sent for each sensor type such as temperature, humidity, and switch. The trap messages fields include the current sensor status (Normal, Critical High, Warning High, Critical Low, Warning Low, and sensorError), the current sensor value, the level exceeded, the sensor index, the sensor name, and the sensor description.

5.2 Setting Up E-mail Notifications

You can also use SNMP traps to send an e-mail report to notify you of a sensor's status.

To get to the entry point of this tutorial do the following:

1. Point your browser to the IP address of your unit.
2. Log in as "administrator."
3. Click the "Mail" tab from the summary page.
4. This brings you to a new page. From here you can setup the various e-mail parameters.

Sys Name - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address http://10.1.1.178/mail/tree= Location: Sys Location Summary Sensors Traps Mail Network System Help Mail Settings Send Mail Off SMTP Server SMTP Port 25 SMTP Authentication Disable SMTP Server Login Name SMTP Server Password Email Subject Timeout 15 seconds Resend Intervals (secs) 60 1 mins, 8 secs Maximum Times to Resend ○ 0 ○ Unlimited Send Keep Alive Email On Keep Alive Email Resend Interval (mins) 693.35 Save Reset Email settings Email Address Configuration Mail From Mail Recipient Mail Cc1 Mail Cc2 Mail Cc3 Mail Cc4 Mail Cc5 Save Reset Mail Status Status of most recent Mail No Status Last Error Message Test Mail Done Internet start Sbio - Microsoft 0... SP2 SPI SP2 SPI latest man... jacarla_nesval -ML tripe2 -Fart Share™ -ncholar... Syst Name - Microsoft... 4:06 PM

Figure 5-3. Mail Parameters Setup screen.

1. You can now set up the individual e-mail options from the fields shown next.

Mail Settings Send Mail Off SMTP Server SMTP Port 25 SMTP Authentication Disable SMTP Server Login Name SMTP Server Password Email Subject Timeout 15 seconds Resend Intervals (secs) 60 1 mins, 0 secs Maximum Times to Resend 0 Unlimited Send Keep Alive Email On Keep Alive Email Resend Interval (mins) 65535 Save Reset

Figure 5-4. Mail Settings screen.

Send Mail—This toggles the send e-mail option on or off.

SMTP Server—The address of your SMTP server.

SMTP Authentication—Check this option if your SMTP server requires authentication.

SMTP Server Login Name—The user name to log in to your SMTP server.

SMTP Server Password—The password used to log in to your SMTP server.

E-mail subject—The subject you want to have for the e-mail. For example, "ServSensor notification."

Timeout—You can increase the timeout for SMTP servers that have poor connectivity. It is best to leave this number as low as possible while still allowing for communication with the SMTP server to continue.

Resend Intervals—The time between which the e-mails will be sent.

Maximum Times To Resend—Set the number of times you want the notification e-mails to be resent.

Send Keep Alive Email—This option will tell the unit to send a heartbeat e-mail. Use this to tell if the unit is still on-line or not. You can also use this when you require data collection at regular intervals.

Keep Alive Email Resend Interval—The amount of time between which the keep alive emails are sent.

1. After setting your parameters, click the "Save" button.

2. Below this, you will see there is another section. Use this to configure the e-mails' recipients.

Email Address Configuration Mail From Mail Recipient Mail Cc1 Mail Cc2 Mail Cc3 Mail Cc4 Mail Cc5 Save Reset

Figure 5-5. E-mail Address Configuration screen.
Mail From—The e-mail address that you want the e-mail to appear from. Because of anti-spam features of some SMTP servers, this address must be authorized on the SMTP server; otherwise, the server may deny the email.
Mail Recipient—The email address of the person you want to send the email to.

Mail Cc1-5—Up to five additional e-mail addresses may be added.
8. When you have filled in your required fields, remember to click "Save."
9. At the bottom of the page you have two further options.

Mail Status
Status of most recent Mail	No Status
Last Error Message
	Test Mail

Figure 5-6. Mail status options.

Status of most recent Mail—This can be either "No Status," "Success," or "Failure."

Last Error Message—This is a debugging aid. If the e-mail is not successfully sent, you may find the reason for the problem here.

Test E-mail—Use this when you first set up the SMTP settings to make sure they are working, or anytime thereafter. Before a test mail can be generated, make sure the previous fields described have been completed.

NOTE: If you having problems connecting to your SMTP e-mail server, go to Chapter 8.

6. System Settings

6.1 Network Settings

The Network Settings page allows you to change network settings, such as the IP address etc., for your unit.

To get to the entry point of this tutorial, complete the following:

1. Point your Web browser to the IP address of your unit.
2. Log in as administrator.
3. From the "Settings" page, select the "Network" tab.

NOTE: You can change your default HTTP port on the unit using this SNMP set command:

You can still use Port 80 for Web access as well.

1. After clicking the "Network" tab you will be taken to the screen shown in Figure 6-1.

Sys Name - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address http://10.1.1.178/network/Time Admin Log Off Location Sys Location Current System Time: 1/10/07 07:11:49 Summary Sensors Traps Mail Network System Help Network Settings IP Address 10.1.1.178 Subset Mask 255.255.8.0 Default Gateway 10.1.1.2 Domain Name Server 192.168.8.1 Use DHCP Do Not Use DHCP Ethernet MAC ID 00-0B-DC-00-59-5B Ethernet Duplex Mode 10 Mbps Half Duplex Save Reset Network tab Network settings System Date & Time Settings RTC Battery Status Good Time Zone (GMT-05:00, DST observed) Eastern Time (US & Canada) Date and Time Settings (admin:yy.Numercss ex. 01/19/07 07:11:47) Use NTP One-time NTP Server 1 NTP Server 2 Save Reset Done Email - Microsoft Out... SP2 SP3 SP2 SP3 latest.msnus... escarta_manual - PCo... Sys Name - Microsoft ... undited - Part 6:30 PM

Figure 6-1. Network screen.

1. Once on this page, you can set up the network settings as indicated below:

Network Settings IP Address 10.1.1.178 Subnet Mask 255.255.0.0 Default Gateway 10.1.1.2 Domain Name Server 192.168.0.1 Use DHCP Do Not Use DHCP Ethernet MAC ID 00-0B-DC-00-59-5B Ethernet Duplex Mode 10 Mbps Half Duplex Save Reset

Figure 6-2. Network Settings screen.

IP Address—Use this to change the IP address of your unit.

Subnet Mask—Use this to assign the subnet mask of your unit.

Default Gateway—Assign the default gateway of your device.

Domain Name Server—IP address of your DNS. This enables you to use a DNS address for your unit instead of accessing it via the IP address.

Use DHCP—The unit can use DHCP to assign its IP address, or it can use a statically assigned IP address. To use DHCP, choose "Use DHCP" from the list box and press "Set." To stop using DHCP, choose "Do Not Use DHCP" from the list box and press "Set." Statically assigning an IP address also turns off DHCP. You can force the ServSensor to voluntarily give up its IP lease and request a new IP lease by choosing Use DHCP from the list box and pressing "Set."

Ethernet MAC ID—This is the MAC address of your unit. It is a read-only field.

Ethernet Duplex Mode—The duplex mode and speed of your unit. This is also a read-only field.

NOTE: Make sure you apply your new settings by clicking on the "Save" button.

1. Below this, there are some further settings for the time and date.

System Date & Time Settings RTC Battery Status Good Time Zone (GMT-05:00, DST observed) Eastern Time (US & Canada) Date and Time Settings (dd/mm/yy hh:mm:ss ex. 01/10/07 07:11:47) Use NTP One-time NTP Server 1 NTP Server 2 Save Reset

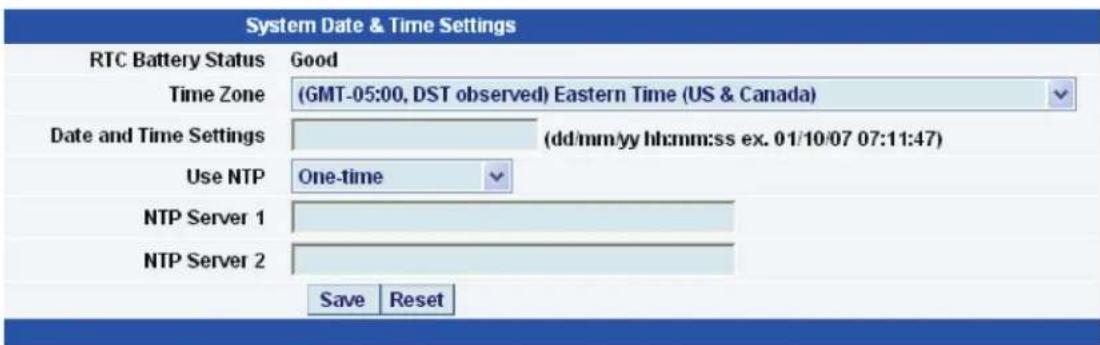

Figure 6-3. System Date and Time Settings screen.

RTC Battery Status—This field displays the status of the real-time clock battery on the unit. If the status displays "Bad," you must replace the battery; otherwise, when the ServSensor does not have power, the clock will stop running. Re-configure the system time settings on every reboot.

Date and Time Settings—Enter the new date and time in this field. The date and time use the following format: date/month/year (dd/mm/yy) and hour:minute:second (hh:mm:ss).

Time Zone—Select the time zone for your location from this list box.

Use NTP—A Network Time Protocol (NTP) is used to sync your units clock over a network. There are many options in this list box. The details for each one are as follows:

• Do Not Use NTP—Select this option to turn off the time synchronization feature.
• One Time—The time is synchronized when you press the "Save" button.
• On System Start Up—The time is synchronized once the hub is turned on or rebooted.

- Once a Month/Week/Day/Hour—The time is automatically synchronized every month, week, day, or hour, respectively.

NTP Server 1 and 2—Set the IP address of the NTP servers to be used. The NTP will synchronize the time with the server that has the lowest number.

6.2 System Tab

From the system tab, you can input various settings for the unit. These settings are mostly optional.

To get to the entry point of this tutorial, complete the following:

1. Point your browser to the unit's IP address.
2. Log in as administrator using your admin password.

3. From the summary page, click on the "System" tab.

4. When you arrive at the Settings page, you will see the following screen:

Sys Name - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address Http://10.1.1.178/system/time- Location: Sys Location Current System Time: 2/10/07 01:25:51 Summary Sensors Traps Mail Network System Help System Settings System Description senatorProbe2v2.0 SP2379 310807 System Name Sys Name System Location Sys Location System Contact Sys Contact Data Collection Period 1 minutes Display Logo On Send Email Trap on boot up Off Delay Time for Email Trap on boot up 0 sec Save Reset System tab Password Settings Use Password Off New User Password Confirm New User Password New Admin Password Confirm New Admin Password Save Reset SNMP SNMP Port Reset To Default SNMP Trap Port Reset To Default Syslog Clear Syslog Clear Remote Syslog Off Remote Syslog IP Address 192.168.0.1 Remote Syslog Port 511 Save Reset SNMP SNMP Port Reset To Default SNMP Trap Port Reset To Default Syslog Syslog Done start SPF SPF SPF label manual... secarta_manual - Mic... entitled - Font Privacy - Microsoft Out... Sys Name - Microsoft ... 12:24:96

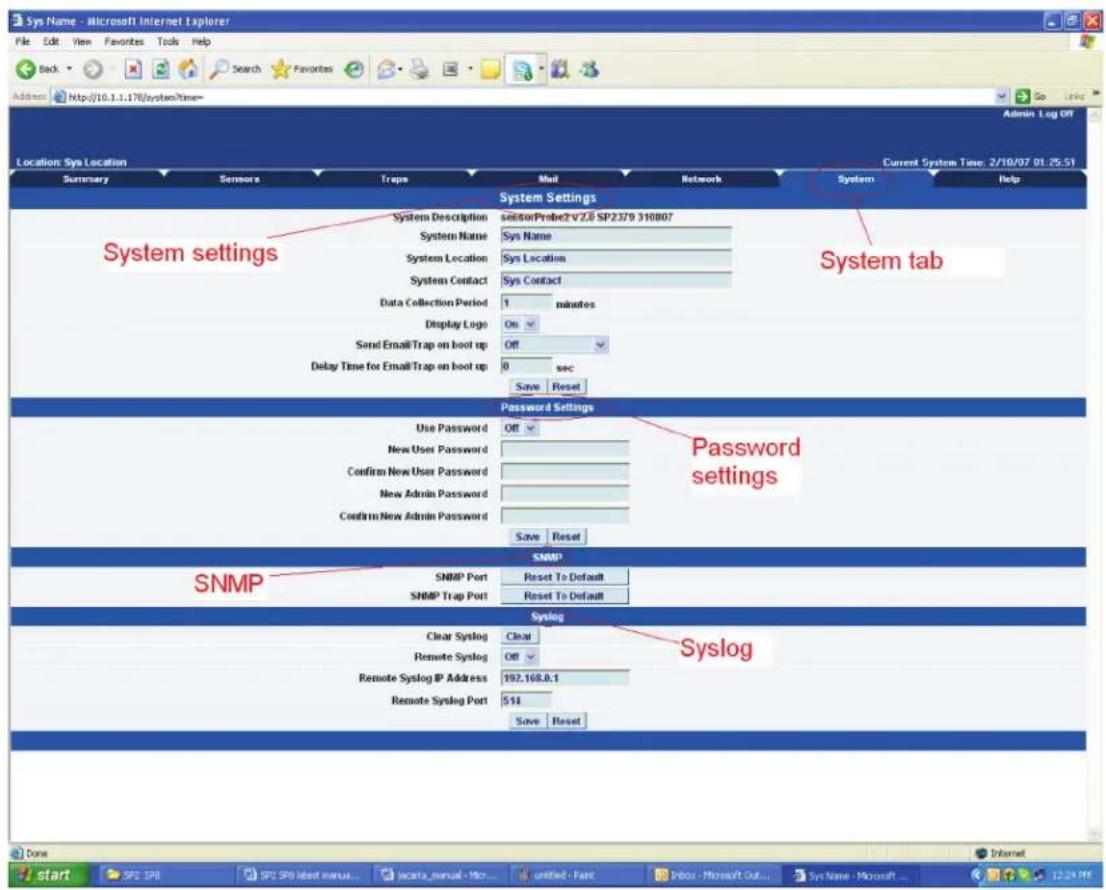

Figure 6-4. Settings screen.

1. The first section is entitled "System Settings."

System Settings System Description sensorProbe2 v 2.0 SP2379 310807 System Name Sys Name System Location Sys Location System Contact Sys Contact Data Collection Period 1 minutes Display Logo On Send Email/Trap on boot up Off Delay Time for Email/Trap on boot up 0 sec Save Reset

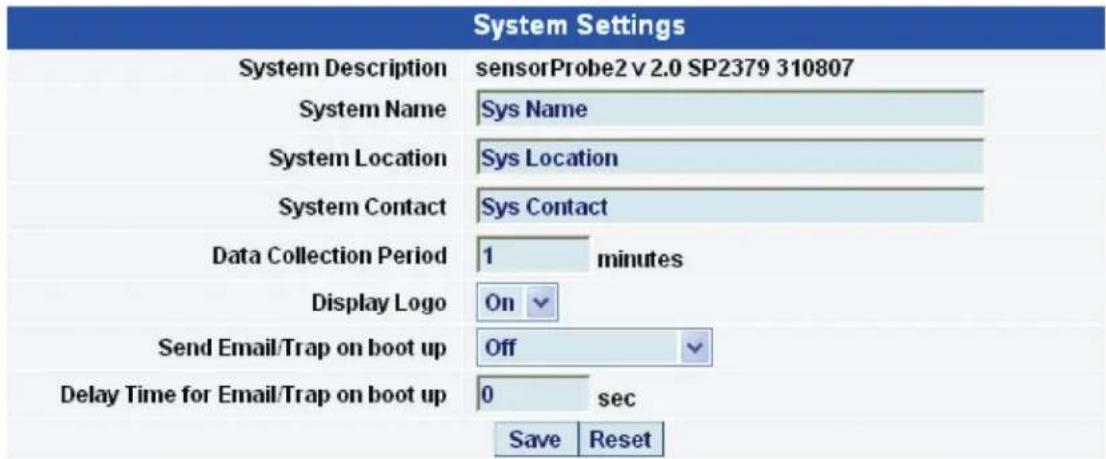

Figure 6-5. System Settings screen.

System Description—This is an MIB II value set when the microcode for the unit was installed. It includes the build time and version of the microcode. This is a read-only field.

System Name/Location/Contact—These are used to identify the system. They are accessed via standard SNMP utilities. The SNMP utilities use these to get information about the unit.

Data Collection Period—This controls how often data is collected for use in the graph function.

Display Logo—Turn off displaying the logo by using this option. This option can be turned off to enable the Web pages to load faster.

Send Email/Trap on boot up—Use this option to send an e-mail and SNMP trap each time the system boots up.

Delay Time for Email/Trap on boot up—The time in seconds to delay before sending the bootup e-mail or trap.

NOTE: Remember to click the "Save" button after making any changes.

1. The next section is used for setting a user password, or changing the admin password.

Location: Bangkok Office Summary Sensors Traps Mail Network System Help System Settings System Description sensorProbe2 Online Demo Unit SP2413 System Name sensorProbe2 Online Demo Unit System Location Bangkok Office System Contact Scott Data Collection Period 15 minutes Display Logo Off Send Email/Trap on boot up On Warning/Error Delay Time for Email/Trap on boot up 5 sec Save Reset Note the lack of the j in the firmware version here. This determines that this unit has the older mega128 memory chip. Password Settings Password checking Enable Save Reset SNMP Community Settings New SNMP get Community Confirm New SNMP get Community New SNMP set Community Confirm New SNMP set Community Save Reset SNMP SNMP Trap Port Reset To Default Syslog Clear Syslog Clear Remote Syslog Off Remote Syslog IP Address 10.10.10.162 Remote Syslog Port 161 Save Reset The User web interface login password is the same as the SNMPget community and the Admin is the same as the SNMPsetiget community string. This the default on the units. You set the web log in passwords here at that SNMP Community Settings, by enabling the "Password checking here. On the newer SP2's (mega256 chip) you can have separate login passwords from you SNMP communities as explained above.

Figure 6-6. Set the password.

Depending on which version of ServSensor Jr. you have, your System page may appear different. The ServSensor Jr. units that were shipped before October 2009 have the older memory mega128 chip. If this is the case, your screen will appear like the screens shown in Figures 6-5 and 6-6. This System page will also show in the ServSensor 8 interface on units shipped before July 1, 2011. For current screen explanations, contact Black Box Technical Support at 724-746-5500 or [e-mail].

NOTE: To allow the user to log in without having to enter a password, use "public" in the SNMP get.

The user Web interface login password is the same as the SNMPget community, and the Admin is the same as the SNMPset\get community string. You set your Web interface login passwords in the SNMP community settings by enabling the "Password checking" above, then entering your passwords into these fields.

Admin: Log Off Location: 7th Floor Current System Time: 22/01/18 14:44:37 Summary Sensors Traps Mail Network System Help System Settings System Description sensorProbe2 v 2.0 SP2413j 310610 System Name Scotts Test Lab SP2 System Location 7th Floor System Contact Scott Farnem Data Collection Period 15 minutes Display Logo On Send Email/Trap on boot up Off Delay Time for Email/Trap on boot up 0 sec Save Reset Password Settings Password checking Enable Use the same password for web interface and SNMP Yes Save Reset SNMP Community Settings New SNMP get Community Confirm New SNMP get Community New SNMP set Community Confirm New SNMP set Community Save Reset Web Interface Password Settings New User Password Confirm New User Password New Admin Password Confirm New Admin Password Save Reset Syslog Clear Syslog Clear Remote Syslog Off Remote Syslog IP Address 192.168.0.1 Remote Syslog Port 514 Save Reset Note the j on the end of the firmware version. This confirms that the unit has the newer mega256 memory chip The SP2 with the newer mega256 memory chip allows you to separate the SNMP communities from the web interface login passwords

Figure 6-7. Setting SNMP passwords.
NOTE: The "j" on the end of the firmware version above confirms that the unit has the newer mega256 memory chip. The ServSensor with the newer mega256 memory chip allows you to separate the SNMP communities from the Web interface login passwords.

Password Checking—Toggle whether the password is required or not.

Use the same password for the Web interface and SNMP—Ties the SNMP communities to the Web interface login passwords.

New User Password—Type in the password for the user account.

NOTE: To allow the user to log in without having to enter a password, type in "public" for the user password.

Confirm New User Password—Confirm the new password for the user account.

New Admin Password—Type in the password you want to use for the admin account.

Confirm New Admin Password—Confirm the new password for the admin account.

1. Next, you have the options for resetting the SNMP trap settings.

SNMP SNMP Port Reset To Default SNMP Trap Port Reset To Default

Figure 6-8. SNMP Trap Settings screen.

SNMP Port—Use this option to reset the SNMP port setting to its default.

SNMP Trap Port—Use this option to reset the SNMP trap port to its default setting.

NOTE: Your SNMP port default is 161 and the SNMP trap port default is 162. You can set your SNMP ports with the following commands:

snmpset -m all -v 1 -c <community> <ipaddress>.1.3.6.1.4.1.3854.1.2.2.1.99.0 u <new snmp port>
snmpset -m all -v 1 c <community> <ipaddress>.1.3.6.1.4.1.3854.1.2.2.1.100.0 u <new snmp trap port>

1. Finally, you have the option for setting up the system log parameters.

Syslog Clear Syslog Clear Remote Syslog Off Remote Syslog IP Address 192.168.0.1 Remote Syslog Port 514 Save Reset

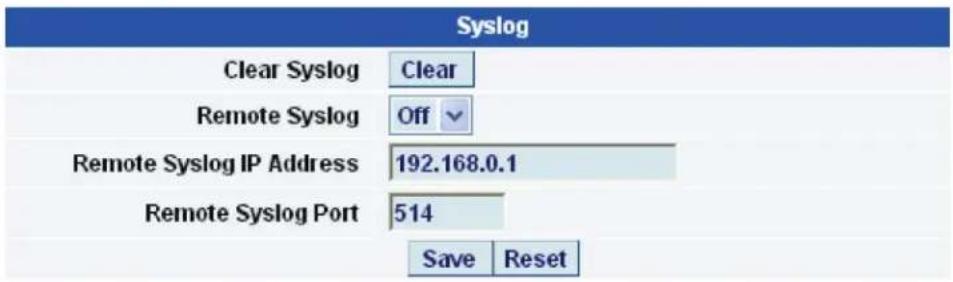

Figure 6-9. System Log Parameters Settings screen.

Clear Syslog—Used to clear the system log of the messages for the unit.

Remote Syslog—You can set up the unit to send its syslog message in a standard format acceptable to a remote syslog server. For example, the Logalot system from Somix®.

Remote Syslog IP Address, Remote Syslog Port—You can set the IP address and port of the remote syslog server to where the unit will send the log messages. Contact Technical Support at 724-746-5500 or [e-mail] for details.

7. Making Your Unit Visible to the Internet

So far the manual has simply covered the basic setup. The setup we have just created will allow you to access your unit on a Local Area Network (LAN). We have setup SNMP traps so that your SNMP software, such as Whatsup Gold or HPOpenView ^® can collate information from your unit.

However, you might want to remotely access your unit from anywhere in the world. This is possible; however, the following steps are only an outline guide. Your exact setup and configuration will often depend on your network equipment and setup. You are going to need access to your router if you are using one, and knowledge of whether your IP address is static or dynamic.

7.1 Simple Setup

1. Let's imagine that your unit is connected to a router on your network, and the following IP addresses are assigned:

Your unit's IP address is the default 192.168.0.100.

Your computer's IP address is 192.168.0.200.

Your router's IP address is 192.168.0.300.

1. To find out your router's external IP address, go to www.whatsmyip.com.

Let's imagine your router's external IP address is 278.67.04.09.

1. You now need to set up port forwarding on your router. This varies depending on your router's model. Generally, you need to point your browser to your router's IP address (in this case 192.168.0.300). This will then allow you to log into your routers administration interface. You can find how to do this for your router on www.portforward.com. For an example of how to do this for a commonly used router, follow this link:

http://www.portforward.com/english/routers/port_forwarding/Linksys/WRT54G/HTTP.htm

You need to set up your router's HTTP forwarding to Port 80. This will then mean when you access your router using the external IP address, you will be forwarded to your unit's internal IP address.

1. To test this, open your Web browser, and go to your external IP address (in our example, 278.67.04.09). If you're using a dynamic IP address, check it again before doing this because it may have changed since the start of this tutorial.

2. To make this easier, you could use a dynamic DNS (Dynamic Name Server). This means you no longer need to remember IP addresses or use www.whatsmyip.com to find your IP address. You will instead register a domain name (for example myServSensor2.homeip.com). This will then automatically point your router's external IP address (for example, 278.67.04.09). This will require you to register the domain name and open an account with a DNS server provider. We recommend www.dyndns.com because they allow up to five free domain names to be registered.

3. If you have set up everything correctly, you can now access your unit from anywhere in the world by simply pointing your Web browser to your DNS address.

7.2 Setting Up Your PC's Routing Table

To set up the routing table, open a DOS window (Start, Run type command, press Enter) and at the command prompt type in:

route add 192.168.0.10 0 10.1.1.20

8. Frequently Asked Questions (FAQs)

Question: How does the ServSensor record the sensor data and how much can it store?

Answer: The ServSensor will record and store the changes for the dry contacts and sensors because the unit's hardware has a data logger where it stores this data in memory. It can save 8,640 points per sensor. So, if you set your collection time period for 15 minutes, for example, then you can save data up to 3 months on the unit.

Question: Can you please tell how often the ServSensor unit interrogates each sensor to obtain the sensor's readings?

Answer: This really depends on the sensor type that you have connected to the unit. The switch-type sensor interrogates with the ServSensors more than 2 times per second. The temperature and analog type sensors interrogate 1 time per second. But all of the readings depend on the environment like the number of sensors you have on-line and your e-mail and SNMP trap alert settings.

Question: Is there a way to reboot the ServSensor unit's Web interface remotely?

Answer: Yes, you can reboot the unit's Web interface remotely using this SNMP command and OID here:

Question: Is there any way to edit the content of the e-mail alerts that are sent out from my ServSensor unit?

Answer: Yes, we have added a separate e-mail notification function. You can set this by using the following SNMP command:

When is admin password is the IP address of the unit and is for the separate e-mails or not. If this value is 1, it will have the separate e-mails. If this value is 0, it will not have the separate e-mails.

Question: I have forgotten the IP address that my ServSensor is configured with. Is there a way I can determine this IP?

Answer: Yes, you can unplug the power cord, then plug it back in, to cycle the power on the ServSensor while you have the IPSet utility software running on your PC. When you open the IPSet utility, it will say "Recycle power to ServSensor" (as shown in Figure 8-1).

IPSet Ver. 5.5.8.0, Jun 8, 2007 Recycle power to sensorProbe Mode MAC Address Automatically Get MAC Manually Enter MAC Firmware Upgrade IP Address Set Status > 1 NICs found on this machine (solid): NIC1: 10.1.5.215 > Listening... Online help Routing table detail Register your product Exit IPSet Permission - High Importance Low Importance tions ABC Spelling - Proofing ing on the PC? When you e out any information.

Figure 8-1. Finding the ServSensor's IP address.

When the ServSensor is powered up, the IPSet will capture its IP address, then you will be able to click on the flashing button to open the Web interface. You can download the IPSet utility by logging into the Black Box Web site (www.blackbox.com) with your unit's MAC ID.

Question: Is there a way to reset my unit back to the factory default settings?

Answer: Yes, you can reset the unit back to the factory default settings using our utility called "Configure." You can download this from our Web site. When you reset the unit, keep it directly connected to your PC with the cross-connect cable. Once you reset the unit, run the latest firmware update as well with the utility. You can download this from the same link above.

Question: I am still having trouble connecting to the unit and opening the Web interface. What could be the problem and what should I try?

Answer: If you are using Internet Explorer ^® 7 or 8 Web browser versions, try placing the unit in the "trusted sites" list. Try clearing the cache and refreshing your browser with the Ctrl + F5 key. Are you using HTTPS? The ServSensors and IPSet do not support HTTPS. This is only available on the ServSensor V4E Hub units.

Question: I have assigned the gateway IP, and when I click "Save," it reverts back to the default IP. What should I do?

Answer: This happens when the device can't find the IP entered. When the IP is entered, the device searches for the IP and will accept it if it is found, or else it will revert back to the default IP.

Question: I have an alert condition from one of my sensors attached to my ServSensor unit: the base unit started to send e-mail alerts. Before I was able to fix the problem, my SMTP server was clogged with several hundreds of messages waiting in the outbound queue to be sent. Is there a way to add a parameter to the base unit's Web interface that defines the interval between successive e-mail alerts to limit the rate at which these alerts are being sent and keep the SMTP server operational?

Answer: Yes, we have the "Minimum time between each Trap/Email" feature in the Sensor Settings > Sensor Status Filters button. This feature can limit the traps and e-mails that the unit will send. A similar parameter also exists on the ServSensor's web interface called "Resend Intervals (secs)" and another one called "Maximum Times to Resend" will also limit the alerts being sent.

Question: I am having trouble connecting the ServSensor to my SMTP e-mail server, what could be the problem?

Answer: Here are some things to check when having trouble with SMTP server connections and saving your settings.

• Try changing your SMTP server from the name to the IP address of the server.
• The SMTP server is entered is wrong.
• The send mail option is not enabled in the Mail settings page.
• The timeout period entered is too low.
• The gateway IP is not entered in the network page.
• The mail from address is not set.
• The mail server is not responding.
• The mail from address is not validated in the mail server.
• The mail server settings prohibit it from accepting connections from the device IP.
• The mail server is an SSL type, which is not supported by the ServSensor units.

Question: I am using Microsoft® Exchange Server, but the Exchange server fails to receive the e-mail alerts from my ServSensor unit. Does my ServSensor support MS Exchange Server?

Answer: Yes, the units do support MS Exchange Server. However, the ServSensors only support basic authentication. MS Exchange, by default, when a connector is set up uses TLS, then basic. You have to uncheck this option.

Question: Is there a way to download my sensor data, or push this out in real time to my PC?

Answer: Yes, you have several options for collecting, downloading, and storing the data from the ServSensor units. See Section 4.2.

You can graph each sensor's output readings and then download that data as a text file, so you can import it into, for example, an Excel spreadsheet. Click on the Graph >> View in the Summary screen and a screen similar to Figure 8-2 will appear.

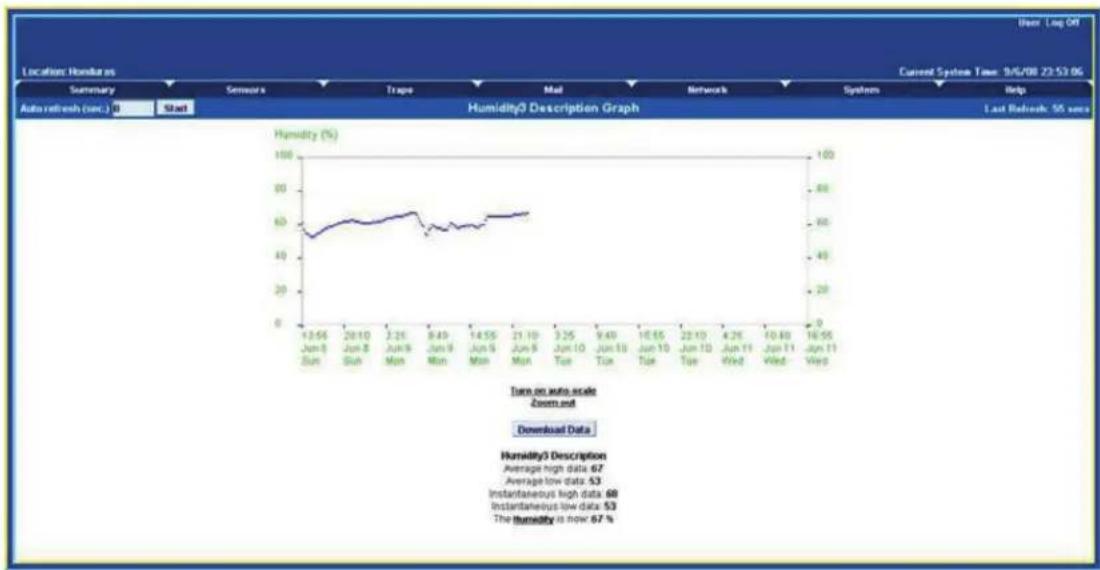

Figure 8-2. Output readings graph.

We also have two utilities that allow you to download the sensor data. The first is called dataDownload, which is a command-line program that will download all the sensor readings stored on the ServSensor. This data is then stored in a text file and can then be easily imported into a spreadsheet program, such as Microsoft Excel. Contact Black Box Technical Support at 724-746-5500 or [e-mail] for details.

Or, you can use our dataCollect utility that enables you to poll the sensor data directly from a PC on the same LAN as your ServSensor in real time. You can collect an unlimited number of readings and you can collect data from multiple ServSensors simultaneously. You can download this from the Black Box Web site by first logging in with your unit's MAC ID.

Question: I am not too familiar with SNMP or what Object Identifiers (OIDs) to use with your products. How would I find out more about this and what OIDs to use?

Answer: Contact Black Box Technical Support at 724-746-5500 or [e-mail].

Black Box Tech Support: FREE! Live. 24/7.

Tech support the way it should be.

Close-up portrait of a smiling man with short hair, hand near ear (no text or symbols visible)

Great tech support is just 30 seconds away at 724-746-5500 or blackbox.com.

BLACK BOX®

NETWORK SERVICES

About Black Box

Black Box provides an extensive range of networking and infrastructure products. You'll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.

© Copyright 2012. Black Box Corporation. All rights reserved.

EME102A-R2, version 1
