USER MANUAL OPTIX5 Lanzar

Owner's Manual and Installation Guide

INTRODUCTION

Congratulations on your purchase of a LANZAR Crossover. This product has been designed and built to deliver excellent sound quality and long lasting high performance. We are sure you will enjoy listening to your favorite music with this LANZAR component in your car audio System. For best result a professional car stereo installer for application advice or troubleshooting. Thank you for choosing LANZAR products for your auto-sound system. Everything else is just noise

FEATURES

FRONT AND REAR CHANNEL :

* High Pass Frequency Selector 40Hz to 400Hz / 32Hz to 250Hz
* Frequencies Multiplier x1 or x20
* Crossover Slope 6dB/Octave or 12dB/Octave
* Signal Gain Control
* Parallel Input Switch

SUBWOOFER CHANNEL:

* Subwoofer Input Switch

* +12dB Bass Boost

* Phase Shift Switch

* Stereo/Mono Switch

* Output Level Control

* Exclusive Remote Subwoofer Level Control

* Low Pass Frequency Selector 40Hz to 400Hz

* Bass Boost Frequency Selector 25Hz to 250Hz

SPECIFICATIONS

Power Supply...... DC to DC switching power

S/N Ratio.... 110dB

Channel Separation.... 80dB

Distortion..... THD @ 0.01%

Crossover Slope.... 12dB per Octave

Input Impedance.... 20K Ohms

Output Impedance.... 100 Ohms

Output Gain.... 1:2 (+6dB)

Output Voltage Level...... 8Volts Max

Dimensions.... 5-13/16" (W) x 8-1/4" (L) x 1-3/8" (H)

Features and specifications subject to change without notice.

INSTALLATION

1. Find a suitable location in the vehicle to mount the crossover.
2. Bolt the crossover to the mounting surface.

3. Using the screw terminals provided, connect minimum 16 gauge wire from the power, Ground and remote terminals. Connect the shortest possible wire to a chassis ground point. The (+) 12V connection should be made directly to the car battery, and the remote should be connected to the Remote Turn On Lead of your head unit. When connecting directly to the battery, install a 3A Fuse within 18 inches of the battery terminal.

4. Connect all line inputs and outputs using high-quality RCA cables.

5. Recheck all connections before powering up.

6. Set all level controls to their minimum positions and set all crossover controls, switches, etc. To the desired frequency or position.

7. Once the system is powered up, set the volume control on the head unit to a moderate level where your normal speaking voice can be heard while the music is playing.

8. Further fine tuning of the various controls may be necessary to obtain the desired results.

9. When unsure about installation or system tuning, please consult an authorized LANZAR dealer.

1. Ground Terminal (GND).
2. Remote Turn-On Terminal (REM).
3. Power Terminal (+12V).
4. Power Indicator.
5. Front Channel Inputs.
6. Parallel Input Switch: If there are 4 sets (2 pairs/ Front & Rear) RCA inputs available, place this switch in the "IN" position. If there is only one pair of input RCA connectors being used, place this switch in the "OUT" position to provide Front and Rear input from that single pair of RCA inputs.

(Note that the Front inputs are essentially the main inputs, thus providing an input to these terminals, and properly selection of the various switch positions would provide signals on ALL of the various outputs.)

1. Rear Channel Inputs.
2. Subwoofer Channel Inputs.

3. Subwoofer Input Switch: If there is no dedicated subwoofer signal available from the signal source, place this switch in the "ON" position to provide signal at the subwoofer output terminals. If there is a dedicated subwoofer signal source available for this input purpose, place the switch in the "OFF" position.

4. Front channel High-Pass frequency selector.

5. Rear channel High-Pass frequency selector.

6. Frequency Multiplier: for Front Channel High Pass Frequency selector.

13 & 14: Front and Rear Channel Slope Selectors: Move the selector switch to the 6 dB position when little or no attenuation as well as little or no separation is required between the selected frequency and the next adjacent frequency. Selected 12dB position when greater definition and/or attenuation is desired between the selected frequency and the other adjacent frequencies.

1. Subwoofer Low Pass Frequency Selector.

2. Bass Boost Level Control.

3. Bass Boost Frequency Selector.

4. Phase Shift Selector switch: Use this switch to select output phase for the subwoofer channel to provide best time alignment and stereo imaging.

5. Stereo / Mono Switch: For selection of stereo and mono mode for subwoofer output signal.

20 & 22. Front and Rear Channel High Pass Level Controls.

1. Front Channel Outputs Terminals.

2. Rear Channel Outputs Terminals.

3. Subwoofer Low Pass Level Control

4. Subwoofer Channel Outputs Terminals.

5. Subwoofer Remote Level Control Jack: To be connected to the remote control for adjusting the output level of subwoofer output. (Note: The remote control will adjust to the highest preset setting of the subwoofer low pass level control.)

6. Fuse: Use only a 3 AMP fuse for replacement.

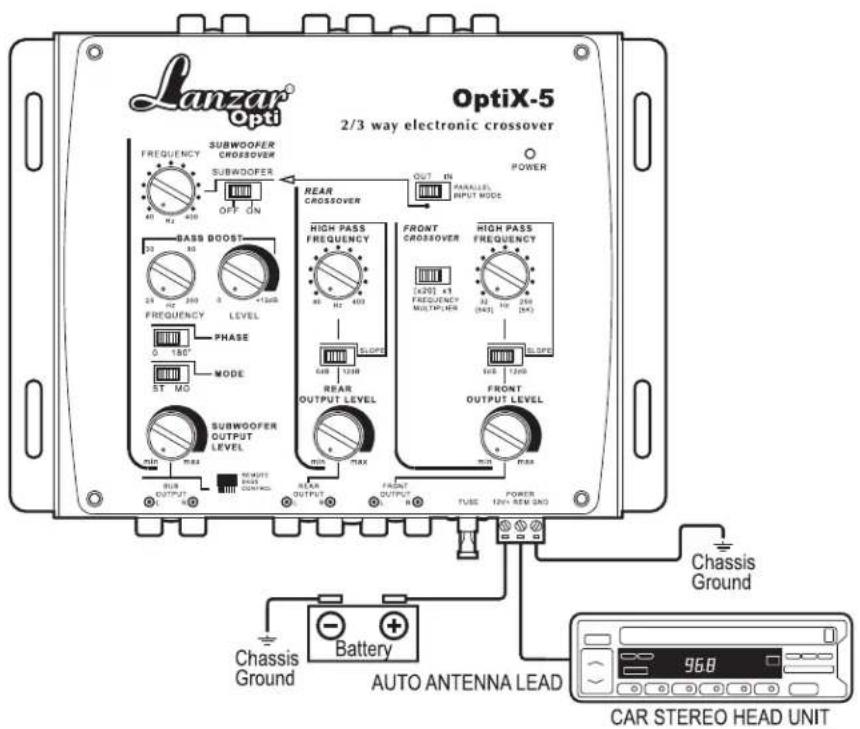

WIRING DIAGRAM : Power Connection

Lanzar® Opti 2/3 way electronic crossover FREQUENCY SUBWOOFER CROSOVER 40 H2 400 OFF ON BASS BOOST 20 H2 300 0 +1200 FREQUENCY LEVEL PHASE 0 150° MODE ST MO SUBWOOFER OUTPUT LEVEL SUBW/OFF R/W OUTPUT MAX MAX MAX OUT ON PARALLEL INPUT MODE REAR CROSOVER HIGH PASS FREQUENCY 80 H2 400 SLOPE 648 1200 REAR OUTPUT LEVEL FRONT CROSOVER [400] 43 FREQUENCY MULTIPLEX 32 30 250 (94) SLOPE 648 1200 FRONT OUTPUT LEVEL TUBE POWER 12V REM SING Chassis Ground Battery AUTO ANTENNA LEAD 96.8 CAR STEREO HEAD UNIT

SIGNAL CONNECTION SYSTEMS:

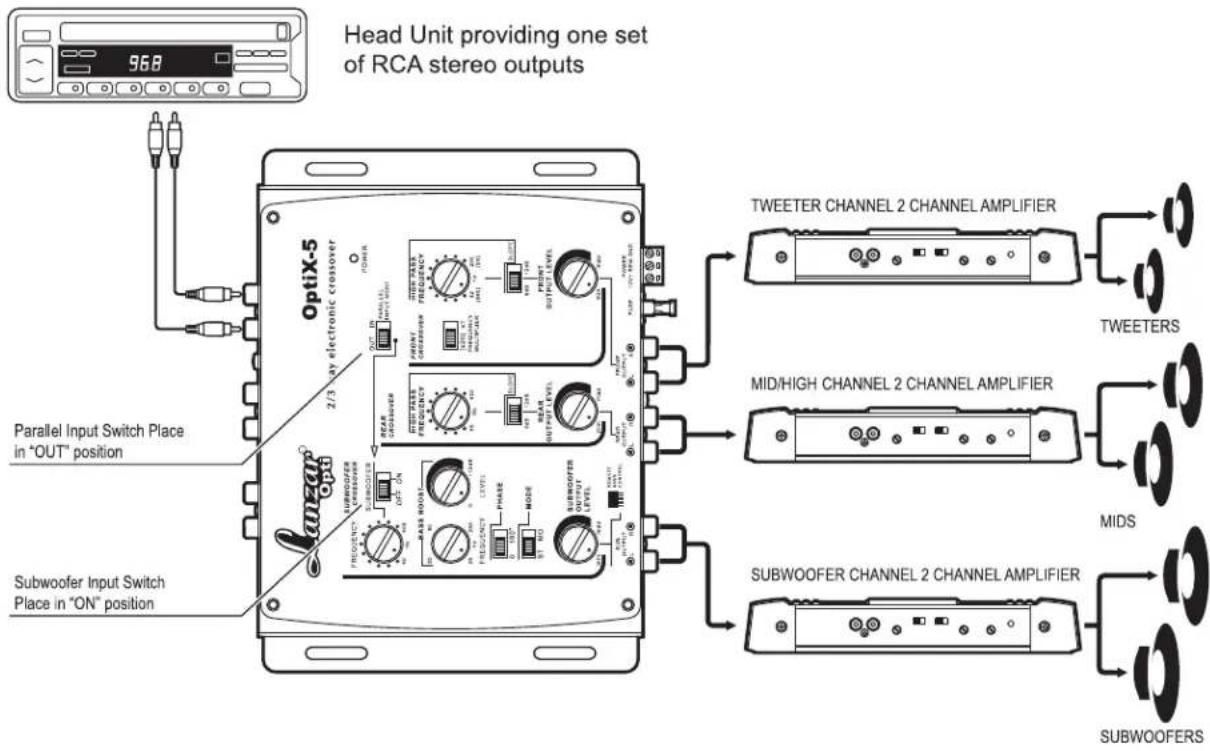

2 Channel Stereo System

Head Unit providing one set of RCA stereo outputs OptiX-5 2/3 PARLLE ELECTRONIC CROSOVER TWEETER CHANNEL 2 CHANNEL AMPLIFIER TWEETERS Parallel Input Switch Place in "OUT" position MID/HIGH CHANNEL 2 CHANNEL AMPLIFIER MIDS Subwoofer Input Switch Place in "ON" position SUBwoofer CHANNEL 2 CHANNEL AMPLIFIER SUBWOOFERS

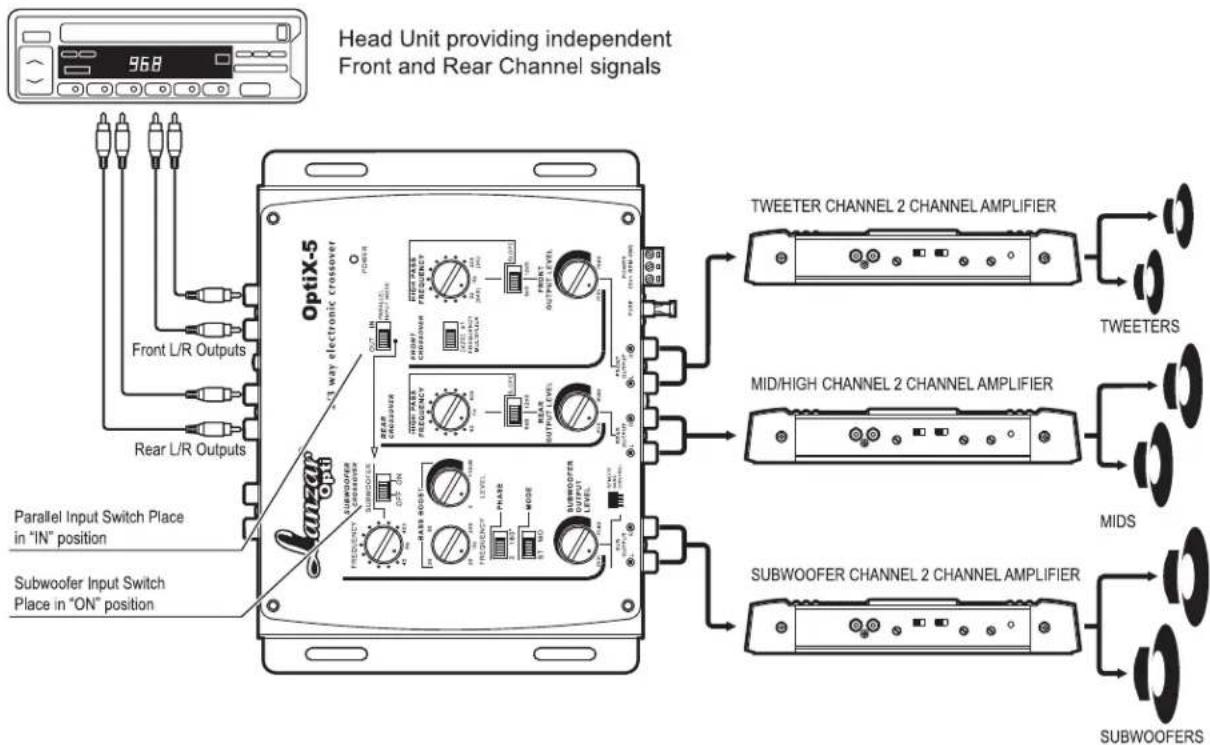

4 Channel Stereo Front/Rear System

Head Unit providing independent Front and Rear Channel signals OptiX-5 Front L/R Outputs Rear L/R Outputs Parallel Input Switch Place in "IN" position Subwoofer Input Switch Place in "ON" position TWEETER CHANNEL 2 CHANNEL AMPLIFIER TWEETERS MID/HIGH CHANNEL 2 CHANNEL AMPLIFIER MIDS SUBWOOFER CHANNEL 2 CHANNEL AMPLIFIER SUBWOOFERS

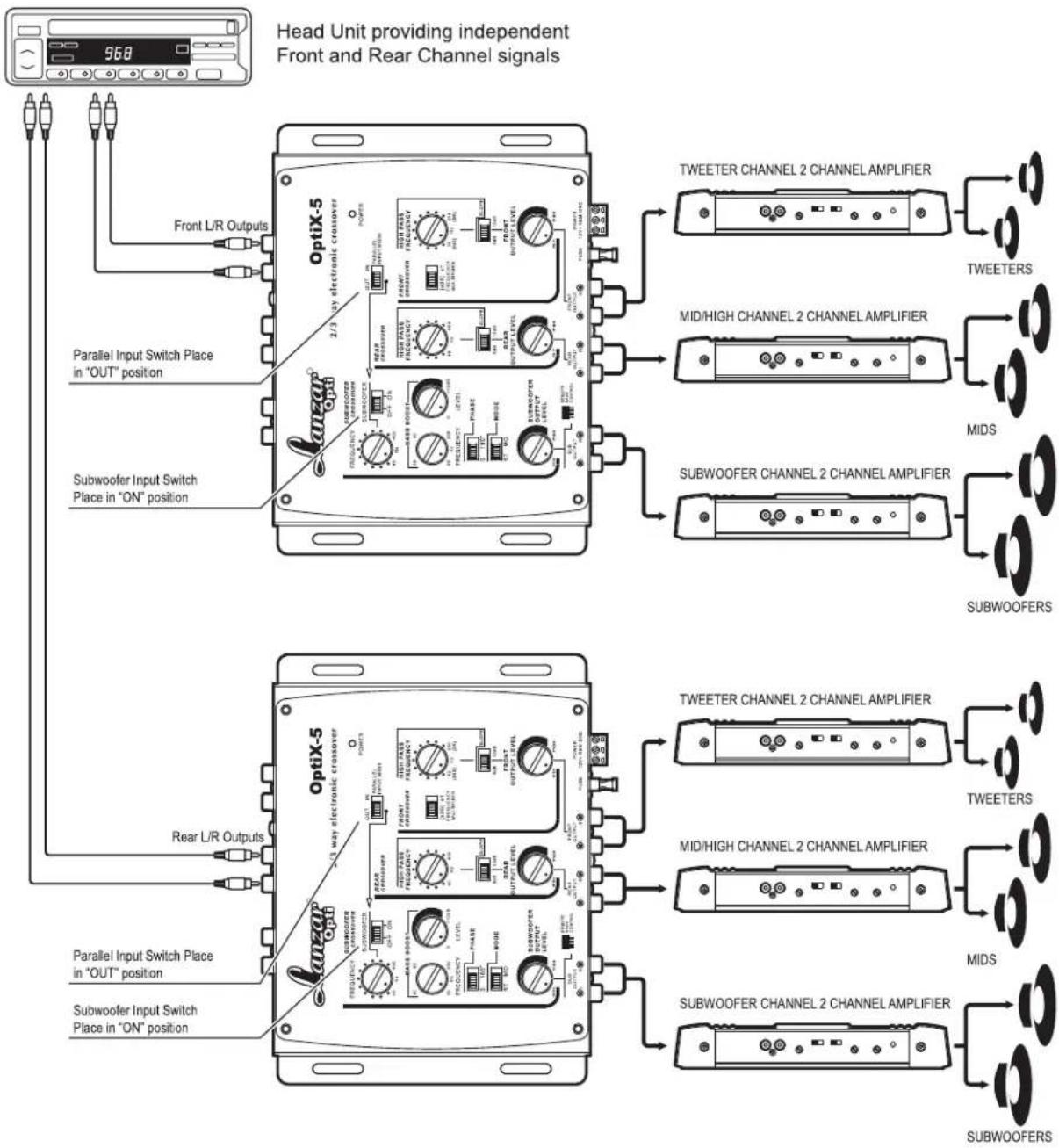

4 Channel Stereo Front/Rear/Dual Crossover System

Head Unit providing independent Front and Rear Channel signals 968 Front L/R Outputs OptiX-5 2/3 TWEETER CHANNEL 2 CHANNEL AMPLIFIER TWEETERS Parallel Input Switch Place in "OUT" position Subwoofer Input Switch Place in "ON" position MID/HIGH CHANNEL 2 CHANNEL AMPLIFIER MIDS SUBWOOFER CHANNEL 2 CHANNEL AMPLIFIER SUBWOOFERS Rear L/R Outputs OptiX-5 13-way electronic crossover Rear L/R Outputs MID/HIGH CHANNEL 2 CHANNEL AMPLIFIER MIDS Subwoofer Input Switch Place in "ON" position Subwoofer Input Switch Place in "ON" position TWEETER CHANNEL 2 CHANNEL AMPLIFIER TWEETERS Parallel Input Switch Place in "OUT" position

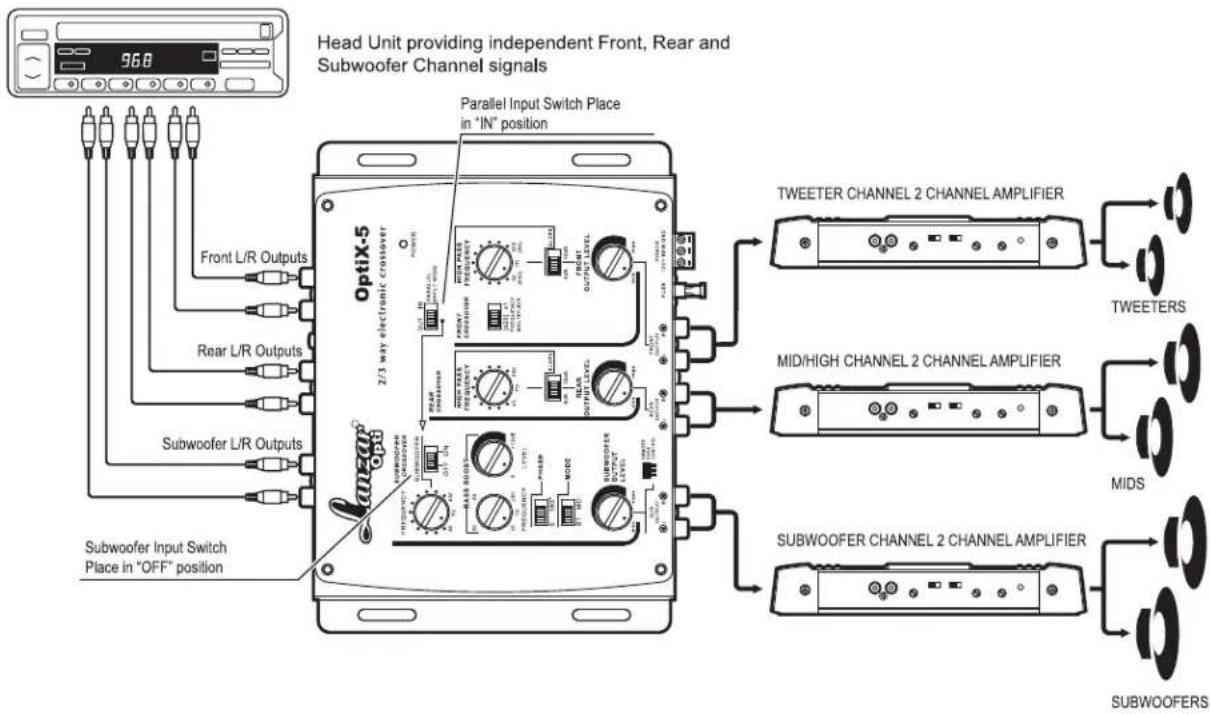

4 Channel Stereo Front/Rear/Dual Rear and Subwoofer System

Head Unit providing independent Front, Rear and Subwoofer Channel signals Parallel Input Switch Place in "IN" position OptiX-5 2/3 way electronic crossover Front L/R Outputs Rear L/R Outputs Subwoofer L/R Outputs Subwoofer Input Switch Place in "OFF" position TWEETER CHANNEL 2 CHANNEL AMPLIFIER TWEETERS MID/HIGH CHANNEL 2 CHANNEL AMPLIFIER MIDS SUBWOOFER CHANNEL 2 CHANNEL AMPLIFIER SUBWOOFERS

TROUBLE SHOOTING

Symptom Possible remedy:

Signal Processor Check:

does not turn on. *Remote Turn-On wire has (+) 12V

*(+) 12V wire has (+) 12V

*Ground wire is properly connected:

Level of sound is Check:

low. *Wiring is not loose or cables misconnected/disconnected

*RCA cables are not faulty

Background noise Check:

is too high. *Wiring is not loose or cables misconnected/disconnected - ground is important

*RCA cables are not faulty

PRECAUTIONS

Enjoy your system, but use it wisely and safely!

* Never drive with the volume raised so high you cannot hear what is occurring in traffic around you.

* Be ware that repeated exposure to excessive volume levels can permanently damage you hearing!

* Keep all electronics away from moisture, dust, extreme heat or extreme vibrations.
