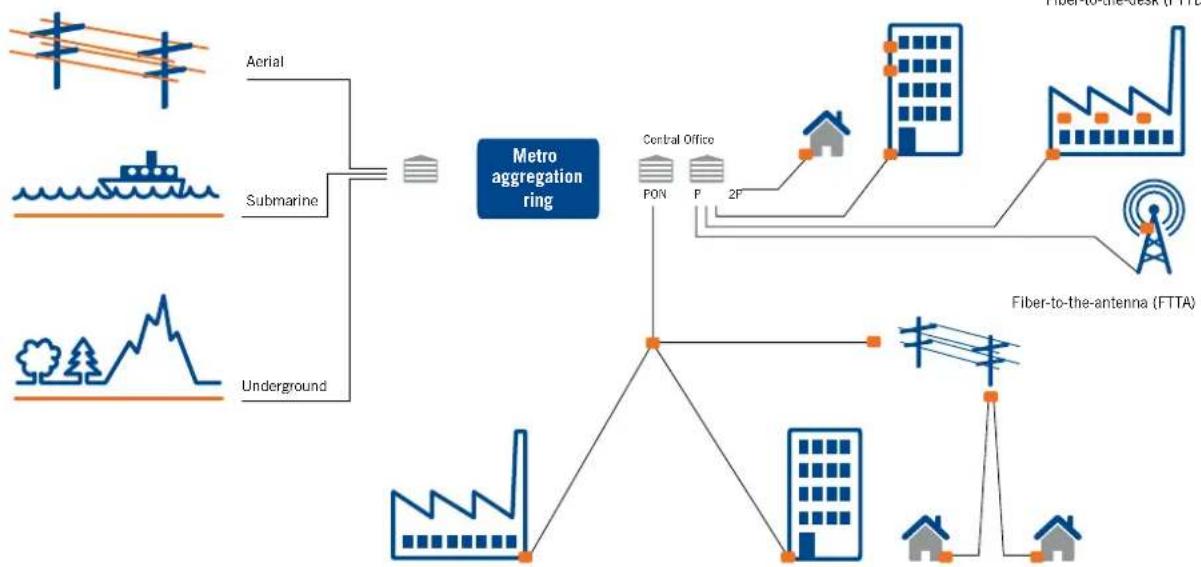

Fiber Access Network Fiber Transport Network

Fiber-to-the-desk (FTTD) Fiber-to-the-home (FTTH)

Fiber-to-the-curb (FTTC) Fiber-to-the-home (FTTH)

A Long Term Investment

The passive infrastructure in any fiber optic network is a long-term investment. It needs to be built on scalable and future-proof technology that is optimized in terms of capacity, quality and operational expenditure.

This catalogue presents an overview of our Passive Fiber Infrastructure offering. All products are designed and tested to meet the highest quality and environmental standards.

The catalogue covers the main areas:

Central Office Related Equipment covers products that are common in any type of network, regardless of application. Equipment racks, Optical Distribution Frames (ODFs), patch cords and other fiber optic accessories are found here.

Fiber Access Network covers the air blown fiber system Rib-bonet® and the Hexatronic Micronet micro cable systems used for efficient installation of access networks including Fiber-to-the-Home (FTTH) and similar architectures. This section also covers products for scalable campus and metro networks as well as components for efficient splicing and termination of access networks.

Fiber Transport Network covers products for general network applications such as fiber optic cables for underground and aerial as well as local site cabling installation. This section also includes associated cables and components for splicing and termination of cables.

Submarine Cable Systems

The range of cables for submarine installations is based on extensive experience from several submarine-cable projects.

Local Site Cabling and FTTA covers installation cables for various interconnect applications as well as cables for Fiber To The Antenna (FTTA) systems. This section also includes components used for indoor and outdoor installations.

You can find all our products on www.hexatronic.com.

Contact the Hexatronic sales team to find your nearest wholesaler +46 (0) 10 - 453 02 00, [e-mail].

ONLINE CATALOGUE

Please find catalogues in digital format and more information about our products and services at: www.hexatronic.com Hexatronic catalogues are also available in: issu.hexatronicpartners.se

NEATRONIC SOURCES www.neatronics.org New Solutions, Global and Research Systems

CONTENTS

Central Office Related Equipment

Equipment Rack Systems 4

Optical Distribution Frames 6

Patch Cords, Pigtails and Cable Assemblies 9

Splitters and Other Passive Optical Devices 14

Fiber Optic Accessories 16

Fiber Access Network

Micronet Micro Cable Systems

Microducts and Multiducts for Micro Cables 20

Duct Joints and Other Duct Equipment 25

Fiber distribution Hubs 28

Ribbonet® Air Blown Fiber Systems

Ribbonet® Air Blown Fiber 30

Microducts and Multiducts for Air Blown Fiber 33

Duct Joints and Other Duct Equipment 40

Fiber Access Terminals and Fiber Termination Boxes .... 44

Installation Tools and Accessories 47

Drop Cables 49

Fiber Transport Network

Cables for Duct Installation 51

Cables for Direct Buried Installation 55

Cables for Aerial Installation 58

Joint Closures for Fiber Optic Cables 60

Submarine Cable System

Loose Tube Cables 62

Ribbon Cables 65

Cable Parts for Integration 67

Local Site Cabling and FTTA

Cables for Indoor Installation 68

Cables for Indoor/Outdoor Installation, FTTA Applications .. 69

CENTRAL OFFICE RELATED EQUIPMENT

EQUIPMENT RACK SYSTEMS

The Central Office offering features fiber management systems to efficiently and cost-effectively organize and terminate large quantities of fiber. The application in the central office environment is characterized by a minimum footprint in combination with class-leading capacity that allows well-organized and safe fiber termination to minimize operating errors.

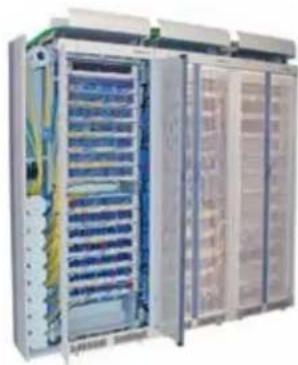

Multifiber Management System

The Multifiber Management System is a high-capacity, telecom grade fiber termination rack for central office applications. The rack is equipped with fiber management through vertical and horizontal cable guides.

TYPE: 19" mounting frame

SIZE: 800x1800*x400 mm

CAPACITY, EQUIPMENT: 36U

CAPACITY, CONNECTIONS: up to 1536 (SC)

* Overhead cable channel adds 150mm to height

E-NO.	PRODUCT NO.	PRODUCT NAME
5055426	1/BFM108213	Fiber Management System, 19" frame, patch management module and doors
	8/BYB501180 BYB 501 Rack H=1800 B=450 D=300 19"
	10/BYB501180/1 Set of Doors
	11/BYB501180 Set of End Covers
	23/BYB501180 Back Plate 400 mm
	31/BYB501180/1 Multipatch handling system
	51/BYB501 Fasteners
	SXM1135667	Vertical cable guide

Interior view of an open industrial server rack cabinet with visible internal compartments and wiring (no text or labels)

Compact Fiber Management System

This rack system offers unique benefits for high density fiber optic termination applications such as FTTH.

TYPE: 14" frame

SIZE: 600x1800 / 2200x300 mm

CAPACITY, EQUIPMENT: 24/36U

CAPACITY, CONNECTIONS: 1152/1536 (SC)

E-NO.	PRODUCT NO.	PRODUCT NAME
5001037	BAB327300/100	Compact Fiber Management System 14" frame, 1800 mm
5001038	BAB327300/200	Compact Fiber Management System 14" frame, 2200 mm
5001033	1/BAB327300	Top mechanic for fiber rack w. Patch guide and wall mount
5001034	10/BAB327300/100	Door for BAB327300/100
5001036	10/BAB327300/200	Door for BAB327300/200

3D rendering of a yellow industrial component with internal cavities and mounting holes (no text or symbols visible)

Mounting Frame System

The mounting rack system is a multi-purpose, wall mounted frame system for smaller sites. The frame is designed for 19" equipment. The depth of the frame can be adjusted with brackets.

TYPE: 19" mounting frame, wall mounted

SIZE: 500x2200x240x500 mm

CAPACITY, EQUIPMENT: 48 U

E-NO.	PRODUCT NO.	PRODUCT NAME
5001010 NBF11003 Mounting Frame System, Set
5001050 N-675073 Vertical Bar
5001060 N-675074 Cable Support
5001135 N-675075 Wire Guide
5001055 N-675076 Top and Bottom Iron
5001110 NBH10201 Mounting Frame
5001015 NBH10202 Mounting Set
5001120 NBH10401 Mounting Bar
5001030 NBH10402 Mounting Set
5001065 NSD60101 Fixing Iron
5001067 NSD60102 Fixing Iron
5001130 NSG20701 Wire Guide
5001165 NSV45101	Washer
5001155 NSV61101	Screw

Pure technical diagram showing intersecting lines and a grid of parallel lines without any text or symbols

Fiber Jointing Cabinet - High Capacity

This high capacity cabinet is intended for handling of cable splices between incoming cables entering the central office and the cables from pre-terminated ODFs. The cabinet can be wall mounted or mounted in a 19" or ETSI rack.

TYPE: Cable installation, 19", ETSI or wall mount SIZE: 440x600x220 mm

CAPACITY: 768 splices (single fiber) or 2600 splices (8-f ribbon)

E-NO.	PRODUCT NO.	PRODUCT NAME
5055427	NCD5188005	Fiber Jointing Cabinet 786
5060284	NTM503023	External strain relief kit

Exterior view of a white industrial electrical cabinet with a door and mounting bracket (no visible text or symbols)

Fiber Jointing Cabinet - Small

This extra small cabinet is useful for smaller sites. It is intended for wall mounting. The cabinet includes 2 splice trays. To increase the splice capacity, 6 additional trays can be added (optional accessories).

TYPE: Cable installation, wall mount SIZE: 350x300x130 mm

CAPACITY: 24 to 96* splices (single fiber) or 48 to 192* splices (4-f ribbon)

* With additional splice trays (optional)

White rectangular electronic enclosure with three black ports and a small metallic component at the bottom (no visible text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5055401	NCD5181098	Cabinet for fiber splicing only, wall mount, incl. 2 splice trays and solid panel

OPTICAL DISTRIBUTION FRAMES

Optical Distribution Frames (ODFs) are integrated components in any fiber management system. They are available as rack-mounted units for 14", 19" or ETSI racks, or as wall-mounted cabinets. The ODFs are available in a range of configurations depending on application:

Pre-terminated ODFs with stub cables are pre-installed with connectors and cable for quick and easy installation. Units with pre-terminated cables offer advantages such as faster installation, resulting in shorter time to revenue as well as guaranteed quality and performance. Several cable options are available. ODFs with stub micro cables are especially suitable for high packing density applications such as the Multifiber Management System (MMS).

ODFs for cable installation are intended for installation and termination of all kinds of fiber optic cables. The units are suitable for splicing pigtails or fiber ribbon fanouts as well as field-installable connectors. The ODFs are delivered empty, allowing the customer to order the pigtails/fanouts, adapters, splice protection sleeves and installation kit that best suit the specific application. The units can also be installed with pre-connectorized cable assemblies.

ODFs for air blown fiber are designed to handle termination of microducts for air blown fibers. They are typically used in FTTx applications when blowing fibers directly to a central office or other distribution point. The air blown technology enables incremental installation when needed.

ODF Pre-terminated, with Stub Cable, 2U

Pre-terminated ODF with a capacity from 24 to 96 SC (192 LC) connectors. Options include: halogen-free, flame-retardant, loose tube, ribbon or micro cable. Optional accessories include horizontal patch cord guides for space-saving mounting directly onto the front of the ODF.

TYPE: Pre-terminated, 19" or ETSI mount, 2U

SIZE: 400x249x86 mm

CAPACITY: 24-96 SC, 24-192 LC

CABLE OPTIONS: Halogen-free, flame-retardant

loose tube, ribbon or micro cable, 10-100 m

CONNECTOR OPTIONS: SC, SC/APC, LC, LC/APC

Front view of a rack-mounted server unit with multiple ports and a green cable (no visible text or labels)

E-NO.	PRODUCT NO.	PRODUCT NAME
5029089	NCD5138051/010D	48xSC ODF 2U, Micro Cable GNHQBDUV 10m
NCD5138051/020D 48xSC ODF 2U, Micro Cable GNHQBDUV 20m
NCD5138051/050D 48xSC ODF 2U, Micro Cable GNHQBDUV 50m
NCD5138051/100D 48xSC ODF 2U, Micro Cable GNHQBDUV 100m
5029088	NCD5138052/010D	72xSC ODF 2U, Micro Cable GNHQBDUV 10m
NCD5138052/020D 72xSC ODF 2U, Micro Cable GNHQBDUV 20m
NCD5138052/050D 72xSC ODF 2U, Micro Cable GNHQBDUV 50m
NCD5138052/100D 72xSC ODF 2U, Micro Cable GNHQBDUV 100m
5029087	NCD5138050/010D	96xSC ODF 2U, Micro Cable GNHQBDUV 10m
5029092	NCD5138050/020D	96xSC ODF 2U, Micro Cable GNHQBDUV 20m
5029093	NCD5138050/050D	96xSC ODF 2U, Micro Cable GNHQBDUV 50m
NCD5138050/100D 96xSC ODF 2U, Micro Cable GNHQBDUV 100m
5029090	NCD5138040/010D	96xSC/APC ODF 2U, Micro Cable GNHQBDUV 10m
	NCD5138040/020D	96xSC/APC ODF 2U, Micro Cable GNHQBDUV 20m
	NCD5138040/050D	96xSC/APC ODF 2U, Micro Cable GNHQBDUV 50m
	NCD5138040/100D	96xSC/APC ODF 2U, Micro Cable GNHQBDUV 100m
5029091	NCD5138047/010D	96xLC ODF 2U, Micro Cable GNHQBDUV 10m
NCD5138047/020D 96xLC ODF 2U, Micro Cable GNHQBDUV 20m
NCD5138047/050D 96xLC ODF 2U, Micro Cable GNHQBDUV 50m
NCD5138047/100D 96xLC ODF 2U, Micro Cable GNHQBDUV 100m

PRODUCT NO.*	PRODUCT NAME
NCD5138053/aaaD	24xSC ODF 2U, Micro Cable GNHQBDUV
NCD5138094/aaaD	24xSC/APC ODF 2U, Micro Cable GNHQBDUV 10m
NCD5138095/aaaD	48xSC/APC ODF 2U, Micro Cable GNHQBDUV 10m
NCD5138059/aaaD	72xSC/APC ODF 2U, Micro Cable GNHQBDU 10m
NCD5138049/aaaD	24xLC ODF 2U, Micro Cable GNHQBDUV 10m
NCD5138048/aaaD 48xLC ODF 2U, Micro Cable GNHQBDUV 10m
NCD5138079/aaaD	24xSC ODF 2U, Indoor/Outdoor Sheath GRHQBDUV 10m
NCD5138078/aaaD	48xSC ODF 2U, Indoor/Outdoor Sheath GRHQBDUV 10m
NCD5138077/aaaD	96xSC ODF 2U, Indoor/Outdoor Sheath GRHQBDUV 10m
NCD5138033/aaaD	24 SC ODF 2U GASQBDUV 10m
NCD5138034/aaaD	48 SC ODF 2U GASQBDUV 10m
NCD5134356/aaaD	96 SC ODF 2U GASQBDUV 10m
NCD5138091/aaaD	24 SC/APC ODF 2U GASQBDUV 10m
NCD5138092/aaaD	48 SC/APC ODF 2U GASQBDUV 10m
NCD5134346/aaaD 96 SC/APC ODF 2U GASQBDUV 10m
NCD5138093/aaaD	24 LC ODF 2U GASQBDUV 10m
NCD5138038/aaaD	48 LC ODF 2U GASQBDUV 10m
NCD5138037/aaaD	96 LC ODF 2U GASQBDUV 10m
NCD5138063/aaaD	72xLC ODF 2U, Micro Cable GAHQBDU 10m w.Patch Guide type A for general racks

*aaa indicates the length in m. (aaa = 010, 020, 050, 100 etc)

ODF for Cable Installation, 2U

High capacity ODF with up to 96/192 connectors. Optional accessories include horizontal patch cord guides for space-saving mounting directly onto the front of the ODF, pigtails, fanouts, adapters, splice sleeves, etc.

TYPE: Cable installation, 19" or ETSI mount, 2U

SIZE: 400x249x86 mm excluding reel

CAPACITY: 96 SC, 192 LC

CONNECTOR OPTIONS: SC, SC/APC, LC, LC/APC, E2000, FC, ST

Exterior view of a white industrial or server rack unit with ventilation grilles and mounting feet (no visible text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5055428	NCD5139215	ODF box with 24 SC duplex cut out
5055429	NCD5139217	ODF box with 36 SC duplex cut out
5010028	NCD5139216	ODF box with 48 SC duplex cut out
	NCD5139245	ODF box with 24 slots for E2000-duplex adapters (48-fiber)
5010026	NCD5139305	ODF box with 48 slots for FC or ST adapters (48-fiber)

ODF for Cable Installation, 1.5U

ODF with a capacity of up to 48/96 connectors. Optional accessories include horizontal patch cord guides for rack mounting directly under the ODF, pigtails, fanouts, adapters, splice sleeves etc.

TYPE: Cable installation, 19" or ETSI mount, 1,5U

SIZE: 440x247x66 mm excluding reel

CAPACITY: 48 SC, 96 LC

CONNECTOR OPTIONS: SC, SC/APC, LC, LC/APC, E2000, FC

Front view of a rack-mounted server unit with multiple ports and indicator lights (no visible text or labels)

E-NO.	PRODUCT NO.	PRODUCT NAME
5010025	NCD5130303 ODF box1,5U with 24 slots for FC or ST
5010022	NCD5130211 ODF box 1,5U with 12 SC duplex cut out
5055430	NCD5130212 ODF box 1,5U with 18 SC duplex cut out
5010023	NCD5130213 ODF box 1,5U with 24 SC duplex cut out
NCD5130243 ODF box 1,5U with 24 E2000 cut out

ODF for Air Blown Fiber installation, 1U

Compact ODF with front access for simplified incremental installation of air blown fiber. The ODF has a capacity up to 48 SC (96 LC) connectors and clamps for up to 48 microducts. Optional accessories include horizontal patch cord guides, pigtails, fanouts, adapters, splice sleeves etc.

TYPE: 19" mount for air blown fiber installation, front access

SIZE: 450x280x44 mm

CAPACITY: 48 SC, 96 LC

CONNECTOR OPTIONS: SC, SC/APC, LC, LC/APC

Exterior view of a white rectangular electronic device with a blue internal panel (no visible text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5060061	NCD5200013	ODF for microduct access in the front, 24SC duplex cut-out

ODF Patch Panels

This is a multi-purpose patch panel system when no or limited access from the rear of the rack is allowed. The panel offers total front access for both incoming and outgoing cables. The light-weight panel is divided in a left and right swiveling section. It is designed for pre-connected incoming cable assemblies.

TYPE: Pre-connected cable assemblies

SIZE: 485x200x43 mm

CAPACITY: 6 basic versions with 48 or 32 SC adapters

Two white server rack units with green connectors and black ports, no visible text or labels

E-NO.	PRODUCT NO.	PRODUCT NAME
5055431	NCD5205000/1	ODF box1U with 48 SC-simplex adapters (included)
5055432	NCD5205000/2	ODF box1U with 16 SC-duplex adapters (for 32 connectors, included)
5055433	NCD5205000/3	ODF box1U with 48 SC/APC-simplex adapters (included)
5055434	1NCD5205000/4	ODF box1U with 16 SC/APC-duplex adapters (for 32 connectors, included)
5055435	NCD5205000/10	ODF box 1U with 48 slots for SC-simplex
5055436	NCD5205000/20	ODF box 1U with 16 slots for SC-duplex

Pre-connected ODF 14"/19"

These compact and pre-connected ODF:s are intended for 14" rack systems such as the BAB327 300. The connectors are terminated to a stub cable consisting of 8-f ribbons. Two versions are available: 1U with 48 SC or 2U with 96 SC.

TYPE: Pre-terminated, 14" mount, 1U or 2U

SIZE: 310x220x44/88 mm

CAPACITY: 48 or 96 SC

CABLE OPTIONS: Halogen-free, flame-retardant ribbon cable, 15-150 m

CONNECTOR OPTIONS: SC

Exterior view of a white electronic device with three blue and black ports (no visible text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5026005	NCD5200072/15M	48xSC 14" 1U ODF GAQQBDU Ribbon 15 m
5026006	NCD5200072/30M	48xSC 14" 1U ODF GAQQBDU Ribbon 30 m
5026007	NCD5200072/50M	48xSC 14" 1U ODF GAQQBDU Ribbon 50 m
5026008	NCD5200072/70M	48xSC 14" 1U ODF GAQQBDU Ribbon 70 m
5026004	NCD5200072/100M	48xSC 14" 1U ODF GAQQBDU Ribbon 100 m
5026057	NCD5200075/15M	96xSC 14" 2U ODF GAQQBDU Ribbon 15 m
5026058	NCD5200075/30M	96xSC 14" 2U ODF GAQQBDU Ribbon 30 m
5026059	NCD5200075/50M	96xSC 14" 2U ODF GAQQBDU Ribbon 50 m
5026060	NCD5200075/70M	96xSC 14" 2U ODF GAQQBDU Ribbon 70 m
5026056	NCD5200075/100M	96xSC 14" 2U ODF GAQQBDU Ribbon 100 m

ODF for Cable Installation, Wall Mounted

Two-sided wall mounted ODF with a capacity of up to 48 SC or 96 LC connectors. The ODF consists of two compartments with separate locks and is therefore suitable as a demarcation cabinet between different network owners. The cabinet can also be used as a jointing box. Optional accessories include patch panels for different adapter types.

TYPE: Cable installation, wall mount

SIZE: 475x300x130 mm

CAPACITY: 48 SC, 96 LC

CONNECTOR OPTIONS: SC, SC/APC, LC, LC/APC, ST, FC

Exterior view of a white electrical cabinet with two doors and metal clamps (no text or symbols visible)

E-NO.	PRODUCT NO.	PRODUCT NAME
5055437	NCD5181200	ODF Cabinet for fiber termination, panel 24 SC-Duplex cutout, side section, 4 splice trays

Patch Handling Unit Wall Mounted

This patch handling unit stores excess lengths of patch cords connected to ODF:s. 24 slots provide storage of up to 6 m of cable in each slot.

TYPE: 19" mount patch cord storage unit

SIZE: 482x234x88 mm

CAPACITY: 24 slots

Exterior view of a heat exchanger or cooling unit with multiple cooling fins (no text or symbols visible)

E-NO.	PRODUCT NO.	PRODUCT NAME
5055439 NBL32301 Storage unit ETSI/19" (vertical storage)

Horizontal Cable Guide

There are a number of accessories available for handling of patch cables in rack systems. This guide is mounted under ODF:s to guide patch cords to the side of the rack.

TYPE: 19" mount patch cord guide, 1U

SIZE: 482x70x41 mm

Pure diagram of a horizontal support structure with five vertical supports (no text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5055408	NTM504036	Horizontal cable guide for mounting in 19°ETSI rack, LU

PATCH CORDS, PIGTAILS AND CABLE ASSEMBLIES

The range of fiber optic patch cords, pigtails and cable assemblies cover all interconnect needs in any kind of environment. We provide virtually any type of fiber optic connector. Some examples are shown below.

Supported fiber types are singlemode G.657 (compatible to G.652), and multimode 50μm OM3and OM4. The product range is divided into four main categories:

Patch cords that are used for quick and easy interconnect between line equipment or for cross connection between network interface equipment such as ODFs. Patch cords are available as simplex (1 fiber), duplex (2 fiber).

Pigtails, stub fibers with a fitted connector on one end, are normally spliced towards a cable or other type of fiber unit inside an ODF, wall outlet or other type of network equipment. The standard pigtail is made of a 0.9mm tight secondary protected fiber. Pigtails are available for all connector options.

Fanouts, fiber ribbons that are branched out in one end and fitted with connectors, enable ribbon-fiber splicing, minimize splice cost and increase packing density in network equipment.

Multifiber cable assemblies, or fiber optic patch cables, for interconnect applications are preferred when a high number of interconnections and a high packing density is required. The cable assemblies are available with 4-48 fibers and are delivered pre-terminated in one or both ends. To facilitate installation and to maximize packing density, the multifiber cable assemblies use extra-slim micro cables, typically 6-8mm in diameter.

Coiled blue medical or laboratory device with connectors (no visible text or symbols)

Simple line drawing of a medical or laboratory device with a blue connector and red tubing (no text or symbols)

Medical or laboratory equipment setup with blue and black components, no visible text or symbols

Circular diagram with two blue fiber-like structures connected by a green line (no text or symbols)

Patch Cords, Pigtails and Fanouts, Blue Grade

A series of patch cords, pigtails and fanouts for demanding telecom applications with high requirements for low-loss and stability. The products are made of highly bend resistant G657A2 fibers to minimize operating errors and enable highest packing density in interconnect applications.

CONNECTOR OPTIONS: SC, SC/APC, LC, LC/APC

PERFORMANCE: IL*≤0.30, RL (PC)≥50,

RL (APC)≥60

STANDARD LENGTH: 1, 2, 3, 5, 7, 10 m

* Insertion Loss according to IEC 61300-3-4 method B

Coiled blue medical or laboratory device with connectors (no visible text or symbols)

e-no.	product no.	product name
Patch Cords, Single Mode, Simplex (1-fiber SM)
	HTSR3952024/1000 Patchcord SM, SC - SC, G657A2, Blue, 1 m
	HTSR3952024/2000 Patchcord SM, SC - SC, G657A2, Blue, 2 m
	HTSR3952024/3000 Patchcord SM, SC - SC, G657A2, Blue, 3 m
	HTSR3952024/5000 Patchcord SM, SC - SC, G657A2, Blue, 5 m
	HTSR3952024/7000 Patchcord SM, SC - SC, G657A2, Blue, 7 m
	HTSR3952024/10M Patchcord SM, SC - SC, G657A2, Blue, 10 m
	HTSR3952027/1000 Patchcord SM, SC/APC - SC/APC, G657A2, Blue, 1 m
	HTSR3952027/2000 Patchcord SM, SC/APC - SC/APC, G657A2, Blue, 2 m
	HTSR3952027/3000 Patchcord SM, SC/APC - SC/APC, G657A2, Blue, 3 m
	HTSR3952027/5000 Patchcord SM, SC/APC - SC/APC, G657A2, Blue, 5 m
	HTSR3952027/7000 Patchcord SM, SC/APC - SC/APC, G657A2, Blue, 7 m
	HTSR3952027/10M Patchcord SM, SC/APC - SC/APC, G657A2, Blue, 10 m
	HTSR3952012/1000 Patchcord SM, LC - LC, G657A2, Blue, 1 m
	HTSR3952012/2000 Patchcord SM, LC - LC, G657A2, Blue, 2 m
	HTSR3952012/3000 Patchcord SM, LC - LC, G657A2, Blue, 3 m
	HTSR3952012/5000 Patchcord SM, LC - LC, G657A2, Blue, 5 m
	HTSR3952012/7000 Patchcord SM, LC - LC, G657A2, Blue, 7 m
	HTSR3952012/10M Patchcord SM, LC - LC, G657A2, Blue, 10 m
	HTSR3952034/1000 Patchcord SM, LC/APC - LC/APC, G657A2, Blue1 m
	HTSR3952034/2000 Patchcord SM, LC/APC - LC/APC, G657A2, Blue, 2 m
	HTSR3952034/3000 Patchcord SM, LC/APC - LC/APC, G657A2, Blue, 3 m
	HTSR3952034/5000 Patchcord SM, LC/APC - LC/APC, G657A2, Blue, 5 m
	HTSR3952034/10M	Patchcord SM, LC/APC - LC/APC, G657A2, Blue, 10 m

Patch Cords, Single Mode, Duplex (2-fiber SM)
HTSR3953024/1000	Duplex-Patchcord 2xSM, 2 SC - 2 SC, G657A2, Blue, 1 m
HTSR3953024/2000	Duplex-Patchcord 2xSM, 2 SC - 2 SC, G657A2, Blue, 2 m
HTSR3953024/3000	Duplex-Patchcord 2xSM, 2 SC - 2 SC, G657A2, Blue, 3 m
HTSR3953024/5000	Duplex-Patchcord 2xSM, 2 SC - 2 SC, G657A2, Blue, 5 m
HTSR3953024/7000	Duplex-Patchcord 2xSM, 2 SC - 2 SC, G657A2, Blue, 7 m
HTSR3953024/10M	Duplex-Patchcord 2xSM, 2 SC - 2 SC, G657A2, Blue, 10 m
HTSR3953027/1000	Duplex-Patchcord 2xSM, SC/APC - SC/APC, Blue, 1 m
HTSR3953027/2000	Duplex-Patchcord 2xSM, SC/APC - SC/APC, Blue, 2 m
HTSR3953027/3000	Duplex-Patchcord 2xSM, SC/APC - SC/APC, Blue, 3 m
HTSR3953027/5000	Duplex-Patchcord 2xSM, SC/APC - SC/APC, Blue, 5 m
HTSR3953027/7000	Duplex-Patchcord 2xSM, SC/APC - SC/APC, Blue, 7 m
HTSR3953027/10M	Duplex-Patchcord 2xSM, SC/APC - SC/APC, Blue, 10 m
HTSR3953012/1000	Duplex-Patchcord 2xSM, 2 LC - 2 LC, G657A2, Blue, 1 m
HTSR3953012/2000	Duplex-Patchcord 2xSM, 2 LC - 2 LC, G657A2, Blue, 2 m
HTSR3953012/3000	Duplex-Patchcord 2xSM, 2 LC - 2 LC, G657A2, Blue, 3 m
HTSR3953012/5000	Duplex-Patchcord 2xSM, 2 LC - 2 LC, G657A2, Blue, 5 m
HTSR3953012/7000	Duplex-Patchcord 2xSM, 2 LC - 2 LC, G657A2, Blue, 7 m
HTSR3953012/10M	Duplex-Patchcord 2xSM, 2 LC - 2 LC, G657A2, Blue, 10 m
TSR3950234/1000	Duplex-Patchcord 2xSM, LC/APC-LC/APC, G657A, Yellow, 1 m
TSR3950234/2000	Duplex-Patchcord 2xSM, LC/APC-LC/APC, G657A, Yellow, 2 m
TSR3950234/3000	Duplex-Patchcord 2xSM, LC/APC-LC/APC, G657A, Yellow, 3 m
TSR3950234/5000	Duplex-Patchcord 2xSM, LC/APC-LC/APC, G657A, Yellow, 5 m
TSR3950234/10M	Duplex-Patchcord 2xSM, LC/APC-LC/APC, G657A, Yellow, 10 m

c-no.	product no.	product name
	HTSR3953015/1000	Duplex-Patchcord 2xSM, 2 LC - 2 SC, G657A2, Blue, 1 m
	HTSR3953015/2000	Duplex-Patchcord 2xSM, 2 LC - 2 SC, G657A2, Blue, 2 m
	HTSR3953015/3000	Duplex-Patchcord 2xSM, 2 LC - 2 SC, G657A2, Blue, 3 m
	HTSR3953015/5000	Duplex-Patchcord 2xSM, 2 LC - 2 SC, G657A2, Blue, 5 m
	HTSR3953015/7000	Duplex-Patchcord 2xSM, 2 LC - 2 SC, G657A2, Blue, 7 m
	HTSR3953015/10M	Duplex-Patchcord 2xSM, 2 LC - 2 SC, G657A2, Blue, 10 m

Patch Cords, Single Mode, Duplex (2-fiber SM)
HTSR3953044/1000	Duplex-Patchcord 2xSM, 2 SC/APC - 2 LC/APC, G657A2, Blue, 1 m
HTSR3953044/2000	Duplex-Patchcord 2xSM, 2 SC/APC - 2 LC/APC, G657A2, Blue, 2 m
HTSR3953044/3000	Duplex-Patchcord 2xSM, 2 SC/APC - 2 LC/APC, G657A2, Blue, 3 m
HTSR3953044/5000	Duplex-Patchcord 2xSM, 2 SC/APC - 2 LC/APC, G657A2, Blue, 5 m
HTSR3953044/7000	Duplex-Patchcord 2xSM, 2 SC/APC - 2 LC/APC, G657A2, Blue, 7 m
HTSR3953044/10M	Duplex-Patchcord 2xSM, 2 SC/APC - 2 LC/APC, G657A2, Blue, 10 m

Pigtails, Single Mode

HTSR3950423/2000 Pigtail SM (0.9 mm), SC - open end, G657A2, 2 m

HTSR3950426/2000 Pigtail SM (0.9 mm), SC/APC - open end, G657A2, 2 m

HTSR3950414/2000 Pigtail SM (0.9 mm), LC - open end, G657A2, 2 m

HTSR3950433/2000 Pigtail SM (0.9 mm), LC/APC - open end, G657A2, 2 m

Fanouts, Single Mode
HTSR3950623/2800	Fanout tail SM, 4 SC, G657A2, 2.8 m
HTSR3950626/2800	Fanout tail SM, 4 SC/APC, G657A2, 2.8 m
HTSR3950614/2800	Fanout tail SM, 4 LC, G657A2, 2.8 m
HTSR3950633/2800	Fanout tail SM, 4 LC/APC, G657A2, 2.8 m

Patch Cords, Pigtails and Fanouts, Standard Grade

A series of patch cords, pigtails and fanouts that offers best price/performance ratio for access networks as well as general data communication applications. The products are made of bend resistant G657A fibers to minimize operating errors and enable high packing density in interconnect applications.

CONNECTOR OPTIONS: SC, SC/APC, LC, LC/APC

PERFORMANCE: IL*≤0.35, RL (PC)≥50, RL (APC)≥60

STANDARD LENGTH: 1, 2, 3, 5, 10 m

* Insertion Loss according to IEC 61300-3-4 method B.

Yellow and blue fiber optic cables with connectors (no text or symbols visible)

E-NO.	PRODUCT NO.	PRODUCT NAME
Patch Cords, Single Mode, Simplex (1-fiber SM)
5035100	TSR3950124/1000	Patchcord SM, SC - SC, G657A, Yellow, 1 m
5035101	TSR3950124/2000	Patchcord SM, SC - SC, G657A, Yellow, 2 m
5035102	TSR3950124/3000	Patchcord SM, SC - SC, G657A, Yellow, 3 m
5035103	TSR3950124/5000	Patchcord SM, SC - SC, G657A, Yellow, 5 m
5035104	TSR3950124/10M	Patchcord SM, SC - SC, G657A, Yellow, 10 m
5035110	TSR3950127/1000	Patchcord SM, SC/APC - SC/APC, G657A, Yellow, 1 m
5035111	TSR3950127/2000	Patchcord SM, SC/APC - SC/APC, G657A, Yellow, 2 m
5035112	TSR3950127/3000	Patchcord SM, SC/APC - SC/APC, G657A, Yellow, 3 m
5035113	TSR3950127/5000	Patchcord SM, SC/APC - SC/APC, G657A, Yellow, 5 m
5035114	TSR3950127/10M	Patchcord SM, SC/APC - SC/APC, G657A, Yellow, 10 m
5035105	TSR3950112/1000	Patchcord SM, LC - LC, G657A, Yellow, 1 m
5035106	TSR3950112/2000	Patchcord SM, LC - LC, G657A, Yellow, 2 m
5035107	TSR3950112/3000	Patchcord SM, LC - LC, G657A, Yellow, 3 m
5035108	TSR3950112/5000	Patchcord SM, LC - LC, G657A, Yellow, 5 m
5035109	TSR3950112/10M	Patchcord SM, LC - LC, G657A, Yellow, 10 m
5035135	TSR3950134/1000	Patchcord SM, LC/APC - LC/APC, G657A, Yellow1 m
5035136	TSR3950134/2000	Patchcord SM, LC/APC - LC/APC, G657A, Yellow, 2 m
5035137	TSR3950134/3000	Patchcord SM, LC/APC - LC/APC, G657A, Yellow, 3 m
5035139	TSR3950134/5000	Patchcord SM, LC/APC - LC/APC, G657A, Yellow, 5 m
5035140	TSR3950134/10M	Patchcord SM, LC/APC - LC/APC, G657A, Yellow, 10 m
Patch Cords, Single Mode, Duplex (2-fiber SM)
5035115	TSR3950224/1000	Duplex Patchcord 2xSM, 2 SC - 2 SC, G657A, Yellow, 1 m
5035116	TSR3950224/2000	Duplex-Patchcord 2xSM, 2 SC - 2 SC, G657A, Yellow, 2 m
5035117	TSR3950224/3000	Duplex-Patchcord 2xSM, 2 SC - 2 SC, G657A, Yellow, 3 m
5035118	TSR3950224/5000	Duplex-Patchcord 2xSM, 2 SC - 2 SC, G657A, Yellow, 5 m
5035119	TSR3950224/10M	Duplex-Patchcord 2xSM, 2 SC - 2 SC, G657A, Yellow, 10 m
5035130	TSR3950227/1000	Duplex-Patchcord 2xSM, SC/APC - SC/APC, Yellow, 1 m
5035131	TSR3950227/2000	Duplex-Patchcord 2xSM, SC/APC - SC/APC, Yellow, 2 m
5035132	TSR3950227/3000	Duplex-Patchcord 2xSM, SC/APC - SC/APC, Yellow, 3 m
5035133	TSR3950227/5000	Duplex-Patchcord 2xSM, SC/APC - SC/APC, Yellow, 5 m
5035134	TSR3950227/10M	Duplex-Patchcord 2xSM, SC/APC - SC/APC, Yellow, 10 m
5035125	TSR3950212/1000	Duplex-Patchcord 2xSM, 2 LC - 2 LC, G657A, Yellow, 1 m
5035126	TSR3950212/2000	Duplex-Patchcord 2xSM, 2 LC - 2 LC, G657A, Yellow, 2 m
5035127	TSR3950212/3000	Duplex-Patchcord 2xSM, 2 LC - 2 LC, G657A, Yellow, 3 m
5035128	TSR3950212/5000	Duplex-Patchcord 2xSM, 2 LC - 2 LC, G657A, Yellow, 5 m
5035129	TSR3950212/10M	Duplex-Patchcord 2xSM, 2 LC - 2 LC, G657A, Yellow, 10 m
5068805	TSR3950234/1000	Duplex-Patchcord 2xSM, LC/APC-LC/APC, G657A, Yellow, 1 m
5068807	TSR3950234/2000	Duplex-Patchcord 2xSM, LC/APC-LC/APC, G657A, Yellow, 2 m
5068808	TSR3950234/3000	Duplex-Patchcord 2xSM, LC/APC-LC/APC, G657A, Yellow, 3 m
5068809	TSR3950234/5000	Duplex-Patchcord 2xSM, LC/APC-LC/APC, G657A, Yellow, 5 m
5068806	TSR3950234/10M	Duplex-Patchcord 2xSM, LC/APC-LC/APC, G657A, Yellow, 10 m

E-NO.	PRODUCT NO.	PRODUCT NAME
5035120	TSR3950215/1000	Duplex-Patchcord 2xSM, 2 LC - 2 SC, G657A, Yellow, 1 m
5035121	TSR3950215/2000	Duplex-Patchcord 2xSM, 2 LC - 2 SC, G657A, Yellow, 2 m
5035122	TSR3950215/3000	Duplex-Patchcord 2xSM, 2 LC - 2 SC, G657A, Yellow, 3 m
5035123	TSR3950215/5000	Duplex-Patchcord 2xSM, 2 LC - 2 SC, G657A, Yellow, 5 m
5035124	TSR3950215/10M	Duplex-Patchcord 2xSM, 2 LC - 2 SC, G657A, Yellow, 10 m
5035170	TSR3950237/1000	Duplex-Patchcord 2xSM, 2 SC - 2 SC/APC, G657A, Yellow, 1 m
5035171	TSR3950237/2000	Duplex-Patchcord 2xSM, 2 SC - 2 SC/APC, G657A, Yellow, 2 m
5035172	TSR3950237/3000	Duplex-Patchcord 2xSM, 2 SC - 2 SC/APC, G657A, Yellow, 3 m
5035173	TSR3950237/5000	Duplex-Patchcord 2xSM, 2 SC - 2SC/APC, G657A, Yellow, 5 m
5035144 TSR3950237/10M		Duplex-Patchcord 2xSM, 2 SC - 2SC/APC, G657A, Yellow, 10 m
Patch Cords, Single Mode, Duplex (2-fiber SM)
5035175	TSR3950243/1000	Duplex-Patchcord 2xSM, 2 SC - 2 LC/APC, G657A, Yellow, 1 m
5035176	TSR3950243/2000	Duplex-Patchcord 2xSM, 2 SC - 2 LC/APC, G657A, Yellow, 2 m
5035177	TSR3950243/3000	Duplex-Patchcord 2xSM, 2 SC - 2 LC/APC, G657A, Yellow, 3 m
5035178	TSR3950124/5000	Duplex-Patchcord 2xSM, 2 SC - 2 LC/APC, G657A, Yellow, 5 m
5035179	TSR3950243/10M	Duplex-Patchcord 2xSM, 2 SC - 2 LC/APC, G657A, Yellow, 10 m
5035180	TSR3950240/1000	Duplex-Patchcord 2xSM, 2 SC/APC - 2 LC, G657A, Yellow, 1 m
5035181	TSR3950240/2000	Duplex-Patchcord 2xSM, 2 SC/APC - 2 LC, G657A, Yellow, 2 m
5035182	TSR3950240/3000	Duplex-Patchcord 2xSM, 2 SC/APC - 2 LC, G657A, Yellow, 3 m
5035183	TSR3950240/5000	Duplex-Patchcord 2xSM, 2 SC/APC - 2 LC, G657A, Yellow, 5 m
5035184	TSR3950240/10M	Duplex-Patchcord 2xSM, 2 SC/APC - 2 LC, G657A, Yellow, 10 m
Pigtails, Single Mode
5035148	TSR3950423/2000	Pigtail SM (0.9 mm), SC - open end, G657A, 2 m
5075685	TSR3950426/2000	Pigtail SM (0.9 mm), SC/APC - open end, G657A, 2 m
5035149	TSR3950414/2000	Pigtail SM (0.9 mm), LC - open end, G657A, 2 m
5075686	TSR3950433/2000	Pigtail SM (0.9 mm), LC/APC - open end, G657A, 2 m
Fanouts, Single Mode
5035145	TSR3950623/2800	Fanout tail SM, 4 SC, G657A, 2.8 m
5075687	TSR3950626/2800	Fanout tail SM, 4 SC/APC, G657A, 2.8 m
5035146	TSR3950614/2800	Fanout tail SM, 4 LC, G657A, 2.8 m
5075688	TSR3950633/2800	Fanout tail SM, 4 LC/APC, G657A, 2.8 m

Patch Cords, Pigtails and Fanouts

Multimode patch cords, pigtails and fanouts for various applications such as telecommunication equipment, and data communication networks.

TYPES: Multimode 50μm OM3 or OM4

CONNECTOR OPTIONS: SC, LC

PERFORMANCE: IL Max*≤0.3, RL≥30

* Insertion Lossaccording to IEC 61300-3-4 method B.

E-NO.	PRODUCT NO.	PRODUCT NAME
Patch Cords, Multimode, Simplex (1-fiber MM)
5069739	TSR3941106/020	Optical Fiber Patchcord 50μm OM2, SC - SC, 2 m
5069740	TSR3941107/2000	Optical Fiber Patchcord 50μm OM2, SC - ST, 2 m
5069743	TSR3941206/020	Optical Fiber Patchcord 62.5μm OM2, SC - SC, 2 m
5069745	TSR3941203/020 Optical Fiber Patchcord 62.5μm OM2, FC - SC, 2 m
5069747	TSR3940309/2000	Optical Fiber Patchcord 62.5μm OM2, (0.9mm), ST - ST, 2 m
Patch Cords, Multimode, Duplex (2-fiber MM)
5069748	TSR3942122/2000	Optical Fiber Duplex-Patchcord 2x50μm OM2, 2 LC - 2 LC, 2m
5069749	TSR3942135/900	Optical Fiber Duplex-Patchcord 2x50μm OM2, 2 LC - LCD (angled), 0.9 m
5069750	TSR3942135/1300	Optical Fiber Duplex-Patchcord 2x50μm OM2, 2 LC - LCD (angled), 1.3 m
5069751	TSR3942135/1700	Optical Fiber Duplex-Patchcord 2x50μm OM2, 2 LC - LCD (angled), 1.7 m
5069752	TSR3942419/020	Optical Fiber Duplex-Patchcord 2x50μm OM2, MT-RJ - 2 SC, 2 m (Fig 8 - 1.8 mm)
5069753	TSR3942420/020	Optical Fiber Duplex-Patchcord 2x50μm OM2, MT-RJ - MT-RJ, 2 m (Fig 8 - 1.8 mm)
5069754	TSR3942107/2000	Optical Fiber Duplex-Patchcord 2x50μm OM2, 2 SC - 2 ST, 2 m
5069755	TSR3942106/020	Optical Fiber Duolex-Patchcord 2x50μm OM2, SCD - SCD, 2 m
5069757	TSR3942223/2000	Optical Fiber Duplex-Patchcord 2x62.5μm OM2, LCD - LCD, 2 m
5069758	TSR3942215/2000	Optical Fiber Duplex-Patchcord 2x62.5μm OM2, 2 LC - SCD, 2 m
5069759	TSR3942209/2000	Optical Fiber Duplex-Patchcord 2x62.5μm OM2, 2 ST - 2 ST, 2 m
Pigtails, Multimode
5074220	TSR3940205/020	Optical Fiber Pigtail 50μm OM2 Gigabit (0.9 mm OM2), SC - open end, 2 m
5074222	TSR3946321/0600	Optical Fiber Duolex-Pigtail 50μm OM2 OM2, MT-RJ (no pin), 0.6 m
5074224	TSR3940305/2000	Optical Fiber Pigtail 62.5μm OM2 (0.9 mm OM2), SC - open end, 2 m
5074225	TSR3940308/020	Optical Fiber Pigtail 62.5μm OM2 (0.9 mm OM2), ST - open end, 2 m
5074228	TSR3941201/3000	Optical Fiber Pigtail 62.5μm OM2, FC - open end, (2 mm) OM2, 3 m
5074229	TSR3941208/2000 Optical Fiber Pigtail 62.5μm OM2, ST - open end, (2 mm) OM2, 2 m
Fanouts, Multimode
5075350	TSR3945305/028	Optical Fiber Fanout tail (0.9 mm OM2) 50μm OM2, 4 SC, 2.8 m
5075351	TSR3945324/2800	Optical Fiber Fanout tail (0.9 mm OM2) 50μm OM2, 4 LC, 2.8 m
5075352	TSR3945308/2800	Optical Fiber Fanout tail (0.9 mm OM2) 50μm OM2, 4 ST, 2.8 m
5075353	TSR3945205/2800	Optical Fiber Fanout tail (0.9 mm OM2) 50μm OM2, 2 SC, 2.8 m
5075354	TSR3945224/2800	Optical Fiber Fanout tail (0.9 mm OM2) 50μm OM2, 2 LC, 2.8 m
5075355	TSR3945208/2800	Optical Fiber Fanout tail (0.9 mm OM2) 50μm OM2, 2 ST, 2.8 m
5077470	TSR3945605/2800	Optical Fiber Fanout tail (0.9 mm OM2) 62.5μm OM2, 4 SC, 2.8 m
5077471	TSR3945608/2800	Optical Fiber Fanout tail (0.9 mm OM2) 62.5μm OM2, 4 ST, 2.8 m
5075356	TSR3945105/2800	Optical Fiber Fanout tail (0.9 mm OM2) 62.5μm OM2, 2 SC, 2.8 m
5075357	TSR3945108/2800	OOptical Fiber Fanout (0.9 mm OM2) 62.5μm OM2, 2 ST, 2.8 m

Coiled transparent fiber optic cable with two connectors (no text or symbols visible)

Multifiber Cable Assemblies

Patch cables with 4 to 48 fibers, for high density interconnect applications. All cable assemblies are manufactured from ultra slim micro cables.

CONNECTOR OPTIONS: SC, SC/APC, LC, LC/APC, FC, E2000

PERFORMANCE: IL*≤0.30, RL (PC)≥50, RL (APC)≥60

* Insertion Loss according to IEC 61300-3-4 method B

E-NO.	PRODUCT NO.	PRODUCT NAME
Cable Assemblies, Slim and flexible, Singlemode 4F
5069761	RPM2533138/10M	Optical Multifiber cable (slim) SM, 4 LC - 4 SC , 10 m
5069762	RPM2531038/10M	Optical Multifiber cable (slim) SM, 4 LC - 4 FC, 10 m
5069763	RPM2531238/10M	Optical Multifiber cable (slim) SM, 4 LC - 4 E2000, 10 m
5069764	RPM2530938/010 Optical Multifiber cable (slim) SM, 4 SC - 4 E2000, 10 m
5069765	RPM2531538/10M	Optical Multifiber cable (slim) SM, 4 SC - 4 E2000/APC, 10 m
5069766	RPM2530838/010	Optical Multifiber cable (slim) SM, 4 SC - 4 FC, 10 m
5069767	RPM2530738/010	Optical Multifiber cable (slim) SM, 4 SC - 4 SC, 10 m
Cable Assemblies, Slim and flexible, G652D
	RPM2533085/4000 Optical Cable Assembly 2xG652D LC-LC 4 m for MMS
	RPM2533085/6000 Optical Cable Assembly 2xG652D LC-LC 6 m for MMS
5069770	RPM2530769/10M	Multifiber Patch Cable (C) 24F SC-SC SM 10 m (1500/700) for MMS
5069771	RPM2530769/15M	Multifiber Patch Cable (C) 24F SC-SC SM 15 m (1500/700) for MMS
5069772	RPM2530769/20M	Multifiber Patch Cable (C) 24F SC-SC SM 20 m (1500/700) for MMS
	RPM2530769/30M Multifiber Patch Cable (C) 24F SC-SC SM 30 m (1500/700) for MMS
5068769	RPM2533069/10M	Multifiber Patch Cable (C) 24F LC-LC SM 10 m (1500/700) for MMS
5068770	RPM2533069/15M	Multifiber Patch Cable (C) 24F LC-LC SM 15 m (1500/700) for MMS
5068771	RPM2533069/20M	Multifiber Patch Cable (C) 24F LC-LC SM 20 m (1500/700) for MMS
5068772	RPM2533069/30M	Multifiber Patch Cable (C) 24F LC-LC SM 30 m (1500/700) for MMS
5068773	RPM253509/10M	Multifiber Patch Cable (C) 48F SC-SC SM 10 m (1500/700) for MMS
5068774	RPM253509/15M	Multifiber Patch Cable (C) 48F SC-SC SM 15 m (1500/700) for MMS
5068775	RPM253509/20M	Multifiber Patch Cable (C) 48F SC-SC SM 20 m (1500/700) for MMS
5068776	RPM253509/30M	Multifiber Patch Cable (C) 48F SC-SC SM 30 m (1500/700) for MMS
5068777	RPM253519/10M	Multifiber Patch Cable (C) 48F LC-LC SM 10 m (1500/700) for MMS
5068778	RPM253519/15M	Multifiber Patch Cable (C) 48F LC-LC SM 15 m (1500/700) for MMS
5068779	RPM253519/20M	Multifiber Patch Cable (C) 48F LC-LC SM 20 m (1500/700) for MMS
5068780	RPM253519/30M	Multifiber Patch Cable (C) 48F LC-LC SM 30 m (1500/700) for MMS

Coiled blue fiber optic cables with green connectors, no text or symbols visible

SPLITTERS AND OTHER PASSIVE OPTICAL DEVICES

Fiber optic splitters or couplers provide division of optical power from one or two input ports into several output ports. Symmetric optical power splitters are used for fiber optic communication systems such as PON FTTx networks. Asymmetric power splitters are used for monitoring of transmission signals in fiber networks.

Fiber Optic Splitter Shelf

Splitter shelf for 19" rack mounting with pre-installed fiber optic splitters. The shelves are available in different configurations with split ratios of 1x2 to 1x64. The standard connector option is SC/APC. Available in both standard and high grade.

TYPE: Splitter Shelf, 19", 1U

CONNECTOR OPTIONS: SC/APC, SC

SIZE: 410x195x44 mm

SPLIT RATIO: 1x2 to 1x64

E-NO.	PRODUCT NO.	PRODUCT NAME
5079271	NCD5200022/10	Splitter shelf 19" 1x16 SC/APC standard grade
5079272	NCD5200023/10	Splitter shelf 19" 1x32 SC/APC standard grade
5079273	NCD5200024/10	Splitter shelf 19" 8x(1x4) SC/APC standard grade
5079274	NCD5200025/10	Splitter shelf 19" 4x(1x4) SC/APC standard grade
5079275	NCD5200026/10	Splitter shelf 19" 16x(1x2) SC/APC standard grade
5079276	NCD5200027/10	Splitter shelf 19" 8x(1x2) SC/APC standard grade
5079277	NCD5200028/10	Splitter shelf 19" 4x(1x8) SC/APC standard grade
5079278	NCD5200029/10	Splitter shelf 19" 1x64 SC/APC standard grade
	NCD5200042/10 Splitter shelf 19" 2x16 SC/APC standard grade
	NCD5200043/10 Splitter shelf 19" 2x32 SC/APC standard grade
	NCD5200044/10 Splitter shelf 19" 8x(2x4) SC/APC standard grade
	NCD5200045/10 Splitter shelf 19" 4x(2x4) SC/APC standard grade
	NCD5200046/10 Splitter shelf 19" 16x(2x2) SC/APC standard grade
	NCD5200047/10 Splitter shelf 19" 8x(2x2) SC/APC standard grade
	NCD5200048/10 Splitter shelf 19" 4x(2x8) SC/APC standard grade
	NCD5200049/10 Splitter shelf 19" 1x(2x64) SC/APC standard grade
	1/NCD5200022/10	Splitter shelf 19" 1x16 SC/APC high grade
	1/NCD5200023/10	Splitter shelf 19" 1x32 SC/APC high grade
	1/NCD5200024/10	Splitter shelf 19" 8x(1x4) SC/APC high grade
	1/NCD5200025/10	Splitter shelf 19" 4x(1x4) SC/APC high grade
	1/NCD5200026/10	Splitter shelf 19" 16x(1x2) SC/APC high grade
	1/NCD5200027/10	Splitter shelf 19" 8x(1x2) SC/APC high grade
	1/NCD5200028/10	Splitter shelf 19" 4x(1x8) SC/APC high grade
	1/NCD5200029/10	Splitter shelf 19" 1x64 SC/APC high grade
	1/NCD5200022/11	Splitter shelf 19" 1x16 SC high grade
	1/NCD5200023/11	Splitter shelf 19" 1x32 SC high grade
	1/NCD5200024/11	Splitter shelf 19" 8x(1x4) SC high grade
	1/NCD5200025/11	Splitter shelf 19" 4x(1x4) SC high grade
	1/NCD5200026/11	Splitter shelf 19" 16x(1x2) SC high grade
	1/NCD5200027/11	Splitter shelf 19" 8x(1x2) SC high grade
	1/NCD5200028/11	Splitter shelf 19" 4x(1x8) SC high grade
	1/NCD5200029/11	Splitter shelf 19" 1x64 SC high grade

Exterior view of a white rectangular electronic device with multiple green connectors (no text or symbols visible)

Splitter Frames

The splitter frames are designed for compact mounting of splitter modules in 19" racks. The most common use is for central office applications or larger distributed PON sites. There are two frame heights available.

TYPE: (04) Splitter frame 1U for up to 9 splitter modules (05) Splitter frame 4U for up to 35 splitter modules

MOUNTING: 19" or ETS

PRODUCT NO.	PRODUCT NAME
NBA30104	Splitter Frame 1U (9 positions)
NBA30105	Splitter Frame 4U (35 positions)

Diagram of a server rack with gold cable routing through a front panel (no text or symbols visible)

Splitter Modules

Splitters to be used for splitter frames. The splitters are pre-terminated with protected fanouts and with fitted connectors. The splitters can also be installed in ODFs or other compartments. Available in both high grade and standard grade and with different connector options.

SPLIT RATIO: 1x4 to 1x64, 2x4 to 2x64

INPUT/OUTPUT: 2 mm patch, G657A1

TYPE: Optical splitters, PLC

SPLIT RATIO: 1x2 to 1x64, 2x2 to 2x64

INPUT/OUTPUT: 2 mm patch, G657A1

CONNECTOR OPTIONS: SC/APC, SC, LC, LC/APC

Close-up of a broadband connector with yellow and green fiber optic cables (no text or symbols visible)

PRODUCT NO.	PRODUCT NAME
RDJ901200/85 SPLM 1:2, SC/APC, 900/1500
RDJ901200/86 1:2 splitter, SC
RDJ901200/87 1:2 splitter, LC/APC
RDJ901200/88 1:2 splitter, LC/AP
RDJ901200/1 1:4 splitter, SC/APC*
RDJ901200/2 1:4 splitter, SC*
RDJ901200/3 1:4 splitter, LC/APC*
RDJ901200/4 1:4 splitter, LC*
RDJ901200/9 1:8 splitter, SC/APC*
RDJ901200/10 1:8 splitter, SC*
RDJ901200/11 1:8 splitter, LC/APC*
RDJ901200/12 1:8 splitter, LC*
RDJ901200/17 1:16 splitter, SC/APC
RDJ901200/18 1:16 splitter, SC
RDJ901200/19 1:16 splitter, LC/APC
RDJ901200/20 1:16 splitter, LC
RDJ901200/25 1:24 splitter, SC/APC
RDJ901200/26 1:24 splitter, SC
RDJ901200/27 1:24 splitter, LC/APC
RDJ901200/28 1:24 splitter, LC
RDJ901200/33 1:32 splitter, SC/APC
RDJ901200/34 1:32 splitter, SC
RDJ901200/35 1:32 splitter, LC/APC
RDJ901200/36 1:32 splitter, LC
RDJ901200/41 1:64 splitter, SC/APC
RDJ901200/42 1:64 splitter, SC
RDJ901200/43 1:64 splitter, LC/APC
RDJ901200/44 1:64 splitter, LC
RDJ901200/93 2:2 splitter, SC/APC
RDJ901200/94 2:2 splitter, SC
RDJ901200/95 2:2 splitter, LC/APC
RDJ901200/96 2:2 splitter, LC
RDJ901200/45 2:4 splitter, SC/APC
RDJ901200/46 2:4 splitter, SC
RDJ901200/47 2:4 splitter, LC/APC
RDJ901200/48 2:4 splitter, LC

PRODUCT NO.	PRODUCT NAME
RDJ901200/53 2:8 splitter, SC/APC
RDJ901200/54 2:8 splitter, SC
RDJ901200/55 2:8 splitter, LC/APC
RDJ901200/56 2:8 splitter, LC
RDJ901200/61 2:16 splitter, SC/APC
RDJ901200/62 2:16 splitter, SC
RDJ901200/63 2:16 splitter, LC/APC
RDJ901200/64 2:16 splitter, LC
RDJ901200/69 2:32 splitter, SC/APC
RDJ901200/70 2:32 splitter, SC
RDJ901200/71 2:32 splitter, LC/APC
RDJ901200/72 2:32 splitter, LC
RDJ901200/77 2:64 splitter, SC/APC
RDJ901200/78 2:64 splitter, SC
RDJ901200/79 2:64 splitter, LC/APC
RDJ901200/80 2:64 splitter, LC

Asymmetric Fiber Optic Splitter Shelf

The asymmetric division of the signal power is in a proportion of 10:90 split ratio which gives the ability to monitor or measure the transmission signal. The optical power splitter is mounted in a standard 2U ODF chassis and fits both 19" and ETSI rack systems. It is designed for both the 1550nm and 1310 nm wavelength band. The unit has 24 channels and is equipped with SC/APC connectors for minimum back reflections.

TYPE: Monitor splitter

SIZE: 440x249x86 mm

SPLIT RATIO: 10:90

CONNECTOR OPTIONS: SC/APC

Front view of a network switch or server rack unit with multiple ports and indicator lights (no visible text or labels)

PRODUCT NO.

PRODUCT NAME

NBA1020001/023 Monitor Splitter Shelf, 2U 24x10/90

FIBER OPTIC ACCESSORIES

Typical accessories for fiber optic interconnect and splicing applications include various essential and optional products such as fiber optic adapters for Optical Distribution Frames (ODFs), splice sleeves and connector cleaners.

Adapters

Fiber optic adapters for ODFs and termination units, all of premium grade to fit any kind of application. Simplex, duplex and quadruplex connector options.

CONNECTOR OPTIONS: SC, SC/APC, SC/MM (simplex, duplex), LC, LC/APC (simplex, duplex, quad) E2000, E2000/APC (simplex, duplex) FC

E-NO.	PRODUCT NO.	PRODUCT NAME
5064014	RNT99210/12	Adapter SC, ceramic, snap-in and flange mount, Blue
5040286	RNT99211/12	Adapter SC duplex, ceramic, snap-in and flange mount, Blue
5063104	RNT99211/13	Adapter SC duplex, ceramic, without flange, Blue
5063105	RNT99211/23	Adapter SC duplex, ceramic, without flange, Green
5064015	RNT99210/22	Adapter SC/APC, ceramic, snap-in and flange mount, Green
5040287	RNT99211/22	Adapter SC/APC duplex, ceramic, snap-in and flange mount, Green
5040288	RNT99215/11	Adapter SC duplex, MM, metallic, snap-in and flange mount, beige
5064024 RNT99210/13 Adapter SC, no flange
5064025	RNT99210/23	Adapter SC/APC, no flange
5064026 RNT99210/14 Adapter SC with shutter, no flange
5064027 RNT99210/24 Adapter SC/APC with shutter, no flange
5064019	RNT99222/13	Adapter LC/APC, duplex, Green, no flange (SC cut-out)
5063106	RNT99222/15	Adapter LC cuad (LP), Blue, no Flange
5063107	RNT99222/16	Adapter LC cuad (LP), Green, no Flange
5064011	RNT99222/2	Adapter LC, duplex, low profile, no flange Blue (SC cut-out)
5075692	RNT99222/4	Adapter LC, duplex, low profile, snap-in, Blue, (SC cut-out)
5064013	RNT99222/5	Adapter LC, cuadruplex, low profile, flange and snap-in, Blue, (SC-Duplex cut-out)
5064021	RNT99222/9	Adapter LC/APC, quadruplex, low profile, flange and snap-in, Green (SC-Duplex cut-out)
5064022	RNT99222/14	Adapter LC duplex (SC cut-out) with shutter, no flange (SC cut-out)
5064023	RNT99222/12	Adapter LC/APC duplex (SC cut-out) with shutter, no flange (SC cut-out)
5064050	RNT99220/2	Adapter WU, duplex, snap-in and flange mount, brown, (SC cut-out)
	RNT99294/4	Adapter E2000, duplex, Blue
	RNT99295/4	Adapter E2000/APC, duplex, Blue
5064055 RNT99290/1	Adapter St
5040039	12/RNT99281/3	Adapter MT-RJ duplex, snap-in, Black, (SCD cut-out) (12 pcs/pack)
5064053	RNT99201/1	Adapter FC (D-shape cut-out)
5064054	RNT99201/2	Adapter FC/APC, D-shape, Ceramic

E2000 FC MU

SC/APC LC SC/MM LC/APC

End Plugs

Plugs to cover unused slots in ODF panels. slot options: SC, SC-duplex, FC, ST cut-out

E-NO.	PRODUCT NO.	PRODUCT NAME
5084188	NDM501901	6 x plugs for SC slots
5084187	NDM501902	6 x plugs for SCD slots
5084189	NDM501903	6 x plugs for FC, ST slots

Two black plastic electronic components with angled edges, shown against a white background (no text or symbols visible)

Splice Protection Sleeves

Sleeves for protection of fiber optic fusion splices, available as single fiber sleeves or as fiber ribbon sleeves.

SLEEVE TYPES: Single fiber 40 mm Single fiber 40 mm or 60 mm Ribbon 2-12 fiber

E-NO.

PRODUCT NO.

PRODUCT NAME

5084197 NTA16212/22 100xSplice Sleeve If, I=60 mm

5084198 NTA16212/41 50xSplice Sleeve 2-8f, I=40 mm

5084199 NTA16212/72 100xSplice Sleeve 1f, l=40 mm

5084200 NTA1621282 100xSplice Sleeve 2f ABF

Two transparent plastic bags filled with small cylindrical objects, no text or symbols visible

Cleaning Sticks

Dust-free, high-grade cleaning sticks specially developed to minimize the risk of cotton nap getting onto connectors during cleaning. The sticks are suitable for 2.5 mm respectively 1.25 mm adapter types.

APPLICATION: SC, FC, ST, E2000 (101) or LC, MU (102) connector and adapter cleaning TYPE: High-grade, dust-free

E-NO.

PRODUCT NO.

PRODUCT NAME

1649696 LFS150101 200xCleaning stick 2,5 mm for SC, FC or ST connectors

5062076 LFS150102 200xCleaning slick 1,25 mm for LC, E200 or MU connectors

Open box containing a tray of white plastic test tubes with black connectors, no visible text or symbols.

Connector Cleaner

This handy tool contains a dust-removing tape for quick and easy cleaning of connector tips. For each cleaning cycle, a new section of tape is dispensed. Refill tapes are available.

APPLICATION: Connector top cleaning TYPE: High-grade, dust-free

E-NO.	PRODUCT NO.	PRODUCT NAME
1649693	LTT179001	Connector cleaner
1649694	1/LTT179001	6 x Clean refill for LTT179001

Blue industrial machine with yellow label and control panel (no visible text or symbols)

FIBER ACCESS NETWORK

Hexatronic's solutions for Access Networks consist of the air blown microduct systems Micronet and Ribbonet® as well as traditional fiber optic cables. The products are specially developed for access networks with the highest requirements for scalability, performance and reliability.

Fiber-to-the-Home (FTTH) refers to fiber optic broadband connec-

tions to individual homes. FTTH networks are deployed either as a passive optical network (PON) with a partially shared fiber infrastructure, or as a point-to-point network (P2P) with dedicated fibers to each end user. Regardless of network type, the chosen technology must be able to support a variety of changes in the future as capacity and services evolve.

TO BUILD FOR THE FUTURE

Scalability

The access networks built today must be scalable, not just regarding capacity, but also regarding topology. Typical examples of scalable technologies are the Ribbonet® and Micronet air-blown fiber and micro cable systems, where incremental installation of fiber, easy repair and upgrade are key elements. The system scalability minimizes the total cost of ownership.

Versatility

It is not possible to predict all technological changes in the future. Therefore, network components are designed for any topology or combination of topologies, for example PON and P2P. They will also support a full transformation from PON to P2P (or vice versa) without the need for additional civil works.

All of our major network components can handle any cabling type, for example air-blown fiber, micro cable, drop cables or traditional cable (a mix of the above).

Sustainability

All products are designed to minimize the environmental impact, from the manufacturing phase and through the whole lifecycle of the products. Total RoHS compliance and halogen-free materials are features of the entire product range. Packing materials are minimized or fully recyclable.

View from a modern TV showing a man on screen, with audience silhouettes in the foreground (no visible text or symbols)

MICRONET MICRO CABLE SYSTEM

Feeder Network and Distribution Network

The Feeder and Distribution Network is the foundation of any fiber access network. The feeder network connects any central office to Fiber Distribution Hubs (FDHs). Passive fiber optic devices such as fiber optic splitters and/or cross connection facilities are located in the FDH. The distribution network distributes fiber from the FDH to the drop network.

Air blown micro cable technology offers great benefits when deploying the feeder and distribution network. A microduct system enables quick, easy installation and minimizes the number of fiber splice joints in the network compared to traditional solutions. The network capacity can quickly be increased by inserting new cables in the spare microducts. As an alternative, traditional loose tube and ribbon cables can be used for the feeder and distribution networks, see section Fiber Transport Network Solutions.

MICRONET MICRO CABLE

Micro Cable

Micro cable based on a slim loose tube design with up to eight tubes per cable. The design facilitates fiber preparation and mid-span access. The cable is suitable for long-distance, air blown installation in microducts, with an inner diameter of as little as 8 mm. The cable has excellent bend performance and extremely wide operational temperature range.

DESIGN: Loose tube

TYPE: Dielectric, slim

DIMENSIONS: ∅5.7 - 8.1 mm

CAPACITY: 12 - 192 fibers

E-NO.	PRODUCT NO.	PRODUCT NAME
Standard Color Code
4979600 TOL4019017/12A Micro Cable 12f GNHLDV G652D
4979610 TOL4019017/24A Micro Cable 24f GNHLDV G652D
TOL4019017/36A Micro Cable 36f GNHLDV G652D
4979620 TOL4019017/48A Micro Cable 48f GNHLDV G652D
4979630 TOL4019017/72A Micro Cable 72f GNHLDV G652D
4979640 TOL4019017/96A Micro Cable 96f GNHLDV G652D
4980030 TOL4019017/144A Micro Cable 144f GNHLDV G652D

E-NO.	PRODUCT NO.	PRODUCT NAME
S12 Color Code
	TOL4019028/12AH	Micro Cable 12f GNHLDV G652D S12
	TOL4019028/24AH	Micro Cable 24f GNHLDV G652D S12
	TOL4019028/48AH	Micro Cable 48f GNHLDV G652D S12
	TOL4019028/72AH	Micro Cable 72f GNHLDV G652D S12
	TOL4019028/96AH	Micro Cable 96f GNHLDV G652D S12
	TOL4019028/144AH	Micro Cable 144f GNHLDV G652D S12
	TOL4019030/192AH	Micro Cable 192f GNHLDV G652D S12

Micro Cable, Indoor

Micro cable based on a slim loose tube design with up to eight tubes per cable. The design facilitates fiber preparation and mid-span access. The cable is designed for indoor installation and has excellent bend performance.

DESIGN: Loose tube

TYPE: Halogen-free, flame-retardant

DIMENSIONS: ∅ 8.3 - 8.6 mm

CAPACITY: 12 - 96 fibers

E-NO.	PRODUCT NO.	PRODUCT NAME
Standard Color Code
4981060	TOL4059011/12A	Micro cable 12f for indoor applications G652D
4981070	TOL4059011/24A	Micro cable 24f for indoor applications G652D
4981080	TOL4059011/48A	Micro cable 48f for indoor applications G652D
4981090	TOL4059011/72A	Micro cable 72f for indoor applications G652D
4981100	TOL4059011/96A	Micro cable 96f for indoor applications G652D

Micro Cable, Aerial Applications

Micro cable based on a slim loose tube design with up to eight tubes per cable. The design is optimized for the maximum strength required for air blown aerial applications. The cable is specially designed for long-distance, air blown installation in microducts with an inner diameter of as little as 8 mm.

DESIGN: Loose tube

TYPE: Dielectric, extra slim for aerial applications

DIMENSIONS: ∅ 5.7 - 6.7 mm

CAPACITY: 12 - 96 fibers

E-NO.	PRODUCT NO.	PRODUCT NAME
Standard Color Code
4988170	TOL4019024/12A	Micro cable 12f for aerial applications G652D
4988180	TOL4019024/24A	Micro cable 24f for aerial applications G652D
4988190	TOL4019024/48A	Micro cable 48f for aerial applications G652D
4988200	TOL4019024/72A	Micro cable 72f for aerial applications G652D
4988210	TOL4019024/96A	Micro cable 96f for aerial applications G652D

E-NO.	PRODUCT NO.	PRODUCT NAME
S12 Color Code
	TOL4019029/12AH	Micro cable 12f for aerial applications G652D
	TOL4019029/29AH	Micro cable 24f for aerial applications G652D
	TOL4019029/48AH	Micro cable 48f for aerial applications G652D
	TOL4019029/72AH	Micro cable 72f for aerial applications G652D
	TOL4019029/96AH	Micro cable 96f for aerial applications G652D

MICRODUCTS AND MULTIDUCTS FOR MICRO CABLES

Microducts and microduct assemblies are available for several installation environments such as direct buried installation, into existing pipes or indoor installation. Ducts for aerial applications are presented in the section Ribbonet® Air Blown Fiber System.

Protected Microducts for Direct Buried Installation

Ducts composed of 10/8 mm or 12/10 mm microducts with a heavy-duty HDPE sheath that enables direct installation in the ground. The microducts have a solid, low-friction inner surface coating for best installation performance.

TYPE: Direct buried installation

DIMENSIONS, MICRODUCTS: ∅ 10/8 mm or 12/10 mm

CAPACITY: 1, 4, 7-way

Cross-sectional illustration of a multi-core cable with orange insulation and multicolored insulation layers (no text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
Standard Color Code
5040330	MPB30270/1	Microduct 10/8 mm for installation direct in the ground, Orange
	NWPB30270/2	Multiduct 10/8 mm consist of 2 microducts for installation direct in the ground, Orange
5040334	MPB30270/4	Multiduct 10/8 mm consist of 4 microducts for installation direct in the ground, Orange
5040337	MPB30270/7	Multiduct 10/8 mm consist of 7 microducts for installation direct in the ground, Orange
5040437	MPB30272/1	Microduct 12/10 mm for installation direct in the ground, Orange
	MPB30272/2	Multiduct 12/10 mm consist of 2 microducts for installation direct in the ground, Orange
5040438	MPB30272/4	Multiduct 12/10 mm consist of 4 microducts for installation direct in the ground, Orange
5040439	MPB30272/7	SMultiduct 12/10 mm consist of 7 microducts for installation direct in the ground, Orange
S12 Color Code
5041159	MPB30272/1M	Microduct 12/10 mm for installation direct in the ground, S12 , Orange
5041061	MPB30272/4M	Multiduct 12/10 mm consist of 4 microducts for installation direct in the ground, S12 , Orange
5041062	MPB30272/7M	Multiduct 12/10 mm consist of 7 microducts for installation direct in the ground, S12 , Orange
5041106	1/MPB30272/1M	Microduct 12/10 mm for installation direct in the ground, S12 , Green
5041107	1/MPB30272/4M	Multiduct 12/10 mm consist of 4 microducts for installation direct in the ground, S12 , Green
5041108	1/MPB30272/7M	Multiduct 12/10 mm consist of 7 microducts for installation direct in the ground, S12 , Green
5041120	2/MPB30272/1M	Microduct 12/10 mm for installation direct in the ground, S12 , Red
5041121	2/MPB30272/4M	Multiduct 12/10 mm consist of 4 microducts for installation direct in the ground, S12 , Red
5041122	2/MPB30272/7M	Multiduct 12/10 mm consist of 7 microducts for installation direct in the ground, S12 , Red
5041133	3/MPB30272/1M	Microduct 12/10 mm for installation direct in the ground, S12 , Blue
5041134	3/MPB30272/4M	Multiduct 12/10 mm consist of 4 microducts for installation direct in the ground, S12 , Blue
5041135	3/MPB30272/7M	Multiduct 12/10 mm consist of 7 microducts for installation direct in the ground, S12 , Blue
	4/MPB30272/1M	Microduct 12/10 mm for installation direct in the ground, S12 , Yellow
	4/MPB30272/4M	Multiduct 12/10 mm consist of 7 microducts for installation direct in the ground, S12 , Yellow
	4/MPB30272/7M	Multiduct 12/10 mm consist of 7 microducts for installation direct in the ground, S12 , Yellow
	5/MPB30272/1M	Microduct 12/10 mm for installation direct in the ground, S12 , White
	5/MPB30272/4M	Multiduct 12/10 mm consist of 4 microducts for installation direct in the ground, S12 , White
	5/MPB30272/7M	Multiduct 12/10 mm consist of 7 microducts for installation direct in the ground, S12 , White
	6/MPB30272/1M	Microduct 12/10 mm for installation direct in the ground, S12 , Violet
	6/MPB30272/4M	Multiduct 12/10 mm consist of 4 microducts for installation direct in the ground, S12 , Violet
	6/MPB30272/7M	Multiduct 12/10 mm consist of 7 microducts for installation direct in the ground, S12 , Violet
Skanova Sheath Marking
	MPB30272/1S	Microduct 12/10mm for installation direct in the ground, S12, Skanova , Orange
	MPB30272/4S	Multiduct 12/10mm consist of 4 microducts for installation direct in the ground, S12, Skanova , Orange
	MPB30272/7S	Multiduct 12/10mm consist of 7 microducts for installation direct in the ground, S12, Skanova , Orange
	1/MPB30272/1S	Microduct 12/10mm for installation direct in the ground, S12, Skanova , Green
	1/MPB30272/4S	Multiduct 12/10mm consist of 4 microducts for installation direct in the ground, S12, Skanova , Green
	1/MPB30272/7S	Multiduct 12/10mm consist of 7 microducts for installation direct in the ground, S12, Skanova , Green
	2/MPB30272/1S	Microduct 12/10mm for installation direct in the ground, S12, Skanova , Red
	2/MPB30272/4S	Multiduct 12/10mm consist of 4 microducts for installation direct in the ground, S12, Skanova , Red
	2/MPB30272/7S	Multiduct 12/10mm consist of 7 microducts for installation direct in the ground, S12, Skanova , Red
	3/MPB30272/1S	Microduct 12/10mm for installation direct in the ground, S12, Skanova , Blue
	3/MPB30272/4S	Multiduct 12/10mm consist of 4 microducts for installation direct in the ground, S12, Skanova , Blue
	3/MPB30272/7S	Multiduct 12/10mm consist of 7 microducts for installation direct in the ground, S12, Skanova , Blue
	4/MPB30272/1S	Microduct 12/10mm for installation direct in the ground, S12, Skanova , Yellow
	4/MPB30272/4S	Multiduct 12/10mm consist of 4 microducts for installation direct in the ground, S12, Skanova , Yellow
	4/MPB30272/7S	Multiduct 12/10mm consist of 7 microducts for installation direct in the ground, S12, Skanova , Yellow

PRODUCT NO.	PRODUCT NAME
Skanova Sheath Marking
5/MPB30272/1S Microduct 12/10mm for installation direct in the ground, S12, Skanova , White
5/MPB30272/4S	Multiduct 12/10mm consist of 4 microducts for installation direct in the ground, S12, Skanova , White
5/MPB30272/7S	Multiduct 12/10mm consist of 7 microducts for installation direct in the ground, S12, Skanova , White
6/MPB30272/1S	Microduct 12/10mm for installation direct in the ground, S12, Skanova , Violet
6/MPB30272/4S	Multiduct 12/10mm consist of 4 microducts for installation direct in the ground, S12, Skanova , Violet
6/MPB30272/7S	Multiduct 12/10mm consist of 7 microducts for installation direct in the ground, S12, Skanova , Violet

Microducts for Duct Installation

Ducts composed of 10/8 mm or 12/10 mm microducts. The ducts are designed for installation in existing pipes or cable shafts. The microducts have a solid, low-friction inner surface coating for best installation performance.

TYPE: Installation in existing pipes DIMENSIONS, MICRODUCTS: ∅ 10/8 mm or 12/10 mm

Colorful circular icons arranged in rows, one highlighted with a black circle containing colored dots (no text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5040300	MPB30260/BU1	Microduct 10/8 mm outdoor installation in existing ducts, Blue
5041053	MPB30260/BK1	Microduct 10/8 mm outdoor installation in existing ducts, Black
5040301	MPB30260/OG1	Microduct 10/8 mm outdoor installation in existing ducts, Orange
5040302	MPB30260/GN1	Microduct 10/8 mm outdoor installation in existing ducts, Green
5040303	MPB30260/BN1	Microduct 10/8 mm outdoor installation in existing ducts, Brown
5040304	MPB30260/GY1	Microduct 10/8 mm outdoor installation in existing ducts, Grey
5040305	MPB30260/WH1	Microduct 10/8 mm outdoor installation in existing ducts, White
5041054	MPB30260/PK1	Microduct 10/8 mm outdoor installation in existing ducts, Pink
5041055	MPB30260/TQ1	Microduct 10/8 mm outdoor installation in existing ducts, Turquoise
5040306	MPB30260/RD1	Microduct 10/8 mm outdoor installation in existing ducts, Red
5040669	MPB30260/YE1	Microduct 10/8 mm outdoor installation in existing ducts, Yellow
5041056	MPB30260/VT1	Microduct 10/8 mm outdoor installation in existing ducts, White
5040440	MPB30262/BU1	Microduct 12/10 mm outdoor installation in existing ducts, Blue
5041057	MPB30262/BK1	Microduct 12/10 mm outdoor installation in existing ducts, Black
5040441	MPB30262/OG1	Microduct 12/10 mm outdoor installation in existing ducts, Orange
5040442	MPB30262/GN1	Microduct 12/10 mm outdoor installation in existing ducts, Green
5040443	MPB30262/BN1	Microduct 12/10 mm outdoor installation in existing ducts, Brown
5040444	MPB30262/GY1	Microduct 12/10 mm outdoor installation in existing ducts, Grey
5040445	MPB30262/WH1	Microduct 12/10 mm outdoor installation in existing ducts, White
5041058	MPB30262/PK1	Microduct 12/10 mm outdoor installation in existing ducts, Pink
5041059	MPB30262/TQ1	Microduct 12/10 mm outdoor installation in existing ducts, Turquoise
5040446	MPB30262/RD1	Microduct 12/10 mm outdoor installation in existing ducts, Red
5040668	MPB30262/YE1	Microduct 12/10 mm outdoor installation in existing ducts, Yellow
5041060	MPB30262/VT1	Microduct 12/10 mm outdoor installation in existing ducts, White

Protected Microducts for Duct Installation

Ducts based on 10/8 mm or 12/10 mm microducts with a single HDPE sheath for easy installation of microduct bundles into existing pipes or cable shafts. The microducts have a solid low friction inner surface coating for best installation performance.

DESIGN: Installation in existing pipes

DIMENSIONS, MICRODUCTS: ∅ 10/8 mm or 12/10 mm

CAPACITY: 4,7-way

E-NO.	PRODUCT NO.	PRODUCT NAME
Standard Color Code
5040365	MPB30290/4	Multiduct 10/8 mm consist of 4 microducts for installation in existing ducts, Black
5040366	MPB30290/7	Multiduct 10/8 mm consist of 7 microducts for installation in existing ducts, Black
5041087	MPB30292/2	Multiduct 12/10 mm consist of 2 microducts for installation in existing ducts, Black
5041088	MPB30292/4	Multiduct 12/10 mm consist of 4 microducts for installation in existing ducts, Black
5041090	MPB30292/7	Multiduct 12/10 mm consist of 7 microducts for installation in existing ducts, Black
S12 Color Code
5041089	MPB30292/4M	Multiduct 12/10 mm consist of 4 microducts for installation in existing ducts S12, Black
5041091	MPB30292/7M	Multiduct 12/10 mm consist of 7 microducts for installation in existing ducts S12, Black
	2/WPB30292/4M	Multiduct 12/10 mm consist of 4 microducts for installation in existing ducts S12, Red
	2/WPB30292/7M
	4/MPB30292/4M	Multiduct 12/10 mm consist of 4 microducts for installation in existing ducts S12, Yellow
	4/MPB30292/7M	Multiduct 12/10 mm consist of 7 microducts for installation in existing ducts S12, Yellow
	5/MPB30292/4M	Multiduct 12/10 mm consist of 4 microducts for installation in existing ducts S12, White
	5/MPB30292/7M	Multiduct 12/10 mm consist of 7 microducts for installation in existing ducts S12, White
	7/MPB30292/4M	Multiduct 12/10 mm consist of 4 microducts for installation in existing ducts S12, Orange
	7/MPB30292/7M	Multiduct 12/10 mm consist of 7 microducts for installation in existing ducts S12, Orange
Skanova Sheath Marking
	MPB30292/4S	Multiduct 12/10mm consist of 4 microducts for installation in existing ducts S12, Skanova, Black
	MPB30292/7S	Multiduct 12/10mm consist of 7 microducts for installation in existing ducts S12, Skanova, Black
	2/WPB30292/4S	Multiduct 12/10mm consist of 4 microducts for installation in existing ducts S12, Skanova, Red
	2/WPB30292/7S	Multiduct 12/10mm consist of 7 microducts for installation in existing ducts S12, Skanova, Red
	4/MPB30292/4S	Multiduct 12/10mm consist of 4 microducts for installation in existing ducts S12, Skanova, Yellow
	4/MPB30292/7S	Multiduct 12/10mm consist of 7 microducts for installation in existing ducts S12, Skanova, Yellow
	5/MPB30292/4S	Multiduct 12/10mm consist of 4 microducts for installation in existing ducts S12, Skanova, White
	5/MPB30292/7S	Multiduct 12/10mm consist of 7 microducts for installation in existing ducts S12, Skanova, White
	7/MPB30292/4S	Multiduct 12/10mm consist of 4 microducts for installation in existing ducts S12, Skanova, Orange
	7/MPB30292/7S	Multiduct 12/10mm consist of 7 microducts for installation in existing ducts S12, Skanova, Orange

Thick Walled Microduct Assemblies

These thick walled ducts are made of 14/10 mm microducts. Compared to conventional tight protected duct assemblies, thick walled microducts offer lower splicing and branching cost.

TYPE: Direct buried installation or installation in existing pipes

DIMENSIONS, MICRODUCTS: ∅ 14/10 mm

CAPACITY: 2, 4, 7-way

E-NO.	PRODUCT NO.	PRODUCT NAME
5040501 MPB30281/2M TWD 2x14/10mm S12, Orange
5040516 MPB30277/4M TWD 4x14/10mm Micronet S12, Orange
5040517 MPB30277/7M TWD 7x14/10mm Micronet S12, Orange
50 41190 1/MPB30281/2M TWD 2x14/10mm S12, Green
50 41193 1/MPB30277/4M TWD 4x14/10mm Micronet S12, Green
50 41194 1/MPB30277/7M TWD 7x14/10mm Micronet S12, Green
50 41195 2/MPB30281/2M TWD 2x14/10mm S12, Red
50 41123 2/MPB30277/4M TWD 4x14/10mm Micronet S12, Red
50 41124 2/MPB30277/7M TWD 7x14/10mm Micronet S12, Red
50 41196 3/MPB30281/2M TWD 2x14/10mm S12, Blue
50 41197 3/MPB30277/4M TWD 4x14/10mm Micronet S12, Blue
50 41198 3/MPB30277/7M TWD 7x14/10mm Micronet S12, Blue
50 41144 4/MPB30281/2M TWD 2x14/10mm S12, Yellow
50 41139 4/MPB30277/4M TWD 4x14/10mm Micronet S12, Yellow
50 41140 4/MPB30277/7M TWD 7x14/10mm Micronet S12, Yellow
50 41199 5/MPB30281/2M TWD 2x14/10mm S12, White
50 41148 5/MPB30277/4M TWD 4x14/10mm Micronet S12, White
50 4120 0 5/MPB30277/7M TWD 7x14/10mm Micronet S12, White
MPB30279/14M TWD 2x14/10mm+12x7/3,5mm Hybrid, Orange
Skanova Sheath Marking
	MPB30281/2S	TWD 2x14/10mm Skanova, Orange
	MPB30277/4S	TWD 4x14/10mm Micronet Skanova, Orange
	MPB30277/7S	TWD 7x14/10mm Micronet Skanova, Orange
	1/MPB30281/2S	TWD 2x14/10mm Skanova, Green
	1/MPB30277/4S	TWD 4x14/10mm Micronet Skanova, Green
	1/MPB30277/7S	TWD 7x14/10mm Micronet Skanova, Green
	2/MPB30281/2S	TWD 2x14/10mm Skanova, Red
	2/MPB30277/4S	TWD 4x14/10mm Micronet Skanova, Red
	2/MPB30277/7S	TWD 7x14/10mm Micronet Skanova, Red
	3/MPB30281/2S	TWD 2x14/10mm Skanova, Blue
	3/MPB30277/4S	TWD 4x14/10mm Micronet Skanova, Blue
	3/MPB30277/7S	TWD 7x14/10mm Micronet Skanova, Blue
	4/MPB30281/2S	TWD 2x14/10mm Skanova, Yellow
	4/MPB30277/4S	TWD 4x14/10mm Micronet Skanova, Yellow
	4/MPB30277/7S	TWD 7x14/10mm Micronet Skanova, Yellow
	5/MPB30281/2S	TWD 2x14/10mm Skanova, White
	5/MPB30277/4S	TWD 4x14/10mm Micronet Skanova, White
	5/MPB30277/7S	TWD 7x14/10mm Micronet Skanova, White
	6/MPB30281/2S	TWD 2x14/10mm Skanova, Violet
	6/MPB30277/4S	TWD 4x14/10mm Micronet Skanova, Violet
	6/MPB30277/7S	TWD 7x14/10mm Micronet Skanova, Violet

E-NO.	PRODUCT NO.	PRODUCT NAME
Special Applications (Available on Request)
5040515	MPB30277/1	TWD 1x14/10mm Sheathed, Orange
5040502	MPB30281/7	TWD 7x14/10mm, Orange
5040503	MPB30282/13	TWD 1x14/10mm+12x7/3,5mm Microtrench, Orange
5040504	MPB30282/14	TWD 2x14/10mm+12x7/3,5mm Microtrench, Orange
5040505	MPB30279/14	TWD 2x14/10mm+12x7/3,5mm Hybrid, Orange
5040506	MPB30279/25	TWD 1x14/10mm+24x7/3,5mm Hybrid, Orange
5040507	MPB30279/26	TWD 2x14/10mm+24x7/3,5mm Hybrid, Orange
	MPB30283/1	TWD 1x14/10mm Sheathed Tracer Orange
	1/MPB30281/2	TWD 2x14/10mm M-trench Tracer Orange
	MPB30283/4	Micronet 4-DA Heavy wall 14/10 Tracer, Orange
	MPB30283/7	Micronet 7-DA Heavy wall 14/10 Tracer, Orange
	1/MPB30281/7	7-way TWD 14/10mm, Micro trench, Tracer, Orange
	MPB30287/14	TWD2x14/10mm+12x7/3,5mm Tracer, Orange
	MPB30287/25	TWD1x14/10mm+24x7/3,5mm Tracer, Orange
	MPB30287/26	TWD2x14/10mm+24x7/3,5mm Tracer, Orange
	MPB30288/12	TWD 12x7/3,5mm M-trench Tracer, Orange
	MPB30289/13	TWD1x14/10mm+12x7/3,5mm Tracer, Orange
	MPB30289/14	TWD2x14/10mm+12x7/3,5mm Tracer, Orange

Thick Walled Microducts

Thick walled microducts, 14/10 mm to be used in combination with thick walled microduct assemblies.

TYPE: Direct buried installation or installation in existing pipes

DIMENSIONS, MICRODUCTS: ∅ 14/10 mm

Five colored circular shapes arranged horizontally on a white background, with no text or symbols.

E-NO.	PRODUCT NO.	PRODUCT NAME
Standard Color Code
5041080 MPB30285/OG TWD 1x14/10 mm Singel tube, Orange
50 41086 MPB30285/YE TWD 1x14/10 mm Singel tube, Yellow
50 41084 MPB30285/WH TWD 1x14/10 mm Singel tube, White
50 41082 MPB30285/RD TWD 1x14/10 mm Singel tube, Red
50 41077 MPB30285/BU TWD 1x14/10 mm Singel tube, Blue
50 41078 MPB30285/GN TWD 1x14/10 mm Singel tube, Green
50 41085 MPB30285/VT TWD 1x14/10 mm Singel tube, Violet
50 41076 MPB30285/BN TWD 1x14/10 mm Singel tube, Brown
50 41083 MPB30285/TQ TWD 1x14/10 mm Singel tube, Turquoise
50 41079 MPB30285/GY TWD 1x14/10 mm Singel tube, Grey
50 41081 MPB30285/PK TWD 1x14/10 mm Singel tube, Pink
50 41075 MPB30285/BK TWD 1x14/10 mm Singel tube, Black

Protected Microducts for Indoor Use

Microduct with a sheath made of halogen-free, flame-retardant material that enables installation of outdoor rated micro cables in indoor environments. Fiber splicing between indoor and outdoor environments can therefore be eliminated.

TYPE: Indoor Installations

DIMENSIONS, MICRODUCTS: ∅ 10/8 mm or 12/10 mm

CAPACITY: 1, 4, 7-way

E-NO.	PRODUCT NO.	PRODUCT NAME
5040447	MPB30271/1	Microduct, single, indoor use with extra protection. 10/8 mm
5040448	MPB30271/4	Multiduct 10/8 mm consist of 4 microducts for indoor installation
5040449	MPB30271/7	Multiduct 10/8 mm consist of 7 microducts for indoor installation
5040450	MPB30273/1	Microduct, single, indoor use with extra protection. 12/10 mm
5040451	MPB30273/4	Multiduct 12/10 mm consist of 4 microducts for indoor installation
5040452	MPB30273/7	Multiduct 12/10 mm consist of 7 microducts for indoor installation

Three circular diagrams with internal circles, no text or symbols present

DUCT JOINTS AND OTHER DUCT EQUIPMENT

MPB 306 01/142 and /152 Straight Connector

Microduct snap-in connectors for quick and easy splicing of microducts. The body is transparent for easy fault location during installation. The connector is available for 12/10 mm and 10/8 mm ducts.

TYPE: Straight connector, Easy Connect DIMENSIONS, MICRODUCTS: ∅10/8mm or 12/10 mm

Close-up of a metallic cylindrical mechanical component with multiple slots and mounting holes (no visible text or symbols)

PRODUCT NO.

PRODUCT NAME

5040888 MPB30601/142 100xConnector, 10/8 mm Easy Connect

5040889 MPB30601/152 100xConnector,12/10 mm Easy Connect

MPB 306 05/142 Straight Connector

Microduct snap-in connectors for quick and easy splicing of microducts. The connector is available for 14/10 mm ducts and can be direct buried. It is equipped with safety locks for unaccidental opening during installation.

TYPE: Straight connector DIMENSIONS, MICRODUCTS: ∅14/10 mm

Close-up of a black cylindrical mechanical connector (no text or symbols visible)

E-NO. PRODUCT NO. PRODUCT NAME

5040519 MPB30605/142 100xConnector,14/10 mm DB

MPB 306 07+ Gas Block Connector

Gas block microduct snap-in connectors are used to seal around cables at the end of the duct. After cable installation, the connector can be gas sealed by pushing the connector ends together.

TYPE: Gas block straight connector DIMENSIONS, MICRODUCTS: ∅10/8 mm, 12/10 mm or 14/10 mm

E-NO.	PRODUCT NO.	PRODUCT NAME
5040906	MPB30607/10A2	100xGas Block Connector 10/8 mm 5.5 - 6.6 mm
5040907	MPB30607/10B2	100xGas Block Connector 10/8 mm 6.5 - 7.2 mm
5040908	MPB30607/12A2	100xGas Block Connector 12/10 mm 5.5 - 6.6 mm
5040909	MPB30607/12B2	100xGas Block Connector 12/10 mm 6.5 - 7.2 mm
5040910	MPB30607/12C2	100xGas Block Connector 12/10 mm 7.2 - 8.2 mm
5040911	MPB30607/14A2	100xGas Block Connector 14/10 mm 6.5 - 7.2 mm
5040912	MPB30607/14B2	100xGas Block Connector 14/10 mm 7.6 - 8.2 mm

3D cutaway view of a yellow and gray plastic pipe fitting with red internal components (no text or symbols)

SXA 113 9137/142 and /152 End Stop Connector

Microduct snap-in, end-stop connectors for permanent or temporarily sealing of unused microducts to prevent water and dust getting into the duct.

TYPE: End stop DIMENSIONS, MICRODUCTS: ∅10/8 mm, or 12/10 mm

Close-up of a black mechanical component with a circular opening (no visible text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5040994	SXA1139137/142	100xEndstop Connector, 10 mm Easy Conenict
5041164	SXA1139137/152	100xEndstop Connector, 12 mm Easy Connect

End Stop Connector

Microduct snap-in, end-stop connectors for permanent or temporarily sealing of unused microducts to prevent water and dust getting into the duct. This type is intended for thick walled ducts.

TYPE: End stop for TWD

DIMENSIONS, MICRODUCTS: ∅ 14/10 mm

E-NO.

PRODUCT NO.

PRODUCT NAME

5040904 MPB30606/142 100xEnstop Connector, 14 mm DB

Divisible Seals

The divisible seals for microducts provide a gas and watertight seal for open duct ends installed with micro cables. The seals are designed to be installed after the fiber or cable has been blown in to the microduct.

TYPE: Divisible seal for micro cables

DIMENSIONS, MICRODUCTS: ∅ 10/8, 12/10 or

14/10 mm, cables ∅2.5 - 3.9 mm,

5.0 - 6.5 mm, or 6.5 - 8 mm

Two black plastic mechanical components with a blue washer, shown against a white background (no text or symbols visible)

E-NO.	PRODUCT NO.	PRODUCT NAME
5040716	MPB30608/10A1 25x10mm	Divisible Seal 2.5-3.9 mm
5040717	MPB30608/10B1 25x10mm	Divisible Seal 5.0-6.5 mm
5040718	MPB30608/10C1 25x10mm	Divisible Seal 6.5-8.0 mm
5040719	MPB30608/12A1 25x12mm	Divisible Seal 2.5-3.9 mm
5040720	MPB30608/12B1 25x12mm	Divisible Seal 5.0-6.5 mm
5040721	MPB30608/12C1 25x12mm	Divisible Seal 6.5-8.0 mm
5040722	MPB30608/12D1 25x12mm	Divisible Seal 7.0-8.5 mm
5040723	MPB30608/14A1 25x14mm	Divisible Seal 5.8-6.5 mm
5040724	MPB30608/14B1 25x14mm	Divisible Seal 8.0-10.0 mm

Duct Joint Closure

A series of straight duct closures for maximum protection of duct joints for direct buried applications. Heat shrink technology is used for maximum protection. The closure is available in three different sizes and includes microduct snap-in connectors for 1, 4 or 7 microducts. Connectors for 10/8 mm ducts are included.

TYPE: Heath shrink, straight joint

SEALING: IP class 68

CAPACITY: 1, 4, or 7

Assorted mechanical components including a coiled tube, striped rod, and red test tubes on a white surface (no text or symbols visible)

E-NO.	PRODUCT NO.	PRODUCT NAME
5040372	NDE45115/4	Straight jointing kit for micronet ducts ( 1 duct )
5040373	NDE45115/5	Straight jointing kit for micronet ducts ( 4 duct )
5040374	NDE45115/6	Straight jointing kit for micronet ducts ( 7 duct )

Duct Joint Closure

A series of straight duct closures for quick and easy installation without the need for heat. The closure is available in several sizes. Microduct snap-in connectors are not included.

TYPE: Cold seal, re-enterable straight joint

SEALING: IP class 68

CAPACITY: 1, 4, or 7

Product photo of cylindrical mechanical components with various black and red parts (no visible text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5084249	NDE45125/111	10xStraight Joint 8-12.5 mm
5040914	NDE45125/131	10xStraight Joint 14.9-18 mm
5084256	NDE45125/141	10xStraight Joint 19-24 mm
5084257	NDE45125/151	10xStraight Joint 26.5-29 mm
5084263	NDE45125/161	10xStraight Joint 31-33 mm
5084266	NDE45125/171	10xStraight Joint 36.7-40 mm
5084269	NDE45125/181	10xStraight Joint 44-46 mm
5040915	NDE45125/191	10xStraight Joint 40-41 mm

Duct Joint and Branch Closures

Closure suitable for branching as well as jointing ducts. The closure provides mechanical protection of the duct joints.

TYPE: Cold seal, re-enterable branch joint

SEALING: Mechanical protection only

Three identical mechanical or electronic components with black and silver casing, shown from different angles (no text or symbols visible)

E-NO.	PRODUCT NO.	PRODUCT NAME
	NDE45126/101 8xClosure Straight 25-25
	NDE45126/102 8xClosure Straight 32-32
	NDE45126/103 8xClosure Straight 50-50
	NDE45126/104 8xClosure Straight 25-32
	NDE45126/105 8xClosure Straight 32-50
	NDE45126/108 8xClosure Branch-Off 50-50-25
	NDE45126/109 8xClosure Branch-Off 32-32-25
	NDE45126/115 4xClosure Fork 50-32-25
	NDE45126/116 4xClosure Fork 50-32-32
	NDE45126/119 4xClosure Fork 50-50-50

Duct Joint and Branch Kit

Flexible kit including materials and tools for jointing, branching and mid-span of microducts/multiducts. A vulcanizing cloth is used for sealing, and strong and flexible PVC tape provides mechanical protection. Refill kits are available. Microduct snap-in connectors are not included. NDE 451 40/2 is a kit without tools.

TYPE: Cold seal, branch joint

SEALING: IP class 68

CAPACITY: approx. 10 joints/kit

Assorted electronic equipment including a black tool kit, battery pack, and tools (no visible text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5040029	NDE45140/1	Joint kit for ducts with tool kit and material for 10 pcs of joints
5040030	NDE45140/2	Joint kit for 10 pcs of joints (without tools)

End Caps

Rubber covers used for temporary sealing of unused multiducts to prevent water and dust from getting into the ducts. The caps are available in several versions for different types of ducts.

TYPE: Rubber duct end caps

Black plastic object with multiple spiky protrusions, no text or symbols visible

E-NO.	PRODUCT NO.	PRODUCT NAME
5040177 SRS10617/01 100xEnd Sleeve for 10-16 mm
5040178	SRS10617/02	100xEnd Sleeve for 15-21 mm
5040179	SRS10617/03	50xEnd sleeve for 21-29 mm
5040180	SRS10617/04	20xEnd Sleeve for 29-38 mm
5040992	SRS10617/05	10xEnd Sleeve for 38-45 mm

FIBER DISTRIBUTION HUBS

The Fiber Distribution Hub (FDH) is the location of passive fiber optic devices such as fiber optic splitters and/or cross connection facilities. In this section, FDHs for cable and microduct systems are presented with associated accessories.

For a complete list of all products for fiber distribution, see also section Drop and Premises Networks/Fiber Access Terminals.

Fiber Distribution Hub, Outdoor

This FDH combines unique features in a compact cabinet. The FDH handles in-cabinet splicing of cable as well as incremental installation of air blown micro cable or air blown fiber. The FDH is designed for both PON and P2P FTTx connections and is designed for the RDJ 901 + splitter modules.

TYPE: Outdoor pad or pole mount

CAPACITY: up to 288 end users

SIZE: 830 (1080*)x700x426 mm

* Height including pad

E-NO.	PRODUCT NO.	PRODUCT NAME
5060052 2/NBD116200/1 FDH Street cabinet, basic empty
5060053	2/NBD116200/2	FDH Street cabinet pre-connected 288 SC/APC, 20 m stub cable
	2/NBD116200/100 FDH OD 288 TWD

Interior view of an open industrial refrigerator with yellow insulation material inside (no visible text or symbols)

Fiber Distribution Hub, Indoor

The indoor FDH, for up to 64 end-users, is designed to handle fiber optic terminations and passive optical splitters in PON FTTx networks but can also be used for Point to Point (P2P) applications or combinations of the both. The FDH can handle air-blown fiber in microducts, micro cables as well as drop cables and other fiber optic cables. It can also be used as a medium sized fiber optic splice box for various applications.

TYPE: Indoor closure, wall mount.

SIZE: 500x 76x182mm

SEALING: IP class 54

CAPACITY: 64 end users (SC)

Open optical fiber optic box with visible circuitry and components (no text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5055441 1/NBD116200/1 FDH cabinet basic, empty
5055442	1/NBD116200/2	FDH cabinet prepared 64 + 8 SC/APC
5055443	1/NBD116200/3	FDH cabinet prepared 64 + 8 SC
5055444	1/NBD116200/4	FDH cabinet prepared 64 + 8 LC/APC

5055445 1/NBD116200/5 FDH cabinet prepared 64 + 8 LC

Fiber Distribution Hub/Access Terminal

The main application for this closure is fiber distribution in PON networks with optical splitters, but it can also be used in a P2P system as a cross connection distribution point. The closure is designed for outdoor, underground installation in manholes, above ground installation on poles or installations inside pedestals. The closure can handle air-blown fibers in microducts, micro cables and traditional cables. The closure is equipped with a holder for up to three RDJ 901+ splitter modules.

TYPE: Outdoor, underground use

CAPACITY: 96 end-users

DIMENSIONS: 520x280 mm

Exterior view of a modern office building (no signage)

Black cylindrical object with rounded top and side protrusions (no visible text or symbols)

PRODUCT NO.	PRODUCT NAME
NCD507500	FAT/FDH for underground use

Splitter Modules

Splitters to be used in the FDH. The splitters are pre-terminated with protected fanouts and with fitted connectors. Available in both high grade and standard grade and with different connectors. These splitter modules also fits in splitter frames.

TYPE: Optical splitters, PLC

SPLIT RATIO: 1x2 to 1x64, 2x2 to 2x64

INPUT/OUTPUT: 2 mm patch, G657A1

CONNECTOR OPTIONS: SC/APC, SC, LC, LC/APC

	PRODUCT NO.	PRODUCT NAME
RDJ901200/81	1:2 splitter, SC/APC
	RDJ901200/82 1:2 splitter, SC
	RDJ901200/83 1:2 splitter, LC/APC
	RDJ901200/84 1:2 splitter, LC
	RDJ901200/5 1:8 splitter, SC/APC
	RDJ901200/6 1:8 splitter, SC
	RDJ901200/7 1:8 splitter, LC/APC
	RDJ901200/8 1:8 splitter, LC
	RDJ901200/13 1:8 splitter, LC
	RDJ901200/14 1:16 splitter, SC/APC
	RDJ901200/15 1:16 splitter, SC
	RDJ901200/16 1:16 splitter, LC/APC
	RDJ901200/21 1:24 splitter, SC/APC
	RDJ901200/22 1:24 splitter, SC
	RDJ901200/23 1:24 splitter, LC/APC
	RDJ901200/24 1:24 splitter, LC
	RDJ901200/29 1:32 splitter, SC/APC
	RDJ901200/30 1:32 splitter, SC
	RDJ901200/31 1:32 splitter, LC/APC
	RDJ901200/32 1:32 splitter, LC
	RDJ901200/37 1:64 splitter, SC/APC
	RDJ901200/38 1:64 splitter, SC
	RDJ901200/39 1:64 splitter, LC/APC
	RDJ901200/40 1:64 splitter, LC
	RDJ901200/89 2:2 splitter, SC/APC
	RDJ901200/90 2:2 splitter, SC
	RDJ901200/91 2:2 splitter, LC/APC
	RDJ901200/92 2:2 splitter, LC
	RDJ901200/49 2:8 splitter, SC/APC
	RDJ901200/50 2:8 splitter, SC
	RDJ901200/51 2:8 splitter, LC/APC
	RDJ901200/52 2:8 splitter, LC
	RDJ901200/57 2:16 splitter, SC/APC
	RDJ901200/58 2:16 splitter, SC
	RDJ901200/59 2:16 splitter, LC/APC
	RDJ901200/60 2:16 splitter, LC
	RDJ901200/65 2:32 splitter, SC/APC
	RDJ901200/66 2:32 splitter, SC
	RDJ901200/67 2:32 splitter, LC/APC
	RDJ901200/68 2:32 splitter, LC
	RDJ901200/73 2:64 splitter, SC/APC
	RDJ901200/74 2:64 splitter, SC
	RDJ901200/75 2:64 splitter, LC/APC
	RDJ901200/76 2:64 splitter, LC

Exterior view of a broadband network device with multiple fiber optic cables and a central connector (no text or symbols visible)

RIBBONET® AIR BLOWN FIBER SYSTEM

Drop and Premises Network

The Drop Network connects end users to splicing and branching points, or Fiber Access Terminals (FATs) where the ducts or cables are connected to the feeder and distribution network. The Ribbonet® Air Blown Fiber (ABF) system or the Hexatronic offering of drop cables are two options for connecting fibers from end users to the FAT.

The Premises Network refers to the network within a customer's premises such as a home or office environment. Typical products within the premises network are Fiber Access Terminals (FATs) and Fiber Termination Units Boxes (FTBs).

The Ribbonet ^® system, consisting of ducts forming the infrastructure into which the fiber units are blown, can be used outdoors, indoors and underground, as well as in aerial applications. The Ribbonet ^® system covers both the Drop Network and the Premises Network. The system consists of air blown fibers, ducts, duct joints

and accessories and Hexatronic's patented lightweight air blowing tool. The Ribbonet installation comes with a 20 year system warranty.

Ribbonet® 20 YEAR SYSTEM WARRANTY

RIBBONET® AIR BLOWN FIBER

Pre-connected Air Blown Fiber

Pre-connected air blown fiber (ABF), consisting of fibers encapsulated in a round multi-layer, high-performance coating. The connected ABF is delivered on lightweight reels, optimized for use with the Ribbonet® fiber blowing tool. The ABF is made of bend-resistant G657A2 fiber. The pre-connected ABF is available with 2 or 4 fibers.

TYPE: 2 or 4 fibers, G657A2

CONNECTOR OPTIONS: SC, SC/APC, LC, LC/APC

STANDARD LENGTHS: 30, 50, 70, 100, 150, 200,

250, 300, 350, 400, 500...1000 m

Close-up of a white and blue circular disc with a small blue object on top (no text or symbols visible)

E-NO. PRODUCT NO. PRODUCT NAME

5040947 RPM258020/30M ABF 1SC 2G657A2 REEL

5040951 RPM258020/50M ABF 1SC 2G657A2 REEL

5040954 RPM258020/70M ABF 1SC 2G657A2 REEL

5040942 RPM258020/100M ABF 1SC 2G657A2 REEL

5040943 RPM258020/150M ABF 1SC 2G657A2 REEL

5040944 RPM258020/200M ABF 1SC 2G657A2 REEL

5040945 RPM258020/250M ABF 1SC 2G657A2 REEL

5040946 RPM258020/300M ABF 1SC 2G657A2 REEL

5040948 RPM258020/350M ABF 1SC 2G657A2 REEL

5040949 RPM258020/400M ABF 1SC 2G657A2 REEL

5040950 RPM258020/500M ABF 1SC 2G657A2 REEL

5040952 RPM258020/600M ABF 1SC 2G657A2 REEL

5040953 RPM258020/700M ABF 1SC 2G657A2 REEL

5040955 RPM258020/800M ABF 1SC 2G657A2 REEL

5040956 RPM258020/900M ABF 1SC 2G657A2 REEL

5040941 RPM258020/1000M ABF 1SC 2G657A2 REEL

5040644 RPM258005/30M ABF 2SC 2G657A2 REEL

5040696 RPM258005/50M ABF 2SC 2G657A2 REEL

5040697 RPM258005/70M ABF 2SC 2G657A2 REEL

5040698 RPM258005/100M ABF 2SC 2G657A2 REEL

5040699 RPM258005/150M ABF 2SC 2G657A2 REEL

5040917 RPM258005/200M ABF 2SC 2G657A2 REEL

5040918 RPM258005/250M ABF 2SC 2G657A2 REEL

5040919 RPM258005/300M ABF 2SC 2G657A2 REEL

5040920 RPM258005/350M ABF 2SC 2G657A2 REEL

5040921 RPM258005/400M ABF 2SC 2G657A2 REEL

5040922 RPM258005/500M ABF 2SC 2G657A2 REEL

5040923 RPM258005/600M ABF 2SC 2G657A2 REEL

5040924 RPM258005/700M ABF 2SC 2G657A2 REEL

5040925 RPM258005/800M ABF 2SC 2G657A2 REEL

5040926 RPM258005/900M ABF 2SC 2G657A2 REEL

5040916 RPM258005/1000M ABF 2SC 2G657A2 REEL

E-NO.	PRODUCT NO.	PRODUCT NAME
5040645	RPM258006/30M	ABF 2LC 2G657A2 REEL
5040700 RPM258006/50M ABF 2LC 2G657A2 REEL
5040701	RPM258006/70M	ABF 2LC 2G657A2 REEL
5040702 RPM258006/100M ABF 2LC 2G657A2 REEL
5040703 RPM258006/150M ABF 2LC 2G657A2 REEL
5040928 RPM258006/200M ABF 2LC 2G657A2 REEL
5040929 RPM258006/250M ABF 2LC 2G657A2 REEL
5040930	RPM258006/300M	ABF 2LC 2G657A2 REEL
5040931	RPM258006/350M	ABF 2LC 2G657A2 REEL
5040932	RPM258006/400M	ABF 2LC 2G657A2 REEL
5040933	RPM258006/500M	ABF 2LC 2G657A2 REEL
5040934	RPM258006/600M	ABF 2LC 2G657A2 REEL
5040935	RPM258006/700M	ABF 2LC 2G657A2 REEL
5040936	RPM258006/800M	ABF 2LC 2G657A2 REEL
5040937	RPM258006/900M	ABF 2LC 2G657A2 REEL
5040927	RPM258006/1000M	ABF 2LC 2G657A2 REEL
5040646 RPM258007/30M ABF 2SC/APC 2G657A2 REEL
5040704	RPM258007/50M	ABF 2SC/APC 2G657A2 REEL
5040705	RPM258007/70M	ABF 2SC/APC 2G657A2 REEL
5040706 RPM258007/100M ABF 2SC/APC 2G657A2 REEL
5040707	RPM258007/150M	ABF 2SC/APC 2G657A2 REEL
	RPM258007/200M ABF 2SC/APC 2G657A2 REEL
	RPM258007/250M	ABF 2SC/APC 2G657A2 REEL
	RPM258007/300M ABF 2SC/APC 2G657A2 REEL
	RPM258007/350M ABF 2SC/APC 2G657A2 REEL
	RPM258007/400M ABF 2SC/APC 2G657A2 REEL
	RPM258007/500M ABF 2SC/APC 2G657A2 REEL
	RPM258007/600M ABF 2SC/APC 2G657A2 REEL
	RPM258007/700M ABF 2SC/APC 2G657A2 REEL
	RPM258007/800M ABF 2SC/APC 2G657A2 REEL
	RPM258007/900M ABF 2SC/APC 2G657A2 REEL
	RPM258007/1000M	ABF 2SC/APC 2G657A2 REEL

E-NO.	PRODUCT NO.	PRODUCT NAME
5040647	RPM258008/30M	ABF 2LC/APC 2G657A2 REEL
5040708	RPM258008/50M	ABF 2LC/APC 2G657A2 REEL
5040709	RPM258008/70M	ABF 2LC/APC 2G657A2 REEL
5040710	RPM258008/100M	ABF 2LC/APC 2G657A2 REEL
5040711	RPM258008/150M	ABF 2LC/APC 2G657A2 REEL
	RPM258008/200M ABF 2LC/APC 2G657A2 REEL
	RPM258008/250M ABF 2LC/APC 2G657A2 REEL
	RPM258008/300M	ABF 2LC/APC 2G657A2 REEL
	RPM258008/350M	ABF 2LC/APC 2G657A2 REEL
	RPM258008/400M ABF 2LC/APC 2G657A2 REEL
	RPM258008/500M	ABF 2LC/APC 2G657A2 REEL
	RPM258008/600M ABF 2LC/APC 2G657A2 REEL
	RPM258008/700M ABF 2LC/APC 2G657A2 REEL
	RPM258008/800M	ABF 2LC/APC 2G657A2 REEL
	RPM258008/900M	ABF 2LC/APC 2G657A2 REEL
	RPM258008/1000M	ABF 2LC/APC 2G657A2 REEL
5040972	RPM258028/30M	ABF 1SC 1SC/APC 2G657A2 REEL
5040976	RPM258028/50M	ABF 1SC 1SC/APC 2G657A2 REEL
5040979 RPM258028/70M ABF 1SC 1SC/APC 2G657A2 REEL
5040967 RPW258028/100M ABF 1SC 1SC/APC 2G657A2 REEL
5040968	RPM258028/150M	ABF 1SC 1SC/APC 2G657A2 REEL
5040969 RPM258028/200M ABF 1SC 1SC/APC 2G657A2 REEL
5040970	RPM258028/250M	ABF 1SC 1SC/APC 2G657A2 REEL
5040971	RPM258028/300M	ABF 1SC 1SC/APC 2G657A2 REEL
5040973 RPM258028/350M ABF 1SC 1SC/APC 2G657A2 REEL
5040974	RPM258028/400M	ABF 1SC 1SC/APC 2G657A2 REEL
5040975	RPM258028/500M	ABF 1SC 1SC/APC 2G657A2 REEL
5040977 RPM258028/600M ABF 1SC 1SC/APC 2G657A2 REEL
5040978	RPM258028/700M	ABF 1SC 1SC/APC 2G657A2 REEL
5040980	RPM258028/800M	ABF 1SC 1SC/APC 2G657A2 REEL
5040981	RPM258028/900M	ABF 1SC 1SC/APC 2G657A2 REEL
5040966	RPM258028/1000M	ABF 1SC 1SC/APC 2G657A2 REEL
	RPM258018/30M ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/50M ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/70M ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/100M	ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/150M	ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/200M ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/250M ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/300M ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/350M ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/400M ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/500M ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/600M ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/700M ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/800M ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/900M ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258018/1000M	ABF 2LC/APC 2G657A2 TIA598 REEL
	RPM258021/30M ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/50M	ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/70M	ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/100M	ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/150M ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/200M ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/250M ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/300M ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/350M	ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/400M	ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/500M ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/600M ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/700M ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/800M ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/900M ABF 2LC/APC 4G657A2 TIA598 REEL
	RPM258021/1000M	ABF 2LC/APC 4G657A2 TIA598 REEL

PRODUCT NO.	PRODUCT NAME
RPM258029/30M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/50M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/70M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/100M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/150M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/200M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/250M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/300M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/350M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/400M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/500M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/600M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/700M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/800M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/900M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258029/1000M	ABF1SC/APC 2G657A2 TIA-598 REEL
RPM258026/30M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/50M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/70M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/100M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/150M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/200M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/250M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/300M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/350M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/400M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/500M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/600M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/700M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/800M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/900M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258026/1000M	ABF 2SC/APC 2G657A2 TIA-598 REEL
RPM258027/30M	ABF 4SC/APC 4G657A2 TIA598 REEL
RPM258027/50M	ABF4SC/APC 4G657A2 TIA-598 REEL
RPM258027/70M	ABF4SC/APC 4G657A2 TIA-598 REEL
RPM258027/100M	ABF4SC/APC 4G657A2 TIA-598 REEL
RPM258027/150M	ABF4SC/APC 4G657A2 TIA-598 REEL
RPM258027/200M	ABF4SC/APC 4G657A2 TIA-598 REEL
RPM258027/250M	ABF4SC/APC 4G657A2 TIA-598 REEL
RPM258027/300M	ABF4SC/APC 4G657A2 TIA-598 REEL
RPM258027/350M	ABF4SC/APC 4G657A2 TIA-598 REEL
RPM258027/400M	ABF4SC/APC 4G657A2 TIA-598 REEL
RPM258027/500M	ABF4SC/APC 4G657A2 TIA-598 REEL
RPM258027/600M	ABF4SC/APC 4G657A2 TIA-598 REEL
RPM258027/700M	ABF4SC/APC 4G657A2 TIA-598 REEL
RPM258027/800M	ABF4SC/APC 4G657A2 TIA-598 REEL
RPM258027/900M	ABF4SC/APC 4G657A2 TIA-598 REEL
RPM258027/1000M	ABF4SC/APC 4G657A2 TIA-598 REEL

Air Blown Fiber, in Pan

Air blown fiber (ABF), consisting of fibers encapsulated in a round multi-layer, high-performance coating. The ABF is delivered in pans in lengths from 1000 to 6000 m and is available in configurations from 2 to 12 fibers, in bend resistant G657A2 fiber or multimode 50 m OM3 or OM4 fiber.

TYPE: 2, 4, 8 or 12 fibers, G657A2 or 50 µm OM3, OM4

STANDARD LENGTHS: 1000, 2000, 4000, 6000 m

Exterior view of a cylindrical mechanical component with blue and gray casing (no visible text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5040648	RPM258013/2000M	ABF 2G657A2 PAN
5040649	RPM258013/4000M	ABF 2G657A2 PAN
5040650	RPM258013/6000M	ABF 2G657A2 PAN
	RPM258019/2000M	ABF 2G657A2 TIA598 PAN
	RPM258019/4000M	ABF 2G657A2 TIA598 PAN
	RPM258019/6000M	ABF 2G657A2 TIA598 PAN
5040729	RPM258014/2000M	ABF 4G657A2 PAN
5040730	RPM258014/4000M	ABF 4G657A2 PAN
5040731	RPM258014/6000M	ABF 4G657A2 PAN
	RPM258022/2000M	ABF 4G657A2 TIA598 PAN
	RPM258022/4000M	ABF 4G657A2 TIA598 PAN
	RPM258022/6000M	ABF 4G657A2 TIA598 PAN
5041262	RPM258016/1000M	ABF 8G657A2 PAN
5041263	RPM258016/2000M	ABF 8G657A2 PAN
5041264	RPM258016/4000M	ABF 8G657A2 PAN
5040938	RPM258017/1000M	ABF 12G657A2 PAN
5040939	RPM258017/2000M	ABF 12G657A2 PAN
5040940	RPM258017/4000M	ABF 12G657A2 PAN
5040963	RPM258025/2000M	ABF 20M3 50μm PAN
5040964	RPM258025/4000M	ABF 20M3 50μm PAN
5040965	RPM258025/6000M	ABF 20M3 50μm PAN
5040960	RPM258024/2000M	ABF 40M3 50μm PAN
5040961	RPM258024/4000M	ABF 40M3 50μm PAN
5040962	RPM258024/6000M	ABF 40M3 50μm PAN
5040957	RPM258023/1000M	ABF 120M3 50μm PAN
5040958	RPM258023/2000M	ABF 120M3 50μm PAN
5040959	RPM258023/4000M	ABF 120M3 50μm PAN

MICRODUCTS AND MULTIDUCTS FOR AIR BLOWN FIBER

Protected Microducts, Direct Buried

Ducts composed of 5/3.5 mm microducts with a heavy-duty HDPE sheath that enables direct buried installation. The ducts are available dielectric or with a moisture barrier of aluminum foil to prevent water diffusion when permanently submersed. The microducts have a solid, low-friction inner surface coating for best installation performance.

TYPE: Direct buried installation, dielectric or metallic moisture barrier

DIMENSIONS, MICRODUCTS: ∅ 5/3.5 mm

CAPACITY: 1, 2, 4, 7, 12, 19, 24, 26-way

Cross-sectional diagram of a multi-core cable showing internal components (no text or labels)

E-NO.	PRODUCT NO.	PRODUCT NAME
Standard Color Code
5040378	MPB30244/1	Microduct, single for direct buried installation, dielectric, Orange
5040431	MPB30244/2	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, Orange
5040432	MPB30244/4	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, Orange
5040433	MPB30244/7	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, Orange
5040434	MPB30244/12	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, Orange
5040435	MPB30244/19	Multiducts, consisting of 19 microducts for direct buried installation, dielectric, Orange
5040436	MPB30244/24	Multiducts, consisting of 24 microducts for direct buried installation, dielectric, Orange
S12 Color Code
5040378	MPB30244/1	Microduct, single for direct buried installation, dielectric, Orange
5041038	MPB30244/2M	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, S12, Orange
5041039	MPB30244/4M	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, S12, Orange
5041040	MPB30244/7M	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, S12, Orange
5041035	MPB30244/12M	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, S12, Orange
5041101	1/MPB30244/2M	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, S12, Green
5041103	1/MPB30244/4M	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, S12, Green
5041104	1/MPB30244/7M	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, S12, Green
5041105	1/MPB30244/12M	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, S12, Green
5041111	2/MPB30244/2M	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, S12, Red
5041112	2/MPB30244/4M	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, S12, Red
5041113	2/MPB30244/7M	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, S12, Red
5041114	2/MPB30244/12M	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, S12, Red
5041129	3/MPB30244/2M	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, S12, Blue
5041130	3/MPB30244/4M	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, S12, Blue
5041131	3/MPB30244/7M	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, S12, Blue
5041132	3/MPB30244/12M	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, S12, Blue
	4/MPB30244/2M	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, S12, Yellow
	4/MPB30244/4M	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, S12, Yellow
	4/MPB30244/7M	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, S12, Yellow
	4/MPB30244/12M	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, S12, Yellow
	5/MPB30244/2M	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, S12, White
	5/MPB30244/4M	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, S12, White
	5/MPB30244/7M	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, S12, White
	5/MPB30244/12M	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, S12, White
	6/MPB30244/2M	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, S12, Violet
	6/MPB30244/4M	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, S12, Violet
	6/MPB30244/7M	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, S12, Violet
	6/MPB30244/12M	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, S12, Violet

... more information on next page

E-NO.	PRODUCT NO.	PRODUCT NAME
Skanova Sheath Marking
	MPB30244/2S	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, S12, Skanova, Orange
	MPB30244/4S	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, S12, Skanova, Orange
	MPB30244/7S	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, S12, Skanova, Orange
	MPB30244/12S	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, S12, Skanova, Orange
	1/MPB30244/2S	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, S12, Skanova, Green
	1/MPB30244/4S	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, S12, Skanova, Green
	1/MPB30244/7S	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, S12, Skanova, Green
	1/MPB30244/12S	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, S12, Skanova, Green
	2/MPB30244/2S	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, S12, Skanova, Red
	2/MPB30244/4S	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, S12, Skanova, Red
	2/MPB30244/7S	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, S12, Skanova, Red
	2/MPB30244/12S	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, S12, Skanova, Red
	3/MPB30244/2S	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, S12, Skanova, Blue
	3/MPB30244/4S	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, S12, Skanova, Blue
	3/MPB30244/7S	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, S12, Skanova, Blue
	3/MPB30244/12S	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, S12, Skanova, Blue
	4/MPB30244/2S	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, S12, Skanova, Yellow
	4/MPB30244/4S	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, S12, Skanova, Yellow
	4/MPB30244/7S	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, S12, Skanova, Yellow
	4/MPB30244/12S	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, S12, Skanova, Yellow
	5/MPB30244/2S	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, S12, Skanova, White
	5/MPB30244/4S	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, S12, Skanova, White
	5/MPB30244/7S	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, S12, Skanova, White
	5/MPB30244/12S	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, S12, Skanova, White
	6/MPB30244/2S	Multiducts, consisting of 2 microducts for direct buried installation, dielectric, S12, Skanova, Violet
	6/MPB30244/4S	Multiducts, consisting of 4 microducts for direct buried installation, dielectric, S12, Skanova, Violet
	6/MPB30244/7S	Multiducts, consisting of 7 microducts for direct buried installation, dielectric, S12, Skanova, Violet
	6/MPB30244/12S	Multiducts, consisting of 12 microducts for direct buried installation, dielectric, S12, Skanova, Violet
Standard Color Code
5040019	MPB30230/1	Microduct, single for direct buried installation, Orange
5040020	MPB30231/2	Multiducts, consisting of 2 microducts for direct buried installation, Orange
5040021	MPB30232/4	Multiducts, consisting of 4 microducts for direct buried installation, Orange
5040022	MPB30233/7	Multiducts, consisting of 7 microducts for direct buried installation, Orange
5040023	MPB30234/12	Multiducts, consisting of 12 microducts for direct buried installation, Orange
5040024	MPB30235/19	Multiducts, consisting of 19 microducts for direct buried installation, Orange
5040025	MPB30236/24	Multiducts, consisting of 24 microducts for direct buried installation, Orange
S12 Color Code
	MPB30230/1M	Microduct, single for direct buried installation, S12 , Orange
	MPB30231/2M	Multiducts, consisting of 2 microducts for direct buried installation, S12 , Orange
	MPB30232/4M	Multiducts, consisting of 4 microducts for direct buried installation, S12 , Orange
	MPB30233/7M	Multiducts, consisting of 7 microducts for direct buried installation, S12 , Orange
	MPB30234/12M	Multiducts, consisting of 12 microducts for direct buried installation, S12 , Orange
	MPB30235/19M	Multiducts, consisting of 19 microducts for direct buried installation, S12 , Orange
	MPB30236/24M	Multiducts, consisting of 24 microducts for direct buried installation, S12 , Orange

Microduct for Installation in Existing Pipes

Ducts composed of 5/3.5 mm microducts. The ducts are designed for installation in existing pipes or cable shafts. The ducts are available dielectric or with a moisture barrier of aluminum foil to prevent water diffusion when permanently submersed. The microducts have a solid, low-friction inner surface coating for best installation performance.

TYPE: Installation in existing pipes, metallic moisture barrier

DIMENSIONS, MICRODUCTS: ∅ 5/3.5 mm

CAPACITY: 1, 2, 4, 7, 12, 19, 24, 26-way

E-NO.	PRODUCT NO.	PRODUCT NAME
Standard Color Code
5040012 MPB30210/1 Ribbonet 1x5/3.5 mm DI, Black
5040013 MPB30211/2 Ribbonet 2x5/3.5 mm DI, Black
5040014 MPB30212/4 Ribbonet 4x5/3.5 mm DI, Black
5040015 MPB30213/7 Ribbonet 7x5/3.5 mm DI, Black
5040016 MPB30214/12 Ribbonet 12x5/3.5 mm DI, Black
5040017 MPB30215/19 Ribbonet 19x5/3.5 mm DI, Black
5040018 MPB30216/24 Ribbonet 24x5/3.5 mm DI, Black
5041026 MPB30216/26 Ribbonet 26x5/3.5 mm DI, Black
Microproducts for Duct Installation - Dielectric
Standard Color Code
5041041	MPB30245/1	Ribbonet 1x5/3.5 mm DI Dielectric, Black
5041046	MPB30245/2	Ribbonet 2x5/3.5 mm DI Dielectric, Black
5041049	MPB30245/4	Ribbonet 4x5/3.5 mm DI Dielectric, Black
5041051	MPB30245/7	Ribbonet 7x5/3.5 mm DI Dielectric, Black
5041042	MPB30245/12	Ribbonet 12x5/3.5 mm DI Dielectric, Black
5041044	MPB30245/19	Ribbonet 19x5/3.5 mm DI Dielectric, Black
5040328	MPB30245/24	Ribbonet 24x5/3.5 mm DI Dielectric, Black
S12 Color Code
5041041	MPB30245/1M	Ribbonet 1x5/3.5 mm DI Dielectric S12 Color, Black
5041048	MPB30245/2M	Ribbonet 2x5/3.5 mm DI Dielectric S12 Color, Black
5041050	MPB30245/4M	Ribbonet 4x5/3.5 mm DI Dielectric S12 Color, Black
5041052	MPB30245/7M	Ribbonet 7x5/3.5 mm DI Dielectric S12 Color, Black
5041043	MPB30245/12M	Ribbonet 12x5/3.5 mm DI Dielectric S12 Color, Black
	2/MPB30245/1M	Ribbonet 1x5/3.5 mm DI Dielectric S12 , Red
	2/MPB30245/2M Ribbonet 2x5/3.5 mm DI Dielectric S12 , Red
	2/MPB30245/4M	Ribbonet 4x5/3.5 mm DI Dielectric S12 , Red
	2/MPB30245/7M Ribbonet 7x5/3.5 mm DI Dielectric S12 , Red
	2/MPB30245/12M	Ribbonet 12x5/3.5 mm DI Dielectric S12 Color, Red
	4/MPB30245/1M	Ribbonet 1x5/3.5 mm DI Dielectric S12 , Yellow
	4/MPB30245/2M Ribbonet 2x5/3.5 mm DI Dielectric S12 , Yellow
	4/MPB30245/4M	Ribbonet 4x5/3.5 mm DI Dielectric S12 , Yellow
	4/MPB30245/7M	Ribbonet 7x5/3.5 mm DI Dielectric S12 , Yellow
	4/MPB30245/12M	Ribbonet 12x5/3.5 mm DI Dielectric S12 , Yellow
	5/MPB30245/1M	Ribbonet 1x5/3.5mm DI Dielectric S12 , White
	5/MPB30245/2M	Ribbonet 2x5/3.5mm DI Dielectric S12 , White
	5/MPB30245/4M	Ribbonet 4x5/3.5mm DI Dielectric S12 , White
	5/MPB30245/7M Ribbonet 7x5/3.5mm DI Dielectric S12 , White
	5/MPB30245/12M	Ribbonet 12x5/3.5mm DI Dielectric S12 , White
	7/MPB30247/1M Ribbonet 1x5/3.5mm DI Dielectric S12 , Orange
	7/MPB30247/2M Ribbonet 2x5/3.5mm DI Dielectric S12 , Orange
	7/MPB30247/4M Ribbonet 4x5/3.5mm DI Dielectric S12 , Orange
	7/MPB30247/7M Ribbonet 7x5/3.5mm DI Dielectric S12 , Orange
	7/MPB30247/12M	Ribbonet 12x5/3.5mm DI Dielectric S12 , Orange

Microducts, Indoor, High Grade or UL Riser

Microducts with a sheath made of halogen-free, flame-retardant material. The ducts are also available in a UL Riser rated series. The microducts have a solid, low-friction inner surface coating for best installation performance. There is also a single microduct available with an extra protection sheath for mounting directly onto walls with cable clamps.

TYPE: Indoor Installation, High Grade,

IEC 60332-3-24 or UL 1666 OFNR

DIMENSIONS, MICRODUCTS: ∅ 5/3.5 mm

CAPACITY: 1, 2, 4, 7, 12, 19, 24-way

Five circular patterned circles with varying internal patterns, arranged horizontally on a gradient background (no text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
Microducts for Indoor Installation - High Grade IEC 60332-3-24
5040298	MPB30201/1	Microduct, single indoors with extra protection. Outer diameter 6mm. Halogen-free
5040007	MPB30202/1	Microduct, consisting of 1-microduct, single indoors. Halogen-free
5040008	MPB30203/4	Multiducts, consisting of 4 microducts, Indoors. Halogen-free
5040009	MPB30204/7	Multiducts, consisting of 7 microducts, Indoors. Halogen-free
5040010	MPB30205/12	Multiducts, consisting of 12 microducts, Indoors. Halogen-free
5040011	MPB30206/19	Multiducts, consisting of 19 microducts, Indoors. Halogen-free
5040004	MPB30207/24	Multiducts, consisting of 24 microducts, Indoors. Halogen-free
Microducts for indoor Installation, UL-1666 Riser Rated
	MPB30208/1U	Microduct, single indoors. Halogen-free, UL Riser
	MPB30208/2U	Multiducts, consisting of 2 microducts, Indoors. Halogen-free, UL Riser
	MPB30208/4U	Multiducts, consisting of 4 microducts, Indoors. Halogen-free, UL Riser
	MPB30208/7U	Multiducts, consisting of 7 microducts, Indoors. Halogen-free, UL Riser
	MPB30208/12U	Multiducts, consisting of 12 microducts, Indoors. Halogen-free, UL Riser

Microducts for Indoor Installation, Standard Grade

Microducts with a sheath made of halogen-free, flame-retardant material with Standard Grade classification for installations with normal fire requirements.

TYPE: Indoor installation, Standard Grade, IEC 60332-1

DIMENSIONS, MICRODUCTS: 5/3.5 mm

CAPACITY: 1, 2, 4, 7, 12, 19, 24-way

E-NO.	PRODUCT NO.	PRODUCT NAME
5041025	MPB30209/2	Multiducts, consisting of 2 microducts, Indoors. Halogen-free
5040484	MPB30209/4	Multiducts, consisting of 4 microducts, Indoors. Halogen-free
5040485	MPB30209/7	Multiducts, consisting of 7 microducts, Indoors. Halogen-free
5040486	MPB30209/12	Multiducts, consisting of 12 microducts, Indoors. Halogen-free
5040487	MPB30209/19	Multiducts, consisting of 19 microducts, Indoors. Halogen-free
5040488	MPB30209/24	Multiducts, consisting of 24 microducts, Indoors. Halogen-free

Nano-ducts Microducts for Indoor Installation, Standard Grade

Microducts with a sheath made of halogen-free, flame-retardant material with Standard Grade classification for installations with normal fire requirements. These ducts are made of ultra-slim 3 mm microducts that enable easier installation in narrow shafts and is the preferred option for most multi dwelling units.

TYPE: 3 mm, Indoor installation, Standard Grade, IEC 60332-1

DIMENSIONS, MICRODUCTS: 3/2 mm

CAPACITY: 1, 7, 12-way

E-NO.	PRODUCT NO.	PRODUCT NAME
5040550	MPB30243/01	Ribbonet 1x3.0/2.1 mm Outdoor,unsheathed
5040551	MPB30243/1	Ribbonet 1x3/2.1 mm Indoor std Grade
5040552	MPB30243/7	Ribbonet 7x3/2.1 mm Indoor std Grade
5040553	MPB30243/12	Ribbonet 12x3/2.1 mm Indoor std Grade

Protected Microducts, Aerial

Microducts for aerial installation on poles that are self-supporting, non-metallic and lightweight to ensure quick and easy installation. The tubes include a stabilized sheath to resist the aging effects of UV radiation. The ducts are part of the Hexatronic's Aerial Air Blown Fiber System and include both 5 mm and 10 mm ducts.

TYPE: Aerial Installation

DIMENSIONS, MICRODUCTS: 5/3.5 mm and 10/8 mm

CAPACITY: 1, 4, 12, 8+2, 19, 9+1-way

Illustration of a black cable with colored bands and four circular insets showing various colored components (no text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
Standard Color Code
5040400	MPB30222/1	Microduct for aerial installation self supporting, single tube
5041028	MPB30222/4	Multiduct, square profile, self supporting, of 4 microducts aerial
5040401	MPB30224/4	Multiduct of figure-8 type self supporting, of 4 microducts aerial
5040402	MPB30224/12	Multiduct of figure-8 type self supporting, of 12 microducts aerial
5040403	MPB30225/8	Multiduct of figure-8 type self supporting, of 2x10/8 mm and 8x5/3,5 mm aerial
5040404	MPB30225/9	Multiduct of figure-8 type self supporting, of 1x10/8 mm and 9x5/3,5 mm aerial
S12 Color Code
5041027	MPB30222/1M	Microduct for aerial installation self supporting, single tube S12
5041029	MPB30222/4M	Multiduct, square profile, self supporting, of 4 microducts aerial S12
5041031	MPB30224/4M	Multiduct of figure-8 type self supporting, of 4 microducts aerial S12
5041030	MPB30224/12M	Multiduct of figure-8 type self supporting, of 12 microducts aerial S12
5041032	MPB30225/8M	Multiduct of figure-8 type self supporting, of 2x10/8 mm and 8x5/3,5 mm aerial S12
5041033	MPB30225/9M	Multiduct of figure-8 type self supporting, of 1x10/8 mm and 9x5/3,5 mm aerial S12

Thick Walled Microduct Assemblies

These thick walled ducts are made of 7/3.5 mm microducts. Compared to conventional light protected duct assemblies, thick walled microducts offer lower splicing and branching cost.

TYPE: Direct buried installation or installation in existing pipes

DIMENSIONS, MICRODUCTS: ∅ 7/3.5 mm

CAPACITY: 1, 2, 4, 7, 12, 19, 24-way

E-NO.	PRODUCT NO.	PRODUCT NAME
S12 Color Code
5040510 MPB30278/4M TWD 4x7/3,5mm Ribbonet S12 , Orange
5040511 MPB30278/7M TWD 7x7/3,5mm Ribbonet S12 , Orange
5040512 MPB30278/12M TWD 12x7/3,5mm Ribbonet S12 , Orange
50 41171 1/MPB30278/4M TWD 4x7/3,5mm Ribbonet S12 , Green
50 41109 1/MPB30278/7M TWD 7x7/3,5mm Ribbonet S12 , Green
5041172	1/MPB30278/12M	TWD 12x7/3,5mm Ribbonet S12 , Green
50 41125 2/MPB30278/4M TWD 4x7/3,5mm Ribbonet S12 , Red
50 41126 2/MPB30278/7M TWD 7x7/3,5mm Ribbonet S12 , Red
50 41127 2/MPB30278/12M TWD 12x7/3,5mm Ribbonet S12 , Red
50 41173 3/MPB30278/4M TWD 4x7/3,5mm Ribbonet S12 , Blue
50 41175 3/MPB30278/7M TWD 7x7/3,5mm Ribbonet S12 , Blue
5041179	3/MPB30278/12M	TWD 12x7/3,5mm Ribbonet S12 , Blue
50 41141 4/MPB30278/4M TWD 4x7/3,5mm Ribbonet S12 , Yellow
50 41142 4/MPB30278/7M TWD 7x7/3,5mm Ribbonet S12 , Yellow
5041143	4/MPB30278/12M	TWD 12x7/3,5mm Ribbonet S12 , Yellow
50 41149 5/MPB30278/4M TWD 4x7/3,5mm Ribbonet S12 , White
5041150 5/MPB30278/7M TWD 7x7/3,5mm Ribbonet S12 , White
50 41151 5/MPB30278/12M TWD 12x7/3,5mm Ribbonet S12 , White
50 41182 6/MPB30278/4M TWD 4x7/3,5mm Ribbonet S12 , Violet
50 41152 6/MPB30278/7M TWD 7x7/3,5mm Ribbonet S12 , Violet
5041183	6/MPB30278/12M	TWD 12x7/3,5mm Ribbonet S12 , Violet
5041196	3/MPB30281/2M	TWD 2x14/10mm S12 , Blue
50 41197 3/MPB30277/4M TWD 4x14/10mm Micronet S12 , Blue
5041198	3/MPB30277/7M	TWD 7x14/10mm Micronet S12 , Blue
MPB30279/14M TWD 2x14/10mm+12x7/3,5mm Hybrid , Orange
Skanova Sheath Marking
	MPB30278/4S	TWD 4x7/3,5mm Ribbonet Skanova , Orange
	MPB30278/7S	TWD 7x7/3,5mm Ribbonet Skanova , Orange
	MPB30278/12S	TWD 12x7/3,5mm Ribbonet Skanova , Orange
	1/MPB30278/4S TWD 4x7/3,5mm Ribbonet Skanova , Green
	1/MPB30278/7S TWD 7x7/3,5mm Ribbonet Skanova , Green
	1/MPB30278/12S	TWD 12x7/3,5mm Ribbonet Skanova , Green
	2/MPB30278/4S TWD 4x7/3,5mm Ribbonet Skanova , Red
	2/MPB30278/7S	TWD 7x7/3,5mm Ribbonet Skanova , Red
	2/MPB30278/12S	TWD 12x7/3,5mm Ribbonet Skanova , Red
	3/MPB30278/4S	TWD 4x7/3,5mm Ribbonet Skanova , Blue
	3/MPB30278/7S	TWD 7x7/3,5mm Ribbonet Skanova , Blue
	3/MPB30278/12S	TWD 12x7/3,5mm Ribbonet Skanova , Blue
	4/MPB30278/4S TWD 4x7/3,5mm Ribbonet Skanova , Yellow
	4/MPB30278/7S	TWD 7x7/3,5mm Ribbonet Skanova , Yellow
	4/MPB30278/12S	TWD 12x7/3,5mm Ribbonet Skanova , Yellow
	5/MPB30278/4S TWD 4x7/3,5mm Ribbonet Skanova , White
	5/MPB30278/7S	TWD 7x7/3,5mm Ribbonet Skanova , White
	5/MPB30278/12S	TWD 12x7/3,5mm Ribbonet Skanova , White
	6/MPB30278/4S TWD 4x7/3,5mm Ribbonet Skanova , Violet
	6/MPB30278/7S	TWD 7x7/3,5mm Ribbonet Skanova , Violet
	6/MPB30278/12S	TWD 12x7/3,5mm Ribbonet Skanova , Violet

E-NO.	PRODUCT NO.	PRODUCT NAME
Special Applications (Available on Request)
5040508	MPB30278/1	TWD 1x7/3,5mm Sheathed, Orange
5040509	MPB30278/2	TWD 2x7/3,5mm, Orange
5040513	MPB30278/19	TWD 19x7/3,5mm, Orange
5040514	MPB30278/24	TWD 24x7/3,5mm, Orange
5040500	MPB30280/12	TWD 12x7/3,5mm, Orange
5040503	MPB30282/13	TWD 1x14/10mm+12x7/3,5mm Microtrench, Orange
5040504	MPB30282/14	TWD 2x14/10mm+12x7/3,5mm Microtrench, Orange
5040505	MPB30279/14	TWD 2x14/10mm+12x7/3,5mm Hybrid, Orange
5040506	MPB30279/25	TWD 1x14/10mm+24x7/3,5mm Hybrid, Orange
5040507	MPB30279/26	TWD 2x14/10mm+24x7/3,5mm Hybrid, Orange
-	MPB30286/1	TWD 1x7/3,5mm Tracer, Orange
-	MPB30286/2	TWD 2x7/3,5mm Tracer, Orange
-	MPB30286/4	TWD 4x7/3,5mm Tracer, Orange
-	MPB30286/7	TWD 7x7/3,5mm Tracer, Orange
-	MPB30286/12	TWD 12x7/3,5mm Tracer, Orange
-	MPB30286/19	TWD 19x7/3,5mm Tracer, Orange
-	MPB30286/24	TWD 24x7/3,5mm Tracer, Orange
-	MPB30287/14	TWD2x14/10mm+12x7/3,5mm Tracer, Orange
-	MPB30287/25	TWD1x14/10mm+24x7/3,5mm Tracer, Orange
-	MPB30287/26	TWD2x14/10mm+24x7/3,5mm Tracer, Orange
-	MPB30288/12	TWD 12x7/3,5mm M-trench Tracer, Orange
-	MPB30289/13	TWD1x14/10mm+12x7/3,5mm Tracer, Orange
-	MPB30289/14	TWD2x14/10mm+12x7/3,5mm Tracer, Orange

Thick Walled Microducts

Thick walled microducts, 7/3.5 mm to be used in combination with thick walled microduct assemblies.

TYPE: Direct buried installation or installation in existing pipes

DIMENSIONS, MICRODUCTS: ∅ 7/3.5 mm

E-NO.	PRODUCT NO.	PRODUCT NAME
Microducts
5041068 MPB30284/OG TWD 1x7/3,5mm Singeltube, Orange
5041074 MPB30284/YE TWD 1x7/3,5mm Singeltube, Yellow
5041072 MPB30284/WH TWD 1x7/3,5mm Singeltube, White
5041070 MPB30284/RD TWD 1x7/3,5mm Singeltube, Red
5041065 MPB30284/BU TWD 1x7/3,5mm Singeltube, Blue
5041066 MPB30284/GN TWD 1x7/3,5mm Singeltube, Green
5041073 MPB30284/VT TWD 1x7/3,5mm Singeltube, Violet
5041064 MPB30284/BN TWD 1x7/3,5mm Singeltube, Brown
5041071 MPB30284/TQ TWD 1x7/3,5mm Singeltube, Turquoise
5041067 MPB30284/GY TWD 1x7/3,5mm Singeltube, Grey
5041069 MPB30284/PK TWD 1x7/3,5mm Singeltube, Pink
5041063 MPB30284/BK TWD 1x7/3,5mm Singeltube, Black

DUCT JOINTS AND OTHER DUCT EQUIPMENT

Straight Connector

Microduct snap-in connectors for quick and easy splicing of microducts. The body is transparent for easy fault location during installation. The connector is available for 5/3.5 mm and 3/2 mm ducts.

TYPE: Straight connector, Slim

DIMENSIONS, MICRODUCTS: ∅ 5/3.5 mm or 3/2 mm

E-NO. PRODUCT NO. PRODUCT NAME

5040580 MPB30601/32 100xConnector, 3/2 mm Slim

5040887 MPB30601/132 100xConnector, 5/3.5 mm Slim

Straight Connector for Thick Walled Ducts

Microduct snap-in connectors for quick and easy splicing of microducts. The connector is available for 7/3.5 mm ducts and can be direct buried. It is equipped with safety locks for unaccidental opening during installation.

TYPE: Straight connector

DIMENSIONS, MICRODUCTS: ∅ 7/3.5 mm

Black cylindrical mechanical connector (no text or symbols visible)

E-NO. PRODUCT NO. PRODUCT NAME

5040518 MPB30605/72 100xConnector,7/3.5 mm DB

Gas Block Connector 5 mm

The gas block microduct snap-in connector is normally used between indoor and outdoor environments to prevent air flow that may result in condensed water getting into in ducts. After cable installation, the connector can be gas sealed by turning a ring on the body.

TYPE: Gas block straight connector

DIMENSIONS, MICRODUCTS: 5/3.5 mm

Close-up of a black and yellow plastic connector (no text or symbols visible)

E-NO.	PRODUCT NO.	PRODUCT NAME
5040353	MPB30602/1	100xGas Block Connector 5/3.5 mm 1.0 - 1.6 mm

Gas Block Connector 7 mm

The gas block microduct snap-in connector is normally used between indoor and outdoor environments to prevent air flow that may result in condensed water getting into in ducts. After cable installation, the connector can be gas sealed by Pushing the connector ends together. This version is intended for 7 mm thick walled ducts.

TYPE: Gas block straight connector

DIMENSIONS, MICRODUCTS: 7/3.5 mm

Close-up of a yellow and gray mechanical component with internal red and white areas (no text or symbols visible)

E-NO.	PRODUCT NO.	PRODUCT NAME
5040913	MPB30607/72	100xGas Block Connector 7/3.5 mm 1.0 - 1.6 mm

End stop Connector

Microduct snap-in end stop connectors for permanent or temporarily sealing of unused micro ducts to prevent water and dust from getting into the duct.

TYPE: End stop

DIMENSIONS, MICRODUCTS: ∅ 5/3.5 mm

E-NO.	PRODUCT NO.	PRODUCT NAME
5040993	SXA1139137/132	100xMicroduct End Stop, 5 mm Easy Connect

End Stop Connector for Thick Walled Ducts

Microduct snap-in, end-stop connectors for permanent or temporarily sealing of unused microducts to prevent water and dust getting into the duct. This type is intended for thick walled ducts.

TYPE: End stop for TWD

DIMENSIONS, MICRODUCTS: ∅ 7/3.5 mm

E-NO.

PRODUCT NO.

PRODUCT NAME

5040905 MPB30606/72 100xEndstop Connector, 7 mm DB

Divisible Seals

The divisible seals for microducts provide a gas and watertight seal for open duct ends installed with air blown fiber. The seals are designed to be installed after the fiber or cable has been blown in to the microduct.

TYPE: Divisible seal for micro cables

DIMENSIONS, MICRODUCTS: ∅ 5/3.5 or 7/3.5 mm

Two plastic electrical connectors, one white and one blue, shown without any text or symbols.

E-NO.	PRODUCT NO.	PRODUCT NAME
5040725	MPB30608/5A1 500x5 mm Miniduct Seal 1.0-1.40 mm
5040726	MPB30608/5B1 500x5 mm Miniduct Seal 2.1-2.5 mm
5040727	MPB30608/7A1 500x7 mm Miniduct Seal 1.0-1.40 mm
5040728	MPB30608/7B1 500x7 mm Miniduct Seal 2.1-2.5 mm

Microduct End Caps

End caps for microducts to prevent dirt and moisture entering the tubes. The end cap also locks the installed fiber to prevent it from moving in the tube. End caps should be used for all open ends in 5 mm microduct installations. The end cap is made of rubber and has a slit that allows the fiber unit to pass through.

TYPE: End cap with strain relief

DIMENSIONS, MICRODUCTS: ∅ 5/3.5 mm

Close-up of several black plastic electronic components with wires, no visible text or symbols

E-NO.	PRODUCT NO.	PRODUCT NAME
5040876	NDK12103	100xMicroduct End Caps, Strain Relief, 5 mm

Duct Joint Closure

A series of straight duct closures for maximum protection of duct joints for direct buried applications. Heat shrink technology is used for maximum protection. The closure is available in five different sizes and includes microduct snap-in connectors for 1 to 24 microducts.

TYPE: Heat shrink, straight joint

SEALING: IP class 68

CAPACITY: 1 to 24 microducts

Assorted decorative items including a coiled black tube, white paper strips, and small geometric shapes (no text or symbols visible)

E-NO.	PRODUCT NO.	PRODUCT NAME
5040372	NDE45115/4	Straight jointing kit for micronet ducts (1 duct)
5040373	NDE45115/5	Straight jointing kit for micronet ducts (4 duct)
5040374	NDE45115/6	Straight jointing kit for micronet ducts (7 duct)

Duct Joint Closure

A series of straight duct closures for quick and easy installation without the need for heat. The closure is available in several sizes. Microduct snap-in connectors are not included.

TYPE: Cold seal, re-enterable straight joint

SEALING: IP class 68

CAPACITY: 1 to 26 microducts

E-NO.	PRODUCT NO.	PRODUCT NAME
5084249 NDE45125/111 10xStraight Joint 8-12.5 mm
50 40914 NDE45125/131 10xStraight Joint 14.9-18 mm
5084256 NDE45125/141 10xStraight Joint 19-24 mm
5084257 NDE45125/151 10xStraight Joint 26.5-29 mm
5084263	NDE45125/161	10xStraight Joint 31-33 mm
5084266	NDE45125/171	10xStraight Joint 36.7-40 mm
5084269	NDE45125/181	10xStraight Joint 44-46 mm
5040915 NDE45125/191 10xStraight Joint 40-41 mm

Product photo of two orange cylindrical mechanical components with black and orange cap-like parts, plus a small metallic connector (no text or symbols visible)

Duct Joint and Branch Kit

Flexible kit including materials and tools for jointing, branching and mid-span of microducts/multiducts. A vulcanizing cloth is used for sealing, and strong and flexible PVC tape provides mechanical protection. Microduct snap-in connectors are not included. NDE 451 40/2 is a kit without tools.

TYPE: Cold seal, branch joint

SEALING: IP class 68

CAPACITY: Approx. 10 joints/kit

E-NO.	PRODUCT NO.	PRODUCT NAME
5040029	NDE45140/1	Joint kit for ducts with tool kit and material for 10 pcs of joints
5040030	NDE45140/2	Joint kit for 10 pcs of joints (without tools)

Assorted electronic testing equipment including a black tool kit, battery pack, and tools (no visible text or symbols)

Duct Branch Closure - Compact

The closure is intended for fast and easy branching of direct buried microduct assemblies for air-blown fiber. The typical application is to branch out 1 to 4 drop ducts to connect single family units from a main duct assembly. The closure is intended for mounting directly into the ground or in manholes, but can also be installed above ground.

TYPE: Cold seal, re-enterable branch closure

SEALING: IP class 68

CAPACITY: 1-24 way ducts, up to 4x1-way branch off

Close-up of a cylindrical electronic component with three black connectors and orange wires extending outward (no visible text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5040497	3/NDE451200	Duct branch off closure, small

Duct Branch Closure - High Capacity

Branch joint closure suitable for multiducts in direct buried applications. It can be used for a large number of duct branches. The box has alternative entrances, allowing a large number of possible joint combinations, as well as mid-span access.

TYPE: Cold seal, re-enterable branch joint

SEALING: IP class 68

CAPACITY: 1-24 way ducts, up to 12x1-way branch off

Close-up of a black cylindrical electrical connector with multiple orange wires inserted (no text or symbols visible)

E-NO.	PRODUCT NO.	PRODUCT NAME
5040351	NDE451100	Duct branch off closure, Universal configuration
5040352	NDE451100/1	Duct branch off closure, Modular 12 configuration

Duct Branch Closure, Gel

Easy-to-use fast to install closure, intended for Hexatronic's Aerial Air Blown Fiber System, and for underground branching of ducts. The closure uses "gel-seal" technology for quick and safe installation.

TYPE: Cold seal, re-enterable branch joint for aerial or underground applications

SEALING: IP class 67

CAPACITY: Up to 4x1-way branch off

Close-up of bundled black cables with coiled leads, no visible text or symbols

PRODUCT NO.	PRODUCT NAME
NDE45122/3	12xDuct Joint 350 mm

End Caps

Rubber covers used for temporarily sealing of unused multiducts to avoid water and dust from getting into the ducts. The caps are available in several versions for different types of ducts.

TYPE: Rubber end caps

Three black plastic mechanical components with spiky protrusions, shown from different angles (no text or symbols visible)

E-NO.

PRODUCT NO.

PRODUCT NAME

5040177 SRS10617/01 100xEnd Sleeve for 10-16 mm

5040178 SRS10617/02 100xEnd Sleeve for 15-21 mm

5040179 SRS10617/03 50xEnd sleeve for 21-29 mm

5040180 SRS10617/04 20xEnd Sleeve for 29-38 mm

5040992 SRS1061706 10xEnd Sleeve for 38-45 mm

Anchoring Clamp

Designed for ducts with a Fiber Reinforced Plastic (FRP) messenger figure-8 shaped duct assembly. The 701 can also be mounted directly on aerial drop ducts.

TYPE: Anchoring Clamp

CAPACITY: (601) 8-10 mm FRP or (701) 6-8 mm FRP or reinforced duct

Close-up of a mechanical tool with threaded end and attached lever (no visible text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5060042	NSF151601	Anchoring Clamp For FRP messenger figure-8 fiber
5060044	NSF151701	Anchoring Clamp For FRP messenger figure-8 or self supporting single duct

Suspension Clamp

Designed for ducts with a Fiber Reinforced Plastic (FRP) messenger figure-8 shaped duct assembly.

TYPE: Suspension Clamp

CAPACITY: 7-11 mm FRP

E-NO.

PRODUCT NO.

PRODUCT NAME

5040893 NSF151502 Suspension Clamp for figure-8 cable

Hook for Suspension Clamp

This hook is designed for the NSF 151 502 suspension clamp and enables a secure fastening of the clamp when mounted on wooden poles..

TYPE: Hook for suspension clamp, pole mounted

E-NO.

PRODUCT NO.

PRODUCT NAME

5040892 NSF151100 Hook for suspension clamp

Universal Pole Bracket

Designed for securing cable or ducts on wooden, concrete or metallic poles.

TYPE: Pole Bracket

E-NO.	PRODUCT NO.	PRODUCT NAME
5060041	NSF151511	Universal Pole Bracket, for all types of poles

FIBER ACCESS TERMINALS AND FIBER TERMINATION BOXES

Fiber Access Terminals (FAT) are designed for Ribbonet® Air Blown Fiber and for changeover from fibers emerging from microducts or drop cables to all types of fiber optic distribution cables. The FATs consist of jointing cabinets and joint closures that are designed for

easy access and good protection of fibers. Products for direct splicing of distribution and drop cabling sections as well as closure with connection panels are available.

FAT Fiber Jointing Cabinet

Small sized cabinet intended for fiber splicing and termination of up to 48 microducts (subscribers) or drop cables. The supplied fiber organizers can typically handle up to 96 fibers.

TYPE: Indoor cabinet, 19", ETSI or wall mount

SIZE: 350x300x120 mm

SEALING: IP class 45

CAPACITY: 96 splices, 48 microducts

E-NO.	PRODUCT NO.	PRODUCT NAME
5040031	NCD5188002	Fiber Jointing Cabinet for up to 48 microducts

White rectangular electronic enclosure with three black dots on top and a small circular button at the bottom (no text or symbols visible)

FAT Fiber Jointing Cabinet

Medium-sized cabinet designed for fiber splicing and termination of up to 96 microducts (5 mm) or drop cables. The organizers typically handle up to 192 fibers.

SIZE: 440x300x160 mm

SEALING: IP class 45

CAPACITY: 192 splices, 96 microducts

E-NO.	PRODUCT NO.	PRODUCT NAME
5040498	NCD5188004/3	Fiber jointing cabinet for up to 96 microducts, wall mounting or 19" rack, 8 small organizers
5060046	NCD5188004/2	Fiber jointing cabinet for up to 96 microducts, wall mounting or 19" rack, 4 large organizers

White rectangular electronic enclosure with three small black holes and a small circular button on the side (no text or symbols visible)

FAT Fiber Jointing Cabinet

Large cabinet suitable for fiber splicing and termination of up to 192 microducts (5 mm) or drop cables. The supplied fiber organizers can typically handle up to 384 fibers.

TYPE: Indoor cabinet, 19", ETSI or wall mount

SIZE: 440x600x220 mm

SEALING: IP class 45

CAPACITY: 384 splices, 192 microducts

E-NO.	PRODUCT NO.	PRODUCT NAME
5040033	NCD5188003	Fiber Jointing Cabinet for up to 192 microducts, wall mounting or 19' rack

White rectangular electronic device with a black top panel and a small handle (no visible text or symbols)

FAT Fiber Jointing Cabinet

This is a medium sized cabinet for both traditional 5 mm microducts and 7 mm thick walled ducts. The closure is intended for mounting inside an outer protective cabinet or for indoor use.

TYPE: Indoor or protected outdoor use, wall mount

SIZE: 289x493x140 mm

CAPACITY: 96 (single)/192 (ribbon) splices, 96 microducts

E-NO.	PRODUCT NO.	PRODUCT NAME
5060070	NCD5188006	Fiber jointing cabinet for up to 96 microducts, for cabinet or wall mounting

Electrical enclosure with wiring and multimeter probes (no visible text or symbols)

Fiber Access Terminal, Indoor or Outdoor

FATs for indoor or outdoor applications with up to 24 end-user connections. It can handle air-blown fiber in microducts, micro cables as well as drop cables and other fiber optic cables. It can also be used as a fiber optic splice box for various applications.

TYPE: Indoor closure, wall mount. Outdoor closure, wall or pole mount SIZE: 368x275x114 mm SEALING: (indoor) IP class 54, (outdoor) IP class 56 CAPACITY: 24 connectors (SC)

Two views of an open electronic device showing internal components and wiring (no text or symbols visible)

E-NO.	PRODUCT NO.	PRODUCT NAME
5050060 1/NCD507200/1 FAT Indoor excluding adapters
5050061 1/NCD507200/2 FAT Indoor with 24 SC/APC adapters
5050062 2/NCD507200/1 FAT Outdoor excluding adapters
5050063 2/NCD507200/2 FAT Outdoor with 24 SC/APC adapters

Fiber Access Terminal, Indoor

FAT for indoor applications with up to 96 end-user connections. It can handle air-blown fiber in micro-ducts, micro cables as well as drop cables and other fiber optic cables. It can also be used as a fiber optic splice box for various applications.

TYPE: Indoor closure, wall mount. Outdoor closure, wall or pole mount SIZE: 500x76x182 mm SEALING: IP class 54 CAPACITY: 96 connectors (SC)

Two open industrial electronic enclosures, one white and one with internal wiring (no visible text or symbols)

PRODUCT NO. PRODUCT NAME

NCD507201/1 FAT 96B with keylock

FAT Fiber Jointing Cabinet

Outdoor street cabinet designed for blown fiber or cable splicing. It consists of an outer cabinet and an inner splicing compartment. The cabinet is made of aluminum. The cabinet can be used with traditional microducts, thick walled ducts or any type of fiber optic cables.

TYPE: Outdoor cabinet SIZE: 430x250x860 mm (above ground) SEALING: IP class 54 CAPACITY: 96 (single)/192 (ribbon) splices, 96 microducts

E-NO.	PRODUCT NO.	PRODUCT NAME
5084141	NBD116501	Outdoor cabinet, Midi, Slim, for up to 96 subscribers

Two gray rectangular cabinets with open doors, one upright and one tilted (no visible text or symbols)

Fiber Joint Closure - High Capacity

This compact, high capacity joint closure handles up to 576 fiber splices. The closure is designed for outdoor underground installation in manholes but can also be mounted above ground on poles or inside pedestals. The closure can handle air-blown fibers in microducts, micro cables and traditional cable.

TYPE: Outdoor, underground use SEALING: IP class 68 CAPACITY: 576 splices DIMENSIONS: 520x280 mm

Two electronic device components: a vertical green-yellow connector on a base and a black cylindrical container with metallic casing (no visible text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5060283	NCD507550	Fiber Joint Closure 576
	NSD515201	Swing-up arm for NCD507500'550
	NDM11016/1	10 x Round Micro cable cable entrance
	NDM11017/1	5 x Oval Micro cable entrance kit
	NDM11018/1	10 x Round Microducts entrance

Fiber/Duct Joint Closure

Plastic joint closure for outdoor, direct buried installations. The closure is designed for outdoor, underground installation in manholes. It can handle air-blown fibers in microducts, micro cables as well as traditional cables.

TYPE: Outdoor, plastic closure for cables and microducts

CAPACITY: 96 (single)/192 (ribbon) splices, 24 microducts

SIZE: 342x262x140 mm

SEALING: IP class 68

E-NO.	PRODUCT NO.	PRODUCT NAME
5060055	NCD5045202 Cable/Duct Joint Closure, closed inlets
5060056	NCD5046202	Cable/Duct Joint Closure, single cable inlet open
5060057	NCD5047202	Cable/Duct Joint Closure, multi cable inlet open
5060058	NCD5048202	Cable/Duct Joint Closure, all inlets open

Close-up of a black plastic electronic device with internal components (no visible text or symbols)

Fiber Termination Box

The fiber termination box (FTB) designed for termination of fibers outside premises in FTTx applications. The box terminates and protects fiber or duct connections for the final drop cabling. It can also be used as a multi-purpose outdoor fiber optic wall outlet. The box is suitable for both air blown fiber installations and drop cables.

TYPE: FTTH Fiber Optic Termination Box, Outdoor/indoor use

DIMENSIONS: 190x130x45 mm

SEALING: IP class 54

CAPACITY: 4xSC, 4xLC

TYPE: Outdoor plastic closure for cables and microducts

E-NO.	PRODUCT NO.	PRODUCT NAME
5060054	5/NEG203200	Fiber Termination Box, Indoor/Outdoor for up to 2xSC Duplex cut out

Exterior view of a modern office building (no signage)

INSTALLATION TOOLS AND ACCESSORIES

Air Blown Fiber (ABF) Installation Tool

The Air Blown Fiber Installation Tool is used for the installation of Air Blown Fibers into microducts. This unique, easy-to-handle and lightweight tool is designed for optimal performance in combination with all available fiber units and microducts in the Ribbonet® Air Blown Fiber System. The tool uses both compressed air and an electric motor to feed the fiber. An adjustable magnetic coupling limits feeding force on fiber to avoid damage in case of a sudden stop. The motor speed and direction is controlled by a trigger switch on the handle.

The tool is delivered with a case including nozzles for 3/2 mm, 5/3.5 mm and 7/3.5 mm microducts.

TYPE: Air blown fiber (ABF) installation

SUPPORTED PRODUCTS: Hexatronic ABF 2 - 12 fiber, 3 - 7 mm microducts

CAPACITY: ≤150 m/min

Black handheld device with a circular head and lever, no visible text or symbols

E-NO.

PRODUCT NO.

PRODUCT NAME

1623603 LTT1792011 ABF Blowing Tool

Blowing Beads

Beads that can be mounted on the tip of the air blown fiber unit for optimal blowing. This is recommended for long installation distances with many duct connectors or sharp bends. The beads come in two different sizes to suit the different blown fiber units.

TYPE: Blowing bead for air blown fiber, 1 - 4f or 12f versions

Six golden bullet points arranged in a fan pattern (no text or symbols visible)

E-NO.	PRODUCT NO.	PRODUCT NAME
5040890 NTK102245/1 100xBlowing Beads, 1-4f
5040891 NTK102245/2 100xBlowing Beads, 8-12f

Cleaning Sponges

Cleaning sponges are used when cleaning dust or moisture from a microduct. The sponge is simply blown through the microduct by the air pressure from the installation tool.

TYPE: Cleaning sponge for 5/3,5 mm ducts

Close-up of several dark cylindrical objects with rounded ends, isolated on white background (no text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5040291 NTM50207	100xCleaning Sponges 3.5 mm
5040896	NTM50207/1	100xCleaning Sponges 10 mm
5040897	NTM50207/2	100xCleaning Sponges 8 mm

Duct Sheath Cutter

Used for quick and easy removal of any sheath from multiducts, this is an excellent tool for performing mid-span access on ducts.

TYPE: Sheath cutter for microduct assemblies

CAPACITY: 1-26-way Ribbonet®

1 - 7-way Micronet

Mechanical clamp or lever device with black components and adjustment knobs (no visible text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
1649216	LDK19502	Sheath cutter for multiduct and midspann access

Double Sheath Cutter

Cutter to use when dismantling the outer sheath of a double-sheathed HDPE multiduct (direct buried).

TYPE: Sheath cutter for microduct assemblies CAPACITY: 1-26-way Ribbonet® 1 - 7-way Micronet

Close-up of a black and red plastic tool with a handle (no visible text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
1649217	LDK19501	Double sheath cutter for microduct assemblies

Single Sheath Cutter

A small and handy tool primarily for removing single-sheathed ducts.

TYPE: Single sheath cutter

Close-up of a black mechanical clamp or connector with a metallic cylindrical body (no visible text or symbols)

E-NO.

PRODUCT NO.

PRODUCT NAME

1649690 LDK1951 Sheath cutter for multiduct, small

TYPE: Micro cable sheath cutter

Blue metal wire crimping tool with a metallic clip (no text or symbols visible)

Micro Cable Sheath Cutter

Used for removal of the sheath on micro cables. The tool is delivered with three straight and one round blade. Cutting depth is adjustable.

E-NO.

PRODUCT NO.

PRODUCT NAME

1649218 LDK19503 Sheath cutter for micro cable

TYPE: Microduct cutter

Two blue wire crimping tools: a blue handle and a pair of metal pliers (no text or symbols visible)

Microduct Cutter

Provides a clean and straight cut necessary to perform a smooth duct splice prior to the mounting of microduct snap-in connectors.

E-NO.

PRODUCT NO.

PRODUCT NAME

1649028 LDK20803 Microduct cutter 3-12 mm

LDK19501/03 Microduct cutter, pliers 3-20 mm

TYPE: Toolkit for preparation of microducts and microduct assemblies

Collection of various metal pliers and crimping tools including a black hard case and blue tool (no text or labels visible)

Toolkit for Microducts

The toolkit contains all necessary tools for removal of sheath on microduct assemblies as well as for cutting assemblies and microducts. Included in the kit is also a pair of pliers for removal of duct connectors. The tools are delivered in a protective hard case.

E-NO.	PRODUCT NO.	PRODUCT NAME
1649025	LTT179003	Toolkit microduct, TKM200, with box

ABF Stripping Scissors

Used for removal of the acrylate coating on air blown fiber (ABF). The scissors are also a handy tool for various applications.

TYPE: ABF stripper

Close-up of a pair of metal scissors with handles and a small circular mark on the blade (no text or symbols visible)

PRODUCT NO.	PRODUCT NAME
LDK1951/07	ABF Scissors

Designed for quick and easy installation Hexatronic's Drop Cables connect end users in FTTx networks to a nearby Fiber Access Terminal. Drop cables are usually a good choice for shorter distances and where there is easy access for the cable installation. To facilitate installation and minimize attenuation when cable is

installed around sharp corners, all Hexatronic's drop cables are based on extra bend resistant G657A2 fiber. The fiber is compatible with standard G652D fiber used in feeder and distribution cables.

Drop Cable for Indoor and Outdoor Use

Halogen-free, flame-retardant drop cables with light secondary coated fiber for quick and easy splicing and fitting of connectors. The cable is designed with G657A2 extra high bend-resistant fiber and a robust design to facilitate mounting with brackets directly on the wall. The cable has a flame retardant and UV protected sheath and is suitable for both indoor and outdoor use.

TYPE: Indoor and outdoor use, HFFR, IEC60332-3

CAPACITY: 1 - 4 fibers

DIAMETER: 4.8mm to be used with cable clamps

FIBER TYPE: G657A2

E-NO.	PRODUCT NO.	PRODUCT NAME
4979680	TOL4063007/1A	Drop Cable, Indoor/Outdoor, 4.8 mm HFFR, Tight sec, G657A2, 1-fiber
4979690	TOL4063007/2A	Drop Cable, Indoor/Outdoor, 4.8 mm HFFR, Tight sec, G657A2, 2-fiber
4979700	TOL4063007/4A	Drop Cable, Indoor/Outdoor, 4.8 mm HFFR, Tight sec, G657A2, 4-fiber

Drop Cable, Indoor

Halogen-free, flame-retardant drop cable for FTTx applications. The cable is used for both vertical (riser) and horizontal installations in buildings. To facilitate installation, G657A2 extra high bend-resistant fiber is used.

TYPE: Indoor use, HFFR, IEC60332-3

CAPACITY: 1 - 4 fibers

DIAMETER: 4.8 mm

FIBER TYPE: G657A2 (G652D compatible)

E-NO.	PRODUCT NO.	PRODUCT NAME
4979650	TOL4063006/1A GNGQQBDU 1x10^125
4979660	TOL4063006/2A GNGQQBDU 2x10^125
4979670	TOL4063006/4A GNGQQBDU 4x10^125

Drop Cable, Indoor

Extra slim drop cable with excellent bend-performance, for indoor installations in cable chutes or directly on the wall with cable clamps. Fits easily to standard connectors bend protection.

TYPE: Indoor use, HFFR, IEC60332-3

CAPACITY: 1 fiber

DIAMETER: 2.9 mm

FIBER TYPE: G657A2 (G652D compatible)

E-NO.	PRODUCT NO.	PRODUCT NAME
4979710	TOL4063005/1A	Drop Cable, Indoor, 2.8 mm HFFR, Tight sec, G657B, 1-fiber

Drop Cable, Outdoor, Duct or Direct Buried

Durable loose tube drop cable for outdoor installation in ducts or direct-buried applications. Two fiber reinforced glass rods guarantee highest crush performance. The cable is longitudinally water blocked.

TYPE: Duct or direct-buried

CAPACITY: 1 - 12 fibers

DIAMETER: 6.1x3.3 mm

FIBER TYPE: G657A2

E-NO.	PRODUCT NO.	PRODUCT NAME
4979780	TOL4069001/1A	Drop Cable, Outdoor, 6.1x3.3 mm Loose tube, G657A2, 1-fiber
4979790	TOL4069001/2A	Drop Cable, Outdoor, 6.1x3.3 mm Loose tube, G657A2, 2-fiber
4979800	TOL4069001/4A	Drop Cable, Outdoor, 6.1x3.3 mm Loose tube, G657A2, 4-fiber
4979820	TOL4069001/12A	Drop Cable, Outdoor, 6.1x3.3 mm Loose tube, G657A2, 12-fiber

Drop Cable, Aerial

Self-supporting figure-8 drop cable with loose tube design for aerial installation.

TYPE: Aerial figure-8

CAPACITY: 1 - 12 fibers

DIAMETER: 4x8 mm

FIBER TYPE: G657A2

E-NO.	PRODUCT NO.	PRODUCT NAME
4988300	TOL4069002/1A	Aerial drop cable for outdoor use, 2 G 657. A2
4988310	TOL4069002/2A	Aerial drop cable for outdoor use, 2 G 657. A2
4988320	TOL4069002/4A	Aerial drop cable for outdoor use, 4 G 657. A2
4988330	TOL4069002/8A	Aerial drop cable for outdoor use, 8 G 657. A2
4988290	TOL4069002/12A	Aerial drop cable for outdoor use, 12 G 657. A2

FIBER TRANSPORT NETWORK

Fiber optic cables for trunk networks. The fiber transport site related offering includes a range of fiber optic cables, joint closures and accessories for all kinds of installation environments such as installation in conduits, direct installation in ground as well as aerial installation.

All products have been designed and tested for optimal installation properties, as well as resistance to fire, chemicals and environmental damage.

CABLES FOR DUCT INSTALLATION

The range of cables for duct installation includes all our five basic designs: concentric core, slotted core, slotted core ribbon, DryTech and ribbon in loose tubes.

The duct installation cables include both metallic and dielectric cables with fiber counts of up to several hundred fibers. The fibers

can be of different types and different types of fiber can be mixed in the same cable. The duct cables can be supplied with aluminum foil as a moisture barrier. Aramid or glass yarn can be added for extra axial pulling strength. Glass yarn or polyamide can be used as protection against rodents.

GRCLDV DryTech

Slim loose tube cable with concentric core design, with up to six tubes per cable. The cable is all dielectric. DryTech filling compound is used in the cable core.

DESIGN: Concentric core, extra slim

TYPE: Dielectric, DryTech

CAPACITY: 1 - 48 fibers

DIAMETER: 10 mm

E-NO.	PRODUCT NO.	PRODUCT NAME
4988130	TOL4012084/12A GRCLDV 12 G652D
4988150	TOL4012084/36A GRCLDV 36 G652D
4988140	TOL4012084/24A GRCLDV 24 G652D
4988160	TOL4012084/48A GRCLDV 48 G652D

GRCLDV DryTech

Slim loose tube cable with concentric core design, with up to six tubes per cable. The cable is all dielectric. DryTech filling compound is used in the cable core.

DESIGN: Concentric core, extra slim

TYPE: Dielectric, DryTech

CAPACITY: 12 - 192 fibers

DIAMETER: 11 - 18.5 mm

E-NO.	PRODUCT NO.	PRODUCT NAME
4982900	TOL4012098/12A	GRCLDV 12 G652D
4982910	TOL4012098/24A GRCLDV 24 G652D
4982920	TOL4012098/48A GRCLDV 48 G652D
4982930	TOL4012098/72A GRCLDV 72 G652D
4982940	TOL4012098/96A GRCLDV 96 G652D
4982950	TOL4012098/144A	GRCLDV 144 G652D
4982960	TOL4012098/192A	GRCLDV 192 G652D

GRCLDV DryTech

Loose tube cable with concentric core design, resulting in a cost-effective solution. The cable is all dielectric. DryTech filling compound is used in the cable core. Maximum capacity is 16 tubes with 4-12 fibers in each.

DESIGN: Concentric core

TYPE: Dielectric, DryTech

CAPACITY: 2 - 192 fibers

DIAMETER: 11 - 23 mm

E-NO.	PRODUCT NO.	PRODUCT NAME
4984810	TOL4012017/8A GRCLDV 8 G652D
4984820	TOL4012017/12A GRCLDV 12 G652D
4984830	TOL4012017/24A GRCLDV 24 G652D
4984840	TOL4012017/56A GRCLDV 36 G652D
4984850	TOL4012017/48A GRCLDV 48 G652D
4984860	TOL4012017/72A GRCLDV 72 G652D
4984870	TOL4012017/96A GRCLDV 96 G652D
4984880	TOL4012017/144A	GRCLDV 144 G652D
4984890	TOL4012017/192A	GRCLDV 192 G652D

GRCALV DryTech

Loose tube cable with concentric core design and aluminum foil, which provides an excellent moisture barrier, making the cable suitable for humid environments. DryTech filling compound is used in the cable core. Maximum capacity is 16 tubes with 12 fibers in each.

DESIGN: Concentric core

TYPE: Aluminum barrier, DryTech

CAPACITY: 2 - 192 fibers

PRODUCT NO.	PRODUCT NAME
TOL4012064/12A	GRCALV 12 G652D
TOL4012064/24A	GRCALV 24 G652D
TOL4012064/36A	GRCALV 36 G652D
TOL4012064/8A	GRCALV 48 G652D
TOL4012064/72A	GRCALV 72 G652D
TOL4012064/96A	GRCALV 96 G652D
TOL4012064/144A	GRCALV 144 G652D
TOL4012064/192A	GRCALV 192 G652D

GRHLDV

Loose tube cable with concentric core design, resulting in a cost-effective solution. The cable is dielectric, making it suitable for environments with a high risk of electrical interference. Maximum capacity is 12 tubes with 12 fibers in each.

DESIGN: Concentric core

TYPE: Dielectric, slim, low weight

CAPACITY: 2 - 144 fibers

E-NO.	PRODUCT NO.	PRODUCT NAME
	TOL4012012/4A	GRHLDV 4 G652D
	TOL4012012/8A	GRHLDV 8 G652D (2x4f)
4979540	TOL4012012/12A	GRHLDV 12 G652D (3x4f)
4979550	TOL4012012/24A	GRHLDV 24 G652D (6x4f)
4979560	TOL4012012/48A	GRHLDV 48 G652D (6x8f)
	TOL4012012/72A	GRHLDV 72 G652D (6x12f)
4979570	TOL4012012/96A	GRHLDV 96 G652D (8x12f)
4979580	TOL4012012/120A	GRHLDV 120 G652D (10x12f)
4979590	TOL4012012/144A	GRHLDV 144 G652D (12x12f)

GNGQBDU Drop Cable, Outdoor

Durable loose tube drop cable for outdoor installation in ducts or direct-buried applications. Two fiber reinforced glass rods guarantee highest crush performance. The cable is longitudinally water blocked.

TYPE: Duct or direct-buried

CAPACITY: 2 - 12 fibers

DIAMETER: 6.1x3.3mm

FIBER TYPE: G657A2

E-NO.	PRODUCT NO.	PRODUCT NAME
4979780	TOL4069001/1A	Drop Cable, Outdoor, 6.1x3.3mm Loose tube, G657A2, 1-fiber
4979790	TOL4069001/2A	Drop Cable, Outdoor, 6.1x3.3mm Loose tube, G657A2, 2-fiber
4979800	TOL4069001/4A	Drop Cable, Outdoor, 6.1x3.3mm Loose tube, G657A2, 4-fiber
4979820	TOL4069001/12A	Drop Cable, Outdoor, 6.1x3.3mm Loose tube, G657A2, 12-fiber

GNHLDV Micro Cable

Micro cable based on a slim loose tube design with up to eight tubes per cable. The design facilitates fiber preparation and mid-span access. The cable is suitable for long-distance, air blown installation in microducts, with an inner diameter of as little as 8 mm. The cable has excellent bend performance and extremely wide operational temperature range.

DESIGN: Loose tube

TYPE: Dielectric, slim

DIMENSIONS: ∅5.7 - 8.1 mm

CAPACITY: 12 - 192 fibers

E-NO.	PRODUCT NO.	PRODUCT NAME
Standard Color Code
4979600	TOL4019017/12A	Micro Cable 12f GNHLDV G652D
4979610	TOL4019017/24A	Micro Cable 24f GNHLDV G652D
	TOL4019017/36A	Micro Cable 36f GNHLDV G652D
4979620	TOL4019017/48A	Micro Cable 48f GNHLDV G652D
4979630	TOL4019017/72A	Micro Cable 72f GNHLDV G652D
4979640	TOL4019017/96A	Micro Cable 96f GNHLDV G652D
4980030	TOL4019017/144A	Micro Cable 144f GNHLDV G652D

E-NO.	PRODUCT NO.	PRODUCT NAME
S12 Color Code
	TOL4019028/12AH	Micro Cable 12f GNHLDV G652D S12
	TOL4019028/24AH	Micro Cable 24f GNHLDV G652D S12
	TOL4019028/48AH	Micro Cable 48f GNHLDV G652D S12
	TOL4019028/72AH	Micro Cable 72f GNHLDV G652D S12
	TOL4019028/96AH	Micro Cable 96f GNHLDV G652D S12
	TOL4019028/144AH	Micro Cable 144f GNHLDV G652D S12
	TOL4019030/192AH	Micro Cable 192f GNHLDV G652D S12

GASLDV

4-fiber ribbon cable using slotted core design. The design reduces installation costs and gives superior fiber protection. The cable is dielectric, making it suitable for installation where there is electrical interference.

DESIGN: Slotted core ribbon

TYPE: Dielectric

CAPACITY: ∅ 9.5 mm 4 - 48 fibers

∅ 12.5 mm 4 - 48 fibers

∅ 14 mm 48 - 96 fibers

E-NO.	PRODUCT NO.	PRODUCT NAME
14988110	TOL4011013/4A GASLDV-SLIM 4x10/125
4988120	TOL4011013/8A GASLDV-SLIM 8x10/125
4984750	TOL4011013/12A GASLDV-SLIM 12x10/125
4984760	TOL4011013/24A GASLDV-SLIM 24x10/125
	TOL4011013/36A GASLDV-SLIM 36x10/125
4984770	TOL4011013/48A GASLDV-SLIM 48x10/125
4984110	TOL4011001/4A	GASLDV 4x10/125
4982990	TOL4011001/8A	GASLDV 8x10/125
4983000	TOL4011001/12A	GASLDV 12x10/125
4983010	TOL4011001/24A	GASLDV 24x10/125
4983020	TOL4011001/36A	GASLDV 36x10/125
4983030	TOL4011001/48A	GASLDV 48x10/125
	TOL4011001/64A GASLDV 64x10/125
4983040	TOL4011001/72A	GASLDV 72x10/125
4983050	TOL4011001/96A	GASLDV 96x10/125

GASLDV

8-fiber ribbon cable using slotted core design. The design allows high packing density that reduces installation costs and gives superior fiber protection. Water-blocking filling compound in the TOL 401 1002 cable and dry water-blocking tape in the TOL 410 1020 cable prevents water penetration along the cables. The cable is dielectric, making it suitable for installation where there is electrical interference.

DESIGN: Slotted core ribbon

TYPE: Dielectric

CAPACITY: ∅ 15.5 mm 8 - 192 fibers

∅ 20 - 22.5 mm 288 - 640 fibers

E-NO.	PRODUCT NO.	PRODUCT NAME
4984120	TOL4011002/144A GASLDV 144 G652D
4984100	TOL4011002/192A GASLDV 192 G652D
4979850	TOL4011020/384A GASLDV 384 C.652.D (24x12f)
4982970	TOL4011020/480A GASLDV 480 G652D
4982980	TOL4011020/640A GASLDV 640 G652D

GASALV

4-fiber ribbon cable using slotted core design, which reduces installation costs and gives superior fiber protection. The cable uses 4-fiber ribbons. Aluminum foil provides an excellent moisture barrier, making the cable suitable for humid environments.

DESIGN: Slotted core ribbon

TYPE: Aluminum barrier

CAPACITY: 4 - 96 fibers

∅ 12 - 14.5 mm

8-fiber ribbon cable with slotted core design, which reduces installation costs and gives superior fiber protection. The cable uses 8-fiber ribbons. Aluminum foil provides an excellent moisture barrier, making the cable suitable for humid environments.

DESIGN: Slotted core ribbon

TYPE: Aluminum barrier

CAPACITY: 8 - 192 fibers

∅ 17 mm

PRODUCT NO.	PRODUCT NAME
TOL4011019/48A	GASALV 48 G652
TOL4011019/96A	GASALV 96 G652
TOL4011019/144A	GASALV 144 G65
TOL4011019/192A	GASALV 192 G65

CABLES FOR DIRECT BURIED INSTALLATION

The range of cables for direct buried installation includes all our five basic designs: concentric core, slotted core, slotted core ribbon, DryTech and ribbon in loose tubes. The cables are reinforced with corrugated steel tape, steel wire, or foamed thermoplastic

elastomer, providing excellent mechanical protection. The range of cables includes both metallic and dielectric cables and covers fiber counts up to several hundred fibers.

GRCLWLV, DryTech

Slim loose tube cable with concentric core design, a corrugated steel tape layer and a second outer sheath. The corrugated steel tape reinforcement provides good mechanical protection, but the cable is still easy to install. DryTech™ filling compound is used in the cable core. Maximum capacity is 6 tubes with 4 or 8 fibers in each.

DESIGN: Concentric core

TYPE: Corrugated steel tape reinforced, DryTech

CAPACITY: 24 - 48 fibers

DIAMETER: 16 - 24 mm

PRODUCT NO.	PRODUCT NAME
TOL4022038/24 GRCLWLV 24 G652D (6x4f)
TOL4022038/48 GRCLWLV 48 G652D (6x8f)

GRCLWLV, DryTech

Slim loose tube cable with concentric core design, a corrugated steel tape layer and a second outer sheath. The corrugated steel tape reinforcement provides good mechanical protection, but the cable is still easy to install. DryTech™ filling compound is used in the cable core. Maximum capacity is 16 tubes with 12 fibers in each.

DESIGN: Concentric core

TYPE: Corrugated steel tape reinforced, DryTech

CAPACITY: 72 - 192 fibers

DIAMETER: 16 - 24 mm

PRODUCT NO.	PRODUCT NAME
TOL4022039/72 GRCLWLV 72 G652D
TOL4022039/96 GRCLWLV 96 G652D
TOL4022039/144 GRCLWLV 144 G652D
TOL4022039/192 GRCLWLV 192 G652D

GRCLWLV, DryTech

Slim loose tube cable with concentric core design, a corrugated steel tape layer and a second outer sheath. The corrugated steel tape reinforcement provides good mechanical protection, but the cable is still easy to install. DryTech™ filling compound is used in the cable core. Maximum capacity is 24 tubes with 12 fibers in each.

DESIGN: Concentric core

TYPE: Dielectric, thermoplastic cushion layer, DryTech

CAPACITY: 288 fibers

DIAMETER: 24.5 mm

PRODUCT NO.	PRODUCT NAME
TOL4022040/288	GRCLWLV 288 G652D

GRCLLDV, DryTech

Slim loose tube cable with concentric core design, a thermoplastic cushion layer and a second outer sheath. The thermoplastic cushion layer makes the non-metallic cable suitable for installation along power lines, e.g. railway embankments. DryTech™ filling compound is used in the cable core. Maximum capacity is 6 tubes with 4 or 8 fibers in each.

DESIGN: Concentric core

TYPE: Dielectric, thermoplastic cushion layer, DryTech

CAPACITY: 24 - 48 fibers

PRODUCT NO.	PRODUCT NAME
TOL4022041/24 GRCLLDV 24 G652D (6x4f)
TOL4022041/48 GRCLLDV 48 G652D (6x8f)

GRCLLDV, DryTech

Slim loose tube cable with concentric core design, a thermoplastic cushion layer and a second outer sheath. The thermoplastic cushion layer makes the non-metallic cable suitable for installation along power lines, e.g. railway embankments. DryTech™ filling compound is used in the cable core. Maximum capacity is 16 tubes with 12 fibers in each.

DESIGN: Concentric core

TYPE: Dielectric, thermoplastic cushion layer, DryTech

CAPACITY: 72-192 fibers

PRODUCT NO.	PRODUCT NAME
TOL4022042/72 GRCLLDV 72 G652D
TOL4022042/96 GRCLLDV 96 G652D
TOL4022042/144 GRCLLDV 144 G652D
TOL4022042/192 GRCLLDV 192 G652D

GRCLLDV, DryTech

Slim loose tube cable with concentric core design, a thermoplastic cushion layer and a second outer sheath. The thermoplastic cushion layer makes the non-metallic cable suitable for installation along power lines, e.g. railway embankments. DryTech™ filling compound is used in the cable core. Maximum capacity is 24 tubes with 12 fibers in each tube.

DESIGN: Concentric core

TYPE: Dielectric, thermoplastic cushion layer

CAPACITY: 288 fibers

DIAMETER: 27.5 mm

PRODUCT NO.	PRODUCT NAME
TOL4022043/288	GRCLLDV 288 G652D

GASQWQBUV

Ribbon cable with slotted core design and corrugated steel tape protection providing superior fiber protection against rodents. Ideal for duct and direct buried installation in tunnels. The cable comes in two configurations; up to 96 fibers with 4-fiber ribbons and more than 96 fibers with 8-fiber ribbons.

DESIGN: Slotted core ribbon

TYPE: Corrugated steel tape reinforce, high crush resistance, flame retardant

CAPACITY: 96 - 640 fibers

PRODUCT NO.	PRODUCT NAME
TOL402101472A GASQWQBUV 72 G652D
TOL402101496A GASQWQBUV 96 G652D
TOL402101414A	GASQWQBUV 144 G652D
TOL4021014192A	GASQWQBUV 192 G652D

GASLLDV

4-fiber ribbon cable with slotted core design, a thermoplastic cushion layer and a second outer sheath. The thermoplastic cushion layer makes the non-metallic cable suitable for installation along power lines, e.g. railway embankments.

DESIGN: Slotted core ribbon

TYPE: Dielectric, thermoplastic cushion layer

CAPACITY: 24-96 fibers

DIAMETER: 19.5 - 21 mm

E-NO.	PRODUCT NO.	PRODUCT NAME
4980700	TOL4021001/4A	GASLLDV 4 G652D
4980710 TOL4021001/8A	GASLLDV 8 G652D
4980720	TOL4021001/12A	GASLLDV 12 G652D
4980730	TOL4021001/24A	GASLLDV 24 G652D
4980740	TOL4021001/36A	GASLLDV 36 G652D
4980750	TOL4021001/48A	GASLLDV 48 G652D
4980790	TOL4021001/72A	GASLLDV 72 G652D
4980770	TOL4021001/96A	GASLLDV 96 G652D

GASLLDV

8-fiber ribbon cable with slotted core design, a thermoplastic cushion layer and a second outer sheath. The thermoplastic cushion layer makes the non-metallic cable suitable for installation along power lines, e.g. railway embankments.

DESIGN: Slotted core ribbon

TYPE: Dielectric, thermoplastic cushion layer

CAPACITY: 192 fibers

DIAMETER: 23 mm

E-NO.	PRODUCT NO.	PRODUCT NAME
4980780	TOL4021005/144A GASLLDV 144 G652D
4980760	TOL4021005/192A GASLLDV 192 G652D

CABLES FOR AERIAL INSTALLATIONS

Self-supporting aerial fiber cables. Hexatronic's range of Fiber Optic Cables for aerial installation includes self-supporting All Dielectric Self Support (ADSS) and figure-8 types, designed for pole installation.

The cables come in different types for different span lengths.

All ADSS and figure-8 cables can be supplied with bulletproof material (aramid tape), or with extra protection against rodents (nylon sheath). Hexalronic also offers a complete range of installation support material for aerial cables.

GRHSLDV

ADSS, non-metallic cable with concentric core design. This extremely slim and low-weight cable, which can be ordered with 4 to 144 fibers, is suitable for span lengths from 60-170 m. It can be installed adjacent to power lines with up to 120 kV. It contains standard filling compound and utilizes aramid yarn to increase strength.

DESIGN: ADSS, concentric core

TYPE: Dielectric

CAPACITY: 4 - 144 fibers

E-NO.	PRODUCT NO.	PRODUCT NAME
4979460	TOL4032003/8A	GRHSLDV (<75 m) 8 G652D 4 kN-11.5 mm
4979470	TOL4032003/12A	GRHSLDV (<75 m) 12 G652D 4 kN-11.5 mm
4979480	TOL4032003/24A	GRHSLDV (<75 m) 24 G652D 4 kN-11.5 mm
4979490	TOL4032003/36A	GRHSLDV (<75 m) 36 G652D 4 kN-11.5 mm
4979500	TOL4032003/48A	GRHSLDV (<75 m) 48 G652D 4 kN-11.5 mm
4979510	TOL4032003/72A	GRHSLDV (<75 m) 72 G652D 4 kN-15.5 mm
4979520	TOL4032003/96A	GRHSLDV (<75 m) 96 G652D 4 kN-19 mm
4979530	TOL4032003/144A	GRHSLDV (<75 m) 144 G652D 4 kN-19 mm

GRHSLLDV

ADSS, non-metallic cable with concentric core design that utilizes aramid yarn and a second outer sheath for an extra robust cable design. It is suitable for installation in harsh climates with high ice loads, and for span lengths of 100-250 m. Like the GRHSLDV, this cable contains standard filling compound and can be ordered with 4 to 144 fibers.

DESIGN: ADSS, concentric core

TYPE: Dielectric

CAPACITY: 4 - 144 fibers, max 7 kN

E-NO.	PRODUCT NO.	PRODUCT NAME
4979380	TOL4032002/8A	GRHSLLDV (<100 m) 8 G652D, 7kN-14.0 mm
4979390	TOL4032002/12A	GRHSLLDV (<100 m) 12 G652D, 7kN-14.0 mm
4979400	TOL4032002/24A	GRHSLLDV (<100 m) 24 G652D, 7kN-14.0 mm
4979410	TOL4032002/36A	GRHSLLDV (<100 m) 36 G652D, 7kN-14.0 mm
4979420	TOL4032002/48A	GRHSLLDV (<100 m) 48 G652D, 7kN-14.0 mm
4979430	TOL4032002/72A	GRHSLLDV (<100 m) 72 G652D, 8kN-15.5 mm
4979440	TOL4032002/96A	GRHSLLDV (<100 m) 96 G652D, 8kN-15.5 mm
4979450	TOL4032002/144A	GRHSLLDV (<100 m) 144 G652D, 8kN-15.5 mm

GRHSLLDV

ADSS, non-metallic cable with concentric core design that utilizes aramid yarn and a second outer sheath for an extra robust cable design. It is suitable for installation in harsh climates with high ice loads, and for span lengths of 200-500 m. Like the GRHSLDV, this cable contains standard filling compound and can be ordered with 4 to 144 fibers.

DESIGN: ADSS, concentric core

TYPE: Dielectric

CAPACITY: 4 - 144 fibers, max 14.5 kN

E-NO.	PRODUCT NO.	PRODUCT NAME
4979310	TOL4032008/12A	GRHSLLDV (<200 m) 12 G652D, 14.5kN-15.0 mm
4979320	TOL4032008/24A	GRHSLLDV (<200 m) 24 G652D, 14.5kN-15.0 mm
4979330	TOL4032008/36A	GRHSLLDV (<200 m) 36 G652D, 14.5kN-15.0 mm
4979340	TOL4032008/48A	GRHSLLDV (<200 m) 48 G652D, 14.5kN-15.0 mm
4979350	TOL4032008/72A	GRHSLLDV (<200 m) 72 G652D, 14.5kN-16.5 mm
4979360	TOL4032008/96A	GRHSLLDV (<200 m) 96 G652D, 16kN-19 mm

GRCLCV

Self-supporting figure-8 cable with concentric core design. The cable has patented DryTech filling compound and includes suspension steel wire integrated into the sheath.

The cable is suitable for span lengths up to 75 m. The GRCLCV can be ordered with 4 to 192 fibers.

DESIGN: Fig-8, concentric core

TYPE: DryTech

CAPACITY: 4 - 192 fibers

PRODUCT NO.	PRODUCT NAME
TOL4032024/12A	GRCLCV 12 G652D
TOL4032024/24A	GRCLCV 24 G652D
TOL4032024/36A GRCLCV 36 G652D
TOL4032024/48A	GRCLCV 48 G652D
TOL4032024/72A GRCLCV 72 G652D
TOL4032024/96A GRCLCV 96 G652D
TOL4032024/144A	GRCLCV 144 G652D
TOL4032024/192A	GRCLCV 192 G652D

GRCLCDV

Non-metallic figure-8 cable using concentric core design, with a glass-fiber reinforced plastic rod integrated into the sheath. The self-supporting cable is suitable for span lengths of up to 75m. Being dielectric, the cable can be installed adjacent to power lines with up to 120kV. The GRCLCDV can be ordered with 4 to 192 fibers.

DESIGN: Fig-8, concentric core

TYPE: Dielectric

CAPACITY: 4 - 192 fibers

PRODUCT NO.	PRODUCT NAME
TOL4032010/12A GRCLCDV 12 G652D
TOL4032010/24A GRCLCDV 24 G652D
TOL4032010/36A	GRCLCDV 36 G652D
TOL4032010/48A GRCLCDV 48 G652D
TOL4032010/72A	GRCLCDV 72 G652D
TOL4032010/96A	GRCLCDV 96 G652D
TOL4032010/144A	GRCLCDV 144 G652D
TOL4032010/192A	GRCLCDV 192 G652D

JOINT CLOSURES FOR FIBER OPTIC CABLES

Joint closures for optimal protection. Hexatronic has developed a range of cost-effective joint closures for every installation environment.

The offering, for both indoor and outdoor installation, includes boxes optimized for virtually all conditions, and for small, medium and large fiber counts. Made in a variety of materials to suit

environments ranging from simple to very demanding, the boxes are designed to join most types of fiber cables.

Hexatronic offers a complete line of accessories, including tool kits, protection sleeves, shrink-on hoses, mounting brackets and expansion kits, suitable for various types of installation.

Fiber Joint Closure

Versatile fiber closure made of durable plastic to meet most environmental demands. The standard box can handle up to 96 single fibers or 48 ribbon sleeves, and is expandable to manage higher fiber counts and a greater number of entrances. The closure can also handle mid-span access.

TYPE: Underground, plastic

SEALING: IP class 68

CAPACITY: 96 single fiber splices or 48 ribbon fiber splices with 4 extra cassettes. Up to 144 single splices with extension ring and 8 extra cassettes.

E-NO.	PRODUCT NO.	PRODUCT NAME
5060021	NCD5045004	Plastic Joint Closure, no open entrance, 4 organizers
5060022	NCD5046004	Plastic Joint Closure, 2xØ24 entrances opened+1xMulti entrance not opened, 4 organizers
5060023	NCD5047004	Plastic Joint Closure, 2xØ24 entrances not opened+1xMulti entrance opened, 4 organizers
5060024	NCD5048004	Plastic Joint Closure, 2xØ24 entrances opened+1xMulti entrance opened, 4 organizers

Interior view of a black plastic enclosure with cylindrical components and an open lid (no visible text or symbols)

Fiber Joint Closure - High Capacity

This compact, high capacity joint closure handles up to 576 fiber splices. The closure is designed for outdoor underground installation in manholes but can also be mounted above ground on poles or inside pedestals. The closure can handle air-blown fibers in microducts, micro cables and traditional cable.

TYPE: Outdoor, underground use

SEALING: IP class 68

CAPACITY: 576 splices

DIMENSIONS: 520x280 mm

Two electronic device components: a green cylindrical device with internal structure and a black cylindrical container (no visible text or symbols)

E-NO.	PRODUCT NO.	PRODUCT NAME
5060283 NCD507550 Fiber Joint Closure 576
	NSD515201 Swing-up arm for NCD507500/550
	NDM11016/1	10 x Round Micro cable cable entrance
	NDM11017/1	5 x Oval Micro cable entrance kit
	NDM11018/1	10 x Round Microducts entrance

Fiber Joint Closure, Stainless Steel

Closure for higher fiber counts in harsh outdoor environments. The generous size of the fiber organizers makes installation fast and trouble free. The design is compact but easy to expand to accommodate very large fiber counts. The closure can also handle mid-span access. Several versions and accessories are available resulting in a total capacity of 144 fibers to more than 2000 fibers depending on configuration.

TYPE: Underground, stainless steel

SEALING: IP class 68

CAPACITY: ≤576 single fiber splices

≤288 ribbon fiber splices

Close-up of a mechanical watch with a circular housing and clasp, no visible text or symbols

E-NO.	PRODUCT NO.	PRODUCT NAME
5040185 NCD5061050 Joint closure L 240/50
5040186 NCD5061070 Joint closure L 240/70
5040187 NCD5061150 Joint closure L 240/150
5040189 NCD5062050 Joint closure LM 240/50
5040190 NCD5062070 Joint closure LM 240/70
5040191 NCD5062150 Joint closure LM 240/150
5040193 NCD5063050 Joint closure LMB 240/50
5040194 NCD5063070 Joint closure LMB 240/70
5040297	NCD5065050	Joint Closure LD3M 240/50, for multiducts

Fiber Joint Closure - Indoor, Wall Mount

Compact indoor closure that provides mechanical protection in situations where jointing and branching of cables needs to be carried out cost effectively. It can be mounted inside a cabinet, container or directly on a wall.

TYPE: Indoor, alu-zinc

SIZE: 369x185x40 mm

CAPACITY: 24 single fiber splices

12 ribbon fiber splices

Electronic device with exposed circuit board and power cord, no visible text or symbols

E-NO.	PRODUCT NO.	PRODUCT NAME
	NCD5025000	Fiber Joint Closure, wall mount 24 splices

SUBMARINE CABLE SYSTEMS

Hexatronic's range of cables for submarine installation is based on extensive experience in submarine-cable projects, including design, project management and installation. The offering comprises cables using unitube loose tube as well as ribbon fiber design for depth down to 3000 m.

LOOSE TUBE CABLES

Hexatronic's submarine loose tube cables provide superior mechanical protection, easy handling and reliable performance. All cables have steel wire armoring in one or several layers and/or stainless steel tube to provide the highest protection and water blocking properties.

The cables are resistant to tensile forces and impact caused by anchoring, recovery operations and handling. All loose tube cables and joints are built with the highest quality protection to ensure a long life span for maximum efficiency over long distances.

Single Armored

GJMLTV, 10-ton SA

Single-armored, unitube cable where moderate protection is required in submarine applications. This design includes a hermetically sealed stainless tube (3.7 mm outer diameter). Inside the tube the fibers are free to move in the thixotropic water blocking compound. The tube is protected by a polyethylene sheath, one layer of galvanized steel wires and wrapped in a layer of polypropylene yarn.

The unitube technique results in a high packing density. This permits a small outer diameter and easy handling.

DESIGN: Loose tube, single armor

TYPE: 10 ton, ≤ 3000 m

CAPACITY: 12 - 96 fibers

E-NO. PRODUCT NO. PRODUCT NAME

4988440 TOL4041050/24A GJMLTV 24 G652D 10 TON SA

4988450 TOL404106048A GJMLTV 48 G652D 10 TON SA

Double Armored

GJMLTV, 15-ton DAL

Double-layer armored, unitube cable where high protection is required in submarine applications. This design includes a hermetically sealed stainless tube (3.7 mm outer diameter). Inside the tube the fibers are free to move in the thixotropic water blocking compound. The tube is protected by a polyethylene sheath, two layers of galvanized steel wires and wrapped in a layer of polypropylene yarn.

DESIGN: Loose tube, double armor

TYPE: 15 ton, ≤ 3000 m

CAPACITY: 12 - 96 fibers

Cross-sectional illustration of a cable with yellow insulation and black insulation (no text or symbols)

E-NO. PRODUCT NO. PRODUCT NAME

4988420 TOL4041051/24A GJMLTV 24 G652D 15 TON DAL

4988430 TOL4041051/48A GJMLTV 24 G652D 15 TON DAL

GJMLTV, 25-ton DA

Double-layer armored, unitube cable with the same principal design as the GJMLTV, 15-ton DA.

DESIGN: Loose tube, double armor

TYPE: 25 ton, ≤ 3000 m

CAPACITY: 12 - 96 fibers

Cross-sectional illustration of a cable with exposed internal components (no text or symbols)

PRODUCT NO. PRODUCT NAME

TOL4041062/24A GJMLTV 24 G652D 25 TON DA

TOL4041062/48A GJMLTV 48 G652D 25 TON DA

GJMLTV, 40-ton DAH

Double-layer armored with the same principal design as the GJMLTVa, 15-ton DA.

DESIGN: Loose tube, double armor

TYPE: 40 ton, ≤ 3000 m

CAPACITY: 12 - 96 fibers

Cross-sectional illustration of a cable with yellow insulation and black insulation (no text or symbols)

PRODUCT NO. PRODUCT NAME

TOL404105424A GJMLTV 24 G652D 40 TON DAH

TOL4041054/48A GJMLTV 24 G652D 40 TON DAH

Electroding / Toning – Single Armored

GJMMLTV, 10-ton SA

Double-layer armored with the same principal design as the GJMLTV, 10-ton DA. The cable incorporates a copper layer wrapped around the stainless tube for electroding and toning.

DESIGN: Loose tube, single armor, electroding

TYPE: 10 ton, ≤ 3000 m

CAPACITY: 12 - 96 fibers

Cross-sectional illustration of a cable with exposed internal structure (no text or symbols)

PRODUCT NO. PRODUCT NAME

TOL4041080/24A GJMMLTV 24 G652D 10 TON SA

TOL4041080/48A GJMMLTV 48 G652D 10 TON SA

Electroding / Toning – Double Armored

GJMMLTV, 25-ton DA

Double-layer armored with the same principal design as the GJMLTV, 25-ton DA. The cable incorporates a copper layer wrapped around the stainless tube for electroding and toning.

DESIGN: Loose tube, double armor, electroding

TYPE: 25 ton, ≤ 3000 m

CAPACITY: 12 - 96 fibers

Cross-sectional illustration of a multi-core cable with visible internal structure (no text or symbols)

PRODUCT NO. PRODUCT NAME

TOL4041082/24A GJMMLTV 24 652D 25 TON DA

TOL4041082/48A GJMMMLTV 48 652D 25 TON DA

GJMMLTV, 40-ton DAH

Double-layer armored with the same principal design as the GJMLTV, 15-ton DA.

DESIGN: Loose tube, double armor, electroding

TYPE: 40 ton, ≤ 3000 m

CAPACITY: 12 - 96 fibers

Cross-sectional illustration of a cable with yellow insulation and black insulation (no text or symbols)

PRODUCT NO. PRODUCT NAME

TOL4041083/24A GJMMLTV 24 G652D 40 TON DAH

TOL4041083/48A GJMMLTV 48 G652D 40 TON DAH

Submarine Joints for Loose Tube Cables

NCD 601 0014 Submarine Joint Closure

Closure made of heavy-duty stainless steel and hermetically sealed cable joints for loose tube fiber optic submarine cables. The joint can host up to 48 fibers.

DESIGN: Straight joint for GJMLTV

CAPACITY: 1 - 48 fibers

PRODUCT NO. PRODUCT NAME

NCD6010014 Straight joint for GJMLTV

NCD6010014/1 Armor Kit SA & DAL

NCD6010014/2 Armor Kit DA & DAH

NCD60100xx Straight joint for GJMLTV

NCD60100xx/1 Armor Kit SA & DAL

NCD60100xx/2 Armor Kit DA & DAH

NCD 601+ Universal Joint for Submarine Cables

Universal Joint is a technology developed by the Universal Joint Consortium to facilitate efficient maintenance of installed submarine cable systems. Most of Hexatronic's submarine cables are qualified for this technology and for some cable types this joint type is used in installation projects of new systems.

DESIGN: UJ for 10-, 25-, 40 ton submarine cables

CAPACITY: 1 - 96 fibers

PRODUCT NO. PRODUCT NAME

NCD6010036 UJ for CJM(M)LTV SA to SA

NCD6010038 UJ for GJM(M)LTV DA to DA

NCD6010039 UJ for GJM(M)LTV DAH to DAH

NCD6010041 UJ for GJM(M)LTV SA to DA

NCD6010042 UJ for CJM(M)LTV SA to DAH

NCD6010045 UJ for GJM(M)LTV DA to DAH

PRODUCT NO. PRODUCT NAME

NCD6010053 UQJ HexatronicGJM(M)LTV Tool Kit

NCD6010054 UQJ for GJM(M)LTV SA to SA

NCD6010055 UQJ for GJM(M)LTV DAL to DAL

NCD6010056 UQJ for GJM(M)LTV DA to DA

NCD6010057 UQJ for GJM(M)LTV DAH to DAH

NCD6010058 UQJ for GJM(M)LTV SA to DAL

NCD6010059 UQJ for GJM(M)LTV SA to DA

NCD6010060 UQJ for GJM(M)LTV SA to DAH

NCD6010051 UQJ for GJM(M)LTV DAL to DA

NCD6010052 UQJ for GJM(M)LTV DAL to DAH

NCD6010063 UQJ for GJM(M)LTV DA to DAH

RIBBON CABLES

Hexatronic's submarine ribbon cables offer high packing density and efficient fiber management as well as high protection for fiber in the harsh conditions under the sea. Exceptional mechanical and water blocking properties are provided by a slotted cable core design, protected by a copper tube and with steel wire armoring. This combination has a good resistance to crushing and heavy

impacts, such as anchoring, recovery operations or manhandling. Protection from the water is achieved by the copper tube acting as a water barrier.

The cable core is also filled with a water repelling compound for extra reassurance. The cable design enables extremely long delivery length with a minimum number of bulky joint closures.

Single Armored

GASLMLTV Submarine Cables 5 ton SAL Single Armored

GASLMLTV, 5-ton SAL is a single armored light fiber ribbon cable for submarine installations where light to moderate protection is required. This submarine cable is based on our well-proven 4- or 8-fiber ribbon cable design. Added on to the inner PE-jacket is a waterproof copper tube, followed by a second outer polyethylene jacket and a layer of galvanized steel wires. The complete cable is wrapped with a layer of polypropylene yarn.

DESIGN: Slotted core ribbon, single armor

TYPE: 5 ton, ≤ 500 m

CAPACITY: 12 - 192 fibers

Cross-sectional diagram of a multi-core cable with exposed steel and insulation (no text or labels)

PRODUCT NO PRODUCT NAME

Single-layer armored with the same principal design as the GASLMLTV, 5-ton SAL.

DESIGN: Slotted core ribbon, single armor

TYPE: 10 ton, ≤ 500 m

CAPACITY: 12 - 192 fibers

Cross-sectional diagram of a multi-core cable with exposed internal wires and insulation sheath (no text or labels)

PRODUCT NO PRODUCT NAME

Single-layer armored with the same principal design as the GASLMLTV, 5-ton SAL.

DESIGN: Slotted core ribbon, single armor

TYPE: 15 ton, ≤ 500 m

CAPACITY: 12 - 192 fibers

Cross-sectional diagram of a multi-core cable with visible internal structure (no text or symbols)

PRODUCT NO PRODUCT NAME

GASLMLTV, 20-ton DA is a double armored fiber ribbon cable for submarine installation where high protection is required. This submarine cable is based on our well-proven 4- or 8- fiber ribbon cable design. Added on to the inner PE-jacket is a waterproof copper tube, followed by a second outer polyethylene jacket and two layers of galvanized steel wires. The complete cable is wrapped with a layer of polypropylene yarn.

DESIGN: Slotted core ribbon, double armor

TYPE: 20 ton, ≤ 500 m

CAPACITY: 12 - 192 fibers

Cross-sectional diagram of a multi-core cable with visible internal structure (no text or labels)

PRODUCT NO PRODUCT NAME

Double-layer armored with the same principal design as the GASLMLTV, 20-ton DA.

DESIGN: Slotted core ribbon, double armor

TYPE: 40 ton, ≤ 500 m

CAPACITY: 12 - 192 fibers

Cross-sectional diagram of a multi-core cable with exposed steel and insulation (no text or labels)

PRODUCT NO PRODUCT NAME

The GASLMLTV, 20-ton RA is a rock armored fiber ribbon cable for submarine installation in areas where the cable is exposed to severe mechanical wear and tear. For example, installation direct on rock or shore landings where the cable is hit by forces from waves and tides.

This submarine cable is based on our well-proven 4- or 8-fiber ribbon cable design. Added on to the inner PE-jacket is a waterproof copper tube, followed by a second outer polyethylene jacket and a triple layer of galvanized steel wires. The complete cable is wrapped with a layer of polypropylene yarn.

DESIGN: Slotted core ribbon, triple armor, rock

TYPE: 20 ton, ≤ 500 m

CAPACITY: 12 - 192 fibers

Cross-sectional diagram of a multi-core cable showing internal structure and insulation (no text or labels)

PRODUCT NO PRODUCT NAME

Submarine Cable Joint

The NCD 601 joint is designed for jointing of Hexatronic fiber optic submarine cables, maintaining the mechanical, optical and electrical properties of the cable.

The joint closure is made of corrosion resistant stainless steel alloy. The waterlight outer housing provides the mechanical strength and protection. An inner sealed box contains the fiber organizers and can accommodate splice sleeves for up to 96 fibers in the NCD 601 0010 model and up to 192 fibers in the NCD 601 0008 model.

NCD 601 0010 is designed for 4-fiber ribbon submarine cables. NCD 601 0008 is designed for 8-fiber ribbon submarine cables.

DESIGN: Straight joint for GASLMLTV CAPACITY: 1 - 192 fibers

PRODUCT NO. PRODUCT NAME

NCD6010010 Straight Joint for GASMLTV, 12-96f

NCD6010008 Straight Joint for GASLMLTV, 144-192f

Throughout our history of supplying high quality, reliable cable solutions, we have developed a long track record with leading power cable suppliers. Fiber optic submarine cable parts for integration into power cables, enables global suppliers to meet the growing need for more power over greater distances.

Cable up to 24 km can be installed without a factory joint. Cables that are longer than 24 km require factory joints. Repair joints can also be provided.

GJMLV Submarine Optical Cable Part 12-96 Fibers

The cable part is based on a hermetically sealed stainless tube of 3.7mm outer diameter. Inside the tube the fibers are free to move in thixotropic water blocking compound. The steel tube is protected by a semiconductive polypropylene sheath. The fibers are easy to identify due to color and colored yarns. The cable part is designed to be integrated in submarine electrical power cables.

DESIGN: Loose tube

TYPE: For integration, ≤ 3000 m

CAPACITY: 12 - 96 fibers

GASLMLV Submarine Optical Cable Part 12-192 Fibers, Ribbon

This submarine cable part is based on our well-proven 4- or 8- fiber ribbon cable design. Added on lo the inner polyethylene jacket is a waterproof copper tube, followed by a second outer semiconductive polyethylene jacket.

DESIGN: Slotted core ribbon

TYPE: For integration, ≤ 500 m

CAPACITY: 12 - 192 fibers

The range of indoor installation cables is intended for various telecommunication applications and especially for interconnection between the optical line interface and the optical distribution frames. The indoor cables are also suitable for use in LAN networks or other types of data networks. All indoor cables are

halogen-free and flame-retardant, and consequently generate no corrosive gases during combustion. All cables are also completely dielectric. The fibers in the cable can be of different types and different fiber types can be mixed in the same cable.

GNGQBDU, 1-fiber

Simplex, buffered patch cord cable, non-jelly filled with an outer diameter of 2.0mm as standard. It can be delivered pre-terminated with a variety of connector types. The cable has low shrinkage of less than 0.5% for reliable high performance.

DESIGN: Tight-buffered

TYPE: Halogen-free, flame-retardant,

EC60332-3 cat C (LSZH), UL 1666 (CMR/Riser)

CAPACITY: 1 fiber

E-NO.

PRODUCT NO.

PRODUCT NAME

4984130 TOL4053001/1A GNGQBDU 1xG652D

GNGQBDU, 2-fibers

Two-fiber, tight-buffered duplex patch cord cable, non-jelly filled and aramid reinforced. The cable has a figure-8 design with single fibers laid in parallel, which makes it easy to split into two simplex patch cables.

DESIGN: Tight-buffered

TYPE: Halogen-free, flame-retardant,

EC60332-3 cat C (LSZH), UL 1666 (CMR/Riser)

CAPACITY: 2 fibers

E-NO.

PRODUCT NO.

PRODUCT NAME

498 4140 TOL4053001/2A GNGQBDU 2xG652D

GNGQQBDU, 2-fibers

Two fiber, tight-buffered duplex patch cord cable, non-jelly filled and aramid reinforced. Two single fiber cables are enclosed in an outer sheath forming a flexible and dry cable with an outer dimension of 4.8x2.8 mm. It can be delivered pre-terminated with a variety of connector types.

DESIGN: Tight-buffered, break-out

TYPE: Halogen-free, flame-retardant,

EC60332-3 cat C (LSZH), UL 1666 (CMR/Riser)

CAPACITY: 2 fibers

E-NO.

PRODUCT NO.

PRODUCT NAME

4980580 TOL4053006/2A GNGQQBDU 2xG652D

GNGQQBDU, 4-fibers

Break-out cable where simplex cables are assembled into one cable, with aramid yarn as central strength member. The construction results in a robust cable combined with high flexibility. The cable can be delivered pre-terminated with a variety of connector types.

DESIGN: Tight-buffered, break-out

TYPE: Halogen-free, flame-retardant,

EC60332-3 cat C (LSZH), UL 1666 (CMR/

Riser)

CAPACITY: 4 fibers

E-NO.

PRODUCT NO.

PRODUCT NAME

4980590 TOL4053018/4A GNGQQBDU 4xG652D

CABLES FOR INDOOR/OUTDOOR INSTALLATION, FTTA APPLICATIONS

The cables for combined indoor/outdoor installation are all halogen-free and flame-retardant (HFFR); consequently, no corrosive gases are generated during combustion. The fibers can be of different types and different fiber types can be mixed in the same

cable. The indoor/outdoor cables are often used between a pre-terminated indoor optical distribution frame and an outdoor joint closure as well as for Fiber To The Antenna (FTTA) applications.

GNGQBDU Drop Cable for Indoor and Outdoor Use

Halogen-free, flame-retardant drop cables with tight secondary coated fiber for quick and easy splicing. The cable is designed with G657A2 high bend-resistant fiber and has a robust design to facilitate mounting with brackets directly on the wall. A flame retardant and UV protected sheath makes it suitable for both indoor and outdoor use. The cable is water blocked.

TYPE: Indoor and outdoor use, halogen-free, flame-retardant, IEC60332-3, bend resistant G657A2

CAPACITY: 1 - 4 fibers

DIAMETER: 4.8 mm to be used with cable clamps

FIBER TYPE: G657A2

E-NO.	PRODUCT NO.	PRODUCT NAME
4979680	TOL4063007/1A	Drop Cable, Indoor/Outdoor, 4.8mm HFFR, Tight sec, G657A2, 1-fiber
4979690	TOL4063007/2A	Drop Cable, Indoor/Outdoor, 4.8mm HFFR, Tight sec, G657A2, 2-fiber
4979700	TOL4063007/4A	Drop Cable, Indoor/Outdoor, 4.8mm HFFR, Tight sec, G657A2, 4-fiber

GRHQBDUV

Loose tube cable with concentric core design, resulting in a cost-effective solution. Each tube contains up to 12 fibers and the cable contains up to 16 tubes. Dry water blocking makes the cable jointing procedure clean and easy.

DESIGN: Concentric core

TYPE: Dielectric, halogen-free, flame-retardant

CAPACITY: 4 - 144 fibers

E-NO.	PRODUCT NO.	PRODUCT NAME
4979110 TOL4052003/8A GRHQBDUV 8 G652D
4979120	TOL4052003/12A	GRHQBDUV 12 G652D
4979130	TOL4052003/24A	GRHQBDUV 24 G652D
4979140	TOL4052003/36A	GRHQBDUV 36 G652D
4979150	TOL4052003/48A	GRHQBDUV 48 G652D
4979160	TOL4052003/72A	GRHQBDUV 72 G652D
4979170	TOL4052003/96A	GRHQBDUV 96 G652D
4988280	TOL4052003/144A	GRHQBDUV 144 G652D

GNGQQBDV

Fiber optic cable designed for FTTA applications in both indoor and outdoor environments. The cable is flame resistant. Water blocking tape guarantees that no water can pass through the cable and the outer sheath is specially designed for highest protection in outdoor environments. The cable is suitable for pre-terminated delivery and has extremely good bending performance due to the use of bend-resistant G657A2 fiber.

DESIGN: Tight-buffered

TYPE: Dielectric, halogen-free, flame-retardant, bend resistant G657A2

CAPACITY: 2 fibers

PRODUCT NO.	PRODUCT NAME
TOL4063004/2A	GNGQQBDV 2 G657A2

GASQBDUV

Ribbon cable with slotted core design, which reduces installation costs and ensures superior fiber protection. Each of the six slots contains 1-2 ribbons of the 4-fiber ribbon type. The cable is dielectric, and very slim and flexible, making it very versatile. Dry water blocking makes the cable jointing procedure clean and easy. The cable is offered in two variants: standard and extra slim.

DESIGN: Slotted core ribbon

TYPE: Dielectric, halogen-free, flame-retardant

CAPACITY: ∅ 13 mm, 4 - 48 fibers

E-NO.	PRODUCT NO.	PRODUCT NAME
4984170 TOL4051001/4A GASQBDUV 4 G652D
4983550 TOL4051001/8A GASQBDUV 8 G652D
4983160	TOL4051001/12A	GASQBDUV 12 G652D
4983170	TOL4051001/24A	GASQBDUV 24 G652D
4983180	TOL4051001/36A	GASQBDUV 36 G652D
4983190	TOL4051001/48A	GASQBDUV 48 G652D
4983370	TOL4051001/72A	GASQBDUV 72 G652D (18x4f)
4983340	TOL4051001/96A	GASQBDUV 96 G652D (24x4f)

GASQBDUV

Ribbon cable with slotted core design which enables a cable design with reduced installation cost and superior fiber protection. Each of the six slots contains 1-2 ribbons of the 4-fiber ribbon type. The cable is dielectric, very slim and flexible, making it very versatile. Dry water blocking makes the cable jointing procedure clean and easy. The cable is offered in two variants: standard and extra slim.

DESIGN: Slotted core ribbon

TYPE: Dielectric, halogen-free, flame-retardant

CAPACITY: ∅ 9.9 mm, 4-48 fibers

4 or 8-fiber ribbon cable with slotted-core design providing superior fiber protection and high fiber count. Each of the slots contains ribbons of 4 or 8 fibers. The 8-fiber ribbon can easily be split into two 4-fiber ribbons. The versatility of the cable and the inherent benefits of ribbon fiber technology reduce installation costs. The cable is provided in two configurations: ≤96 fibers with 4-fiber ribbons and >96 fibers with 8-fiber ribbons.

DESIGN: Slotted core ribbon

TYPE: Dielectric, halogen-free, flame-retardant

CAPACITY: 72 - 96 fibers (4-f ribbon)

192 - 640 fibers (8-f ribbon)

PRODUCT NO.	PRODUCT NAME
TOL4051024/288A	GASQBDUV 288 G652D
TOL4051024/384A	GASQBDUV 384 G652D
TOL4051024/480A	GASQBDUV 480 G652D
TOL4051024/640A	GASQBDUV 640 G652D
TOL4051024/1000A	GASQBDUV 1000 G652D

GNGQBDUV, High Temperature Performance

Fiber optic cable designed for FTTA applications in both indoor and outdoor environments. This cable has extremely good heat resistance and operates -40 to +95 (degrees) C. The cable is flame resistant so it can be installed indoors at the same time the outer sheath is robust enough to cope with outdoor environments. It is suitable for pre-terminated delivery.

DESIGN: Tight-coated, with aramid yarn TYPE: Dielectric, halogen-free, flame-retardant, IEC60332-3, UL 1666 (CMR/Riser), bend resistant G657. A2*

CAPACITY: 2 fibers

PRODUCT NO.

PRODUCT NAME

TOL4059009/2A GNGQBDUV High Temp, 2 G657A2

GNGQBDUV

Fiber optic cable designed for FTTA applications for both indoor and outdoor environments. Water blocking aramid yams guarantees that no water can pass through the cable and the outer sheath is specially designed for highest protection in outdoor environments. It is suitable for pre-terminated delivery.

DESIGN: Tight-coated, with aramid yarn TYPE: Dielectric, halogen-free, flame-retardant, IEC60332-3, UL 1666 (CMR/Riser)

CAPACITY: 2 fibers

PRODUCT NO.

PRODUCT NAME

TOL4063008/2A GNGQBDUV FTTA 2 G652D

Industry Leading System Solutions for Fiber Optic Communications

Hexatronic Cables & Interconnect Systems develops, manufactures, markets and provides solutions within the fiber optic cable infrastructure, for telecom companies. Hexatronic Cables & Interconnect Systems manufacture fiber optic cable, duct, copper cable and network accessories. The company originates from the former Ericsson site in Hudiksvall. Our products are developed and manufactured by Swedish specialists, with many years of experience and unique expertise in fiber optics. The product portfolio includes the industry leading brands Ribbonet® and Micronet.

A part of Hexatronic Group

Hexatronic Cables & Interconnect Systems is a part of Hexatronic which is an innovative Swedish technology group, specializing in fiber communications. The Group provides products and solutions for the fiber optic network and together, the independent, entrepreneurial companies offer a full range of passive infrastructure. We combine our large corporate stability and resources with small company flexibility and speed.

Our customers are companies within the telecommunications industry such as communications and telecom suppliers, operators and network owners. The other companies within The Group are, Memoteknik in Skellefteå, Hexatronic Elektronik & Data in Gothenburg, The Blue Shift and Proximion in Stockholm and TD Fiberoptik in Örebro.

For more information about Hexatronic Group: www.hexatronicgroup.com

HEXATRONIC

Cables & Interconnect Systems

Hexatronic Cables & Interconnect Systems AB, Kabelvägen 1, 824 82 Hudiksvall, Sweden

Tel [phone] [e-mail] www.hexatronic.com
