Product Type	Quick Pop Maker (Ice Pop Maker)
Brand	Zoku
Model	ZK103
Number of Molds	6
Fill Volume per Mold	2 fl oz (59 ml)
Included Items	2 Fruit Stencils (heart and star), 1 Fruit Wand, 1 Siphon, 3 Pour Cups, 1 Angle Tray
Power Source	None (manual freezing required)
Freezing Preparation	Freeze device at 0°F (-18°C) for 24 hours before first use
Materials	Plastic body; metal stencils; plastic accessories
Cleaning Instructions	Hand wash only; dry stencils immediately to prevent rust; do not store tools in freezer
Safety Warnings	Not a toy; adult supervision required; choking hazard (small parts) – not for children under 3
Intended Use	Household use only
Main Functions	Basic single-flavor pops, fruit-decorated pops (using fruit wand and stencils), flavored core pops (using siphon), angled layered pops (using angle tray)
Spare Parts	Not available; only use Zoku-provided tools and pop sticks
Patents	U.S. Patent Nos. D637,035 S, D642,021 S; additional U.S. and foreign patents
Support	Visit zokuhome.com, follow @ZokuHQ, blog.zokuhome.com, facebook.com
Manual Languages	English (PDF available for download)

Frequently Asked Questions - ZK103 Zoku

How long should I freeze the Quick Pop Maker before making pops?

Freeze the Quick Pop Maker at 0°F (-18°C) for a minimum of 24 hours before first use to ensure optimal freezing performance.

Can I use any type of juice for the pops?

Yes, you can use most fruit juices, but avoid thick purees or pulpy juices as they may not freeze evenly. For best results, use clear juices or those with fine pulp.

How do I use the fruit wand?

Cut fruit into thin slices, attach a slice to the end of the fruit wand, insert it into the mold pressing the fruit against the wall, then insert pop stick and fill with juice. The fruit sticks to the mold wall.

How should I clean the fruit stencils?

Wash the fruit stencils by hand with mild soap and water. Dry them immediately and thoroughly after cleaning to prevent rust. Do not put them in the dishwasher.

What is the siphon used for?

The siphon is used to remove remaining juice from the mold after the outer shell has frozen, allowing you to add a different core flavor. It also helps fill molds at sharp angles.

How do I make layered angled pops using the angle tray?

Insert pop sticks, tilt the maker on the short side of the angle tray, partially fill with juice and freeze. Then tilt on the wider side, add a second color, freeze. Finally, set flat and fill to the top with a third color, then freeze completely.

Can I store the Zoku tools in the freezer?

No, do not store the tools (fruit stencils, fruit wand, siphon, pour cups, angle tray) in the freezer. They should be stored at room temperature after cleaning and drying.

Are replacement parts or extra accessories available?

Replacement parts are not listed. Only use tools and pop sticks provided by Zoku to ensure proper fit and safety. Contact Zoku support for inquiries.

Is the Quick Pop Maker safe for children to use?

This product is not a toy. Close adult supervision is required at all times when used by or near children. Warning: choking hazard due to small parts. Not for children under 3 years.

What fruits work best for decorating pops?

Apples and bananas work great. For colored shapes, soak apple slices in juice mixed with a little food coloring. Cut fruit slices 1/8 inch thick or less for best results.

USER MANUAL ZK103 Zoku

Important Safeguards

Please read The Quick Pop Maker Instructions & Tool Instructions before using. Save these instructions for future reference.

THIS PRODUCT IS NOT A TOY. CLOSE ADULT SUPERVISION IS NECESSARY AT ALL TIMES WHEN ANY APPLIANCE IS USED BY OR NEAR CHILDREN. WARNING: CHOKING HAZARD - CONTAINS SMALL PARTS. NOT FOR CHILDREN UNDER 3 YEARS OF AGE.

• Wash The Quick Pop Maker tools by hand.
• Dry stencils thoroughly after cleaning to prevent rust.
• Do not store the tools in the freezer.
• Do not use tools or pop sticks that are not provided by ZOKU.
  • This product is intended for household use only.

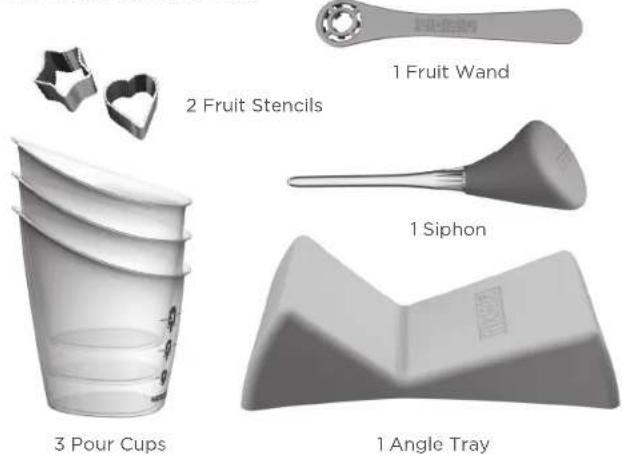

Included Items

2 Fruit Stencils 1 Fruit Wand 1 Siphon 3 Pour Cups 1 Angle Tray

Before You Get Started...

We recommend making a batch of basic Quick Pops before trying unique pops in order to become acquainted with The Quick Pop Maker.

Before attempting any of these techniques, freeze your Quick Pop Maker at 0°F for 24 hours.

NOTE: Unique Quick Pops take a bit longer to make than single flavored pops, so the number of batches may be reduced when making them.

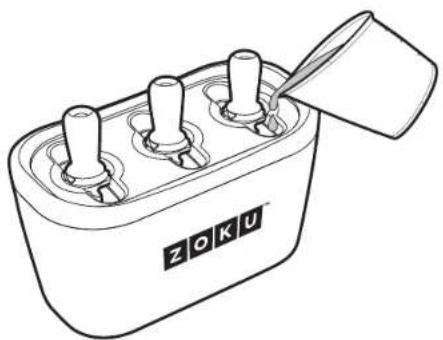

The Pour Cup

Measure your juice (2 oz. per mold) using the lines on the side of the pour cup. Lean the side of the cup on the edge of The Quick Pop Maker for a cleaner pour. Wait until it freezes, then remove pops and enjoy!

Line drawing of a Zoku battery with three pins and a handle, no text or symbols present

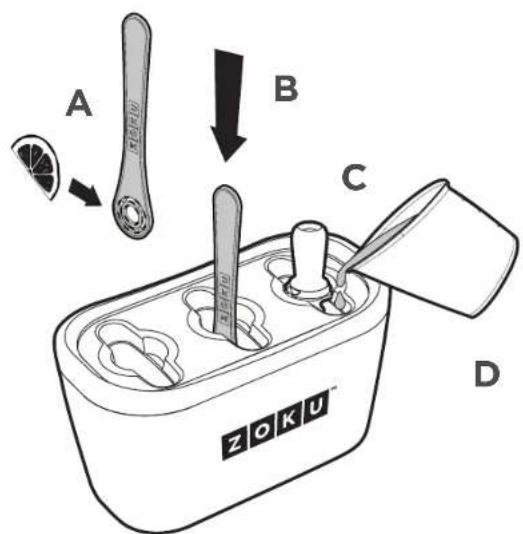

The Fruit Wand

Decorate your Quick Pops with fresh fruit slices easily using the fruit wand. Follow the instructions below that correspond with the illustration on the right.

A) Cut fruit into thin slices. Attach a thin fruit slice to the end of the fruit wand.
B) Insert the prepared fruit wand into the pop mold, pressing the fruit slice against the wall of the cavity. The fruit will stick to the wall of the mold.
C) After you have finished decorating the pop mold, insert the pop sticks and fill the mold with juice to the fill line.
D) Wait until the pop freezes, then remove it and enjoy!

A B C D Zoku

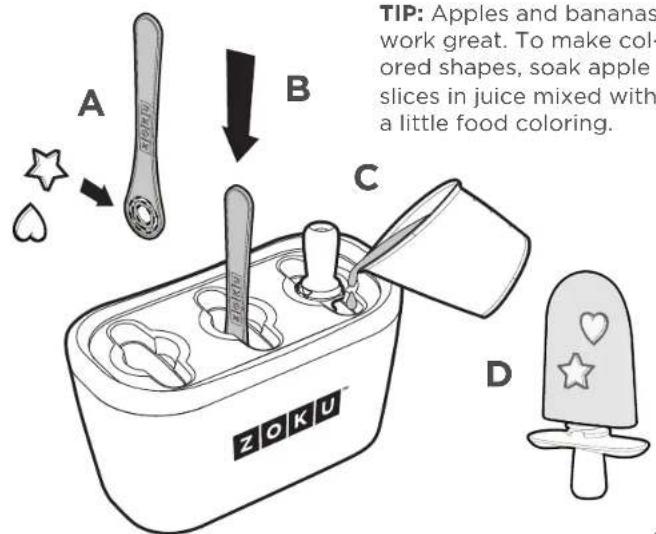

Fruit Stencils

Easily cut perfect hearts and stars with our stencils to make fun decorated pops! Follow the instructions below that correspond with the illustration on the right.

A) Slice fruit 1/8 inch thick or less. Lay flat and cut with the sharp end of the fruit stencil. Attach the fruit slice to the end of the fruit wand.
B) Insert the prepared fruit wand into the pop mold, pressing the fruit slice against the wall of the cavity. The fruit will stick to the wall of the mold.
C) After you have finished decorating the pop mold, insert the pop sticks and fill the mold with juice to the fill line.
D) Wait until the pop freezes, then remove it and enjoy!

TIP: Apples and bananas work great. To make col- ored shapes, soak apple slices in juice mixed with a little food coloring. A B C D Zoku

TIP: Apples and bananas work great. To make colored shapes, soak apple slices in juice mixed with a little food coloring.

The Siphon

To make flavored core pops, follow the instructions below that correspond with the illustration on the right.

A) Pour your shell flavor up to the fill line and wait until you see the outer shell freeze (1-4 min). The longer you wait, the thicker the shell will be.
B) Remove the remaining juice from The Quick Pop Maker by inserting the siphon and squeezing to extract the juice.
C) Pour the core flavor into the mold.
D) Wait until the pop freezes, then remove it and enjoy!

NOTE: The siphon also comes in handy when filling the Quick Pop molds at sharp angles (see pg. 13).

A Zoku 1-4 Minutes

Line drawing of a mechanical lever mechanism (no text or symbols)

Illustration of a battery pack with three wells and a handle, labeled 'ZORU' (no text or symbols beyond label)

Illustration of a popsicle with a dark cap and white base (no text or symbols)

The Angle Tray

The angle tray tilts The Quick Pop Maker at various angles to create a wide array of angled Quick Pops. To make a fun angled pop, follow the instructions below that correspond with the illustration on the right.

A) Insert pop sticks into the molds. Set The Quick Pop Maker to lean on the short side of the angle tray, then partially fill the mold cavity with juice.
B) Wait until that portion is frozen, then set the bottom of The Quick Pop Maker to sit on the wider surface of the angle tray and pour a different colored juice.
C) Wait until the second portion is frozen, then set The Quick Pop Maker flat and pour the final juice until it reaches the fill line.
D) Wait until the pop freezes, then remove it and enjoy!

A B C D

Diagram illustrating the equivalence between a box and a pester using a spring, with labeled parts and directional arrows.

TIP: Use the siphon to add juice to the molds when The Quick Pop Maker is tilted at a sharp angle.

See more angle tray charts on pages 14 & 15!

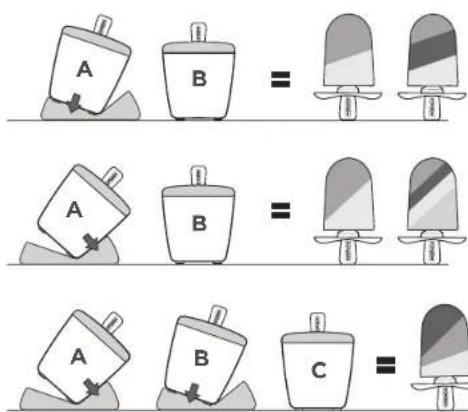

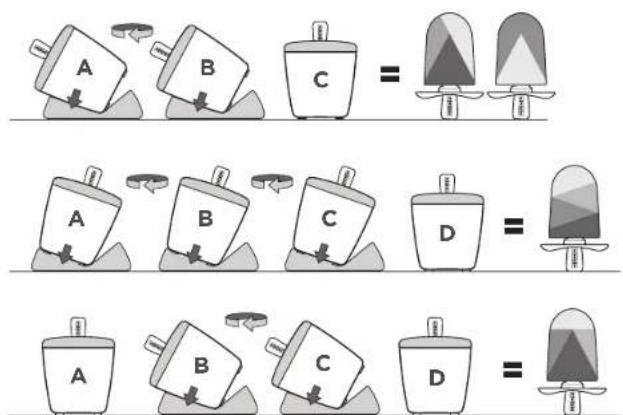

Here are more fun angled pops that you can make using the angle tray. (See full instructions on pg. 12)

A B = A B = A B C =

A B C = = A B C D = A B C D =

Follow us for more great Quick Pop ideas & recipes!

- zokuhome.com

- @ZokuHQ

- blog.zokuhome.com

- facebook.com

Silhouette of a bell with radiating lines, no text or symbols present

U.S. PATENT NOS. D637,035 S, D642,021 S.

ADDITIONAL U.S. & FOREIGN PATENTS, TRADEMARKS, COPYRIGHTS, & REGISTRATIONS ISSUED & PENDING

ZOKU, LLC Hoboken, NJ

www.zokuhome.com

© 2012 by ZOKU, LLC. All Rights Reserved.
