FW-01 - Foot bath IMETEC - Free user manual and instructions

Product Type	Foot Bath
Brand	Imetec
Model	FW-01
Dimensions (L x W x H)	Approx. 40 x 35 x 20 cm
Weight	Approx. 1.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	Approx. 100 W
Water Capacity	Approx. 5 L
Heating Function	Yes, with temperature control
Vibration/Massage	Yes, with adjustable intensity
Bubble Function	Yes, for soothing bubbles
Timer	Automatic shut-off (approx. 15-30 min)
Temperature Range	Up to 45°C
Control Type	Button panel on the device
Material	Plastic body, textured bottom
Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Overheat protection, splash-proof design
Accessories Included	Power adapter (if applicable), user manual
Spare Parts Availability	Contact Imetec customer service
Repairability	Do not disassemble; seek professional repair
Certifications	CE, RoHS

Frequently Asked Questions - FW-01 IMETEC

How do I fill the foot bath with water?

Fill the foot bath with water up to the indicated maximum level line inside the tub. Do not exceed the max mark to avoid spillage during operation.

Can I use essential oils in the foot bath?

Yes, you can add a few drops of essential oil to the water, but make sure to clean the tub thoroughly after each use to prevent residue buildup. Do not use oils that may damage plastic.

How long does the automatic shut-off timer last?

The foot bath typically has an automatic shut-off timer of approximately 15 to 30 minutes. This feature prevents overheating and ensures safe operation.

Can I use the foot bath with salty water?

It is not recommended to use salt or bath bombs with the foot bath as they can corrode the internal components and damage the device. Stick to plain water or a few drops of essential oil.

Why is my foot bath not heating up?

Ensure the device is plugged in and the power button is pressed. Check that the water level is above the minimum line. If it still does not heat, contact Imetec customer support.

How do I clean the foot bath properly?

Unplug the device and let it cool. Wipe the inside and outside with a soft, damp cloth. Do not immerse the control unit in water. For stubborn residue, use mild soap.

What does the massage function do?

The massage function uses vibrations or rotating nodes (depending on model) to soothe tired feet. You can adjust the intensity via the control panel.

Is the foot bath safe for people with diabetes?

If you have diabetes or nerve damage, consult your doctor before using hot water or massage functions. The water temperature should be kept below 40°C to avoid burns.

Can I use the foot bath without water?

No, never operate the foot bath without water. Doing so may damage the heating element and pose a fire risk.

Where can I find the user manual for the FW-01?

The user manual can be downloaded for free from notice-facile.com in multiple languages. You can also request a translated version by email.

USER MANUAL FW-01 IMETEC

Tel. +39.035.688.111 Fax +39.035.320.149

IMETEC

TYPE G0002

[A]
GUIDA ILLUSTRATIVA
ILLUSTRATIVE GUIDE
GUÍA ILUSTRATIVA
ΕΙΚΟΝΟΓΡΑΦΗΜΕΝΟΣ ΟΔΗΓΟΣ

DATI TECNICI
TECHNICAL DATA
DATOS TÉCNICOS
TEXNIKA ΣΤΟΙΧΕΙΑ

IMETEC

TYPE G0002

IPX1

220-240 V 50Hz 20 W (max. 110 W)

□CE

LE DI ISTRUZIONI PER L'USO SCALDAPIEDI

ACCENSIONE E SCELTA DELLA TEMPERATURA

Dear customer, IMETEC thanks you for purchasing this product. We are certain you will appreciate the quality and reliability of this appliance, designed and manufactured with customer satisfaction in mind. These instructions for use have been drawn up in accordance with European standard EN 62079.

IMPORTANT INSTRUCTIONS KEEP FOR FUTURE USE

ATTENTION! Instructions and warnings for a safe use.

Please read the operating instructions and safety warnings in

particular before using the appliance and follow these at all times. Keep this manual and illustrative guide with the appliance for future consultation. Should you pass the appliance on to another user, make sure to also include this documentation. Should certain parts of this user manual result difficult to understand or should doubts arise, contact the assistance service before using the product, by calling the free-phone number indicated on the last page.

CONTENTS

SAFETY WARNINGS page 5
SYMBOLS	page 6
DESCRIPTION OF THE APPLIANCE	page 7
USE	page 7
AUTOMATIC SHUTDOWN	page 7
CLEANING	page 7
CLEANING THE INNER LINING (1) (FIG.A)	page 7
CLEANING THE OUTER LINING (2) (FIG.A)	page 8
STORAGE	page 8
DISPOSAL	page 8
ASSISTANCE AND WARRANTY	page 8
ILLUSTRATIVE GUIDE	page I-II
TECHNICAL DATA	page III

SAFETY WARNINGS

• After having removed the appliance from its packaging, verify its integrity based on the drawing and check for any damage caused during transport. If in doubt, do not use the appliance and contact the authorised service centre.
• Do not let children play with the packaging! Keep the plastic wrapping out of the reach of children; risk of suffocation!

GB

• Before connecting the appliance, check that the mains voltage data reported on the identification plate corresponds to that of the available electric mains. The identification plate is attached to the appliance.
• This appliance is intended exclusively as a heating pad for home use. Any other use is improper and potentially dangerous.
• The appliance is not to be used by persons (including children) with reduced physical, sensorial or mental abilities, or with no experience or knowledge, unless supervised by a person responsible for their safety, supervision or after having received instructions regarding its use.

Children must be supervised to ensure they do not play with the appliance.

Do not use the appliance for ill people, for infants or for persons who are insensitive to heat. This appliance must not be used by children if the control devices have not been set beforehand by a parent or guardian or if the child has not been properly instructed on how to use the device safely.

• DO NOT activate the temperature control with wet hands.

- Do NOT pull the power cord or the appliance itself to remove the plug from the socket.

- Always disconnect the appliance from the mains before cleaning or performing maintenance and when the appliance is not in use.

- In case of a fault or malfunctioning of the appliance, switch it off and do not tamper with it. If the appliance needs to be repaired, contact an authorised technical service centre.

- If the power cord is damaged, it must be replaced by an authorised technical service centre, so as to prevent all risks.

- The appliance must be used solely with the types of control indicated on the label.

• DO NOT use with your shoes on.

- Inspect the appliance frequently to check for signs of wear and tear. If such signs are found or if the appliance has been used incorrectly, contact an authorised technical assistance centre before continuing to use it.

- This appliance is not intended for medical use inside of hospitals.

- Do NOT use the appliance if it is wet.

- Do NOT use the appliance to keep animals warm.

- Do NOT leave the appliance running while you sleep.

DO NOT INSERT PINS OR NEEDLES.

- Application of the appliance for a long time at high temperature can burn the skin.

SYMBOLS

[SAZD]	Protection class II.		Prohibited.
	Warning. Temperature selector.
	ON/OFF selector. STAND-BY.

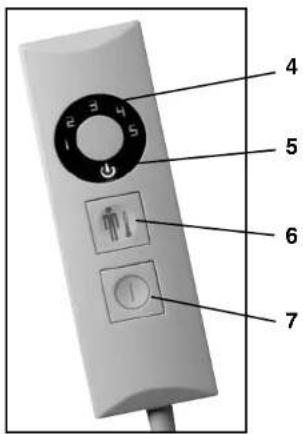

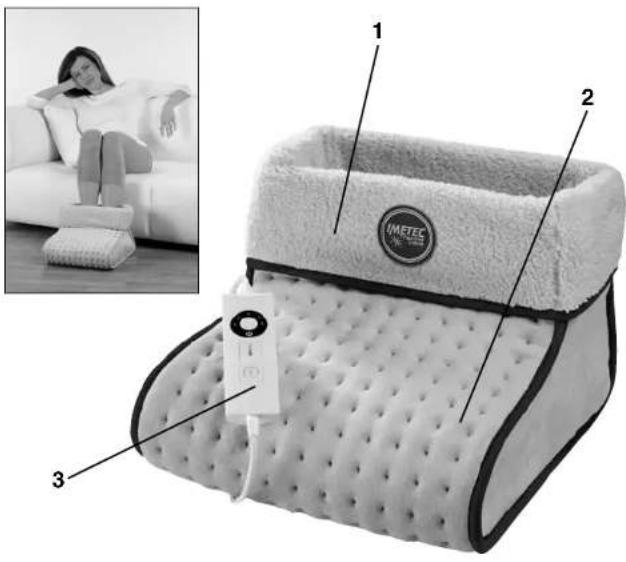

DESCRIPTION OF THE APPLIANCE

1. Inner lining
2. Outer lining

3. Control

4. Temperature display

5. Stand-by Display

6. Temperature selector

7. ON/OFF selector

USE

Use the footwarmer while sitting down.

SPECIFIC WARNINGS:

Do not use the product with your shoes on.

Do not use to keep animals warm.

Do not use if it shows signs of damage.

SWITCHING THE APPLIANCE ON AND SELECTING THE TEMPERATURE

• Press the ON/OFF ⏻ (7) selector to switch the footwarmer.
• The temperature display (4) will light up and the temperature will be automatically set to position 5 (MAX).
• Select the desired temperature, from 1 (min.) to 5 (max.) by pressing the temperature selector ⚙️ (6) until the relative number lights up on the temperature display (4).

AUTOMATIC SHUTDOWN

• The footwarmer is provided with an automatic shutdown system. The stand-by display ⏻(5) lights up after 3 operating hours to indicate that the product has switched off automatically.
• Switch the appliance back on by pressing the ON/OFF selector (7) and select the desired temperature once again.

SWITCH-OFF

• Switch the footwarmer off after use by pressing the ON/OFF selector (7).
• Remove the plug from the socket.

CLEANING

ATTENTION! Always disconnect the electric plug before cleaning.

CLEANING THE INNER LINING (1) (FIG.A)

The footwarmer is provided with an inner lining (1) which can be washed in lukewarm water (40°) after it has been pulled out of the outer lining (2). We recommend using delicate detergent.

Wash at 40^ C.

Tumble-dry at less than 40^ C.

Do not bleach.

Do not iron.

Do not dry-clean.

CLEANING THE OUTER LINING (2) (FIG.A)

Do not wash.

Do not bleach.

Do not tumble-dry.

Do not iron.

Do not dry-clean.

ATTENTION!

DO NOT use the footwarmer if it is wet.

STORAGE

When you store the appliance, let it cool down before folding it.

- Ⓧ WHEN you store the appliance, do not place objects on top of it which pleat it and/or deform it.

DISPOSAL

The product is packaged in recyclable materials. Dispose of it in compliance with the environmental protection standards.

The product must be disposed of appropriately, in compliance with European standard 2002/96/EC. The recyclable materials contained in the appliance must be recovered so as to prevent environmental pollution. For further information, contact the local disposal body or the appliance dealer.

ASSISTANCE AND WARRANTY

To request repairs or purchase spare parts, please contact IMETEC's authorised customer service centre on the Number below or via the website. The appliance is covered by the manufacturer's warranty. For details, read the attached warranty sheet. Failure to comply with the instructions for use and maintenance provided in this manual will render the manufacturer's warranty null and void.
