MSB9004 - Self-balancing electric scooter Manta - Free user manual and instructions

Product Type	Self-balancing electric scooter (Two-wheel intelligent drifting scooter)
Brand	Manta
Model	MSB9004
Maximum Speed	12 km/h
Maximum Range	Depends on terrain, weight, temperature, maintenance, speed (estimated 10-20 km)
Maximum Load	120 kg
Minimum Load	20 kg
Battery Type	Lithium battery
Battery Voltage	36 V
Battery Initial Capacity	2-4 Ah
Charging Time	Approximately 3 hours
Working Temperature	10°C – 40°C
Charging Temperature	0°C – 40°C
Storage Temperature (recommended)	Approximately 20°C – 25°C
Storage Humidity	5% – 95%
Storage Time (at 20-25°C)	Up to 12 months
Power Supply	100-240 V, 50-60 Hz AC
Charger Indicator	Green: idle/charged; Red: charging
Safety Features	Automatic balance system, speed limiter, tilt protection (15° forward/backward alarm, 35° shutdown), low battery shutoff, tire lock protection, overcurrent protection
Recommended Terrain	Flat, smooth ground; avoid uneven, wet, icy, or sandy surfaces
Driving Mode	Body weight shifting (lean forward/backward, turn by shifting weight)
Maintenance	Check tires for damage, loose parts before each use; charge regularly; store in dry place
Disposal	Do not dispose in household waste; take to designated collection point
Certifications	Complies with local regulations; manufacturer: Manta Europe

Frequently Asked Questions - MSB9004 Manta

What is the maximum speed of the Manta MSB9004?

The maximum speed is 12 km/h. When exceeding this speed, the buzzer will alarm and the platform tilts up to limit speed.

What is the weight limit for riders?

The maximum load is 120 kg and the minimum load is 20 kg. Riding outside these limits may cause falls or damage.

How long does it take to fully charge the battery?

Charging time is approximately 3 hours. Overcharging may reduce battery life.

What type of battery does the MSB9004 use?

It uses a Lithium battery with a voltage of 36V and initial capacity of 2-4 Ah.

How do I start the self-balancing scooter?

Press the power switch to start. Then step onto the mat; the automatic balancing system activates. Maintain a level platform before stepping on fully.

What should I do if the battery is low?

The power indicator will flash red. Stop riding immediately. The scooter will tilt up to prevent use when battery is too low; continuing may cause falls and battery damage.

Can I ride the scooter in the rain?

No, avoid wet surfaces. The manual warns against riding on wet roads or in rain to prevent slipping and damage.

What safety gear is recommended?

It is strongly recommended to wear a helmet, knee pads, and elbow pads when learning or riding.

How do I turn and control the scooter?

Lean forward to go forward, lean backward to go backward, and shift your weight left or right to turn. Keep movements moderate.

Where can I get support or find the manual?

Visit www.manta.com.pl or www.manta.info.pl for support and product information. The manual is also available for download on the product page.

USER MANUAL MSB9004 Manta

Black and red electric scooter with blue wheels and red side panels (no text or symbols visible)

Instrukcja obsługi

User's Manual

Bedienungsanleitung

Istruzioni d'uso

Manual de usuario

Návod k obsluze

Two people riding a black electric scooter with circular motion arrows indicating speed (no text or symbols)

Prawa stopa

Three human body poses in vertical motion diagrams, showing different postures of movement (no text or symbols)

Jazda na inteligentnej deskorolce

OSTRZEŻENIE!

Close-up of a white electronic device's head and neck showing two metallic pins (no text or symbols visible)

Symbol of a trash bin crossed out by diagonal lines, representing waste or discharge (no text or numbers present)

1.1 About the safe use of

Our company hope all drivers can drive safely two-wheel intelligent drifting scooter, and enjoy the fun brought by the drifting scooter, to remember you learning to ride a bicycle, drive a car, or use other means of transport, all these experiences can be applied to the sale of our products allows you to better use of drifting scooter.

• Relevant content you will be able to follow directions drift safe driving a car, we strongly recommend you the first time in drift driving car can read the operation handbook. Before each driving please check T yre for damage, if there is a loose parts, if you have a any situation, please contact the agent for repair.
• Please read the instruction for use, you will get a lot of important safety information, including the speed limit, indicator light warning, safety shutdown.
• Please do not use drifting scooter made any endangers one's personal or property safety.
• Please do don't arbitrarily modified drifting scooter parts, not only affects the drifting scooter may even damage the performance of drifting scooter , at the same time will produce serious harm.

1.2 The driver of the weight limit

• Drivers there are two reasons for weight limit: 1. Ensure the safety of drivers 2. Reduce the overload of intelligent drifting scooter damage.
• Drivers' biggest weight limit:120kg
  ● The driver of minimum weight limit:20kg

WARNING! More than make you are in danger of falling weight.

1.3 The largest distance

Intelligent drifting scooter the biggest range is related to many factors, such as:

• Terrain: in smooth, flat ground driving increases range, on the contrary will reduce the distance.
  ● Weight: the weight of the drivers affect the distance.
• Environment temperature, under the recommended temperature storage and intelligent driving drifting scooter increase distance, on the contrary will reduce the distance in extreme temperatures.
• Maintenance: reasonable charging and maintenance of the battery can increase the range, on the contrary will reduce the distance.
• Speed and driving style: keep medium speed increases range, on the contrary frequent start, stop, acceleration and deceleration will reduce the distance.

1.4 The speed limit

• The maximum speed of intelligent drifting scooter for 12km/hour.
• When driving over maximum allowable speed, drifting scooter buzzer will send out alarm.
• Smart drifting scooter under the specified speed can keep the balance of the driver, when the speed is greater than specified speed, drifting scooter up, cock to limit speed within the safe speed.

3. Drive a two-wheel intelligent drifting scooter

Using intelligent ticket I car security related matters need attention, so you must fully understand the instruction manual before driving all of the matters needing attention, mentioned in the before use to understand these security issues is very important for you.

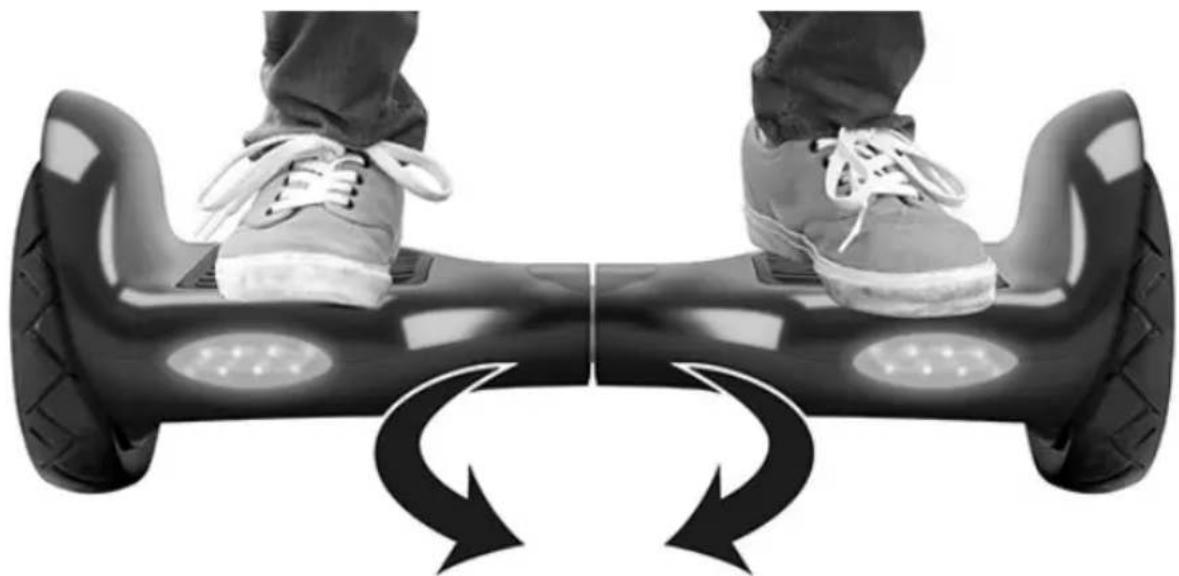

2.1 Intelligent drifting scooter steps

Step1. Start the smart drifting scooter, press the power switch. Step2. Driving to the trigger switch operation indicator light on single foot mat, automatic balancing system into the state, maintain smooth fuselage on the other foot after can operate. Step3. Manipulation of the drifting scooters after successful standing balance of center of gravity, intelligent drifting scooter mobile will remain state. Small forward or backward through the body to control the smart drifting scooter forward or backward, remember that the body movement range is too big.

NOTE: If the trigger when the foot switch intelligent platform drifting scooter not in level state, the beep will alarm and alarm indicator light, system into automatic balance state, at this time are prohibited.

Step4. manipulation of the drifting scooter left and right. Step5. get off the bus, get off before you stop intelligent drifting scooter balance state, one foot down, the other one foot in the left drifting scooter again.

Two people riding a black electric scooter with wheels, showing a circular motion arrow (no text or symbols)

Three sequential illustrations of human figure standing on a scooter, showing vertical motion with arrows indicating left and right sides (no text or symbols)

Intelligent drifting scooter driving

WARNING!

● Prohibited in the case of high-speed sharp steering, lest appear dangerous situation.
- Please don't drive the transverse slopes or turned, it will lead to intelligent drifting scooter balance angle offset, affect driving safet.

2.2 Intelligent drifting scooter protection function

In the process of running, if the system errors or irregularities, intelligent drifting scooter prompt drives in different ways. Ban cycling, alarm light is normally on, buzzer intermittent singing alarm, system cannot enter the balance model.

• Hands-on, the platform forward or back more than 15 degrees.
  ● The battery voltage is too low.
• In the process of charging.
• Cycling process, become warped on platform, operation is prohibited.

• Car speeding.

• Lack of battery.
  ● Car body rocking back and forth for more than 30 seconds.

• System into protection mode, alarm light is normally on, buzzer at a high rate in the process of alarm cycling.
• Platform forward or back more than 35 degrees, directly into the stop condition.
• Tire locked-rotor, after 2 seconds into the stop condition.
• The battery voltage is lower than the protection value, after 15 seconds into the stop condition.
• Continued large current discharge(such as long time up a long slope), enter the stop condition after 15 seconds.

WARNING!

When smart drifting scooter into the outage status, the system will automatically lock machine can press lock unlock. When the battery has been depleted or system to produce the safe parking information, please do not continue to drift driving a scooter, otherwise, the scooter would make scooter cannot balance due to of the electricity, in this case the driver is likely to be hurt. If the battery reaches a minimum, continue to drift driving scooter, will affect the service life of batteries.

2.3 Intelligent drifting scooter driving practice

When you drive smart drift outdoors, for your safety, please ensure that you have first can skilled driving drifting scooter:

• Please wear comfortable casual sportswear and wear flat shoes, let the body maintain flexibility.
• Please open field practice intelligent drift to drive a scooter, until you can easily get on the scooter forward,

backward, turn, stop, get off the bus.

• Attention should be paid to the ground of the flat and level.
• You can learn driving in different terrain must slowdown in case of an unfamiliar terrain. Any time can't let drifting scooter off the ground.
• Smart drifting scooter it flat surface design for using the object of a supplementary means of transport. When users run on the uneven road surface, should decelerate slowly moving.
• If not skilled driving intelligent drifting scooter please avoid danger such as pedestrians or obstacles exist where, to meet in through the door carefully and make sure whether can pass.

4. Driving safety instruction

This section highlights a few safety knowledge and warning statement, let you in the use of intelligent drifting scooter have certain knowledge of security considerations. In order to ensure that you can safely drive drift please be sure to read the operation instruction handbook “and comply with the relevant safety instructions. Please pay attention to the operation instruction handbook” mentioned in all the safety warning and use the matters needing attention, understanding of these security issues can improve your driving safety and pleasure.

WARNING!

- Under on circumstances use the smart drifting scooter you are likely to lose control, collision and fall and cause harm. In order to avoid damage, you must carefully read and refer to instruction manual instructions to drifting scooter

drifting. Please ensure that the product use in good condition, and after carefully read and be familiar with the company to provide all of the products material before using this product.

• When you learn drifting scooter, please make sure that completes the safety measures, such as: wearing a helmet, knee and elbow pads, gear, etc.
• Intelligent drifting scooter applies only to personal entertainment, it is prohibited to use in public transportation.
• It is strictly prohibited in the motor vehicle to use the company’s products.
• Children shall not be less than 20kg weight should be protected by the adults driving: Has a history of heart disease, high blood pressure, and lack ego to protect consciousness of the old man hands the inconvenience banned driving: pregnant women and people with disability driving is prohibited.
• No driving after drinking or using drugs and driving don't pick up goods.
• Driving drifting scooter please pay attention to comply with the local traffic laws, comity pedestrian.
• Please alert your front and distant things, keep good vision helps you safer driving drifting scooter.

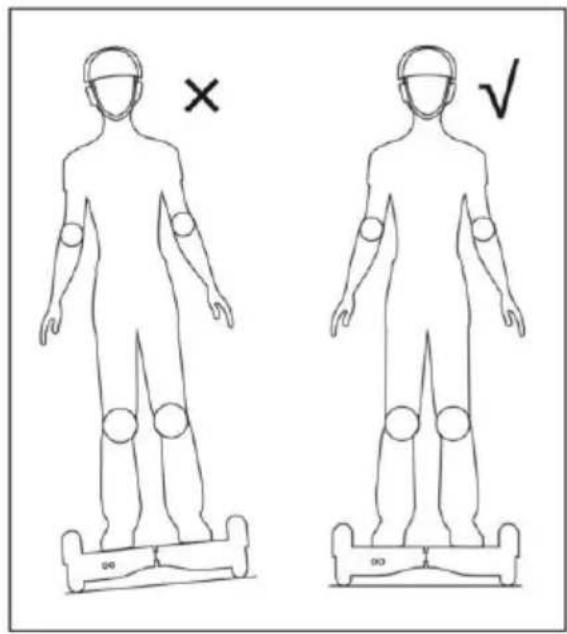

  ● While driving my legs to relax, knees slightly bent, it will make you in balance is concave and convex surface.
• Driving process, to ensure that the soles of your feet always step on the mat.
• Please use drifting scooter suitable for sport clothes, it helps you better handle emergency situations.
• Drifting scooter can only be a person, not more than two, and two at the same time.
• Users and the belongings should not be more than the

weight of the manual of using fall or injury, even can cause damage to the function of intelligent drifting scooter. In addition to this, the driver should not be less than the weight of the instruction in the designed driver minimum weight. Otherwise cause driver may not be able to manipulate drifting scooter, especially in the downhill when not safe reduce speed or stop.

• Must let the speed of the scooter in to ensure the safety of themselves and others, can be ready to stop the drifting scooters running.
• When you are driving drifting scooter traffic accident occurs, you stay put waiting for the arrival of the relevant departments and reasonable and lawful process events.
• When you are together with other users of drift drifting scooter while driving, please keep a certain distance between each other in order to avoid a collision.
• Always remember you in drift driving scooter, you body is highly increased by about 10cm in head through the door, please pay attention to the safety.
• pay attention to the balance of body gravity when steering action to prevent falling off because of center of gravity or too fast.
• Don't get distracted when driving drifting scooter, such as answering the phone, listen to music, or engage in any other activities.
• Do not allow the wet in the rain road, long distance driving backwards, high-speed, high-speed decay, speeding drifting scooter turn back.
• Design, test, or is not present in the personal transport related proof method and equipment for the medical safety, so the user must drifting scooter without external force.

• Don't drift in the dim light or dark place driving scooter .

• Avoid the obstacle and smooth surface, such as, glaze ice and snow of the wet floor.

• Please avoid scattered objects and small branches are in the exercise ,trash, or a small stone road.
• Avoid driving with an obstacle in the narrow space or place.
• Please conform to the conditions of use of the intelligent drifting scooter environment use, if there are any environment need to obtain permission to use, please get permission first.
• Please do not start or stop suddenly.
• Avoid driving on a steep slope.
  ● Prohibited in unsafe environment using smart drifting scooters, there unsafe environment refers to the result of flammable gas, steam, liquid, dust or fiber and other reasons may cause dangerous events. Such as fire or explosion.

5. Learning charging and maintenance of batteries

Main MianShu drifting scooter charging method, how to maintain the battery, need to pay attention to safety matters, and to show the battery specifications, For you and others safety maximum extend battery life and improve battery performance, please be sure to use according to the following the operation of the battery.

4.1 Lack of battery

When you found the power indicator light is red and flashing, suggests that power is not enough, you are advised to stop driving. When the battery is low. Intelligent drifting scooter don't have enough energy to your normal driving, the system will be the base platform automatically cock, forbids operators

continue to use, if you insist on driving at this time, damage is very easy to fall down, at the same time also can affect the service life of batteries.

- If you develop any of the following do not use the battery.

1. Emit some smell or a high fever.

2. Leak out of any material.

3. To remove the battery and maintenance is limited to the staff.

4. Don't touch the battery leakage of any material.

Don't let the child contact with animal cells, before install batteries or driving must pull out the charge, in the case of charging to make anything that has to do with intelligent drifting scooter is dangerous.

• Batteries contain dangerous substances, do not open the battery, no not insert any material into the battery.
• Limited to the company to provide equipment to drifting scooter battery.
• Ban has been put on the lithium battery, unsafe has excessive discharge of battery, only scrap processing.
• Intelligent drifting scooter battery to use with the permission of the local lows.

4.2 The charging step

● To ensure the charging mouth was dry.
- To insert one end of the charger to the mains(100-240v; 50-60Hz), confirm the charger green indicator light is normal lights up, then put the charger on the other side of smart drifting scooter.
- When the red indicator light on charger, charging showed normal, otherwise please check whether the circuit connection is good.
- When the indicator lights on the charge change from red

to green, suggests that electricity is filled. At this time, please stop charging, charging for a long time will affect the service life of batteries.

Close-up of a white electronic device's head panel showing two metallic connectors and circular ports (no text or symbols visible)

● Pay attention to use the local standard plug.
- Please charge according to the rules, storage battery, otherwise it will damage the battery, the battery life.
● Smart drifting scooter charging time is about 3 hours, long charging time will affect the battery life.
- Please keep the environment clean, dry charge.
- Charging mouth moist, don't charge.

4.3 Temperature too high or too low

If you want the smart drifting scooter the highest efficiency, the temperature of the battery must be marked in the battery specifications temperature range.

Before charging and charge process temperature must be within the recommended temperature, close to the recommended temperature, the charging efficiency is the highest, if extreme cold or heat, charging time will be lengthened or cannot be fully charged.

4.4 Detailed parameters of the battery

Item	Parameter
The battery type	The Lithium battery
Charging time	3 hours
Voltage	36V
Initial capacity	2-4AH
Working temperature	10°C-40°C
Charging temperature	0-40°C
Storage time(~ 20°C and 25°C)	12 months
Stored relative humidity	5%-95%

Note!

Product design and Technical parameters may be change without notice. This mainly concerns parameters technical, software and user manual present. User's Manual is a general orientation on service product. Manufacturer and distributor do not assume any responsibility as compensation for any inaccuracies errors in the descriptions appearing in this user manual.

Note about disposal

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Older appliances, which display the symbol as shown in the picture, may not be discarded in household waste. You must take them to a specific disposal site (check with your local authority) or to your retailer. These sites will guarantee disposal without harming the environment.

WARNING!

The manufacturer does not assume any responsibility for any injuries if the user has acted contrary to the warnings contained in this manual.

Three sequential illustrations of human standing poses with circular footprints, showing vertical and horizontal motion (no text or symbols)

Three sequential illustrations of human figure standing on a circular base, showing vertical and horizontal movement with arrows indicating left and right motion (no text or symbols)

Giro sullo skateboard intelligente

AVVERTENZE!

Two people riding a blue electric scooter with wheels, showing motion arrows (no text or symbols)

Three human body positions showing vertical motion with arrows indicating left and right movements (no text or symbols)

Two people riding a blue electric scooter with circular motion arrows indicating speed (no text or symbols on the car itself)

Three sequential illustrations of human standing figures with foot positions and directional arrows indicating movement (no text or symbols)

Two people riding a black electric scooter with wheels, showing front and side motion arrows (no text or symbols)

Three human body poses in standing pose with directional arrows indicating movement (no text or symbols)

from Monday to Friday. 9.00-17.00

The manufacturer reserves the right to make changes to product specifications without notice.

Home: www.manta.com.pl

Home support: www.manta.info.pl

All cercates and technical data available on the www.manta.com.pl

Made in P.R.C.

FOR MANTA EUROPE
