Table of Contents

Notice for Users in the USA 4

TCO '95/ '99 5

Notice for Users in Europe 7

Notice for Users in the UK 8

Notice for Users in Australia....8

Tips and safety precautions 9

Product description 10

Connecting the monitor and turning the monitor on and off 12

Connecting the monitor to a computer 12

Connection of headphones (commercially available) 13

Connecting the monitor to a power source 14

Turning the power on 14

Changing between input terminals.... 14

Turning the power off 15

Adjusting the screen display and speaker volume 16

Adjustment value reset 16

Adjustment lock function.... 16

Adjusting the backlight 16

Adjusting the speaker volume 17

Adjusting the screen display (When using an analog signal) 18

Automatic screen adjustment 18

Manual screen adjustment 19

Adjusting the screen display (When using a digital signal) 22

Monitor care and repair 24

Monitor care 24

Storage 24

Troubleshooting.... 24

Specifications 25

Installing set-up information and the ICC profile (For Windows).... 28

Information about the ColorSync profile (For MacOS) 31

Instructions for attaching a VESA compliant arm 32

FCC Statement

WARNING – FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Use nothing but the included cables and AC cord to insure compliance with FCC regulation for Class B computing equipment.

Declaration of Conformity

SHARP LCD Color Monitor LL-T1520 / LL-T1620

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersized operation.

Responsible Party : SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430

TEL :1-800-BE-SHARP

* As an ENERGY STAR Partner, SHARP has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance:www.eiae.org

ECOLOGY·ENERGY TCO 95 ERGONOMICS·EMISSIONS

LL-T1520-B
LL-T1620-B

ECOLOGY ENERGY EMISSIONS SOLOGIES TCO 99

LL-T1520-H
LL-T1620-H

Congratulations!

You have just purchased a TCO'95 or TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

This product meets the requirements for the TCO'95 or TCO'99 scheme which provides for an international environmental and quality labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska

Naturskyddsforeningen (The Swedish Society for Nature Conservation), Statens Energimyndighet (The Swedish National Energy Administration) and SEMKO AB.

The requirements cover a wide range of issues: environment, ergonomics, usability, reduction of electric and magnetic fields, energy consumption and electrical safety.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

What does the environmental labelling involve?

The environmental demands has been developed by Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation). These demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative * processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur. The relevant TCO'95 and TCO'99 demand require that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium \*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per million) of cadmium. The colour-generating layers of display screens must not contain any cadmium.

The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury \*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses.

TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per million) of mercury. The relevant TCO'99 requirement states that batteries may not contain any mercury.

Both TCO'95 and TCO'99 also demand that mercury is not present in any of the electrical or electronics components associated with the labelled unit. There is however one exception. Mercury is, for the time being, permitted in the back light system of flat panel monitors as there today is no commercially available alternative. TCO aims on removing this exception when a mercury free alternative is available.

CFCs (freons)

The relevant TCO'95 and TCO'99 requirement state that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead \*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'95 and TCO'99 requirement permit the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms

**Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

Notice for Users in Europe

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

The wires in this mains lead are coloured in accordance with the following code :

GREEN-AND-YELLOW : Earth

BLUE : Neutral

BROWN : Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows. The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth 12 or coloured green or green-and-yellow.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

Ensure that your equipment is connected correctly-if you are in any doubt consult a qualified electrician.

"WARNING :THIS APPARATUS MUST BE EARTHED"

Notice for Users in Australia

Service Inquiries

Please contact your dealer for service if required or contact Sharp Corporation of Australia on 1 300 13 50 22 for referral to your nearest Sharp authorized Service Center.

Tips and safety precautions

• The LCD module built in this LCD Monitor is manufactured with highly precise technology. However bright pixels or blank pixels may appear constantly. Also an irregular color and brightness may appear depending on view angle. Please note that these phenomena are common for liquid crystal monitor and are not a malfunction.
• Do not leave the screen displaying idly for long periods of time, as this could cause afterimage to remain.
• If the brightness is adjusted to the minimum setting it may be difficult to see the screen.
• The quality of the computer signal may influence the quality of the display. We recommend using a computer able to emit high quality video signals.
• Never rub or tap the monitor with hard objects.
• Please understand that Sharp Corporation bears no responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this product arising during use, except where indemnity liability is recognized under law.
• This monitor and its accessories may be upgraded without advance notice.

Location

• Do not use the monitor where ventilation is poor, where there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam, as this could lead to fire.
• Ensure that the monitor does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to fire or electric shock.
• Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to come into contact with strong shocks or vibrations. Causing the monitor to fall or topple over may damage it.
• Do not use in places where the monitor will be subject to direct sunlight, near heating equipment or anywhere else where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire.

The Power Cord

• Do not damage the power cord nor place heavy objects on it, stretch it or overly bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock.
• Insert the power plug directly into the AC outlet. Adding an extension cord may lead to fire as a result of overheating.

Monitor and accessory checklist

- Please check that the following items are included in the package.

- LCD monitor (1)

- Analog signal cable (1) (model name: QCNW-1041MPZZ)

- Audio cable (1) (model name: QCNW-1068MPZZ)

- Utility Disk (For Windows/Macintosh) (1)

- Operation manual (1)

Notes:

• The digital signal cable (DVI-D24 pin – DVI-D24 pin) is to be purchased separately. (model name: NL-C01E)
• The analog signal cable (DVI-I29 pin – D-sub 15 pin) is to be purchased separately. (model name: NL-C02E)
• You are advised to retain the carton in case the monitor needs to be transported.
• Sharp Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.
• The shape of the supplied accessories may not be exactly same as shown in this booklet.

Manual Scope

• In this booklet, Microsoft Windows XP will be referred to as [WindowsXP], Microsoft Windows Millenium as [WindowsMe], Microsoft Windows 2000 as [Windows2000], Microsoft Windows 98 as [Windows98], Microsoft Windows 95 as [Windows95], and Microsoft Windows Version 3.1 as [Windows3.1]. When there is no need to distinguish between programs, the term [Windows] will be used.
• Microsoft and Windows are registered trademarks of Microsoft Corporation.
• Macintosh is a registered trademark of Apple Computer, Inc.

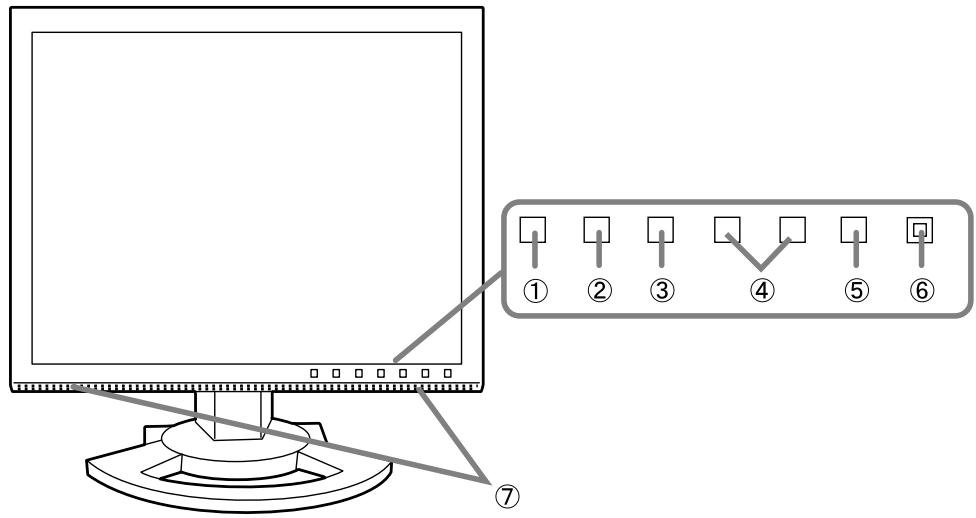

Diagram showing a computer monitor with seven labeled components and a corresponding diagram illustrating the structure of components 1 through 6.

1. INPUT button .... To switch between the signal's input terminals. (Analogue RGB input terminal DVI-I input terminal)
2. MENU button.... This button is used to pop-up, select and close the OSD (On Screen Display) Menu.
3. SELECT button .... This button is used to select menu options when the OSD Menu is displayed.
4. ◀▶ buttons ..... When the OSD Menu is displayed:
   These buttons are used to increase or decrease the value of a selected option.
   When the OSD Menu is not displayed:
   These buttons are used to adjust backlight brightness and speaker volume.
5. Power button
6. Power LED .... This LED is lit green when in use and orange when in power-saving mode.
7. Speakers.... Audio entering via the monitor and the external device connected to the monitor can be heard.

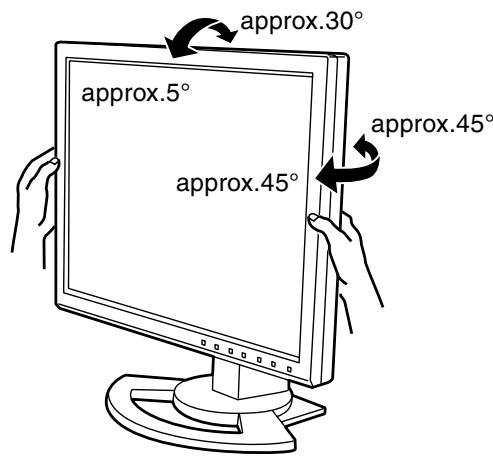

Adjusting the tilt and the swivel of monitor

Lightly holding both sides of the monitor, adjust it to a suitable viewing angle.

Note:

When adjusting the screen tilt and swivel, pressure from hands on the LCD panel could cause damage.

approx.30° approx.5° approx.45° approx.45°

Product description

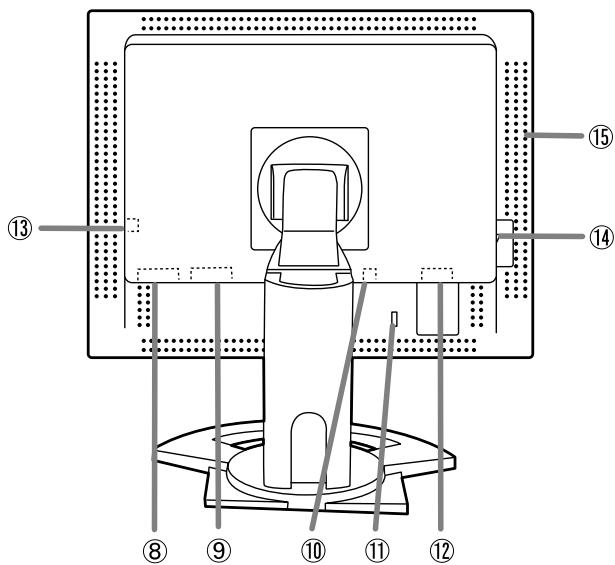

Technical diagram of a computer monitor with numbered parts labeled 8 through 15

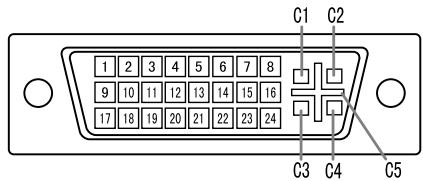

1. DVI-I input terminal .... The computer's digital RGB output terminal or analogue RGB output terminal can be connected here.
2. The monitor can be connected to the following computers that have a DVI standard output terminal (DVI-D24 pin or DVI-I29 pin) for digital connection. (Note that the display may not appear correctly, depending on the connected computer.) LL-T1520: Computers capable of XGA output LL-T1620: Computers capable of SXGA output
3. Separately sold cables are necessary for connection. To connect to a digital RGB output terminal: Digital signal cable (model name: NL-C01E) To connect to an analog RGB output terminal: Analog signal cable (model name: NL-C02E)
4. Analog RGB input terminal . . . The analog signal cable is connected here. The analog signal cable included should be used.
5. Audio input terminal ..... A computer's audio output terminal can be connected here. The audio cable included should be used.
6. Security lock anchor ..... By connecting a security lock (commercially available) to the security lock anchor, the monitor is fixed so that it cannot be transported. The security slot works in conjunction with Kensington Micro Saver Security Systems.
7. Power terminal
8. Headphone terminal ..... Headphones (commercially available) can be connected here.

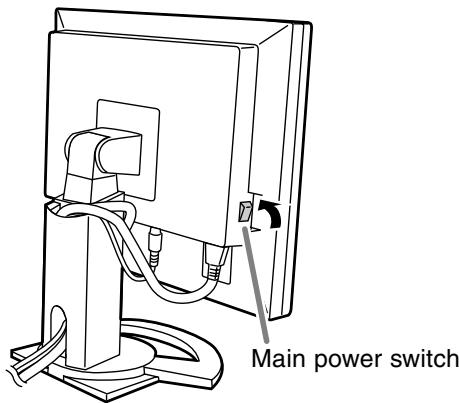

9. Main power switch
10. Ventilation openings ..... Note: Never block the ventilation openings as this may lead to overheating inside the monitor and result in malfunction.

Connecting the monitor and turning the monitor on and off

CAUTION!

• When connecting, ensure that both the monitor and computer are switched off.
• Be careful not to overly bend the cable or add extension cords as this could lead to a malfunction.

Cable storage

If necessary, excess cable can be housed in the stand.

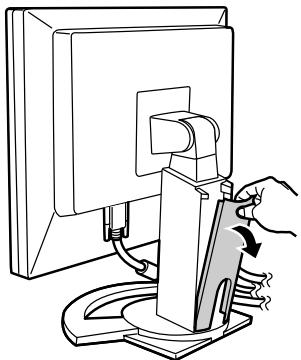

1. Remove the cover.

Gently pull the top of the cover towards yourself.

Illustration of a hand operating a computer monitor with a scroll wheel (no text or symbols visible)

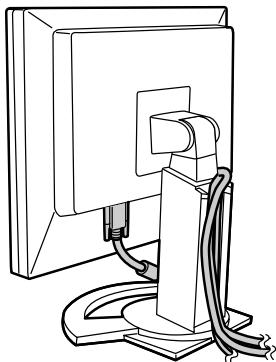

1. Run cable along the back of the stand.

Line drawing of a computer monitor with cables attached to its side (no text or symbols)

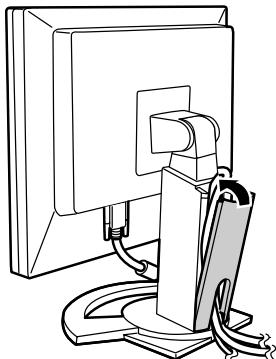

1. Refit the cover.

Be careful not to pinch the cable.

Line drawing of a computer monitor mounted on a stand with cables, no text or symbols present

- If the cover is hard to refit, do not force it. Check whether cables are trapped.

Connecting the monitor to a computer

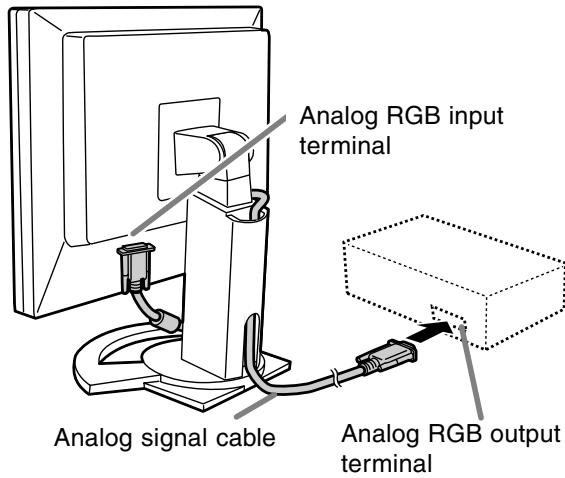

Connecting using accessory analog signal cable

Connect the accessory analog signal cable to the analog RGB input terminal of the display, and the analog RGB output terminal of the computer.

Analog RGB input terminal Analog signal cable Analog RGB output terminal

- Paying attention to connector direction, firmly insert the signal cable to terminal, and then tighten the screws at both sides.

If connecting to a D-sub 15 pin 2 row Apple Power Macintosh, attach a Macintosh conversion adapter (commercially available) to the analog signal cable.

Macintosh conver

Macintosh conversion adapter

Connecting using a separately sold display cable

The separately sold display cable enables connection between the DVI-I input terminal on the display and the digital or analog RGB output terminal of the computer.

When connecting to a digital RGB output terminal:

• Use a digital signal cable (model name: NL-C01E)
• The monitor can be connected to the following computers that have a DVI standard output terminal (DVI-D24 pin or DVI-I29 pin) for digital connection. (Note that the display may not appear correctly, depending on the connected computer.)
  LL-T1520: Computers capable of XGA output LL-T1620: Computers capable of SXGA output

Connecting the monitor and turning the monitor on and off

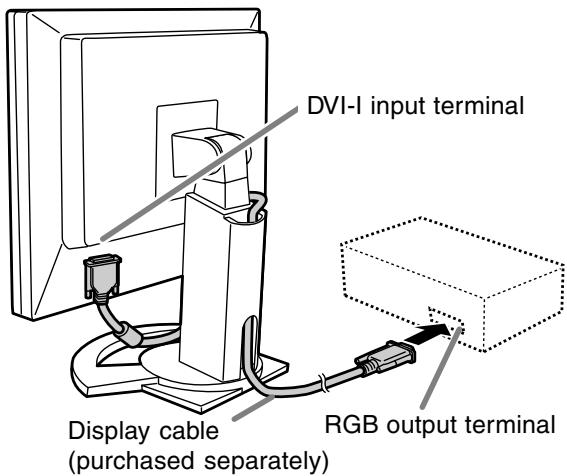

When connecting to an analog RGB output terminal:

- Use an analog signal cable (model name: NL-C02E).

DVI-I input terminal Display cable (purchased separately) RGB output terminal

- Paying attention to connector direction, firmly insert the signal cable to terminal, and then tighten the screws at both sides.

Set the monitor as follows when establishing a digital connection with a Power Mac using an ADC-DVI adapter made by Belkin. (Operation has been checked with the Power Mac G4 M7627J/A)

• Perform settings with the Power Mac power supply off.

• The setup screen automatically disappears approximately 30 seconds after the last command.

• After connecting the power cord, turn on the monitor's main power.

• Press the ◀ button and ▶ button simultaneously, and while doing this press the POWER button (i.e. turn the power on).

MAC DIGITAL INPUT-2 OFF ON OK... [ MENU ]

1. Set to "ON" with the ◀▶ buttons.

- Do not set to [ON] if you are not using a Belkin ADC-DVI adapter, as this may result in incorrect display.

1. Press the MENU button.

This completes setting.

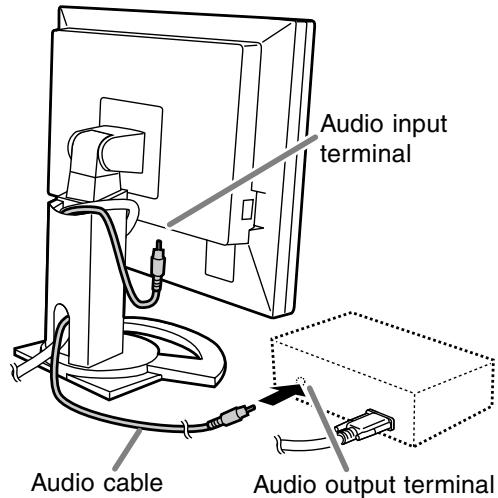

Connect the accessory audio cable

When the accessory audio cable is connected to the audio output terminal of the computer, the sound of the connected computer is output from the display speakers. You can also use the headphone jack of the display.

Audio input terminal Audio cable Audio output terminal

- If you plan to use a commercially available cable, obtain one with no resistance.

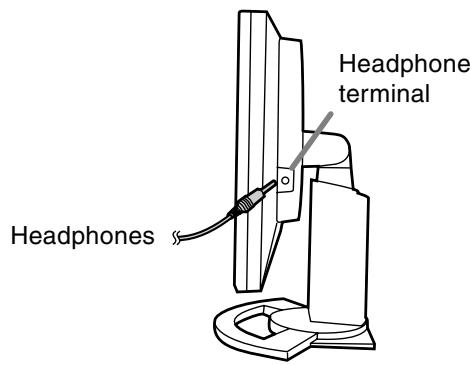

Connection of headphones (commercially available)

Headphones (commercially available) can be connected.

Headphone terminal Headphones

Notes:

- When the headphones are connected, no sound can be heard from the monitor speakers.

Connecting the monitor and turning the monitor on and off

Connecting the monitor to a power source

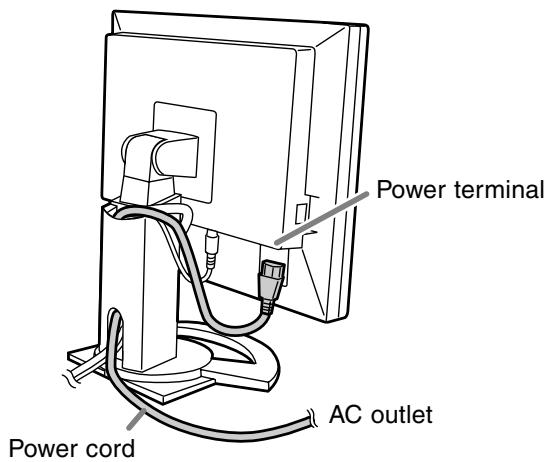

Power terminal Power cord AC outlet

Turning the power on

1. Turn on the main power of the monitor.

Main power switch

- When switching the main power switch on and off, always wait for an interval of at least 5 seconds. Rapid switching may result in malfunction.

1. Press the monitor's POWER button. The power LED will light up orange.

2. Turn on the computer.

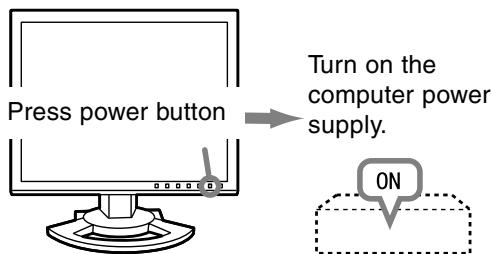

Press power button Turn on the computer power supply. ON

When a signal is input from the computer, the power LED lights up green, and the screen is displayed (After power is turned on, it may take a little time until the screen is displayed.)

- If the input terminal to which the computer is connected has not been selected, the screen will not be displayed. If necessary, perform input terminal switching.

Notes: (when using an analog signal)

• If using the monitor for the first time or after having changed the system settings during use, perform an automatic screen adjustment (p. 18).
• When connecting to a notebook, if the notebook computer's screen is set so that it is displaying at the same time, the MS-DOS screen may not be able to display properly. In this case, change the settings so that only the monitor is displaying.

Changing between input terminals

Use the INPUT button to switch between signal input terminals.

Analog RGB input terminal

DVI-I input terminal (digital)

INPUT-2

DVI-I input terminal (analog)

INPUT-2

Connecting the monitor and turning the monitor on and off

Turning the power off

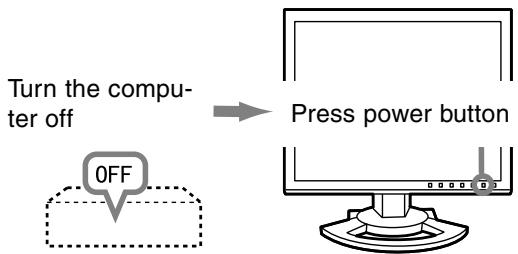

1. Turn the computer off.
2. Press the monitor's POWER button.

The Power LED will disappear.

Turn the computer off OFF Press power button

If the monitor will not be used for a long time, turn off the main power switch of the monitor, and remove the power plug from the outlet.

Adjusting the screen display and speaker volume

For analog signal

1. First perform an automatic adjustment. (p. 18)
2. Perform manual adjustment where necessary. (p. 19)

For digital signal

The monitor can generally be used without adjustment. If necessary perform manual adjustment. (p. 22)

Note:

- All adjustments will be saved even after turning the power off.

Adjustment value reset

Resetting all adjustment values

All adjustment values can be returned to their original ex-factory values in one command.

1. Turn off the monitor power.
2. Press the MENU button and the SELECT button simultaneously, and while doing this press the power button (i.e. turn the power on).

Continue to press the button until [ALL RESET] appears on the screen. Reset is complete when the displayed message disappears.

Notes:

• While ALL RESET is displayed, the control buttons are disabled.
• It is not possible to reset values when the adjustment lock is in place. Remove the adjustment lock before attempting to operate control buttons.

ADJUSTMENT menu reset

The adjustment values of the analogue signal time's ADJUSTMENT menu can be returned to their original ex-factory values.

1. Turn on the monitor power.
2. Press the MENU button and the ◀ button simultaneously. When [RESET] appears on the screen, the reset is complete.

Notes:

- It is not possible to reset values when the adjustment lock is in place. Remove the adjustment lock before attempting to operate control buttons.

Adjustment lock function

By disabling the control buttons (i.e. setting the lock) any attempted changes to adjusted values will be voided.

1. Turn off the monitor power.
2. While pressing the MENU button, press the power button (i.e. turn the power on).

Continue to press the button until [ADJUSTMENT LOCKED] appears on the screen. The lock is set when the message is displayed.

Notes:

- When the lock is in place, all buttons other than the power button are disabled.

Adjustment lock release

1. Turn off the monitor power.
2. While pressing the MENU button, press the power button (i.e. turn the power on).

Continue to press the button until [ADJUSTMENT UNLOCKED] appears on the screen. The lock is released when the message is displayed.

Adjusting the backlight

Carry out the commands without the On Screen Display (OSD) Menu displayed. If the OSD Menu is displayed, press the MENU button (several times may be required) and begin when the OSD Menu has disappeared.

1. Without the OSD Menu being displayed, push the ◀ or the ▶ button.

VOLUME 11 BRIGHT 31 SELECT ... [ SELECT ]

1. Check that "BRIGHT" is selected.

If it is not selected, press the SELECT button and select "BRIGHT".

1. Adjust by pressing the ◀ button (darker) or ▶ button (lighter).

Notes:

- On Screen display for adjustment disappears several seconds after the last operation.

Adjusting the speaker volume

Carry out the commands without the On Screen Display (OSD) Menu displayed. If the OSD Menu is displayed, press the MENU button (several times may be required) and begin when the OSD Menu has disappeared.

1. Without the OSD Menu being displayed, push the

◀ or the ▶ button.

VOLUME 11 BRIGHT 31 SELECT ... [ SELECT ]

1. Check that "VOLUME" is selected.

If it is not selected, press the SELECT button and select "VOLUME".

1. Adjust by pressing the ◀ button (decrease) or ▶ button (increase).

Notes:

- On Screen display for adjustment disappears several seconds after the last operation.

Automatic screen adjustment

Options in the ADJUSTMENT Menu can be adjusted automatically (CLOCK, PHASE, H-POS V-POS).

Notes:

- When setting up this monitor for the first time or after having changed an aspect of the current system, perform an automatic screen adjustment before use.

On Screen Display for the automatic adjustment

First display an image that makes the entire screen light.

If you are using Windows, you can use the Adjustment Pattern on the accompanying Utility Disk.

Opening the Adjustment Pattern (for Windows)

This explanation is for Windows 95/98/Me/2000/XP, and assumes that the floppy disk drive is "A drive".

- If you are using the Floppy disk other than [Drive A], read [Drive A] or [A:] in replacing them with the drive name in use currently.

1. Place the Utility Disk (provided) into the computer's A drive.
2. Open [My Computer] and select [3 ½ Floppy [A:]]. If using Windows 3.1, open [File Manager] and choose "A drive".
3. Double click on [Adj_uty.exe] to run the Adjustment Program. The Adjustment Pattern will appear.

Adjustment pattern

Pure geometric diagram with concentric circles and a central rectangle, no text or symbols present

After completing the adjustments, press the computer's [Esc] key to exit the Adjustment Program.

Notes:

- If your computer's display mode is set to 65K colors, you may see the different color levels in each color pattern or the gray scale may look colored. (This is due to the specification of the input signal and is not a malfunction.)

How to Adjust

1. Press the MENU button.

The ADJUSTMENT Menu will be displayed.

1. Press the ▶ button.

The screen will become dark and [ADJUSTING] will be displayed. After a few seconds the ADJUSTMENT Menu will return. (The automatic adjustment is now complete.)

1. Press the MENU button 4 times to make the OSD Menu disappear.

Notes:

• In most cases automatic adjustment is sufficient.
• It may not be possible to achieve correct adjustment with the first automatic adjustment. In such a case, try repeating automatic adjustment 2 or 3 times.
• If necessary due to any of the following, manual adjustments (p. 19) can be performed after the automatic adjustment.

- When further fine adjustment is needed.

- When the computer's video input signals are Composite Sync or Sync On Green. (Automatic adjustments may not be possible.)

- When [OUT OF ADJUST] is displayed. (When the screen displays an entirely dark image, the automatic screen adjustment may be disabled. When making an automatic adjustment, be sure to either use the Adjustment Pattern or try displaying an image that makes the entire screen very bright.)

- Automatic adjustment may not be achieved correctly depending on what is displayed on the screen - moving pictures or the MS-DOS prompt etc.

Adjusting the screen display (When using an analog signal)

Manual screen adjustment

Adjustments can be made using On Screen Display (OSD) Menu provided.

On Screen Display for adjustment

If you are using Windows, open the Adjustment Pattern on the accompanying Utility Disk. (p. 18) If your system is not Windows, you can not use the Adjustment Pattern. Therefore display an image that makes the entire screen light and adjust it through checking visually its actual tone. This chapter provides the procedure how to adjust the screen by using Adjustment Pattern (for Windows)

How to adjust

1. Press the MENU button.

The ADJUSTMENT Menu will be displayed.

At this point relevant menu options can be adjusted.

Each time the MENU button is pressed the next menu is selected. (ADJUSTMENT → GAIN CONTROL → COLOR CONTROL → MODE SELECT → OSD Menu disappears)

Notes:

- The OSD Menu automatically disappears approximately 30 seconds after the last command.

ADJUSTMENT Menu

MANUAL: Individual menu options are manually adjusted.

AUTO: Every menu option is automatically adjusted.

Notes:

• Press the ▶ button to select [AUTO].
• To choose a menu option: SELECT button
• To go to the next menu: MENU button

CLOCK

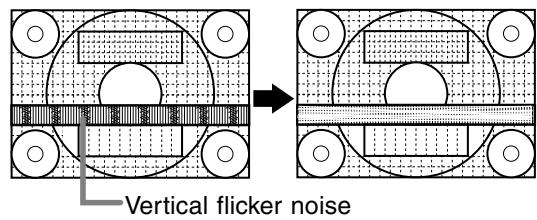

The figure below demonstrates how to adjust so that vertical flicker noise is not emitted. (◀▶ buttons)

Vertical flicker noise

PHASE

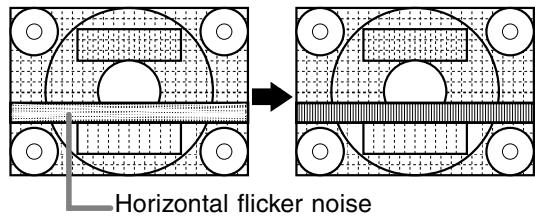

The figure below demonstrates how to adjust so that horizontal flicker noise is not emitted. (◀▶ buttons)

Notes:

- Adjustments to PHASE should be made only after CLOCK has been correctly set.

Horizontal flicker noise

H-POS (horizontal positioning) and V-POS (vertical positioning)

To center the screen image within the boundaries of the screen, adjust the left-right (H-POS) values and the up-down (V-POS) values. (◀▶ buttons)

Screen frame

Adjusting the screen display (When using an analog signal)

GAIN CONTROL Menu

GAIN CONTROL MANUAL AUTO BLACK LEVEL 50 CONTRAST 18 INPUT-1 ANALOG 1024 x 768 V : 60Hz H : 48.4kHz

MANUAL: Individual menu options are manually adjusted.

AUTO: Every menu option is automatically adjusted using the Auto Gain Control* function.

Notes:

• Press the ▶ button to select [AUTO].
• To choose a menu option: SELECT button
• To go to the next menu: MENU button

\* Auto Gain Control function

• The Auto Gain Control adjusts contrast and black level based on the brightest color of the image displayed. Unless an Adjustment Pattern is used, automatic adjustment may not be possible. In such a case, either use an Adjustment Pattern, or adjust manually.
• If the signal coming from the computer is composite sync or sync on green, automatic adjustment cannot be performed. Please perform manual adjustment instead.

BLACK LEVEL

Total screen brightness can be adjusted while watching the color pattern. (◀▶ buttons)

Abstract geometric pattern with concentric circles and a horizontal bar (no text or symbols)

•Color pattern

CONTRAST

While watching the color pattern, adjustments can be made so that all graduations appear.

(<► buttons)

COLOR CONTROL Menu

COLOR CONTROL COLOR MODE WHITE BALANCE ▶ HUE SATURATION ○sRGB ● STD ○ VIVID 0 0 INPUT-1 ANALOG 1024 x 768 V : 60Hz H : 48.4kHz

Notes:

• To choose a menu option: SELECT button
• To go to the next menu: MENU button

COLOR MODE

Color tone can be set as below.

sRGB : sRGB is international standard of color representation specified by IEC (International Electrotechnical Commission). Color conversion is made in taking account of liquid crystal's characteristics and represents color tone close to it original image.

STD : Displays image with the color tone results from original scheme of liquid crystal panel.

VIVID : Displays an image with dynamic and VIVID primary colors.

- If [sRGB] or [VIVID] has been selected, items subsequent to [WHITE BALANCE] cannot be set.

Subsequent items can be set when the [COLOR MODE] is [STD].

WHITE BALANCE

After selecting [WHITE BALANCE], press the button and display the adjustment menu.

WHITE BALANCE
COOL	•	STD	•	WARM	USER
R-CONTRAST
G-CONTRAST
B-CONTRAST
					OK…[MENU]

Notes:

• On settings other than [STD] not all graduations can be displayed. To display all graduations, set to [STD].
• Use the ◀▶ buttons to select [COOL], [·], [STD], [·], [WARM] or [USER].
• Selecting USER will display the setting values for [R-CONTRAST], [G-CONTRAST] and [B-CONTRAST], in order to make fine adjustments.
• Use the SELECT button to select [R-CONTRAST], [G-CONTRAST] and [B-CONTRAST].
• When adjustment complete: MENU button

Adjusting the screen display (When using an analog signal)

COOL ... Color tone bluer than standard

• ......Color tone slightly bluer than standard STD .....Color tone standard setting
- ......Color tone slightly redder than standard WARM ..Color tone redder than standard USER

R-CONTRAST ..... ◀ button for blue-green
▶ button for red
G-CONTRAST ..... ◀ button for purple
▶ button for green
B-CONTRAST ..... ◀ button for yellow
▶ button for blue

HUE

Hue can be adjusted. (◀▶ buttons)

SATURATION

Color saturation can be adjusted. (◀▶ buttons) At the minimum value, the screen is black and white.

MODE SELECT Menu

MODE SELECT OSD H-POSITION OSD V-POSITION SCALING 400 LINES LANGUAGE ▶ 3 640 720 INPUT-1 ANALOG 1024 x 768 V : 60Hz H : 48.4kHz

Notes:

• Depending on the resolution of the input signal, even if menu options can be selected, the display may not change.
• To choose a menu option: SELECT button
• When adjustment complete: MENU button

OSD H-POSITION (OSD horizontal position)

The position of the OSD display can be moved to the left and right. (◀▶ buttons)

OSD V-POSITION (OSD vertical position)

The position of the OSD display can be moved up and down. (◀▶ buttons)

SCALING (Level of scaling)

Adjusts the image to optimum sharpness when Screen expansion is taken. (◀▶ buttons)

400 LINES (degree of resolution)

You can specify the horizontal resolution of a 400-line screen when using US text, etc. (◀▶ buttons)

640: 640 X 400 dot mode

720: 720 X 400 dot mode (US text etc.)

Notes:

- As the resolution input for other than 400 lines is done automatically, there is no need to set it.

LANGUAGE

Messages displayed on the screen and OSD Menu contents can be changed to the following languages.

English, German, French, Dutch, Spanish, Italian, Swedish, Japanese

1. After selecting [LANGUAGE], press the ▶ button. The Language Selection Menu will be displayed on the screen.
2. Select the desired language using the SELECT button.
3. Press the MENU button. The Language Selection Menu disappears.

Adjusting the screen display (When using a digital signal)

Adjustments can be made using On Screen Display (OSD) Menu provided.

On Screen Display for adjustment

If you are using Windows, open the Adjustment Pattern on the accompanying Utility Disk. (p. 18) If your system is not Windows, you can not use the Adjustment Pattern. Therefore display an image that makes the entire screen light and adjust it through checking visually its actual tone.

This chapter provides the procedure how to adjust the screen by using Adjustment Pattern (for Windows)

How to adjust

1. Press the MENU button.

The COLOR CONTROL Menu will be displayed.

COLOR CONTROL COLOR MODE WHITE BALANCE ▶ HUE SATURATION ○sRGB ○STD ○VIVID 0 0 INPUT-2 1024 x 768 DIGITAL V : 60Hz H : 48.4kHz

At this point relevant menu options can be adjusted.

Each time the MENU button is pressed the next menu is selected. (COLOR CONTROL → MODE SELECT → OSD Menu disappears)

Notes:

- The OSD Menu automatically disappears approximately 30 seconds after the last command.

COLOR CONTROL Menu

COLOR CONTROL COLOR MODE WHITE BALANCE ▶ HUE SATURATION ○sRGB ○STD ○VIVID 0 0 INPUT-2 1024 x 768 DIGITAL V : 60Hz H : 48.4kHz

Notes:

• To choose a menu option: SELECT button
• To go to the next menu: MENU button

COLOR MODE

Color tone can be set as below.

sRGB : sRGB is international standard of color representation specified by IEC (International Electrotechnical Commission). Color conversion is made in taking account of liquid crystal's characteristics and represents color tone close to it original image.

STD : Displays image with the color tone results from original scheme of liquid crystal panel.

VIVID : Displays an image with dynamic and VIVID primary colors.

- If [sRGB] or [VIVID] has been selected, items subsequent to [WHITE BALANCE] cannot be set.

Subsequent items can be set when the [COLOR MODE] is [STD].

WHITE BALANCE

After selecting [WHITE BALANCE], press the button and display the adjustment menu.

WHITE BALANCE COOL • STD • WARM USER R-CONTRAST G-CONTRAST B-CONTRAST OK … [ MENU ]

Notes:

• On settings other than [STD] not all graduations can be displayed. To display all graduations, set to [STD].
• Use the ◀▶ buttons to select [COOL], [·], [STD], [·], [WARM] or [USER].
• Selecting USER will display the setting values for [R-CONTRAST], [G-CONTRAST] and [B-CONTRAST], in order to make fine adjustments.
• Use the SELECT button to select [R-CONTRAST], [G-CONTRAST] and [B-CONTRAST].
• When adjustment complete: MENU button

Adjusting the screen display (When using a digital signal)

COOL ... Color tone bluer than standard

• ......Color tone slightly bluer than standard STD .....Color tone standard setting
- ......Color tone slightly redder than standard WARM ..Color tone redder than standard USER

R-CONTRAST ..... ◀ button for blue-green
▶ button for red
G-CONTRAST ..... ◀ button for purple
▶ button for green
B-CONTRAST ..... ◀ button for yellow
▶ button for blue

HUE

Hue can be adjusted. (◀▶ buttons)

SATURATION

Color saturation can be adjusted. (◀▶ buttons) At the minimum value, the screen is black and white.

MODE SELECT Menu

MODE SELECT OSD H-POSITION OSD V-POSITION SCALING LANGUAGE ▶ 3 INPUT-2 1024 x 768 DIGITAL V : 60Hz H : 48.4kHz

Notes:

• Depending on the resolution of the input signal, even if menu options can be selected, the display may not change.
• To choose a menu option: SELECT button
• When adjustment complete: MENU button

OSD H-POSITION (OSD horizontal position)

The position of the OSD display can be moved to the left and right. (◀▶ buttons)

OSD V-POSITION (OSD vertical position)

The position of the OSD display can be moved up and down. (◀▶ buttons)

SCALING (Level of scaling)

Adjusts the image to optimum sharpness when Screen expansion is taken. (◀▶ buttons)

LANGUAGE

Messages displayed on the screen and OSD Menu contents can be changed to the following languages.

English, German, French, Dutch, Spanish, Italian, Swedish, Japanese

1. After selecting [LANGUAGE], press the ▶ button. The Language Selection Menu will be displayed on the screen.

2. Select the desired language using the SELECT button.

3. Press the MENU button. The Language Selection Menu disappears.

Monitor care

Always remove the plug from the AC outlet when cleaning the monitor.

Cabinet and control panel section

Use a soft dry cloth to lightly wipe away any grime from the cabinet and control panel.

If they are very dirty, apply neutral detergent to a dampened soft cloth, wring it out well and wipe away grime.

LCD panel section

Use a soft dry cloth to lightly wipe away dirt and dust from the surface of the LCD panel. (A soft cloth such as gauze or that used for lens cleaning is suitable.)

CAUTION!

• Never use thinner, benzine, alcohol, glass cleaner, etc, as this could lead to color change or change in shape.
• Never scratch the monitor with anything hard or apply strong pressure as this could leave marks or result in malfunction.

Storage

If the monitor will not be used for a long period of time, be sure to remove the power plug from the AC outlet.

CAUTION!

Do not leave the monitor in contact with rubber or plastic items for long periods of time as this could lead to color change or change in shape.

Troubleshooting

If you think the monitor may be faulty, please check the following points before taking it to be repaired. If afterwards it still does not work, please contact the shop where you purchased the monitor or your nearest Sharp authorized Service Center.

The monitor's florescent tubes have a limited life span.

• If the screen darkens, persistently flickers or does not light up, it may be necessary to replace the florescent tube unit. Please inquire at the shop where you purchased the monitor or your nearest Sharp authorized Service Center. (Never attempt this replacement on your own.)
• In the initial period of use, due to the characteristics of florescent tubes the screen may flicker. (This is not a malfunction.) Should this happen, check by first turning off the power, then turning it on again.

No image appears on the monitor (Power LED is not lit)

- Is the power cord connected properly? (p. 14)

No image appears on the monitor (Power LED is lit)

• Is the computer connected properly? (p. 12)
• Is the computer turned on?
• Is the signal's input terminal switched to the correct one? (p. 14)
• Does the computer's signal timing correspond to monitor specifications? (p. 26)
• Is the computer in power-saving mode?

Control buttons do not work

- Is the adjustment lock on? (p. 16)

The image appears distorted

• Does the computer's signal timing correspond to monitor specifications? (p. 26)
• If you are using the analog signal, perform automatic adjustment. (p. 18)
• If you can change the frequency on the computer you are using, change the values to a low frequency count.

No sound can be heard from the speakers

• Is the audio cable connected correctly? (p. 13)
• Are the headphones connected?
• Perform the volume adjustment procedure.(p. 17)
• These is no sound from the speakers when the display is in power save mode.

Product specifications

	LL-T1520	LL-T1620
LCD panel	Diagonal 38cm	Diagonal 40cm
	Advanced Super-V and Anti-Glare Low Reflection TFT LCD module
Resolution (max.)	XGA, 1,024 x 768 pixel	SXGA, 1,280 x 1,024 pixel
Displayable colors (max.)	Approx. 16.77 million color (8 bit)
Brightness (max.)	250 cd/m2	300 cd/m2
Dot pitch	0.297(H) x 0.297 (V)mm	0.248(H) x 0.248 (V)mm
Contrast ratio	400 : 1
Angle of visibility	Left-right 170°; Up-down 170°
Screen display size	Horizontal 304.1 x Vertical 228.1 mm	Horizontal 317.4 x Vertical 253.9 mm
Video signal	Analog: Analog RGB (0.7 Vp-p) [75Ω]Digital: DVI standard 1.0 compatible
Sync signal	H/V separate Sync (TTL level: +/-), Sync on Green, Composite Sync (TTL level: +/-)
Expansion compensation	Digital screening(Enlargement VGA/SVGA etc. to full screen size.)	Digital screening(Enlargement VGA/SVGA/XGA etc. to full screen size.)
Plug & Play	VESA DDC1/DDC2B compatible
Power management	VESA DPMS, DVI DMPM
Speaker output	1W + 1W
Input signal terminal	Mini D-sub 15 pin (3 row), DVI-I 29 pin
Audio input terminal	Mini stereo jack
Headphone terminal	Mini stereo jack
Screen tilt	Upward approx.0° -30°; downward approx.0° - 5°
Screen swivel	Approx.90° from left through right
Power supply	AC100 - 240V, 50/60Hz
Temperature of operating environment	5 - 35°C
Power consumption	Maximum 36W (Standby state: 3W)	Maximum 42W (Standby state: 3W)
Dimensions	337(W) x 185(D) x 355(H) mm	352(W) x 185(D) x 370(H) mm
Weight	Approx. 4.9kg(approx. 3.3kg excluding stand)	Approx. 5.3kg(approx. 3.7kg excluding stand)

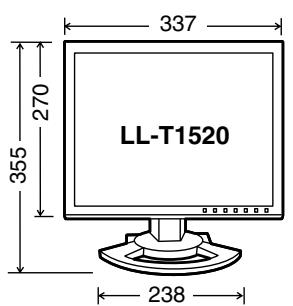

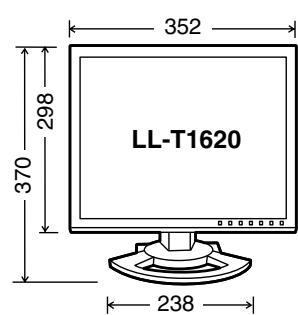

Dimensions (Units: mm)

337 270 355 LL-T1520 238

61 185

352 298 370 LL-T1620 238

64 185

Analog signal cable: Approx. 2.0m
Audio cable: Approx. 2.0m
Digital signal cable, NL-C01E (purchased separately): Approx. 2.0m
Analog signal cable, NL-C02E (purchased separately): Approx. 2.0m

Specifications

Relevant signal timings

• Recommended resolution for LL-T1520 is 1024 x 768.
• Recommended resolution for LL-T1620 is 1280 x 1024.
• All are compliant only with non-interlaced.
• The monitor can be connected to the following computers that have a DVI standard output terminal (DVI-D24 pin or DVI-I29 pin) for digital connection. (Note that the display may not appear correctly, depending on the connected computer.)
  LL-T1520: Computers capable of XGA output
  LL-T1620: Computers capable of SXGA output
• Frequencies for Power Macintosh and the Sun Ultra series are reference values. To connect, another adapter (commercially available) may be required.
• If the monitor is receiving timing signals that are not compatible, [OUT OF TIMING] will appear. Follow your computer's instruction manual to set the timing so that it is compatible with the monitor.
• If the monitor is not receiving any signal (synch signal), [NO SIGNAL] will appear.

The analog RGB input connector pin

(Mini D-sub connector with 15 pins)

⑤ ④ ③ ② ① ⑩ ⑨ ⑧ ⑦ ⑥ ⑮ ⑭ ⑬ ⑭ ⑮

No.	Function
1	Red video signal input
2	Green video signal input
3	Blue video signal input
4	GND
5	GND
6	For red video signal GND
7	For green video signal GND
8	For blue video signal GND
9	DDC +5V
10	GND
11	N.C.
12	DDC data
13	For Hsync signal input
14	For Vsync signal input
15	DDC clock

Specifications

The DVI-I input connector pin

(DVI-I connector with 29 pins)

C1 C2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 C3 C4 C5

No.	Function	No.	Function
1	TMDS data 2-	16	Hot plug detection
2	TMDS data 2+	17	TMDS data 0-
3	TMDS data 2/4 shield	18	TMDS data 0+
4	N.C.	19	TMDS data 0/5 shield
5	N.C.	20	N.C.
6	DDC clock	21	N.C.
7	DDC data	22	TMDS clock shield
8	Analogue vertically synchronised signal	23	TMDS clock +
9	TMDS data 1-	24	TMDS clock -
10	TMDS data 1+	C1	Analogue red image signal
11	TMDS data 1/3 shield	C2	Analogue green image signal
12	N.C.	C3	Analogue blue image signal
13	N.C.	C4	Analogue horizontally synchronised signal
14	+5V	C5	Analogue GND
15	GND

Power management

The monitor is based on the VESA DPMS*1 and the DVI DMPM*2 standards.

To activate the monitor's Power Management function, both the video card and the computer must conform to the VESA DPMS standard and the DVI DMPM standard.

*1 DPMS: Display Power Management Signalling

DPMS mode	Screen	Power consumption	H-sync	V-sync
ON	Display on	LL-T1520: 36W LL-T1620: 42W	Yes	Yes
STANDBY	Display off	LL-T1520: 3W LL-T1620: 3W	No	Yes
SUSPEND			Yes	No
OFF			No	No

*2 DMPM: Digital Monitor Power Management

DMPM mode	Screen	Power consumption
ON	Display on	LL-T1520: 36WLL-T1620: 42W
OFF	Display off	LL-T1520: 3WLL-T1620: 3W

DDC (Plug & Play)

This monitor supports the VESA DDC (Display Data Channel) standard.

DDC is a signal standard for carrying out Plug & Play functions on the monitor or PC. It transfers information such as degree of resolution between the monitor and PC. You can use this function if your PC is DDC compliant and if it is set so that it can detect the Plug & Play monitor.

There are many varieties of DDC due to the differences between systems. This monitor works with DDC1 and DDC2B.

Installing set-up information and the ICC profile (For Windows)

Depending on the computer or OS, it may be necessary to use the computer to operate the installation of monitor set-up information etc. If so, follow the steps below to install the monitor set-up information. (Depending on the type of computer or OS, command names and methods may differ. Please follow the computer's own operation manual while reading this.)

About the ICC profile

An ICC (International Color Consortium) profile is a file that describes the color characteristics of the LCD monitor. By using an application that works together with an ICC profile, a high color resolution can be realized.

• Windows98/2000/Me/XP all use the ICC profile.
• When installing Windows98/2000/Me/XP setup information (described below), the ICC profile is also installed. If you would like to install the ICC program only, please refer to Installing the ICC profile on page 30.
• When using an ICC profile, set [COLOR MODE] and [WHITE BALANCE] to [STD], and set [HUE] and [SATURATION] to [0].

Installing set-up information

For Windows95

Installing monitor set-up information into Windows95.

This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk (provided) into the computer's A drive.
2. Click on the [Start] button. From [Settings], choose [Control Panel].
3. Double click on [Display].
4. Click on [Settings], [Advanced Properties], and [Monitor], then [Change].
5. Click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:] then click [OK].
6. Confirm that the monitor details are selected, and click [OK].
7. Check that the monitor details are displayed, then click [Apply].
8. Click [OK], and close the window.
9. Remove the Utility Disk from the A drive.

For Windows98

Installing monitor set-up information into Windows98, and setting the monitor's ICC profile as a predetermined value.

This explanation assumes that the floppy disk drive is "A drive".

If the "Add new Hardware Wizard" has appeared:

1. Place the Utility Disk (provided) into the computer's A drive.
2. Click [Next].
3. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].
4. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
5. Confirm that the monitor details are selected, then click [Next], [Next], and [Finish]. If the "Add New Hardware Wizard" appears, repeat the installation commands beginning from 2 above.
6. Remove the Utility Disk from the A drive.

If the "Add New Hardware Wizard" has not appeared:

1. Place the Utility Disk in the computer's A drive.
2. Click on the [Start] button. From [Settings], choose [Control Panel].
3. Double click on [Display].
4. Click on [Settings], [Advanced] and [Monitor].

5. In [Options], check [Automatically detect Plug & Play monitors] and click on [Change].

6. Click [Next].

7. Click on [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].

8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].

9. Confirm that the monitor details are selected, then click [Next], [Next], and [Finish].

10. Check that the monitor details are displayed, then click [Apply].

11. Click [OK], and close the window.

12. Remove the Utility Disk from the A drive.

Installing set-up information and the ICC profile (For Windows)

For Windows2000

Installing monitor set-up information into Windows2000, and setting the monitor's ICC profile as a predetermined value.

This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk (provided) into the computer's A drive.
2. Click on the [Start] button. From [Settings], choose [Control Panel].
3. Double click on [Display].
4. Click on [Settings], [Advanced] and [Monitor].
5. Click on [Properties], [Driver] and [Update Driver].
6. When [Upgrade Device Driver Wizard] appears, click [Next].
7. Check [Display a list of the known drivers for this device so that I can choose a specific driver] and click [Next].
8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
9. Select the monitor from the list displayed and click [Next].
10. Click [Next], confirm that the monitor's name appears on the screen, and click [Finish]. If [The Digital Signature Not Found] appears, click [Yes].
11. Click on [Close].
12. Click [OK], and close the window.
13. Remove the Utility Disk from the A drive.

For WindowsMe

Installing monitor set-up information into WindowsMe, and setting the monitor's ICC profile as a predetermined value.

This explanation assumes that the floppy disk drive is "A drive".

If the "Add new Hardware Wizard" has appeared:

1. Place the Utility Disk (provided) into the computer's A drive.
2. Check [Specify the location of the driver [Advanced]] and click [Next].
3. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].
4. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
5. Select the monitor details from the list, then click [Next], [Next], and [Finish]. If the "Add new Hardware Wizard" appears, repeat the installation commands beginning from 2 above.
6. Remove the Utility Disk from the A drive.

If the "Add New Hardware Wizard" has not appeared:

1. Place the Utility Disk in the computer's A drive.
2. Click on the [Start] button. From [Settings], choose [Control Panel].
3. Double click on [Display].
4. Click on [Settings], [Advanced] and [Monitor].
5. In [Options], check [Automatically detect Plug & Play monitors] and click on [Change].
6. Check [Specify the location of the driver [Advanced]] and click [Next].
7. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.] and click [Next].
8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
9. Select the monitor details, then click [Next], [Next], and [Finish].
10. Check that the monitor details are displayed, then click [Apply].
11. Click [OK], and close the window.
12. Remove the Utility Disk from the A drive.

Installing set-up information and the ICC profile (For Windows)

For WindowsXP

Installing monitor set-up information into

WindowsXP, and setting the monitor's ICC profile as a predetermined value.

This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk in the computer's A drive.
2. Click on the [Start] button. Choose [Control Panel].
3. Switch to "Classic View".
4. Double click on [Display].
5. Click on [Settings], [Advanced] and [Monitor].
6. Click on [Properties], [Driver] and [Update Driver].
7. When [Hardware Update Wizard] appears, check [Install from a list or specific location [Advanced]] and click [Next].
8. Check [Don't search. I will choose the driver to install.] and click [Next].
9. Click on [Have Disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
10. Select the monitor from the list displayed and click [Next].
    If [has not passed Windows Logo testing...] appears, click [Continue Anyway].
11. Confirm that the monitor's name appears on the screen.
12. Click on [Finish].
13. Click on [Close].
14. Click [OK], and close the window.
15. Remove the Utility Disk from the A drive.

Installing the ICC profile

Installing the monitor's ICC profile. (If the set-up information has already been installed, so too has the profile, and there is no need to install it.)

This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk in the computer's A drive.
2. Click on the [Start] button. From [Settings], choose [Control Panel].
3. Double click on [Display].
4. Click on [Settings] and [Advanced].
5. Click on [General] and from [Compatibility] select [Apply the new display setting without restarting], then click on [Color Management].
6. Click [Add], and select [3 12 Floppy [A:]] as the file location.
7. Choose the color profile that you would like to install, and click on [Add].
8. Choose the profile and click on [Set As Default].
9. Click [OK], and close the window.
10. Remove the Utility Disk from the A drive.

- When using an ICC profile, set [COLOR MODE] and [WHITE BALANCE] to [STD], and set [HUE] and [SATURATION] to [0].

Information about the ColorSync profile (For MacOS)

About the ColorSync profile

ColorSync is the Apple Corporation's color management system and is a function that enables color resolution to be realized when used with a compatible application. A ColorSync profile describes the color characteristics of the LCD monitor.

Notes:

• This monitor's ColorSync profile works with MacOS8.5 or above.
• When using the ColorSync profile, set [COLOR MODE] and [WHITE BALANCE] to [STD], and set [HUE] and [SATURATION] to [0].

Setting up the ColorSync profile

Notes:

• A floppy disk drive is necessary. In addition, it is necessary to have PC Exchange or File Exchange installed in your system.

• Depending on the type of computer or OS, command names and methods may differ. Please follow the computer's own operation manual while reading this.

• Place the Utility Disk (provided) into the computer's floppy disk drive.

• Copy the profile to be used from the Mac folder on the Utility Disk to the ColorSync profile folder located within the system folder.
• Using the ColorSync on the control panel, choose the profile to be used.

Instructions for attaching a VESA compliant arm

An arm or stand based on the VESA standard (commercially available) can be attached to the monitor.

Procurement of the arm or stand is at the customer's discretion.

Arms or stands able to be used

Attachments must satisfy the following.

• Compatible with the VESA standard
• Have a gap of 75 mm x 75 mm between the screw holes on the section to be attached.
• Not be likely to fall off or break off after being attached to the monitor.

How to attach the arm or stand

• Be careful not to overly bend the cable or add extension cords as this could lead to malfunction.

• While following these instructions, please also refer to the installation instructions in the operation manual included with the arm or stand.

• Turn off the monitor's power and unplug AC plug from AC outlet.

• Remove the cable.
• Spread out a soft cloth on a suitable horizontal surface.

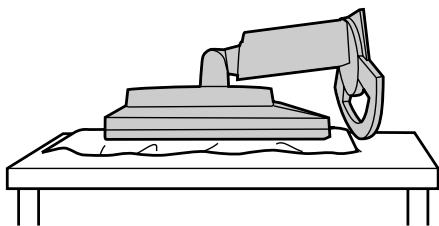

• Being careful not to damage the monitor, gently lay the monitor on it display-side down.

Simple line drawing of a mechanical device pressing down on a workbench (no text or symbols)

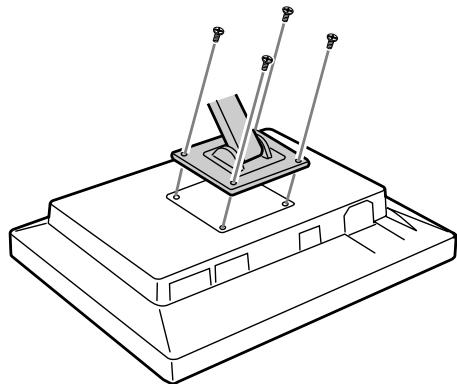

1. Remove the four screws and then remove the stand from the monitor.


Technical line drawing of a mechanical assembly with three pins inserted into a housing (no text or symbols)

Notes:

• The stand is specially made for use with this monitor. Once having removed the stand, never attempt to attach it to another device.

• Once having removed the screws, store them together with the stand and if the stand is ever re-attached be sure to use the original screws. Using different screws could lead to a malfunction.

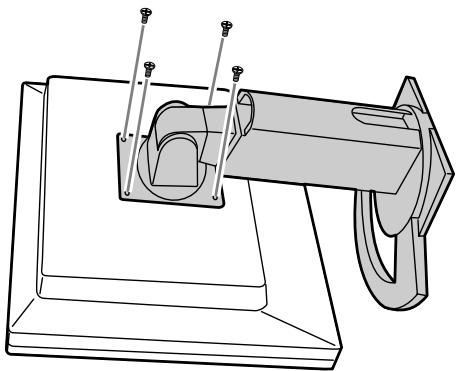

• Attach the arm to the monitor with the four screws.

Technical line drawing of a mechanical assembly with three pins and a central component (no text or symbols)

Notes:

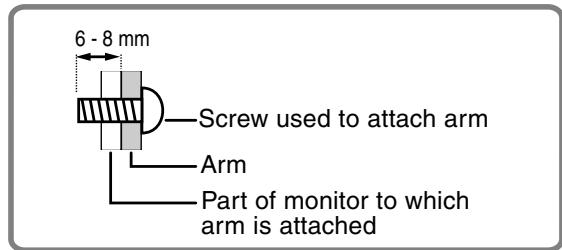

- The screws used to attach the arm should be M4 screws with a length of 6 mm \~ 8 mm protruding from the surface to be attached. Using different screws could lead to malfunction or may lead to the monitor falling off, internal damaged, personal injury.

6 - 8 mm Screw used to attach arm Arm Part of monitor to which arm is attached

Inhaltsverzeichnis

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430

TEL :1-800-BE-SHARP

ECOLOGY·ENERGY TCO 95 ERGONOMICS·EMISSIONS

LL-T1520-B
LL-T1620-B

ECOLOGY ENERGY EMISSIONS SOLOGIES TCO 99

LL-T1520-H
LL-T1620-H

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

"WARNUNG: DIESES GERÄT MUSS GEERDET WERDEN."

Diagram showing a computer monitor with six labeled control points and a zoomed-in view of the screen.

ca. 30° ca. 5° ca. 45° ca. 45°

Produktbeschreibung

Technical diagram of a computer monitor with numbered parts labeled 8 through 15

Line drawing of a hand using a computer to press or install a device (no text or symbols present)

Line drawing of a computer monitor with cables and a stand (no text or symbols)

Line drawing of a computer monitor with cables and a stand (no text or symbols)

Diagram of a connector assembly with a 3D cube and dotted lines indicating connection (no text or symbols)

MAC DIGITAL INPUT-2 OFF ON OK... [ MENU ]

Pure geometric diagram with concentric circles and a central rectangle, no text or symbols present

*1 DPMS: Display Power Management Signalling

*2 DMPM: Digital Monitor Power Management

Line drawing of a mechanical device pressing down on a workbench (no text or symbols)

Technical line drawing of a mechanical assembly with mounting base and clamping device (no text or symbols)

Hinweise:

Technical line drawing of a mechanical assembly with three pins and a central support (no text or symbols)

Hinweis:

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430

TEL :1-800-BE-SHARP

ECOLOGY·ENERGY TCO 95 ERGONOMICS·EMISSIONS

LL-T1520-B
LL-T1620-B

ECOLOGY ENERGY EMISSIONS SOLOGIES TCO 99

LL-T1520-H
LL-T1620-H

Félicitations !

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

Diagram showing a computer monitor with seven labeled components and a zoomed-in view of the next component.

approx.30° approx.5° approx.45° approx.45°

Technical diagram of a computer monitor with numbered parts labeled 8 through 15

Line drawing of a hand using a computer monitor to press or adjust a cable (no text or symbols present)

Line drawing of a computer monitor with cables attached to its side (no text or symbols)

Line drawing of a computer monitor with cables and a stand (no text or symbols)

Diagram of a connector with a 3D cube and dotted lines indicating connection (no text or symbols)

MAC DIGITAL INPUT-2 OFF ON OK... [ MENU ]

Pure geometric diagram with circles and a diagonal line, no text or symbols present

Modèle de couleurs

CONTRAST

Câble audio: Approx. 2,0m

*1 DPMS: Display Power Management Signalling

*2 DMPM: Digital Monitor Power Management

Simple line drawing of a mechanical device pressing down on a flat surface (no text or symbols)

Technical line drawing of a mechanical assembly with mounting base and support components (no text or symbols)

Remarques :

Technical line drawing of a mechanical assembly with three pins and a central base (no text or symbols)

Remarques :

ECOLOGY·ENERGY TCO 95 ERGONOMICS·EMISSIONS

LL-T1520-B
LL-T1620-B

ECOLOGY ENERGY EMISSIONS SOLOGIES Tc0 99 ERGONOMICS

LL-T1520-H
LL-T1620-H

Congratulazioni!

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

Diagram showing a computer monitor with six labeled diagrammatic elements (① to ⑥) pointing to it, with a pointer and arrow indicating direction.

circa 30° circa 5° circa 45° circa 45°

Technical diagram of a computer monitor with numbered parts labeled 8 through 15

Line drawing of a hand using a computer to press or install a device (no text or symbols present)

Line drawing of a computer monitor with cables attached to its side (no text or symbols)

Line drawing of a computer monitor mounted on a stand with cables, no text or symbols present

MAC DIGITAL INPUT-2 OFF ON OK... [ MENU ]

Pure geometric diagram with concentric circles and rectangles on a grid background (no text or symbols)

Abstract geometric pattern with concentric circles and a central semicircle (no text or symbols)

*1 DPMS: Display Power Management Signalling

*2 DMPM: Digital Monitor Power Management

Simple line drawing of a mechanical device pressing down on a table (no text or symbols)

Technical line drawing of a mechanical assembly with mounting base and cylindrical component (no text or symbols)

Note:

Technical line drawing of a mechanical assembly with three pins and a central component (no text or symbols)

Nota:

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430

TEL :1-800-BE-SHARP

ECOLOGY·ENERGY TCO 95 ERGONOMICS·EMISSIONS

LL-T1520-B
LL-T1620-B

ECOLOGY ENERGY EMISSIONS SOLOGIES TCO 99

LL-T1520-H
LL-T1620-H

¡Enhorabuena!

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

Diagram showing a computer monitor with seven labeled components and a zoomed-in view of the next component.

Technical diagram of a mechanical or electrical component with numbered parts labeled 8 through 15.

Illustration of a hand using a computer monitor to press or install a cable (no text or symbols visible)

Line drawing of a computer monitor with cables and a stand (no text or symbols)

Line drawing of a computer monitor with cables and a stand (no text or symbols)

MAC DIGITAL INPUT-2 OFF ON OK... [ MENU ]

Pure geometric diagram with concentric circles and diagonal lines on a grid background (no text or symbols)

Line drawing of a mechanical device pressing down on a workbench (no text or symbols)

Technical line drawing of a mechanical assembly with pins and a central component (no text or symbols)

Notas:

Technical line drawing of a mechanical assembly with three vertical rods and a central support block (no text or symbols)

Nota:
