Brand	Clas Ohlson
Model	SBL-811 / SBL-811-UK
Product Type	Chocolate Fountain
Capacity	300 ml
Voltage	220–240 V
Power	32 W
Control Type	Rotary dial with OFF, HEAT, HEAT MOTOR
Heating Element	Bowl heater
Motor	Rotates fountain-head screw
Material	Plastic (motor unit), metal (screw, tower)
Cleaning Method	Hand wash screw and tower with mild detergent; wipe bowl; do not immerse motor unit
Safety Features	Overheat protection (not explicitly stated but standard), auto shut-off? Not specified. Manual warns against immersion.
Usage	Indoor use only
Chocolate Type	Pure melted chocolate; no solid ingredients or cold liquids
Accessories Included	Fountain tower, screw, bowl (motor unit integrated)
Cord Length	Not specified (approx. 1 m typical)
Weight	Not specified (approx. 1.5 kg)
Dimensions	Not specified (approx. 30 cm height, 20 cm base diameter)
Warranty	Not specified (typically 2 years for EU)
Disposal	Dispose according to local regulations

Frequently Asked Questions - SBL-811 Clas Ohlson

What type of chocolate should I use?

Use only pure melted chocolate without nuts or solid ingredients. Avoid adding cold liquids as they can cause the chocolate to solidify.

How do I thin the chocolate if it flows too slowly?

Mix the chocolate with about 2 tablespoons of vegetable oil to thin it out.

Can I use the fountain with cold liquids?

No, never add cold liquids to the melted chocolate as it can cause the chocolate to solidify.

How do I clean the fountain?

Disconnect and let cool. Wash the screw and tower with warm water and mild detergent. Wipe the bowl with a damp cloth. Do not immerse the motor unit in water.

What should I do if the chocolate does not flow?

The chocolate may be too thick. Thin it with vegetable oil. Also ensure the fountain is on a level surface and that there are no unmelted bits.

How do I operate the fountain?

First, set the dial to HEAT to warm the bowl. Pour in melted chocolate, then switch to HEAT MOTOR to start the pump. Let flow for 2 minutes, then turn off motor for 30 seconds to release air bubbles.

Can children use this product?

No, the product must not be used by children. Keep the product and cord out of reach of children.

What is the capacity of the fountain?

The capacity is 300 ml, which is slightly below the bowl's edge.

What should I do if the chocolate flows unevenly?

Check that the fountain is on a level and stable surface. Also ensure the screw and tower are correctly assembled.

How do I dispose of the product?

Dispose of the product according to local regulations. Contact your local authority if unsure.

USER MANUAL SBL-811 Clas Ohlson

Illustration of a heat-flowering water tower with labeled components (no text or symbols on the main body)

Art.no Model

18-4524,-1 SBL-811-UK

34-1691,-1 SBL-811

Ver. 20140317

clas ohlson

Chocolate Fountain

Art.no 18-4524, -1 Model SBL-811-UK

34-1691,-1 SBL-811

Please read the entire instruction manual before using the product and save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services.

Safety

• Incorrect handling of this product could result in personal injury.
• The product should always be disconnected from the mains when it is not in use, when it is to be assembled/disassembled and when it is to be cleaned.
• The product must not be used by children. Ensure that the product and its mains lead are kept out of children's reach.
• Wash the parts in warm water using a bit of washing-up liquid.
• Switch the product off and disconnect it from the mains before removing any accessories or handling any of the moving parts.
• The product may be used by persons with some form of disability, lack of experience or knowledge, provided they have been instructed and understand the possible safety hazards that may arise during use and no longer pose a threat to their own or others' safety.
• Never let children play with the product.
• Ensure that the product is used with the correct voltage. Refer to the product's rating plate.
• Remove the rotation screw and tower from the motor unit before cleaning.
• To prevent electric shocks, the product and its mains lead should always be kept dry.
• Never lay the mains lead over hot surfaces, sharp edges or corners.
• Always disconnect the product from the power supply by holding and pulling the plug. Do not pull the mains lead.
• Make sure that all parts are correctly assembled and that the product is switched off before it is connected to the power supply.
• The product is intended for indoor use only.
• Only use the provided accessories.
• Never use the product for anything other than its intended use.
• Never immerse the motor unit in water or expose it to moisture.
• Do not subject the product to moisture, impacts or high temperatures.
• Never use the product if you have dropped it on the floor, left it outdoors or dropped it into water.
• Never try to open the casing. Certain components inside the casing carry dangerous electrical current. Contact with these components could result in electric shock.
• The product must not be taken apart or modified.

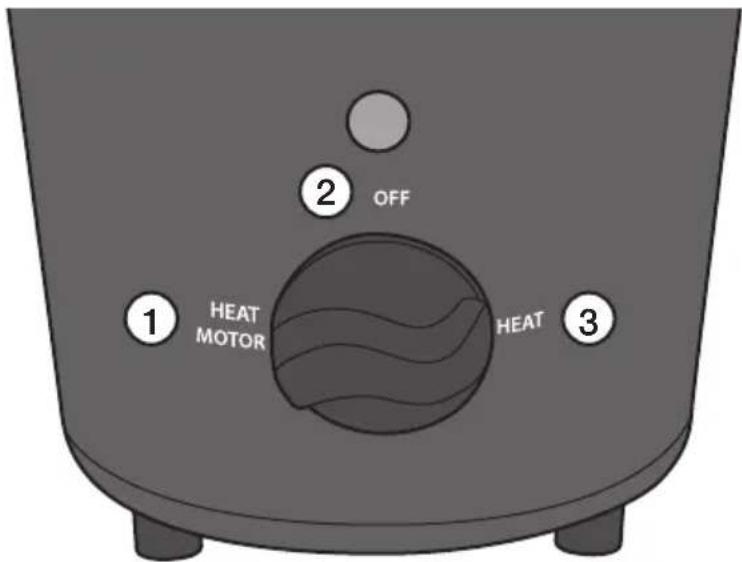

Buttons and functions

1. HEAT MOTOR Bowl heater and rotating fountain-head screw

2. OFF

3. HEAT Bowl heater only

Before initial use

1. Wipe the bowl clean with a soft damp cloth.
2. Clean the screw and tower using some warm water mixed with a little washing-up liquid.
3. Rinse, and dry all parts thoroughly.

Installation

1. Attach the screw to the centre pin.
2. Place the tower over the screw and line up the three fountain-head holes with the three holes in the tower.
3. Plug the product into a power point. Turn the selector dial to HEAT MOTOR. Check that the screw rotates and the bowl begins to heat up. Once this action is successful, turn the dial back to OFF.

Operating instructions

1. Place the product on a level surface and plug it into a power point. Make sure the dial switch is set to the OFF position.
2. Melt some chocolate in the microwave oven or in water bath (Bain-marie) on the cooker.

3. Turn the selector dial to the HEAT position, making sure that the indicator light is also on. It is important to allow the bowl a few minutes to come up to operating temperature before pouring in the chocolate.

4. Pour the melted chocolate into the bowl. Fill it to slightly below the bowl's edge. Then turn the selector dial to HEAT MOTOR. The chocolate will then be pumped up through the fountain-head screw and cascade down the tower.

5. Let the chocolate flow for 2 minutes, then turn off the motor off for about 30 sec in order to let any possible trapped air bubbles escape from the system.
6. If the chocolate seems to flow too slowly, mix it with about 2 tablespoons of vegetable oil to thin it out.

NOTE:

• Use only pure melted chocolate, nothing with nuts or other solid ingredients that can clog the product and prevent it from functioning properly.
• Never add any cold liquids to the melted chocolate. This can make the chocolate solidify.

Care and maintenance

1. Make sure that the product is off, unplugged and completely cooled down.
2. Clean the screw and tower using some warm water mixed with a little washing-up liquid.
3. Remove any remaining chocolate with a kitchen towel. Never pour any excess chocolate down your drain as it will harden and possibly clog up your waste pipes.

NOTE: The motor unit must absolutely not be rinsed or submerged in water.

Troubleshooting guide

Problem Solution
The chocolate does not flow.	The chocolate is too thick. Thin it out with a little vegetable oil.
The chocolate does not flow evenly.	The product does not lie on an even surface.Change its location.
The chocolate doesn’t flow like it should.	Bits of unmelted chocolate may cause temporary clogs.Remove the unmelted bits.

Disposal

This product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local authority.

Specifications

Capacity 300 ml

Voltage 220–240 V/32 W
