USER MANUAL MS-C3367-PNA Milesight

Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact your dealer.

This manual is applicable to the Milesight H.264&H.265 Network Camera, series shown as follows, except where otherwise indicated.

Milesight H.264 Network Camera
TypeMegapixel	1.3MP	2MP	3MP
Mini Dome Camera	MS-C2181-PA	MS-C3581-PA	MS-C3586-PA
IR Mini Dome Camera	MS-C2182-PA	MS-C3582-PA	MS-C3587-PA
Vandal-proof Mini Dome	MS-C2173-PA	MS-C3373-PAMS-C3573-PA	MS-C3377-PAMS-C3577-PA
Wi-Fi Mini Cube Camera	MS-C2191-PWA	-	MS-C3596-PWA
Mini Bullet Camera	MS-C2163-PNA	MS-C3263-PNAMS-C3363-PNA	MS-C3367-PNAMS-C3567-PNA
Remote Focus&ZoomMini Bullet Camera	MS-C2163-F(I)PNA	MS-C3263-F(I)PNAMS-C3363-F(I)PNA	MS-C3367-F(I)PNAMS-C3567-F(I)PNA
Remote Focus&ZoomPro Bullet Camera	MS-C2162-F(I)PNA	MS-C3262-F(I)PNAMS-C3362-F(I)PNA	MS-C3366-F(I)PNAMS-C3566-F(I)PNA
Remote Focus&ZoomPro Dome Camera	MS-C2172-F(I)PNA	MS-C3272-F(I)PNAMS-C3372-F(I)PNA	MS-C3376-F(I)PNAMS-C3576F(I)PNA
Remote Focus&ZoomPro Dome(M) Camera	MS-C2172-F(I)PMNA	MS-C3272-F(I)PMNAMS-C3372-F(I)PMNA	MS-C3376-F(I)PMNAMS-C3576-F(I)PMNA
Day&Night ProBox Camera	MS-C2151-PA	-	MA-C3356-PAMS-C3556-PA

	Milesight H.265 Network Camera
Type Megapixel	2MP	3MP	4MP	5MP	4K
Mini Dome Network Camera	MS-C2981-PB	-	MS-C4481-PB	MS-C5381-PB	-
IR Mini Dome Network Camera	MS-C2982-PB	-	MS-C4482-PB	MS-C5382-PB	-
Vandal-proof Mini Dome Network Camera	MS-C2973-PB	-	MS-C4473-PB	MS-C5373-PB	-
Mini Bullet Camera	MS-C2963-PB	MS-C3763-PB	MS-C4463-PB	MS-C5363-PB	-
Remote Focus&Zoom Mini Bullet Camera	MS-C2963-F(I) PB	MS-C3763-F(I) PB	MS-C4463-F(I) PB	MS-C5363-F(I) PB	-
Remote Focus&Zoom Pro Bullet Camera	MS-C2862-F(I) PBMS-C2962-(R)F(I)PB	MS-C3762-F(I) PB	MS-C4462-F(I) PB	MS-C5362-F(I) PB	MS-C8262-F(I) PB
Remote Focus&Zoom Pro Dome Camera	MS-C2972-F(I) PB	MS-C3772-F(I) PB	MS-C4472-F(I) PB	MS-C5372-F(I) PB	-
Remote Focus&Zoom Pro Dome(M) Camera	MS-C2972-F(I) PMB	MS-C3772-F(I) PMB	MS-C4472-F(I) PMB	MS-C5372-F(I) PMB	-
Day&Night Pro Box Network Camera	MS-C2951-PB	MS-C3751-PB	MS-C4451-PB	MS-C5351-PB	-

This Manual explains how to use and manage Milesight network cameras on your network. Previous experience of networking will be of use when using the products. Please read this manual carefully before operation and retain it for future reference.

This manual may contain several technically incorrect places or printing errors, and the content is

subject to change without notice. The updates will be added into the new version of this manual. We will readily improve or update the products or procedures described in the manual.

Copyright Statement

This manual may not be reproduced in any form or by any means to create any derivative such as translation, transformation, or adaptation without the prior written permission of Milesight Technology Co., Ltd(Hereinafter referred to as Milesight).

Milesight reserves the right to change this manual and the specifications without prior notice. The latest specifications and user documentation for all Milesight products are available on our official website www.milesight.com

Industry Canada ICES-003 Compliance:

This Class B digital apparatus complies with Canadian ICES-003.

These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measures are divided into "Warnings" and "Cautions"

Warnings: Serious injury or death may be caused if any of these warnings is neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.

Warnings: Please follow these safeguards to prevent injury or death.

Cautions: Please follow these safeguards to prevent potential injury or material damage.

Warnings

◆ This installation must be conducted by a qualified service person and should strictly comply with the electrical safety regulations of the local region

◆ To avoid risk of fire and electric shock, do keep the product away from rain and moisture before installed.

◆ Do not touch components such as heat sinks, power regulators, and processors, which may be hot

◆ Source with DC 12V or PoE

◆ Please make sure the plug is firmly inserted into the power socket

◆ When the product is installed on a wall or ceiling, the device should be firmly fixed

◆ If the product does not work properly, please contact your dealer. Never attempt to disassemble the camera by yourself

Cautions

◆ Make sure that the power supply voltage is correct before using the camera
Do not store or install the device in extremely hot or cold temperatures, dusty or damp locations, and do not expose it to high electromagnetic radiation
◆ Only use components and parts recommended by manufacturer
◆ Do not drop the camera or subject it to physical shock
◆ To prevent heat accumulation, do not block air circulation around the camera
◆ Laser beams may damage image sensors. The surface of image sensors should not be exposed to where a laser beam equipment is used
◆ Use a blower to remove dust from the lens cover
Use a soft, dry cloth to clean the surface of the camera. Stubborn stains can be removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry
Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the surface finishes.
◆ Save the package to ensure availability of shipping containers for future transportation

EU Conformity Statement

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see:www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury(Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see:www.recyclethis.info.

Table of Contents

Chapter I Product Description.... 1

1.1 Product Overview....1
1.2 Key Features....1
1.3 Hardware Overview....2
1.4 How to Connect to Alarm Interface....12
1.5 How to Connect the Water-proof Connector....12
1.6 System Requirements....13

Chapter II Network Connection....14

2.1 Setting the Camera over the LAN.... 14

2.1.1 Connect the Camera to the PC Directly....14
2.1.2 Connect via a Switch or a Router....14

2.2 Dynamic IP Connection....14

Chapter III Accessing the Network Camera....16

3.1 Assigning An IP Address....16

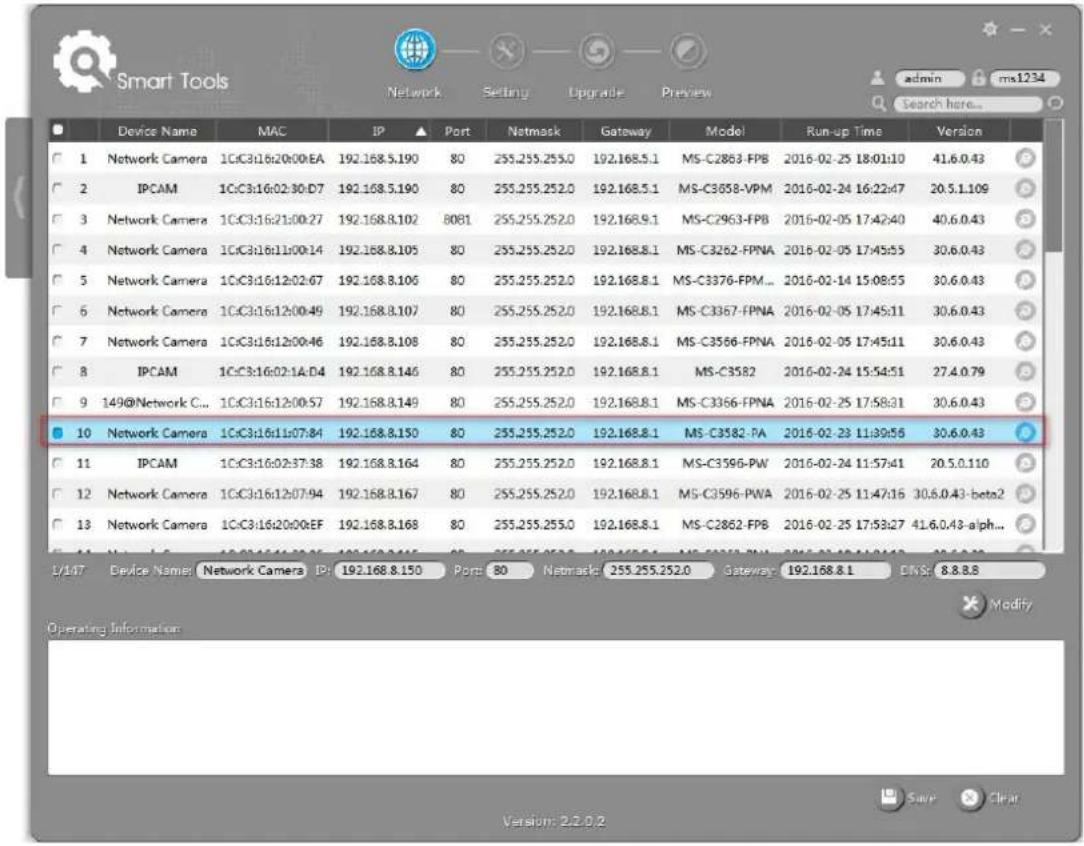

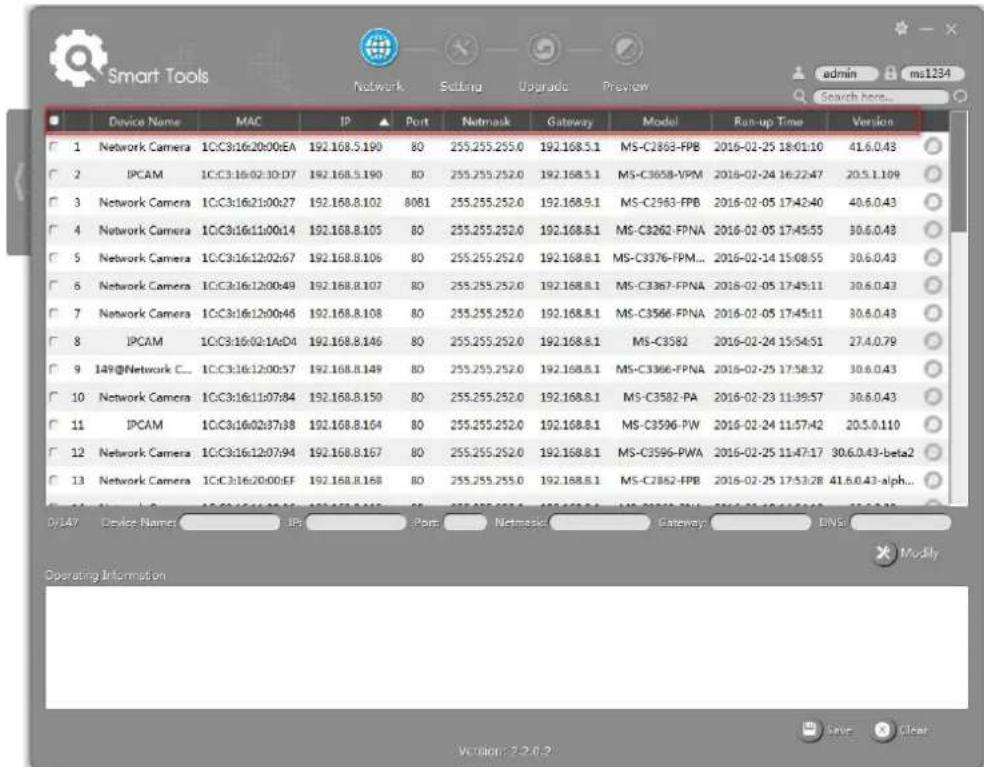

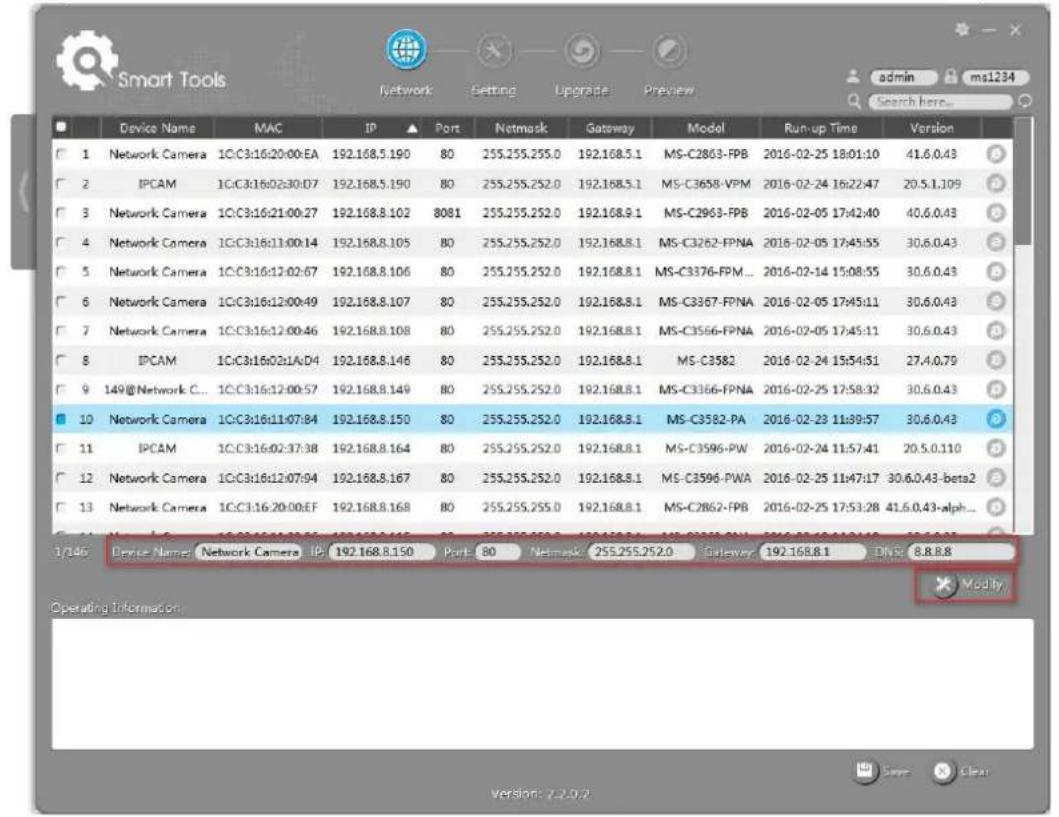

3.1.1 Assigning An IP Address Using Smart Tools.... 16

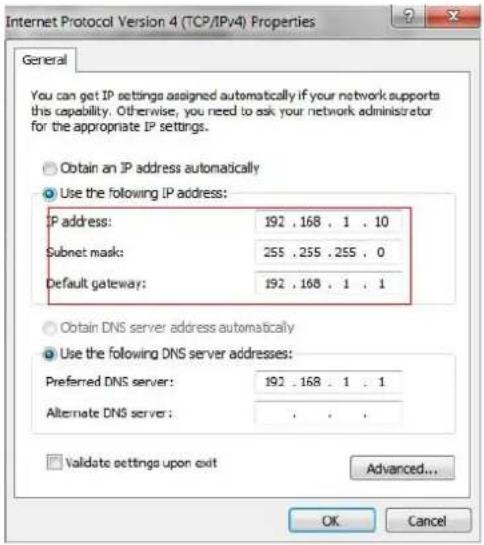

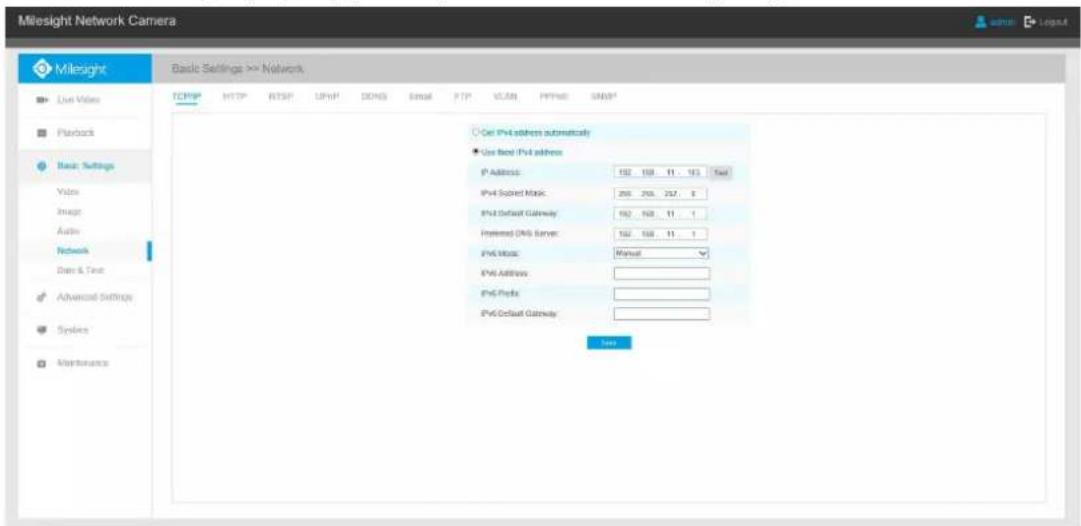

3.1.2 Assign An IP Address via Browser....20

3.2 Accessing from the Web Browser....22

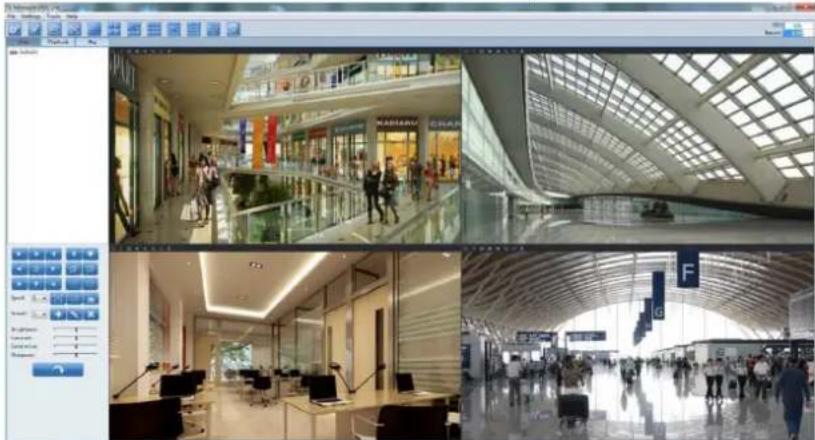

3.3 Accessing from Milesight VMS (Video Management Software).... 24

Chapter IV System Operation Guide....25

4.1 Live Video....25

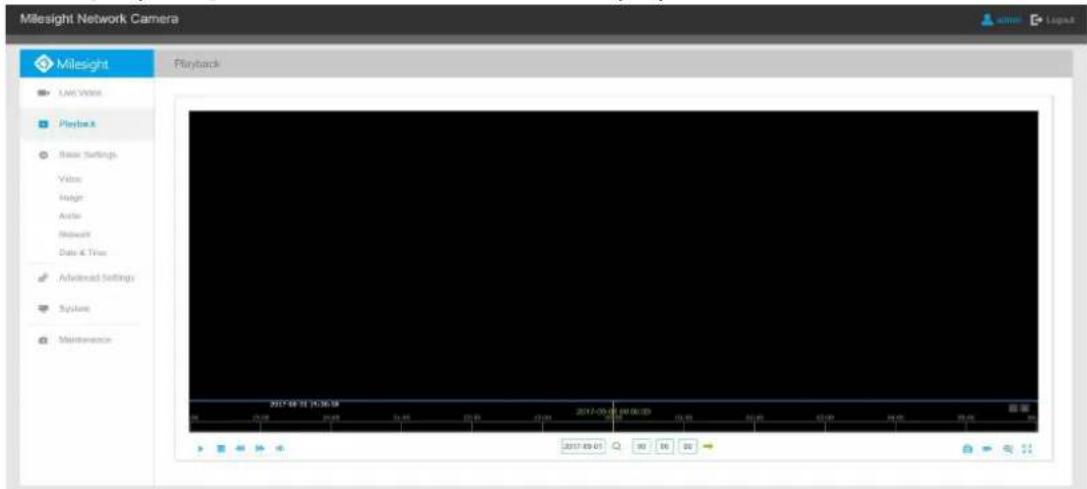

4.2 Playback....27

4.3 Basic Settings....29

4.3.1 Video....29
4.3.2 Image.... 31
4.3.3 Audio....38
4.3.4 Network....40
4.3.5 Wi-Fi (Optional).... 49
4.3.6 Date&Time....51

4.4 Advanced Settings....52

4.4.1 Alarm....52
4.4.2 Storage....59
4.4.3 Security....63
4.4.4 SIP 65
4.4.5 Smart Event....67
4.4.6 Logs....75

4.5 System....76
4.6 Maintenance....77

Chapter V Services....78

Chapter I Product Description

1.1 Product Overview

Milesight provides a consistent range of cost-effective and reliable network cameras to fully meet your requirements. Based on embedded Linux operating system, Milesight network cameras could be easily accessed and managed either locally or remotely with great reliability. With built-in high-performance DSP video processing modules, the cameras pride on low power consumption and high stability. They support state-of-the-art H.265/H.264/MJPEG video compression algorithm and industry-leading HD dual-stream technology to achieve the highest level of video image quality under the limited network resources. It is fully functional, supporting for flexible and comprehensive alarm linkage mechanism, day and night auto switch, smart PTZ control and privacy masking, etc.

In practical applications, Milesight network cameras could either work independently in the LAN, or be networked to form a powerful safety monitoring system. It is widely used in fields such as finance, education, industrial production, civil defense, health care for security's sake.

1.2 Key Features

✨ Based on Linux OS with high reliability
H.265/H.264/MJPEG video compression capability
✨ Support ONVIF Profile S
✨ Support three streams
Support PoE
✨ Support Video Content Analysis
✦ ICR filter with auto switch, true day/night
Built-in WEB server, support IE/ Firefox/ Chrome/ Safari browser

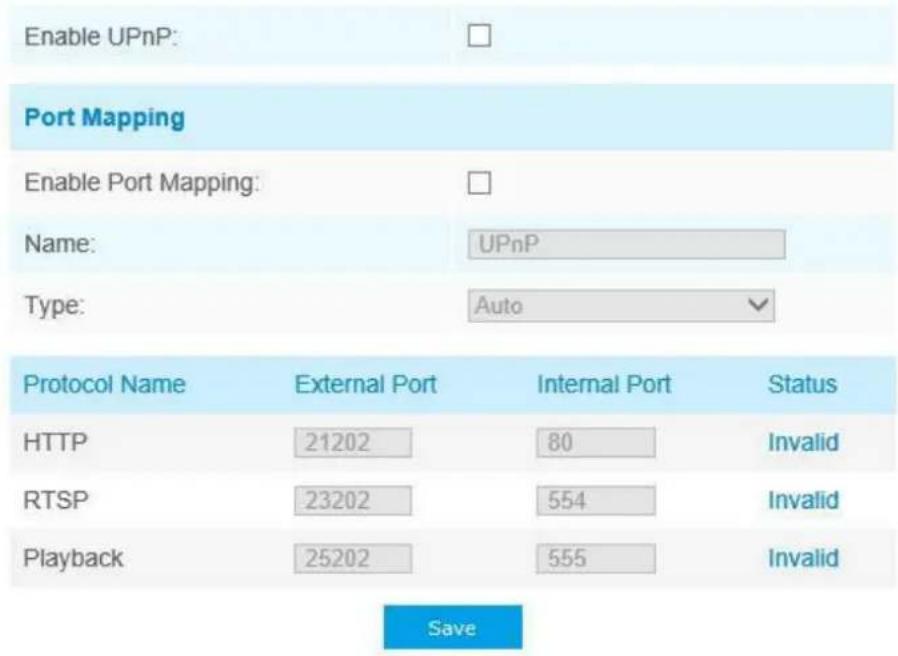

✨ UPnP protocol for the easy management of IPC
✦ Support Milesight DDNS
◇ Motion Detection, Privacy Masking, Network Fault Detection and ROI
✿ FTP upload, SMTP upload, SD card record and SIP phone
G.711/AAC audio compression capability
◇ Alarm I/O(built-in for pro bullet and box cameras, optional for dome cameras)
Built-in Microphone(built-in for (IR) Mini Dome and Vandal-proof Mini Dome, optional for Pro Dome)
Real-time video electronic amplification
✨ Three-privilege levels of users for flexible management
✿ Micro SD/SDHC/SDXC card local storage support, expand the edge storage
✨ Local PAL/NTSC signal output

1.3 Hardware Overview

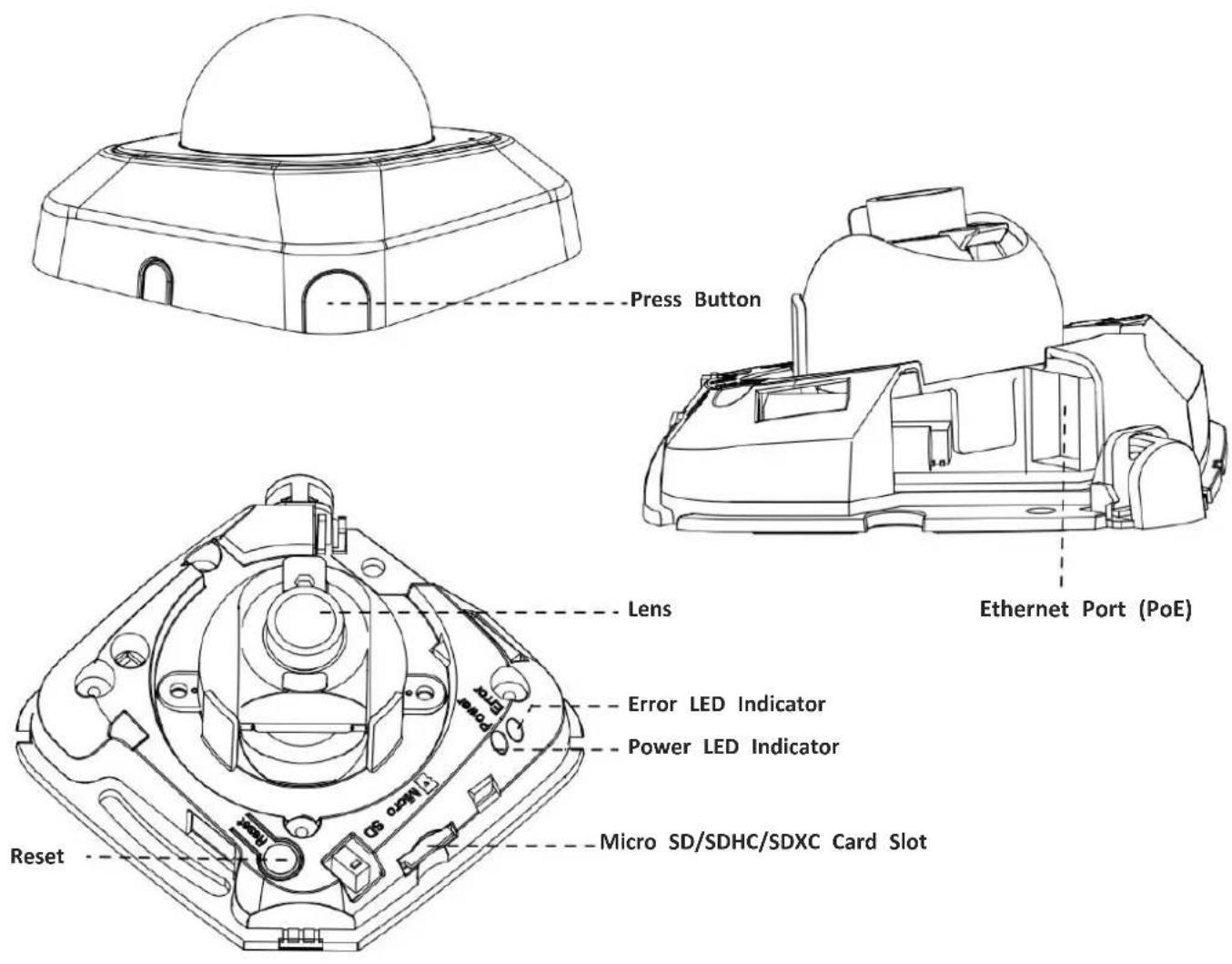

1. Mini Dome Network Camera

Press Button Ethernet Port (PoE) Lens Error LED Indicator Power LED Indicator Micro SD/SDHC/SDXC Card Slot Reset

Figure 1-3-1 Mini Dome Network Camera

Note:

1) Error LED Indicator: Error LED Indicator is on when the device starts up or runs error.
2) Reset Button: Press "Reset" button for 5 seconds, then the device will be restored to factory default.
3) Only PoE is available for power supply.

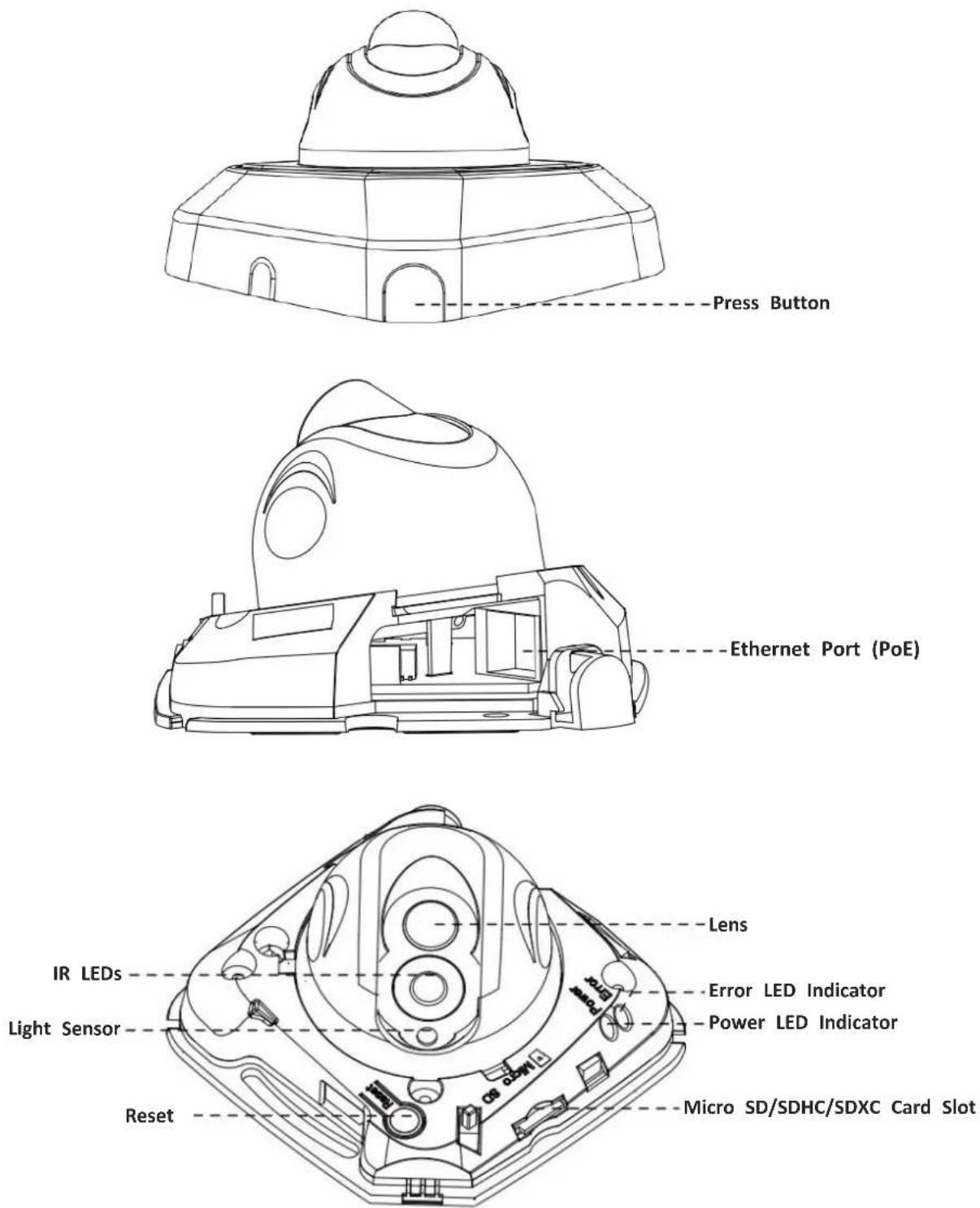

2. IR Mini Dome Network Camera

Press Button Ethernet Port (PoE) Lens IR LEDs Error LED Indicator Light Sensor Power LED Indicator Reset Micro SD/SDHC/SDXC Card Slot

Figure 1-3-2 IR Mini Dome Network Camera

Note:

1) Error LED Indicator: Error LED Indicator is on when the device starts up or runs error.
2) Reset Button: Press "Reset" button for 5 seconds, then the device will be restored to factory default.
3) Only PoE is available for power supply.

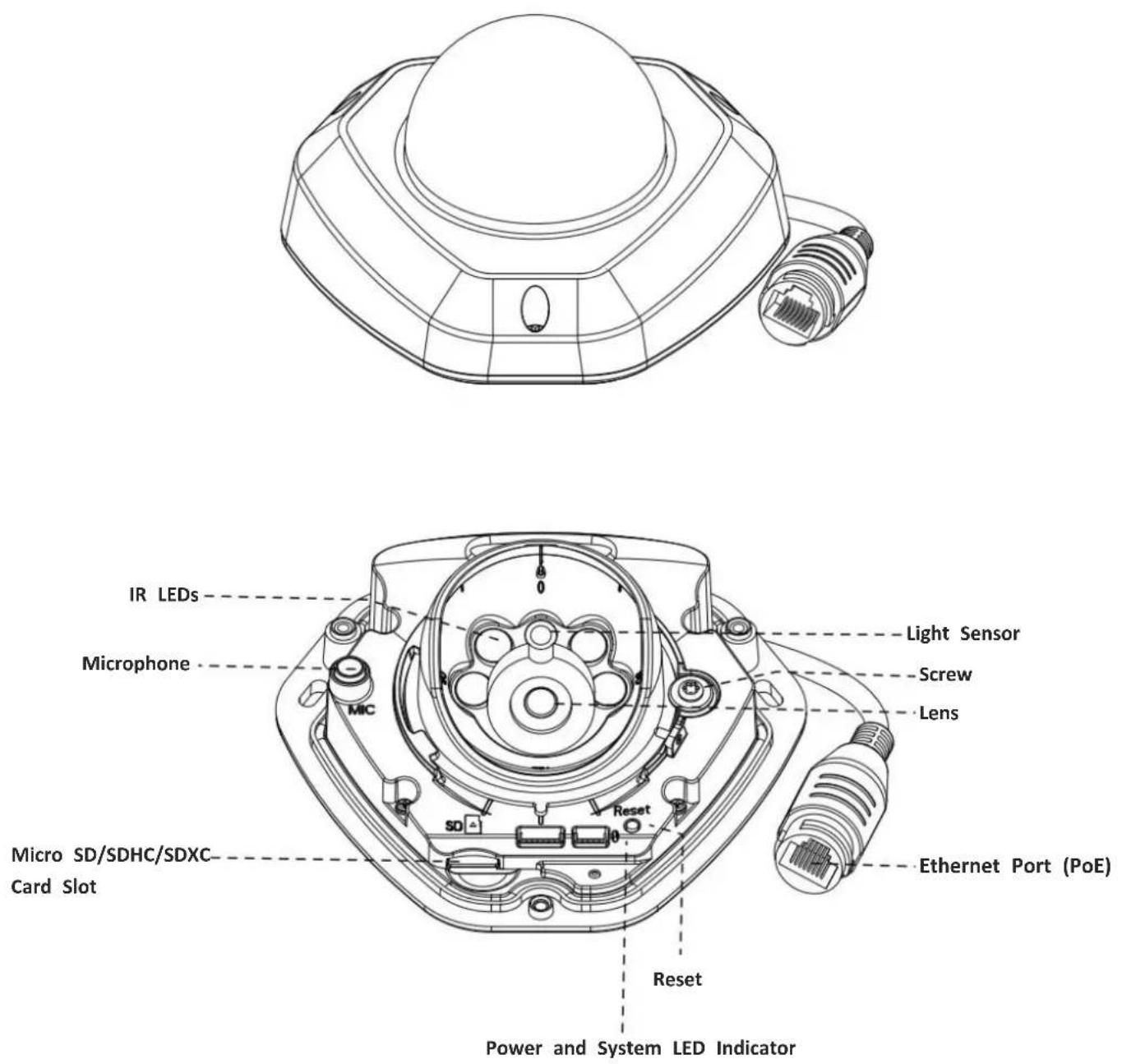

3. Vandal-proof Mini Dome Network Camera

IR LEDs Microphone MIC SD Reset Power and System LED Indicator Light Sensor Screw Lens Micro SD/SDHC/SDXC Card Slot Ethernet Port (PoE) Reset

Figure 1-3-3 Vandal-proof Mini Dome Network Camera

Note:

1) Error LED Indicator: Error LED Indicator is on when the device starts up or runs error.
2) Reset Button: Press "Reset" button for 5 seconds, then the device will be restored to factory default.
3) Only PoE is available for power supply.

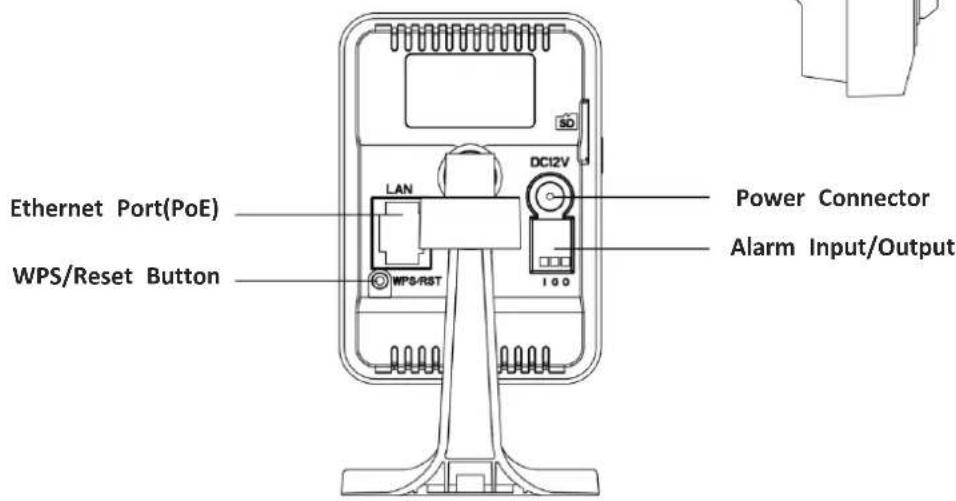

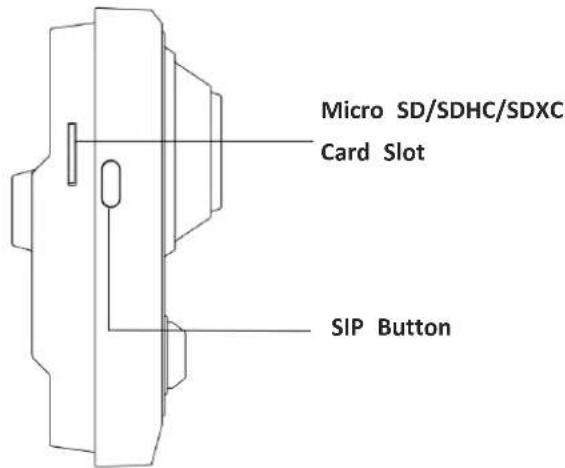

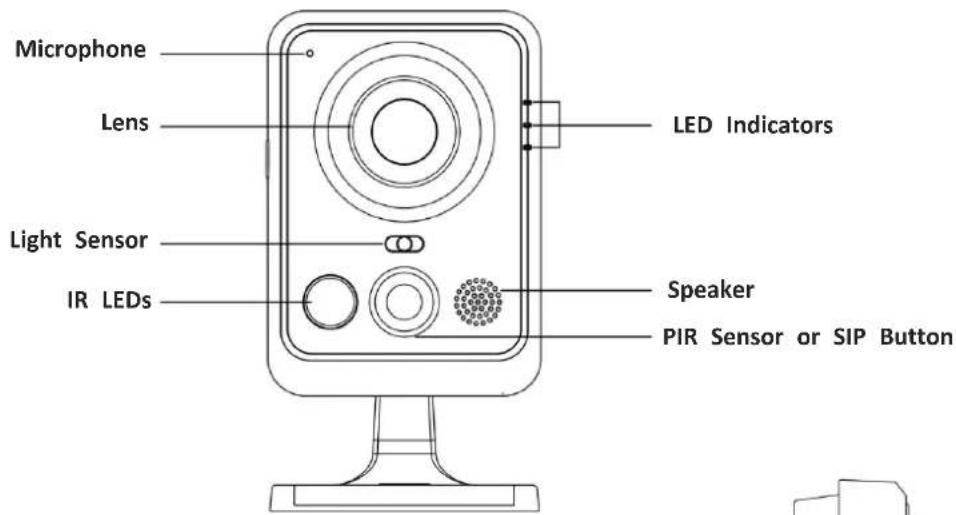

4. Wi-Fi Mini Cube Network Camera

Microphone Lens Light Sensor IR LEDs LED Indicators Speaker PIR Sensor or SIP Button

Micro SD/SDHC/SDXC Card Slot SIP Button

Ethernet Port(PoE) WPS/Reset Button LAN DC12V 1 0 0 Power Connector Alarm Input/Output

Figure 1-3-4 Wi-Fi Mini Cube Network Camera

Note:

1) SIP Button: Enable SIP Calling when Alarm Triggered. After this button is pressed, the camera will call the SIP Phone.
2) WPS Button: Press this button, and then press the WPS button on your router to set up wireless connection automatically.
3) DC 12V and PoE are available for power supply.
4) Reset Button: Press "Reset" button for 5 seconds, then the device will be restored to factory default.

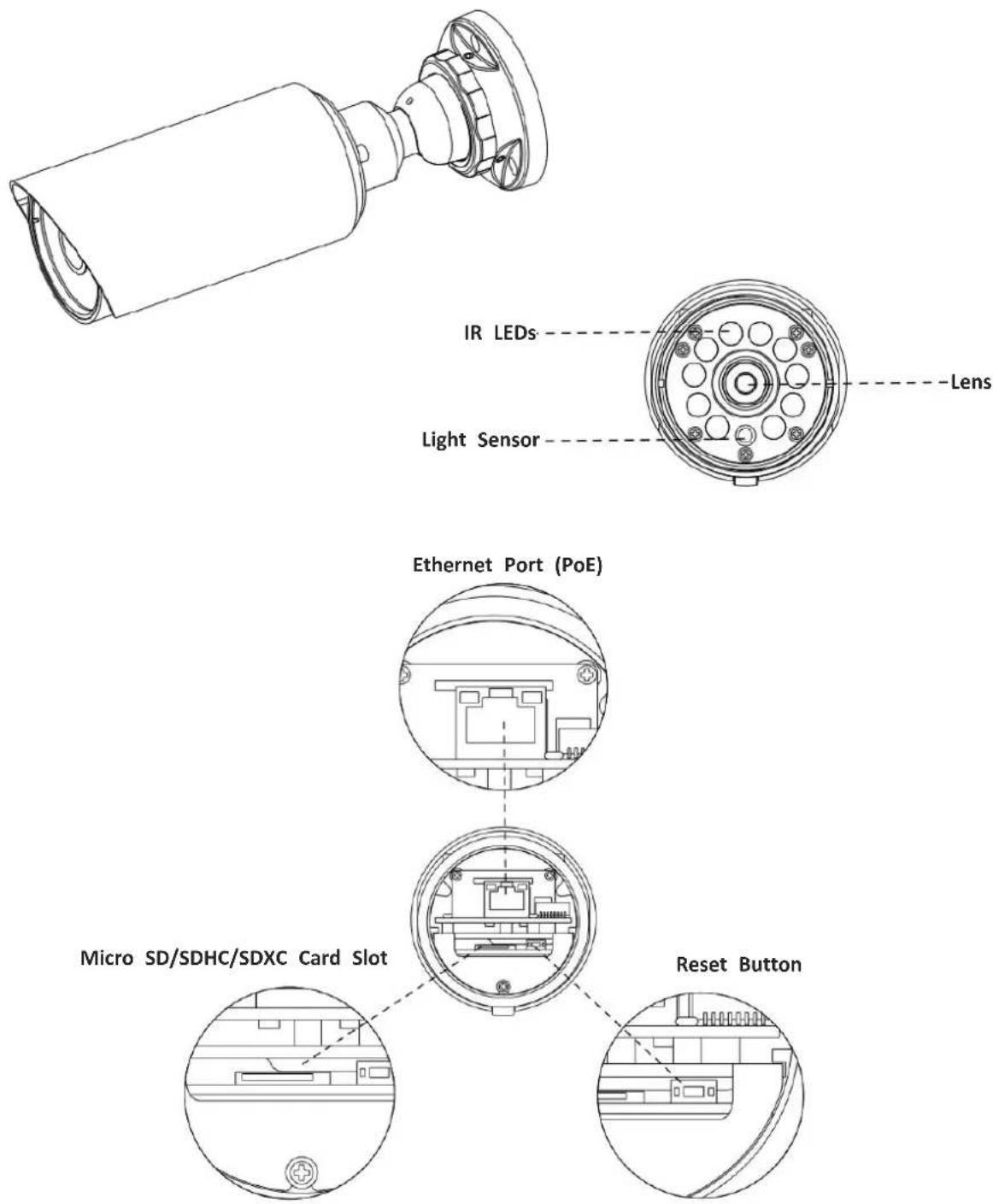

5. Mini Bullet Network Camera

IR LEDs Lens Light Sensor Ethernet Port (PoE) Micro SD/SDHC/SDXC Card Slot Reset Button

Figure 1-3-5 Mini Bullet Network Camera

Note:

1) Only PoE is available for power supply.
2) Reset Button: Press "Reset" button for 5 seconds, then the device will be restored to factory default.

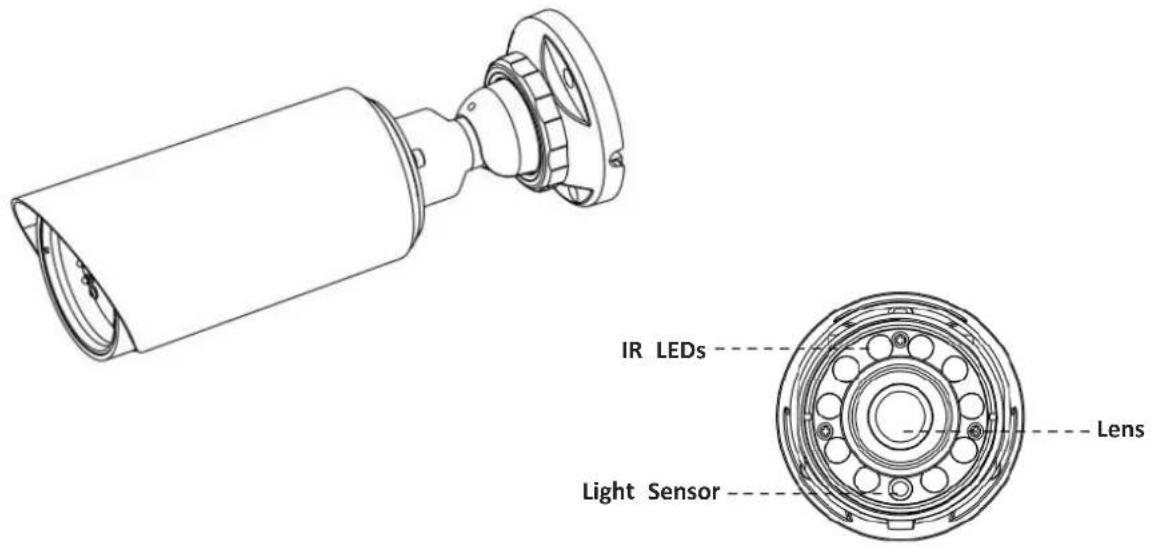

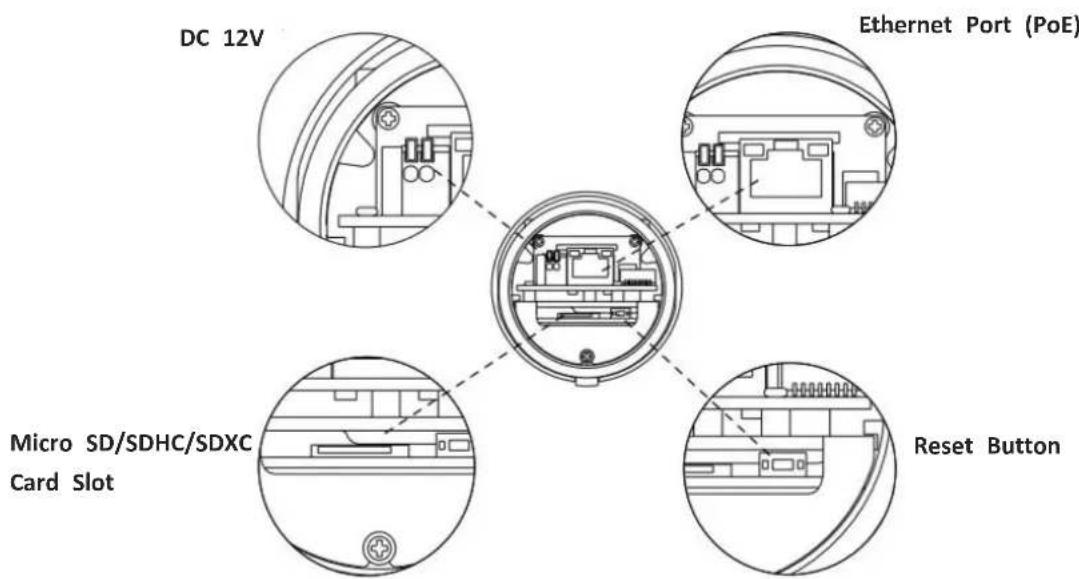

6. Remote Focus&Zoom Mini Bullet Network Camera

IR LEDs Light Sensor Lens

DC 12V Ethernet Port (PoE) Micro SD/SDHC/SDXC Card Slot Reset Button

Figure 1-3-6 Remote Focus&Zoom Mini Bullet Network Camera

Note:

1) DC 12V and PoE are available for power supply.
2) Reset Button: Press "Reset" button for 5 seconds, then the device will be restored to factory default.

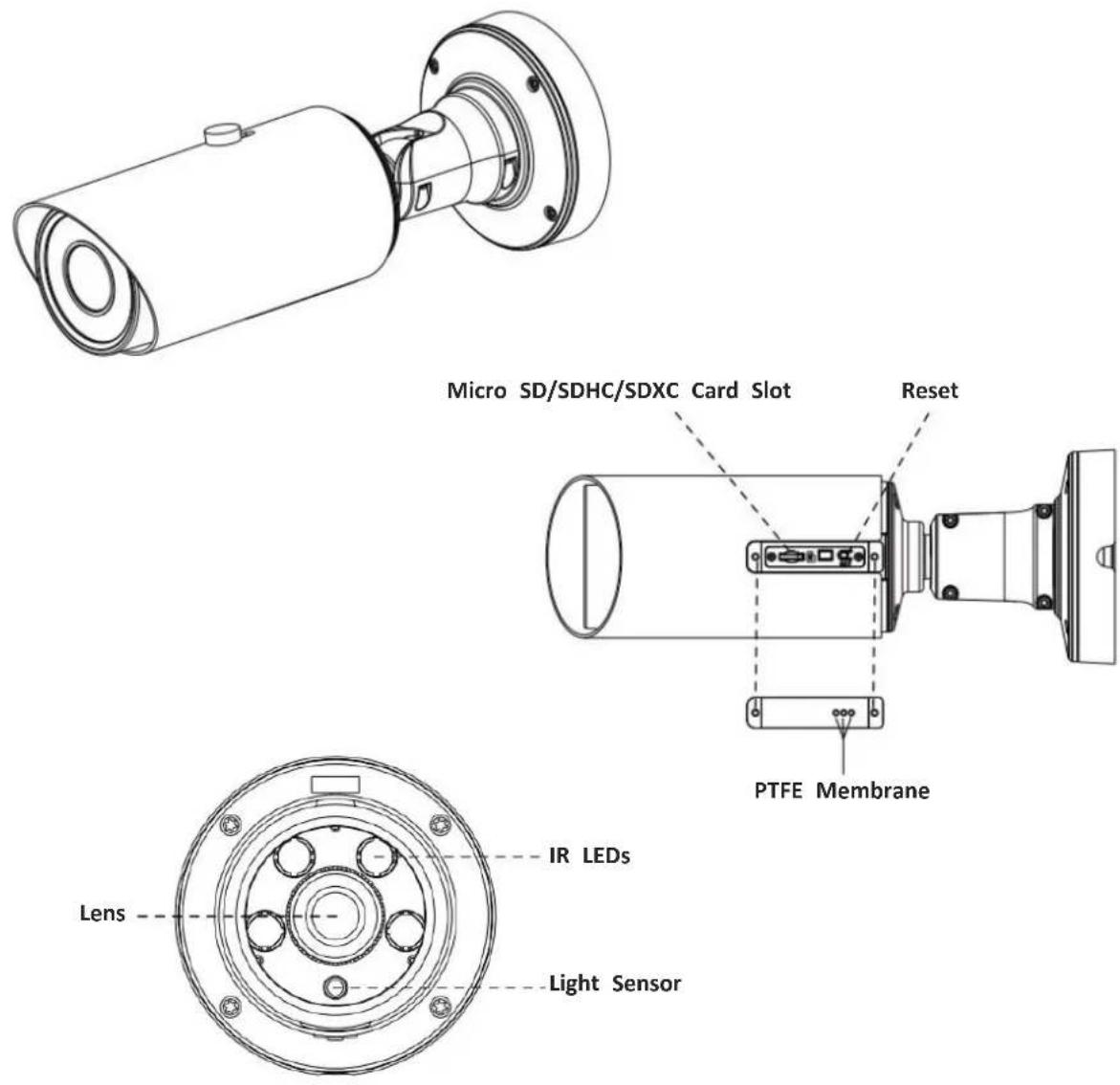

7. Pro Bullet Network Camera

Figure 1-3-7 Pro Bullet Network Camera

Note:

1) DC 12V and PoE are available for power supply.
2) Reset Button: Press "Reset" button for 5 seconds, then the device will be restored to factory default.
3) There are two versions for Pro Bullet: the interface's pictures are as below.

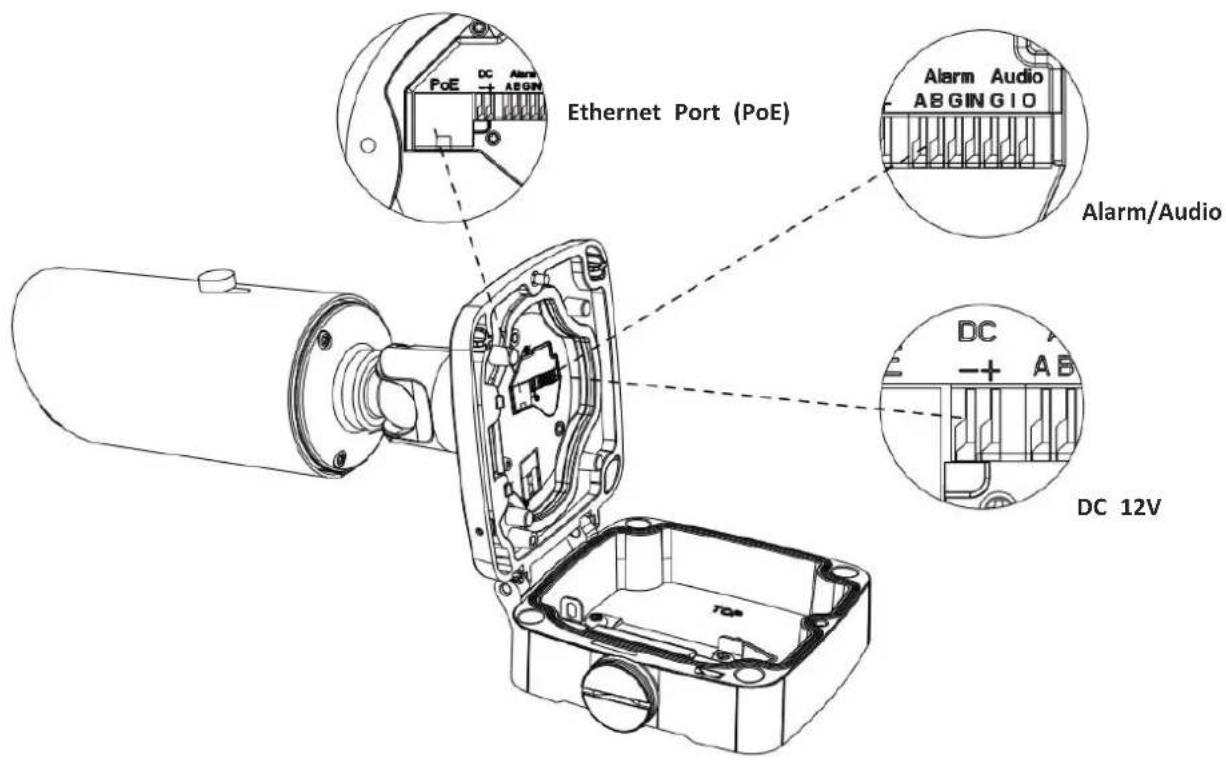

PoE DC Alarm + ADR Ethernet Port (PoE) Alarm Audio AB GINGIO Alarm/Audio DC - + AB DC 12V TCP

Figure 1-3-8 Pro Bullet Network Camera(Version A)

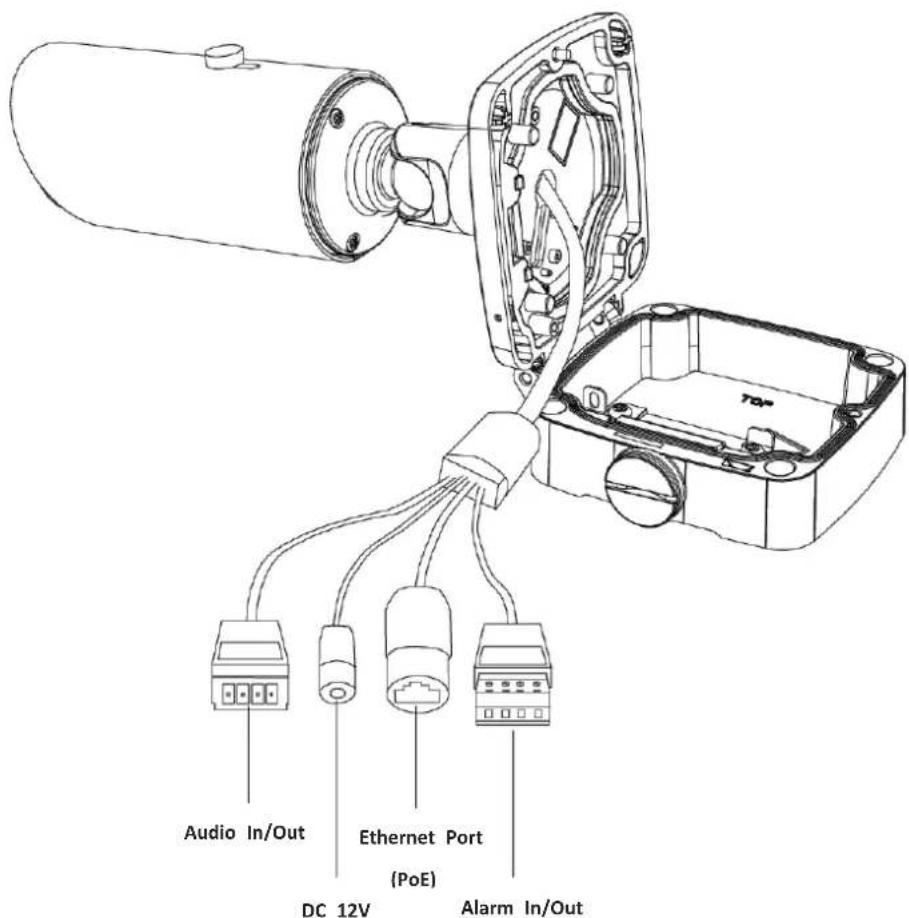

Audio In/Out DC 12V Ethernet Port (PoE) Alarm In/Out 70°

Figure 1-3-9 Pro Bullet Network Camera(Version B)

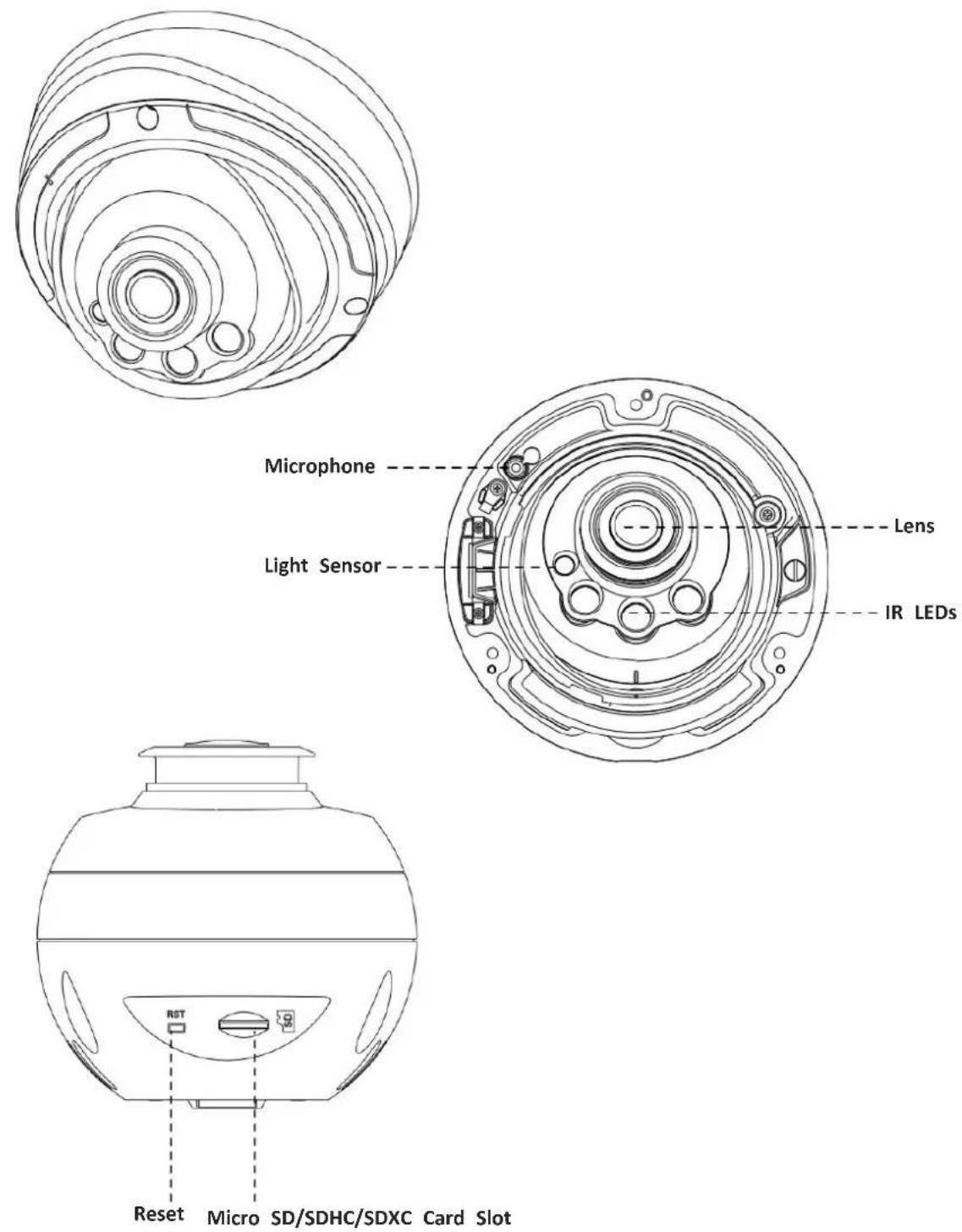

8. Pro Dome Network Camera

Microphone Light Sensor Lens IR LEDs Reset Micro SD/SDHC/SDXC Card Slot

Figure 1-3-10 Pro Dome Network Camera

Note:

1) Reset Button: Press "Reset" button for 5 seconds, then the device will be restored to factory default.

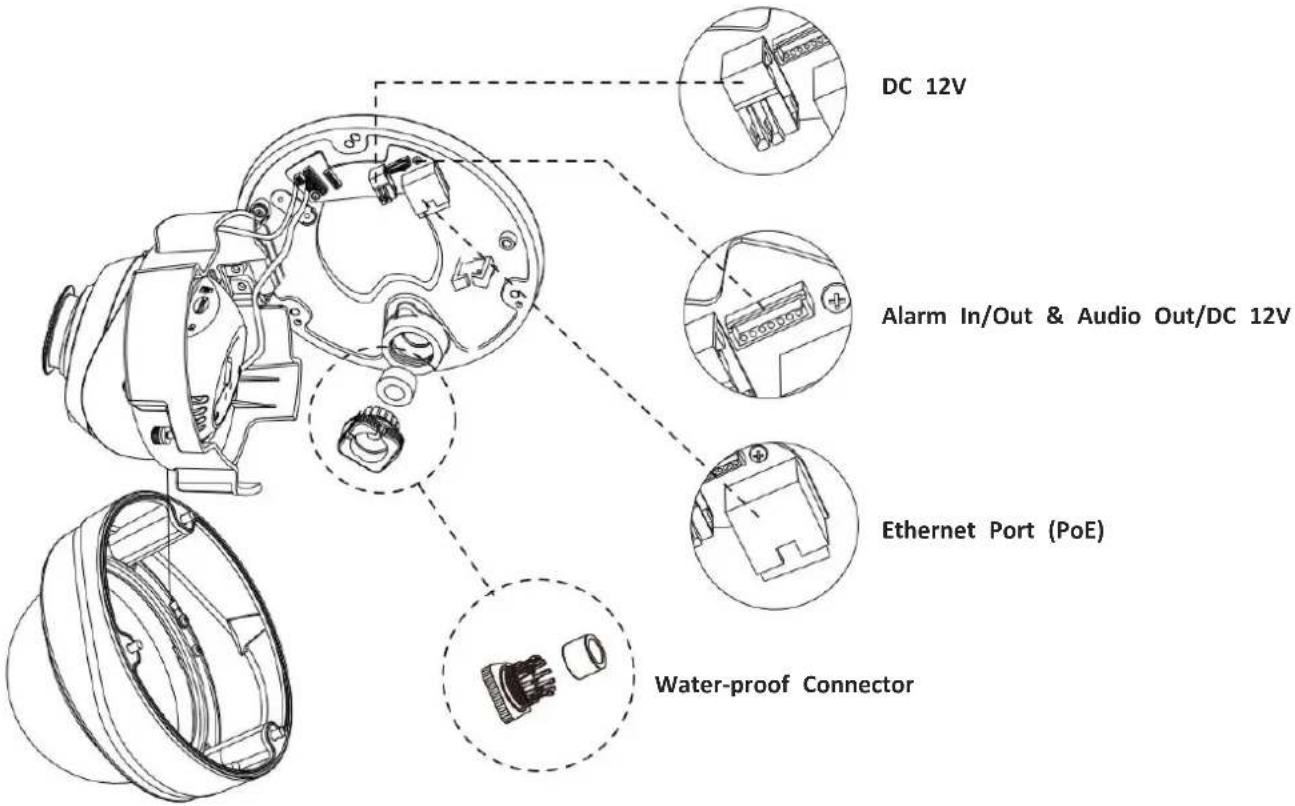

DC 12V Alarm In/Out & Audio Out/DC 12V Ethernet Port (PoE) Water-proof Connector

Figure 1-3-11 Pro Dome Network Camera multiple interface

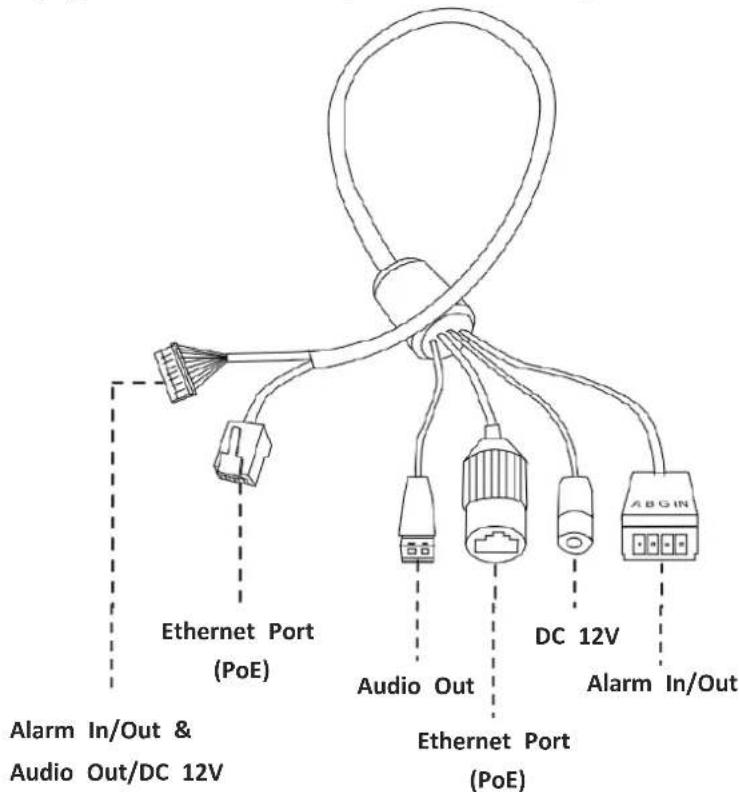

Here is one equipped cable for multiple interface usage:

Alarm In/Out & Audio Out/DC 12V Ethernet Port (PoE) Audio Out DC 12V Alarm In/Out

Figure 1-3-12 Pro Dome Network Camera multiple interface cable

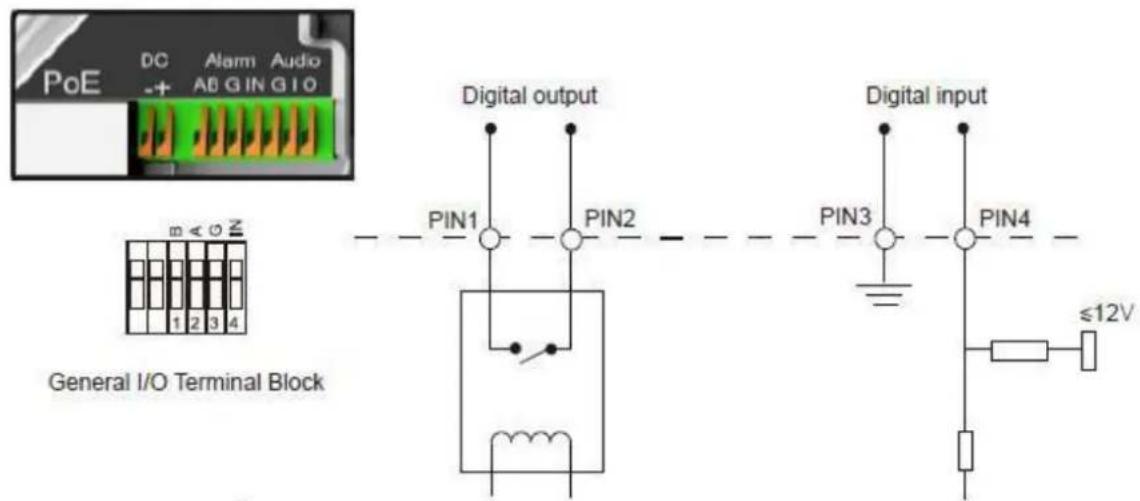

1.4 How to Connect to Alarm Interface

External interface of camera is as the following, you can refer to the picture to install the external alarm device:

PoE DC Alarm Audio AB G IN G I O Digital output PIN1 PIN2 Digital input PIN3 PIN4 ≤12V General I/O Terminal Block

PIN1: Alarm Output NC/NO 24V DC 1A

PIN2: Alarm Output NC/NO 24V DC 1A

PIN3: Alarm Input NC/NO ≤12V

PIN4: Alarm Input NC/NO ≤12V

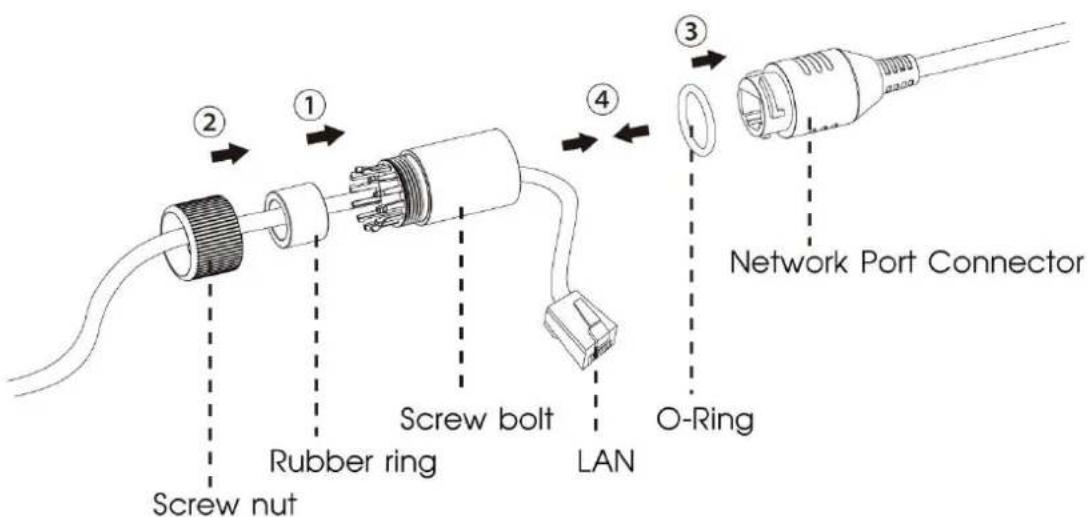

1.5 How to Connect the Water-proof Connector

Screw nut Rubber ring Screw bolt LAN O-Ring Network Port Connector

Step1: Get the network cable through the screw nut, rubber ring and the screw bolt.

Step2: Insert the rubber ring into the screw bolt.

Step3: Connect the screw nut to the screw bolt.

Step4: Place the O-Ring on the network port connector.

Step5: Connect the RJ45 to the network port connector, and tighten the screw bolt and the connector.

1.6 System Requirements

Operating System: Windows XP/Vista/7/8/10/Server 2000/Server 2008

CPU: 1.66GHz or higher

RAM: 1G or higher

Graphic memory: 128MB or more

Internet protocol: TCP/IP (IPv4/IPv6)

Web Browsers: Internet Explorer 8.0 and above version, Mozilla Firefox, Google Chrome and Safari.

Chapter II Network Connection

2.1 Setting the Camera over the LAN

Connecting the camera to a switch or a router is the most common connection method. The camera must be assigned an IP address that is compatible with its LAN.

2.1.1 Connect the Camera to the PC Directly

In this method, only the computer connected to the camera will be able to view the camera. The camera must be assigned a compatible IP address to the computer. Details are shown as the following figure.

Figure 2-1-1 Connect the camera to the PC directly

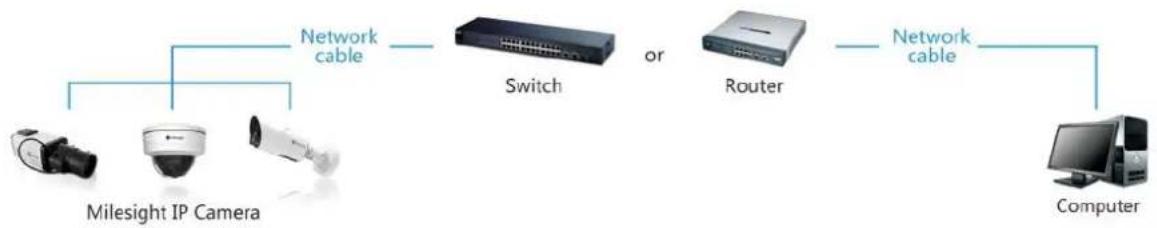

2.1.2 Connect via a Switch or a Router

Refer to the following figure to set network camera over the LAN via the switch or router.

Figure 2-1-2 Connect via a switch or a Router

2.2 Dynamic IP Connection

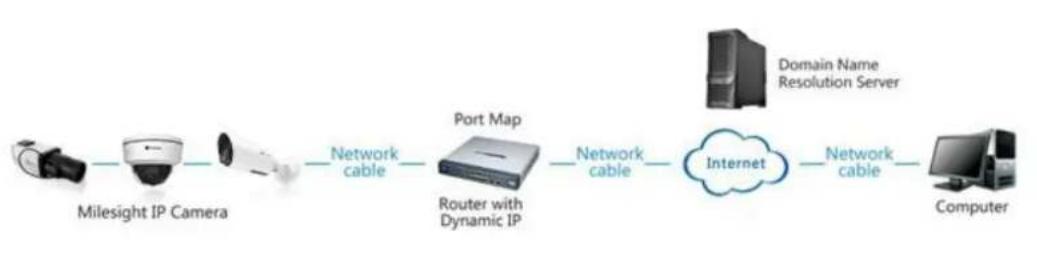

◆ Connecting the network camera via a router

Step1: Connect the network camera to a router;

Step2: On the camera, assign a LAN IP address, the Subnet mask and the Gateway;

Step3: On the router, set port forwarding. E.g. 80, 8000 and 554 ports. The steps for port forwarding vary depending on different routers. Please look up the router's user manual for assistance with port forwarding;

Step4: Apply a domain name from a domain name provider;

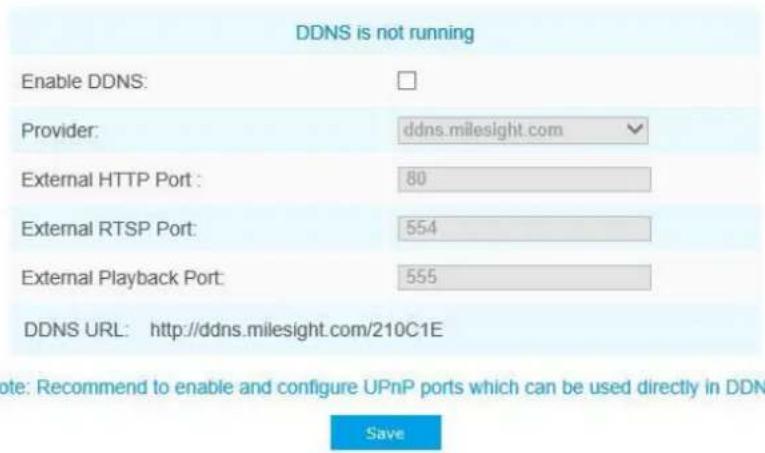

Step5: Configure the DDNS settings in the setting interface of the router;
Step6: Visit the camera via the domain name.

Figure 2-2 Connect the network camera via a router using dynamic IP

Chapter III Accessing the Network Camera

The camera must be assigned an IP address to be accessible.

3.1 Assigning An IP Address

The Network Camera must be assigned an IP address to be accessible. The default IP address of Milesight Network Camera is 192.168.5.190. The default user name is “admin”, and password is “ms1234”.

You can either change the IP address of the camera via Smart Tools or browser. Please connect the camera in the same LAN of your computer.

3.1.1 Assigning An IP Address Using Smart Tools

Smart Tools is a software tool which can automatically detect multiple online Milesight network cameras in the LAN, set IP addresses, and manage firmware upgrades. It's recommended to use when assigning IP addresses for multiple cameras.

Step1: Install Smart Tools (The software could be downloaded from our website);

Step2: Start Smart Tools, click the IPC Tools page, then enter the device information, such as IP address, MAC address, Port number, Netmask, and Gateway, then all related Milesight network cameras in the same network that will be displayed. Details are shown as Figure 3-1-1;

Smart Tools Network Setting Upgrade Preview admin ms1234 Search here... Device Name MAC IP Port Network Gateway Model Run-up Time Version 1 Network Camera 1C:C3:16:20:00:EA 192.168.5.190 80 255.255.255.0 192.168.5.1 MS-C2863-FPB 2016-02-25 18:01:10 41.6.0.43 2 IPCAM 1C:C3:16:02:10:D7 192.168.5.190 80 255.255.252.0 192.168.5.1 MS-C3658-VPM 2016-02-24 16:22:47 20.5.1.109 3 Network Camera 1C:C3:16:21:00:27 192.168.8.102 8081 255.255.252.0 192.168.9.1 MS-C2963-FPB 2016-02-05 17:42:40 40.6.0.43 4 Network Camera 1C:C3:16:11:00:14 192.168.8.105 80 255.255.252.0 192.168.8.1 MS-C3262-FPNA 2016-02-05 17:45:55 30.6.0.43 5 Network Camera 1C:C3:16:12:02:67 192.168.8.106 80 255.255.252.0 192.168.8.1 MS-C3376-FPM... 2016-02-14 15:08:55 30.6.0.43 6 Network Camera 1C:C3:16:12:00:49 192.168.8.107 80 255.255.252.0 192.168.8.1 MS-C3367-FPNA 2016-02-05 17:45:11 30.6.0.43 7 Network Camera 1C:C3:16:12:00:46 192.168.8.108 80 255.255.252.0 192.168.8.1 MS-C3566-FPNA 2016-02-05 17:45:11 30.6.0.43 8 IPCAM 1C:C3:16:02:1A:D4 192.168.8.146 80 255.255.252.0 192.168.8.1 MS-C3582 2016-02-24 15:54:51 27.4.0.79 9 I49@Network C... 1C:C3:16:12:00:37 192.168.8.149 80 255.255.252.0 192.168.8.1 MS-C3366-FPNA 2016-02-25 17:58:32 30.6.0.43 10 Network Camera 1C:C3:16:11:07:84 192.168.8.150 80 255.255.252.0 192.168.8.1 MS-C3582-PA 2016-02-23 11:39:57 30.6.0.43 11 IPCAM 1C:C3:16:02:37:38 192.168.8.164 80 255.255.252.0 192.168.8.1 MS-C3596-PW 2016-02-24 11:57:42 20.5.0.110 12 Network Camera 1C:C3:16:12:07:94 192.168.8.167 80 255.255.252.0 192.168.8.1 MS-C3596-PWA 2016-02-25 11:47:17 30.6.0.43-beta2 13 Network Camera 1C:C3:16:20:00:EF 192.168.8.168 80 255.255.253.0 192.168.8.1 MS-C2862-FPB 2016-02-25 17:53:28 41.6.0.43-alpha... D:\J47 Device Name IP Port Network Gateway DNSI Operating Information Save Clear

Figure 3-1-1 Smart Tools

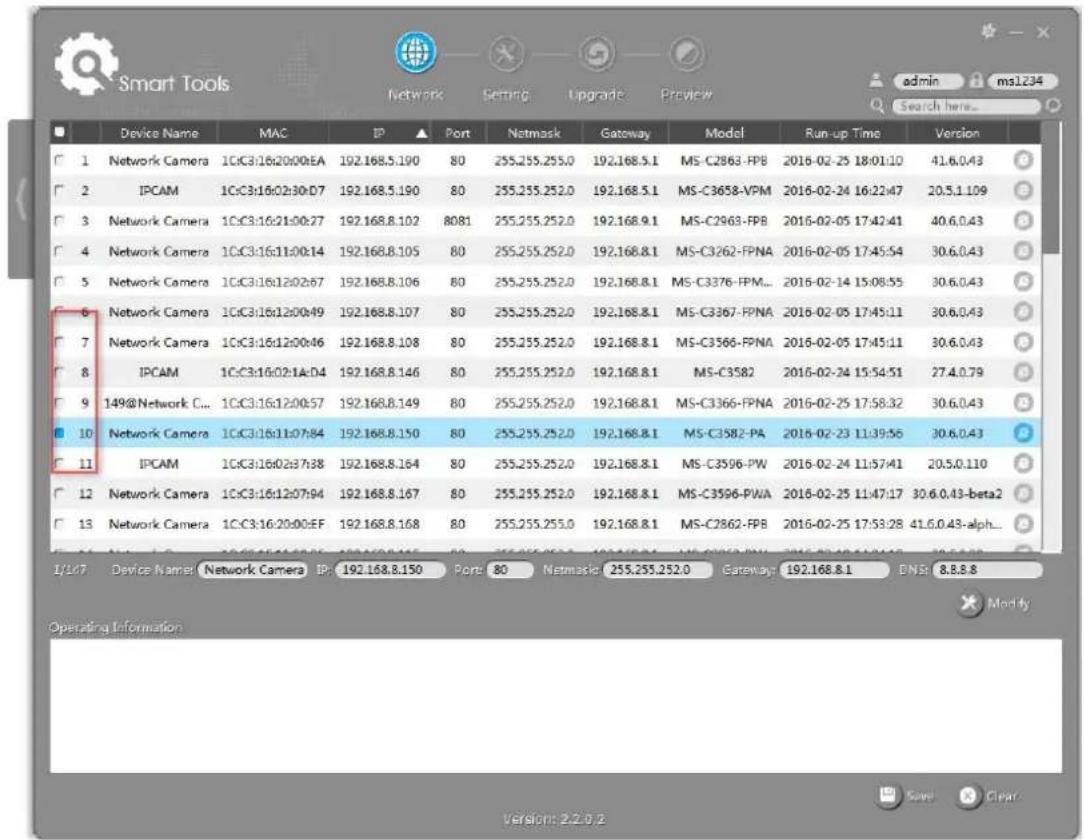

Step3: Select a camera or multiple cameras according to the MAC addresses;

Smart Tools Device Name MAC IP Port Netmask Gateway Model Run-up Time Version 1 Network Camera 1C:C3:16:20:00 EA 192.168.5.190 80 255.255.255.0 192.168.5.1 MS-C2863-FPB 2016-02-25 18:01:10 41.6.0.43 2 IPCAM 1C:C3:16:02:30 D7 192.168.5.190 80 255.255.252.0 192.168.5.1 MS-C3658-VPM 2016-02-24 16:22:47 20.5.1.109 3 Network Camera 1C:C3:16:21:00:27 192.168.8.102 8081 255.255.252.0 192.168.9.1 MS-C2963-FPB 2016-02-05 17:42:40 40.6.0.43 4 Network Camera 1C:C3:16:11:00:14 192.168.8.105 80 255.255.252.0 192.168.8.1 MS-C3262-FPNA 2016-02-05 17:45:55 30.6.0.43 5 Network Camera 1C:C3:16:12:02:67 192.168.8.106 80 255.255.252.0 192.168.8.1 MS-C3376-FPM... 2016-02-14 15:08:55 30.6.0.43 6 Network Camera 1C:C3:16:12:00:49 192.168.8.107 80 255.255.252.0 192.168.8.1 MS-C3367-FPNA 2016-02-05 17:45:11 30.6.0.43 7 Network Camera 1C:C3:16:12:00:46 192.168.8.108 80 255.255.252.0 192.168.8.1 MS-C3566-FPNA 2016-02-05 17:45:11 30.6.0.43 8 IPCAM 1C:C3:16:02:1A:D4 192.168.8.146 80 255.255.252.0 192.168.8.1 MS-C3582 2016-02-24 15:54:51 27.4.0.79 9 149@Network C... 1C:C3:16:12:00:57 192.168.8.149 80 255.255.252.0 192.168.8.1 MS-C3366-FPNA 2016-02-25 17:58:31 30.6.0.43 10 Network Camera 1C:C3:16:11:07:84 192.168.8.150 80 255.255.252.0 192.168.8.1 MS-C3582-PA 2016-02-23 11:39:56 30.6.0.43 11 IPCAM 1C:C3:16:02:37:38 192.168.8.164 80 255.255.252.0 192.168.8.1 MS-C3596-PW 2016-02-24 11:57:41 20.5.0.110 12 Network Camera 1C:C3:16:12:07:94 192.168.8.167 80 255.255.252.0 192.168.8.1 MS-C3596-PWA 2016-02-25 11:47:16 30,6,0,43-beta2 13 Network Camera 1C:C3:16:20:00 EF 192.168.8.168 80 255.255.255.0 192.168.8.1 MS-C2862-FPB 2016-02-25 17:53:27 41,6,0,43-alpha... I/II/III Device Name Network Camera IP 192.168.8.150 Port 80 Netmask 255, 255, 252, Gateway 192, 168, 8, ENSF 8, 8, 8, 8 Operating Information Modify Save Clear

Figure 3-1-2 Select single camera

Smart Tools Network Setting Upgrade Preview admin ms1234 Search here... Device Name MAC IP Port Netmask Gateway Model Run-up Time Version 1 Network Camera 1C/C3:16:20:00:EA 192.168.5.190 80 255.255.255.0 192.168.5.1 MS-C2863-FPB 2016-02-25 18:01:10 41.6.0.43 2 IPCAM 1C/C3:16:02:30:D7 192.168.5.190 80 255.255.252.0 192.168.5.1 MS-C3658-VPM 2016-02-24 16:22:47 20.5.1.109 3 Network Camera 1C/C3:16:21:00:27 192.168.8.102 8081 255.255.252.0 192.168.9.1 MS-C2963-FPB 2016-02-05 17:42:41 40.6.0.43 4 Network Camera 1C/C3:16:11:00:14 192.168.8.105 80 255.255.252.0 192.168.8.1 MS-C3262-FPNA 2016-02-05 17:45:54 30.6.0.43 5 Network Camera 1C/C3:16:12:02:67 192.168.8.106 80 255.255.252.0 192.168.8.1 MS-C3376-FPM... 2016-02-14 15:08:55 30.6.0.43 6 Network Camera 1C/C3:16:12:00:49 192.168.8.107 80 255.255.252.0 192.168.8.1 MS-C3367-FPNA 2016-02-05 17:45:11 30.6.0.43 7 Network Camera 1C/C3:16:12:00:46 192.168.8.108 80 255.255.252.0 192.168.8.1 MS-C3566-FPNA 2016-02-05 17:45:11 30.6.0.43 8 IPCAM 1C/C3:16:02:1A:D4 192.168.8.146 80 255.255.252.0 192.168.8.1 MS-C3582 2016-02-24 15:54:51 27.4.0.79 9 149@Network C... 1C/C3:16:12:00:57 192.168.8.149 80 255.255.252.0 192.168.8.1 MS-C3366-FPNA 2016-02-25 17:58:32 30.6.0.43 10 Network Camera 1C/C3:16:11:07:84 192.168.8.150 80 255.255.252.0 192.168.8.1 MS-C3582-PA 2016-02-23 11:39:56 30.6.0.43 11 IPCAM 1C/C3:16:02:37:38 192.168.8.164 80 255.255.252.0 192.168.8.1 MS-C3596-PW 2016-02-24 11:57:41 20.5.0.110 12 Network Camera 1C/C3:16:12:07:94 192.168.8.167 80 255.255.252.0 192.168.8.1 MS-C3596-PWA 2016-02-25 11:47:17 30.6.0.43-beta2 13 Network Camera 1C/C3:16:20:00:EF 192.168.8.168 80 255.255.255.0 192.168.8.1 MS-C2862-FPB 2016-02-25 17:53:28 41,6,0,43-alpha... I/II/III Device Name Network Camera IP: 192,168,8,150 Port: 80 Netmask Gateway: 192,168,8,1 DNS: 8,8,8,8 Operating Information Modify Save Clear

Figure 3-1-3 Select multiple cameras

Step4: Type the User Name and Password (admin/ms1234 for default, please change your password for your device security);

Smart Tools Network Setting Upgrade Preview admin ms1234 Search here... Device Name MAC IP Port Netmask Gateway Model Run-up Time Version 1 Network Camera 1C:C3:16:20:00:EA 192.168.5.190 80 255.255.255.0 192.168.5.1 MS-C2863-FPB 2016-02-25 18:01:11 41.6.0.43 2 IPCAM 1C:C3:16:02:30:D7 192.168.5.190 80 255.255.252.0 192.168.5.1 MS-C3658-VPM 2016-02-24 16:22:48 20.5.1.109 3 Network Camera 1C:C3:16:21:00:27 192.168.8.102 8081 255.255.252.0 192.168.9.1 MS-C2963-FPB 2016-02-05 17:42:41 40.6.0.43 4 Network Camera 1C:C3:16:11:00:14 192.168.8.105 80 255.255.252.0 192.168.8.1 MS-C3262-FPNA 2016-02-05 17:45:55 30.6.0.43 5 Network Camera 1C:C3:16:12:02:67 192.168.8.106 80 255.255.252.0 192.168.8.1 MS-C3376-FPM... 2016-02-14 15:08:56 30.6.0.43 6 Network Camera 1C:C3:16:12:00:49 192.168.8.107 80 255.255.252.0 192.168.8.1 MS-C3367-FPNA 2016-02-05 17:45:12 30.6.0.43 7 Network Camera 1C:C3:16:12:00:46 192.168.8.108 80 255.255.252.0 192.168.8.1 MS-C3566-FPNA 2016-02-05 17:45:12 30.6.0.43 8 IPCAM 1C:C3:16:02:1A:D4 192.168.8.146 80 255.255.252.0 192.168.8.1 MS-C3582 2016-02-24 15:54:52 27.4.0.79 9 149@Network C... 1C:C3:16:12:00:57 192.168.8.149 80 255.255.252.0 192.168.8.1 MS-C3366-FPNA 2016-02-25 17:58:33 30.6.0.43 10 Network Camera 1C:C3:16:11:07:84 192.168.8.150 80 255.255.252.0 192.168.8.1 MS-C3582-PA 2016-02-23 11:39:58 30.6.0.43 11 IPCAM 1C:C3:16:02:37:38 192.168.8.164 80 255.255.252.0 192.168.8.1 MS-C3596-PW 2016-02-24 11:57:42 20.5.0.110 12 Network Camera 1C:C3:16:12:07:94 192.168.8.167 80 255.255.252.0 192.168.8.1 MS-C3596-PWA 2016-02-25 11:47:18 30.6.0,43-beta2 13 Network Camera 1C:C3:16:20:00 EF 192.168.8.168 80 255.255.255.0 192.168.8.1 MS-C2862-FPB 2016-02-25 17:53:28 DNS: 8,8,8,8 I/Is7 Device Name Network Camera IP#: 192.168,8,150 Ports 80 Netmask 255,255,252,0 Gateway 192,168,8,1 DNS: 8,8,8,8 Modify Operating Information Save Clear Version: 2/2/0/2

Figure 3-1-4 Type the User Name and Password

Step5: Change the IP address or other network values, and then click "Modify" button;

Smart Tools I:network Setting Upgrade Preview admin ms1234 Search here... Device Name MAC IP Port Netmask Gateway Model Run-up Time Version 1 Network Camera 1C:C3:16:20:00:EA 192.168.5.190 80 255.255.255.0 192.168.5.1 MS-C2863-FPB 2016-02-25 18:01:10 41.6.0.43 2 IPCAM 1C:C3:16:02:30:D7 192.168.5.190 80 255.255.252.0 192.168.5.1 MS-C3658-VPM 2016-02-24 16:22:47 20.5.1.109 3 Network Camera 1C:C3:16:21:00:27 192.168.8.102 8081 255.255.252.0 192.168.9.1 MS-C2963-FPB 2016-02-05 17:42:40 40.6.0.43 4 Network Camera 1C:C3:16:11:00:14 192.168.8.105 80 255.255.252.0 192.168.8.1 MS-C3262-FPNA 2016-02-05 17:45:55 30.6.0.43 5 Network Camera 1C:C3:16:12:02:67 192.168.8.106 80 255.255.252.0 192.168.8.1 MS-C3376-FPM... 2016-02-14 15:08:55 30.6.0.43 6 Network Camera 1C:C3:16:12:00:49 192.168.8.107 80 255.255.252.0 192.168.8.1 MS-C3367-FPNA 2016-02-05 17:45:11 30.6.0.43 7 Network Camera 1C:C3:16:12:00:46 192.168.8.108 80 255.255.252.0 192.168.8.1 MS-C3566-FPNA 2016-02-05 17:45:11 30.6.0.43 8 IPCAM 1C:C3:16:03:1A:D4 192.168.8.146 80 255.255.252.0 192.168.8.1 MS-C3582 2016-02-24 15:54:51 27.4.0.79 9 149@Network C... 1C:C3:16:12:00:57 192.168.8.149 80 255.255.252.0 192.168.8.1 MS-C3366-FPNA 2016-02-25 17:58:32 30.6.0.43 10 Network Camera 1C:C3:16:11:07:84 192.168.8.150 80 255.255.252.0 192.168.8.1 MS-C3582-PA 2016-02-23 11:39:57 30.6.0.43 11 IPCAM 1C:C3:16:02:37:38 192.168.8.164 80 255.255.252.0 192.168.8.1 MS-C3596-PW 2016-02-24 11:57:41 20.5.0.110 12 Network Camera 1C:C3:16:12:07:94 192.168.8.167 80 255.255.252.0 192.168.8.1 MS-C3596-PWA 2016-02-25 11:47:17 30.6.0,43-beta2 13 Network Camera 1C:C3:16:20:00:EF 192.168.8.168 80 255.255.255.0 192.168.8.1 MS-C2862-FPB 2016-02-25 17:53:28 DNS 8,8,8,8 Device Name Network Camera IPS 192.168,8,150 Part 80 Netmask 255,255,25,2,GoTewer 192,168,8,1 DNS 8,8,8,8 Version: 7-7,7,7 Modify Operating Information

Figure 3-1-5 Modify

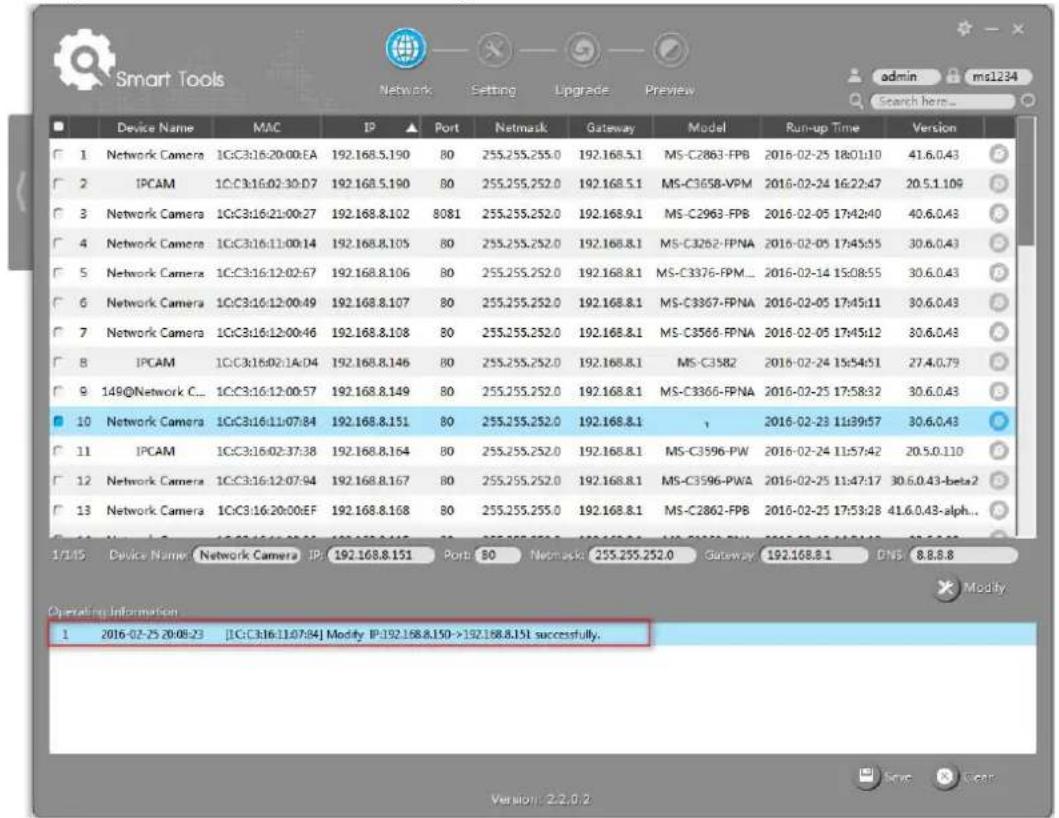

Step6: Change the IP address successfully;

Smart Tools Network Setting Upgrade Preview admin ms1234 Search here... Device Name MAC IP Port Netmask Gateway Model Run-up Time Version 1 Network Camera 1C:C3:16:20:00:EA 192.168.5.190 80 255.255.255.0 192.168.5.1 MS-C2863-FPB 2016-02-25 18:01:10 41.6.0.43 2 IPCAM 1C:C3:16:02:30:D7 192.168.5.190 80 255.255.252.0 192.168.5.1 MS-C3658-VPM 2016-02-24 16:22:47 20.5.1.109 3 Network Camera 1C:C3:16:21:00:27 192.168.8.102 8081 255.255.252.0 192.168.9.1 MS-C2963-FPB 2016-02-05 17:42:40 40.6.0.43 4 Network Camera 1C:C3:16:11:00:14 192.168.8.105 80 255.255.252.0 192.168.8.1 MS-C3262-FPNA 2016-02-05 17:45:55 30.6.0.43 5 Network Camera 1C:C3:16:12:02:67 192.168.8.106 80 255.255.252.0 192.168.8.1 MS-C3376-FPM... 2016-02-14 15:08:55 30.6.0.43 6 Network Camera 1C:C3:16:12:00:49 192.168.8.107 80 255.255.252.0 192.168.8.1 MS-C3367-FPNA 2016-02-05 17:45:11 30.6.0.43 7 Network Camera 1C:C3:16:12:00:46 192.168.8.108 80 255.255.252.0 192.168.8.1 MS-C3566-FPNA 2016-02-05 17:45:12 30.6.0.43 8 IPCAM 1C:C3:16:02:14:D4 192.168.8.146 80 255.255.252.0 192.168.8.1 MS-C35B2 2016-02-24 15:54:51 27.4.0.79 9 149@Network C... 1C:C3:16:12:00:57 192.168.8.149 80 255.255.252.0 192.168.8.1 MS-C3366-FPNA 2016-02-25 17:58:32 30.6.0.43 10 Network Camera 1C:C3:16:11:07:84 192.168.8.151 80 255.255.252.0 192.168.8.1 , 2016-02-23 11:39:57 30.6.0.43 11 IPCAM 1C:C3:16:02:37:38 192.168.8.164 80 255.255.252.0 192.168.8.1 MS-C3596-PW 2016-02-24 11:57:42 20.5.0.110 12 Network Camera 1C:C3:16:12:07:94 192.168.8.167 80 255.255.252.0 192.168.8.1 MS-C3596-PWA 2016-02-25 11:47:17 30.6.0.43-beta2 13 Network Camera 1C:C3:16:20:00 EF 192.168.8.168 80 255.255.255.0 192.168.8.1 MS-C2862-FPB 2016-02-25 17:53:28 41,6,0,43-alpha... Device Name Network Camera IPCI 192,168,8,15, Port BO Network mask 255,255,252,0 Gateway, 192,168,8, I DNS Operating Information Modify [ ] 2016-07-25 20:08:23 [IC:C3:16:11:07:84] Modify IP:J9Z.I6B.E.I5D->J9Z.I6B.E.I5I successfully. Version: Z/Z, O/Z

Figure 3-1-6 Change IP address successfully

Step7: By double clicking the selected camera or the browser of interested camera, you can access the camera via web browser directly. The Internet Explorer window will pop up.

Language: Englin Milesight User Name: Password: Refreshed me? Login Download Plugin for Network Camera Copyright © Milesight All rights reserved.

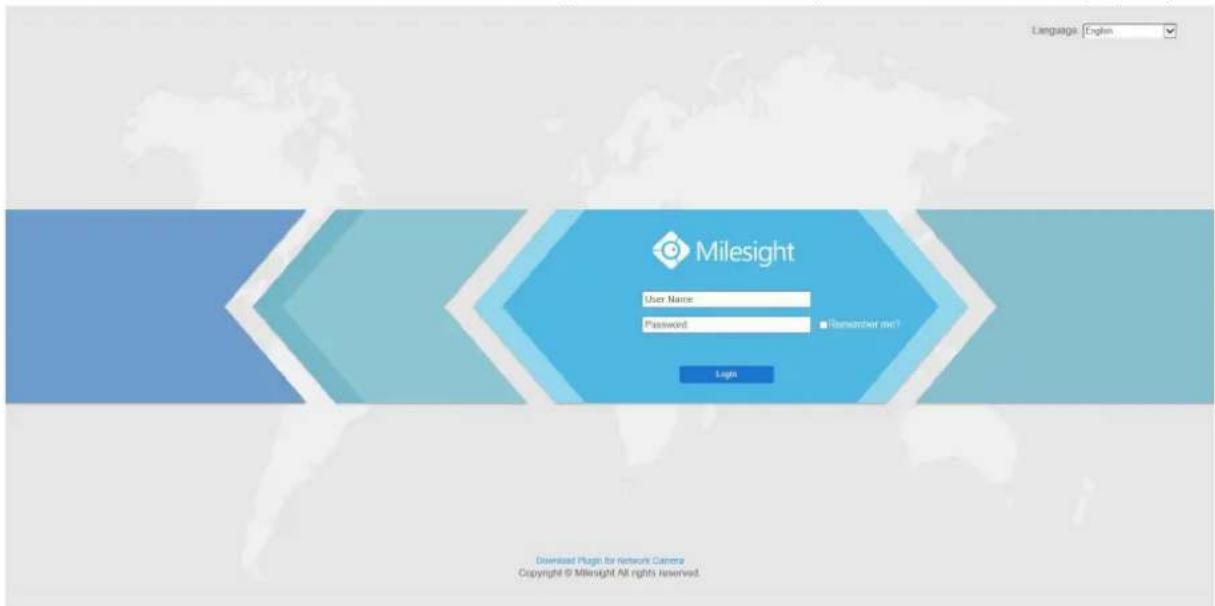

Figure 3-1-7 Login interface

More usage of Smart Tools, please refer to the Smart Tools User Manual.

3.1.2 Assign An IP Address via Browser

If the network segment of the computer and that of the camera are different, please follow the steps to change the IP address:

Step1: Change the IP address of computer to 192.168.5.0 segment, here are two ways as below:

a. Start → Control Panel→ Network and Internet Connection→ Network Connection→

Local Area Connection, and double click it. (Refer to Figure 3-1-8);

Internet Protocol Version 4 (TCP/IPy4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 , 168 , 1 , 10 Subnet mask: 255 , 255 , 255 , 0 Default gateway: 192 , 168 , 1 , 1 Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: 192 , 168 , 1 , 1 Alternate DNS server : , , , . Validate settings upon exit Advanced... OK Cancel

Figure 3-1-8 Setting Network Segment IP Address of Computer

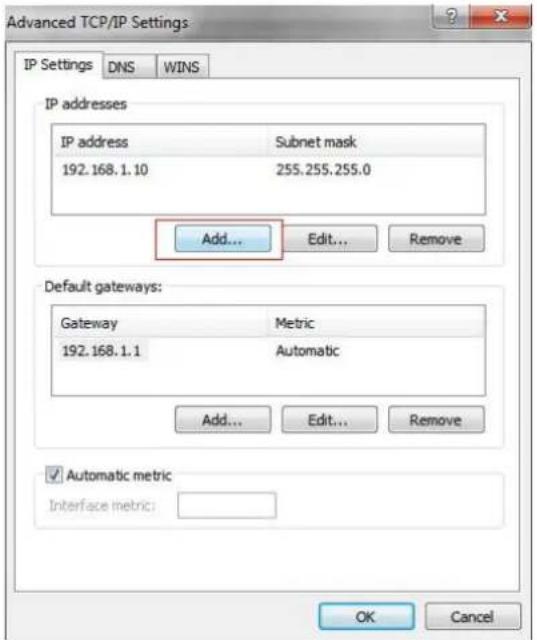

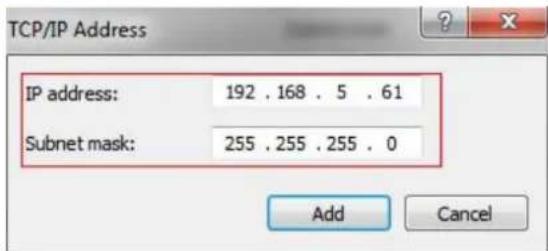

b. Click “Advanced”, and then click “IP settings”→ “IP address”→ “Add” (See Figure 3-1-9). In the pop-up window, enter an IP address that in the same segment with Milesight network camera (e.g. 192.168.5.61, but please note that this IP address shall not conflict with the IP address on the existing network);

Advanced TCP/IP Settings IP Settings DNS WINS IP addresses IP address Subnet mask 192.168.1.10 255.255.255.0 Add... Edit... Remove Default gateways: Gateway Metric 192.168.1.1 Automatic Add... Edit... Remove ✓ Automatic metric Interface metric: OK Cancel

TCP/IP Address IP address: 192 . 168 . 5 . 61 Subnet mask: 255 . 255 . 255 . 0 Add Cancel

Figure 3-1-9 Setting IP Address of Computer

Step2: Start the browser. In the address bar, enter the default IP address of the camera: http://192.168.5.190;

Step3: Enter the user name and password when the LOGIN page appears;

Default user name: admin

Default password: ms1234

Language: English Milesight User Name Password Login Copyright Files Copyright Files for Internet Services Copyright © Milesight All rights reserved.

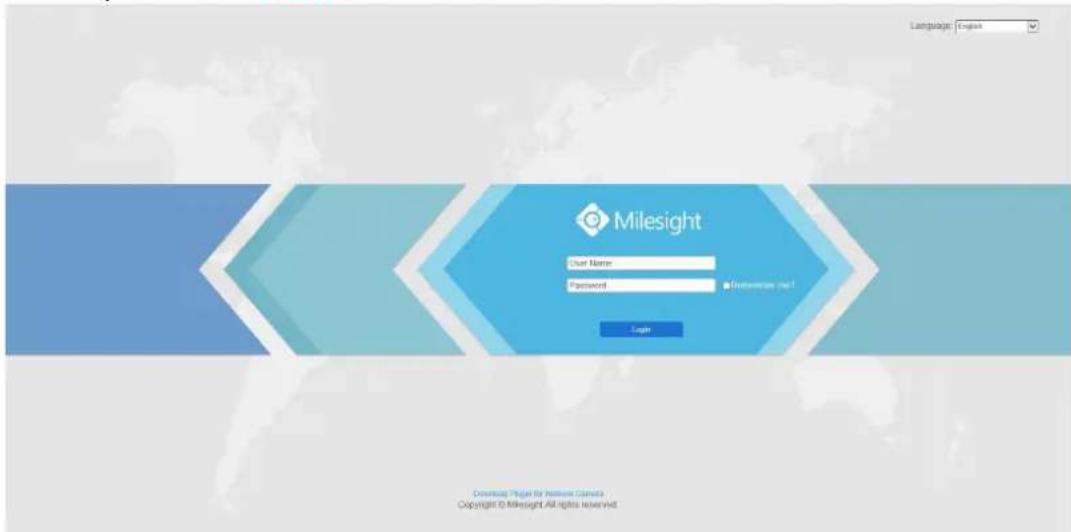

Figure 3-1-10 Login

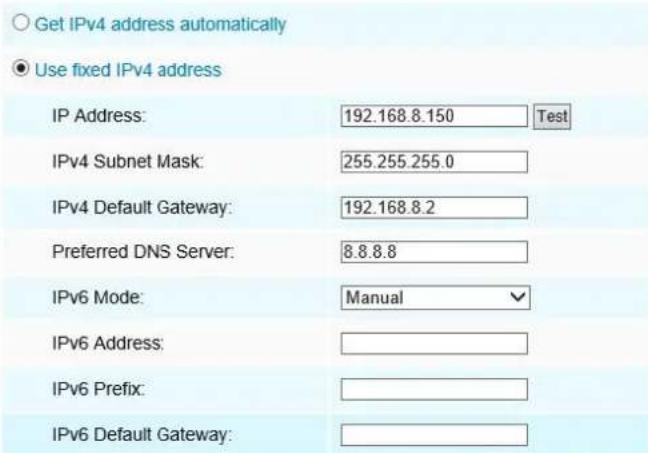

Step4: After login, please select "Configuration" "Basic Settings"→ "Network"→ "TCP/IP". The Network Settings page appears (Shown as below Figure);

Milesight Network Camera Milesight Basic Settings >x Network Live Video Playback Basic Settings Video Image Audio Network Data & Text Advanced Settings Systems Maintenance TCP/IP HTTP RTSP UPHP DONG Email FTP VLAN PPHD SNMP Get IPv4 address automatically Use local IPv4 address IP Address: 152 158 11 163 Total IPv4 Sorted Mask: 250 255 257 8 IPv4 Default Gateway: 152 158 11 1 Preferred DNS Server: 152 158 11 1 IPv6 Address: Manual IPv6 Address: IPv6 Prefix: IPv6 Default Gateway: Save

Figure 3-1-11 IP Address of Camera

Step5: Change the IP address or other network values. Then click "Save" button;

Step6: The change of default IP address is completed.

3.2 Accessing from the Web Browser

The camera can be used with the most standard operating systems and browsers. The recommended browsers are Internet Explorer, Firefox, Chrome, Safari.

Access over IE Browser

Before using the browser to get access to your camera, you need to install the MsActiveX firstly. You can refer the steps as follows:

Step1: Launch the IE browser and enter the IP address of the camera;

Step2: Enter the User Name and Password and click "Login"; (The default user name is "admin", password is "ms1234")

Step3: At the first time to log in the device, the browser will prompt to install Controls, please click "Click here to download and install controls manually" as Figure 3-2-1;

Click here to download and install controls manually

Figure 3-2-1 To download and install controls

Note:

1) During installing the controls, please keep the browsers close.

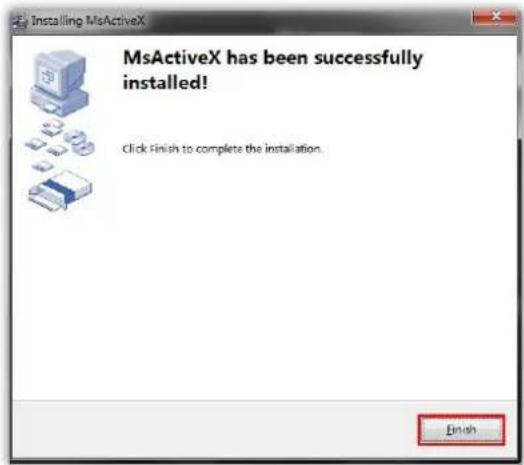

Step4: Follow the prompts to install the Controls, when it's finished, it will pop out a window as Figure 3-2-2. Please click "Finish" and refresh the browser, then you will see the video.

Installing MsActiveX MsActiveX has been successfully installed! Click Finish to complete the installation. Finish

Figure 3-2-2 Finish installation

If IE9 or higher version browser is used, it is suggested that the Milesight camera web link should be added as a trusted site. See the instructions as follows:

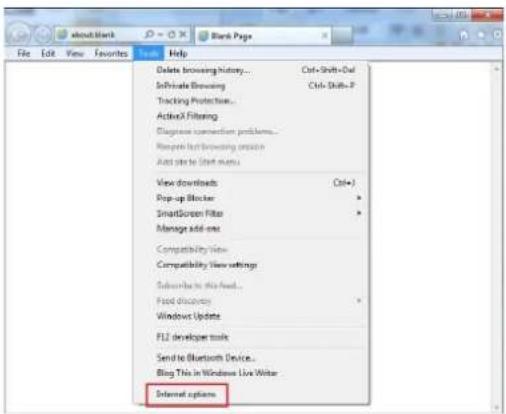

Step1: Start the IE9 or higher version browser, and select "To"Internet Options";

Delete browsing history... Ctrl+Shift+Out Private browsing Ctrl+Shift+P Tracking Protection... ActiveX Filtering Diagnose connection problems... Ranges for browsing session Add site to Start menu View downloads Ctrl+J Pop-up Blocker SmartScreen Filter Manage add-one Compatibility View Compatibility View settings Subscribe to this feed... Food discovery Windows Update FIZ developer tools Send to Bluetooth Device... Blog This in Windows Live Writer Internal options

Figure 3-2-3 To add the permission

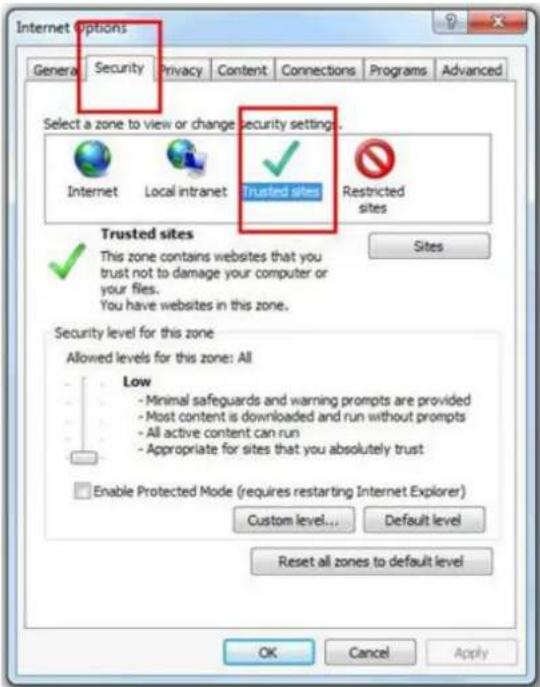

Step2: Select "Security" to "Trusted";

Internet Options General Security Privacy Content Connections Programs Advanced Select a zone to view or change security settings... Internet Local intranet Trusted sites Restricted sites Trusted sites This zone contains websites that you trust not to damage your computer or your files. You have websites in this zone. Security level for this zone Allowed levels for this zone: All Low - Minimal safeguards and warning prompts are provided - Most content is downloaded and run without prompts - All active content can run - Appropriate for sites that you absolutely trust Enable Protected Mode (requires restarting Internet Explorer) Custom level... Default level Reset all zones to default level OK Cancel Apply

Figure 3-2-4 To trust the control

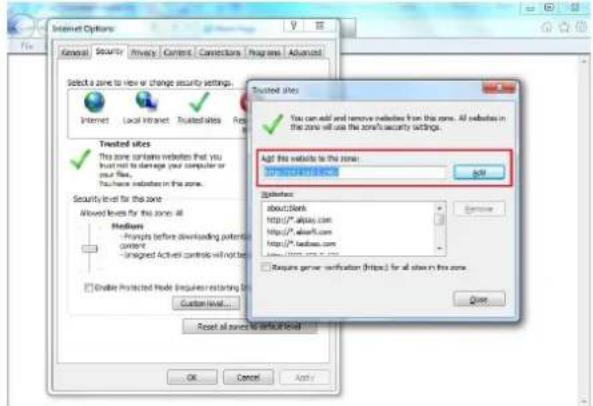

Step3: Enter the IP address of the camera in the blank and click "Add";

Internet Options General Security Privacy Content Connections Programs Advanced Select a zone to view or change security settings. Internet Local Intranet Trusted sites Treated sites This zone contains websites that you trust not to manage your computer or your files. To have websites in the zone. Security level for the zone Allowed levels for the zone: all Medium - Prompts (before downloading projects) - Unsigned Active controls will not be Enable Protected Node Resources Sentoring D Custom level... Reset all zones to default if local Trusted sites You can add and remove websites from this zone. All sites in the zone will use the zone's security settings. Add the website to the zone: http://www Trinidad.com Options: AboutBank https://aikai.com http://aikai.com http://aikai.com Require general verification (https) for all sites in the zone. Cancel OK Cancel Apply

Figure 3-2-5 Add the website to the zone

Step4: Enter the IP address. After logging on network camera's web GUI successfully, user is allowed to view live video as follows.

Milesight Network Camera Primary Stream TCP Lead Delay AUTO 100% Milesight 01/09/2017 14:27:30 Configuration Copyright © Milesight all rights reserved.

Figure 3-2-6 Live View Interface

3.3 Accessing from Milesight VMS (Video Management Software)

Milesight VMS(ONVIF compatible) is a handy and reliable application designed to work with network cameras in order to provide video surveillance, recording settings and event management functions. The interface of Milesight VMS is very easy to use, intuitive, with easy access to the most common activities, such as viewing live video, searching through recordings and exporting videos and snapshots. It's able to be integrated with other devices through ONVIF. It is designed to work on Windows XP/7/8/Vista/ Server 2000/ Server 2008. The software could be downloaded from our website www.milesight.com.

Please install Milesight VMS; then launch the program to add the camera to the channel list. For detailed information about how to use the software, please refer to user manual of Milesight VMS.

Interior views of a modern shopping mall with glass architecture, interior spaces, and travelers (no visible text or signage)

Figure 3-3-1 Milesight VMS Live View

Chapter IV System Operation Guide

4.1 Live Video

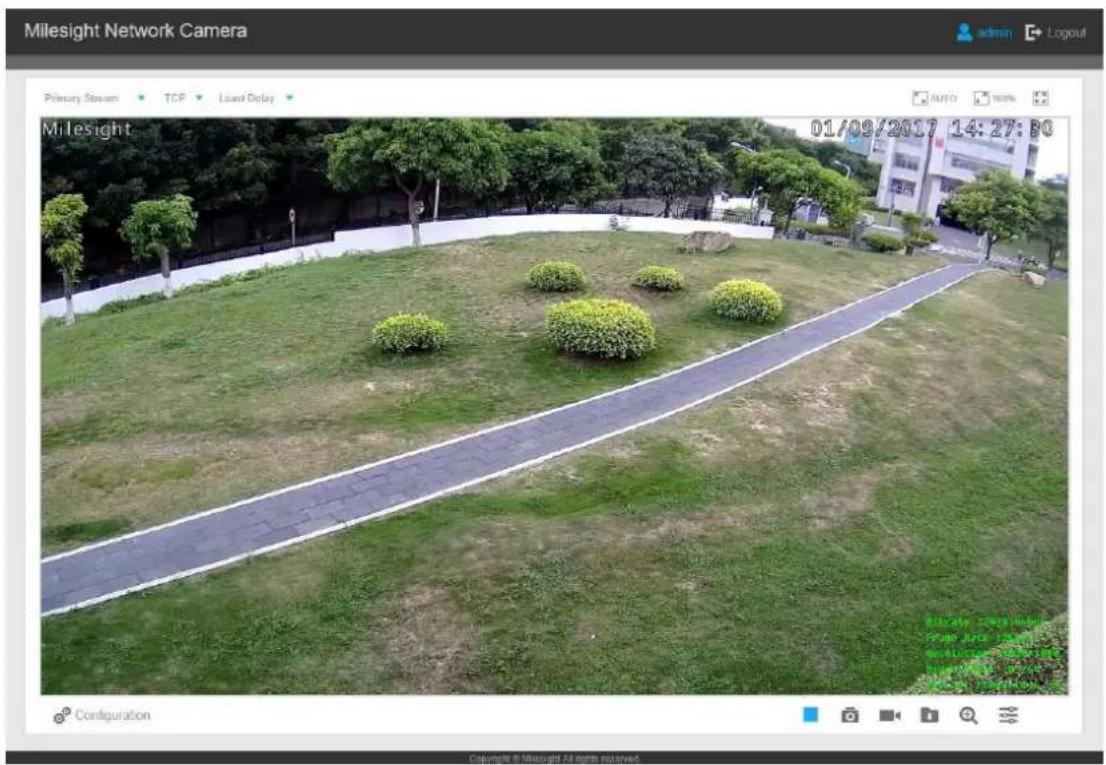

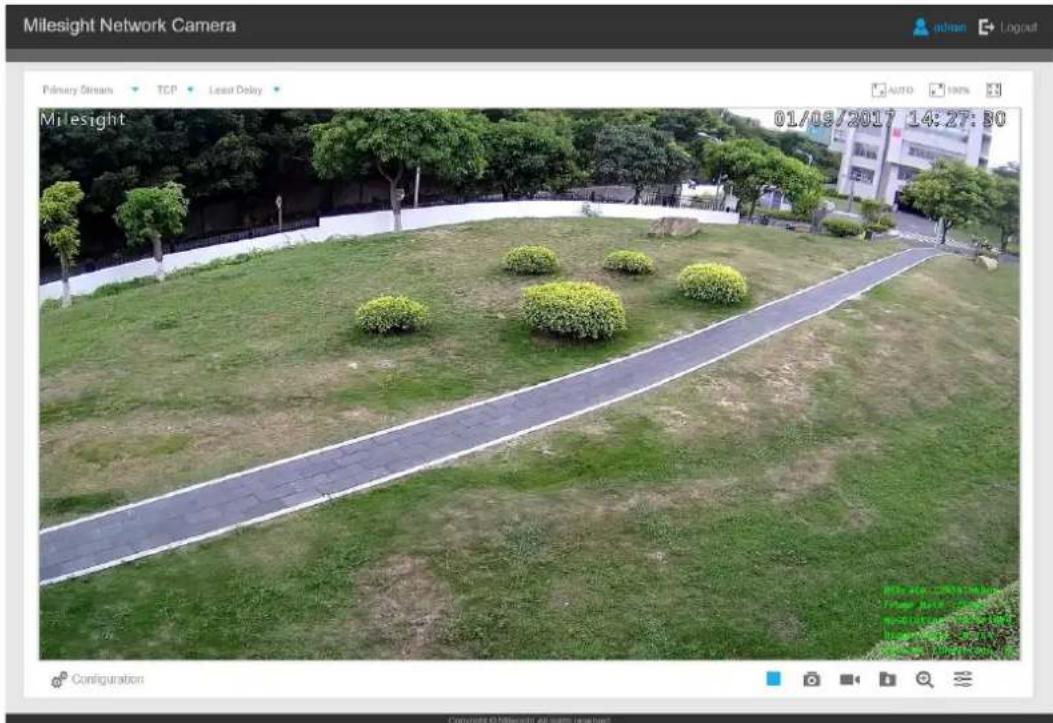

After logging in the network camera web GUI successfully, user is allowed to view live video as follows.

Milesight Network Camera Primary Stream TCP LCD Delay Milesight 01/09/2017 14:27:90 Configuration Copyright © Mileight All rights reserved.

Figure 4-1-1 Live view interface

Table 4-1-1 Description of the buttons

No.	Parameter		Description
1		Image Adjustment	Brightness: Adjust the Brightness of the scene
			Contrast: Adjust the color and light contrast
			Saturation: Adjust the Saturation of the image. Higher Saturation makes colors appear more "pure" while lower one appears more "wash-out"
			Sharpness: Adjust the Sharpness of image. Higher Sharpness sharps the pixel boundary and makes the image looks "more clear"
			Noise Reduction Level: Adjust the noise reduction level
			Default: Restore brightness, contrast and saturation to default settings

	Configuration	Click to access the configuration page
2		Choose the Stream (Primary/Secondary/Tertiary) to show on the current video window
3		Only available for camera whose software version is 43 or aboveWeb Components: Support Firefox, Safari, Chrome (Chrome version 44 or below); need to install the component to display the view;MJPEG: Support to display the view on Firefox, Safari Chrome (Chrome version 45 or above); (NOTE: IE choose Web Components mode for default this case, it will not show the options)
4		TCP: More reliable connection;UDP: More instantaneous connection, but if you can get the live view successfully, please turn into TCP connection;
5		Least Delay: The most instantaneous mode;Balanced: A balanced mode between Least Delay and Best Fluency, maintains the fluency while keeps an acceptable delay;Best Fluency: The most fluent mode;
6	Window size	Click to display images at a window size
7	[SX4T]Real size	Click to display images at a real size
8	Full Screen	Click to display images at full-screen
9	Recording	When recording, the icon will turn red
10	Alarm	When an alarm of Smart Event was triggered, the icon appears
11	Alarm	When an alarm of Motion Detection was triggered the icon appears
12	Alarm	Except for the two kinds of alarms above, when alarms were triggered, the icon appears
[7XHS]		Adjust the Zoom length of the lens ( Only work when your camera is equipped with motorized lens)Adjust focus of the lens (Only work when your cam equipped with motorized lens)
		Adjust the size of Iris (Only work when your camera equipped with P-Iris)
		Auxiliary Focus and Lens Initialization Only work when your camera is equipped with motorized lens
		Adjust iris automatically if check this box( Only work when your camera is equipped with P-Iris
14		Start/Stop live view
15	Capture	Click to capture the current image and save to the configured path. The default path is C:VMS\+-1\ IMAGE-MANUAL
16	Start Recording	Click to start recording video and save to the config path. The default path is C:VMS\+-1\MS_Record. Click again to stop recording
17	Play Audio	Enable Audio Input/Output. It can also be set in Auc configuration page
18	Saving Path Settings	Set the saving path for captured images and video recordings of operating on the live view
19	Enable Digital Zoom	When enabled, you can zoom in in a specific area o video image with your mouse wheel
20	Start Talking	When it is enabled, you can start real-time talking.

4.2 Playback

This section explains how to view the recorded video files stored in SD cards.

Step1: Click [Playback] on the menu bar to enter playback interface;

Milesight Network Camera Milesight Playback Unit Video Playback Basic Settings Video Hedge Auto Network Date & Time Advanced Settings Systems Maintenance 2017-08-29 14:30:00 2017-09-01 04:00:00 2017-09-01 00:00:00 2017-09-01 00:00:00

Figure 4-2-1 Playback interface

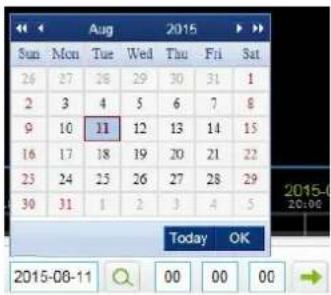

Step2: Click the date button, choose the date when date window pops up;

Sun Mon Tue Wed Thu Fri Sat 26 27 28 29 30 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 5 Today OK 2015-08-11 Q 00 00 00

Figure 4-2-2 Search Video

Note:

1) The date with bright red means current date; one with a dark red number and white background means weekend day; one with a dark red number and blue background means that the date is selected now.

Step3: Click to play the video files found on this date.

The toolbar on the button of playback interface can be used to control playing progress.

04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00 13:00 14:00 15:00 2017-05-23 00 00 00

Figure 4-2-3 Playback Toolbar

Table 4-2-1 Description of the buttons

Button	Operation
	Play
	Pause
	Stop
	Speed Down
	Speed Up
	Audio On/Off
	Search
	Go To
	Time Narrow/Expand
	Start/Stop Recording

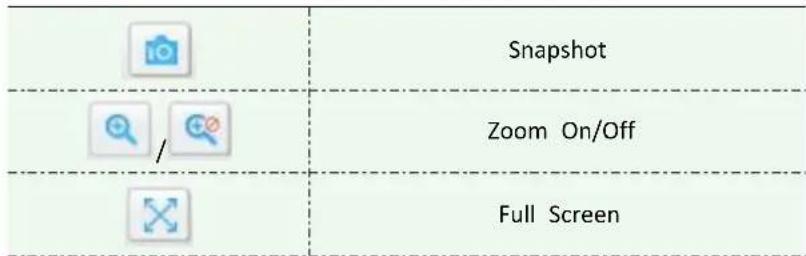

Snapshot Zoom On/Off Full Screen

Note:

1) Drag the progress bar with the mouse to locate the exact playback point. You can also input the time and click to locate the playback point in the Set Playback Time filed. You can also click to zoom out/in the progress bar.

Figure 4-2-4 Set Payback Time

4.3 Basic Settings

4.3.1 Video

Stream parameters can be set in this module, adapting to different network environments and demands.

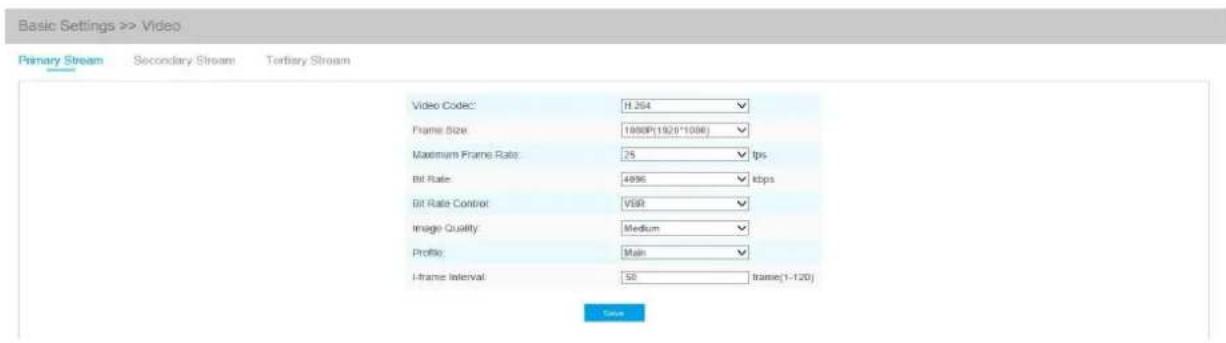

Primary Stream Settings

Basic Settings >> Video Primary Stream Secondary Stream Tertiary Stream Video Codec: H.264 Frame Size: 1800P(1920*1006) Maximum Frame Rate: 25 fps Bit Rate: 4996 kbps Bit Rate Control: VSSZ Image Quality: Medium Profile: Main I-frame Interval: 50 frames(1-120) Save

Figure 4-3-1 Primary Stream Settings

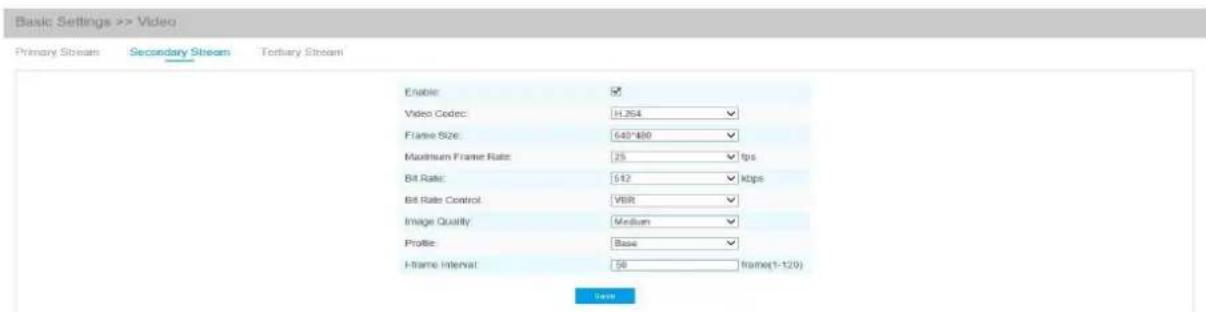

Secondary Stream Settings

Basic Settings >> Video Primary Stream Secondary Stream Tertiary Stream Enable ✓ Video Codec: H.264 Frame Size: 640*480 Maximum Frame Rate: 25 fps Bit Rate: 512 kbps Bit Rate Control: VBR Image Quality: Medium Profile: Basis Frame Interval: 56 frames(1-12/0) Save

Figure 4-3-2 Secondary Stream

Tertiary Stream Settings

Basic Settings >> Video

Primary Stream

Secondary Stream

Tertiary Stream

Enable Video Codec H:264 Frame Size 640*180 Maximum Frame Rate 25 fps Bit Rate 1924 kbps Bit Rate Control CBR Profile Main 1-frame Interval 50 frame(1-120) Save

Figure 4-3-3 Tertiary Stream

Table 4-3-1 Description of the buttons

Parameters	Function Introduction
Video Codec	There are differences for the camera with “-A” and “-B”-A: H.264/MJPEG are available-B: H.265/H.264/MJPEG are available
Frame Size	Options include 8M(3840×2160), 6M(3072×2048), 5M(2560*1920), 4M(2592*1520), 3M(2304*1296), 3M(2048*1536), 1080P(1920*1080), 2M(1600 *1200), 1.3M(1280*960), 720P(1280*720), D1(704*576)
Maximum Frame Rate	Maximum refresh frame rate of per second
Bit Rate	Transmitting bits of data per second, this item is optional only if you select H.265/H.264
Bit Rate Control	CBR: Constant Bitrate. The rate of CBR output is constant
	VBR: Variable Bitrate. VBR files vary the amount of output date per time segment
Image Quality	Low/Medium/High are available, this item is optional only if you select VBR.
Profile	The option is for H.264, Main/High can be selected according to your needs
I-frame Interval	Set the I-frame interval to 1~120, 50 for the default. This item is optional c you select the H.265/H.264. The number must be a multiple of the number frames.
JPEG Quality	Low/Medium/High/Higher are available, this item is optional only if you selected the MJPEG

Note:

1) The options of [Frame Size] are variable according to the model selected.

4.3.2 Image

Display information, enhancement of image and Day/Night setting can be set in this module. OSD (On Screen Display) content and video time can be displayed to rich the image information.

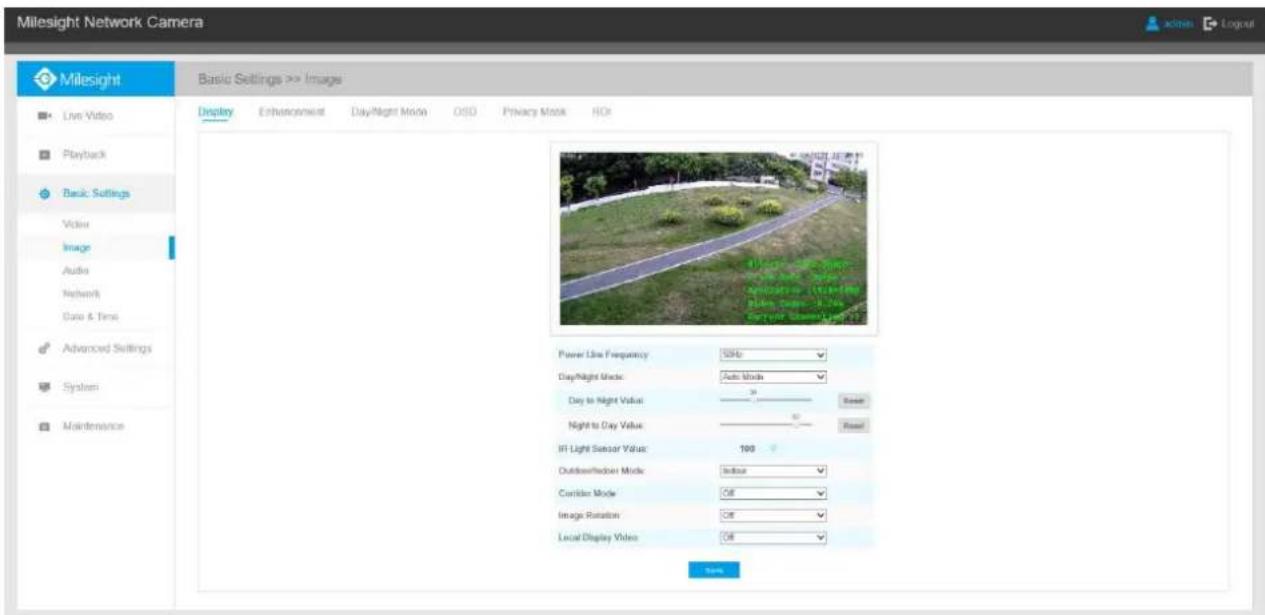

Display

Milesight Network Camera Basic Settings >> Images Live Video Playback Basic Settings Video Image Audio Network Date & Time Advanced Settings System Maintenance Display Enhancement Day/Night Mode OSD Privacy Mask HO Power Line Frequency: 50Hz Day/Night Mode: Auto Mode Day to Night Value: 30 Night to Day Value: 10 RF Light Sensor Value: 100 Outdoor/Redox Mode: Inside Crossover Mode: Off Image Runout: Off Local Display Video: Off Name

Figure 4-3-4 Display

Table 4-3-2 Description of the buttons

Parameters	Function Introduction
Power Line Frequency	60HZ flicker for NTSC mode and 50HZ flicker for PAL mode
Day/Night Mode	There are several parameters such as Exposure Level, Maximum Exposure Tir and IR-CUT Interval, etc, associated with this modeNight Mode: Shown in live view based on Night Mode settingsDay Mode: Shown in live view based on Day Mode settingsAuto Mode: Shown in live view based on environment, set the sensitivity fo switching Day Mode to Night Mode, or Night Mode to Day ModeCustomize: Shown in live view based on your own settings' time to start/en Night Mode
Day To Night Value	This is the sensitivity for switching Day Mode to Night Mode. When IR Light Sensor Current Value is lower than this value, it will switch Day Mode to N Mode
Night To Day Value	This is the sensitivity for switching Night Mode to Day Mode. When IR Light Sensor Current Value is higher than this value, it will switch Night Mode to Mode
IR Light Sensor Value	The current value of the IR light sensor
Outdoor/Indoor Mode	Select indoor or outdoor mode to meet your needs
Corridor Mode	There are three options available, you can select one to meet your needOff: Keep the image in normal directionRotating 90°: Rotate the image by 90°Rotating 270°: Rotate the image by 270°
Image Rotation	There are four options available, you can select one to meet your needOff: Keep the image in normal directionRotating 180°: Upside down the imageFlip Horizontal: Flip the image horizontallyFlip vertical: Flip the image vertically
Local Display Video	Select NTSC or PAL for local display

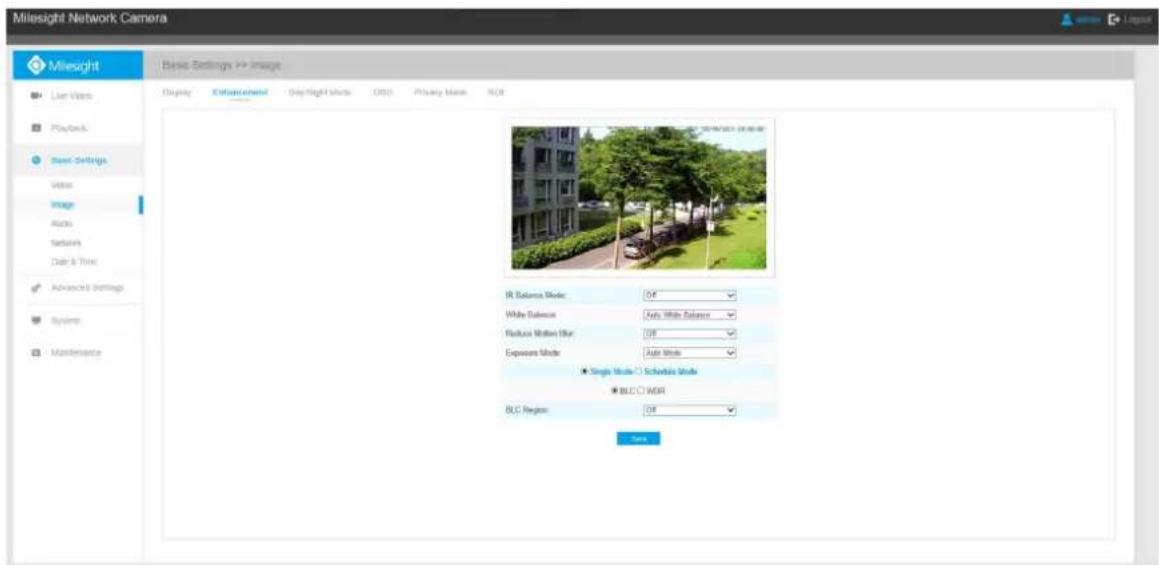

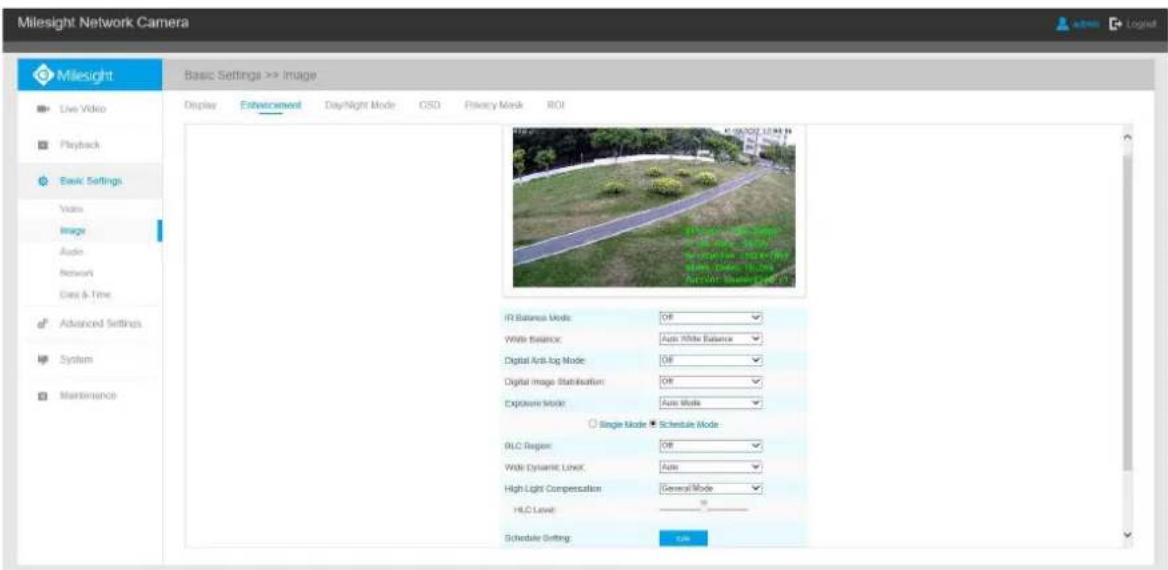

Enhancement

Milesight Network Camera Milesight Basic Settings → Image Display Environmental Only Right Mode CISO Privacy Mode ROI Playback Basic Settings Value Image Audio Networks Date & Time Advanced Settings System Maintenance IR Balance Mode: Off White Balance: Auto White Balance Reduce Width Blur: Off Exposure Mode: Auto Wide ► Single Mode ○ Schedule Mode ► BLC ○ WDR BLC Region: Off New

Figure 4-3-5 Enhancement (H.264 series)

Milesight Network Camera Basic Settings >> Image Live Video Playback Basic Settings Video Image Audio Network Core & Time Advanced Settings System Maintenance Display Enhancement DayNight Mode OSD Privacy Mask ROI IR Balance Mode: Off Wide Balance: Auto Middle Balance Digital Anti-log Mode: Off Digital Image Stabilisation: Off Exposure Mode: Auto Mode Single Mode Schedule Mode: RLC Region: Off Wide Dynamic Line: Auto High Light Compensation: General Mode HLC Level: - Schedule Setting: OK

Figure 4-3-6 Enhancement (H.265 series)

Table 4-3-3 Description of the buttons

Parameters	Function Introduction
IR Balance Mode	There is an option to turn On/Off the IR LED.IR Balance Mode would avoid the problem of overexposure and darkn and the IR LED will change according to the actual illumination.
White Balance	To restore white objects, removed color distortion caused by the light the environmentAuto White Balance: This option will automatically enable the White Balance functionManual White Balance: This option is only for H.265 series. Set Red (Level and Blue Gain Level manually.Incandescent Lamp: Select this option when light is similar with incandescent lampWarm Light Lamp: Select this option when light is similar with warm lampNatural Light: Select this option when there is no other light but natu lightFluorescent Lamp: Select this option when light is similar with FluoresLampSchedule mode: Select this option that you can customize the schedul enable/disable above modes
Reduce Motion Blur	This function is only for H.264 series. Better image for moving objects may lead worse quality for still objects

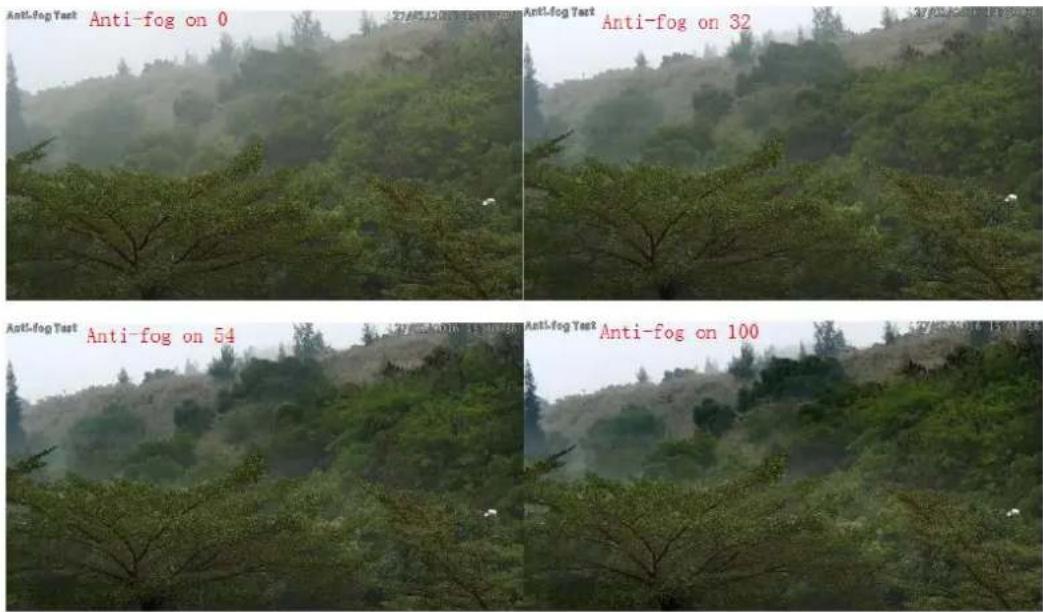

Digital Anti-fog Mode	This function is only for H.265 series. Better image effect in foggy we refers to Figure 4-3-9
Digital Image Stabilisation	This function is only for H.265 series. Decrease the blur and shakiness the image.
Exposure Mode	Auto mode/Customize mode. If you choose customize mode, the came adjusts the brightness according to the value you set. The higher the is, the brighter the image is.
Single Mode/Schedule Mode	Set single mode or schedule mode for BLC/WDR/HLC
BLC Region	Off, Customize, and Centre are available (in single mode, only enable WDR is disable)Off: Calculate the full range of view and offer appropriate light compensationCustomize: This option enables you to customize inclusive or exclusive region manuallyCentre: This option will automatically add an inclusive region in the m of the window and give the necessary light compensation
Wide Dynamic Range	This function which can capture and display both bright and dark area the same frame enables details of objects in both bright and dark are be visible.Off: Disable WDR functionOn: Enable the WDR, there are Low/High/Auto three levelsCustomize: Customize the schedule to enable/disable the WDR function and set the levels with Low/High/Auto
High Light Compensation	This function is only for H.265 series to adjust the brightness to a no range when the light is strong, refers to Figure 4-3-10Off: Disable HLC functionGeneral Mode: Enable the general mode of HLC, and there is a setting HLC LevelEnhanced Mode: Enable the enhanced mode of HLC, and there is a set for HLC Level
HLC Level	Select level for HLC
Wide Dynamic Level	Set WDR with Low/High/Auto level
Anti-flicker Level	Reduce flickers that appear on screen in some lighting conditions and are 10 levels of anti-flicker adjustments
Schedule Setting	Customize the schedule to enable/disable BLC/WDR/HLC mode

Note:

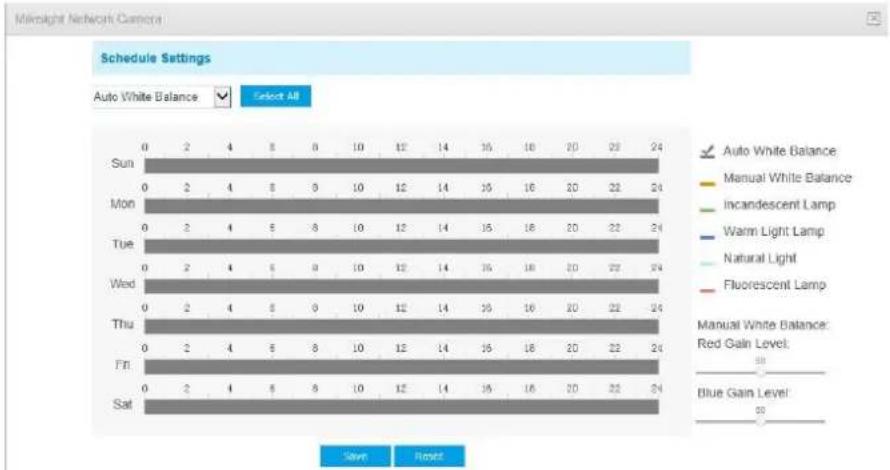

1) You can customize the schedule to enable/disable the difference White Balance modes.

Figure 4-3-7 White Balance schedule settings

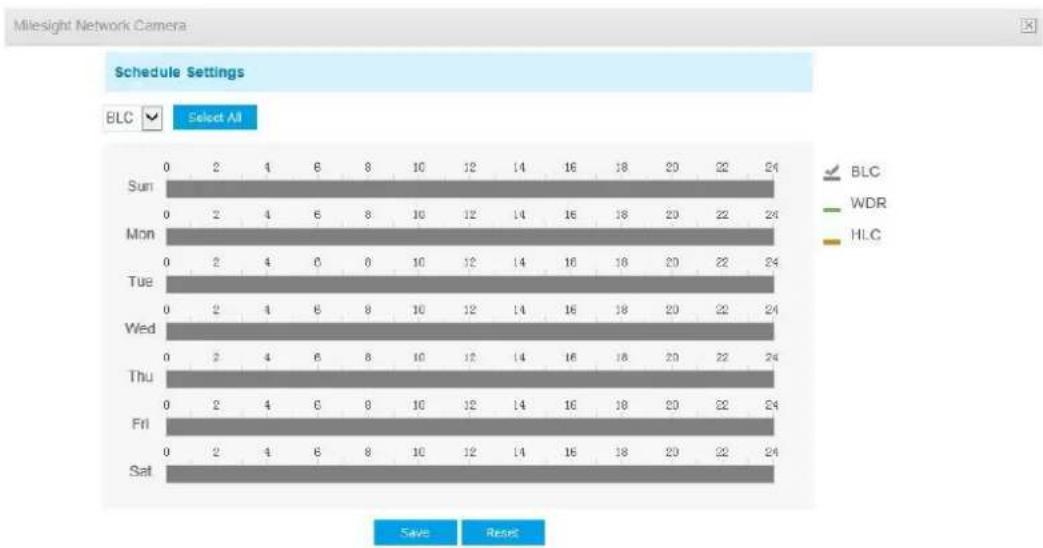

2) You can customize the schedule to enable/disable BLC/WDR/HLC mode.

Figure 4-3-8 BLC/WDR/HLC mode schedule settings

Anti-fog Test Anti-fog on 0 Anti-fog Test Anti-fog on 32 Anti-fog Test Anti-fog on 54 Anti-fog Test Anti-fog on 100

Figure 4-3-9 Anti-fog Image

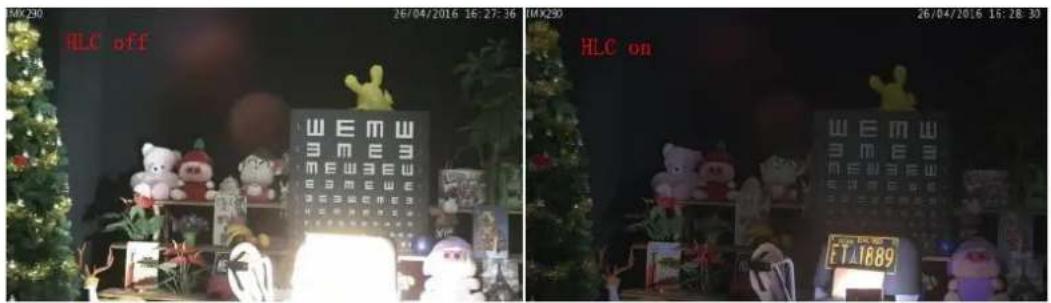

M0.290 26/04/2016 16:27:36 M0.290 HLC off HLC on WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMW WEMM ET1889

Figure 4-3-10 HLC Image

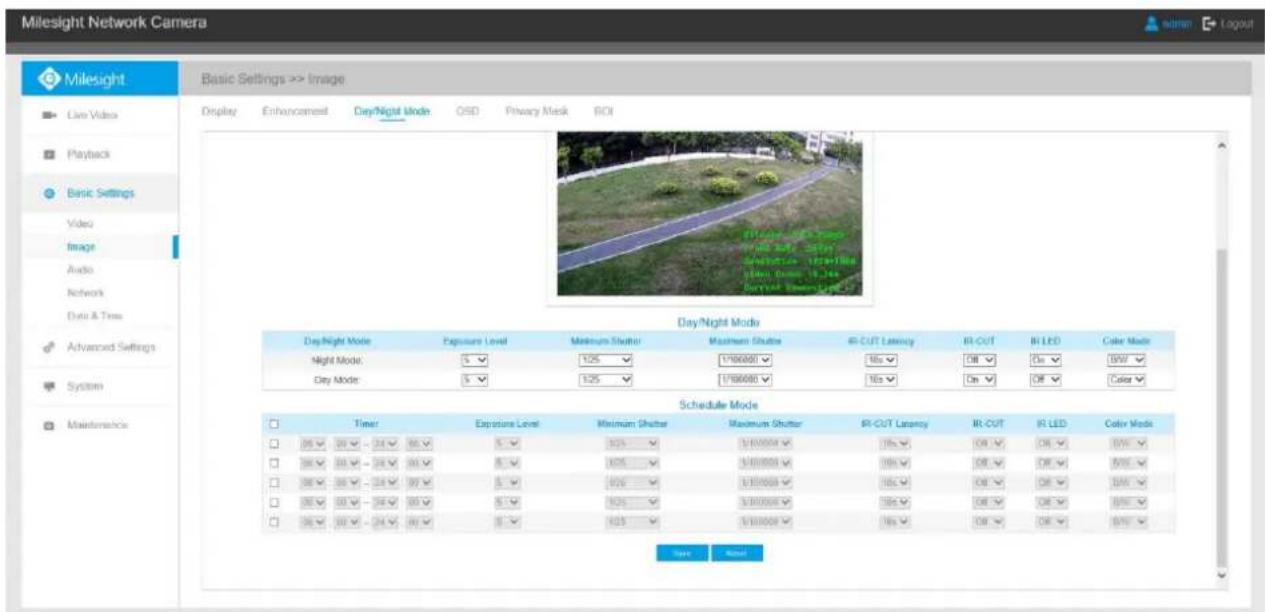

Day/Night Mode

Milesight Network Camera Basic Settings >> Image Display Enhancement Day/Night Mode OSD Privacy Mask ROI Day/Night Mode Day/Night Mode Exposure Level Maximum Shutter Maximum Shutter IR-CUT Latency IR-CUT IR LED Color Mode Night Mode: $ 125 1/100000 10s OK On OK BWF Day Mode: $ 125 1/100000 10s OK ON OK Color Schedule Mode Timer Exposure Level Maximum Shutter Maximum Shutter IR-CUT Latency IR-CUT IR LED Color Mode OK OK 34 80 $ 125 1/100000 10s OK OK BWF OK OK 34 80 $ 125 1/100000 10s OK OK BWF OK OK 34 80 $ 125 1/100000 10s OK OK BWF OK OK 34 80 $ 125 1/100000 10s OK OK 34 80 $ 125 1/100000 10s OK OK BWF OK OK 34 80 $ 125 1/100000 10s OK OK BWF OK OK 34 80 $ 125 1/100000 10s Save Dancel

Figure 4-3-11 Day/Night Mode

Table 4-3-4 Description of the buttons

Parameters	Function Introduction
Exposure Level	Level 0~10 are available to meet your need
Minimum Shutter	Minimum Shutter is the same as Maximum Exposure Time. Set the minimum Shutter to 1/5~1/100000
Maximum Shutter	Maximum Shutter is the same as Maximum Exposure Time. Set the maximum Shutter to 1/5~1/100000
IR-CUT Latency	The interval time of switching one mode to another
IR-CUT	Turn on or turn off IR-CUT
IR LED	Turn on or turn off IR-LED
Color Mode	Select B/W or Color mode under Day/Night mode
Schedule Mode	Here you can customize your special demands for different time, then the D mode and Night mode will switch automatically according to your settings

On Screen Display(OSD)

Milesight Network Camera Basic Settings >> Image Live Video Playback Basic Settings Video Image Audio Network Date & Time Advanced Settings System Maintenance Display Enhancement Day/Night Modu CSD Privacy Mask ROI Video Stream: Primary Stream Font Size: Small Font Color: Show Video Title: Video Title: Network Camera Text Position: Top-Left Show Timestamp: Data Position: Top Right Date Format: DMM/YYYY Copy to Other Streams: 1 2 3 New

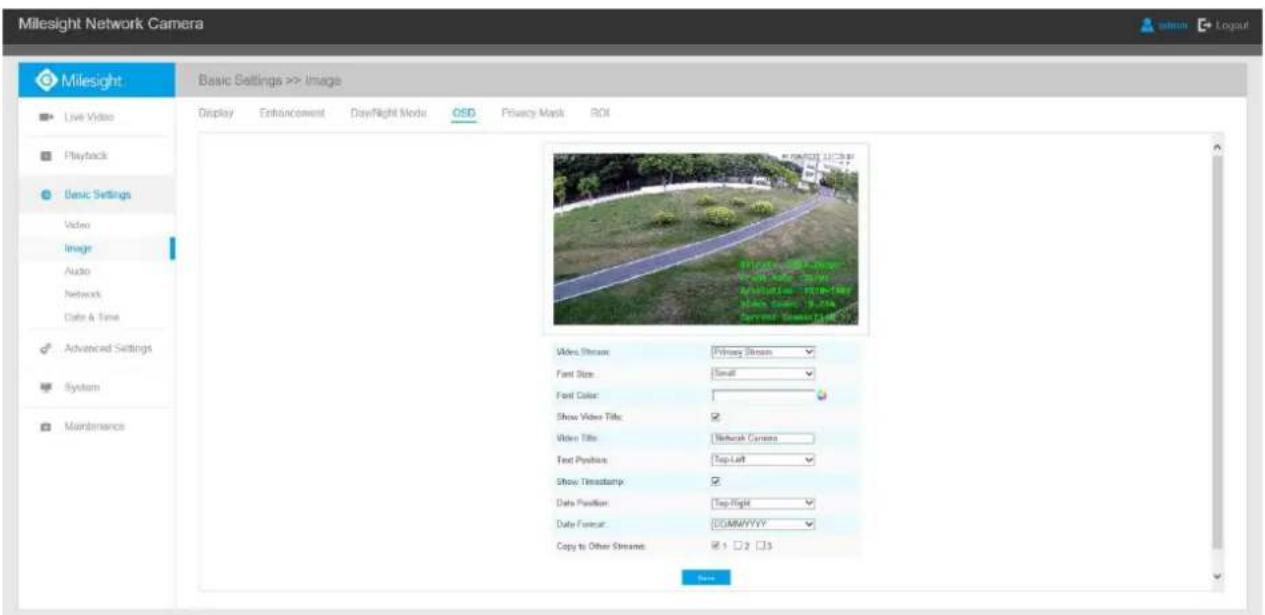

Figure 4-3-12 OSD

Table 4-3-5 Description of the buttons

Parameters	Function Introduction
Video Stream	Enable to set OSD for primary stream and secondary stream
Font Size	Smallest/Small/Medium/Large/Largest/Auto are available for title and date
Font Color	Enable to set different color for title and date
Show Video Title	Check the checkbox to show video title
Video Title	Customize the OSD content
Text Position	OSD display position on the image
Show Timestamp	Check the checkbox to display date on the image
Date Position	Date display position on the image
Date Format	The format of date
Copy to Other Streams	Copy the settings to other streams

Privacy Mask

Milesight Network Camera Basic Settings >> Image Display Enhancement Day/Night Mode CSD Privacy Mask ROI Basic Settings >> Use Video Playback Base Settings Video Image Audio Network Data & Time Advanced Settings Systems Maintenance Save All Enable: Type: 000000 Save

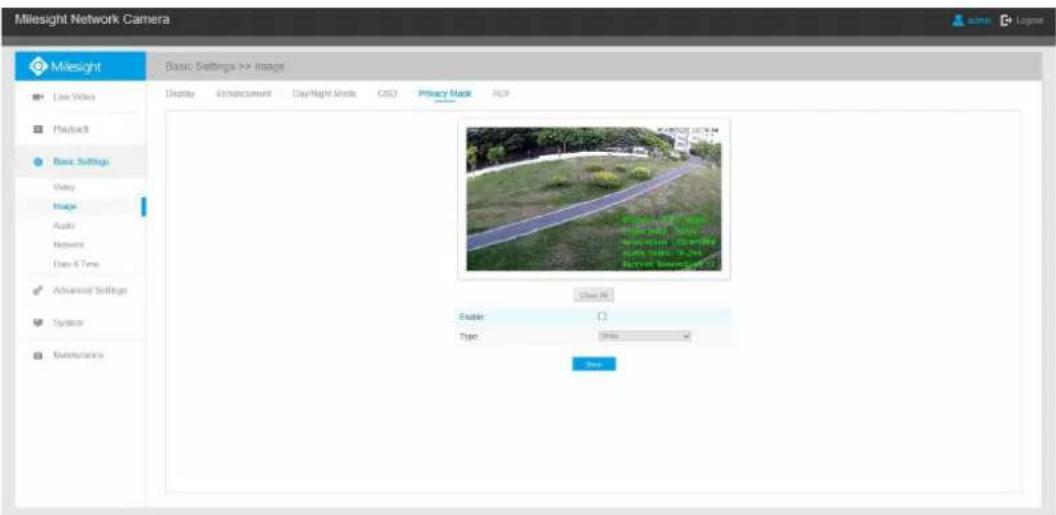

Figure 4-3-13 Privacy Mask

Table 4-3-6 Description of the buttons

Parameters	Function Introduction
Enable	Check the checkbox to enable the Privacy Mask function
Clear All	Clear all areas you drew before
Type	Select the color to use for the privacy areas, there are three colors available White, Black, Blue

ROI

Region of interest(often abbreviate ROI), is a selected subset of samples within a dataset identified for a particular purpose. Users can select up to 3 key regions of a scene to transmit through separate streams for targeted preview and recording.

By using Milesight ROI technology, more than 50% of bit rate can be saved and therefore less bandwidth demanded and the storage usage reduced. So according to this, you can set a small bit rate for high resolution.

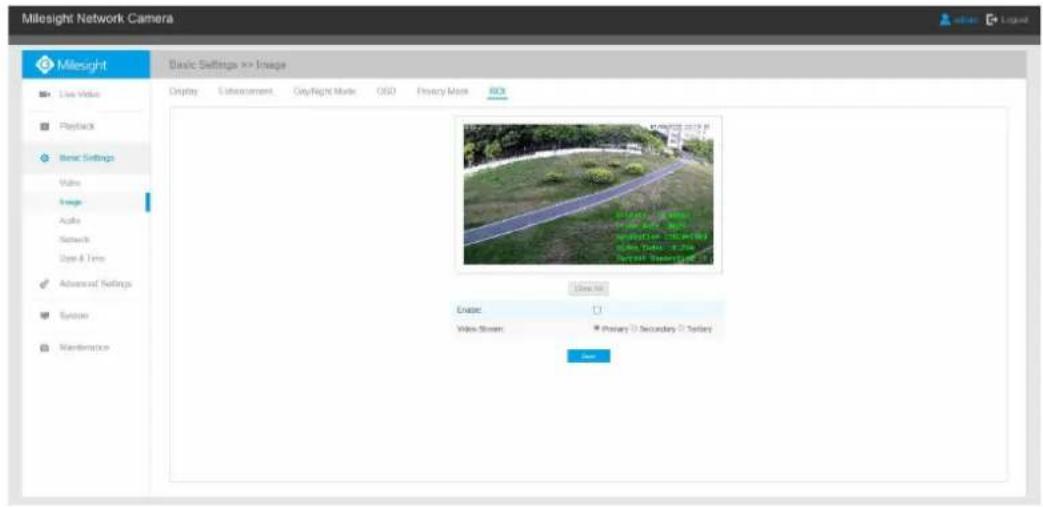

Milesight Network Camera Basic Settings >> Image Live Video Display Enhancement CityRight Make OSD Privacy Mask ROI Playback Metric Settings Video Image Audio Network User & Time Advanced Settings System Maintenance Video Flow: Video Stream: Primary (1) Secondary (2) Teller View

Figure 4-3-14 ROI Settings

Table 4-3-7 Description of the buttons

Parameters	Function Introduction
Enable	Check the checkbox to enable the ROI function
Clear All	Clear all areas you drew before
Video Stream	Choose the Video Stream

Note:

You can set a low bit rate. For example, you can set a bit rate with 512Kbps and a resolution w 1080P, then you can see the image quality of ROI is more clear and fluent than the other region.

4.3.3 Audio

This audio function allows you to hear the sound from the camera or transmit your sound to the camera side. A two-way communication is also possible to be achieved with this feature. Alarm can be triggered when the audio input is above a certain alarm level you set, and configured audio can be played when an alarm occurs.

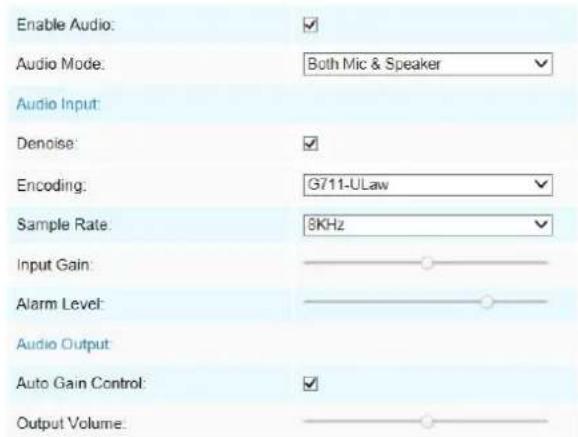

Enable Audio: ✓ Audio Mode: Both Mic & Speaker ✓ Audio Input: Denoise: ✓ Encoding: G711-ULaw ✓ Sample Rate: 8KHz ✓ Input Gain: Alarm Level: Audio Output Auto Gain Control: ✓ Output Volume:

Figure 4-3-15 Audio

Table 4-3-8 Description of the buttons

Parameters	Function Introduction
Enable Audio	Check on the checkbox to enable audio feature
Audio Input	Denoise: Set it as On/Off. When you set the function on, the noise detected be filteredEncoding: G711-ULaw, G711-ALaw and AAC LC are availableSample Rate: There are 8KHz/16KHz two optionsInput Gain: Input audio gain level, 0-100Alarm Level: Alarm will be triggered if voice alarm is enabled and input gain volume is higher than the alarm level, 1-100
Audio Output	Auto Gain Control: This function is only for H.265 series, improve the qualityaudioOutput Volume: Adjust volume of output

You can upload up to 3 audio files manually on the Audio web page and you can also edit the audio file's name when upload. Most important, you can set the audio schedule to realize trigger different audio files in different time, which is corresponded to alarm action.

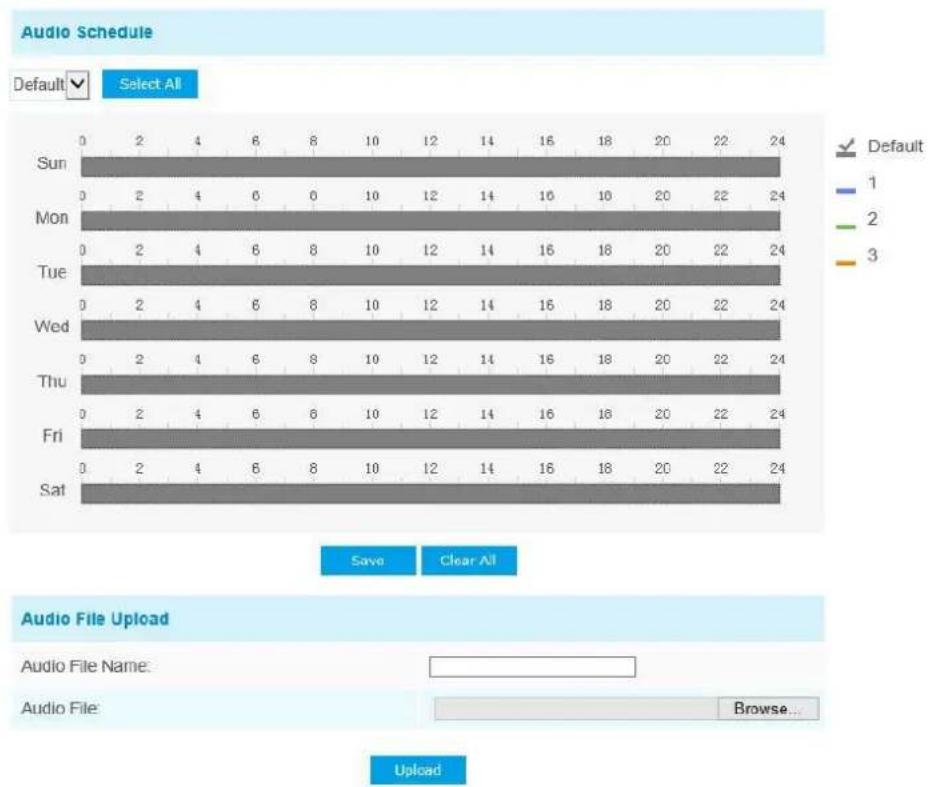

Audio Schedule Default Select All Sun 0 2 4 6 8 10 12 14 16 18 20 22 24 Mon 0 2 4 6 8 10 12 14 16 18 20 22 24 Tue 0 2 4 6 8 10 12 14 16 18 20 22 24 Wed 0 2 4 6 8 10 12 14 16 18 20 22 24 Thu 0 2 4 6 8 10 12 14 16 18 20 22 24 Fri 0 2 4 6 8 10 12 14 16 18 20 22 24 Sat 0 2 4 6 8 10 12 14 16 18 20 22 24 Save Clear All Audio File Upload Audio File Name: Audio File: Browse... Upload

Figure 4-3-16 Audio File

Note:

1) The Audio mode and Audio Output are only for certain modules.

4.3.4 Network

TCP/IP

Get IPv4 address automatically Use fixed IPv4 address IP Address: 192.168.8.150 Test IPv4 Subnet Mask: 255.255.255.0 IPv4 Default Gateway: 192.168.8.2 Preferred DNS Server: 8.8.8.8 IPv6 Mode: Manual IPv6 Address: IPv6 Prefix: IPv6 Default Gateway:

Figure 4-3-17 TCP/IP

Table 4-3-9 Description of the buttons

Parameters	Function Introduction
Get IPv4 AddressAutomatically	Get an IP address from the DHCP server automatically
Use fixed IP address	IPv4 Address: An address that used to identify a network camera on the networkIPv4 Subnet Mask: It is used to identify the subnet where the network can be locatedIPv4 Default Router: The default router addressPreferred DNS Server: The DNS Server translates the domain name to IP addressIPv6 Mode: Choose different mode for IPv6: Manual/Route Advertisement/DHCPv6IPv6 Address: IPv6 Address used to identify a network camera on the netIPv6 Prefix: Define the prefix length of IPv6 addressIPv6 Default Router: The default router IPv6 address

Note:

1) The Test button is used to test if the IP is conflicting.

HTTP

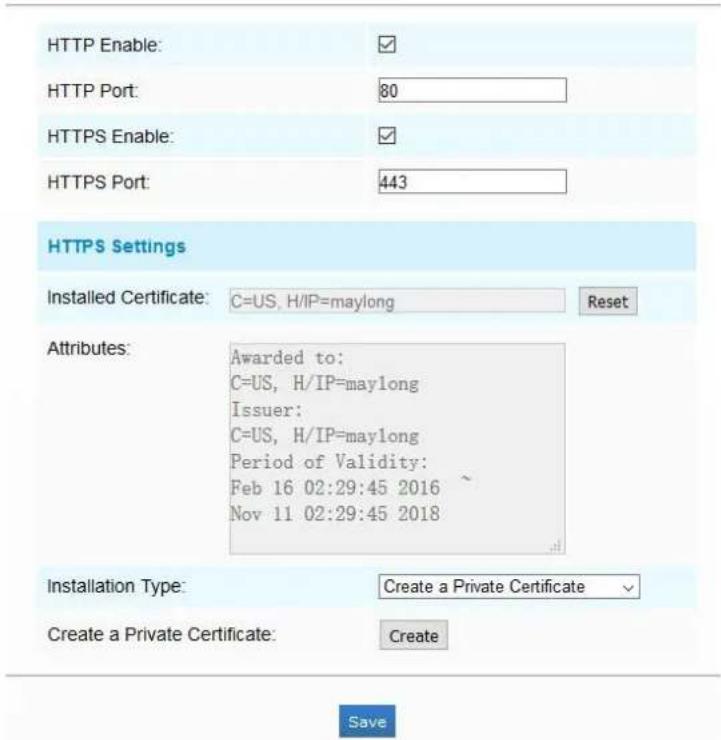

HTTP Enable: ✓ HTTP Port: 80 HTTPS Enable: ✓ HTTPS Port: 443 HTTPS Settings Installed Certificate: C=US, H/IP=maylong Reset Attributes: Awarded to: C=US, H/IP=maylong Issuer: C=US, H/IP=maylong Period of Validity: Feb 16 02:29:45 2016 Nov 11 02:29:45 2018 Installation Type: Create a Private Certificate ✓ Create a Private Certificate: Create Save

Figure 4-3-18 HTTP Port Settings

Table 4-3-10 Description of the buttons

Parameters	Function Introduction
HTTP Enable	Start or stop using HTTP
HTTP Port	Web GUI login port, the default is 80, the same with ONVIF port
HTTPS Enable	Start or stop using HTTPS
HTTPS Port	Web GUI login port via HTTPS, the default is 443
HTTP Settings	Upload and set the SSL certificate .

HTTP URL are as below:

Stream	URL
Main Stream	http://username:password@IP:port/ipcam/mjpeg.cgi
Secondary Stream	http://username:password@IP:port/ipcam/mjpegcif.cgi
Tertiary Stream	http://username:password@IP:port/mjpegthird.cgi

Note:

1) You need to change the codec type of streams to MJPEG except the main stream of H.264 cameras whose models with "-A".

RTSP

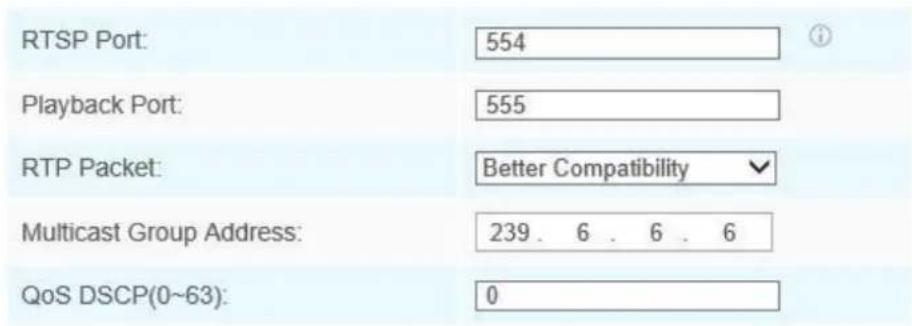

RTSP Port: 554 Playback Port: 555 RTP Packet: Better Compatibility Multicast Group Address: 239. 6 . 6 . 6 QoS DSCP(0~63): 0

Figure 4-3-19 RTSP Settings

Table 4-3-11 Description of the buttons

Parameters	Function Introduction
RTSP Port	The port of RTSP, the default is 554
Playback Port	The port of playback, the default is 555
RTP Packet	There are Better Compatibility and Better Performance two options, if your camera's image mess up, please switch this option
Multicast Group Address	Support multicast function
QoS DSCP	The valid value range of the DSCP is 0-63.

RTSP URL are as below:

Stream	URL
Main Stream	rtsp://username:password@IP:port/main
Secondary Stream	rtsp://username:password@IP:port/sub
Tertiary Stream	http://username:password@IP:port/third

Note:

1) Get the format of RTSP URL by clicking " " on the right side of RTSP Port.
2) DSCP refers to the Differentiated Service Code Point; and the DSCP value is used in the IP header to indicate the priority of the data.
3) A reboot is required for the settings to take effect.
4) The tertiary stream is only equipped on camera whose model with "-A" or "-B".

UPnP

Universal Plug and Play (UPnP) is a networking architecture that provides compatibility among networking equipment, software and other hardware devices. The UPnP protocol allows devices to connect seamlessly and to simplify the implementation of networks in the home and corporate environments. With the function enabled, you don't need to configure the port mapping for each port, and the camera is connected to the Wide Area Network via the router.

Enable UPnP: Port Mapping Enable Port Mapping: Name: UPnP Type: Auto Protocol Name External Port Internal Port Status HTTP 21202 80 Invalid RTSP 23202 554 Invalid Playback 25202 555 Invalid Save

Figure 4-3-20 UPnP Settings

Table 4-3-12 Description of the buttons

Parameters	Function Introduction
Enable	Check the checkbox to enable the UPnP function
Enable Port Mapping	Check the checkbox to enable the Port Mapping
Name	The name of the device detected online can be edited
Type	Auto: Automatically obtain the corresponding HTTP and RTSP port, without a settingsManual: Need to manually set the appropriate HTTP port and RTSP Port. W choose Manual, you can customize the value of the port number by yourself

DDNS

DDNS allows you to access the camera via domain names instead of IP address. It manages to change IP address and update your domain information dynamically. You need to register an account from a provider.

DDNS is not running Enable DDNS: Provider: ddns.milesight.com External HTTP Port : 80 External RTSP Port: 554 External Playback Port: 555 DDNS URL: http://ddns.milesight.com/210C1E Note: Recommend to enable and configure UPnP ports which can be used directly in DDN Save

Figure 4-3-21 DDNS Settings

You can choose "ddns.milesight.com" as provider for DDNS. After enabling it, you can access the device via the URL "http://ddns.milesight.com/MAC address".

Table 4-3-13 Description of the buttons

Parameters	Function Introduction
Enable DDNS	Check the checkbox to enable DDNS service
Provider	Get support from DDNS provider: ddns.milesight.com, freedns.afraid.org, dyndns.org, www.no-ip.com, www.zoneedit.com. You can also customize the provider for DDNS.
Hash	A string used for verifying, only for "freedns.afraid.org"
User name	Account name from the DDNS provider, unavailable for "freedns.afraid.org"
Password	Account password, unavailable for "freedns.afraid.org"
Host name	DDNS name enabled in the account

Note:

1) Please do the Port Forwarding of HTTP Port and RTSP Port before you use Milesight DDNS.
2) Make sure that the internal and the external port number of RTSP are the same.

Email

Alarm video files can be sent to specific mail account through SMTP server. You must configure the email settings correctly before using it.

User Name: hdipnc Sender Email Address: [e-mail] Password: •••••••••••• SMTP Server: smtp.sina.com SMTP Port: 25 Recipient Email Address1: [e-mail] Recipient Email Address2: Encryption: ○ SSL ○ TLS Save Test

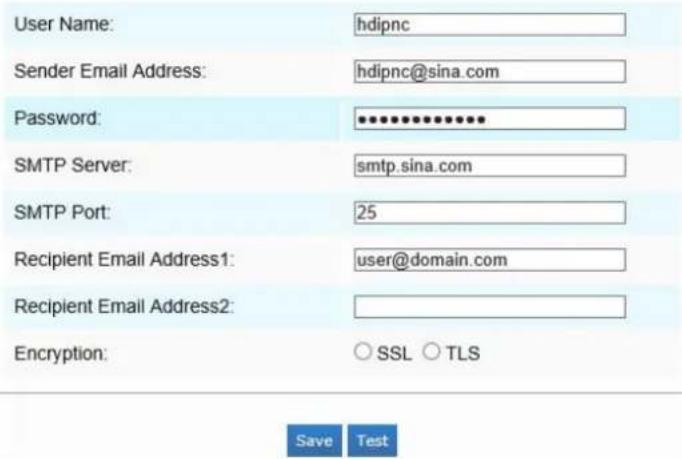

Figure 4-3-22 SMTP Settings

Table 4-3-14 Description of the buttons

Parameters	Function Introduction
User Name	The sender's name. It is usually the same as the account name
Sender Email Address	Email address to send video files attached emails
Password	The password of the sender
SMTP Server	The SMTP server IP address or host name(e.g. smtp.gmail.com)
SMTP Port	The default TCP/IP port for SMTP is 25(not secured). For SSL/TLS port, it de on the mail you use
Recipient Email Address1	Email address to receive video files
Recipient Email Address2	Email address to receive video files
Encryption	Check the checkbox to enable SSL or TLS if it is required by the SMTP serv

FTP

Alarm video files can be sent to specific FTP server. You must configure the FTP settings correctly before using it.

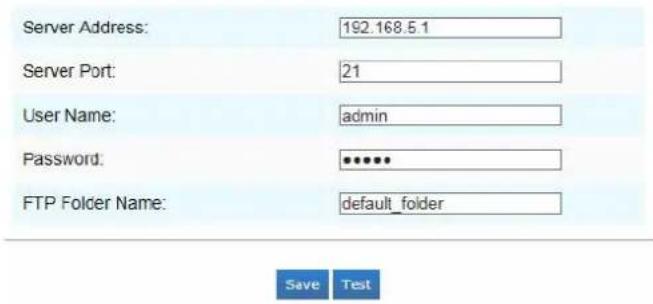

Server Address: 192.168.5.1 Server Port: 21 User Name: admin Password: •••••• FTP Folder Name: default_folder Save Test

Figure 4-3-23 FTP Settings

Table 4-3-15 Description of the buttons

Parameters	Function Introduction
Server Address	FTP server address
Server Port	The port of the FTP server. Generally it is 21
User Name	User name used to log in to the FTP sever
Password	User password
FTP Folder Name	Path where video will be uploaded to on the FTP server

VLAN

A virtual LAN (VLAN) is any broadcast domain that is partitioned and isolated in a computer network at the data link layer (OSI layer 2). LAN is an abbreviation of local area network. VLANs allow network administrators to group hosts together even if the hosts are not on the same network switch. This can greatly simplify network design and deployment, because VLAN membership can be configured through software. Without VLANs, grouping hosts according to their resource needs necessitates the labour of relocating nodes or rewiring data links.

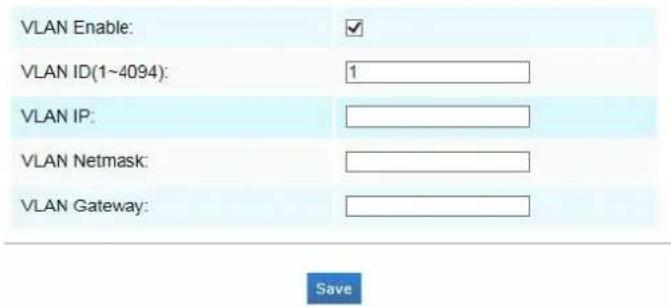

VLAN Enable: ✓ VLAN ID(1~4094): 1 VLAN IP: VLAN Netmask: VLAN Gateway:

Figure 4-3-24 VLAN Settings

Note:

1) How to set up VLAN in switches, please refers to your switches user manual.

PPPoE

This camera supports the PPPoE auto dial-up function. The camera gets a public IP address by ADSL dial-up after the camera is connected to a modem. You need to configure the PPPoE parameters of the network camera.

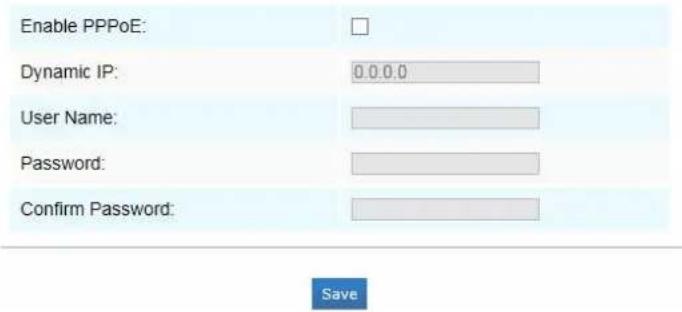

Enable PPPoE: Dynamic IP: 0.0.0.0 User Name: Password: Confirm Password:

Figure 4-3-25 PPPoE Settings

Note:

1) The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes after rebooting the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (e.g. DynDns.com).
2) The user name and password should be assigned by your ISP.

SNMP

You can set the SNMP function to get camera status, parameters and alarm related information and manage the camera remotely when it is connected to the network.

Before setting the SNMP, please download the SNMP software and manage to receive the camera information via SNMP port. By setting the Trap Address, the camera can send the alarm event and exception messages to the surveillance center.

SNMP v1/v2 SNMP V1 Enable: □ SNMP V2c Enable: □ Write Community: public Read Community: private SNMP v3 SNMP V3 Enable: □ Read Security Name: Level of Security: no auth,no priv Write Security Name: Level of Security: no auth,no priv SNMP Port SNMP Port: 161 Save

Figure 4-3-26 SNMP Settings

Table 4-3-16 Description of the buttons

Parameters	Function Introduction
SNMP v1/2/3	The version of SNMP, please select the version of your SNMP software. SNMP v1: Provide no security SNMP v2: Require password for access SNMP v3: Provide encryption and the HTTPS protocol must be enabled
Write Community	Input the name of Write Community
Read Community	Input the name of Read Community
Read Security Name	Input the name of Read Security Community
Level of Security	There are three levels available: (auth, priv), (auth, no priv) and (no auth, n
Write Security Name	Input the name of Write Security Community
Level of Security	There are three levels available: (auth, priv), (auth, no priv) and (no auth, n
SNMP Port	The port of SNMP, the default is 161

Note:

1) The settings of SNMP software should be the same as the settings you configure here;
2) A reboot is required for the settings to take effect.

802.1x

The IEEE 802.1X standard is supported by the network cameras, and when the feature is enabled, the camera data is secured and user authentication is needed when connecting the camera to the network protected by the IEEE 802.1X.

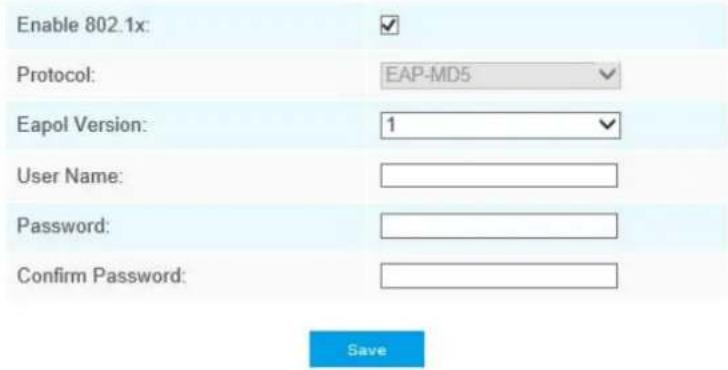

Enable 802.1x: Protocol: EAP-MD5 Eapol Version: 1 User Name: Password: Confirm Password: Save

Figure 4-3-27 802.1x Settings

4.3.5 Wi-Fi (Optional)

Wi-Fi

The page is as follows:

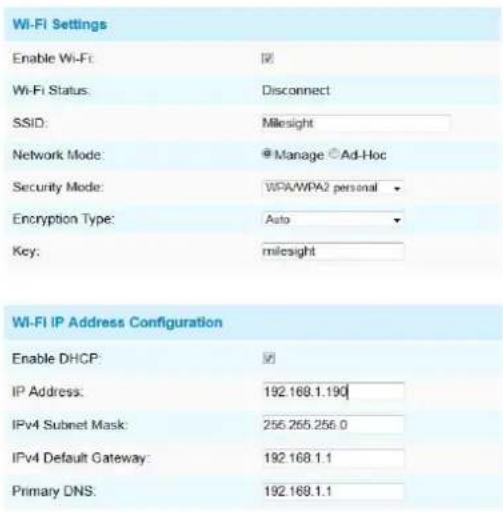

Wi-FI Settings Enable Wi-Fi: ☑ Wi-Fi Status: Disconnect SSID: Milesight Network Mode: + Manage Ⓐ Ad-Hoc Security Mode: WPA/WPA2 personal Encryption Type: Auto Key: milesight Wi-FI IP Address Configuration Enable DHCP: ☑ IP Address: 192.168.1.190 IPv4 Subnet Mask: 255.265.256.0 IPv4 Default Gateway: 192.168.1.1 Primary DNS: 192.168.1.1

Figure 4-3-28 Wi-Fi

Table 4-3-17 Description of the buttons

Parameters	Function Introduction
Enable Wi-Fi	Enable/Disable the Wi-Fi function
Wi-Fi Settings	Wi-Fi Status: Connected/DisconnectedSSID: Wi-Fi sourceNetwork Mode: Wi-Fi option for Manage and Ad-Hoc modeSecurity Mode: Select Wi-Fi connection security modeEncryption Type: Auto/TKIP/AES are availableKey: Enter the Key of Wi-Fi to connect
Wi-Fi IP Address Configuration	Enable DHCP: Check the checkbox to enable the DHCP functionIPv4 Address: Address used to identify a network camera on the networkIPv4 Subnet Mask: It is used to identify the subnet where the network cam locatedIPv4 Default Gateway: The default gateway addressPrimary DNS: The DNS Server translates the domain name to IP address

WPS(Wi-Fi Protected Setup)

Originally, Wi-Fi Simple configuration is a network security standard that allows users to easily secure a wireless home network. The goal of the protocol is to allow home users who know little or wireless security and may be intimidated by the available security options to set up Wi-Fi Protected Access, as well as making it easy to add new devices to an existing network without entering long password phrases.

PIN Method

It's a personal identification number (PIN) has to be read from either a sticker or the display on the new wireless device. You can add the PIN code to the router or you add the Router PIN code on this camera.

Push-Button Method

The user simply has to push a button, either an actual or virtual one, on both the access point and the new wireless client device. Support of this mode is mandatory for access points and optional for connecting devices.

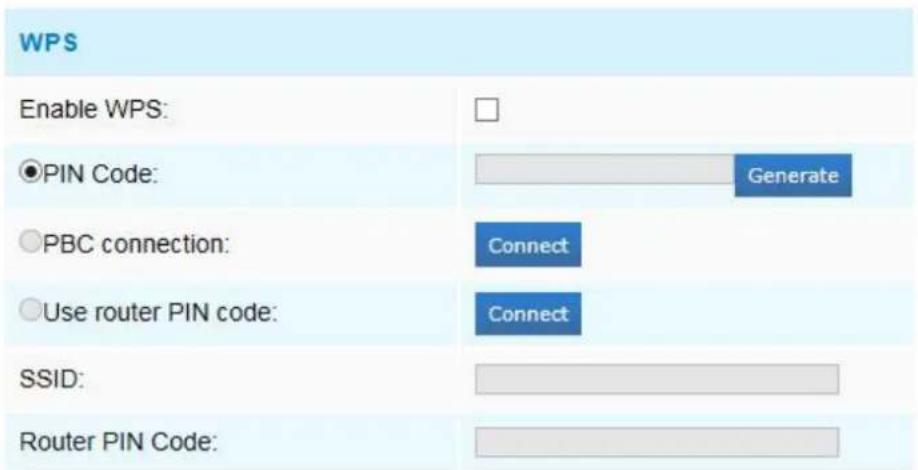

WPS Enable WPS: ○PIN Code: ○PBC connection: ○Use router PIN code: SSID: Router PIN Code:

Figure 4-3-29 WPS

Table 4-3-18 Description of the buttons

Parameters	Function Introduction
Enable WPS	Enable or Disable WPS
PIN Code	Click on the “Generate” to get a code, you need to add this PIN code to t
PBC Connecting	Connect via PBC button, click on the PBC button on the router, then click “Connect” button again
Use Router PIN Code	Enter the router PIN code here, and also with the SSID

Note:

1) Wi-Fi function is only applicable for Cube cameras, WPS need supports from Wi-Fi router. 2) If you use Fixed IP, please set the same IP as the segment of Wi-Fi router.

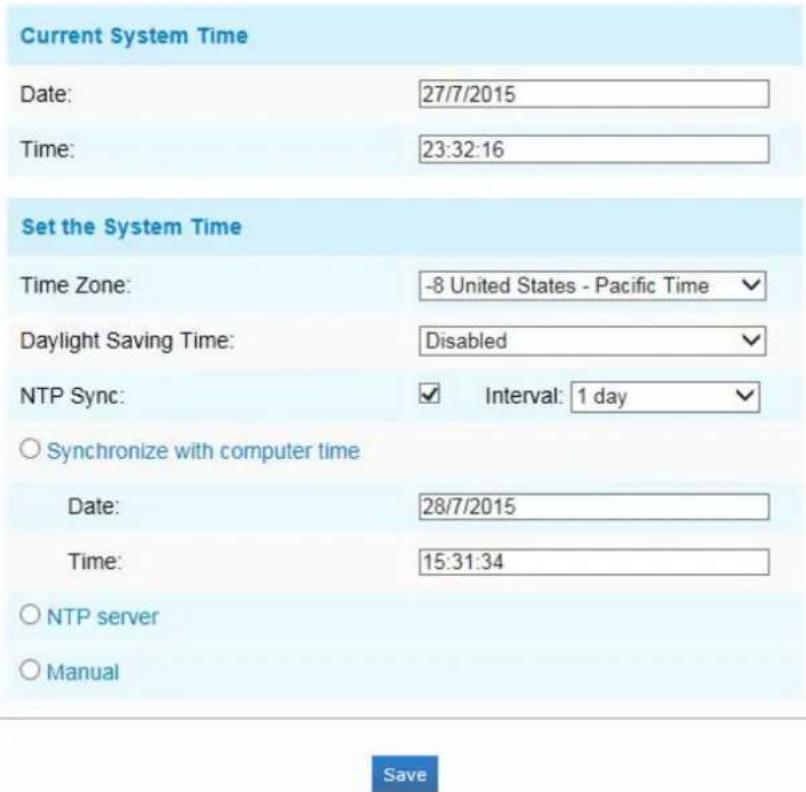

4.3.6 Date&Time

Current System Time Date: 27/7/2015 Time: 23:32:16 Set the System Time Time Zone: -8 United States - Pacific Time Daylight Saving Time: Disabled NTP Sync: Interval: 1 day Synchronize with computer time Date: 28/7/2015 Time: 15:31:34 NTP server Manual Save

Figure 4-3-10 Date&Time Settings

Current System Time

Current date&time of the system

Set the System Time

Table 4-3-19 Description of the buttons

Parameters	Function Introduction
Time Zone	Choose a time zone for your location
Daylight Saving time	Enable the daylight saving time
NTP Sync	Regularly update your time according to the interval time
Synchronize with computer time	Synchronize the time with your computer
NTP server	Input the address of NTP server
Encryption Type	Synchronize the time with configured SNTP server and selected time zone
Manual	Set the system time manually

4.4 Advanced Settings

4.4.1 Alarm

Motion Detection

Step1: Check the checkbox to enable the motion detection;

Step2: Set motion region;

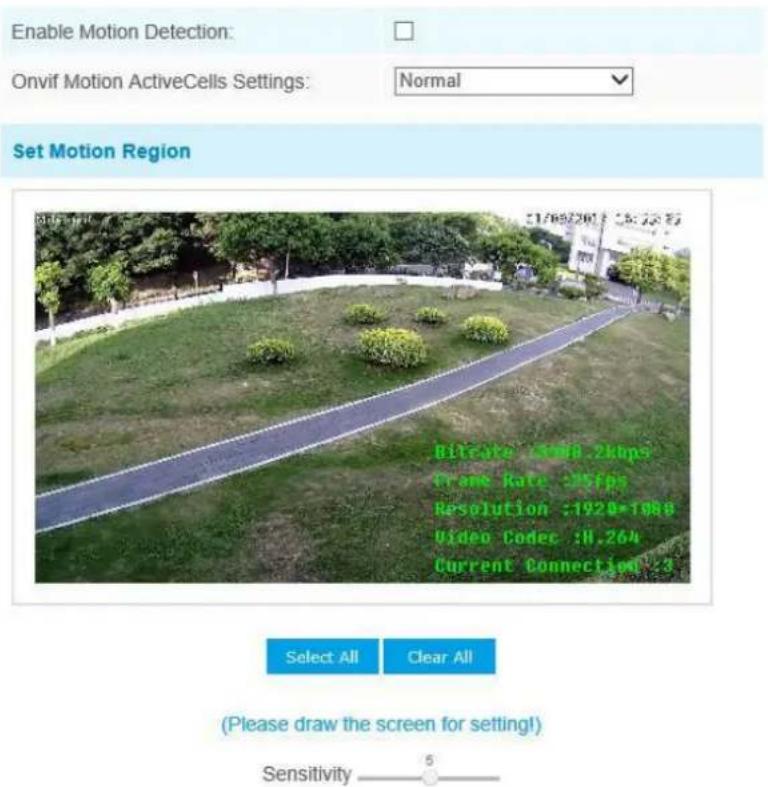

Enable Motion Detection: Onvif Motion ActiveCells Settings: Normal Set Motion Region Bitmap: 5000.2Kbps Frame Rate: 35fps Resolution: 1920=1080 Video Codes: H.264 Current Connection: 3 Select All Clear All (Please draw the screen for setting!) Sensitivity 5

Figure 4-4-1 Motion Region Settings

Table 4-4-1 Description of the buttons

Parameters	Function Introduction
Enable Motion Detection	Check the checkbox to enable Motion Detection function
Onvif Motion ActiveCells Settings	Normal and Compatible are available for the option. If the setting of motion region of the third-party software is different from ours, please set this opti Compatible.
Select All	Click the button, the motion in the area will be detected
Clear All	Click the button, the area drawn before will be removed
Sensitivity	Sensitivity level, 1~10

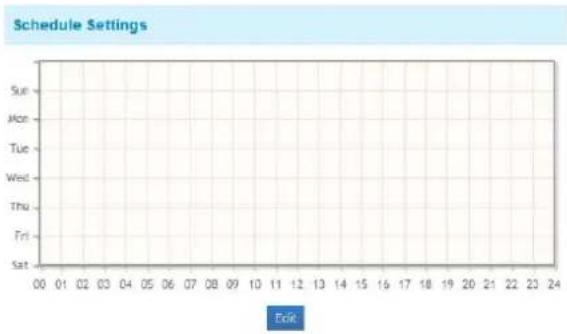

Step3: Set motion detection schedule;

Schedule Settings Sun Mon Tue Wed Thu Fri Sat 08 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Edge

Figure 4-4-2 Schedule Settings

Step4: Set alarm action;

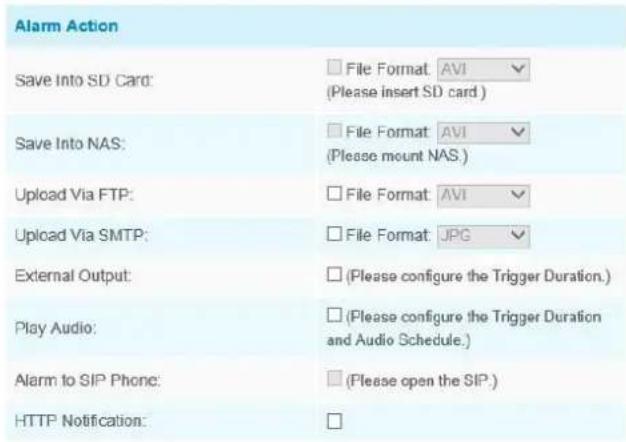

Alarm Action Save Into SD Card: □ File Format: AVI (Please insert SD card) Save Into NAS: □ File Format: AVI (Please mount NAS.) Upload Via FTP: □ File Format: AVI Upload Via SMTP: □ File Format: JPG External Output: □ (Please configure the Trigger Duration.) Play Audio: □ (Please configure the Trigger Duration and Audio Schedule.) Alarm to SIP Phone: □ (Please open the SIP.) HTTP Notification: □

Figure 4-4-3 Alarm Action

Table 4-4-2 Description of the buttons

Parameters	Function Introduction
Save Into SD Card	Save alarm recording files into SD Card
Save Into NAS	Save alarm recording files into NAS
Upload Via FTP	Upload the recording files via FTP
Upload Via SMTP	Upload the files via SMTP
External Output	If the camera equips with External Output, you can enable the action after configuring the trigger duration
Play Audio	If the camera equips with Speaker, you can enable the action after configuri audio speaker
Play Buzzer	If the camera equips with Buzzer, you can check the checkbox to enable the function.
Alarm to SIP Phone	Support to call the SIP phone after enable the SIP function.
HTTP Notification	Support to pop up the alarm news to specified HTTP URL.

NOTE:

1) The HTTP notification function is just one way for camera to send messages to VMS Software.

And it's the VMS that defines what the messages mean and decides what to do after receiving this kind of messages. So, we can use the HTTP Notification function of our cameras only if the VMS supports this kind of message format.

Here will take the Digifort as an example to introduce the HTTP Notification function.

The following are the detail steps of setting for HTTP Notification in Digifort VMS and our cameras.

Step1: Enable Alarm, set Motion Region and detection Schedule;

Step2: Check the HTTP Notification as Alarm Action, and fill the fields. Then save the alarm setting;

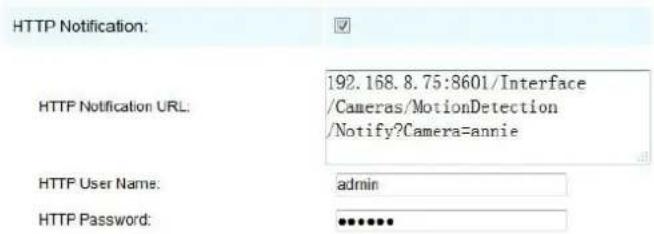

HTTP Notification: HTTP Notification URL: 192.168.8.75:8601/Interface /Cameras/MotionDetection /Notify?Camera=annie HTTP User Name: admin HTTP Password: ●●●●●●

HTTP User Name: admin (the user name of your camera)

HTTP Password: ms1234 (the password of your camera)

HTTP Notification URL:

http://IP:8601/Interface/Cameras/MotionDetection/Notify?Camera=CameraName

IP refers to the PC's IP where the Digifort installed.

8601 is the port for Motion signal in Digifort.

CameraName is the camera name you set in Digifort VMS, like the picture shown below.

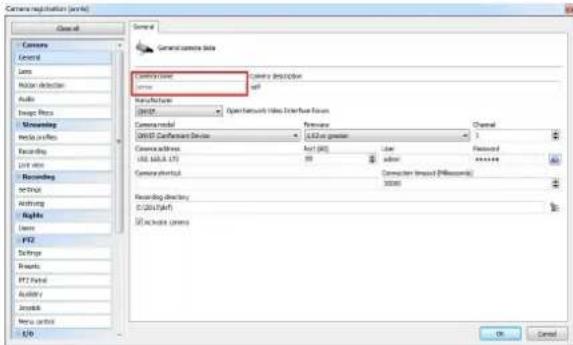

Camera registration (arch) General camera data Camera Address Camera Description user Auto Audio Image Tools Recording Radio buttons Recording Audio Recording Internet Audio Audio FPT2 Settings Reversals FPT Panama Audience Audio Video (optional) C:\Users\Shift C:\Users\Camera General Camera Data Camera Address Camera Description user Auto Audio Audio Camera Address Camera Description 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Example:

http://192.168.8.75:8601/Interface/Cameras/MotionDetection/Notify?Camera=annie,

this URL format is exactly supported by Digifort VMS, so we can set as above to our cameras and get it work well.

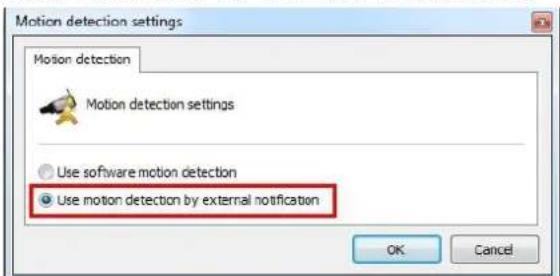

Step3: choose use motion detection by external notification;

Motion detection settings Motion detection Motion detection settings Use software motion detection Use motion detection by external notification OK Cancel

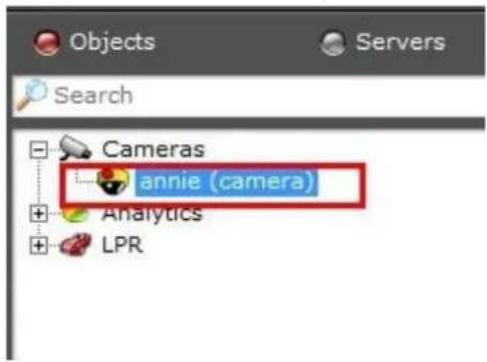

Step4: If successful, you can see the device icon turns yellow in the Surveillance when the camera is under Motion Detection Alarm;

Objects Servers Search Cameras annie (camera) Analytics LPR

So, it's the VMS Software which decides whether we can use this function successfully. Step5: Set alarm settings.

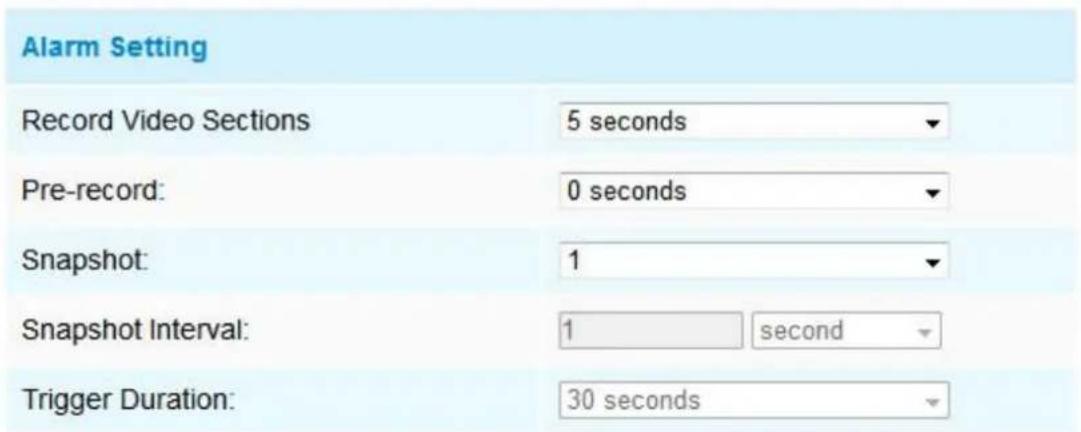

Alarm Setting Record Video Sections 5 seconds Pre-record: 0 seconds Snapshot: 1 Snapshot Interval: 1 second Trigger Duration: 30 seconds

Figure 4-4-4 Alarm Settings

Table 4-4-3 Description of the buttons

Parameters	Function Introduction
Record Video Sections	Six different periods are available(5, 10, 15, 20, 25, 30 sec)
Pre-record	Reserve the record time before alarm, 0~10 sec
Snapshot	The number of snapshot, 1~5
Snapshot Interval	This cannot be edited unless you choose more than 1 to Snapshot
Trigger Duration	Length of time an alarm lasts, this cannot be edited unless you enable th External Output on the Alarm Action firstly.

Audio Alarm

Enable the Audio before using Audio Alarm function.

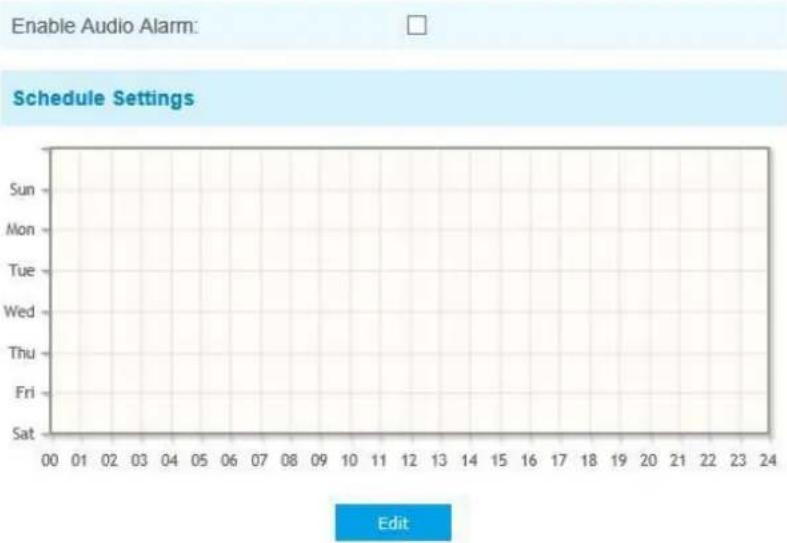

Enable Audio Alarm: Schedule Settings Sun Mon Tue Wed Thu Fri Sat Edit

Figure 4-4-5 Schedule Settings

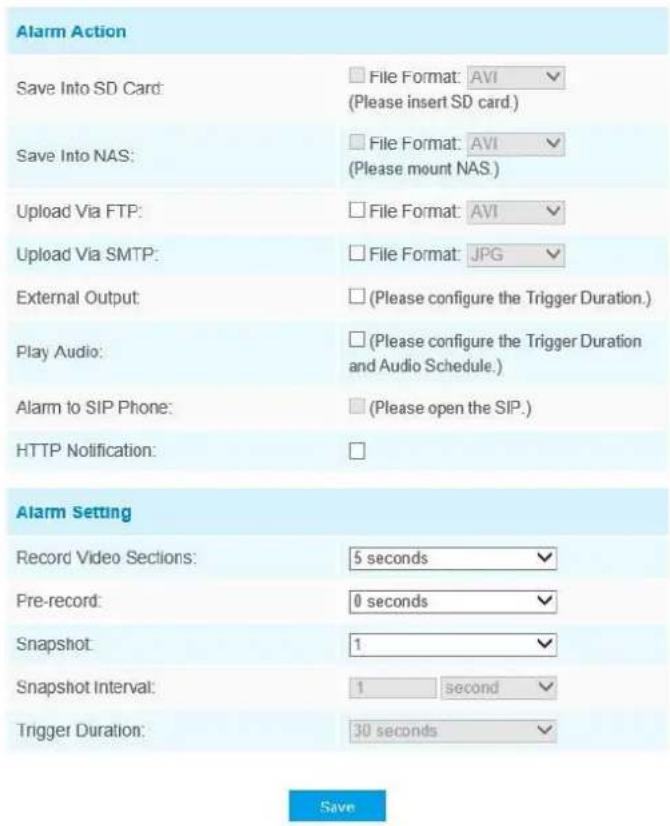

Alarm Action Save Into SD Card: File Format: AVI (Please insert SD card.) Save Into NAS: File Format: AVI (Please mount NAS.) Upload Via FTP: File Format: AVI Upload Via SMTP: File Format: JPG External Output: (Please configure the Trigger Duration.) Play Audio: (Please configure the Trigger Duration and Audio Schedule.) Alarm to SIP Phone: (Please open the SIP.) HTTP Notification: Alarm Setting Record Video Sections: 5 seconds Pre-record: 0 seconds Snapshot: 1 Snapshot Interval: 1 second Trigger Duration: 30 seconds Save

Figure 4-4-6 Alarm Settings

The meaning of items please refer to table 4-4-2 and 4-4-3, here will not repeat again.

External Input

Enable External Input

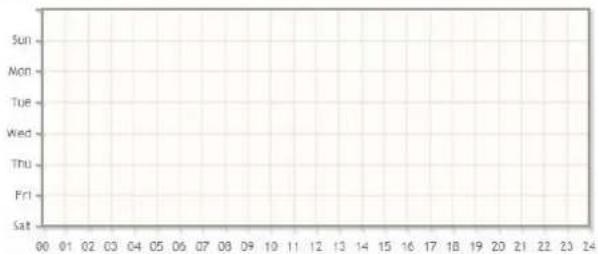

Schedule Settings

Sun Mon Tue Wed Thu Fri Sat

Figure 4-4-7 Schedule Settings

Alarm Action

Save Into SD Card:	File Format: AVI(Please insert SD card.)
Save Into NAS:	File Format: AVI(Please mount NAS.)
Upload Via FTP:	File Format: AVI
Upload Via SMTP:	File Format: JPG
External Output:	(Please configure the Trigger)
Play Audio:	(Please configure the Trigger and Audio Schedule.)
Alarm to SIP Phone:	(Please open the SIP.)
HTTP Notification:

Alarm Setting

Record Video Sections:	5 seconds
Pre-record:	0 seconds
Snapshot:	1
Snapshot Interval:	1	second
Trigger Duration:	30 seconds

Save

Figure 4-4-8 Alarm Settings

The meaning of items please refer to table 4-4-2 and 4-4-3, here will not repeat again.

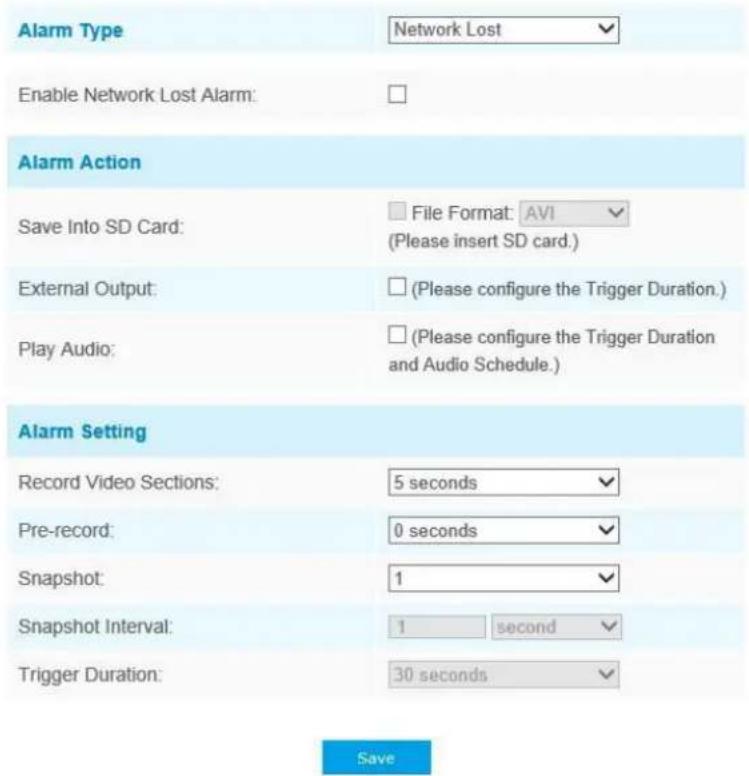

Other Alarm

Alarm Type Enable Network Lost Alarm: Alarm Action Save Into SD Card: External Output: Play Audio: Alarm Setting Record Video Sections: Pre-record: Snapshot: Snapshot Interval: Trigger Duration: 5 seconds 0 seconds 1 second 30 seconds Save

Figure 4-4-9 Other Alarm

Table 4-4-4 Description of the buttons

Parameters	Function Introduction
Alarm Type	Network Lost, Tampering and IP Address Conflicted are availableCheck the checkbox to enable the alarm type you selected
Alarm Action	Save Into SD Card: Save alarm recording files into SD CardExternal Output: If the camera equips with External Output, you can enable action after configuring the trigger durationPlay Audio: If the camera equips with Speaker, you can enable the action a configuring the audio speakerPlay Buzzer: If the camera equips with Buzzer, you can check the checkbox enable the function
Alarm Setting	Record Video Sections: Six different periods are available(5, 10, 15, 20, 25, sec)Pre-record: Reserve the record time before alarm, 0~10 secSnapshot: The number of snapshot, 1~5Snapshot Interval: This cannot be edited unless you choose more than 1 to SnapshotTrigger Duration: Length of time an alarm lasts, this cannot be edited unless when you enable the External Output on the Alarm Action firstly

External Output

External Output Normal Status: Open Grounded Current Status: Grounded Test Save

Figure 4-4-10 External Output Settings

Please set the Normal Status firstly, when the Current Status is different with Normal Status, it will lead to the alarm.

4.4.2 Storage

Before you start:

To configure record settings, please make sure that you have the network storage device within the network or the SD card inserted in your camera.

You can check "Enable cyclic storage", then it will delete the files when the free disk space reach a certain value. Choose the storage mode according to your needs.

SD Card

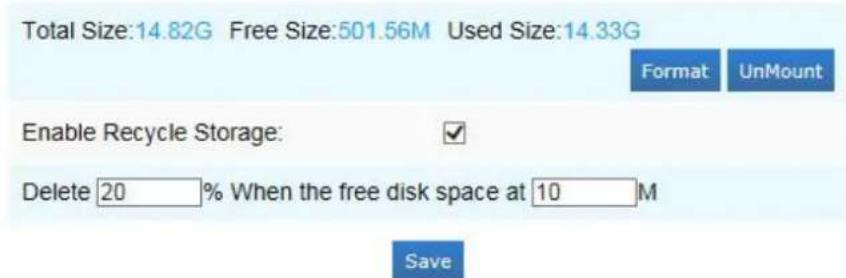

Total Size:14.82G Free Size:501.56M Used Size:14.33G Format UnMount Enable Recycle Storage: ✓ Delete 20 % When the free disk space at 10 M Save

Figure 4-4-13 SD Card

Table 4-4-5 Description of the buttons

Parameters	Function Introduction
Format	Format SD card, the files in SD card will be removed
Mount/UnMount	Mount/Dismount SD card
Enable cyclic storage	Enable/Disable cyclic storage
Delete	Enable cyclic storage, when the free disk space reach at a certain value, it automatically delete the files at certain percentage according to your settings

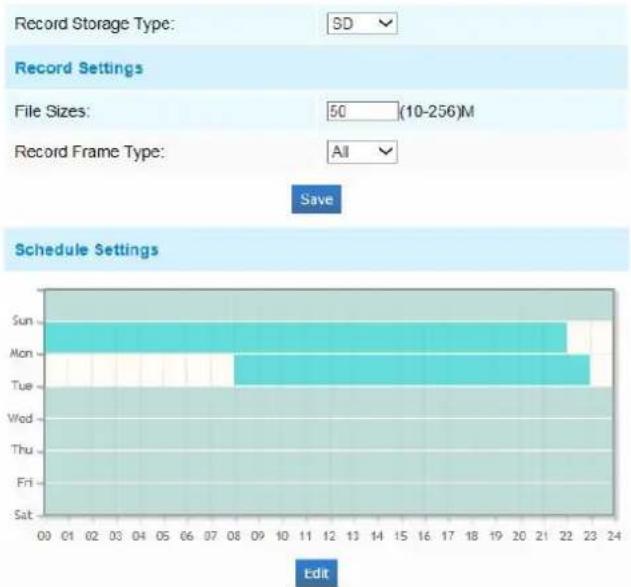

Record Schedule

Record Storage Type: SD Record Settings File Sizes: 50 (10-256)M Record Frame Type: All Save Schedule Settings Sun Mon Tue Wed Thu Fri Sat Edit

Figure 4-4-14 Record Schedule

Table 4-4-6 Description of the buttons

Parameters	Function Introduction
Record Storage Type	SD or NAS are available
Record Settings	File Sizes: Set record file size, (10-256)MRecord Frame Type: All/Key(All: Record all the frameKey: Only record I-frame)
Schedule Settings	Click the Edit button to edit record schedule

NAS

The network disk should be available within the network and properly configured to store the recorded files, etc.

NAS (Network-Attached Storage), connecting the storage devices to the existing network, provides data and files services.

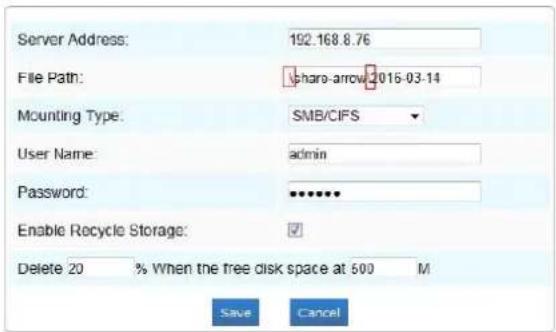

Server Address: 192.168.8.76 File Path: \charo-arrow\2016-03-14 Mounting Type: SMB/CIFS User Name: admin Password: ****** Enable Recycle Storage: ✓ Delete 20 % When the free disk space at 500 M Save Cancel

Figure 4-4-15 NAS Settings

Table 4-4-7 Description of the buttons

Parameters	Function Introduction
Server Address	IP address of NAS server
File Path	Input the NAS file path, e.g. “\path”.
Mounting Type	NFS and SMB/CIFS are available. And you can set the user name and passw guarantee the security if SMB/CIFS is selected

Note:

1) Up to 5 NAS disks can be connected to the camera.

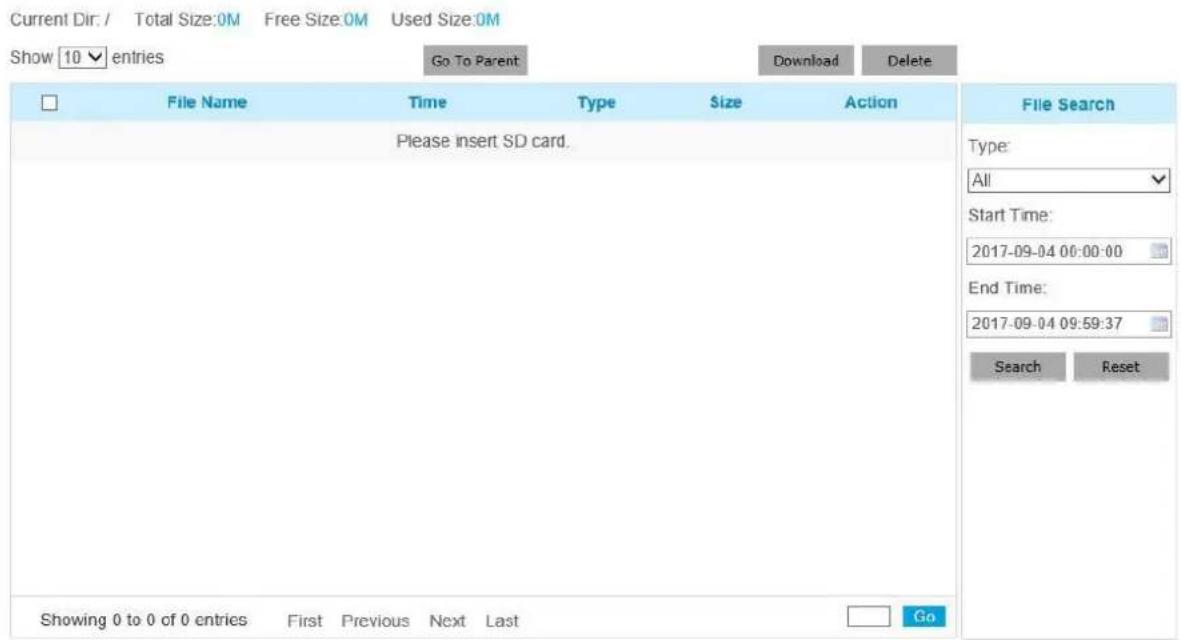

SD Card Explorer

Files will be seen on this page when they are configured to save into SD card.

You can set time schedule every day for recording videos and save video files to your desired location.

(Note: Files are visible once SD card is inserted. Don't insert or plug out SD card when power on.)

SD card video files are arranged by date. Each day files will be displayed under the corresponding date, from here you can copy and delete files etc. You can visit the files in SD card by ftp, for example, ftp://username:password@192.168.5.190(user name and password are the same as the camera account and the IP followed is the IP of your device.).

Current Dir: / Total Size:0M Free Size:0M Used Size:0M Show 10▼ entries Go To Parent Download Delete File Name Time Type Size Action File Search Please insert SD card. Type: All Start Time: 2017-09-04 00:00:00 End Time: 2017-09-04 09:59:37 Search Reset Showing 0 to 0 of 0 entries First Previous Next Last Go

Figure 4-4-16 SD Card Explorer

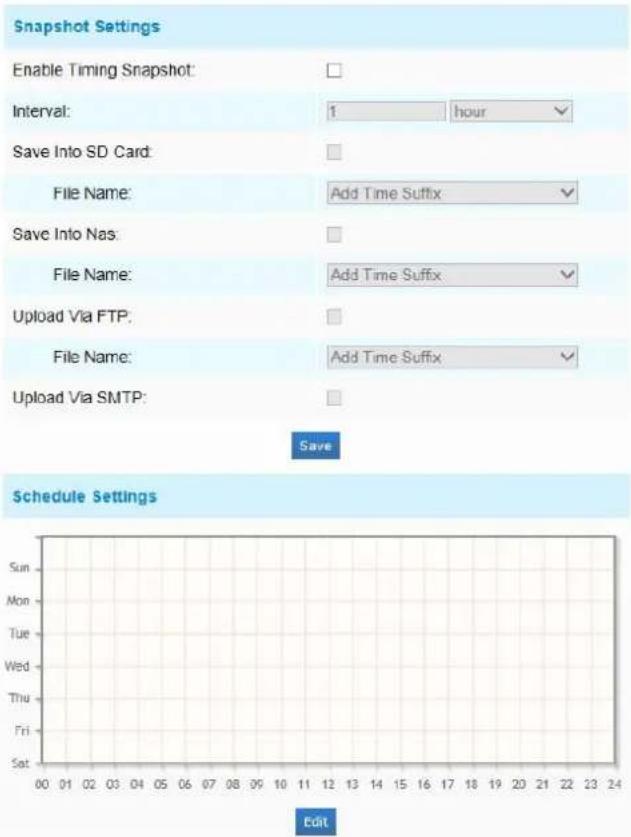

Snapshot

Snapshot Settings Enable Timing Snapshot: Interval: 1 hour Save Info SD Card: File Name: Add Time Suffix Save Info Nas: File Name: Add Time Suffix Upload Via FTP: File Name: Add Time Suffix Upload Via SMTP: Save Schedule Settings Sun Mon Tue Wed Thu Fri Sat Edit

Figure 4-4-17 Snapshot Settings

Table 4-4-8 Description of the buttons

Parameters	Function Introduction
Snapshot Settings	Enable Time Snapshot: Check the checkbox to enable the Timing Snapshot functionInterval: Set the snapshots interval, input the number and choose the unit(millisecond, second, minute, hour, day)Save Into SD Card: Save the snapshots into SD card, and choose the file name add time suffix or overwrite the base file name.Save Into NAS: Save the snapshots into NAS, and choose the file name to a time suffix or overwrite the base file nameUpload Via FTP: Upload the snapshots via FTP, and choose the file name to time suffix or overwrite the base file nameUpload Via SMTP: Upload the snapshots via SMTPPlease note:If you choose to add time suffix, every snapshot picture will be saved, but choose to overwrite the base file name, only one latest picture will be save. When you choose add overwrite the base file name to SD, it will create a named “Snapshot” to place the snapshot while the NAS and FTP won’t.
Schedule Settings	Click the Edit button to edit record schedule

4.4.3 Security

User

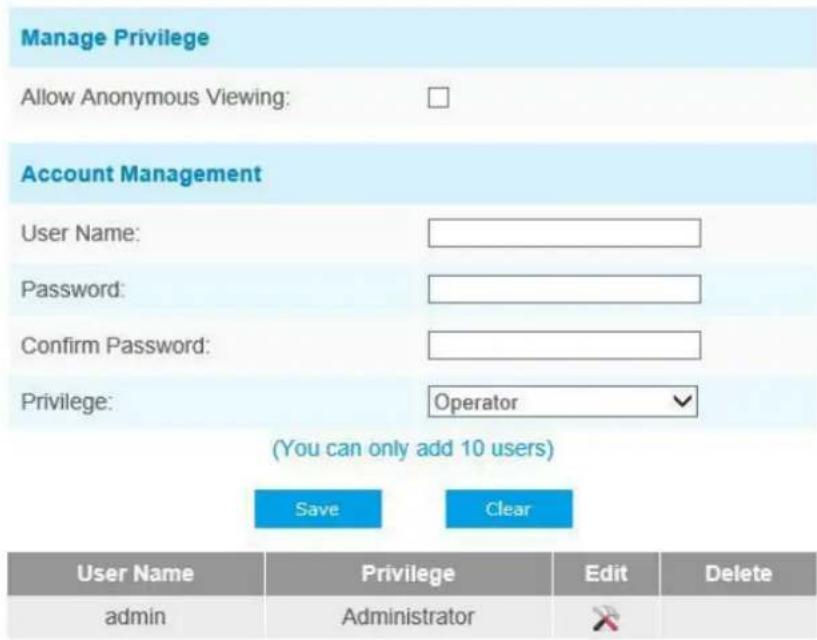

Manage Privilege Allow Anonymous Viewing: Account Management User Name: Password: Confirm Password: Privilege: Operator (You can only add 10 users) Save Clear User Name Privilege Edit Delete admin Administrator

Figure 4-4-18 User Settings

Table 4-4-9 Description of the buttons

Parameters	Function Introduction
Manage Privilege	Allow anonymous viewing: Check the checkbox to enable visit from whom doesn’t have account of the device
Account Management	User Name: Input user name for creating an accountUser Password: Input password for the accountConfirm User Password: Confirm the passwordPrivilege: Set the privilege for the account
Administrator	An administrator can manage all configuration pages of the device, including change user password, add or delete users (the default user “admin” cannot deleted)
Operator	An operator can manage all configuration pages except the User page
Viewer	A viewer can’t change any settings

Note:

For versions after 54, the Operator and Viewer users are closed by default. But you still can add or the User page.

Access List

General Settings Maximum Number of Concurrent Streaming: 9 IP Access List Rule: Single IP Address: Add Enable Access List Filtering: □ Filter Type: Allow ▼ Deny Save

Figure 4-4-19 Access List

Table 4-4-10 Description of the buttons

Parameters	Function Introduction
General Settings	Maximum number of concurrent streaming: Select the maximum number of concurrent streaming. Options include No Limit, 1~9
IP access list	Rule: Single, Network and Range are availableIP address: Input the address to get the access to the device
Enable access list filtering	Able to access or restrict access for some IP address
Filter type	Access or restrict access

Security Service

SSH Settings Enable SSH: Save

Figure 4-4-20 Security Service

Table 4-4-11 Description of the buttons

Parameters	Function Introduction
SSH Settings	Secure Shell (SSH) has many functions: it can replace Telnet and also provide secure channel for FTP, POP, even for PPP.

4.4.4 SIP

The Session Initiation Protocol(SIP) is a signaling communications protocol, widely used for controlling multimedia communication sessions such as voice and video calls over Internet Protocol(IP) networks. This page allows user to configure SIP related parameters. Milesight cameras can be configured as SIP endpoint to call out when alarm triggered; or allow permitted number to call in to check the video if the video IP phone is used. To use this function, the setting in SIP page must be configured properly. There are two ways to get video through SIP, one is to dial the IP address directly, the other is account registration mode, the details are as follows:

Method 1: IP Direct mode

Dial on the camera's IP address directly through SIP phone, so you can see the video.

(Note: SIP phone and the camera should in the same network segment).

Method2: Account registration mode

1) Before using the SIP, you need to register an account for the camera from the SIP server;
2) Register another user account for the SIP device from the same SIP server;
3) Call the camera User ID from the SIP device, you will get the video on the SIP device.

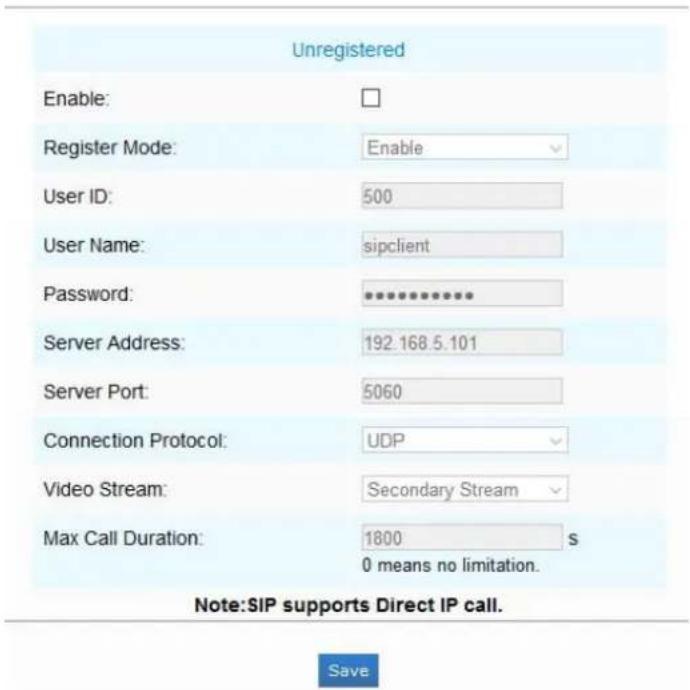

SIP Settings

Unregistered Enable: Register Mode: Enable User ID: 500 User Name: sipclient Password: ********** Server Address: 192.168.5.101 Server Port: 5060 Connection Protocol: UDP Video Stream: Secondary Stream Max Call Duration: 1800 s 0 means no limitation. Note:SIP supports Direct IP call. Save

Figure 4-4-21 SIP Settings

Table 4-4-12 Description of the buttons

Parameters	Function Introduction
Unregistered/ Registered	SIP registration status. Display “Unregistered” or “Registered”
Enable	Start or stop using SIP
Register Mode	Choose to use Enable mode or Disable mode. Enable mode means to use S register account. Disable mode refers to use SIP without register account, ju the IP address to call.
User ID	SIP ID
User Name	SIP account name
Password	SIP account password
Server Address	Server IP address
Server Port	Server port
Connection Protocol	UDP/TCP
Video Stream	Choose the video stream
Max Call Duration	The max call duration when use SIP

Note:

1) SIP supports Directly IP call;
2) SIP only supports second stream with H.265/H.264 or MPEG4 Video Compression.

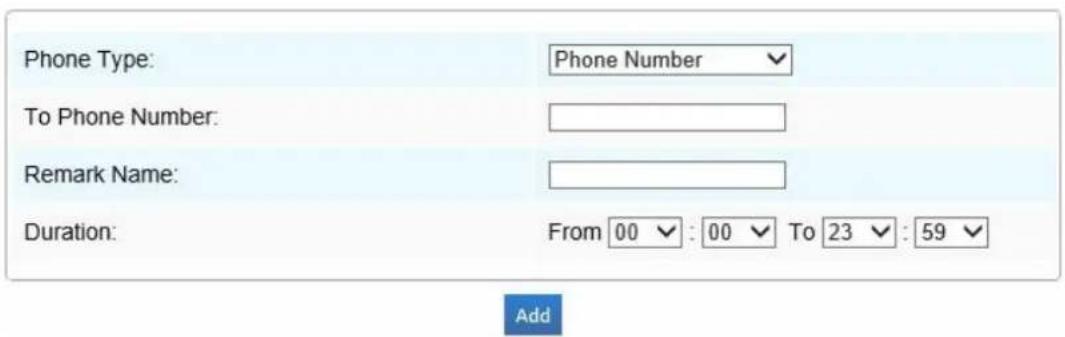

Alarm Phone List

Phone Type: Phone Number To Phone Number: Remark Name: Duration: From 00 : 00 To 23 : 59 Add

Figure 4-4-22 Alarm Phone List

Table 4-4-13 Description of the buttons

Parameters	Function Introduction
Phone Type	Phone Number(Call by phone number) & Direct IP Call(Check to accept peer peer IP call).
To Phone Number/IP Address	Call by phone number or IP address.
Remark Name	Display name.
Duration	The time schedule to use SIP.

White List

Phone Type: Phone Number Phone Number: Add Enable White List Number Filter. Save

Figure 4-4-23 White List

Table 4-4-14 Description of the buttons

Parameters	Function Introduction
Phone Type	Phone Number(Call by phone number) & Direct IP Call
Phone Number/IP Address	Including the phone number or IP address on the white list
Enable White ListNumber Filter	When enabled, only the designated phone number or IP address can visit

4.4.5 Smart Event

Smart Event uses Milesight Video Content Analysis technology. This technical capability is used in a wide range of domains including entertainment, health-care, retail, automotive, transport, home automation, safety and security. Milesight VCA provides advanced, accurate smart video analysis for Milesight network cameras. It enhances the performance of network cameras through 8 detection modes which are divided into basic function and advanced function, enabling the comprehensive surveillance function and quicker response of cameras to different monitoring scenes.

Region Entrance

Region entrance helps to protect a special area from potential threat of suspicious person's or object's entrance. An alarm will be triggered when objects enter the selected regions by enabling region entrance.

Milesight Network Camera Advanced Settings >> Smart Event Live Video Playback Basic Settings Advanced Settings Alarm Storage Security SIP Smart Event Logs System Maintenance Region Entrance Region Exiting Advanced Motion Detection Tampier Detection Line Crocsing Lathering Human Detachment People Counting Settings Enable Region Entrance Detector Object Size: Set Entrance Detection Region Select All Clear All (Please draw the screens for settings) Schedule Settings

Figure 4-4-24 Region Entrance

Step1: Set detecting object size;

Step2: Set entrance detection region;

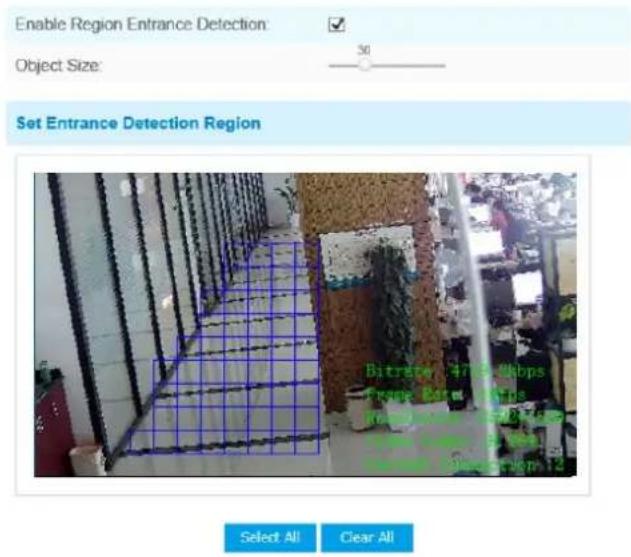

Enable Region Entrance Detection Object Size: Set Entrance Detection Region BitRate: 47.5 Mbps Frame Rate: 0.16 Image Rate: 2.0 Hz Clear: 9.0 m-1.3 Select All Clear All

Figure 4-4-25 Set Entrance Detection Region

Step3: Set detection schedule;

Step4: Set alarm action;

Step5: Set alarm settings.

Note:

The "Object Size" can be set to define whether an object is big enough for triggering the alarm when enter into the selected region.

Region Exiting

Region exiting is to make sure that any person or object won't exit the area that is being monitored. Any exit of people or objects will trigger an alarm.

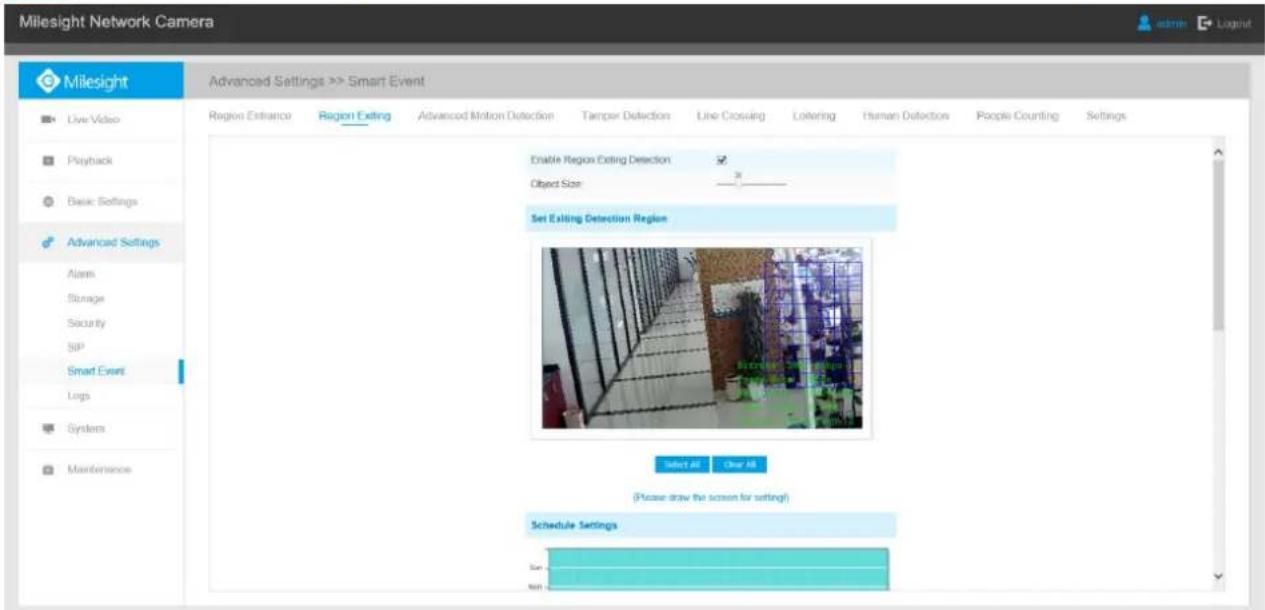

Milesight Network Camera Advanced Settings >> Smart Event Live Video Playback Basic Settings Advanced Settings Alarms Storage Security SIP Smart Event Lings Systems Maintenance Region Entrance Region Exiting Advanced Motion Detection Tampor Detection Line Crossing Littering Human Detection People Counting Settings Enable Region Exiting Detection Object Size Set Exiting Detection Region Select All Clear All (Please draw the screen for setting) Schedule Settings Size Non

Figure 4-4-26 Set Region Exiting

Step1: Set detecting object size;

Step2: Set exiting detection region;

Step3: Set detection schedule;

Step4: Set alarm action;

Step5: Set alarm settings.

Advanced Motion Detection

Different from traditional motion detection, Milesight advanced motion detection can filter out "noise" such as lighting changes, natural tree movements, etc. When an object moves in the selected area, it will trigger alarm.

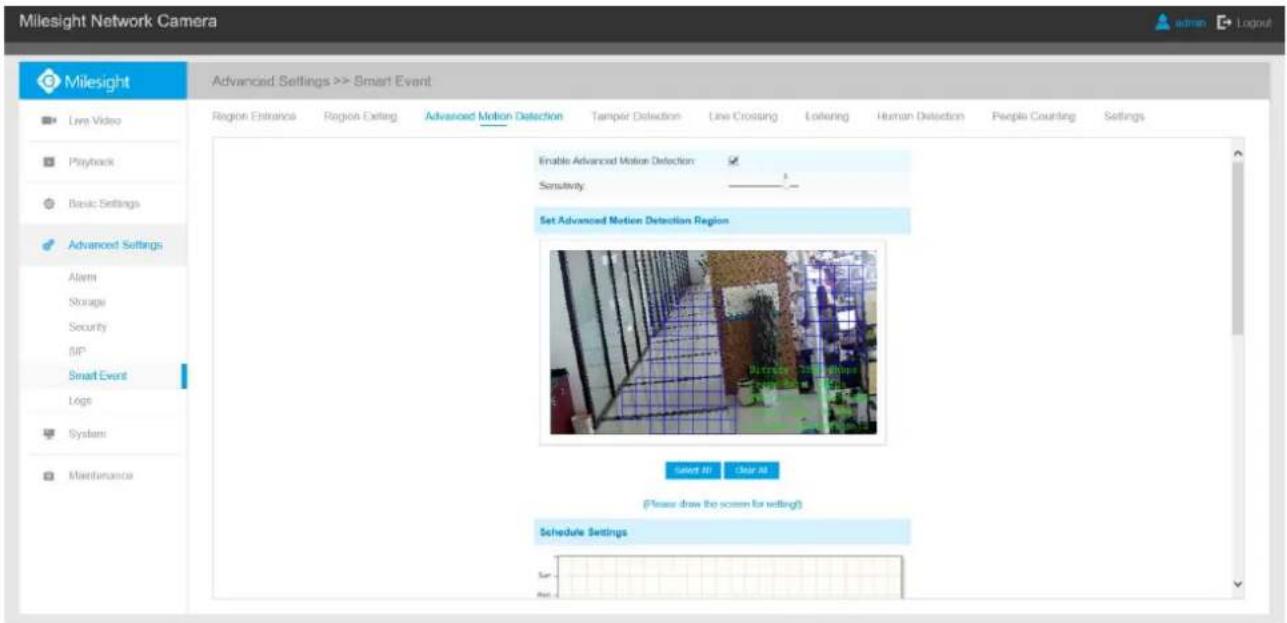

Milesight Network Camera Advanced Settings >> Smart Event Live Video Playback Basic Settings Advanced Settings Alarm Storage Security UP Smart Event Logs System Maintenance Region Entrance Region Exiteg Advanced Motion Detection Tampier Detection Line Crossing Lotterying Human Detection People Counting Settings Enable Advanced Motion Detection Sensitivity: Set Advanced Motion Detection Region Select All Clear All (Please draw the screen for setting) Schedule Settings

Figure 4-4-27 Set Advanced Motion Detection

Step1: Set detecting sensitivity;

Step2: Set advanced motion detection region;

Step3: Set detection schedule;

Step4: Set alarm action;

Step5: Set alarm settings.

Note:

The sensitivity can be configured to detect various movement according to different requirements. When the level of sensitivity is low, slight movement won't trigger the alarm.

Tamper Detection

Tamper Detection is used to detect possible tampering like the camera being unfocused, obstructed or moved. This functionality alerts security staff immediately when any above-mentioned actions occur.

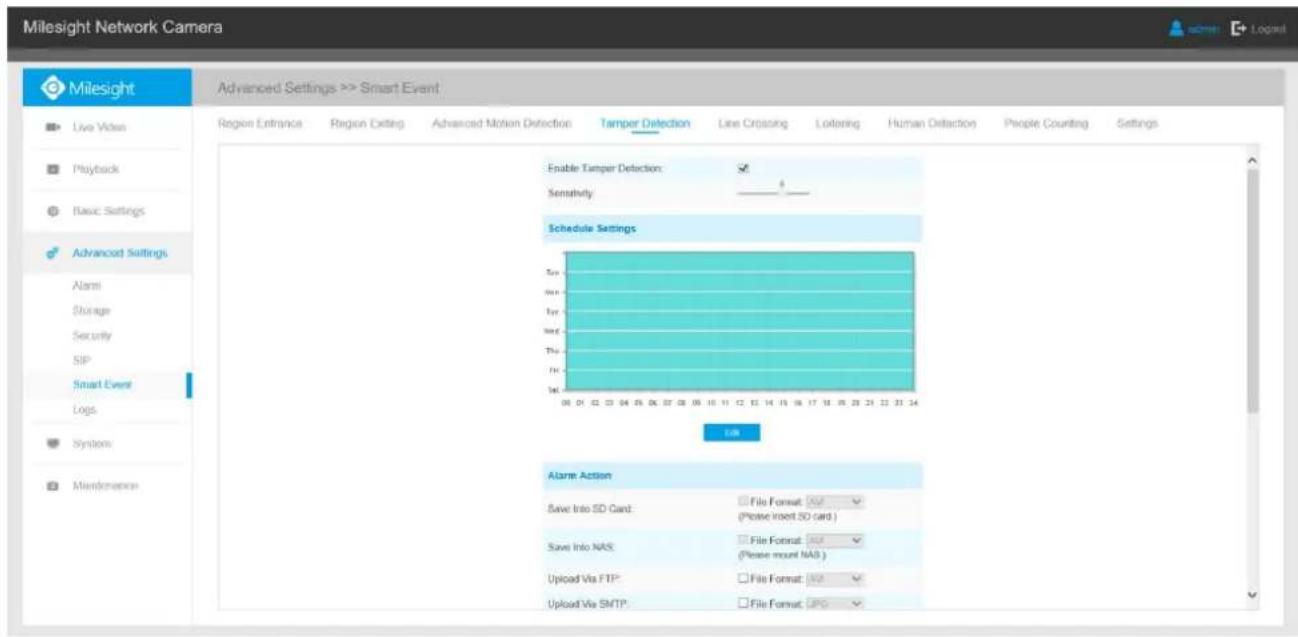

Milesight Network Camera Advanced Settings >> Smart Event Live Video Region Entrance Region Exiting Advanced Motion Detection Tamper Detection Line Crossing Loitering Human Detraction People Counting Settings Enable Tamper Detection: ✓ Sensitivity: Schedule Settings Save into SD Card: File Format: NAS (Please insert SD card) Save into NAS: File Format: NAS (Please mount NAS) Upload Via FTP: File Format: NAS Upload Via SMTP: File Format: JPEG Alarm Action Save Into SD Card: File Format: NAS (Please insert SD card) Save Into NAS: File Format: NAS (Please mount NAS) Upload Via FTP: File Format: NAS Upload Via SMTP: File Format: JPEG

Figure 4-4-28 Set Tamper Detection

Step1: Set detecting sensitivity;

Step2: Set detection schedule;

Step3: Set alarm action;

Step4: Set alarm settings.

Line Crossing

Line Crossing detection is designed to work in most indoor and outdoor environment. An event will be triggered every time when the camera detects objects crossing a defined virtual line.

Settings steps are shown as follows:

Step1: Choose detection line number and define its direction;

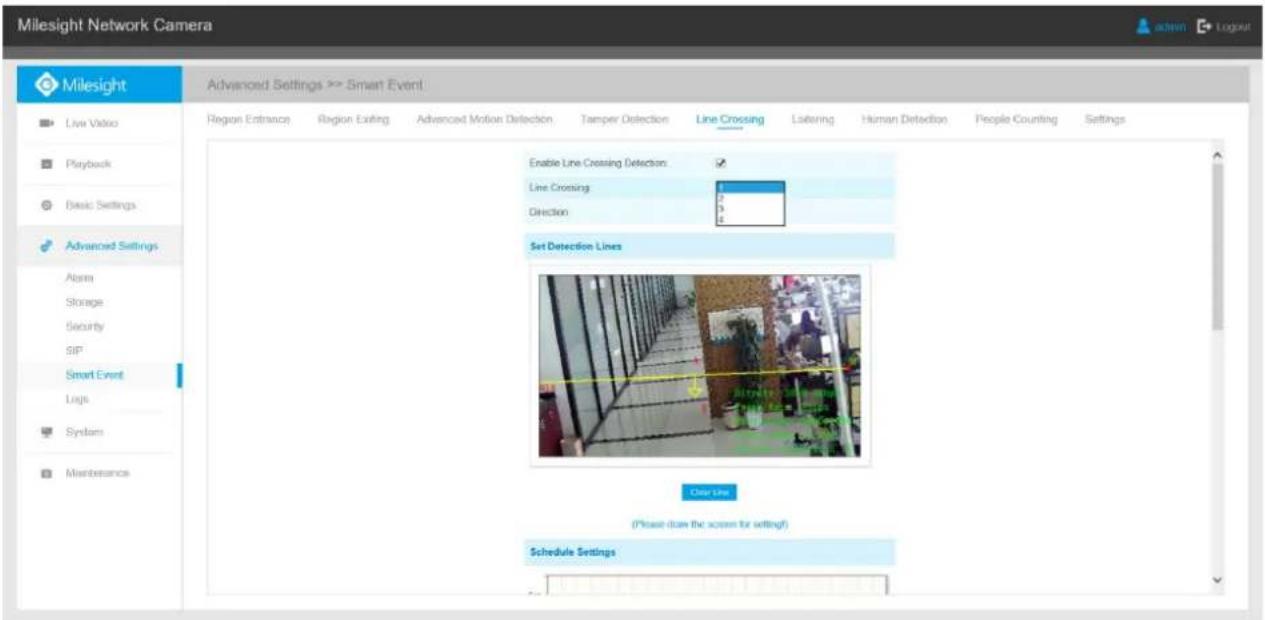

Milesight Network Camera Advanced Settings >> Smart Event Live Video Playback Basic Settings Advanced Settings Alisma Storage Security SIP Smart Event Logs System Maintenance Enable Line Crossing Detection: Line Crossing Direction Set Detection Lines Clear Line (Please down the screen for setting) Schedule Settings

Figure 4-4-29 Set Detection Lines

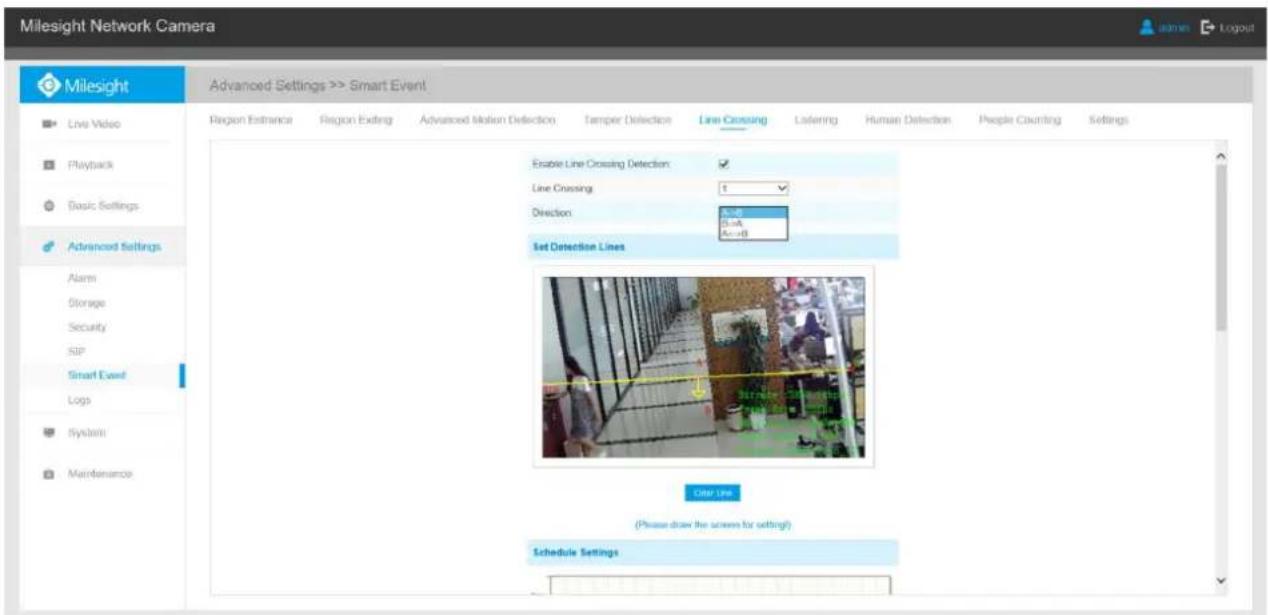

Milesight Network Camera Advanced Settings >> Smart Event Live Video Playback Basic Settings Advanced Settings Alarm Storage Security SAP Smart Event Logs System Maintenance Enable Line Crossing Detection: Line Crossing: Direction: Set Detection Lines Enter Line (Please draw the screens for setting) Schedule Settings

Figure 4-4-30 Set Line Direction

Step2: Draw detection lines;

Step3: Set detection schedule;

Step4: Set alarm action;

Step5: Set alarm settings.

Note:

Milesight allows to set up to four lines at a time. There are three direction modes to choose for triggering alarm. “A→B” means when there is any object crossing the line from the “A” side to the “B” side, the alarm will be triggered. “B→A” vice versa. “A ↔ B” means that the alarm will be triggered when objects cross line from either side.

Loitering

When objects are loitering in a defined area for a specific period of time, it would trigger an alarm.

Milesight Network Camera Advanced Settings >> Smart Event Live Video Playback Basic Settings Advanced Settings Alarms Storage Security SIP Smart Event Logs Systems Maintenance Region Entrance Region Exiting Advanced Motion Detection Tamper Detection Line Crossing Lottering Humanial Detection People Counting Settings Enable Loitering Detection Min. Loitering Time: 3 s Object Size: Set Loitering Detection Region Select All Clear All (Please show the screen for setting/) Schedule Settings

Figure 4-4-31 Set Loitering Detection

Step1: Set minimum loitering time;

Step2: Set object size;

Step3: Set loitering detection region;

Step4: Set detection schedule;

Step5: Set alarm action;

Step6: Set alarm settings.

Note:

After setting minimum loitering time from 3s to 300s, any objects loitering in the selected area over the minimum loitering time will trigger the alarm. Also Milesight loitering allows to set "Object Size". Only the object bigger than the set size will trigger the alarm.

Human Detection

Human detection is used for figuring out whether an object is a human or not. Once human detection is enabled, when there is an object appearing in the detecting area, an ID will show on the frame. If the object is a person, it will mark as “person”. When the Show Tracks is enabled, the tracks of the moving object will show on the screen.

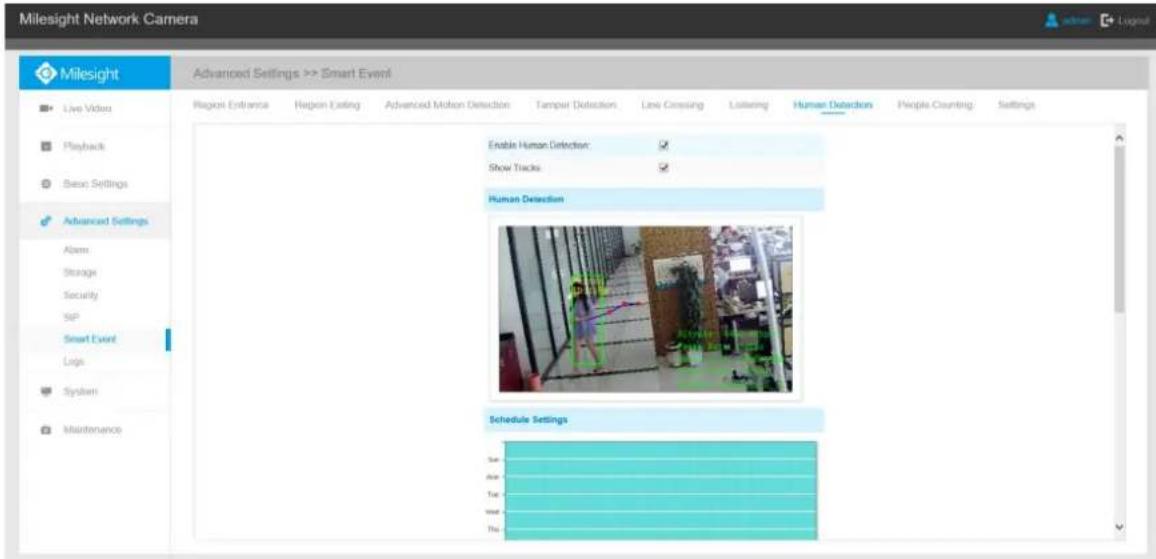

Milesight Network Camera Advanced Settings >> Smart Event Live Video Playback Basic Settings Advanced Settings Alarm Storage Security SP Smart Event Logs System Maintenance Region Entrance Region Listing Advanced Motion Detection Tempur Detection Line Crossing Listening Human Detection Enable Human Detection: ✓ Show Tracks: ✓ Human Detection Schedule Settings Set: Ask: Tet: Wed: No:

Figure 4-4-32 Set Human Detection

People Counting

People counting is able to count that how many people enter or exit during the setting period.

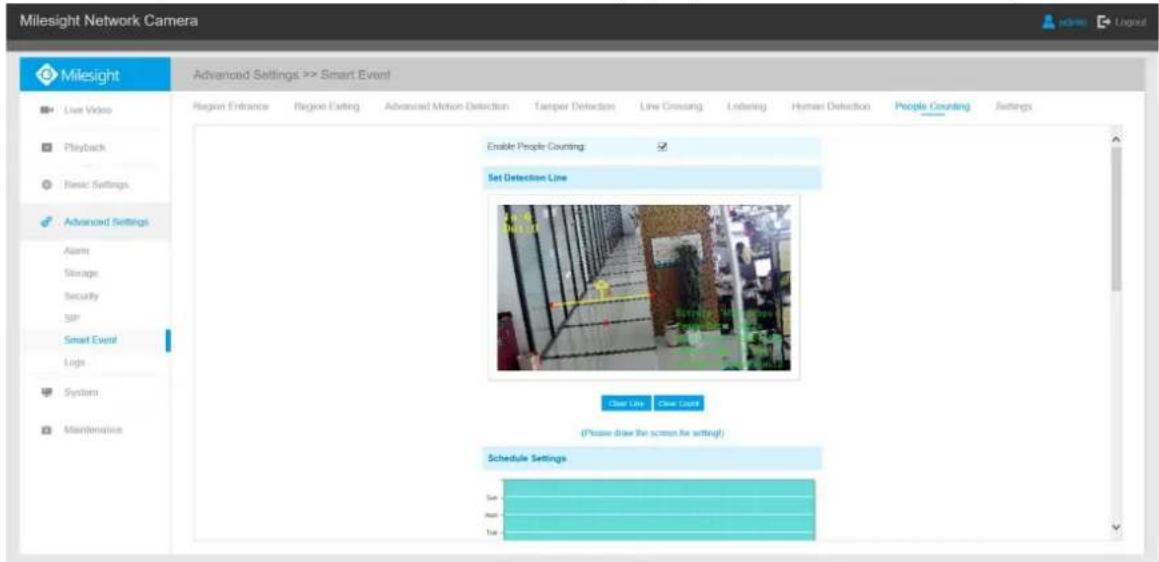

Milesight Network Camera Advanced Settings >> Smart Event Live Video Playback Basic Settings Advanced Settings Agents Storage Security SIP Smart Event Logic System Maintenance Enable People Counting: Set Detection Line Clear Line Clear Limit (Please draw the screen for setting) Schedule Settings Set Mount Turn

Figure 4-4-33 Set Detection Line

Step1: Set detection line;

Step2: Set detection schedule;

Step3: Set counting OSD;

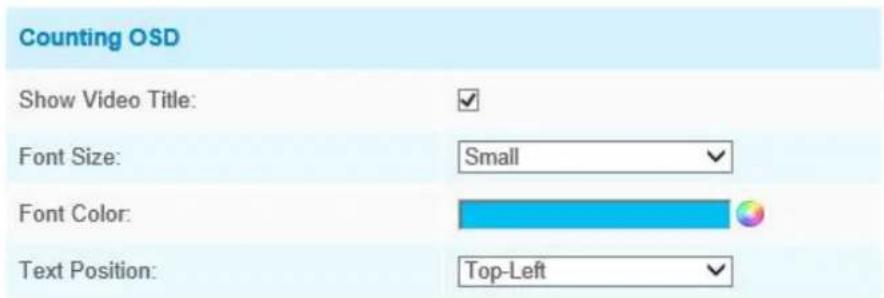

Counting OSD Show Video Title: ✓ Font Size: Small ✓ Font Color: Top-Left ✓ Text Position:

Figure 4-4-34 Set Counting OSD

Step3: Set alarm trigger;

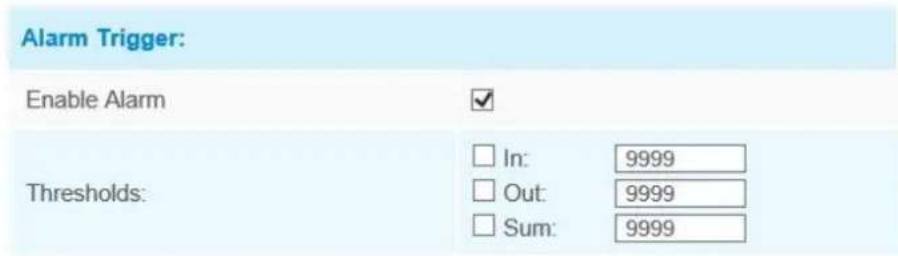

Figure 4-4-35 Set Alarm Trigger

Step4: Set alarm action;

Step5: Set alarm settings.

Note:

1) To enable people counting, human detection should be enabled first;
2) Crossing along the direction of the arrow will record as "In", opposite is "Out";
3) Alarm will be triggered when the thresholds reaches to a certain value from 1 to 9999.

Setting

Milesight VCA provides the primary setting for the whole VCA functions. “Minimum Size” is to set the whether an object is big enough to trigger other settings. The frame you draw on the screen means that only if the object size is bigger than the frame, the settings for other VCA functions will take effect. Maximum Size means opposite, the frame you draw on the screen stands for that only if the object size is smaller than the frame, the settings for other VCA functions will take effect.

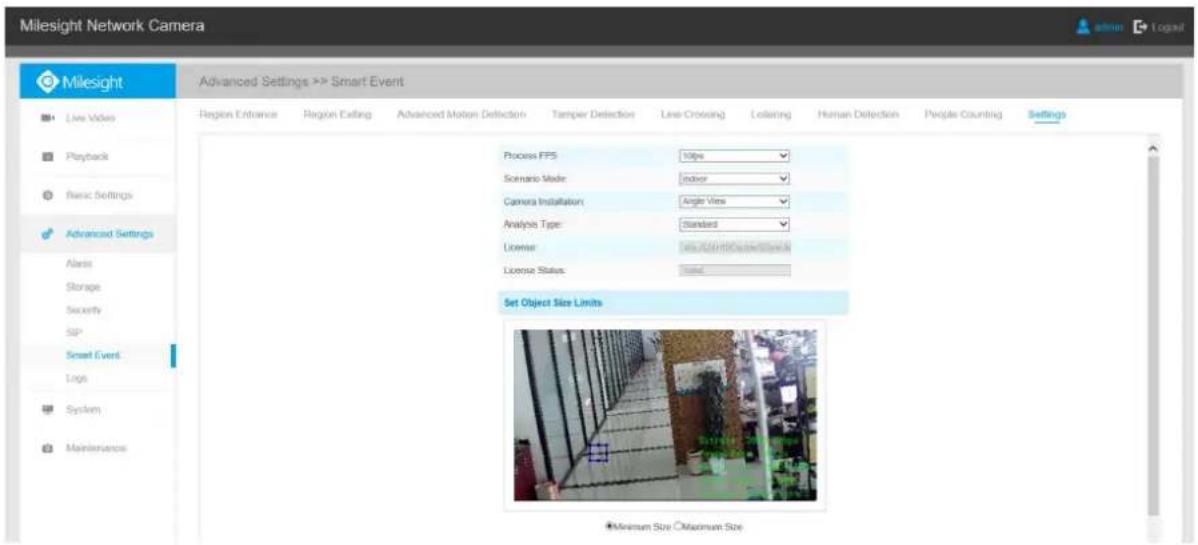

Milesight Network Camera Advanced Settings >> Smart Event Line Video Playback Basic Settings Advanced Settings Alerts Storage Security SIP Smart Event Logic System Maintenance Process FPS: 10fps Scenario Mode: Indoor Camera Installation: Angle View Analysis Type: Standard License: Ins/ADLH/Cas/w/OSA License Status: None Set Object Size Limits Minimum Size / Maximum Size

Figure 4-4-36 Smart Event Settings

Table 4-4-15 Description of the buttons

Parameters	Function Introduction
Process FPS	Five different periods are available(5, 10, 15, 20, 25, fps) for process fps
Scenario Mode	Select Indoor or Outdoor mode to meet your needs
Camera Installation	Select camera installation view, including Angel View, Horizontal View and Overhead View
Analysis Type	Select Standard or Advanced analysis type
License	Generated by camera's information
License Status	Show present license status, including Valid, Invalid, Expired, Unactivated

4.4.6 Logs

The logs contain the information about the time and IP that has accessed the camera through web.

Show 30 entries

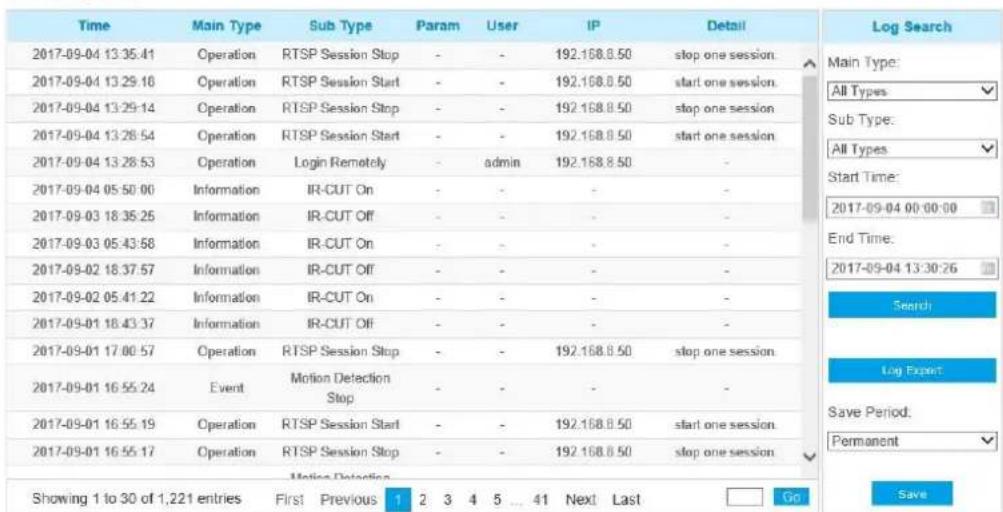

Time 2017-09-04 13:35:41 Operation RTSP Session Stop - - - 192.168.8.50 stop one session. 2017-09-04 13:29:16 Operation RTSP Session Start - - - 192.168.8.50 start one session. 2017-09-04 13:29:14 Operation RTSP Session Stop - - - 192.168.8.50 stop one session. 2017-09-04 13:28:54 Operation RTSP Session Start - - - 192.168.8.50 start one session. 2017-09-04 13:28:53 Operation Login Remotely - admin 192.168.8.50 - 2017-09-04 05:50:00 Information IR-CUT On - - - - - 2017-09-03 18:35:25 Information IR-CUT Off - - - - 2017-09-03 05:43:58 Information IR-CUT On - - - - 2017-09-02 18:37:57 Information IR-CUT Off - - - - 2017-09-02 05:41:22 Information IR-CUT On - - - - - 2017-09-01 18:43:37 Information IR-CUT Off - - - - 2017-09-01 17:00:57 Operation RTSP Session Stop - - - 192.168.8.50 stop one session. 2017-09-01 16:55:24 Event Motion Detection Stop - - - 2017-09-01 16:55:19 Operation RTSP Session Start - - - 192.168.8.50 start one session. 2017-09-01 16:55:17 Operation RTSP Session Stop - - - 192.168.8.50 stop one session. Motion Detection Showing 1 to 30 of 1,221 entries First Previous 1 2 3 4 5 ... 41 Next Last Go Log Search Main Type: All Types Sub Type: All Types Start Time: 2017-09-04 00:00:00 End Time: 2017-09-04 13:30:26 Search Log Export Save Period: Permanent Save

Figure 4-4-37 Logs

Table 4-4-15 Description of the buttons

Parameters	Function Introduction
Main Type	There are five main log types: All Type, Event, Operation, Information, Exception, Event
Sub Type	On the premise of main type has been selected, select the sub type to narr range of logs
Start Time	The time log starts
End Time	The time log ends
Log Export	Export the logs
Save Period	Set the period of log saving, there are eight options to choose: Permanent 30/60/120/180/240/300/360 Days
Go	Input the number of logs' page

4.5 System

All information about the hardware and software of the camera can be checked on this page.

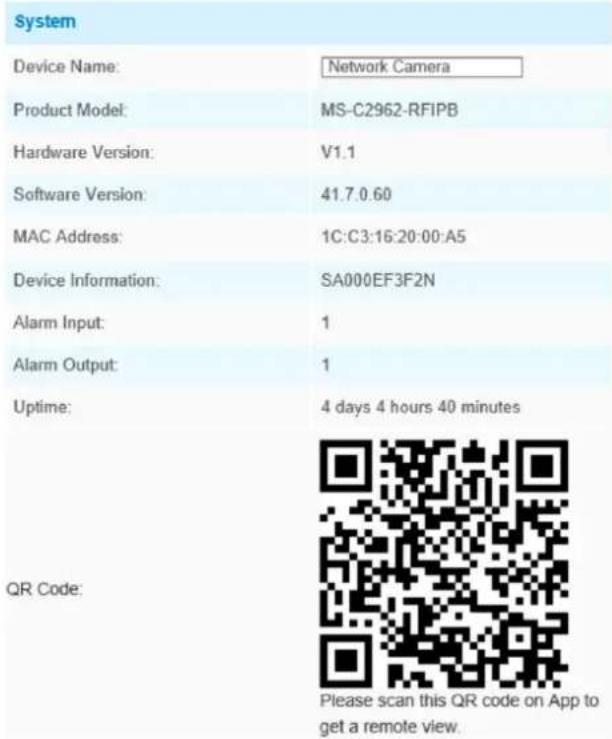

System Device Name: Network Camera Product Model: MS-C2962-RFIPB Hardware Version: V1.1 Software Version: 41.7.0.60 MAC Address: 1C:C3:16:20:00:A5 Device Information: SA000EF3F2N Alarm Input: 1 Alarm Output: 1 Uptime: 4 days 4 hours 40 minutes QR Code: Please scan this QR code on App to get a remote view.

Figure 4-5-1 System Information

Table 4-5-1 Description of the buttons

Parameters	Function Introduction
Device Name	The device name can be customized. It will be seen in file names of video
Product Model	The product model of the camera
Hardware Version	The hardware version of the camera
Software Version	The software version of the camera can be upgraded
MAC Address	Media Access Control address
Device Information	The device information, including information about alarm I/O and clipper ch
Alarm Input	The number of Alarm Input interface
Alarm Output	The number of Alarm Output interface
Uptime	The elapsed time since the last restarted of the device
QR Code	Add the device on Milesight APP by scanning it directly.

Note:

1) The Alarm Input/Alarm Output will appear only when the camera have alarm input/output interface.
2) The QR code will appear after the P2P of IP camera is activated.

4.6 Maintenance

The software can be upgraded by the following steps:

Step1: Browse and select the upgrading file;

Step2: Click the "upgrade" button after it prompts upload file successfully. After the system reboots successfully, the update is done.

Note:

1) Do not disconnect the power of the device during the update. The device will be restarted to complete the upgrading.

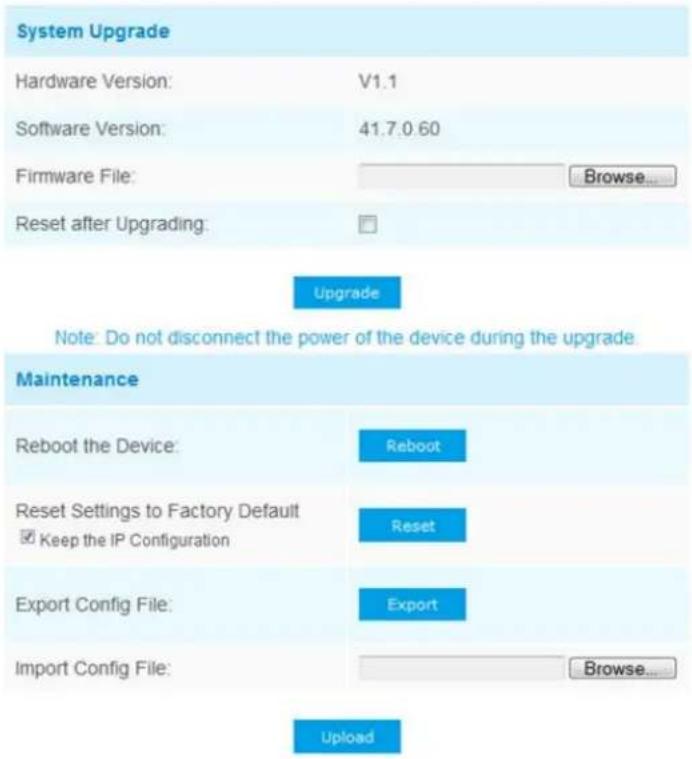

System Upgrade Hardware Version: V1.1 Software Version: 41.7.0.60 Firmware File: Browse... Reset after Upgrading: Upgrade Note: Do not disconnect the power of the device during the upgrade. Maintenance Reboot the Device: Reboot Reset Settings to Factory Default Reset ✓ Keep the IP Configuration Export Config File: Export Import Config File: Browse... Upload

Figure 4-6-1 Maintenance

Table 4-6-1 Description of the buttons

Parameters	Function Introduction
System Upgrade	Hardware Version: The hardware version of the cameraSoftware Version: The software version of the cameraKernel Version: The kernel versionFirmware File: Select the firmware used to upgrade
Maintenance	Reboot the device: Click “Reboot” button to restart the device immediatelyReset settings: Click “Reset” button to reset the camera to factory default settingsKeep the IP Configuration: Select this option to keep the IP configuration w resetting the cameraExport Config File: Click this button to export the configuration fileImport Config File: Click this button to import the old configuration file

Chapter V Services

Milesight Technology Co., Ltd provides customers with timely and comprehensive technical support services. End-users can contact your local dealer to obtain technical support. Distributors and resellers can contact directly with Milesight for technical support.

Technical Support Mailbox: [e-mail]

Web: http://www.milesight.com

Online Problem Submission System: http://www.milesight.com/service/feedback.asp

Address: No.23 Wanghai Road,2nd Software Park, Xiamen, China

Zip Code: 361006

TEL: [phone]

FAX: [phone]

Milesight

Better Inside, More in Sight
