The Ace Series are technical backpacks for young outdoor enthusiasts ages 10-18 with the same features and fit as Osprey's adult backpacks. An ultra-adjustable torso and hipbelt allows the pack to grow with the user providing years of value and comfort. The Ace 75 provides the capacity and organization required by outdoor education groups.

* Recommended age range. Height and weight may vary from child to child.

OWNER'S MANUAL

ospreypacks.com

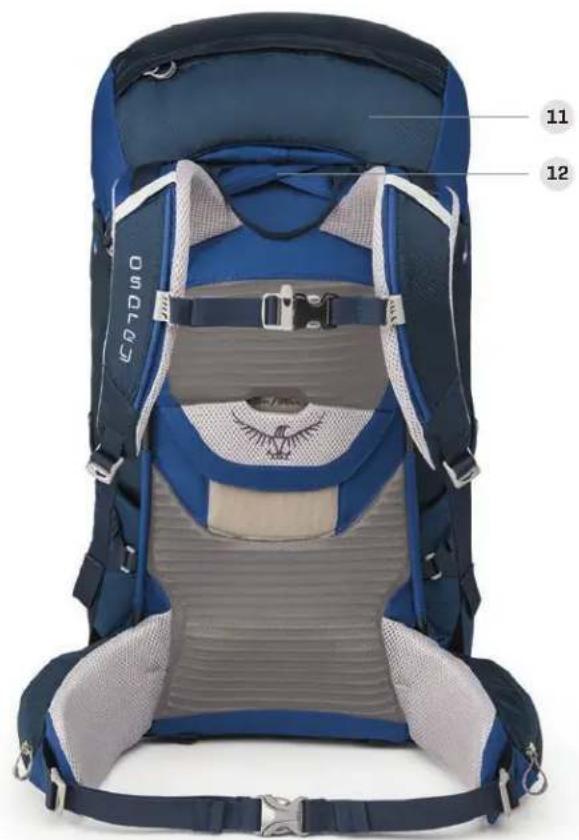

1 2 3 4 5 6 7 8 9 10 DAR ACE 50

Back view of a blue and gray Osoa Cura backpack with visible seatbelt and lanyard (no text or symbols)

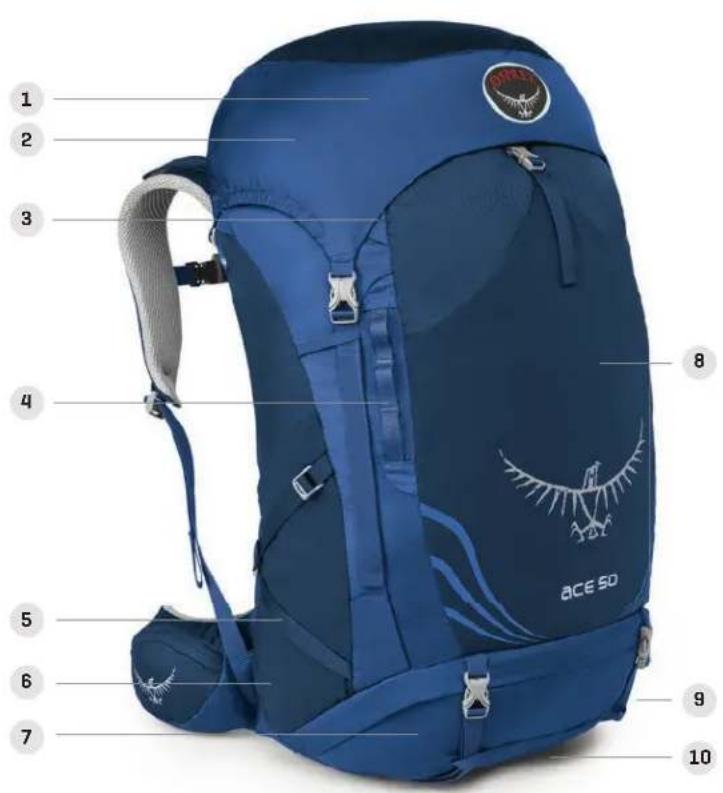

SHARED FEATURES

1 Top load access to main compartment
2 Zippered under lid pocket
3 Upper side release buckle compression straps
4 Daisy chain
5 Lower InsideOut side compression straps
6 Dual stretch mesh side pockets
7 Lower zippered sleeping bag compartment with divider
8 Large stretch mesh front pocket
9 Sleeping pad straps
10 Integrated raincover
11 Zippered top lid pocket
12 Internal reservoir sleeve

FABRIC

MAIN 210D Nylon Double Diamond Ripstop

ACCENT 420HD Nylon Packcloth

BOTTOM 420H0 Nylon Packcloth

ACE 75 (AGES 11-18\*)

SPECS ONE SIZE

Cubic Inches 4577

Liters 75

Lbs/Dunces 3/9

Kilograms 1.61

Inches 31h x 13w x 14d

Centimeters 79h x 34w x 35d

KIDS' LOAD RANGE

15-20 % body weight

KIDS' TORSO RANGE

Inches 14" - 19"

Centimeters 35.5 - 48

Labeled diagram of a green outdoor backpack with visible branding and numbered parts

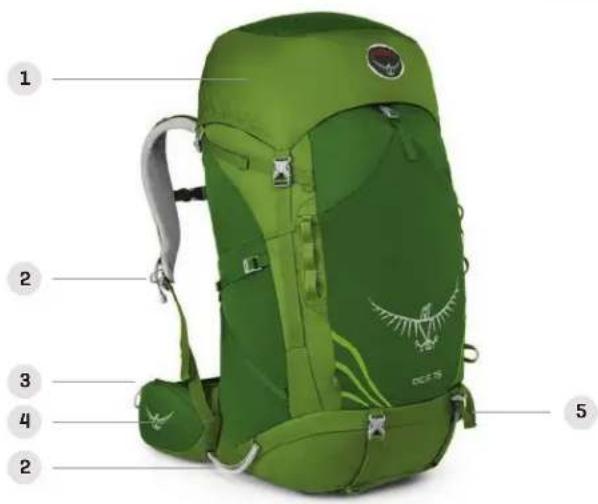

UNIQUE FEATURES

1 Removable floating top lid
2 Stow-on-the-Go "trekking pole attachment
3 Fit-on-the-Fly® hipbelt
4 Zippered hipbelt pockets
5 Adjustable ice tool or fishing rod loop
+ Internal compression strap

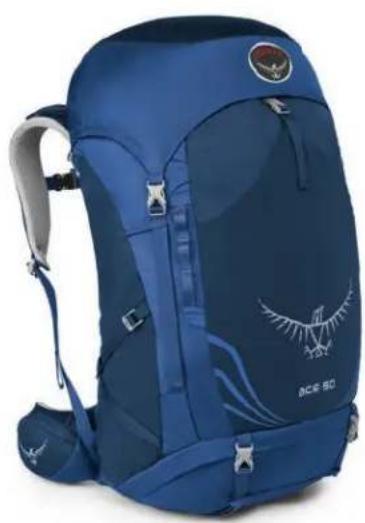

ACE 50 (AGES 8-14\*)

SPECS ONE SIZE

Cubic Inches 3051

Liters 50

Lbs/Dunces 2/15

Kilograms 1.34

Inches 26h x 13w x 12d

Centimeters 67h x 33w x 30d

KIDS' LOAD RANGE

15-20 % body weight

KIDS' TORSO RANGE

Inches 13" - 18"

Centimeters 33 - 46

1 2 3 4 ACE 50

UNIQUE FEATURES

1 Removable floating top lid
2 Fit-on-the-Fly ^TM hipbelt
3 Zippered hipbelt pockets
4 Adjustable ice tool or fishing rod loop
+ Internal compression strap

ACE 38 (AGES 6-11\*)

SPECS ONE SIZE

Cubic Inches 2319

Liters 38

Lbs/Dunces 2/6

Kilograms 1.09

Inches 23h x 12w x 11d

Centimeters 58h x 31w x 28d

KIDS' LOAD RANGE

15-20 % body weight

KIDS' TORSO RANGE

Inches 11" - 15"

Centimeters 28 - 38

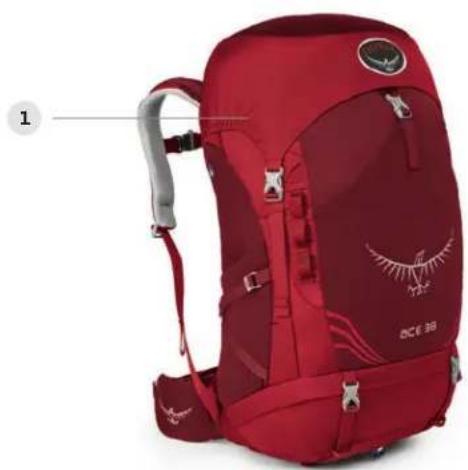

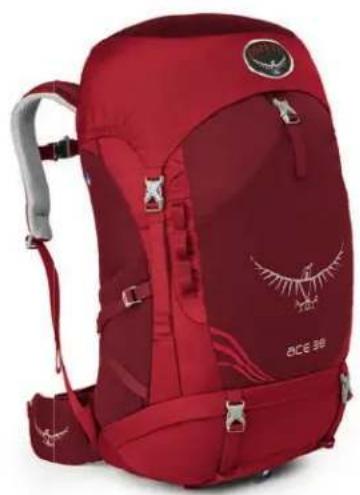

Red and maroon hiking backpack with visible branding and lanyard (no text or symbols)

UNIQUE FEATURE

1 Fixed top lid

SUSPENSION

1 SUSPENSION

+ LightWire ™ frame and 1.2mm HDPE framesheet

2 AIRSCAPE™ BACKPANEL

+ Mesh covered ridged foam

3 SPACERMESH HARNESS

• Adjustable seamless spacermesh harness
• Adjustable sternum strap with rescue whistle buckle

4 SPACERMESH HIPBELT

• Fit-On-the-Fly \~adjustable hipbelt [75L / 50L]
• Fixed spacermesh padded hipbelt (38L)

MODIFIED ERGOPULL™ HIPBELT

75L/50L

Osprey's ErgoPull ^TM design creates extra leverage when cinching down the hipbelt.

A Loosen the hipbelt webbing so the hipbelt is loose enough to be buckled around the waist.
B Grab the loose ends of the webbing on both sides and pull in and across the body evenly with both hands at the same time.

SIZING / FIT

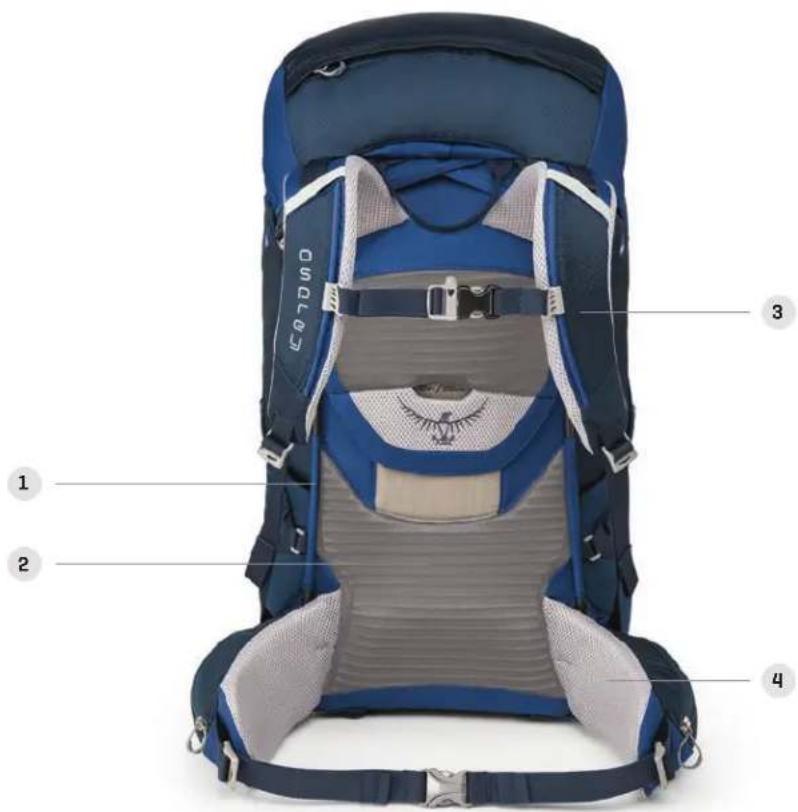

KIDS' SIZING AND FIT

Correct fit and sizing is vital for kids heading out on the trail. Kids, like adults, need to have their hips and torso measured to determine the appropriate size pack. The Ace Series' adjustable harness system and Fit-on-the-Fly *hipbelt offers a wide range of sizing options. This allows each liter version of the Ace to fit a wide variety of users as well as to adjust in size for kids as they grow. Along with fit and sizing, it is recommended to limit the pack load to 15-20% of the user's body weight. More than this could put excessive weight on the spine and back muscles and cause injury. Please help make the experience enjoyable and safe for the future generations of the outdoor community.

For more information on Osprey's custom fit and sizing visit ospreypacks.com.

1 2 3 4

Person wearing a red shirt and yellow sash, holding a yellow sash with 'TOMOT' logo (no visible text or symbols on the person or background)

TORSO SIZING

ACE 75 [AGES 11-18 ^* ]

0/S 14-20" / 35-51 cm

ACE 50 (AGES 8-14*)

0/S 13-18" / 33-46 cm

ACE 38 (AGES 6-11*)

0/S 11-15" / 29-38 cm

* Recommended age range. Height and weight may vary from child to child.

LOAD RANGE

Children should not carry more than 15-20% of their body weight.

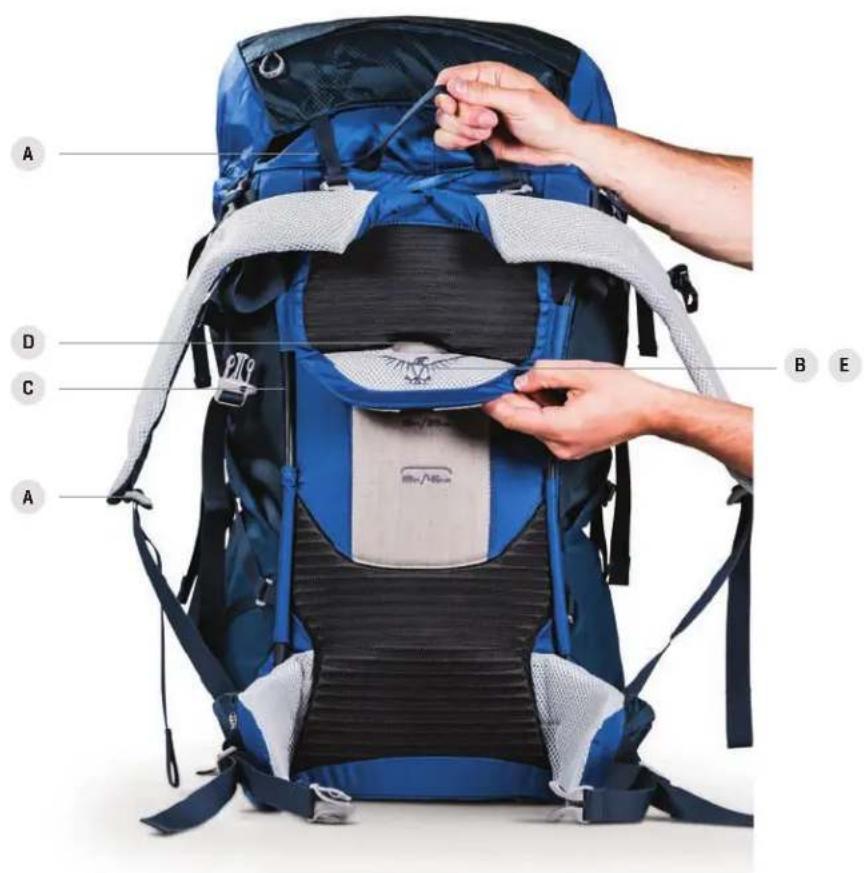

ADJUSTABLE HARNESS

The harness is adjustable up to 5"/13cm, providing a stable and comfortable carry for a variety of users. To adjust the harness:

A Completely loosen the load lifters and harness straps.
B Located on the backpanel of the pack is a flap with the Osprey bird icon. Flip up the flap disengaging the hook and loop closure.
C Slide the harness into place along the LightWire™ frame.
☐ The measurements shown in the window, located above the Osprey bird icon, are a fit guide to help with adjusting the harness to the right size.
E Once the harness is adjusted to the appropriate size push down the flap to reengage the flap's hook and loop closure.

A D C B E A

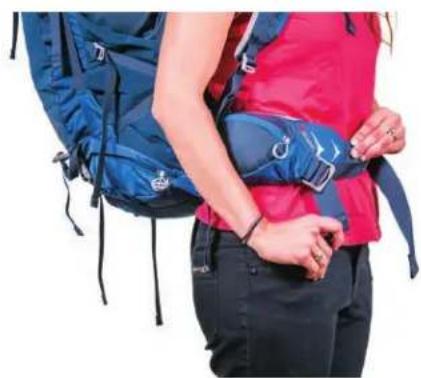

FIT-ON-THE-FLY™ HIPBELT

75L/50L

The-Fit-on-the-Fly™ hipbelt pad extends up to 5" /15cm to accommodate different hip sizes providing a custom fit. To adjust the hipbelt:

A Locate the adjustment icon on the hipbelt and slide a hand between the fixed hipbelt and the adjustable pad to separate the hook and loop closure.
B Slide the hipbelt insert pad into position so that it wraps around your hipbones.
C Press firmly to reengage the hook and loop closure.
☐ Extend the pads the same distance on both hipbelt wings so the pack weight is distributed evenly.

Person wearing blue and red hiking gear with a belt, standing in front (no visible text or symbols)

Person placing a card into a blue backpack (no text or symbols visible)

TOP LID POCKET

75L/50L/38L

A zippered top pocket with an underlid zippered mesh pocket and internal key clip provides storage for often needed items.

Blue hiking backpack with attached seat, shown in two steps: one being adjusted for the back, the other adjusting the seat (no text or symbols visible)

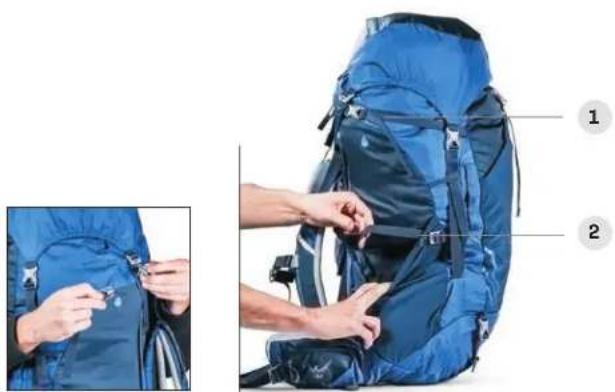

Dual upper side compression/carry straps with a quick release buckle aid in compressing and stabilizing loads for optimal carry.

2 INSIDEOUT™ COMPRESSION STRAPS

75L/50L/38L

Osprey's InsideOut™ compression straps allow you to create tension and easily secure loads in the dual stretch mesh side pockets. To route the InsideOut™ compression straps:

A Locate the duckbill buckle at the top and side of each side pocket and unthread the webbing.
B. Route the webbing by positioning the slider buckle inside or outside of the side pocket and reverse the process.

Two backpacks: one blue with a logo and hand holding a green bag, the other lime green (no text or symbols visible)

INTEGRATED RAINCOVER

75L/50L/38L

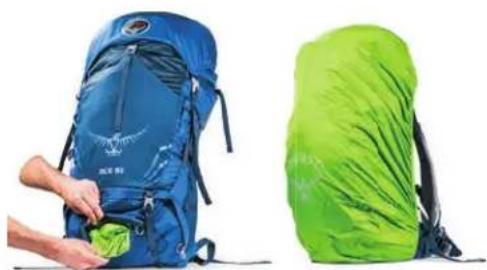

The integrated, removable raincover provides pack protection in adverse conditions.

A Locate the raincover icon near the base of the pack and unzip the raincover compartment.
B Pull the raincover from the compartment and slip it over the top and bottom of pack using the peripheral elastic to hold it in place.
C Reverse this process to return raincover to compartment.
☐ To remove the raincover altogether, unfasten the toggle from the cord loop and remove.

Note: To prevent mildew, allow the raincover to dry entirely before storing.

DAISY CHAIN ATTACHMENT POINTS

75L / 50L / 38L

Dual front panel daisy chains provide multiple attachment points for external gear storage options.

Blue hiking backpack with animal logo and Chinese text, no visible text or symbols on the backpack or background

REMOVABLE SLEEPING PAD STRAPS

75L / 50L / 38L

Sleeping pad straps allow for quick, secure external gear attachment. They can be fully removed to save weight.

Blue hiking backpack and matching bag (no visible text or symbols)

REMOVABLE FLOATING TOP LID

75L/50L

The floating top lid can extend to accept oversized loads or can be removed from the pack body. The top lid is attached to the pack body using a three-point vector strap system for easy adjustment with variable loads. Unthread the side ladder buckle and slide the strap through the sewn-in slider buckles on the backpanel. To reattach, reverse this process.

INTERNAL COMPRESSION STRAP

75L/50L

Once your pack is loaded, clip and tighten the red internal compression strap to stabilize the load.

Blue hiking backpack with a white sword, no visible text or symbols

Blue hiking backpack with attached gear and a stick (no visible text or symbols)

ICE TOOL/FISHING ROD LOOP

75L/50L

The single gear loop located at the base of the front panel of the pack is provided for fi shing rod or ice tool carry and works in conjunction with your own rigging to provide stable, secure carry.

Person wearing a green backpack with a yellow hiker's leg, holding a black glove (no text or symbols visible)

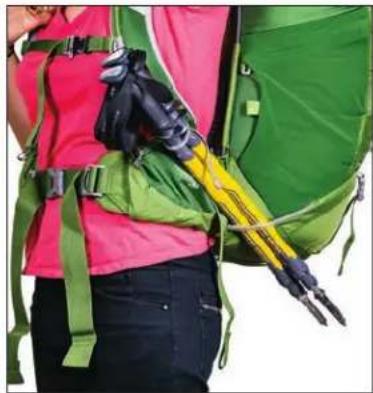

STOW-ON-THE-GO™ TREKKING POLE ATTACHMENT

75L/50L

Osprey's Stow-on the-Go™ trekking pole attachment is designed to quickly attach and carry trekking poles while wearing a pack.

A Adjust the trekking poles to their minimum length.
B Locate the elasticized loop on the lower left side of pack. While pulling the loop out from the pack, insert the basket end of the trekking poles into the loop.
C On the left harness strap locate the trekking pole icon. Pull up on the cord to open, place pole handles in the loop and tighten with the cord lock to secure.
Reverse these steps to remove the trekking poles.

Green hiking backpack with backpack and interior gear (no visible text or symbols)

DAYLITE PACK / ALPINE POCKET ATTACHMENT

75L

There are four cord loops on the front of the pack for attaching an Osprey Daylite pack or Alpine Pocket.

A Locate the four sliders on the upper and lower straps of the Daylite.
B Align the sliders with the four cord loops on the larger pack.
C Push each slider through the cord loop.
D Tighten the straps to secure.

Your Osprey pack is an extremely durable product and is built for years of use.

However, some basic pack maintenance will help ensure your pack lasts a lifetime.

OSPREY PACKS

STANDARD MAINTENANCE

• After each trip be sure to clean out your pack thoroughly.
• Clean the zippers regularly using mild soap, warm water and soft brush. This will help keep them in proper working condition.
• If your pack is wet, hang it to dry out of direct sunlight.
• Loosen all the straps.
• Wash your pack if dirt, sweat, salt and stains have worked their way into fabrics, webbing or mesh.
  [Do not immerse travel packs in water with our HighRoad™ Wheeled Chassis.]

WASHING YOUR PACK

A Empty the pack including any food, dirt or spilled contents.
B If your pack has a removable harness and hipbelt, remove them from the pack body.
C Do NOT wash your pack in a washing machine. Clean your pack and components in a bathtub or large sink using a mild detergent and warm water.
☐ Agitate the pack gently. Scrub the inside and outside of all compartments including the pockets with a soft brush.
E Clean the zippers using a mild soap, warm water and a soft brush. Flush water and soap through the buckles. Keeping dirt and debris out of the zippers and buckles will help keep them in proper working condition.
F Drain the dirty water from the bathtub or sink and refi II with cool clean non-soapy water. Rinse the pack thoroughly. Repeat this step as necessary.
G Hang your pack to dry outside or in a well ventilated area, out of direct sunlight.

WHEELED TRAVEL LUGGAGE

[Do not immerse travel packs in water with our HighRoad™ Wheeled Chassis.]

A After each trip, empty the pack including any food, dirt or spilled contents.
B Clean the zippers regularly using mild soap, warm water and soft brush. This will help keep them in proper working condition.
C Wipe the exterior of the chassis with a damp cloth or sponge.
☐ Clean the pack fabric by scrubbing stains and dirt with warm water, mild detergent and a soft brush or sponge.
E Use a wet towel with clean non-soapy water to wipe away any soap residue on the pack.
F Hang your pack to dry outside or in a well ventilated area, out of direct sunlight.

RECOMMENDED CLEANING PRODUCTS

Osprey recommends Nikwax® products for pack care. Be sure to read label directions carefully before applying any product to your pack.

Tech Wash® - Use this with warm water for washing and cleaning your packs or luggage.

Tent & Gear Solar Proof® - Use this spray-on product to protect your packs from UV exposure and to improve water repellency.

For complete instructions on cleaning your Osprey pack,

visit: ospreypacks.com/PackTech/PackCare.

OSPREY RESERVOIRS

RESERVOIR STANDARD MAINTENANCE

• Our reservoir's anti-microbial formula prevents most mold and bacteria growth.
• Rinsing out your reservoir after each use should keep your reservoir fresh, especially when using sugary drink mixes.
• Periodically use Osprey's Hydraulics™ Cleaning Tablets to clean your reservoir.
• lodine or other purifying tablets used in your reservoir will not affect the quality of your reservoir. However these tablets may stain the reservoir over time.
• Freezing your reservoir will not effect the quality of the reservoir. However if the reservoir is filled with water, be aware that water expands when it freezes and can damage your reservoir if it is overfilled.
  Do NOT pour boiling water into the reservoir. This can damage the reservoir and will void your warranty.
• Watch "Cleaning an Osprey Hydraulics™ Reservoir" video on Osprey Packs YouTube® page.

CLEANING YOUR RESERVOIR (WITH OSPREY HYDRAULICSTM CLEANING TABLETS)

A Fill reservoir with warm water. Do not use bleach or boiling water.
B Add one cleaning tablet to reservoir and close the cap.
C Let tablet dissolve for 5 minutes with the reservoir laying on its back.
D Shake the reservoir for 30 seconds to mix and spread the solution.
E Pinch the bite valve and squeeze the reservoir to remove air and fill the reservoir hose and bite valve with solution.
F Let the reservoir sit for 15 minutes and then pour out solution.
G Rinse the reservoir and tube with clean cool water.
H Hang your reservoir to dry in a well ventilated area.

DEEP CLEANING YOUR RESERVOIR (WITH OSPREY HYDRAULICSTM CLEANING KIT)

1 Rinse out the reservoir and fill it with warm water and a mild dish detergent. Do not use bleach or boiling water.
2 With the large cleaning brush from Osprey's Hydraulics™ Cleaning Kit scrub the interior of the reservoir.
3 Remove the hose from the reservoir and the bite valve from the hose and use the small brush from Osprey's Hydraulics™ Cleaning Kit to scrub the interior of the hose.
4 Remove the silicone bite valve cover and clean it and the bite valve with warm soapy water.
5 Rinse the interior and exterior of the reservoir, hose and bite valve parts with cool clean water.
6 Let the hose and bite valve dry in a well-ventilated area.
7 Insert Osprey's Hydraulics™ Cleaning Kit drying rack into the reservoir and hang to dry in a well ventilated area.

For complete instructions on cleaning your Osprey reservoir watch,

"Cleaning an Osprey Hydraulics™ Reservoir" at youtube.com/ospreypacks.

OSPREY ACCESSORIES

Customize and protect your pack with Osprey's full line of accessories.

For the full lineup, please visit your local Osprey retailer or visit:

ospreypacks.com.

PACK YOUR PACK

Loading your pack correctly optimizes comfort while

you are carrying it. For complete information visit:

ospreypacks.com/PackTech/HowToPackYourPack

GUARANTEE

At Osprey, sustainability is designed into our packs, which are built to last a lifetime and backed by a superb guarantee, no matter how hard you are on your gear. Visit ospreypacks.com for details.

QUESTIONS?

Contact Osprey Customer Service. Real help from real people.

Scroll over the customer service tab at ospreypacks.com.

OSPREY PACKS, INC.

115 PROGRESS CIRCLE

CORTEZ, CO 81321 USA

866-284-7830

ospreypacks.com/PackTech/OwnersManuals

KR www.ospreypacks.com/PackTech/OwnersManuals

에서 사용자 설명 서를다운로드하세요

OWNER'S MANUAL

ospreypacks.com
