USER MANUAL Farpoint 80 Osprey

Red travel backpack with visible branding and logos (no text or symbols on body)

FARPOINT 80

Blue backpack with visible branding and accessories (no text or symbols)

FARPOINT 70

Black backpack with visible branding and logos, no text or symbols present

FARPOINT 55

Red travel backpack with visible branding and usage slots (no text or symbols)

FARPOINT 40

The Farpoint Series is a great travel companion. With its varied carry options and thoughtful organization, the Farpoint will help you travel with ease and comfort.

OWNER'S MANUAL

ospreyeurope.com

1 2 3 4 5

Blue backpack with white logo and zipper, no visible text or symbols

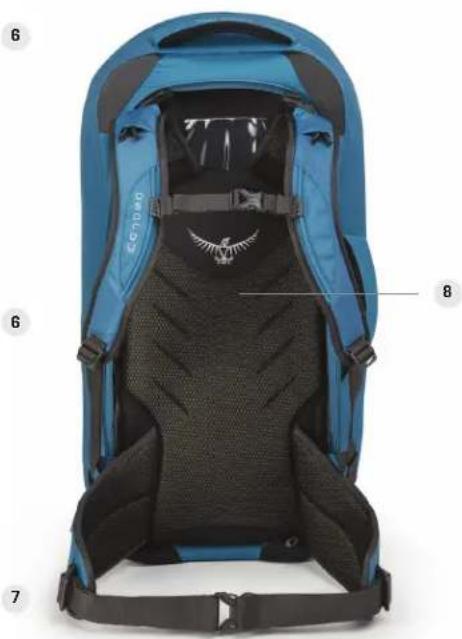

Back view of a blue and black athletic backpack with visible branding and interior details (no text or symbols)

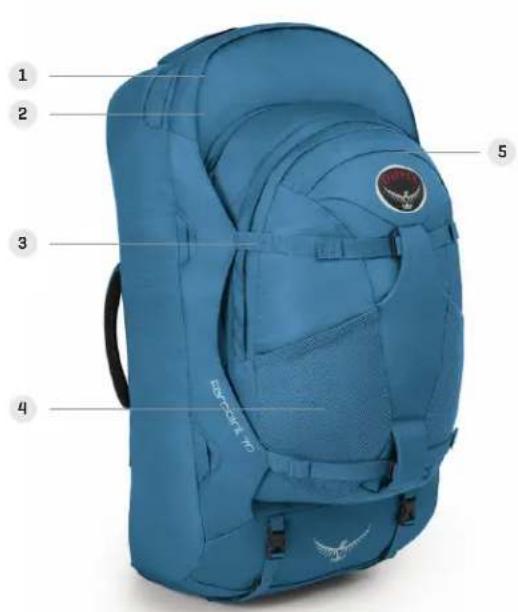

SHARED FEATURES

1 Large panel zip access to main compartment
2 Lockable sliders on main compartment zipper
3 Dual front compression straps
4 Dual front mesh pockets
5 Heat embossed scratch free zippered stash pocket*
6 Padded top and side handles
7 Zippered rear flap to stow and protect hipbelt and harness
8 Stowaway backpanel, harness and hipbelt
+ Laptop and tablet sleeve secure in lockable compartment*
+ Two internal compression straps hold contents securely
+ Internal front flap zippered mesh pocket
* Not included on Farpoint 80
Feature included in the Farpoint Daypack on the Farpoint 70L and 55L.

FABRIC

MAIN 2100 Nylon Mini Hex Diamond Ripstop

ACCENT 6000 Packcloth

BOTTOM 6000 Packcloth

FARPOINT 80

SPECS		S/M	M/L
Cubic Inches		4637	4882
Liters		76	80
Pounds	3.73	3.88
Kilograms	1.69	1.76
Inches	29h x 15w x 16d
Centimeters	74h x 38w x 40d

LOAD RANGE 20-50 lbs | 9-23 kg

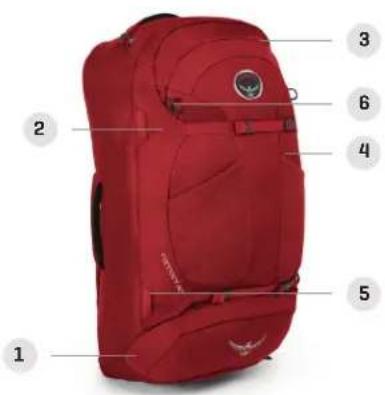

UNIQUE FEATURES

1 Large lower zippered compartment with floating divider
2 StraightJacket™ compression
3 Top zippered liquids pocket
4 Zipper front panel slash pocket
5 External gear attachment points
6 Daylite attachment loops

Labeled photo of a red travel backpack with numbered parts for identification

FARPOINT 55

SPECS		S/M	M/L
Cubic Inches	3173	3356
Liters	52	55
Pounds	3.75	3.92
Kilograms	1.69	1.76
Inches	25h x 13w x 13d
Centimeters	65h x 32w x 32d

LOAD RANGE 20-50 lbs | 9-23kg

UNIQUE FEATURES

1 Zip-off daypack with lockable zip main compartment
2 Removable sleeping pad straps

Black athletic backpack with two labeled parts (1 and 2), no visible text or symbols on the backpack itself.

FARPOINT 70

SPECS	S/M	M/L
Cubic Inches 4089	4272
Liters 67	70
Pounds 3.75	3.92
Kilograms 1.71	1.78
Inches 26h x 13w x 13d
Centimeters 65h x 33w x 34d

LOAD RANGE 20-50 lbs | 9-23 kg

UNIQUE FEATURES

1 Zip-off daypack with lockable zip main compartment
2 Removable sleeping pad straps

Blue backpack with labeled parts, no visible text or symbols on the bag itself

FARPOINT 40

SPECS	S/M	M/L
Cubic Inches 2319	2441
Liters 38	40
Pounds 3.11	3.17
Kilograms 1.41	1.44
Inches 21h x 14w x 15d
Centimeters 54h x 35w x 37d

LOAD RANGE 20-40 lbs | 9-18 kg

Red backpack with a small emblem on the front, no visible text or symbols on the backpack or background.

1 CARRY

+ 3.5mm LightWire™ peripheral frame suspension effectively transfers the load from harness to hipbelt

2 STOWAWAY REVERSE SPACERMESH BACKPANEL, HARNESS AND HIPBELT

• Smooth mesh covered Atilon foam provides a comfortable, breathable contact surface with a load supporting core
• Adjustable sternum strap with rescue whistle

1

Back view of a blue Olympic-style backpack with visible seat and backrest details (no text or symbols)

SIZING / FIT

FARPOINT

TORSO

S/M 1 5-1 9" / 38-48 cm

M/L 18-22°/46-56 cm

HIPBELT

S/M 27-53" / 70-135 cm

M/L 29-55" / 75-140 cm

Side profile of a woman wearing a brown backpack and blue tank top, standing against a white background (no text or symbols visible)

HARNESS FIT

The harness straps should wrap fully around your shoulders with no gaps between the pack and your back. The padded part of the harness straps should end 1"/2.5cm- 2"/5cm below the armpits and the sternum strap adjusted to approximately 2"/5cm below the collarbone.

Two blue backpacks with visible branding and front side detail (no text or symbols)

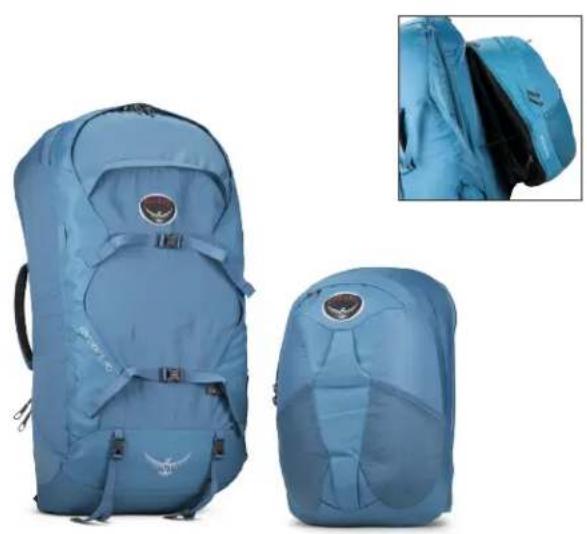

FARPOINT DAYPACK\*

70L/55L

Farpoint Daypack conveniently attaches to the main harness of the Farpoint pack to provide easy access to gear essentials.

SPECS O/S

Cubic Inches 915

Liters 15

Pounds 1.12

Kilograms 0.51

Inches 17h x 11w x 9d

Centimeters 42h x 27w x 22d

To remove Farpoint Daypack from main Farpoint body:

A To remove daypack, unbuckle StraightJacket™ compression straps from the loops on the front panel of the daypack.
B Unbuckle the zipper pull that connects the daypack to the Farpoint body.
C Unzip the perimeter of the daypack and pull away from Farpoint body.
D. Reverse process to reattach Daypack to Farpoint body. *Not available on Farpoint 80 or 40

Man wearing a red jacket and blue backpack, standing with hands in pockets (no visible text or symbols)

FARPOINT DAYPACK CARRY\*

70L/55L

To attach Farpoint Daypack to main harness of the Farpoint for front carry:

A Unzip rear flap to gain access to harness and hipbelt.
B Tuck flap into the space under the center of the hipbelt and use the hook and loop closure to secure it away.
C Put the primary Farpoint pack on, buckle and tighten the hipbelt across your hipbones and tighten the shoulder straps by pulling them down and back.
D Locate the two male buckles sewn into the top harness of the Farpoint Daypack.
E Clip each of these to corresponding female buckles on the top of the shoulder straps of the main harness.
F Reverse the steps to remove the Farpoint Daypack from the Farpoint main pack. *Not available on Farpoint 80 or 40

Black and white photo of a backpack with visible side profile details, including front and back views (no text or symbols on the backpack itself)

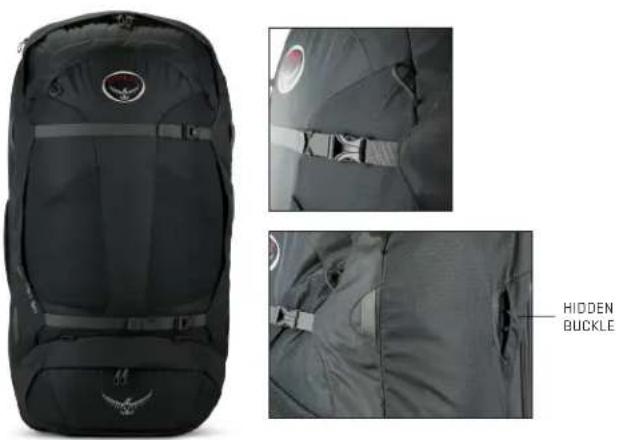

Osprey's StraightJacket™ compression system secures loads and adds stability to the pack. It utilizes the external compression straps and padded side walls to wrap internal contents of the pack.

A When the pack is full, use the front compression straps attached to the buckles at the front edge of the side wall to secure the load.
B. When the pack has a smaller load, find the hidden buckles along the right side of the pack near the backpanel.
C Bring front compression straps all the way around and connect to these hidden buckles and cinch down the padded sidewalls for smaller loads.

Two blue backpacks with animal designs, one open and one closed, shown from front and side views (no text or symbols visible)

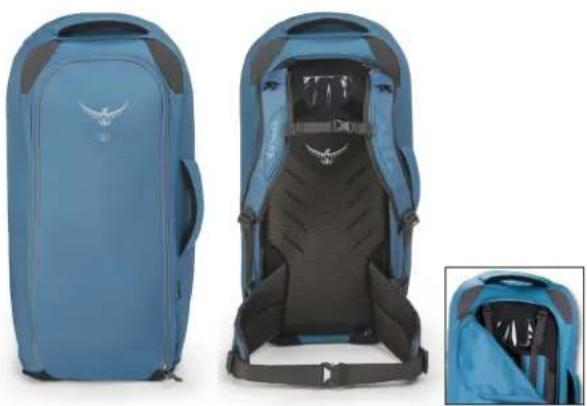

STOWAWAY BACKPANEL

80L / 70L / 55L / 40L

To access the backpanel, unzip the rear flap. Tuck flap into the space under the center of the hipbelt and use the hook and loop closure to secure it away.

A Unzip the rear flap.
B Pull out harness and hipbelt.
C Tuck flap into the space under the center of the hipbelt and use the hook and loop closure to secure it away.
Reverse the steps to stowaway the backpanel.

LOCKABLE SLIDERS ON MAIN COMPARTMENT ZIPPER

80L / 70L / 55L / 40L

There are loops on the zippers of the main compartment to lock your bag. We recommend a TSA-recognized lock.

Green and blue children's backpack with front pockets, no visible text or symbols

LAPTOP AND TABLET SLEEVES

70L / 55L LAPTOP SLEEVE*

Max 15"

Inches 13h x 10.5w x 1.5d

Centimeters 33h x 27w x 3.755d

70L / 55L TABLET SLEEVE\*

Inches 9.5h x 9w x 1d

Centimeters 24h x 23w x 2d

40L LAPTOP SLEEVE\*\*

Inches 14h x 11w x 1.5d

Centimeters 36h x 28w x 3.755d

40L TABLET SLEEVE\*\*

Inches 10.5h x 10.5w x 1d

Centimeters 27h x 27w x 2d

*Featured on daypack

**Featured on primary pack

Your Osprey pack is an extremely durable product and is built for years of use.

However, some basic pack maintenance will help ensure your pack lasts a lifetime.

OSPREY PACKS

STANDARD MAINTENANCE

• After each trip be sure to clean out your pack thoroughly.
• Clean the zippers regularly using mild soap, warm water and soft brush. This will help keep them in proper working condition.
• If your pack is wet, hang it to dry out of direct sunlight.
• Loosen all the straps.
• Wash your pack if dirt, sweat, salt and stains have worked their way into fabrics, webbing or mesh. [Do not immerse travel packs in water with our HighRoad™ Wheeled Chassis.]

WASHING YOUR PACK

A Empty the pack including any food, dirt or spilled contents.
B If your pack has a removable harness and hipbelt, remove them from the pack body.
C Do NOT wash your pack in a washing machine. Clean your pack and components in a bathtub or large sink using a mild detergent and warm water.
☐ Agitate the pack gently. Scrub the inside and outside of all compartments including the pockets with a soft brush.
E Clean the zippers using a mild soap, warm water and a soft brush. Flush water and soap through the buckles. Keeping dirt and debris out of the zippers and buckles will help keep them in proper working condition.
F Drain the dirty water from the bathtub or sink and refill with cool clean non-soapy water. Rinse the pack thoroughly. Repeat this step as necessary.
G Hang your pack to dry outside or in a well ventilated area, out of direct sunlight.

WHEELED TRAVEL LUGGAGE

[Do not immerse travel packs in water with our HighRoad™ Wheeled Chassis.]

A After each trip, empty the pack including any food, dirt or spilled contents.
B Clean the zippers regularly using mild soap, warm water and soft brush. This will help keep them in proper working condition.
C Wipe the exterior of the chassis with a damp cloth or sponge.
☐ Clean the pack fabric by scrubbing stains and dirt with warm water, mild detergent and a soft brush or sponge.
E Use a wet towel with clean non-soapy water to wipe away any soap residue on the pack.
F Hang your pack to dry outside or in a well ventilated area, out of direct sunlight.

RECOMMENDED CLEANING PRODUCTS

Osprey recommends Nikwax® products for pack care. Be sure to read label directions carefully before applying any product to your pack.

Tech Wash® - Use this with warm water for washing and cleaning your packs or luggage.

Tent & Gear Solar Proof® - Use this spray-on product to protect your packs from UV exposure and to improve water repellency.

For complete instructions on cleaning your Osprey pack,

visit: ospreypacks.com/PackTech/PackCare.

OSPREY RESERVOIRS

RESERVOIR STANDARD MAINTENANCE

• Rinsing out your reservoir after each use should keep your reservoir fresh, especially when using sugary drink mixes.
• Periodically use Osprey's Hydraulics™ Cleaning Tablets to clean your reservoir.
• lodine or other purifying tablets used in your reservoir will not affect the quality of your reservoir. However these tablets may stain the reservoir over time.
• Freezing your reservoir will not effect the quality of the reservoir. However if the reservoir is filled with water, be aware that water expands when it freezes and can damage your reservoir if it is overfilled.
  Do NOT pour boiling water into the reservoir. This can damage the reservoir and will void your warranty.
• Watch "Cleaning an Osprey Hydraulics™ Reservoir" video on Osprey Packs YouTube® page.

CLEANING YOUR RESERVOIR (WITH OSPREY HYDRAULICS™ CLEANING TABLETS)

A Fill reservoir with warm water. Do not use bleach or boiling water.
B Add one cleaning tablet to reservoir and close the cap.
C Let tablet dissolve for 5 minutes with the reservoir laying on its back.
D Shake the reservoir for 30 seconds to mix and spread the solution.
E Pinch the bite valve and squeeze the reservoir to remove air and fill the reservoir hose and bite valve with solution.
F Let the reservoir sit for 15 minutes and then pour out solution.
G Rinse the reservoir and tube with clean cool water.
H Hang your reservoir to dry in a well ventilated area.

DEEP CLEANING YOUR RESERVOIR (WITH OSPREY HYDRAULICSTM CLEANING KIT)

1 Rinse out the reservoir and fill it with warm water and a mild dish detergent. Do not use bleach or boiling water.
2 With the large cleaning brush from Osprey's Hydraulics™ Cleaning Kit scrub the Interior of the reservoir.
3 Remove the hose from the reservoir and the bite valve from the hose and use the small brush from Osprey's Hydraulics™ Cleaning Kit to scrub the interior of the hose.
4 Remove the silicone bite valve cover and clean it and the bite valve with warm soapy water.
5 Rinse the interior and exterior of the reservoir, hose and bite valve parts with cool clean water.
6 Let the hose and bite valve dry in a well-ventilated area.
7 Insert Osprey's Hydraulics™ Cleaning Kit drying rack into the reservoir and hang to dry in a well ventilated area.

For complete instructions on cleaning your Osprey reservoir watch, "Cleaning an Osprey Hydraulics™ Reservoir" at youtube.com/ospreypacks.

OSPREY ACCESSORIES

Customize and protect your pack with Osprey's full line of accessories.

For the full lineup, please visit your local Osprey retailer or visit:

ospreypacks.com.

PACK YOUR PACK

Loading your pack correctly optimizes comfort while

you are carrying it. For complete information visit:

ospreypacks.com/PackTech/HowToPackYourPack

GUARANTEE

At Osprey, sustainability is designed into our packs, which are built to last a lifetime and backed by a superb guarantee, no matter how hard you are on your gear. Visit ospreypacks.com for details.

QUESTIONS?

Contact Osprey Customer Service. Real help from real people.

Scroll over the customer service tab at ospreypacks.com.

OSPREY PACKS, INC.

115 PROGRESS CIRCLE

CORTEZ, CO 81321 USA

866-284-7830

ospreypacks.com/PackTech/OwnersManuals
