USER MANUAL Radial 26 Osprey

Red and black athletic backpack with visible branding and lanyard (no text or symbols)

RADIAL 34

Black and white photo of a modern backpack with visible branding and logo (no text or symbols on the backpack itself)

RADIAL 26

Welcome to Osprey. We pride ourselves on creating the most functional, durable and innovative carrying product for your adventures. Please refer to this owner's manual for information on product features, use, maintenance, customer service and warranty.

OWNER'S MANUAL

ospreypacks.com

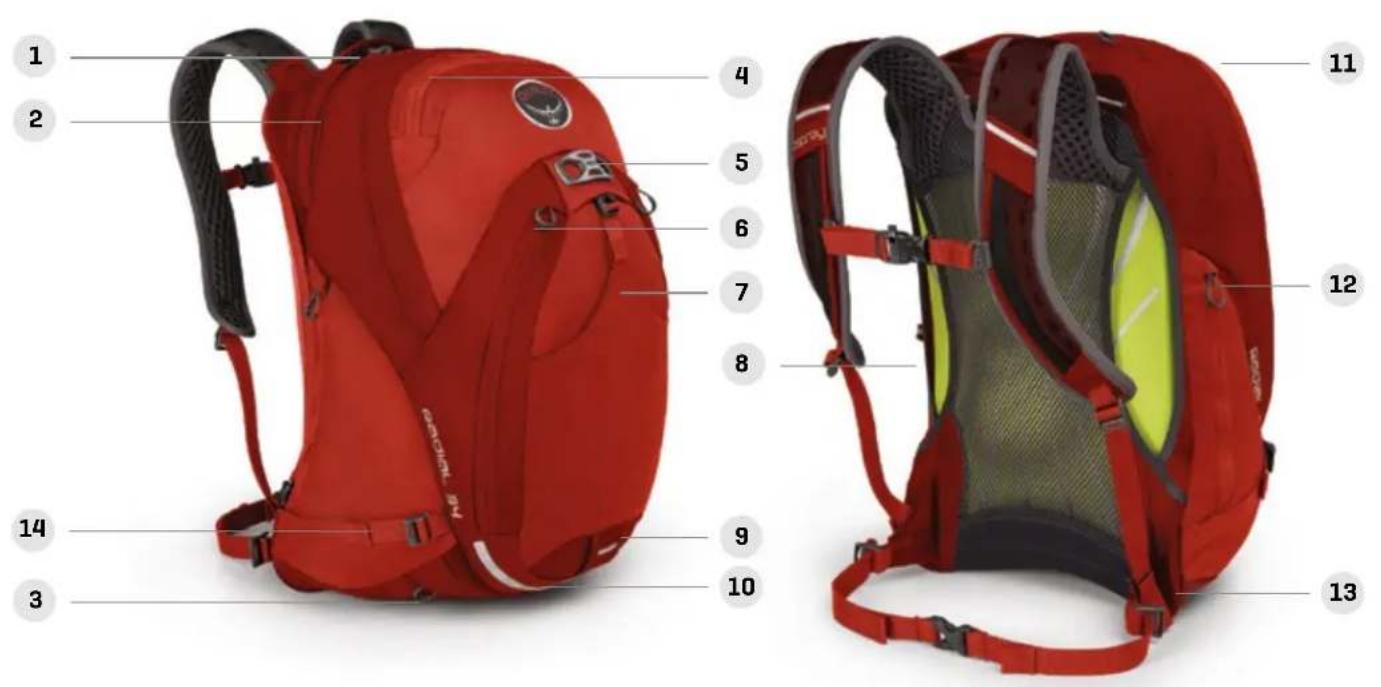

FEATURES

1 Separate top zip access to padded laptop and tablet sleeves
2 Main compartment with document sleeve and mesh pockets
3 Built-in, high visibility raincover
4 Front panel organization pocket
5 LidLock™ helmet attachment
6 Dual access front panel zippered shoe pocket (34L only)
7 Front panel stretch shove-it pocket sized for U-locks
8 Stretch side panel water bottle pocket
9 Blinker light attachment
10 Reflective detail on front panel
11 Zippered heat-embossed top pocket
12 Zippered heat-embossed side panel pocket with retractable keychain
13 Integrated kickstand keeps pack upright and accessible
14 Lower side compression straps

FABRIC

MAIN 4200 x 4000 Nylon Dobby

ACCENT 420D Nylon Packcloth

BOTTOM 200D x 400D Nylon Dobby

RADIAL 34

SPECS	S/M	M/L
Cubic Inches 1953 2075
Liters	32	34
Pounds	3.20	3.32
Kilograms	1.45	1.51
Inches 21h x 13w x 13d
Centimeters 54h x 33w x 34d

Red backpack with black straps and a small logo, no visible text or symbols on the backpack itself

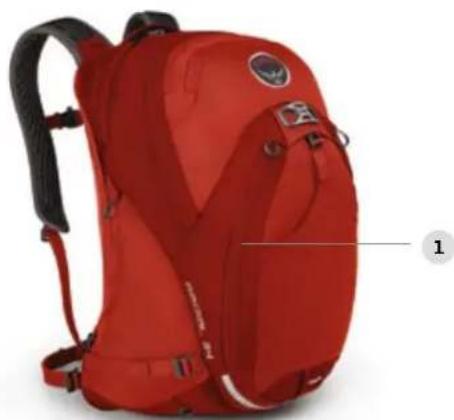

UNIQUE FEATURE

1 Dual-access front panel zippered shoe pocket

RADIAL 26

SPECS	S/M	M/L
Cubic Inches 1465	1507
Liters	24	26
Pounds	2.87	3.02
Kilograms	1.30	1.37
Inches 21h x 13w x 12d
Centimeters 54h x 33w x 30d

Black and white backpack with visible branding and logo (no text or symbols on the backpack itself)

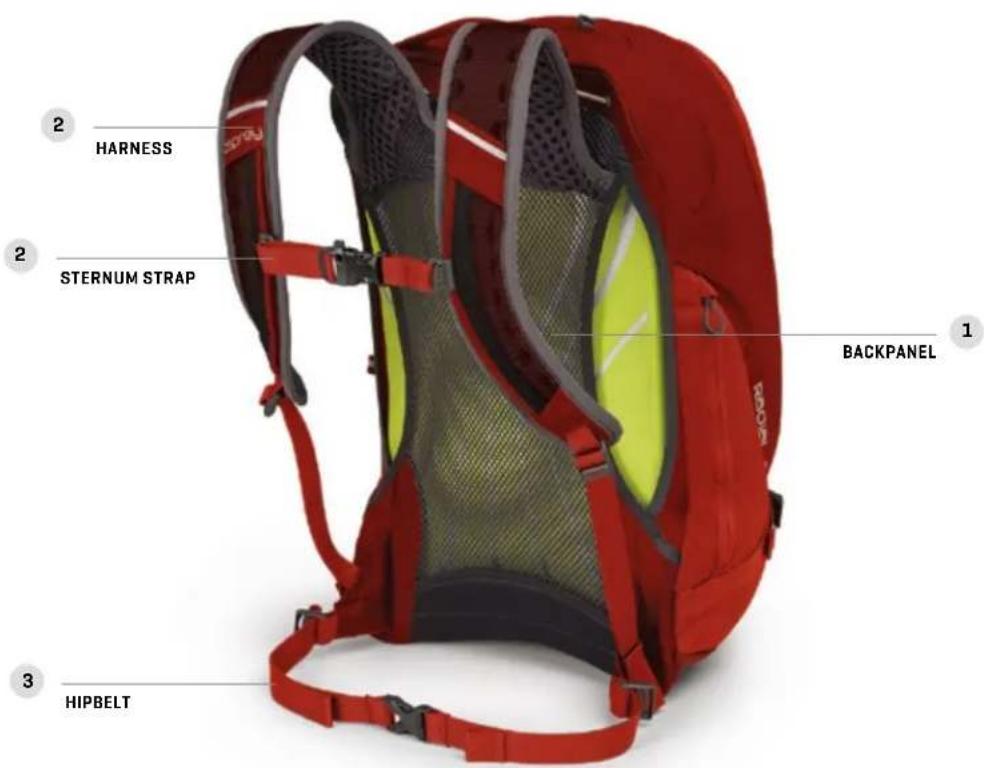

2 HARNESS 2 STERNUM STRAP BACKPANEL 1 3 HIPBELT

CARRY

1 MODIFIED AIRSPEED™ BACKPANEL

+ Suspended mesh backpanel for superior ventilation and comfort

2 VENTILATED SHOULDER HARNESS

• Innovative ventilated stretch yoke and load lifters
• Ventilated mesh-covered die-cut foam
• Air mesh shoulder strap for comfort and ventilation
• Adjustable sternum strap with safety whistle

3 WEBBING HIPBELT

• Elastic hipbelt wing to maintain comfort while riding
• Removable 25 mm webbing pack stabilizing hipbelt

RADIAL - UNISEX SIZING

S/M 15-19° / 38-48 cm

M/L 18-22" / 46-56 cm

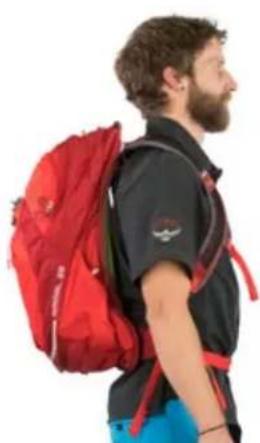

Side profile of a man wearing a red backpack and black shirt, standing against a white background (no text or symbols visible)

HARNESS FIT

The harness straps should wrap fully around your shoulders with no gaps between the pack and your back. The padded part of the harness straps should end 1"/2.5 cm- 2"/5 cm below the armpits and the sternum strap adjusted to approximately 2"/5 cm below the collarbone.

Close-up of a red and black athletic backpack with visible branding (no text or symbols)

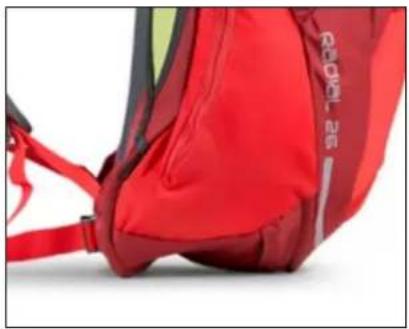

INTEGRATED KICKSTAND

34L/26L

An integrated kickstand keeps your pack upright whether loaded or empty and provides easy access to gear.

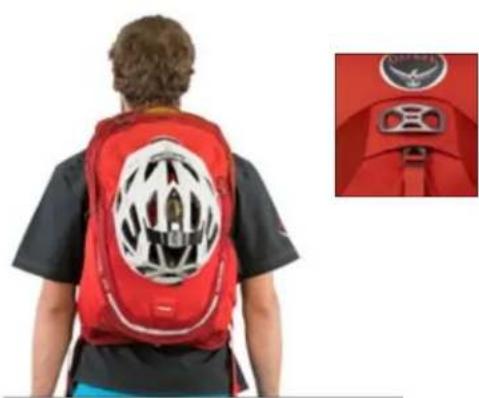

Back view of a person wearing a red backpack with a white helmet design, next to an inset image of the same helmet (no text or symbols visible)

LIDLOCK™ HELMET ATTACHMENT

34L/26L

Osprey's LidLock™ easily and securely carries bicycle helmets.

A Locate the LidLock™ helmet attachment clip near the top of the pack's front panel and pull away from the pack.
B In the vertical position, pass LidLock™ through the helmet vent from the bottom and engage in the horizontal position.
C Reverse process to detach helmet.

BLINKER LIGHT ATTACHMENT

34L/26L

The blinker light attachment strap found near the base of the front panel of the pack allows for quick light attachment for high visibility in the dark.

A Secure blinker light clip through reflective blinker light attachment loop.
B Blinker light attachment loop is reflective, providing some visibility even without a blinker light.

Yellow fabric cushion with crumpled texture, resting on a wooden surface (no text or symbols visible)

INTEGRATED REMOVABLE RAINCOVER

34L/26L

A Locate the raincover icon near the base of the pack.
B Unzip the raincover compartment.
C Pull the raincover from compartment and slip over the top and bottom of the pack.
☐ Tension into place using the cord lock at the bottom of the raincover.
E Reverse this process to return raincover to compartment.
F To remove the raincover altogether, unfasten the hook and loop strap from the cord loop inside the raincover compartment.

Tip: To prevent mildew, remove raincover and allow to dry entirely after use in the rain.

Red backpack with white text label, partially visible against white background (no readable text or symbols)

Lower side compression straps stabilize loads and narrow the pack's profile when packing light. To compress the pack, cinch the side straps, and lift the slider buckle to loosen.

Person holding a red backpack with a yellow and orange pouch containing colorful items (no visible text or symbols)

FRONT PANEL ORGANIZATION POCKET

34L / 26L

The front panel pocket secures and stores pens, books and other small items.

Close-up of a red backpack with straps and straps (no visible text or symbols)

ZIPPERED HEAT-EMBOSSED TOP POCKET 34L / 26L

The zippered heat-embossed top pocket provides a secure and scratch-free storage solution for sunglasses and other fragile items.

Person wearing a black athletic jacket with visible zipper and green accents (no text or symbols)

ZIPPERED HEAT-EMBOSSED SIDE PANEL WITH RETRACTABLE KEYCHAIN 34L / 26L

Keep your keys, phone and other small items secure, scratch-free and easy to access while on the go. The retractable keychain prevents accidentally dropping keys.

Person wearing a red backpack with a blue water bottle (no visible text or symbols)

STRETCH SIDE PANEL WATER BOTTLE POCKET 34L / 26L

The stretch side panel water bottle pocket holds smaller bottles and is intentionally angled to provide access to the pocket's contents without removing the pack.

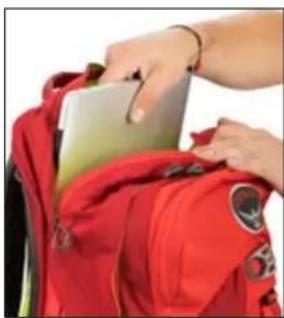

Close-up of hands installing a tablet on a red backpack (no visible text or symbols)

LAPTOP AND TABLET SLEEVE

34L / 26L LAPTOP SLEEVE

Inches 17.7h x 10.2w x 3.90d

Centimeters 49h x 26w x 10d

34L / 26L TABLET SLEEVE

Inches 12.2h x 9.1w x 2d

Centimeters 31h x 23w x 5d

For more information on this product and others, pack care, how to pack your pack, our lifetime guarantee, or to contact Osprey Customer Service, visit ospreypacks.com.
