USER MANUAL Waypoint 80 Osprey


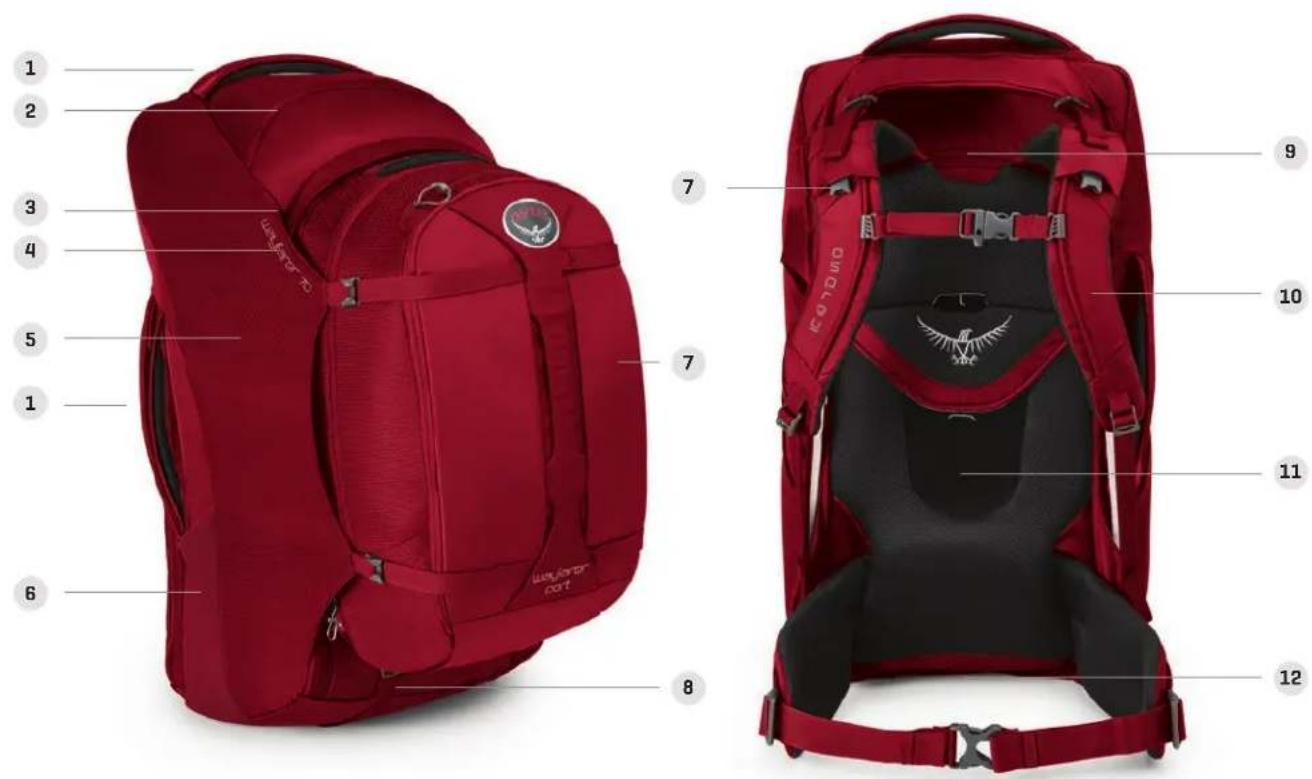

1 2 3 4 5 1 6 Workforce 2014 7 7 8 9 10 11 12WAYPOINT & WAYFARER SHARED FEATURES
1 Foam padded top and side grab handles offer convenient and comfortable carry options
2 A zippered top accessory pocket is ideal for easy access to liquids and other frequently needed items
3 Large panel load lockable zippered access to the main compartment provides easy and secure entry to the pack's internal contents
4 A large, zippered front panel pocket provides additional organization and accessible storage
5. Foam padded sidewalls with StraightJacket™ compression stabilizes, protects and compresses loads
6 Dual stretch woven external side pockets are ideal for water bottles and provide additional external storage options
7 A full featured zip and clip detachable Waypoint/Wayfarer Daypack with Port™ window is ideal for a day-long jaunt and provides additional space and organization. The Daypack also attaches to the main pack harness to provide secure front carry and access
FABRICS
MAIN 330D nylon dobby
ACCENT 420HD nylon packcloth
BOTTOM 420HD nylon packcloth
8 Stowable sleeping pad straps provide additional external carry options and can be stowed in Integrated strap slots when not in use
9 A hidden zippered security pocket on the Waypoint's exposed backpanel keeps contents safe and organized
10 Tuck away, adjustable gender specific spacer mesh harness with adjustable sternum strap and rescue whistle buckle delivers stable, comfortable backpack style carry
11 An integrated, internal HDPE framesheet and peripheral LightWire™ frame works in conjunction with the hipbelt/harness to provide supportive, comfortable backpack style carry
12 Tuck away, gender specific foam padded hipbelt with breathable contact surface provides excellent load transfer and comfort with backpack style carry
+ Dual internal compression straps prevent the unwanted migration of clothing and help to secure and organize internal contents
+ Two internal mesh zippered pockets and one internal fabric zippered pocket provide organization of and accessibility to internal contents
OWNERS MANUAL WAYPOINT / WAYFARER


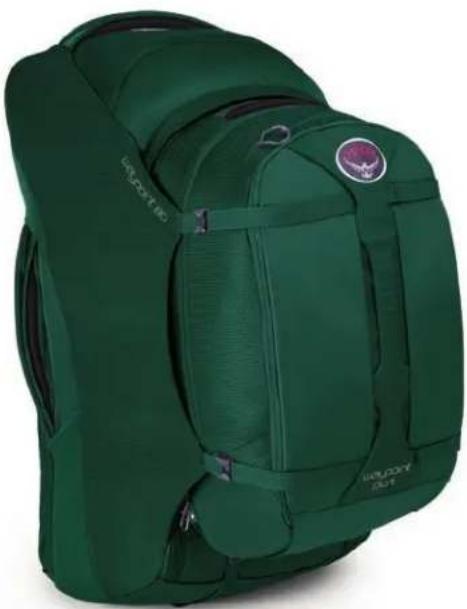

Green backpack with black accents and a purple emblem on the front (no visible text or symbols)WAYPOINT 80
TREKKING / BACKPACKING
The Waypoint 80 is a panel loading gender specific men's technical backpack designed specifically for adventure travel treks and backpacking travel adventures.
SPECS\* ONE SIZE
Cubic Inches 4882
Liters 80
Lbs/Dunces 5/10
Kilograms 2.56
Inches 24h x 16w x 13d
Centimeters 62h x 40w x 32d
* Volume and weight measurements include the Waypoint Day. Dimension measurements DO NOT include the Waypoint Day.
UNIQUE FEATURES
+ Men's specific hipbelt and harness
OPTIMAL LOAD RANGE


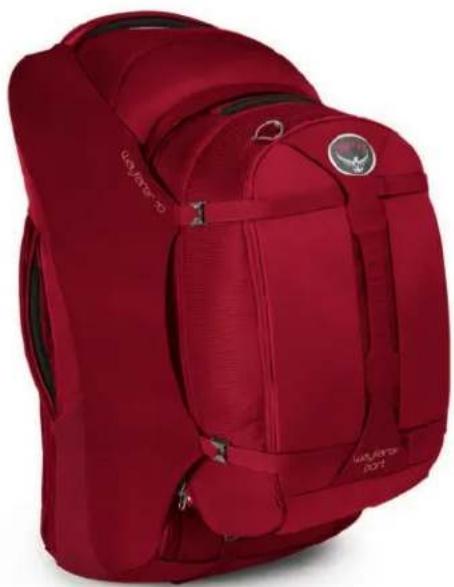

Red and dark red athletic backpack with visible branding and usage slots (no text or symbols)WAYFARER 70
TREKKING / BACKPACKING
The Wayfarer 70 is a panel loading gender specific women's technical backpack designed specifically for adventure travel treks and backpacking travel adventures.
SPECS\* ONE SIZE
Cubic Inches 4272
Liters 70
Lbs/Ounces 5/7
Kilograms 2.46
Inches 24h x 16w x 13d
Centimeters 60h x 40w x 32d
* Volume and weight measurements include the Wayfarer Day. Dimension measurements DO NOT include the Wayfarer Day.
UNIQUE FEATURES
+ Women's specific hipbelt and harness
OPTIMAL LOAD RANGE
OWNERS MANUAL
WAYPOINT / WAYFARER
WAYPOINT & WAYFARER SHARED FEATURES / DETAILS
ZIP AWAY HARNESS AND HIPBELT
The zip-off, foam padded gender specific adjustable harness and fixed hipbelt are directly connected to a LightWire™ peripheral frame that supports the weight that backpacking and traveling for extended periods of time necessitates A large, six inch torso adjustment range assures perfect fit.
To access the hipbelt/harness:
1 Locate the dual zippers at the top of the pack's backpanel and unzip individually, one to the lower right zipper garage terminus and the other to the lower left zipper garage terminus to expose the components.
2 Roll the unzipped backpanel in on itself, logo side up, until you reach the hook patch and attach this to the loop patch just below the pack's backpanel and press to attach while in backpack mode. Reverse this process to restore components.
ADJUSTABLE HARNESS
To adjust the harness, first obtain a proper torso size either in-store or by visiting ospreypacks.com Once you have this information.
1 Locate the easy-fit sizing window on the Waypoint/Wayfarer harness and lift up on the hook and loop tab to release the harness.
2 Now you can slide the harness either up or down using the window as a fit guide to locate your proper torso size. Press down on the tab to reengage the hook and loop closure and secure the harness in place.
ERGOPULL™ HIPBELT
The tuck away, gender specifi c foam padded hipbelt on your Waypoint/Wayfarer pack utilizes Osprey's exclusive modifi ed straight ErgoPull™ closure. To operate, loosen the webbing enough so that you can connect the center buckle. Grasp the loose ends of the webbing on either side and pull in and across evenly with both hands at the same time.
LOCKABLE PANEL LOAD ACCESS
A dual lockable zippered front panel provides access to the main compartment. Once inside, the internal organization consists of dual internal compression straps to hold clothes securely while two internal mesh zippered pockets and one internal fabric zippered pocket provide organization of, and accessibility to internal contents.
STOWABLE SLEEPING PAD STRAPS
Dual sleeping pad straps near the base of the Waypoint/Wayfarer provide easily accessible and secure external gear storage options. When not in use the sleeping pad straps can be stowed in the fabric slots just above where they are sewn-in to the main pack body.
STRAIGHTJACKET™ COMPRESSION
Dual foam padded sidewalls work in conjunction with our StraightJacket™ compression system to both protect contents and stabilize loads. Loads can be compressed and stabilized by tensioning the dual StraightJacket™ straps on the pack's front panel. When contents are less than full the protected buckles on the right side panel of the pack serve as connection points for the, compressing and stabilizing your load.
WAYFARER WOMEN'S SPECIFIC FIT
WOMEN'S SPECIFIC FIT
The Wayfarer 70 is the women's specific counterpart to the Waypoint Series. The Wayfarer's harness and hipbelt are designed specifically to fit a woman's body, providing superb comfort and performance.
OWNERS MANUAL WAYPOINT / WAYFARER


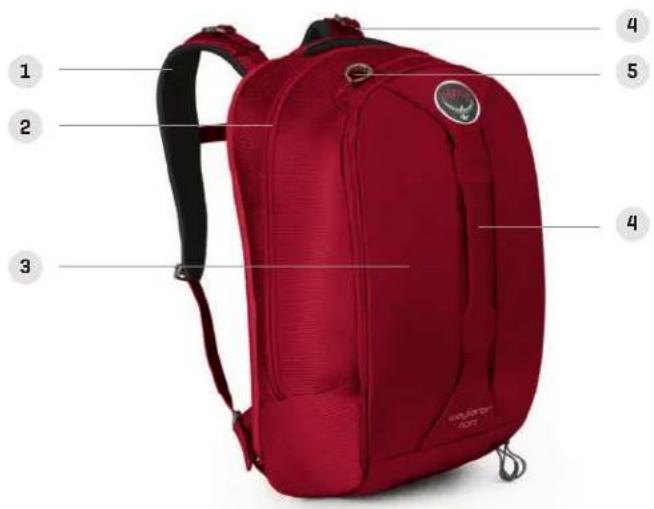

Labeled image of a red athletic backpack with numbered parts for identification.WAYPOINT & WAYFARER DAY FEATURES / DETAILS
WAYPOINT/WAYFARER DAYPACK
The zip-off, removable Waypoint/Wayfarer daypack is a full featured travel solution perfect for day trips. Unclip the two StraightJacket™ style compression straps securing the daypack to the main pack body and pull the zipper pull securing the daypack to the main pack body to fully detach the daypack. The dual, main body compression straps form a StraightJacket™ style compression system when the daypack is disengaged [see StraightJacket™ Compression instructions].
The Waypoint/Wayfarer Daypack conveniently attaches to the front harness of the main pack body to provide easy access to photo gear and essentials.
1 Locate the two protected male buckles sewn into the harness of the daypack and remove from slots.
2 Clip the male buckles on the harness of Waypoint/Wayfarer Day into the protected female buckles located on the harness of the main pack body. Reverse these steps to remove the daypack.
WAYPOINT & WAYFARER DAY
WAYPOINT/WAYFARER ACCESSORY DAYPACK
SPECS ONE SIZE
Cubic Inches 1220
Liters 20
Lbs/Ounces 1/10
Kilograms 0.75
Inches 19h x 12w x 9d
Centimeters 48h x 31w x 22d
1 Foam padded harness with adjustable sternum strap and rescue whistle buckle
2 Lockable zipper panel load access to laptop/tablet sleeves and internal organization sleeves
3 Front panel Port™ Window for instant tablet access
4 Top and front panel padded grab handles
5 Zippered top stash pocket with scratch free fabric liner
PORT WINDOW TABLET ACCESS
This zippered sleeve with touch-sensitive film is hidden behind a padded flap on the detachable daypack. Simply open the flap for quick access to the tablet or e-reader without removing it from the pack. The padded flap zips back up for protected and hidden storage of the tablet.
OWNERS MANUAL WAYPOINT / WAYFARER
OSPREY ACCESSORIES
Customize and protect your pack with Osprey's full line of accessories.
For the full lineup, please visit your local Osprey retailer or visit:
ospreypacks.com.
PACK CARE
Osprey recommends Nikwax® products for pack care.
For complete instructions on cleaning your pack,
visit: ospreypacks.com/PackTech/PackCare
Your pack is an extremely durable product built for years of use and abuse. However, some basic procedures will ensure that your pack holds up optimally.
After each trip be sure to clean out your pack thoroughly.
If your pack is wet, hang it to dry.
Loosen all the straps.
- Wash your pack every now and then.
[Do not immerse travel packs with our High Road™ Wheeled Chassis.]
PACK YOUR PACK
Loading your pack correctly optimizes comfort while
you are carrying it. For complete information visit:
ospreypacks.com/PackTech/HowToPackYourPack
GUARANTEE
At Osprey, sustainability is designed into our packs, which are built to
last a lifetime and backed by a superb guarantee, no matter how hard
you are on your gear. Visit ospreypacks.com for details.
QUESTIONS?
Contact Osprey Customer Service. Real help from real people.
Scroll over the customer service tab at ospreypacks.com.
OSPREY PACKS, INC.
115 PROGRESS CIRCLE,
CORTEZ, CO 81321 USA
866-284-7830
KR www.ospreypacks.com/PackTech/OwnersManuals
