USER MANUAL Kendo Krom

Line drawing of a pair of headphones with a screwdriver, shown against a dark grid background (no text or symbols)

QuickGuide Installation

Uniform dark background with a diagonal pattern of white diamonds and an orange border at the bottom (no text or symbols)

DEFAULT FUNCTIONS & ELEMENTS

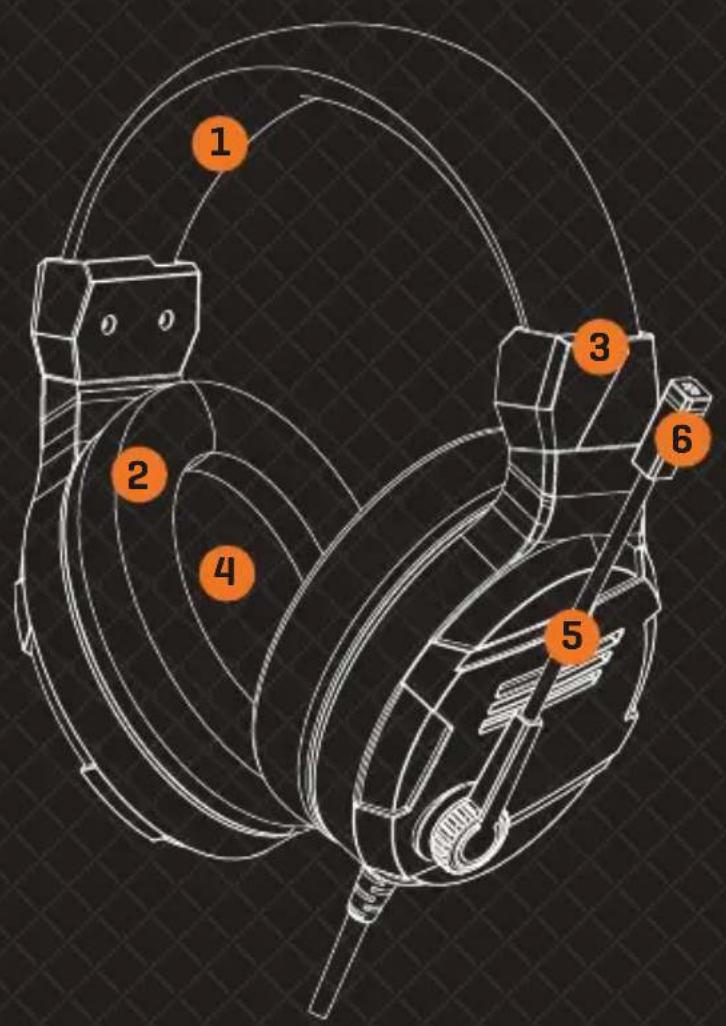

Technical diagram of a headset with numbered components labeled 1 through 6

1] Ultra comfortable headband
2] Soft cushions
3] Lightweight and durable structure
4] 40 mm drivers

5] Foldable and flexible microphone

6] Omni-directional microphone

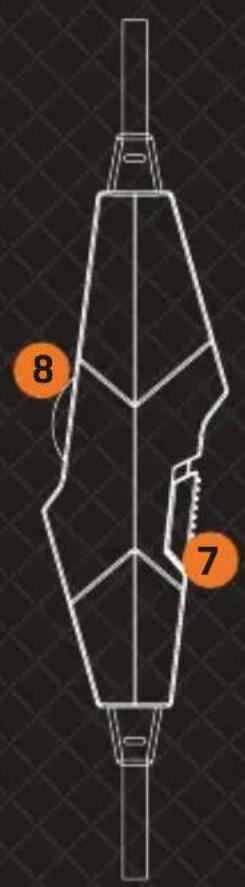

7] Microphone mute switch

8] Volume wheel

SYSTEM REQUIREMENTS

1. Operation system and devices:

Windows / Mac OS

1. 2 free 3.5 mm jack input

KROM KENDO INSTALLATION

PC/MAC CONNECTION

1. Connect the headset to your PC/MAC using the two 3.5 mm jacks
2. A pop up window will ask you to confirm the new devices [depending on your audio driver]
3. Audio input and output will be assigned to the relevant controller

SPECIFICATIONS

HEADPHONES

• Driver diameter: 40 mm driver
• Frequency range: 20 Hz - 20 KHz
• Impedance: 32 Ohm ± 15%
• Sensitivity: 94 dB ± 3 dB

MICROPHONE

• Directivity: Omni-Directional
• Impedance: ≤ 2.2K ohms
• Frequency range: 100 Hz - 10 KHz
• Sensitivity: -58 dB ± 3 dB

GENERAL

• Connection: 2x 3.5 mm jack
• Cable lenght: 240 cm
• Dimensions: 218 x 215 x 91 mm
• Weight: 259 g

EU DIRECTIVES

CE STATEMENT OF COMPLIANCE WITH EUROPEAN UNION DIRECTIVES

Krom declares that this product is in compliance with the essential requirements and other relevant provisions from the following Directives: 2014/30/EC; 2011/65/EC, as applicable. The technical documentation required by the Conformity Evaluation process is in Krom's possession and can be requested through the email [e-mail].

DISPOSAL OF BATTERIES AND ELECTRICAL OR ELECTRONIC EQUIPMENT WASTE

The existence of this symbol on the product, batteries or respective packaging, signifies that this product and the contained batteries can not be disposed as domestic waste. It is the user's responsibility to deliver this product at a battery, electrical or electronic recycling pick-up point. The pick-up and separate recycling contributes for the preservation of natural resources and suppresses potential negative consequences for the human health and the environment resultant of inadequate disposal of dangerous substances contained in batteries and electrical or electronic equipment. For additional information regarding batteries, electrical or electronic recycling pick-up points, please contact your local municipal services.

WARRANTY

Who does the warranty protect:

This warranty is valid for the original purchaser only.

What does the warranty protect:

For warranty claims, please contact Krom's overseas distribution partners in your country.

Find the distribution partner list at www.kromgaming.com

Warranty: 2 years from the purchasing date. [Depending on the laws of each country]

URL: www.kromgaming.com

E-mail: [e-mail]

What doesn't the warranty cover:

1. Any product, on which the serial number has been defaced, modified or removed.
2. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
3. Repair or attempted repair by anyone not authorized by Krom.
4. Damage to or loss of any programs, data or removable storage media.
5. Software or data loss occurring during repair or replacement.
6. Any damage of the product due to shipment.
7. Removal or installation of the product.
8. External causes, such as electric power fluctuations or failure.
9. Use of supplies or parts not meeting Krom's specifications.
10. Normal wear and tear.
11. Any other cause which does not relate to a product defect.

If you have any questions regarding technical problems, please contact us via our website:

WWW.KROMGAMING.COM

Krom reserves the right for any modifications in text and/or images.
