USER MANUAL EHD930F EverFocus

EHD930F eZ.HD Series

1080p Full High Definition True Day/Night Outdoor IR Vandal Dome Camera

User's Manual

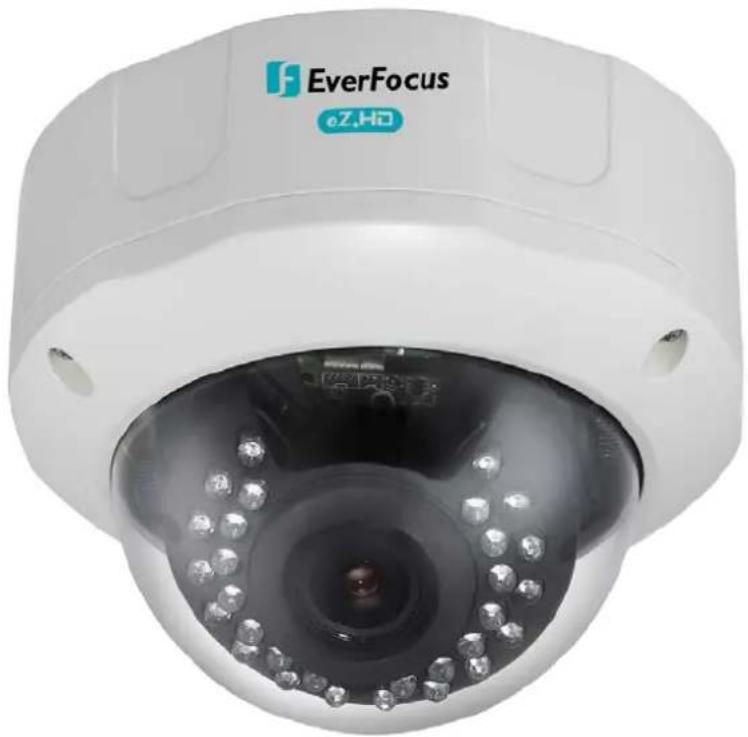

Exterior view of a white surveillance camera with visible lens and control buttons (no text or symbols on the device itself)

Copyright © EverFocus Electronics Corp.

Release Date: February 2016

Precautions

1. Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation.
2. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein. Improper disassembly or introduction of corrosive materials may result in equipment failure or other damage.
3. Try to avoid facing the camera toward the sun. In some circumstances, direct sunlight may cause permanent damage to the sensor and/or internal circuits, as well as creating unbalanced illumination beyond the capability of the camera to compensate.
4. Keep the power cable away from water and other liquids and never touch the power cord with wet hands. Touching a wet power cord with your hands or touching the power cord with wet hands may result in electric shock.
5. Never install the camera in areas exposed to oil, gas or solvents. Oil, gas or solvents may result in equipment failure, electric shock or, in extreme cases, fire.
6. Cleaning. For cameras with interchangeable lenses, do not touch the surface of the sensor directly with the hands. Use lens tissue or a cotton tipped applicator and ethanol to clean the sensor and the camera lens. Use a damp soft cloth to remove any dirt from the camera body. Please do not use complex solvents, corrosive or abrasive agents for cleaning of any part of the camera.
7. Do not operate the camera beyond the specified temperature, humidity or power source ratings. This camera is suitable for indoor operation only. Use the camera at temperatures within -40°C\~50°C (-40°F\~122°F) and humidity less than 80%; this device is not rated as submersible. The input power source is 12VDC or 24VAC. Be sure to connect the proper +/ - polarity and voltage, as incorrect polarity or too high a voltage will likely cause the camera to fail, and such damage is not covered by the warranty.
8. Mounting. Use care in selecting a solid mounting surface which will support the weight of the camera plus any wind, snow, ice or other loading, and securely attach the camera to the mounting surface using screws and anchors which will properly support the camera. If necessary (e.g. when mounting to drop ceilings) use a safety wire to provide additional support for the camera.

Safety Notice

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ATTENTION! This is a class A product which may cause radio interference in a domestic environment; in this case, the user may be urged to take adequate measures.

This Product is RoHS compliant.

WEEE+

Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please, dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic product.

Please, help us to conserve the environment we live in!

Contents

1. Introduction......5

1.1 Packing List ....5
1.2 Features....5

1. Cable Description.... 6

2. Installation 7

3.1 Installation and Adjustment ....7

1. Configuration in the OSD Menu....12
2. Specifications....16

1. Introduction

The EverFocus eZ.HD Series EHD930F provides incredible performance in bright light or low light environments, and the resolution listed in the specification from the actual camera you install. To take full advantage of the amazing resolution available from this advanced imaging technology, the EverFocus eZ.HD Series EHD930F uses a vari-focal lens together with 1/2.9" SONY 2.24M pixels CMOS to deliver 1080p high resolution, 30 LEDs with range of 30m/100ft., together with a useable native low light sensitivity of 0.01 lux without using digital slow shutter. The camera truly provides optimized images without compromising 1080p high resolution. The Digital Wide Dynamic Range for clear color images in the most challenging of bright or unbalanced lighting conditions. The true day/night IR enhances images in low light environments with guaranteed ZERO ghosting. The EHD930F is equipped with a 3-axis rotation mechanical design that delivers wall or ceiling mounting flexibility and an IP66 weather resistant, vandal proof dome housing. Users can take the advantage of vari-focal 2.8\~12mm DC iris lens to easily adjustable field of view. The cameras also feature dual voltage operation and a full suite of OSD Menu and DSP functions controllable at the camera (3DNR to save DVR HDD space, privacy masking, mirroring, and much more). This is the camera that you have been waiting for to create analog CCTV systems that produce astounding image clarity in a wide range of outdoor applications at the widest range of light levels. The EHD930F supports both NTSC and PAL scanning systems, which can be switched via OSD.

1.1 Packing List

• Camera Body x 1
• User Manual x 1
• Test Lead x 1
• Template Plate x 1
• Rubber Plate x 1
• Adapter Plate x 1

• Desiccant Bag x 1

• Screw x 4

• Screw Driver x 1
  • Plastic Anchor x 4
  • DC Power Pigtail Cable x 1
• Hexagon Wrench x 1
  • Quick Installation Guide x 1
• Warning Paper x 1

1.2 Features

• 1080p full HD with high flexibility and performance for astounding image
  • 1/2.9" Sony 2.24M pixels CMOS sensor, delivering amazing high sensitivity
• Vari-focal 2.8\~12mm DC iris lens to captures the desired field of view
• Extended IR range of up to 30M/100ft. with 30 LEDs (depending on scene IR reflectivity)
  • D-WDR to improve the visibility under high contrast scene

- 3D Noise Reduction ensures less blurry moving subjects, vivid and high SN ratio images even under low light environment

- Support 1080p, 720p & 960H analog signal output, which can be easily switched using OSD Joystick

- The flexible angle viewing with its 3 Axis rotation design allows wall or ceiling mounting

- Convenient speedy-mount base plate easily attaches to surface, camera attaches to plate with machine screw

- eZ.Controller function: Control camera OSD settings and PTZ operation directly from DVR end

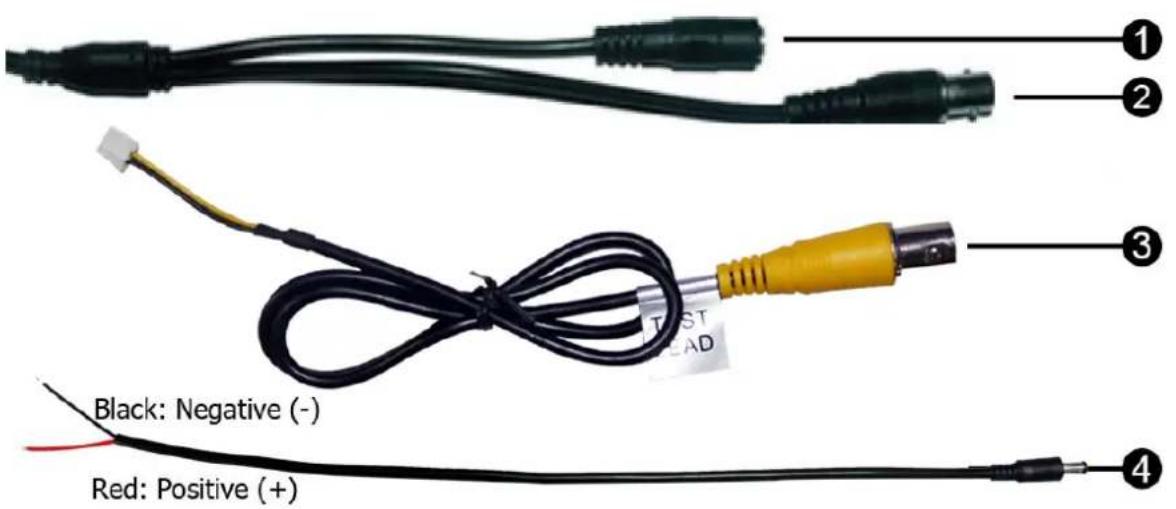

2. Cable Description

1 2 3 TEST READ Black: Negative (-) Red: Positive (+)

No.	Name Descriptions
1	Power Cable	Connect to a 12VDC or 24VAC power source.
2	Video Output	1080p, 720p and 960H output, using a 75 Ohm BNC-type coaxial cable.
3	Test Lead	Connect to a monitor for setting image aim and focus.
4	DC Power Pigtail Cable	Optional power pigtail cable. The red wire is positive (+); while the black wire is negative (-).

3. Installation

3.1 Installation and Adjustment

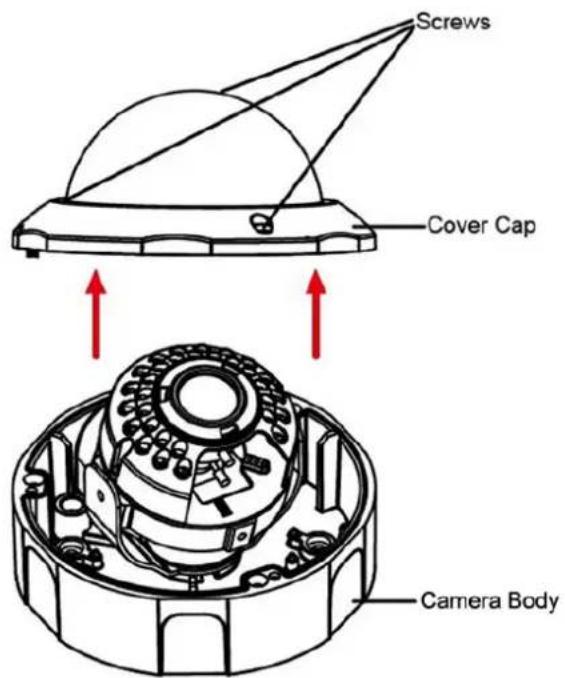

1. To remove the Cover Cap, unscrew the three Set Screws using the supplied Hexagon Wrench.

Screws Cover Cap Camera Body

1. For Ceiling Mount / Wall Mount users: Stick the Template Plate on the position where you want to attach the camera, drill four holes on the Template Plate for screwing the Adapter Plate with the supplied Screws and Plastic Anchors. If you wish to run the wires through the wall / ceiling, drill an additional hole in the middle circle position. Otherwise you can wire the cables from the side of the camera (refer to the arrow position). Insert the supplied four Plastic Anchors into the holes.

Line out

1. To screw the camera onto a Junction Box or using a Bracket:

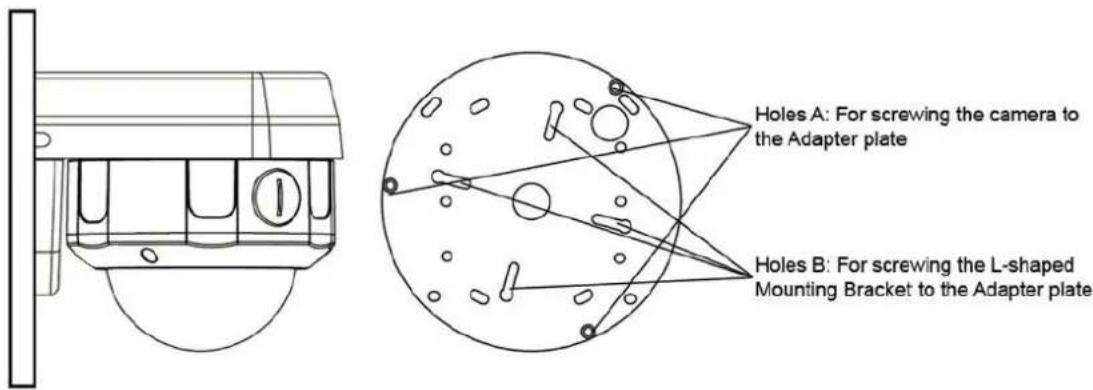

a. You can optionally screw the camera to the wall using an L-Shaped Mounting Bracket. b. Screw the supplied Adapter Plate to the Junction Box or the L-Shaped Mounting Bracket using the screw holes on the Adapter Plate. Note the holes A / B are designed for screwing the camera / L-Shaped Mounting Bracket.

Holes A: For screwing the camera to the Adapter plate Holes B: For screwing the L-shaped Mounting Bracket to the Adapter plate

1. If you want to wire the cable through the side of the camera, follow the steps below:

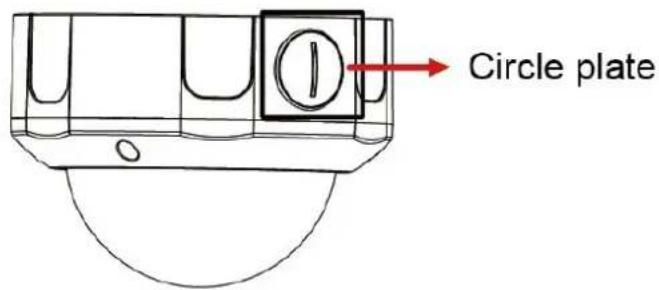

a. Remove the Circle Plate from the camera. You can simply loosen the Circle Plate using a coin.

Circle plate

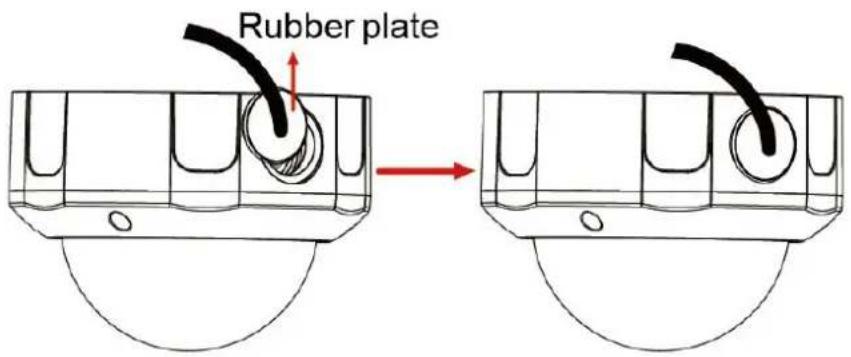

b. Run the cable through the Cable Conduit. c. Use the supplied Rubber Plate to fix the cable and then tightly push the Rubber Plate to the Cable Conduit tightly.

Rubber plate

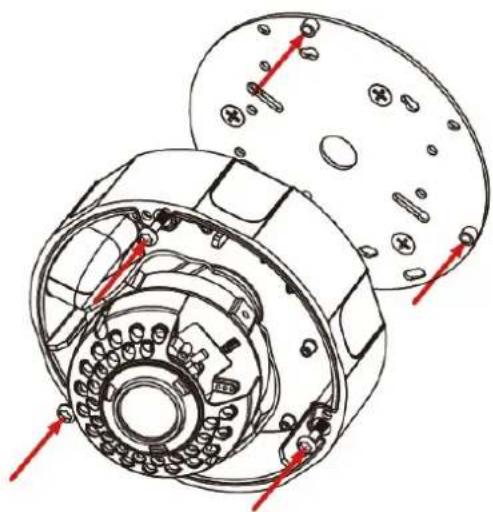

1. Screw the camera to the Adapter Plate.

Technical line drawing of a mechanical assembly with no visible text or symbols

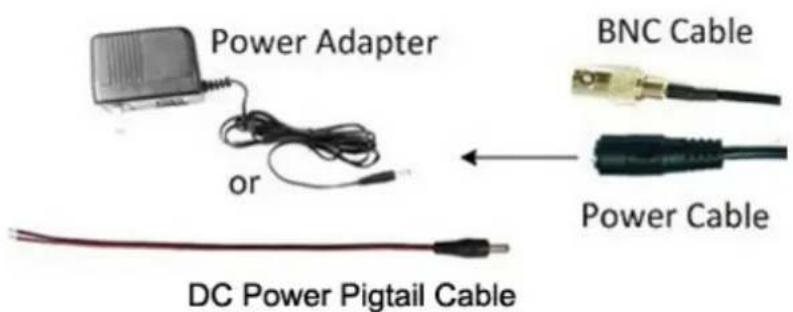

1. Connect the camera to an AHD DVR with the 12VDC or 24VAC power source using the supplied DC power pigtail cable or a power adapter.

Power Adapter or DC Power Pigtail Cable BNC Cable Power Cable

1. Using the Test Lead for viewing the video image while adjusting camera angles. You can also use the OSD Menu Joystick to configure camera settings.

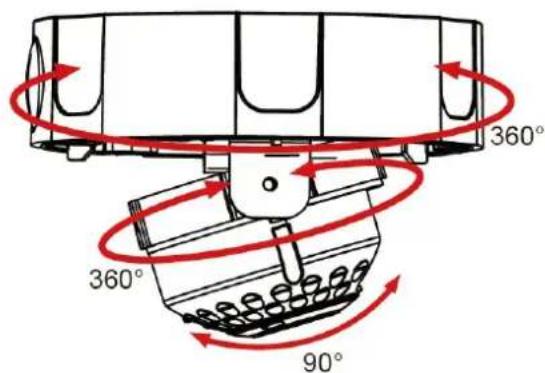

a. Adjust camera angles by tilting or rotating the camera.

360° 360° 90°

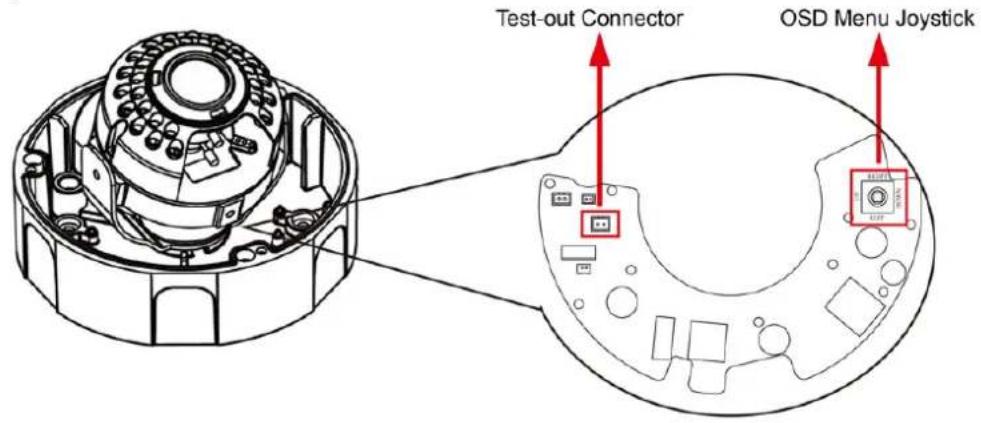

b. Configure the camera settings using the OSD Menu Joystick, connect one end of the Test Lead to the Test-Out connector on the camera module and the other end to the portable monitor.

Test-out Connector OSD Menu Joystick

- Push the Joystick up / down to select among menu items.

- Push the Joystick left / right to adjust the level of the selected item.

- Press the Joystick to enter the submenu or exit the OSD Setup Menu.

Note: The function button is using to control direction, and also to switch video format and video output. Please follow the detailed instruction as below to switch the camera to:

Switch between 1080p and 720p (Default, 1080p): Press Upward for 5 Seconds
Switch from HD (1080p / 720p) to 960H: Press Left for 5 Seconds
Switch from 960H to HD (1080p / 720p): Press Right for 5 Seconds
Switch between NTSC and PAL: Press Downward for 5 Seconds

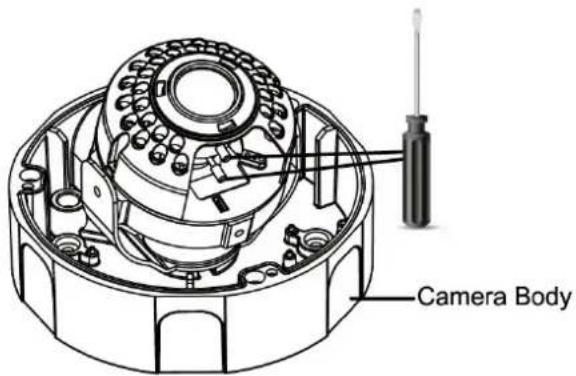

1. Adjust the Zoom / Focus using the Zoom / Focus screws. Tighten the Zoom / Focus screws using the supplied Screw Driver.

Camera Body

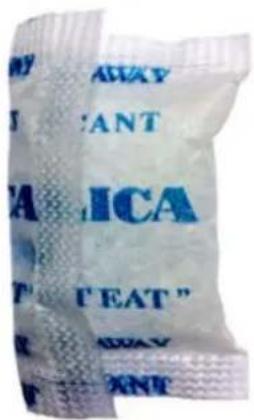

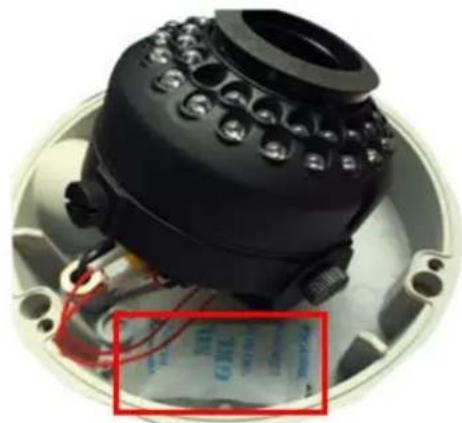

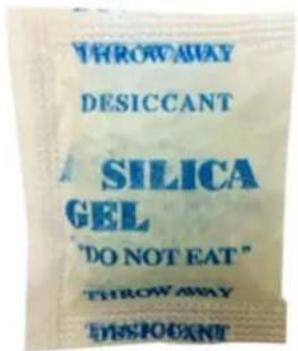

1. Take out the supplied Desiccant Bag (figure 2) from the outer packing (figure 1). Fold the Desiccant Bag (figure 3) and put it into the camera housing (figure 4).

Figure 1

DO NOT EAT THYROW ABRY THYROCCENT

Figure 2

THROW AWAY DESICCANT SILICA GEL "DO NOT EAT" THROW AWAY INSFOODANT

Figure 3

AWAY ANT ICA "EAT" AVAY ANT

Figure 4

Close-up of a black industrial device with multiple bolts and wiring, no visible text or symbols

Note: It's recommended to close the cover cap immediately in case of reducing the absorption capacity of the desiccant bag inside the camera.

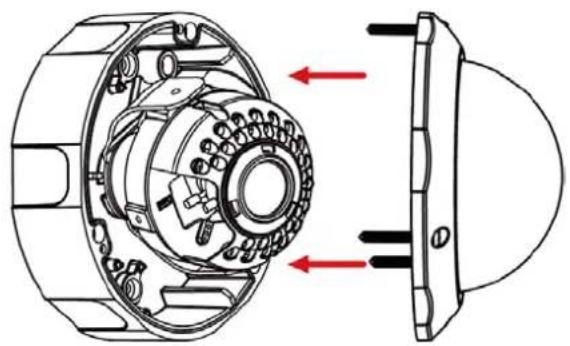

1. Screw back the Cover Cap Set Screws using the supplied Hexagon Wrench.

Technical diagram of a mechanical assembly showing internal components and directional arrows (no text or labels)

4. Configuration in the OSD Menu

You can use the Joystick on the rear panel of the camera to configure camera settings in the OSD menu. For details on the OSD menu structure as below:

No.	Main	Sub Menu	Sub Menu / Function
1 Lens		DC	Mode	Indoor
				Outdoor	Min Shu.	NTSC: 1/30
						PAL: 1/25
					Max. Shu.	NTSC: 1/60,FLK,1/240,1/480,1/1000,1/2000,1/5000,1/10000, 1/50000
						PAL: 1/50,FLK,1/200,1/400,1/1000,1/2000*,1/5000,1/10000, 1/50000
			Iris Speed 0	-15
		Manual
2 Exposure		Shutter	NTSC: 1/30, 1/60, FLK, 1/240, 1/480, 1/1000, 1/2000, 1/5000, 1/101/50000, X2, X4, X6, X8, X10, X15, X20, X25, X30, Auto
			PAL: 1/25, 1/50, FLK, 1/200, 1/400, 1/1000, 1/2000, 1/5000, 1/101/50000, X2, X4, X6, X8, X10, X15, X20, X25, X30, Auto
		AGC 0 - 15
		Sens-up	Off
			Auto	Sens-up	X2, X4, X6, X8, X10, X15, X20, X25, X30
		Brightness	1-100
		D-WDR	Off
			On	Level	0-8
			Auto
		Defog	Off
			Auto	Pos/Size	Position, Size, ↑, ↓, →, ←
				Gradation	0-2
				Default
3	Backlight	Off
		BLC	Level Middle,	High, Low
			Area	Position, Size, ↑, ↓, →, ←
			Default
		HSBLC	Select Area1,	Area2, Area3, Area4
			Display	Off
				On	Position, Size, ↑, ↓, →, ←
			Black Mask On/Off
			Level 0-100
			Model	All Day
				Night	AGC Level	0-255
			Default
4	White Balance	ATW
		AWC→SET
		Indoor
		Outdoor
		Manual	Blue 1-500
			Red 0-100
		AWB
5	Day & Night	Ext	D→N(Delay)		0-60
			N→D(Delay)		0-60
		Auto	D→N(AGC)		1-255
			D→N(Delay)		0-60
			N→D(AGC)		1-255
			N→D(Delay)		0-60
		Color
		B/W	Burst Off/On
			IR Smart	Off
				On	Level 0-15
					Area	Position, Size, ↑, ↓, →, ←
			IR PWM	Off
				0-100
6 NR		2DNR	Middle/Low/Off/High
		3DNR	Middle/Low/Off/High
7 Special		Cam Title	Off
			On	0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ→←↑↓()^-_-■/=&:~,.
		D-effect	Freeze	Off/On
			Mirror	Off, Mirror, V-flip, Rotate
			Neg. Image Off/On
		Motion	Off
			On	Select Area1,Area2,Area3,Area4
				Display	On	Position, Size, ↑, ↓, →, ←
					Off
				Sensitivity	0-100
				Color Green, Blue, White, Red
				Trans	1.00,0.75,0.50, 0.25
				Alarm	View Type	Off, Block, Outline, All
					OSD View On/Off
					Alarm Out On/Off
					Time 1-15
				Default
		Privacy	Off
			On	Select Area1,Area2,Area3,Area4
				Display	Off
					Color	Position, Size, ↑, ↓, →, ←
					Mosaic	Position, Size, ↑, ↓, →, ←
					Inv	Position, Size, ↑, ↓, →, ←
				Color	White, Black, Red, Blue, CYAN, Yellow, Green
				Trans	1.00,0.75,0.50, 0.25
				Default
		Language	ENG/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR
		Defect	Live DPC	Off
				On	AGC level	0-255
					Level 0-100
			White DPC	Off
				On	Pos/Size	Position, Size, ↑, ↓, →, ←
					Start	Close the iris then press
					DPC View	Off/On
					Level 0-60
					AGC	0-14
					Sens-up	x2, x4, x6, x8,x10, x15, x20, x25, x30
			Black DPC	Off
				On	Pos/Siz	Position, Size, ↑, ↓, →, ←
					Start Press Enter	Enter
					DPC View Off/On	/On
					Level 0-255
		RS485	CAM ID 0-255
			ID Display Off/On
			Baud Rate	2400,4800,9600,19200 ,38400
8 Adjust	Sharpness	Off
		Auto	Level 0-10
			Start AGC 0-255
			End AGC 0-255
	Monitor	CRT	Blue Gain 0-100
			Red Gain 0-255
		LCD	Gamma		User,0.45,0.50,0.55,0.60,0.65,0.70,0.75,0.80,0.85,0.90,0.95,1.00
			Blue Gain 0-100
			Red Gain 0-100
	LSC Off/On
	Video. Out	PAL/NTSC
9 AF	AF Mode	Semi.
		Auto
		Manual
	One Shot AF
	TDN AF	On
		Off
	Lens Init.
10	Exit		Save& END /Reset/Not Saved

1. Specifications

P/N	EHD930F
Pickup Device	1/2.9" SONY 2.24M pixels CMOS
Video Format	NTSC and PAL( can be switched via OSD)
Effective Pixels	1920 (H)*1080(V)
Scanning System	Progressive Scan
Sensitivity 0 lux with IR on
S/N Ratio	Over 48 dB (AGC OFF)
Electronic Shutter	Auto/Manual (X30~1/50,000)/FLK
Video Output	BNC 1.0Vp-p 75Ω
Gamma Correction 0.45
Lens Type	DC Iris with ICR 2.8-12mm, F1.4
BLC OFF/BLC/HS BLC Selectable
AGC 0~15 Levels
White Balance	ATW/AWC-SET/INDOOR/OUTDOOR/MANUAL/AWB
Sync Mode	Internal
Day/Night	Ext, Auto, Color, B/W
IR LED	30 Units
IR Distance	Up to 30m/100ft. (depending on scene IR reflectivity)
OSD Languages	English/Simplified Chinese/Traditional Chinese/German/French/Italian/Spanish/Polish/Russian/Portuguese/Netherlands/Turkish
DNR	2DNR/3DNR, Off
DEFOG Off/Auto
D-WDR On/Off/Auto
Sens-up	Off/On(x2~x30)
Mirror	Off/Mirror/V-flip/Rotate
Motion Detection	Off/On for 4 selectable zones
Privacy Mask	Off/On for 4 selectable zones
Environmental	IP66 Weather Resistant
Power Source	12VDC/24VAC
Power Source	12VDC: 9w max. / 24VAC: 9.5w max.
Operating Temperature	-40°C~50°C / -40°F~122°F
Humidity	Less than 80%
Dimensions	140 x 102.5mm / 5.51" x 4.04"
Weight	1020g/2.25lbs
Certifications	CE/FCC/ RoHS

Specifications and designs are subject to change for improving the functionality of this product without notice.

EverFocus Electronics Corp.

EverFocus Taiwan:

12F-1, No.79, Sec. 1, Shin-Tai Wu Road,

Hsi-Chih, New Taipei City, Taiwan

TEL: [phone]

FAX: [phone]

www.everfocus.com.tw

[e-mail]

EverFocus Europe - Germany:

Albert-Einstein-Strasse 1, D-46446

Emmerich, Germany

TEL: [phone]

FAX: [phone]

www.everfocus.de

[e-mail]

EverFocus China - Beijing:

Room 609, Technology Trade Building,

Shangdi Information Industry Base,

Haidian District, Beijing 100085, China

TEL: [phone]\~39

FAX: [phone]

www.everfocus.com.cn

[e-mail]

EverFocus China - Shenzhen:

4F, No. 2, D4 Building, Wan Yelong

Industrial Park, Tangtou Road, Shiyan,

Baoan, Shenzhen, Guangdong 518101, China

TEL: [phone]

FAX: [phone]

www.everfocus.com.cn

[e-mail]

EverFocus USA - California:

1801 Highland Avenue, Unit A, Duarte, CA 91010, USA

TEL: [phone]

FAX: [phone]

www.everfocus.com

[e-mail]

EverFocus Japan:

3F Kuramochi, Buildingll 2-2-3 Koto-Bashi,

Sumida-Ku Tokyo, 130-0022, Japan

TEL: [phone]

FAX: [phone]

www.everfocus.co.jp

[e-mail]

Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please, dispose of this equipment at your local community waste

collection recycling centre. In the European Union there are separate collection systems for used electrical and electronic product.

Please, help us to conserve the environment we live in!
