806-068 - Massage device Marquant - Free user manual and instructions

Product Type	Shiatsu Foot Massager
Brand	Marquant
Model	806-068
Number of Massage Nodes	12 (3D)
Weight	2.1 kg
Power Supply	Mains powered (plug)
Operating Modes	Massage only, Massage with soothing heat
Auto Shut-off	After 15 minutes
Heat Function	Yes, activates only with massage
Control	Single power switch (3 presses: on, heat, off)
Intensity Adjustment	By varying foot pressure
Usage Position	Sitting only, never standing
Recommended Attire	Socks (no shoes)
Safety Certification	Compliant with EU standards
Materials	Plastic, fabric, electronic components
Storage	Cool, dry place in original packaging
Cleaning	Soft, slightly moist sponge; do not immerse
Repairability	No user-serviceable parts; qualified technician only
Warranty	As per manufacturer's terms
Intended Use	Home relaxation, not medical
Suitable For	Adults and children over 8 with supervision
Contraindications	Not for diabetics, pregnant women (consult doctor), pacemaker users, skin conditions
Power Cord Length	Approx. 1.5 m (typical)

Frequently Asked Questions - 806-068 Marquant

How do I turn on the foot massager?

Press the power switch once to start the massager. A blue light turns on. Press again to activate heat (red light), and a third time to turn it off.

Can I use the foot massager without the heat function?

Yes, press the power switch once for massage only. The heat function can only be activated when the massage is running.

How long does the foot massager run before auto shut-off?

The massager automatically turns off after 15 minutes for safety reasons. Do not restart immediately; let it cool down if needed.

What should I wear when using the foot massager?

Wear socks. Do not use shoes. This ensures comfort and proper functioning of the massage nodes.

Is the foot massager safe for people with diabetes?

No, the foot massager is not recommended for diabetics due to potential nerve damage or poor circulation.

Can I use the massager if I am pregnant?

Consult your doctor before use. The manual advises medical advice for pregnant women.

How do I clean the foot massager?

Unplug and let it cool. Clean with a soft, slightly moist sponge. Do not immerse in water or use abrasive cleaners.

Why does the foot massager stop unexpectedly?

It may be due to the 15-minute auto shut-off. If overheating, turn it off and let it cool before reuse.

Can I stand on the foot massager?

No, always sit down while using. Standing can damage the product and cause injury.

What should I do if the power cord is damaged?

Stop use immediately. The cord must be replaced by the manufacturer or a qualified technician to avoid hazard.

USER MANUAL 806-068 Marquant

Close-up of a white massage device with black mesh backrests and red circular sensors, featuring a power button (no text or symbols visible)

SE Bruksanvisning för fotmassage SHIATSU
NO Bruksanvisning for fotmassasje SHIATSU
PL Instrukcja obsługi urządzenia do masażu stóp SHIATSU
EN User instructions for SHIATSU foot massager

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importør/ Importer/ Importer

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SVENSKA....5

SÄKERHETSANVISNINGAR....5

TEKNISKA DATA....7

BESKRIVNING 7

HANDHAVANDE 7

UNDERHÅLL 8

Förvaring 8

Rengöring....8

NORSK 9

SIKKERHETSANVISNINGER 9

TEKNISKE DATA 11

BESKRIVELSE....11

BRUK....11

VEDLIKEHOLD 12

Oppbevaring....12

Rengjøring 12

POLSKI 13

ZASADY BEZPIECZEŃSTWA 13

DANE TECHNICZNE 15

OPIS 15

OBSŁUGA 15

KONSERWACJA 16

SAFETY INSTRUCTIONS....17

TECHNICAL DATA....19

DESCRIPTION 19

OPERATION....19

MAINTENANCE 20

Storage....20

Cleaning....20

SÄKERHETSANVISNINGAR

Read the Operating Instructions carefully before use!

Please retain for future reference.

Always take basic safety precautions when using massage appliances to reduce the risk of personal injury.

WARNING!

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision

- The product must only be used for its intended purpose and in accordance with these instructions.

- Keep the appliance and its cord out of reach of children less than 8 years.

- The product must not be used by persons who are unable to operate the controls on the product.

- Carefully monitor the product when it is used by, or in the vicinity of, children or people with disabilities.

- Do not leave the product unattended when it is plugged into an electrical socket, especially in the vicinity of children.

- The product should not be used for medicinal purposes.

- Never use the product instead of consulting a doctor.

- Always consult a doctor before using the product if you are pregnant, use a pacemaker or have any other questions concerning your health and the use of this product.

- The foot massager is not recommended for use by diabetics.

- Never use the product on swollen or inflamed areas or on sores/skin rashes.

- Do not use the product on sensitive skin or on persons with poor blood circulation.

- Do not use the product immediately before going to bed. The massage has a stimulating effect, which can make it difficult to get to sleep.

• Do not use the product outdoors.
• Do not carry or pull the product by its cord.
• Do not use the product if the cord or the plug is damaged, if it has been exposed to water or does not work properly, or if it is damaged in some other way.
• Protect the power cord from hot surfaces.
• Never block the air vents in the product for instance by placing it on a soft surface for example in bed or on a rug. Do not use under a duvet, blanket, cushion or similar items. Keep the air vents free from fluff, hair, etc. Considerable heat can be generated, resulting in fire, electric shock or personal injury.
• Never insert objects into openings in the product.
• Do not use the product in the vicinity of aerosols or oxygen.
  • Take care with all types of heated surfaces. Risk of serious burns.
• Pull out the plug from the socket immediately after use or prior to cleaning the product.
• If a product falls into water, do not reach into the water to recover it. Unplug the power cord immediately.
• Prolonged use of the product can cause overheating and shorten its life. If the product becomes too hot, turn it off, pull out the plug and allow it to cool down before using it again.
• The foot massager should only be repaired by a qualified technician.
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

TECHNICAL DATA

Number of 3D massage nodes 12

Weight 2.1 kg

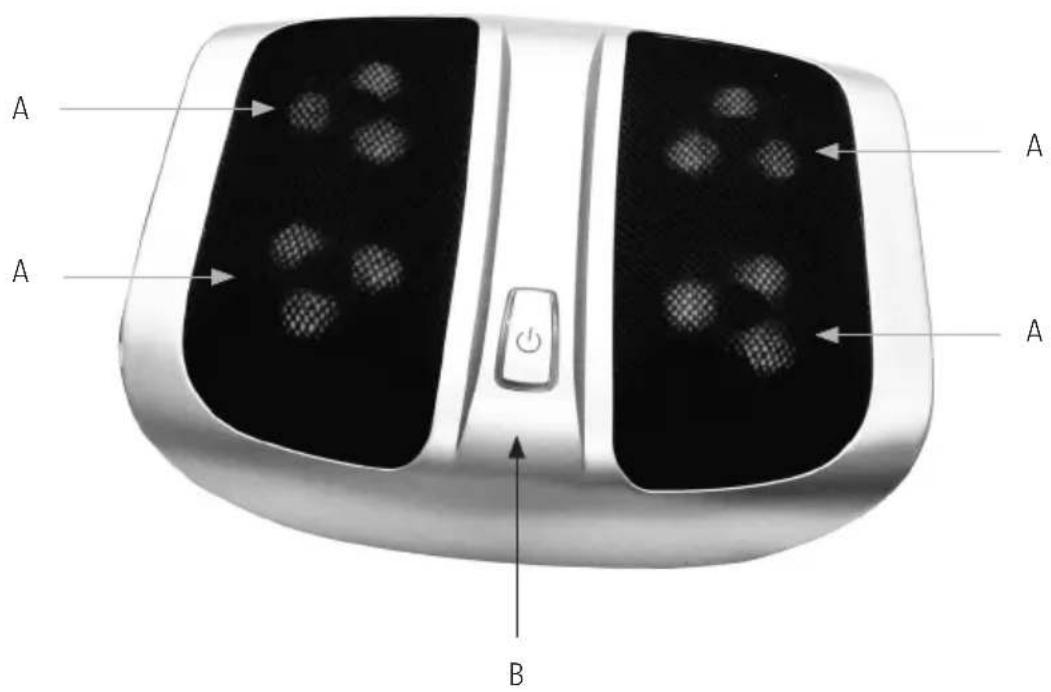

A. Massage nodes and heat

B. Power switch

DESCRIPTION

There are two operating modes to choose from with the foot massager:

— Massage only. The massage nodes rotate in two directions to give an invigorating massage.

- Massage with soothing heat to give a more relaxing massage.

OPERATION

NOTE:

- For safety reasons, the foot massager turns off automatically after 15 minutes use. Do not use the product for more than 15 minutes at a time.

- For safety reasons, the heating function cannot be turned on if the massage function is not activated.

1. Place the foot massager in front of your chair and insert the plug in the power socket. Wear socks (do not use shoes) when using the foot massager. Always sit down when using the foot massager. Never stand on the product.
2. The power switch controls all functions. Press the power switch once to start the massager. A blue light comes on.
3. Press the power switch again to activate the heating function and massage (while the massage function is still working). The light now turns red. It takes a short time for the foot massager to heat up.
4. Turn off the massager by pressing the power switch a third time. Then pull out the plug. Always unplug the product when it is not being used.

TIP!

• Vary the intensity of the massage by putting different pressure on the massager with your feet.
• Press your feet down more on the massage surface if they tickle or wait a moment to allow your feet to get used to this feeling.
• Reduce the pressure on the massage surface if the massage is too intense.

MAINTENANCE

STORAGE

• The product must be stored in a cool, dry place and in its original packaging.
• Protect the product and cord from sharp, pointed objects that can damage the surface.
• Do not wind the cord around the product.
• Do not carry or pull the product by its cord.

CLEANING

Note!

• Do not expose the product to water or other liquids.
• Never use abrasive cleaning agents, brushes or chemicals (flammable or not) for cleaning.

• Do not attempt to dismantle or repair the product. This product does not contain any parts that can be repaired by the user.

• Pull out the plug and allow the product to cool down before cleaning.

• Clean with a soft, slightly moist sponge.
