USER MANUAL 17885 Lakeland

Cordless Blending Set

MODEL 17885

Product photo of a modern electric shaver with a black base, accompanied by a small charging plug and power adapter (no visible text or symbols)

LAKELAND CORDLESS BLENDING SET

Thank you for choosing this Lakeland Cordless Blending Set. Please take a little time to read this booklet before you use your blender and then keep it in a safe place for future reference.

We are sure you will be delighted with the performance and will enjoy many years of preparing smoothies, soups, drinks, baby food and much more with the cordless blender. It blends for 10-15 minutes on a single charge, far longer than you will need for most tasks. It is convenient to use because you can take it to where you want to work, rather than having to be restricted by plugs, and it has a great safety feature in that you won't have to worry about getting cables in liquids or near heat sources.

An award winning family-owned business, here at Lakeland we still have the same values of excellent quality, value for money and exceptional customer care as we did when we first set up the company in the 1960s. Our products are carefully selected and rigorously tested to meet our high standards, so you can be assured that any product you purchase will be easy-to-use and highly durable.

CONTENTS

Product Features & battery levels 4

Safety Cautions 5

How to assemble the Cordless Hand Blender and using for the first time 6.

Instructions for use 7

A guide to ingredients 8

Hints and tips 8

Recipes 9

Troubleshooting 1.1

Care and cleaning 11

Recycling your electricals....1

Electrical connections 1

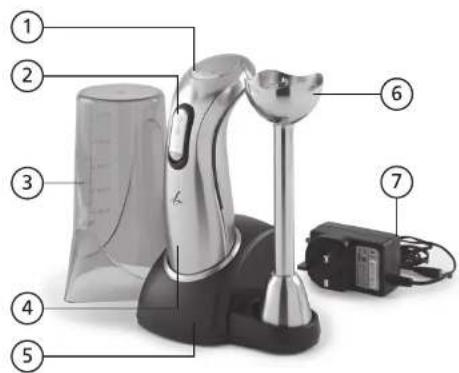

PRODUCT FEATURES

Labeled diagram of a blender with numbered parts including a stand, battery, and power supply

1. Battery indicator
2. Control switch
3. Measuring/mixing cup
4. Main unit
5. Charging stand
6. Blending wand
7. Power supply

BATTERY STATUS

- When the blender is on, the battery indicator will show the battery level (4 levels)

Four identical circular diagrams with curved segments, no text or symbols present

Extreme low battery Low Battery Half Battery Full charge

• The battery indicator light flashes when charging. When the battery is fully charged the full indicator will light up blue.
  • The power supply will be slightly warm during the charging process.

SAFETY CAUTIONS

Please read all the instructions before using the appliance and keep in a safe place for future reference. Always follow these safety cautions when using the appliance to avoid personal injury or damage to the appliance. This appliance should be used only as described in this instruction book.

• Make sure your electricity supply matches the voltage shown on the appliance.
- Ensure all packaging materials and any promotional labels or stickers are removed from the appliance before the first use.
• Always inspect the appliance before use for noticeable signs of damage. Do not use appliance if it is damaged or has been dropped. In the event of damage, or if the appliance develops a fault, contact the Lakeland customer care team on 015394 88100.
- Do not use the charging unit if the lead is damaged. If the lead is damaged it must be replaced with a special lead from the Lakeland customer care team on 015394 88100.
• Always site the charger on a dry, level, heat resistant surface.
- Detach the blender wand from the main unit before cleaning the wand.
• Before the first use, charge the battery for 8 to 10 hours.
- The battery will last for between 10 and 15 minutes, but not continuously. Allow the blender to 'rest' between tasks.
- From low battery to fully charged, will take approximately two hours to bring it back up to full charge.
• Make sure the battery is recharged every 6 months to keep it in good condition and prevent deep-discharge.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should always be supervised to ensure they do not play with this product.
- Do not use any accessories or attachments with this appliance other than those recommended by Lakeland.
• To protect against fire, electric shock or personal injury, do not immerse base, charging stand or power supply in water or other liquids.
• For indoor use only.
• For domestic use only.
• This appliance should be used for preparation of food as described within the instructions for use that accompany it.

• Always ensure that your hands are dry before removing the plug from the mains socket. Never pull the plug out of the mains socket by its lead.
• To avoid injury or possible fire, do not cover the appliance when in use.
- Do not connect this appliance to an external timer or remote control system.
- This appliance complies with the basic requirements of Directives 04/108/EC (Electromagnetic Compatibility) and 06/95/EC (Safety of Domestic Electrical Appliances)
- WARNING: a cut off plug inserted into a 13amp socket is a serious safety (shock) hazard. Ensure the cut off plug is disposed of safely.
- CAUTION; the plastic bags used to wrap this appliance or the packaging may be dangerous. To avoid risk of suffocation, keep these bags out of reach of babies and children. These bags are not toys.
- Do not touch any moving parts whilst in use. Allow the blender to stop completely before taking it apart.
• Never use this appliance to mix or stir anything other than foods.
• Do not use whilst cooking or with boiling liquids.
• The blades are very sharp
• Only use the original battery charger provided by Lakeland in order to avoid a hazard.
- Switch off the appliance before changing accessories or touching parts that move in use

HOW TO ASSEMBLE THE CORDLESS HAND BLENDER AND USING IT FOR THE FIRST TIME

• Before first use, the blender will need to charge for approximately 8-10 hours
- Thoroughly clean the parts which will be in contact with food before using the blender for the first time.
- Charge the blender until the all three battery indicators light up (approximately 2 hours) when the appliance has not been used for a short period.
- Plug the power supply into the charging stand and connect to mains power supply. Then place the main unit into the stand. Ensure the battery indicator lights up and flashes to indicate charging status.

• Assemble the blender by unlocking the blender wand from the charging stand by clockwise

- Place the blender wand onto the main unit and turn clockwise to the locked position until it is firmly secured

INSTRUCTIONS FOR USE

• Place the food into the measuring/mixing jug.
• Lower the blender wand into the mixing jug, the blade shield should be immersed into the food.
• Slide the control switch downward and then press it to turn on the blender. Gently move the blender upward, downward and in a circular movement to get best result.
  • To prevent food from splashing, do not turn on the blender until the blender shield is fully immersed in the food, and stop blending before you lift it back out of food.
• Always allow boiling foods or liquids to cool down before starting to blend. The mixing jug is heat resistant up to 80-90°C.

• Cut the food into small pieces (about 2cm) before processing by the blender
- Disconnect the blender wand and clean the blender immediately after use.
- Connect the power supply to the stand. Then return the main unit to the stand for battery charging.
- When the blender battery indicator is at low, you should stop using the appliance and recharge the battery until full.
- When the blender is not in use, remove the blender wand from the main unit immediately.

A GUIDE TO INGREDIENTS

• The blender is recommended for mixing mayonnaise, cream and milk based products, drinks, baby foods, sauces, foods such as chopped onion, pureeing cooked fruits and vegetables but is not suitable for mixing hard ingredients.
• Can be used for warm foods but not above 80°C as the mixing jug is not heat resistant above this and there is a risk of scalding if the food splashes or spills
  • Always half fill the measuring/mixing jug with the product to be blended to allow the blender space to rotate and the ingredient levels to rise during blending without risk of spilling

HINTS AND TIPS

• Do not overfill the mixing jug as the level may rise when the blender is turned on, it is better to blend half of a recipe, and then repeat, than to overfill the jug and risk splashing or scalding with a liquid
• If the battery indicator light is red during operation this may be an overload warning indicating that the blade is finding it difficult to blend an item either because it is too chunky and hard or too thick. Stop blending, wait for the blade to stop moving, disconnect the wand from the main unit and then check to see if any food is caught in the blade.
• For best results blend for about 1 minute, then rest the blender for about 1 minute, then blend again
• Keep, charge or use the appliance in rooms where the temperature should be between 5°C and 35°C

RECIPES

Cream of Leek and Potato Soup Serves 4

Ingredient Quantity

Oil 1 tbsp

Leeks, washed and chopped 500g

Potatoes, skin on, washed and chopped 350g

Stock 500ml

Single cream 100ml

Salt

1. Put oil in a pot
2. Add sliced leeks and cook gently for 2-3 minutes
3. Add potatoes and stock and cook gently for 20 minutes
4. Remove from heat and allow to cool a little, add cream and blend until smooth in the saucepan
5. Taste and season with salt
6. Reheat soup to serve

Banana Milk Shake Makes 1

Ingredient Quantity
Banana	1
Rolled oats	2 tbsp
Milk	150ml
Honey	1 tbsp or to taste

1. Measure milk in the measuring/mixing jug
2. Break up banana into three or four pieces and add to jug
3. Add oats and honey
4. Blend

Tomato Sauce

Serves 4

Ingredient Quantity
Medium red onion, halved and roughly chopped into 2cm pieces	1
Canned tomatoes 400g
Garlic, chopped 2 cloves
Lemon juice and zest 12
Thyme leaves from 3 sprigs
Salt 14 tsp
Sugar 1 pinch

1. Put all the ingredients in a pan and cook gently for 10 minutes
2. When soft, allow to cool slightly and blend until smooth in the saucepan

This sauce is useful for meatballs, pasta: with added stock it can be used for soup or it can be reduced down and used as a pizza topping

Mayonnaise

Makes approximately 400 mls

Ingredient Quantity

Egg yolks 2

Egg 1

French Mustard 1 tbsp

Lemon juice 12 tsp

Caster sugar 12 tsp

Salt & pepper to taste

Vegetable oil 300 mls

1. Place yolks and egg in measuring/mixing jug with mustard, lemon juice, sugar, salt and pepper.
2. Blend till combined and smooth
3. Holding the blender in one hand with finger on the button, drizzle in the oil from a jug. This should take 8 - 10 minutes to add slowly and the mixture will thicken up as you add it

The mayonnaise will keep in an airlight container in the refrigerator for 2 days.

TROUBLESHOOTING

Following are some common problems that can occur when using the cordless blender.

Problem	Possible cause	Solution
Red light comes on during use	Blender needs charging	Stop operating the blender, wait till it stops moving, remove wand. Check if main unit needs charging by placing in stand
Red light comes on during use	food being prepared is too hard for the machine	Stop operating the blender, wait till it stops moving, remove wand. Check if food is too hard for the blender (see ingredients list recommended for blender)
Food splashes out of mixing jug	Blade is not immersed far enough into food	The blade shield should be immersed fully into the food before it is switched on to avoid splashing
Blade appears to stop turning	Blade is jammed with a piece of food that has become stuck	Stop operating the blender, wait till it stops moving, remove wand. Use a small brush to remove any blocked food, rinse and re-assemble

CARE AND CLEANING

• Before the first use and after every use, clean each part thoroughly.
• Periodically check all parts before reassembly.
- Never immerse the main unit or the power supply in water or any other liquid.
- To clean the main unit and charging stand, wipe with a clean, damp cloth and dry before storing.
• Do not use abrasive cleaners, steel wool or abrasive materials or cleansers.
- Wash the blender wand in hot, soapy water, rinse and dry thoroughly.
- Alternatively you may put a little clean soapy water in the mixing jug and immerse the blender wand in this (whilst still attached to the main unit) Operate the blender for a few seconds, remove from water, remove the wand from the main unit, check it is clean and then rinse and dry thoroughly

RECYCLING YOUR ELECTRICALS

Along with many other high street retailers, Lakeland has joined a scheme whereby customers can take their unwanted electricals to recycling points set up around the country.

Visit www.recycle-more.co.uk to find your nearest recycling point.

ELECTRICAL CONNECTIONS

Use only with the Mains Adaptor provided and connect properly to 220-240 Volts AC \~ 50 Hz, AC mains outlet

LAKELAND

GEBRAUCHSANWEISUNG

Kabelloses Stabmixerset

MODELL 17885

Product photo of a modern electric shaver with a black base, next to a transparent cylindrical container and a small electronic device (no visible text or symbols)

KABELLOSES STABMIXERSET VON LAKELAND

Labeled diagram of a handwashing device with numbered parts for identification

Two metallic mechanical components with mounting holes, one marked with checkmark and the other with cross (no text or symbols)

Two mechanical components with metallic fittings and mounting holes, shown from different angles (no text or symbols visible)
