MR751 - Chargeur de téléphone MediaRange - Free user manual and instructions

Product Type	Portable Powerbank
Brand	MediaRange
Model	MR751
Input	DC 5V, 1.0A
Output	DC 5V, 2.1A
Battery Capacity	5200 mAh
Charging Cycles	>500
Weight	108 g
Dimensions (W x D x H)	90 x 40 x 22 mm
Color	White
Material	Plastic
Package Contents	Powerbank, USB to Micro USB cable, User manual
LED Indicators	4 LEDs indicating charge level (25% increments)
Torch	Built-in LED torch, activated by pressing torch icon on power button
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 45°C
Humidity (Operating)	Max 90% RH
Safety Features	Overcharge protection, automatic shut-off when fully charged
Charging Time (approx.)	5.2 hours (using 1A input)
Warranty	Legal warranty period, covers material and production defects
Compatibility	Devices with 5V DC operating voltage (smartphones, tablets, MP3 players, etc.)

Frequently Asked Questions - MR751 MediaRange

How do I charge the MediaRange MR751 Powerbank?

Connect the included Micro USB cable to the Powerbank's input and the USB end to a computer or USB charger. The device stops charging automatically when fully charged.

How do I charge my device with the Powerbank?

Connect your device to the USB-A output port using the included cable or your device's charging cable. The Powerbank starts charging automatically. If not, press and hold the power button for a few seconds.

What do the LED indicators mean?

Four LEDs indicate charge level: 4 LEDs = 76-100%, 3 LEDs = 51-75%, 2 LEDs = 26-50%, 1 LED = 1-25%. No LEDs means the Powerbank is empty.

How do I use the built-in torch?

Press the torch icon on the power button to turn the LED torch on. Press again to turn it off.

Is the Powerbank safe to use?

Yes, but follow safety instructions: avoid moisture, heat, direct sunlight, drops, and do not open the device. Ensure the power consumption of your device does not exceed the Powerbank's maximum output (2.1A).

What devices are compatible with this Powerbank?

It is compatible with devices that have an operating voltage of 5V DC, such as smartphones, tablets, MP3 players, and other USB-powered gadgets.

How long does it take to fully charge the Powerbank?

With a 1A input, it takes approximately 5.2 hours to charge the 5200 mAh battery.

Can I store the Powerbank for a long time?

Yes, store it in a temperature range of -10°C to 45°C with max 90% humidity. Charge it every three months to maintain performance.

How should I dispose of the Powerbank?

Dispose of the device and its battery according to local regulations. It is subject to European Directives 2006/66/EG and 2012/19/EG, so do not dispose of it with household waste.

What is covered by the warranty?

The warranty covers material and production defects. It does not cover misuse, modifications, damages from force majeure, or normal wear. Keep your sales receipt as proof of purchase.

USER MANUAL MR751 MediaRange

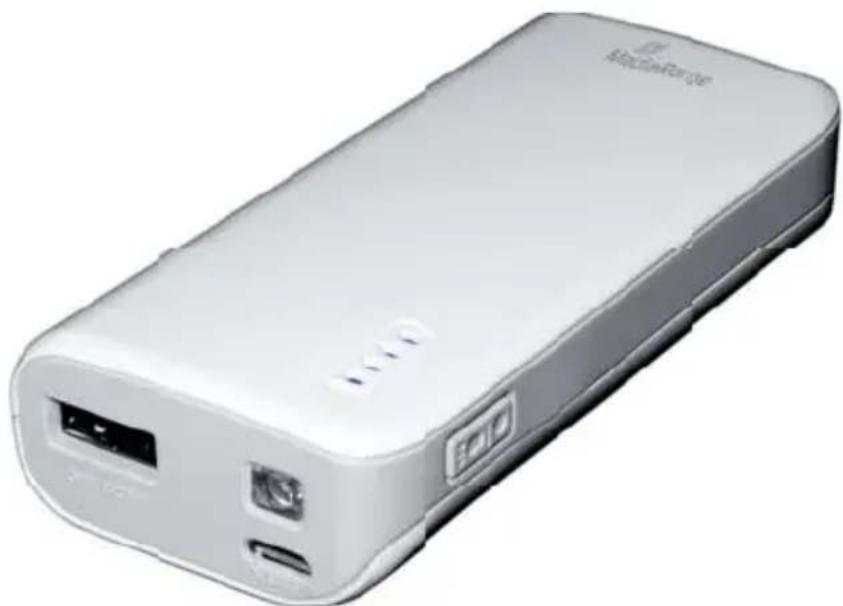

White rectangular electronic device with ports and connectors, no visible text or symbols on body

MR751

MediaRange Powerbank provides your mobile device with energy while you are on the go without requiring a power supply or a power supply unit.

Package contents

• MediaRange Powerbank
• USB to Micro USB charging cable
• User manual

Safety instructions

• Do not use this device in moist environments and avoid water and splashes
• Do not use this device in the immediate vicinity of heaters or other heat sources and avoid direct sunlight
• Do not drop this device or handle roughly.
• Do not open the device

Please check with the manufacturer of your device to determine the device's power consumption. This information is usually located in the manual or on the label of your device. The power consumption of the device to be charged must not exceed the maximum power output of the Powerbank. Otherwise, the device will not be able to charge properly and may be damaged.

Getting Started and Operation

The MediaRange Powerbank can be charged via the USB port on your computer or via an external USB charging device with the included Micro USB cable. The device stops charging automatically once it is fully charged.

Briefly press the power button and the current charge level of the Powerbank is indicated by LEDs. The number of LEDs that are illuminated indicates the following charge levels:

Four illuminated LEDs: Charged between 76-100% Three illuminated LEDs: Charged between 51-75% Two illuminated LEDs: Charged between 26-51% One illuminated LED: Charged between 1-25% No illuminated LEDs: Powerbank is empty.

Start charging:

To charge your device, connect it to the USB-A port on the Powerbank using the cable included (or a device-specific charging cable). The powerbank starts charging your device automatically. In case that the powerbank does not charge your device, please press and hold the power button for a couple of seconds to start charging.

Stop charging | Switching off the Powerbank

To stop charging, unplug the charging cable from the device and the powerbank. If all devices are unplugged or if your device is fully charged, the Powerbank switches off automatically.

Using the built-in LED torch

To use the torch, please press the torch icon on the power button. The LED torch turns on. Press the torch icon again to turn of the torch.

Warranty

MediaRange GmbH assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety instructions.

Support service

if you have any questions about our Powerbanks, please contact MediaRange Support Service:

Model	MR751
Input DC 5	V-1.0A
Output DC	5V-2.1A
Capacity 5.2	00 mAh
Charging cycles	>500
Weight 108 g
Dimensions 9	0x40x22 mm

This Powerbank is meant solely for the purpose of power supply to devices with an operating voltage of 5V DC (smartphones, tablet computers, MP3 player etc.). Any other use is considered as unintended use and may lead to damages and injuries. Claims of any type resulting from unintended use are ruled out.

All listed brands are trademarks of the corresponding companies. Errors and omissions excepted and are subject to technical changes. Our general terms of delivery and payment are applied.

MediaRange

MOBILE CHARGER I POWERBANK

GB Warranty conditions, operating - and safety instructions

for item no.: MR751

White rectangular electronic device with ports and connectors, no visible text or symbols on body

MR751

D Garantiebedingungen

Operating and safety instructions:

- Operate the device at 0 to 40 degree Celsius at max.90% relative humidity. If you do not use the powerbank forlong periods of time, store the device at atemperature range of -10 to 45 degree Celsius atmax. 90% relative humidity (for short period) and charge the device every three months to maintain the total performance of the device.

- Do not use the device in extremely cold, hot, humid or dusty areas; also do not expose to direct sunlight. Avoid contact with open flame. Risk of Explosion!

- Please protect the device against shock and drops in all operating modes.

- This device is sensitive to electrostatic discharge. Please protect the device against any possible electrostatic discharge.

- ()

(…)

- Disposal of old batteries:

This device is subjected to the European Directive 2006/66/EG. All the old batteries must be disposed separated from household garbage through the government agencies designated for that purpose. By disposing the batteries in this prescribed manner, you can avoid environmental damages.

- Disposal of Used Electronic Equipment:

This device is subjected to the European Directive 2012/19/EG. All electrical devices and used electrical equipment must be disposed of separately from household waste over the appropriate government agencies. Proper disposal of old electronic equipment helps avoid environmental damage.

GB Warranty conditions

The warranty only covers material and production defects. The free warranty service covers the repair or replacement of defective parts. All MediaRange products are subject to constant quality inspections and the legal warranty period applies, of course, from the date of purchase. Please be sure therefore to save the sales receipt as proof of purchase.

Please understand that we cannot render any warranty services, e.g. in case of:

• Misuse or improper handling, installation or use
• Modifications, manipulation or repairs by third parties
• Damages through force majeure or transport
• Damages, scratches or wear

In case of a claim, please proceed as follows:

• Only returns accompanied with all accessories and sales receipt are accepted.
• Contact the MediaRange Support service via e-mail or through our free service hotline.
• Please make sure that the package is packed safe for transport
• Please stamp the package.

Please note that any warranty claim shall expire if the housing of the Powerbank has been opened. This product is not meant for a commercial use or for medical and special applications, where the failure of the product may cause injuries, death or significant material damages.

The warranty only covers the replacement of this MediaRange product. The warranty is not applicable for normal wear & tear resulting from erroneous, improper use of the device, negligence, accident or incompatibility. There are no warranty claims if the user manual is not followed and if the device is damaged through improper use or defects caused by other devices.

There are no warranty claims if the product is exposed to shocks, electrostatic discharges, heat or humidity effects beyond the product specifications.

MediaRange is not liable for any collateral damages or consequential losses, for violation of warranty conditions or any other losses irrespective of the cause.

MediaRange GmbH is not liable for the loss of data in units sent to us.
