USER MANUAL GV-BL2500 Geovision

© 2016 GeoVision, Inc. All rights reserved.

Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of GeoVision.

Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein. Features and specifications are subject to change without notice. Note: no memory card slot or local storage function for Argentina.

GeoVision, Inc.

9F, No. 246, Sec. 1, Neihu Rd.,

Neihu District, Taipei, Taiwan

Trademarks used in this manual: GeoVision, the GeoVision logo and GV series products are trademarks of GeoVision, Inc. Windows is a registered trademark of Microsoft Corporation.

October 2016

Contents

Caution......i

Options ......ii

Note for Adjusting Focus and Zoom......iii

Note for Installing Camera Outdoor...... iv

Note for Closing the Bullet Camera Cover ...... v

Note for Silica Gel Bags ...... v

Note for Waterproofing Failures...... vi

Note for Recording ...... vii

Chapter 1 Bullet Camera (Part I)....1

1.1 Packing List....3
1.2 Features ....4
1.3 Overview 7
1.4 Installation ....8
1.4.1 Connecting the Camera....10
1.4.2 Adjusting the Angles....15
1.4.3 Adjusting Lens and Inserting a Memory Card ...... 19
1.4.4 Installing the Sun-Shield Cover....22
1.5 Loading Factory Default....23

Chapter 2 Bullet Camera (Part II)....24

2.1 Packing List....26
2.2 Features ....27

2.3 Overview ......29
2.4 Installation ....31
2.5 Connecting the Camera....38

Chapter 3 Bullet Camera (Part III)....40

3.1 Packing List ....41
3.2 Features 42
3.3 Overview ....44
3.3 Overview 44
3.4 Installation ....45

3.4.1 Adjusting the Angles....49

3.4.2 Adjusting Lens....51

3.5 Connecting the Camera....52
3.5.1 Wire Definition....52
3.5.2. Power Connection ..... 53
3.6 Loading Factory Default....55

Chapter 4 Ultra Bullet Camera....56

4.1 Packing List ....58
4.2 Features ....59
4.3 Overview 61
4.4 Installation 63

4.4.1 Waterproofing the Cable....68
4.4.2 Connecting the Camera....70
4.5 Loading Factory Default....73

Chapter 5 Target Bullet Camera (Part I)....74

5.1 Packing List ....75
5.2 Features ....76

5.3 Overview .....77

5.4 Installation 78

5.5 Connecting the Camera....82

5.5.1 Wire Definition 82

5.5.2 Power Connection 83

5.6 Loading Factory Default....84

Chapter 6 Target Bullet Camera (Part II)......85

6.1 Packing List 86

6.2 Features 87

6.3 Overview 88

6.4 Installation 89

6.4.1 Adjusting the Angles .....94

6.4.2 Adjusting Lens 95

6.5 Connecting the Camera....96

6.5.1 Wire Definition 96

6.5.2 Power Connection .....97

6.6 Loading Factory Default....97

Caution

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

Safety Notice

The GV-IPCAM uses a Lithium battery as the power supply for its internal real-time clock (RTC). The battery should not be replaced unless required!

If the battery does need replacing, please observe the following:

• Danger of Explosion if battery is incorrectly replaced
• Replace only with the same or equivalent battery, as recommended by the manufacturer
• Dispose of used batteries according to the manufacturer's instructions

Options

Optional devices can expand your camera's capabilities and versatility. Contact your dealer for more information.

Device Description
Power Adapter	The power adapter is available for all Bullet Camera, Ultra Bullet Camera (except GV-BL2511-E / 5311-E), and Target Bullet Camera. Contact your sales representative for the countries and areas supported.
GV-PA191 PoE Adapter	The GV-PA191 PoE adapter is designed to provide power and network connection to the cameras over a single Ethernet cable.
GV-Relay V2	The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch	The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
GV-Mount Accessories	The GV-Mount Accessories provide a comprehensive lineup of accessories for installation on ceiling, wall corner and pole. For details, see GV-Mount Accessories Installation Guide on the Software DVD.

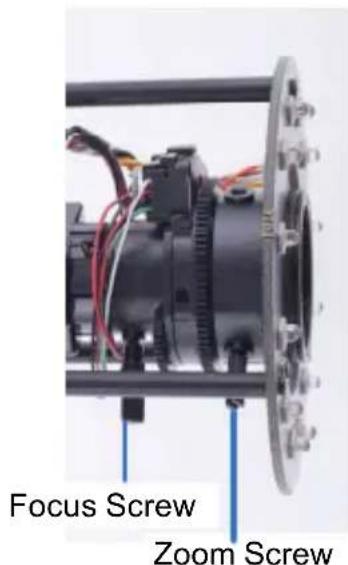

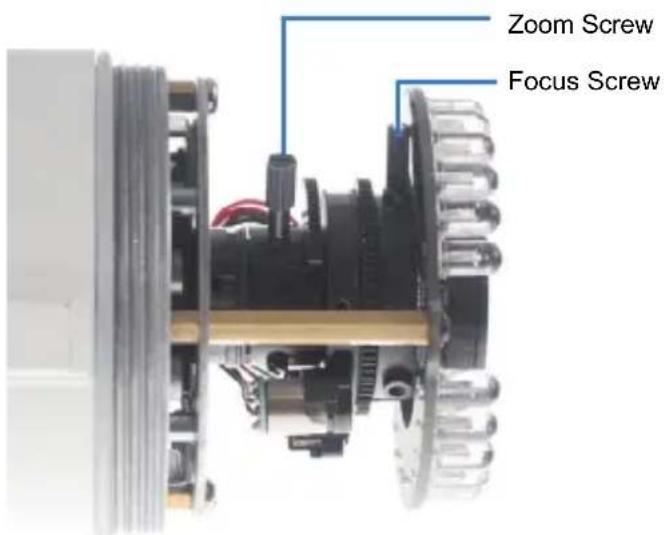

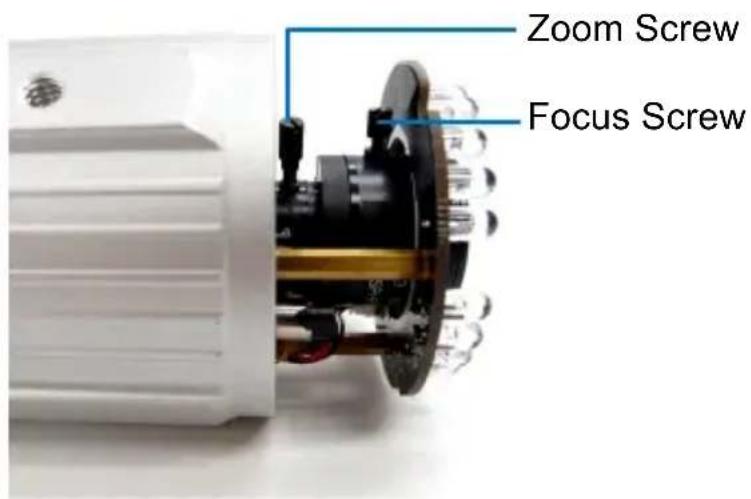

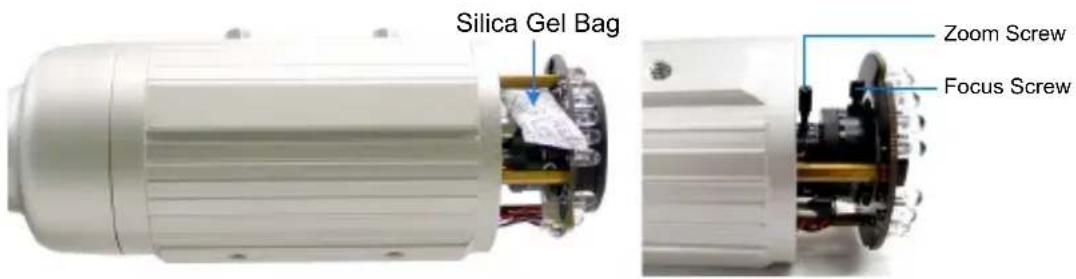

Note for Adjusting Focus and Zoom

When adjusting the Focus and Zoom Screws on Bullet Camera, do not over tighten the Focus and Zoom screws. The screws only need to be as tight as your finger can do it. It is not necessary to use any tools to get them tighter. Doing so can damage the structure of lens.

For example,

Zoom Screw Focus Screw

The maximum torque value for all the zoom and focus screws is 0.049 N.m

Note for Installing Camera Outdoor

When installing the cameras outdoor, be sure that:

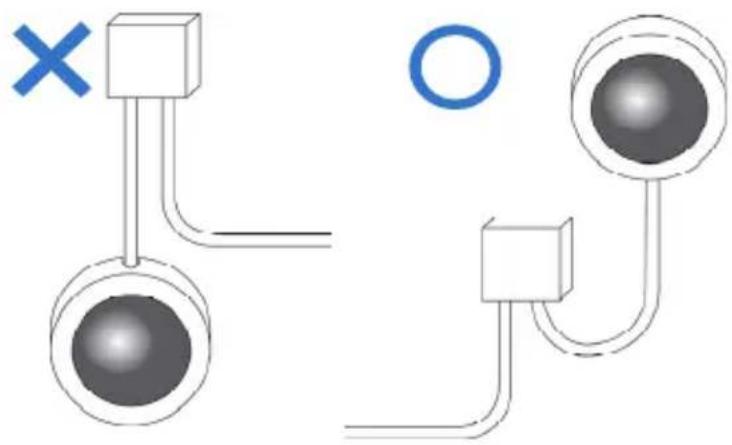

1. The camera is set up above the junction box to prevent water from entering the camera along the cables.

Diagram showing two connected components with a cross mark and a circle, no text or symbols present

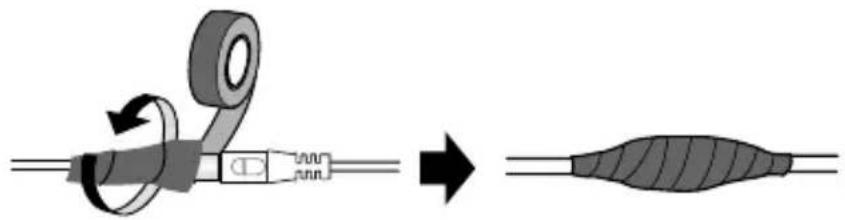

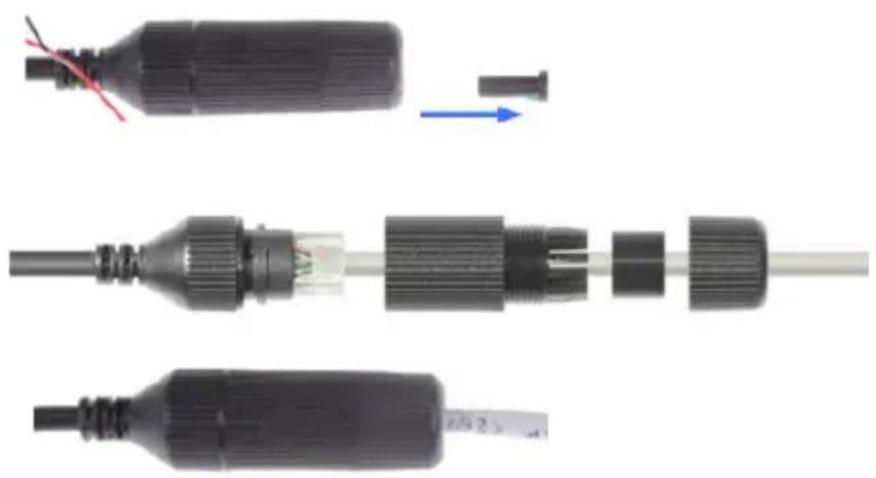

1. Any PoE, power, audio and I/O cables are waterproofed using waterproof silicon rubber or the like.

Diagram showing a cable being twisted with a coiled cable, resulting in a disassembled cable (no text or symbols present)

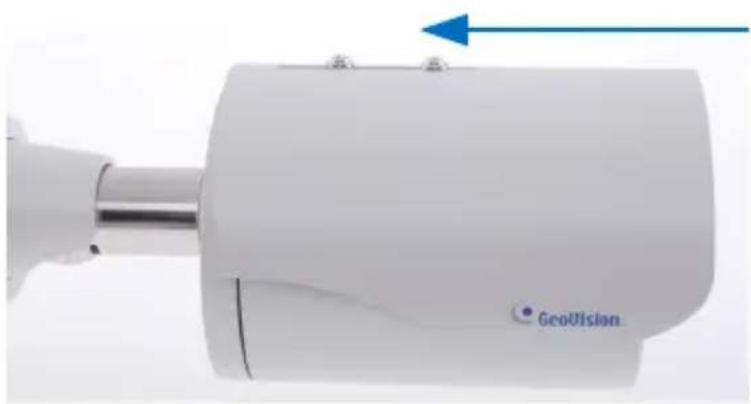

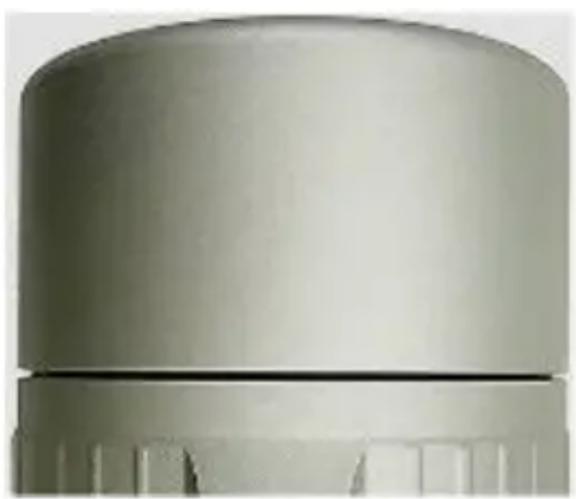

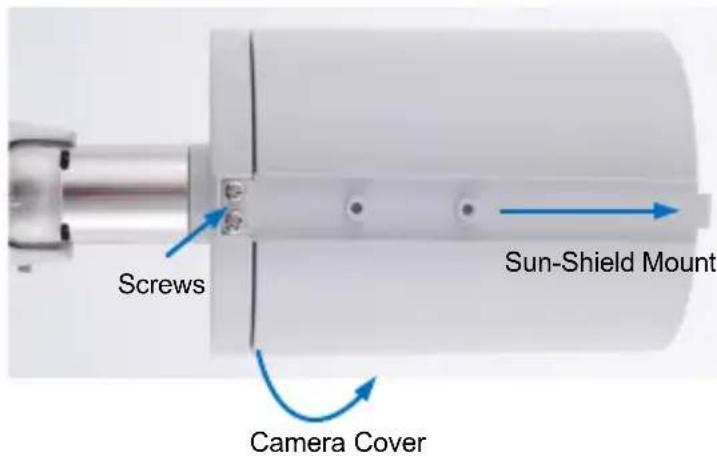

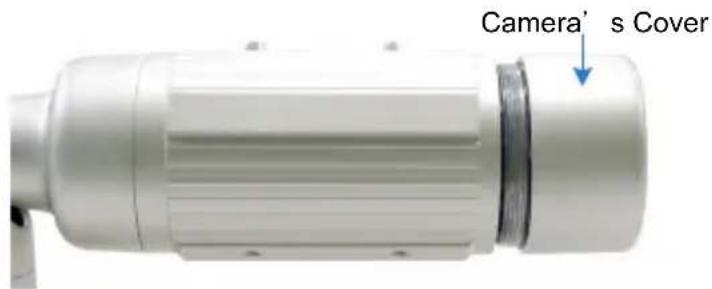

Note for Closing the Bullet Camera Cover

To ensure that the camera performs its full capacity against water and dust, tightly close and lock the camera cover as indicated below.

Close-up of a metallic cylindrical object with a flared rim and a small protrusion at the bottom (no visible text or symbols)

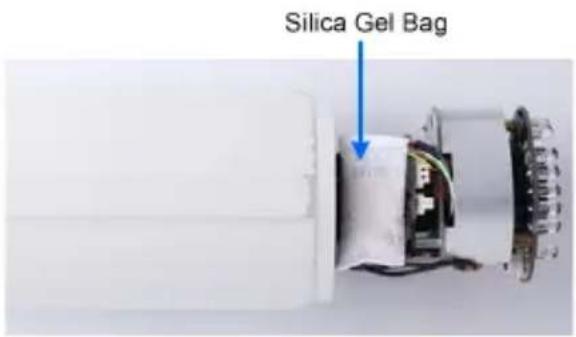

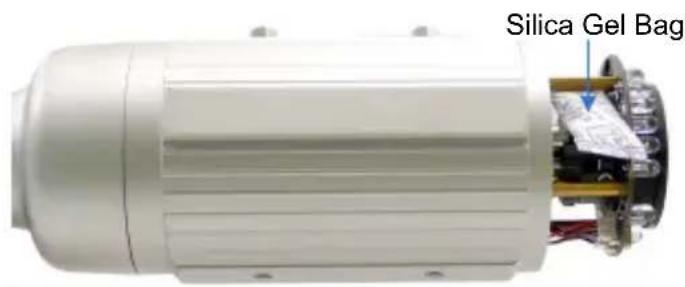

Note for Silica Gel Bags

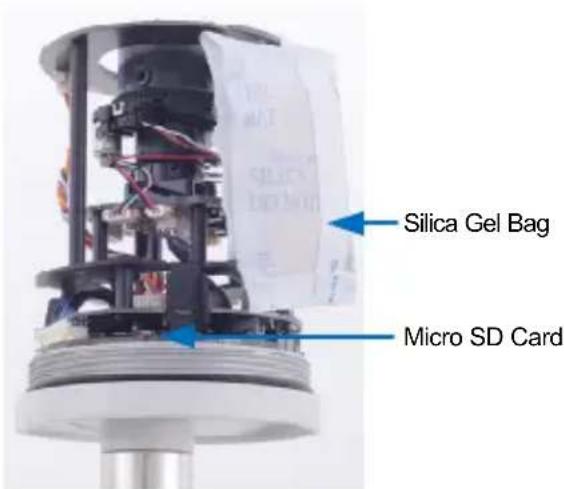

1. The silica gel bag loses its effectiveness when the dry camera is opened. To prevent the lens from fogging up, replace the silica gel bag every time you open the camera, and conceal the gel bag in camera within 2 minutes of exposing to open air.

2. When the camera is shipped, a silica gel bag will be included inside the camera. For the first-time user, replace the silica gel bag prior to the installation to avoid foggy live view.

Note for Waterproofing Failures

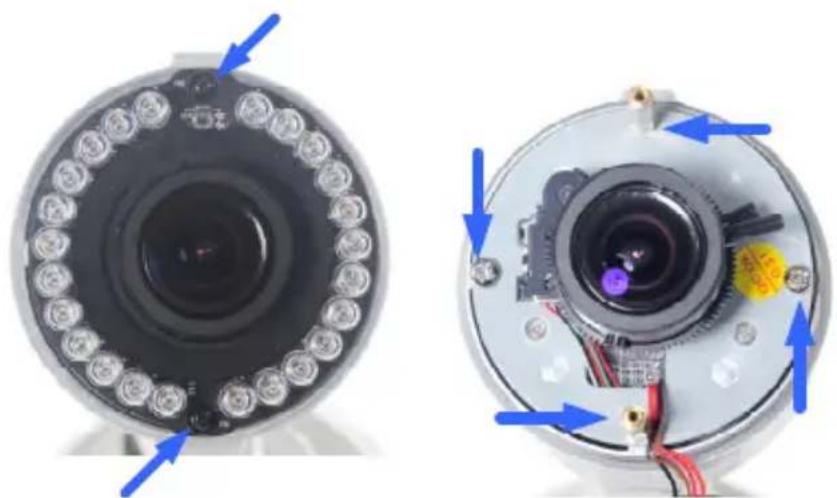

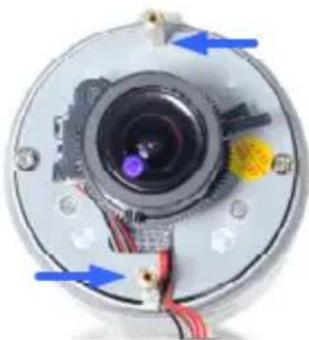

To avoid waterproofing failures, do not open the screw on the camera body.

- The screw on Ultra Bullet Camera

Do not empty No Mood/Health 100% of 100% of 100% 100% of 100% of 100%

- The screw on Target Bullet Camera

Close-up of a white electronic device with three small dots and a red circular button on the side (no visible text or symbols)

• The screw on GV-EBL2101 / 2111 / 3101

Close-up of a cylindrical mechanical component with three circular features and a red symbol on the top (no readable text or symbols)

- The screw on GV-BL3700 / 5700

Close-up of a white industrial knob with a red circular indicator on the top (no text or symbols visible)

Note for Recording

1. By default, the images are recorded to the memory card inserted in the GV-IP Camera (except GV-IR Arctic Box Camera and Target Series, which are not equipped with a memory card slot). Make sure the Write recording data into local storage option (see 4.1.1 Video Settings, GV-IPCam Firmware Manual) is enabled. If this option is disabled, the camera will stop recording to the memory card while the live view is accessed through Web browsers or other applications.

2. Mind the following when using a memory card for recording:

3. Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.

4. The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you seldom access the memory card.
5. Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are used. Back up your data regularly and replace the memory card annually.

6. Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.

7. It is recommended to use memory cards of the following setting and specifications:

- Apply a battery backup (UPS) to avoid power outage.

- Use Micro SD card of MLC NAND flash, Class 10 for better performance.

Chapter 1 Bullet Camera (Part I)

The Bullet Cameras are specifically designed for outdoors and are weatherproof (IP66 or IP67). They are equipped with IR LEDs for infrared illumination in night vision applications. The models described in this chapter use auto iris, which allows for automatic control of exposure.

The WDR Pro models enhance the image by processing contrasting intensity of light. The super low lux models can produce color live view in near darkness. The motorized varifocal lens models allow the user to adjust the focus and zoom through the Web interface.

Model No.		Specifications	Description
GV-BL120D	1.3 MP, H.264	Low Lux
GV-BL130D			1.3
GV-BL220D		Auto Iris, f: 3 ~ 9 mm, F/1.2, 1/2.7"ø 14 mm LensMount	2
GV-BL320D			3
GV-BL1500			1.3 MP, H.264, Super Low Lux
GV-BL2400 2	MP, H.264, WDR Pro
GV-BL2500			2 MP, H.264, Super Low Lux
GV-BL3400			3 MP, H.264, WDR Pro
GV-BL1210	Motorized varifocal lens	Auto Iris,f: 3 ~ 9 mm,F/1.2, 1/2.7"ø 14 mm LensMount	1.3 MP, H.264, Low Lux,3X Optical Zoom
GV-BL2410			2 MP, H.264, WDR Pro,3X Optical Zoom
GV-BL3410			3 MP, H.264, WDR Pro,3X Optical Zoom
GV-BL5310		Auto Iris,f: 4.5 ~ 9 mm,F/1.2, 1/2.7"ø 14 mm LensMount	5 MP, H.264, 2X Optical Zoom

1.1 Packing List

• Bullet Camera
• Self Tapping Screw x 3
• Plastic Screw Anchor x 3
• Torx Wrench x 2
• Sun-Shield Cover Kit (Sun-Shield Cover, Philips Head Screw x 2, Plastic Screw Spacer x 2 and Hexagon Screw x 2)
• Silica Gel Bag x 2
• 2-Pin Terminal Block
• Power Adapter
  • GV-IPCAM Software DVD
  • GV-NVR Software DVD
• Warranty Card

Note: The power adapter can be excluded upon request.

1.2 Features

• Image sensor

Camera Model Image Sensor
GV-BL120D / 1210 1/3” progressive scan low lux CMOS
GV-BL1500 / 1510	1/3” progressive scan super low lux CMOS
GV-BL130D / 220D / 320D GV-BL5310	1/2.5” progressive scan CMOS
GV-BL2400 / 2410 GV-BL3400 / 3410	1/3.2” progressive scan CMOS
GV-BL2500 / 2510	1/2.8” progressive scan super low lux CMOS

• Dual streams from H.264 or MJPEG
- Frame rate

Camera Model Frame Rate
GV-BL120D / 130D	30 fps at 1280 x 1024
GV-BL1210
GV-BL1500 / 1510
GV-BL220D / 2400 / 2410	30 fps at 1920 x 1080
GV-BL2500 / 2510
GV-BL320D/ 3400 / 3410 20	fps at 2048 x 1536
GV-BL5310 10 fps at 2560 x	1920

• Day and night function (with removable IR-cut filter)
- Megapixel lens
- Motorized varifocal lens for remote focus/zoom adjustment (GV-BL1210 / 1510 / 2410 / 2510 / 3410 / 5310 only)
• Wide Dynamic Range Pro (GV-BL2400 / 2410 / 3400 / 3410 only)
- Ingress protection (IP66 for GV-BL120D / 130D / 220D / 320D)

(IP67 for GV-BL1500 / 2400 / 2500 / 3400 and GV-BL1210 / 1510 / 2410 / 2510 / 3410 / 5310)

• Vandal resistance (IK10 for metal casing for all models except GV-BL120D / 130D / 220D / 320D)
• Two-way audio
  • One sensor input and alarm output
• Micro SD card slot (SD/SDHC) for local storage
• NAS recording
• Recording assigned by GV-Edge Recording Manager (Windows & Mac)
• Cable-concealed bracket preventing cable from being cut
  • DC 12V / AC 24V / PoE (IEEE 802.3af)
• Intelligent IR
  • Maximum IR distance

Camera Model Maximum IR Distance
GV-BL120D / 130D / 220D / 320D 15	m (50 ft)
GV-BL1210 / 5310 40 m (131 ft)
GV-BL2400 / 2410	50 m (164 ft)
GV-BL2500 / 2510
GV-BL3400 / 3410
GV-BL1500 / 1510 70 m (230 ft)

• 3D noise reduction (GV-BL1500 / 1510 / 2500 / 2510 only)
- 2D noise reduction (for all models except super low lux models)
- Defog
- Motion detection
- Tampering alarm
- Visual automation
- Text overlay
- Privacy mask
- IP address filtering

• Smart Phone and 3GPP support
• 31 languages on Web interface
• ONVIF (Profile S) conformant

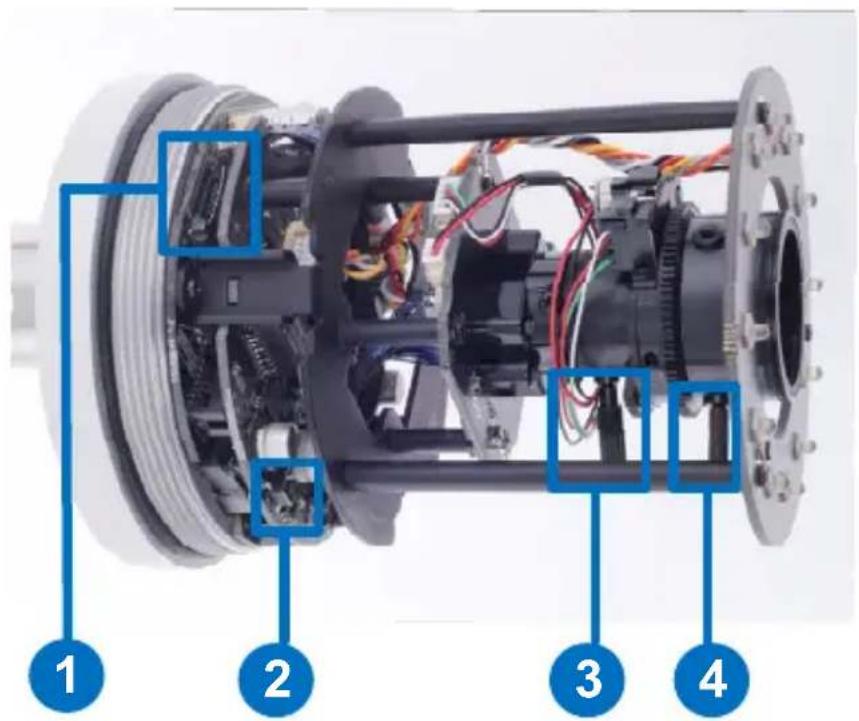

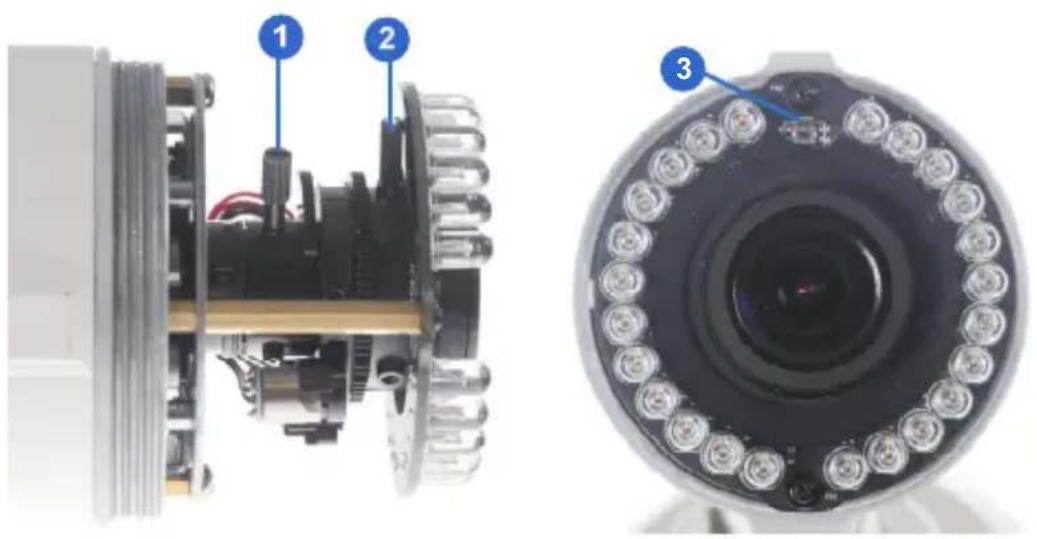

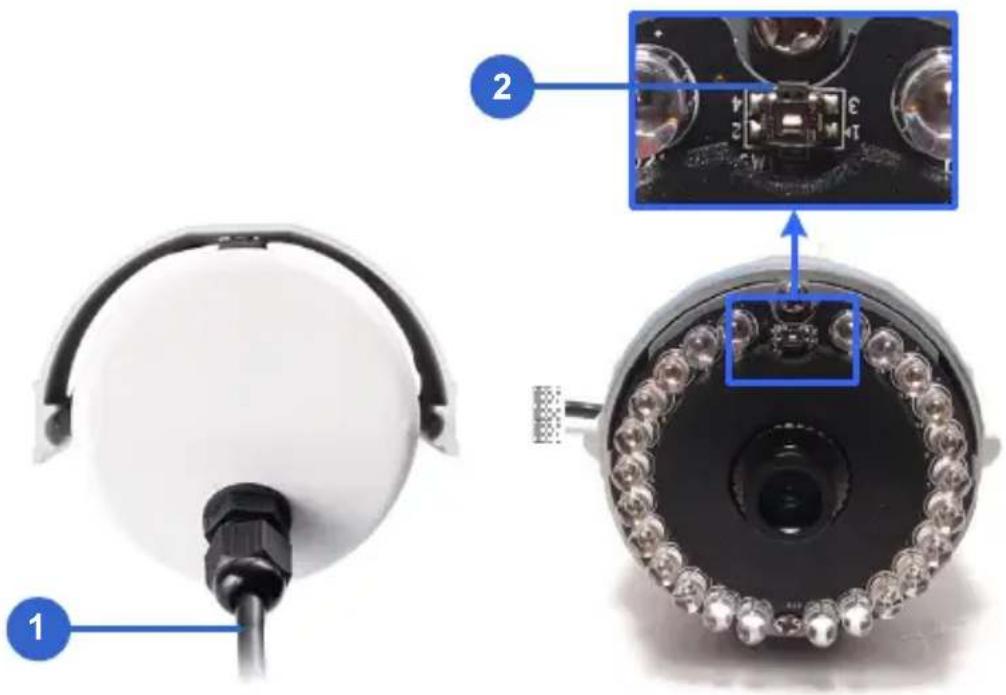

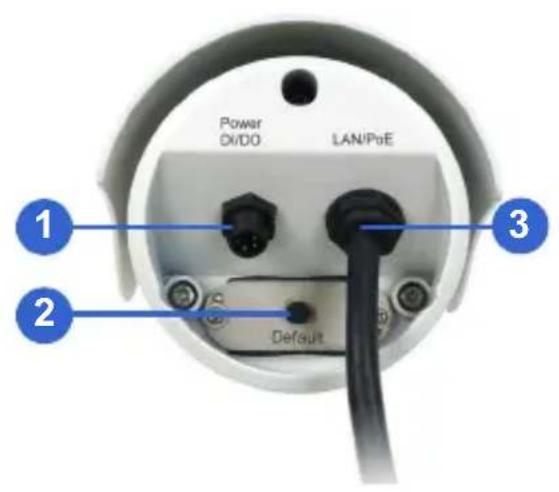

1.3 Overview

1 2 4 ASP RICAL

Figure 1-1

No.	Name Description

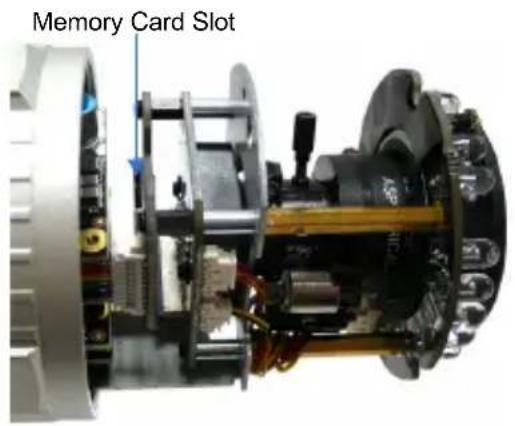

1	Memory Card Slot	Receives a micro SD card (SD/SDHC, version 2.0 only, Class 10).
2	Zoom Screw Holds the zoom lens in place.
3	Focus Screw Holds the focus lens in place

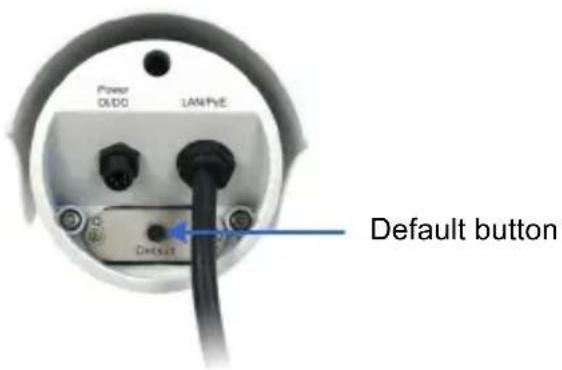

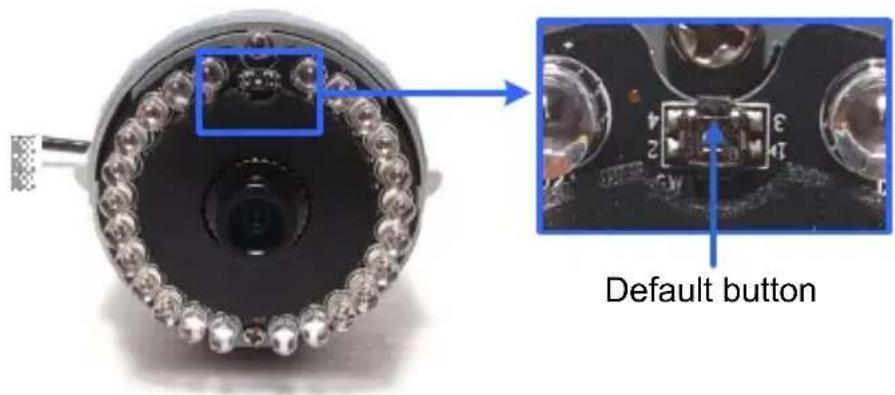

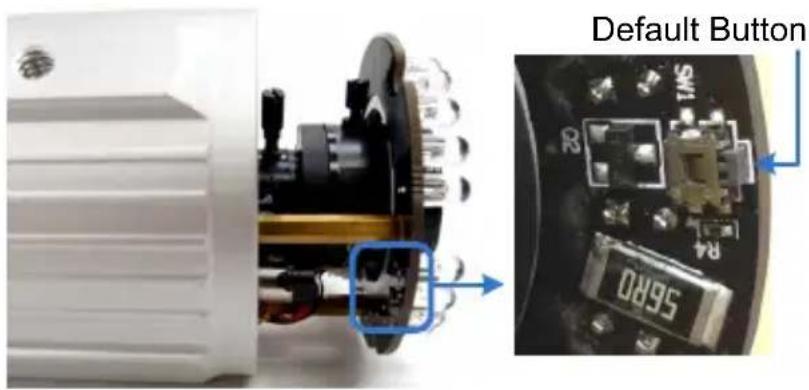

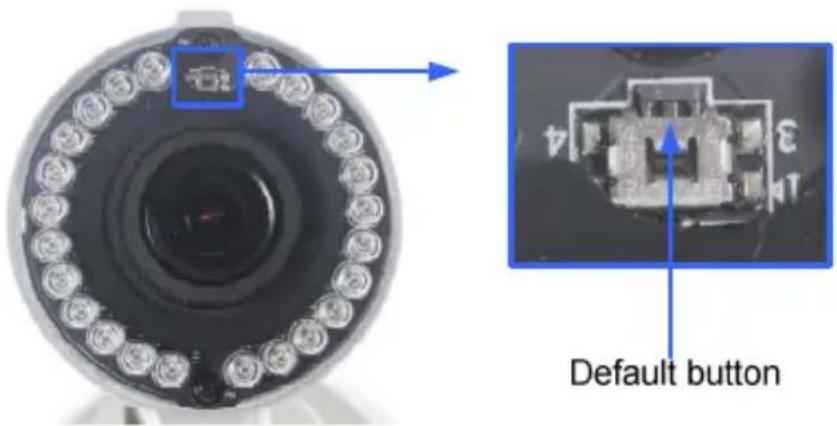

4	Default Button	Resets all configurations to factory default. For details, see 1.5 Loading Factory Default.

1.4 Installation

These instructions describe the basic installation of the Bullet Camera.

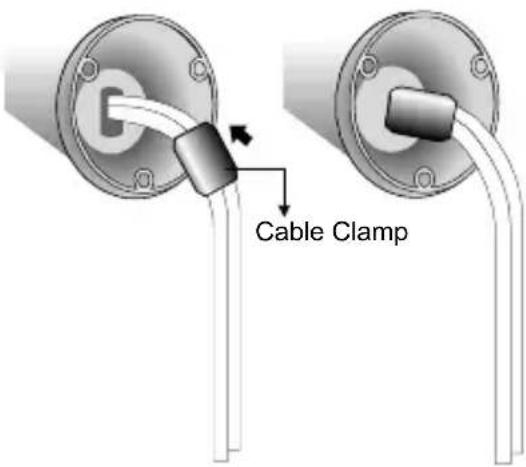

1. Slide the cable clamp to the camera base.

Cable Clamp

Figure 1-2

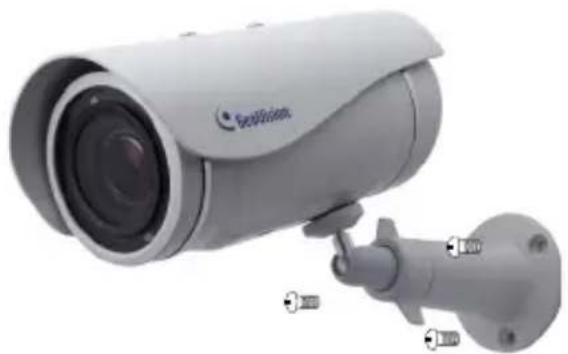

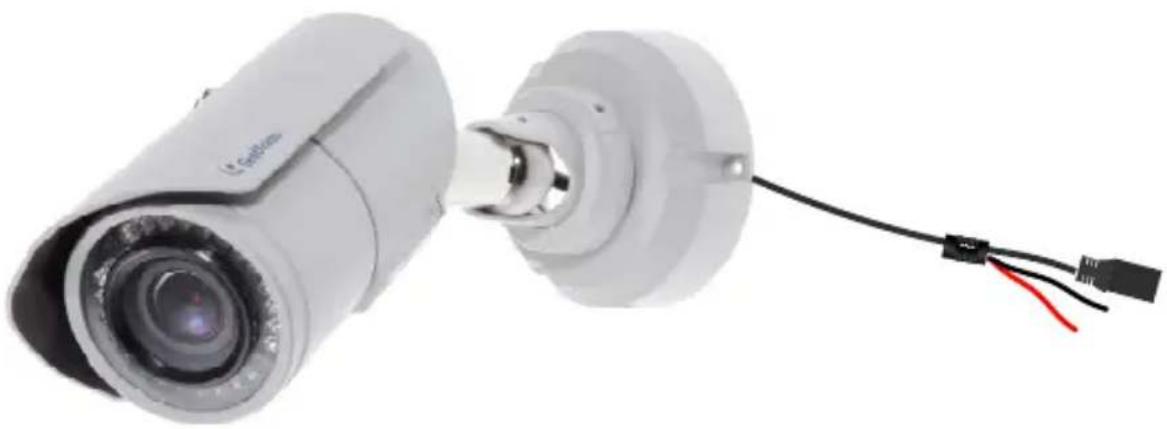

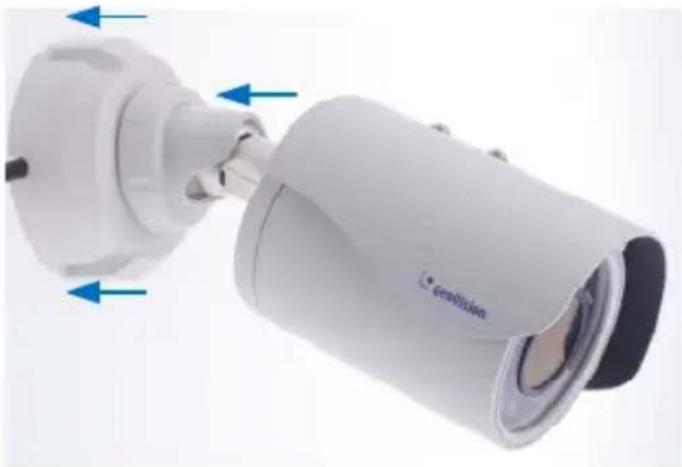

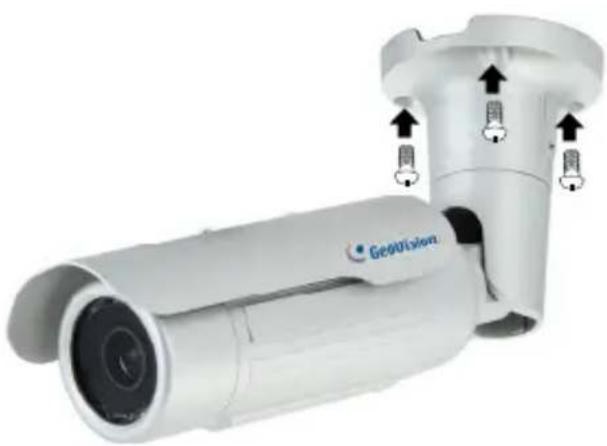

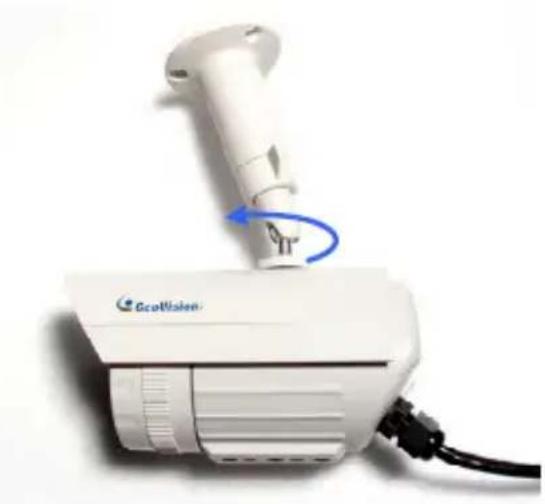

1. Install the Bullet Camera to the wall.

Exterior view of a Ge90 Vision security camera with mounted sensor and control panel (no text or symbols visible)

Figure 1-3

1. Remove the protection sticker from the camera's cover
2. Connect the power, network and other wires to the Bullet Camera.

See 1.4.1 Connecting the Camera.

1. Access the live view. For details, see 2.1. Accessing the Live View, GV-IPCam Firmware Manual.

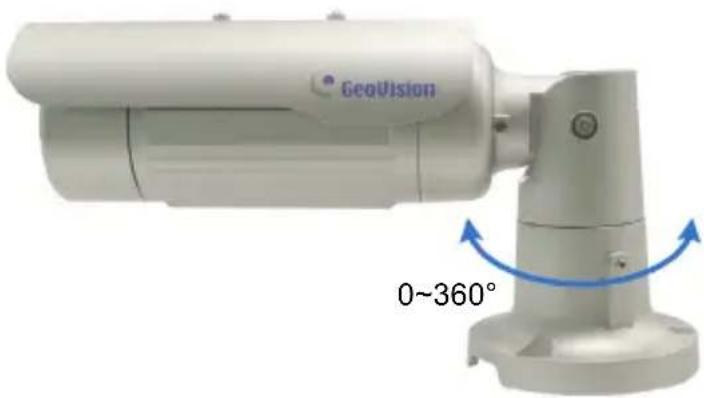

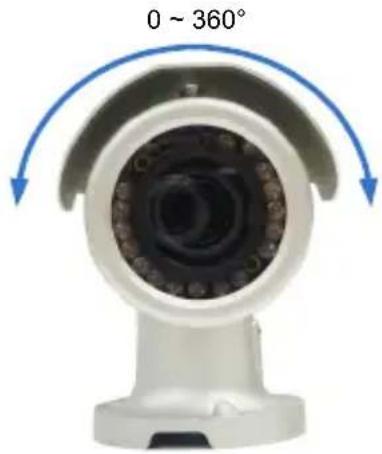

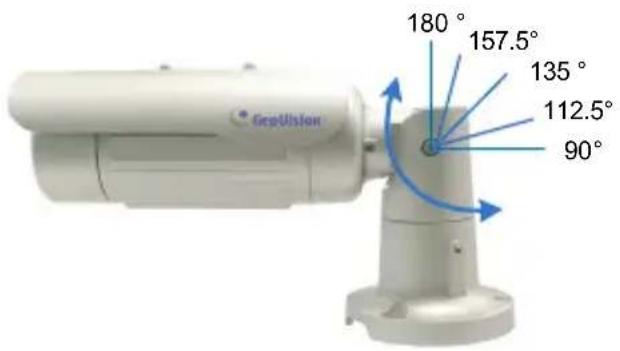

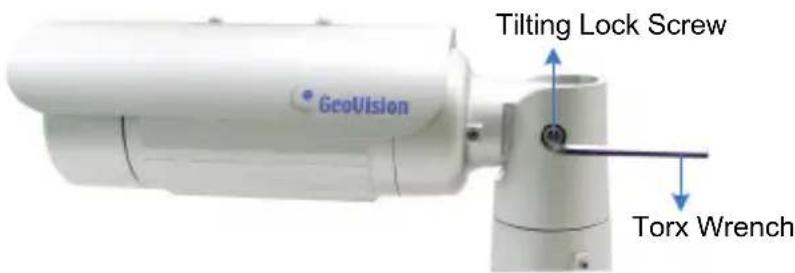

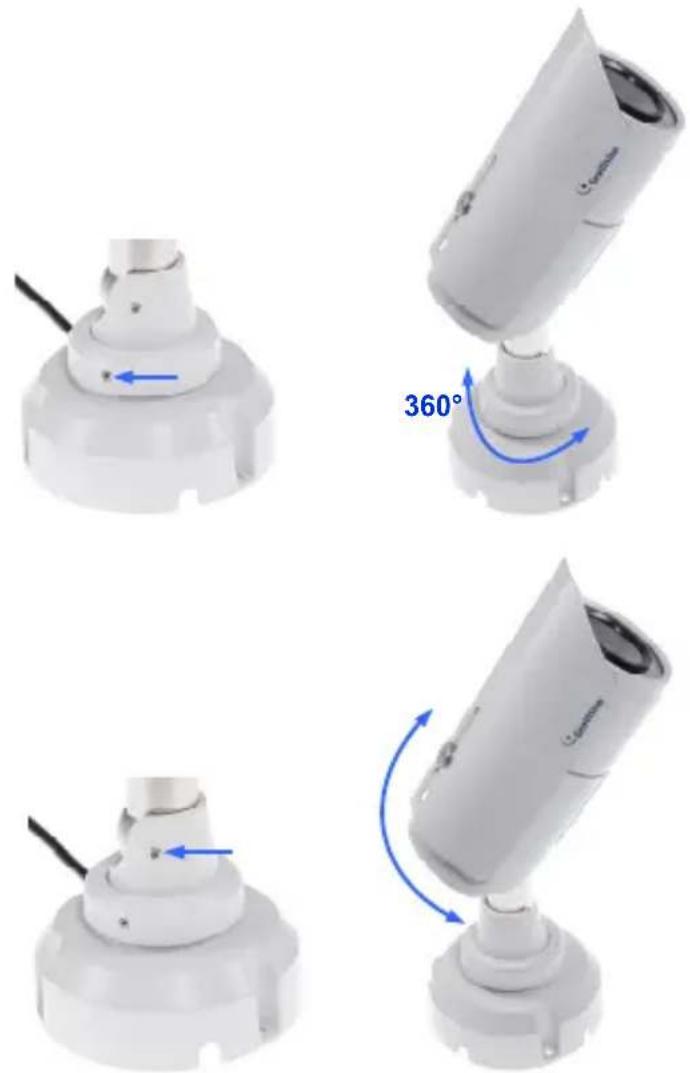

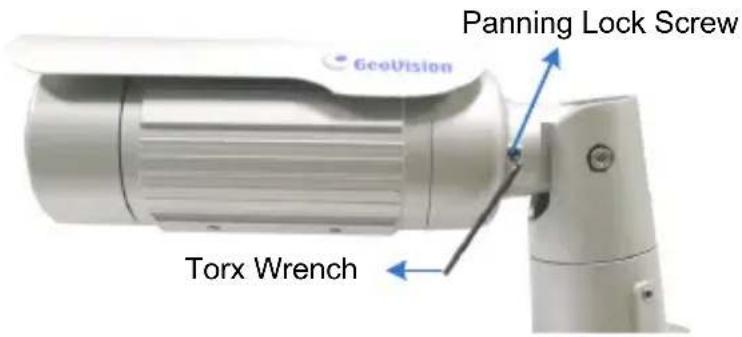

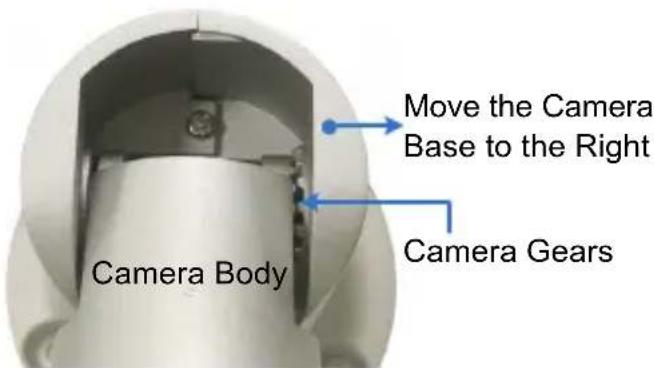

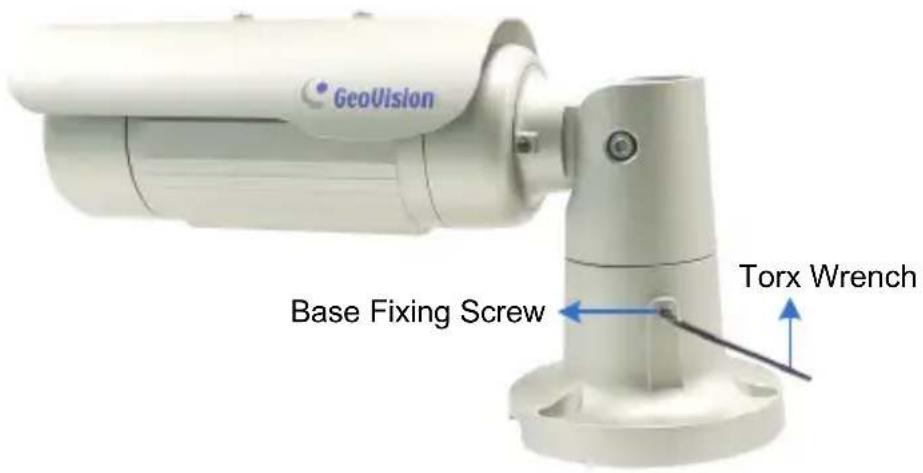

2. Adjust angles of the camera body based on the live view. Three shafts can be adjusted. See 1.4.2 Adjusting the Angles.

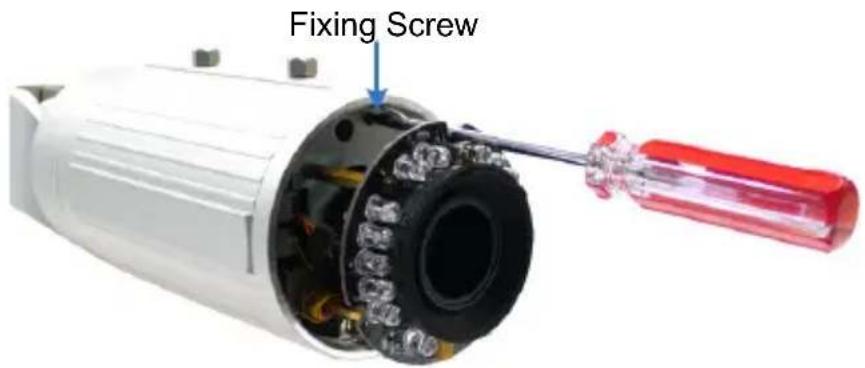

3. Loosen the camera's cover, adjust the focus of the camera and optionally insert a micro SD card (SD/SDHC, version 2.0, Class 10) into the SD card slot. See 1.4.3 Adjusting Lens and Inserting a Memory Card.
4. Fasten the camera's cover.

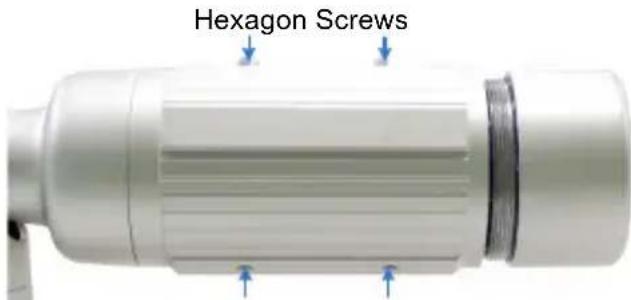

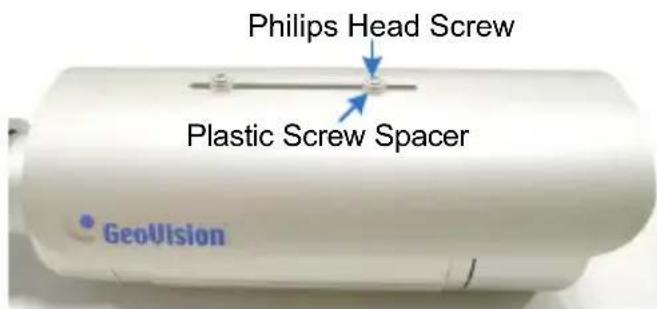

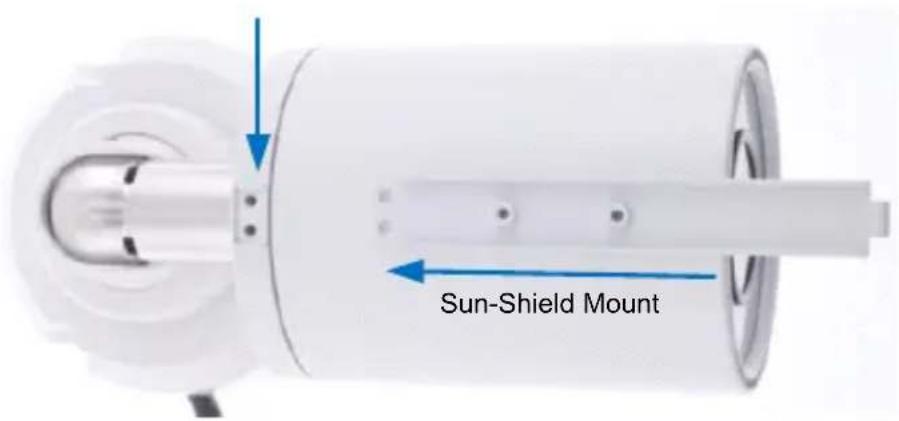

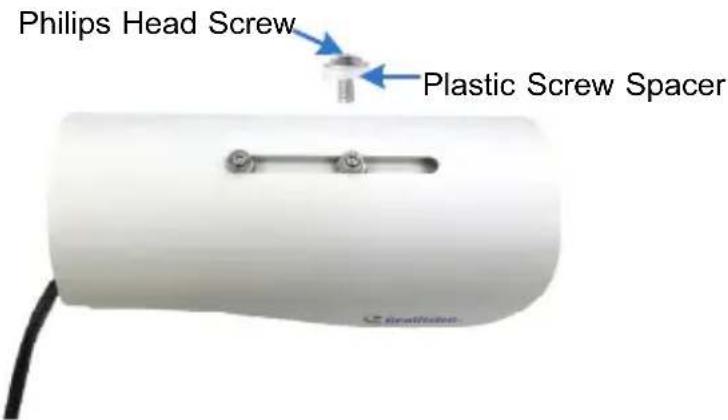

5. Install the sun-shield cover to the Bullet Camera. For details, see 1.4.4 Installing the Sun-Shield Cover.

1.4.1 Connecting the Camera

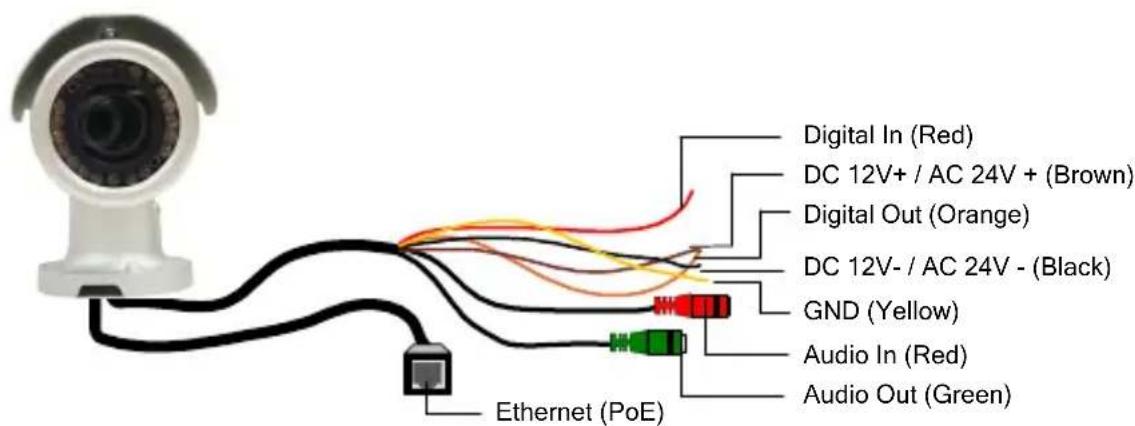

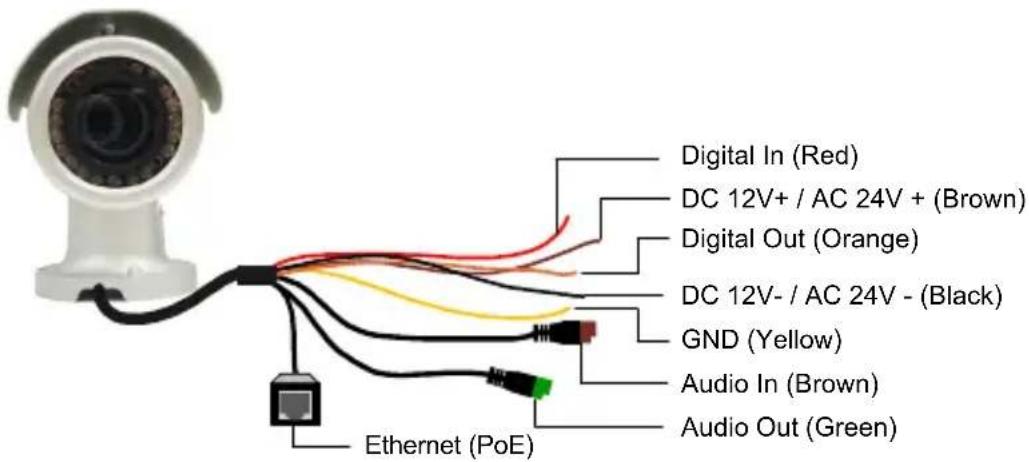

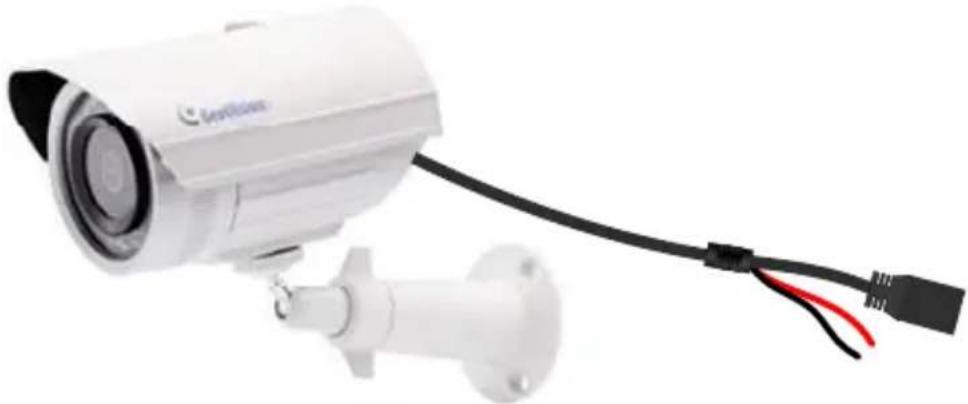

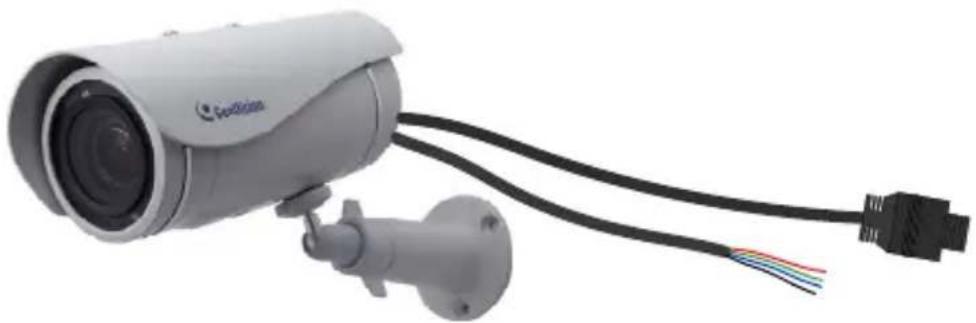

Wire Definition for Auto Iris Models

The 7-Pin Data Cable provides connections for power, ground, 1 sensor input, 1 alarm output, audio input and audio output. The wires are illustrated and defined below:

Digital In (Red) DC 12V+ / AC 24V + (Brown) Digital Out (Orange) DC 12V- / AC 24V - (Black) GND (Yellow) Audio In (Red) Audio Out (Green) Ethernet (PoE)

Figure 1-4

No.	Wire Color Definition
1	Red Digital	In
2 Brown DC 12V+ / AC 24V+
3	Orange Digital	Out
4 Black DC 12V- / AC 24V-
5	Yellow Ground
6	Red RCA	Audio in
7 Green RCA Audio out

Note that the Audio In and Out connectors may also come as terminal blocks:

Digital In (Red) DC 12V+ / AC 24V + (Brown) Digital Out (Orange) DC 12V- / AC 24V - (Black) GND (Yellow) Audio In (Brown) Audio Out (Green) Ethernet (PoE)

Figure 1-5

No.	Wire Color Definition
1	Red Digital	In
2 Brown DC 12V+ / AC 24V+
3	Orange Digital	Out
4 Black DC 12V- / AC 24V-
5	Yellow Ground
6 Brown terminal block Audio in
7 Green terminal block Audio out

Power Connection

Use one of the following methods to supply power to the camera.

• Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.

• Plug the power adaptor to the terminal block as shown below.

- Insert the black wire of the Bullet Camera to the left pin (+) and the brown wire to the right pin (-).

Green electrical component with two terminals and a red wire, no visible text or symbols

Figure 1-6

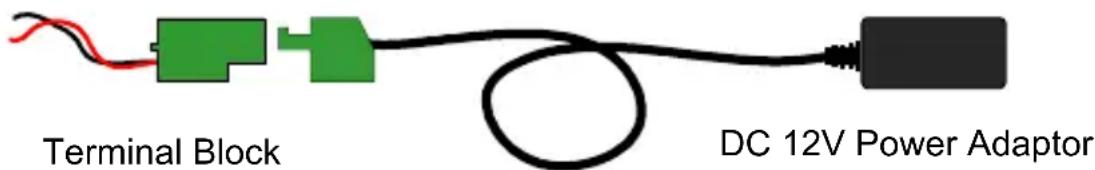

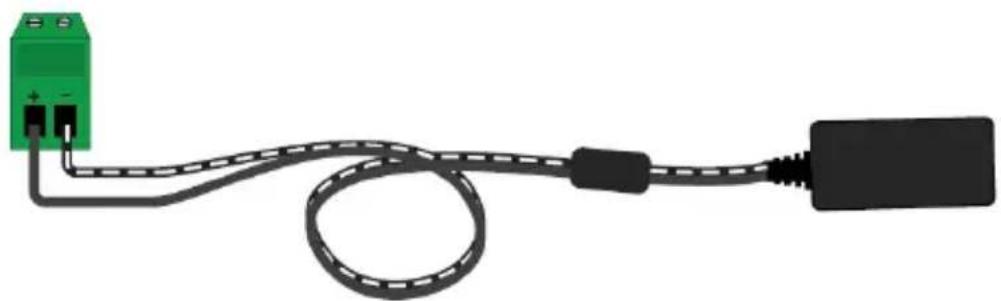

- Connect the DC 12V Power Adapter to the Terminal Block.

Terminal Block DC 12V Power Adaptor

Figure 1-7

I/O Device Connection

The camera supports one digital input and one digital output of dry contact.

I/O 1 2 3

Figure 1-8

Pin	Function
1	Digital	Output
2	GND
3	Digital	Input

For details on how to enable an installed I/O device, see 4.2 I/O Settings, GV-IPCam Firmware Manual.

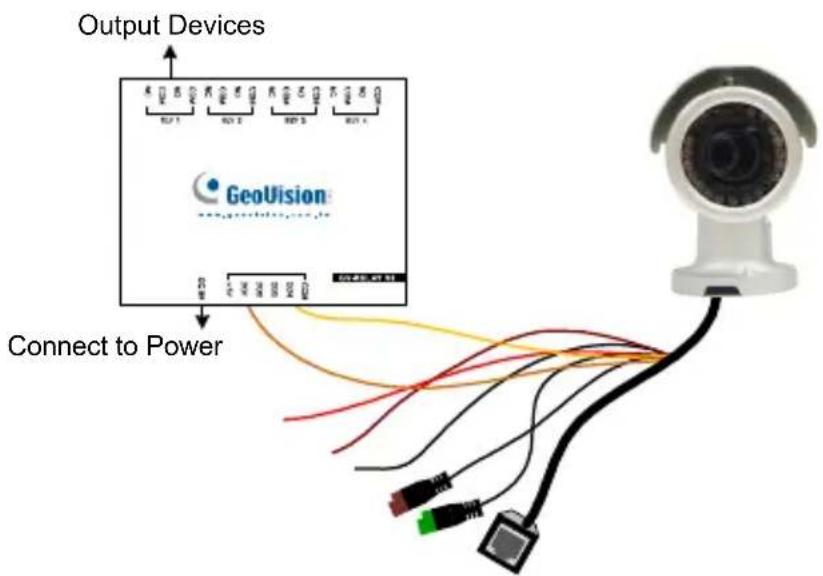

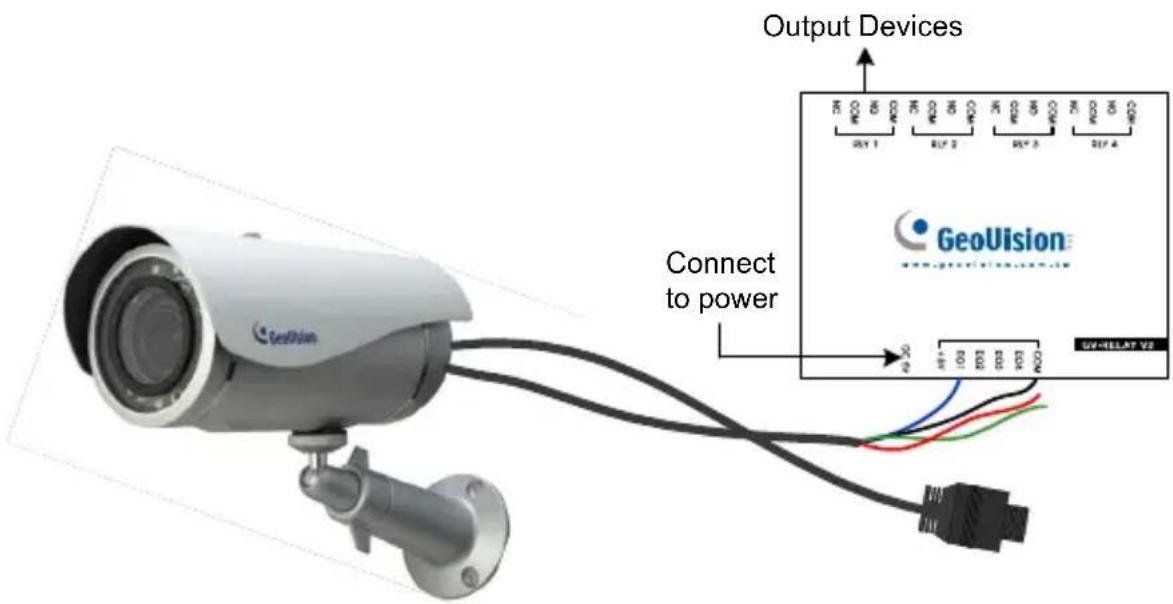

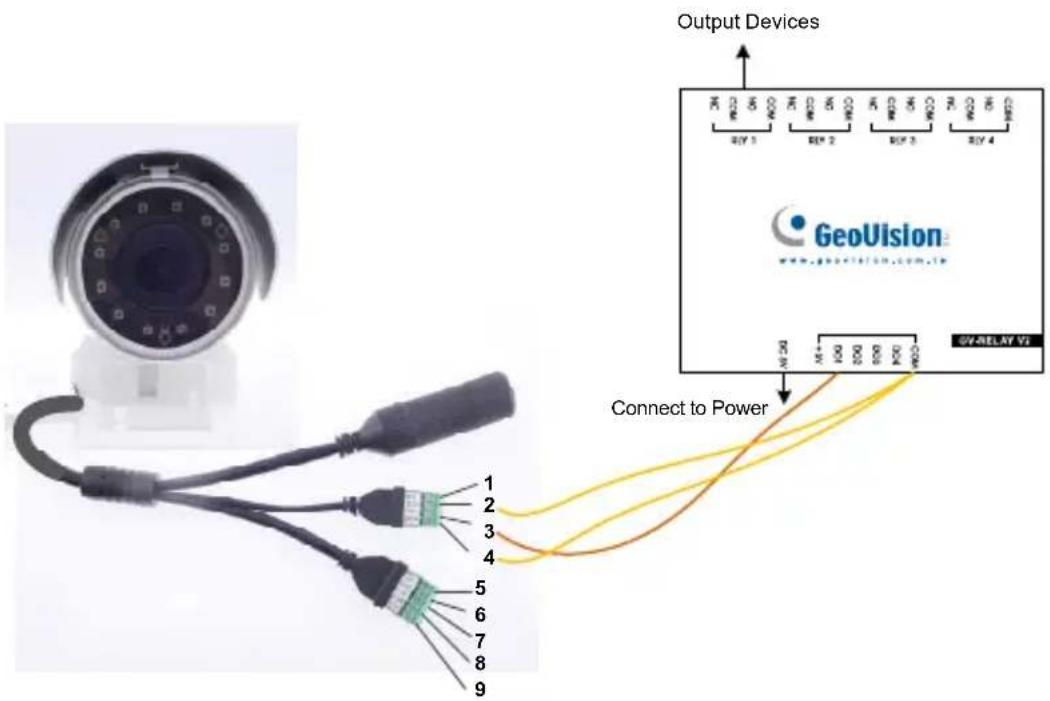

Voltage Load Expansion (Optional)

The camera can only drive a maximum load of 200mA 5V DC. To expand the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A 100V DC, connect the camera to a GV-Relay V2 module (optional product). Refer to the figure and table below.

Output Devices GeoVision Connect to Power

Figure 1-9

GV-Relay V2 Bullet Camera
COM	Ground
DO1 Digital Out (Orange)

(Yellow)

1.4.2 Adjusting the Angles

The Bullet Camera is designed to be adjustable in three shafts for easy and flexible installation.

First Shaft

You can adjust the camera body by 360 degrees to the right or the left.

1. Unscrew the panning lock screw with the torx wrench.

GeoVision Panning Lock Screw Torx Wrench

Figure 1-10

1. Adjust the angle of camera body to the right or the left, and fasten the panning lock screw.

0 ~ 360°

Figure 1-11

Second Shaft

You can adjust the camera body up and down by 90, 112.5, 135, 157.5 or 180 degrees by using the gears inside the camera body and the camera base.

1. Unscrew the tilting lock screw with the torx wrench.

GeoVision Tilting Lock Screw Torx Wrench

Figure 1-12

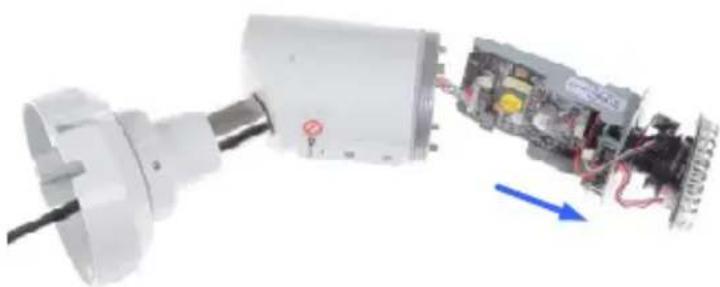

1. Hold the camera body, and move the camera base to the right to separate the camera gears.

Move the Camera Base to the Right Camera Body Camera Gears

Figure 1-13

1. Adjust the angle of camera body to 90^ , 112.5^ , 135^ , 157.5^ or 180^ . Then move the camera base to the left to combine the gears.

180° 157.5° 135° 112.5° 90°

Figure 1-14

1. Fasten the tilting lock screw.

Third Shaft

You can adjust the camera base by 360^ .

1. Unscrew the base fixing screw with the torx wrench.

GeoVision Base Fixing Screw Torx Wrench

Figure 1-15

1. Adjust the angle of camera base, and fasten the base fixing screw.

Geovision security camera with 0~360° angle annotation (no other text or symbols)

Figure 1-16

1.4.3 Adjusting Lens and Inserting a Memory Card

To adjust the camera's zoom and focus or to insert a micro SD card (SD/SDHC, version 2.0 only, Class 10), follow the steps below.

1. Loosen the camera's cover.

Camera's Cover

Figure 1-17

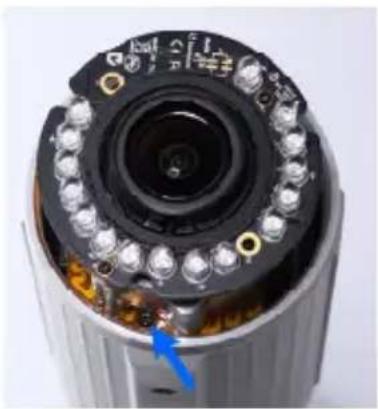

For GV-BL2511-E / 5311-E, loosen the camera's cover and the screw as indicated below.

Close-up of a camera lens assembly with visible internal components and a blue arrow pointing to a component (no text or symbols)

Figure 1-18

1. To adjust for image clarity, follow the steps below.

- For models with zoom and focus screws, pull out the camera and remove the silica gel bag to access its focus and zoom screws. Use GV-IP Device Utility to help you. For details, see 2.2 Adjusting Image Clarity, GV-IPCam Firmware Manual.

Silica Gel Bag Zoom Screw Focus Screw

Figure 1-19

- For motorized varifocal lens models, adjust for image clarity through the Web interface. For details, see Zoom, Focus Change, and Focus Mode settings in 3.2.2 The Control Panel of the Live View Window, GV-IPCam Firmware Manual.

1. To insert a micro SD card, follow the steps below.
2. Loosen the fixing screw.

Fixing Screw

Figure 1-20

1. Slightly pull out the camera module.

2. Insert a micro SD card into the memory card slot.

Memory Card Slot

Figure 1-21

1. Push the camera back and fasten the fixing screw.
2. Insert a new silica gel bag to the camera module and fasten the camera's cover.

Silica Gel Bag

Figure 1-22

Silica Gel Bag

Figure 1-23 (GV-BL2511-E/5311-E)

1.4.4 Installing the Sun-Shield Cover

After setting up the Bullet Camera, now you can install the sun-shield cover to the camera.

1. Fasten the hexagon screws either on top or below the camera.

Hexagon Screws

Figure 1-24

1. Put the sun-shield cover on top of hexagon screws. Make sure to aim the rear hexagon screw at the edge of the sun-shield cover's aperture for optimal sun-shield performance.

Sun-Shield Cover GeoVision

Figure 1-25

1. Fasten the Philips head screws with the plastic screw spacers.

Philips Head Screw Plastic Screw Spacer GeoVision

Figure 1-26

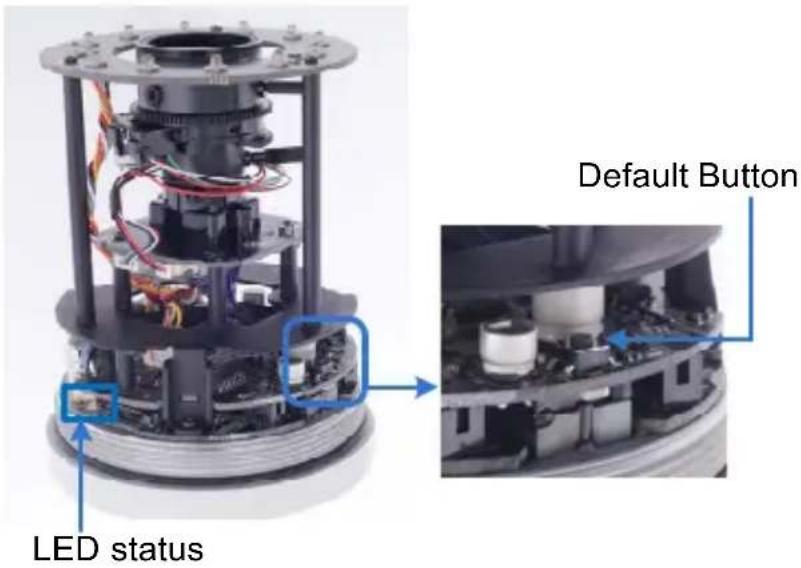

1.5 Loading Factory Default

1. Keep the power and network cables connected to the camera.
2. Loosen the camera's cover.
3. Press and hold the default button for 8 seconds.

Default Button 5690

Figure 1-27

1. Release the default button. When the process of loading default settings is completed, the camera reboots automatically.
2. Replace the Silica Gel Bag and fasten the camera's cover immediately.

Chapter 2 Bullet Camera (Part II)

The Bullet Cameras are specifically designed for outdoors. They are weatherproof (IP67) and equipped with IR LEDs for infrared illumination in night vision applications. The models described in this chapter use P-Iris, which allows for precise control of exposure, producing images with better clarity and contrast.

The WDR Pro models enhance the image by processing contrasting intensity of light. The super low lux models can produce color live view in near darkness. The motorized varifocal lens models allow the user to adjust the focus and zoom through the Web interface. The arctic models can withstand extreme temperatures (-40°C \~ 50°C / -40°F \~ 122°F). For related models, see 2.2 Features.

Model No.		Specifications	Description
GV-BL1501	Varifocal lens	P-Iris, f: 3 ~ 9 mm, F/1.2, 1/2.7"ø 14 mm Lens Mount	1.3 MP, H.264, Super Low Lux
GV-BL2501			2 MP, H.264, Super Low Lux
GV-BL3401			3 MP, H.264, WDR Pro
GV-BL1511	Motorized varifocal lens		1.3 MP, H.264, Super Low Lux, 3X Optical Zoom
GV-BL2511			2 MP, H.264, Super Low Lux, 3X Optical Zoom
GV-BL3411			3 MP, H.264, WDR Pro, 3X Optical Zoom
GV-BL5311		P-Iris, f: 4.5 ~ 9 mm, F/1.2, 1/2.7"ø 14 mm Lens Mount	5 MP, H.264, 2X Optical Zoom
GV-BL2511-E	Motorized varifocal lens, extreme temperature tolerance	P-Iris, f: 3 ~ 9 mm, F/1.2, 1/2.7"ø 14 mm Lens Mount	2 MP, H.264, Super Low Lux, 3X Optical Zoom
GV-BL5311-E		P-Iris, f: 4.5 ~ 9 mm, F/1.2, 1/2.7"ø 14 mm Lens Mount	5 MP, H.264, 2X Optical Zoom

2.1 Packing List

• Bullet Camera
  • Self Tapping Screw x 3
• Plastic Screw Anchor x 3
• Torx Wrench x 3
• Sun-Shield Cover Kit (Sun-Shield Cover, Philips Head Screw x 2, Plastic Screw Spacer x 2, and Hexagon Screw x 2)
• Silica Gel Bag x 2
• 2-Pin Terminal Block
  • 3-Pin Terminal Block
• Power Adapter
• Installation Sticker
• Ruler
• Stand Kit (Conduit Converter, PG21 Conduit Connector, RJ-45 Connector, M3 Screw x 2, Cable Tie)
• Mounting Kit (M4 Screw x 3, Nut x 3, Plate x 3)
  • GV-IPCAM Software DVD
  • GV-NVR Software DVD
• Warranty Card

Note:

• The power adapter can be excluded upon request.
• The Mounting Kit is used for wall corner and pole installations using GV-Mount300 / 310 / 400 / 410 (optional). For details, see GV-Mount Accessories Installation Guide on the Software DVD.

2.2 Features

- Image sensor

Camera Model Image Sensor
GV-BL1501 / 1511	1/3” progressive scan super low lux CMOS
GV-BL5311 / 5311-E 1/2.5”	progressive scan CMOS
GV-BL3401 / 3411 1/3.2”	progressive scan CMOS
GV-BL2501 / 2511 / 2511-E	1/2.8” progressive scan super low lux CMOS

• Dual streams from H.264 or MJPEG

- Frame rate

Camera Model Frame Rate
GV-BL1501 / 1511 30 fps at 1	280 x 1024
GV-BL2501 / 2511 / 2511-E 3	30 fps at 1920 x 1080
GV-BL3401 / 3411 20 fps at 2	2048 x 1536
GV-BL5311 / 5311-E 10 fps at	2560 x 1920

• Day and night function (with removable IR-cut filter)

- Megapixel lens

- Motorized varifocal lens for remote focus/zoom adjustment (GV-BL1511 / 2511 / 3411 / 5311 and GV-BL2511-E / 5311-E only)

• P-iris for auto iris adjustment

- Wide Dynamic Range Pro (GV-BL3401 / 3411 only)

- Ingress protection (IP67)

• Vandal resistance (IK10 for metal casing)

- Two-way audio

• Built-in heater and fan (GV-BL2511-E / 5311-E only)

• One sensor input and alarm output

- Micro SD card slot (SD/SDHC) for local storage

- NAS recording

• Recording assigned by GV-Edge Recording Manager (Windows & Mac)
• DC 12V / AC 24V / PoE (IEEE 802.3af, not supported by GV-BL2511-E / 5311-E)
• Intelligent IR
  • Maximum IR distance

Camera Model Maximum IR Distance
GV-BL5311 / 5311-E 40 m (131 ft)
GV-BL2501 / 2511 / 2511-EGV-BL3401 / 3411	50 m (164 ft)
GV-BL1501 / 1511 70 m (230 ft)

• Wide temperature tolerance for GV-BL2511-E / 5311-E (-40°C \~ 50°C / -40°F \~ 122°F)
  • 3D noise reduction (GV-BL1501 / 1511 / 2501 / 2511 / 2511-E only)
  • 2D noise reduction (GV-BL3401 / 3411 / 5311 / 5311-E only)
• Defog
• Motion detection
• Tampering alarm
• Visual automation
• Text overlay
• Privacy mask
• IP address filtering
  • Smart Phone and 3GPP support
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

2.3 Overview

Twist off the camera cover to access the following:

1 2 4

Figure 2-1

No.	Name	Description
1	Memory Card Slot		Receives a micro SD card (SD/SDHC, version 2.0 only, Class 10).
2	Zoom Screw Holds the zoom lens in place.
3	Focus Screw Holds the focus lens in place
4	Default Button		Resets all configurations to factory default. For details, see 1.5 Loading Factory Default.

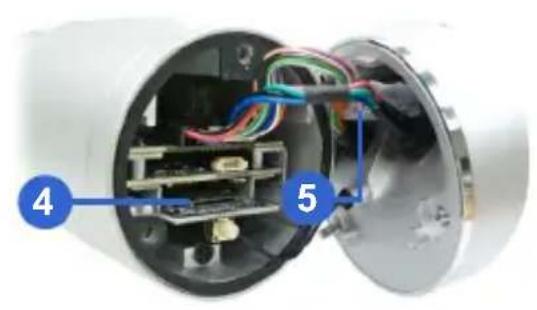

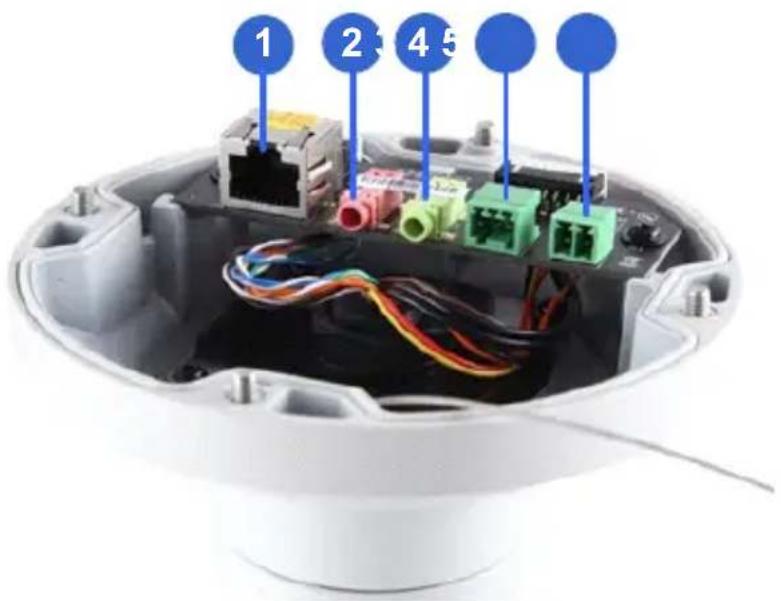

To access the following interface, remove the camera base using the supplied torx wrench.

1 2 4 5

Figure 2-2

No.	Name	Description
1	LAN / PoE	Connects to a	10/100 Ethernet or PoE.
2	Audio In	Connects a microphone for audio input.
3	Audio Out	Connects a speaker for audio output.
4	I/O	Terminal	Connects to I/O devices. For details, see Block I/O Terminal, 2.5 Connecting the Camera.
5	DC	12V Port Connects to power.

2.4 Installation

Follow the steps below to install the Bullet Camera.

1. Paste the supplied sticker to the ceiling/wall. For wall installations, make sure the arrow on the sticker points toward the ceiling.

Mount template

Figure 2-3

1. Drill the shaded area, and insert the screw anchor into the three holes.
2. Loosen the indicated screws with the supplied torx wrench to remove the base.

Close-up of a white plastic mechanical component with blue directional arrows indicating features (no text or symbols)

Figure 2-4

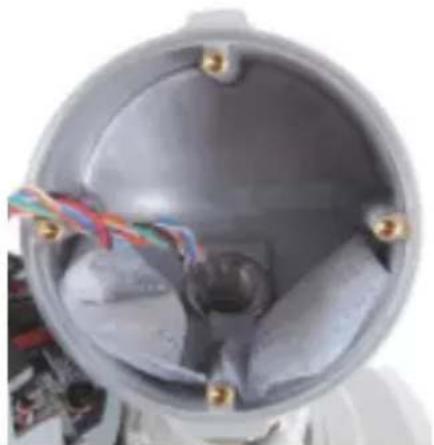

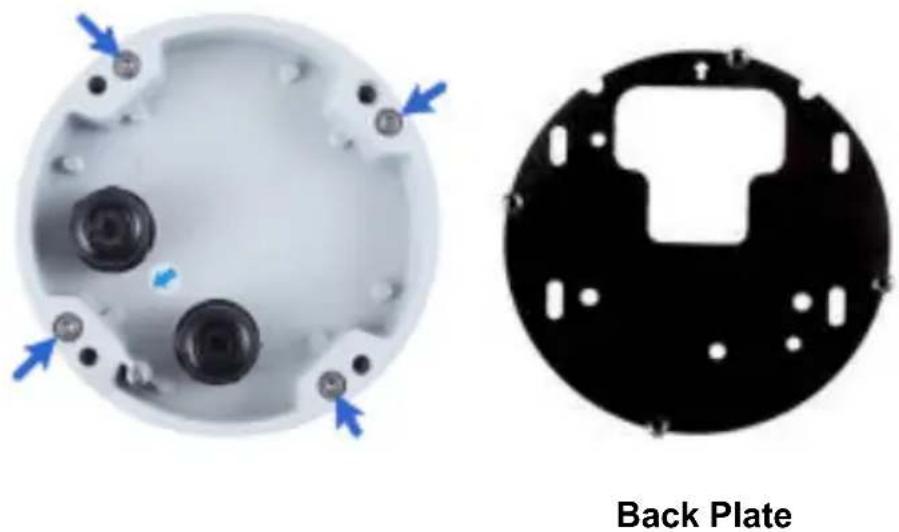

1. Loosen the indicated screws and remove the back plate.

Figure 2-5

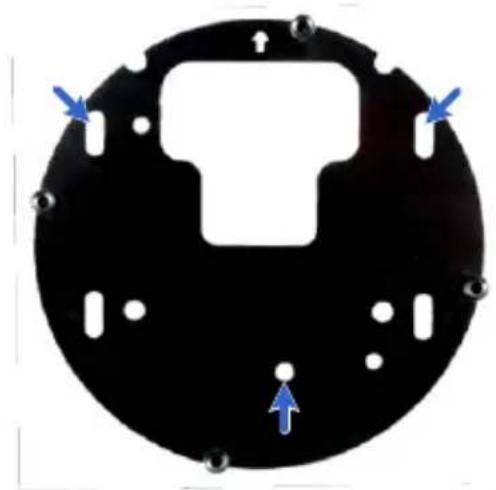

1. Align and secure the black plate to the wall/ceiling with the supplied self-tapping screws.

Circular black electronic component with white cutout and blue directional arrows indicating ports or features (no text or symbols)

Figure 2-6

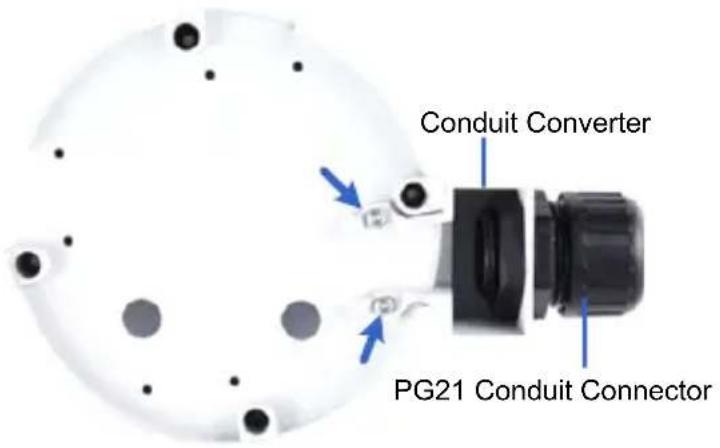

1. To use a pipe (optional), install the conduit converter using the supplied M3 screws.

Conduit Converter PG21 Conduit Connector

Figure 2-7

IMPORTANT: For GV-BL2511-E / 5311-E connected with a power adapter, only install the conduit converter to the indicated exit.

1. Install the Ethernet cable.

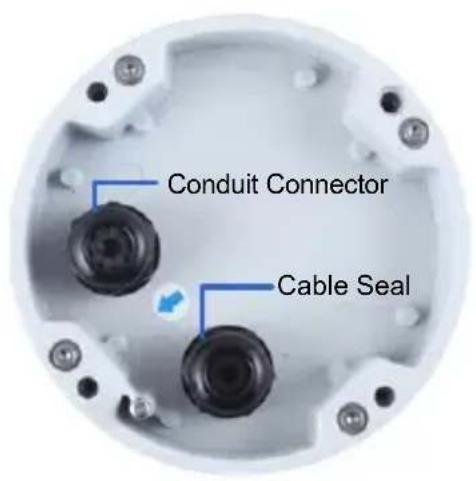

A. Twist off and remove the cable seal and the conduit connector.

Conduit Connector Cable Seal

Figure 2-8

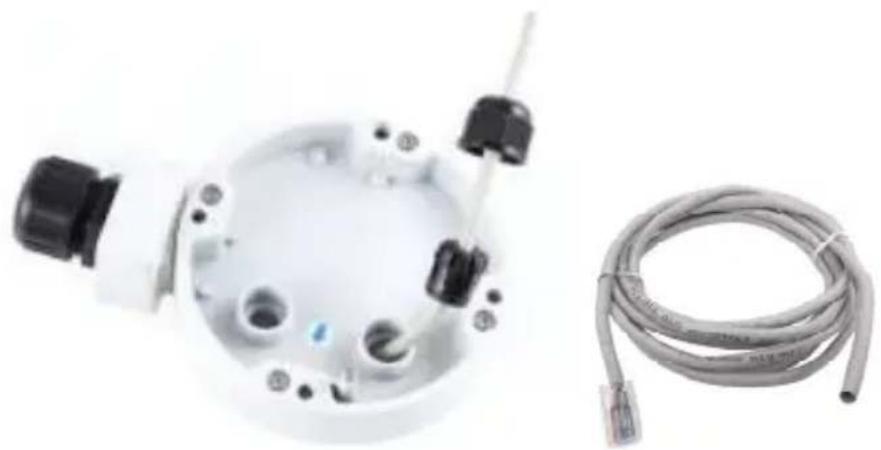

B. Thread an Ethernet cable (with no RJ-45 connector on one end) from the back panel through the conduit converter (optionally installed at step 6) and then through the cable seal.

White industrial sensor device with attached coiled cable and black connectors (no visible text or symbols)

Figure 2-9

IMPORTANT: Use the supplied ruler and leave about 10 cm of the Ethernet cable between the connector and the cable seal.

C. Re-install the cable seal. Make sure it is installed tightly to waterproof the camera.

1. Thread wires into the camera.

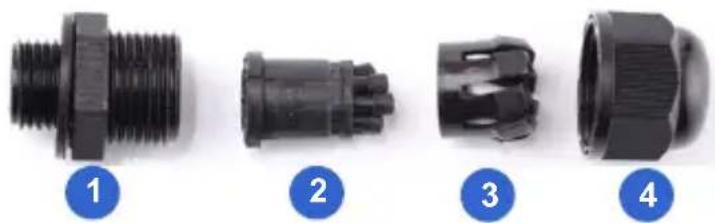

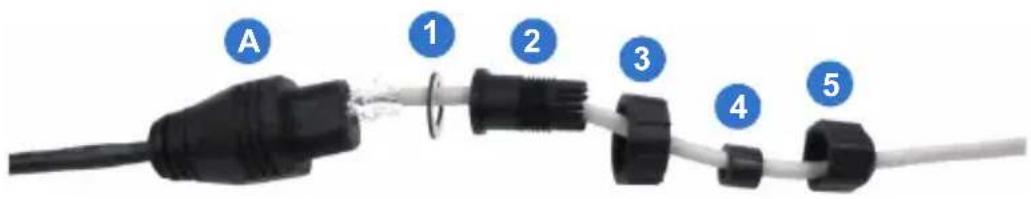

A. Disintegrate the removed conduit connector. You should have 4 parts:

Four black plastic connectors with different internal structures, labeled 1 to 4 (no text or symbols on the connectors themselves)

Figure 2-10

B. Remove the terminal block from the supplied power adapter.
C. Optionally thread audio wires, adapter wires, and I/O wires through the conduit converter and then through part 1, 2, 3, and 4 of the conduit connector.

Tip: To make the threading easier, it is advised to thread the wires in the order described here.

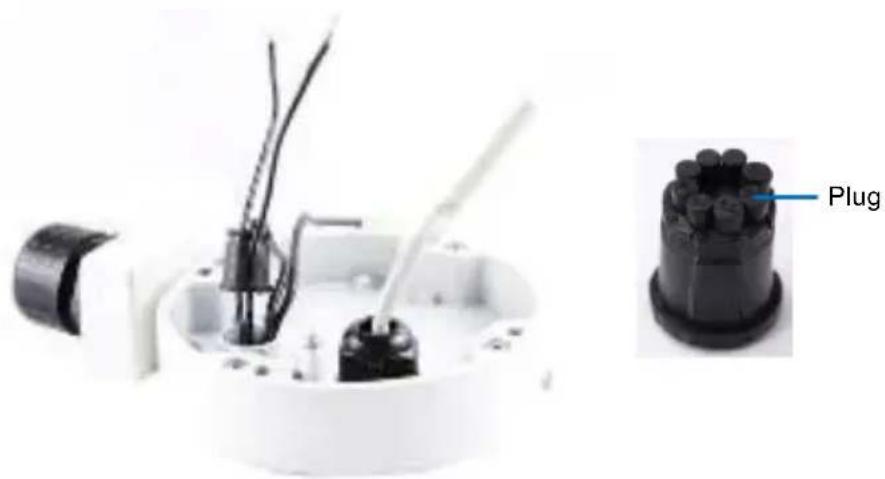

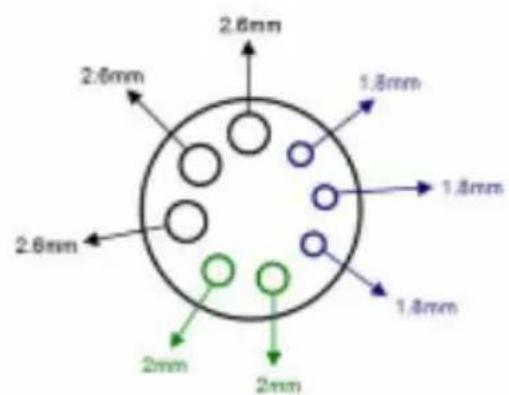

For part 2, there are 8 holes each labeled with its diameter.

Remove the plugs and push the wires to the corresponding hole listed below:

Plug

Figure 2-11

2.6mm 2.6mm 1.8mm 1.8mm 1.8mm 2.6mm 2mm 2mm

2.6 mm: Audio

2 mm: DC12V / AC24V

1.8 mm: DIDO

Figure 2-12

IMPORTANT:

- Use the supplied ruler and leave about 10 cm of audio, power, and I/O wires between their connectors and the cable seal.

- The plugs are used to prevent water from entering the camera housing. Keep the unused holes plugged and save the removed plugs for future use.

- Only thread the wires through their designated holes on the conduit connector to make sure the wires are properly sealed.

1. Install the base to the back plate on the wall.

2. Connect the wires to the camera.

A. Install the terminal blocks to the power adapter and I/O devices. See Power Connection and I/O Device Connections in 2.5 Connecting the Camera.

B. Install the supplied RJ-45 connector to the Ethernet cable.

C. Plug all the connectors to the camera panel.

1. Tie the wires with the supplied cable tie and re-install the base to the camera. You may need to rotate the base for the wires to fit.

Cable Tie

Figure 2-13

1. Access the live view. For details, see 2.1 Accessing the Live View, GV-IPCam Firmware Manual.
2. Adjust the angles of the camera based on the live view. Three shafts can be adjusted. See 1.4.2 Adjusting the Angles.
3. To adjust the focus and insert a micro SD card (SD/SDHC, version 2.0, Class 10), see 1.4.3 Adjusting Lens and Inserting a Memory Card.
4. Install the sun-shield cover. For details, see 1.4.4 Installing the Sun-Shield Cover.

2.5 Connecting the Camera

Power Connection

Use one of the following methods to supply power to the camera. Note that GV-BL2511-E / 5311-E do not support PoE.

• Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.
• Plug the power adaptor to the terminal block as shown below. For all models (except GV-BL2511-E / 5311-E), insert the striped wire to the left pin (+); for GV-BL2511-E / 5311-E, insert the striped wire to the right pin (-).

Green electrical component with two terminals and two black cables connected by a wire (no text or symbols)

Figure 2-14 (All Models except GV-BL2511-E / 5311-E)

Green electrical component with two terminals and a coiled wire (no text or symbols)

Figure 2-15 (GV-BL2511-E / 5311-E)

I/O Device Connection

The camera supports one digital input and one digital output of dry contact.

I/O 1 2 3

Figure 2-15

Pin	Function
1	Digital	Output
2	GND
3	Digital	Input

For details on how to enable an installed I/O device, see 4.2 I/O Settings, GV-IPCam Firmware Manual.

Chapter 3 Bullet Camera (Part III)

The Bullet Cameras are specifically designed for outdoors. They are weatherproof (IP67) and equipped with IR LEDs for infrared illumination in night vision applications. They support H.265 video codec to achieve better video compression while maintaining high quality picture. The cameras use P-Iris, which allows for precise control of exposure, producing images with better clarity and contrast.

Model No.		Specifications	Description
GV-BL3700	Varifocal Lens	P-Iris, f: 2.8 ~ 12 mm,F/1.7, 1/2.7", ø 14 mmLens Mount	3 MP, H.265,Super Low Lux, WDR pro
GV-BL5700		P-Iris, f: 4 ~ 8 mm,F/1.65, 1/1.8", ø 14 mmLens Mount	5 MP, H.265,Low Lux, WDR

3.1 Packing List

• H.265 Bullet Camera
- Sun-shield Cover

Plain white paper with a small blue watermark at the bottom left corner (no text or symbols on the paper itself)

- Screw for Supporting Rack x 3

- Silica Gel Bag x 2

- RJ-45 Connector x 2

- Screw for Mounting Kit x 3

• GV-IPCAM Software DVD
- Warranty Card

- Screw for Sun-shield Cover x 2

- Screw Anchor x 3

- Washer x 2

- Hex Wrench

- Nut for Mounting Kit x 3

• GV-Software DVD

3.2 Features

- Image sensor

Camera Model Image Sensor

GV-BL3700 1/2.8” progressive scan super low lux CMOS

GV-BL5700 1/1.8” progressive scan CMOS

• Dual streams from H.265, H.264, and MJPEG
- Frame rate

Camera Model Frame rate
GV-BL3700 Up to 30 fps	at 2048 x 1536
GV-BL5700 Up to 30 fps	at 2592 x 1944

• P-iris lens for auto iris control
• Vandal resistance (IK10 for metal casing)
• Ingress protection (IP67)
• Day/Night function (with removable IR-cut filter)
- Intelligent IR
• IR distance up to 30 m (98.4 ft)
- Two-way audio
• One alarm input and sensor output
• Built-in micro SD card slot for local storage
• DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range (WDR)

Camera Model Type of WDR
GV-BL3700	WDR Pro
GV-BL5700	WDR

- Defog

• Text overlay
• Tampering alarm
  • 3D noise reduction
• IP address filtering
• Recording assigned by GV-Edge Recording Manager (Windows & Mac)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

3.3 Overview

1 2 3 4

Figure 3-1

No.	Name Description
1.	Memory Card Slot	Receives a micro SD card (SD/SDHC/SDXC/UHS-I, Class 10).* UHS-II card type is not supported.
2.	Default Button	Resets all configurations to factory default. For details, see 3.6 Loading Factory Default.
3.	Focus Screw Holds the focus lens in place
4.	Zoom Screw Holds the zoom lens in place.

3.4 Installation

You can install the camera to the ceiling or wall. Follow the steps below.

1. Unscrew the camera body, remove the sun-shield mount, and loosen the camera cover from the camera.

Screws Camera Cover Sun-Shield Mount

Figure 3-2

1. Insert a micro SD card (SD/SDHC/SDXC/UHS-I, Class 10) into the card slot.
2. Tape two silica gel bags to the camera module.

Silica Gel Bag Micro SD Card

Figure 3-3

1. Secure the camera cover, fasten the sun-shield mount, and screw the camera body.

Sun-Shield Mount

Figure 3-4

1. Slide the sun-shield cover onto the top of the camera. Adjust the position of the cover before fully securing the cover with the washer and the screw.

Close-up of a white cylindrical device with a metallic shaft and a blue arrow indicator (no readable text or symbols)

Figure 3-5

1. Thread the Ethernet cable into the conduit connector.

A. Remove the plug from the conduit connector.

Close-up of a black cylindrical electronic component with red wires and a blue arrow indicating direction (no text or symbols)

Figure 3-6

B. Disintegrate the removed conduit connector. Thread the Ethernet cable through the 3 parts.

Close-up of a black plastic electrical connector with multiple connectors and wires (no visible text or symbols)

Figure 3-7

C. Assemble the conduit connector.

Close-up of a black electrical plug with a cable, showing internal components and a white strip (no text or symbols visible)

Figure 3-8

Note: If you can't plug the self-prepared RJ-45 connector into the jack of the conduit, it is suggested to use the supplied RJ-45 connector.

1. Install the camera to the wall or ceiling using the screw anchors and screws for supporting rack.

Close-up of a white camera with blue directional arrows indicating left and right motion (no text or symbols on the device itself)

Figure 3-9

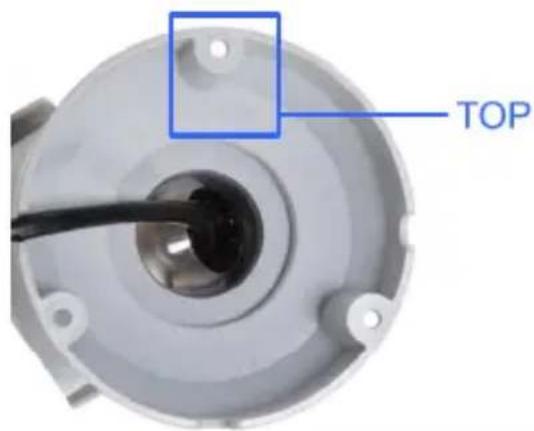

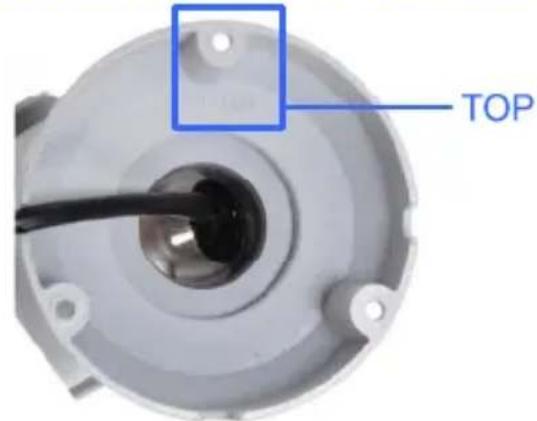

IMPORTANT: To avoid waterproofing failures, the top of the camera must be facing upward for wall mount.

TOP

1. Connect the wires and cable connector to the camera. See 5.5 Connecting the Camera.
2. Access the live view. For details, see 3.1. Accessing the Live View, GV-IPCam Firmware Manual.
3. Adjust angles of the camera body based on the live view.

3.4.1 Adjusting the Angles

The GV-BL3700 / 5700 is designed to be adjustable in two shafts for easy and flexible installation.

First Shaft

You can adjust the camera base by 360°.

1. Unscrew the base fixing screw with the hex wrench.

Close-up of a white mechanical component with a blue arrow pointing to a small star on the base (no text or symbols visible)

Figure 3-10

1. Adjust the angle of camera base, and fasten the base fixing screw with the hex wrench.

Close-up of a white surveillance camera with blue directional arrows indicating rotation (no text or symbols visible)

Figure 3-11

Second Shaft

You can adjust the camera body to the desired angle by tilting the camera module.

1. Unscrew the tilting lock screw with the hex wrench.

Close-up of a white mechanical component with a blue arrow pointing to a small dot on the base (no text or symbols visible)

Figure 3-12

1. Adjust the angle of camera body to the desired angle.

Close-up of a white surveillance camera with blue directional arrows indicating rotation (no text or symbols visible)

Figure 3-13

1. Fasten the tilting lock screw.

3.4.2 Adjusting Lens

To adjust the camera's zoom and focus, follow the steps below.

• Loosen the camera's cover. See Figure 3-2.
• To adjust for image clarity by adjusting the focus and zoom screws. For details, see 2.2 Adjusting Image Clarity, GV-IPCam Firmware Manual.

Focus Screw Zoom Screw

Figure 3-14

3.5 Connecting the Camera

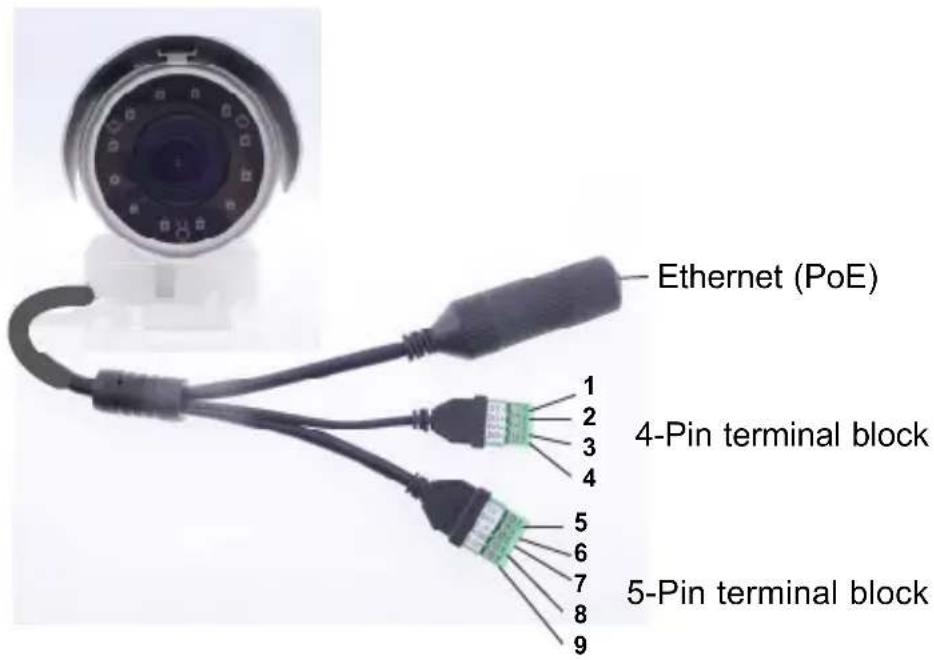

3.5.1 Wire Definition

The 4-Pin terminal block supports 1 digital input and 1 digital output of dry contact.. For details on how to enable an installed I/O device, see 4.2 I/O Settings, GV-IPCam Firmware Manual. The 5-Pin terminal block provides power input, 1 audio input and 1 audio output. The wires are illustrated and defined below:

Ethernet (PoE) 1 2 3 4 5 6 7 8 9 4-Pin terminal block 5-Pin terminal block

Figure 3-16

No. Wire Name Definition
1.	DI4-pinDigital in +terminal- Digital Out block	-	Digital In -
2. DI + terminal
3. DO
4.		DO+ Digital Out +
5. 12V 12 V DC5-pinDC 12V +terminalblock A
6. GND
7.		Audio in
8.		GND	Audio Ground
9.		L-OUT	Audio out
Wire Definition
RJ-45	Ethernet / PoE (IEEE 802.3af)

3.5.2. Power Connection

Use one of the following methods to supply power to the camera.

• Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.
- Connect the wires of your power adapter to the DC 12V+ and DC 12V- pins of the 5-pin terminal blocks.

Pure electrical circuit lines without any symbols

Figure 3-17

Voltage Load Expansion (Optional)

The camera can only drive a maximum load of 200mA 5V DC. To expand the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A 100V DC, connect the camera to a GV-Relay V2 module (optional product). Refer to the figure and table below.

Output Devices GeoVision www.geovision.com.cn Connect to Power W1 100 500 100 W2 RELAY VT

Figure 3-18

GV-Relay V2 Bullet Camera
COM	4-Pin terminal block	Digital In +Digital Out +
DO1		Digital Out -

3.6 Loading Factory Default

Press and hold the default button for about 5 seconds to restore the factory default. After the ready LED blinks, release the default button. For details see 1.5 Loading Factory Default.

LED status Default Button

Figure 3-19

Chapter 4 Ultra Bullet Camera

The Ultra Bullet Camera is a series of light-weighted cameras designed for outdoor environments. The camera adheres to the IP67 standard and has full protection against dust and jets of water. The Ultra Bullet Cameras are available in motorized varifocal lens and fixed lens at 1.3, 2 and 3 megapixels. The motorized varifocal lens models allow the user to remotely adjust the focus and zoom through the Web interface. The WDR Pro models can enhance the live view by processing contrasting intensity of lights. The super low lux models are able to provide color live view in near darkness. For related models, see 4.2 Features.

Model No.		Specifications	Description
GV-UBL1211	Varifocal Lens	Auto Iris, f: 3 ~ 9 mm, F/1.2, 1/2.7"ø 14 mm Lens Mount	1.3 MP Low Lux, H.264, 3X Optical Zoom
GV-UBL1511			1.3 MP Super Low Lux, H.264, 3X Optical Zoom
GV-UBL2411			2 MP, H.264, WDR Pro, 3X Optical Zoom
GV-UBL2511			2 MP Super Low Lux, H.264, 3X Optical Zoom
GV-UBL3411			3 MP, H.264, WDR Pro, 3X Optical Zoom
GV-UBL1301-0F	Fixed Lens	Fixed Iris, f: 2.8 mm,F/2.0, 1/3” M12 LensMount	1.3 MP, Low Lux, H.264
GV-UBL1301-1F		Fixed Iris, f: 4 mm,F/1.5, 1/3” M12 LensMount
GV-UBL1301-2FGV-UBL1301-3F		Fixed Iris, f: 4 / 8 mm,F/1.6, 1/3” M12 LensMount	1.3 MP, Low Lux, H.264
GV-UBL2401-0F		Fixed Iris, f: 2.8 mm,F/2.0, 1/3” M12 LensMount	2 MP, H.264,WDR Pro
GV-UBL2401-1F		Fixed Iris, f: 4 mm,F/1.5, 1/3” M12 LensMount
GV-UBL2401-2FGV-UBL2401-3F		Fixed Iris, f: 8 / 12 mm,F/1.6, 1/3” M12 LensMount
GV-UBL3401-0F		Fixed Iris, f: 2.8 mm,F/2.0, 1/3” M12 LensMount	3 MP, H.264,WDR Pro
GV-UBL3401-1F		Fixed Iris, f: 4 mm,F/1.5, 1/3” M12 LensMount
GV-UBL3401-2FGV-UBL3401-3F		Fixed Iris, f: 8 / 12 mm,F/1.6, 1/3” M12 LensMount

4.1 Packing List

• Ultra Bullet Camera (with Waterproof or Non-Waterproof LAN connector)
• Camera Stand
• Black Rubber
  • Self Tapping Screw x 3
• Plastic Screw Anchor x 3
• Torx Wrench
• Sun-Shield Cover Kit (Sun-Shield Cover, Philips Head Screw x 2, Plastic Screw Spacer x 2 and Hexagon Screw x 2)
• Cable connector (for waterproof LAN connector only)
• Silica Gel Bag x 2
• 2-Pin Terminal Block
• Data cable
• Power Adapter
  • GV-IPCAM Software DVD
  • GV-NVR Software DVD
• Warranty Card

Note: The power adapter can be excluded upon request.

4.2 Features

- Image sensor

Camera Model Image Sensor
GV-UBL1211	1/3” progressive scan
GV-UBL1301 Series	1/2.5” progressive scan CMOS
GV-UBL1511 1/3” progressive scan super low lux CMOS
GV-UBL2511	1/2.8” progressive scan super low lux CMOS
GV-UBL2411 / 3411GV-UBL2401 SeriesGV-UBL3401 Series	1/3.2” progressive scan CMOS

• Dual streams from H.264 or MJPEG
- Frame rate

Camera Model Frame Rate
GV-UBL1211 / 1511GV-UBL1301 Series	30 fps at 1280 x 1024
GV-UBL2411 / 2401 SeriesGV-UBL2511	30 fps at 1920 x 1080
GV-UBL3411 / 3401 Series	20 fps at 2048 x 1536

• Motorized varifocal lens for remote focus/zoom adjustment (for GV-UBL1211 / 1511 / 2411 / 2511 / 3411 only)
  • Day and night function (with removable IR-cut filter)
• Wide Dynamic Range Pro (WDR Pro) (for GV-UBL2411 / 3411 / 2401 Series / 3401 Series only)

• Defog
  • Ingress protection (IP67)
  • Vandal resistance (IK10 for metal casing)
  • One alarm input and sensor output

• Micro SD card slot (SD/SDHC) for local storage

• NAS recording
• Recording assigned by GV-Edge Recording Manager (Windows & Mac)
• Intelligent IR
  • 3D noise reduction (for GV-UBL1511 / 2511)
  • 2D noise reduction (except for GV-UBL1511 / 2511)
• Motion detection
• Tampering alarm
• Visual automation
• Text overlay
• Privacy mask
• IP address filtering
  • DC 5V / PoE (IEEE 802.3af)
• Megapixel lens
  • Support for iPhone, iPad, Android and 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

4.3 Overview

Panel

Power DI/DO LAN/PoE 1 2 3 Default

Interior view of a cylindrical electronic device showing internal components and wiring (no text or symbols visible)

Figure 4-1

No.	Name Description
1	Power & I/O Connector	Connects to the data cable. For details, see 4.4.2 Connecting the Camera.
2	Default Button	Resets all configurations to factory default. For details, see 4.5 Loading Factory Default.
3 LAN / PoE Cable Connects to a 10/100 Ethernet or PoE.
4	Memory Card Slot	Receives a micro SD card (SD/SDHC, version 2.0 only, Class 10).
5 Silica gel bag Desiccant that keeps the camera housing dry.

LAN Connector

The Ultra Bullet Camera provides two connector types. Select an option based on your installation environment.

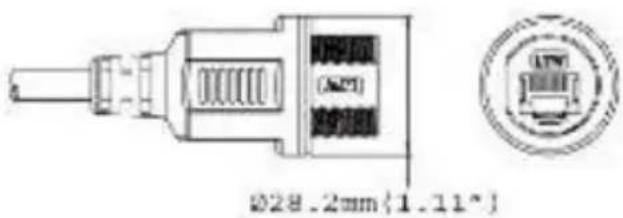

- Option 1 (Waterproof)

Ø28.2mm{1.11°}

To waterproof the cable, install the supplied cable connector. See 3.4.1 Waterproofing the Cable.

- Option 2 (Smaller and non-waterproof)

20.3mm(0.8°) 16.8mm(0.66°) 13.8mm(0.54°)

4.4 Installation

You can install the camera to the ceiling or wall. Follow the steps below.

1. Optionally insert a micro SD card to the camera.

A. Unscrew and open the back panel with the supplied torx wrench.

Power ENDO LANTIC Default

Figure 4-2

B. Insert a micro SD card into the card slot and replace the silica gel bag (see Figure 4-1).

IMPORTANT: Make sure the I/O connector is firmly plugged.

C. Secure the back cover with the supplied torx wrench.

1. Install the sun-shield cover to the camera.

A. Fasten the hexagon screw(s) on the top of the camera.

Hexapn Screws

Figure 4-3

B. Put the sun-shield cover on the top of the camera. For optimal sun-shield performance, make sure the rear hexagon screw is at the end of the opening.

Sun-Shield Cover

Figure 4-4

IMPORTANT: The GeoVision logo on the sun-shield cover should be closer to the front of the camera.

C. Fasten the Philips head screws with the plastic screw spacers to mount the sun-shield cover onto the camera.

- Ceiling Mount: Fasten one Philips head screw to the top of the camera.

- Wall Mount: Fasten two Philips head screws to the top of the camera.

Philips Head Screw Plastic Screw Spacer

Figure 4-5

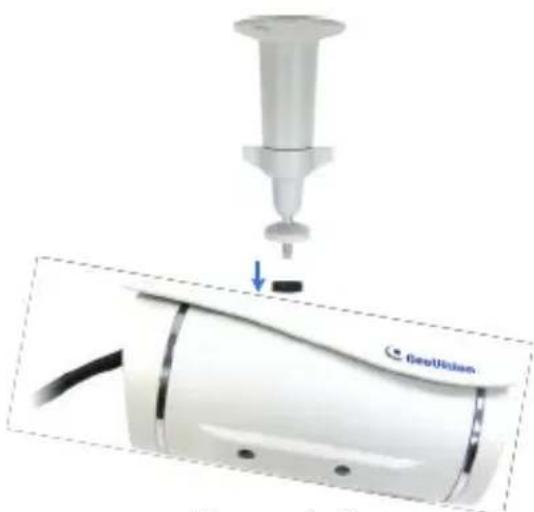

1. Install the camera stand.

A. Ceiling Mount: Secure the black rubber and the camera stand to the screw hole on the top.

Close-up of a medical device with a pipette inserted into a tube, showing a small component and a blue arrow indicating direction (no text or symbols on the device itself)

Figure 4-6

B. Wall Mount: Secure the black rubber and the camera stand to one of the screw holes on the bottom.

Close-up of a white GeoVision surveillance camera with a mounted sensor base and cable (no visible text or symbols)

Figure 4-7

1. Use the screw anchors and self-tapping screws to secure the camera to the wall.

Exterior view of a security camera with mounted lens and wall-mounted port (no visible text or symbols)

Figure 4-8

1. Remove the protection sticker from the camera's cover.
2. Connect the wires and cable connector to the camera. See 3.4.1 Waterproofing the Cable and 3.4.2 Connecting the Camera.
3. Access the live view. For details, see 2.1 Accessing the Live View, GV-IPCam Firmware Manual.
4. Adjust angles of the camera body based on the live view.
5. For varifocal models (GV-UBL1211 / 1511 / 2411 / 2511 / 3411), adjust the focus. For details, see 3.2.2 The Control Panel of the Live View Window, GV-IPCam Firmware Manual.

4.4.1 Waterproofing the Cable

Waterproof the option 1 LAN / PoE cable (see 3.3 Overview) using the supplied cable connector. The cable connector can be dissembled into 5 parts:

Five black plastic connectors with blue circular indicators labeled 1, 2, 3, and 5 (no text or symbols on the connectors themselves)

Figure 4-9

1. Cut off the RJ-45 connector on one end of the Ethernet cable.

Black cable with a pair of scissors cutting through it, connected to an Ethernet port (no text or symbols visible)

Figure 4-10

1. Connect the Ethernet cable to the LAN / PoE connector (No. 3, Figure 4-1) on the camera.
2. Slide the components through the Ethernet cable as shown below.

A 1 2 3 4 5

Figure 4-11

1. Paste the item 1 sticker to item 2.

2. Move all the components toward the LAN / PoE connector, fit item 4 to item 2, secure item 3 to the LAN / PoE connector (Item A) and finally secure item 5 to item 2 tightly.

Close-up of a black mechanical component with a white shaft, no visible text or symbols

Figure 4-12

IMPORTANT: Item 5 must be secured tightly to waterproof the LAN / PoE connector.

1. Prepare an RJ-45 connector, reconnect the RJ-45 connector to the cable, and then connect the camera to network.

4.4.2 Connecting the Camera

Wire Definition

The camera's 4-pin data cable provides connections for power, ground, 1 sensor input and 1 alarm output. The wires are defined below:

Exterior view of a security camera with attached cable and connector (no visible text or symbols)

Figure 4-13

No.	Wire Color Definition
1	Red DC 5V
2	Green Digital	In
3	Blue Digital	Out
4	Black Ground

Power Connection

Connect the camera to power using one of the following methods:

• Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.
• Plug the power adaptor to the terminal block as shown below.

1. Insert the black wire of the data cable to the left pin (-) and the red wire to the right pin (+).

Simple electrical component with orange body and black/red wires, no text or symbols visible

Figure 4-14

1. Connect the DC 5V power adapter to the terminal block.

Terminal Block DC 5V Power Adaptor

Figure 4-15

Voltage Load Expansion (Optional)

The camera can only drive a maximum load of 200mA 5V DC. To expand the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A 100V DC, connect the camera to a GV-Relay V2 module (optional product). Refer to the figure and table below.

Output Devices Connect to power GeoVision GEV-ELLAT V2

Figure 4-16

GV-Relay V2 Ultra Bullet Camera
DO1	Digital	Out (Blue)
COM	Ground	(Black)

4.5 Loading Factory Default

Press and hold the default button for about 8 seconds to store the factory default. For details see 1.5 Loading Factory Default.

Power O/DC LAN/FWE Default button

Figure 4-17

Chapter 5 Target Bullet Camera

(Part I)

The Target Bullet Camera is a series of light-weighted cameras designed for outdoor environments. The camera adheres to the IP67 standard and has full protection against dust and jets of water. The camera offers an entry-level surveillance solution with all the essential features and excellent image quality.

Model No.		Specifications	Description
GV-EBL1100-1FGV-EBL2100-1F	Fixed Lens	Fixed Iris, f: 6 mm,F/1.8, 1/2.7", ø 14 mmLens Mount	1.3 MP / 2 MP,H.264, Low Lux
GV-EBL1100-2FGV-EBL2100-2F		Fixed Iris, f: 3.8 mm,F/1.8, 1/2.7", ø 14 mmLens Mount

5.1 Packing List

• Target Bullet Camera
- Sun-Shield Cover
- Silica Gel Tape x 2
- Supporting Rack
- Screw for supporting rack x 3
- Screw Anchor x 3
- Screw for sun-shield cover
- Washer
- Terminal Block
• GV-IPCAM Software DVD
• GV-NVR Software DVD
- Warranty Card

Note: Power adapter can be purchased upon request.

5.2 Features

• 1/3" progressive scan low lux CMOS for GV-EBL1100 Series
  • 1/2.8" progressive scan low lux CMOS for GV-EBL2100 Series
  • Dual streams from H.264 or MJPEG
• Up to 30 fps at 1280 x 1024
  • Up to 25 fps at 1920 x 1080
• Intelligent IR
  • Day and night function (with removable IR-cut filter)
• Megapixel lens
• Wide Dynamic Range (WDR)
  • Vandal resistance (IK10 for metal casing)
• Ingress protection (IP67)
• Defog
• Motion detection
• Tampering alarm
• Text overlay
• Privacy mask
• IP address filtering
  • DC 12V / PoE (IEEE 802.3af)
• NAS Recording
• Recording assigned by GV-Edge Recording Manager (Windows & Mac)
  • Support for iPhone, iPad, Android and 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

5.3 Overview

Technical diagram of a security camera module with labeled components and close-up detail view

Figure 5-1

No.	Name Description
1	Power Connector	Connects to the data cable. For details, see 5.5 Connecting the Camera.
2	Default Button	Resets the camera to factory default. For details, see 5.6 Loading Factory Default.

5.4 Installation

You can install the camera to the ceiling or wall. Follow the steps below.

1. Slide the sun-shield cover onto the top of the camera.

White EcoVision device with a blue arrow pointing right, no visible text or symbols on the device body.

Figure 5-3

Note: The GeoVision logo on the sun-shield cover should be closer to the front of the camera.

1. Line up the screw hole on the camera with the opening on the sun-shield cover.

White computer mouse with a small circular head and visible label (no text or symbols on the device body)

Figure 5-4

1. Ceiling Mount: Secure the supporting rack to the opening on the sun-shield cover

White Scotiadan medical device with a blue arrow indicating rotation around the tip (no visible text or symbols on the device body)

Figure 5-5

1. Wall Mount:

A. Insert and tighten the supplied screw and washer on the sun-shield cover.
B. Secure the supporting rack to the bottom.

Medical device with blue arrow indicating force or movement, no visible text or symbols

Figure 5-6

1. Thread the Ethernet cable into the conduit connector. For details, see step 6, 3.4 Installation.

Three black plastic connectors with internal wiring and a blue arrow indicating direction (no text or symbols)

Figure 5-7

Note: The size of RJ-45 connector must be within 14 mm to plug into the jack of the conduit.

Unfit size of RJ45 Connector

1. Install the camera to the wall or ceiling using the screw anchors and self-tapping screws. You can also stand the camera on a plain surface.

Close-up of a white surveillance camera with attached sensor port (no visible text or symbols)

Figure 5-8

1. Remove the protection sticker from the camera's cover.

2. Connect the wires and cable connector to the camera. See 5.5 Connecting the Camera.

3. Access the live view. For details, see 3.1. Accessing the Live View, GV-IPCam Firmware Manual.

4. Adjust angles of the camera body based on the live view.

5.5 Connecting the Camera

5.5.1 Wire Definition

The data cable provides connections for power, ground and network access. The wires are defined below:

Exterior view of a white surveillance camera with black cable and red connector (no text or symbols visible)

Figure 5-9

No.	Wire Color Definition
1	Red DC 12V
2	Black Ground
3	Black (thick)	PoE, Ethernet

5.5.2 Power Connection

There are two ways to supply power to the camera:

• Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.

• Plug the power adapter to the 12V terminal block as shown below. The power adapter is an optional device.

• Insert the black wire of the data cable to the left pin (-) and the red wire to the right pin (+).

Green electrical component with black and red terminals, connected by black and red lines (no text or symbols)

Figure 5-10

1. Connect the DC 12V power adapter to the terminal block.

Terminal Block DC 12V Power Adaptor

Figure 5-11

Note: The Power Adaptor is not supplied in the packing list. You need to self-prepare this item.

5.6 Loading Factory Default

Press and hold the default button for about 8 seconds to restore the factory default. For details see 1.5 Loading Factory Default

Default button

Figure 5-12

Chapter 6 Target Bullet Camera

(Part II)

The Target Bullet Camera is a light-weighted camera designed for outdoor environments. It adheres to the IP67 standard and has full protection against dust and jets of water. The camera also allows automatic and precise control of exposure using its P-iris, producing images with better clarity and contrast. It offers an entry-level surveillance solution with all the essential features and excellent image quality.

Model No.		Specifications	Description
GV-EBL2101	Varifocal Lens	P-Iris, f: 3 ~ 9 mm,F/1.7, 1/2.7", ø 14 mmLens Mount	2 MP, H.264,Super Low Lux
GV-EBL2111	Motorized Varifocal Lens	P-Iris, f: 2.8 ~ 12 mm,F/1.7, 1/2.7", ø 14 mmLens Mount	2 MP, H.264,Super Low Lux
GV-EBL3101	Varifocal Lens	P-Iris, f: 2.8 ~ 12 mm,F/1.7, 1/2.7", ø 14 mmLens Mount	3 MP, H.264,Super Low Lux

6.1 Packing List

• Target Bullet Camera
- Sun-shield Cover

Gray rectangular object with a logo and text, no readable document content

- Screw for Supporting Rack x 3

- Screw for Sun-shield Cover x 2

- RJ45 Connector

- Screw for Mounting Kit x 3

- Hex Wrench

• GV-NVR Software DVD

- Silica Gel Bag x 2

Two identical dark rectangular blocks with no visible text, numbers, or symbols.

- Screw Anchor x 3

- Washer x 2

- Terminal Block

- Nut for Mounting Kit x 3

• GV-IPCAM Software DVD

- Warranty Card

Note: Power adapter can be purchased upon request.

6.2 Features

• 1/2.8" progressive scan super low lux CMOS
• Dual streams from H.264 or MJPEG
- Up to 30 fps at 1920 x 1080 (for GV-EBL2101 / 2111); Up to 30 fps at 2048 x 1536 (for GV-EBL3101)
- Intelligent IR
• Day and night function (with removable IR-cut filter)
- Megapixel lens
• P-Iris lens for auto Iris control
• DC 12V / PoE (IEEE 802.3af)
• Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- Wide Dynamic Range (WDR) (for GV-EBL2101 / 2111); Wide Dynamic Range Pro (WDR Pro) (for GV-EBL3101)
• 3D noise deduction
- Defog
- Motion detection
- Tampering alarm
- Text overlay
- Privacy mask
- IP address filtering
- Recording assigned by GV-Edge Recording Manager (Windows & Mac)
• Support for iPhone, iPad, Android and 3GPP
• 31 languages on Web interface
• ONVIF (Profile S) conformant

6.3 Overview

Cross-sectional and top views of a mechanical device showing internal components and a circular lens assembly (no text or symbols visible)

Figure 6-1

No.	Name	Description
1	Zoom	Screw Holds the	zoom lens in place.
2	Focus	Screw Holds the	focus lens in place
3	Default	Button	Resets all configurations to factory default. For details, see 6.6 Loading Factory Default.

6.4 Installation

You can install the camera to the ceiling or wall. Follow the steps below.

1. Replace the Silica Gel Bag.

A. Remove the camera cover from the camera.

no stop No stop

Figure 6-2

B. Loosen the camera's screws and the hexagon pillars as indicated below.

Two circular cameras with LED indicators and blue arrows indicating camera direction (no text or symbols)

Figure 6-3

C. Take out the camera from the camera body

Exploded view of an electric motor showing internal components and wiring (no text or symbols visible)

Figure 6-4

D. Cut the 2 silica gel bags apart with scissors, and place the new silica gel bags at the lower half of the camera body.

Close-up of a mechanical component with exposed wiring and internal structure (no text or symbols visible)

Figure 6-5

1. Secure the 2 hexagon pillars to the upper and lower holes of camera module as indicated below.

Close-up of a circular electronic device with visible lens and wiring, no text or symbols present

Figure 6-6

1. Secure the camera cover.
2. Slide the sun-shield cover onto the top of the camera. You can also secure the sun shield cover onto the back of the camera. Adjust the position of the cover before fully securing the cover with the washer and the screw.

Close-up of a white medical device with a blue arrow pointing left, labeled 'GeoVision' (no other text or symbols visible)

Close-up of a white GE oil lamp with a metallic handle and logo (no readable text or symbols beyond branding)

Figure 6-7

Note:

1. The GeoVision logo on the sun-shield cover should be closer to the front of the camera.

2. There are two holes for the screws at the back of the camera. You only need to fasten one screw to secure the sun shield cover.

3. Thread the Ethernet cable into the camera. For details, see step 6, 3.4 Installation.

Three black plastic electrical connectors with internal wiring and a blue arrow indicating a process (no text or symbols)

Figure 6-8

Note: If you can't plug the self-prepared RJ-45 connector into the jack of the conduit, it is suggested to use the supplied RJ-45 connector.

1. Install the camera to the wall or ceiling using the screw anchors and screws for supporting rack.

Close-up of a white cylindrical device with blue directional arrows pointing to its side (no text or symbols visible)

Figure 6-9

IMPORTANT: To avoid waterproofing failures, the top of the camera must be facing upward for wall mount.

TOP

1. Connect the wires and cable connector to the camera. See 5.5 Connecting the Camera.

2. Access the live view. For details, see 3.1. Accessing the Live View, GV-IPCam Firmware Manual.

3. Adjust angles of the camera body based on the live view.

6.4.1 Adjusting the Angles

GV-EBL2101 / 2111 / 3101 are designed to be adjustable in two shafts for easy and flexible installation.

You can adjust the camera base by 360^ and the camera body to the desired angle by tilting the camera module. For details, see 3.4.1 Adjusting the Angles.

Four-panel diagram showing a camera module with blue directional arrows indicating rotation, no text or symbols present.

Figure 6-10

6.4.2 Adjusting Lens

To adjust the camera's zoom and focus, follow the steps below.

1. Loosen the camera's cover. See Figure 6-2.
2. To adjust for image clarity by adjusting the focus and zoom screws. For details, see 2.2 Adjusting Image Clarity, GV-IPCam Firmware Manual.

Zoom Screw Focus Screw

Figure 6-11

6.5 Connecting the Camera

6.5.1 Wire Definition

The data cable provides connections for power, ground and network access. The wires are defined below:

Exterior view of a white security camera with attached cable and connector (no text or symbols visible)

Figure 6-12

No.	Wire Color Definition
1	Red DC 12V
2	Black Ground
3	Black (thick)	PoE, Ethernet

6.5.2 Power Connection

For details, see 5.5.2 Power Connection.

Note: The Power Adaptor is not supplied in the packing list. You need to self-prepare this item.

6.6 Loading Factory Default

Press and hold the default button for about 8 seconds to load the factory default. For details, see 1.5 Loading Factory Default.

Default button

Figure 6-13
