Indoor Dome Series Hardware Manual

B51, B52, B53

2014/01/06

Table of Contents

Precautions 4

Safety Instructions 6

Introduction......7

The List of Models 7

Package Contents......8

Physical Description 9

Mounting Options....11

Other Mounting Accessories 13

Before Installation....14

Prepare the Power Adapter (Optional)....14

Prepare the DI/DO and Audio Input / Output Connector (Optional)..... 16

How to Connect DI/DO Devices....16

How to Connect Audio Devices....19

Installing the Camera on a Surface 20

Step 1: Drill the Holes....20

Step 2: Open the Dome Cover 21

Step 3: Install the Camera to the Surface....22

Step 4: Connect the Cable(s)....23

Step 5: Access the Camera Live View....23

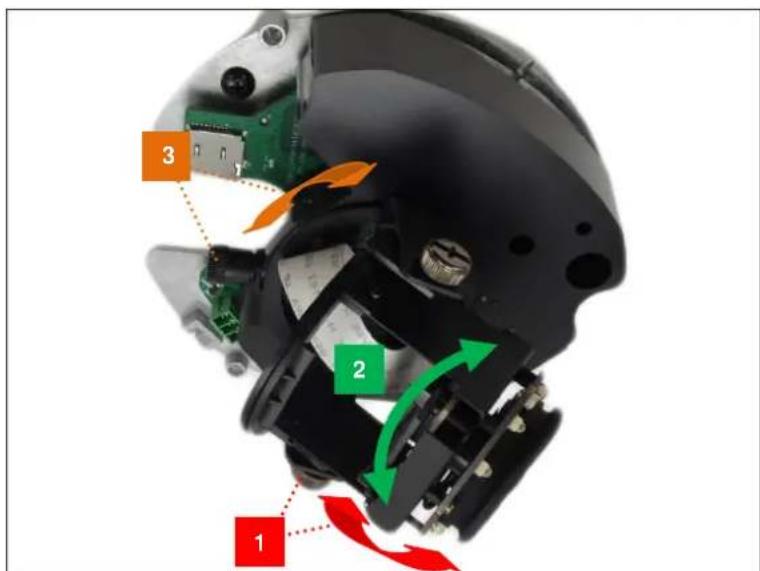

Step 6: Adjust the Viewing Angle and Focus ...... 24

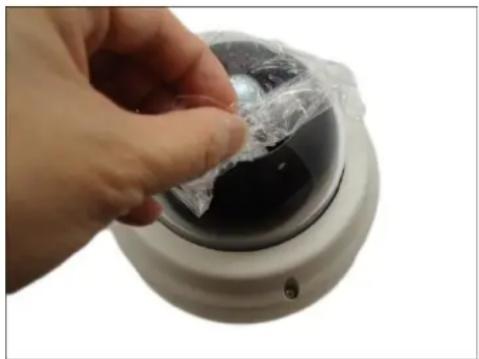

Step 7: Close the Dome Cover....25

Other Adjustments and Accessories ...... 27

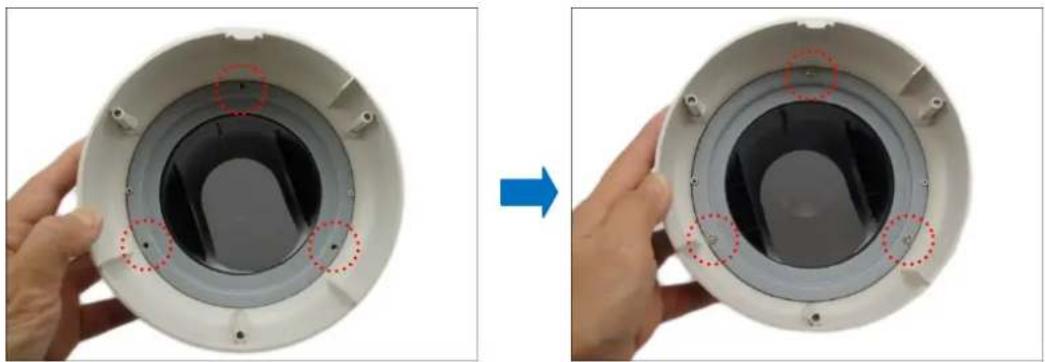

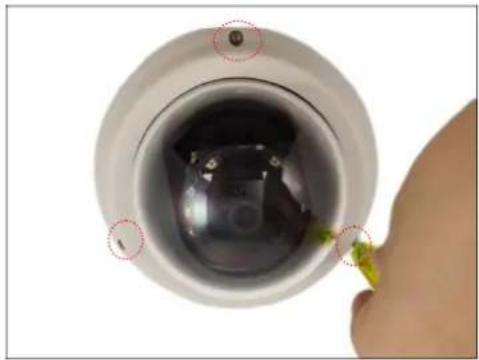

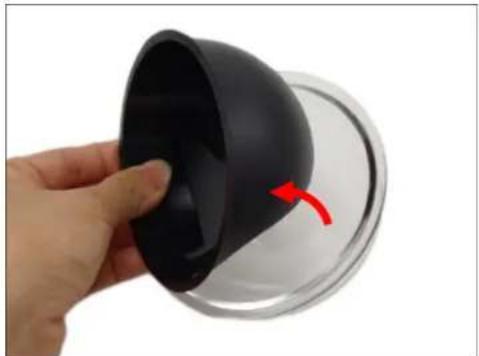

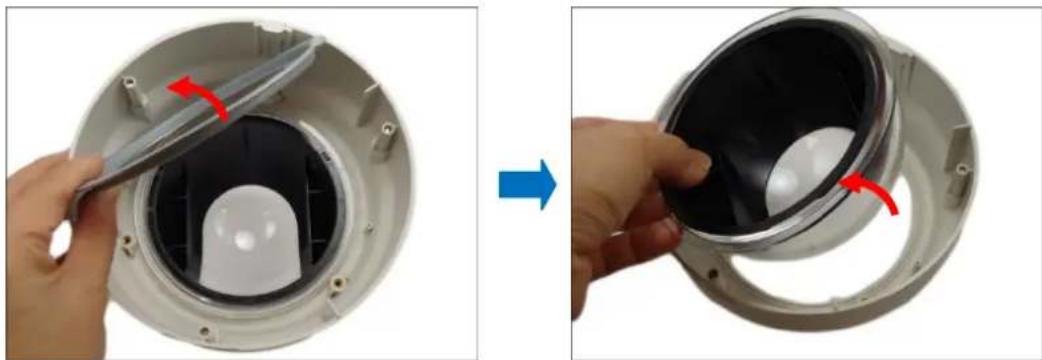

How to Replace the Dome Cover....27

Using a Memory Card....30

How to Insert the Memory Card 30

How to Remove the Memory Card.... 30

Accessing the Camera 31

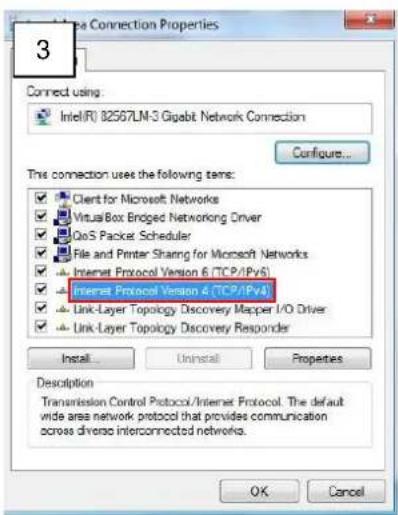

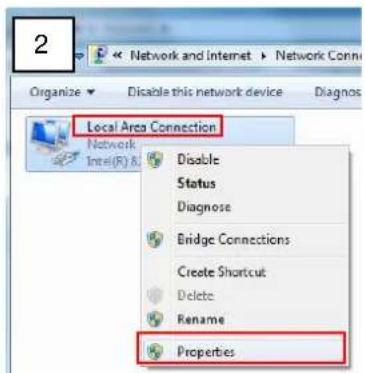

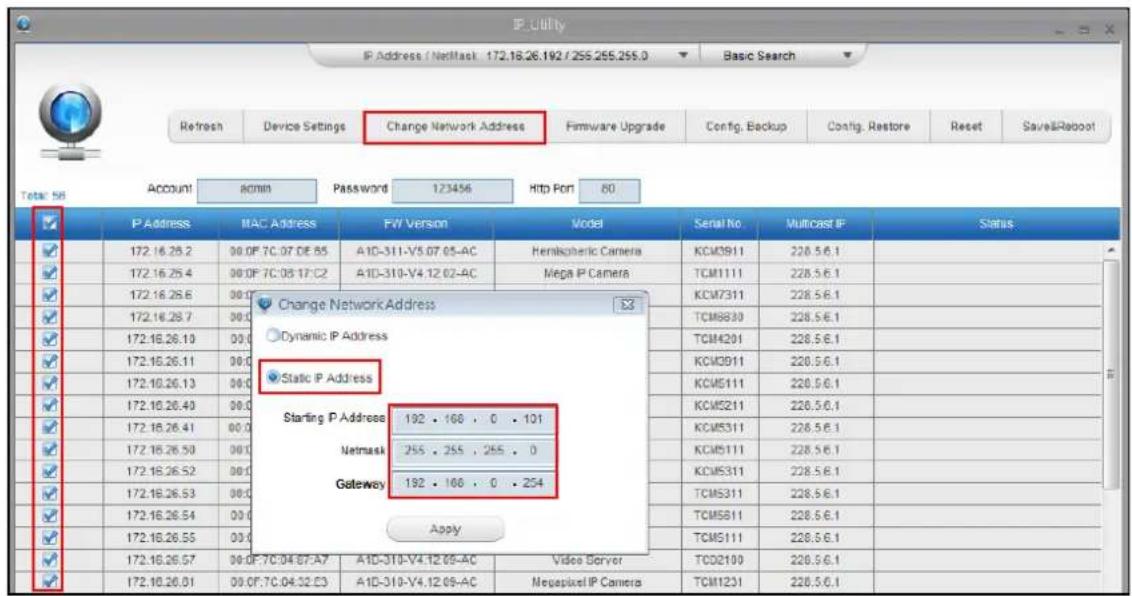

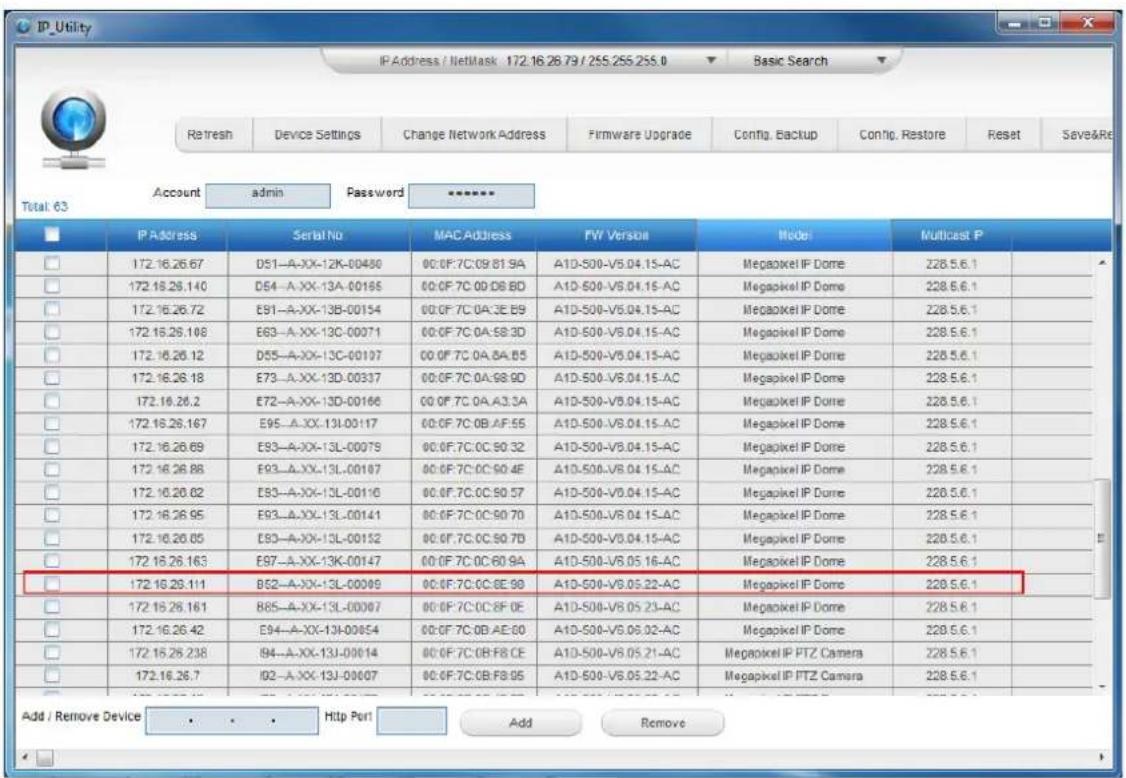

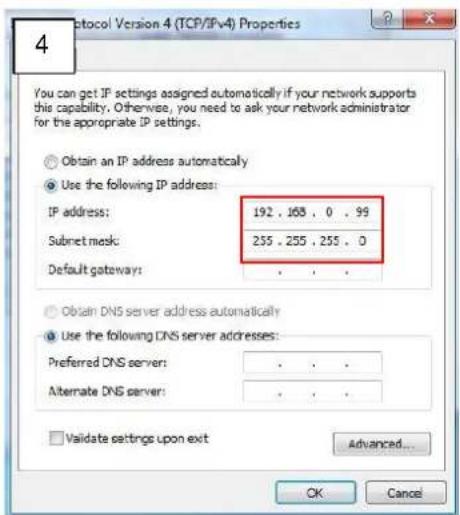

Configure the IP Addresses.... 31

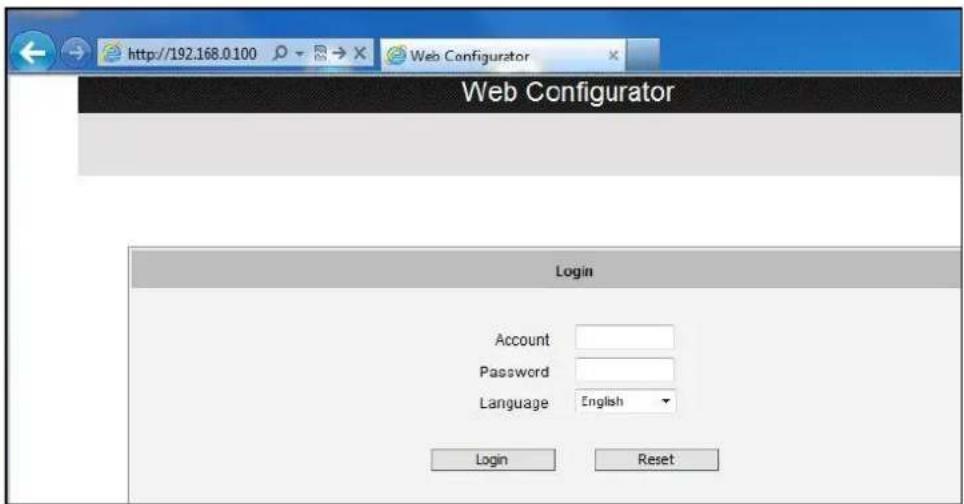

Access the Camera....35

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice.

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the responsible party for compliance could void the user's authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures.

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

Do not use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself. Refer all servicing to qualified service personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the inner parts of video product have been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in this manual. Adjust only those controls that are covered by the instruction manual, as an improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition.

Introduction

The List of Models

This hardware manual contains the following models:

B51		5MP Indoor Dome with D/N, Adaptive IR, Basic WDR, Fixed lens
B52		10MP Indoor Dome with D/N, Adaptive IR, Basic WDR, Fixed lens
B53		3MP Indoor Dome with D/N, Adaptive IR, Superior WDR, Fixed lens

Package Contents

Camera	Mounting Screw Kit	Hexagon Screwdriver
Drill Template	Terminal Block (for Power)	Terminal Block (for Audio and DI/DO)
Quick Installation Guide	Warranty Card

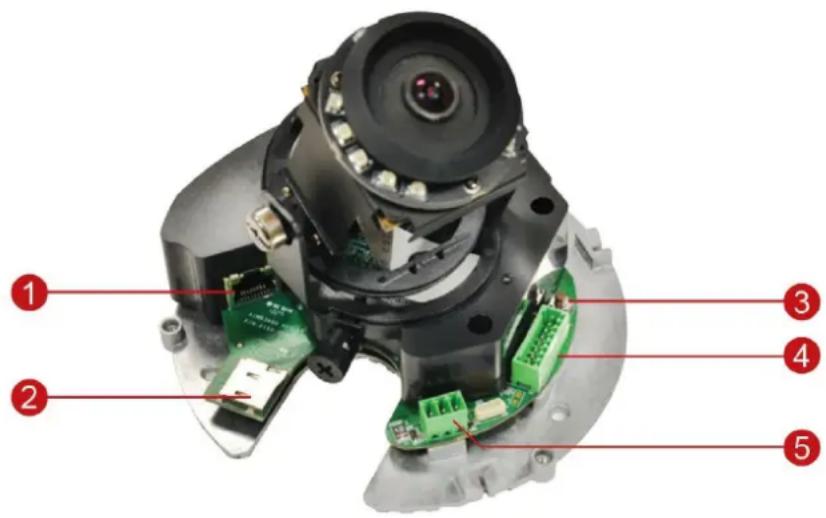

Physical Description

Labeled diagram of an optical device showing internal components and parts with numbered annotations

1) Ethernet Port

Connects to a network using an Ethernet cable.

2) Memory Card Slot

Insert a memory card (not included) into this slot for local recording purposes. See Using a Memory Card on page 30 for more information.

NOTE: Supports microSDHC and microSDXC cards.

3) Reset Button

The purpose of reset button is to restore the factory default settings of the camera, including the administrator's password.

When to use the reset button?

1. The administrator's password has been forgotten and therefore the camera cannot be accessed.
2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to modify these settings.
3. In case of connectivity issues or abnormal video quality.

How to do the reset properly?

Press and hold the reset button for 5 seconds.

4) Digital Input / Output (DI/DO) and Audio Input / Output

This connector connects to digital input or output devices, such as an alarm trigger, panic button, etc., as well as audio input and output devices, such as microphones and speakers. Digital Input (DI) and Digital Output (DO) devices are used in applications like motion detection, event triggering, alarm notifications, etc. See Prepare the DI/DO and Audio Input / Output Connector (Optional) on page 16 for more information.

5) DC 12V Power Input

In case the camera is connected to a non-PoE (Power over Ethernet) switch, use this connector to connect the camera to an external power adapter (not included). See Prepare the Power Adapter (Optional) on page 14 for more information.

Mounting Options

There are several mounting options that you can use to install the camera. Select the most suitable solution for your installation environment.

Mount Types	Accessories
Surface Mount	Suitable when mounting the camera directly on walls or ceilings without extra accessories. SeeInstalling the Camera on a Surfaceon page 20 for mounting instructions.
Flush Mount	Suitable when mounting the camera discretely above dropped ceilings wherein only the dome cover will be visible underneath the ceiling.
	PMAX-1003
Gang Box Converter	Suitable for locations which require the use of gang boxes. The Gang Box Converter can be attached to a “two-gang” or 4” square gang box. Then, the camera can be installed on the Gang Box Converter. All cables are hidden inside the gang box.
	PMAX-0803
Pendant Mount	Suitable when mounting the camera on hard and high ceilings.
	PMAX-0101 PMAX-0103 (Straight Tube with Bracket)
	PMAX-0101 PMAX-0102 (Straight Tube)
Straight Wall Mount	Suitable when mounting the camera on straight walls.
	PMAX-0308 (L-Type Wall Mount)
	PMAX-0101	PMAX-0305 (Heavy Duty Wall Mount)
Vertical Pole Mount	Suitable when mounting the camera on vertical poles.
	PMAX-0101	PMAX-0305	PMAX-0503
Horizontal Pole Mount	Suitable when mounting the camera on horizontal poles.
	PMAX-0101	PMAX-0102	PMAX-0503
Corner Mount	Suitable when mounting the camera on a corner wall.
	PMAX-0101	PMAX-0305	PMAX-0402

Other Mounting Accessories

Accessories

PMAX-0104 (Extension Tube)

NOTE:

• For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector).
• The above mounting accessories are not included in the package. Contact your sales agents to purchase.

Before Installation

This section describes the procedures in preparing the external devices that you can connect to the camera. The camera supports DC12V power input, Digital Input and Output (DI/DO) and Audio Input and Output devices using the bundled terminal blocks. The use of these devices, however, is optional.

Prepare the Power Adapter (Optional)

In case of using a non-PoE switch or your PoE switch has limited power supply, you can purchase a power adapter and directly connect the camera to a power outlet. The power adapter must be connected to the supplied terminal block before use.

To do this, follow the procedures below:

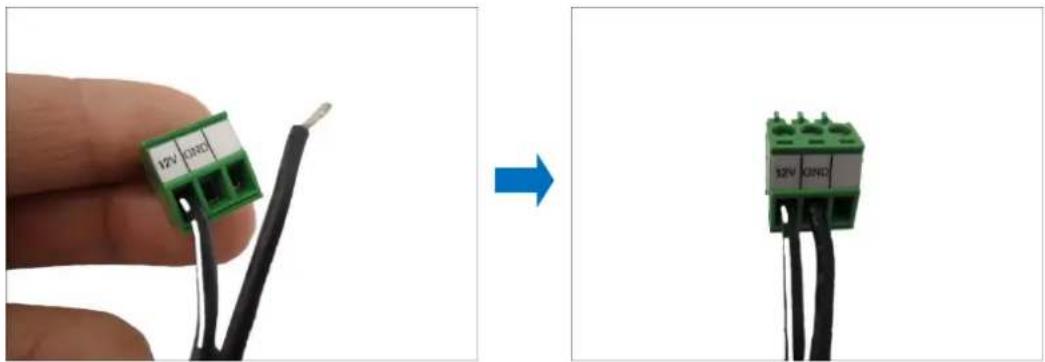

1. Loosen the screws of the 12V and GND pins of the power terminal block.

Close-up of a green electrical connector being inserted with a black tool, no visible text or symbols

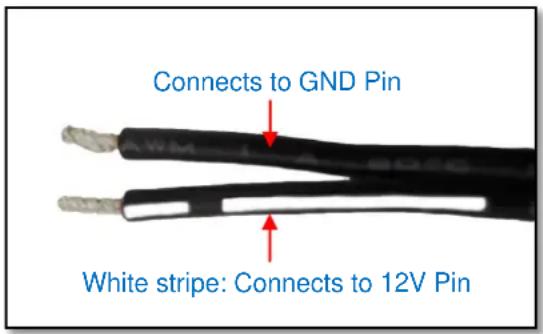

1. Take note that a standard power adapter cable has two (2) different wires:

Connects to GND Pin White stripe: Connects to 12V Pin

1. Connect the wire with the white stripe to the 12V pin and the other to the GND pin.

Close-up of a green terminal block with 12V and 20Hz labels being inserted, showing wiring deformation (no text or symbols on the components)

1. Tighten the screws of the 12V pin and the GND pins to secure the wire connection.

Close-up of a green electrical connector with red dashed lines indicating connection points (no text or symbols visible)

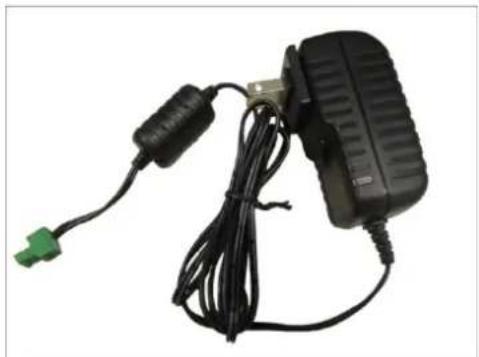

1. Set the prepared power adapter for connection later. Below is an example of a power adapter with an attached terminal block.

Black electronic device with attached cable and connector, no visible text or symbols

NOTE: The power adapter is not bundled in the package.

Prepare the DI/DO and Audio Input / Output Connector (Optional)

Depending on your surveillance needs, you may connect digital input / output or audio input / output devices to your camera. The camera comes with one (1) terminal block for both digital and audio input / output devices.

How to Connect DI/DO Devices

Digital Input (DI) devices can be used to notify the camera about an activity in the camera site. DI can be triggers of events. For example, you can connect a “panic button” to the camera; as such when the panic button is pressed, the alarm signal will be sent through the camera. Other common DI device applications are emergency button, smoke detector, passive infrared sensor, etc.

Digital Output (DO) devices are external devices that are activated by the camera upon an event inside the camera. For example, you can connect an “alarm horn” to the camera; as such when an event occurs inside the camera (e.g. detected intruder), the alarm horn will sound. Other common DO device applications are motion-triggered lights, electric fence, magnetic door locks, etc.

Press and hold the orange tab as you insert the wire through the pin slot, then release the orange tab to secure the wire.

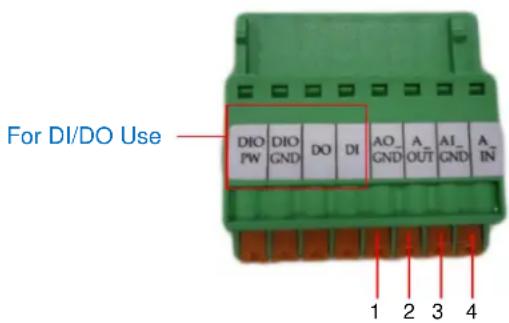

DIO PW DIO GND DO DI AO_ GND A_ OUT AI_ GND A_ IN For Audio Use 1 2 3 4

To connect digital input / output devices (DI/DO), map the pins to one of the pin combinations below:

Device	Pin		Mapping Instructions
Digital Output (DO)	1	DIO PW	Connect the wires of the output device to DIO PW (Pin 1) and DO (Pin 3).
	3	DO
Digital Input (DI)	2	DIO GND	Connect the wires of the input device to DIO GND (Pin 2) and DI (Pin 4).
	4	DI

The table below shows the DI/DO connection specifications:

Device
DI	Connection design		TTL - compatible logic levels
	Voltage	To trigger (low)	Logic level 0: 0V ~ 0.4V
		Normal (high)	Logic level 1: 3.1V ~ 30V
	Current		10mA ~ 100mA
DO	Connection design		Transistor (Open Collector)
	Voltage & Current		< 24V DC, < 50mA

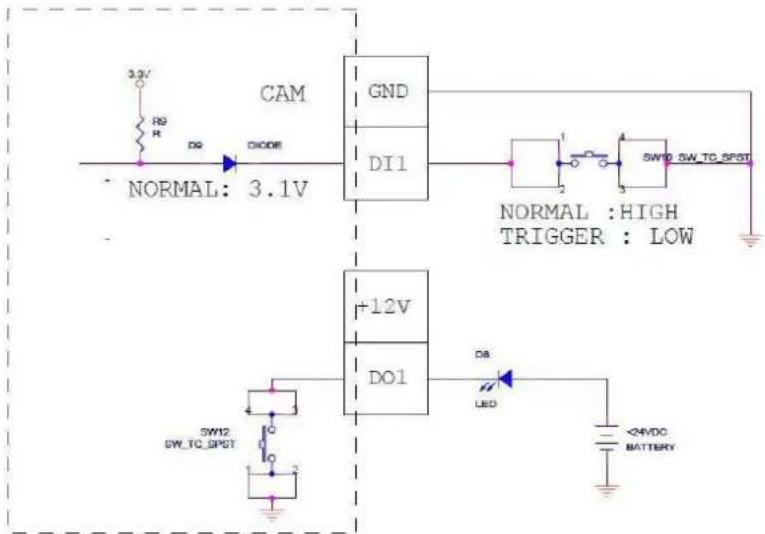

Typical Connection

Based on these specifications, if the DI device has a voltage of 0V \~ 30V or the DO device has a voltage of < 24V (< 50mA), then the camera can supply internal power to these devices and there is no need to connect the DI/DO device to an external power source.

In this case, wire connection to Pins 1 to 4. Use the DIO GND and DI pins to connect a DI device and use the DIO PW and DO pins to connect a DO device. See wiring scheme below:

3.3V R9 R DQ DIODE NORMAL: 3.1V GND DI1 1 2 SW10 SW_TC_SPST NORMAL : HIGH TRIGGER : LOW +12V DO1 DA LED SW12 SW_TC_SPST <24VDC BATTERY

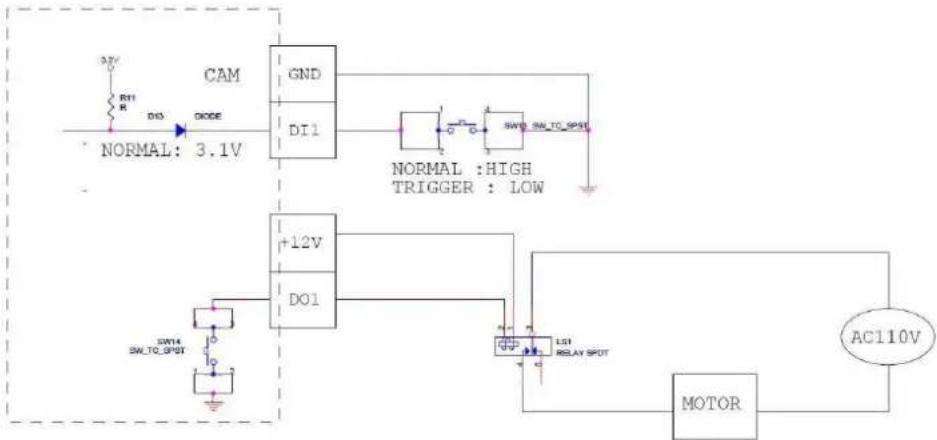

High Voltage DO Device Connection

Even though the camera provides 12V power, this may not be enough for some high voltage DO devices, such as a ceiling light or a motor that opens or closes a gate. In this case, there is a need to connect an external relay. See wiring scheme below:

Note that when choosing an appropriate relay, please refer to its specifications and make sure they match the above design. The triggering circuit voltage has to be around 12V DC and the switch-controlled circuit voltage has to match the external power supply (e.g. 110V AC or 220V AC).

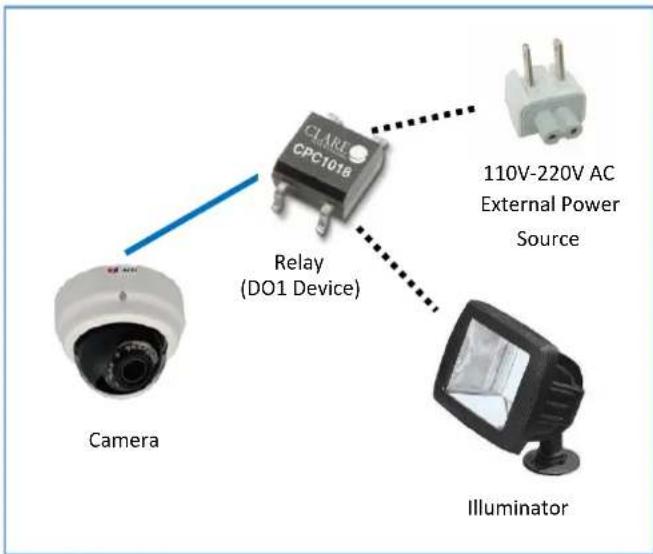

The illustration below is a graphic example of connecting a relay to a high voltage DO device.

CLARU CPC1018 Relay (DO1 Device) Camera 110V-220V AC External Power Source Illuminator

NOTE: For more information on DI/DO connections, please refer to the Knowledge Base article All about Digital Input and Digital Output downloadable from the link below (http://www.acti.com/kb/detail.asp?KB_ID=KB20091230001).

How to Connect Audio Devices

Audio input / output devices, such as an active microphone or speaker can be connected to the camera using the supplied terminal block.

Press and hold the orange tab as you insert the wire through the pin slot, then release the orange tab to secure the wire.

For DI/DO Use DIO PW DIO GND DO DI AO_ GND A_ OUT AI_ GND A_ IN 1 2 3 4

To connect audio devices, map the pins to one of the pin combinations below:

Device	Pin		Mapping Instructions
Audio Output (AO)	1	AO_GND	Connect the wires of the audio output device to AO_GND (Pin 1) and A_OUT (Pin 2).
	2	A_OUT
Audio Input (A1)	3	AI_GND	Connect the wires of the audio input device to AI_GND (Pin 3) and A_IN (Pin 4).
	4	A_IN

NOTE: For more information about AUDIO in connections, please refer to the Knowledge Base article How to Use Audio-in of ACTi Cameras, downloadable from the link below (http://www.acti.com/support/KnowledgeBase/outside/detail.asp?KB_ID=KB20100114003).

Installing the Camera on a Surface

This section describes the procedures in installing the camera on a flat surface such as a hard or dropped ceiling and straight or tilted walls. Before installation, make sure the wall or the ceiling can bear more than the weight of the camera.

Step 1: Drill the Holes

Before drilling the holes on the ceiling or wall, note the direction of the connectors side of the camera, which is also the opposite side of the camera logo. This influences the camera placement and where you should drill the hole where the cables will pass through or how the cables will go along the ceiling or wall.

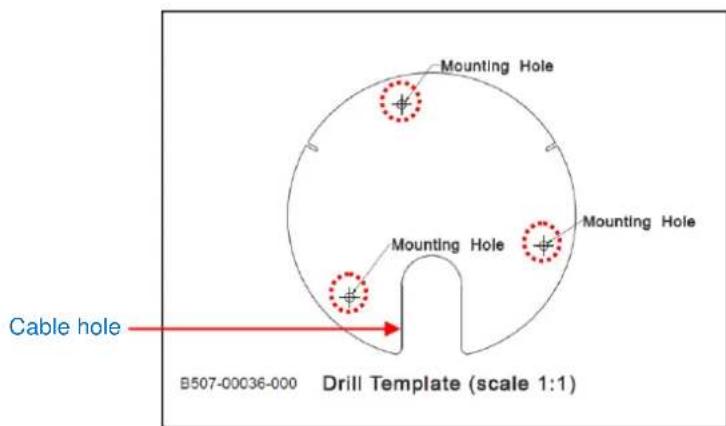

1. Use the supplied drill template to mark the screw holes on the surface according to the preferred orientation.
2. Determine how the cables will be routed: pass through the surface or along the surface.

- If the cables will pass through the surface, drill the cable hole and the three (3) screw holes on the surface.

Mounting Hole Mounting Hole Mounting Hole Cable hole B507-00036-000 Drill Template (scale 1:1)

- If the cables will be routed along the surface, just drill the three (3) screw holes on the surface.

1. Insert the plastic plugs into the screw holes.

Step 2: Open the Dome Cover

NOTE: To avoid scratches or leaving fingerprints on the dome cover, it is recommended to retain the plastic covering the dome cover until the camera is completely installed.

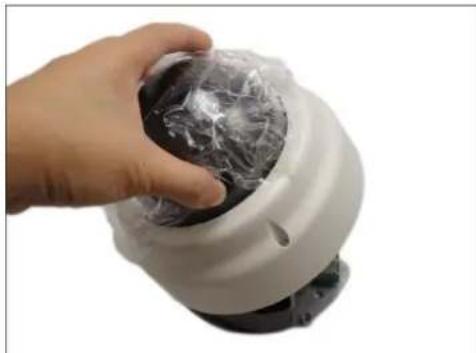

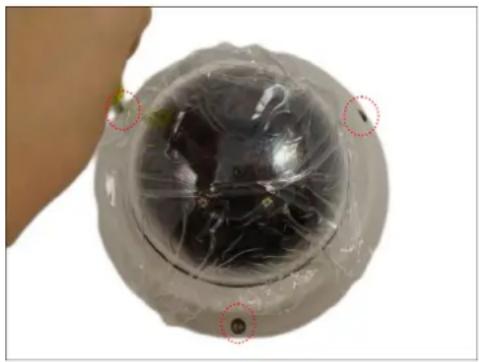

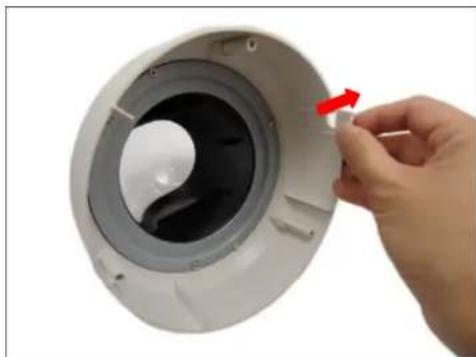

1. With the bundled hex screwdriver, loosen the three (3) screws securing the dome cover.

Close-up of a transparent dome-shaped object with internal dark structure, held by a hand (no text or symbols visible)

1. Lift to remove the dome cover.

Hand holding a wrapped black object over a white mechanical device (no text or symbols visible)

1. If the cables will be routed along the ceiling or wall, remove the cable tab from the dome cover.

Hand holding a small object inside a white circular device with a red arrow pointing to it (no text or symbols visible)

1. If the cables will pass through the ceiling or wall, route and pull the cables through the hole on the surface.

Step 3: Install the Camera to the Surface

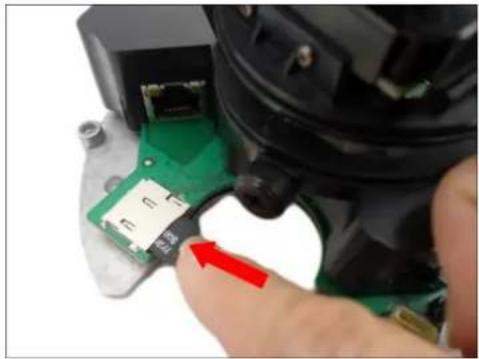

1. If necessary, insert a memory card, with the metallic contacts facing down, into the card slot of the camera.

Close-up of a hand inserting a green circuit board into a black mechanical component, with a red arrow indicating the next component (no visible text or symbols)

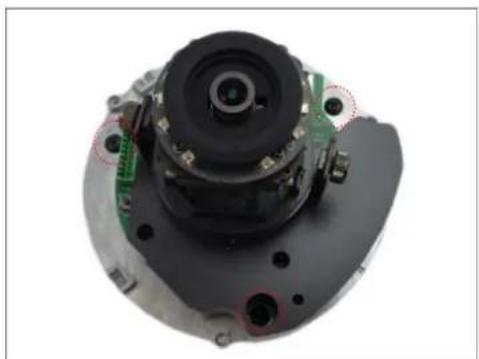

1. Align the camera screw holes and the cable hole (if necessary) to the holes on the surface and attach the three (3) supplied screws to secure the camera.

Close-up of a mechanical component with visible mounting holes and circuit board (no text or symbols)

CAUTION: When using electric screwdrivers, be careful not to touch the camera components while attaching the screws. Since electric screwdrivers vary in sizes, speed, and force, they may bruise and damage the camera components.

DISCLAIMER: ACTi will not be responsible for camera damage caused by improper installations or the misuse of equipment for installation.

Step 4: Connect the Cable(s)

1. Connect the network cable to the Ethernet port of the camera.

If necessary, connect other cable connectors (optional), like audio input/output, DI/DO, and DC 12V power to the corresponding connectors on the camera.

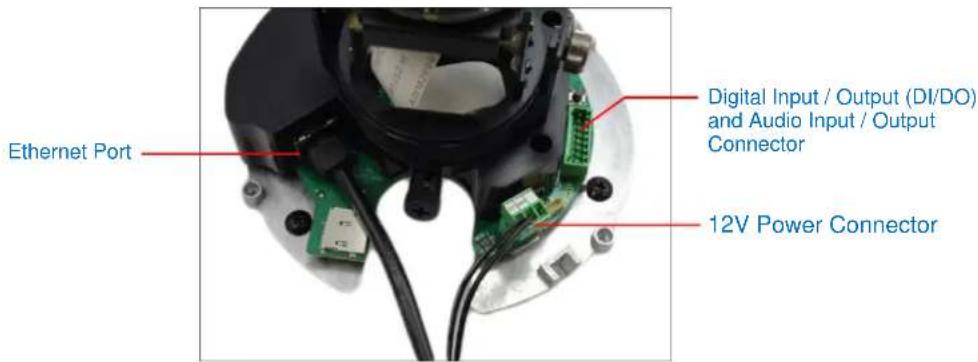

Ethernet Port Digital Input / Output (DI/DO) and Audio Input / Output Connector 12V Power Connector

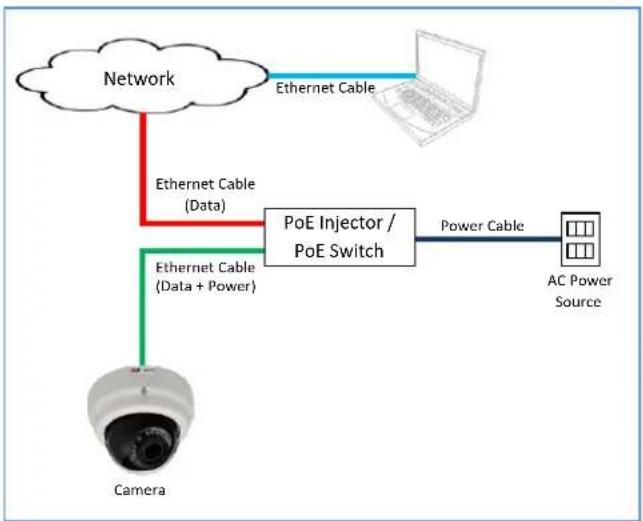

1. Connect the other end of the network cable to a switch or injector. Then, connect the switch or injector to a network, PC and a power source. See Power-over-Ethernet (PoE) connection example below.

Step 5: Access the Camera Live View

See Accessing the Camera on page 31 for more information on how to access the Live View of the camera.

Step 6: Adjust the Viewing Angle and Focus

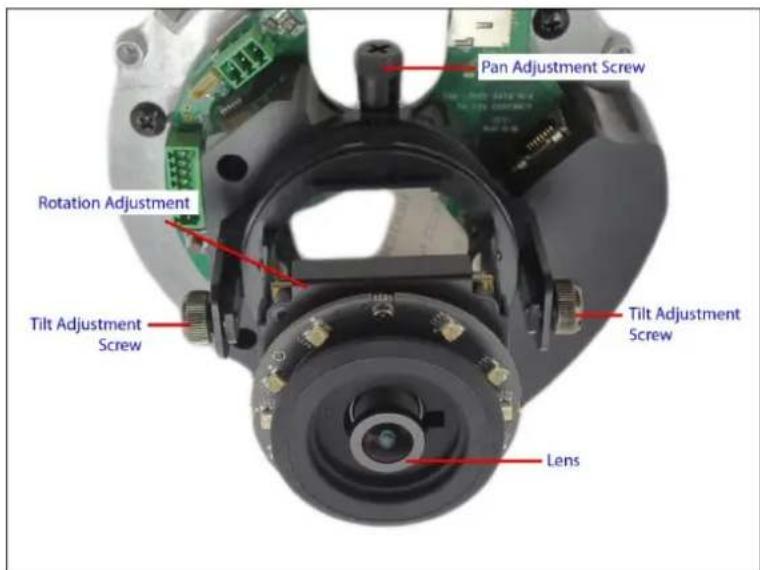

Camera Parts Overview

Pan Adjustment Screw Rotation Adjustment Tilt Adjustment Screw Tilt Adjustment Screw Lens

Adjustment Procedures

Technical diagram of a robotic head with labeled parts and directional arrows indicating motion or movement.

1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix the tilt position.
2. Turn the rotation adjustment to rotate the viewing orientation.
3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the screw to fix the pan position.

Step 7: Close the Dome Cover

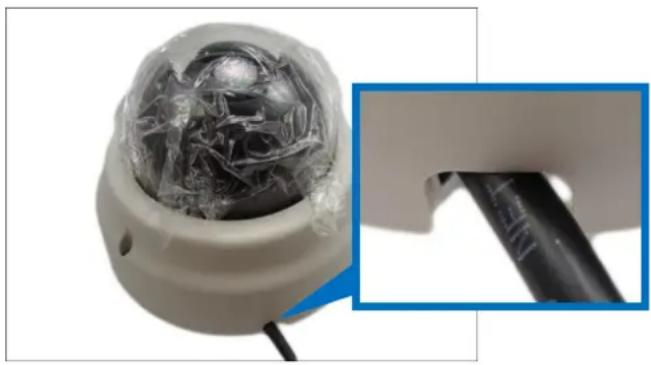

1. Align the screws with the screw holes of the camera. Note that if the cables are routed along the ceiling or wall, route the cable to pass through the cable hole on the dome cover.

Close-up of a damaged electrical component with exposed wiring and plastic wrap, alongside a close-up of its cable (no text or symbols visible)

1. Tighten the three (3) screws to attach the dome cover to the camera body.

Close-up of a transparent dome-shaped object with internal structure and two red-circled points, no visible text or symbols.

1. Remove the plastic covering the dome cover.

Hand holding a transparent plastic film over a black spherical object (no text or symbols visible)

Final installation should look similar to the illustration below.

Close-up of a spherical security camera with a glossy black dome and a small metallic sensor mounted on top (no text or symbols visible)

Other Adjustments and Accessories

How to Replace the Dome Cover

For more discrete surveillance needs, the bundled dome cover can be replaced with a smoke, vandal proof cover available for purchase. To replace the dome cover, do the following:

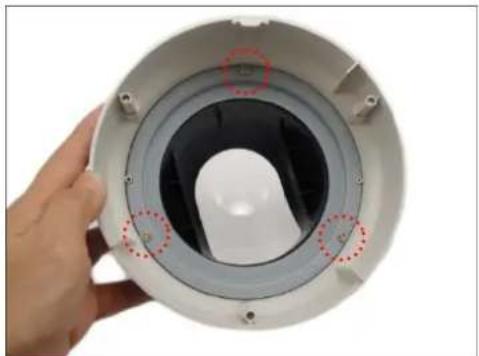

1. Loosen the three (3) screws to open the dome cover.

Close-up of a surveillance camera lens with red and green circular markers, no visible text or symbols

1. Remove the three (3) screws to detach the bracket.

Close-up of a white circular mechanical component with red dotted annotations highlighting features (no text or symbols visible)

1. Remove the bracket and dome cover from the cover housing.

Two-step photo showing a hand holding a device inside a circular housing, with red arrows indicating the process (no text or symbols present)

1. Remove the shroud from the dome cover.

Hand holding a black dome-shaped object with a red arrow indicating rotation (no text or symbols)

1. Place the shroud on the replacement dome cover.

Hand holding a black dome-shaped object with a red arrow indicating rotation (no text or symbols)

1. Insert the replacement dome cover into the cover housing.

Close-up of a hand holding a white ceramic bowl with a black dome, showing a red arrow pointing to the lid (no text or symbols visible)

1. Align and attach the three (3) screws to secure the bracket to the cover housing.

Two views of a mechanical component before and after assembly, showing internal structure and mounting holes (no text or symbols)

1. Attach the dome cover to the camera by tightening the three (3) screws. Final installation should look similar to the illustration below.

Close-up of a hand holding a black spherical object with red dotted circles, before and after transformation (no text or symbols visible)

Using a Memory Card

The camera supports local video recording or saving of snapshots to a memory card.

NOTE: Supports microSDHC and microSDXC cards.

How to Insert the Memory Card

Insert a memory card into the card slot with the metallic contacts facing down the camera. Push the card until it clicks into place.

Close-up of a hand inserting a green circuit board into a black electronic device, with a red arrow pointing to the component (no visible text or symbols)

How to Remove the Memory Card

In case there is a need to remove the card, make sure to access the camera Web Configurator to safely "unmount" the card first (see the camera Firmware manual for more information). Once unmounted from the firmware, push the card to eject it from the slot.

Accessing the Camera

Configure the IP Addresses

In order to be able to communicate with the camera from your PC, both the camera and the PC have to be within the same network segment. In most cases, it means that they both should have very similar IP addresses, where only the last number of the IP address is different from each other. There are 2 different approaches to IP Address management in Local Area Networks – by DHCP Server or Manually.

Using DHCP server to assign IP addresses:

If you have connected the computer and the camera into the network that has a DHCP server running, then you do not need to configure the IP addresses at all – both the camera and the PC would request a unique IP address from DHCP server automatically. In such case, the camera will immediately be ready for the access from the PC. The user, however, might not know the IP address of the camera yet. It is necessary to know the IP address of the camera in other to be able to access it by using a Web browser.

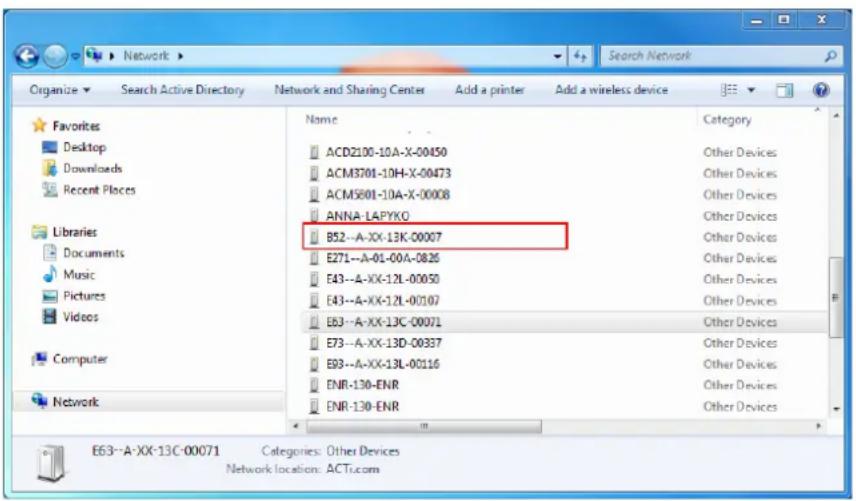

The quickest way to discover the cameras in the network is to use the simplest network search, built in the Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras.

In the example below, we successfully found the camera model that had just connected to the network.

Favorites Desktop Downloads Recent Places Libraries Documents Music Pictures Videos Computer Network Name ACD2100-10A-X-00450 ACM3701-10H-X-00473 ACM5801-10A-X-00008 ANNA-LAPYKO B52--A-XX-13K-00007 E271--A-01-00A-0826 E43--A-XX-12L-00050 E43--A-XX-12L-00107 E63--A-XX-13C-00071 E73--A-XX-13D-00337 E93--A-XX-13L-00116 ENR-130-ENR ENR-130-ENR Category Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices Other Devices

Double-click on the camera model name, the default browser of the PC is automatically launched and the IP address of the target camera is already filled in the address bar of the browser.

If you work with our cameras regularly, then there is even a better way to discover the cameras in the network – by using IP Utility. The IP Utility is a light software tool that can not only discover the cameras, but also list lots of valuable information, such as IP and MAC addresses, serial numbers, firmware versions, etc, and allows quick configuration of multiple devices at the same time.

The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility

With just one click, you can launch the IP Utility and there will be an instant report as follows:

IP_Utility IP Address / NetMask 172.16.28.79 / 255.255.255.0 Basic Search Refresh Device Settings Change Network Address Firmware Upgrade Config, Backup Config, Restore Reset Save&Re Account admin Password Total: 63 IP Address Serial No MAC Address FW Version Mode Multicast IP 172.16.26.67 D51-A-XX-12K-00480 00:0F:7C:0B:81.9A A1D-500-V5.04.15-AC Megapixel IP Dome 228.5.6.1 172.16.26.140 D54-A-XX-13A-00165 00:0F:7C:0B:8B.0A A1D-500-V5.04.15-AC Megapixel IP Dome 228.5.6.1 172.16.26.72 E91-A-XX-13B-00154 00:0F:7C:0A:3E.B9 A1D-500-V5.04.15-AC Megapixel IP Dome 228.5.6.1 172.16.26.108 E63-A-XX-13C-00071 00:0F:7C:0A:5B.3D A1D-500-V5.04.15-AC Megapixel IP Dome 228.5.6.1 172.16.26.12 D55-A-XX-13C-00107 00:0F:7C:0A:8A.B5 A1D-500-V5.04.15-AC Megapixel IP Dome 228.5.6.1 172.16.26.18 E73-A-XX-13D-00337 00:0F:7C:0A:9B.9D A1D-500-V5.04.15-AC Megapixel IP Dome 228.5.6.1 172.16.26.2 E72-A-XX-13D-00166 00:0F:7C:0A:A3.3A A1D-500-V5.04.15-AC Megapixel IP Dome 228.5.6.1 172.16.26.167 E95-A-XX-13I-00117 00:0F:7C:0B:A.F.S5 A1D-500-V5.04.15-AC Megapixel IP Dome 228.5.6.1 172.16.26.69 E93-A-XX-13L-00079 00:0F:7C:0C:9D 32 A1D-500-V5.04.15-AC Megapixel IP Dome 228.5.6.1 172.16.26.88 E93-A-XX-13L-00107 00:0F:7C:0C:9D 4E A1D-500-V5.04.15-AC Megapixel IP Dome 228.5.6.1 172.16.26.62 E93-A-XX-13L-00116 00:0F:7C:0C:9D 57 A1D-500-V5.04.15-AC Megapixel IP Dome 228.5.6.1 172.16.26.95 E93-A-XX-13L-00141 00:0F:7C:0C:9D 70 A1D-500-V5.04.15-AC Megapixel IP Dome 228.5.6.1 172.16.26.85 E93-A-XX-13L-00152 00:0F:7C:0C:9D 7D A1D-500-V5.04.15-AC Megapixel IP Dome 228.5.6.1 172.16.26.163 E97-A-XX-13K-00147 00:0F:7C:0C:9D 9A A1D-500-V5.05.16-AC Megapixel IP Dome 228.5.6.1 172.16.26.111 B52-A-XX-13L-00399 00:0F:7C:0C:9E 9D A1D-500-V5.05.22-AC Megapixel IP Dome 228.5.6.1 172.16.26.161 B85-A-XX-13L-00397 00:0F:7C:0C:9F 9E A1D-500-V5.05 23-AC Megapixel IP Dome 228.5.6.1 172.16.26.42 E94-A-XX-13J-00454 00:0F:7C:OB:A.E.CO A1D-500-V5.06.02-AC Megapixel IP Dome 228.5.6.1 172.16.26.238 B4-A-XX-13J-00444 00:0F:7C:OB:F8 CE A1D-500-V5.05 21-AC Megapixel IP PTZ Camera 228.5.6.1 172.16.26.7 IQ2-A XX-13J-03697 00:0F:7C:OB:F8 9S A1D-500-V5.05 22-AC Megapixel IP PTZ Camera 228.5.6.1 Add / Remove Device . . . . Http Port Add Remove

You can quickly notice the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.

Use the default IP address of a camera:

If there is no DHCP server in the given network, the user may have to assign the IP addresses to both PC and camera manually to make sure they are in the same network segment.

When the camera is plugged into network and it does not detect any DHCP services, it will automatically assign itself a default IP:

192.168.0.100

Whereas the default port number would be 80. In order to access that camera, the IP address of the PC has to be configured to match the network segment of the camera.

Manually adjust the IP address of the PC:

In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below:

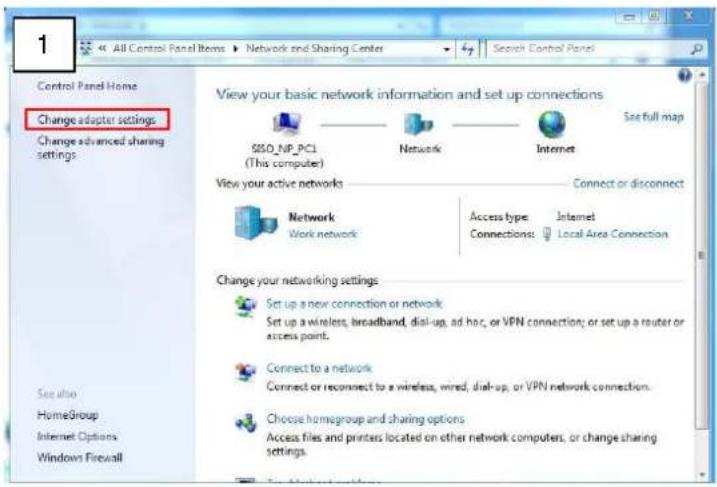

1 All Control Panel Items ▶ Network and Sharing Center ▶ Search Control Panel Control Panel Home Change adapter settings Change advanced sharing settings View your basic network information and set up connections SISO_NP_PCI (This computer) Network Internet See full map View your active networks Connect or disconnect Network Work network Access type: Internet Connections: Local Area Connection Change your networking settings Set up a new connection or network Set up a wireless, broadband, dial-up, ad hoc, or VPN connection; or set up a router or access point. Connect to a network Connect or reconnect to a wireless, wired, dial-up, or VPN network connection. Choose homegroup and sharing options Access files and printers located on other network computers, or change sharing settings. See also HomeGroup Internet Options Windows Firewall

2 Organize Enable this network device Diagnos Local Area Connection Network Inter(R) & Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties

3 Connect using: Intel(R) 32567LM-3 Gigabit Network Connection Configure... This connection uses the following items: Client for Microsoft Networks VirtualBox Extended Networking Driver QoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPvS) Internet Protocol Version 4 (TCP/IPv4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Install... Uninstall... Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

4 You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 0 . 99 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced... OK Cancel

Manually adjust the IP addresses of multiple cameras:

If there are more than 1 camera to be used in the same local area network and there is no DHCP server to assign unique IP addresses to each of them, all of the cameras would then have the initial IP address of 192.168.0.100, which is not a proper situation for network devices – all the IP addresses have to be different from each other. The easiest way to assign cameras the IP addresses is by using IP Utility:

IP Uthly IP Address / NetMask 172.16.26.192 / 255.255.255.0 Basic Search Refresh Device Settings Change Network Address Firmware Upgrade Config, Backup Config, Restore Reset Save&Robot Total: 56 Account admin Password 123456 Http Port 80 ✓ P Address MAC Address FW Version Model Serial No Multicast IP Status ✓ 172.16.26.2 00.0F 7C.07 DE 85 A1D-311-V5.07 05-AC Hemispheric Camera KCM3911 228.5.6.1 ✓ 172.16.26.4 00.0F 7C.08 17:C2 A1D-310-V4.12 02-AC Mega IP Camera TCM1111 228.5.6.1 ✓ 172.16.26.6 00.0 ✓ 172.16.26.7 00.0 ✓ 172.16.26.10 00.0 ✓ 172.16.26.11 00.0 ✓ 172.10.26.13 00.0 ✓ 172.10.26.40 00.0 ✓ 172.16.26.41 00.0 ✓ 172.16.26.50 00.0 ✓ 172.16.26.52 00.0 ✓ 172.16.26.53 00.0 ✓ 172.16.26.54 00.0 ✓ 172.16.26.55 00.0 ✓ 172.16.26.57 00.0F:7C:04:87:A7 A1D-310-V4.12 05-AC Video Server TCD2100 228.5.6.1 ✓ 172.10.26.01 00.0F:7C:04:32:E3 A1D-310-V4.12 05-AC Megapixel IP Camera TCM1231 228.5.6.1

With the procedure shown above, all the cameras will have unique IP addresses, starting from 192.168.0.101. In case there are 20 cameras selected, the last one of the cameras would have the IP 192.168.0.120.

Later, by pressing the "Refresh" button of the IP Utility, you will be able to see the list of cameras with their new IP addresses.

Refresh

Please note that it is also possible to change the IP addresses manually by using the Web browser. In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time.

Access the Camera

Now that the camera and the PC are both having their unique IP addresses and are under the same network segment, it is possible to use the Web browser of the PC to access the camera.

You can use any of the browsers to access the camera, however, the full functionality is provided only for Microsoft Internet Explorer.

The browser functionality comparison:

Functionality	Internet Explorer	Other browsers
Live Video	Yes	Yes^*
Live Video Area Resizable	Yes	No
PTZ Control	Yes	Yes
Capture the snapshot	Yes	Yes
Video overlay based configuration (Motion Detection regions, Privacy Mask regions)	Yes	No
All the other configurations	Yes	Yes

* QuickTime (http://www.apple.com/quicktime/download/) has to be installed in PC first before using any non-Internet Explorer browsers to be able to get live video feed from the camera with those browsers. It is a free and open source cross-platform multimedia player.

Disclaimer Notice: The camera manufacturer does not guarantee the compatibility of its cameras with QuickTime – since it is a third party software, the third party has the right to modify their utility any time which might affect the compatibility. In such cases, please use Internet Explorer browser instead.

When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case.

The examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera.

Assuming that the camera's IP address is 192.168.0.100, you can access it by opening the Web browser and typing the following address into Web browser's address bar:

http://192.168.0.100

Upon successful connection to the camera, the user interface called Web Configurator would appear together with the login page. The HTTP port number was not added behind the IP address since the default HTTP port of the camera is 80, which can be omitted from the address for convenience.

http://192.168.0.100 Web Configurator Web Configurator Login Account Password Language English Login Reset

Before logging in, you need to know the factory default Account and Password of the camera.

Account: Admin

Password: 123456

For further operations, please refer to the Firmware User Manual.
