Product Type	Security Camera (Zoom Box)
Model	I25
Resolution	2 Megapixels
Lens Type	Zoom lens, 30x optical zoom
Day/Night	Yes (with ICR filter)
Wide Dynamic Range	Extreme WDR
Power Supply	DC 12V or PoE (IEEE 802.3af)
Memory Card Slot	microSDHC/SDXC for local recording
Network Interface	10/100 Ethernet
Audio Input/Output	Yes (terminal block)
Digital Input/Output	Yes (DI/DO)
Serial Port	RS-485/422 for PTZ control
PTZ Protocol	Pelco-D/P
Mounting Options	Indoor bracket (optional), outdoor requires waterproof housing
Included Accessories	Terminal blocks (power, audio, DI/DO, serial), Quick Installation Guide
Web Interface	Web Configurator (Internet Explorer recommended)
Discovery Tool	IP Utility software
Reset Button	Yes (restores factory defaults)
LED Indicator	Power LED
Compliance	FCC Class B, CE
Cleaning	Disconnect power, use dry cloth
Safety	Read all instructions, heed warnings, refer servicing to qualified personnel
Spare Parts and Repairability	Only use manufacturer-recommended accessories; do not attempt self-service

Frequently Asked Questions - I25 ACTi

How do I reset the ACTi I25 camera to factory defaults?

Press and hold the Reset button using a paper clip for at least 5 seconds until the Power LED turns off. This restores default settings, including the administrator password.

What power options does the I25 support?

The camera supports DC 12V via the terminal block or Power over Ethernet (PoE) using an IEEE 802.3af compliant switch or injector.

How do I install a memory card in the I25?

Insert a microSDHC or microSDXC card into the slot with the metal contacts facing down. Push until it clicks. To remove, unmount it via the Web Configurator first, then press the card to eject.

How can I connect audio devices to the I25?

Use the supplied terminal block: connect audio input wires to AI_GND and A_IN (or AI), and audio output wires to AO_GND and A_OUT (or AO). Press the orange tab to secure wires.

How do I configure the IP address of the I25?

Connect to a network with DHCP for automatic assignment, or manually set a static IP. The default IP is 192.168.0.100. Use IP Utility software to discover and change IP addresses.

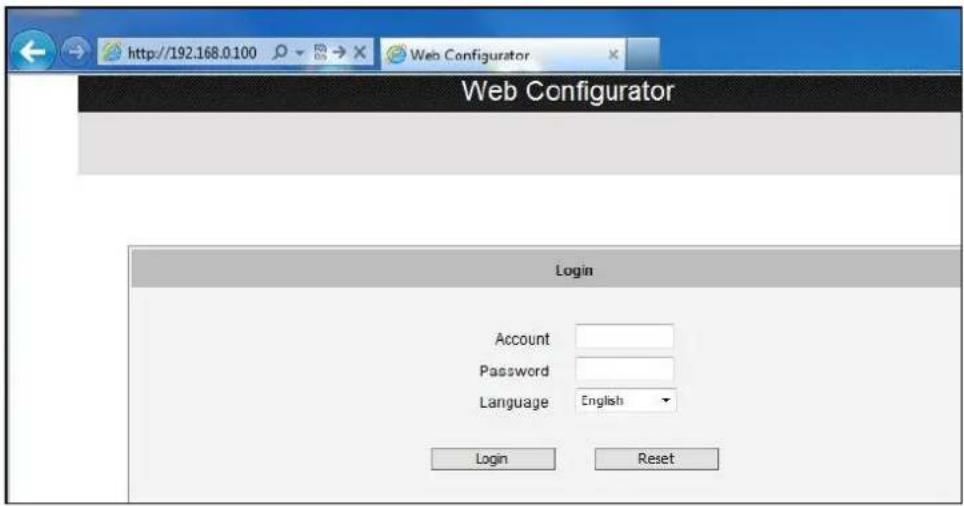

How do I access the live view of the I25?

Open a web browser and enter the camera's IP address (e.g., http://192.168.0.100). Log in with default credentials: Account Admin, Password 123456. Live view is available.

Which web browser is recommended for full I25 functionality?

Microsoft Internet Explorer is recommended for access to all features, including video overlay configuration. Other browsers require third-party plugins like QuickTime or VLC.

Can I control PTZ with the I25?

Yes, the camera supports PTZ control via RS-485/422 serial connection and Pelco-D/P protocols. Connect to a Pan-Tilt scanner using the supplied terminal block.

What are the default login credentials for the I25?

The factory default username is Admin and password is 123456. It is strongly recommended to change the password after the first login.

How should I clean the ACTi I25 camera?

Disconnect the camera from power. Use a dry, soft cloth to gently clean the housing and lens. Do not use liquid cleaners or abrasive materials.

USER MANUAL I25 ACTi

Abstract geometric design with a red square and a gray star-like shape (no text or symbols)

Zoom Box Camera Series Hardware Manual

B21, B22, B24, B25, B27, B210

I24, I25, I27, I28

2015/10/05

Table of Contents

Precautions 4

Safety Instructions 6

Introduction......7

The List of Models 7

Package Contents......8

Physical Description 9

Mounting Options....11

Before Installation.... 12

Connecting a Power Adapter (Optional) 12

Connecting the DI/DO and Audio Devices (Optional).... 14

How to Connect DI/DO Devices....14

How to Connect Audio Devices....17

Connecting a Serial Device (Optional).... 18

Indoor Installation Procedures 20

Step 1: Mount the Indoor Bracket .... 20

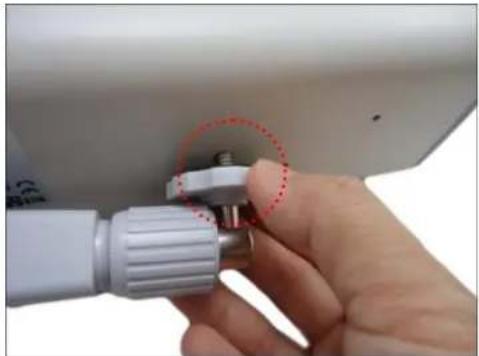

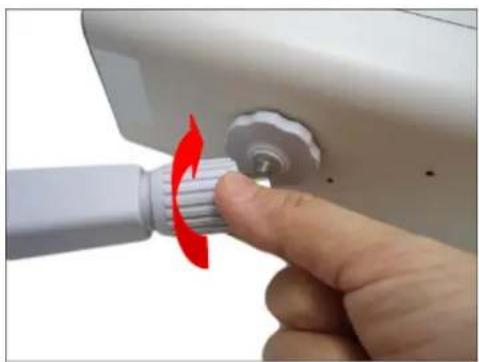

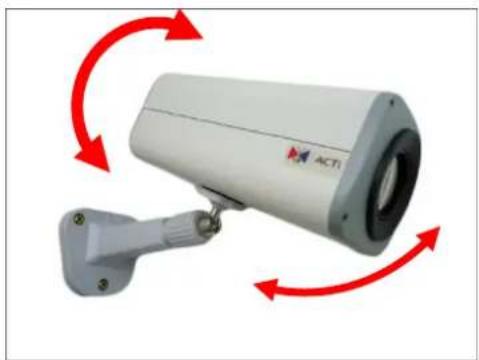

Step 2: Attach the Camera to the Bracket 21

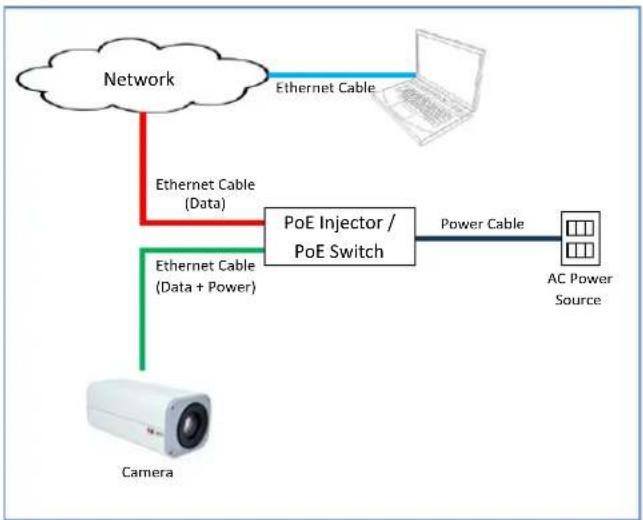

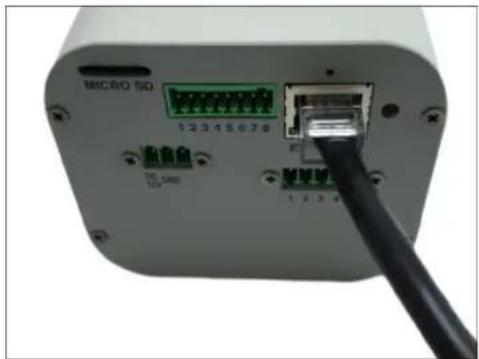

Step 3: Connect the Cable(s)....23

Step 4: Access the Camera Live View....24

Other Accessories 25

How to Install / Remove the Memory Card 25

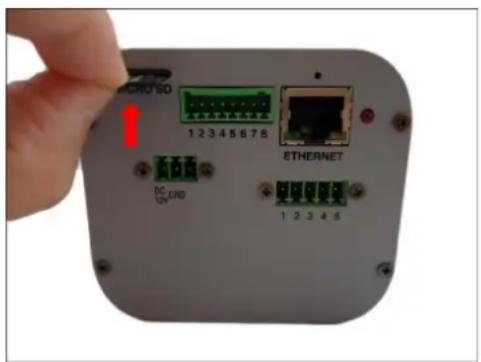

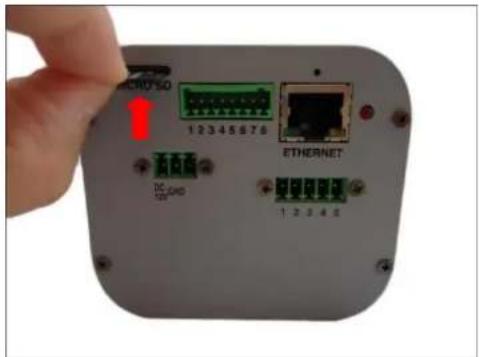

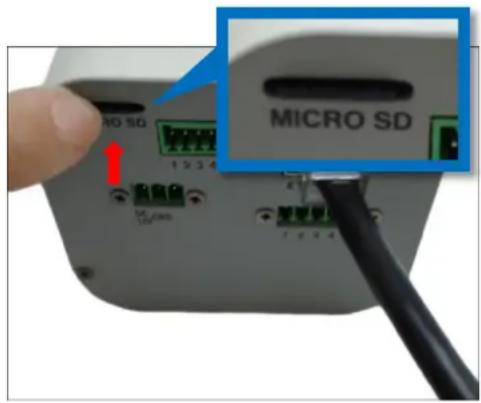

How to Insert the Memory Card 25

How to Remove the Memory Card.... 25

Accessing the Camera 26

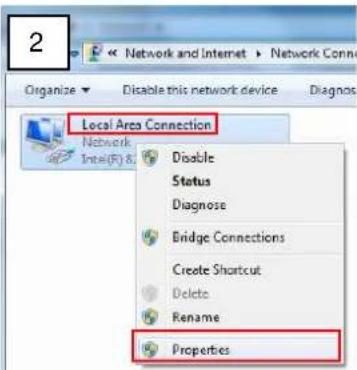

Configure the IP Addresses.... 26

Access the Camera.... 30

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instructions given may directly endanger people, cause damage to the system or to other equipment.

Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

ACTi and ACTi logo are registered trademarks of ACTi Corporation. All other names and products used in this manual are registered trademarks of their respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. ACTi will not be held responsible for any typographical or technical errors and reserves the right to make changes to the product and manuals without prior notice.

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the responsible party for compliance could void the user's authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures.

Safety Instructions

Cleaning

Disconnect this product from the power supply before cleaning.

Accessories and Repair Parts

Use only the accessories and repair parts recommended by the manufacturer.

Installation

Install this device in a dry place protected from weather.

Servicing

Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.

Damage Requiring service

Disconnect this product from the power supply immediately and refer servicing to qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the product.
3) If the inner parts of product have been directly exposed to rain or water.
4) If the product does not operate normally even by following the operating instructions in this manual. Adjust only those controls that are covered by the instruction manual, as improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the product to its normal operation.

Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine if the product is in proper operating condition.

Introduction

The List of Models

This hardware manual contains the following models:

B21		5MP Zoom Box with D/N, Basic WDR, 12x Zoom lens
B22		5MP Zoom Box with D/N, Basic WDR, 10x Zoom lens
B24		1.3MP Zoom Box with D/N, Basic WDR, SLLS, 10x Zoom lens
B25		2MP Zoom Box with D/N, Basic WDR, SLLS, 10x Zoom lens
B27		3MP Zoom Box with D/N, Superior WDR, 12x Zoom lens
B210		10MP Zoom Box with D/N, Basic WDR, 10x Zoom lens
I24		1MP Zoom Box with D/N, Extreme WDR, ELLS, 30x Zoom lens
I25		2MP Zoom Box with D/N, Extreme WDR, ELLS, 30x Zoom lens
I27		4MP Zoom Box with D/N, Advanced WDR, SLLS, 30x Zoom lens
I28		2MP Video Analytics Zoom Box with D/N, Extreme WDR, SLLS, 33x Zoom lens

From the installation perspective, these models are very similar; therefore one manual is used for all of them.

Package Contents

Camera	Terminal Block (for Power)	Terminal Block (for Audio and DI/DO)
Terminal Block (for Serial Port)	Quick Installation Guide	Warranty Card

NOTE: The pictures are for reference only. Actual items may slightly vary.

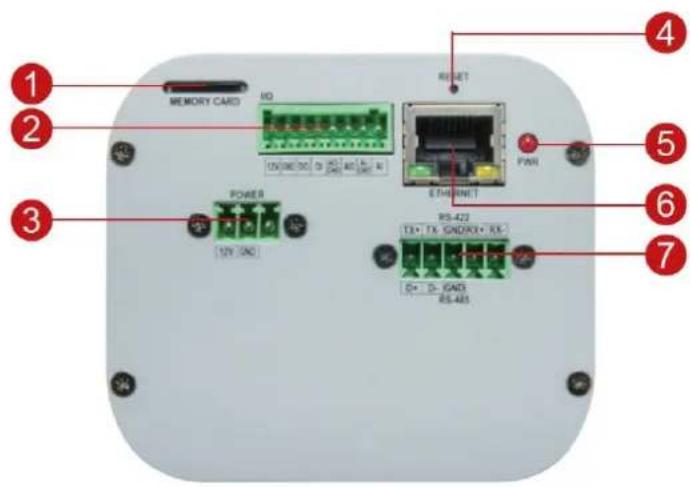

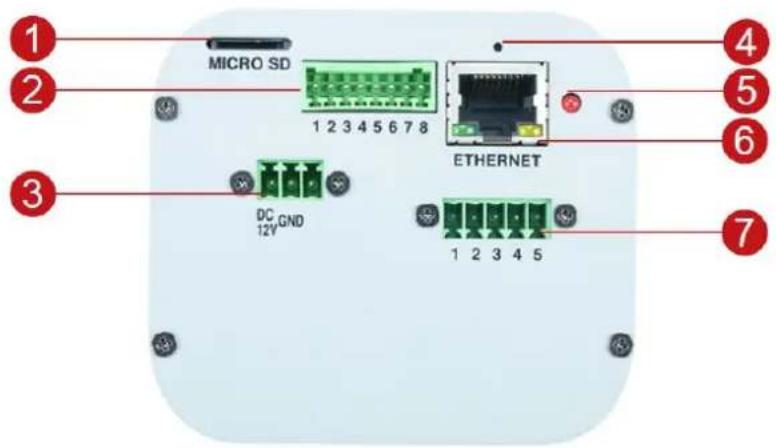

Physical Description

B2x / 12x

MICRO SD 1 2 3 4 5 6 7 8 ETHERNET DC GND 12V 1 2 3 4 5

B210, I28

1 2 3 4 5 6 7 MEMORY CARD HD 12V 1000 POWER 12V 100 RESET ETHABINET PWR RS-422 TX+ TX 1000/100+ RS- D+ D+ 1000 RS-485

1) Memory Card Slot

Insert a memory card into this slot for local recording purposes. See How to Install / Remove the Memory Card on page 25 for more information.

NOTE: Supports microSDHC and microSDXC cards.

2) Digital Input / Output (DI/DO) and Audio Input / Output

This connector connects to digital input or output devices, such as an alarm trigger, panic button, etc., as well as audio input and output devices, such as microphones and speakers. Digital Input (DI) and Digital Output (DO) devices are used in applications like motion detection, event triggering, alarm notifications, etc. See Connecting the DI/DO and Audio Devices (Optional) on page 14 for more information.

3) DC 12V Power Input

In case the camera is connected to a non-PoE (Power over Ethernet) switch, use this connector to connect an external adaptor (not included) to the camera. See Connecting a Power Adapter (Optional) on page 12 for more information.

4) Reset Button

The purpose of reset button is to restore the factory default settings of the camera, including administrator's password.

The reset button can be used for following purposes:

1. The administrator's password has been forgotten and therefore the camera cannot be accessed.
2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to modify these settings.
3. In case of connectivity issues or abnormal video quality.

How to do the reset?

Using a pointed object, such as a paper clip, press and hold the reset button for at least 5 seconds or until the Power LED goes off.

5) Power LED

The Power LED turns on when the camera is powered on and the system is running.

6) Ethernet Port

Connects to a network using a standard Ethernet cable.

7) Serial Port

This port connects to serial devices via RS-485 or RS-422 protocols. Use the supplied serial port terminal block to connect the wires from the camera to the serial device.

See Connecting a Serial Device (Optional) on page 18 for connection details.

Mounting Options

The camera can be installed both indoors and outdoors. For outdoor installation, additional waterproof housing is required. Below are several mounting options that you can use to install the camera. Select the most suitable solution for your installation environment.

Mount Types	Accessories
Ceiling or Wall(Indoor)	For indoor applications, the camera can be mounted on the ceiling or wall using an indoor bracket (not included in the camera package). You may use the bracket from a local supplier or purchase ACTi's indoor bracket.See Indoor Installation Procedures on page 20 for more information.
	PMAX-1105
Wall(Outdoor)	A waterproof housing is required when installing the camera outdoors. See the Mounting Accessory Selector for more details.
Pole Mount(Outdoor)	Suitable when mounting the camera on vertical poles. The camera must be enclosed inside the waterproof housing. See the Mounting Accessory Selector for more details.
Corner Mount(Outdoor)	Suitable when mounting the camera on a corner wall. The camera must be enclosed inside the waterproof housing. See the Mounting Accessory Selector for more details.

NOTE:

• For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector).
• The above mounting accessories are not included in the package. Contact your sales agents to purchase.

Before Installation

This section describes the procedures in preparing the external devices that you can connect to the camera. The camera supports DC12V power input, Digital Input and Output (DI/DO), Audio Input and Output devices, as well as Serial Devices like a Pan-Tilt (PT) Scanner using the bundled terminal blocks. The use of these devices, however, is optional.

Connecting a Power Adapter (Optional)

In case of using a non-PoE switch or your PoE switch has limited power supply, you can purchase a power adapter and directly connect the camera to a power outlet. The power adapter must be connected to the supplied terminal block before use.

To do this, follow the procedures below:

1. Loosen the screws of the 12V and GND pins of the power terminal block.

Close-up of a green electrical connector with a black tool tip, no visible text or symbols

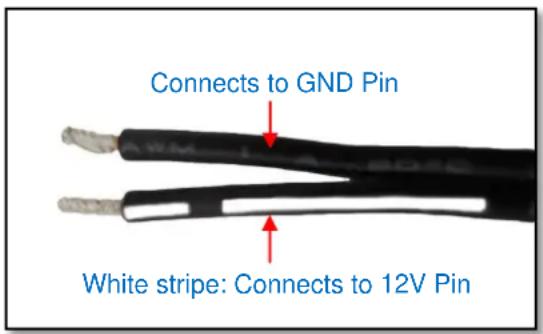

1. Take note that a standard power adapter cable has two (2) different wires:

Connects to GND Pin White stripe: Connects to 12V Pin

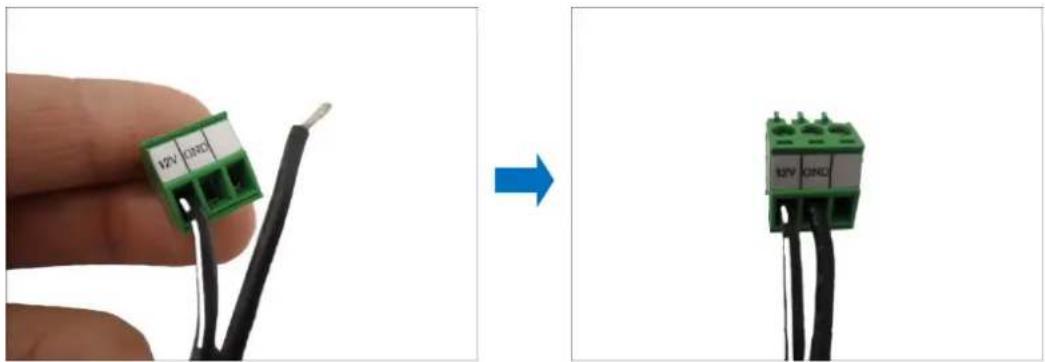

1. Connect the wire with the white stripe to the 12V pin and the other to the GND pin.

Close-up of a green printed circuit terminal connected to black wires, showing a change from left to right (no text or symbols visible)

1. Tighten the screws of the 12V pin and the GND pins to secure the wire connection.

Close-up of a green electrical connector with black wires, no visible text or symbols

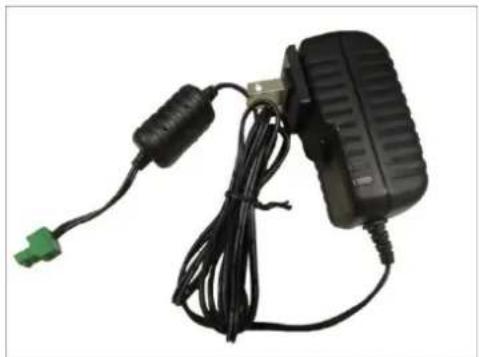

1. Set the prepared power adapter for connection later. Below is an example of a power adapter with an attached terminal block.

Black electrical plug with attached cable and connector, no visible text or symbols

NOTE: The power adapter is not bundled in the package.

Connecting the DI/DO and Audio Devices (Optional)

Depending on your surveillance needs, you may connect digital input / output or audio input / output devices to your camera. The camera comes with one (1) terminal block for both digital and audio input/output devices.

How to Connect DI/DO Devices

Digital Input (DI) devices can be used to notify the camera about an activity in the camera site. DI can be triggers of events. For example, you can connect a “panic button” to the camera; as such when the panic button is pressed, the alarm signal will be sent through the camera. Other common DI device applications are emergency button, smoke detector, passive infrared sensor, etc.

Digital Output (DO) devices are external devices that are activated by the camera upon an event inside the camera. For example, you can connect an “alarm horn” to the camera; as such when an event occurs inside the camera (e.g. detected intruder), the alarm horn will sound. Other common DO device applications are motion-triggered lights, electric fence, magnetic door locks, etc.

Press and hold the orange tab as you insert the wire through the pin slot, then release the orange tab to secure the wire. The terminal block that comes with the camera may either be labelled as one of the following:

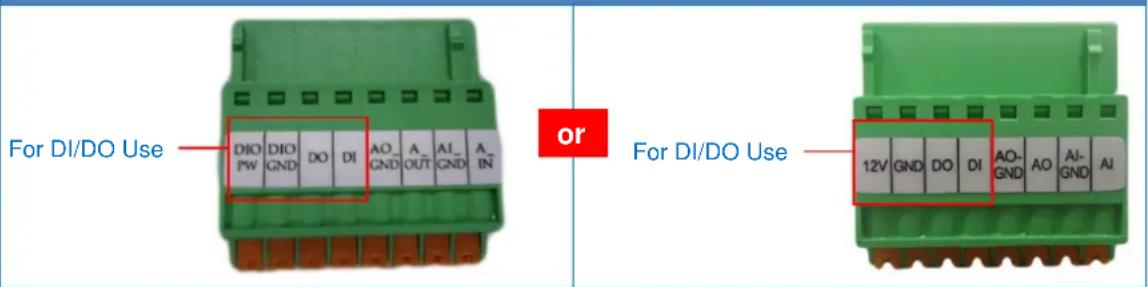

DI/DO and Audio Terminal Block

For DI/DO Use DIO PW DIO GND DO DI AO_ GND A_ OUT AI_ GND A_ IN or For DI/DO Use 12V GND DO DI AO_ GND AO AI_ GND AI

To connect digital input / output devices (DI/DO), map the pins to one of the pin combinations below:

Device	Pin	Mapping Instructions
Digital Output (DO)	DIO PW or 12V	Connect the wires of the output device to DIO PW or 12V and DO.
	DO
Digital Input (DI)	DIO GND	Connect the wires of the input device to DIO GND and DI.
	DI

The table below shows the DI/DO connection specifications:

Device
DI	Connection design		TTL - compatible logic levels
	Voltage	To trigger (low)	Logic level 0: 0V ~ 0.4V
		Normal (high)	Logic level 1: 3.1V ~ 30V
	Current		10mA ~ 100mA
DO	Connection design		Transistor (Open Collector)
	Voltage & Current		< 24V DC, < 50mA

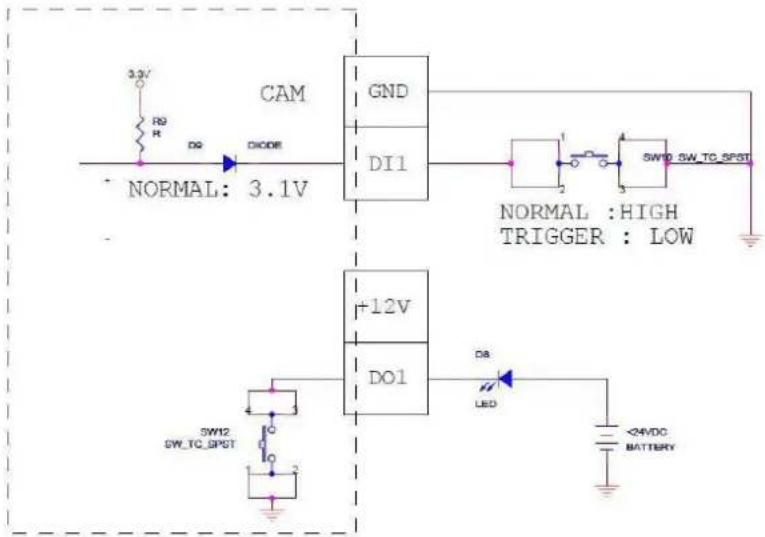

Typical Connection

Based on these specifications, if the DI device has a voltage of 0V \~ 30V or the DO device has a voltage of < 24V (< 50mA), then the camera can supply internal power to these devices and there is no need to connect the DI/DO device to an external power source.

Use the DIO GND and DI pins to connect a DI device and use the DIO PW or 12V and DO pins to connect a DO device. See wiring scheme below:

3.3V R9 R DQ DIODE NORMAL: 3.1V GND DI1 1 2 SW10_SW_TC_SPST NORMAL : HIGH TRIGGER : LOW +12V DO1 DA LED SW12 SW_TC_SPST 2 1 24VDC BATTERY

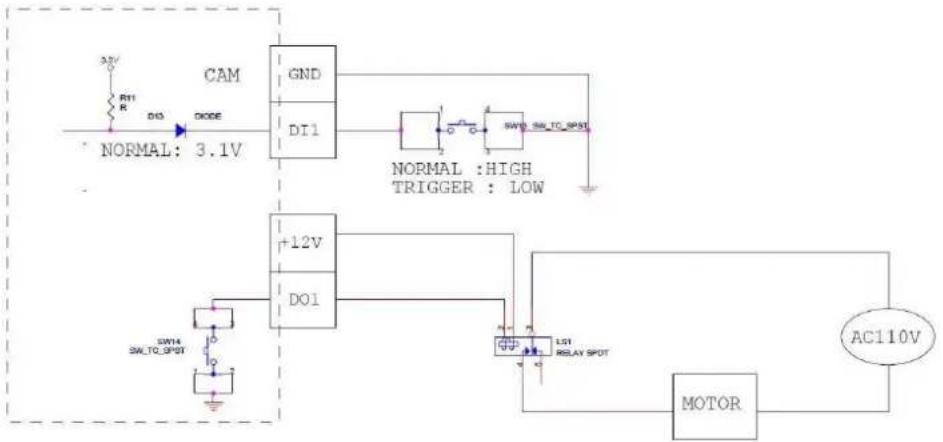

High Voltage DO Device Connection

Even though the camera provides 12V power, this may not be enough for some high voltage DO devices, such as a ceiling light or a motor that opens or closes a gate. In this case, there is a need to connect an external relay. See wiring scheme below:

Note that when choosing an appropriate relay, please refer to its specifications and make sure they match the above design. The triggering circuit voltage has to be around 12V DC and the switch-controlled circuit voltage has to match the external power supply (e.g. 110V AC or 220V AC).

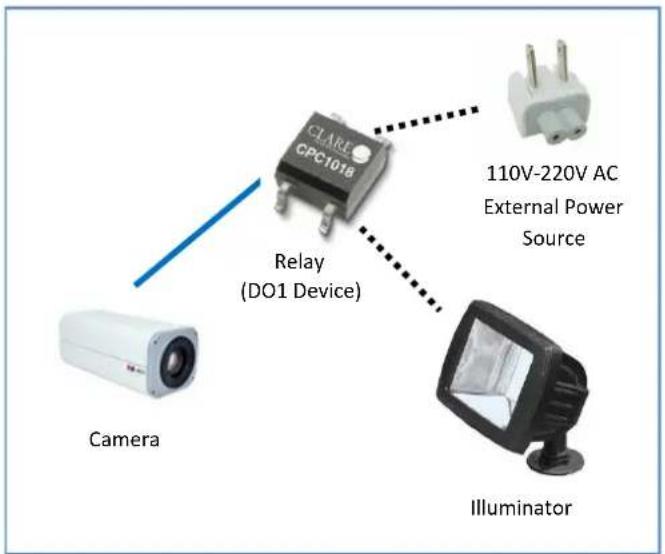

The illustration below is a graphic example of connecting a relay to a high voltage DO device.

CLARE CPC1016 Relay (DO1 Device) Camera 110V-220V AC External Power Source Illuminator

NOTE: For more information on DI/DO connections, please refer to the Knowledge Base article All about Digital Input and Digital Output downloadable from the link below (http://www.acti.com/kb/detail.asp?KB_ID=KB20091230001).

How to Connect Audio Devices

Audio input / output devices, such as an active microphone or speaker can be connected to the camera using the supplied terminal block.

Press and hold the orange tab as you insert the wire through the pin slot, then release the orange tab to secure the wire. The terminal block that comes with the camera may either be labelled as one of the following:

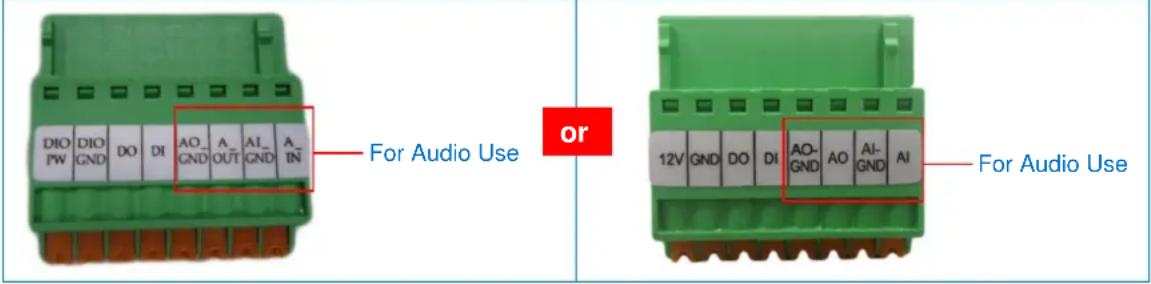

DI/DO and Audio Terminal Block

DIO PW DIO GND DO DI AO_ GND A_ OUT AI_ GND A_ IN For Audio Use or 12V GND DO DI AO_ GND AO AI_ GND AI For Audio Use

To connect audio devices, map the pins to one of the pin combinations below:

Device	Pin	Mapping Instructions
Audio Output (AO)	AO_GND	Connect the wires of the audio output device to AO_GND and A_OUT or AO.
	A_OUT or AO
Audio Input (AI)	AI_GND	Connect the wires of the audio input device to AI_GND and A_IN or AI.
	A_IN or AI

NOTE: For more information about AUDIO in connections, please refer to the Knowledge Base article How to Use Audio-in of ACTi Cameras, downloadable from the link below (http://www.acti.com/support/KnowledgeBase/outside/detail.asp?KB_ID=KB20100114003).

Connecting a Serial Device (Optional)

The camera can be connected to a Pan-Tilt (PT) Scanner (Pan-Tilt Head) using the serial port connector. This allows the zoom camera to do pan and tilt using the Pelco-D protocol. Most PT scanners accept Pelco-D and Pelco-P protocol commands via RS-485 or RS-422 connection, which are both supported by your camera.

Check the connection available on the PT scanner and connect it to your camera following the procedures below.

1. Map the wires from the PT scanner to your camera using the supplied terminal block according to one of the tables below. The terminal block the comes with the camera may either be labelled as one of the following:

Serial Port Terminal Block

RX- RX+ GND TX- TX+

or

TX+ (D+) TX- (D-) GND RX+ RX-

Via RS-485 Connection

Terminal Block		Wire Mapping
Pin Number / Label		Camera Pin	PT Scanner Pin
1	TX + (D+)	TX + (D+)	DATA +
2	TX - (D-)	TX - (D-)	DATA -
3	GND	GROUND PIN
4	RX+	-
5	Rx-	-

Via RS-422 Connection

Terminal Block		Wire Mapping
Pin Number / Label		Camera Pin	PT Scanner Pin
1	TX +	TX +	RX +
2	TX -	TX -	RX -
3	GND	GROUND PIN
4	RX+	RX +	TX +
5	Rx-	RX -	TX -

NOTE: The pins of the PT Scanner may be labeled differently depending on the location or country where the scanner is purchased. For example, some devices may have RS-485

DATA+ pins labeled as "TX+", "RX+", "A" or "485+", etc. Refer to the scanner documentation or contact the manufacturer to verify the corresponding pin labels and ensure proper wiring connection.

CAUTION: Incorrect wiring may cause damage to the connected devices.

DISCLAIMER: ACTi will not be responsible for any damage caused by improper wiring.

1. Connect a ground wire to one of the GND terminal pin to complete the connection.

For more information on connecting PT scanners, please refer to the Knowledge Base article: Pan and Tilt Scanner for ACTi Zoom Cameras

(http://www.acti.com/support/KnowledgeBase/outside/detail.asp?KB_ID=KB20110120001) available on the website.

Indoor Installation Procedures

This section describes the procedures in installing the camera indoors using PMAX-1105 indoor bracket (purchased separately).

When using brackets from other manufacturers, check the installation guide included in the bracket to install the camera.

NOTE: Some pictures in this documentation may slightly differ from the actual camera or accessories.

Step 1: Mount the Indoor Bracket

NOTE: Before installing the bracket, make sure the ceiling or wall can bear more than the weight of the camera and its accessories.

Install the indoor bracket to the ceiling or wall using the three (3) screws included in the bracket package.

Close-up of a mechanical component with mounting holes and a central hub (no text or symbols visible)

Step 2: Attach the Camera to the Bracket

NOTE: The following images show the mounting bracket attached on the bottom side of the camera. Same procedures apply when attaching the mounting bracket on the top side.

1. If necessary, insert a memory card into the memory card slot of the camera with the metal contacts facing down. Push until the card clicks into place. See How to Install / Remove the Memory Card on page 25 for more information.

MICRO SO 1 2 3 4 5 6 7 8 ETHERNET DC GND 1 2 3 4 5

1. Slightly loosen the knurled knob.

Hand holding a mechanical tool with a red arrow indicating rotation (no text or symbols visible)

1. Screw the camera to the bracket.

Close-up of a hand holding a white mechanical device with a red dotted circle highlighting a small component (no text or symbols visible)

1. Tighten the hand knob until the camera is secured to the bracket.

Exterior view of a white surveillance camera with a red arrow indicating clockwise motion (no text or symbols visible)

1. Adjust the camera angle.

Exterior view of a white ACTI security camera with red circular arrows indicating clockwise motion (no text or symbols on the device itself)

1. Tighten the knurled knob to fix the camera position.

Close-up of a hand holding a white electronic device with a red arrow indicating rotation (no text or symbols visible)

Step 3: Connect the Cable(s)

1. Connect the network cable to the Ethernet port of the camera.

Close-up of a device rear panel showing internal components including a micro SD connector and Ethernet port, with a black cable inserted (no readable text or symbols)

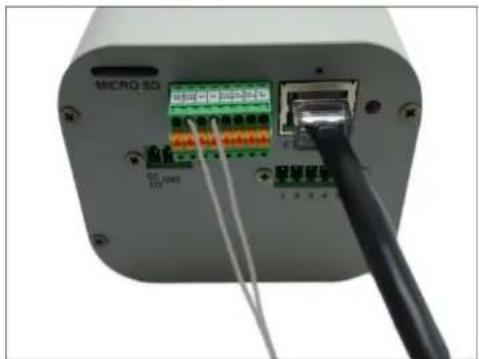

1. If necessary, connect the other external devices, such as DI/DO, PT scanner or power adapter to the camera. See Before Installation on page 12 for more information.

Close-up of a device rear panel with labeled ports and connectors, showing internal wiring and a connector (no readable text or symbols beyond labels)

1. Connect the other end of the network cable to a switch or injector. Then, connect the switch or injector to a network, PC and a power source. See Power-over-Ethernet (PoE) connection example below.

Step 4: Access the Camera Live View

See Accessing the Camera on page 26 for more information on how to access the Live View of the camera.

Other Accessories

How to Install / Remove the Memory Card

The camera supports local video recording or saving of snapshots to a memory card.

NOTE: Supports microSDHC and microSDXC cards.

How to Insert the Memory Card

Insert a memory card into the card slot with the metallic contacts facing down the camera. Push the card until it clicks into place.

MICRO SO 1 2 3 4 5 6 7 8 DC END 12V ETHERNET 1 2 3 4 5

MICRO SD 1 2 3 4 15/10/10 7 2 3 4

How to Remove the Memory Card

In case there is a need to remove the card, make sure to access the camera Web Configurator to safely "unmount" the card first (see the camera Firmware manual for more information). Once unmounted from the firmware, push the card to eject it from the slot.

Accessing the Camera

Configure the IP Addresses

In order to be able to communicate with the camera from your PC, both the camera and the PC have to be within the same network segment. In most cases, it means that they both should have very similar IP addresses, where only the last number of the IP address is different from each other. There are 2 different approaches to IP Address management in Local Area Networks – by DHCP Server or Manually.

Using DHCP server to assign IP addresses:

If you have connected the computer and the camera into the network that has a DHCP server running, then you do not need to configure the IP addresses at all – both the camera and the PC would request a unique IP address from DHCP server automatically. In such case, the camera will immediately be ready for the access from the PC. The user, however, might not know the IP address of the camera yet. It is necessary to know the IP address of the camera in other to be able to access it by using a Web browser.

The quickest way to discover the cameras in the network is to use the simplest network search, built in the Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras.

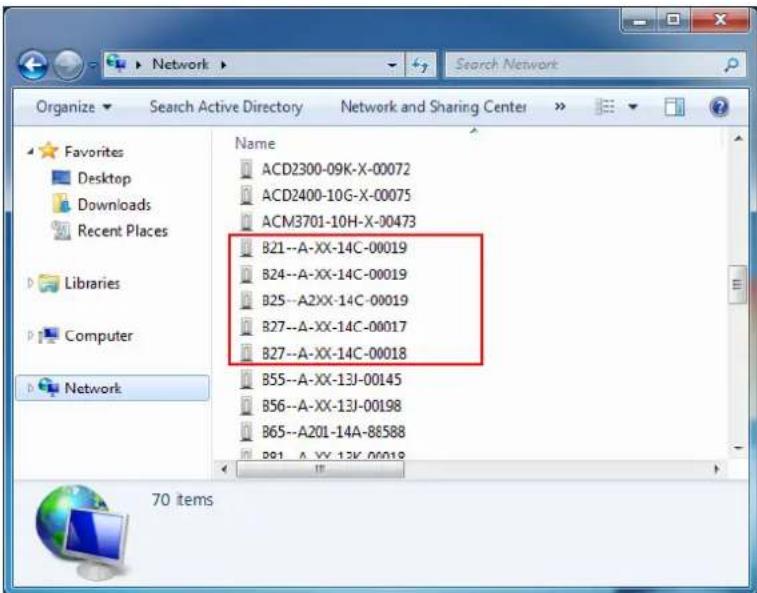

In the example below, we successfully the camera model that we had just connected to the network.

Favorites Desktop Downloads Recent Places Libraries Computer Network Name ACD2300-09K-X-00072 ACD2400-10G-X-00075 ACM3701-10H-X-00473 B21--A-XX-14C-00019 B24--A-XX-14C-00019 B25--A2XX-14C-00019 B27--A-XX-14C-00017 B27--A-XX-14C-00018 B55--A-XX-13J-00145 B56--A-XX-13J-00198 B65--A201-14A-88588 B91--A-XX-13K-00019 70 items

Double-click the mouse button on the camera model, the default browser of the PC is automatically launched and the IP address of the target camera is already filled in the address bar of the browser.

If you work with our cameras regularly, then there is even a better way to discover the cameras in the network – by using IP Utility. The IP Utility is a light software tool that can not only discover the cameras, but also list lots of valuable information, such as IP and MAC addresses, serial numbers, firmware versions, etc, and allows quick configuration of multiple devices at the same time.

The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility.

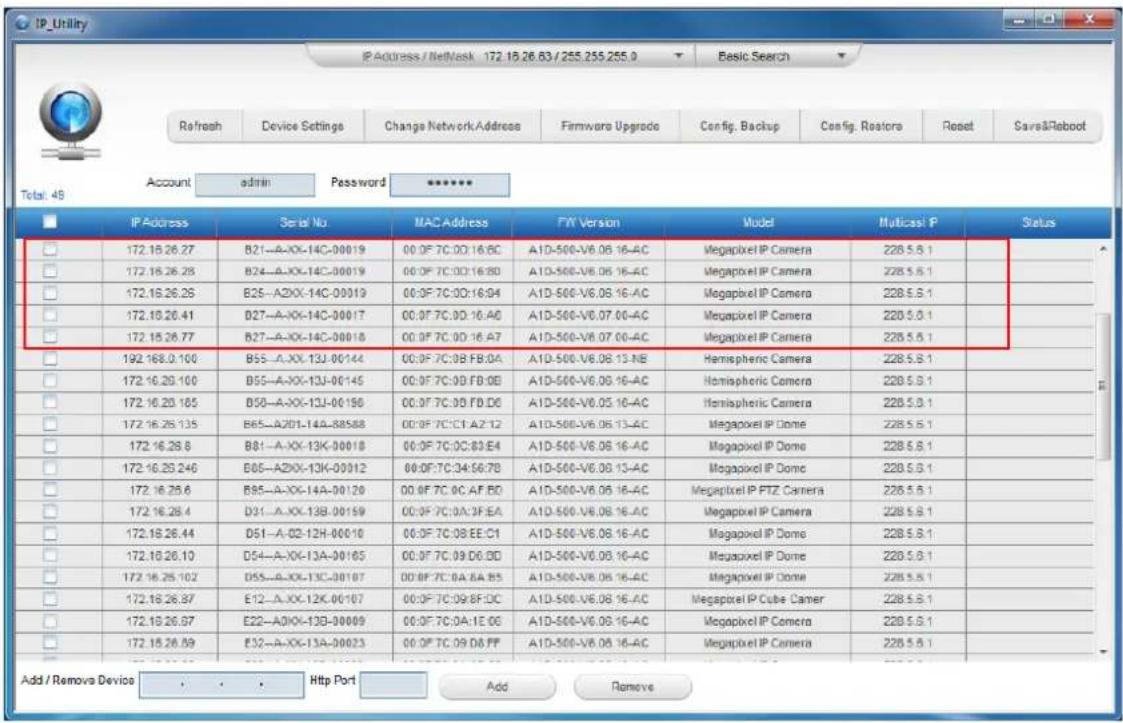

With just one click, you can launch the IP Utility and there will be an instant report as follows:

IP_Utility IP Address / NetMask 172.16.26.63 / 255.255.255.0 Basic Search Refresh Device Settings Change NetworkAddress Firmware Upgrade Config. Backup Config. Restore Reset Save&Reboot Total: 49 Account admin Password ****** IP Address Serial No MAC Address FW Version Model Multicasi P Status 172.16.26.27 B21--A-XX-14C-00019 00:0F 7C:0D 16:6C A1D-500-V6.0B 16-AC Megapixel IP Camera 228.5.8.1 172.16.26.28 B24--A-XX-14C-00019 00:0F 7C:0D 16:80 A1D-500-V6.0B 16-AC Megapixel IP Camera 228.5.8.1 172.16.26.26 B25--A2XX-14C-00019 00:0F 7C:0D 16:94 A1D-500-V6.0B 16-AC Megapixel IP Camera 228.5.8.1 172.16.26.41 B27--A-XX-14C-00017 00:0F 7C:0D 16:46 A1D-500-V6.07 00-AC Megapixel IP Camera 228.5.8.1 172.16.26.77 B27--A-XX-14C-00018 00:0F 7C:0D 16:47 A1D-500-V6.07 00-AC Megapixel IP Camera 228.5.8.1 192.168.0.100 B55--A-XX-13J-00144 00:0F 7C:0B FB:0A A1D-500-V6.0B 13-NB Haminpheric Camera 228.5.8.1 172.16.26.100 B55--A-XX-13J-00145 00:0F 7C:0B FB:0B A1D-500-V6.0B 16-AC Haminpheric Camera 228.5.8.1 172.16.26.185 B58--A-XX-13J-00196 00:0F 7C:0B FB:D6 A1D-500-V6.0B 16-AC Haminpheric Camera 228.5.8.1 172.16.26.135 B65--A2DTI-14L-88588 00:0F 7C:C1-A2'12 A1D-500-V6.0B 13-AC Megapixel IP Dome 228.5.8.1 172.16.26.8 B81--A-XX-13K-00018 00:0F 7C:DC:83:E4 A1D-500-V6.0B 16-AC Megapixel IP Dome 228.5.8.1 172.16.26.246 B85--A2XX-13K-00012 00:0F 7C:DC:56:7B A1D-500-V6.0B 13-AC Megapixel IP Dome 228.5.8.1 172.16.26.6 B85--A-XX-14A-00129 00:0F 7C:DC AF BD A1D-500-V6.0B 16-AC Megapixel IP PTZ Camera 228.5.8.1 172.16.26.4 D31--A-XX-13B-00159 00:0F 7C:DC:A3FEA A1D-500-V6.0B 16-AC Megapixel IP Camera 228.5.8.1 172.16.26.44 D51--A-XX-12H-00019 00:0F 7C:DC EE:C1 A1D-500-V6.0B 16-AC Megapixel IP Dome 228.5.8.1 172.16.26.19 D54--A-XX-13A-00165 00:0F 7C:DC:DD BD A1D-500-V6.0B 16-AC Megapixel IP Dome 228.5.8.1 172.16.26.19 D55--A-XX-13C-00197 00:0F 7C:DC:A4:B5 A1D-500-V6.0B 16-AC Megapixel IP Dome 228.5.8.1 172.16.26.87 E12--A-XX-12K-00197 00:0F 7C:DC:DF DC A1D-500-V6.0B 16-AC Megapixel IP Cube Camer 228.5.8.1 172.16.26.97 E22--AIOX-13D-99999 00:0F 7C:DC:AIC DC A1D-500-V6.0B 16-AC Megapixel IP Camera 228.5.8.1 172.16.26.99 E32--A-XX-13A-99993 00:0F 7C:DC:DFF A1D-500-V6.0B 16-AC Megapixel IP Camera 228.5.8.1 Add / Remove Device Http Port Add Remove

You can quickly notice the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.

Use the default IP address of a camera:

If there is no DHCP server in the given network, the user may have to assign the IP addresses to both PC and camera manually to make sure they are in the same network segment.

When the camera is plugged into network and it does not detect any DHCP services, it will automatically assign itself a default IP:

192.168.0.100

Whereas the default port number would be 80. In order to access that camera, the IP address of the PC has to be configured to match the network segment of the camera.

Manually adjust the IP address of the PC:

In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below:

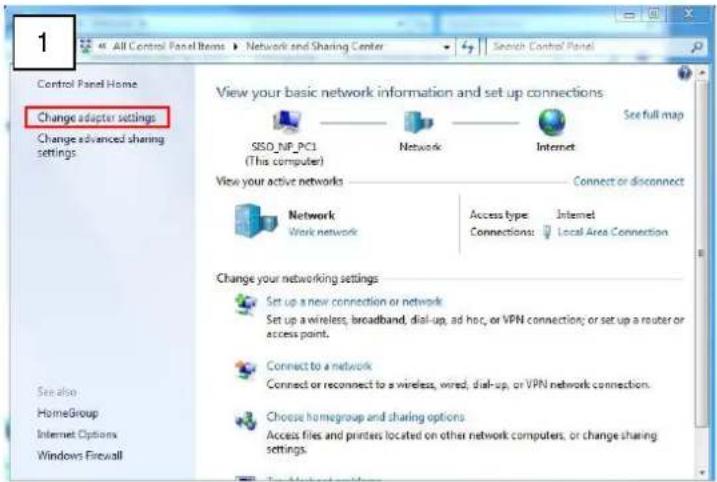

1 All Control Panel Items ▶ Network and Sharing Center ▶ Search Control Panel Control Panel Home Change adapter settings Change advanced sharing settings View your basic network information and set up connections SISO_NP_PC1 (This computer) Network Internet See full map View your active networks Connect or disconnect Network Work network Access type: Internet Connections: Local Area Connection Change your networking settings Set up a new connection or network Set up a wireless, broadband, dial-up, ad hoc, or VPN connection; or set up a router or access point. Connect to a network Connect or reconnect to a wireless, wired, dial-up, or VPN network connection. Choose homegroup and sharing options Access files and printers located on other network computers, or change sharing settings.

2 Organize Disable this network device Diagnos Local Area Connection Network Intel(R) & Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties

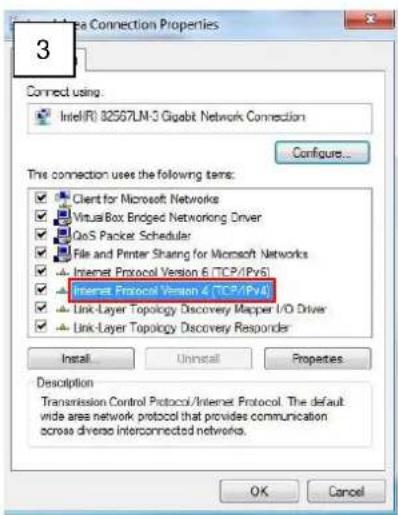

3 Connect using: Intel(R) 32567LM-3 Gigabit Network Connection Configure... This connection uses the following items: Client for Microsoft Networks Virtual Box Enclosed Networking Driver QoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPv5) Internet Protocol Version 4 (TCP/IPv4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Install Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

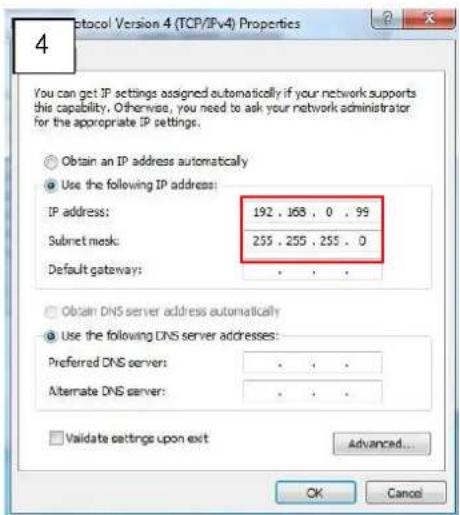

Protoco Version 4 (TCP/IPv4) Properties You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 , 0 . 99 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced... OK Cancel

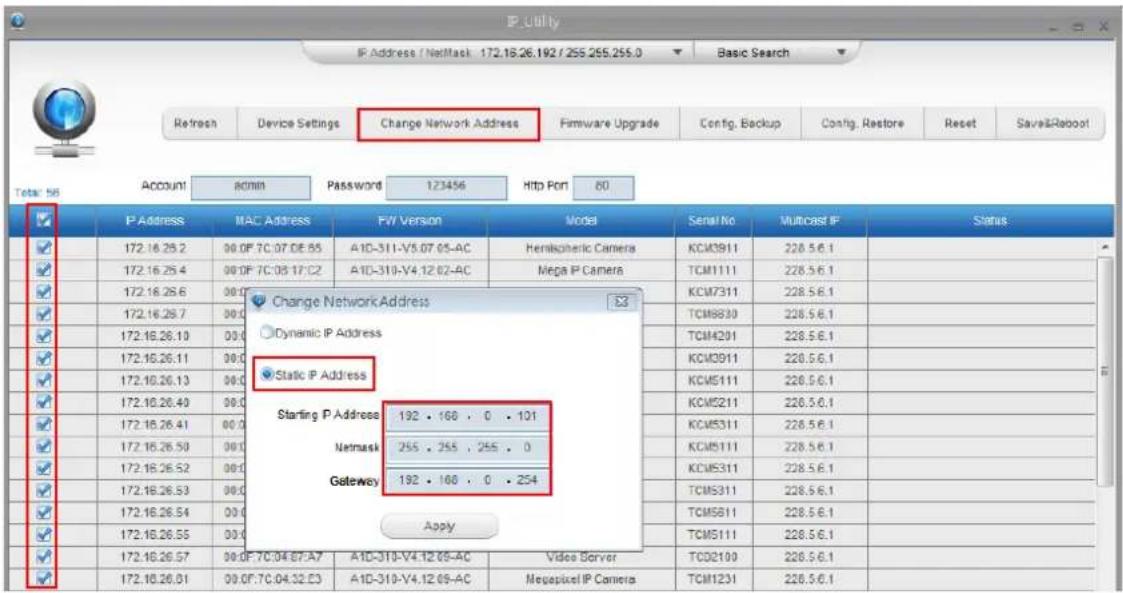

Manually adjust the IP addresses of multiple cameras:

If there are more than 1 camera to be used in the same local area network and there is no DHCP server to assign unique IP addresses to each of them, all of the cameras would then have the initial IP address of 192.168.0.100, which is not a proper situation for network devices – all the IP addresses have to be different from each other. The easiest way to assign cameras the IP addresses is by using IP Utility:

IP Uulty IP Address / NetMask 172.16.26.192 / 255.255.255.0 Basic Search Refresh Device Settings Change Network Address Firmware Upgrade Config, Backup Config, Restore Reset Save&Robot Total: 58 Account admin Password 123456 Http Port 80 P Address MAC Address FW Version Model Serial No Multicast IP Status 172.16.26.2 00.0F 7C:07 DE:55 A1D-311-V5.07.05-AC Hemispheric Camera KCM3911 228.5.6.1 172.16.26.4 00.0F 7C:08 17:C2 A1D-310-V4.12.02-AC Mega P Camera TCM1111 228.5.6.1 172.16.26.6 00:0 172.16.26.7 00:0 172.16.26.10 00:0 172.16.26.11 00:0 172.16.26.13 00:0 172.16.26.40 00:0 172.16.26.41 00:0 172.16.26.50 00:0 172.16.26.52 00:0 172.16.26.53 00:0 172.16.26.54 00:0 172.16.26.55 00:0 172.16.26.57 00:0F 7C:04:57.A7 A1D-310-V4.12.05-AC Video Server TCD2100 228.5.6.1 172.16.26.01 00:0F 7C:04:32.E3 A1D-310-V4.12.05-AC MegaPixel IP Camera TCM1231 228.5.6.1

With the procedure shown above, all the cameras will have unique IP addresses, starting from 192.168.0.101. In case there are 20 cameras selected, the last one of the cameras would have the IP 192.168.0.120.

Later, by pressing the "Refresh" button of the IP Utility, you will be able to see the list of cameras with their new IP addresses.

Please note that it is also possible to change the IP addresses manually by using the Web browser. In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time.

Access the Camera

Now that the camera and the PC are both having their unique IP addresses and are under the same network segment, it is possible to use the Web browser of the PC to access the camera.

You can use any of the browsers to access the camera, however, the full functionality is provided only for Microsoft Internet Explorer.

The browser functionality comparison:

Functionality	Internet Explorer	Other browsers
Live Video	Yes	Yes*
Live Video Area Resizable	Yes	No
PTZ Control	Yes	Yes
Capture the snapshot	Yes	Yes
Video overlay based configuration (Motion Detection regions, Privacy Mask regions)	Yes	No
All the other configurations	Yes	Yes

* When using non-Internet Explorer browsers, free third-party software plug-ins must be installed to the PC first to be able to get the live video feed from the camera:

Browser	Required Plug-In
Safari	QuickTime (http://www.apple.com/quicktime/download/)
Other non-Internet Explorer browsers	Basic VLC Media Player (http://www.videolan.org)

Disclaimer Notice: The camera manufacturer does not guarantee the compatibility of its cameras with VLC player or QuickTime – since these are third party softwares. The third party has the right to modify their utility any time which might affect the compatibility. In such cases, please use Internet Explorer browser instead.

When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case.

The following examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera.

Assuming that the camera's IP address is 192.168.0.100, you can access it by opening the Web browser and typing the following address into Web browser's address bar:

http://192.168.0.100

Upon successful connection to the camera, the user interface called Web Configurator would appear together with the login page. The HTTP port number was not added behind the IP address since the default HTTP port of the camera is 80, which can be omitted from the address for convenience.

http://192.168.0.100 Web Configurator Web Configurator Login Account Password Language English Login Reset

Before logging in, you need to know the factory default Account and Password of the camera.

Account: Admin

Password: 123456

ACTi

Connecting Vision

Copyright © 2015, ACTi Corporation All Rights Reserved

7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C.

TEL: [phone] FAX: [phone]

Email: [e-mail]
